INSTRUCTIONS
LVT1265-001A
[J]
POWERED WOOFER CD SYSTEM
RV-NB1
For Customer Use:
Enter below the Model No. and Serial No.
which are located on the rear, bottom or
side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
RV-NB1[J]fff.book Page 1 Monday, August 23, 2004 2:28 PM
G-1

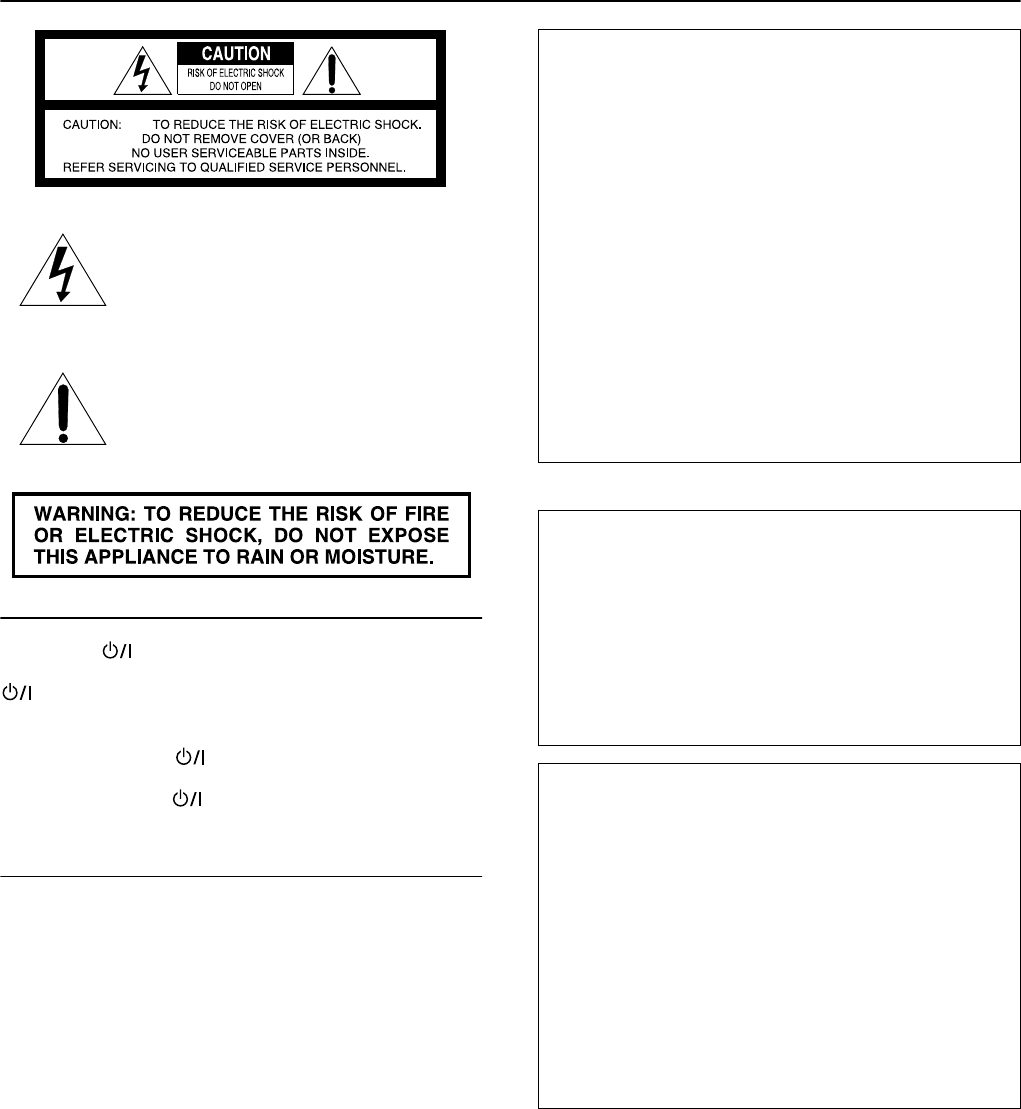

Warnings, Cautions and Others
Mises en garde, précautions et indications diverses
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION—ON/STANDBY button!
Disconnect the mains plug to shut the power off completely. The
ON/STANDBY button in any position does not disconnect the
mains line. The power can be remote controlled.
ATTENTION—Touche ON/STANDBY!
Déconnectez la fiche secteur pour mettre l’appareil complètement
hors tension. La touche ON/STANDBY dans n’importe quelle
position ne déconnecte pas l’appareil du secteur. L’alimentation ne
peut pas être commandée à distance.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret
de l’appareil.
2. Ne pas exposer l’appareil à la pluie ni à l’humidité.
For U.S.A.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
For Canada/pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
ATTENTION: POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND.
For Canada/pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE
CLASS B LIMITS FOR RADIO NOISE EMISSIONS
FROM DIGITAL APPARATUS AS SET OUT IN THE
INTERFERENCE-CAUSING EQUIPMENT STANDARD
ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE
DEPARTMENT OF COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES
LIMITES DE BRUITS RADIOELECTRIQUES
APPLICABLES AUX APPAREILS NUMERIQUES DE
CLASSE B PRESCRITES DANS LA NORME SUR LE
MATERIEL BROUILLEUR: “APPAREILS
NUMERIQUES”, NMB-003 EDICTEE PAR LE
MINISTRE DES COMMUNICATIONS.
RV-NB1[J]fff.book Page 1 Monday, August 23, 2004 2:28 PM
G-2
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user
serviceable parts inside the unit; leave all servicing to qualified
service personnel.
3. CAUTION: Visible and invisible laser radiation when open and
interlock failed or defeated. Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED
INSIDE THE UNIT.
IMPORTANT POUR PRODUITS LASER
1. PRODUIT LASER CLASSE 1
2. ATTENTION: N’ouvrez pas le couvercle supérieur. Il n’y a
aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil;
confiez toute réparation à un personnel qualifié.
3. ATTENTION: Risque de radiations laser visible et invisible
quand l’appareil est ouvert et que le système de verrouillage ne
fonctionne pas ou a été mis hors service. Évitez toute exposition
directe au rayon.
4. REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE DE
PRÉCAUTION PLACÉE À L’INTERIEUR DE L’APPAREIL.
CAUTION:
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems must be
considered and local rules or laws governing the disposal of
these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or
splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
ATTENTION:
• Ne bloquez pas les orifices ou les trous de ventilation. (Si les
orifices ou les trous de ventilation sont bloqués par un journal
un tissu, etc., la chaleur peut ne pas être évacuée
correctement de l’appareil.)
• Ne placez aucune source de flamme nue, telle qu’une bougie,
sur l’appareil.
• Lors de la mise au rebut des piles, veuillez prendre en
considération les problèmes de l’environnement et suivre
strictement les règles et les lois locales sur la mise au rebut
des piles.
• N’exposez pas cet appareil à la pluie, à l’humidité, à un
égouttement ou à des éclaboussures et ne placez pas des
objets remplis de liquide, tels qu’un vase, sur l’appareil.
RV-NB1[J]fff.book Page 2 Monday, August 23, 2004 2:28 PM
1
Thank you for purchasing the JVC Powered Woofer CD System.
Before operating this system, read this manual carefully and thoroughly to obtain the best possible performance from your system, and retain
this manual for future reference.
Here are some of the things that make your system both powerful and simple to use.
■General
• With JVC’s COMPU PLAY you can turn on the system and automatically start the radio, disc player,
or cassette deck with a single touch. (Only when AC power is used.)
• Shoulder strap and carrying handle
• ACS (Active Clear Sound) circuit for enhanced sound reproduction
• Super woofer volume control that provides powerful bass
• Sound mode control—reproducing various sound fields
• Remote control unit that operates the disc, cassette, and tuner functions
• Locking mechanism for disc and cassette door
• Microphone/guitar input
■Disc playback mode includes Skip Play, Search Play, Repeat Play, Random Play, and Program Play.
■Cassette player having full logic cassette mechanism, auto reverse, and auto tape mechanism.
■A 45-station preset capability (30 FM and 15 AM) in addition to auto-seek and manual tuning.
■Clock/timer functions, timer on/off with preset volume function, and sleep timer.
■
1. Where to place the system
• Select a place which is level, dry and neither too hot nor too cold (between 5°C and 35°C or 41°F and 95°F).
• Leave sufficient distance between the system and a TV.
• Do not use the system in a place subject to vibrations.
■
2. Power cord
• Do not handle the power cord with wet hands!
• Some power is always consumed as long as the power cord is connected to the wall outlet.
• When unplugging the system from the wall outlet, always pull the plug, not the power cord.
■
3. When carrying the system
• Remove a disc from the system.
• Disconnect all the cords from the system.
■
4. Malfunctions, etc.
• There are no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the system.
• The system is not waterproof or dust proof.
■■ Table of contents
Features............................................................................ 1
IMPORTANT CAUTIONS.............................................. 1
Index of parts and controls .................................. 2
Getting started....................................................... 4
Basic operations ................................................... 7
Listening to radio .................................................. 9
Playing back discs ................................................ 10

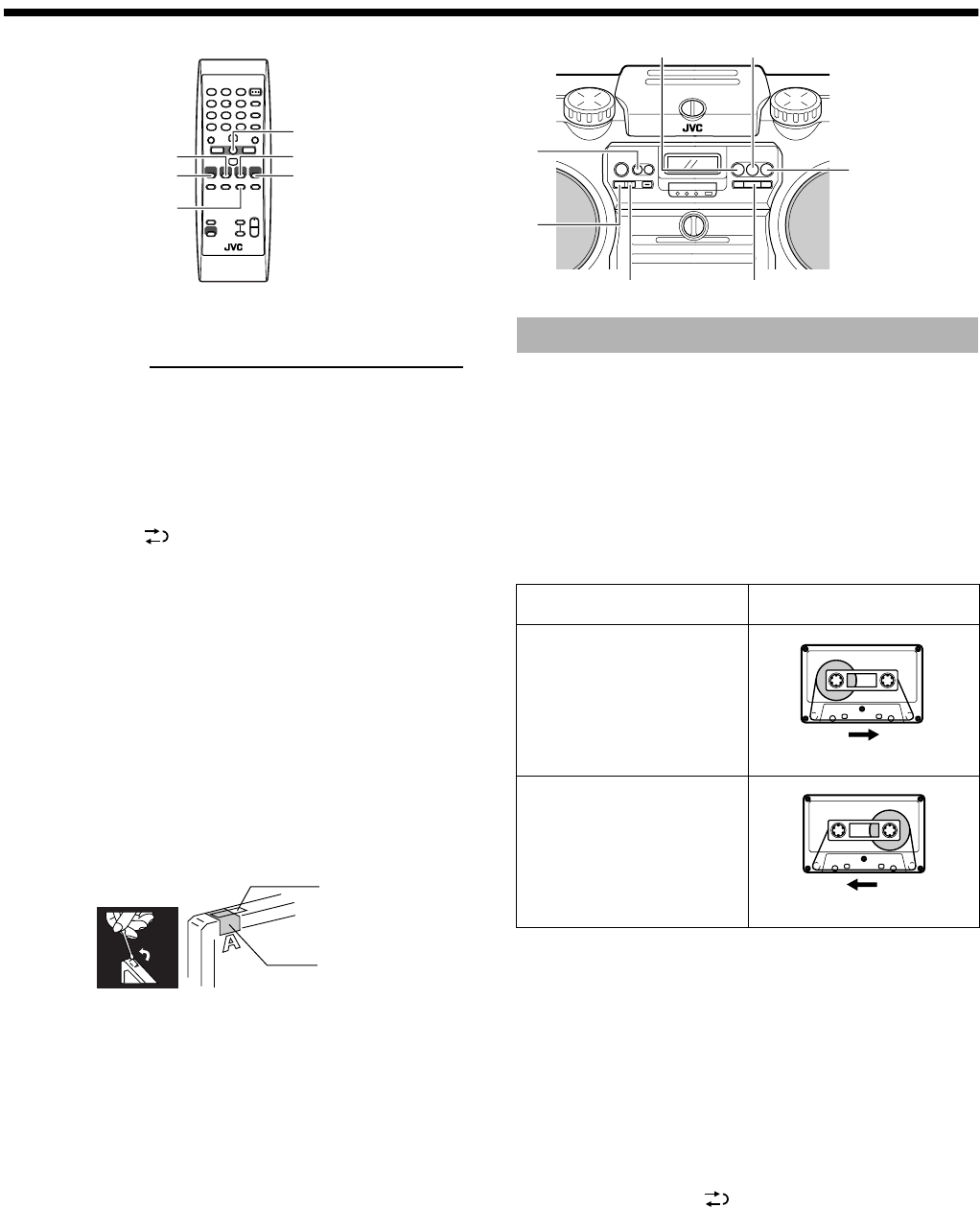

Playing back tapes ................................................ 13
Recording............................................................... 14

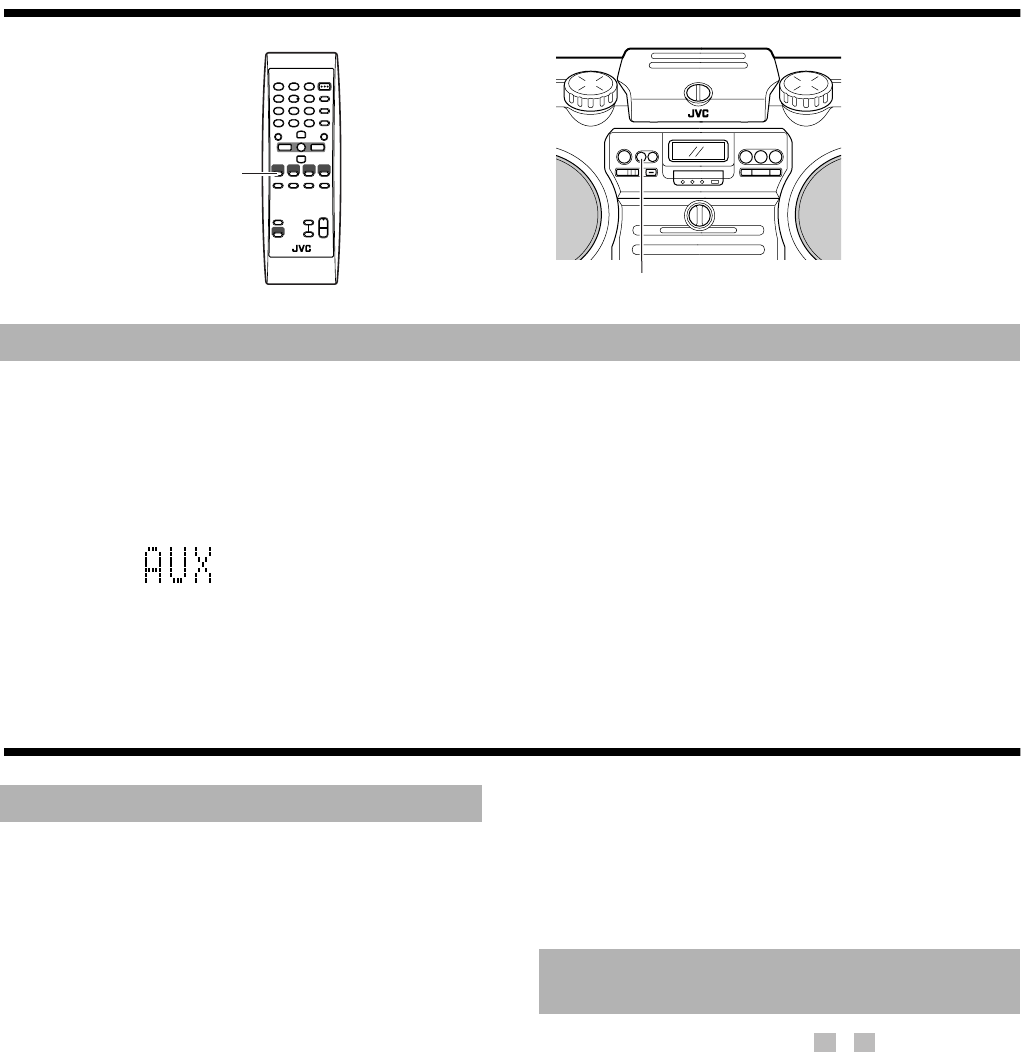

Listening to an auxiliary equipment.................... 16
Using the microphone/guitar ............................... 16

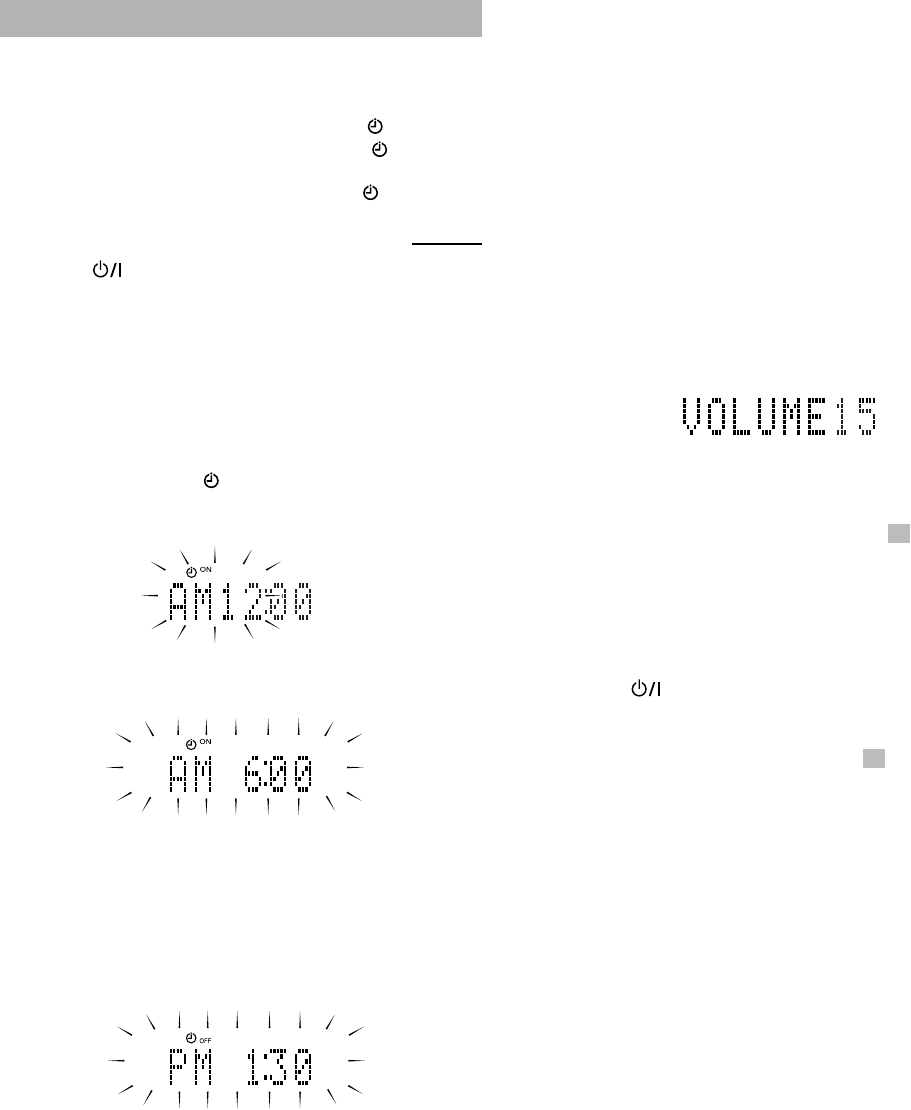

Using the timer ...................................................... 17

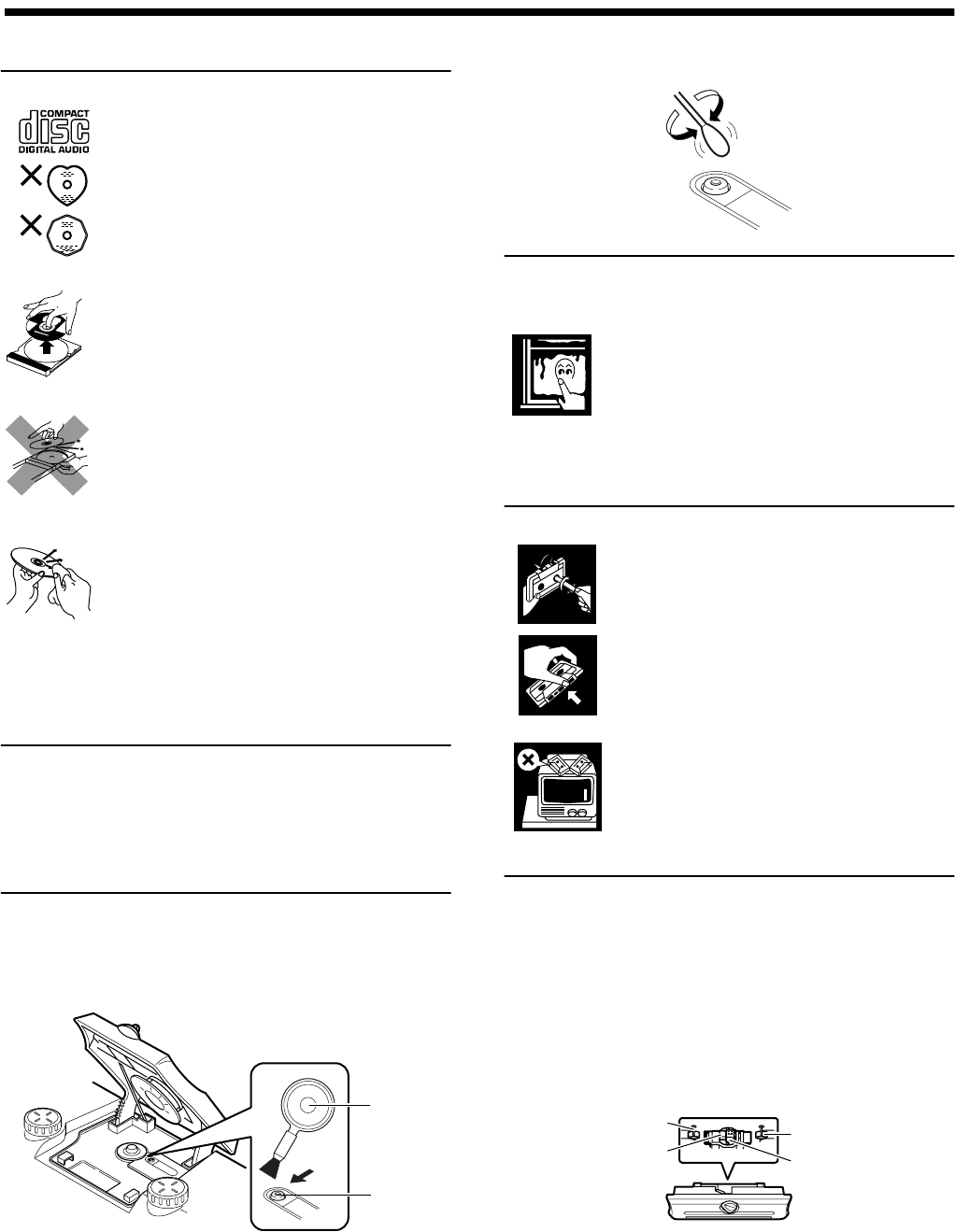

Care and maintenance.......................................... 19
Troubleshooting .................................................... 20
Specifications........................................................ 20
Features
IMPORTANT CAUTIONS
RV-NB1[J]fff.book Page 1 Monday, August 23, 2004 2:28 PM
2

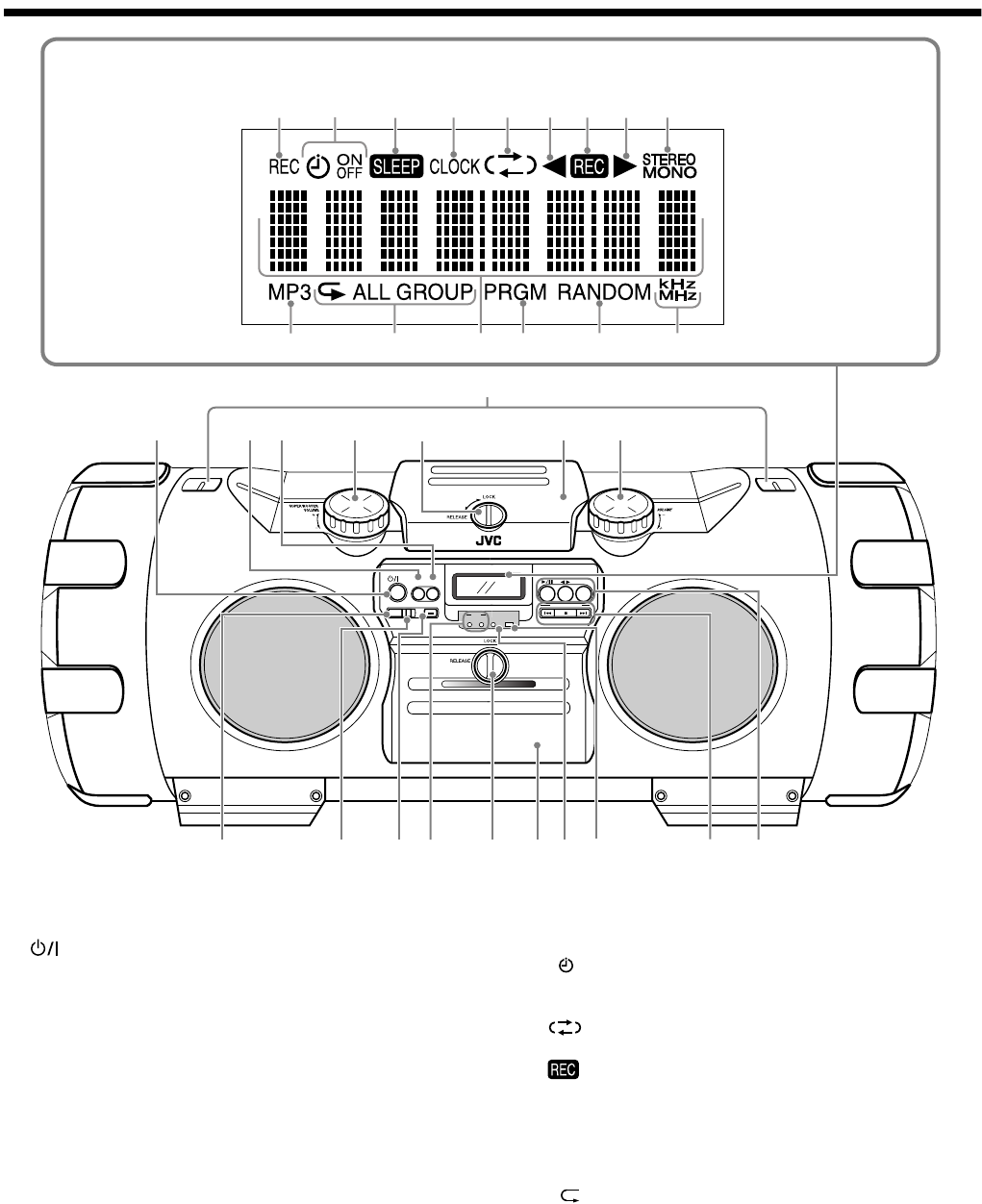

■■ Index of parts and controls
See pages in parentheses for details.
1Shoulder strap hooks (4)
2 ON/STANDBY button (7)
3AUX button (3, 16)
• Pressing this button also turns on the unit.
4SOUND button (8)
5 SUPER WOOFER VOLUME +/– control knob (8)
6 LOCK/RELEASE knob (for disc) (10)
7 Disc compartment door (10)
8 VOLUME +/– control knob (7)
9 PRESET TUNING/BEAT CUT button (9, 15)
p ONE TOUCH REC button (15)
q ACTIVE CLEAR SOUND button (8)
wACS (Active Clear Sound) indicators (8)
• ON, LEVEL
e LOCK/RELEASE knob (for deck) (13)
rCassette holder (13)
t STANDBY indicator (7)
yRemote sensor (4)
uMULTI CONTROL buttons (9 – 15)
•4 REW (rewind), 7 STOP, ¢ FF (fast-forward)
iSource and play mode buttons (3, 9 – 15)
•CD
6, TAPE 2 3, TUNER BAND
Pressing one of these buttons also turns on the unit.
Display window
oREC indicator (18)
;Timer indicators (18)
• (timer), ON, OFF
aSLEEP indicator (17)
sCLOCK indicator (8, 17)
d(reverse mode) indicator (13 – 15)
f2 (reverse) tape direction indicator (13 – 15)
gindicator (15)
h3 (forward) tape direction indicator (13 – 15)
jFM mode indicators (9)
• STEREO, MONO
kMP3 indicator (11)
lRepeat indicators (12)
• , ALL, GROUP
/Main display
zPRGM (program) indicator (12)
xRANDOM indicator (12)
cFrequency unit indicators (8 – 9)
•kHz, MHz
BAND
REW STOP FF
MULTI CONTROL
TUNERTAPE
CD
SOUNDAUX
BEAT CUT ON LEVEL
ACS
1
23
9w ui
osj
STANDBY
STANDBY
ON/
5
REC
ONE TOUCH CLEAR SOUND
ACTIVE
TUNING
PRESET
lzxc
k
;adf
gh
678
pqerty
/
4
Display window
RV-NB1[J]fff.book Page 2 Monday, August 23, 2004 2:28 PM
3

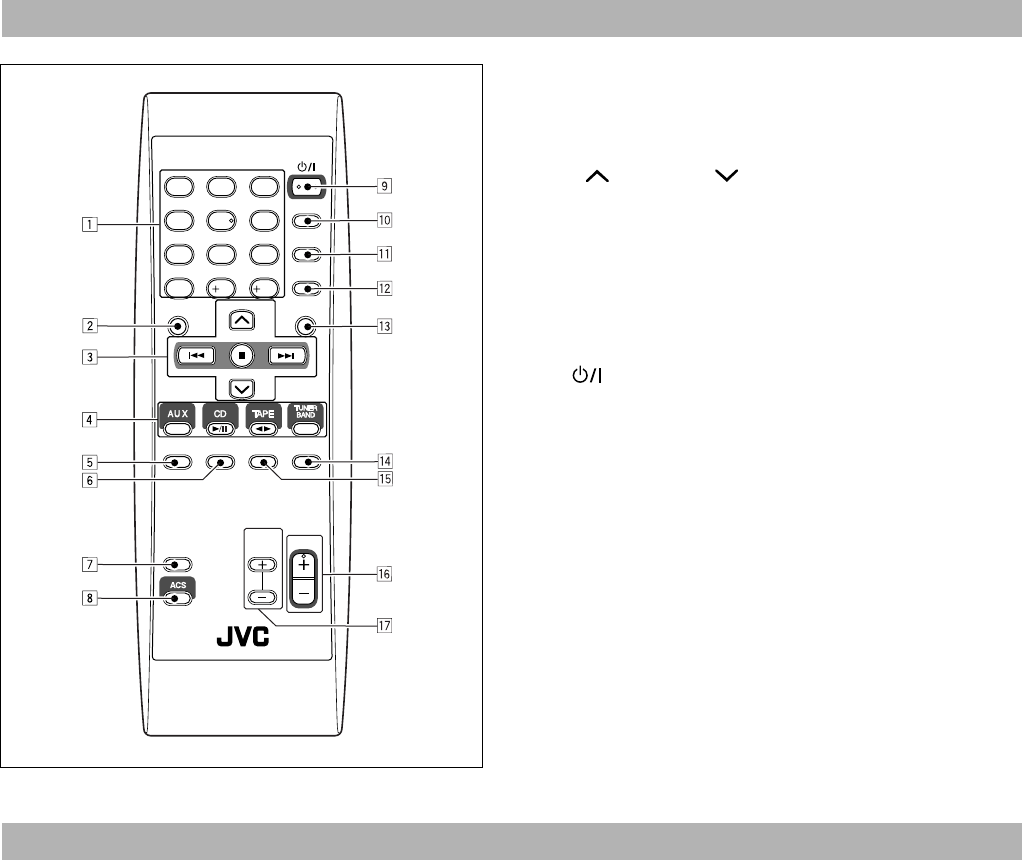

See pages in parentheses for details.
1Number buttons (9, 11)
2SLEEP button (17)
3 Multi control buttons (9 – 15, 17 – 18)
• GROUP UP, GROUP DOWN
•4, 7, ¢
4 Source buttons (3, 9 – 16)
• AUX, CD 6, TAPE 2 3, TUNER BAND
Pressing one of these buttons also turns on the unit.
5 PLAY MODE button (12)
6 REPEAT button (12)
7 SOUND button (8)
8 ACS (Active Clear Sound) button (8)
9 ON/STANDBY button (7, 17 – 18)
p DISPLAY button (8)
q CANCEL button (12, 18)
w SET button (10, 17 – 18)
e CLOCK/TIMER button (17 – 18)
r FM MODE button (9)
t REVERSE MODE button (13)
y VOLUME +/– buttons (7)
u SUPER WOOFER VOLUME +/– buttons (8)
With One Touch Operation you can play a disc, a tape, or turn on the radio with a single press of the play button for that function. The system
turns on and starts playing the source if it is ready.
The COMPU PLAY buttons are: On the system and remote control
CD 6 button
TAPE 2 3 button
TUNER BAND button
AUX button
Note: The COMPU PLAY feature is not effective when the system is operated on batteries or car battery (DC12V).
Remote control
DISPLAY
REPEAT
CANCEL
SET
PLAY
MODE
FM
MODE
REVERSE
MODE
SUPER
WOOFER
VOLUME
SOUND
SLEEP
GROUP UP
CLOCK/TIMER
GROUP DOWN
VOLUME
1
4
7
10
2
5
8
3
6
9
100
10
RM-SRVNB1A REMOTE CONTROL
ON/STANDBY
COMPU PLAY — One Touch Operation
RV-NB1[J]fff.book Page 3 Monday, August 23, 2004 2:28 PM
4
■■ Getting started
Check that you have all the following items, which are supplied with the system.
Power cord (1)
Remote control (1)
Shoulder strap (1)
If any of these items are missing, contact your dealer immediately.
■Using the carrying handles
Be sure to hold both handles when you carry the system.
If you carry the system by only one handle, because of the length
of the system, the end may drag on the ground and be damaged as a
result.
Do not lift the system by the woofer ducts, and do not insert any
metallic objects into them.
■Using the shoulder strap
Attach the supplied shoulder strap (adjustable in length) to each
end of the system as illustrated.
To detach the shoulder strap, press in the metal fitting and unhook
it from the shaft.
■Installing the batteries CAUTION:
To avoid battery leakage or explosion:
• Remove batteries when the remote control is not in use for an
extended period of time.
• When you need to replace the batteries, replace both batteries at
the same time with new ones.
• Do not use different types of batteries together.
Point the remote control at the remote sensor on the system’s
control panel (from a distance of up to 7 m (23 feet)). If you point
the remote control from the slant direction, the distance will be
shortened.
• Do not expose the remote sensor to strong direct sunlight or
artificial lighting.
• Make sure there are no obstacles between the remote sensor and
the remote control.
Accessories
Carrying the system
Woofer duct
Carrying handle
12
Shoulder strap
Remote control
Shoulder strap
Remote control
case
Using the remote control — RM-SRVNB1A
1
2
3
Match the polarity (+ and –) on the batteries with the +
and – markings in the battery compartment.
R6(SUM-3)/AA(15F) (not supplied)
Remote sensor
RV-NB1[J]fff.book Page 4 Monday, August 23, 2004 2:28 PM
5

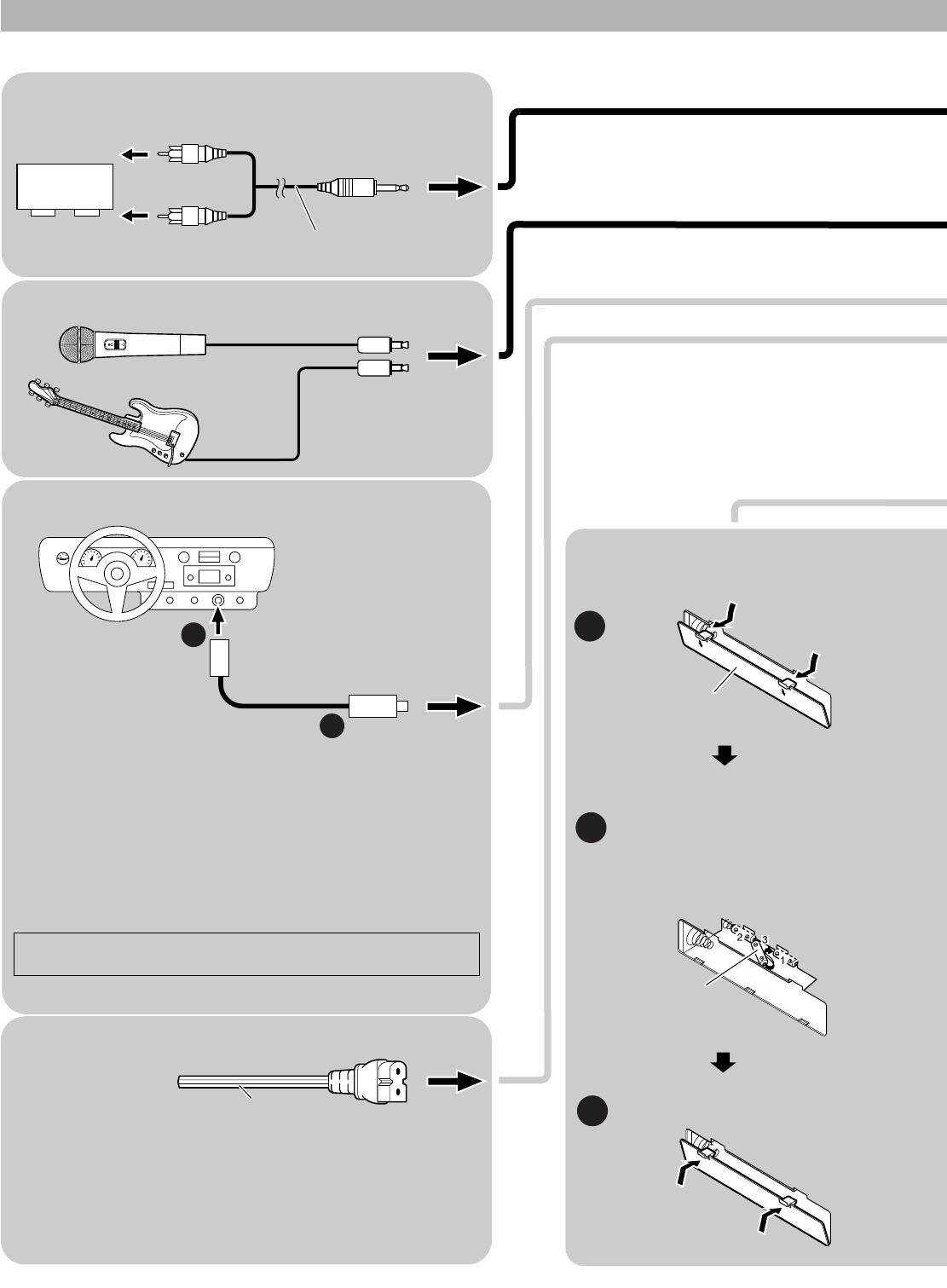

Connections
2
1
1
3
2
■Connecting the microphone/guitar
■Connecting the auxiliary equipment
Pin-plug x 2
Auxiliary
equipment
Signal cord
(not supplied)
Stereo mini plug
■Connecting the AC power cord
■Connecting to the car battery
Power cord
CAUTIONS:
• ONLY USE THE JVC POWER CORD PROVIDED WITH
THIS SYSTEM TO AVOID MALFUNCTION OR
DAMAGE TO THE SYSTEM.
• BE SURE TO UNPLUG THE POWER CORD FROM THE
OUTLET WHEN GOING OUT OR WHEN THE SYSTEM
IS NOT IN USE FOR AN EXTENDED PERIOD OF TIME.
CAUTION:
• Be sure to use the specified car adapter (JVC model CA-R120) to prevent
mishaps or damage resulting from different polarity design.
• For safety, stop the car before performing operations.
• Be sure to start the engine when you use the car adapter; otherwise, the car
battery will be exhausted.
• During transport, stabilize the system in a box, etc.
• To prevent malfunctions, do not leave the system in a car for a long time.
• If the power is supplied through the car battery, the display will be blank
with the system turned off (at standby).
Unplug the AC power cord from the system to supply the power
through the car battery; otherwise, the system does not work.
■Memory backup batteries
“R6(SUM-3)/AA (15F)”
size batteries (not
supplied)
Match the polarity (+ and –) on the batteries
with the + and – markings in the battery
compartment.
Battery cover
To car’s cigarette
lighter socket (DC12V) Car adapter JVC model
CA-R120 (not supplied)
(not supplied)
(not supplied)
CAUTION: Make all connection before plugging the system into an AC power outlet.
EN01-06_RV-NB1 [J].fm Page 5 Wednesday, August 25, 2004 5:35 PM
6
••
12V
DC IN
AC IN
1
2
3
Match the polarity (+ and –) on the batteries
with the + and – markings in the battery
compartment.
Battery cover
To remove the batteries, remove battery
“3” first.
Notes:
• The memory backup batteries will not be
consumed as long as the power is supplied
from an AC outlet, loaded 10 batteries, or
car battery (DC12V). However, if no power
is supplied to the system, the memory
backup batteries should be replaced with
new ones approximately every 12 months to
securely maintain the contents of the
memory.
• Before replacing the memory backup
batteries, always connect the AC power
cord to the system to prevent the contents of
memory from being erased.
• When a power failure occurs, the time
indication disappears from the display to
save the battery power of the memory
backup batteries.
CAUTION:
To avoid battery leakage or explosion:
• When you need to replace the batteries,
replace all batteries at the same time with
new ones. Before replacing, you need to
supply AC power to the system.
• Do not use an old battery with new ones.
• Do not use different types of batteries
together.
■Operating the system on
batteries
“R20/D (13F)” size
batteries (not supplied)
To remove the batteries, remove battery
“10” first.
Notes:
• When you operate the system on mains
(AC) power or on car battery (DC12V), the
power source automatically switches from
batteries to AC or DC12V. However, you
should remove the 10 batteries when
operating on AC power or car battery
(DC12V).
• When the batteries are exhausted, the
following symptoms will occur:
- Mistracking occurs during disc playback.
- Sounds are distorted intermittently during
tape playback.
- “DC OFF” flashes on the display, then the
power goes off.
If this happens, replace the batteries.
• It is recommended to use AC power cord
when recording important material or
listening to a disc.
CAUTION:
To avoid battery leakage or explosion:
• Remove the 10 batteries when the system is
not in use for an extended period of time.
• When you need to replace the batteries,
replace all batteries at the same time with
new ones.
• Do not use different types of batteries
together.
• If the power is supplied through the
batteries, the display will be blank with the
system turned off (at standby).
Unplug the AC power cord from the
system to supply the power through the
batteries; otherwise, the system does
not work.
PHONES jack
RV-NB1[J]fff.book Page 6 Monday, August 23, 2004 2:28 PM
7
■■ Basic operations
Note: The lighting condition for the STANDBY indicator and the
display differs depending on the power source.
* If no source is playing and no operation is done for about
4 minutes, “DC OFF” starts flashing on the display for about one
minute before the system turns off automatically (except when
the source is FM/AM or AUX, or when the microphone
(or guitar) is used).
Press ON/STANDBY.
• When the system is operated on batteries or car battery (DC12V),
press ON/STANDBY on the system.
The STANDBY indicator goes out when the system is operated on
AC power.
The display comes on and the system is ready to continue in the
mode it was in when the power was last turned off.
Press ON/STANDBY again.
The STANDBY indicator lights up when the system is operated on
AC power.
• When the AC power is used, the CLOCK indicator and the time
are displayed without backlighting.
■Some power is always consumed even though power is turned
off (called standby mode).
■To disconnect the system from mains (AC) supply completely,
unplug the AC power cord from the AC outlet. When you
unplug the AC power cord, the clock will be reset to
“AM12:00” if no memory backup batteries are installed.
You can adjust the volume level between 0 and 50.
Turn the VOLUME +/– control clockwise to increase the volume
or turn it counterclockwise to decrease the volume.
Press VOLUME + to increase the volume or press VOLUME – to
decrease it.
When you press and hold VOLUME + or –, the volume changes
rapidly.
CAUTION: DO NOT start playing any source
without first setting the volume to minimum, as a
sudden blast of sound can damage your hearing,
speakers and/or headphones.
For private listening
Connect a pair of headphones to the PHONES jack on the rear of
the system (see page 6). No sound comes out of the speakers.
Be sure to turn down the volume before connecting or putting on
headphones.
SUPER WOOFER
VOLUME +/–
STANDBY
indicator
VOLUME +/–
ON/STANDBY
ACS ON/LEVEL
indicator
SUPER WOOFER
VOLUME +/–
VOLUME +/–
DISPLAY
ON/STANDBY
SOUND
ACS
SOUND
ACTIVE CLEAR
SOUND

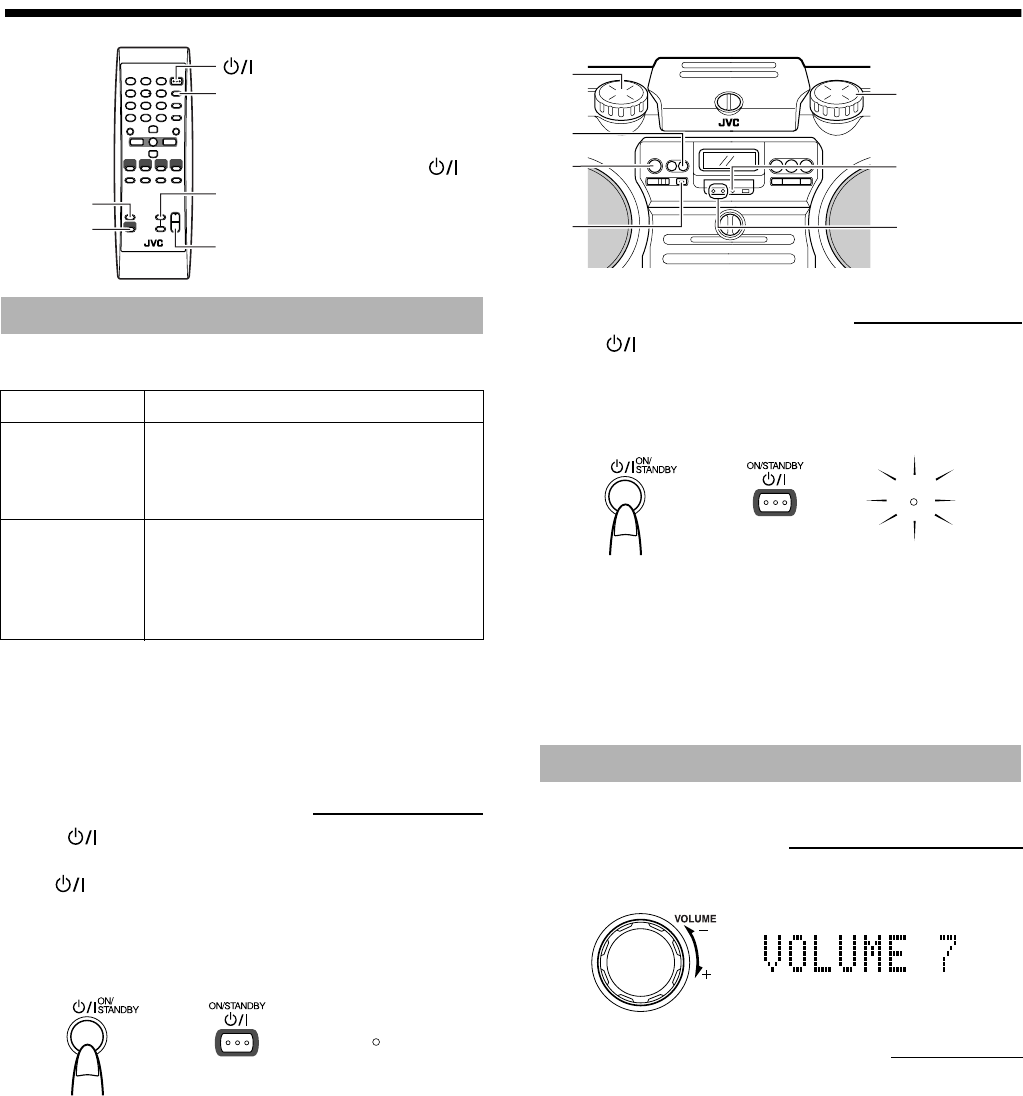

Turning the power on and off
Power source STANDBY indicator/display
AC power
• The STANDBY indicator lights when
power is turned off.
• Backlighting of the display is illuminated
when power is turned on.
Batteries or car
battery (DC12V)*
• The STANDBY indicator does not light.
• Backlighting of the display is not
illuminated.
• With the system turned off (at standby), no
indication is shown on the display.
Turning on the system
STANDBY
or
On system On remote control
Turning off the system
Adjusting the volume
Using the system
Using the remote control
STANDBY
or
On system On remote control
RV-NB1[J]fff.book Page 7 Monday, August 23, 2004 2:28 PM
8

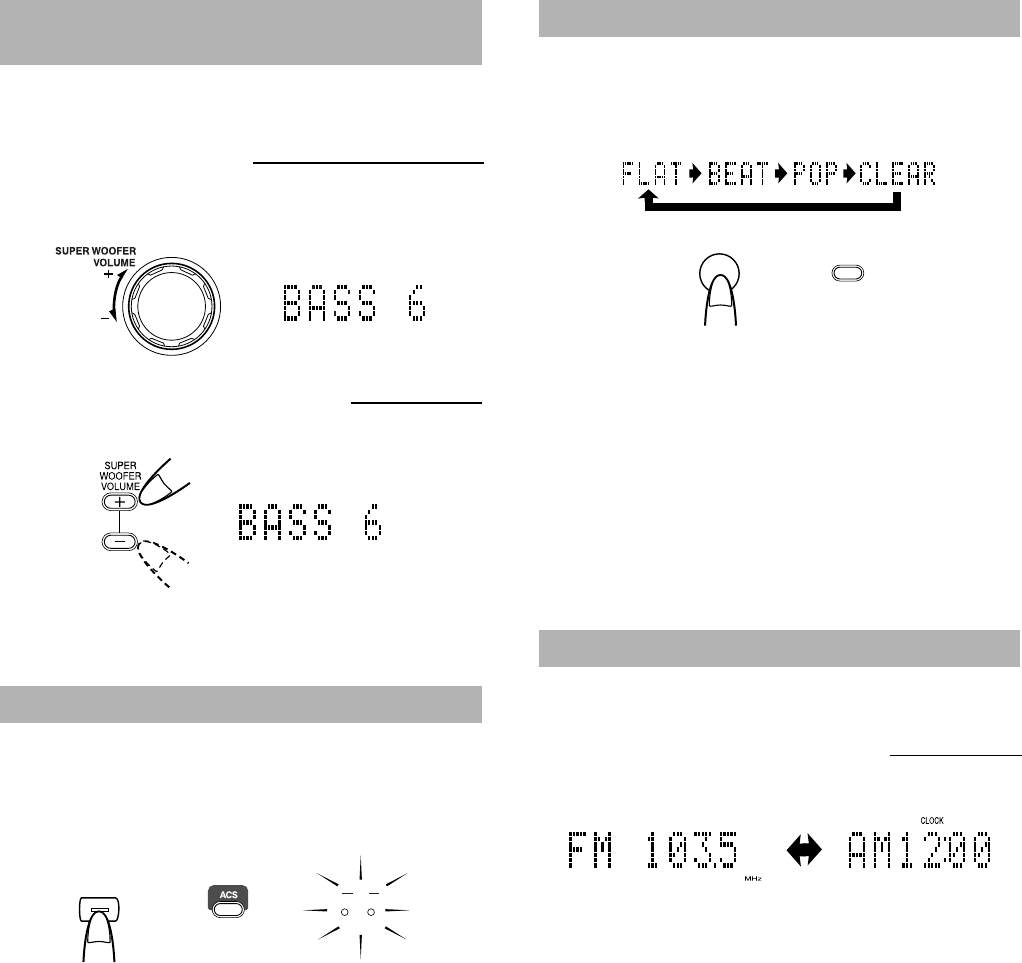

During play, you can adjust the bass level between BASS 1
(minimum) and BASS 6 (maximum).
Turn the SUPER WOOFER VOLUME +/– control clockwise to
increase the bass level or turn it counterclockwise to decrease the
bass level.
Press SUPER WOOFER VOLUME + to increase the bass level or
press SUPER WOOFER VOLUME – to decrease it.
Note: This function is not effective when the headphones are in
use.
The Active Clear Sound (ACS) circuit emphasize high-frequency
sound without lowering the signal-noise ratio, while adjusting its
output according to the input signal level. This results in a better
balance between the high-frequency sound and the low-frequency
heavy bass.
Press ACS (active clear sound) on the system or on the remote
control to turn it on or off. When it is turned on, the ACS ON
indicator lights in red.
The ACS LEVEL indicator blinks in green according to the input
signal level.
Sound modes can be selected to enhance the type of music being
played.
Press SOUND to select the sound mode.
Each time you press the button, the sound mode changes as
follows:
Sound mode selection:
BEAT: Set to this position for music with a heavy beat, such as
rock and disco music.
POP: Set to this position for light music including popular and
vocal music.
CLEAR: Set to this position for crisp and clear sounding music
with transparent highs.
FLAT (no effect): Set to this position when listening to classical
music.
While the power is turned on, you can see the current time (clock)
at any time, as follows.
Press DISPLAY. Each time you press the button, the display
changes as follows:
Current sound source (e.g. FM103.5 MHz) = (clock) = (back to
the beginning)
Note: To let the clock work, you need to set the clock first. (See
“Setting the clock” on page 17.)
Adjusting the super woofer
volume
Using the system
Using the remote control
Activating clear sound
ON LEVEL
ACS
CLEAR SOUND
ACTIVE
or
On system On remote control
Selecting the sound mode
Showing the time
Using the remote control
SOUND
SOUND
or
On system On remote control
RV-NB1[J]fff.book Page 8 Monday, August 23, 2004 2:28 PM
9
■■ Listening to radio
You can listen to FM and AM stations. Stations can be tuned in manually, automatically, or from preset memory storage.
■Before listening to the radio, fully extend the FM telescopic antenna.
■
1. Press TUNER BAND.
The band and frequency you were last tuned into appear on the
display.
Each time you press the button, the band changes as follows:
FM = AM = (back to the beginning)
■
2. Select a station using one of the following
methods.
• When you tune into an FM stereo broadcast, the STEREO
indicator lights up and you can hear stereo effect.
If an FM stereo broadcast is hard to receive or
noisy, press FM MODE on the remote control. The MONO
indicator lights up and the sound becomes monaural, but the
reception improves. When you tune in to another station, the
MONO indicator goes off and stereo effect restores
automatically.
Note: AM broadcasts are monaural.
■Manual Tuning
Press 4 or ¢ repeatedly to move from frequency to
frequency until you find the station you want.
OR
■Auto Tuning
Press and hold 4 or ¢ for one second or more.
The frequency changes automatically until a station frequency
is found.
OR
■Preset Tuning (possible only after presetting stations)
Select the desired preset number (displayed as “P-XX” on the
display) using PRESET TUNING on the system or the number
buttons on the remote control. After one second, the display
will show the band frequency.
PRESET TUNING button: Each time you press the button, the
preset number increases.
Number buttons: To select P-5, press 5.
To select P-15, press +10 then 5.
To select P-20, press +10 once then
press 10.

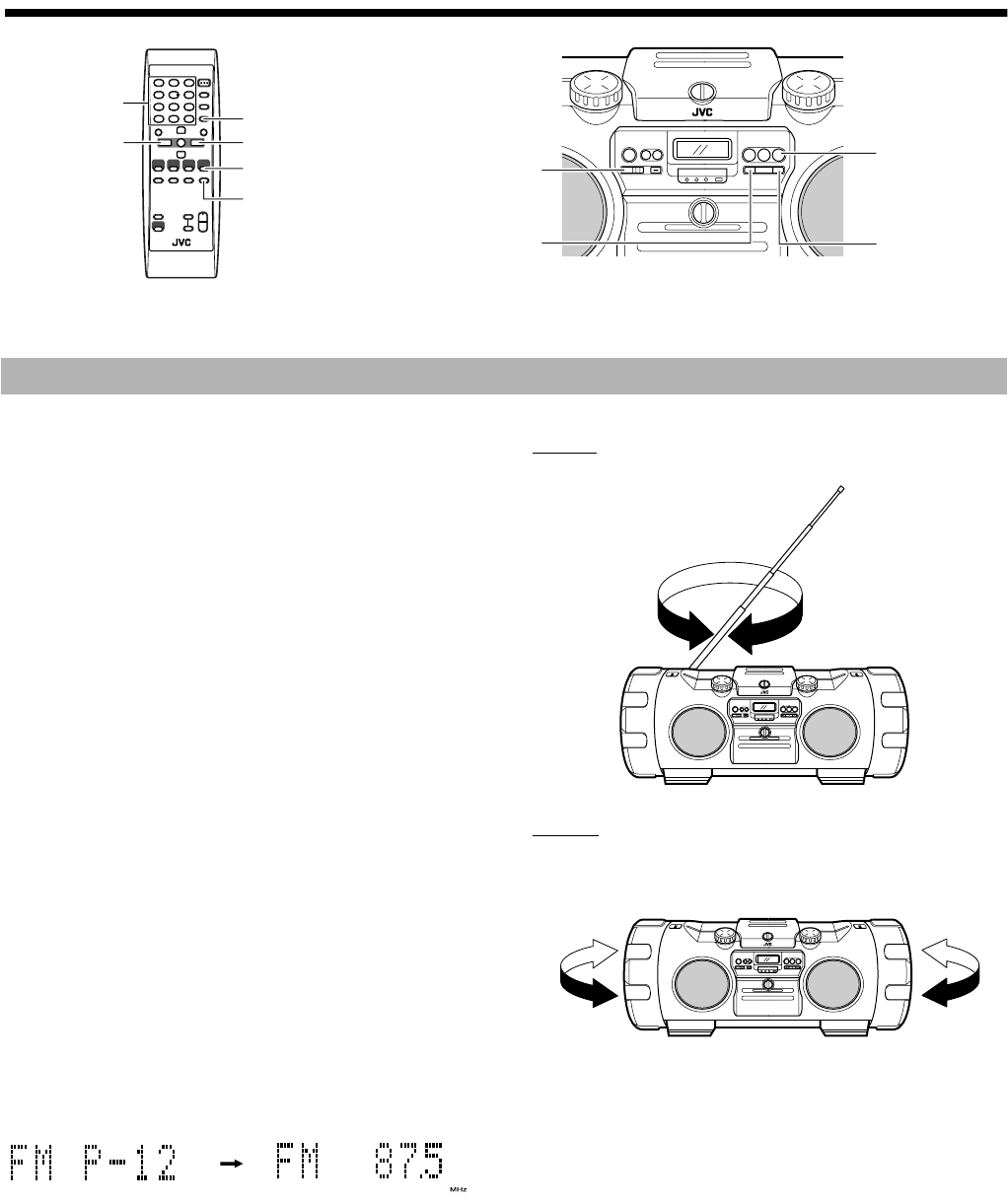

Notice: To adjust the reception condition
For FM: Adjust the FM telescopic antenna’s length, angle and
direction until the best reception is obtained.
For AM: Change the direction of the system to obtain the best
reception.
Placing the system near the window, for example, will
improve AM reception.
Tuning in to a station
TUNER BAND
PRESET TUNING
4¢
TUNER BAND
4¢
Number buttons
FM MODE
SET
(After one second)
RV-NB1[J]fff.book Page 9 Monday, August 23, 2004 2:28 PM
10
You can preset up to 30 FM stations and 15 AM stations.
Note: Preset numbers may have been set to factory test
frequencies prior to shipment. This is not a malfunction.
You can preset the stations you want into memory by
following one of the presetting methods below:
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start again from step .
■
1. Select a band (either AM or FM) by
pressing TUNER BAND.
■
2. Press 4 or ¢ to tune in to a station.
■
3. Press SET.
The preset station number starts flashing.
■
4. Press the number buttons to select the
preset number you want.
■
5. Press SET.
“STORED” appears on the display and the station is stored.
■
6. Repeat above steps to for each
station you want to store into memory with
a preset number.
To change the preset stations, repeat the same steps as
above to overwrite a new station.
CAUTION: To prevent the preset stations from
being erased because of a power failure, etc.,
install memory backup batteries in the system.
(See pages 5 and 6.)
■■ Playing back discs
This system has been designed to play back the following
discs—CD, finalized CD-R/CD-RW (recorded in audio CD
format) and CD-R/CD-RW (in MP3 format).
• This system is not compatible with the other discs such as DVD,
DVD-R, and DVD-RW.
Notes on MP3:
• The system can only recognize files (tracks) with “MP3” or
“mp3” as the extensions, which can be in any combination of
upper and lower case.
• It is recommended that you record your material at a 44.1 kHz
sampling rate, using the 128 kbps data transfer rate.
• You can play back the discs containing the tracks in music CD
format or MP3 files in ISO 9660 format.
• Some MP3 tracks or discs may not be played back because of
their characteristics or recording conditions.
• MP3 discs require a longer readout time than normal discs.
• This system recognizes up to 999 tracks on a disc (or less
depending on the recording condition of a disc).
■

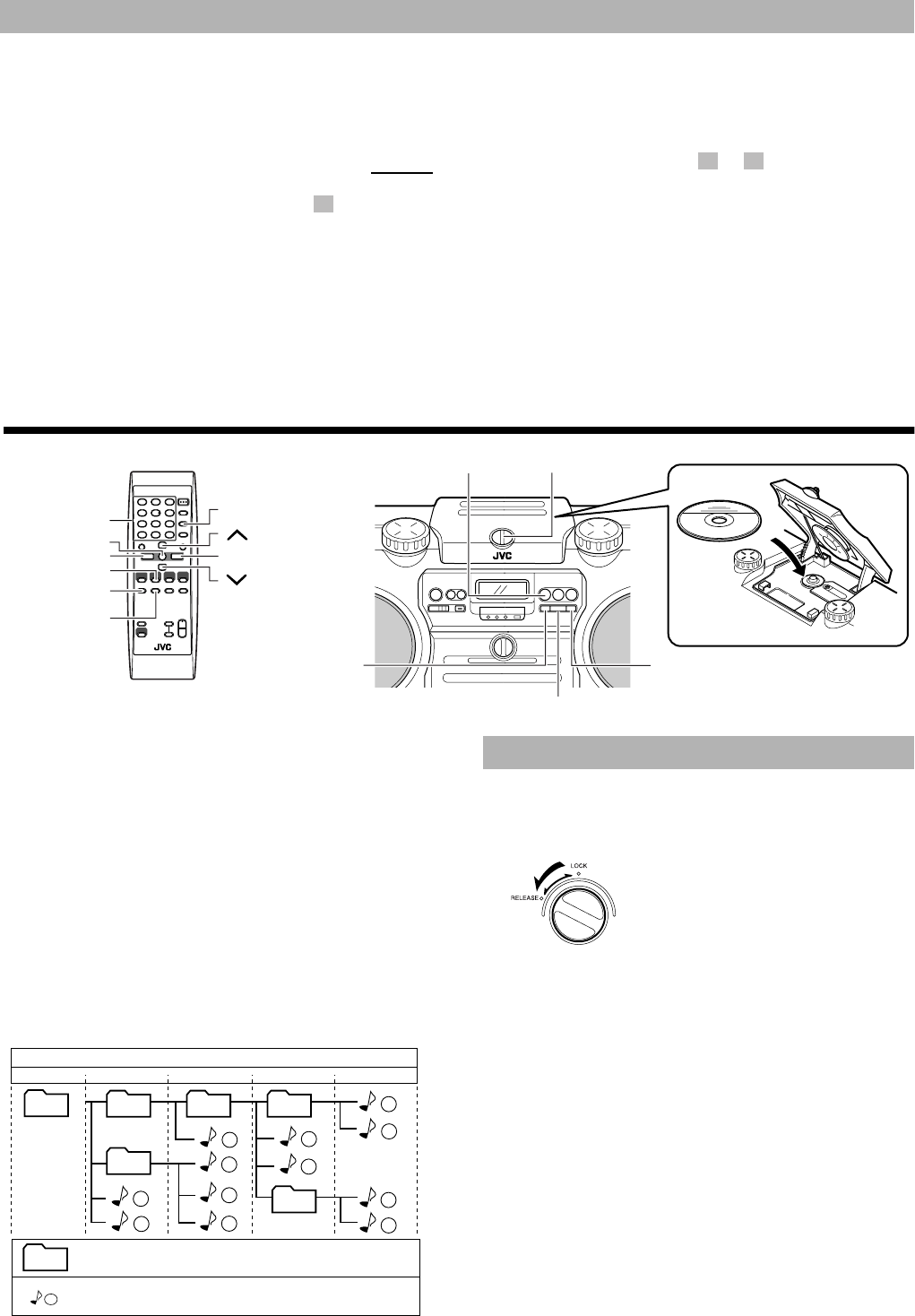

1. Turn the LOCK/RELEASE knob
counterclockwise to open the disc
compartment door.
■
2. Place a disc, with its label side up as
shown above.
■
3. Close the disc compartment door and turn
the knob to “LOCK” position.
To remove the disc, open the disc compartment door in stop
mode.
■You can place an 8 cm disc without an adapter.
■If the disc cannot be read correctly (because it is scratched, for
example), “NO PLAY” or “NO DISC” appears on the display.
■You can place a disc while listening to the other source.
Presetting stations
Using the remote control only
3.
1. 5.
LOCK/RELEASE knob
7
CD 6
4¢
7
4¢
Number buttons
REPEAT
CD 6
PLAY MODE
GROUP UP
GROUP DOWN
CANCEL
1
1
2
3
G 2
G 1
G 3
G 4 G 5
G 6
10
11
12
4
5
6
7
8
9
G 1
(ROOT)
Hierarchy
Level 1 Level 2 Level 3 Level 4 Level 5
Group with its play order
MP3 track with its play order
Setting a disc
RV-NB1[J]fff.book Page 10 Monday, August 23, 2004 2:28 PM
11
■
1. Set a disc.
■
2. Press CD 6.
The first track of the disc starts playing.
For CDs:
For MP3 discs:
• When playing an MP3 disc, the file name (then ID3 Tag if
any) is displayed at the beginning of each track.
• If no disc is inserted, “NO DISC” appears on the display and
the system remains in stop mode.
• The system automatically stops when the last track of the disc
has finished playing.
To stop playing the disc, press 7.

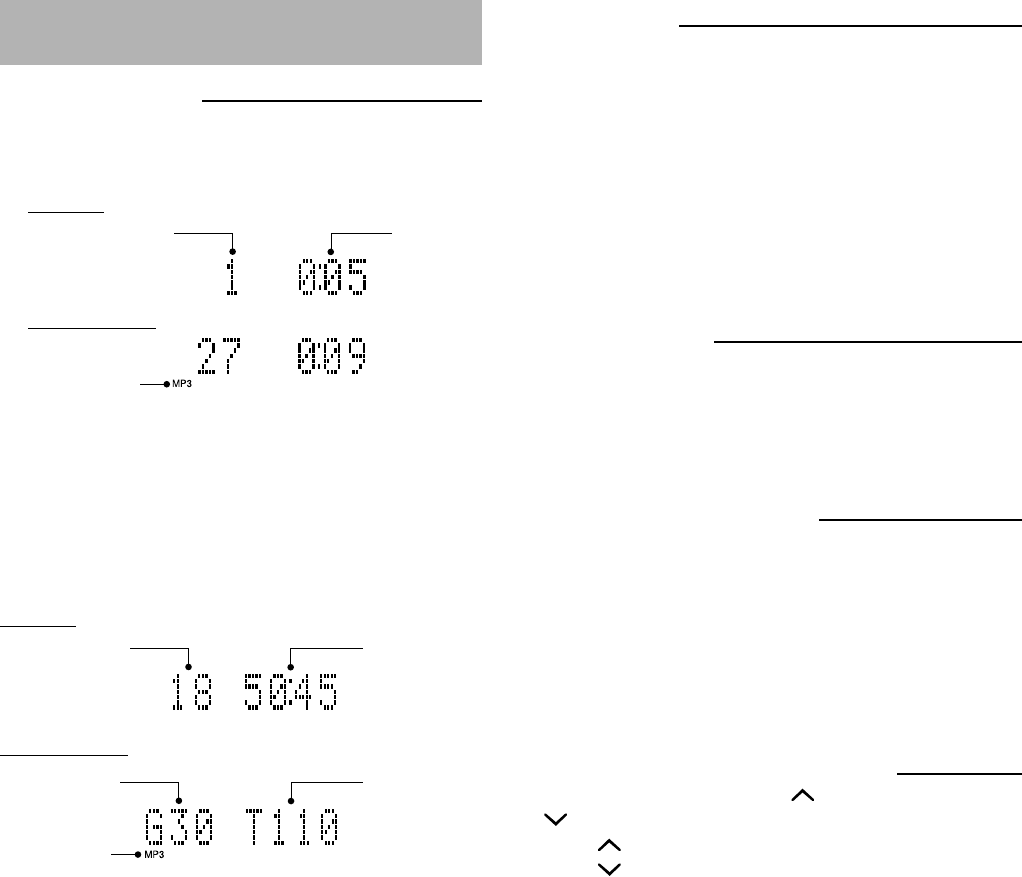

The following information for the disc is displayed.
For CDs:
For MP3 discs:
To pause, press CD 6. The playback time blinks on the
display.
To cancel pause, press the same button again. Playback
continues from the point where it was paused.
Note: Do not turn the LOCK/RELEASE knob during playback.
During playback, press 4 or ¢ to select the track you want to
play.
•Press ¢ once to skip to the beginning of the next track.
•Press 4 to skip to the beginning of the track being played.
Press 4 twice quickly to skip to the beginning of the previous
track.
You can also select a track in stop mode with the same buttons.
For CD: Selected track and its playback time are shown on the
display.
For MP3:Group and track numbers (then ID3 Tag if any) are
shown on the display.
To start playback, press CD 6.
Press and hold 4 or ¢, during playback, will fast forward/
backwards the disc so you can quickly find a particular passage in
the track you are listening to. During search play, you can hear the
sound of approx. one forth level.
Press the number buttons to directly play a track.
• To directly play track 5, press 5.
• To directly play track 15, press +10 then 5.
• To directly play track 20, press +10 once then press 10.
(Only for MP3 discs)
• To directly play track 109, press +100 once then press 9.
• To directly play track 125, press +100, +10, +10 then 5.
While playing an MP3 disc, press GROUP UP or
GROUP DOWN to select the group you want to play.
• Press GROUP UP to skip to the next group.
• Press GROUP DOWN to skip to the previous group.
You can also select a group in stop mode with the same buttons.
To play the group after selection, press CD 6.
Using the disc player—Normal
Play
To play a disc
Tra ck
number
Playback
time
MP3 indicator
Total playback
time
Total track
number
Total track
number
Total group
number*
*If a disc includes more than 99 groups, “G – –” will appear
on the display.
MP3 indicator
Skip Play
Search Play
To locate a track directly using the
remote control only
To select a group (for MP3 disc)
using remote control only
RV-NB1[J]fff.book Page 11 Monday, August 23, 2004 2:28 PM
12

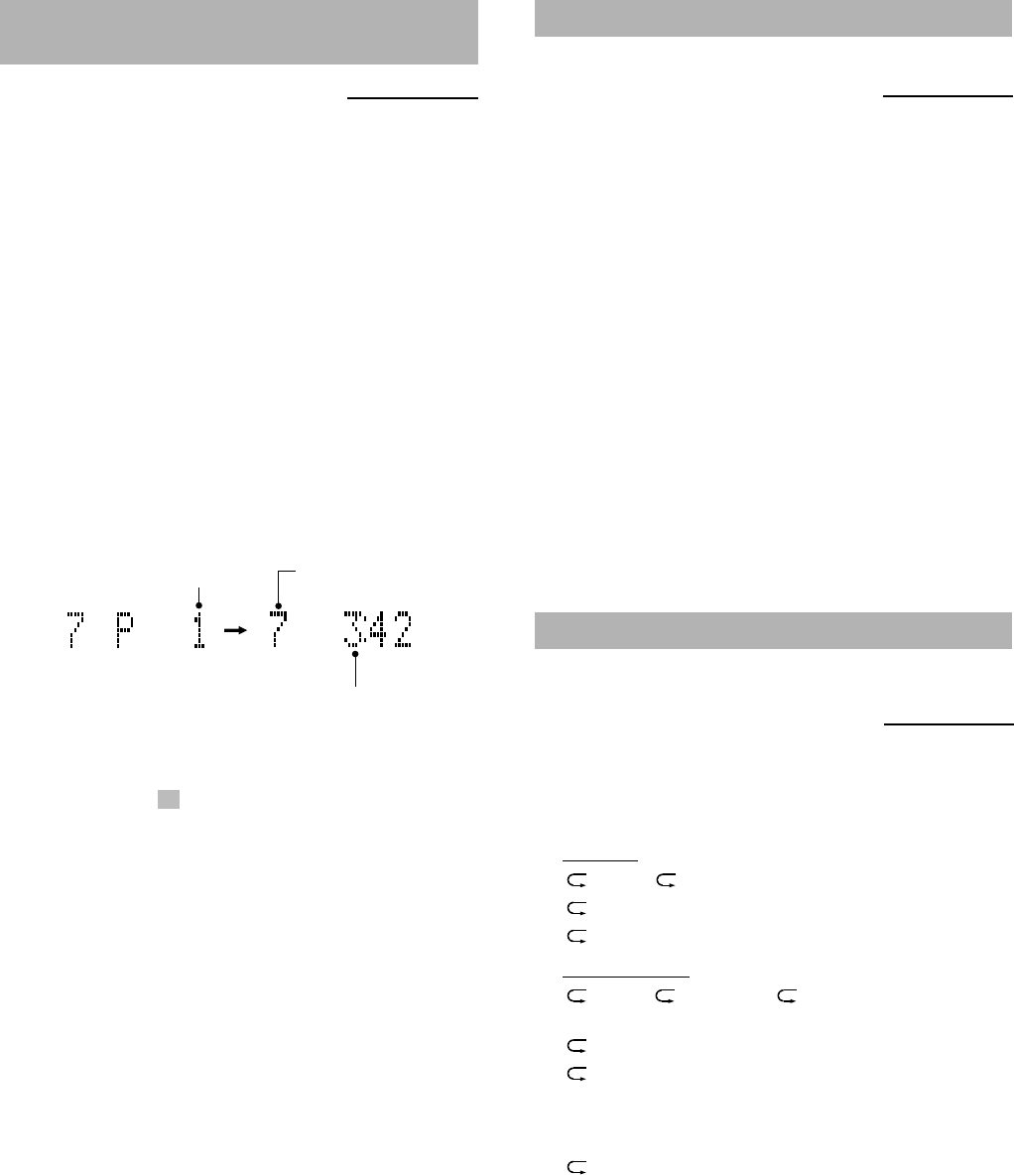

■You can program up to 50 tracks in any desired order including
the same tracks.
■You can only make a program when the system is stopped.
■While making a program, you cannot specify a group number to
select a track.
■
1. Set a disc.
■
2. Press CD 6.
■
3. Press 7 to stop the disc.
■
4. Press PLAY MODE repeatedly to select
“PROGRAM”.
The system enters the programming mode and the
PRGM indicator lights up.
■
5. Press the number buttons to select the
track to program.
• For detailed operations, see “To locate a track directly using
the remote control only” on page 11.
Example: for track 7, press 7.
* Total playback time will not appear while making a
program using an MP3 disc.
■
6. Repeat step to select other tracks for
the program.
• To cancel the last track programmed, press CANCEL once.
■
7. Press CD 6.
The system plays the tracks in the order you have programmed
them.
■You can skip to a particular program track by pressing
4 or ¢ during program play.
While stopped:
■To confirm the programmed tracks, press 4 or ¢
repeatedly; the tracks making up the program will successively
be displayed in the programmed order.
• To add a track to the end of the program, simply press the
number buttons.
■To delete the tracks in the program, press CANCEL
repeatedly. Each time you press the button, the last track will be
erased.
■To delete the entire program, press and hold CANCEL
until “CLEAR!” appears on the display.
• Turning off the power will clear the program.
■To exit from program mode, press PLAY MODE
repeatedly until the track number and total playback time
appear on the display.
Each time you press the button, the play mode changes as follows:
Normal play = PROGRAM = RANDOM = (back to the
beginning)
Note:
(For CDs) If the total playback time of the programmed tracks
exceeds 99 minutes 59 seconds, “– – : – –” will appear on the
display.
The tracks will play in no special order when you use this mode.
■
1. Set a disc.
■
2. Press CD 6.
■
3. Press 7 to stop the disc.
■
4. Press PLAY MODE repeatedly to select
“RANDOM”.
The RANDOM indicator lights up on the display.
■
5. Press CD 6.
The tracks are played in random order once.
To skip a track during playback, press ¢ to skip to another
track in the random sequence. The 4 button works only to go
back to the beginning of the current track.
While stopped:
■To exit from random mode, press PLAY MODE repeatedly
until the track number and total playback time appear on the
display.
Each time you press the button, the play mode changes as follows:
Normal play = PROGRAM = RANDOM = (back to the
beginning)
You can repeat the tracks or individual track as many times as you
like.
Press REPEAT.
Each time you press the button, repeat indicator changes as
follows:
■Repeat mode remains in effect even when you change the play
mode.
For CDs:
ALL = = canceled = (back to the beginning)
ALL : Repeats all the tracks on the disc.
: Repeats the current track.
For MP3 discs:
ALL = GROUP = = canceled = (back to the
beginning)
ALL : Repeats all the tracks on the disc.
GROUP : In normal play mode, repeats all the tracks in a
group.
In program and random play modes, group
repeat cannot be selected.
: Repeats the current track.
To exit from repeat mode, press REPEAT until the repeat
indicator on the display goes out.
Programming the playing order
of the tracks
Using the remote control
(After 2 seconds)
Program order number
Total playback time of the programmed tracks*
Last programmed track
5.
Random play
Using the remote control
Repeating tracks
Using the remote control
RV-NB1[J]fff.book Page 12 Monday, August 23, 2004 2:28 PM
13
■■ Playing back tapes
With automatic tape direction, you can listen to type I or II tapes
without having to change any settings.
■
1. Turn the LOCK/RELEASE knob
counterclockwise to open the cassette
holder.
■
2. Put the cassette in, with the side you want
to listen facing you.
■
3. Close the holder gently and turn the knob
to “LOCK” position.
■
4. Press TAPE 2 3.
The tape is played in the direction shown by the tape direction
indicator.
3 (Forward playback): The side of the tape facing you is
played back.
2 (Reverse playback): The opposite side of the tape is
played back.
■
5. If you need to change the playback
direction, press TAPE 2 3.
The opposite side tape direction indicator lights up and the tape
playback direction changes.
To stop playing, press 7.
To remove the tape, stop the tape, and open the cassette
holder by turning the LOCK/RELEASE knob to the
“RELEASE” position.
Notes:
• Do not turn the LOCK/RELEASE knob during playback.
• When no tape is loaded in the deck, “NO TAPE” appears on
the display.
Press ¢ or 4 to fast-wind/rewind the tape.
• The cassette deck automatically stops when the tape reaches its
end.
You can set a tape to play just one side, both sides in succession, or
both sides continuously.
Press REVERSE MODE.
Each time you press the button, reverse mode indicator changes as
follows:
== = (back to the beginning)
: The cassette deck automatically stops after playing
one side of the tape.
: The cassette deck automatically stops when playback
in the reverse (2) direction is finished.
: The cassette deck continues to play both sides of the
tape until the 7 button is pressed.
7
4
¢
TAPE 2 3
7
4¢
TAPE 2 3
REVERSE
MODE LOCK/RELEASE
knob
The use of tapes longer than 120 minutes is not recommended,
since characteristic deterioration may occur and these tapes
easily jam in the pinch-rollers and the capstans.
Regular play
To fast-wind/rewind a tape
Reverse mode
Using the remote control
RV-NB1[J]fff.book Page 13 Monday, August 23, 2004 2:28 PM
14
■■ Recording
■It should be noted that it may be unlawful to re-record
pre-recorded tapes, records, or discs without the
consent of the owner of copyright in the sound or
video recording, broadcast or cable programme and
in any literary, dramatic, musical, or artistic work
embodied therein.
■When you want to record onto both sides of a tape, you can set
reverse mode to . Recording automatically stops after
recording in the reverse (2) direction. Therefore, make sure
that the tape direction is forward (3) when recording with
reverse mode is on.
■The recording level is automatically set correctly, so it is not
affected by the VOLUME control on the system or by adjusting
the sound effects. Thus, during recording you can adjust the
sound you are actually listening to without affecting the
recording level.
■Two small tabs on the back of the cassette tape, one for side A
and one for side B, can be removed to prevent accidental erasure
or recording.
■To record on a cassette with the tabs removed, you must cover
the holes with adhesive tape first. However, when a type II tape
is used, only cover part of the hole as shown, since the other part
of the hole (type II detection slot) is used to detect the tape type.
■Type I and type II tapes can be used for recording.
Note:
At the start and end of cassette tapes, there is leader tape which
cannot be recorded onto. Thus, before recording, wind on the
leader tape first to ensure getting the beginning of the recording.
CAUTION: If a recording you make has excessive
noise or static, the system may have been too
close to a TV which was on during the recording.
Either turn off the TV or increase the distance
between the TV and the system.
You can record any sound source to tape.
The sources are disc, tuner, auxiliary equipment, microphone, and
guitar. The microphone sound and guitar sound can be mixed with
any source.
■
1. Insert a blank or erasable cassette tape
into the cassette deck.
Be sure that the tape direction indicator and the tape insertion
direction are as follows:
[Forward and reverse recording]
• If the tape direction 2 (reverse) is lit, press TAPE 2 3 to change
the direction. (In this case, since the tape play starts, you need to
press 7. Then, press 4 to rewind the tape up to the end point of
the leader tape which cannot be recorded onto.)
• If the inserted tape is not fully rewound, press 4 to rewind the
tape up to the end point of the leader tape which cannot be
recorded onto.
■
2. If you want to record on both sides of the
tape, press REVERSE MODE on the remote
control to set the cassette deck in reverse
mode.
Press the
button until “ ” is lit.
■
3. Prepare the source, for example, tuning in
to a radio station, or turning on the
connected auxiliary equipment.
Note: For disc recording, refer to “Disc direct recording”
described on page 15.
7
TA PE 2 3
ONE TOUCH REC
PRESET TUNING/
BEAT CUT
TA PE 2 3
7
REVERSE
MODE
CD 6
TUNER
AUX TUNER
CD 6
AUX
Things to know before you start
recording
Type II detection
slot
Adhesive tape
Standard recording
Tape direction indicator Tape insertion direction
3
(Forward)
*Recording will be made on
the tape side facing you. (Front view)
2
(Reverse)
*Recording will be made on
the opposite side of the tape.
(Front view)
RV-NB1[J]fff.book Page 14 Monday, August 23, 2004 2:28 PM
15
■
4. Press ONE TOUCH REC on the system.
The indicator lights up and the system starts recording.
• If the tab of the cassette tape is removed to protect erasure or
recording, recording does not start.
Tips: When you want to record on both sides of the tape, start
recording from the forward direction.
To stop at any time during the recording process, press 7.
Recording an AM station on a tape
When recording an AM broadcast, beats may be produced which
are not heard when listening to the broadcast. If this happens, press
BEAT CUT to eliminate the beats.
1. Set to AM station and start recording.
2. Press BEAT CUT to eliminate the beats.
Each time you press the button, the display changes as follows:
B.CUT-1 = B.CUT-2 = B.CUT-3 = B.CUT-4 = (back to
the beginning)
Everything on the disc goes onto the tape in the order it is on the
disc, or according to the order you have set in a program.
■
1. Insert a blank or erasable cassette tape
into the cassette deck.
Be sure that the tape direction indicator and the tape insertion
direction are as follows:
[Forward recording]
■
2. If you want to record on both sides of the
tape, press REVERSE MODE on the remote
control to set the system in reverse mode.
Press the button until “ ” is lit.
■
3. Set a disc.
■
4. Press CD 6.
■
5. Press 7.
• If you want to record specific tracks only, program the tracks
first. You can check their total playback time on the display
during programming. (See page 12.)
■
6. Choose whether to have pauses between
tracks.
• If nothing is done, a non-recorded pause of about four
seconds will be automatically made between tracks.
• If you do not want pauses between tracks, press CD 6
twice to enter pause mode—only possible with CDs.
■
7. Press ONE TOUCH REC on the system.
The indicator lights up and the cassette deck starts
recording.
• When the tape reaches its end at the middle of a song in the
forward direction (3), the recording in the reverse direction
(2) will start from the beginning of that track (or previous
track). See diagram below.
Ex.: Case 1
[Recording direction 3 (forward)]
Ex.: Case 2
[Recording direction 3 (forward)]
• After the disc player has played the entire disc, or all the
programmed tracks, the tape automatically stops.
• Recording will also stop when the end of the reverse side (2)
is reached (even if the disc play is not yet over).
To stop at any time during the recording process, press 7.
The tape stops after four seconds.
Note:

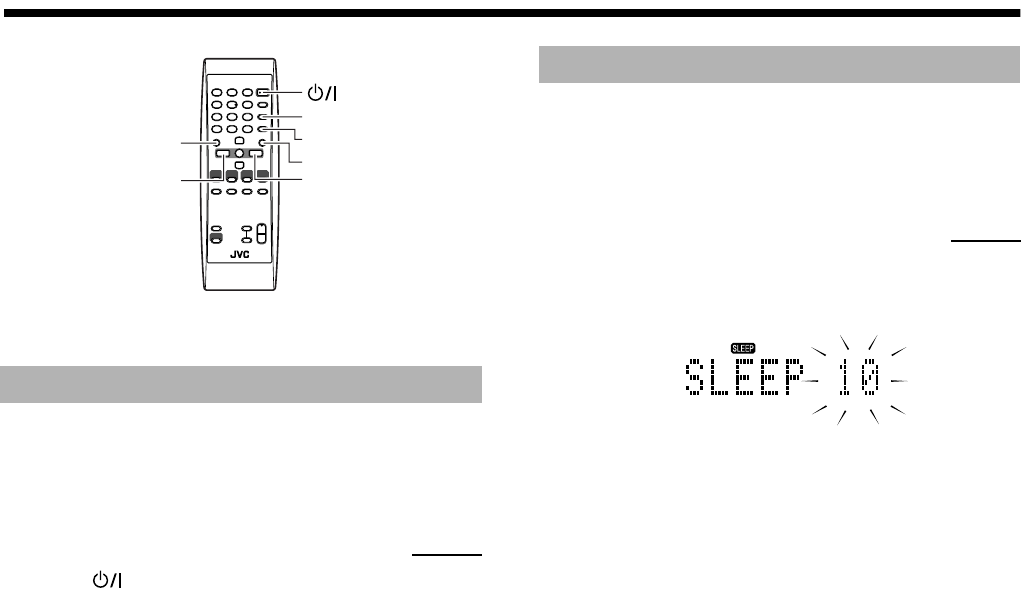

When making SLEEP timer settings while performing disc direct
recording, set enough time to allow the disc to finish playing;
otherwise, the power will go off before recording is completed.
You can record the current track being played.
■
1. Insert a blank or erasable cassette tape
into the cassette deck.
■
2. Play the track you wish to record.
■
3. Press ONE TOUCH REC on the system.
The disc player returns to the beginning of that track and the
track is recorded on the tape. After recording, the disc player
and the cassette deck automatically stop.

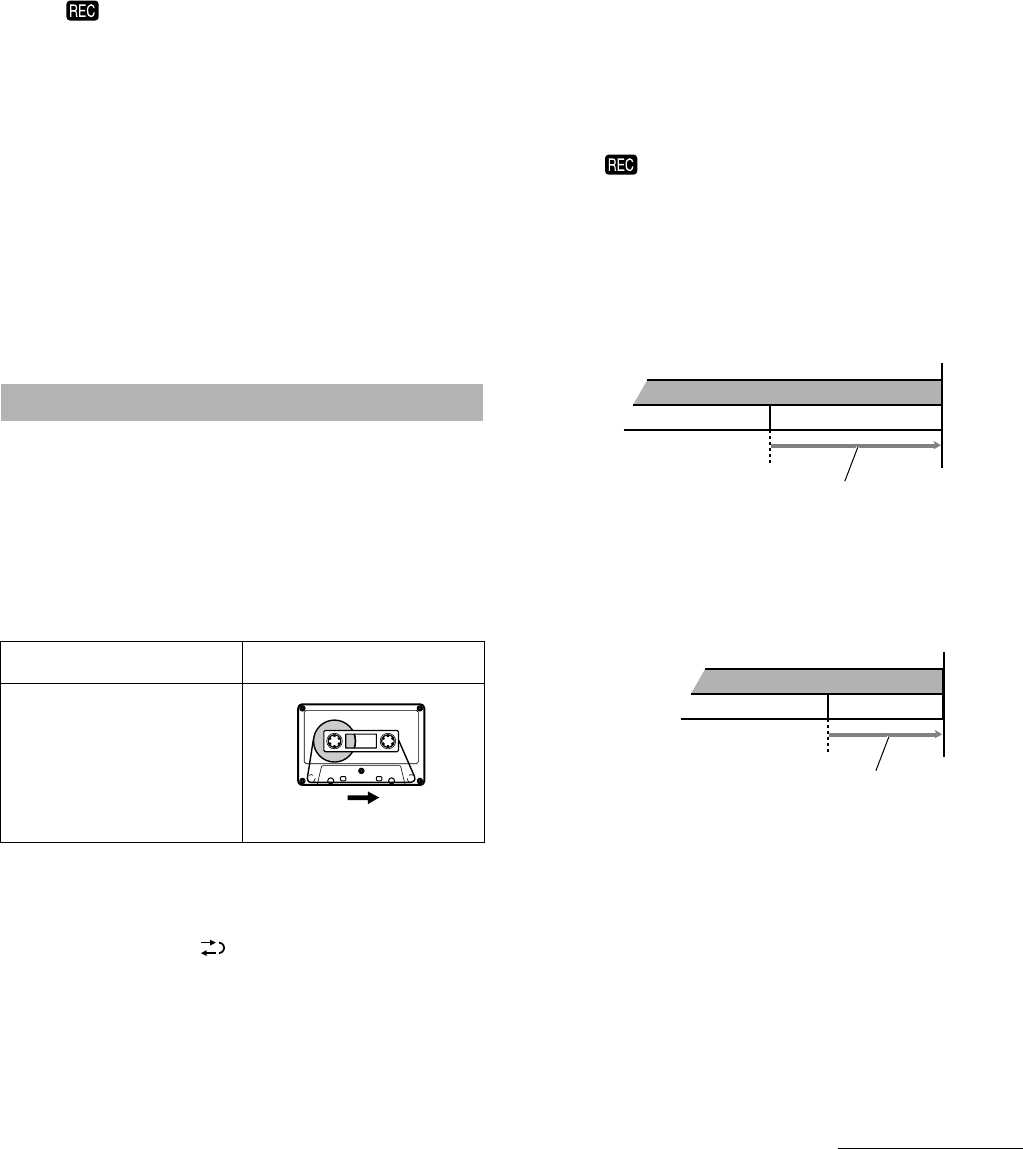

Disc direct recording
Tape direction indicator Tape insertion direction
3
(Forward)
*Recording will be made on
the tape side facing you. (Front view)
One Track Recording
Track 1 Track 2
Tape end
more than 10 seconds
*The recording in reverse side (2) starts from the beginning
of track 2.
Tra ck 1 Track 2
Tape end
less than 10 seconds
*The recording in reverse side (2) starts from the beginning
of track 1.
RV-NB1[J]fff.book Page 15 Monday, August 23, 2004 2:28 PM
16
■■ Listening to an auxiliary equipment
You can listen to an auxiliary equipment.
• First make sure that the auxiliary equipment is properly
connected to the system. (See page 5.)
■
1. Set the volume level to minimum.
■
2. Press AUX.
“AUX” appears on the display.
• To listen to the auxiliary equipment, start playing the auxiliary
equipment.
■
3. Adjust the volume to the desired listening
level.
■
4. Apply sound effects, if you wish.
■Adjust the super woofer volume to reinforce the bass sound.
Note: For operation of the auxiliary equipment, refer to its
instructions.
■■ Using the microphone/guitar
Using a microphone or a guitar (not supplied), you can mix its
sound with a source sound.
■
1. Make sure the MIC/GUITAR LEVEL control
on the rear of the system is properly set.
• When using a microphone, make sure the knob is pressed in
(_).
• When using a guitar, make sure the knob is released (—).
■
2. Set the MIC/GUITAR LEVEL control to MIN
by turning it fully counterclockwise.
■
3. Connect a microphone or a guitar into the
MIC/GUITAR INPUT jack on the rear of the
system.
■
4. Start a source: disc, tape, tuner, or other
equipment.
■
5. Adjust the VOLUME +/– control and the
MIC/GUITAR LEVEL control, as you play the
microphone or the guitar.
CAUTION: DO NOT connect a bass guitar to the
MIC/GUITAR INPUT jack, as it may damage the
system.
■
1. Follow the above steps –
■
2. To record, follow the steps in “Standard
recording”. (See page 14.)
Note: If “howling” occurs when using the microphone, keep the
microphone away from the speaker.
AUX
AUX
Listening to external equipment
Microphone/guitar mixing
Recording microphone or
guitar mixing on a tape
1. 5.
RV-NB1[J]fff.book Page 16 Monday, August 23, 2004 2:28 PM
17
■■ Using the timer
The timers let you control the listening and recording functions
automatically.
When the power is first supplied, the CLOCK indicator and
“AM12:00” blink on the display. Set the clock.
Note:
The clock must be correctly set for the timers to work.
■
1. Press ON/STANDBY.
■
2. Press CLOCK/TIMER repeatedly until the
CLOCK indicator lights up.
The hour digit blinks on the display.
■
3. Press ¢ or 4 to select the hour.
When you press and hold the button, the hour digit changes
continuously.
■
4. Press SET to set the hour.
The minutes digits start flashing on the display.
■
5. Press ¢ or 4 to select the minute.
When you press and hold the button, the minute digit changes
continuously.
■
6. Press SET to finish setting the clock.
CAUTION: If memory backup batteries are
exhausted or not installed, and the AC power
cord is plugged in again after being
disconnected, or power is restored after a power
failure, the CLOCK indicator will blink on the
display. Set the current time (clock) again.
Use the sleep timer to turn the system off after a certain number of
minutes when it is playing. By setting the sleep timer, you can fall
asleep to the music and know that your system will turn off by
itself rather than playing all night.
■You can set the sleep timer only when the system is turned on.
■
1. Press SLEEP.
The SLEEP indicator lights up on the display.
■
2. Set the length of time you want the source
to play before shutting off.
• Each time you press the button, it changes the number of
minutes shown on the display in this sequence:
10 = 20 = 30 = 60 = 90 = 120 = OFF = (back to the
beginning)
After setting the number of minutes for the sleep timer, the
indication will stop blinking and goes off.
The system is now set to turn off after the number of minutes you
set.
To confirm the sleep time:
When SLEEP is pressed, the remaining sleep time is displayed.
Wait until the display returns to the original display.
To cancel the sleep timer:
Press SLEEP repeatedly to select “OFF”. Turning off the system
also cancels the sleep timer.
Setting the clock
Using the remote control only
4¢
CLOCK/TIMER
SET
CANCEL
SLEEP
ON/STANDBY
Setting the sleep timer
Using the remote control only
RV-NB1[J]fff.book Page 17 Monday, August 23, 2004 2:28 PM
18
Once the timer has been set, it will be activated at the same time
everyday until the timer is turned off. Recording timer works only
one time.
• While the timer is being set, the timer indicator ( ) lights up.
• While the timer has been set, the timer indicator ( ) also lights
up if the power is supplied through the AC outlet.
• While the timer is working, the timer indicator ( ) blinks.
■
1. Press ON/STANDBY.
■
2. Press CLOCK/TIMER.
“TIMER ON?” appears.
• Press SET to activate the timer setting you have made before.
• Press CANCEL to cancel the timer.
• Go to the next step to reset the timer (or set the timer first
time).
■
3. Press CLOCK/TIMER again, so that the
timer indicator ( ) and ON indicator light
up.
The hour digit of the current ON time blinks on the display.
■
4. Set the on-time you want the system to
turn on.
(1) Press ¢ or 4 to select the hour, then press SET.
(2) Press ¢ or 4 to select the minute, then press SET.
The OFF indicator lights up.
• Press and hold the button will change the time rapidly.
• If you want to change the time setting, press
CANCEL.
■
5. Set the OFF time (example: PM1:30).
(1) Press ¢ or 4 to select the hour, then press SET.
(2) Press ¢ or 4 to select the minute, then press SET.
• Press and hold the button will change the time rapidly.
• If you want to change the time setting, press
CANCEL.
■
6. Press ¢ or 4 to select the music source
you want to listen to, then press SET.
Each time you press the button, the display changes as shown
below:
TUNER = TU\TAPE = CD = TAPE = (back to the
beginning)
When you select the “TU\TA PE” ;
• The REC indicator appears on the display.
• The timer will be canceled after tuner recording has been
finished.
■
7. Press ¢ or 4 to select the volume level,
then press SET.
– – : The current volume level will be used.
0 to 50 : When the timer is turned on, the volume will be
automatically set to the selected level.
• The current timer setting appears for confirmation.
■
8. Before turning off the system, prepare the
music source selected in step .
TUNER : Tune into the desired station.
TU\TAPE : The last tuned station will be recorded. Insert a
cassette tape for recording the station.
CD : Set a disc.
TAPE :Insert a tape.
■
9. Press ON/STANDBY to turn off the
system.
• When the timer turns on, the volume level gradually increases
from 0 (zero) to the preset level in step .
However, if the volume has been set to “– –”, the volume
level will be set to the last level directly.
To cancel the operation, press CLOCK/TIMER until the
display returns to the original one.
To cancel the timer, press CLOCK/TIMER once, then press
CANCEL. (“TIMEROFF” appears, only when power is on.)
To reactivate (or confirm) the canceled timer, press
CLOCK/TIMER once, then press SET. (The current timer setting
appears for confirmation.)
Notes:
• The timer cannot be set if on-time and off-time are the same.
• The timer does not work if the system is not in the standby mode
(the system needs to be in standby mode at least one minute
before the on-time).
CAUTION: If memory backup batteries are
exhausted or not installed, and the AC power
cord is disconnected or there is a power failure,
time settings will be erased from memory. If this
happens, set the current time (clock) and
perform the timer setting again.
Setting the daily timer
Using the remote control only
6.
7.
RV-NB1[J]fff.book Page 18 Monday, August 23, 2004 2:28 PM
19
■■ Care and maintenance
Handle your discs carefully, and they will last a long time.
Compact discs
• Only discs bearing this mark can be used with
this system. However, continued use of
irregular shape discs (heart-shape, octagonal,
etc.) can damage the system.
• Remove the disc from its case by holding it at
the edges while pressing the case’s center hole
lightly.
• Do not touch the shiny surface of the disc, or
bend the disc.
• Put the disc back in its case after use to
prevent warping.
• Be careful not to scratch the surface of the disc
when placing it back in the case.
• Avoid exposure to direct sunlight,
temperature extremes, and moisture.
• A dirty disc may not play correctly. If a disc
does become dirty, wipe it with a soft cloth in a
straight line from center to edge.
CAUTION: Do not use any solvent (for example,
conventional record cleaner, spray thinner,
benzine, etc.) to clean a disc.
General notes
In general, you will have the best performance by keeping your
discs and the mechanism clean.
• Store discs in their cases, and keep them in cabinets or on shelves.
• Keep the disc compartment door closed when not in use.
Cleaning the lens
If the lens in the pickup is dirty, dropout, etc., could degrade sound.
Open the disc compartment door and clean the lens as shown.
• Use a blower (available from a camera store) to blow dust off the
lens.
• If there are fingerprints, etc. on the lens, gently wipe clean with a
cotton swab.
Moisture condensation
Moisture may condense on the lens inside the
system in the following cases:
• After turning on heating in the room.
• In a damp room.
• If the system is brought directly from a cold to
a warm place.
Should this occur, the system may malfunction.
In this case, leave the system turned on for a few
hours until the moisture evaporates, unplug the
AC power cord, and then plug it in again.
Cassette tapes
• If the tape is loose, it may get stretched, cut, or
caught in the cassette. Take up the slack by
inserting a pencil in one of the reels and
rotating.
• Do not touch the tape surface.
• Do not store the tape:
- In dusty places
- In direct sunlight or heat
- In moist areas
- On a TV or speaker
- Near a magnet
Cassette deck
• If the heads, capstans, or pinch-rollers of the cassette deck
become dirty, the following may occur:
- Loss of sound quality
- Discontinuous sound
-Fading
- Incomplete erasure
- Difficulty recording
• Clean the heads, capstans, and pinch-rollers using a cotton swab
moistened with alcohol.
• If the heads become magnetized, the system will produce noise or
lose high frequency notes.
• To demagnetize the heads, turn off the system, and use a head
demagnetizer (available at electronics and record shops).
Blower
Lens
Capstans
Erase head
Pinch-rollers
Record/play head
RV-NB1[J]fff.book Page 19 Monday, August 23, 2004 2:28 PM
20
■■ Troubleshooting
• If you are having a problem with your system, check this list for a possible solution before calling for service.
• If you cannot solve the problem from the hints given here, or the system has been physically damaged, call a qualified person, such as your
dealer, for service.
■■ Specifications
Amplifier
Output Power
6 W per channel, min. RMS, at 4 Ω from 150Hz to 15kHz with
no more than 10% total harmonic distortion.
20 W per channel woofer, min. RMS into 4 Ω at 60 Hz with no
more than 10% total harmonic distortion.
Input Sensitivity/Impedance (1 kHz)
AUX IN 300 mV/47 kΩ
MIC/GUITAR INPUT: Switchable
MIC 200 Ω – 2 kΩ (6.3 mm dia. plug)
GUITAR 100 kΩ – 1 MΩ (6.3 mm dia. plug)
Output Sensitivity/Impedance (1 kHz)
Phones 16 Ω – 1 kΩ
0 – 12 mW/ch output into 32 Ω
Cassette Deck
Frequency Response
Type II (High position) 60 Hz – 14 kHz
Wow and Flutter 0.15% (WRMS)
Disc Player
Dynamic range 90 dB
Signal-to-noise ratio 95 dB
Wow and Flutter Unmeasurable
Tuner
FM Tuner
Tuning Range 87.5 MHz – 108.0 MHz
AM Tuner
Tuning Range 530 kHz – 1 710 kHz
Antenna FM telescopic antenna
Ferrite core antenna for AM
Speakers
Full range 8 cm (3 – 3/16”) × 2, 4 Ω
Super woofer 16 cm (6 – 5/16”) × 2, 4 Ω
General
Dimensions 690 mm × 239 mm × 296 mm (W/H/D)
(27 – 3/16” × 9 – 7/16” × 11 – 11/16”)
Mass 9.5 kg (21 lbs) (without batteries)
10.6 kg (23.4 lbs) (with batteries)
Power Specifications
Power Requirements AC 120 V , 60 Hz
DC15V (“R20/D (13F)” batteries (10))
External DC12V (car battery via
optional CA-R120 car adapter)
Power Consumption 50 W (power on mode)
1.6 W (in standby mode)
Symptom Possible cause Action
Power does not come on. The power cord is not connected to an AC
outlet.
Insert the plug into the socket.
No sound is heard. • Connections are incorrect, or loose.
• Headphones are connected.
• MP3 disc is recorded with “packet
writing.”
• Check all connections and make
corrections. (See page 5.)
• Disconnect the headphones.
• It cannot be played. Replace the disc.
Poor FM reception. The FM telescopic antenna is not properly
extended and positioned.
Fully extend the FM telescopic antenna
and turn it for the best reception.
The track skips. The disc is dirty or scratched. Clean or replace the disc.
The disc does not play (“NO PLAY” or
“NO DISC” appears).
• The disc is upside down.
• The disc is dirty or scratched.
• Put the disc in with the label side up.
• Change the disc.
Specific files (tracks) on an MP3 disc are
not played.
Files other than MP3 are included in the
disc.
They cannot be played.
Unable to record. Cassette record protect tabs are removed. Cover the holes on the back edge of the
cassette with tape.
Unable to operate the remote control. • The path between the remote control and
the sensor on the system is blocked.
• The batteries have lost their charge.
• Remove the obstruction.
• Replace the batteries.
Operations are disabled. The built-in microprocessor has
malfunctioned due to external electrical
interference.
Unplug the system then plug it back in
after a few minutes.
The cassette holder cannot be opened. During tape play, the power cord has been
unplugged.
Plug in the power cord and press the
ON/STANDBY button.
Indicators and the display do not light up
while in standby mode.
Batteries or DC power is used to supply
the power.
Design and specifications are subject to change without notice.
EN07-20_RV-NB1 [J].fm Page 20 Wednesday, August 25, 2004 5:32 PM
Authorized Service Centers
QUALITY SERVICE
HOW TO LOCATE YOUR JVC SERVICE CENTER
TOLL FREE: 1(800) 537-5722
http://www.jvc.com
Dear customer,
In order to receive the most satisfaction from your purchase, please read the instruction booklet before operating
the unit. In the event that repairs are necessary, please call 1 (800) 537-5722 for your nearest authorized servicer
or visit our website at www.JVC.com
Remember to retain your Bill of Sale for Warranty Service.
Do not service the television yourself
Caution
To prevent electrical shock, do not open the cabinet. There are no user serviceable parts
inside. Please refer to qualified service personnel for repairs.
Accessories
To purchase accessories for your JVC product, please call toll free: 1 (800) 882-2345 or on the
web at www.JVC.com
RV-NB1[J]fff.book Page 1 Monday, August 23, 2004 2:28 PM
REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF
REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION
PACKAGED WITH EACH REFURBISHED PRODUCT.
For customer use:
Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this
information for future reference.
Model No.: Serial No.:
Purchase data: Name of dealer:
LIMITED WARRANTY AUDIO-1
JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE
ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP from the date of
original retail purchase for the period as shown below. (“The Warranty Period.”)
THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN
COMMONWEALTH OF PUERTO RICO.
WHAT WE WILL DO:
If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such
repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers.
Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may
be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches
and above which are covered on an in-home basis.
WHAT YOU MUST DO FOR WARRANTY SERVICE:
Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized
service center, please call toll free: (800) 537-5722.
If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of
your bill of sale plus and letter of explanation of the problem to the nearest JVC Factory Service Center, the name and
location of which will be given to you by the toll-free number.
If you have any questions concerning your JVC Product, please contact our Customer Relations Department.
WHAT IS NOT COVERED:
This limited warranty provided by JVC does not cover:
1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty
installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to
render such service, or if affixed to any attachment not provided with the products, or if the model number or serial
number has been altered, tampered with, defaced or removed.
2. Initial installation and installation and removal for repair;
3. Operational adjustments covered in the Owner’s Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except the Rechargeable Batteries are covered for 90 days from the date of purchase);
There are no express warranties except as listed above:
THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARCHANTABILITY, IS
LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.
JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER
DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE
TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY
BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied
warranty last, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state.
JVC COMPANY OF AMERICA 1700 Valley Road
DIVISION OF JVC AMERICAS CORP. Wayne, NJ 07470
PARTS
1 YR
LABOR
1 YR
RV-NB1[J]fff.book Page 2 Monday, August 23, 2004 2:28 PM
RV-NB1 POWERED WOOFER CD SYSTEM
© 2004 Victor Company of Japan, Limited 0804NSMMDWJEIN
EN
RV-NB1[J]fff.book Page 1 Monday, August 23, 2004 2:28 PM

Navigation menu
