LVT1301-005A

[B]

RX-E11S/RX-E12B

HOME CINEMA CONTROL CENTER

INSTRUCTIONS

cover_RXE11S_12B[B]1.p65 06/12/2004, 21:473

G-1

Warnings, Cautions and Others

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the

plug fitted is not suitable for the power points in your home or

the cable is too short to reach a power point, then obtain an

appropriate safety approved extension lead or consult your

dealer.

BE SURE to replace the fuse only with an identical approved

type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the

fuse and dispose of the plug immediately, to avoid a possible

shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then

follow the instructions given below:

IMPORTANT:

DO NOT make any connection to the terminal which is

marked with the letter E or by the safety earth symbol or

coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in

accordance with the following code:

Blue : Neutral

Brown : Live

As these colours may not correspond with the coloured

markings identifying the terminals in your plug proceed as

follows:

The wire which is coloured blue must be connected to the

terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the

terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution–– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely.

The STANDBY/ON button in any position does not

disconnect the mains line. The power can be remote

controlled.

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to get

out.)

• Do not place any naked flame sources, such as lighted

candles, on the apparatus.

• When discarding batteries, environmental problems must be

considered and local rules or laws governing the disposal of

these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or

splashing and that no objects filled with liquids such as

vases, shall be placed on the apparatus.

safe_RXE11S_12B[B]1.p65 06/12/2004, 21:471

G-2

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage.

Locate the apparatus as follows:

Front: No obstructions open spacing.

Sides: No obstructions in 10 cm from the sides.

Back: No obstructions in 15 cm from the back.

Bottom: No obstructions, place on the level surface.

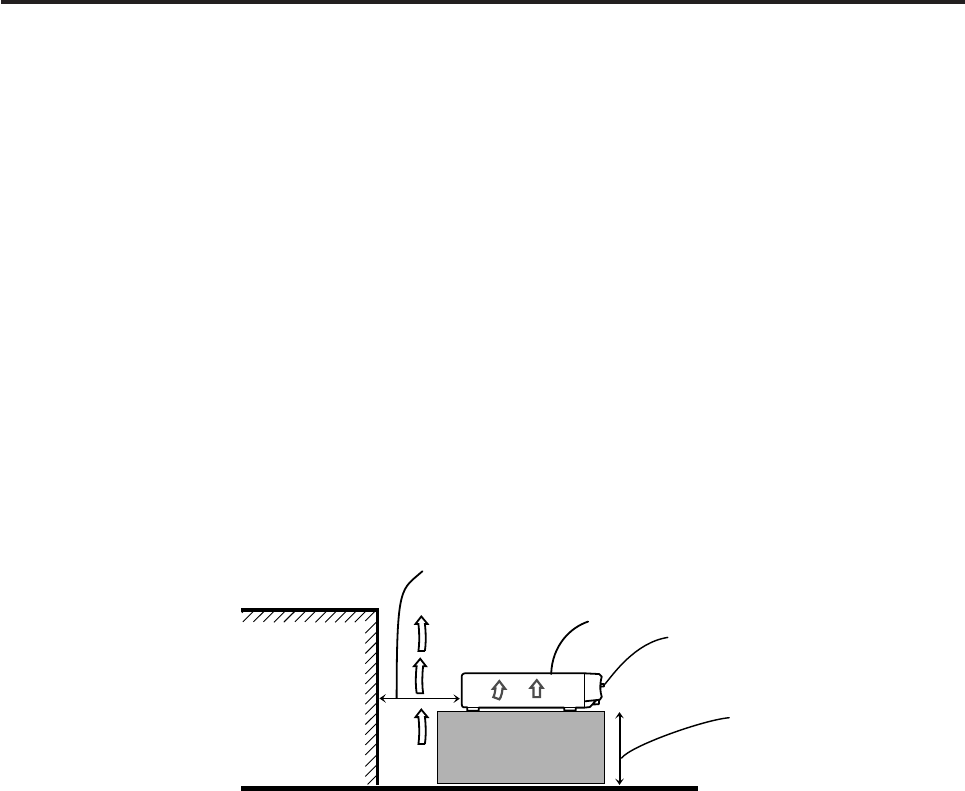

In addition, maintain the best possible air circulation as illustrated.

Spacing 15 cm or more

Wall or

obstructions Stand height

15 cm or more

Floor

Front

RX-E11S/RX-E12B

safe_RXE11S_12B[B]1.p65 06/12/2004, 21:472

G-3

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care

must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment)

are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or

changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way—switch

off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation

or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal

to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to ensure complete safety always fit the manufacturer’s approved

stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case—this could result in

a fatal electrical shock.;

— NEVER guess or take chances with electrical equipment of any kind—it is better to be safe than sorry!

safe_RXE11S_12B[B]1.p65 06/12/2004, 21:473

1

Table of Contents

Parts identification ................................................ 2

Getting started ...................................................... 4

Before Installation .................................................................. 4

Checking the supplied accessories ....................................... 4

Putting batteries in the remote control ................................... 4

Connecting the FM and AM (MW) antennas ......................... 5

Connecting the speakers ....................................................... 6

Connecting video components .............................................. 7

Connecting the power cord .................................................... 9

Basic operations ................................................. 10

1 Turn on the power ............................................................ 10

2 Select the source to play.................................................. 10

3 Adjust the volume ............................................................ 11

Selecting the digital decode mode ....................................... 11

Adjusting the subwoofer audio position ............................... 12

Activating TV Direct ............................................................. 12

Turning off the sounds temporarily ...................................... 13

Changing the display brightness.......................................... 13

Turning off the power with the Sleep Timer ......................... 13

Basic settings ...................................................... 14

Setting the speaker information automatically

—Smart Surround Setup ............................................... 14

Basic setting items ............................................................... 15

Operating procedure ............................................................ 16

Setting the speakers ............................................................ 16

Setting bass sound .............................................................. 17

Setting the virtual surround back speaker—VIRTUAL SB ... 18

Selecting the main or sub channel—DUAL MONO ............. 18

Using the Midnight mode—MIDNIGHT M............................ 18

Setting the digital input (DIGITAL IN) terminals

—DIGITAL IN1/2............................................................ 19

Setting Auto Surround—AUTO SURRND ............................ 19

Setting the Auto Function mode—AUTO MODE ................. 19

Sound adjustments ............................................. 20

Basic adjustment items ........................................................ 20

Operating procedure ............................................................ 20

Adjusting speaker output level ............................................. 21

Adjusting the sound parameters for the

Surround/DSP modes ................................................... 21

Adjusting the bass sounds ................................................... 22

Adjusting the equalization patterns

—D EQ 63Hz/250Hz/1kHz/4kHz/16kHz........................ 22

Tuner operations ................................................. 23

Tuning in to stations manually.............................................. 23

Using preset tuning .............................................................. 23

Selecting the FM reception mode ........................................ 24

Using the Radio Data System (RDS) to

receive FM stations ....................................................... 25

Searching for a program by PTY codes ............................... 26

Switching to broadcast program of your choice

temporarily..................................................................... 28

Creating realistic sound fields ........................... 29

Reproducing theatre ambience ........................................... 29

Introducing the Surround modes ......................................... 29

Introducing the DSP modes ................................................. 31

Using the Surround/DSP modes ......................................... 32

Operating other JVC products ........................... 34

Operating other manufacturers’ products ........ 36

Troubleshooting .................................................. 39

Specifications ...................................................... 40

EN01-05RXE11S_12B[B]f.p65 08/12/2004, 14:591

2

7

w

2

3

u

d

5

6

r

e

t

y

i

o

;

a

s

1

4

8

9

p

q

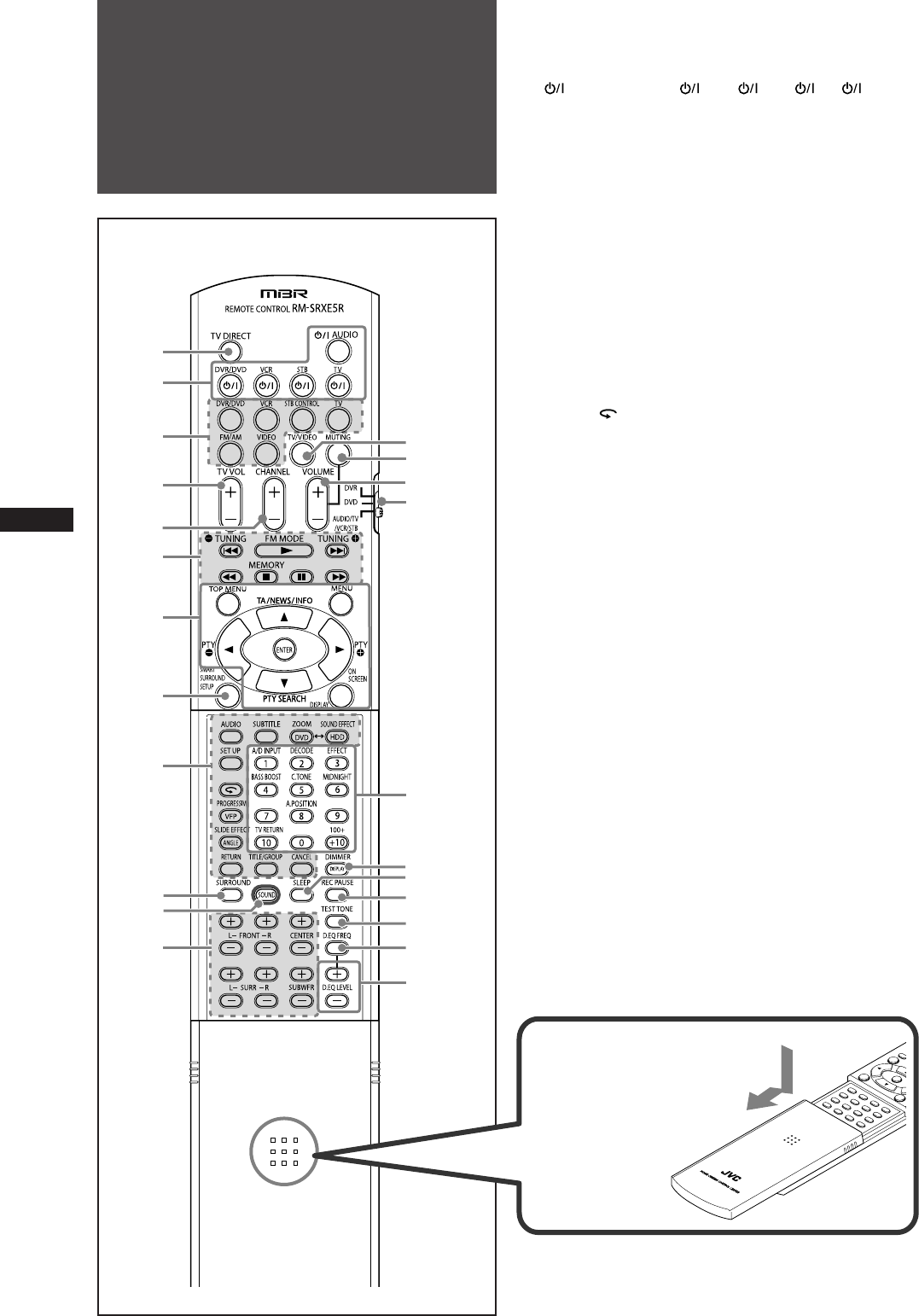

Remote control

See pages in parentheses for details.

1TV DIRECT button (12)

2Standby/on buttons (10, 34 – 38)

AUDIO, DVR/DVD , VCR , STB , TV

3• Source selecting buttons (10, 12, 23, 34, 36, 37)

DVR/DVD, VCR, TV, FM/AM, VIDEO

• STB CONTROL button (38)

4TV VOL (volume) +/– button (34, 36)

5CHANNEL +/– button (34 – 38)

6• Operating buttons for video components (34, 35, 37)

4, 3, ¢, 1, 7, 8, ¡

• Operating buttons for tuner (23, 24)

( TUNING, FM MODE, TUNING 9, MEMORY

7• Operating buttons for DVD recorder or DVD player* (35)

TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), ENTER,

ON SCREEN

• Operating buttons for RDS (25, 26, 28)

PTY 9, PTY (, TA/NEWS/INFO, PTY SEARCH,

DISPLAY

8SMART SURROUND SETUP button (14)

9Operating buttons for DVD recorder or DVD player* (35)

AUDIO, SUBTITLE, DVD, ZOOM, HDD, SOUND EFFECT,

SET UP, , VFP, PROGRESSIVE, ANGLE,

SLIDE EFFECT, RETURN, TITLE/GROUP, CANCEL

pSURROUND button (32)

qSOUND button (10 – 12, 18, 21, 22)

wAdjusting buttons for speaker and subwoofer output levels

(21)

FRONT L +/–, FRONT R +/–, CENTER +/–, SURR L +/–,

SURR R +/–, SUBWFR +/–

eTV/VIDEO button (34, 36)

rMUTING button (13)

tVOLUME +/– button (11)

yMode selector (10, 34 – 38)

DVR, DVD, AUDIO/TV/VCR/STB

u• Numeric buttons (24, 34 – 38)

• Adjusting buttons (10 – 12, 18, 21, 22)

A/D INPUT, DECODE, EFFECT, BASS BOOST, C.TONE,

MIDNIGHT, A.POSITION

• TV RETURN button (34)

i• DISPLAY button* (35)

• DIMMER button (13, 35)

oSLEEP button (13)

;REC PAUSE button (35)

aTEST TONE button (21)

sD.EQ FREQ button (22)

dD.EQ LEVEL +/– buttons (22)

* These buttons can be used for operating a JVC DVD recorder

or DVD player with the mode selector set to “DVR” or “DVD”

(see page 35).

If these buttons do not function normally, use the remote control

supplied with your DVD recorder or DVD player. Refer also to

the manuals supplied with the DVD recorder or DVD player for

details.

Parts identification

Parts identification

To open the cover of the remote

control, push here then slide

downward.

EN01-05RXE11S_12B[B]f.p65 08/12/2004, 14:592

3

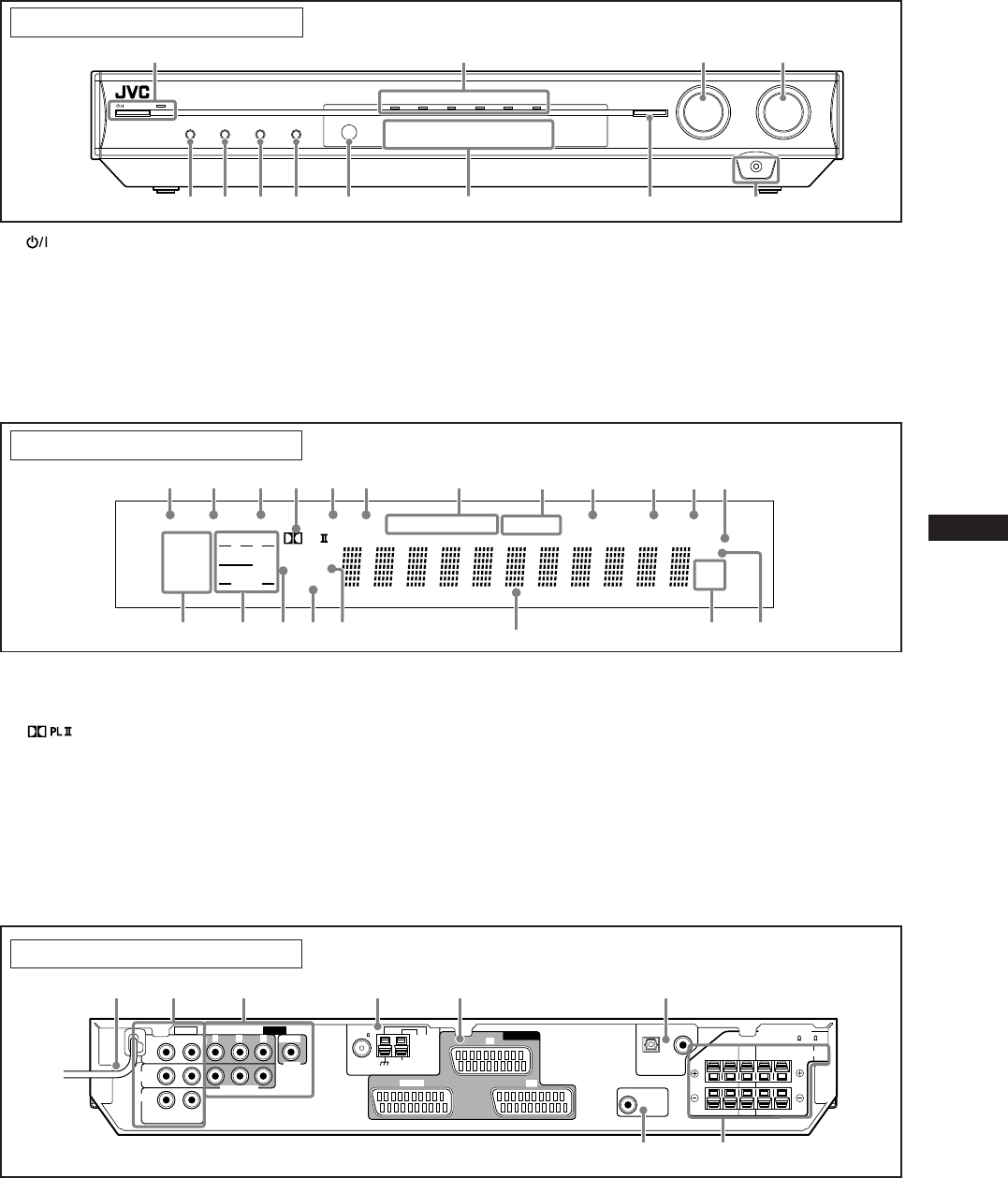

Front panel

1 STANDBY/ON button and standby lamp (10)

2Source lamps

DVR/DVD, VCR, VIDEO, TV, FM, AM

3• SOURCE SELECTOR (10, 24)

• MULTI JOG (16, 20, 24, 33)

4MASTER VOLUME control (11)

5TV DIRECT button (12)

6SETTING button (16)

7ADJUST button (20)

8SURROUND button (33)

9Remote sensor (4)

pDisplay window (see below)

q• SET button (16, 20)

• TUNER PRESET button (24)

wPHONES jack (11)

Display window

1EQ indicator (22)

2C.TONE indicator (21)

3VIRTUAL SB indicator (18, 29, 30)

4 indicator (29)

5AUDIO P. (position) indicator (12)

6BASS indicator (22)

7RDS operation indicators (25, 28)

TA, NEWS, INFO, RDS

8Tuner operation indicators (23)

TUNED, ST (stereo)

9AUTO MUTING indicator (24)

0SLEEP indicator (13)

1Power cord (9)

2AUDIO jacks (8, 9)

MONITOR OUT, DVR/DVD IN, VIDEO IN

3VIDEO jacks (8, 9)

COMPONENT (Y, PB, PR): MONITOR OUT, DVR/DVD IN

VIDEO (composite video): VIDEO IN

4ANTENNA terminals (5)

5AV IN/OUT terminals (7)

TV, DVR/DVD, VCR

Rear panel

See pages in parentheses for details.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

1 2 3 5 6780

9-=

&

$

@#

!

~%^

4

-AUTO MODE indicator (19)

=ATT (attenuator) indicator (22)

~Digital signal format indicators (11)

LPCM (Linear PCM), DOLBY D (Dolby Digital), DTS, 96/24

!Signal and speaker indicators (13)

@DSP indicator (30, 31)

#AUTO SR (surround) indicator (19)

$3D indicator (30, 31)

%Main display

^Frequency unit indicators

MHz (for FM station), kHz (for AM station)

&HP (headphones) indicator (11, 30, 31)

6DIGITAL IN terminals (9)

Coaxial: 1(DVR/DVD)

Optical: 2(VIDEO)

7SUBWOOFER OUT jack (6)

8SPEAKERS terminals (6)

FRONT, CENTER, SURROUND

Parts identification

STANDBY / ON

TV DIRECT ADJUSTSETTING SURROUND

HOME CINEMA CONTROL CENTER

DVR / DVD VCR VIDEO TV AMFM

SET / TUNER PRESET

SOURCE

SELECTOR

/ MULTI JOG

MASTER

VOLUME

PHONES

6 7 85 q

3 4

9

2

wp

1

VCR

TV

SUBWOOFER

OUT

2(VIDEO) 1(DVR/DVD)

DIGITAL IN

CENTER SURROUND SPEAKERS

LEFTRIGHT LEFTRIGHT

FRONT

CAUTION:SPEAKER

IMPEDANCE 6

-

16

DVR/DVD

ANTENNA

Y

AUDIO VIDEO

P

B

P

R

VIDEO IN

DVR/DVD

IN

VIDEO

IN

MONITOR

OUT

RIGHT LEFT

COMPONENT

AV IN/OUT

COAXIAL

AM LOOP

FM 75

AM EXT

VIDEO

8

32 41 5 6

7

EN01-05RXE11S_12B[B]f.p65 08/12/2004, 14:593

4

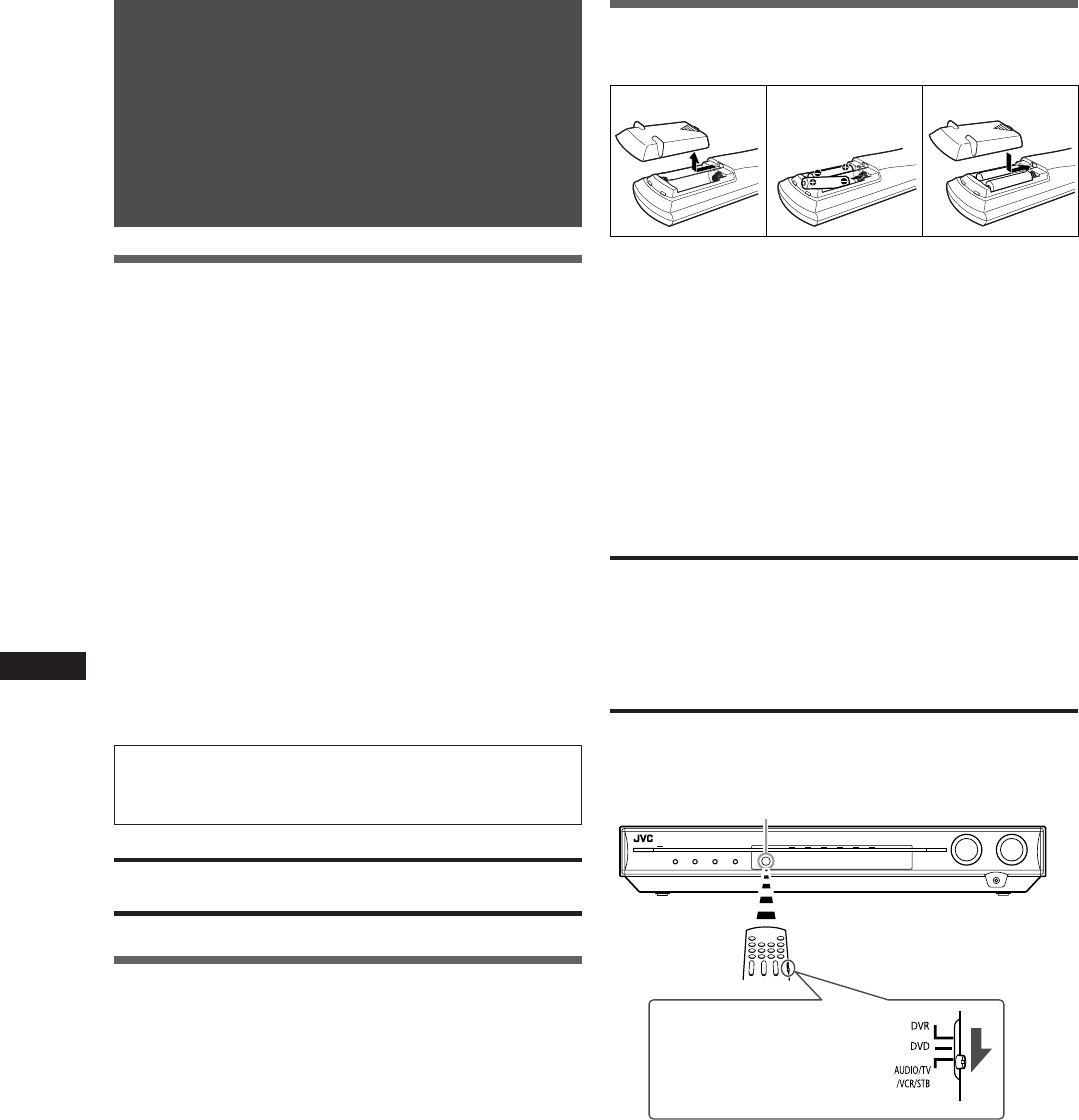

Getting started

123

Getting started

Before Installation

General precautions

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going

to connect.

Locations

• Install the receiver in a location that is level and protected from

moisture and dust.

• The temperature around the receiver must be between –5˚C

and 35˚C.

• Make sure there is good ventilation around the receiver. Poor

ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or

cabinet.

• Do not expose the receiver to rain or moisture.

The receiver has a built-in cooling fan which operates

while the receiver is turned on. Be sure to leave enough

ventilation to obtain sufficient cooling effect.

CAUTION:

Do not connect the AC power plug to the wall outlet until all

connections are completed.

Checking the supplied accessories

Check to be sure you have all of the following supplied

accessories. If anything is missing, contact your dealer

immediately.

• Remote control (× 1)

• Batteries (× 2)

• AM (MW) loop antenna (× 1)

• FM antenna (× 1)

• Digital coaxial cable (× 1)

Putting batteries in the remote control

Before using the remote control, put two supplied batteries first.

1

Press and slide the battery cover on the back

of the remote control.

2

Insert batteries.

Make sure to match the polarity: (+) to (+) and (–) to (–).

3

Replace the cover.

If the range or effectiveness of the remote control decreases,

replace the batteries. Use two R6(SUM-3)/AA(15F) type dry-cell

batteries.

• Supplied butteries are for initial setup. Replace for continued

use.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:

(+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

When using the remote control, aim the remote control directly at

the remote sensor on the front panel.

To operate the receiver, set

the mode selector to

“AUDIO/TV/VCR/STB.”

Remote sensor

EN01-05RXE11S_12B[B]f.p65 08/12/2004, 15:004

5

ANTENNA

COAXIAL

AM LOOP

FM 75

AM EXT

Snap the tabs on the loop

into the slots of the base

to assemble the AM (MW)

loop antenna.

Connecting the FM and AM (MW) antennas

AM (MW) loop

antenna (supplied)

If AM (MW) reception is poor,

connect an outdoor single vinyl-

covered wire (not supplied).

AM (MW) antenna connection

Connect the AM (MW) loop antenna supplied to the AM LOOP

terminals.

Turn the loop until you have the best reception.

• If the reception is poor, connect an outdoor single vinyl-covered

wire (not supplied) to the AM EXT terminal. Keep the AM (MW)

loop antenna connected.

FM antenna connection

Connect the FM antenna supplied to the FM 75 Ω COAXIAL

terminal as a temporary measure.

Extend the supplied FM antenna horizontally.

• If the reception is poor, connect an outdoor FM antenna (not

supplied). Before attaching a 75 Ω coaxial cable with a

connector (IEC or DIN 45325), disconnect the supplied FM

antenna.

If FM reception is poor, connect an

outdoor FM antenna (not supplied).

FM antenna (supplied)

NOTES

• If the AM (MW) loop antenna wire is covered with

vinyl, remove the vinyl while twisting it as shown

on the right.

• Make sure the antenna conductors do not touch

any other terminals, connecting cords and power

cord. This could cause poor reception.

Getting started

EN01-05RXE11S_12B[B]f.p65 08/12/2004, 15:005

6

Getting started

SUBWOOFER

OUT

2(VIDEO) 1(DVR/DVD)

DIGITAL IN

CENTER SURROUND SPEAKERS

LEFTRIGHT LEFTRIGHT

FRONT

CAUTION:SPEAKER

IMPEDANCE 6

-

16

1

2

123

SW RL CRSLS

Right front

speaker (R)

Subwoofer (SW)

Left front

speaker (L)

Right surround

speaker (RS)

Left surround

speaker (LS)

Center speaker (C)

Connecting the front, center, and surround speakers

Turn off all components before making connections.

1

Twist and remove the insulation at the end of each

speaker cord.

2

Press and hold the clamp of the speaker terminal

(1), then insert the speaker cord (2).

•For each speaker, connect the (+) and (–) terminals on the

rear panel to the (+) and (–) terminals marked on the

speakers.

3

Release the finger from the clamp.

CAUTIONS:

•Use speakers with the SPEAKER IMPEDANCE indicated by the

speaker terminals (6 Ω – 16 Ω).

•DO NOT connect more than one speaker to one speaker

terminal.

Connecting the speakers

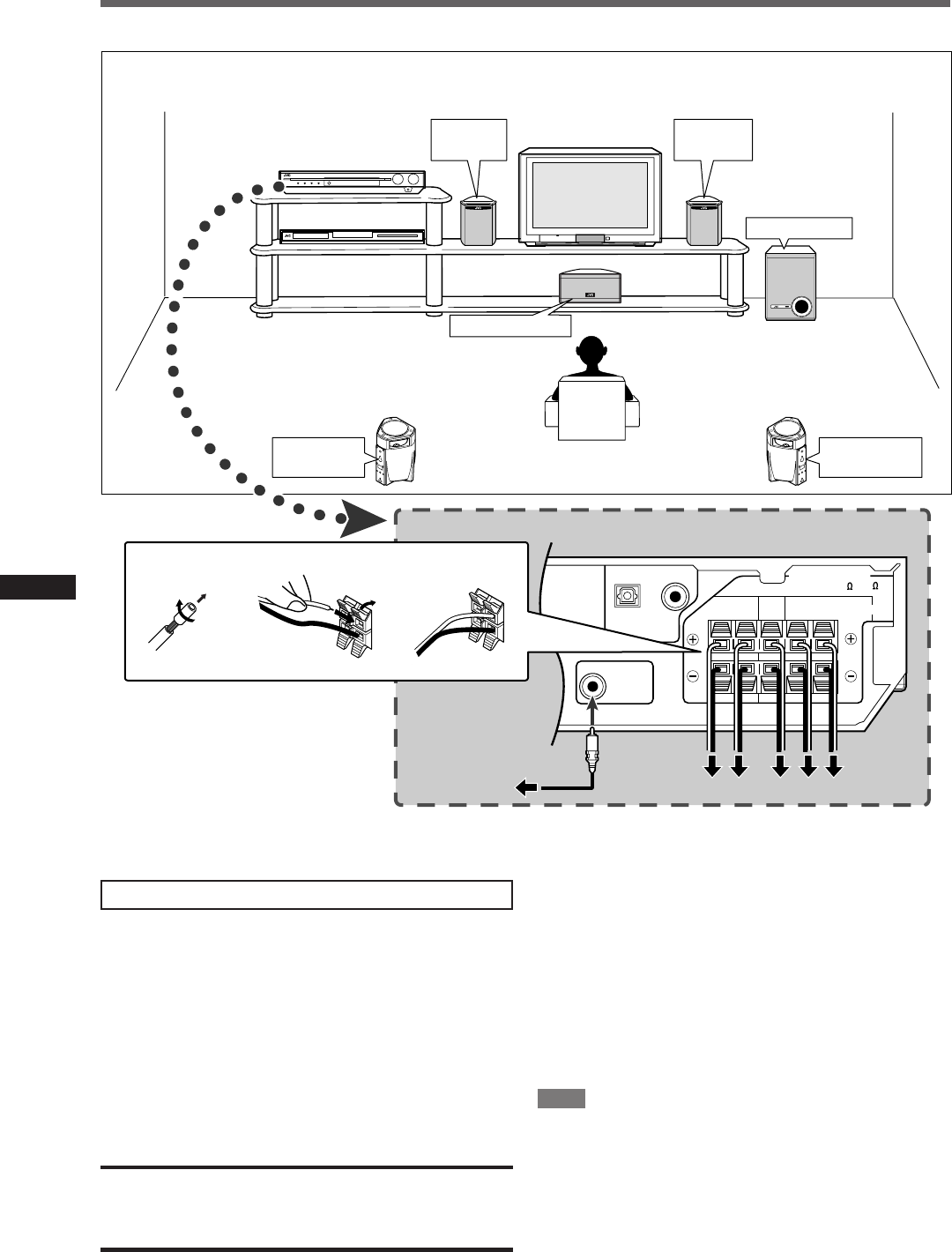

Speaker Layout Diagram

Connecting the subwoofer

By connecting a subwoofer, you can enhance the bass or

reproduce the original LFE signals recorded in digital software.

Connect the input jack of a powered subwoofer to the

SUBWOOFER OUT jack on the rear panel, using a cord

with RCA pin plugs (not supplied).

• Refer also to the manual supplied with your subwoofer.

After connecting all the speakers and/or a subwoofer, set the

speaker setting information properly to obtain the best possible

surround effect. For details, see pages 14 to 17.

NOTE

You can place a subwoofer wherever you like since bass sound is

non-directional. Normally place it in front of you.

EN06-09RXE11S_12B[B]f.p65 08/12/2004, 15:006

7

Getting started

DO NOT use a TV through a VCR or a TV with a built-in

VCR; otherwise, the picture may be distorted.

Turn off all components before making connections.

•Illustrations of the input/output terminals are typical

examples. When you connect other components, refer also

to their manuals since the terminal names actually printed on

the rear vary among different components.

TV

SCART cable (not supplied)

Connecting video components

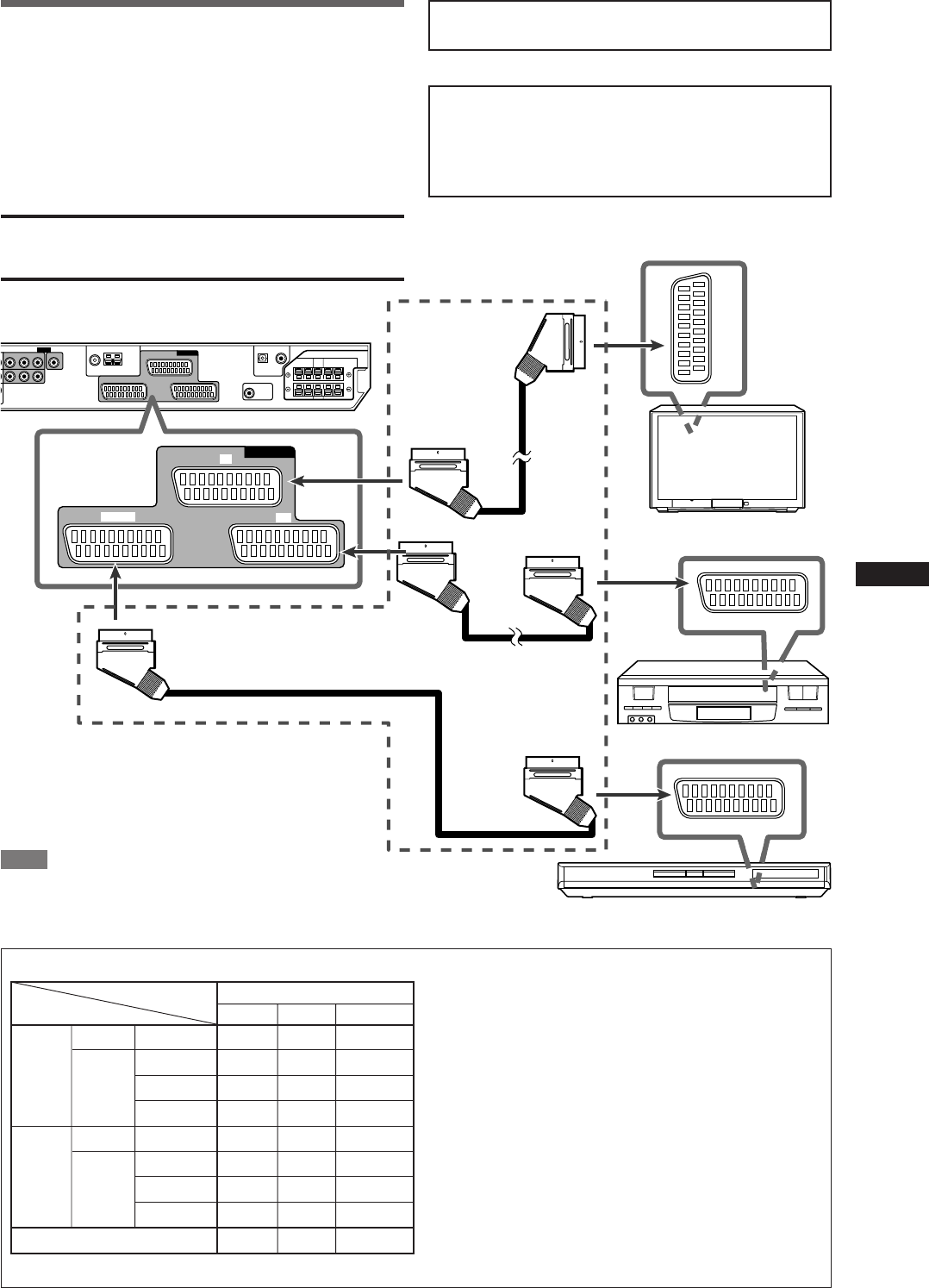

SCART connection

You can enjoy pictures and sounds from playback components

simply by connecting with the SCART cable.

•If your video components have digital output terminal, also

connect them using the digital terminals explained in “Digital

connection” (see page 9). By using these terminals, you can get

better sound quality.

CAUTION:

If you connect a sound-enhancing device such as a graphic

equalizer between the source components and this receiver, the

sound output through this receiver may be distorted.

NOTE

When the TV is equipped with multiple SCART terminals, refer to

the TV manual to check the available video signals for each

terminal, then connect the SCART cable correctly.

VCR

CONTINUED ON THE NEXT PAGE

SCART Terminal Specifications

Terminal name

TV VCR DVR/DVD

Audio L/R 䡬䡬 䡬

Input Composite 䡬䡬 䡬

Video

S-video (Y/C)

−䡬䡬

RGB −䡬䡬

Audio L/R 䡬*1 䡬䡬

Output Composite 䡬*2*3 䡬*2*3 䡬*2*3

Video

S-video (Y/C)

䡬*3 −−

RGB 䡬*3 −−

T-V LINK 䡬*4 䡬*4 䡬*4

䡬: Available –: Not available

*1 Only when TV Direct is in use (see page 12).

*2 The signals input from a SCART terminal cannot be output

through the same SCART terminal.

*3 The video format of the output video signals are consistent

with that of the input video signals. For example, if S-video

signals are input to this receiver, no signals other than S-

video signals can be output from this receiver.

Refer to the manuals supplied with the video components to

check the setting of the input/output video signals.

*4 The signals for the T-V LINK function are always going

through the receiver.

VCR

TV

DVR/DVD

AV IN/OUT

DVD recorder or DVD player

EN06-09RXE11S_12B[B]f.p65 08/12/2004, 15:007

8

Getting started

Y

AUDIO VIDEO

PBPR

MONITOR

OUT

Åı

For TV and video format

This receiver cannot convert the video signals. When the video

signal of one video component is different from that of the other

(for example, one is S-video, the other is Composite), you may

not see the pictures appropriately. In this case, unify the video

signals of all the video components, or you need to switch the

video signal of TV each time you change the source.

For an analogue decoder

To watch through or to record a scrambled program on your

VCR, connect the analogue decoder to your VCR and select

the scrambled channel on your VCR.

If there is not an appropriate terminal for the decoder

connection on your VCR, connect the decoder to your TV.

Refer also to the manuals supplied with these components.

For T-V LINK

•You can use the T-V LINK function if you connect a T-V LINK

compatible TV and VCR to this receiver with a fully wired

SCART cables. For details on T-V LINK, refer also to the

manuals supplied with the TV and the VCR.

•Connect a SCART cable to EXT-2 terminal on the JVC’s T-V

LINK compatible TV for the T-V LINK function.

•Some video components support the data communication

like T-V LINK. For complete details, refer also to the manuals

supplied with these components.

Y

AUDIO VIDEO

VIDEO

P

B

P

R

VIDEO IN

DVR/DVD

IN

VIDEO

COMPONENT

MONITOR

OUT

Åı

Component video

cable (not supplied)

Red

Blue

Green

Stereo audio

cable

(not supplied)

ÅTo left/right audio channel output

ıTo component video output

NOTES

•Connect Y, PB, and PR correctly.

•Do not connect different components to the AUDIO DVR/DVD

IN jacks and AV IN/OUT DVR/DVD terminal; otherwise, sounds

from both components are come out of the speakers at the

same time.

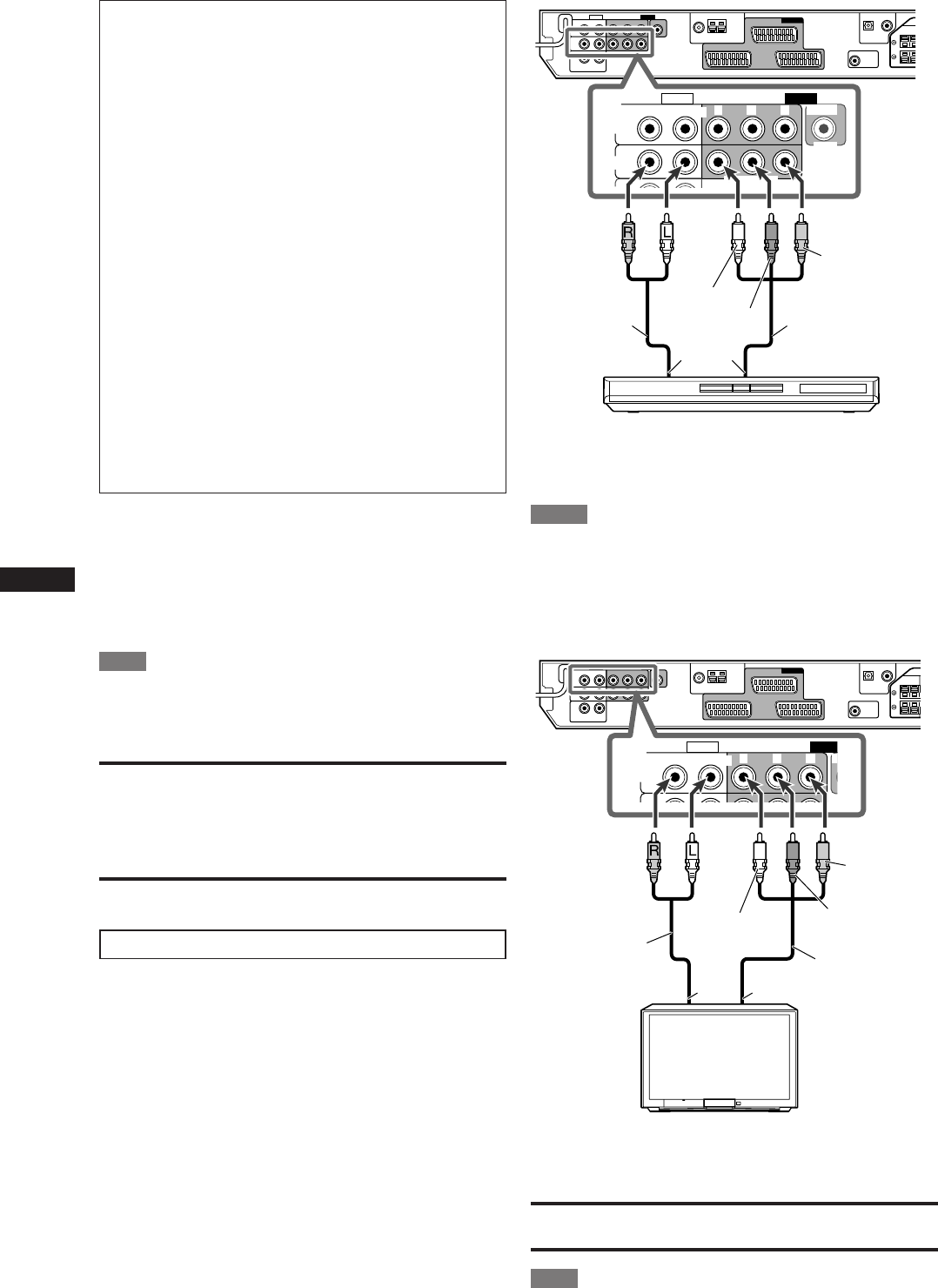

7Connecting a TV to the MONITOR OUT jacks

Component

video cable

(not supplied)

Red

Blue

Green

Stereo audio

cable

(not supplied)

Turn off all components before making connections.

7Connecting a DVD recorder or DVD player to the

DVR/DVD IN jacks

To fully enjoy Dolby Digital and DTS multi-channel software (including

Dual Mono software), connect the DVD recorder or DVD player

through the digital input/output terminals (see page 9).

Red White

Red White

Audio/video connection

In addition to the SCART terminals, this receiver is equipped with

the following video terminals:

•Component video input/output: DVR/DVD IN, MONITOR OUT

•Composite video input: VIDEO IN

NOTE

When recording the sounds and pictures onto the DVD recorder

or VCR, record them through the SCART terminals.

IMPORTANT

The component video signals from the COMPONENT VIDEO

jacks are transmitted only through the MONITOR OUT jacks.

Therefore, if the TV is connected to the receiver through the

SCART terminal (TV) and a playing video component is

connected to the receiver through the component video jacks

(DVR/DVD IN), you cannot view the playback picture on the TV.

TV

ÅTo left/right audio channel input

ıTo component video input

IMPORTANT

Audio signals come out through the AUDIO MONITOR OUT

(RIGHT/LEFT) jacks ONLY when TV Direct is in use (see page 12).

NOTE

Connect Y, PB, and PR correctly.

DVD recorder or DVD player

EN06-09RXE11S_12B[B]f.p65 08/12/2004, 15:008

9

Getting started

Digital connection

Turn off all components before making connections.

This receiver is equipped with two DIGITAL IN terminals—a digital

coaxial terminal and digital optical terminal.

To reproduce the digital sound, use the digital connection in

addition to the analogue connection methods described on pages

7 to 9.

Digital coaxial cable (supplied: 1 cable)

Digital optical cable (not supplied)

2(VIDEO) 1(DVR/DVD)

DIGITAL IN

VIDEO

VIDEO

VIDEO IN

VIDEO

IN

RIGHT LEFT

Åı

VCR , etc.

Stereo audio cable

(not supplied) Composite video

cable (not supplied)

ÅTo left/right audio channel output

ıTo composite video output

NOTE

To view the picture, connect the TV to the receiver using the

SCART cable.

7Connecting a video component to the VIDEO IN

jacks

You can connect a video component such as another VCR to the

VIDEO IN jacks using a composite video cable and stereo audio

cable. Such component is referred to as the source “VIDEO” in

this manual.

Connecting the power cord

When all the audio/video connections have been made, connect

the AC power plug to the wall outlet. Make sure that the plugs are

inserted firmly. The standby lamp lights in red.

CAUTIONS:

•Do not touch the power cord with wet hands.

•Do not alter, twist or pull the power cord, or put anything heavy

on it, which may cause fire, electric shock, or other accidents.

•If the cord is damaged, consult a dealer and have the power

cord replaced with a new one.

When the component has a digital coaxial output

terminal, connect it to the 1(DVR/DVD) terminal,

using a digital coaxial cable (supplied).

NOTES

•When shipped from the factory, the DIGITAL IN terminals have

been set for use with the following components:

–1(DVR/DVD): For DVD recorder or DVD player

–2(VIDEO): For the component connected to the VIDEO

IN jacks

If you connect other components, change the digital input

(DIGITAL IN) terminal setting correctly. See “Setting the digital

input (DIGITAL IN) terminals—DIGITAL IN1/2” on page 19.

•Select the correct digital input mode. See “Selecting the

analogue or digital input mode” on page 10.

When the component has a digital optical output

terminal, connect it to the 2(VIDEO) terminal, using

a digital optical cable (not supplied).

Before connecting a digital

optical cable, unplug the

protective plug.

NOTES

•Keep the power cord away from the connecting cables and the

antenna. The power cord may cause noise or screen

interference.

•The preset settings such as preset channels and sound

adjustment may be erased in a few days in the following cases:

–When you unplug the power cord.

–When a power failure occurs.

Red White Yellow

EN06-09RXE11S_12B[B]f.p65 08/12/2004, 15:009

10

Basic operations

Basic operations

2

Select the source to play

On the front panel:

Turn SOURCE SELECTOR until the source name

you want appears on the display.

The source lamp corresponding to the selected source lights in

red.

•As you turn SOURCE SELECTOR, the source changes as

follows:

DVR/DVD (DGT)*: Select the DVD recorder or DVD player.

VCR (DIGITAL)*: Select the VCR.

VIDEO (DGTL)*: Select the component connected to the

VIDEO IN jacks on the rear of the receiver.

TV (DIGITAL)*: Select the TV.

FM: Select an FM broadcast.

AM: Select an AM (MW) broadcast.

From the remote control:

Press one of the source selecting buttons.

•For the tuner, press FM/AM. Each time you press FM/AM, the

band alternates between FM and AM (MW).

* Selecting the analogue or digital input mode

For a component you have connected using both the analogue

connection and the digital connection methods (see pages 7 to 9),

you need to select the correct input mode.

•You can select the digital input only for sources which you have

selected digital input terminals for. (See “Setting the digital input

(DIGITAL IN) terminals—DIGITAL IN1/2” on page 19.)

From the remote control ONLY:

Press SOUND, then press A/D INPUT to select

the analogue or digital input mode.

•Each time you press A/D INPUT, the input mode alternates

between the analogue input (“ANALOGUE”) and the digital

input (“DGTL AUTO”).

DGTL AUTO: Select for the digital input mode. The receiver

automatically detects the incoming signal

format, then the digital signal format indicator

(LPCM, DOLBY D, DTS, or DTS 96/24) for

the detected signal lights up.

ANALOGUE: Select for the analogue input mode.

Initial setting: ANALOGUE

NOTE

After pressing SOUND, the numeric buttons work for sound

adjustments. To use the numeric buttons to operate your target

source, press the corresponding source selecting button before

operation; otherwise, the remote control may not work as you

intend.

1

Turn on the power

Press STANDBY/ON (or AUDIO on the

remote control).

The standby lamp goes off and the source lamp of the current

source lights in red.

Current source name appears.

To turn off the power (into standby)

Press STANDBY/ON (or AUDIO on the remote control)

again.

The standby lamp lights in red.

NOTE

A small amount of power is consumed in standby mode. To turn

the power off completely, unplug the AC power cord.

When operating the receiver

using the remote control, set

the mode selector to

“AUDIO/TV/VCR/STB.”

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

DVR/DVD (DGT) VCR (DIGITAL)

VIDEO (DGTL) TV (DIGITAL)

FM AM

(Back to the beginning)

1

3

2

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

12 3

EN10-13RXE11S_12B[B]f.p65 08/12/2004, 15:0010

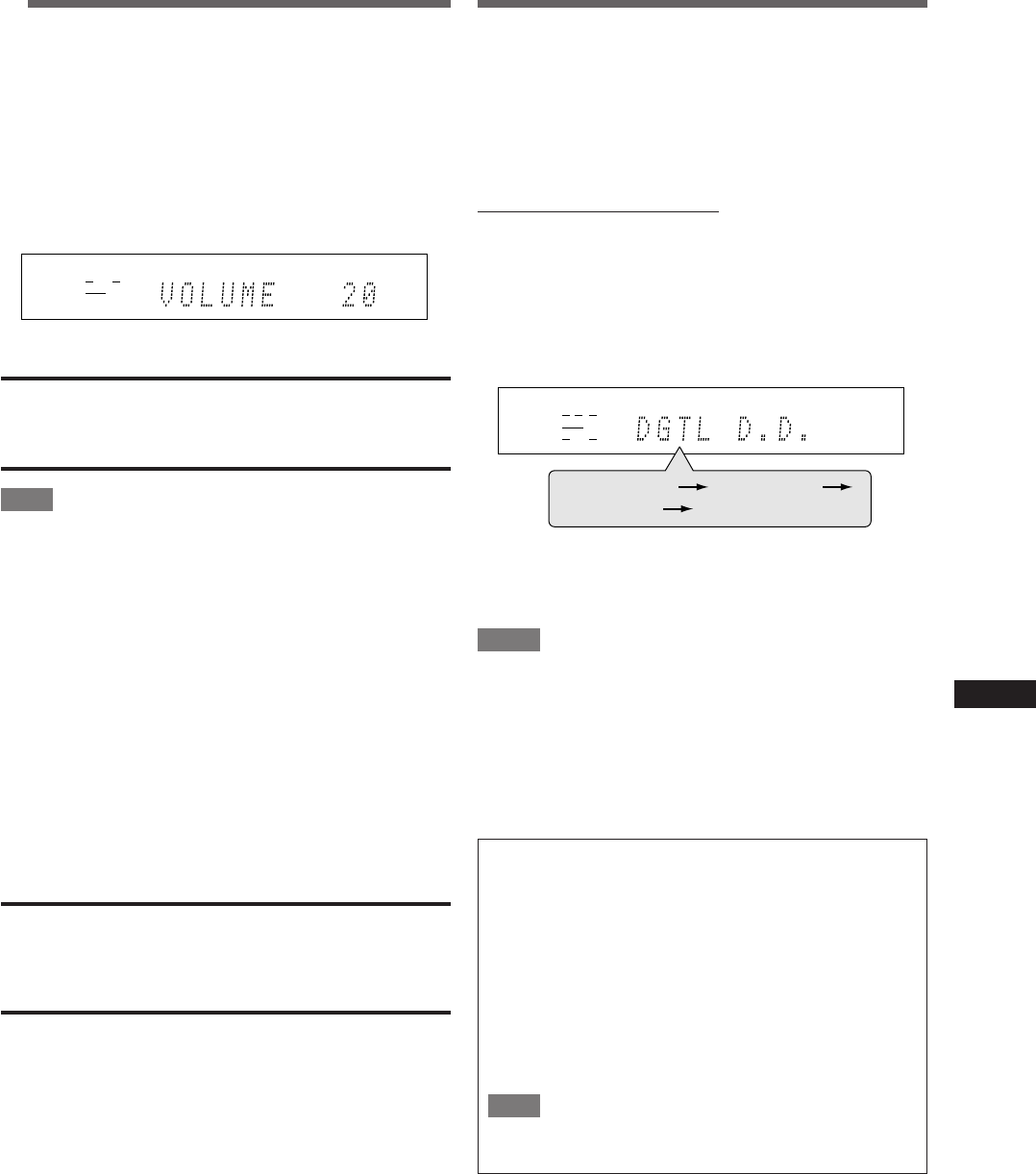

11

Basic operations

3

Adjust the volume

To increase the volume, turn MASTER VOLUME

control clockwise (or press VOLUME + on the

remote control).

To decrease the volume, turn MASTER VOLUME

control counterclockwise (or press VOLUME – on

the remote control).

•When you adjust the volume, the volume level indication

appears on the display for a while.

CAUTION:

Always set the volume to the minimum before starting any

sources. If the volume is set at its high level, the sudden blast of

sound energy can permanently damage your hearing and/or ruin

your speakers.

NOTE

The volume level can be adjusted within the range of “0” (minimum)

to “50” (maximum).

Listening with headphones

You can enjoy not only stereo software but also multi-channel

software through the headphones. (Sounds are down-mixed to the

front channels while playing multi-channel software.)

Connect a pair of headphones to the PHONES jack on the

front panel to activate the HEADPHONE mode.

The HP (headphone) indicator lights up on the display.

•You can also enjoy the Surround/DSP mode through the

headphones—3D HEADPHONE mode. For details, see pages

30 and 31.

•Disconnecting a pair of headphones from the PHONES jack

cancels the HEADPHONE (or 3D HEADPHONE) mode and

activates the speakers.

CAUTION:

Be sure to turn down the volume:

•Before connecting or putting on headphones, as high volume

can damage both the headphones and your hearing.

•Before removing headphones, as high volume may output from

the speakers.

Selecting the digital decode mode

If the following symptoms occur while playing Dolby Digital or DTS

software with “DGTL AUTO” selected (see page 10), follow the

procedure below:

•Sound does not come out at the beginning of playback.

•Noise comes out while searching for or skipping chapters or

tracks.

From the remote control ONLY:

1

Press SOUND, then press A/D INPUT to select

“DGTL AUTO.”

2

Press DECODE to select “DGTL D.D.” or

“DGTL DTS.”

•Each time you press the button, the digital decode mode

changes as follows:

•To play back software encoded with Dolby Digital, select

“DGTL D.D.”

•To play back software encoded with DTS, select “DGTL

DTS.”

NOTES

•When you turn off the power or select another source, “DGTL

D.D.” or “DGTL DTS” is canceled and the digital decode mode is

automatically reset to “DGTL AUTO.”

•After pressing SOUND, the numeric buttons work for sound

adjustments. To use the numeric buttons to operate your target

source, press the corresponding source selecting button before

operation; otherwise, the remote control may not work as you

intend.

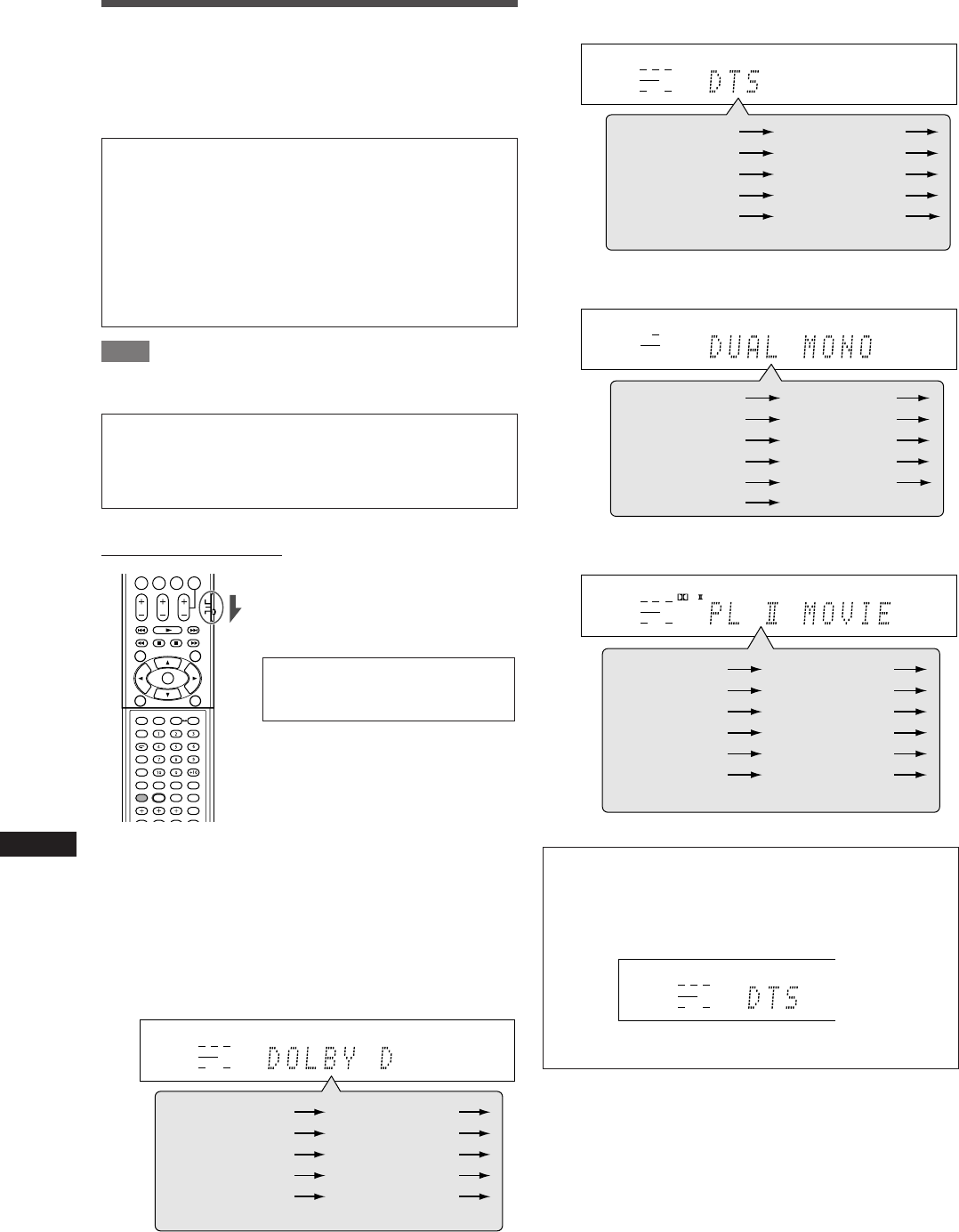

The following digital signal format indicators on the display

indicate what type of signal comes into the receiver.

LPCM: Lights up when Linear PCM signal comes in.

DOLBY D: •Lights up when Dolby Digital signal comes in.

•Flashes when “DGTL D.D.” is selected for any

software other than Dolby Digital.

DTS: •Lights up when conventional DTS signal comes

in.

•Flashes when “DGTL DTS” is selected for any

software other than DTS.

DTS 96/24: Lights up when DTS 96/24 signal comes in.

NOTE

When “DGTL AUTO” cannot recognize the incoming signal, no

digital signal format indicator lights up on the display.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

DGTL AUTO DGTL D.D.

DGTL DTS

(Back to the beginning)

EN10-13RXE11S_12B[B]f.p65 08/12/2004, 15:0011

12

Basic operations

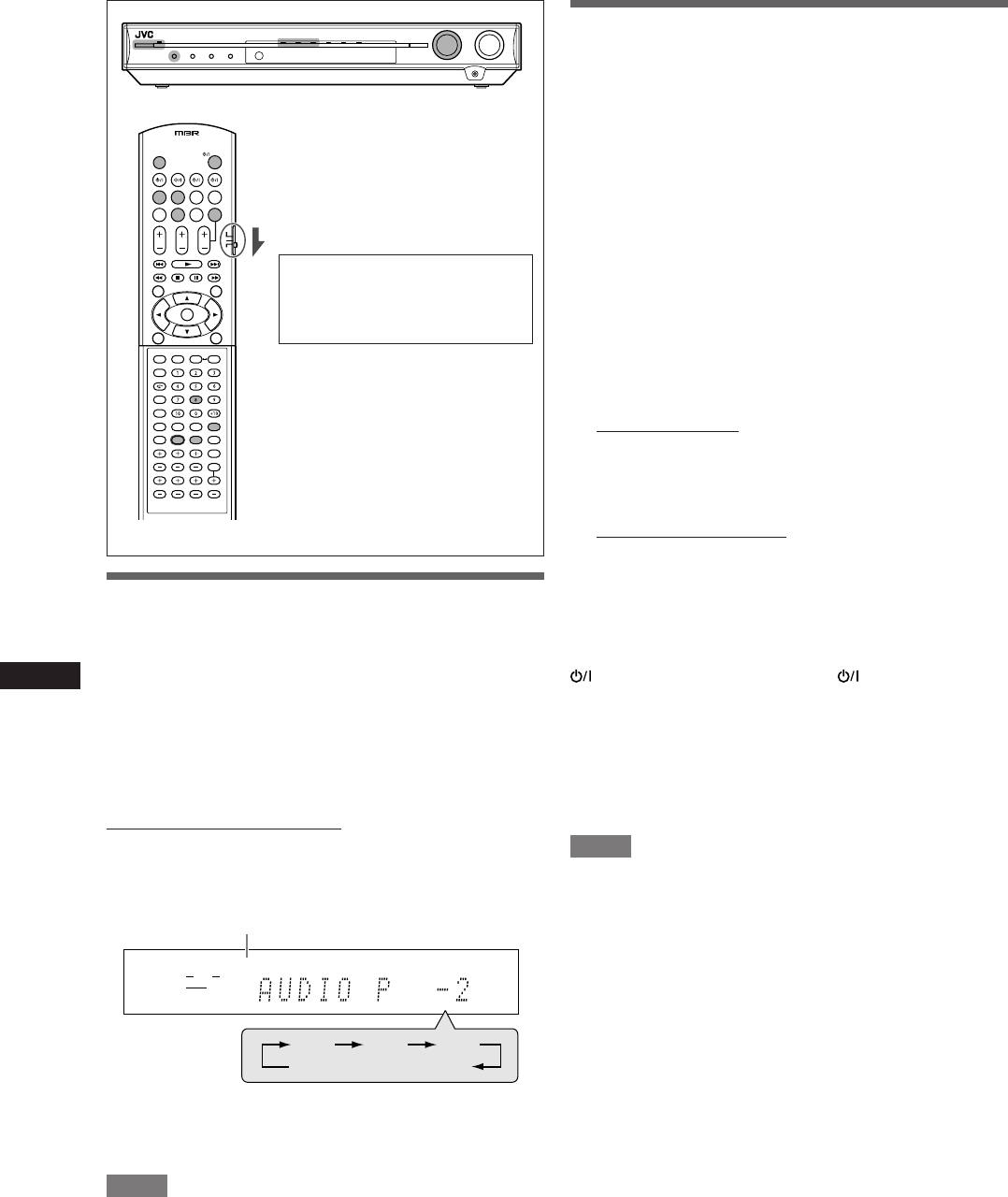

Adjusting the subwoofer audio

position

If the subwoofer sound is reinforced for stereo sound compared to

the sound reproduced with multi-channel, set the subwoofer audio

position. The subwoofer output level is automatically decreased by

the selected value when you are listening in stereo.

The AUDIO P. indicator lights up when this function is activated.

•Once you have made an adjustment, it is memorized for each

source.

From the remote control ONLY:

Press SOUND, then press A.POSITION repeatedly.

•Each time you press A.POSITION, the subwoofer audio position

level changes as follows:

AUDIO P. indicator

The smaller the number becomes, the more the level decreases

automatically when listening in stereo.

•If no adjustment is required, select “OFF” (initial setting).

NOTES

•The maximum subwoofer output level is –10 dB.

Ex.: When setting the subwoofer output level to “–8 (dB)” and

the subwoofer audio position to “–4 (dB),” the subwoofer

output level when listening in stereo will be –10 dB.

To adjust the subwoofer output level, see page 21.

•This function is not available when the Surround/DSP mode is

activated.

•After pressing SOUND, the numeric buttons work for sound

adjustments. To use the numeric buttons to operate your target

source, press the corresponding source selecting button before

operation; otherwise, the remote control may not work as you

intend.

Activating TV Direct

TV Direct enables you to use this receiver as an AV selector

while the receiver is turned off.

When TV Direct is activated, the pictures and sounds go from the

video components such as DVD player to the TV through this

receiver. Thus, you can use the video components and the TV as

if they were connected directly.

•This function takes effect for the following sources—DVR/DVD,

VCR, and VIDEO.

To activate (or deactivate) TV Direct, follow the procedure below:

1

Press TV DIRECT.

All the indications disappear, then the source lamp of the

current source lights in green.

2

Turn on the video component and TV.

3

Select the target video component.

On the front panel:

Turn SOURCE SELECTOR until one of the

source lamps—DVR/DVD, VCR, or VIDEO—

lights in green.

From the remote control:

Press one of the source selecting buttons—

DVR/DVD, VCR, or VIDEO.

The source lamp corresponding to the selected source lights

in green.

To cancel TV Direct and turn off the receiver, press

STANDBY/ON on the front panel (or AUDIO on the remote

control).

The receiver is turned off and the standby lamp lights up.

To cancel TV Direct and turn on the receiver, press TV DIRECT

again.

The receiver is turned on and the source lamp currently selected

lights in red.

NOTES

•When TV Direct is activated, you cannot enjoy any of the sound

effects the receiver produces, and cannot use the speakers

connected to the receiver.

•You can use the T-V LINK function between the TV and VCR

while TV Direct is activated. (For T-V LINK functions, refer to the

manuals supplied with the TV and the VCR.)

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

–2 –4 –6

OFF (canceled)

When operating the receiver

using the remote control, set

the mode selector to

“AUDIO/TV/VCR/STB.”

EN10-13RXE11S_12B[B]f.p65 08/12/2004, 15:0012

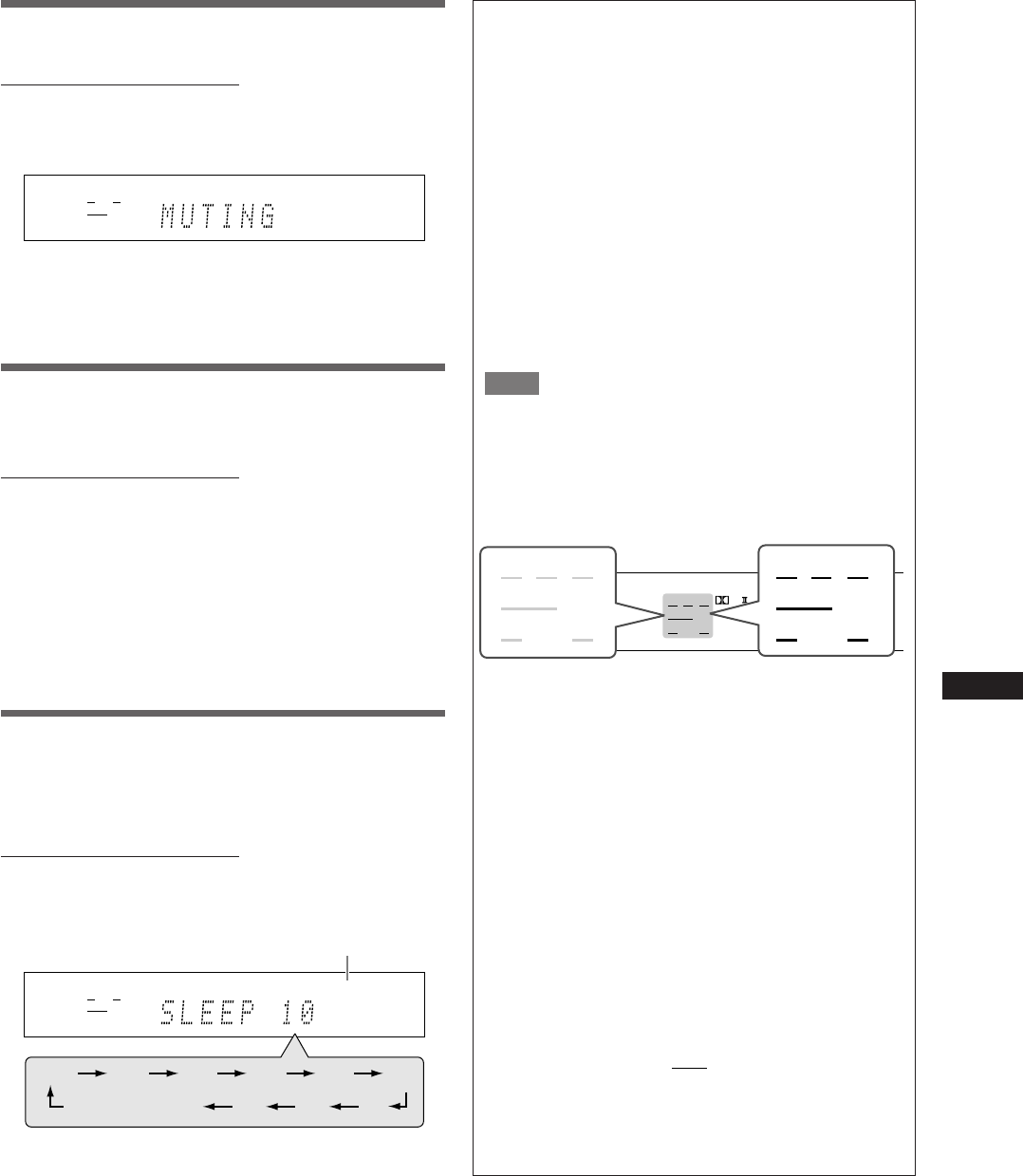

13

Basic operations

Basic adjustment of auto memory

This receiver memorizes sound settings for each source:

•when you turn off the power,

•when you change the source, and

•when you change the analogue/digital input mode (see page

10).

When you change the source, the memorized settings for the

newly selected source are automatically recalled.

The following can be stored for each source:

•Analogue/digital input mode (see page 10)

•Speaker output level (see page 21)

•Subwoofer audio position (see page 12)

•Subwoofer phase (see page 22)

•Digital equalization pattern (see page 22)

•Bass boost (see page 22)

•Input attenuator mode (see page 22)

•Surround/DSP mode selection (see pages 32 and 33)

NOTE

If the source is FM or AM (MW), you can assign a different

setting for each band.

Signal and speaker indicators on the display

Signal indicators Speaker indicators

The signal indicators light up as follows:

L: •When digital input is selected: Lights up when the

left channel signal comes in.

•When analogue input is selected: Always lights up.

R: •When digital input is selected: Lights up when the

right channel signal comes in.

•When analogue input is selected: Always lights up.

C: Lights up when the center channel signal comes in.

LS*: Lights up when the left surround channel signal comes

in.

RS*: Lights up when the right surround channel signal comes

in.

SB: Lights up when the surround back channel signal

comes in.

LFE: Lights up when the LFE channel signal comes in.

* When monaural surround signal comes in, only “S” lights up.

The speaker indicators light up as follows:

•The subwoofer indicator (

S . WFR

) lights up when

“SUBWOOFER” is set to “SUBWFR :YES.” For details, see

page 16.

•The other speaker indicators light up only when the

corresponding speaker is set to “SML (small)” or “LRG

(large),” and also when required for the current playback.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS

L

LS SB RS

S . WFR LFE

CRL

LS SB RS

S . WFR LFE

CR

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

10 20 30 40 50 60

90OFF (canceled) 80 70

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

Turning off the sounds temporarily

From the remote control ONLY:

Press MUTING to turn off the sound through all

connected speakers and headphones connected.

“MUTING” appears on the display and the volume turns off.

To restore the sound, press MUTING again.

•Pressing VOLUME +/– (or turning MASTER VOLUME control

on the front panel) also restores the sound.

Changing the display brightness

You can dim the display—Dimmer.

From the remote control ONLY:

Press DIMMER repeatedly.

•Each time you press the button, the display brightness changes

as follows:

DIMMER 1: Dims the display slightly.

DIMMER 2: Dims the display more than DIMMER 1.

DIMMER 3: Turns off the display. (Temporarily canceled

when you operate the receiver.*)

DIMMER OFF: Cancels the Dimmer (normal display).

* Except when activating or deactivating TV Direct.

Turning off the power with the Sleep

Timer

You can fall asleep while listening to music—Sleep Timer.

From the remote control ONLY:

Press SLEEP repeatedly.

•Each time you press the button, the shut-off time changes in 10

minute intervals. The SLEEP indicator lights up on the display.

SLEEP indicator

When the shut-off time comes:

The receiver turns off automatically.

To check or change the remaining time until the shut-off

time:

Press SLEEP once.

The remaining time (in minutes) until the shut-off time appears.

•To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer:

Press SLEEP repeatedly so that “SLEEP OFF” appears on the

display. (The SLEEP indicator goes off.)

•The Sleep Timer is also canceled when:

–You turn off the receiver, or

–TV Direct is activated.

EN10-13RXE11S_12B[B]f.p65 08/12/2004, 15:0013

14

Basic settings

To obtain the best possible sound effect from Surround/DSP

modes (see pages 29 to 33), you need to set up the speaker and

subwoofer information after all the connections are completed.

From pages 14 to 19, how to set speakers and other basic items

of the receiver are explained.

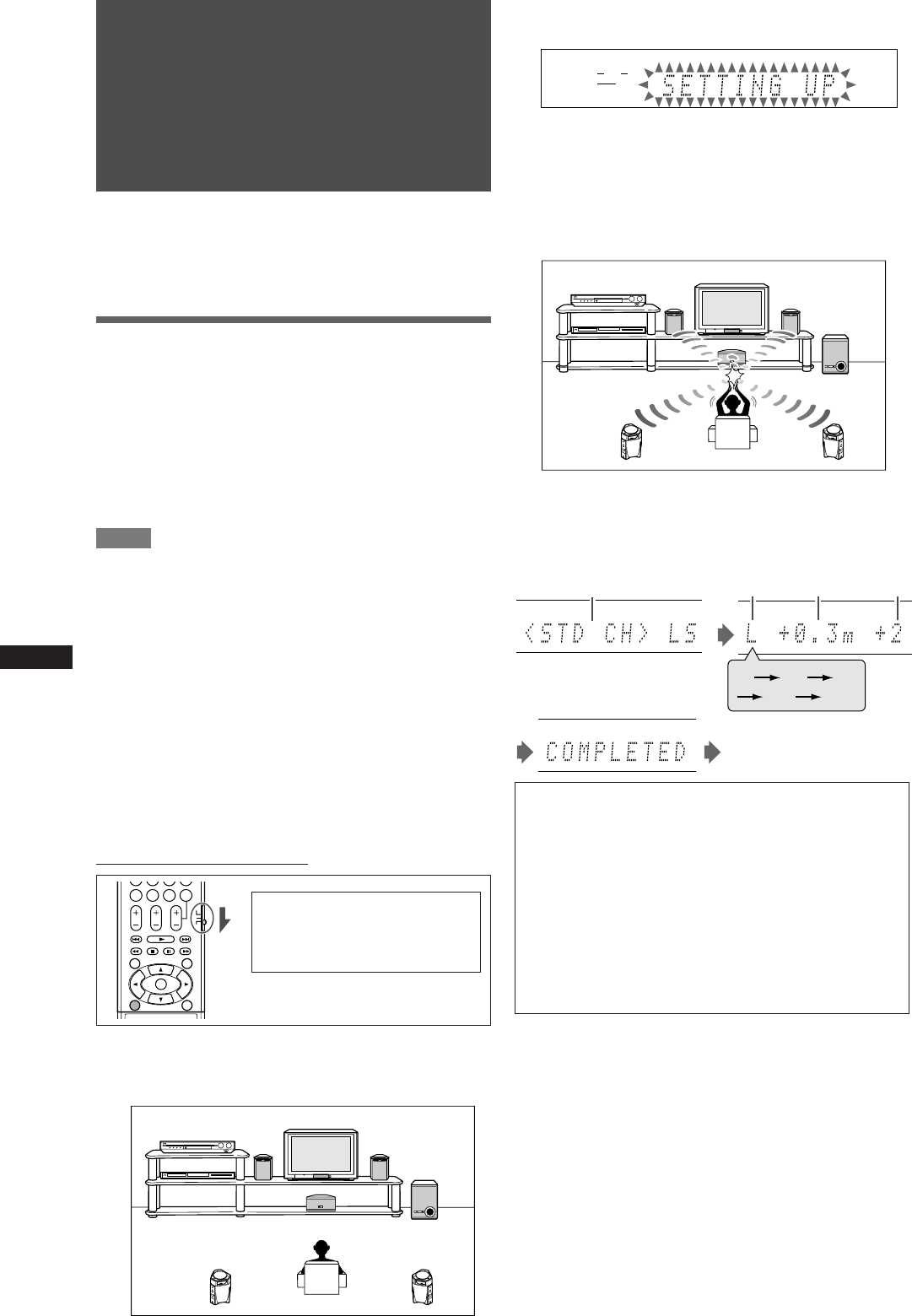

Setting the speaker information

automatically—Smart Surround Setup

The distance from your listening point to the speakers is one of

the important elements to obtain the best possible sound effect for

the Surround/DSP modes.

By using Smart Surround Setup, the following are automatically

calculated by one simple action—clapping hands.

•Speaker distance (compared to that of the closest speaker)

•Speaker output level

NOTES

•To set the speaker information effectively using Smart Surround

Setup, unplug the power cords of all the components connected

to this receiver and the subwoofer which may cause noise.

•Before starting Smart Surround Setup, set the speaker

information correctly (SML, LRG, or NO) according to your

speakers except the subwoofer (see page 16).

•When the setting is made by Smart Surround Setup, the

speaker distance and output level you have set before will be

inactive.

•If you have turned off the display, cancel the Dimmer (see page

13); otherwise, you cannot see the information on the display

during Smart Surround Setup.

•Smart Surround Setup will not be done correctly if you or other

object blocks the sound.

•When you change your speakers, do the following procedure

again.

2

Press and hold SMART SURROUND SETUP

until “SETTING UP” flashes on the display.

3

Confirm that “SETTING UP” stops flashing,

then clap your hands over your head once

while “SETTING UP” still remains on the

display.

The receiver starts detecting the level of the sound coming

through each speakers (except the subwoofer).

When your clapping sound is detected successfully,

“SUCCESSFUL” appears on the display, then the values set are

shown as follows:

Ex.:

Then the receiver returns to

normal operation mode.

*1 Standard channel (the closest speaker).

This speaker position now works as the reference

position (“0m/ft”) and other speakers’ distance is

shown by the difference with this reference speaker

position.

*2 L: Left front speaker

R: Right front speaker

C: Center speaker

LS: Left surround speaker

RS: Right surround speaker

*3 Difference of each speaker position in distance (in

meters or feet).

*4 Each speaker’s output level (–6 to +6).

When your clapping sound is not detected correctly,

“SETTING UP” appears again after one of the following messages

appears on the display.

SILENT: •The receiver detects sound from only the left

and right front speakers.

•The receiver detects no sound from the front

speakers and detects sound from at least one of

other speakers.

SILENT-ALL: The receiver cannot detect any sound from any

speakers for about 15 seconds.

FAILED: The receiver cannot detect sound from the left or

right front speaker.

In this case, repeat step

3

.

From the remote control ONLY:

1

Take your position where you listen to the

sound.

•Make sure speaker cables are connected firmly.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

Basic settings

*3*2

*1 *4

LR

LS RS

C

When operating the receiver

using the remote control, set

the mode selector to

“AUDIO/TV/VCR/STB.”

EN14-19RXE11S_12B[B]f.p65 08/12/2004, 15:0014

15

Basic settings

In the following cases, set the speakers manually.

•When the receiver detects the sound as “SILENT” twice in

succession.

The setting is made. (The distance of the speakers from which

sound has not been detected is set to “+9.0m (+30ft).”)

The receiver exits from Smart Surround Setup.

•When the receiver fails to detect the sound three times.

“MANUAL” appears on the display. The receiver exits from

Smart Surround Setup.

To cancel Smart Surround Setup, press SMART SURROUND

SETUP while “SETTING UP” flashes on the display.

•No other operations can be done after “SETTING UP” stops

flashing. Complete the Smart Surround Setup.

To check the setting made by Smart Surround Setup, press

SMART SURROUND SETUP while the receiver is in normal

operation mode.

The setting values appear one after another (see page 14).

•If you have changed speaker distance and/or output level

manually after using Smart Surround Setup, “MANUAL”

appears.

•If you have not used Smart Surround Setup, “NO S.S.S.”

appears.

NOTES

•The speaker distance and output level manually set will be

applied instead of those set by using Smart Surround Setup in

the following cases:

–When you change one of the speaker distance (see page 17).

–When you change one of the speaker output level (see page

21).

–When you change one of the speaker size either from “NO” to

“SML” or “LRG,” or from “SML” or ”LRG” to “NO” (see page 16).

•When you want to adjust the speaker distance and output level

manually, see pages 17 and 21.

•Do not clap your hands so hard that it may hurt your hands.

Basic setting items

You can adjust the following items. See pages in parentheses for

details.

•You cannot select the items which is not available with the

current setting.

Items To do

SUBWOOFER Register your subwoofer. (16)

FRONT SPK Register your front speaker size. (16)

CENTER SPK Register your center speaker size. (16)

SURRND SPK Register your surround speaker size. (16)

DIST UNIT Select the measuring unit for the speaker

distance. (17)

FRNT L DIST* Register the distance from the left front

speaker to your listening point. (17)

FRNT R DIST* Register the distance from the right front

speaker to your listening point. (17)

CENTER DIST* Register the distance from the center speaker

to your listening point. (17)

SURR L DIST* Register the distance from the left surround

speaker to your listening point. (17)

SURR R DIST* Register the distance from the right surround

speaker to your listening point. (17)

SUBWFR OUT Select sounds emitted from the subwoofer.

(17)

VIRTUAL SB Set the virtual surround back speaker. (18)

DUAL MONO Select the Dual Mono sound channel. (18)

CROSS OVER Select the cutoff frequency to the subwoofer.

(17)

LFE ATT Attenuate the bass (LFE) sounds. (17)

MIDNIGHT M. Reproduce a powerful sound at night. (18)

DIGITAL IN1 Select the component connected to the digital

coaxial terminal. (19)

DIGITAL IN2 Select the component connected to the digital

optical terminal. (19)

AUTO SURRND Select Auto Surround mode. (19)

AUTO MODE Select Auto Function mode. (19)

* If you have used Smart Surround Setup on page 14, these

settings are not required.

CONTINUED ON THE NEXT PAGE

EN14-19RXE11S_12B[B]f.p65 08/12/2004, 15:0015

16

Basic settings

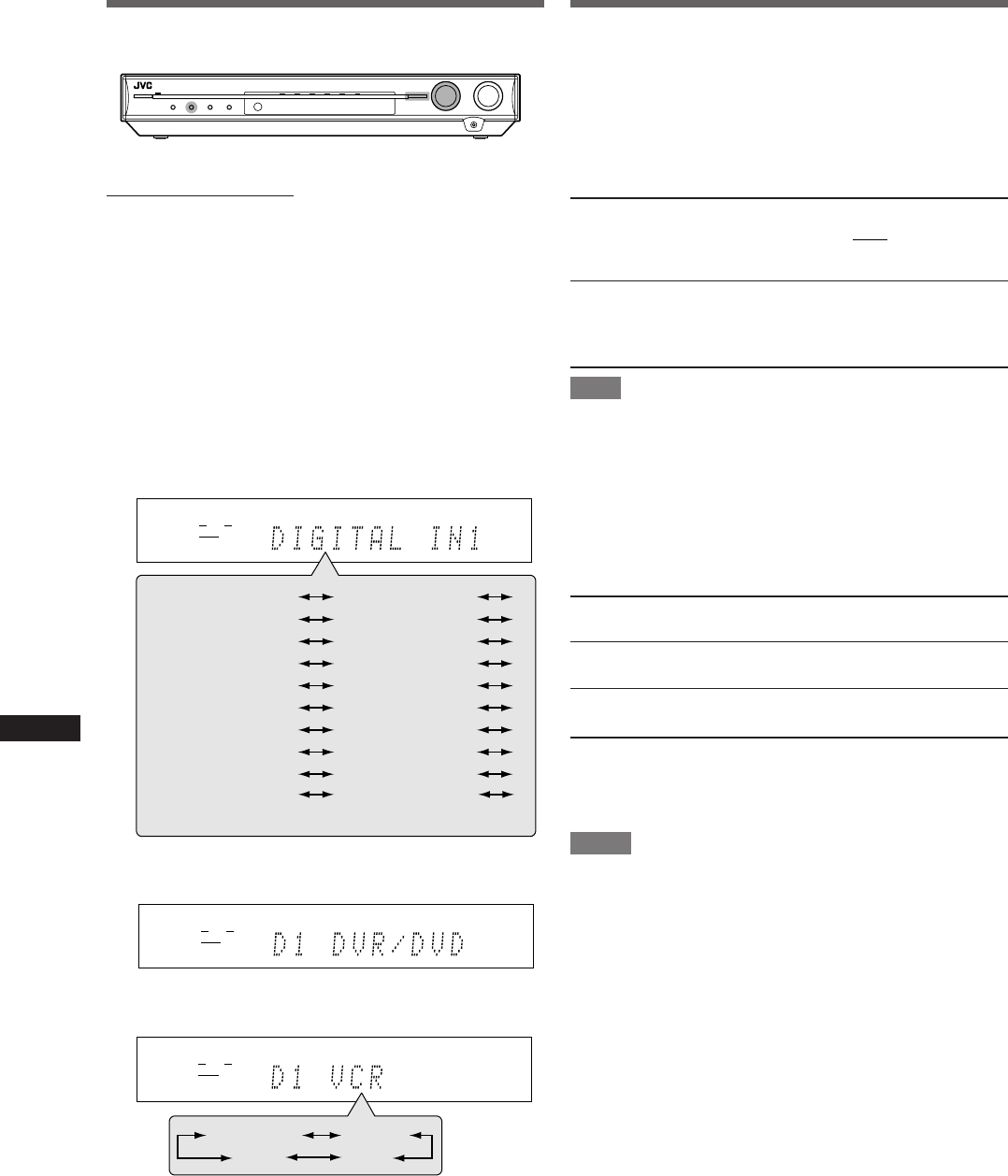

Operating procedure

On the front panel ONLY:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

1

again.

Ex.: When setting DIGITAL IN 1 terminal.

1

Press SETTING.

MULTI JOG now works for the setting operation.

2

Turn MULTI JOG until the item you want to set

appears on the display.

•As you turn MULTI JOG, the setting items change as

follows:

3

Press SET.

The current setting of the selected item appears.

4

Turn MULTI JOG to select the appropriate

setting.

Your setting is stored.

5

Press SET.

6

Repeat steps

2

to

5

to set other items if

necessary.

Setting the speakers

Setting subwoofer information—SUBWOOFER

Each time the receiver turns on, the receiver detects the

subwoofer connection and automatically changes the setting of

the subwoofer.

When you want to change the setting manually, select either one

below.

SUBWFR : YES Select when you have connected a subwoofer.

The subwoofer indicator (

S . WFR

) lights up on the

display. You can adjust the subwoofer output level

(see page 21).

SUBWFR : NO Select when you have disconnected a

subwoofer.

Selecting this changes the front speaker size to

“LRG” (see below).

NOTE

You need to change the setting each time you turn on the receiver

if you want to change the subwoofer information set automatically.

Setting the speaker size—FRONT SPK (front

speakers), CENTER SPK (center speaker), SURRND

SPK (surround speakers)

Register the sizes of all the connected speakers.

LRG (large) Select when the cone speaker size is larger than

12 cm.

SML (small) Select when the cone speaker size is smaller than

12 cm.

NO Select when you have disconnected a speaker.

(Not selectable for the front speakers.)

Initial setting: SML for all speakers*

* When “SUBWOOFER” is set to “SUBWFR : NO,” the front

speaker size is fixed to “LRG” (and you cannot select “SML”).

NOTES

•If you have selected “SML (small)” for the front speaker size,

you cannot select “LRG (large)” for the center and surround

speaker sizes.

•If you change the center and/or surround speaker size either

from “NO” to “SML” or “LRG,” or from “SML” or “LRG” to “NO,” the

distance and output levels set by Smart Surround Setup will be

ineffective.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

CENTER SPK SURRND SPK

FRNT R DIST CENTER DIST

(Back to the beginning)

SUBWOOFER FRONT SPK

DIST UNIT FRNT L DIST

SURR L DIST SURR R DIST

DUAL MONO CROSS OVER

SUBWFR OUT VIRTUAL SB

LFE ATT MIDNIGHT M.

AUTO SURRND AUTO MODE

DIGITAL IN1 DIGITAL IN2

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

DVR/DVD VIDEO

VCR

TV

EN14-19RXE11S_12B[B]f.p65 08/12/2004, 15:0016

17

Basic settings

Setting the speaker distance

The distance from your listening point to the speakers is one of

the important elements to obtain the best possible sound effect

from the Surround/DSP modes.

By referring to the speaker distance, the receiver automatically

sets the delay time of the sound through each speaker so that

sounds through all the speakers can reach you at the same time.

•If you have used Smart Surround Setup on page 14, this setting

is not required.

7Measuring unit—DIST UNIT

Select which measuring unit you use.

UNIT :meter Select to set the distance in meters.

UNIT : feet Select to set the distance in feet.

Initial setting: UNIT :meter

7Speaker distance—

FRNT L DIST (for the left front speaker),

FRNT R DIST (for the right front speaker),

CENTER DIST (for the center speaker),

SURR L DIST (for the left surround speaker),

SURR R DIST (for the right surround speaker)

Adjustable range: 0.3 m to 9.0 m in 0.3 m intervals

(1 ft to 30 ft in 1 ft intervals)

Initial setting: 3.0 m (10 ft) for all speakers

In this case, set the distance as follows:

Left front speaker (L): “FL D : 3.0m (10ft)”

Right front speaker (R): “FR D : 3.0m (10ft)”

Center speaker (C): “C D : 3.0m (10ft)”

Left surround speaker (LS): “LS D : 2.7m (9ft)”

Right surround speaker (RS): “RS D : 2.7m (9ft)”

NOTES

•You cannot set the speaker distance for the speakers you have

set to “NO.”

•If you change speaker distance, the distance and output level

set manually will be applied instead of those set by Smart

Surround Setup.

Setting bass sound

Setting subwoofer output—SUBWFR OUT

You can select the type of the signal which can be transmitted

through the subwoofer. In other words, you can determine

whether or not the bass elements of the front speaker channels

are transmitted through the subwoofer regardless of the front

speaker size setting (either “SML” or “LRG”).

SW: LFE Select to emit only the LFE signals (while

playing Dolby Digital and DTS software) or

the bass elements of the “SML (small)” front

speakers (while playing any source other than

above).

SW:LFE+MAIN Select to always emit the bass elements of

the front speaker channels (MAIN). While

playing Dolby Digital and DTS software, the

bass elements and the LFE signals are both

emitted.

Initial setting: SW: LFE

NOTE

When “SUBWOOFER” is set to “SUBWFR : NO” (see page 16),

this function is not available.

Setting the crossover frequency—CROSS OVER

Small speakers cannot reproduce the bass sounds efficiently. If

you use a small speaker in any position, this receiver

automatically reallocates the bass sound elements assigned to

the small speaker to the large speakers.

To use this function properly, set this crossover frequency level

according to the size of the small speaker connected.

•If you have selected “LRG (large)” for all speakers (see page

16), this function will not take effect (“CROSS: OFF” appears).

CROSS: 80Hz Select when the cone speaker unit built in the

speaker is about 12 cm.

CROSS:100Hz Select when the cone speaker unit built in the

speaker is about 10 cm.

CROSS:120Hz Select when the cone speaker unit built in the

speaker is about 8 cm.

CROSS:150Hz Select when the cone speaker unit built in the

speaker is about 6 cm.

CROSS:200Hz Select when the cone speaker unit built in the

speaker is less than 5 cm.

Initial setting: CROSS:150Hz

NOTE

Crossover frequency is not valid for the HEADPHONE and 3D

HEADPHONE modes.

Setting the low frequency effect attenuator—LFE

ATT

If the bass sound is distorted while playing back software

encoded with Dolby Digital or DTS, set the LFE level to eliminate

distortion.

•This function takes effect only when the LFE signals come in.

LFE : 0dB Normally select this.

LFE : –10dB Select when the bass sound is distorted.

Initial setting: LFE : 0dB

C

LR

LS RS

2.1 m

(7 ft)

2.4 m

(8 ft)

2.7 m

(9 ft)

3.0 m

(10 ft)

3.3 m

(11 ft)

EN14-19RXE11S_12B[B]f.p65 08/12/2004, 15:0017

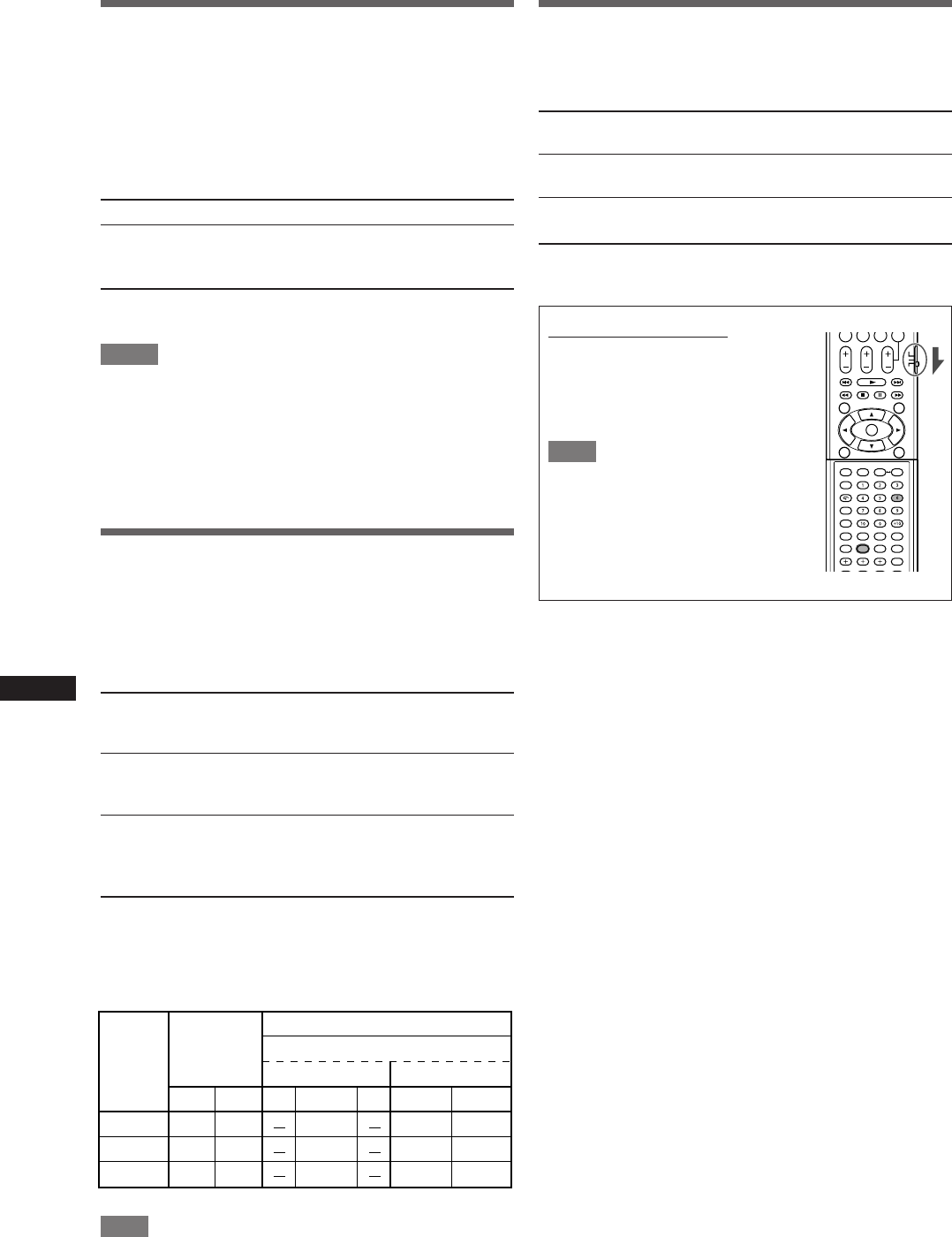

18

Basic settings

Setting the virtual surround back

speaker—VIRTUAL SB

You can enjoy the surround back channel while playing back

Dolby Digital Surround EX software or DTS-ES software without

the surround back speaker—Virtual Surround Back. This function

creates the great surround effect from the behind as if you have

connected the surround back speaker.

Select “V SB : ON” when activating the Virtual Surround Back.

V SB : OFF Select to deactivate the Virtual Surround Back.

V SB : ON While you play Dolby Digital Surround EX

software or DTS-ES software, the VIRTUAL SB

(Surround Back) indicator lights up.

Initial setting: V SB : OFF

NOTES

•When “SURRND SPK” is set to “NO” (see page 16), this

function is not available.

•While playing back DTS-ES Matrix software with DTS 96/24,

DTS 96/24 processing will not be performed with the Virtual

Surround Back activated. To apply the processing, deactivate

the Virtual Surround Back.

•Virtual Surround Back may not be applied to some software.

Selecting the main or sub channel

—DUAL MONO

You can select the playback sound (channel) you want while

playing digital software recorded (or broadcast) in Dual Mono

mode (see page 30), which includes two monaural channels

separately.

D MONO: SUB Select to play back the sub-channel (Ch 2).*

Signal indicator “R” lights up while playing

back this channel.

D MONO:MAIN Select to play back the main channel (Ch 1).*

Signal indicator “L” lights up while playing

back this channel.

D MONO: ALL Select to play back both the main and sub-

channels (Ch 1/Ch 2).*

Signal indicators “L” and “R” light up while

playing back these channels.

Initial setting: D MONO:MAIN

* Dual Mono signals can be heard from the following speakers—L

(left front speaker), R (right front speaker), and C (center

speaker), with respect to the current Surround setting:

NOTE

The Dual Mono format is not identical with bilingual broadcasting

for TV programs. So this setting does not take effect while

watching such bilingual programs.

Dual Mono

setting

Ch 2

Ch 1

Ch 2

Ch 2

Ch 2 Ch 2

MAIN Ch 1 Ch 1 Ch 1 Ch 1 Ch 1

Ch 2

Ch 1+Ch 2Ch 1+Ch 2Ch 1+Ch 2

LRL RCLR

SUB

ALL

Without

Surround

With Surround Activated

Center speaker setting

SML/LRG NO

Using the Midnight mode

—MIDNIGHT M.

You can enjoy a powerful sound at night using the Midnight mode.

NIGHT :OFF Select when you want to enjoy surround with its

full dynamic range. (No effect applied.)

NIGHT : 1 Select when you want to reduce the dynamic

range a little.

NIGHT : 2 Select when you want to apply the compression

effect fully (useful at night).

Initial setting: NIGHT :OFF

From the remote control:

Press SOUND, then press MIDNIGHT

repeatedly to select either one of

above.

NOTE

After pressing SOUND, the numeric

buttons work for sound adjustments. To

use the numeric buttons to operate your

target source, press the corresponding

source selecting button before operation;

otherwise, the remote control may not

work as you intend.

EN14-19RXE11S_12B[B]f.p65 08/12/2004, 15:0018

19

Basic settings

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

VIDEO* VCR* TV*

(Back to the beginning)

DVR/DVD*

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

DVR/DVD VIDEO VCR

(Back to the beginning)

TV

Setting the digital input (DIGITAL IN)

terminals—DIGITAL IN1/2

When you use the digital input terminals, register what

components are connected to which terminals—DIGITAL IN1/2

(see page 9) so that the correct source name will appear when

you select the digital source.

For DIGITAL IN 1(DVR/DVD) terminal:

For DIGITAL IN 2(VIDEO) terminal:

* The one selected for “DIGITAL IN1” will be skipped.

DVR/DVD For DVD player (or DVD recorder).

VIDEO For the component connected to the VIDEO IN jack

on the rear of the receiver.

VCR For VCR.

TV For TV.

Initial setting: DVR/DVD (for “DIGITAL IN1”)

VIDEO (for “DIGITAL IN2”)

Setting Auto Surround—AUTO SURRND

You can enjoy the Surround mode simply by selecting the source

(with digital input selected for that source).

•Auto Surround also works when the input mode changes from

analogue to digital.

•For details about the Surround/DSP modes, see pages 29 to 31.

Select “AUTO SR: ON” when activating Auto Surround.

AUTO SR: ON

The AUTO SR indicator lights up on the display.

•If a multi-channel signal comes in, an appropriate

Surround mode will be turned on.

•If a Dolby Digital 2-channel or DTS 2-channel signal

with surround signal comes in, “PLII MOVIE” will be

selected.

•If a Dolby Digital 2-channel or DTS 2-channel signal

without surround signal comes in, “SURRND OFF

(stereo)” will be selected.

•If a Linear PCM signal comes in, nothing will

change.

AUTO SR:OFF

Select to deactivate Auto Surround.

Initial setting: AUTO SR:OFF

NOTES

•This function does not take effect in the following cases:

–While playing an analogue source,

–While selecting any of DSP modes (see page 31), or one of

the fixed digital decode mode—“DGTL D.D.” or “DGTL DTS”

(see page 11), and

–While listening with the headphones.

•If you press SURROUND with Auto Surround activated, Auto

Surround will be canceled temporarily for the currently selected

source.

Auto Surround setting will be restored in the following cases:

–When you turn the receiver off and on,

–When you change the source,

–When you change the analogue/digital input, and

–When you select “AUTO SR: ON” again.

Setting the Auto Function mode

—AUTO MODE

The source will be selected automatically simply by turning on a

video component.

•This function takes effect for the video components connected

to the receiver using the SCART cable—DVR/DVD and VCR.

Auto Function mode works as follows:

•When a video component is turned on, the receiver selects the

video component as the source (and the TV input is changed

automatically).

•When a video component currently selected as the source is

turned off, the receiver changes the source to the video source

previously selected—DVR/DVD, VCR, or VIDEO.

MODE: AUTO1 Auto Function mode works when the receiver

is turned on or when TV Direct is activated.

MODE: AUTO2 Auto Function mode works when the receiver

is turned on or off, or when TV Direct is

activated. (When a video component is turned

on while the receiver is off, TV Direct is

activated and the receiver selects the video

component as the source.)

MODE:MANUAL You need to select the source manually.

Initial setting: MODE:MANUAL

When “MODE: AUTO1” or “MODE: AUTO2” is selected, the AUTO

MODE indicator lights up on the display.

NOTES

•When selecting VCR as the source, “MODE: AUTO1” or “MODE:

AUTO2” may not work if you only turn on the VCR. If this

happens, you may need to start playback to activate Auto

Function mode.

•When Auto Function mode is set to “MODE: AUTO2,” the TV

Direct may be activated after recovery from a power failure.

EN14-19RXE11S_12B[B]f.p65 08/12/2004, 15:0019

20

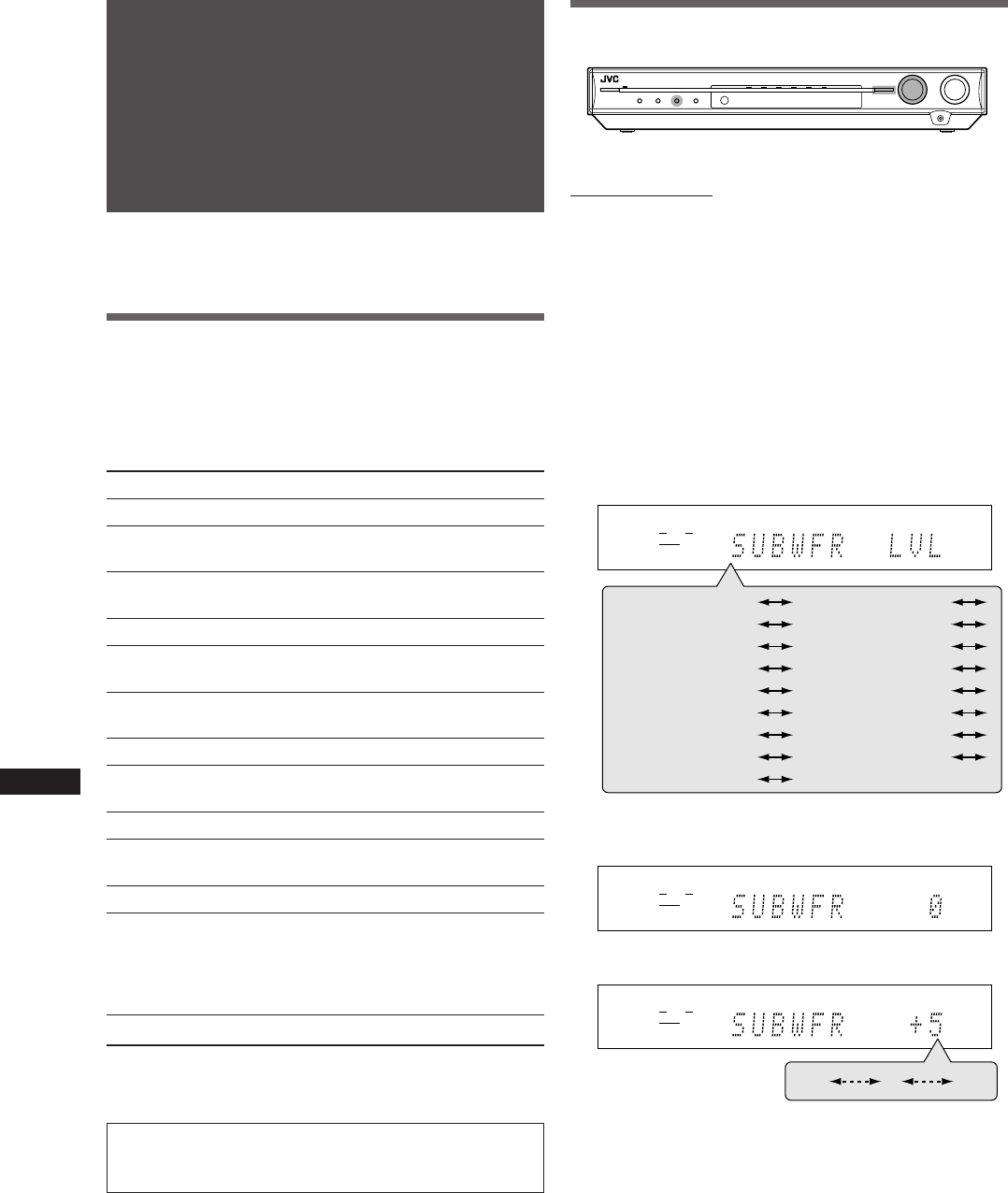

Sound adjustments

Sound adjustments

You can make sound adjustment to your preference after

completing basic setting.

Basic adjustment items

You can adjust the following items. See pages in parentheses for

details.

•You cannot select the items which is not available with the

current setting.

Items To do

SUBWFR LVL Adjust the subwoofer output level. (21)

FRONT L LVL* Adjust the left front speaker output level.

(21)

FRONT R LVL* Adjust the right front speaker output level.

(21)

CENTER LVL* Adjust the center speaker output level. (21)

SURR L LVL* Adjust the left surround speaker output level.

(21)

SURR R LVL* Adjust the right surround speaker output

level. (21)

EFFECT Adjust the effect level. (21)

PANORAMA Add “wraparound” sound effect with side-

wall image. (21)

BASS BOOST Boost the bass level. (22)

INPUT ATT Attenuate the input level of analogue source.

(22)

CENTER TONE Make the center tone soft or sharp. (21)

D EQ 63Hz Adjust the equalization pattern of each

D EQ 250Hz band. (22)

D EQ 1kHz

D EQ 4kHz

D EQ 16kHz

SBWFR PHASE Select the subwoofer sound phase. (22)

* If you have used Smart Surround Setup on page 14, these

settings are not required.

You can also use the remote control for sound adjustment

except for “PANORAMA,” “INPUT ATT,” and “SBWFR PHASE.”

Operating procedure

On the front panel:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

1

again.

Ex.: When adjusting subwoofer output level.

1

Press ADJUST.

MULTI JOG now works for the sound adjustment.

2

Turn MULTI JOG until the item you want to

adjust appears on the display.

•As you turn MULTI JOG, the adjustment items change as

follows:

3

Press SET.

The current setting for the selected item appears.

4

Turn MULTI JOG to adjust the selected item.

Your adjustment is stored.

5

Press SET.

6

Repeat steps

2

to

5

to adjust other items if

necessary.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

SUBWFR LVL FRONT L LVL

SURR L LVL SURR R LVL

(Back to the beginning)

FRONT R LVL CENTER LVL

EFFECT PANORAMA

CENTER TONE D EQ 63Hz

BASS BOOST INPUT ATT

D EQ 250Hz D EQ 1kHz

SBWFR PHASE

D EQ 4kHz D EQ 16kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

–10 0 +10

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EN20-22RXE11S_12B[B]f.p65 08/12/2004, 15:0020

21

Sound adjustments

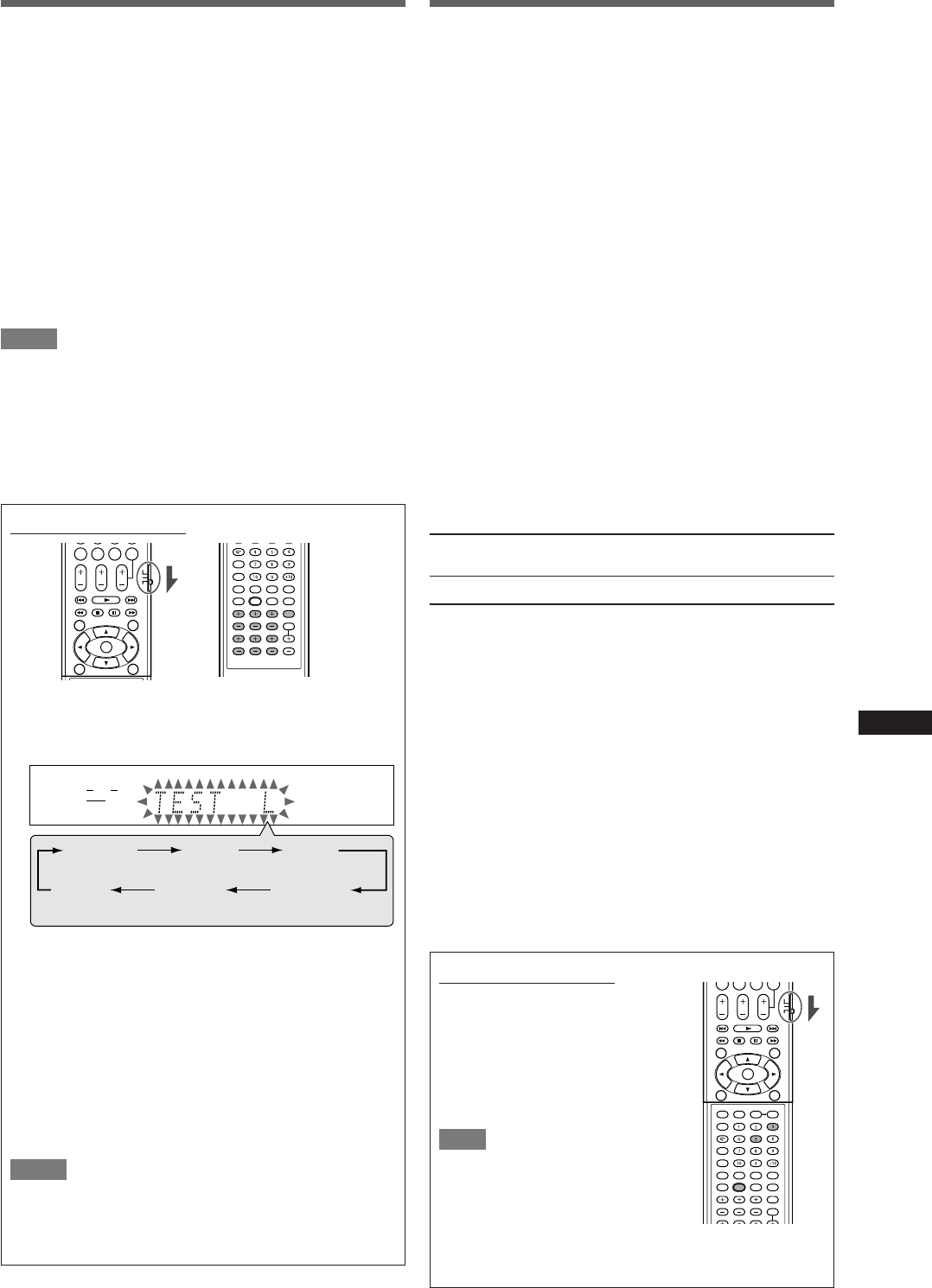

Adjusting speaker output level

•SUBWFR LVL (subwoofer output level),

•FRONT L LVL (left front speaker output level),

•FRONT R LVL (right front speaker output level),

•CENTER LVL (center speaker output level),

•SURR L LVL (left surround speaker output level),

•SURR R LVL (right surround speaker output level)

You can adjust the speaker output levels.

Adjust all the speakers’ output levels so that you can listen sounds

from all speakers at the same level.

•Once you have made an adjustment, it is memorized for each

source.

Adjustable range: –10 (dB) to +10 (dB) (in 1 step intervals)

Initial setting: 0 (dB) for all speakers

NOTES

•If you have selected “NO” for a speaker (see page 16), the

output level for the corresponding speaker is not adjustable.

•While using headphones, you can adjust only the left and right

front speakers’ output level.

•If you change one of these settings (except the subwoofer

output level) manually, the distance and output levels set by

Smart Surround Setup will be cleared and those manually set

will be effective.

Adjusting the sound parameters for

the Surround/DSP modes

You can adjust the Surround/DSP sound parameters to your

preference.

•For details about the Surround/DSP modes, see pages 29 to 33.

Adjusting the effect level for DSP modes—EFFECT

This setting is available only when one of the DSP modes (except

ALL CH ST.) is in use. To activate DSP mode, see pages 32 and

33.

•Once you have made an adjustment, it is memorized for each

DSP mode.

Adjustable range: 1 to 5 (in 1 step intervals)

Initial setting: EFFECT 3

As the number increases, the effect becomes stronger.

Normally, select “3.”

Adjusting the panorama control for Pro Logic II

Music—PANORAMA

This setting is available only when Pro Logic II Music is in use. To

activate Pro Logic II Music, see pages 32 and 33.

•Once you have made an adjustment, it is memorized until you

change the setting.

•You cannot use the remote control for this setting.

PANORAMA ON Select to add “wraparound” sound effect with

side-wall image.

PANORAMAOFF Select to listen to originally recorded sound.

Initial setting: PANORAMAOFF

Adjusting the center tone—CENTER TONE

This setting is available when one of the Surround/DSP modes is

in use.

•If you have set “CENTER SPK” to “NO” (see page 16), the

center tone is not adjustable.

•This setting is common to all Surround modes, and is

memorized separately for DSP modes.

Adjustable range: 1 to 5 (in 1 step intervals)

Initial setting: CNT TONE 3

As the number increases, the dialogue becomes stronger.

Normally, select “3.”

•When the center tone is set to other than “CNT TONE 3,” the

C.TONE indicator lights up on the display.

From the remote control:

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

LCR

LS RS

(Left front speaker) (Right front speaker)

(Left surround speaker)

SW

(Subwoofer) (Right surround speaker)

(Center speaker)

From the remote control:

To adjust the effect level:

Press SOUND, then press EFFECT

repeatedly.

To adjust the center tone:

Press SOUND, then press C.TONE

repeatedly.

NOTE

After pressing SOUND, the numeric

buttons work for sound adjustments. To

use the numeric buttons to operate your

target source, press the corresponding

source selecting button before operation;

otherwise, the remote control may not

work as you intend.

1

Press TEST TONE to check the speakers’ output

balance.

“TEST L” starts flashing on the display, and a test tone

comes out of the speakers in the following order:

2

Adjust the speaker output levels.

When you press the level adjustment buttons

corresponding to each speaker once, the current level for

the speaker appears on the display, and the test tone

comes out of the speaker.

EX.: When adjusting output level for the center speaker:

Press CENTER +/–.

The test tone comes out of the center speaker.

If no adjustment is done for about 4 seconds, the test tone

comes out of the next speaker.

3

Press TEST TONE again to stop the test tone.

NOTES

•You can adjust the speaker output levels without the test

tone.

•No test tone is available when the HEADPHONE (or 3D

HEADPHONE) mode is in use.

EN20-22RXE11S_12B[B]f.p65 08/12/2004, 15:0021

22

Sound adjustments

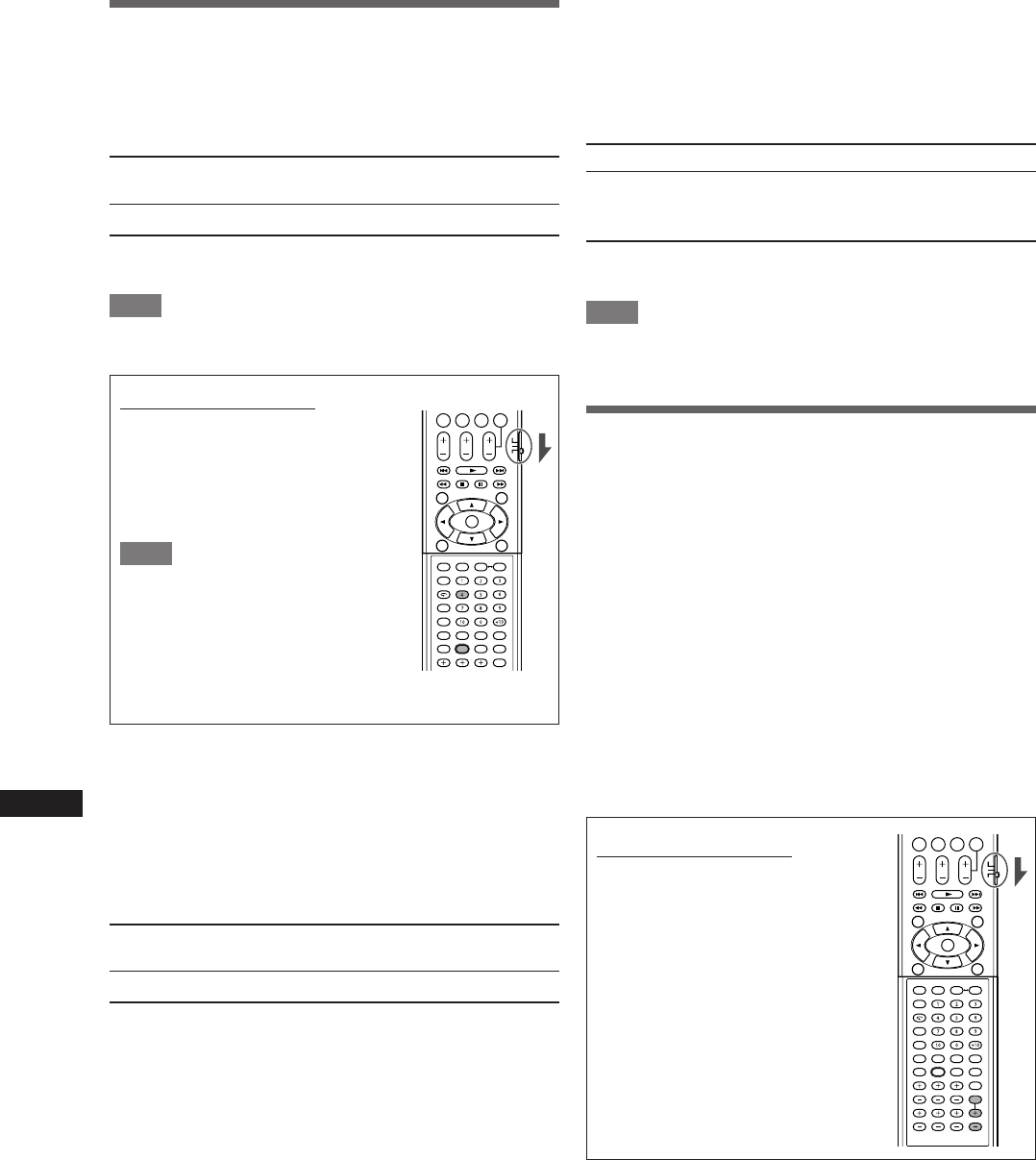

Adjusting the bass sounds

Reinforcing the bass—BASS BOOST

You can boost the bass level—Bass Boost.

•Once you have made an adjustment, it is memorized for each

source.

B.BOOST ON Select to boost the bass level.

The BASS indicator lights up on the display.

B.BOOST OFF Select to deactivate the Bass Boost.

Initial setting: B.BOOST OFF

NOTE

This function affects only the sound coming out through the front

speakers.

From the remote control:

Press SOUND, then press BASS

BOOST repeatedly.

•Each time you press BASS BOOST, the

Bass Boost turns on and off alternately.

NOTE

After pressing SOUND, the numeric

buttons work for sound adjustments. To

use the numeric buttons to operate your

target source, press the corresponding

source selecting button before operation;

otherwise, the remote control may not

work as you intend.

Attenuating the input signal—INPUT ATT

When the input level of analogue source is too high, the sound

will be distorted. If this happens, you need to attenuate the input

signal level to prevent the sound distortion.

•Once you have made an adjustment, it is memorized for each

source.

•You cannot use the remote control for this setting.

ATT ON Select to attenuate the input signal level.

The ATT indicator lights up on the display.

ATT NORMAL Select to deactivate attenuation.

Initial setting: ATT NORMAL

Selecting the subwoofer sound phase—SBWFR

PHASE

You can change the subwoofer sound phase to your preference.

•Once you have made an adjustment, it is memorized for each

source.

•You cannot use the remote control for this setting.

PHASE NORM. Normally select this.

PHASE REV. Select this when you feel the bass sound is

better with this mode rather than with “PHASE

NORM.”

Initial setting: PHASE NORM.

NOTE

This function takes effect only when “SUBWOOFER” is set to

“SUBWFR :YES” (see page 16).

Adjusting the equalization patterns—

D EQ 63Hz/250Hz/1kHz/4kHz/16kHz

You can adjust equalization patterns in five frequency bands

(center frequency: 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz) for the

front speakers.

•Once you have made an adjustment, it is memorized for each

source.

Adjustable range: –8 (dB) to +8 (dB) (in 2 dB intervals)

Initial setting: 0 (dB) for all bands

•When adjustment is made, the EQ indicator lights up on the

display.

To flatten the equalization pattern, set all the frequency bands

to “0 (dB).”

•The EQ indicator goes off from the display.

From the remote control:

1

Press D.EQ FREQ repeatedly to

select the band you want to adjust.

2

Press D.EQ LEVEL +/– to adjust the

equalization pattern of the selected

band.

EN20-22RXE11S_12B[B]f.p65 08/12/2004, 15:0022

23

Tuner operations

Tuner operations

When operating the receiver using the remote control,

set the mode selector to “AUDIO/TV/VCR/STB.”

Tuning in to stations manually

From the remote control ONLY:

1

Press FM/AM to select the band.

The last received station of the selected band is tuned in.

•Each time you press the button, the band alternates

between FM and AM (MW).

2

Press repeatedly or hold TUNING 9 or

( TUNING until the station you want is tuned

in.

•Pressing (or holding) TUNING 9 increases the frequency.

•Pressing (or holding) ( TUNING decreases the frequency.

NOTES

•When you hold and release TUNING 9 or ( TUNING, the

frequency keeps changing until a station is tuned in.

•When a station of sufficient signal strength is tuned in, the

TUNED indicator lights up on the display.

•When an FM stereo program is received, the ST (stereo)

indicator also lights up.

Using preset tuning

Once a station is assigned a channel number, the station can be

quickly tuned simply by selecting the number. You can preset up to

30 FM and 15 AM (MW) stations.

To store the preset stations

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

2

again.

From the remote control ONLY:

1

Tune in to the station you want to preset (see

“Tuning in to stations manually” above).

•If you want to store the FM reception mode for this station,

select the FM reception mode you want. See “Selecting the

FM reception mode” on page 24.

2

Press MEMORY.

The channel number position starts flashing on the display for

about 5 seconds.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

CONTINUED ON THE NEXT PAGE

Tuner operations are mainly done from the remote control.

When you have selected “FM” or “AM” by using SOURCE

SELECTOR on the front panel, press FM/AM on the remote

control to use the remote control for tuner operations.

EN23-28RXE11S_12B[B]f.p65 08/12/2004, 15:0123

24

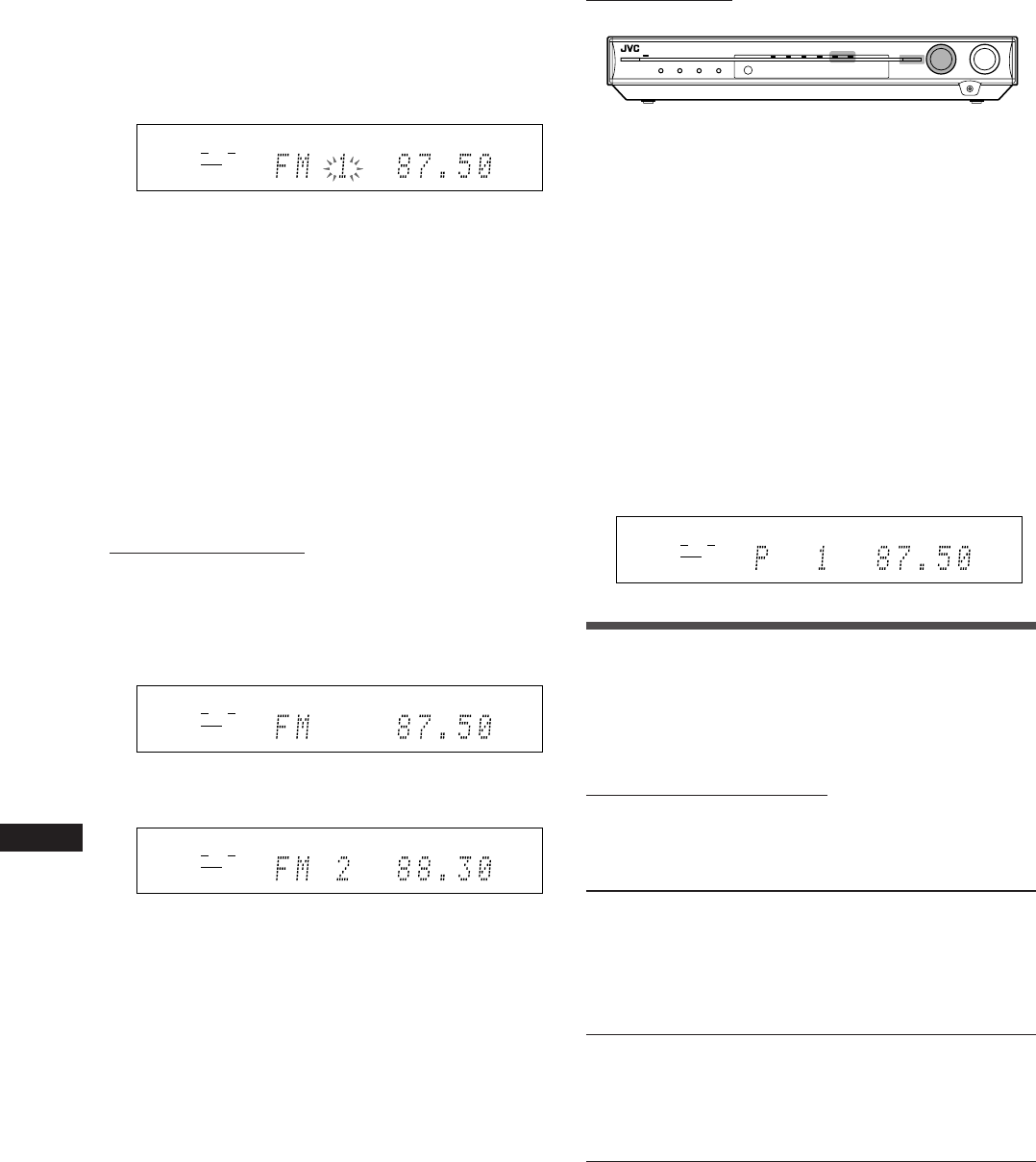

Tuner operations

3

Press the numeric buttons (1 – 10, +10) to

select a channel number while the channel

number position is flashing.

•For channel number 5, press 5.

•For channel number 15, press +10, then 5.

•For channel number 30, press +10, +10, then 10.

4

Press MEMORY again while the selected

channel number is flashing on the display.

The selected channel number stops flashing.

The station is assigned to the selected channel number.

5

Repeat steps

1

to

4

until you store all the

stations you want.

To erase a stored preset station

Storing a new station on a used channel number erases the

previously stored one.

To tune in a preset station

From the remote control:

1

Press FM/AM to select the band.

The last received station of the selected band is tuned in and

the numeric buttons now work for tuner operations.

•Each time you press the button, the band alternates

between FM and AM (MW).

2

Press the numeric buttons (1 – 10, +10) to

select a preset channel number.

•For channel number 5, press 5.

•For channel number 15, press +10, then 5.

•For channel number 30, press +10, +10, then 10.

On the front panel:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

2

again.

1

Turn SOURCE SELECTOR to select “FM” or

“AM.”

The last received station of the selected band is tuned in.

2

Press TUNER PRESET.

“P” appears on the display and MULTI JOG now works for

selecting preset channels.

3

Turn MULTI JOG to select a preset channel

number while “P” appears on the display.

•To increase the preset channel numbers, turn MULTI JOG

clockwise.

•To decreases the preset channel numbers, turn MULTI JOG

counterclockwise.

Selecting the FM reception mode

When an FM stereo broadcast is hard to receive or noisy, you can

change the FM reception mode while receiving an FM broadcast.

•You can store the FM reception mode for each preset station

(see page 23).

From the remote control ONLY:

While listening to an FM station, press FM MODE.

•Each time you press the button, the FM reception mode

alternates between “AUTO MUTING” and “MONO.”

AUTO MUTING: Normally select this.

When a program is broadcast in stereo,

you will hear stereo sound; when in

monaural, you will hear monaural sound.

This mode is also useful to suppress

static noise between stations. The AUTO

MUTING indicator lights up on the display.

MONO: Select this to improve the reception (but

stereo effect will be lost).

In this mode, you will hear noise while

tuning in to the stations. The AUTO

MUTING indicator goes off from the

display. (The ST indicator also goes off.)

Initial setting: AUTO MUTING

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

EN23-28RXE11S_12B[B]f.p65 08/12/2004, 15:0124

25

Tuner operations

With the receiver, you can receive the following types of RDS

signals:

PS (Program Service): Shows commonly known station

names.

PTY (Program Type): Shows types of broadcast

programs.

RT (Radio Text): Shows text messages the station

sends.

Enhanced Other Networks: See page 28.

NOTES

•RDS is not available for AM (MW) broadcasts.

•RDS may not operate correctly if the station tuned is not

transmitting RDS signal properly or if the signal strength is

weak.

What information can RDS signals provide?

You can see the RDS signals the station sends on the display.

Press DISPLAY while listening to an FM station.

•Each time you press the button, the display changes to show

the following information:

PS (Program Service):

While searching, “PS” appears and then the station names will

be displayed. “NO PS” appears if no signal is sent.

PTY (Program Type):

While searching, “PTY” appears and then the type of the

broadcast program will be displayed. “NO PTY” appears if no

signal is sent.

RT (Radio Text):

While searching, “RT” appears and then text messages the

station sends will be displayed. “NO RT” appears if no signal is

sent.

Frequency:

Station frequency (non-RDS service).

About characters shown on the display

When the display shows PS, PTY, or RT signals, the following

characters are used:

•The display cannot show accented letters, “A” for instance, may

stand for accented “A’s” like “Å, Ä, Ã, Á, À, Â, å, ä, ã, á, à, and

â.”

NOTE

If searching finishes at once, “PS,” “PTY,” and “RT” will not appear

on the display.

PS PTY

RT

Frequency

(Normal indication)

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

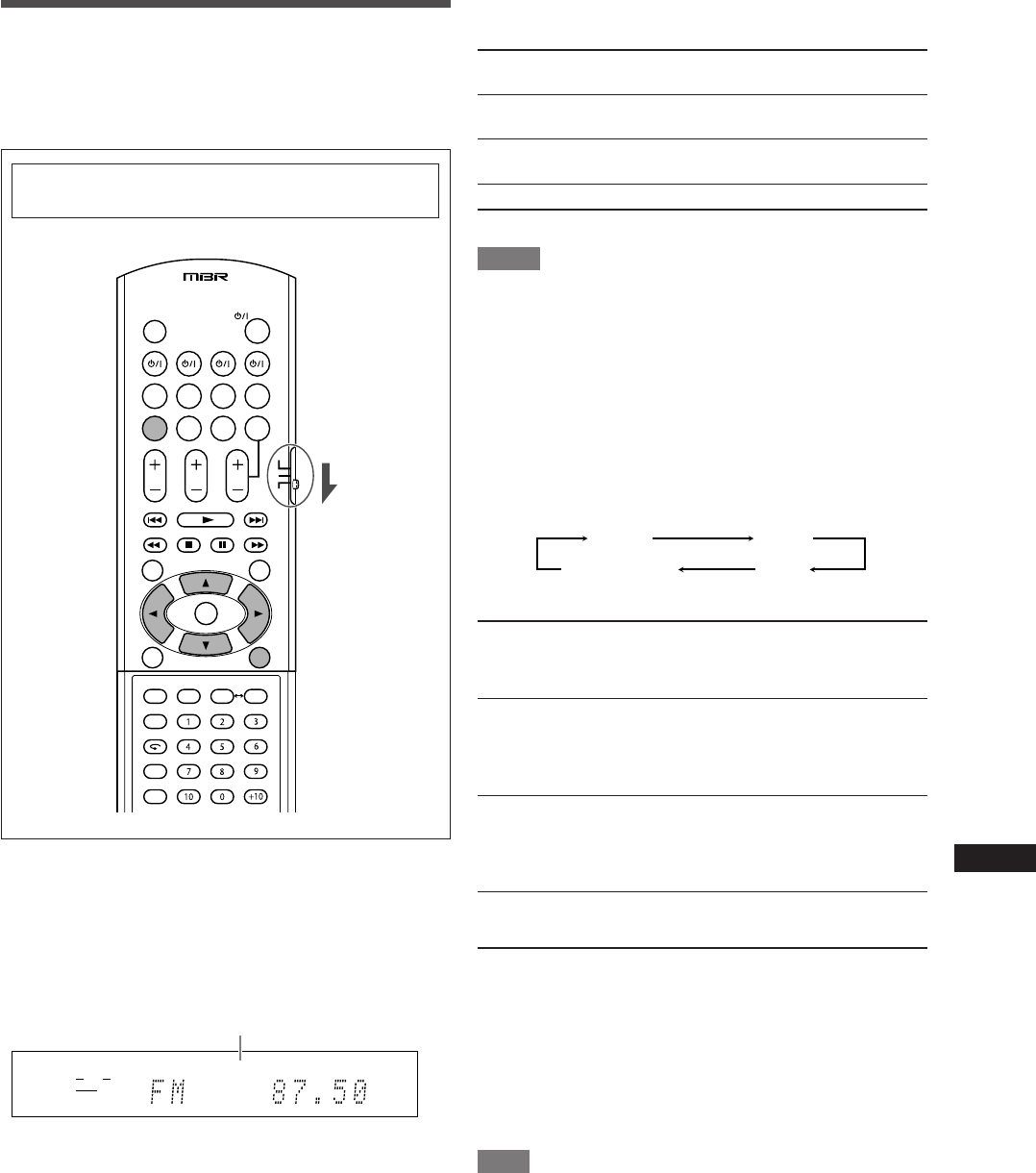

Using the Radio Data System (RDS)

to receive FM stations

Only the buttons on the remote control are used for RDS

operations.

When operating the receiver using the remote control,

set the mode selector to “AUDIO/TV/VCR/STB.”

RDS allows FM stations to send an additional signal along with

their regular program signals. For example, the stations send their

station names, as well as information about what type of program

they broadcast, such as sports or music, etc.

When an FM station which provides the RDS service is tuned in,

the RDS indicator lights up on the display.

RDS indicator

EN23-28RXE11S_12B[B]f.p65 08/12/2004, 15:0125

26

Tuner operations

PTY codes

Searching for a program by PTY

codes

One of the advantages of the RDS service is that you can locate a

particular kind of program from the preset channels (see pages

23 and 24) by specifying the PTY codes.

To search for a program using the PTY codes

Before you start, remember...

•To stop searching any time, press PTY SEARCH while

searching.

•There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

1

again.

1

Press PTY SEARCH while listening to an FM

station.

“PTY SELECT” flashes on the display.

2

While “PTY SELECT” is flashing, press PTY 9

or PTY ( until the PTY code you want appears

on the display.

3

Press PTY SEARCH again while the PTY code

selected in the previous step is still on the

display.

While searching, “SEARCH” and the selected PTY code

alternatively appears on the display.

The receiver searches 30 preset FM stations, stops when it

finds the one you have selected, and tunes in to that station.

•If no program is found, “NOT FOUND” appears on the

display.

To continue searching after the first stop

Press PTY SEARCH again while the indications on the display

are flashing.

Travel

Affairs

Rock M (Music)

Religion Easy M (Music)

Children Classics

Finance

Weather

Other M (Music)

Social

Phone In

Light M (Music)

Info (Information)

Sport

Educate (Education)

Folk M (Music)

Oldies

Drama

Nation M (Music)

Culture

Jazz

Varied

Pop M (Music)

Country

Science

Leisure

Alarm !

TEST

Document

None

News

•For details about each code, see “Description of the PTY

codes” on page 27.

EN23-28RXE11S_12B[B]f.p65 08/12/2004, 15:0126

27

Tuner operations

Description of the PTY codes:

News: News.

Affairs: Topical program expanding or enlarging upon the

news—debate or analysis.

Info (Information): Programs the purpose of which is to impart

advice in the widest sense.

Sport: Programs concerned with any aspect of sports.

Educate (Education): Educational programs.

Drama: All radio plays and serials.

Culture: Programs concerning any aspect of national or

regional culture, including language, theatre, etc.

Science: Programs about natural sciences and technology.

Varied: Used for mainly speech-based programs such as

quizzes, panel games and personality interviews.

Pop M (Music): Commercial music of current popular appeal.

Rock M (Music): Rock music.

Easy M (Music): Current contemporary music considered to be

“easy-listening.”

Light M (Music): Instrumental music, and vocal or choral works.

Classics: Performances of major orchestral works,

symphonies, chamber music, etc.

Other M (Music): Music not fitting into any of the other categories.

Weather: Weather reports and forecasts.

Finance: Stock Market reports, commerce, trading, etc.

Children: Programs targeted at a young audience.

Social: Programs about sociology, history, geography,

psychology and society.

Religion: Religious programs.

Phone In: Involving members of the public expressing their

views either by phone or at a public forum.

Travel: Travel information.

Leisure: Programs about recreational activities.

Jazz: Jazz music.

Country: Songs which originate from, or continue the

musical tradition of the American Southern

States.

Nation M (Music): Current popular music of the nation or region

in that country’s language.

Oldies: Music from the so-called “golden age” of popular

music.

Folk M (Music): Music which has its roots in the musical culture

of a particular nation.

Document: Programs concerning factual matters, presented

in an investigative style.

TEST: Broadcasts for testing emergency broadcast

equipment or unit.

Alarm !: Emergency announcement.

None: No program type, unidentified program, or difficult

to categorize into particular types.

Classification of the PTY codes for some FM stations may be

different from the above list.

EN23-28RXE11S_12B[B]f.p65 08/12/2004, 15:0127

28

Tuner operations

Switching to broadcast program of

your choice temporarily

Another convenient RDS service is called “Enhanced Other

Networks.”

This allows the receiver to switch temporarily to a broadcast

program of your choice (TA, NEWS, and/or INFO) from a different

station except in the following case:

•The Enhanced Other Networks mode only works when

receiving an FM station with the Enhanced Other Networks

code.

Before you start, remember...

The Enhanced Other Networks function is only applicable to

preset FM stations.

Press TA/NEWS/INFO repeatedly until the

program type you want appears on the display.

•Each time you press the button, the program type(s) change,

and the corresponding indicator(s) light up as follows:

TA: Traffic Announcement in your area.

NEWS: News.

INFO: Program the purpose of which is to impart advice in the

widest sense.

How the Enhanced Other Networks function actually works:

If another FM station starts broadcasting the program type

you have selected while you are listening to an FM station

The receiver automatically switches to the station. The

indicator of the received program type starts flashing.

‘

When the program is over, the receiver goes back to the

station previously tuned in, but still remains in Enhanced Other

Networks standby mode. The indicator of the received program

type stops flashing and remains lit.

If the station currently tuned in starts broadcasting the

program type you have selected

The receiver continues to receive the station, but the indicator

of the received program type starts flashing.

‘

When the program is over, the indicator of the received

program type stops flashing and remains lit, but the receiver

remains in Enhanced Other Networks standby mode.

TA

NEWS/INFO

TA/INFO

NEWS

TA/NEWS/INFO

INFO TA/NEWS

Canceled

To stop listening to the program selected by Enhanced Other

Networks

Press TA/NEWS/INFO repeatedly again so that the program type

(TA/NEWS/INFO) indicator goes off from the display. The receiver

exits from Enhanced Other Networks standby mode and goes

back to the previously selected station.

When an emergency broadcast (Alarm ! signal) is sent from

an FM station

The receiver automatically tunes in to the station except in the

following cases:

•When you are listening to non-RDS Networks—all AM (MW)

stations, some FM stations and other sources.

•When the receiver is in standby mode or TV Direct mode.

While receiving an emergency broadcast, “Alarm !” appears on

the display.

The TEST signal is used for equipment test—whether it can

receive the Alarm ! signal correctly

The TEST signal makes the receiver work in the same way as the

Alarm ! signal does. If the TEST signal is received, the receiver

automatically switches to the station broadcasting the TEST

signal.

While receiving the TEST signal, “TEST” appears on the display.

NOTES

•Enhanced Other Networks data sent from some stations may

not be compatible with this receiver.

•Enhanced Other Networks does not function for some FM

stations with RDS service.

•While listening to a program tuned in by the Enhanced Other

Networks function, the station does not change even if another

network station starts broadcasting a program of the same

Enhanced Other Networks data.

•While listening to a program tuned in by the Enhanced Other

Networks function, you can only use the TA/NEWS/INFO and

DISPLAY.

CAUTION:

If the stations alternate intermittently between the station tuned by

the Enhanced Other Networks function and the currently tuned

station, press TA/NEWS/INFO repeatedly to cancel the Enhanced

Other Networks function.

If you do not press the button, the currently tuned station is

received finally, and the indication of the Enhanced Other

Networks data type flashing on the display disappears.

EN23-28RXE11S_12B[B]f.p65 08/12/2004, 15:0128

29

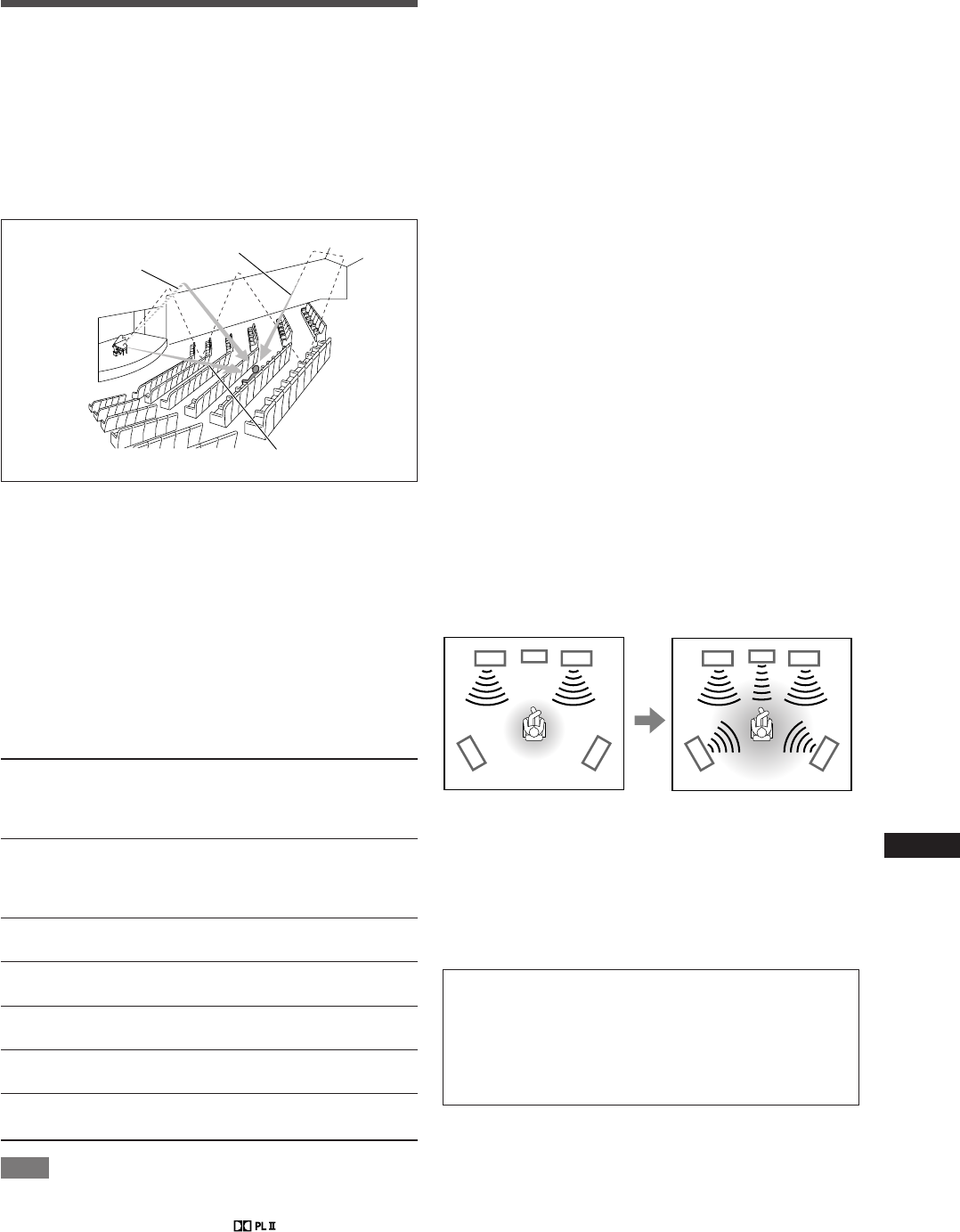

Creating realistic sound fields

Creating realistic

sound fields

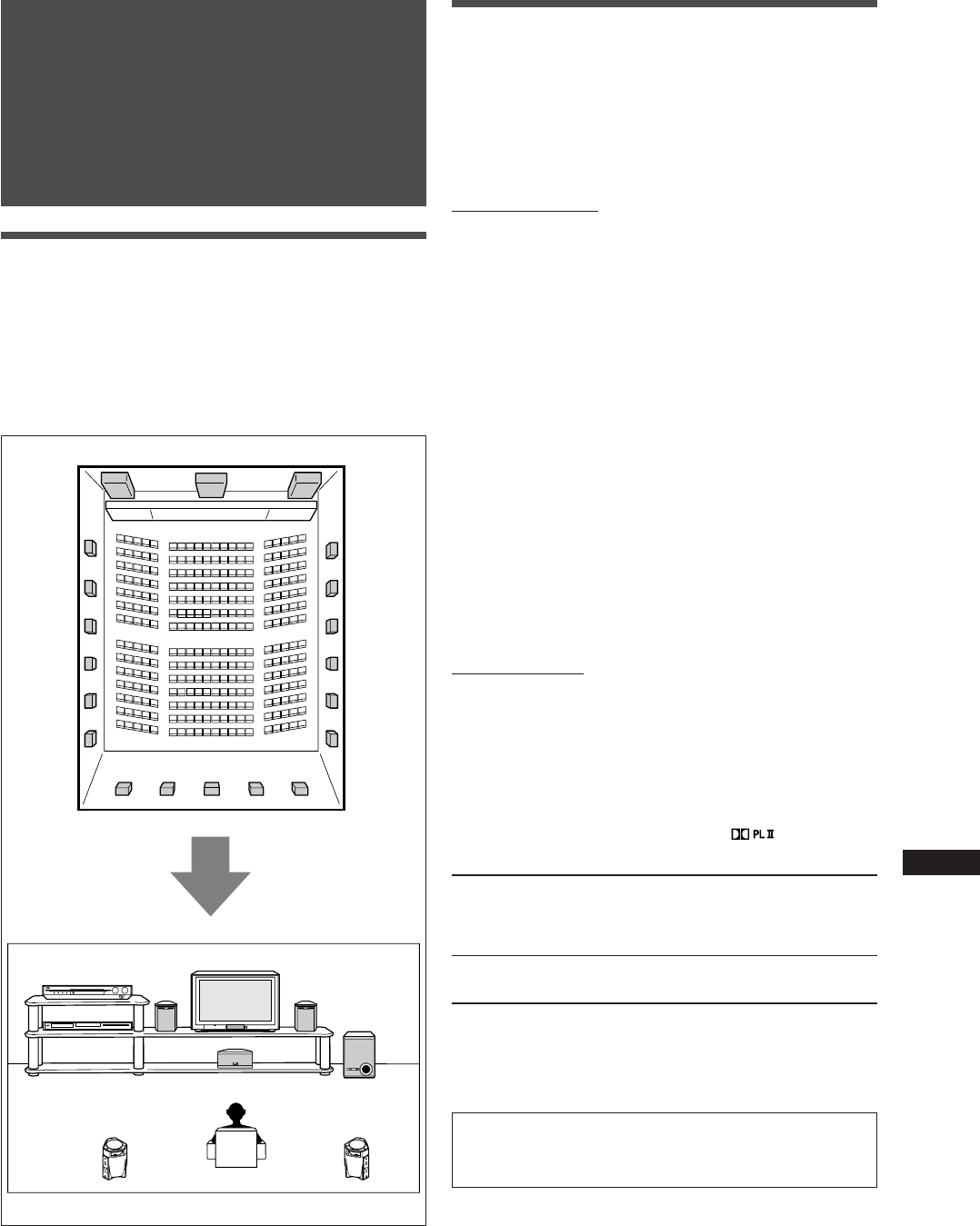

Reproducing theatre ambience

In a movie theatre, many speakers are located on the walls to

reproduce impressive multi-surround sound, reaching you from all

directions.

With these many speakers, sound localization and sound

movement can be expressed.

Surround/DSP modes built in this receiver can create almost the

same Surround sound as you can feel in a real movie theatre.

Introducing the Surround modes

■ Dolby Digital*

Dolby Digital is a digital signal compression method, developed by

Dolby Laboratories, and enables multi-channel encoding and

decoding (1ch up to 5.1ch).

•When Dolby Digital signal is detected through the digital input,

the DOLBY D indicator lights up on the display.

Dolby Digital 5.1CH

Dolby Digital 5.1CH (DOLBY D) encoding method records and

digitally compresses the left front channel, right front channel,

center channel, left surround channel, right surround channel, and

LFE channel signals (total 6 channels, but the LFE channel is

counted as 0.1 channel. Therefore, called 5.1 channel).

Dolby Digital enables stereo surround sounds, and sets the cutoff

frequency of the surround treble at 20 kHz, compared to 7 kHz for

Dolby Pro Logic. As such, the sound movement and “being-there”

feeling are enhanced much more than Dolby Pro Logic.

Another digital surround encoding format introduced by Dolby

Laboratories is Dolby Digital EX, which adds the third surround

channels, called “surround back.”

Compared to the conventional Dolby Digital 5.1CH, these newly

added surround back channels can reproduce more detailed

movements behind you while viewing the video software. In

addition, surround sound localization will become more stable.

•You can use Virtual Surround Back (see page 18) when playing

back Dolby Digital Surround EX software. This function creates

the great surround effect from the behind as if you have

connected the surround back speaker. The VIRTUAL SB

indicator lights up on the display.

Dolby Pro Logic II

Dolby Pro Logic II is a multi-channel playback format to convert 2-

channel software into 5-channel (plus subwoofer). The matrix-

based conversion method used for Dolby Pro Logic II makes no

limitation for the cutoff frequency of the surround treble and

enables stereo surround sound.

•This receiver provides two types of Dolby Pro Logic II modes—

Pro Logic II Movie (PLII MOVIE) and Pro Logic II Music (PLII

MUSIC).

When Dolby Pro Logic II is activated, the indicator lights

up on the display.

PLII MOVIE: Suitable for playing any Dolby Surround encoded

software. You can enjoy a sound field very close

to the one created with discrete 5.1-channel

sounds.

PLII MUSIC: Suitable for playing any 2-channel stereo

software. You can enjoy wide and deep sounds.

•To enjoy software encoded with Dolby Digital, connect the

source component using the digital terminal on the rear of this

receiver. (See page 9.)

*Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are

trademarks of Dolby Laboratories.

EN29-33RXE11S_12B[B]f.p65 08/12/2004, 15:0129

30

Creating realistic sound fields

■ DTS**

DTS is another digital signal compression method, developed by

Digital Theater Systems, Inc., and enables multi-channel

encoding and decoding (1ch up to 6.1ch).

•When DTS signal is detected through the digital input, the DTS

indicator lights up on the display.

DTS Digital Surround

DTS Digital Surround (DTS) is another discrete 5.1 channel digital

audio format available on CD, LD, and DVD software.

Compared to Dolby Digital, the DTS Digital Surround format has a

lower audio compression rate which enables it to add breadth and

depth to the sounds reproduced. As such, DTS Digital Surround

features natural, solid, and clear sound.

Another multi-channel digital surround encoding format introduced

by Digital Theater Systems, Inc. is DTS Extended Surround

(DTS-ES).

It greatly improves the 360-degree surround impression and

space expression by adding the third surround channel—surround

back channel.

DTS-ES includes two signal formats with different surround signal

recording methods—DTS-ES Discrete 6.1ch and DTS-ES Matrix

6.1ch.

•You can use the Virtual Surround Back (see page 18) when

playing back DTS-ES software. This function creates the great

surround effect from the behind as if you have connected the

surround back speaker. The VIRTUAL SB indicator lights up on

the display.

DTS 96/24

In recent years, there has been increasing interest in higher

sampling rates both for recording and for reproducing at home.

Higher sampling rates allow wider frequency range and greater bit

depths provide extended dynamic range.

DTS 96/24 is a multi-channel digital signal format (fs 96 kHz/24

bits) introduced by Digital Theater Systems, Inc. to deliver “better-

than-CD sound quality” into the home.

•When DTS 96/24 signal is detected, the DTS and 96/24

indicators light up. You can enjoy its 5.1-channel sound with full-

quality.

**“DTS” and “DTS 96/24” are trademarks of Digital Theater

Systems, Inc.

About other digital signals

Linear PCM

Uncompressed digital audio data used for DVDs, CDs, and

Video CDs.

DVDs support 2 channels with sampling rates of 48/96 kHz,

at quantization of 16/20/24 bits. On the other hand, CDs and

Video CDs are limited to 2 channels with 44.1 kHz at 16 bits.

•When Linear PCM signal is detected, the LPCM indicator

lights up.

Dual Mono

Dual Mono can be easily understood when you think of the

bilingual broadcast for TV programs (however, the Dual Mono

format is not identical with those analogue formats).

This format is now adopted in Dolby Digital, DTS, and so on.

It allows two independent channels (called main channel and

sub-channel) to be recorded separately.

•You can select either channel you want to listen to (see

page 18).

When using Surround mode, the sounds come out of the

activated speakers which the Surround mode requires.

•If either the surround speakers or center speaker is set to

“NO” in the speaker setting (see page 16), the corresponding

channel signals are allocated to and emitted through the front

speakers.

•If both the surround speakers and center speaker are set to

“NO” in the speaker setting (see page 16), JVC’s original 3D-

PHONIC processing (which has been developed to create the

surround effect through the front speakers only) is used. The 3D

indicator lights up on the display.

3D HEADPHONE mode

If you connect a pair of headphones while one of the Surround

modes is in use, the 3D HEADPHONE mode is activated

without respect to the type of software played back.

“3DHEADPHONE” appears on the display and the DSP, 3D,

and HP indicators light up.

EN29-33RXE11S_12B[B]f.p65 08/12/2004, 15:0130

31

Creating realistic sound fields

3D HEADPHONE mode

If you connect a pair of headphones while one of the DSP

modes is in use, the 3D HEADPHONE mode is activated

without respect to the type of software played back.

“3DHEADPHONE” appears on the display and the DSP, 3D,

and HP indicators light up.

Introducing the DSP modes

The sound heard in a concert hall, club, etc. consists of direct

sound and indirect sound—early reflections and reflections from

behind. Direct sounds reach the listener directly without any

reflection. On the other hand, indirect sounds are delayed by the

distances of the ceiling and walls. These direct sounds and

indirect sounds are the most important elements of the acoustic

surround effects.

The DSP modes can create these important elements, and give

you a real “being there” feeling.

The DSP modes include the following modes:

•Digital Acoustic Processor (DAP) modes—HALL1, HALL2, LIVE

CLUB, DANCE CLUB, PAVILION, THEATRE1, THEATRE2

•MONO FILM—Used for all types of 2-channel signals (including

Dual Mono signal)

•All Channel Stereo mode (ALL CH ST.)

When one of the DSP modes is activated, the DSP indicator lights

up on the display.

■ Digital Acoustic Processor (DAP) modes

You can use the following DAP modes in order to reproduce a

more acoustic sound field in your listening room.

HALL1 Reproduces the spatial feeling of a large

shoebox-shaped hall designed primarily for

classical concerts. (Its seating capacity is about

2000.)

HALL2 Reproduces the spatial feeling of a large

vineyard-shaped hall designed primarily for

classical concerts. (Its seating capacity is about

2000.)

LIVE CLUB Reproduces the spatial feeling of a live music club

with a low ceiling.

DANCE CLUB Reproduces the spatial feeling of a rocking dance

club.

PAVILION Reproduces the spatial feeling of an exhibition

hall with a high ceiling.

THEATRE1 Reproduces the spatial feeling of a large theatre

where the seating capacity is about 600.

THEATRE2 Reproduces the spatial feeling of a small theatre

where the seating capacity is about 300.

NOTE

When “THEATRE1” or “THEATRE2” is activated while playing

back 2-channel analogue or digital source, the built-in Dolby Pro

Logic II decoder is activated and the indicator lights up.

Early reflections

Direct sounds

Reflections from behind

When using the DAP mode, the sounds come out of all the

connected and activated speakers.

•If the surround speakers are set to “NO” in the speaker

setting (see page 16), JVC’s original 3D-PHONIC processing

(which has been developed to create the surround effect

through the front speakers only) is used.

The 3D indicator lights up on the display.

■ MONO FILM

In order to reproduce a more acoustic sound field in your listening

room while viewing monaural sound video software (analogue

and 2-channel digital signals including Dual Mono signal), you can

use this mode.

The surround effect will be added, and the sound localization of

actor’s words will be improved.

This mode cannot be used for multi-channel digital signals.

When “MONO FILM” is used, sounds come out of all the

connected (and activated) speakers.

•If the surround speakers are set to “NO” in the speaker

setting (see page 16), JVC’s original 3D-PHONIC processing

(which has been developed to create the surround effect

through the front speakers only) is used.

The 3D indicator lights up on the display.

•If incoming signals change from 2-channel digital signal to

another digital signal type, “MONO FILM” is canceled and an

appropriate Surround mode is activated.

■ All Channel Stereo mode (ALL CH ST.)

This mode can reproduce a larger stereo sound field using all the

connected (and activated) speakers. This mode cannot be used

without activating the surround speakers.

Sound reproduced from

normal stereo

Sound reproduced from All

Channel Stereo mode

EN29-33RXE11S_12B[B]f.p65 08/12/2004, 15:0131

32

Creating realistic sound fields

•For DTS multi-channel software (except 2-channel and

Dual Mono software):

•For Dual Mono software:

You can select the channel you listen to (see page 18).

•For digital 2-channel software or analogue sources:

Ex.: When Linear PCM is coming in.

Virtual Surround Back

When playing Dolby Digital Surround EX or DTS-ES

software, you can enjoy surround back channel playback using

the Virtual Surround Back.

Ex.: When playing back DTS-ES software.

To activate the Virtual Surround Back, see page 18.

To cancel Surround/DSP modes

Press SURROUND repeatedly so that “SURRND OFF” appears

on the display.

Using the Surround/DSP modes

Available Surround/DSP modes vary depending on the incoming

signal.

For details, see “Available Surround and DSP modes according to

the incoming signal” on page 33.

Activating one of the Surround/DSP modes for a source

automatically recalls the memorized settings and

adjustments.

•To adjust the speaker output level, see page 21.

•To adjust the effect level for the DSP mode (except All

Channel Stereo mode), see page 21.

•To add “wraparound” sound effect to PLII MUSIC

(PANORAMA control), see page 21.

NOTE

You cannot select All Channel Stereo mode if the surround

speakers are set to “NO” in the speaker setting (see page 16).

If “AUTO SURRND (Auto Surround)” is set to “ON”

You can enjoy Surround mode simply by playing back multi-

channel software (with digital input selected for that source).

To activate Auto Surround, see page 19.

From the remote control:

1

Select and play any source you like.

•Make sure you have selected the input mode (analogue or

digital) correctly.

2

Press SURROUND repeatedly to select the

Surround/DSP mode you want.

•For Dolby Digital multi-channel software (except

2-channel and Dual Mono software):

When operating the receiver using

the remote control, set the mode

selector to “AUDIO/TV/VCR/STB.”

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL1 HALL2

PAVILION THEATRE1

(Back to the beginning)

PLII MOVIE PLII MUSIC

LIVE CLUB DANCE CLUB

THEATRE2 MONO FILM

ALL CH ST. SURRND OFF

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL2 LIVE CLUB

THEATRE1 THEATRE2

DOLBY D HALL1

DANCE CLUB PAVILION

(Back to the beginning)

SURRND OFFALL CH ST.

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL2 LIVE CLUB

THEATRE1 THEATRE2

DTS HALL1

DANCE CLUB PAVILION

SURRND OFFALL CH ST.

(Back to the beginning)

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL2 LIVE CLUB

THEATRE1 THEATRE2

DUAL MONO HALL1

DANCE CLUB PAVILION

ALL CH ST.MONO FILM

SURRND OFF (Back to the beginning)

EN29-33RXE11S_12B[B]f.p65 08/12/2004, 15:0132

33

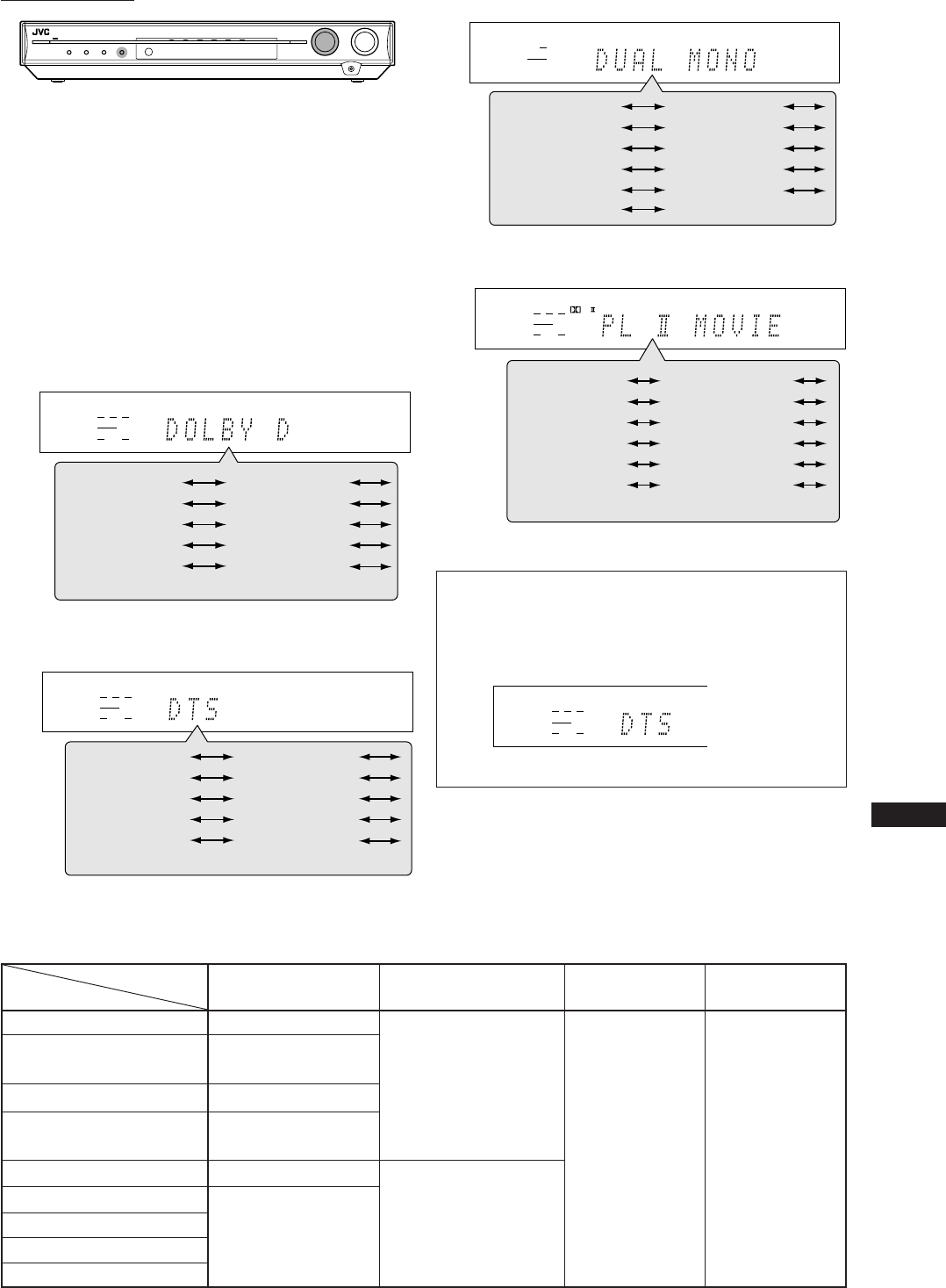

Creating realistic sound fields

Available Surround and DSP modes according to the incoming signal

Modes Surround modes DSP modes HEADPHONE mode Surround/DSP

Incoming signal off

Dolby Digital (multi-channel) DOLBY D

Dolby Digital Surround EX DOLBY D HALL1/2, LIVE CLUB,

(Virtual Surround Back*1) DANCE CLUB, PAVILION,

DTS (multi-channel) DTS THEATRE1/2, ALL CH ST.*2

DTS-ES DTS HEADPHONE, SURRND OFF

(Virtual Surround Back) 3D HEADPHONE (stereo)

Dual Mono DUAL MONO HALL1/2, LIVE CLUB,

Dolby Digital (2-channel) DANCE CLUB, PAVILION,

DTS (2-channel) PLII MOVIE, PLII MUSIC THEATRE1/2, MONO FILM,

Linear PCM ALL CH ST.*2

Analogue

On the front panel:

Before you start, remember...

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

2

again.

1

Select and play any source you like.

•Make sure you have selected the input mode (analogue or

digital) correctly.

2

Press SURROUND.

3

Turn MULTI JOG to select the Surround/DSP

mode you want.

•For Dolby Digital multi-channel software (except

2-channel and Dual Mono software):

•For DTS multi-channel software (except 2-channel and

Dual Mono software):

•For Dual Mono software:

You can select the channel you listen to (see page 18).

•For digital 2-channel software or analogue sources:

Ex.: When Linear PCM is coming in.

Virtual Surround Back

When playing Dolby Digital Surround EX or DTS-ES

software, you can enjoy surround back channel playback using

the Virtual Surround Back.

Ex.: When playing back DTS-ES software.

To activate the Virtual Surround Back, see page 18.

To cancel Surround/DSP modes

Turn MULTI JOG so that “SURRND OFF” appears on the display.

*1 Virtual Surround Back may not be applied to some software.

*2 Not selectable if the surround speakers are set to “NO” in the speaker setting (see page 16).

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL2 LIVE CLUB

THEATRE1 THEATRE2

DOLBY D HALL1

DANCE CLUB PAVILION

SURRND OFFALL CH ST.

(Back to the beginning)

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL2 LIVE CLUB

THEATRE1 THEATRE2

DTS HALL1

DANCE CLUB PAVILION

SURRND OFFALL CH ST.

(Back to the beginning)

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL1 HALL2

PAVILION THEATRE1

(Back to the beginning)

PLII MOVIE PLII MUSIC

LIVE CLUB DANCE CLUB

THEATRE2 MONO FILM

ALL CH ST. SURRND OFF

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS

EQ

LPCM L

LS SB RS

S . WFR

PL

NEO : 6

DSP 3D

LFE

CR

DOLBY D

DTS AAC

96 / 24

AUTO SR

C.TONE VIRTUAL SB AUDIO P. BASS TA NEWS INFO RDS TUNED ST SLEEP

AUTO MUTING AUTO MODE

ATT

HP

MHz

kHz

HALL2 LIVE CLUB

THEATRE1 THEATRE2

DUAL MONO HALL1

DANCE CLUB PAVILION

ALL CH ST.MONO FILM

SURRND OFF (Back to the beginning)

EN29-33RXE11S_12B[B]f.p65 08/12/2004, 15:0133

34

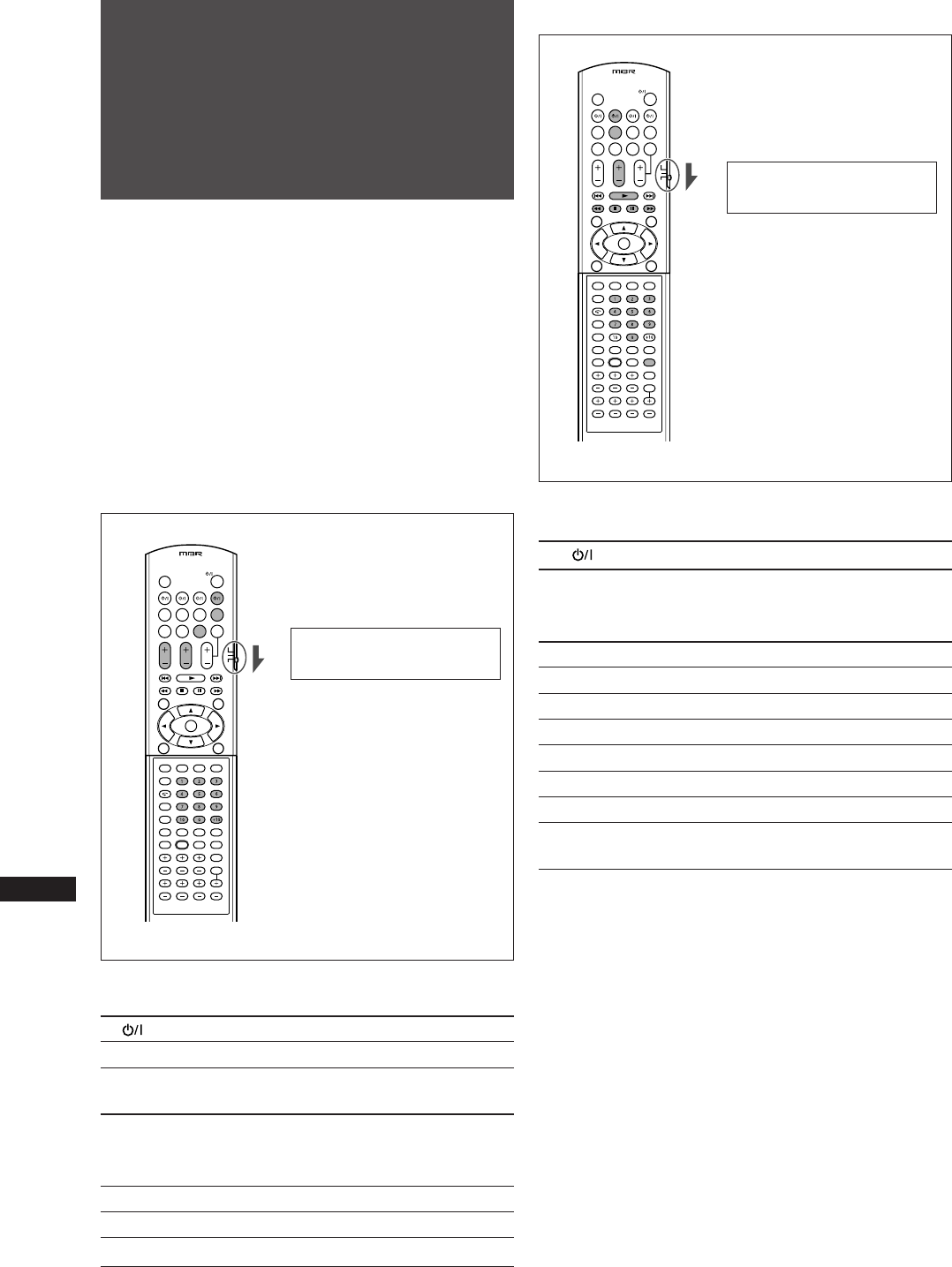

You can use the supplied remote control to operate not only

the receiver/DVD player but also other JVC products.

•Refer also to the manuals supplied with the other products.

–Some JVC VCRs can accept two types of the control

signals—remote codes “A” and “B.” This remote control can

operate a VCR whose remote control code is set to “A.”

–Some JVC DVD recorders can accept four types of the control

signals. This remote control can operate a DVD recorder

whose remote control code is set to the initial code. For

details, refer to the manual supplied with the DVD recorder.

•To operate other products, aim the remote control directly at the

remote sensor on the target product.

7TV

Operating other

JVC products

Operating other JVC products

You can always perform the following operations:

TV : Turn on or off the TV.

TV VOL +/–:Adjust the volume on the TV.

TV/VIDEO: Change the input mode (either video input

or TV tuner) on the TV.

After pressing TV, you can perform the following operations on the

TV.

CHANNEL +/–:Change the channel numbers.

1 – 9, 0, 100+: Select the channel numbers.

TV RETURN (10): Function as the TV RETURN button.

You can always perform the following operation:

VCR : Turn on or off the VCR.

After pressing VCR, you can perform the following operations on

the VCR.

CHANNEL +/–:Change the channel numbers on the VCR.

1 – 9, 0: Select the channel numbers on the VCR.

3:Start playback.

7:Stop playback.

8:Pause playback. To release it, press 3.

¡:Fast-wind a tape.

1:Rewind a tape.

REC PAUSE: Enter recording pause. To start recording,

press this button then 3.

7VCR

Set the mode selector to

“AUDIO/TV/VCR/STB.”

Set the mode selector to

“AUDIO/TV/VCR/STB.”

EN34-38RXE11S_12B[B]f.p65 08/12/2004, 15:0134

35

Operating other JVC products

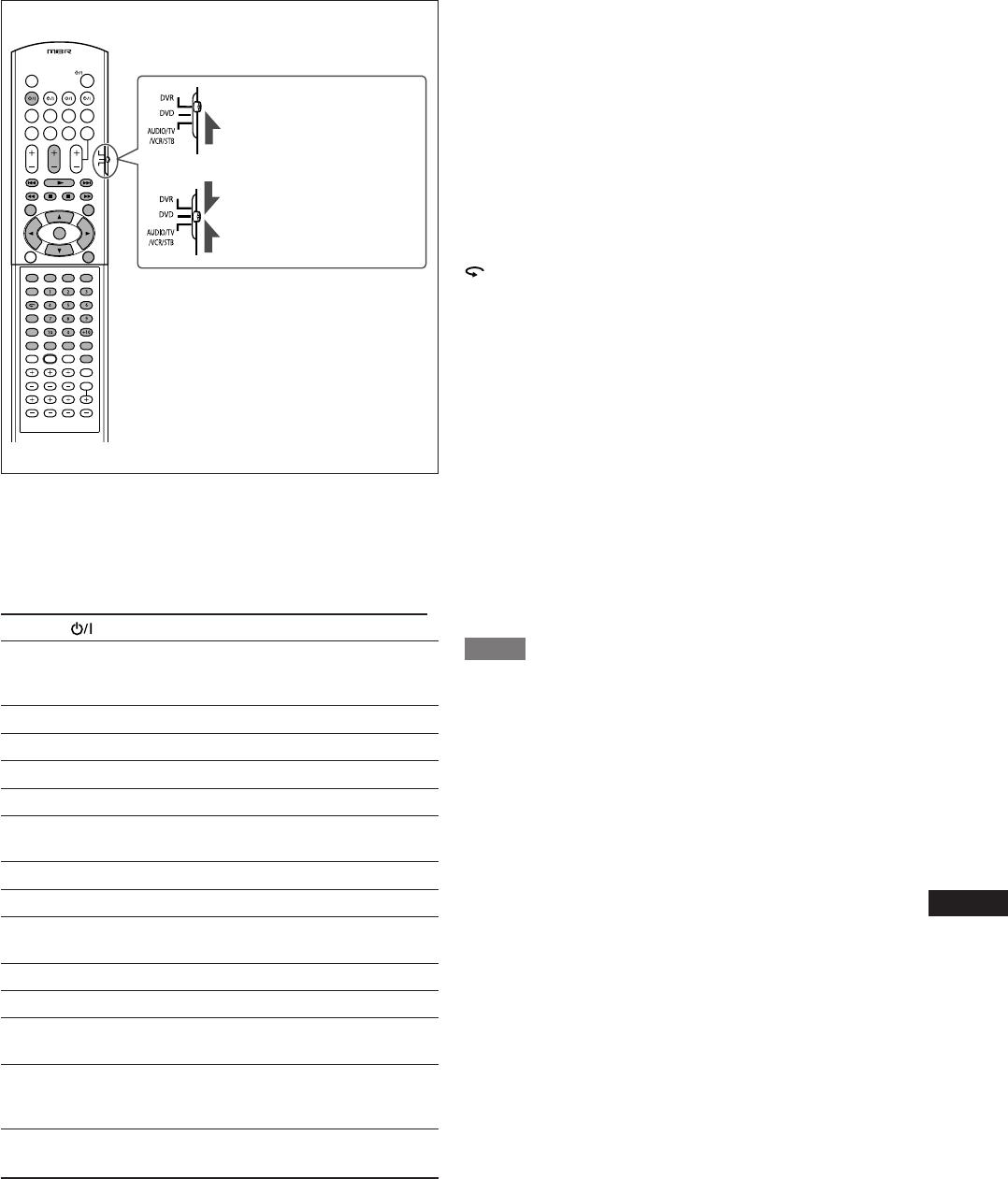

You can also use the following buttons to operate JVC DVD

recorder or DVD player if it supports the corresponding function:

For various settings:

AUDIO: Select the audio language/channel.

SUBTITLE: Select the subtitle language.

SET UP: Display the Preference display.

VFP: Adjust the picture.

PROGRESSIVE*: Change the scanning mode.

ANGLE: Select the view angle.

For various playback:

TITLE/GROUP: Make the numeric buttons work for selecting

the title/group number.

ZOOM (for DVD player only): Zoom in and out.

(one touch replay): Move the playback position back 10

seconds before the current position.

RETURN: Return to the main menu during menu

operation.

CANCEL: Cancel the programmed track, etc.

SLIDE EFFECT*: Select the effect for the slide show playback

for JPEG discs.

SOUND EFFECT (for DVD player only): Select the sound effect.

For recording (for DVD recorder ONLY):

REC PAUSE: Enter recording pause. To release it, press 3.

For other functions:

DVD, HDD (for DVD recorder incorporated with HDD deck):

Select the DVD recorder or HDD deck.

DISPLAY: Change the display information.

DIMMER*: Change the display brightness.

NOTES

•Press and hold when using the buttons marked with an asterisk

(*).

•If these buttons do not function normally, use the remote control

supplied with your DVD recorder or DVD player. Refer also to

the manuals supplied with the DVD recorder or DVD player for

details.

7DVD recorder or DVD player

After setting the mode selector, you can perform the following

operations on the DVD recorder or DVD player.

See the instructions supplied with the DVD recorder or DVD

player for details.

DVR/DVD : Turn on or off the DVD recorder or DVD player.

CHANNEL +/–(for DVD recorder only):

Change the channel numbers on the DVD

recorder.

3:Start playback.

7:Stop playback.

8:Pause playback. To release it, press 3.

¢:Skip to the beginning of the next chapter.

4:Return to the beginning of the current (or

previous) chapter.

¡:Fast-forward playback.

1:Fast-reverse playback.

TOP MENU/MENU:

Display the menu recorded on DVD VIDEO discs.

ON SCREEN: Shows the on-screen bar.

5/∞/3/2:Select an item on the menu screen.

ENTER: Enter the selected item, channel number, or track

number.

1 – 9, 0 (for DVD recorder):

Select channel numbers or track numbers. (Press

ENTER to enter the number.)

1 – 10, 0, +10 (for DVD player):

Select a track number, menu item, etc.

To operate the DVD

player, set the mode

selector to “DVD.”

To operate the DVD

recorder, set the mode

selector to “DVR.”

EN34-38RXE11S_12B[B]f.p65 08/12/2004, 15:0135

36

By changing the transmittable signals, you can use the

supplied remote control to operate other manufacturers’

products.

•Refer also to the manuals supplied with the other products.

•To operate those components with the remote control, first you

need to set the manufacturers’ codes each for the TV, VCR, and

STB.

•After replacing batteries of the remote control, set the

manufacturers’ codes again.

❏Changing the transmittable signals for operating

a TV

Set the mode selector to “AUDIO/TV/VCR/STB.”

1

Press and hold TV .

2

Press TV.

3

Enter the manufacturer’s code using buttons

1 – 9, and 0.

See “Manufacturers’ codes for TV” on the right column.

4

Release TV .

Now, you can perform the following operations on the TV.

TV : Turn on or off the TV.

TV VOL +/–:Adjust the volume on the TV.

TV/VIDEO: Change the input mode (either TV or

VIDEO).

After pressing TV, you can perform the following operations on

the TV.

CHANNEL +/–:Change the channel numbers.

1 – 9, 0, +10 (100+): Select the channel numbers.

See the instructions supplied with the TV for details.

5

Try to operate your TV by pressing TV .

When your TV turns on or off, you have entered the correct

code.

If more than one code is listed for your brand of TV, try each

one until the correct one is entered.

Operating other

manufacturers’

products

Operating other manufacturers’ products

Manufacturer Codes

JVC 01

Akai 02, 05

Blaupunkt 03

Daewoo 09, 30, 31

Fenner 04, 30, 31

Fisher 05

Grundig 06

Hitachi 07, 08

Irradio 02, 05

Magnavox 09

Mitsubishi 10, 32

Miver 03

Nokia 11, 33

Nordmende 12, 13, 17, 25, 26, 27

Orion 14

Panasonic 15, 16

Philips 09

Saba 12, 13, 17, 25, 26, 27

Samsung 09, 18, 31

Sanyo 05

Schneider 02, 05

Sharp 19

Sony 20, 21, 22, 23, 24

Telefunken 12, 13, 17, 25, 26, 27

Thomson 12, 13, 17, 25, 26, 27, 29

Toshiba 28

Initial setting: 01

Manufacturers’ codes for TV

EN34-38RXE11S_12B[B]f.p65 08/12/2004, 15:0136

37

Manufacturer Codes

JVC 01

Akai 02, 36

Bell+Howell 03, 16

Blaupunkt 04

CGM 03, 05, 16

Daewoo 34

Digtal 05

Fisher 03, 16

GE 06

Grundig 07

Hitachi 08, 09

Loewe 05, 10, 11

Magnavox 04, 05

Mitsubishi 12, 13, 14, 15

Nokia 16

Nordmende 17, 18, 19, 31

Orion 20

Panasonic 21

Philips 05, 22

Phonola 05

Saba 17, 18, 19, 23, 31

Samsung 24, 25

Sanyo 03, 16

Sharp 26, 27

Siemens 07

Sony 28, 29, 30, 35

Telefunken 17, 18, 19, 31, 32

Toshiba 33

Initial setting: 01

Manufacturers’ codes for VCR

❏Changing the transmittable signals for operating

a VCR

Set the mode selector to “AUDIO/TV/VCR/STB.”

1

Press and hold VCR .

2

Press VCR.

3

Enter the manufacturer’s code using buttons

1 – 9, and 0.

See “Manufacturers’ codes for VCR” on right column.

4

Release VCR .

Now, you can perform the following operation on the VCR.

VCR : Turn on or off the VCR.

After pressing VCR, you can perform the following operations

on the VCR.

CHANNEL +/–:Change the channel numbers on the

VCR.

1 – 9, 0: Select the channel numbers on the VCR.

3:Start playback.

7:Stop playback.

8:Pause playback.

¡:Fast-wind a tape.

1:Rewind a tape.

See the instructions supplied with the VCR for details.

5

Try to operate your VCR by pressing VCR .

When your VCR turns on or off, you have entered the correct

code.

If more than one code is listed for your brand of VCR, try each

one until the correct one is entered. Manufacturers’ codes are subject to change without

notice. If they are changed, this remote control cannot

operate the equipment.

Operating other manufacturers’ products

EN34-38RXE11S_12B[B]f.p65 08/12/2004, 15:0137

38

Operating other manufacturers’ products

Manufacturer Codes

JVC 01, 02

Amstrad 03, 04, 05, 06, 33

BT 01

Canal Stellite 22

Canal + 22

D–Box 26

Echostar 19, 20, 21, 23

Finlux 11

Force 30

Galaxis 29

Grundig 07, 08

Hirschmann 07, 19, 39

ITT Nokia 11

Jerrold 16

Kathrein 13, 14, 36

Luxor 11

Mascom 34

Maspro 13

Nokia 26, 28, 35

Pace 10, 27, 33

Panasonic 15

Philips 09, 25

RFT 12

Saba 37

Sagem 24, 31

Salora 11

Selector 31

Skymaster 12, 38

Thomson 37

TPS 24

Triax 32

Videoway 17, 18

Wisi 07

Initial setting: 01

Manufacturers’ codes for STB

❏Changing the transmittable signals for operating

an STB

Set the mode selector to “AUDIO/TV/VCR/STB.”

1

Press and hold STB .

2

Press STB CONTROL.

3

Enter the manufacturer’s code using buttons

1 – 9, and 0.

See “Manufacturers’ codes for STB” on the right column.

4

Release STB .

Now, you can perform the following operation on the STB.

STB : Turn on or off the STB.

After pressing STB CONTROL, you can perform the following

operations on the STB.

CHANNEL +/–:Change the channel numbers on the

STB.

1 – 9, 0: Select the channel numbers on the

STB.

See the instructions supplied with the STB for details.

5

Try to operate your STB by pressing STB .

When your STB turns on or off, you have entered the correct

code.

If more than one code is listed for your brand of STB, try each

one until the correct one is entered.

Manufacturers’ codes are subject to change without

notice. If they are changed, this remote control cannot

operate the equipment.

EN34-38RXE11S_12B[B]f.p65 08/12/2004, 15:0138

39

Troubleshooting

Use this chart to help you solve daily operational problems. If

there are any problems you cannot solve, contact your JVC’s

service center.

Power

The power does not come on.

\The power cord is not plugged in. Plug the power cord into

an AC outlet.

The receiver turns off (enters standby mode).

\Speakers are overloaded because of high volume.

1. Stop the playback source.

2. Turn on the receiver again, then turn the volume down.

\Speakers are overloaded because of a short circuit at the

speaker terminals. Check the speaker wiring.

If speaker wiring is not short-circuited, contact your dealer.

\The receiver is overloaded because of a high voltage.

Consult your dealer after unplugging the power cord.

“OVER HEAT” flashes on the display, then the receiver turns

off.

\The receiver is overheated because of high volume or long

time usage.

Turn on the receiver again. If the receiver turns off soon,

consult your dealer after unplugging the power cord.

Sound

No sound from speakers.

\Speaker signal cables are not connected. Check speaker

wiring, then reconnect if necessary (see page 6) after

unplugging the power cord.

\Connections are incorrect. Check the audio connections

(see pages 7 to 9) after unplugging the power cord.

\An incorrect source is selected. Select the correct source.

\Muting is activated. Press MUTING to cancel the mute (see

page 13).

\An incorrect input mode (analogue or digital) is selected.

Select the correct input mode (analogue or digital).

\TV Direct is activated. Deactivate TV Direct (see page 12).

Sound from one speaker only.

\Speaker signal cables are not connected properly. Check

speaker wiring and reconnect if necessary (see page 6)

after unplugging the power cord.

Bass sound is reinforced too much when listening in stereo.

\Adjust audio position level (see page 12).

Sounds are intermittently distorted by the outside noise such

as a lightning discharge.

\When you use the digital coaxial connection, the sounds

may be intermittently distorted by the outside noise such as

a lightning discharge but the sound will be restored

automatically. This is not a malfunction.

Remote control

Remote control does not operate as you intend.

\The remote control is not ready for your intended operation.

Set the mode selector correctly, then press the

corresponding source selecting button or SOUND before

operation.

Remote control does not work.

\There is an obstruction hiding the remote sensor on the

receiver. Remove the obstruction.

\Batteries are weak. Replace batteries.

\The mode selector is set to the incorrect position. Set the

mode selector to the proper position.

Buttons cannot be used.

\TV Direct is activated. Deactivate TV Direct (see page 12).

Tuner

Continuous hiss or buzzing during FM reception.

\Incoming signal is too weak. Connect an outdoor FM

antenna or contact your dealer.

\The station is too far away. Select another station.

\The wrong antenna is being used. Check with your dealer to

be sure you have the correct antenna.

\Antennas are not connected properly. Check the

connections.

Occasional cracking noise during FM reception.

\Ignition noise from automobiles. Move the antenna farther

from automobile traffic.

Troubleshooting

EN39-40RXE11S_12B[B]f.p65 08/12/2004, 15:0139

40

Specifications

Designs and specifications are subject to change without

notice.

Specifications

Amplifier

Output Power

At stereo operation:

Front channels: 60 W per channel, min. RMS, both

channels driven into 6 Ω at 1 kHz with no

more than 10% total harmonic distortion.

(IEC268-3)

At surround operation:

Front channels: 60 W per channel, min. RMS, driven into

6 Ω at 1 kHz with no more than 10% total

harmonic distortion.

Center channel: 60 W, min. RMS, driven into 6 Ω at 1 kHz,

with no more than 10% total harmonic

distortion.

Surround channels: 60 W per channel, min. RMS, driven into

6 Ω at 1 kHz, with no more than 10% total

harmonic distortion.

Audio

Audio Input Sensitivity/Impedance:

DVR/DVD, VCR, TV, VIDEO: 170 mV(p-p)/47 kΩ

Audio Input (DIGITAL IN)*:

Coaxial: DIGITAL IN 1(DVR/DVD):

0.5 V(p-p)/75 Ω

Optical: DIGITAL IN 2(VIDEO): –21 dBm to –15 dBm

(660 nm ±30 nm)

* Corresponding to Linear PCM, Dolby Digital, and DTS (with

sampling frequency—32 kHz, 44.1 kHz, 48 kHz).

Audio Output Level

DVR/DVD, VCR, TV: 170 mV

Signal-to-Noise Ratio (’66 IHF/DIN): 87 dB/62 dB

Frequency Response (6 Ω): 20 Hz to 20 kHz (±1 dB)

Bass Boost: +4 dB ±1 dB at 100 Hz

Equalization:

Center frequency: 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz

Control range: ±8 dB

Video

Video Input Sensitivity/Impedance:

Composite video: DVR/DVD, VCR, TV, VIDEO:

1 V(p-p)/75 Ω

S-video: DVR/DVD, VCR:

Y (luminance): 1 V(p-p)/75 Ω

C (chrominance, burst): 0.3 V(p-p)/75 Ω

RGB: DVR/DVD, VCR: 0.7 V(p-p)/75 Ω

Component: DVR/DVD:

Y (luminance): 1 V(p-p)/75 Ω

PB, PR: 0.7 V(p-p)/75 Ω

Video Output Level/Impedance:

Composite video: DVR/DVD, VCR, TV:

1 V(p-p)/75 Ω

S-video: TV:

Y (luminance): 1 V(p-p)/75 Ω

C (chrominance, burst): 0.3 V(p-p)/75 Ω

RGB: TV: 0.7 V(p-p)/75 Ω

Component: MONITOR OUT:

Y (luminance): 1 V(p-p)/75 Ω

PB, PR: 0.7 V(p-p)/75 Ω

Synchronization: Negative

FM tuner (IHF)

Tuning Range: 87.50 MHz to 108.00 MHz

Usable Sensitivity:

Monaural: 17.0 dBf (1.95 µV/75 Ω)

50 dB Quieting Sensitivity:

Monaural: 21.3 dBf (3.2 µV/75 Ω)

Stereo: 41.3 dBf (31.5 µV/75 Ω)

Stereo Separation at Rec Out: 35 dB at 1 kHz

AM (MW) tuner

Tuning Range: 522 kHz to 1 629 kHz

General

Power Requirements: AC 230 V , 50 Hz

Power Consumption: 120 W (at operation)

1 W (in standby mode)

Dimensions (W x H x D): 435 mm x 70 mm x 325 mm

Mass: 5.6 kg

EN39-40RXE11S_12B[B]f.p65 08/12/2004, 15:0140

1204RYMMDWJEIN

EN

© 2005 Victor Company of Japan, Limited

HOME CINEMA CONTROL CENTER

RX-E11S/RX-E12B

cover_RXE11S_12B[B]1.p65 06/12/2004, 21:472
