For Customer Use:

Enter below the Model No. and Serial

No. which are located either on the rear,

bottom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

LVT1009-009A

[UG]

INSTRUCTIONS

DVD DIGITAL CINEMA SYSTEM

TH-A35

Consists of XV-THA35 and SP-THA35

COMPACT

SUPER VIDEO

DIGITAL

SURROUND

DIGITAL•EX

PRO LOGIC

VOLUME

PHONES

DSPSURROUNDSOURCE

STANDBY

STANDBY/ON

DVD DIGITAL CINEMA SYSTEM TH-A35

STANDBY/ON

AUDI O

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

1234

5678

VCR

ENTER

TH-A35[UG]cover.pm6 03.5.19, 2:46 PM1

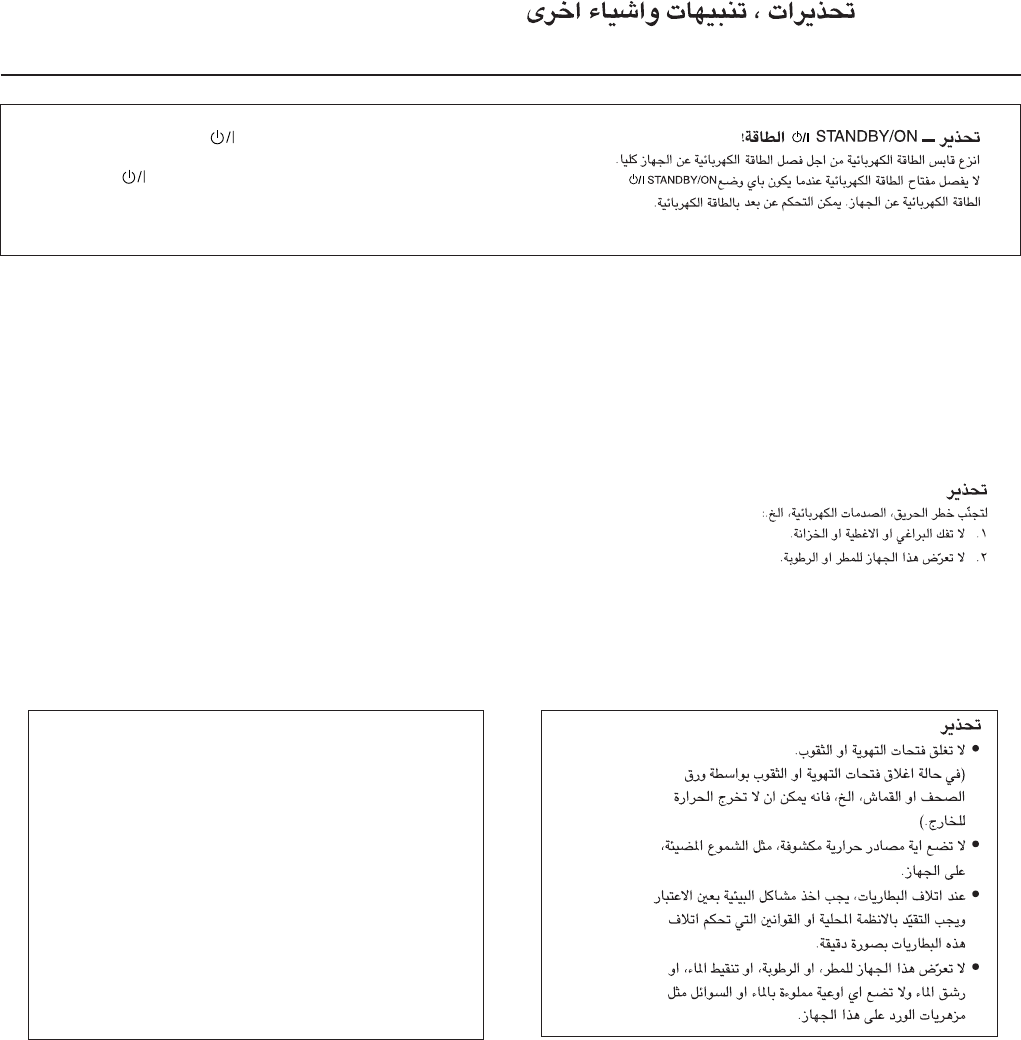

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– STANDBY/ON switch!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON switch in any position does not disconnect the

mains line. The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to

get out.)

• Do not place any naked flame sources, such as

lighted candles, on the apparatus.

• When discarding batteries, environmental problems

must be considered and local rules or laws governing

the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture,

dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the

apparatus.

Warnings, Cautions and Others /

G-1

TH-A35[UG]safety.pm6 03.5.19, 2:47 PM1

English

Stand height 15 cm or more

XV-THA35

Spacing 15 cm or more

Wall or obstructions Front

Floor

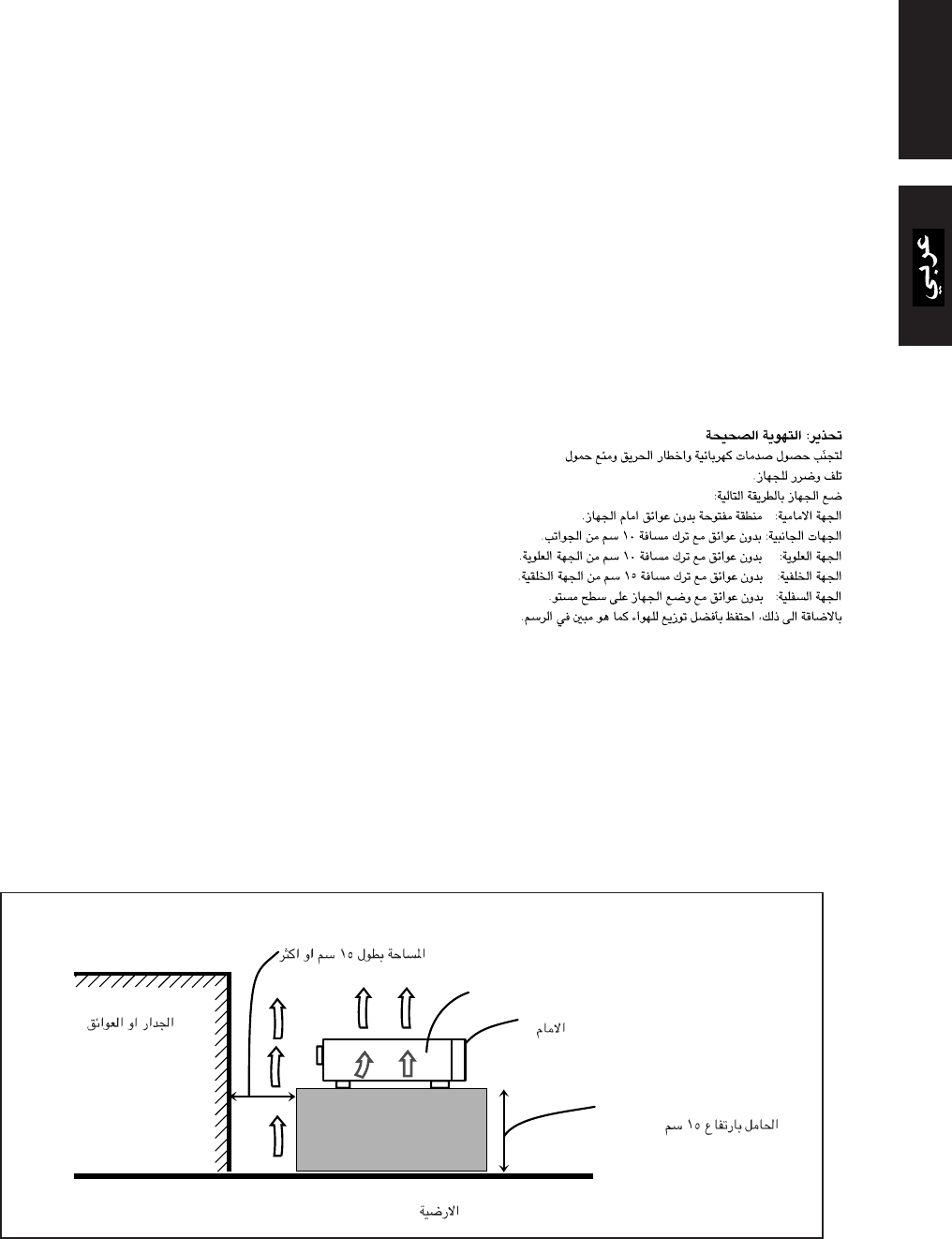

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage.

Locate the apparatus as follows:

Front: No obstructions open spacing.

Sides: No obstructions in 10 cm from the sides.

Top: No obstructions in 10 cm from the top.

Back: No obstructions in 15 cm from the back

Bottom: No obstructions, place on the level surface.

In addition, maintain the best possible air circulation as illustrated.

G-2

TH-A35[UG]safety.pm6 03.5.19, 2:47 PM2

1. CLASS 1 LASER PRODUCT

2. CAUTION: Invisible laser radiation when open

and interlock failed or defeated. Avoid direct

exposure to beam.

3. CAUTION: Do not open the top cover. There

are no user serviceable parts inside the unit;

leave all servicing to qualified service personnel.

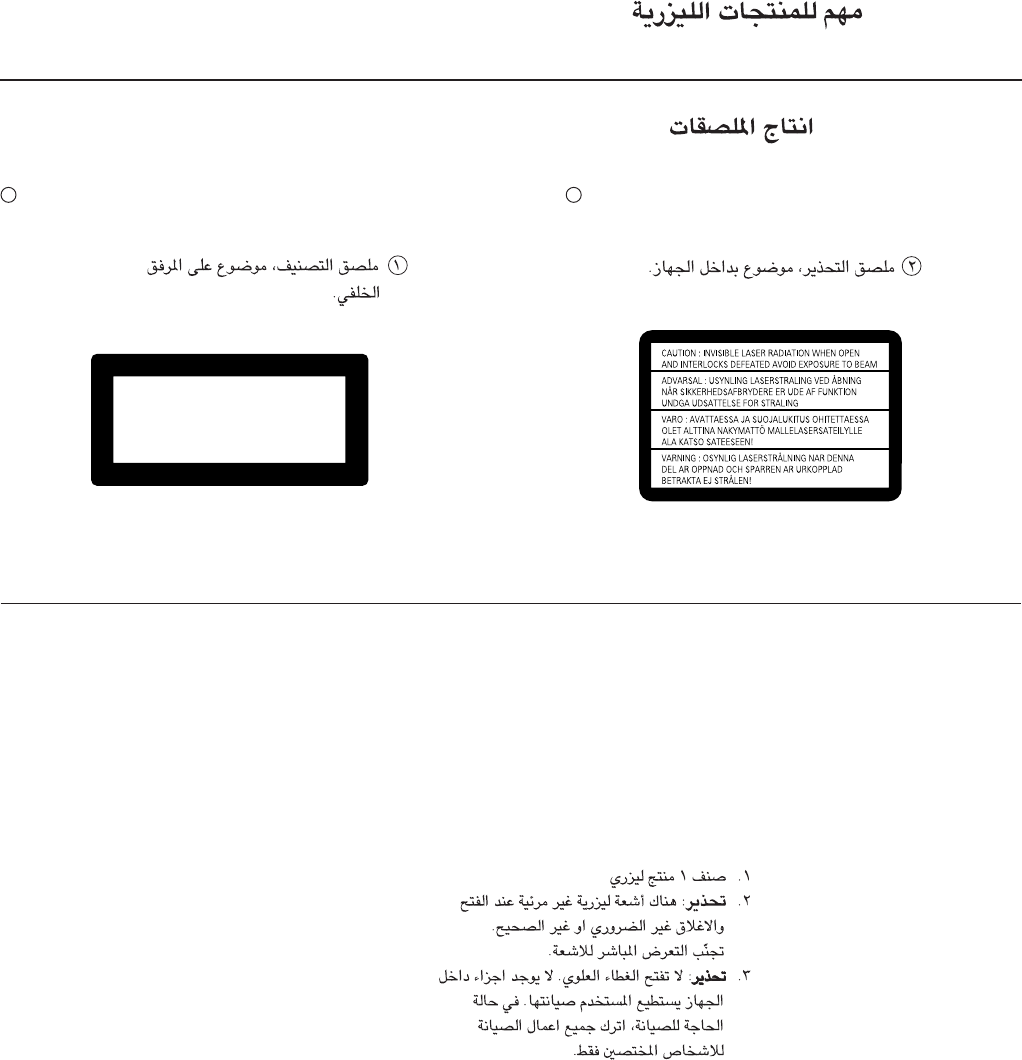

IMPORTANT FOR LASER PRODUCTS /

1 CLASSIFICATION LABEL, PLACED ON EXTERIOR

SURFACE

REPRODUCTION OF LABELS /

2 WARNING LABEL, PLACED INSIDE THE UNIT

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

G-3

TH-A35[UG]safety.pm6 03.5.19, 2:47 PM3

English

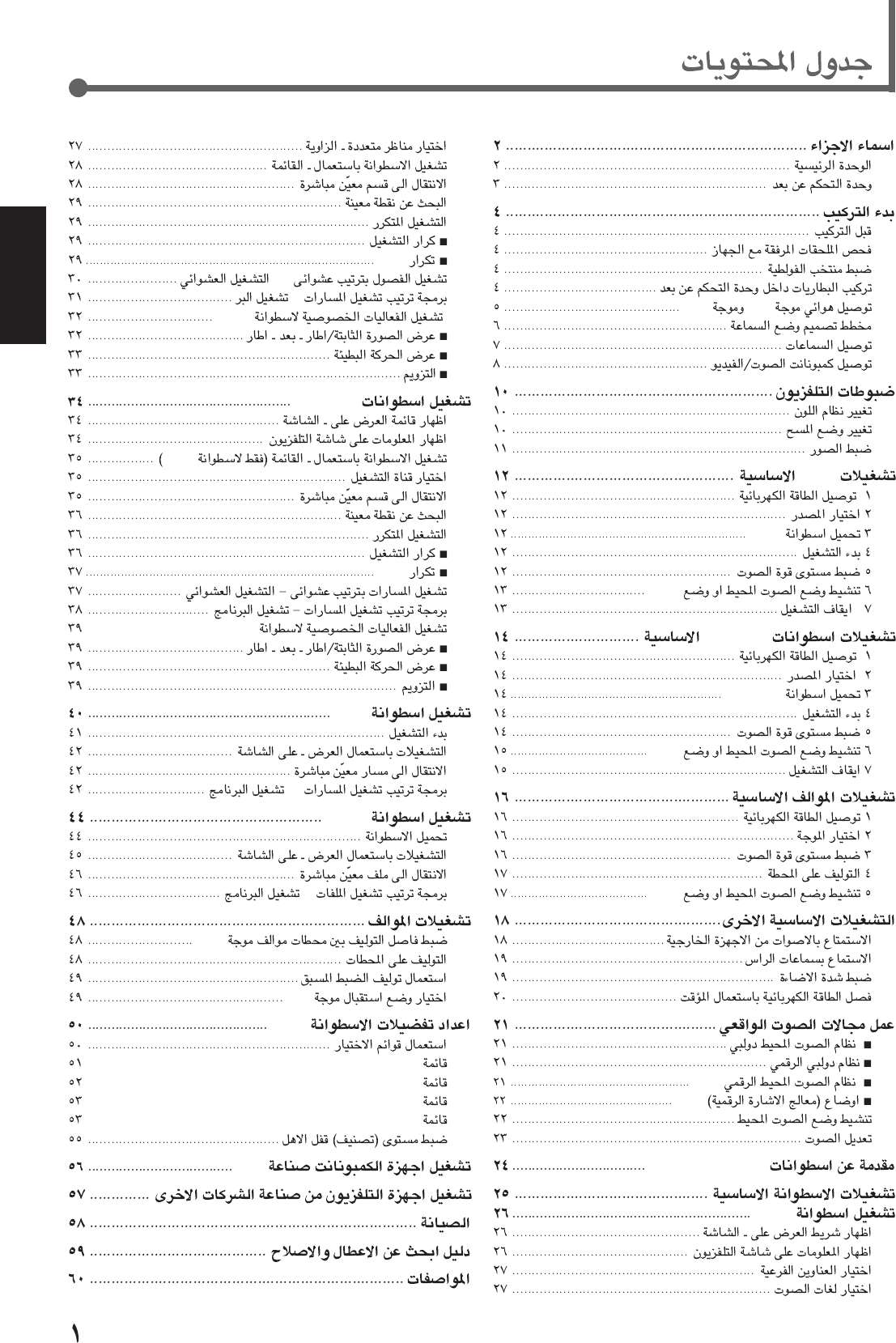

Table of Contents

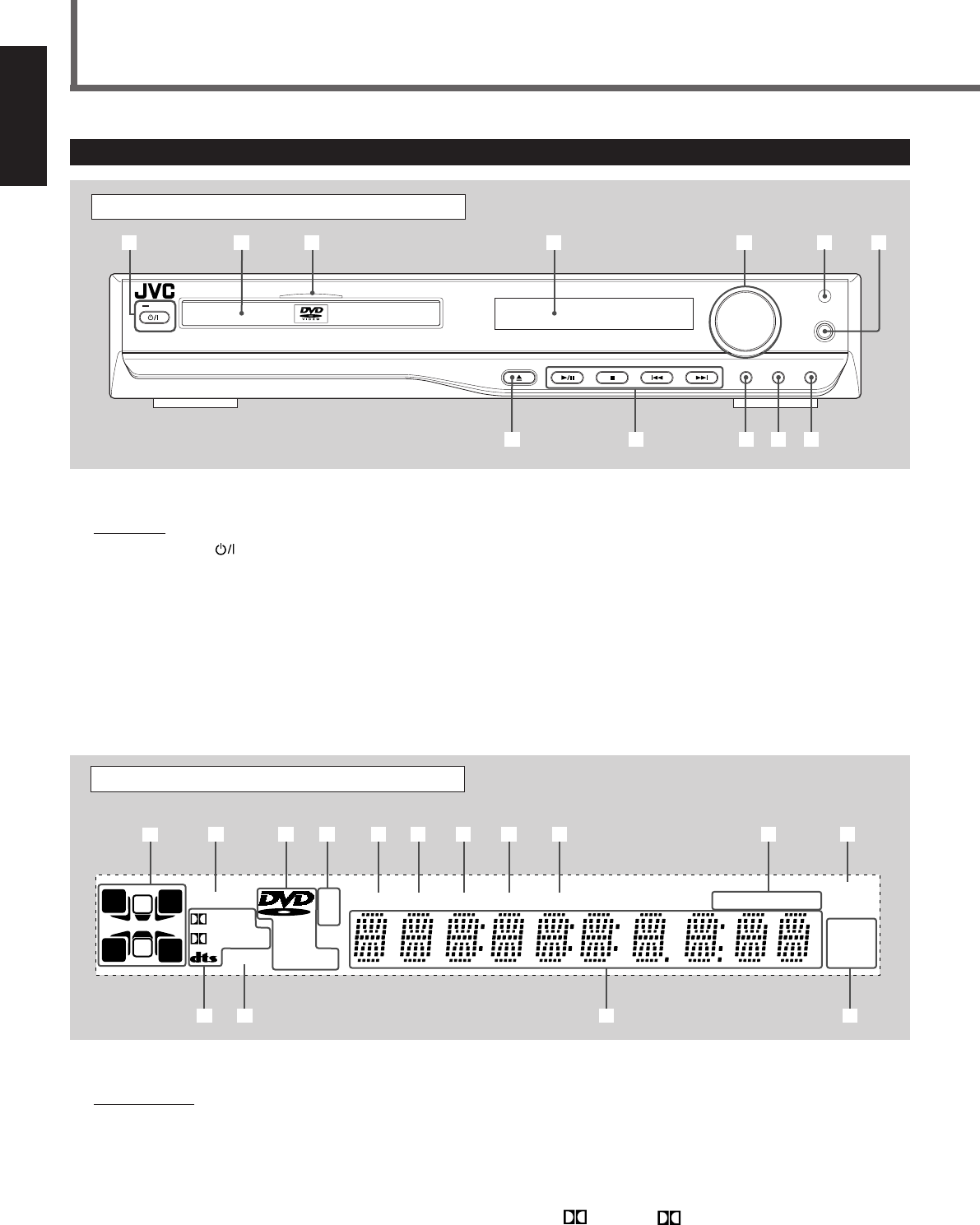

Parts Identification ...................................... 2

Center Unit ................................................................................. 2

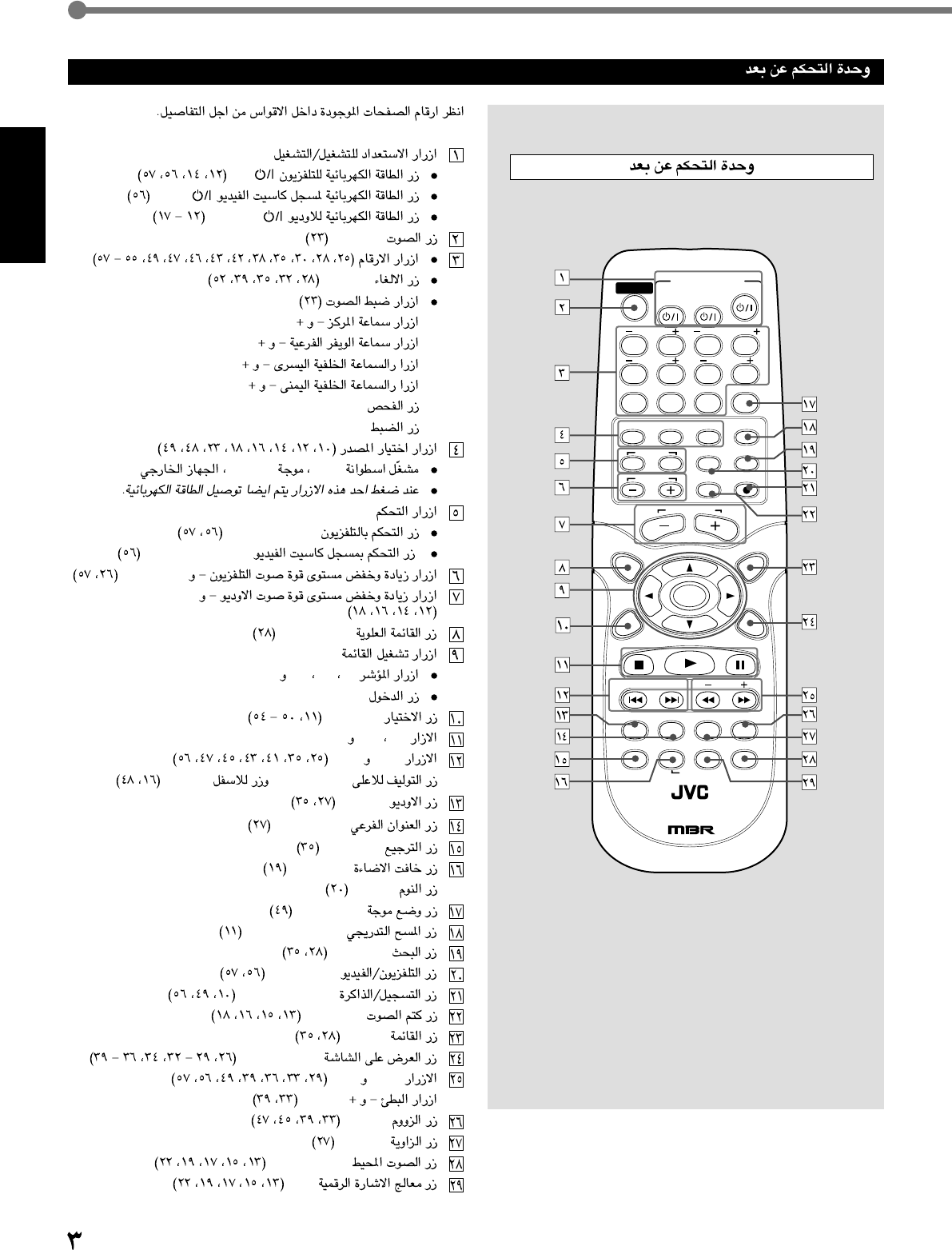

Remote Control .......................................................................... 3

Getting Started........................................... 4

Before Installation ...................................................................... 4

Checking the Supplied Accessories ........................................... 4

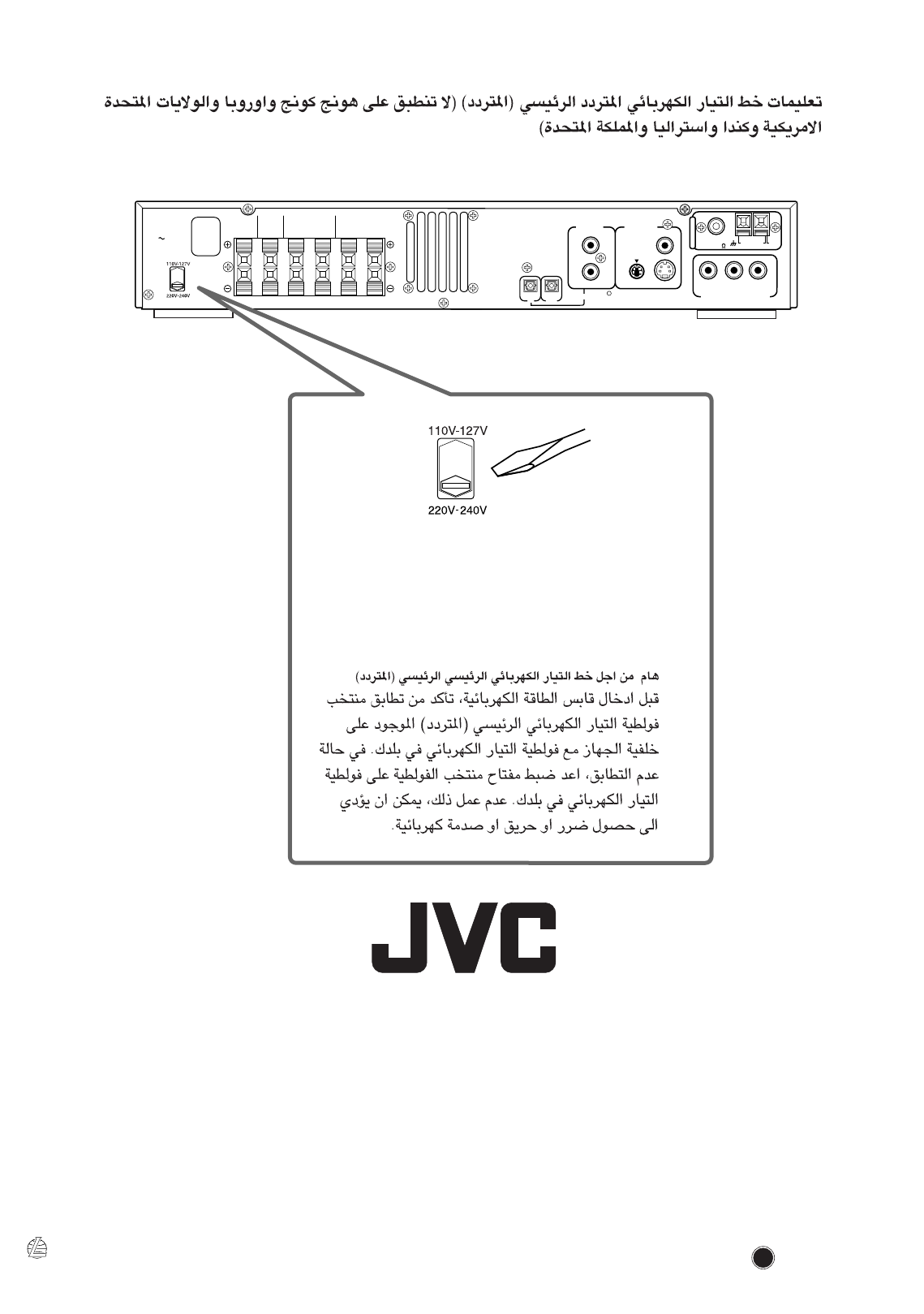

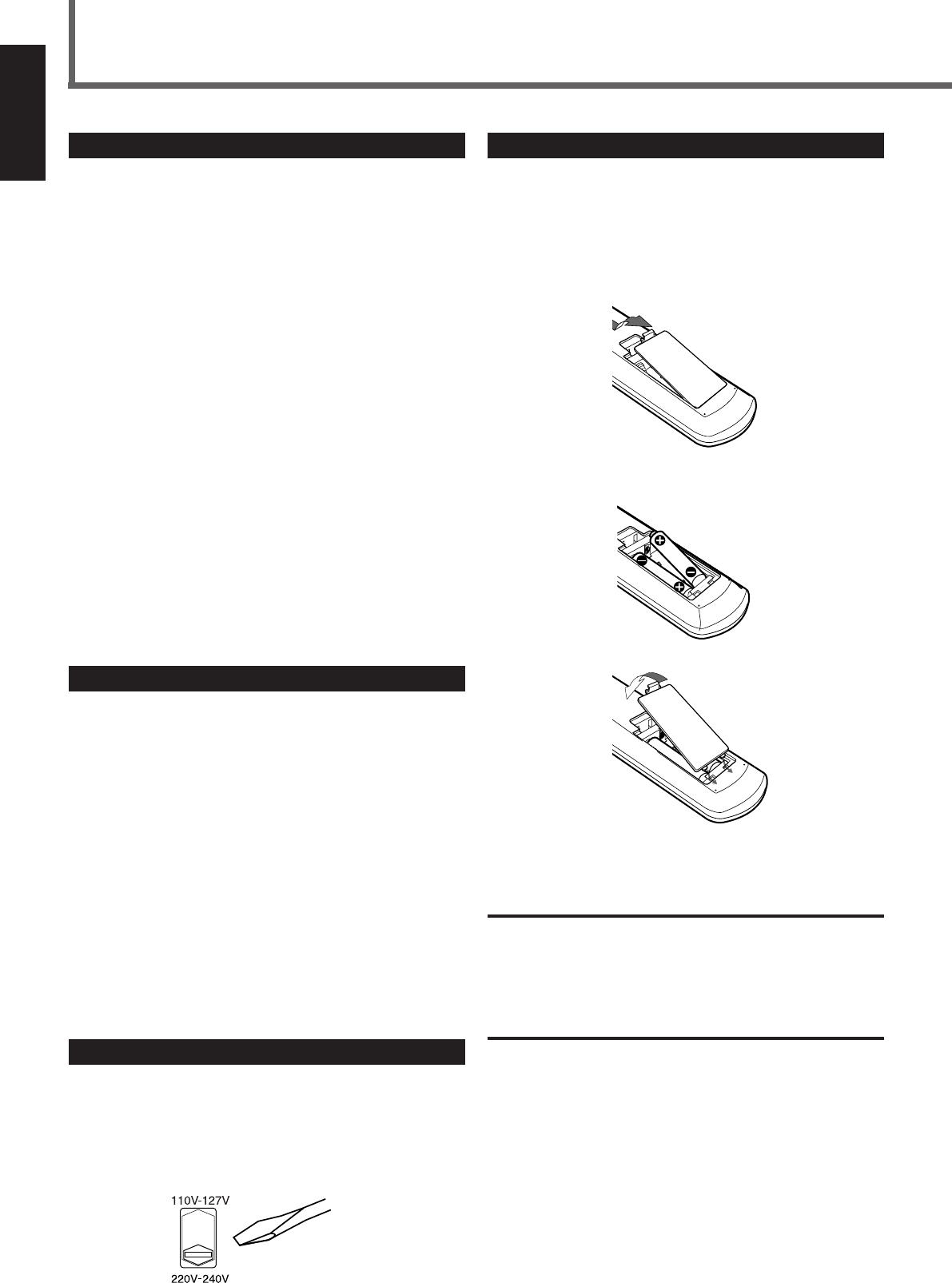

Adjusting the Voltage Selector ................................................... 4

Putting Batteries in the Remote Control .................................... 4

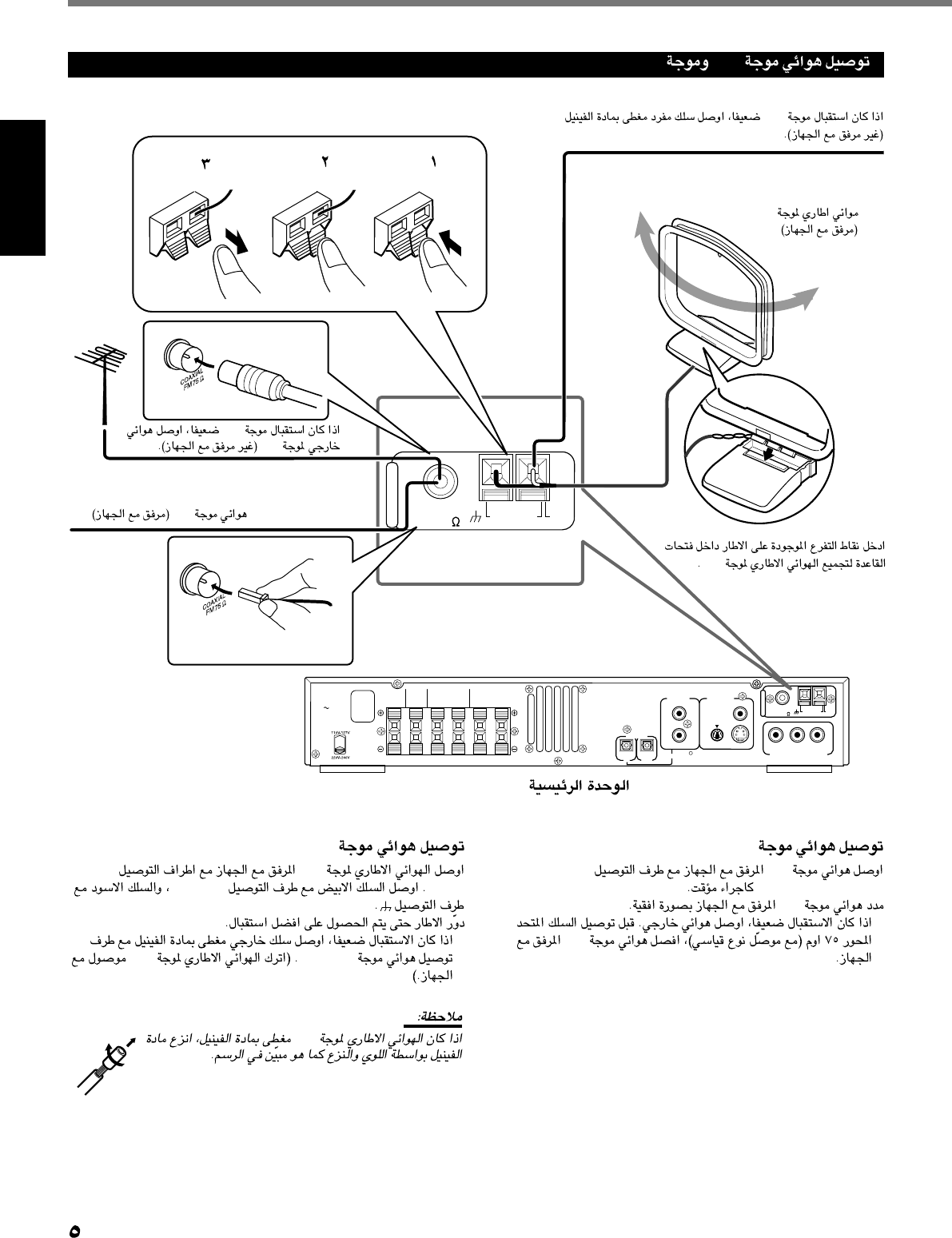

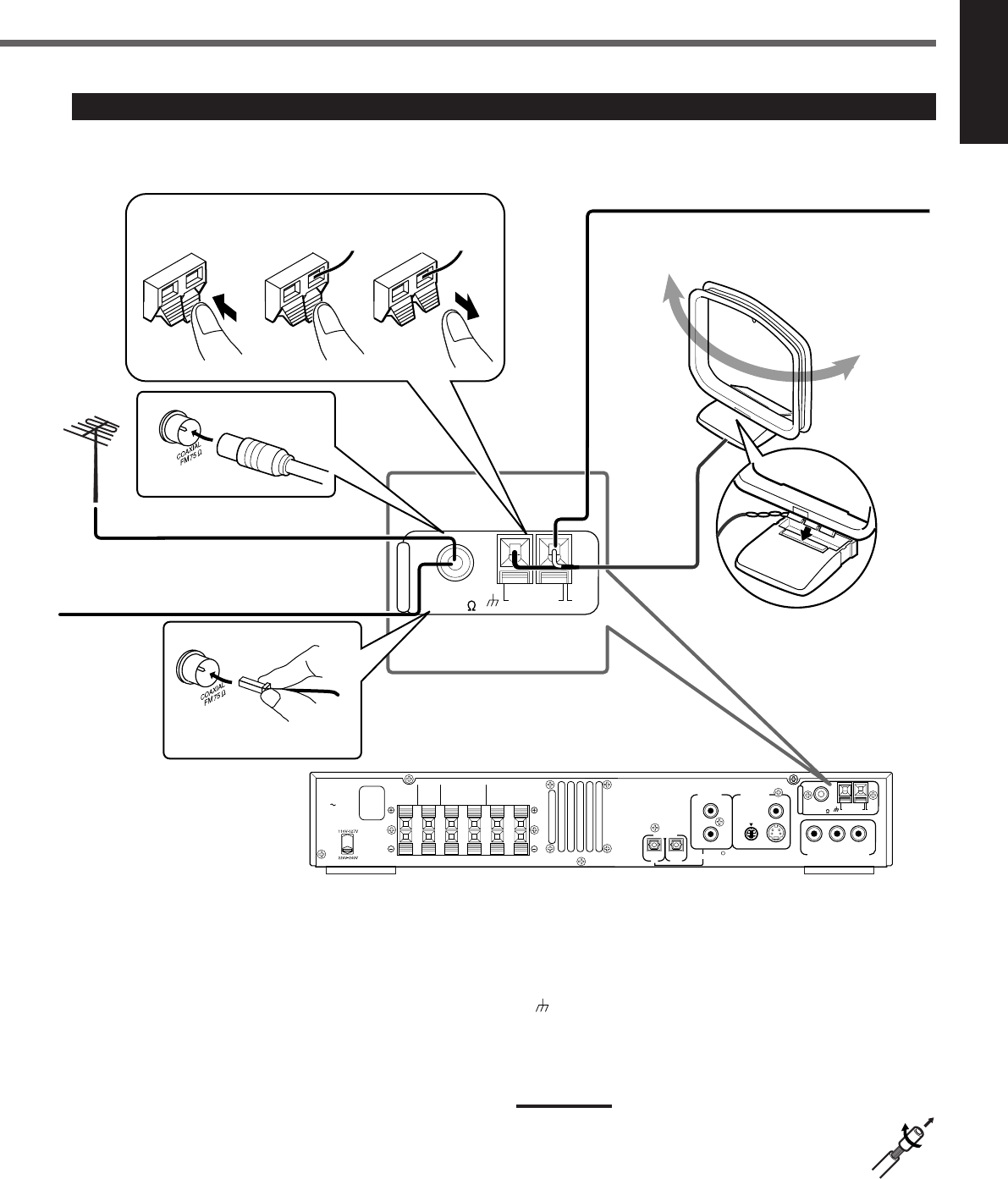

Connecting the FM and AM Antennas ....................................... 5

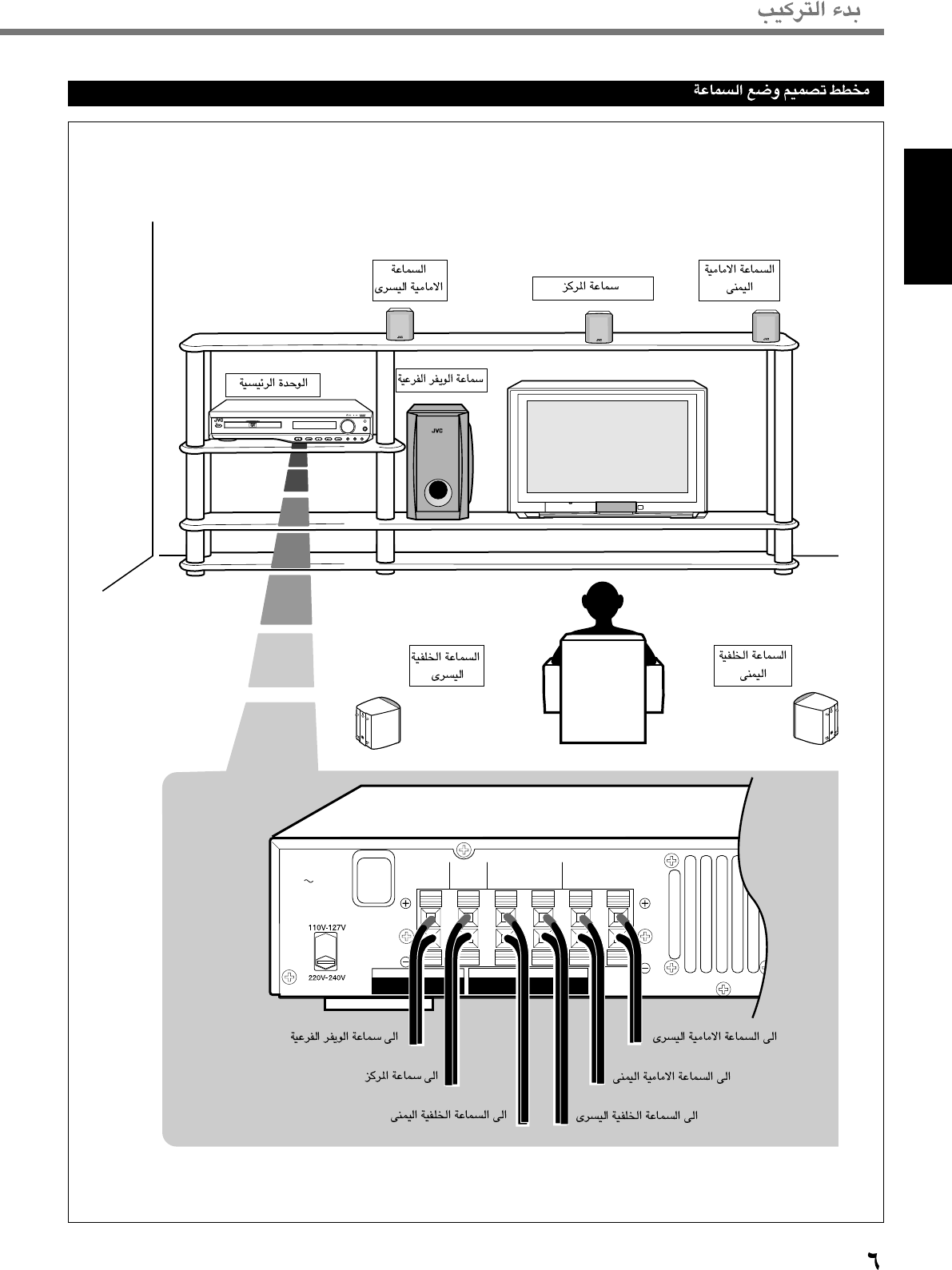

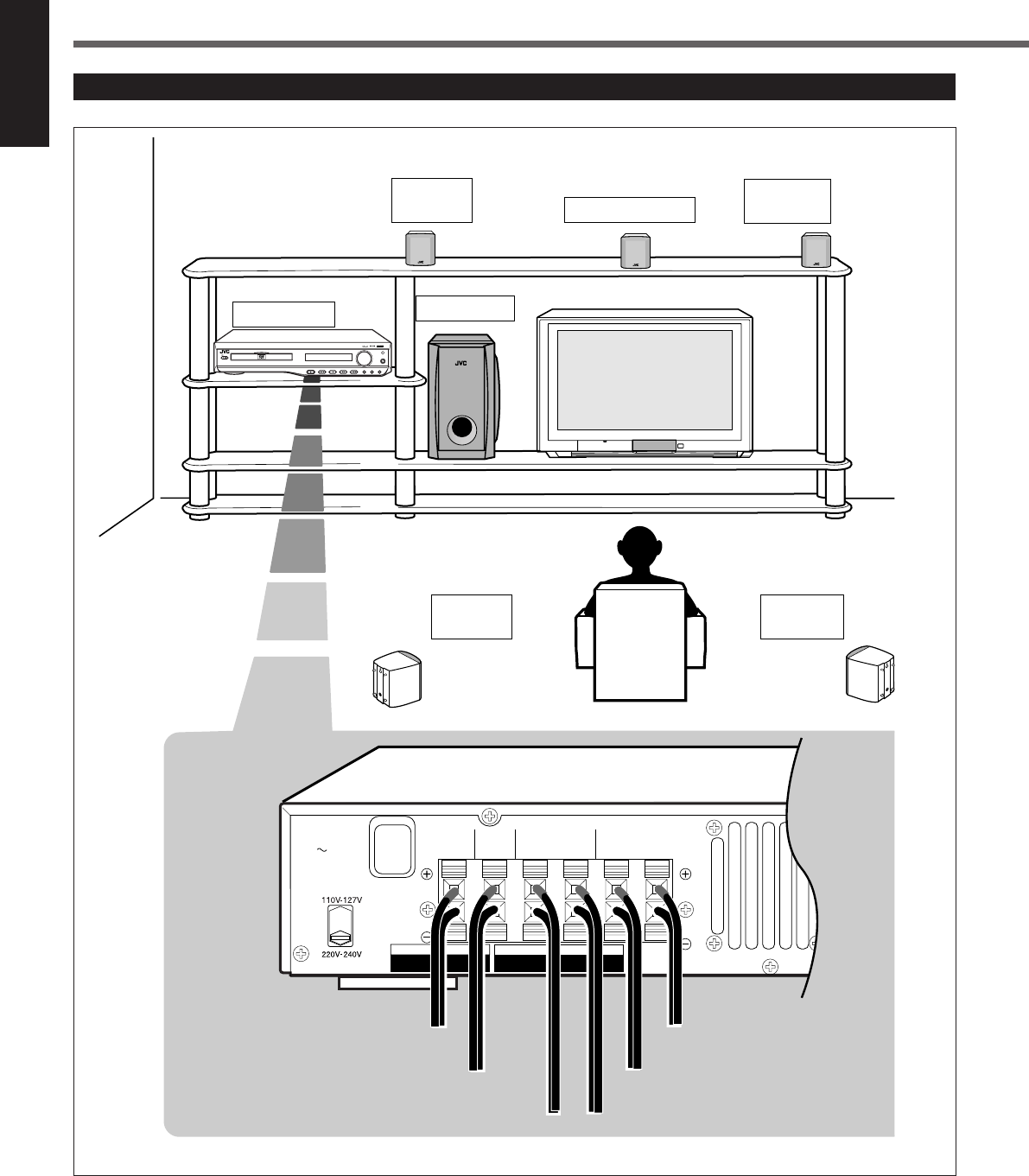

Speaker Layout Diagram ............................................................ 6

Connecting the Speakers ............................................................ 7

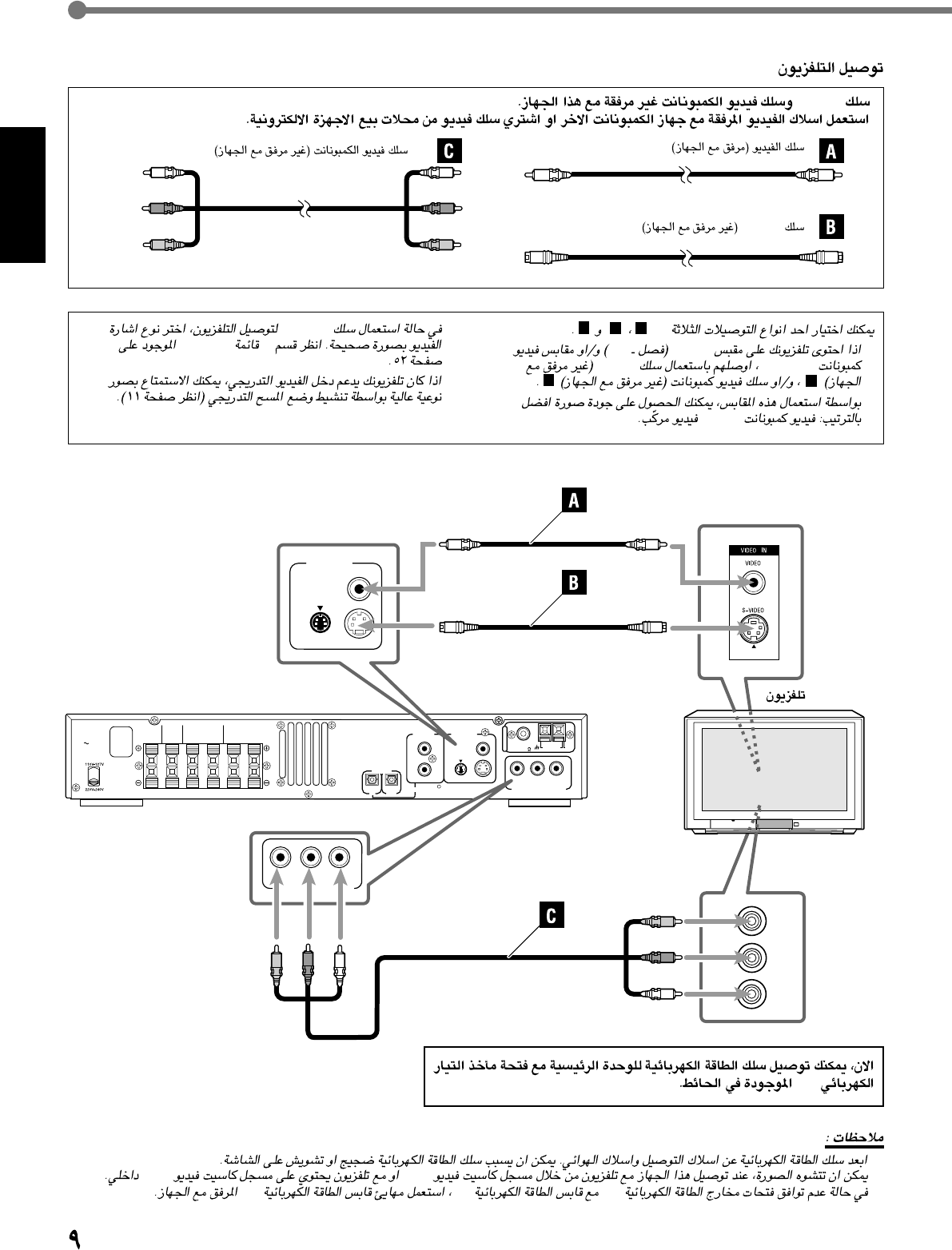

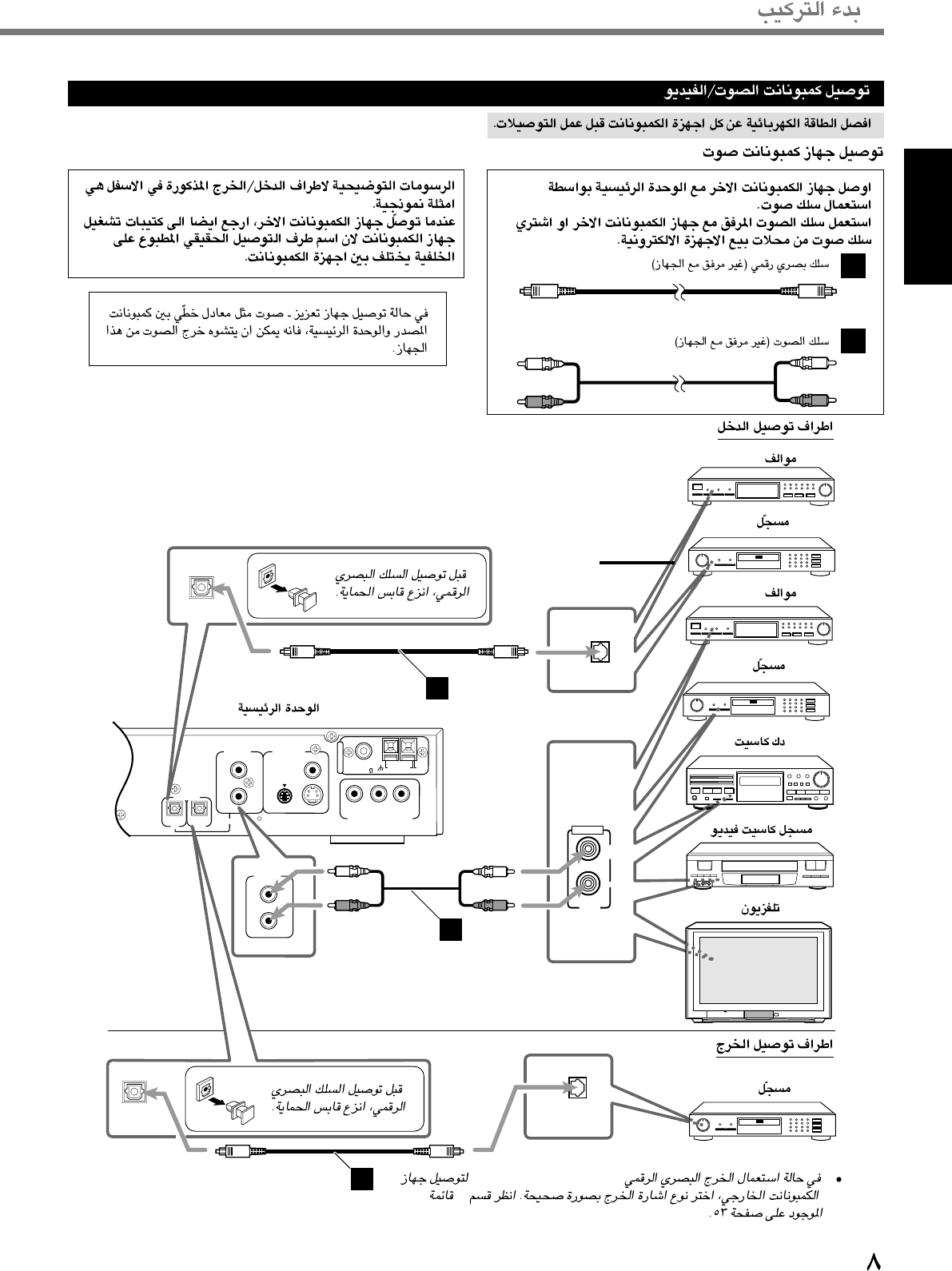

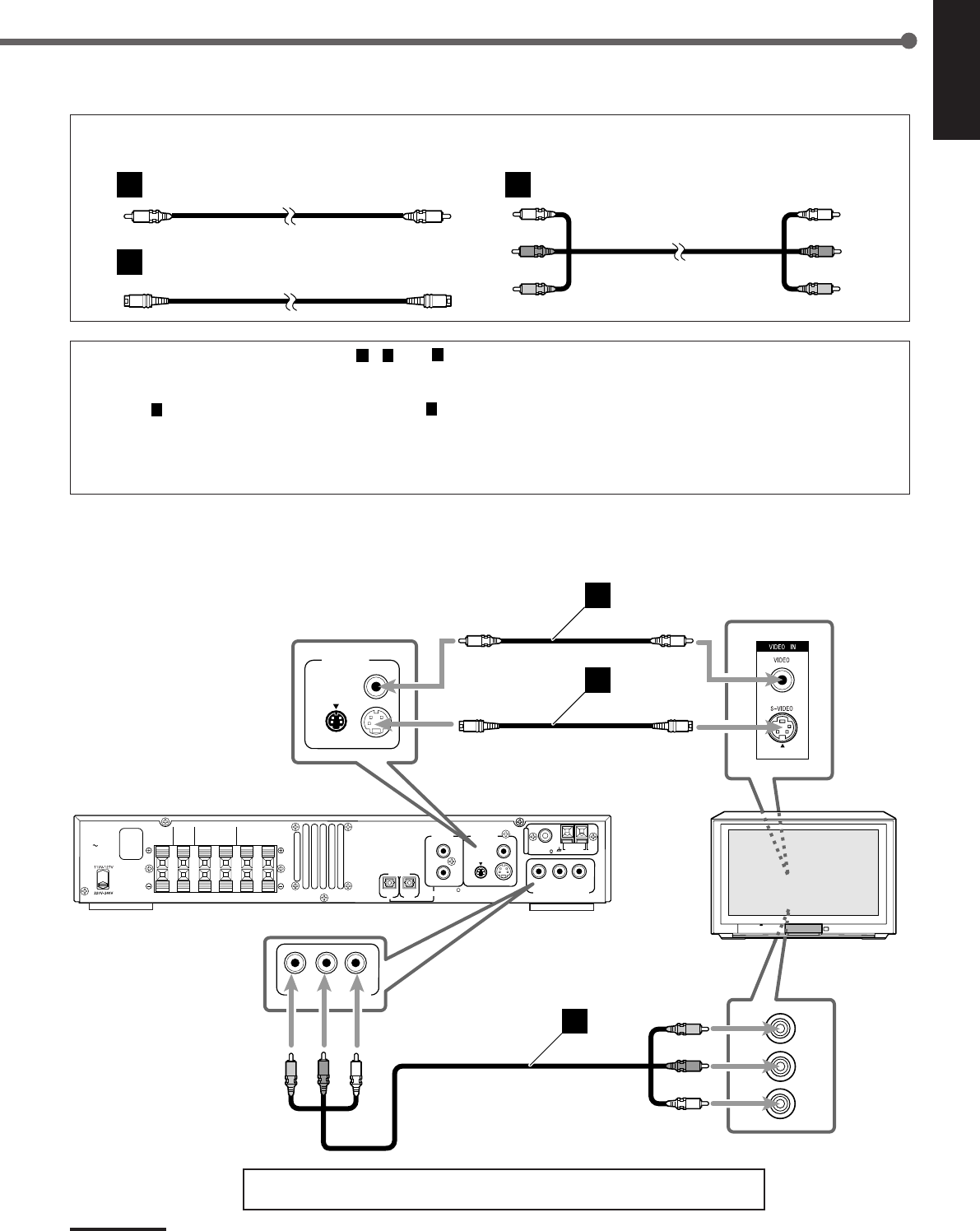

Connecting Audio/Video Component ........................................ 8

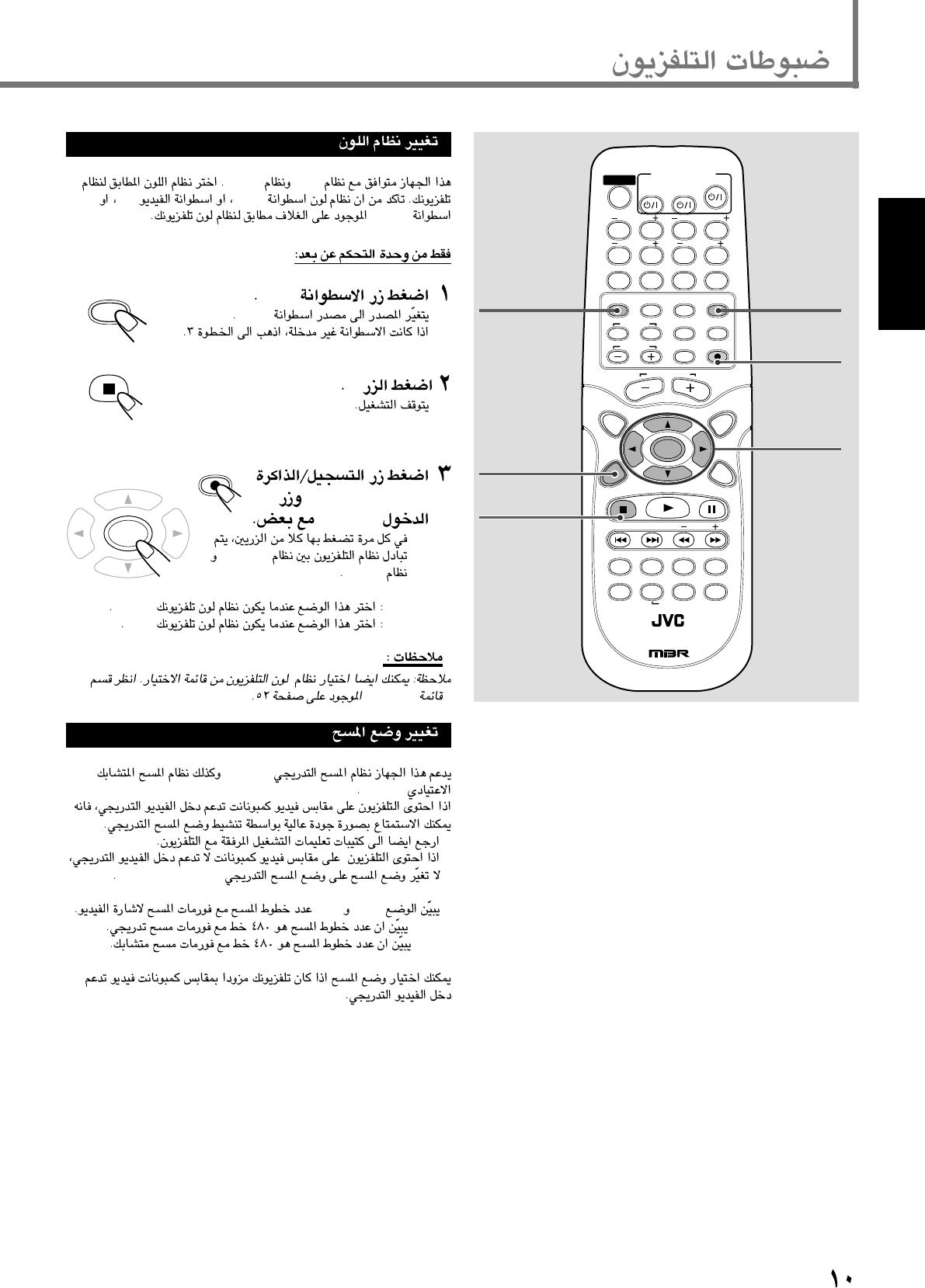

TV Setting ................................................ 10

Changing the Color System ..................................................... 10

Changing the Scanning Mode .................................................. 10

Adjusting the Pictures .............................................................. 11

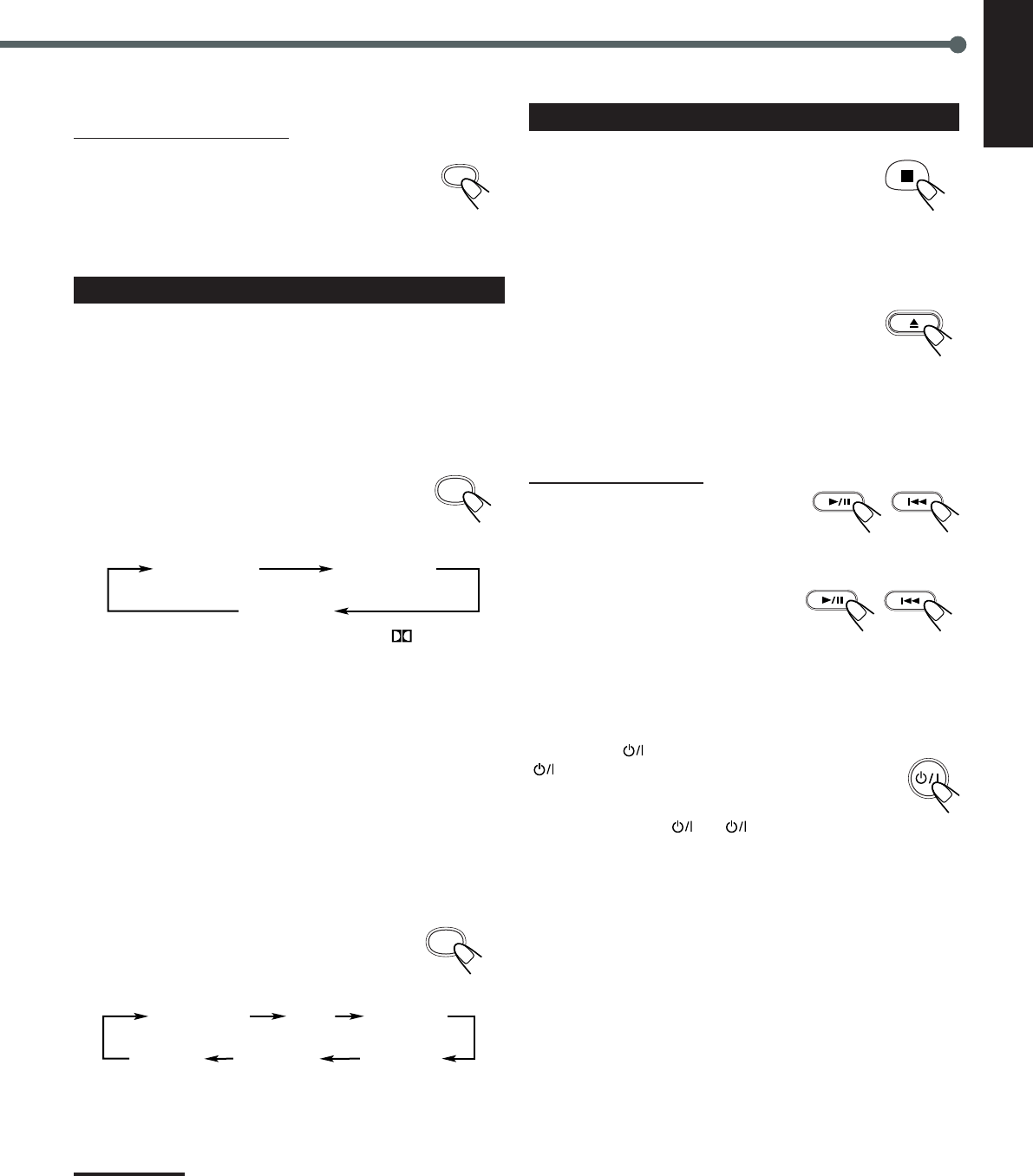

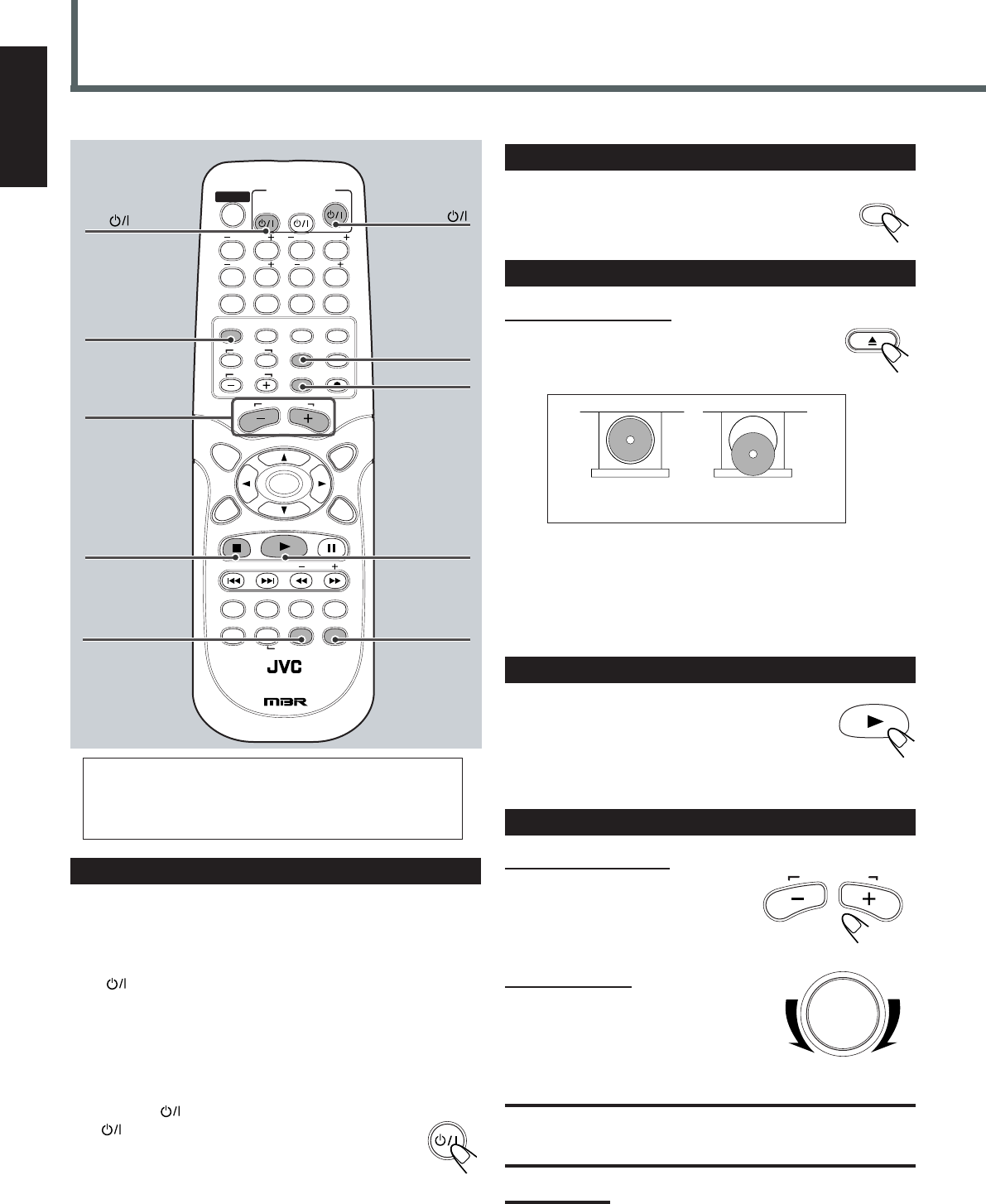

Basic DVD Operations ................................ 12

1 Turn On the Power ............................................................... 12

2 Select the Source .................................................................. 12

3 Load a DVD ......................................................................... 12

4 Start Playback ...................................................................... 12

5 Adjust the Volume ................................................................ 12

6 Activate Surround or DSP Mode ......................................... 13

7 Stop Playback ...................................................................... 13

Basic VCD/CD Operations .......................... 14

1 Turn On the Power ............................................................... 14

2 Select the Source .................................................................. 14

3 Load a VCD/CD .................................................................. 14

4 Start Playback ...................................................................... 14

5 Adjust the Volume ................................................................ 14

6 Activate Surround or DSP Mode ......................................... 15

7 Stop Playback ...................................................................... 15

Basic Tuner Operations .............................. 16

1 Turn On the Power ............................................................... 16

2 Select the Band .................................................................... 16

3 Adjust the Volume ................................................................ 16

4 Tune into a Station ............................................................... 16

5 Activate Surround or DSP Mode ......................................... 17

Other Basic Operations .............................. 18

Enjoying Sounds from the External Component ..................... 18

Listening with the Headphones ................................................ 19

Adjusting the Brightness .......................................................... 19

Turning Off the Power with the Timer ..................................... 20

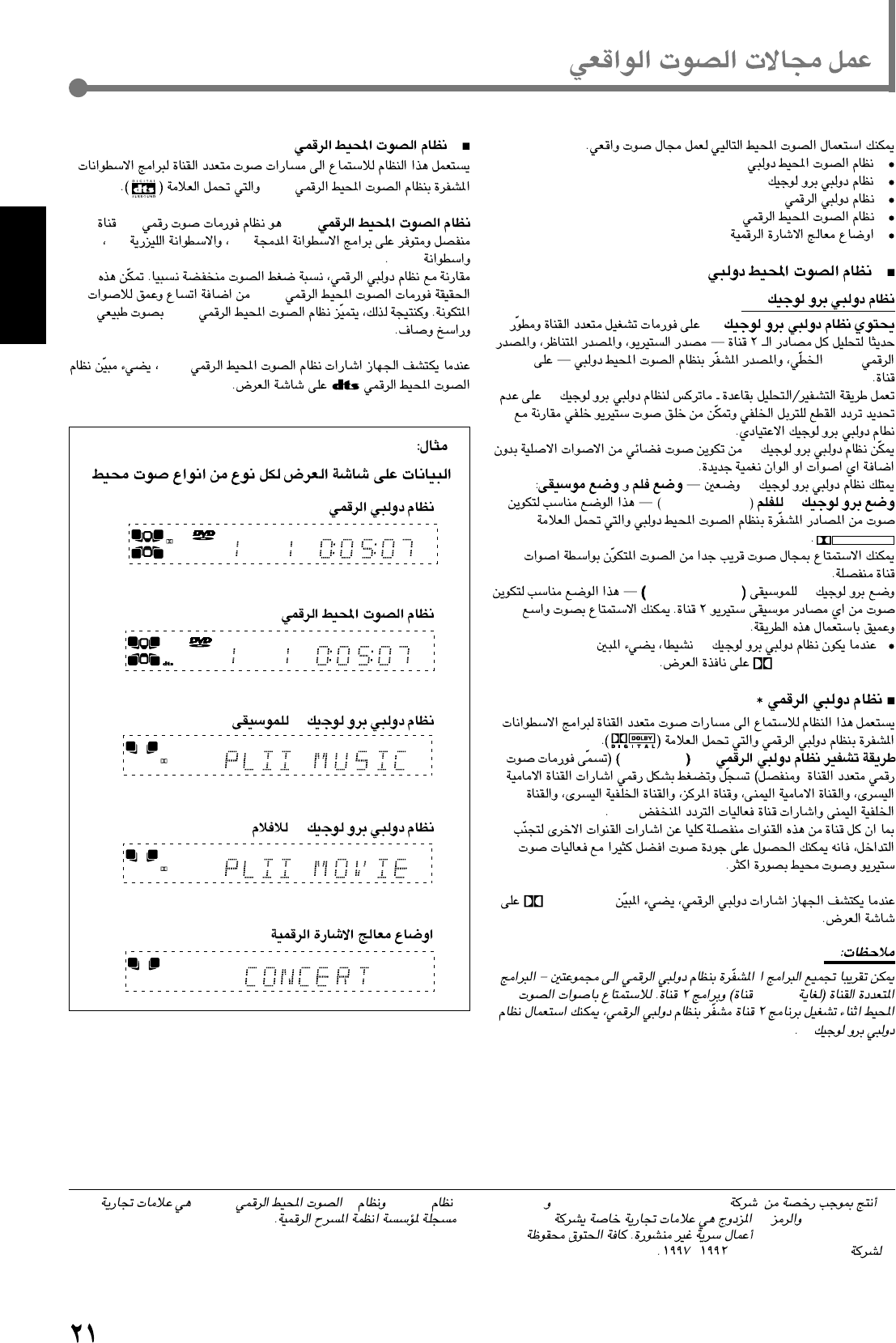

Creating Realistic Sound Fields ................... 21

7 Dolby Surround .................................................................... 21

7 Dolby Digital ........................................................................ 21

7 DTS Digital Surround .......................................................... 21

7 DSP (Digital Signal Processor) Modes ................................ 22

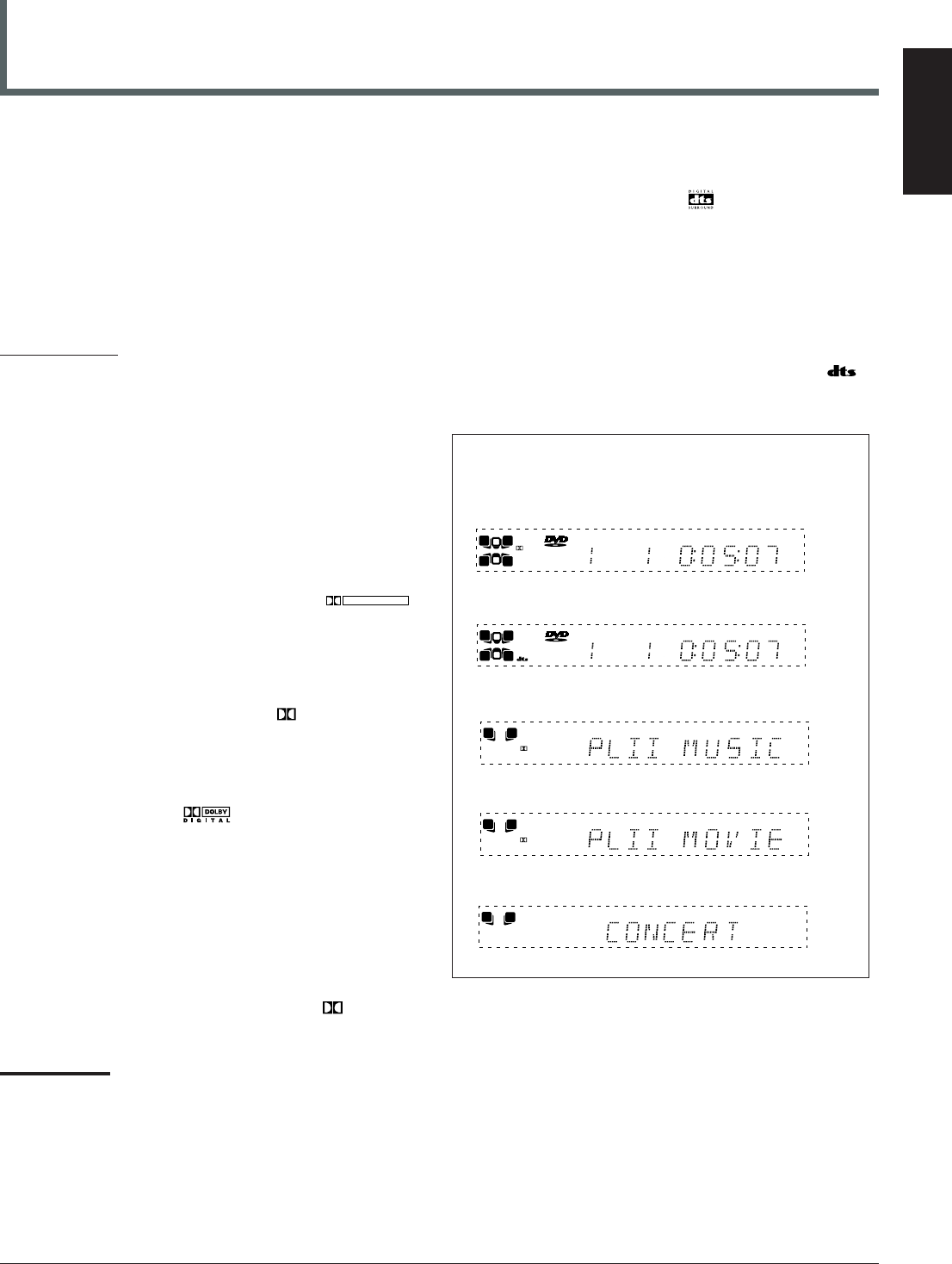

Activating the Surround Mode ................................................. 22

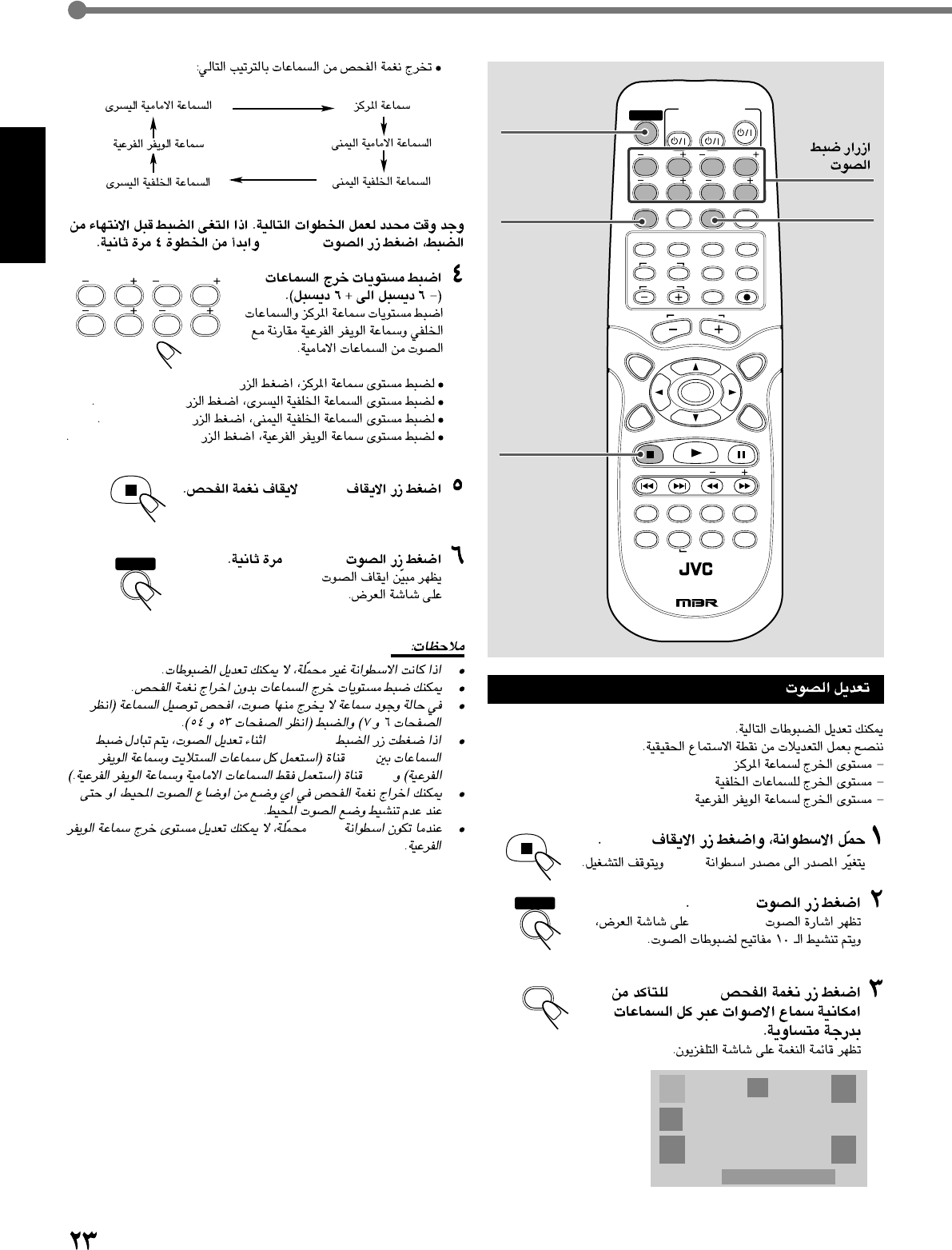

Adjusting the Sound ................................................................. 23

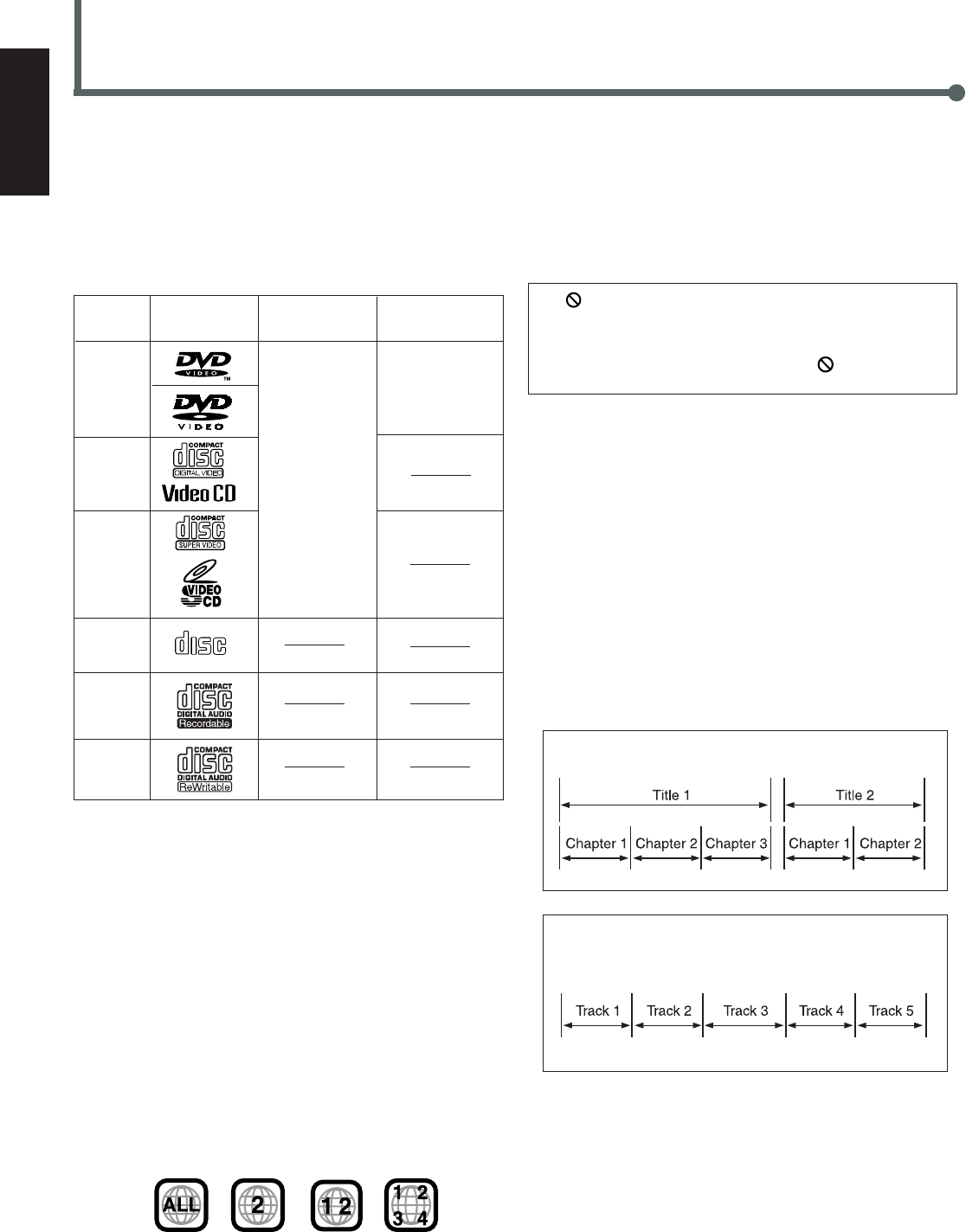

Disc Introduction—DVD/VCD/CD ................ 24

Basic Disc Operations ................................ 25

DVD Playback ........................................... 26

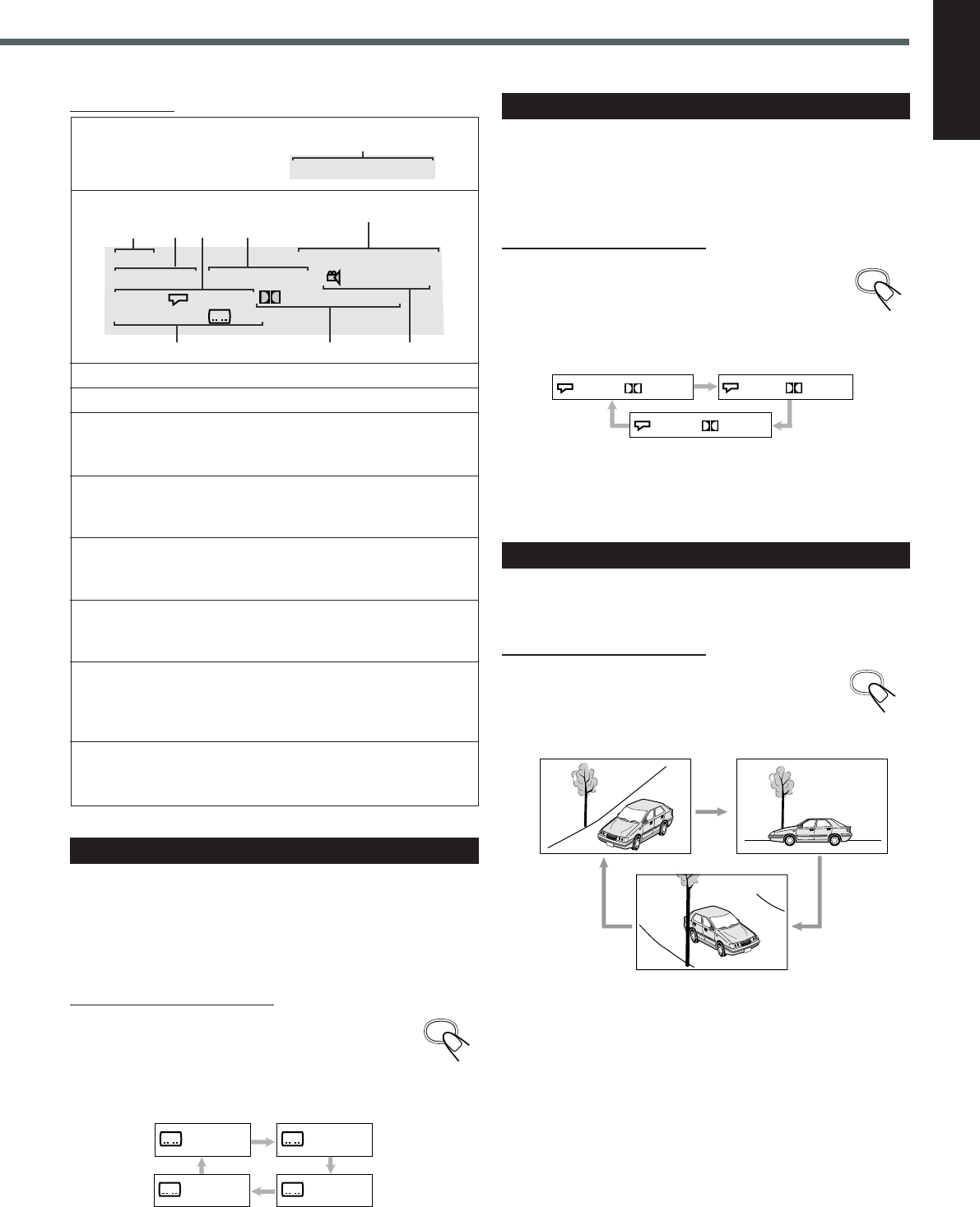

Showing the On-Screen Menu ................................................. 26

Showing the Information on the TV Screen ............................. 26

Selecting the Subtitles .............................................................. 27

Selecting the Audio Languages ................................................ 27

Selecting the Multi-Angle Views ............................................. 27

Disc Menu-Driven Playback .................................................... 28

Moving to a Particular Portion Directly ................................... 28

Searching for a Particular Point ............................................... 29

Repeating Playback .................................................................. 29

7 Repeat Play ........................................................................... 29

7 A–B Repeat ........................................................................... 29

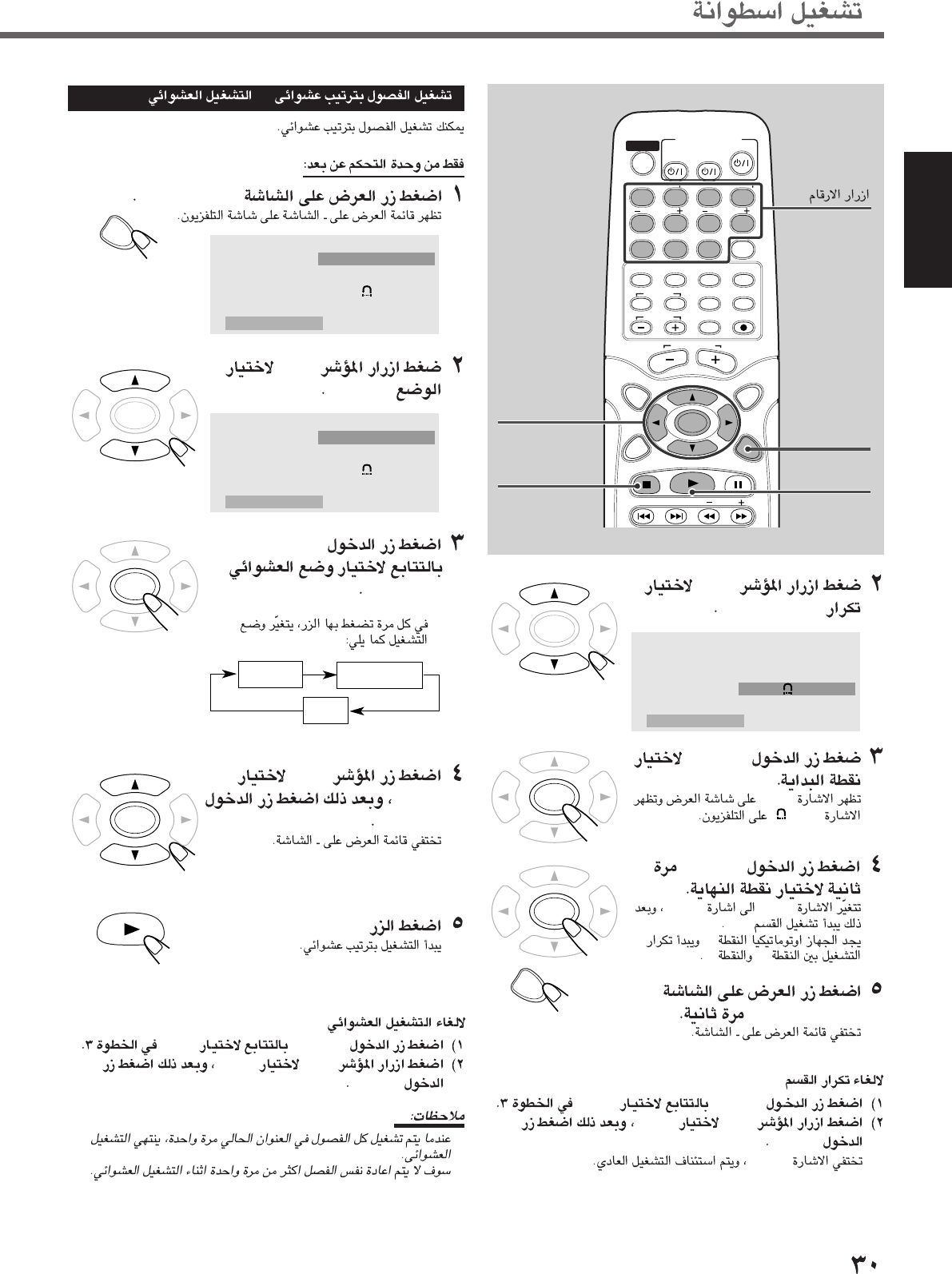

Playing Back Chapters in Random Order—Shuffle Play ........ 30

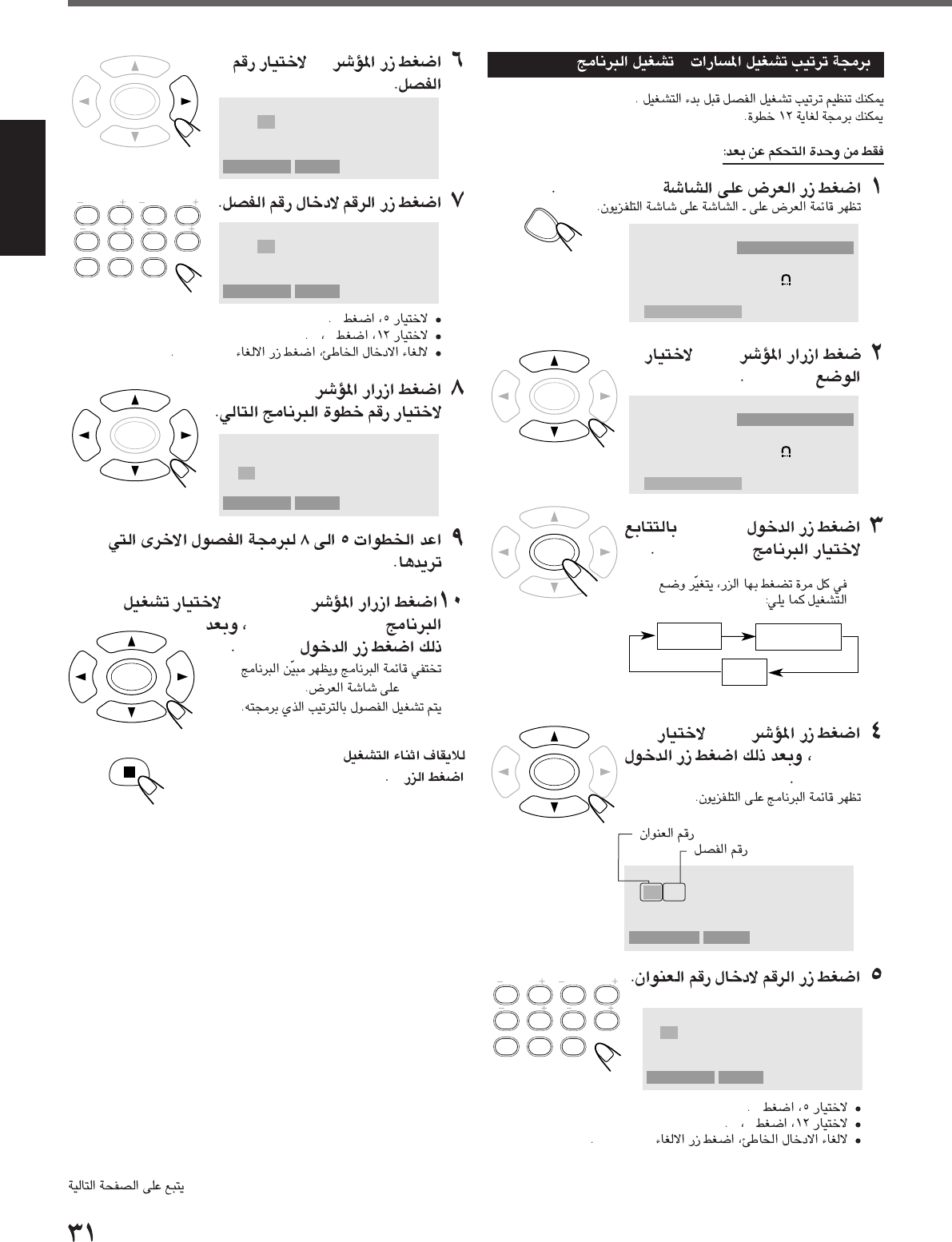

Programming the Playing Order of the Chapters

—Program Play .................................................................. 31

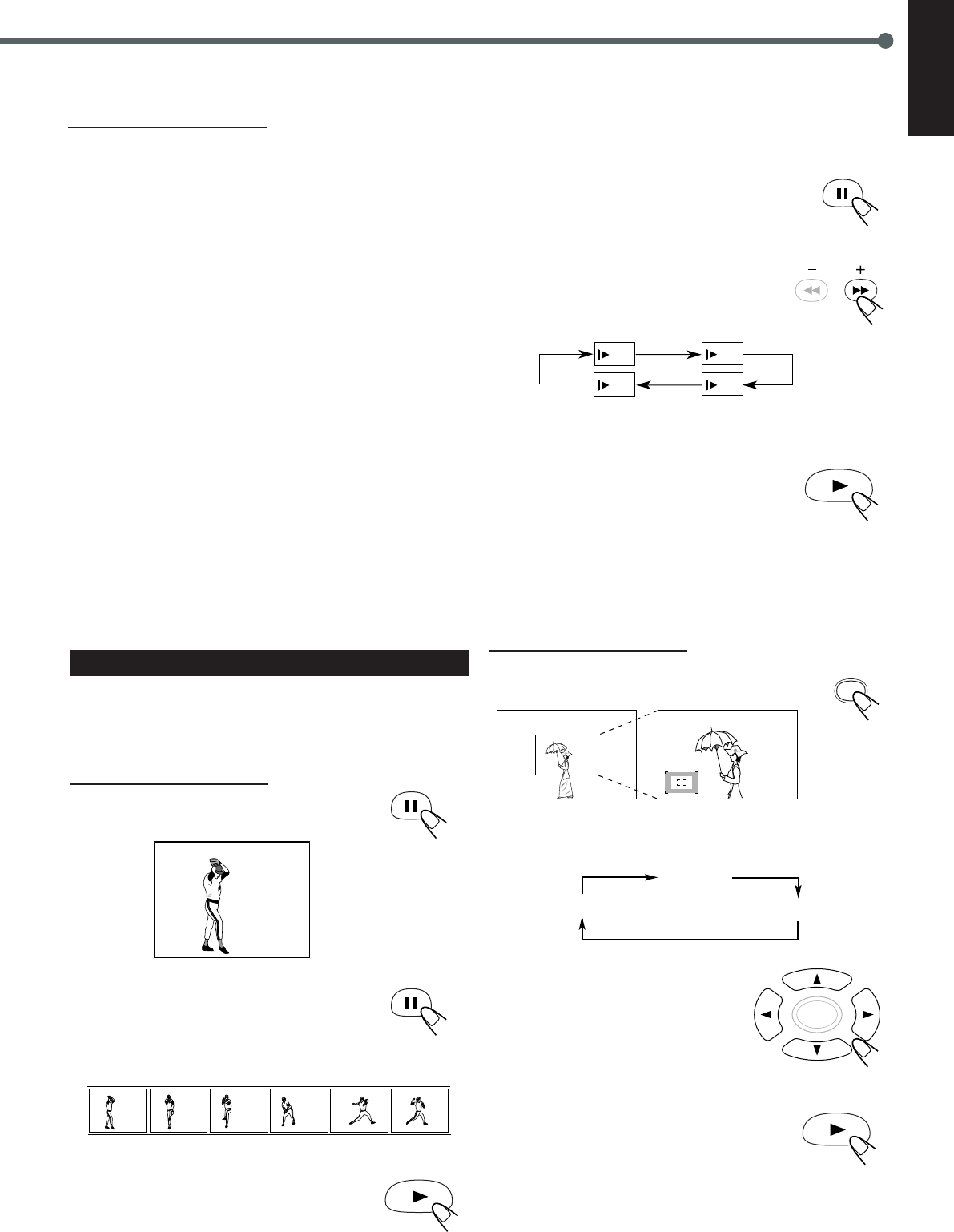

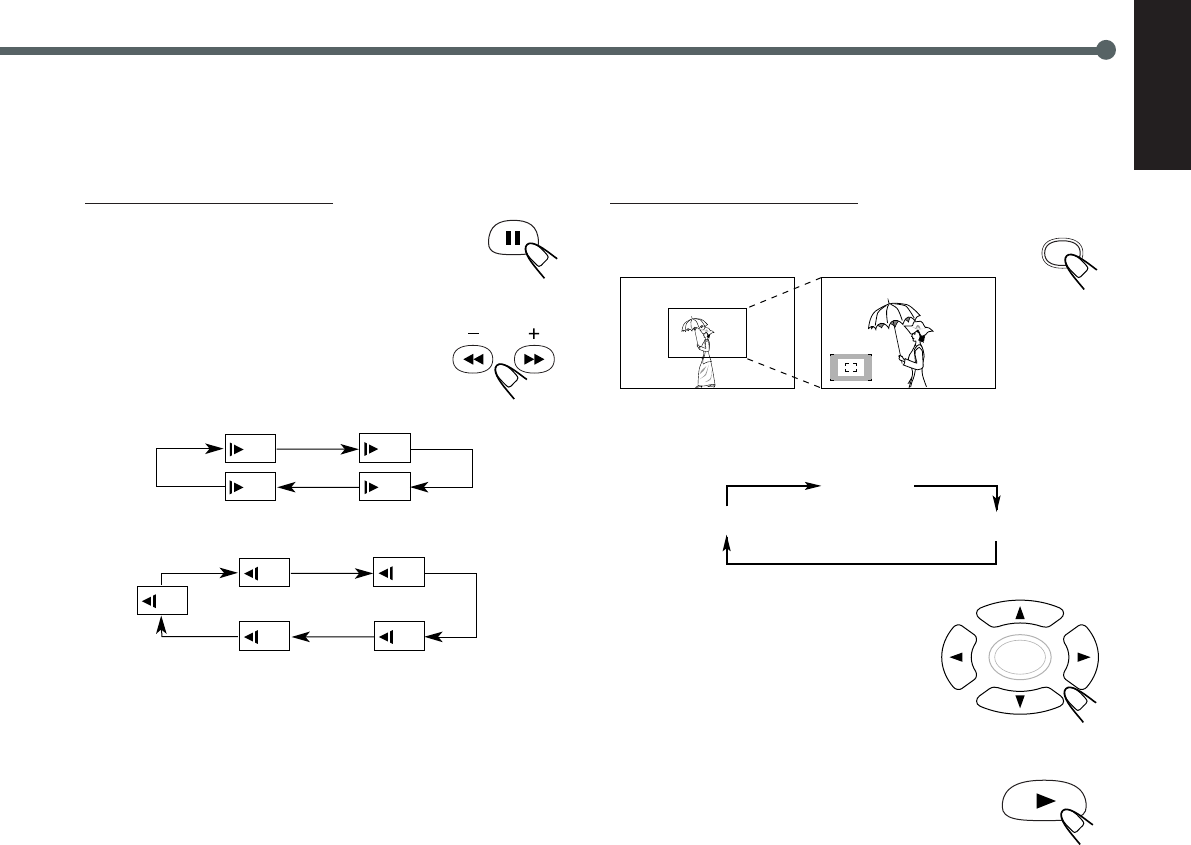

DVD Special Effect Playback .................................................. 32

7 Still Picture/Frame-by-Frame Playback ............................... 32

7 Slow Motion Playback ......................................................... 33

7 Zoom .................................................................................... 33

VCD/CD Playback...................................... 34

Showing the On-Screen Menu ................................................. 34

Showing the Information on the TV Screen ............................. 34

Disc Menu-Driven Playback (Only for VCD) .......................... 35

Selecting Playback Channel ..................................................... 35

Moving to a Particular Portion Directly ................................... 35

Searching for a Particular Point ............................................... 36

Repeating Playback .................................................................. 36

7 Repeat Play ........................................................................... 36

7 A–B Repeat ........................................................................... 37

Playing Back Tracks in Random Order—Shuffle Play ............ 37

Programming the Playing Order of the Tracks

—Program Play .................................................................. 38

VCD Special Effect Playback .................................................. 39

7 Still Picture/Frame-by-Frame Playback ............................... 39

7 Slow Motion Playback ......................................................... 39

7 Zoom .................................................................................... 39

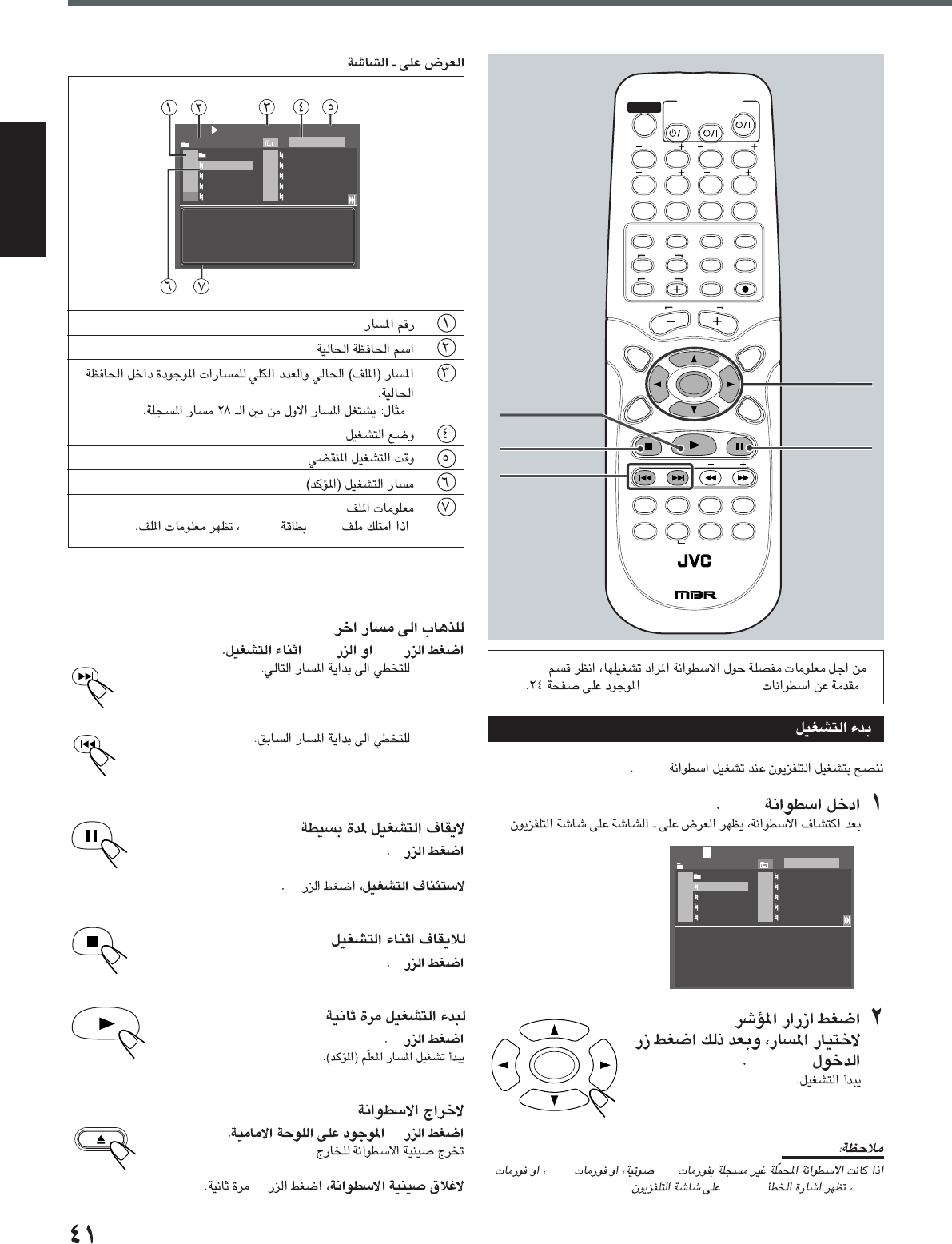

MP3 Playback ........................................... 40

Starting Playback ..................................................................... 41

Operations Using the On-Screen Display ................................ 42

Moving to a Particular Track Directly...................................... 42

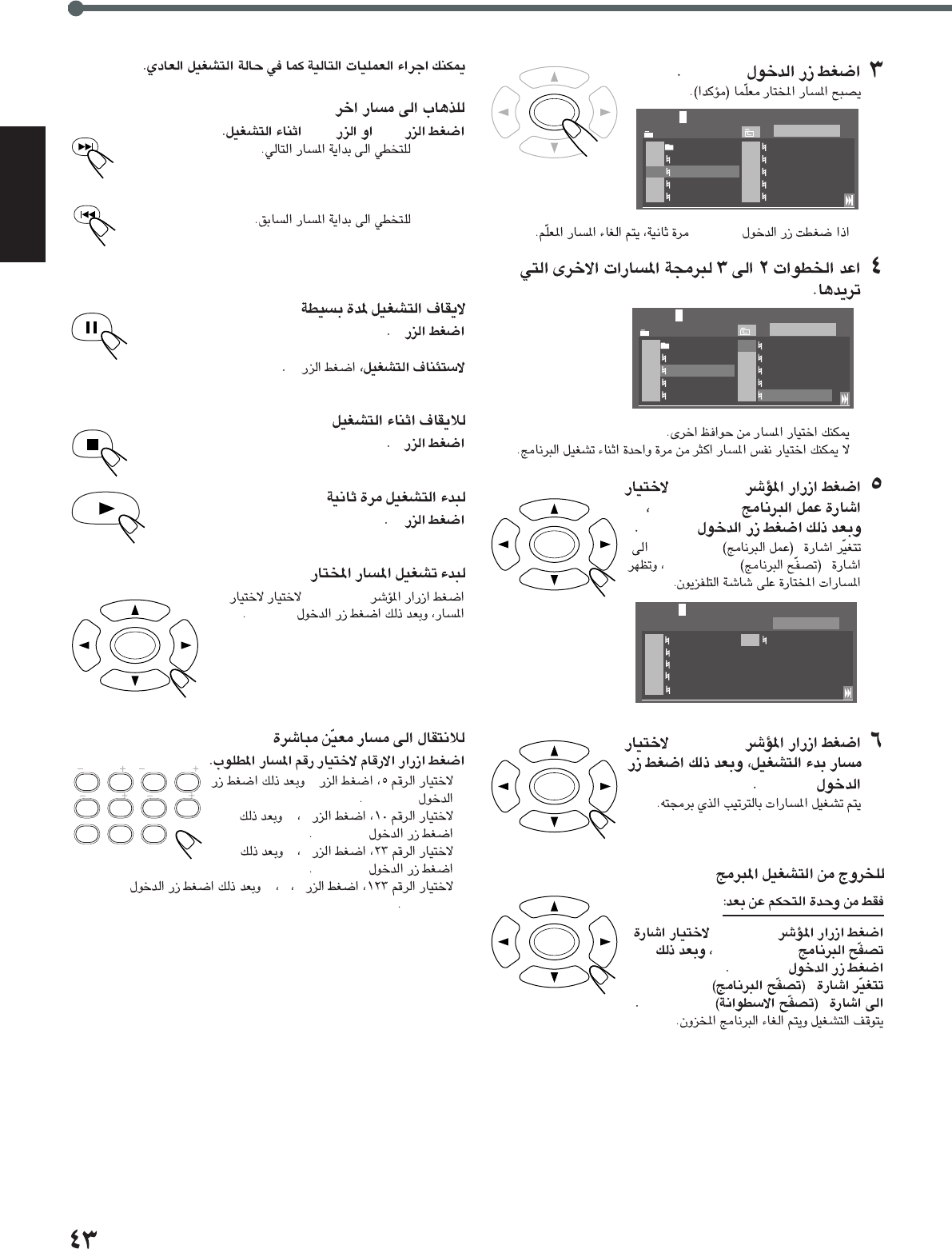

Programming the Playing Order of the Tracks

—Program Play .................................................................. 42

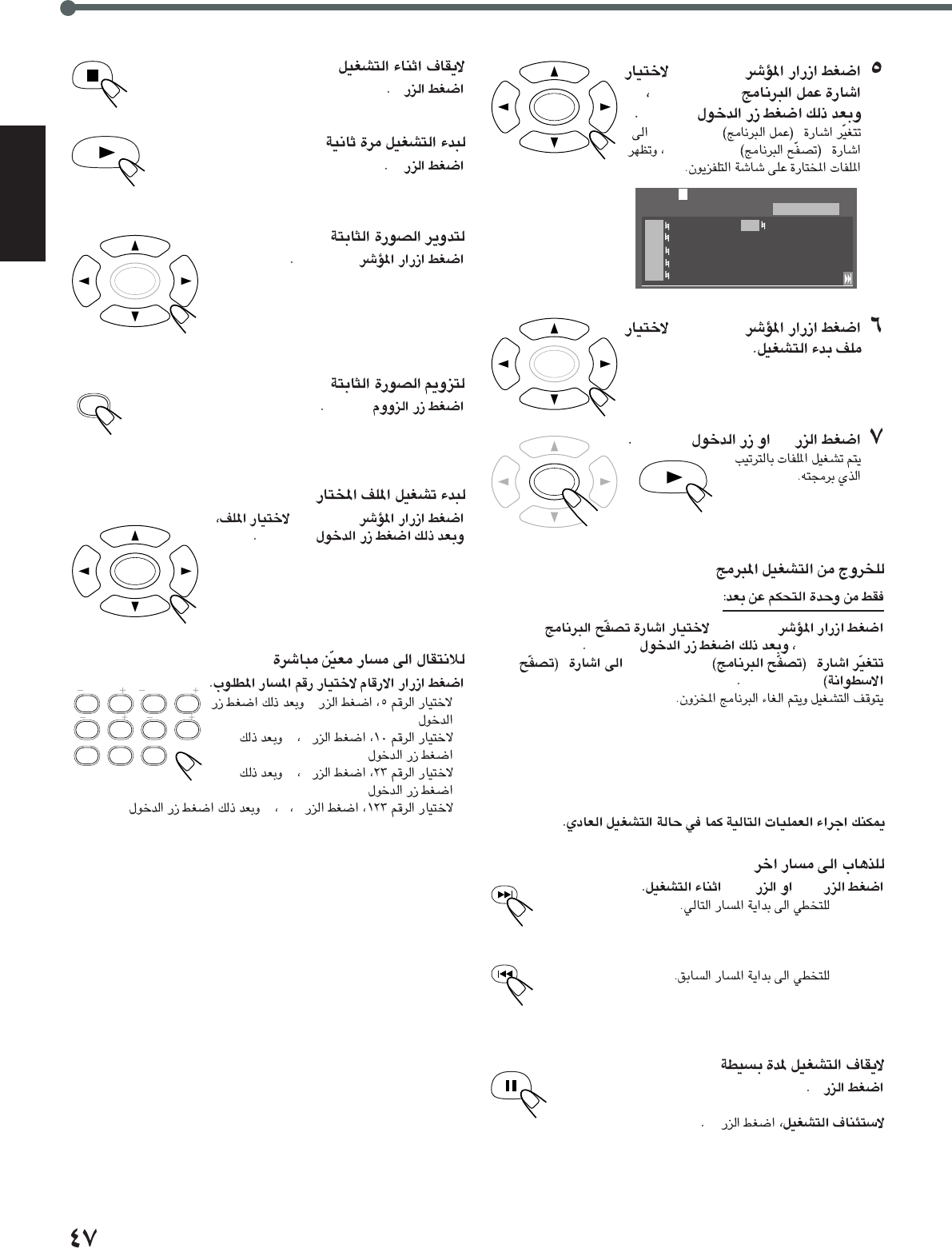

JPEG Playback .......................................... 44

Loading the Disc ...................................................................... 44

Operations Using the On-Screen Display ................................ 45

Moving to a Particular File Directly ........................................ 46

Programming the Playing Order of the Files

—Program Play .................................................................. 46

Tuner Operations ....................................... 48

Setting the AM Tuner Interval Spacing .................................... 48

Tuning in Stations .................................................................... 48

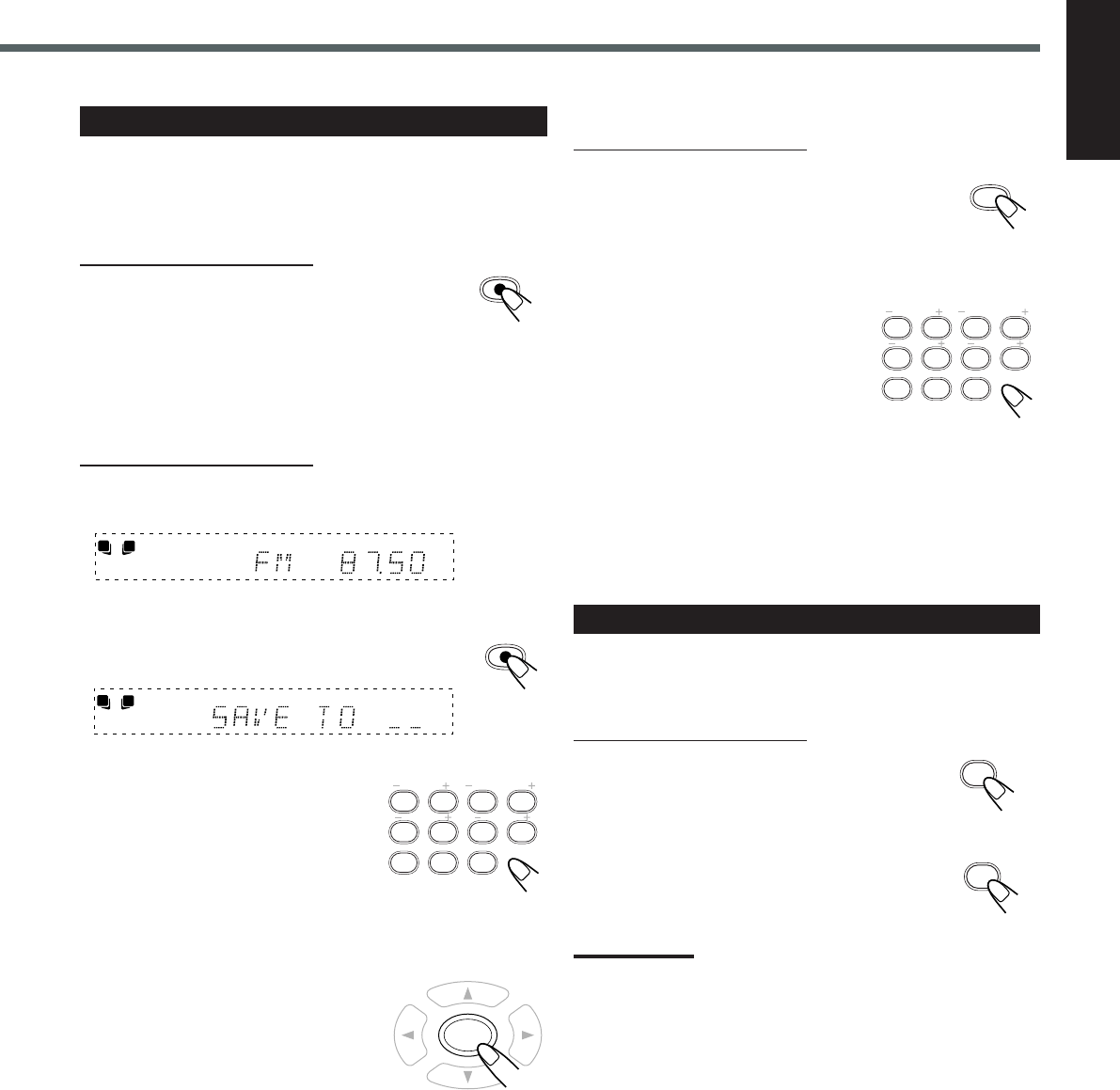

Using Preset Tuning ................................................................. 49

Selecting the FM Reception Mode ........................................... 49

Setting up the DVD Preferences ................. 50

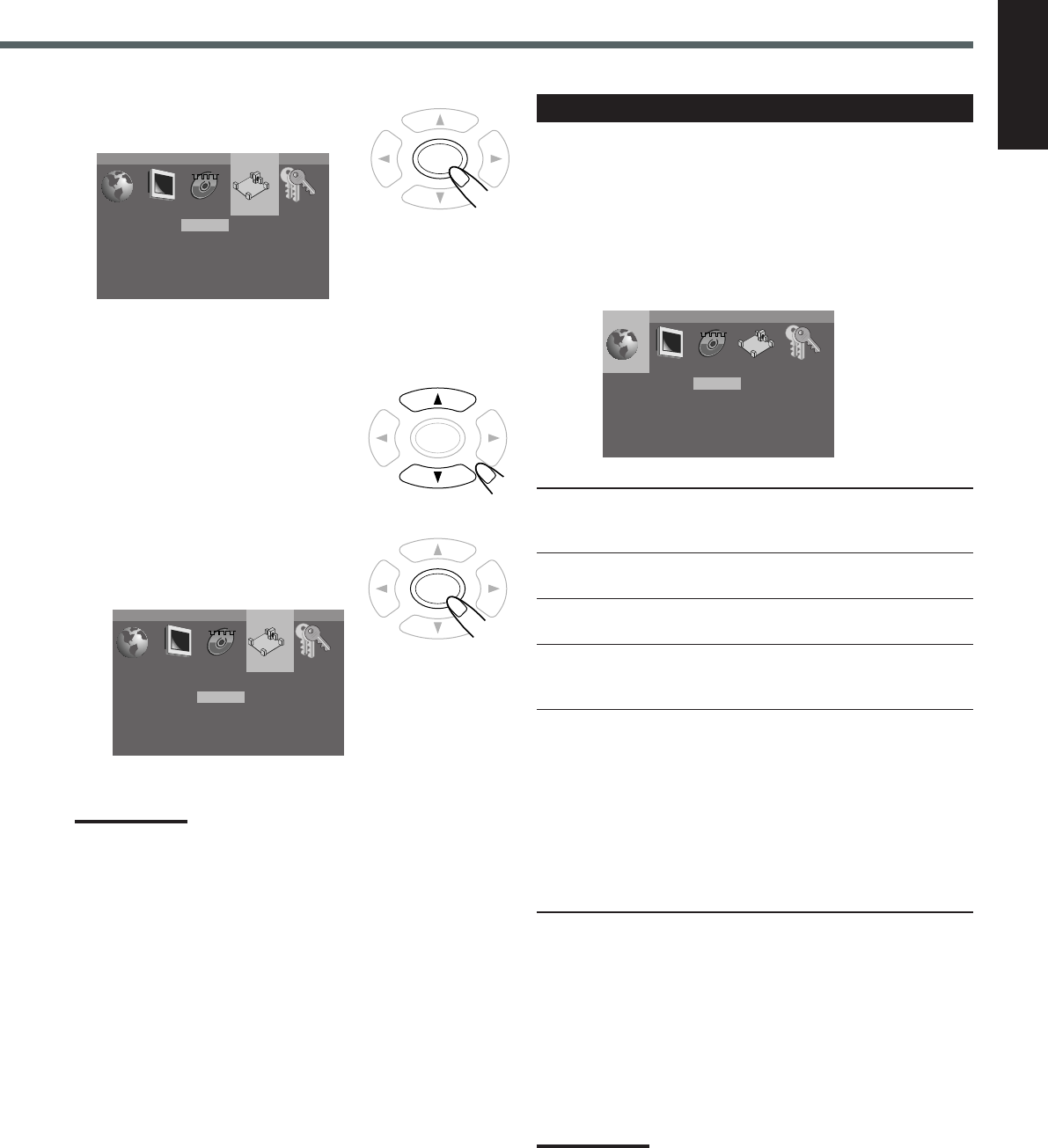

Using the Choice Menus .......................................................... 50

Language Menu ........................................................................ 51

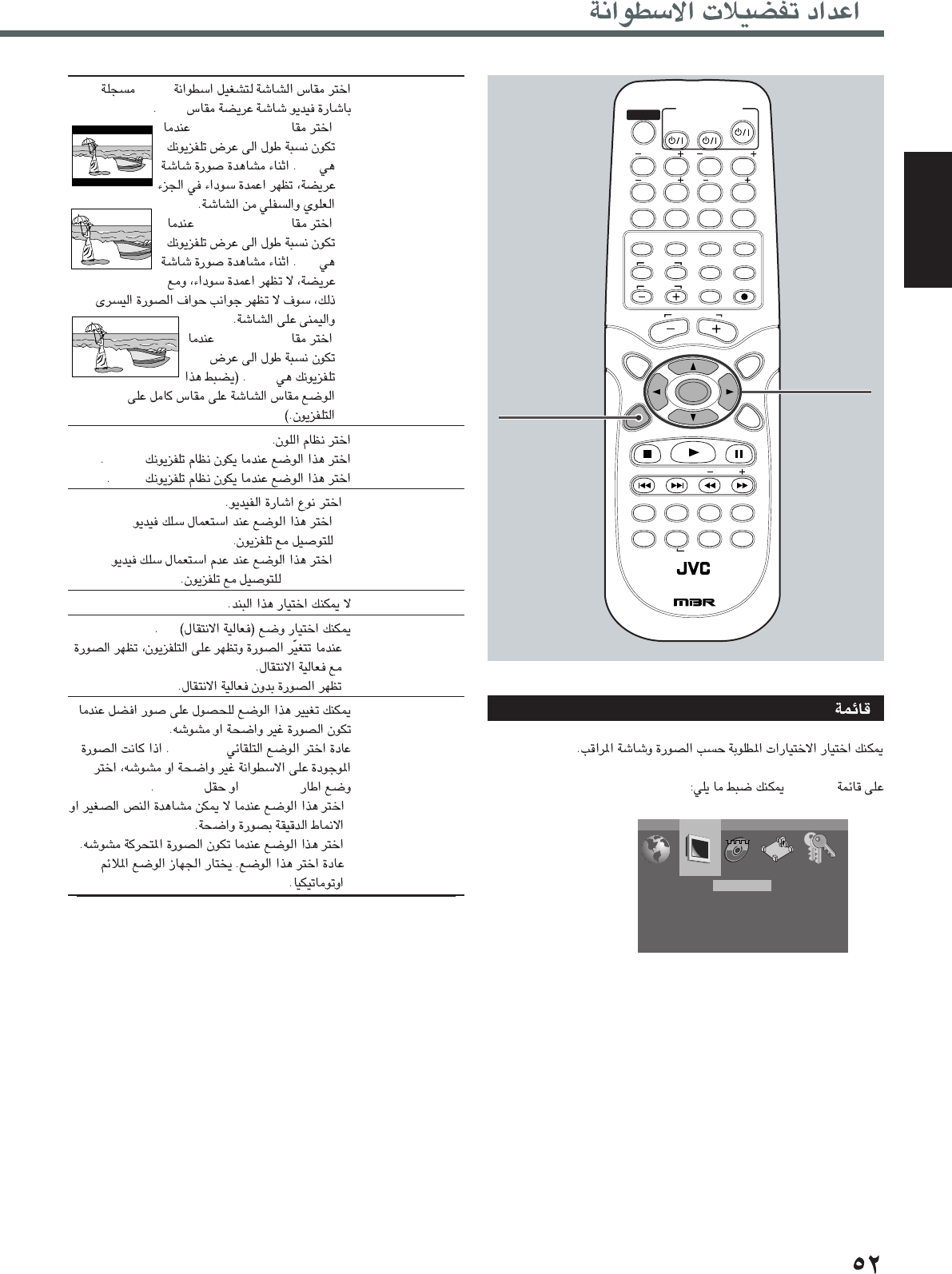

Picture Menu ............................................................................ 52

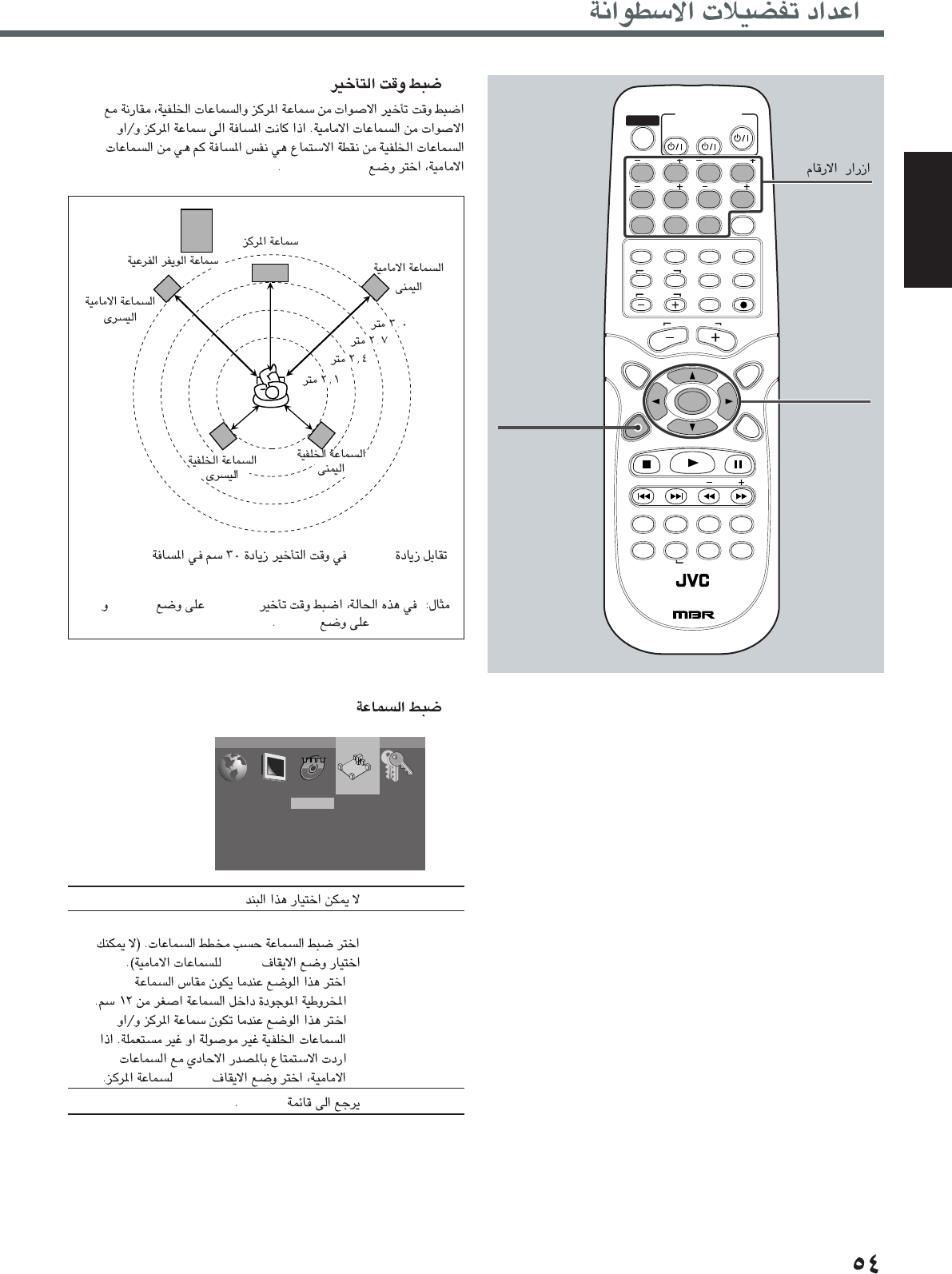

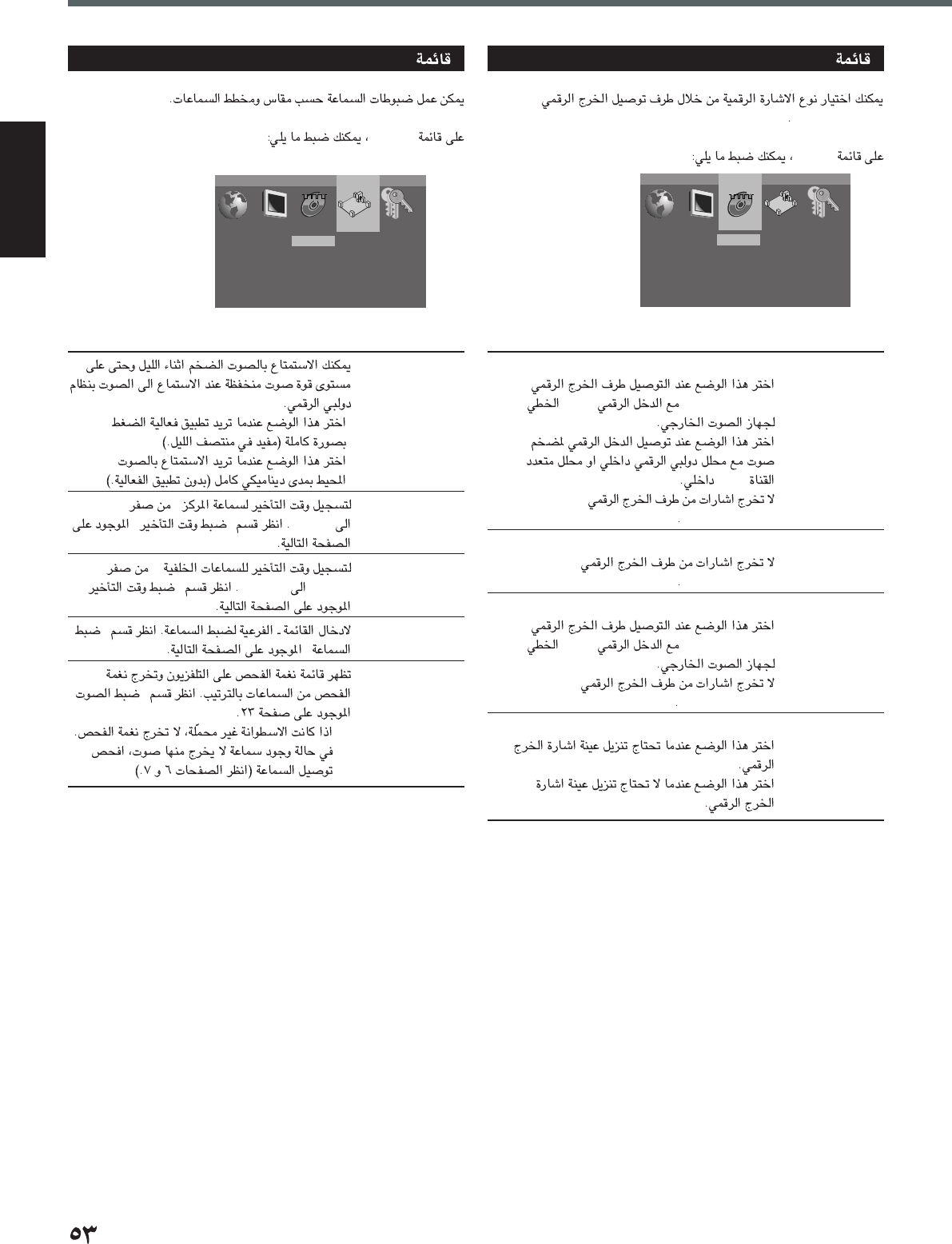

Audio Menu ............................................................................. 53

Setting Menu ............................................................................ 53

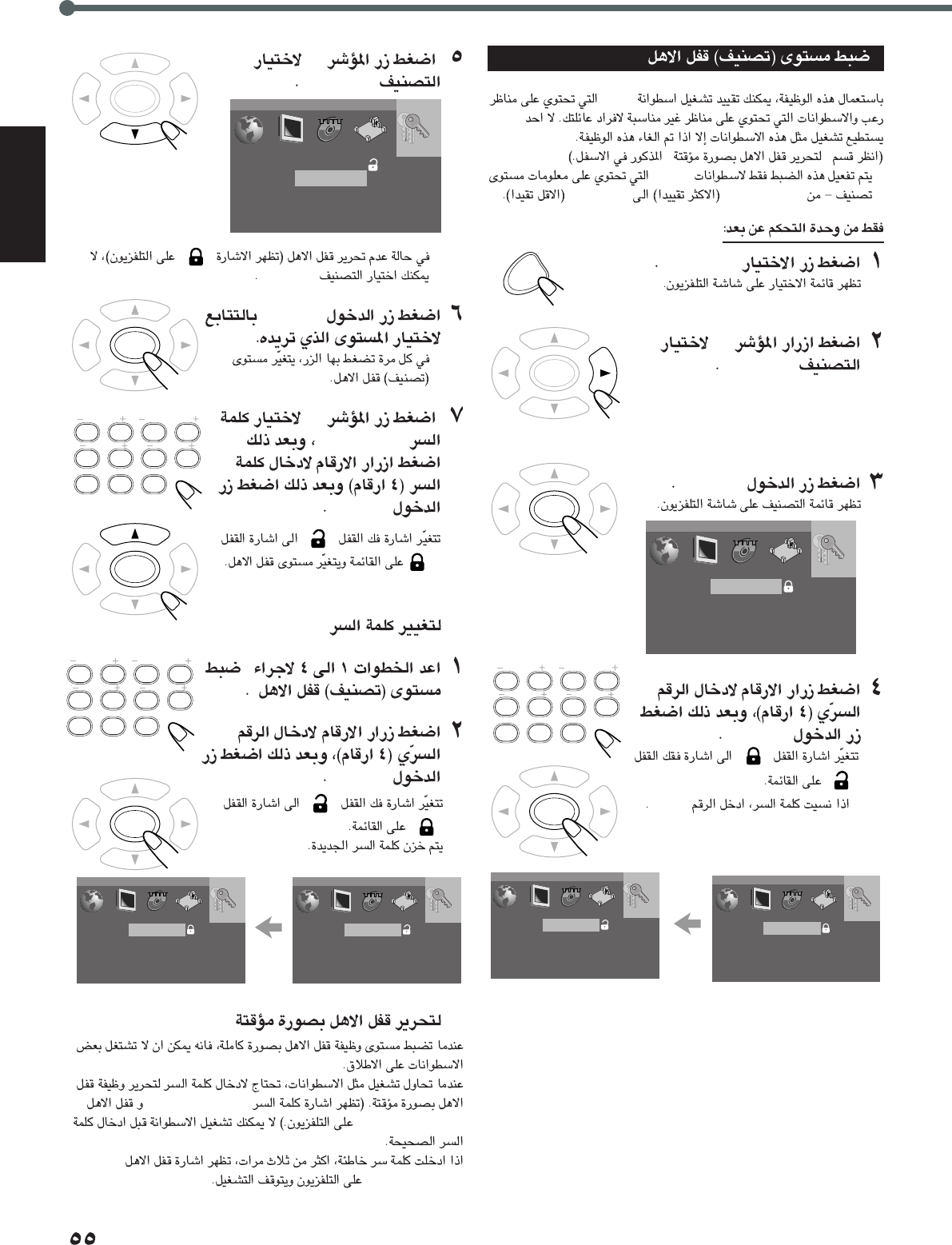

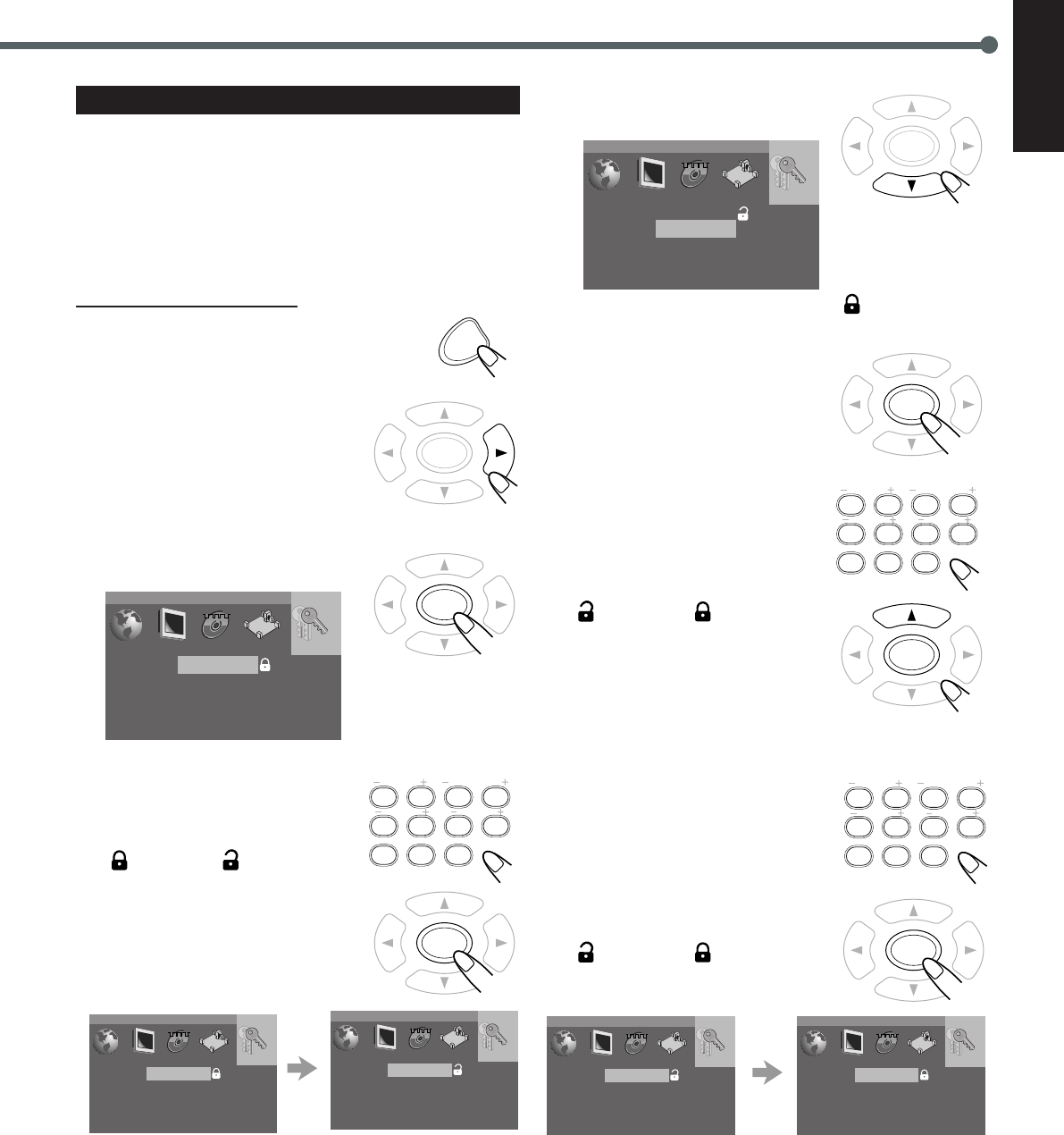

Setting the Parental (Rating) Level .......................................... 55

Operating JVC’s Components ...................... 56

Operating Other Manufacturers’ TV ............ 57

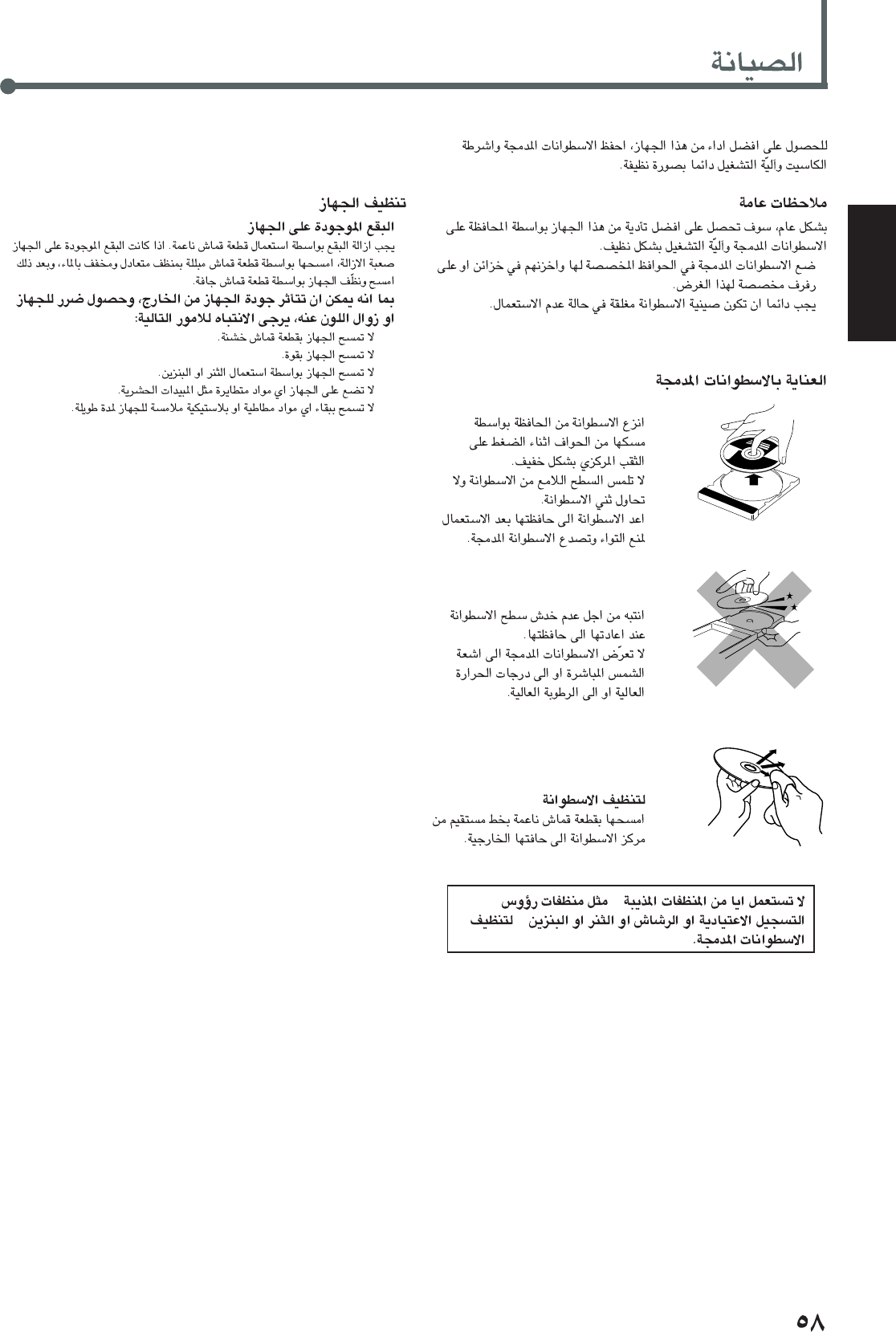

Maintenance ............................................. 58

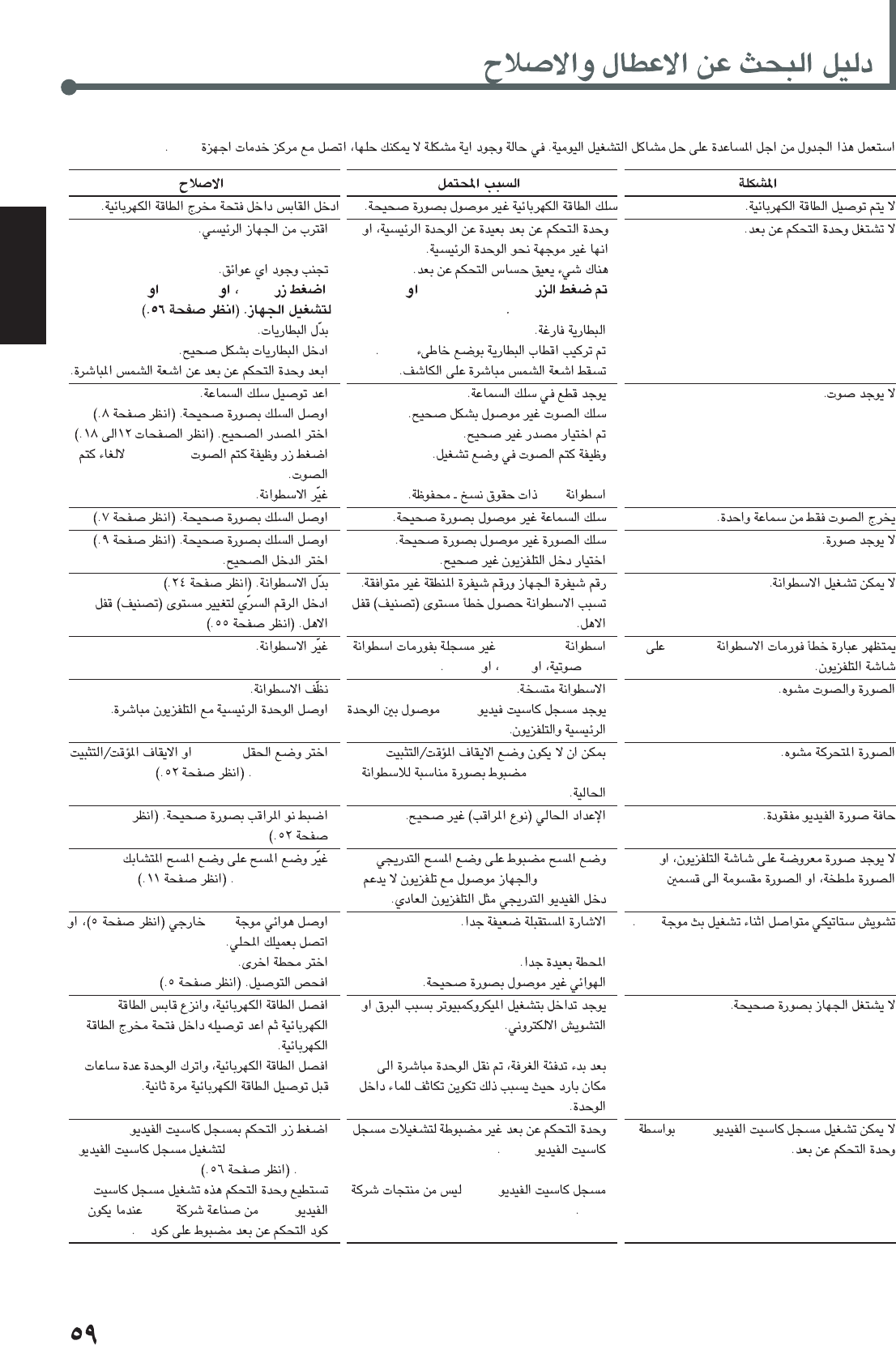

Troubleshooting ......................................... 59

Specifications............................................ 60

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM1

English

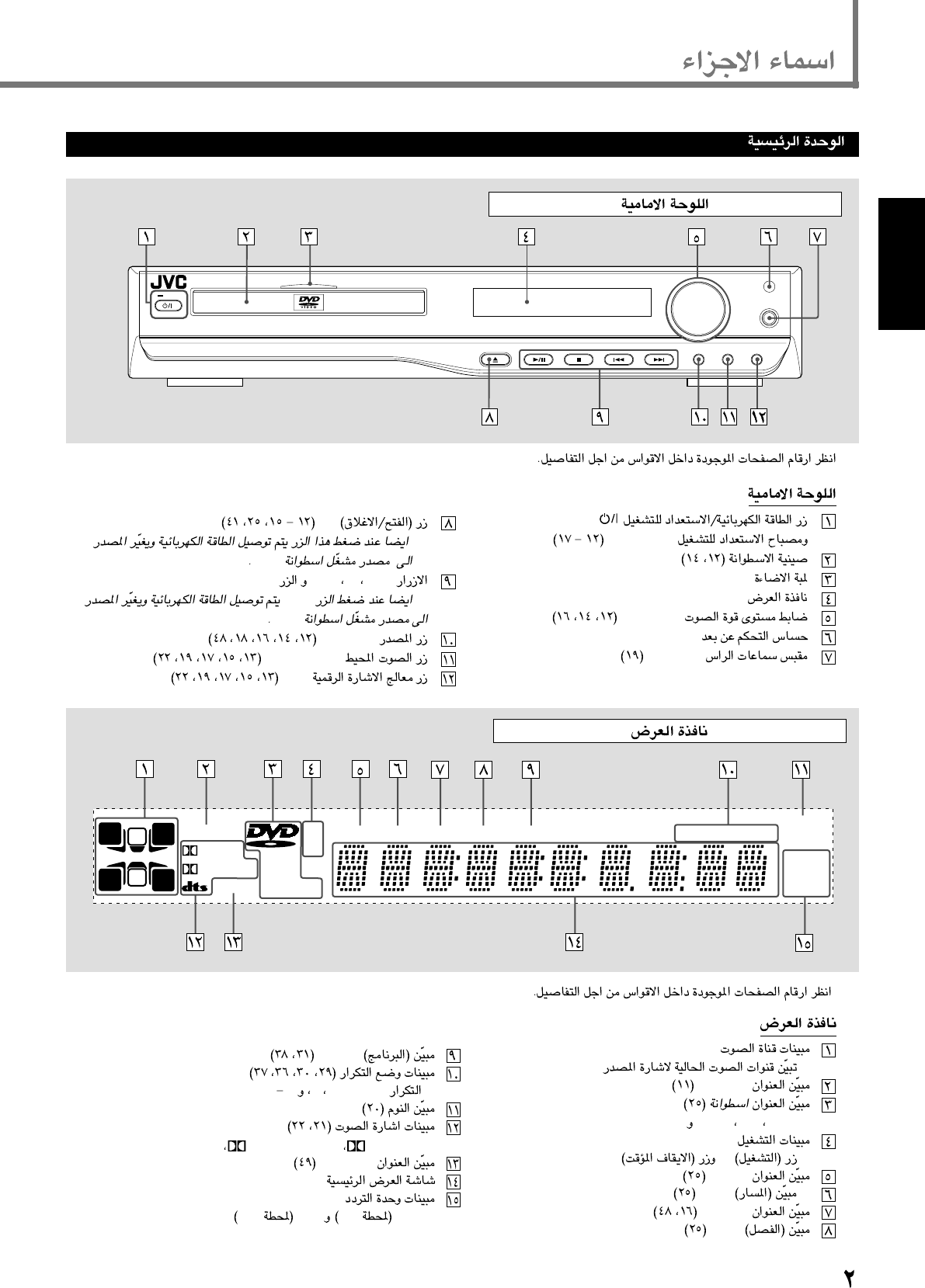

Parts Identification

Front Panel

See pages in the parentheses for details.

Display Window

1Audio channel indicators

• Indicates audio channels currently source signal.

2P-SCAN indicator (11)

3Disc indicators (25)

• DVD, CD, VCD, and MP3

4Playback indicators

• 3 (play) and 8(pause)

5TITLE indicator (25)

6TRK (track) indicator (25)

7TUNED indicator (16, 48)

8CHP (chapter) indicator (25)

VOLUME

DSPSURROUNDSOURCE

STANDBY

STANDBY/ON

DVD DIGITAL CINEMA SYSTEM

PHONES

89 p q w

345

See pages in the parentheses for details.

Front Panel

1STANDBY/ON button and STANDBY lamp (12 – 17)

2Disc tray (12, 14)

3Illumination lamp

4Display window

5VOLUME control (12, 14, 16)

6Remote sensor

7PHONES jack (19)

80 (open/close) button (12 – 15, 25, 41)

• Pressing this button also turns on the power and

changes the source to the DVD player.

93/8, 7, 4, and ¢ buttons

• Pressing 3/

also turns on the power and changes the

source to the DVD player.

pSOURCE button (12, 14, 16, 18, 48)

qSURROUND button (13, 15, 17, 19, 22)

wDSP button (13, 15, 17, 19, 22)

9PROG (program) indicator (31, 38)

pRepeat mode indicators (29, 30, 36, 37)

• REPEAT, 1, and A–B

qSleep indicator (20)

wSound signal indicators (21, 22)

• DIGITAL, PRO LOGIC II, and DTS

eSTEREO indicator (49)

rMain display

tFrequency unit indicators

• MHz (for FM station) and kHz (for AM station)

Display Window

Center Unit

REPEAT 1

MHz

A–BPROGCHPTUNEDTRKTITLE

P–SCAN

ProLogic II

DIGITAL

VCDSTEREO MP3

LS S

wr t

543

26 7 8 9 p q

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM2

English

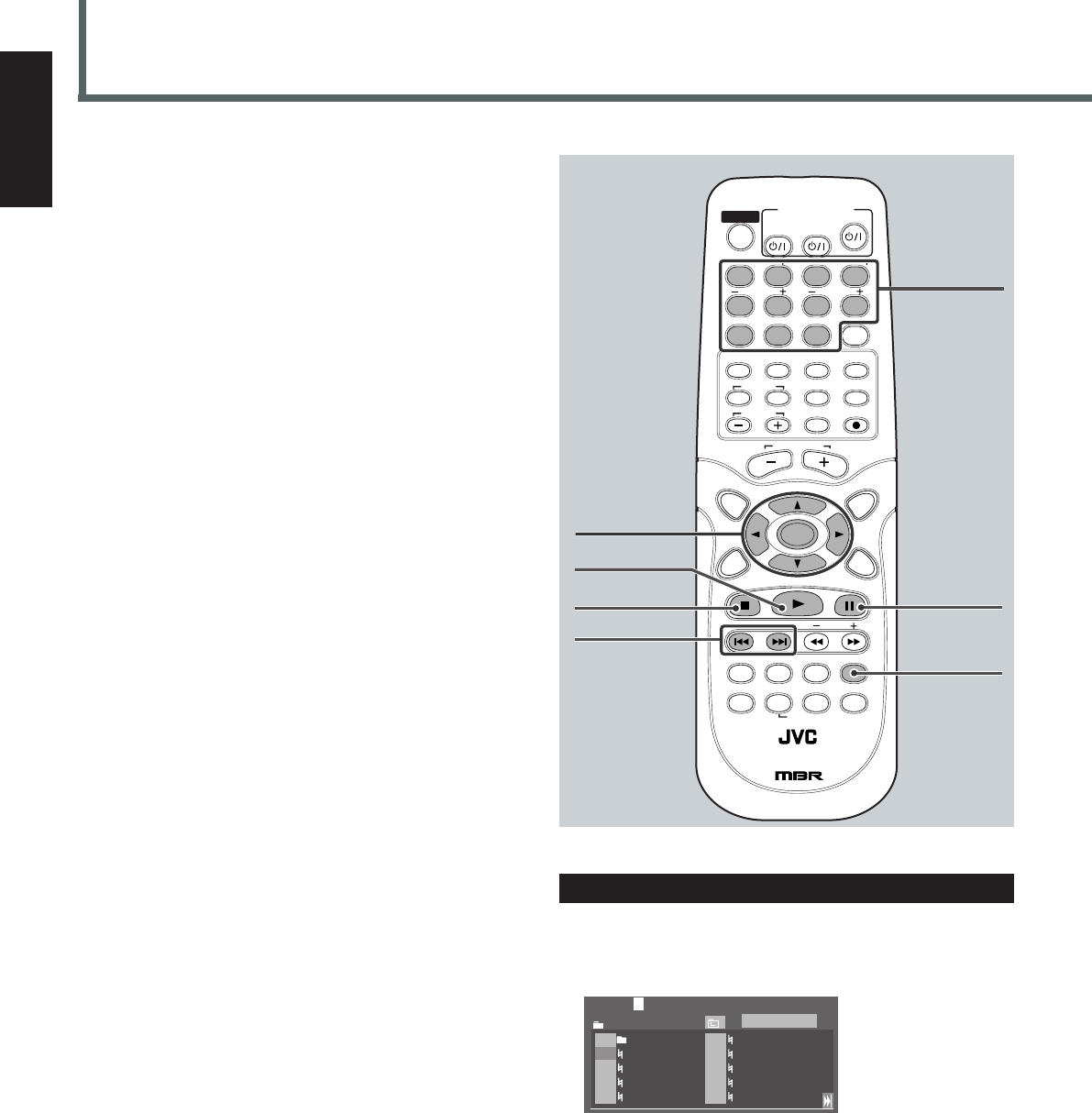

Remote Control

See pages in the parentheses for details.

1STANDBY/ON buttons

•TV button (12, 14, 56, 57)

• VCR button (56)

• AUDIO button (12 – 17)

2SOUND button (23)

3• Number buttons

(25, 28, 30, 35, 38, 42, 43, 46, 47, 49, 55–57)

• CLEAR button (28, 32, 35, 39, 52)

• Sound setting buttons (23)

CENTER + and – buttons

SUBWOOFER + and – buttons

REAR-L + and – buttons

REAR-R + and – buttons

TEST button

SETTING button

4Source selecting buttons (10, 12, 14, 16, 18, 23, 48, 49)

• DVD, FM/AM, AUX

• Pressing one of these buttons also turns on the power.

5CONTROL buttons

• TV CONTROL button (56, 57)

• VCR CONTROL button (56)

6TV VOL + and – buttons (56, 57)

7AUDIO VOL + and – buttons (12, 14, 16, 18)

8TOP MENU button (28)

9Menu operation buttons

• cursor 3, 2, 5, and ∞ buttons

• ENTER button

pCHOICE button (11, 50–54)

q7, 3, and

buttons

w4 and ¢ buttons (25, 35, 41, 43, 45, 47, 56)

TUNING UP and DOWN buttons (16, 48)

eAUDIO button (27, 35)

rSUB TITLE button (27)

tRETURN button (35)

yDIMMER button (19)

SLEEP button (20)

uFM MODE button (49)

iPROGRESSIVE button (11)

oSEARCH button (28, 35)

;TV/VIDEO button (56, 57)

aREC/MEMORY button (10, 49, 56)

sMUTING button (13, 15, 16, 18)

dMENU button (28, 35)

fON SCREEN button (26, 29–32, 34, 36–39)

g1 and ¡ buttons (29, 33, 36, 39, 49, 56, 57)

SLOW + and – buttons (33, 39)

hZOOM button (33, 39, 45, 47)

jANGLE button (27)

kSURROUND button (13, 15, 17, 19, 22)

lDSP button (13, 15, 17, 19, 22)

;

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

1234

5678

VCR

ENTER

Remote Control

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM3

English

Getting Started

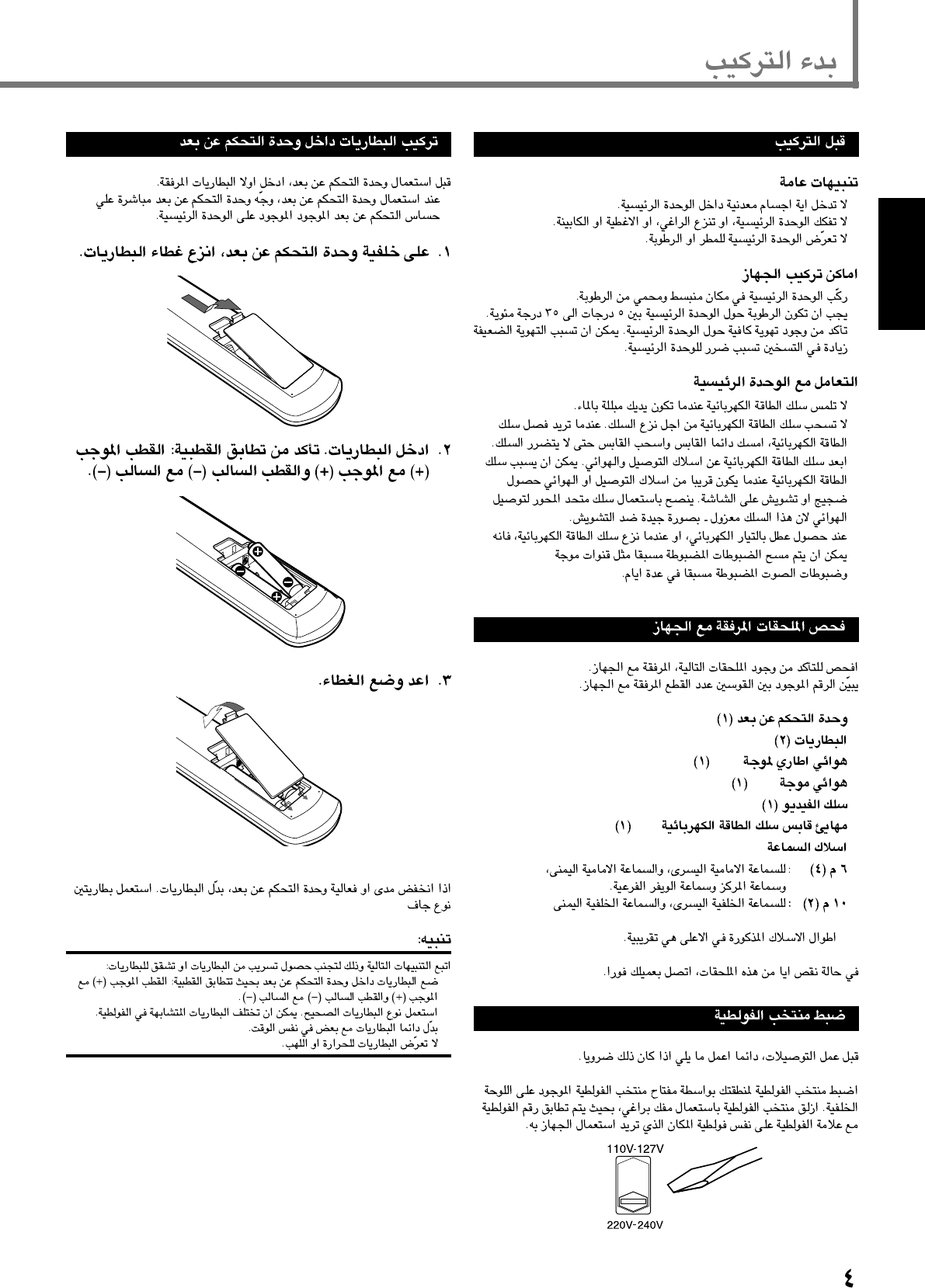

Putting Batteries in the Remote Control

Before using the remote control, put two supplied batteries first.

• When using the remote control, aim the remote control directly at

the remote sensor on the center unit.

1. On the back of the remote control, remove the

battery cover.

2. Insert batteries. Make sure to match the polarity:

(+) to (+) and (–) to (–).

3. Replace the cover.

If the range or effectiveness of the remote control decreases, replace

the batteries. Use two R6P (SUM-3)/AA(15F) type dry-cell

batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+)

to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Before Installation

General Precautions

• DO NOT insert any metal object into the center unit.

• DO NOT disassemble the center unit or remove screws, covers, or

cabinet.

• DO NOT expose the center unit to rain or moisture.

Locations

• Install the center unit in a location that is level and protected from

moisture.

• The temperature around the center unit must be between 5˚C and

35˚C.

• Make sure there is good ventilation around the center unit. Poor

ventilation could cause overheating and damage the center unit.

Handling the center unit

• DO NOT touch the power cord with wet hands.

• DO NOT pull on the power cord to unplug the cord. When

unplugging the cord, always grasp the plug so as not to damage

the cord.

• Keep the power cord away from the connecting cords and the

antennas. The power cord may cause noise or screen interference.

It is recommended to use a coaxial cable for antenna connection,

since it is well-shielded against interference.

• When a power failure occurs, or when you unplug the power cord,

the preset settings such as preset FM/AM channels and sound

adjustments may be erased in a few days.

Checking the Supplied Accessories

Check to be sure you have all of the following supplied accessories.

The number in the parentheses indicates the quantity of the pieces

supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

• Video cord (1)

• AC Plug Adaptor (1)

• Speaker cords

6 m (4)*: For left front speaker, right front speaker, center

speaker, and subwoofer

10 m (2)*: For left rear speaker and right rear speaker

*The lengths of the speaker cords above are approximate.

If anything is missing, contact your dealer immediately.

Adjusting the Voltage Selector

Before connections, always do the following first if necessary.

Set the correct voltage for your area with the voltage selector switch

on the rear panel. Slide the voltage selector using a screw driver, so

the voltage number the voltage mark is set at is the same as the

voltage where you are plugging in the system.

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM4

English

AC IN

SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

VIDEO

S-VIDEO

CONPONENT VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

132

DIGITAL

OUT AUX

OPTICAL

Connecting the FM and AM Antennas

FM Antenna (supplied)

If FM reception is poor, connect

outdoor FM antenna (not supplied).

AM antenna connection

Connect the supplied AM loop antenna to the AM LOOP terminals.

Connect the white cord to the AM EXT terminal, and the black cord

to terminal.

Turn the loop until you have the best reception.

• If reception is poor, connect an outdoor single vinyl-covered wire

to the AM EXT terminal. (Keep the AM loop antenna connected.)

Note:

If the AM loop antenna wire is covered with vinyl, remove

the vinyl by twisting it as shown in the diagram.

Snap the tabs on the loop into

the slots of the base to

assemble the AM loop antenna.

If AM reception is poor, connect single vinyl-covered

wire (not supplied).

AM Loop Antenna

(supplied)

FM antenna connection

Connect the supplied FM antenna to the COAXIAL FM 75 Ω

terminal as temporary measure.

Extend the supplied FM antenna horizontally.

• If reception is poor, connect an outdoor antenna.

Before attaching a 75 Ω coaxial cable (with a standard type

connector), disconnect the supplied FM antenna.

Center unit

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM5

English

Getting Started

Right front

speaker

Right rear

speaker

To center speaker

To left front speaker

To right front speaker

To left rear speakerTo right rear speaker

To subwoofer

Left front

speaker Center speaker

Left rear

speaker

COMPACT

SUPER VIDEO

DIGITAL

SURROUND

DIGITAL•EX

PRO LOGIC

VOLUME

PHONES

DSPSURROUNDSOURCE

STANDBY

STANDBY/ON

DVD DIGITAL CINEMA SYSTEM TH-A35

Center unit Subwoofer

AC IN SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

CAUTION

SPEAKER IMPEDANCE

6-8 OHMS

CAUTION

SUBWOOFER IMPEDANCE

10 OHMS

Speaker Layout Diagram

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM6

English

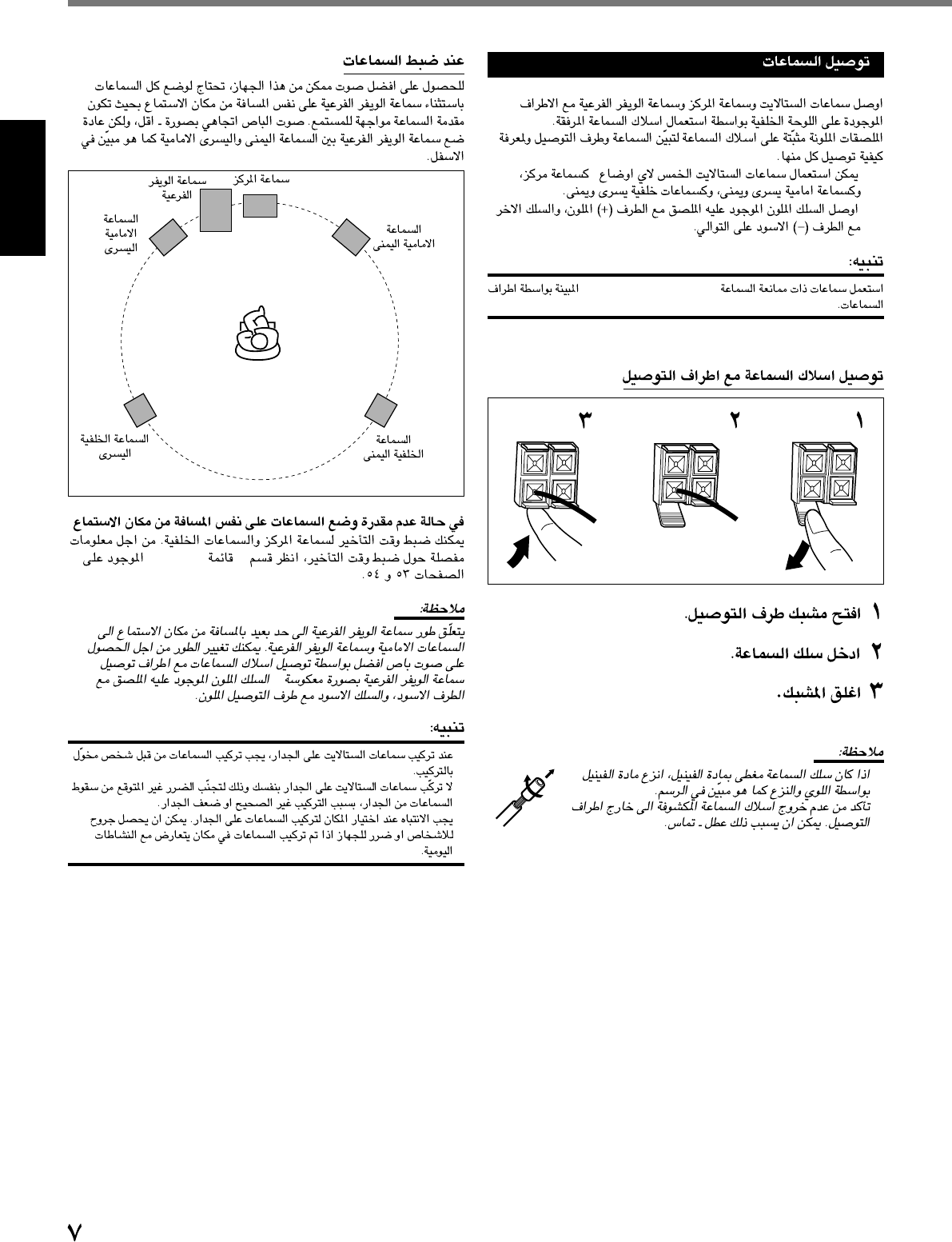

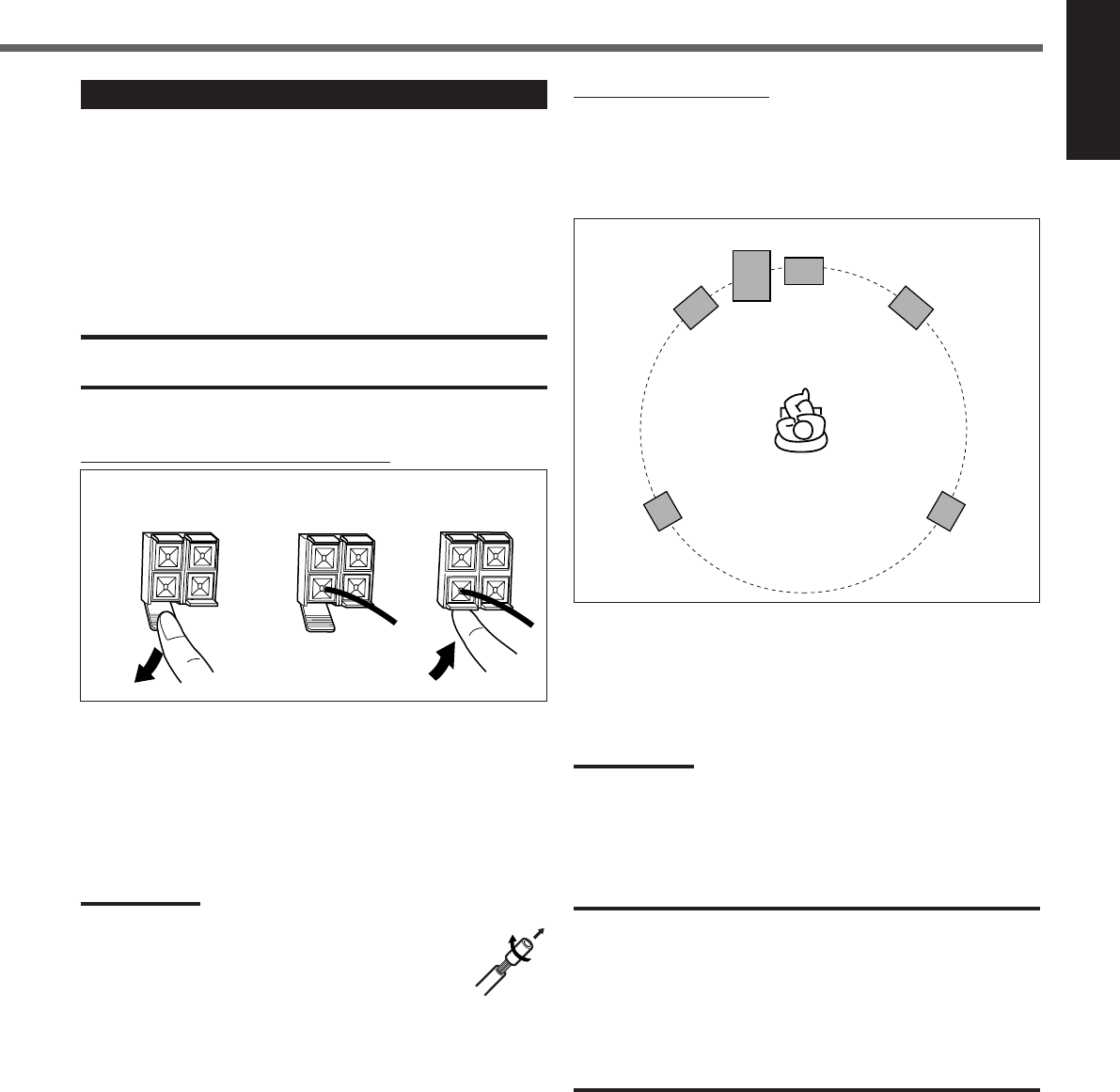

Connecting the Speakers

Connect the satellite speakers and subwoofer to the terminals on the

rear panel using speaker cords supplied.

Color labels are attached to the speaker cords to indicate the speaker

and the terminal to which each is to be connected.

• The five satellite speakers can be used for any positions—center,

front left and right, and rear left and right.

• Connect the color labeled cord to the color (+) terminal, and the

other cord to the black (–) terminal respectively.

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the

speaker terminals.

Connecting speaker cords to the terminals

Open the terminal clamp.

Insert the speaker cord.

Close the clamp.

Notes:

• If the speaker cord is covered with vinyl, remove the

vinyl by twisting it as shown in the diagram.

• Make sure the core wire of speaker cords do not

expose to out of the terminals. This could cause

short-circuit.

When setting the speakers

To obtain the best possible sound from this system, you need to

place all the speakers except the subwoofer at the same distance

from the listening position with each front faced toward the listener.

Since bass sound is less-directional, but normally place it in

between right and left front speaker shown as below.

Left front

speaker

Right front

speaker

Right rear

speaker

Subwoofer

Left rear

speaker

Center speaker

If your speakers cannot be placed at the same distance from the

listening position

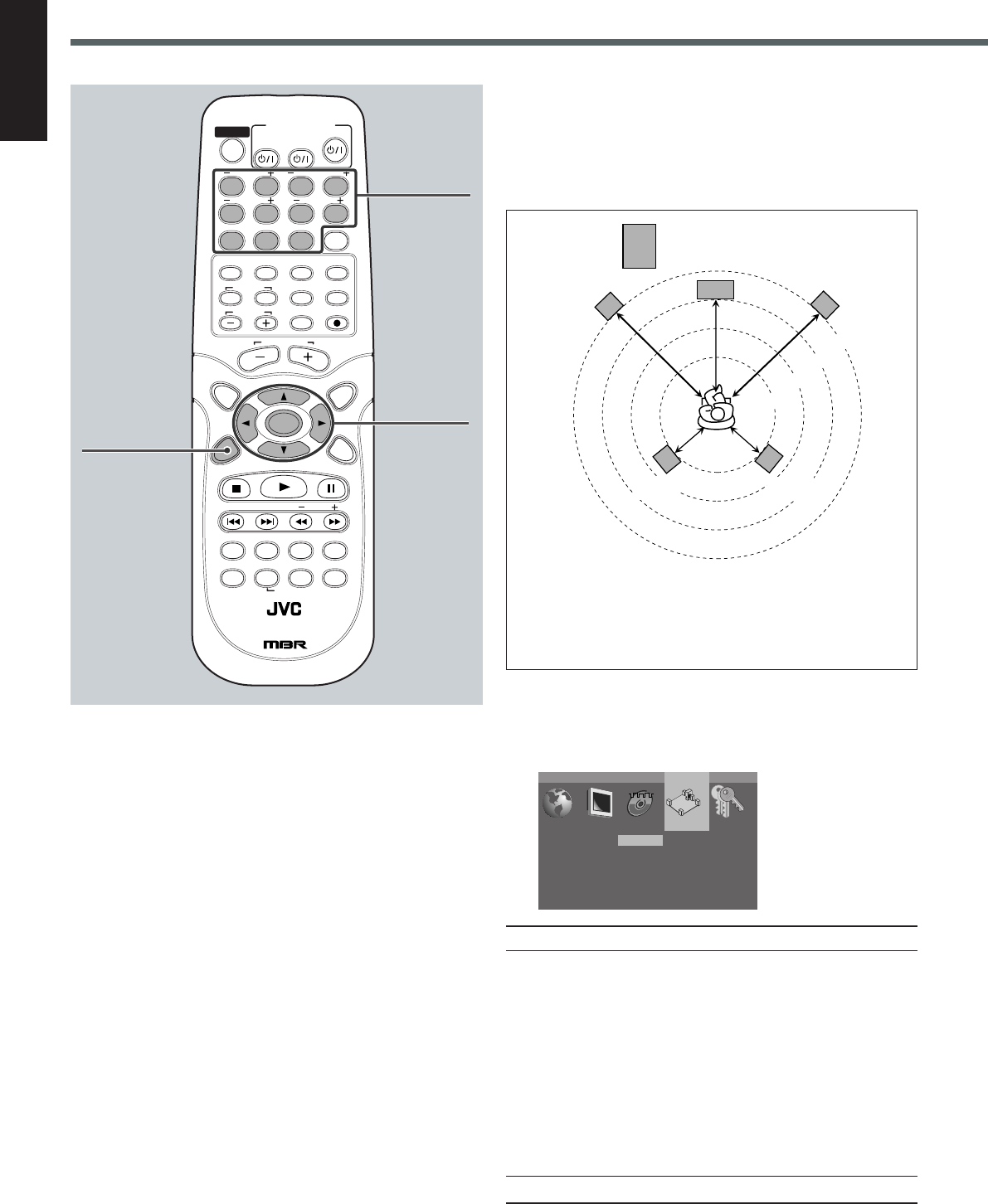

You can adjust the delay time of the center speaker and rear

speakers. For in-depth information about adjusting the delay time,

see “Setting Menu” on pages 53 and 54.

Note:

Subwoofer phase is closely related with the distance from the

listening position to the front speakers and subwoofer. You can change

the phase to obtain better bass sound by connecting the speaker

cords to the terminals of the subwoofer inversely—the color labeled

cord to the black terminal, and the black cord to the color terminal.

CAUTION:

• When attaching the satellite speakers on the wall, have them

attached to the wall by a qualified person.

DO NOT attach the satellite speakers on the wall by yourself to

avoid an unexpected damage of their falling from the wall, caused

by incorrect attachment or weakness in the wall.

• Care is required in selecting a location for attaching speakers to the

wall. Injury to personnel, or damage to equipment, may result if the

speakers are attached in a location which interferes with daily

activities.

132

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM7

English

Getting Started

Connecting Audio/Video Component

Turn the power off to all components before connections.

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

VIDEO

S-VIDEO

DIGITAL

OUT AUX

OPTICAL

CONPONENT VIDEO OUT

DBS Tuner

Center unit

MD Recorder

Cassette Deck

OUT

LEFT

RIGHT

AUDIO VCR

MD Recorder

DIGITAL

OPTICAL OUT

DIGITAL

ANALOG

DBS Tuner

MD Recorder

DIGITAL

OPTICAL IN

DIGITAL

OUT

Before connecting an

optical digital cord, unplug

the protective plug.

Illustrations of the input/output terminals below are typical

examples.

When you connect the other component, refer also to its

manuals since the terminal name actually printed on the rear

vary among the components.

If you connect a sound-enhancing device such as a graphic

equalizer between the source component and the center

unit, the sound output through this system may be

distorted.

Connect the other component to the center unit with the

audio cord.

Use the cords supplied with the other component or

purchase them at an electric appliance store.

Optical digital cord (not supplied)

Audio cord (not supplied)

Audio Component connection

•If you use the OPTICAL DIGITAL OUT to connect the external component, you

select the output signal type correctly. See “Audio Menu” on page 53.

Output Terminal

Input Terminals

Before connecting an

optical digital cord, unplug

the protective plug.

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM8

English

Notes:

•Keep the power cord away from the connecting cords and the antenna cords. The power cord may cause noise or screen interference.

•Connecting to a TV through a VCR, or to a TV with a built-in VCR, may cause distortion of picture.

•If the AC outlets do not match the AC plug, use the supplied AC plug adaptor.

Now, you can plug the power cord of the center unit into the AC outlet.

S-video cord (not supplied)

Video cord (supplied) Component video cord (not supplied)

TV connection

The S-video cord and the component video cord are not supplied with this system.

Use the cords supplied with another components or purchase them at an electric appliance store.

You can select one of three connection types—

, and

•If your TV has S-video (Y/C-separation) and/or component video

(Y, P

, P

) jacks, connect them using an S-video cord (not

supplied)

and/or component video cord (not supplied)

By using these jacks, you can get a better picture quality—in the

order : Component video > S-video > Composite video.

•If you use the S-video cord to connect the TV, you select the

video signal type correctly. See “Picture Menu” on page 52.

AC IN

SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

VIDEO

S-VIDEO

CONPONENT VIDEO OUT

PR/CR

PB/CB

CONPONENT VIDEO OUT

VIDEO OUT

VIDEO

S-VIDEO

DIGITAL

OUT

OPTICAL

AUX

•If your TV supports the progressive video input, you can enjoy a

high quality picture by making the progressive scanning mode

active (see page 11.)

EN01-09TH-A35[UG].pm6 03.5.19, 5:18 PM9

English

Changing the Scanning Mode

This system supports the progressive scanning system (480p*) as

well as the conventional interlaced scanning system (480i*).

If your TV equipped with component video jacks supports the

progressive video input, you can enjoy a high quality picture by

activating the progressive scanning mode.

•Refer also to the instruction manuals supplied with your TV.

•If your TV equipped with component video jacks does not support

the progressive video input, do not change the scanning mode to

the progressive scanning mode (P–SCAN MODE.)

* 480p and 480i indicate the number of scanning lines and scanning

format of a video signal.

•480p indicates 480 scanning lines with progressive format.

•480i indicates 480 scanning lines with interlaced format.

You can select the scanning mode if your TV equipped with

component video jacks supports the progressive video input.

TV Setting

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2/5/∞

ENTER

DVD

PROGRESSIVE

CHOICE

Changing the Color System

This system is compatible with the PAL and NTSC systems. Select

the color system to match the color system of your TV. Make sure

that the color system of a DVD, Video CD, or SVCD disc labeled on

the package matches your TV.

From the remote control ONLY:

Press DVD.

The source changes to DVD.

If a disc is not loaded, go to step

Press 7.

Playback stops.

Press REC/MEMORY

and ENTER at once.

•Each time you press the

both buttons, the TV

system alternates between “NTSC” and

“PAL.”

NTSC: Select this when the color system of your TV is NTSC.

PAL: Select this when the color system of your TV is PAL.

Note:

You can also select the TV system in the choice menu. See “Picture

Menu” on page 52.

DVD

REC/MEMORY

ENTER

REC/MEMORY

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM10

English

PROGRESSIVE

Press cursor 5/∞repeatedly to

select a parameter you want to

adjust.

•Adjust gradually to show preferable

appearance by confirming the picture.

Brightness: Controls the brightness of the screen.

Edges: Controls the sharpness of the screen.

Color: Controls the color of the screen.

Contrast: Controls the contrast of the screen.

Press cursor 3/2repeatedly to

change the setting.

Press CHOICE.

Video Enhance menu disappears.

Video Enhance

Brightness

Edges

Color

Contrast

CHOICE

ENTER

CHOICE

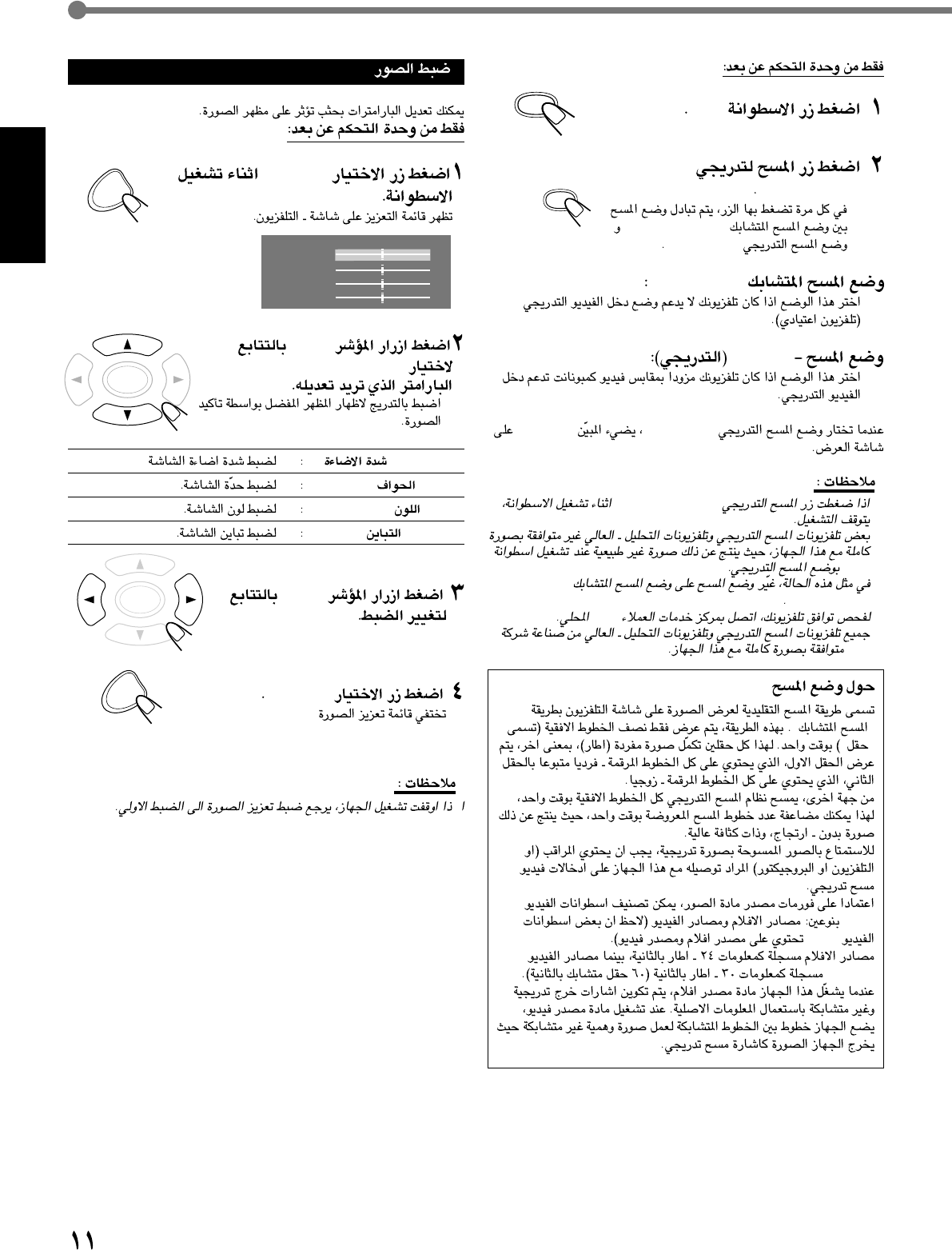

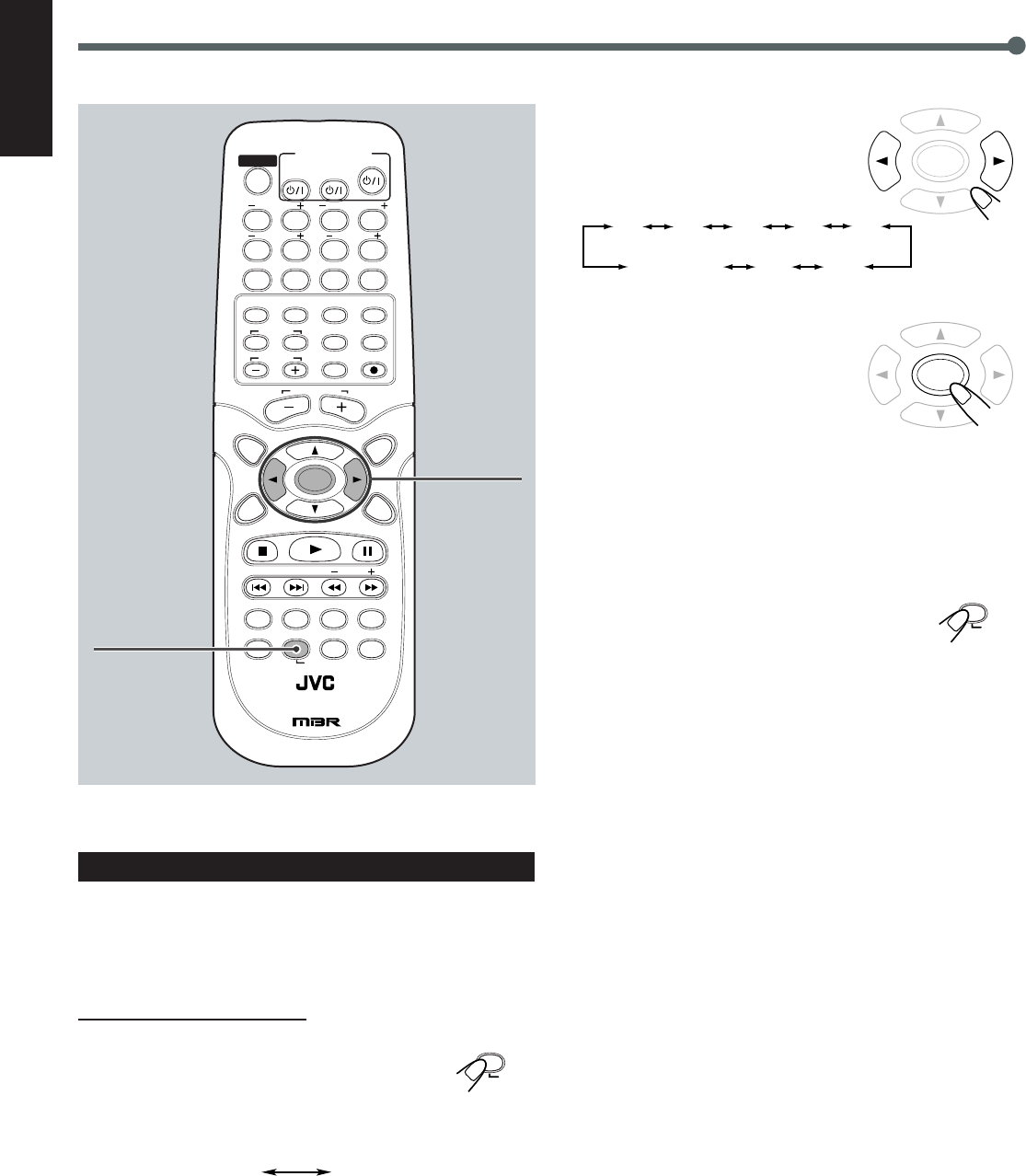

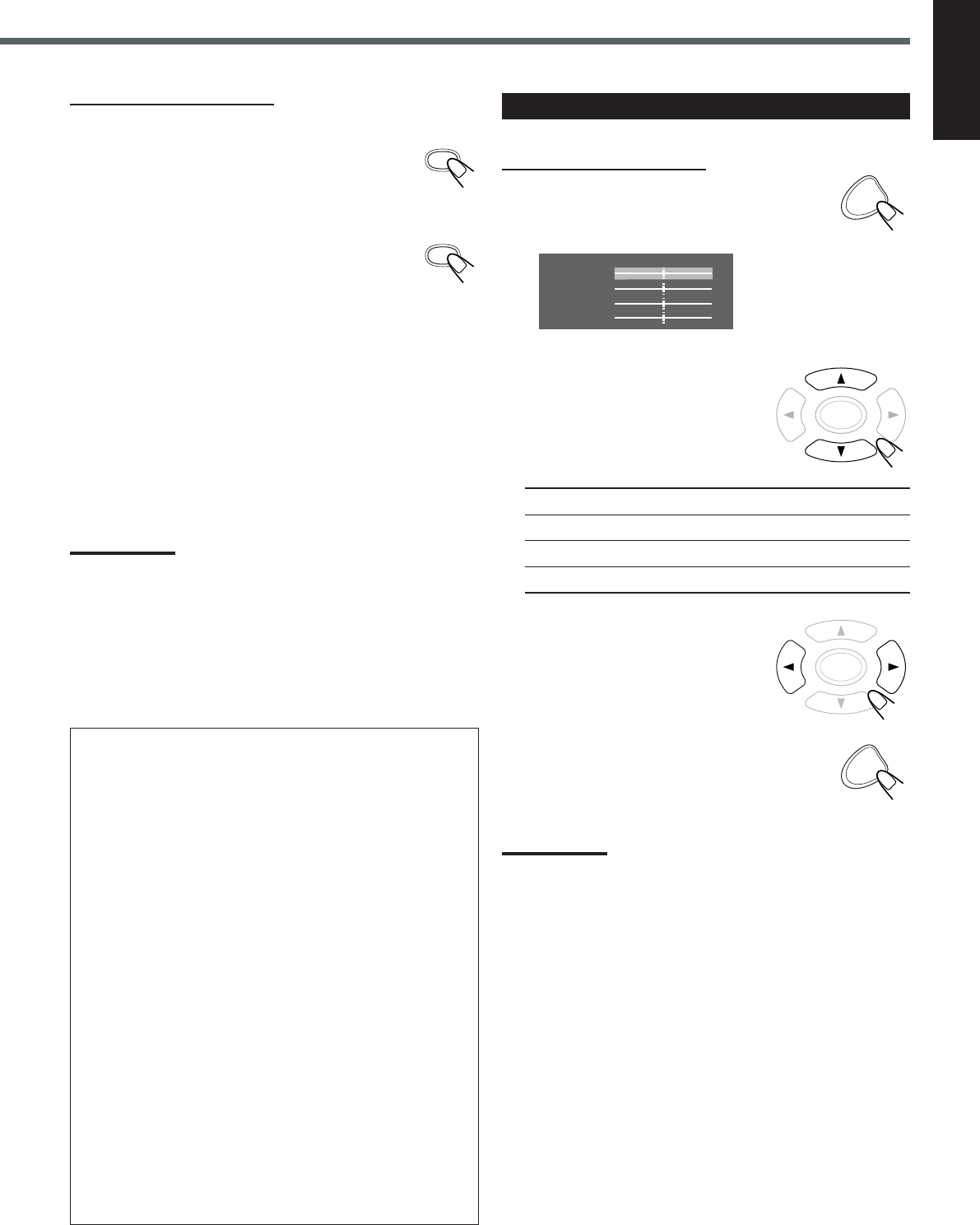

Adjusting the Pictures

You can adjust parameters that affect the appearance of picture.

From the remote control ONLY:

Press CHOICE while playing back a

disc.

Video Enhance menu appears on TV-screen.

Note:

If you turn off the unit, the video enhance setting return to initial

setting.

DVD

About scanning system

The conventional scanning method to display video signals on

the TV screen is called “Interlaced scanning.” With this method,

only half of the horizontal lines (called a “field”) are displayed

at a time. So two fields complete a single picture (frame); i.e.,

the first field, containing all the odd-numbered lines, is followed

by the second field, containing all the even-numbered lines.

On the other hand, the Progressive scanning system scans all

horizontal lines at a time, so you can double the number of

scanning lines displayed at a time, resulting in a flicker-free,

high-density picture.

To enjoy the progressive scanned picture, a monitor (or TV or

projector) connected to the system must support the progressive

video inputs.

Depending on the material source format, DVD video can be

classified into two types; film source and video source (note that

some DVD video contain both film source and video source).

Film sources are recorded as 24-frame-per-second data, while

(NTSC) video sources are recorded as 30-frame-per-second (60-

field-per-second interlaced).

When this system plays back a film source data, uninterlaced

progressive output signals are created using the original data.

When a video source is played back, the unit interleaves lines

between the interlaced lines to create the pseudo uninterlaced

picture and outputs as the progressive signals.

From the remote control ONLY:

Press DVD.

Press PROGRESSIVE.

•Each time you press the button, the scanning

mode alternates between “INTERLACE” and

“P–SCAN.”

INTERLACE:

Select this if your TV does not support the progressive video input

(conventional TV).

P (Progressive)–SCAN:

Select this if your TV equipped with component video jacks

supports the progressive video input.

When you select the “P-SCAN”, P-SCAN indicator lights up on the

display.

Notes:

•If you press PROGRESSIVE while playing back a disc, playing

back stops.

•Some progressive TVs and High-Definition TVs are not fully

compatible with this system, resulting in the unnatural picture when

playing back a DVD in the progressive scanning mode.

In such a case, change the scanning mode to “INTERLACE.”

To check the compatibility of your TV, contact your local JVC

customer service center.

•All JVC progressive TVs and High-Definition TVs are fully

compatible with this system.

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM11

English

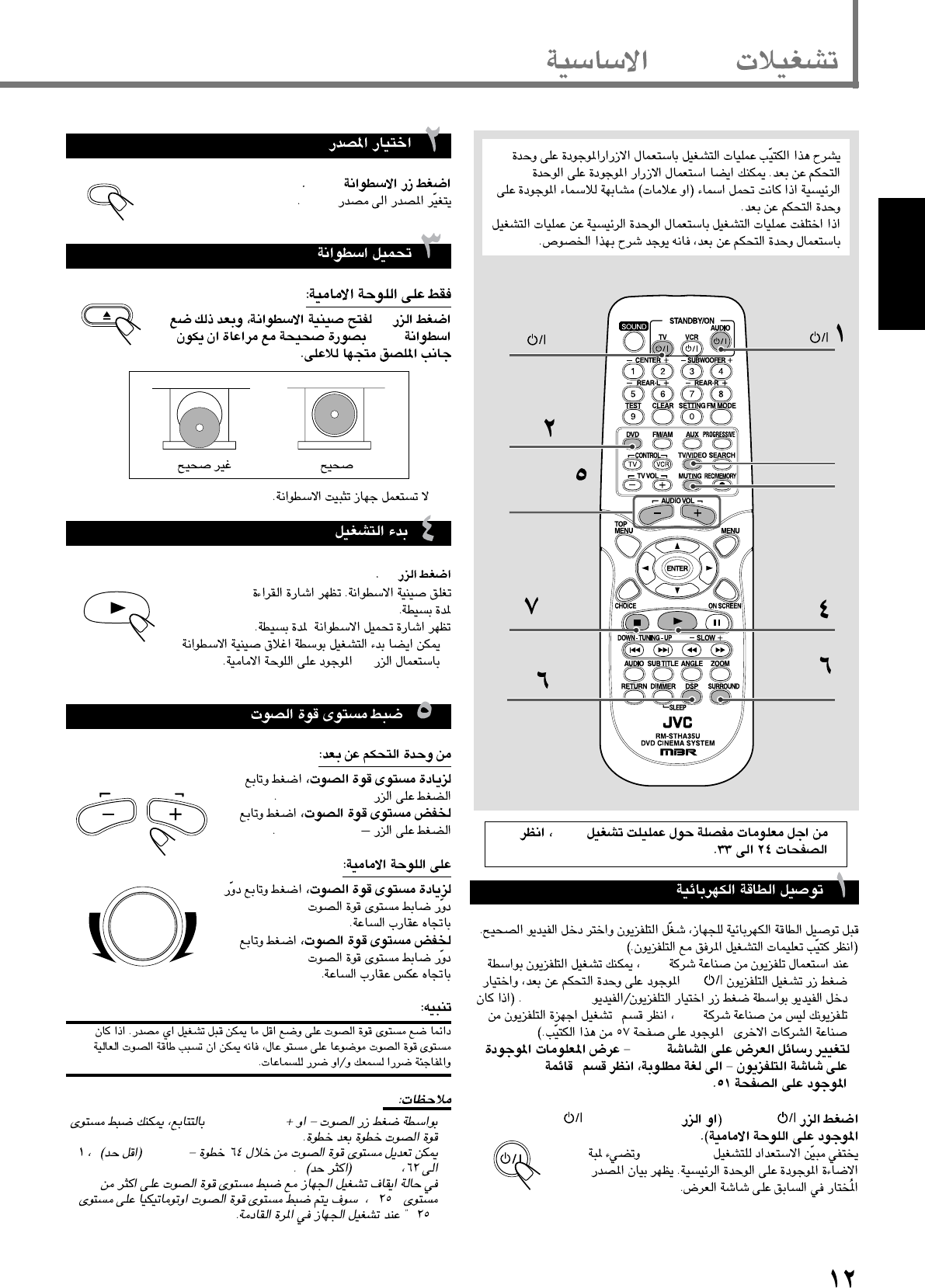

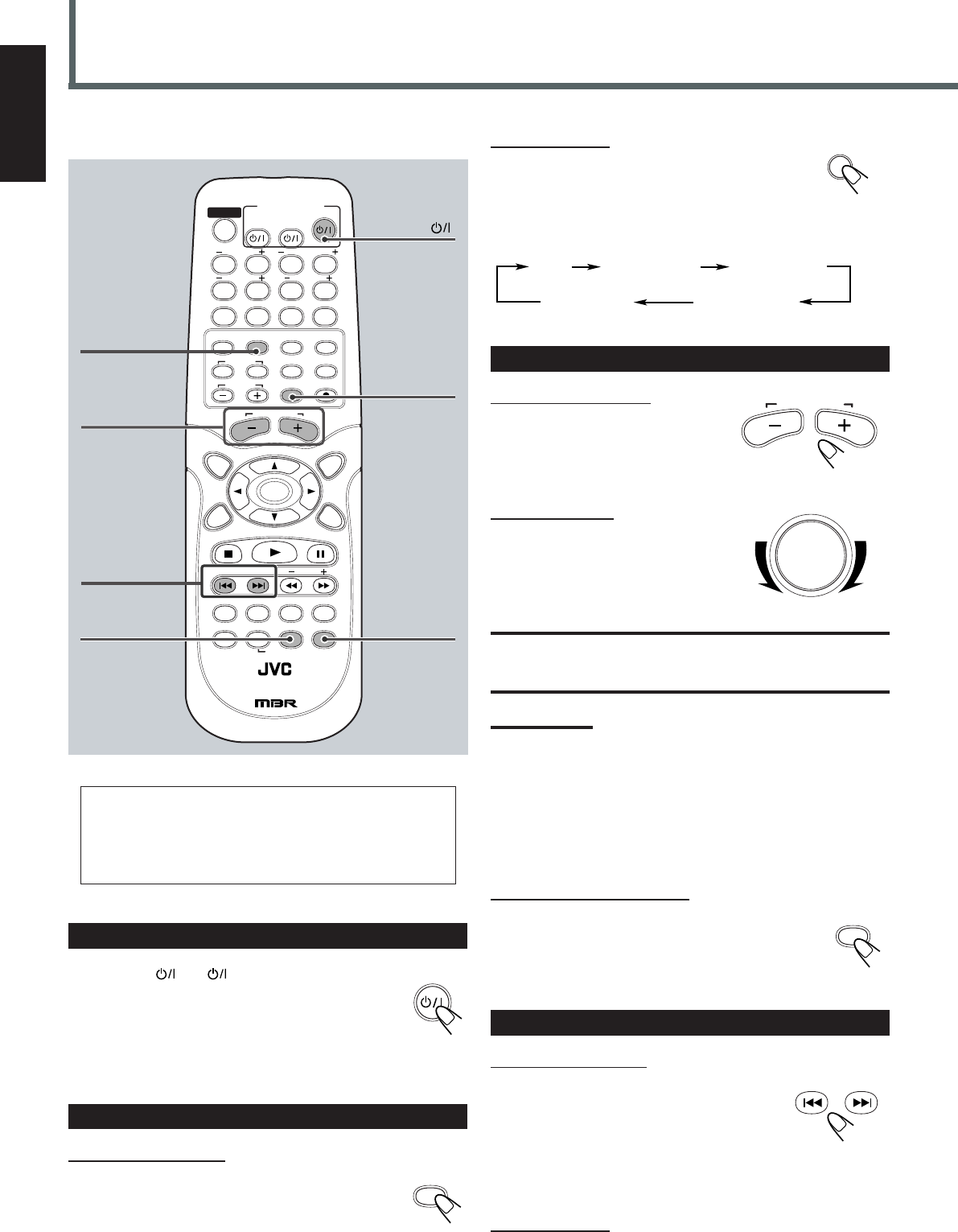

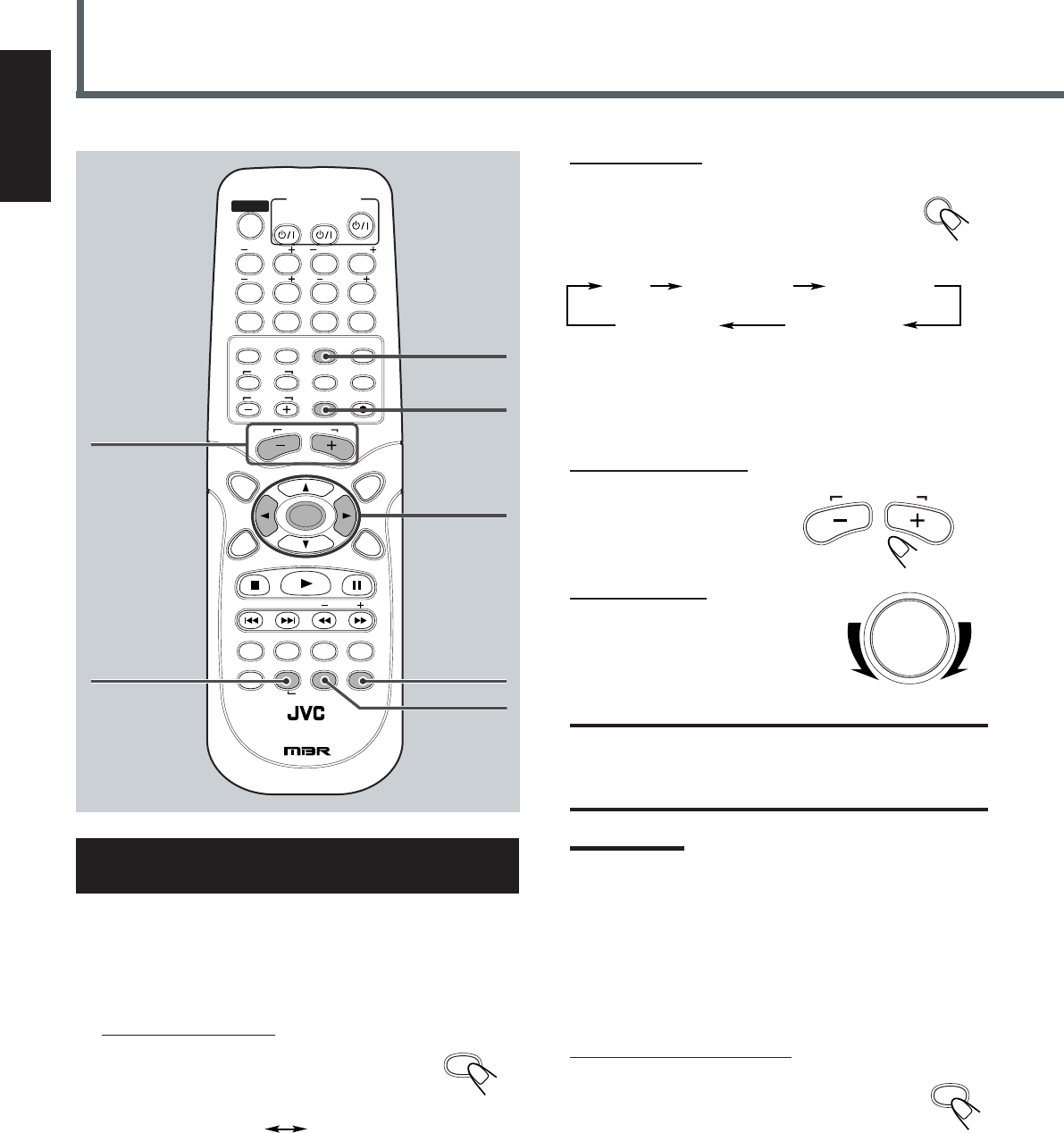

Basic DVD Operations

This manual mainly explains operations using the buttons on

the remote control. You can also use the buttons on the center

unit if they have the similar names (or marks) as those on the

remote control.

If operations using the center unit are different from those

using the remote control, they are then explained.

Turn On the Power

Before turning on the system, turn on your TV and select the correct

video input. (See the manual supplied with your TV.)

•When you use a JVC’s TV, you can turn on your TV by pressing

TV on the remote control, and select the video input by

pressing TV/VIDEO. (If your TV is not a JVC’s, see “Operating

Other Manufacturers’ TV” on page 57.)

•For changing the OSD messages—the information on the TV

screen—into the desired language, see “ Language Menu” on

pages 51.

Press AUDIO (or STANDBY/ON on the front

panel).

The STANDBY lamp goes off and the illumination lamp

on the center unit lights up. The source indication

selected previously appears on the display.

Select the Source

Press DVD.

The source changes to DVD.

Load a DVD

On the front panel ONLY:

Press 0 to open the disc tray, then place a DVD

correctly with its label side up.

•DO NOT use the disc stabilizer.

Start Playback

Press 3.

The disc tray closes. “READING” appears for a

while.

•You can also start playback by closing the disc

tray using 0 on the front panel.

Adjust the Volume

From the remote control :

To increase the volume,

press and hold AUDIO VOL +.

To decrease the volume,

press and hold AUDIO VOL –.

On the front panel :

To increase the volume,

turn VOLUME control clockwise.

To decrease the volume,

turn VOLUME control counterclockwise.

CAUTION:

Always set the volume to the minimum before starting any source. If

the volume is set at its high level, the sudden blast of sound energy

can permanently damage your hearing and/or ruin your speakers.

Notes:

•By pressing AUDIO VOL + or – repeatedly, you can adjust the

volume level step by step.

•The volume level can be adjusted within 64 steps—

“MIN (minimum),” 01 to 62, and “MAX (maximum).”

•If you have turned off the unit with the volume level set at more than

level “25,” the volume level will be automatically set at level “25” next

time you turn on the unit.

AUDIO

CORRECT INCORRECT

AUDIO VOL

•For in-depth information about DVD operations, see

pages 24 to 33.

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEARTEST SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

DVD

AUDIO

AUDIO VOL

+/–

TV/VIDEO

SURROUND

MUTING

DVD

VOLUME

DSP

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM12

English

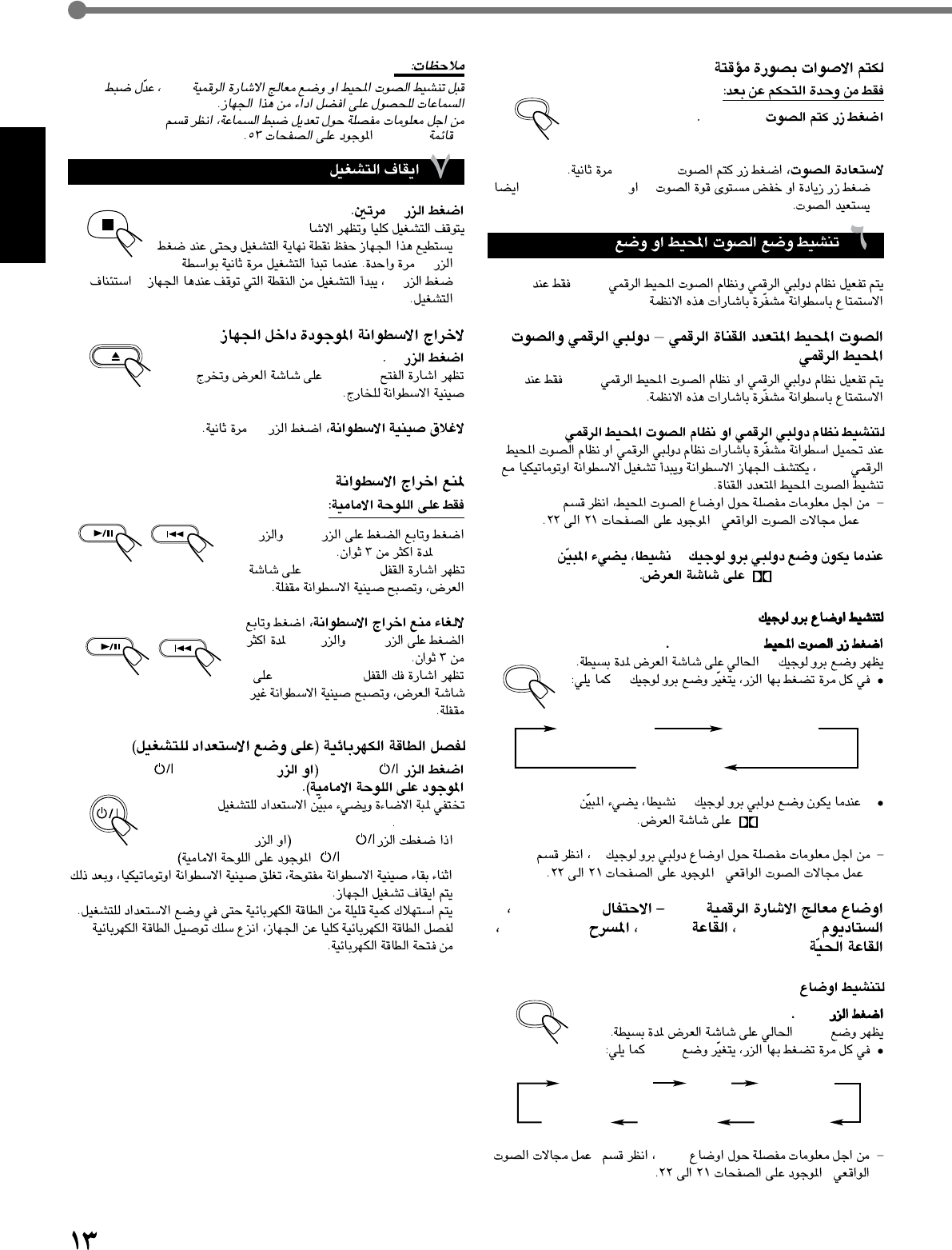

Note:

Before activating the Surround or DSP mode, adjust the speaker

setting to bring out the best performance from this system.

For in-depth information about adjusting the speaker setting, see

“Setting Menu” on pages 53.

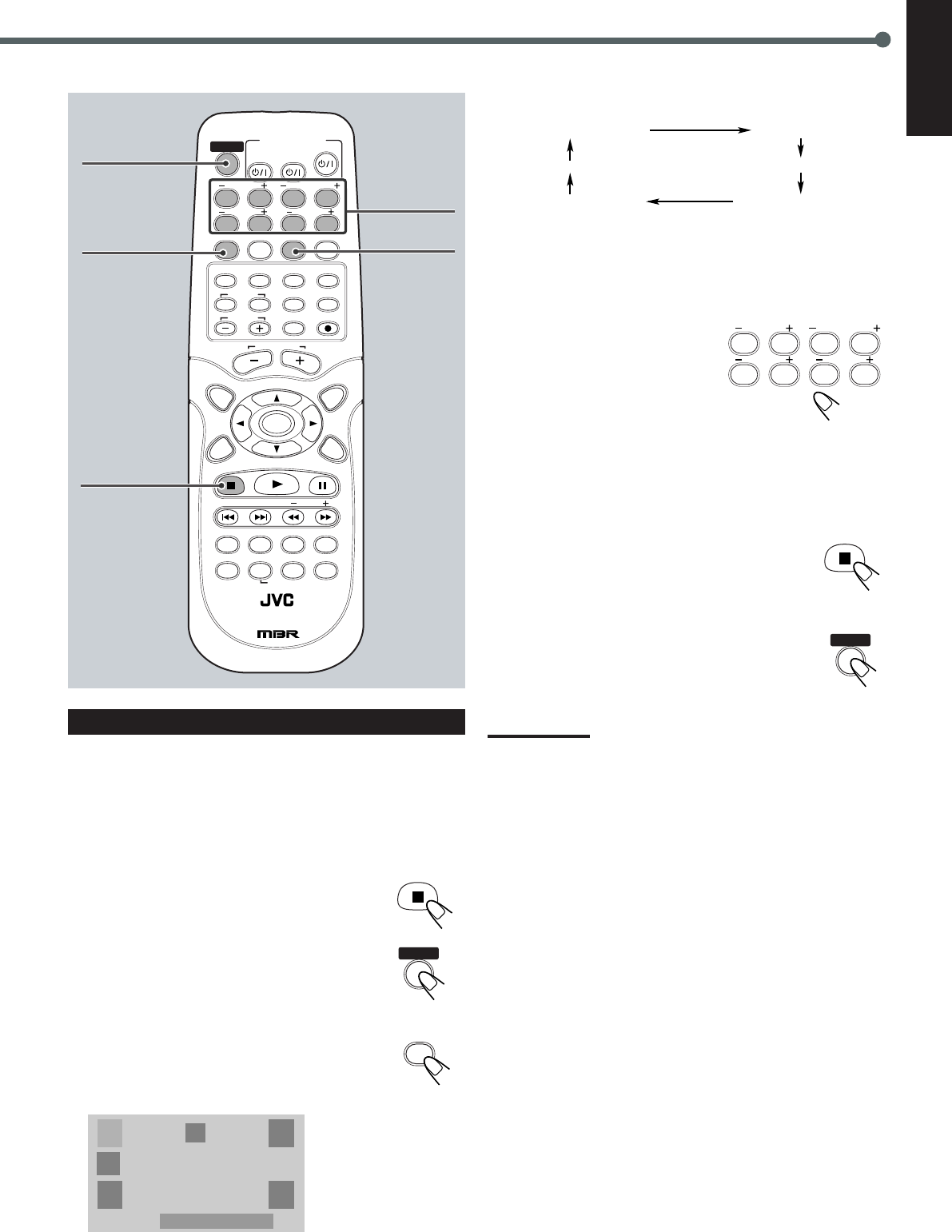

Stop Playback

Press 7 twice.

Playback stops completely.

•This system can memorize the end point even when you

press 7 once. When you start playback again by

pressing 3, playback begins from where it has been stopped—

Resume play.

To remove the loaded disc

Press 0.

“OPEN” appears on the display and the disc tray comes

out.

To close the disc tray, press 0 again.

To prohibit disc ejection

On the front panel ONLY:

Press and hold 6 and 4 for more than

3 seconds.

“LOCKED” appears on the display, and the

disc tray is locked.

To cancel the prohibition, press and hold

6 and 4 for more than 3 seconds.

“UNLOCK” appears on the display, and the

disc tray is unlocked.

To turn off the power (into standby)

Press AUDIO (or STANDBY/ON on the front

panel).

The illumination lamp goes off and the STANDBY lamp

lights up.

•If you press AUDIO (or STANDBY/ON on the front

panel) while the disc tray is kept open, the disc tray closes

automatically, then the system is turned off.

•A small amount of power is consumed even in standby mode. To

turn the power off completely, unplug the AC power cord.

AUDIO

MUTING

DSP

To turn off the sounds temporarily

From the remote control ONLY:

Press MUTING.

To restore the sound, press MUTING again.

•Pressing AUDIO VOL + or – also restores the sound.

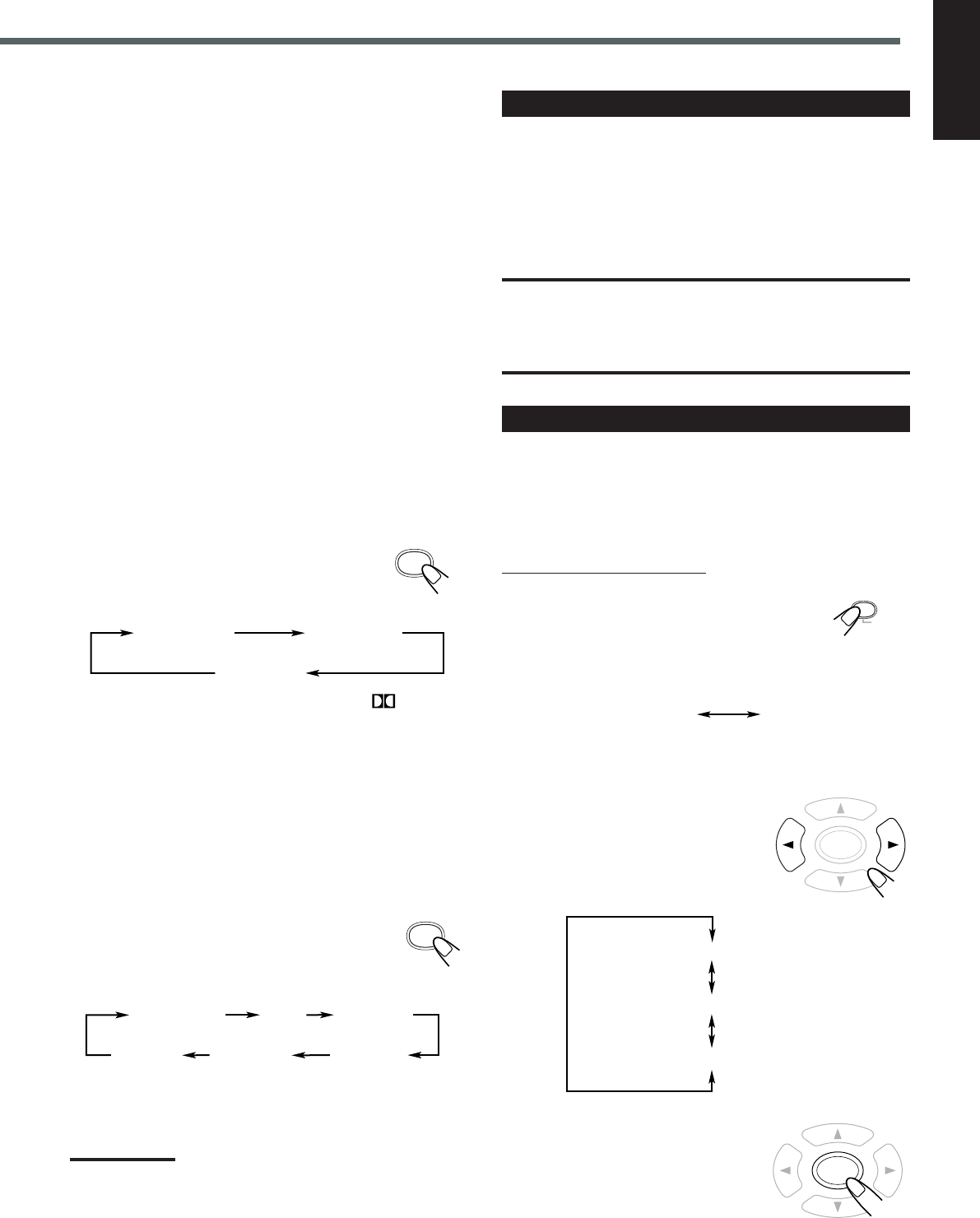

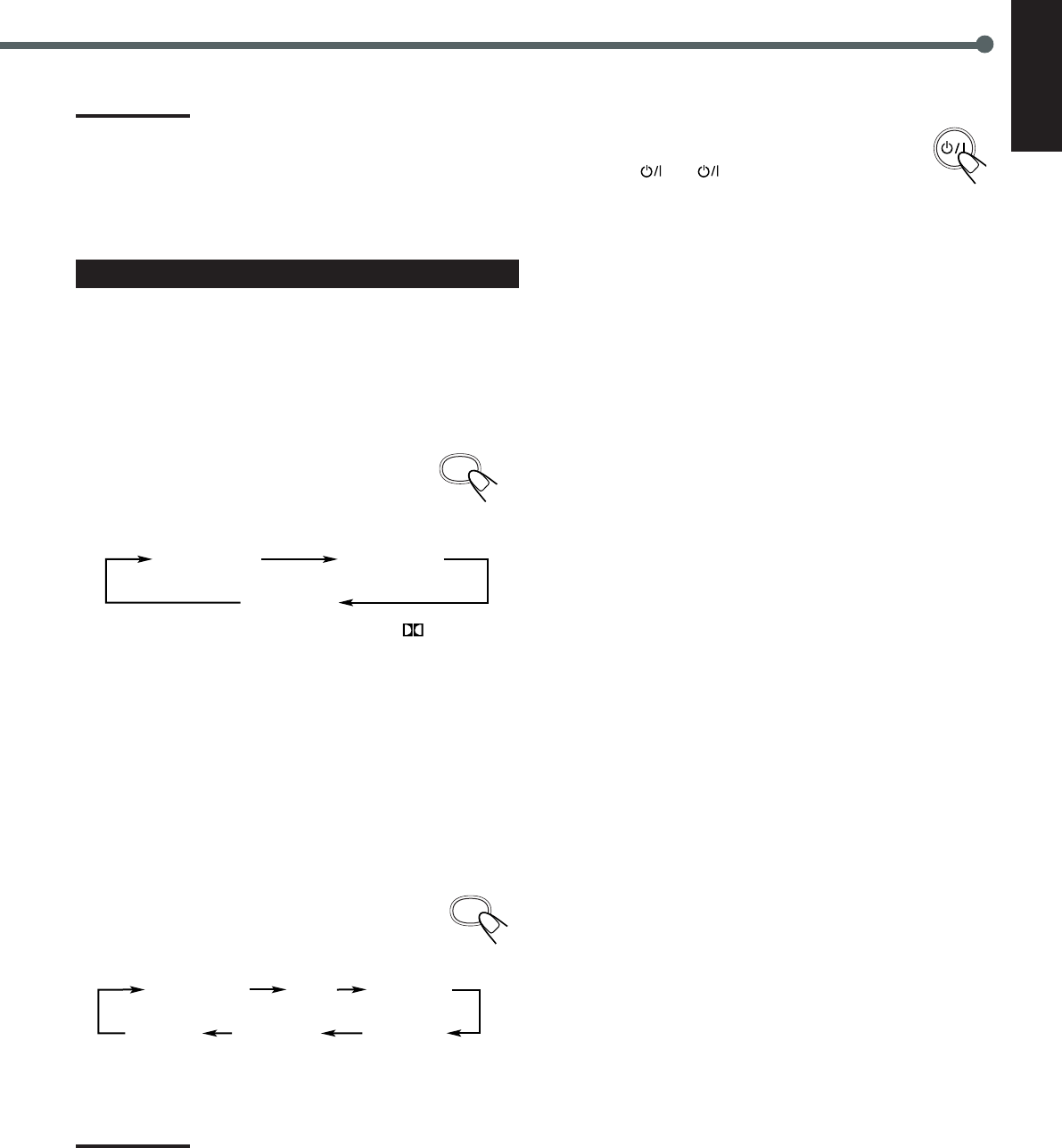

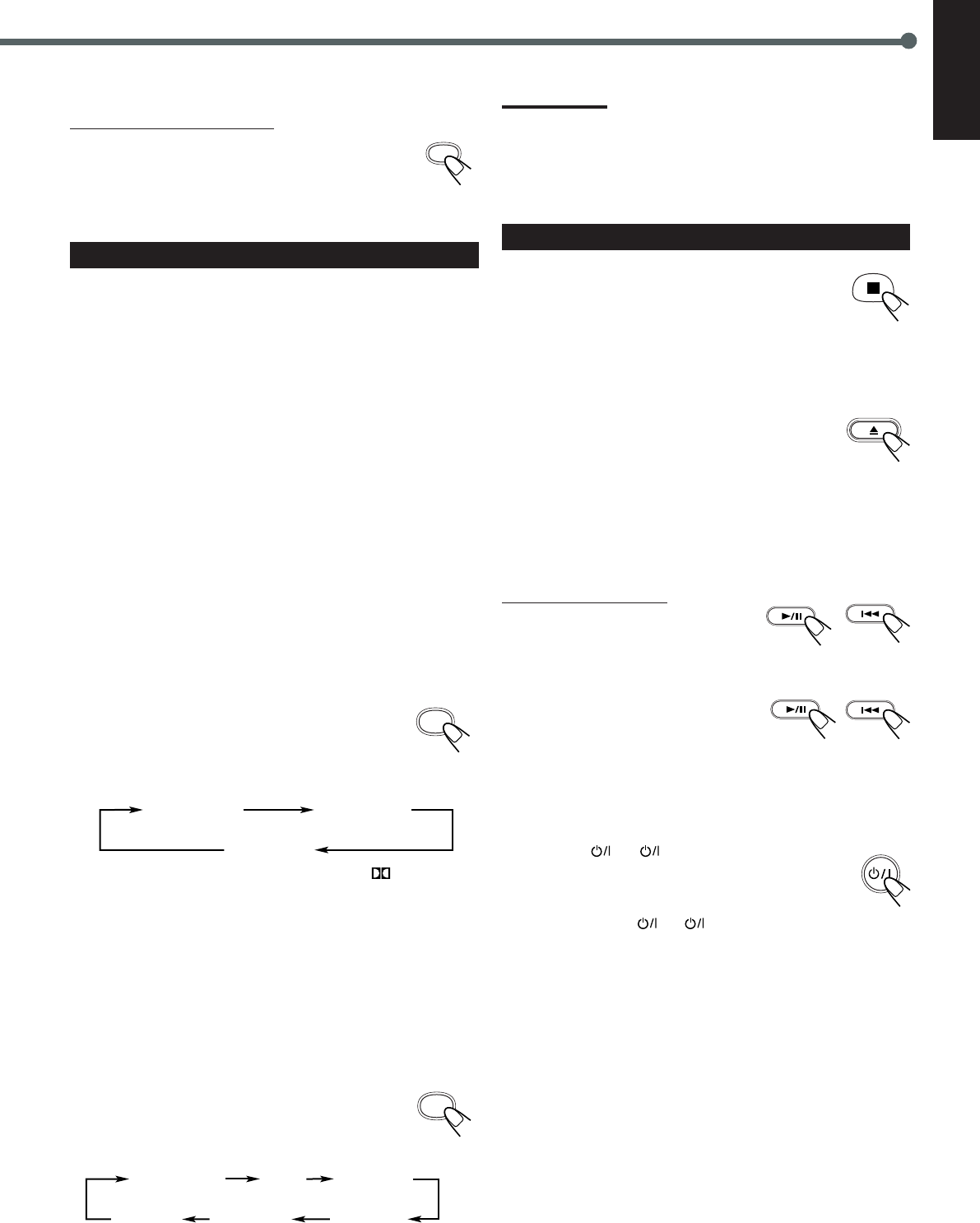

Activate Surround or DSP Mode

You can enjoy three kinds of surround—Digital Multichannel

Surround (Dolby Digital and DTS Digital Surround), Dolby Pro

Logic II and DSP modes.

Digital Multichannel Surround—Dolby Digital

and DTS Digital Surround

Dolby Digital or DTS Digital Surround takes effect only when you

enjoy a disc encoded with its signals.

To activate Dolby Digital or DTS Digital Surround

When a disc encoded with the Dolby Digital or DTS Digital

Surround is loaded, the system detects it and starts playing the disc

automatically with Multichannel Surround activated.

–For in-depth information about surround modes, see “Creating

Realistic Sound Fields” on pages 21 to 22.

Dolby Pro Logic II—Pro Logic II Music and Pro

Logic II Movie

To activate Pro Logic II modes

Press SURROUND.

The current Pro Logic II mode appears on the display

for a while.

•Each time you press the button, Pro Logic II mode

changes as follows:

•When Dolby Pro Logic II mode is activated, the PRO LOGIC

II indicator lights up on the display.

–For in-depth information about Dolby Pro Logic II modes, see

“Creating Realistic Sound Fields” on pages 21 to 22.

DSP modes—CONCERT, STADIUM, HALL,

THEATER, LIVE HOUSE

To activate DSP modes

Press DSP.

The current DSP mode appears on the display for a

while.

•Each time you press the button, DSP mode changes as

follows:

–For in-depth information about DSP modes, see “Creating

Realistic Sound Fields” on pages 21 to 22.

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

SURROUND

PL II MUSIC PL II MOVIE

PL II OFF

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM13

English

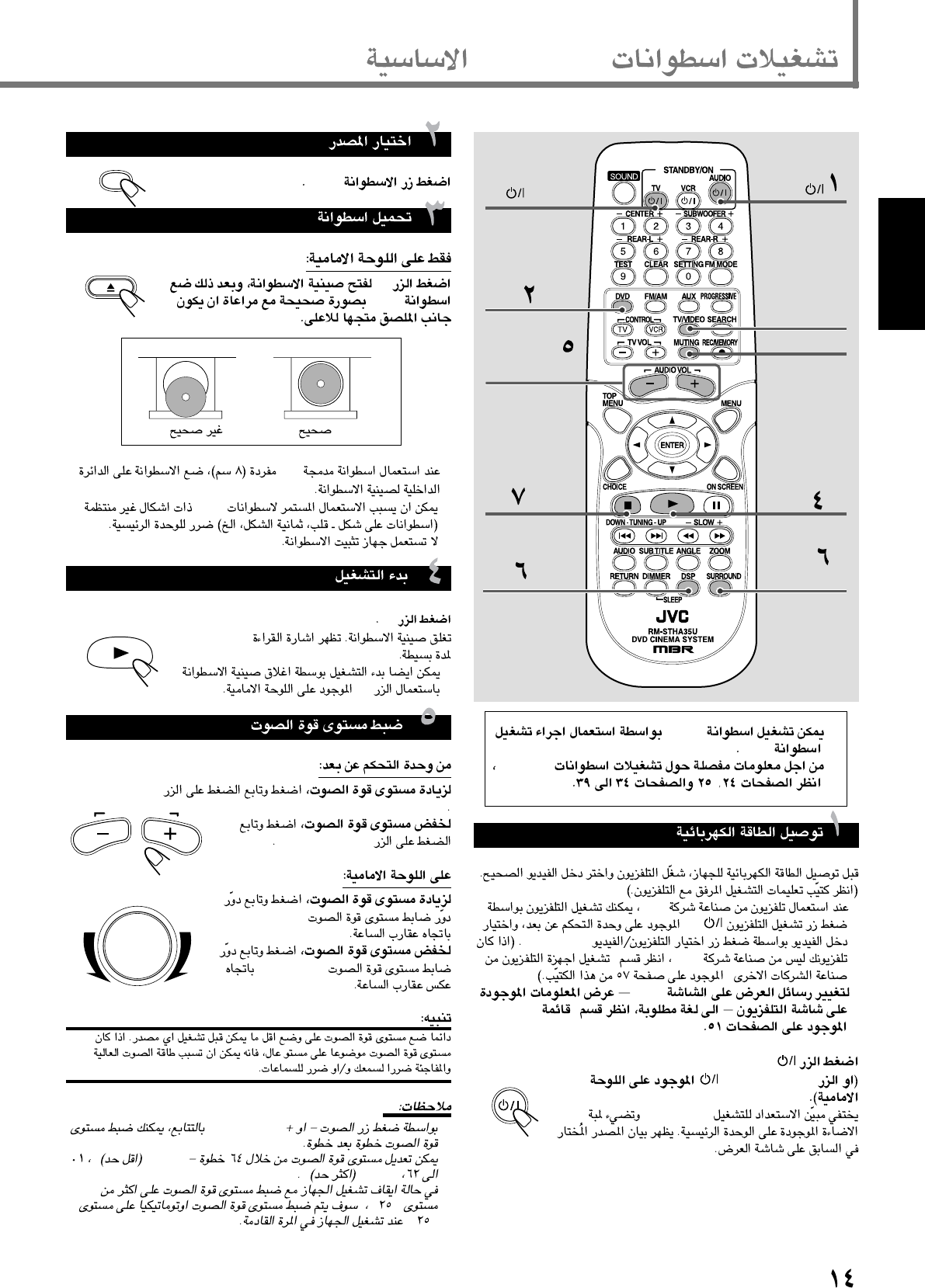

Basic VCD/CD Operations

Turn On the Power

Before turning on the system, turn on your TV if necessary and

select the correct video input. (See the manual supplied with your

TV.)

•When you use a JVC’s TV, you can turn on your TV by pressing

TV on the remote control, and select the video input by

pressing TV/VIDEO. (If your TV is not a JVC’s, see “Operating

Other Manufacturers’ TV” on page 57.)

•For changing the OSD messages—the information on the TV

screen—into the desired language, see “ Language Menu” on

pages 51.

Press AUDIO

(or STANDBY/ON on the front panel).

The STANDBY lamp goes off and the illumination lamp

on the center unit lights up. The source indication selected

previously appears on the display.

Select the Source

Press DVD.

Load a VCD/CD

On the front panel ONLY:

Press 0 to open the disc tray, then place a disc

correctly with its label side up.

•When using a CD single (8 cm), place it on the inner circle of the

disc tray.

•Continued use of irregular shape CDs (heart-shape, octagonal,

etc.) can damage the center unit.

•DO NOT use the disc stabilizer.

Start Playback

Press 3.

The disc tray closes. “READING” appears for a while.

•You can also start playback by closing the disc tray

using 0 on the front panel.

Adjust the Volume

From the remote control :

To increase the volume,

press and hold AUDIO VOL +.

To decrease the volume,

press and hold AUDIO VOL –.

On the front panel :

To increase the volume,

turn VOLUME control clockwise.

To decrease the volume,

turn VOLUME control counterclockwise.

CAUTION:

Always set the volume to the minimum before starting any source. If

the volume is set at its high level, the sudden blast of sound energy

can permanently damage your hearing and/or ruin your speakers.

Notes:

•By pressing AUDIO VOL + or – repeatedly, you can adjust the

volume level step by step.

•The volume level can be adjusted within 64 steps—

“MIN (minimum),” 01 to 62 and “MAX (maximum).”

•If you have turned off the unit with the volume level set at more than

level “25,” the volume level will be automatically set at level “25” next

time you turn on the unit.

AUDIO

CORRECT INCORRECT

AUDIO VOL

•SVCD can be operated by using the VCD operation

procedure.

•For in-depth information about VCD/CD operations,

see pages 24, 25, and 34 to 39.

DVD

VOLUME

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEARTEST SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

AUDIO

AUDIO VOL

+/–

TV/VIDEO

SURROUND

MUTING

DVD

DSP

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM14

English

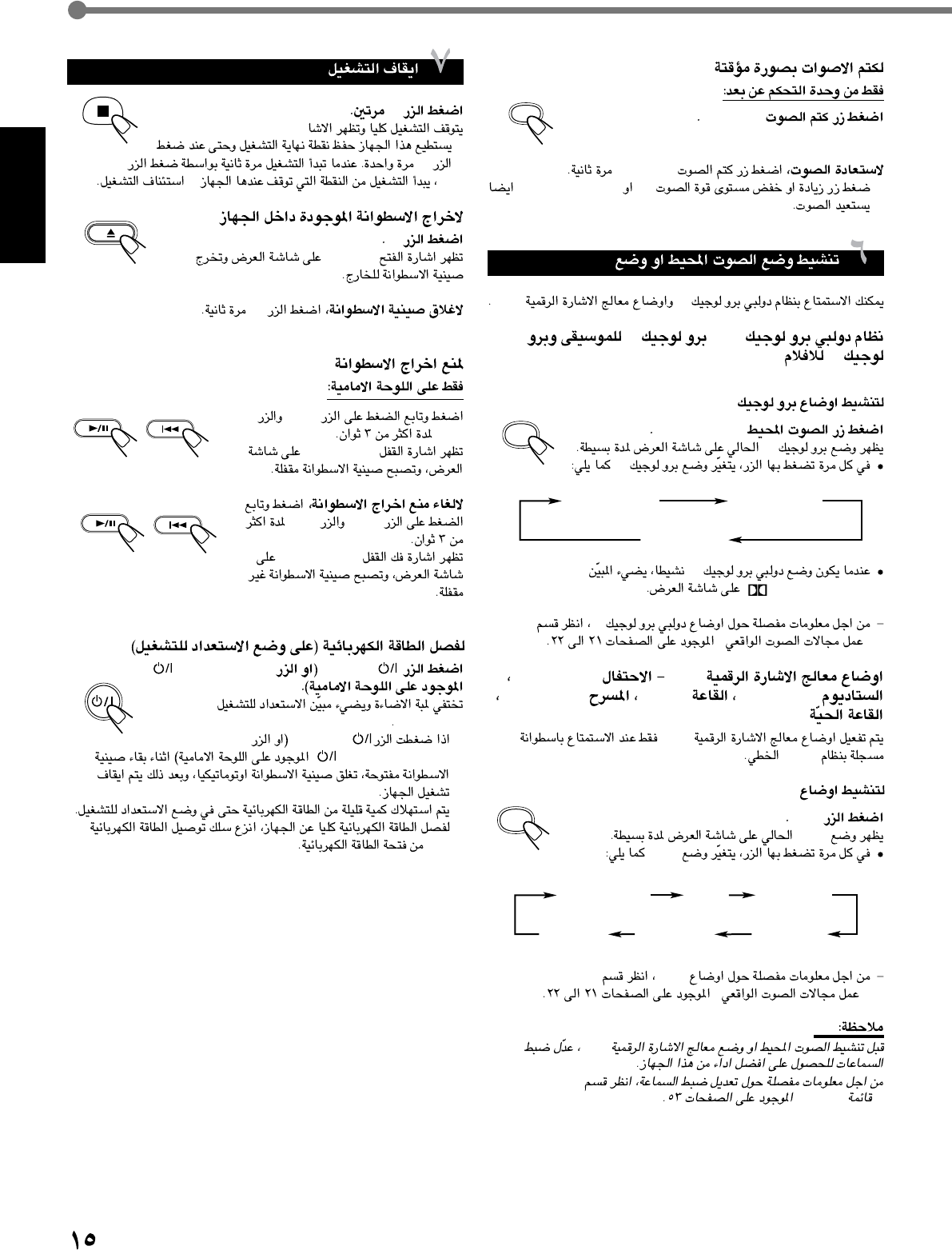

To turn off the sounds temporarily

From the remote control ONLY:

Press MUTING.

To restore the sound, press MUTING again.

•Pressing AUDIO VOL + or – also restores the sound.

Activate Surround or DSP Mode

You can enjoy Dolby Pro Logic II mode and DSP modes.

Dolby Pro Logic II—Pro Logic II Movie and Pro

Logic II Music

To activate Pro Logic II modes

Press SURROUND.

The current Pro Logic II mode appears on the display

for a while.

•Each time you press the button, Pro Logic II mode

changes as follows:

•When Dolby Pro Logic II mode is activated, the PRO LOGIC

II indicator lights up on the display.

–For in-depth information about Dolby Pro Logic II modes, see

“Creating Realistic Sound Fields” on pages 21 to 22.

DSP modes—CONCERT, STADIUM, HALL,

THEATER, LIVE HOUSE

DSP modes take effect only when you enjoy a disc recorded using

Linear PCM.

To activate DSP modes

Press DSP.

The current DSP mode appears on the display for a

while.

•Each time you press the button, DSP mode changes

as follows:

–For in-depth information about DSP modes, see “Creating

Realistic Sound Fields” on pages 21 to 22.

Note:

Before activating the Surround or DSP mode, adjust the speaker

setting to bring out the best performance from this system.

For in-depth information about adjusting the speaker setting, see

“Setting Menu” on pages 53.

Stop Playback

Press 7 twice.

Playback stops completely.

•This system can memorize the end point even when

you press 7 once. When you start playback again by

pressing 3, playback begins from where it has been stopped—

Resume play.

To remove the loaded disc

Press 0.

“OPEN” appears on the display and the disc tray comes

out.

To close the disc tray, press 0 again.

To prohibit disc ejection

On the front panel ONLY:

Press and hold 6 and 4 for more than

3 seconds.

“LOCKED” appears on the display, and the

disc tray is locked.

To cancel the prohibition, press and hold

6 and 4 for more than 3 seconds.

“UNLOCK” appears on the display, and

the disc tray is unlocked.

To turn off the power (into standby)

Press AUDIO (or

STANDBY/ON on the front panel).

The illumination lamp goes off and the STANDBY lamp

lights up.

•If you press AUDIO (or STANDBY/ON on the front

panel) while the disc tray is kept open, the disc tray closes

automatically, then the system is turned off.

•A small amount of power is consumed even in standby mode. To

turn the power off completely, unplug the AC power cord.

AUDIO

MUTING

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

SURROUND

PL II MUSIC PL II MOVIE

PL II OFF

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM15

English

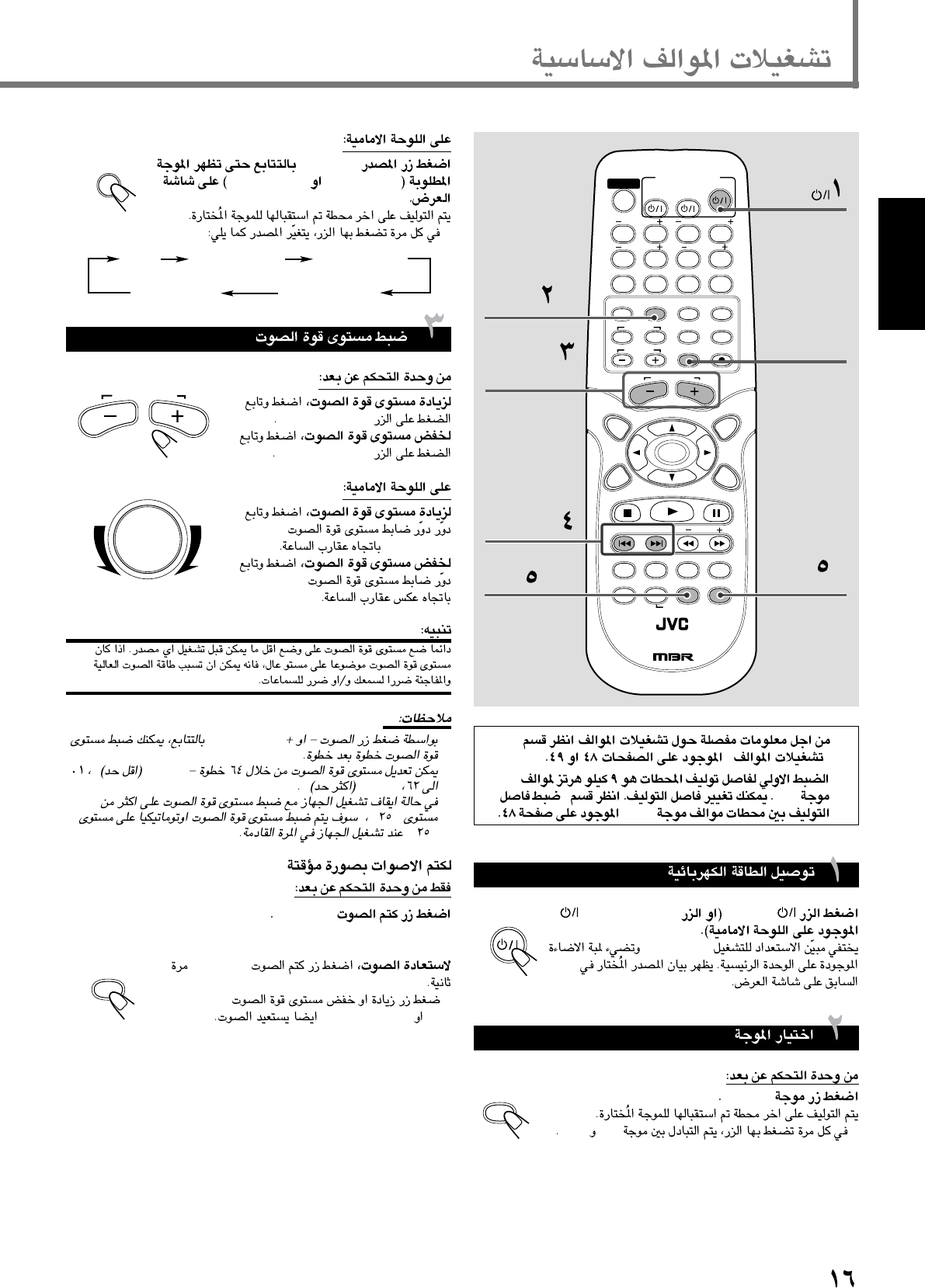

Turn On the Power

Press AUDIO (or STANDBY/ON on the front

panel).

The STANDBY lamp goes off and the illumination lamp

lights up on the center unit.

The source indication selected previously appears on the

display.

Select the Band

From the remote control:

Press FM/AM.

The last received station of the selected band is tuned

into.

•Each time you press the button, the band alternates

between FM and AM.

On the front panel:

Press SOURCE repeatedly until the desired band

(TUNER FM or TUNER AM) appears on the

display.

The last received station of the selected band is tuned into.

•Each time you press the button, the source changes as follows:

Adjust the Volume

From the remote control :

To increase the volume,

press and hold AUDIO VOL +.

To decrease the volume,

press and hold AUDIO VOL –.

On the front panel :

To increase the volume,

turn VOLUME control clockwise.

To decrease the volume,

turn VOLUME control counterclockwise.

CAUTION:

Always set the volume to the minimum before starting any source. If

the volume is set at its high level, the sudden blast of sound energy

can permanently damage your hearing and/or ruin your speakers.

Notes:

•By pressing AUDIO VOL + or – repeatedly, you can adjust the

volume level step by step.

•The volume level can be adjusted within 64 steps—

“MIN (minimum),” 01 to 62 and “MAX (maximum).”

•If you have turned off the unit with the volume level set at more than

level “25,” the volume level will be automatically set at level “25” next

time you turn on the unit.

To turn off the sounds temporarily

From the remote control ONLY:

Press MUTING.

To restore the sound, press MUTING again.

•Pressing AUDIO VOL + or – also restores the sound.

Tune into a Station

From the remote control:

Press and hold TUNING UP or DOWN until

the station frequency starts changing

continuously on the display.

The system starts searching for a station.

When a station of sufficient signal strength is tuned in, the system

stops searching, and the TUNED indicator lights up on the display.

On the front panel:

Press and hold 4or ¢until the station frequency starts

changing continuously on the display.

Basic Tuner Operations

AUDIO

FM/AM

SOURCE

DOWN - TUNING - UP

AUDIO VOL

For in-depth information about tuner operations, see

“Tuner Operations” on pages 48 to 49.

•9 kHz interval spacing is the initial setting for AM

tuner. You can change the interval spacing. See

“Setting the AM Tuner Interval Spacing” on page 48.

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

SETTINGCLEAR

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

TEST FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

AUDIO

AUDIO VOL

+ / –

FM/AM

TUNING

DOWN/UP

MUTING

VOLUME

DVD TUNER FM TUNER AM

ANALOG INDIGITAL IN

MUTING

DSP

SURROUND

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM16

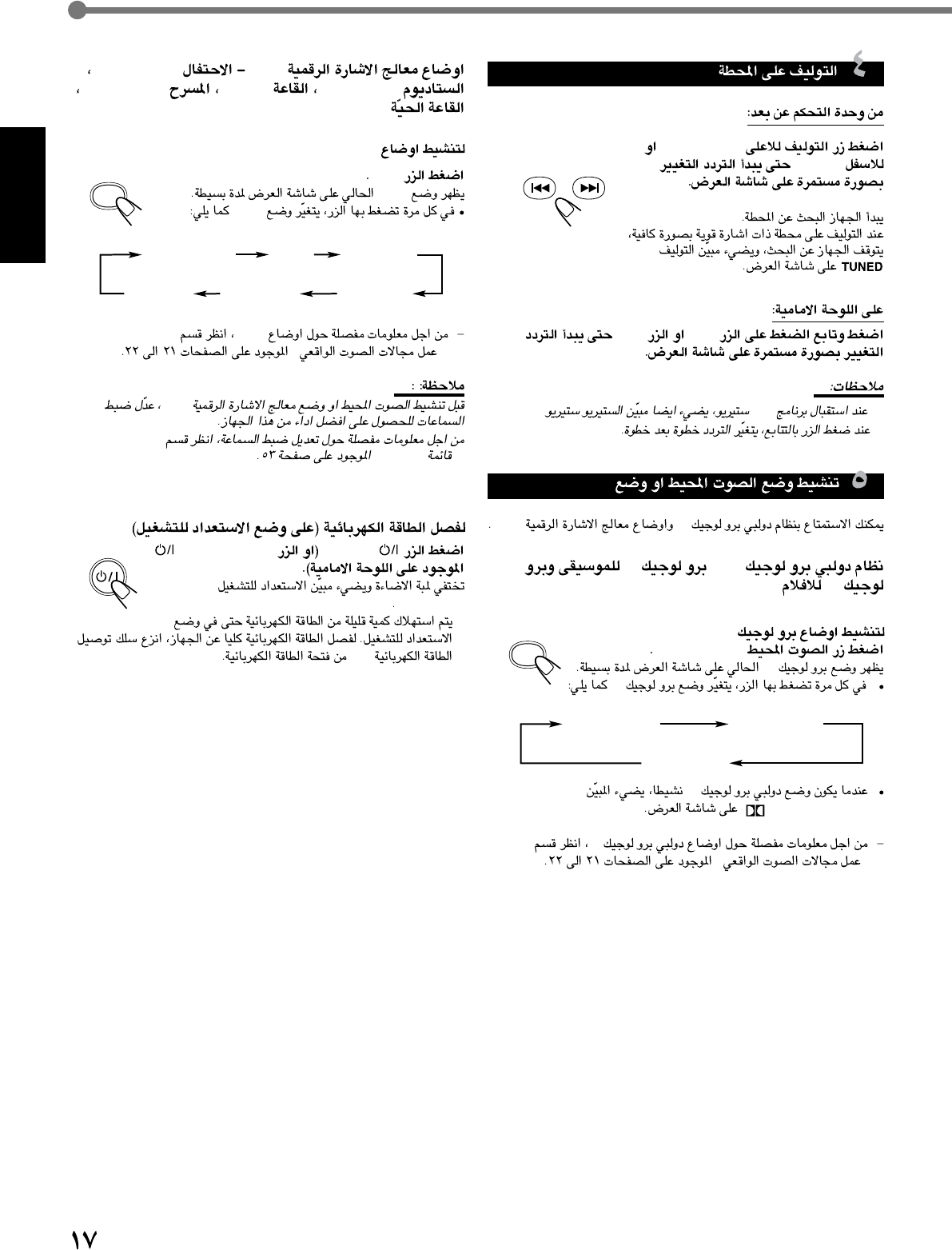

English

AUDIO

Activate Surround or DSP Mode

You can enjoy Dolby Pro Logic II mode and DSP modes.

Dolby Pro Logic II—Pro Logic II Movie and Pro

Logic II Music

To activate Pro Logic II modes

Press SURROUND.

The current Pro Logic II mode appears on the display

for a while.

•Each time you press the button, Pro Logic II mode changes as

follows:

•When Dolby Pro Logic II mode is activated, the PRO LOGIC

II indicator lights up on the display.

–For in-depth information about Dolby Pro Logic II modes, see

“Creating Realistic Sound Fields” on pages 21 to 22.

DSP modes—CONCERT, STADIUM, HALL,

THEATER, LIVE HOUSE

To activate DSP modes

Press DSP.

The current DSP mode appears on the display for a

while.

•Each time you press the button, DSP mode changes as

follows:

–For in-depth information about DSP modes, see “Creating

Realistic Sound Fields” on pages 21 to 22.

Note:

Before activating the Surround or DSP mode, adjust the speaker

setting to bring out the best performance from this system.

For in-depth information about adjusting the speaker setting, see

“Setting Menu” on pages 53.

To turn off the power (into standby)

Press AUDIO (or STANDBY/ON on the front

panel) again.

The illumination lamp goes off and the STANDBY lamp lights up.

•A small amount of power is consumed even in standby mode. To

turn the power off completely, unplug the AC power cord.

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

SURROUND

PL II MUSIC PL II MOVIE

PL II OFF

Notes:

•When an FM stereo program is received, the STEREO indicator

also lights up.

•When you press the button repeatedly, the frequency changes step

by step.

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM17

English

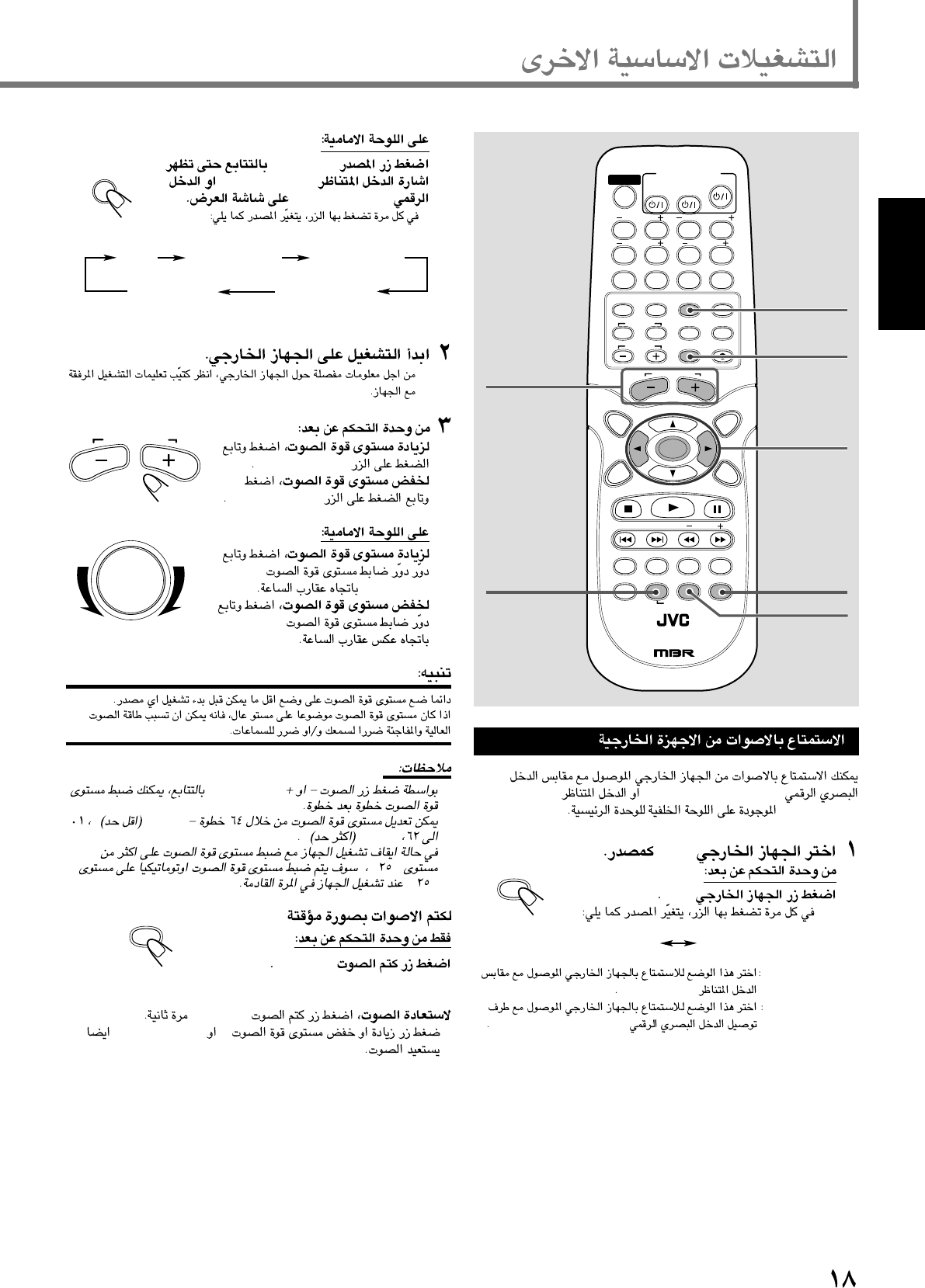

Other Basic Operations

Enjoying Sounds from the External

Component

You can enjoy sounds from the external equipment connected to the

OPTICAL DIGITAL IN terminal or ANALOG IN jacks on the rear

panel of the center unit.

Select AUX as the source.

From the remote control:

Press AUX.

•Each time you press the button, the source

changes as follows:

ANALOG IN : Select this to enjoy the external equipment

connected to the ANALOG IN jacks.

DIGITAL IN : Select this to enjoy the external equipment

connected to the OPTICAL DIGITAL IN

terminal.

AUX

On the front panel:

Press SOURCE repeatedly until “ANALOG IN”

or “DIGITAL IN” appears on the display.

•Each time you press the button, the source

changes as follows:

Start playback on the external equipment.

•For in-depth information about the external equipment, see the

manual supplied for it.

Adjust the Volume.

From the remote control :

To increase the volume,

press and hold AUDIO VOL +.

To decrease the volume,

press and hold AUDIO VOL –.

On the front panel :

To increase the volume,

turn VOLUME control clockwise.

To decrease the volume,

turn VOLUME control counterclockwise.

CAUTION:

Always set the volume to the minimum before starting any source.

If the volume is set at its high level, the sudden blast of sound

energy can permanently damage your hearing and/or ruin your

speakers.

Notes:

•By pressing AUDIO VOL + or – repeatedly, you can adjust the

volume level step by step.

•The volume level can be adjusted within 64 steps—

“MIN (minimum),” 01 to 62 and “MAX (maximum).”

•If you have turned off the unit with the volume level set at more

than level “25,” the volume level will be automatically set at level

“25” next time you turn on the unit.

To turn off the sounds temporarily

From the remote control ONLY:

Press MUTING.

To restore the sound, press MUTING again.

•Pressing AUDIO VOL + or – also restores the

sound.

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

AUX

DVD TUNER FM TUNER AM

ANALOG INDIGITAL IN

DIMMER

3/2

ENTER

SOURCE

SURROUND

ANALOG IN DIGITAL IN

DSP

AUDIO VOL

VOLUME

MUTING

AUDIO VOL

+/–

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM18

English

PL II MUSIC PL II MOVIE

PL II OFF

SURROUND

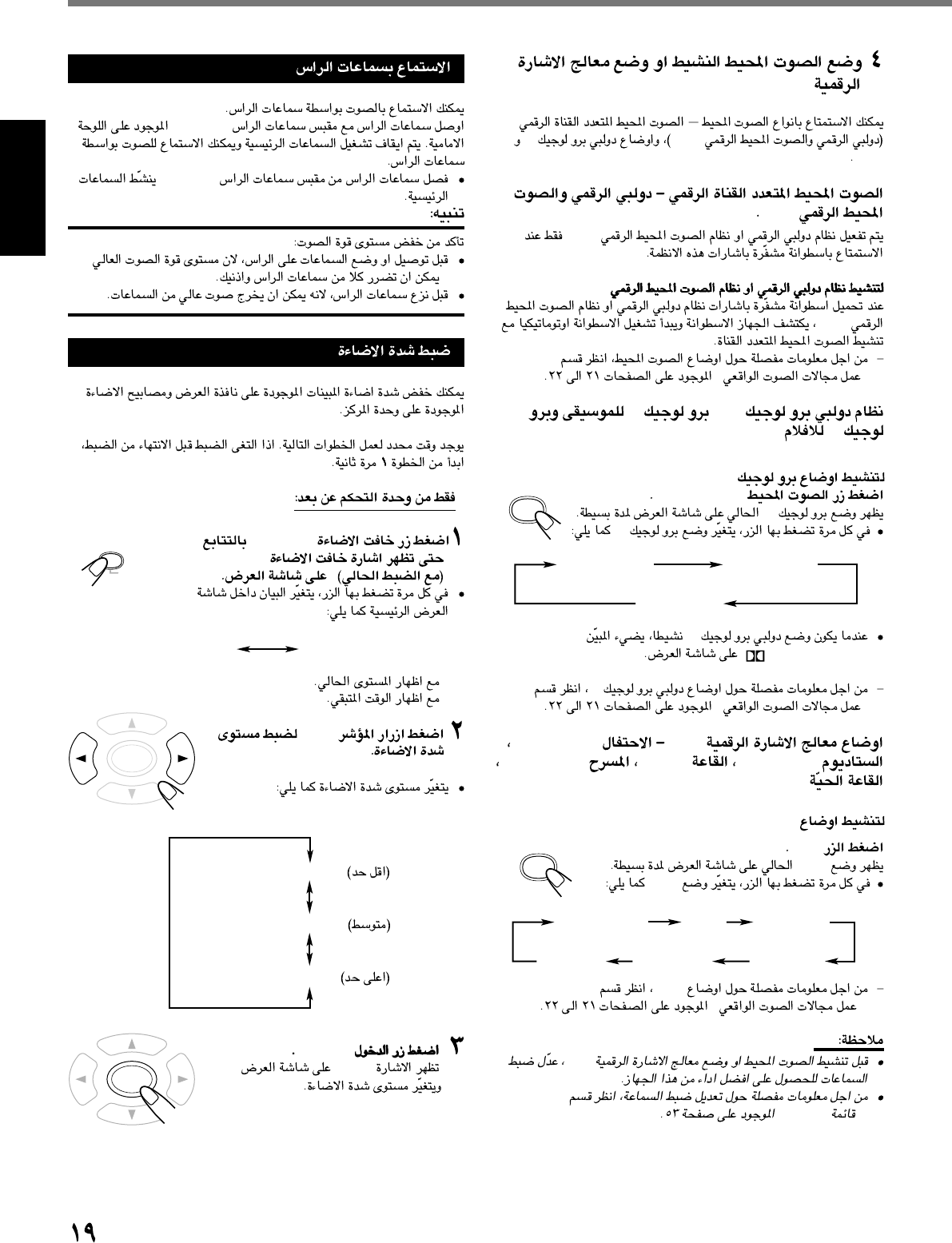

Activate Surround or DSP Mode

You can enjoy three kinds of surround—Digital Multichannel

Surround (Dolby Digital and DTS Digital Surround), Dolby Pro

Logic II and DSP modes.

Digital Multichannel Surround—Dolby Digital

and DTS Digital Surround

You can enjoy Dolby Digital or DTS Digital Surround when you

playback Multichannel source on the external equipment.

To activate Dolby Digital or DTS Digital Surround

When playback source is encoded with Dolby Digital or DTS

Digital Surround, the system detects it and activate Multichannel

Surround automatically.

–For in-depth information about surround modes, see “Creating

Realistic Sound Fields” on pages 21 to 22.

Dolby Pro Logic II—Pro Logic II Music and Pro

Logic II Movie

To activate Pro Logic II modes

Press SURROUND.

The current Pro Logic II mode appears on the

display for a while.

•Each time you press the button, Pro Logic II

mode changes as follows:

•When Dolby Pro Logic II mode is activated, the PRO LOGIC

II indicator lights up on the display.

–For in-depth information about Dolby Pro Logic II modes, see

“Creating Realistic Sound Fields” on pages 21 to 22.

DSP modes—CONCERT, STADIUM, HALL,

THEATER, LIVE HOUSE

To activate DSP modes

Press DSP.

The current DSP mode appears on the display for a

while.

•Each time you press the button, DSP mode changes

as follows:

–For in-depth information about DSP modes, see “Creating

Realistic Sound Fields” on pages 21 to 22.

Notes:

•On some source signals, no sounds come out from the subwoofer.

•Before activating the Surround or DSP mode, adjust the speaker

setting to bring out the best performance from this system.

For in-depth information about adjusting the speaker setting, see

“Setting Menu” on pages 53.

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

Listening with the Headphones

You can enjoy the sound with headphones.

Connect a pair of headphones to the PHONES jack on the front

panel. The speakers are diactivated and you can listen the sound

with the headphones.

•Disconnecting a pair of headphones from the PHONES jack

activate speakers.

CAUTION:

Be sure to turn down the volume:

•Before connecting or putting on headphones, as high volume can

damage both the headphones and hearing.

•Before removing headphones, as high volume may output from the

speakers.

Adjusting the Brightness

You can dim the indications on the display window and the

illumination lamps on the center unit.

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

again.

From the remote control ONLY:

Press DIMMER repeatedly until

“DIMMER (with the current setting) ”

appears on the display.

•Each time you press the button, the indication in the main

display changes as follows:

* With the current level is shown.

** With the remaining time is shown.

Press cursor 3/2to adjust the

brightness level.

•The brightness level changes as

follows:

Press ENTER.

“OK” appears on the display and the

brightness level changes.

DIMMER

SLEEP

ENTER

DIMMER*SLEEP**

ENTER

DIMMER MAX (Maximum)

DIMMER MIN (Minimum)

DIMMER MID (Middle)

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM19

English

Other Basic Operations

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

SETTINGCLEAR

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

TEST FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2

ENTER

SLEEP

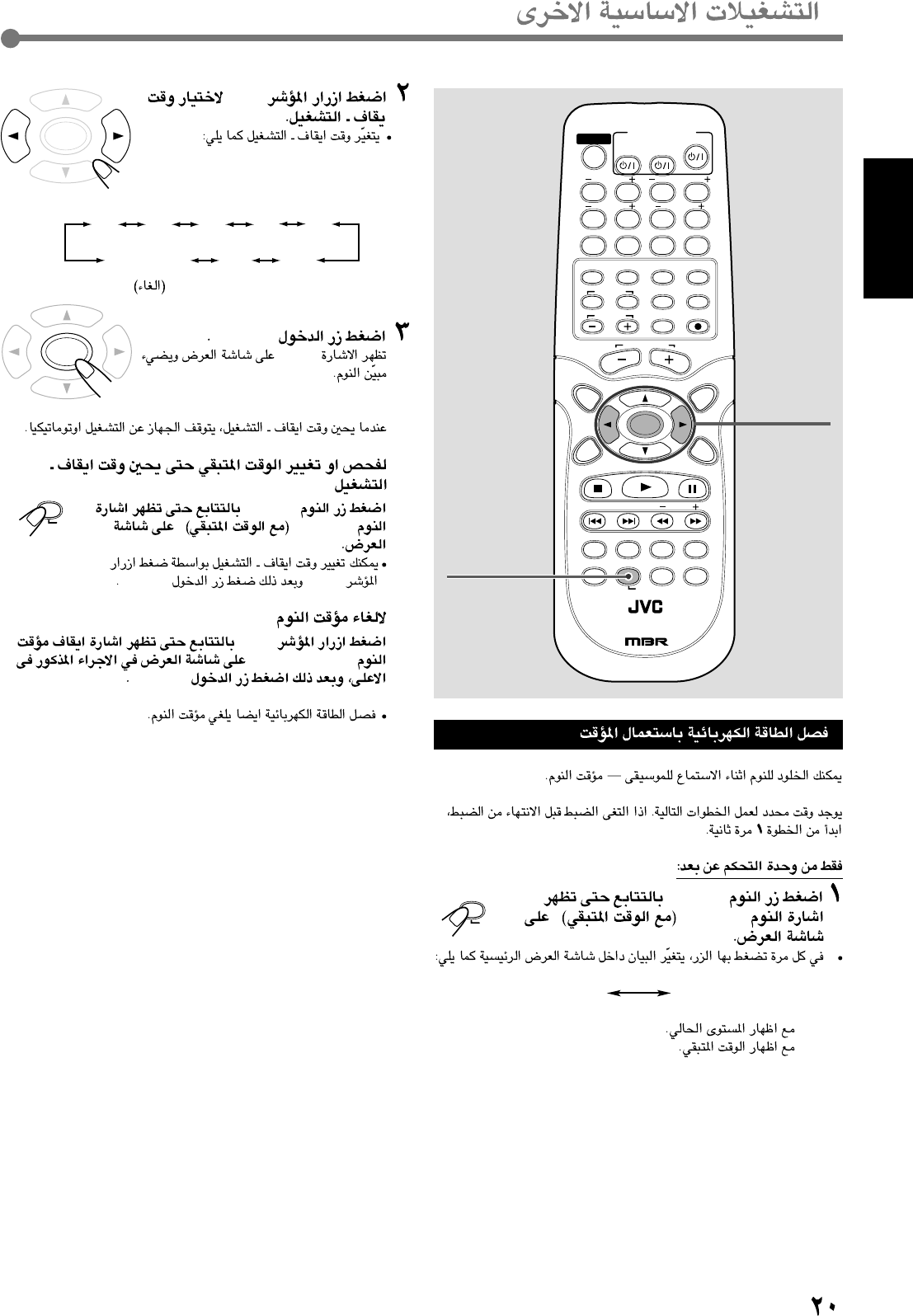

Turning Off the Power with the Timer

You can fall asleep while listening to music—Sleep Timer.

There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step

again.

From the remote control ONLY:

Press SLEEP repeatedly until “SLEEP

(with the remaining time) ” appears on

the display.

•Each time you press the button, the indication in the main

display changes as follows:

* With the current level is shown.

** With the remaining time is shown.

DIMMER

SLEEP

DIMMER*SLEEP**

10 20 30 60

120

150

SLEEP OF

(Canceled)

DIMMER

SLEEP

Press cursor 3/2to select the

shut-off time.

•The shut-off time changes as follows:

Press ENTER.

“OK” appears on the display and the

sleep indicator lights up.

When the shut-off time comes, the system turns off

automatically.

To check or change the time remaining until the

shut-off time

Press SLEEP repeatedly until “SLEEP (with the

remaining time) ” appears on the display.

•You can change the shut-off time by pressing cursor

3/2 then ENTER .

To cancel the Sleep Timer

Press cursor 3/2 repeatedly until “SLEEP OFF” appears on

the display in procedure above, then ENTER.

•Turning off the power also cancels the Sleep Timer.

ENTER

EN10-20TH-A35[UG].pm6 03.5.19, 5:19 PM20

English

Creating Realistic Sound Fields

“DTS” and “DTS Digital Surround” are registered trademarks of

Digital Theater Systems, Inc.

Manufactured under license from Dolby Laboratories. “Dolby,” “Pro

Logic,” and the double-D symbol are trademarks of Dolby

You can use the following surround to reproduce a realistic sound

field.

•Dolby Surround

•Dolby Pro Logic II

•Dolby Digital

•DTS Digital Surround

•DSP modes

7 Dolby Surround

Dolby Pro Logic II*

Dolby Pro Logic II has newly developed multichannel playback

format to decode the 2 channel sources—stereo analog source,

Linear PCM digital source, and Dolby Surround encoded source—

into 5.1 channel.

Matrix-based encoding/decoding method for Dolby Pro Logic II

makes no limitation for the cutoff frequency of the rear treble and

enables stereo rear sound compared to conventional Dolby Pro

Logic.

Dolby Pro Logic II enables to reproduce spacious sound from

original sound without adding any new sounds and tonal colorations.

Dolby Pro Logic II has two modes—Movie mode and Music mode:

Pro Logic II Movie (PL II MOVIE)—suitable for reproduction of

Dolby Surround encoded sources bearing the mark

DOLBY SURROUND

You can enjoy sound field very close to the one created with discrete

5.1 channel sounds.

Pro Logic II Music (PL II MUSIC)—suitable for reproduction of

any 2 channel stereo music sources. You can enjoy wide and deep

sound by using this mode.

•When Dolby Pro Logic II is activated, the PRO LOGIC II

indicator lights up on the display window.

7 Dolby Digital*

Used to reproduce multichannel soundtracks of the software

encoded with Dolby Digital ( ).

Dolby Digital 5.1 ch (DOLBY D) encoding method (so-called

discrete multichannel digital audio format) records and digitally

compresses the left front channel, right front channel, center

channel, left rear channel, right rear channel, and LFE channel

signals.

Since each channel is completely independent from the other

channel signals to avoid interference, you can obtain much better

sound quality with much stereo and surround effects.

When the system detects Dolby Digital signals, the DIGITAL

indicator lights up on the display.

Note:

Dolby Digital software can be roughly grouped into two categories—

multichannel (up to “5.1” channel) and 2 channel software. To enjoy

surround sounds while playing Dolby Digital 2 ch software, you can

use Dolby Pro Logic II.

■ DTS Digital Surround**

Used to reproduce multichannel sound tracks of the software

encoded with DTS Digital Surround ( ).

DTS Digital Surround is another discrete 5.1 channel digital audio

format available on CD, LD, and DVD software.

Compared to Dolby Digital, audio compression rate is relatively low.

This fact allows DTS Digital Surround format to add breadth and

depth to the reproduced sounds. As a result, DTS Digital Surround

features natural, solid and clear sound.

When the system detects DTS Digital Surround signals, the

indicator lights up on the display.

Exapmle:

Indications on the display for each surround

•Dolby Digital

•DTS Digital Surround

•Dolby Pro Logic II Music

•Dolby Pro Logic II Movie

•DSP

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

LS S

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

VCDSTEREO MP3

LS S

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

EN21-23TH-A35[UG].pm6 03.5.19, 5:20 PM21

English

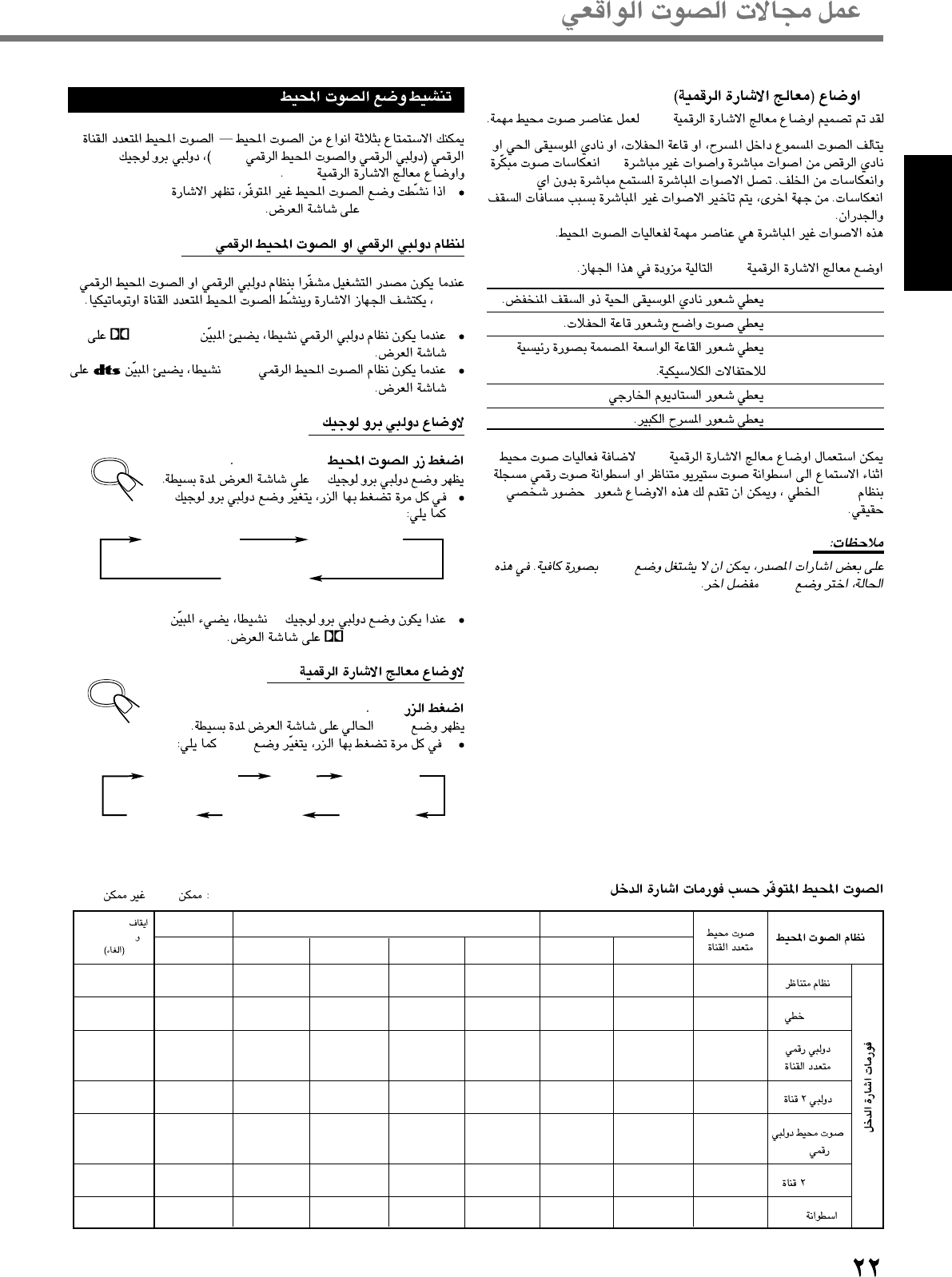

Creating Realistic Sound Fields

■ DSP (Digital Signal Processor) Modes

DSP modes have been designed to create important acoustic

surround elements.

The sound heard in a live house, a hall, a concert, a stadium, or a

theater consists of direct sound and indirect sound—early reflections

and reflections from behind. Direct sounds reach the listener directly

without any reflection. On the other hand, indirect sounds are

delayed by the distances of the ceiling and walls.

These indirect sounds are important elements of the acoustic

surround effects.

The following DSP modes are provided with this unit.

LIVE HOUSE : Gives the feeling of a live music house with a

low ceiling.

HALL : Gives clear vocal and the feeling of a concert

hall.

CONCERT : Gives the feeling of a large hall designated

primarily for classical concert.

STADIUM : Gives feeling of an outdoor stadium.

THEATER : Gives the feeling of a theater.

These DSP modes can be used to add the acoustic surround effects

while reproducing stereo analog software, Linear PCM digital

software, or Dolby Surround encoded source and can give you a real

“being there” feeling.

Note:

On some source signals, DSP mode may not work sufficiently. In that

case, select another preferred DSP mode.

Activating the Surround Mode

You can enjoy three kinds of surround—Digital Multichannel

Surround (Dolby Digital and DTS Digital Surround), Dolby Pro

Logic II and DSP modes.

•If you activate the surround mode not available, “INVALID”

appears on the display.

For Dolby Digital or DTS Digital Surround

When playback source is encoded with Dolby Digital or DTS

Digital Surround, the system detects it and activate Multichannel

Surround automatically.

•When Dolby Digital is activated, the DIGITAL indicator lights

up on the display.

•When DTS Digital Surround is activated, the indicator lights

up on the display.

For Pro Logic II modes

Press SURROUND.

The current Pro Logic II mode appears on the display

for a while.

•Each time you press the button, Pro Logic II mode

changes as follows:

•When Dolby Pro Logic II mode is activated, the PRO LOGIC

II indicator lights up on the display.

For DSP modes

Press DSP.

The current DSP mode appears on the display for a

while.

•Each time you press the button, DSP mode changes as

follows:

PL II MUSIC PL II MOVIE

PL II OFF

SURROUND

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

Surround Multichannel Pro Logic II DSP

Surround PLII Movie PLII Music

LIVE HOUSE

HALL

CONCERT STADIUM

THEATER

Analog ⳯䡬䡬䡬䡬䡬䡬䡬䡬

Linear PCM ⳯䡬䡬䡬䡬䡬䡬䡬䡬

Dolby Digital 䡬⳯⳯⳯⳯⳯⳯⳯—

Multichannel

Dolby 2ch

⳯䡬䡬䡬䡬䡬䡬䡬䡬

DTS Digital 䡬⳯⳯⳯⳯⳯⳯⳯—

Surround

DTS 2ch

⳯⳯⳯⳯⳯⳯⳯⳯䡬

MP3

⳯⳯⳯⳯⳯⳯⳯⳯䡬

Input Signal format

Available surround according to the input signal format 䡬: Possible ⳯: Impossible

PL II OFF and

DSP OFF

(canceled)

EN21-23TH-A35[UG].pm6 03.5.19, 5:20 PM22

English

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

TEST SETTING

Sound

setting

buttons

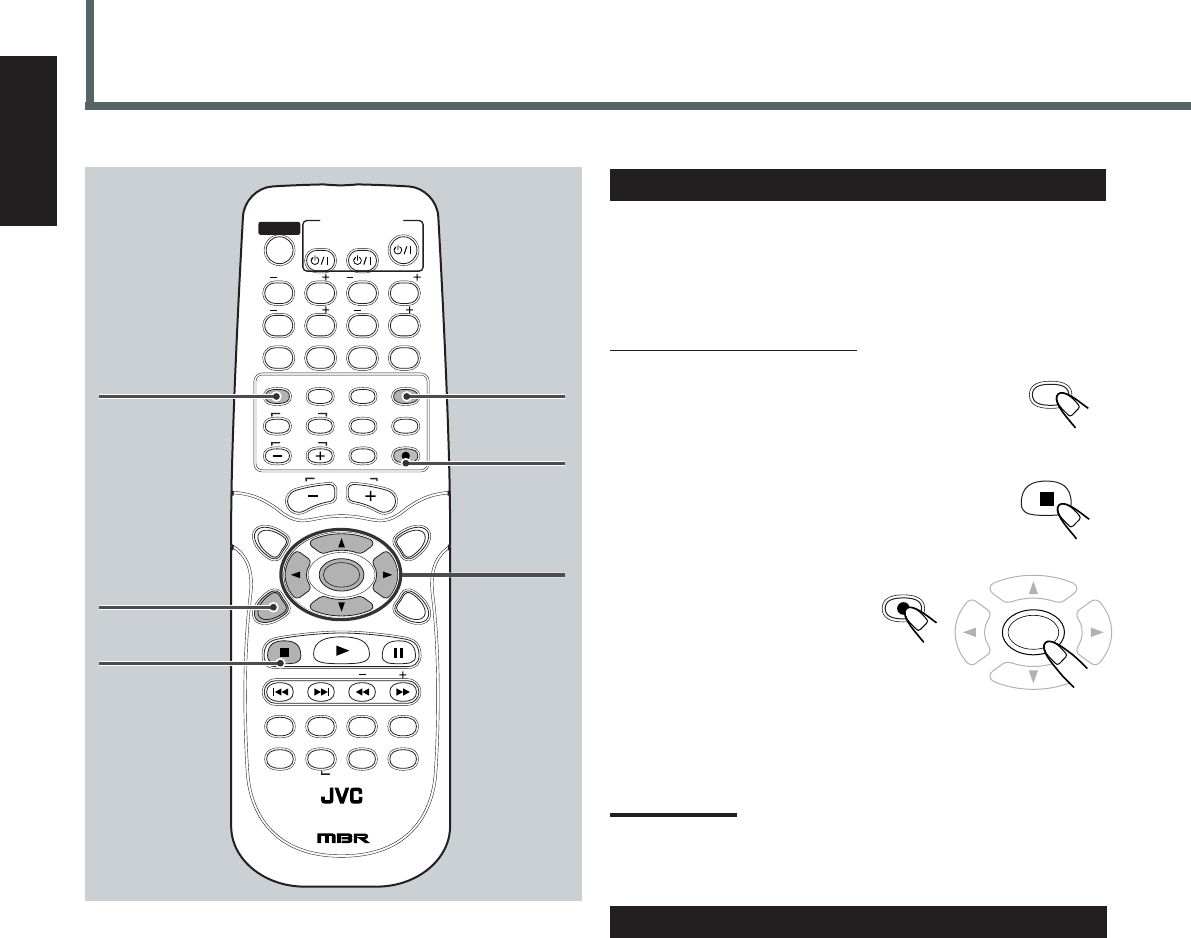

Adjusting the Sound

You can adjust the following settings.

It is recommended that you make adjustments from your actual

listening point.

–Output level for the center speaker

–Output level for the rear speakers

–Output level for the subwoofer

Load a disc, and Press STOP.

The source changes to DVD and playback stops.

Press SOUND.

“SOUND” appears on the display and the 10 keys

are activated for sound adjustments.

Press TEST to check if you can hear the

sounds through all the speakers at the

equal level.

Test tone menu appears on the TV.

•The test tone comes out of the speakers in the following order:

There is a time limit in doing the following steps. If the setting is

canceled before you finish, press SOUND and start from step

again.

Adjust the speaker output

levels (–6 dB to +6 dB).

Adjust the center speaker, rear

speakers and subwoofer levels

comparing to the sound from the

front speakers.

•To adjust the center speaker level, press CENTER +/–.

•To adjust the left rear speaker level, press REAR-L +/–.

•To adjust the right rear speaker level, press REAR-R +/–.

•To adjust the subwoofer level, press SUBWOOFER +/–.

Press STOP to stop the test tone.

Press SOUND again.

“SOUND OFF” appears on the display.

Notes:

•If a disc is not loaded, you cannot adjust the settings.

•You can adjust the speaker output levels without outputting the test

tone.

•If there is a speaker from which no sounds comes out, check the

speaker’s connection (see pages 6 and 7) and setting (see pages

53 and 54).

•If you press SETTING while adjusting sound, speaker settings

alternate between 5.1ch (use all sattelite speakers and subwoofer)

and 2.1ch (use only front speakers and subwoofer.)

•You can output the test tone in any surround mode, or even when

surround mode is not activated.

•When an MP3 disc is loaded, you cannot adjust the subwoofer

output level.

LCR

LS RS

To cancel press Stop

SOUND

TEST

Left front speaker

Right front speaker

Left rear speaker Right rear speaker

Center speaker

Subwoofer

CENTER

REAR-RREAR-L

SUBWOOFER

1234

5678

SOUND

EN21-23TH-A35[UG].pm6 03.5.19, 5:20 PM23

English

Disc Introduction—DVD/VCD/CD

•On some DVD or VCD/SVCD discs, their actual operations

may be different from what is explained in this manual. This is

due to the disc programming and disc structure, but not a

malfunction of this system.

•DVD-R discs recorded with the DVD VIDEO format can be

played back. However, some discs may not be played back

because of the disc characteristics or recording conditions.

Note that unfinalized disc cannot be played back.

•The following discs cannot be played back:

–DVD-Audio, DVD-ROM, DVD-RAM, DVD-RW,

DVD+RW, CD-ROM, CD-I, (CD-I Ready), Photo CD, etc.

Playing back these discs will generate noise and damage the

speakers.

* Note on Region Code

DVD players and DVD Video discs have their own Region Code

numbers. This system only can play back DVD discs whose Region

Code numbers include “2.”

If a DVD with the inadequate Region Code numbers is loaded,

“Invalid Region” appears on the TV and playback cannot start.

This system has been designed to play back the following discs: DVD,

Video CD, Super Video CD (SVCD), Audio CD, CD-R, and CD-RW.

•This system can also play back MP3 and JPEG files recorded on

CD-Rs and CD-RWs. For in-depth information about MP3, see

“MP3 Playback” on page 40, and about JPEG, see “JPEG

Playback” on page 44.

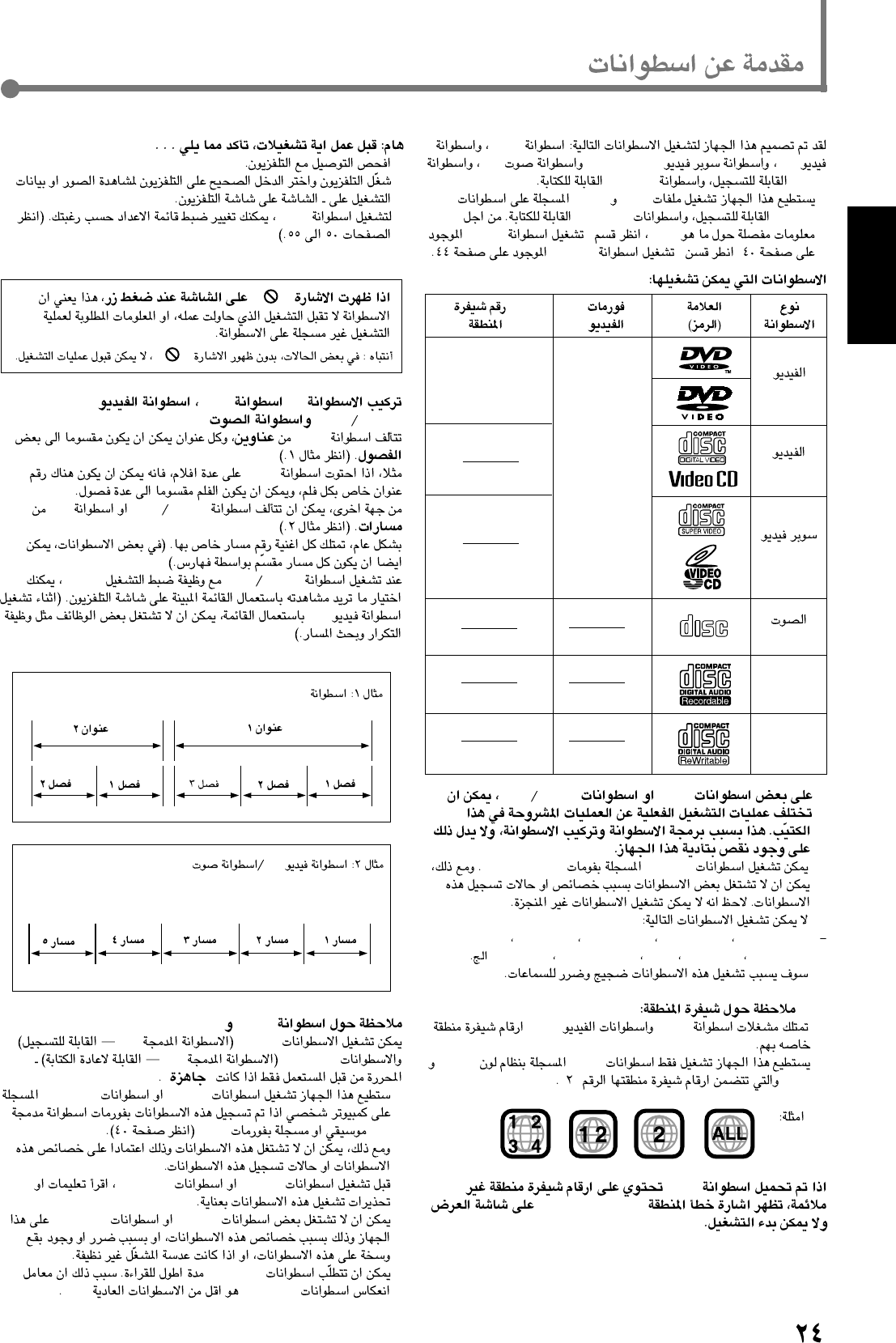

Discs you can play:

Example 1: DVD disc

Example 2 : Video CD/Audio CD

Examples:

Disc structure—DVD, Video CD (VCD/SVCD) and Audio CD (CD)

A DVD disc consists of Titles, and each title may be divided into

some Chapters. (See Example 1.)

For example, if a DVD disc contains some movies, each movie may

have its own title number, and it may be further divided into some

chapters.

On the other hand, a VCD/SVCD or CD consists of Tracks. (See

Example 2.)

In general, each song has its own track number. (On some discs,

each track may also be divided by Indexes.)

When playing back a VCD/SVCD with Playback Control (PBC)

function, you can select what to view using the menu shown on the

TV screen. (While operating a Video CD using the menu, some of

the functions such as Repeat and Track Search may not work.)

Notes on CD-R and CD-RW

User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be

played back only if they are already “finalized.”

•The system can play back CD-Rs or CD-RWs recorded on a

personal computer if they have been recorded in the audio CD

format or recorded in MP3 format (see page 40).

However, they may not be played back depending on their

characteristics or recording conditions.

•Before playing back CD-Rs or CD-RWs, read their instructions or

cautions carefully.

•Some CD-Rs or CD-RWs may not be played back on this unit

because of their disc characteristics, damage or stain on them.

•CD-RWs may require a longer readout time. This is caused by the

fact that the reflectance of CD-RWs is lower than for regular CDs.

IMPORTANT: Before performing any operations, make sure of

the following....

•Check the connection with the TV.

•Turn on the TV and select the correct input on the TV to view the

pictures or on-screen indications on the TV screen.

•For DVD playback, you can change the Setup menu setting to

your preference. (See pages 50 to 55.)

If “” appears on the TV screen when pressing a button,

the disc cannot accept an operation you have tried to do, or

information required for that operation is not recorded in the disc.

NOTICE : In some cases, without showing “,” operations will

not be accepted.

Disc Mark Video Region Code

Type (Logo) Format Number*

DVD

Video

NTSC

PAL

ALL

Video

Super

Video

COMPACT

DIGITAL AUDIO

Audio

CD-R

CD-RW

EN24-33TH-A35[U].pm6 03.5.19, 5:20 PM24

English

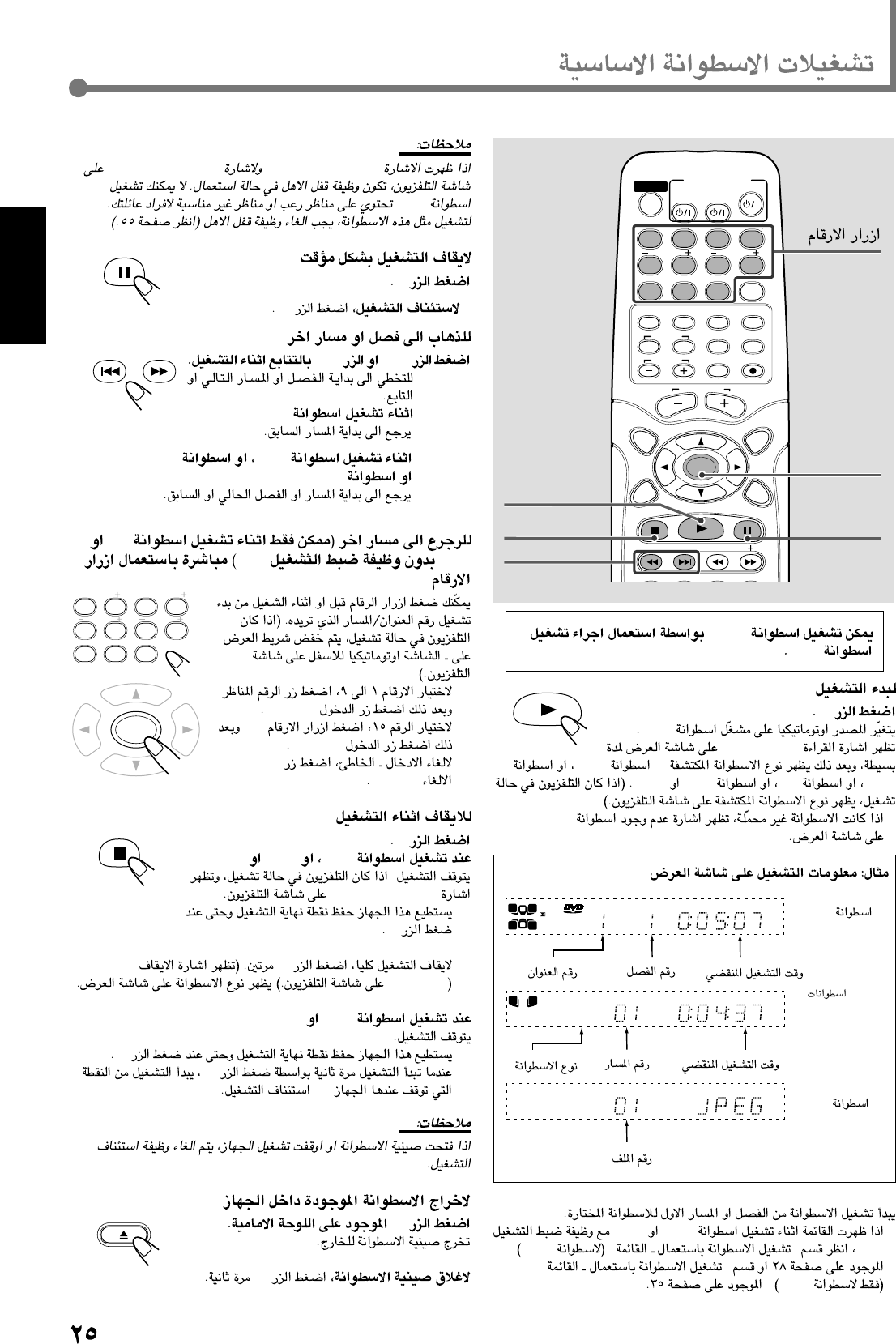

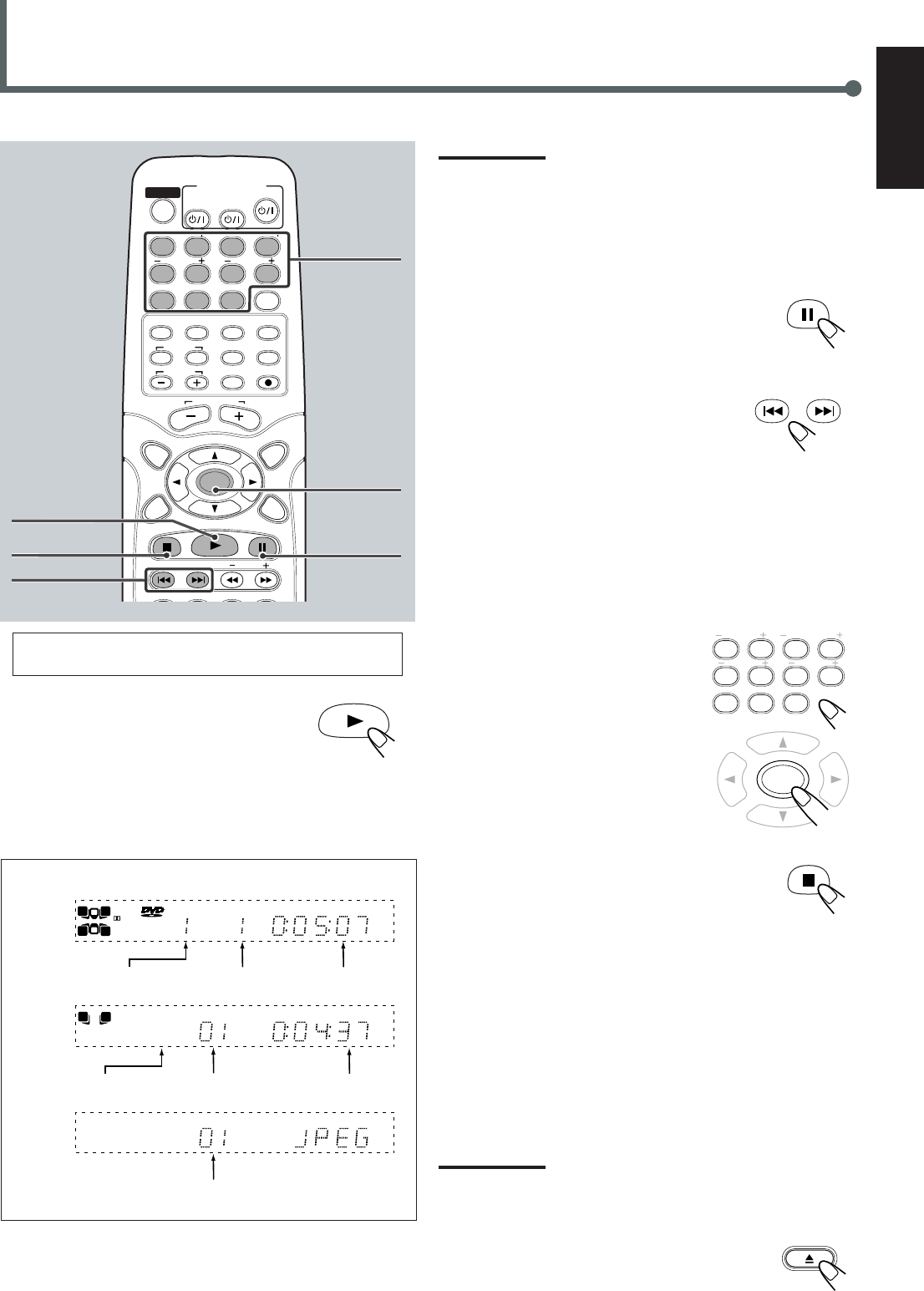

Basic Disc Operations

To start playback

Press 3.

The source is automatically changed to the DVD

player.

“READING” appears on the display for a while, then the detected

disc type appears—DVD, VCD, CD, MP3 or JPEG. (If your TV is

turned on, the detected disc type appears on the TV screen.)

•When a disc is not loaded, “NO DISC” appears on the display.

Note:

If “Password – – – –” and “Parental Locked” appear on the TV screen,

Parental Lock is in use. You cannot play back a DVD containing violent

scenes or those not suitable for your family members.

To play back such a disc, cancel the Parental Lock. (See page 55.)

To stop playback for a moment

Press 8.

•To resume play, press 3.

To go to another chapter or track

Press ¢ or 4 repeatedly during playback.

•¢: Skips to the beginning of the next or

succeeding chapter or track.

•4:While an MP3 is played back

Goes back to the beginning of the previous track.

While a DVD, a CD, or a VCD is played back

Goes back to the beginning of the current or previous

chapter or track.

To go to another track (only possible on a CD

and VCD without PBC) directly using the

number buttons

Pressing the number buttons during play

allows you to start playing the track number

you want.

•To select number 1 to 9, press the

corresponding number button, then press

ENTER.

•To select number 15, press 1, 5, then press

ENTER.

•To cancel a mis-entry, press CLEAR.

To stop during playback

Press 7.

When a DVD, a VCD, or a CD is played back

Playback stops (If your TV is turned on, “7Resume

Stop” appears on the TV screen.)

•This system can memorize the end point even when you press

7. When you start playback again by pressing 3, playback

begins from where it has been stopped—Resume play.

•To stop completely, press 7 twice. (“7 Stop” appears on the

TV screen.) The disc type appears on the display.

When an MP3 disc or JPEG disc is played back

Playback stops.

•This system can memorize the end point even when you press

7. When you start playback again by pressing 3, playback

begins from the beginning of the stopped track—Resume play.

Note:

If you open the disc tray or turn off the unit, the resume play is

canceled.

To remove the disc

Press 0 on the front panel.

The disc tray comes out.

To close the disc tray, press 0 again.

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

Number

buttons

4/ ¢

Example:Playback information on the display

DVD

VCD/CD

MP3

JPEG

SVCD can be operated by using the VCD operation

procedure.

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

LS S

REPEAT 1

MHz

A–BRDSEONPROGTUNEDTRK

AUDIO

ProLogic II

VCDSTEREO MP3

Title No. Chapter No.

Elapsed playing

time

Disc Type Track No.

Elapsed playing

time

File No.

REPEAT 1

MHz

A–BRDSEONPROGTUNEDTRK

ProLogic II

STEREO

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Disc play starts from the first chapter or track of the selected disc.

•If a menu appears while playing a DVD or VCD with PBC

function, see “Disc Menu-Driven Playback” (for DVD) on page 28

or “Disc Menu-Driven Playback (Only for VCD)” on page 35.

ENTER

EN24-33TH-A35[U].pm6 03.5.19, 5:20 PM25

English

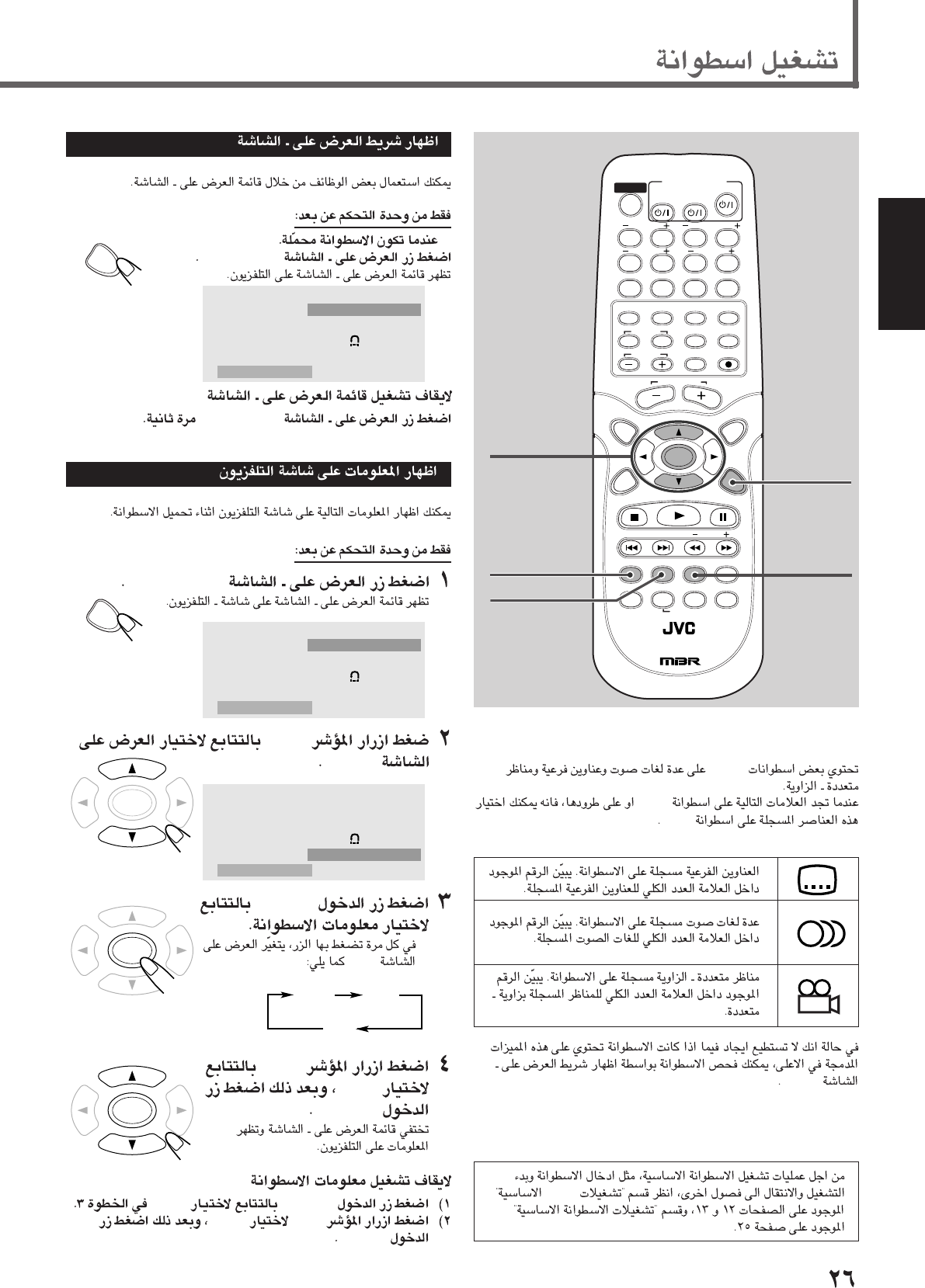

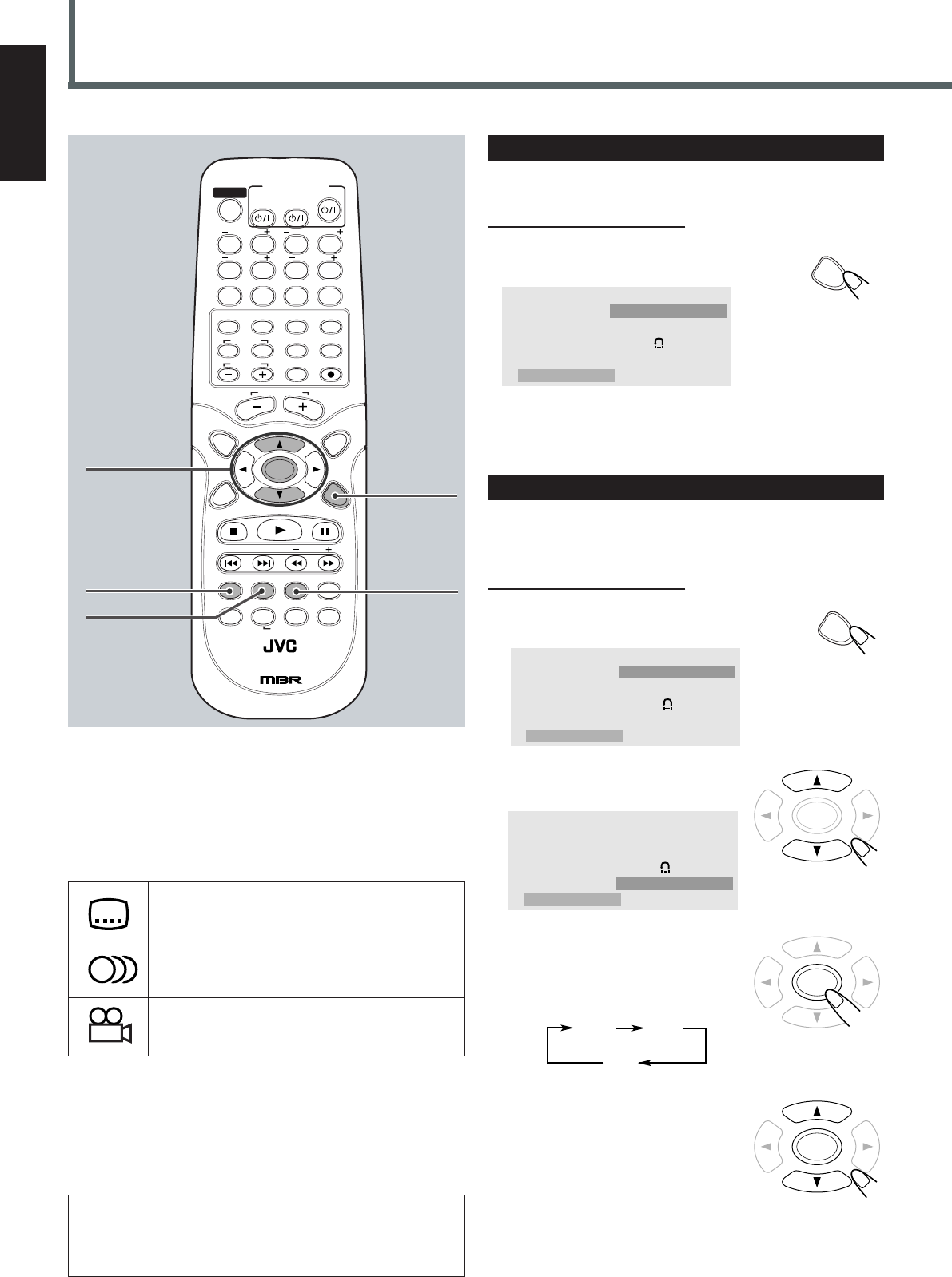

DVD Playback

Some DVDs contain several audio languages, subtitles, and multi-

angle views.

When you find the following marks on the DVD or its package, you

can select these elements recorded on the DVD.

Subtitles are recorded on the disc. The number

inside the mark indicates the total number of the

recorded subtitles.

Several audio languages are recorded on the disc.

The number inside the mark indicates the total

number of the recorded audio languages.

Multi-angle views are recorded on the disc. The

number inside the mark indicates the total number

of the recorded multi-angle views.

If you cannot find out whether your disc contains these features

listed above, you can check it by showing the on-screen display

(OSD.)

For basic disc operations such as inserting a disc, starting

playback, and moving to another chapters, see “Basic DVD

Operations” on pages 12, 13, and “Basic Disc Operations” on

page 25.

ON SCREEN

Showing the On-screen Menu

You can use some functions through the on-screen menu.

From the remote control ONLY:

7Whenever a disc is loaded.

Press ON SCREEN.

On-screen menu appears on the TV.

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

To turn off the on-screen menu

Press ON SCREEN again.

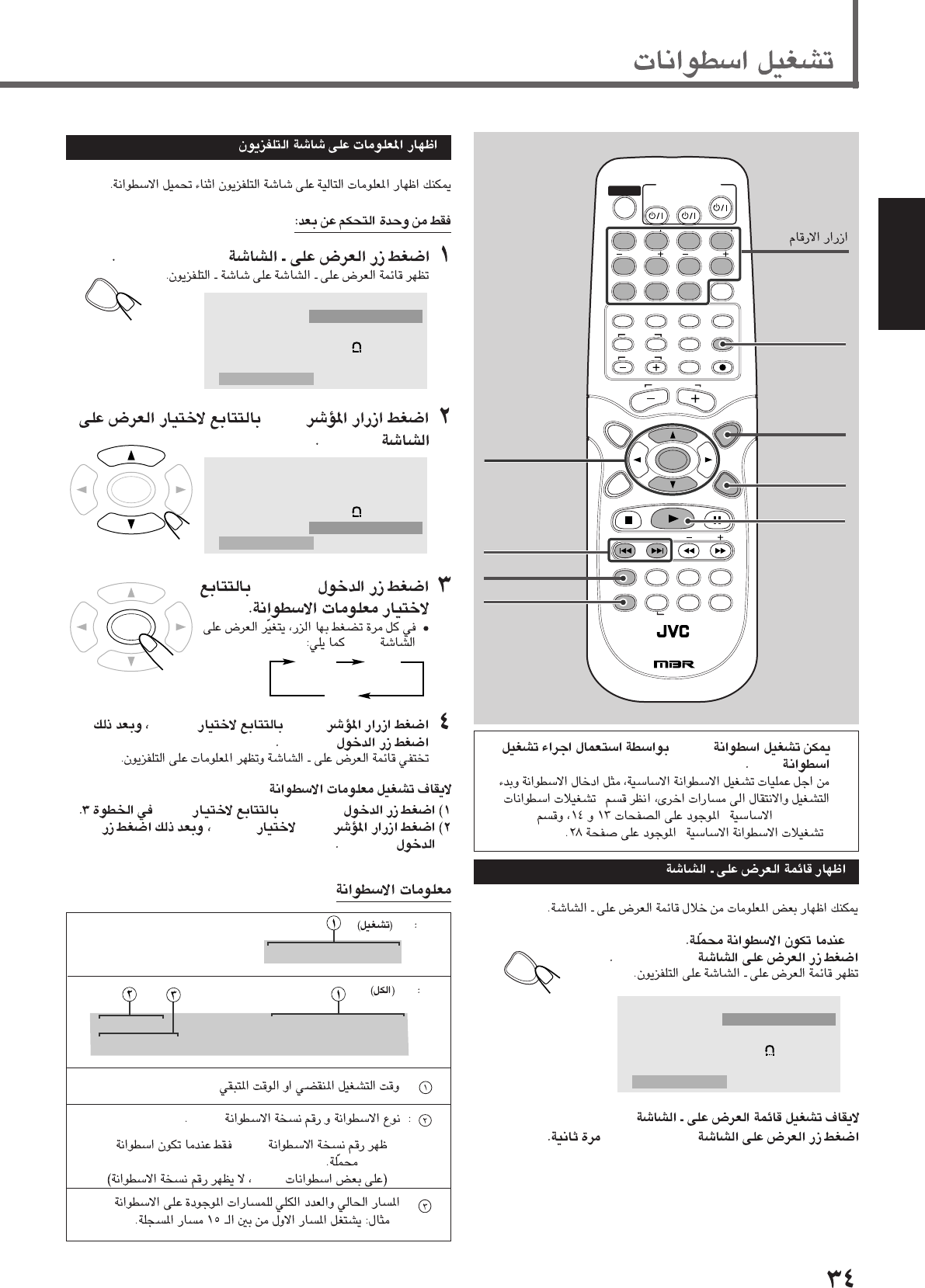

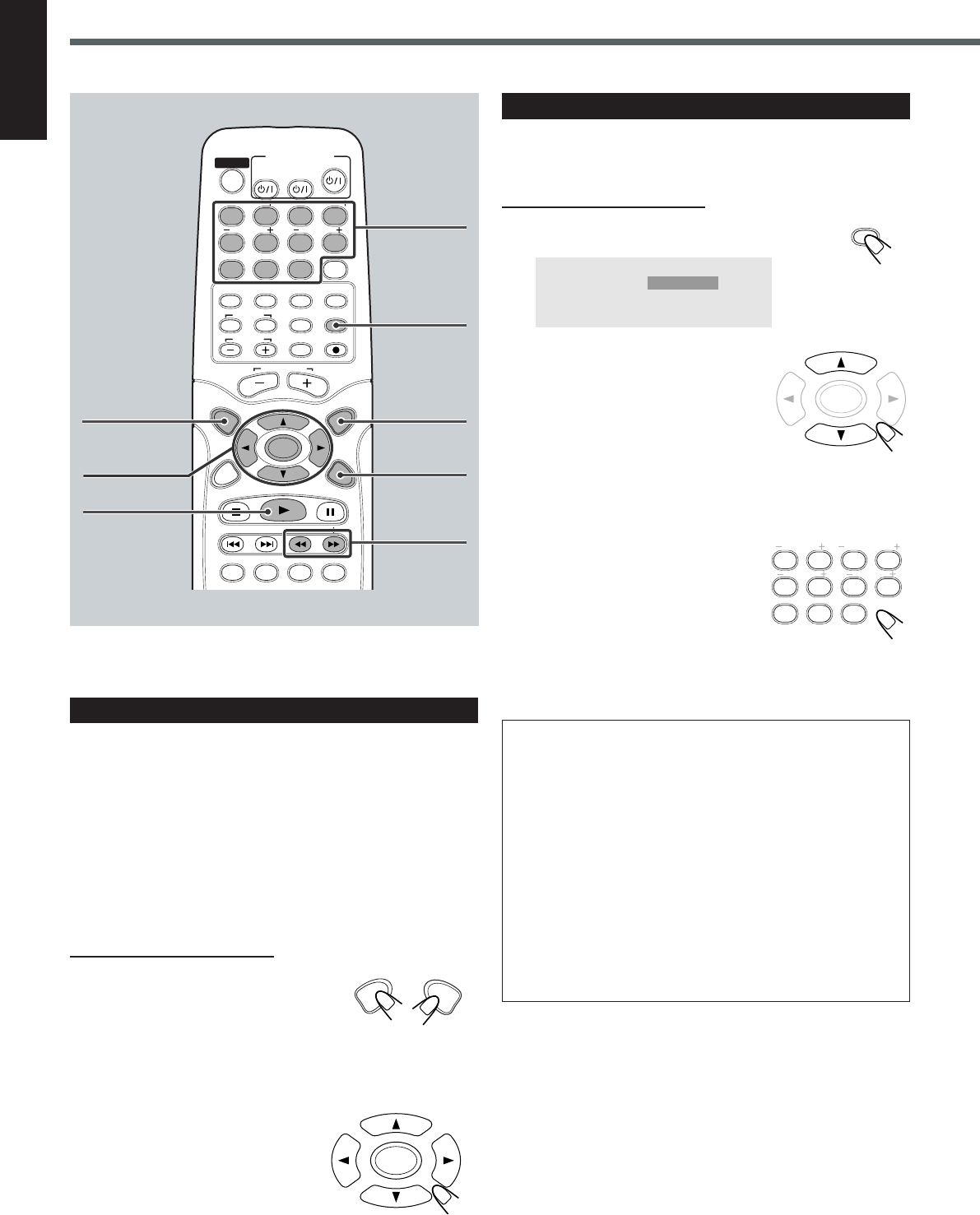

Showing the Information on the TV Screen

You can show the following information on the TV screen while a

disc is loaded.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on TV-screen.

Press cursor 5/ ∞repeatedly

to select “OSD.”

Press ENTER repeatedly to

select the disc information.

•Each time you press the button, OSD

changes as following:

Press cursor 5/ ∞repeatedly

to select “OK,” then ENTER.

The on-screen menu disappears and the

information appears on the TV.

To turn off the disc information

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

ENTER

5/∞

ENTER

ANGLE

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

AUDIO

SUB TITLE

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

On All

Off

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM26

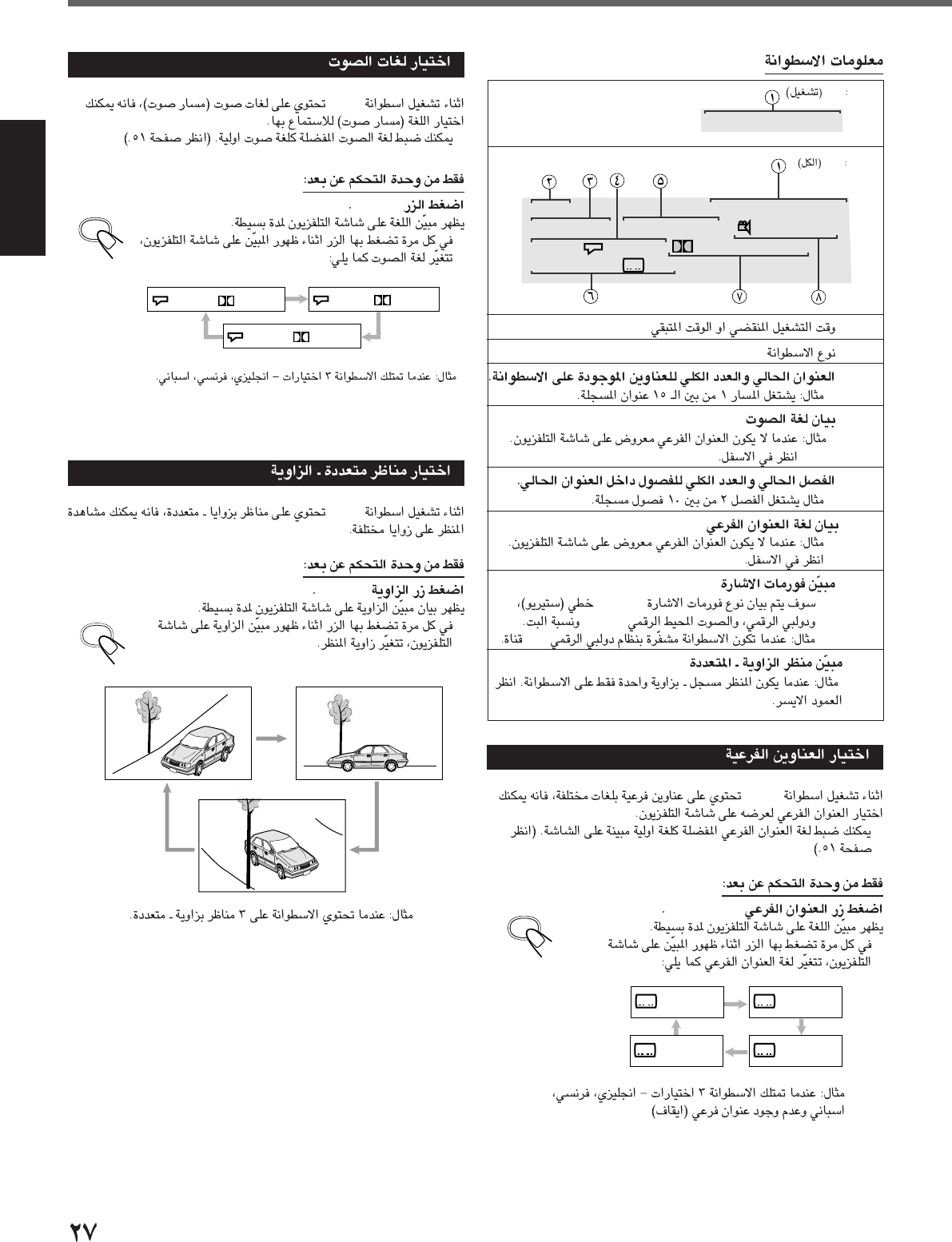

English

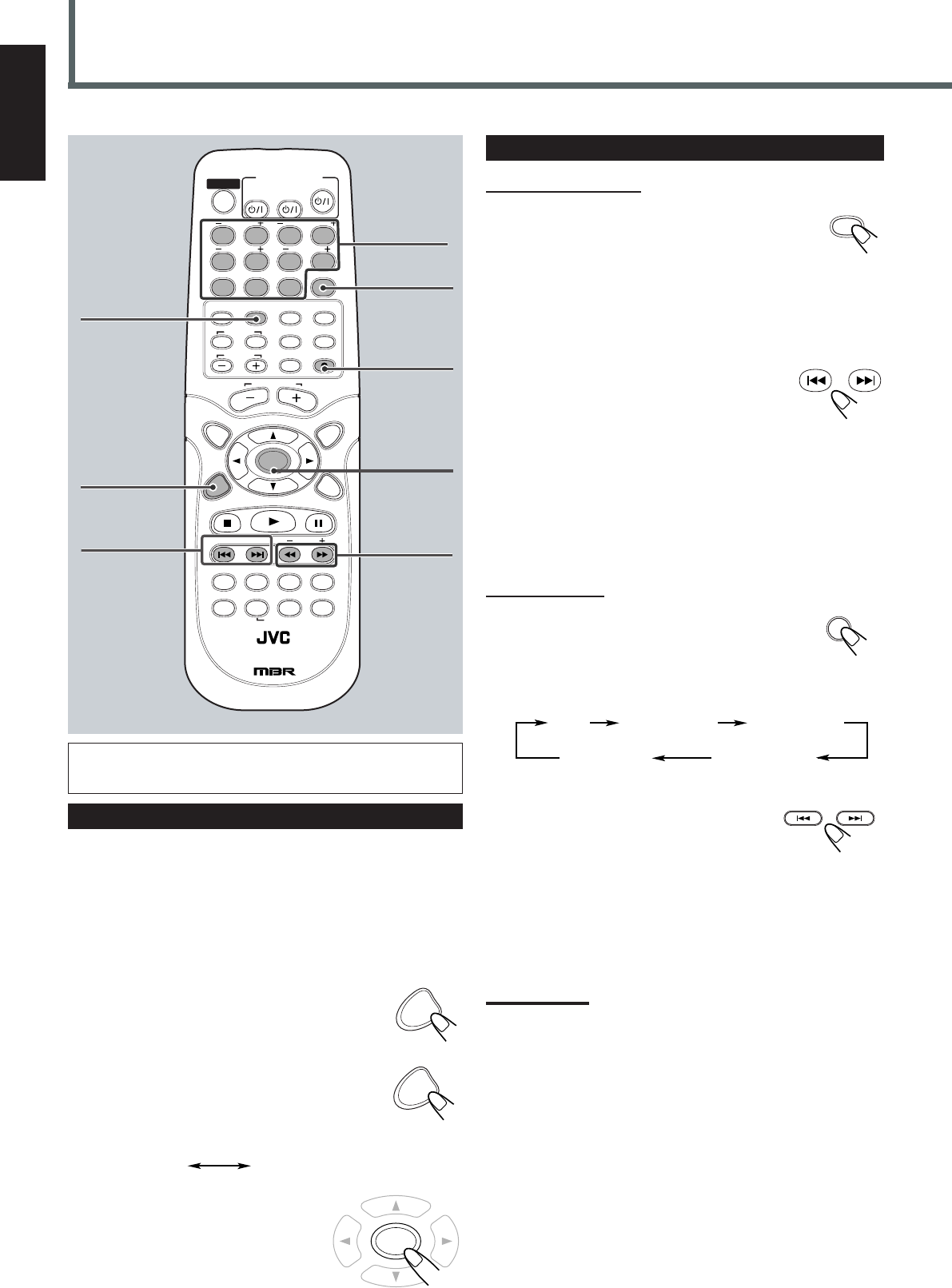

Selecting the Audio Languages

While playing back a DVD containing audio languages (sound

track), you can select the language (sound track) to listen to.

•You can set your favorite audio language as the initial audio

language. (See page 51.)

From the remote control ONLY:

Press AUDIO.

Audio language indicator appears on the TV screen for a

while.

•Each time you press the button while the indicator

appears on the TV screen, the audio language changes as follows:

Selecting the Multi-Angle Views

While playing back a DVD containing multi-angle views, you can

view the same scene at different angles.

From the remote control ONLY:

Press ANGLE.

The angle indicator appears on the TV screen for a

while.

•Each time you press the button while the angle indicator appears

on the TV screen, the view angle changes.

Ex.: When the disc has 3 multi-angle views

Ex.: When the disc has 3 selections—English,

French, Spanish and no subtitle (OFF)

1/3 2/3

3/3

Ex.: When the disc has 3 selections—English,

French, and Spanish

Selecting the Subtitles

While playing back a DVD containing subtitles in different

languages, you can select the subtitle to be displayed on the TV

screen.

•You can set your favorite subtitle language as the initial language

shown on the screen. (See page 51.)

From the remote control ONLY:

Press SUB TITLE.

Subtitle language indicator appears on the TV screen

for a while.

•Each time you press the button while the indicator appears on the

TV screen, the subtitle language changes as follows:

SUB TITLE

2/3 Fre

3/3 SpaOff

1/3 Eng

1/3 Eng 5.1ch 2/3 Fre 5.1ch

3/3 Spa 5.1ch

AUDIO

ANGLE

1:Elapsed playing time and remaining time

2:Disc type

3:Current title and total number of the titles on the

disc

•Ex.: 1st title is playing out of 15 titles recorded.

4:Audio language indication

•Ex.: English is selected out of 3 audio languages recorded.

See right column.

5:Current chapter and total number of the chapters

in the current title

•Ex.: 2nd chapter is playing out of 10 chapters recorded.

6:Subtitle language indication

•Ex.: When no subtitle is displayed on the TV screen.

See below.

7:Signal format indicator

•Signal format type—Linear PCM (stereo), Dolby Digital,

and DTS Digital Surround—and bit rate will be indicated.

Ex.: When the disc is encoded with Dolby Digital 5.1 ch.

8:Multi-angle view indicator

•Ex.: When only a single angle-view is recorded on the

disc. See right column.

OSD: On

OSD: All

Disc information

Title 1/15 Chapter 2/10 Angle 1/1

Audio 1/3 Eng

DVD 00:01:16 01:40:45

00:01:16 01:40:45

5.1ch 48KHz

Subtitle Off

678

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM27

English

DVD Playback

3/2/5/∞

ENTER

TOP MENU

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

1/ ¡

ON SCREEN

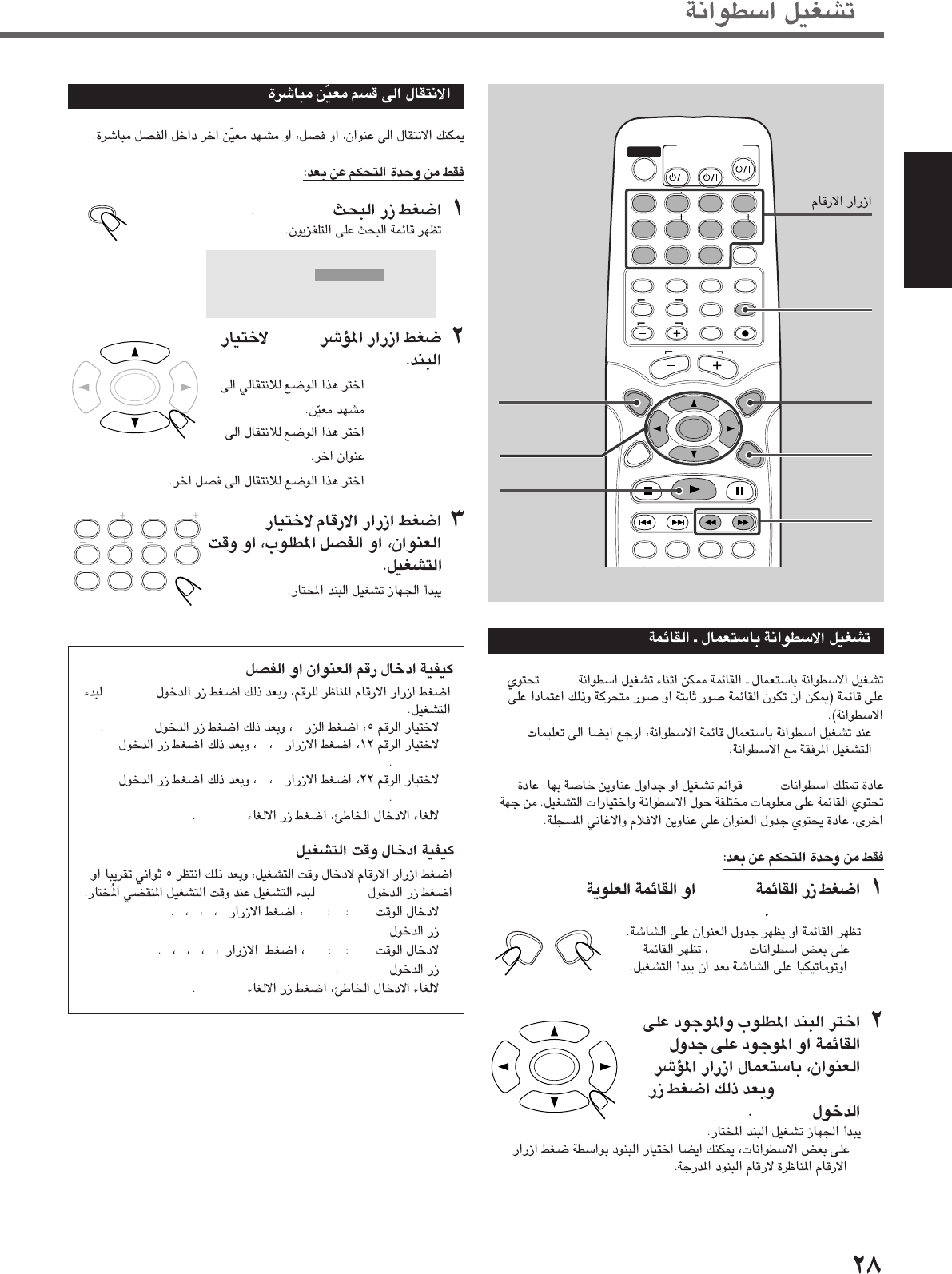

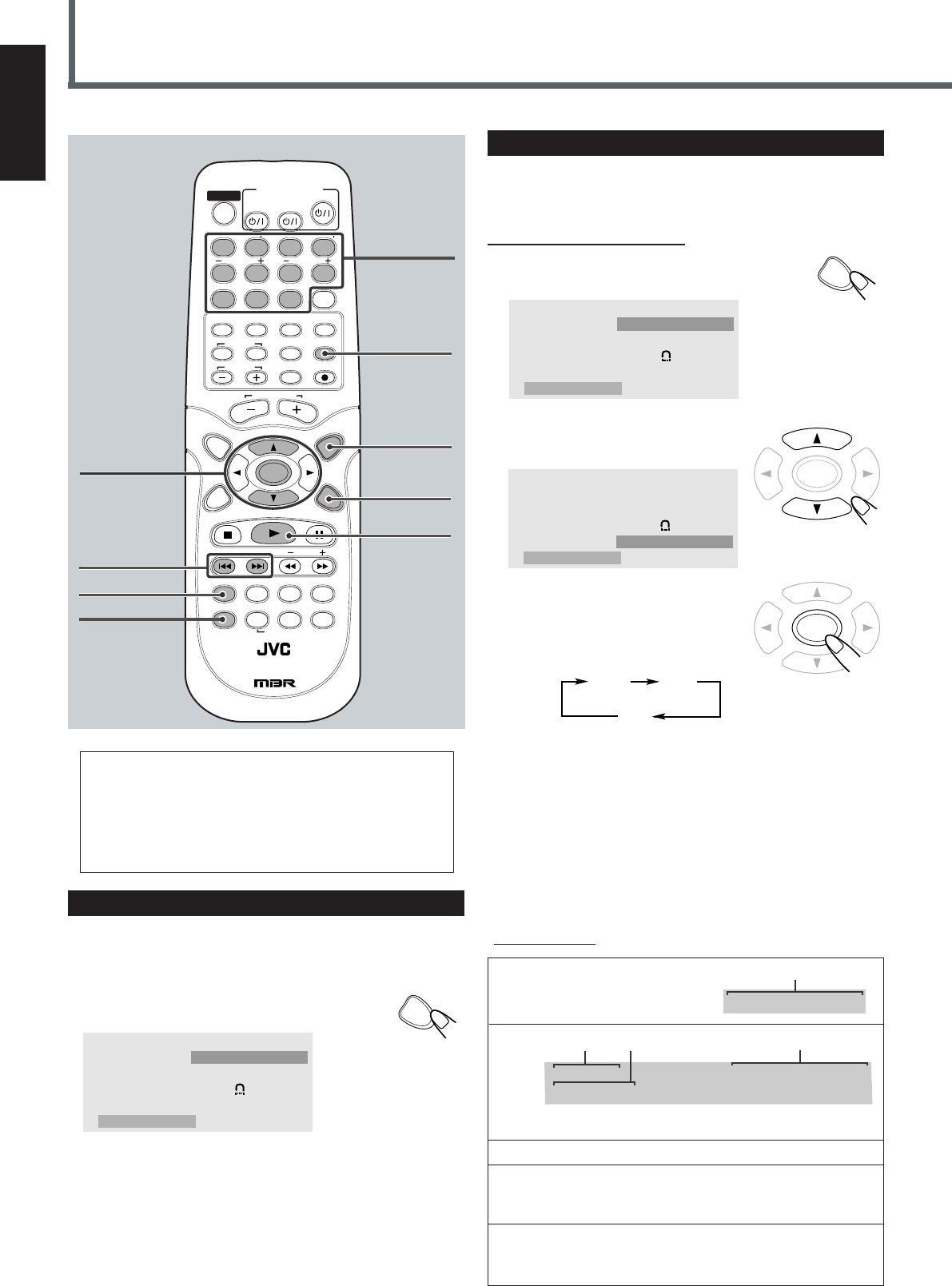

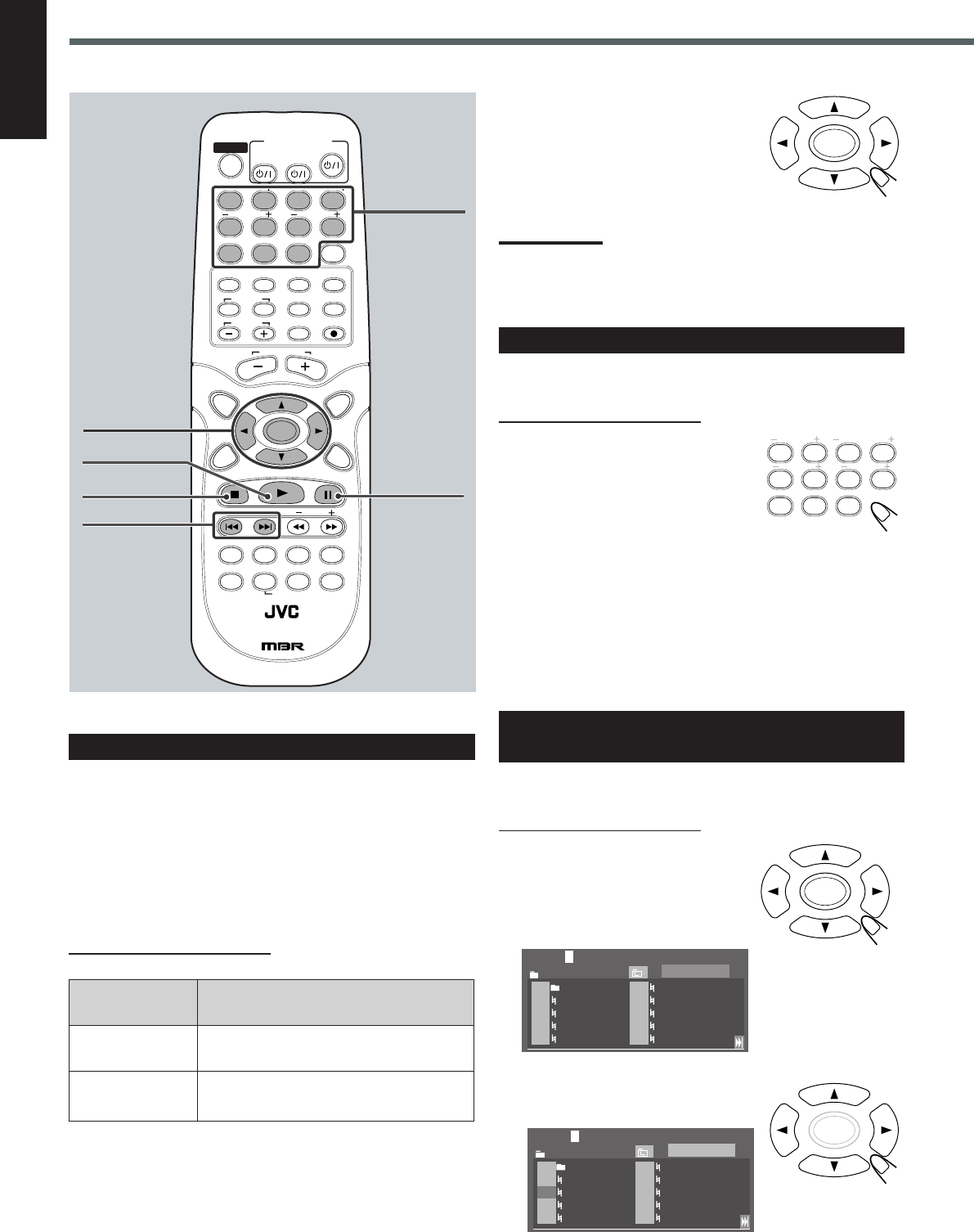

Moving to a Particular Portion Directly

You can move to another title, chapter, or particular scene in the

chapter directly.

From the remote control ONLY:

Press SEARCH.

The search menu appears on the TV.

Press cursor 5/∞ to select the

item.

Time : Select this to

move to a

particular scene.

Title: Select this to move to another title.

Chapter: Select this to move to another chapter.

Press the number buttons to

select a desired title, chapter,

or playing time.

The unit starts playback of the selected

item.

How to input the title and chapter number

Press the number buttons corresponding to the number, then press

ENTER to start playback.

•To select number 5, press 5, then ENTER.

•To select number 12, press 1, 2, then ENTER.

•To select number 22, press 2, 2, then ENTER.

•To cancel a mis-entry, press CLEAR.

How to input the playing time

Press the number buttons to input the playing time, then press

ENTER to start playback at the selected elapsed playing time.

•To input time “00:45:23,” press 4, 5, 2, 3, then ENTER.

•To input time “01:23:45,” press 1, 2, 3, 4, 5, then ENTER.

•To cancel a mis-entry, press CLEAR.

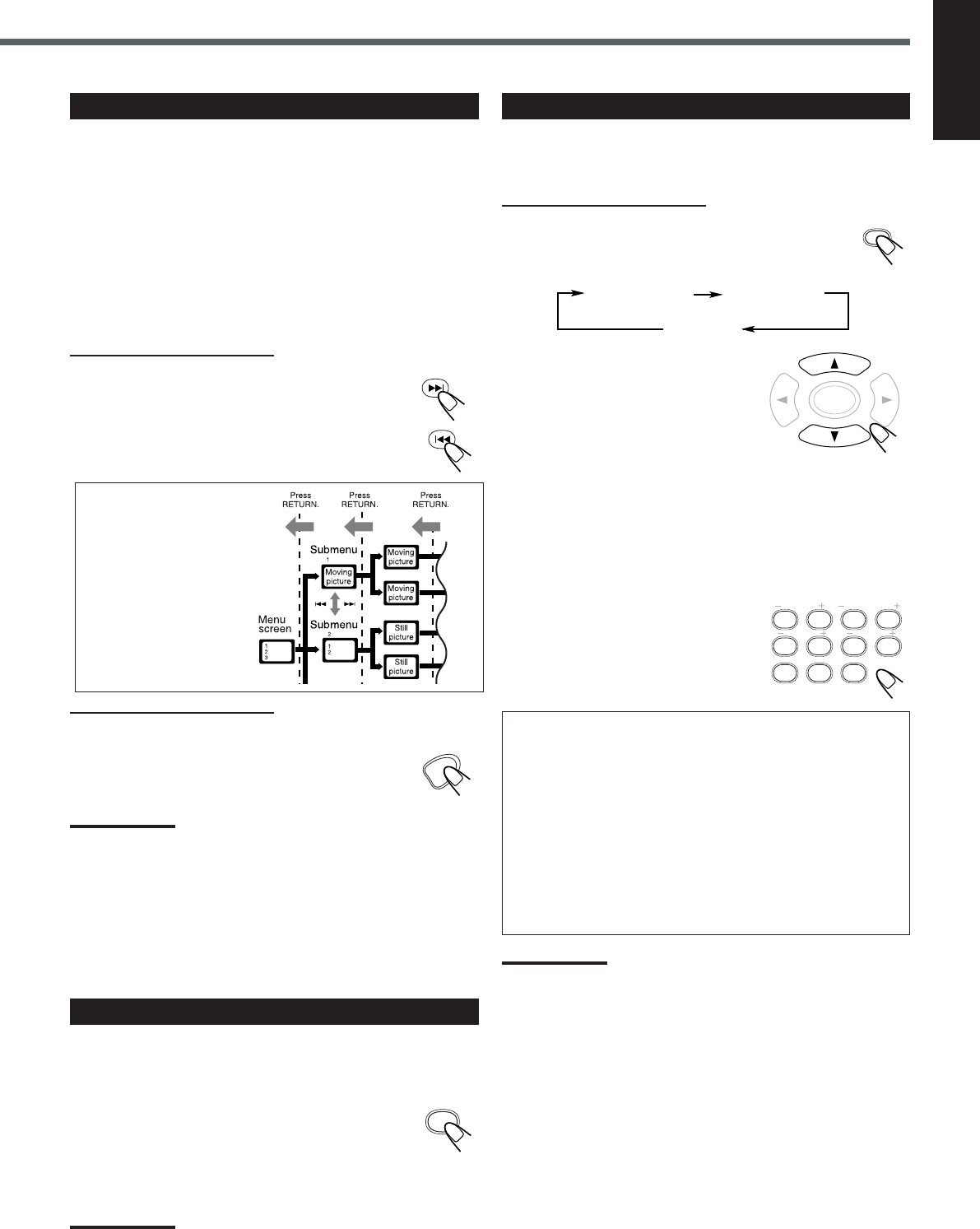

Disc Menu-Driven Playback

Disc menu-driven playback is possible while playing back a DVD

with menu (menu may be still pictures or moving pictures

depending on the disc).

•When operating a disc using the disc menu, refer also to the

instructions supplied for the disc.

DVD discs generally have their own menus or title lists. A menu

usually contains various information about the disc and playback

selections. On the other hand, a title list usually contains titles of

movies and songs recorded.

From the remote control ONLY:

Press MENU or TOP MENU.

A menu or title list will appear on the

screen.

•On some DVDs, a menu will automatically appear on the

screen after playback starts.

Select a desired item on the

menu or on the title list, using

cursor 3/2/5/∞ and

ENTER.

The unit starts playback of the selected

item.

•On some discs, you can also select items by pressing the

number buttons corresponding to the item numbers listed.

TOP

ENTER

Time

Title

Chapter

_ _:_ _:_ _

_ _

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

Number

buttons

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM28

English

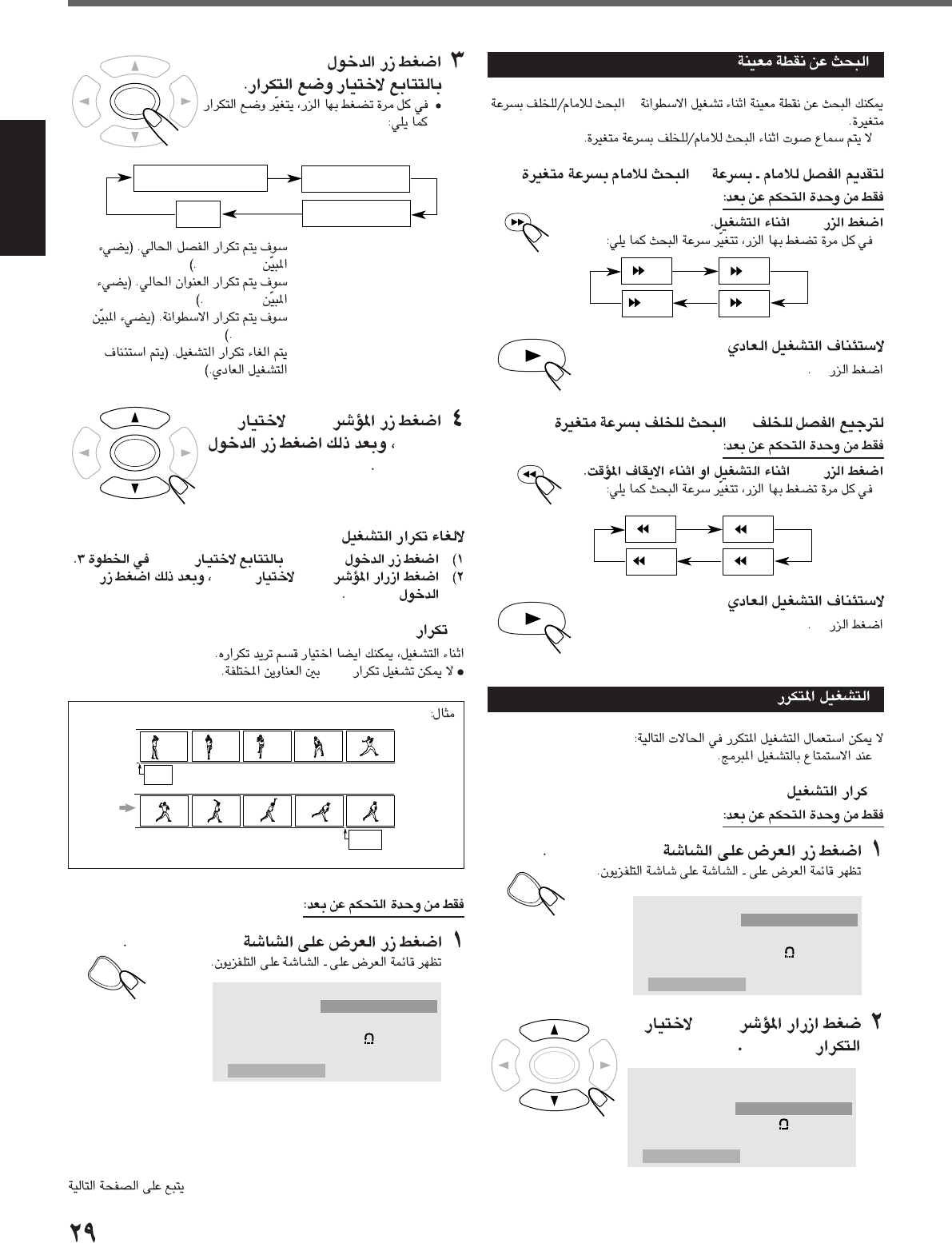

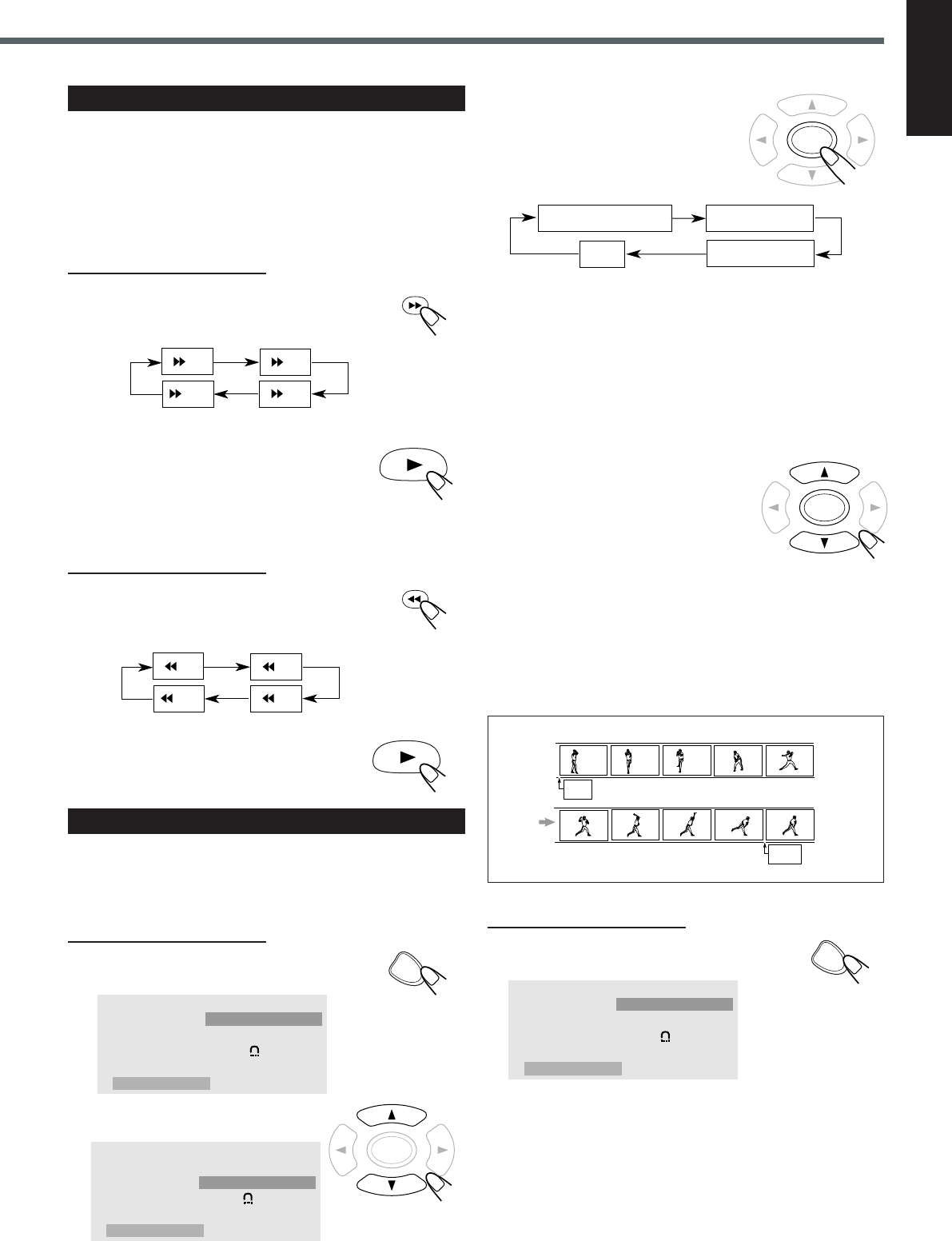

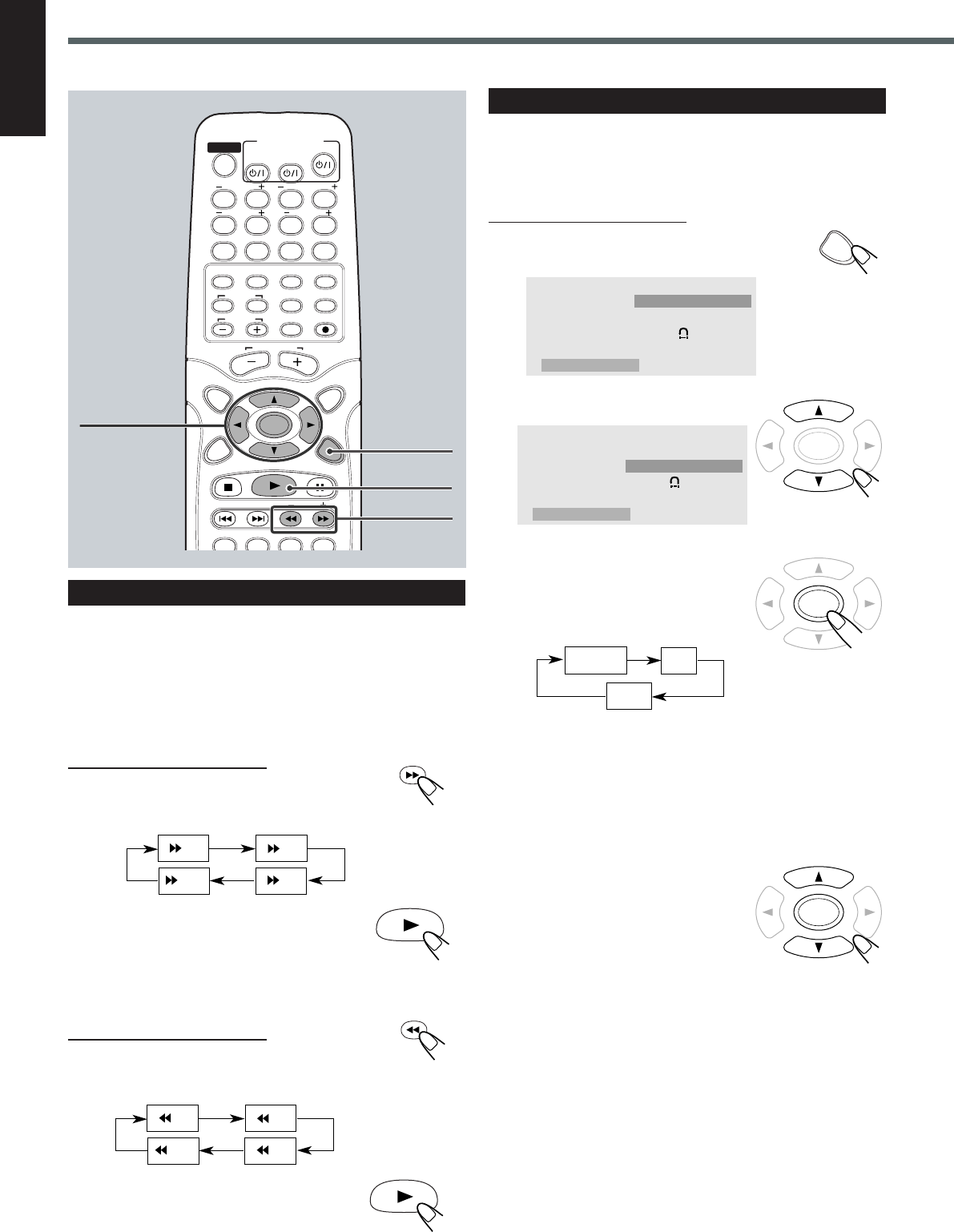

Searching for a Particular Point

You can search for a particular portion while playing a disc—

Variable Speed Forward/Reverse Search.

•No sound comes out during Variable Speed Forward/Reverse

Search.

To fast-forward the chapter—Variable Speed

Forward Search

From the remote control ONLY:

Press ¡ during playback.

•Each time you press the button, the search speed

changes as follows:

To resume normal play

Press 3.

To reverse the chapter—Variable Speed Reverse

From the remote control ONLY:

Press 1 during playback.

•Each time you press the button, the search speed

changes as follows:

To resume normal play

Press 3.

Repeating Playback

Repeat play cannot be used in the following cases:

•When you enjoy program play

7 Repeat Play

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

Press ENTER repeatedly to

select the repeat mode.

•Each time you press the button,

Repeat mode changes as follows:

Chapter Repeat: Current chapter will be repeated. (the

REPEAT 1 indicator lights up.)

Title Repeat: Current title will be repeated. (the

REPEAT indicator lights up.)

Disc Repeat: Disc will be repeated. (the REPEAT

indicator lights up.)

Off: Repeat play is canceled. (Normal play

is resumed.)

Press cursor 5/∞ to select

“OK,” then ENTER.

To cancel repeat play

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

x2 x4

x8x20

x2 x4

x8x20

Chapter Repeat Title Repeat

Disc Repeat

Off

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Press cursor 5/∞ to select

“Repeat.”

ENTER

TO BE CONTINUED ON THE NEXT PAGE

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Example:

A –

A–B

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

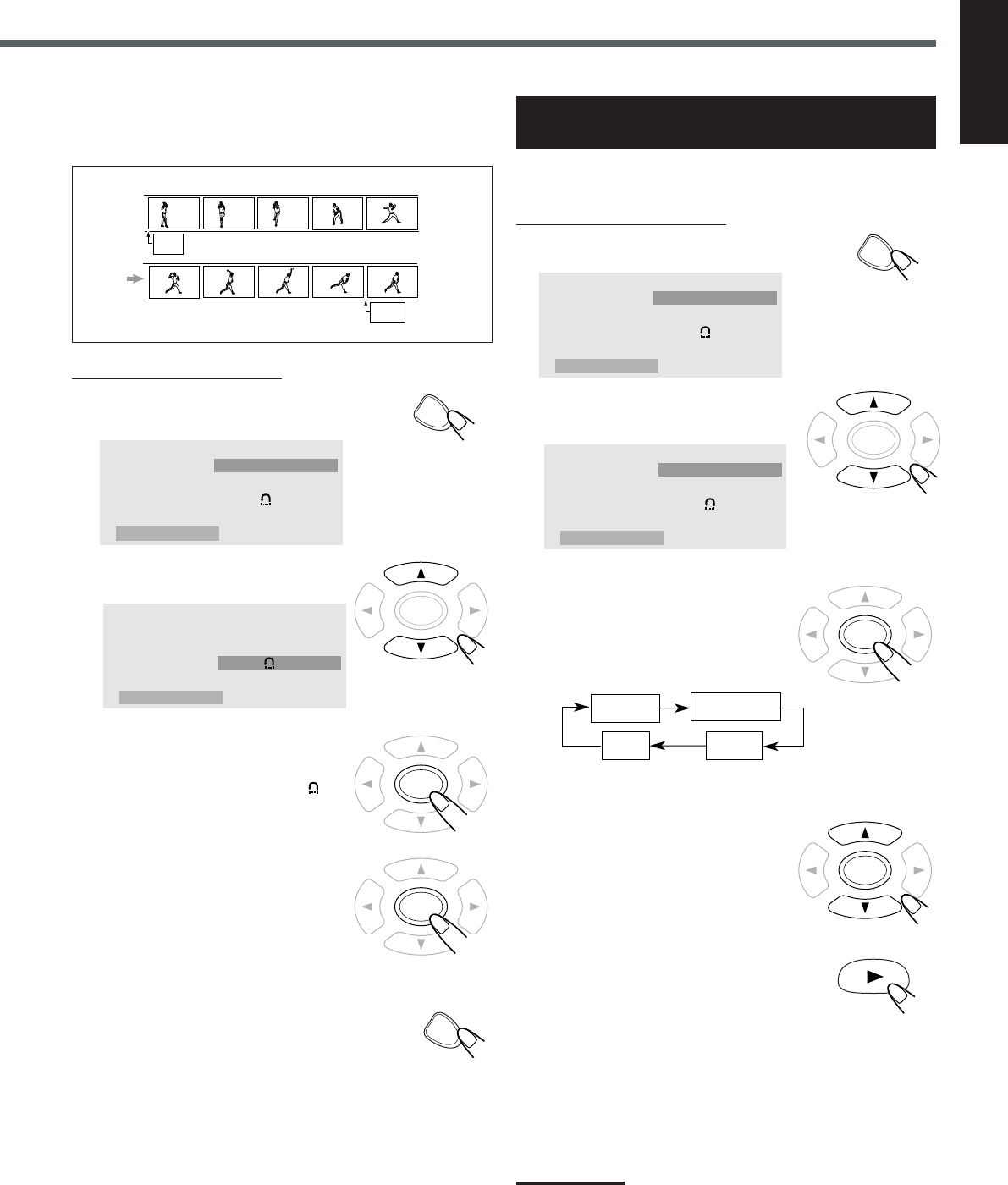

7 A–B Repeat

While playing, you can also select a portion you want to repeat.

•A–B repeat is not performed between different titles.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM29

English

DVD Playback

3/2/5/∞

ENTER

ON SCREEN

Number

buttons

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

ENTER

Press ENTER to select the start

point.

“A–” appears on the display and “A–”

appears on the TV.

Press ENTER again to select

the end point.

“A–” changes to “A–B”, then A–B

repeat begins.

The unit automatically locates point A

and starts repeated playback between points A and B.

Press ON SCREEN again.

The on-screen menu disappears.

To cancel A–B Repeat

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

“A–B” disappears, and resume normal playback.

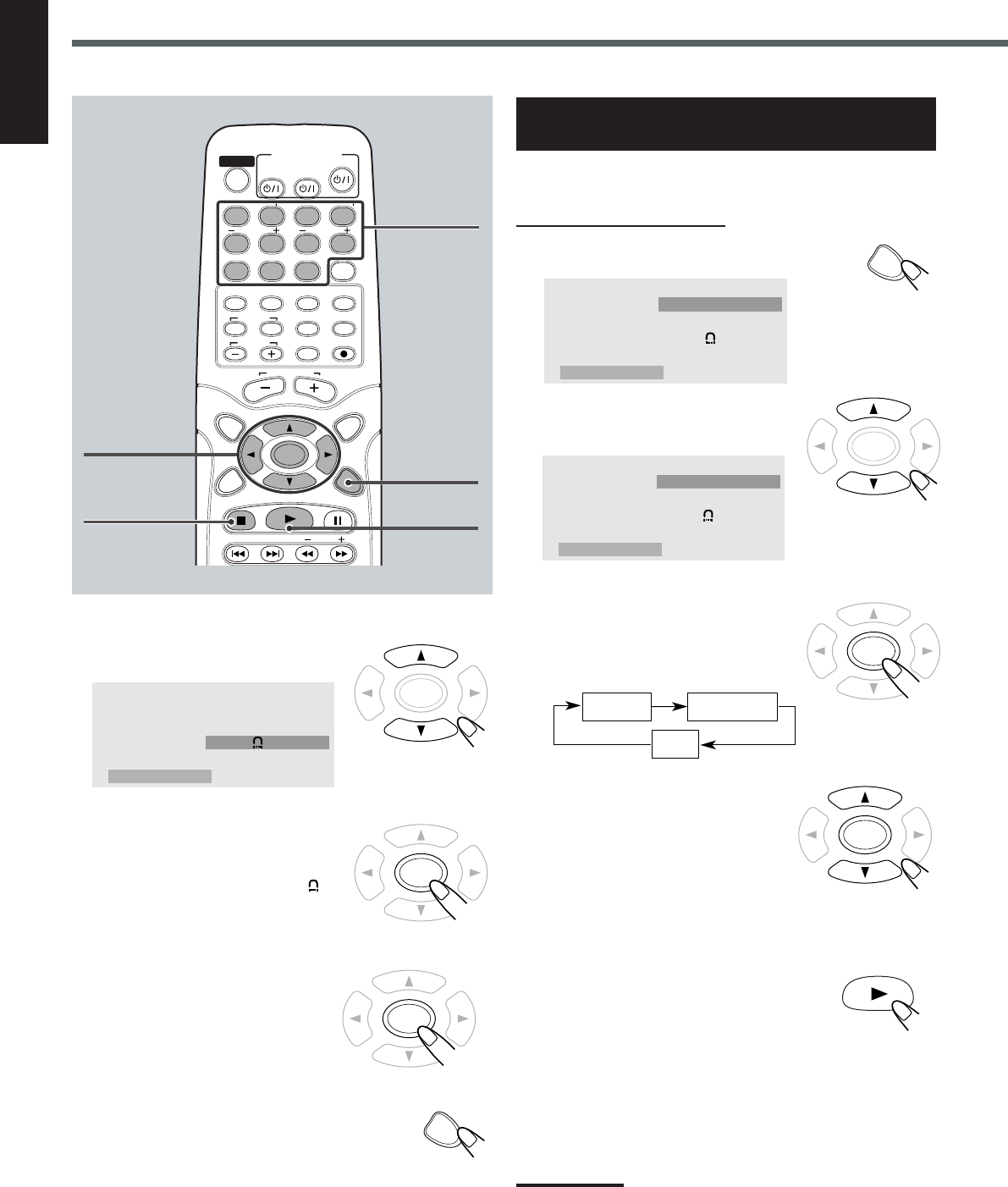

Playing Back Chapters in Random Order

— Shuffle Play

You can playback chapters in random order.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

Press cursor 5/∞ to select

“Mode.”

Press ENTER repeatedly to

select “Shuffle.”

•Each time you press the button, play

mode changes as follows:

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Press cursor 5/∞ to select

“OK”, then press ENTER.

The on-screen menu disappears.

Press 3.

Playback starts in random order.

To cancel shuffle play

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

Notes:

•When all chapters in the current title have been played once,

shuffle play ends.

•The same chapter will not be played more than once during shuffle

play.

Shuffle Program

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

Press cursor 5/∞ to select

“Repeat A–B.”

ON SCREEN

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM30

English

TO BE CONTINUED ON THE NEXT PAGE

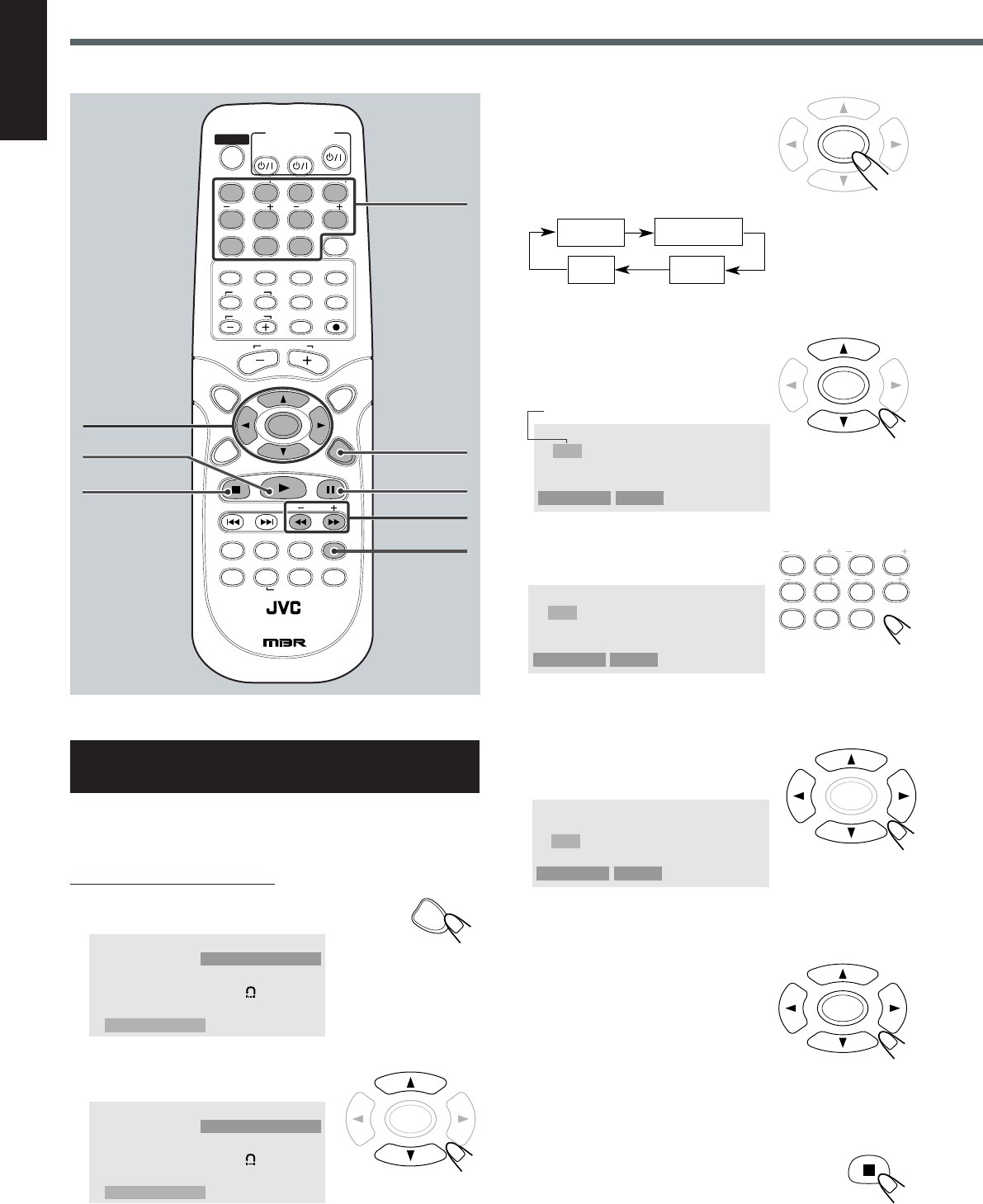

Programming the Playing Order of the

Chapters — Program Play

You can arrange the chapter playback order before you start playing.

You can program up to 12 steps.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Shuffle Program

Off

ENTER

Press cursor 5/∞ to select

“Mode.”

Press ENTER repeatedly to

select “Program.”

•Each time you press the button, play

mode changes as follows:

Press cursor 5/∞ to select

“OK”, then press ENTER.

The Program menu appears on the TV.

Press the number button to

enter a title number.

•To select number 5, press 5.

•To select number 12, press 1, 2.

•To cancel a mis-entry, press CLEAR.

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

Program

Title/Chapter

Play Program Clear All

1 _ _ _ _

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

Title Number

Chapter Number

Program

Title/Chapter

Play Program Clear All

1 _ 2 _ _

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

Press cursor 3 to select the

chapter number.

Press the number button to

enter the chapter number.

•To select number 5, press 5.

•To select number 12, press 1, 2.

•To cancel a mis-entry, press CLEAR.

Press cursor 3/2/5/∞ to select

next program step number.

Repeat steps

to program other chapters

you want.

Press cursor 3/2/5/∞ to

select “Play Program”, then

press ENTER.

The Program menu disappears and

PROG indicator appears on the display.

The chapters are played in the order you

have programmed.

To stop during playback

Press 7.

Program

Title/Chapter

Play Program Clear All

1 2 _ _

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

Program

Title/Chapter

Play Program Clear All

1 2 _ 3

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

ENTER

Program

Title/Chapter

Play Program Clear All

1 2 3

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

ENTER

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM31

English

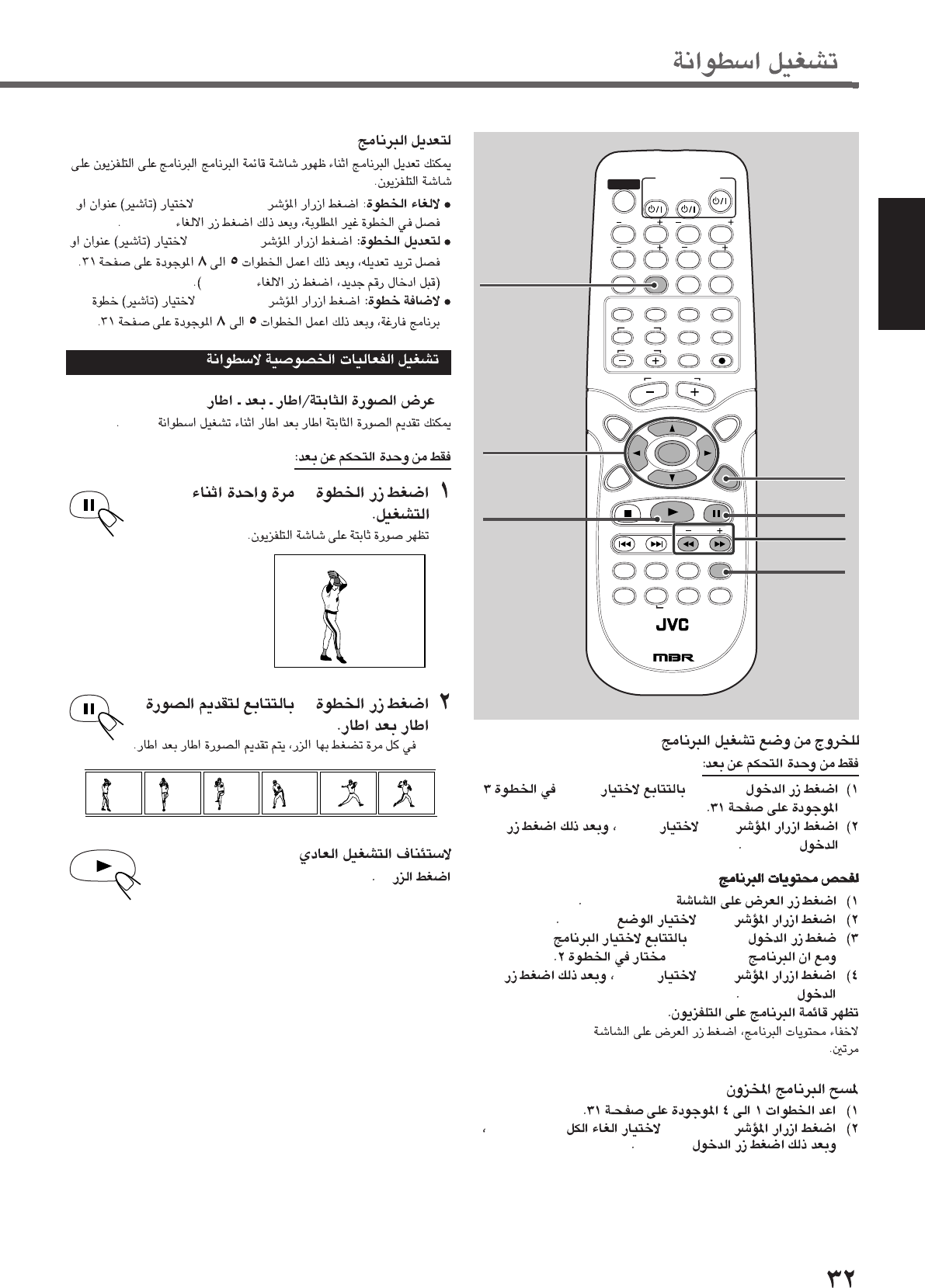

DVD Special Effect Playback

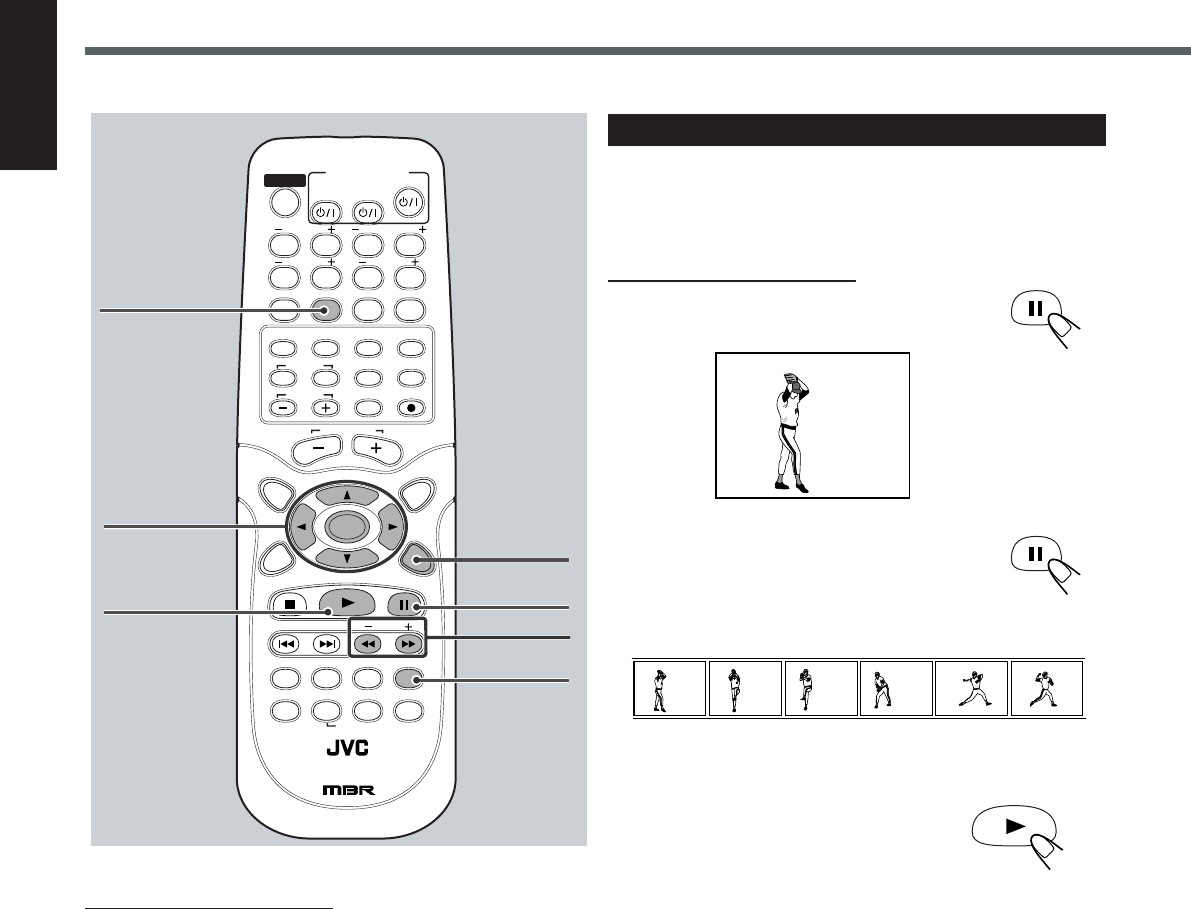

7 Still Picture/Frame-by-Frame Playback

You can advance the still picture frame by frame while playing a

DVD.

From the remote control ONLY:

Press 8 once during playback.

A still picture appears on the TV screen.

Press 8 repeatedly to advance the

picture frame by frame.

•Each time you press the button, the picture

advances frame by frame.

To resume normal play

Press 3.

PAUSE

STEP

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

ON SCREEN

ZOOM

SLOW +/–

To exit from program play

From the remote control ONLY:

1) Press ENTER repeatedly to select “Off” in step

on page 31.

2) Press cursor 5/∞ to select “OK”, then ENTER.

To check the program contents

1) Press ON SCREEN.

2) Press cursor 5/∞ to select “Mode.”

3) Press ENTER repeatedly to select “Program” again even

though “Program” is selected in Step 2.

4) Press cursor 5/∞ to select “OK”, then ENTER.

The program menu appears on the TV.

To disappear program contents, press ON SCREEN twice.

To erase the stored program

1) Repeat steps

on page 31.

2) Press cursor 3/2/5/∞ to select “Clear All”, then ENTER.

To modify the program

You can modify the program while the program menu screen is

shown on the TV screen.

•To erase a step: Press cursor 3/2/5/∞ to select (highlight) an

title or chapter in unwanted step, then press CLEAR.

•To modify a step: Press cursor 3/2/5/∞ to select (highlight) a

title or chapter you want to modify, then perform steps

page 31. (Before entering a new number, press CLEAR)

•To add a step: Press cursor 3/2/5/∞ to select (highlight) an

empty program step, then perform steps

on page 31.

DVD Playback

CLEAR

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM32

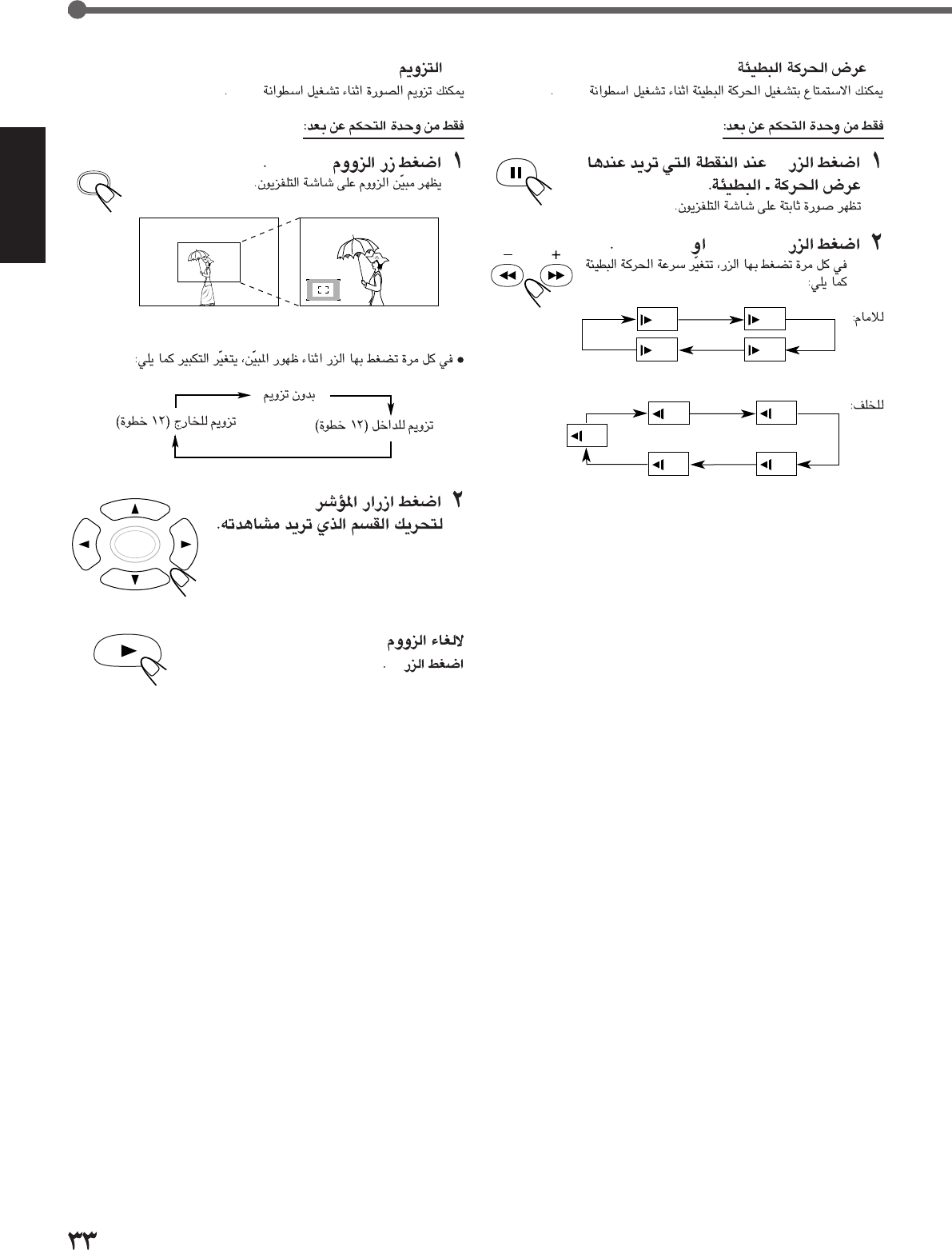

English

7 Slow Motion Playback

You can enjoy slow motion playback while playing a DVD.

From the remote control ONLY:

Press 8 at the point where you want to

start playback in slow-motion.

A still picture appears on the TV screen.

Press SLOW + or SLOW –.

•Each time you press the button, slow

motion speed changes as follows.

Forward:

Reverse:

SLOW

7 Zoom

You can zoom on the picture while playing back a DVD.

From the remote control ONLY:

Press ZOOM.

The zoom indicator appears on the TV.

•Each time you press the button while the indicator appears, the

magnification changes as follows:

Press cursor 3/2/5/∞ to move

the portion you want to watch.

To cancel the zoom

Press 3.

ZOOM

ENTER

Zoom in (12 steps)

No Zoom

Zoom out (12 steps)

EN24-33TH-A35[U].pm6 03.5.19, 5:21 PM33

English

VCD/CD Playback

•SVCD can be operated by using the VCD operation

procedure.

•For basic disc operations such as inserting a disc, starting

playback, and moving to another tracks, see “Basic VCD/

CD Operations” on pages 14, 15, and “Basic Disc

Operations” on page 25.

ON SCREEN

RETURN

4/ ¢

5/∞

ENTER

ON SCREEN

Showing the On-screen Menu

You can use some functions through the on-screen menu.

7Whenever a disc is loaded.

Press ON SCREEN.

The on-screen menu appears on the TV.

To turn off the on-screen menu

Press ON SCREEN again.

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

On All

Off

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

Showing the Information on the TV Screen

You can show the following information on the TV screen while a

disc is loaded.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on TV-screen.

Press cursor 5/∞repeatedly to

select “OSD.”

Press ENTER repeatedly to

select the disc information.

•Each time you press the button, OSD

changes as following:

Press cursor 5/∞repeatedly to select “OK,”

then ENTER.

The on-screen menu disappears and the information appears on

the screen.

To turn off the disc information

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

1:Elapsed playing time and remaining time

2:Disc type and VCD version number

•VCD version number appears when only VCD is loaded

(On some VCD, the version number is not shown).

3:Current track and total number of the tracks on

the disc

•Ex.: 1st track is playing out of 15 tracks recorded.

OSD: On

OSD: All

Disc information

Track

1/15

VCD 2.0 00:01:16 01:06:35

00:01:16 01:06:35

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

Number

buttons

AUDIO

EN34-39TH-A35[UG].pm6 03.5.19, 5:22 PM34

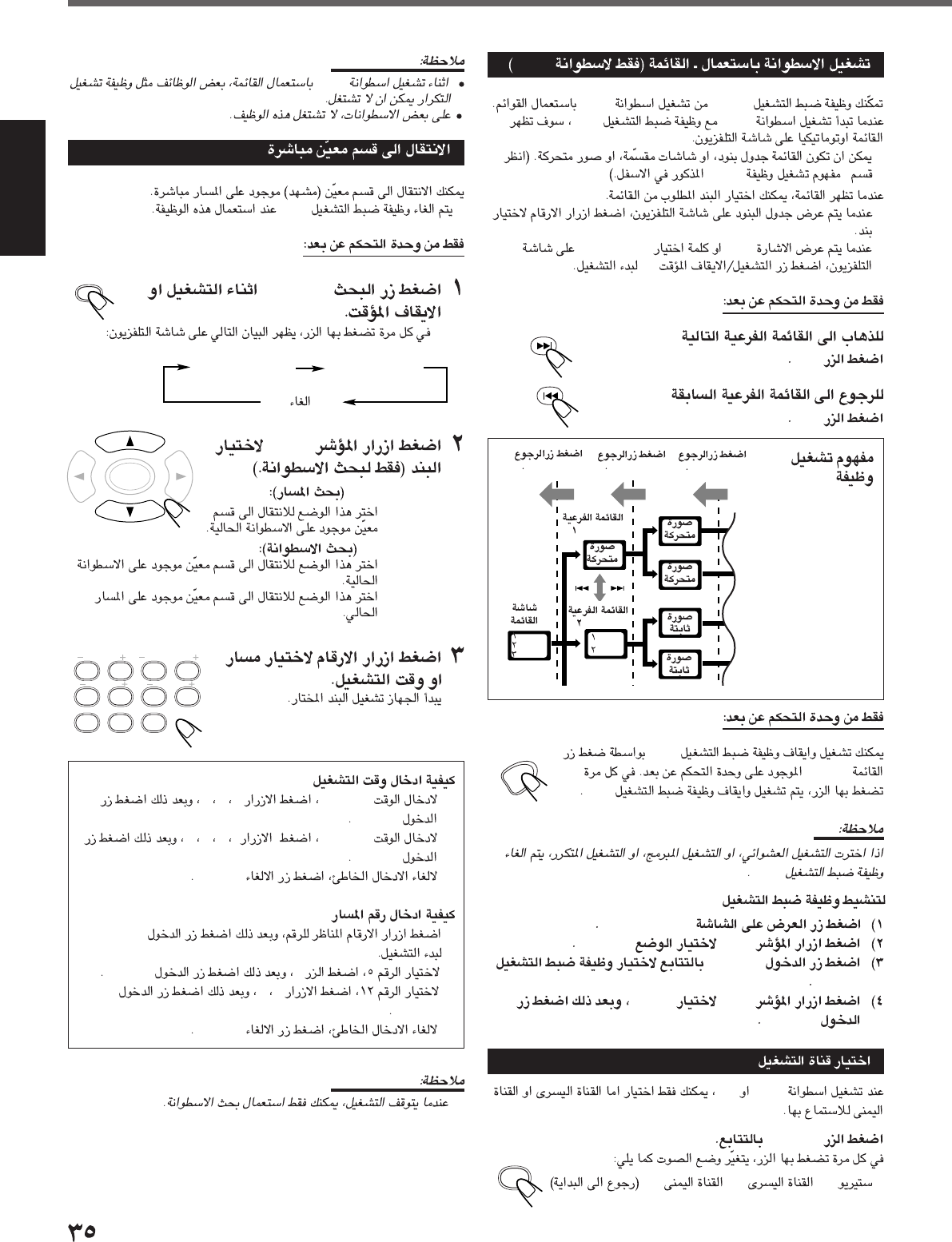

English

PBC operation

concept

Disc SearchTrack Search

canceled

Moving to a Particular Portion Directly

You can move to a particular portion (scene) on the track directly.

•PBC function is canceled when you use this function.

From the remote control ONLY:

Press SEARCH during playback or pause.

•Each time you press the button, the following

indication appears on the TV screen.

Press cursor 5/∞ to select the

item (only for Disc search.)

Track Search:

Time : Select this to move to a

particular portion on the

current track.

Disc Search:

Time : Select this to move to a particular portion on the

current disc.

Track: Select this to move to a particular track on the current

disc.

Press number buttons to select

a desired track or playing

time.

The unit starts playback of the selected

item.

How to input the playing time

•To input time “09:45,” press 9, 4, 5, then ENTER.

•To input time “45:23,” press 4, 5, 2, 3, then ENTER.

•To cancel a misentry, press CLEAR.

How to input the track number

Press the number buttons corresponding to the number, then

press ENTER to start playback.

•To select number 5, press 5, then ENTER.

•To select number 12, press 1, 2, then ENTER.

•To cancel a misentry, press CLEAR.

Note:

When playing back is stopped, you can use only Disc Search.

Disc Menu–Driven Playback (Only for VCD)

The Play Back Control function (PBC) allows you to operate the

VCD using menus.

When you start playing a VCD with PBC function, a menu will

automatically appear on the TV screen.

•A menu may be a list of items, divided screens, or some moving

pictures. (See “PBC operation concept” below.)

When a menu appears, you can select a desired item on the menu.

•When a list of items is displayed on the TV screen, press the

number buttons to select an item.

•When “3” or “SELECT” is displayed on the TV screen, press

3 to start playback.

From the remote control ONLY:

To go to the next submenu

Press ¢.

To return to the previous submenu

Press 4.

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

From the remote control ONLY:

To cancel the PBC playback

You can turn on and off the PBC function by pressing

MENU on the remote control. Each time you press the

button, the PBC function turns on and off.

Note:

If you select shuffle play, program play, or repeat play, the PBC

function is canceled.

To activate the PBC function

1) Press ON SCREEN.

2) Press cursor 5/∞ to select “Mode.”

3) Press ENTER repeatedly to select “PBC.”

4) Press cursor 5/∞ to select “OK,” then press ENTER.

Selecting Playback Channel

When you play back VCD or CD, you can only select either the left

channel or right channel to listen to.

Press AUDIO repeatedly.

Each time you press the button, the sound mode changes

as follows:

Stereo \ Left channel \ Right channel

\ (back to the begininng)

Notes:

•While activating Surround mode or DSP mode, this function does

not work.

•On some discs, this function does not work.

AUDIO

EN34-39TH-A35[UG].pm6 03.5.19, 5:22 PM35

English

VCD/CD Playback

3/2/5/∞

ENTER

ON SCREEN

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

1/¡

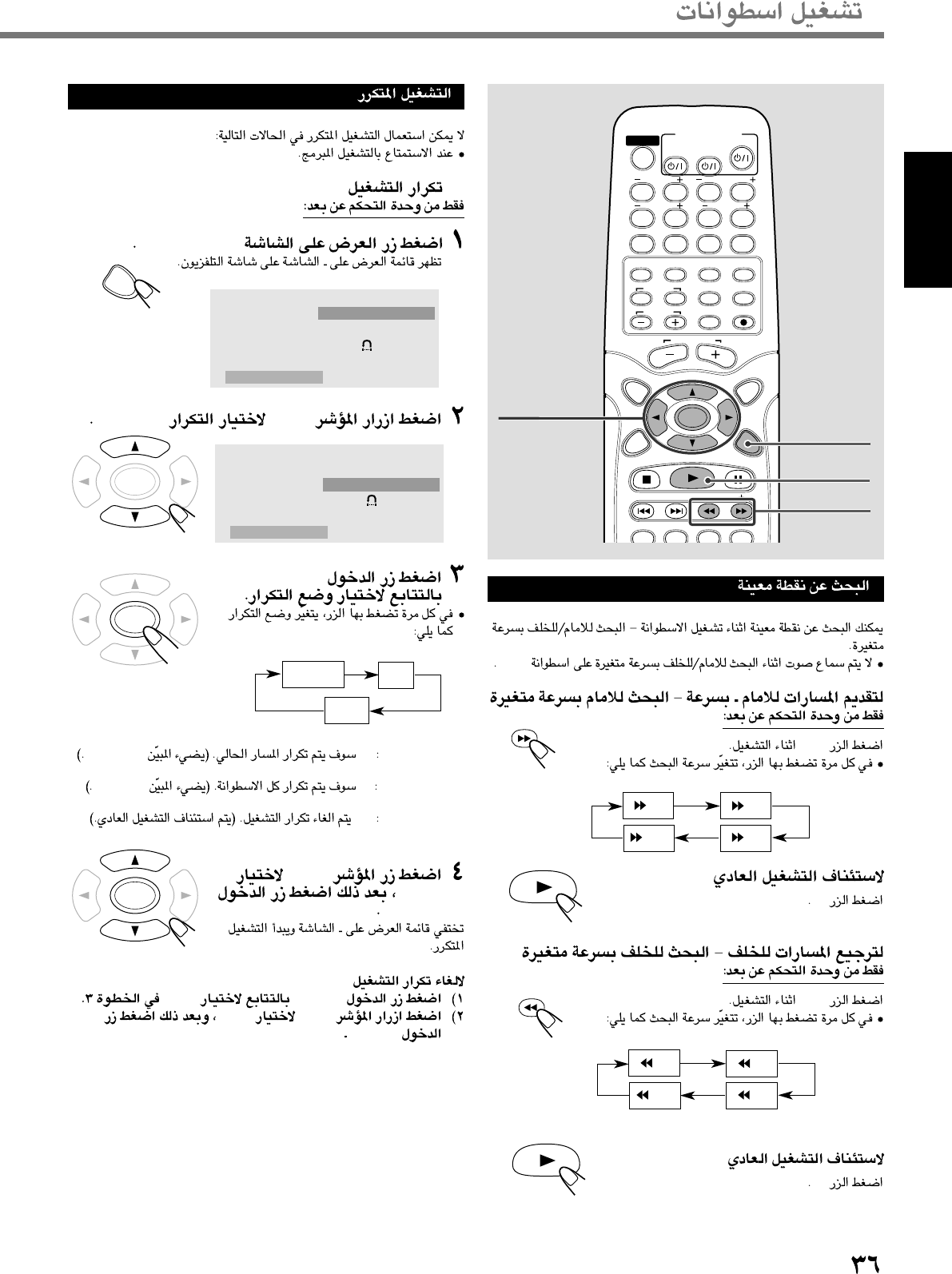

Searching for a Particular Point

You can search for a particular portion while playing a disc—

Variable Speed Forward/Reverse Search.

•No sound comes out during Variable Speed Forward/Reverse

Search on a VCD.

To fast-forward the tracks—Variable Speed

Forward Search

From the remote control ONLY:

Press ¡ during playback.

•Each time you press the button, the search speed

changes as follows:

To resume normal play

Press 3.

To reverse the tracks—Variable Speed Reverse

From the remote control ONLY:

Press 1 during playback.

•Each time you press the button, the search speed changes as

follows:

To resume normal play

Press 3.

x2 x4

x8x20

x2 x4

x8x20

Repeating Playback

Repeat play cannot be used in the following cases:

•When you enjoy program play

7 Repeat Play

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

Press cursor 5/∞ to select “Repeat.”

Press ENTER repeatedly to

select the repeat mode.

•Each time you press the button, Repeat

mode changes as follows:

Single: Current track be repeated. (REPEAT

1 indicator lights up.)

All: Disc will be repeated. (REPEAT

indicator lights up.)

Off: Repeat play is canceled. (Normal play

is resumed.)

Press cursor 5/∞ to select

“OK,” then ENTER.

The on-screen menu disappears and

repeat playback starts.

To cancel repeat play

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

Single All

Off

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

EN34-39TH-A35[UG].pm6 03.5.19, 5:22 PM36

English

Press cursor 5/∞ to select

“Repeat A–B.”

Press ENTER to select the start

point.

“A–” appears on the display and “A–”

appears on the TV.

Press ENTER again to select

the end point.

“A–” changes to “A–B”, then A–B repeat

begins.

The unit automatically locates point A

and starts repeated playback between

points A and B.

Press ON SCREEN again.

The on-screen menu disappears.

To cancel A–B Repeat

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

“A–B” disappears, and resume normal playback.

Example:

A –

A–B

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

ENTER

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

7 A–B Repeat

While playing, you can also select a portion you want to repeat.

ENTER

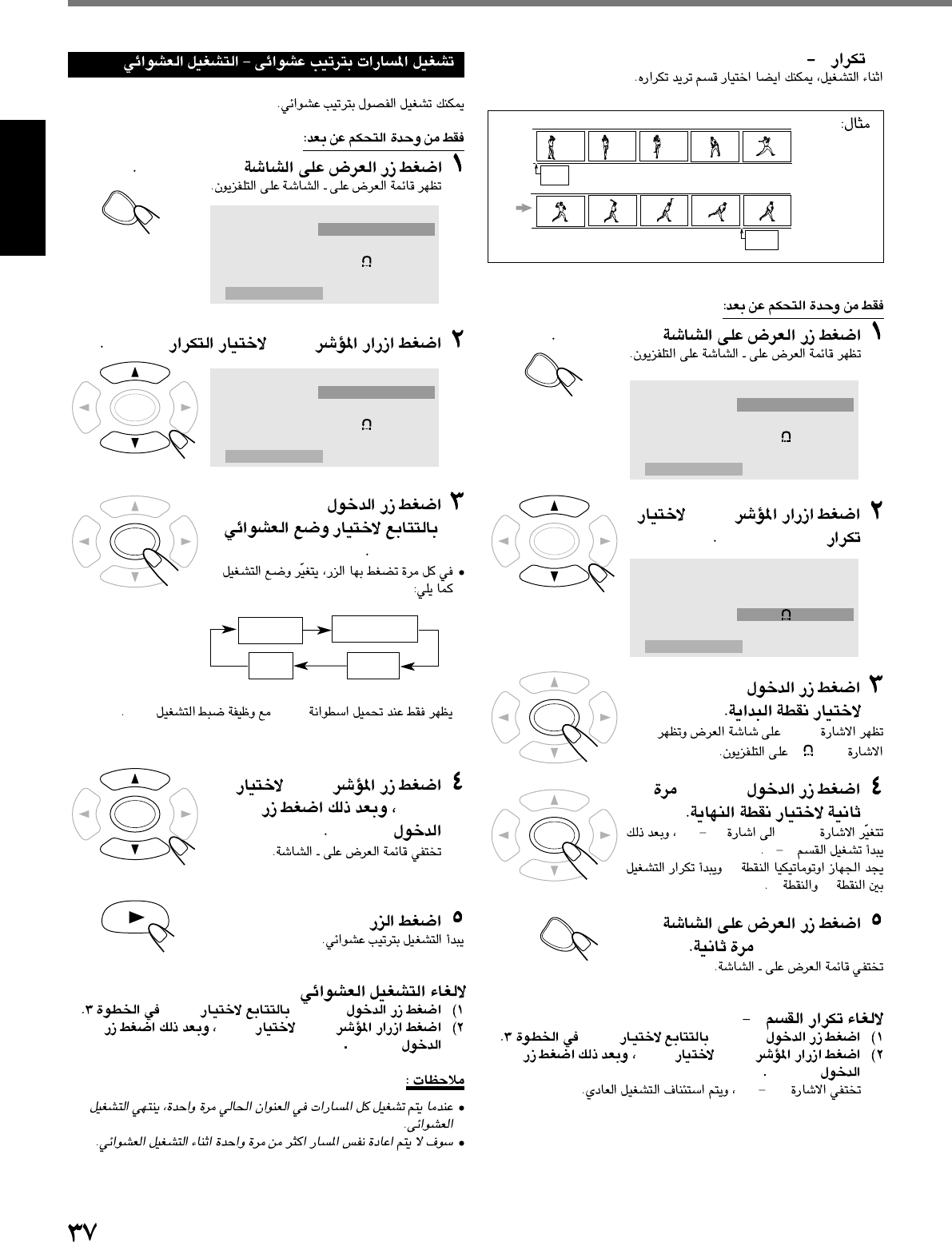

Playing Back Tracks in Random Order

— Shuffle Play

You can playback chapters in random order.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

ON SCREEN

Press cursor 5/∞ to select

“Mode.”

Press ENTER repeatedly to

select “Shuffle.”

•Each time you press the button, play

mode changes as follows:

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

* Appears when only VCD with PBC is loaded

Press cursor 5/∞ to select

“OK”, then press ENTER.

The on-screen menu disappears.

Press 3.

playback starts in random order.

To cancel shuffle play

1) Press ENTER repeatedly to select “Off” in step

2) Press cursor 5/∞ to select “OK”, then press ENTER.

Notes:

•When all tracks have been played once, shuffle play ends.

•The same track will not be played more than once during shuffle

play.

Shuffle

Off PBC*

Program

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

EN34-39TH-A35[UG].pm6 03.5.19, 5:22 PM37

English

VCD/CD Playback

3/2/5/∞

ENTER

Number

buttons

ON SCREEN

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

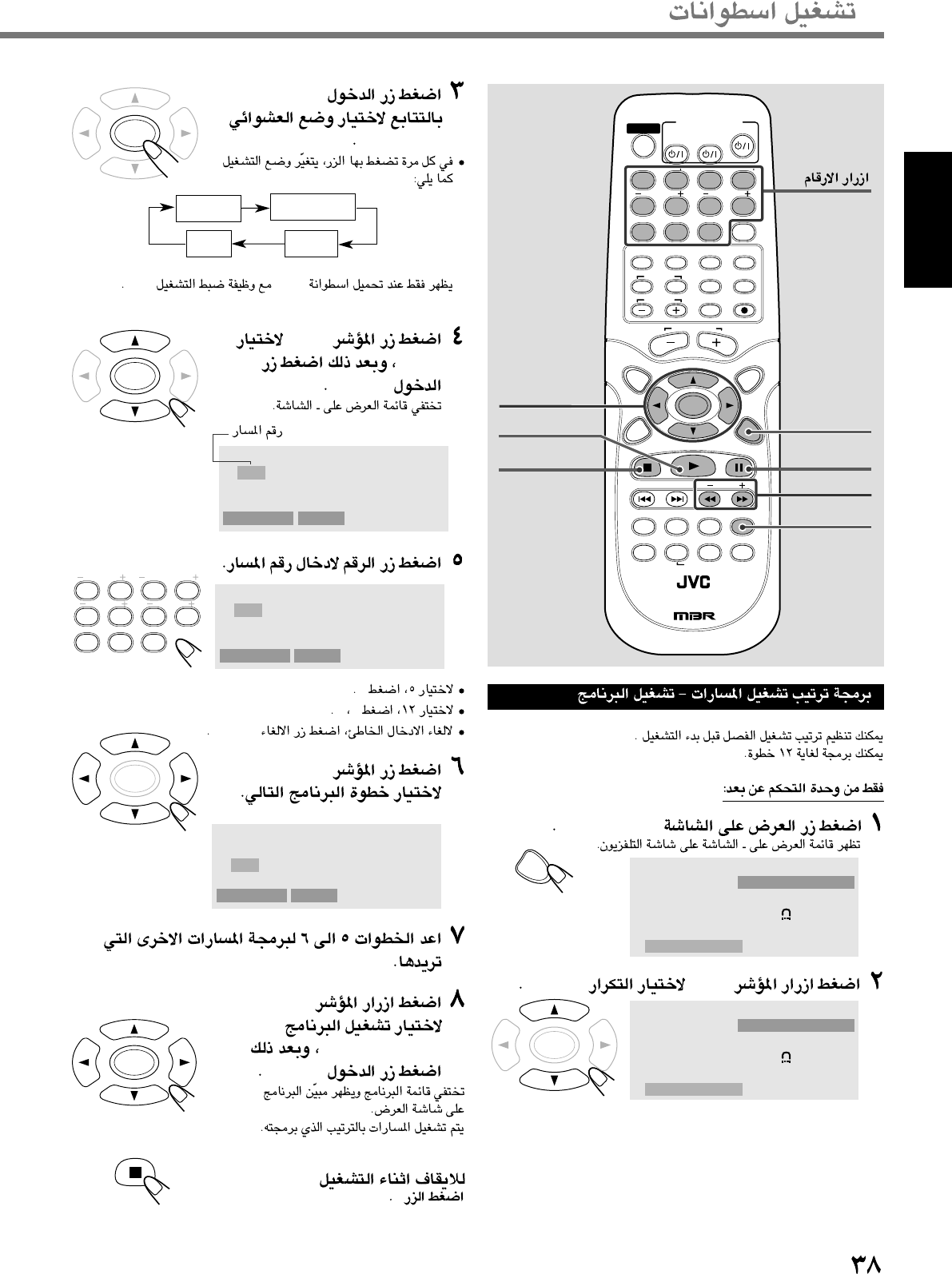

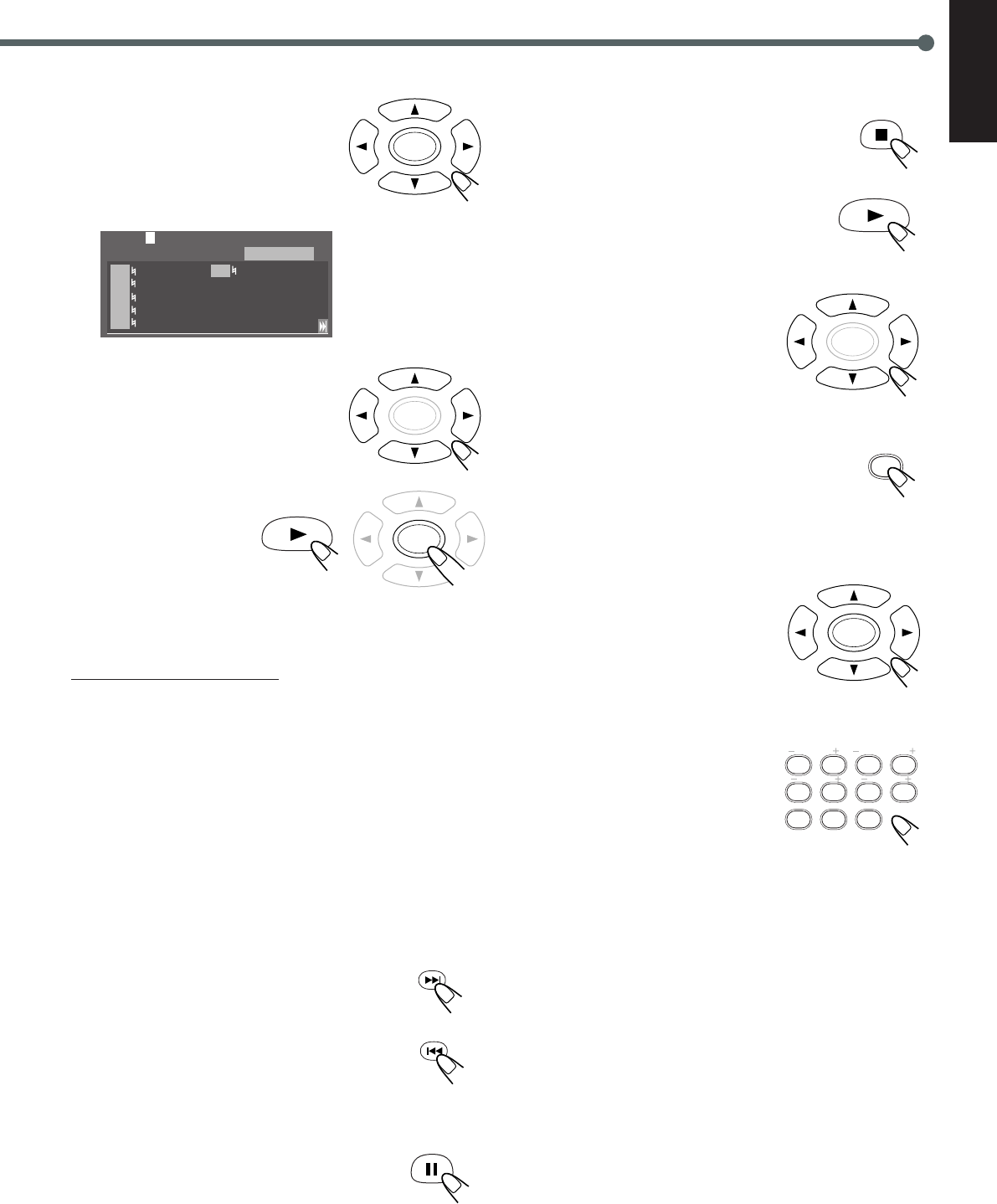

Programming the Playing Order of the

Tracks — Program Play

You can arrange the track playback order before you start playing.

You can program up to 12 steps.

From the remote control ONLY:

Press ON SCREEN.

The on-screen menu appears on the TV.

Press cursor 5/∞ to select

“Mode.”

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Shuffle

Off PBC*

Program

ENTER

Press ENTER repeatedly to

select “Program.”

•Each time you press the button, play

mode changes as follows:

* Appears when only VCD with PBC is loaded

Press cursor 5/∞ to select

“OK”, then press ENTER.

The Program menu appears on the TV.

Press the number button to

enter a track number.

•To select number 5, press 5.

•To select number 12, press 1, 2.

•To cancel a mis-entry, press CLEAR.

Press cursor 3/2/5/∞ to select

next program step.

Repeat steps

to program other tracks you

want.

Press cursor 3/2/5/∞ to select

“Play Program”, then press

ENTER.

The Program menu disappears and

the PROG indicator appears on the

display.

The tracks are played in the order you have programmed.

To stop during playback

Press 7.

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Program

Play Program Clear All

1 _ _ _

2 _ _ _

3 _ _ _

4 _ _ _

5 _ _ _

6 _ _ _

7 _ _ _

8 _ _ _

9 _ _ _

10 _ _ _

11 _ _ _

12 _ _ _

Track Number

Program

Play Program Clear All

1 _ 1 2

2 _ _ _

3 _ _ _

4 _ _ _

5 _ _ _

6 _ _ _

7 _ _ _

8 _ _ _

9 _ _ _

10 _ _ _

11 _ _ _

12 _ _ _

Program

Play Program Clear All

1 1 2

2 _ _ _

3 _ _ _

4 _ _ _

5 _ _ _

6 _ _ _

7 _ _ _

8 _ _ _

9 _ _ _

10 _ _ _

11 _ _ _

12 _ _ _

SLOW +/–

ZOOM

EN34-39TH-A35[UG].pm6 03.5.19, 5:22 PM38

English

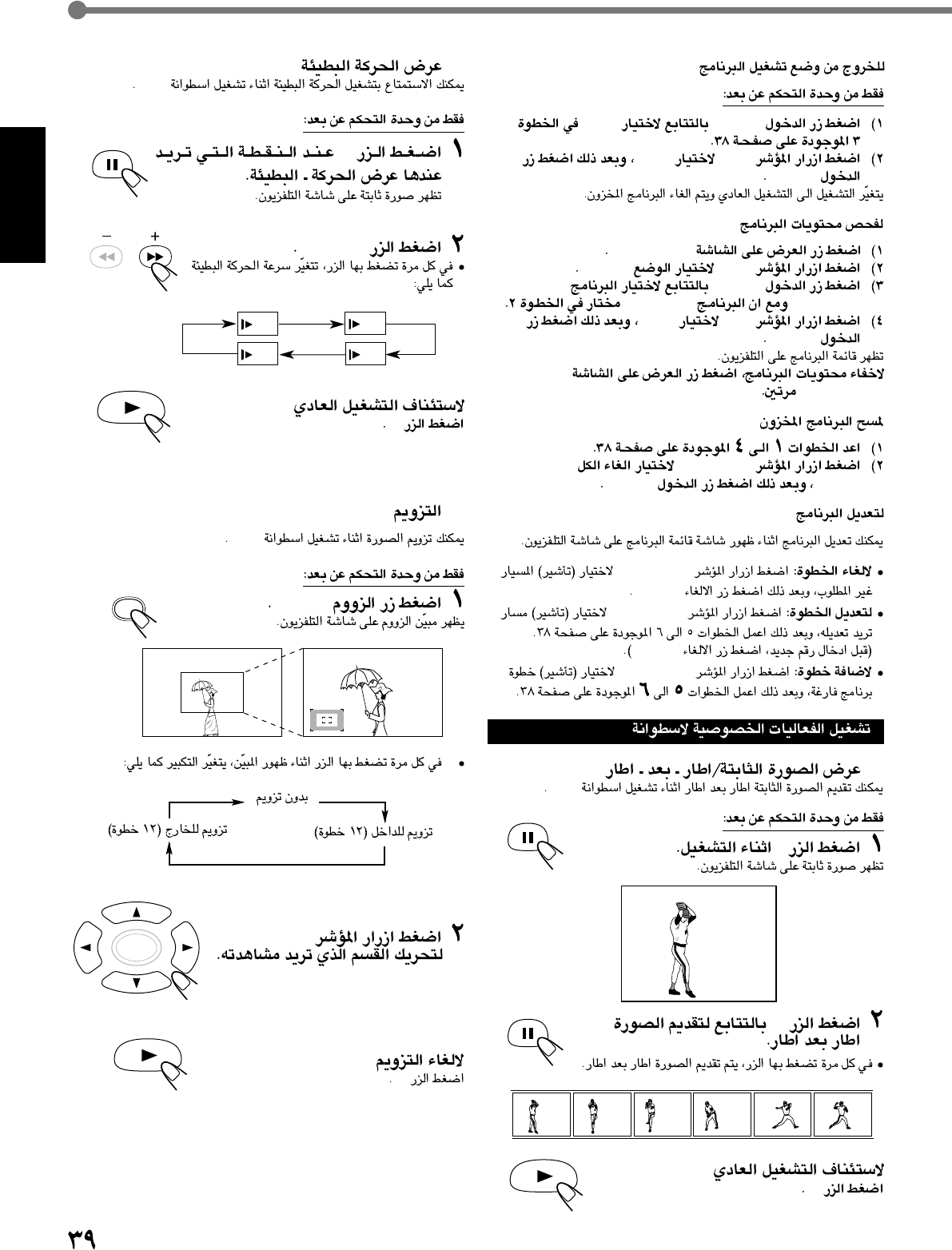

VCD Special Effect Playback

7 Still Picture/Frame-by-Frame Playback

You can advance the still picture frame by frame while playing a

VCD.

From the remote control ONLY:

Press 8 once during playback.

A still picture appears on the TV screen.

Press 8 repeatedly to advance the

picture frame by frame.

•Each time you press the button, the picture

advances frame by frame.

To resume normal play

Press 3.

PAUSE

STEP

To exit from program play

From the remote control ONLY:

1) Press ENTER repeatedly to select “Off” in step

on page 38.

2) Press cursor 5/∞ to select “OK”, then press ENTER.

Playback changes to normal play and the stored program is cleared.

To check the program contents

1) Press ON SCREEN.

2) Press cursor 5/∞ to select “Mode.”

3) Press ENTER repeatedly to select “Program” again even

though “Program” is selected in Step 2.

4) Press cursor 5/∞ to select “OK”, then ENTER.

The program menu appears on the TV.

To disappear program contents, press ON SCREEN twice.

To erase the stored program

1) Repeat steps

on page 38.

2) Press cursor 3/2/5/∞ to select “Clear All”, then ENTER.

To modify the program

You can modify the program while the program menu screen is

shown on the TV.

•To erase a step: Press cursor 3/2/5/∞ to select (highlight) an

unwanted track, then press CLEAR.

•To modify a step: Press cursor 3/2/5/∞ to select (highlight) a

track you want to modify, then perform steps

on page 38

(Before entering a new number, press CLEAR).

•To add a step: Press cursor 3/2/5/∞ to select (highlight) an

empty program step, then perform steps

on page 38.

7 Zoom

You can zoom on the picture while playing back a VCD.

From the remote control ONLY:

Press ZOOM.

The zoom indicator appears on the TV.

•Each time you press the button while the indicator appears, the

magnification changes as follows:

Press cursor 3/2/5/∞ to move

the portion you want to watch.

To cancel the zoom

Press 3.

ZOOM

ENTER

7 Slow Motion Playback

You can enjoy slow motion playback while playing a VCD.

From the remote control ONLY:

Press 8 at the point where you want to

start playback in slow-motion.

A still picture appears on the TV screen.

Press SLOW +.

•Each time you press the button, slow motion

speed changes as follows.

To resume normal play

Press 3.

SLOW

Zoom in (12 steps)

No Zoom

Zoom out (12 steps)

EN34-39TH-A35[UG].pm6 03.5.19, 5:22 PM39

English

MP3 Playback

This system is incorporated with an MP3 decoder. You can playback

MP3 tracks (files) recorded on CD-Rs, CD-RWs, and CD-ROMs.

•Notice that “files” and “tracks” are used interchangeably.

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG)

Audio Layer 3. MP3 is simply a file format with a data compression

ratio of 1:10 (128 Kbps*). That means, by using MP3 format, one

CD-R or CD-RW can contain 10 times as much data volume as a

regular CD can.

* Bit rate is the average number of bits that one second of audio data

will consume. The measuring unit used is Kbps (1000 bits per

second).

To get a better audio quality, choose a higher bit rate. The most

popular bit rate for encoding (recording) is 128 Kbps.

MP3 File Compatibility

•This system can only read MP3 files that are recorded in the

format that is compliant with ISO 9660 Level 1 or Level 2.

•The system can play MP3 files only with the following file

extensions: “.MP3,” “.Mp3,” “.mP3,” and “.mp3.”

•This unit can show ID3v1* tags on the TV-screen.

* An MP3 file can contain file information called “ID3 Tag” where

its album name, performer, track title, etc. are recorded. There are

two versions—ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag

version 2).

•This unit is not compatible with ID3v2.

Disc structure—How are MP3 files recorded

and played back?

“MP3 files (tracks)” can be recorded in “folders,” in PC

terminology.

During recording, the files and folders can be arranged in a way

similar to arranging files and folders of computer data.

“Root” is similar to the root of a tree. Every file and directory can be

linked to the root.

In compliance with ISO 9660, the maximum allowable depth of

nested folders—so-called “hierarchy”—is eight (inclusive of the

root).

Playback order, files search order, and folder search order of the

MP3 files recorded on a disc are determined by the writing (or

encoding) application; therefore, playback order may be different

from the one you have intended while recording the folders and the

files.

NOTES for MP3 disc

•MP3 discs (either CD-R or CD-RW) require a longer readout time.

(It differs due to the complexity of the folder/file configuration.)

•When an MP3 disc is loaded, you cannot adjust the subwoofer

output level.

Example: MP3 disc structure and playback order

: Indicates folders

: Indicates files (tracks)

(

oot

Hierarchies

EN40-47TH-A35[UG].pm6 03.5.19, 5:22 PM40

English

1:Track number

2:Current folder name

3:Current track (file) and total number of the tracks

in the current folder

•Ex.: 1st track is playing out of 28 tracks recorded.

4:Play mode

5:Elapsed playing time

6:Playback track (highlight)

7:File information

•If the MP3 file has ID3v1 tag, file information appears.

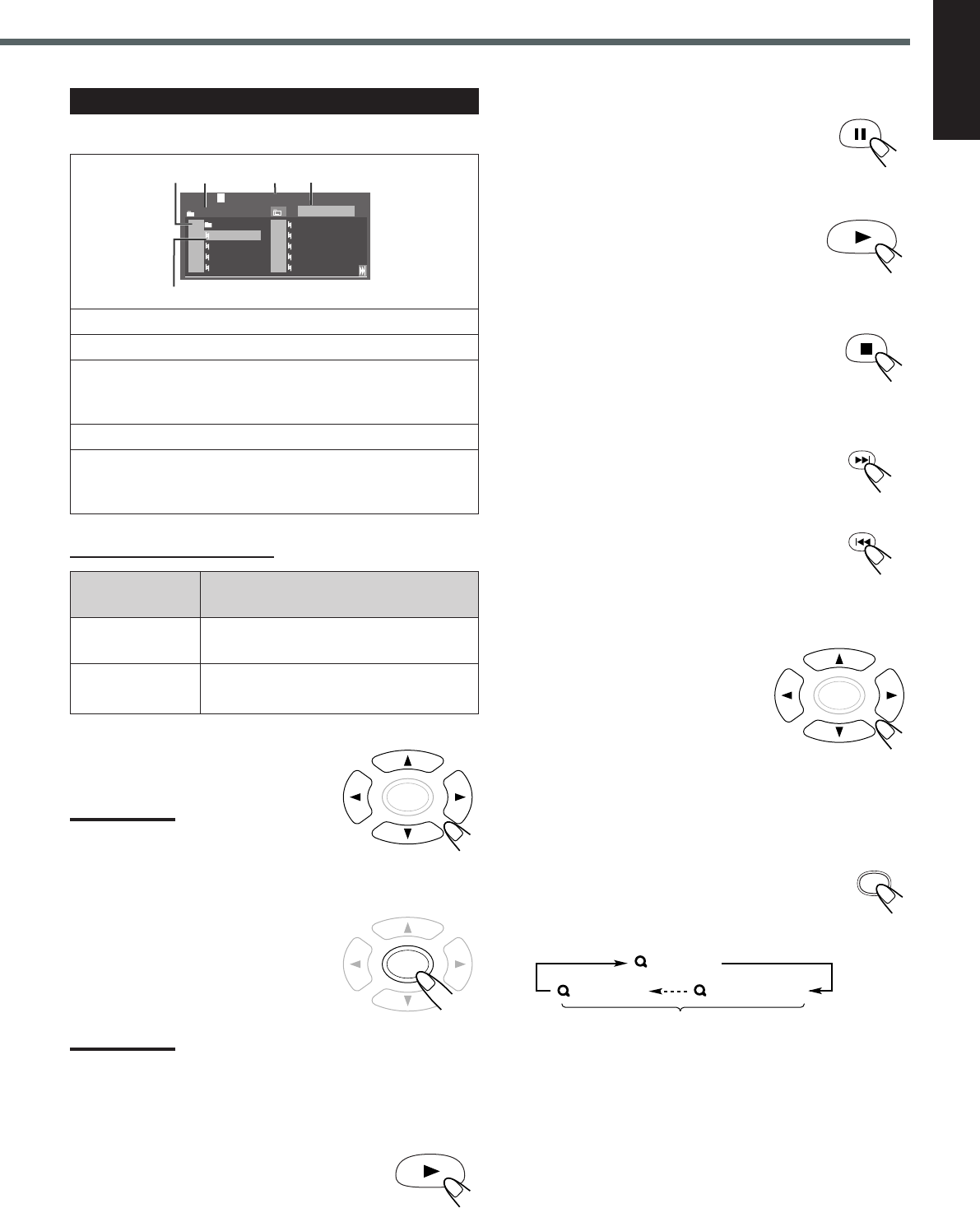

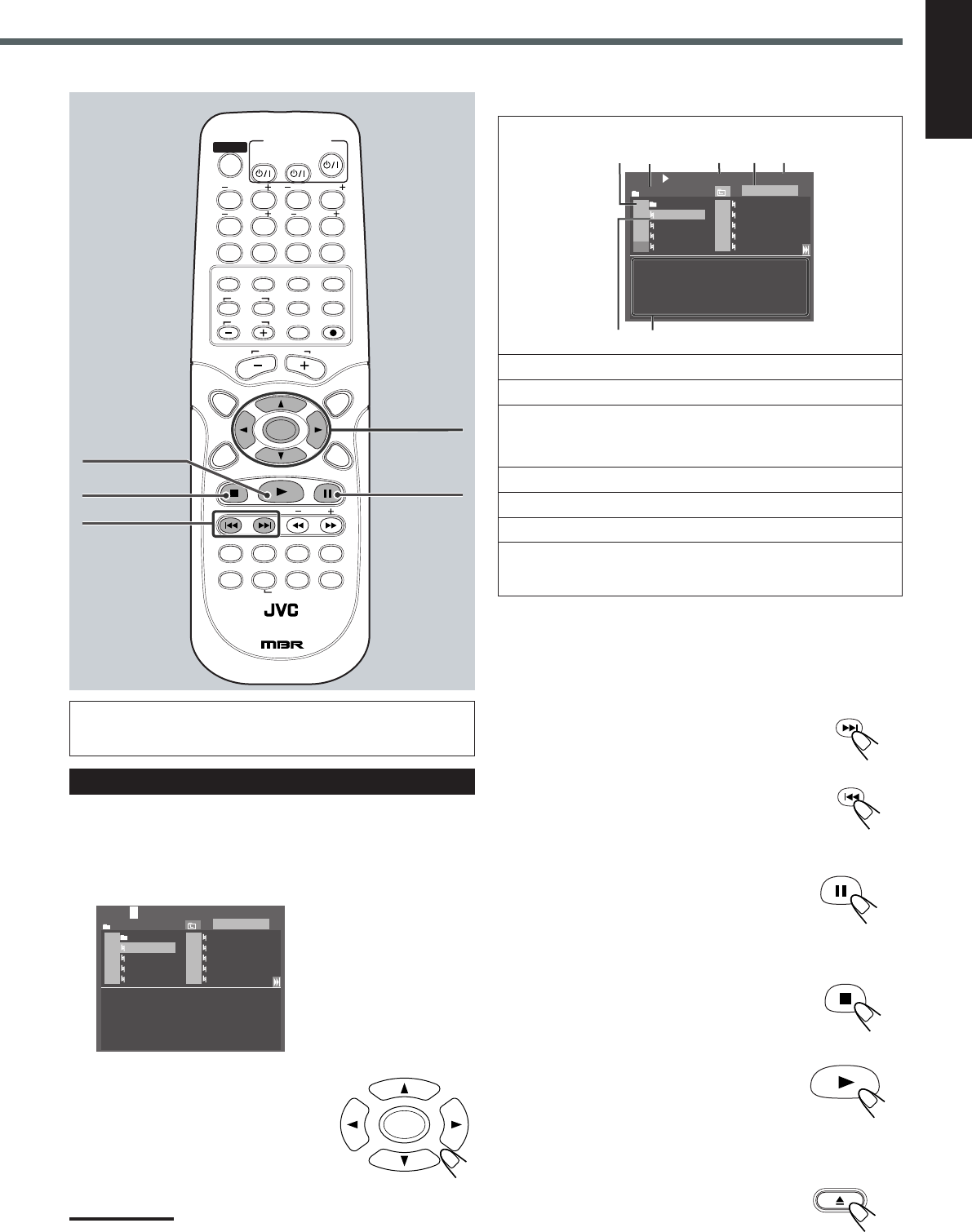

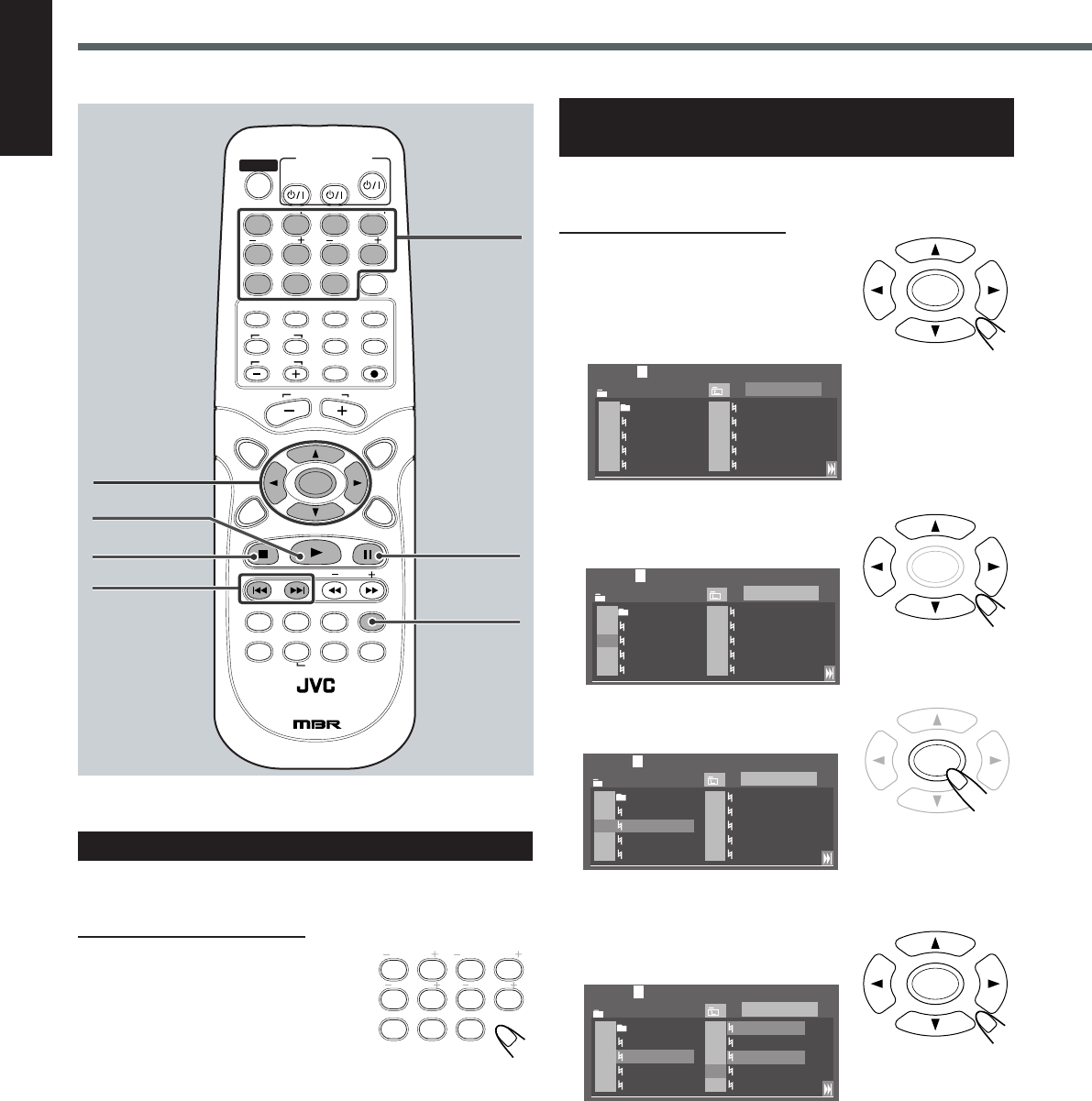

The on-screen display

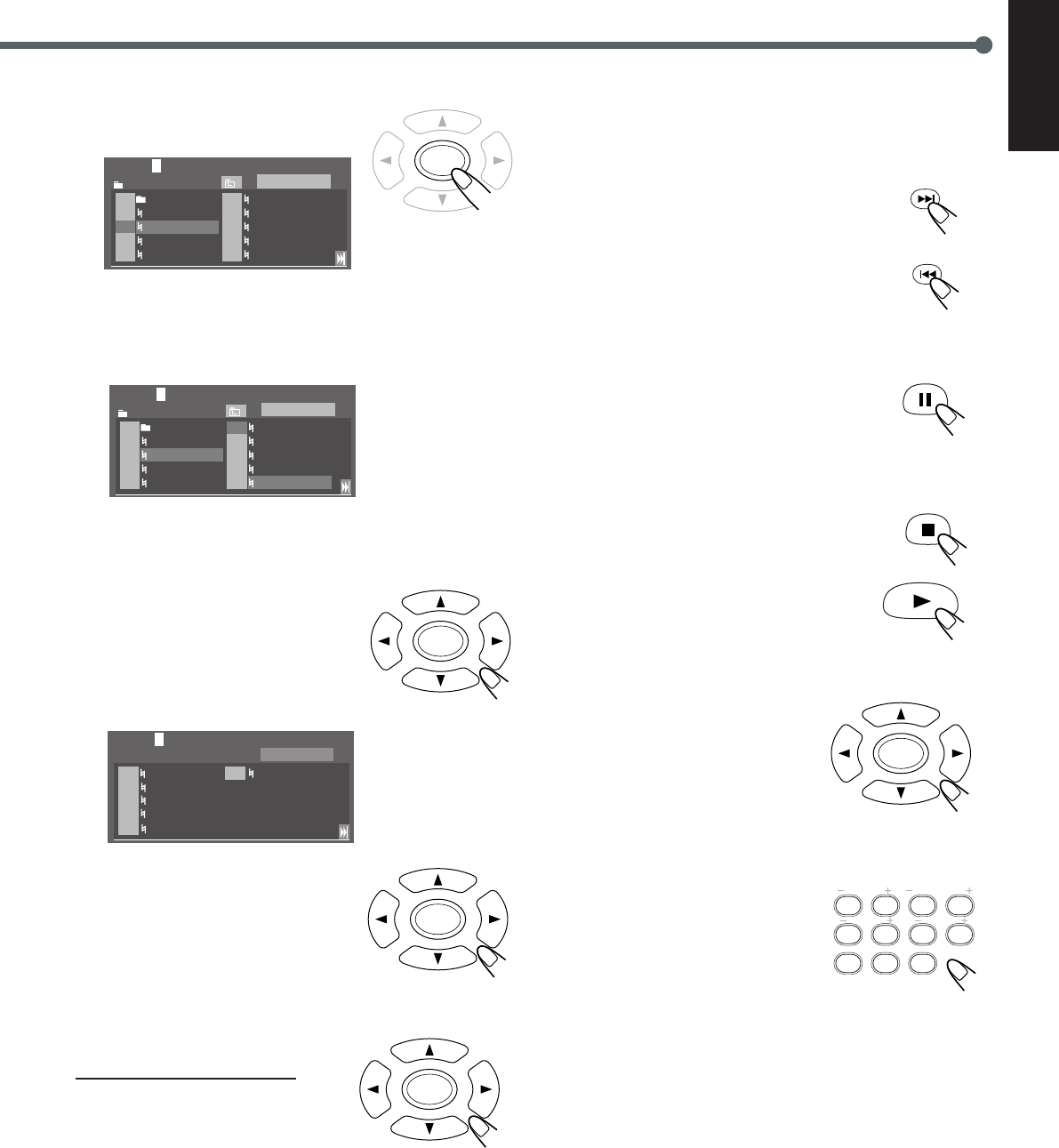

Starting Playback

It is recommended to turn on your TV when playing back an MP3

disc.

Insert an MP3 disc.

After detecting the disc, on-screen display appears on the TV.

Press cursor 3/2/5/∞ to select

the track, then press ENTER.

Playback starts.

For in-depth information about a disc to be played back, see

“Disc Introduction—DVD/VCD/CD” on page 24.

Play Track 1/28 00:00:17

Brow Disc

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

File:BEZIQUE.mp3

Artist:

Song:

Genre:

Album:

Comments:

Year:

3 54

Track 1/28

Brow Disc

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

File:BEZIQUE.mp3

Artist:

Song:

Genre:

Album:

Comments:

Year:

Stop

Note:

If the loaded disc is not recorded in the audio CD format, MP3 format,

or JPEG format, “Error” appears on the TV screen.

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

4/ ¢

To go to another track

Press ¢ or 4during playback.

•¢: Skip to the beginning of the next track.

•4: Skip to the beginning of the previous track.

To stop playback for a moment

Press 8.

To resume play, press 3.

To stop during playback

Press 7.

To start playback again

Press 3.

The marked (highlight) track starts playback.

To remove the disc

Press 0 on the front panel.

The disc tray comes out.

To close the disc tray, press 0 again.

ENTER

3/2/5/∞

ENTER

EN40-47TH-A35[UG].pm6 03.5.19, 5:22 PM41

English

ENTER

MP3 Playback

Moving to a Particular Track Directly

You can move to a particular track on the current folder directly.

From the remote control ONLY:

Press the number buttons to

select a track number you

want.

The system starts playback from the

selected track.

•To select number 5, press 5 then press ENTER.

•To select number 10, press 1, 0 then press ENTER.

•To select number 23, press 2, 3 then press ENTER.

•To select number 123, press 1, 2, 3 then press ENTER.

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

4/ ¢

Number

buttons

Programming the Playing Order of the

Tracks — Program Play

You can arrange the track playback order before you start playing.

From the remote control ONLY:

Press cursor 3/2/5/∞ to

select “Brow Disc,” then press

ENTER.

“Brow Disc (Browse Disc) ” changes

to “Crea Prog (Create Program).”

Press cursor 3/2/5/∞ to select

the track.

ENTER

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Operations Using the On-Screen Display

It is recommended to turn on your TV when playing back an MP3

disc.

When the loaded MP3 disc is recognized, the following on-screen

display appears on the TV screen. (The contents of this on-screen

display varies according to the disc—the way MP3 tracks were

recorded on the disc.)

From the remote control ONLY:

ENTER

Button

ENTER

To do

Start playback or go into a folder.

Select a track or folder.

3 / 2/ 5 / ∞

To start playback of the

selected track

Press cursor 3/2/5/∞ to select the track,

then press ENTER.

Notes:

•Only 10 tracks can be shown on the TV.

To move to next 10 tracks, press cursor

repeatedly.

To move to previous 10 tracks, press cursor

repeatedly.

•If you move to another folder, playing back stops.

EN40-47TH-A35[UG].pm6 03.5.19, 5:22 PM42

English

Press ENTER.

The selected track is marked (highlight).

•If you press ENTER again, the marked track is canceled.

Repeat steps

to program other tracks you

want.

•You can select the track in another folders.

•You cannot select same track more than once during program

play.

Press cursor 3/2/5/∞ to select

“Crea Prog,” then press

ENTER.

“Crea Prog (Create Program)” changes

to “Brow Prog (Browse Program),” and

selected tracks appear on the TV.

Press cursor 3/2/5/∞ to

select the start track, then

press ENTER.

The tracks are played in the order you

have programmed.

To exit from program play

From the remote control ONLY:

Press cursor 3/2/5/∞ to select “Brow

Prog,” then press ENTER.

“Brow Prog (Browse Program)” changes

to “Brow Disc (Browse disc).”

Playback stops and the stored program is cleared.

You can perform following operation same as in normal playback.

To go to another track

Press ¢ or 4during playback.

•¢: Skip to the beginning of the next track.

•4: Skip to the beginning of the previous track.

To stop playback for a moment

Press 8.

To resume play, press 3.

To stop during playback

Press 7.

To start playback again

Press 3.

To start playback of the selected track

Press cursor 3/2/5/∞ to select the

track, then press ENTER.

To move to a particular track directly

Press the number buttons to select a

track number you want.

•To select number 5, press 5 then press

ENTER.

•To select number 10, press 1, 0 then press

ENTER.

•To select number 23, press 2, 3 then press

ENTER.

•To select number 123, press 1, 2, 3 then press ENTER.

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Stop Track 1/28 00:00:00

Brow Prog

Selected Files:

BRIDGE.mp3

CANASTA.m

CRIBBAGE.

HEART.MP3

OLDMAID.M

RUMMY.MP3

EN40-47TH-A35[UG].pm6 03.5.19, 5:22 PM43

English

What is JPEG?

A still-picture data compression system proposed by the Joint

Photographic Expert Group, which features small decrease in image

quality in spite of its high compression ratio.

Disc structure

On a JPEG disc, each still picture (material) is recorded as a file.

Files are usually grouped into a folder. Folders can also include

another folders, creating hierarchical folder layers.

This system simplifies the hierarchical construction of a disc and

manages folders by “groups.”

This system can recognize up to 999 items in one folder, items

including subfolders and files.

•If there is any type of files other than JPEG files in a folder, those

files are also counted in the total number of 999.

NOTES for JPEG disc

•JPEG discs (either CD-R or CD-RW) require a longer readout

time. (It differs due to the complexity of the directory/file

configuration.)

•When making a JPEG disc, select ISO 9660 Level 1 or Level 2 as

the disc format.

•This system supports “multi-session” discs (up to 5 sessions).

•This system cannot play “packet write” discs.

•The system can play JPEG files only with the following file

extensions: “.jpg,” “.jpeg,” “.JPG,” “.JPEG” and any uppercase

and lowercase combination (such as “.Jpg”).

•We recommend to record a file at 640 x 480 resolution. (If a file

has been recorded at a resolution of more than 640 x 480, it will

take a longer time to be shown.)

•This system can play only baseline JPEG files*. Progressive JPEG

files* or lossless JPEG files* cannot be played.

•Some JPEG discs may not be played back because of their disc

characteristics or recording conditions.

*•Baseline JPEG format: Used for digital cameras, web, etc.

•Progressive JPEG format: Used for web.

•Lossless JPEG format: An old type and rarely used now.

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

4/ ¢

Number

buttons

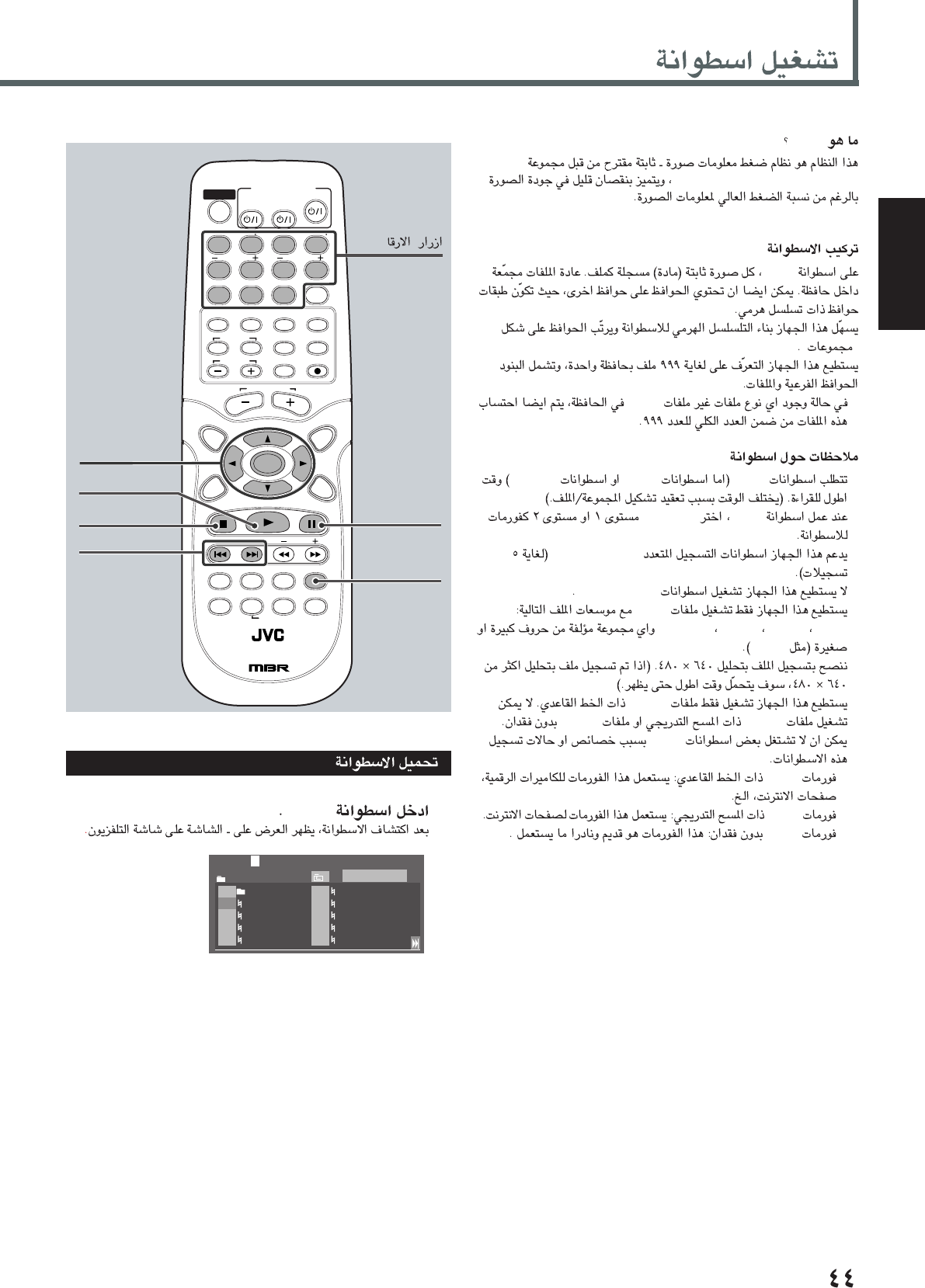

JPEG Playback

Loading the Disc

Insert a JPEG disc.

After detecting the disc, on-screen display appears on the TV.

Stop Track 1/22

Brow Disc

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


ZOOM

EN40-47TH-A35[UG].pm6 03.5.19, 5:23 PM44

English

From the remote control ONLY:

To select the file.

Press cursor 3/2/5/∞.

Note:

Only 10 files can be shown on the TV.

To move to next 10 files, press cursor

repeatedly.

To move to previous 10 files, press cursor

repeatedly.

To show the selected file only

Press ENTER.

The selected file (still picture) is shown on

the TV.

Note:

The picture size changes automatically to fit the TV-screen.

Stop Track 1/22 00:00:00

Brow Disc

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


Operations Using the On-Screen Display

The on-screen display

1:File number

2:Current folder name

3:Current file and total number of the files in the

current folder

•Ex.: 1st file is playing out of 22 files recorded.

4:Play mode

5:Playback file (highlight)

•When press 3to start playback slide-show, playback starts

this (highlight) file.

ENTER

Button

ENTER

To do

Start playback or go into a folder.

Select a file or folder.

3/ 2/ 5 / ∞

ENTER

To start the slide-show playback

Press 3.

Each file (still picture) is shown on the TV for about

few seconds, then changed to the next file one after

another.

•The showing time varies depending on the file size or other factor.

No Zoom

12 steps

Zoom ✕ 4 Zoom ✕ 1.25

ENTER

ZOOM

To stop the slide-show playback temporarily

Press 8on the remote control.

To resume the slide-show playback

Press 3.

To stop the slide-show playback completely

Press 7.

To skip files forward

Press ¢.

To skip files backward

Press 4.

To rotate a still picture

Press cursor 3/2/5/∞.

When the slide-show stops and the picture is

rotated on the TV.

3: ANGLE 90

∞: ANGLE 180

2: ANGLE 270

5: ANGLE 0

To return to normal angle, press the button again or press 5.

To zoom in a still picture

Press ZOOM.

The zoom indicator appears on the TV.

•Each time you press the button while the indicator

appears, the magnification changes as follows:

• While the picture is zoomed in, press cursor 3/2/5/∞ to move

the portion you want to watch.

To cancel the zoom, press 3.

EN40-47TH-A35[UG].pm6 03.5.19, 5:23 PM45

English

ENTER

Programming the Playing Order of the

Files — Program Play

You can arrange the file playback order before you start playing.

From the remote control ONLY:

Press cursor 3/2/5/∞ to select

“Brow Disc,” then press

ENTER.

“Brow Disc (Browse Disc) ” changes to

“Crea Prog (Create Program).”

Press cursor 3/2/5/∞ to select

the file.

Press ENTER.

The selected file is marked (highlight).

•If you press ENTER again, the marked file is canceled.

Repeat steps

to program

other files you want.

•You can select the files in another folders.

•You cannot select same file more than once during program

play.

ENTER

Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color



5 CYAN.JPG

ORANGE.JP

YELLOW.JP




PURPLE.JP

Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color



5 CYAN.JPG

ORANGE.JP

YELLOW.JP




PURPLE.JP

JPEG Playback

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

4/ ¢

Number

buttons

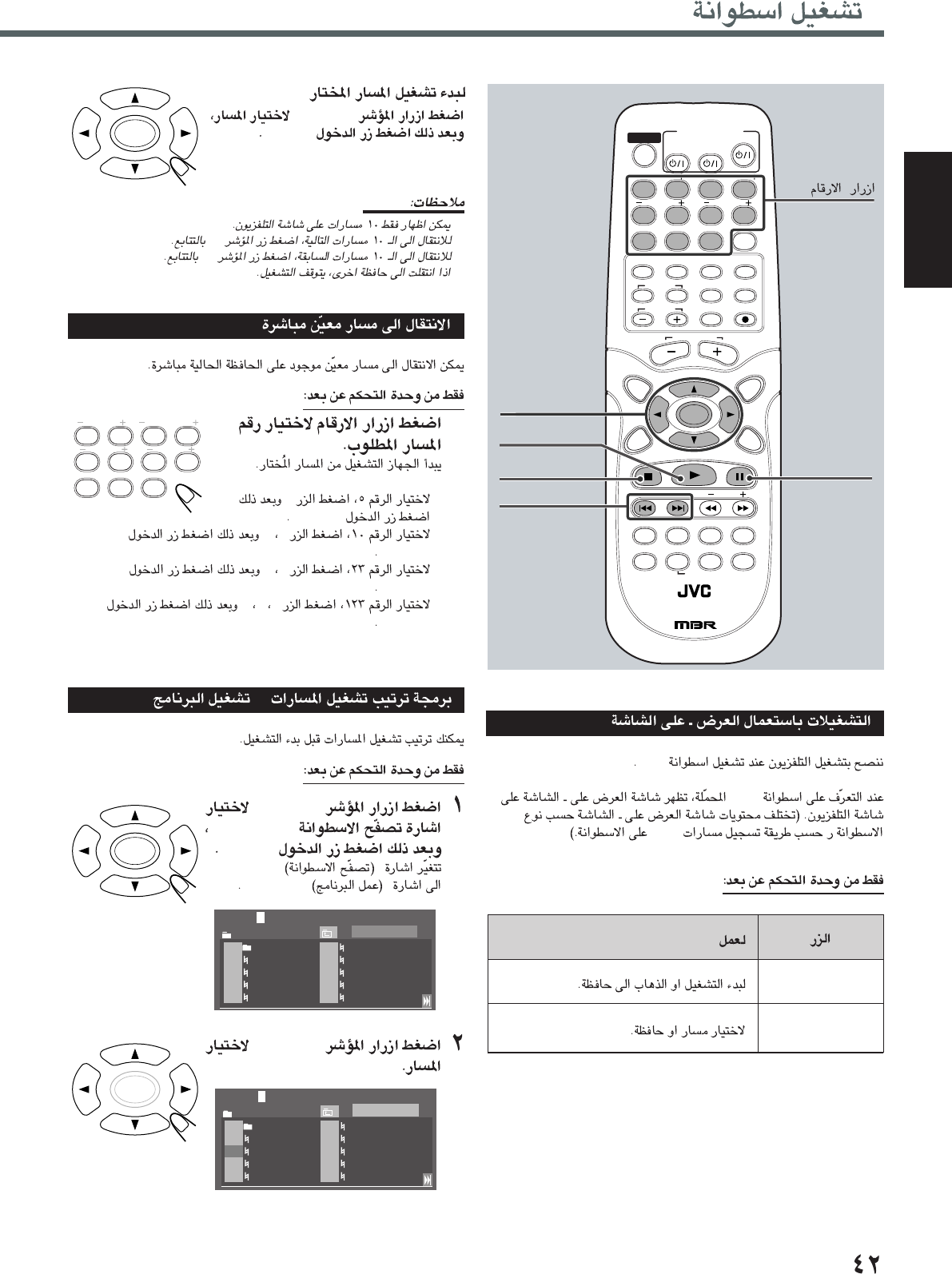

Moving to a Particular File Directly

You can move to a particular file on the current folder directly.

From the remote control ONLY:

Press the number buttons to

select a file number you want.

The system starts playback from the

selected file.

•To select number 5, press 5 then press

ENTER.

•To select number 10, press 1, 0 then press ENTER.

•To select number 23, press 2, 3 then press ENTER.

•To select number 123, press 1, 2, 3 then press ENTER.

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ZOOM

EN40-47TH-A35[UG].pm6 03.5.19, 5:23 PM46

English

Press cursor 3/2/5/∞ to select

“Crea Prog,” then press

ENTER.

“Crea Prog (Create Program)” changes

to “Brow Prog (Browse Program),” and

selected files appear on the TV.

Press cursor 3/2/5/∞ to select

the start file.

Press 3 or ENTER.

The selected files are

played in the order you

have programmed.

You can perform following operation same as in normal playback.

To go to another file

Press ¢ or 4during playback.

•¢: Skip to the beginning of the next file.

•4: Skip to the beginning of the previous file.

To stop playback for a moment

Press 8.

To resume play, press 3.

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Stop Track 1/22 00:00:00

Brow Prog

Selected Files:


5 CYAN.JPG




PURPLE.JP

ENTER

ZOOM

To stop during playback

Press 7.

To start playback again

Press 3.

To rotate a still picture

Press cursor 3/2/5/∞.

To zoom in a still picture

Press ZOOM.

To start playback of the selected file

Press cursor 3/2/5/∞ to select the file,

then press ENTER.

To move to a particular track directly

Press the number buttons to select a file

number you want.

•To select number 5, press 5 then press

ENTER.

•To select number 10, press 1, 0 then

press ENTER.

•To select number 23, press 2, 3 then press ENTER.

•To select number 123, press 1, 2, 3 then press ENTER.

ENTER

To exit from program play

From the remote control ONLY:

Press cursor 3/2/5/∞ to select “Brow Prog,” then press

ENTER.

“Brow Prog (Browse Program)” changes to “Brow Disc (Browse

disc).”

Playback stops and the stored program is cleared.

EN40-47TH-A35[UG].pm6 03.5.19, 5:23 PM47

English

Tuner Operations

For basic tuner operations, see “Basic Tuner Operations” on page

16.

FM/AM

Number

buttons

1/ ¡

TUNING

UP/DOWN

FM MODE

MEMORY

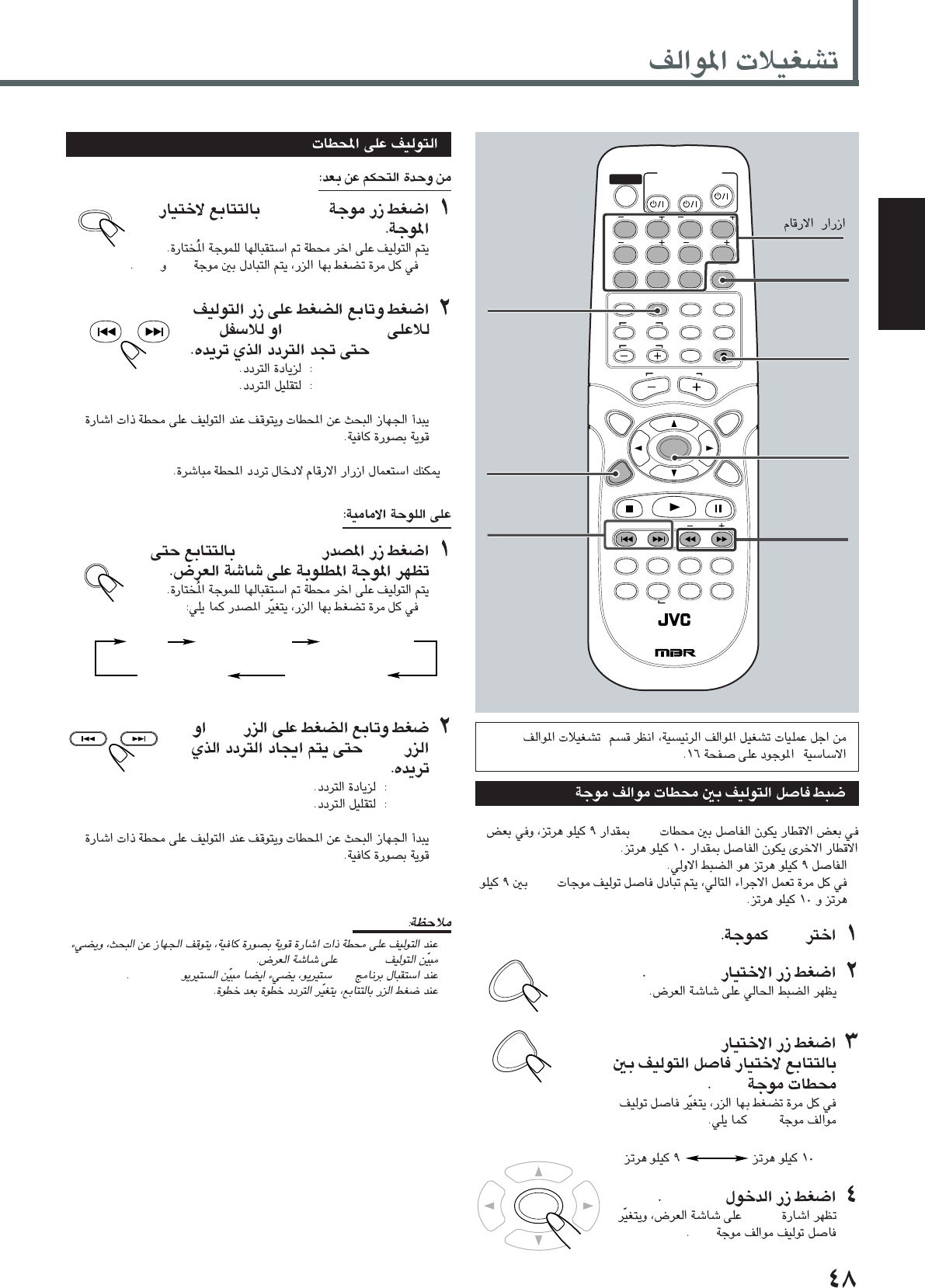

Tuning in Stations

From the remote control:

Press FM/AM repeatedly to select the

band.

The last received station of the selected band is tuned

in.

• Each time you press the button, the band alternates between

FM and AM.

Press and hold TUNING UP or

DOWN until you find the frequency

you want.

• TUNING UP : Increases the frequency.

• TUNING DOWN : Decreases the frequency.

The system starts searching for stations and stops when a station

of sufficient signal strength is tuned in.

• You can use the number button to enter the station frequency

directly

On the front panel:

Press SOURCE repeatedly until the

desired band appears on the display.

The last received station of the selected band is

tuned in.

• Each time you press the button, the source changes as follows:

Press and hold ¢ or 4 until

you find the frequency you want.

•¢: Increases the frequency.

•4: Decreases the frequency.

The system starts searching for stations and stops when a station

of sufficient signal strength is tuned in.

Notes:

• When a station of sufficient signal strength is tuned in, the TUNED

indicator lights up on the display.

• When an FM stereo program is received, the STEREO indicator

also lights up.

• When you press the button repeatedly, the frequency changes step

by step.

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

FM/AM

SOURCE

DOWN - TUNING - UP

DVD TUNER FM TUNER AM

ANALOG INDIGITAL IN

ENTER

Setting the AM Tuner Interval Spacing

Some countries space AM stations 9 kHz apart, and other countries use

10 kHz spacing.

• 9 kHz interval spacing is the initial setting.

• Each time you do the following procedure, the AM tuner interval

spacing alternates between 9 kHz and 10 kHz.

Select AM as the band.

Press CHOICE.

The current setting appears on the display.

Press CHOICE repeatedly to select

the AM interval.

• Eah time you press the button, the AM tuner

interval changes as follows.

Press ENTER.

“OK” appears on the display, and the

AM tuner interval chages.

10 kHz 9 kHz

CHOICE

ENTER

CHOICE

EN48-49TH-A35[UG].pm6 03.5.23, 9:28 PM48

English

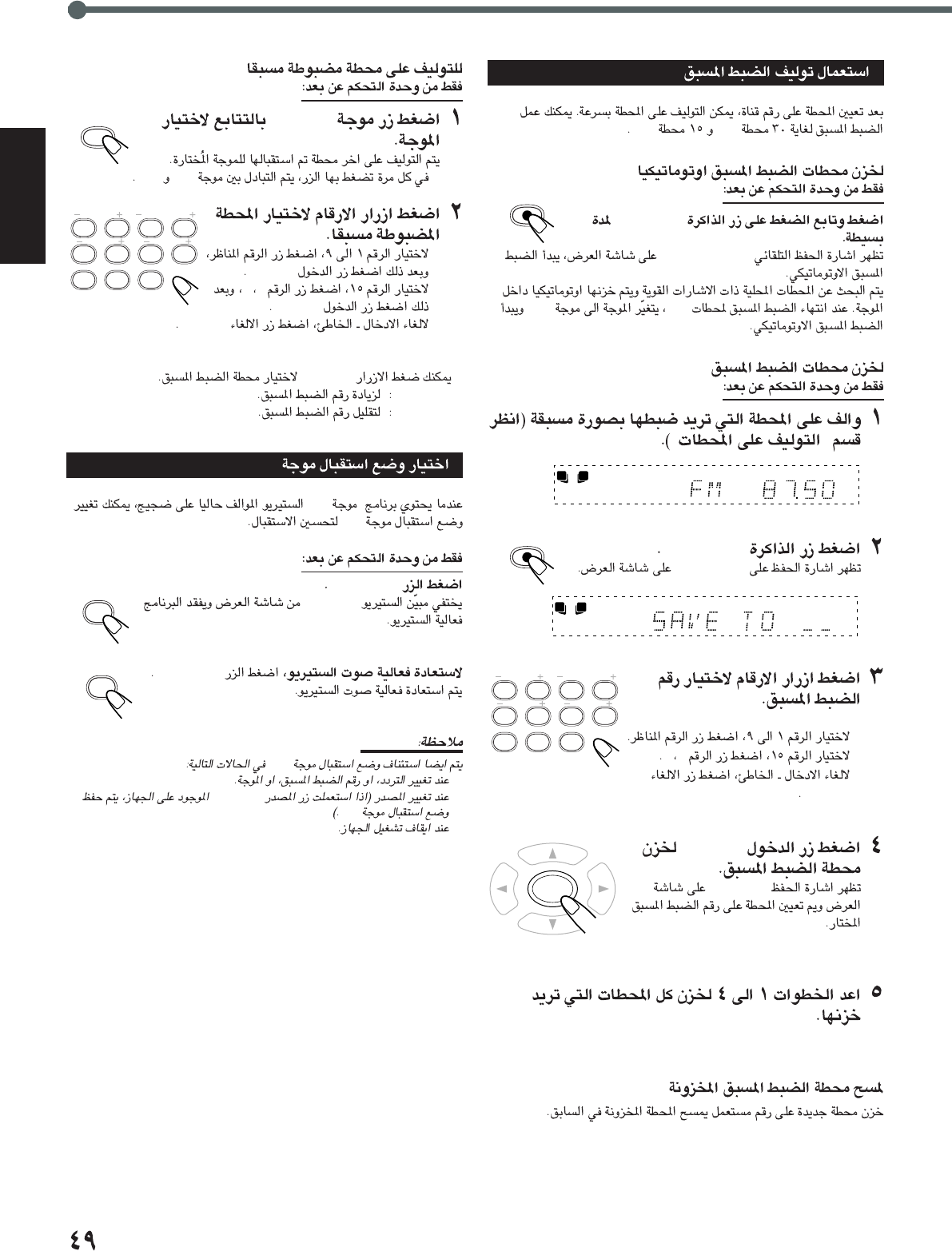

Using Preset Tuning

Once a station is assigned to a channel number, the station can be

quickly tuned. You can preset up to 30 FM and 15 AM stations.

To store the preset stations automatically

From the remote control ONLY:

Press and hold MEMORY for a while.

“AUTO SAVE” appears on the display, and automatic

preset starts.

Local stations with the strong signals are searched for and stored

automatically in the band. When FM preset is over, the band

changes to AM and automatic preset starts.

To store the preset stations

From the remote control ONLY:

Tune in the station you want to preset (see

“Tuning in Stations”).

Press MEMORY.

“SAVE TO” appears on the display.

Press the number button to

select a preset number.

•To select number 1 to 9, press the

corresponding number button.

•To select number 15, press 1, 5.

•To cancel a mis-entry, press CLEAR.

Press ENTER to store the

preset station.

“SAVED” appears on the display and the

station is assigned to the selected preset

number.

Repeat steps

until you store all the stations

you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored

one.

To tune in a preset station

From the remote control ONLY:

Press FM/AM repeatedly to select the

band.

The last received station of the selected band is

tuned in.

•Each time you press the button, the band alternates between

FM and AM.

Press the number button to

select a preset station.

•To select number 1 to 9, press the

corresponding number button, then

press ENTER.

•To select number 15, press 1, 5 then press ENTER.

•To cancel a mis-entry, press CLEAR.

•You can press ¡/1to select the preset station.

¡: Increases the preset number.

1: Decreases the preset number.

Selecting the FM Reception Mode

When a stereo FM program tuned currently is noisy, you can change

the FM reception mode to improve the reception.

From the remote control ONLY:

Press FM MODE.

The STEREO indicator goes off from the display and

the program loses the stereo effect.

To resume the stereo effect, press FM MODE again.

The stereo effect resumes.

Note:

The FM reception mode will also resumes in the following cases:

•When you change the frequency, the preset number, or the band

•When you change the source (If you use SOURCE button on the

unit, the FM reception mode is memoried.)

•When you turn off the system

MHz

TUNED

STEREO

REC/MEMORY

TUNED

STEREO

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

REC/MEMORY

FM/AM

FM MODE

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

EN48-49TH-A35[UG].pm6 03.5.19, 5:23 PM49

English

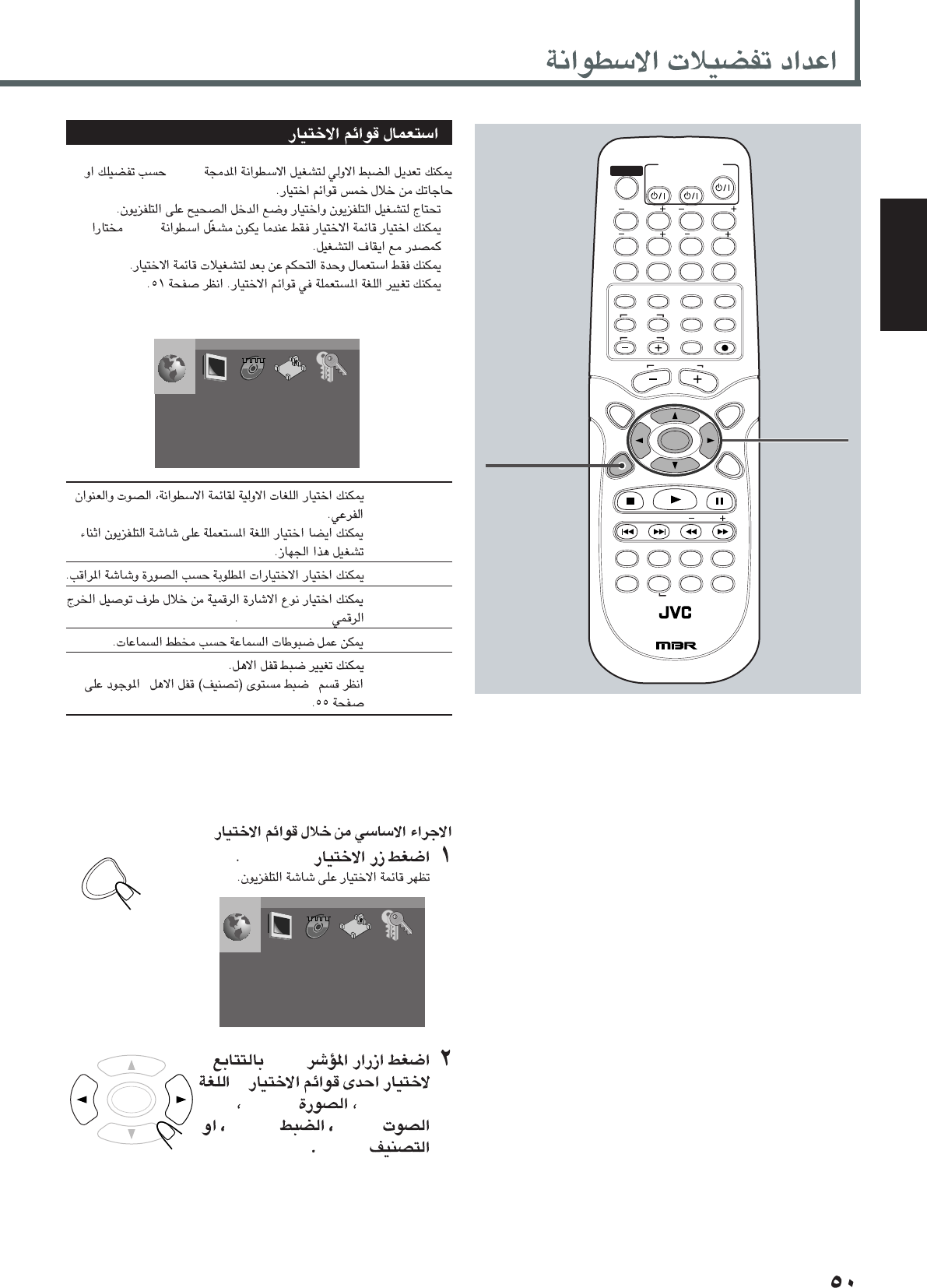

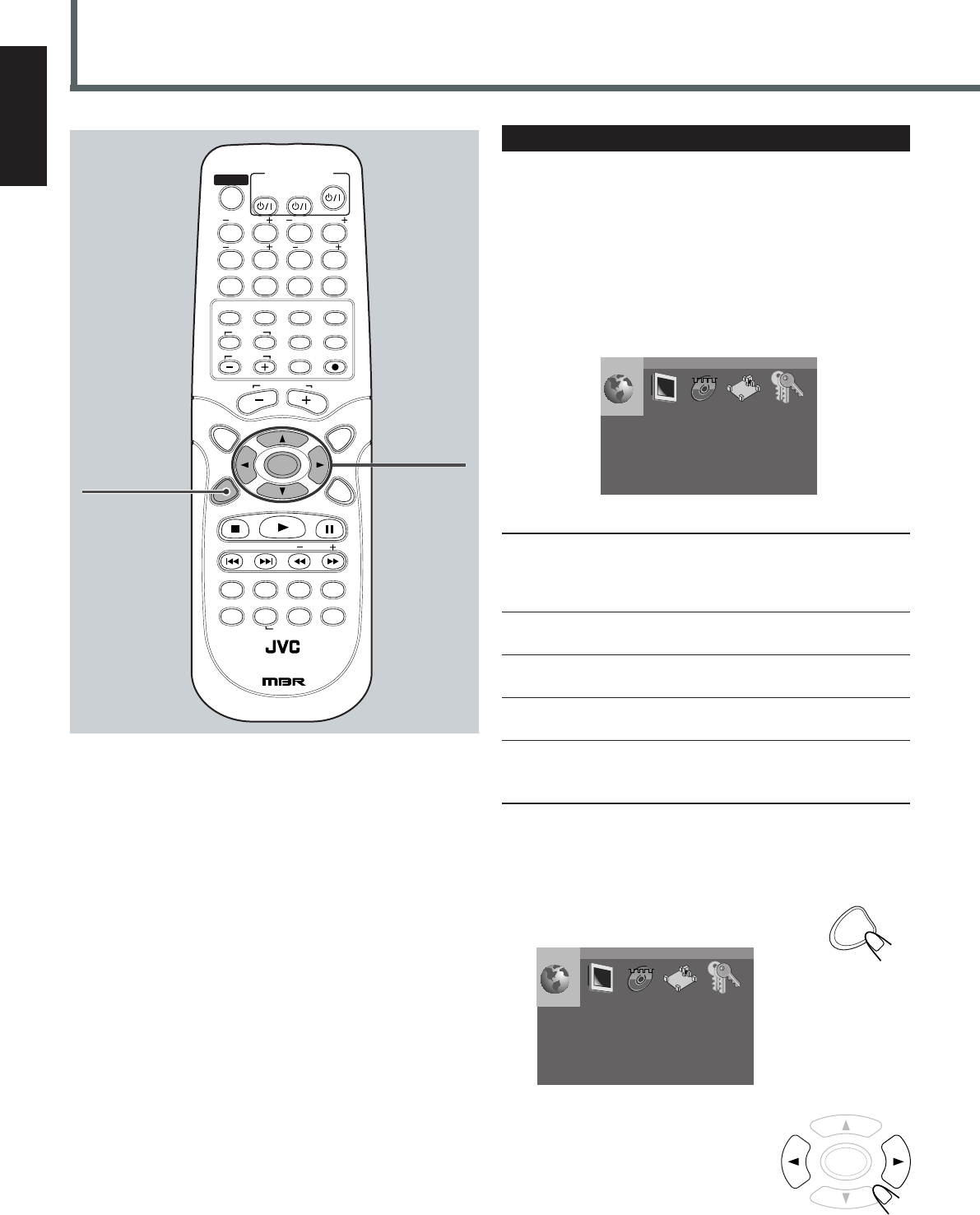

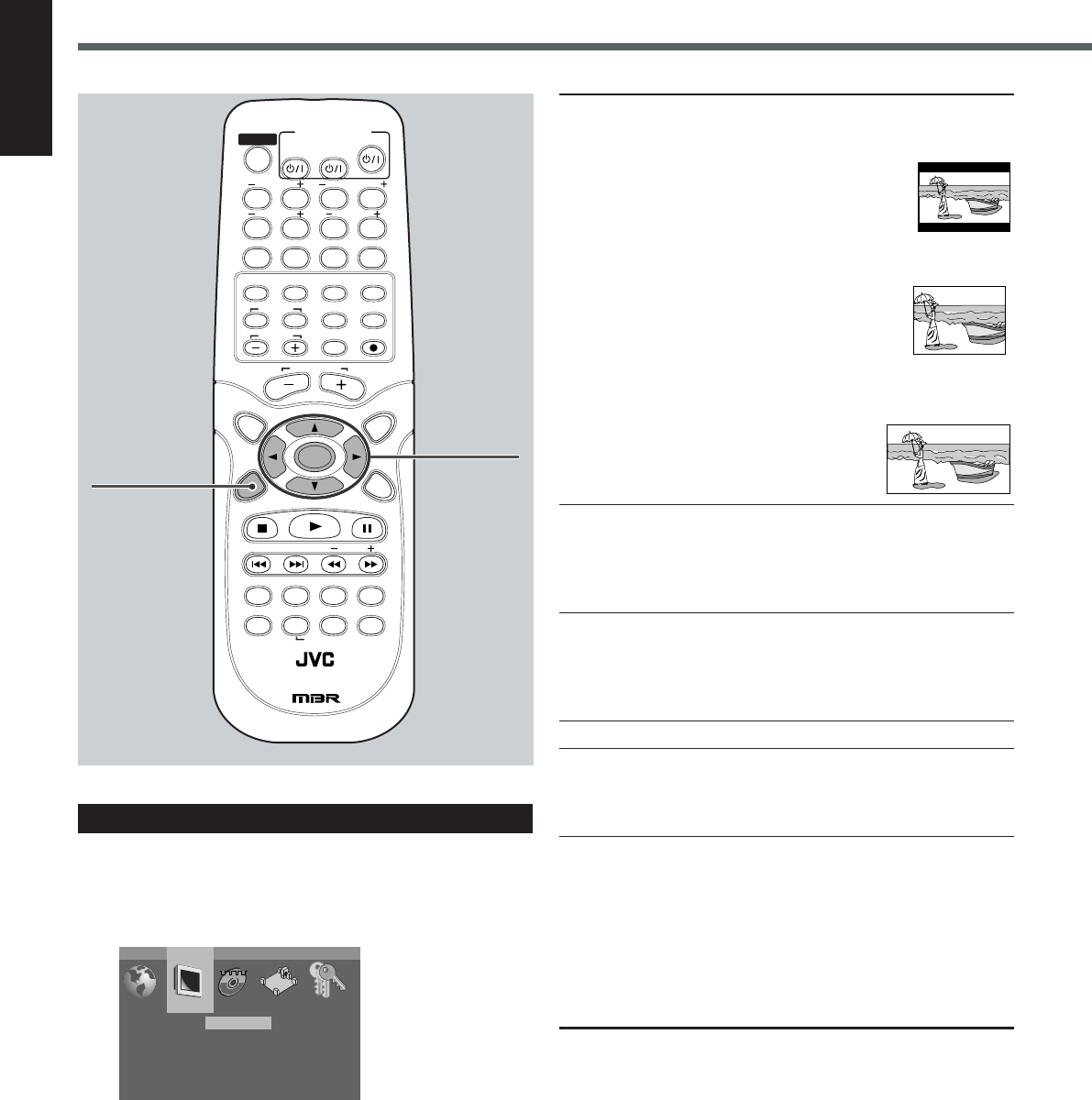

Using the Choice Menus

You can adjust the initial setting of DVD playback according to your

preference or needs through five choice menus.

•You need to turn on your TV and select the correct input mode on

the TV.

•You can select the choice menu only when DVD is selected as the

source and playback stops.

•You can only use the remote control for the choice menu operations.

•You can change the language used in the choice menus. See page

51.

Language: You can select the initial languages for the disc

menu, audio, and subtitle.

You can also select the language used on the TV

screen while operating this system.

Picture: You can select the desired options concerning a

picture or monitor screen.

Audio: You can select digital signal type through the

DIGITAL OUT terminal.

Setting: You can make the speaker settings according to the

layout of your speakers.

Rating: You can change the setting the parental lock.

See “Setting the Parental (Rating) Level” on page

55.

CHOICE

Basic procedure through the choice menus

Press CHOICE.

The choice menu appears on the TV.

Press cursor 3/2 repeatedly to

select one of the choice

menus—Language, Picture,

Audio, Setting, or Rating.

Language

Picture Audio Setting Rating

ENTER

Language

Picture Audio Setting Rating

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2/5/∞

ENTER

CHOICE

Setting up the DVD Preferences

EN50-55TH-A35[UG].pm6 03.5.19, 5:23 PM50

English

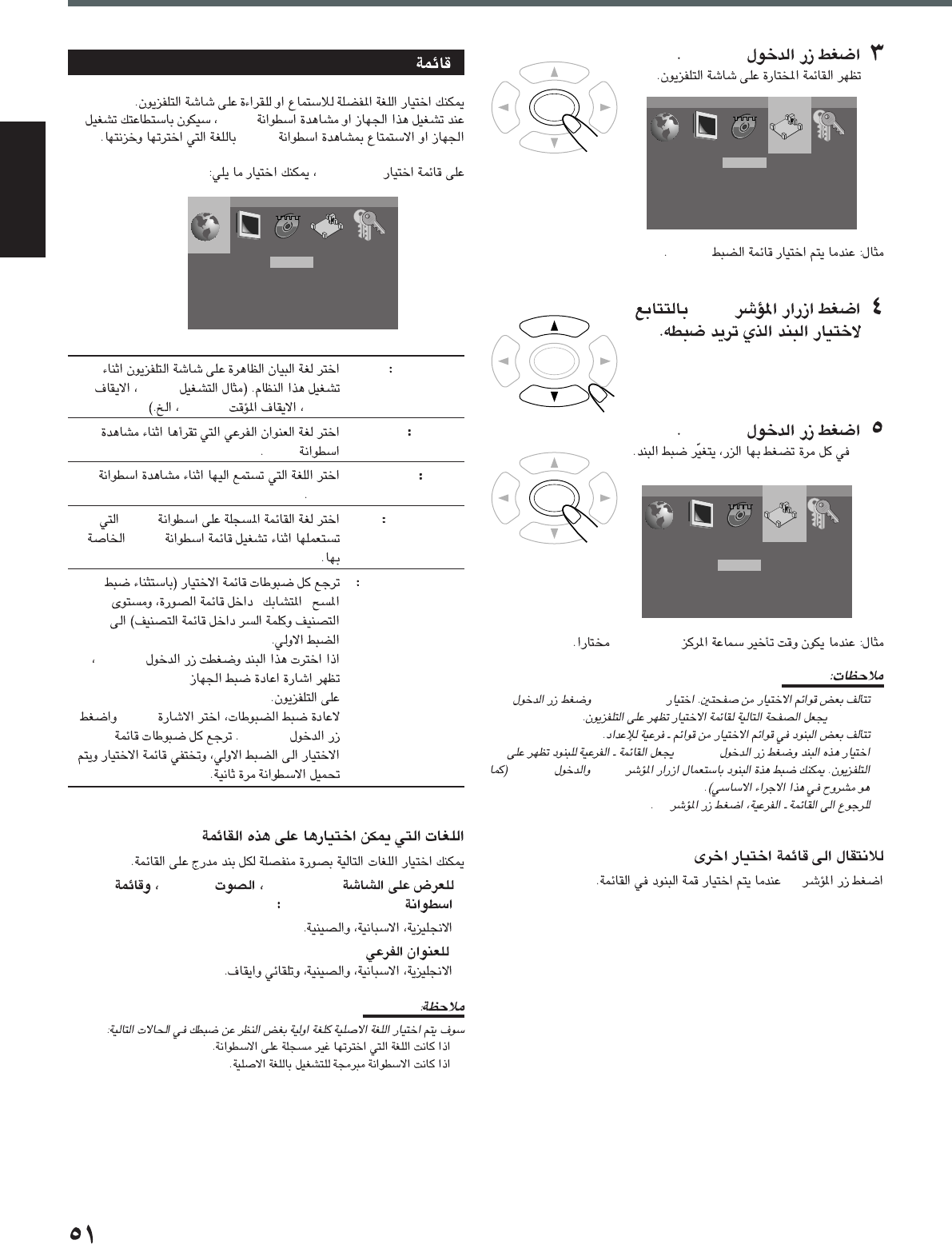

Language Menu

You can select your favorite language you listen to or read on the TV

screen.

When you operate this system or watch a DVD, you will be able to

operate the system or to enjoy a DVD in the language you have

selected and stored.

On the Language menu, you can select the following:

On Screen: Select the indication language shown on the

TV screen while operating the system. (ex.

PLAY, STOP, PAUSE, etc.)

Subtitle: Select the subtitle language you read while

watching a DVD.

Audio: Select the language you listen to while

watching a DVD.

DVD Menu: Select the menu language recorded on a DVD

which you use while operating the DVD’s own

menu.

Restore default: All choice menu settings (except for

“Interlace” setting in the Picture menu, Rating

level and the password in the Rating menu)

return to initial setting.

If you select this item and press ENTER,

“System Reset” appears on the TV.

To reset the settings, select “OK” and press

ENTER. All choice menu settings return to

initial setting, the choice menu disappears and

the disc is loaded again.

Languages you can select on this menu

You can select the following languages separately for each listed

item on the menu.

•For “On screen,”“Audio,” and “DVD Menu”:

English, Spanish, and Chinese.

•For “Subtitle” :

English, Spanish, Chinese, Auto and Off.

Note:

The original language will be selected as the initial language

regardless of your setting in the following cases:

•If the language you have selected is not recorded on the disc.

•If the disc is programmed to be played back in the original

language.

ENTER

Dynamic Range

C.Delay

S.Delay

Speaker Set

Off

2 ms

0 ms

LR C LS RS SW

Test Tone

Language

Picture Audio Setting Rating

Language

On Screen

Subtitle

Audio

DVD Menu

Restore default

English

Picture Audio Setting Rating

Press ENTER

The selected menu appears on the TV.

Example: When the Setting menu is selected.

Press cursor 5/∞ repeatedly to

select the item you want to set

up.

Press ENTER

•Each time you press the button, the

setting of the item changes.

Example: When the C.Delay is selected.

Notes:

•Some choice menus consist of two pages. Selecting “Next Page”

and pressing ENTER makes its next menu appear on the TV.

•Some items in the choice menus consist of sub-menus to set up.

Selecting them and pressing ENTER makes its sub-menu appear

on the TV. You can set them using cursor

∞

and ENTER (as

explained in this basic procedure).

To return from the sub-menu, cursor

To move to another choice menu

Press cursor 5 when the top of the items in the menu is selected.

ENTER

Dynamic Range

C.Delay

S.Delay

Speaker Set

Off

0 ms

LR C LS RS SW

Test Tone

Language

Picture Audio Setting Rating

EN50-55TH-A35[UG].pm6 03.5.19, 5:24 PM51

English

Picture Menu

You can select the desired options concerning a picture or monitor

screen.

On the Picture menu, you can set the following:

Language

Monitor type

TV System

Interlace

Progressive YP

4:3Letter Box

PAL

CVBS YUV

Picture Audio Setting Rating

Monitor Type: Select the TV screen size for playing back a

DVD recorded with 16:9 wide screen video

signal.

•4:3 Letter Box: Select “4:3 Letter Box” when

the aspect ratio of your TV is

4:3. While viewing a wide

screen picture, the black bars

appear on the top and the bottom of the

screen.

•4:3 Pan-Scan: Select “4:3 Pan-Scan” when

the aspect ratio of your TV is

4:3. While viewing a wide

screen picture, the black bars

do not appear, however, the left and right

edge sides of the pictures will not be shown

on the screen.

•16:9 Wide: Select “16:9 Wide” when

the aspect ratio of the TV

is 16:9. (Set the screen

size to full on your TV.)

TV System: Select the color system.

•NTSC: Select this when the color system of your TV

is NTSC.

•PAL: Select this when the color system of your TV

is PAL.

Interlace: Select the video signal type.

•CVBS S_Video: Select this when you use the S-Video cord to

connect a TV.

•CVBS YUV: Select this when you do not use the S-Video

cord to connect a TV.

Progressive: You cannot select this item.

TE Mode: You can select the TE (Transition Effect) mode.

•On: When the picture changes and appears on the

TV, the picture appears with transition effect.

•Off: The picture appears without effect.

Pause/Still: You can change this mode to get better pictures

when the picture is unclear or noisy.

Normally select “AUTO.” If the picture on a disc

is unclear or noisy, select “Frame” or “Field.”

•Frame: Select this when the small text or fine

patterns cannot be seen clearly.

•Field: Select this when the moving picture is noisy.

•Auto: Normally select this mode. The system

selects the appropriate mode automatically.

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2/5/∞

ENTER

CHOICE

Setting up the DVD Preferences

EN50-55TH-A35[UG].pm6 03.5.19, 5:24 PM52

English

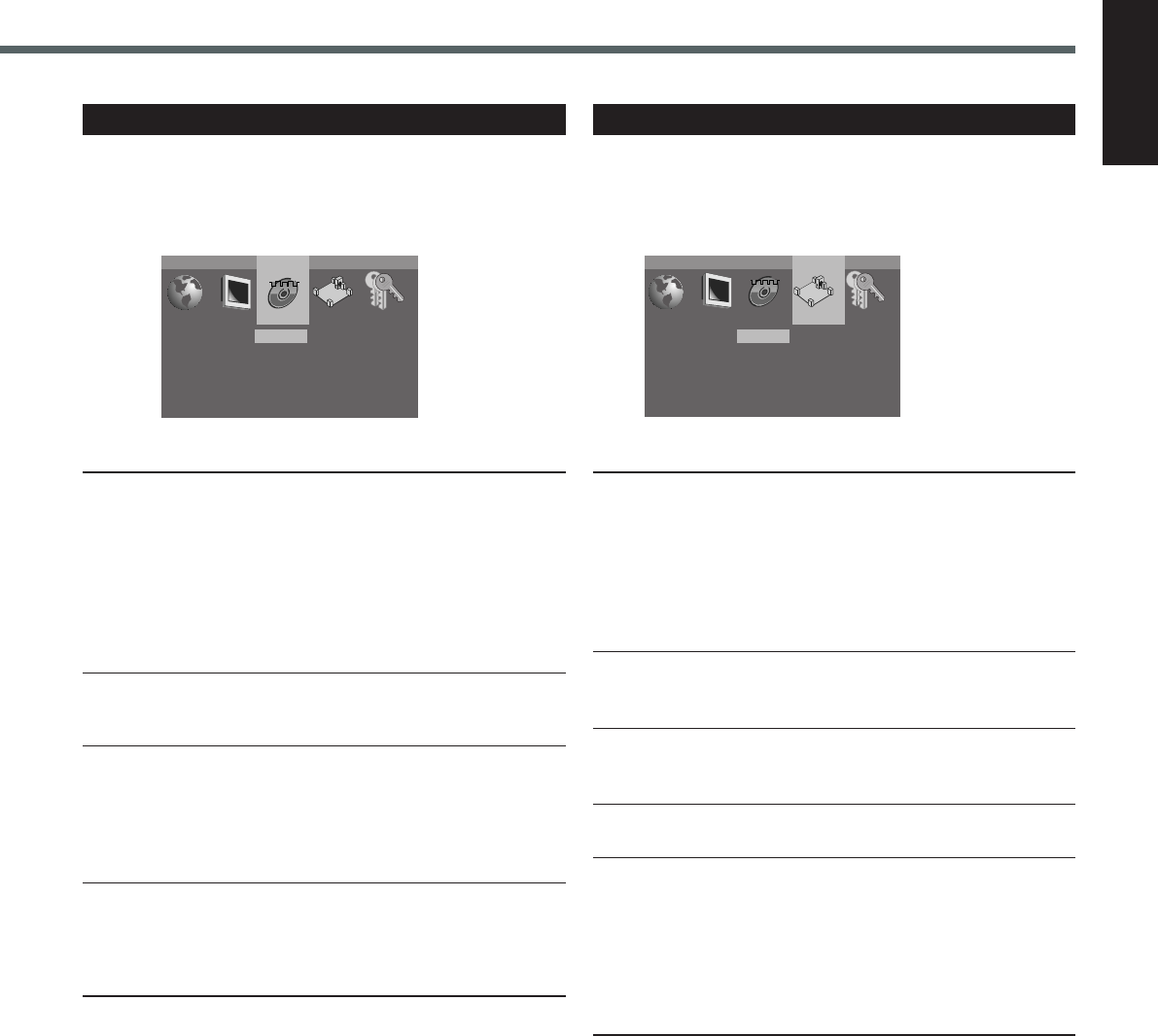

Audio Menu

You can select digital signal type through the DIGITAL OUT

terminal.

On the Audio menu, you can set the following:

D Digital

DTS

MP3

Off

Language

Picture Audio Setting Rating

Setting Menu

You can make the speaker settings according to the size and layout

of your speakers.

On the Setting menu, you can set the following:

Dynamic Range:You can enjoy a powerful sound at night even at

a low volume level when listening to the sound

with Dolby Digital.

•On: Select this when you want to apply the

compression effect fully (useful at midnight.)

•Off: Select this when you want to enjoy surround

with its full dynamic range (no effect

applied.)

C.Delay: To register delay time for center speaker—from

0 msec to 5 msec. See “Setting the delay time”

on the next page.

R.Delay: To register delay time for rear speakers—from 0

msec to 15 msec. See “Setting the delay time”

on the next page.

Speaker Set: Enters Speaker setting sub-menu. See “Speaker

setting” on the next page.

Test Tone: The test tone menu appears on the TV and the

test tone comes out from the speakers in the

order. See “Adjusting the Sound” on page 23.

• If a disc is not loaded, the test tone does not

come out.

• If there is a speaker from which no sounds

comes out, check the speaker’s connection (see

pages 6 and 7.)

Dynamic Range

C.Delay

S.Delay

Speaker Set

Off

0 ms

LR C LS RS SW

Test Tone

Language

Picture Audio Setting Rating

D Digital / DTS:

•PCM: Select this when you connect to the DIGITAL

OUT terminal to the linear PCM digital input

of other audio equipment.

•STREAM: Select this when you connect to the digital

input of an amplifier to a built-in Dolby

Digital or DTS multichannel decoder.

•Off: Do not out signals in DIGITAL OUT

terminal.

MP3:

•Off: Do not out signals in DIGITAL OUT

terminal.

CD / PCM:

•PCM: Select this when you connect to the DIGITAL

OUT terminal to the linear PCM digital input

of other audio equipment.

•Off: Do not out signals in DIGITAL OUT

terminal.

DownSampling:

•On: Select this when you need to downsample the

digital output signal.

•Off: Select this when you do not need to

downsample the digital output signal.

EN50-55TH-A35[UG].pm6 03.5.19, 5:24 PM53

English

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

3/2/5/∞

ENTER

CHOICE

Setting up the DVD Preferences

Number

buttons

7Setting the delay time

Adjust the delay time of the sounds from the center speaker and the

rear speakers, comparing to that of the sounds from the front

speakers. If the distance to the center speaker and/or the rear

speakers from your listening point is almost the same as from the

front speakers, select “0 ms (msec).”

2.1 m

2.4 m

2.7 m

3.0 m

Left front

speaker Right front

speaker

Subwoofer

Center speaker

Left rear

speaker Right rear

speaker

Ex. : In this case, set C.Delay to “1 ms” and R.Delay to

“3 ms”

1 msec increase in delay time corresponds to 30 cm

increase in distance.

7Speaker setting

Subwoofer

Surround

Center

Front Speaker

Small

Return

Language

Picture Audio Setting Rating

Subwoofer: You cannot select this item.

Surround / Center / Front Speaker:

Select the speaker setting according to the layout

of your speakers. (You cannot select “Off” for

the front speakers.)

•Small: Select this when the cone speaker unit built in

the speaker is smaller than 12 cm. (Select this

when using the supplied speakers. )

•Off: Select this when the center speaker and/or

rear speakers are not connected or not in use.

If you want to enjoy monaural source with

the front speakers, select “Off” for the center

speaker.

Return: Return to the Setting menu.

EN50-55TH-A35[UG].pm6 03.5.19, 5:24 PM54

English

ENTER

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Password

Rating 1. Kid Safe

****

Language

Picture Audio Setting Rating

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

7 To release the parental lock temporarily

When you set a strict parental level, some discs may not be played

back at all.

If you try to playback such a disc, you need to input the password to

release parental lock temporarily (“Password – – – –” and ”Parental

Locked” appear on the TV.) You cannot play the disc before you

enter the correct password.

When you enter wrong passwords more than three times, “Parental

Lock” appears on the TV and playback stops.

Press cursor ∞ to select

“Rating.”

•If you do not release the parental lock (“ ” appears on the

TV), cannot select “Rating.”

Press ENTER repeatedly to

select the level you want.

•Each time you press the button, the

parental (rating) level changes.

Press cursor 5 to select

“Password”, then press the

number buttons to enter the

password (4 digits) and

ENTER.

“ ” changes to “ ” on the menu,

and the parental level changes.

7To change the password

Repeat steps

of “Setting

the Parental (Rating) Level”

procedure.

Press the number buttons to

enter a new password (4 digits),

then ENTER.

“ ” changes to “ ” on the menu.

Your new password is now stored.

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

Setting the Parental (Rating) Level

Using this function, you can restrict playback of DVD containing

violent scenes and those not suitable for your family members.

Nobody can play such a disc unless this function is canceled (See

“To release the parental lock temporarily” below.)

•This setting takes effect only for the DVDs containing the rating

level information—“1. Kid Safe” (most restrictive) to “8. Adult”

(least restrictive).

From the remote control ONLY:

Press CHOICE.

The choice menu appears on the TV.

Press cursor 3 repeatedly to

select “Rating.”

Press ENTER.

The Rating menu appears on the TV.

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Press the number buttons to

enter the password (4 digits),

then ENTER.

“ ” changes to “ ” on the menu.

•If you forget your password, enter

“1987”

ENTER

CHOICE

ENTER

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Password

Rating 1. Kid Safe

****

Language

Picture Audio Setting Rating

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

EN50-55TH-A35[UG].pm6 03.5.19, 5:24 PM55

English

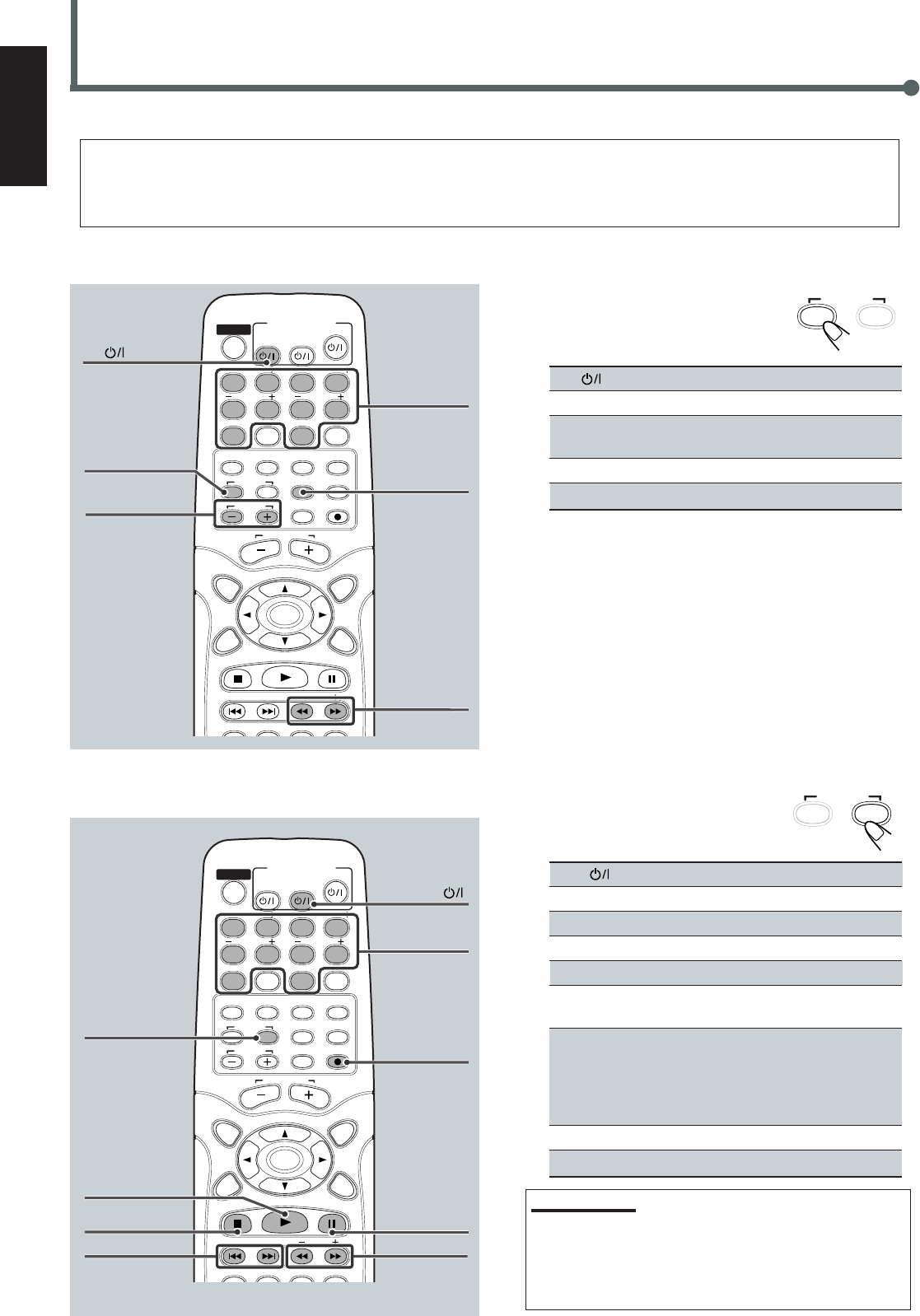

❏To operate a JVC’s VCR

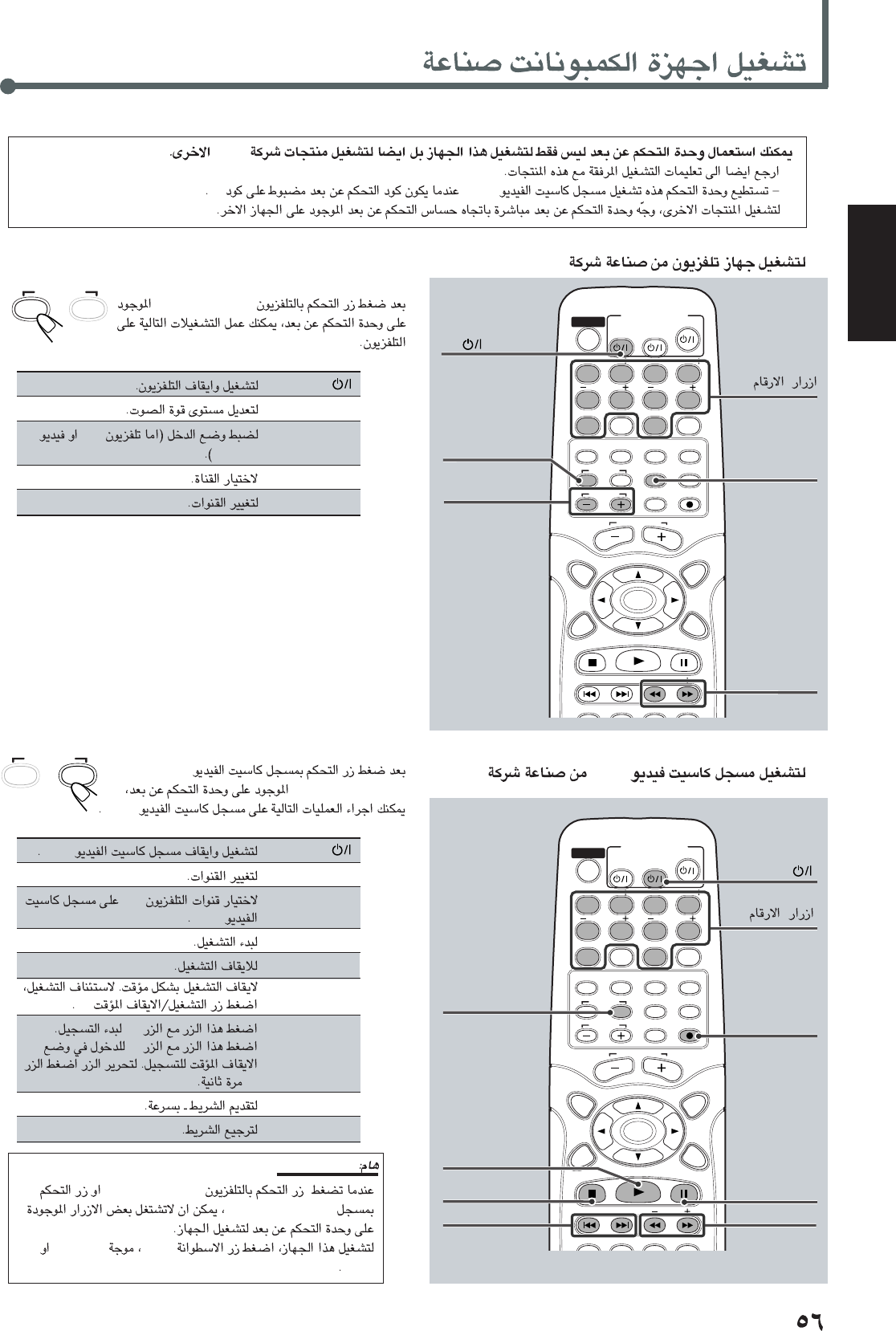

Operating JVC’s Components

You can use the remote control to operate not only this unit but also other JVC products.

•Refer also to the manuals supplied for the other products.

–This remote control can operate a VCR whose remote control code is set to A code.

•To operate the other products, aim the remote control directly at the remote sensor on the target product.

After pressing CONTROL TV on the

remote control, you can perform the

following operations on the TV.

TV : Turn on or off the TV.

TV VOL +/–: Adjust the volume.

TV/VIDEO: Set the input mode (either TV or

VIDEO).

1 – 9, 0: Select the channel.

1/ ¡: Change the channels.

After pressing CONTROL VCR on the

remote control, you can perform the

following operations on the VCR.

VCR : Turn on or off the VCR.

1/ ¡: Change the channels.

1 – 9, 0: Select TV channel on the VCR.

3: Start playback.

7: Stop operation.

8: Pause playback. To release it,

press 3.

REC(¶): Press this button with 3 to start

recording.

Press this button and 8, to enter

recording pause. To release it,

Press 8.

¢: Fast-wind a tape.

4: Rewind a tape.

IMPORTANT:

When you press CONTROL TV or CONTROL VCR, some

buttons on the remote control cannot work for operating the

system.

To operate the system, press DVD, FM/AM or AUX .

CONTROL

VCR

CONTROL

VCR

TV/VIDEO

Number

buttons

CONTROL TV

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

TV VOL +/–

1/ ¡

VCR

REC

CONTROL VCR

Number

buttons

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

VCR

PROGRESSIVE

1/ ¡

4/ ¢

❏To operate a JVC’s TV

EN56-60TH-A35[UG].pm6 03.5.19, 5:24 PM56

English

❏To change the transmittable signals for operating a

1. Press CONTROL TV.

2. Press and hold TV .

3. Enter manufacturer’s code using buttons 1–9, and 0.

4. Press 7.

5. Release TV .

Now, you can perform the following operations on the TV.

TV : Turn on or off the TV.

TV VOL +/–: Adjust the volume.

TV/VIDEO: Set the input mode (either TV or

VIDEO)

1 – 9, 0: Select the channel.

1/ ¡: Change the channels.

6. Try to operate your TV by pressing TV .

When your TV turns on or off, you have entered the correct

code.

If there are more than one code listed for your brand of TV,

try each one until the correct one is entered.

Manufacturers’ codes are subject to change without notice. If

they are changed, this remote control cannot operate the

equipment.

Manufacturer Codes

JVC 01, 23, 24, 25

FUNAI 32

GRUNDIG 19

HITACHI 10

(GOLDSTAR)

MAGNAVOX 02

MITSUBISHI 03

NEC 20

NOKIA 31

PANASONIC 04, 11

PHILIPS 02

RCA 05

SAMSUNG 12, 33, 34, 35

SANYO 13, 16

SHARP 06

SONY 07

THOMSON 26

TOSHIBA 08, 14

ZENITH 09

Manufacturers’ codes for TV

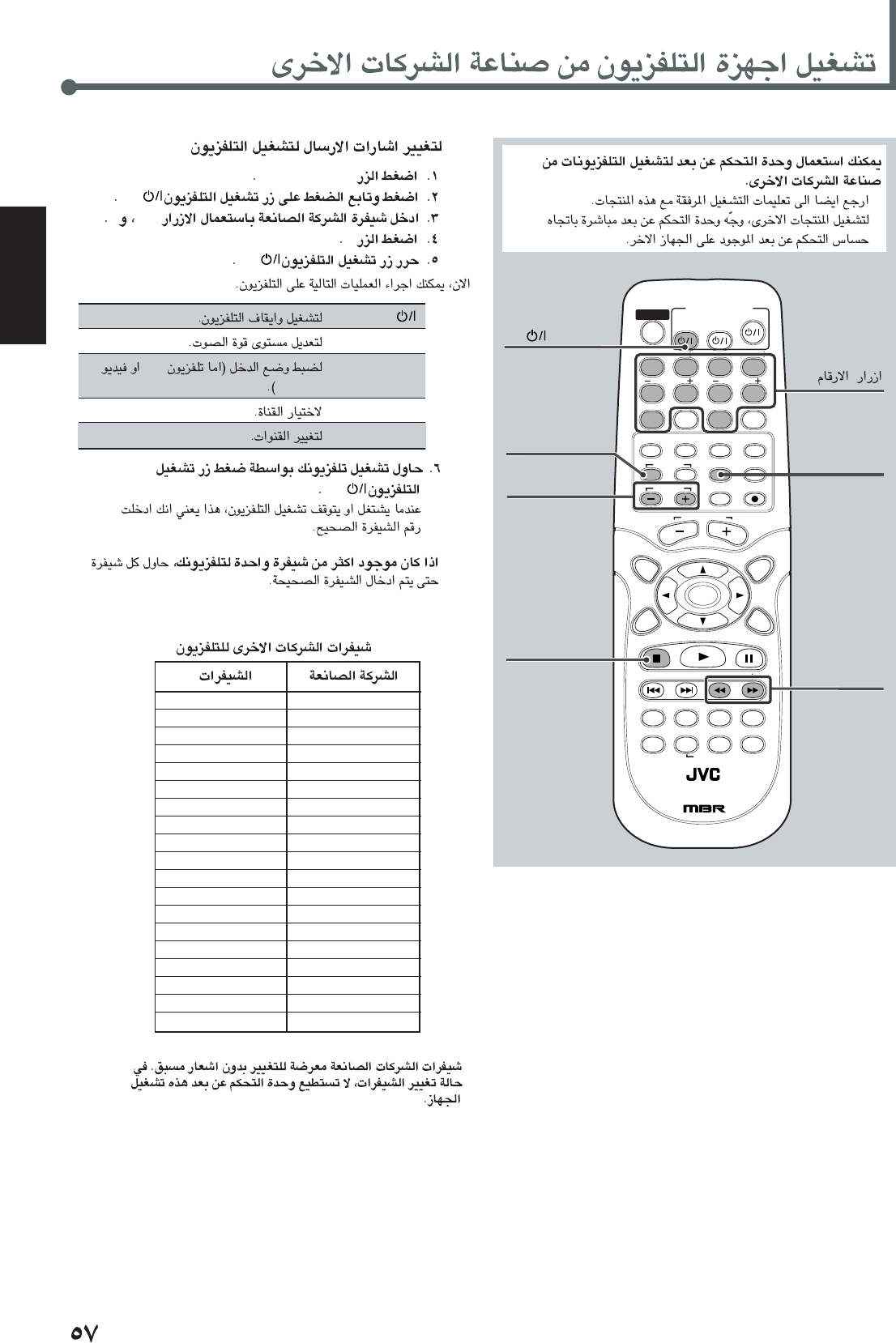

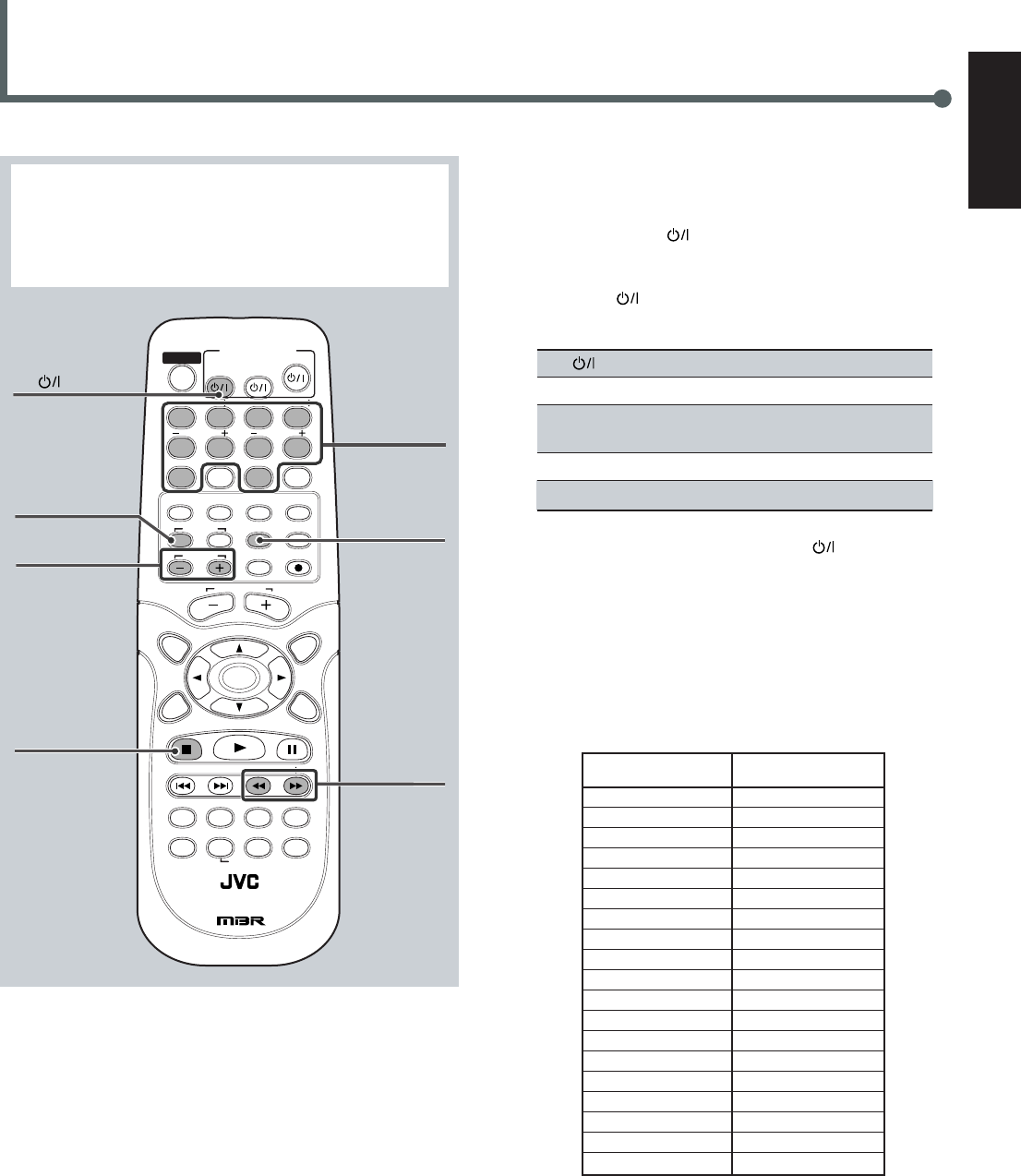

Operating Other Manufacturers’ TV

You can use the remote control to operate other

manufactures’ TV.

•Refer also to the manuals supplied for the other products.

•To operate the other products, aim the remote control

directly at the remote sensor on the target product.

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

TV/VIDEO

Number

buttons

CONTROL TV

TV VOL +/–

1/ ¡

EN56-60TH-A35[UG].pm6 03.5.19, 5:24 PM57

English

To get the best performance of the unit, keep your discs and

mechanism clean.

General Notes

In general, you will have the best performance by keeping your

discs, and the mechanism clean.

•Store discs in their cases, and keep them in cabinets or on shelves.

•Keep the disc tray closed when not in use.

Handling Discs

•Remove the disc from its case by

holding it at the edge while

pressing the center hole lightly.

•Do not touch the shiny surface of

the disc, or bend the disc.

•Put the disc back in its case after

use to prevent warping.

•Be careful not to scratch the

surface of the disc when placing it

back in its case.

•Avoid exposure to direct sunlight,

temperature extremes, and

moisture.

To clean the disc

Wipe the disc with a soft cloth in a

straight line from center to edge.

Maintenance

Cleaning the unit

•Stains on the unit

Should be wiped off with a soft cloth. If the unit is heavily stained,

wipe it with a cloth soaked in water-diluted neutral detergent and

wrung well, then wipe clean with a dry cloth.

•Since the unit may deteriorate in quality, become damaged or

get its paint peeled off, be careful about the following.

—DO NOT wipe it with a hard cloth.

—DO NOT wipe it strong.

—DO NOT wipe it with thinner or benzine.

—DO NOT apply any volatile substance such as insecticides to

it.

—DO NOT allow any rubber or plastic to remain in contact with

it for a long time.

DO NOT use any solvent—such as conventional record

cleaner, spray, thinner, or benzine—to clean the disc.

EN56-60TH-A35[UG].pm6 03.5.19, 5:24 PM58

English

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC service center.

PROBLEM

Power does not come on.

The remote control does not work.

No sound.

Sound is emitted from only one speaker.

No video.

A disc cannot be played.

“Error” appears on the TV screen.

Video and audio are distorted.

The moving picture is noisy.

The edge is missing on the video image.

No picture is displayed on the TV screen, the

picture is blurred, or the picture is divided

into two parts.

Continuous static during FM broadcasts.

The system does not work correctly.

The VCR cannot be operated using this

remote control.

POSSIBLE CAUSE

The power cord is not plugged in.

•It is too far from the center unit, or is not

facing the center unit.

•There is something obstructing the remote

sensor.

•The CONTROL VCR or CONTROL TV

button has been pressed.

•The battery is flat.

•The battery has been inserted the wrong

way round (+/–).

•Sunlight is falling directly on the detector.

•There is a short in the speaker cord.

•The audio cord is not connected properly.

•An incorrect source has been selected.

•Muting is on.

•The disc is copy–protected CD.

•The speaker cord is not connected correctly.

•The video cord is not connected properly.

•TV input selection is incorrect.

•The system and disc region code numbers

are incompatible.

•The disc causes the parental (rating) error.

•The CD-R/RW is not recorded in the audio

CD format, MP3 format, or JPEG format.

•The disc is dirty.

•A VCR is connected between the center unit

and the TV.

•“Pause/Still” mode may not be set

appropriately for the current disc.

•Initial setup (Monitor Type) was incorrect.

•The scanning mode is set to “P-SCAN”

though the system is connected to the TV

which does not support the progressive

video input such a conventional TV.

•The received signal is too weak.

•The station is too far away.

•The antenna is not connected correctly.

•Lightning or electronic noise interferes with

operation of the microcomputer.

•Immediately after beginning to heat the

room, the unit was moved to a cold location

causing condensation to form inside.

•The remote control is not set for VCR

operations.

•The VCR is not a JVC’s product.

SOLUTION

Insert the plug into the socket.

•Come close to the center unit.

•Avoid any obstacles.

•Press DVD, FM/AM or AUX to operate

the system. (See page 56)

•Replace the battery.

•Insert the battery correctly.

•Shade the remote control from direct

sunlight.

•Reconnect the speaker cord.

•Connect the cord properly. (See page 8.)

•Select the correct source. (See pages 12 to

18.)

•Press MUTING to cancel muting.

•Replace the disc.

•Connect the cord properly. (See page 7.)

•Connect the cord properly. (See page 9.)

•Select the correct input.

•Replace the disc. (See page 24.)

•Enter password to change the parental

(rating) level. (See page 55.)

•Replace the disc.

•Clean the disc.

•Connect the center unit and TV directly.

•Select “Field” on “Pause/Still” mode.

(See page 52.)

•Set Monitor Type correctly.

(See page 52.)

•Change the scanning mode to

“INTERLACE.” (See page 11.)

•Connect an external FM antenna (see page 5),

or contact your dealer.

•Select another station.

•Check the connection. (See page 5.)

•Switch power off, and remove and re-insert

the power plug in the socket.

•Switch power off and leave the unit a few

hours before switching power on again.

•Press CONTROL VCR to operate the VCR.

(See page 56.)

•This remote control can operate a JVC’s

VCR whose remote control code is set to A

code.

EN56-60TH-A35[UG].pm6 03.5.19, 5:24 PM59

English

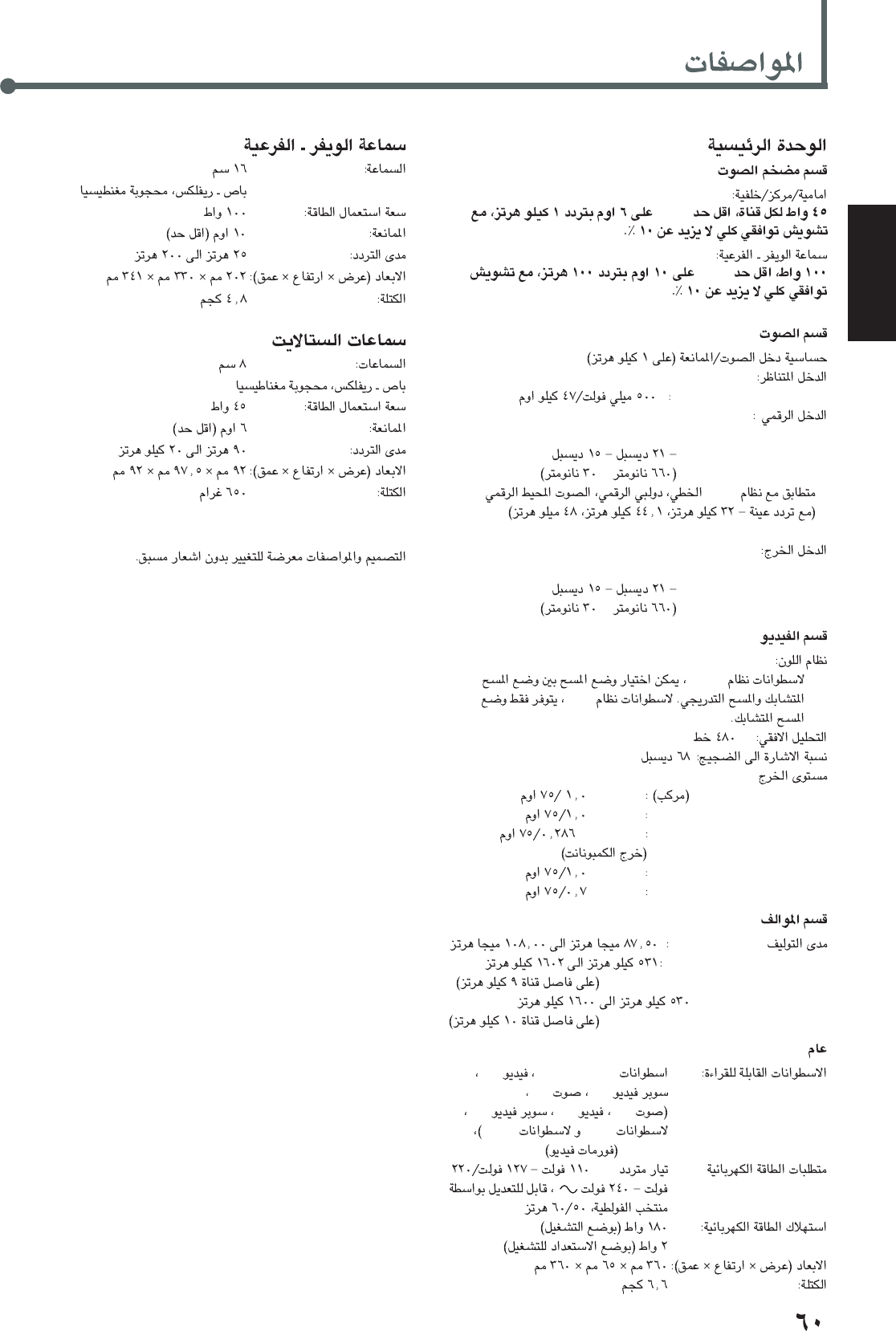

Specifications

Center unit (XV-THA35)

Amplifier section

Front/Center/Rear:

45 watts per channel, min. RMS at 6 ohms as 1 kHz,

with no more than 10 % total harmonic distortion.

Subwoofer:

100 watts, min. RMS at 10 ohms as 100 Hz,

with no more than 10 % total harmonic distortion.

Audio section

Audio input sensitivity/Impedance (at 1 kHz)

Analog input:

AUX (“AUX IN”): 500 mV/47 kΩ

Digital input*:

DIGITAL IN (OPTICAL):

–21 dBm to –15 dBm (660 nm ±30 nm)

* Corresponding to Linear PCM, Dolby Digital, and DTS Digital

Surround (with sampling frequency — 32 kHz,

44.1 kHz, 48 kHz)

Digital output:

DIGITAL OUT (OPTICAL):

–21 dBm to –15 dBm (660 nm ±30 nm)

Video section

Color System: NTSC/PAL

For NTSC discs, the scanning mode can be selected between

interlaced scanning and progressive scanning. For PAL discs,

only interlaced scanning mode is available.

Horizontal Resolution: 480 lines

Signal-to-Noise Ratio: 68 dB

Output Level

VIDEO(Composite): 1.0 V(p-p)/75 Ω

S-VIDEO(Y): 1.0 V(p-p)/75 Ω

(C): 0.286 V(p-p)/75 Ω

COMPONENT VIDEO OUT

Y: 1.0 V(p-p)/75 Ω

PB/PR: 0.7 V(p-p)/75 Ω

Tuner section

Tuning Range FM : 87.50 MHz – 108.00 MHz

AM : 531 kHz – 1 602 kHz

(at 9 kHz intervals)

530 kHz – 1 600 kHz

(at 10 kHz intervals)

General

Readable Discs: DVD VIDEO, Video CD,

Super Video CD, Audio CD,

CD–R/RW (Audio CD, Video CD,

Super Video CD, MP3 disc, and

JPEG disc), DVD–R (Video format)

Power Requirements: AC 110 V – 127 V/220 V – 240 V ,

adjustable with the voltage selector,

50 Hz/60 Hz

Power Consumption: 180 W (at operation)

2 W (in standby mode)

Dimensions (W × H × D): 360 mm × 65 mm × 360 mm

Mass: 6.6 kg

Subwoofer (SP-WA35)

Speaker: 16 cm

Bass-reflex, Magnetically Shielded

Power Handling Capacity: 100 W

Impedance: 10 Ω (min)

Frequency Range: 25 Hz to 200 Hz

Dimensions (W × H × D): 202 mm × 330 mm × 341 mm

Mass: 4.8 kg

Satellite Speakers (SP-THA35F)

Speakers: 8 cm

Bass-reflex, Magnetically Shielded

Power Handling Capacity: 45 W

Impedance: 6 Ω (min)

Frequency Range: 90 Hz to 20 kHz

Dimensions (W × H × D): 92 mm × 97.5 mm × 92 mm

Mass: 650 g

Designs & specifications are subject to change without notice.

EN56-60TH-A35[UG].pm6 03.5.22, 9:20 AM60

wÐdŽwÐdŽ

wÐdŽ

FMAM

DVD

DSP

VCD/CD

DSP

DTS

DSP

—DVD/VCD/CD

DVD

A-B

—

DVD

VCD/CD

VCD

A-B

VCD.................................

MP3

—

JPEG

—

DVD

Language...........................................................................

Picture...............................................................................

Audio.................................................................................

Setting...............................................................................

JVC

AR01-05/TH-A35.p65 26/5/03, 5:49 PM1

wÐdŽwÐdŽ

wÐdŽ

PROG

•REPEAT1AB

•

DIGITAL PRO LOGIC IIDTS

STEREO

•MHzFMkHzAM

STANDBY/ON

STANDBY

VOLUME

PHONES

•

DVD

3/874¢

•3/8

DVD

SOURCE

SURROUND

DSP

•

P-SCAN

•DVDCDVCDMP3

•

TITLE

TRK

TUNED

CHP

VOLUME

DSPSURROUNDSOURCE

STANDBY

STANDBY/ON

DVD DIGITAL CINEMA SYSTEM

PHONES

REPEAT 1

MHz

A–BPROGCHPTUNEDTRKTITLE

P–SCAN

ProLogic II

DIGITAL

VCDSTEREO MP3

LS S

AR01-05/TH-A35.p65 23/5/03, 2:53 PM2

wÐdŽwÐdŽ

wÐdŽ

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

1234

5678

VCR

ENTER

STANDBY/ON

VCR

AUDIO

SOUND

CLEAR

CENTER

SUBWOOFER

REAR-L

REAR-R

TEST

SETTING

DVDFM/AMAUX

CONTROL

TV CONTROL

VCR CONTROL

TV VOL +

AUDIO VOL +

TOP MENU

325∞

ENTER

CHOICE

738

4¢

TUNING UPDOWN

AUDIO

SUB TITLE

RETURN

DIMMER

SLEEP

FM MODE

PROGRESSIVE

TV/VIDEO

REC/MEMORY

MUTING

ON SCREEN

¡1

SLOW

ZOOM

ANGLE

SURROUND

DSP

AR01-05/TH-A35.p65 23/5/03, 2:53 PM3

wÐdŽwÐdŽ

wÐdŽ

•

R6P(SUM-3)/AA(15F).

•

FM/AM

•

•AM

•FM

•

•AC

•

AR01-05/TH-A35.p65 23/5/03, 2:53 PM4

wÐdŽwÐdŽ

wÐdŽ

AC IN

SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

VIDEO

S-VIDEO

CONPONENT VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

DIGITAL

OUT AUX

OPTICAL

FMAM

AMAM

LOOP

AM EXT

•

EXTAMAM

FM 75 ΩCOAXIAL

•

AR01-05/TH-A35.p65 23/5/03, 2:53 PM5

wÐdŽwÐdŽ

wÐdŽ

COMPACT

SUPER VIDEO

DIGITAL

SURROUND

DIGITAL•EX

PRO LOGIC

VOLUME

PHONES

DSPSURROUNDSOURCE

STANDBY

STANDBY/ON

DVD DIGITAL CINEMA SYSTEM TH-A35

AC IN

SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

CAUTION

SPEAKER IMPEDANCE

6-8 OHMS

CAUTION

SUBWOOFER IMPEDANCE

10 OHMS

AR06-09/TH-A35.p65 23/5/03, 2:52 PM6

wÐdŽwÐdŽ

wÐdŽ

•

SPEAKER IMPEDANCE

•

”Setting “

•

AR06-09/TH-A35.p65 23/5/03, 2:52 PM7

wÐdŽwÐdŽ

wÐdŽ

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

BPR

EXT

VIDEO

S-VIDEO

DIGITAL

OUT AUX

OPTICAL

CONPONENT VIDEO OUT

OUT

LEFT

RIGHT

AUDIO

DIGITAL

OPTICAL OUT

DIGITAL

ANALOG

DIGITAL

OPTICAL IN

DIGITAL

OUT

DBS

OPTICAL DIGITAL OUT

”Audio“

DBS

AR06-09/TH-A35.p65 23/5/03, 2:52 PM8

wÐdŽwÐdŽ

wÐdŽ

AC IN

SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

VIDEO

S-VIDEO

CONPONENT VIDEO OUT

PR/CR

PB/CB

CONPONENT VIDEO OUT

VIDEO OUT

VIDEO

S-VIDEO

DIGITAL

OUT

OPTICAL

AUX

S-video

—

•S-videoY/C

(Y, PR, PB)S-video

—

S-video

•S-video

”Picture“

•

•VCRVCR

•ACACAC

AR06-09/TH-A35.p65 23/5/03, 2:52 PM9

wÐdŽwÐdŽ

wÐdŽ

PALNTSC

DVDCD

SVCD

DVD

REC/MEMORY

ENTER

•

“NTSC”

“PAL”

NTSCNTSC

PALPAL

”Picture“

(480p*)

(480i*)

•

(P-SCAN MODE)

*480p480i

•480p

•480i

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2/5/∞

ENTER

DVD PROGRESSIVE

CHOICE

REC/MEMORY

ENTER

REC/MEMORY

DVD

AR10-15/TH-A35.p65 23/5/03, 2:51 PM10

wÐdŽwÐdŽ

wÐdŽ

”“

DVD

(NTSC)

DVD

PROGRESSIVE

•

“INTERLACE”

“P-SCAN”

INTERLACE

P-SCAN

“P-SCAN”P-SCAN

•

PROGRESSIVE

•

DVD

“INTERLACE”

JVC

•

JVC

DVD

5¥∞

•

) Brightness (

) Edges (

) Color (

Contrast)(

3¥2

CHOICE

Video Enhance

Brightness

Edges

Color

Contrast

CHOICE

ENTER

CHOICE

PROGRESSIVE

AR10-15/TH-A35.p65 23/5/03, 2:51 PM11

wÐdŽwÐdŽ

wÐdŽ

DVD

•

“READING”

•

AUDIO VOL +

AUDIO VOL

VOLUME

•AUDIO VOL

•”MIN“.

”MAX“

•

”“

•JVC

TV/VIDEO

JVC”

“

•OSD

”Language“

AUDIOSTANDBY/ON

STANDBY

•DVD

DSP

MUTING

DVD

TV/VIDEO

SURROUND

AUDIO

AUDIO VOL +/

AUDIO VOL

VOLUME

DVD

AUDIO

AR10-15/TH-A35.p65 23/5/03, 2:51 PM12

wÐdŽwÐdŽ

wÐdŽ

MUTING

•-AUDIO VOL +

DSP

DTS

”“

PRO LOGIC II

SURROUND

PRO LOGIC II

”“

DSPCONCERT

STADIUMHALLTHEATER

LIVE HOUSE

DSP

DSP”

“

MUTING

SURROUND

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

PL II MUSIC PL II MOVIE

PL II OFF

•

3—

“OPEN”

3¥8

“LOCKED”

3¥84

“UNLOCK”

AUDIO STANDBY/ON

STANDBY

•AUDIO

STANDBY/ON

•

AUDIO

DSP

” “Setting

AR10-15/TH-A35.p65 23/5/03, 2:51 PM13

wÐdŽwÐdŽ

wÐdŽ

DVD

VCD/CD

DVD

•CD

•CDs

•

“READING”

•

AUDIO VOL +

AUDIO VOL

VOLUME

•AUDIO VOL

•”MIN“

”MAX“

•

”“

•JVC

TV/VIDEO

JVC”

“

•OSD

”

“

Languag

AUDIO

STANDBY/ON

STANDBY

7 3

•SVCD

VCD

•VCD/CD

VCD/CD

DVD

AUDIO VOL

AUDIO

VOLUME

DSP

MUTING

DVD

TV/VIDEO

SURROUND

AUDIO

AUDIO VOL +/

AR10-15/TH-A35.p65 23/5/03, 2:51 PM14

wÐdŽwÐdŽ

wÐdŽ

•

3—

“OPEN”

3¥8

“LOCKED”

3¥84

“UNLOCK”

AUDIO STANDBY/ON

STANDBY

•AUDIO

STANDBY/ON

•

MUTING

•

AUDIO VOL +

DSP

IIDSP

SURROUND

PRO LOGIC II

”“

DSPCONCERT

STADIUMHALLTHEATER

LIVE HOUSE

DSP

PCM

DSP

”“

DSP

” “Setting

MUTING

SURROUND

DSP

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

PL II MUSIC PL II MOVIE

PL II OFF

AUDIO

AR10-15/TH-A35.p65 23/5/03, 2:51 PM15

wÐdŽwÐdŽ

wÐdŽ

AUDIOSTANDBY/ON

STANDBY

FM/AM

•FMAM

SOURCE

FMTUNERAMTUNER

•

AUDIO VOL +

AUDIO VOL

VOLUME

•AUDIO VOL

•”MIN“

”MAX“

•

”“

MUTING

•

+VOLAUDIO

•

”“

•

AM”

AM“

1234

5678

VCR

STANDBY/ON

AUDI O

VCRTV

CENTER

REAR-RREAR-L

SETTINGCLEAR

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

TEST FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

VOLAUDIO

FM/AM

MUTING

AUDIO

TUNING

DOWN/UP

DSP SURROUND

AUDIO

FM/AM

DVD TUNER FM TUNER AM

ANALOG INDIGITAL IN

MUTING

AUDIO VOL

VOLUME

SOURCE

AR16-19/TH-A35.p65 23/5/03, 2:50 PM16

wÐdŽwÐdŽ

wÐdŽ

TUNING UP

DOWN

4¢

•

FM.STEREO

•

DSP

IIDSP

SURROUND

PRO LOGIC II

”“

DOWN - TUNING - UP

SURROUND

DSP

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

PL II MUSIC PL II MOVIE

PL II OFF

DSPCONCERT

STADIUMHALLTHEATER

LIVE HOUSE

DSP

”“

DSP

”“Setting

AUDIOSTANDBY/ON

STANDBY

•

AUDIO

AR16-19/TH-A35.p65 23/5/03, 2:50 PM17

wÐdŽwÐdŽ

wÐdŽ

OPTICAL DIGITAL IN

ANALOG IN

AUX

•

ANALOG IN

DIGITAL IN

OPTICAL DIGITAL IN

AUX

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

AUX

DIMMER

3/2

SURROUND

ANALOG IN DIGITAL IN

DSP

MUTING

SOURCE

“ANALOG IN”

”“ DIGITAL IN

•

AUDIO VOL +

AUDIO VOL

VOLUME

•AUDIO VOL

•”MIN“

”MAX“

•

”“

MUTING

•- +AUDIO VOL

DVD TUNER FM TUNER AM

ANALOG INDIGITAL IN

AUDIO VOL

VOLUME

MUTING

AUDIO VOL

SOURCE

ENTER

AR16-19/TH-A35.p65 23/5/03, 2:50 PM18

wÐdŽwÐdŽ

wÐdŽ

DSPDSP

DTSII

DSP

DTS

”“

SURROUND

PRO LOGIC II

”“

DSPCONCERT

STADIUMHALLTHEATER

LIVE HOUSE

DSP

”“

DSP

”“Setting

SURROUND

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

PL II MUSIC PL II MOVIE

PL II OFF

PHONES

DIMMER

” DIMMER

“

3¥2

ENTER

“OK”

DIMMER

SLEEP

DIMMER*SLEEP**

ENTER

DIMMER MIN

DIMMER MID

DIMMER MAX

AR16-19/TH-A35.p65 23/5/03, 2:50 PM19

wÐdŽwÐdŽ

wÐdŽ

3¥2

ENTER

“OK”

SLEEP

”

SLEEP“

3¥2

ENTER

3¥2

“SLEEP OFF”

ENTER

SLEEP

SLEEP”“

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

SETTINGCLEAR

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

TEST FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2

ENTER

SLEEP

DIMMER

SLEEP

DIMMER*SLEEP**

10 20 30 60

120

150

SLEEP OF

DIMMER

SLEEP

ENTER

AR20-25/TH-A35.p65 23/5/03, 2:46 PM20

wÐdŽwÐdŽ

wÐdŽ

**DTS

DTS

DTS5.1

CDLD

DVD

DTS

•

•DTS

•II

•DSP

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

LS S

**”“

DTS”“DTS

DTS

DSP

* II

PCM5.1

IIPL II MOVIE

DOLBY SURROUND

5.1

IIPL II MUSIC

PRO LOGIC II

5.1DOLBY D

LFE

DIGITAL

“5.1”

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

*.Dolby Laboratories“Dolby”

“Pro Logic”D

.Dolby Laboratories

Dolby Laboratories

–

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

VCDSTEREO MP3

LS S

REPEAT 1

MHz

A–BRDSEONPROGCHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

AR20-25/TH-A35.p65 23/5/03, 2:46 PM21

wÐdŽwÐdŽ

wÐdŽ

PLII MoviePLII Music

LIVE HOUSE

HALL

CONCERTSTADIUM

THEATER



PCM

—



—DTS

DTS

MP3

DTSII

DSP

”“INVALID

DTS

DIGITAL

DTS

SURROUND

PRO LOGIC II

DSP

SURROUND

LIVE HOUSE

STADIUM

CONCERT

THEATERDSP OFF

HALL

DSP

PL II MUSIC PL II MOVIE

PL II OFF

■DSP

DSP

—

DSP

LIVE HOUSE:

HALL:

CONCERT:

STADIUM:.

THEATER:

DSP

PCM”“

DSP

 :

PL II OFF

DSP OFF

DSP Pro Logic II

AR20-25/TH-A35.p65 23/5/03, 2:46 PM22

wÐdŽwÐdŽ

wÐdŽ

STOP

DVD

SOUND

“SOUND”

TEST

SOUND

CENTER +/

REAR-L +/

REAR-R +/

SUBWOOFER +/

STOP

SOUND

“SOUND OFF”

SETTING

5.1

2.1

MP3

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

TEST SETTING

LCR

LS RS

To cancel press Stop

SOUND

TEST

CENTER

REAR-RREAR-L

SUBWOOFER

1234

5678

SOUND

AR20-25/TH-A35.p65 23/5/03, 2:46 PM23

wÐdŽwÐdŽ

wÐdŽ

—DVD/VCD/CD

•DVDSVCDVCD

•DVD-RDVD VIDEO

•

DVD-AudioDVD-ROMDVD-RAMDVD-RW

DVD+RWCD-ROMCD-I(CD-I Ready)Photo CD

DVDDVD

DVDNTSC

PAL”“

DVD

“Invalid Region”

DVD

CD(SVCD) CDCD

CD-RCD-RW

•

MP3JPEG

CD-RsCD-RWs

MP3”MP3“

”JEPG“

DVD

CDCD

—DVDCD

SVCD)(VCD

CD(CD)

DVD

SVCDVCDCD

SVCDVCD(PBC)

CD-RCD-RW

CD-RsCD

CD-RWsCD

”“

•CD-RsCD-RWs

CDMP3

•CD-RsCD-RWs

•CD-RWs

CD-RWsCDs

COMPACT

DIGITAL AUDIO

DVD

CD-R

CD-RW

NTSC

PAL

ALL

“ ”

•

•DVD

AR20-25/TH-A35.p65 23/5/03, 2:46 PM24

wÐdŽwÐdŽ

wÐdŽ

”“Password“Parental Locked”

DVD

•3

¢4

•¢:

•4:MP3

DVDCD

VCD

VCDPBC

•

ENTER

•5.1

ENTER

•

CLEAR

DVDVCDCD

)

”Resume Stop7“(

•

•7

“7 Stop”

MP3JPEG

•7

•3

—

DVD

“READING”

DVD

VCDCDMP3JPEG

•“NO DISC”

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

4/ ¢

REPEAT 1

MHz

A–BRDSEON

EON

PROG

CHPTUNEDTRKTITLE

AUDIO

ProLogic II

DIGITAL

VCDSTEREO MP3

LS S

REPEAT 1

MHz

A–BRDSEON

EON

PROG

TUNEDTRK

AUDIO

ProLogic II

VCDSTEREO MP3

REPEAT 1

MHz

A–BRDSEON

EON

PROG

TUNEDTRK

ProLogic II

STEREO

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

SVCD

VCD

DVD

VCD/CD

MP3

JEPG

•DVDVCD

PBC”“DVD

”

VCD“

AR20-25/TH-A35.p65 23/5/03, 2:46 PM25

wÐdŽwÐdŽ

wÐdŽ

DVDs

DVD

(OSD)

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

5/ ∞

“OSD”

ENTER

•

OSD

5/ ∞

“OK”

ENTER

ENTER“Off ”

5/∞“OK”

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

On All

Off

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

DVD

5/∞

ENTER

ANGLE

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

AUDIO

SUB TITLE

ON SCREEN

DVD

AR26-31/TH-A35.p65 23/5/03, 3:07 PM26

wÐdŽwÐdŽ

wÐdŽ

(OFF)

DVD

•

SUB TITLE

•

SUB TITLE

2/3 Fre

3/3 SpaOff

1/3 Eng

•

•—PCM

DTS—

5.1

•

OSDOn

OSDAll

Title 1/15 Chapter 2/10 Angle 1/1

Audio 1/3 Eng

DVD 00:01:16 01:40:45

00:01:16 01:40:45

5.1ch 48KHz

Subtitle Off

DVD

•

AUDIO

•

DVD

ANGLE

•

1/3 2/3

3/3

1/3 Eng 5.1ch 2/3 Fre 5.1ch

3/3 Spa 5.1ch

AUDIO

ANGLE

AR26-31/TH-A35.p65 23/5/03, 3:07 PM27

wÐdŽwÐdŽ

wÐdŽ

5/ ∞

: TIME

:TITLE

:CHAPTER

ENTER

•5ENTER

•12

ENTER

•22

ENTER

•CLEAR

ENTER

•”234500“4523

ENTER

•”452301“12345

ENTER

•CLEAR

Time

Title

Chapter

_ _:_ _:_ _

_ _

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

3/2/5/∞

ENTER

TOP MENU

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

1/ ¡

ON SCREEN

TOP

ENTER

DVD

•

DVD

TOP MENU

•DVDs

∞/5/2/3

ENTER

•

AR26-31/TH-A35.p65 23/5/03, 3:07 PM28

wÐdŽwÐdŽ

wÐdŽ

ENTER

:Chapter Repeat

REPEAT1

:Title Repeat

REPEAT

:Disc Repeat

REPEAT

:Off

5/∞

“OK”

ENTER

ENTER“Off”

5/∞“OK”

ENTER

7A-B

A-B

—

•

—

•

—

•

ON SCREEN

5/∞

“Repeat”

x2 x4

x8x20

x2 x4

x8x20

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

Chapter Repeat Title Repeat

Disc Repeat

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

A –

A–B

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

AR26-31/TH-A35.p65 23/5/03, 3:07 PM29

wÐdŽwÐdŽ

wÐdŽ

—

ON SCREEN

5/∞

“Mode”

ENTER

“Shuffle”

•

5/∞

“OK”

ENTER

ENTER“Off”

5/∞“OK”

ENTER

•

5/∞

“Repeat A-B”

ENTER

“A–”

A–” “

ENTER

“A–”“A-B”

A-B

ON SCREEN

A-B

ENTER“Off”

5/∞“OK”

ENTER

“A-B”

3/2/5/∞

ENTER

ON SCREEN

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Shuffle Program

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

DVD

AR26-31/TH-A35.p65 26/5/03, 5:42 PM30

wÐdŽwÐdŽ

wÐdŽ

CANCEL

3/2/5/∞

“Play Program”

ENTER

PROG

—

ON SCREEN

5/∞

“Mode”

ENTER

“Program”

•

5/∞

“OK”

ENTER

CANCEL

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Shuffle Program

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

Program

Title/Chapter

Play Program Clear All

1 _ _ _ _

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

Title Number

Chapter Number

Program

Title/Chapter

Play Program Clear All

1 _ 2 _ _

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

Program

Title/Chapter

Play Program Clear All

1 2 _ _

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

Program

Title/Chapter

Play Program Clear All

1 2 _ 3

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

ENTER

Program

Title/Chapter

Play Program Clear All

1 2 3

2 _ _ _ _

3 _ _ _ _

4 _ _ _ _

5 _ _ _ _

6 _ _ _ _

7 _ _ _ _

8 _ _ _ _

9 _ _ _ _

10 _ _ _ _

11 _ _ _ _

12 _ _ _ _

ENTER

AR26-31/TH-A35.p65 23/5/03, 3:08 PM31

wÐdŽwÐdŽ

wÐdŽ

3/2/5/∞

CLEAR

3/2/5/∞

CLEAR

3/2/5/∞

DVD

•

PAUSE

STEP

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

ON SCREEN

ZOOM

SLOW +/–

CLEAR

DVD

ENTER“Off”

5/∞“OK”

ENTER

ON SCREEN

5/∞“Mode”

ENTER“Program”

“Program”

5/∞“OK”

ENTER

ON SCREEN

3/2/5/∞“Clear All”

ENTER

AR32-35/TH-A35.p65 26/5/03, 5:44 PM32

wÐdŽwÐdŽ

wÐdŽ

DVD

SLOW +SLOW –

•

SLOW

ZOOM

ENTER

Zoom in (12 steps)

No Zoom

Zoom out (12 steps)

DVD

ZOOM

3/2/5/∞

ZOOM

AR32-35/TH-A35.p65 26/5/03, 5:44 PM33

wÐdŽwÐdŽ

wÐdŽ

ON SCREEN

5/∞

“OSD”

ENTER

OSD

5/∞“OK”

ENTER

ENTER“Off ”

5/∞“OK”

ENTER

•SVCD

VCD

•

”

VCD/CD“

”“

ON SCREEN

RETURN

4 / ¢

5/∞

ENTER

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

On All

Off

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

OSDOn

OSDAll

Track

1/15

VCD 2.0 00:01:16 01:06:35

00:01:16 01:06:35

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

AUDIO

VCD/CD

ON SCREEN

VCD

•VCD

VCD

•

AR32-35/TH-A35.p65 26/5/03, 5:44 PM34

wÐdŽwÐdŽ

wÐdŽ

VCD

•

PBC

•

5/ ∞

Track Search

:Time

Disc Search

:Time

:Track

•“09:45”945

ENTER

•“45:23”4523

ENTER

•CLEAR

ENTER

•5ENTER

•12

ENTER

•CLEAR

•

VCD

(PBC)VCD

VCDPBC

•

”PBC“

•

•“3”“SELECT”

PBC

ON SCREEN

5/∞“Mode”

ENTER

“PBC”

5/∞“OK”

ENTER

VCDCD

AUDIO

|||

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

AUDIO

PBC

RETURN RETURN RETURN

Disc SearchTrack Search

canceled

AR32-35/TH-A35.p65 26/5/03, 5:44 PM35

wÐdŽwÐdŽ

wÐdŽ

ON SCREEN

5¥∞“Repeat”

ENTER

SingleREPEAT1

AllREPEAT

Off

5¥∞

“OK”

ENTER

ENTER“Off”

5¥∞“OK”

ENTER

VCD

3/2/5/∞

ENTER

ON SCREEN

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

1/¡

x2 x4

x8x20

x2 x4

x8x20

Single All

Off

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

VCD/CD

AR36-39/TH-A35.p65 23/5/03, 2:45 PM36

wÐdŽwÐdŽ

wÐdŽ

ON SCREEN

5¥∞“Mode”

ENTER

“Shuffle”

*VCDPBC

5¥∞

“OK”

ENTER

ENTER“Off”

5¥∞“OK”

ENTER

7BA

ON SCREEN

5¥∞

“Repeat A-B”

ENTER

”A

“

”A

“

ENTER

”A

“”BA“

ON SCREEN

ENTER“Off”

5¥∞“OK”

ENTER

”BA“

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ON SCREEN

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Shuffle

Off PBC*

Program

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

A –

A–B

AR36-39/TH-A35.p65 23/5/03, 2:45 PM37

wÐdŽwÐdŽ

wÐdŽ

ENTER

“Program”

VCDPBC

5¥∞

“OK”

ENTER

CLEAR

∞¥5¥2¥3

“Play Program”

ENTER

PROG

ON SCREEN

5¥∞“Mode”

3/2/5/∞

ENTER

3ON SCREEN

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

ON SCREEN

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

ENTER

Shuffle

Off PBC*

Program

ENTER

Play Mode

Mode

Repeat

Repeat A–B

OSD

Off

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Program

Play Program Clear All

1 _ _ _

2 _ _ _

3 _ _ _

4 _ _ _

5 _ _ _

6 _ _ _

7 _ _ _

8 _ _ _

9 _ _ _

10 _ _ _

11 _ _ _

12 _ _ _

Program

Play Program Clear All

1 _ 1 2

2 _ _ _

3 _ _ _

4 _ _ _

5 _ _ _

6 _ _ _

7 _ _ _

8 _ _ _

9 _ _ _

10 _ _ _

11 _ _ _

12 _ _ _

Program

Play Program Clear All

1 1 2

2 _ _ _

3 _ _ _

4 _ _ _

5 _ _ _

6 _ _ _

7 _ _ _

8 _ _ _

9 _ _ _

10 _ _ _

11 _ _ _

12 _ _ _

SLOW +/

ZOOM

VCD/CD

AR36-39/TH-A35.p65 23/5/03, 2:45 PM38

wÐdŽwÐdŽ

wÐdŽ

VCD

SLOW +

VCD

ZOOM

∞¥5¥2¥3

ENTER“Off”

5¥∞

“OK”

ENTER

ON SCREEN

5¥∞

“Mode”

ENTER

“Program”“Program”

5¥∞

“OK”

ENTER

ON SCREEN

∞¥5¥2¥3

“Clear All”ENTER

∞¥5¥2¥3

CLEAR

∞¥5¥2¥3

CLEAR

∞¥5¥2¥3

VCD

8 PAUSE

STEP

SLOW

ZOOM

ENTER

AR36-39/TH-A35.p65 23/5/03, 2:45 PM39

wÐdŽwÐdŽ

wÐdŽ

MP3

(

MP3MP3

CD-RsCD-RWsCD-ROMs

•

MP3

MP3“MPEG Audio Layer 3”MP3

MP3CD-R

CD-RWCD

MP3

•MP3

ISO 9660

•MP3

“.MP3”“.Mp3”“.mP3”“.mp3”

•ID3v1*

*MP3“ID3 Tag”

ID3v1—

ID3 TagID3v2ID3 Tag

•ID3v2

—MP3

”MP3“”“

”“

ISO 9660—

”—“

MP3

•MP3CD-R

CD-RW

•MP3

AR40-47/TH-A35.p65 23/5/03, 3:09 PM40

wÐdŽwÐdŽ

wÐdŽ

•

•MP3ID3v1

MP3

3/2/5/∞

ENTER

”—“DVD/VCD/CD

Play Track 1/28 00:00:17

Brow Disc

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

File:BEZIQUE.mp3

Artist:

Song:

Genre:

Album:

Comments:

Year:

Track 1/28

Brow Disc

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

File:BEZIQUE.mp3

Artist:

Song:

Genre:

Album:

Comments:

Year:

Stop

CDMP3

JPEG“Error”

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

PROGRESSIVE

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

4 / ¢

¢ 4

•¢:

•4:

ENTER

3/2/5/∞

ENTER

AR40-47/TH-A35.p65 23/5/03, 3:09 PM41

wÐdŽwÐdŽ

wÐdŽ

ENTER

MP3

•5

ENTER

•10

ENTER

•2 3

ENTER

•12 3

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

4 / ¢

—

3/2/5/∞

“Brow Disc”

ENTER

”Brow Disc“

”Crea Prog“

3/2/5/∞

ENTER

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

MP3

ENTER

3 / 2 / 5 / ∞

3/2/5/∞

ENTER

•

AR40-47/TH-A35.p65 23/5/03, 3:09 PM42

wÐdŽwÐdŽ

wÐdŽ

ENTER

•ENTER

•

3/2/5/∞

“Crea Prog”

ENTER

”Crea Prog“

”Brow Prog“

3/2/5/∞

ENTER

3/2/5/∞

“Brow Prog”

ENTER

”“Brow Prog

”“Brow Disc

¢ 4

•¢:

•4:

3/2/5/∞

ENTER

•5

ENTER

•10

ENTER

•2 3

ENTER

•12 3

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

6 CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Stop Track 1/28 00:00:00

Crea Prog

1 SOLITAIRE

_ CARD

2 BEZIQUE.m

BRIDGE.mp3

4 CANASTA.m

5 COPAC.MP3

CRIBBAGE.

7 HEART.MP3

8 OLDMAID.M

9 PINOCLE.M

10 RUMMY.MP3

Stop Track 1/28 00:00:00

Brow Prog

Selected Files:

BRIDGE.mp3

CANASTA.m

CRIBBAGE.

HEART.MP3

OLDMAID.M

RUMMY.MP3

AR40-47/TH-A35.p65 23/5/03, 3:10 PM43

wÐdŽwÐdŽ

wÐdŽ

JPEG

Joint Photographic Expert Group

JPEG

”“

•JPEG

JPEG

•

JPEGCD-RCD-RW

•JPEGISO 9660

•“multi-session”

•“packet write”

•JPEG

“.jpg”“.jpeg”“.JPG”“.JPEG”

“.Jpg”

•

•*JPEG

*JPEG*JPEG

•JPEG

*•JPEG

•JPEG

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

4 / ¢

JPEG

Stop Track 1/22

Brow Disc

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


ZOOM

AR40-47/TH-A35.p65 23/5/03, 3:10 PM44

wÐdŽwÐdŽ

wÐdŽ

3/2/5/∞

ENTER

Stop Track 1/22 00:00:00

Brow Disc

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


•

•3

ENTER

•

No Zoom

Zoom ✕ 4 Zoom ✕ 1.25

ENTER

ZOOM

3/2/5/∞

∞

ZOOM

•

•3/2/5/∞

ENTER

3 / 2 / 5 / ∞

AR40-47/TH-A35.p65 23/5/03, 3:10 PM45

wÐdŽwÐdŽ

wÐdŽ

ENTER

—

3/2/5/∞

“Brow Disc”

ENTER

”Brow Disc“

”Crea Prog“

3/2/5/∞

ENTER

•ENTER

•

ENTER

Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color




5 CYAN.JPG

6 GREEN.JPG

PURPLE.JP

ORANGE.JP

YELLOW.JP


Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color



5 CYAN.JPG

ORANGE.JP

YELLOW.JP




PURPLE.JP

Stop Track 1/22 00:00:00

Crea Prog

1 Rainbow

_ Color



5 CYAN.JPG

ORANGE.JP

YELLOW.JP




PURPLE.JP

JPEG

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

1234

5678

3/2/5/∞

ENTER

4 / ¢

•5

ENTER

•

ENTER

•

2 3

ENTER

•

12 3

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ZOOM

AR40-47/TH-A35.p65 23/5/03, 3:10 PM46

wÐdŽwÐdŽ

wÐdŽ

3/2/5/∞

“Crea Prog”

ENTER

”Crea Prog“

”Brow Prog“

3/2/5/∞

3ENTER

¢ 4

•¢:

•4:

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

Stop Track 1/22 00:00:00

Brow Prog

Selected Files:


5 CYAN.JPG




PURPLE.JP

ENTER

ZOOM

3/2/5/∞

ZOOM

3/2/5/∞

ENTER

•5

ENTER

•

ENTER

•

2 3

ENTER

•

12 3

ENTER

3/2/5/∞

“Brow Prog”ENTER

”Brow Prog“”

Brow Disc“

AR40-47/TH-A35.p65 23/5/03, 3:10 PM47

wÐdŽ

”

“

FM/AM

1 / ¡

TUNING

UP/DOWN

FM MODE

MEMORY

FM/AM

•FMAM

TUNING UP

DOWN

•TUNING UP

•TUNING DOWN

•

SOURCE

•

•¢

•4

•

TUNED

•

STEREO

•

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

FM/AM

SOURCE

DOWN - TUNING - UP

DVD TUNER FM TUNER AM

ANALOG INDIGITAL IN

ENTER

•

•AM

CHOICE

ENTER

“OK”

CHOICE

ENTER

CHOICE

AR48-49/TH-A35.p65 24/5/03, 3:19 PM48

CHOICE

wÐdŽwÐdŽ

wÐdŽ

MHz

TUNED

STEREO

FMAM

MEMORY

“AUTO SAVE”

FMAM

”“

MEMORY

“SAVE TO”

•

•15

•

CLEAR

ENTER

“SAVED”

FM/AM

•FMAM

•

ENTER

•15

ENTER

•CLEAR

•¡/1

FM MODE

STEREO

FM MODE

•

SOURCE

•

REC/MEMORY

TUNED

STEREO

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

REC/MEMORY

FM/AM

FM MODE

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

AR48-49/TH-A35.p65 23/5/03, 3:11 PM49

wÐdŽwÐdŽ

wÐdŽ

DVD

•

•DVD

•

:Language

:Picture

:Audio

DIGITAL OUT

:Setting

:Rating

”“

CHOICE

3/2

—

LanguagePicture

AudioSetting

Rating

Language

Picture Audio Setting Rating

ENTER

Language

Picture Audio Setting Rating

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2/5/∞

ENTER

CHOICE

DVD

AR50-55/TH-A35.p65 23/5/03, 3:12 PM50

wÐdŽwÐdŽ

wÐdŽ

Language

DVD

Language

On Screen

PLAY

STOPPAUSE

Subtitle

DVD

Audio

DVD

DVD MenuDVD

DVD

Restore default

”“

ENTER

“System Reset”

“OK”

ENTER

•“On screen” “Audio”

DVD“DVD Menu”

• :“Subtitle”

•

ENTER

Dynamic Range

C.Delay

S.Delay

Speaker Set

Off

2 ms

0 ms

LR C LS RS SW

Test Tone

Language

Picture Audio Setting Rating

Language

On Screen

Subtitle

Audio

DVD Menu

Restore default

English

Picture Audio Setting Rating

ENTER

Setting

5/∞

ENTER

•

“C. Delay”

•

“Next Page”

ENTER

•

ENTER

5/∞ENTER

•

ENTER

Dynamic Range

C.Delay

S.Delay

Speaker Set

Off

0 ms

LR C LS RS SW

Test Tone

Language

Picture Audio Setting Rating

AR50-55/TH-A35.p65 23/5/03, 3:12 PM51

wÐdŽwÐdŽ

wÐdŽ


Language

Monitor type

TV System

Interlace

Progressive YPBPR

4:3Letter Box

PAL

CVBS YUV

Picture Audio Setting Rating

:Monitor TypeDVD

16:9

•:4:3 Letter Box“4:3 Letter Box”

4:3

•:4:3 Pan-Scan“4:3 Pan-Scan”

4:3

•:16:9 Wide“16:9 Wide”

16:9

:TV System

•:NTSCNTSC

•:PALPAL

:Interlace

•:CVBS S_VideoS-Video

•:CVBS YUV

S-Video

:Progressive

:TE ModeTE

•:On

•:Off

:Pause/Still

“AUTO”

“Frame”“Field”

•:Frame

•:Field

•:Auto

1234

5678

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

PROGRESSIVE

3/2/5/∞

ENTER

CHOICE

DVD

AR50-55/TH-A35.p65 23/5/03, 3:12 PM52

wÐdŽwÐdŽ

wÐdŽ

Audio

DIGITAL OUT

Audio

D Digital

DTS

MP3

Off

Language

Picture Audio Setting Rating

Setting

:Dynamic Range

•:On

•:Off

:C.Delay–0 msec

5 msec”“

:R.Delay–

0 msec15 msec”“

:Speaker Set”

“

:Test Tone

”“

•

Dynamic Range

C.Delay

S.Delay

Speaker Set

Off

0 ms

LR C LS RS SW

Test Tone

Language

Picture Audio Setting Rating

:D Digital / DTS

•:PCM

DIGITAL OUTPCM

•:STREAM

DTS

•:Off

DIGITAL OUT

:MP3

•:Off

DIGITAL OUT

CD / PCM:

•:PCM

DIGITAL OUTPCM

•:Off

DIGITAL OUT

:DownSampling

•:On

•:Off

AR50-55/TH-A35.p65 23/5/03, 3:12 PM53

wÐdŽwÐdŽ

wÐdŽ

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

3/2/5/∞

ENTER

CHOICE

DVD

“0 ms (msec)”

2.1 m

2.4 m

2.7 m

3.0 m

Left front

speaker Right front

speaker

Subwoofer

Center speaker

Left rear

speaker Right rear

speaker

C.Delay“1 ms”

R.Delay“3 ms”

1 msec

Subwoofer

Surround

Center

Front Speaker

Small

Return

Language

Picture Audio Setting Rating

:Subwoofer

:Surround / Center / Front Speaker

“Off”

•:Small

•:Off

“Off”

:ReturnSetting

AR50-55/TH-A35.p65 23/5/03, 3:12 PM54

wÐdŽwÐdŽ

wÐdŽ

ENTER

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Password

Rating 1. Kid Safe

****

Language

Picture Audio Setting Rating

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

“Password - - - -”

“Parental Locked”

“Parental Lock”

∞

“Rating”

•”“

“Rating”

ENTER

•

“Password”

ENTER

”“

”

“

ENTER

”“

ENTER

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

DVD

”“

•DVDs

“1. Kid Safe”“8. Adult”

CHOICE

“Rating”

ENTER

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

ENTER

”“

•“1987”

ENTER

CHOICE

ENTER

Password

Rating 1. Kid Safe

––––

Language

Picture Audio Setting Rating

Password

Rating 1. Kid Safe

****

Language

Picture Audio Setting Rating

REAR-RREAR-L

TEST CLEAR SETTING

1234

5678

CENTER

SUBWOOFER

ENTER

AR50-55/TH-A35.p65 23/5/03, 3:12 PM55

wÐdŽwÐdŽ

wÐdŽ

❏VCRJVC

JVC

•

VCRA

•

CONTROL TV

:TV

:TV VOL +/–

:TV/VIDEOTV

VIDEO

:1 – 9, 0

:1/ ¡

VCR CONTROL

VCR

:VCRVCR

:1/ ¡

:1 – 9, 0TV

VCR

:REC(¶)3

:¢

CONTROL TV

CONTROL VCR

DVDFM/AM

AUX

CONTROL

VCR

CONTROL

VCR

TV/VIDEO

CONTROL TV

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

TV VOL +/–

1/ ¡

VCR

REC

CONTROL VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

VCR

PROGRESSIVE

1/ ¡

4/ ¢

❏JVC

AR56-60/TH-A35.p65 23/5/03, 3:13 PM56

wÐdŽwÐdŽ

wÐdŽ

❏

CONTROL TV

1–90

:TV

:TV VOL +/–

:TV/VIDEOTV

VIDEO

:1 – 9, 0

:1/ ¡

JVC01, 23, 24, 25

FUNAI32

GRUNDIG19

HITACHI10

(GOLDSTAR)

MAGNAVOX02

MITSUBISHI03

NEC20

NOKIA31

PANASONIC04, 11

PHILIPS02

RCA05

SAMSUNG12, 33, 34, 35

SANYO13, 16

SHARP06

SONY07

THOMSON26

TOSHIBA08, 14

ZENITH09

•

VCR

STANDBY/ON

AUDIO

VCRTV

CENTER

REAR-RREAR-L

TEST

DVD FM/AM

CONTROL

AUX

TV/VIDEO

MUTING

REC/MEMORY

TOP

MENU MENU

CHOICE

DOWN - TUNING - UP

SLOW

AUDIO

RETURN DIMMER DSP

SLEEP

RM-STHA35U

DVD CINEMA SYSTEM

SURROUND

SUB TITLE ANGLE ZOOM

ON SCREEN

CLEAR SETTING FM MODE

SUBWOOFER

TV VOL

AUDIO VOL

SOUND

ENTER

1234

5678

PROGRESSIVE

TV/VIDEO

CONTROL TV

TV VOL +/–

1/ ¡

AR56-60/TH-A35.p65 23/5/03, 3:13 PM57

wÐdŽwÐdŽ

wÐdŽ

•

—

•

—

AR56-60/TH-A35.p65 23/5/03, 3:13 PM58

wÐdŽwÐdŽ

wÐdŽ

JVC

“Error”

VCR

•

CONTROL VCR

CONTROL TV

•

•(+/–)

•

•CD

•

•CD-R/RW

CDMP3JPEG

•

•VCR

•

“Pause/Still”

•

“P-SCAN”

•

VCR

•VCR

JVC

•

DVDFM/AMAUX

•

MUTING

•

•“Field”

“Pause/Still”

•

“INTERLACE”

•FM

•

CONTROLVCR

VCR

•

VCRJVC

AR56-60/TH-A35.p65 23/5/03, 3:13 PM59

wÐdŽwÐdŽ

wÐdŽ

(XV-THA35)

RMS

AUX (“AUX IN”)

:DIGITAL IN (OPTICAL)

*PCMDTS

:DIGITAL OUT (OPTICAL)

PAL/NTSC

NTSC

PAL

VIDEOV (p-p)

S-VIDEO (Y)V (p-p)

(C)mV (p-p)

VIDEO OUTCOMPONENT

YV (p-p)

PB/PRV (p-p)

DVD VIDEOCD

CDCDCD-R/RW

CDCDCD

MP3JPEG

DVD-R

(SP-WA35)

(SP-THA35F)

AR56-60/TH-A35.p65 26/5/03, 5:46 PM60

VICTOR COMPANY OF JAPAN, LIMITED

EN, AR 0503TMMMDWBET

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada,

Australia and U.K.)

AC IN

SUBWOOFER

CENTER

SPEAKER

REAR

SPEAKERS

RIGHT LEFT

FRONT

SPEAKERS

RIGHT LEFT

ANALOG VIDEO OUT

COAXIAL

FM 75

AM LOOP

EXT

VIDEO

S-VIDEO

YPBPR

CONPONENT VIDEO OUT

DIGITAL

OUT AUX

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC)

line voltage corresponds with the position of the voltage

selector switch provided on the outside of this equipment

and, if different, reset the voltage selector switch, to

prevent from a damage or risk of fire/electric shock.
