Warnings, Cautions and Others

Introduction

Notes on handling

Important cautions

Installation of the System

Select a place which is level, dry, and neither too hot nor too cold; between

5°C and 35°C.

Leave sufficient distance between the System and the TV.

Do not use the System in a location near heat sources, or in a place subject to

direct sunlight, excessive dust, or vibration.

Install the System in a location with adequate ventilation to prevent internal

heat buildup.

Power cord

Do not handle the power cord with wet hands.

A small amount of power is always consumed while the power cord is

connected to the wall outlet.

Do not pull on the cord to unplug the power cord. When unplugging the

power cord, always grasp and pull the plug so as not to damage the cord.

To prevent malfunctions of the System

There are no user-serviceable parts inside. If anything goes wrong, unplug

the power cord and consult your dealer.

Do not insert any metallic objects or liquids into the System.

Safety precautions

Avoid moisture, water, and dust

Do not place the System in moist or dusty places.

Avoid high temperatures

Do not expose the System to direct sunlight and do not place it near any

heating devices.

When you are away

When away on holiday or for other reasons for an extended period of time,

disconnect the power cord from the wall outlet.

Do not block the vents

Blocking the vents may damage the System.

•

•

•

•

•

•

•

•

•

Care of the cabinet

Stains on the System should be wiped off with a soft cloth. If the System

is heavily stained, wipe it with a cloth soaked in water diluted neutral

detergent and wrung well, then wipe clean with a dry cloth.

Since the System may deteriorate in quality, become damaged or get its

paint peeled off, be careful about the following:

DO NOT wipe it forcefully.

DO NOT wipe it with thinners, benzines or other organic solvents including

disinfectants.

DO NOT apply any volatile substances such as insecticides to it.

DO NOT allow any rubber or plastic to remain in contact with it for a long

time.

Do not place anything on top of the System. Doing so may cause the System

to fall, causing malfunctioning and/or injury.

The manufacturer accepts absolutely no liability for any accidents or damage

resulting from inadequate assembly or mounting, insufficient strength of

attachment, misuse or abuse, or natural disasters.

If water gets inside the System

Turn the System off and disconnect the power cord from the wall outlet,

then call the store where you purchased this System. Using the System in this

condition may cause a fire or electrical shock.

Supplied accessories

Check to make sure you have all of the supplied accessories.

If anything is missing, contact your dealer immediately.

Remote control RM-STHBA1A (× 1)

AC adaptor (AA-R1902) (× 1)

AC power cord (× 1)

Lithium coin battery CR2025 (× 1)

The battery has been installed in the remote control when shipped from

the factory.

Core Filter (× 2)

•

•

–

–

–

–

•

•

•

•

•

•

–

•

Specifications

Center unit (CA-THBA1)

Output power

Center/ Front Surround: 120 W (30 W × 4) at 4 Ω (THD 10%)

Audio section

Analog Input ANALOG: 1 Vrms/50 kΩ

Digital Input* DIGITAL 1, DIGITAL 2: –21 dBm to –15 dBm

(660 nm ±30 nm)

Speaker section

Type: Full-Range Bass-Reflex Type (Magnetically-

Shielded Type)

Speaker: 8 cm cone × 4

Power Handling Capacity: 30 W

Impedance: 4 Ω

Frequency Range: Center Speakers: 84 Hz to 22 kHz

Front Speakers: 84 Hz to 22 kHz

Sound Pressure Level: Center Speakers: 82 dB/W•m

Front Speakers: 82 dB/W•m

General

Power Source (DC IN): DC19 V 3.37 A

AC Adaptor (AA-R1902): Input: AC 110-240 V 1.5 -0.9 A,

50/60 Hz

Output: DC19 V 3.37 A

Dimensions (W × H × D): 900 mm ×125 mm × 85 mm

Mass: 3.5 kg

Powered subwoofer (SP-THBA1)

Output power 100 W at 3 Ω (THD 10%)

Type: 1-Way Bass-Reflex Type

Speaker: 16 cm cone × 1

Power Handling Capacity: 100 W

Impedance: 3 Ω

Frequency Range: 45 Hz to 5 kHz

Sound Pressure Level: 82 dB/W•m

Power Requirements: AC 230 V , 50 Hz

Power Consumption: 30 W (during operation)

0.8 W (in Standby mode)

Dimensions (W × H × D): 215 mm × 352 mm × 254 mm

Mass: 5 kg

Corresponding to Linear PCM, Dolby Digital, and DTS (with sampling

frequency — 32 kHz, 44.1 kHz, 48 kHz)

Designs & specifications are subject to change without notice.

*

HOME THEATER SOUND SYSTEM

TH-BA1

—Consists of CA-THBA1 and SP-THBA1

CAUTION: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the

apparatus as follows:

Front: No obstructions and open spacing.

Sides/Top/Back: No obstructions should be placed in the areas shown

by the dimensions below.

Bottom: Place on the level surface. Maintain an adequate air path for

ventilation by placing on a stand with a height of 10 cm or more.

1.

2.

3.

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not

suitable for the power points in your home or the cable is too short to reach

a power point, then obtain an appropriate safety approved extension lead or

consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally

fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose

of the plug immediately, to avoid a possible shock hazard by inadvertent

connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the

instructions given below:

IMPORTANT: DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-

yellow.

The wires in the mains lead on this product are coloured in accordance with the

following code:

Blue: Neutral

Brown: Live

As these colours may not correspond with the coloured markings identifying

the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is

marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is

marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Do not use another AC adaptor to connect this model.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

Do not remove screws, covers or cabinet.

Do not expose this appliance to rain or moisture.

CAUTION (CA-THBA1)

The button in any position does not disconnect the mains line.

Disconnect the mains plug to shut the power off completely (the STANDBY

lamp goes off). The MAINS plug or an appliance coupler is used as the

disconnect device, the disconnect device shall remain readily operable.

When the System is on standby, the STANDBY lamp lights red.

When the System is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION (SP-THBA1)

The power supply to the subwoofer is linked to the center unit. Disconnect the

mains plug to shut the power off completely (the POWER ON lamp goes off).

The MAINS plug or an appliance coupler is used as the disconnect device, the

disconnect device shall remain readily operable.

When the System is on standby, the STANDBY/ON lamp lights red.

When the System is turned on, the STANDBY/ON lamp lights blue.

CAUTION

Do not block the ventilation openings or holes. (If the ventilation openings

or holes are blocked by a newspaper or cloth, etc., the heat may not be able

to get out.)

Do not place any naked flame sources, such as lighted candles, on the

apparatus.

When discarding batteries, environmental problems must be considered

and local rules or laws governing the disposal of these batteries must be

followed strictly.

Do not expose this apparatus to rain, moisture, dripping or splashing and

that no objects filled with liquids, such as vases, shall be placed on the

apparatus.

1.

2.

•

•

•

•

•

•

•

•

GVT0289-001B[B]

0809WMKMDWJMM

EN

© 2009 Victor Company of Japan, Limited

INSTRUCTIONS

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic,

and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent numbers: 5,451,942;

5,956,674; 5,974,380; 5,978,762; 6,487,535 and other U.S. and

worldwide patents issued and pending. DTS and DTS Digital Surround

are registered trademarks and the DTS logos and Symbol are trademarks

of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

•

•

Front

15 cm

15 cm 15 cm

10 cm

CA-THBA1 SP-THBA1

2 cm

Thank you for purchasing a JVC product.

Before operation, please read the instructions carefully.

ENGLISH

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet

international safety standards but, like any electrical equipment, care

must be taken if you are to obtain the best results and safety is to be

assured.

★★★★★★★★★★★★★★★★★★★★★★★★★★★

Do read the operating instructions before you attempt to use the

equipment.

Do ensure that all electrical connections (including the mains plug,

extension leads and interconnections between pieces of equipment) are

properly made and in accordance with the manufacturer’s instructions.

Switch off and withdraw the mains plug when making or changing

connections.

Do consult your dealer if you are ever in doubt about the installation,

operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

★★★★★★★★★★★★★★★★★★★★★★★★★★★

DON’T continue to operate the equipment if you are in any doubt about it

working normally, or if it is damaged in any way—switch off, withdraw

the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is

specifically stated that it is designed for unattended operation or has a

standby mode.

Switch off using the switch on the equipment and make sure that your

family know how to do this.

Special arrangements may need to be made for infirm or handicapped

people.

DON’T use equipment such as personal stereos or radios so that you are

distracted from the requirements of traffic safety. It is illegal to watch

television whilst driving.

DON’T listen to headphones at high volume as such use can permanently

damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with

curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws—to

ensure complete safety always fit the manufacturer’s approved stand or

legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

NEVER let anyone, especially children, push anything into holes, slots or

any other opening in the case.

—this could result in a fatal electrical shock.

NEVER guess or take chances with electrical equipment of any kind—it

is better to be safe than sorry!

–

–

Information for Users on Disposal of Old Equipment and Batteries

[European Union]

These symbols indicate that the electrical and electronic equipment

and the battery with this symbol should not be disposed of as general

household waste at its end-of-life. Instead, the products should be handed

over to the applicable collection points for the recycling of electrical and

electronic equipment as well as batteries for proper treatment, recovery

and recycling in accordance with your national legislation and the

Directive 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to conserve natural

resources and will help to prevent potential negative effects on the

environment and human health which could otherwise be caused by

inappropriate waste handling of these products.

For more information about collection points and recycling of these

products, please contact your local municipal office, your household waste

disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in

accordance with national legislation.

[Business users]

If you wish to dispose of this product, please visit our web page http://

www.jvc.eu/ to obtain information about the take-back of the product.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

If you wish to dispose of these items, please do so in accordance with

applicable national legislation or other rules in your country for the

treatment of old electrical and electronic equipment and batteries.

Dear Customer,

This apparatus is in conformance with the valid European directives and

standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is:

JVC Technical Services Europe GmbH

Postfach 10 05 04

61145 Friedberg

Germany

Products

Notice:

The sign Pb below the symbol

for batteries indicates that this

battery contains lead.

Battery

TH-BA1_B.indd 1TH-BA1_B.indd 1 09.9.9 10:31:52 AM09.9.9 10:31:52 AM

12 3 4 5 6 7

FADE

MUTING

ANALOG

VOLUME

SURROUNDCENTERSUBWOOFER

DIGITAL

1

DIGITAL

2

SURROUND

MODE OFF

RM-STHBA1A

DIMMER

DRC

— INPUT —

— SPEAKER LEVEL —

1

2

Do not install the center unit onto a plywood or plasterboard wall; otherwise, it

will fall and sustain damage.

When installing the center unit on the wall;

Be sure to have them installed on the wall by qualified personnel.

Care must be taken when selecting a location for installation on the wall.

Injury to personnel or damage to equipment may result if the installed unit

interfere with daily activities.

AC adaptor should not be hanging/put above of any other items. It is

acceptable to place the AC adaptor on the flat floor only.

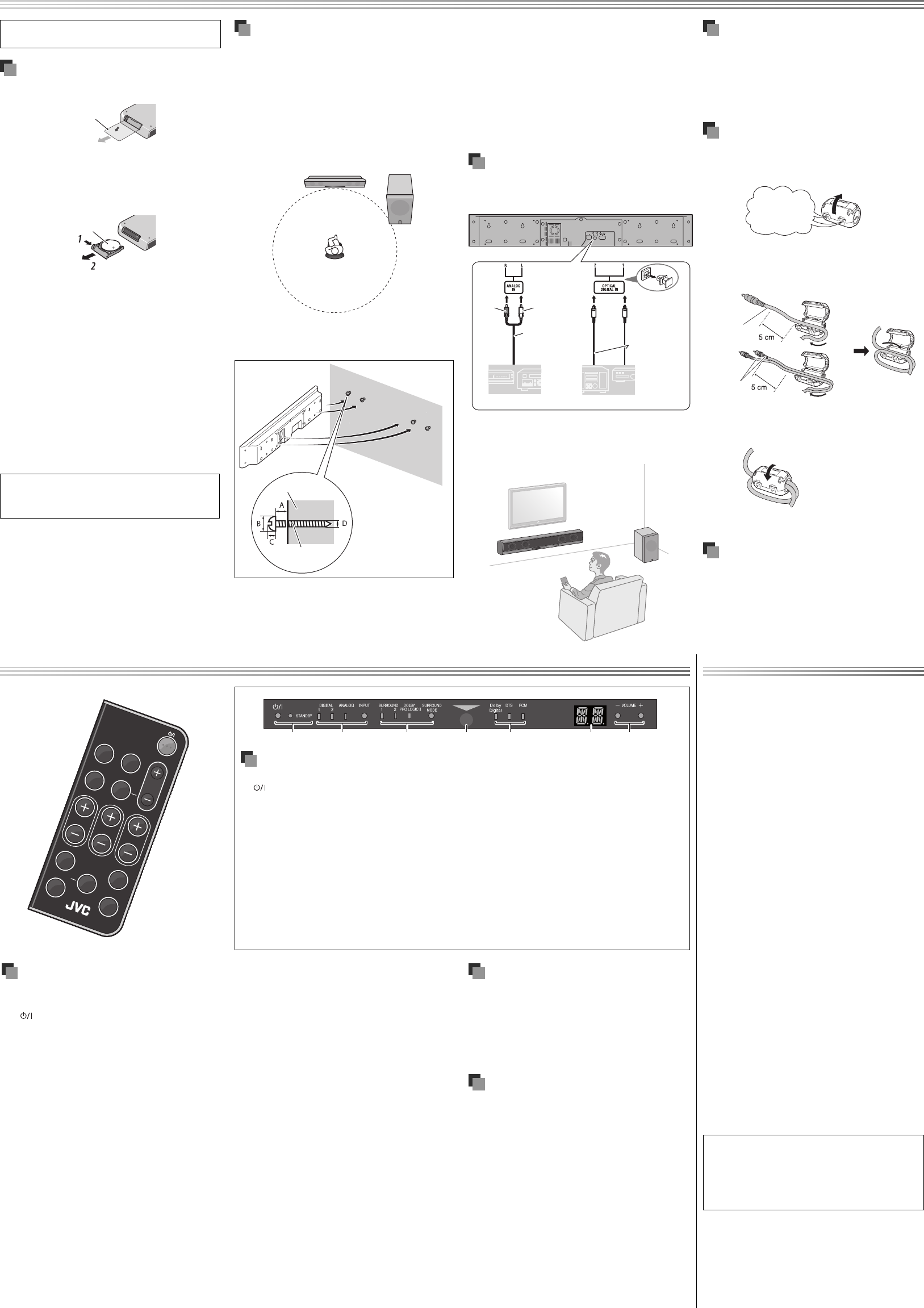

Connecting external components

You can connect analog components to the ANALOG terminal and digital

components to the DIGITAL 1 and DIGITAL 2 terminals.

•

•

–

–

–

•

Connecting the power cord

Connect the supplied AC adaptor to the DC IN jack on the center unit. Then

connect the supplied AC power cord to the AC adaptor, and plug it in a wall

outlet.

Plug in the power cord of the subwoofer to a wall outlet.

CAUTION

Disconnect the power cords before cleaning or moving the speakers.

Using the core filter

Attach the provided core filter to the power cord and the external components

cord, then the core filter reduces interference.

1 Release the stopper of the core filter.

2 Run the cable through the core filter, and wind the cable

firmly once inside the cutout of the core filter as shown in

the illustration.

You can wind 2 external components cords together.

3 Close the core filter until it clicks shut.

CAUTION

Do not damage the cord by applying excessive force when winding.

Setting up the subwoofer

This System is equipped with a wireless subwoofer. When you use it for the first

time, activate the wireless pairing.

Refer to the supplied information sheet—“Activate wireless pairing.”

NOTE

The wireless pairing is not canceled even after the AC plug has been pulled out.

•

•

*

•

•

Getting started

DO NOT connect the power cord until all other connections have

been made.

Prepare the Remote Control

When you use the remote control for the first time, pull out the insulation

sheet.

If the range or effectiveness of the remote control decreases, replace the

battery.

To Replace the Battery in the Remote Control

Insert the battery into the remote control by matching the polarities (+ and –)

correctly.

1 Pinch the side of the battery case.

2 Pull out the battery case and insert the battery by

matching the polarities.

NOTE

Store the battery in a place where children cannot reach. If a child accidentally

swallows the battery, consult a doctor immediately.

To prevent the battery from overheating, cracking, or starting a fire:

Do not recharge, short, disassemble or heat the battery, or dispose of it in a

fire.

Do not leave the battery with other metallic materials.

Wrap the battery with tape and insulate when throwing away or saving it.

Do not poke the battery with tweezers or similar tools.

Dispose of the battery in the proper manner, according to federal, state, and

local regulations.

•

•

–

–

–

•

•

Lithium coin battery

(product number: CR2025)

Operations

Turning on/off the power

Press .

You can also use the power button on the front panel.

NOTE

A small amount of power is consumed even when the power is turned off

(standby mode). During standby mode, the STANDBY lamp on the front panel

lights up. Unplug the power cord from the AC outlet to turn the power off

completely.

You can also turn on the System by pressing one of the input buttons (DIGITAL

1, DIGITAL 2 or ANALOG).

Selecting the input source

Press one of the input buttons: DIGITAL 1, DIGITAL 2 or

ANALOG.

D1 (DIGITAL 1), D2 (DIGITAL 2) or AN (ANALOG) appears on the display for 2

seconds.

You can also use the input button on the front panel.

NOTE

The indicator lamp of the selected input source lights.

•

•

•

•

•

Troubleshooting

Adjusting the volume

Press VOLUME +/– (0 to 40).

You can also use the volume buttons on the front panel.

CAUTION

Set the volume to the minimum level before starting any source. If the volume

is set to a high level, the sudden blast of sound may damage your hearing and

blow out the speakers.

Turning off the sound temporarily

Press FADE MUTING.

To restore the sound, press the button again or adjust the volume.

Changing the display brightness

Press DIMMER.

Each time you press the button, the LED brightness changes as follows:

normal \ dim \ off

Making sound clearer (Only for Dolby DIGITAL

and DTS)

You can enjoy low level recorded sound clearly even at a low volume

level—Dynamic Range Compression.

Press DRC.

Each time you press the button, the sound is enhanced the effect as follows:

OF(off) \ MD (middle) \ MX (maximum)

•

•

•

Insulation sheet

Speaker layout

Install the speakers on a flat and level surface to ensure the best sound quality.

The sound may be affected depending on the location in which you install

them. To avoid such issues, change the location and orientation of the

speakers.

Install the speakers leaving an appropriate distance between them.

If you install the speakers near the TV, color distortion may occur. To prevent

this, turn off the TV’s main power or unplug it before installing the speakers.

Wait at least 30 minutes before turning on the TV’s main power again.

If the TV is still affected, move the speakers further away.

Typical installation

Installing on the wall

You can install the center unit on the wall.

CAUTION

The center unit weighs approximately 3.5 kg. Sufficient care must be taken

when installing it on the wall to prevent any accidents caused by its falling off.

Use screws which are compatible with the strength and material of the pillar or

wall to prevent the center unit from falling off.

•

•

•

•

•

•

Rear of the center unit

RCA pin plug cord

(not supplied)

Analog

component

Digital

components

White

Red

Digital optical cord

(not supplied)

A: Minimum 6.5 mm

B: Maximum 10 mm

C: Maximum 6 mm

D: φ 4 mm (screw diameter)

Center unit

Wall

1 (power) button and STANDBY lamp

Turns on/off the System.

STANDBY lamp lights up while the System is turned off.

2 Input button and input source indicator lamps

Selects an input source: “DIGITAL 1,” “DIGITAL 2” or “ANALOG.”

The indicator lamp for the selected input source lights up.

3 Surround button and surround indicator lamps

Selects a surround mode: “SURROUND 1,” “SURROUND 2” or SURROUND

OFF.

The indicator lamp for the selected surround mode lights.

The DOLBY PROLOGIC II lamp lights up when:

surround is activated with an ANALOG input source selected.

surround is activated and a DIGITAL input source with 2 channel

audio format.

•

•

•

•

–

–

4 Remote sensor

Receives the signal from the remote control.

5 Digital signal format lamps

Shows the digital signal format of the incoming signal when “DIGITAL 1”

or “DIGITAL 2” is selected as the input source. Each lamp lights when:

– DOLBY DIGITAL: a Dolby Digital signal comes in.

– DTS: a DTS signal comes in.

– PCM: a Linear PCM signal comes in.

6 Display

Shows the volume level.

7 Volume buttons

Adjusts the volume within the range of 0 to 40.

If you have a problem with this System, check this list for a possible solution

before calling for service.

POWER

Power does not come on.

The power cord is not inserted securely. Plug it in securely.

REMOTE CONTROL

The remote control does not work.

The battery is exhausted. Replace the battery.

Sunlight is shining directly on the remote sensor. Hide the remote sensor

from direct sunlight.

The path between the remote control and the remote sensor on the front

panel is blocked.

Point the remote control at the remote sensor on the front panel.

Signals cannot reach the remote sensor. Move closer to the unit.

Pull out the insulation sheet.

SOUND

Sounds are sometimes interrupted.

Radio wave connections may be interrupted. Change the location and

orientation of the speakers.

No sound from speakers.

The wireless connections have not been activated correctly. Check the

connection.

The sound has been turned off temporarily. Press FADE MUTING on the

remote control or adjust the volume by pressing VOLUME +/–.

Radio wave reflections

The System is connected directly by radio waves which are reflected by

walls, furniture and buildings. If the System cannot receive the waves

properly, move the System to obtain better reception.

Radio wave reception may also be interrupted by people moving between

the units.

=

=

=

=

=

=

=

=

=

=

Basic operation

Buttons and lamps on the front panel

Adjusting the output level of the

speakers

You can adjust the output level within the range of –6 dB to +6 dB.

Press SPK LEVEL +/– for the corresponding speaker.

– SUBWOOFER: Adjusts the output level of the subwoofer.

– CENTER: Adjusts the output level of the center speakers.

– SURROUND: Adjusts the output level of the front surround speakers.

Using the surround mode

You can listen to a more realistic sound than stereo sound using surround.

Available surround modes are as follows:

– SURROUND 1: Suitable for the reproduction of multi-channel sources. S1

appears on the display when selected.

– SURROUND 2: Suitable for the reproduction of any stereo music sources.

S2 appears on the display when selected.

The indicator lamp of the selected mode lights.

Press SURROUND MODE 1 or SURROUND MODE 2.

To deactivate, press OFF. OF appears on the display.

•

•

Stopper

Power cord

External

components

cords*

Screw

(not supplied)

CAUTION:
