GVT0116-014A

[UX]

For Customer Use:

Enter below the Model No. and Serial No.

which are located either on the rear, bot-

tom or side of the cabinet. Retain this

information for future reference.

Model No.

Serial No.

UX-J66V– Consists of CA-UXJ66V and SP-UXJ66V

UX-J55V– Consists of CA-UXJ55V and SP-UXJ55V

MICRO COMPONENT SYSTEM

INSTRUCTIONS

P-UXJ55V

A-

J55

P-UXJ55V

P-UXJ66V

A-

J66

P-UXJ66V

VIDEO CD VERSION 2.0

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL VIDEO

STANDBY/ON

DISPLAY

CLOCK

/TIMER

SLEEP

TREBLE

DOWN

BASS

CANCELSET

TAPE F M/AM AUX

REPEATRANDOM

REV.

MODE FM MODE

STILL COLOR

PRGMRETURN

/SELECT

1 32

4 65

7 98

10 +10

PREV. NEXT

STANDBY/ON

DISPLAY

CLOCK

/TIMER

SLEEP

TREBLE

BASS

CANCELSET

TAPE FM/AM AUX

REPEAT

KARAOKE

RANDOM

AHB

PRO

STILL

MPX

PRGM

RETURN

4 65

7 98

10 +10

RM-

DIGITAL

ECHO

DOWN

PREV.

/SELECT

MODE

REV.

MODE

CA-UXJ66V SP-UXJ66V

CA-UXJ55V SP-UXJ55V

English

ARCover,UX-J66/55V(UX) 4/8/03, 4:52 PM3

– G-1 –

Warnings, Cautions and Others

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper

or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles,

on the apparatus.

• When discarding batteries, environmental problems must be

considered and local rules or laws governing the disposal of

these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or

splashing and that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or

moisture.

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off).

The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights red.

• When the unit is turned on, the STANDBY/ON lamp lights green.

The power can be remote controlled.

Safety_UX-66/55V[UX]/1 4/8/03, 5:23 PM1

– G-2 –

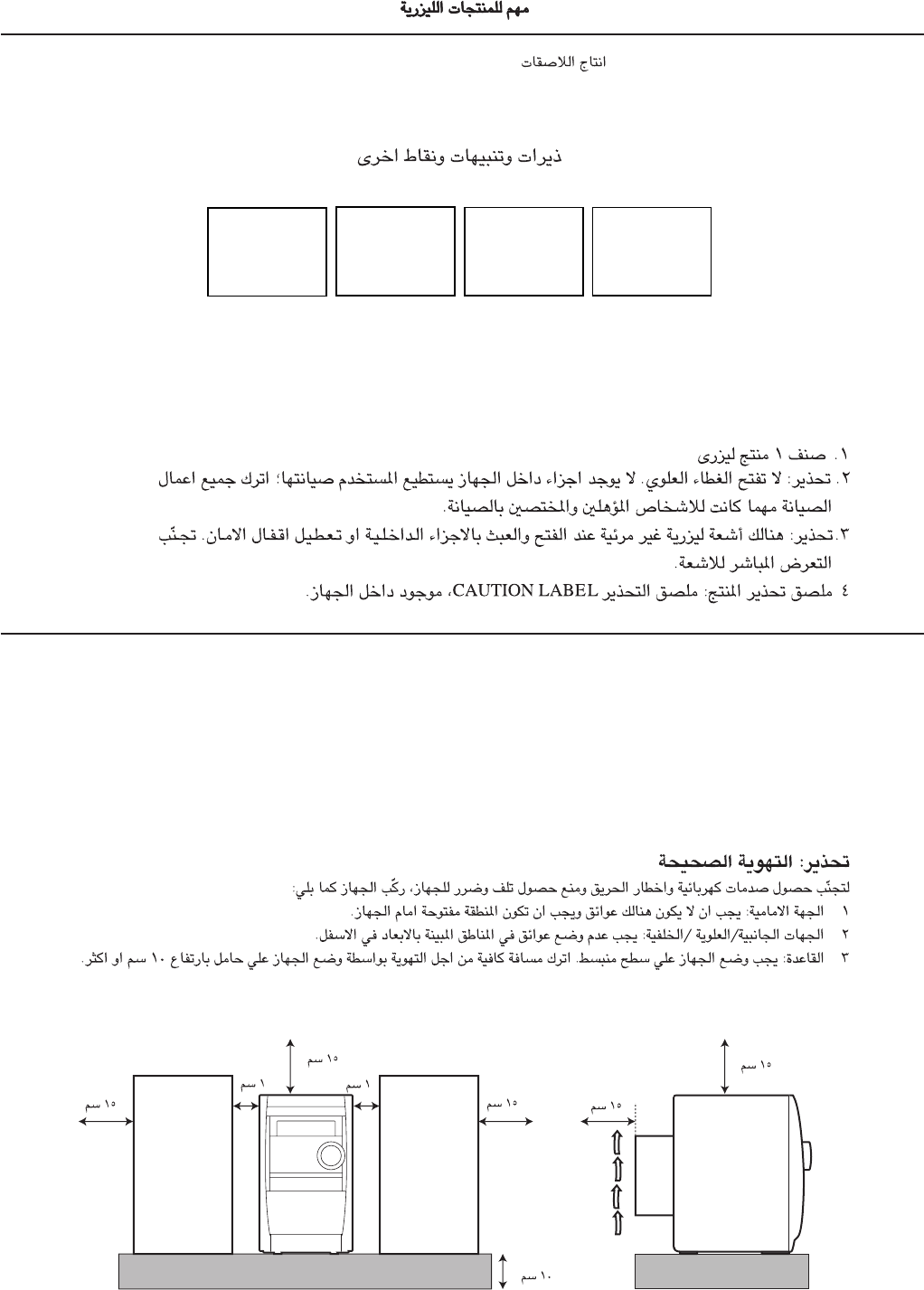

IMPORTANT FOR LASER PRODUCTS

REPRODUCTION OF LABELS /

WARNING LABEL, PLACED INSIDE THE UNIT

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

qualified service personnel.

3. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

ADVARSEL: Usynlig laser-

stråling ved åbning, når

sikkerhedsafbrydere er ude

af funktion. Undgå udsæt-

telse for stråling (d)

VARNING: Osynlig laser-

strålning när denna del är

öppnad och spärren är

urkopplad. Betrakta ej

strålen. (s)

CAUTION: Invisible laser

radiation when open and

interlock failed or defeated.

AVOID DIRECT EXPOSURE

TO BEAM. (e)

VARO: Avattaessa ja suo-

jalukitus ohitettaessa olet

alttiina näkymättömälle

lasersäteilylle. Älä katso

säteeseen. (f)

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1 Front:

No obstructions and open spacing.

2 Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom:

Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of

10 cm or more.

UX-J66V/UX-J55V

UX-J66V

UX-J55V

Safety_UX-66/55V[UX]/1 4/8/03, 5:23 PM2

English

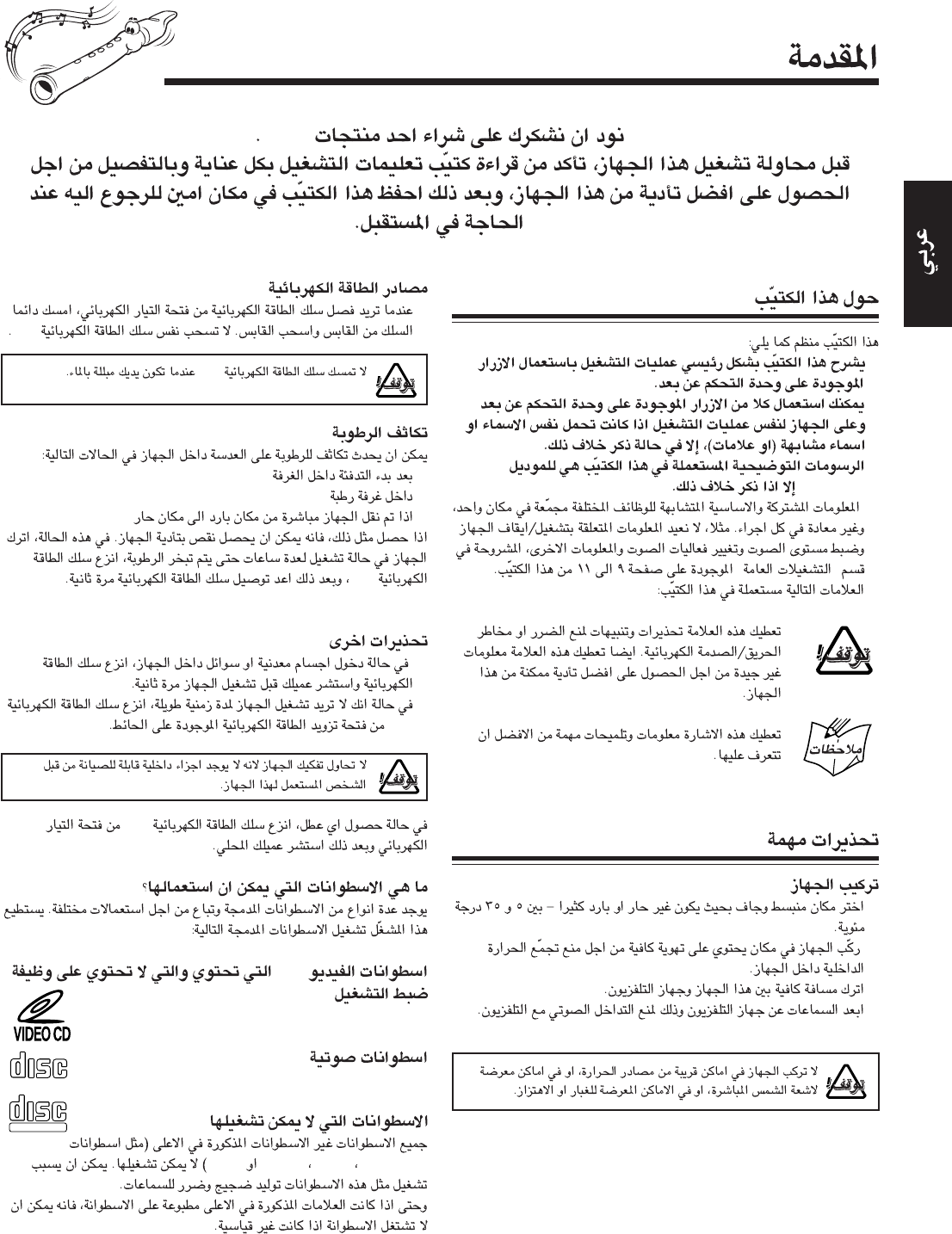

Introduction

About This Manual

This manual is organized as follows:

• The manual mainly explains operations using the

buttons on the remote control.

You can use the buttons both on the remote control and

on the main unit for the same operations if they have

the same or similar names (or marks), unless mentioned

otherwise.

The illustrations used in this manual are of UX-J66V

unless mentioned otherwise.

• Basic and common information that is the same for many

functions is grouped in one place, and is not repeated for

each procedure. For instance, we do not repeat the

information about turning on/off the unit, setting the

volume, changing the sound effects, and others, which are

explained in the section “Common Operations” on pages 9

to 11.

• The following symbols are used in this manual:

Gives you warning and caution to prevent

damage or risk of fire/electric shock.

Furthermore, it gives you information about

what is not good for obtaining the best possible

performance from the unit.

Gives you information and hints you should

know.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor

too cold—between 5˚C and 35˚C.

• Install the unit in a location with adequate ventilation to

prevent internal heat buildup in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference

with TV.

DO NOT install the unit in a location near heat

sources, or in a place subject to direct sunlight,

excessive dust or vibration.

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

Power sources

• When unplugging the unit from the wall outlet, always pull

on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet

hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the

following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should condensation occur, the unit may malfunction. In this

case, leave the unit turned on for a few hours until the

moisture evaporates, unplug the AC power cord, then plug it

in again.

Others

• Should any metallic object or liquid fall into the unit,

unplug the power cord and consult your dealer before

operating any further.

• If you are not going to operate the unit for an extended

period of time, unplug the AC power cord from the wall

outlet.

DO NOT disassemble the unit since there are no

user serviceable parts inside.

If anything goes wrong, unplug the AC power cord and

consult your dealer.

Which compact discs can be used?

Many types of compact discs are sold for a variety of uses.

The player can play the following compact discs:

Video CD discs both with and without PBC

Audio CD discs

Discs you cannot playback

Any other discs than listed above (such as CD-ROM, DVD,

CD-G or CD-I Discs) cannot be played. Playing back such

discs may generate noise and damage your speakers.

Even though a logo listed above is printed on the disc, it may

not be played if it is a non-standard disc.

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:15 PM1

English

Contents

Location of the Buttons and Controls ....................... 3

Front Panel and Top View .......................................... 3

Remote Control .......................................................... 5

Getting Started ............................................................ 6

Supplied Accessories .................................................. 6

Putting the Batteries into the Remote Control ........... 6

Connecting Antennas ................................................. 6

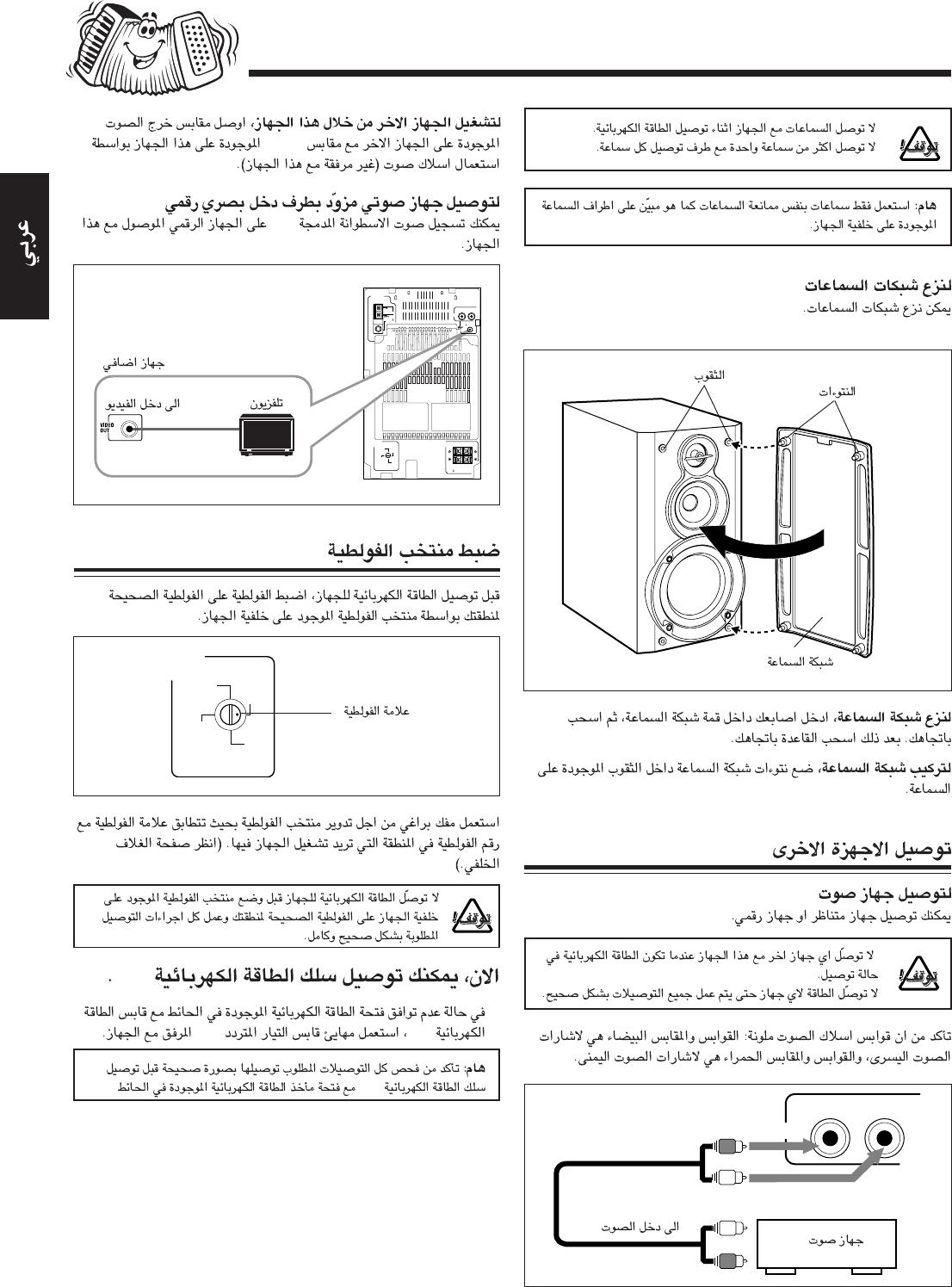

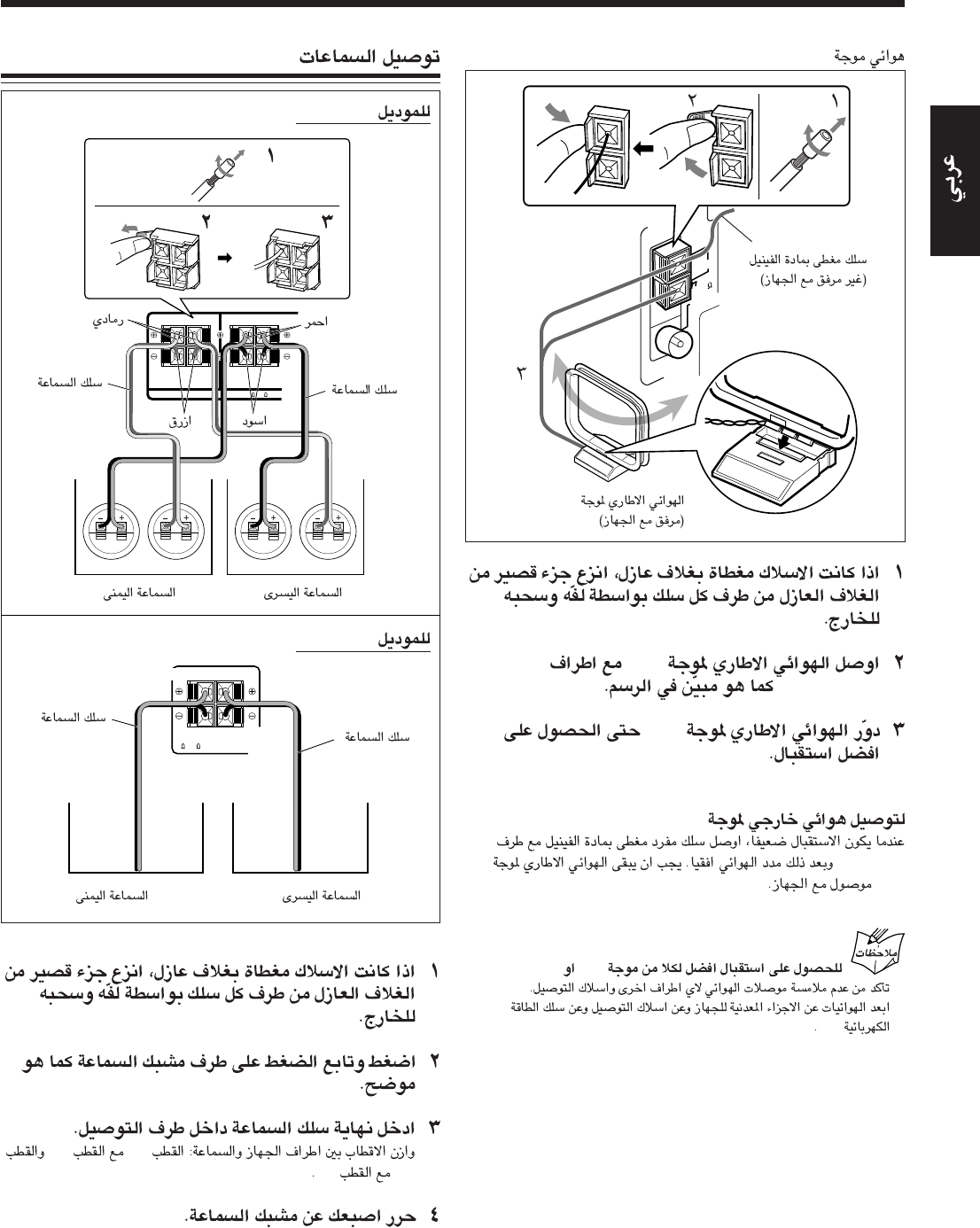

Connecting Speakers .................................................. 7

Connecting Other Equipment ..................................... 8

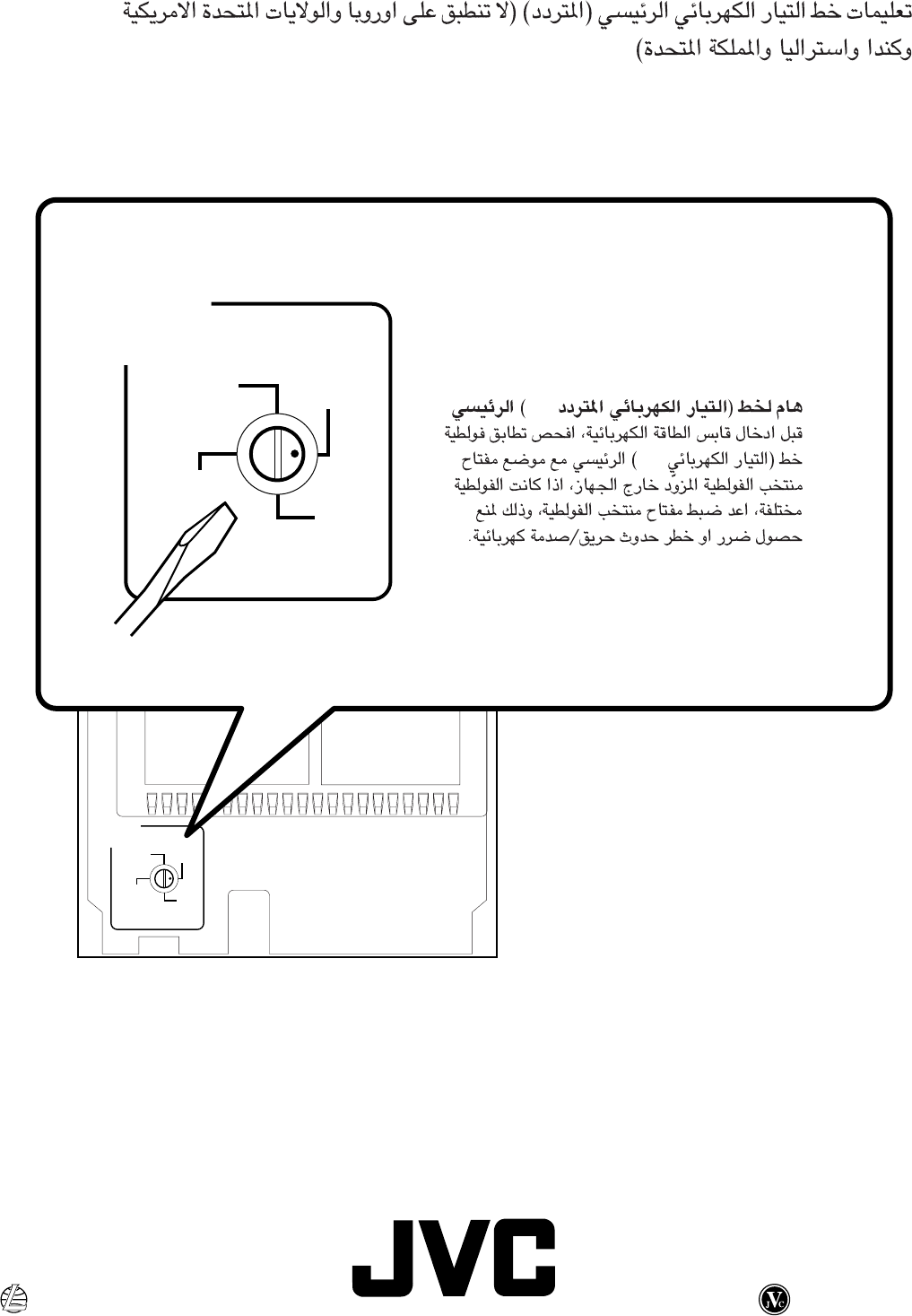

Adjusting the Voltage Selector ................................... 8

Common Operations .................................................. 9

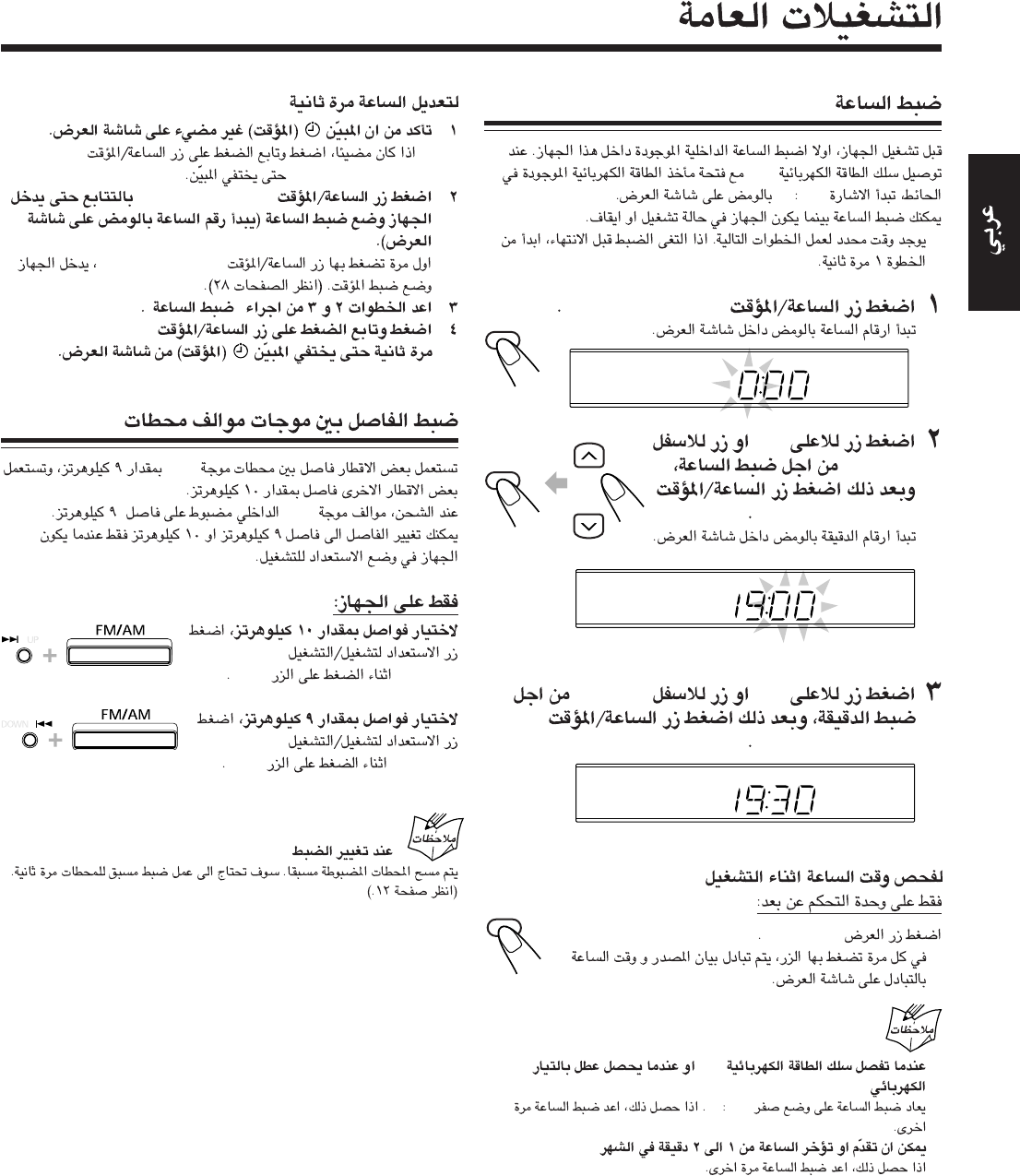

Setting the Clock ........................................................ 9

Setting the AM Tuner Interval Spacing ...................... 9

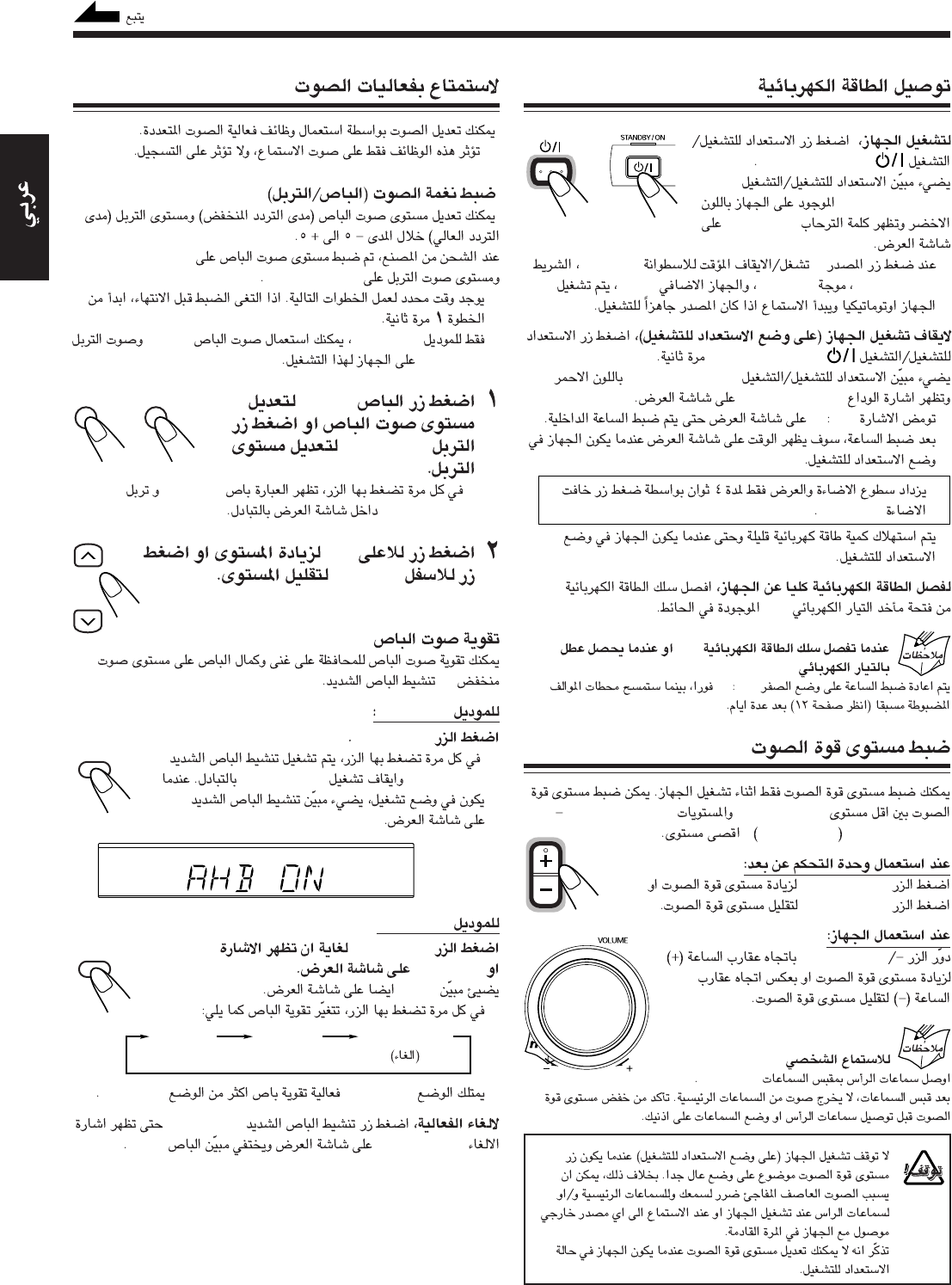

Turning On the Power .............................................. 10

Adjusting the Volume ............................................... 10

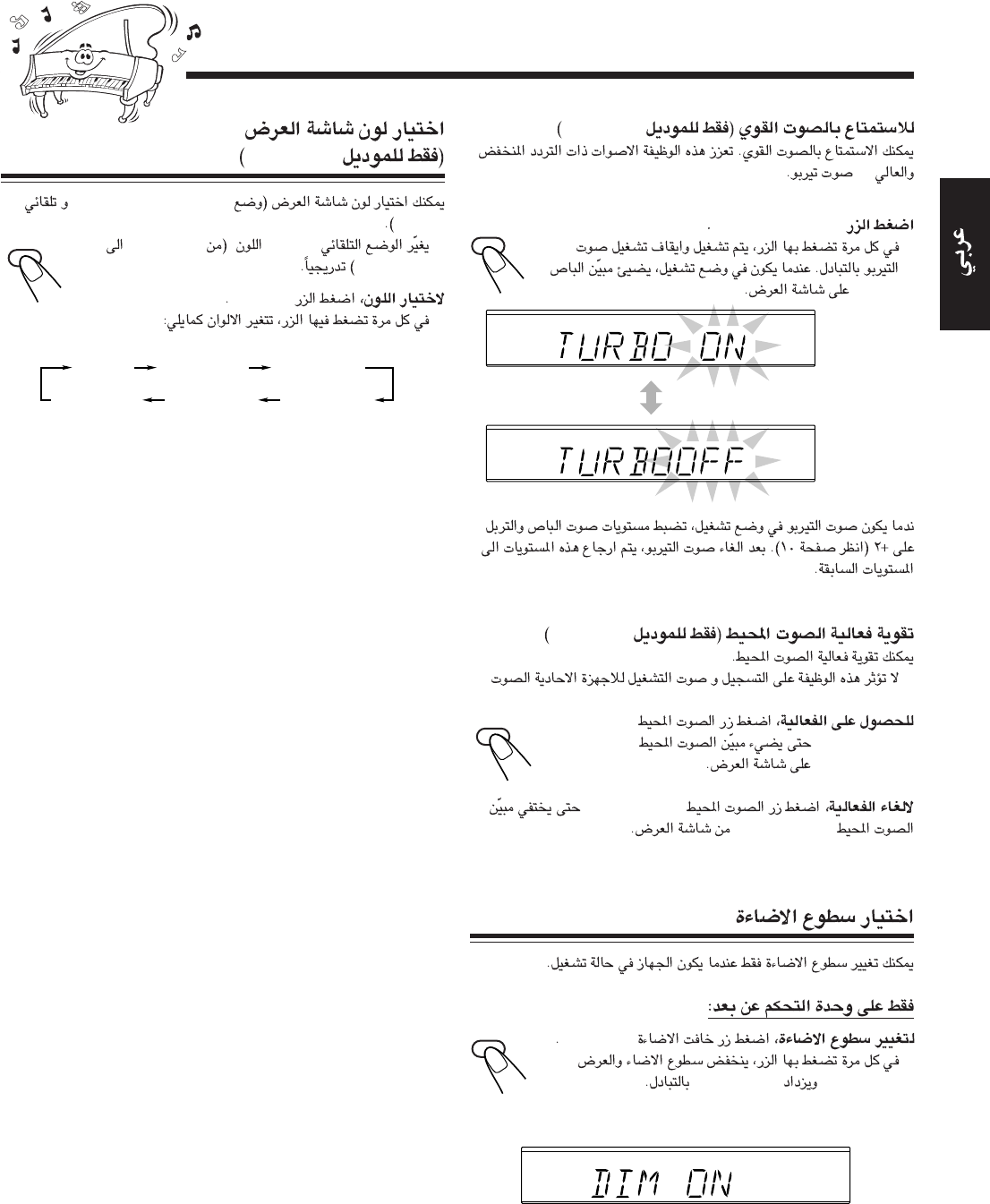

Enjoying Sound Effects ............................................ 10

Selecting the Illumination Brightness ...................... 11

Selecting the Display Color

(ONLY FOR UX-J66V) ..................................... 11

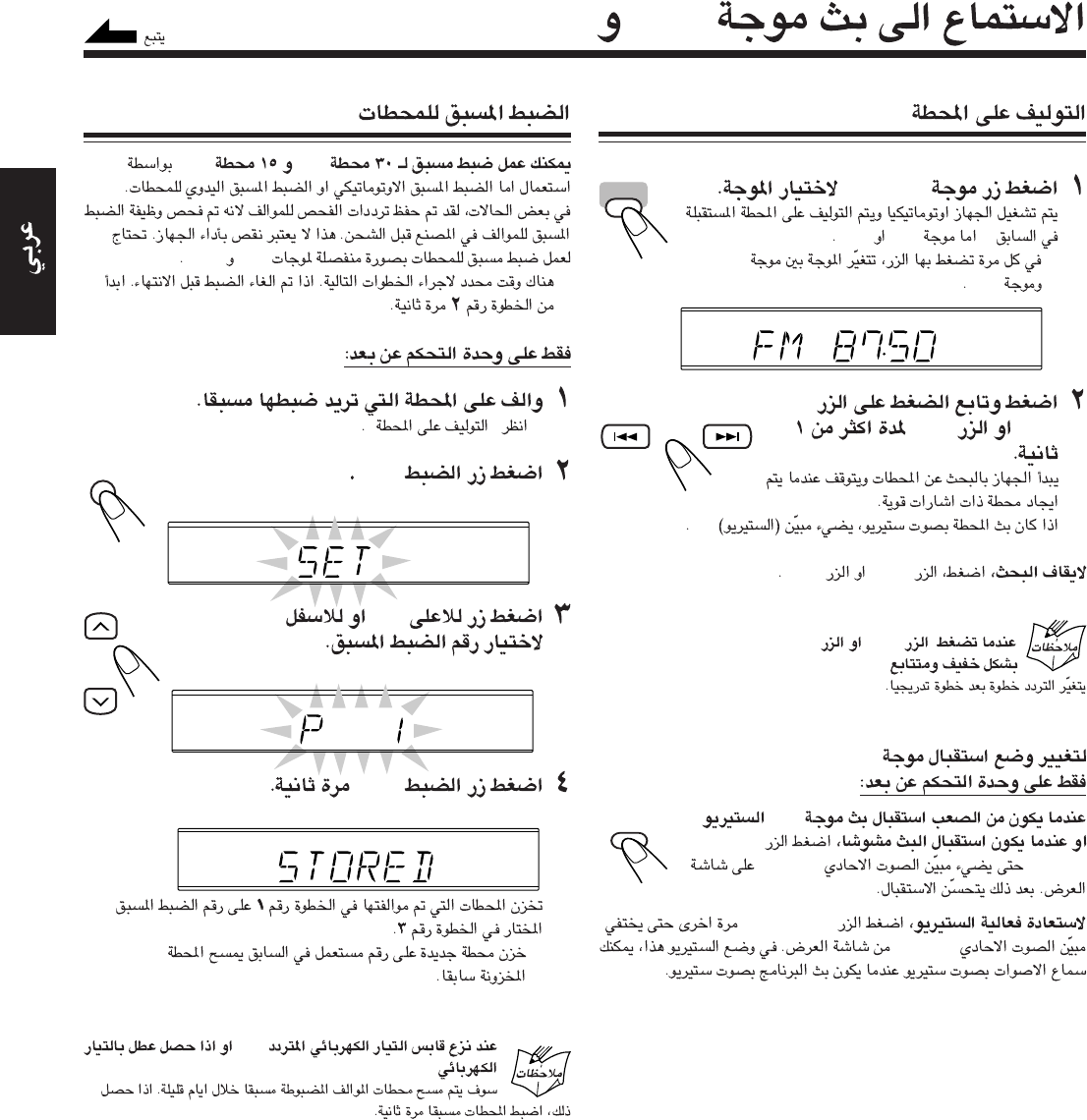

Listening to FM and AM Broadcasts ...................... 12

Tuning in to a Station ............................................... 12

Presetting Stations .................................................... 12

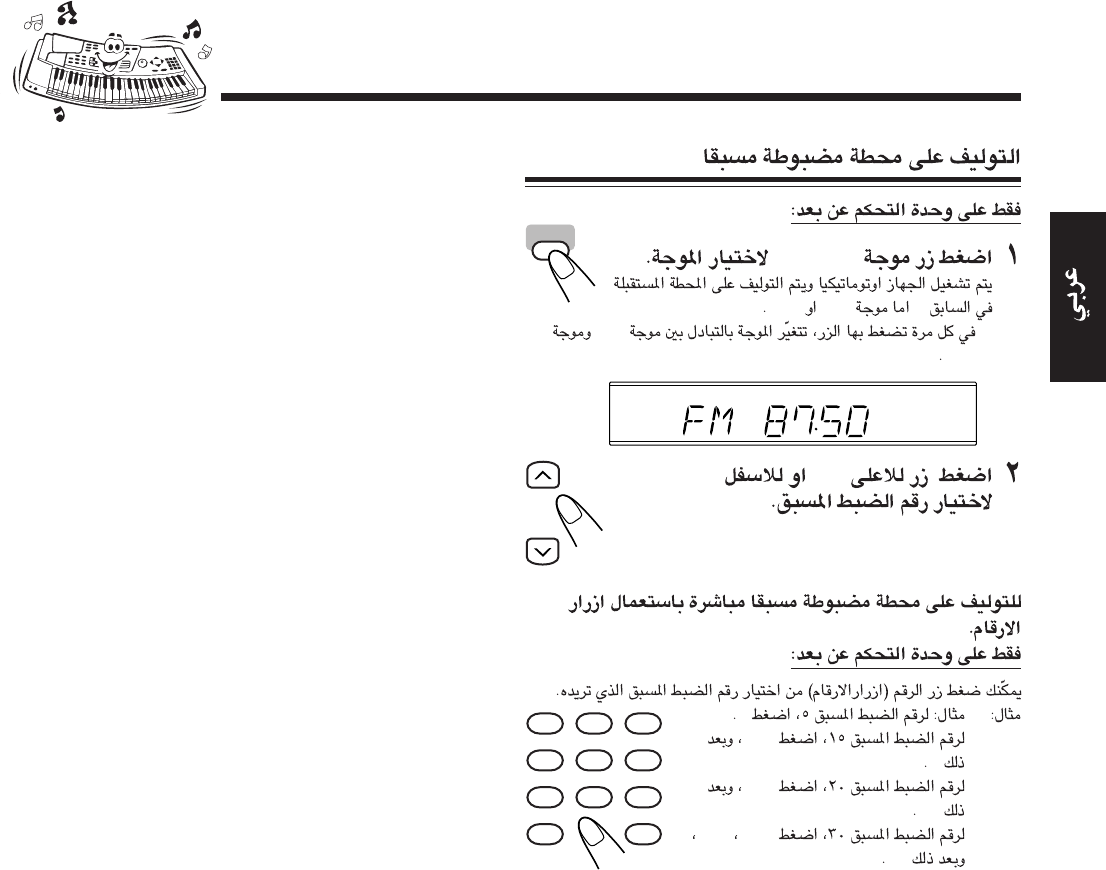

Tuning in to a Preset Station .................................... 13

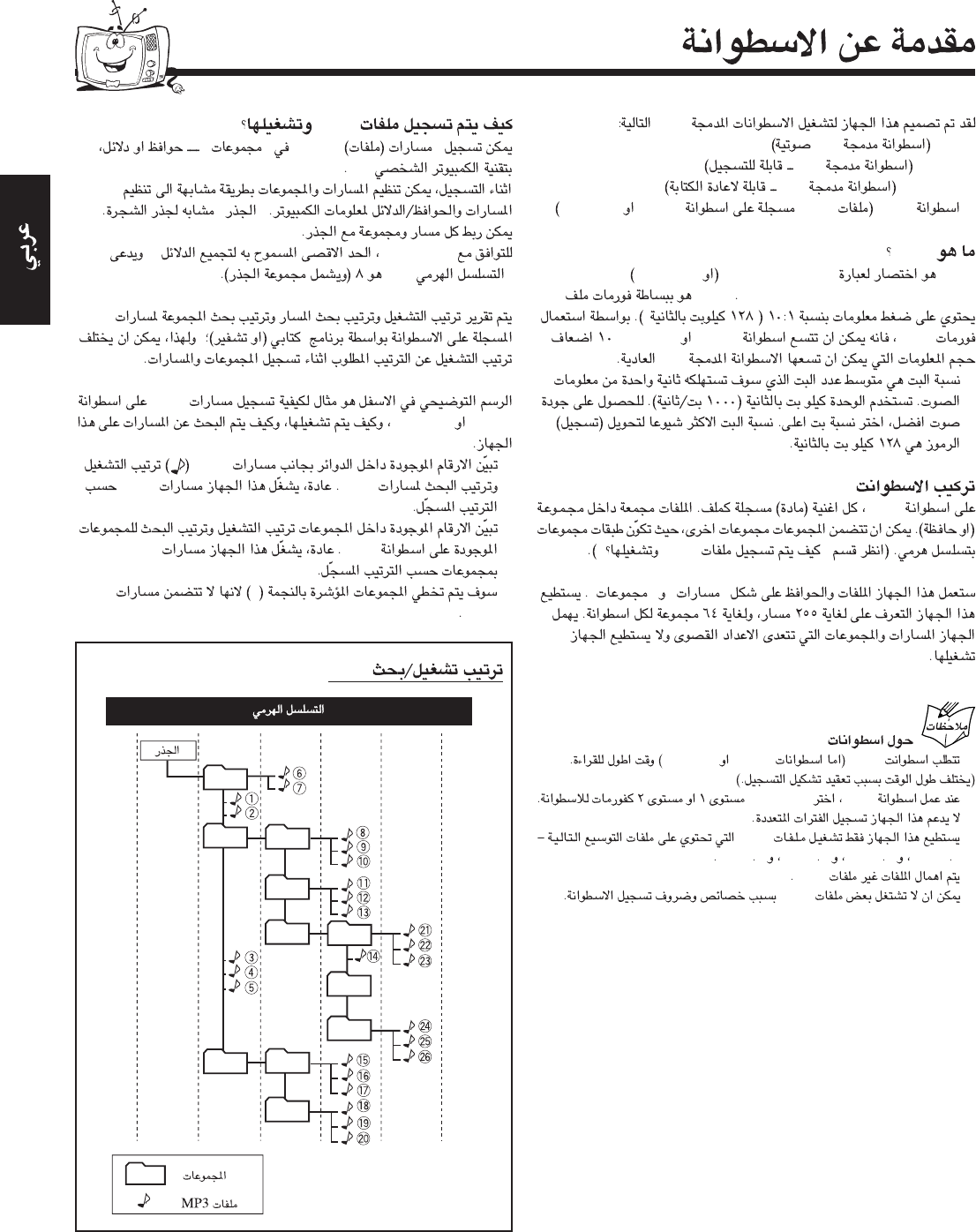

Disc Introduction ...................................................... 14

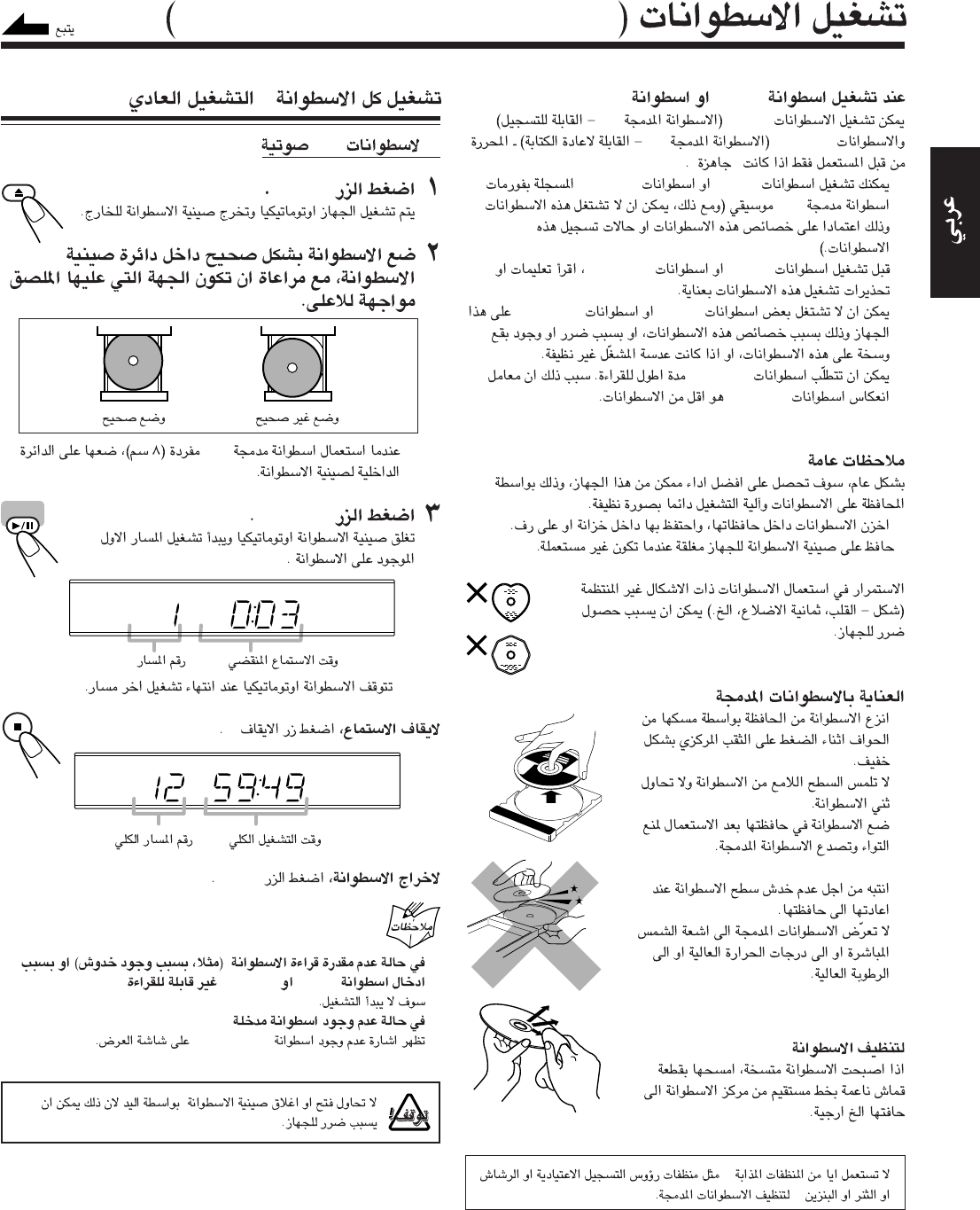

Playing Back Discs (CD/CD-R/CD-RW/MP3) ....... 15

Playing Back the Entire Disc—Normal Play ........... 15

Basic Disc Operations .............................................. 16

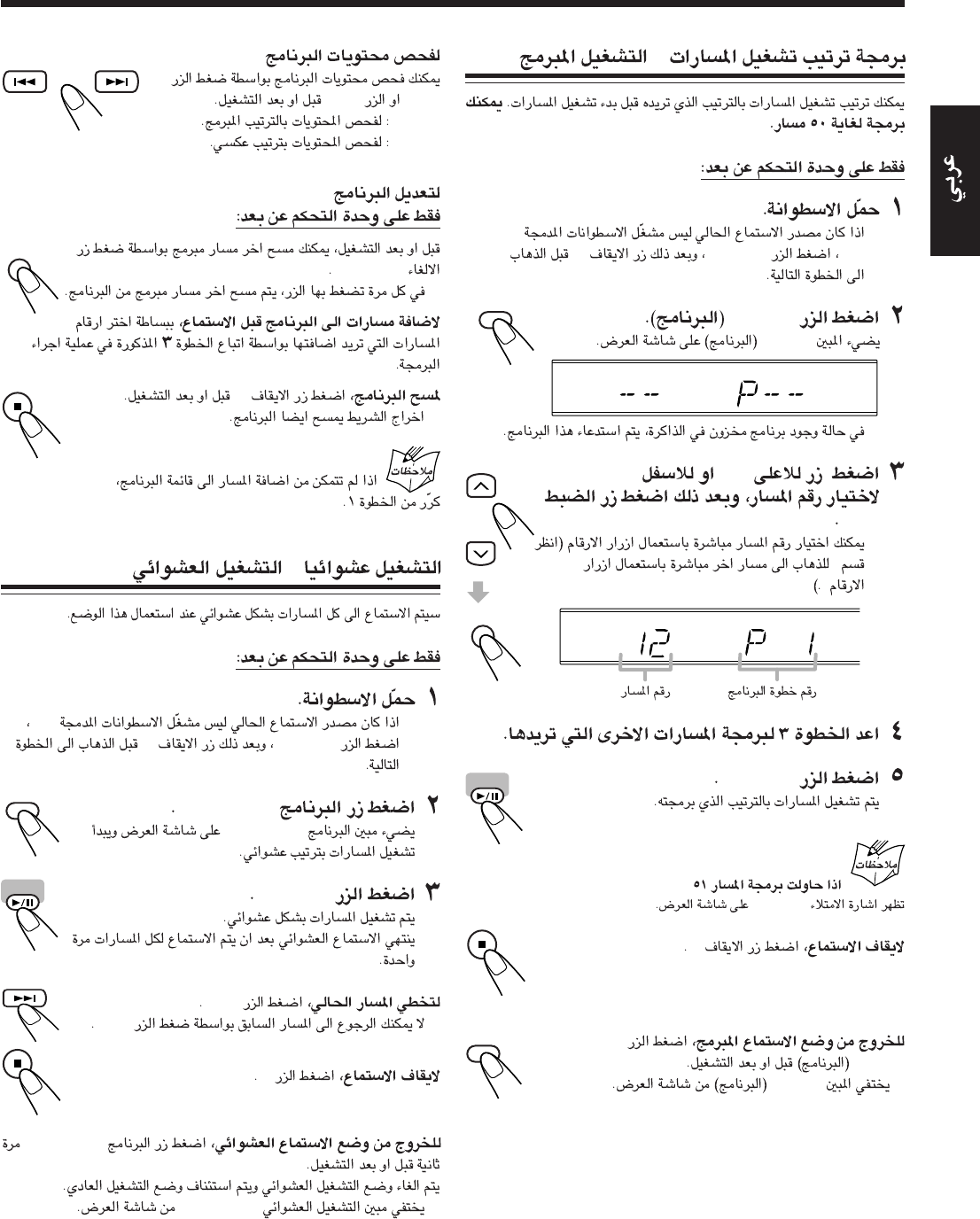

Programming the Playing Order of the Tracks

—Program Play .................................................. 17

Playing at Random—Random Play ......................... 17

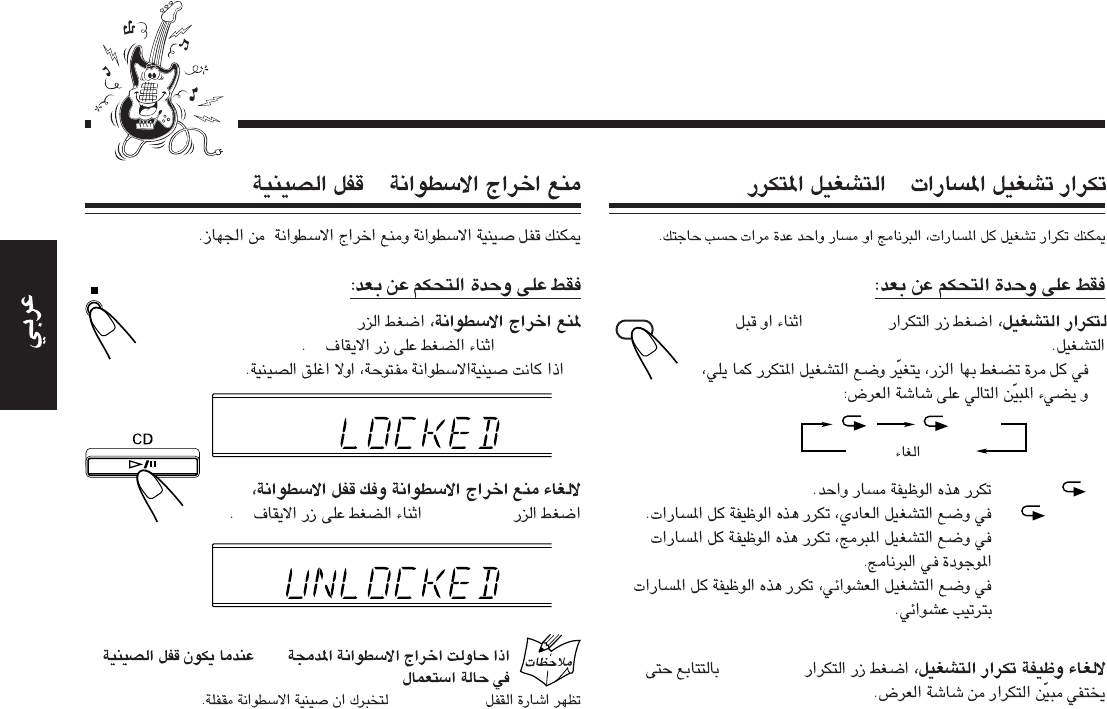

Repeating Tracks—Repeat Play ............................... 18

Prohibiting Disc Ejection—Tray Lock .................... 18

Using the Video CD Player (Video CDs) ................. 19

Setting the TV System.............................................. 19

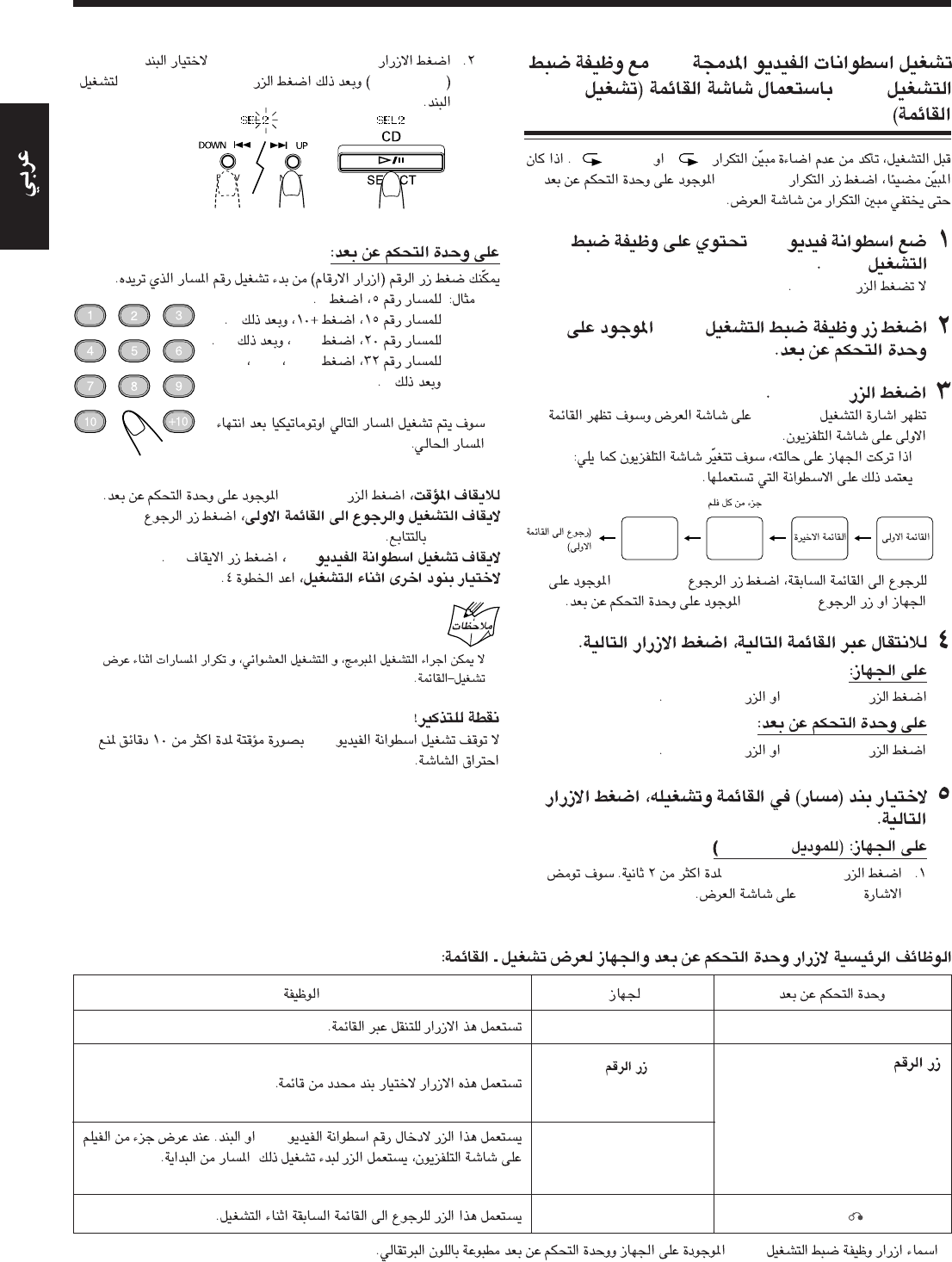

Playing Video CDs with the PBC Function ............. 19

Playing Video CDs with the PBC Function without

Using the Menu Screen (Continuous Play) ........ 19

Playing Video CDs with the PBC Function

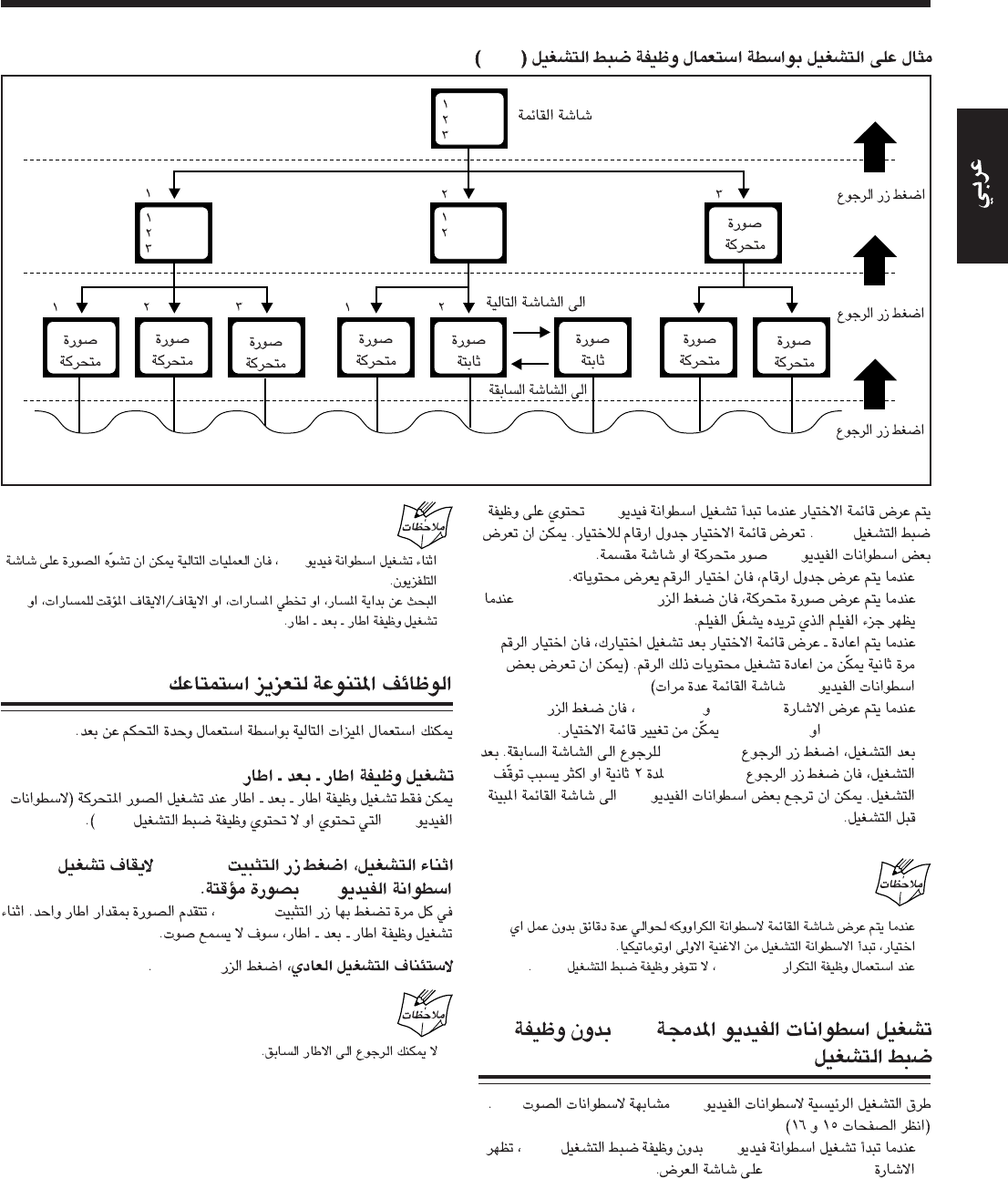

Using the Menu Screen (Menu-Driven Play) ..... 20

Playing video CDs without the PBC Function ......... 21

Various Functions to Enhance Your Enjoyment ....... 21

Playing Back Tapes ................................................... 23

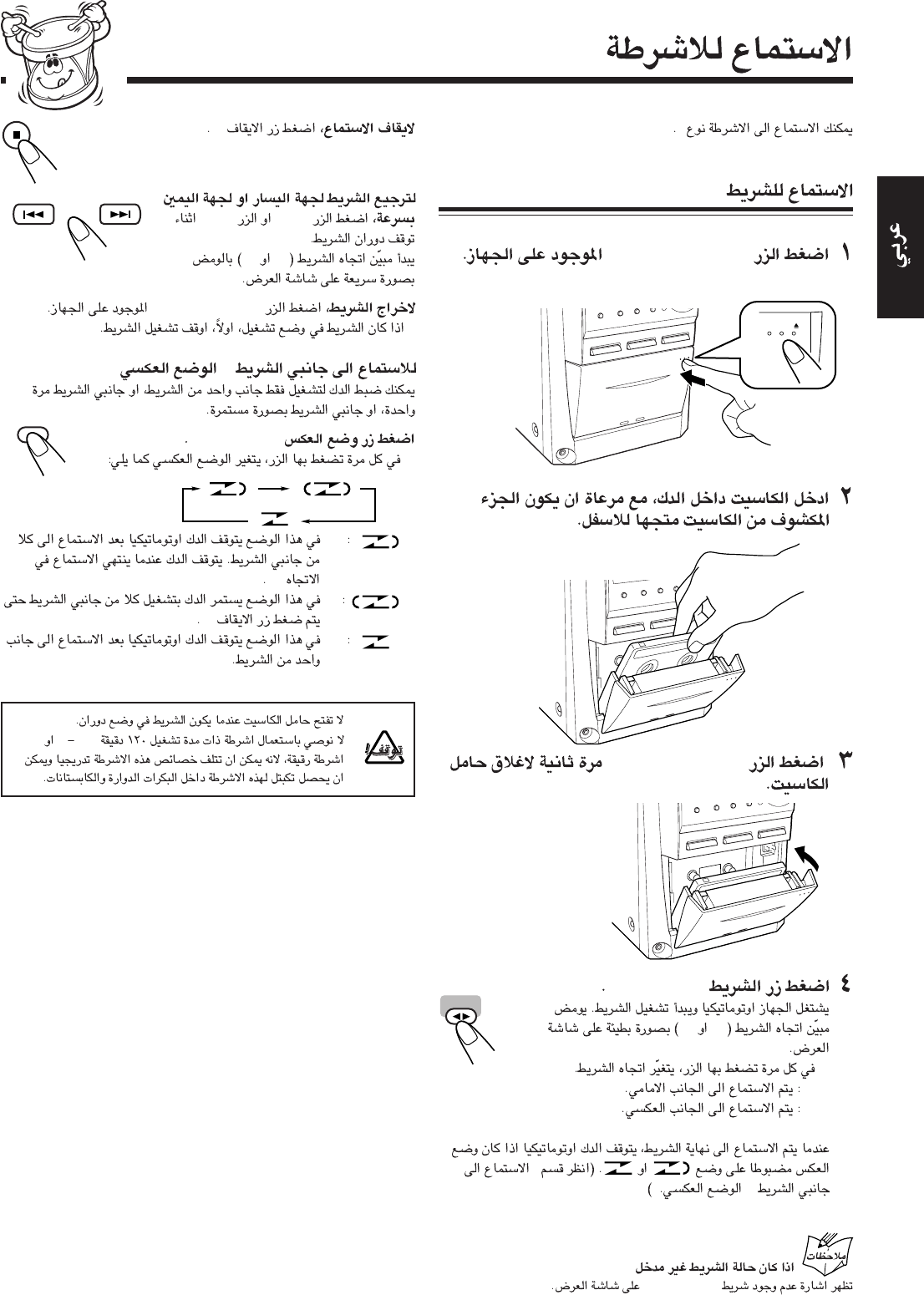

Playing Back a Tape ................................................. 23

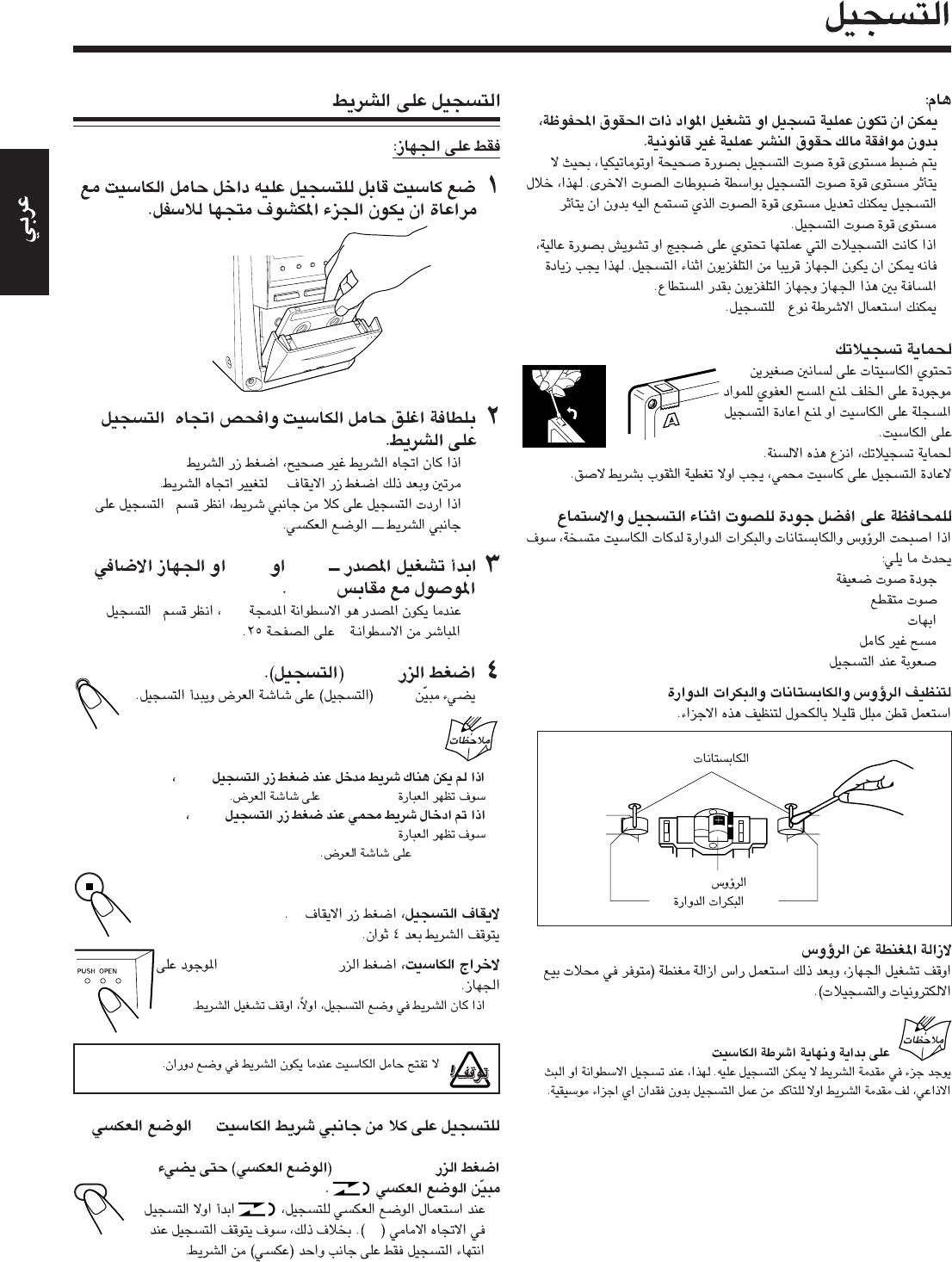

Recording .................................................................. 24

Recording on a Tape ................................................. 24

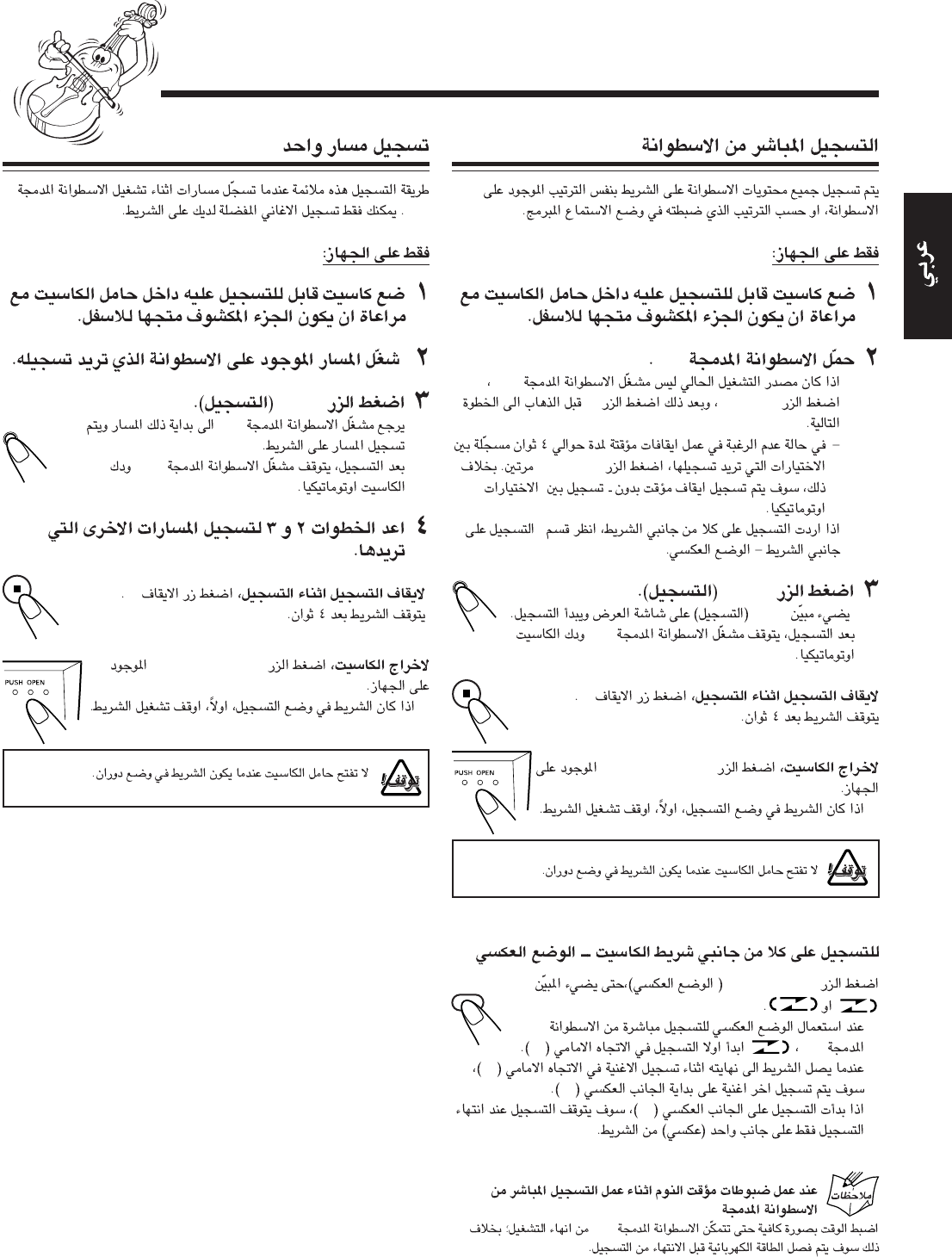

Disc Direct Recording .............................................. 25

One Track Recording ............................................... 25

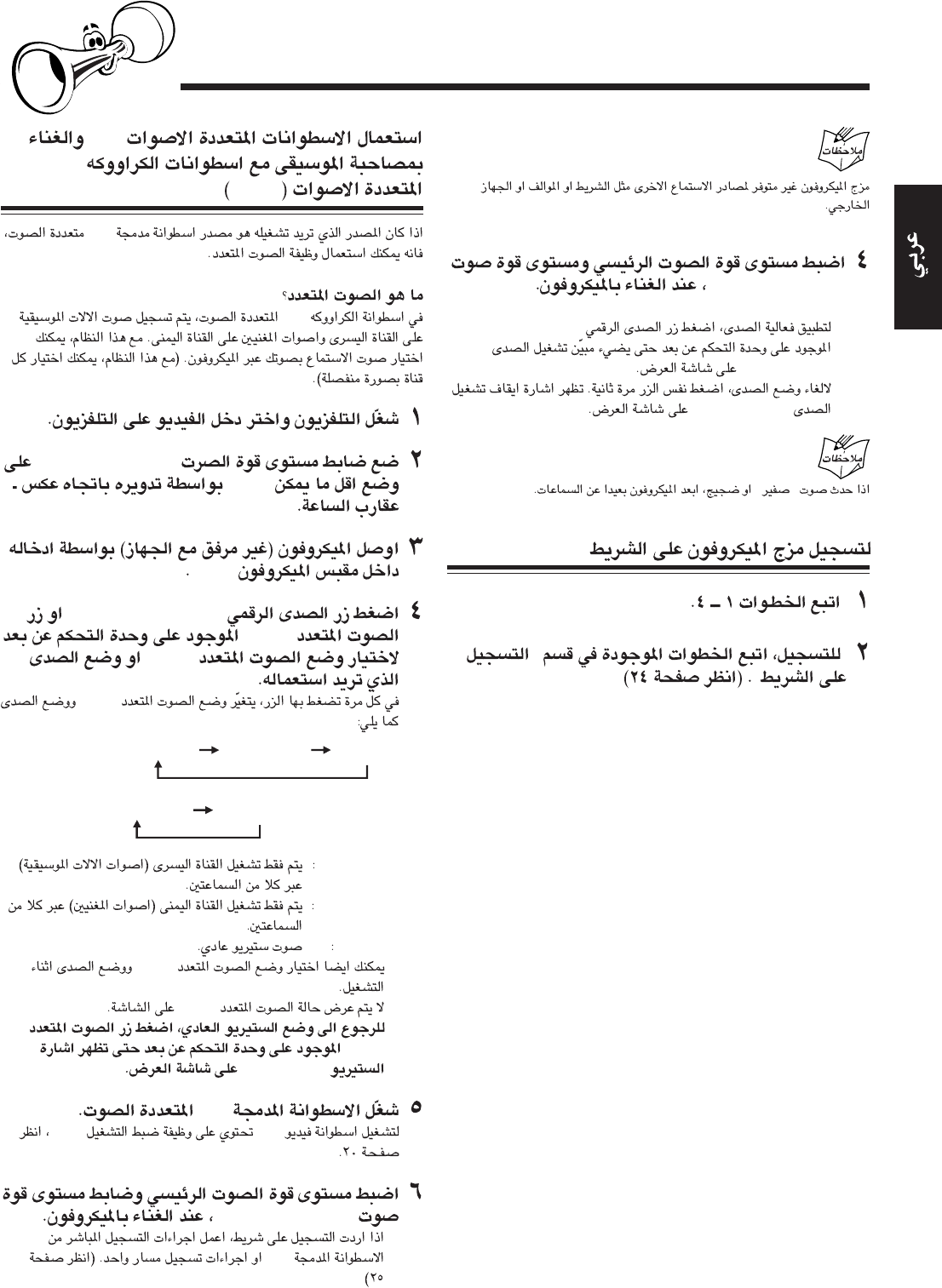

Using the Microphone and Multiplex CDs ............. 26

Singing Along – Karaoke ......................................... 26

Microphone Mixing ................................................. 26

To Record Microphone Mixing on a Tape ............... 27

Using the Multiplex CDs and Singing Along with

Multiplex (MPX) Karaoke CDs ......................... 27

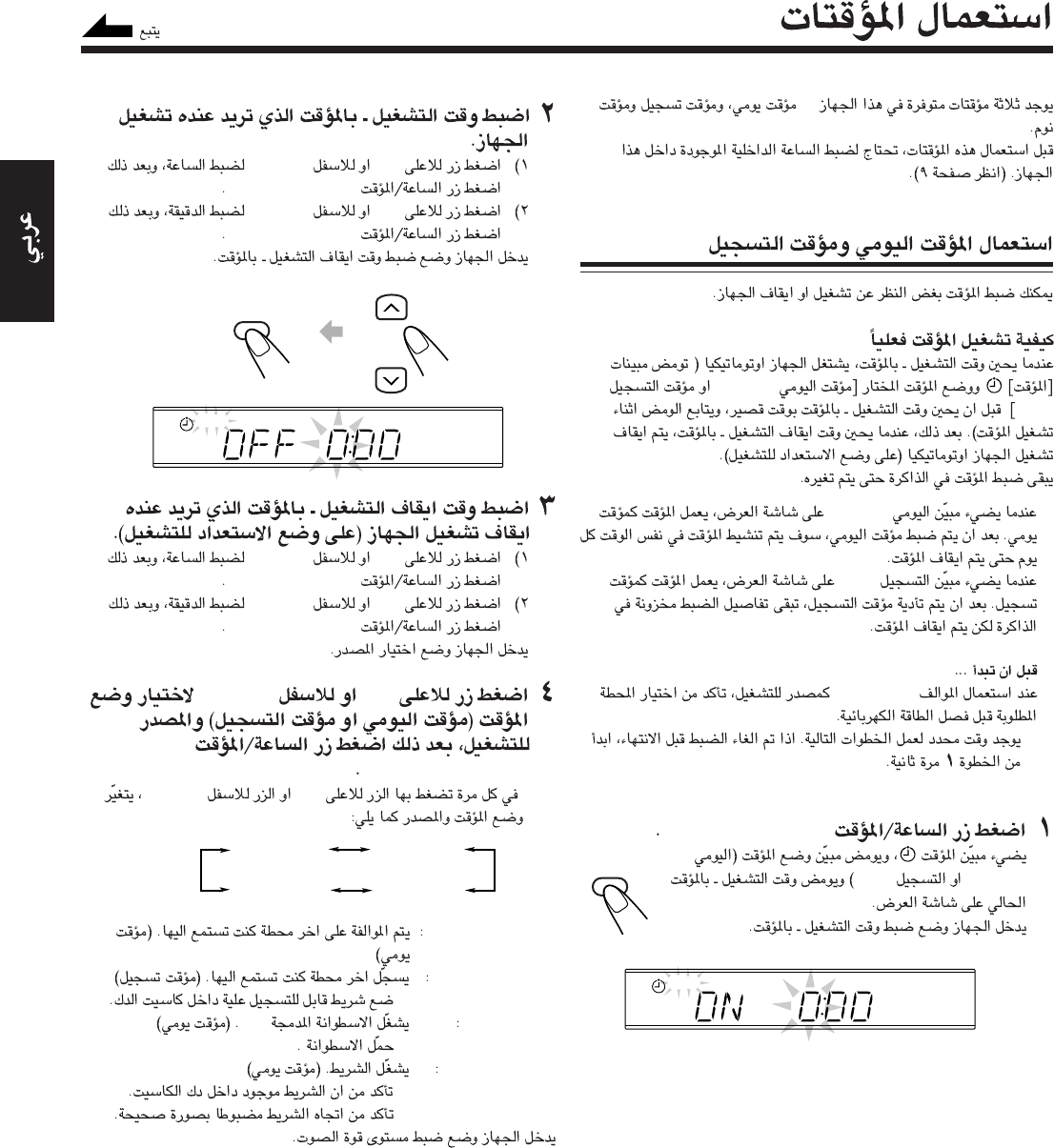

Using the Timers ....................................................... 28

Using Daily Timer and Recording Timer ................. 28

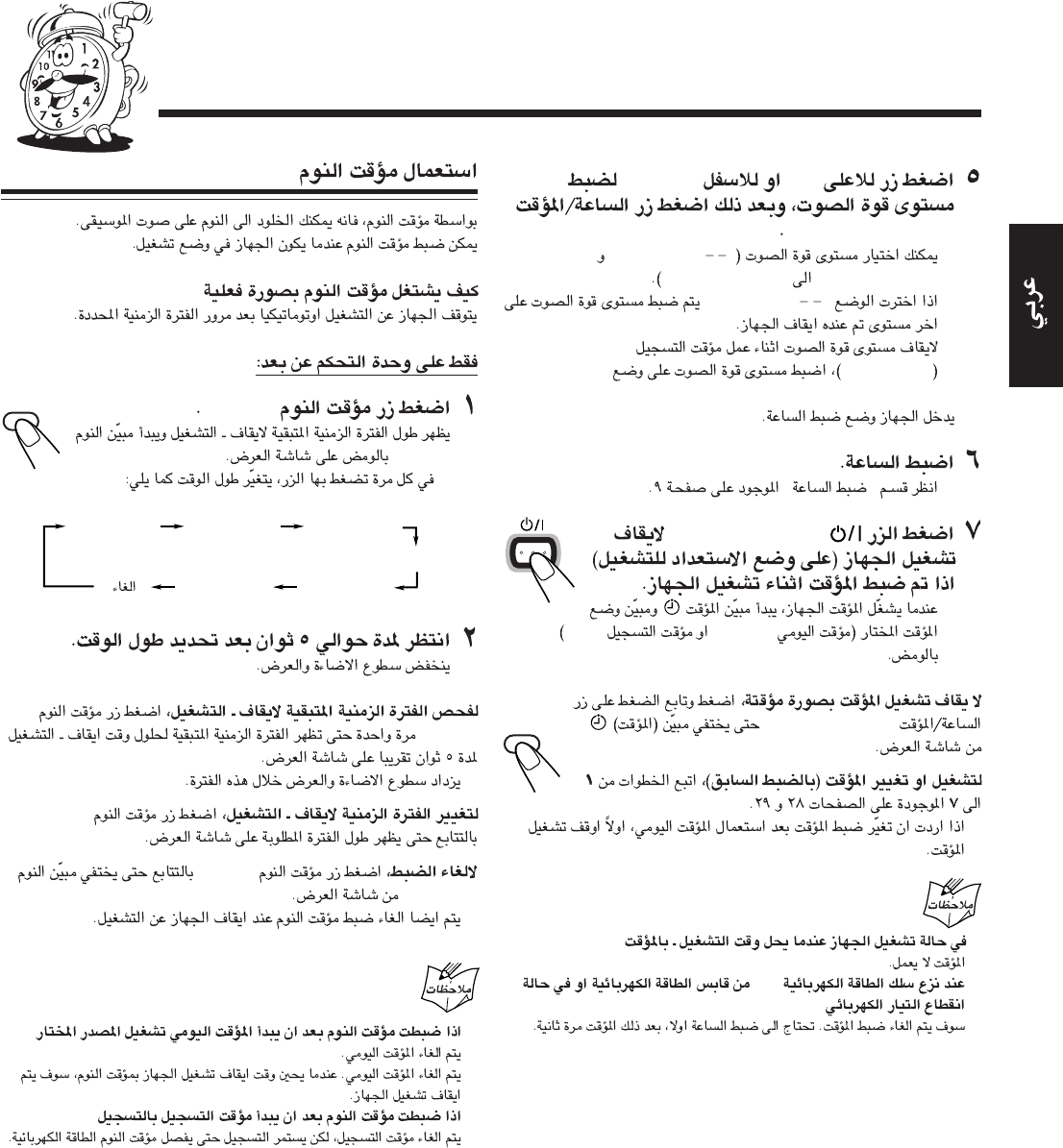

Using Sleep Timer .................................................... 29

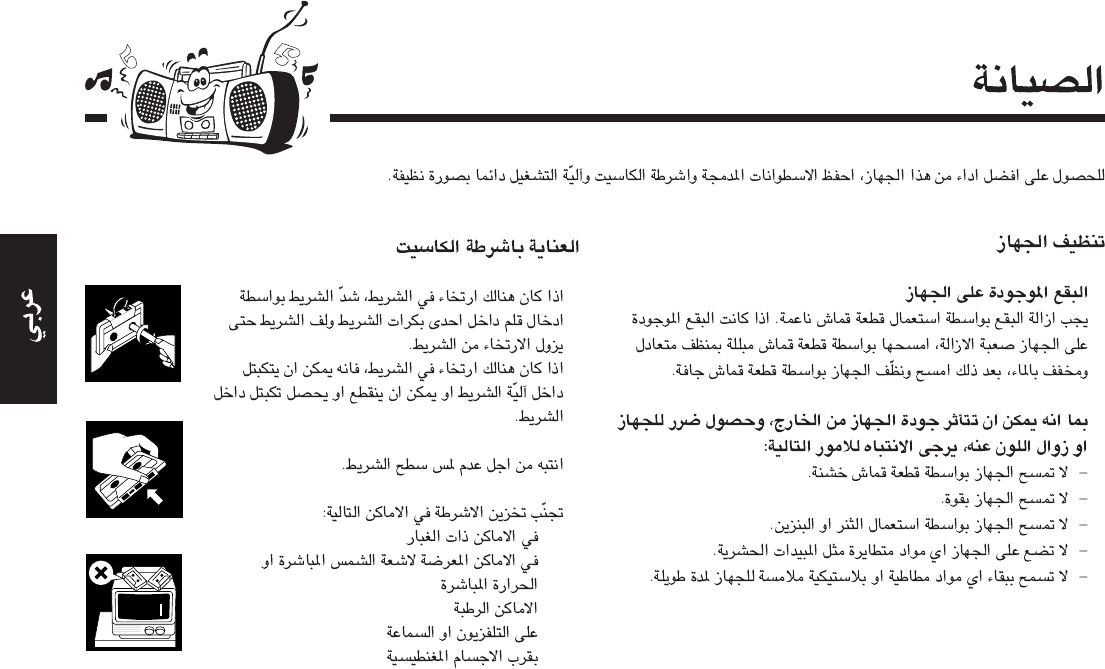

Maintenance .............................................................. 30

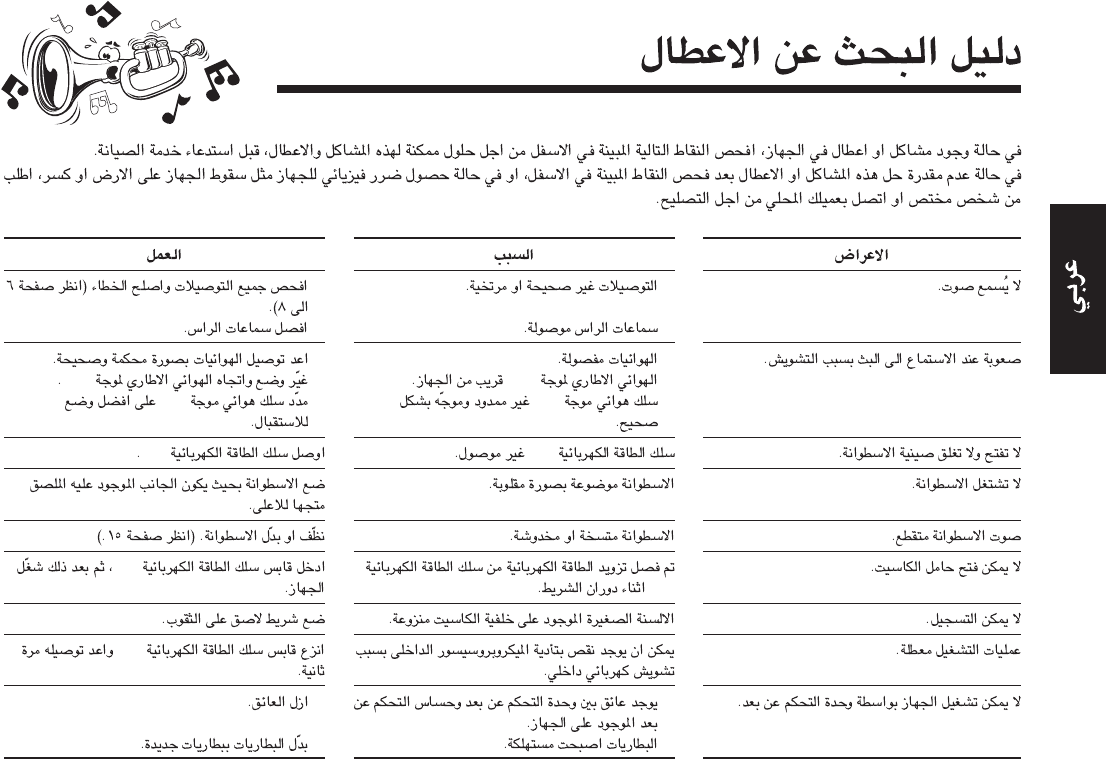

Troubleshooting ........................................................ 31

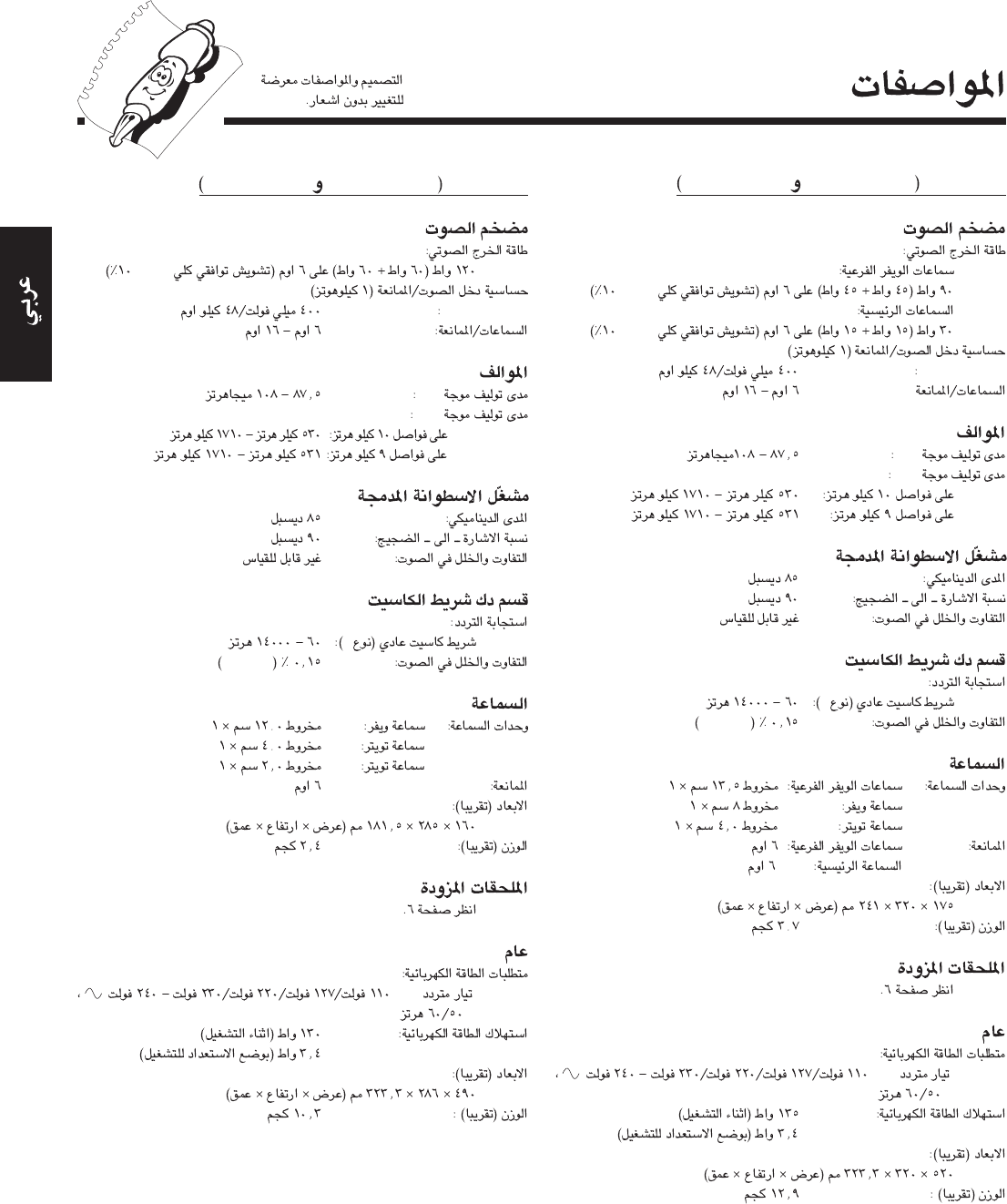

Specifications ............................................................. 32

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:15 PM2

English

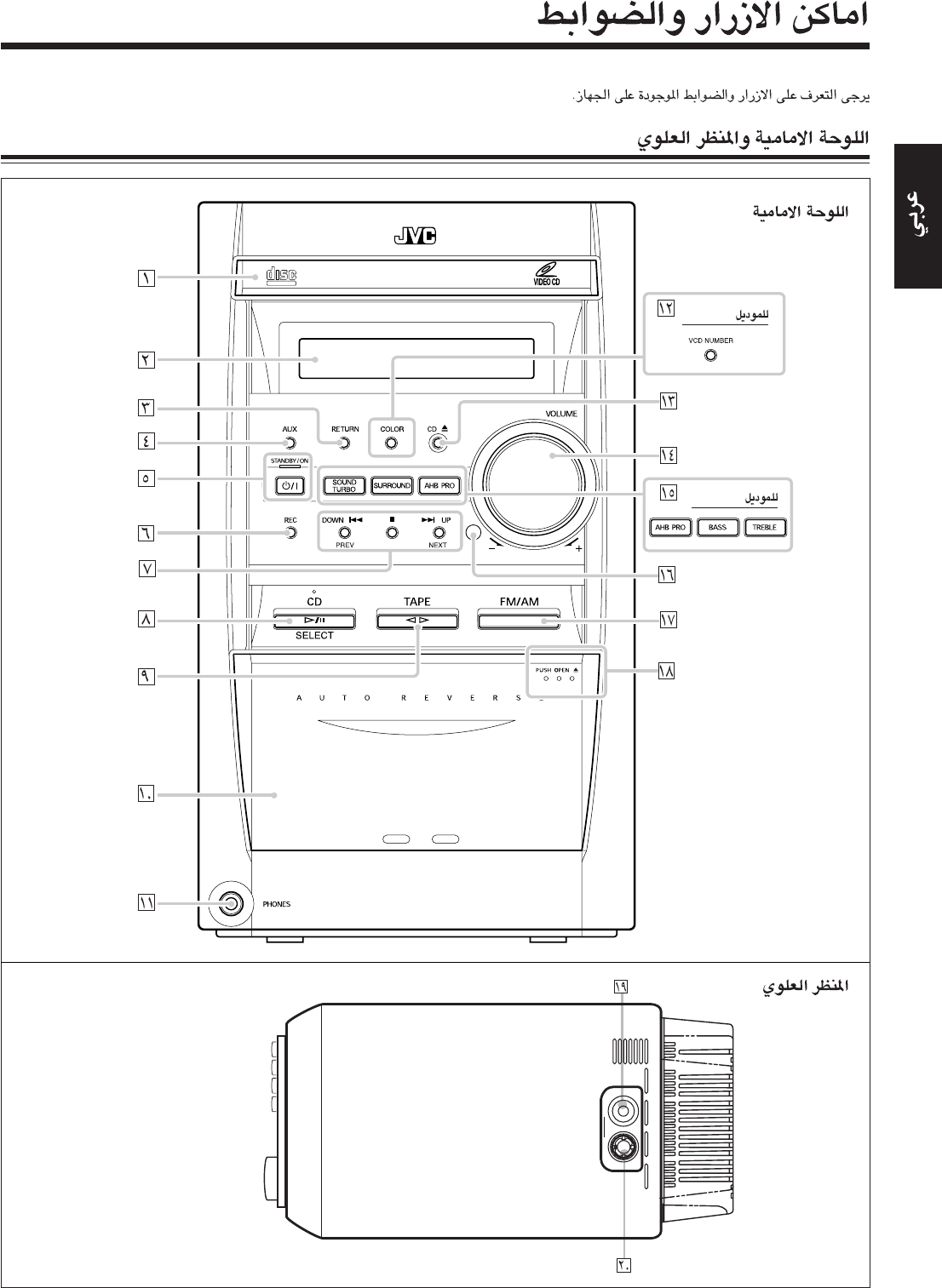

Front Panel

FOR UX-J55V:

Location of the Buttons and Control

Become familiar with the buttons and control on your unit.

Front Panel and Top View

UX-J66V

MICRO COMPONENT SYSTEM

VIDEO CD VERSION 2.0

COMPACT

DIGITAL VIDEO

Top View

;

MIC VOLUME

MIN MAX

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:15 PM3

English

Front Panel

1Disc tray

2Display window

3RETURN button (20 – 21)

4AUX button (10)

Pressing this button also turns on the unit.

5STANDBY/ON button and STANDBY/ON lamp

(10, 29)

6REC (recording) button (24)

7Multi operation buttons

•DOWN4 (reverse skip)/PREV, 7 (stop)

and UP ¢ (forward skip)/NEXT

8SELECT CD ‹/8 (play/pause) button (16, 18)

Pressing this button also turns on the unit.

9TAPE ¤ ‹ button (10)

Pressing this button also turns on the unit.

pCassette holder

qPHONES jack (10)

wFOR UX-J66V:

COLOR button (11)

FOR UX-J55V:

VCD NUMBER button (20, 22)

eCD 0 (disc tray open/close) button (15, 16)

Pressing this button also turns on the unit.

rVOLUME + / – control (10)

tFOR UX-J66V:

SOUND TURBO button (11)

SURROUND button (11)

AHB (Active Hyper Bass) PRO button (10)

FOR UX-J55V:

AHB (Active Hyper Bass) PRO button (10)

BASS button (10)

TREBLE button (10)

yRemote sensor

uFM/AM button (9, 12)

Pressing this button also turns on the unit.

iPUSH OPEN 0 (cassette holder open) portion (23, 24)

oMIC Jack (26, 27)

;MIC VOLUME Control (26, 27)

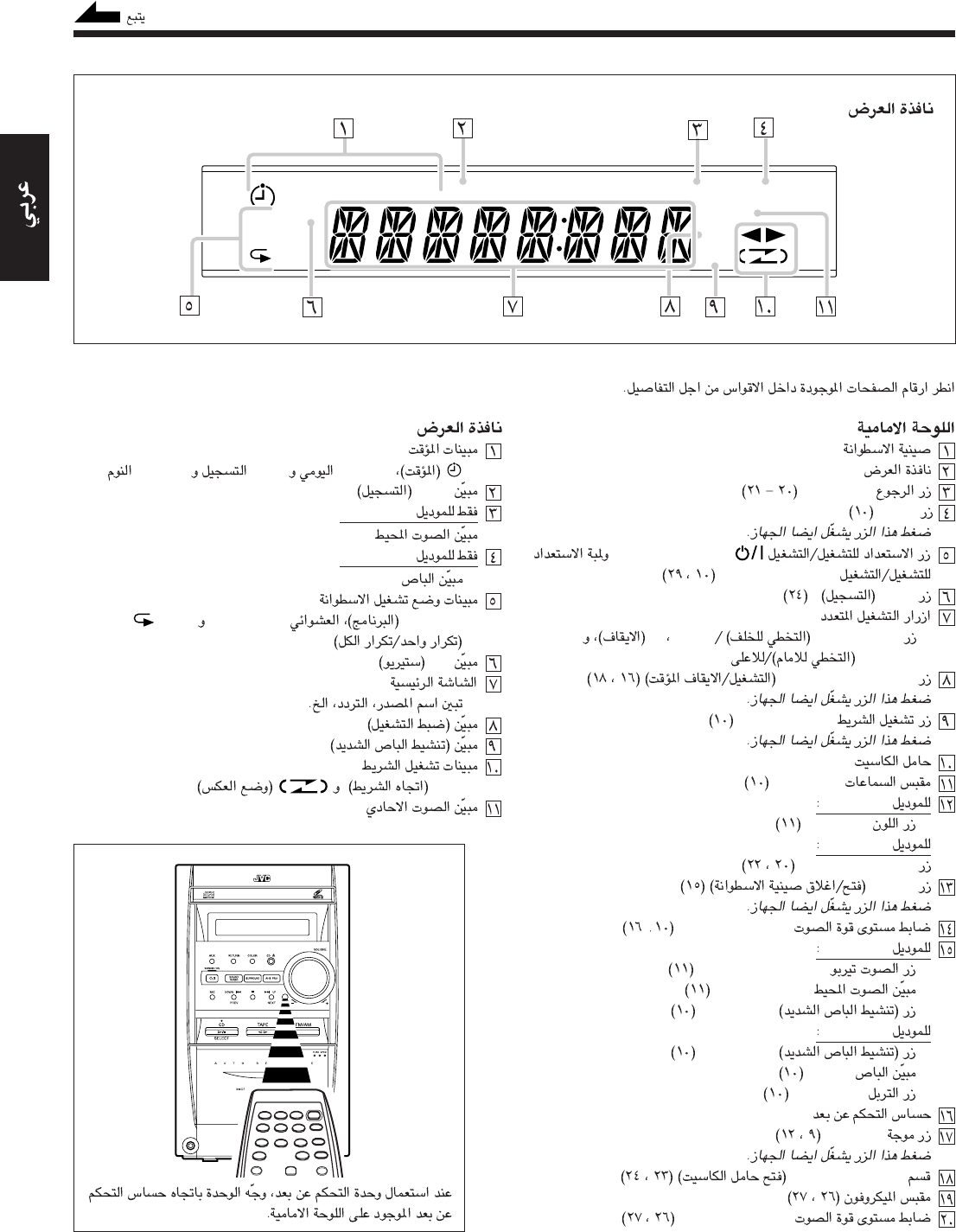

Display Window

1Timer indicators

• (timer), DAILY, REC (recording timer), and SLEEP

2REC (recording) indicator

3ONLY FOR UX-J66V:

SURROUND indicator

4ONLY FOR UX-J66V:

BASS indicator

5Disc play mode indicators

• PRGM (program), RANDOM, and ALL (repeat)

6ST (stereo) indicator

7Main display

• Shows the source name, frequency, etc.

8PBC (Playback Control) indicator

9AHB (Active Hyper Bass pro) indicator

pTape operation indicators

•2 3 (tape direction) and (reverse mode)

qMONO indicator

When using the remote control, point it at the

remote sensor on the front panel.

[DAILY REC SLEEP]REC

PRGM

RANDOM

ALL

SURROUND

BASS

MONO

PBC

AHB

12 34

56 7 98pq

See the pages in parentheses for details.

Continued

VIDEO CD VERSION 2.0

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:15 PM4

English

1Number buttons

2BASS button (10)

3Multi operation buttons

•3 UP, 4 PREV (reverse skip), 7 (stop), ¢ NEXT

(forward skip) and 4 DOWN

4SET button (12, 17)

5Source buttons

•3/8 CD/SELECT, 2 3 TAPE, FM/AM and AUX

Pressing one of these buttons also turns on the unit.

6CD 0 (disc tray open/close) button (15, 16)

Pressing this button also turns on the unit.

7REV.MODE (reverse mode) button (23 – 24)

8 RETURN button (20, 21)

9KARAOKE button (26)

pSOUND TURBO button (11)

qMPX button (27)

wPBC button (20)

eDIGITAL ECHO button (26, 27)

rON SCREEN button (22)

tSTANDBY/ON button (10, 29)

yDISPLAY button (9)

uCLOCK/TIMER button (9, 28, 29)

iSLEEP button (29)

oTREBLE button (10)

;CANCEL button (17)

aSTILL/FM MODE button (12, 21)

sCOLOR button (11)

dDisc play mode buttons (17, 18)

• PRGM (program), RANDOM, and REPEAT

fSURROUND button (11)

gAHB (Active Hyper Bass) PRO button (10)

hVIDEO INTRO button (22)

jVOLUME + / – button (10)

kDIMMER button (11)

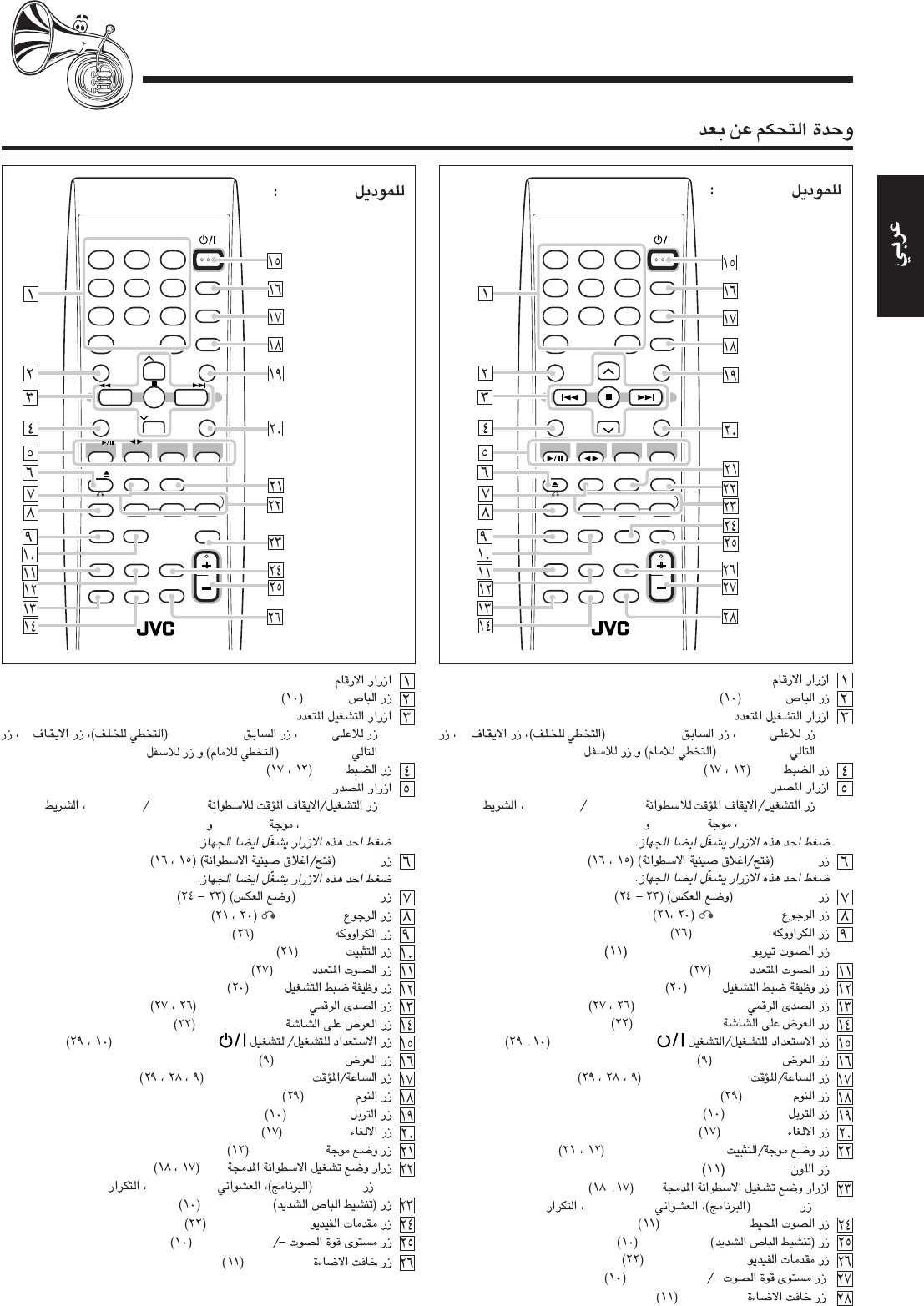

Remote Control

STANDBY/ON

DISPLAY

CLOCK

/TIMER

SLEEP

TREBLE

DOWN

BASS

CANCELSET

TAPE FM/AM AUX

REPEAT

KARAOKE

RANDOM

AHB

PRO

PBC

MPX

REV.

MODE FM MODE

STILL COLOR

PRGM

RETURN

/SELECT

1 32

4 65

7 98

10 +10

RM-SUXJ66V REMOTE CONTROL

SCREEN DIMMER

SURROUND

SOUND

TURBO

VOLUME

;

DIGITAL

ECHO

VIDEO

INTRO

PREV. NEXT

For UX-J66V

STANDBY/ON

DISPLAY

CLOCK

/TIMER

SLEEP

TREBLE

BASS

CANCELSET

TAPE

FM/AM AUX

REPEAT

KARAOKE

RANDOM

AHB

PRO

PBC

STILL

MPX

PRGM

RETURN

4 65

7 98

10 +10

RM-SUXJ55V REMOTE CONTROL

SCREEN DIMMER

VOLUME

;

DIGITAL

ECHO

VIDEO

INTRO

DOWN

PREV.

/SELECT

MODE

REV.

MODE

For UX-J55V

1Number buttons

2BASS button (10)

3Multi operation buttons

•3 UP, PREV 4 (reverse skip), 7 (stop), ¢ NEXT

(forward skip) and 4 DOWN

4SET button (12, 17)

5Source buttons

•3/8 CD/SELECT, 2 3 TAPE, FM/AM and AUX

Pressing one of these buttons also turns on the unit.

6CD 0 (disc tray open/close) button (15, 16)

Pressing this button also turns on the unit.

7REV.MODE (reverse mode) button (23 – 24)

8 RETURN button (20, 21)

9KARAOKE button (26)

pSTILL button (21)

qMPX button (27)

wPBC button (20)

eDIGITAL ECHO button (26, 27)

rON SCREEN button (22)

tSTANDBY/ON button (10, 29)

yDISPLAY button (9)

uCLOCK/TIMER button (9, 28, 29)

iSLEEP button (29)

oTREBLE button (10)

;CANCEL button (17)

aFM MODE button (12)

sDisc play mode buttons (17, 18)

• PRGM (program), RANDOM, and REPEAT

dAHB (Active Hyper Bass) PRO button (10)

fVIDEO INTRO button (22)

gVOLUME + / – button (10)

hDIMMER button (11)

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:15 PM5

English

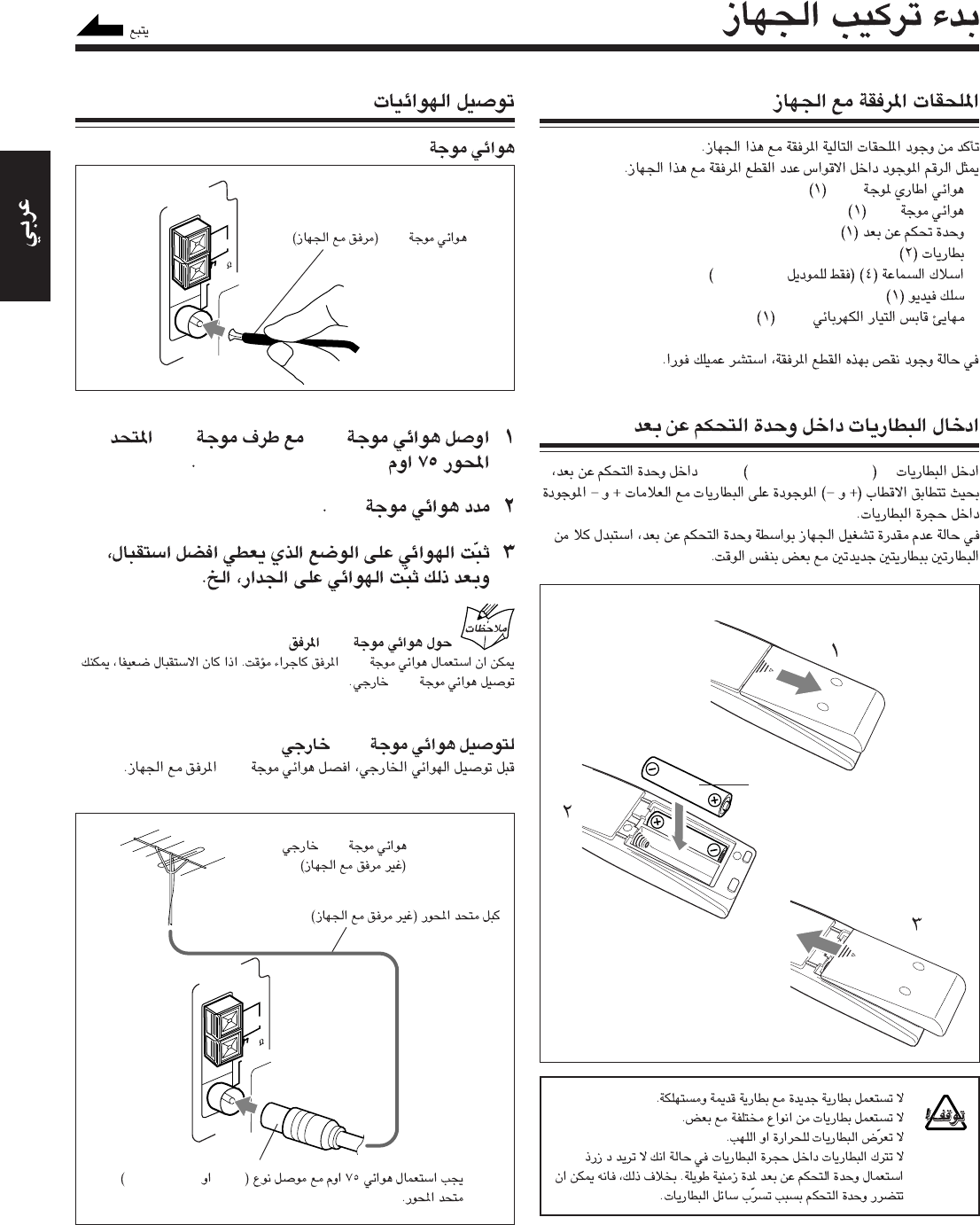

Getting Started

Supplied Accessories

Make sure that you have all the following items.

The number in parentheses indicates the quantity of each

piece supplied.

• AM loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

• Speaker cords (ONLY FOR UX-J66V) (4)

• Video cord (1)

• AC plug adaptor (1)

If anything is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries—R6(SUM-3)/AA(15F)—into the

remote control, by matching the polarity (+ and –) on the

batteries with the + and – markings on the battery

compartment.

When the remote control can no longer operate the unit,

replace both batteries at the same time.

• DO NOT use an old battery together with a new

one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery

compartment when you are not going to use the

remote control for an extended period of time.

Otherwise, the remote control will be damaged

from battery leakage.

R6(SUM-3)/AA(15F)

Connecting Antennas

FM antenna

1Attach the FM antenna to the FM 75 Ω

COAXIAL terminal.

2Extend the FM antenna.

3Fasten it up in the position which gives you

the best reception, then fix it on the wall,

etc.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary

measure. If reception is poor, you can connect an outdoor FM

antenna.

To connect an outdoor FM antenna

Before connecting the antenna, disconnect the supplied FM

antenna.

FM antenna (supplied)

Outdoor FM antenna

(not supplied)

A 75 Ω antenna with coaxial type connector

(IEC or DIN 45325) should be used.

Coaxial cable (not supplied)

Continued

FM 75

COAXIAL

AM EXT

AM LOOP

ANTENNA

FM 75

COAXIAL

AM EXT

AM LOOP

ANTENNA

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM6

English

INPUT INPUT INPUT INPUT

RIGHT LEFT

MAIN SPEAKERS

CAUTION: SPEAKER IMPEDANCE 6 -16

SUBWOOFERS

RIGHT LEFT

1If the cords are covered with insulation,

remove a short section of insulation at the

end of each cord by twisting and pulling it

off.

2Connect the AM loop antenna to the AM

LOOP terminals as illustrated.

3Turn the AM loop antenna until you have

the best reception.

To connect an outdoor AM antenna

When reception is poor, connect a single vinyl-covered wire

to the AM EXT terminal and extend it horizontally. The AM

loop antenna must remain connected.

For better reception of both FM and AM

• Make sure the antenna conductors do not touch any other

terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit,

connecting cords, and the AC power cord.

AM antenna

Vinyl-covered wire

(not supplied)

AM loop antenna

(supplied)

Connecting Speakers

Speaker cord

FM 75

COAXIAL

AM EXT

AM LOOP

ANTENNA

RIGHT

SPEAKER

IMPEDANCE

6 - 16

LEFT

SPEAKERS

FOR UX-J66V:

Right speaker Left speaker

FOR UX-J55V:

Right speaker Left speaker

Speaker

cord

Speaker

cord

Black

Red

Blue

Gray

1If the cords are covered with insulation,

remove a short section of insulation at the

end of each cord by twisting and pulling it

off.

2Press and hold the clamp of the speaker

terminal as illustrated.

3Insert the end of the speaker cord into the

terminal.

Match the polarity between the unit and the speaker

terminals: ª to ª and · to ·.

4Release your finger from the clamp.

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM7

English

AUX

Speaker grille

To remove the speaker grille, insert your fingers at the top

of the speaker grille, pull towards you. Then pull the bottom

towards you.

To attach the speaker grille, put the projections of the

speaker grille into the holes of the speaker.

Holes Projections

• DO NOT connect speakers while the power is on.

• DO NOT connect more than one speaker to each

speaker teminal.

IMPORTANT: Use only speakers with the same speaker

impedance as shown on the speaker terminals on the

rear of the unit.

To remove the speaker grilles

The speaker grilles are removable.

Connecting Other Equipment

To connect an audio equipment

You can connect audio equipment—used only as a playback

device.

• DO NOT connect any equipment while the power

is on.

• DO NOT plug in any equipment until all

connections are complete.

Be sure that the plugs of the audio cords are colored: White

plugs and jacks are for left audio signals, and red ones for

right audio signals.

To audio output Audio

equipment

For playing other equipment through this unit, connect

between the audio output jacks on the other equipment and

AUX jacks by using audio cords (not supplied).

VOLTAGE

SELECTOR

110V

127V

220V

230V

-240V

Voltage mark

Adjusting the Voltage Selector

Before plugging in the unit, set the correct voltage for your

area with the voltage selector on the rear of the unit.

Use a screwdriver to rotate the voltage selector so the voltage

number the voltage mark is pointing at is the same as the voltage

where you are plugging in the unit. (See the back cover page.)

DO NOT plug in before setting the voltage selector

on the rear of the unit and all connection

procedures are complete.

Now, you can plug the AC power cord.

• If the wall outlet does not match the AC plug, use the

supplied AC plug adaptor.

IMPORTANT: Be sure to check all connections to be

done before plugging the AC power cord into a wall outlet.

To connect a TV set

You can connect a TV with a video input jack: used as a

monitor for video CD playback.

Auxiliary Equipment

CAUTION: SPEAKER IMPEDANCE 6 - 16

RIGHT LEFTRIGHT LEFT

MAIN SPEAKERS SUBWOOFERS

VOLTAGE

SELECTOR

110V

127V

220V

230V

-240V

AM EXT

COAXIAL

AM LOOP

ANTENNA

AUX

To video input TV

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM8

English

Common Operations

To change the clock

1 Make sure the (timer) indicator is not lit on the

display.

• If it is lit, press and hold CLOCK/TIMER until it goes

off.

2 Press CLOCK/TIMER repeatedly until the unit enters

the clock setting mode (the hour digits start flashing

on the display).

First time you press CLOCK/TIMER, the unit enters the

timer setting mode. (See page 28.)

3 Repeat steps

and

of the procedure of “Setting the

Clock.”

4 Press and hold CLOCK/TIMER again so that the

(timer) indicator goes off.

Setting the AM Tuner Interval Spacing

Some countries space AM stations 9 kHz apart, and some

countries use 10 kHz spacing.

When shipped, the built-in AM tuner is set to 9 kHz spacing.

You can change it to 9 kHz or 10 kHz spacing only while the

unit is on standby.

On the unit ONLY:

To select 10 kHz intervals, press

FM/AM while holding ¢.

To select 9 kHz intervals, press

FM/AM while holding 4.

When you change the setting

The preset stations are erased. You will need to preset the stations

again. (See page 12.)

DISPLAY

CLOCK

/TIMER

DOWN

CLOCK

/TIMER

Setting the Clock

Before operating the unit any further, first set the clock built

in this unit. When you plug the AC power cord into the wall

outlet, “0:00” starts flashing on the display.

You can set the clock whether the unit is on or off.

• There is a time limit in doing the following steps. If the

setting is canceled before you finish, start from step 1

again.

Press CLOCK/TIMER.

The hour digits start flashing on the display.

Press UP or DOWN to

adjust the hour, then

press CLOCK/TIMER.

The minute digits start flashing

on the display.

Press UP or DOWN to adjust the minute,

then press CLOCK/TIMER.

To check the clock time during play

On the remote control ONLY:

Press DISPLAY.

• Each time you press the button, the source

indication and the clock time alternate on the

display.

• When you unplug the AC power cord or if a power failure

occurs

The clock is reset to “0:00” right away. If this happens, set the

clock again.

• The clock may gain or lose 1 to 2 minutes per month

If this happens, set the clock again.

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM9

English

Turning On the Power

To turn on the unit, press

STANDBY/ON .

The STANDBY/ON lamp lights

green and “HELLO” appears on

the display.

• When you press the source button—CD 3/8, TAPE 2 3,

FM/AM, and AUX, the unit automatically turns on and

starts playback if the source is ready.

To turn off the unit (standby), press STANDBY/ON

again.

The STANDBY/ON lamp lights red and “GOOD BYE”

appears on the display.

• “0:00” flashes on the display until you set the built-in

clock. After setting the clock, the clock time will appear on

the display while the unit is on standby.

The illumination and display brighten only for 4 seconds

by pressing DIMMER.

• A little power is always consumed even while the unit is on

standby.

To switch off the power supply completely, unplug the AC

power cord from the AC outlet.

When you unplug the AC power cord or if a power

failure occurs

The clock is reset to “0:00” right away, while the tuner preset

stations (see page 12) will be erased in a few days.

Adjusting the Volume

You can adjust the volume level only while the unit is turned

on. The volume level can be adjusted between “VOL MIN”

and “VOLUME 1” – “VOLUME 40 (VOL MAX).”

On the remote control:

Press VOLUME + to increase the volume or

press VOLUME – to decrease it.

On the unit:

Turn VOLUME + / – control clockwise

(+) to increase the volume or

counterclockwise (–) to decrease it.

For private listening

Connect headphones to the PHONES jack.

No sound comes out of the speakers. Be sure to turn down the

volume before connecting or putting on headphones.

DO NOT turn the unit off (standby) with the volume

set to an extremely high level; otherwise, the

sudden blast of sound can damage your hearing,

speakers and/or headphones when you turn on the

unit or start playing any source next time.

REMEMBER you cannot adjust the volume level

while the unit is on standby.

VOLUME

DOWN

Continued

Enjoying Sound Effects

You can adjust the sound by using various sound effect

functions.

• These functions only affect the playback sound, and do not

affect your recording.

To adjust the tone (Bass/Treble)

You can adjust the bass level (low frequency range) and the

treble level (high frequency range) within a range of –5 to +5.

When shipped, the bass level set to “BASS +2” and the treble

level set to “TREBLE +2.”

• There is a time limit in doing the following steps. If the

setting is canceled before you finish, start over from step

• For UX-J55V only, you can also use BASS and TREBLE

on the unit for this operation.

Press BASS to adjust the

bass level or press TREBLE

to adjust the treble level.

• Each timer you press the button,

“BASS” and “TREBLE” appears in the display

alternately.

Press UP to increase the level

or press DOWN to decrease it.

To reinforce the bass sound

You can reinforce the bass sound to maintain rich, full bass at

low volume—Active Hyper Bass Pro.

For UX-J66V:

Press AHB PRO.

• Each time you press the button, the Active

Hyper Bass Pro is turned on (AHB ON) and

off (AHB OFF) alternately. When it is turned

on, the AHB indicator lights up on the display.

For UX-J55V:

Press AHB PRO until “AHB 1” or “AHB 2”

appears on the display.

The AHB indicator also lights up on the display.

• Each time you press the button, the bass

reinforcement changes as follows:

• “AHB 2” has much more bass reinforcement effect than

“AHB 1.”

To cancel the effect, press AHB PRO until “AHB OFF”

appears on the display and the AHB indicator goes off.

AHB

PRO

AHB OFF

(Canceled)

AHB 1 AHB 2

AHB

PRO

AHB

BASS

TREBLE

STANDBY/ON

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM10

English

Selecting the Display Color

(ONLY FOR UX-J66V)

You can select the display color (COLOR 1 – COLOR 5 and

AUTO mode).

• AUTO mode changes the color (COLOR 1 to COLOR 5)

gradually.

To select the color, press COLOR.

• Each time you press the button, the color

changes as follows:

COLOR

AUTO COLOR 1 COLOR 2

COLOR 4 COLOR 3COLOR 5

DIMMER

To enjoy the heavy sound (ONLY FOR UX-J66V)

You can enjoy the heavy sound. The function boosts low and

high frequency sounds—Sound Turbo.

Press SOUND TURBO.

• Each time you press the button, the Sound

Turbo is turned on and off alternately. When it

is turned on, the BASS indicator lights up on

the display.

When the Sound Turbo is on, the bass and the treble levels

are set to +2 (see page 10). After the Sound Turbo is

canceled, these levels restored to the previous levels.

To reinforce the surround effect (ONLY FOR UX-J66V)

You can reinforce the surround effect.

• This function does not affect your recording and playback

sound of monaural sources.

To get the effect, press SURROUND so that

the SURROUND indicator lights up on the

display.

To cancel the effect, press SURROUND again so that the

SURROUND indicator goes off.

Selecting the Illumination Brightness

You can change the illumination and display brightness only

while the unit is turned on.

On the remote control ONLY:

To change the brightness, press DIMMER.

• Each time you press the button, the illumination

and display dim (DIM ON) and brighten (DIM

OFF) alternately.

SOUND

TURBO

SURROUND

BASS

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM11

English

Listening to FM and AM Broadcasts

Tuning in to a Station

Press FM/AM to select the band.

The unit automatically turns on and tunes in

to the previously received station—either FM

or AM.

• Each time you press the button, the band alternates

between FM and AM.

Press and hold ¢ or 4

for more than 1 second.

The unit starts searching for

stations and stops when a station

of sufficient signal strength is tuned in.

• If a program is broadcast in stereo, the ST (stereo)

indicator lights up.

To stop searching, press ¢ or 4.

When you press ¢ or 4 briefly and repeatedly

The frequency changes step by step.

To change the FM reception mode

On the remote control ONLY:

When an FM stereo broadcast is hard to receive

or noisy, press FM MODE so that the MONO

indicator lights up on the display. Reception will

improve.

To restore the stereo effect, press FM MODE again so that

the MONO indicator goes off. In stereo mode, you can hear

stereo sound when a stereo program is broadcast.

Presetting Stations

You can preset 30 FM and 15 AM stations.

In some cases, test frequencies have been already memorized

for the tuner since the factory examined the tuner preset

function before shipment. This is not a malfunction.

You need to preset stations separately for the FM and AM

bands.

• There is a time limit in doing the following steps. If the

setting is canceled before you finish, start over from step

On the remote control ONLY:

Tune in to the station you want to preset.

• See “Tuning in to a Station.”

Press SET.

Press UP or DOWN to select a

preset number.

Press SET again.

The tuned station in step

is stored in the preset number

selected in step

• Storing a new station on a used number erases the

previously stored one.

When you unplug the AC power cord or if a power

failure occurs

The tuner preset stations will be erased in a few days. If this

happens, preset the stations again.

FM/AM

PREV. NEXT

SET

DOWN

Continued

FM MODE

STILL

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM12

English

Tuning in to a Preset Station

On the remote control ONLY:

Press FM/AM to select the band.

The unit automatically turns on and tunes in

to the previously received station—either FM

or AM.

• Each time you press the button, the band alternates

between FM and AM.

Press UP or DOWN to select a

preset number.

To tune in to a preset station directly using the number

buttons

On the remote control ONLY:

Pressing the number button(s) allows you to select the preset

number you want.

Ex.: For preset number 5, press 5.

For preset number 15, press +10,

then 5.

For preset number 20, press +10,

then 10.

For preset number 30, press +10,

+10, then 10.

DOWN

123

456

789

10 +10

FM/AM

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM13

English

Disc Introduction

This unit has been designed to playback the following CDs:

• CD (Audio CD)

• CD-R (CD-Recordable)

• CD-RW (CD-Rewritable)

• MP3 disc (MP3 files recorded on a CD-R or CD-RW)

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group 1

(or MPEG-1) Audio Layer 3. MP3 is simply a file format

with a data compression ratio of 1:10 (128 kbps*). By using

MP3 format, one CD-R or CD-RW can contains 10 times as

much data volume as a regular CD can.

* Bit rate is the average number of bits that one second of

audio data will consume. The unit uses kbps (1,000 bits per

second). To get a better audio quality, choose a higher bit

rate. The most popular bit rate for encoding (recording) is

128 kbps.

MP3 disc structure

On an MP3 disc, each song (material) is recorded as a file.

Files are grouped into a directory (or folder). Directories can

also include other directories, creating hierarchical directory

layers. (See “How are MP3 files recorded and played back?” ).

This unit manages files and directories as “tracks” and

“groups.” This unit can recognize up to 255 tracks, up to 64

groups per disc. The unit ignores those exceeding the

maximum numbers and cannot play them back.

About MP3 discs

• MP3 discs (either CD-R or CD-RW) require a longer readout time.

(It varies due to the complexity of the recording configuration.)

• When making an MP3 disc, select ISO 9660 Level 1 or Level 2 as

the disc format.

• This unit does not support multisession recording.

• This unit can play MP3 files only with the following file extensions—

“.MP3”, “.Mp3”, “.mP3”, and “.mp3”.

• Files other than MP3 are ignored.

• Some MP3 discs may not be played back because of their disc

characteristics or recording conditions.

How are MP3 files recorded and played back?

MP3 “tracks (files)” can be recorded in “group”—folders or

directories, in PC terminology.

During recording, the tracks and groups can be arranged

similarly to the tracks and folders/directories of computer

data. “Root” is similar to the root of a tree. Every track and

group can be linked to the root.

In compliance with ISO 9660, the maximum allowable depth

of nested directories—so called “hierarchy”—is eight

(inclusive of the root).

Playback order, track search order, and group search order of

the MP3 tracks recorded on a disc are determined by the

writing (or encoding) application; therefore, playback order

may be different from the one you have intended while

recording the groups and the tracks.

The illustration shows an ordinary example of how MP3

tracks are recorded on a CD-R or CD-RW, how they are

played back and how they are searched for on this unit.

• The numbers in circles next to the MP3 tracks ( ) indicate

the playback order and search order of the MP3 tracks.

Normally this unit plays back MP3 tracks in the recorded

order.

• The numbers inside the groups indicate the playback order

and search order of the groups on an MP3 disc. Normally

this unit plays back MP3 tracks in the groups in the

recorded order.

The groups marked with asterisk (*) will be skipped since

they do not include any MP3 tracks.

Root

Hierarchy

Groups

MP3 tracks

MP3 group/track configuration:

EN01-14_UX-J66&55[UX]1.pm6 4/8/03, 5:16 PM14

English

Playing Back Discs (CD/CD-R/CD-RW/MP3)

When playing a CD-R or CD-RW

User-edited CD-Rs (CD-Recordable) and CD-RWs

(CD-ReWritable) can be played only if they are already

“finalized.”

• Usually you can play back your original CD-Rs or CD-

RWs recorded in music CD format. However, sometimes

they may not play depending on their characteristics or

recording conditions.

• Before playing CD-Rs or CD-RWs, read their instructions

or cautions carefully.

• Some CD-Rs or CD-RWs may not play on this unit because

of their disc characteristics, damage or stain on them, or if

the player’s lens is dirty.

• CD-RWs may require a longer readout time. This is

because the reflectance of CD-RWs is lower than for

regular discs.

General notes

In general, you will have the best performance by keeping

your discs and the mechanism clean.

• Store discs in their cases, and keep them in cabinets or on

shelves.

• Keep the unit’s disc tray closed when not in use.

Continued use of irregular shape discs

(heart-shape, octagonal, etc.) can damage the unit.

Handling discs

• Remove the disc from its case by

holding it at the edge while pressing the

center hole lightly.

• Do not touch the shiny surface of the

disc, or bend the disc.

• Put the disc back in its case after use to

prevent warping.

• Be careful not to scratch the surface

of the disc when placing it back in its

case.

• Avoid exposure to direct sunlight,

temperature extremes, and moisture.

To clean the disc

Wipe the disc with a soft cloth in a

straight line from center to edge.

DO NOT use any solvent—such as conventional record

cleaner, spray, thinner, or benzine—to clean the disc.

Playing Back the Entire Disc—Normal Play

■ For Audio CDs

Press CD 0.

The unit automatically turns on and the disc

tray comes out.

Place a disc correctly on the circle of the

disc tray, with its label side up.

• When using a CD single (8 cm), place it on the inner

circle of the disc tray.

Press CD 3/8.

The disc tray automatically closes and the first

track of the disc starts playing.

• The disc automatically stops when the last track has

finished playing.

To stop playing, press 7.

To remove the disc, press CD 0.

• If the disc cannot be read correctly (because it is scratched,

for example) or an unreadable CD-R or CD-RW is inserted

Playback will not start.

• If no disc is inserted

“NO DISC” appears on the display.

DO NOT try to open or close the disc tray by hand

as it will be damaged.

Track number Elapsed playing time

CORRECT INCORRECT

Total track number Total playing time

/SELECT

BASS

Continued

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM15

English

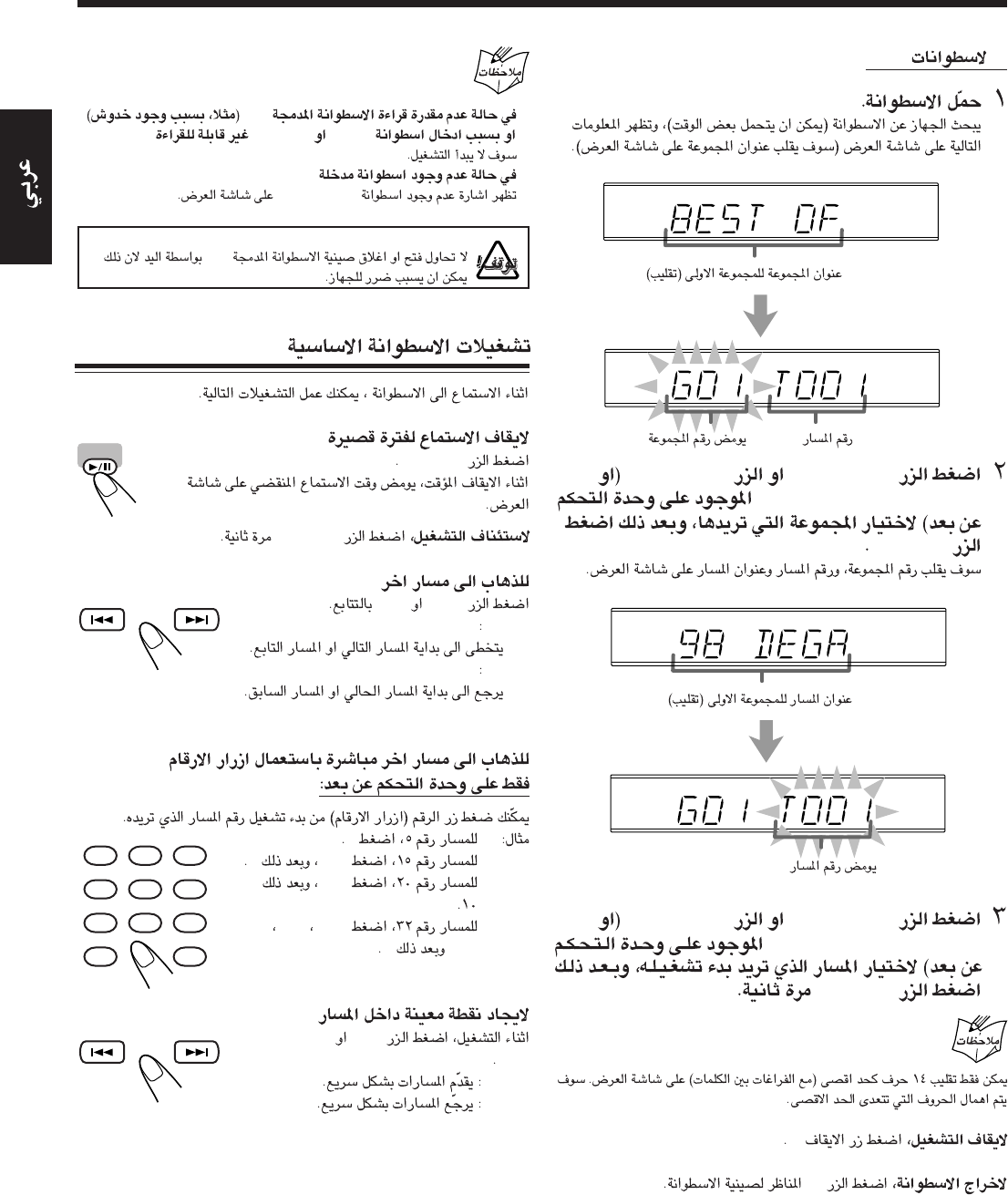

■ For MP3 discs

Load a disc.

The unit searches for the disc (it may take some time),

and the following information appears on the display

(the group title will scrolls on the display).

Press ¢ NEXT or PREV 4 (or ¢

NEXT/PREV 4 on the remote control) to

select a group you want, then press CD 3/8.

The group number, track number and track title will

scroll on the display.

Press ¢ NEXT or PREV 4 (or ¢

NEXT/PREV 4 on the remote control) to

select a track you want to start playback with,

then press CD 3/8 again.

Only a maximum of 14 characters (including spaces between words)

can scroll on the display. The exceeding characters will be ignored.

To stop playing, press 7.

To remove disc, press 0 for the corresponding disc tray.

Group number flashes Track number

Group title of the first group (scrolling)

Track number flashes

Track title of the first group (scrolling)

• If the CD cannot be read correctly (because it is scratched, for

example) or an unreadable CD-R or CD-RW is inserted

Playback will not start.

• If no CD is inserted

“NO DISC” appears on the display.

DO NOT try to open or close the CD tray by hand

as it will be damaged.

Basic Disc Operations

While playing a disc, you can do the following operations.

To stop playing for a moment

During play, press CD 3/8.

While pausing, the elapsed playing time flashes on

the display.

To resume playing, press CD 3/8 again.

To go to another track

Before or during play, press ¢ or

4 repeatedly.

•¢ : Skips to the beginning of the

next or succeeding tracks.

•4 : Goes back to the beginning of the current or previous

tracks.

To go to another track directly using the number

buttons

On the remote control ONLY:

Pressing the number button(s) before or during play allows

you to start playing the track number you want.

Ex.: For track number 5, press 5.

For track number 15, press +10,

then 5.

For track number 20, press +10,

then 10.

For track number 32, press +10,

+10, +10, then 2.

To locate a particular point in a

track

During play, press and hold ¢ or

•¢ : Fast-forwards the tracks.

•4 : Fast-reverses the tracks.

123

456

789

10 +10

/SELECT

PREV. NEXT

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM16

English

Programming the Playing Order of the Tracks

—Program Play

You can arrange the order in which tracks play before you

start playing. You can program up to 50 tracks.

On the remote control ONLY:

Load a disc.

• If the current playing source is not the CD player,

press CD 3/8, then 7 before going to the next step.

Press PRGM (program).

The PRGM (program) indicator lights up on

the display.

• If a program has been stored in memory, the program

is called up.

Press UP or DOWN to select the

track number, then press SET.

• You can select the track number directly

using the number button(s). (See “To go

to another track directly using the

number buttons.”)

Repeat step

to program other tracks you

want.

Press CD 3/8.

The tracks are played in the order you have

programed.

If you try to program a 51st track

“FULL” will appear on the display.

To stop playing, press 7.

To exit from Program Play, press PRGM (program) before

or after playing.

• The PRGM (program) indicator goes off.

To check the program contents

You can check the program contents

by pressing ¢ or 4 before or

after playback.

•¢ : To check the contents in the programmed order.

•4 : To check the contents in the reverse order.

Track number Program step number

PRGM

DOWN

SET

PRGM

/SELECT

PRGM

PREV. NEXT

To modify the program

On the remote control ONLY:

Before or after playing, you can erase the last

programed track by pressing CANCEL.

• Each time you press the button, the last

programed track is erased from the program.

To add tracks in the program before playing, simply select

the track numbers you want to add by following step

of the

programming procedure.

To erase the program, press 7 before or after

playing.

• Disc ejection also erases the program.

If additional track cannot add into the program list,

repeat from step 1.

Playing at Random—Random Play

The tracks will play in no particular order when you use this

mode.

On the remote control ONLY:

Load a disc.

• If the current playing source is not the CD player,

press CD 3/8, then 7 before going to the next step.

Press RANDOM.

The RANDOM indicator lights up on the

display.

Press CD 3/8.

The tracks are randomly played.

Random Play ends when all the tracks are

played once.

To skip the current track, press ¢.

• You cannot go back to the previous track by

pressing 4.

To stop playing, press 7.

To exit from Random Play, press RANDOM before or after

playing.

Random Play is canceled and Normal Play resumes.

• The RANDOM indicator goes off.

RANDOM

/SELECT

CANCEL

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM17

English

Prohibiting Disc Ejection—Tray Lock

You can lock the disc tray and prohibit ejecting the disc

whether the unit is on or off.

On the unit ONLY:

To prohibit disc ejection, press CD ‹/8

while holding 7.

• If the disc tray is opened, close it first.

To cancel the prohibition and unlock the

disc, press CD ‹/8 while holding 7.

If you try to eject the disc while Tray Lock is in use

“LOCKED” appears to inform you that the disc tray is locked.

Repeating Tracks—Repeat Play

You can have all the tracks, the program or individual track

currently playing, repeat as many times as you like.

On the remote control ONLY:

To repeat playing, press REPEAT before or

during play.

• Each time you press the button, Repeat Play

changes as follows, and the following repeat

indicator lights up on the display:

: Repeats one track.

ALL : In Normal Play, repeats all the tracks.

In Program Play, repeats all the tracks in the

program.

In Random Play, repeats all the tracks in

random order.

To cancel Repeat Play, press REPEAT repeatedly until the

repeat indicator goes off.

REPEAT

ALL

Canceled

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM18

English

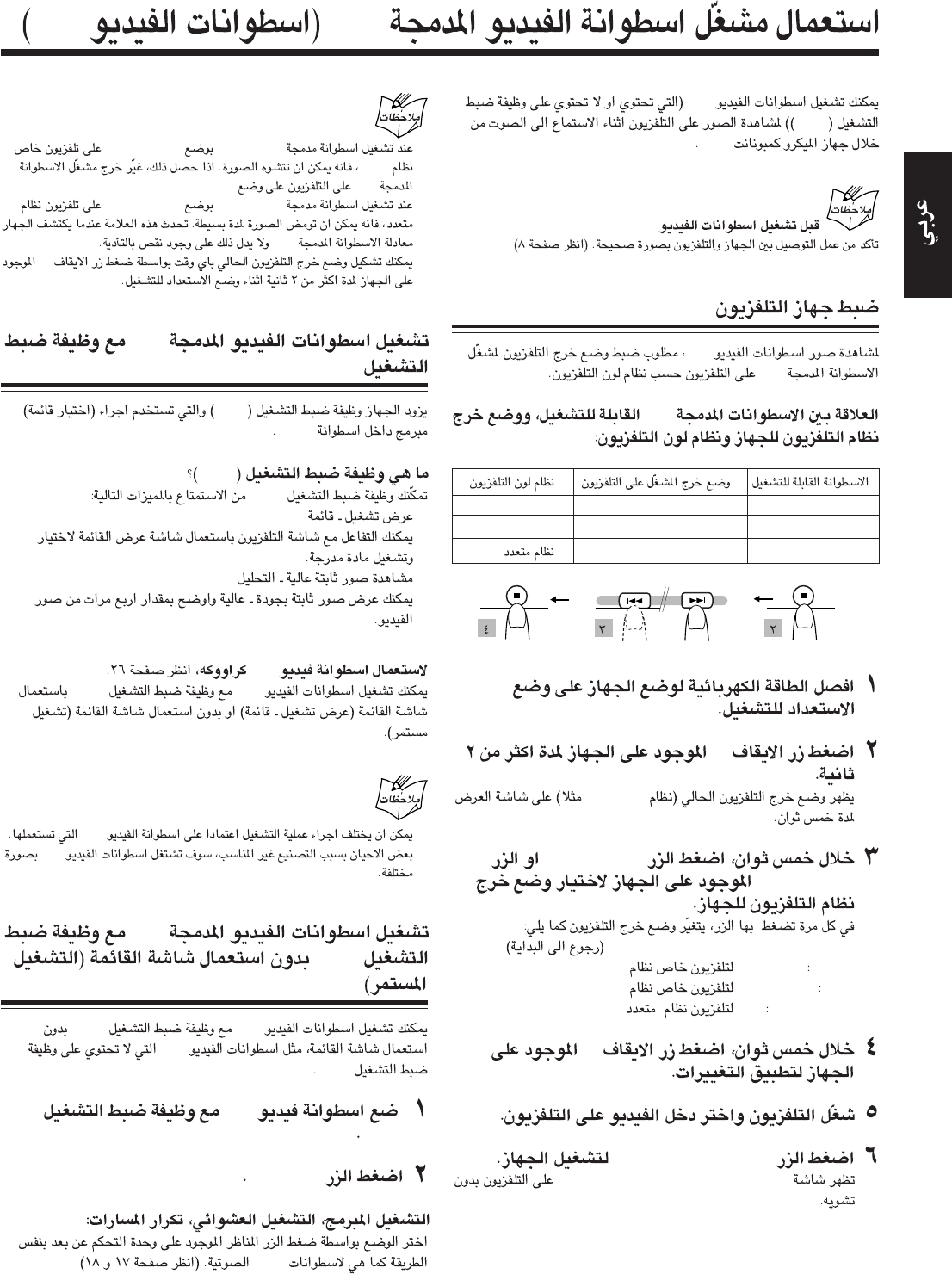

Using the Video CD Player (Video CDs)

You can play video CDs (with or without the Playback

Control (PBC) function) to watch the picture on your TV

while listening to the sound through your JVC Micro

Component System.

Before playing video CDs

Make sure that the connection between the System and your TV is

correct. (See page 8)

Setting the TV System

To view a picture of video CDs, it is required that you set

your CD player’s TV output mode according to your TV’s

color system.

Relationship among the playable CDs, System’s TV

output mode and your TV’s color system:

Turn off the power to put the System into

Standby mode.

Press the 7 button on the Unit for more

than 2 seconds.

The current TV output mode (“NTSC” for example)

appears on the display for five seconds.

Within five seconds, press the ¢ NEXT or

PREV 4 button on the Unit to select the

System’s TV output mode.

Each time you press the button, the TV output mode

changes as follows:

NTSC O PAL O PAL AUTO O (back to beginning)

NTSC: for NTSC exclusive TV

PAL: for PAL exclusive TV

PAL AUTO:for multisystem TV

Within five seconds, press the 7 button on

the Unit to apply the changes.

Turn on the TV and select the video input

on the TV.

Press the SELECT CD 3/8 button to turn

on the System.

“JVC VIDEO CD/CD PLAYER” screen will appear on

the TV without distortion.

Playable CD Player’s TV output mode Your TV’s color system

NTSC/PAL NTSC NTSC

NTSC/PAL PAL PAL

NTSC/PAL PAL AUTO Multisystem

2 3 4

PREV.

• If you play an NTSC CD in PAL AUTO mode on a PAL exclusive

TV, the image may be distorted. If this happens change the CD

Player’s TV output mode to “PAL”.

• When you play an NTSC CD in PAL AUTO mode on a

multisystem TV, the image may blink for a moment. This

symptom occurs when the System detects the formula of the CD

and is not a malfunction.

• You can configure the current TV output mode by pressing the 7

button on the Unit for more than 2 seconds during standby mode.

Playing Video CDs with the PBC Function

The System provides Playback Control (PBC) which utilizes

a procedure (menu selection) programed into a VCD.

What is the Playback Control (PBC) function?

PBC allows you to enjoy the following features:

• Menu-Driven Play

You can interact with the TV screen using a menu display

to select and play an entry.

• High resolution still image playback

You can display high-quality images four times clearer than

video pictures.

To use a Karaoke video CD, see page 26.

You can play video CDs with PBC function using the menu

screen (Menu-Driven Play) or without using the menu screen

(Continuous Play).

• The playback operation procedure may differ depending on the

video CD you use.

• Sometimes due to improper manufacturing, video CDs will

function differently.

Playing Video CDs with the PBC Function

without Using the Menu Screen (Continuous

Play)

You can play video CDs with PBC without using the menu

screen, as if the CDs had no PBC function.

Load a video CD with PBC.

Press the CD 3/8 button.

Program Play, Random Play, Repeating Tracks:

Select the mode by pressing the respective button on the

Remote Control in the same way as for audio CDs. (See

pages 17 and 18)

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM19

English

Playing Video CDs with the PBC Function

Using the Menu Screen (Menu-Driven Play)

Before playing, make sure that Repeat indicator “ ” or

“

ALL

” is not lit. If lit, press the REPEAT button on the

Remote Control until the repeat indicator goes off.

Load a video CD with PBC.

Do not press the CD 3/8 button yet.

Press PBC button on the Remote Control.

Press the CD 3/8 button.

“PLAY” appears on the display and the first menu will

appear on the TV screen.

• If you leave your System on its own, the TV screen

will change as follows:

This depending on the disc you use.

To return to the previous menu, press the RETURN

button on the Unit or the RETURN button on the

Remote Control.

To move through the next menu, press the

following buttons.

On the Unit:

Press the ¢ NEXT or PREV 4 button.

On the Remote Control:

Press the NEXT ¢ or PREV 4 button.

To select the item (track) in the menu and

play it, press the following buttons.

On the Unit (Only for UX-J55V):

1. Press the VCD NUMBER button for more than 2

seconds. “SEL 1” will blink on the display.

First Menu Last Menu (Back to the

first Menu)

Part of each movie

2. Press the ¢ NEXT/PREV 4 buttons to select the

item (“SEL XX”) and press the SELECT CD 3/8

button to play it back.

On the Remote Control:

Pressing the number button(s) allows

you to start playing the track number

you want.

Ex.: For track number 5, press 5.

For track number 15, press

+10, then 5.

For track number 20, press

+10, then 10.

For track number 32, press +10, +10, +10, then 2.

• The next track will be automatically played after the

current track is finished.

To pause, press the CD 3/8 button on the Remote Control.

To stop playback and return to the first menu, press the

RETURN button repeatedly.

To stop the video CD, press 7 button.

To select other items during playback, repeat step 4.

• Program Play, Random Play and Repeating Tracks cannot be

performed during Menu-Driven Play.

Reminder!

Do not pause Video CD for more than 10 minutes to prevent

screen burns.

Basic Remote Control and Unit Button Functions for Menu-Driven Play:

* The PBC function button names on the unit and the remote control are printed in orange.

PREV 44

4 / ¢¢

¢¢

¢ NEXT

VCD NUMBER

≠≠

≠

PREV 44

4 / ¢¢

¢¢

¢ NEXT

(Only for UX-J55V)

SELECT CD 33

3/88

RETURN

PREV 44

4 / NEXT ¢¢

¢¢

Number button

RETURN

Remote Control Unit* Function

Move through menu.

Select a specific menu item.

Enters the selected video CD number or item. When a part of

movie is displayed on the TV screen, starts playing that track

from the beginning.

Returns to the previous menu during playback.

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM20

English

1 3

1231

Menu Screen

Moving


Still


To next screen

press

RETURN

press

RETURN

press

RETURN

To previous screen

A selection menu is displayed when you start playing a video

CD with PBC. The selection menu shows a list of numbers

for selection. Some video CDs may show moving pictures or

a divided screen.

• When a list of numbers is displayed, selecting a number

shows its contents.

• When a moving picture is displayed, pressing SELECT

CD 3/8 when the part of the movie you desire is shown

plays the movie.

• When the selection menu is re-displayed after you have

played your selection, selecting a number again can replay

its contents. (Some video CDs may show the menu screen

several times)

When “NEXT” and “PREV” are shown, pressing ¢ NEXT

or PREV 4 can change the selection menu.

• After playback, press RETURN to go back to the previous

screen. After playback, pressing RETURN for 2 seconds or

more causes it to stop. Some video CDs may return you to

the menu screen shown before playback.

• When a menu screen of a karaoke disc is displayed for about a

few minutes without any selection being made, it automatically

starts playing from the first song.

• When using the REPEAT function, the PBC function is not

available.

Playing video CDs without the PBC Function

Basic playback procedures for video CDs are the same as for

audio CDs. (See pages 15 and 16)

• When you start playing a video CD without PBC, “VIDEO

CD” appears on the display.

• During playback of a video CD, the following operations may

distort the image on the TV screen.

Searching for the beginning of the track, Skipping tracks,

Stopping/pausing the tracks, or frame-by-frame playback.

Various Functions to Enhance Your Enjoyment

You can use the following features using the Remote Control.

Frame-by-Frame Playback

Frame-by-Frame playback is possible only when moving

pictures (the video CDs with or without PBC) are played.

During playback, press the STILL button to pause the

video CD.

Each time you press the STILL button, the picture advances

by one frame. During Frame-by-Frame playback, no sound

will be heard.

To resume Normal Play, press the CD 3/8 button.

• You cannot return to the previous frame.

Example of playback using Playback Control (PBC)

Moving


Moving


Moving


Moving


Moving


Still


Moving


EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM21

English

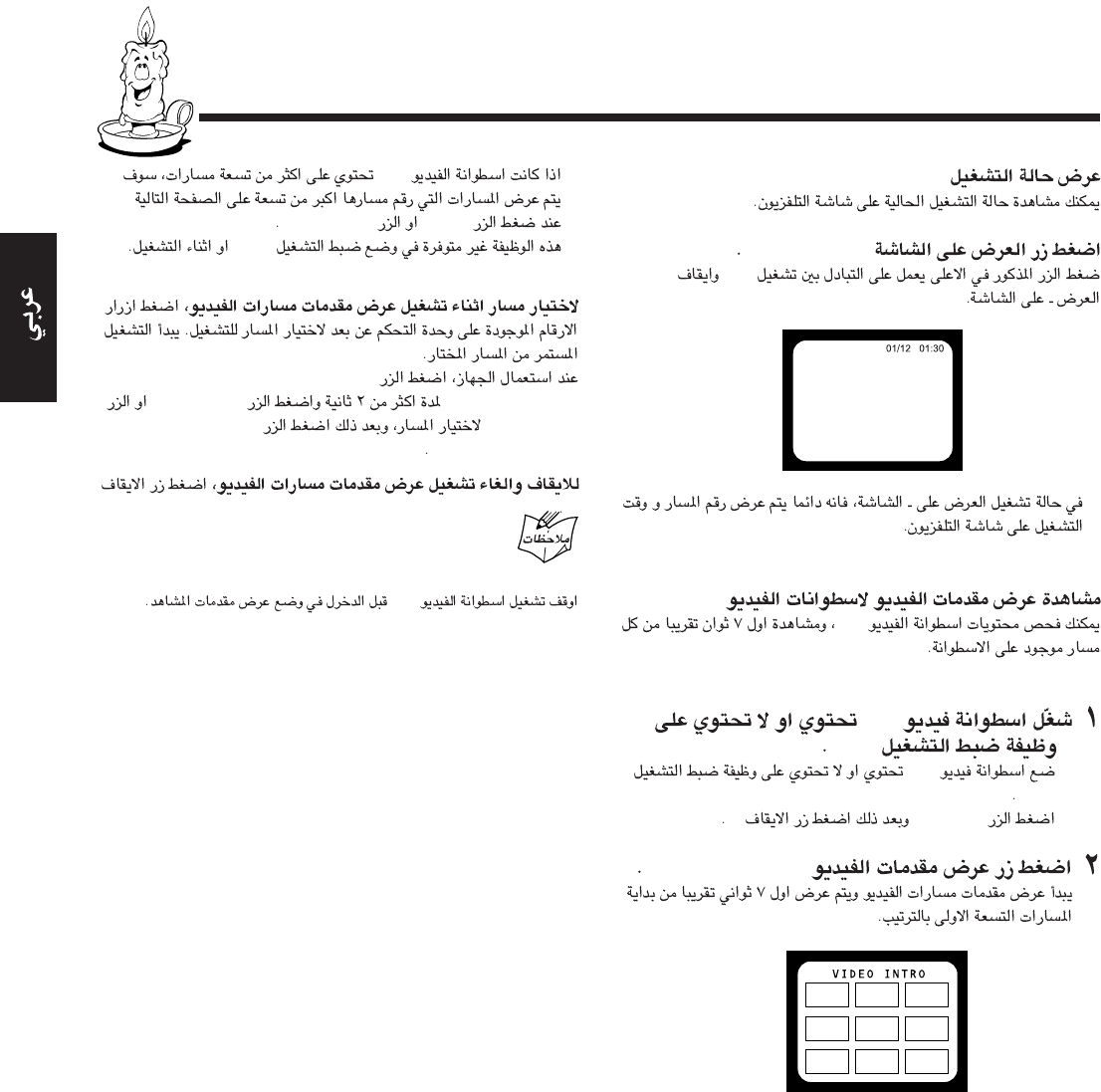

Display of Operating Status

You can view the current operating status on the TV screen.

Press the ON SCREEN button.

Pressing the above button alternates between on-screen

display ON and OFF.

• Once you have turned on the on-screen display, the track

number and playing time are always displayed on the TV

screen.

Viewing the Video Intro of Video CDs

You can check the contents of a video CD, watching about

7 seconds at the beginning of each track on the disc.

Play the video CD with or without PBC.

• Load the video CD with or without PBC.

• Press the CD 3/8 button, then press the 7 button.

Press the VIDEO INTRO button.

The Video Intro play starts whereby about 7 seconds at

the beginning of the first nine tracks will be played in

sequence.

1 2 3

4 5 6

7 8 9

• If the video CD has more than nine tracks, the tracks

whose track number is greater than nine will be

displayed on the next page when the 3 UP or ¢

NEXT is pressed.

• This function is not available in PBC mode or during

playback.

To select a track during Video Intro Play, press the number

buttons on the Remote Control to select the track to play.

Continuous play starts from the selected track.

When you use the Unit for UX-J55V, press the VCD

NUMBER button for more than 2 seconds and press the

PREV 4 or ¢ NEXT buttons to select the track, then

press the SELECT CD 3/8 button.

To stop and cancel the Video Intro Play, press the 7.

Stop the Video CD playback before enter the video intro mode.

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM22

English

Playing Back Tapes

You can play back type I tapes.

Playing Back a Tape

Press PUSH OPEN 0 on the unit.

Put a cassette in with the exposed part of

the tape down.

Press PUSH OPEN 0 again to close the

cassette holder.

Press TAPE 2 3.

The unit automatically turns on and the

tape starts playing. The tape direction

indicator (3 or 2) flashes slowly on the

display.

• Each time you press the button, the tape direction

changes:

3 : plays the front side.

2 : plays the reverse side.

When the tape plays to the end, the deck automatically

stops if the Reverse Mode is set to or . (See

“To play both sides—Reverse Mode.”)

If no cassette is inserted when you press TAPE 2 3

“NO TAPE” appears on the display.

To stop playing, press 7.

To fast-wind to the left or to the

right, press ¢ or 4 while the tape

is not running.

The tape direction indicator (3 or 2)

starts flashing rapidly on the display.

To remove the cassette, press PUSH OPEN 0 on the unit.

• If the tape is playing, stop it first.

To play both sides—Reverse Mode

You can set the deck to play just one side of a tape, both sides

once, or both sides continuously.

Press REV.MODE (reverse mode).

• Each time you press the button, the Reverse

Mode changes as follows:

: The deck automatically stops after playing both

sides of the tape. Stops when playback in the 2

direction is finished.

: The deck continues to play both sides of the tape

until 7 is pressed.

: The deck automatically stops after playing one

side of the tape.

•DO NOT open the cassette holder when the tape

is running.

•The use of C-120 or thinner tape is not

recommended, since characteristic deterioration

may occur and this tape easily jams in the pinch-

rollers and the capstans.

REV.

MODE

PUSH OPEN

TAPE

PREV. NEXT

EN15-23_UX-J66&55[UX]1.pm6 4/8/03, 5:20 PM23

English

Recording

Recording on a Tape

On the unit ONLY:

Put a recordable cassette in with the

exposed part of the tape down.

Close the cassette holder gently and check

the recording direction for the tape.

• If the tape direction is not correct, press TAPE 2 3

twice then 7 to change the tape direction.

• If you want to record on both sides of a tape, see “To

record on both sides—Reverse Mode.”

Start playing the source—FM, AM or

auxiliary equipment connected to AUX

jacks.

• When the source is the CD player, see “Disc Direct

Recording” on page 25.

Press REC (recording).

The REC (recording) indicator lights up on

the display and recording starts.

• If no cassette is inserted when you press REC

“NO REC” appears on the display.

• If a protected tape is inserted when you press REC

“NO REC” appears on the display.

To stop while recording, press 7.

To remove the cassette, press PUSH OPEN 0

on the unit.

• If the tape is recording, stop it first.

DO NOT open the cassette holder when the tape is

running.

To record on both sides—Reverse Mode

Press REV.MODE (reverse mode) repeatedly

until or is lit.

• When using the Reverse Mode for recording,

lights up and start recording in the forward

(3) direction first. Otherwise, recording will stop when

recording is done only on one side (reverse) of the tape.

IMPORTANT:

• It may be unlawful to record or play back copyrighted

material without the consent of the copyright owner.

• The recording level is automatically set correctly, so it is

not affected by the other sound settings. Thus, during

recording you can adjust the sound you are actually

listening to without affecting the recording level.

• If recordings you have made have excessive noise or static,

the unit may be too close to a TV. Increase the distance

between the TV and the unit.

• You can use type I tape for recording.

To protect your recording

Cassettes have two small tabs

on the back to protect from

unexpected erasure or re-

recording.

To protect your recording,

remove these tabs.

To re-record on a protected tape, cover the holes with

adhesive tape.

To keep the best recording and playback sound quality

If the heads, capstans, and pinch rollers of the cassette deck

become dirty, the following will occur:

• Impaired sound quality

• Discontinuous sound

• Fading

• Incomplete erasure

• Difficulty in recording

To clean the heads, capstans, and pinch rollers

Use a cotton swab moistened with alcohol.

To demagnetize the heads

Turn off the unit, and use a head demagnetizer (available at

electronics and audio shops).

At the start and end of cassette tapes

There is leader tape which cannot be recorded onto. Thus, when

recording discs or radio broadcasts, wind the leader tape first to

ensure that the recording will be made without any loss.

Heads

Capstans

Pinch Rollers

REV.

MODE

REC

Continued

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM24

English

Disc Direct Recording

Everything on the disc goes onto the tape in the order it is on

the disc, or according to the order you have set in Program

Play.

On the unit ONLY:

Put a recordable cassette in with the

exposed part of the tape down.

Load a CD.

• If the current playing source is not the CD player,

press CD 3/8, then 7 before going to the next step.

— A non-recorded pause of about 4 seconds will be

automatically inserted between tracks. If you do

not want a 4 seconds pause between tracks, press

CD 3/8 twice.

• If you want to record on both sides of a tape, see “To

record on both sides—Reverse Mode.”

Press REC (recording).

The REC (recording) indicator lights up on

the display and recording starts.

After recording, the CD player and cassette

deck automatically stop.

To stop while recording, press 7.

The tape stops after 4 seconds.

To remove the cassette, press PUSH OPEN 0

on the unit.

• If the tape is recording, stop it first.

DO NOT open the cassette holder when the tape is

running.

To record on both sides—Reverse Mode

Press REV.MODE (reverse mode) repeatedly

until or is lit.

• When using the Reverse Mode for Disc Direct

Recording, lights up and start recording in

the forward (3) direction first. When the tape reaches its

end while recording a song in the forward direction (3),

the last song will be re-recorded at the beginning of the

reverse side (2).

If you start recording on the reverse side (2), recording

will stop when recording is done only on one side (reverse)

of the tape.

When making Sleep Timer settings while doing Disc

Direct Recording

Set enough time to allow for the disc to finish playing; otherwise,

the power will go off before recording is completed.

One Track Recording

This recording method is convenient when you record tracks

while playing the disc. You can record just your favorite

songs on the tape.

On the unit ONLY:

Put a recordable cassette in with the

exposed part of the tape down.

Play the track on the disc you wish to

record.

Press REC (recording).

The CD player returns to the beginning of that

track and the track is recorded on the tape.

After recording, the CD player and cassette

deck automatically stop.

Repeat steps

and

to record other tracks

you want.

To stop while recording, press 7.

The tape stops after 4 seconds.

To remove the cassette, press PUSH OPEN 0

on the unit.

• If the tape is recording, stop it first.

DO NOT open the cassette holder when the tape is

running.

REV.

MODE

REC

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM25

English

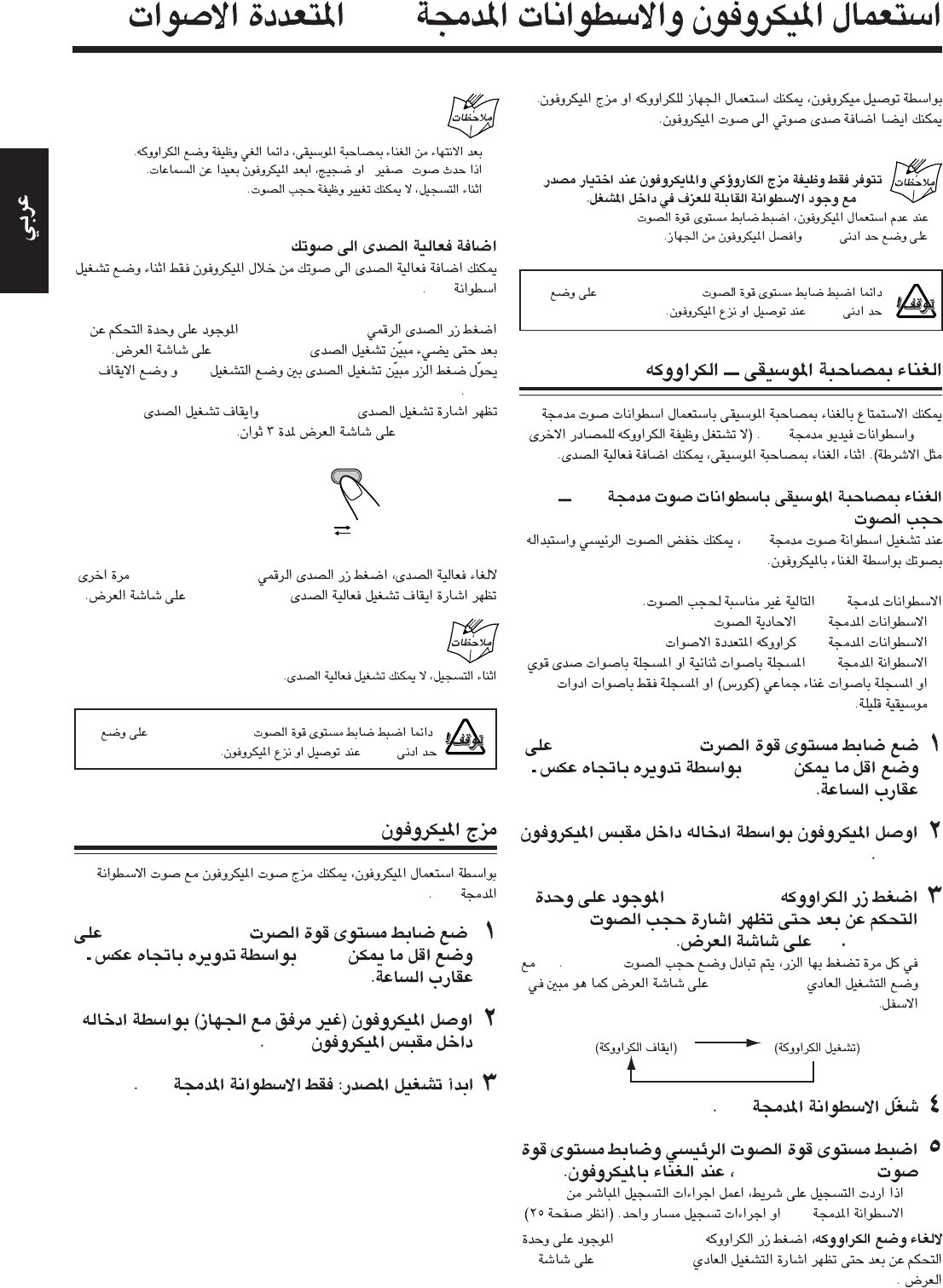

Using the Microphone and Multiplex CDs

By plugging in the microphone, you can use the System for

Karaoke or microphone mixing. You can also add an echo to

the microphone’s sound.

Karaoke and microphone mixing are only available

when you select the CD source with a playable disc

inside.

• When you will not be using the microphone, keep the MIC

VOLUME control set to MIN and disconnect the microphone.

Always set the MIC VOLUME control to MIN when

connecting or disconnecting the microphone.

Singing Along — Karaoke

You can enjoy singing along using audio CDs and video CDs

(Karaoke does not function for other sources such as tapes).

While singing along, you can apply echo.

Singing Along with Audio CDs — Vocal Masking

When playing an audio CD, you can reduce the lead vocal

and replace it with your voice by singing into the

microphone.

The following CDs are not suitable for Vocal Masking.

• Monoaural CDs

• Multiplex Karaoke CDs

• CD recorded duets, strong echo, a chorus, or only a few

instruments

Set the MIC VOLUME control to MIN by

turning it anti-clockwise.

Connect the microphone by plugging it into

the MIC jack.

Press the KARAOKE button on the Remote

Control until “V.MASK” appears on the

display.

Each time you press the button, the “V.MASK” and

“NORMAL” appears on the display alternately as

shown below:

Play a CD.

Adjust the main volume and the MIC VOLUME

control, as you sing into the microphone.

• If you want to record on a tape, carry out CD Direct

Recording or One Track Recording. (See page 25)

To cancel the Karaoke mode, press the KARAOKE button

on the Remote Control until “NORMAL” appears on the

display.

NORMAL

(KARAOKE OFF)

V.MASK

(KARAOKE ON)

• After you have finished singing along, always cancel the Karaoke

mode.

• If “howling” occurs, keep the microphone away from the

speakers.

• During recording, you cannot change the Vocal Masking.

Applying an echo to your voice

You can apply echo to your voice through the microphone

during CD mode only.

Press the DIGITAL ECHO button on the Remote Control

until “ECHO ON” appears on the display.

Pressing the button alternates between echo ON and OFF.

“ECHO ON” and “ECHO OFF” will appear on the display

for 3 seconds.

To cancel the echo, press the DIGITAL ECHO button again

until “ECHO OFF” appears on the display.

During recording, you cannot switch the echo.

Always set the MIC VOLUME control to MIN when

connecting or disconnecting the microphone.

Microphone Mixing

Using a microphone, you can mix the microphone sound with

a CD sound.

Set MIC VOLUME control to MIN by

turning it fully anti-clockwise.

Connect a microphone (not supplied) by

plugging it into the MIC jack.

Start the source: CD Only.

ECHO ON ECHO OFF

DIGITAL

ECHO

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM26

English

Microphone mixing is not available for other sources such as Tape,

Tuner or Aux.

Adjust the main volume and the MIC

VOLUME control as you sing into the

microphone.

• To apply echo, press the DIGITAL ECHO button on the

Remote Control until “ECHO ON” appears on the display.

To cancel the echo, press the same button again. “ECHO

OFF” will appear on the display.

If “howling” occurs, keep the microphone away from the speakers.

To Record Microphone Mixing on a Tape

Follow the above steps 1-4.

To record, follow the steps in “Recording on

a Tape”. (See page 24)

Using the Multiplex CDs and Singing Along

with Multiplex (MPX) Karaoke CDs

If the source you are going to play is a multiplex CD, you can

use the Multiplex Sound function.

What is Multiplex Sound?

In a multiplex Karaoke CD, the instrumental parts are

recorded on the left channel and the vocal parts are recorded

on the right channel. With this system, you can select the

playback sound with your voice through the microphone

(With this system, you can select each channel separately).

Turn on the TV and select the video input

on the TV.

Set the MIC VOLUME control to MIN by

turning it anti-clockwise.

Connect a microphone (not supplied) by

plugging it into the MIC jack.

Press the DIGITAL ECHO or MPX button

on the remote control to select the MPX or

Echo mode you want to use.

Each time you press the button, MPX and Echo mode

changes as follows.

Lch MONO: Only the left channel (instrumental parts)

are played through both speakers.

Rch MONO: Only the right channel (vocal parts) are

played through both speakers.

STEREO: Normal stereo mode.

• You can also select MPX and Echo mode during

playback.

• MPX status is not indicate on the display.

•To return to Normal stereo mode press the MPX

button on the remote control until “STEREO”

appear on the display.

Play a multiplex CD.

To play a video CD with PBC, see page 20.

Adjust the main volume and the MIC

VOLUME control as you sing into the

microphone.

• If you want to record on a tape, carry out CD Direct

Recording or One Track Recording. (See page 25)

MPX:

ECHO:

LCH MONO RCH MONO STEREO

ECHO ON ECHO OFF

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM27

English

Using the Timers

There are three timers available—Daily Timer, Recording

Timer, and Sleep Timer.

Before using the timers, you need to set the unit’s clock (see

page 9).

Using Daily Timer and Recording Timer

You can set the timer whether the unit is on or off.

How the timer actually works

When the on-time comes, the unit automatically turns on

(the [timer] and the selected timer mode [DAILY or REC]

indicators flash just before the on-time, and continue flashing

while the timer is operating). Then, when the off-time comes,

the unit automatically turns off (standby).

The timer setting remains in memory until you change it.

• When the DAILY indicator is lit on the display, the timer

acts as the Daily Timer. Once the timer has been set, it will

be activated at the same time everyday until the timer is

turned off.

• When the REC indicator is lit on the display, the timer acts

as the Recording Timer. After the timer-recording finishes,

the details of the setting remain stored but the timer is

turned off.

Before you start...

When using “ TUNER” as the source to play, make sure to

select the desired station before turning off the power.

• There is a time limit in doing the following steps. If the

setting is canceled before you finish, start over from step

Press CLOCK/TIMER.

The (timer) indicator lights up and the

timer mode (DAILY or REC) indicator

flashes on the display.

The unit enters on-time setting mode.

Set the on-time when you want the unit to

turn on.

1) Press UP or DOWN to set the hour, then press

CLOCK/TIMER.

2) Press UP or DOWN to set the minute, then press

CLOCK/TIMER.

The unit enters off-time setting mode.

Set the off-time when you want the unit to

turn off (standby).

1) Press UP or DOWN to set the hour, then press

CLOCK/TIMER.

2) Press UP or DOWN to set the minute, then press

CLOCK/TIMER.

The unit enters the timer selecting mode.

Press UP or DOWN to select the timer

(Daily Timer or Recording Timer) with the

source to play, then press CLOCK/TIMER.

• Each time you press UP or DOWN, the timer mode

and the source change as follows:

DAILY TUNER: tunes in to the last station you were

listening to. (Daily Timer)

REC TUNER: records the last station you were

listening to. (Recording Timer)

• Put a recordable cassette into the deck.

DAILY CD: plays a disc. (Daily Timer)

• Load a disc.

DAILY TAPE: plays a tape. (Daily Timer)

• Make sure that a tape is in the cassette deck.

• Make sure that the tape direction is correct.

The unit enters the volume level setting mode.

CLOCK

/TIMER

[DAILY ]

DOWN

CLOCK

/TIMER

TAPE

TUNER

DAILY REC

DAILY

Continued

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM28

English

Press UP or DOWN to set the volume level,

then press CLOCK/TIMER.

• You can select the volume level (“VOLUME – –” and

“VOLUME 0” to “VOLUME 40”).

If you select “VOLUME – –,” the volume is set to the

previous level when the unit was turned off.

• To turn off the volume while the Recording Timer

(REC TUNER) is working, set the volume level

“VOLUME 0.”

The unit enters the clock setting mode.

Adjust the clock if you need.

• See “Setting the Clock” on page 9.

Press STANDBY/ON to turn

off the unit (standby) if you have

set the timer with the unit turned

on.

• When the timer turns on the unit, the (timer) and

the selected timer mode indicators (DAILY or REC)

start flashing.

To deactivate the timer temporarily, press

and hold CLOCK/TIMER until the (timer)

indicator on the display goes off.

To activate or change the timer (with the previous

setting), follow steps

on pages 28 and 29.

• If you want to change the timer setting after the Daily

Timer be used, first deactivate the timer.

• If the unit is turned on when the timer on-time comes

Timer does not work.

• When you unplug the AC power cord or if a power failure

occurs

The timer will be canceled. You need to set the clock first, then

the timer again.

Using Sleep Timer

With the Sleep Timer, you can fall asleep to music. You can

set the Sleep Timer when the unit is turned on.

How the Sleep Timer actually works

The unit automatically turns off after the specified time

length passes.

On the remote control ONLY:

Press SLEEP.

The time length until the shut-off time appears

and the SLEEP indicator lights up on the

display.

• Each time you press the button, the time length

changes as follows:

Wait for about 5 seconds after specifying

the time length.

The illumination and display dim.

To check the remaining time until the shut-off time, press

SLEEP once so that the remaining time until the shut-off time

appears for about 5 seconds.

• The illumination and display brighten during this period.

To change the shut-off time, press SLEEP repeatedly until

the desired time length appears on the display.

To cancel the setting, press SLEEP repeatedly until the

SLEEP indicator goes off.

• The Sleep Timer is also canceled when you turn off the

unit.

• If you set the Sleep Timer after the Daily Timer starts playing

the selected source

The Daily Timer is canceled. When the Sleep Timer shut-off time

comes, the unit will be turned off.

• If you set the Sleep Timer after the Recording Timer starts

recording

The Recording Timer is canceled, but recording continues until

the Sleep Timer shuts off the power.

STANDBY/ON

CLOCK

/TIMER

SLEEP

SLEEP 10

Canceled

SLEEP 20 SLEEP 30

SLEEP 60

SLEEP 90SLEEP120

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM29

English

Maintenance

Handling cassette tapes

• If the tape is loose in its cassette, take up

the slack by inserting a pencil in one of

the reels and rotating.

• If the tape is loose, it may get stretched,

cut, or caught in the cassette.

• Be careful not to touch the tape surface.

• Avoid storing tapes in the following places:

—In dusty places

—In direct sunlight or heat

—In moist areas

—On a TV or speaker

—Near a magnet

Cleaning the unit

• Stains on the unit

Should be wiped off with a soft cloth. If the unit is heavily

stained, wipe it with a cloth soaked in water-diluted neutral

detergent and wrung well, then wipe clean with a dry cloth.

• Since the unit may deteriorate in quality, become

damaged or have its paint peel, be careful about the

following.

—DO NOT wipe it with a rough cloth.

—DO NOT wipe it strongly.

—DO NOT wipe it with thinner or benzine.

—DO NOT apply any volatile substances such as

insecticides to it.

—DO NOT allow any rubber or plastic to remain in contact

with it for a long time.

To get the best performance from the unit, keep your discs, tapes, and mechanism clean.

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM30

English

Troubleshooting

If you are having a problem with your unit, check this list for a possible solution before calling for service.

If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person,

such as your dealer, for service.

Symptom

No sound is heard.

Hard to listen to broadcasts because of

noise.

The disc tray does not open or close.

The disc does not play.

The disc sound is discontinuous.

The cassette holder cannot be opened.

Impossible to record.

Operations are disabled.

Unable to operate the unit from the

remote control.

Cause

• Connections are incorrect or loose.

• Headphones are connected.

• Antennas are disconnected.

• The AM loop antenna is too close to

the unit.

• The FM antenna is not properly

extended and positioned.

The AC power cord is not plugged in.

The disc is placed upside down.

The disc is scratched or dirty.

Power from the AC power cord has

been cut off while the tape was running.

Small tabs on the back of the cassette

are removed.

The built-in microprocessor may

malfunction due to external electrical

interference.

• The path between the remote control

and the remote sensor on the unit is

blocked.

• The batteries are exhausted.

Action

• Check all connections and make

corrections. (See pages 6 – 8.)

• Disconnect the headphones.

• Reconnect the antennas correctly and

securely.

• Change the position and direction of

the AM loop antenna.

• Extend the FM antenna to the best

position.

Plug the AC power cord.

Place the disc with the label side up.

Clean or replace the disc. (See page

15.)

Plug in the AC power cord, then turn on

the unit.

Cover the holes with adhesive tape.

Unplug the AC power cord and then

plug it back in.

• Remove the obstruction.

• Replace the batteries.

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM31

English

Specifications

UX-J66V (CA-UXJ66V and SP-UXJ66V)

Amplifier

Output Power:

SUBWOOFERS:

90 W (45 W + 45 W) at 6 Ω (10% THD)

MAIN SPEAKERS:

30 W (15 W + 15 W) at 6 Ω (10% THD)

Audio input sensitivity/Impedance (at 1 kHz)

AUX: 400 mV/48 kΩ

Speakers/Impedance: 6 Ω – 16 Ω

Tuner

FM tuning range: 87.50 MHz – 108.00 MHz

AM tuning range:

AM 10 kHz intervals: 530 kHz – 1 600 kHz

AM 9 kHz intervals: 531 kHz – 1 602 kHz

CD player

Dynamic range: 85 dB

Signal-to-noise ratio: 90 dB

Wow and flutter: Immeasurable

Cassette deck

Frequency response:

Normal (type I): 60 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

Speaker—SP-UXJ66V

Speaker units: Subwoofer: 13.5 cm cone x 1

Woofer: 8.0 cm cone x 1

Tweeter : 4.0 cm cone x 1

Impedance: Subwoofer: 6 Ω

Main speaker: 6 Ω

Dimensions (approx.):

175 mm x 320 mm x 241 mm (W/H/D)

Mass (approx.): 3.7 kg each

Supplied Accessories

See page 6.

General

Power requirement:

AC 110 V/ 127 V/ 220 V/ 230 V – 240 V , adjustable

with the voltage selector, 50 Hz/60 Hz

Power consumption: 135 W (at operation)

3.4 W (on standby)

Dimensions (approx.):

520 mm x 320 mm x 323.3 mm (W/H/D)

Mass (approx.): 12.9 kg

UX-J55V (CA-UXJ55V and SP-UXJ55V)

Amplifier

Output Power:

120 W (60 W + 60 W) at 6 Ω (10% THD)

Audio input sensitivity/Impedance (at 1 kHz)

AUX: 400 mV/48 kΩ

Speakers/Impedance: 6 Ω – 16 Ω

Tuner

FM tuning range: 87.50 MHz – 108.00 MHz

AM tuning range:

AM 10 kHz intervals: 530 kHz – 1 600 kHz

AM 9 kHz intervals: 531 kHz – 1 602 kHz

CD player

Dynamic range: 85 dB

Signal-to-noise ratio: 90 dB

Wow and flutter: Immeasurable

Cassette deck

Frequency response:

Normal (type I): 60 Hz – 14 000 Hz

Wow and flutter: 0.15% (WRMS)

Speaker—SP-UXJ55V

Speaker units: Woofer: 12.0 cm cone x 1

Midrange: 4.0 cm cone x 1

Tweeter: 2.0 cm dome x 1

Impedance: 6 Ω

Dimensions (approx.):

160 mm x 285 mm x 181.5 mm (W/H/D)

Mass (approx.): 2.4 kg each

Supplied Accessories

See page 6.

General

Power requirement:

AC 110 V/ 127 V/ 220 V/ 230 V – 240 V , adjustable

with the voltage selector, 50 Hz/60 Hz

Power consumption: 130 W (at operation)

3.4 W (on standby)

Dimensions (approx.):

490 mm x 286 mm x 323.3 mm (W/H/D)

Mass (approx.): 10.3 kg

Design and specifications are

subject to change without notice.

EN24-32_UX-J66&55[UX]1.pm6 4/8/03, 5:22 PM32

±±

•

UX-J66V

•

”“

•

JVC

•

PBC

CD-ROMDVDCD-GCD-I

COMPACT

DIGITAL VIDEO

COMPACT

DIGITAL AUDIO

AR01-14,UX-J66&55V(UX) 4/8/03, 4:58 PM1

≤≤

≤

UX-J66V

FMAM

CD/CD-R/CD-RW/MP3

CDPBC

PBC

CDMPX

AR01-14,UX-J66&55V(UX) 4/8/03, 4:58 PM2

≥≥

≥

UX-J55V:

UX-J66V

MICRO COMPONENT SYSTEM

VIDEO CD VERSION 2.0

COMPACT

DIGITAL VIDEO

MIC VOLUME

MIN MAX

UX-J55V:

AR01-14,UX-J66&55V(UX) 4/8/03, 4:58 PM3

¥¥

RETURN

AUX

STANDBY/ON

REC

•DOWN4PREV7

UP ¢ NEXT

SELECT CD ‹/8

¤ ‹TAPE

PHONES

UX-J66V

COLOR

UX-J55V

VCD NUMBER

CD 0

VOLUME + /–

UX-J66V

SOUND TURBO

SURROUND

AHB PRO

UX-J55V

AHB PRO

BASS

TREBLE

FM/AM

0 PUSH OPEN

VOLUMEMIC

[DAILY REC SLEEP]REC

PRGM

RANDOM

ALL

SURROUND

BASS

MONO

PBC

AHB

•DAILYRECSLEEP

REC

UX-J66V:

SURROUND

UX-J66V:

BASS

•PRGMRANDOMALL

•

PBC

AHB

•2 3

MONO

VIDEO CD VERSION 2.0

AR01-14,UX-J66&55V(UX) 4/8/03, 4:58 PM4

µµ

STANDBY/ON

DISPLAY

CLOCK

/TIMER

SLEEP

TREBLE

BASS

CANCELSET

TAPE

FM/AM AUX

REPEAT

KARAOKE

RANDOM

AHB

PRO

PBC

STILL

MPX

PRGM

RETURN

4 65

7 98

10 +10

RM-SUXJ55V REMOTE CONTROL

SCREEN DIMMER

VOLUME

DIGITAL

ECHO

VIDEO

INTRO

DOWN

PREV.

/SELECT

MODE

REV.

MODE

BASS

•3 UPPREV 47

NEXT¢4 DOWN

SET

•SELECTCD 3/8

2 3 TAPEFM/AMAUX

CD 0

REV.MODE

RETURN

KARAOKE

STILL

MPX

PBC

DIGITAL ECHO

ON SCREEN

STANDBY/ON

DISPLAY

CLOCK/TIMER

SLEEP

TREBLE

CANCEL

FM MODE

•PRGMRANDOMREPEAT

AHB PRO

VIDEO INTRO

VOLUME +

DIMMER

UX-J55V

BASS

•3 UPPREV 47

NEXT¢4 DOWN

SET

•SELECTCD 3/8

2 3 TAPEFM/AMAUX

CD 0

REV.MODE

RETURN

KARAOKE

pSOUND TURBO

MPX

PBC

DIGITAL ECHO

ON SCREEN

STANDBY/ON

DISPLAY

CLOCK/TIMER

SLEEP

TREBLE

CANCEL

STILL/FM MODE

sCOLOR

•PRGMRANDOMREPEAT

SURROUND

AHB PRO

VIDEO INTRO

VOLUME +

DIMMER

STANDBY/ON

DISPLAY

CLOCK

/TIMER

SLEEP

TREBLE

DOWN

BASS

CANCELSET

TAPE FM/AM AUX

REPEAT

KARAOKE

RANDOM

AHB

PRO

PBC

MPX

REV.

MODE FM MODE

STILL COLOR

PRGM

RETURN

/SELECT

1 32

4 65

7 98

10 +10

RM-SUXJ66V REMOTE CONTROL

SCREEN DIMMER

SURROUND

SOUND

TURBO

VOLUME

DIGITAL

ECHO

VIDEO

INTRO

PREV. NEXT

UX-J66V

AR01-14,UX-J66&55V(UX) 4/8/03, 4:58 PM5

∂∂

∂

•AM

•FM

•

•UX-J66V

•

•AC

—SUM-3)/AA(15FR6—

R6(SUM-3)/AA(15F)

FMFM

FM 75 Ω COAXIAL

IEC DIN 45325

FM 75

COAXIAL

AM EXT

AM LOOP

ANTENNA

FM 75

COAXIAL

AM EXT

AM LOOP

ANTENNA

•

AR01-14,UX-J66&55V(UX) 4/8/03, 4:58 PM6

∑∑

∑

AM LOOP

AM EXT

FMAM

•

FM 75

COAXIAL

AM EXT

AM LOOP

ANTENNA

INPUT INPUT INPUT INPUT

RIGHT LEFT

MAIN SPEAKERS

CAUTION: SPEAKER IMPEDANCE 6 -16

SUBWOOFERS

RIGHT LEFT

RIGHT

SPEAKER

IMPEDANCE

6 - 16

LEFT

SPEAKERS

UX-J66V

UX-J55V

ªª

··

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM7

∏∏

∏

AUX

•

AUX

VOLTAGE

SELECTOR

110V

127V

220V

230V

-240V

•

ACAC

SPEAKER

IMPEDANCE

MIN

RIGHT LEFT

SPEAKERS

VOLTAGE

SELECTOR

110V

127V

220V

230V

-240V

AM EXT

COAXIAL

AM LOOP

ANTENNA

AUX

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM8

ππ

DISPLAY

CLOCK

/TIMER

DOWN

CLOCK

/TIMER

00”“0

•

CLOCK/TIMER

DOWN

CLOCK/TIMER

UPDOWN

CLOCK/TIMER

DISPLAY

•

•AC

00”“0

•

CLOCK/TIMER

”“

CLOCK/TIMER

FM/AM¢

FM/AM 4

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM9

±∞±∞

±∞

STANDBY/ON

“HELLO”

•—CD 3/8

TAPE 2 3FM/AMAUX

STANDBY/ON

“GOOD BYE”

•00”“0

DIMMER

•

00” “0

“VOL MIN”1”“VOLUME

40”VOLUMEVOL MAX“

VOLUME +

VOLUME –

VOLUME +

PHONES

VOLUME

STANDBY/ON

DOWN

•

“BASS+2”

“TREBLE+2”

•

•UX-J55VBASS

TREBLE

BASS

TREBLE

•“BASS”

“TREBLE”

DOWN

—

UX-J66V:

AHB PRO

•

(AHB ON)(AHB OFF)

AHB

UX-J55V:

AHB PRO“AHB 1”

“AHB 2”

AHB

•

•2”“AHB1”“AHB

AHB PRO

“AHB OFF”AHB

AHB

PRO

AHB OFF

(Canceled)

AHB 1 AHB 2

AHB

PRO

AHB

BASS

TREBLE

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM10

±±±±

±±

DIMMER

UX-J66V

—

SOUND TURBO

•

BASS

UX-J66V

•

SURROUND

DIMMER

•

(DIM ON)(DIM OFF)

SOUND

TURBO

SURROUND

BASS

UX-J66V

COLOR 5–COLOR 1

AUTO

•AUTOCOLOR 1

COLOR 5

COLOR

•

COLOR

AUTO COLOR 1 COLOR 2

COLOR 4 COLOR 3COLOR 5

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM11

±≤±≤

±≤

FMAM

FM/AM

—FMAM

•FM

¢4

¢ 4

MODEMONO

FM MODE

MONO

FM/AM

PREV. NEXT

FM MODE

STILL

FMAM

•

•”“

SET

UPDOWN

SET

•

SET

DOWN

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM12

±≥±≥

±≥

FM/AM

—FMAM

•FM

UPDOWN

+10

+10+10

DOWN

123

456

789

10 +10

FM/AM

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM13

±¥±¥

±¥

CDs

•CDCD

•CD-RCD

•CD-RWCD

•MP3MP3CD-RCD-RW

MP3

MP3Audio Layer 3”MPEG-1

“Motion Picture Experts Group 1MP3

MP3CD-RCD-RW

MP3

”MP3“

”“”“

MP3

•MP3CD-RCD-RW

•MP39660ISO

•

•MP3

”“MP3”“Mp3”“mP3”“mp3

•MP3

MP3

”“MP3”“

”“

9660ISO—

”“—

MP3

CD-RCD-RW

•MP3

MP3MP3

•

MP3MP3

MP3

AR01-14,UX-J66&55V(UX) 4/8/03, 4:59 PM14

±µ±µ

±µ

CD/CD-R/CD-RW/MP3

CD-RCD-RW

CD-RCD

CD-RWCD

”“

•CD-RCD-RW

•CD-RCD-RWs

•CD-RW

CD-RW

•

—

■CD

CD 0

•CD

CD 3/8

•

CD 0

•

CD-RCD-RW

•

“NO DISC”

/SELECT

BASS

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM15

±∂±∂

±∂

■MP3

¢ NEXTPREV 4

/NEXT ¢ PREV 4

CD 3/8

¢ NEXTPREV 4

PREV 4/NEXT ¢

CD 3/8

¢ 4

•¢

•4

+105

+10

+10+10

+102

•¢

•4

123

456

789

10 +10

PREV. NEXT

/SELECT

PREV. NEXT

•CD

CD-RCD-RW

•

“NO DISC”

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM16

±∑±∑

±∑

—

•

CDCD 3/87

PRGM

•

UPDOWN

SET

•

”

“

CD 3/8

“FULL”

PRGM

•PRGM

PRGM

DOWN

SET

PRGM

/SELECT

PRGM

¢ 4

•¢

• 4

CANCEL

•

—

•CD

CD 3/87

RANDOM

CD 3/8

• 4

RANDOM

•RANDOM

RANDOM

/SELECT

CANCEL

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM17

±∏±∏

±∏

—

REPEAT

•

ALL :

REPEAT

ALL

Canceled

—

CD ‹/87

•

CD ‹/87

“LOCKED”

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM18

±π±π

±π

CDCD

PBC

JVC

“NTSC”

¢ NEXT

PREV 4

O PALL AUTO O PAL O NTSC

NTSCNTSC

PALPAL

PAL AUTO

SELECT CD 3/8

“JVC VIDEO CD/CD PLAYER”

NTSC/PALNTSCNTSC

NTSC/PALPA LPA L

NTSC/PALPAL AUTO

•NTSC CDPAL AUTO

PAL

CD“PAL”

•NTSC CDPAL AUTO

•7

PBC

VCD

PBC

•

CDPBC

•CD

PBC

CDPBC

PBC

CD 3/8

CDs

– ±π –

PREV.

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM19

≤∞≤∞

≤∞

PBC

”“ALL”“

REPEAT

PBC

CD 3/8

PBC

CD 3/8

“PLAY”

•

RETURN

¢ NEXTPREV 4

NEXT ¢PREV 4

UX-J55V

VCD NUMBER

1”“SEL

PREV 4/¢ NEXT

“SEL XX”CD 3/8SELECT

+1010

+10+10+10

•

CD 3/8

RETURN

CD7

•

*PBC

PREV 44

4 / ¢¢

¢¢

¢ NEXT

≠≠

≠

PREV 44

4 / ¢¢

¢¢

¢ NEXT

SELECT CD 33

3/88

RETURN

PREV 44

4 / NEXT ¢¢

¢¢

RETURN

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM20

≤±≤±

≤±

RETURN

PBC

•

•SELECT CD 3/8

•

“NEXT”“PREV”

¢¢

¢ NEXTPREV 44

•RETURN

RETURN

•

•REPEATPBC

PBC

CDCD

•CDPBC

“VIDEO CD”

•CD

CDPBC

STILL

CD 3/8

•

PBC

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM21

≤≤≤≤

≤≤

123

456

789

ON SCREEN

ONOFF

•

PBC

•CD

PBC

•CD 3/87

VIDEO INTRO

•CD

3 UPNEXT ¢

•PBC

VCD NUMBERPREV 4

¢ NEXT

SELECT CD 3/8

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM22

≤≥≤≥

≤≥

PUSH OPEN

TAPE

0 PUSH OPEN

PUSH OPEN 0

TAPE 2 3

•

”

—“

“NO TAPE”

¢ 4

0 PUSH OPEN

•

–

REV.MODE

•

•120C

PREV. NEXT

REV.

MODE

AR15-23,UX-J66&55V(UX) 4/8/03, 4:56 PM23

≤¥≤¥

≤¥

•

•I

•

•TAPE 2 3

•”

“

FMAM

AUX

•CD”

“

REC

•REC

“NO REC”

•REC

“NO REC”

0 PUSH OPEN

•

—

REV.MODE

•

REV.

MODE

REC

AR24-32,UX-J66&55V(UX) 4/8/03, 4:54 PM24

≤µ≤µ

≤µ

•CD

CD 3/87

CD 3/8

•”

“

REC

0 PUSH OPEN

•

REV.MODE

•

CD3

REV.

MODE

REC

0 PUSH OPEN

•

REC

AR24-32,UX-J66&55V(UX) 4/8/03, 4:54 PM25

≤∂≤∂

≤∂

•MIC VOLUME

MIN

MIC VOLUME

MIN

CDCD

•CD

MIC VOLUME

MIN

MIC

KARAOKE

MASK”“V

“NORMAL”

MIC VOLUME

•

KARAOKE

“NORMAL”

•

•”“

•

DIGITAL ECHO

“ECHO ON”

OFF

“ECHO ON”

“ECHO OFF”

DIGITAL ECHO

“ECHO OFF”

MIC VOLUME

MIN

MIC VOLUME

MIN

MIC

ECHO ON ECHO OFF

DIGITAL

ECHO

NORMAL V.MASK

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM26

≤∑≤∑

≤∑

MIC VOLUME

•DIGITAL ECHO

“ECHO ON”

“ECHO OFF”

”“

”

“

MPX

MIC VOLUME

MIN

MIC

DIGITAL ECHO

MPX

Lch MONO

Rch MONO

STEREO

•MPX

•

MPX

“STEREO”

CDPBC

MIC VOLUME

•

MPX:

ECHO:

LCH MONO RCH MONO STEREO

ECHO ON ECHO OFF

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM27

≤∏≤∏

≤∏

—

DAILY

REC

•DAILY

•REC

“TUNER”

•

CLOCK/TIMER

DAILYREC

CLOCK

/TIMER

[DAILY ]

UPDOWN

CLOCK/TIMER

UPDOWN

CLOCK/TIMER

UPDOWN

CLOCK/TIMER

UPDOWN

CLOCK/TIMER

UPDOWN

CLOCK/TIMER

•UPDOWN

DAILY TUNER

REC TUNER

•

DAILY CDCD

•

DAILY TAPE

•

[DAILY ]

DOWN

CLOCK

/TIMER

TAPE

TUNER

DAILY REC

DAILY

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM28

≤π≤π

≤π

UPDOWN

CLOCK/TIMER

•”“VOLUME

0”VOLUME “40”VOLUME“

”“VOLUME

•

REC TUNER

0”VOLUME .“

•”“

STANDBY/ON

•

DAILYREC

CLOCK/TIMER

•

•AC

STANDBY/ON

CLOCK

/TIMER

SLEEP

•

SLEEP

•

SLEEP

“SLEEP”

•

SLEEP

SLEEP 10 SLEEP 20 SLEEP 30

SLEEP 60

SLEEP 90SLEEP120

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM29

≥∞≥∞

≥∞

•

—

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM30

≥±≥±

≥±

•

•AM

•FM

•

•AM

•FM

•

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM31

≥≤≥≤

≥≤

UX-J66VCA-UXJ66VSP-UXJ66V

THD

AUX

WRMS

SP-UXJ66V—

UX-J55VCA-UXJ55VSP-UXJ55V

THD

AUX

WRMS

SP-UXJ55V—

AR24-32,UX-J66&55V(UX) 4/8/03, 4:55 PM32

OPTICAL DIGITAL

OUT

AM EXT

COAXIAL

AM LOOP

ANTENNA

AUX

VOLTAGE

SELECTOR

110V

127V

220V

230V

-240V

VOLTAGE

SELECTOR

110V

127V

220V

230V

-240V

VICTOR COMPANY OF JAPAN, LIMITED

EN, AR 0603NKKFLEJEM

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and

U.K.)

IMPORTANT for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC)

line voltage corresponds with the position of the voltage

selector switch provided on the outside of this equipment

and, if different, reset the voltage selector switch, to

prevent from a damage or risk of fire/electric shock.

ARCover,UX-J66/55V(UX) 4/8/03, 4:52 PM2

JVC UX J66VUX J66V/J55V[UX] User Manual GVT0116 014A

UX-J55VUX UX-J55VUX GVT0116-014A English, Arabic,

Navigation menu

Versions of this User Manual:

Views

Navigation
