Getting Started
Connection/Installation (VN-V685U/VN-V686BU)
Connection/Installation (VN-V686WPBU)
Network Setting
- Network Requirements
- IP Address Settings
Setting Using Internet Explorer
- Setting
Operation
- Built-in Viewer
Others
- Troubleshooting
- Specifications

PTZ IP DOME CAMERA

OUTDOOR PTZ IP DOME CAMERA

VN-V685U

VN-V686BU

VN-V686WPBU

INSTRUCTIONS

Thank you for purchasing this product.

Before beginning to operate this unit, please read

the instruction manual carefully in order to make

sure that the best possible performance is

obtained.

For Customer Use:

Enter below the Serial No. which is located on the

body.

Retain this information for future reference.

Model No.

VN-V685U/VN-V686BU/VN-V686WPBU

Serial No. LST0819-001A

VN-V686WPBU

VN-V685U/

VN-V686BU

Getting Started

Safety Precautions

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK. DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE.REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash wish arrowhead

symbol, within an equilateral triangle is

intended to alert the user to the pres-

ence of uninsulated "dangerous volt-

age" within the product's enclosure that

may be of sufficient magnitude to con-

stitute a risk of electric shock to per-

sons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important op-

erating and maintenance (servicing)

instructions in the literature accompa-

nying the appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

FOR USA AND CANADA Information for USA

This device complies with part 15 of the FCC Rules.

Changes or modifications not approved by JVC could

void the user's authority to operate the equipment.

This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated

in a commercial environment. This equipment

generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance

with the instruction manual, may cause harmful

interference to radio communications. Operation of

this equipment in a residential area is likely to cause

harmful interference in which case the user will be

required to correct the interference at his own

expense.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be

disposed as general household waste at its end-of-life. Instead, the product

should be handed over to the applicable collection point for the recycling of

electrical and electronic equipment for proper treatment, recovery and recycling

in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources

and will help prevent potential negative effects on the environment and human

health which could otherwise be caused by inappropriate waste handling of this

product. For more information about collection point and recycling of this product,

please contact your local municipal office, your household waste disposal service

or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance

with national legislation.

(Business users)

If you wish to dispose of this product, please visit our web page

www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with

applicable national legislation or other rules in your country for the treatment of

old electrical and electronic equipment.

Attention:

This symbol is

only valid in

the European

Union.

●This installation should be made by a

qualified service person and should conform

to all local codes.

●This installation shall be in accordance with

the National Electrical Code, ANSI/NFPA 70.

●The unit is to be powered by an AC 24 V

power supply.

The AC 24 V power supply should conform to

the following:Class 2 only(For USA),Isolated

power supply only(For Europe and other).

●Any Mention in this manual of Alarm inputs/

outputs have not been evaluated by UL to be

used for Burglar Alarm Functionality.

FOR USA-California Only

This product contains a CR Coin Cell Lithium

Battery which contains Perchlorate Material -

special handling may apply.

See

www.dtsc.ca.gov/hazardouswaste/perchlorate

Getting Started

These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances.

1. Read all of these instructions.

2. Save these instructions for later use.

3. All warnings on the product and in the operating instructions should be adhered to.

4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.

6. Do not use this appliance near water - for example, near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming pool, etc.

Do not place this appliance on an unstable cart, stand, or table. The appliance may

fall, causing serious injury to a child or adult, and serious damage to the appliance.

Use only with a cart or stand recommended by the manufacturer, or sold with the

appliance. Wall or shelf mounting should follow the manufacturer’s instructions,

and should use a mounting kit approved by the manufacturer. An appliance and

cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and

cart combination to overturn.

8. Slots and openings in the cabinet and the back or bottom are provided for

ventilation, and to insure reliable operation of the appliance and to protect it from

overheating, these openings must not be blocked or covered. The openings

should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface.

This appliance should never be placed near or over a radiator or heat register. This appliance should

not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

This appliance should be operated only from the type of power source indicated on the marking label.

If you are not sure of the type of power supplied to your home, consult your dealer or local power

company. For appliance designed to operate from battery power, refer to the operating instructions.

10.For added protection for this product during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable

system. This will prevent damage to the product due to lightning and power-line surges.

11.Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be

abused by persons walking on it.

12.Follow all warnings and instructions marked on the appliance.

13.Do not overload wall outlets and extension cords as this can result in fire or electric shock.

14.Never push objects of any kind into this appliance through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill

liquid of any kind on the appliance.

15.Do not attempt to service this appliance yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

16.Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under

the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the appliance.

c. If the appliance has been exposed to rain or water.

d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls

that are covered by the operating instructions as improper adjustment of other controls may result in damage

and will often require extensive work by a qualified technician to restore the appliance to normal operation.

e. If the appliance has been dropped or the cabinet has been damaged.

f. When the appliance exhibits a distinct change in performance - this indicates a need for service.

17.When replacement parts are required, be sure the service technician has used replacement parts

specified by the manufacturer that have the same characteristics as the original part. Unauthorized

substitutions may result in fire, electric shock, or other hazards.

18.Upon completion of any service or repairs to this appliance, ask the service technician to perform

routine safety checks to determine that the appliance is in safe operating condition.

IMPORTANT SAFEGUARDS

PORTABLE CART WARNING

(symbol provided by RETAC)

S3125A

Getting Started

Safety Precautions ........................................2

Contents ........................................................5

Main Features ...............................................6

Safety precautions .........................................8

Operating Environment .................................8

Precautions ...................................................9

Name and Function of Parts .......................13

VN-V685U/VN-V686BU ...........................13

VN-V686WPBU .......................................15

Features ......................................................16

Connection/Installation

(VN-V685U/VN-V686BU)

Mounting the Camera ..................................18

Power Connection .......................................23

LAN Cable Connection ................................24

Connecting the alarm signal terminal ..........25

Connection/Installation

(VN-V686WPBU)

Mounting the Camera ..................................26

Power Connection .......................................30

LAN Cable Connection ................................31

Connecting the alarm signal cable ..............32

Network Setting

Network Requirements ................................33

IP Address Settings .....................................36

IP address setting procedure ..................36

IP address setting at the computer ..........37

Internet Explorer settings ........................38

Connecting the camera to the computer

.....40

IP address setting for the camera ............42

Enter user name and password ...............44

Setting Using Internet Explorer

Setting ......................................................... 46

How to open the setting page .................. 46

Basic Settings1 ....................................... 47

Basic Settings2 ....................................... 48

Camera Page ..........................................51

Encoding Page ........................................56

Alarm Page ..............................................58

Alarm Environment Page ........................62

PTZ Page ................................................66

Auto Patrol Page .....................................72

Privacy Mask Page ..................................74

Motion Detection Page ............................ 76

Network Basic Page ................................78

Network Details Page .............................. 80

Protocol Page .......................................... 81

Streaming Page .......................................82

Access Restrictions Page ........................84

Time Page ...............................................86

Password Page ........................................87

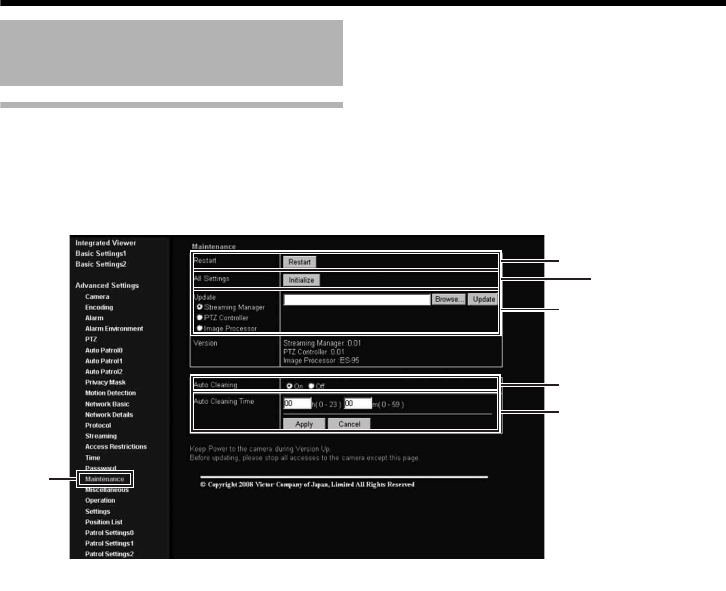

Maintenance Page ..................................88

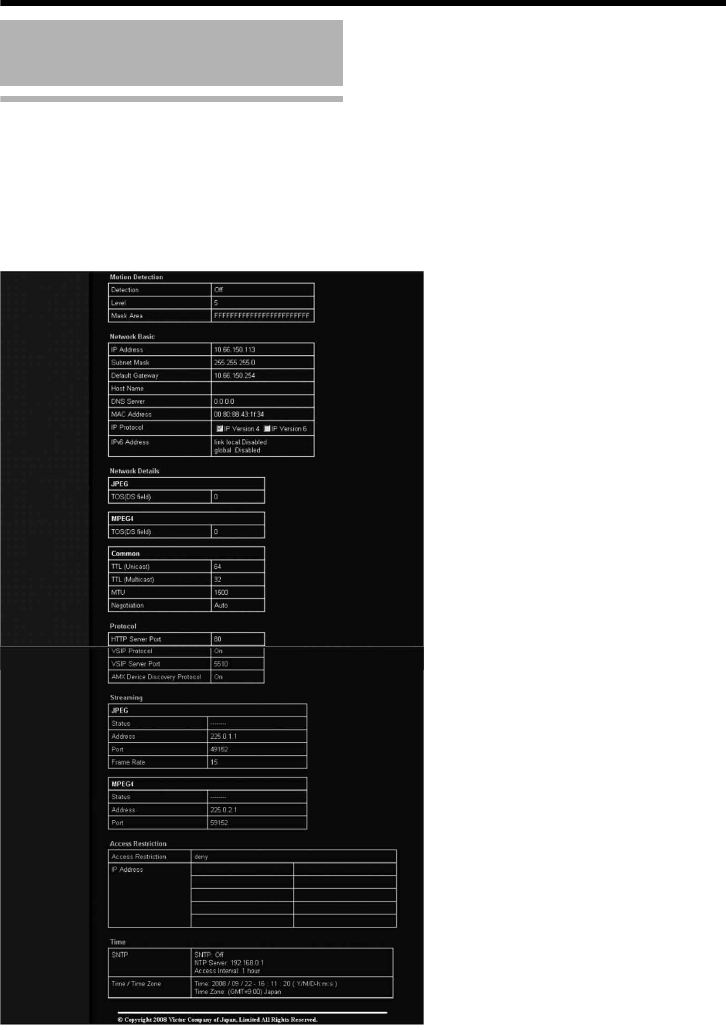

List of Factory Settings of Each Page .....90

Miscellaneous page .................................94

Operation Page .......................................95

Settings Page ..........................................96

Position List Page ....................................99

Patrol Settings Page ..............................100

Operation

Built-in Viewer ...........................................101

Screen Configuration of Built-in Viewer

....102

Image quality setting .............................104

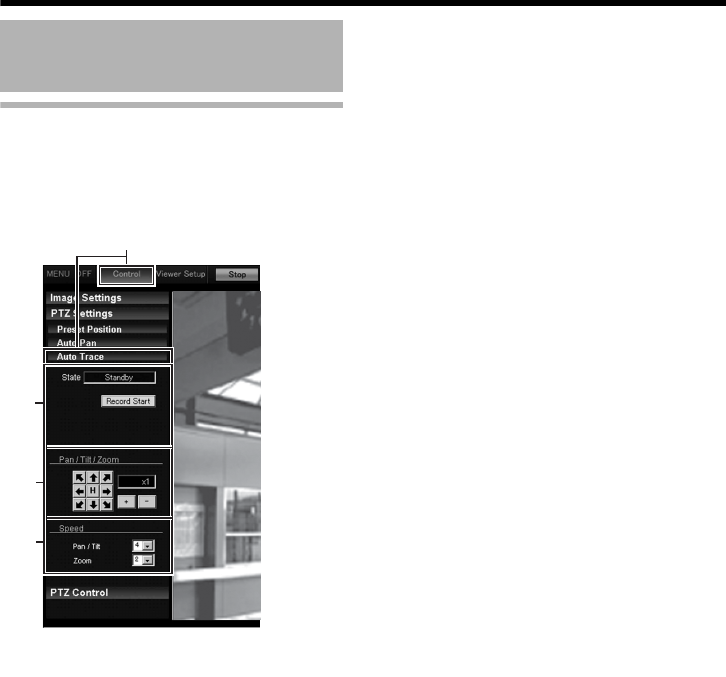

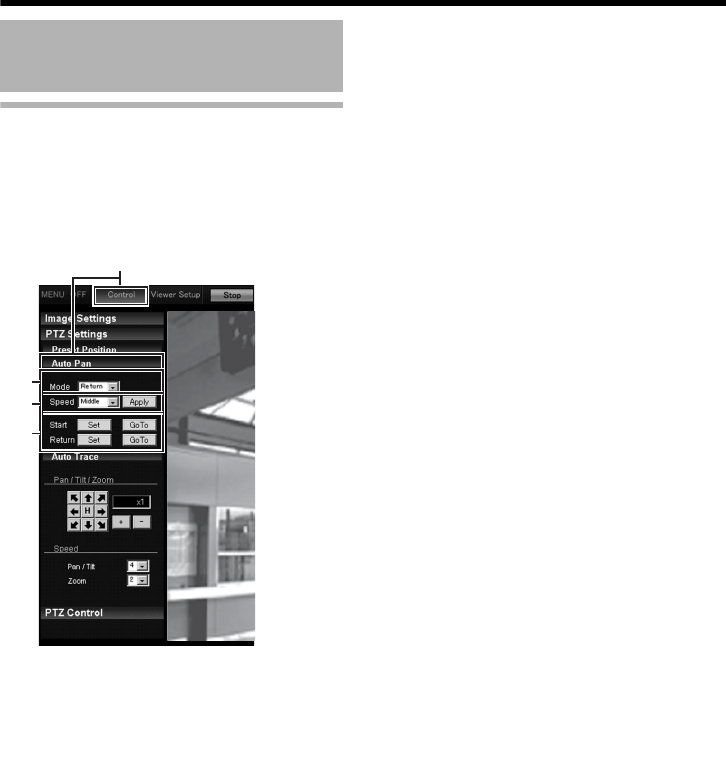

PTZ Setting ...........................................106

PTZ Control ...........................................112

JPEG Viewer Settings ...........................117

MPEG4 Viewer Settings ........................119

Operator Password ................................ 121

Exiting the Viewer ..................................122

Others

Troubleshooting .........................................123

Specifications ............................................ 126

Contents

Getting Started

Support for PoE (Power over Ethernet)

This camera supports PoE (IEEE802.3af) and enables

power supply through a LAN cable.

Connect to AC 24 V when using the heater.

(VN-V686WPBU only)

Dual Stream Full Frame Rate

Transmission

Dual stream (JPEG, MPEG4) data transmission

is possible in VGA size at a rate of 30 fps.

Realizing a High Picture Quality

This product uses high resolution 380,000 pixels

CCD and a new digital image processing IC to

achieve high resolution and image quality.

Progressive Output

This function realizes high picture quality of

moving objects by fixing combing noise on the

contour of the objects.

Long Magnification Zoom Lens

The optical 36 times (VN-V686BU/VN-

V686WPBU) and 27 times (VN-V685U) long

magnification lenses allow you to conduct

detailed monitoring. The high power and large

focal ratio F1.6 (WIDE edge) and bright zoom

lens realize 1.0 lux (AGC Super, 50 %) high

sensitivity during color mode.

Equipped with high precision high

speed rotation platform

The newly developed direct drive rotation platform

rotates at a high speed of 400

⬚

/s both horizontally

and vertically, thus allowing the camera to move to

the preset positions quickly. As it does not have a

slowdown mechanism, it is very durable, has a high

stopping accuracy and can rotate smoothly even at

low speed.

Image Stabilizer

This function detects camera shaking and reduces

image shaking.

Automatic Tracking function

This product is equipped with a function that easily

tracks moving objects when home position is

displayed.

Intelligent Tracking Feature

This feature enables you to track color information of

the object that you selected by clicking. Linking the

zoom feature enables tracking while automatically

adjusting to the optimal magnification ratio.

Day/Night surveillance

This product is equipped with infrared filter

mechanism for day/night surveillance. During low

illuminance such as nighttime, switching out the

infrared filter will switch the product to high sensitivity

mode (B&W).

Privacy Mask function

This function allows you to blank out areas that you do

not wish to display in the location to be recorded.

Motion Detection Feature

This feature enables output of an alarm upon

detection of motion in the video image within preset

area. Pre-/Post-recorded JPEG image files can be

sent to FTP server by the alarm.

Support for Multicast

This product supports multicast, which enables

transmission of image data to multiple

computers on the network without lowering the

frame rate.

Support for IPv6 dual stack

This camera supports IPv6 and enables

transition from IPv4.

HTTP-based API

This product comes with HTTP-based API. This

feature enables you to perform setting and control via

the network.

Built-in Integrated Viewer Software

This product comes with a built-in integrated viewer

that enables you to monitor camera images (JPEG or

MPEG4) on the computer. It can also be used to

configure the camera settings and control the camera.

It also employs a new GUI for greater user-

friendliness.

Waterproof and Weatherproof Chassis

(VN-V686WPBU)

This camera is equipped with a dust-proof and drip-

proof mechanism that prevents it from being

subject to rain, and therefore can be installed

outdoors. (IP66 specification)

THowever, VN-V685U/VN-V686BU can only

be used indoors. Do not use them in an

outdoor environment or expose them to

moisture.

Main Features

This manual contains the detailed

instructions for using this unit.

Please refer to [READ ME FIRST] for

description on the general usage of this

unit.

For the latest information, please refer to

the AReadmeB file in the CD-ROM supplied

with this product.

●

The supplied CD-ROM includes

INSTRUCTIONS (this manual) (pdf), [API

Guide] (pdf), [VSIP Guide] (pdf) and [Search

tool].

●Before starting an important recording, be

sure to perform a test recording in order to

confirm that a normal recording is possible.

●

We do not accept liability for the loss of a

recording in the case of it becoming

impossible to record due to a problem in the

video camera, VTR, hard disk recorder or

video tape.

●

The Automatic Tracking, Intelligent Tracking,

and Motion Detection features are simple

functions and cannot be used as a substitute

for a security alarm. JVC shall not be liable for

any inconveniences or damages caused in

the event of false detection or when these

functions cannot be detected. We shall not be

liable for any inconveniences or damages

caused as a result of operational failure for

alarm input/output.

How to Read this Manual

䡵

Symbols used in this manual

Note

:States precautions to be taken

during operation.

Memo

:States restrictions on the functions

or use of this equipment. For

reference purposes.

:Indicates the page numbers or items

to refer to.

䡵

Contents of this manual

●

JVC holds the copyright to this manual. Any

part or all of this manual may not be

reproduced without prior consent from the

company.

●

Windows is a registered trademark of

Microsoft Corporation in the U.S.

●

Product names of other companies described

in this manual are trademarks or registered

trademarks of the respective companies.

Symbols such as

姠

姞

and

姝

are omitted in

this manual.

●

Design, specifications and other contents

described in this manual are subject to

change for improvements without prior notice.

●

Screen displays in this manual may differ

from the actual ones.

Getting Started

Recommended Computer

Specifications

OS : Windows XP (Professional or

Home Edition) (SP2)

:Windows Vista Business (SP1)

CPU : Pentium4 2 GHz or higher

Memory capacity: 1 GB and above

Free hard disk space

:512 MB or more

Display and video card

:1024 ⳯ 768 pixels or higher, True

Color (24 bits or 32 bits)

VRAM 8 MB or more (256 MB

and above recommended)

Web browser: Internet Explorer

XP : Version 6.0

Vista : Version 7.0

LAN Environment

●10BASE-T/100BASE-TX network

interconnected using devices such as an

IEEE802.3-compliant switching hub.

●IEEE802.3af-compliant switching hub when

PoE is used

●

IGMPv2-compliant network when multicast is

in use.

emo:

●The above PC specifications are guides for

smooth use of the applications, and not a

guarantee of their operation.

●Depending on the condition of use,

applications may not run smoothly even when

the user’s computer meets the specification

requirements.

●The following may occur if the performance of

the computer is insufficient.

●Playback frame rate for JPEG images may

drop

●Delay in the MPEG4 playback images

may occur, and playback is interrupted

●To use MPEG4 images on the integrated

viewer, install the open source codec

“ffdshow”. You can download “ffdshow” from

the Internet.

Safety precautions

Mounting to a firm place

As the unit rotates at high speed, mount it on a

firm place with sufficient strength to support

the vibration and weight of the unit

Mass:Approx. 1.9 kg

(VN-V685U/VN-V686BU)

:Approx. 5.5 k

(VN-V686WPBU)

If the strength is weak, the vibration will cause

fuzzy images on the monitor screen. In the

worst scenario, the camera may even fall off

and hit somebody, resulting in serious

accidents.

Mounting the camera correctly with

the designated clamping brackets

Always use the designated clamping brackets.

Be sure to connect the fall prevention wire and

tighten the fixing screws or nuts securely.

Using the correct power and voltage

The rated power of this product is AC 24 V, 50

Hz/60 Hz. Supplying a power beyond the rated

value may result in failures and in the worst

scenario, smoking and fire.

This unit is able to divert lightning conduction

to itself and the connecting cables to a certain

extent but this is not 100 % guaranteed. For

installation locations that are likely to suffer

lightning strikes, be sure to take appropriate

measures such as adding arrestor to the

connecting cables.

Consult your dealer as special technique is

required when installing this product. Ensure

that the fixing screws or nuts are tightened

securely, otherwise, the unit may fall off.

Inspect the unit regularly.

Screws may be loosened due to vibration or

deterioration of the mounting section. Perform

regular inspections for loosened screws and

check whether there is any danger of the unit

falling off.

Do not hang on this product, shake it, or hang

objects over it. Applying an excessive load

may cause the product to fall off and result in

accidents.

Do not modify this product. It may result in

accidents.

Operating Environment

Storage and operating environment

䢇

VN-V685U/VN-V686BU is an indoor camera. It

cannot be used outdoors.

䢇

VN-V685U/VN-V686BU is a pendant mount camera.

Be sure to place the camera head horizontally. The

product will not work properly if it is tilted.

䢇

VN-V686WPBU is specially designed to be mounted

on walls. Be sure to place the camera head

horizontally. The product will not work properly if it is

tilted.

䢇

Do not store in the following environments.

It might result in malfunctions or failure.

●

Locations beyond the allowable operating

humidity range of 20 %RH to 90 %RH.

(condensation is not allowed)

●

Near equipment that emits strong magnetic fields,

such as transformers or motors.

●

Near equipment that emits radio waves, such as

transceivers and mobile phones.

●

Locations with excessive dust and sand.

●

Locations that are subject to vibration such as

inside the car or ship.

●

Locations prone to moisture such as window side.

●

Locations subject to steam or oil, such as

kitchens.

●

Special environment, such as those with

combustible atmosphere

●

Locations that are subjected to radiation, X-rays,

salt attack or corrosive gases.

●

Locations where medicine is used such as pools.

●

Hot or cold places that are beyond the allowable

operating temperature range

䡵Allowable operating temperature

●

When power is supplied to VN-V686WPBU using

PoE, the heater will not work. Use an AC 24 V

power supply when using the camera in an

environment under -10

䢇

When using VN-V686WPBU in a low temperature

environment (-40

to -20

), images may not be

displayed for up to two hours until the interior is

warmed up by the built-in heater. It is therefore

recommended that power be supplied to the camera

at all times when the surrounding temperature is low.

Inadequate heat ventilation may result in malfunction

of this product. Be sure not to block vents around the

product. This product discharges heat from the

surface of the main unit.

䢇

Do not install it at locations directly subjected to cold

air such as near the vents of air-conditioners or at

locations with high temperature. Condensation may

occur inside the dome cover.

䢇

Use of this product and cables connected to this

product at locations where strong electric waves and

magnetic waves are generated (e.g., near radio, TV,

transformer, monitor, etc.) may cause noise

interferences in the images or changes in the color.

Others

䢇

Do not subject the lens to strong light source such as

sun rays. This may cause the equipment to

malfunction.

䢇

This camera comes with a built-in AGC circuit. The

sensitivity increases automatically at a dark place

and the screen may appear grainy. This is not a

malfunction.

䢇

While AGC is activated, if a transceiver which causes

strong electromagnetic wave is used near the

camera, the picture may suffer from beat. Please use

the camera more than three meters away from such

transceivers.

䢇

When automatic iris is selected, the Iris Control

button may not work depending on the brightness of

the screen (when the amount of light is not sufficient).

In this case, set the iris to Manual.

䢇

When automatic iris is selected and AGC is ON, even

if the iris setting can be changed with the Iris Control

button, the Sense Up function will be enabled and the

brightness of the screen may not change. In this

case, set AGC to OFF or set the iris to Manual.

䢇

When this camera is used in the White Balance

AT W- N a rr o w

AT W- W i d e

(automatic adjustment)

mode, the color tone may differ slightly from the

actual color due to the principle of the automatic

tracking white balance circuit. This is not a

malfunction.

䢇

If a high brightness object (such as a lamp) is shot,

the image on the screen may have white vertical

tailings. This phenomenon (smear) is characteristic of

solid-state image sensors and is not a malfunction.

䢇

Do not touch the dome cover with your hands. Dirty

covers will cause image deterioration.

䢇

Do not subject the dome cover to strong impact. It

may result in damage and water seepage.

䢇

The dome cover may fog up due to the drastic change

of temperature when humidity is high.

䢇

Do not connect an AC 24 V cable to AC 110 V/AC

230 V power supply. The camera internal circuit will

be damaged. Should that happens, do not use the

camera. Bring it to your nearest JVC dealer for repair.

(charged separately)

䢇

To supply AC 24 V, use an AC 24 V supplying power

unit that is insulated from AC 110 V/AC 230 V line.

Precautions

VN-V685U/VN-V686BU -10

to 50

VN-V686WPBU

AC 24 V power supply -40

to 50

PoE power supply -10

to 50

Getting Started

Others (continued)

䢇

Depending on the stop position and rotation speed of

the horizontal/vertical rotation platform, the running

sound of the rotation platformfs motor may be heard,

but this is not a malfunction.

䢇

When using multicast, make use of a IGMPv2-

compliant network switch.

䢇

Some hubs/switches of products that are equipped

with intelligent features may include a broadcast/

multicast suppression function. Viewing of

multicast images on this product may fail if this

function is enabled.

䢇

The electronic shutter of this product is set to 1/60

by default. For regions with a commercial power

supply frequency of 50 Hz, switch to the 1/100

during use under fluorescent lights (excluding

inverter lighting equipment) to prevent flickers.

䢇

When the B&W mode is set to

Auto

, the image

turns black-and-white in a dark location. As the

sensitivity level is increased in this case, the

screen may appear grainy and more white spots

may appear. When switching between color and

black-and-white images, the brighter area on the

screen is emphasized, which may reduce the

visibility. However, this is not a malfunction.

䢇

If the power supply voltage is momentarily cut off

or reduced due to lightning or turning on of the air

conditioner’s power, the image may be disrupted

or noise interference may occur.

䢇

As the dome cover is of a semiglobular shape,

image distortion will occur at the hemispherical

edge. When the hemispherical edge of this unit is

masked and horizontal level is shot in a tilt

direction, the hemispherical edge will enter the

field angle. This may cause the upper edge of the

screen to become black and the focus unclear. In

this case, you can avoid shooting the above area

by using the tilt limit settings (

Page 70).

䢇

When shooting objects with a luminance

difference or near a light source, ghost may occur

on the screen. This is a feature of the dome cover

and the built-in lens, and is not a malfunction.

䢇

In particular, manual and auto pan operation near

the TELE edge (telephoto side) may cause the

screen to vibrate (unsmooth rotation). This is a

feature of the motor and is not a malfunction.

䢇

As long magnification lens is used in this product,

the focus may be unclear due to temperature

changes but this is not a malfunction.

䢇

Preset the focus under an environment with a

temperature closest to that in your actual usage. If

the temperature change is large and the focus

becomes unclear, preset the focus again before

using the product.

䢇

If you sense that the focus has become unclear

due to temperature changes, use the Auto

Foucua(AF) function or reset the focus

manually.

Transporting the unit

䢇

Remove the connecting cables when transporting

the unit.

䢇

When transporting the unit, turn off the power of

the system.

䢇

Pack the unit with cushioning material so as to

avoid shock when transporting.

䢇

Handle the unit with care and do not subject it to

vibration or shock.

䢇

With the exception of the user being the

duplication has been granted by the copyright

holder, permission is required in principle for the

duplication, modification, or transmission of

copyrighted video and audio data.

Unauthorized duplication, modification, or

transmission of copyrighted material may

constitute a copyright infringement, and the

user may be liable to compensate for any

damages. When using copyrighted video/audio

data, be sure to check the license agreement of

the copyrighted material thoroughly.

When rights or rights holders are involved with

regard to the targeted duplicating subject,

permission may be required for shooting or

using (processing) it. Be sure to check the

licensing conditions thoroughly.

Maintenance

䢇

Turn off the power before performing maintenance.

䢇

Wipe using a soft cloth.

Wiping with thinner or benzene may melt or tarnish

its surface. For tough stains, wipe using a cloth

that is dipped into a neutral detergent diluted with

water, followed by wiping with a dry cloth.

䢇

When the same position is monitored for 24 hours

continuously over a long period, the increased

contact resistance on the horizontal rotation

section may cause noise interferences in the

images and operation from the computer may

become unstable. As such, this product is

equipped with an auto cleaning function that

performs cleaning once a week.

Saving Energy

䢇

If the camera is not to be used for a long time,

turn off the power of the system for safety and

energy conservation reasons.

Precautions (continued)

Disclaimer

䢇

The Automatic Tracking, Intelligent Tracking, and

Motion Detection features are not features to

prevent theft or fire. Our company shall not be

liable for any inconveniences or failures that occur.

䢇

We shall not be responsible for any

inconveniences or disturbances caused in the

event of privacy invasion as a result of camera

footages of this product.

Transportation

䢇Do not throw away the original box of the unit.

Keep it and use it for transporting the unit in

future.

䢇As the camera unit is of an easily rotatable

structure, secure the camera unit inside the

dome cover such that it does not rotate

before transporting. Otherwise, an error may

occur during camera operation.

AFace the heat release vents upward and

secure the lens section with tape.

BInsert cushioning material wrapped with air

caps (approx. 50 mm x 200 mm) at two

opposite sides of the camera.

䢇When attaching the ceiling clamping bracket

to the camera unit before transporting, pull

out the tip of the fall prevention wire to

prevent it from being caught between the

camera and clamping bracket. Otherwise, it

may be difficult to detach the bracket from the

camera. (VN-V685U/VN-V686BU)

Cushioning material

Secure

with tape

Pull out the tip of the fall

prevention wire

䡵VN-V685U/VN-V686BU

䡵VN-V686WPBU Cushioning material

Secure

with tape

Getting Started

Precautions (continued)

䡵

Consumable parts

The following are consumable parts. They must be

replaced once they reach their lifetime.

The lifetime is only an estimation and differs according

to the usage environment and conditions.

Replacement of consumable parts is chargeable within

the guarantee period.

●

Zoom lens assembly

Zoom operation ..... Approx. 2 million operations

Focus operation..... Approx. 4 million operations

●

Slip ring ................. Approx. 5 million operations

●

Cooling fan ...................... Approx. 50,000 hours

●

Heater relay(VN-V686WPBU)......... Approx. 100,000

times

●

Heater fan(VN-V686WPBU) ........... Approx. 50,000

hours

䡵

Auto Focus

This unit is equipped with Auto Focus functions.

However, depending on the object and the camera

setting, it might be out of focus. In this case, please

adjust the focus manually.

●

Objects which are difficult to be focused

automatically

●

When the brightness of the image plane is

extremely high (bright)

●

When the brightness of the image plane is

extremely low (dim)

●

When the brightness of the image plane is

constantly changing (for example, a blinking light)

●

When there is almost no contrast

●

When there are repetitive vertical striped patterns

on the image plane

●

Auto Focus is difficult to set under the following

conditions

●

When sensitivity is increased with AGC and the

screen is grainy

●

When there is less movement on the screen due

to the Sense Up function.

●

When there is no clear contour in electronic zoom

䡵

Zoom Operation

The following phenomena are the results of the built-in

lens performance and are not malfunctions.

●

When manual operation or preset is selected,

focus moves slightly after the zoom operation has

stopped near the TELE edge.

●

Manual zoom operation is not smooth.

●

When Preset is selected, the camera becomes out

of focus for an instant during zooming.

䡵

Preset Positions

The total number of preset positions that can be set in

this unit is 100, including the home position and 99

preset positions.

VN-V685U/VN-V686BU

䡵Ceiling mount section

Fixing holes (x3)

This hole is for mounting the ceiling clamping bracket to

the ceiling or the ceiling recessed bracket (WB-S685:

Sold separately).

[AC24V

INPUT] AC 24 V Input terminal

This connects the camera to AC 24 V power.

[10BASE-T/100BASE-TX] LAN cable connection

terminal

This connects the unit to the network.

It supports PoE (IEEE802.3af) and enables you to use

this camera without having to connect to a power supply

using a power cord.

PoE: class0 (

Page 24)

Alarm input/Alarm output terminal

This terminal is for alarm input/alarm output.

(

Page 25)

Fall prevention wire fixing bracket

This attaches to the fall prevention wire

of the camera.

Wire clamp fixing hole

This is used to bundle wires. (

Page 19)

Fall prevention wire mounting hole

Mount wires from the ceiling slab or channel to this hole

to prevent the camera from falling.

Power indicator

The indicator lights up in green when AC 24 V power/

PoE power is turned on.

[Mac address] indication

The MAC address is a unique physical address of the

product. This address cannot be altered.

Camera connection terminal (female)

This connects to the connection terminal (male) of the

camera.

Name and Function of Parts

erminal

Reverse side

Pin number Signal Name

1 Input 1

2 Input 1 COM

3 Input 2

4 Input 2 COM

5 Output 1

6 Output 1 COM

7 Output 2

8 Output 2 COM

Getting Started

VN-V685U/VN-V686BU (continued)

䡵Camera

KFall Prevention Wire

This is fixed to the fall prevention wire fixing

bracket E of the ceiling clamping bracket.

LCamera lock knob (x2)

This mounts the camera on the ceiling and

secures it so that it does not fall.

MFront Mask

NLens

Lens cannot be replaced.

OCable cover

To pull the cables from the side and mount the

camera, remove the cover. (A Page 20)

PDome Cover

The dome cover is a delicate object. Handle it

with care.

Note:

Do not peel off the protective sheet which is

attached at shipment, until the dome cover is

mounted on the main unit. (A Page 21)

Name and Function of Parts

(continued)

VN-V686WPBU

ACamera securing hole (4 locations)

This hole is used for mounting the camera on the

wall.

BCable connecting hole, cap

Remove the cap and pull out the cables from this

hole for connection.

(A Page 27)

CFall Prevention Wire

Connects the camera to the wall. Secure the

camera tightly to the anchor bolts used to mount

the fall prevention wire on the wall. (A Page 28)

DAC 24 V Power Cable

This connects the camera to AC 24 V power. (A

Page 30)

EAlarm Input/Alarm Output Cable (x8)

This cable is for alarm input and alarm output.

(A Page 25)

FLAN Cable

This connects the unit to the network.

(A Page 24)

GDome Cover

The dome cover is a delicate object. Handle it

with care.

Note:

●It is covered with a protective sheet during

shipment. Do not remove this sheet until

installation is complete.

HDome Cover Fixing Screws (x4)

IHeater ON/OFF Switch

This is the automatic control ON/OFF switch of

the built-in heater.

The built-in heater prevents the dome cover from

fogging up and snow or frost from attaching to

the dome cover. When installing the heater at an

unrequired location, turn off the switch of the

heater. It is usually set to ON. (A Page 26)

JLens

Lens cannot be replaced.

KFront Mask

L[MAC address] indication

The MAC address is a unique physical address

of the product. This address cannot be altered.

䡵Front side

䡵Inner structure of

the camera

Cable color Signal Name

Brown Input 1

Red Input 1 COM

Orange Input 2

Yellow Input 2 COM

Green Output 1

Blue Output 1 COM

Purple Output 2

Gray Output 2 COM

Getting Started

Surveillance Using Built-in Viewer

This unit comes with a built-in ActiveX JPEG

Viewer and MPEG4 Viewer.

JPEG images and MPEG4 images of the

camera can be monitored using the computer by

installing this Built-in Viewer on the computer.

JPEG images that are currently displayed can

also be captured into the computer’s hard disk.

ABuilt-in ViewerB (APage101)

This unit accepts requests from a maximum of

20 clients.

Monitoring via Multicast

Multicast enables monitoring of JPEG and

MPEG4 images on multiple computers.

AStreaming PageB (APage82)

AJPEG Viewer SettingsB (APage118)

AMPEG4 Viewer SettingsB (APage120)

Surveillance via Dual Stream

Simultaneous distribution of JPEG and MPEG4

images enables real-time surveillance using

MPEG4 (30 fps) and recording of JPEG images

at the same time. You can also lengthen the

recording time by lowering the frame rate,

resolution, and picture quality settings for JPEG

images.

Saving JPEG images to the FTP server

at regular intervals

JPEG images may be uploaded to the FTP

server at regular intervals.

AFTPB (APage63)

Features

Computer

camera

Network

Computer

IGMP-

Compliant

Network

camera

Computer

Real-time Surveillance

Using MPEG4

Network

Storage Device

Recording JPEG

camera

Computer

Uploads the latest

JPEG images to the

FTP server at regular

Network

camera

Alarm

This unit comes with a motion detection feature

and dual alarm input.

During motion detection or alarm input, actions

such as mail delivery, message transmission via

TCP/UDP, alarm output, moving to a preset

position, and changing of B&W mode settings

can be triggered. These actions can also be

triggered by combination of two alarm inputs.

Installing an FTP server enables uploading of

JPEG images before and after the alarm input

time (pre-/post-recording) to the server.

AAlarm PageB (APage58)

AJPEG Viewer SettingsB (APage118)

Restrictions on Clients

This unit enables users to authorize or reject the

acquisition of images by specific IP address.

(

Page 84)

Control via customized application

software

The following uses are also possible by

developing a customized application software

that supports the API of this unit.

For details, please refer to [API GUIDE] in the

supplied CD-ROM.

●Monitors via the computer while at the same

time records images to the HDD of the

computer.

●Performs recording by changing the frame

size/frame rate during alarm occurrence.

●Records the type and time of alarm

occurrence on the computer.

Computer

Sending JPEG images

before and after alarm

input to FTP

Alarm Device

Network

camera

Connection/Installation (VN-V685U/VN-V686BU)

Preparation

Make holes on the ceiling

●

Use the provided template to make a hole (

mm) for the connection cables to thread behind

the ceiling.

●

If necessary, also open a screw hole to mount the

ceiling clamping bracket to the ceiling. In this case,

align the

FRONT mark

of the template in the

direction where the camera faces front and open

the screw hole.

Pull the cables from the hole in the ceiling

Pull out the fall prevention wire, power cable, coaxial

cable, control signal cable, alarm signal cable and

provided alarm cable that were mounted to the ceiling

slab from the ceiling.

Note:

●

Mount the fall prevention wire on a firm place with

sufficient strength.

Remove the ceiling clamping bracket from

the camera unit

The ceiling clamping bracket is attached to the

camera unit during packaging of the product. Before

installing the camera, remove the ceiling clamping

bracket from the camera unit.

Check to make sure that the two camera lock knobs

(left and right) are unlocked.

●

If they are locked, unlock by sliding them in the

direction indicated by the arrow.

Press the two camera lock knobs from both the left

and right sides in the direction indicated by the

arrows.

●

Doing so detaches the ceiling clamping bracket

from the camera. Prevent the bracket from

dropping such as by performing this on a table.

emo:

●

If the camera fixing lock knob is too stiff, push the

knob hard while pressing the edge of the camera

unit (

in the diagram) against the table you are

using.

Lifting the camera unit detaches the ceiling

clamping bracket. Remove by sliding it in the

direction indicated by the arrows.

Remove the terminal cover

Loosen two screws on the ceiling clamping bracket

and remove the terminal cover.

Mount the fall prevention wire that

connects the ceiling clamping bracket to

the ceiling

Mounting the Camera

Be sure to put on protective glasses to protect

your eyes from falling objects when mounting

the camera.

Alarm signal

cable

Power cable

LAN Cable

Fall

Preventio

Camera fixing

lock knob (x2)

Camera

Ceiling mount

Terminal cover

6 mm

䡵Fall Prevention Wire

6 mm (3/16

R6 mm and

R4 to 5.5 mm

emo:

●The wire should be insulated from the ceiling

structure. If the ceiling structure is metal and

insulation is not provided between the

camera and the ceiling structure, image noise

may occur.

6 Connect the cable (A 23 to 25)

Connect cables to the terminal of the ceiling

clamping bracket.

The connection cables consist of the alarm

signal cable, LAN cable and AC 24 V power

cable.

ALAN cable (A Page 24)

This connects the unit to the network.

BPower cable (A Page 23)

This connects to AC 24 V power.

CAlarm input/output signal terminal

(A Page 25)

This connects to devices with alarm input/output

terminals.

Note:

●Do not connect an AC 24 V cable to AC 110

V power supply. The camera internal circuit

will be damaged. Should that happens, do

not use the camera. Bring it to your nearest

JVC dealer for repair. (charged separately)

●For safety reasons, turn on the power only

after all the connection is complete.

●To supply AC 24 V, use an AC 24 V supplying

power unit that is insulated from AC 100 V

line.

7 Handling cables

Thread the provided wire clamp through the wire

clamp fixing hole of the ceiling clamping bracket

to tie all the wires.

Note:

●To prevent the cables from tangling and

coming off, be sure to thread a wire clamp

through the wire clamp fixing hole to tie the

cables.

Caution

●

Take note of the length, strength, pull and

material (insulation) of the fall prevention wire

and use one with a wire strength of more than

20k

●

The inner diameter of the ring section of the

fall prevention wire mounted on the camera

should be

4 mm to

5.5 mm and the outer

diameter be

9 mm and below.

●

The thickness of the screw head and the fall

prevention wire (including the washer) should

be 6 mm and below. If it is more than 6 mm,

the screw will touch the ceiling and the

camera cannot be installed horizontally.

●

Use M4 fixing screws.

Alarm signal cable

Power cable

LAN Cable

Tie here

Wire clamp fixing

hole

Wire clamp

Connection/Installation (VN-V685U/VN-V686BU)

Preparation (continued)

Mount the terminal cover

Return the terminal cover that was removed in step

its original position. The direction to pull out the cables

changes according to the mounting method of the

camera.

Note:

●

Be sure to mount the terminal cover to prevent foreign

objects or dust from entering.

●

When pulling out the cables from the top, make the

fall prevention wire go under the terminal cover and

pull it out together with the other cables.

●

When pulling out the cables from the side, remove the

cable cover of the camera.

Mounting the ceiling clamping bracket

to the ceiling

Secure the ceiling clamping bracket to the

ceiling

●

Install such that the

FRONT mark

of the ceiling

clamping bracket faces the front.

●

Ensure that the connection cables are not caught in

between and secure the ceiling clamping bracket to

the ceiling with 3 screws.

Note:

●

Use M4 fixing screws and bolts.

●

Use

4.1 wood screws.

●

The length of the screws should be 25 mm (1inch)

and above.

●

Place the product horizontally and install. The camera

will not operate properly if it is slanted.

●

The screw head should be 5 mm and below. If the

ceiling structure is metal, image noise may occur.

●

Do not use screws for which the screw head is

embedded after fastening. (e.g. flat countersunk head

screws). Otherwise, the insulating resin part may be

damaged, thus preventing proper insulation.

emo:

●

Always use 3 screws and mount securely.

●

Tighten the screws again during maintenance just to

be safe.

●

The plastic parts on the ceiling fixing holes of the

ceiling clamping bracket act as an insulation between

the ceiling clamping bracket and the ceiling structure.

If the ceiling structure is metal and insulation is not

provided between the camera and the ceiling

structure, image noise may occur. Be sure to provide

insulation.

Mounting the Camera

(continued)

䡵Pulling out the cables from the top

Terminal cover

Fall Prevention Wire

(To go under the terminal co

䡵Pulling out the cables from the side

Te r mi n al

cover

Cable cover

Screws

DFRONT mark

Front of the camera

5 mm (3/16

inch) and below

Mounting the camera to the ceiling

1 Remove the tape on the lens section

2 Remove the lens cap

3 Mount the dome cover to the camera

ACheck that the dome cover and lens are

free from dirt.

Turn the dome cover in a clockwise direction

to mount.

Note:

●Be sure to turn the dome cover until it stops

and tighten securely. Make sure that the

dome cover is not slanted.

●Do not over-rotate the dome cover. This may

damage the dome cover.

emo:

●If it is difficult to screw on the dome cover,

turn it in an anticlockwise direction until you

hear a click sound, then turn it in a clockwise

direction. It will screw on smoothly.

4 Remove the dome cover protective

sheet

Camera

Ta p e

Lens cap

Caution

●The dome cover is an optical part. Handle

with care.

●When mounting the dome cover, make sure

that there is no dirt inside the cover.

●Tighten the dome cover securely.

Dome Cover

Dome cover

protective

sheet

Connection/Installation (VN-V685U/VN-V686BU)

5 Mount the fall prevention wire

Mount the fall prevention wire, which is attached

to the camera, to the fall prevention wire fixing

bracket of the ceiling clamping bracket.

6 Mount the camera

●Align the ADB mark (blue)/(red) inside the

camera with the ADB mark (blue)/(red) on the

ceiling clamping bracket.

●Insert the camera into the ceiling clamping

bracket until you hear a click sound and

mount it securely.

7 Check that the camera fixing lock

knobs (x2) are sticking out.

If the camera is mounted on securely, the

camera fixing lock knobs (x2) will stick out a little.

Note:

●Before mounting the camera, check that the

camera fixing lock knobs are not locked (i.e.,

lock knobs are on top). The camera cannot

be mounted if the lock knobs are locked.

●When pulling out the cables from the side,

remove the cable cover of the camera. (A

Page 18)

8 Lock

When the camera is mounted on the ceiling

clamping bracket, lower the camera fixing lock

knobs (x2) in the direction of the arrow and

secure the camera such that it does not fall off.

9 Remove the safety precautions sheet

on the camera

Read through details stated on the safety

precautions sheet again.

Removing the camera

ARelease the lock by sliding the camera fixing

lock knobs toward the ceiling.

BPress the two camera fixing lock knobs from

both the left and right sides to remove the

camera unit.

CRemove the fall prevention wire by performing

the mounting procedures in the reverse

sequence.

Mounting the Camera

(continued)

Caution

●Be sure to connect the fall prevention wire.

Otherwise, the camera may fall.

●To prevent danger, do not leave the fall

prevention wire dangling by the camera.

D mark

(blue)

Fall prevention

wire fixing bracket

Fall Prevention Wire

D mark (red)

During

mounting

After

mounting

Caution

●Be sure to check that the camera fixing lock

knobs (x2) are locked securely. Otherwise,

the camera may fall.

●After mounting, check that the camera is

mounted securely. Improper mounting may

cause the camera to fall off.

Camera

fixing lock

knob (x2)

Sheet

Power can be supplied to this camera either by

connecting to an AC 24 V power supply or using

PoE (A Page 24).

Note:

●If power is supplied from both power cable

and LAN cable, priority will be given to the

power supply from the power cable.

●Be sure to use an AC 24 V supply that is

isolated from the primary power supply

circuit. Using a variable voltage power supply

will cause the camera and system to

malfunction or breakdown.

●The unit is to be powered by an AC 24 V

power supply. The AC 24 V power supply

should conform to the following: Class 2 only

(For USA), Isolated power supply only (For

Europe and others).

Connecting to an AC 24 V power supply

This connects the camera to AC 24 V power.

When using 2-core VVF (Vinyl-insulated vinyl-

sheath cable), the connection distance is as

follows: (Reference value)

emo:

●

After DHCP timeout, all IP addresses of camera are

set to 192.168.0.2 by default.

If the power of multiple cameras within the same LAN

environment are turned on at the same time, the IP

addresses of the cameras overlap, thus preventing

proper access. As such, make sure to turn on the

power of the cameras one by one.

●

In a system where multiple units of camera are used,

turn on the power of only one unit to configure the IP

address settings using the Internet Explorer. Upon

doing so, turn on the power of the second unit and

configure accordingly. Configure the subsequent

camera settings using the same procedure.

●

When there is an overlap of IP address, access to the

camera may fail. When this occurs, turn on the power

of only one camera unit within the same LAN

environment and wait for a while (at least 10 minutes).

Alternatively, turn off the power of all network devices

connected to the same LAN environment, followed by

turning them on again.

Note:

●

If thin cables are used, the resistance of the cables will

be high and a significant voltage drop will occur when

the camera is at its maximum power consumption

(when pan, tilt and zoom operates at the same time).

Either use a thick cable with low resistance or place

the power supply near to the camera and shorten the

length of the cable to restrict the voltage drop at the

rated current of the camera to below 10 %. If voltage

drops during operation, the camera may experience

unstable performance and be unable to call up the

preset position correctly.

●

Do not connect an AC 24 V cable to AC 110 V/AC 230

V power supply. The camera internal circuit will be

damaged. Should that happens, do not use the

camera. Bring it to your nearest JVC dealer for repair.

(charged separately)

●

Turn on the power only after the connection for all the

devices is complete.

●

After the power is turned on and activation is

completed, this product will move to the home

position. The default home position settings for pan,

tilt, and zoom are 1.00 °, 45 °, and x1 respectively.

Power Connection

Maximum

connectio

n distance

50 m 150 m 230 m 390 m

Conductor

Diameter

(mm)

R1.0

and

above

R1.6

and

above

2.0

and

above

2.6

and

above

To Power Supply

Power cable

Warning

●The rated power of this product is AC 24 V, 50

Hz/60 Hz. Make sure to use it with the correct

voltage.

●Supplying a power beyond the rated value

may result in failures, smoke or fire. If the

camera breaks down, turn off the power and

contact our service center immediately.

●When a power beyond the rated value is

supplied, the internal components may be

damaged even if no abnormality is found on

the appearance and operation of the camera.

Please contact your nearest JVC dealer

immediately for servicing (charged

separately).

Connection/Installation (VN-V685U/VN-V686BU)

Using PoE

Supply power to the camera by connecting it to a

device that supports PoE via a LAN cable.

Connect the camera to a hub or computer using

a LAN cable.

䢇When connecting to a hub

Make use of a straight cable.

䢇When connecting to a computer

Make use of a cross cable.

Note:

●However, cross cables cannot be used with

some computer models. When connecting

this unit directly to a computer, check the

computer’s LAN specifications in advance.

Power Connection

(continued)

What is PoE (Power over Ethernet)?

PoE is a feature that transfers data and

supplies power simultaneously through a LAN

cable. It enables you to operate a LAN-

compatible equipment without having to

connect it to a power supply using a power

cord.

Cable to use

●

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

[10BASE-T/100BASE-TX]

LAN cable connection

terminal

LAN Cable Connection

Cable to use

●

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

[10BASE-T/100BASE-TX]

LAN cable connection

terminal

Connect the alarm signal cable to external

devices, such as a sensor or buzzer.

ALoosen screws on both sides of the

terminal block with a flathead screwdriver

and remove the terminal block as shown

in the diagram below.

emo:

●Inserting the tip of the screwdriver into the slit

of the terminal block will remove the terminal

block easily.

BPeel off about 4 mm of the alarm signal

cable covering and insert into the

terminal.

CTurn the screws at the side and secure the

alarm signal cable.

DWhen the alarm signal cable is secured,

return the terminal block that was

removed in A to its original position.

Note:

●Noises from an external source may cause

the camera to malfunction even when the

cable used is within 50 m. In this case, move

the cable away from the noise source.

Alarm input signal

Connects to sensors such as infrared sensors,

door sensors, metal sensors and manual

switches.

●To prevent noise from entering the internal

circuit, supply non-voltage contact signal to

the alarm input signal.

●Do not supply voltage.

●When the contact is short (MAKE) or open

(BREAK) on the menu, you can set it to

Alarm.

●Supply such that the alarm signal continues

for at least more than 500 ms. The alarm

signal may not be recognized if it is less than

500 ms.

Alarm output signal

Connect to alarm devices such as alarm,

indicator, light or buzzer.

●

Alarm output signal is an open collector output

insulated with photo coupler.

●

During an alarm, it is ON.

●

As this terminal is polarized, be sure to

connect it such that the voltage of the + output

is higher than that of the – output.

●

It will be damaged if reverse voltage is

supplied.

Connecting the alarm signal

terminal

Cable to use

●Length of 50 m or shorter

●UL1007, UL1015 or equivalent products

●AWG#22 to AWG#18 or equivalent

products

4 mm

Alarm signal

terminal

COM

OUTPUT

COM

Rating:

Max. applied voltage: DC 20 V

Max. driving current: 25 mA

Connection/Installation (VN-V686WPBU)

Setting Up the Wall

1 Make holes in the wall

Make holes (R 45 mm) for the connecting cables

to pass through.

Note:

●Check the strength of the wall. A less firm

wall may cause the unit to fall.

2 Install the anchor bolts for mounting

the camera

Install 4 anchor bolts (M8 ⳯ 35 mm and above)

to mount the camera.

3 Install the anchor bolt for mounting

the fall prevention wire

Install the anchor bolt (M8 ⳯ 35 mm and above)

to mount the fall prevention wire 30 mm below

the center of the upper two anchor bolts that are

used to mount the camera.

4 Pull the cables from the hole in the

wall

Pull the power cable, LAN cable and alarm

signal cable from the wall.

Setting Up the Camera

1 Remove the dome cover

Loosen the screws (x4) and remove the dome

cover from the camera.

2 Remove the cushioning material, lens

cap and tape used during

transporting

When installing the heater at an unrequired

location, turn off the switch of the heater.

Mounting the Camera

Be sure to put on protective glasses to protect

your eyes from falling objects when mounting

the camera.

213

176

152

126

Anchor bolts to

mount the camera

Anchor bolt to

mount the fall

prevention wire

Alarm signal cable

Power cable

LAN Cable

Dome Cover

OFF

Cushioning material

Lens cap

Ta p e

Heater power

switch

3 Insert silica gel (when using PoE

power supply)

Note:

●Be sure to insert the provided silica gel in the

position as shown in the diagram when using

the PoE power supply.Otherwise, the camera

lens may fog up or the image may become

blur.

ARemove the screw and lift up the plate

BTake out 3 silica gels from the aluminum bag

and insert them into the position as shown in

the diagram.

CFasten the screw

emo:

●During reconnection or re-installation after

repair or maintenance, make sure to replace

the silica gel with a new one.

●Consult your nearby JVCfs dealer on the

replacement procedures.Serial number of

part to be replaced: Use a LW40500-001A

silica gel.

Note:

●When mounting is performed on a rainy

day,make sure that rain water does not enter

this unit.

4 Mount the dome cover to the camera

Use the screws (x4) to mount the dome cover to

the camera. As a guide, install the three catches

of the dome cover and the central mark. Install

such that the central mark appears above the

JVC mark of the camera.

Note:

●

Check that there is no dirt or dust inside the dome

cover before mounting.

●

When installing on a rainy day, ensure that

raindrops do not enter the interior.

●

When mounting the dome cover, temporarily

secure the 4 screws and then tighten.

●

As a guide, tighten the screws to 0.5 N•m to 1 N•m

(5 kgf•cm to 10 kgf•cm). If the tightening is loose,

the dome cover may fog due to water seepage.

Remove the cable connection cap

Remove the cap on the arm of the camera.

Pull out the cables from the cable

connection hole

Pull out the cables (except the fall prevention wire) of

the camera from the cable connection hole.

Plate

Silica gel ⳯3

Position aligning catches (x3)

Face front

(towards direction of

the JVC mark)

Cable connection cap

Connection/Installation (VN-V686WPBU)

Mounting the Camera

Mount the fall prevention wire

●

Mount the fall prevention wire of the camera to the fall

prevention wire anchor bolt that was installed earlier.

●

Secure the fall prevention wire tightly with a nut and

washer.

Pull out the cables (from the wall) from the

cable connection hole.

Mount the camera to the wall

●

Mount the camera to the camera anchor bolts that

were installed earlier.

●

Secure the camera tightly with a nut and washer.

Note:

●

This product weighs approximately 5.5k

. When

installing, pay extra attention as it may fall.

●

For your safety, hold the arm section during

installation.

●

After installing, paint the nuts and washers to prevent

corrosion.

emo:

●

To remove the camera, follow the reverse procedures.

Cable Connection

1 Connecting the power cable

(A Page 30)

Connect the power cable and wind the

waterproof tape (adhesive).

After connecting, push the cable into the arm of

the camera.

2 LAN Cable Connection (A Page 31)

AUse the provided RJ-45 conversion connector

and connect the LAN cable.

BWind the connector section with waterproof

tape (adhesive) and push the cable into the

arm of the camera.

Mounting the Camera

(continued)

Fall Prevention

Wire

Washer

Nut

Wind the waterproof tape (adhesive)

Arm

Wind the

waterproof tape

(adhesive)

Arm

RJ-45

conversion

connector

(provided)

3 Connecting the alarm cable (A

Page 25)

Connect the alarm cable and wind the

waterproof tape (adhesive).

After connecting, push the cable into the arm of

the camera.

Note:

●For cables that are not used, be sure to wrap

the ends individually with insulating tape.

●For safety reasons, turn on the power only

after all the connection is complete.

4 Mount the cap

5 Seal the cable connection hole and

around the mounting surface of the

camera with waterproof seal (GE

silicon).

Note:

●Ensure that waterproof treatment is

performed. Otherwise, the camera may

malfunction due to rain water seepage.

●Use GE silicon or other similar product for the

sealing material.

6 Remove the dome cover protective

sheet

Wind the waterproof tape

(adhesive)

Arm

Waterproof

treatment

Cap

Protective

sheet

Connection/Installation (VN-V686WPBU)

Power can be supplied to this camera either by

connecting to an AC 24 V power supply or using

PoE (A Page 31).

Note:

●If power is supplied from both power cable

and LAN cable, priority will be given to the

power supply from the power cable.

●Be sure to use an AC 24 V supply that is

isolated from the primary power supply

circuit. Using a variable voltage power supply

will cause the camera and system to

malfunction or breakdown.

●The unit is to be powered by an AC 24 V

power supply. The AC 24 V power supply

should conform to the following: Class 2 only

(For USA), Isolated power supply only (For

Europe and others).

Connecting the power cable

This connects the camera to AC 24 V power.

When using 2-core VVF (Vinyl-insulated vinyl-

sheath cable), the connection distance is as

follows: (Reference value)

emo:

●

After DHCP timeout, all IP addresses of camera are

set to 192.168.0.2 by default.

If the power of multiple cameras within the same LAN

environment are turned on at the same time, the IP

addresses of the cameras overlap, thus preventing

proper access. As such, make sure to turn on the

power of the cameras one by one.

●

In a system where multiple units of camera are used,

turn on the power of only one unit to configure the IP

address settings using the Internet Explorer. Upon

doing so, turn on the power of the second unit and

configure accordingly. Configure the subsequent

camera settings using the same procedure.

●

When overlapping of the IP address occurs, check to

ensure that there is only one camera unit within the

same LAN environment, and wait for a while (at least

10 minutes) or power off and on all network devices

under the same LAN environment. Otherwise, access

to the camera may fail.

Note:

●

If thin cables are used, the resistance of the cables will

be high and a significant voltage drop will occur when

the camera is at its maximum power consumption

(when pan, tilt and zoom operates at the same time).

Either use a thick cable with low resistance or place the

power supply near to the camera and shorten the

length of the cable to restrict the voltage drop at the

rated current of the camera to below 10 %. If voltage

drops during operation, the camera may experience

unstable performance and be unable to call up the

preset position correctly.

●

Do not connect an AC 24 V cable to AC 110 V/AC 230

V power supply. The camera internal circuit will be

damaged.

●

Should that happens, do not use the camera. Bring it to

your nearest JVC dealer for repair.

●

Turn on the power only after the connection for all the

devices is complete.

●

After the power is turned on and activation is

completed, this product will move to the home position.

Power Connection

Maximum

connectio

n distance

30 m 80 m 120 m 210 m

Conductor

Diameter

(mm)

R1.0

and

above

R1.6

and

above

2.0

and

above

2.6

and

above

To Powe r

Solder welding or

crimping

Insulating

tape

Warning

●The rated power of this product is AC 24 V,

50 Hz/60 Hz. Make sure to use it with the

correct voltage.

●Supplying a power beyond the rated value

may result in failures, smoke or fire. If the

camera breaks down, turn off the power

and contact our service center

immediately.

●When a power beyond the rated value is

supplied, the internal components may be

damaged even if no abnormality is found

on the appearance and operation of the

camera. Please contact your nearest JVC

dealer immediately for servicing (charged

separately).

Using PoE

Supply power to the camera by connecting it to a

device that supports PoE via a LAN cable.

Note:

●

When power is supplied to VN-V686WPBU using

PoE, the heater will not work. Use an AC 24 V

power supply when using the camera in an

environment under -10

Connect the camera to a hub or computer using

a LAN cable.

䢇When connecting to a hub

Make use of a straight cable.

䢇When connecting to a computer

Make use of a cross cable.

Note:

●However, cross cables cannot be used with

some computer models. When connecting

the camera directly to a computer, check the

computer’s LAN specifications in advance.

What is PoE (Power over Ethernet)?

PoE is a feature that transfers data and

supplies power simultaneously through a LAN

cable. It enables you to operate a LAN-

compatible equipment without having to

connect it to a power supply using a power

cord.

Cable to use

●

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

RJ-45

conversion

connector

(provided)

LAN Cable Connection

Cable to use

●

Shield (STP) cable

●

Length of 100 m or shorter

●

Make use of a Category 5 (or higher) cable .

RJ-45

conversion

connector

(provided)

Connection/Installation (VN-V686WPBU)

Connect the alarm signal cable to external

devices, such as a sensor or buzzer.

Note:

●Noises from an external source may cause

the camera to malfunction even when the

cable used is within 50 m. In this case, move

the cable away from the noise source.

Alarm input signal

Connects to sensors such as infrared sensors,

door sensors, metal sensors and manual

switches.

●To prevent noise from entering the internal

circuit, supply non-voltage contact signal to

the alarm input signal.

●Do not supply voltage.

●When the contact is short (MAKE) or open

(BREAK) on the menu, you can set it to

Alarm.

●Supply such that the alarm signal continues

for at least more than 500 ms. The alarm

signal may not be recognized if it is less than

500 ms.

Alarm output signal

Connect to alarm devices such as alarm,

indicator, light or buzzer.

●

Alarm output signal is an open collector output

insulated with photo coupler.

●

During an alarm, it is ON.

●

As this terminal is polarized, be sure to

connect it such that the voltage of the + output

is higher than that of the – output.

●

It will be damaged if reverse voltage is

supplied.

Connecting the alarm signal

cable

Cable to use

●Length of 50 m or shorter

●UL1007, UL1015 or equivalent products

●AWG#22 to AWG#18 or equivalent

products

Solder welding or

crimping

Insulating

tape

COM

Rating:

Max. applied voltage: DC 20 V

Max. driving current: 25 mA

OUTPUT

COM

Network Setting

●Ensure that there is sufficient network

bandwidth for the data volume to be sent out

by the camera. Do not send multicast stream

that exceeds the bandwidth. If the entire

bandwidth is used by the multicast stream,

control of this camera via the network may fail.

●Data volume to be sent by the camera varies

with the settings and number of distributions.

●The maximum bit rate for transmission is about

20 Mbps.

Estimation of Total Bit Rate

The total JPEG bit rate from the camera is

determined by the camera settings, number of

clients, and the client’s requested number of

frames. The total MPEG4 bit rate from the camera

is determined by the number of distributions.

Develop a design upon taking the above into

consideration.

Bit Rate of JPEG Stream

The JPEG file size per frame varies with the

encoding settings as well as input video signals.

The following table may be used as a reference.

䡵AFS (Average File Size)

When AFS is selected, encoding will be

performed such that the target file size is the

average size of multiple JPEG images.

䡵VFS(Variable File Size)

When VFS is selected, the quantization table

during JPEG encoding will be maintained,

and the file size will increase/decrease

according to the input signals.

The maximum number of distributions varies with

the bit rate settings as well as the client’s

requested frame rate. Up to 20 streams can be

distributed (including multicast). The total frame

rate refers to the sum of these frame rates.

For example, when 10 fps is requested by two

clients, and in addition, multicast is transmitted at

a rate of 10 fps, the total frame rate will be:

10 +10 +10 = 30 fps

If the JPEG file size per frame is 30 KB, then the

total bit rate will be:

30 KB × 30 fps = 900 KB/s = Approx. 7.2

Mbps

Network Requirements

Selectable between 10 KB

to 100 KB

Selectable between 3 KB

to 33 KB

VGA QVGA

1 (High) 80 KB 27 KB

260 KB 20 KB

340 KB 13 KB

(Medium) 30 KB 10 KB

525 KB 8 KB

620 KB 7 KB

7 (Low) 15 KB 5 KB

Network Setting

Bit Rate of MPEG4 Stream

You can select either the Variable Bit Rate (VBR) or

Constant Bit Rate (CBR) system for MPEG4 stream.

When the VBR system is selected, the bit rate varies

according to the condition of the input video signals. The

VBR system delivers a stable picture quality, but forecast

of the bit rate is difficult.

When the CBR system is selected, encoding is performed

at a fixed bit rate regardless of the condition of the input

video signals. The picture quality varies under the CBR

system, but the bit rate can be easily forecast.

You can specify an estimated bit rate for both VBR and

CBR. (64 kbps to 8000 kbps)

Restrictions on the Number of Distributions for

Camera

The maximum number of distributions for this unit is

determined by the settings as well as requirements from

the client.

When only JPEG images are distributed, the maximum

number of distributions is determined based on the

highest bit rate within the stream. When a distribution

request that exceeds the maximum number of

distributions is received, this request is denied. For

example, if Client A requests for and receives data at 1

Mbps, while Client B requests for and receives data at 5

Mbps, the maximum number of distributions is 4 streams

according to the table below.

Maximum number of distributions when only JPEG

data is distributed

When only MPEG4 images are distributed, the maximum

number of distributions is determined by the preset bit rate.

When a distribution request that exceeds the maximum

number of distributions is received, this request is denied.

When distributing only MPEG4 data

When both JPEG and MPEG4 images are

distributed simultaneously, distribution up to two

clients for JPEG and MPEG4 respectively is

possible. However, distribution requests that

exceed a total bit rate of 20 Mbps will be denied.

Insufficient network bandwidth

When there is insufficient bandwidth, the number of

JPEG frames (frame rate) that the client can acquire will

decrease. Delay will also occur in the distribution of

images. In the case of MPEG4, noise interference may

occur and playback may fail.

Network Requirements

(continued)

Distribution at

maximum bit

rate

Maxi

mum

numb

er of

distrib

utions

Total maximum

bit rate

1 Mbps and

below

20 20 Mbps

5 Mbps and

below

4 20 Mbps

10 Mbps and

below

2 20 Mbps

Larger than 10

Mbps

1 Maximum

configurable value

(24 Mbps)

Preset bit rate

Maxi

mum

numb

er of

distrib

utions

Total maximum

bit rate

0.6 Mbps and

below

20 12 Mbps

3 Mbps and

below

4 12 Mbps

6 Mbps and

below

2 12 Mbps

Larger than 6

Mbps

1 Maximum

configurable value

(8 Mbps)

Total bit rate

Maximum

number of

distributions

for JPEG

Maximum

number of

distributions

for MPEG4

20 Mbps and

below

Network Delay

When the client acquires JPEG via TCP, the

camera will send out data while checking the

ACK from the client at the same time. For

networks with considerable delay, data cannot

be sent out until ACK is received, and therefore

the frame rate will drop. In the case of MPEG4,

noise interference may occur and playback may

fail.

Decrease in the frame rate due to network

delays can be eliminated by receiving data via

multicast.

Network Jitter

When there is considerable network jitter, delay

time may be prolonged and the image frame rate

may drop. In the case of MPEG4, noise

interference may occur and playback may fail.

Packet Loss

When acquiring images from this unit via TCP,

packet loss may be recovered by TCP

retransmission. When there is considerable

delay in the network, however, missing data may

occur and the image frame rate may drop. In the

case of MPEG4, noise interference may occur

and playback may fail.

When packet loss occurs during multicast

sending from this unit, the image frame rate may

drop. In the case of MPEG4, noise interference

may occur and playback may fail.

List of Protocols and Port Numbers

Used by this unit

This unit uses the protocols and port numbers

listed below. Ensure that these ports are allowed

through the firewall when a firewall is to be

installed.

Protocol/Port No. Purpose of Use

Source

TCP/80 JPEG/MPEG4 server,

Web Settings page, API

TCP/5510 VSIP

TCP/10020

TCP/10021

TCP/10023

(Reserved for

adjustment)

TCP/32040 Alarm Server

Destination

TCP/20, 21 FTP

TCP/25 Mail delivery

TCP/110 POP (Mail Delivery)

TCP/User Setting

No.

Sending alarm

UDP/123 SNTP

UDP/5510 VSIP

UDP/9541 VSIP discovery protocol

UDP/User Setting

No.

Sending alarm

Network SettingNetwork Setting

IP address setting procedure

Follow the procedure below to configure the IP

address of the camera.

Step1 IP address setting at the

computer

(APager37)

Step2 Internet Explorer settings

(APager38)

Step3 Connecting the camera to the

computer

(APager40)

Step4 IP address setting for the camera

(APager42)

䢇System configuration required for setting

IP address

Camera at factory default is set to ADHCP

EnableB (DHCP client function is On). When it is

connected to a LAN without DHCP servers, it will

activate under the following IP address after

timeout.

IP address : 192.168.0.2

Subnet mask : 255.255.255.0

Default gateway

: None

emo:

●To set a static IP address for the camera,

connect the camera, the switching hub and

the computer for setting using a straight LAN

cable of Category 5 and above.

䢇Set up the computer for setting the IP

address.

●Minimum computer specifications for

setting

OS : Windows XP (Professional or

Home Edition) (SP2)

Web browser

: Internet Explorer Version 6.0

Note:

●When setting the IP address of the camera,

do so by using a network that is made up of

only the camera, the computer for setting and

the switching hub.

●Using a hub connected to other network

devices or networks via a LAN cable for

setting can cause problems.

IP Address Settings

Set the IP address of the computer for

configuring the camera settings.

Configure the Internet Explorer settings in

order to establish connection between the

computer and the camera.

Connect the computer to the camera.

Set the [DHCP Disable] item on the [Basic

Settings1] screen to ADHCP EnableB or

ADHCP EnableB.

IP address setting at the computer

Set the computer to an IP address that enables communication with the camera.

1 Click [Start]

●Select in the sequence of [Control Panel]-[Network Connection]-[Local Area].

Windows Vista:

●Select in the sequence of [Settings]- [Control Panel]- [Network Center]- [Network Connection].

2 The computer on which Internet Explorer is launched automatically selects the

connected network

●

Right-click and select [Properties].

●Check to ensure that the [Client for Microsoft Networks] and [Internet Protocol(TCP/IP)] check

boxes are selected.

Windows Vista:

●Check to ensure that the [Client for Microsoft Networks] and [Internet Protocol Version 4 (TCP/

IPv4)] check boxes are selected.

3 Select [Internet Protocol(TCP/IP)] and click [Properties]

Windows Vista:

●Select [Internet Protocol Version 4 (TCP/IPv4)] and click [Properties].

4 Set the IP address

5 Click [OK] on the [Local Area Connection Propertise] screen

EClick [OK].

Specify the [IP address]. (For example, use

192.168.0.100 when the camera is in its

default settings and there is no DHCP

server.)

emo:

Make sure that you take note of the original IP

address before altering.

Note:

Ensure that a duplicate IP address is not specified

within the same network environment.

Set [Subnet mask] to a value that is

appropriate for the setting operation. Consult

the network administrator if you have any

queries.

(Use 255.255.255.0 the camera is in its

default settings and there is no DHCP

Select [Use the following IP address].

When a [Default gateway] is present, make

use of the corresponding IP address (e.g.,

192.168.0.254).

Network SettingNetwork Setting

Internet Explorer settings

1 Launch the Internet Explorer on the computer

2 When proxy settings are enabled in the Internet Explorer, follow the steps below to

disable the proxy of the Internet Explorer

●Select in the order of [Tool]-[Internet Options]-[Connections]-[LAN Setting], followed by

deselecting the check for [Use a proxy server for your LAN] under [Proxy Server] of the [Local

Area Network (LAN) Settings] window.

If the active script of the Internet Explorer is disabled, follow the steps below to enable it

●Select [Trusted sites] under [Tool]-[Internet Options]-[Security]. Upon doing so, the [Sites...]

button directly below becomes active. Click this button and deselect the check [in the displayed

window], and add the following web site to the zone.

http://192.168.0.2

●Next, select [Trusted sites] under [Tool]-[Internet Options]-[Security], and press the [Custom

Level] button. Select [Enable] under [Scripting]-[Active script] of the [Security Settings] window

that has been opened.

IP Address Settings

(continued)

Deselect the check

Select [Enable]

4 If ActiveX controls and plug-ins of the Internet Explorer is disabled, follow the steps

below to enable it

●Click [Trusted sites] under [Tool]-[Internet Options]-[Security]. Select the [Custom Level] button

and open the [Security Settings] window. Set all items under [ActiveX controls and plug-ins] in

the opened window to [Enable]. Enable also [Use the following IP address] under

[Miscellaneous].

5 Disable pop-up block

Connection of the camera cannot be established when pop-up block in the Internet Explorer is set to

AEnableB.

Follow the steps below to set the pop-up block to AdisableB.

●Selecting [Tool]-[Pop-up Blocker]-[Turn Off Pop-up Blocker] permits all sites.

●To allow only specific sites such as this unit, select [Tool]-[Pop-up Blocker]-[Turn On Pop-up

Blocker], followed by selecting [Tool]-[Pop-up Blocker]-[Pop-up Blocker Settings] that becomes

active to open the [Pop-up Blocker Settings] window.

In the opened window, add the address of VN-V686BU as a permitted web site address.

6 If plug-in tools are installed in the Internet Explorer, disable the pop-up block

function of these plug-in tools as well.

Select [Enable]

Network SettingNetwork Setting

Connecting the camera to the computer

1 Launch the Internet Explorer

emo:

●If the proxy server settings for access to the Internet via the Internet Explorer is enabled, you may

not be able to specify the IP address directly. In this case, change the proxy settings of the Internet

Explorer.

●After the [Security Settings] screen appears, press the [OK] button to proceed.

2 Enter the user name and password (login as administrator) (A Page 44)

emo:

●After the [Security Settings] screen appears, press the [Yes] button to proceed.

IP Address Settings

(continued)

Click [Go].

Enter the following IP address into the address field.

http://192.168.0.2

䡵When the IP address of the camera is unknown

IP address settings cannot be changed by accessing via a computer when the IP address of the camera is unknown.

You can use the following method to identify the IP address.

●

Search for the camera in the LAN using [Search tool] inside [Tool_E] folder of the supplied CD-ROM.

For details on [Search tool], please refer to the

Readme

file in the CD-ROM supplied with this product.

Enter the user name.

This is set to AadminB by default.

Enter the password.

This is set to AjvcB by default.

Click [OK].

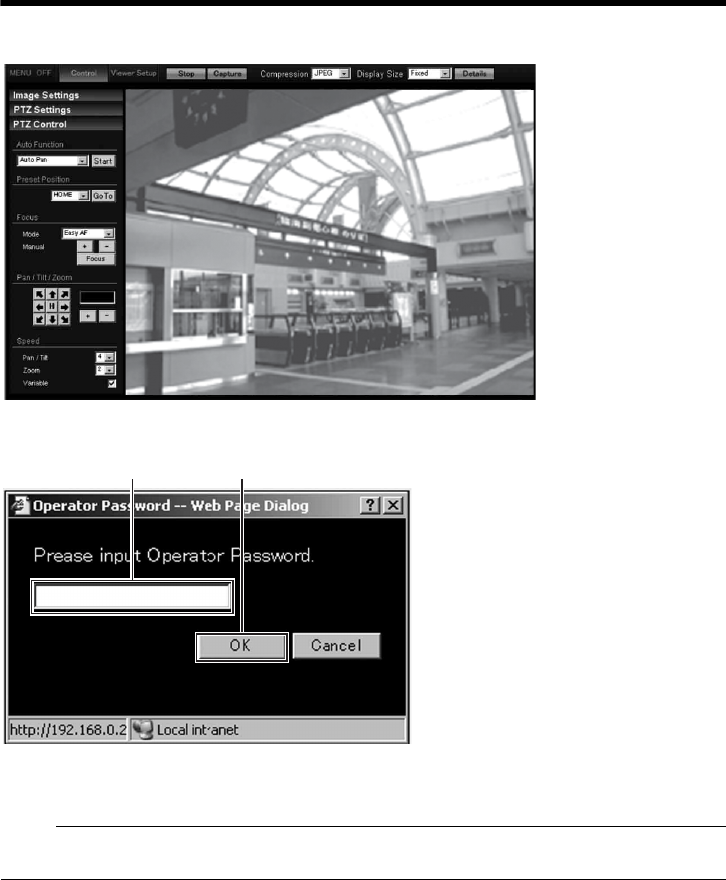

3 Built-in Viewer appears

4 The Operator Password entry screen appears

AOperator Password (default password is AjvcB)

BClick [OK].

emo:

●The operator password entry screen does not appear if the password is stored on the computer.

Proceed to configure the IP address. (A Page 42)

Network SettingNetwork Setting

IP address setting for the camera

1 Click [Advanced Settings] of the Built-in Viewer

2 The [Basic Settings1] screen appears

ASpecify the [DHCP Disable].

●When selecting ADHCP EnableB:

The default setting is ADHCP EnableB (DHCP client function is Enabled). To assign an IP

address from the DHCP server, connect the DHCP server to the LAN, set the [DHCP Disable] of

the camera to ADHCP EnableB, and click the [OK] button. For details on IP addresses assigned

to the camera, consult your network administrator.

●When selecting ADHCP EnableB:

Select ADHCP EnableB, and specify a value in the [IP address], [Subnet Mask] and [Default

Gateway] fields.

Note:

●Set the DHCP server such that the same IP address is always assigned to the MAC address of the

camera by the DHCP server. Connection may fail if the above setting is not performed.

IP Address Settings

(continued)

Click

BSpecify the [Time Zone].

CClick [OK].

3 A confirmation screen appears

Click [OK].

Camera restarts using the new IP address. It takes about one minute for the camera to reboot.

emo:

●Access from this computer may fail when the IP address of the camera is changed. To enable

access to this unit from the same computer, alter the IP address at the computer accordingly.

When the display or configuration of the opened screen appears strange, check the computer

settings using the following procedures.

AClick [Start]-[Control Panel]-[Display] and open the [Display Properties] window

BClick the [Settings] tab in the [Display Properties] window and click the [Advanced] button

CCheck that [DPI setting] in the [General] tab has become [Normal size(96DPI)]

DOtherwise, change the setting to [Normal size(96DPI)] and reboot Windows

Network SettingNetwork Setting

Enter user name and password

User name and password entry will be required

at the beginning.(A Page 40)

There are three access authorization levels to

the camera. The factory settings are as follows.

䢇Pages that users have access to

Restrictions are placed on the pages that users

have access to. In addition, links on the web

pages are also displayed according to the

access rights of the user.

●admin

●operator

IP Address Settings

(continued)

User

Name

Default

Password

Description

admin jvc All operations and

setting changes are

allowed

operator jvc Change of settings

other than those

related to network

and maintenance

are allowed

user jvc Viewing of images

is allowed

Basic Settings1 [Network]

[Time]

Basic Settings2 [Camera]

[Encoding]

[JPEG]

[MPEG4]

Detalis [Camera]

[Encoding]

[Alarm]

[Alarm Environment]

[PTZ]

[Auto Patrol0]

[Auto Patrol1]

[Auto Patrol2]

[Privacy Mask]

[Motion detection]

[Network Basic]

[Network Details]

[Protocol]

[Streaming]

[Access Restrictions]

[Time]

[Password]

[Maintenance]

[Miscellaneous]

[Operation]

[Settings]

[Position List]

[Patrol Infomation 0]

[Patrol Infomation 1]

[Patrol Infomation 2]

Basic Settings2 [Camera]

[Encoding]

[JPEG]

[MPEG4]

Detalis [Camera]

[Encoding]

[Alarm]

[Alarm Environment]

[PTZ]

[Auto Patrol0]

[Auto Patrol1]

[Auto Patrol2]

[Privacy Mask]

[Motion detection]

[Streaming]

[Miscellaneous]

[Operation]

[Settings]

[Position List]

[Patrol Infomation 0]

[Patrol Infomation 1]

[Patrol Infomation 2]

●user

emo:

●Security Information window may appear

before the top page is displayed. Press the

[OK] button to proceed.

If you do not want this warning screen to be

displayed, change the Internet Explorer

settings as follows.

●Open [Tool]-[Internet Options]-[Security]

and select the [Trusted sites] icon.

●Next, press the [Custom Level] button,

followed by selecting AEnableB for

[Miscellaneous]-[Display mixed content].

Note:

●Do not reset or turn off the power of camera

immediately after the settings are changed.

Otherwise, changes may not be saved or may

be saved incorrectly.

●If settings are changed when sending JPEG

or MPEG4, the transmission may be

temporarily cancelled.

Detalis [Miscellaneous]

Setting Using Internet Explorer

How to open the setting page

1 Enter the IP address of the camera in the address bar of Internet Explorer (A

Page 40)

●A Built-in Viewer is opened.

2 Click [Detalis]

●[Basic Settings1] page will be opened if accessed by user name AadminB. (A Page 47)

●[Basic Settings2] page will be opened if accessed by user name AoperatorB. (A Page 48)

●[Miscellaneous] page will be opened if accessed by user name AuserB. (A Page 94)

Setting

Click

Basic Settings1

This page is for performing basic setting related to the network.

●This page can be used during access using AadminB.

●Click [Basic Settings1].

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

emo:

●You can open the [Basic Settings1] screen without going through Built-in Viewer by entering direct

URL address in the address field of Internet Explorer.

When the IP address of the camera is 192.168.0.2 for example, enter the URL below.

VN-V685U :http://192.168.0.2/cgi-bin/v685display.cgi?v685basicmenu1.html

VN-V686BU/VN-V686WPBU :http://192.168.0.2/cgi-bin/v686display.cgi?v686basicmenu1.html

Click

Network

AIP Setting For setting the DHCP client function. Connect the camera to a network

environment with a DHCP server when DHCP is to be enabled. If the DHCP

server does not exist when [IP Setting] is set to ADHCP EnableB, the camera

will start running with IP address 192.168.0.2 and subnet mask 255.255.255.0

in about 2 minutes after startup. (A Page 42)

BIP Address For setting the IP address of the camera.

CSubnet

Mask

For setting the Subnet Mask of the camera.

DDefault

Gateway

For setting the Default Gateway of the camera.

Set as 0.0.0.0 when the Default Gateway is not set.

Time

ETime Displays the clock time of the camera.

The time transmitted by the camera is recorded in the JPEG header.

Discontinuity may occur in the JPEG header’s time immediately before and

after changing the time.

FTime Zone For setting the time zone.

GPc time to

Camera

Click the [Set] button to set the time of the computer on the camera.

Setting Using Internet Explorer

Basic Settings2

Page for setting fundamental parameters of Camera, JPEG and MPEG4.

●This page can be used during access using AadminB or AoperatorB.

●Click [Basic Settings2].

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

emo:

●You can open the [Basic Settings2] screen without going through Built-in Viewer by entering direct

URL address in the address field of Internet Explorer.

When the IP address of the camera is 192.168.0.2 for example, enter the URL below.

VN-V685U :http://192.168.0.2/cgi-bin/v685display.cgi?v685basicmenu2.html

VN-V686BU/VN-V686WPBU :http://192.168.0.2/cgi-bin/v686display.cgi?v686basicmenu2.html

EFG

Click

Camera

ACamera ID Character strings entered here will be written to the JPEG comment segment

(item name: Camera). Refer to the [API Guide] (provided CD-ROM) on the

file formats of JPEG.

BMonitor

Type

For selecting the monitor type according to the monitor used to display the

video images. The picture quality varies according to the type of monitor

selected.

Custom :Enables setting of picture quality according to the user’s

preference. You can configure the detailed settings on the

[Camera] page. (A Page 51)

LCD1, LCD2 :Picture quality setting for LCD monitors. Two types are

available for selection according to the user’s preference.

CRT :Picture quality setting for CRT (cathode-ray tube) monitors.

[Setting value:Custom, LCD1, LCD2, CRT]

Encoding

CFrame Size For setting the frame size of each JPEG or MPEG4 screen to VGA (640 x

480) or QVGA (320 x 240).

Select one of the four different patterns.

emo:

●Refer to the API Guide on the file formats of JPEG.

JPEG

DQuality/

Size

For specifying the JPEG picture quality (rate control mode) and size (target

file size). When AVFS1B to AVFS7B is selected, the quantization table during

JPEG encoding will be maintained and the file size will increase/decrease

according to the input signals. Typical sizes will be displayed in the Size field.

When recording JPEG data to a recorder with a limited storage capacity, the

maximum recording time may vary as the file size fluctuates under this

setting.

When AAFSB is selected, encoding is performed such that the target file size

is the average size of multiple JPEG images. You can enter the target size in

the Size field.

[Picture quality values:VFS1 to VFS7, AFS]

emo:

The picture size can be specified only when the picture quality value is set to

AFS.

[Size field setting range for VGA:10 KB to 100 KB ]

[Size field setting range for QVGA:3 KB to 33 KB ]

Setting Using Internet Explorer

Basic Settings2 (continued)

Setting (continued)

MPEG4

EBitrate For setting the MPEG4 encoding bit rate.

[Setting range: 64 kbps to 8000 kbps]

FBitrate

Control

For selecting whether to set the MPEG4 rate control mode to CBR (Constant

Bit Rate) or VBR (Variable Bit Rate).

CBR : Encoding is performed at a fixed bit rate regardless of the

condition of the input video signals. Enables easy forecast of

the bit rate.

VBR : Changes the bit rate according to the condition of the input

video signals. Picture quality is stable, but forecast of the bit rate

is difficult.

GFPS For setting the MPEG4 frame rate.

[Setting range: 1 fps, 7.5 fps, 10 fps, 15 fps, 25 fps, 30 fps]

HI Frame

Interval

For setting the I-frame interval. MPEG4 starts encoding from the I-frame.

Shortening the interval stabilizes the picture quality even when there are

rapid changes in the video image. However, the picture quality for images

with little change will deteriorate. In addition, when multicast packet loss

occurs, the time interval required to restore the image is shorter.

[Setting value:30, 60, 90, 120, 150]

IPriority For selecting whether to assign priority to the frame rate or picture quality

during MPEG4 encoding.

FPS : Assigns priority to frame rate. Select this setting to enable

smooth monitoring of motion images.

Quality : Prioritizes image quality.

Camera Page

This page is for setting the camera’s parameters.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Camera]. Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

●To restore the settings of this page to the factory settings, press [Initialize] button.

Click

ACamera ID Character strings entered here will be written to the JPEG comment segment

(item name: ACameraB). Refer to the [API Guide] (provided CD-ROM) on the

file formats of JPEG.

Monitor Type

For selecting the monitor type according to the monitor used to display the

video images. The picture quality varies according to the type of monitor

selected.

Custom : Enables setting of picture quality according to the user’s

preference.

LCD1, LCD2 : Picture quality setting for LCD monitors. Two types are

available for selection according to the user’s preference.

CRT : Picture quality setting for CRT (cathode-ray tube) monitors.

[Setting value:Custom, LCD1, LCD2, CRT]

CBlack Level For adjusting the black level. Lowering the value darkens the video image.

Increasing the value brightens the image.

[Setting range:0 to 2]

emo:

●If the black level is set to A0B, this may be too low depending on the

connected device, or dark area will become complete black.

●When using MPEG4 images, set to either A1B or A2B.

Setting Using Internet Explorer

Camera Page (continued)

Setting (continued)

DGamma To alter the appearance of dark areas in a video image, adjust the gamma

curve.

0 : Gamma correction suitable for CRT is performed.

1 : Gamma correction suitable for some LCDs is performed.

2 : Do not perform gamma correction. This setting is suitable for

some LCDs.

Active : The most appropriate gamma correction is applied according to

the darkness of the screen. Select the level under [Active

Gamma Level].

[Setting value:0, 1, 2, Active]

emo:

●The set value is fixed when the [Monitor Type] B is set to ALCD1B,

ALCD2B, or ACRTB.

Active Gamma

Level

This adjusts the effect when [Gamma] D is set to AActiveB.

Objects with little luminance differenceBDecrease the number

Objects with large luminance differenceBIncrease the number

[Setting range:-5 to 0 to 5]

emo:

●The color may appear different from the actual one depending on the

object.

●Noise interference and hue changes may appear prominent depending

on the brightness of the object but this is not a malfunction.

●This feature can only be configured when [Gamma] D is set to AActiveB.

EEnhance

Frequency

For setting the type of edge enhancement.

Low : Enhanced edges become thicker.

High : Enhanced edges become thiner.

[Setting value:Low, High]

emo:

●The set value is fixed when the [Monitor Type] B is set to ALCD1B,

ALCD2B, or ACRTB.

FEnhance Level For setting the intensity of edge enhancement.

Larger value : Increases the intensity of edge enhancement.

Smaller value : Decreases the intensity of edge enhancement.

[Setting range:-5 to 0 to 5]

GColor Level For adjusting the color level.

Larger value : Increases the color level.

Smaller value : Decreases the color level.

[Setting range:-5 to 0 to 5]

HStabilizer This function prevents image shaking caused by vibration.

Set this function to AOnB to control image shaking.

Off : Disabled.

On : Enabled.

emo:

●When the function is set to AOnB, the screen is digitally zoomed to

approximately 1.3 times.

●Adjustment is disabled in the electronic zoom area.

●Adjustment is disabled for about 1 minute after power ON and during

Pan/Tilt/Zoom operation.

●Adjustment may not work when the vibration is fast. The effect can be

small when vibration direction does not match with Pan/Tilt position.

Depending on the installation environment, the stabilizer may malfunction

and increase image shaking due to the vibration transmitting to the

camera. In this case, set the stabilizer to AOffB.

IStabilizer Level This item allows you to set the adjustment level of the [Stabilizer] item H in 3

steps.

The adjustment volume is larger if the value is set to AHighB rather than

AMidB. When it is set to ALowB, the adjustment volume is lesser than

compared to when it is set to AMidB.

[Setting value:Low,Mid,High]

JNoise Reduction When AOnB is set, image noise on the screen will be reduced.

emo:

●This item is only enabled when [AGC] item K is set to a value other than

AOffB.

●Image noise in dark images will be reduced but the resolution will

deteriorate.

●The edges between high and low illumination area may appear rough.

KALC For setting the priority of ALC (feature for maintaining the video level

according to the brightness of the object). You can select whether to assign

priority to the motion or picture quality when the object becomes dark.

Motion : Prioritizes movement.

When the object becomes dark, priority is given to AGC

(automatic gain control), and therefore this is suitable for

shooting fast-moving objects.

Quality : Prioritizes image quality.

When the object becomes dark, priority is given to the Sense

Up feature, and therefore this is suitable for shooting objects

requiring a high picture quality.

[Setting value:Motion,Quality]

Setting Using Internet Explorer

Camera Page (continued)

Setting (continued)

KALC (continued)

AGC For setting the AGC (automatic gain control) level.

Off : Disables the AGC feature

Mid : When the amount of light is insufficient

High : When the amount of light is particularly insufficient

Super : When the brightness level is insufficient even upon setting to

AHighB.

[Setting value:Off, Mid, High, Super]

emo:

●The screen appears grainy at dark locations when the AGC feature is in

use.

Sense Up This feature is used to raise the sensitivity level by lengthening the

exposure time.

You can specify the number of times by which the sensitivity level is to be

increased automatically when the object becomes dark. When Ax32B is

selected, the sensitivity is changed dynamically up to 32 times (as

compared to the AOffB mode) to fit to current darkness. When sensitivity

increases, the shutter speed becomes slower and hence, movement

becomes unnatural. When set to AOffB, Sense Up is disabled.

[Setting value:Off, x2, x4, x8, x16, x32, x64, x128]

emo:

●Upon raising the sensitivity level, the screen may appear grainy or

white, or white defects may occur. However, this is not a malfunction.

●When [Sense Up] is set to a value other than AOffB, flickers occur under

the light of fluorescent or mercury lamps. This is not a malfunction of

the camera, but is due to principles related to Sense Up.

●When the [Shutter Speed] item L is set to A1/100B to A1/10000B, set

[Sense Up] to AOffB.

LShutter Speed This item sets the speed of the electronic shutter.

When [Sense Up] item K is set to Ax2B or above, available setting value is

A1/60B or A1/100B only.

[Setting value:1/60,1/100,1/250,1/500,1/1000,1/2000,1/4000,1/10000]

emo:

●Flickering of fluorescent lightings can be reduced when the shutter

speed is set to A1/100B or A1/60B respectively in regions of commercial

power frequency 50 Hz and 60 Hz.

●The faster the shutter speed is, a smear phenomenon specific to CCD,

where white bands appear vertically along bright light source, is more

emphasized.

●The edges between high and low illumination area may appear rough.

MB/W Mode This sets the function to switch from Color to B&W mode.

Color : Always be in Color mode.

Black & White : Always be in B&W mode.

Auto Low,Auto Mid,Auto High

: This item automatically switches between Color Mode

and B&W Mode when the luminance meets defined

conditions for over 30 seconds. Select the sensitivity from

three options.

emo:

To ensure a successful B&W/Color switching

●If the [B/W Mode] item is set to AAuto Low, Auto Mid, Auto HighB, the

B&W/Color setting can be switched according to the brightness of the

object, but the condition of illumination and field angle may make this

impossible. To be absolutely certain of B&W/Color switching,

connecting external sensor to alarm input cable of this camera and

setting alarm action of B&W mode is recommended.

IR Preset AF When switching the Color mode to B&W mode, the type of light source may

cause the focus to be dislocated. This is because the B&W mode is

sensitive to both visible light and near-infrared light. When this happens,

set this item to AOnB to focus automatically.

On : Enabled.

Off : Disabled.

Light This item sets the illumination of the object during B&W mode.

Normal : Select this for normal illumination.

IR : Select this when using infrared illumination.

emo:

●If AIRB is set under normal sunlight or fluorescent lighting, the camera

will not switch normally from Color to B&W mode.

Setting Using Internet Explorer

Encoding Page

This page is for setting JPEG and MPEG4 encoding parameters.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Encoding]. Press the [OK] button to enable the new settings. Press the [OK] button to enable

the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

●When settings on this page are altered during playback using Built-in Viewer, reboot the Built-in

Viewer.

●There is a maximum limit to the bit rate for transmission by the camera. If a bit rate that exceeds the

maximum limit is specified, this new setting will not be applied. For details on the maximum

transmission limit, refer to [Network Requirements] (A Page 33).

Setting (continued)

CDEF

Click

AFrame Size For setting the frame size of each JPEG or MPEG4 screen to AVGAB (640 x

480) or AQVGAB (320 x 240).

Select one of the four different patterns.

JPEG

BQuality/Size For specifying the rate control mode and target file size for JPEG.

When AVFS1B to AVFS7B is selected, the quantization table during JPEG

encoding will be maintained and the file size will increase/decrease

according to the input signals. Stipulated values will be displayed in the Size

field. When recording JPEG data to a recorder with a limited storage

capacity, note that the maximum recording time may vary as the file size

fluctuates under this setting.

When AAFSB is selected, encoding is performed such that the target file size

is the average size of multiple JPEG images. You can enter the target size in

the [Size] field.

[Size field setting range for VGA: 10KB to 100KB (Only when setting

AFS

)]

[Size field setting range for QVGA: 3KB to 33KB (Only when setting

AAFSB)]

MPEG4

CBitrate For setting the MPEG4 encoding bit rate.

[Setting range:64kbps to 8000kbps]

DBitrate Control For selecting whether to set the MPEG4 rate control mode to CBR (Constant

Bit Rate) or VBR (Variable Bit Rate).

CBR : Encoding is performed at a fixed bit rate regardless of the

condition of the input video signals. Enables easy forecast of the

bit rate.

VBR : Changes the bit rate according to the condition of the input

video signals. Picture quality is stable, but forecast of the bit rate

is difficult.

EFPS For setting the MPEG4 frame rate.

[Setting range:1 fps, 7.5 fps, 10 fps, 15 fps, 25 fps, 30 fps]

FI Frame Interval For setting the I-frame interval. MPEG4 starts encoding from the I-frame.

Shortening the interval stabilizes the picture quality even when there are

rapid changes in the video image. However, the picture quality for images

with little change will deteriorate. In addition, when multicast packet loss

occurs, the time interval required to restore the image is shorter.

[Setting value:30, 60, 90, 120, 150]

GPriority For selecting whether to assign priority to the frame rate or picture quality

during MPEG4 encoding.

FPS : Assigns priority to frame rate. Select this setting to enable

smooth monitoring of motion images.

Quality : Prioritizes image quality.

emo:

●Valid when [Bitrate Control] D is ACBRB. When a very small bit rate is set

for the frame rate or frame size, ACBRB or AVBRB will become the lowest

images and a difference will appear in the frame rate. AQualityB which

skips frames will be able to realize small bit rates better than AFPSB.

Setting Using Internet Explorer

Alarm Page

This page is for setting actions when there is an alarm.

Up to 5 actions (No. 01 to No. 05) may be set.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●

Click [Alarm]. Press the [OK] button to enable the new settings.

●

Press the [OK] button to enable the new settings. Only items that are valid under the selected action

will be saved. When Disable is selected for the action, all settings will be restored to their default

values.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

ABCD

Click

AAction For specifying the type of action.

Disable : Does not trigger any action.

Mail : Sends out e-mail. Specify the recipient’s mail address. The

title of the mail will appear as [Alarm from VN-V685(VN-

V685U)][Alarm from VN-V686(VN-V686BU/VN-

V686WPBU)] and the sender as [Camera ID]. Enter the

message to send in [Mail Text]. Input up to 127

alphanumeric characters. To attach the latest image to the

mail, set [Attach Image] to AOnB.

PrePostRecording + FTP

: Sends out pre-/post-recorded JPEG files via FTP. See the

page on Alarm Environment for details on pre-/post-

recording and FTP server settings. (A Page 62)

The maximum transmission rate of FTP is 1 Mbps. If a new

FTP trigger occurs during post-recording, the recorded

portion is treated as pre-recording and a new post-

recording starts. During FTP transmission after completing

the post-recording, a new post-recording starts if a new

FTP trigger occurs.

TCP : Sends out the character string entered in the [TCP/UDP

Data] field to the destinations specified in [TCP/UDP IP

Address] and [TCP/UDP Port Number] via TCP.

UDP : Sends out the character string entered in the [TCP/UDP

Data] field to the destinations specified in [TCP/UDP IP

Address] and [TCP/UDP Port Number] via UDP.

TCP/UDP Data

:Input up to 127 alphanumeric characters.

PinOutout 1 Make :Changes Alarm Output 1 to Make.

PinOutout 1 Breake :Changes Alarm Output 1 to Break.

PinOutout 2 Make :Changes Alarm Output 2 to Make.

PinOutout 2 Breake :Changes Alarm Output 2 to Break. Set the alarm

output time in the [Alarm Output Duration] field.

Position : This item moves the camera to the position set in [Action

Position No.] E.

BlackWhite →Color

: Changes the [B/W Mode] setting from ABlack & WhiteB to

AColorB

Color →BlackWhite

: Changes the [B/W Mode] setting from AColorB to ABlack &

WhiteB

DayNight:Auto Low

: Changes the [B/W Mode] setting to AAuto LowB.

DayNight:Auto Mid

: Changes the [B/W Mode] setting to AAuto MidB.

DayNight:Auto High

: Changes the [B/W Mode] setting to AAuto HighB.

emo:

●For details on [B/W Mode], see [B/W Mode] (A Page 55).

Alarm Page (continued)

Setting (continued)

B1st Trigger This item specifies the first trigger to the operation set in [Action] A.

[Setting value:Input 1 Make, Input 2 Make, Input 1 Break, Input 2 Break,

Motion Detection, Fan Stop, Position, BlackWhite →Color, Color →

BlackWhite]

emo:

●When the second trigger is turned off, the action will be invoked only by

the first trigger.

●When AMotion DetectionB, AFan StopB, APositionB, ABlackWhite→ColorB,

AColor →BlackWhiteB is selected as the first trigger, selection of AMax.

IntervalB and A2nd TriggerB will be disabled.

CMax. Interval Enabled when both the first and second triggers are specified.

Specify the maximum interval between the first and second triggers. An

action will be invoked only if the interval between the first and second

triggers is within the maximum interval.

[Setting range:1sec to 3600sec]

D2nd Trigger This item specifies the second trigger to the operation set in [Action] A.

[Setting value:Off, Input 1 Make, Input 2 Make, Input 1 Break,

Input 2 Break]

EAction Position

No.

This item sets the position number for trigger when APositionB is selected in

[Action] A.

[Setting range:0 to 99]

FTrigger Position

No.

This item sets the position number for trigger when APositionB is selected in

[1st Trigger] B.

[Setting range:0 to 99]

GMail Mail Address : For entering the recipient’s mail address.

Mail Text : For entering the mail transmission data. Input up to 127

alphanumeric characters.

Attach Image : For specifying whether to attach images to the mail.

HTCP/UDP TCP/UDP IP Address

: For entering the address when alarm action notification is

to be sent via TCP or UDP. (IP or FQDN)

TCP/UDP Port Number

: For entering the port number when alarm action

notification is to be sent via TCP or UDP. (1-65535)

TCP/UDP Data

: For entering the data to send during TCP or UDP

notification. Input up to 127 alphanumeric characters.

IAlarm Output

Duration

For setting the alarm output time from the alarm output terminal.

When this is set to A0B, it is not possible to revert back to break (or make)

after changing to make (or break).

[Setting range:0/100msec to 5000msec]

JTime Filter For specifying the alarm action with respect to each day of the week and

setting the corresponding time of the day.

Applicable day of week

: Sunday, Monday, Tuesday, Wednesday, Thursday, Friday,

Saturday

Alarm action : Mask span

Unmask span

Mask All

Unmask All

Applicable time period

: For specifying the Start and End time in hours and

minutes.

Setting Using Internet Explorer

Alarm Environment Page

This page is for setting alarm-related environments.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Alarm Environment]. Press the [OK] button to enable the new settings. Press the [OK] button

to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

Click

AMail For setting the mail environment when AMailB is specified as an [Action]A on

the Alarm page.

[SMTP] and [POP] can be used. Configure only the [SMTP] settings under

usual circumstances.

Enter the camera’s mail address as the [Send Mail Address].

Configure the [POP] settings as well if [POP before SMTP] is set to AOffB. In

addition, if AFQDNB is set for [SMTP Server], configure also the [DNS

Server] settings on the Basic page. (A Page 79)

emo:

What is FQDN (Fully Qualified Domain Name)?

This is a fully qualified domain name that indicates a notation method of

describing the entire host or domain name on the TCP/IP network without

abbreviating.

For example, if the host name is AwwwB and the domain name is Ajvc.co.jpB,

this will be denoted as Awww.jvc.co.jpB in FQDN. Japanese cannot be used

in FQDN.

BFTP For setting the FTP environment when AFTPB is specified as an [Action]A

on the Alarm page. This is common with the FTP environment when using

the periodic FTP on this page.

When [Directory] is left blank, FTP transfer will be performed to the home

directory of the FTP server. To enable FTP transfer to a directory below the

home directory, set the corresponding directory name in [Directory].

Delimit the directory using A/B.

Example: subdir1/subdir2

Destination directory of FTP transfer will be dependent on the FTP server if

A/B is added at the beginning.

Setting [Periodic FTP] to AOnB enables transfer of the latest JPEG images to

the FTP server at regular intervals. Specify the interval in seconds for

[Periodic FTP Interval].

File name: Select a type from the two types of periodic FTP file names.

When AAutoB is selected, file names are generated from the year, month,

day, hour, minute, second, and number.

Example: 20071114161032-001-2.jpg

When AManualB is selected, you can select a file name generation method

from the following.

●File name containing only the character string entered in [User-defined-

name]

Example: Camera1.jpg

●File name with the year, month, day, hour, minute, and second added to

[User-defined-name]

Example: Camera1_20071114161032001.jpg

The name of the file to be transmitted via FTP is made up of the action

number, year, month, day, hour, minute, second, number and trigger flag.

Example: 01-20070711152904-001-0.jpg

The first two digits are the action number, and the following 14 digits denote

the year, month, day, hour, minute and second.

The three digits after the first hyphen is the number of the series of JPEG

files to be sent via the FTP. The number starts from A000B. The last digit

denotes the trigger flag. This is displayed as A1B only for the JPEG file during

a trigger input, and as A0B if otherwise.

Setting Using Internet Explorer

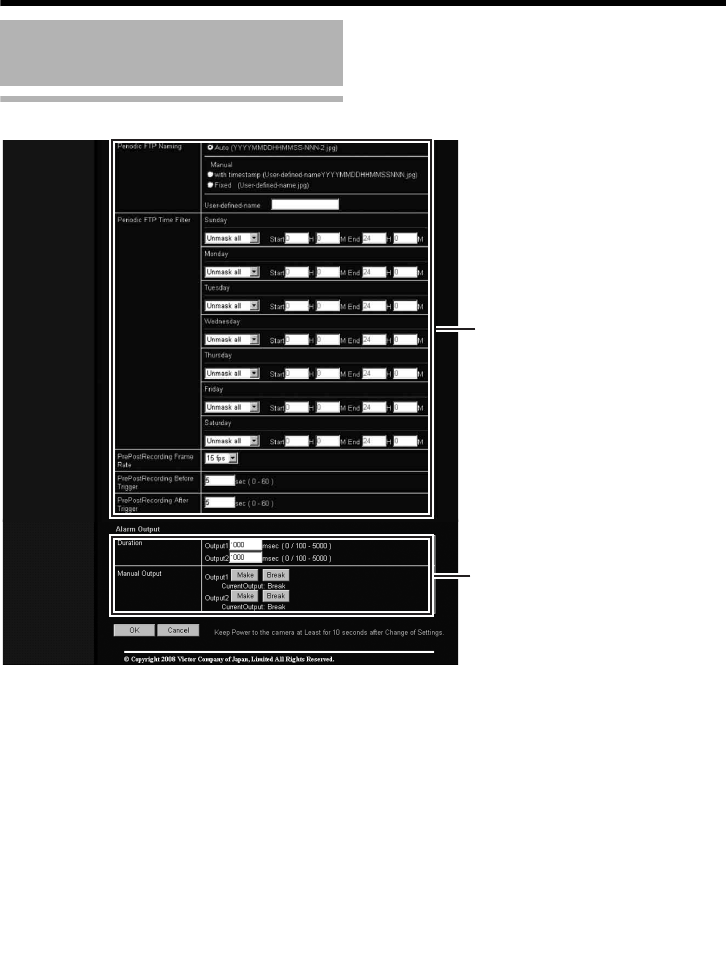

Alarm Environment Page (continued)

Setting (continued)

BFTP (continued) Setting the Periodic FTP Time Filter:

For specifying the periodic FTP transfer action with respect to each day of

the week and setting the corresponding time of the day.

Applicable day of week

:Sunday, Monday, Tuesday, Wednesday, Thursday, Friday,

Saturday

Alarm action : Mask span

Unmask span

Mask All

Unmask All

Applicable time period: For specifying the Start and End time in hours and

minutes.

Pre-/Post-recording parameter:

[PrePostRecording Frame Rate]

: For specifying the JPEG frame rate for FTP pre-/post-

recording.

[Setting value:1 fps, 2 fps, 3 fps, 5 fps, 6 fps, 7.5 fps,

10 fps, 15 fps, 30 fps]

[PrePostRecording Before Trigger]

: For setting the FTP pre-recording trigger time (recording

time before alarm input) in seconds.

[Setting value:0sec to 60sec]

[PrePostRecording After Trigger]

: For setting the FTP post-recording trigger time (recording

time after alarm input) in seconds.

[Setting value:0sec to 60sec]

The maximum time intervals for [PrePostRecording Before Trigger] and

[PrePostRecording After Trigger] are determined by the JPEG size on the

Encoding page as well as [PrePostRecording Frame Rate]. A message

appears if the combination of the entered values are not feasible.

CAlarm Output For setting the alarm output.

Duration For setting the output time of [Manual Output].

[Setting range:0 / 100 msec to 5000 msec]

Manual Output For operating alarm output manually.

The current output status appears on the right. When [Duration] is set to A0B,

pressing the [Make] button switches the alarm to Make output, while

pressing the [Break] button switches the alarm to Break output.

When [Duration] is set to a value other than A0B, pressing the [Make] button

switches the alarm to Make output only during the duration of the output,

upon which it switches to Break output.

When the output duration is set to a value other than A0B, pressing the

[Break] button switches the alarm to Break output only during the duration of

the output, upon which it switches to Make output.

Setting Using Internet Explorer

PTZ Page

This page is used for specifying Auto Return, Auto Tracking, Intelligent Tracking, Move Preset Position,

and Auto Flip.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [PTZ]. Press the [OK] button to enable the new settings. Press the [OK] button to enable the

new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

Click

AAuto Return If the camera is not operated over the duration that was set in AReturn

TimeB, it will automatically return to the state that was set in AModeB.

Mode This item sets the operation after Auto Return.

none : Auto Return is disabled.

Home : Returns to the home position.

Auto Pan : Returns to the Auto Pan operation.

Auto Patrol : Returns to the Auto Patrol operation.

Auto Trace : Returns to the Auto Trace operation.

Auto Tracking : Returns to the automatic tracking operation.

Intelligent Tracking : Returns to the Intelligent Tracking operation.

AAuto Return (continued)

Return Time This item sets the time to return the operation with Auto Return.

This feature cannot be configured when the [Mode] is set to AnoneB.

[Setting value:1 minute, 2minutes, 3minutes, 5minutes, 10minutes,

20minutes, 30minutes, 60minutes]

emo:

●When the [Mode] item is set to AIntelligent TrackingB, the camera returns

to the home position after the specified Return Time has elapsed, and

action restarts from the detection of tracked objects. When the Intelligent

Tracking operation is in progress, PTZ may not function even when an

object is being captured. If PTZ operations do not function for a time

interval specified in AReturn TimeB, Auto Return starts automatically.

Test

Click [Execute] to test run the configured Auto Return operation.

BAuto Tracking/

Intelligent

Tracking

For configuring settings related to Auto Tracking and Intelligent Tracking.

Auto Tracking : Moves to the home position when Auto Return starts.

Shoots the object by tracking it automatically when motion

is detected at the home position. Zoom ratio is fixed at x1.

Intelligent Tracking

: Intelligent Tracking is available in two modes, namely the

Auto mode which starts automatically from Auto Return,

and the Manual mode for specifying a target on the viewer.

You can change the object to track freely by clicking the

viewer’s display area when the camera is in the ALockedB

or ALosingB mode. To exit, press the [Stop] button on the

PTZ Controller screen.

●Auto mode

Detects the color information of the object for which motion is detected

at the home position, and shoots the object by tracking it with

automatic pan/tilt/zoom operations. You can switch to the Manual

mode by clicking on the viewer screen before any motion is detected.

●Manual mode (A Page 113)

Select AIntelligent TrackingB under the [Function] item on the PTZ

Control screen, and press the [Start] button to switch to the AStandbyB

mode. Once you click on the viewer screen to specify a target, the

camera automatically tracks and shoots the target object while

performing automatic pan/tilt/zoom operations.

emo:

●Auto tracking may be difficult under the following conditions.

●When multiple moving objects are in the same screen

●When there is a flickering light source in the screen

●When the speed of the moving object is too fast or slow

●When the moving object is too big or small

●When the object and background have same brigthness

●Intelligent tracking may be difficult under the following conditions.

●Strong backlight

●Colors that are similar to the tracking target are present in the same

screen

●No colors on the tracking target (such as white, gray, black)

●When the tracking target moves into the privacy mask area

Setting Using Internet Explorer

PTZ Page (continued)

Setting (continued)

BAuto Tracking/

Intelligent

Tracking

(continued)

emo:

●Intelligent tracking cannot begin under the following conditions.

●[B/W Mode] is set to ABlack & WhiteB (A Page 55)

●[B/W Mode] is set to AAutoB and black and white is selected

(A Page 55)

●[Auto Flip] is set to ADigital FlipB (A Page 71)

●All areas of detected motion are masked (A Page 76)

●The zoom ratio exceeds 20x. (The zoom ratio of the home position

exceeds 20x if Intelligent Tracking is started by Auto Return.)

●Dark images can be improved with the [Sense Up] (A Page 54) function

but the tracking may be slow.

Note:

●The Auto Tracking function of this camera detects changes in brightness.

As such, depending on changes in the illumination, it may or may not

detect movement of objects having the same color as the background

color. It may be difficult to detect objects with very slow movement. Check

the operating conditions thoroughly beforehand and configure the

settings such that there will not be any misoperation or omission of

detection.

●When [Stabilizer] (A Page 53) is set to AOFFB, this function starts from

home position and initial detect area is the screen of the home position

without enlargement. When [Stabilizer] is set to AONB, as the screen is

enlarged, it will also respond to motion of image which is not shown on

the screen. This is the specification of this unit, not a malfunction.

Restart Time Auto Tracking : This item sets the duration to return to the home position

when there is no movement in the images after auto

tracking starts.

Intelligent Tracking

: When Intelligent Tracking loses the object, you can return

to the home position after the preset [Restart Time] has

elapsed.

For Intelligent Tracking, the camera does not return to

home position while the object is locked even if the object

does not move.

[Setting value:Off, 10seconds, 20seconds, 30seconds, 40seconds,

50seconds, 60seconds, 120seconds]

Note:

●When the [Mode] item of [Auto Return]A is set to AAuto TrackingB and

the [Return Time] is set shorter than the [Restart Time] for [Auto

Tracking]B, the camera will operate according to the [Return Time].

Auto Tracking

Level

This item sets the detection sensitivity of Auto Tracking/Intelligent Tracking.

To lower the sensitivity B Decrease the number

To increase the sensitivity B Increase the number

[Setting range:0 to 10]

CIntelligent

Tracking

This item sets the zoom for [Intelligent Tracking].

Tracking Zoom When this item is set to AOnB, the zoom ratio changes according to the

movement of the object.

Tracking Zoom

Limit

When [Tracking Zoom] is set to AOnB, this item sets the threshold limit of the

zoom ratio.

When Intelligent Tracking is started, tracking is possible if the zoom ratio is

within 20x, even if the current zoom ratio has exceeded the [Tracking Zoom

Limit]. In that case, behaviour of automatic zoom changes according to the

[Tracking Zoom] setting as followings.

●[Tracking Zoom] is AOnB:

Tracking starts at the current zoom ratio. If the [Tracking Zoom Limit] is

exceeded, the camera moves in the WIDE direction but not in the TELE

direction. Once the zoom ratio enters the [Tracking Zoom Limit], the

camera will zoom within the configured tracking zoom limit.

●[Tracking Zoom] is AOffB:

The camera tracks objects at the current zoom ratio. The zoom ratio will

not change.

DLimit

Zoom Limit When the zoom lens is operated to TELE side, optical zoom works and

electronic zoom works after optical zoom becomes full. This item sets the

maximum value of the electronic zoom function.

[Setting range:Off, 1, 2, 4, 8, 16, 32]

emo:

●

As electronic zoom processes the images digitally, image quality will

deteriorate somewhat.

●

Increasing the electronic zoom ratio will shift the center of the screen toward

the top left. This is a characteristic of this camera and is not a malfunction.

●

The camera will not operate continuously from optical zoom to electronic

zoom. When the optical zoom is full, release and press again the [+] button of

[Zoom] in [PTZ Controller].

[PTZ Control] (

Page 113)

Pan Limit This item sets the movable range of the pan (horizontal) operation during

manual operation when AOnB is selected. It is invalid when AOffB is selected.

[Set Left], [Set Right] button

: Click these buttons to set the current position to the left or

right edge.

[Go to Left], [Go to Right] button

: Click these buttons to move the camera to the preset left or

right edge.

emo:

●It does not affect the Preset Position, Auto Pan and Auto Trace

operations.

Setting Using Internet Explorer

PTZ Page (continued)

Setting (continued)

DLimit (continued)

Pan Limit

(continued)

䡵Basic operation of Pan Limit

When [Pan Limit] is set to AOnB, panning is only available in the effective area.

When the camera is moved to prohibited area by some operation that has

priority over [Pan Limit] and manual panning is performed, it operates in the

following manner.

●Panning can be operated freely even in the prohibited area before the

camera enters the effective area.

●Once the camera enters the effective area, the [Pan Limit] settings take over

and pan operation can only be performed in the effective area.

䢇Operations that have priority over Pan Limit

The following operations are available regardless of the prohibited areas set in

[Pan Limit].

●Auto Pan

●Auto Trace

●Move Preset Position

●Auto Flip

●Auto Tracking

䢇Settings that have priority over Pan Limit

The following settings come together with pan operation but they can be set

regardless of the prohibited areas even when [Pan Limit] is set to AOnB.

●Privacy Mask Setting

●Auto Pan setting

emo:

●When setting Auto Trace and Preset Position and the [Pan Limit] setting is

AOnB, panning is unavailable in the prohibited area.

●As Auto Trace and Move Preset Position have priority over manual pan limit,

setting pan limit after setting Auto Trace or Preset Position does not prevent

Auto Trace or Preset Position operation.

Tilt Limit This item sets the movable range of the tilt (vertical) operation during manual

operation.

When this item is set to 10, the movable range of the tilt operation is from 10 to

90 degrees. It cannot operate between -5 and 9 degrees.

[Setting range:-5 Degrees to 0 Degrees to 10 Degrees]

emo:

●When the camera is moved to prohibited area by some operation that has

priority over tilt limit and tilt operation is performed manually, it operates in the

following manner.

●Tilt operation is disabled in the prohibited area. Tilt will be forcibly moved to

the effective area.

●Once the camera enters the effective area, the tilt limit settings take over

and tilt operation can only be performed in the effective area.

●It does not affect the Preset Position, Auto Pan and Auto Trace operations.

EPreset Position

Speed

This item sets the speed of moving to the preset position. It is also applicable

when moving to the preset position in Auto Patrol.

Speed [Setting value:1 to 4]

FAuto Flip Set this item when shooting objects that pass right under the camera.

Otherwise, following operations are necessary to shoot objects that pass

right under the camera.

ATurn the camera to face down

BRotate the camera 180 ° horizontally

CTurn the camera to face up

You can use the [Auto Flip] function to perform the above operations

automatically.

Off : Auto Flip function does not activate.

Digital Flip

: The top/bottom and left/right of the image flips when tilt

position passed the angle of 135 degrees.

Mode1 : When the camera faces bottom, it rotates 180 °

horizontally and stops. In this case, the operating direction

of the camera is the same as that of the Pan/Tilt operation.

Mode2 : When the camera faces bottom, it rotates 180 °

horizontally and the operating direction of the camera is

opposite that of the Tilt operation. Select this mode if you

wish to operate continuously. Once operation stops, the

direction will return to normal.

Mode3 : When the camera faces bottom, it rotates 180 °

horizontally and the operating direction of the camera is

opposite that of the Tilt operation. However, the operating

direction will return to normal 10 seconds after the

operation has stopped.

[Setting value:Off, Digital Flip, Mode1, Mode2, Mode3]

emo:

●[Intelligent Tracking] is disabled when this is set to ADigital FlipB.

(A Page 67)

●Settings for [Preset Position Speed] are reflected in the rotation speed

when images are flipped using AMode1B, AMode2B, AMode3B. To flip

images in high speed using AMode1B, AMode2B, AMode3B, set the

[Speed] in [Preset Position Speed] to A4B.

Note:

●When [Auto Flip] is set to other than AOffB, the camera can be moved to

areas outside the pan limit with the Tilt operation. When ADigital FlipB is

set, use the Tilt operation to flip and return to the pan limit area again.

When AMode1B, AMode2B or AMode3B is set and the camera is moved to

inside of the pan limit with Pan operation, it will stop at the pan limit

position.

Setting Using Internet Explorer

Auto Patrol Page

This function sets the Auto Patrol operation which patrols multiple positions at specified time intervals.

You can set the order in which to view the determined positions.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Auto Patrol]. Press the [OK] button to enable the new settings. Press the [OK] button to enable

the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

There are three screens in Auto Patrol.

ABCD

Click

ANo Switches the camera image from No. 0 to 99 in sequence.

BTitle This displays the title of the position.

CPosition This sets the position number to be moved in sequence.

[Setting value:0 to 99]

DTime This sets the duration of staying at the position. (Unit: Seconds)

[Setting range:Skip, 10 sec, 20 sec, 30 sec, 45 sec, 60 sec, 120 sec]

Setting Using Internet Explorer

Privacy Mask Page

Privacy Mask is a feature that enables masking of a portion of the image.

You can set 8 rectangular privacy masks for this unit.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Privacy Mask]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

Setting (continued)

[Mask Settings] screen [Brightness] screen [Password] screen

Click

Note:

●

The tilt angle where mask can be set is within 40 degrees from the horizontal position.

●

To change the privacy mask position to upper area from horizontal direction, press the up button until the end of

the horizontal position, release the button, and press it again. Only the privacy mask will be moved to upper

area. This will set the privacy mask at the area above the shallow horizontal position.

●

The mask will appear larger than when it is set. If some area that you wish to hide appear due to the camera

direction or zoom, set the mask larger.

●

The default home position is outside the range of the privacy mask.

●

When the [Adjustment] window is opened in the computer for the first time, ActiveX will be installed.

Privacy Mask

For specifying whether to activate the Privacy Mask feature.

When this is set to AOnB, the privacy mask specified using the following

items will appear on the screen.

emo:

●When setting privacy mask, zoom will be at the Wide edge and [Digital

Flip] is set to AOffB.

BMask Settings This item adjusts the mask. Click this item to open the [Adjustment] screen.

To change the setting, first, enter [Operator Password] in the [Password]

screen. (

Page 44)

If the [Operator Password] was entered already to setting page of built-in

viewer, it will be displayed as 000000.

䡵[Mask Settings] screen

䡵[Brightness] screen

This item sets the brightness (color) of the mask.

A0B is black. The larger the number is, the closer the color is to white. When

the number is A10B, the color is white. You can check the color at [Image].

[Setting value:0 to 10]

䡵[Password] screen

Enter the AOperator PasswordB. (A Page 44)

A[Adjustment], [Brightness], [Password]

tab

Each setting screen appears.

B[Mask]

When AOffB is selected, mask will not be

displayed on the screen.

[Setting value:0 to 7]

C[Size]

This item sets the size of the mask.

Use the [Shrink] or [Expand] button to set

the AHightB or AWidthB of the mask.

D [Position]

This sets the position to place the mask.Set

the moving speed in [Pan/Tilt Speed].

[Setting values:1 to 8]

[Save]

This saves the new settings.

[Delate]

This removes the privacy

mask of the specified mask

number.

Setting Using Internet Explorer

Motion Detection Page

This page is for setting motion detection.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Motion detection]. Press the [OK] button to enable the new settings.

●The area valid for motion detection is displayed in blue.

●When motion is detected, the image screen edge is displayed in red.

●Information of the configured mask is also applicable for detecting the tracking target of Intelligent

Tracking, which starts from Auto Return. (A Page 67)

Setting (continued)

BC D EF

Click

emo:

●The area display position serves as a reference. Make sure to perform operation check.

●The screen is divided into blocks of 96 (12 horizontal x 8 vertical). Set the angle of view such that the

size of the object for which motion is to be detected is larger than the size of multiple blocks.

●When [Stabilizer] is set to AOnB, the image is zoomed to 1.3 times. Thus, the number of blocks

displayed on the motion detection setting screen becomes 48 (8 horizontal x 6 vertical).

(A Page 53)

Note:

●Flickers of fluorescent lamps may cause motion detection.

●Changes in brightness due to the light source may be detected as motion.

●The motion detection feature is not intended to prevent theft or fire. This feature may not function

properly depending on the conditions of the object and settings.

Our company shall not be liable for any accident or damage that occurs.

●When other client is getting JPEG/MPEG4 stream from this unit, video images may not appear on

the [Motion Detection] page due to the maximum distribution limit of the camera. Stop other clients

before using the [Motion Detection] page.

ADisplay Screen The screen is divided into blocks of 12 (horizontal) x 8 (vertical). Use this to

set whether to mask each block.

All blocks are masked in the default setting.

The block turns blue when it is clicked, indicating that it is unmasked. Click

again to return to the masked state.

Press the [OK] button to enable this setting.

Use the [Mask All] button to mask all blocks.

Use the [Clear Mask] button to unmask all blocks.

BDetection For setting the On/Off of [Detection].

Press the [OK] button to enable this setting.

Motion detection does not work during [Auto Tracking/Intelligent Tracking]

(A Page 67).

COK/Cancel To apply the new parameters, press the [OK] button.

Press the [Cancel] button to cancel the change.

DLevel For setting the sensitivity of motion detection.

Increasing the number raises the detection sensitivity level, and hence it is

more sensitive.

Press the [OK] button to enable this setting.

[Setting value:0 to 10]

EMask All Masks all blocks.

Press the [OK] button to enable this setting.

FClear Mask Unmasks all blocks.

Press the [OK] button to enable this setting.

Setting Using Internet Explorer

Network Basic Page

This page is for performing basic setting related to the network.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Network Basic]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

●When settings of the Basic page is changed, all services that are currently running will end

immediately. For example, when changes are made to the [Network Basic] page during JPEG/

MPEG4 distribution, distribution will be discontinued and TCP will be disconnected.

Setting (continued)

Click

AIP Setting For setting the DHCP client function.

Connect the camera to a network environment with a DHCP server when

DHCP is to be enabled.

If the DHCP server does not exist when [IP Setting] is set to ADHCP

EnableB, the camera will start running with IP address 192.168.0.2 and

subnet mask 255.255.255.0 in about 2 minutes after startup.

Refer to [IP Address Settings] (A Page 36) for the IP address.

BIP Address For setting the IP address of the camera.

CSubnet Mask For setting the subnet mask of the camera.

DDefault Gateway For setting the default gateway of the camera.

Set as A0.0.0.0B when a default gateway is not set.

EHost Name For setting the host name of the camera.

Specify a name using alphanumeric characters, hyphen (-) or period (.).

Underscores (_) cannot be used.

FDNS Server For setting the address of the DNS server.

GMAC Address The MAC address of the camera is displayed in a hexadecimal number.

HIP Protocol For setting IPv6 to AOnB or AOffB. (IPv4 is set to AOnB at all times. ) When

IPv6 is set to AOnB in a network that supports IPv6, the address appears in

the [IPv6 Address] field. If the network does not support IPv6, ADisableB

appears in the [IPv6 Address] field. Camera will restart if this item is altered.

Wait for about one minute before operation of the unit is enabled.

IIPv6 Address Displays the IPv6 address.

Setting Using Internet Explorer

Network Details Page

This page is for performing detailed network setting.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Network Details]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

Click

JPEG

ATOS(DS field) For setting the TOS value of IP packets in which JPEG is stored.

The upper six bits out of the eight bits that make up the TOS value belong to

DSCP.

This upper six bits can be set. The lower two bits are A0B. For example, upon

setting to A255B, the lower two bits are converted to A0B, and the value

becomes A252B.

TOS values are used in networks that support QoS. By setting QoS for the

network switch, routing can be done by giving priority to packets with a larger

TOS value.

MPEG4

BTOS(DS field) For setting the TOS value of IP packets in which MPEG4 is stored.

For details, refer to the [JPEG TOS(DS field)] item A above.

Common

CTTL (Unicast) For setting the TTL value of JPEG/MPEG4 packets that are to be sent via

TCP.

DTTL (Multicast) For setting the TTL value of JPEG/MPEG4 packets that are to be sent via

multicast.

EMTU For setting the maximum packet size for storing JPEG/MPEG4.

[Setting range:1280 to 1500]

FNegotiation For setting the [Negotiation] of the [Network Details].

When a value other than AAutoB is selected, do not set the network device to

be connected to AAutoB. Ensure that it is set to the same value as the

camera.

Protocol Page

This page is for changing the HTTP server port number.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Protocol]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

●After changing, you will need to re-establish the connection if you are using the Internet Explorer.

emo:

●If Built-in Viewer is used for playback, change the [HTTP Port] number in the setting screen of Built-

in Viewer to the same value. (A Page 119)(A Page 121)

Click

AHTTP Server

Port

You can change the port number for the built-in web server of the camera.

(1-65535)

The default port number setting is A80B. The port number of JPEG/MPEG4

server is changed also.

To access to camera from the Internet Explorer, enter the following in the

Internet Explorer when the camera is in its default settings.

http://192.168.0.2

If the port number is changed to A8080B, for example, enter the Internet

Explorer as follows.

http://192.168.0.2:8080

BVISIP Protocol You can change the On/Off setting of VSIP Protocol. To use this unit from

Nextiva of Verint Systems Inc., select AOnB.

CHTTP Server

Port

You can change the port number for Built-in VSIP server of the camera.

(1-65535) The default port number setting is A5510B.

DAMX Device

Discovery

Protocol

You can change the On/Off setting of AMX device detection protocol. Set to

AOnB when you are using the camera on AMX’s systems.

[Setting value:On , Off]

Setting Using Internet Explorer

Streaming Page

This page is for setting manual multicast transmission.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Streaming]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

ABCD

EF G

Click

emo:

●When the power of the camera is turned off accidentally during multicast transmission, multicast

transmission will restart automatically after the camera is rebooted.

JPEG

AControl For starting or stopping streaming of JPEG images.

Parameters that are set on the [Streaming] page will be saved when

transmission is started upon pressing the [Start] button.

BDestination

Address

For specifying the destination address of JPEG streaming.

Specify the multicast address. When other devices that make use of

multicast transmission exist, ensure that each of them is set to a different

multicast address.

CDestination Port For specifying the destination port number of JPEG streaming.

Specify an even number for RTP compliance.

When other devices that make use of multicast transmission exist, it is

recommended that each of them be set to a different port number.

Multiple multicast streams cannot be received on a single computer when

there are duplicate port numbers.

DFrame Rate For specifying the frame rate when sending JPEG images via multicast.

MPEG4

EControl For starting or stopping streaming of MPEG4 images.

Parameters that are set on the [Streaming] page will be saved when

transmission is started upon pressing the [Start] button.

FDestination

Address

For specifying the destination address for MPEG4 streaming.

Specify the multicast address. When other devices that make use of

multicast transmission exist, ensure that each of them is set to a different

multicast address.

GDestination Port For specifying the destination port number for MPEG4 streaming.

Specify an even number for RTP compliance.

When other devices that make use of multicast transmission exist, it is

recommended that each of them be set to a different port number.

Multiple multicast streams cannot be received on a single computer when

there are duplicate port numbers.

Setting Using Internet Explorer

Access Restrictions Page

This page is for setting client restrictions.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Access Restrictions]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

●This feature is targeted at JPEG/MPEG4 acquisition. It does not impose restrictions on access via a

web browser or use of API.

Note:

●The Access Restriction feature determines whether to impose restrictions during TCP connection by

the client. In the case when access restriction is set after TCP connection by a client has been

established, TCP connection will not be disconnected.

Setting (continued)

Click

Note:

●Note that when AallowB is selected and all IP address fields are left blank, JPEG/MPEG4 acquisition

by all IP addresses will be denied. Restrictions are not imposed on access to the Web Settings

page.

Additionally, the camera will also deny access when instructions for transmission to the specified IP

address are sent via API.

emo:

●To specify a specific IP address range, enter a combination of the IP address and subnet mask in

the [IP Address] item B field.

●Define the subnet mask using a length between 8 to 30 bits.

For example, a range between 192.168.0.0 to 192.168.0.255 is denoted as 192.168.0.0/24

([IP Address]/[bit length of subnet mask]).

Destination

Address

Restrictions may be imposed on clients accessing the camera using the IP

address.

AAccess

Restrictions

When AdenyB is selected, acquisition of JPEG/MPEG4 via the IP address

specified for the [IP Address] item B will be denied. Restrictions are not

imposed on access to the Web Settings page.

When AallowB is selected, acquisition of JPEG/MPEG4 via the IP address

specified for the [IP Address] item B will be permitted. Restrictions are not

imposed on access to the Web Settings page.

BIP Address When a multicast address is specified and AdenyB is selected, the camera

will deny transmission to this multicast address.

When a multicast address is specified and AallowB is selected, the camera

will only accept transmission to this multicast address and deny transmission

to multicast addresses that are not stated in the [IP Address] item B field.

Setting Using Internet Explorer

Time Page

This page is for setting time.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Time]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

●If the [OK] button is pressed upon entering an invalid value, a warning message will appear and the

entry will be denied. Press the [Cancel] button to restore the invalid entry to the current value.

Setting (continued)

Click

ASNTP For setting the SNTP client feature.

When this is set to AOnB, the system accesses the specified NTP server at

regular intervals to acquire the time.

In addition, time will be recorded in the JPEG headers distributed by the

camera. Discontinuity in JPEG header’s time may occur immediately before

and after acquiring time from the NTP server.

BNTP Server For setting the IP address of the NTP server.

CAccess Interval For setting the time interval for access to the NTP server.

DTime Displays the time on the clock of the camera.

The clock time can be changed by entering an appropriate value. (Second

value cannot be specified.)

In addition, time will be recorded in the JPEG headers distributed by the

camera. Discontinuity may occur in the JPEG header’s time immediately

before and after changing the time.

ETime Zone For setting the time zone.

FPC Time to

Camera

Click [Set] to load the clock time of the computer in use on the camera.

Password Page

This page is for setting the password.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Password]. Press the [OK] button to enable the new settings.

●Press the [OK] button to enable the new settings.

Note:

●Be sure to handle the password carefully in case you forget it.

●If you have forgotten the password, please consult your nearest JVC dealer.

Click

AUsername Select a user name.

BNew Password Enter a new password.

Passwords should be 8 characters or less (no space allowed). Camera is

case-sensitive.

CNew Password

Again

Enter again to confirm the new password.

Setting Using Internet Explorer

Maintenance Page

This page is for maintenance purposes.

This page can be used during access using AadminB.

●Click [Advanced Settings] to display setting menu.

●Click [Maintenance]. Press the [OK] button to enable the new settings.

Setting (continued)

Click

ARestart Reboots the camera. (It takes about one minute for the camera to reboot.)

BAll Settings

[Initialize]

Restores all settings to their default values and reboots the unit. (It takes

about one minute for the camera to initialize and reboot.)

Passwords will also be initialized. The built-in clock of the camera will not be

affected. JPEG/MPEG4 transmission and all other services that are running

will be discontinued.

CUpdate Upgrades the firmware version of the camera and reboots the unit.

Select the update target from [Streaming Manager], [PTZ Controller] or

[Image Processor].

The settings of the camera will be saved. Copy the new firmware file to the

computer on which Internet Explorer is used, and specify this file using the

[Browse...] button. Press the [Update] button to start the update. JPEG/

MPEG4 transmission and all other services that are running will be

discontinued. The update process may take several minutes.

A message will be displayed on the Internet Explorer when update is

successfully completed.

Note:

●Do not turn off the power when update is in progress or during reboot

after update is complete. Turning off the power of the camera may cause

it to malfunction.

●Before updating, end all accesses to the camera (such as viewer) other

than from this page. If there are accesses from other pages, when update

starts, the access from this page may be disconnected. In this case, end

all the accesses from other pages, then access this page and try

updating again.

Auto Cleaning

This item sets whether to automatically clean the power and signal

transmission components.

Note:

●When the camera has stopped at the pan position for more than 7 days, it

will pan at the specified time and perform cleaning automatically.

Auto Cleanig Time

This item sets the time to start cleaning.

To change the setting, enter the time and click the [Apply] button.

[Setting values:0-23 h, 0-59 m]

Setting Using Internet Explorer

List of Factory Settings of Each Page

䡵Camera Page(A Page 51)

䡵Encoding Page(A Page 56)

䡵Alarm Page(A Page 58)

Setting (continued)

Item Factory Settings

Camera ID AVN-V685B

(For VN-V685U)

AVN-V686B

(For VN-V686BU/

VN-V686WPBU)

Monitor Type Custom

Black Level 1

Gamma 1

Active Gamma Level 0

Enhance Frequency High

Enhance Level 0

Color Level 0

Stabilizer Off

Stabilizer Level Mid

Noise Reduction Off

AGC High

Sense Up Off

ALC Priority Motion

Shutter Speed 1/60

B/W Mode Color

IR Preset AF Off

Light Normal

Item Factory Settings

JPEG Frame Size VGA

MPEG4 Frame Size VGA

JPEG Quality VFS4

MPEG4 Bitrate 2000 kbps

MPEG4 Bitrate Control CBR

MPEG4 FPS 15 fps

MPEG4 I Frame Interval 30

MPEG4 Priority FPS

Item Factory Settings

Action Disable

1st Trigger Input 1 Make

Max. Interval ^

2nd Trigger Disable

Action Position No. ^

Trigger Position No. ^

Mail Address ^

Mail Text

Attach Image Off

TCP/UDP IP Address ^

TCP/UDP Port Number ^

TCP/UDP Data ^

Alarm Output Duration ^

Time Filter Unmask All

䡵Alarm Environment Page(A Page 62) 䡵PTZ Page(A Page 66)

Item Factory Settings

SMTP Server 0.0.0.0

Port Number 25

Send Mail Address ^

POP before SMTP Off

POP Server 0.0.0.0

Port Number 110

Username ^

Password ^

FTP Server 0.0.0.0

Directory ^

Username ^

Password ^

Periodic FTP Off

Periodic FTP Interval 1

Periodic FTP Time Filter Auto

Periodic FTP Time Filter Unmask All

PrePostRecording Frame Rate

15 fps

PrePostRecording Before

Trigger

5 sec

PrePostRecording After Trigger

5 sec

Duration Output1 1000 msec

Duration Output2 1000 msec

Manual Output Output1 Break

Manual Output Output2 Break

Item Factory Settings

Mode none

Return Time 1 minute

Restart Time Off

Auto Tracking Level 5

Tracking Zoom On

Tracking Zoom Limit 5 Times

EZoom Limit 2

Pan Limit Off

Tilt Limit 0 degree

Preset Position Speed 4

Auto Flip Digital Flip

Setting Using Internet Explorer

List of Factory Settings of Each Page

(continued)

䡵Auto Patrol Page(A Page 72)

䡵Privacy Mask Page(A Page 74)

䡵Motion Detection Page(A Page 76)

䡵Network Basic Page(A Page 78)

䡵Network Details Page(A Page 80)

䡵Protocol Page(A Page 81)

Setting (continued)

Item Factory Settings

Position (Preset Position

number)

Time 10

Item Factory Settings

Privacy Mask Off

Mask 0 to 7 Off

Brightness 4

Password —

Item Factory Settings

Mask Clear Mask

Detection Off

Level 5

Item Factory Settings

IP Setting DHCP Enable

IP Address 192.168.0.2

Subnet Mask 255.255.255.0

Default Gateway 192.168.0.254

Host Name —

DNS Server 0.0.0.0

IP Protocol IP version4

IP version6

IPv6 Address Disable

Item Factory Settings

JPEG TOS 0

MPEG4 TOS 0

TTL (Unicast) 64

TTL (Multicast) 32

MTU 1500

Negotiation Auto

Item Factory Settings

HTTP Server Port 80

VSIP Protocol Off

VSIP Server Port 5510

AMX Device Discovery

Protocol

䡵Streaming Page(A Page 82)

䡵Access Restrictions Page

(A Page 84)

䡵Time Page(A Page 86)

䡵Password Page(A Page 87)

Item Factory Settings

JPEG Destination

Address

225.0.1.1

JPEG Destination Port 49152

JPEG Frame Rate 15 fps

MPEG4 Destination

Address

225.0.2.1

MPEG4 Destination Port 59152

Item Factory Settings

Access Restrictions deny

IP Address —

Item Factory Settings

SNTP Off

NTP Server 0.0.0.0

Access Interval hour,1

Time Zone (GMT)UTC

Item Factory Settings

Username AadminB

Current Password Blank

Default passwords

are:

AadminB:jvc

AoperatorB:jvc

AuserB:jvc

Setting Using Internet Explorer

Miscellaneous page

This page is for acquiring information.

This page can be used during access using AadminB, AoperatorB and AuserB.

●Click [Advanced Settings] to display setting menu.

●Click [Miscellaneous]. Press the [OK] button to enable the new settings.

Setting (continued)

Click

AOpen Source

Software

Press the [Show] button to display information of the software used by the

camera.

Operation Page

Displays the operating status of the camera.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Operation]. Press the [OK] button to enable the new settings.

Click

Operation

ATotal Sending

Bitrate

Displays the total TCP/UDP bit rate sent by the camera as well as the

individual bit rates.

BDestination Displays the destination that the camera is sending data to.

Log

CSystem Log Displays the following information.

●Number of seconds after startup

●Alarm information

Setting Using Internet Explorer

Settings Page

This page displays the version information and settings of the camera.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Settings]. Press the [OK] button to enable the new settings.

Setting (continued)

Click

Setting Using Internet Explorer

Settings Page (continued)

Setting (continued)

Position List Page

This page displays information on preset positions.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Position List]. Press the [OK] button to enable the new settings.

Click

100

Setting Using Internet Explorer

Patrol Settings Page

This page displays the information and settings of Auto Patrol.

This page can be used during access using AadminB or AoperatorB.

●Click [Advanced Settings] to display setting menu.

●Click [Patrol Infomation]. Press the [OK] button to enable the new settings.

Setting (continued)

Click

101

Operation

This product comes with a built-in integrated viewer.

The built-in viewer is activitated by entering an IP address into the Internet Explorer. The built-in viewer

enables monitoring and PTZ operation to be done in either JPEG or MPEG4 formats.

䡵Using the compressed JPEG format enables display of a series of still images as well as one-

shot recording of still images.

䡵Using the compressed MPEG4 format enables display of MPEG4-encoded motion images.

⽧AOperationB (APage102)

⽧AImage quality settingB (APage104)

⽧APTZ SettingB (APage107)

⽧APTZ ControlB (APage113)

⽧AJPEG Viewer SettingsB (APage118)

⽧AMPEG4 Viewer SettingsB (APage120)

⽧AExiting the ViewerB (APage123)

Built-in Viewer

When the display or configuration of the opened screen appears strange, check the computer

settings using the following procedures.

AClick [Start]-[Control Panel]-[Display] and open the [Display Properties] window

BClick the [Settings] tab in the [Display Properties] window and click the [Advanced] button

CCheck that [DPI setting] in the [General] tab has become [Normal size(96DPI)]

DOtherwise, change the setting to [Normal size(96DPI)] and reboot Windows

102

Operation

Screen Configuration of Built-in Viewer

●When the JPEG Viewer is first installed, it is set to play back at 15 fps by default.

Built-in Viewer (continued)

ABCDE F G H

AMENU OFF

MENU ON

For showing/hiding the operation menu.

BControl Switches to the PTZ menu. Click this button when you want to perform

AImage SettingsB, APTZ settingB or APTZ ControlB. (A Page 104)

CViewer Setup Switches to the viewer settings menu.

Click this button when you want to configure the settings of AJPEG

Viewer SettingsB, AMPEG4 Viewer SettingsB or AOperator PasswordB.

DCapture Captures the currently displayed image on the computer. The captured

data is recorded as a JPEG file in the folder that is created under [My

Documents] of the computer.

The default folder name is AVN-V685B(VN-V685U) or “VN-V686B”(VN-

V686BU/VN-V686WPBU).

The file name is made up of the year, month, day, hour, minute, second,

and millisecond.

emo:

●In the case of Windows Vista, images are stored under [Document].

●The folder name can be changed. (A Page 119)

●The time indicated is the computer’s clock time, not the clock ATimeB

of the camera.

●Motion images cannot be captured.

●MPEG4 images cannot be captured.

103

emo:

●The settings of Built-in Viewer are stored in the file named Cookie.

䡵Searching and deleting cookie files

●Open [Tool]-[Internet Options]-[Advanced] of the Internet Explorer, and press the [Settings] button

under [Temporary Internet Files]. A new [Settings] will appear. Press the [View Files] button in this

window. The [Temporary Internet Files] window opens up and a list of files will be displayed. The file

named Acgi-binB in this list is the Cookie for the Built-in Viewer.

●Deleting this file deletes the view settings, and the viewer will be initialized during the next startup.

EStop Pauses/Resumes playback of images.

FCompression Switches the stream to acquire. You can specify either JPEG or MPEG4.

GDisplay Size For specifying the display size of the image area.

[Fixed] : Display according to the window size of the browser.

[Variable] : Display according to the specified frame size.

emo:

●The window size of the browser does not change when [Fixed] or

[Variable] is selected.

HDetalis Starts up the page for configuring the various detailed settings.

This setting screen is used to set Built-in Viewer as a software on the computer, and does not apply

to settings of the camera unit.

When settings are changed, press the [OK] button to exit and restart the Built-in Viewer.

104

Operation

Image quality setting

䡵Image Settings

For adjusting the picture quality.

●When a different menu is currently being displayed, click [Control] to switch the menu.

●Click each menu bar on the left of the screen to open the setting screen.

Built-in Viewer (continued)

Click

AWhite Balance

For selecting the white balance control feature.

Mode

ATW-Wide : This is the Auto-Tracking White Balance mode (Automatic color

temperature tracking). The camera adjusts the white balance

automatically according to the color temperature of the illumination.

(Color temperature range of 2,300K to 10,000K)

ATW-Narrow : This mode supports a narrower range of color temperature than

ATW-Wide.(Color temperature range of 3,200K to 8,000K)

ATW-Full : ATW is performed in a wider color temperature range.

ATW-Sodium : Under the light of a high-pressure sodium lamp, the color is closer to

the actual one.

AWC : Switches to the Auto-White Balance Control mode. In the

AWC

mode, values entered for the [R Gain] and [B Gain] items are applied

to white balance.

R Gain

Adjusts the R (red) hue during AWC.

[+] : Increases the redness or red level.

[-] : Decreases the redness or red level.

emo:

●

Click the [+] or [-] button once to change to the next value. To change the value

continuously, click repeatedly. The value will not change if the button remains pressed

down.

105

AWhite Balance (continued)

B Gain

Adjusts the B (blue) hue during AWC.

[+] : Increases the blueness or blue level.

[-] : Decreases the blueness or blue level.

emo:

●

Click the [+] or [-] button once to change to the next value. To change the value continuously,

click repeatedly. The value will not change if the button remains pressed down.

[AWC]button

Executes AWC (automatic white balance control).Execute by placing a white object

around the center of the screen in a location with a lighting condition that is similar to the

object to be shot.

●

Pressing the [AWC] button replaces the [R Gain]] and [B Gain] valueswith the values of

the AWC execution results.

●

Even when [White Balance] is set to

AT W- N a r r ow

AT W- W i d e

, pressing the [AWC]

button switches the mode automatically to AWC.

BIris

This item sets the iris.

Mode

When Auto -1, Auto, or Auto +1 is selected, the iris is adjusted automatically.

Manual

You can also adjust using the [+] and [-] buttons. In this case, the iris will change while the

button is being pressed. It will stop when the button is released.

CBack Light

Compensation

For selecting the backlight compensation feature. Set this feature when there is a bright

light source in the same direction as the object. Enables unwanted light sources to be

excluded from the photometry area.

Mode

Off : No backlight compensation.

Area1 to Area4 : For selecting a photometry area from the four available types.

[Setting value:Off, Area1, Area2, Area3, Area4]

emo:

●

The backlight compensation area is not linked to digital PTZ.

DB/W Mode

This sets the function to switch from Color to B&W mode.

Mode

Color : Always be in Color mode.

Black & White : Always be in B&W mode.

Auto : Auto Low,Auto Mid,Auto High

: This item automatically switches between Color Mode and B&W

Mode when the luminance meets defined conditions for over 30

seconds. Select the sensitivity from three options.

[Setting value:Color, Black & White, Auto]

emo:

To ensure a successful B&W/Color switching

●

If the [B/W Mode] item is set to

Auto Low, Auto Mid, Auto High

, the B&W/Color

setting can be switched according to the brightness of the object, but the condition of

illumination and field angle may make this impossible. To be absolutely certain of

B&W/Color switching, connecting external sensor to alarm input cable of this camera

and setting alarm action of B&W mode is recommended.

Off Area1 Area2 Area3 Area4

Photometry

Area

Photometry

Area

Photometry

Area

Photometry

Area

Photometry

Area

106

Operation

PTZ Setting

䡵Preset Position

This page describes procedures for setting the preset positions.

●When a different menu is currently being displayed, click [Control] to switch the menu.

●Click the menu bar on the left side of the screen to open the setting screen.

Built-in Viewer (continued)

Click

107

䡵Preset Position For setting the Preset Position.

Note:

●When [Auto Flip] is set to ADigital FlipB, preset positions cannot be

registered when the tilt angle is more than 90 degrees.

[Auto Flip] (A Page 71)

●When setting preset positions and [Pan Limit] is AOnB, pan operation is

unavailable in the prohibited areas. [Pan Limit] (A Page 69)

●As moving preset positions has priority over pan limit, set the preset

positions when [Pan Limit] is AOffB. After that, when [Pan Limit] is set to

AOnB, the camera will pan regardless of the prohibited areas. [Pan Limit]

(A Page 69)

●Items that are stored in the preset position include pan, tilt, zoom, focus,

position title, white balance, iris, and backlight compensation.

APosition For selecting [Position].

[Setting value:HOME, 1 to 99]

BTitle The current title appears.

Enter here to register or change the title.

(Up to 32 alphanumeric characters can be entered. When JPEG viewer is

used, up to 16 alphanumeric characters are displayed.)

emo:

●Click [Unreaiste] button to delete information of the selected position.

However, [HOME] cannot be deleted.

●The display area of Home position is set to the full screen by default.

CPan /Tilt /

Zoom

䡵Pan/Tilt operation

Click the arrow buttons to move the display area in the direction indicated by

the arrow. Release the button to stop the movement.

Click the [H] button to move to the home position.

䡵Zoom operation

Use this function to perform zoom operation on the display area.

[+] : Zoom is set to TELE and the object becomes bigger.

[-] : Zoom is set to WIDE and the object becomes smaller.

䡵Ratio to Full Area

Shows current ratio to full area.

emo:

●You can restrict the magnification of the object using the [+] button by

altering the [Zoom Limit] settings. (A Page 69)

DSpeed This item sets the operation speed.

Pan/Tilt : This item sets the operation speed of the [Pan/Tilt] operation

button.Increase the number to increase the operation speed.

[Setting range: 1 to 8]

Zoom : This item sets the operation speed of the [Zoom] operation

button.Increase the number to increase the operation speed.

[Setting range: 1 to 4]

108

Operation

PTZ Setting (continued)

䡵Auto Pan

For setting the Auto Pan.

●When a different menu is currently being displayed, click [Control] to switch the menu.

●Click the menu bar on the left side of the screen to open the setting screen.

Built-in Viewer (continued)

Click

109

䡵Auto Pan This item sets the Auto Pan operation which moves at a specific speed from

the preset [Start].

AMode

Select the [Mode] of the Auto Pan operation.

Right : This rotates the camera horizontally in the right direction from

the [Start Position].

Left : This rotates the camera horizontally in the left direction from the

[Start Position].

Return : Moves between [Start Position] and [Start Position] in the

clockwise direction from the [Start Position] toward the [Return

Position].

You can specify any random position as the start and return

positions except under the following conditions.

Tilt angle of 90 ° or larger

: An error message appears if the angle is set to 90 ° or larger.

Electronic zoom area

: When setting is performed using the electronic zoom area,

optical zoom is automatically set to its largest magnification

ratio.

emo:

●If the zoom ratio between the [Start Position] and [Return Position] is

different from each other, linked operations between zoom and pan/tilt

may not be even.

ASpeed Select the Auto Pan operation speed.

[Setting value:Low, Mid, High]

BStart

Position

Return

Position

Select the [Start Position] and [Return Position] (only during AReturnB) of the

operation. Operate the camera manually, decide on a position and click

[Apply] to register. Click [Go To] to move the camera to the registered

position.

emo:

●For details on the manual operation, see [PTZ Control] (A Page 113).

110

Operation

PTZ Setting (continued)

䡵Auto Trace

For setting the Auto Trace.

●When a different menu is currently being displayed, click [Control] to switch the menu.

●Click the menu bar on the left side of the screen to open the setting screen.

Built-in Viewer (continued)

Click

111

䡵

Auto Trace

This item stores and reproduces manual operation.

Note:

●

As Auto Trace performs simple saving of manual operation, the position may be shifted

during playback.

●

Digital Flip cannot be used during Auto Trace recording. .

State

[Record Start] : The camera will start recording of Pan/Tilt and Zoom

operations. (for approximately 30 seconds)

[Record Stop] : Click this when a recording operation is complete.

emo:

●

For details on the manual operation, see [PTZ Control] (

Page 113).

[State] Display

The current status is displayed.

Standby : The camera is on standby. [Record Stop] is invalid.

Recording : The camera is recording. Click [Record Stop] to finish

recording. ACompletedB will be displayed.

Completed : Recording is completed. After ACompletedB is displayed

for 3 seconds, AStandbyB will be displayed.

Timeout : 30 seconds has passed since recording started.

(Operation for the 30 seconds has been recorded.) After

ATimeoutB is displayed for 3 seconds, AStandbyB will be

displayed.

Memory Full : The operation has exceeded the number of recordable

operations. Further recording cannot be made even if it is

within 30 seconds. (Operations before the limit are

recorded.)) After AMemory FullB is displayed for 3 seconds,

AStandbyB will be displayed.

Pan /Tilt /Zoom

䡵

Pan/Tilt operation

Click the arrow buttons to move the display area in the direction indicated by the arrow.

Release the button to stop the movement.

Click the [H] button to move to the home position.

䡵

Zoom operation

Use this function to perform zoom operation on the display area.

[+] : Zoom is set to TELE and the object becomes bigger.

[-] : Zoom is set to WIDE and the object becomes smaller.

䡵

Ratio to Full Area

Shows current ratio to full area.

emo:

●

You can restrict the magnification of the object using the [+] button by altering the

[Zoom Limit] settings. (

Page 69)

Speed

This item sets the operation speed.

Pan/Tilt : This item sets the operation speed of the [Pan/Tilt] operation

button.Increase the number to increase the operation speed.

[Setting range:1 to 8]

Zoom : This item sets the operation speed of the [Zoom] operation

button.Increase the number to increase the operation speed.

[Setting range: 1 to 4]

112

Operation

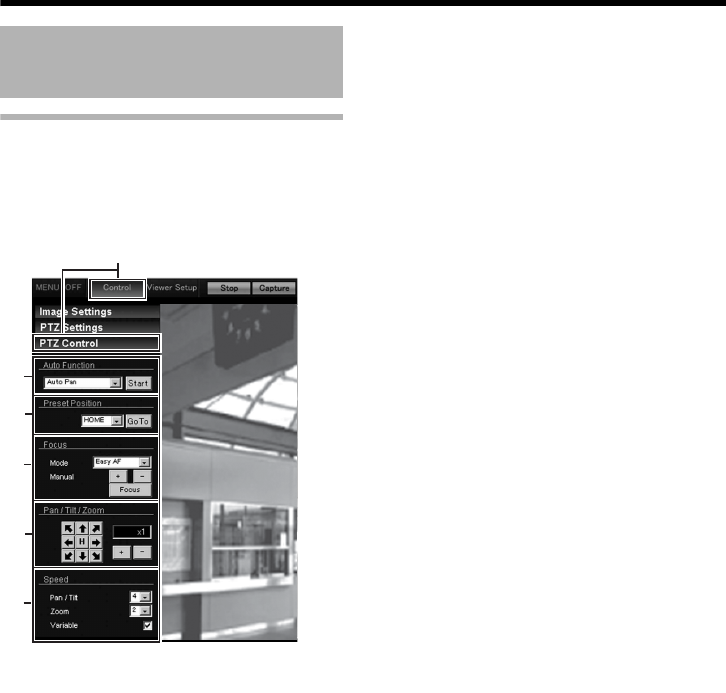

PTZ Control

䡵PTZ Control

Use this item to operate the PTZ feature.

●When a different menu is currently being displayed, click [Control] to switch the menu.

●Click the menu bar on the left side of the screen to open the setting screen.

Built-in Viewer (continued)

Click

113

䡵PTZ Control For operating the camera and adjusting the angle and image quality of the

position to be registered.

AAuto

Function

For selecting the operation.

[Start] : Start the selected Auto function.

[Stop] : Stop the running Auto function.

emo:

●When AAuto PatrolB is selected, the patrol mode list is displayed.

●When AIntelligent TrackingB is selected, the target’s list is displayed.

Auto Pan : The configured Auto Pan operation is performed.

(A Page 109)

Auto Patrol : The configured Auto Patrol operation is executed. Select

AAuto PatrolB.(A Page 72)

Auto Trace :The configured Auto Trace operation is performed.

(A Page 111)

Auto Tracking : Auto tracking is performed. (A Page 67)

Motion detection does not work during Auto Tracking.

Intelligent Tracking

: Intelligent tracking is performed. (A Page 116)

Note:

●When the [Mode] item of [Auto Return] is set to AAuto PatrolB and Auto

Patrol starts in this screen, the AAuto PatrolB mode of [Auto Return] will

be changed to the mode that was started in this screen. [Auto Return]

(A Page 66)

●When AAuto PanB starts, the camera will repeat the left rotate, right rotate

or return operations.

●When AAuto PatrolB starts, the camera will complete a series of

operations and return to the start position, and then repeat the entire

process. When Auto Trace starts, the camera will perform a series of

operations before returning to the start position. It will resume after 30

seconds. If Auto Return function is set, the Auto function that was started

manually is stopped when AAuto ReturnB starts.

BPreset

Position

For selecting the preset position. When the selected position has been

registered, the camera will move to the selected position.

[Setting range: HOME, 1 to 19]

114

Operation

PTZ Control (continued)

Built-in Viewer (continued)

䡵PTZ Control (continued)

CFocus

This item adjusts the focus.

Mode : Shows the current mode.

Easy AF : Auto Focus (AF) will activate automatically when the pan, tilt or

zoom function is operated manually. This is convenient as you

need not reset the focus everytime you move the camera when

there are many manual operations.

Manual : Click the [+], [-] buttons to adjust manually. The focus will change

while the button is being pressed. It will stop when the button is

released.

[Focus] button : Click this button to focus automatically in about 1 second

emo:

●

The

Easy AF

function may not focus properly for some objects. In this case, set

the focus manually.

DPan /Tilt /

Zoom

䡵

Pan/Tilt operation

Click the arrow buttons to move the display area in the direction indicated by the

arrow. Release the button to stop the movement.

Click the [H] button to move to the home position.

䡵

Zoom operation

Use this function to perform zoom operation on the display area.

[+] : Zoom is set to TELE and the object becomes bigger.

[-] : Zoom is set to WIDE and the object becomes smaller.

䡵

Ratio to Full Area

Shows current ratio to full area.

emo:

●

You can restrict the magnification of the object using the [+] button by altering the

[Zoom Limit] settings. (

Page 69)

ESpeed This item sets the operation speed.

Pan/Tilt : This item sets the operation speed of the [Pan/Tilt] operation

button.Increase the number to increase the operation speed.

[Setting range: 1 to 8]

Zoom : This item sets the operation speed of the [Zoom] operation

button.Increase the number to increase the operation speed.

[Setting range: 1 to 4]

Variable Speed : This function adjusts the Pan/Tilt operation speed by the

zoom ratio. Select the checkbox to slow down at the Tele

end and to move quickly at the Wide end. Deselect the

checkbox to move the camera at a constant speed

configured in Pan/Tilt regardless of the zoom ratio.

115

䡵Intelligent Tracking feature

Use this item to operate the Intelligent Tracking feature.

●When a different menu is currently being displayed, click [Control] to switch the menu.

●Click each menu bar on the left of the screen to open the setting screen.

Standby

Locked

MPEG4 Viewer screen

116

Operation

PTZ Control (continued)

Built-in Viewer (continued)

䡵Intelligent

Tracking

Click on the object on the viewer screen to shoot the selected object by

tracking its color information.

emo:

●You can change the object to track freely by clicking the object when

ALockedB or ALosingB is displayed.

●You can select whether to display the [Tracking Frame] (JPEG Viewer

only) and [Tracking Status] displays on the setting screen. (A

Page 118)(A Page 121)

Note:

●When the OS of the computer is WindowsXP, click the viewer screen

once to activate the screen before clicking on the object to track.

AFor selecting [Intelligent Tracking].

BClick [Start].

●Intelligent Tracking switches to the standby mode, and Standby is shown

on the top right corner of the viewer screen. (JPEG Viewer)

●Intelligent Tracking switches to the standby mode, and Standby is shown

in the title bar. (MPEG4 Viewer)

CClick on the object to track on the viewer screen.

●The object is surrounded by [Tracking Status] (blue frame). (JPEG

Viewer only)

●When an object is being captured, ALockedB appears on the top right

corner of the viewer screen. When the camera loses track of the object,

this appears as ALosingB. (JPEG Viewer)

●When an object is being captured, ALockedB appears in the title bar.

When the camera loses track of the object, this appears as ALosingB.

(MPEG4 Viewer)

117

JPEG Viewer Settings

Using the compressed JPEG format enables display of a series of still images as well as one-shot

recording of still images.

When the JPEG Viewer is first installed, it is set to play back at 15 fps by default.

●When a different menu is currently being displayed, click [Viewer Setup] to switch the menu.

●Click each menu bar on the left of the screen to open the setting screen.

Click Click Click

䡵On Screen Display 䡵Stream 䡵Other

䡵On Screen Display

Settings

For setting display items on the viewer screen.

For the JPEG Viewer, characters are displayed as overlay on the video

image.

ACamera ID Select AOnB to display [Camera ID]. (Up to 16 alphanumeric characters

will be displayed.)

[Camera ID] can be specified on the [Basic Settings2] or [Camera] page.

(A Page 51)

BPositionTitle Select AOnB to display the PositionTitle.

CDisplay MD Selecting AOnB displays the area in which motion is detected in red.

DTracking Frame When AOnB is selected, the blue frame that surrounds the tracked object

of AIntelligent TrackingB appears on the screen. (A Page 116)

ETracking Status When AOnB is selected, the AIntelligent TrackingB status appears as

AStandbyB, ALockedB, or ALosingB on the screen. (A Page 116)

FTime Select AOnB to display the time.

This indicates the time that is stored in the JPEG data.

GFormat Select the format for displaying time.

YYYY, MM, and DD denote year, month and day respectively, while HH,

MM, and SS denote hour, minute and second respectively. mm is

equivalent to 1/100 seconds.

118

Operation

JPEG Viewer Settings (continued)

Built-in Viewer (continued)

䡵Stream For specifying settings for receiving JPEG stream.

AStream For selecting the protocol when the viewer acquires data from the

camera.

When AHTTPB is selected, lost packets are recovered via resending.

Camera may be monitored using multiple viewers when AMulticastB is

selected. When playing back via multicast, start multicast sending on the

[Streaming] page.

[Streaming Page] (A Page 82)

Note:

●When Built-in Viewer is launched with AMulticastB specified, a

Windows firewall warning may appear. In this case, select AunblockB

and proceed.

●If AblockB is selected, the Windows firewall will block the multicast

stream and playback of AMulticastB by the viewer will fail.

BHTTP Port You can change the HTTP port number.

The default port number setting is A80B.

Specify the same value as the parameter that is set on the [Protocol]

page of the camera. (A Page 81)

CFrame Rate For selecting the acquisition frame rate of the viewer.

Selecting a large frame rate will increase the processing load of the

computer on which the viewer is running.

[Setting values:30, 25, 15, 10, 7.5, 6, 5, 3, 2, 1, 1/2, 1/3, 1/5, 1/10, 1/15,

1/20, 1/30, 1/60]

Note:

●Set to a rate such that the CPU burden of the computer does not

exceed 80 %. If the CPU is overloaded, the computer may not

function properly.

DMulticast IP

Address

You can change the multicast IP address.

The default IP address setting is A225.0.1.1B.

EMulticast Port You can change the multicast port number.

The default port number setting is A49152B.

emo:

●This is enabled when [Start] is selected for the[JPEG] [Control] item

on the [Streaming] page.

●Specify the same value as the parameter that is set on the

[Streaming] page of the camera. (A Page 82)

Other

AFolder Name For specifying the name of the folder in which the captured files are

stored. (When the viewer is installed: AVN-V685B(VN-V685U),AVN-

V686BB(VN-V686BU/VN-V686WPBU)

119

MPEG4 Viewer Settings

Using the compressed MPEG4 format enables display of MPEG4-encoded motion images.

●When a different menu is currently being displayed, click [Viewer Setup] to switch the menu.

●Click each menu bar on the left of the screen to open the setting screen.

emo:

●To use the MPEG4 Viewer of the camera, install the open source codec “ffdshow”. You can

download “ffdshow” from the Internet.

Click

䡵Title Bar

Click

䡵Stream

120

Operation

MPEG4 Viewer Settings (continued)

Built-in Viewer (continued)

䡵Title Bar

For setting display items on the viewer screen.

For the MPEG4 Viewer, characters are displayed in the title bar of the window.

ACamera ID

Select

to display [Camera ID]. (Up to 16 alphanumeric characters will be

displayed.)

[Camera ID] can be specified on the [Basic Settings2] or [Camera] page. (

Page 51)

BPosition Title

Select

to display the title of the position that is being displayed.

CTracking Frame

When

is selected, the

Intelligent Tracking

status appears as

Standby

Recording

, or

Completed

on the screen. (

Page 69).

DTime

Select

to display the time.

EFormat

Select the format for displaying time.

YYYY, MM, and DD denote year, month and day respectively, while HH, MM, and SS

denote hour, minute and second respectively. mm is equivalent to 1/100 seconds.

䡵Stream

For specifying settings for receiving MPEG4 stream.

AStream

For selecting the protocol when the viewer acquires data from the camera.

When

HTTP

is selected, lost packets are recovered via resending. Camera may be

monitored using multiple viewers when

Multicast

is selected.

emo:

●

When playing back via multicast, start multicast sending on the [Streaming] page

of the camera unit.

[Streaming Page] (

Page 82)

Note:

●

When Built-in Viewer is launched with

Multicast

specified, a Windows firewall

warning may appear. In this case, select

unblock

and proceed.

●

block

is selected, the Windows firewall will block the multicast stream and

playback of multicast by the viewer will fail.

BHTTP Port

You can change the HTTP port number.

The default port number setting is 80.

Specify the same value as the parameter that is set on the [Protocol] page of the

camera. (

Page 81)

CMulticast IP

Address

You can change the multicast IP address.

The default address is 225.0.2.1.

DMulticast Port

You can change the multicast port number.

The default port number setting is 59152.

emo:

●

This is enabled when

Start

is selected for the [JPEG Control] item on the

[Streaming] page.

●

Specify the same value as the parameter that is set on the [Streaming] page of

the camera. (

Page 82)

121

Operator Password

This section describes the procedures for configuring the Operator Password, which is required for PTZ

operation.

●When a different menu is currently being displayed, click [Viewer Setup] to switch the menu.

●Click the menu bar on the left side of the screen to open the setting screen.

Click

䡵Operator Password For configuring the Operator Password required for PTZ operation.

AOperator

Password

Enter the Operator Password.

122

Operation

Exiting the Viewer

To exit, press the [X] button at the top right of the window.

●During the next startup of Built-in Viewer, launch the Internet Explorer and enter the URL of the

camera in the address field.

For example, if the IP address of the camera is 192.168.0.2, enter as follows:

http://192.168.0.2/

emo:

●After the [Security Settings] screen appears, press the [OK] button to proceed.

Built-in Viewer (continued)

Click

123

Others

Troubleshooting

Symptom Causes and Countermeasures Reference

Page

Video image does not appear

Power does not turn on.

●

Is there a problem with the power cable connecting this

unit and the power unit? (If the power cable is too long or

thin, the cable resistance will be high and the correct

voltage may not be supplied.)

Use a cable of low resistance and the correct cable

length. (When the camera is operating (at rated

current), check that the supplied voltage is of the rated

voltage at the terminal of the camera.)

A Page 23

A Page 30

●

Is the lens cap attached?

Remove the lens cap.

A Page 21

A Page 26

The power of the camera

turns off when VN-

V686WPBU is used in an

environment under -10I.

●

When power is supplied using PoE, the heater will not

work. Use an AC 24 V power supply when using VN-

V686WPBU in an environment under -10

A Page 30

The power does not turn on

even when PoE is used to

supply power.

●

With some PoE-compatible devices (such as a hub),

power will not be supplied when connected to a certain

number of PoE terminals which exceed the limit of total

electrical power that can be supplied. Please refer to the

instruction manual of PoE-compatible devices.

IP address of the camera is

unknown

●

The default IP address is 192.168.0.2, and the default

Subnet Mask is 255.255.255.0.

●

When [IP Setting] is set to

DHCP Enable

, this product

will run using the default IP address when it is started up

via a LAN in which a DHCP server does not exist.

●

Search tool in attached CD-ROM is available to look for

the camera using a PC in the same LAN.

A Page 40

The web page of the camera

cannot be displayed

Check the Internet Explorer settings.

When a proxy server is in use, configure the proxy server

settings of the Internet Explorer accordingly.

A Page 44

Built-in Viewer cannot be

installed

Check the Internet Explorer settings.

Built-in Viewer consists of a software component called

ActiveX.

The ActiveX is usually installed when Built-in Viewer is used

for the first time. However, installation may be rejected

depending on the Anti-virus software settings. In this case,

change the settings of the Anti-virus software before installing

Built-in Viewer.

A Page 102

124

Others

Troubleshooting (continued)

Symptom Causes and Countermeasures Reference

Page

Authentication by VeriSign

appears during installation of

Built-in Viewer

VeriSign’s electronic signature is stored in Built-in Viewer.

For computers with a network environment that is connected

to the Internet, the authenticity of the Built-in Viewer can be

verified via authentication by VeriSign.

Multicast images cannot be

played back

●

Start multicast transmission manually from the

[Streaming] page of the camera.

●

In the case of multicast reception at Built-in Viewer, check

that the multicast address and port number of Built-in

Viewer settings coincide with those on the [Streaming]

page of the camera.

Make use of a network that supports IGMP v2 for

multicast transmission.

●

Data may be blocked by the Windows firewall. When this

occurs, perform the following to allow it to pass through.

Windows

XP:

Double-click [Windows Firewall] under [Start]

[Control

Panel], click the [Add Port...] button under the Exception

tab, and register the port number to be allowed through

the firewall in the Port Number field. Enter an arbitrary

character string in the name field.

Windows

XP:

Double-click [Allow a program through Windows Firewall.]

under [Start]

[Control Panel]

[Windows Firewall], click

the [Add Port...] button under the Exception tab, and

in the Port Number field. Enter an arbitrary character

string in the name field.

A Page 82

A Page 119

A Page 121

The frame rate of the

displayed image is low

●

Check Built-in Viewer settings when a Built-in Viewer is in

use.

●

Frame rate will be constrained when the network

bandwidth is narrow.

A Page 57

A Page 82

A Page 33

A white zone appears in Built-

in Viewer

For some computers, a part of the Internet Explorer graphics

may not appear and is left white when the following setting is

performed on the Internet Explorer.

If [Right-click on the Desktop screen]

[Properties]

[Settings]

[Advanced]

[DPI setting] is set to

Large size

Custom size

, select

Normal size(96DPI)

to resume normal drawing.

A warning message appears

upon starting up Built-in

Viewer

Built-in Viewer consists of a software component

called ActiveX.

The ActiveX is usually installed when Built-in Viewer is used

for the first time. However, installation may be rejected

depending on the Anti-virus software settings. In this case,

change the settings of the Anti-virus software before installing

Built-in Viewer.

125

Symptom Causes and Countermeasures Reference

Page

TCP images cannot be

played back

The maximum number of images that can be sent

by the camera via TCP is 20, and up to 20 Built-in

Viewers can be connected to each camera unit.

Make use of multicast for monitoring when the

number of areas exceeds the above number.

Camera allows multicast transmission of JPEG and

MPEG4 one stream at a time.

A Page 33

Unable to receive alarm

notification using the

computer via TCP/UDP

●Data may be blocked by the Windows firewall.

When this occurs, perform the following to allow

it to pass through.

Windows XP:

Double-click [Windows Firewall] under [Start]-

[Control Panel], click the [Add Port...] button

under the Exception tab, and register the port

number to be allowed through the firewall in the

Port Number field. Enter an arbitrary character

string in the name field.

Windows XP:

Double-click [Allow a program through Windows

Firewall.] under [Start]-[Control Panel]-

[Windows Firewall], click the [Add Port...] button

under the Exception tab, and register the port

number to be allowed through the firewall in the

Port Number field. Enter an arbitrary character

string in the name field.

Power is turned on but it is

disconnected once the

camera rotates.

Are the transporting tape and cushioning material

removed?

BRemove the transporting tape and cushioning

material.

A Page 21

A Page 26

Characters of the file name

registered in the FTP server

are garbled

When double-byte characters are to be used for the

file name, make use of an FTP server for which the

character code is EUC-JP.

A Page 63

The MPEG4 Viewer screen

appears in black

Is ffdshow installed?

To use the MPEG4 Viewer of the camera, install the

open source codec “ffdshow”. You can download

“ffdshow” from the Internet.

ACaution : The fan(T) is

stoppedB appears on the

screen. (T denotes number)

The internal cooling fan is abnormal.

Write down the displayed text of BACaution : The

fan(T) is stoppedB and consult your nearest JVC

dealer. Turn off the power of this camera

beforehand.

The camera pans

automatically

When [Auto Cleaning] is set to AOnB, this is not an

abnormality. Check the settings.

A Page 89

126

Others

VN-V685U/VN-V686BU

䡵

CAMERA HEAD

Image pickup device: 1/4 type, Interline Transfer CCD

768 (H) x 494 (V)

Minimum brightness of object

Color : 1.0 lx (50 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

0.5 lx (25 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

During B&W : 0.08 lx (50 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

0.04 lx (25 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

White balance : Select from ATW-Narrow/ATW-

Wide/AWC

Electronic Shutter : 1/60, 1/100, (50 Hz Flickerless),

1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000

Backlight Compensation

: 4 photometry areas can be

selected

Color level adjustment

:YES

Contour adjustment : Effective for both horizontal and

vertical

(adjustable level)

䡵

Network section

Image compression format

:JPEG, MPEG4

Frame size : 640

⳯

480,320

⳯

240

Network interface

: 100BASE-TX/10BASE-T/FULL/

HALF/Auto negotiation supported

Internal memory : 8 MB

䡵

LAN Specifications

Compliant with IEEE802.3 and IEEE802.3u

Communication protocol

: TCP/IP, UDP, HTTP, FTP, ICMP,

ARP, DHCP, SNTP, SMTP, DSCP,

IGMP

䡵

Lens (VN-V685U)

Zoom ratio : Approx. 27 times

Focal length : 3.43 mm to 92.6 mm

Maximum aperture ratio

: F1.6 (WIDE) to F3.5 (TELE)

Aperture range : F1.6 (Opened fully) to Equivalent

to F360

Maximum close-range

: Approx. 1.8 m (TELE)

Approx. 0.6 m (WIDE)

䡵

Lens (VN-V686BU)

Zoom ratio : Approx. 36 times

Focal length : 3.43 mm to 122 mm

Maximum aperture ratio: F1.6 (WIDE) to F4.5 (TELE)

Aperture range : F1.6 (Opened fully) to Equivalent

to F360

Maximum close-range

: Approx. 1.8 m (TELE)

Approx. 0.6 m (WIDE)

䡵

Rotation platform

Horizontal rotation range

: 360

⬚

Endless rotation

Horizontal rotation speed

: Approx. 0.04

⬚

/s to Approx. 400

⬚

Vertical rotation range

:-5

⬚

to 185

⬚

(Horizontal to Face bottom to

Horizontal)

Vertical rotation speed

: Approx. 0.04

⬚

/s to Approx. 400

⬚

䡵

Overall

Alarm input : No-voltage a contact input, NPN

open collector input, low level,

latch/momentary (200 ms and

above) (Circuit current during low

level: 1 mA; Applied voltage during

high level: DC 3.3 V)

Alarm output : NPN open collector output

(Allowable applied voltage:DC20

V; Allowable inflow current: 25

mA)

Supply voltage : AC 24 V 50 Hz/60 Hz or PoE(DC -

48 V)

Current consumption

: AC 24 V 1.2 A

Power consumption : PoE 12.95 W

Number of preset positions

: Up to 100

Surrounding temperature

:-10

to 50

(operation)

to 40

(Recommended)

Ambient humidity : 20 % RH to 90 % RH

(without condensation)

Mass : Approx. 1.9 k

Specifications

127

䡵Accessories

: Read Me First ..................................... 1

CD-ROM ............................................. 1

Ceiling Mount ...................................... 1

Dome Cover ........................................ 1

Template ............................................. 1

Wire Clamp ......................................... 1

Warranty Card (For USA).................... 1

Service Information Card (For USA) ... 1

䡵Dimension [Unit: mm] 䡵Ceiling mounting hole [Unit: mm]

R160 (6 19/64)

201(7 59/64)

199 (7 53/64)

90.5(3 9/16)

SR72.5

(2 55/64)

Camera outer

diameter

FRONT mark

Front of camera

120⬚

Screw

mounting hole

R160(6 19/64)

Mounting hole

R80(3 5/32)

R140(5 33/64)

Position where cables are to be pulled

out from the side

(29/32)

22.5

(57/64)

Screw mounting hole

TSpecifications and appearance of this unit are subject to change for further improvement without

prior notice.

128

Others

VN-V686WPBU

䡵

CAMERA HEAD

Image pickup device: 1/4 type, Interline Transfer CCD

768 (H) x 494 (V)

Minimum brightness of object

Color : 1.0 lx (50 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

0.5 lx (25 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

During B&W : 0.08 lx (50 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

0.04 lx (25 % output, AGC Super,

WIDE edge, Monitor Type CRT,

Black Level 2)

White balance

: Select from ATW-Narrow/ATW-

Wide/AWC

Electronic Shutter : 1/60, 1/100, (50 Hz Flickerless),

1/250, 1/500, 1/1000,

1/2000, 1/4000, 1/10000

Backlight Compensation

: 4 photometry areas can be

selected

Color level adjustment

:YES

Contour adjustment : Effective for both horizontal and

vertical

(adjustable level)

䡵

Network section

Image compression format

:JPEG, MPEG4

Frame size : 640

⳯

480

320

⳯

240

Network interface : 100BASE-TX/10BASE-T/FULL/

HALF/Auto negotiation supported

Internal memory : 8 MB

䡵

LAN Specifications

Compliant with IEEE802.3 and IEEE802.3u

Communication protocol

: TCP/IP, UDP, HTTP, FTP, ICMP,

ARP, DHCP, SNTP, SMTP, DSCP,

IGMP

䡵

Lens

Zoom ratio : Approx. 36 times

Focal length : 3.43 mm to 122 mm

Maximum aperture ratio

: F1.6 (WIDE) to F4.5 (TELE)

Aperture range : F1.6 (Opened fully) to Equivalent

to F360

Maximum close-range

: Approx. 1.8 m (TELE)

Approx. 0.6 m (WIDE)

䡵

Rotation platform

Horizontal rotation range

: 360

⬚

Endless rotation

Horizontal rotation speed

: Approx. 0.04

⬚

/s to Approx. 400

⬚

Vertical rotation range

:-5

⬚

to 185

⬚

(Horizontal to Face bottom to

Horizontal)

Vertical rotation speed

: Approx. 0.04

⬚

/s to Approx. 400

⬚

䡵

Overall

Alarm input : No-voltage a contact input, NPN

open collector input, low level,

latch/momentary (200 ms and

above) (Circuit current during low

level: 1 mA; Applied voltage during

high level: DC 3.3 V)

Alarm output : NPN open collector output

(Allowable applied voltage:DC20

V; Allowable inflow current: 25

mA)

Number of preset positions

: Up to 100

Supply voltage : AC 24 V 50 Hz/60 Hz or PoE(DC -

48 V)

Current consumption

AC 24 V power supply

: AC 24 V 2.2 A,

Power consumption

PoE power supply

: PoE 12.95 W

Surrounding temperature

●

When heater is in use

: -40

to 50

(operation)

-30

to 40

(recommended)

Connect to AC 24 V when using the heater.

If the temperature is between -40

to -20

when

power is turned on, images may not be displayed

until the heater takes effect (about 2 hours).

●

When heater is not in use

: -10

to 50

(operation)

to 40

(recommended)

Ambient humidity : 20 % RH to 90 % RH

(without condensation)

Dust-proof, Waterproof

: IP66 (IEC60529)

Mass : Approx. 5.5 k

Specifications (continued)

129

䡵Accessories

: Read Me First ..................................... 1

CD-ROM ............................................. 1

Warranty Card (For USA).................... 1

Service Information Card (For USA) ... 1

RJ-45 Conversion Connector.............. 1

SILICA GEL ........................................ 3

䡵Dimension [Unit: mm (inch)]

TSpecifications and appearance of this unit are subject to change for further improvement without

prior notice.

385 (15

5/32

)

350 (13

25/32

)

213 (8

25/64

)

176 (6

59/64

)

(

51/64

)

152 (5

63/64

)

126 (4

31/32

)

260 ( 10

15/64

)

SR75 (2

61/64

)

140 (5

33/64

)

About

213

25/64

)

176

59/64

)

23/64

)

(

51/64

)

152(5

63/64

)

126(4

31/32

)

31/64

)

(1 3/4)

12(

15/32

)

30(1

3/16

)

VN-V685U/VN-V686BU

PTZ IP DOME CAMERA

VN-V686WPBU

OUTDOOR PTZ IP DOME CAMERA
