CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off

completely. The STANDBY/ON button in any

position does not disconnect the mains line. The power

can be remote controlled.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no

user serviceable parts inside the unit; leave all

servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when

open and interlock failed or defeated. Avoid direct

exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL,

PLACED INSIDE THE UNIT.

CAUTION:

•Do not block the ventilation openings or holes. (If the

ventilation openings or holes are blocked by a

newspaper or cloth, etc., the heat may not be able to

get out.)

• Do not place any naked flame sources, such as

lighted candles, on the apparatus.

•When discarding batteries, environmental problems

must be considered and local rules or laws

governing the disposal of these batteries must be

followed strictly.

• Do not expose this apparatus to rain, moisture,

dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the

apparatus.

.

Precautions

Notes on the power cord

• When you are away on travel or otherwise for an

extended period of time, remove the plug from the

wall outlet. A small amount of power (2.0 W) is always

consumed while the power cord is connected to the

wall outlet.

• When unplugging the player from the wall outlet,

always pull the plug, not the power cord.

• Do not handle the power cord with wet hands!

• Disconnect the power cord before cleaning the

player or moving the player.

• Do not alter, twist or pull the power cord, or put

anything heavy on it, which may cause fire, electric

shock, or other accidents.

•If the cord is damaged, consult a dealer and have the

power cord replaced with a new one.

Avoid moisture, water, dust, and high temperatures

• Do not place the player in moist or dusty places.

•If water gets inside the player, turn off the power and

remove the plug from the wall outlet, then consult

your dealer. Using the player in this state may cause

a fire or electrical shock.

•Do not expose the player to direct sunlight or place it

near a heating device.

Notes on installation

•Select a place which is level, dry and neither too hot

nor too cold between 5˚C and 35˚C (41˚F and 95˚F).

•Leave sufficient distance between the player and the

TV.

• Do not install the player in a place subject to

vibrations.

• Do not put heavy objects on the player.

To prevent malfunction of the player

• There are no user-serviceable parts inside. If

anything goes wrong, unplug the power cord and

consult your dealer.

• Do not insert any metallic objects, such as wires,

hairpins, coins, etc. into the player.

• Do not block the vents. Blocking the vents may

damage the player.

To clean the cabinet

• Use a soft cloth. Follow the relevant instructions on

the use of chemically-coated cloths.

• Do not use benzene, thinner or other organic

solvents and disinfectants. These may cause

deformation or discoloring.

Playable discs

• DVD VIDEO, SVCD, Video CD, Audio CD

• DVD-R/-RW written in the DVD VIDEO format

•CD-R/RW written in the SVCD, Video CD or Audio CD

format

• CD-R/RW written in MP3/JPEG/MPEG-4 in

accordance with the “ISO 9660” format

Supported Digital audio formats:

Linear PCM, Dolby Digital, DTS (Digital Theater

Systems)

NOTES

•If a disc gets dirty, scratched or warped, or due to the

disc characteristics or recording conditions, the

player may not be able to play back such discs.

• The player can play back audio signals recorded in

MIX-MODE CD, CD-G, CD-EXTRA and CD TEXT.

• With some discs, operations may not be possible.

Unplayable discs

If you try to play back discs listed below, noise may

generate causing damage to speakers.

• DVD-RW written in the VR format

• DVD-ROM, DVD-RAM, DVD AUDIO, CD-ROM,

PHOTO CD, SACD

• Unfinalized discs

• Discs of irregular shape or discs with tape, seals or

paste on either the label side or playback side.

Playing back these discs may damage the player.

VIDEO

Connections

Before making connections:

• Do not connect the AC power cord until all other connections have been made.

•Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the player

to a TV via a VCR/an integrated TV/Video system may cause a monitor problem.

Basic Connection

Connecting to a TV with component jacks

When connecting your TV by the component video

cable, set the VIDEO SIGNAL SELECTOR as follows:

• When the TV does not support the progressive

scanning mode: \480i

• When the TV supports the progressive scanning

mode: \480p

• When you want to select the scanning mode

depending on the source condition: \REMOTE*

* To switch the scanning mode between Progressive

(480p) and Interlace (480i) by the remote control,

press and hold down VFP-PROGRESSIVE SCAN for

a few seconds.

NOTES

• Connect “Y” to “Y,”“PB” to “PB(CB),”“PR” to “PR(CR)”

correctly.

•When using the COMPONENT jacks, do not connect

the S-VIDEO OUT jack with the player.

About the scanning mode indicator

NOTE

Some progressive TV are not fully compatible with the

unit. To check the compatibility of your TV, contact your

local JVC customer service center.

RIGHT

LEFT

COAXIAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

VIDEO OUT

COMPONENT

P

R

P

B

Y

480i

480p

REMOTE

VIDEO SIGNAL

SELECTOR

AV

COMPU LINK

RIGHT

LEFT

AUDIO

VIDEO

IN

S-VIDEO

S-VIDEO

Set the

VIDEO

SIGNAL SELECTOR

to “480i.”

NOTES

• If your TV has a monaural

audio input instead of stereo,

use an optional audio cable

which converts stereo audio

output to monaural.

• The VIDEO jack, S-VIDEO

OUT jack and COMPONENT

jacks can not be used at the

same time.

Connect only the VIDEO

jack, S-VIDEO OUT jack, or

COMPONENT jacks which

you want to use.

S-video cable*

(not supplied)

Audio/video

cable*

(supplied) Red

White

TV

The unit

Yellow

COMPONENT

P

R

P

B

Y

To component video input

[PICTURE SOURCE]

of the PICTURE menu

Source type of DVD VIDEO

Film source Video source

AUTO [DDP] [P]

FILM [DDP] [DDP]

VIDEO(NORMAL)/

(ACTIVE) [P] [P]

Advanced Operations

213

546

879

010 +10

TITLE/GROUP CANCELRETURN

VFP

ZOOM

DIMMER

REPEAT

AUDIO

SOUND

EFFECT

SUB TITLE

ANGLE

OPEN/

CLOSE DISPLAY

NEXT

THUMBNAIL

/LIST

PREVIOUS

SELECTCLEAR

SLOW

-

SLOW+

T

O

P

M

E

N

U

M

E

N

U

O

N

S

C

R

E

E

N

S

E

T

U

P

ENTER

STANDBY/ON

PROGRESSIVE

SCAN

SLIDE

EFFECT

Zooming the picture

Each time you press ZOOM, the

magnification changes.

• You can use 5/∞/2/3 button to

move the zoomed position.

To return the normal playback,

select the normal size by pressing

ZOOM repeatedly.

Changing the language, sound

and scene angle

1Press the button.

2Press the button repeatedly or

5/∞ to select the desired item.

3Press ENTER to finish the

setting.

Buttons To do

AUDIO For DVD Video:

select audio

languages.

For SVCD/VCD/CD:

select the audio

channel.

SUBTITLE select the subtitle.

ANGLE select the view-angle.

Changing the picture tone (VFP)

The VFP (Video Fine Processor)

function allows you to adjust the

picture character according to the

type of programming, picture tone or

personal preferences.

1Press

VFP-PROGRESSIVE SCAN

.

2Press 2/3 to select the desired

preset.

NORMAL For watching TV in a

general room.

CINEMA For watching a movie

software in a room with

suppressed light.

USER1

USER2

You can adjust

parameters that affect

the picture character and

store the settings as a

user preset. See below.

To adjust the picture tone

1Select “USER1” or “USER2.”

2Press 5/∞ to select a parameter, then press ENTER.

3Press 5/∞ to adjust the parameter, then press ENTER.

4Repeat step 2 and 3 to adjust other parameters.

5Press

VFP-PROGRESSIVE SCAN

to finish the setting.

USER 1

BRIGHTNESS

GAMMA

CONTRAST

SATURATION

TINT

SHARPNESS

Y DELAY

+ 4

MID

+10

+10

+10

LOW

+ 2

Selected

Preset

Parameter

GAMMA Adjust this if the neutral color is bright or

dark. The brightness of dark and bright

portion is maintained (LOW/MID/HIGH).

BRIGHTNESS Adjust this if the picture is bright or dark on

the whole (–16 (darkest) to +16 (brightest)).

CONTRAST Adjust this if the far and near position is

unnatural (–12 to +12).

SATURATION Adjust this if the picture is whitish or blackish

(–16 (blackest) to +16 (whitest)).

TINT Adjust this if the appearance of flesh tone is

unnatural (–16 to +16).

SHARPNESS Adjust this if the picture is indistinct (LOW/

HIGH).

Y DELAY Adjust this if the picture looks separately/

overlapped (–2 to +2).

Changing the Sound Field

You can change the sound field

only for analog audio output.

Each time you press SOUND

EFFECT, the Sound Effect mode

changes.

• As the value becomes bigger,

the Sound Effect works stronger.

Repeating playback

Each time you press REPEAT, the

repeat mode changes.

Display Mode

Repeat the

current title or all

tracks.

Repeat the current

chapter or the

current track.

No indication The repeat mode

is off.

DVD PLAYER

XV-N310B

XV-N312S

INSTRUCTIONS

©2004 Victor Company of Japan, Limited

• Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are

trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+Digital Out” are trademarks of

Digital Theater Systems, Inc.

• USE OF THIS PRODUCT IN ANY MANNER THAT

COMPLIES WITH THE MPEG-4 VISUAL STANDARD

IS PROHIBITED, EXCEPT FOR USE BY A

CONSUMER ENGAGING IN PERSONAL AND NON-

COMMERCIAL ACTIVITIES.

• This product incorporates copyright protection

technology that is protected by U.S. patents and

other intellectual property rights. Use of this

copyright protection technology must be authorized

by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise

authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Warnings, Cautions and Others

GNT0058-001A[J/UJ]

EN 0804STHMDWJSC

Region code of DVD VIDEO

This player can play back DVD VIDEO discs

whose region code numbers include “1.”

Examples of playable DVD VIDEO discs:

The player’s region code is printed on the rear of

the player

Note of Color system format

This player accommodates the NTSC system, and

also can play back discs recorded with PAL

system. (PAL video signals are converted to an

NTSC signal and output.)

Supplied accessories

If anything is missing, consult your dealer

immediately.

• Audio/video cable (Yellow/White/Red) (x 1)

• Remote control (x 1)

• R6P(SUM-3)/AA(15F) battery (x 2)

• AC power plug adaptor (x 1) (for PX model

ONLY)

For customer use

Enter below the Model No. and Serial No. which are

located either on the rear, bottom or side of the cabinet.

Retain this information for future reference.

Model No.

Serial No.:

VIDEO

ALL

1

51

4

2

3

1

231

564

The lightning flash with arrowhead

symbol, within an equilateral triangle is

intended to alert the user to the presence

of uninsulated “dangerous voltage” within

the products enclosure that may be of

sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an

equilateral triangle is intended to alert the

user to the presence of important

operating and maintenance (servicing)

instructions in the literature accompanying

the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

For U.S.A.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver. Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV

technician for help.

For Canada

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT

For Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE

CLASS B LIMITS FOR RADIO NOISE EMISSIONS

FORM DIGITAL APPARATUS AS SET OUT IN THE

INTERFERENCE-CAUSING EQUIPMENT STANDARD

ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE

DEPARTMENT OF COMMUNICATIONS.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

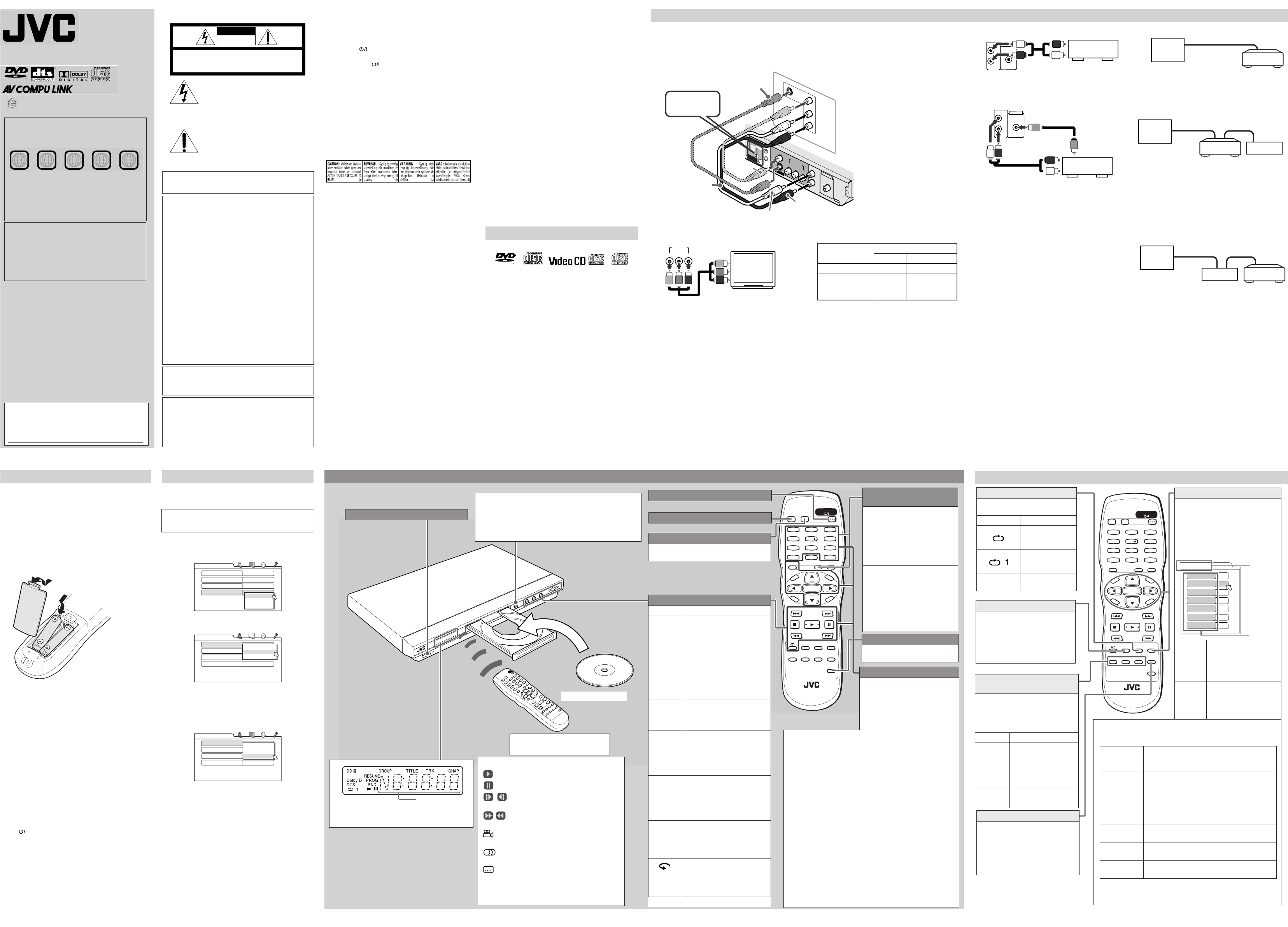

Connecting to a stereo audio amplifier (receiver)

Connecting to a digital audio device

To enjoy high-quality surround sound, connect the

DIGITAL OUT (COAXIAL) jack to a Dolby Digital or DTS

decoder or an amplifier with a built-in decoder.

NOTES

•Depending on the disc, no signal may be output from

the DIGITAL OUT. Make an analog connection in this

case.

Set [DIGITAL AUDIO OUTPUT] in the [AUDIO]

preference display correctly according to the

connected digital audio equipment. (See “DIGITAL

AUDIO OUTPUT” in “Initial settings.”)

Using the AV COMPU LINK system

The JVC COMPU LINK system allows you to enjoy

video and/or audio by simply pressing Play on the

source component (the component which plays back

the video or audio, such as a DVD player or VCR). You

do not even have to switch on power on the TV or

receiver.

Connection and setup

Using an AV COMPU LINK cable, connect the AV

COMPU LINK terminals of each component to one

another.

• The player’s AV COMPU LINK setting is controlled

using the OTHERS menu in the preference display.

See “AV COMPULINK MODE” in “Initial settings.”

• See also the instruction manual of the other device.

Ex.1

• Set the player’s AV COMPU LINK setting as follows:

–When connecting to the VIDEO-1 input terminal of

the television: DVD2

–When connecting to the VIDEO-2 input terminal of

the television: DVD3

Ex.2:

•Set the VCR’s Remote Control Code and the player’s

AV COMPU LINK setting as follows:

–When connecting to the VIDEO-1 input terminal of

the television:

The player’s AV COMPU LINK setting: DVD2

VCR’s Remote Control Code: B

–When connecting to the VIDEO-2 input terminal of

the television:

The player’s AV COMPU LINK setting: DVD3

VCR’s Remote Control Code: A

Ex.3:

• Set the player’s AV COMPU LINK setting to DVD1.

Notes for connection

•If you connect the player to a receiver via AV COMPU

LINK in a system including a Dolby Digital decoder,

some functions may not be performed automatically.

• Connect the AUDIO OUT jacks of the player to the

audio input jacks of a receiver indicating “DVD.”

Otherwise, the system will not work correctly.

Operation

1. Turn on the main power of the television.

2. Insert a disc (or tape) into the source component.

3. Press 3 of the source component.

The following actions are performed automatically:

• Turning on the television and/or receiver.

• Setting the source of the television to the external

input (VIDEO-1 or VIDEO-2).

• Setting the source of the receiver to the component

which has started playback.

RIGHT

LEFT

COAXIAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

To analog audio input

RIGHT

LEFT

COAXIAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

To analog audio input

To digital

audio input

TV

The unit

To AV COMPU LINK (II, EX, or III)

TV

The unit

To AV COMPU LINK

(II, EX, or III)

VCR

To AV COMPU

LINK

TV

The unit

To AV COMPU LINK

(II, EX, or III)

Receiver

To AV COMPU

LINK

Turning on the power

Inserting the AC power plug

After all other connections have been made, insert the

AC power plug to the wall outlet firmly.

For PX model only

The STANDBY indicator lights in red.

Installing the battery in the remote control

Open the compartment cover, and place the two

supplied R6P(SUM-3)/AA(15F) batteries in the remote

control according to the polarity markings (“+” and “–”)

inside the compartment. Then replace the cover.

The batteries will last about six months with normal use.

If the functions of the remote control become erratic,

replace the batteries.

Precautions of the safe use of batteries

Observe the following precautions for the safe use of

batteries. If they are used improperly their lives will be

shortened, they may burst or their contents may leak.

• Remove the batteries from the remote control if it is

not going to be used for a long period of time.

• Remove dead batteries and dispose of them

properly.

• Never leave dead batteries lying around, take them

apart, mix them with other refuse, or throw them into

an incinerator.

• Never touch liquid that has leaked out of a battery.

• Do not mix new and old batteries, or batteries of

different types, when placing them.

Turning on and off the player

Press STANDBY/ON.

For PX model only

The STANDBY/ON indicator in red on the front panel

goes off.

Initial setup

When you turn on the player for the first time after

purchase, the following message appears on the TV

screen.

EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO

SETTING

YES - PRESS ENTER NO - PRESS CANCEL

Before enjoying this unit, make the initial settings as

follows:

1Press ENTER.

2Press 5/∞ to select the on-screen language for

the preference displays, etc., then press ENTER.

3Press 5/∞ to select the your monitor type, then

press ENTER.

•For a normal (conventional) TV, select “4:3 LB” or

“4:3 PS.” (See “MONITOR TYPE” in “Initial

settings.”)

• For a wide-screen TV, select “16:9.”

4Press 5/∞ to select a desired digital output

signal type, then press ENTER.

Set this item correctly according to your Dolby

Digital decoder, DTS decoder, or amplifier with a

built-in decoder.

(If you do not connect the player to such a device,

press ENTER to finish the setting.)

• When connecting to a Dolby Digital decoder,

select “DOLBY DIGITAL/PCM.”

• When connecting to a DTS decoder, select

“STREAM/PCM.”

• When connecting to other digital device, select

“PCM ONLY.”

To bring up the DVD PLAYER SET UP display later

Press SET UP for a few seconds until the DVD PLAYER

SET UP display appears.

MENU LANGUAGE ENGLISH

AUDIO LANGUAGE ENGLISH

SUBTITLE OFF

ON SCREEN LANGUAGE ENGLISH

DVD PLAYER SET UP

ENGLISH

FRENCH

SPANISH

MONITOR TYPE 4:3 L.B.

PICTURE SOURCE AUTO

SCREEN SAVER

BACK GROUND

ON

STANDARD

DVD PLAYER SET UP

16:9

4:3 LB

4:3 PS

DIGITAL AUDIO OUTPUT DOLBY DIGITAL/PCM

ANALOG DOWN MIX DOLBY PROLOGIC

D.RANGE CONTROL ON

OUTPUT LEVEL

DVD PLAYER SET UP

PCM ONLY

DOLBY DIGITAL/PCM

STREAM/PCM

STANDARD

1 2 3 4

5 6 7

Basic Operations

213

546

879

010 +10

TITLE/GROUP CANCELRETURN

VFP

ZOOM

DIMMER

REPEAT

AUDIO

SOUND

EFFECT

SUB TITLE

ANGLE

OPEN/

CLOSE DISPLAY

NEXT

THUMBNAIL

/LIST

PREVIOUS

SELECTCLEAR

SLOW

-

SLOW+

T

O

P

M

E

N

U

M

E

N

U

O

N

S

C

R

E

E

N

S

E

T

U

P

ENTER

STANDBY/ON

PROGRESSIVE

SCAN

SLIDE

EFFECT

Changing the display window contents

Each time you press

DISPLAY, the display

window contents changes.

Open/close the disc tray

Point toward the remote sensor

directly as possible (the operating

range is approx. 5 m.)

Turning on and off the player

With the label side up

Insert a disc

1Press

0 to open the disc tray.

2Place a disc in the disc tray.

• To insert an 8-cm disc, place it in the inner recess.

3Press 0 to close the disc tray.

• Each indicator lights up when corresponding

function/mode is activated, or corresponding

information is on the main display.

Main display

About On-screen guide icons

: Playback.

: Pause.

/:Slow-motion playback with the current

speed.

/:Fast forward/backward playback with

the current speed.

: At the beginning of a scene containing

multi-angle views.

: At the beginning of a scene containing

multi-audio sounds.

: At the beginning of a scene containing

multi-subtitles.

You can change the setting so that the on-screen

guide icons do not appear on the TV screen. (See

“ON SCREEN GUIDE” in “Initial settings.”)

Basic playback

Buttons To do

3Start Playback

7Stop

•When RESUME MODE is ON

or DISC RESUME, this player

memorizes the position on

the disc where you

interrupted playback.

– To resume playback, press

3.

– To stop playback

completely, press 7 again.

8Pause*

• Each time you press the

button, the still picture

advances to the next frame.

¡/1Fast forward/backward*

(While paused)

Slow-motion playback*

• Each time you press the

button, the playback speed

changes.

¢/4Skip chapter/track

• If you press and hold the

button during playback,

playback is advanced/

reversed at 5 times normal

speed.

QUICK

PLAYBACK

(Only for DVD Video)

The disc is played back at

about 1.5 times normal speed.

The sound is not muted, and

the subtitle does not go off.

(Only for DVD Video)

The playback position moves

back 10 seconds before the

current position (only within the

same title).

* To return to normal playback, press 3.

Locating the beginning of a

scene or song

You can select a title/chapter/

track directly and start playback.

For DVD Video:

(While stopped) select title.

(While playing back) select

chapter.

For SVCD/VCD/CD:

Select track.

To select 5: press 5.

To select 23: press +10, +10,

then 3.

To select 40: press +10, +10,

+10, then 10.

• If you press TITLE/GROUP

before entering the number,

you can select the title instead

of the chapter.

Turning on and off the player

Using the disc menu

You can operate a disc—DVD and

SVCD/VCD with Playback Control*

(PBC)—using the disc menu

shown on the TV screen.

* A method of controlling disc play

for SVCD/VCD by using the disc

menu.

7 For DVD

1Press TOP MENU or MENU to show the disc menu.

2Press 5/∞/2/3 to select a desired item, then press

ENTER or 3 (SELECT).

• With some discs, you can also select items by entering the

number using the numeric buttons.

7 For SVCD/VCD

1In stop mode, press TOP MENU or 3 (SELECT) to show

the menu.

2Press the numeric buttons to select a desired item.

To select 5: press 5.

To select 23: press +10, +10, then 3.

To select 40: press +10, +10, +10, then 10.

• To move to the next or previous page of the current menu,

press 4 or ¢.

• To return to the previous menu, press RETURN.

To cancel PBC

Press the numeric buttons instead of 3 (SELECT) to start

playback.

To reactivate PBC

• Press TOP MENU or MENU - THUMBNAIL/LIST.

• Press 7 to stop playback, then 3 (SELECT).

Changing the display brightness

Press DIMMER to change the

brightness of the display window.

8

XV-N310_A2.fm Page 1 Friday, August 20, 2004 11:51 AM

Specifications

Specifications and appearance are subject to change without prior notice.

General

Readable discs:

DVD VIDEO, DVD-R (Video format), DVD-RW (Video

format), SVCD, Video CD, Audio CD (CD-DA),

CD-R/RW (CD-DA, SVCD, Video CD, MP3 format,

JPEG, MPEG-4)

Video format:

NTSC, 480i/480p selectable

Other

Power requirements:

AC 120 V , 60 Hz

Power consumption:

10.0 W (POWER ON), 2.0 W (STANDBY mode)

Mass:

1.6 k

g

(3.6 lbs)

Dimensions (W x H x D):

435 mm x 44 mm x 201 mm (17-3/16 inch x 1-3/4

inch x 7-15/16 inch)

Video outputs

COMPONENT (pin jacks)

Y Output:

1.0 Vp-p (75

Ω

)

P

B

/P

R

Output:

0.7 Vp-p (75

Ω

)

VIDEO OUT (pin jack):

1.0 Vp-p (75

Ω

)

S-VIDEO OUT (S jack)

Y Output:

1.0 Vp-p (75

Ω

)

C Output:

286 mVp-p (75

Ω

)

Horizontal resolution:

500 lines or more

Audio outputs

ANALOG OUT (pin jack):

2.0 Vrms (10 k

Ω

)

DIGITAL OUT (COAXIAL):

0.5 Vp-p (75

Ω

termination)

Audio characteristics

Frequency response

CD (sampling frequency 44.1 kHz):

2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):

2 Hz to 22 kHz(4 Hz to 20 kHz for DTS and Dolby

Digital bitstream signals)

DVD (sampling frequency 96 kHz):

2 Hz to 44 kHz

Dynamic range

16 bit:

More than 98 dB

20 bit/24 bit:

More than 100 dB

Wow and flutter:

Unmeasurable (less than ± 0.002%)

Total harmonic distortion:

less than 0.009%

* Notes for PX model (Check the specification

indication on the rear panel.)

Power requirements:

AC

110 V to 240 V , 50 Hz/60 Hz

Power consumption:

11.0 W (POWER ON),

2.0 W (STANDBY mode)

BT-51005-5

(0301)

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

Dear Customer,

In order to receive the most satisfaction from your purchase,please read the instruction booklet before

operating the unit.In the event that repairs are necessary, please call 1 (800)537-5722 for your nearest

authorized servicer or visit our website at www.JVC.com

Remember to retain your Bill of Sale for Warranty Service.

Do not service the television yourself

Caution

To prevent electrical shock,do not open the cabinet.There are no user serviceable

parts inside.Please refer to qualified service personnel for repairs.

Accessories

To purchase accessories for your JVC product,please call toll free:1 (800)882-2345 or

on the web at www.JVC.com

TOLL FREE: 1 (800) 537-5722

http://www.jvc.com

Authorized Service Centers

®

Country/Area code list for Parental Lock

AD Andorra

AE United Arab Emirates

AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles

AO Angola

AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia

AW Aruba

AZ Azerbaijan

BA Bosnia and

Herzegovina

BB Barbados

BD Bangladesh

BE Belgium

BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize

CA Canada

CC Cocos (Keeling)

Islands

CF Central African

Republic

CG Congo

CH Switzerland

CI Côte d’Ivoire

CK Cook Islands

CL Chile

CM Cameroon

CN China

CO Colombia

CR Costa Rica

CU Cuba

CV Cape Verde

CX Christmas Island

CY Cyprus

CZ Czech Republic

DE Germany

DJ Djibouti

DK Denmark

DM Dominica

DO Dominican Republic

DZ Algeria

EC Ecuador

EE Estonia

EG Egypt

EH Western Sahara

ER Eritrea

ES Spain

ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

FM Micronesia (Federated

States of)

FO Faroe Islands

FR France

FX France, Metropolitan

GA Gabon

GB United Kingdom

GD Grenada

GE Georgia

GF French Guiana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia

GN Guinea

GP Guadeloupe

GQ Equatorial Guin ea

GR Greece

GS South Georgia and

theSouth Sandwich

GT Guatemala

GU Guam

GW Guinea-Bissau

GY Guyana

HK Hong Kong

HM Heard Island and

McDonald Islands

HN Honduras

HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel

IN India

IO British Indian Ocean

Territory

IQ Iraq

IR Iran (Islamic Republic

of)

IS Iceland

IT Italy

JM Jamaica

JO Jordan

JP Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia

KI Kiribati

KM Comoros

KN Saint Kitts and Nevis

KP Korea, Democratic

People’s Republic of

KR Korea, Republic of

KW Kuwait

KY Cayman Islands

KZ Kazakhstan

LA Lao People’s

Democratic Republic

LB Lebanon

LC Saint Lucia

LI Liechtenstein

LK Sri Lanka

LR Liberia

LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia

LY Libyan Arab

Jamahiriya

MA Morocco

MC Monaco

MD Moldova, Republic of

MG Madagascar

MH Marshall Islands

ML Mali

MM Myanmar

MN Mongolia

MO Macau

MP Northern Mariana

Islands

MQ Martinique

MR Mauritania

MS Montserrat

MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands

NO Norway

NP Nepal

NR Nauru

NU Niue

NZ New Zealand

OM Oman

PA Panama

PE Peru

PF French Polynesia

PG Papua New Guinea

PH Philippines

PK Pakistan

PL Poland

PM Saint Pierre and

Miquelon

PN Pitcairn

PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Réunion

RO Romania

RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia

SJ Svalbard and Jan

Mayen

SK Slovakia

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Sao Tome and

Principe

SV El Salvador

SY Syrian Arab Republic

SZ Swaziland

TC Turks and Caicos

Islands

TD Chad

TF French Southern

Territories

TG Togo

TH Thailand

TJ Tajikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW Taiwan

TZ Tanzania, United

Republic of

UA Ukraine

UG Uganda

UM United States Minor

Outlying Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City State

(Holy See)

VC Saint Vincent and the

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (U.S.)

VN Vietnam

VU Vanuatu

WF Wallis and Futuna

Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbbabwe

Menu bar functions

You can use various functions from the menu bar.

To bring up the menu bar

When a disc is inserted, press ON SCREEN twice.

A menu bar for the type of disc inserted will appear

under the status bar.

Ex.: Menu bar for DVD VIDEO

To dismiss the menu bar, press ON SCREEN.

Basic operation procedure

1

Press 2

/3

to select the icon you want to work

with.

2

Press ENTER.

After pressing ENTER:

(1) When a pull-down menu appears, press 5

/∞

to

select the setting you want, then press ENTER.

(2) When a number-entry box appears, use the

numeric buttons to enter the number you want,

then press ENTER.

(3) When changing setting, press ENTER

repeatedly to select the setting you want.

NOTES

•The selected item on the menu bar is shown in green.

• The available functions differ depending on the unit

status. Refer to the explanation below to check when

you can use a certain function.

Menu bar functions

selects the time mode shown in the display

window and the status bar.

• TOTAL: Elapsed time of current title (DVD) or a disc

(CD/VCD/SVCD)

• T.REM: Remaining time of current title (DVD) or a

disc (CD/VCD/SVCD)

(while in stop mode, disc total time)

• TIME: Elapsed time of current chapter (DVD) or

track (CD/VCD/SVCD)

• REM: Remaining time of current chapter (DVD) or

track (CD/VCD/SVCD)

(while in stop mode, current track total time)

selects repeat mode.

DVD: During playback

CD: In any condition

VCD/SVCD: In any condition except PBC playback

• CHAPTER: Current chapter repeat (DVD)

• TITLE: Current title repeat (DVD)

• TRACK: Current track repeat (CD/VCD/SVCD)

• ALL: All track repeat (CD/VCD/SVCD)

• A-B: A-B repeat (During playback). After

selecting A-B, press ENTER at the

beginning point of repeat, then press

ENTER again at the end point.

• OFF: Repeat mode deactivated. Select this to

quit repeat mode.

specifies beginning point of a title (DVD) or a

disc (CD/VCD/SVCD) by the time.

DVD: In any condition

CD: In any condition except program or

random playback

VCD/SVCD: In any condition except PBC or program

or random playback

specifies a chapter to play back from

(DVD only).

selects the audio language (DVD), sound

track (DVD), or audio channel (VCD/SVCD) during

playback.

selects the subtitle language (DVD) or

subtitle (SVCD) during playback.

selects a desired scene angle in a multi-

angle part (DVD only).

specifies the playback order of tracks while

stopped (unavailable for DVD). You can program up to

99 tracks.

1. After selecting icon, press the numeric

buttons to specify tracks in the desired order.

•To correct the program, press 5

/∞

to move to

the track to be corrected, then press CANCEL. The

track is erased and the subsequent programmed

tracks move up.

Pressing 7

clears all the programmed tracks.

2. Press 3

(SELECT) to start program playback.

• During program playback, you cannot edit the

program contents.

• To exit the program mode, press ON SCREEN after

clearing the program.

activates random playback while stopped

(unavailable for DVD).

1. After selecting icon, press ENTER.

The player starts random playback.

Audio/Video files playback

You can play back MP3/JPEG/MPEG4 (simple

profile/asf file) files on a CD/CD-R/RW.

Precautions

• Use “ISO 9660” as the disc format.

• The player does not support “packet writing (UDF

files)” discs.

• The player supports discs recorded with up to five

multiple sessions.

•The player may be unable to play back a disc due to

the characteristics or recording conditions.

•The player recognizes up to the fifth layer of groups,

999 files per group (including unplayable files), and

up to 250 groups per disc.

• Add the appropriate extension (“.mp3”, “.jpg”, and

“.asf”) to the file name.

• MP3i and MP3 Pro are not available.

• The player cannot play back a picture of more than

5120 x 3413 pixels (baseline JPEG) or 2048 x 1536

pixels (progressive JPEG).

Selecting a specific file or group

You can select files or folders (groups) using the

Control display on the TV screen.

Control display

Press 5

/∞

/2

/3

to move the cursor bar to a desired

file, then press 3

(SELECT).

• When you press ENTER, only the selected file is

played back.

Various playback mode

• To play back a disc continuously, select NORMAL.

Repeat playback

1. While stopped, press 5

/∞

/2

/3

to move the cursor

bar to playback mode.

2. Press ENTER repeatedly to select the desired repeat

mode.

• REPEAT 1: Repeats the current file.

• REPEAT GROUP: Repeats all files in the current

group.

• REPEAT ALL: Repeats all files on the disc.

3. Press 3

to move the cursor bar to the file column,

then press 3

(SELECT).

Random playback

1. While stopped, press 5

/∞

/2

/3

to move the cursor

bar to playback mode.

2. Press ENTER repeatedly to select RANDOM.

3. Press 3

to move the cursor bar to the file column,

then press 3

(SELECT).

Program playback

1. While stopped, press 5

/∞

/2

/3

to move the cursor

bar to playback mode.

2. Press ENTER repeatedly to select PROGRAM.

3. Press 5

/∞

/2

/3

to select the desired file, then press

ENTER.

4. Repeat step 3 until all the desired files are selected.

• To erase the last programmed file, press 2

to

move the cursor bar to the programmed files

column, then press CANCEL.

5. Press 3

(SELECT).

Various JPEG files playback

To zoom in a picture

Press ZOOM.

Each time you press ZOOM, you can magnify a JPEG

file (x1.5/x2/x4).

• You can also magnify an MPEG-4 file (x2/x4).

To rotate/reflect a still picture

While a still picture is played back:

• Pressing 2

/3

rotates the picture by 90

°

.

• Pressing 5

reflects the picture vertically.

• Pressing ∞

reflects the picture horizontally.

To select a JPEG files from the thumbnail list

1. Press and hold MENU-THUMBNAIL/LIST while a

JPEG file is selected on the Control display.

2. Press 5

/∞

/2

/3

to select the desired picture, then

press ENTER.

• You can change the page of thumbnail list by

pressing 4

/¢

.

Slide show playback of JPEG files

Press 3

(SELECT) while a JPEG file is selected on the

Control display.

• To select slide show effect

Press and hold ANGLE-SLIDE EFFECT until

SLIDE EFFECT MODE: and the current mode

appears on the TV screen.

By pressing and holding the button repeatedly, you

can select the effect out of 11 effects, random effect

selection (RAND), and no effect (NONE).

The effect is not applied to progressive JPEG files.

NORMAL GROUP

MP3

MPEG4

SLIDESHOW

MIX

--

MOVIE01.asf

MOVIE02.asf




MUSIC01.mp3

MUSIC02.mp3

DISC CONTROL

Select these

sections to show the

upper layer.

Current file

File columnGroup column

Current group

Current playback mode

Initial settings

You can change the settings of this player according to your preferences and playing environment.

How to set the Initial settings

1

Press SET UP.

2

Press 2

/3

to select the menu.

3

Press 5

/∞

to move to select the item.

4

Press ENTER.

5

Press 5

/∞

to select the options, then press

ENTER.

To dismiss a preference display

Press SET UP.

NOTES

•Some items in the menus cannot be changed during

playback.

•While CD-R/RW which contains MP3/MPEG-4 files is

inserted, you cannot show the menus.

• If the upper and lower parts of the menu are cut off,

adjust the picture size control of the TV.

• For settings of the LANGUAGE menu or the

PARENTAL LOCK menu, see also “Language

codes” below.

• Depending on the disc, the settings may not apply

correctly.

MENU LANGUAGE ENGLISH

AUDIO LANGUAGE ENGLISH

SUBTITLE OFF

ON SCREEN LANGUAGE ENGLISH

LANGUAGE

Item Contents

DIGITAL AUDIO OUTPUT

Set this item correctly when connecting to an external device equipped with a

digital input.

[PCM ONLY]:

When connecting to audio equipment which can decode only linear

PCM signals.

[DOLBY DIGITAL/PCM]:

When connecting to a Dolby Digital decoder or an

amplifier with a built-in Dolby Digital decoder.

[STREAM/PCM]:

When connecting to an amplifier with a built-in DTS, MPEG

Multichannel or Dolby Digital decoder.

ANALOG DOWN MIX

Set this item properly according to your analog audio connection to play the sound of

the surround multichannel audio on a DVD VIDEO.

[DOLBY SURROUND]:

Select this when connecting to a surround decoder.

[STEREO]:

Select this when connecting to a stereo amplifier or TV, or in case you

want to record from a DVD VIDEO to a MiniDisc, cassette, etc.

D.RANGE CONTROL

Set this item to listen to DVD VIDEO recorded in Dolby Digital format at low or middle

volume.

[WIDE RANGE]:

You can enjoy powerful playback sound.

[NORMAL]:

Normally, select this.

[TV MODE]:

Select this if the sound level of DVD VIDEO is lower than the one of TV

program to make the sound at a lower volume clear.

OUTPUT LEVEL

Set this item to attenuate the level of the signal output from the analog AUDIO OUT

terminals. If the sound from the speaker is distorted, select [LOW].

Item Contents

RESUME

You can select the resume playback mode.

[ON]:

The player resumes playback from the position where playback has been

stopped if the disc is still in the disc tray.

[OFF]:

This function is deactivated.

[DISC RESUME]:

The player resumes playback of the last 30 discs played. The

player retains a memory of the stopped position of each disc even if the disc is

removed from the disc tray.

ON SCREEN GUIDE

Activate or deactivate the on-screen guide.

AUTO STANDBY

Set the time until the player turns off (into standby) automatically if playback is

stopped for more than 30 minutes or 60 minutes.

AV COMPULINK MODE

Set this item correctly when using the AV COMPU LINK system. See “Using the AV

COMPU LINK system” in “Connections.”

PARENTAL LOCK

Select this item, then press ENTER to show the PARENTAL LOCK menu for

limiting playback by children. Scenes which are limited by this function are not

played or replaced with other scenes.

[COUNTRY CODE]:

Select the code of your country/area.

[SET LEVEL]:

Select the level of restriction. (“1” is the strictest.)

[PASSWORD]:

Enter your password by pressing the numeric buttons (0 to 9).

[EXIT]:

Select this and press ENTER to go back to the OTHERS menu.

Note:

•Some DVD VIDEO cannot be played by this function. If you try to play such a disc,

the PARENTAL LOCK menu appears on the TV and asks whether you want to

release the lock or not.

To release the lock and play, select “TEMPORARY RELEASE,” press ENTER, then

enter your password. Otherwise, eject the disc.

• To change the setting of the limitation, you need to enter your password.

• If you forget your pass word, enter “8888.”

AUDIO menu

OTHERS menu

SET LEVEL NONE

PASSWORD _ _ _ _

PARENTAL LOCK

EXIT

COUNTRY CODE US

Language codes list for the LANGUAGE menu

AA

Afar

AB

Abkhazian

AF

Afrikaans

AM

Ameharic

AR

Arabic

AS

Assamese

AY

Aymara

AZ

Azerbaijani

BA

Bashkir

BE

Byelorussian

BG

Bulgarian

BH

Bihari

BI

Bislama

BN

Bengali,Ban

gla

BO

Tibetan

BR

Breton

CA

Catalan

CO

Corsican

CS

Czech

CY

Welsh

DA

Danish

DZ

Bhutani

EL

Greek

EO

Esperanto

ET

Estonian

EU

Basque

FA

Persian

FI

Finnish

FJ

Fiji

FO

Faroese

FY

Frisian

GA

Irish

GD

Scots Gaelic

GL

Galician

GN

Guarani

GU

Gujarati

HA

Hausa

HI

Hindi

HR

Croatian

HU

Hungarian

HY

Armenian

IA

Interlingua

IE

Interlingue

IK

Inupiak

IN

Indonesian

IS

Icelandic

IW

Hebrew

JI

Yiddish

JW

Javanese

KA

Georgian

KK

Kazakh

KL

Greenlandic

KM

Cambodian

KN

Kannada

KO

Korean

(KOR)

KS

Kashmiri

KU

Kurdish

KY

Kirghiz

LA

Latin

LN

Lingala

LO

Laothian

LT

Lithuanian

LV

Latvian,

Lettish

MG

Malagasy

MI

Maori

MK

Macedonian

ML

Malayalam

MN

Mongolian

MO

Moldavian

MR

Marathi

MS

Malay (MAY)

MT

Maltese

MY

Burmese

NA

Nauru

NE

Nepali

NL

Dutch

NO

Norwegian

OC

Occitan

OM

(Afan)

Oromo

OR

Oriya

PA

Panjabi

PL

Polish

PS

Pashto,

Pushto

PT

Portuguese

QU

Quechua

RM

Rhaeto-

Romance

RN

Kirundi

RO

Rumanian

RU

Russian

RW

Kinyarwanda

SA

Sanskrit

SD

Sindhi

SG

Sangho

SH

Serbo-

Croatian

SI

Singhalese

SK

Slovak

SL

Slovenian

SM

Samoan

SN

Shona

SO

Somali

SQ

Albanian

SR

Serbian

SS

Siswati

ST

Sesotho

SU

Sundanese

SV

Swedish

SW

Swahili

TA

Tamil

TE

Telugu

TG

Tajik

TH

Thai

TI

Tigrinya

TK

Turkmen

TL

Tagalog

TN

Setswana

TO

Tongan

TR

Turkish

TS

Tsonga

TT

Tatar

TW

Twi

UK

Ukrainian

UR

Urdu

UZ

Uzbek

VI

Vietnamese

VO

Volapuk

WO

Wolof

XH

Xhosa

YO

Yoruba

ZU

Zulu

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND

IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner.

Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service

centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts

thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen

size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized

service center, please call toll free: (800) 537-5722.

If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with

a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the

name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty

installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by

JVC to render such service, or if affixed to any attachment not provided with the products, or if the model number

or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus (Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS

LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER

DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE

TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH

OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an

implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific

legal rights and you may also have other rights which vary from state to state.

LIMITED WARRANTY

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE

ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date

of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS LABOR

1 YR 90

DAYS

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF

REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION

PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. which is located either on the rear, bottom or side of the cabinet. Retain this information

for future reference.

Model No. : Serial No. :

Purchase data : Name of dealer :

CONSUMER VIDEO 1-90

Item Contents

MENU LANGUAGE

You can select the default menu language of DVD VIDEO.

AUDIO LANGUAGE

You can select the default audio language of DVD VIDEO.

SUBTITLE

You can select the default subtitle language of DVD VIDEO.

ON SCREEN LANGUAGE

You can select “ENGLISH,” “FRENCH,” or “SPANISH” as the on-screen language.

Item Contents

MONITOR TYPE

You can select the monitor type to match your TV when you play back DVD VIDEO

discs recorded for wide-screen televisions.

[16:9] (Wide television screen):

For a wide-screen (16:9) TV.

[4:3 LB] (Letter Box conversion):

For a normal (4:3) TV. Displays a wide-screen

picture to fit the width of the TV screen keeping the aspect ratio.

[4:3 PS] (Pan Scan conversion):

For a normal (4:3) TV. The picture is zoomed

up to filling the screen vertically and the left and right sides of the picture are

cut off.

PICTURE SOURCE

You can obtain optimal picture quality by selecting the source type of the disc

contents.

[AUTO]:

Normally, select this option. The player recognizes the picture type (film

or video source) of the current disc according to the disc information.

[FILM]:

For a film source disc.

[VIDEO(NORMAL)]:

For a video source disc with relatively a few movements.

[VIDEO(ACTIVE)]:

For a video source disc with relatively a lot of movements.

SCREEN SAVER

You can set the screen saver function to ON or OFF.

BACKGROUND

You can use your favorite image as the opening display.

[STANDARD]:

Display the JVC original image.

[USER]:

Display your favorite image as the opening display when a JPEG image

is registered.

[SAVE AS BACKGROUND]:

To register a new image, select this while a JPEG

image is displayed on the TV.

LANGUAGE menu

PICTURE menu

16:9 4:3 LB

4:3 PS

1211109

13 14 15 16

Troubleshooting

Power

Power does not come on.

\

Power plug is not inserted securely. Plug in

securely.

Operation

“REGION CODE ERROR!” is shown on the TV.

\

Region code of the inserted disc does not match the

player. Check the region code of the disc printed on

the disc jacket.

Operation is not possible.

\

Microcomputer malfunction due to lightning or static

electricity. Turn off the power and unplug the power

cord, then connect the power cord again.

\

Moisture condensation caused by a sudden change

of temperature or humidity. Turn off the power, then

turn it on a few hours later.

\

The disc does not allow the operation, or an

unplayable disc is inserted. Check and replace the

disc.

[LOCK] is displayed on the display window

and the disc tray does not open.

\

When you press 0

while pressing down 7

on the

player in standby mode, the tray lock function is

activated. The disc tray cannot be opened or closed

in this status. To release this status, press 0

while

pressing down 7

on the player in standby mode.


Picture is noisy.

\

The player is connected to a VCR directly and the

copyguard function is activated. Connect the player

so that the picture signal flows directly to the TV.

With some discs, the picture may be blurred when

[PICTURE SOURCE] is set to [FILM] or [AUTO].

Set [PICTURE SOURCE] to [VIDEO (NORMAL)] or

[VIDEO (ACTIVE)].

Picture is distorted when using

COMPONENT or S-VIDEO OUT jack(s).

\

Both the component connection and S-video

connection are made. Disconnect the unused one.

No picture is displayed on the TV screen or

the screen is blurred or divided into two parts.

\

The player is in the progressive scanning mode

though it is connected to a TV via the VIDEO or

S-VIDEO OUT jack. Observe the display window. If

[P] is turned on, the player is in the progressive

scanning mode.

Set the VIDEO SIGNAL SELECTOR on the rear

panel to “480i,” or set it to “REMOTE” and make the

Progressive scanning mode inactive by using the

VFP-PROGRESSIVE SCAN button.

Audio

DVD VIDEO disc playback sound level is

lower than TV broadcast sound level.

\

Set the [D.RANGE CONTROL] preference to [TV

MODE].

Analog audio output is distorted.

\

Set the [OUTPUT LEVEL] preference to [LOW].

MP3/JPEG/MPEG-4

No sound and/or no picture comes out.

\

MP3/MPEG-4 disc is recorded with the “packet

writing (UDF file).” It cannot be played.

Check the files you want to play back.

Files (tracks) are not played in the recorded

order.

\

This player plays the files in the alphabetic order.

So, the playback order can vary.

MPEG-4 files cannot be played back.

\

The format of the file is not asf.

XV-N310_A2.fm Page 2 Friday, August 20, 2004 11:51 AM
