JVC XV NP10S User Manual LET0246 003A

User Manual: JVC XV-NP10S XV-NP10S English,

Open the PDF directly: View PDF .
Page Count: 42

XV-NP10S/LET0246-003A/English

DVD PLAYER/MEMORY CARD READER

XV-NP10S

LET0246-003A

[B]

Before operation 2

Preparations 5

Basic operations 12

Advanced operations 17

Audio/Video files playback 25

Changing the initial settings 30

Additional information 35

INSTRUCTIONS

DVD/CARD

Region code of DVD VIDEO

This player can play back DVD VIDEO discs whose region code

numbers include “2.”

Examples of playable DVD VIDEO discs:

The player’s region code is printed on the rear of the player.

ALL 252 4

2

3

13

2

1

6

5

4

XV-NP10[B].book Page 1 Wednesday, April 28, 2004 10:08 PM

XV-NP10S/LET0246-003A/English

Warnings, Cautions and Others

CAUTION

• Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or

cloth, etc., the heat may not be able to get out).

• Do not place any naked flame sources, such as lighted candles, on

the apparatus.

• When discarding batteries, environmental problems must be

considered and local rules or laws governing the disposal of these

batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or

splashing and that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage,

locate the apparatus as follows:

Front: No obstructions and open spacing.

Sides: No obstructions in 3 cm from the sides.

Top: No obstructions in 5 cm from the top.

Back: No obstructions in 15 cm from the back

Bottom: No obstructions, place on the level surface.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the Unit; leave all servicing to qualified

service personnel.

3. CAUTION: Visible and invisible laser radiation when open and

interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED

INSIDE THE UNIT.

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the

cable is too short to reach a power point, then obtain an

appropriate safety approved extension lead or consult your

dealer.

BE SURE to replace the fuse only with an identical approved

type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the

fuse and dispose of the plug immediately, to avoid a possible

shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then

follow the instructions given below:

IMPORTANT.

DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured

green or green-and-yellow.

The wires in the mains lead on this product are coloured in

accordance with the following code:

Blue : Neutral

Brown : Live

As these colours may not correspond with the coloured

markings identifying the terminals in your plug proceed as

follows:

The wire which is coloured blue must be connected to the

terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the

terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely

(the STANDBY/ON lamp goes off).

The STANDBY/ON button in any position does not

disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights

red.

• When the unit is turned on, the STANDBY/ON lamp lights

green.

The power can be remote controlled.

Spacing 15 cm or more

Wall or

obstructions

Stand height

5 cm or more

Front

XV-NP10S

Floor

G-1

XV-NP10[B].book Page 1 Wednesday, April 28, 2004 10:08 PM

1

XV-NP10S/LET0246-003A/English

Supplied accessories

Check that you have all the following accessories supplied to you.

If anything is missing, consult your dealer immediately.

• Remote control unit (× 1)

• R6(SUM-3)/AA(15F) battery (× 2)

About this manual

• The display window information and OSD (On Screen Display)

menu items are put in brackets [ ] in the operation procedures.

• Usable disc(s) for each operation/function is (are) referred to by

the icons;

Precautions

Notes on the power cord

• When you are away on travel or otherwise for an extended

period of time, remove the plug from the wall outlet. A small

amount of power (1.1 W) is always consumed while the power

cord is connected to the wall outlet.

• When unplugging the player from the wall outlet, always pull the

plug, not the power cord.

• Do not handle the power cord with wet hands!

Avoid moisture, water and dust

• Do not place the player in moist or dusty places.

• If water gets inside the player, turn off the power and remove

the plug from the wall outlet, then consult your dealer. Using the

player in this state may cause a fire or electrical shock.

Avoid high temperatures

• Do not expose the player to direct sunlight or place it near a

heating device.

Notes on installation

• Select a place which is level, dry and neither too hot nor too

cold between 5° C and 35° C.

• Leave sufficient distance between the player and the TV.

• Do not install the player in a place subject to vibrations.

• Do not put heavy objects on the player.

To prevent malfunction of the player

• There are no user-serviceable parts inside. If anything goes

wrong, unplug the power cord and consult your dealer.

• Do not insert any metallic objects, such as wires, hairpins,

coins, etc. into the player.

• Do not block the vents. Blocking the vents may damage the

player.

Notes on a memory card

• Make sure both the disc playback or memory card playback is

stopped when inserting or removing the memory card.

• When playing back a disc, always remove a memory card and

close the card door.

To clean the cabinet

• Use a soft cloth. Follow the relevant instructions on the use of

chemically-coated cloths.

• Do not use benzene, thinner or other organic solvents and

disinfectants. These may cause deformation or discoloring.

Table of contents

Before operation................................................... 2

About playable media ..............................................................2

Care and handling of discs ......................................................2

Names of parts and controls....................................................3

Preparations ......................................................... 5

Connections.............................................................................5

Using the remote control unit.................................................10

Basic operations ................................................ 12

Turning on/off the player........................................................12

Initial setup ............................................................................12

Basic playback.......................................................................13

Resuming playback ...............................................................14

Various speed playback ........................................................15

Locating the beginning of a scene or song ............................16

Advanced operations......................................... 17

Playing from a specific position .............................................17

Changing the playback order.................................................19

Repeat playback ....................................................................20

Changing the language, sound and scene angle ..................21

Special picture/sound effect ..................................................22

Menu bar functions ................................................................23

Audio/Video files playback................................ 25

Outline ...................................................................................25

Basic operations ....................................................................26

Direct selection for JPEG files ...............................................27

Repeat playback ....................................................................27

Slide show playback ..............................................................28

Changing the picture of the opening display .........................28

BGM slide show playback .....................................................29

Changing the initial settings ............................. 30

Selecting preferences............................................................30

Limiting playback by children.................................................33

Additional information ....................................... 35

Troubleshooting .....................................................................35

Specifications ........................................................................36

Appendix A: Digital output signal chart ..................................37

Appendix B: Table of languages and their abbreviations ......37

Appendix C: Country/Area code list for Parental Lock...........38

Appendix D: Glossary ............................................................39

XV-NP10[B].book Page 1 Wednesday, April 28, 2004 10:08 PM

2

XV-NP10S/LET0246-003A/English

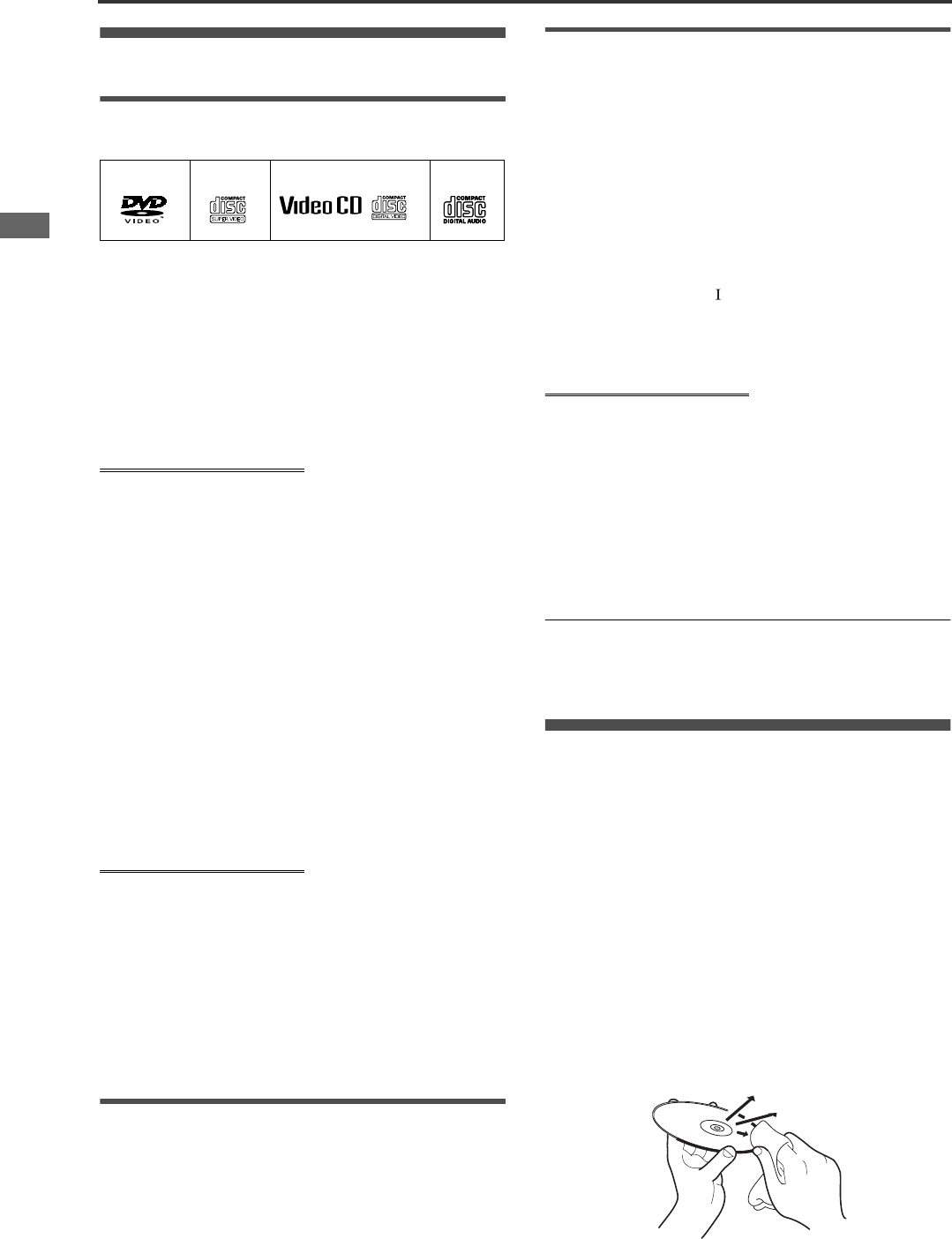

Before operation

Before operation

About playable media

Playable disc types

Discs with the following marks can be played back on the player.

The DVD Logo is a trademark.

The player can also play back the following discs:

• The finalized DVD-R and DVD-RW discs written in the DVD

VIDEO format.

• The DivX file on the DVD-R and DVD-RW discs written in the

UDF format.

• The finalized CD-R and CD-RW discs written in the SVCD,

Video CD or Audio CD format.

• CD-R and CD-RW discs written in MP3/WMA/JPEG/MPEG-4/

DivX in accordance with the “ISO 9660” format. (For details,

see page 25.)

NOTE

If a disc gets dirty, scratched or warped, or due to the disc

characteristics or recording conditions, it may take considerable

time for the player to read the content, or the player may not be

able to play back such discs.

The player can also play back audio signals recorded in MIX-

MODE CD, CD-G, CD-EXTRA and CD TEXT.

Color system format

This player accommodates the PAL system, and also can play

back discs recorded with NTSC system whose Region Code

numbers include “2.”

Note that the NTSC video signal on a disc is converted to an PAL

60 signal and output. With some discs, the playback picture may

become jagged.

Digital audio formats

The player supports the following digital audio formats (see page

39 “Glossary” for descriptions of each audio format):

Linear PCM, MPEG Multichannel, Dolby Digital, DTS (Digital

Theater Systems)

NOTE

Depending on the player’s [DIGITAL AUDIO OUTPUT] setting,

digital audio signals may not be output as they are recorded on

the disc. See “DIGITAL AUDIO OUTPUT” on page 32 for details.

Notes on discs

• With some DVD VIDEO discs, the player starts playback

automatically after inserting the disc.

• The image may be sometimes poor or noisy due to defects in

the disc itself.

• With some discs, operations described in this manual may not

be possible.

Unplayable discs

The player does not play back discs listed below.

• DVD-RW discs written in the VR format

• DVD-ROM, DVD-RAM, DVD AUDIO, CD-ROM, PHOTO CD,

SACD

In addition, the player does not play:

• Unfinalized discs.

• Discs of irregular shape or discs with tape, seals or paste on

either the label side or playback side. Playing back these discs

may damage the player.

Playable memory cards

This player has two types of the exclusive insertion slot for the

memory cards; one is the 5 in 1 slot for SD card (SD),

MultiMediaCard (MMC), SmartMedia (SM), Memory Stick (MS),

and xD-Picture Card (xD), the other for CompactFlash (CF).

You can play back the following files written in memory cards:

• MP3, WMA, JPEG, MPEG-4 (Simple profile)

Requirements for memory cards

• Format: Fat 12/16

• Voltage type: 3.3 V

• Storage type: Up to 128 MB (256 MB type is also available for only

SD, xD, and CF). 4 MB type is not available for MMC and xD.

• For CompactFlash: Type

• Protection: Secure MMC and Magic Gate Memory Stick are not

available.

• For Memory Stick: Memory Stick Pro and Memory Stick Duo

are not available.

NOTES

• The playback order may differ from that of the other device such

as a digital still/video camera.

• The memory cards initialized by PC are not available.

• The player may be unable to play back some CompactFlash

which are available for the high speed reading/writing.

• The player may be unable to play back some memory cards

due to their characteristics or recording conditions.

• Memory cards are precision instruments. DO NOT impact,

bend, drop, or wet them.

SD, Secure SD, MultiMediaCard, SmartMedia, CompactFlash,

Memory Stick, xD-Picture Card are trademarks of their respective

product companies.

Notes on copyright

Check the copyright laws in your country before recording from DVD VIDEO,

SVCD, Video CD, Audio CD, MP3, WMA, JPEG, MPEG-4, and DivX discs.

Recording of copyrighted material may infringe copyright laws.

Care and handling of discs

If a disc gets dirty, dusty, scratched or warped, playback sound

and picture may be deteriorated. Take proper precautions when

handling discs.

Handling

• Do not touch the surface of the disc.

• Do not damage, stick paper to, or use any adhesive on either

the label side or playback side.

Storing discs

• Keep discs in their cases. If discs are piled on top of one

another without their protective cases, they can be damaged.

• Do not put discs in a location where they may be exposed to

direct sunlight, or where the humidity or temperature is high.

Avoid leaving discs in a car!

Cleaning discs

• Wipe with a soft dry cloth, moving from the center outwards. If a

disc is difficult to clean, wipe with a cloth moistened with water.

• Never use record cleaners, petrol, alcohol or any anti-static agents.

DVD VIDEO SVCD Video CD

Audio CD

Before_operation[B].fm Page 2 Wednesday, May 19, 2004 3:26 PM

Before operation

3

XV-NP10S/LET0246-003A/English

Before operation

Names of parts and controls

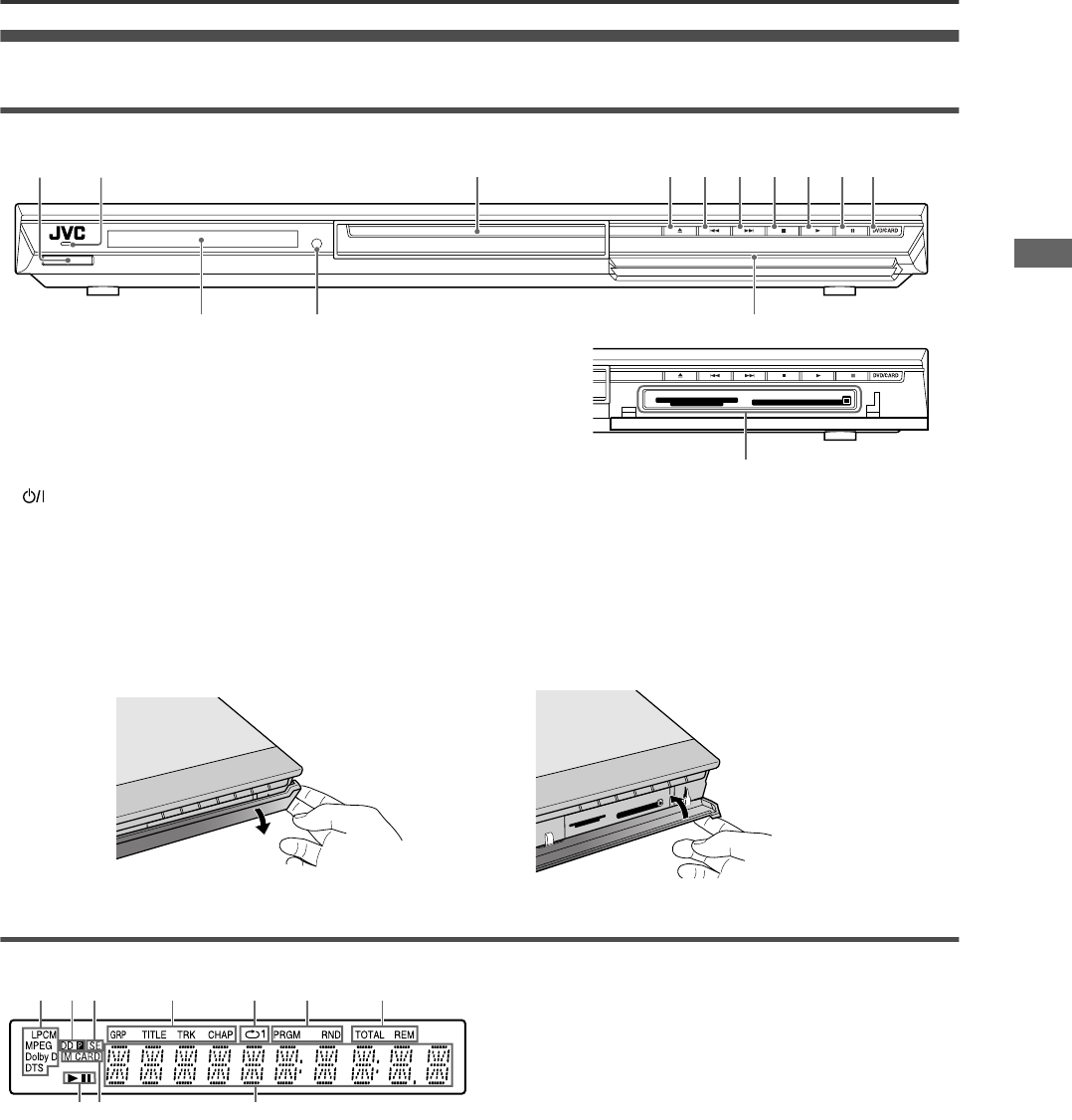

Front panel

1 button (12)

2 STANDBY/ON indicator (12)

3 Disc tray (13)

4 0 (eject) button (13)

5 4 button (15, 16)

6 ¢ button (15, 16)

7 7 (stop) button (14, 15, 17)

8 3 (play) button (13, 15)

9 8 (pause) button (14, 15, 27)

0 DVD/CARD button (15, 26, 29)

- Display window (see below)

= Remote sensor (10)

~ Card door (26)

! Memory card slots (26)

How to open/close the card door

Display window

\

1 Audio format indicators

[LPCM] Turns on when linear PCM audio signals are output

from the player, for example when playing back an

Audio CD disc.

[MPEG] Turns on when MPEG signals are output from the

player, for example when playing back a Video CD

disc.

[Dolby D] Turns on when playing back a Dolby Digital sound

source.

[DTS] Turns on when playing back a DTS-encoded digital

sound source.

2 Progressive indicators

[P] Turns on while in the Progressive scanning mode.

[DDP] Turns on depending on the [PICTURE SOURCE]

preference setting and the source type of the current

DVD VIDEO disc (see page 8).

3 SE (Sound Effect) indicator

Turns on when the Sound Effect function takes effect.

4 Group/title/track/chapter indicators

Show what is indicated by the multi-information display during

playback.

5 Repeat mode indicator

Turns on while in the repeat mode and shows the currently

selected repeat mode.

6 Program/random indicators

Turn on while in the program playback mode or random

playback mode respectively.

7 Total time/remaining time indicators

[TOTAL] Turns on when total elapsed time is indicated by the

multi-information display.

[REM] Turns on when remaining playback time is indicated

by the multi-information display.

8 3(play) / 8(pause) indicators

Turn on while in playback or in pause respectively.

9 M (memory) CARD indicator

Turns on while accessing a memory card.

p Multi-information window

Indicates various kinds of information by numbers and

alphabets, such as the player’s current status (“READING,”

“OPEN,” etc.) or currently played DVD’s title and chapter.

12 3459

0876

~

-=

!

Inside of the card door (~).

1

8 9 p

2 3 4 5 6 7

XV-NP10[B].book Page 3 Wednesday, April 28, 2004 10:08 PM

Before operation

4

XV-NP10S/LET0246-003A/English

Before operation

Remote control unit

1OPEN/CLOSE button (13)

2DVD/CARD button (15, 26, 29)

3Numeric buttons

4RETURN button (17)

5THUMBNAIL/LIST button (27)

6TOP MENU button (17)

7Cursor selection (5 Up, ∞ Down) - CH (+/–) buttons

8Cursor selection (2 Left, 3 Right) - VOL (+/–) buttons

9CHOICE button (13, 28, 30)

04/PREVIOUS button (15, 16, 17, 19, 27, 29)

-7/CLEAR button (14, 19, 20, 27, 28)

=3/SELECT button (13, 15, 17, 19, 27, 28)

~1/SLOW– button (15, 27)

! button (16)

@SOUND EFFECT button (23)

#ANGLE button (21)

$SUBTITLE button (21)

%REPEAT button (20, 27, 29)

^SLIDE EFFECT button (28)

&Infrared signal window (10)

*TV - DVD switch (11, 12, 17, 26, 28, 30)

(TV STANDBY/ON button (11)

)DVD STANDBY/ON button (12)

_TV/VIDEO - CANCEL button (11, 19)

+TITLE/GROUP button (17)

¡MENU button (17)

ENTER button

£ON SCREEN button (14, 18, 20, 23)

¢¢/NEXT button (15, 16, 17, 19, 27, 29)

8 button (14, 15, 28)

¡/SLOW+ button (15, 27)

ZOOM button (22, 27)

VFP - PROGRESSIVE SCAN button (8, 22)

AUDIO button (21)

AMP VOL +/– buttons (11)

DIMMER button (See below)

213

546

879

010 +10

TITLE

/GROUP TV/VIDEO

CANCELRETURN THUMBNAIL

/LIST

VOL VOL+

CH

CH +

VFPZOOM

AMP

VOL

AUDIO

SOUND

EFFECT

SUB TITLE

SLIDE

EFFECT

ANGLE

DIMMER

REPEAT

OPEN

/CLOSE DVD/

CARD

TV1 TV2 TV3

TV4 TV5 TV6

TV7 TV8 TV9

TV-/-- TV0 MUTING

TV DVD

NEXTPREVIOUS

SELECTCLEAR

SLOW

-

SLOW+

T

O

P

M

E

N

U

M

E

N

U

O

N

S

C

R

E

E

N

C

H

O

I

C

E

ENTER

STANDBY/ON

TV DVD

PROGRESSIVE

SCAN

+

&

£

¢

)

(

_

¡

2

1

3

4

5

7

8

9

-

0

=

!

@

#

$

%

^

~

6

*

To change the brightness of the display window

Press DIMMER on the remote control unit.

You can select the brightness of the display window and the

illumination on the front panel from three levels, or off.

If the brightness is set to off, nothing will be shown on the

display. In this case, the illumination on the front panel is also

turned off.

XV-NP10[B].book Page 4 Wednesday, April 28, 2004 10:08 PM

5

XV-NP10S/LET0246-003A/English

Preparations

Preparations

Connections

Before using the player, connect the player to a TV and/or

amplifier.

Before making connections

• Do not connect the AC power cord until all other

connections have been made.

• Connect VIDEO OUT of the player directly to the video

input of your TV. Connecting VIDEO OUT of the player to a

TV via a VCR may cause a monitor problem when playing

back a copy-protected disc. You may also have a monitor

problem when connecting the player to an integrated TV/

Video system.

Connecting to a TV

The following sections A to D describe TV connections where

only a TV is connected to the player so that you will hear sound

from the TV.

A Connecting to a TV with the SCART connector

You can enjoy using the player by simply connecting it to your

television set with a 21-pin SCART cable.

NOTES

•Do not connect multiple devices using multiple connectors.

•When you connect a SCART cable, do not connect any other

cables to other video signal output jacks (VIDEO/S-VIDEO/

COMPONENT VIDEO OUT). If you do so, you will not be able

to obtain correct signals from the SCART connector of the

player.

•In the following description, “TV” may be substituted with

“monitor” or “projector.”

•Terminal names used for other components may be different

from those used in the following description.

RIGHT

LEFT

AUDIO

VIDEO

S-VIDEO

IN IN

RIGHT

LEFT

COAXIAL

OPTICAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

S-VIDEO

YP

B

P

R

VIDEO OUT

COMPONENT

AV OUT

COMPONENT

/ COMPOSITE

S-VIDEO Y /C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

SCART cable (not supplied)

Set the selector correctly according to your TV.

•If your TV only accommodates the composite video

signal:

Set the selector to “COMPONENT/COMPOSITE” or

“RGB/COMPOSITE.”

or

•If your TV accommodates

Y/C signals:

Set the selector to “S-

VIDEO Y/C.”

•If your TV accommodates

RGB signals:

Set the selector to “RGB/

COMPOSITE.”

•If your TV accommodates both RGB and Y/C, set the

selector to “RGB/COMPOSITE.” Otherwise the picture

cannot be displayed correctly.

XV-NP10[B].book Page 5 Wednesday, April 28, 2004 10:08 PM

Preparations

6

XV-NP10S/LET0246-003A/English

Preparations

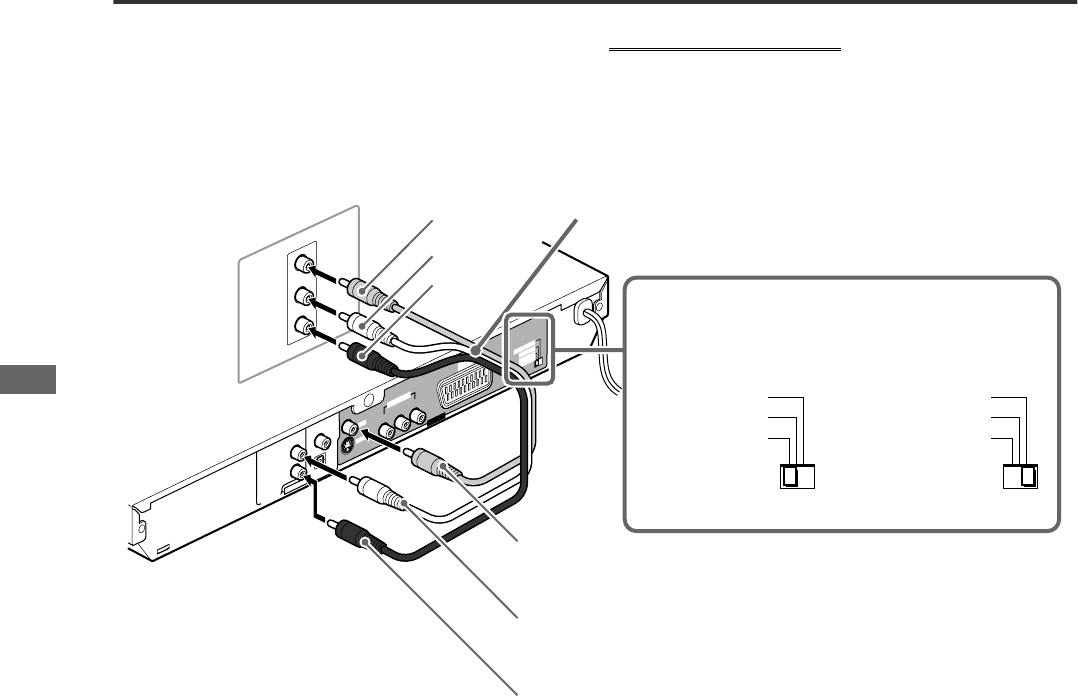

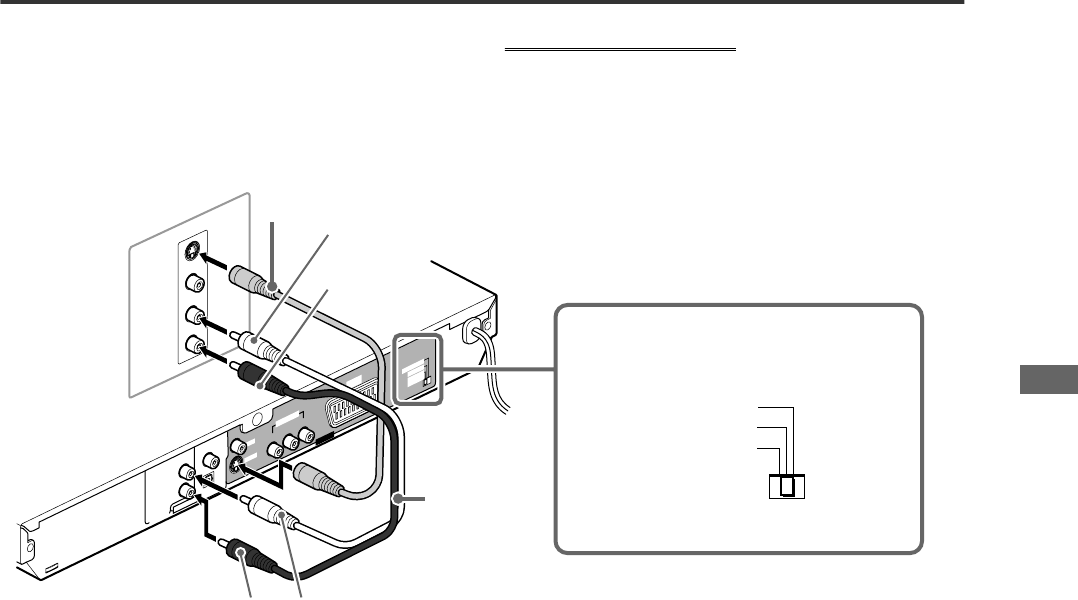

B Connecting to a conventional TV

If your TV has a monaural audio input instead of stereo, you need

to use an optional audio cable which converts stereo audio output

to monaural.

NOTES

•Do not connect multiple devices using multiple connectors.

•Do not connect cables to S-VIDEO jack and SCART connector. If

you do so, you will not be able to obtain correct signals from the

VIDEO (and COMPONENT VIDEO OUT) jacks.

RIGHT

LEFT

COAXIAL

OPTICAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

S-VIDEO

YP

B

P

R

VIDEO OUT

COMPONENT

RIGHT

LEFT

AUDIO

VIDEO

IN

AV OUT

COMPONENT

/ COMPOSITE

S-VIDEO Y /C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

TV

White

Red

The player

Audio video cable (not supplied)

Red

White

Set the selector to “COMPONENT/COMPOSITE” or

“RGB/COMPOSITE.”

Yellow

Ye l l o w

•When you connect cables to both the VIDEO jack and

COMPONENT VIDEO OUT jacks, set the selector to

“COMPONENT/COMPOSITE.”

XV-NP10[B].book Page 6 Wednesday, April 28, 2004 10:08 PM

Preparations

7

XV-NP10S/LET0246-003A/English

Preparations

C Connecting to a TV with an S-video jack

If your TV has an S-VIDEO input, you can get better picture

quality by connecting it with the S-VIDEO output of the player

using an S-video cable instead of connecting the video input of

the TV to the VIDEO jack of the player.

NOTES

•Do not connect multiple devices using multiple connectors.

•When using the S-VIDEO output jack, do not connect the

COMPONENT VIDEO OUT jacks, VIDEO jack, and SCART

cable on the player.

RIGHT

LEFT

AUDIO

VIDEO

S-VIDEO

IN

RIGHT

LEFT

COAXIAL

OPTICAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

S-VIDEO

YP

B

P

R

VIDEO OUT

COMPONENT

AV OUT

COMPONENT

/ COMPOSITE

S-VIDEO Y /C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

TV

White

Red

The player

Audio cable

(not supplied)

S-video cable (not supplied)

Red White

Set the selector to “S-VIDEO Y/C.”

XV-NP10[B].book Page 7 Wednesday, April 28, 2004 10:08 PM

Preparations

8

XV-NP10S/LET0246-003A/English

Preparations

D Connecting to a TV with component jacks.

You can enjoy picture of high-fidelity color reproduction by

connecting the COMPONENT VIDEO OUT jacks on the player to

your TV.

NOTES

•Do not connect multiple devices using multiple connectors.

•Connect “Y” to “Y,” “PB” to “PB” (CB), “PR” to “PR” (CR) correctly.

•Do not connect cables to S-VIDEO jack and SCART connector. If

you do so, you will not be able to obtain correct signals from the

COMPONENT VIDEO OUT jacks.

•If your TV has component video input jacks of BNC type, use an

adapter which converts a pin jack to a BNC jack (not supplied).

HINT

Depending on the material source format, DVD VIDEO discs can

be classified into two types; film source and video source (note

that some DVD VIDEO discs contain both film source and video

source).

When the player plays back a film source material, Progressive

(uninterlaced) output signals are created using the original

information. When a video source material is played back, the

player interleaves lines between the interlaced lines on each to

create the interpolated picture and outputs as the progressive

signal.

Activating the Progressive scanning mode using the remote

control unit

When the player is turned on, press and hold down VFP -

PROGRESSIVE SCAN for a few seconds.

The scanning mode switches between the Progressive scanning

and Interlaced scanning modes.

When the scanning mode is set to the Progressive mode, the [P]

indicator lights up in the display window. [DD] indicator also lights

up when Progressive scanned signals on a DVD VIDEO disc are

directly output as they are from the player.

Depending on the [PICTURE SOURCE] setting on the [PICTURE]

preference display (see page 31) and whether the current DVD

VIDEO disc is film-source or video-source, the progressive

indicator lights, as shown in the table.

* While stopped in the Progressive scanning mode, the [P]

indicator is lit regardless of the [PICTURE SOURCE] selection.

NOTES

•The Progressive scanning mode works only when you connect

the player’s COMPONENT VIDEO OUT jacks to a progressive

TV.

•There are some progressive TV and High-Definition TV sets that

are not fully compatible with the player, resulting in the unnatural

picture when playing back a DVD VIDEO disc in the Progressive

scanning mode. In such a case, use the Interlaced scanning

mode. To check the compatibility of your TV set, contact your

local JVC customer service center.

•All JVC progressive TV and High-Definition TV sets are fully

compatible with the player (Example: AV-61S902).

Progressive scan video playback available

In the Progressive scanning mode, you can enjoy high quality

picture with less flickers when the COMPONENT VIDEO OUT

jacks are connected to a TV or monitor that supports the

progressive video input.

RIGHT

LEFT

AUDIO

VIDEO

S-VIDEO

IN

YP

B

P

R

COMPONENT IN

RIGHT

LEFT

COAXIAL

OPTICAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

S-VIDEO

YP

B

P

R

VIDEO OUT

COMPONENT

AV OUT

COMPONENT

/ COMPOSITE

S-VIDEO Y /C

RGB / COMPOSITE

COMPONENT

/ COMPOSITE

S-VIDEO Y / C

RGB / COMPOSITE

The player

Blue

Red

Green

White

Red

Red

White Audio cable

(not supplied)

Component video cable (not supplied)

Blue

Green

TV

Red

Set the selector to “COMPONENT/COMPOSITE.”

Setting of

[PICTURE SOURCE]

Source type of DVD VIDEO

Film source Video source

AUTO DDP P

FILM DDP DDP

VIDEO (NORMAL)/

(ACTIVE) PP

XV-NP10[B].book Page 8 Wednesday, April 28, 2004 10:08 PM

Preparations

9

XV-NP10S/LET0246-003A/English

Preparations

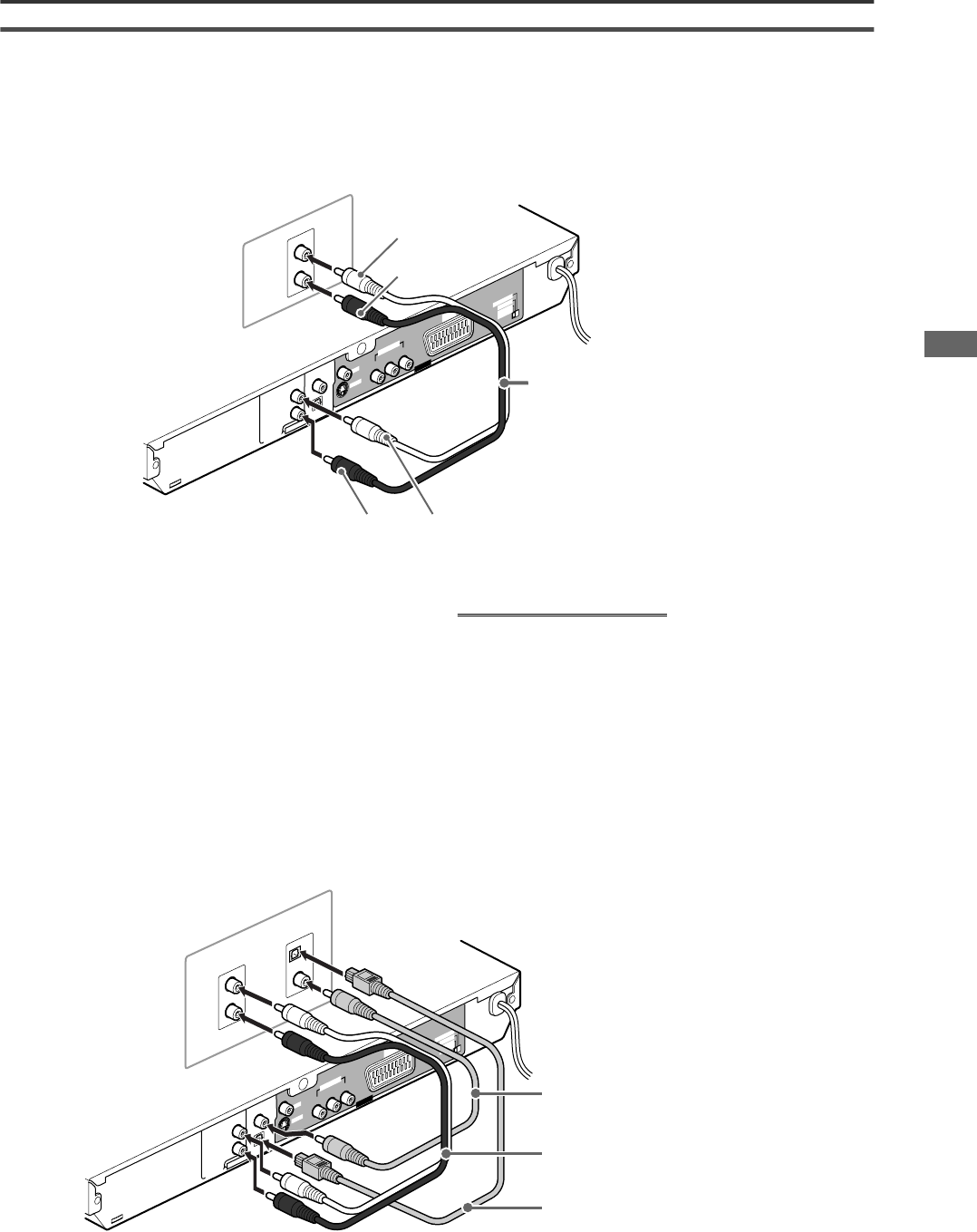

Connecting to optional audio equipment

Connecting to a stereo audio amplifier/receiver

Connect the player’s AUDIO OUT (LEFT/RIGHT) jacks to any

line-level inputs (such as AUX, DVD, CD, etc.) of an audio

amplifier or receiver.

Connecting to a digital audio device for

multichannel source

You can enjoy sound of enhanced quality by connecting the

player’s DIGITAL OUT (either OPTICAL or COAXIAL) jack to a

digital input of an amplifier, etc., using an optical or coaxial digital

cable. The digital audio signal on a disc will be transferred directly

from the player. If the connected digital audio equipment is a

Dolby Digital or DTS decoder or an amplifier with a built-in

decoder, you can enjoy high-quality surround sound.

NOTES

•Connect the player and the digital audio device by using either

an optical digital cable or a coaxial digital cable.

•It is not recommended to use the digital jacks for dubbing.

When recording the sounds (DVD VIDEO, SVCD, Video CD or

Audio CD) played back on the player, record them through the

analog jacks.

•Depending on the disc, no signal may be output from the

DIGITAL OUT. Make an analog connection in this case.

• Set [DIGITAL AUDIO OUTPUT] in the [AUDIO] preference

display correctly according to the connected digital audio

equipment. If setting made for [DIGITAL AUDIO OUTPUT] is

incorrect, loud noise may be generated causing damage to

the speakers (see page 32).

RIGHT

LEFT

AUDIO

IN

RIGHT

LEFT

COAXIAL

OPTICAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

S-VIDEO

YP

B

P

R

VIDEO OUT

COMPONENT

AV OUT

COMPONENT

/ COMPOSITE

S-VIDEO Y /C

RGB / COMPOSITE

White

Red

The player Audio cable (not supplied)

Amplifier or receiver

Red White

RIGHT

LEFT

DVD

COAXIAL

OPTICAL

DIGITAL

IN IN

RIGHT

LEFT

COAXIAL

OPTICAL

PCM/STREAM

DIGITAL OUT

AUDIO OUT

VIDEO

S-VIDEO

YP

B

P

R

VIDEO OUT

COMPONENT

AV OUT

COMPONENT

/ COMPOSITE

S-VIDEO Y /C

RGB / COMPOSITE

The player

Audio cable (not supplied)

Digital equipment

Optical digital cable (not supplied)

Coaxial digital cable (not supplied)

XV-NP10[B].book Page 9 Wednesday, April 28, 2004 10:08 PM

Preparations

10

XV-NP10S/LET0246-003A/English

Preparations

Connecting the power cord

When all the audio/video connections have been made, connect

the AC power plug to the wall outlet. Make sure that the plugs are

inserted firmly.

The STANDBY/ON indicator lights in red.

Warning

•Disconnect the power cord:

- if you are not going to use the player for a long time.

- before cleaning the player.

- before moving the player.

•Do not:

- connect or disconnect the power cord with wet hands.

- pull the power cord when disconnecting it, as this may damage

the cord and cause fire, electric shock, or other accidents.

Caution

•Do not alter, twist or pull the power cord, or put anything heavy

on it, which may cause fire, electric shock, or other accidents.

•If the cord is damaged, consult a dealer and have the power cord

replaced with a new one.

Using the remote control unit

To install batteries

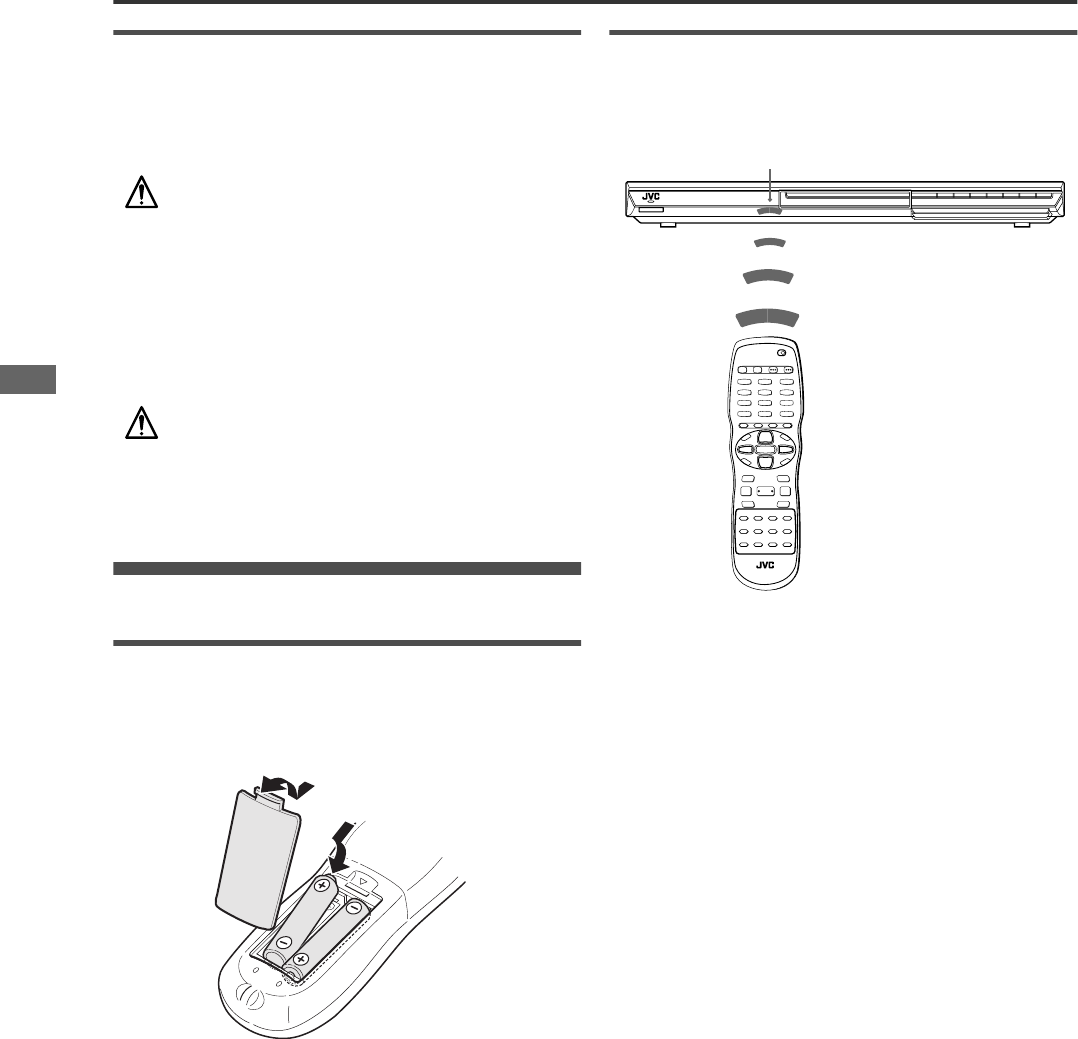

Open the compartment cover, and place the two supplied R6

(SUM-3)/AA(15F) batteries in the remote control unit according to

the polarity markings (“+” and “–”) inside the compartment. Then

replace the cover.

The batteries will last about six months with normal use.

If the functions of the remote control unit become erratic, replace

the batteries.

Precautions of the safe use of batteries

Observe the following precautions for the safe use of batteries. If

they are used improperly their lives will be shortened, they may

burst or their contents may leak.

•Remove the batteries from the remote control unit if it is not

going to be used for a long period of time.

•Remove dead batteries and dispose of them properly.

•Never leave dead batteries lying around, take them apart, mix

them with other refuse, or throw them into an incinerator.

•Never touch liquid that has leaked out of a battery.

•Do not mix new and old batteries, or batteries of different types,

when replacing them.

Remote sensor

Point the top of the remote control unit toward the remote sensor

as directly as possible. If you operate it from a diagonal position,

the operating range (approx. 5 m) may be shorter.

Remote sensor

XV-NP10[B].book Page 10 Wednesday, April 28, 2004 10:08 PM

Preparations

11

XV-NP10S/LET0246-003A/English

Preparations

To use the remote control unit for TV

operation

Setting the remote control signal for operating your

TV

1Set the TV - DVD switch to “TV.”

2While holding down TV/VIDEO - CANCEL,

enter the manufacturer code of your TV listed

below by using the numeric buttons (0 to 9),

and then press ENTER.

Example:

To enter the manufacturer code “01”: Press “0,” “1,” then

ENTER.

Manufacturer code list

NOTE

These codes may not be compatible with TVs which are relatively

old.

3Release TV/VIDEO - CANCEL.

4Try to operate the TV by pressing TV

STANDBY/ON .

If your TV turns on or off, you have successfully set the

control signal.

NOTES

•When you purchased the player the manufacturer code is set to

“JVC” (01).

•If there is more than one code listed for the manufacturer of

your TV, try them one by one until you succeed.

Operating the TV

Set the TV - DVD switch on the remote control unit to “TV.”

The following buttons can be used for operating the TV.

To control the volume of a JVC’s amplifier or

receiver

Pressing the AMP VOL + button raises the audio volume of a

JVC’s amplifier or receiver, while pressing the – button lowers the

volume.

Manufacturer No. Manufacturer No.

AIWA 36 MIVAR 29

BEIJING 22 NEC 20

CCE 02 NOBLEX 22

CHANGHONG 34 NOKIA 31

DAEWOO 17, 37 PANASONIC 04, 11

FERGUSON 27 PEONY 34, 38, 39

FINLUX 30 PHILCO 10, 17, 21

FUNAI 32 PHILIPS 02

GRADIENTE 15, 20 RCA 05

GRUNDIG 19

SAMSUNG

12, 33, 34,

35

HITACHI 10

ITT 28 SANYO 13, 16

JINXING 38 SEARS 13

JVC

01, 23, 24,

25

SHARP 06

SONY 07

KONKA 40 TCL 41

LG (GOLDSTAR) 18 THOMSON 26

MAGNAVOX 02 TOSHIBA 08, 14

MITSUBISHI 03 ZENITH 09

Numeric buttons

Turns the TV on or off.

Switches the TV input mode between TV and

VIDEO.

Selects the TV channels directly.

*For some TVs, pressing “+10” functions as the

“100+,” while “10” functions as the ENTER button

if your TV requires pressing the ENTER button

after selecting a channel number.

Mutes the TV sound.

Changes the TV channels.

Adjusts the TV sound volume.

TV DVD

TV

TV/VIDEO

CANCEL

TV1

1

TV-/--

10

TV0

0

MUTING

+10

CH

+

CH

-

VOL

-

VOL+

AMP

VOL

XV-NP10[B].book Page 11 Wednesday, April 28, 2004 10:08 PM

12

XV-NP10S/LET0246-003A/English

Basic operations

Basic operations

NOTE

Turning on/off the player

Press DVD STANDBY/ON on the remote

control unit or press on the front panel.

The STANDBY/ON indicator on the front panel, which lights

in red during standby, lights in green.

The left and right sides of the display window are illuminated.

The opening display appears on the TV screen, and the following

messages may appear at the bottom of the opening display.

•NOW READING (The player is reading the disc information.)

•REGION CODE ERROR! (The region code of the DVD VIDEO

disc does not match the player. The disc cannot be played

back.)

•CANNOT READ THIS DISC (The player cannot play back the

disc.)

•OPEN (The disc tray is opening.)

•CLOSE (The disc tray is closing.)

•NO DISC (No disc is loaded.)

NOTES

•Even if you turn off the player, the player is not disconnected

from the AC power source as long as it is connected to the wall

outlet. This state is called standby mode. In this state, the player

consumes a very small amount of power.

•You can change the picture of the opening display. (See page

28.)

Initial setup

When you turn on the player for the first time, the following

message appears on the TV screen.

1Press ENTER.

The first page of the DVD PLAYER SET UP display appears.

The pull-down menu of the [ON SCREEN LANGUAGE] is

already open.

2Press 5/∞ to select the desired language.

You can select the on-screen language for the preference

displays, etc. from among ENGLISH, FRENCH, and

GERMAN.

3Press ENTER.

The second page is shown, in which the pull-down menu of

the [MONITOR TYPE] is already open.

4Press 5/∞ to select the desired monitor type.

For a normal (conventional) TV, select [4:3 LB] or [4:3 PS].

For a wide-screen TV, select [16:9]. (See page 31.)

Make sure that the TV - DVD switch on the

remote control unit is set to “DVD” when

using the 5/∞/2/3 and numeric buttons

for controlling the player.

About invalid operation icon

When you press a button, and if the player does not accept its

operation, appears on your TV screen. Operations are

occasionally unacceptable even if is not displayed.

Note that some operations may not be accepted. For example,

some discs may not allow rapid advance/reverse or slow-

motion playback.

STANDBY/ON indicator

TV DVD

NOW READING

NOW READING

Message area

EXECUTE DVD PLAYER SETUP? - BASIC PICTURE/AUDIO

SETTING

YES - PRESS ENTER NO - PRESS CANCEL

ON SCREEN LANGUAGE options

MONITOR TYPE options

XV-NP10[B].book Page 12 Wednesday, April 28, 2004 10:08 PM

Basic operations

13

XV-NP10S/LET0246-003A/English

Basic operations

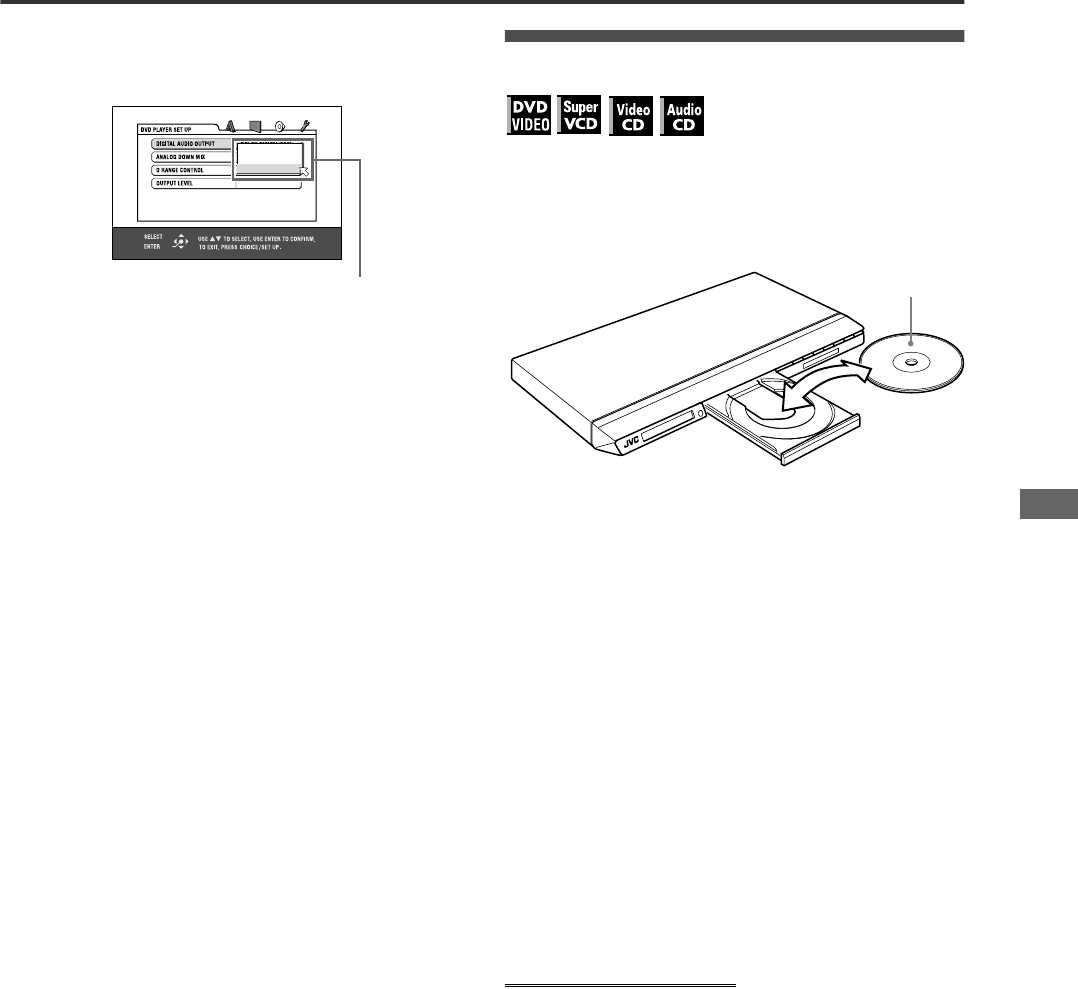

5Press ENTER.

The third page is shown, in which the pull-down menu of the

[DIGITAL AUDIO OUTPUT] is already open.

6Press 5/∞ to select a desired digital output

signal type.

Set this item correctly when you connect the player to an

external surround decoder or D/A converter. See “DIGITAL

AUDIO OUTPUT” on page 32. (If you do not connect the

player to such a device, you do not have to set this item.)

•When connecting to other digital device, select

[PCM ONLY].

•When connecting to a Dolby Digital decoder, select

[DOLBY DIGITAL/PCM].

•When connecting to a Dolby Digital decoder/DTS decoder/

MPEG decoder, select [STREAM/PCM].

7Press ENTER.

The TV screen returns to the opening display.

To bring up the DVD PLAYER SET UP display later

Press CHOICE for a few seconds until the DVD PLAYER SET UP

display appears.

Basic playback

1Press 0 (or OPEN/CLOSE on the remote

control unit) to open the disc tray.

2Place a disc in the disc tray.

3Press 0 (or OPEN/CLOSE on the remote

control unit) to close the disc tray.

4Press 3 on the player or 3/SELECT on the

remote control unit.

The player starts playback from the beginning.

•Depending on the disc, playback starts when you close the

disc tray.

If a menu is shown on the TV screen

When inserting a DVD VIDEO, SVCD or Video CD disc, a menu

may be shown on the TV screen. From the menu, you can select

a desired item to be played back.

For DVD VIDEO

1Press 5/∞/2/3 to select a desired item.

2Press ENTER.

The player starts playback of the selected item.

For SVCD/Video CD

Press the numeric buttons to select a desired item.

The player starts playback of the selected item.

NOTES

•Do not insert an unplayable disc. (See page 2.)

•When inserting a disc on the disc tray, be sure to position the

disc inside the recess. Otherwise, the disc may be damaged

when the disc tray is closed, or you may not be able to remove

the disc from the player.

•If it takes time to read the loaded disc (“READING” appears on

the display window), remove the disc by pressing OPEN/

CLOSE on the remote control and check the disc.

PCM ONLY

DOLBY DIGITAL/PCM

STREAM/PCM

DIGITAL AUDIO OUTPUT options

•To insert an 8-cm disc, place it in the inner recess.

With the label side up

XV-NP10[B].book Page 13 Wednesday, April 28, 2004 10:08 PM

Basic operations

14

XV-NP10S/LET0246-003A/English

Basic operations

To check the playback status

You can see the current selection number (the title/chapter number

for DVD VIDEO or track number for SVCD/Video CD/Audio CD),

time information (the track or chapter time while stopped, or

elapsed track or chapter time during playback) and the transport

status (stop, playback, pause, etc.) on the TV screen.

Press ON SCREEN.

Example: for DVD VIDEO

Note that pressing ON SCREEN again brings up the menu bar

under the status bar, from which you can access various functions.

See page 23 for details about the menu bar.

To turn off the status bar

Press ON SCREEN repeatedly until the status bar goes off.

To stop playback completely

Press 7.

Hint

If you press 0 during playback, the player stops playback and

opens the disc tray.

To stop playback temporarily

Press 8.

To resume playback, press 3/SELECT. (See the following item.)

Resuming playback

The player can memorize the position on a disc where you

interrupt playback, and resume playback from that position later.

There are three resume modes; ON, OFF and DISC RESUME.

The mode is initially set to ON when you purchased the player.

•You can select the mode using the preference display (see page

32).

When the resume mode is “ON”

When you press 7, the player stops playback and memorizes the

interrupted position. The TV screen shows “RESUME STOP” and

[– – – – RESUME] appears in the display window.

The memory of the interrupted position is not cleared if you turn off

the player.

When you turn off the player after setting the resume function,

simply press 3/SELECT. The player is turned on, and playback

starts from the interrupted position.

Note that the memory is cleared if you open the disc tray.

When the resume mode is “DISC RESUME”

When you press 7, the player stops playback and memorizes the

interrupted position. The TV screen shows “RESUME STOP” and

[– – – – RESUME] appears in the display window.

The memory of the interrupted position is not cleared if you open

the disc tray or turn off the player.

Hint

The player memorizes interrupted positions for the last 30 discs

played. Storing a new interrupted position will erase the

interrupted position stored for the first disc.

To clear the memory

Press 7 while the disc is stopped.

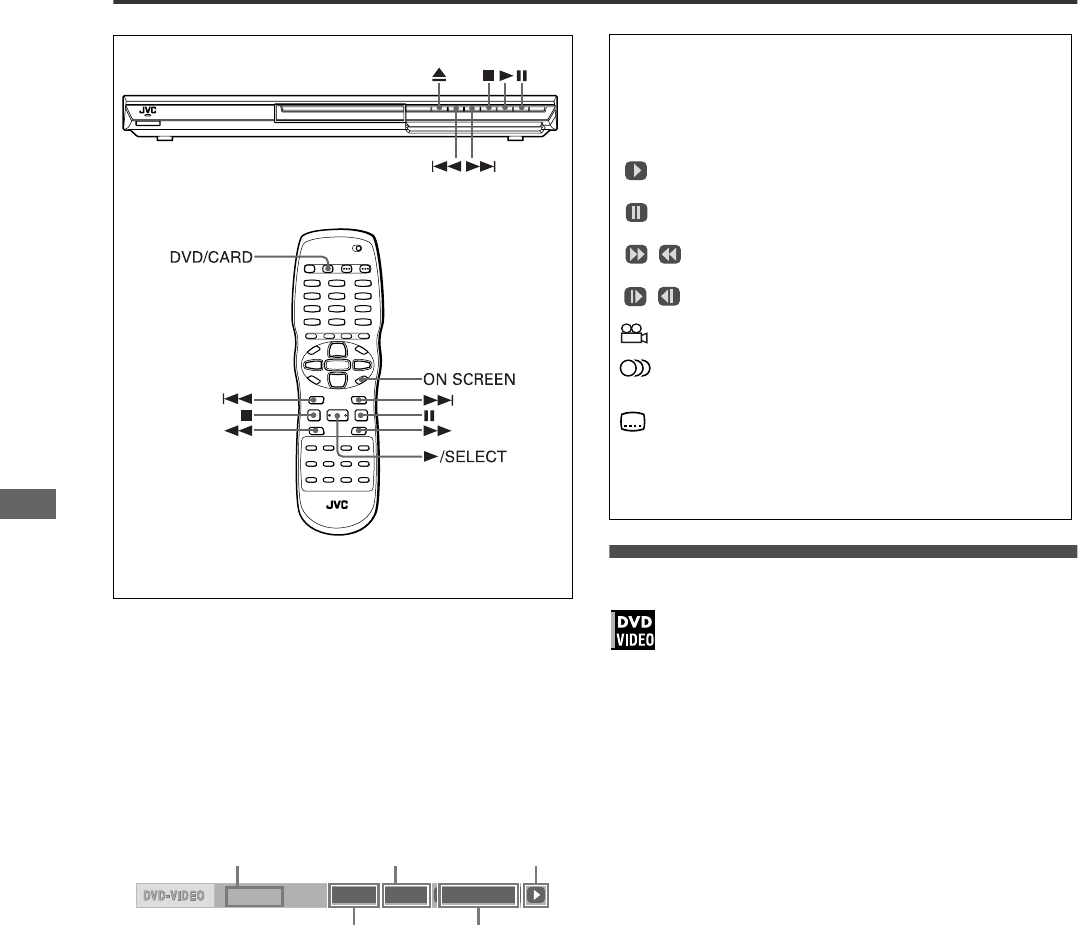

8.5Mbps

TITLE 33 TOTAL 1:25:58CHAP 33

Transfer rate

Current chapter

number

Current transport

status

Current title number Current chapter

time

About On-screen guide icons

You may see the following icons displayed over the picture at

the beginning of an operation.

They have the following meanings.

: Playback

: Pause

: Fast playback with the speed indication

: Slow-motion playback with the speed indication

: A scene recorded from multiple angles (see page 21)

: A scene recorded with multiple audio languages (see

page 21)

: A scene recorded with multiple subtitle languages (see

page 21)

You can change the setting so that the on-screen guide icons

do not appear on the TV screen (see page 32).

/

/

XV-NP10[B].book Page 14 Wednesday, April 28, 2004 10:08 PM

Basic operations

15

XV-NP10S/LET0246-003A/English

Basic operations

To resume playback

When the resume mode is “ON”

While the disc you interrupted playback is

still on the disc tray, press 3/SELECT.

The player resumes playback from the position where

playback was interrupted. The TV screen shows “RESUME

PLAY.”

To play back from the beginning

Press 7 before pressing 3/SELECT to start playback.

When the resume mode is “DISC RESUME”

1Press 0 to insert a disc for which the player

has stored an interrupted position.

The TV screen shows “RESUME STOP.”

2Press 3/SELECT.

The TV screen shows “RESUME PLAY” and the player

resumes playback from the position where playback was

interrupted.

To play back from the beginning

After inserting the disc, press 7 before pressing 3/SELECT to

start playback.

When playing back a memory card

Pressing the DVD/CARD with a disc loaded clears the memory of

the interrupted position.

To playback a memory card without clearing the memory of the

interrupted position, do the following procedure.

1Set the [RESUME] setting to [DISC RESUME].

2Press 7.

3Press 0 to eject the disc.

4Press DVD/CARD and start the memory card playback.

NOTES

•If you change the [RESUME] setting from [DISC RESUME] to

[OFF] or [ON], you cannot resume playback of a disc whose

“resuming” position is stored. However, when you again set

[RESUME] to [DISC RESUME], you will then be able to resume

playback of the disc.

•When you resume playback, set the [RESUME] setting to [DISC

RESUME] before removing a loaded disc.

•If you interrupt the playback of a disc for which an interrupted

position has already been stored, the memory will be updated

with the new interrupted position.

•For a double-sided DVD VIDEO disc, the player regards each

side as a different disc. Therefore, to resume playback of such a

disc, the disc must be inserted with the same side down.

•When the player memorizes an interrupted point for a disc, it

also memorizes Audio, Subtitle and Angle settings.

Various speed playback

To advance or reverse playback rapidly

while monitoring

During playback, press ¡ or 1 on the

remote control unit.

You can select from 2 times (1.5 times for only the forward

playback of DVD VIDEO), 5 times, 20 times and 60 times (for

DVD VIDEO only) normal speed. Pressing 3/SELECT

returns the player to normal playback.

During playback, hold down ¢ or 4.

Playback is advanced or reversed at 5 times normal speed.

NOTE

During rapid playback, the sound will be muted except when

playing an audio CD, and when playing a DVD VIDEO at 1.5

times normal speed. For Audio CD, the sound will be heard

intermittently.

x1.5 Quick Playback with sound

When you select 1.5 times normal speed playback, the disc is

played back with sound.

•The subtitle does not go off.

•The sound may be heard intermittently.

•If the sound of a DVD VIDEO disc is recorded in Dolby Digital,

MPEG Multichannel, or DTS format, stereo linear PCM signals

are output. With some DVD VIDEO discs, the sound quality and

volume may alter, or the sound may be out of tune.

•To switch from rapid reverse playback to x1.5 Quick Playback,

first press 3/SELECT, then press ¡ once.

To advance a still picture frame by frame

While paused, press 8.

Each time you press 8, the still picture advances to the next

frame.

Pressing 3/SELECT returns to normal playback.

To play back in slow motion

You can select from 1/32 times, 1/16 times, 1/4 times and 1/2

times normal speed.

During playback, press 8, then press ¡ (to

play forward slow motion), or 1 (to play

reverse slow motion, for DVD VIDEO disc

only).

Pressing 3/SELECT returns to normal playback.

NOTE

During slow motion playback, the sound will be muted.

XV-NP10[B].book Page 15 Wednesday, April 28, 2004 10:08 PM

Basic operations

16

XV-NP10S/LET0246-003A/English

Basic operations

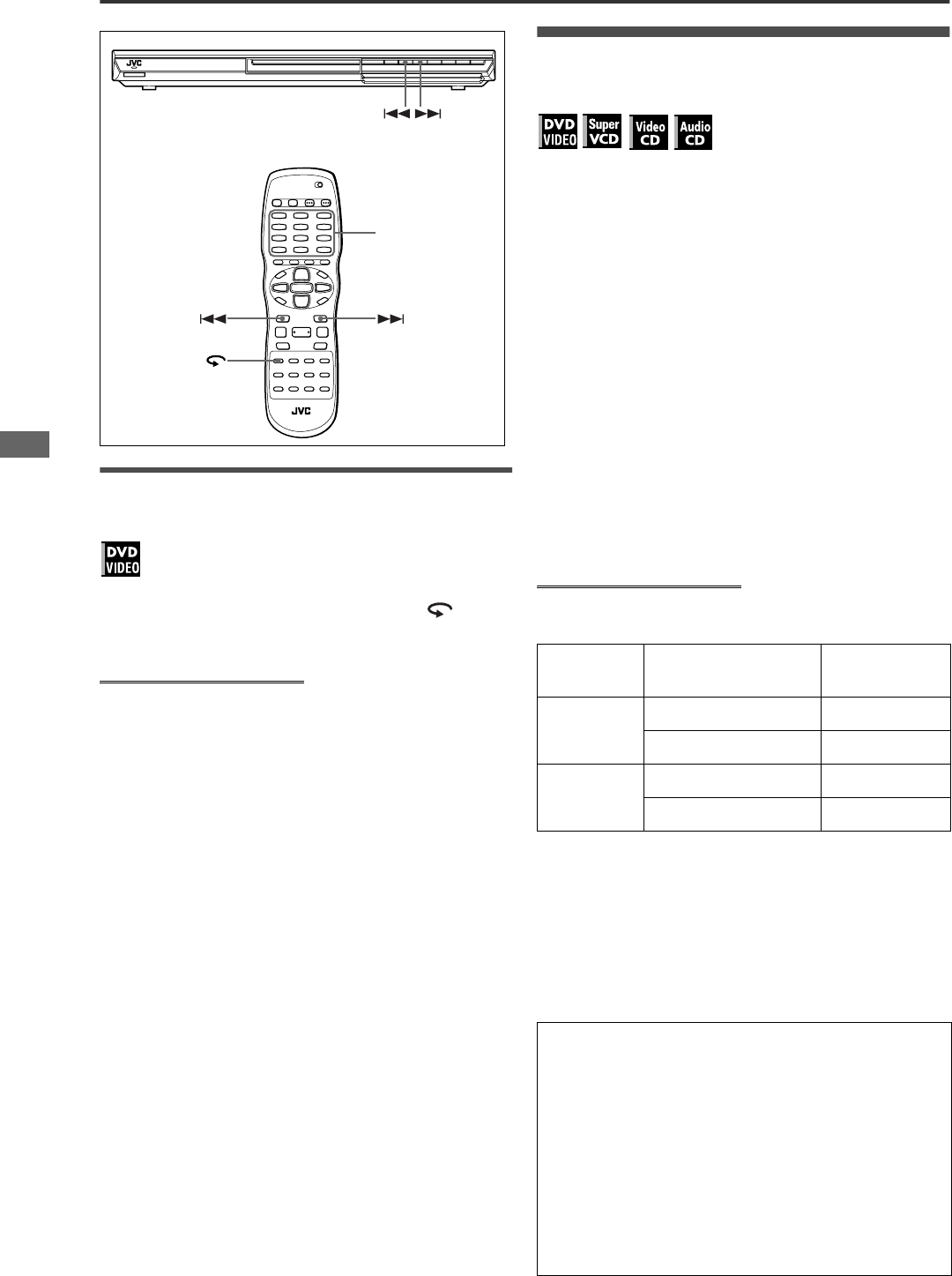

To replay the previous scenes (One touch

replay function)

During DVD VIDEO playback, press .

The playback position moves back 10 seconds before the

current position.

NOTES

•This function works only within the same title, though it works

between chapters.

•This function may not work with some DVD VIDEO discs.

Locating the beginning of a scene or

song

For DVD VIDEO: During playback, you can skip a chapter or title,

depending on the disc configuration.

For SVCD/Video CD: During playback without PBC function, you

can skip a track.

For Audio CD: During playback or while in stop mode, you can skip

a track.

To skip forward, press ¢.

To skip backward, press 4 twice.

Using the numeric buttons

For DVD VIDEO/Audio CD: During playback or while in stop mode

For SVCD/Video CD: During playback without PBC function or

while in stop mode

Press the numeric buttons to specify the

number.

To select 5: press 5.

To select 23: press +10, +10, then 3.

To select 40: press +10, +10, +10, then 10.

The player starts playback from the beginning of the selection.

NOTES

•Depending on the disc type and the player status, what is

specified differs:

•During DVD VIDEO playback, if a menu is shown on the TV

screen, the numeric buttons may be used for selecting an item in

the menu.

Numeric buttons

Player status Disc type What is

specified

While stopped

DVD VIDEO title

SVCD/Video CD/Audio CD track

During playback

DVD VIDEO chapter

SVCD/Video CD/Audio CD track

About screen saver function

A television monitor may have an image burned into it if a static

image is displayed for a long time. To prevent this, the player

automatically activates the screen saver function if a static

picture, such as an on-screen display or menu, is displayed for

over 5 minutes.

When the screen saver function is activated, the TV screen gets

darker.

Pressing any buttons will release the screen saver function.

See “SCREEN SAVER” on page 31.

•The screen saver function does not work when playing back

the following sources:

- JPEG/MPEG-4 (while in pause)

- Audio CD

XV-NP10[B].book Page 16 Wednesday, April 28, 2004 10:08 PM

17

XV-NP10S/LET0246-003A/English

Advanced operations

Advanced operations

NOTE

Playing from a specific position

To locate a desired scene from the DVD

menu

DVD VIDEO discs generally have their own menus which show

the disc contents. These menus contain various items such as

titles of movies, names of songs, or artist information, and display

them on the TV screen. You can locate a desired scene using the

DVD menu.

1While a DVD VIDEO disc is inserted, press

TOP MENU or MENU.

The menu appears on the TV screen.

2Press 5/∞/2/3 to select a desired item, then

press ENTER.

The player starts playback of the selected item.

Hints

•Some DVD VIDEO discs may also have a different menu which

appears when MENU is pressed.

•See the instructions of each DVD VIDEO disc for its particular

menu.

•With some discs, you can select items by entering the

corresponding number using the numeric buttons, which may

cause the player to automatically start playback.

NOTE

The MENU button does not work while stopped.

To locate a desired scene from the menu of

a SVCD/Video CD with PBC

Some SVCD/Video CD discs support the PBC function. PBC is

an abbreviation of “Playback Control.” Some SVCD/Video CD

discs recorded with PBC have their own menus, such as a list of

the songs of the disc. You can locate a specific scene by using

the PBC menu.

1In stop mode, press 3/SELECT.

A disc menu appears on the TV screen.

2Press the numeric buttons to select the

desired item.

To select 5: press 5.

To select 23: press +10, +10, then 3.

To select 40: press +10, +10, +10, then 10.

The player starts playback of the selected item.

To return to the menu, press RETURN.

Hint

If something like “NEXT” or “PREVIOUS” appears on the TV

screen, pressing ¢ advances to the next page, and pressing

4 returns to the previous page.

To specify a desired title

1During playback, press TITLE/GROUP.

[--] is shown in the title display area of the display window.

2Press the numeric buttons to specify a title to

be played.

To select 5: press 5.

To select 23: press +10, +10, then 3.

To select 40: press +10, +10, +10, then 10.

The player starts playback from the specified title.

NOTE

This function may not work with some DVD VIDEO discs.

Make sure that the TV - DVD switch on the

remote control unit is set to “DVD” when

using the 5/∞/2/3, numeric and TV/

VIDEO - CANCEL buttons for controlling

the player.

Numeric

buttons

TV DVD

About PBC (Playback Control)

Some SVCD/Video CD discs support the PBC function.

The PBC function allows you to enjoy menu-driven operation

and high-resolution still images which have a resolution four

times greater than moving pictures.

•To play a PBC-compatible SVCD/Video CD disc without

activating the PBC function, press the numeric buttons

instead of 3/SELECT to start playback.

•To activate the PBC function again,

press 7 to stop playback, then press 3/SELECT.

XV-NP10[B].book Page 17 Wednesday, April 28, 2004 10:08 PM

Advanced operations

18

XV-NP10S/LET0246-003A/English

Advanced operations

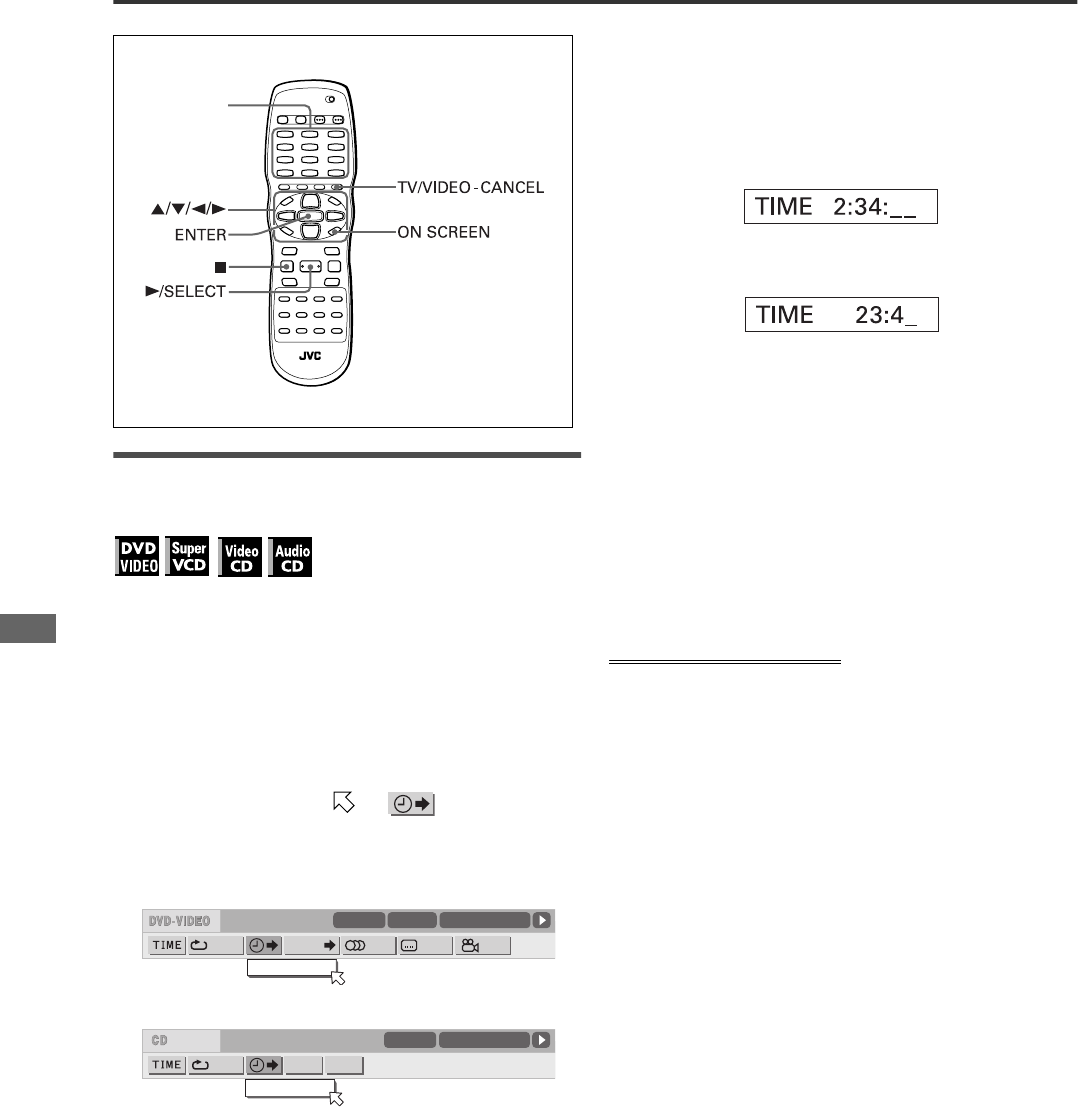

To locate a desired position in the current

title or track (Time search)

You can play a disc from the desired position by specifying the

time from the beginning of the current title (for DVD VIDEO) or the

disc (for SVCD/Video CD/Audio CD).

For DVD VIDEO/Audio CD: During playback

For SVCD/Video CD: In any condition except SVCD/Video CD

playback with PBC

1Press ON SCREEN twice.

The menu bar appears on the TV screen.

2Press 2/3 to move to , then press

ENTER.

The pull-down menu for entering time appears.

Screen example for DVD VIDEO

Screen example for Audio CD

3Press the numeric buttons (0 to 9) to enter the

desired time.

The specified time is displayed in the pull-down menu.

Example (for DVD VIDEO)

To play back from 2(H):34(M):00(S)

Press 2, 3, then 4.

Example (for SVCD/Video CD/Audio CD)

To play back from 23(M):40(S)

Press 2, 3, then 4.

You do not have to press “0” to enter the trailing zeros (for the

last two digits in the example above).

To correct a mistake

Press 2 repeatedly to move back to the digit where you

entered a wrong number, and reenter the correct one.

4Press ENTER.

The player starts playback from the specified time.

To dismiss the menu bar

Press ON SCREEN.

Hint

“10” and “+10” buttons are not used with this function.

NOTES

•Some DVD VIDEO discs do not contain time information, and the

time search function cannot be used.

•The time search function cannot be used during program

playback.

Numeric

buttons

1/3 1/3OFF 1/5

8.5Mbps

TITLE 33 TOTAL 1:25:58CHAP 33

CHAP.

TIME _:__:__

OFF PROG. RND.

TIME 25:58TRACK 33

TIME __:__

XV-NP10[B].book Page 18 Wednesday, April 28, 2004 10:08 PM

Advanced operations

19

XV-NP10S/LET0246-003A/English

Advanced operations

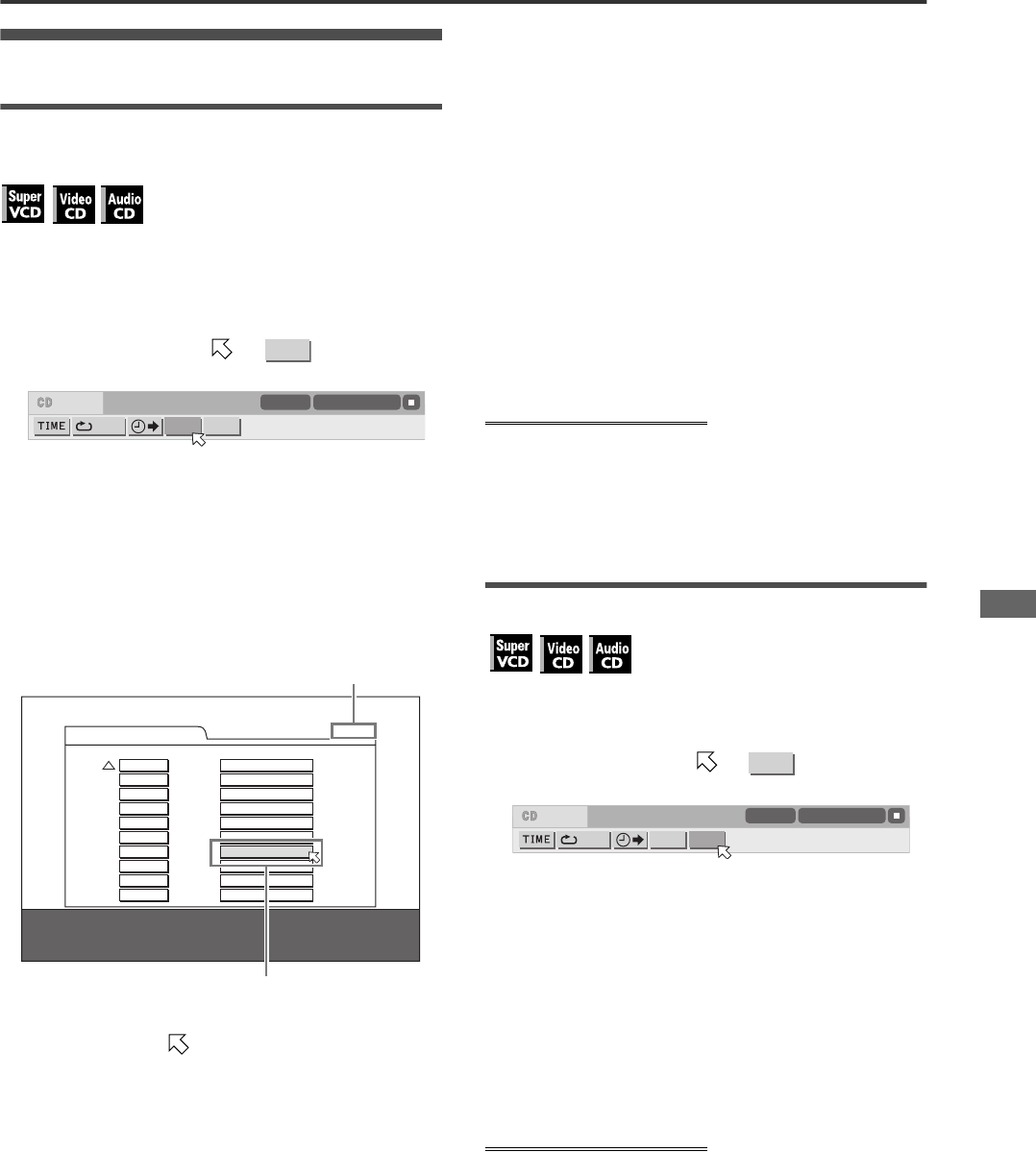

Changing the playback order

To play back in a specific order (Program

play)

By programming tracks, you can play up to 99 tracks in any order.

You may program the same track more than once.

1In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

2Press 2/3 to move to .

Screen example for Audio CD

3Press ENTER.

The program table appears.

The [PRGM] indicator lights up in the display window.

4Press the numeric buttons to specify tracks

in the desired order.

To select 5: press 5.

To select 23: press +10, +10, then 3.

To select 40: press +10, +10, +10, then 10.

To correct the program

Press 5/∞ to move to the track to be corrected, then

press TV/VIDEO - CANCEL. The track is erased and the

subsequent programmed tracks move up.

Pressing 7 clears all the programmed tracks.

5Press 3/SELECT to start program playback.

With an Audio CD disc, the program table remains on the TV

screen during program playback. (Pressing ON SCREEN

brings up the status bar.)

When all of the programmed tracks have finished playback,

the player stops and the program table appears again.

Note that the program remains.

•During program playback, you cannot edit the program

contents.

To check the program contents

During playback, press 7. Playback stops and the program table

is shown.

When the player is playing back an Audio CD and the program

table is not shown, you can bring up the table by carrying out

steps 1 to 3.

During SVCD/Video CD playback, you can check the program

contents via the menu bar.

To stop program playback

Press 7.

To clear the program

While stopped and the program table is shown, press 7.

To exit the program mode

After clearing the program, press ON SCREEN.

NOTES

•When the disc tray is opened or the player is turned off, the

program is cleared.

•During Audio CD playback, you can select previous or next

tracks by pressing ¢/4.

•During VCD/SVCD playback, you cannot search for the portion

on the discs by pressing ¡/1.

•During program playback, you can repeat playback.

To play back in random order (Random play)

1In stop mode, press ON SCREEN twice.

The menu bar appears on the TV screen.

2Press 2/3 to move to .

Screen example for Audio CD

3Press ENTER.

The player starts random playback.

With an SVCD/Video CD disc, the menu bar is automatically

dismissed.

During random playback, the [RND] indicator lights up in the

display window.

After playing all tracks of the disc, the player stops the disc

and exits the random playback mode.

To stop and quit random playback

Press 7. The player stops playback and exits the random

playback mode.

NOTES

•During random playback, you can repeat playback.

•Random playback mode will be canceled in the following cases:

- When ejecting the loaded disc

- When the Control screen appears on the TV

- When turning off the power

PROG.

OFF PROG. RND.

TIME 25:58TRACK 33

PROGRAM Total Program Time 00:25:12

No. TrackDisc

1 2 1

2 3 5

3 7 4

4 4 2

5 3 3

6 5 4

7 6 6

8

9

10

USE NUMERIC KEYS TO PROGRAM TRACKS.

CANCEL DELETES THE LAST STEP. 7 DELETES ALL.

The total program time

Selected track number

RND.

OFF PROG. RND.

TIME 25:58TRACK 33

XV-NP10[B].book Page 19 Wednesday, April 28, 2004 10:08 PM

Advanced operations

20

XV-NP10S/LET0246-003A/English

Advanced operations

Repeat playback

To repeat the current selection or all tracks

For DVD VIDEO: During playback

For SVCD/Video CD/Audio CD: In any condition except SVCD/

Video CD playback with PBC

Press REPEAT.

If you press REPEAT in stop mode, press 3/SELECT to start

playback.

Each time you press REPEAT, the repeat mode cycles among

All repeat, Repeat 1 and off.

The indication on the display window shows the selected

repeat mode.

: Repeats the current title for DVD VIDEO or all tracks for

SVCD/Video CD/Audio CD.

1: Repeats the current chapter for DVD VIDEO or the

current track for SVCD/Video CD/Audio CD.

No indication: The repeat mode is off.

A window which indicates the current repeat mode will be

displayed on the TV screen. The mode indication on the window is

same as the one on the menu bar.

(Repeat mode example on the TV screen)

To stop repeat playback

Press 7.

When a DVD VIDEO disc is set, the unit stops playback and quits

the repeat mode.

When an SVCD, Video CD or Audio CD disc is set, the unit stops

playback but does not quit the repeat mode.

To quit repeat playback

Press REPEAT until the repeat mode indicator goes off in the

display window.

Hint

When the program playback mode is active with an SVCD, Video

CD or Audio CD, the repeat mode changes in the same manner.

Note, however, that in the “” mode the player repeats all the

programmed tracks instead of all tracks on the disc.

To repeat a desired part (A-B repeat

playback)

First make sure:

•The player is in playback mode except SVCD/Video CD playback

with PBC.

1Press ON SCREEN twice.

The menu bar appears on the TV screen.

2Press 2/3 to move to , then press

ENTER.

The pull-down menu for repeat mode selection appears.

3Press 5/∞ to select [A-B].

4Press ENTER at the beginning of the part you

want to repeat (point A).

The pull down menu disappears.

The repeat icon shows .

5Press ENTER at the end of the part you want

to repeat (point B).

The repeat icon shows .

The player locates “A” and starts repeat playback between “A”

and “B.”

The [ ] indicator lights in the display window.

To quit A-B repeat playback

Press 2/3 to move to , and press ENTER. The A-B

repeat mode turns off, then normal playback continues.

NOTES

•The A and B points must be set in the same title/chapter/track.

•When you press 7 twice during DVD VIDEO playback, A-B

repeat is canceled.

CHAP

A-

A-

A-B

A-B

A-B

A-B

XV-NP10[B].book Page 20 Wednesday, April 28, 2004 10:08 PM

Advanced operations

21

XV-NP10S/LET0246-003A/English

Advanced operations

Changing the language, sound and

scene angle

To select the subtitle language (SUBTITLE)

Some DVD VIDEO and SVCD discs contain more than one

subtitle language. You can choose a desired one from them.

Hint

At the beginning of the part where the subtitles are recorded,

appears on the TV screen (except when the [ON SCREEN

GUIDE] preference is set to [OFF]).

1During playback, press SUBTITLE.

The subtitle selection window appears on the TV screen.

2Press 5/∞ or SUBTITLE to select the subtitle.

Each time you press 5/∞ or SUBTITLE, the subtitle

language changes.

3Press ENTER.

Subtitles are displayed in the selected language.

The subtitle selection window is dismissed.

NOTES

•An SVCD disc can have up to four subtitles. Pressing 5/∞

cycles through those channels regardless of whether the

subtitles are recorded or not.

•The subtitle selection window will automatically disappear if you

do not change the subtitle for several seconds.

•For DVD VIDEO, the selected language may be abbreviated on

the TV screen. See “Appendix B: Table of languages and their

abbreviations” on page 37.

To change the audio language or sound

(AUDIO)

The audio selection setting allows you to change the audio

language of a movie.

Hint

At the beginning of the part where multiple audio tracks are

recorded, appears on the TV screen (except when the [ON

SCREEN GUIDE] preference is set to [OFF]).

1During playback, press AUDIO.

The audio selection window appears on the TV screen.

2Press 5/∞ or AUDIO to select the desired

audio.

Each time you press 5/∞ or AUDIO, the audio changes.

For DVD VIDEO (example)

For SVCD

For Video CD

3Press ENTER.

You can hear the selected audio.

The audio selection window is dismissed.

NOTES

•The audio selection window will automatically disappear if you

do not change the audio for several seconds.

•For DVD VIDEO, the selected language may be abbreviated on

the TV screen. See “Appendix B: Table of languages and their

abbreviations” on page 37.

•Some discs may not allow this operation during playback.

To select a scene angle of DVD VIDEO

(ANGLE)

You can enjoy a variety of scene angles if the DVD VIDEO disc

contains “multi-angle” parts, where multiple cameras were used

to shoot the same scene from different angles.

Hint

At the beginning of a “multi-angle” part, appears on the TV

screen (except when the [ON SCREEN GUIDE] preference is set

to [OFF]).

1During playback, press ANGLE.

The angle selection window appears on the TV screen.

2Press 5/∞ or ANGLE to select the desired

angle.

Each time you press 5/∞ or ANGLE, the angle changes.

3Press ENTER.

You can see the picture from the selected angle.

The angle selection window is dismissed.

NOTE

The angle selection window will automatically disappear if you do

not change the angle for several seconds.

1/3

ENGLISH

ENGLISH

1/3

1

1/3

XV-NP10[B].book Page 21 Wednesday, April 28, 2004 10:08 PM

Advanced operations

22

XV-NP10S/LET0246-003A/English

Advanced operations

Special picture/sound effect

To zoom in pictures

1During playback or while paused, press

ZOOM.

Pressing ZOOM causes the player to zoom in on the image.

Each time you press ZOOM, the magnification is changed

(1.5, 2 and 4 times).

2Press 5/∞/2/3 to move the zoomed position.

To return to the normal playback

Select the normal size by pressing ZOOM repeatedly.

NOTE

While zoomed, the picture may look coarse.

To adjust the picture character (VFP)

The VFP (Video Fine Processor) function allows you to adjust the

picture character according to the type of programming, picture

tone or personal preferences.

1During playback, press VFP - PROGRESSIVE

SCAN.

The VFP mode selection window appears on the TV screen.

•If you press the VFP-PROGRESSIVE button too long, the

button works for changing the scanning mode (see page 8)

instead of the VFP function.

2Press 2/3 to select the desired preset.

Each time you press the button, the VFP mode changes as

follows.

Set the video type most suitable to the current program or the

room conditions.

[NORMAL]: for watching TV in a general room.

[CINEMA]: for watching a movie software in a room with

suppressed light.

[USER 1] [USER 2]: you can adjust parameters that affect the

picture character and store the settings as a user preset.

See the next step.

3To define a user setting, press 5/∞ to select a

parameter to be edited from the following.

•GAMMA

Adjust this if the neutral color is bright or dark. The

brightness of dark and bright portion is maintained.

Available range: LOW/MID/HIGH.

• BRIGHTNESS

Adjust this if the picture is bright or dark on the whole.

Available range: –16 (darkest) to +16 (brightest).

•CONTRAST

Adjust this if the far and near position is unnatural.

Available range: –12 to +12.

• SATURATION

Adjust this if the picture is whitish or blackish.

Available range: –16 (blackest) to +16 (whitest).

•TINT

Adjust this if the appearance of flesh tone is unnatural.

Available range: –16 to +16.

• SHARPNESS

Adjust this if the picture is indistinct.

Available range: LOW/HIGH.

•Y DELAY

Adjust this if the picture looks separately/overlapped.

Available range: –2 to +2.

4Press ENTER.

A window for setting parameters appears.

5Press 5/∞ to adjust the level of the

parameter.

The higher value enhances the effect for each item other than

“GAMMA” and “SHARPNESS.”

6Press ENTER.

Repeat steps 3 to 6 if you want to set other parameters.

USER 1

BRIGHTNESS

GAMMA

CONTRAST

SATURATION

TINT

SHARPNESS

Y DELAY

+ 4

MID

+10

+10

+10

LOW

+ 2

Selected preset

Parameter

SATURATION + 4

Selected parameter

XV-NP10[B].book Page 22 Wednesday, April 28, 2004 10:08 PM

Advanced operations

23

XV-NP10S/LET0246-003A/English

Advanced operations

To dismiss the VFP mode selection window

Press VFP - PROGRESSIVE SCAN.

NOTE

The window for VFP mode selection and parameter setting

disappear if no operation is made for about 10 seconds.

To change sound field (SOUND EFFECT)

Using the Sound Effect function, you can change the sound field.

1During playback, press SOUND EFFECT.

The Sound Effect indication appears on the TV screen.

2Press SOUND EFFECT to select the desired

mode.

Each time you press the button, the Sound Effect mode

changes as follows:

The [SE] indicator lights on the display window when the

Sound Effect function takes effect.

•As the value becomes bigger, the Sound Effect works

stronger.

To deactivate the Sound Effect

Press SOUND EFFECT repeatedly until “OFF” appears on the

TV screen.

NOTE

The Sound Effect indication disappears if no operation is made

for about few seconds.

Menu bar functions

To bring up the menu bar

1When a disc is inserted, press ON SCREEN.

A status bar for the type of disc inserted will appear on the TV

screen.

See page 14 for details about the status bar.

2Press ON SCREEN again.

A menu bar for the type of disc inserted will appear under the

status bar.

(for DVD VIDEO)

(for SVCD)

(for Video CD)

(for Audio CD)

To dismiss the menu bar and status bar

Press ON SCREEN.

Basic operation procedure

1Press 2/3 to select the icon you want to

work with.

The selected icon is pointed by .

2Press ENTER.

With many icons, an appropriate pull-down window appears,

however, there are some exceptions.

NOTES

•A mark or text on the menu icon for the function or mode

currently selected is shown in green.

•Some functions are not available during playback. (You cannot

move to the associated icon when it is not available.)

SOUND EFFECT:1 SOUND EFFECT:2

OFF SOUND EFFECT:3

1/3 1/3OFF 1/5

8.5Mbps

TITLE 33 TOTAL 1:25:58CHAP 33

CHAP.

OFF ST1

PROG. RND.

TIME 25:58TRACK 33

-/4

OFF STPROG. RND.

TIME 25:58TRACK 33

OFF PROG. RND.

TIME 25:58TRACK 33

XV-NP10[B].book Page 23 Wednesday, April 28, 2004 10:08 PM

Advanced operations

24

XV-NP10S/LET0246-003A/English

Advanced operations

Menu bar functions for DVD VIDEO

Time mode selection

During playback, selects the time mode shown in the display

window and in the status bar.

Press ENTER to select the time mode from the following.

•TOTAL: Current title elapsed time

•T.REM: Current title remaining time

•TIME: Current chapter elapsed time

•REM: Current chapter remaining time

Repeat mode (See also page 20)

Selects the repeat mode during playback.

1. Open the pull-down window.

2. Press 5/∞ to select the repeat mode from the following.

•CHAPTER: Current chapter repeat

•TITLE: Current title repeat

•A-B: A-B repeat

•OFF: Repeat mode deactivated

3. Press ENTER to make the selected repeat function active.

Time search (See also page 18)

Specifies a time from the beginning of the current title as the point

from which to begin playback.

Chapter search

During playback, specifies a desired chapter to be played back

from.

1. Open the pull-down window.

2. Press numeric buttons (0 to 9) to enter a desired chapter

number. (For example, to specify “10,” press 1, then 0.)

3. Press ENTER to begin playback from the specified chapter.

Audio selection (See also page 21)

During playback, selects the audio language or sound track.

1. Open the pull-down window.

2. Press 5/∞ to select a desired audio language or sound track.

3. Press ENTER to begin playback with the selected audio.

Subtitle selection (See also page 21)

During playback, selects the subtitle language.

1. Open the pull-down window.

2. Press 5/∞ to select a desired subtitle language.

3. Press ENTER to begin playback with the selected subtitle.

Angle selection (See also page 21)

During playback, selects a desired scene angle in a multi-angle

part.

1. Open the pull-down window.

2. Press 5/∞ to select a scene angle.

3. Press ENTER to begin playback with the selected scene angle.

Menu bar functions for SVCD/Video CD/

Audio CD

Time mode selection

Selects the time mode shown in the display window and in the

status bar.

Press ENTER to select the time mode from the following.

•TIME: Current track elapsed time

•REM: Current track remaining time (while in stop mode, current

track total time)

•TOTAL: Disc elapsed time

•T.REM: Disc remaining time (while in stop mode, disc total time)

Repeat mode (See also page 20)

Selects the repeat mode.

1. Open the pull-down window.

2. Press 5/∞ to select the repeat mode from the following.

•TRACK: Current track repeat

•ALL: All track repeat

•A-B: A-B repeat

•OFF: Repeat mode deactivated

3. Press ENTER to make the selected repeat function active.

Time search (See also page 18)

Specifies a time from the beginning of the disc as the point from

which to begin playback.

Program playback (See also page 19)

While stopped, specifies the playback order of tracks.

Random playback (See also page 19)

While stopped, activates random playback.

Audio selection (See also page 21)

During SVCD/Video CD playback, selects the audio channel(s).

1. Open the pull-down window.

2. Press 5/∞ to select a desired audio channel(s).

3. Press ENTER to play back with the selected audio channel(s).

Subtitle selection (See also page 21)

During SVCD playback, selects the subtitle.

1. Open the pull-down window.

2. Press 5/∞ to select a desired subtitle.

3. Press ENTER to begin playback with the selected subtitle.

CHAP.

PROG.

RND.

XV-NP10[B].book Page 24 Wednesday, April 28, 2004 10:08 PM

25

XV-NP10S/LET0246-003A/English

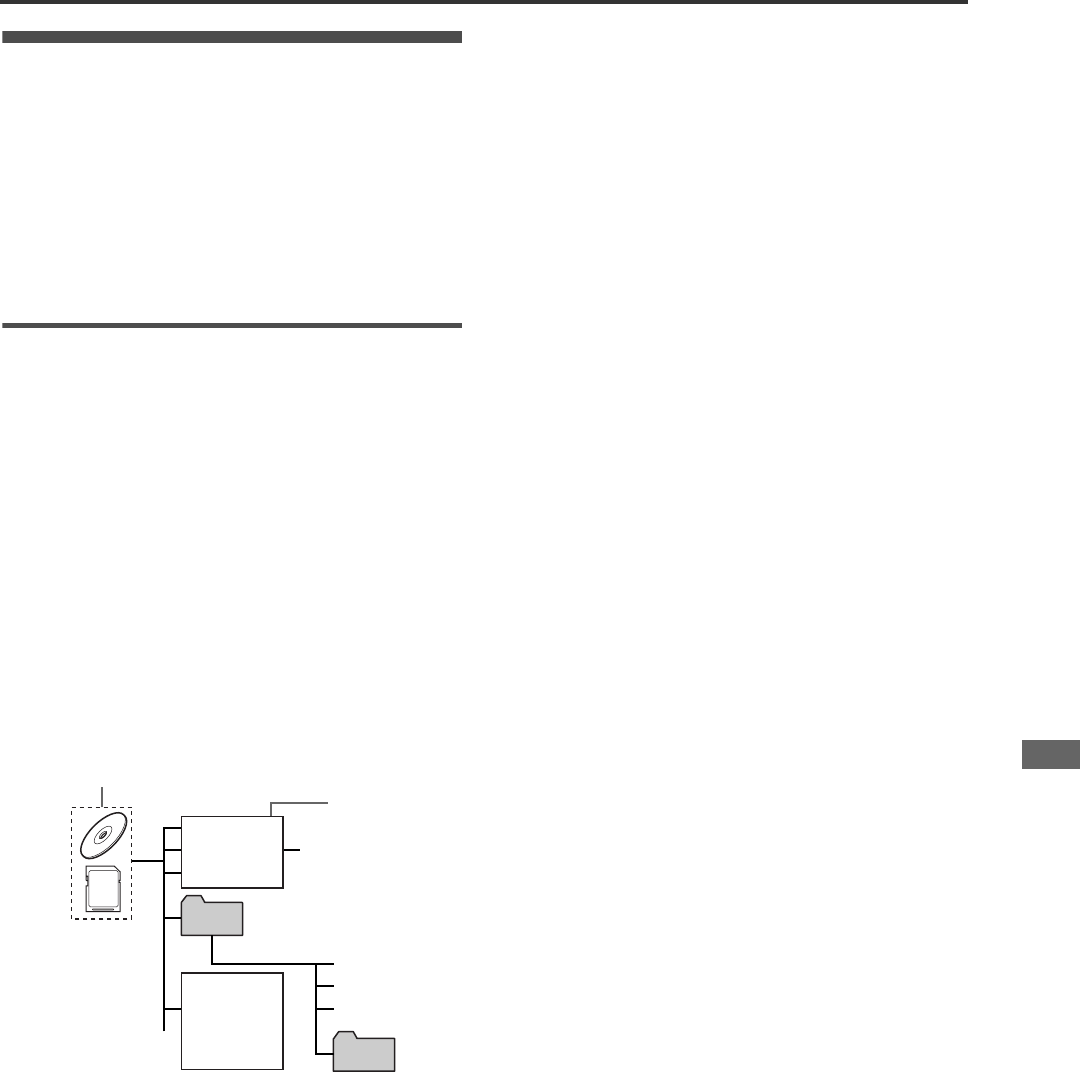

Audio/Video files playback

Audio/Video files playback

Outline

The player can play back MP3/WMA/JPEG/MPEG-4 (Simple

profile) files on a personally recorded media as follows:

CD-R/RW, memory card, commercially available CD

The player can also play back MPEG-4 (Advanced simple profile)

and DivX files recorded on CD-R/RW, DVD-R/-RW. Some DVD-R

and DVD-RW discs mastered as multi border (multi-session) may

not be compatible with the player.

You can select and play back files using the Control display on

the TV screen.

• The player may be unable to play back the media due to the

characteristics or recording conditions.

Precautions

About files and folders (groups) on the disc or the

memory card

• Files are sometimes grouped into folders by genre, album, etc.

In this manual, “group” is also referred to as “folder.”

• A folder which has one or more files is regarded as a group.

• The player can detect and play back the groups which are

located up to the fifth layer.

• The files in the Control display are arranged by the alphabetical

order of extensions as follows: “asf”, “avi”, “divx”, “jpeg”, “mp3”,

and “wma”.

• Time required for reading the media contents may vary for

different media, depending on the numbers of folders (groups)

and files recorded, etc.

• Files which do not belong to any folder are grouped into “group

1.”

• The player recognizes up to 150 files per group, and up to 250

groups per disc/memory card. Files other than MP3/WMA/

JPEG/MPEG-4/DivX files count in the 999 total.

Notes for making your own disc

• Use “UDF format” as the disc format for DVD-R/-RW.

• Use “ISO 9660” as the disc format for CD-R/RW.

• The player does not support “packet writing” for CD-R/RW.

• The player supports discs recorded with up to five multiple

sessions.

• Some disc may not play due to media characteristics or

recording conditions.

Notes for making files/groups

• If a file name includes even one 2-byte character, the player

may not show the file name correctly.

• The player supports up to 12 characters as the group/file

names.

• The player can only recognize files with one of the following

extensions, which can be in any combination of upper and lower

case:

- For MP3 files, “.MP3”, “.mp3”.

- For WMA files, “.WMA”, “.wma”.

- For JPEG files, “.JPG”, “.JPEG”, “.jpg”, “.jpeg”.

- For MPEG-4 files, “.ASF”, “.asf”.

- For DivX files, “.DIVX”, “.DIV”, “.divx”, “.div” and “.AVI”, “.avi”.

• For MP3 files:

- It is recommended that you record your material at a 44.1 kHz

sampling rate, using the 128 kbps data transfer rate.

- ID3 Tag is not available.

- MP3i and MP3 Pro are not available.

• For WMA files:

- WMA Tag is not available.

- Make sure that the copyright feature is set to off.

- We recommend you to record your material at a bit rate of 64

kbps or higher.

- The player supports WMA files recorded with a bit rate of 48

kbps or higher. The player cannot play back WMA files

recorded with a bit rate under 48 kbps.

• For JPEG files:

- We recommend you to record your material at a 640 x 480

pixel resolution.

- This player supports the baseline JPEG format.

- The player does not support a baseline-formatted picture of

more than 5120 x 3413 pixels. Make sure that the pictures

pixel size is 5120 x 3413 pixels or less.

- This player cannot play back a progressive JPEG file of more

than 2048 x 1536 pixels.

• For MPEG-4 files:

- The player supports the AVI files whose resolution is 640 x

480 pixels or less, and created using 4 Mbps ASP codec.

- The size of the playback screen will be the same size as it is

recorded.

- Some recorded files may not be able to be played back

depending on file characteristics, kind of digital still/video

cameras, or recording conditions.

- The player can playback the following MPEG-4 files:

MPEG-4 V2: Simple (single) stream

MPEG-4 V3: Fully supported

(MPEG-4 V1 file is not compatible.)

• For DivX files:

- The player supports DivX 5.x, 4.x and 3.11.

- The player supports the DivX files whose resolution is 720 x

480 pixels or less (30 fps), and 720 x 576 pixels or less (25

fps).

- Audio stream should conform to MPEG 1 Audio Layer-2 or

MPEG Audio Layer-3 (MP3).

- The player does not support GMC (Global Motion

Compression) and Q-Pel (Quarter Pixel).

- The file encoded in the interlaced scanning mode may not be

played back correctly.

- The player has its own Registration Code for DivX playback.

If necessary, you can confirm the Registration Code of your

player using the OTHERS menu. (See page 32.)

Max. 250 groups per media

File 1.mp3

File 2.mp3

File 3.mp3

Group 1

Group 2

Group 4 Group 3

File 4.jpg

File 5.jpg

File 6.jpg

Max.150 files

per group

File 1.jpg

File 2.jpg

File 3.jpg

File 4.jpg

AVfiles_playback[B].fm Page 25 Wednesday, May 19, 2004 3:27 PM

Audio/Video files playback

26

XV-NP10S/LET0246-003A/English

Audio/Video files playback

Notes for inserting and removing memory cards

•Before you insert a memory card into a card slot, open the door

on the front panel and make sure of the slot type and the

direction of insertion as illustrated.

•Always use the single type of memory card at a time.

When inserting the two or more types of memory card, “CHECK

FOR CARD” appears on the TV screen.

•After inserting a memory card, close the door for playback. If the

door is open, “CLOSE THE DOOR” appears on the TV screen

and the player does not start the memory card playback.

•Stop both the memory card playback and the disc playback

before inserting or removing memory card.

When inserting or removing memory card during the disc

playback, you cannot operate the player temporarily by static

electricity and/or noise. In this case, disconnect the power plug

and connect it again.

•When playing back a disc, always remove a memory card and

close the card door.

•When playing back a disc, the electrostatic noise may restart the

playback from the beginning.

•When inserting or removing a memory card, hold the player

firmly.

•When inserting an xD-Picture card, make sure that the front

edge of the card is facing to the slot properly,

•Make sure the disc playback is stopped when inserting or

removing the memory card.

•When inserting or removing the memory card, pay attention not

to push any button on the player accidentally.

NOTE

Basic operations

When you insert a disc or memory card with groups and files, the

Control display that shows the contents of the medium

automatically appears on the TV screen.

You can specify and play back the desired group/file from the

Control display using the following procedure.

1Make sure that the cursor bar is in the left

(group) column on the Control display.

•If it is in the right column, press 2 to move it to the left

column.

•If you want to select the other medium while both a disc and

memory cards are inserted, press DVD/CARD before

starting playback. When the player accesses a memory card,

the [M CARD] indicator lights on the display window.

Press here to remove the inserted

CompactFlash with the player held.

SD or

MMC

MS

SM

(To the upper part)

CF

Ridge

Metal terminal

xD

(To the

middle part)

(To the lower part)

Make sure that the TV - DVD switch on the

remote control unit is set to “DVD” when

using the 5/∞/2/3 and numeric buttons

for controlling the player.

TV DVD

SD Memory Card

GROUP

WMA

MP3

MPEG4

SLIDESHOW

MIX

--

MOVIE01.ASF

BGM SLIDE SHOW OFF

MOVIE02.ASF




MUSIC01.MP3

MUSIC02.WMA

Current media

Group column

Current

group

Selected

track

File column

Select these sections to show

the upper layer.

XV-NP10[B].book Page 26 Wednesday, April 28, 2004 10:08 PM

Audio/Video files playback

27

XV-NP10S/LET0246-003A/English

Audio/Video files playback

2Press 5/∞ to move the bar to a desired

group, then press ENTER or 3/SELECT.

•In the right column, files in the selected group are shown.

3Press 5/∞ to select the desired file, then

press ENTER.

The selected file is played back.

•When you press 3/SELECT, the continuous playback starts

from the selected file. The playback stops after playing back

of all files in the same group.

•You can also change the files on the list by pressing 4/

¢ or the numeric buttons.

To pause playback

Press 8.

Pressing 3/SELECT resumes normal playback.

To reverse or advance playback rapidly

Press 1/¡ during playback of MP3/WMA/DivX.

•Each time you press 1 or (¡), the player reverses (or

advances) playback, rapidly changing the playback speed as

follows:

- For MP3/WMA files

x2, x4, x6, and x8

- For DivX files

During rapid forward or reverse playback using 1/¡,

[11]/[¡1], [12]/[¡2], [13]/[¡3], or [14]/[¡4]

appears on the TV screen. The higher the value is, the faster

the playback speed is.

To zoom in a picture

Press ZOOM.

•Each time you press ZOOM, the magnification is changed—

- 1.5, 2 times, and 4 times for JPEG files

- 2 times, and 4 times for MPEG-4 files

- 2 times for DivX files

•The four-time magnification may not work for some JPEG/

MPEG-4 files according to their resolutions.

•Pressing 5/∞/2/3 moves the zoomed position during playback

of JPEG file.

To cancel the zoom function, select the normal size by pressing

ZOOM repeatedly.

To rotate/reflect a still picture

While the still picture is played back:

•Pressing 3 rotates the picture by 90° clockwise.

•Pressing 2 rotates the picture by 90° counterclockwise.

•Pressing ∞ reflects the picture vertically.

•Pressing 5 reflects the picture horizontally.

To stop playback

Press 7.

The Control display appears on the TV.

•Removing the memory card also stops playback.

NOTES

•Opening the card door or the disc tray stops playback.

•During slide show playback, you cannot rotate/reflect a picture.

•It may take time to show the Control display due to the layer

configuration of the files and groups.

•The elapsed time may be incorrectly indicated on the display

window due to the recording condition of the file.

•The display window cannot show the file number more than

100. When the files numbered over 100th are played back, the

player re-counts file number again from 0.

•When the screen saver starts, the Control display disappears.

•The playback information appears on the TV as follows:

- [READING INDEX] means that the player is reading the

information of the selected MPEG-4/DivX file.

- [CODEC. NOT SUPPORTED ] means that the player cannot

play back the selected MPEG-4/DivX file.

- [JPEG DATA ERROR] means that this player cannot play back

the file.

- [JPEG DATA CORRUPTED] means that the file has error but

the player can play back it.

- [OUT OF MEMORY] means that the pixel resolution of the

JPEG file is too high. (See “Notes for making files/groups” on

page 25.)

- [NEXT] means the player skips to the next file.

- [PREVIOUS] means the player skips to the previous file.

- [SELECT] means the file is selected on the thumbnail screen.

Direct selection for JPEG files

You can select a particular JPEG file from the thumbnail screen.

1Press THUMBNAIL/LIST while a JPEG file is

selected on the Control display.

The thumbnail screen appears on the TV. Up to nine

thumbnails from the selected file at a time can be displayed

on the screen.

•When selecting a group on the Control display, the

thumbnail screen does not appear.

2Press 5/∞/2/3 to select the desired picture

on the thumbnail screen, then press ENTER.

The desired picture is played back.

•You can change the thumbnails by pressing 4/¢. All

the JPEG files in the single group are displayed every nine

thumbnails.

Repeat playback

During playback or while stopped, press

REPEAT.

•Each time you press REPEAT while a file is selected, the

repeat mode changes as follows:

If you press REPEAT while stopped, you need to press

ENTER or 3/SELECT to start playback.

To stop repeat playback

Press 7.

Note that the repeat mode remains active.

To quit repeat playback

During playback, press REPEAT until no repeat icon is shown on

the display window.

•While stopped, press REPEAT until the repeat mode indication

on the Control display goes off.

Control display Display

window

Function

REPEAT 1 1

Repeats the current

file.

REPEAT GROUP Repeats all files in the

current group.

REPEAT ALL Repeats all files on

the media.

No indication The repeat mode is off.

XV-NP10[B].book Page 27 Wednesday, April 28, 2004 10:08 PM

Audio/Video files playback

28

XV-NP10S/LET0246-003A/English

Audio/Video files playback

NOTE

Slide show playback

You can display files (still pictures) one after another automatically.

Press 3/SELECT while a JPEG file is selected

on the Control display.

The slide show starts from the beginning of the media.

• The display time varies in size of each file.

To change the effect on displaying images

You can select the effect of slide show.

Press SLIDE EFFECT.

“SLIDE EFFECT MODE :” and the current mode appear on the TV

screen.

• Each time you press the button, the effect is changed as follows:

To stop slide show playback in the middle

Press 7.

The TV screen returns to the Control display.

• Pressing 3/SELECT resumes slide show playback from the last

picture displayed.

To keep showing the current picture

Press 8.

• Pressing 3/SELECT resumes slide show playback.

NOTES

• During slide show playback, you cannot use the thumbnail and

rotate/reflect functions.

• During the slide show playback of progressive JPEG files, you

cannot change the effect.

Changing the picture of the opening

display

You can change and set the opening display to your favorite

image. See page 32.

1Play back a JPEG file to be displayed as the

opening display.

When selecting a JPEG file from the thumbnail screen or the

slide show playback, press 8 to pause the slide show.

2Press CHOICE and 2/3 to show PICTURE

menu of the on-screen menu.

3Press 5/∞ to select [BACKGROUND], then

press ENTER.

4Press 5/∞ to select [SAVE AS

BACKGROUND], then press ENTER.

5Press 5/∞ to select [YES], then press ENTER.

The player starts reading the selected JPEG file, and the

opening screen is changed after reading the file.

• The previous picture for the opening screen is overwritten by

the newly saved file.

To dismiss the menu screen

Press CHOICE.

To resume the JVC’s opening screen

Select [STANDARD] in step 4.

Make sure that the TV - DVD switch on the

remote control unit is set to “DVD” when

using the 5/∞/2/3 and numeric buttons

for controlling the player.

Mode Type of wipe

1Scroll wipe 1: The next image slides in from top to

bottom.

2Scroll wipe 2: The next image slides in from bottom

to top.

3Shutter wipe 1: The next image slides in vertically

from both sides to center.

4Shutter wipe 2: The next image slides in vertically

from center to both sides.

5Blind wipe 1: The next image slides in vertically

through 4 slits.

6Slide wipe 1: The next image slides in from left to

right.

7Slide wipe 2: The next image slides in from right to

left.

8Door wipe 1: The next image slides in horizontally

from both sides to center.

9Door wipe 2: The next image slides in horizontally

from center to both sides.

10 Window wipe: The next image slides in from each

side to center.

11 Blind wipe 2: The next image slides in horizontally

through 4 slits.

RANDOM The player selects and applies the effect to each

image randomly.

NONE Cancels the effect.

TV DVD

AVfiles_playback[B].fm Page 28 Tuesday, May 11, 2004 8:36 PM

Audio/Video files playback

29

XV-NP10S/LET0246-003A/English

Audio/Video files playback

BGM slide show playback

During slide show playback of JPEG files on the memory card,

you can play back Audio CDs or MP3 files as background music

(BGM).

When you play back MP3 files as background music, make a

group containing both JPEG files and MP3 files on the memory

card.

•You cannot play Audio CDs with DTS or WMA as background

music.

•BGM slide show is available for JPEG files on the single group.

•BGM slide show may not work correctly for the progressive

JPEG format.

Slide show with Audio CD playback

1Insert an Audio CD.

•When a memory card is playing back, playback will stop.

2Insert a memory card containing JPEG files.

3Close the door cover.

The Control display of the memory card appears on the TV.

•When the memory card containing JPEG files is already

selected, press DVD/CARD.

•When the memory card has two or more groups containing

JPEG files, select the JPEG file in the group.

4Select “BGM SLIDE SHOW OFF” on the

Control display by pressing 5/∞/2/3, then

press ENTER to change to “BGM SLIDE

SHOW ON.”

•Each time you press ENTER, the playback mode alternates

between “BGM SLIDE SHOW ON (BGM slide show

playback)” and “BGM SLIDE SHOW OFF (normal playback)”.

5Select a JPEG file on the Control display,

then press 3/SELECT.

The first track on the Audio CD is played back and BGM slide

show starts.

•During BGM slide show, you can select the track on the

Audio CD by pressing 4/¢ or numeric buttons.

•The playback of the Audio CD stops after all the JPEG files

are played back.

•When a track on an Audio CD is played back, the time and

track indication is not displayed on the window.

Slide show with MP3 playback

•Before starting the following procedure, remove the disc from

the disc tray.

1Insert a memory card containing a group with

both JPEG files and MP3 files.

2Close the door cover.

The Control display for the media appears on the TV.

3Select “BGM SLIDE SHOW OFF” on the

Control display by pressing 5/∞/2/3, then

press ENTER to change to “BGM SLIDE

SHOW ON.”

•Each time you press ENTER, the playback mode alternates

between “BGM SLIDE SHOW ON (BGM slide show

playback)” and “BGM SLIDE SHOW OFF (normal playback)”.

4Select JPEG file on the Control display, then

press 3 (SELECT).

The player plays back the MP3 file from the beginning in the

group and BGM slide show starts.

•You can change the MP3 files by pressing 4/¢.

•You cannot select MP3 files on the other group.

•The playback of MP3 files stops after all the JPEG files are

played back.

To repeat BGM slide show playback

Press REPEAT before BGM slide show playback.

•Each time you press REPEAT, the repeat mode changes as

follows:

To stop BGM slide show playback in the middle

Press 8.

JPEG playback pauses.

When you press 8 again, BGM playback also pauses.

•Pressing 3/SELECT or 8 resumes music slide show playback

from the last picture displayed.

To stop BGM slide show playback

Press 7.

BGM slide show playback is canceled (“BGM SLIDE SHOW

OFF” is displayed on the Control display).

Control display Display

window

Function

REPEAT 1 1Repeats the current

JPEG file.

REPEAT GROUP Repeats all JPEG files in

the current group.

No indication The repeat mode is off.

XV-NP10[B].book Page 29 Wednesday, April 28, 2004 10:08 PM

30

XV-NP10S/LET0246-003A/English

Changing the initial settings

Changing the initial settings

NOTE

Selecting preferences

This section refers to the settings which are already made when

you purchase the player. Read this section when you want to

connect this player to a wide-vision TV set, or when you want to

otherwise change the settings according to your preferences and

viewing environment.

About the Preference display

The Preference display consists of the LANGUAGE, PICTURE,

AUDIO and OTHERS setting displays, each having setting items.

LANGUAGE


AUDIO

OTHERS

How to set preferences

1Press CHOICE.

One of the preference on-screen displays appears on the TV

screen.

You can see four icons at the top right of the on-screen

display for the settings.

: LANGUAGE menu

: PICTURE menu

: AUDIO menu

: OTHERS menu

2Press 2/3 to select the appropriate icon.

The appropriate display appears on the TV screen.

3Press 5/∞ to move to select the item you

want to edit.

The color of the selected item changes.

4Press ENTER.

A pull-down menu appears over the selected item.

5Press 5/∞ to select from the options then

press ENTER.

The selected option is set.

• For details about each setting, see the following.

To dismiss a preference display

Press CHOICE.

NOTES

• Some items cannot be changed during disc playback.

• When a preference display is shown on a wide TV screen, the

upper and lower parts of the preference display sometimes may

be cut off. If this happens, adjust the picture size control of the

TV.

• When a preference display is shown, you cannot start playing

back a disc.

Make sure that the TV - DVD switch on the

remote control unit is set to “DVD” when

using the 5/∞/2/3 and numeric buttons

for controlling the player.

TV DVD

SELECT

ENTER

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM

TO EXIT, PRESS CHOICE/SETUP.

MENU LANGUAGE ENGLISH

AUDIO LANGUAGE ENGLISH

SUBTITLE ENGLISH

ON SCREEN LANGUAGE ENGLISH

LANGUAGE

SELECT

ENTER

USE 5∞23 TO SELECT, USE ENTER TO CONFIRM

TO EXIT, PRESS CHOICE/SET UP.

DIGITAL AUDIO OUTPUT STREAM/PCM

ANALOG DOWN MIX STEREO

D RANGE CONTROL NORMAL

OUTPUT LEVEL STANDARD

AUDIO

Selected item

Changing_the_initials[B].fm Page 30 Wednesday, May 19, 2004 3:28 PM

Changing the initial settings

31

XV-NP10S/LET0246-003A/English

Changing the initial settings

LANGUAGE menu

MENU LANGUAGE

You can select the default menu language to be displayed if it is

contained on a DVD VIDEO disc.

Setting options

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN,

ITALIAN, JAPANESE, language code from AA to ZU

•If the disc does not have a menu in the selected language, the

disc’s default language will be used.

•For details about language codes, see “Appendix B: Table of

languages and their abbreviations” on page 37.

•You cannot change the setting during playback.

AUDIO LANGUAGE

You can select the default audio language to be played if it is

contained on a DVD VIDEO disc.

Setting options

ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN,

ITALIAN, JAPANESE, language code from AA to ZU

•If the disc does not have the selected language, the disc’s

default language will be used.

•For details about language codes, see “Appendix B: Table of

languages and their abbreviations” on page 37.

•You cannot change the setting during playback.

SUBTITLE

You can select the default subtitle language to be displayed if it is

contained on a DVD VIDEO disc.

Setting options

OFF, ENGLISH, SPANISH, FRENCH, CHINESE, GERMAN,

ITALIAN, JAPANESE, language code from AA to ZU

•If the disc does not have a subtitle in the selected language, the

disc’s default language will be used.

•For details about language codes, see “Appendix B: Table of

languages and their abbreviations” on page 37.

•You cannot change the setting during playback.

ON SCREEN LANGUAGE

You can select the on-screen display language of the player.

Setting options

ENGLISH, FRENCH, GERMAN

•Some on-screen messages are shown in English regardless of

the setting.

•You cannot change the on-screen language shown on the

Control display.

PICTURE menu

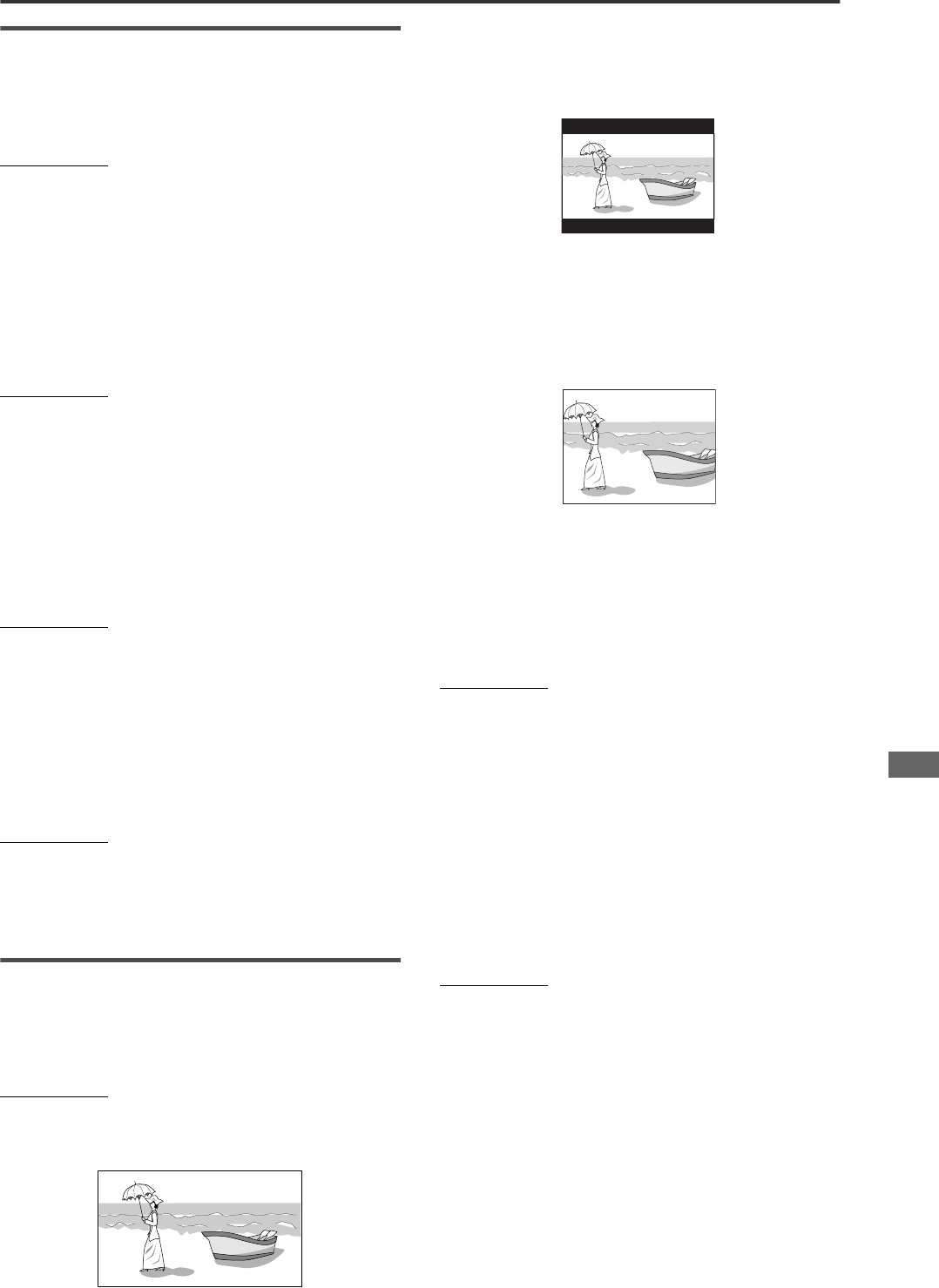

MONITOR TYPE

You can select the monitor type to match your TV when you play

back DVD VIDEO discs recorded for wide-screen televisions.

Setting options

16:9, 4:3 LB, 4:3 PS

[16:9] (Wide television screen): select when you connect the

player to a wide-screen (16:9) TV.

[4:3 LB] (Letter Box conversion): select when you connect the

player to a normal (4:3) TV.

When playing back a DVD VIDEO disc recorded in wide picture

format, the picture is shown with black bars at the top and

bottom.

[4:3 PS] (Pan Scan conversion): select when you connect the

player to a normal (4:3) TV.

When playing back a DVD VIDEO disc recorded in wide picture

format, the picture is zoomed to fill the screen vertically, and the

left and right sides of the image are chopped off.

Note, however, that the picture will be shown in the 4:3 LB

mode even if you select the 4:3 PS mode depending on the

disc.

PICTURE SOURCE

This mode selects whether the content on the disc is processed

by field (video source) or by frame (film source). You can obtain

optimal picture quality according to the source type to be played

back by selecting an appropriate option. This setting is available

for both the interlaced mode and progressive scanning mode.

Setting options

VIDEO(NORMAL), VIDEO(ACTIVE), FILM, AUTO

[VIDEO(NORMAL)]: select when playing back a video source

disc with relatively a few movements.

[VIDEO(ACTIVE)]: select when playing back a video source disc

with relatively a lot of movements.

[FILM]: select when playing back a film source disc.

[AUTO]: select when playing back a disc containing both video

and film source materials.

The player recognizes the picture type (film or video source) of

the current disc according to the disc information. Normally,

select this option.

SCREEN SAVER

You can set the screen saver function to ON or OFF. (See page

16.)

Setting options

ON, OFF

XV-NP10[B].book Page 31 Wednesday, April 28, 2004 10:08 PM

Changing the initial settings

32

XV-NP10S/LET0246-003A/English

Changing the initial settings

BACKGROUND

You can change and set the opening display to your favorite image

using this menu.

Setting options

STANDARD, USER, SAVE AS BACKGROUND

[STANDARD]: select when you use the JVC original image as the

opening display (initial setting).

[USER]: select when you use your favorite image as the opening

display. This item will be taken effect after you register a new

image in the next item.

[SAVE AS BACKGROUND]: select when you register a new

image. To register a new image, see “Changing the picture of the

opening display” on page 28.

AUDIO menu

DIGITAL AUDIO OUTPUT

To connect the player’s digital output to an external device

equipped with a digital input, this item must be set correctly.

See “Appendix A: Digital output signal chart” on page 37 for details

about the relation between the setting and output signals.

Setting options

PCM ONLY, DOLBY DIGITAL/PCM, STREAM/PCM

[PCM ONLY]: select when you connect the DIGITAL OUT jack of

the player to the linear PCM digital input of other audio

equipment.

[DOLBY DIGITAL/PCM]: select when you connect the digital

input of a Dolby Digital decoder or an amplifier with a built-in

Dolby Digital decoder.

When this option is selected, playing back a disc recorded by the

MPEG Multichannel format outputs a linear PCM digital signal.

[STREAM/PCM]: select when you connect the digital input of an

amplifier with a built-in DTS, MPEG Multichannel or Dolby Digital

decoder, or the stand-alone unit of such a decoder.

•With some DVD VIDEO discs that are not fully copy-protected, a

20 or 24 bit digital signal may be output.

•When playing a DVD VIDEO or Audio CD disc with DTS, use a

DTS decoder to get correct signals from your speakers.

ANALOG DOWN MIX

To correctly play the audio on a DVD VIDEO disc recorded with

surround multichannel audio, you must set this item properly

according to your audio system configuration.

Setting options

DOLBY SURROUND, STEREO

[DOLBY SURROUND]: select when listening to multichannel

surround audio with the player’s analog AUDIO OUT terminals

connected to a surround decoder.

[STEREO]: select when listening to conventional two-channel

stereo audio with the player’s AUDIO OUT terminals connected

to a stereo amplifier/receiver or television set, or in case you

want to record the audio from a DVD VIDEO disc to MiniDisc,

cassette, etc.

D. RANGE CONTROL

This setting provides optimal audio quality from the analog AUDIO

OUT terminals for listening to DVD VIDEO discs recorded in Dolby

Digital format, at low or middle volume.

Setting options

WIDE RANGE, NORMAL, TV MODE

[WIDE RANGE]: when selected, audio is played back with the

widest dynamic range so that you can enjoy powerful playback

sound.

[NORMAL]: normally, select this option.

[TV MODE]: select if DVD VIDEO disc sound level is lower than

TV program sound level. Thus you can hear sound at a lower

volume clearly.

OUTPUT LEVEL

This setting allows you to attenuate the level of the signal output

from the player’s analog AUDIO OUT terminals.

Setting options

STANDARD, LOW

•If the sound output from the speaker is distorted, select [LOW].

OTHERS menu

RESUME

You can select the resume playback mode.

See pages 14 and 15 for details about the resume playback

function.

Setting options

ON, OFF, DISC RESUME

[ON]: when selected, the player can resume playback of the disc

from the position where playback was last interrupted, if the disc

is still in the disc tray.

[OFF]: when selected, the resume function is deactivated.

[DISC RESUME]: when selected, the player can resume playback

of the last 30 discs played. The player retains a memory of the

interrupted positions of the last 30 discs played, even though

they have been removed from the disc tray.

ON SCREEN GUIDE

The player can display “on-screen guide” icons or characters on

the picture, which show what is happening to the disc or the player.

Example of “on-screen guide” icons: , ,

Setting options

ON, OFF

[ON]: when selected, the on-screen guide is activated.

AUTO STANDBY

When the player is stopped for more than 30 minutes or 60

minutes, the player enters standby mode automatically.

Setting options

60, 30, OFF

DivX REGISTRATION

The player has its own Registration Code for DivX playback.

You can confirm the code of your player.

•Once you played back a disc created by using the Registration

Code, the player’s code is overwritten by a totally different new

one for copyright protection purpose.

XV-NP10[B].book Page 32 Wednesday, April 28, 2004 10:08 PM

Changing the initial settings

33

XV-NP10S/LET0246-003A/English

Changing the initial settings

PARENTAL LOCK

When this option is selected, pressing ENTER on the remote

control unit brings up the PARENTAL LOCK display shown below.

This allows you to restrict children from playing DVD VIDEO

discs.

•See this page for details about the parental lock setting.

Limiting playback by children

This function restricts playback of DVD VIDEO discs which

contain violent (and other) scenes according to the level set by

the user. For example, if a movie which includes violent scenes

supports the parental lock feature, such scenes which you do not

want to let children view can be cut or replaced with other

scenes.

To set Parental Lock for the first time

1Bring up the OTHERS menu.

2Press 5/∞ to move to select [PARENTAL

LOCK] then press ENTER.

The Parental Lock on-screen display appears on the TV

screen.

3While is pointing to [COUNTRY CODE],

press ENTER to bring up the pull-down

menu.

4Press 5/∞ to select the country code.

Select the code of the country whose standards were used to

rate the DVD VIDEO disc content.

See “Appendix C: Country/Area code list for Parental Lock”

on page 38.

5Press ENTER.

moves to [SET LEVEL].

6Press ENTER to bring up the pull-down

menu.

In the pull-down menu, [NONE] and levels [8] to [1] are

available.

[NONE] does not restrict playback. Level [1] is the strictest

level. Discs rated higher than the selected level are restricted.

7Press 5/∞ to select a desired parental lock

level, then press ENTER.

moves to [PASSWORD].

8Press the numeric buttons (0 to 9) to enter a

4-digit password.

9Press ENTER.

The parental lock feature is set.

moves to [EXIT]. Pressing ENTER again returns to the

[OTHERS] menu of the preference display.

Hint

If you want to change the password at step 8, do it before

pressing ENTER.

Numeric buttons

XV-NP10[B].book Page 33 Wednesday, April 28, 2004 10:08 PM

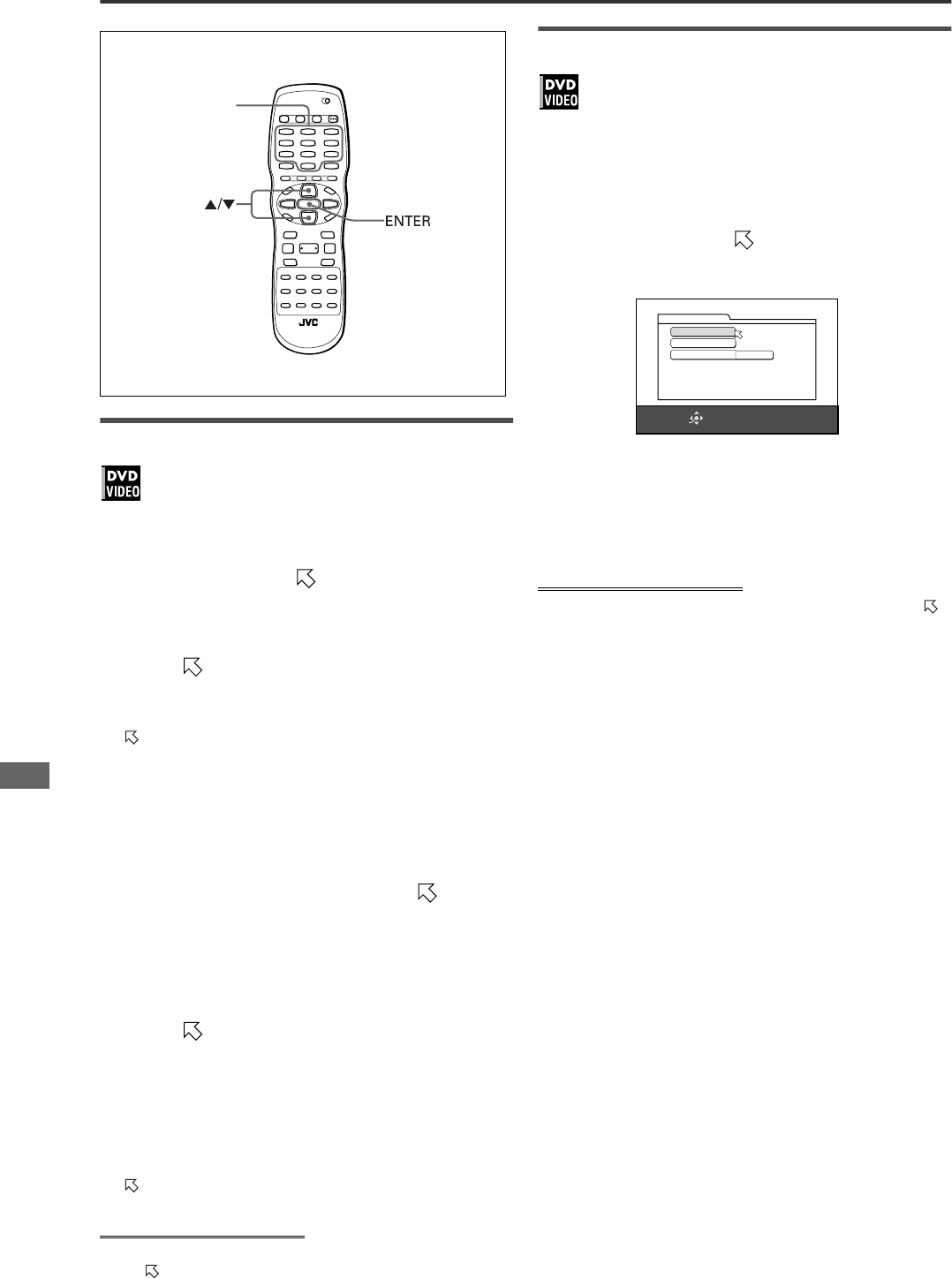

Changing the initial settings

34

XV-NP10S/LET0246-003A/English

Changing the initial settings

To change the settings

You can change the parental lock settings later.

1Bring up the OTHERS menu.

2Press 5/∞ to move to select [PARENTAL

LOCK] and press ENTER.

The parental lock on-screen display appears on the TV

screen.

3While is pointing to [PASSWORD], press

the numeric buttons to enter your current 4-

digit password then press ENTER.

moves to [COUNTRY CODE] if you enter the correct

password.

If you enter a wrong password, “WRONG! RETRY...” appears

on the TV screen, and you cannot go to the next step.

If you forget your password, enter “8888.” The current

password is deleted and you can set a new password.

4To change the [COUNTRY CODE] or [SET

LEVEL], press ENTER to bring up the

associated pull-down menu when is

pointing to the desired item.

5Press 5/∞ to select the desired option then

press ENTER.

If you change the country code, you must reselect the parental

lock level.

6While is pointing to [PASSWORD], press

the numeric buttons to enter a 4-digit

password.

The password entered in this step becomes the new

password. If you want to keep the same password as before,

enter the same password.

7Press ENTER.

moves to [EXIT]. Pressing ENTER again returns to the

[OTHERS] menu of the preference display.

NOTE

If you enter the wrong password more than 3 times in step 3

above, moves to [EXIT] automatically and 5/∞ do not work.

To temporarily release the Parental Lock

If the parental level is set to a strict value, some discs may not play

at all.

When you insert such a disc and try to play it, the following

parental lock on-screen display appears on the TV screen, asking

you whether you want the parental lock to be temporarily released

or not.

1Press 5/∞ to move to [TEMPORARY

RELEASE], then press ENTER.

2Press the numeric buttons (0 to 9) to enter

your 4-digit password.

The Parental Lock is released, and the player starts playback.

If you enter a wrong password, “WRONG! RETRY...” appears

on the TV screen. Enter the correct password.

NOTE

When you enter the wrong password 3 times at step 2 above,

moves to [NOT RELEASE] automatically and 5/∞ do not work.

Numeric buttons

USE 5∞ TO SELECT, USE ENTER TO CONFIRM

SELECT

ENTER

_ _ _ _

PARENTAL LOCK

TEMPORARY RELEASE

NOT RELEASE

PASSWORD

XV-NP10[B].book Page 34 Wednesday, April 28, 2004 10:08 PM

35

XV-NP10S/LET0246-003A/English

Additional information

Additional information

Troubleshooting

Power

Power does not come on.

\Power plug is not inserted securely. Plug in securely.

Operation

“REGION CODE ERROR!” is shown on the TV screen.

\Region code of the inserted disc does not match the player.

Check the region code of the disc printed on the disc jacket.

Operation is not possible.

\Microcomputer malfunction due to lightning or static electricity.

Turn off the power and unplug the power cord, then connect

the power cord again.

\Moisture condensation caused by a sudden change of

temperature or humidity. Turn off the power, then turn it on a

few hours later.

\The disc does not allow the operation, or an unplayable disc is

inserted. Check and replace the disc (see page 2).

[TRAY LOCK] is displayed on the display window and the

disc tray does not open.

\When you press 0 while pressing down 7 on the player in

standby mode, the tray lock function is activated. The disc tray

cannot be opened or closed in this status. To release this

status, press 0 while pressing down 7 on the player in

standby mode. ([LOCK OFF] is displayed on the display

window.)


Picture is noisy.

\The player is connected to a VCR directly and the copyguard

function is activated. Connect the player so that the picture

signal flows directly to the TV.

\With some discs, the picture may be blurred when [PICTURE

SOURCE] is set to [FILM] or [AUTO]. Set [PICTURE

SOURCE] to [VIDEO(NORMAL)] or [VIDEO(ACTIVE)].

Correct picture cannot be obtained.

\Connect only one type of cable to the jack(s) you want to use

on this player, either the VIDEO jack, S-VIDEO jack,

COMPONENT VIDEO OUT jacks or SCART connector. (Note

that you can connect cables to the VIDEO jack and

COMPONENT VIDEO OUT jacks at the same time.) If an S-

VIDEO cable is connected to the S-VIDEO jack, the player is

set to the S-VIDEO output mode automatically.

\If your TV accommodates both RGB and Y/C for connecting

with SCART cable, set the video signal selector to “RGB/

COMPOSITE.” Otherwise the picture cannot be displayed

correctly.

No picture is displayed on the TV screen, or the picture is

divided in two parts.

\The Progressive scanning mode is activated. Change the

scanning mode to the Interlaced scanning mode by pressing

and holding down VFP - PROGRESSIVE SCAN for a few

seconds.

Audio

DVD VIDEO disc playback sound level is lower than TV

broadcast sound level.

\Set the [D.RANGE CONTROL] preference to [TV MODE] (see

page 32).

Analog audio output is distorted.

\Set the [OUTPUT LEVEL] preference to [LOW] (see page 32).

MP3/WMA/JPEG/MPEG-4/DivX

No sound and/or no picture comes out.

\MP3/WMA/MPEG-4 disc is recorded with the “packet writing

(UDF format).” It cannot be played.

\Check the files you want to play back.

Files (tracks) are not played in the recorded order.

\This player plays the files in the alphabetic order. So, the

playback order can vary.

WMA files cannot be played back.

\The file is copy protected.

\The file is recorded with a bit rate under 48 kbps. The player

does not support such WMA files.

MPEG-4 files cannot be played back.

\The format of the file is not asf.

DivX files are played back without sound.

\This player can play back the MP3 sound for the audio part of

the DivX files. Select the proper audio CODEC when making

DivX files.

XV-NP10[B].book Page 35 Wednesday, April 28, 2004 10:08 PM

Additional information

36

XV-NP10S/LET0246-003A/English

Additional information

Specifications

Specifications and appearance are subject to change without prior

notice.

General

Readable discs DVD VIDEO, DVD-R (Video format), DVD-RW

(Video format), SVCD, Video CD, Audio CD

(CD-DA), CD-R/RW (CD-DA, SVCD, Video

CD, MP3/WMA format, JPEG, MPEG-4

(Advanced simple profile/Simple profile),

DivX)

Readable cards SD card, MultiMediaCard, Smart Media,

CompactFlash, Memory Stick, xD-Picture

card

(MP3/WMA format, JPEG, MPEG-4 (Simple

Profile))

Video format PAL, Interlaced scan/Progressive scan

selectable

Other

Power requirements

AC 230 V , 50 Hz

Power consumption

10 W (POWER ON), 1.1 W (STANDBY mode)

Mass 2.1 kg (4.7 lbs)

Dimensions (W × H × D)

435 mm × 47 mm × 259 mm

Video outputs

COMPONENT (pin jacks)

Y Output: 1.0 Vp-p (75 Ω)

PB/PR Output: 0.7 Vp-p (75 Ω)

VIDEO OUT (pin jack)1.0 Vp-p (75 Ω)

S-VIDEO OUT (S jack)

Y Output: 1.0 Vp-p (75 Ω)

C Output: 286 mVp-p (75 Ω)

RGB output 700 mVp-p (75 Ω)

Horizontal resolution

500 lines or more

Audio outputs

ANALOG OUT (pin jack)

2.0 Vrms (10 kΩ)

DIGITAL OUT (COAXIAL)

0.5 Vp-p (75 Ω termination)

DIGITAL OUT (OPTICAL)

–21 dBm to –15 dBm (peak)

Audio characteristics

Frequency response

CD (sampling frequency 44.1 kHz):

2 Hz to 20 kHz

DVD (sampling frequency 48 kHz):

2 Hz to 22 kHz

(4 Hz to 20 kHz for DTS and Dolby

Digital bitstream signals)

DVD (sampling frequency 96 kHz)

2 Hz to 44 kHz

Dynamic range 16 bit: More than 98 dB

20 bit/24 bit: More than 100 dB

Wow and flutter Unmeasurable (less than ± 0.002%)

Total harmonic distortion

less than 0.007%

• Manufactured under license from Dolby Laboratories. “Dolby”

and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital

Theater Systems, Inc.

• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES

WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED,

EXCEPT FOR USE BY A CONSUMER ENGAGING IN

PERSONAL AND NON-COMMERCIAL ACTIVITIES.

• “Official DivX CertifiedTM product”

“Plays DivX® 5, DivX® 4, DivX® 3, and DivX® VOD video content

(in compliance with DivX CertifiedTM technical requirements)”

“DivX, DivX Certified, and associated logos are trademarks of

DivXNetworks, Inc. and are used under license.”

• This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized

by Macrovision Corporation, and is intended for home and other

limited viewing uses only unless otherwise authorized by

Macrovision. Reverse engineering or disassembly is prohibited.

• “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE

WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE

DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625

PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS

RECOMMENDED THAT THE USER SWITCH THE

CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT.

IF THERE ARE QUESTIONS REGARDING OUR TV SET

COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD

PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE

CENTER.”

Additional_information[B].fm Page 36 Wednesday, May 19, 2004 3:29 PM

Additional information

37

XV-NP10S/LET0246-003A/English

Additional information

Appendix A: Digital output signal chart

Appendix B: Table of languages and their abbreviations

(for page 32)

Source type

Output

PCM ONLY DOLBY DIGITAL/PCM STREAM/PCM

DVD with 48 kHz, 16/20/24 bit linear

PCM

48 kHz, 16 bit, stereo linear PCM

DVD with 96 kHz, 16/22/24 bit linear

PCM

DVD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream

DVD with Dolby Digital 48 kHz, 16 bit, stereo linear PCM Dolby Digital bitstream

DVD with MPEG Multichannel 48 kHz, 16 bit, stereo linear PCM MPEG bitstream

SVCD/Video CD/Audio CD 44.1 kHz, 16 bit, stereo linear PCM

Audio CD with DTS 48 kHz, 16 bit, stereo linear PCM DTS bitstream

CD-R/RW or memory card recorded

MP3/WMA, CD-R/RW or DVD-R/-RW

recorded DivX

Linear PCM

CD-R/RW or memory card recorded

MPEG-4 Cannot be outputted

AA Afar FA Persian KM Cambodian OM (Afan) Oromo SU Sundanese

AB Abkhazian FI Finnish KN Kannada OR Oriya SV Swedish

AF Afrikaans FJ Fiji KO Korean (KOR) PA Panjabi SW Swahili

AM Ameharic FO Faroese KS Kashmiri PL Polish TA Tamil

AR Arabic FY Frisian KU Kurdish PS Pashto, Pushto TE Telugu

AS Assamese GA Irish KY Kirghiz PT Portuguese TG Tajik

AY Aymara GD Scots Gaelic LA Latin QU Quechua TH Thai

AZ Azerbaijani GL Galician LN Lingala RM Rhaeto-Romance TI Tigrinya

BA Bashkir GN Guarani LO Laothian RN Kirundi TK Turkmen

BE Byelorussian GU Gujarati LT Lithuanian RO Rumanian TL Tagalog

BG Bulgarian HA Hausa LV Latvian, Lettish RU Russian TN Setswana

BH Bihari HI Hindi MG Malagasy RW Kinyarwanda TO Tongan

BI Bislama HR Croatian MI Maori SA Sanskrit TR Turkish

BN Bengali, Bangla HU Hungarian MK Macedonian SD Sindhi TS Tsonga

BO Tibetan HY Armenian ML Malayalam SG Sangho TT Tatar

BR Breton IA Interlingua MN Mongolian SH Serbo-Croatian TW Twi

CA Catalan IE Interlingue MO Moldavian SI Singhalese UK Ukrainian

CO Corsican IK Inupiak MR Marathi SK Slovak UR Urdu

CS Czech IN Indonesian MS Malay (MAY) SL Slovenian UZ Uzbek

CY Welsh IS Icelandic MT Maltese SM Samoan VI Vietnamese

DA Danish IW Hebrew MY Burmese SN Shona VO Volapuk

DZ Bhutani JI Yiddish NA Nauru SO Somali WO Wolof

EL Greek JW Javanese NE Nepali SQ Albanian XH Xhosa

EO Esperanto KA Georgian NL Dutch SR Serbian YO Yoruba

ET Estonian KK Kazakh NO Norwegian SS Siswati ZU Zulu

EU Basque KL Greenlandic OC Occitan ST Sesotho

(for pages 21 and 31 )

XV-NP10[B].book Page 37 Wednesday, April 28, 2004 10:08 PM

Additional information

38

XV-NP10S/LET0246-003A/English

Additional information

Appendix C: Country/Area code list for Parental Lock (for page 33)

AD Andorra

AE United Arab Emirates

AF Afghanistan

AG Antigua and Barbuda

AI Anguilla

AL Albania

AM Armenia

AN Netherlands Antilles

AO Angola

AQ Antarctica

AR Argentina

AS American Samoa

AT Austria

AU Australia

AW Aruba

AZ Azerbaijan

BA Bosnia and Herzegovina

BB Barbados

BD Bangladesh

BE Belgium

BF Burkina Faso

BG Bulgaria

BH Bahrain

BI Burundi

BJ Benin

BM Bermuda

BN Brunei Darussalam

BO Bolivia

BR Brazil

BS Bahamas

BT Bhutan

BV Bouvet Island

BW Botswana

BY Belarus

BZ Belize

CA Canada

CC Cocos (Keeling) Islands

CF Central African Republic

CG Congo

CH Switzerland

CI Côte d’Ivoire

CK Cook Islands

CL Chile

CM Cameroon

CN China

CO Colombia

CR Costa Rica

CU Cuba

CV Cape Verde

CX Christmas Island

CY Cyprus

CZ Czech Republic

DE Germany

DJ Djibouti

DK Denmark

DM Dominica

DO Dominican Republic

DZ Algeria

EC Ecuador

EE Estonia

EG Egypt

EH Western Sahara

ER Eritrea

ES Spain

ET Ethiopia

FI Finland

FJ Fiji

FK Falkland Islands

FM Micronesia (Federated States

of)

FO Faroe Islands

FR France

FX France, Metropolitan

GA Gabon

GB United Kingdom

GD Grenada

GE Georgia

GF French Guiana

GH Ghana

GI Gibraltar

GL Greenland

GM Gambia

GN Guinea

GP Guadeloupe

GQ Equatorial Guinea

GR Greece

GS South Georgia and the South

Sandwich

GT Guatemala

GU Guam

GW Guinea-Bissau

GY Guyana

HK Hong Kong

HM Heard Island and McDonald

Islands

HN Honduras

HR Croatia

HT Haiti

HU Hungary

ID Indonesia

IE Ireland

IL Israel

IN India

IO British Indian Ocean Territory

IQ Iraq

IR Iran (Islamic Republic of)

IS Iceland

IT Italy

JM Jamaica

JO Jordan

JP Japan

KE Kenya

KG Kyrgyzstan

KH Cambodia

KI Kiribati

KM Comoros

KN Saint Kitts and Nevis

KP Korea, Democratic People's

Republic of

KR Korea, Republic of

KW Kuwait

KY Cayman Islands

KZ Kazakhstan

LA Lao People’s Democratic

Republic

LB Lebanon

LC Saint Lucia

LI Liechtenstein

LK Sri Lanka

LR Liberia

LS Lesotho

LT Lithuania

LU Luxembourg

LV Latvia

LY Libyan Arab Jamahiriya

MA Morocco

MC Monaco

MD Moldova, Republic of

MG Madagascar

MH Marshall Islands

ML Mali

MM Myanmar

MN Mongolia

MO Macau

MP Northern Mariana Islands

MQ Martinique

MR Mauritania

MS Montserrat

MT Malta

MU Mauritius

MV Maldives

MW Malawi

MX Mexico

MY Malaysia

MZ Mozambique

NA Namibia

NC New Caledonia

NE Niger

NF Norfolk Island

NG Nigeria

NI Nicaragua

NL Netherlands

NO Norway

NP Nepal

NR Nauru

NU Niue

NZ New Zealand

OM Oman

PA Panama

PE Peru

PF French Polynesia

PG Papua New Guinea

PH Philippines

PK Pakistan

PL Poland

PM Saint Pierre and Miquelon

PN Pitcairn

PR Puerto Rico

PT Portugal

PW Palau

PY Paraguay

QA Qatar

RE Réunion

RO Romania

RU Russian Federation

RW Rwanda

SA Saudi Arabia

SB Solomon Islands

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

SI Slovenia

SJ Svalbard and Jan Mayen

SK Slovakia

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Sao Tome and Principe

SV El Salvador

SY Syrian Arab Republic

SZ Swaziland

TC Turks and Caicos Islands

TD Chad

TF French Southern Territories

TG Togo

TH Thailand

TJ Tajikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW Taiwan

TZ Tanzania, United Republic of

UA Ukraine

UG Uganda

UM United States Minor Outlying

Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City State (Holy See)

VC Saint Vincent and the

Grenadines

VE Venezuela

VG Virgin Islands (British)

VI Virgin Islands (U.S.)

VN Vietnam

VU Vanuatu

WF Wallis and Futuna Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

XV-NP10[B].book Page 38 Wednesday, April 28, 2004 10:08 PM

Additional information

39

XV-NP10S/LET0246-003A/English

Additional information

Appendix D: Glossary

ASF

ASF is an abbreviation of “Advanced Streaming Format,” and is a

data compression format for streaming developed by Microsoft

Corporation. ASF can contain the various data types such as

audio, video, and text.

Aspect ratio

A ratio which defines the shape of the rectangular picture in a TV.

It is the width of the picture relative to the height. A conventional

TV picture is 4:3 in aspect ratio.

Bitstream

The digital form of multichannel audio data (e.g., 5.1-channel)

before it is decoded into its various channels.

Chapter/title

Chapter is the smallest division and title is the largest division on

DVD VIDEO. A chapter is a division of a title and similar to a track

for Video CD or Audio CD.

Component video

Video signals with three channels of separate information that

makes up the picture. There are some types of component video,

such as R/G/B and Y/CB(PB)/CR(PR).

Composite video

A single video signal commonly used in most consumer video

products that contains all luminance, color, and synchronization

information.

DivX

One of the encoding methods for making MPEG-4 files.

Dolby Digital (AC3)

A six-channel system consisting of left, center, right, left rear,

right rear and LFE (Low-Frequency Effect channel, for use with a

sub-woofer) channels. All processing is done in the digital

domain. Not all Dolby Digital discs contain six (5.1) channels of

information.

Dolby Surround/Dolby Pro Logic

Dolby Surround records four channels of front and rear audio in

two channels in a way that allows a decoder to recover the

original four channels for playback. Because the audio is

recorded in two channels, it can be played back naturally by a

two-channel stereo system.

Dolby Pro Logic introduces directional circuits in decoder-side

processing (increasing the level of specific channels and lowering

the level of silent channels) for greater spatial perspective, and

adds a center speaker used primarily for dialog. The result is

enhanced channel separation.

Down-mix

Internal stereo mix of multichannel surround audio by a DVD

player. The down-mix signals are output from stereo output

connectors.

DTS

A Digital Surround audio encoding format configured with six

(5.1) channels, similar to Dolby Digital. It requires a decoder,

either in the player or in an external receiver. DTS stands for

Digital Theater Systems.

Not all DTS discs contain six (5.1) channels of information.

Dynamic range

The difference between the loudest and softest sounds.

Interlaced scanning

In a conventional video system, a picture is shown on the display

monitor in between lines of two halves. The Interlaced scanning

system places lines of the second half of the picture in-between

lines of the first half of the picture.

JPEG

A popular file format for still image compression and storage.

JPEG stands for Joint Photographic Experts Group.

There are three sub-types of the JPEG format as follows.

•baseline JPEG: used for digital cameras, the web, etc.

•progressive JPEG: used for the web

•lossless JPEG: an old type, rarely used now

Linear PCM audio

PCM stands for “pulse code modulation.” Linear PCM is the usual

method for digitally encoding audio without compression, and is

used for the audio tracks on DVD VIDEO discs, Audio CDs, etc.

MP3

MP3 is an audio data compression format, which stands for

MPEG-1 Audio Layer 3. Using MP3, you can achieve a data

reduction of about 1:10.

MPEG-4

MPEG-4 is an audio/video data compression format, which is

highly efficient and more stable than MPEG-1 and MPEG-2.

MPEG Multichannel

This feature expands the 5.1 channel audio format recorded on

the disc to a 7.1 channel format. The further expansion of the 5.1

channel audio makes it easy for you to reproduce the movie

theater experience in your own home.

NTSC (National television system committee)

A black and white and color television system format used in the

U.S.A., Canada, Mexico and Japan.

PAL (Phase Alternation by Line)

A color television system format used extensively in Western

Europe.

PBC

PBC stands for “Playback control” and is a method of controlling

disc play for Video CDs (VCD). You are able to interact with the

disc through menus.

Progressive scanning

Progressive scanning displays all the horizontal lines of a picture

at one time, as a single frame. A progressive scanning DVD

player converts the interlaced video from DVD into progressive

format for connection to a progressive display. It dramatically

increases the vertical resolution.

S-video

A video signal which improves picture quality over standard

composite connections. Used on Super VHS, DVD, high end TV

monitors, etc.

Track

The smallest division on SVCD, Video CD and Audio CD discs.

WMA

WMA is an abbreviation of “Windows Media Audio,” and is an

audio data compression format developed by Microsoft

Corporation. Sound quality of data compressed using WMA is

the same as that of MP3, though the WMA file size is smaller

than that of MP3.

XV-NP10[B].book Page 39 Wednesday, April 28, 2004 10:08 PM

XV-NP10S/LET0246-003A/English

XV-NP10S DVD PLAYER/MEMORY CARD READER

EN

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards but, like any

electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections

between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch

off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged

in any way–switch off, withdraw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages.

DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for

unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of

traffic safety. It is illegal to watch television whilst driving.

DON’T listen to headphones at high volume as such use can permanently damage your hearing.

DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the

manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

—NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case -this

could result in a fatal electrical shock.;

—NEVER guess or take chances with electrical equipment of any kind -it is better to be safe than sorry!

VICTOR COMPANY OF JAPAN, LIMITED

© 2004 VICTOR COMPANY OF JAPAN, LIMITED

0504KTYMDWJSC

XV-NP10[B].book Page 1 Wednesday, April 28, 2004 10:08 PM
