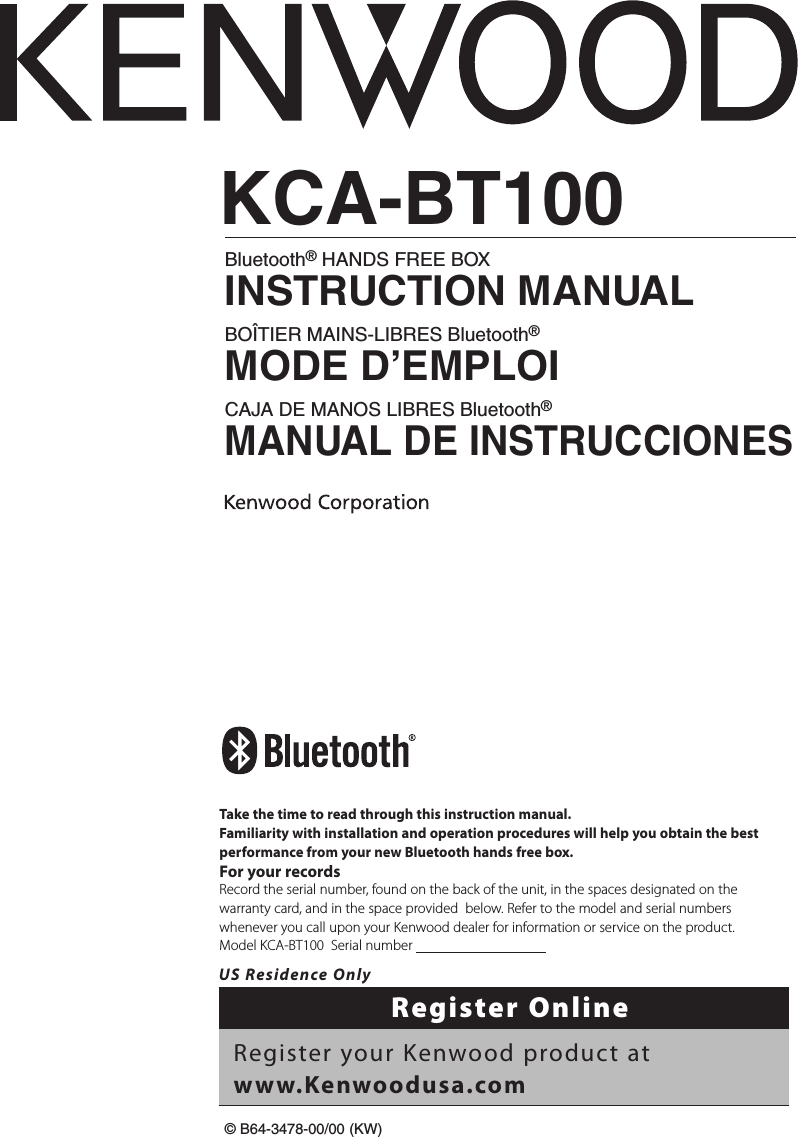

KCA-BT100Bluetooth® HANDS FREE BOXINSTRUCTION MANUALBOÎTIER MAINS-LIBRES Bluetooth®MODE D’EMPLOICAJA DE MANOS LIBRES Bluetooth®MANUAL DE INSTRUCCIONES© B64-3478-00/00 (KW)Take the time to read through this instruction manual.Familiarity with installation and operation procedures will help you obtain the best performance from your new Bluetooth hands free box.For your recordsRecord the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.Model KCA-BT100 Serial number US Residence OnlyRegister OnlineRegister your Kenwood product at www.Kenwoodusa.com

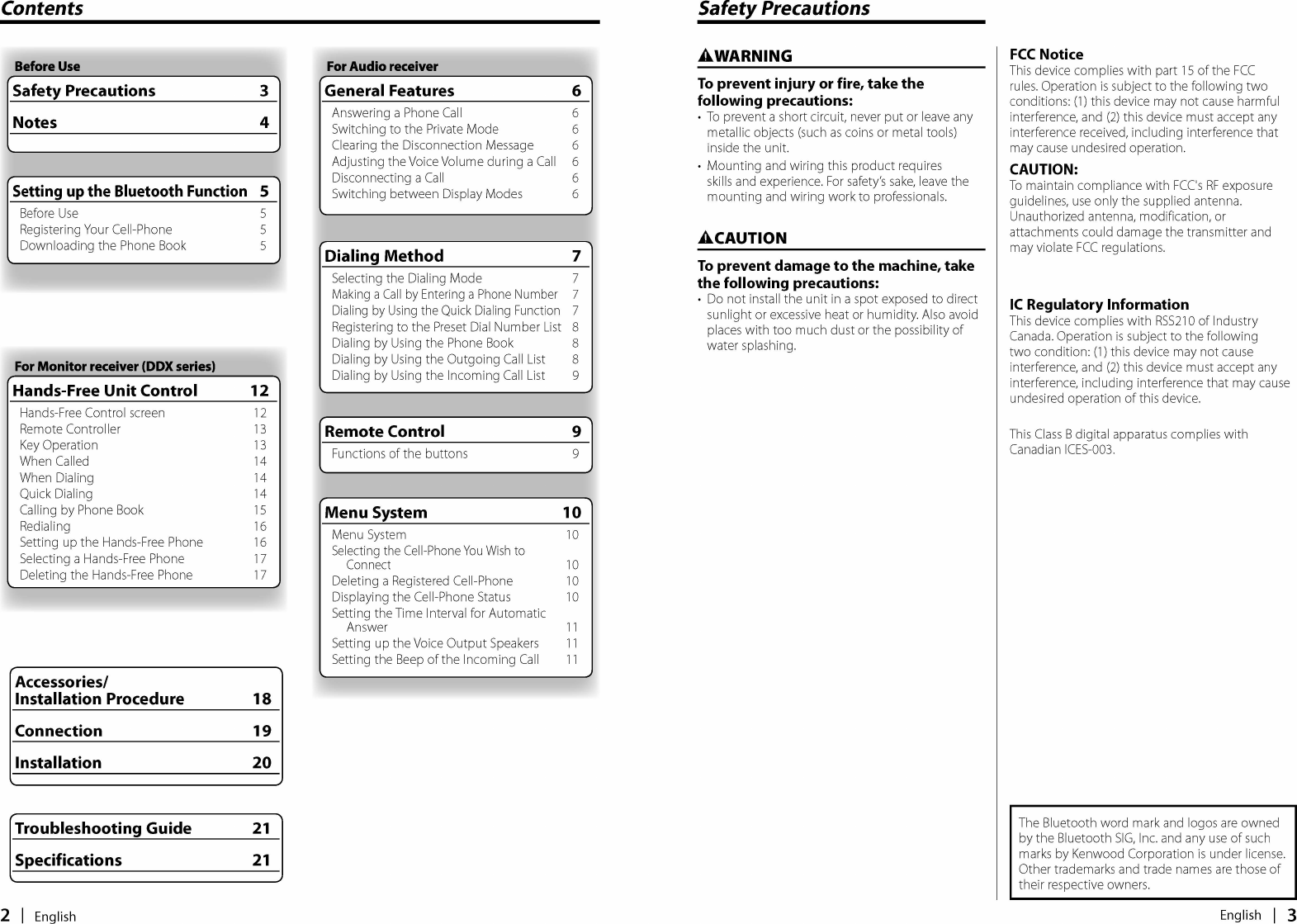

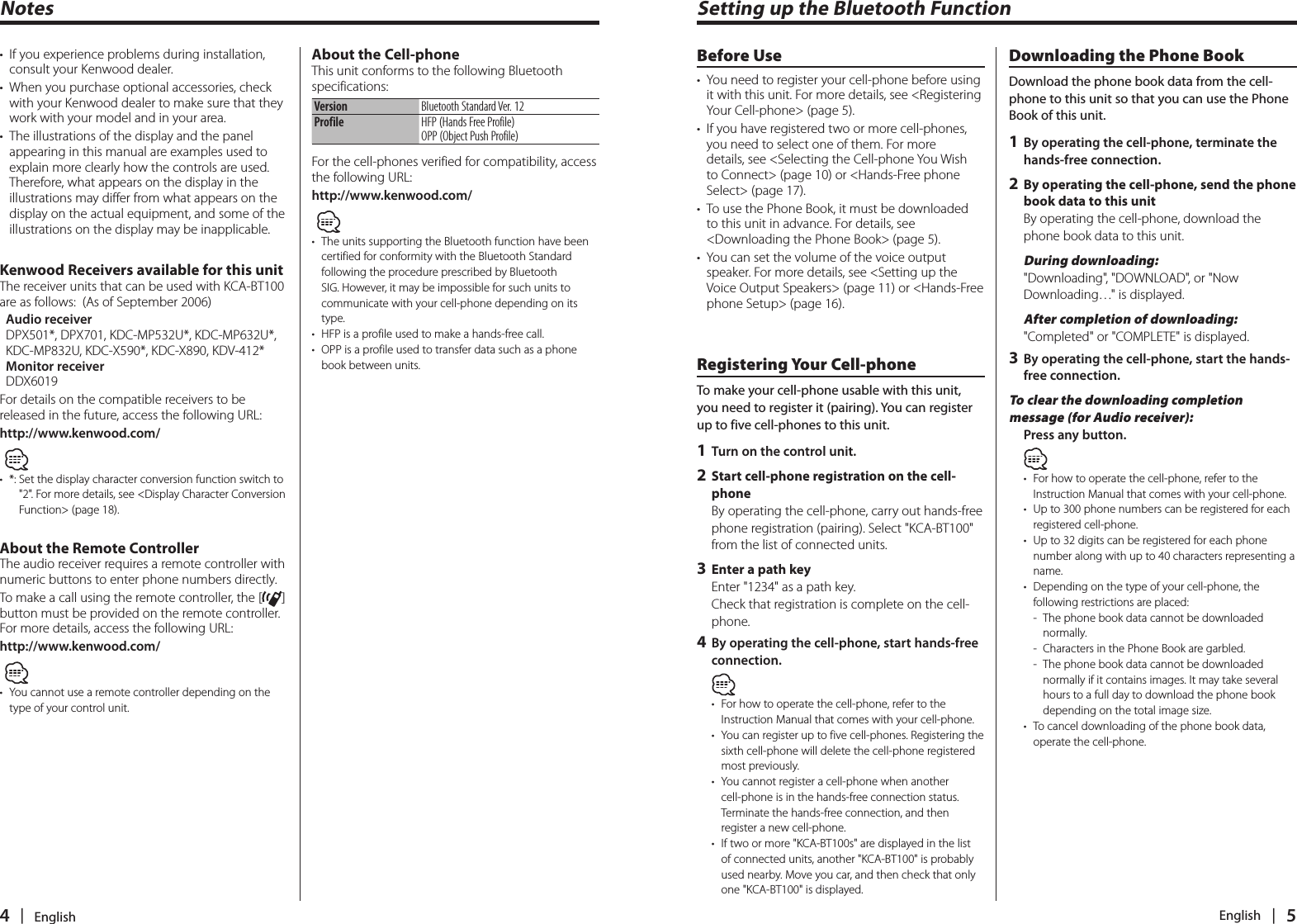

4 | English English | 5• If you experience problems during installation, consult your Kenwood dealer.• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.• The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable.Kenwood Receivers available for this unitThe receiver units that can be used with KCA-BT100 are as follows: (As of September 2006) Audio receiverDPX501*, DPX701, KDC-MP532U*, KDC-MP632U*, KDC-MP832U, KDC-X590*, KDC-X890, KDV-412*Monitor receiverDDX6019For details on the compatible receivers to be released in the future, access the following URL:http://www.kenwood.com/• *: Set the display character conversion function switch to "2". For more details, see <Display Character Conversion Function> (page 18).About the Remote ControllerThe audio receiver requires a remote controller with numeric buttons to enter phone numbers directly.To make a call using the remote controller, the [ ] button must be provided on the remote controller. For more details, access the following URL: http://www.kenwood.com/• You cannot use a remote controller depending on the type of your control unit.About the Cell-phoneThis unit conforms to the following Bluetooth specifications:Version Bluetooth Standard Ver. 12Profile HFP (Hands Free Profile)OPP (Object Push Profile)For the cell-phones verified for compatibility, access the following URL:http://www.kenwood.com/• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG. However, it may be impossible for such units to communicate with your cell-phone depending on its type. • HFP is a profile used to make a hands-free call.• OPP is a profile used to transfer data such as a phone book between units.Notes Setting up the Bluetooth FunctionRegistering Your Cell-phone To make your cell-phone usable with this unit, you need to register it (pairing). You can register up to five cell-phones to this unit.1 Turn on the control unit.2 Start cell-phone registration on the cell-phoneBy operating the cell-phone, carry out hands-free phone registration (pairing). Select "KCA-BT100" from the list of connected units. 3 Enter a path keyEnter "1234" as a path key.Check that registration is complete on the cell-phone.4 By operating the cell-phone, start hands-free connection.• For how to operate the cell-phone, refer to the Instruction Manual that comes with your cell-phone.• You can register up to five cell-phones. Registering the sixth cell-phone will delete the cell-phone registered most previously.• You cannot register a cell-phone when another cell-phone is in the hands-free connection status. Terminate the hands-free connection, and then register a new cell-phone.• If two or more "KCA-BT100s" are displayed in the list of connected units, another "KCA-BT100" is probably used nearby. Move you car, and then check that only one "KCA-BT100" is displayed. Before Use• You need to register your cell-phone before using it with this unit. For more details, see <Registering Your Cell-phone> (page 5).• If you have registered two or more cell-phones, you need to select one of them. For more details, see <Selecting the Cell-phone You Wish to Connect> (page 10) or <Hands-Free phone Select> (page 17).• To use the Phone Book, it must be downloaded to this unit in advance. For details, see <Downloading the Phone Book> (page 5).• You can set the volume of the voice output speaker. For more details, see <Setting up the Voice Output Speakers> (page 11) or <Hands-Free phone Setup> (page 16).Downloading the Phone Book Download the phone book data from the cell-phone to this unit so that you can use the Phone Book of this unit. 1 By operating the cell-phone, terminate the hands-free connection. 2 By operating the cell-phone, send the phone book data to this unitBy operating the cell-phone, download the phone book data to this unit.During downloading:"Downloading", "DOWNLOAD", or "Now Downloading…" is displayed.After completion of downloading:"Completed" or "COMPLETE" is displayed.3 By operating the cell-phone, start the hands-free connection. To clear the downloading completion message (for Audio receiver):Press any button.• For how to operate the cell-phone, refer to the Instruction Manual that comes with your cell-phone.• Up to 300 phone numbers can be registered for each registered cell-phone. • Up to 32 digits can be registered for each phone number along with up to 40 characters representing a name. • Depending on the type of your cell-phone, the following restrictions are placed:- The phone book data cannot be downloaded normally.- Characters in the Phone Book are garbled.- The phone book data cannot be downloaded normally if it contains images. It may take several hours to a full day to download the phone book depending on the total image size. • To cancel downloading of the phone book data, operate the cell-phone.

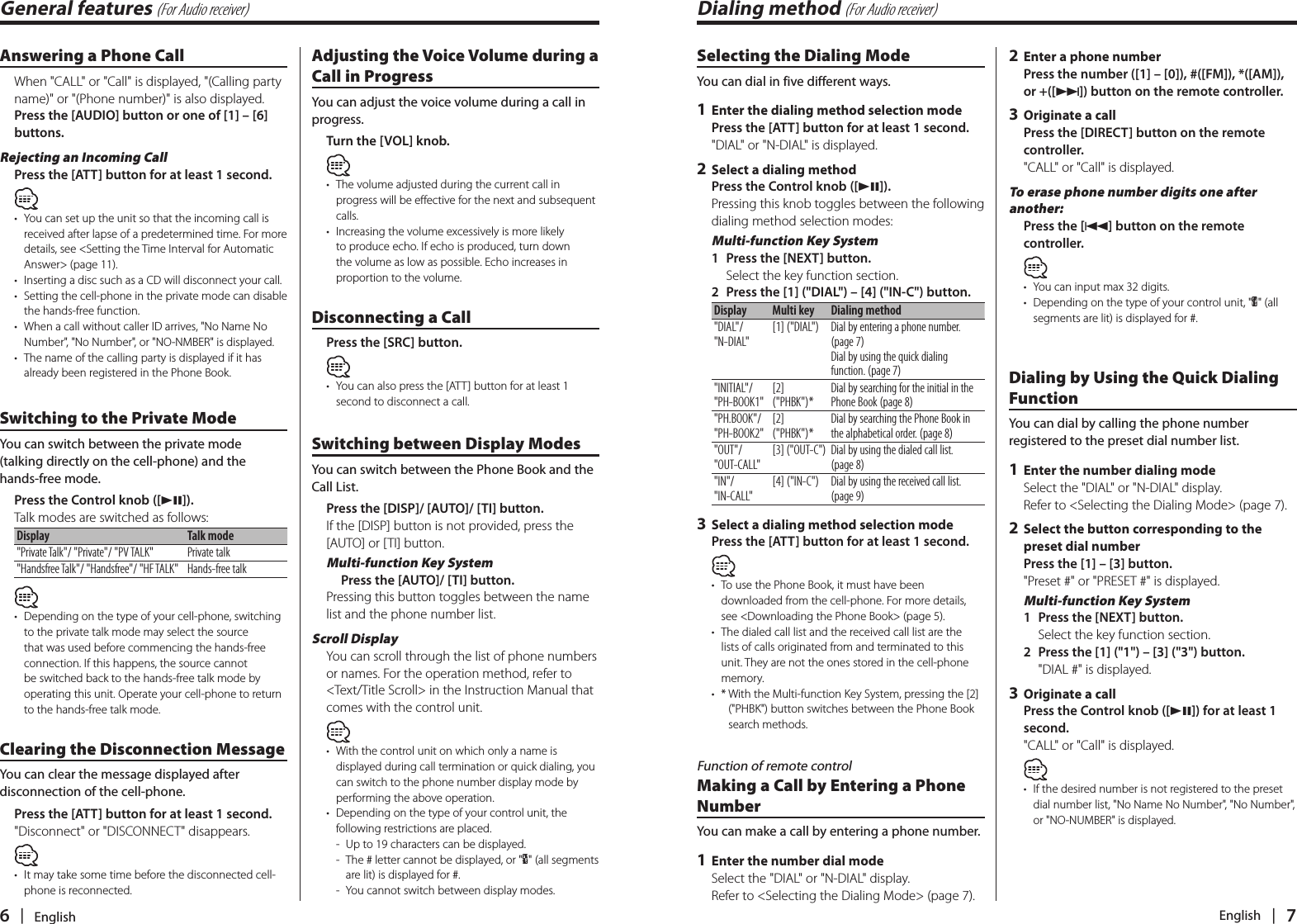

6 | English English | 7General features (For Audio receiver)Answering a Phone CallWhen "CALL" or "Call" is displayed, "(Calling party name)" or "(Phone number)" is also displayed.Press the [AUDIO] button or one of [1] – [6] buttons.Rejecting an Incoming CallPress the [ATT] button for at least 1 second.• You can set up the unit so that the incoming call is received after lapse of a predetermined time. For more details, see <Setting the Time Interval for Automatic Answer> (page 11).• Inserting a disc such as a CD will disconnect your call.• Setting the cell-phone in the private mode can disable the hands-free function.• When a call without caller ID arrives, "No Name No Number", "No Number", or "NO-NMBER" is displayed.• The name of the calling party is displayed if it has already been registered in the Phone Book.Disconnecting a CallPress the [SRC] button.• You can also press the [ATT] button for at least 1 second to disconnect a call. Switching to the Private ModeYou can switch between the private mode (talking directly on the cell-phone) and the hands-free mode.Press the Control knob ([38]).Talk modes are switched as follows:Display Talk mode"Private Talk"/ "Private"/ "PV TALK" Private talk"Handsfree Talk"/ "Handsfree"/ "HF TALK" Hands-free talk• Depending on the type of your cell-phone, switching to the private talk mode may select the source that was used before commencing the hands-free connection. If this happens, the source cannot be switched back to the hands-free talk mode by operating this unit. Operate your cell-phone to return to the hands-free talk mode.Adjusting the Voice Volume during a Call in ProgressYou can adjust the voice volume during a call in progress.Turn the [VOL] knob.• The volume adjusted during the current call in progress will be effective for the next and subsequent calls.• Increasing the volume excessively is more likely to produce echo. If echo is produced, turn down the volume as low as possible. Echo increases in proportion to the volume. Switching between Display ModesYou can switch between the Phone Book and the Call List. Press the [DISP]/ [AUTO]/ [TI] button.If the [DISP] button is not provided, press the [AUTO] or [TI] button.Multi-function Key System Press the [AUTO]/ [TI] button.Pressing this button toggles between the name list and the phone number list. Scroll DisplayYou can scroll through the list of phone numbers or names. For the operation method, refer to <Text/Title Scroll> in the Instruction Manual that comes with the control unit.• With the control unit on which only a name is displayed during call termination or quick dialing, you can switch to the phone number display mode by performing the above operation.• Depending on the type of your control unit, the following restrictions are placed.- Up to 19 characters can be displayed.- The # letter cannot be displayed, or "|" (all segments are lit) is displayed for #.- You cannot switch between display modes. Clearing the Disconnection MessageYou can clear the message displayed after disconnection of the cell-phone.Press the [ATT] button for at least 1 second."Disconnect" or "DISCONNECT" disappears.• It may take some time before the disconnected cell-phone is reconnected.Dialing method (For Audio receiver)Selecting the Dialing ModeYou can dial in five different ways.1 Enter the dialing method selection modePress the [ATT] button for at least 1 second."DIAL" or "N-DIAL" is displayed.2 Select a dialing methodPress the Control knob ([38]).Pressing this knob toggles between the following dialing method selection modes:Multi-function Key System1 Press the [NEXT] button.Select the key function section.2 Press the [1] ("DIAL") – [4] ("IN-C") button.Display Multi key Dialing method"DIAL"/ "N-DIAL" [1] ("DIAL") Dial by entering a phone number. (page 7)Dial by using the quick dialing function. (page 7)"INITIAL"/ "PH-BOOK1" [2] ("PHBK")* Dial by searching for the initial in the Phone Book (page 8)"PH.BOOK"/ "PH-BOOK2" [2] ("PHBK")* Dial by searching the Phone Book in the alphabetical order. (page 8)"OUT"/ "OUT-CALL" [3] ("OUT-C") Dial by using the dialed call list. (page 8)"IN"/ "IN-CALL" [4] ("IN-C") Dial by using the received call list. (page 9)3 Select a dialing method selection modePress the [ATT] button for at least 1 second.• To use the Phone Book, it must have been downloaded from the cell-phone. For more details, see <Downloading the Phone Book> (page 5).• The dialed call list and the received call list are the lists of calls originated from and terminated to this unit. They are not the ones stored in the cell-phone memory.• * With the Multi-function Key System, pressing the [2] ("PHBK") button switches between the Phone Book search methods.2 Enter a phone numberPress the number ([1] – [0]), #([FM]), *([AM]), or +([¢]) button on the remote controller.3 Originate a callPress the [DIRECT] button on the remote controller."CALL" or "Call" is displayed.To erase phone number digits one after another:Press the [4] button on the remote controller.• You can input max 32 digits.• Depending on the type of your control unit, "|" (all segments are lit) is displayed for #.Dialing by Using the Quick Dialing FunctionYou can dial by calling the phone number registered to the preset dial number list.1 Enter the number dialing modeSelect the "DIAL" or "N-DIAL" display.Refer to <Selecting the Dialing Mode> (page 7).2 Select the button corresponding to the preset dial numberPress the [1] – [3] button."Preset #" or "PRESET #" is displayed.Multi-function Key System1 Press the [NEXT] button.Select the key function section.2 Press the [1] ("1") – [3] ("3") button."DIAL #" is displayed.3 Originate a callPress the Control knob ([38]) for at least 1 second."CALL" or "Call" is displayed.• If the desired number is not registered to the preset dial number list, "No Name No Number", "No Number", or "NO-NUMBER" is displayed.Function of remote controlMaking a Call by Entering a Phone NumberYou can make a call by entering a phone number.1 Enter the number dial modeSelect the "DIAL" or "N-DIAL" display.Refer to <Selecting the Dialing Mode> (page 7).

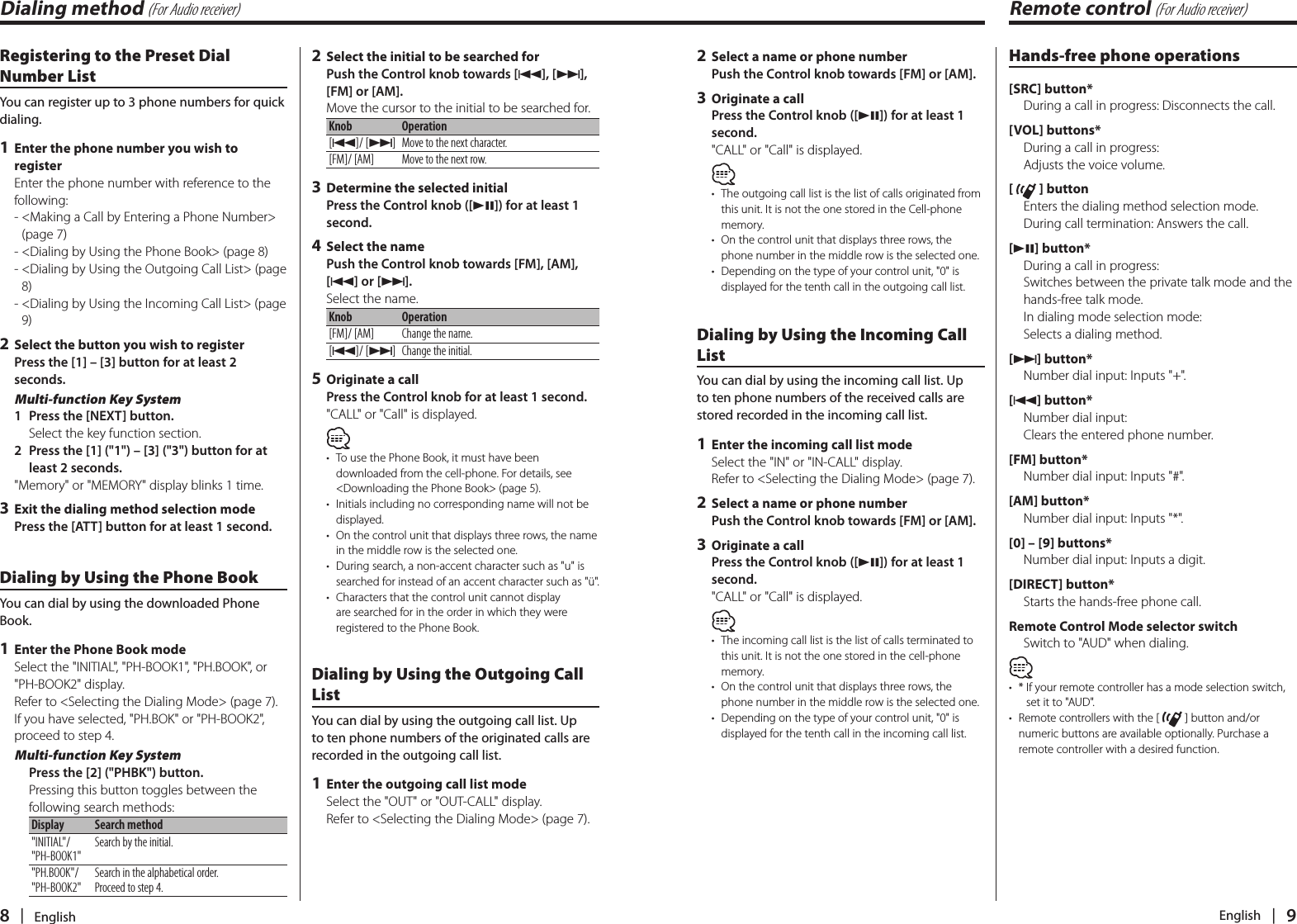

8 | English English | 9Dialing method (For Audio receiver)Registering to the Preset Dial Number ListYou can register up to 3 phone numbers for quick dialing.1 Enter the phone number you wish to registerEnter the phone number with reference to the following:- <Making a Call by Entering a Phone Number> (page 7)- <Dialing by Using the Phone Book> (page 8)- <Dialing by Using the Outgoing Call List> (page 8)- <Dialing by Using the Incoming Call List> (page 9)2 Select the button you wish to registerPress the [1] – [3] button for at least 2 seconds.Multi-function Key System1 Press the [NEXT] button.Select the key function section.2 Press the [1] ("1") – [3] ("3") button for at least 2 seconds."Memory" or "MEMORY" display blinks 1 time.3 Exit the dialing method selection modePress the [ATT] button for at least 1 second.Dialing by Using the Phone BookYou can dial by using the downloaded Phone Book.1 Enter the Phone Book modeSelect the "INITIAL", "PH-BOOK1", "PH.BOOK", or "PH-BOOK2" display.Refer to <Selecting the Dialing Mode> (page 7).If you have selected, "PH.BOK" or "PH-BOOK2", proceed to step 4.Multi-function Key System Press the [2] ("PHBK") button.Pressing this button toggles between the following search methods:Display Search method"INITIAL"/ "PH-BOOK1" Search by the initial."PH.BOOK"/ "PH-BOOK2" Search in the alphabetical order.Proceed to step 4.2 Select the initial to be searched forPush the Control knob towards [4], [¢], [FM] or [AM].Move the cursor to the initial to be searched for.Knob Operation[4]/ [¢] Move to the next character. [FM]/ [AM] Move to the next row.3 Determine the selected initialPress the Control knob ([38]) for at least 1 second.4 Select the namePush the Control knob towards [FM], [AM], [4] or [¢].Select the name.Knob Operation[FM]/ [AM] Change the name.[4]/ [¢] Change the initial.5 Originate a callPress the Control knob for at least 1 second."CALL" or "Call" is displayed.• To use the Phone Book, it must have been downloaded from the cell-phone. For details, see <Downloading the Phone Book> (page 5).• Initials including no corresponding name will not be displayed.• On the control unit that displays three rows, the name in the middle row is the selected one.• During search, a non-accent character such as "u" is searched for instead of an accent character such as "ü".• Characters that the control unit cannot display are searched for in the order in which they were registered to the Phone Book.Dialing by Using the Incoming Call ListYou can dial by using the incoming call list. Up to ten phone numbers of the received calls are stored recorded in the incoming call list.1 Enter the incoming call list modeSelect the "IN" or "IN-CALL" display.Refer to <Selecting the Dialing Mode> (page 7).2 Select a name or phone numberPush the Control knob towards [FM] or [AM].3 Originate a callPress the Control knob ([38]) for at least 1 second."CALL" or "Call" is displayed.• The incoming call list is the list of calls terminated to this unit. It is not the one stored in the cell-phone memory.• On the control unit that displays three rows, the phone number in the middle row is the selected one.• Depending on the type of your control unit, "0" is displayed for the tenth call in the incoming call list.Dialing by Using the Outgoing Call ListYou can dial by using the outgoing call list. Up to ten phone numbers of the originated calls are recorded in the outgoing call list.1 Enter the outgoing call list modeSelect the "OUT" or "OUT-CALL" display.Refer to <Selecting the Dialing Mode> (page 7).Hands-free phone operations[SRC] button*During a call in progress: Disconnects the call.[VOL] buttons*During a call in progress: Adjusts the voice volume.[ ] buttonEnters the dialing method selection mode.During call termination: Answers the call.[38] button*During a call in progress: Switches between the private talk mode and the hands-free talk mode.In dialing mode selection mode: Selects a dialing method.[¢] button*Number dial input: Inputs "+".[4] button*Number dial input: Clears the entered phone number.[FM] button*Number dial input: Inputs "#".[AM] button*Number dial input: Inputs "*".[0] – [9] buttons*Number dial input: Inputs a digit.[DIRECT] button*Starts the hands-free phone call.Remote Control Mode selector switch Switch to "AUD" when dialing.• * If your remote controller has a mode selection switch, set it to "AUD". • Remote controllers with the [ ] button and/or numeric buttons are available optionally. Purchase a remote controller with a desired function.Remote control (For Audio receiver)2 Select a name or phone numberPush the Control knob towards [FM] or [AM].3 Originate a callPress the Control knob ([38]) for at least 1 second."CALL" or "Call" is displayed.• The outgoing call list is the list of calls originated from this unit. It is not the one stored in the Cell-phone memory.• On the control unit that displays three rows, the phone number in the middle row is the selected one.• Depending on the type of your control unit, "0" is displayed for the tenth call in the outgoing call list.

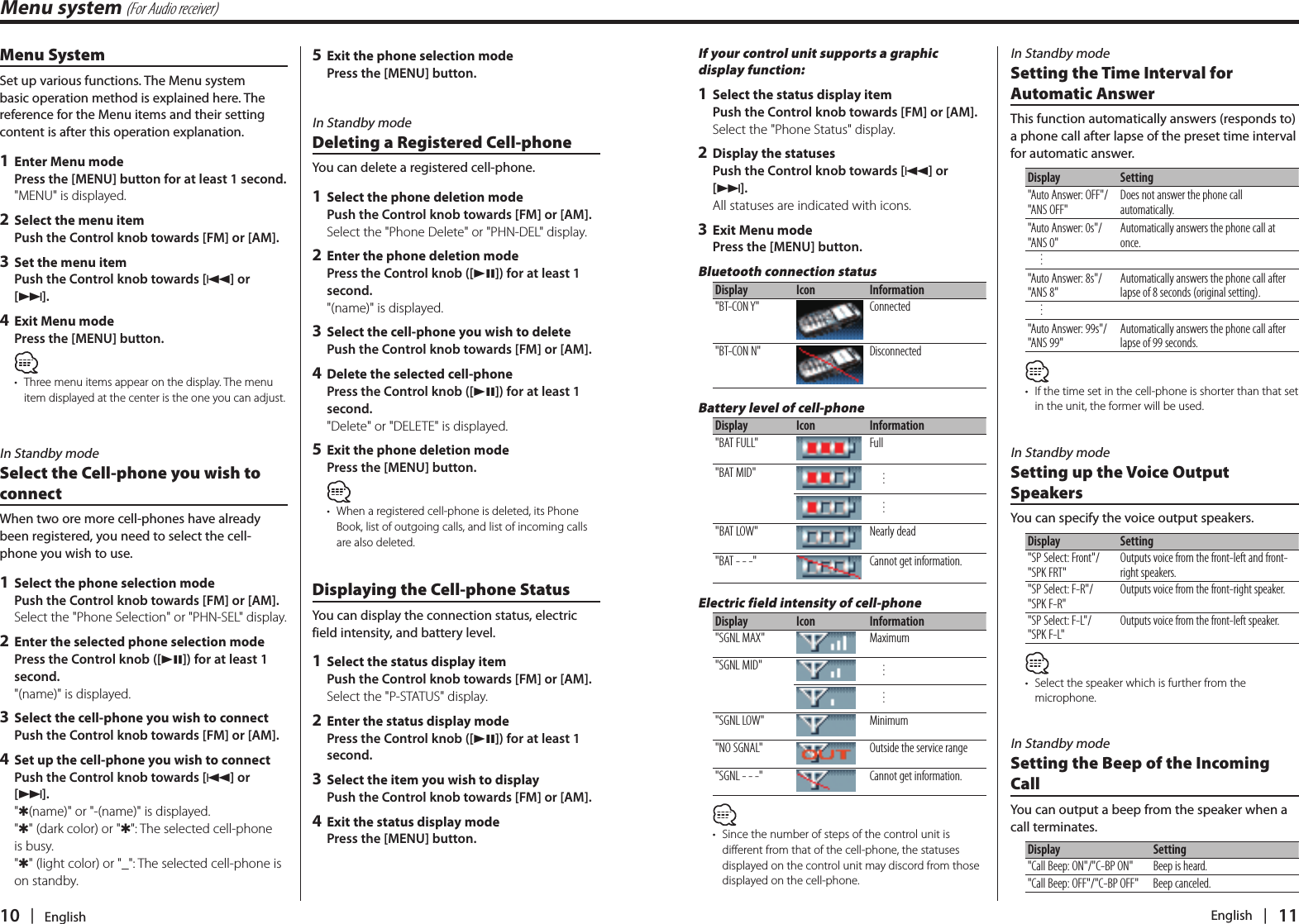

10 | English English | 11Menu system (For Audio receiver)Menu SystemSet up various functions. The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation.1 Enter Menu modePress the [MENU] button for at least 1 second."MENU" is displayed.2 Select the menu itemPush the Control knob towards [FM] or [AM].3 Set the menu itemPush the Control knob towards [4] or [¢].4 Exit Menu modePress the [MENU] button.• Three menu items appear on the display. The menu item displayed at the center is the one you can adjust.In Standby modeSetting the Time Interval for Automatic AnswerThis function automatically answers (responds to) a phone call after lapse of the preset time interval for automatic answer. Display Setting"Auto Answer: OFF"/"ANS OFF" Does not answer the phone call automatically."Auto Answer: 0s"/"ANS 0" Automatically answers the phone call at once.…"Auto Answer: 8s"/"ANS 8" Automatically answers the phone call after lapse of 8 seconds (original setting).…"Auto Answer: 99s"/"ANS 99" Automatically answers the phone call after lapse of 99 seconds.• If the time set in the cell-phone is shorter than that set in the unit, the former will be used.In Standby modeSetting up the Voice Output Speakers You can specify the voice output speakers.Display Setting"SP Select: Front"/"SPK FRT" Outputs voice from the front-left and front-right speakers. "SP Select: F-R"/"SPK F-R" Outputs voice from the front-right speaker."SP Select: F-L"/"SPK F-L" Outputs voice from the front-left speaker.• Select the speaker which is further from the microphone.In Standby modeDeleting a Registered Cell-phoneYou can delete a registered cell-phone.1 Select the phone deletion modePush the Control knob towards [FM] or [AM].Select the "Phone Delete" or "PHN-DEL" display.2 Enter the phone deletion modePress the Control knob ([38]) for at least 1 second."(name)" is displayed.3 Select the cell-phone you wish to deletePush the Control knob towards [FM] or [AM].4 Delete the selected cell-phonePress the Control knob ([38]) for at least 1 second."Delete" or "DELETE" is displayed.5 Exit the phone deletion modePress the [MENU] button.• When a registered cell-phone is deleted, its Phone Book, list of outgoing calls, and list of incoming calls are also deleted.In Standby modeSelect the Cell-phone you wish to connectWhen two ore more cell-phones have already been registered, you need to select the cell-phone you wish to use.1 Select the phone selection modePush the Control knob towards [FM] or [AM].Select the "Phone Selection" or "PHN-SEL" display.2 Enter the selected phone selection modePress the Control knob ([38]) for at least 1 second."(name)" is displayed.3 Select the cell-phone you wish to connectPush the Control knob towards [FM] or [AM].4 Set up the cell-phone you wish to connectPush the Control knob towards [4] or [¢]."✱(name)" or "-(name)" is displayed."✱" (dark color) or "✱": The selected cell-phone is busy."✱" (light color) or "_": The selected cell-phone is on standby.In Standby modeSetting the Beep of the Incoming CallYou can output a beep from the speaker when a call terminates.Display Setting"Call Beep: ON"/"C-BP ON" Beep is heard."Call Beep: OFF"/"C-BP OFF" Beep canceled.Displaying the Cell-phone StatusYou can display the connection status, electric field intensity, and battery level.1 Select the status display itemPush the Control knob towards [FM] or [AM].Select the "P-STATUS" display.2 Enter the status display modePress the Control knob ([38]) for at least 1 second.3 Select the item you wish to displayPush the Control knob towards [FM] or [AM].4 Exit the status display modePress the [MENU] button.If your control unit supports a graphic display function:1 Select the status display itemPush the Control knob towards [FM] or [AM].Select the "Phone Status" display.2 Display the statusesPush the Control knob towards [4] or [¢].All statuses are indicated with icons.3 Exit Menu modePress the [MENU] button.Bluetooth connection statusDisplay Icon Information"BT-CON Y" Connected"BT-CON N" DisconnectedBattery level of cell-phoneDisplay Icon Information"BAT FULL" Full"BAT MID"……"BAT LOW" Nearly dead"BAT - - -" Cannot get information.Electric field intensity of cell-phoneDisplay Icon Information"SGNL MAX" Maximum"SGNL MID"……"SGNL LOW" Minimum"NO SGNAL" Outside the service range"SGNL - - -" Cannot get information.• Since the number of steps of the control unit is different from that of the cell-phone, the statuses displayed on the control unit may discord from those displayed on the cell-phone.5 Exit the phone selection modePress the [MENU] button.

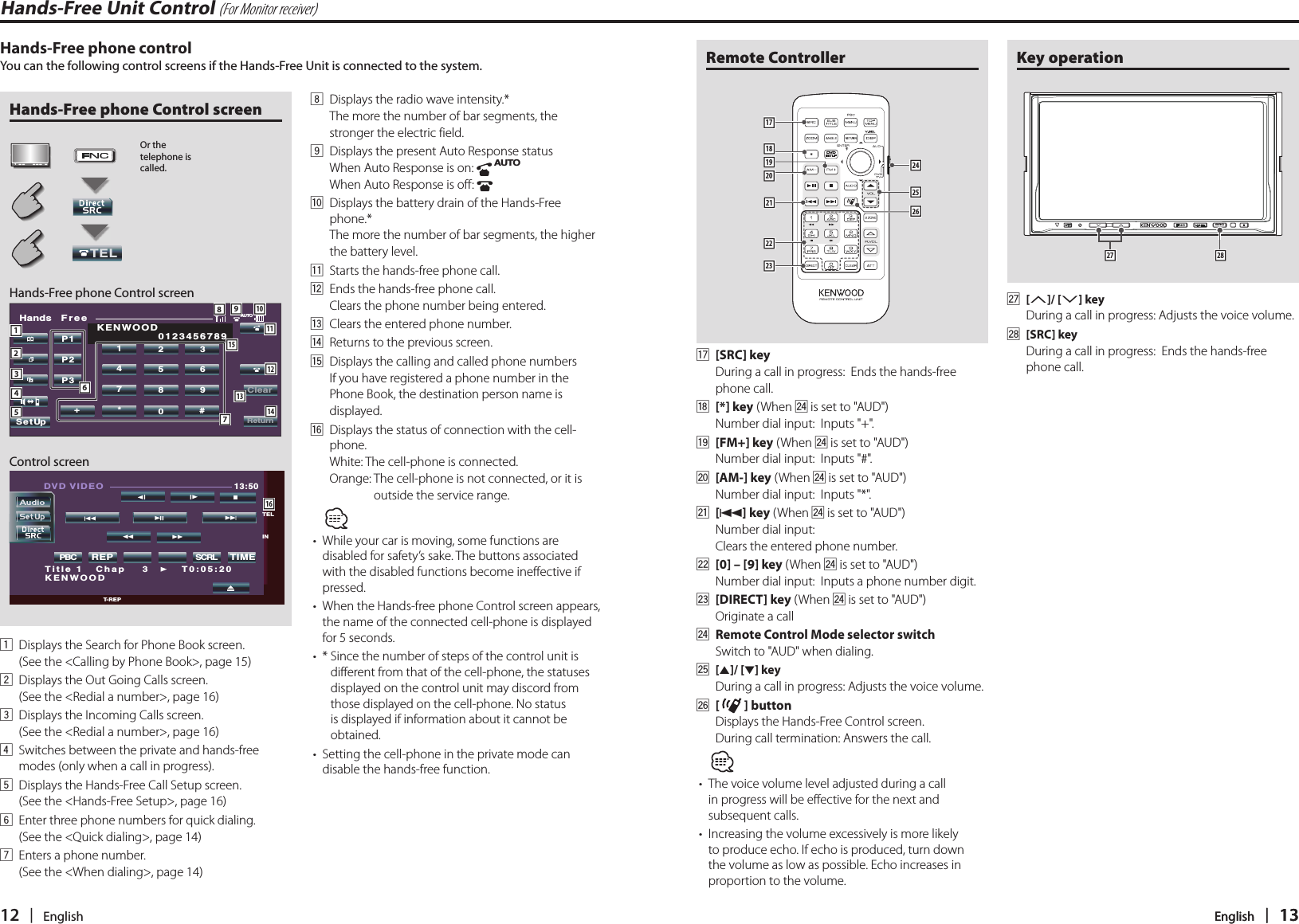

12 | English English | 13English | 13Hands-Free phone controlYou can the following control screens if the Hands-Free Unit is connected to the system.Hands-Free phone Control screen Or the telephone is called. TELHands-Free phone Control screenHands FreeP1P2P3SetUpAUTO1234567809#*+KENWOOD 0123456789ClearReturn111214891015123135674Control screenNextNextDVD VIDEO13:50INTELTitle 1 Chap 3 T0:05:20KENWOODT-REPPBC SCRLTIMEREP161 Displays the Search for Phone Book screen.(See the <Calling by Phone Book>, page 15)2 Displays the Out Going Calls screen.(See the <Redial a number>, page 16)3 Displays the Incoming Calls screen.(See the <Redial a number>, page 16)4 Switches between the private and hands-free modes (only when a call in progress).5 Displays the Hands-Free Call Setup screen.(See the <Hands-Free Setup>, page 16)6 Enter three phone numbers for quick dialing.(See the <Quick dialing>, page 14)7 Enters a phone number.(See the <When dialing>, page 14)8 Displays the radio wave intensity.* The more the number of bar segments, the stronger the electric field.9 Displays the present Auto Response statusWhen Auto Response is on: AUTOWhen Auto Response is off: p Displays the battery drain of the Hands-Free phone.* The more the number of bar segments, the higher the battery level.q Starts the hands-free phone call.w Ends the hands-free phone call. Clears the phone number being entered.e Clears the entered phone number.r Returns to the previous screen.t Displays the calling and called phone numbersIf you have registered a phone number in the Phone Book, the destination person name is displayed.y Displays the status of connection with the cell-phone.White: The cell-phone is connected.Orange: The cell-phone is not connected, or it is outside the service range.• While your car is moving, some functions are disabled for safety’s sake. The buttons associated with the disabled functions become ineffective if pressed. • When the Hands-free phone Control screen appears, the name of the connected cell-phone is displayed for 5 seconds.• * Since the number of steps of the control unit is different from that of the cell-phone, the statuses displayed on the control unit may discord from those displayed on the cell-phone. No status is displayed if information about it cannot be obtained. • Setting the cell-phone in the private mode can disable the hands-free function.Hands-Free Unit Control (For Monitor receiver)Remote Controller18202217192123242526u [SRC] key During a call in progress: Ends the hands-free phone call. i [*] key (When f is set to "AUD")Number dial input: Inputs "+".o [FM+] key (When f is set to "AUD")Number dial input: Inputs "#".; [AM-] key (When f is set to "AUD")Number dial input: Inputs "*".a [4] key (When f is set to "AUD")Number dial input: Clears the entered phone number.s [0] – [9] key (When f is set to "AUD")Number dial input: Inputs a phone number digit.d [DIRECT] key (When f is set to "AUD")Originate a callf Remote Control Mode selector switch Switch to "AUD" when dialing.g [5]/ [∞] key During a call in progress: Adjusts the voice volume.h [ ] buttonDisplays the Hands-Free Control screen.During call termination: Answers the call.• The voice volume level adjusted during a call in progress will be effective for the next and subsequent calls.• Increasing the volume excessively is more likely to produce echo. If echo is produced, turn down the volume as low as possible. Echo increases in proportion to the volume. Key operation SRC27 28j [u]/ [d] key During a call in progress: Adjusts the voice volume. k [SRC] key During a call in progress: Ends the hands-free phone call.
14 | English English | 15When calledWhen you are called, you can use the hands-free phone.1 Responds to a phone call When the telephone is called, the Hands-Free phone control screen appears automatically.2 Terminate the phone call The previous screen reappears.When dialingOriginate a call by entering a phone number.1 Enter a phone number 0 — 9, +, *, #2 Originate a call You can start talking the destination responds.• To clear your incorrect entry, touch Clear.3 Terminate the phone call The previous screen reappears.• You can input max 32 digits.Quick dialingYou can register up to 3 phone numbers for quick dialing.To register a phone number:1 Display a phone number you wish to registerSee the <Calling by Phone Book> (page 15), <Redial a number> (page 16) and <When dialing> (page 14).2 Register the phone number P1 — P3 Continue to touch more than 2 seconds.To call a phone number from memory:1 Recall the phone number P1 — P32 Originate a call • Only a phone number can be registered for Quick Dialing. Therefore, the destination subscriber name and others are not displayed during dialing.Calling by Phone BookYou can call a person using his/her phone number that you have registered in the Phone Book.1 Display the Search for Phone Book screen The Initial Input screen appears.Initial Input screenPhone Book ListAUTObcd e fghi jklmnopqr s tuvwx yzaReturn13211 Scrolls the character array display.2 Displays the Phone Book beginning with the name whose first character you have touched.3 Returns to the Hand-Free phone Control screen.2 Select the initial character of a person name in memory a etc. The Phone Book List screen appears.Phone Book List screenPhone Book ListNameNameNameNameAUTO1234567890OKReturn314121 Scrolls the list.2 Enters the destination name.3 Enters the destination data and returns to the Hand-Free phone Control screen.4 Returns to the Hand-Free phone Control screen.3 Select a destination you wish to call Name4 Select a destination you wish to call OKThe Displaying the Control screen appears again. The selected destination data is displayed.5 Originate a call You can start talking the destination responds.6 Terminate the phone call The previous screen reappears.• To use the Phone Book, it must have been downloaded from the cell-phone. For more details, see <Downloading the Phone Book> (page 5).• Up to 16 characters can be displayed for each name in the Phone Book. Hands-Free Unit Control (For Monitor receiver)
16 | English English | 17Redial a numberYou can call to redial, one of last 10 phone numbers that you have called or received to call.1 Display the Search for Out Going Calls or Incoming Calls screen Out Going Calls Or Incoming Calls The Out Going Calls or Incoming Calls list screen appears.Out Going Calls or Incoming Calls screenIncoming CallsAUTOKenwood1234567890Kenwood1234567890Kenwood1234567890Kenwood1234567890Kenwood1234567890DISPOKReturn4123151 Scrolls the list.2 Enters the destination name.3 Change to record of redial list.4 Enters the destination data and returns to the Hand-Free phone Control screen.5 Returns to the Hand-Free phone Control screen.2 Select a destination you wish to call 3 Select a destination you wish to call OKThe Displaying the Control screen appears again. The selected destination data is displayed.4 Originate a call You can start talking the destination responds.5 Terminate the phone call The previous screen reappears.• The Outgoing Calls list screen or Incoming Calls list screen shows the list of the calls originated from or terminated to this unit, not the telephone set. Hands-Free phone SetupThe Hands-Free system can be set as follows. SetUp Hands-Free Set Up screenHands Free Set UpAUTOReturnAuto AnsweringSelectSelect SelectDeletePhone Voice8F-RightBeepOn112265341 Sets an automatic response time after call termination. ( "8")"Off": This function can not use."0-99": Sets to calling ring time (second).2 Sets a ringing tone output position. ( "F-Right")"F-Left": Outputs the tone from the front left-hand side speaker."F-Right": Outputs the tone from the front right-hand side speaker."Front All": Outputs the tone from the both front speakers.3 Set the beep of the terminating call. ( "On")"On": Beep is heard."Off": Beep canceled.4 Display the Hands-Free phone select screen.5 Display the Hands-Free phone delete screen.6 Returns to the Hand-Free phone Control screen.• Either the time interval for automatic answer set on this unit or the time interval set on the cell-phone, whichever is shorter, takes effect. Hands-Free phone SelectYou can choose the Hands-Free phone of the list.1 Display the Hands-Free phone setup SetUp 2 Display the Hands-Free phone select list SelectSelect Hands-Free phone select screenPhone SelectAUTOReturnKenwood 1Kenwood 2Kenwood 3Kenwood 4Kenwood 5121 Selects the Hands-Free phone.2 Returns to the Hand-Free phone Set Up screen.3 Select a Hands-Free phone you wish to phone Kenwood 1 Hands-Free phone DeleteYou can cancel a registration of Hands-Free phone of the list.1 Display the Hands-Free phone setup SetUp 2 Display the Hands-Free phone delete list SelectDelete Hands-Free phone delete screenPhone DeleteAUTOReturnKenwood 1Kenwood 2Kenwood 3Kenwood 4Kenwood 5121 Selects the Hands-Free phone.2 Returns to the Hand-Free phone Set Up screen.3 Select a Hands-Free phone you wish to phone Kenwood 3 • The Phone Book, outgoing call list, and incoming call list are deleted together with the deleted Hands-Free phone.Hands-Free Unit Control (For Monitor receiver)

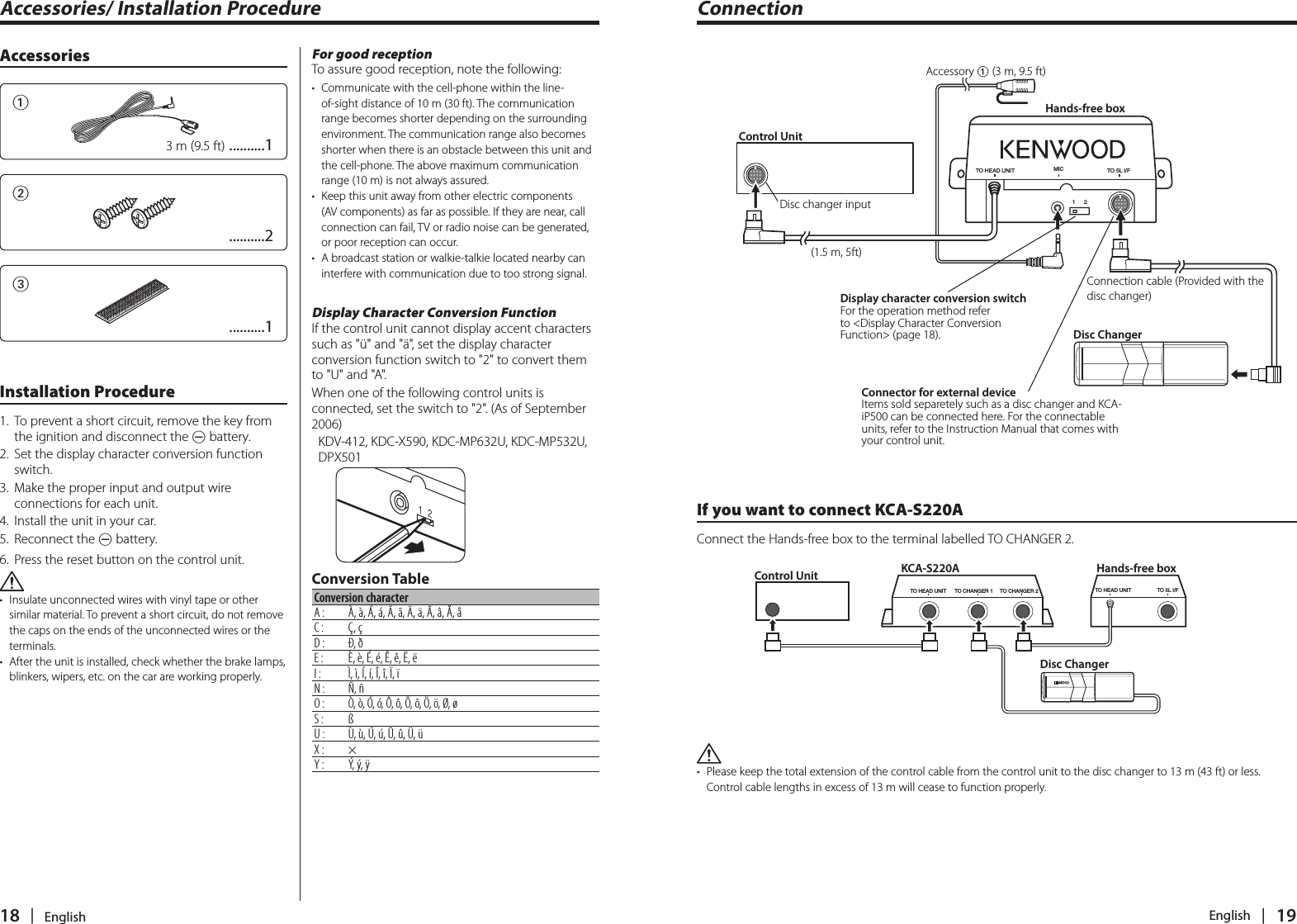

18 | English English | 19Accessories/ Installation ProcedureAccessories13 m (9.5 ft) ..........12..........23..........1Installation Procedure1. To prevent a short circuit, remove the key from the ignition and disconnect the - battery.2. Set the display character conversion function switch.3. Make the proper input and output wire connections for each unit.4. Install the unit in your car.5. Reconnect the - battery.6. Press the reset button on the control unit.• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.ConnectionMIC21TO 5L I/FTO HEAD UNITConnection cable (Provided with the disc changer)Hands-free boxAccessory 1 (3 m, 9.5 ft)Control UnitDisc ChangerConnector for external deviceItems sold separetely such as a disc changer and KCA-iP500 can be connected here. For the connectable units, refer to the Instruction Manual that comes with your control unit. For good receptionTo assure good reception, note the following:• Communicate with the cell-phone within the line-of-sight distance of 10 m (30 ft). The communication range becomes shorter depending on the surrounding environment. The communication range also becomes shorter when there is an obstacle between this unit and the cell-phone. The above maximum communication range (10 m) is not always assured. • Keep this unit away from other electric components (AV components) as far as possible. If they are near, call connection can fail, TV or radio noise can be generated, or poor reception can occur. • A broadcast station or walkie-talkie located nearby can interfere with communication due to too strong signal. Display Character Conversion FunctionIf the control unit cannot display accent characters such as "ü" and "ä", set the display character conversion function switch to "2" to convert them to "U" and "A". When one of the following control units is connected, set the switch to "2". (As of September 2006) KDV-412, KDC-X590, KDC-MP632U, KDC-MP532U, DPX50112Conversion TableConversion characterA : À, à, Á, á, Ã, ã, Ä, ä, Â, â, Å, åC : Ç, çD : Ð, ðE : È, è, É, é, Ê, ê, Ë, ëI : Ì, ì, Í, í, Î, î, Ï, ïN : Ñ, ñO : Ò, ò, Ó, ó, Ô, ô, Õ, õ, Ö, ö, Ø, øS : ßU : Ù, ù, Ú, ú, Û, û, Ü, üX : ×Y : Ý, ý, ÿDisc changer inputDisplay character conversion switchFor the operation method refer to <Display Character Conversion Function> (page 18).(1.5 m, 5ft)If you want to connect KCA-S220AConnect the Hands-free box to the terminal labelled TO CHANGER 2.TO CHANGER 2TO CHANGER 1TO HEAD UNIT TO HEAD UNIT TO 5L I/FHands-free boxControl UnitDisc ChangerKCA-S220A• Please keep the total extension of the control cable from the control unit to the disc changer to 13 m (43 ft) or less. Control cable lengths in excess of 13 m will cease to function properly.
20 | English English | 21InstallationInstallation the Hands-free box• Determine the installation position after making sure that the unit can communicate with the cell-phone.• Please do not install the unit near the dashboard, the rear tray, or other important components. Doing so could lead to injury or accident should the unit come off due to a shock and strike a person or an important component. Tapping screws should be used for mounting. (Attachment with velcro strips, although easy, can come off with a shock.)Securing to audio boardInstallation the Microphone Unit 1 Check the installation position of the microphone (accessory 1).2 Remove oil and other dirt from the installation surface.3 Install the microphone. 4 Wire the microphone cable up to the hands-free box with it secured at several positions using tape or the like.Fix a cable with a commercial item of tape.Peel the release coated paper of double-face adhesive tape to fix on the place shown in the left-hand example.Adjust the direction of the microphone to the driver.Troubleshooting GuideWhat might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.General? The hands-free talk volume is low.✔ The hands-free talk volume is set at a low level.☞ The hands-free talk volume can be adjusted independently. Adjust it during hands-free talk. ? No sound is heard from the rear speakers.✔ You are talking in the hand-free talk mode.☞ No sound is heard from the rear speakers in the hands-free talk mode. ? No beep is heard at reception of an incoming call. ✔ No beep is heard depending on the type of your cell-phone. ☞ Selecting "Call Beep: ON" or "C-BP ON" (page 11) allows you to hear the beep. ? Characters in a name are missing. ✔ The control unit cannot display accent characters.☞ Set the display character conversion function switch to "2" (page 18).The messages shown below display your systems condition.No Number/ NO-NMBER/ Incoming No Number : • The calling party does not notify a caller ID.• There is no phone number data.No Data/ NO DATA :• There is no outgoing call list.• There is no incoming call list.No Entry/ NO ENTRY : The cell-phone has not been registered (pairing).Disconnect/ DISCONCT/ Non Connection : The unit can communicate with the cell-phone.Connect/ CONNECT/ Disconnected: The unit cannot communicate with the cell-phone.HF Error 07/ HF ERR07: The memory cannot be accessed.\ Turn off the power and on again. If this message still appears, press the reset button on the control unit. HF Error 68/ HF ERR68: The unit cannot communicate with the cell-phone.\ Turn off the power and on again. If this message still appears, press the reset button on the control unit. Securing to pile carpetAccessory 3SpecificationsSpecifications subject to change without notice.Bluetooth sectionTechnology: Compliant with Bluetooth ver.1.2Maximum power: 4 dBm (Power Class 2)Maximum link distance: 10 m (30 ft)Profiles: HFP (Hands Free Profile): OPP (Object Push Profile)GeneralOperating voltage (11 – 16V allowable) : 14.4 VCurrent consumption: ?? ADimension (W x H x D) : 140 x 70 x 29 mm5-1/2 x 2-3/4 x 1-1/8 inchWeight: 0.0 lbs (0.0 kg)Antenna part• Do not stick the Velcro tape over the serial number.• If the installation place is stepped, cut the Velcro tape into two pieces and stick them at two positions as shown. Antenna partAccessory 2 (ø5 × 20 mm)
