NXR-700/ NXR-800INSTRUCTION MANUAL© B62-1994-00 (K, K2)09 08 07 06 05 04 03 02 01 00MANUAL DE INSTRUCCTIONESMODE D'EMPLOIBASE-REPETIDOR DIGITAL VHF / BASE-REPETIDOR DIGITAL UHFVHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATERBASE-RELAIS NUMÉRIQUE VHF/BASE-RELAIS NUMERIQUE UHF

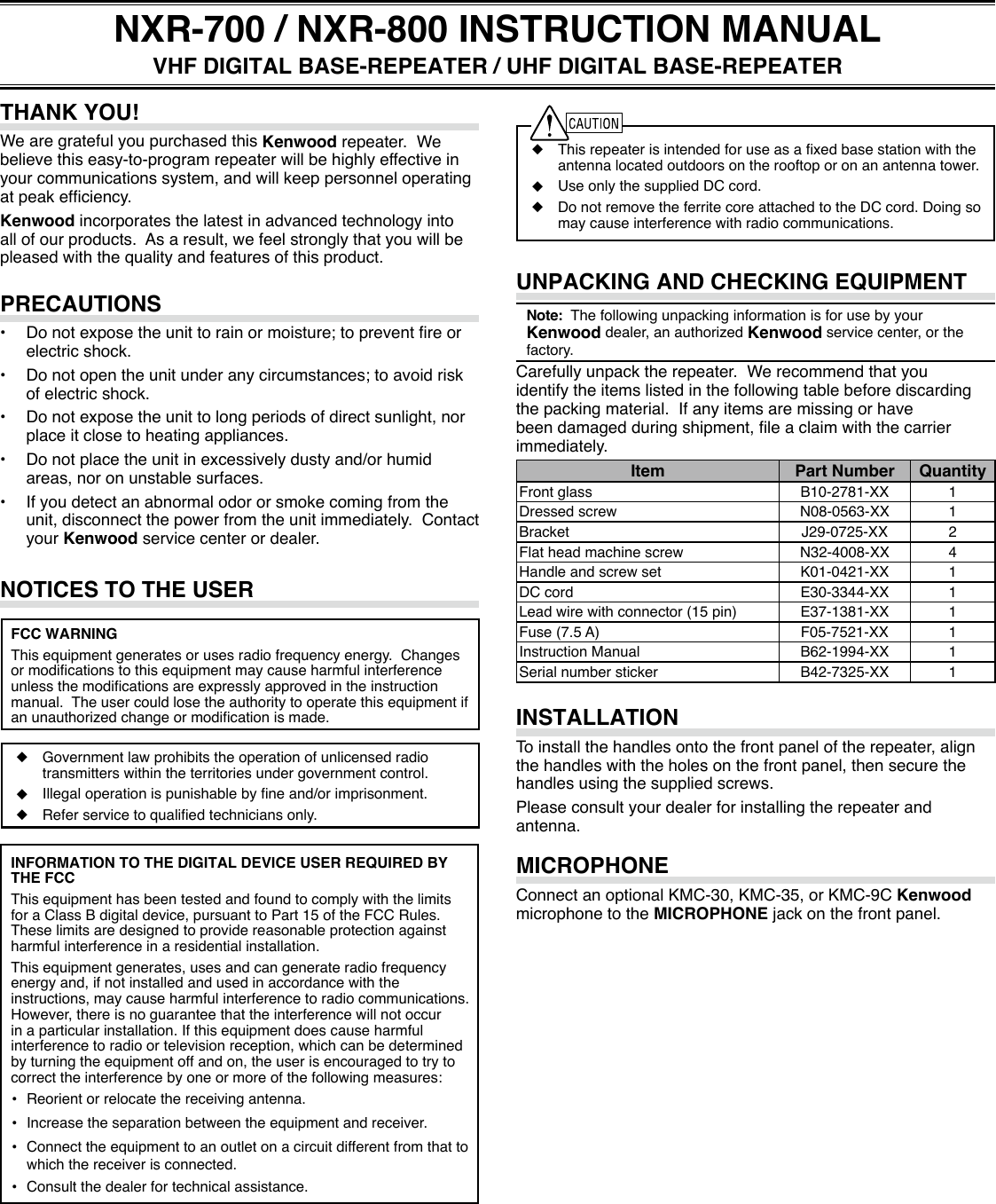

◆ Thisrepeaterisintendedforuseasaxedbasestationwiththeantennalocatedoutdoorsontherooftoporonanantennatower.◆ UseonlythesuppliedDCcord.◆ DonotremovetheferritecoreattachedtotheDCcord.Doingsomaycauseinterferencewithradiocommunications.UNPACKING AND CHECKING EQUIPMENTNote:ThefollowingunpackinginformationisforusebyyourKenwood dealer, an authorized Kenwood service center, or the factory.Carefullyunpacktherepeater.Werecommendthatyouidentifytheitemslistedinthefollowingtablebeforediscardingthepackingmaterial.Ifanyitemsaremissingorhavebeendamagedduringshipment,leaclaimwiththecarrierimmediately.Item Part Number QuantityFrontglass B10-2781-XX 1Dressedscrew N08-0563-XX 1Bracket J29-0725-XX 2Flatheadmachinescrew N32-4008-XX 4Handleandscrewset K01-0421-XX 1DC cord E30-3344-XX 1Leadwirewithconnector(15pin) E37-1381-XX 1Fuse(7.5A) F05-7521-XX 1Instruction Manual B62-1994-XX 1Serialnumbersticker B42-7325-XX 1INSTALLATIONToinstallthehandlesontothefrontpaneloftherepeater,alignthehandleswiththeholesonthefrontpanel,thensecurethehandlesusingthesuppliedscrews.Pleaseconsultyourdealerforinstallingtherepeaterandantenna.MICROPHONEConnect an optional KMC-30, KMC-35, or KMC-9C Kenwood microphone to the MICROPHONEjackonthefrontpanel.NOTICES TO THE USERFCC WARNINGThisequipmentgeneratesorusesradiofrequencyenergy.Changesormodicationstothisequipmentmaycauseharmfulinterferenceunlessthemodicationsareexpresslyapprovedintheinstructionmanual.Theusercouldlosetheauthoritytooperatethisequipmentifanunauthorizedchangeormodicationismade.◆ Governmentlawprohibitstheoperationofunlicensedradiotransmitterswithintheterritoriesundergovernmentcontrol.◆ Illegaloperationispunishablebyneand/orimprisonment.◆ Referservicetoqualiedtechniciansonly.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCCThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcangenerateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethattheinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: • Reorientorrelocatethereceivingantenna. • Increasetheseparationbetweentheequipmentandreceiver. • Connect the equipment to an outlet on a circuit different from that to whichthereceiverisconnected. • Consultthedealerfortechnicalassistance.THANK YOU!WearegratefulyoupurchasedthisKenwoodrepeater.Webelievethiseasy-to-programrepeaterwillbehighlyeffectiveinyourcommunicationssystem,andwillkeeppersonneloperatingatpeakefciency.Kenwoodincorporatesthelatestinadvancedtechnologyintoallofourproducts.Asaresult,wefeelstronglythatyouwillbepleasedwiththequalityandfeaturesofthisproduct.PRECAUTIONS• Donotexposetheunittorainormoisture;topreventreorelectricshock.• Donotopentheunitunderanycircumstances;toavoidriskofelectricshock.• Donotexposetheunittolongperiodsofdirectsunlight,norplaceitclosetoheatingappliances.• Donotplacetheunitinexcessivelydustyand/orhumidareas,noronunstablesurfaces.• Ifyoudetectanabnormalodororsmokecomingfromtheunit,disconnectthepowerfromtheunitimmediately.Contactyour Kenwood servicecenterordealer.NXR-700 / NXR-800 INSTRUCTION MANUALVHF DIGITAL BASE-REPEATER / UHF DIGITAL BASE-REPEATER

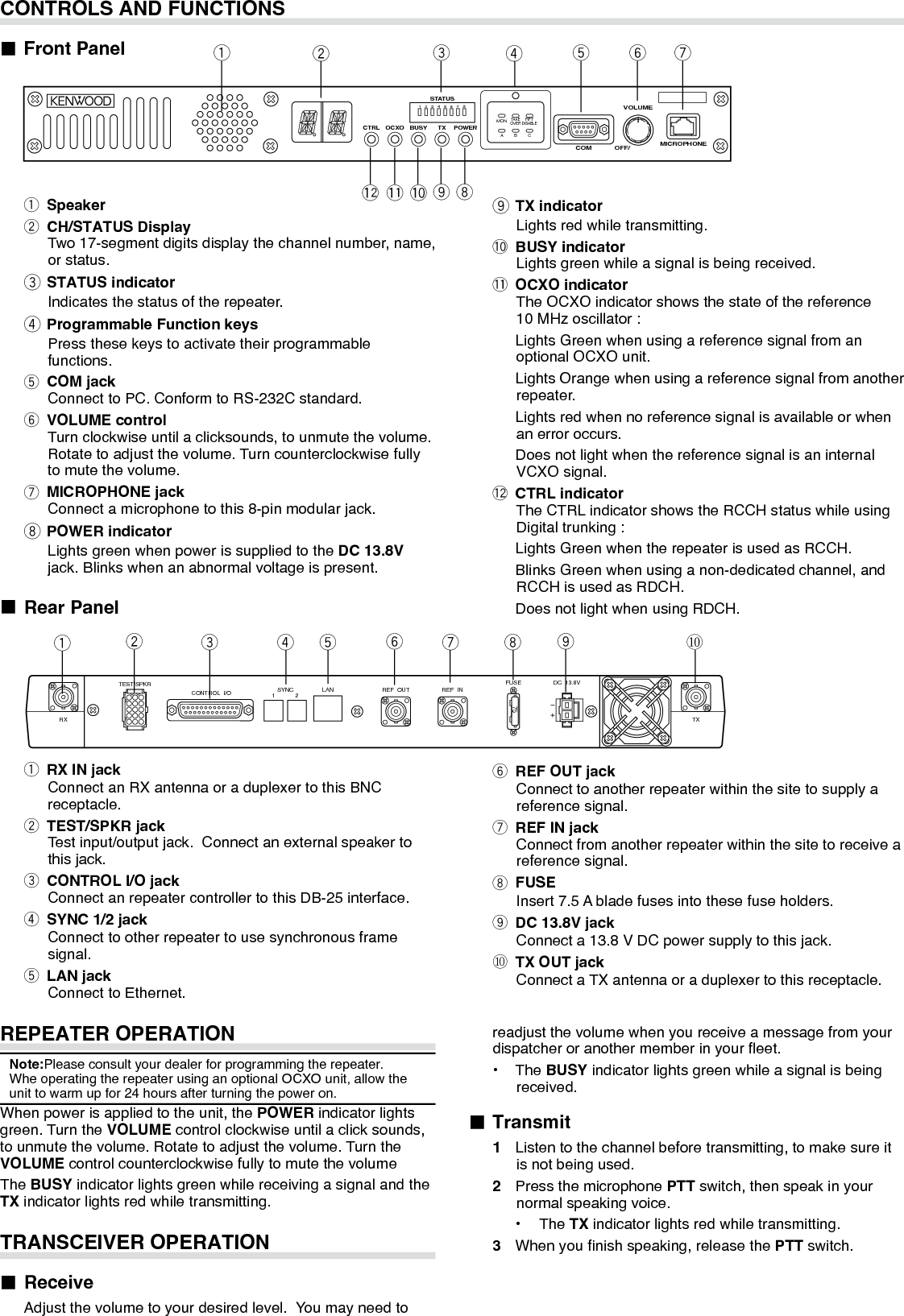

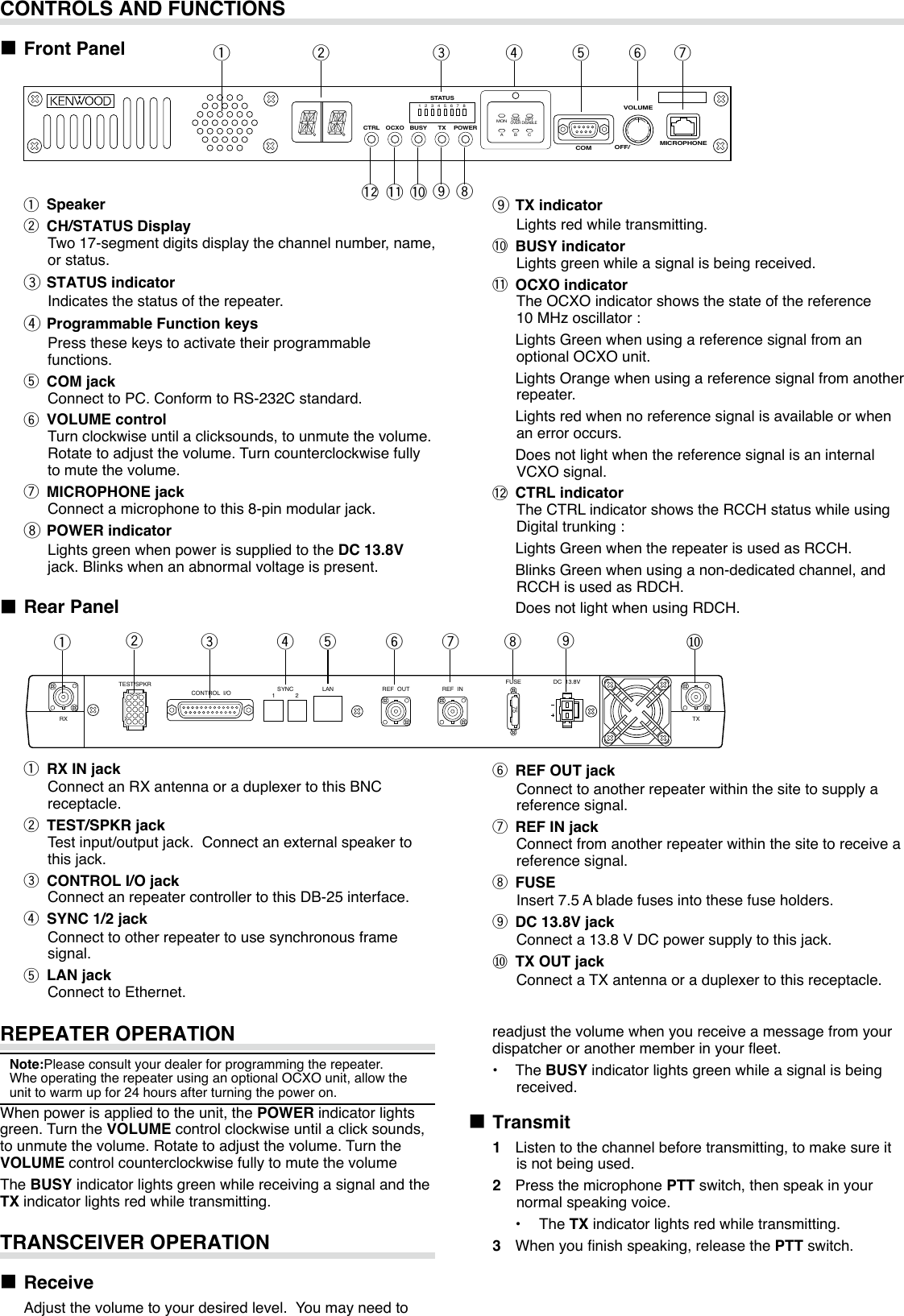

REPEATER OPERATIONNote:Pleaseconsultyourdealerforprogrammingtherepeater.WheoperatingtherepeaterusinganoptionalOCXOunit,allowtheunittowarmupfor24hoursafterturningthepoweron.Whenpowerisappliedtotheunit,thePOWERindicatorlightsgreen.TurntheVOLUMEcontrolclockwiseuntilaclicksounds,tounmutethevolume.Rotatetoadjustthevolume.TurntheVOLUMEcontrolcounterclockwisefullytomutethevolumeThe BUSYindicatorlightsgreenwhilereceivingasignalandtheTXindicatorlightsredwhiletransmitting.TRANSCEIVER OPERATION■ Receive Adjustthevolumetoyourdesiredlevel.Youmayneedto■ Rear Panelq RX IN jack ConnectanRXantennaoraduplexertothisBNCreceptacle.w TEST/SPKR jack Testinput/outputjack.Connectanexternalspeakertothisjack.e CONTROL I/O jack ConnectanrepeatercontrollertothisDB-25interface.r SYNC 1/2 jack Connect to other repeater to use synchronous frame signal.t LAN jack ConnecttoEthernet.CONTROLS AND FUNCTIONS■ Front Panel qw r t y uioeqwr t yueMICROPHONEVOLUMECOM OFF/POWERCTRL OCXO BUSY TX1 2MONTAKEOVERRPTDISABLEA B C3 4 5 6 7 8STATUSTEST/SPKRRX TXCONTROL I/O SYNC1 2 LAN REF OUT REF INFUSE75DC 13.8Vy REF OUT jack Connecttoanotherrepeaterwithinthesitetosupplyareferencesignal.u REF IN jack Connectfromanotherrepeaterwithinthesitetoreceiveareferencesignal.i FUSE Insert7.5Abladefusesintothesefuseholders.o DC 13.8V jack Connecta13.8VDCpowersupplytothisjack.⑩ TX OUT jack ConnectaTXantennaoraduplexertothisreceptacle.io⑩readjustthevolumewhenyoureceiveamessagefromyourdispatcheroranothermemberinyoureet.• The BUSYindicatorlightsgreenwhileasignalisbeingreceived.■ Transmit1 Listentothechannelbeforetransmitting,tomakesureitisnotbeingused.2 Press the microphone PTTswitch,thenspeakinyournormalspeakingvoice.• The TXindicatorlightsredwhiletransmitting.3 Whenyounishspeaking,releasethePTTswitch.!0!1!2q Speakerw CH/STATUS Display Two17-segmentdigitsdisplaythechannelnumber,name,orstatus.e STATUS indicator Indicatesthestatusoftherepeater.r Programmable Function keys Pressthesekeystoactivatetheirprogrammablefunctions.t COM jack ConnecttoPC.ConformtoRS-232Cstandard.y VOLUME control Turnclockwiseuntilaclicksounds,tounmutethevolume.Rotatetoadjustthevolume.Turncounterclockwisefullytomutethevolume.u MICROPHONE jack Connectamicrophonetothis8-pinmodularjack.i POWER indicator LightsgreenwhenpowerissuppliedtotheDC 13.8V jack.Blinkswhenanabnormalvoltageispresent.o TX indicator Lightsredwhiletransmitting.!0 BUSY indicator Lightsgreenwhileasignalisbeingreceived.!1 OCXO indicator TheOCXOindicatorshowsthestateofthereference10MHzoscillator: LightsGreenwhenusingareferencesignalfromanoptionalOCXOunit. LightsOrangewhenusingareferencesignalfromanotherrepeater. Lightsredwhennoreferencesignalisavailableorwhenanerroroccurs. DoesnotlightwhenthereferencesignalisaninternalVCXOsignal.!2 CTRL indicator TheCTRLindicatorshowstheRCCHstatuswhileusingDigitaltrunking: LightsGreenwhentherepeaterisusedasRCCH. BlinksGreenwhenusinganon-dedicatedchannel,andRCCHisusedasRDCH. DoesnotlightwhenusingRDCH.

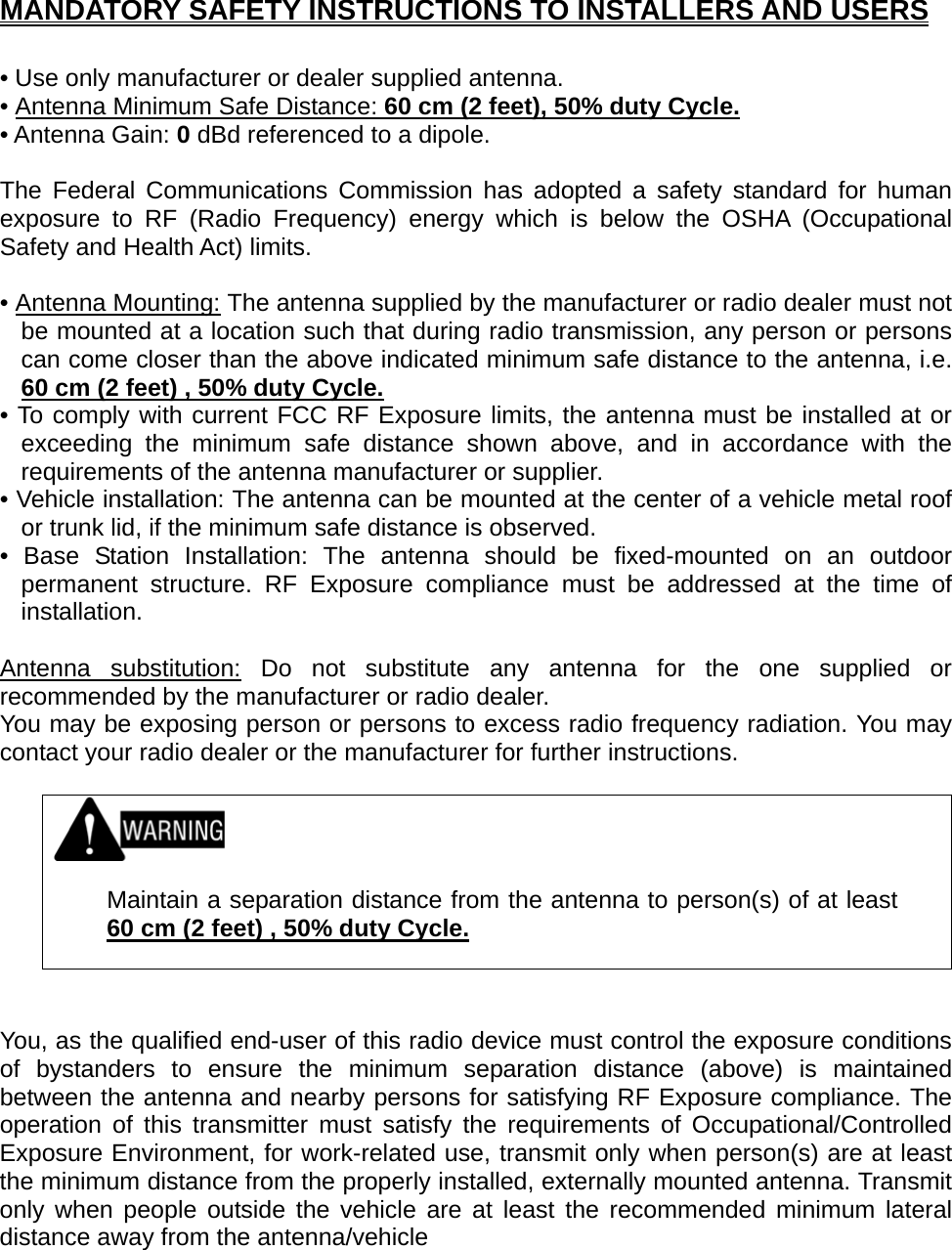

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antenna. • Antenna Minimum Safe Distance: 60 cm (2 feet), 50% duty Cycle. • Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 60 cm (2 feet) , 50% duty Cycle. • To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 60 cm (2 feet) , 50% duty Cycle. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle
