JVCKENWOOD 378600 VHF Digital Transceiver User Manual

JVC KENWOOD Corporation VHF Digital Transceiver

manual

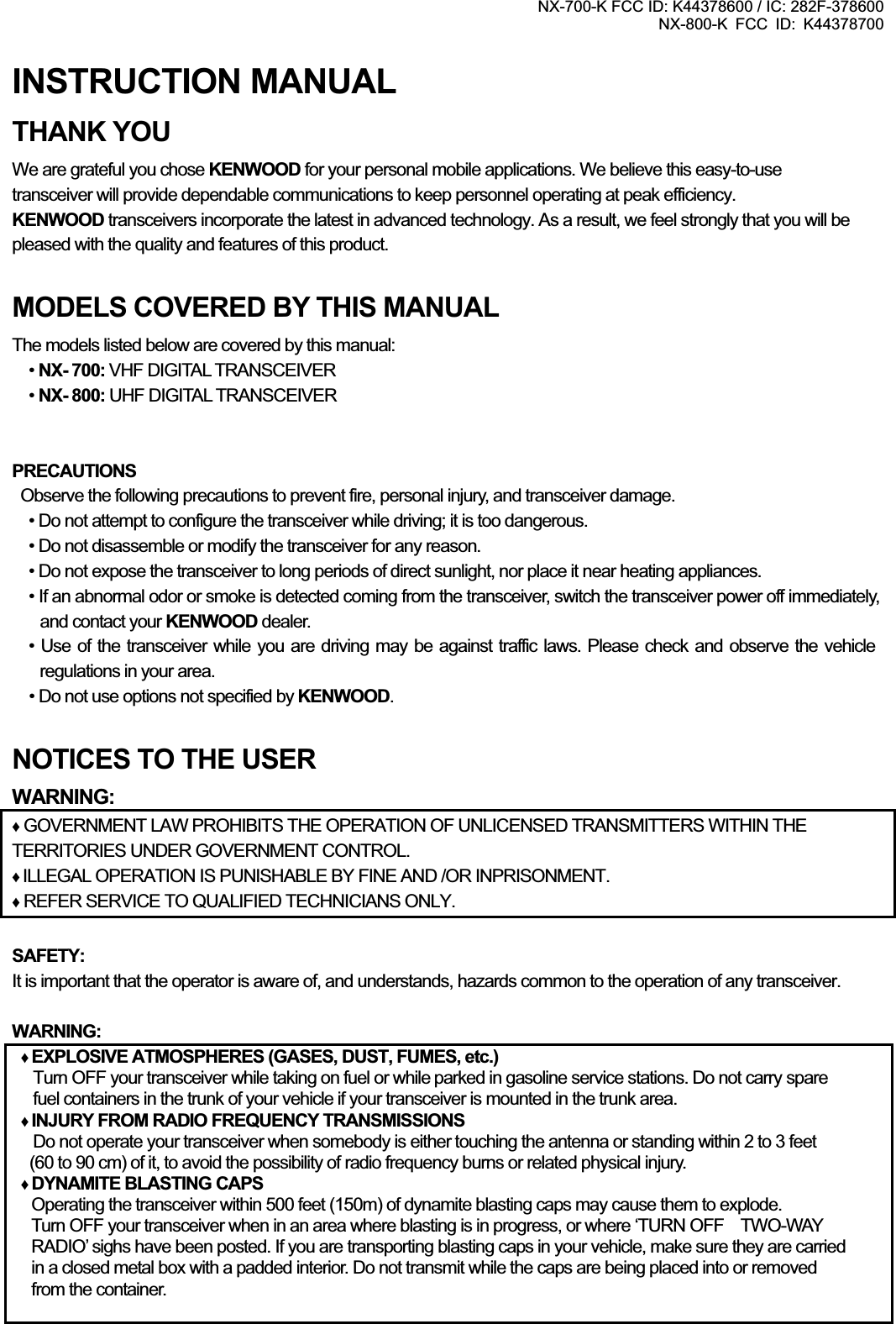

NX-700-K FCC ID: K44378600 / IC: 282F-378600 NX-800-K FCC ID: K44378700 INSTRUCTION MANUAL THANK YOU We are grateful you chose KENWOOD for your personal mobile applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. MODELS COVERED BY THIS MANUAL The models listed below are covered by this manual: •NX- 700: VHF DIGITAL TRANSCEIVER•NX- 800: UHF DIGITAL TRANSCEIVER PRECAUTIONS Observe the following precautions to prevent fire, personal injury, and transceiver damage. • Do not attempt to configure the transceiver while driving; it is too dangerous. • Do not disassemble or modify the transceiver for any reason. • Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances. • If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact your KENWOOD dealer. • Use of the transceiver while you are driving may be against traffic laws. Please check and observe the vehicle regulations in your area. • Do not use options not specified by KENWOOD.NOTICES TO THE USER WARNING:Ƈ GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. ƇILLEGAL OPERATION IS PUNISHABLE BY FINE AND /OR INPRISONMENT. Ƈ REFER SERVICE TO QUALIFIED TECHNICIANS ONLY. SAFETY:It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. WARNING:ƇEXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area. ƇINJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either touching the antenna or standing within 2 to 3 feet (60 to 90 cm) of it, to avoid the possibility of radio frequency burns or related physical injury. ƇDYNAMITE BLASTING CAPS Operating the transceiver within 500 feet (150m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where ‘TURN OFF TWO-WAY RADIO’ sighs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container.

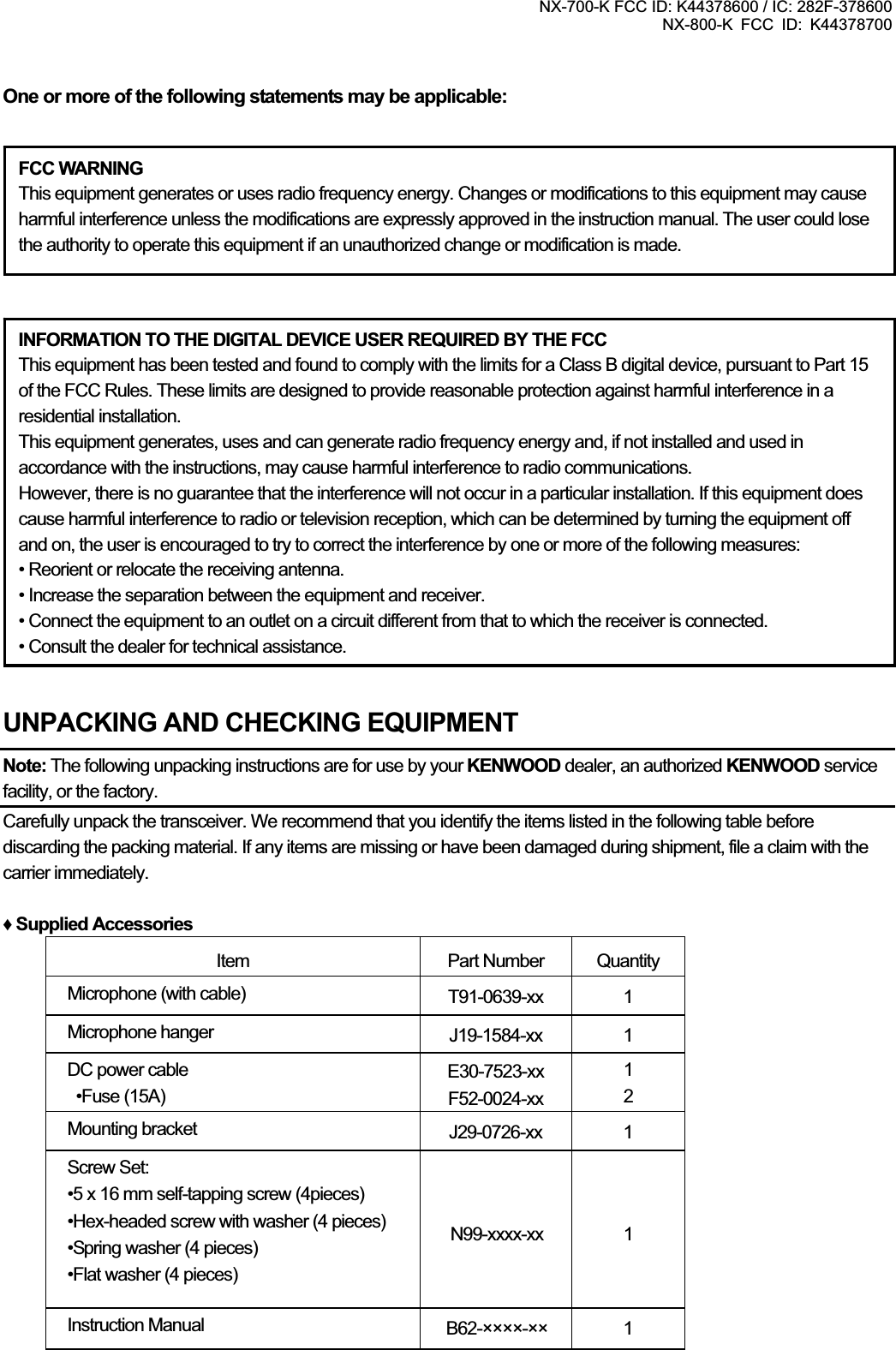

NX-700-K FCC ID: K44378600 / IC: 282F-378600 NX-800-K FCC ID: K44378700 One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.packing instructions are for use by your KENWOOD dealer, an authorized KENWOOD service UNPACKING AND CHECKING EQUIPMENTNote: The following unfacility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the arrier immediately. Ƈ Supplied Accessories QuantitycItem Part Number Microphone (with cable) T91-0639-xx 1Microphone hanger J19-1584-xx 1DC power cable •Fuse (15A) E30-7523-xx F52-0024-xx12Mounting bracket J29-0726-xx 1 Screw Set: •5 x 16 mm self-tapping screw (4pieces) •Hex-headed screw with washer (4 pieces) )•Flat washer (4 pieces) N99-xxxx-xx 1 •Spring washer (4 piecesInstruction Manual B62-××××-×× 1 INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance.

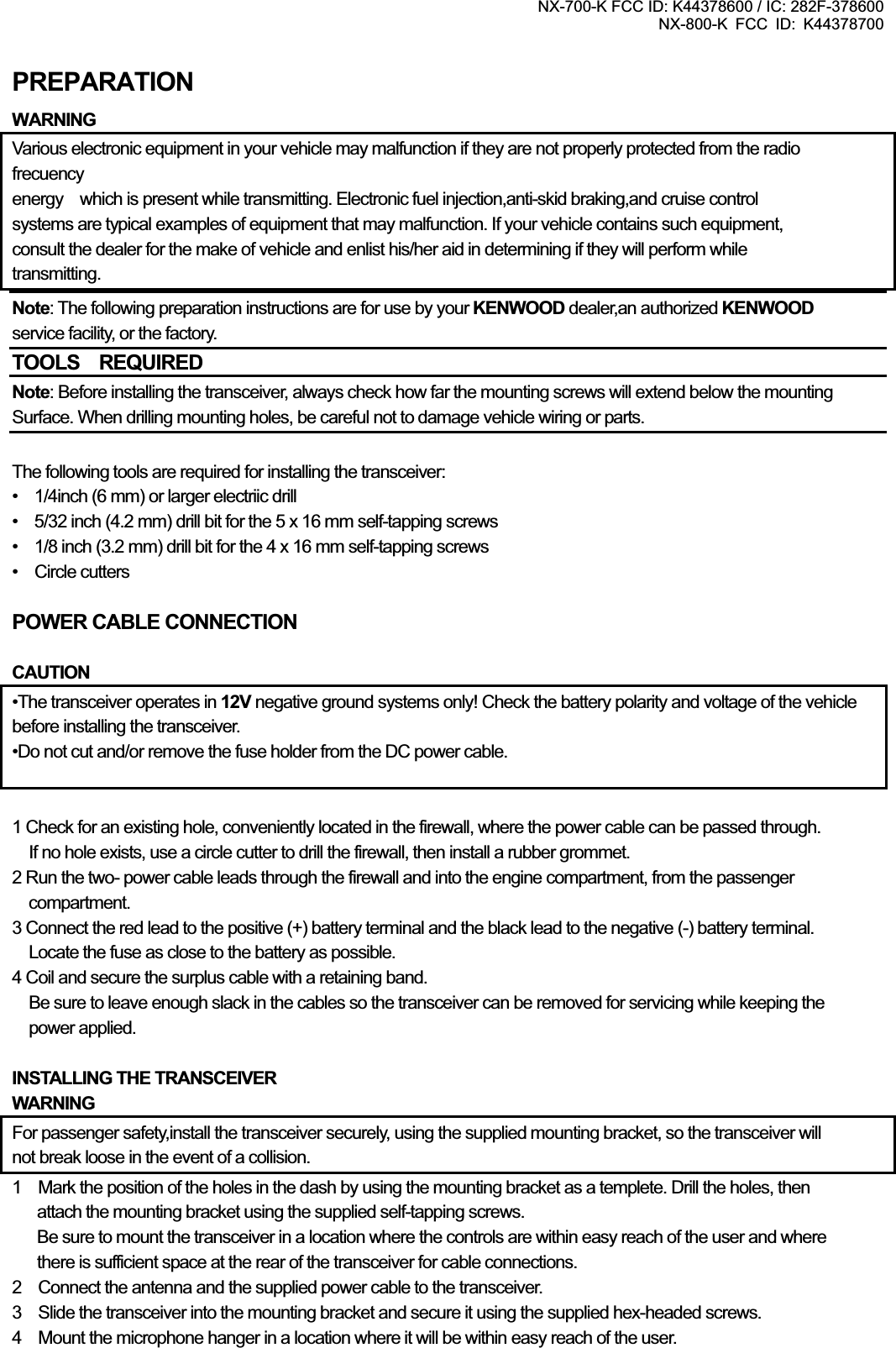

NX-700-K FCC ID: K44378600 / IC: 282F-378600 NX-800-K FCC ID: K44378700 PREPARATIONWARNINGVarious electronic equipment in your vehicle may malfunction if they are not properly protected from the radio frecuency energy which is present while transmitting. Electronic fuel injection,anti-skid braking,and cruise control systems are typical examples of equipment that may malfunction. If your vehicle contains such equipment, consult the dealer for the make of vehicle and enlist his/her aid in determining if they will perform while transmitting. Note: The following preparation instructions are for use by your KENWOOD dealer,an authorized KENWOOD service facility, or the factory. TOOLS REQUIRED Note: Before installing the transceiver, always check how far the mounting screws will extend below the mounting Surface. When drilling mounting holes, be careful not to damage vehicle wiring or parts. The following tools are required for installing the transceiver: • 1/4inch (6 mm) or larger electriic drill • 5/32 inch (4.2 mm) drill bit for the 5 x 16 mm self-tapping screws • 1/8 inch (3.2 mm) drill bit for the 4 x 16 mm self-tapping screws • Circle cutters POWER CABLE CONNECTION CAUTION•The transceiver operates in 12V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver. •Do not cut and/or remove the fuse holder from the DC power cable. 1 Check for an existing hole, conveniently located in the firewall, where the power cable can be passed through. If no hole exists, use a circle cutter to drill the firewall, then install a rubber grommet. 2 Run the two- power cable leads through the firewall and into the engine compartment, from the passenger compartment. 3 Connect the red lead to the positive (+) battery terminal and the black lead to the negative (-) battery terminal. Locate the fuse as close to the battery as possible. 4 Coil and secure the surplus cable with a retaining band. Be sure to leave enough slack in the cables so the transceiver can be removed for servicing while keeping the power applied. INSTALLING THE TRANSCEIVERWARNING For passenger safety,install the transceiver securely, using the supplied mounting bracket, so the transceiver will not break loose in the event of a collision. 1 Mark the position of the holes in the dash by using the mounting bracket as a templete. Drill the holes, then attach the mounting bracket using the supplied self-tapping screws. Be sure to mount the transceiver in a location where the controls are within easy reach of the user and where there is sufficient space at the rear of the transceiver for cable connections. 2 Connect the antenna and the supplied power cable to the transceiver. 3 Slide the transceiver into the mounting bracket and secure it using the supplied hex-headed screws. 4 Mount the microphone hanger in a location where it will be within easy reach of the user.

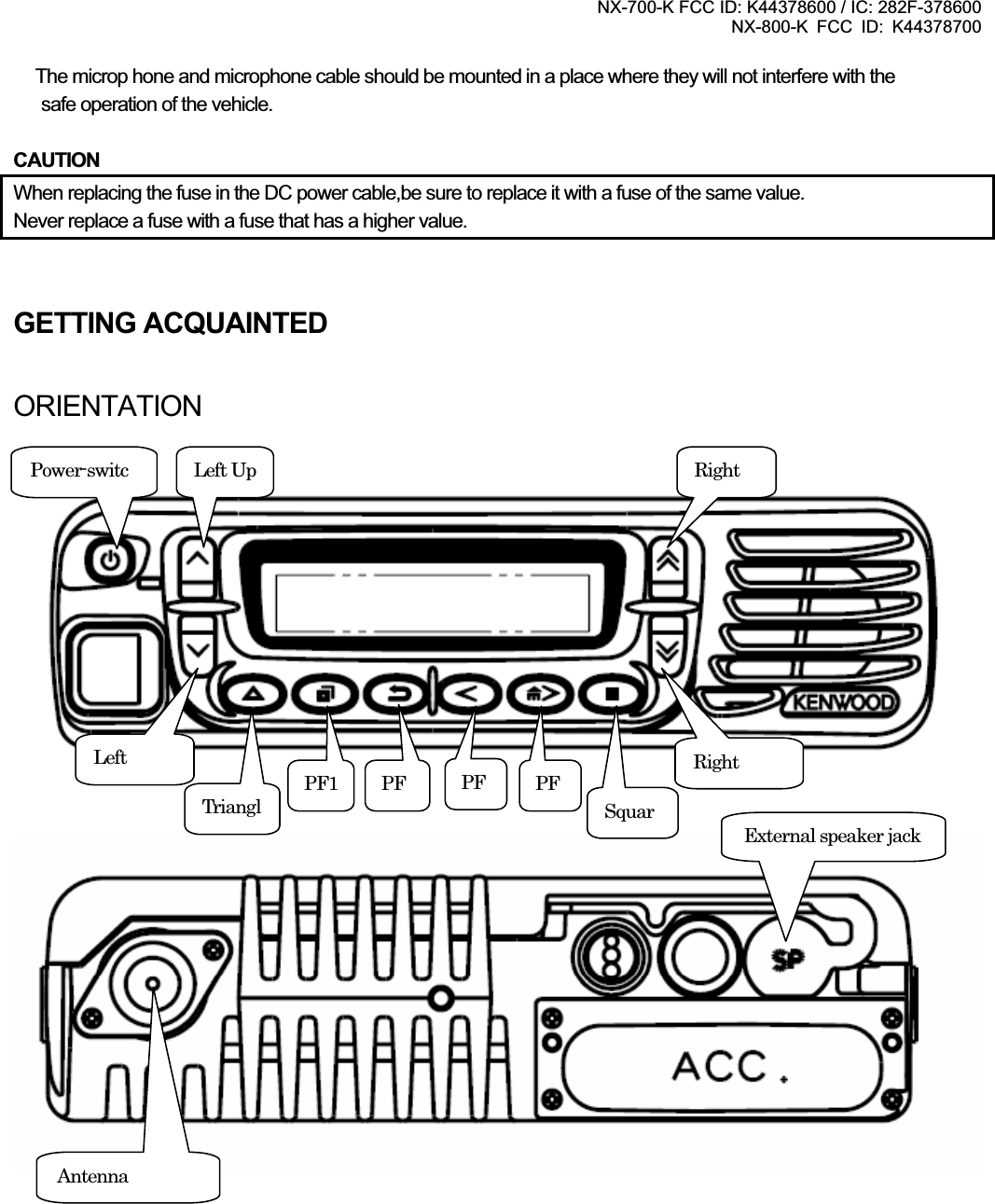

NX-700-K FCC ID: K44378600 / IC: 282F-378600 NX-800-K FCC ID: K44378700 The microp hone and microphone cable should be mounted in a place where they will not interfere with the safe operation of the vehicle. CAUTION When replacing the fuse in the DC power cable,be sure to replace it with a fuse of the same value. Never replace a fuse with a fuse that has a higher value. GETTING ACQUAINTED ORIENTATIONPower-switc Left UpLeftRight Right External speaker jackAntennaTrianglPF1 PFSquarPFPF

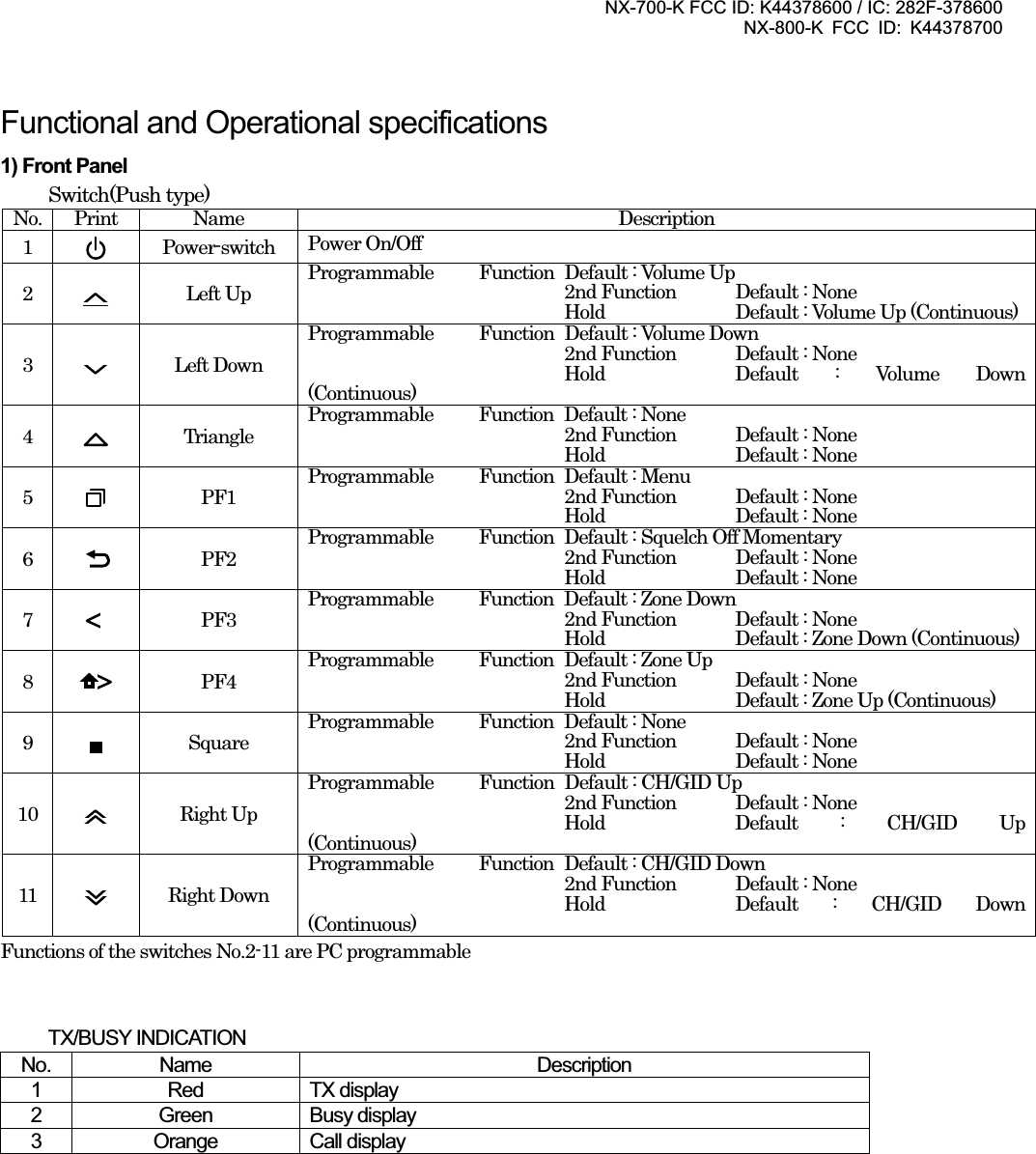

NX-700-K FCC ID: K44378600 / IC: 282F-378600 NX-800-K FCC ID: K44378700 Functional and Operational specifications 1) Front Panel Switch(Push type)No. Print Name Description 1Power-switch Power On/Off 2Left Up Programmable Function Default : Volume Up 2nd Function Default : None Hold Default : Volume Up (Continuous)3Left Down Programmable Function Default : Volume Down 2nd Function Default : None Hold Default : Volume Down (Continuous) 4Triangle Programmable Function Default : None 2nd Function Default : None Hold Default : None 5PF1Programmable Function Default : Menu 2nd Function Default : None Hold Default : None 6PF2Programmable Function Default : Squelch Off Momentary 2nd Function Default : None Hold Default : None 7PF3Programmable Function Default : Zone Down 2nd Function Default : None Hold Default : Zone Down (Continuous)8PF4Programmable Function Default : Zone Up 2nd Function Default : None Hold Default : Zone Up (Continuous) 9Square Programmable Function Default : None 2nd Function Default : None Hold Default : None 10 Right Up Programmable Function Default : CH/GID Up 2nd Function Default : None Hold Default : CH/GID Up (Continuous) 11 Right Down Programmable Function Default : CH/GID Down 2nd Function Default : None Hold Default : CH/GID Down (Continuous) Functions of the switches No.2-11 are PC programmable TX/BUSY INDICATION No. Name Description 1 Red TX display 2 Green Busy display 3 Orange Call display

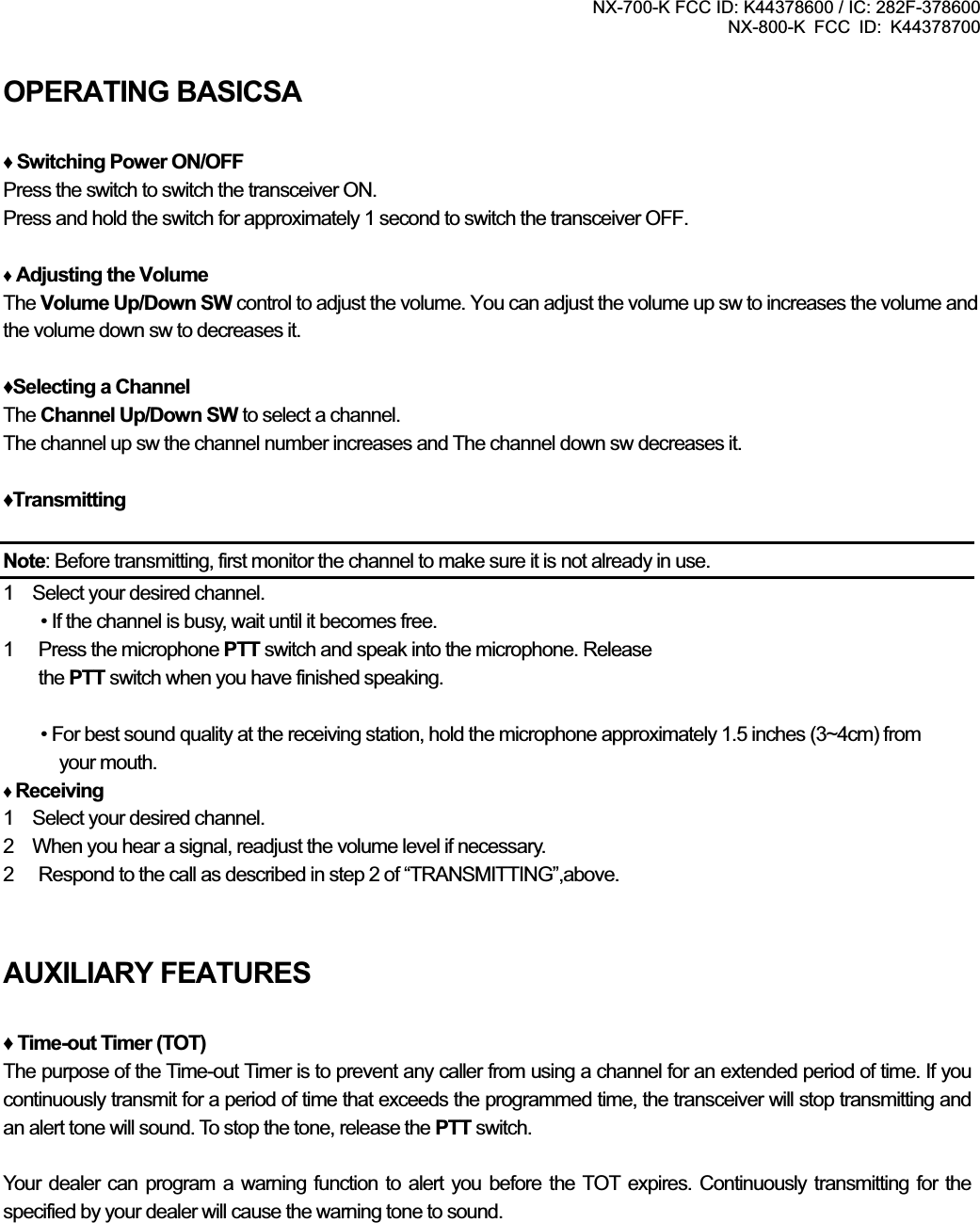

NX-700-K FCC ID: K44378600 / IC: 282F-378600 NX-800-K FCC ID: K44378700 OPERATING BASICSATINGƇSwitching Power ON/OFF Press the switch to switch the transceiver ON. Press and hold the switch for approximately 1 second to switch the transceiver OFF. ƇAdjusting the Volume The Volume Up/Down SW control to adjust the volume. You can adjust the volume up sw to increases the volume and the volume down sw to decreases it. ƇSelecting a Channel The Channel Up/Down SW to select a channel. The channel up sw the channel number increases and The channel down sw decreases it.ƇTransmitting Note: Before transmitting, first monitor the channel to make sure it is not already in use. 1 Select your desired channel. • If the channel is busy, wait until it becomes free. 1 Press the microphone PTT switch and speak into the microphone. Release the PTT switch when you have finished speaking. • For best sound quality at the receiving station, hold the microphone approximately 1.5 inches (3~4cm) from your mouth. ƇReceiving 1 Select your desired channel. 2 When you hear a signal, readjust the volume level if necessary. 2 Respond to the call as described in step 2 of “TRANSMITTING”,above. AUXILIARY FEATURES ƇTime-out Timer (TOT) The purpose of the Time-out Timer is to prevent any caller from using a channel for an extended period of time. If you continuously transmit for a period of time that exceeds the programmed time, the transceiver will stop transmitting and an alert tone will sound. To stop the tone, release the PTT switch. Your dealer can program a warning function to alert you before the TOT expires. Continuously transmitting for the specified by your dealer will cause the warning tone to sound.

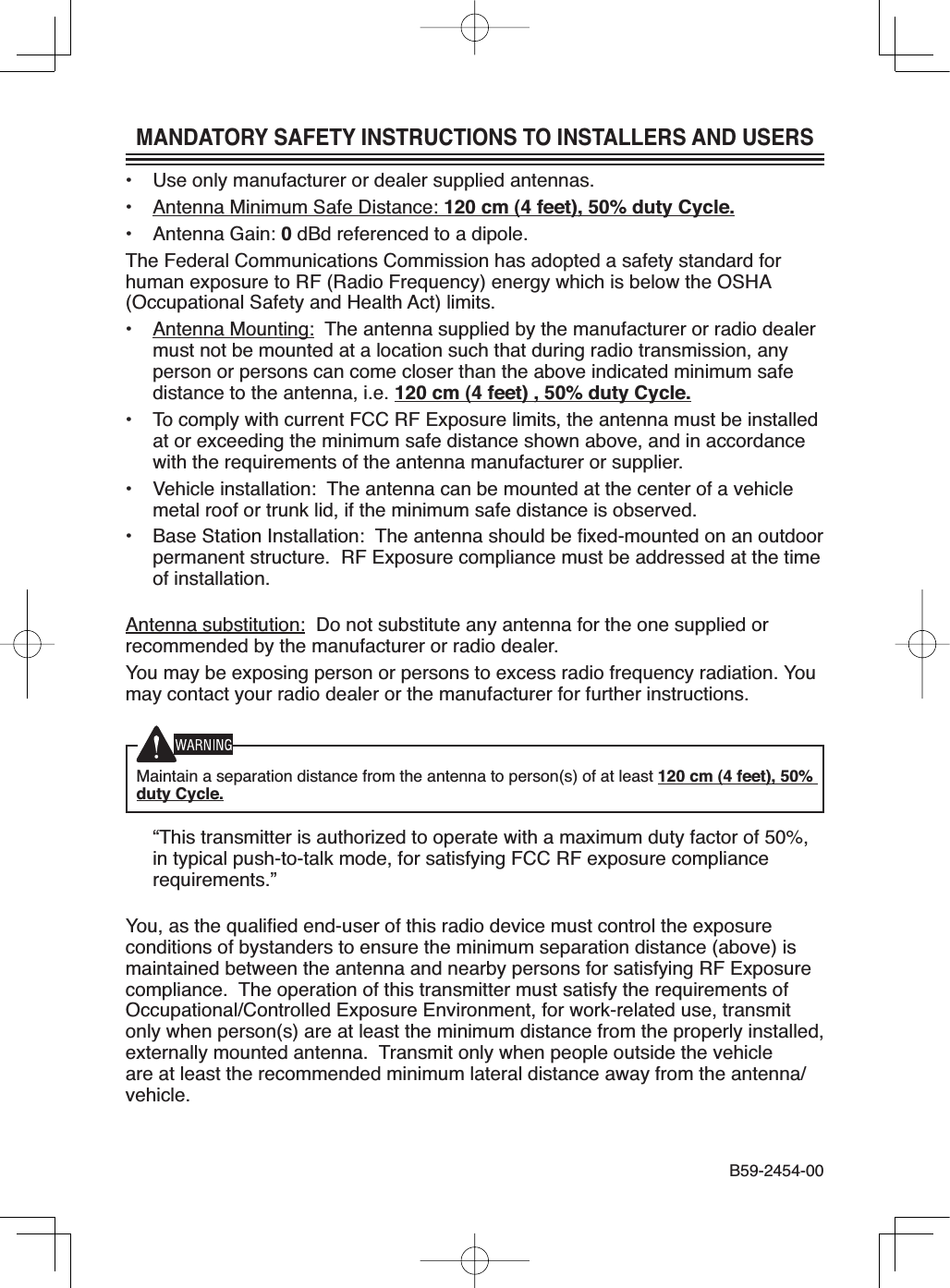

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS• Use only manufacturer or dealer supplied antennas.• Antenna Minimum Safe Distance: 120 cm (4 feet), 50% duty Cycle.• Antenna Gain: 0dBd referenced to a dipole.The Federal Communications Commission has adopted a safety standard forhuman exposure to RF (Radio Frequency) energy which is below the OSHA(Occupational Safety and Health Act) limits.• Antenna Mounting: The antenna supplied by the manufacturer or radio dealermust not be mounted at a location such that during radio transmission, anyperson or persons can come closer than the above indicated minimum safedistance to the antenna, i.e. 120 cm (4 feet) , 50% duty Cycle.• To comply with current FCC RF Exposure limits, the antenna must be installedat or exceeding the minimum safe distance shown above, and in accordancewith the requirements of the antenna manufacturer or supplier.• Vehicle installation: The antenna can be mounted at the center of a vehiclemetal roof or trunk lid, if the minimum safe distance is observed.• Base Station Installation: The antenna should be À[HGPRXQWHG on an outdoorpermanent structure. RF Exposure compliance must be addressed at the timeof installation.Antenna substitution: Do not substitute any antenna for the one supplied orrecommended by the manufacturer or radio dealer.You may be exposing person or persons to excess radio frequency radiation. Youmay contact your radio dealer or the manufacturer for further instructions.Maintain a separation distance from the antenna to person(s) of at least 120 cm (4 feet), 50% duty Cycle. “This transmitter is authorized to operate with a maximum duty factor of 50%,LQW\SLFDOSXVKWRWDONPRGHIRUVDWLVI\LQJ)&&5)H[SRVXUHFRPSOLDQFHrequirements.”<RXDVWKHTXDOLÀHGHQGXVHURIWKLVUDGLRGHYLFHPXVWFRQWUROWKHH[SRVXUHconditions of bystanders to ensure the minimum separation distance (above) ismaintained between the antenna and nearby persons for satisfying RF Exposurecompliance. The operation of this transmitter must satisfy the requirements of2FFXSDWLRQDO&RQWUROOHG([SRVXUH(QYLURQPHQWIRUZRUNUHODWHGXVHWUDQVPLWonly when person(s) are at least the minimum distance from the properly installed,externally mounted antenna. Transmit only when people outside the vehicleare at least the recommended minimum lateral distance away from the antenna/vehicle.%
