JVCKENWOOD 39601 GPS NAVIGATION SYSTEM MONITOR DVD RECEIVER User Manual

JVC KENWOOD Corporation GPS NAVIGATION SYSTEM MONITOR DVD RECEIVER

Users manual

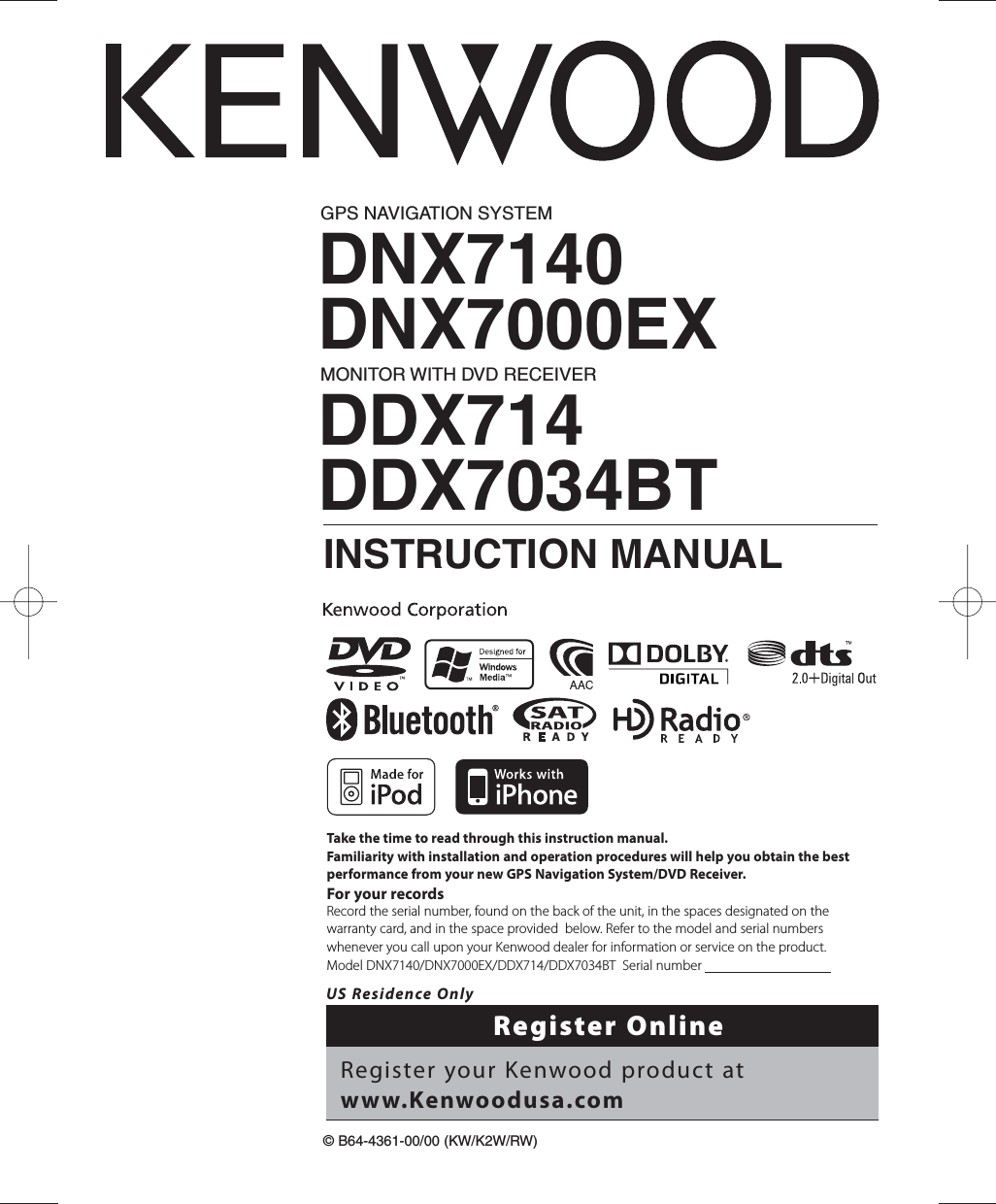

GPS NAVIGATION SYSTEMDNX7140DNX7000EXMONITOR WITH DVD RECEIVERDDX714DDX7034BTINSTRUCTION MANUAL©B64-4361-00/00 (KW/K2W/RW)Take the time to read through this instruction manual.Familiarity with installation and operation procedures will help you obtain the best performance from your new GPS Navigation System/DVD Receiver.For your recordsRecord the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.Model DNX7140/DNX7000EX/DDX714/DDX7034BT Serial number US Residence OnlyRegister OnlineRegister your Kenwood product at www.Kenwoodusa.com

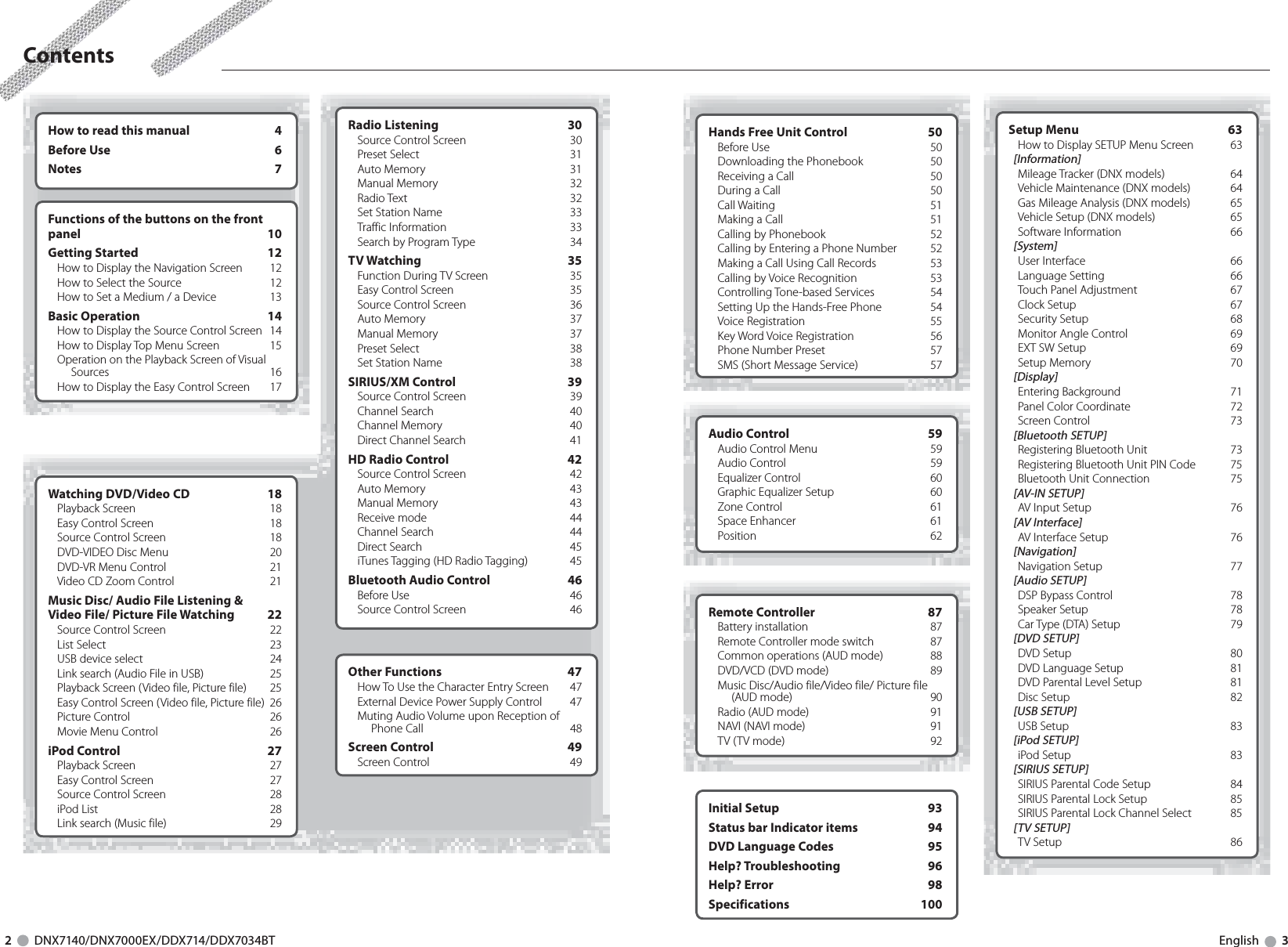

2 DNX7140/DNX7000EX/DDX714/DDX7034BT English 3ContentsFunctions of the buttons on the front panel 10Getting Started 12How to Display the Navigation Screen 12How to Select the Source 12How to Set a Medium / a Device 13Basic Operation 14How to Display the Source Control Screen 14How to Display Top Menu Screen 15Operation on the Playback Screen of Visual Sources 16How to Display the Easy Control Screen 17Watching DVD/Video CD 18Playback Screen 18Easy Control Screen 18Source Control Screen 18DVD-VIDEO Disc Menu 20DVD-VR Menu Control 21Video CD Zoom Control 21Music Disc/ Audio File Listening & Video File/ Picture File Watching 22Source Control Screen 22List Select 23USB device select 24Link search (Audio File in USB) 25Playback Screen (Video file, Picture file) 25Easy Control Screen (Video file, Picture file) 26Picture Control 26Movie Menu Control 26iPod Control 27Playback Screen 27Easy Control Screen 27Source Control Screen 28iPod List 28Link search (Music file) 29Hands Free Unit Control 50Before Use 50Downloading the Phonebook 50Receiving a Call 50During a Call 50Call Waiting 51Making a Call 51Calling by Phonebook 52Calling by Entering a Phone Number 52Making a Call Using Call Records 53Calling by Voice Recognition 53Controlling Tone-based Services 54Setting Up the Hands-Free Phone 54Voice Registration 55Key Word Voice Registration 56Phone Number Preset 57SMS (Short Message Service) 57Audio Control 59Audio Control Menu 59Audio Control 59Equalizer Control 60Graphic Equalizer Setup 60Zone Control 61Space Enhancer 61Position 62Radio Listening 30Source Control Screen 30Preset Select 31Auto Memory 31Manual Memory 32Radio Text 32Set Station Name 33Traffic Information 33Search by Program Type 34TV Watching 35Function During TV Screen 35Easy Control Screen 35Source Control Screen 36Auto Memory 37Manual Memory 37Preset Select 38Set Station Name 38SIRIUS/XM Control 39Source Control Screen 39Channel Search 40Channel Memory 40Direct Channel Search 41HD Radio Control 42Source Control Screen 42Auto Memory 43Manual Memory 43Receive mode 44Channel Search 44Direct Search 45iTunes Tagging (HD Radio Tagging) 45Bluetooth Audio Control 46Before Use 46Source Control Screen 46Setup Menu 63How to Display SETUP Menu Screen 63[Information]Mileage Tracker (DNX models) 64Vehicle Maintenance (DNX models) 64Gas Mileage Analysis (DNX models) 65Vehicle Setup (DNX models) 65Software Information 66[System]User Interface 66Language Setting 66Touch Panel Adjustment 67Clock Setup 67Security Setup 68Monitor Angle Control 69EXT SW Setup 69Setup Memory 70[Display]Entering Background 71Panel Color Coordinate 72Screen Control 73[Bluetooth SETUP]Registering Bluetooth Unit 73Registering Bluetooth Unit PIN Code 75Bluetooth Unit Connection 75[AV-IN SETUP]AV Input Setup 76[AV Interface]AV Interface Setup 76[Navigation]Navigation Setup 77[Audio SETUP]DSP Bypass Control 78Speaker Setup 78Car Type (DTA) Setup 79[DVD SETUP]DVD Setup 80DVD Language Setup 81DVD Parental Level Setup 81Disc Setup 82[USB SETUP]USB Setup 83[iPod SETUP]iPod Setup 83[SIRIUS SETUP]SIRIUS Parental Code Setup 84SIRIUS Parental Lock Setup 85SIRIUS Parental Lock Channel Select 85[TV SETUP]TV Setup 86Other Functions 47How To Use the Character Entry Screen 47External Device Power Supply Control 47Muting Audio Volume upon Reception of Phone Call 48Screen Control 49Screen Control 49Remote Controller 87Battery installation 87Remote Controller mode switch 87Common operations (AUD mode) 88DVD/VCD (DVD mode) 89Music Disc/Audio file/Video file/ Picture file (AUD mode) 90Radio (AUD mode) 91NAVI (NAVI mode) 91TV (TV mode) 92Initial Setup 93Status bar Indicator items 94DVD Language Codes 95Help? Troubleshooting 96Help? Error 98Specifications 100How to read this manual 4Before Use 6Notes 7

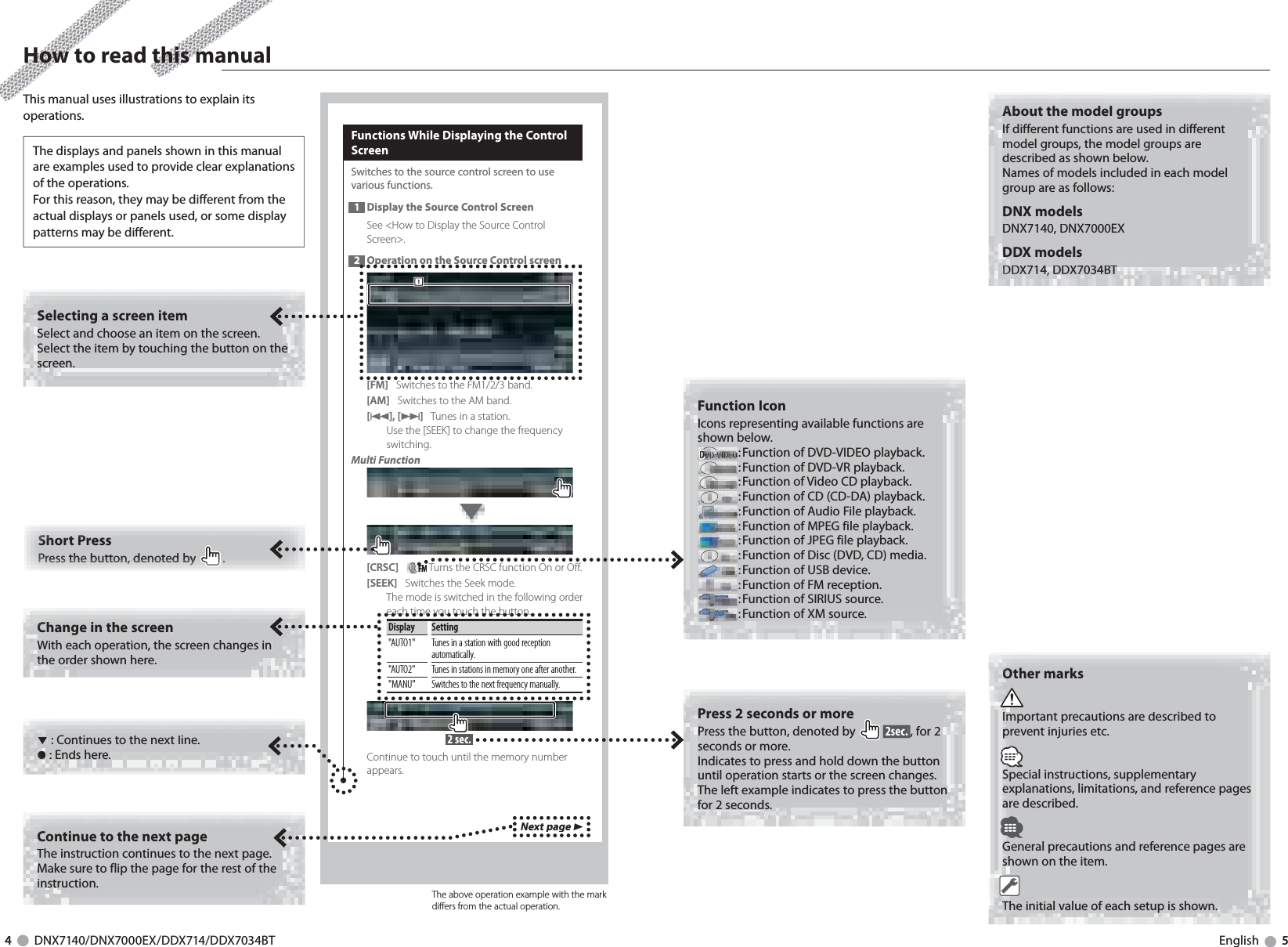

Functions While Displaying the Control ScreenSwitches to the source control screen to use various functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen>. Operation on the 2 Source Control screen111[FM] Switches to the FM1/2/3 band.[AM] Switches to the AM band.[], [D] Tunes in a station. Use the [SEEK] to change the frequency switching.Multi Function[CRSC] FMFM Turns the CRSC function On or Off. [SEEK] Switches the Seek mode. The mode is switched in the following order each time you touch the button. Display Setting"AUTO1" Tunes in a station with good reception automatically."AUTO2" Tunes in stations in memory one after another."MANU" Switches to the next frequency manually. 2 sec. Continue to touch until the memory number appears.Next page 4 DNX7140/DNX7000EX/DDX714/DDX7034BT English 5How to read this manualThis manual uses illustrations to explain its operations.The displays and panels shown in this manual are examples used to provide clear explanations of the operations.For this reason, they may be different from the actual displays or panels used, or some display patterns may be different.The above operation example with the mark differs from the actual operation.SSShShShShShororttt PPPrPresesssPrePrePrePrePrePrPssssssssss ththethethethethebbubububu buttttottottottottonnn,n,n, ,,ddendendendendentoteoteoteoteotedbdbdbdbdbd byyyyy yyyy...PPPress 2 seconds or morePPress the button, denoted by2sec. , for 2 sseconds or more.IIndicates to press and hold down the button uuntil operation starts or the screen changes.TThe left example indicates to press the button foforf 2 seconds.CCChChangei in hthe screenWWith each operation, the screen changes inthethethethtor orderdersh shownownhe herere.OOOtOthher marksImportant precautions are described topprevent injuries etc.SSpecial instructions, supplementaryeexplanations, limitations, and reference pages aare described.GGeneral precautions and reference pages are sshown on the item.TheTheTheTTTin initiitialal valvalueue ofof eaceachsh setuetupip ippsss showhownn.CCContinue to the next pageTThe instruction continues to the next page.MMake sure to flip the page for the rest of theininsitruction.SSelecting a screen itemSSelect and choose an item on the screen.SSelect the item by touching the button on the sscrseen.AAAbAbAboutt ththe moddell groupsIIf different functions are used in different mmodel groups, the model groups areddescribed as shown below. NNames of models included in each model ggroup are as follows:DDNX modelsDDNX7140,DNX7000EXDDDX modelsDDXDDXDDXDDDD714714714,, ,DDXDDXDDX7037037034BT4BT4BT∞∞∞: Continues to the next line.¶¶¶¶:E: Endsnds heere.e.FFunction IconIIcons representing available functions aresshown below. DEODEODVD-VIDVD-VIDDVD-VD-VDDDDDDV: Function of DVD-VIDEO playback.: Function of DVD-VR playback.: Function of Video CD playback.: Function of CD (CD-DA) playback.: Function of Audio File playback.: Function of MPEG file playback.: Function of JPEG file playback.: Function of Disc (DVD, CD) media.: Function of USB device.: Function of FM reception.: Function of SIRIUS source.: Function of XM source.

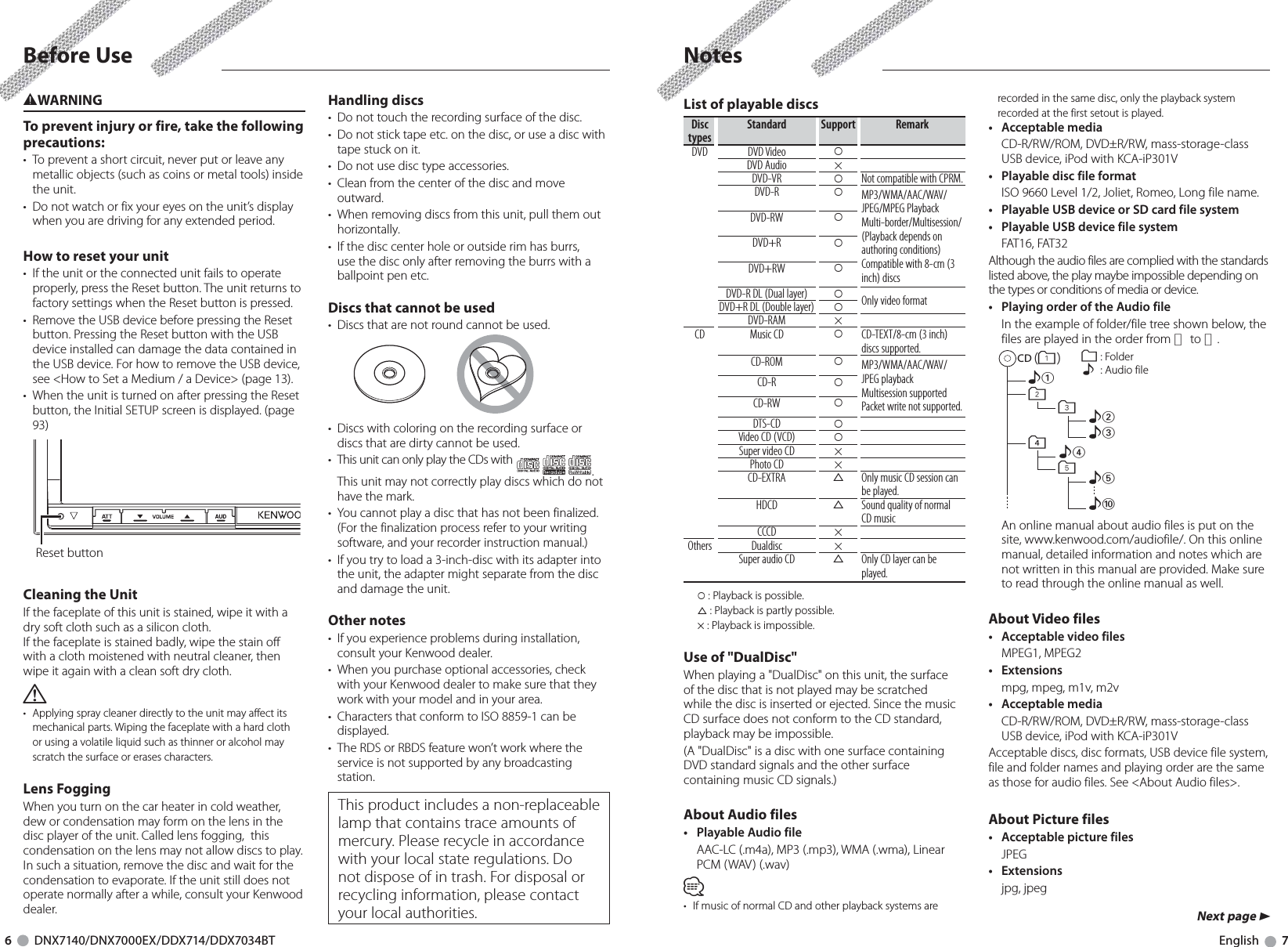

6 DNX7140/DNX7000EX/DDX714/DDX7034BT English 7NotesBefore Use2WARNINGTo prevent injury or fire, take the following precautions:• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period. How to reset your unit• If the unit or the connected unit fails to operate properly, press the Reset button. The unit returns to factory settings when the Reset button is pressed. • Remove the USB device before pressing the Reset button. Pressing the Reset button with the USB device installed can damage the data contained in the USB device. For how to remove the USB device, see <How to Set a Medium / a Device> (page 13).• When the unit is turned on after pressing the Reset button, the Initial SETUP screen is displayed. (page 93) Reset buttonCleaning the UnitIf the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth.If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.¤• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erases characters.Lens FoggingWhen you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer. List of playable discsDisc typesStandard Support RemarkDVD DVD Video ‡DVD Audio ×DVD-VR ‡Not compatible with CPRM.DVD-R ‡MP3/WMA/AAC/WAV/JPEG/MPEG PlaybackMulti-border/Multisession/(Playback depends on authoring conditions)Compatible with 8-cm (3 inch) discsDVD-RW ‡DVD+R ‡DVD+RW ‡DVD-R DL (Dual layer) ‡Only video formatDVD+R DL (Double layer) ‡DVD-RAM ×CD Music CD ‡CD-TEXT/8-cm (3 inch) discs supported.CD-ROM ‡MP3/WMA/AAC/WAV/JPEG playbackMultisession supportedPacket write not supported.CD-R ‡CD-RW ‡DTS-CD ‡Video CD (VCD) ‡Super video CD ×Photo CD ×CD-EXTRA %Only music CD session can be played.HDCD %Sound quality of normal CD music CCCD ×Others Dualdisc ×Super audio CD %Only CD layer can be played.‡ : Playback is possible.% : Playback is partly possible.× : Playback is impossible.Use of "DualDisc"When playing a "DualDisc" on this unit, the surface of the disc that is not played may be scratched while the disc is inserted or ejected. Since the music CD surface does not conform to the CD standard, playback may be impossible.(A "DualDisc" is a disc with one surface containing DVD standard signals and the other surface containing music CD signals.) About Audio files• Playable Audio file AAC-LC (.m4a), MP3 (.mp3), WMA (.wma), Linear PCM (WAV) (.wav) ⁄• If music of normal CD and other playback systems are recorded in the same disc, only the playback system recorded at the first setout is played.• Acceptable media CD-R/RW/ROM, DVD±R/RW, mass-storage-class USB device, iPod with KCA-iP301V• Playable disc file format ISO 9660 Level 1/2, Joliet, Romeo, Long file name.• Playable USB device or SD card file system• Playable USB device file system FAT16, FAT32Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device. • Playing order of the Audio file In the example of folder/file tree shown below, the files are played in the order from ① to ⑩.CD v() <: Folderv: Audio vvvv. vFolderAudio file An online manual about audio files is put on the site, www.kenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well. About Video files• Acceptable video files MPEG1, MPEG2• Extensions mpg, mpeg, m1v, m2v• Acceptable media CD-R/RW/ROM, DVD±R/RW, mass-storage-class USB device, iPod with KCA-iP301VAcceptable discs, disc formats, USB device file system, file and folder names and playing order are the same as those for audio files. See <About Audio files>. About Picture files• Acceptable picture files JPEG• Extensions jpg, jpeg Handling discs• Do not touch the recording surface of the disc.• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.• Do not use disc type accessories.• Clean from the center of the disc and move outward.• When removing discs from this unit, pull them out horizontally.• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.Discs that cannot be used• Discs that are not round cannot be used.• Discs with coloring on the recording surface or discs that are dirty cannot be used.• This unit can only play the CDs with . This unit may not correctly play discs which do not have the mark.• You cannot play a disc that has not been finalized. (For the finalization process refer to your writing software, and your recorder instruction manual.)• If you try to load a 3-inch-disc with its adapter into the unit, the adapter might separate from the disc and damage the unit.Other notes• If you experience problems during installation, consult your Kenwood dealer.• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.• Characters that conform to ISO 8859-1 can be displayed.• The RDS or RBDS feature won’t work where the service is not supported by any broadcasting station.Next page 3This product includes a non-replaceable lamp that contains trace amounts of mercury. Please recycle in accordance with your local state regulations. Do not dispose of in trash. For disposal or recycling information, please contact your local authorities.

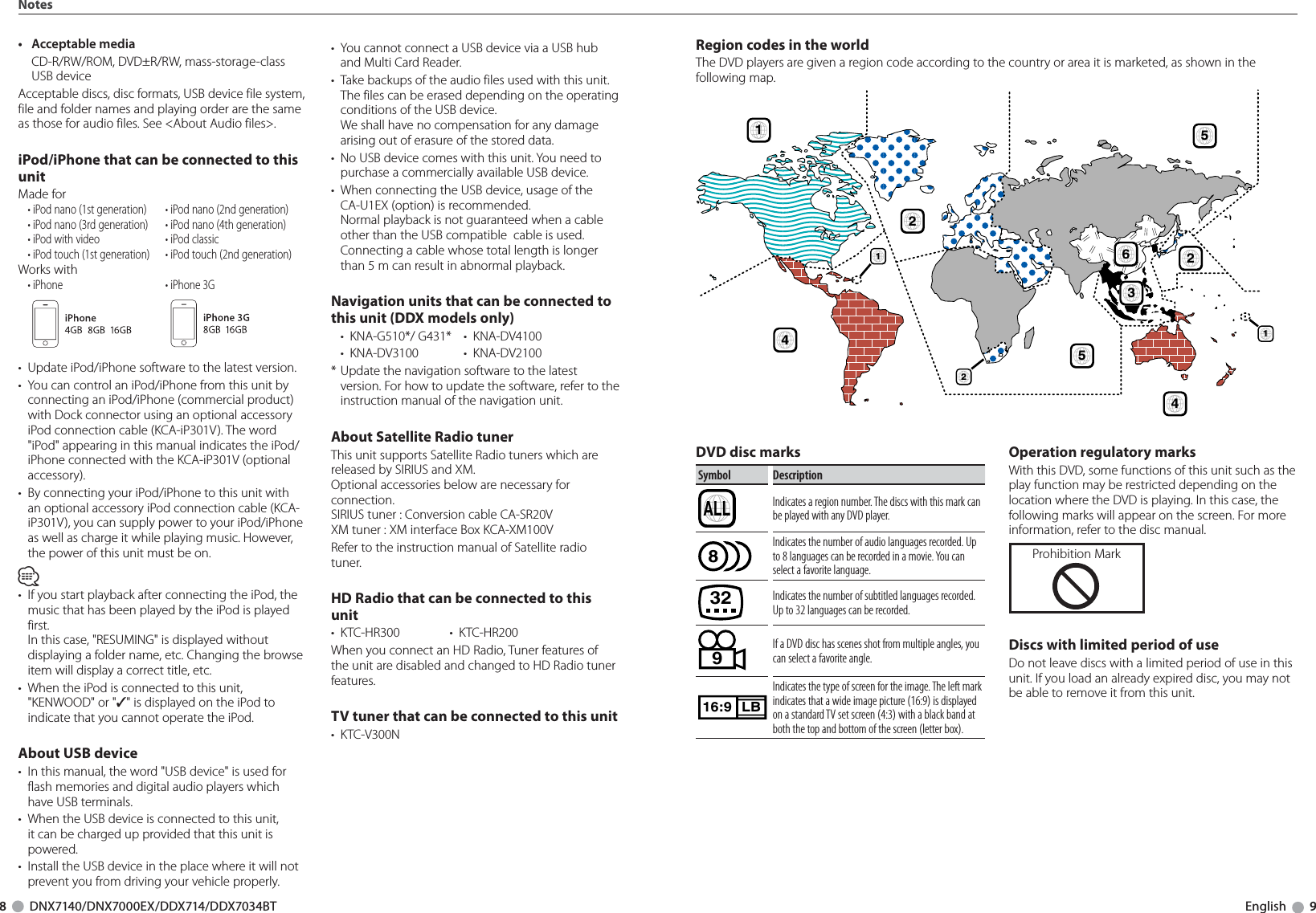

8 DNX7140/DNX7000EX/DDX714/DDX7034BT English 9Notes• Acceptable media CD-R/RW/ROM, DVD±R/RW, mass-storage-class USB deviceAcceptable discs, disc formats, USB device file system, file and folder names and playing order are the same as those for audio files. See <About Audio files>. iPod/iPhone that can be connected to this unitMade for • iPod nano (1st generation) • iPod nano (2nd generation)• iPod nano (3rd generation) • iPod nano (4th generation)• iPod with video • iPod classic• iPod touch (1st generation) • iPod touch (2nd generation)Works with • iPhone • iPhone 3G• Update iPod/iPhone software to the latest version.• You can control an iPod/iPhone from this unit by connecting an iPod/iPhone (commercial product) with Dock connector using an optional accessory iPod connection cable (KCA-iP301V). The word "iPod" appearing in this manual indicates the iPod/iPhone connected with the KCA-iP301V (optional accessory).• By connecting your iPod/iPhone to this unit with an optional accessory iPod connection cable (KCA-iP301V), you can supply power to your iPod/iPhone as well as charge it while playing music. However, the power of this unit must be on.⁄• If you start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, "RESUMING" is displayed without displaying a folder name, etc. Changing the browse item will display a correct title, etc.• When the iPod is connected to this unit, "KENWOOD" or "✓" is displayed on the iPod to indicate that you cannot operate the iPod.About USB device• In this manual, the word "USB device" is used for flash memories and digital audio players which have USB terminals.• When the USB device is connected to this unit, it can be charged up provided that this unit is powered.• Install the USB device in the place where it will not prevent you from driving your vehicle properly.Region codes in the worldThe DVD players are given a region code according to the country or area it is marketed, as shown in the following map.Operation regulatory marksWith this DVD, some functions of this unit such as the play function may be restricted depending on the location where the DVD is playing. In this case, the following marks will appear on the screen. For more information, refer to the disc manual.Prohibition MarkDiscs with limited period of useDo not leave discs with a limited period of use in this unit. If you load an already expired disc, you may not be able to remove it from this unit.124154521263DVD disc marksSymbol DescriptionALLIndicates a region number. The discs with this mark can be played with any DVD player.8Indicates the number of audio languages recorded. Up to 8 languages can be recorded in a movie. You can select a favorite language.32Indicates the number of subtitled languages recorded. Up to 32 languages can be recorded.9If a DVD disc has scenes shot from multiple angles, you can select a favorite angle.16:9 LBIndicates the type of screen for the image. The left mark indicates that a wide image picture (16:9) is displayed on a standard TV set screen (4:3) with a black band at both the top and bottom of the screen (letter box).• You cannot connect a USB device via a USB hub and Multi Card Reader.• Take backups of the audio files used with this unit. The files can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising out of erasure of the stored data.• No USB device comes with this unit. You need to purchase a commercially available USB device.• When connecting the USB device, usage of the CA-U1EX (option) is recommended. Normal playback is not guaranteed when a cable other than the USB compatible cable is used. Connecting a cable whose total length is longer than 5 m can result in abnormal playback. Navigation units that can be connected to this unit (DDX models only)• KNA-G510*/ G431* • KNA-DV4100• KNA-DV3100 • KNA-DV2100* Update the navigation software to the latest version. For how to update the software, refer to the instruction manual of the navigation unit.About Satellite Radio tunerThis unit supports Satellite Radio tuners which are released by SIRIUS and XM.Optional accessories below are necessary for connection.SIRIUS tuner : Conversion cable CA-SR20VXM tuner : XM interface Box KCA-XM100VRefer to the instruction manual of Satellite radio tuner.HD Radio that can be connected to this unit • KTC-HR300 • KTC-HR200When you connect an HD Radio, Tuner features of the unit are disabled and changed to HD Radio tuner features. TV tuner that can be connected to this unit• KTC-V300N

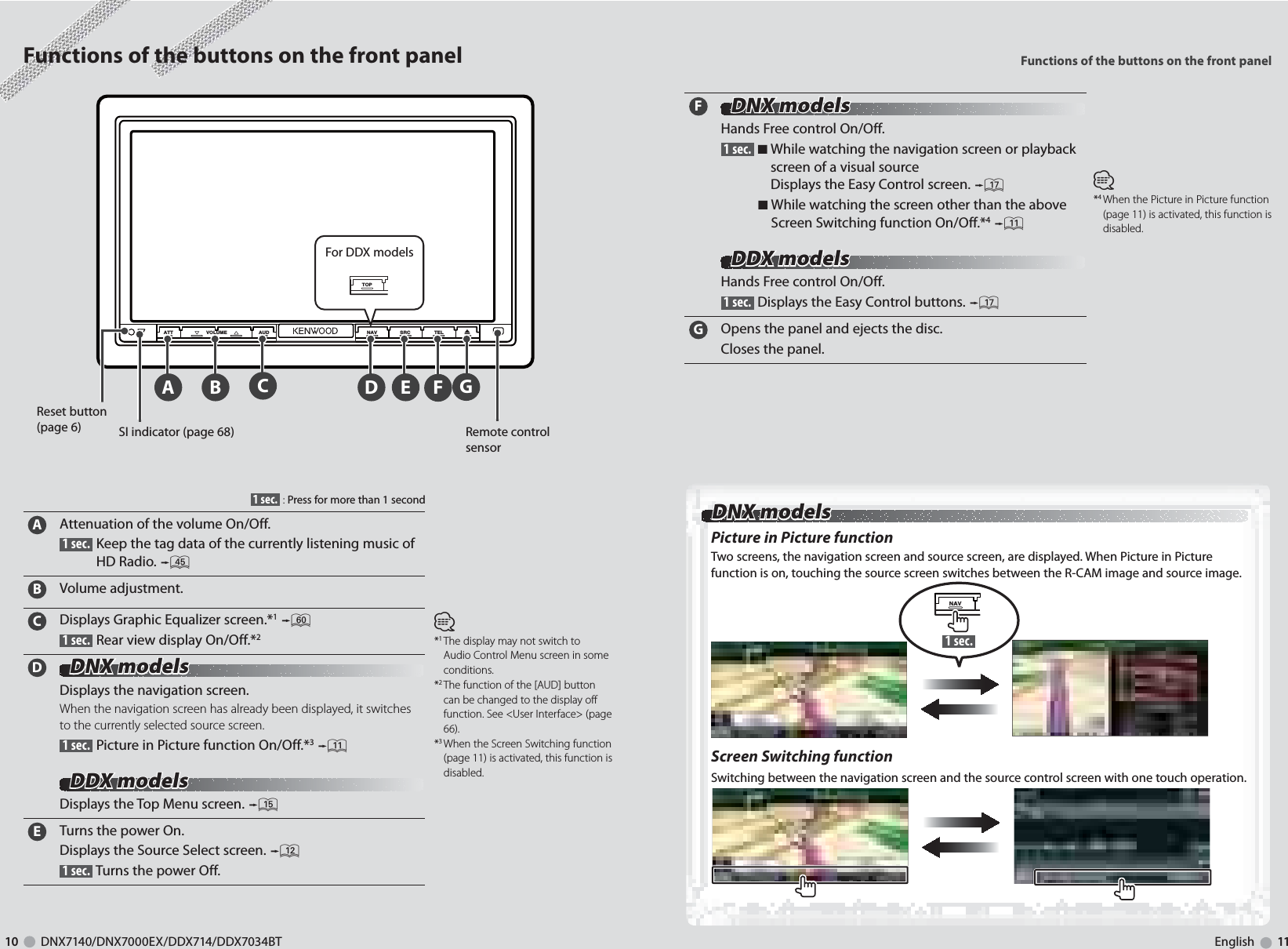

10 DNX7140/DNX7000EX/DDX714/DDX7034BT English 11Functions of the buttons on the front panelFunctions of the buttons on the front panelATT NAV SRC TELVOLUME AUDA EB CDFGTOPFor DDX modelsAAttenuation of the volume On/Off. 1 sec. Keep the tag data of the currently listening music of HD Radio. tBVolume adjustment.CDisplays Graphic Equalizer screen.*1 P 1 sec. Rear view display On/Off.*2DDNX modelsDNX modelsDisplays the navigation screen.When the navigation screen has already been displayed, it switches to the currently selected source screen. 1 sec. Picture in Picture function On/Off.*3 !DDX modelsDDX modelsDisplays the Top Menu screen. %ETurns the power On.Displays the Source Select screen. @ 1 sec. Turns the power Off.⁄*4 When the Picture in Picture function (page 11) is activated, this function is disabled.FDNX modelsDNX modelsHands Free control On/Off. 1 sec. 7 While watching the navigation screen or playback screen of a visual sourceDisplays the Easy Control screen. & 7 While watching the screen other than the aboveScreen Switching function On/Off.*4 !DDX modelsDDX modelsHands Free control On/Off. 1 sec. Displays the Easy Control buttons. &GOpens the panel and ejects the disc.Closes the panel.SI indicator (page 68) Remote control sensorReset button (page 6) 1 sec. : Press for more than 1 second⁄*1 The display may not switch to Audio Control Menu screen in some conditions. *2 The function of the [AUD] button can be changed to the display off function. See <User Interface> (page 66).*3 When the Screen Switching function (page 11) is activated, this function is disabled.DNX modelsDNX models Picture in Picture functionTwo screens, the navigation screen and source screen, are displayed. When Picture in Picture function is on, touching the source screen switches between the R-CAM image and source image. 1 sec. NAV Screen Switching functionSwitching between the navigation screen and the source control screen with one touch operation.

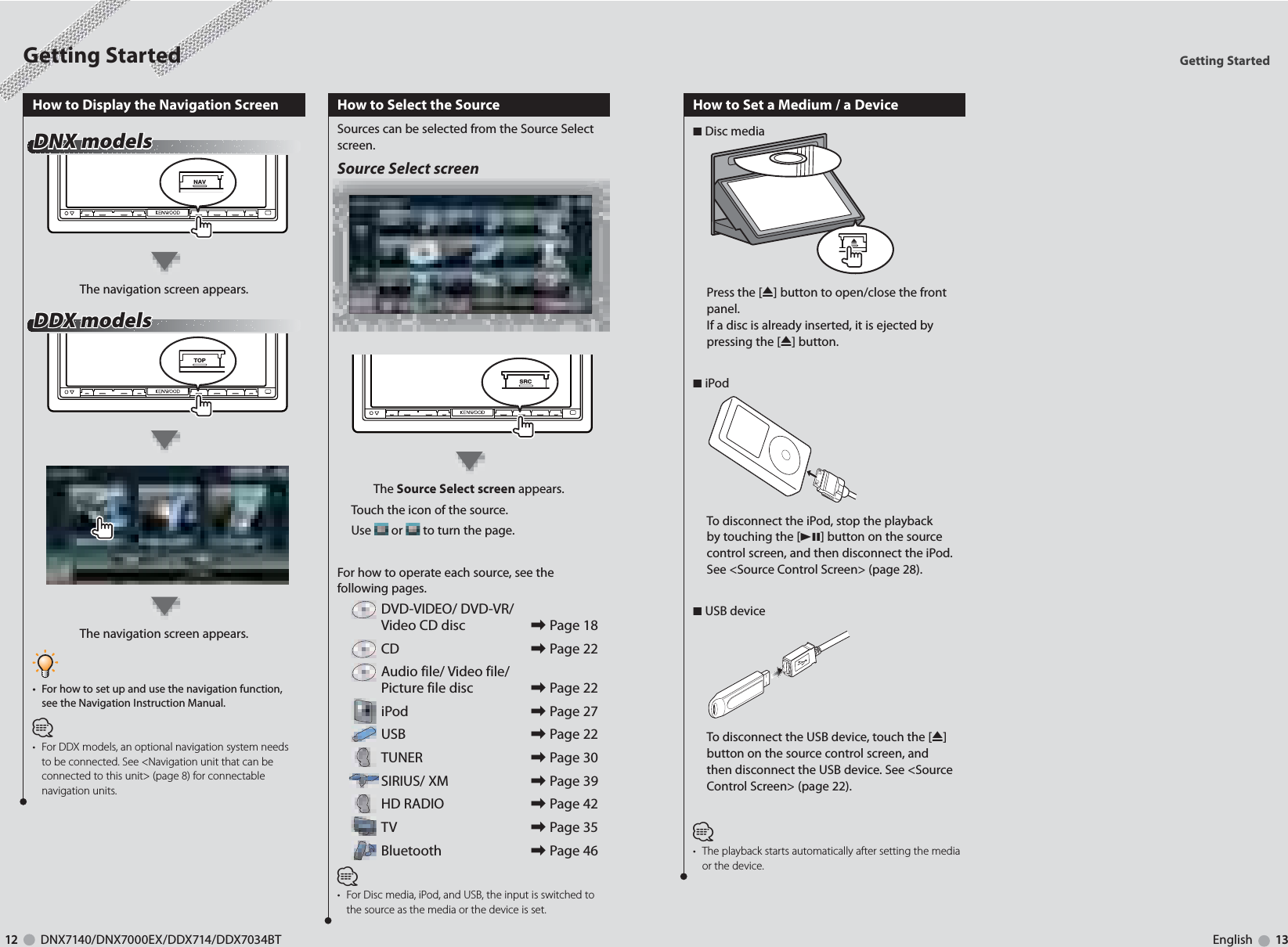

12 DNX7140/DNX7000EX/DDX714/DDX7034BT English 13Getting StartedGetting Started How to Select the SourceSources can be selected from the Source Select screen.Source Select screenSRCThe Source Select screen appears.Touch the icon of the source.Use or to turn the page.For how to operate each source, see the following pages. DVD-VIDEO/ DVD-VR/ Video CD disc \ Page 18 CD \ Page 22 Audio file/ Video file/ Picture file disc \ Page 22 iPod \ Page 27 USB \ Page 22 TUNER \ Page 30 SIRIUS/ XM \ Page 39 HD RADIO \ Page 42 TV \ Page 35 Bluetooth \ Page 46⁄• For Disc media, iPod, and USB, the input is switched to the source as the media or the device is set.How to Display the Navigation ScreenDNX modelsDNX modelsNAVThe navigation screen appears.DDX modelsDDX modelsTOPThe navigation screen appears.• For how to set up and use the navigation function, see the Navigation Instruction Manual.⁄• For DDX models, an optional navigation system needs to be connected. See <Navigation unit that can be connected to this unit> (page 8) for connectable navigation units. How to Set a Medium / a Device7 Disc mediaPress the [0] button to open/close the front panel.If a disc is already inserted, it is ejected by pressing the [0] button.7 iPodTo disconnect the iPod, stop the playback by touching the [38] button on the source control screen, and then disconnect the iPod. See <Source Control Screen> (page 28).7 USB deviceTo disconnect the USB device, touch the [0] button on the source control screen, and then disconnect the USB device. See <Source Control Screen> (page 22).⁄• The playback starts automatically after setting the media or the device.

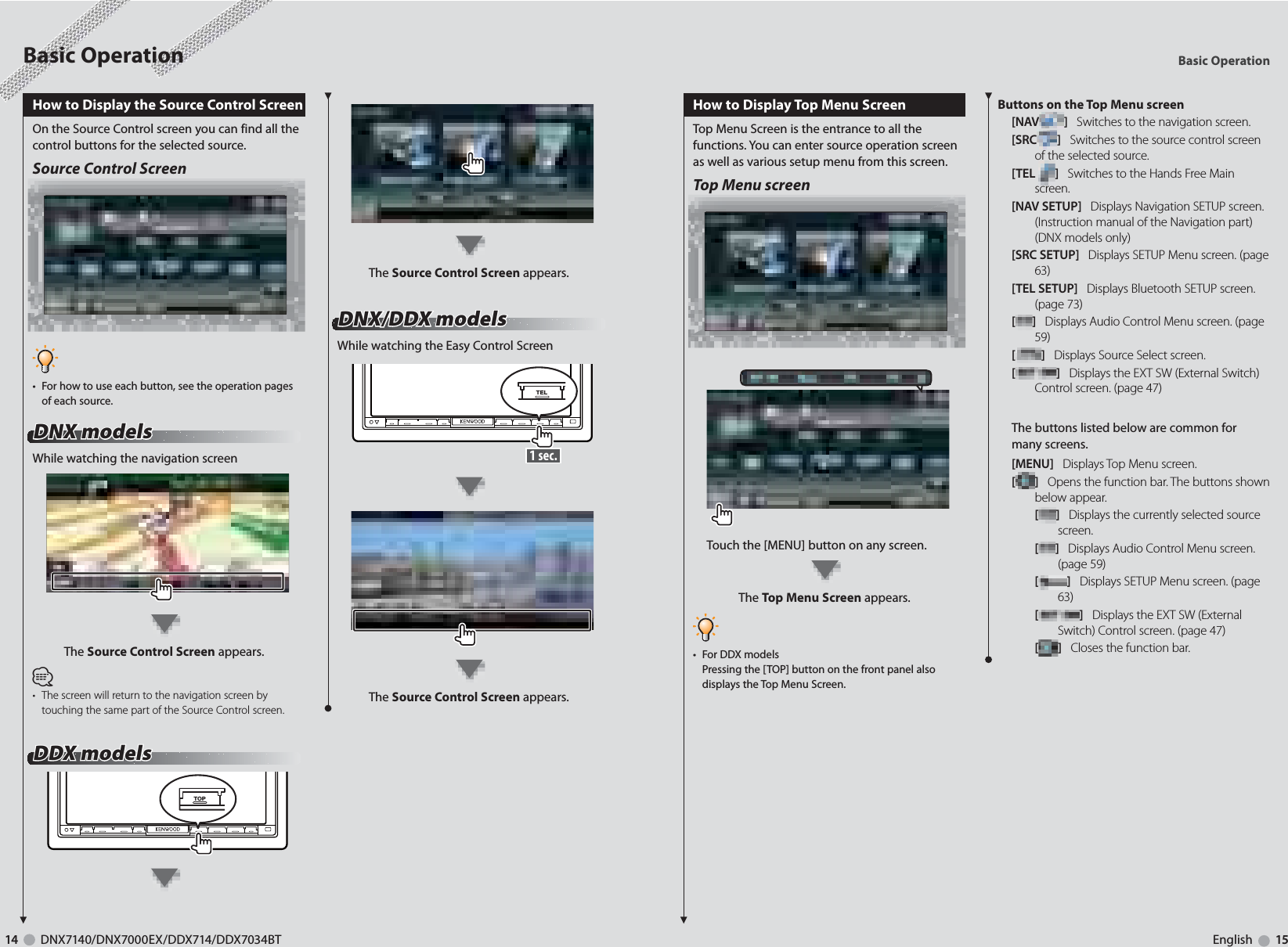

14 DNX7140/DNX7000EX/DDX714/DDX7034BT English 15Basic OperationBasic Operation How to Display the Source Control ScreenOn the Source Control screen you can find all the control buttons for the selected source.Source Control Screen• For how to use each button, see the operation pages of each source.DNX modelsDNX modelsWhile watching the navigation screenThe Source Control Screen appears.⁄• The screen will return to the navigation screen by touching the same part of the Source Control screen.DDX modelsDDX modelsTOPThe Source Control Screen appears.DNX/DDX modelsDNX/DDX modelsWhile watching the Easy Control ScreenTEL 1 sec. The Source Control Screen appears. How to Display Top Menu ScreenTop Menu Screen is the entrance to all the functions. You can enter source operation screen as well as various setup menu from this screen.Top Menu screenTouch the [MENU] button on any screen.The Top Menu Screen appears.• For DDX modelsPressing the [TOP] button on the front panel also displays the Top Menu Screen.Buttons on the Top Menu screen[NAVV] Switches to the navigation screen.[SRC ] Switches to the source control screen of the selected source.[TEL ] Switches to the Hands Free Main screen.[NAV SETUP] Displays Navigation SETUP screen. (Instruction manual of the Navigation part) (DNX models only)[SRC SETUP] Displays SETUP Menu screen. (page 63)[TEL SETUP] Displays Bluetooth SETUP screen. (page 73)[] Displays Audio Control Menu screen. (page 59)[] Displays Source Select screen.[] Displays the EXT SW (External Switch) Control screen. (page 47) The buttons listed below are common for many screens.[MENU] Displays Top Menu screen. [] Opens the function bar. The buttons shown below appear.[] Displays the currently selected source screen.[] Displays Audio Control Menu screen. (page 59)[] Displays SETUP Menu screen. (page 63)[] Displays the EXT SW (External Switch) Control screen. (page 47) [] Closes the function bar.

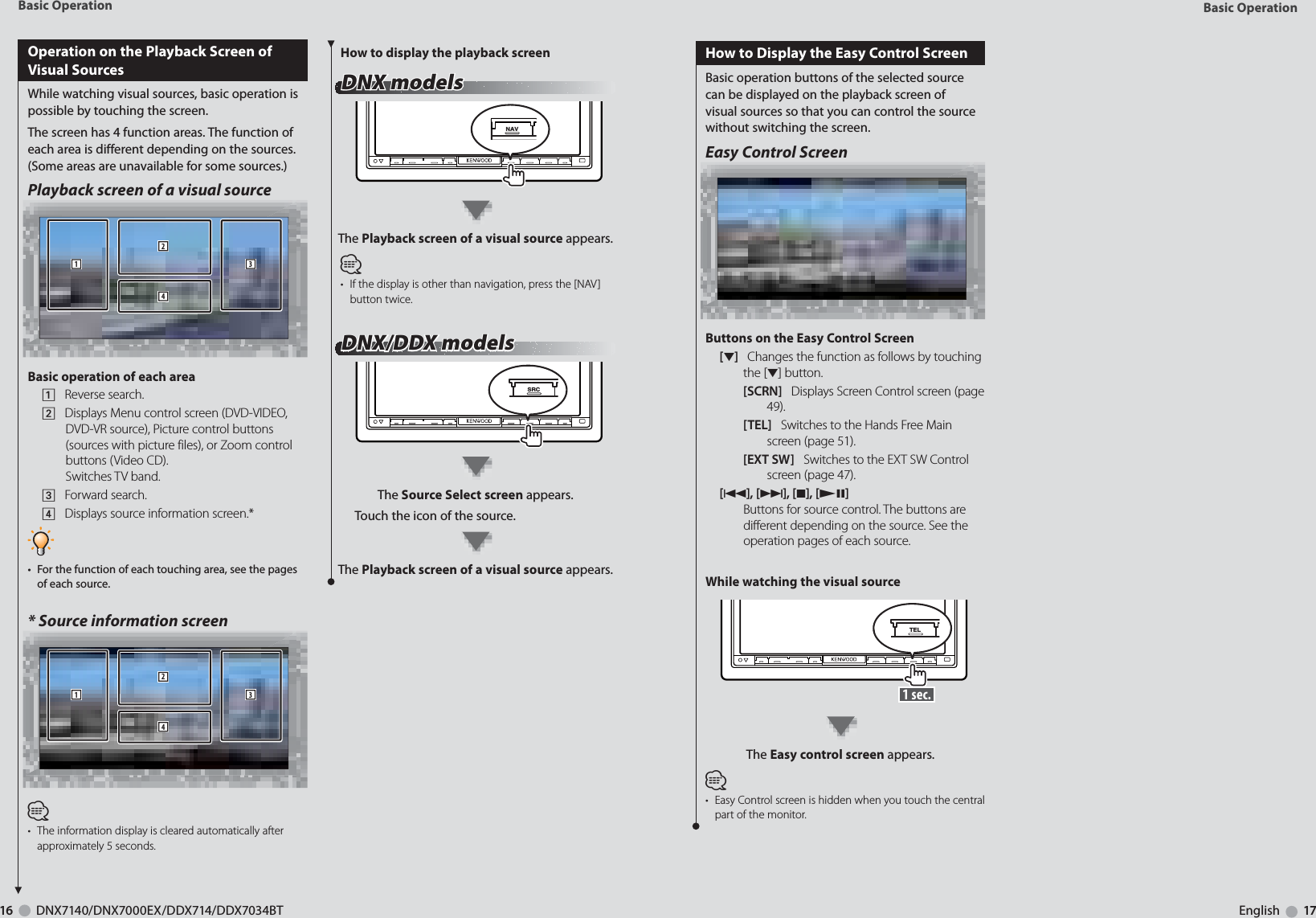

16 DNX7140/DNX7000EX/DDX714/DDX7034BT English 17Basic OperationBasic Operation Operation on the Playback Screen of Visual SourcesWhile watching visual sources, basic operation is possible by touching the screen.The screen has 4 function areas. The function of each area is different depending on the sources. (Some areas are unavailable for some sources.) Playback screen of a visual source3124Basic operation of each area1 Reverse search.2 Displays Menu control screen (DVD-VIDEO, DVD-VR source), Picture control buttons (sources with picture files), or Zoom control buttons (Video CD).Switches TV band.3 Forward search.4 Displays source information screen.*• For the function of each touching area, see the pages of each source.* Source information screen3124⁄• The information display is cleared automatically after approximately 5 seconds. How to Display the Easy Control ScreenBasic operation buttons of the selected source can be displayed on the playback screen of visual sources so that you can control the source without switching the screen.Easy Control ScreenButtons on the Easy Control Screen[∞] Changes the function as follows by touching the [∞] button.[SCRN] Displays Screen Control screen (page 49).[TEL] Switches to the Hands Free Main screen (page 51).[EXT SW] Switches to the EXT SW Control screen (page 47). [4], [¢], [7], [£8] Buttons for source control. The buttons are different depending on the source. See the operation pages of each source.While watching the visual sourceTEL 1 sec. The Easy control screen appears.⁄• Easy Control screen is hidden when you touch the central part of the monitor.How to display the playback screen DNX modelsDNX modelsNAVThe Playback screen of a visual source appears.⁄• If the display is other than navigation, press the [NAV] button twice.DNX/DDX modelsDNX/DDX modelsSRCThe Source Select screen appears.Touch the icon of the source.The Playback screen of a visual source appears.

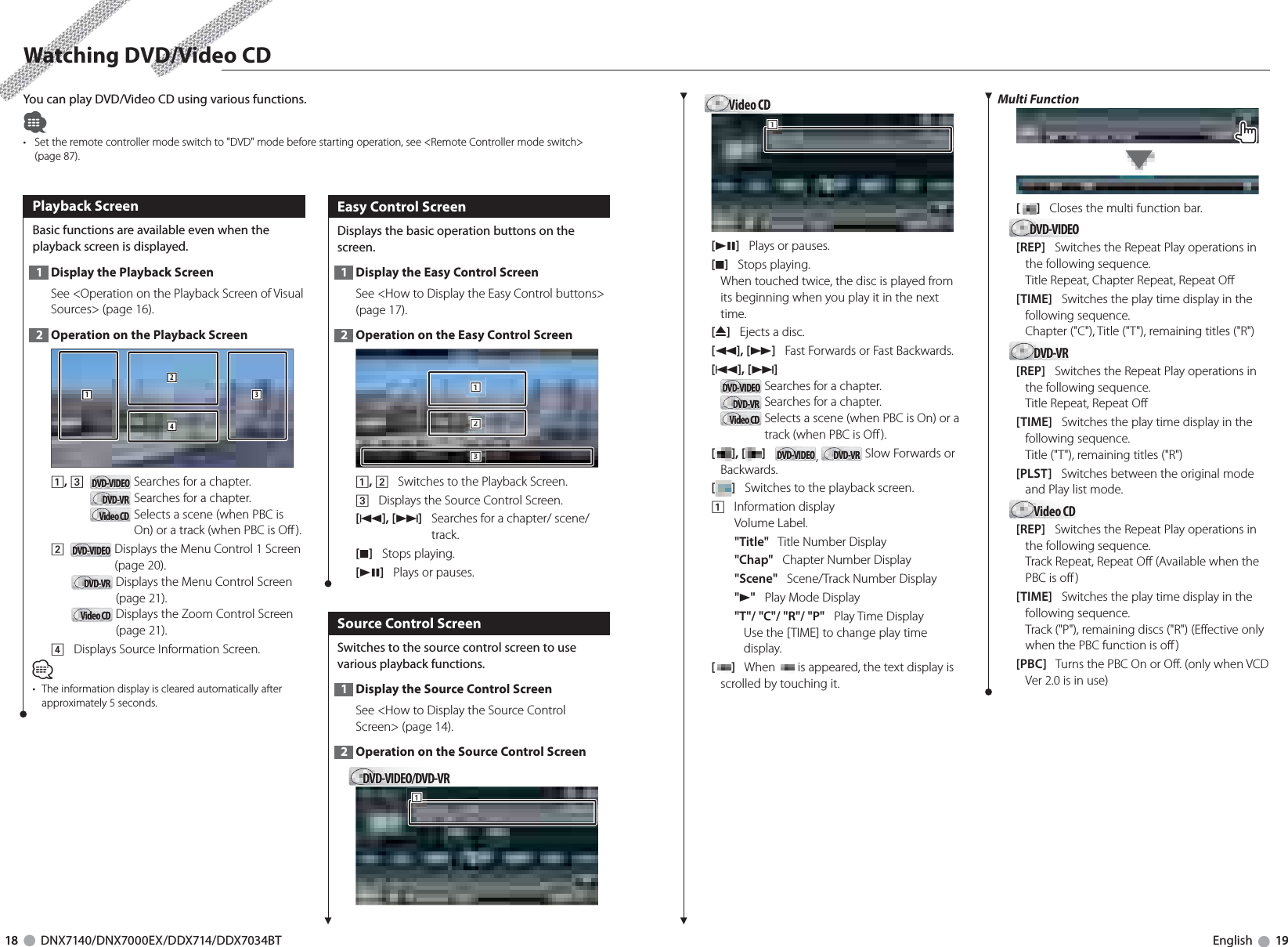

18 DNX7140/DNX7000EX/DDX714/DDX7034BT English 19 Watching DVD/Video CDYou can play DVD/Video CD using various functions.• Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch> (page 87).Playback ScreenBasic functions are available even when the playback screen is displayed.Display the Playback Screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Operation on the Playback Screen2 31241, 3 DVD-VIDEODVD-VIDEO Searches for a chapter.DVD-VRDVD-VR Searches for a chapter.Video CDVideo CD Selects a scene (when PBC is On) or a track (when PBC is Off ).2 DVD-VIDEODVD-VIDEO Displays the Menu Control 1 Screen (page 20).DVD-VRDVD-VR Displays the Menu Control Screen (page 21).Video CDVideo CD Displays the Zoom Control Screen (page 21).4 Displays Source Information Screen.⁄The information display is cleared automatically after • approximately 5 seconds. Easy Control ScreenDisplays the basic operation buttons on the screen.Display the Easy Control Screen1 See <How to Display the Easy Control buttons> (page 17).Operation on the Easy Control Screen2 2221113331, 2 Switches to the Playback Screen.3 Displays the Source Control Screen.[4], [¢] Searches for a chapter/ scene/ track.[7] Stops playing. [38] Plays or pauses. Source Control ScreenSwitches to the source control screen to use various playback functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control Screen2 DVD-VIDEO/DVD-VRDVD-VIDEO/DVD-VR111Video CDVideo CD111[38] Plays or pauses.[7] Stops playing. When touched twice, the disc is played from its beginning when you play it in the next time.[0] Ejects a disc.[1], [¡] Fast Forwards or Fast Backwards.[4], [¢] DVD-VIDEODVD-VIDEO Searches for a chapter.DVD-VRDVD-VR Searches for a chapter.Video CDVideo CD Selects a scene (when PBC is On) or a track (when PBC is Off ).[], [ ] DVD-VIDEODVD-VIDEO , DVD-VRDVD-VR Slow Forwards or Backwards.[] Switches to the playback screen.1 Information displayVolume Label."Title" Title Number Display"Chap" Chapter Number Display"Scene" Scene/Track Number Display"3" Play Mode Display"T"/ "C"/ "R"/ "P" Play Time DisplayUse the [TIME] to change play time display.[] When is appeared, the text display is scrolled by touching it.Multi Function[ ] Closes the multi function bar.DVD-VIDEODVD-VIDEO[REP] Switches the Repeat Play operations in the following sequence.Title Repeat, Chapter Repeat, Repeat Off[TIME] Switches the play time display in the following sequence.Chapter ("C"), Title ("T"), remaining titles ("R")DVD-VRDVD-VR[REP] Switches the Repeat Play operations in the following sequence.Title Repeat, Repeat Off [TIME] Switches the play time display in the following sequence.Title ("T"), remaining titles ("R")[PLST] Switches between the original mode and Play list mode.Video CDVideo CD[REP] Switches the Repeat Play operations in the following sequence.Track Repeat, Repeat Off (Available when the PBC is off )[TIME] Switches the play time display in the following sequence.Track ("P"), remaining discs ("R") (Effective only when the PBC function is off )[PBC] Turns the PBC On or Off. (only when VCD Ver 2.0 is in use)

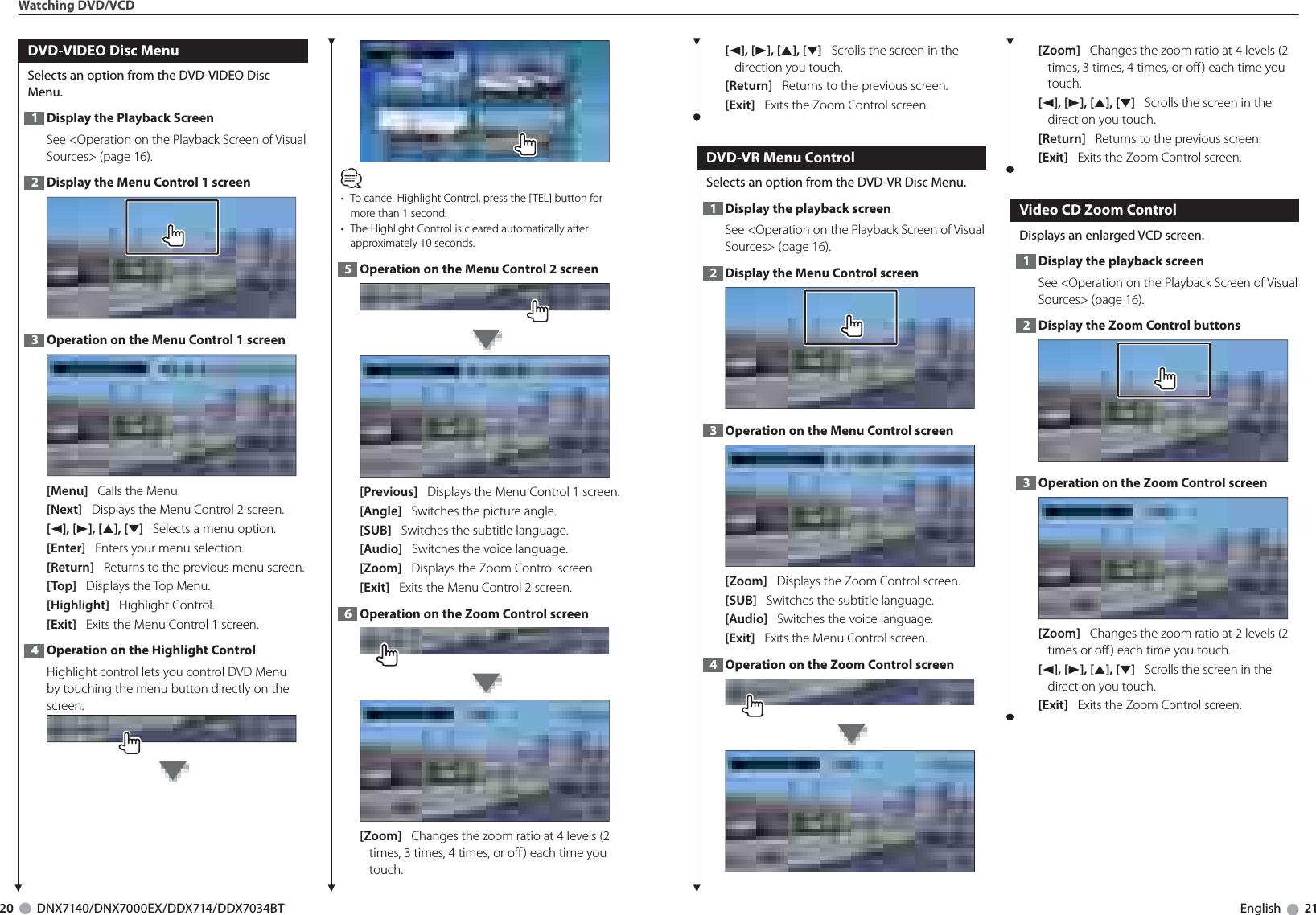

20 DNX7140/DNX7000EX/DDX714/DDX7034BT English 21Watching DVD/VCD DVD-VIDEO Disc MenuSelects an option from the DVD-VIDEO Disc Menu.Display the Playback Screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Display the Menu Control 1 screen2 Operation on the Menu Control 1 screen3 [Menu] Calls the Menu.[Next] Displays the Menu Control 2 screen.[2], [3], [5], [∞] Selects a menu option.[Enter] Enters your menu selection.[Return] Returns to the previous menu screen.[Top] Displays the Top Menu.[Highlight] Highlight Control.[Exit] Exits the Menu Control 1 screen.Operation on the Highlight Control4 Highlight control lets you control DVD Menu by touching the menu button directly on the screen.⁄• To cancel Highlight Control, press the [TEL] button for more than 1 second. • The Highlight Control is cleared automatically after approximately 10 seconds.Operation on the Menu Control 2 screen5 [Previous] Displays the Menu Control 1 screen.[Angle] Switches the picture angle.[SUB] Switches the subtitle language.[Audio] Switches the voice language.[Zoom] Displays the Zoom Control screen.[Exit] Exits the Menu Control 2 screen.Operation on the Zoom Control screen6 [Zoom] Changes the zoom ratio at 4 levels (2 times, 3 times, 4 times, or off ) each time you touch.[2], [3], [5], [∞] Scrolls the screen in the direction you touch.[Return] Returns to the previous screen.[Exit] Exits the Zoom Control screen. DVD-VR Menu ControlSelects an option from the DVD-VR Disc Menu.Display the playback screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Display the Menu Control screen2 Operation on the Menu Control screen3 [Zoom] Displays the Zoom Control screen.[SUB] Switches the subtitle language.[Audio] Switches the voice language.[Exit] Exits the Menu Control screen.Operation on the Zoom Control screen4 [Zoom] Changes the zoom ratio at 4 levels (2 times, 3 times, 4 times, or off ) each time you touch.[2], [3], [5], [∞] Scrolls the screen in the direction you touch.[Return] Returns to the previous screen.[Exit] Exits the Zoom Control screen. Video CD Zoom ControlDisplays an enlarged VCD screen.Display the playback screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Display the Zoom Control buttons2 Operation on the Zoom Control screen3 [Zoom] Changes the zoom ratio at 2 levels (2 times or off ) each time you touch.[2], [3], [5], [∞] Scrolls the screen in the direction you touch.[Exit] Exits the Zoom Control screen.

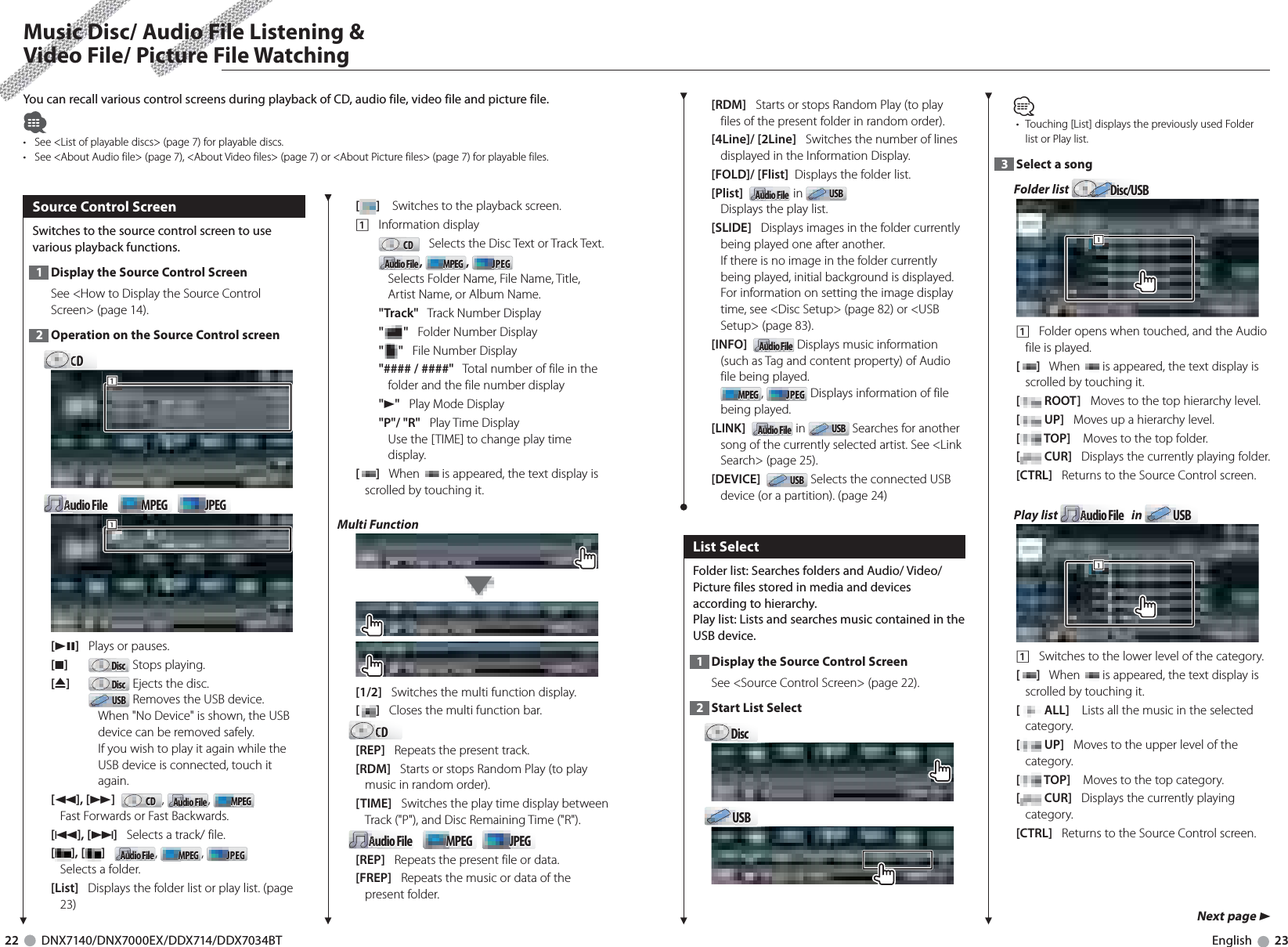

22 DNX7140/DNX7000EX/DDX714/DDX7034BT English 23 Music Disc/ Audio File Listening & Video File/ Picture File Watching[RDM] Starts or stops Random Play (to play files of the present folder in random order).[4Line]/ [2Line] Switches the number of lines displayed in the Information Display.[FOLD]/ [Flist] Displays the folder list.[Plist] Audio FileAudio File in USBUSBDisplays the play list.[SLIDE] Displays images in the folder currently being played one after another. If there is no image in the folder currently being played, initial background is displayed. For information on setting the image display time, see <Disc Setup> (page 82) or <USB Setup> (page 83).[INFO] Audio FileAudio File Displays music information (such as Tag and content property) of Audio file being played.MPEGMPEG , JPEGJPEG Displays information of file being played.[LINK] Audio FileAudio File in USBUSB Searches for another song of the currently selected artist. See <Link Search> (page 25).[DEVICE] USBUSB Selects the connected USB device (or a partition). (page 24) List SelectFolder list: Searches folders and Audio/ Video/ Picture files stored in media and devices according to hierarchy.Play list: Lists and searches music contained in the USB device.Display the Source 1 Control ScreenSee <Source Control Screen> (page 22). Start List Select2 DiscDiscUSBUSBYou can recall various control screens during playback of CD, audio file, video file and picture file.• See <List of playable discs> (page 7) for playable discs.• See <About Audio file> (page 7), <About Video files> (page 7) or <About Picture files> (page 7) for playable files. Source Control ScreenSwitches to the source control screen to use various playback functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control screen2 CDCDCDCDCD111Audio FileAudio FileAuAuAuAuMPEGMPEG JPEGJPEG111[38] Plays or pauses.[7] DiscDisc Stops playing. [0] DiscDisc Ejects the disc.USBUSB Removes the USB device.When "No Device" is shown, the USB device can be removed safely.If you wish to play it again while the USB device is connected, touch it again.[1], [¡] CDCD , Audio FileAudio File , MPEGMPEGFast Forwards or Fast Backwards.[4], [¢] Selects a track/ file.[], [ ] Audio FileAudio File , MPEGMPEG , JPEGJPEGSelects a folder.[List] Displays the folder list or play list. (page 23)[] Switches to the playback screen.1 Information displayCDCD Selects the Disc Text or Track Text.Audio FileAudio File , MPEGMPEG , JPEGJPEG Selects Folder Name, File Name, Title, Artist Name, or Album Name."Track" Track Number Display"" Folder Number Display"" File Number Display"#### / ####" Total number of file in the folder and the file number display"3" Play Mode Display"P"/ "R" Play Time DisplayUse the [TIME] to change play time display.[] When is appeared, the text display is scrolled by touching it.Multi Function[1/2] Switches the multi function display.[] Closes the multi function bar.CDCDCDCDCD[REP] Repeats the present track.[RDM] Starts or stops Random Play (to play music in random order).[TIME] Switches the play time display between Track ("P"), and Disc Remaining Time ("R").Audio FileAudio FileAuAuAuAuMPEGMPEG JPEGJPEG[REP] Repeats the present file or data.[FREP] Repeats the music or data of the present folder.Next page 3⁄Touching [List] displays the previously used Folder • list or Play list.Select a song3 Folder list Disc/USBDisc/USB1111 Folder opens when touched, and the Audio file is played.[] When is appeared, the text display is scrolled by touching it.[ ROOT] Moves to the top hierarchy level.[ UP] Moves up a hierarchy level.[ TOP] Moves to the top folder.[ CUR] Displays the currently playing folder.[CTRL] Returns to the Source Control screen.Play list Audio FileAudio FileAuAuAuAu in USBUSB1111 Switches to the lower level of the category.[] When is appeared, the text display is scrolled by touching it.[ ALL] Lists all the music in the selected category.[ UP] Moves to the upper level of the category.[ TOP] Moves to the top category.[ CUR] Displays the currently playing category.[CTRL] Returns to the Source Control screen.

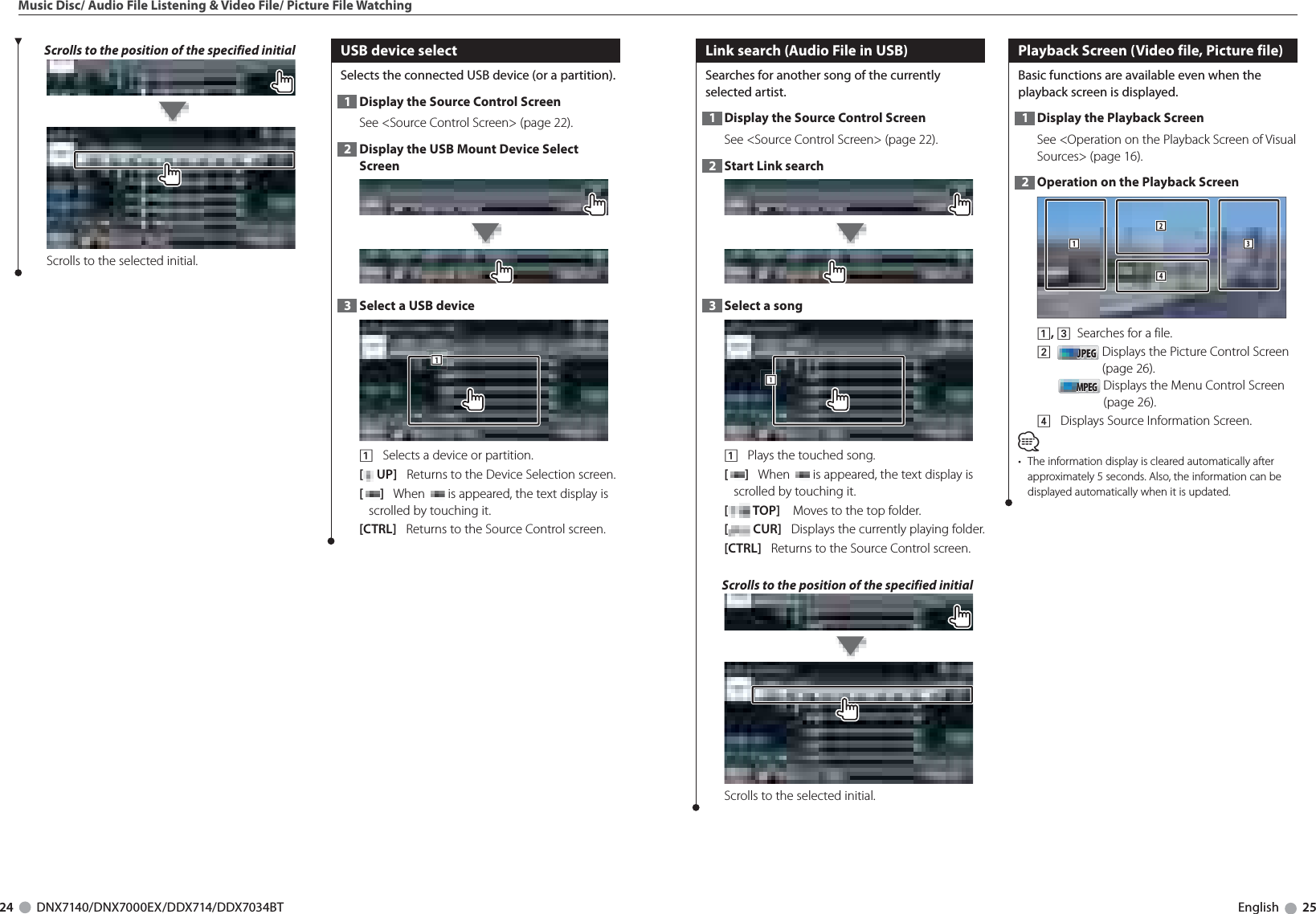

24 DNX7140/DNX7000EX/DDX714/DDX7034BT English 25Music Disc/ Audio File Listening & Video File/ Picture File WatchingScrolls to the position of the specified initialScrolls to the selected initial. USB device select Selects the connected USB device (or a partition). Display the Source 1 Control ScreenSee <Source Control Screen> (page 22). Display the USB Mount Device Select 2 ScreenSelect a USB device3 1111 Selects a device or partition. [ UP] Returns to the Device Selection screen. [] When is appeared, the text display is scrolled by touching it.[CTRL] Returns to the Source Control screen. Link search (Audio File in USB)Searches for another song of the currently selected artist.Display the Source 1 Control ScreenSee <Source Control Screen> (page 22). Start Link search2 Select a song3 1111 Plays the touched song.[] When is appeared, the text display is scrolled by touching it.[ TOP] Moves to the top folder.[ CUR] Displays the currently playing folder.[CTRL] Returns to the Source Control screen.Scrolls to the position of the specified initialScrolls to the selected initial.Playback Screen (Video file, Picture file)Basic functions are available even when the playback screen is displayed.Display the Playback Screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Operation on the Playback Screen2 31241, 3 Searches for a file.2 JPEGJPEG Displays the Picture Control Screen (page 26).MPEGMPEG Displays the Menu Control Screen (page 26).4 Displays Source Information Screen.⁄The information display is cleared automatically after • approximately 5 seconds. Also, the information can be displayed automatically when it is updated.

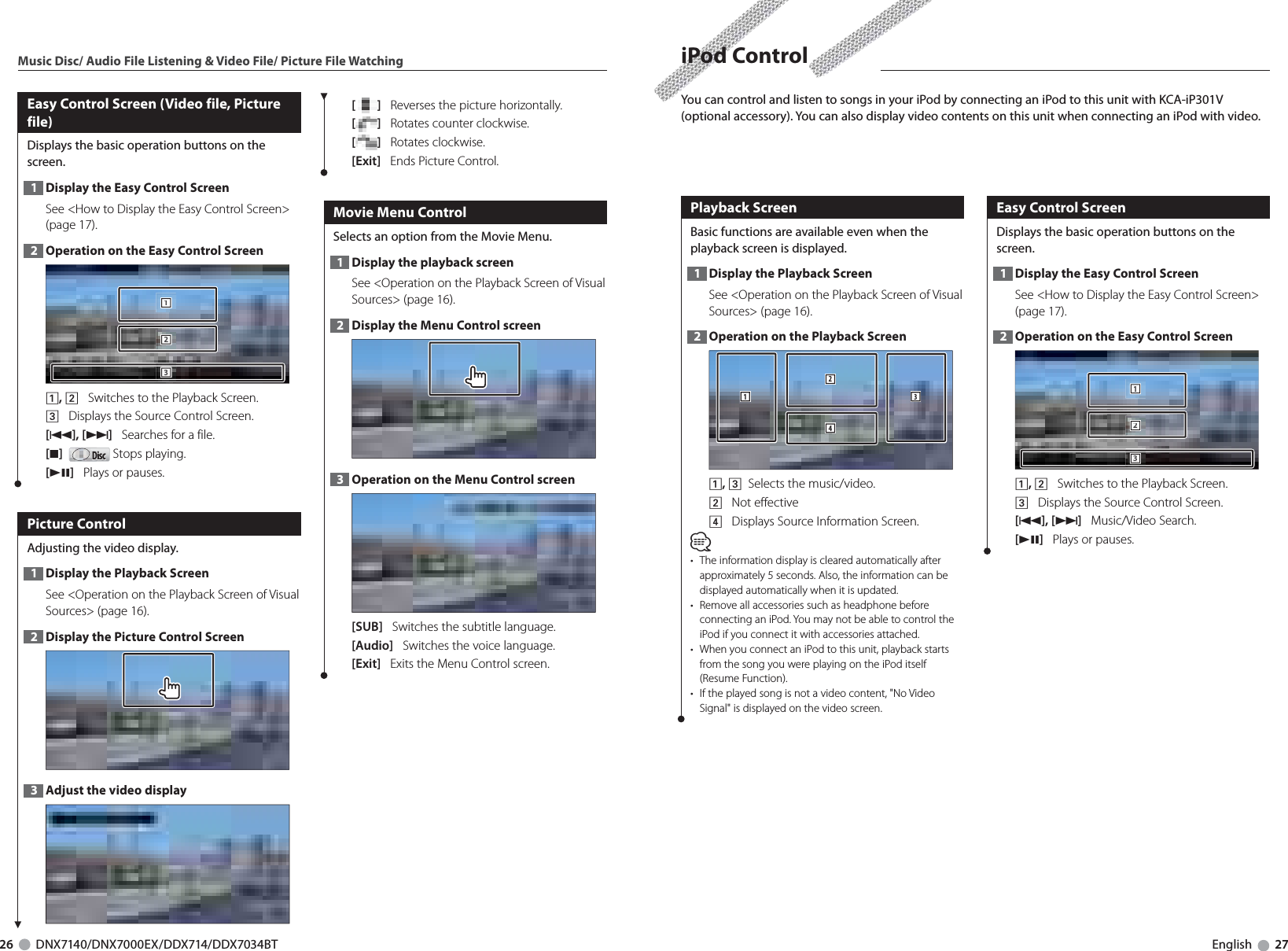

26 DNX7140/DNX7000EX/DDX714/DDX7034BT English 27Music Disc/ Audio File Listening & Video File/ Picture File WatchingEasy Control Screen (Video file, Picture file)Displays the basic operation buttons on the screen.Display the Easy Control Screen1 See <How to Display the Easy Control Screen> (page 17). Operation on the Easy Control Screen2 2221113331, 2 Switches to the Playback Screen.3 Displays the Source Control Screen.[4], [¢] Searches for a file.[7] DiscDisc Stops playing. [38] Plays or pauses. Picture ControlAdjusting the video display.Display the Playback Screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Display the Picture Control Screen2 Adjust the video display3 [ ] Reverses the picture horizontally.[] Rotates counter clockwise.[] Rotates clockwise.[Exit] Ends Picture Control. Movie Menu ControlSelects an option from the Movie Menu.Display the playback screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Display the Menu Control screen2 Operation on the Menu Control screen3 [SUB] Switches the subtitle language.[Audio] Switches the voice language.[Exit] Exits the Menu Control screen. iPod ControlEasy Control ScreenDisplays the basic operation buttons on the screen.Display the Easy Control Screen1 See <How to Display the Easy Control Screen> (page 17). Operation on the Easy Control Screen2 2221113331, 2 Switches to the Playback Screen.3 Displays the Source Control Screen.[4], [¢] Music/Video Search.[38] Plays or pauses.Playback ScreenBasic functions are available even when the playback screen is displayed.Display the Playback Screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Operation on the Playback Screen2 31241, 3 Selects the music/video.2 Not effective4 Displays Source Information Screen.⁄The information display is cleared automatically after • approximately 5 seconds. Also, the information can be displayed automatically when it is updated.Remove all accessories such as headphone before • connecting an iPod. You may not be able to control the iPod if you connect it with accessories attached.When you connect an iPod to this unit, playback starts • from the song you were playing on the iPod itself (Resume Function).If the played song is not a video content, "No Video • Signal" is displayed on the video screen.You can control and listen to songs in your iPod by connecting an iPod to this unit with KCA-iP301V (optional accessory). You can also display video contents on this unit when connecting an iPod with video.

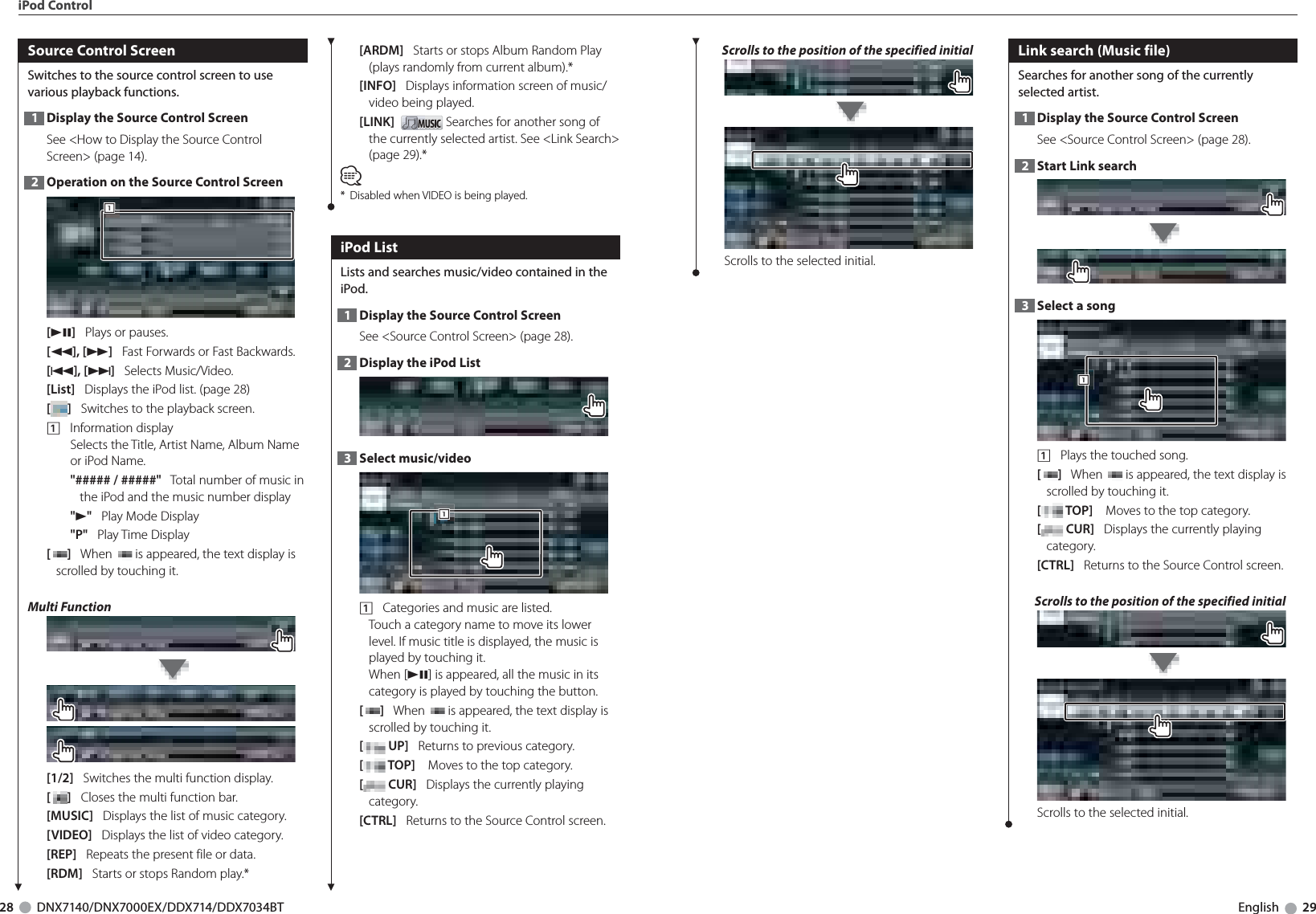

28 DNX7140/DNX7000EX/DDX714/DDX7034BT English 29[ARDM] Starts or stops Album Random Play (plays randomly from current album).*[INFO] Displays information screen of music/video being played.[LINK] MUSICMUSIC Searches for another song of the currently selected artist. See <Link Search> (page 29).*⁄* Disabled when VIDEO is being played. iPod ListLists and searches music/video contained in the iPod.Display the Source 1 Control ScreenSee <Source Control Screen> (page 28). Display the iPod List2 Select music/video3 1111 Categories and music are listed. Touch a category name to move its lower level. If music title is displayed, the music is played by touching it.When [38] is appeared, all the music in its category is played by touching the button.[] When is appeared, the text display is scrolled by touching it.[ UP] Returns to previous category.[ TOP] Moves to the top category.[ CUR] Displays the currently playing category.[CTRL] Returns to the Source Control screen. Source Control ScreenSwitches to the source control screen to use various playback functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control Screen2 111[38] Plays or pauses.[1], [¡] Fast Forwards or Fast Backwards.[4], [¢] Selects Music/Video.[List] Displays the iPod list. (page 28)[] Switches to the playback screen. 1 Information displaySelects the Title, Artist Name, Album Name or iPod Name."##### / #####" Total number of music in the iPod and the music number display"3" Play Mode Display"P" Play Time Display[] When is appeared, the text display is scrolled by touching it.Multi Function[1/2] Switches the multi function display.[] Closes the multi function bar.[MUSIC] Displays the list of music category. [VIDEO] Displays the list of video category. [REP] Repeats the present file or data.[RDM] Starts or stops Random play.*iPod Control Link search (Music file)Searches for another song of the currently selected artist.Display the Source 1 Control ScreenSee <Source Control Screen> (page 28). Start Link search2 Select a song3 1111 Plays the touched song.[] When is appeared, the text display is scrolled by touching it.[ TOP] Moves to the top category.[ CUR] Displays the currently playing category.[CTRL] Returns to the Source Control screen.Scrolls to the position of the specified initialScrolls to the selected initial.Scrolls to the position of the specified initialScrolls to the selected initial.

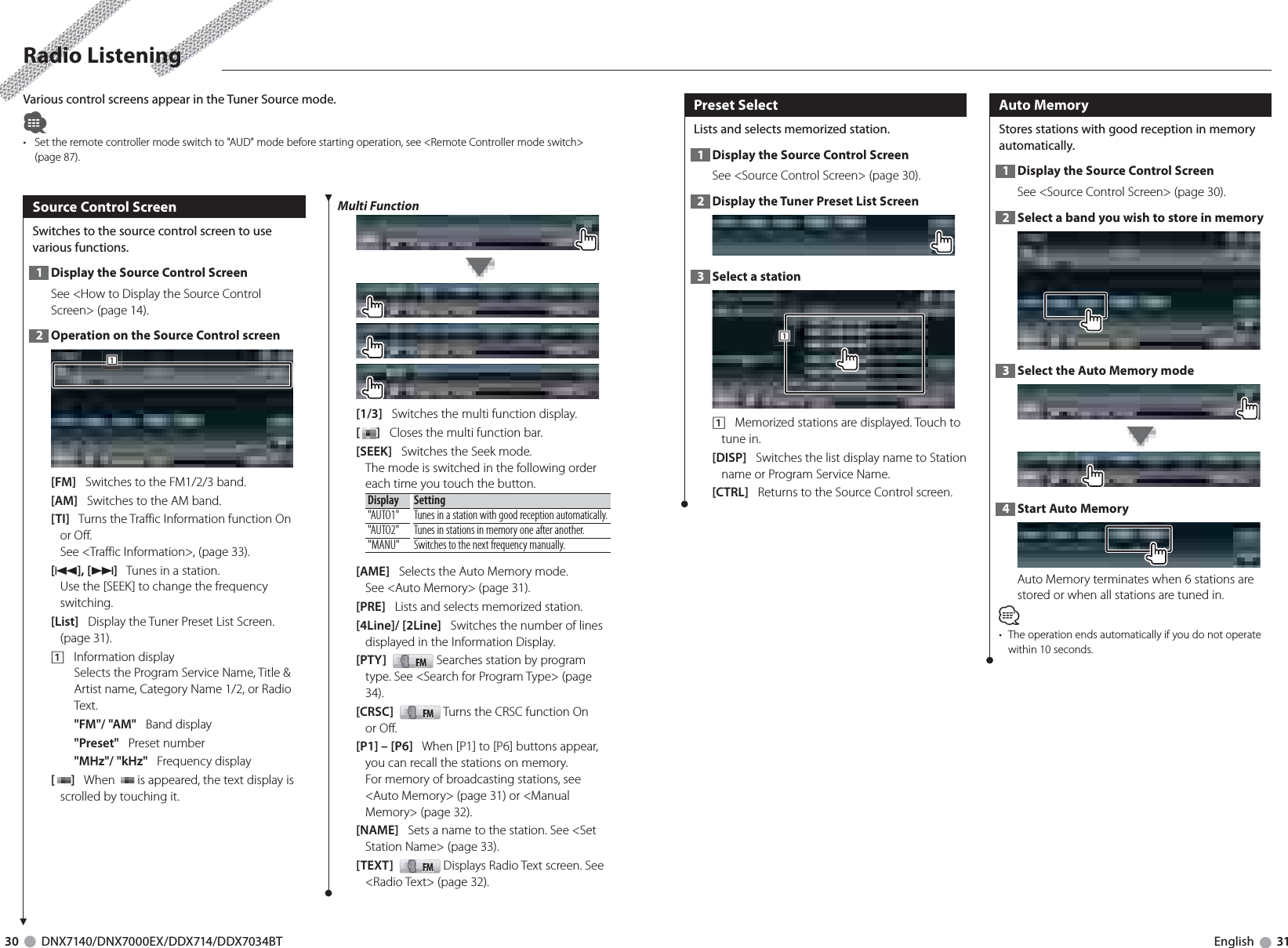

30 DNX7140/DNX7000EX/DDX714/DDX7034BT English 31 Radio Listening Source Control ScreenSwitches to the source control screen to use various functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control screen2 111[FM] Switches to the FM1/2/3 band.[AM] Switches to the AM band.[TI] Turns the Traffic Information function On or Off.See <Traffic Information>, (page 33).[4], [¢] Tunes in a station.Use the [SEEK] to change the frequency switching.[List] Display the Tuner Preset List Screen. (page 31).1 Information displaySelects the Program Service Name, Title & Artist name, Category Name 1/2, or Radio Text."FM"/ "AM" Band display"Preset" Preset number"MHz"/ "kHz" Frequency display[] When is appeared, the text display is scrolled by touching it.Various control screens appear in the Tuner Source mode.• Set the remote controller mode switch to "AUD" mode before starting operation, see <Remote Controller mode switch> (page 87).Multi Function[1/3] Switches the multi function display.[] Closes the multi function bar.[SEEK] Switches the Seek mode.The mode is switched in the following order each time you touch the button. Display Setting"AUTO1" Tunes in a station with good reception automatically."AUTO2" Tunes in stations in memory one after another."MANU" Switches to the next frequency manually.[AME] Selects the Auto Memory mode.See <Auto Memory> (page 31).[PRE] Lists and selects memorized station.[4Line]/ [2Line] Switches the number of lines displayed in the Information Display.[PTY] FMFM Searches station by program type. See <Search for Program Type> (page 34).[CRSC] FMFM Turns the CRSC function On or Off. [P1] – [P6] When [P1] to [P6] buttons appear, you can recall the stations on memory.For memory of broadcasting stations, see <Auto Memory> (page 31) or <Manual Memory> (page 32).[NAME] Sets a name to the station. See <Set Station Name> (page 33).[TEXT] FMFM Displays Radio Text screen. See <Radio Text> (page 32). Preset SelectLists and selects memorized station.Display the Source 1 Control ScreenSee <Source Control Screen> (page 30). Display the Tuner Preset List Screen2 Select a station3 1111 Memorized stations are displayed. Touch to tune in.[DISP] Switches the list display name to Station name or Program Service Name.[CTRL] Returns to the Source Control screen. Auto MemoryStores stations with good reception in memory automatically.Display the Source 1 Control ScreenSee <Source Control Screen> (page 30). Select a band you wish to store in memory2 Select the Auto Memory mode3 Start Auto Memory4 Auto Memory terminates when 6 stations are stored or when all stations are tuned in.⁄• The operation ends automatically if you do not operate within 10 seconds.

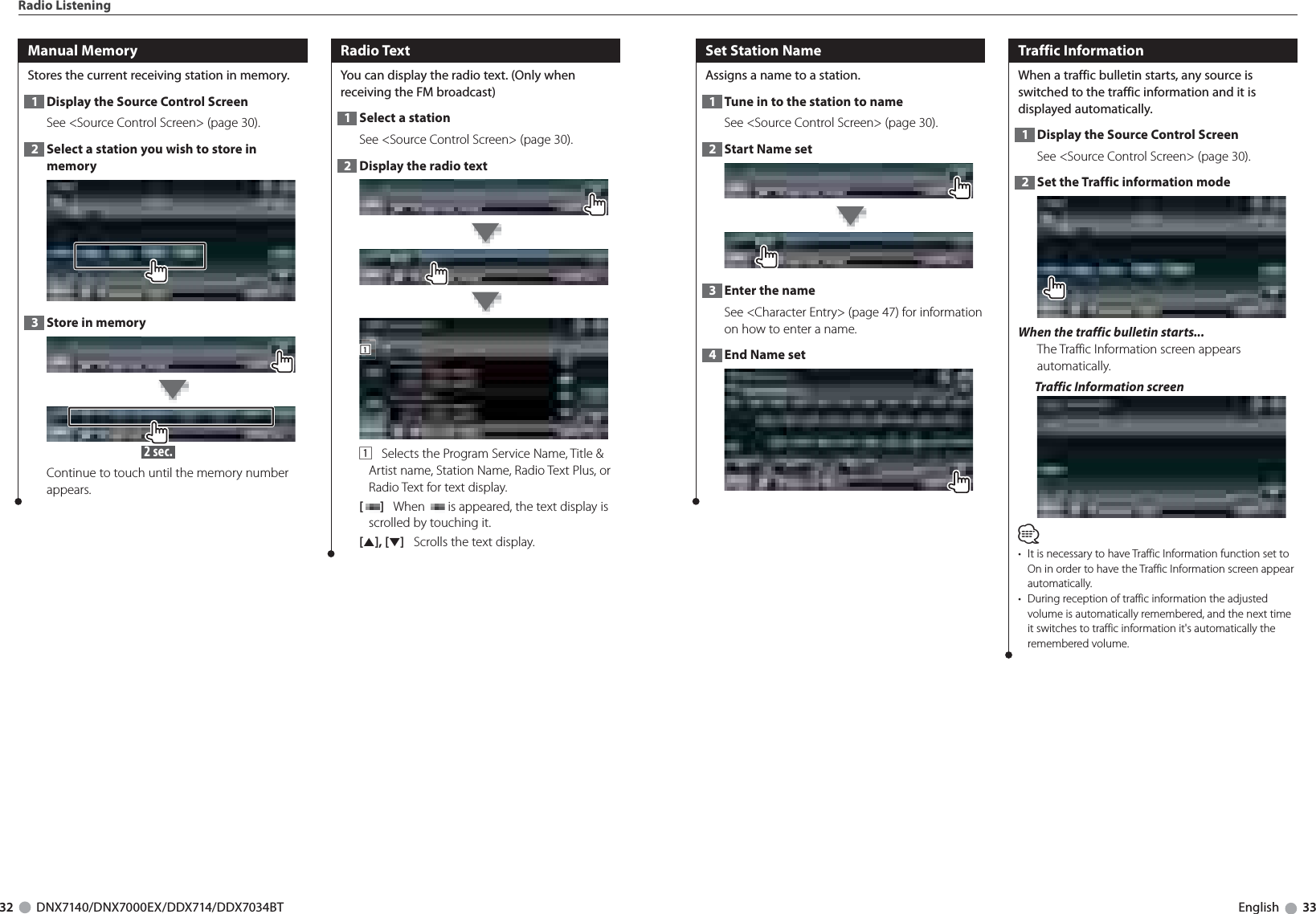

32 DNX7140/DNX7000EX/DDX714/DDX7034BT English 33Radio Listening Manual MemoryStores the current receiving station in memory.Display the Source 1 Control ScreenSee <Source Control Screen> (page 30). Select a station you wish to store in 2 memoryStore in memory3 2 sec. Continue to touch until the memory number appears. Radio TextYou can display the radio text. (Only when receiving the FM broadcast)Select a station1 See <Source Control Screen> (page 30). Display the radio text2 1111 Selects the Program Service Name, Title & Artist name, Station Name, Radio Text Plus, or Radio Text for text display.[] When is appeared, the text display is scrolled by touching it.[5], [∞] Scrolls the text display. Set Station NameAssigns a name to a station.Tune in to the station to name1 See <Source Control Screen> (page 30). Start Name set2 Enter the name3 See <Character Entry> (page 47) for information on how to enter a name.End Name set4 Traffic InformationWhen a traffic bulletin starts, any source is switched to the traffic information and it is displayed automatically.Display the Source 1 Control ScreenSee <Source Control Screen> (page 30). Set the Traffic information mode2 When the traffic bulletin starts...The Traffic Information screen appears automatically.Traffic Information screen⁄• It is necessary to have Traffic Information function set to On in order to have the Traffic Information screen appear automatically. • During reception of traffic information the adjusted volume is automatically remembered, and the next time it switches to traffic information it's automatically the remembered volume.
34 DNX7140/DNX7000EX/DDX714/DDX7034BT English 35 TV WatchingRadio Listening Search by Program TypeA program is tuned when you set its program type. (Only when receiving the FM broadcast)Display the Source 1 Control ScreenSee <Source Control Screen> (page 30). Enter Program Type Search mode2 Select a Program Type3 1111 Program Type is displayed. Touch to select a Program Type.[Search] Searches for the program type. It is displayed when the Program type is selected.[User] Continue to touch more than 2 seconds. The currently receiving station is registered to the selected program type.Search a station of the selected Program 4 TypeFunction During TV ScreenBasic functions are available even when the TV screen is displayed.Display the TV screen1 See <Operation on the Playback Screen of Visual Sources> (page 16). Operation on the TV screen2 31241, 3 Selects a channel.2 Switches to TV1 or TV2.4 Displays Source Information Screen.⁄• The information display is cleared automatically after approximately 5 seconds. Also, the information can be displayed automatically when it is updated.Various control screens appear in the TV source mode. You can only operate TV with the optional accessory TV Tuner connected.Easy Control ScreenDisplays the basic operation buttons on the screen.Display the Easy Control Screen1 See <How to Display the Easy Control Screen> (page 17). Operation on the Easy Control Screen2 2221113331, 2 Switches to the TV screen.3 Displays the Source Control Screen.[BAND] Switches to TV1 or TV2.[4], [¢] Selects a channel.Use the [SEEK] to change the channel tuning sequence.[SEEK] Switches the Seek mode. (page 36)

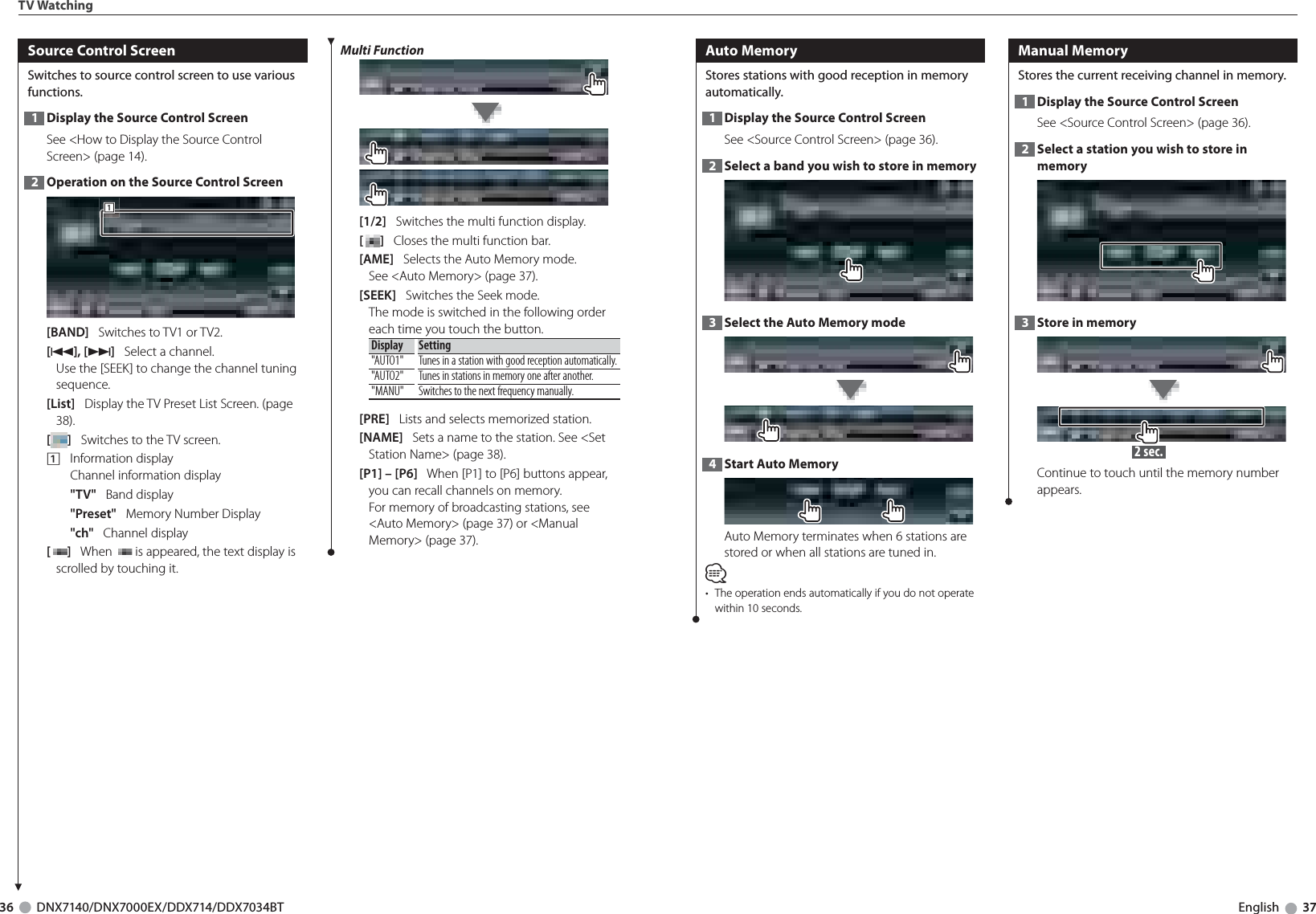

36 DNX7140/DNX7000EX/DDX714/DDX7034BT English 37TV Watching Manual MemoryStores the current receiving channel in memory.Display the Source 1 Control ScreenSee <Source Control Screen> (page 36). Select a station you wish to store in 2 memoryStore in memory3 2 sec. Continue to touch until the memory number appears. Source Control ScreenSwitches to source control screen to use various functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control Screen2 111[BAND] Switches to TV1 or TV2.[4], [¢] Select a channel. Use the [SEEK] to change the channel tuning sequence.[List] Display the TV Preset List Screen. (page 38).[] Switches to the TV screen.1 Information displayChannel information display"TV" Band display"Preset" Memory Number Display"ch" Channel display[] When is appeared, the text display is scrolled by touching it.Multi Function[1/2] Switches the multi function display.[] Closes the multi function bar.[AME] Selects the Auto Memory mode.See <Auto Memory> (page 37). [SEEK] Switches the Seek mode.The mode is switched in the following order each time you touch the button. Display Setting"AUTO1" Tunes in a station with good reception automatically."AUTO2" Tunes in stations in memory one after another."MANU" Switches to the next frequency manually.[PRE] Lists and selects memorized station.[NAME] Sets a name to the station. See <Set Station Name> (page 38).[P1] – [P6] When [P1] to [P6] buttons appear, you can recall channels on memory.For memory of broadcasting stations, see <Auto Memory> (page 37) or <Manual Memory> (page 37). Auto MemoryStores stations with good reception in memory automatically.Display the Source 1 Control ScreenSee <Source Control Screen> (page 36). Select a band you wish to store in memory2 Select the Auto Memory mode3 Start Auto Memory4 Auto Memory terminates when 6 stations are stored or when all stations are tuned in.⁄• The operation ends automatically if you do not operate within 10 seconds.

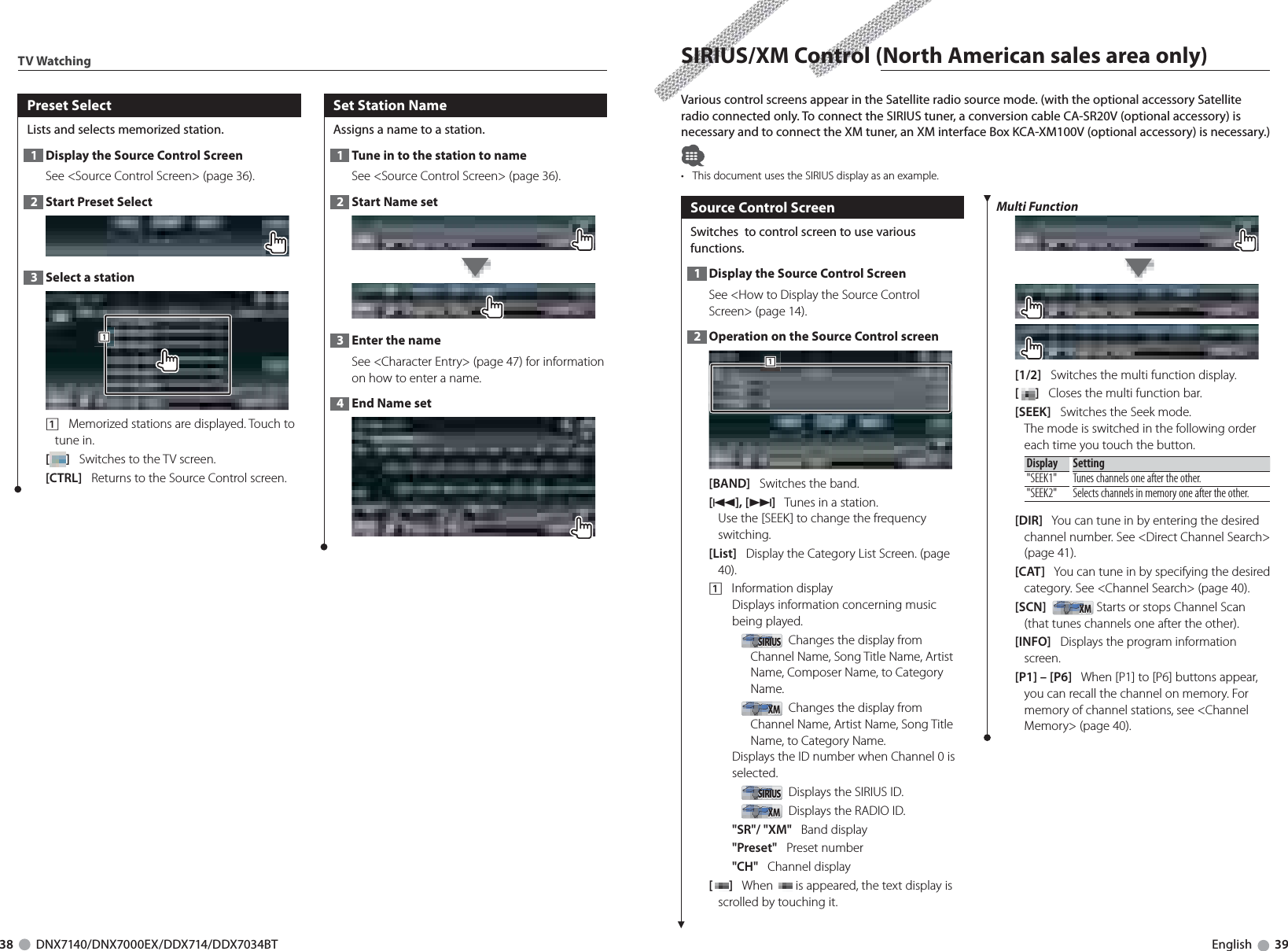

38 DNX7140/DNX7000EX/DDX714/DDX7034BT English 39 SIRIUS/XM Control (North American sales area only)TV Watching Set Station NameAssigns a name to a station.Tune in to the station to name1 See <Source Control Screen> (page 36). Start Name set2 Enter the name3 See <Character Entry> (page 47) for information on how to enter a name.End Name set4 Preset SelectLists and selects memorized station.Display the Source 1 Control ScreenSee <Source Control Screen> (page 36). Start Preset Select2 Select a station3 1111 Memorized stations are displayed. Touch to tune in.[] Switches to the TV screen.[CTRL] Returns to the Source Control screen. Source Control ScreenSwitches to control screen to use various functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control screen2 111[BAND] Switches the band.[4], [¢] Tunes in a station.Use the [SEEK] to change the frequency switching.[List] Display the Category List Screen. (page 40).1 Information displayDisplays information concerning music being played.SIRIUSSIRIUS Changes the display from Channel Name, Song Title Name, Artist Name, Composer Name, to Category Name.XMXM Changes the display from Channel Name, Artist Name, Song Title Name, to Category Name.Displays the ID number when Channel 0 is selected.SIRIUSSIRIUS Displays the SIRIUS ID.XMXM Displays the RADIO ID."SR"/ "XM" Band display"Preset" Preset number"CH" Channel display[] When is appeared, the text display is scrolled by touching it.Various control screens appear in the Satellite radio source mode. (with the optional accessory Satellite radio connected only. To connect the SIRIUS tuner, a conversion cable CA-SR20V (optional accessory) is necessary and to connect the XM tuner, an XM interface Box KCA-XM100V (optional accessory) is necessary.) • This document uses the SIRIUS display as an example.Multi Function[1/2] Switches the multi function display.[] Closes the multi function bar.[SEEK] Switches the Seek mode.The mode is switched in the following order each time you touch the button. Display Setting"SEEK1" Tunes channels one after the other."SEEK2" Selects channels in memory one after the other.[DIR] You can tune in by entering the desired channel number. See <Direct Channel Search> (page 41).[CAT] You can tune in by specifying the desired category. See <Channel Search> (page 40).[SCN] XMXM Starts or stops Channel Scan (that tunes channels one after the other).[INFO] Displays the program information screen.[P1] – [P6] When [P1] to [P6] buttons appear, you can recall the channel on memory. For memory of channel stations, see <Channel Memory> (page 40).

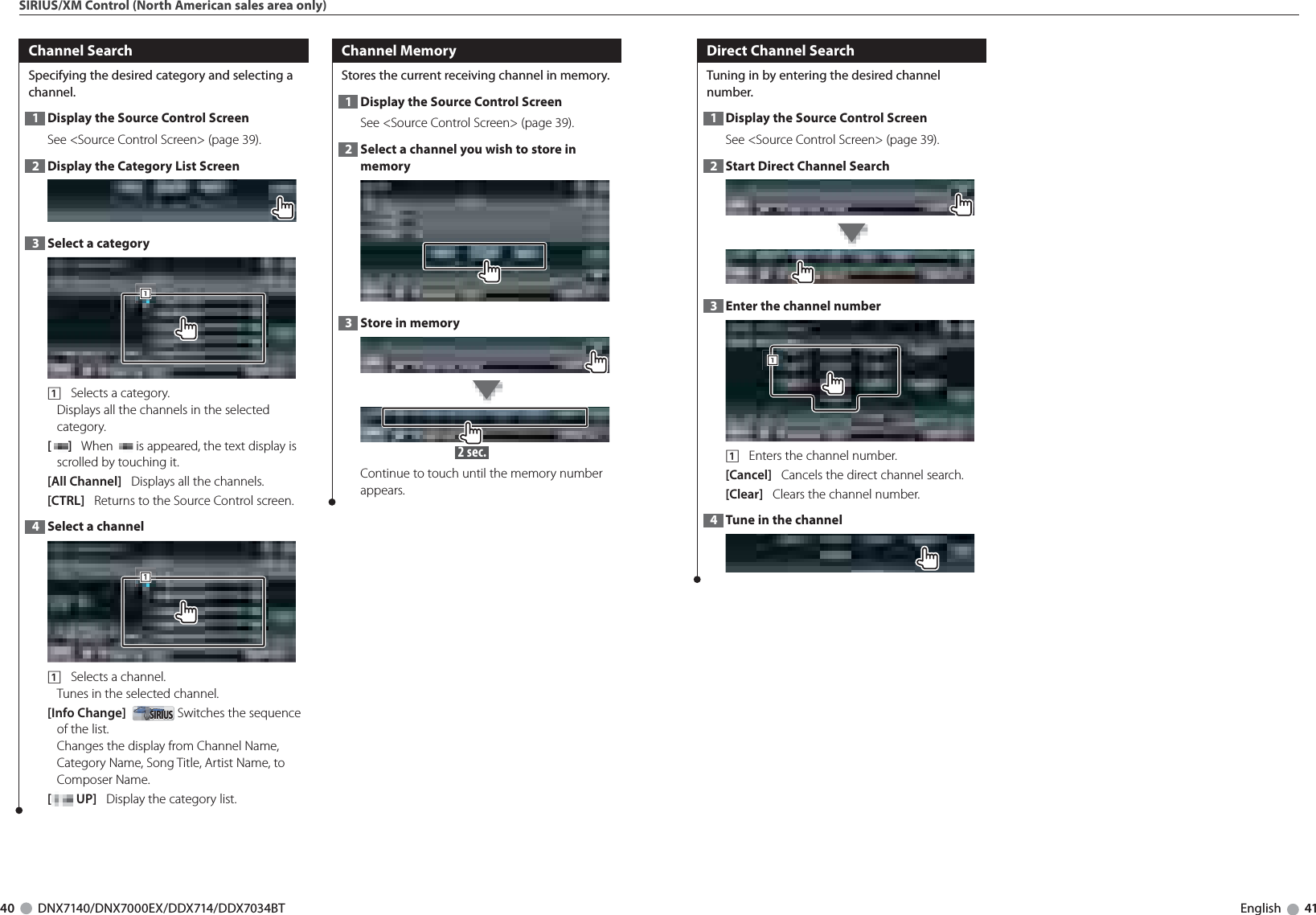

40 DNX7140/DNX7000EX/DDX714/DDX7034BT English 41SIRIUS/XM Control (North American sales area only) Channel SearchSpecifying the desired category and selecting a channel.Display the Source 1 Control ScreenSee <Source Control Screen> (page 39). Display the Category List Screen2 Select a category3 1111 Selects a category.Displays all the channels in the selected category.[] When is appeared, the text display is scrolled by touching it.[All Channel] Displays all the channels.[CTRL] Returns to the Source Control screen.Select a channel4 1111 Selects a channel.Tunes in the selected channel.[Info Change] SIRIUSSIRIUS Switches the sequence of the list.Changes the display from Channel Name, Category Name, Song Title, Artist Name, to Composer Name. [ UP] Display the category list. Channel MemoryStores the current receiving channel in memory.Display the Source 1 Control ScreenSee <Source Control Screen> (page 39). Select a channel you wish to store in 2 memoryStore in memory3 2 sec. Continue to touch until the memory number appears. Direct Channel SearchTuning in by entering the desired channel number.Display the Source 1 Control ScreenSee <Source Control Screen> (page 39). Start Direct Channel Search2 Enter the channel number3 1111 Enters the channel number.[Cancel] Cancels the direct channel search.[Clear] Clears the channel number.Tune in the channel4

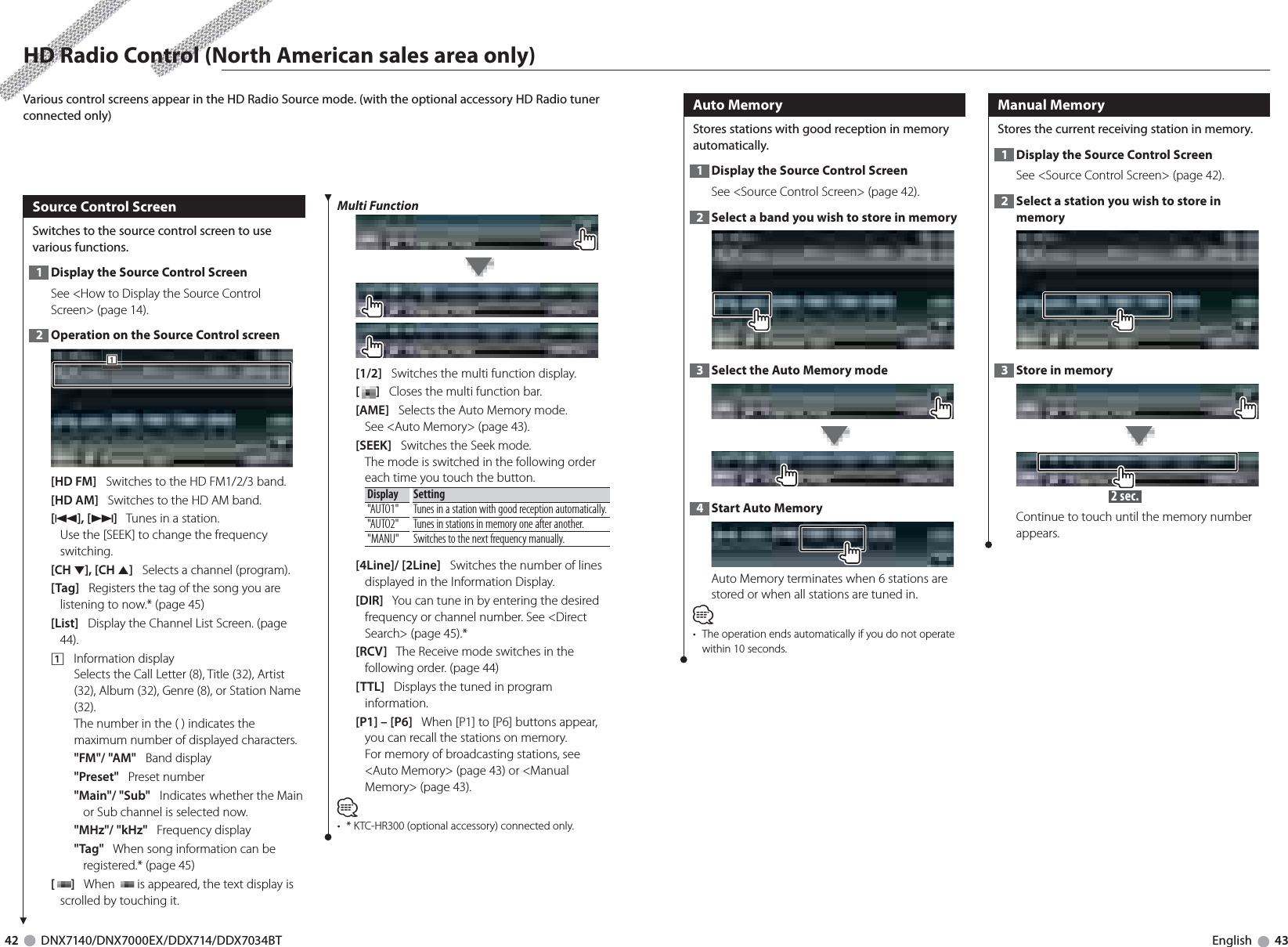

42 DNX7140/DNX7000EX/DDX714/DDX7034BT English 43 HD Radio Control (North American sales area only) Manual MemoryStores the current receiving station in memory.Display the Source 1 Control ScreenSee <Source Control Screen> (page 42). Select a station you wish to store in 2 memoryStore in memory3 2 sec. Continue to touch until the memory number appears. Auto MemoryStores stations with good reception in memory automatically.Display the Source 1 Control ScreenSee <Source Control Screen> (page 42). Select a band you wish to store in memory2 Select the Auto Memory mode3 Start Auto Memory4 Auto Memory terminates when 6 stations are stored or when all stations are tuned in.⁄• The operation ends automatically if you do not operate within 10 seconds.Multi Function[1/2] Switches the multi function display.[] Closes the multi function bar.[AME] Selects the Auto Memory mode.See <Auto Memory> (page 43).[SEEK] Switches the Seek mode.The mode is switched in the following order each time you touch the button. Display Setting"AUTO1" Tunes in a station with good reception automatically."AUTO2" Tunes in stations in memory one after another."MANU" Switches to the next frequency manually.[4Line]/ [2Line] Switches the number of lines displayed in the Information Display.[DIR] You can tune in by entering the desired frequency or channel number. See <Direct Search> (page 45).*[RCV] The Receive mode switches in the following order. (page 44)[TTL] Displays the tuned in program information.[P1] – [P6] When [P1] to [P6] buttons appear, you can recall the stations on memory.For memory of broadcasting stations, see <Auto Memory> (page 43) or <Manual Memory> (page 43).⁄* KTC-HR300 (optional accessory) connected only.• Various control screens appear in the HD Radio Source mode. (with the optional accessory HD Radio tuner connected only) Source Control ScreenSwitches to the source control screen to use various functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control screen2 111[HD FM] Switches to the HD FM1/2/3 band.[HD AM] Switches to the HD AM band.[4], [¢] Tunes in a station.Use the [SEEK] to change the frequency switching.[CH ∞], [CH 5] Selects a channel (program).[Tag] Registers the tag of the song you are listening to now.* (page 45)[List] Display the Channel List Screen. (page 44).1 Information displaySelects the Call Letter (8), Title (32), Artist (32), Album (32), Genre (8), or Station Name (32).The number in the ( ) indicates the maximum number of displayed characters."FM"/ "AM" Band display"Preset" Preset number"Main"/ "Sub" Indicates whether the Main or Sub channel is selected now."MHz"/ "kHz" Frequency display"Tag" When song information can be registered.* (page 45)[] When is appeared, the text display is scrolled by touching it.

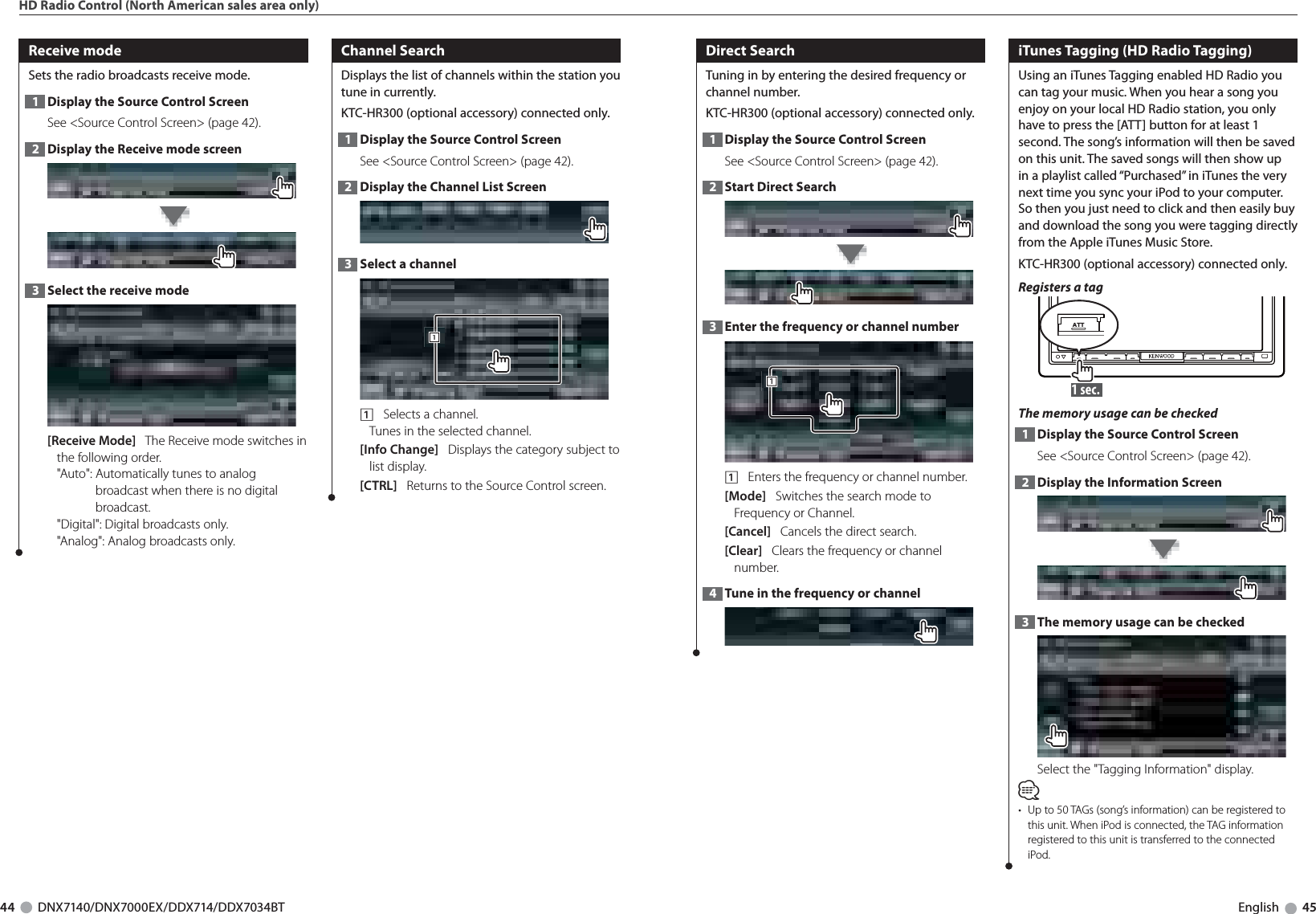

44 DNX7140/DNX7000EX/DDX714/DDX7034BT English 45HD Radio Control (North American sales area only) iTunes Tagging (HD Radio Tagging) Using an iTunes Tagging enabled HD Radio you can tag your music. When you hear a song you enjoy on your local HD Radio station, you only have to press the [ATT] button for at least 1 second. The song’s information will then be saved on this unit. The saved songs will then show up in a playlist called “Purchased” in iTunes the very next time you sync your iPod to your computer. So then you just need to click and then easily buy and download the song you were tagging directly from the Apple iTunes Music Store.KTC-HR300 (optional accessory) connected only.Registers a tag1 sec. ATTThe memory usage can be checkedDisplay the Source 1 Control ScreenSee <Source Control Screen> (page 42). Display the Information Screen2 The memory usage can be checked3 Select the "Tagging Information" display.⁄Up to 50 TAGs (song’s information) can be registered to • this unit. When iPod is connected, the TAG information registered to this unit is transferred to the connected iPod. Direct SearchTuning in by entering the desired frequency or channel number.KTC-HR300 (optional accessory) connected only.Display the Source 1 Control ScreenSee <Source Control Screen> (page 42). Start Direct Search2 Enter the frequency or channel number3 1111 Enters the frequency or channel number.[Mode] Switches the search mode to Frequency or Channel.[Cancel] Cancels the direct search.[Clear] Clears the frequency or channel number.Tune in the frequency or channel4 Channel SearchDisplays the list of channels within the station you tune in currently. KTC-HR300 (optional accessory) connected only.Display the Source 1 Control ScreenSee <Source Control Screen> (page 42). Display the Channel List Screen2 Select a channel3 1111 Selects a channel.Tunes in the selected channel.[Info Change] Displays the category subject to list display. [CTRL] Returns to the Source Control screen. Receive modeSets the radio broadcasts receive mode.Display the Source 1 Control ScreenSee <Source Control Screen> (page 42). Display the Receive mode screen2 Select the receive mode3 [Receive Mode] The Receive mode switches in the following order."Auto": Automatically tunes to analog broadcast when there is no digital broadcast."Digital": Digital broadcasts only."Analog": Analog broadcasts only.

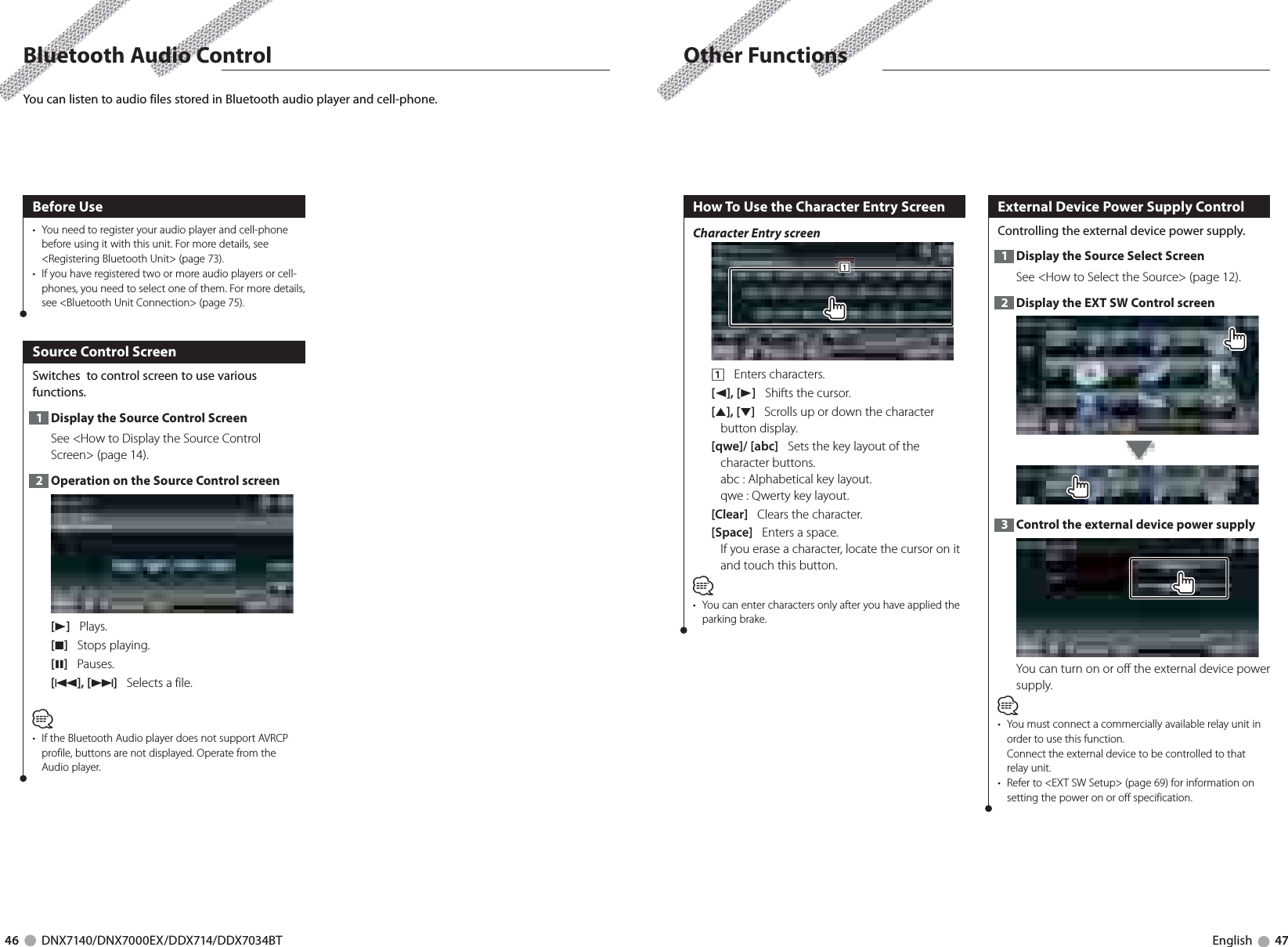

46 DNX7140/DNX7000EX/DDX714/DDX7034BT English 47Other Functions Bluetooth Audio ControlYou can listen to audio files stored in Bluetooth audio player and cell-phone.Before Use• You need to register your audio player and cell-phone before using it with this unit. For more details, see <Registering Bluetooth Unit> (page 73).• If you have registered two or more audio players or cell-phones, you need to select one of them. For more details, see <Bluetooth Unit Connection> (page 75).Source Control ScreenSwitches to control screen to use various functions.Display the Source 1 Control ScreenSee <How to Display the Source Control Screen> (page 14). Operation on the Source Control screen2 [3] Plays.[7] Stops playing.[8] Pauses.[4], [¢] Selects a file.⁄• If the Bluetooth Audio player does not support AVRCP profile, buttons are not displayed. Operate from the Audio player. How To Use the Character Entry ScreenCharacter Entry screen1111 Enters characters.[2], [3] Shifts the cursor.[5], [∞] Scrolls up or down the character button display.[qwe]/ [abc] Sets the key layout of the character buttons.abc : Alphabetical key layout. qwe : Qwerty key layout. [Clear] Clears the character.[Space] Enters a space.If you erase a character, locate the cursor on it and touch this button.⁄• You can enter characters only after you have applied the parking brake. External Device Power Supply ControlControlling the external device power supply.Display the Source Select Screen1 See <How to Select the Source> (page 12). Display the EXT SW Control screen2 Control the external device power supply3 You can turn on or off the external device power supply.⁄• You must connect a commercially available relay unit in order to use this function.Connect the external device to be controlled to that relay unit.• Refer to <EXT SW Setup> (page 69) for information on setting the power on or off specification.

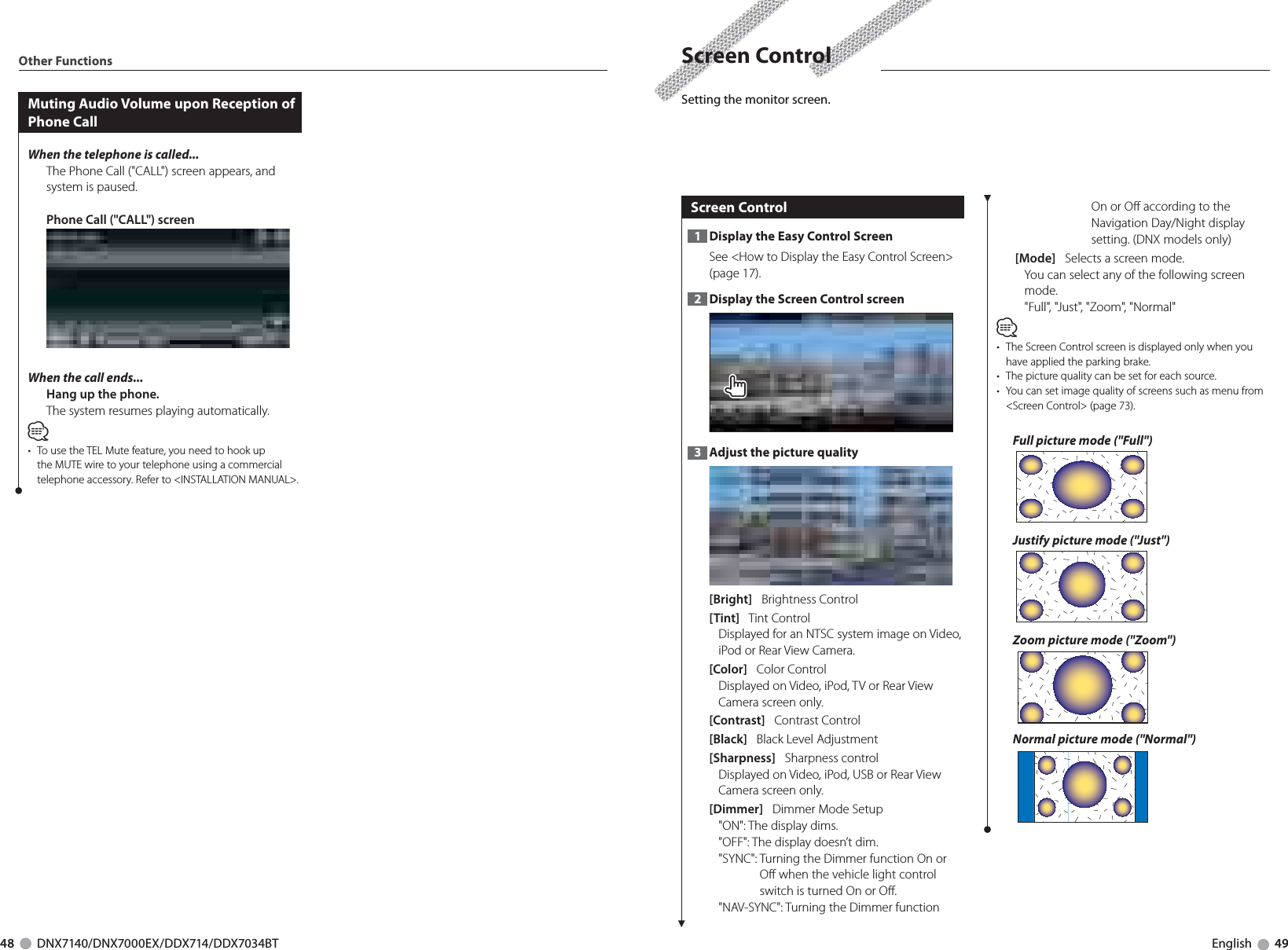

48 DNX7140/DNX7000EX/DDX714/DDX7034BT English 49Other FunctionsMuting Audio Volume upon Reception of Phone CallWhen the telephone is called...The Phone Call ("CALL") screen appears, and system is paused.Phone Call ("CALL") screenWhen the call ends...Hang up the phone.The system resumes playing automatically.⁄• To use the TEL Mute feature, you need to hook up the MUTE wire to your telephone using a commercial telephone accessory. Refer to <INSTALLATION MANUAL>.Screen Control Screen ControlDisplay the Easy Control Screen1 See <How to Display the Easy Control Screen> (page 17). Display the Screen Control screen2 Adjust the picture quality3 [Bright] Brightness Control[Tint] Tint ControlDisplayed for an NTSC system image on Video, iPod or Rear View Camera.[Color] Color ControlDisplayed on Video, iPod, TV or Rear View Camera screen only.[Contrast] Contrast Control[Black] Black Level Adjustment[Sharpness] Sharpness controlDisplayed on Video, iPod, USB or Rear View Camera screen only.[Dimmer] Dimmer Mode Setup"ON": The display dims."OFF": The display doesn’t dim."SYNC": Turning the Dimmer function On or Off when the vehicle light control switch is turned On or Off."NAV-SYNC": Turning the Dimmer function On or Off according to the Navigation Day/Night display setting. (DNX models only)[Mode] Selects a screen mode.You can select any of the following screen mode."Full", "Just", "Zoom", "Normal"⁄• The Screen Control screen is displayed only when you have applied the parking brake.• The picture quality can be set for each source.• You can set image quality of screens such as menu from <Screen Control> (page 73).Full picture mode ("Full")Justify picture mode ("Just")Zoom picture mode ("Zoom")Normal picture mode ("Normal")Setting the monitor screen.

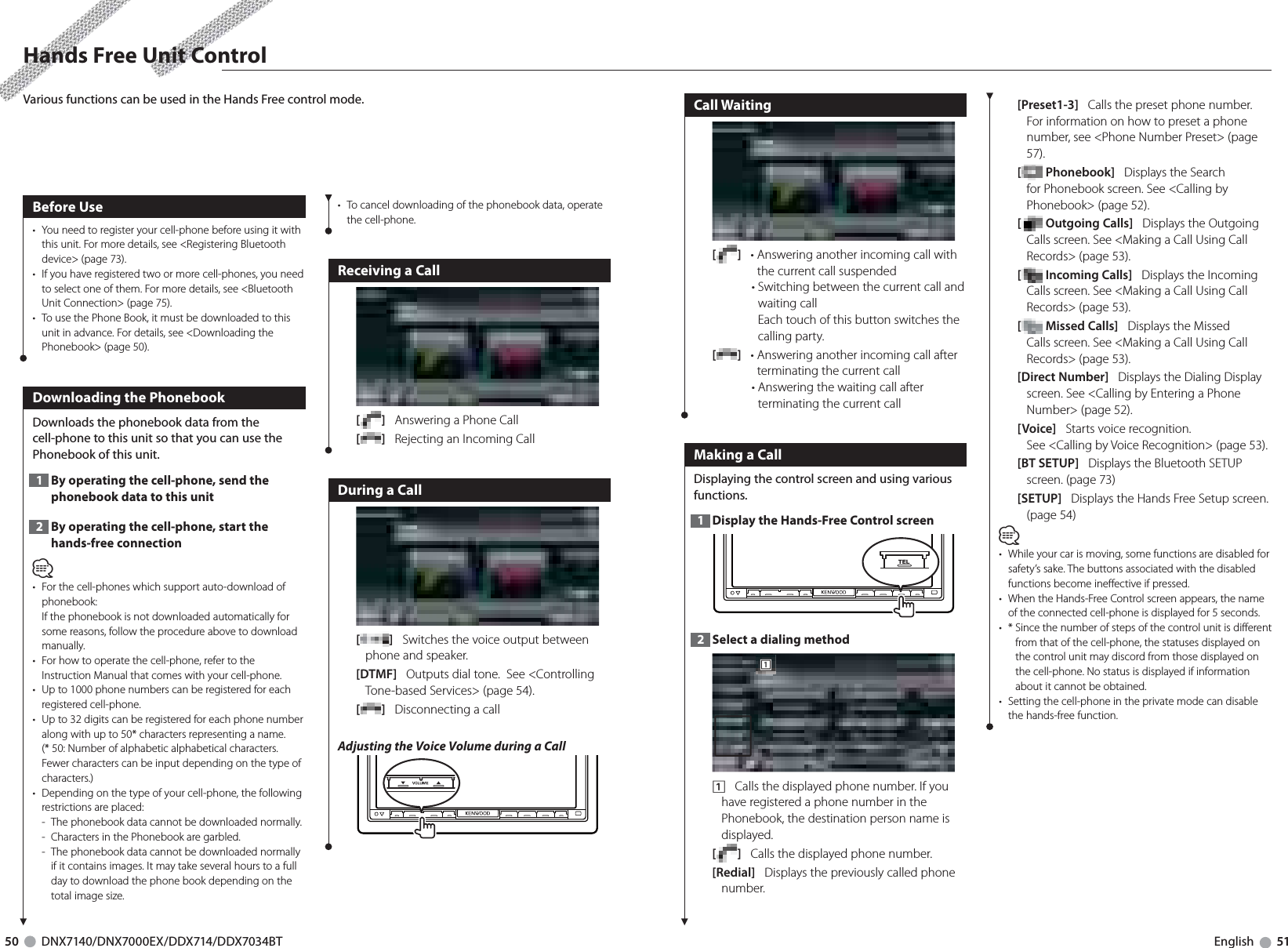

50 DNX7140/DNX7000EX/DDX714/DDX7034BT English 51[Preset1-3] Calls the preset phone number. For information on how to preset a phone number, see <Phone Number Preset> (page 57).[ Phonebook] Displays the Search for Phonebook screen. See <Calling by Phonebook> (page 52).[ Outgoing Calls] Displays the Outgoing Calls screen. See <Making a Call Using Call Records> (page 53).[ Incoming Calls] Displays the Incoming Calls screen. See <Making a Call Using Call Records> (page 53).[ Missed Calls] Displays the Missed Calls screen. See <Making a Call Using Call Records> (page 53).[Direct Number] Displays the Dialing Display screen. See <Calling by Entering a Phone Number> (page 52).[Voice] Starts voice recognition. See <Calling by Voice Recognition> (page 53).[BT SETUP] Displays the Bluetooth SETUP screen. (page 73)[SETUP] Displays the Hands Free Setup screen. (page 54)⁄While your car is moving, some functions are disabled for • safety’s sake. The buttons associated with the disabled functions become ineffective if pressed. When the Hands-Free Control screen appears, the name • of the connected cell-phone is displayed for 5 seconds.* Since the number of steps of the control unit is different • from that of the cell-phone, the statuses displayed on the control unit may discord from those displayed on the cell-phone. No status is displayed if information about it cannot be obtained. Setting the cell-phone in the private mode can disable • the hands-free function.Call Waiting[ ] • Answering another incoming call with the current call suspended• Switching between the current call and waiting callEach touch of this button switches the calling party.[] • Answering another incoming call after terminating the current call• Answering the waiting call after terminating the current call Making a CallDisplaying the control screen and using various functions.Display the Hands-Free Control screen1 TELSelect a dialing method2 1111 Calls the displayed phone number. If you have registered a phone number in the Phonebook, the destination person name is displayed.[] Calls the displayed phone number. [Redial] Displays the previously called phone number.Hands Free Unit ControlBefore UseYou need to register your cell-phone before using it with • this unit. For more details, see <Registering Bluetooth device> (page 73).If you have registered two or more cell-phones, you need • to select one of them. For more details, see <Bluetooth Unit Connection> (page 75).To use the Phone Book, it must be downloaded to this • unit in advance. For details, see <Downloading the Phonebook> (page 50). Downloading the Phonebook Downloads the phonebook data from the cell-phone to this unit so that you can use the Phonebook of this unit.By operating the cell-phone, send the 1 phonebook data to this unitBy operating the cell-phone, start the 2 hands-free connection⁄• For the cell-phones which support auto-download of phonebook:If the phonebook is not downloaded automatically for some reasons, follow the procedure above to download manually.• For how to operate the cell-phone, refer to the Instruction Manual that comes with your cell-phone.• Up to 1000 phone numbers can be registered for each registered cell-phone. • Up to 32 digits can be registered for each phone number along with up to 50* characters representing a name. (* 50: Number of alphabetic alphabetical characters. Fewer characters can be input depending on the type of characters.)• Depending on the type of your cell-phone, the following restrictions are placed:- The phonebook data cannot be downloaded normally.- Characters in the Phonebook are garbled.- The phonebook data cannot be downloaded normally if it contains images. It may take several hours to a full day to download the phone book depending on the total image size. Various functions can be used in the Hands Free control mode. • To cancel downloading of the phonebook data, operate the cell-phone.Receiving a Call[ ] Answering a Phone Call[] Rejecting an Incoming CallDuring a Call[ ] Switches the voice output between phone and speaker.[DTMF] Outputs dial tone. See <Controlling Tone-based Services> (page 54).[] Disconnecting a callAdjusting the Voice Volume during a Call

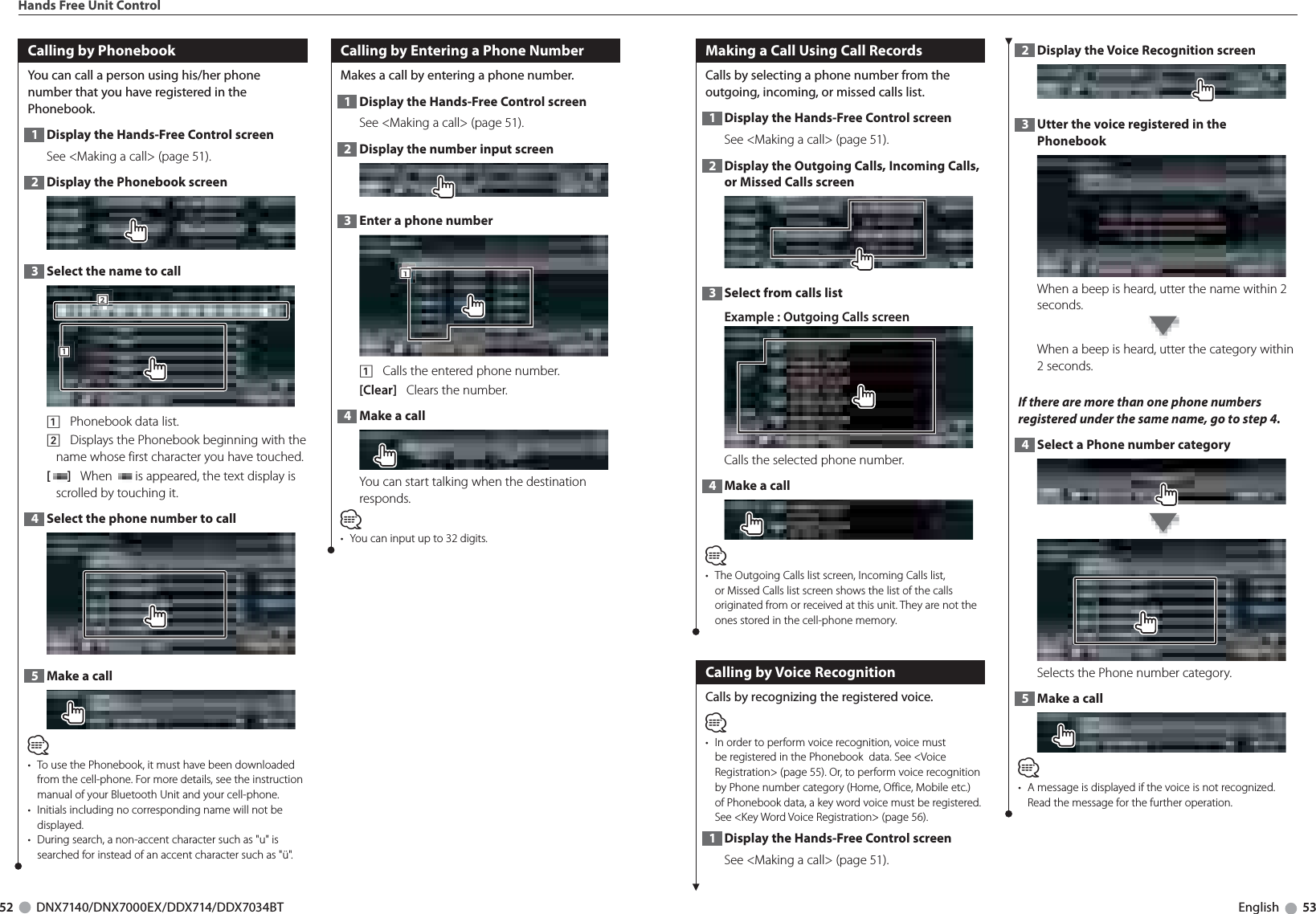

52 DNX7140/DNX7000EX/DDX714/DDX7034BT English 53 Calling by PhonebookYou can call a person using his/her phone number that you have registered in the Phonebook.Display the Hands-Free Control screen1 See <Making a call> (page 51). Display the Phonebook screen2 Select the name to call 3 1112221 Phonebook data list. 2 Displays the Phonebook beginning with the name whose first character you have touched.[] When is appeared, the text display is scrolled by touching it.Select the phone number to call 4 Make a call5 ⁄To use the Phonebook, it must have been downloaded • from the cell-phone. For more details, see the instruction manual of your Bluetooth Unit and your cell-phone.Initials including no corresponding name will not be • displayed.During search, a non-accent character such as "u" is • searched for instead of an accent character such as "ü". Calling by Entering a Phone NumberMakes a call by entering a phone number.Display the Hands-Free Control screen1 See <Making a call> (page 51). Display the number input screen2 Enter a phone number3 1111 Calls the entered phone number. [Clear] Clears the number.Make a call4 You can start talking when the destination responds.⁄You can input up to 32 digits.• Making a Call Using Call RecordsCalls by selecting a phone number from the outgoing, incoming, or missed calls list.Display the Hands-Free Control screen1 See <Making a call> (page 51). Display the Outgoing Calls, Incoming Calls, 2 or Missed Calls screenSelect from calls list 3 Example : Outgoing Calls screenCalls the selected phone number. Make a call4 ⁄The Outgoing Calls list screen, Incoming Calls list, • or Missed Calls list screen shows the list of the calls originated from or received at this unit. They are not the ones stored in the cell-phone memory. Calling by Voice RecognitionCalls by recognizing the registered voice. ⁄In order to perform voice recognition, voice must • be registered in the Phonebook data. See <Voice Registration> (page 55). Or, to perform voice recognition by Phone number category (Home, Office, Mobile etc.) of Phonebook data, a key word voice must be registered. See <Key Word Voice Registration> (page 56).Display the Hands-Free Control screen1 See <Making a call> (page 51). Display the Voice Recognition screen2 Utter the voice registered in the 3 PhonebookWhen a beep is heard, utter the name within 2 seconds.When a beep is heard, utter the category within 2 seconds.If there are more than one phone numbers registered under the same name, go to step 4.Select a Phone number category4 Selects the Phone number category. Make a call5 ⁄A message is displayed if the voice is not recognized. • Read the message for the further operation. Hands Free Unit Control

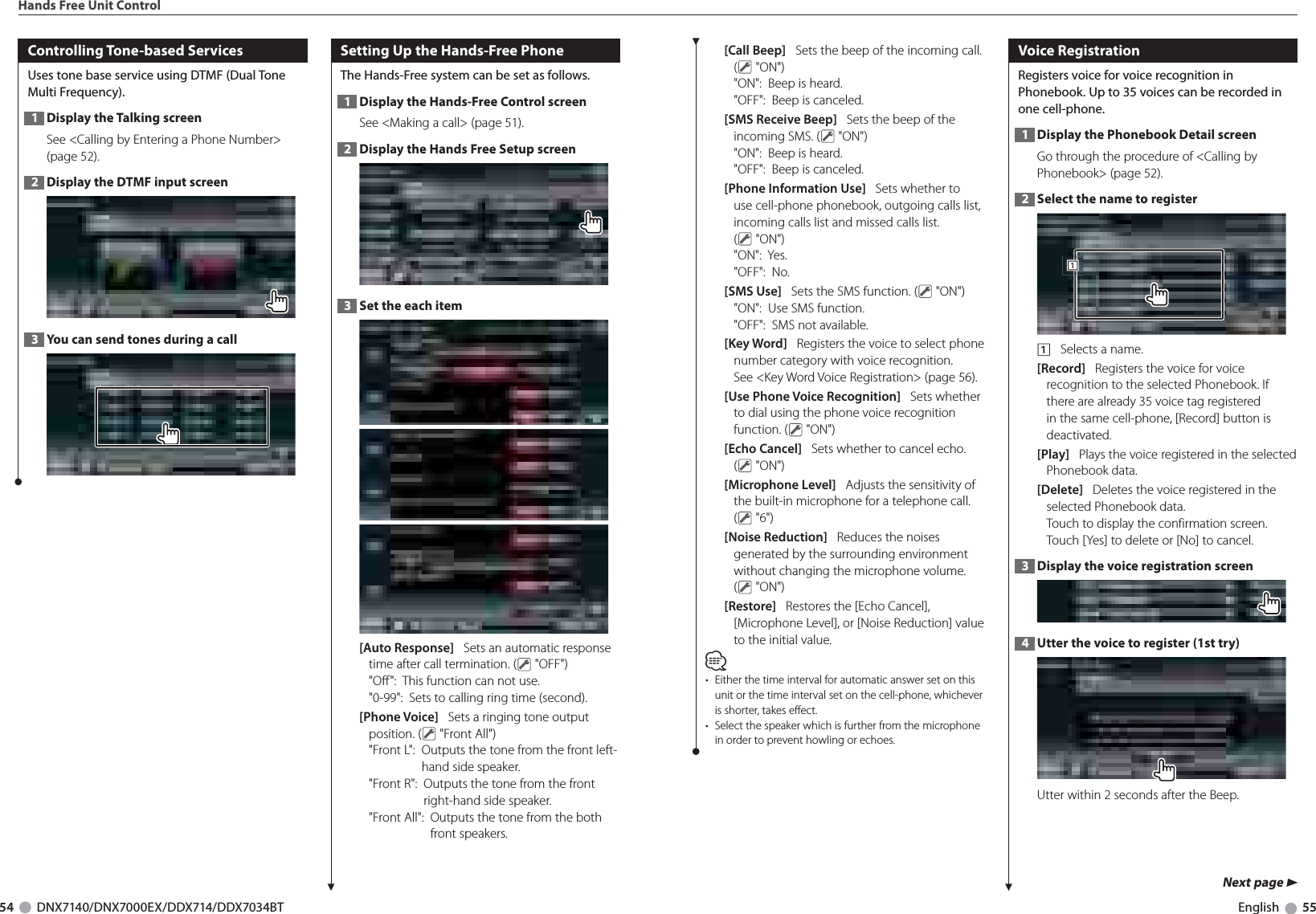

54 DNX7140/DNX7000EX/DDX714/DDX7034BT English 55Hands Free Unit Control Controlling Tone-based ServicesUses tone base service using DTMF (Dual Tone Multi Frequency). Display the Talking screen1 See <Calling by Entering a Phone Number> (page 52).Display the DTMF input screen2 You can send tones during a call3 Setting Up the Hands-Free PhoneThe Hands-Free system can be set as follows.Display the Hands-Free Control screen1 See <Making a call> (page 51). Display the Hands Free Setup screen2 Set the each item3 [Auto Response] Sets an automatic response time after call termination. ( "OFF")"Off": This function can not use."0-99": Sets to calling ring time (second).[Phone Voice] Sets a ringing tone output position. ( "Front All")"Front L": Outputs the tone from the front left-hand side speaker."Front R": Outputs the tone from the front right-hand side speaker."Front All": Outputs the tone from the both front speakers.[Call Beep] Sets the beep of the incoming call. ( "ON")"ON": Beep is heard."OFF": Beep is canceled.[SMS Receive Beep] Sets the beep of the incoming SMS. ( "ON")"ON": Beep is heard."OFF": Beep is canceled.[Phone Information Use] Sets whether to use cell-phone phonebook, outgoing calls list, incoming calls list and missed calls list. ( "ON")"ON": Yes."OFF": No.[SMS Use] Sets the SMS function. ( "ON")"ON": Use SMS function. "OFF": SMS not available. [Key Word] Registers the voice to select phone number category with voice recognition. See <Key Word Voice Registration> (page 56).[Use Phone Voice Recognition] Sets whether to dial using the phone voice recognition function. ( "ON")[Echo Cancel] Sets whether to cancel echo. ( "ON")[Microphone Level] Adjusts the sensitivity of the built-in microphone for a telephone call. ( "6")[Noise Reduction] Reduces the noises generated by the surrounding environment without changing the microphone volume. ( "ON")[Restore] Restores the [Echo Cancel], [Microphone Level], or [Noise Reduction] value to the initial value. ⁄Either the time interval for automatic answer set on this • unit or the time interval set on the cell-phone, whichever is shorter, takes effect. Select the speaker which is further from the microphone • in order to prevent howling or echoes. Voice RegistrationRegisters voice for voice recognition in Phonebook. Up to 35 voices can be recorded in one cell-phone.Display the Phonebook Detail screen1 Go through the procedure of <Calling by Phonebook> (page 52).Select the name to register2 1111 Selects a name. [Record] Registers the voice for voice recognition to the selected Phonebook. If there are already 35 voice tag registered in the same cell-phone, [Record] button is deactivated.[Play] Plays the voice registered in the selected Phonebook data. [Delete] Deletes the voice registered in the selected Phonebook data. Touch to display the confirmation screen. Touch [Yes] to delete or [No] to cancel.Display the voice registration screen 3 Utter the voice to register (1st try) 4 Utter within 2 seconds after the Beep. Next page 3

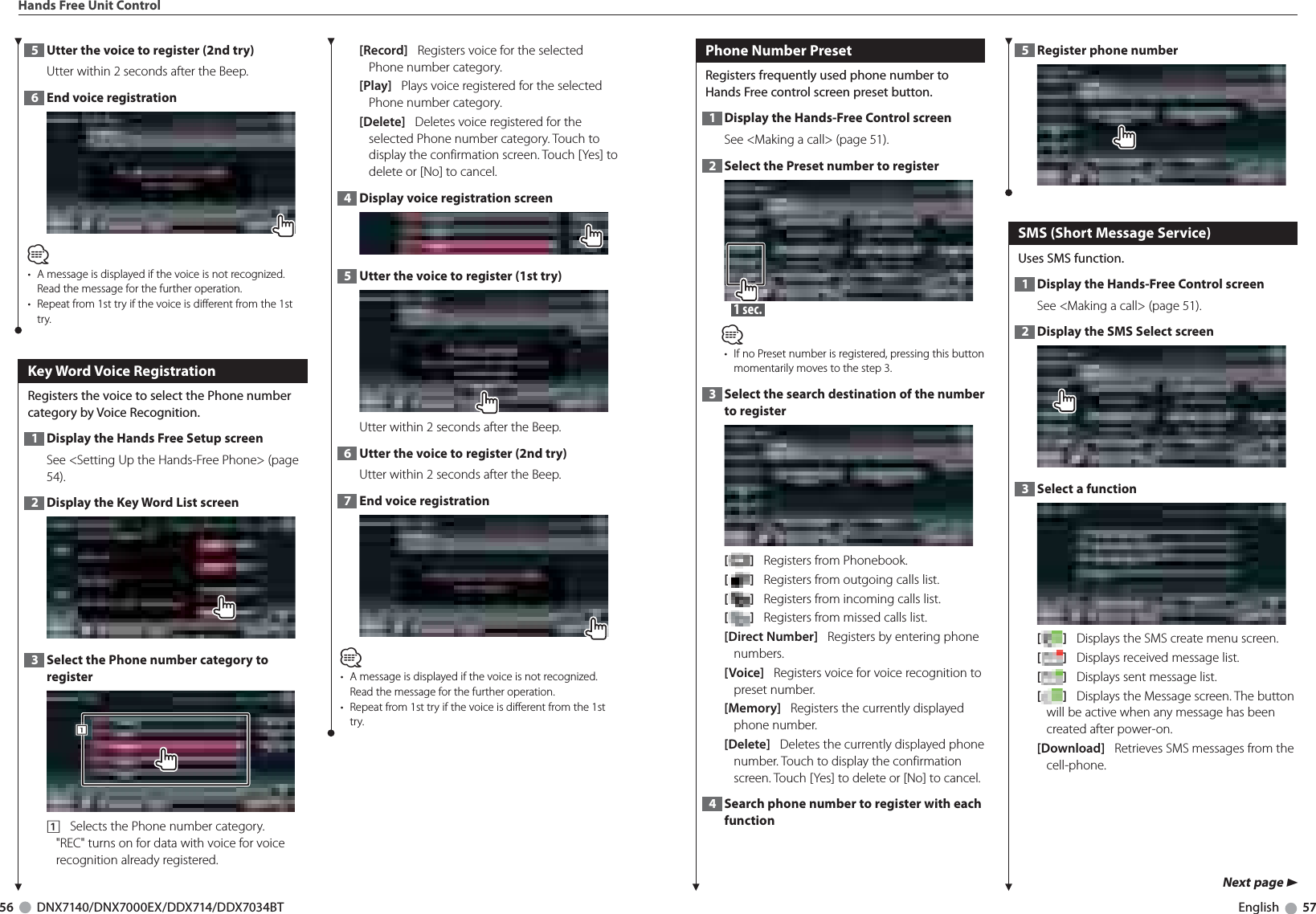

56 DNX7140/DNX7000EX/DDX714/DDX7034BT English 57Hands Free Unit ControlUtter the voice to register (2nd try)5 Utter within 2 seconds after the Beep. End voice registration6 ⁄A message is displayed if the voice is not recognized. • Read the message for the further operation. Repeat from 1st try if the voice is different from the 1st • try. Key Word Voice RegistrationRegisters the voice to select the Phone number category by Voice Recognition. Display the Hands Free Setup screen1 See <Setting Up the Hands-Free Phone> (page 54).Display the Key Word List screen2 Select the Phone number category to 3 register1111 Selects the Phone number category. "REC" turns on for data with voice for voice recognition already registered. [Record] Registers voice for the selected Phone number category. [Play] Plays voice registered for the selected Phone number category. [Delete] Deletes voice registered for the selected Phone number category. Touch to display the confirmation screen. Touch [Yes] to delete or [No] to cancel. Display voice registration screen4 Utter the voice to register (1st try) 5 Utter within 2 seconds after the Beep. Utter the voice to register (2nd try) 6 Utter within 2 seconds after the Beep. End voice registration 7 ⁄A message is displayed if the voice is not recognized. • Read the message for the further operation.Repeat from 1st try if the voice is different from the 1st • try. Phone Number PresetRegisters frequently used phone number to Hands Free control screen preset button.Display the Hands-Free Control screen1 See <Making a call> (page 51). Select the Preset number to register2 1 sec. ⁄If no Preset number is registered, pressing this button • momentarily moves to the step 3.Select the search destination of the number 3 to register[ ] Registers from Phonebook.[] Registers from outgoing calls list. [] Registers from incoming calls list. [] Registers from missed calls list. [Direct Number] Registers by entering phone numbers. [Voice] Registers voice for voice recognition to preset number. [Memory] Registers the currently displayed phone number. [Delete] Deletes the currently displayed phone number. Touch to display the confirmation screen. Touch [Yes] to delete or [No] to cancel.Search phone number to register with each 4 functionRegister phone number 5 SMS (Short Message Service)Uses SMS function.Display the Hands-Free Control screen1 See <Making a call> (page 51). Display the SMS Select screen2 Select a function3 [ ] Displays the SMS create menu screen.[] Displays received message list. [] Displays sent message list. [] Displays the Message screen. The button will be active when any message has been created after power-on. [Download] Retrieves SMS messages from the cell-phone. Next page 3

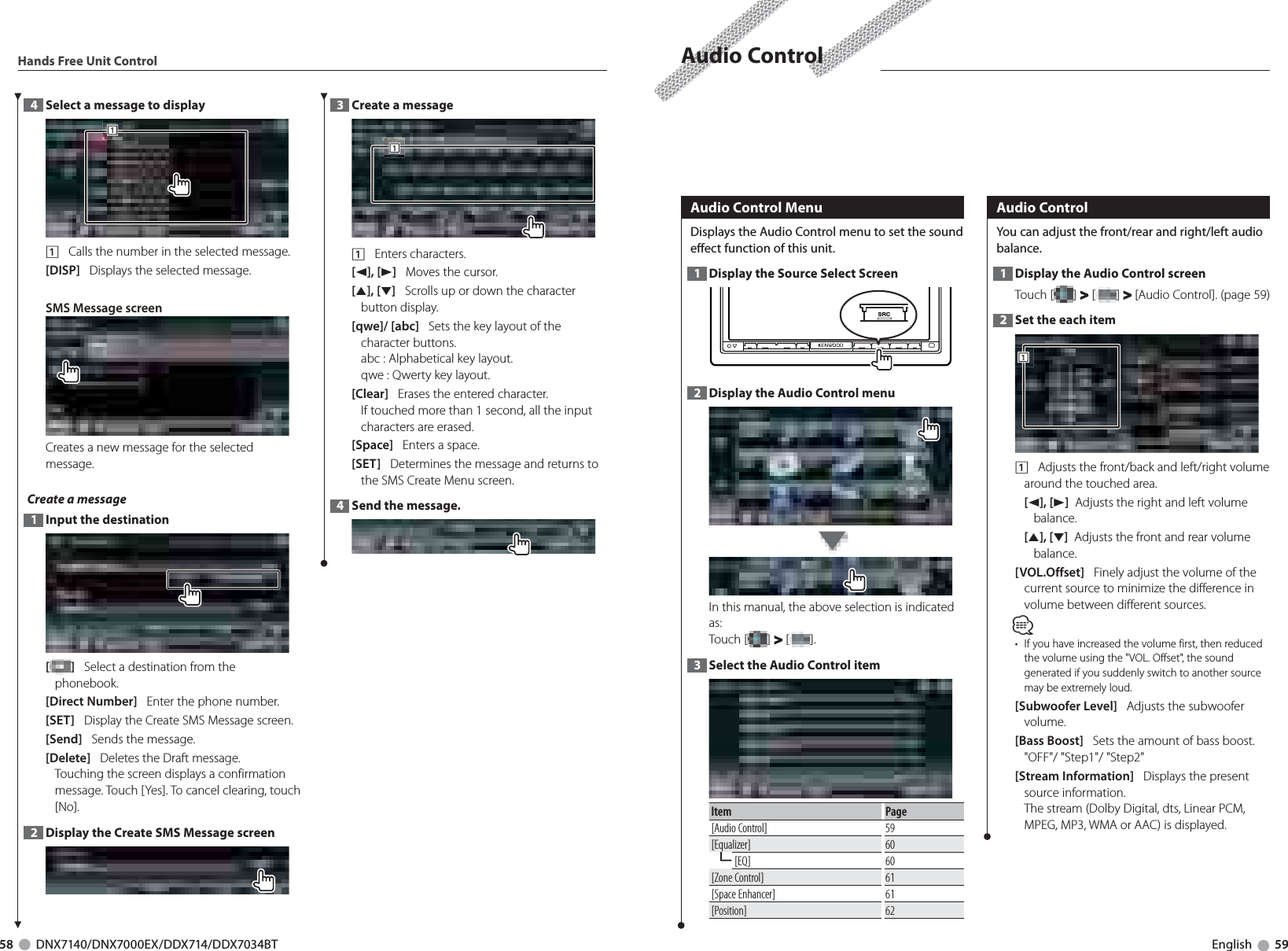

58 DNX7140/DNX7000EX/DDX714/DDX7034BT English 59Hands Free Unit ControlSelect a message to display 4 1111 Calls the number in the selected message. [DISP] Displays the selected message. SMS Message screenCreates a new message for the selected message. Create a message Input the destination1 [ ] Select a destination from the phonebook.[Direct Number] Enter the phone number.[SET] Display the Create SMS Message screen. [Send] Sends the message. [Delete] Deletes the Draft message. Touching the screen displays a confirmation message. Touch [Yes]. To cancel clearing, touch [No].Display the Create SMS Message screen2 Create a message3 1111 Enters characters.[2], [3] Moves the cursor. [5], [∞] Scrolls up or down the character button display.[qwe]/ [abc] Sets the key layout of the character buttons.abc : Alphabetical key layout. qwe : Qwerty key layout. [Clear] Erases the entered character. If touched more than 1 second, all the input characters are erased.[Space] Enters a space.[SET] Determines the message and returns to the SMS Create Menu screen.Send the message.4 Audio Control Audio Control MenuDisplays the Audio Control menu to set the sound effect function of this unit.Display the Source Select Screen1 SRCDisplay the Audio Control menu2 In this manual, the above selection is indicated as: Touch [ ] > [ ]. Select the Audio Control item3 Item Page[Audio Control] 59[Equalizer] 60[EQ] 60[Zone Control] 61[Space Enhancer] 61[Position] 62 Audio ControlYou can adjust the front/rear and right/left audio balance.Display the Audio Control screen1 Touch [ ] > [ ] > [Audio Control]. (page 59)Set the each item2 1111 Adjusts the front/back and left/right volume around the touched area. [2], [3] Adjusts the right and left volume balance.[5], [∞] Adjusts the front and rear volume balance.[VOL.Offset] Finely adjust the volume of the current source to minimize the difference in volume between different sources. ⁄If you have increased the volume first, then reduced • the volume using the "VOL. Offset", the sound generated if you suddenly switch to another source may be extremely loud.[Subwoofer Level] Adjusts the subwoofer volume.[Bass Boost] Sets the amount of bass boost. "OFF"/ "Step1"/ "Step2"[Stream Information] Displays the present source information.The stream (Dolby Digital, dts, Linear PCM, MPEG, MP3, WMA or AAC) is displayed.

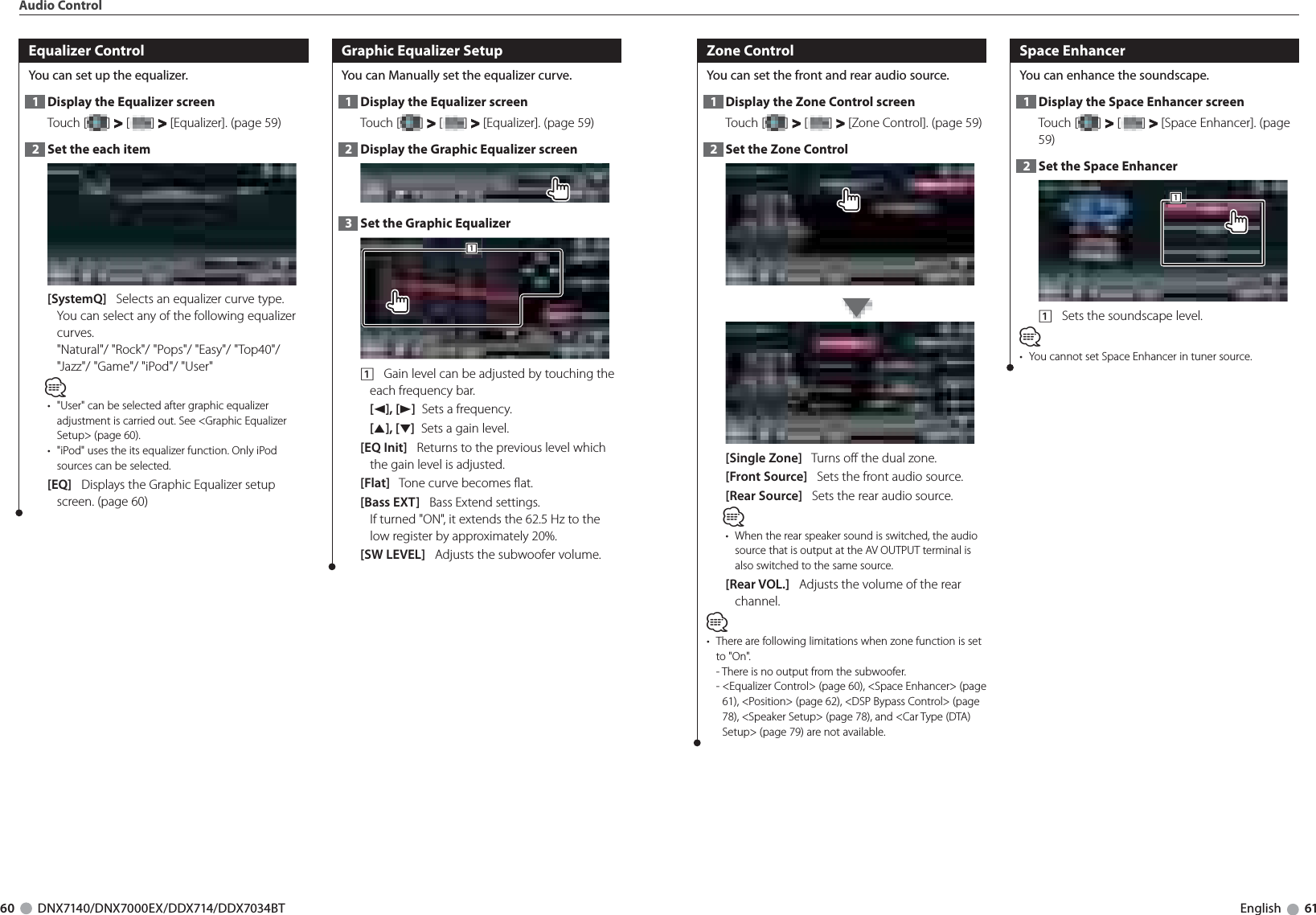

60 DNX7140/DNX7000EX/DDX714/DDX7034BT English 61Audio Control Equalizer ControlYou can set up the equalizer.Display the Equalizer screen1 Touch [ ] > [ ] > [Equalizer]. (page 59)Set the each item2 [SystemQ] Selects an equalizer curve type.You can select any of the following equalizer curves."Natural"/ "Rock"/ "Pops"/ "Easy"/ "Top40"/ "Jazz"/ "Game"/ "iPod"/ "User"⁄"User" can be selected after graphic equalizer • adjustment is carried out. See <Graphic Equalizer Setup> (page 60)."iPod" uses the its equalizer function. Only iPod • sources can be selected. [EQ] Displays the Graphic Equalizer setup screen. (page 60) Graphic Equalizer Setup You can Manually set the equalizer curve.Display the Equalizer screen1 Touch [ ] > [ ] > [Equalizer]. (page 59)Display the Graphic Equalizer screen2 Set the Graphic Equalizer3 1111 Gain level can be adjusted by touching the each frequency bar.[2], [3] Sets a frequency.[5], [∞] Sets a gain level.[EQ Init] Returns to the previous level which the gain level is adjusted.[Flat] Tone curve becomes flat.[Bass EXT] Bass Extend settings. If turned "ON", it extends the 62.5 Hz to the low register by approximately 20%. [SW LEVEL] Adjusts the subwoofer volume. Zone ControlYou can set the front and rear audio source.Display the Zone Control screen1 Touch [ ] > [ ] > [Zone Control]. (page 59)Set the Zone Control2 [Single Zone] Turns off the dual zone.[Front Source] Sets the front audio source.[Rear Source] Sets the rear audio source.⁄When the rear speaker sound is switched, the audio • source that is output at the AV OUTPUT terminal is also switched to the same source.[Rear VOL.] Adjusts the volume of the rear channel.⁄There are following limitations when zone function is set • to "On". - There is no output from the subwoofer. - <Equalizer Control> (page 60), <Space Enhancer> (page 61), <Position> (page 62), <DSP Bypass Control> (page 78), <Speaker Setup> (page 78), and <Car Type (DTA) Setup> (page 79) are not available. Space Enhancer You can enhance the soundscape.Display the Space Enhancer screen1 Touch [ ] > [ ] > [Space Enhancer]. (page 59)Set the Space Enhancer2 1111 Sets the soundscape level. ⁄You cannot set Space Enhancer in tuner source.•

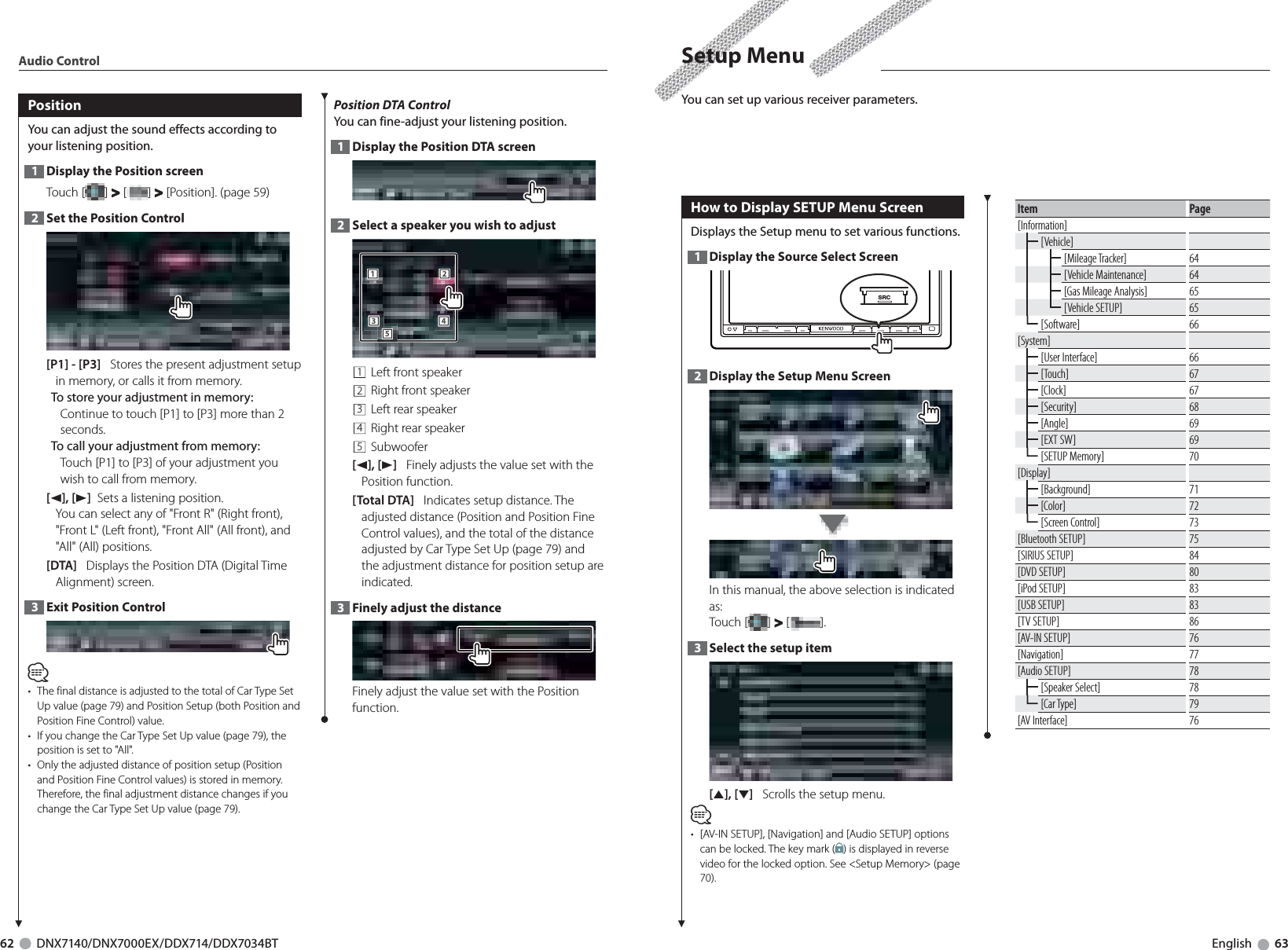

62 DNX7140/DNX7000EX/DDX714/DDX7034BT English 63Audio Control Position You can adjust the sound effects according to your listening position.Display the Position screen1 Touch [ ] > [ ] > [Position]. (page 59)Set the Position Control2 [P1] - [P3] Stores the present adjustment setup in memory, or calls it from memory.To store your adjustment in memory:Continue to touch [P1] to [P3] more than 2 seconds.To call your adjustment from memory:Touch [P1] to [P3] of your adjustment you wish to call from memory.[2], [3] Sets a listening position.You can select any of "Front R" (Right front), "Front L" (Left front), "Front All" (All front), and "All" (All) positions.[DTA] Displays the Position DTA (Digital Time Alignment) screen.Exit Position Control3 ⁄The final distance is adjusted to the total of Car Type Set • Up value (page 79) and Position Setup (both Position and Position Fine Control) value.If you change the Car Type Set Up value • (page 79), the position is set to "All".Only the adjusted distance of position setup (Position • and Position Fine Control values) is stored in memory. Therefore, the final adjustment distance changes if you change the Car Type Set Up value (page 79).Position DTA ControlYou can fine-adjust your listening position.Display the Position DTA screen1 Select a speaker you wish to adjust2 4442221115553331 Left front speaker2 Right front speaker3 Left rear speaker4 Right rear speaker5 Subwoofer[2], [3] Finely adjusts the value set with the Position function.[Total DTA] Indicates setup distance. The adjusted distance (Position and Position Fine Control values), and the total of the distance adjusted by Car Type Set Up (page 79) and the adjustment distance for position setup are indicated.Finely adjust the distance3 Finely adjust the value set with the Position function. Setup Menu How to Display SETUP Menu ScreenDisplays the Setup menu to set various functions.Display the Source Select Screen1 SRCDisplay the Setup Menu Screen2 In this manual, the above selection is indicated as: Touch [ ] > [ ]. Select the setup item3 [5], [∞] Scrolls the setup menu.⁄[AV-IN SETUP], [Navigation] and [Audio SETUP] options • can be locked. The key mark ( ) is displayed in reverse video for the locked option. See <Setup Memory> (page 70). You can set up various receiver parameters.Item Page[Information][Vehicle][Mileage Tracker] 64[Vehicle Maintenance] 64[Gas Mileage Analysis] 65[Vehicle SETUP] 65[Software] 66[System][User Interface] 66[Touch] 67[Clock] 67[Security] 68[Angle] 69[EXT SW] 69[SETUP Memory] 70[Display][Background] 71[Color] 72[Screen Control] 73[Bluetooth SETUP] 75[SIRIUS SETUP] 84[DVD SETUP] 80[iPod SETUP] 83[USB SETUP] 83[TV SETUP] 86[AV-IN SETUP] 76[Navigation] 77[Audio SETUP] 78[Speaker Select] 78[Car Type] 79[AV Interface] 76

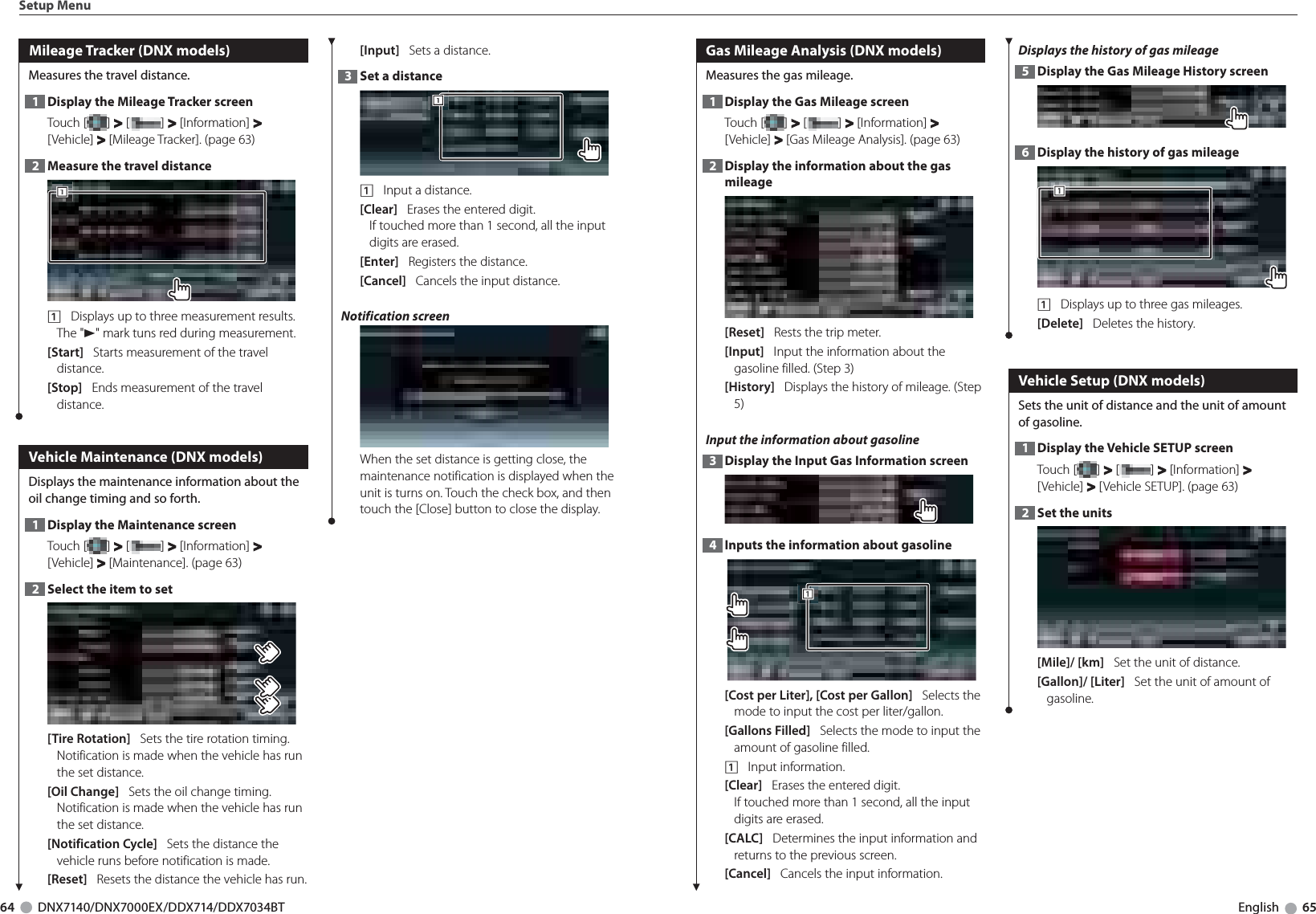

64 DNX7140/DNX7000EX/DDX714/DDX7034BT English 65Setup Menu Mileage Tracker (DNX models)Measures the travel distance.Display the Mileage Tracker screen1 Touch [ ] > [ ] > [Information] > [Vehicle] > [Mileage Tracker]. (page 63)Measure the travel distance2 1111 Displays up to three measurement results.The "3" mark tuns red during measurement.[Start] Starts measurement of the travel distance.[Stop] Ends measurement of the travel distance. Vehicle Maintenance (DNX models)Displays the maintenance information about the oil change timing and so forth.Display the Maintenance screen1 Touch [ ] > [ ] > [Information] > [Vehicle] > [Maintenance]. (page 63)Select the item to set2 [Tire Rotation] Sets the tire rotation timing. Notification is made when the vehicle has run the set distance. [Oil Change] Sets the oil change timing. Notification is made when the vehicle has run the set distance.[Notification Cycle] Sets the distance the vehicle runs before notification is made.[Reset] Resets the distance the vehicle has run. [Input] Sets a distance.Set a distance3 1111 Input a distance.[Clear] Erases the entered digit. If touched more than 1 second, all the input digits are erased.[Enter] Registers the distance.[Cancel] Cancels the input distance. Notification screenWhen the set distance is getting close, the maintenance notification is displayed when the unit is turns on. Touch the check box, and then touch the [Close] button to close the display. Gas Mileage Analysis (DNX models)Measures the gas mileage. Display the Gas Mileage screen1 Touch [ ] > [ ] > [Information] > [Vehicle] > [Gas Mileage Analysis]. (page 63)Display the information about the gas 2 mileage[Reset] Rests the trip meter. [Input] Input the information about the gasoline filled. (Step 3)[History] Displays the history of mileage. (Step 5)Input the information about gasolineDisplay the Input Gas Information screen3 Inputs the information about gasoline4 111[Cost per Liter], [Cost per Gallon] Selects the mode to input the cost per liter/gallon. [Gallons Filled] Selects the mode to input the amount of gasoline filled. 1 Input information.[Clear] Erases the entered digit. If touched more than 1 second, all the input digits are erased.[CALC] Determines the input information and returns to the previous screen. [Cancel] Cancels the input information. Displays the history of gas mileageDisplay the Gas Mileage History screen5 Display the history of gas mileage6 1111 Displays up to three gas mileages. [Delete] Deletes the history. Vehicle Setup (DNX models)Sets the unit of distance and the unit of amount of gasoline. Display the Vehicle SETUP screen1 Touch [ ] > [ ] > [Information] > [Vehicle] > [Vehicle SETUP]. (page 63)Set the units2 [Mile]/ [km] Set the unit of distance. [Gallon]/ [Liter] Set the unit of amount of gasoline.

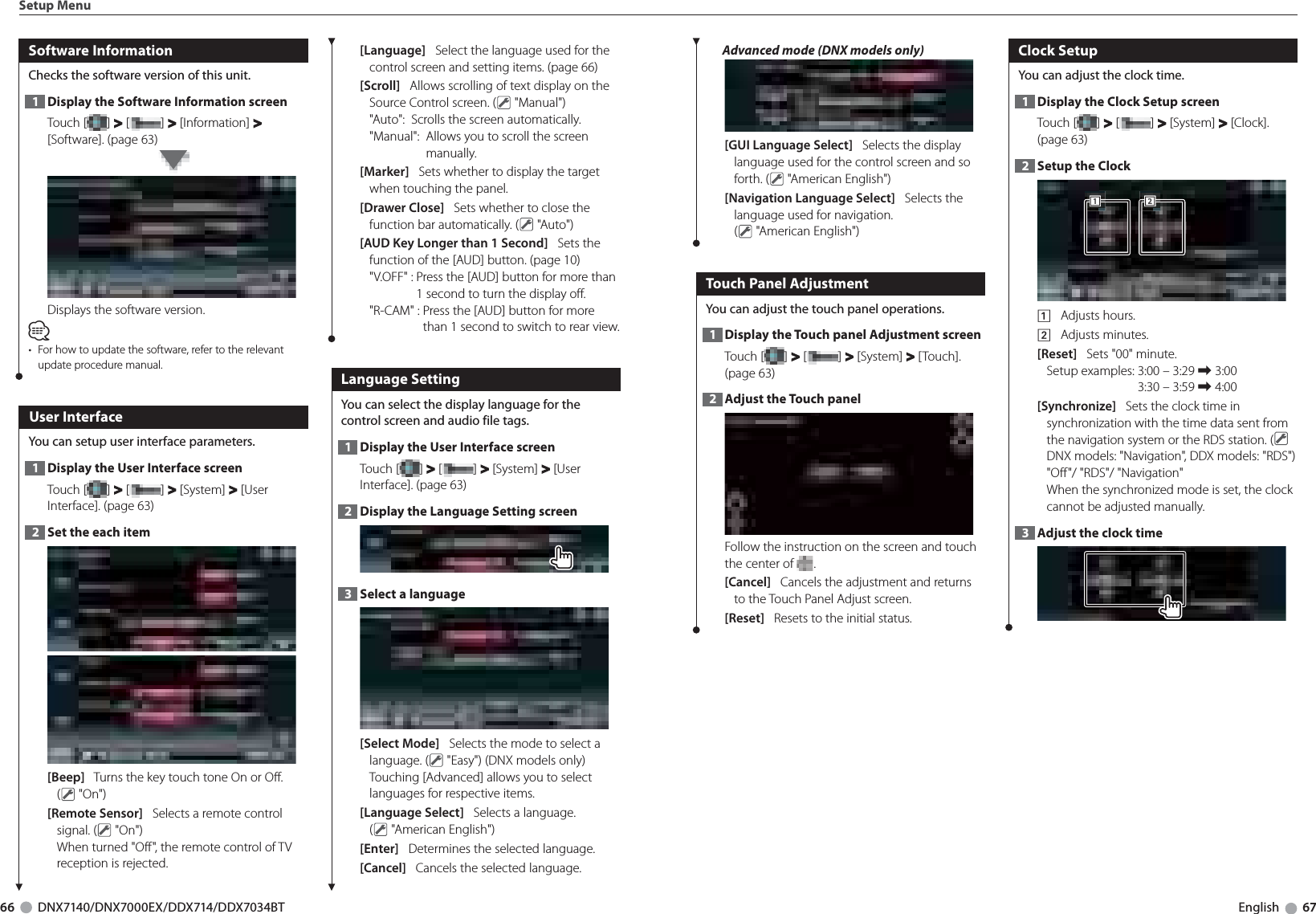

66 DNX7140/DNX7000EX/DDX714/DDX7034BT English 67Setup Menu Software InformationChecks the software version of this unit.Display the Software Information screen1 Touch [ ] > [ ] > [Information] > [Software]. (page 63)Displays the software version.⁄For how to update the software, refer to the relevant • update procedure manual. User InterfaceYou can setup user interface parameters.Display the User Interface screen1 Touch [ ] > [ ] > [System] > [User Interface]. (page 63)Set the each item2 [Beep] Turns the key touch tone On or Off. ( "On") [Remote Sensor] Selects a remote control signal. ( "On")When turned "Off", the remote control of TV reception is rejected.Advanced mode (DNX models only)[GUI Language Select] Selects the display language used for the control screen and so forth. ( "American English") [Navigation Language Select] Selects the language used for navigation. ( "American English") Touch Panel AdjustmentYou can adjust the touch panel operations.Display the Touch panel Adjustment screen1 Touch [ ] > [ ] > [System] > [Touch]. (page 63)Adjust the Touch panel2 Follow the instruction on the screen and touch the center of .[Cancel] Cancels the adjustment and returns to the Touch Panel Adjust screen.[Reset] Resets to the initial status.[Language] Select the language used for the control screen and setting items. (page 66)[Scroll] Allows scrolling of text display on the Source Control screen. ( "Manual")"Auto": Scrolls the screen automatically."Manual": Allows you to scroll the screen manually.[Marker] Sets whether to display the target when touching the panel.[Drawer Close] Sets whether to close the function bar automatically. ( "Auto")[AUD Key Longer than 1 Second] Sets the function of the [AUD] button. (page 10)"V.OFF" : Press the [AUD] button for more than 1 second to turn the display off."R-CAM" : Press the [AUD] button for more than 1 second to switch to rear view. Language SettingYou can select the display language for the control screen and audio file tags. Display the User Interface screen1 Touch [ ] > [ ] > [System] > [User Interface]. (page 63)Display the Language Setting screen2 Select a language3 [Select Mode] Selects the mode to select a language. ( "Easy") (DNX models only)Touching [Advanced] allows you to select languages for respective items. [Language Select] Selects a language. ( "American English") [Enter] Determines the selected language. [Cancel] Cancels the selected language. Clock SetupYou can adjust the clock time.Display the Clock Setup screen1 Touch [ ] > [ ] > [System] > [Clock]. (page 63)Setup the Clock2 2221111 Adjusts hours.2 Adjusts minutes.[Reset] Sets "00" minute.Setup examples: 3:00 – 3:29 \ 3:00 3:30 – 3:59 \ 4:00 [Synchronize] Sets the clock time in synchronization with the time data sent from the navigation system or the RDS station. ( DNX models: "Navigation", DDX models: "RDS")"Off"/ "RDS"/ "Navigation"When the synchronized mode is set, the clock cannot be adjusted manually. Adjust the clock time3

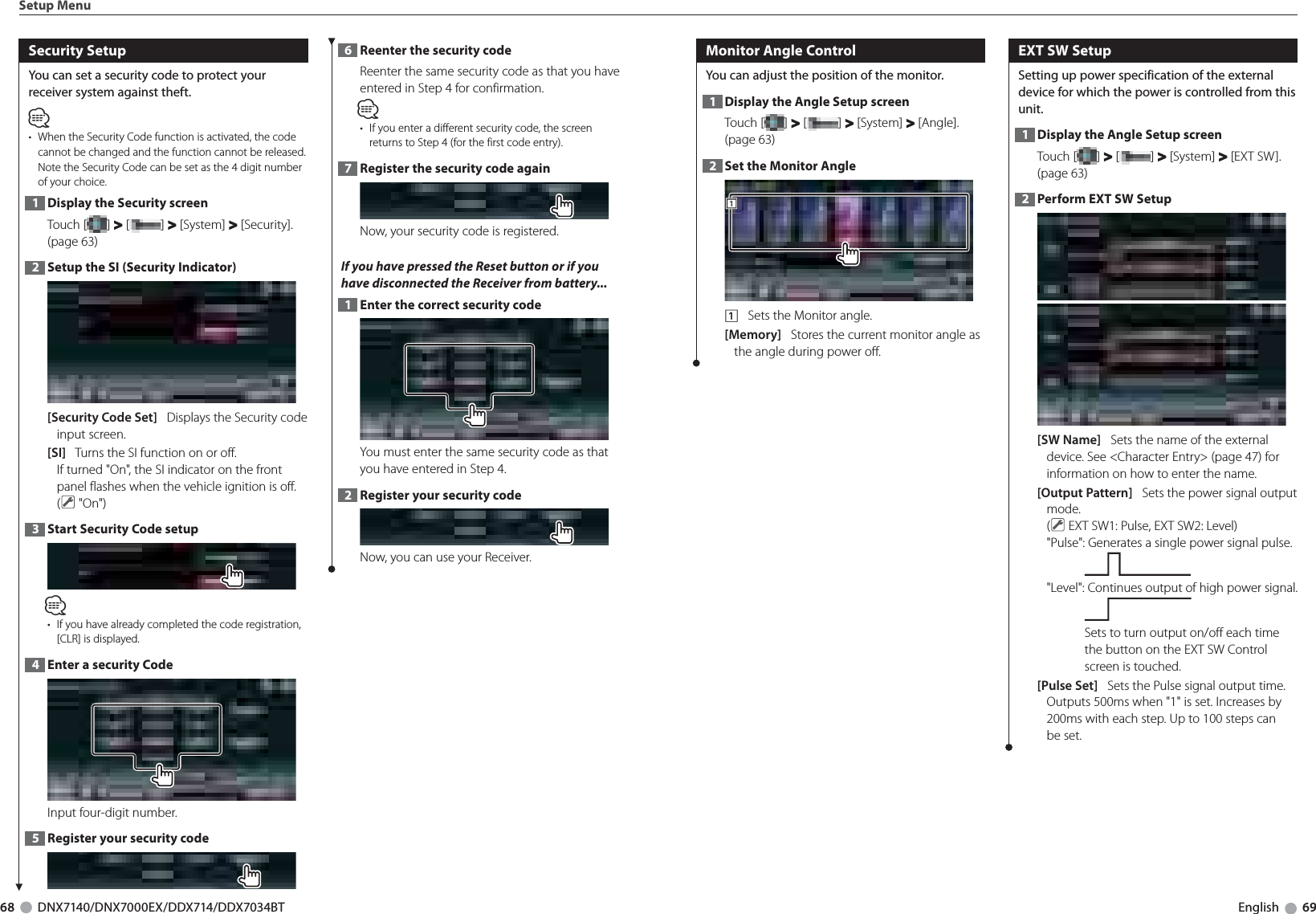

68 DNX7140/DNX7000EX/DDX714/DDX7034BT English 69Setup Menu Monitor Angle ControlYou can adjust the position of the monitor.Display the Angle Setup screen1 Touch [ ] > [ ] > [System] > [Angle]. (page 63)Set the Monitor Angle2 1111 Sets the Monitor angle.[Memory] Stores the current monitor angle as the angle during power off. Security SetupYou can set a security code to protect your receiver system against theft.⁄• When the Security Code function is activated, the code cannot be changed and the function cannot be released. Note the Security Code can be set as the 4 digit number of your choice.Display the Security screen1 Touch [ ] > [ ] > [System] > [Security]. (page 63)Setup the SI (Security Indicator)2 [Security Code Set] Displays the Security code input screen.[SI] Turns the SI function on or off.If turned "On", the SI indicator on the front panel flashes when the vehicle ignition is off. ( "On")Start Security Code setup3 ⁄If you have already completed the code registration, • [CLR] is displayed.Enter a security Code4 Input four-digit number.Register your security code5 Reenter the security code6 Reenter the same security code as that you have entered in Step 4 for confirmation.⁄If you enter a different security code, the screen • returns to Step 4 (for the first code entry).Register the security code again7 Now, your security code is registered. If you have pressed the Reset button or if you have disconnected the Receiver from battery...Enter the correct security code1 You must enter the same security code as that you have entered in Step 4.Register your security code2 Now, you can use your Receiver. EXT SW SetupSetting up power specification of the external device for which the power is controlled from this unit. Display the Angle Setup screen1 Touch [ ] > [ ] > [System] > [EXT SW]. (page 63)Perform EXT SW Setup2 [SW Name] Sets the name of the external device. See <Character Entry> (page 47) for information on how to enter the name.[Output Pattern] Sets the power signal output mode.( EXT SW1: Pulse, EXT SW2: Level)"Pulse": Generates a single power signal pulse."Level": Continues output of high power signal.Sets to turn output on/off each time the button on the EXT SW Control screen is touched.[Pulse Set] Sets the Pulse signal output time. Outputs 500ms when "1" is set. Increases by 200ms with each step. Up to 100 steps can be set.

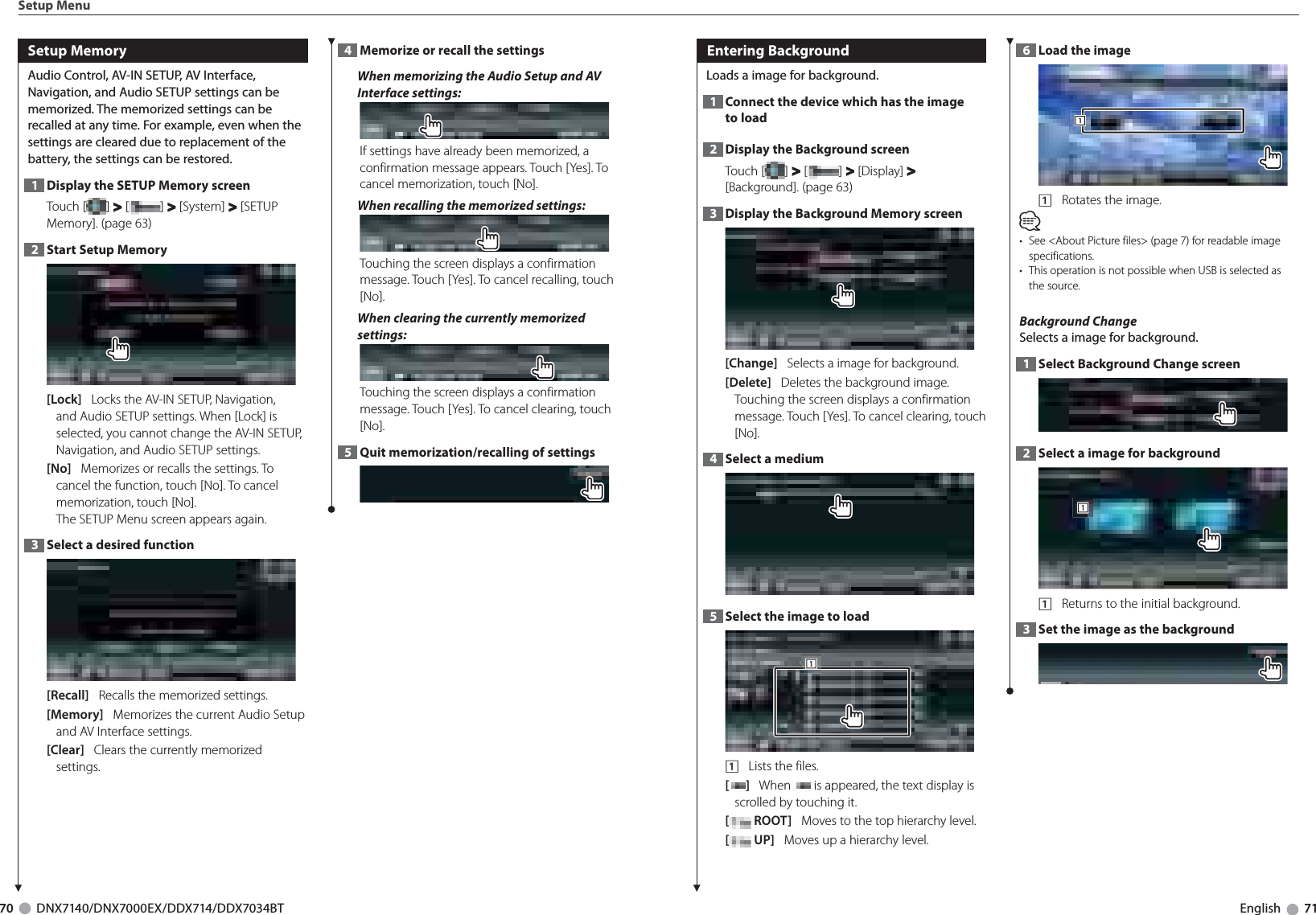

70 DNX7140/DNX7000EX/DDX714/DDX7034BT English 71Setup Menu Setup MemoryAudio Control, AV-IN SETUP, AV Interface, Navigation, and Audio SETUP settings can be memorized. The memorized settings can be recalled at any time. For example, even when the settings are cleared due to replacement of the battery, the settings can be restored.Display the SETUP Memory screen1 Touch [ ] > [ ] > [System] > [SETUP Memory]. (page 63)Start Setup Memory2 [Lock] Locks the AV-IN SETUP, Navigation, and Audio SETUP settings. When [Lock] is selected, you cannot change the AV-IN SETUP, Navigation, and Audio SETUP settings.[No] Memorizes or recalls the settings. To cancel the function, touch [No]. To cancel memorization, touch [No].The SETUP Menu screen appears again.Select a desired function3 [Recall] Recalls the memorized settings.[Memory] Memorizes the current Audio Setup and AV Interface settings.[Clear] Clears the currently memorized settings. Entering BackgroundLoads a image for background.Connect the device which has the image 1 to loadDisplay the Background screen2 Touch [ ] > [ ] > [Display] > [Background]. (page 63)Display the Background Memory screen3 [Change] Selects a image for background. [Delete] Deletes the background image. Touching the screen displays a confirmation message. Touch [Yes]. To cancel clearing, touch [No].Select a medium4 Select the image to load5 1111 Lists the files.[] When is appeared, the text display is scrolled by touching it.[ ROOT] Moves to the top hierarchy level.[ UP] Moves up a hierarchy level.Memorize or recall the settings4 When memorizing the Audio Setup and AV Interface settings:If settings have already been memorized, a confirmation message appears. Touch [Yes]. To cancel memorization, touch [No].When recalling the memorized settings:Touching the screen displays a confirmation message. Touch [Yes]. To cancel recalling, touch [No]. When clearing the currently memorized settings:Touching the screen displays a confirmation message. Touch [Yes]. To cancel clearing, touch [No]. Quit memorization/recalling of settings5 Load the image6 1111 Rotates the image.⁄See • <About Picture files> (page 7) for readable image specifications.This operation is not possible when USB is selected as • the source.Background ChangeSelects a image for background.Select Background Change screen1 Select a image for background2 1111 Returns to the initial background.Set the image as the background3

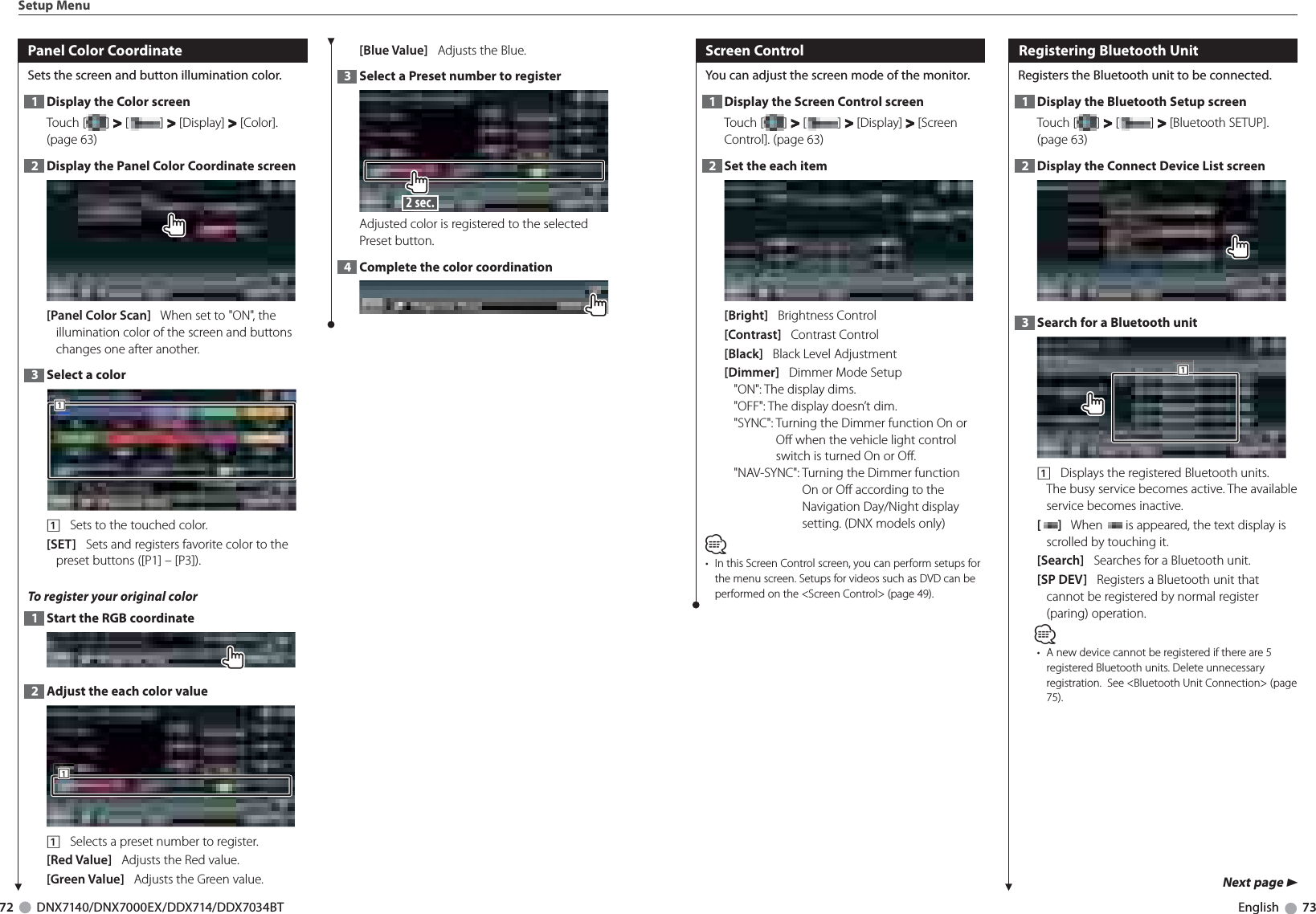

72 DNX7140/DNX7000EX/DDX714/DDX7034BT English 73Setup Menu Panel Color CoordinateSets the screen and button illumination color. Display the Color screen1 Touch [ ] > [ ] > [Display] > [Color]. (page 63)Display the Panel Color Coordinate screen2 [Panel Color Scan] When set to "ON", the illumination color of the screen and buttons changes one after another. Select a color3 1111 Sets to the touched color. [SET] Sets and registers favorite color to the preset buttons ([P1] – [P3]). To register your original colorStart the RGB coordinate1 Adjust the each color value2 1111 Selects a preset number to register.[Red Value] Adjusts the Red value.[Green Value] Adjusts the Green value. Screen ControlYou can adjust the screen mode of the monitor.Display the Screen Control screen1 Touch [ ] > [ ] > [Display] > [Screen Control]. (page 63)Set the each item2 [Bright] Brightness Control[Contrast] Contrast Control[Black] Black Level Adjustment[Dimmer] Dimmer Mode Setup"ON": The display dims."OFF": The display doesn’t dim."SYNC": Turning the Dimmer function On or Off when the vehicle light control switch is turned On or Off."NAV-SYNC": Turning the Dimmer function On or Off according to the Navigation Day/Night display setting. (DNX models only)⁄• In this Screen Control screen, you can perform setups for the menu screen. Setups for videos such as DVD can be performed on the <Screen Control> (page 49).[Blue Value] Adjusts the Blue.Select a Preset number to register3 2 sec. Adjusted color is registered to the selected Preset button. Complete the color coordination4 Registering Bluetooth UnitRegisters the Bluetooth unit to be connected. Display the Bluetooth Setup screen1 Touch [ ] > [ ] > [Bluetooth SETUP]. (page 63)Display the Connect Device List screen2 Search for a Bluetooth unit3 1111 Displays the registered Bluetooth units. The busy service becomes active. The available service becomes inactive. [] When is appeared, the text display is scrolled by touching it.[Search] Searches for a Bluetooth unit.[SP DEV] Registers a Bluetooth unit that cannot be registered by normal register (paring) operation. ⁄A new device cannot be registered if there are 5 • registered Bluetooth units. Delete unnecessary registration. See <Bluetooth Unit Connection> (page 75). Next page 3

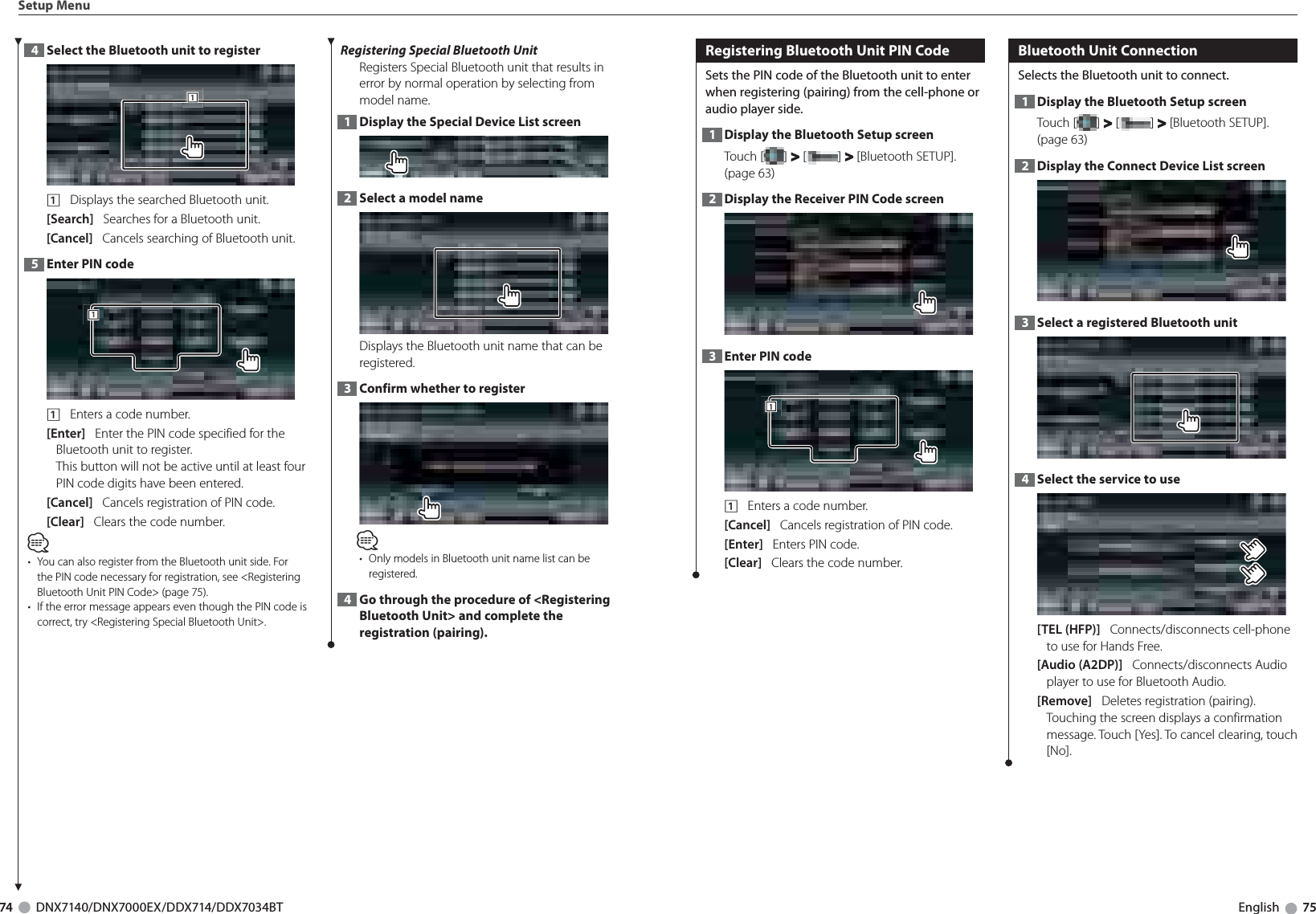

74 DNX7140/DNX7000EX/DDX714/DDX7034BT English 75Setup MenuSelect the Bluetooth unit to register4 1111 Displays the searched Bluetooth unit. [Search] Searches for a Bluetooth unit.[Cancel] Cancels searching of Bluetooth unit.Enter PIN code 5 1111 Enters a code number.[Enter] Enter the PIN code specified for the Bluetooth unit to register.This button will not be active until at least four PIN code digits have been entered. [Cancel] Cancels registration of PIN code. [Clear] Clears the code number.⁄You can also register from the Bluetooth unit side. For • the PIN code necessary for registration, see <Registering Bluetooth Unit PIN Code> (page 75). If the error message appears even though the PIN code is • correct, try <Registering Special Bluetooth Unit>. Registering Bluetooth Unit PIN CodeSets the PIN code of the Bluetooth unit to enter when registering (pairing) from the cell-phone or audio player side. Display the Bluetooth Setup screen1 Touch [ ] > [ ] > [Bluetooth SETUP]. (page 63)Display the Receiver PIN Code screen2 Enter PIN code3 1111 Enters a code number.[Cancel] Cancels registration of PIN code. [Enter] Enters PIN code. [Clear] Clears the code number.Registering Special Bluetooth UnitRegisters Special Bluetooth unit that results in error by normal operation by selecting from model name. Display the Special Device List screen1 Select a model name2 Displays the Bluetooth unit name that can be registered. Confirm whether to register3 ⁄Only models in Bluetooth unit name list can be • registered.Go through the procedure of <Registering 4 Bluetooth Unit> and complete the registration (pairing). Bluetooth Unit ConnectionSelects the Bluetooth unit to connect. Display the Bluetooth Setup screen1 Touch [ ] > [ ] > [Bluetooth SETUP]. (page 63)Display the Connect Device List screen2 Select a registered Bluetooth unit3 Select the service to use4 [TEL (HFP)] Connects/disconnects cell-phone to use for Hands Free. [Audio (A2DP)] Connects/disconnects Audio player to use for Bluetooth Audio. [Remove] Deletes registration (pairing).Touching the screen displays a confirmation message. Touch [Yes]. To cancel clearing, touch [No].

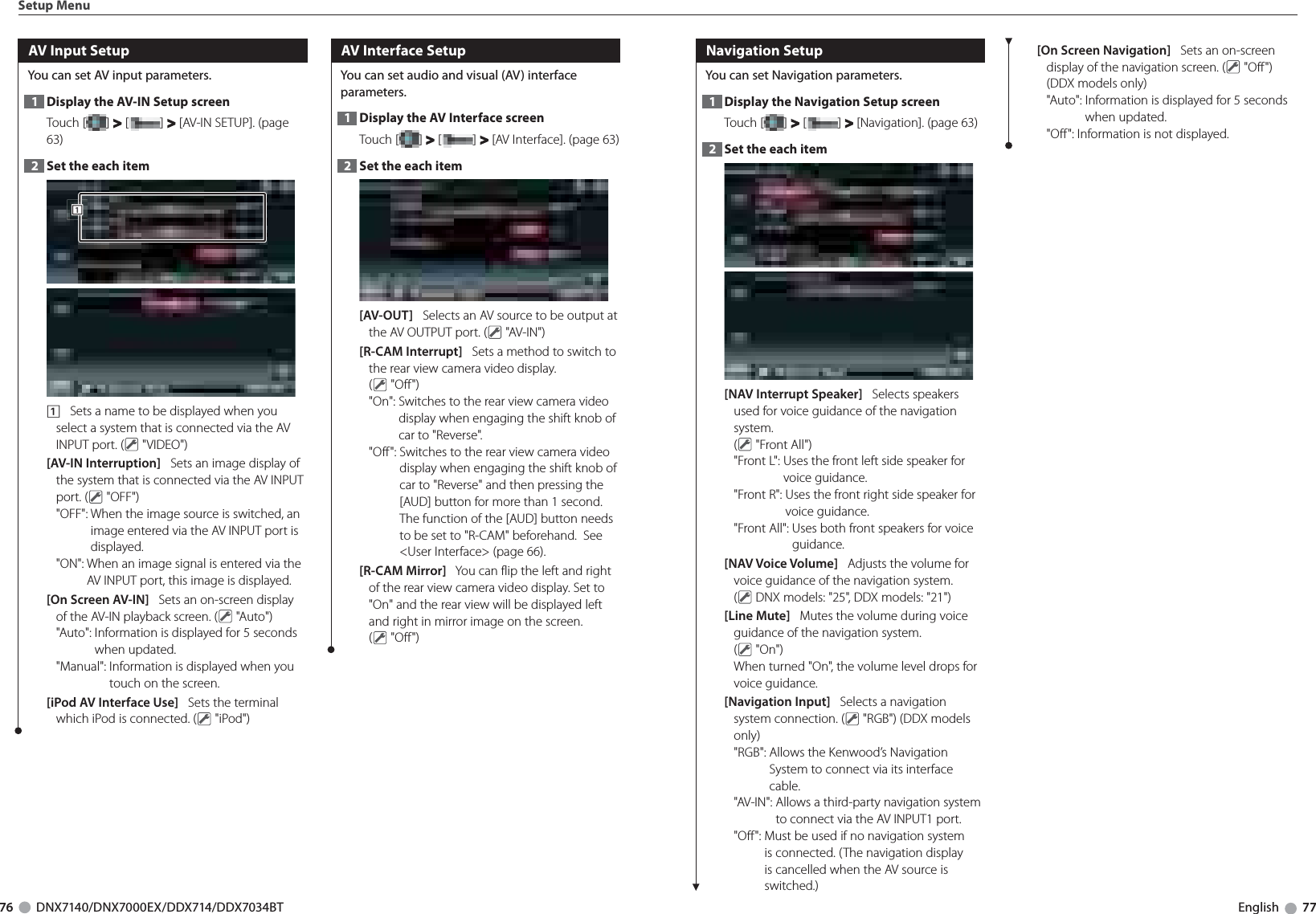

76 DNX7140/DNX7000EX/DDX714/DDX7034BT English 77Setup Menu AV Input SetupYou can set AV input parameters. Display the AV-IN Setup screen1 Touch [ ] > [ ] > [AV-IN SETUP]. (page 63)Set the each item2 1111 Sets a name to be displayed when you select a system that is connected via the AV INPUT port. ( "VIDEO")[AV-IN Interruption] Sets an image display of the system that is connected via the AV INPUT port. ( "OFF")"OFF": When the image source is switched, an image entered via the AV INPUT port is displayed."ON": When an image signal is entered via the AV INPUT port, this image is displayed.[On Screen AV-IN] Sets an on-screen display of the AV-IN playback screen. ( "Auto")"Auto": Information is displayed for 5 seconds when updated."Manual": Information is displayed when you touch on the screen.[iPod AV Interface Use] Sets the terminal which iPod is connected. ( "iPod") Navigation SetupYou can set Navigation parameters. Display the Navigation Setup screen1 Touch [ ] > [ ] > [Navigation]. (page 63)Set the each item2 [NAV Interrupt Speaker] Selects speakers used for voice guidance of the navigation system. ( "Front All")"Front L": Uses the front left side speaker for voice guidance."Front R": Uses the front right side speaker for voice guidance."Front All": Uses both front speakers for voice guidance.[NAV Voice Volume] Adjusts the volume for voice guidance of the navigation system. ( DNX models: "25", DDX models: "21")[Line Mute] Mutes the volume during voice guidance of the navigation system. ( "On")When turned "On", the volume level drops for voice guidance.[Navigation Input] Selects a navigation system connection. ( "RGB") (DDX models only)"RGB": Allows the Kenwood’s Navigation System to connect via its interface cable."AV-IN": Allows a third-party navigation system to connect via the AV INPUT1 port."Off": Must be used if no navigation system is connected. (The navigation display is cancelled when the AV source is switched.) AV Interface SetupYou can set audio and visual (AV) interface parameters. Display the AV Interface screen1 Touch [ ] > [ ] > [AV Interface]. (page 63)Set the each item2 [AV-OUT] Selects an AV source to be output at the AV OUTPUT port. ( "AV-IN")[R-CAM Interrupt] Sets a method to switch to the rear view camera video display. ( "Off")"On": Switches to the rear view camera video display when engaging the shift knob of car to "Reverse"."Off": Switches to the rear view camera video display when engaging the shift knob of car to "Reverse" and then pressing the [AUD] button for more than 1 second.The function of the [AUD] button needs to be set to "R-CAM" beforehand. See <User Interface> (page 66). [R-CAM Mirror] You can flip the left and right of the rear view camera video display. Set to "On" and the rear view will be displayed left and right in mirror image on the screen.( "Off")[On Screen Navigation] Sets an on-screen display of the navigation screen. ( "Off") (DDX models only)"Auto": Information is displayed for 5 seconds when updated."Off": Information is not displayed.

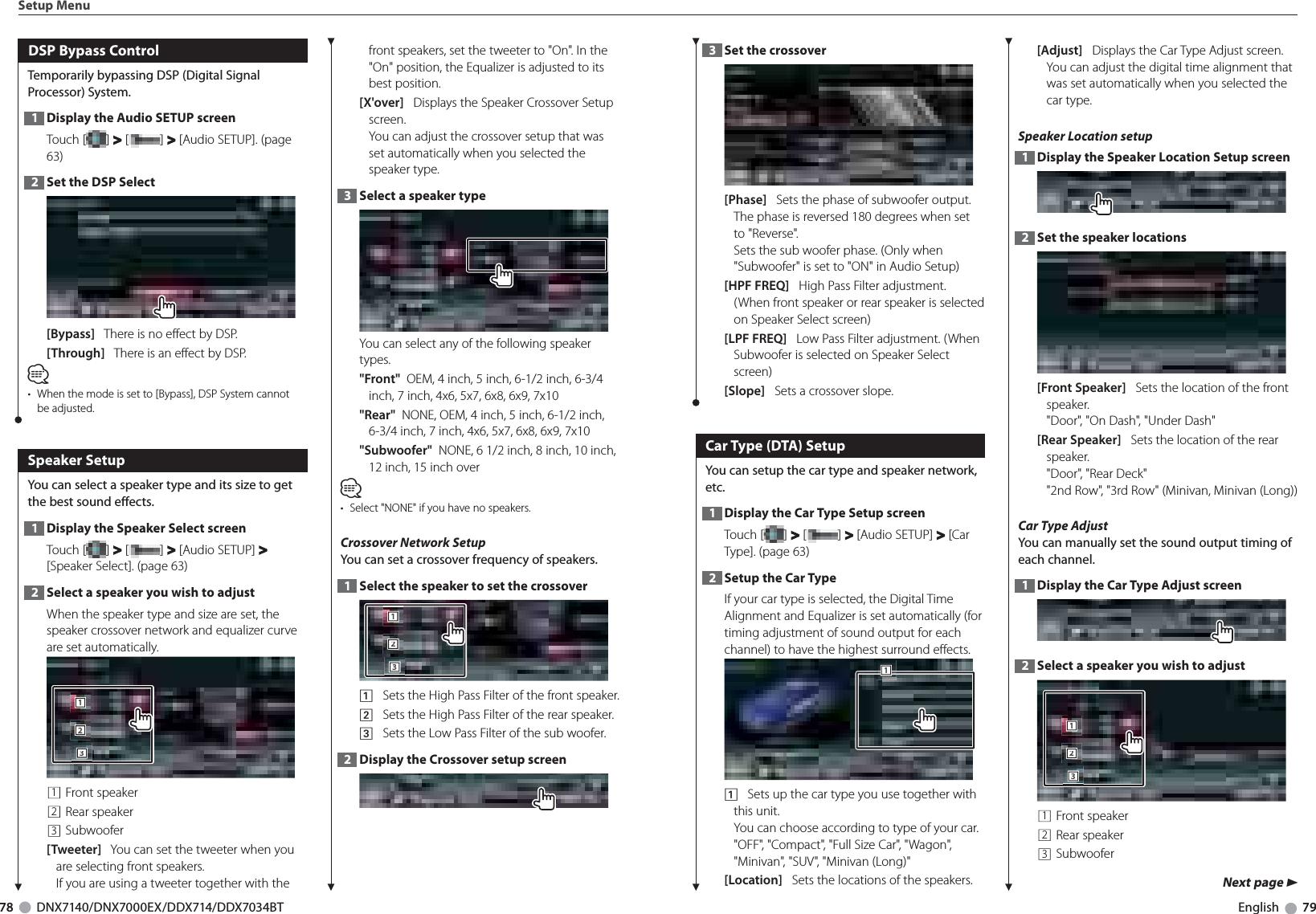

78 DNX7140/DNX7000EX/DDX714/DDX7034BT English 79Setup Menu DSP Bypass Control Temporarily bypassing DSP (Digital Signal Processor) System.Display the Audio SETUP screen1 Touch [ ] > [ ] > [Audio SETUP]. (page 63)Set the DSP Select2 [Bypass] There is no effect by DSP. [Through] There is an effect by DSP. ⁄When the mode is set to [Bypass], DSP System cannot • be adjusted. Speaker SetupYou can select a speaker type and its size to get the best sound effects.Display the Speaker Select screen1 Touch [ ] > [ ] > [Audio SETUP] > [Speaker Select]. (page 63)Select a speaker you wish to adjust2 When the speaker type and size are set, the speaker crossover network and equalizer curve are set automatically.2221113331 Front speaker2 Rear speaker3 Subwoofer[Tweeter] You can set the tweeter when you are selecting front speakers. If you are using a tweeter together with the Set the crossover3 [Phase] Sets the phase of subwoofer output.The phase is reversed 180 degrees when set to "Reverse".Sets the sub woofer phase. (Only when "Subwoofer" is set to "ON" in Audio Setup)[HPF FREQ] High Pass Filter adjustment. (When front speaker or rear speaker is selected on Speaker Select screen)[LPF FREQ] Low Pass Filter adjustment. (When Subwoofer is selected on Speaker Select screen)[Slope] Sets a crossover slope. Car Type (DTA) Setup You can setup the car type and speaker network, etc.Display the Car Type Setup screen1 Touch [ ] > [ ] > [Audio SETUP] > [Car Type]. (page 63)Setup the Car Type2 If your car type is selected, the Digital Time Alignment and Equalizer is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects.1111 Sets up the car type you use together with this unit.You can choose according to type of your car."OFF", "Compact", "Full Size Car", "Wagon", "Minivan", "SUV", "Minivan (Long)"[Location] Sets the locations of the speakers.front speakers, set the tweeter to "On". In the "On" position, the Equalizer is adjusted to its best position.[X'over] Displays the Speaker Crossover Setup screen.You can adjust the crossover setup that was set automatically when you selected the speaker type.Select a speaker type3 You can select any of the following speaker types."Front" OEM, 4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10"Rear" NONE, OEM, 4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10"Subwoofer" NONE, 6 1/2 inch, 8 inch, 10 inch, 12 inch, 15 inch over⁄Select "NONE" if you have no speakers.• Crossover Network SetupYou can set a crossover frequency of speakers.Select the speaker to set the crossover1 2221113331 Sets the High Pass Filter of the front speaker.2 Sets the High Pass Filter of the rear speaker.3 Sets the Low Pass Filter of the sub woofer.Display the Crossover setup screen2 [Adjust] Displays the Car Type Adjust screen. You can adjust the digital time alignment that was set automatically when you selected the car type.Speaker Location setupDisplay the Speaker Location Setup screen1 Set the speaker locations2 [Front Speaker] Sets the location of the front speaker."Door", "On Dash", "Under Dash"[Rear Speaker] Sets the location of the rear speaker."Door", "Rear Deck""2nd Row", "3rd Row" (Minivan, Minivan (Long))Car Type Adjust You can manually set the sound output timing of each channel.Display the Car Type Adjust screen1 Select a speaker you wish to adjust2 2221113331 Front speaker2 Rear speaker3 SubwooferNext page 3

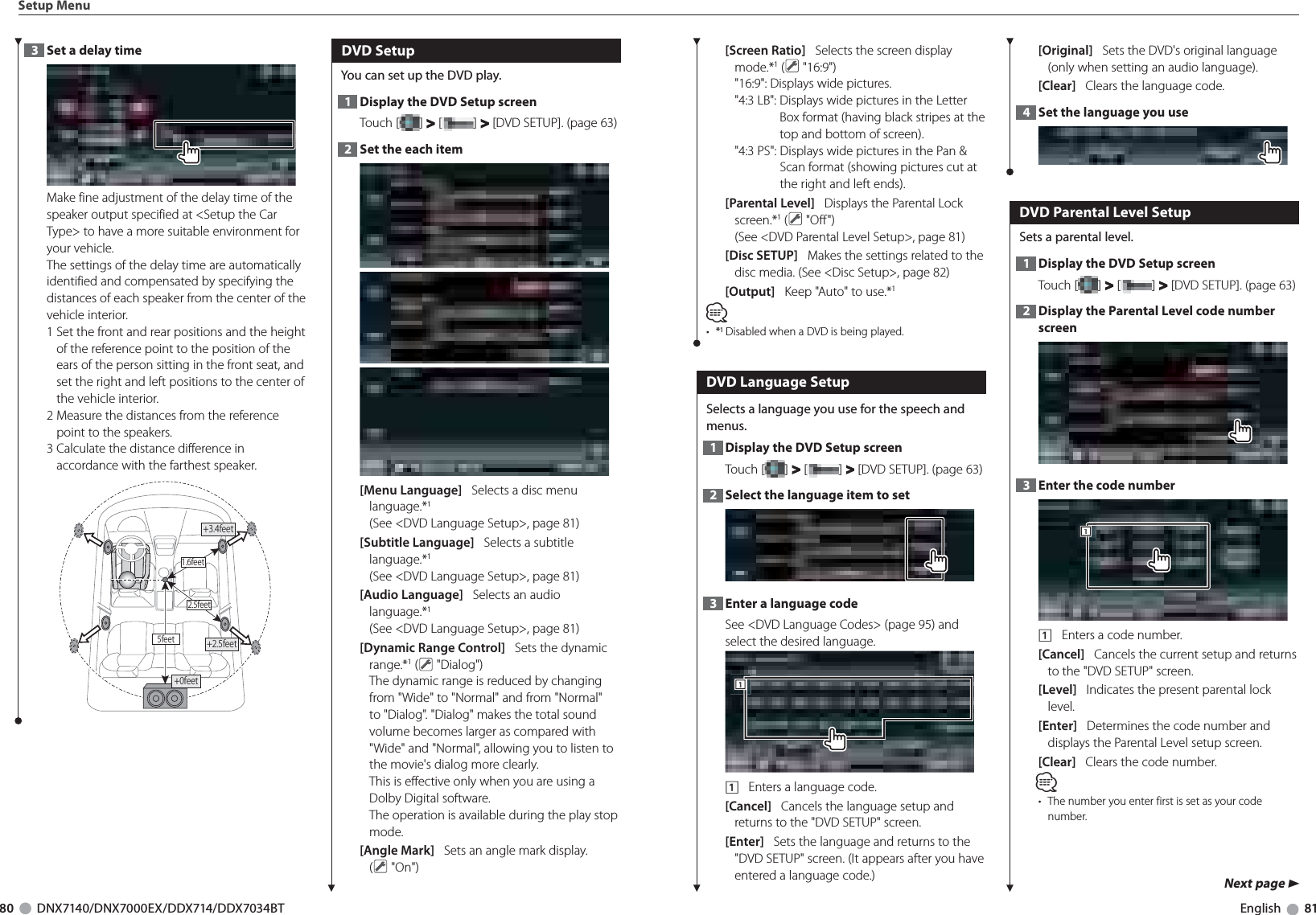

80 DNX7140/DNX7000EX/DDX714/DDX7034BT English 81Setup MenuSet a delay time3 Make fine adjustment of the delay time of the speaker output specified at <Setup the Car Type> to have a more suitable environment for your vehicle.The settings of the delay time are automatically identified and compensated by specifying the distances of each speaker from the center of the vehicle interior.1 Set the front and rear positions and the height of the reference point to the position of the ears of the person sitting in the front seat, and set the right and left positions to the center of the vehicle interior.2 Measure the distances from the reference point to the speakers.3 Calculate the distance difference in accordance with the farthest speaker.1.6feet2.5feet5feet +2.5feet+0feet+3.4feet DVD SetupYou can set up the DVD play.Display the DVD Setup screen1 Touch [ ] > [ ] > [DVD SETUP]. (page 63)Set the each item2 [Menu Language] Selects a disc menu language.*1 (See <DVD Language Setup>, page 81)[Subtitle Language] Selects a subtitle language.*1 (See <DVD Language Setup>, page 81)[Audio Language] Selects an audio language.*1 (See <DVD Language Setup>, page 81)[Dynamic Range Control] Sets the dynamic range.*1 ( "Dialog")The dynamic range is reduced by changing from "Wide" to "Normal" and from "Normal" to "Dialog". "Dialog" makes the total sound volume becomes larger as compared with "Wide" and "Normal", allowing you to listen to the movie's dialog more clearly. This is effective only when you are using a Dolby Digital software.The operation is available during the play stop mode.[Angle Mark] Sets an angle mark display. ( "On")[Screen Ratio] Selects the screen display mode.*1 ( "16:9")"16:9": Displays wide pictures."4:3 LB": Displays wide pictures in the Letter Box format (having black stripes at the top and bottom of screen)."4:3 PS": Displays wide pictures in the Pan & Scan format (showing pictures cut at the right and left ends).[Parental Level] Displays the Parental Lock screen.*1 ( "Off")(See <DVD Parental Level Setup>, page 81)[Disc SETUP] Makes the settings related to the disc media. (See <Disc Setup>, page 82)[Output] Keep "Auto" to use.*1⁄*•  Disabled when a DVD is being played. DVD Language SetupSelects a language you use for the speech and menus.Display the DVD Setup screen1 Touch [ ] > [ ] > [DVD SETUP]. (page 63)Select the language item to set2 Enter a language code3 See <DVD Language Codes> (page 95) and select the desired language.1111 Enters a language code.[Cancel] Cancels the language setup and returns to the "DVD SETUP" screen.[Enter] Sets the language and returns to the "DVD SETUP" screen. (It appears after you have entered a language code.)[Original] Sets the DVD's original language (only when setting an audio language).[Clear] Clears the language code.Set the language you use4 DVD Parental Level SetupSets a parental level.Display the DVD Setup screen1 Touch [ ] > [ ] > [DVD SETUP]. (page 63)Display the Parental Level code number 2 screenEnter the code number3 1111 Enters a code number.[Cancel] Cancels the current setup and returns to the "DVD SETUP" screen.[Level] Indicates the present parental lock level.[Enter] Determines the code number and displays the Parental Level setup screen.[Clear] Clears the code number.⁄The number you enter first is set as your code • number.Next page 3

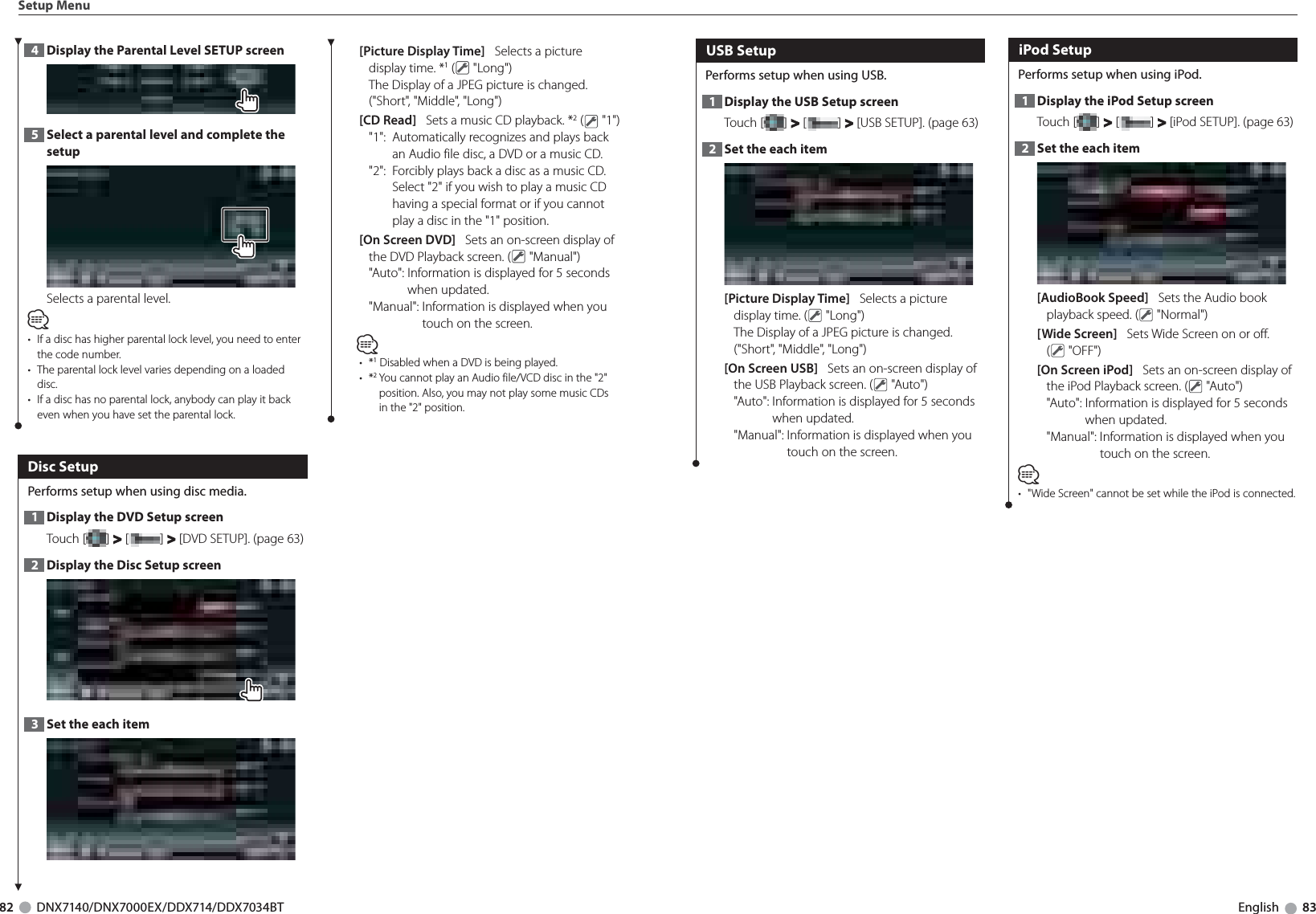

82 DNX7140/DNX7000EX/DDX714/DDX7034BT English 83Setup MenuDisplay the Parental Level SETUP screen4 Select a parental level and complete the 5 setupSelects a parental level.⁄• If a disc has higher parental lock level, you need to enter the code number.• The parental lock level varies depending on a loaded disc.• If a disc has no parental lock, anybody can play it back even when you have set the parental lock. Disc SetupPerforms setup when using disc media.Display the DVD Setup screen1 Touch [ ] > [ ] > [DVD SETUP]. (page 63)Display the Disc Setup screen2 Set the each item3 [Picture Display Time] Selects a picture display time. *1 ( "Long")The Display of a JPEG picture is changed.("Short", "Middle", "Long")[CD Read] Sets a music CD playback. *2 ( "1")"1": Automatically recognizes and plays back an Audio file disc, a DVD or a music CD."2": Forcibly plays back a disc as a music CD. Select "2" if you wish to play a music CD having a special format or if you cannot play a disc in the "1" position.[On Screen DVD] Sets an on-screen display of the DVD Playback screen. ( "Manual")"Auto": Information is displayed for 5 seconds when updated."Manual": Information is displayed when you touch on the screen.⁄*• 1 Disabled when a DVD is being played.*• 2 You cannot play an Audio file/VCD disc in the "2" position. Also, you may not play some music CDs in the "2" position. USB SetupPerforms setup when using USB.Display the USB Setup screen1 Touch [ ] > [ ] > [USB SETUP]. (page 63)Set the each item2 [Picture Display Time] Selects a picture display time. ( "Long")The Display of a JPEG picture is changed.("Short", "Middle", "Long")[On Screen USB] Sets an on-screen display of the USB Playback screen. ( "Auto")"Auto": Information is displayed for 5 seconds when updated."Manual": Information is displayed when you touch on the screen. iPod SetupPerforms setup when using iPod.Display the iPod Setup screen1 Touch [ ] > [ ] > [iPod SETUP]. (page 63)Set the each item2 [AudioBook Speed] Sets the Audio book playback speed. ( "Normal")[Wide Screen] Sets Wide Screen on or off.( "OFF")[On Screen iPod] Sets an on-screen display of the iPod Playback screen. ( "Auto")"Auto": Information is displayed for 5 seconds when updated."Manual": Information is displayed when you touch on the screen.⁄• "Wide Screen" cannot be set while the iPod is connected.
84 DNX7140/DNX7000EX/DDX714/DDX7034BT English 85Setup Menu SIRIUS Parental Code SetupSets a SIRIUS Parental code.Display the SIRIUS Setup screen1 Touch [ ] > [ ] > [SIRIUS SETUP]. (page 63)Display the Parental Code screen2 ⁄If you have already completed the code registration, • [Change] is displayed.If you want to clear the code which has already • registered, touch [Clear].Pressing [Clear] for 5 seconds or longer deletes the • code.Enter the current code number3 1111 Enters a code number.[Cancel] Cancels the current setup and returns to the SIRIUS Setup screen.[Enter] Determines the code number and displays the Parental Code 1st screen.[Clear] Clears the code number.⁄If you are to register the parental code for the first • time, this screen will not appear. Go to Step 4.Enter the new code number4 Confirm the code number5 Enter the same code number as you input in step 4.SIRIUS Parental code is now set, and the display returns to SIRIUS Setup screen. SIRIUS Parental Lock SetupSets a SIRIUS Parental Lock function on or off.Display the SIRIUS Setup screen1 Touch [ ] > [ ] > [SIRIUS SETUP]. (page 63)Display the Parental Code screen2 ⁄You need to complete <SIRIUS Parental Code Setup> • beforehand.Enter the code number3 Enter the same code number as you input in <SIRIUS Parental Code Setup> (page 84).Parental Lock function is now set to on or off, and the display returns to "SIRIUS SETUP" screen.⁄• If you have not registered the parental code, the code number you input in this step will be the number to register as SIRIUS Parental Code. In this case, you are requested to input the code once more.SIRIUS Parental Lock Channel SelectSelects the channel to enable SIRIUS Parental lock function. Display the SIRIUS Setup screen1 Touch [ ] > [ ] > [SIRIUS SETUP]. (page 63)Display the Parental Code screen2 Enter the code number3 Enter the same code number as you input in <SIRIUS Parental Code Setup>.Select a category4 1111 Category list If touched a category, it Displays all the channels in the selected category.[All Channel] Displays all the channels.

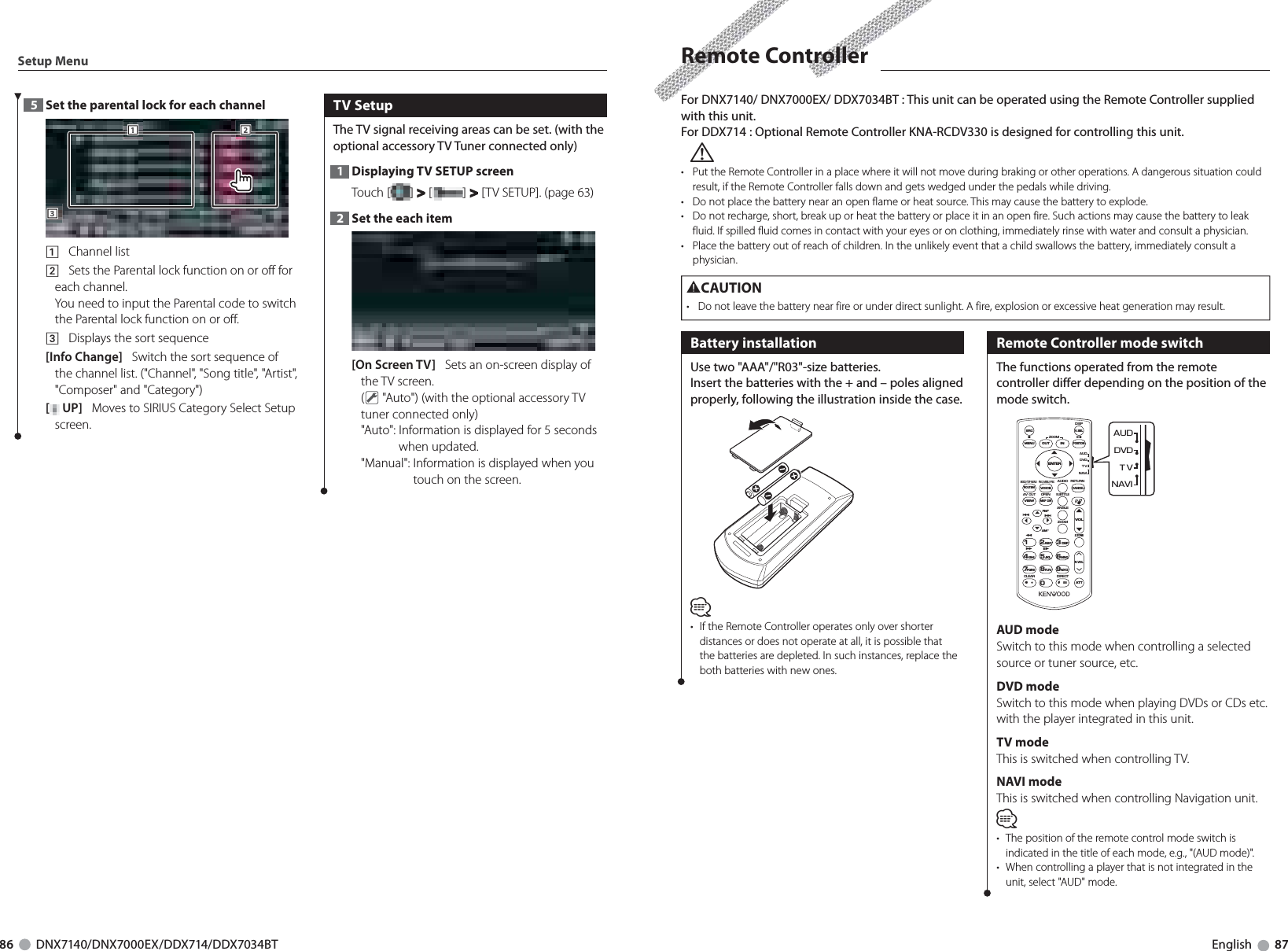

86 DNX7140/DNX7000EX/DDX714/DDX7034BT English 87Setup MenuSet the parental lock for each channel5 3331112221 Channel list2 Sets the Parental lock function on or off for each channel.You need to input the Parental code to switch the Parental lock function on or off.3 Displays the sort sequence[Info Change] Switch the sort sequence of the channel list. ("Channel", "Song title", "Artist", "Composer" and "Category")[ UP] Moves to SIRIUS Category Select Setup screen. T V SetupThe TV signal receiving areas can be set. (with the optional accessory TV Tuner connected only)Displaying TV SETUP screen1 Touch [ ] > [ ] > [TV SETUP]. (page 63)Set the each item2 [On Screen TV] Sets an on-screen display of the TV screen.( "Auto") (with the optional accessory TV tuner connected only)"Auto": Information is displayed for 5 seconds when updated."Manual": Information is displayed when you touch on the screen.Remote ControllerFor DNX7140/ DNX7000EX/ DDX7034BT : This unit can be operated using the Remote Controller supplied with this unit.For DDX714 : Optional Remote Controller KNA-RCDV330 is designed for controlling this unit.¤• Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could result, if the Remote Controller falls down and gets wedged under the pedals while driving.• Do not place the battery near an open flame or heat source. This may cause the battery to explode.• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.• Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a physician.Battery installationUse two "AAA"/"R03"-size batteries.Insert the batteries with the + and – poles aligned properly, following the illustration inside the case.⁄• If the Remote Controller operates only over shorter distances or does not operate at all, it is possible that the batteries are depleted. In such instances, replace the both batteries with new ones. Remote Controller mode switchThe functions operated from the remote controller differ depending on the position of the mode switch.V.SELR.VOLOUTMENUINENTERZOOMFNC/MENU/PBCMODE/TOP MENUAUDIOANGLEZOOMRETURNDVDTVNAVIAUDDISP12ABC3DEF4GHI7PQRS#+ BS5JKL8TUV09WXYZ6MNO1ATT2 ZONEVOLFM+AM−POSITIONSRCDY1OOOOOOVOICECANCELROUTEMSUBTITLEAV OUTCLEAR DIRECTOPENMAP DIRVIEWUUUUOOOODVDTVNAVIAUDUUUUAUD modeSwitch to this mode when controlling a selected source or tuner source, etc.DVD modeSwitch to this mode when playing DVDs or CDs etc. with the player integrated in this unit.TV modeThis is switched when controlling TV.NAVI modeThis is switched when controlling Navigation unit.⁄• The position of the remote control mode switch is indicated in the title of each mode, e.g., "(AUD mode)".• When controlling a player that is not integrated in the unit, select "AUD" mode.2CAUTION• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.

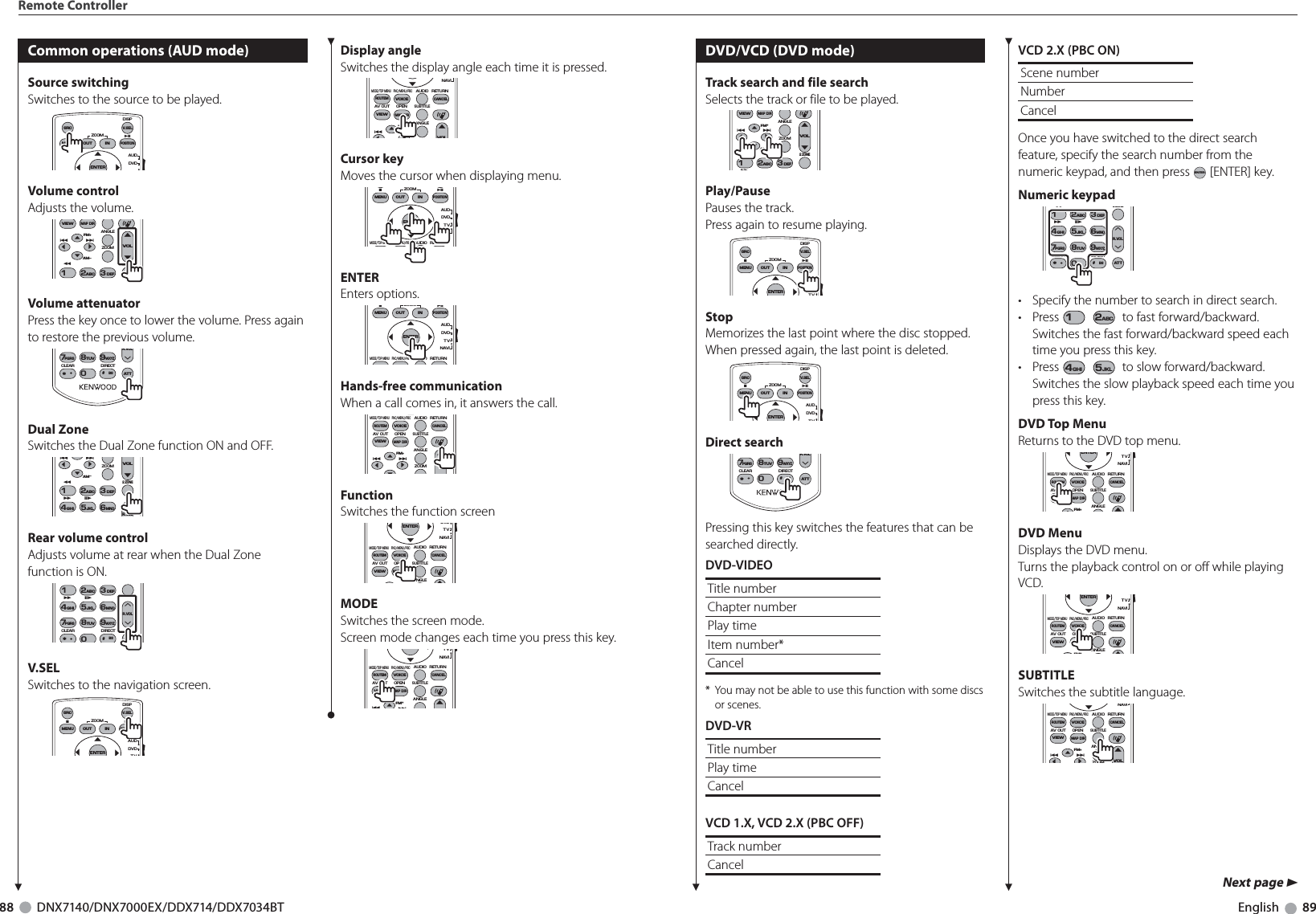

88 DNX7140/DNX7000EX/DDX714/DDX7034BT English 89Common operations (AUD mode)Source switchingSwitches to the source to be played.V.SELOUTMENUINENTERZOOMDVDAUDDISPPOSITIONSRCOOO•••Volume controlAdjusts the volume.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DYOOMAP DIRVIEWOOOOVolume attenuatorPress the key once to lower the volume. Press again to restore the previous volume.R.VOL7PQRS#+ BS8TUV09WXYZ1ATTCLEAR DIRECTDual ZoneSwitches the Dual Zone function ON and OFF.R.VOLZOOM12ABC3DEF4GHI5JKL6MNO2 ZONEVOLAM−DY1OOOORear volume controlAdjusts volume at rear when the Dual Zone function is ON.R.VOL12ABC3DEF4GHI7PQRS#+ BS5JKL8TUV09WXYZ6MNO1ATT2 ZONEY1CLEAR DIRECTV.SELSwitches to the navigation screen.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••Display angleSwitches the display angle each time it is pressed.FNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNNAVIVOLFM+DOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOOCursor keyMoves the cursor when displaying menu.OUTMENUINENTERZOOMFNC/MENU/PBCMODE/TOP MENUAUDIO RETURNDVDTVNAVIAUDPOSITIONOOOO••••ENTEREnters options.OUTMENUINENTERZOOMFNC/MENU/PBCMODE/TOP MENUAUDIO RETURNDVDTVNAVIAUDPOSITIONOOOO••••Hands-free communicationWhen a call comes in, it answers the call.FNC/MENU/PBCMODE/TOP MENUAUDIOANGLEZOOMRETURNVOLFM+DOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOOOFunctionSwitches the function screenENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNDVDTVNAVIOOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW•••MODESwitches the screen mode.Screen mode changes each time you press this key.FNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNTVNAVIFM+DOOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW••ORemote ControllerDVD/VCD (DVD mode)Track search and file searchSelects the track or file to be played.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DY1OOMAP DIRVIEWOOOOPlay/PausePauses the track.Press again to resume playing.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••StopMemorizes the last point where the disc stopped. When pressed again, the last point is deleted.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••Direct searchR.VOL7PQRS#+ BS8TUV09WXYZ1ATTCLEAR DIRECTPressing this key switches the features that can be searched directly.DVD-VIDEOTitle numberChapter numberPlay timeItem number*Cancel* You may not be able to use this function with some discs or scenes.DVD-VRTitle numberPlay timeCancelVCD 1.X, VCD 2.X (PBC OFF)Track numberCancelVCD 2.X (PBC ON)Scene numberNumberCancelOnce you have switched to the direct search feature, specify the search number from the numeric keypad, and then press ENTER [ENTER] key.Numeric keypadR.VOL12ABC3DEF4GHI7PQRS#+ BS5JKL8TUV09WXYZ6MNO1ATT2ZONEY1CLEAR DIRECT• Specify the number to search in direct search.• Press 1 2ABC to fast forward/backward. Switches the fast forward/backward speed each time you press this key.• Press 4GHI 5JKL to slow forward/backward. Switches the slow playback speed each time you press this key.DVD Top MenuReturns to the DVD top menu.ENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNTVNAVIFM+OOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW••ODVD MenuDisplays the DVD menu.Turns the playback control on or off while playing VCD.ENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNTVNAVIFM+OOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW•••SUBTITLESwitches the subtitle language.FNC/MENU/PBCMODE/TOP MENUAUDIOANGLEZOOMRETURNNAVIVOLFM+DOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOONext page 3

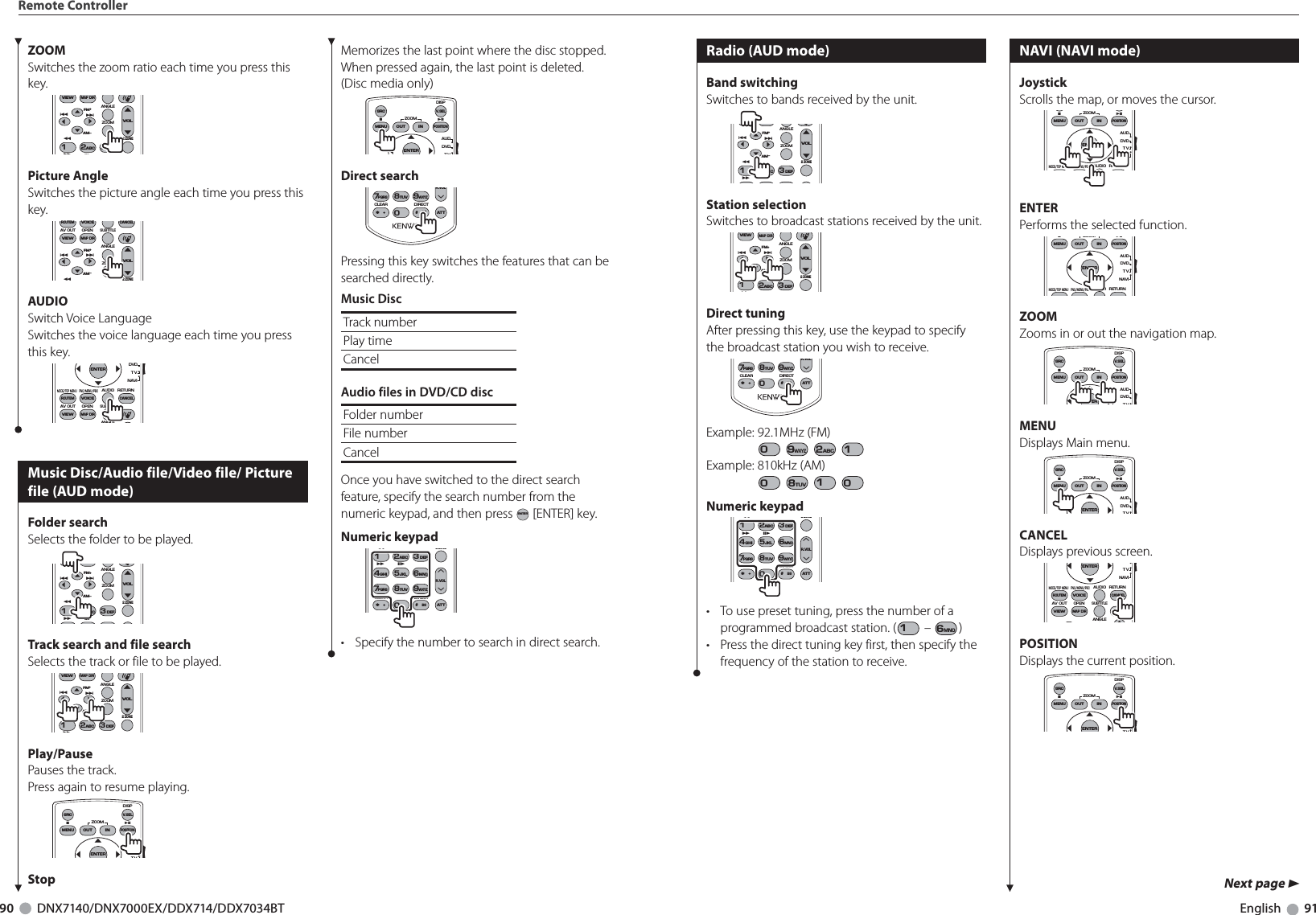

90 DNX7140/DNX7000EX/DDX714/DDX7034BT English 91Remote ControllerMemorizes the last point where the disc stopped. When pressed again, the last point is deleted.(Disc media only)V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••Direct searchR.VOL7PQRS#+ BS8TUV09WXYZ1ATTCLEAR DIRECTPressing this key switches the features that can be searched directly.Music DiscTrack numberPlay timeCancelAudio files in DVD/CD discFolder numberFile numberCancelOnce you have switched to the direct search feature, specify the search number from the numeric keypad, and then press ENTER [ENTER] key.Numeric keypadR.VOL12ABC3DEF4GHI7PQRS#+ BS5JKL8TUV09WXYZ6MNO1ATT2 ZONEY1CLEAR DIRECT• Specify the number to search in direct search.ZOOMSwitches the zoom ratio each time you press this key.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DY1OOMAP DIRVIEWOOOOPicture AngleSwitches the picture angle each time you press this key.ANGLEZOOM2 ZONEVOLFM+AM−DYOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOOOAUDIOSwitch Voice LanguageSwitches the voice language each time you press this key.ENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNDVDTVNAVIOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW•••Music Disc/Audio file/Video file/ Picture file (AUD mode)Folder search Selects the folder to be played.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DY1OOOOOOTrack search and file searchSelects the track or file to be played.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DY1OOMAP DIRVIEWOOOOPlay/PausePauses the track.Press again to resume playing.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••StopRadio (AUD mode)Band switchingSwitches to bands received by the unit.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DY1OOOOOOStation selectionSwitches to broadcast stations received by the unit.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DY1OOMAP DIRVIEWOOOODirect tuningAfter pressing this key, use the keypad to specify the broadcast station you wish to receive.R.VOL7PQRS#+ BS8TUV09WXYZ1ATTCLEAR DIRECTExample: 92.1MHz (FM)0 9WXYZ 2ABC 1Example: 810kHz (AM)0 8TUV 1 0Numeric keypadR.VOL12ABC3DEF4GHI7PQRS#+ BS5JKL8TUV09WXYZ6MNO1ATT2 ZONEY1CLEAR DIRECT• To use preset tuning, press the number of a programmed broadcast station. (1 – 6MNO )• Press the direct tuning key first, then specify the frequency of the station to receive.NAVI (NAVI mode)JoystickScrolls the map, or moves the cursor.OUTMENUINENTERZOOMFNC/MENU/PBCMODE/TOP MENUAUDIO RETURNDVDTVNAVIAUDPOSITIONOOOO••••ENTERPerforms the selected function.OUTMENUINENTERZOOMFNC/MENU/PBCMODE/TOP MENUAUDIO RETURNDVDTVNAVIAUDPOSITIONOOOO••••ZOOMZooms in or out the navigation map.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••MENUDisplays Main menu.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••CANCELDisplays previous screen.ENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNTVNAVIOOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW•••POSITIONDisplays the current position.V.SELOUTMENUINENTERZOOMDVDTVAUDDISPPOSITIONSRCOOO•••Next page 3

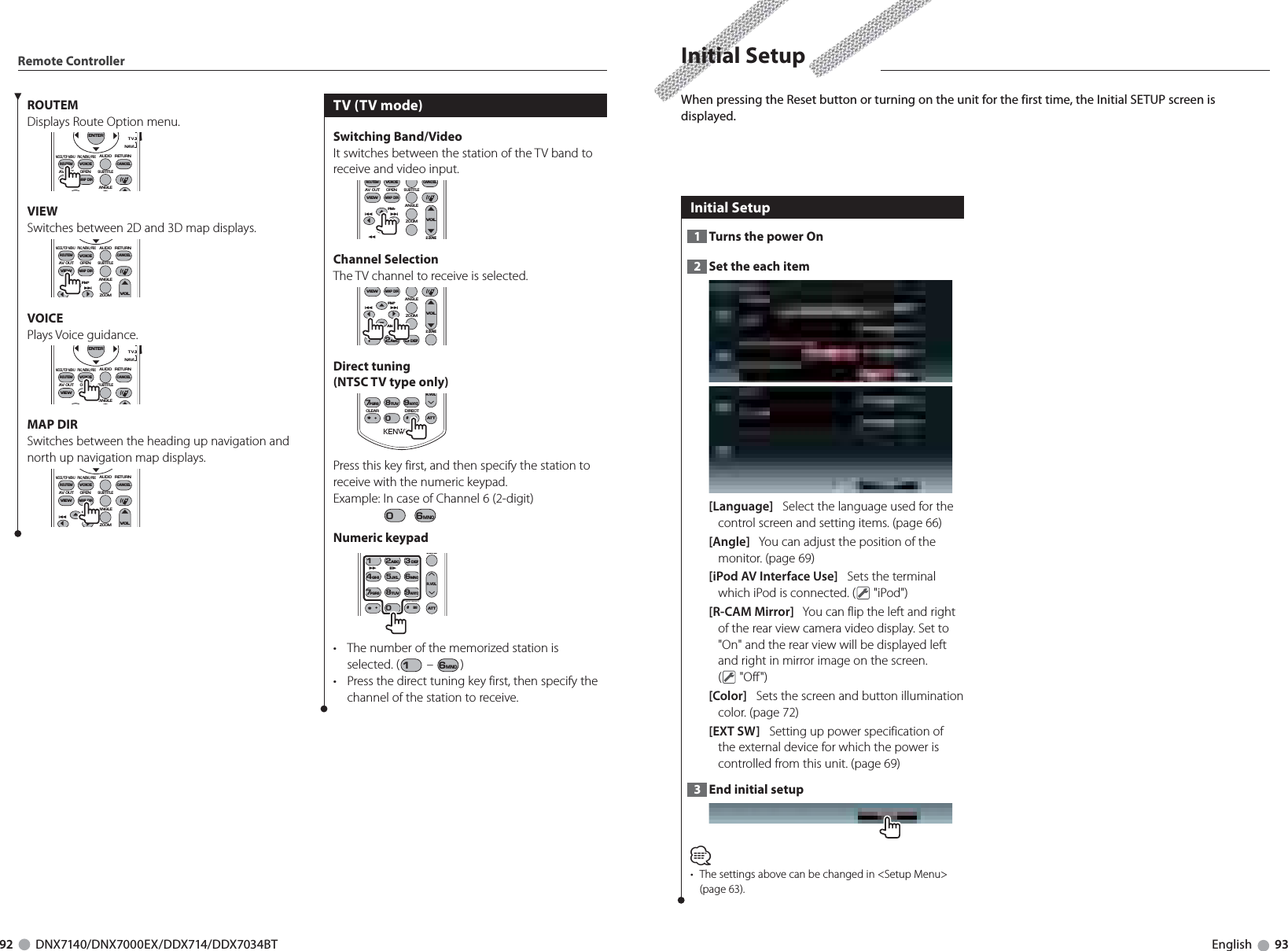

92 DNX7140/DNX7000EX/DDX714/DDX7034BT English 93Remote ControllerROUTEMDisplays Route Option menu.ENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNTVNAVIOOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW•••VIEWSwitches between 2D and 3D map displays.FNC/MENU/PBCMODE/TOP MENUAUDIOANGLEZOOMRETURNNAVIVOLFM+DOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOOVOICEPlays Voice guidance.ENTERFNC/MENU/PBCMODE/TOP MENUAUDIOANGLERETURNTVNAVIOOOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEW•••MAP DIRSwitches between the heading up navigation and north up navigation map displays.FNC/MENU/PBCMODE/TOP MENUAUDIOANGLEZOOMRETURNNAVIVOLFM+DOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOOTV (TV mode)Switching Band/VideoIt switches between the station of the TV band to receive and video input.ANGLEZOOM2 ZONEVOLFM+AM−DYOOVOICECANCELROUTEMSUBTITLEAV OUT OPENMAP DIRVIEWOOOOChannel SelectionThe TV channel to receive is selected.ANGLEZOOM12ABC3DEF2 ZONEVOLFM+AM−DYOOMAP DIRVIEWOOOODirect tuning(NTSC TV type only)R.VOL7PQRS#+ BS8TUV09WXYZ1ATTCLEAR DIRECTPress this key first, and then specify the station to receive with the numeric keypad.Example: In case of Channel 6 (2-digit)0 6MNONumeric keypadR.VOL12ABC3DEF4GHI7PQRS#+ BS5JKL8TUV09WXYZ6MNO1ATT2 ZONEY1CLEAR DIRECT• The number of the memorized station is selected. (1 – 6MNO )• Press the direct tuning key first, then specify the channel of the station to receive. Initial SetupTurns the power On1 Set the each item2 [Language] Select the language used for the control screen and setting items. (page 66)[Angle] You can adjust the position of the monitor. (page 69)[iPod AV Interface Use] Sets the terminal which iPod is connected. ( "iPod")[R-CAM Mirror] You can flip the left and right of the rear view camera video display. Set to "On" and the rear view will be displayed left and right in mirror image on the screen.( "Off")[Color] Sets the screen and button illumination color. (page 72)[EXT SW] Setting up power specification of the external device for which the power is controlled from this unit. (page 69)End initial setup3 ⁄The settings above can be changed in • <Setup Menu> (page 63).When pressing the Reset button or turning on the unit for the first time, the Initial SETUP screen is displayed. Initial Setup

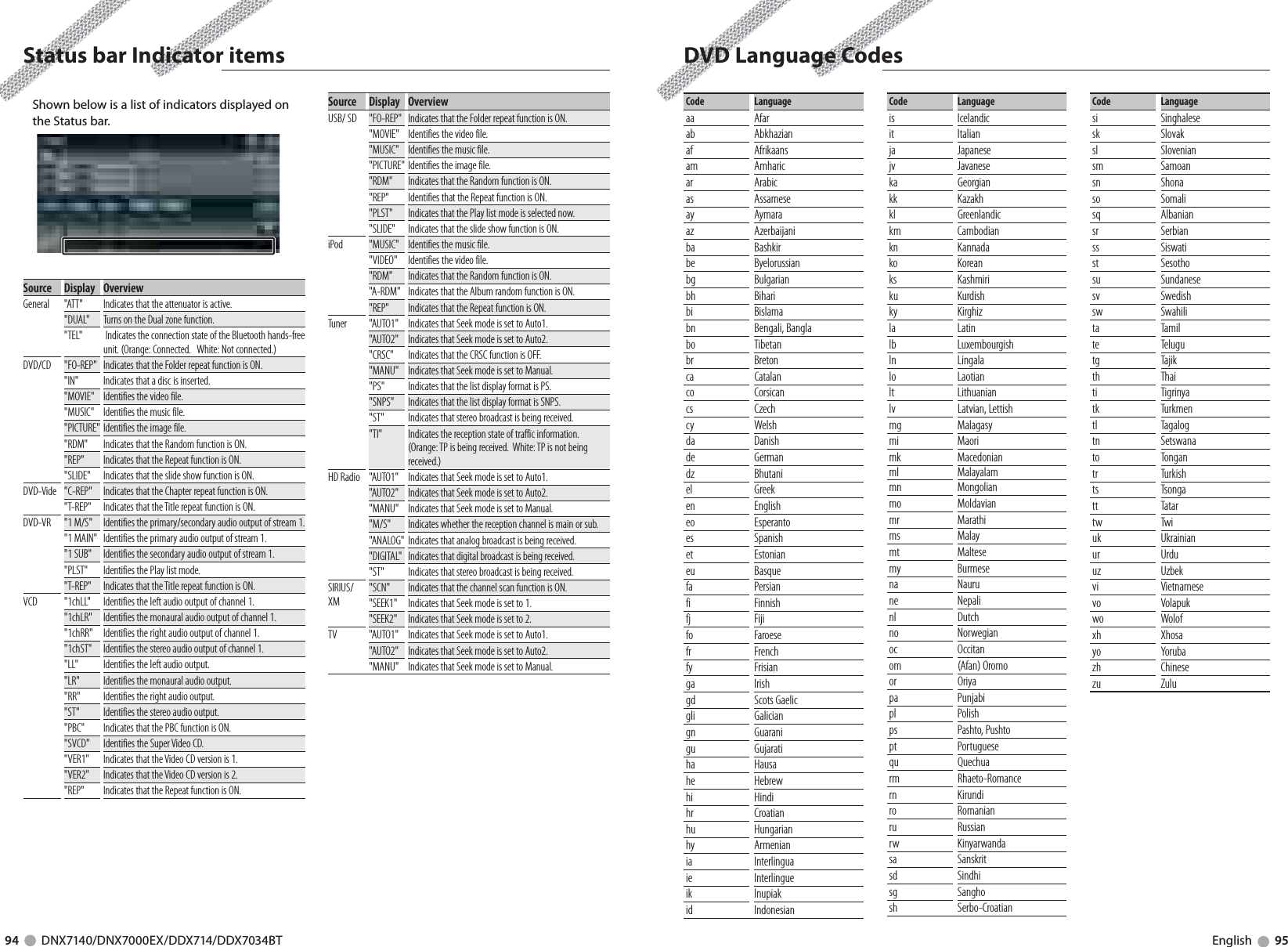

94 DNX7140/DNX7000EX/DDX714/DDX7034BT English 95Source Display OverviewUSB/ SD "FO-REP" Indicates that the Folder repeat function is ON."MOVIE" Identifies the video file."MUSIC" Identifies the music file."PICTURE" Identifies the image file."RDM" Indicates that the Random function is ON."REP" Identifies that the Repeat function is ON."PLST" Indicates that the Play list mode is selected now."SLIDE" Indicates that the slide show function is ON.iPod "MUSIC" Identifies the music file."VIDEO" Identifies the video file."RDM" Indicates that the Random function is ON."A-RDM" Indicates that the Album random function is ON."REP" Indicates that the Repeat function is ON.Tuner "AUTO1" Indicates that Seek mode is set to Auto1."AUTO2" Indicates that Seek mode is set to Auto2."CRSC" Indicates that the CRSC function is OFF. "MANU" Indicates that Seek mode is set to Manual."PS" Indicates that the list display format is PS. "SNPS" Indicates that the list display format is SNPS."ST" Indicates that stereo broadcast is being received."TI" Indicates the reception state of traffic information. (Orange: TP is being received. White: TP is not being received.)HD Radio "AUTO1" Indicates that Seek mode is set to Auto1."AUTO2" Indicates that Seek mode is set to Auto2."MANU" Indicates that Seek mode is set to Manual."M/S" Indicates whether the reception channel is main or sub."ANALOG" Indicates that analog broadcast is being received."DIGITAL" Indicates that digital broadcast is being received."ST" Indicates that stereo broadcast is being received. SIRIUS/ XM"SCN" Indicates that the channel scan function is ON. "SEEK1" Indicates that Seek mode is set to 1."SEEK2" Indicates that Seek mode is set to 2.TV "AUTO1" Indicates that Seek mode is set to Auto1."AUTO2" Indicates that Seek mode is set to Auto2."MANU" Indicates that Seek mode is set to Manual.Shown below is a list of indicators displayed on the Status bar. Source Display OverviewGeneral "ATT" Indicates that the attenuator is active."DUAL" Turns on the Dual zone function."TEL" Indicates the connection state of the Bluetooth hands-free unit. (Orange: Connected. White: Not connected.)DVD/CD "FO-REP" Indicates that the Folder repeat function is ON."IN" Indicates that a disc is inserted."MOVIE" Identifies the video file."MUSIC" Identifies the music file."PICTURE" Identifies the image file."RDM" Indicates that the Random function is ON."REP" Indicates that the Repeat function is ON."SLIDE" Indicates that the slide show function is ON.DVD-Vide "C-REP" Indicates that the Chapter repeat function is ON."T-REP" Indicates that the Title repeat function is ON.DVD-VR "1 M/S" Identifies the primary/secondary audio output of stream 1. "1 MAIN" Identifies the primary audio output of stream 1. "1 SUB" Identifies the secondary audio output of stream 1."PLST" Identifies the Play list mode."T-REP" Indicates that the Title repeat function is ON.VCD "1chLL" Identifies the left audio output of channel 1. "1chLR" Identifies the monaural audio output of channel 1. "1chRR" Identifies the right audio output of channel 1. "1chST" Identifies the stereo audio output of channel 1. "LL" Identifies the left audio output."LR" Identifies the monaural audio output."RR" Identifies the right audio output."ST" Identifies the stereo audio output."PBC" Indicates that the PBC function is ON. "SVCD" Identifies the Super Video CD."VER1" Indicates that the Video CD version is 1."VER2" Indicates that the Video CD version is 2."REP" Indicates that the Repeat function is ON.Status bar Indicator items DVD Language CodesCode Languageaa Afarab Abkhazianaf Afrikaansam Amharicar Arabicas Assameseay Aymaraaz Azerbaijaniba Bashkirbe Byelorussianbg Bulgarianbh Biharibi Bislamabn Bengali, Banglabo Tibetanbr Bretonca Catalanco Corsicancs Czechcy Welshda Danishde Germandz Bhutaniel Greeken Englisheo Esperantoes Spanishet Estonianeu Basquefa Persianfi Finnishfj Fijifo Faroesefr Frenchfy Frisianga Irishgd Scots Gaelicgli Galiciangn Guaranigu Gujaratiha Hausahe Hebrewhi Hindihr Croatianhu Hungarianhy Armeniania Interlinguaie Interlingueik Inupiakid IndonesianCode Languageis Icelandicit Italianja Japanesejv Javaneseka Georgiankk Kazakhkl Greenlandickm Cambodiankn Kannadako Koreanks Kashmiriku Kurdishky Kirghizla Latinlb Luxembourgishln Lingalalo Laotianlt Lithuanianlv Latvian, Lettishmg Malagasymi Maorimk Macedonianml Malayalammn Mongolianmo Moldavianmr Marathims Malaymt Maltesemy Burmesena Naurune Nepalinl Dutchno Norwegianoc Occitanom (Afan) Oromoor Oriyapa Punjabipl Polishps Pashto, Pushtopt Portuguesequ Quechuarm Rhaeto-Romancern Kirundiro Romanianru Russianrw Kinyarwandasa Sanskritsd Sindhisg Sanghosh Serbo-CroatianCode Languagesi Singhalesesk Slovaksl Sloveniansm Samoansn Shonaso Somalisq Albaniansr Serbianss Siswatist Sesothosu Sundanesesv Swedishsw Swahilita Tamilte Telugutg Tajikth Thaiti Tigrinyatk Turkmentl Tagalogtn Setswanato Tongantr Turkishts Tsongatt Tatartw Twiuk Ukrainianur Urduuz Uzbekvi Vietnamesevo Volapukwo Wolofxh Xhosayo Yorubazh Chinesezu Zulu

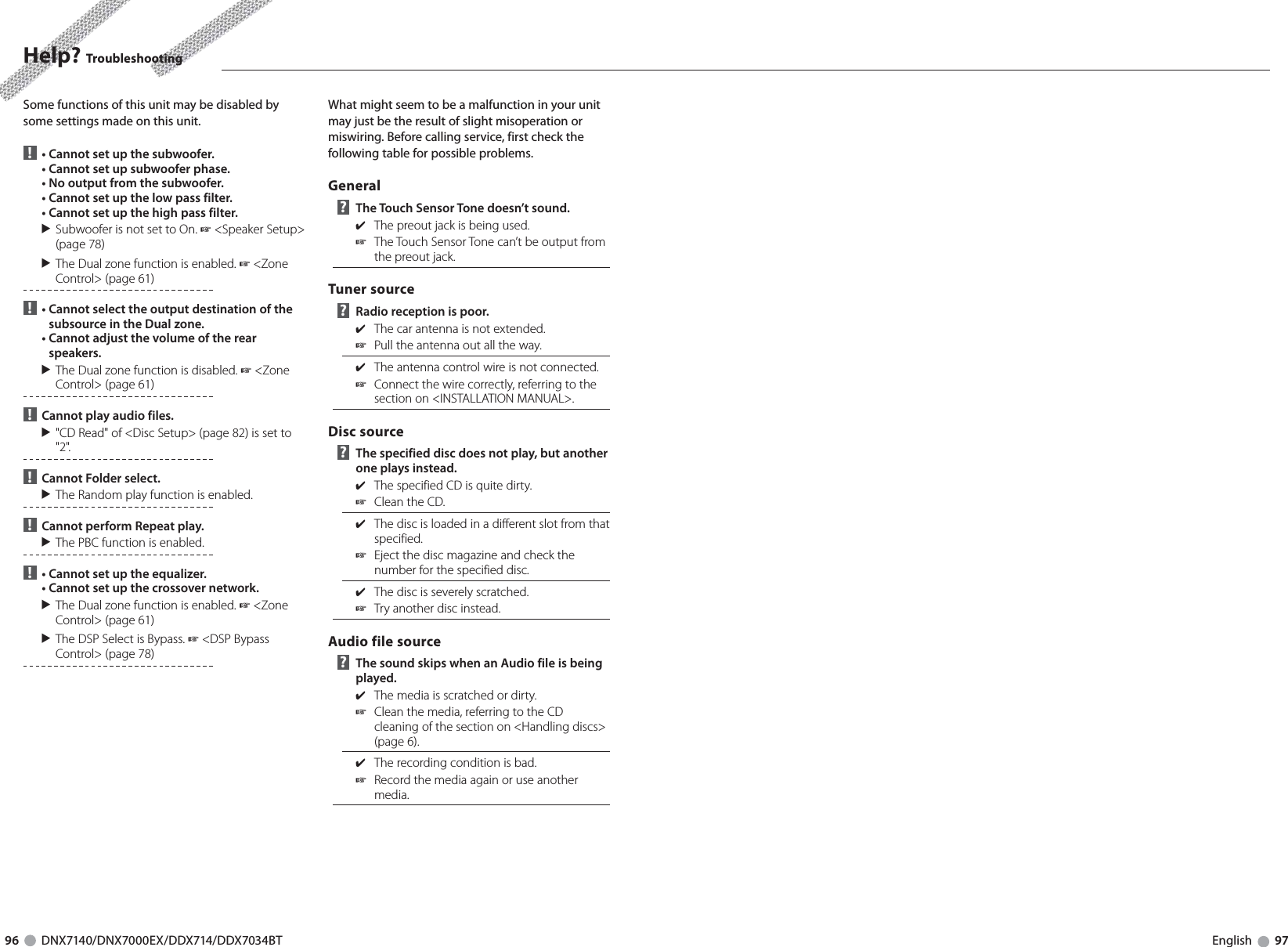

96 DNX7140/DNX7000EX/DDX714/DDX7034BT English 97Help? TroubleshootingSome functions of this unit may be disabled by some settings made on this unit. ! • Cannot set up the subwoofer. • Cannot set up subwoofer phase. • No output from the subwoofer. • Cannot set up the low pass filter. • Cannot set up the high pass filter.▲ Subwoofer is not set to On. ☞ <Speaker Setup> (page 78)▲ The Dual zone function is enabled. ☞ <Zone Control> (page 61) ! • Cannot select the output destination of the subsource in the Dual zone. • Cannot adjust the volume of the rear speakers.▲ The Dual zone function is disabled. ☞ <Zone Control> (page 61) ! Cannot play audio files.▲ "CD Read" of <Disc Setup> (page 82) is set to "2". ! Cannot Folder select.▲ The Random play function is enabled. ! Cannot perform Repeat play.▲ The PBC function is enabled. ! • Cannot set up the equalizer. • Cannot set up the crossover network.▲ The Dual zone function is enabled. ☞ <Zone Control> (page 61) ▲ The DSP Select is Bypass. ☞ <DSP Bypass Control> (page 78) What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.General ? The Touch Sensor Tone doesn’t sound.✔ The preout jack is being used.☞ The Touch Sensor Tone can’t be output from the preout jack.Tuner source ? Radio reception is poor.✔ The car antenna is not extended.☞ Pull the antenna out all the way.✔ The antenna control wire is not connected.☞ Connect the wire correctly, referring to the section on <INSTALLATION MANUAL>.Disc source ? The specified disc does not play, but another one plays instead.✔ The specified CD is quite dirty.☞ Clean the CD.✔ The disc is loaded in a different slot from that specified.☞ Eject the disc magazine and check the number for the specified disc.✔ The disc is severely scratched.☞ Try another disc instead.Audio file source ? The sound skips when an Audio file is being played.✔ The media is scratched or dirty.☞ Clean the media, referring to the CD cleaning of the section on <Handling discs> (page 6).✔ The recording condition is bad.☞ Record the media again or use another media.

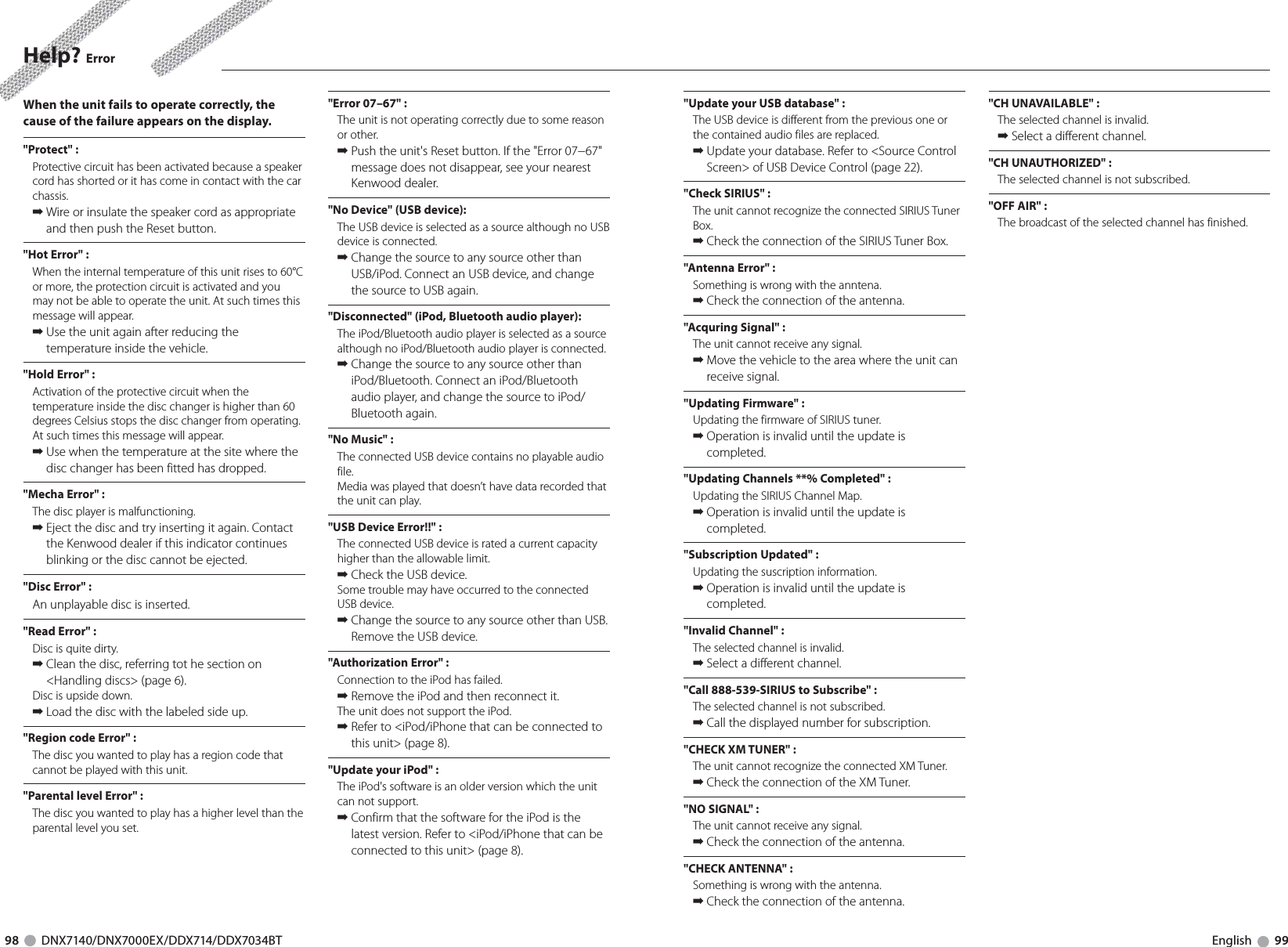

98 DNX7140/DNX7000EX/DDX714/DDX7034BT English 99Help? ErrorWhen the unit fails to operate correctly, the cause of the failure appears on the display."Protect" :Protective circuit has been activated because a speaker cord has shorted or it has come in contact with the car chassis.➡ Wire or insulate the speaker cord as appropriate and then push the Reset button."Hot Error" : When the internal temperature of this unit rises to 60°C or more, the protection circuit is activated and you may not be able to operate the unit. At such times this message will appear.➡ Use the unit again after reducing the temperature inside the vehicle."Hold Error" : Activation of the protective circuit when the temperature inside the disc changer is higher than 60 degrees Celsius stops the disc changer from operating. At such times this message will appear.➡ Use when the temperature at the site where the disc changer has been fitted has dropped."Mecha Error" : The disc player is malfunctioning.➡ Eject the disc and try inserting it again. Contact the Kenwood dealer if this indicator continues blinking or the disc cannot be ejected."Disc Error" : An unplayable disc is inserted."Read Error" :Disc is quite dirty.➡ Clean the disc, referring tot he section on <Handling discs> (page 6). Disc is upside down.➡ Load the disc with the labeled side up. "Region code Error" :The disc you wanted to play has a region code that cannot be played with this unit."Parental level Error" :The disc you wanted to play has a higher level than the parental level you set."Error 07–67" : The unit is not operating correctly due to some reason or other.➡ Push the unit's Reset button. If the "Error 07−67" message does not disappear, see your nearest Kenwood dealer."No Device" (USB device): The USB device is selected as a source although no USB device is connected.➡ Change the source to any source other than USB/iPod. Connect an USB device, and change the source to USB again."Disconnected" (iPod, Bluetooth audio player): The iPod/Bluetooth audio player is selected as a source although no iPod/Bluetooth audio player is connected.➡ Change the source to any source other than iPod/Bluetooth. Connect an iPod/Bluetooth audio player, and change the source to iPod/Bluetooth again."No Music" : The connected USB device contains no playable audio file.Media was played that doesn’t have data recorded that the unit can play."USB Device Error!!" : The connected USB device is rated a current capacity higher than the allowable limit. ➡ Check the USB device.Some trouble may have occurred to the connected USB device.➡ Change the source to any source other than USB. Remove the USB device."Authorization Error" : Connection to the iPod has failed.➡ Remove the iPod and then reconnect it.The unit does not support the iPod.➡ Refer to <iPod/iPhone that can be connected to this unit> (page 8)."Update your iPod" : The iPod's software is an older version which the unit can not support.➡ Confirm that the software for the iPod is the latest version. Refer to <iPod/iPhone that can be connected to this unit> (page 8)."Update your USB database" : The USB device is different from the previous one or the contained audio files are replaced.➡ Update your database. Refer to <Source Control Screen> of USB Device Control (page 22)."Check SIRIUS" : The unit cannot recognize the connected SIRIUS Tuner Box.➡ Check the connection of the SIRIUS Tuner Box."Antenna Error" : Something is wrong with the anntena.➡ Check the connection of the antenna."Acquring Signal" : The unit cannot receive any signal.➡ Move the vehicle to the area where the unit can receive signal."Updating Firmware" : Updating the firmware of SIRIUS tuner. ➡ Operation is invalid until the update is completed."Updating Channels **% Completed" : Updating the SIRIUS Channel Map. ➡ Operation is invalid until the update is completed."Subscription Updated" : Updating the suscription information. ➡ Operation is invalid until the update is completed."Invalid Channel" : The selected channel is invalid.➡ Select a different channel."Call 888-539-SIRIUS to Subscribe" : The selected channel is not subscribed.➡ Call the displayed number for subscription."CHECK XM TUNER" : The unit cannot recognize the connected XM Tuner.➡ Check the connection of the XM Tuner."NO SIGNAL" : The unit cannot receive any signal.➡ Check the connection of the antenna."CHECK ANTENNA" : Something is wrong with the antenna.➡ Check the connection of the antenna."CH UNAVAILABLE" : The selected channel is invalid.➡ Select a different channel."CH UNAUTHORIZED" : The selected channel is not subscribed."OFF AIR" : The broadcast of the selected channel has finished.

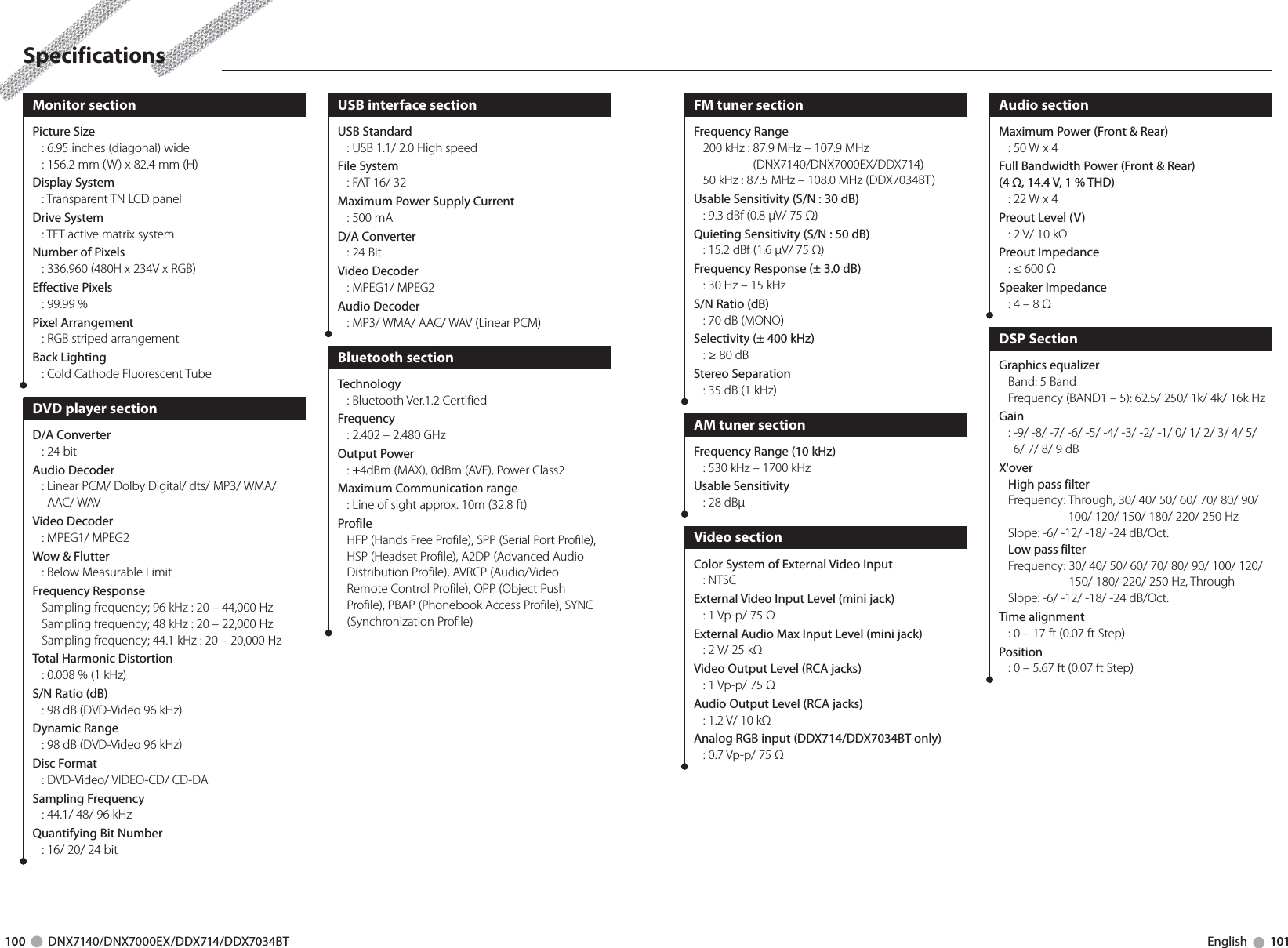

100 DNX7140/DNX7000EX/DDX714/DDX7034BT English 101SpecificationsMonitor sectionPicture Size: 6.95 inches (diagonal) wide: 156.2 mm (W) x 82.4 mm (H)Display System: Transparent TN LCD panelDrive System: TFT active matrix systemNumber of Pixels: 336,960 (480H x 234V x RGB) Effective Pixels: 99.99 %Pixel Arrangement: RGB striped arrangementBack Lighting: Cold Cathode Fluorescent TubeDVD player sectionD/A Converter: 24 bitAudio Decoder: Linear PCM/ Dolby Digital/ dts/ MP3/ WMA/ AAC/ WAV Video Decoder: MPEG1/ MPEG2Wow & Flutter: Below Measurable LimitFrequency ResponseSampling frequency; 96 kHz : 20 – 44,000 HzSampling frequency; 48 kHz : 20 – 22,000 HzSampling frequency; 44.1 kHz : 20 – 20,000 HzTotal Harmonic Distortion: 0.008 % (1 kHz)S/N Ratio (dB): 98 dB (DVD-Video 96 kHz)Dynamic Range: 98 dB (DVD-Video 96 kHz)Disc Format: DVD-Video/ VIDEO-CD/ CD-DASampling Frequency: 44.1/ 48/ 96 kHzQuantifying Bit Number: 16/ 20/ 24 bitUSB interface sectionUSB Standard: USB 1.1/ 2.0 High speedFile System: FAT 16/ 32Maximum Power Supply Current: 500 mAD/A Converter: 24 BitVideo Decoder: MPEG1/ MPEG2Audio Decoder: MP3/ WMA/ AAC/ WAV (Linear PCM)Bluetooth sectionTechnology: Bluetooth Ver.1.2 CertifiedFrequency: 2.402 – 2.480 GHzOutput Power: +4dBm (MAX), 0dBm (AVE), Power Class2Maximum Communication range: Line of sight approx. 10m (32.8 ft)ProfileHFP (Hands Free Profile), SPP (Serial Port Profile), HSP (Headset Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile), OPP (Object Push Profile), PBAP (Phonebook Access Profile), SYNC (Synchronization Profile)FM tuner sectionFrequency Range 200 kHz : 87.9 MHz – 107.9 MHz (DNX7140/DNX7000EX/DDX714)50 kHz : 87.5 MHz – 108.0 MHz (DDX7034BT)Usable Sensitivity (S/N : 30 dB): 9.3 dBf (0.8 μV/ 75 Ω)Quieting Sensitivity (S/N : 50 dB): 15.2 dBf (1.6 μV/ 75 Ω)Frequency Response (± 3.0 dB): 30 Hz – 15 kHzS/N Ratio (dB): 70 dB (MONO)Selectivity (± 400 kHz): ≥ 80 dB Stereo Separation: 35 dB (1 kHz)AM tuner sectionFrequency Range (10 kHz): 530 kHz – 1700 kHzUsable Sensitivity: 28 dBμVideo sectionColor System of External Video Input: NTSCExternal Video Input Level (mini jack): 1 Vp-p/ 75 ΩExternal Audio Max Input Level (mini jack): 2 V/ 25 kΩVideo Output Level (RCA jacks): 1 Vp-p/ 75 ΩAudio Output Level (RCA jacks): 1.2 V/ 10 kΩAnalog RGB input (DDX714/DDX7034BT only): 0.7 Vp-p/ 75 ΩAudio sectionMaximum Power (Front & Rear): 50 W x 4Full Bandwidth Power (Front & Rear) (4 Ω, 14.4 V, 1 % THD): 22 W x 4Preout Level (V): 2 V/ 10 kΩPreout Impedance: ≤ 600 ΩSpeaker Impedance : 4 – 8 ΩDSP SectionGraphics equalizerBand: 5 BandFrequency (BAND1 – 5): 62.5/ 250/ 1k/ 4k/ 16k HzGain: -9/ -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0/ 1/ 2/ 3/ 4/ 5/ 6/ 7/ 8/ 9 dBX'overHigh pass filterFrequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 HzSlope: -6/ -12/ -18/ -24 dB/Oct.Low pass filterFrequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz, ThroughSlope: -6/ -12/ -18/ -24 dB/Oct.Time alignment: 0 – 17 ft (0.07 ft Step)Position: 0 – 5.67 ft (0.07 ft Step)

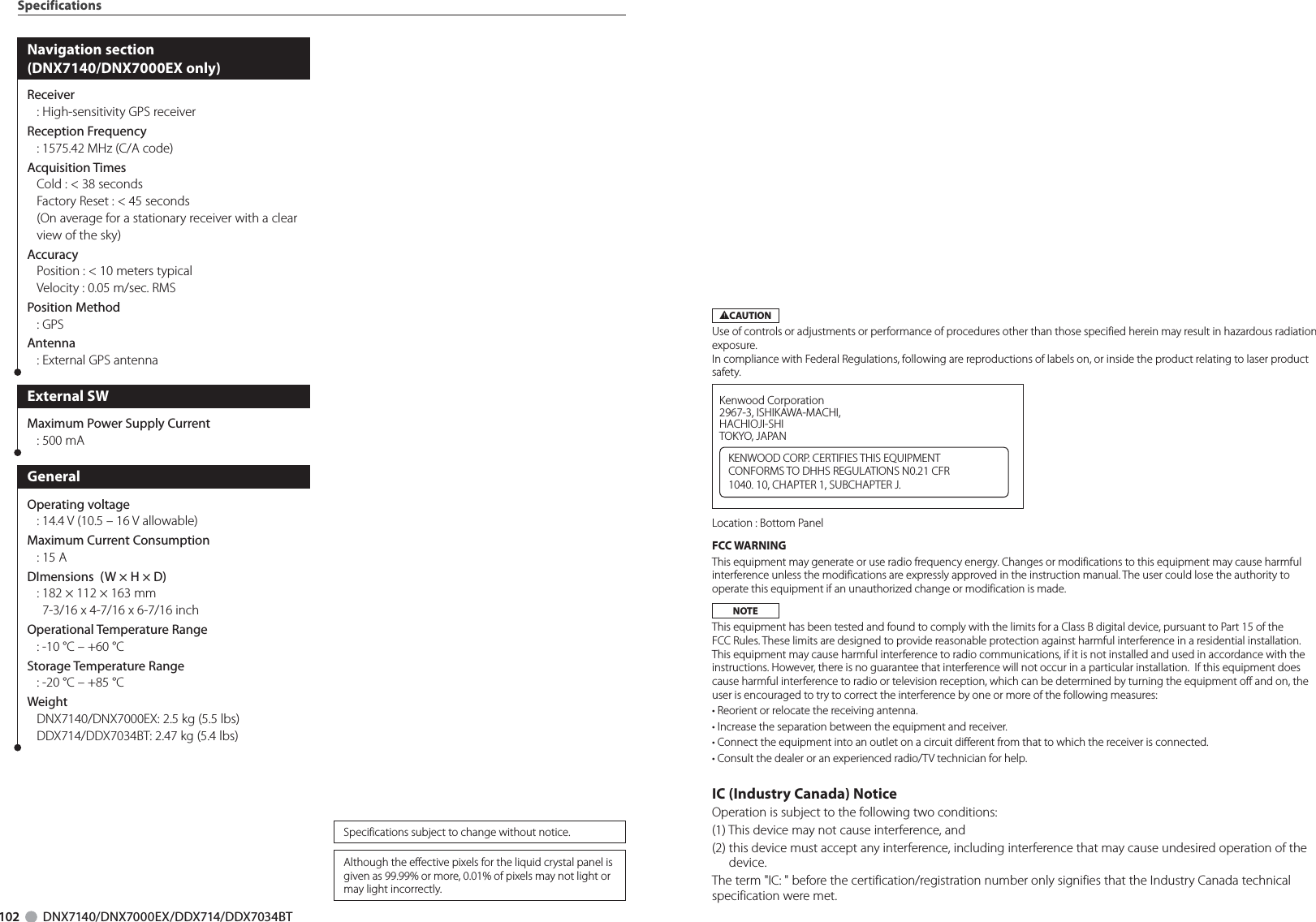

102 DNX7140/DNX7000EX/DDX714/DDX7034BTSpecifications2CAUTIONUse of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. Kenwood Corporation 2967-3, ISHIKAWA-MACHI,HACHIOJI-SHITOKYO, JAPANKENWOOD CORP. CERTIFIES THIS EQUIPMENT CONFORMS TO DHHS REGULATIONS N0.21 CFR 1040. 10, CHAPTER 1, SUBCHAPTER J.Location : Bottom PanelFCC WARNINGThis equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.NOTEThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.IC (Industry Canada) NoticeOperation is subject to the following two conditions:(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.The term "IC: " before the certification/registration number only signifies that the Industry Canada technical specification were met.Navigation section (DNX7140/DNX7000EX only)Receiver: High-sensitivity GPS receiverReception Frequency: 1575.42 MHz (C/A code)Acquisition TimesCold : < 38 secondsFactory Reset : < 45 seconds(On average for a stationary receiver with a clear view of the sky)AccuracyPosition : < 10 meters typicalVelocity : 0.05 m/sec. RMSPosition Method: GPS Antenna: External GPS antenna External SWMaximum Power Supply Current: 500 mAGeneralOperating voltage: 14.4 V (10.5 – 16 V allowable) Maximum Current Consumption: 15 A DImensions (W × H × D): 182 × 112 × 163 mm7-3/16 x 4-7/16 x 6-7/16 inchOperational Temperature Range: -10 °C – +60 °CStorage Temperature Range: -20 °C – +85 °CWeight DNX7140/DNX7000EX: 2.5 kg (5.5 lbs)DDX714/DDX7034BT: 2.47 kg (5.4 lbs)Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrectly.Specifications subject to change without notice.

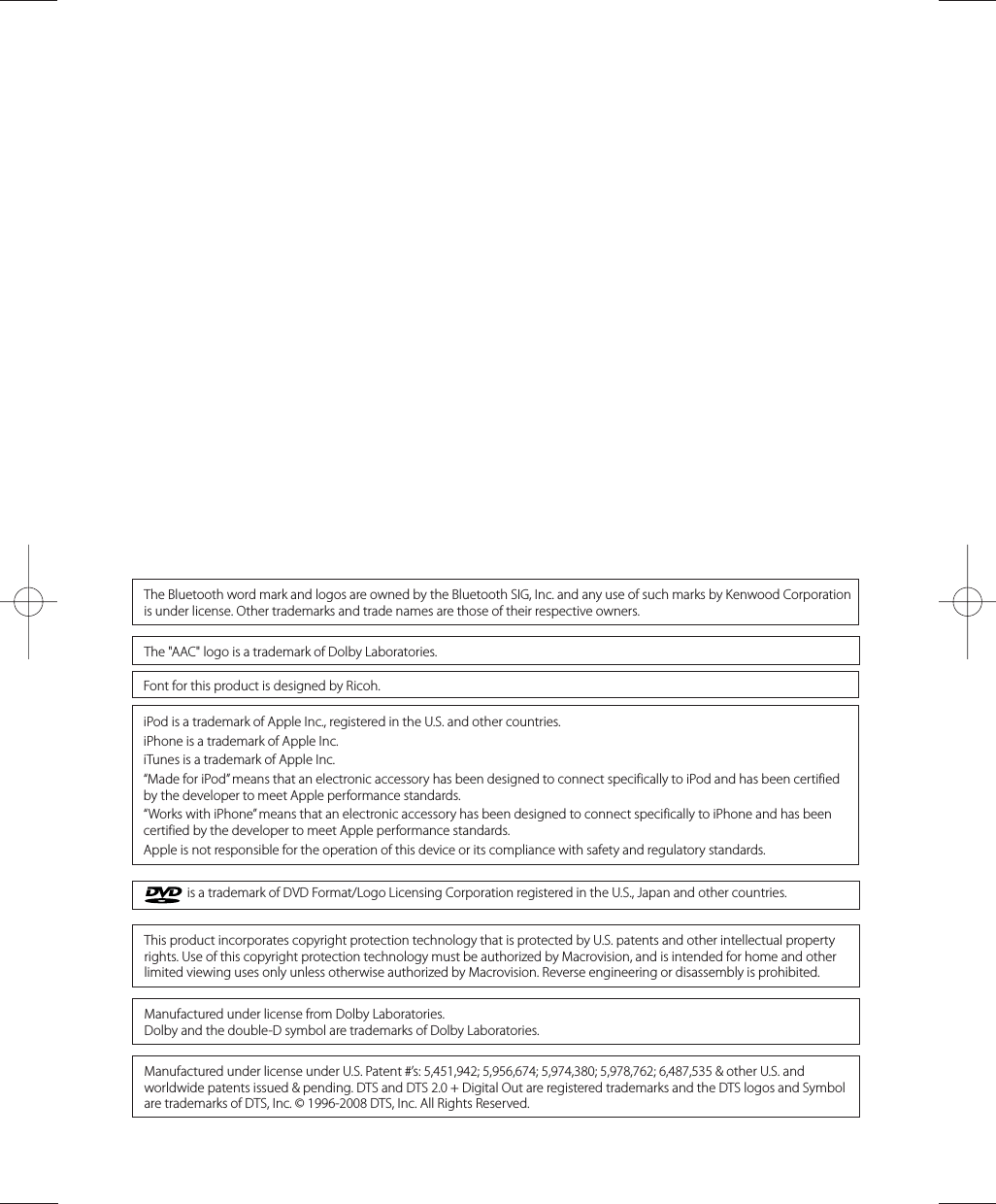

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.Manufactured under license from Dolby Laboratories.Dolby and the double-D symbol are trademarks of Dolby Laboratories.Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.The "AAC" logo is a trademark of Dolby Laboratories.The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners.iPod is a trademark of Apple Inc., registered in the U.S. and other countries.iPhone is a trademark of Apple Inc.iTunes is a trademark of Apple Inc.“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.“Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.Font for this product is designed by Ricoh.
