JVCKENWOOD 39604 GPS NAVIGATION SYSTEM MONITOR DVD RECEIVER User Manual 10 Instruction manual DNX9140 Rev2
JVC KENWOOD Corporation GPS NAVIGATION SYSTEM MONITOR DVD RECEIVER 10 Instruction manual DNX9140 Rev2
Users manual
GPS NAVIGATION SYSTEM
DNX9140
MONITOR WITH DVD RECEIVER
DDX814
DDX8034BT
INSTRUCTION MANUAL
©B64-4378-00/00 (KW/RW)
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best
performance from your new GPS Navigation System/DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your Kenwood dealer for information or service on the product.
Model DNX9140/DDX814/DDX8034BT Serial number
US Residents Only
Register Online
Register your Kenwood product at
www.Kenwoodusa.com
2 DNX9140/DDX814/DDX8034BT English 3
Contents
Functions of the buttons on the front
panel 10
Picture in Picture Function 11
Screen Switching Function 11
Getting Started 12
How to Display the Navigation Screen 12
How to Select the Source 12
How to Set a Medium / a Device 13
Basic Operation 14
How to Display the Source Control Screen 14
How to Display Top Menu Screen 15
Operation on the Playback Screen of Visual
Sources 16
How to Display the Easy Control Screen 17
Watching DVD/Video CD 18
Playback Screen 18
Easy Control Screen 18
Source Control Screen 18
DVD-VIDEO Disc Menu 20
DVD-VR Menu Control 21
Video CD Zoom Control 21
Music Disc/ Audio File Listening &
Video File/ Picture File Watching 22
Source Control Screen 22
List Select 23
USB device select 24
Link search (Audio File in USB) 25
Playback Screen (Video file, Picture file) 25
Easy Control Screen (Video file, Picture file) 26
Picture Control 26
Movie Menu Control 26
iPod Control 27
Playback Screen 27
Easy Control Screen 27
Source Control Screen 28
iPod List 28
Link search (Music file) 29
Hands Free Unit Control 51
Before Use 51
Downloading the Phonebook 51
Receiving a Call 51
During a Call 51
Call Waiting 52
Making a Call 52
Calling by Phonebook 53
Calling by Entering a Phone Number 53
Making a Call Using Call Records 54
Calling by Voice Recognition 54
Controlling Tone-based Services 55
Setting Up the Hands-Free Phone 55
Voice Registration 56
Key Word Voice Registration 57
Phone Number Preset 58
SMS (Short Message Service) 59
Audio Control 61
Audio Control Menu 61
Audio Control 61
Equalizer Control 62
Graphic Equalizer Setup 62
Zone Control 63
SRS WOW Control 63
Surround Control 64
Position 65
Radio Listening 30
Source Control Screen 30
Preset Select 31
Auto Memory 31
Manual Memory 32
Radio Text 32
Set Station Name 33
Traffic Information 33
Search by Program Type 34
TV Watching 35
Function During TV Screen 35
Easy Control Screen 35
Source Control Screen 36
Auto Memory 37
Manual Memory 37
Preset Select 38
Set Station Name 38
SIRIUS/XM Control 39
Source Control Screen 39
Channel Search 40
Channel Memory 40
Direct Channel Search 41
HD Radio Control 42
Source Control Screen 42
Auto Memory 43
Manual Memory 43
Receive mode 44
Direct Search 44
iTunes Tagging (HD Radio Tagging) 45
Bluetooth Audio Control 46
Before Use 46
Source Control Screen 46
Setup Menu 66
How to Display SETUP Menu Screen 66
Mileage Tracker (DNX9140) 67
Vehicle Maintenance (DNX9140) 67
Gas Mileage Analysis (DNX9140) 68
Vehicle Setup (DNX9140) 68
DivX Setup 69
Software Information 69
User I nterface 70
Language Setting 70
Touch Panel Adjustment 71
Clock Setup 71
Security Setup 72
Monitor Angle Control 73
EXT SW Setup 73
Setup Memory 74
Entering Background 75
Panel Color Coordinate 76
Screen Control 77
Registering Bluetooth Unit 77
Registering Bluetooth Unit PIN Code 79
Bluetooth Unit Connection 79
AV Input Setup 80
AV Interface Setup 80
Navigation Setup 81
DSP Bypass Control 82
Speaker Setup 82
Car Type (DTA) Setup 84
Channel Level 85
DVD Setup 86
DVD Language Setup 86
DVD Parental Level Setup 87
Disc Setup 88
USB Setup 88
iPod Setup 89
SIRIUS Parental Code Setup 89
SIRIUS Parental Lock Setup 90
SIRIUS Parental Lock Channel Select 91
TV Setup 92
Voice Control (DNX9140 only) 47
Voice Control 47
Other Functions 48
How To Use the Character Entry Screen 48
External Device Power Supply Control 48
Muting Audio Volume upon Reception of
Phone Call 49
Screen Control 50
Screen Control 50
Remote Controller 93
Initial Setup 99
Status bar Indicator items 100
DVD Language Codes 101
Voice Command Table 102
Help? Troubleshooting 110
Help? Error 111
Specifications 113
How to read this manual 4
Before Use 6
Notes 7
Initial Setup 93

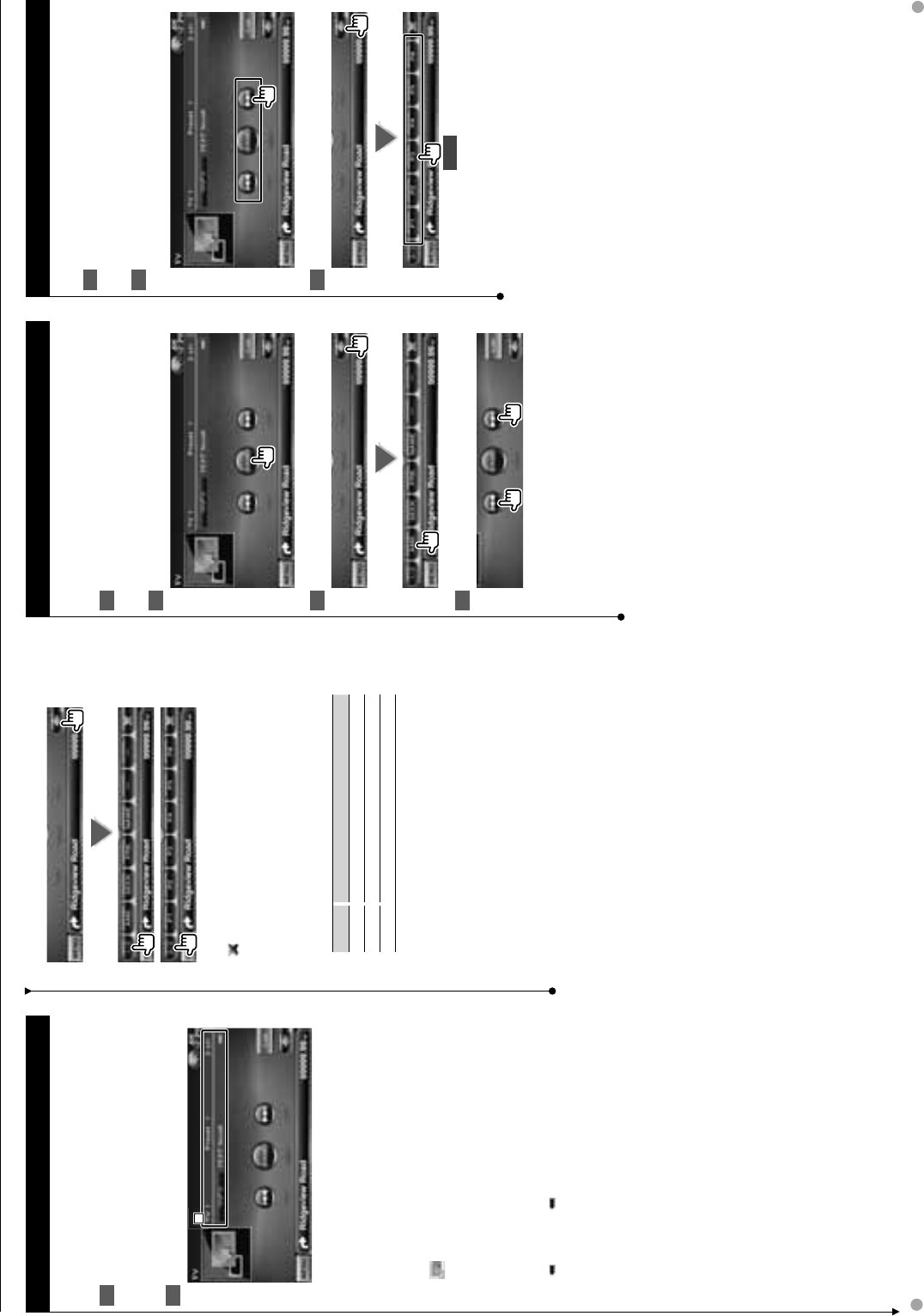

Source Control Screen
Switches to the source control screen to use
various functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen>.
Operation on the 2 Source Control screen
1
1
1
[FM] Switches to the FM1/2/3 band.
[AM] Switches to the AM band.
[], [D] Tunes in a station.
Use the [SEEK] to change the frequency
switching.
Multi Function
[CRSC] FMFM Turns the CRSC function On
or Off.
[SEEK] Switches the Seek mode.
The mode is switched in the following order
each time you touch the button.
Display Setting
"AUTO1" Tunes in a station with good reception
automatically.
"AUTO2" Tunes in stations in memory one after another.
"MANU" Switches to the next frequency manually.
2 sec.
Continue to touch until the memory number
appears.
Next page
4 DNX9140/DDX814/DDX8034BT English 5

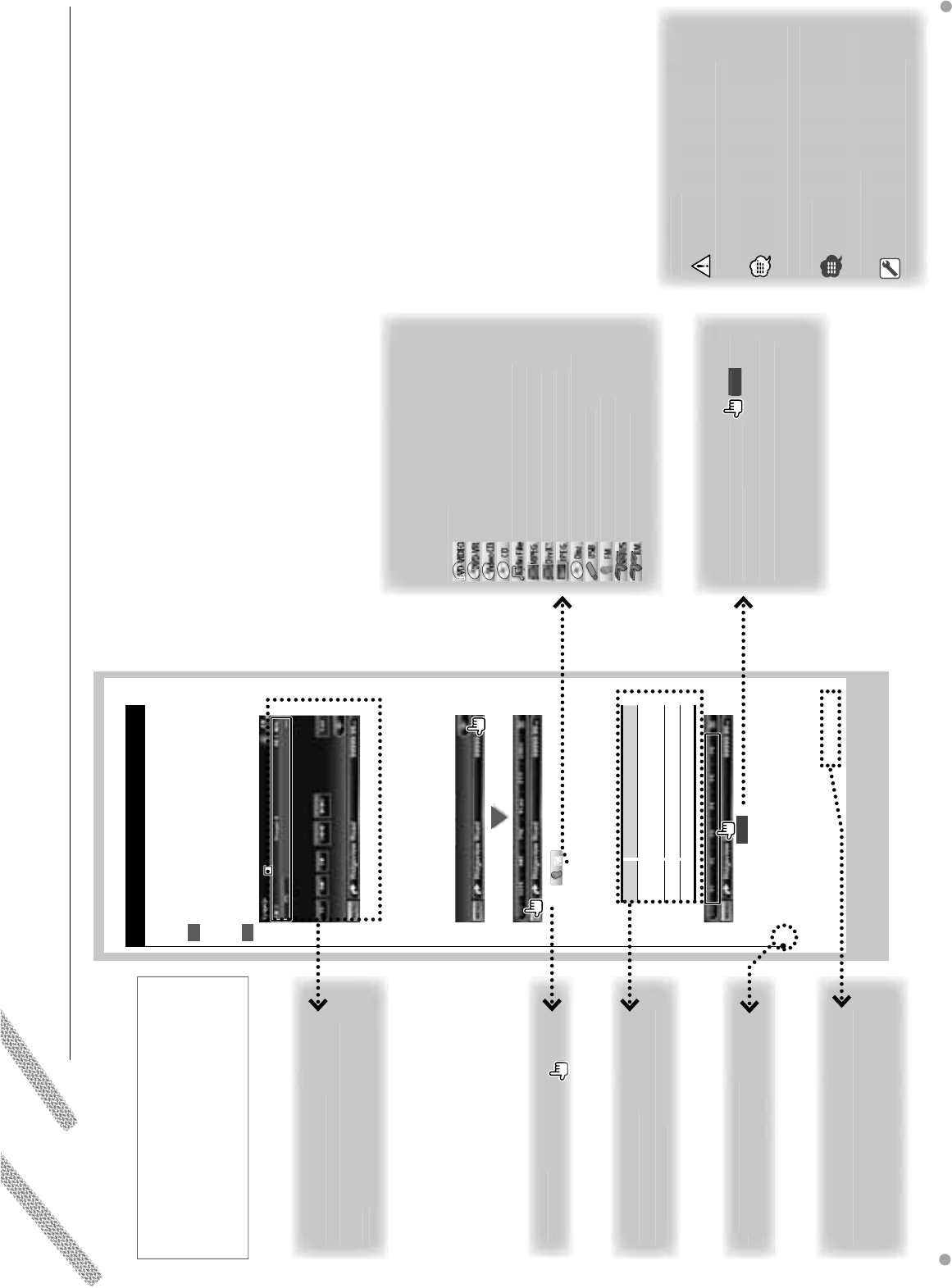

How to read this manual
This manual uses illustrations to explain its
operations.
The displays and panels shown in this manual
are examples used to provide clear explanations
of the operations.
For this reason, they may be different from the
actual displays or panels used, or some display
patterns may be different.
The above operation example with the mark
differs from the actual operation.
S
S
Sh
Sh
Sh
Sh
Sh
or
or
t
t
t
P
P
Pr
Pr
es
es
s
s
Pre
Pre
Pre
Pre
Pre
Pre
Pr
P
ss
ss
ss
ss
ss
ss
the
the
the
the
the
the
bu
bu
bu
bu
bu
bu
tto
tto
tto
tto
tto
tto
n
n
n
n,
n,
n,
,
,
den
den
den
den
den
den
ote
ote
ote
ote
ote
ote
db
db
db
db
db
d
b
y
y
y
y
y
y
y
y
y
.
.
.
P
Pr
ess
2
seco
n
ds
o
r m
o
r
e
Press the button, denoted b
y
2
sec.
,
f
or 2
seco
n
ds
o
r m
o
r
e
.
Indicates to press and hold down the button
u
ntil operation starts or the screen chan
g
es.
T
he le
f
t example indicates to press the button
fo
for
f
2
seco
n
ds.
C
C
Ch
Ch
an
g
e in the screen
Wit
W
h
eac
h
operation, t
h
e screen c
h
anges in
the
the
th
th
t
t
or
or
der
der
sh
sh
own
own
he
he
re.
re.
O
O
O
O
Ot
her mark
s
I
mportant precautions are
d
escri
b
e
d
to
prevent
i
n
j
ur
i
es etc.
S
S
pecia
l
instructions, supp
l
ementar
y
e
e
xplanations, limitations, and re
f
erence pages
a
a
re
d
escri
b
e
d
.
G
G
eneral precautions and re
f
erence pa
g
es are
s
sho
wn
o
n
the
i
te
m
.
Th
The
The
T
T
T
in
in
iti
iti
al
al
val
val
ue
ue
of
of
eac
eac
hs
h
s
etu
etu
pi
p
i
p
p
ss
s
s
how
how
n.
n.
C
C
Co
ntinue to t
h
e next pag
e
The instruction continues to the next pa
g
e.
M
ake sure to flip the pa
g
e for the rest of the
ins
i
i
t
r
uct
i
o
n
.
S
Se
lectin
g
a screen item
S
e
l
ect an
d
c
h
oose an item on t
h
e screen.
S
e
l
ect t
h
e item
by
touc
h
ing t
h
e
b
utton on t
h
e
s
scr
een
.
∞
∞
∞
: Continues to t
h
e next
l
ine
.
¶
¶
¶
¶
: En
d
s
h
ere.
F
unct
i
on Icon
Icons representin
g
available functions are
s
h
o
wn
be
l
o
w
.
DEO
DEO
DVD-VID
VD-VID
DVD-V
D-V
DD
DD
D
DV
:
Function of DVD-VIDEO playback
.
:
Function of DVD-VR playback
.
:
Function of Video CD playback.
:
Function of CD (CD-DA) playback
.
:
Function of Audio File playback
.
:
Function of MPEG file playback.
:
Function of DivX file playback.
:
Function of JPEG file playback.
:
Function of Disc (DVD, CD) media
.
:
F
u
n
ct
i
o
n
o
f
US
B
de
vi
ce
.
:
Function of FM rece
p
tion.
:
F
u
n
ct
i
o
n
o
f
S
IRI
US
sou
r
ce.
:
F
u
n
ct
i
o
n
o
f XM
sou
r
ce.
6 DNX9140/DDX814/DDX8034BT English 7
NotesBefore Use
2WARNING
To prevent injury or fire, take the following
precautions:
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools) inside
the unit.
• Do not watch or fix your eyes on the unit’s display
when you are driving for any extended period.
How to reset your unit
• If the unit or the connected unit fails to operate
properly, press the Reset button. The unit returns to
factory settings when the Reset button is pressed.
• Remove the USB device before pressing the Reset
button. Pressing the Reset button with the USB
device installed can damage the data contained in
the USB device. For how to remove the USB device,
see <How to Set a Medium / a Device> (page 13).
• When the unit is turned on after pressing the Reset
button, the Initial SETUP screen is displayed. (page
99)
Reset button
Cleaning the Unit
If the faceplate of this unit is stained, wipe it with a
dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the stain off
with a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
¤
• Applying spray cleaner directly to the unit may affect its
mechanical parts. Wiping the faceplate with a hard cloth
or using a volatile liquid such as thinner or alcohol may
scratch the surface or erases characters.
Lens Fogging
When you turn on the car heater in cold weather,
dew or condensation may form on the lens in the
disc player of the unit. Called lens fogging, this
condensation on the lens may not allow discs to play.
In such a situation, remove the disc and wait for the
condensation to evaporate. If the unit still does not
operate normally after a while, consult your Kenwood
dealer.
List of playable discs
Disc
types
Standard Support Remark
DVD DVD Video ‡
DVD Audio ×
DVD-VR ‡Not compatible with CPRM.
DVD-R ‡MP3/WMA/AAC/WAV/
JPEG/MPEG/DivX Playback
Multi-border/Multisession/
(Playback depends on
authoring conditions)
Compatible with 8-cm (3
inch) discs
DVD-RW ‡
DVD+R ‡
DVD+RW ‡
DVD-R DL (Dual layer) ‡Only video format
DVD+R DL (Double layer) ‡
DVD-RAM ×
CD Music CD ‡CD-TEXT/8-cm (3 inch)
discs supported.
CD-ROM ‡MP3/WMA/AAC/WAV/
JPEG/DivX playback
Multisession supported
Packet write not supported.
CD-R ‡
CD-RW ‡
DTS-CD ‡
Video CD (VCD) ‡
Super video CD ×
Photo CD ×
CD-EXTRA %Only music CD session can
be played.
HDCD %Sound quality of normal
CD music
CCCD ×
Others Dualdisc ×
Super audio CD %Only CD layer can be
played.
‡ : Playback is possible.
% : Playback is partly possible.
× : Playback is impossible.
⁄
• When buying DRM enabled contents, check the
Registration Code in the <DivX Setup> (page 69).
Registration Code changes each time a file with the
displayed Registration Code is played to protect against
copying.
Use of "DualDisc"
When playing a "DualDisc" on this unit, the surface
of the disc that is not played may be scratched
while the disc is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may be impossible.
(A "DualDisc" is a disc with one surface containing
DVD standard signals and the other surface
containing music CD signals.)
About Audio files
• Playable Audio file
AAC-LC (.m4a), MP3 (.mp3), WMA (.wma), Linear
PCM (WAV) (.wav)
⁄
• If music of normal CD and other playback systems are
recorded in the same disc, only the playback system
recorded at the first setout is played.
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device, iPod with KCA-iP301V
• Playable disc file format
ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device file system
FAT16, FAT32
Although the audio files are complied with the standards
listed above, the play maybe impossible depending on
the types or conditions of media or device.
• Playing order of the Audio file
In the example of folder/file tree shown below, the
files are played in the order from ① to ⑩.
CD
v
()
<
: Folder
v
: Audio
v
v
v
v.
v
Folder
Audio file
An online manual about audio files is put on the
site, www.kenwood.com/audiofile/. On this online
manual, detailed information and notes which are
not written in this manual are provided. Make sure
to read through the online manual as well.
About Video files
• Acceptable video files
MPEG1, MPEG2, DivX
• Extensions
mpg, mpeg, m1v, m2v, divx, div, avi
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device, iPod with KCA-iP301V
Acceptable discs, disc formats, USB device file system,
file and folder names and playing order are the same
as those for audio files. See <About Audio files>.
Handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with
tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull them out
horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with a
ballpoint pen etc.
Discs that cannot be used
• Discs that are not round cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
• This unit can only play the CDs with .
This unit may not correctly play discs which do not
have the mark.
• You cannot play a disc that has not been finalized.
(For the finalization process refer to your writing
software, and your recorder instruction manual.)
• If you try to load a 3-inch-disc with its adapter into
the unit, the adapter might separate from the disc
and damage the unit.
Other notes
• If you experience problems during installation,
consult your Kenwood dealer.
• When you purchase optional accessories, check
with your Kenwood dealer to make sure that they
work with your model and in your area.
• Characters that conform to ISO 8859-1 can be
displayed.
• The RDS or RBDS feature won’t work where the
service is not supported by any broadcasting
station.
Next page 3
This product includes a non-replaceable
lamp that contains trace amounts of
mercury. Please recycle in accordance
with your local state regulations. Do
not dispose of in trash. For disposal or
recycling information, please contact
your local authorities.
8 DNX9140/DDX814/DDX8034BT English 9
Notes
About Picture files
• Acceptable picture files
JPEG
• Extensions
jpg, jpeg
• Acceptable media
CD-R/RW/ROM, DVD±R/RW, mass-storage-class
USB device
Acceptable discs, disc formats, USB device file system,
file and folder names and playing order are the same
as those for audio files. See <About Audio files>.
iPod/iPhone that can be connected to this
unit
Made for
• iPod nano (1st generation) • iPod nano (2nd generation)
• iPod nano (3rd generation) • iPod nano (4th generation)
• iPod with video • iPod classic
• iPod touch (1st generation) • iPod touch (2nd generation)
Works with
• iPhone • iPhone 3G
• Update iPod/iPhone software to the latest version.
• You can control an iPod/iPhone from this unit by
connecting an iPod/iPhone (commercial product)
with Dock connector using an optional accessory
iPod connection cable (KCA-iP301V). The word
"iPod" appearing in this manual indicates the iPod/
iPhone connected with the KCA-iP301V (optional
accessory).
• By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable (KCA-
iP301V), you can supply power to your iPod/iPhone
as well as charge it while playing music. However,
the power of this unit must be on.
⁄
• If you start playback after connecting the iPod, the
music that has been played by the iPod is played
first.
In this case, "RESUMING" is displayed without
displaying a folder name, etc. Changing the browse
item will display a correct title, etc.
• When the iPod is connected to this unit,
"KENWOOD" or "✓" is displayed on the iPod to
indicate that you cannot operate the iPod.
About USB device
• In this manual, the word "USB device" is used for
flash memories and digital audio players which
Region codes in the world
The DVD players are given a region code according to the country or area it is marketed, as shown in the
following map.
Operation regulatory marks
With this DVD, some functions of this unit such as the
play function may be restricted depending on the
location where the DVD is playing. In this case, the
following marks will appear on the screen. For more
information, refer to the disc manual.
Prohibition Mark
Discs with limited period of use
Do not leave discs with a limited period of use in this
unit. If you load an already expired disc, you may not
be able to remove it from this unit.
1
2
4
1
5
4
5
2
1
2
6
3
DVD disc marks
Symbol Description
ALL
Indicates a region number. The discs with this mark can
be played with any DVD player.
8
Indicates the number of audio languages recorded. Up
to 8 languages can be recorded in a movie. You can
select a favorite language.
32
Indicates the number of subtitled languages recorded.
Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple angles, you
can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The left mark
indicates that a wide image picture (16:9) is displayed
on a standard TV set screen (4:3) with a black band at
both the top and bottom of the screen (letter box).
have USB terminals.
• When the USB device is connected to this unit,
it can be charged up provided that this unit is
powered.
• Install the USB device in the place where it will not
prevent you from driving your vehicle properly.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this unit.
The files can be erased depending on the operating
conditions of the USB device.
We shall have no compensation for any damage
arising out of erasure of the stored data.
• No USB device comes with this unit. You need to
purchase a commercially available USB device.
• When connecting the USB device, usage of the
CA-U1EX (option) is recommended.
Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
Connecting a cable whose total length is longer
than 5 m can result in abnormal playback.
Navigation units that can be connected to
this unit (DDX814/ DDX8034BT only)
• KNA-G510*/ G431* • KNA-DV4100
• KNA-DV3100 • KNA-DV2100
* Update the navigation software to the latest
version. For how to update the software, refer to the
instruction manual of the navigation unit.
About Satellite Radio tuner
This unit supports Satellite Radio tuners which are
released by SIRIUS and XM.
Optional accessories below are necessary for
connection.
SIRIUS tuner : Conversion cable CA-SR20V
XM tuner : XM interface Box KCA-XM100V
Refer to the instruction manual of Satellite radio
tuner.
HD Radio that can be connected to this
unit
• KTC-HR300 • KTC-HR200
When you connect an HD Radio, Tuner features of
the unit are disabled and changed to HD Radio tuner
features.
TV tuner that can be connected to this unit
(DDX8034BT only)
• KTC-V300N
10 DNX9140/DDX814/DDX8034BT English 11

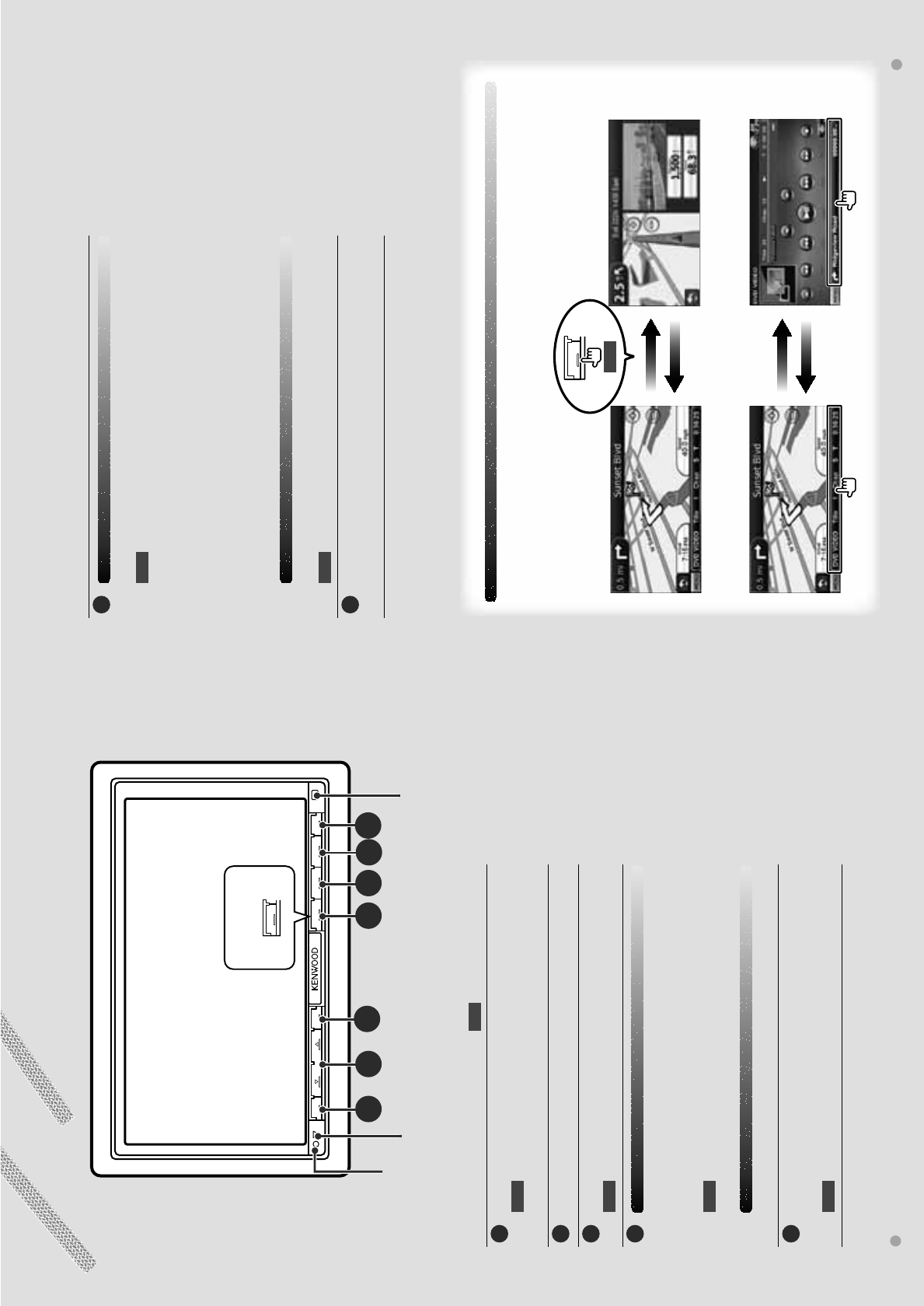

Functions of the buttons on the front panel
Functions of the buttons on the front panel
ATT NAV SRC TEL
VOLUME AUD
A EB CDFG
TOP
For DDX814/
DDX8034BT
AAttenuation of the volume On/Off.
1 sec. Keep the tag data of the currently listening music of
HD Radio. t
BVolume adjustment.
CDisplays Graphic Equalizer screen.*1 „
1 sec. Rear view display On/Off.*2
D
DNX9140
DNX9140
Displays the navigation screen.
When the navigation screen has already been displayed, it switches
to the currently selected source screen.
1 sec. Picture in Picture function On/Off.*3 !
DDX814/ DDX8034BT
DDX814/ DDX8034BT
Displays the Top Menu screen. %
ETurns the power On.
Displays the Source Select screen. @
1 sec. Turns the power Off.
⁄
*4 When the Picture in Picture function
(page 11) is activated, this function is
disabled.
F
DNX9140
DNX9140
Hands Free control On/Off.
1 sec. 7 While watching the playback screen of a visual
source
Displays the Easy Control screen. &
7 While watching the navigation screen
Displays the Screen Control screen. p
7 While watching the screen other than the above
Screen Switching function On/Off.*4 !
DDX814/ DDX8034BT
DDX814/ DDX8034BT
Hands Free control On/Off.
1 sec. Displays the Easy Control buttons. &
GOpens the panel and ejects the disc.
Closes the panel.
SI indicator (page 72) Remote control
sensor
Reset button
(page 6)
1 sec. : Press for more than 1 second
⁄
*1 The display may not switch to
Audio Control Menu screen in some
conditions.
*2 The function of the [AUD] button
can be changed to the display off
function. See <User Interface> (page
70).
*3 When the Screen Switching function
(page 11) is activated, this function is
disabled.
DNX9140
DNX9140
Picture in Picture Function
Two screens, the navigation screen and source screen, are displayed. When Picture in Picture
function is on, touching the source screen switches between the R-CAM image and source image.
1 sec.
NAV
Screen Switching Function
Switching between the navigation screen and the source control screen with one touch operation.
12 DNX9140/DDX814/DDX8034BT English 13
Getting Started
Getting Started
How to Select the Source
Sources can be selected from the Source Select
screen.
Source Select screen
SRC
The Source Select screen appears.
Touch the icon of the source.
Use or to turn the page.
For how to operate each source, see the
following pages.
DVD-VIDEO/ DVD-VR/
Video CD disc \ Page 18
CD \ Page 22
Audio file/ Video file/
Picture file disc \ Page 22
iPod \ Page 27
USB \ Page 22
TUNER \ Page 30
SIRIUS/ XM \ Page 39
HD RADIO \ Page 42
TV \ Page 35
Bluetooth \ Page 46
⁄
• For Disc media, iPod, and USB, the input is switched to
the source as the media or the device is set.

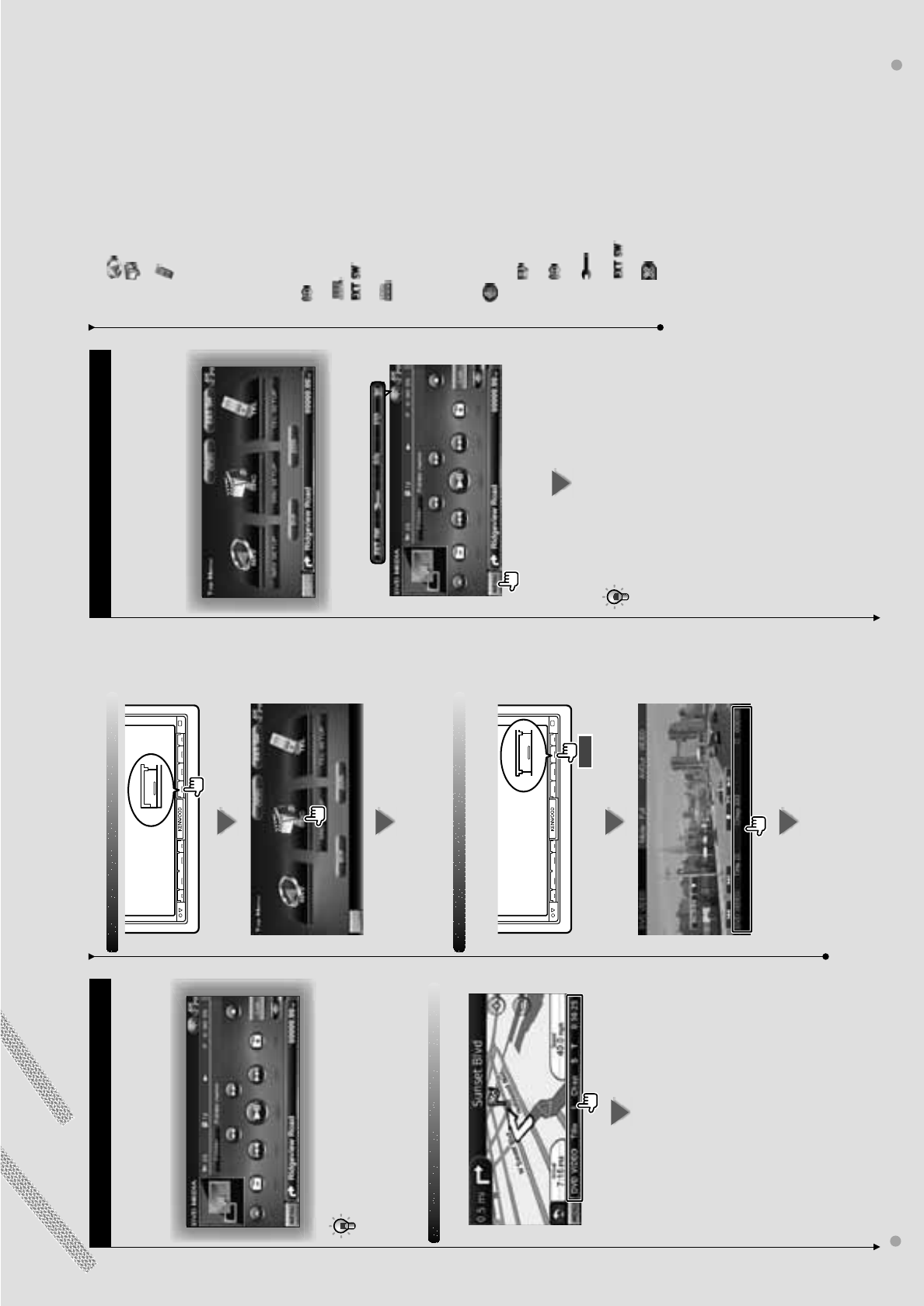

How to Display the Navigation Screen
DNX9140
DNX9140
NAV
The navigation screen appears.
DDX814/ DDX8034BT
DDX814/ DDX8034BT
TOP
The navigation screen appears.
• For how to set up and use the navigation function,
see the Navigation Instruction Manual.
⁄
• For DDX814/ DDX8034BT, an optional navigation system
needs to be connected. See <Navigation unit that can
be connected to this unit> (page 8) for connectable
navigation units.

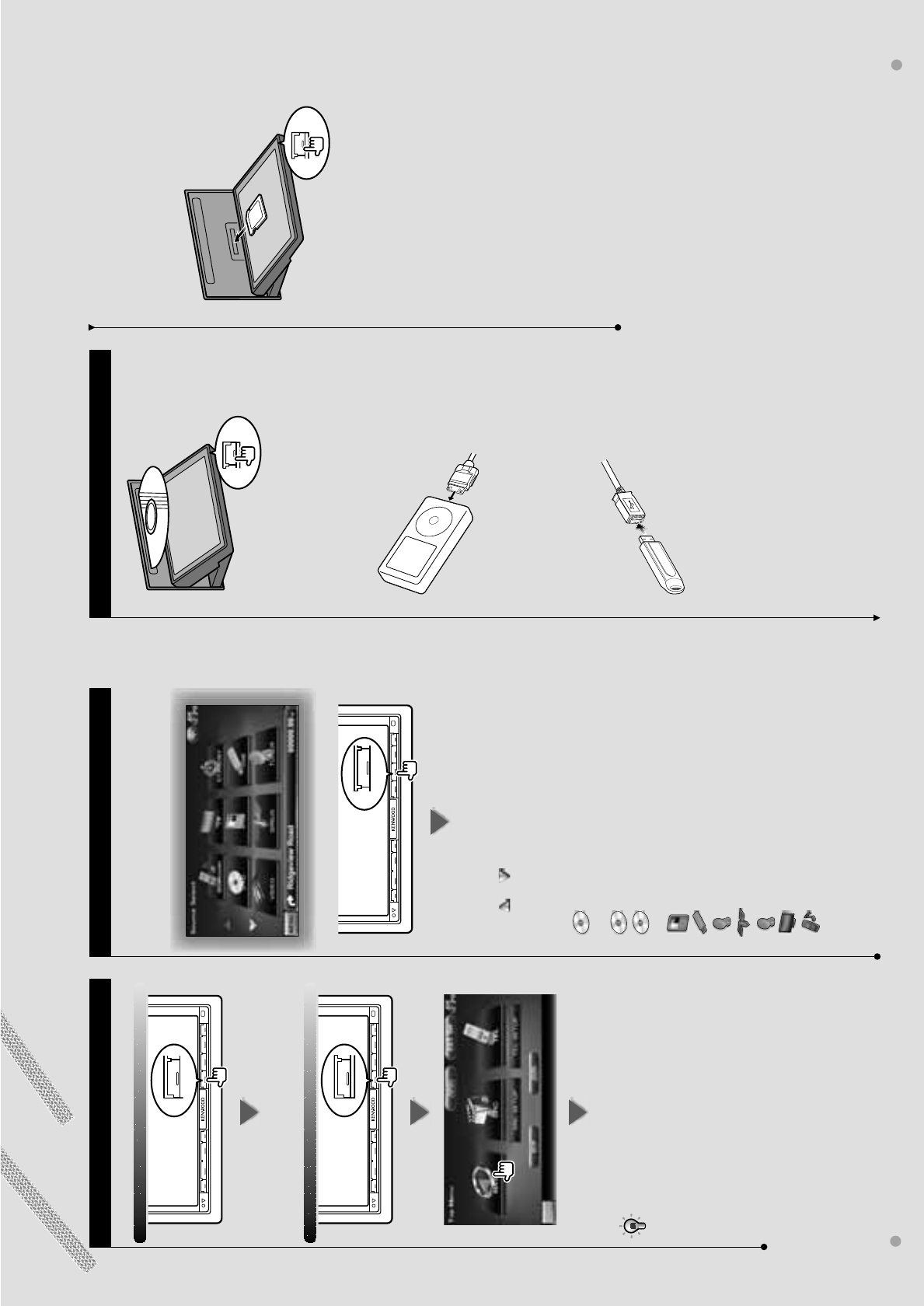

How to Set a Medium / a Device
7 Disc media
0
Press the [0] button to open/close the front
panel.
If a disc is already inserted, it is ejected by
pressing the [0] button.
7 iPod
To disconnect the iPod, stop the playback
by touching the [38] button on the source
control screen, and then disconnect the iPod.
See <Source Control Screen> (page 28).
7 USB device
To disconnect the USB device, touch the [0]
button on the source control screen, and
then disconnect the USB device. See <Source
Control Screen> (page 22).
7 SD card (DNX9140 only)
This SD card slot is used to upgrade the
Navigation System.
For how to upgrade the Navigation System,
refer to the instruction manual of the
navigation system.
Press the [0] button for more than 1 second
to open the front panel.
Inserting the SD card
Hold the SD card with the label side up
and the notched section on the right, and
insert it into the slot until it clicks.
Removing the SD card
Push the SD card until it clicks and then
remove your finger from the card. The card
pops up so that you can pull it out with
your fingers.
Press the [0] button to close the front panel.
⁄
• The playback starts automatically after setting the media
or the device.
14 DNX9140/DDX814/DDX8034BT English 15
Basic Operation
Basic Operation
How to Display the Source Control Screen
On the Source Control screen you can find all the
control buttons for the selected source.
Source Control Screen
• For how to use each button, see the operation pages
of each source.
How to display the Source Control screen
DNX9140
DNX9140
While watching the navigation screen
The Source Control Screen appears.
⁄
• The screen will return to the navigation screen by
touching the same part of the Source Control screen.
DDX814/ DDX8034BT
DDX814/ DDX8034BT
TOP
The Source Control Screen appears.
DNX9140/DDX814/ DDX8034BT
DNX9140/DDX814/ DDX8034BT
While watching the Easy Control Screen
TEL
1 sec.
The Source Control Screen appears.

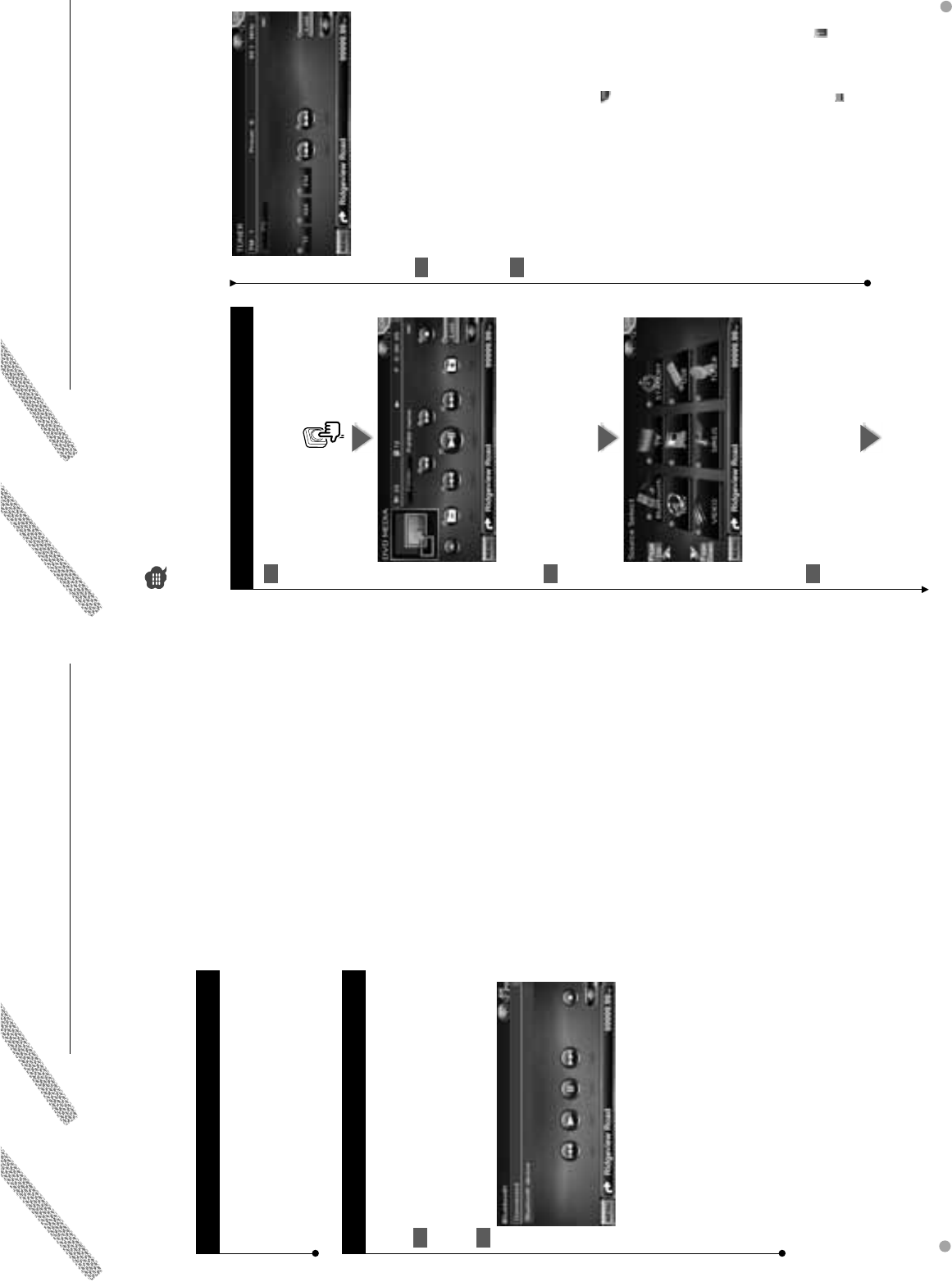

How to Display Top Menu Screen
Top Menu Screen is the entrance to all the
functions. You can enter source operation screen
as well as various setup menu from this screen.
Top Menu screen
How to display the Top Menu screen
Touch the [MENU] button on any screen.
The Top Menu Screen appears.
• For DDX814/ DDX8034BT
Pressing the [TOP] button on the front panel also
displays the Top Menu Screen.
Buttons on the Top Menu screen
[NAV
V
] Switches to the navigation screen.
[SRC ] Switches to the source control screen
of the selected source.
[TEL ] Switches to the Hands Free Main
screen.
[NAV SETUP] Displays Navigation SETUP screen.
(Instruction manual of the Navigation part)
(DNX9140 only)
[SRC SETUP] Displays SETUP Menu screen. (page
66)
[TEL SETUP] Displays Hands Free SETUP screen.
(page 55)
[] Displays Audio Control Menu screen. (page
61)
[] Displays Source Select screen.
[] Displays the EXT SW (External Switch)
Control screen. (page 48)
[] Changes the screen skin each time it is
pressed.
The buttons listed below are common for
many screens.
[MENU] Displays Top Menu screen.
[] Opens the function bar. The buttons shown
below appear.
[] Displays the currently selected source
screen.
[] Displays Audio Control Menu screen.
(page 61)
[] Displays SETUP Menu screen. (page
66)
[] Displays the EXT SW (External
Switch) Control screen. (page 48)
[] Closes the function bar.
16 DNX9140/DDX814/DDX8034BT English 17
Basic Operation
Basic Operation
Operation on the Playback Screen of
Visual Sources
While watching visual sources, basic operation is
possible by touching the screen.
The screen has 4 function areas. The function of
each area is different depending on the sources.
(Some areas are unavailable for some sources.)

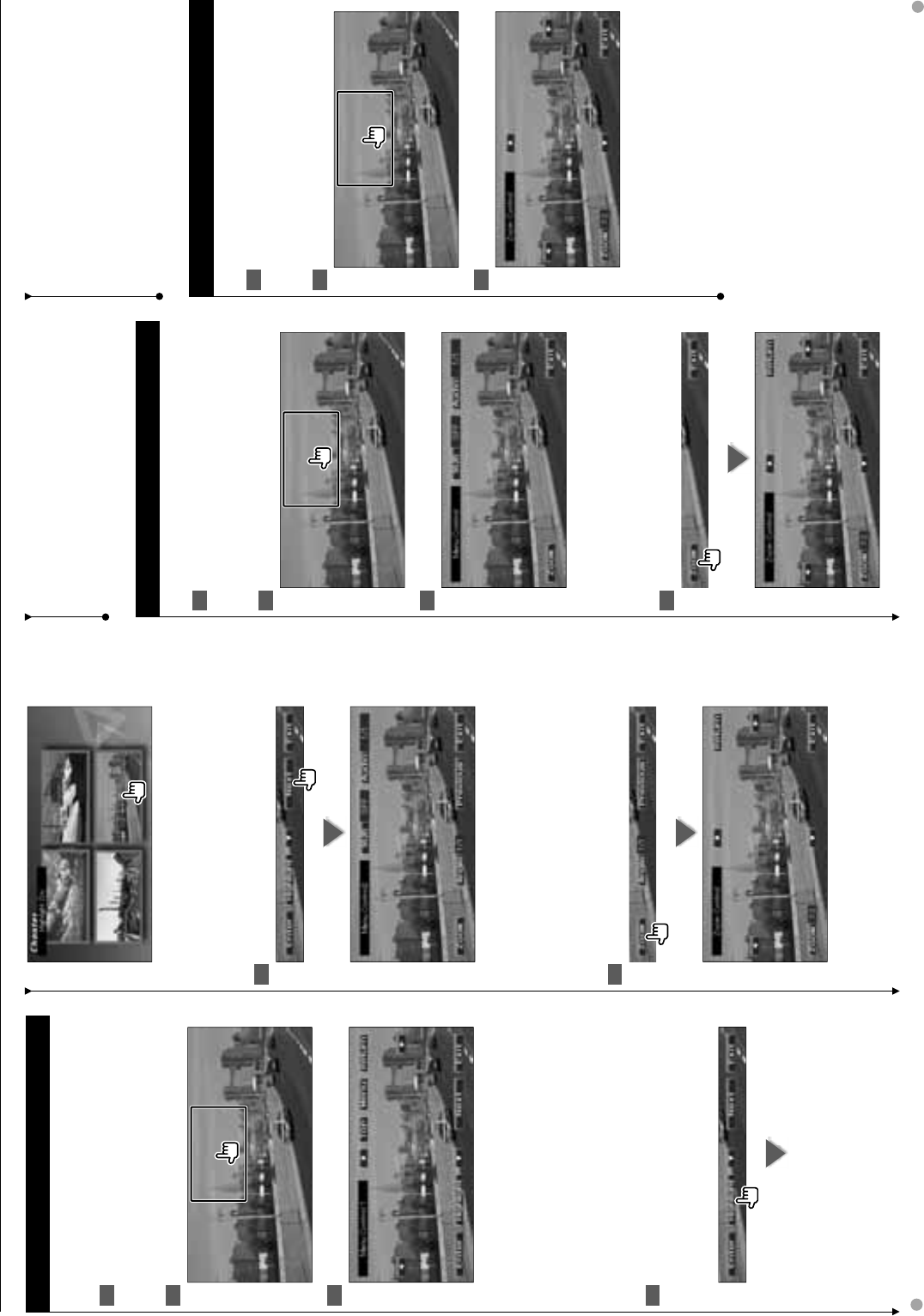

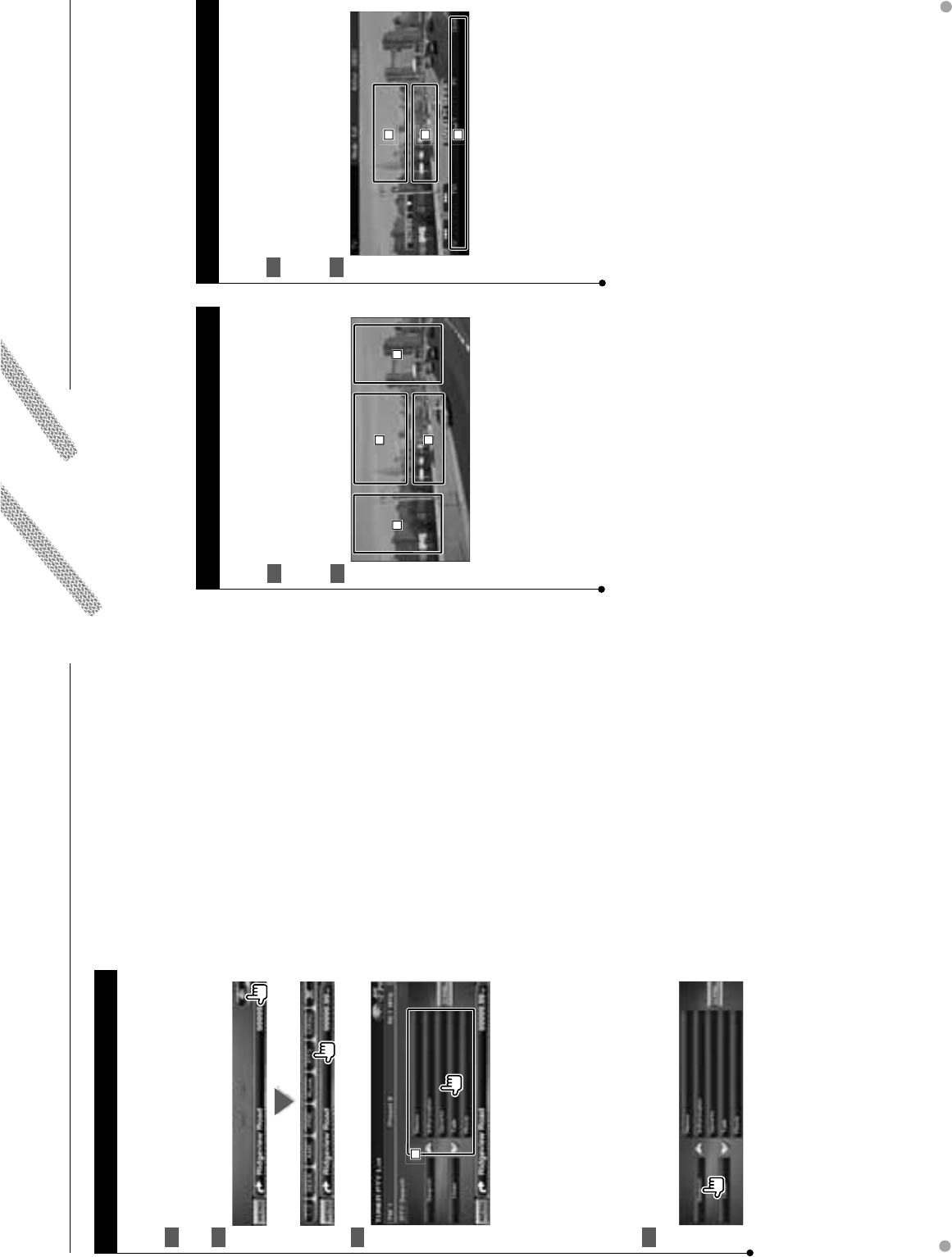

Playback screen of a visual source
31
2
4
Basic operation of each area
1 Reverse search.
2 Displays Menu control screen (DVD-VIDEO,
DVD-VR source), Picture control buttons
(sources with picture files), or Zoom control
buttons (Video CD).
Switches TV band.
3 Forward search.
4 Displays source information screen.*
• For the function of each touching area, see the pages
of each source.
* Source information screen
31
2
4
⁄
• The information display is cleared automatically after
approximately 5 seconds.
How to Display the Easy Control Screen
Basic operation buttons of the selected source
can be displayed on the playback screen of
visual sources so that you can control the source
without switching the screen.
Easy Control Screen
Buttons on the Easy Control Screen
[∞] Changes the function as follows by touching
the [∞] button.
[SCRN] Displays Screen Control screen (page
50).
[TEL] Switches to the Hands Free Main
screen (page 52).
[EXT SW] Switches to the EXT SW Control
screen (page 48).
[4], [¢], [7], [£8]
Buttons for source control. The buttons are
different depending on the source. See the
operation pages of each source.
While watching the visual source
TEL
1 sec.
The Easy control screen appears.
⁄
• Easy Control screen is hidden when you touch the central
part of the monitor.
How to display the playback screen
SRC
The Source Select screen appears.
Touch the icon of the source.
The Playback screen of a visual source appears.
18 DNX9140/DDX814/DDX8034BT English 19
Watching DVD/Video CD
You can play DVD/Video CD using various functions.
• Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch>
(page 93).

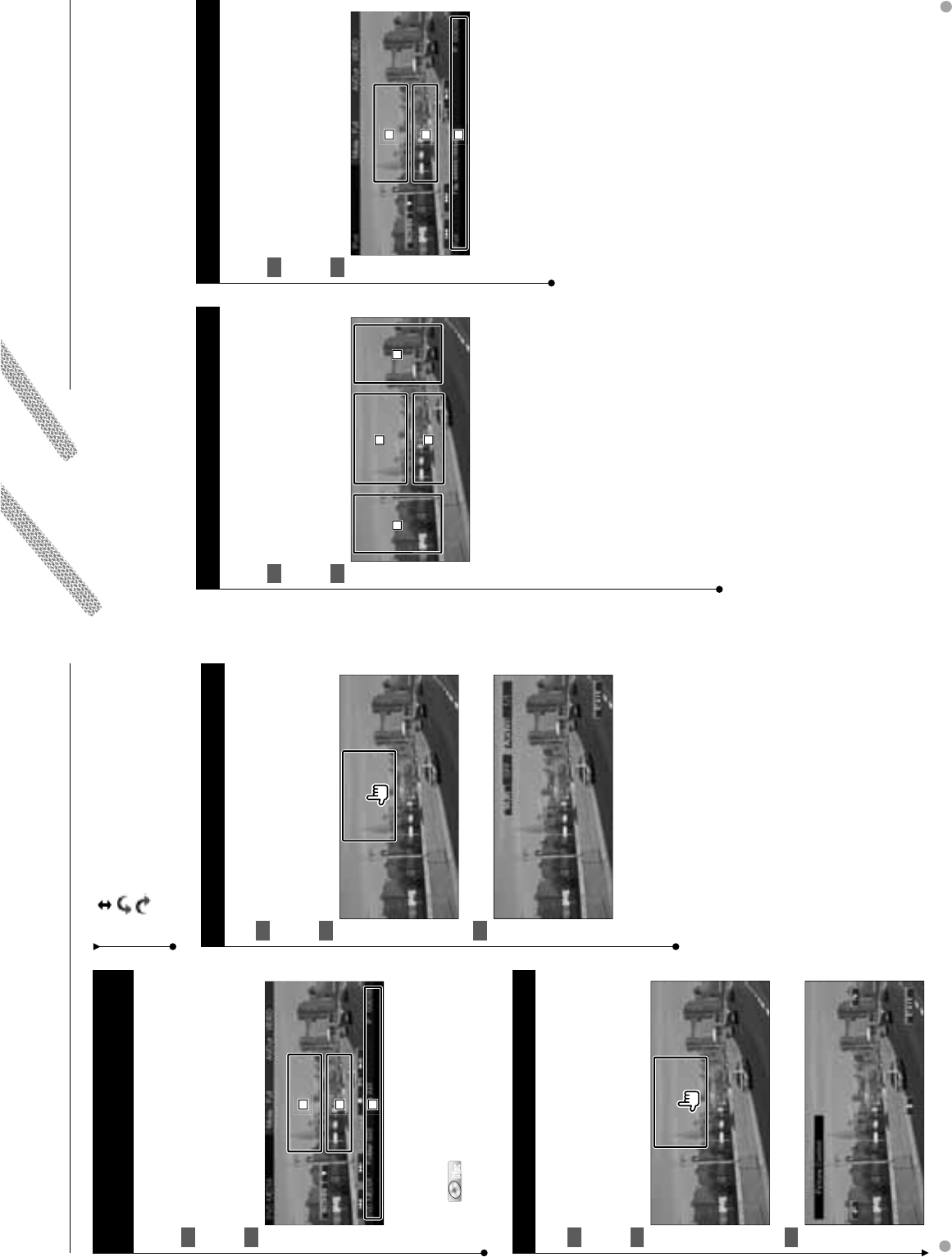

Playback Screen
Basic functions are available even when the
playback screen is displayed.
Display the Playback Screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Operation on the Playback Screen2
31
2
4
1, 3 DVD-VIDEODVD-VIDEO Searches for a chapter.
DVD-VRDVD-VR Searches for a chapter.
Video CDVideo CD Selects a scene (when PBC is
On) or a track (when PBC is Off ).
2 DVD-VIDEODVD-VIDEO Displays the Menu Control 1 Screen
(page 20).
DVD-VRDVD-VR Displays the Menu Control Screen
(page 21).
Video CDVideo CD Displays the Zoom Control Screen
(page 21).
4 Displays Source Information Screen.
⁄
The information display is cleared automatically after •
approximately 5 seconds.
Easy Control Screen
Displays the basic operation buttons on the
screen.
Display the Easy Control Screen1
See <How to Display the Easy Control buttons>
(page 17).
Operation on the Easy Control Screen2
2
2
2
1
1
1
3
3
3
1, 2 Switches to the Playback Screen.
3 Displays the Source Control Screen.
[4], [¢] Searches for a chapter/ scene/
track.
[7] Stops playing.
[38] Plays or pauses.
Source Control Screen
Switches to the source control screen to use
various playback functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control Screen2
DVD-VIDEO/DVD-VRDVD-VIDEO/DVD-VR
1
1
1
Video CDVideo CD
1
1
1
[38] Plays or pauses.
[7] Stops playing.
When touched twice, the disc is played from
its beginning when you play it the next time.
[0] Ejects a disc.
[1], [¡] Fast Forwards or Fast Backwards.
[4], [¢]
DVD-VIDEODVD-VIDEO Searches for a chapter.
DVD-VRDVD-VR Searches for a chapter.
Video CDVideo CD Selects a scene (when PBC is On) or a
track (when PBC is Off ).
[], [ ] DVD-VIDEODVD-VIDEO , DVD-VRDVD-VR Slow Forwards or
Backwards.
[] Switches to the playback screen.
1 Information display
Volume Label.
"Title" Title Number Display
"Chap" Chapter Number Display
"Scene" Scene/Track Number Display
"3" Play Mode Display
"T"/ "C"/ "R"/ "P" Play Time Display
Use the [TIME] to change play time
display.
[] When appears, the text display is
scrolled by touching it.
Multi Function
[ ] Closes the multi function bar.
DVD-VIDEODVD-VIDEO
[REP] Switches the Repeat Play operations in
the following sequence.
Title Repeat, Chapter Repeat, Repeat Off
[TIME] Switches the play time display in the
following sequence.
Chapter ("C"), Title ("T"), remaining titles ("R")
DVD-VRDVD-VR
[REP] Switches the Repeat Play operations in
the following sequence.
Title Repeat, Repeat Off
[TIME] Switches the play time display in the
following sequence.
Title ("T"), remaining titles ("R")
[PLST] Switches between the original mode
and Play list mode.
Video CDVideo CD
[REP] Switches the Repeat Play operations in
the following sequence.
Track Repeat, Repeat Off (Available when the
PBC is off )
[TIME] Switches the play time display in the
following sequence.
Track ("P"), remaining discs ("R") (Effective only
when the PBC function is off )
[PBC] Turns the PBC On or Off. (only when VCD
Ver 2.0 is in use)
20 DNX9140/DDX814/DDX8034BT English 21
Watching DVD/VCD
DVD-VIDEO Disc Menu
Selects an option from the DVD-VIDEO Disc
Menu.
Display the Playback Screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Display the Menu Control 1 screen2
Operation on the Menu Control 1 screen3
[Menu] Calls the Menu.
[Next] Displays the Menu Control 2 screen.
[2], [3], [5], [∞] Selects a menu option.
[Enter] Enters your menu selection.
[Return] Returns to the previous menu screen.
[Top] Displays the Top Menu.
[Highlight] Highlight Control.
[Exit] Exits the Menu Control 1 screen.
Operation on the Highlight Control4
Highlight control lets you control DVD Menu
by touching the menu button directly on the
screen.
⁄
• To cancel Highlight Control, press the [TEL] button for
more than 1 second.
• The Highlight Control is cleared automatically after
approximately 10 seconds.
Operation on the Menu Control 2 screen5
[Previous] Displays the Menu Control 1 screen.
[Angle] Switches the picture angle.
[SUB] Switches the subtitle language.
[Audio] Switches the voice language.
[Zoom] Displays the Zoom Control screen.
[Exit] Exits the Menu Control 2 screen.
Operation on the Zoom Control screen6
[Zoom] Changes the zoom ratio at 4 levels (2
times, 3 times, 4 times, or off ) each time you
touch.
[2], [3], [5], [∞] Scrolls the screen in the
direction you touch.
[Return] Returns to the previous screen.
[Exit] Exits the Zoom Control screen.
DVD-VR Menu Control
Selects an option from the DVD-VR Disc Menu.
Display the playback screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Display the Menu Control screen2
Operation on the Menu Control screen3
[Zoom] Displays the Zoom Control screen.
[SUB] Switches the subtitle language.
[Audio] Switches the voice language.
[Exit] Exits the Menu Control screen.
Operation on the Zoom Control screen4
[Zoom] Changes the zoom ratio at 4 levels (2
times, 3 times, 4 times, or off ) each time you
touch.
[2], [3], [5], [∞] Scrolls the screen in the
direction you touch.
[Return] Returns to the previous screen.
[Exit] Exits the Zoom Control screen.
Video CD Zoom Control
Displays an enlarged VCD screen.
Display the playback screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Display the Zoom Control buttons2
Operation on the Zoom Control screen3
[Zoom] Changes the zoom ratio at 2 levels (2
times or off ) each time you touch.
[2], [3], [5], [∞] Scrolls the screen in the
direction you touch.
[Exit] Exits the Zoom Control screen.
22 DNX9140/DDX814/DDX8034BT English 23
Music Disc/ Audio File Listening &
Video File/ Picture File Watching
files of the present folder in random order).
[4Line]/ [2Line] Switches the number of lines
displayed in the Information Display.
[FOLD]/ [Flist] Displays the folder list.
[Plist] Audio FileAudio File in USBUSB
Displays the play list.
[SLIDE] Displays images in the folder currently
being played one after another.
If there is no image in the folder currently
being played, initial background is displayed.
For information on setting the image display
time, see <Disc Setup> (page 88) or <USB
Setup> (page 88).
[INFO] Audio FileAudio File Displays music information
(such as Tag and content property) of Audio
file being played.
MPEG/DivX®MPEG/DivX®
, JPEGJPEG Displays information of file
being played.
[LINK] Audio FileAudio File in USBUSB Searches for another
song of the currently selected artist. See <Link
Search> (page 25).
[DEVICE] USBUSB Selects the connected USB
device (or a partition). (page 24)
List Select
Folder list: Searches folders and Audio/ Video/
Picture files stored in media and devices
according to hierarchy.
Play list: Lists and searches music contained in the
USB device.
Display the Source 1 Control Screen
See <Source Control Screen> (page 22).
Start List Select2
DiscDisc
USBUSB
⁄
Touching [List] displays the previously used Folder •
list or Play list.
You can recall various control screens during playback of CD, audio file, video file and picture file.
• See <List of playable discs> (page 7) for playable discs.
• See <About Audio file> (page 7), <About Video files> (page 7) or <About Picture files> (page 8) for playable files.
Source Control Screen
Switches to the source control screen to use
various playback functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control screen2
CDCD
CD
CD
C
D
1
1
1
Audio FileAudio File
Au
Au
Au
Au
MPEG/DivX®MPEG/DivX® JPEGJPEG
1
1
1
[38] Plays or pauses.
[7] DiscDisc Stops playing.
[0] DiscDisc Ejects the disc.
USBUSB Disables the USB device.
When "No Device" is shown, the USB
device can be removed safely.
If you wish to play it again while the
USB device is connected, touch it
again.
[1], [¡] CDCD , Audio FileAudio File ,
MPEG/DivX®MPEG/DivX®
Fast Forwards or Fast Backwards.
[4], [¢] Selects a track/ file.
[], [ ] Audio FileAudio File ,
MPEG/DivX®MPEG/DivX®
, JPEGJPEG
Selects a folder.
[List] Displays the folder list or play list. (page
23)
[] Switches to the playback screen.
1 Information display
CDCD Selects the Disc Text or Track Text.
Audio FileAudio File ,
MPEG/DivX®MPEG/DivX®
, JPEGJPEG
Selects Folder Name, File Name, Title,
Artist Name, or Album Name.
"Track" Track Number Display
"" Folder Number Display
"" File Number Display
"#### / ####" Total number of file in the
folder and the file number display
"3" Play Mode Display
"P"/ "R" Play Time Display
Use the [TIME] to change play time
display.
[] When appears, the text display is
scrolled by touching it.
Multi Function
[1/2] Switches the multi function display.
[] Closes the multi function bar.
CDCD
CD
CD
C
D
[REP] Repeats the present track.
[RDM] Starts or stops Random Play (to play
music in random order).
[TIME] Switches the play time display between
Track ("P"), and Disc Remaining Time ("R").
Audio FileAudio File
Au
Au
Au
Au
MPEG/DivX®MPEG/DivX® JPEGJPEG
[REP] Repeats the present file or data.
[FREP] Repeats the music or data of the
present folder.
[RDM] Starts or stops Random Play (to play
Next page 3
Select a song3
Folder list Disc/USBDisc/USB
1
1
1
1 Folder opens when touched, and the Audio
file is played.
[] When appears, the text display is
scrolled by touching it.
[ ROOT] Moves to the top hierarchy level.
[ UP] Moves up a hierarchy level.
[ TOP] Moves to the top folder.
[ CUR] Displays the currently playing folder.
[CTRL] Returns to the Source Control screen.
Play list Audio FileAudio File
Au
Au
Au
Au
in USBUSB
1
1
1
1 Switches to the lower level of the category.
[] When appears, the text display is
scrolled by touching it.
[ ALL] Lists all the music in the selected
category.
[ UP] Moves to the upper level of the
category.
[ TOP] Moves to the top category.
[ CUR] Displays the currently playing
category.
[CTRL] Returns to the Source Control screen.
24 DNX9140/DDX814/DDX8034BT English 25
Music Disc/ Audio File Listening & Video File/ Picture File Watching
Scrolls to the position of the specified initial
Scrolls to the selected initial.
USB device select
Selects the connected USB device (or a partition).
Display the Source 1 Control Screen
See <Source Control Screen> (page 22).
Display the USB Device Select Screen2
Select a USB device3
1
1
1
1 Selects a device or partition.
[ UP] Returns to the Device Selection screen.
[] When appears, the text display is
scrolled by touching it.
[CTRL] Returns to the Source Control screen.
Link search (Audio File in USB)
Searches for another song of the currently
selected artist.
Display the Source 1 Control Screen
See <Source Control Screen> (page 22).
Start Link search2
Select a song3
1
1
1
1 Plays the touched song.
[] When appears, the text display is
scrolled by touching it.
[ TOP] Moves to the top folder.
[ CUR] Displays the currently playing folder.
[CTRL] Returns to the Source Control screen.
Scrolls to the position of the specified initial
Scrolls to the selected initial.
Playback Screen (Video file, Picture file)
Basic functions are available even when the
playback screen is displayed.
Display the Playback Screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Operation on the Playback Screen2
31
2
4
1, 3 Searches for a file.
2 JPEGJPEG Displays the Picture Control Screen
(page 26).
MPEG/DivX®MPEG/DivX®
Displays the Menu Control Screen
(page 26).
4 Displays Source Information Screen.
⁄
The information display is cleared automatically after •
approximately 5 seconds. Also, the information can be
displayed automatically when it is updated.
26 DNX9140/DDX814/DDX8034BT English 27
Music Disc/ Audio File Listening & Video File/ Picture File Watching
Easy Control Screen (Video file, Picture
file)
Displays the basic operation buttons on the
screen.
Display the Easy Control Screen1
See <How to Display the Easy Control Screen>
(page 17).
Operation on the Easy Control Screen2
2
2
2
1
1
1
3
3
3
1, 2 Switches to the Playback Screen.
3 Displays the Source Control Screen.
[4], [¢] Searches for a file.
[7] DiscDisc Stops playing.
[38] Plays or pauses.
Picture Control
Adjusting the video display.
Display the Playback Screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Display the Picture Control Screen2
Adjust the video display3
[ ] Reverses the picture horizontally.
[] Rotates counter clockwise.
[] Rotates clockwise.
[Exit] Ends Picture Control.
Movie Menu Control
Selects an option from the Movie Menu.
Display the playback screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Display the Menu Control screen2
Operation on the Menu Control screen3
[SUB] Switches the subtitle language.
[Audio] Switches the voice language.
[Exit] Exits the Menu Control screen.
iPod Control
Easy Control Screen
Displays the basic operation buttons on the
screen.
Display the Easy Control Screen1
See <How to Display the Easy Control Screen>
(page 17).
Operation on the Easy Control Screen2
2
2
2
1
1
1
3
3
3
1, 2 Switches to the Playback Screen.
3 Displays the Source Control Screen.
[4], [¢] Music/Video Search.
[38] Plays or pauses.
Playback Screen
Basic functions are available even when the
playback screen is displayed.
Display the Playback Screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Operation on the Playback Screen2
31
2
4
1, 3 Selects the music/video.
2 Not effective
4 Displays Source Information Screen.
⁄
The information display is cleared automatically after •
approximately 5 seconds. Also, the information can be
displayed automatically when it is updated.
Remove all accessories such as headphone before •
connecting an iPod. You may not be able to control the
iPod if you connect it with accessories attached.
When you connect an iPod to this unit, playback starts •
from the song you were playing on the iPod itself
(Resume Function).
If the played song is not a video content, "No Video •
Signal" is displayed on the video screen.
You can control and listen to songs in your iPod by connecting an iPod to this unit with KCA-iP301V
(optional accessory). You can also display video contents on this unit when connecting an iPod with video.
28 DNX9140/DDX814/DDX8034BT English 29
[ARDM] Starts or stops Album Random Play
(plays randomly from current album).*
[INFO] Displays information screen of music/
video being played.
[LINK] MUSICMUSIC Searches for another song of
the currently selected artist. See <Link Search>
(page 29).*
⁄
* Disabled when VIDEO is being played.
iPod List
Lists and searches music/video contained in the
iPod.
Display the Source 1 Control Screen
See <Source Control Screen> (page 28).
Display the iPod List2
Select music/video3
1
1
1
1 Categories and music are listed.
Touch a category name to move to its lower
level. If music title is displayed, the music is
played by touching it.
When [38] is appeared, all the music in its
category is played by touching the button.
[] When appears, the text display is
scrolled by touching it.
[ UP] Returns to previous category.
[ TOP] Moves to the top category.
[ CUR] Displays the currently playing
category.
[CTRL] Returns to the Source Control screen.
Source Control Screen
Switches to the source control screen to use
various playback functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control Screen2
1
1
1
[38] Plays or pauses.
[1], [¡] Fast Forwards or Fast Backwards.
[4], [¢] Selects Music/Video.
[List] Displays the iPod list. (page 28)
[] Switches to the playback screen.
1 Information display
Selects the Title, Artist Name, Album Name
or iPod Name.
"##### / #####" Total number of music in
the iPod and the music number display
"3" Play Mode Display
"P" Play Time Display
[] When appears, the text display is
scrolled by touching it.
Multi Function
[1/2] Switches the multi function display.
[] Closes the multi function bar.
[MUSIC] Displays the list of music category.
[VIDEO] Displays the list of video category.
[REP] Repeats the present file or data.
[RDM] Starts or stops Random play.*
iPod Control
Link search (Music file)
Searches for another song of the currently
selected artist.
Display the Source 1 Control Screen
See <Source Control Screen> (page 28).
Start Link search2
Select a song3
1
1
1
1 Plays the touched song.
[] When appears, the text display is
scrolled by touching it.
[ TOP] Moves to the top category.
[ CUR] Displays the currently playing
category.
[CTRL] Returns to the Source Control screen.
Scrolls to the position of the specified initial
Scrolls to the selected initial.
Scrolls to the position of the specified initial
Scrolls to the selected initial.
30 DNX9140/DDX814/DDX8034BT English 31
Radio Listening
Source Control Screen
Switches to the source control screen to use
various functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control screen2
1
1
1
[FM] Switches to the FM1/2/3 band.
[AM] Switches to the AM band.
[TI] Turns the Traffic Information function On
or Off.
See <Traffic Information>, (page 33).
[4], [¢] Tunes in a station.
Use the [SEEK] to change the frequency.
[List] Display the Tuner Preset List Screen.
(page 31).
1 Information display
Selects the Program Service Name, Title &
Artist name, Station Name, R-Text Plus, or
Radio Text.
"FM"/ "AM" Band display
"Preset" Preset number
"MHz"/ "kHz" Frequency display
[] When appears, the text display is
scrolled by touching it.
Various control screens appear in the Tuner Source mode.
• Set the remote controller mode switch to "AUD" mode before starting operation, see <Remote Controller mode switch>
(page 93).
Multi Function
[1/3] Switches the multi function display.
[] Closes the multi function bar.
[SEEK] Switches the Seek mode.
The mode is switched in the following order
each time you touch the button.
Display Setting
"AUTO1" Tunes in a station with good reception automatically.
"AUTO2" Tunes in stations in memory one after another.
"MANU" Switches to the next frequency manually.
[AME] Selects the Auto Memory mode.
See <Auto Memory> (page 31).
[PRE] Lists and selects memorized station.
[4Line]/ [2Line] Switches the number of lines
displayed in the Information Display.
[PTY] FMFM Searches station by program
type. See <Search for Program Type> (page
34).
[CRSC] FMFM Turns the CRSC function On
or Off.
[P1] – [P6] When [P1] to [P6] buttons appear,
you can recall the stations on memory.
For memory of broadcasting stations, see
<Auto Memory> (page 31) or <Manual
Memory> (page 32).
[NAME] Sets a name to the station. See <Set
Station Name> (page 33).
[TEXT] FMFM Displays Radio Text screen. See
<Radio Text> (page 32).
Preset Select
Lists and selects memorized station.
Display the Source 1 Control Screen
See <Source Control Screen> (page 30).
Display the Tuner Preset List Screen2
Select a station3
1
1
1
1 Memorized stations are displayed. Touch to
tune in.
[DISP] Switches the list display name to Station
name or Program Service Name.
[CTRL] Returns to the Source Control screen.

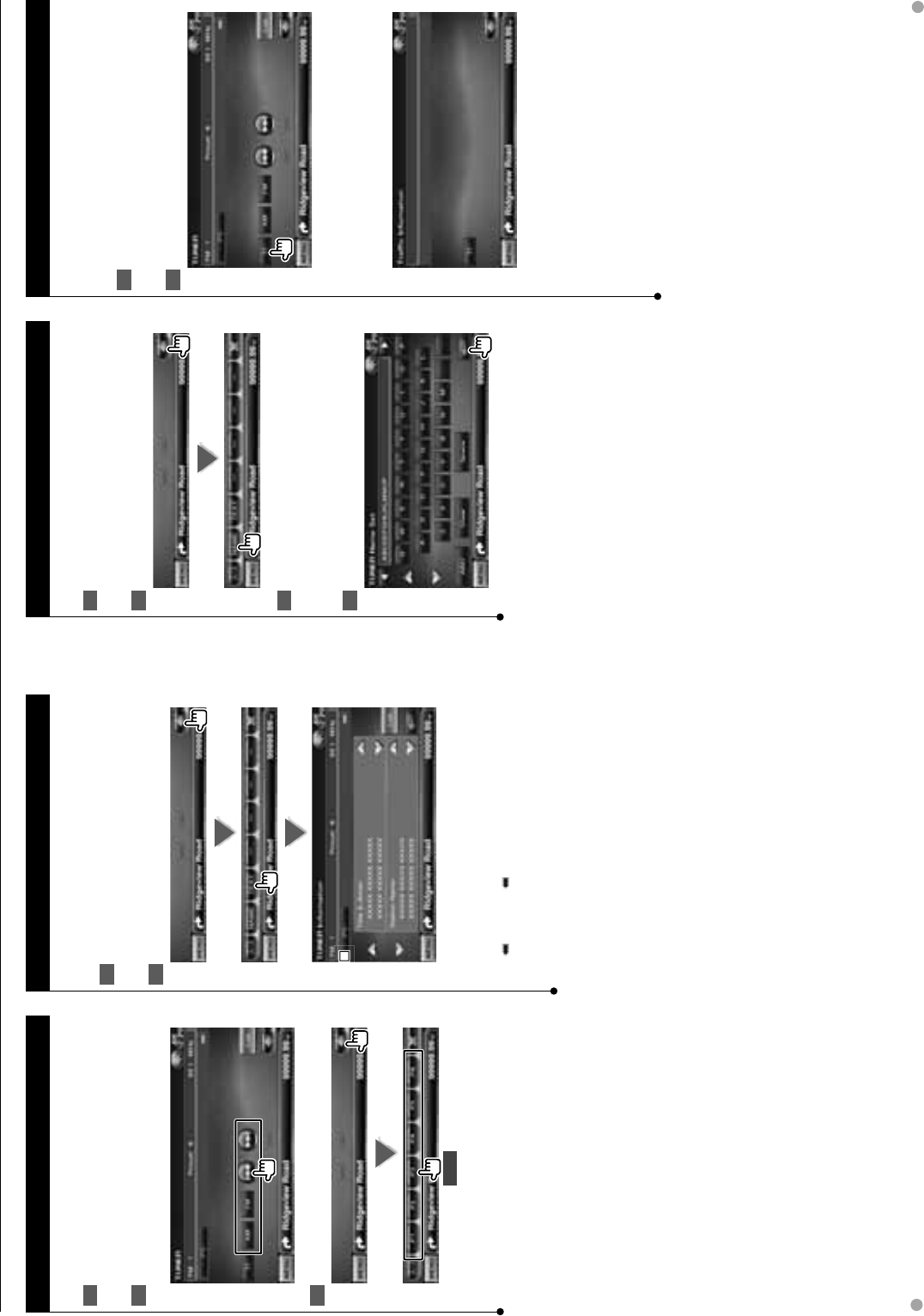

Auto Memory
Stores stations with good reception in memory
automatically.
Display the Source 1 Control Screen
See <Source Control Screen> (page 30).
Select a band you wish to store in memory2
Select the Auto Memory mode3
Start Auto Memory4
Auto Memory terminates when 6 stations are
stored or when all stations are tuned in.
⁄
• The operation ends automatically if you do not operate
within 10 seconds.
32 DNX9140/DDX814/DDX8034BT English 33
Radio Listening
Manual Memory
Stores the current receiving station in memory.
Display the Source 1 Control Screen
See <Source Control Screen> (page 30).
Select a station you wish to store in 2
memory
Store in memory3
2 sec.
Continue to touch until the memory number
appears.
Radio Text
You can display the radio text. (Only when
receiving the FM broadcast)
Select a station1
See <Source Control Screen> (page 30).
Display the radio text2
1
1
1
1 Selects the Program Service Name, Title &
Artist name, Station Name, Category Name
1/2, or Radio Text for text display.
[] When appears, the text display is
scrolled by touching it.
[5], [∞] Scrolls the text display.
Set Station Name
Assigns a name to a station.
Tune in to the station to name1
See <Source Control Screen> (page 30).
Start Name set2
Enter the name3
See <Character Entry> (page 48) for information
on how to enter a name.
End Name set4
Traffic Information
When a traffic bulletin starts, any source is
switched to the traffic information and it is
displayed automatically.
Display the Source 1 Control Screen
See <Source Control Screen> (page 30).
Set the Traffic information mode2
When the traffic bulletin starts...
The Traffic Information screen appears
automatically.
Traffic Information screen
⁄
• It is necessary to have Traffic Information function set to
On in order to have the Traffic Information screen appear
automatically.
• During the reception of traffic information the adjusted
volume is automatically remembered, so that the next
time it switches to traffic information the volume level is
that from the previously adjusted and remembered level.
34 DNX9140/DDX814/DDX8034BT English 35
Radio Listening
Search by Program Type
A program is tuned when you set its program
type. (Only when receiving the FM broadcast)
Display the Source 1 Control Screen
See <Source Control Screen> (page 30).
Enter Program Type Search mode2
Select a Program Type3
1
1
1
1 Program Type is displayed. Touch to select a
Program Type.
[Search] Searches for the program type.
It is displayed when the Program type is
selected.
[User] Continue to touch more than 2 seconds.
The currently receiving station is registered to
the selected program type.
Search a station of the selected Program 4
Type
TV Watching (DDX8034BT only)
Function During TV Screen
Basic functions are available even when the TV
screen is displayed.
Display the TV screen1
See <Operation on the Playback Screen of Visual
Sources> (page 16).
Operation on the TV screen2
31
2
4
1, 3 Selects a channel.
2 Switches to TV1 or TV2.
4 Displays Source Information Screen.
⁄
• The information display is cleared automatically after
approximately 5 seconds. Also, the information can be
displayed automatically when it is updated.
Various control screens appear in the TV source mode. You can only operate TV with the optional accessory
TV Tuner connected.
Easy Control Screen
Displays the basic operation buttons on the
screen.
Display the Easy Control Screen1
See <How to Display the Easy Control Screen>
(page 17).
Operation on the Easy Control Screen2
2
2
2
1
1
1
3
3
3
1, 2 Switches to the TV screen.
3 Displays the Source Control Screen.
[BAND] Switches to TV1 or TV2.
[4], [¢] Selects a channel.
Use the [SEEK] to change the channel tuning
sequence.
[SEEK] Switches the Seek mode. (page 36)
36 DNX9140/DDX814/DDX8034BT English 37
TV Watching (DDX8034BT only)
Source Control Screen
Switches to source control screen to use various
functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control Screen2
1
1
1
[BAND] Switches to TV1 or TV2.
[4], [¢] Select a channel.
Use the [SEEK] to change the channel tuning
sequence.
[List] Display the TV Preset List Screen. (page
38).
[] Switches to the TV screen.
1 Information display
Channel information display
"TV" Band display
"Preset" Memory Number Display
"ch" Channel display
[] When appears, the text display is
scrolled by touching it.
Multi Function
[1/2] Switches the multi function display.
[] Closes the multi function bar.
[AME] Selects the Auto Memory mode.
See <Auto Memory> (page 37).
[SEEK] Switches the Seek mode.
The mode is switched in the following order
each time you touch the button.
Display Setting
"AUTO1" Tunes in a station with good reception automatically.
"AUTO2" Tunes in stations in memory one after another.
"MANU" Switches to the next frequency manually.
[PRE] Lists and selects memorized station.
[NAME] Sets a name to the station. See <Set
Station Name> (page 38).
[P1] – [P6] When [P1] to [P6] buttons appear,
you can recall channels on memory.
For memory of broadcasting stations, see
<Auto Memory> (page 37) or <Manual
Memory> (page 37).
Manual Memory
Stores the current receiving channel in memory.
Display the Source 1 Control Screen
See <Source Control Screen> (page 36).
Select a station you wish to store in 2
memory
Store in memory3
2 sec.
Continue to touch until the memory number
appears.
Auto Memory
Stores stations with good reception in memory
automatically.
Display the Source 1 Control Screen
See <Source Control Screen> (page 36).
Select a band you wish to store in memory2
Select the Auto Memory mode3
Start Auto Memory4
Auto Memory terminates when 6 stations are
stored or when all stations are tuned in.
⁄
• The operation ends automatically if you do not operate
within 10 seconds.
38 DNX9140/DDX814/DDX8034BT English 39

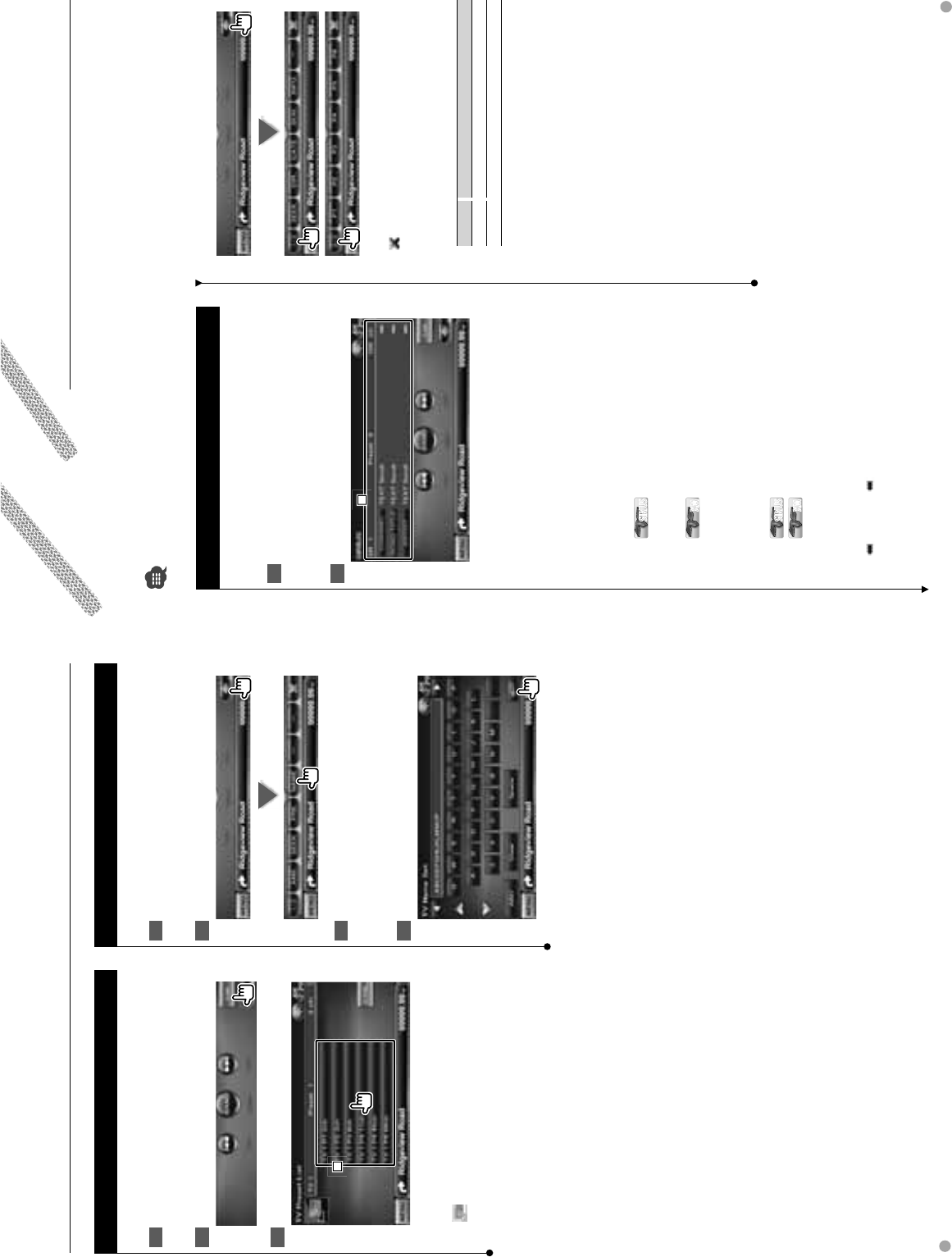

TV Watching (DDX8034BT only)
Set Station Name
Assigns a name to a station.
Tune in to the station to name1
See <Source Control Screen> (page 36).
Start Name set2
Enter the name3
See <Character Entry> (page 48) for information
on how to enter a name.
End Name set4
Preset Select
Lists and selects memorized station.
Display the Source 1 Control Screen
See <Source Control Screen> (page 36).
Start Preset Select2
Select a station3
1
1
1
1 Memorized stations are displayed. Touch to
tune in.
[] Switches to the TV screen.
[CTRL] Returns to the Source Control screen.
SIRIUS/XM Control (North American sales area only)
Source Control Screen
Switches to control screen to use various
functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control screen2
1
1
1
[BAND] Switches the band.
[4], [¢] Tunes in a station.
Use the [SEEK] to change the frequency
switching.
[List] Display the Category List Screen. (page
40).
1 Information display
Displays information concerning music
being played.
SIRIUSSIRIUS Changes the display from Channel
Name, Song Title Name, Artist Name,
Composer Name, to Category Name.
XMXM Changes the display from Channel
Name, Artist Name, Song Title Name, to
Category Name.
Displays the ID number when Channel 0 is
selected.
SIRIUSSIRIUS Displays the SIRIUS ID.
XMXM Displays the RADIO ID.
"SR"/ "XM" Band display
"Preset" Preset number
"CH" Channel display
[] When appears, the text display is
scrolled by touching it.
Various control screens appear in the Satellite radio source mode. (only with the optional accessory
Satellite radio connected. To connect the SIRIUS tuner, a conversion cable CA-SR20V (optional accessory) is
necessary and to connect the XM tuner, an XM interface Box KCA-XM100V (optional accessory) is necessary.)
• This document uses the SIRIUS display as an example.
Multi Function
[1/2] Switches the multi function display.
[] Closes the multi function bar.
[SEEK] Switches the Seek mode.
The mode is switched in the following order
each time you touch the button.
Display Setting
"SEEK1" Tunes channels one after the other.
"SEEK2" Selects channels in memory one after the other.
[DIR] You can tune in by entering the desired
channel number. See <Direct Channel Search>
(page 41).
[CATE] You can tune in by specifying the
desired category. See <Channel Search> (page
40).
[SCN] Starts or stops Channel Scan (that tunes
channels one after the other).
[INFO] Displays the program information
screen.
[P1] – [P6] When [P1] to [P6] buttons appear,
you can recall the channel on memory. For
memory of channel stations, see <Channel
Memory> (page 40).
40 DNX9140/DDX814/DDX8034BT English 41
SIRIUS/XM Control (North American sales area only)
Channel Search
Specifying the desired category and selecting a
channel.
Display the Source 1 Control Screen
See <Source Control Screen> (page 39).
Display the Category List Screen2
Select a category3
1
1
1
1 Selects a category.
Displays all the channels in the selected
category.
[] When appears, the text display is
scrolled by touching it.
[All Channel] Displays all the channels.
[CTRL] Returns to the Source Control screen.
Select a channel4
1
1
1
1 Selects a channel.
Tunes in the selected channel.
[Info Change] SIRIUSSIRIUS Switches the sequence
of the list.
Changes the display from Channel Name,
Category Name, Song Title, Artist Name, to
Composer Name.
[ UP] Display the category list.
Channel Memory
Stores the current receiving channel in memory.
Display the Source 1 Control Screen
See <Source Control Screen> (page 39).
Select a channel you wish to store in 2
memory
Store in memory3
2 sec.
Continue to touch until the memory number
appears.
Direct Channel Search
Tuning in by entering the desired channel
number.
Display the Source 1 Control Screen
See <Source Control Screen> (page 39).
Start Direct Channel Search2
Enter the channel number3
1
1
1
1 Enters the channel number.
[Cancel] Cancels the direct channel search.
[Clear] Clears the channel number.
Tune in the channel4
42 DNX9140/DDX814/DDX8034BT English 43
HD Radio Control (North American sales area only)
Multi Function
[1/2] Switches the multi function display.
[] Closes the multi function bar.
[SEEK] Switches the Seek mode.
The mode is switched in the following order
each time you touch the button.
Display Setting
"AUTO1" Tunes in a station with good reception automatically.
"AUTO2" Tunes in stations in memory one after another.
"MANU" Switches to the next frequency manually.
[AME] Selects the Auto Memory mode.
See <Auto Memory> (page 43).
[DIR] You can tune in by entering the desired
frequency or channel number. See <Direct
Search> (page 45).*
[4Line]/ [2Line] Switches the number of lines
displayed in the Information Display.
[TTL] Displays the tuned in program
information.
[RCV] The Receive mode switches in the
following order. (page 44)
[P1] – [P6] When [P1] to [P6] buttons appear,
you can recall the stations on memory.
For memory of broadcasting stations, see
<Auto Memory> (page 43) or <Manual
Memory> (page 43).
⁄
* KTC-HR300 (optional accessory) connected only.•
Various control screens appear in the HD Radio Source mode. (only with the optional accessory HD Radio
tuner connected)
Source Control Screen
Switches to the source control screen to use
various functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control screen2
1
1
1
[HD FM] Switches to the HD FM1/2/3 band.
[HD AM] Switches to the HD AM band.
[4], [¢] Tunes in a station.
Use the [SEEK] to change the frequency
switching.
[CH ∞], [CH 5] Selects a channel (program).
1 Information display
Selects the Call Letter (8), Title (32), Artist
(32), Album (32), Genre (8), or Station Name
(32).
The number in the ( ) indicates the
maximum number of displayed characters.
"FM"/ "AM" Band display
"Preset" Preset number
"MHz"/ "kHz" Frequency display
"CH" Channel display
"Tag" When song information can be
registered.* (page 45)
[] When appears, the text display is
scrolled by touching it.
Manual Memory
Stores the current receiving station in memory.
Display the Source 1 Control Screen
See <Source Control Screen> (page 42).
Select a station you wish to store in 2
memory
Store in memory3
2 sec.
Continue to touch until the memory number
appears.
Auto Memory
Stores stations with good reception in memory
automatically.
Display the Source 1 Control Screen
See <Source Control Screen> (page 42).
Select a band you wish to store in memory2
Select the Auto Memory mode3
Start Auto Memory4
Auto Memory terminates when 6 stations are
stored or when all stations are tuned in.
⁄
• The operation ends automatically if you do not operate
within 10 seconds.
44 DNX9140/DDX814/DDX8034BT English 45
HD Radio Control (North American sales area only)
Direct Search
Tuning in by entering the desired frequency or
channel number.
KTC-HR300 (optional accessory) connected only.
Display the Source 1 Control Screen
See <Source Control Screen> (page 42).
Start Direct Search2
Enter the frequency or channel number3
1
1
1
1 Enters the frequency or channel number.
[Mode] Switches the search mode to
Frequency or Channel.
[Cancel] Cancels the direct search.
[Clear] Clears the frequency or channel
number.
Tune in the frequency or channel4

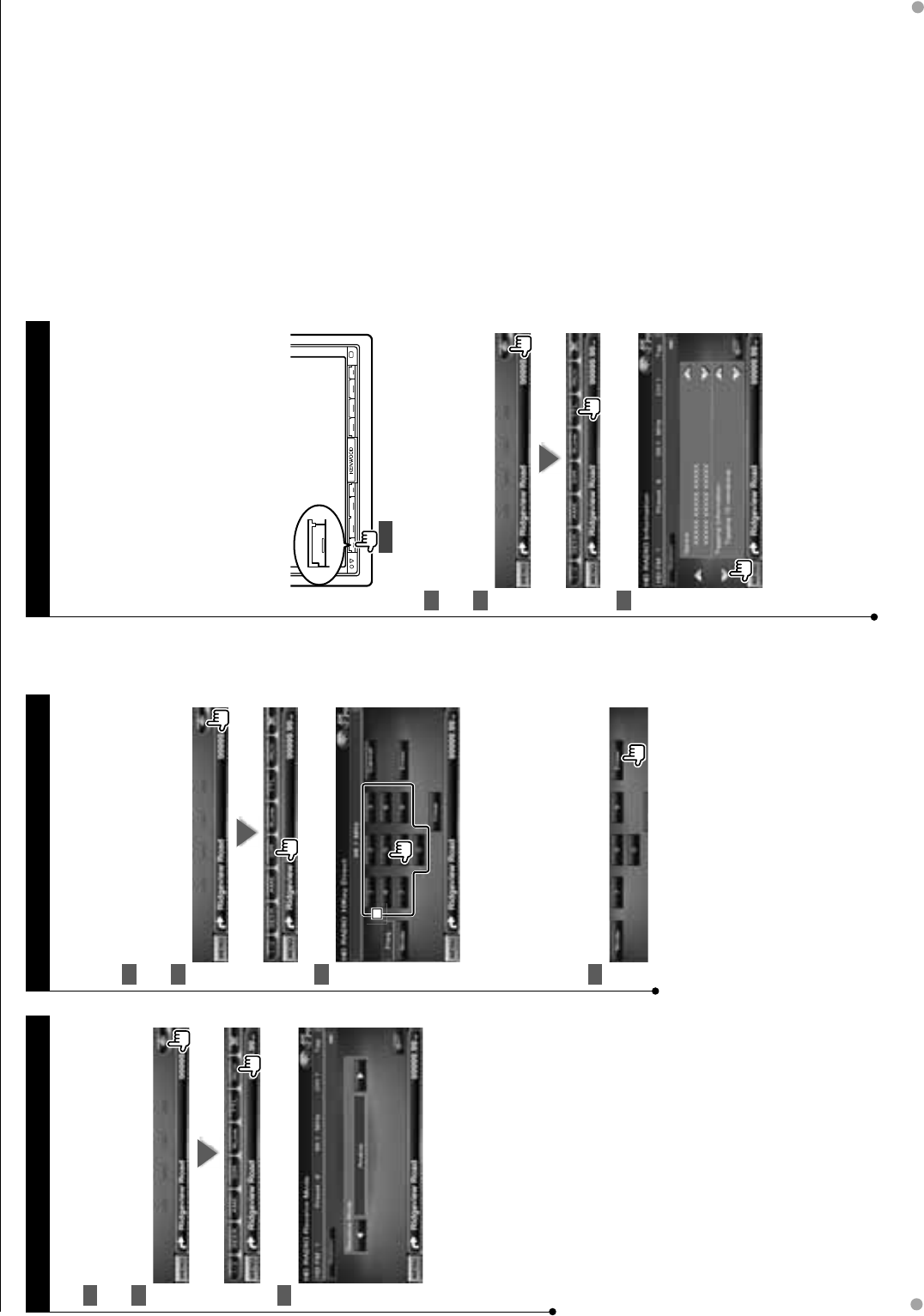

Receive mode
Sets the radio broadcasts receive mode.
Display the Source 1 Control Screen
See <Source Control Screen> (page 42).
Display the Receive mode screen2
Select the receive mode3
[Receive Mode] The Receive mode switches in
the following order.
"Auto": Automatically tunes to analog
broadcast when there is no digital
broadcast.
"Digital": Digital broadcasts only.
"Analog": Analog broadcasts only.
iTunes Tagging (HD Radio Tagging)
Using an iTunes Tagging enabled HD Radio you
can tag your music. When you hear a song you
enjoy on your local HD Radio station, you only
have to press the [ATT] button for at least 1
second. The song’s information will then be saved
on this unit. The saved songs will then show up
in a playlist called “Purchased” in iTunes the very
next time you sync your iPod to your computer.
So then you just need to click and then easily buy
and download the song you were tagging directly
from the Apple iTunes Music Store.
KTC-HR300 (optional accessory) connected only.
Registers a tag
1 sec.
ATT
The memory usage can be checked
Display the Source 1 Control Screen
See <Source Control Screen> (page 42).
Display the Information Screen2
The memory usage can be checked3
Select the "Tagging Information" display.
⁄
Up to 50 TAGs (song’s information) can be registered to •
this unit. When iPod is connected, the TAG information
registered to this unit is transferred to the connected
iPod.
46 DNX9140/DDX814/DDX8034BT English 47
Bluetooth Audio Control
You can listen to audio files stored in Bluetooth audio player and cell-phone.
Before Use
• You need to register your audio player and cell-phone
before using it with this unit. For more details, see
<Registering Bluetooth Unit> (page 77).
• If you have registered two or more audio players or cell-
phones, you need to select one of them. For more details,
see <Bluetooth Unit Connection> (page 79).
Source Control Screen
Switches to control screen to use various
functions.
Display the Source 1 Control Screen
See <How to Display the Source Control
Screen> (page 14).
Operation on the Source Control screen2
[3] Plays.
[7] Stops playing.
[8] Pauses.
[4], [¢] Selects a file.
⁄
• If the Bluetooth Audio player does not support AVRCP
profile, buttons are not displayed. Operate from the
Audio player.
The screen has changed to the Tuner Control
screen.
You will hear a beep again.
Control the source with voice control4
Repeat the same procedure as step 2 or 3.
For information on the recognizable voice
commands, refer to <Voice command table
(page 102).
End the voice control mode5
Press the TALK switch.
⁄
• The voice control is disabled while operating the hands-
free phone.
• The voice control is disabled when is displayed on the
upper-right corner of the screen.
• The voice control is canceled when the screen is touched
or any of the buttons, except the [VOLUME] button, on
the front panel or the remote control unit is pressed.
• The voice control is disabled while using your cell-phone
with hands-free.
• The voice control is canceled if no operation is continued
for a certain period of time.
Tips for voice command
The voice recognition icons are displayed on the
operation buttons on the screen when the voice
control mode is turned on. The icons are divided
into two types: the number icon (such as ) for
the list buttons, and the icon for the operation
buttons. The command name may be displayed.
Voice Control (DNX9140 only)
The unit is equipped with Automatic Speech Recognition function which allows you to operate it with your
voice. The supported languages are US English, UK English, French, German, Dutch, Italian, and Spanish. For
information on the recognizable voice commands, refer to <Voice command table> (page 102).
• ASR on the Language Setting screen should be set to "Enabled". See <Language Setting> (page 70).
Voice Control
Enter into the Voice control mode1
Press the TALK switch.
The voice recognition icons will be attached to
the buttons supporting the voice control.
Speak the command2
Speak the command. (Ex: Speak "Source Select".)
You will hear a beep.
The screen has changed to the Source Control
screen.
You will hear a beep again.
Speak the command3
Speak the command. (Ex: Speak "TUNER".)
You will hear a beep.
48 DNX9140/DDX814/DDX8034BT English 49
Other Functions

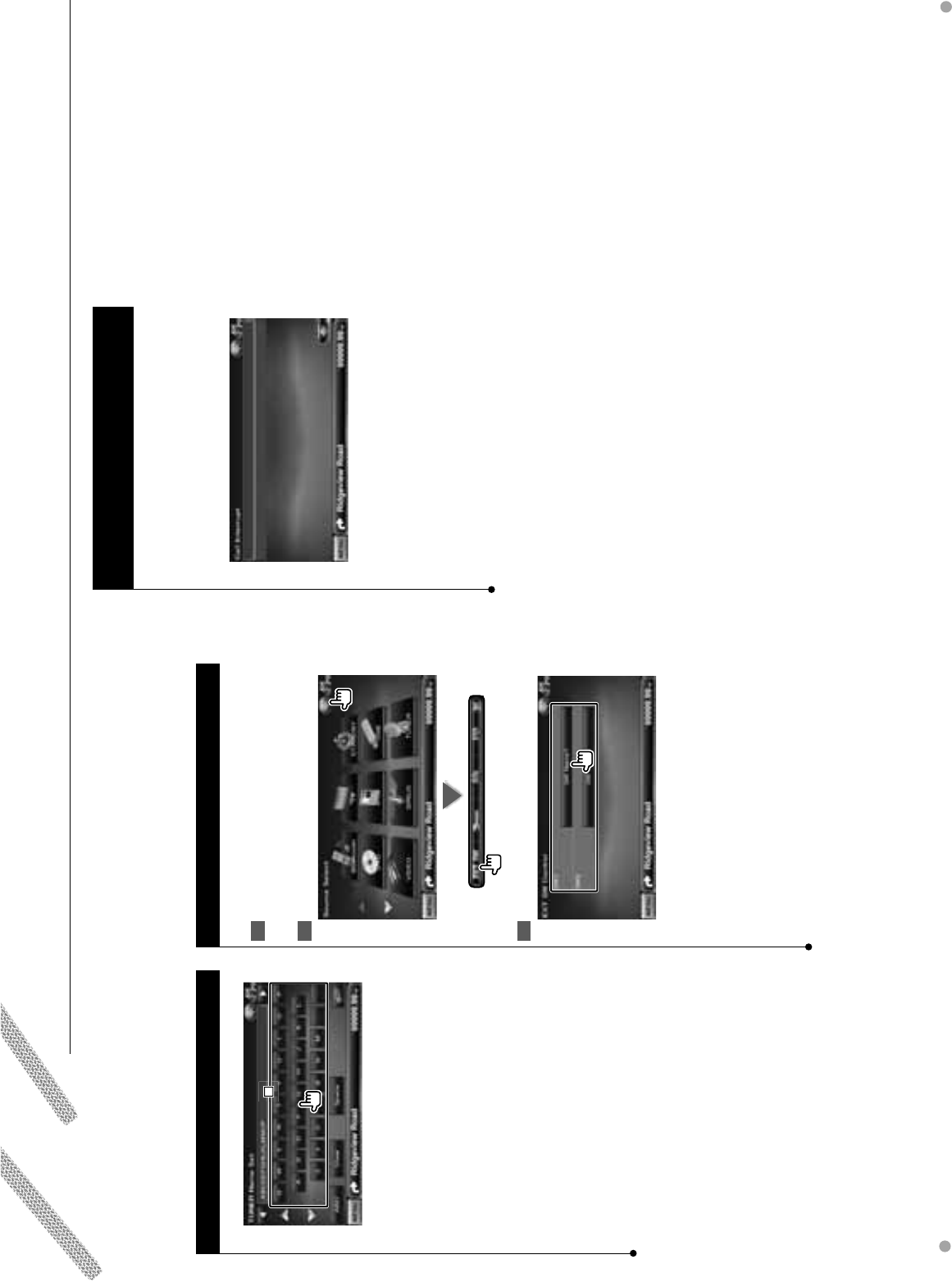

External Device Power Supply Control
Controlling the external device power supply.
Display the Source Select Screen1
See <How to Select the Source> (page 12).
Display the EXT SW Control screen2
Control the external device power supply3
You can turn on or off the external device power
supply.
⁄
• You must connect a commercially available relay unit in
order to use this function.
Connect the external device to be controlled to that
relay unit.
• Refer to <EXT SW Setup> (page 73) for information on
setting the power on or off specification.
How To Use the Character Entry Screen
Character Entry screen
1
1
1
1 Enters characters.
[2], [3] Shifts the cursor.
[5], [∞] Scrolls up or down the character
button display.
[QWE]/ [ABC] Sets the key layout of the
character buttons.
ABC : Alphabetical key layout.
QWE : Qwerty key layout.
[Clear] Clears the character.
[Space] Enters a space.
If you erase a character, locate the cursor on it
and touch this button.
⁄
• You can enter characters only after you have applied the
parking brake.
Muting Audio Volume upon Reception of
Phone Call
When a telephone call is received...
The Phone Call ("CALL") screen appears, and
system is paused.
Phone Call ("CALL") screen
When the call ends...
Hang up the phone.
The system resumes playing automatically.
⁄
• To use the TEL Mute feature, you need to hook up
the MUTE wire to your telephone using a commercial
telephone accessory. Refer to <INSTALLATION MANUAL>.
50 DNX9140/DDX814/DDX8034BT English 51

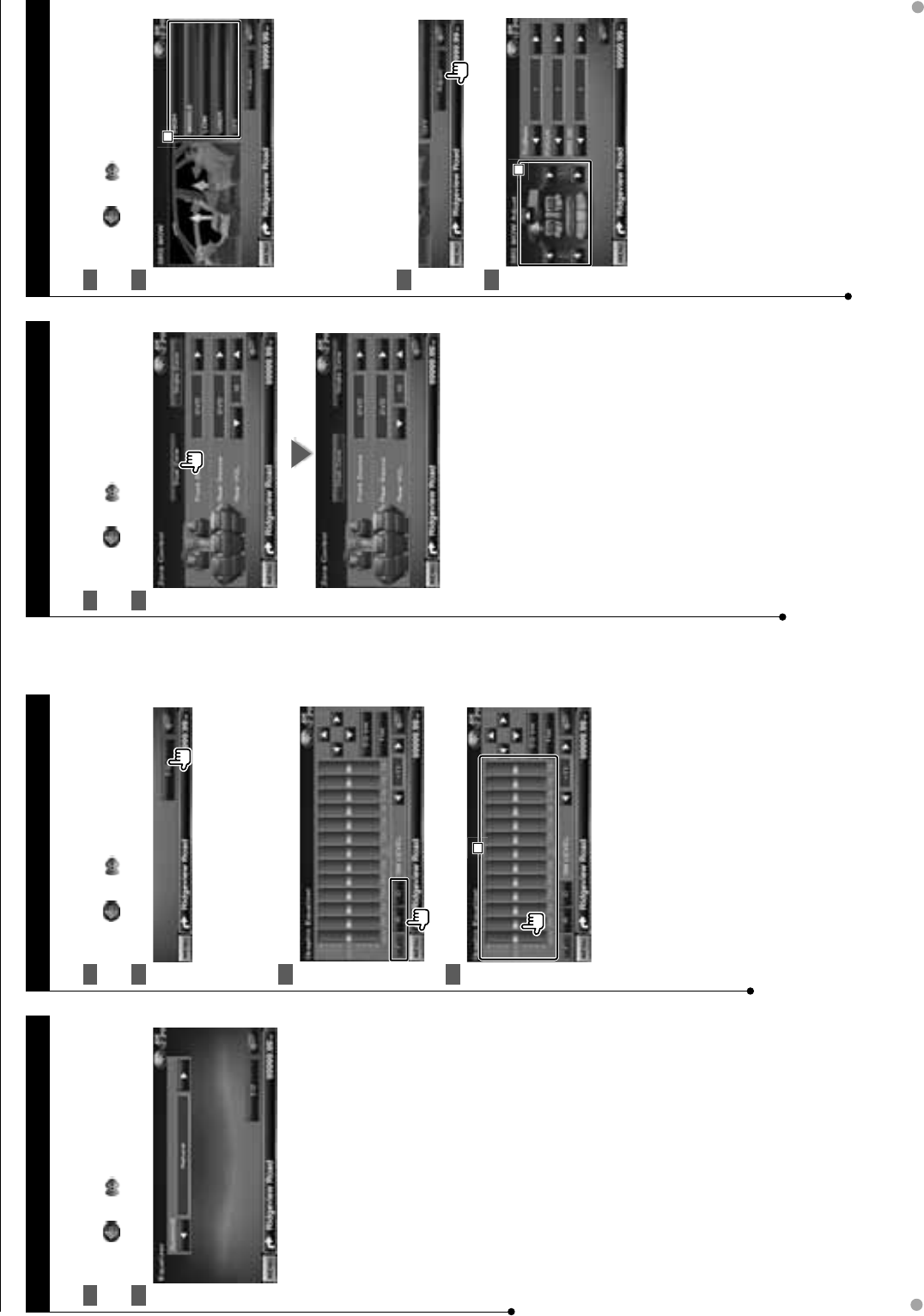

Screen Control
Screen Control
Display the Easy Control Screen1
See <How to Display the Easy Control Screen>
(page 17).
Display the Screen Control screen2
Adjust the picture quality3
[Bright] Brightness Control
[Tint] Tint Control
Displayed for an NTSC system image on Video,
iPod, TV or Rear View Camera.
[Color] Color Control
Displayed on Video, iPod, TV or Rear View
Camera screen only.
[Contrast] Contrast Control
[Black] Black Level Adjustment
[Sharpness] Sharpness control
Displayed on Video, iPod, USB or Rear View
Camera screen only.
[Dimmer] Dimmer Mode Setup
"ON": The display dims.
"OFF": The display doesn’t dim.
"SYNC": Turning the Dimmer function On or
Off when the vehicle light control
switch is turned On or Off.
"NAV-SYNC": Turning the Dimmer function
On or Off according to the
Navigation Day/Night display
setting.
[Mode] Selects a screen mode.
You can select any of the following screen
mode.
"Full", "Just", "Zoom", "Normal"
⁄
• The Screen Control screen is displayed only when you
have applied the parking brake.
• The picture quality can be set for each source.
• You can set image quality of screens such as menu from
<Screen Control> (page 77).
Full picture mode ("Full")
Justify picture mode ("Just")
Zoom picture mode ("Zoom")
Normal picture mode ("Normal")
Setting the monitor screen.
Hands Free Unit Control
Before Use
You need to register your cell-phone before using it with •
this unit. For more details, see <Registering Bluetooth
device> (page 77).
If you have registered two or more cell-phones, you need •
to select one of them. For more details, see <Bluetooth
Unit Connection> (page 79).
To use the Phone Book, it must be downloaded to this •
unit in advance. For details, see <Downloading the
Phonebook> (page 51).
Downloading the Phonebook
Downloads the phonebook data from the
cell-phone to this unit so that you can use the
Phonebook of this unit.
By operating the cell-phone, send the 1
phonebook data to this unit
By operating the cell-phone, start the 2
hands-free connection
⁄
• For the cell-phones which support auto-download of
phonebook:
If the phonebook is not downloaded automatically for
some reasons, follow the procedure above to download
manually.
• For how to operate the cell-phone, refer to the
Instruction Manual that comes with your cell-phone.
• Up to 1000 phone numbers can be registered for each
registered cell-phone.
• Up to 32 digits can be registered for each phone number
along with up to 50* characters representing a name.
(* 50: Number of alphabetical characters. Fewer
characters can be input depending on the type of
characters.)
• Depending on the type of your cell-phone, the following
restrictions are placed:
- The phonebook data cannot be downloaded normally.
- Characters in the Phonebook are garbled.
- The phonebook data cannot be downloaded normally
if it contains images. It may take several hours to a full
day to download the phone book depending on the
total image size.
Various functions can be used in the Hands Free control mode.
• To cancel downloading of the phonebook data, operate
the cell-phone.
Receiving a Call
[ ] Answering a Phone Call
[] Rejecting an Incoming Call
During a Call
[ ] Switches the voice output between
phone and speaker.
[DTMF] Outputs dial tone. See <Controlling
Tone-based Services> (page 55).
[] Disconnecting a call
Adjusting the Voice Volume during a Call
52 DNX9140/DDX814/DDX8034BT English 53
Call Waiting
[ ] • Answering another incoming call with
the current call suspended
• Switching between the current call and
waiting call
Each touch of this button switches the
calling party.
[] • Answering another incoming call after
terminating the current call
• Answering the waiting call after
terminating the current call

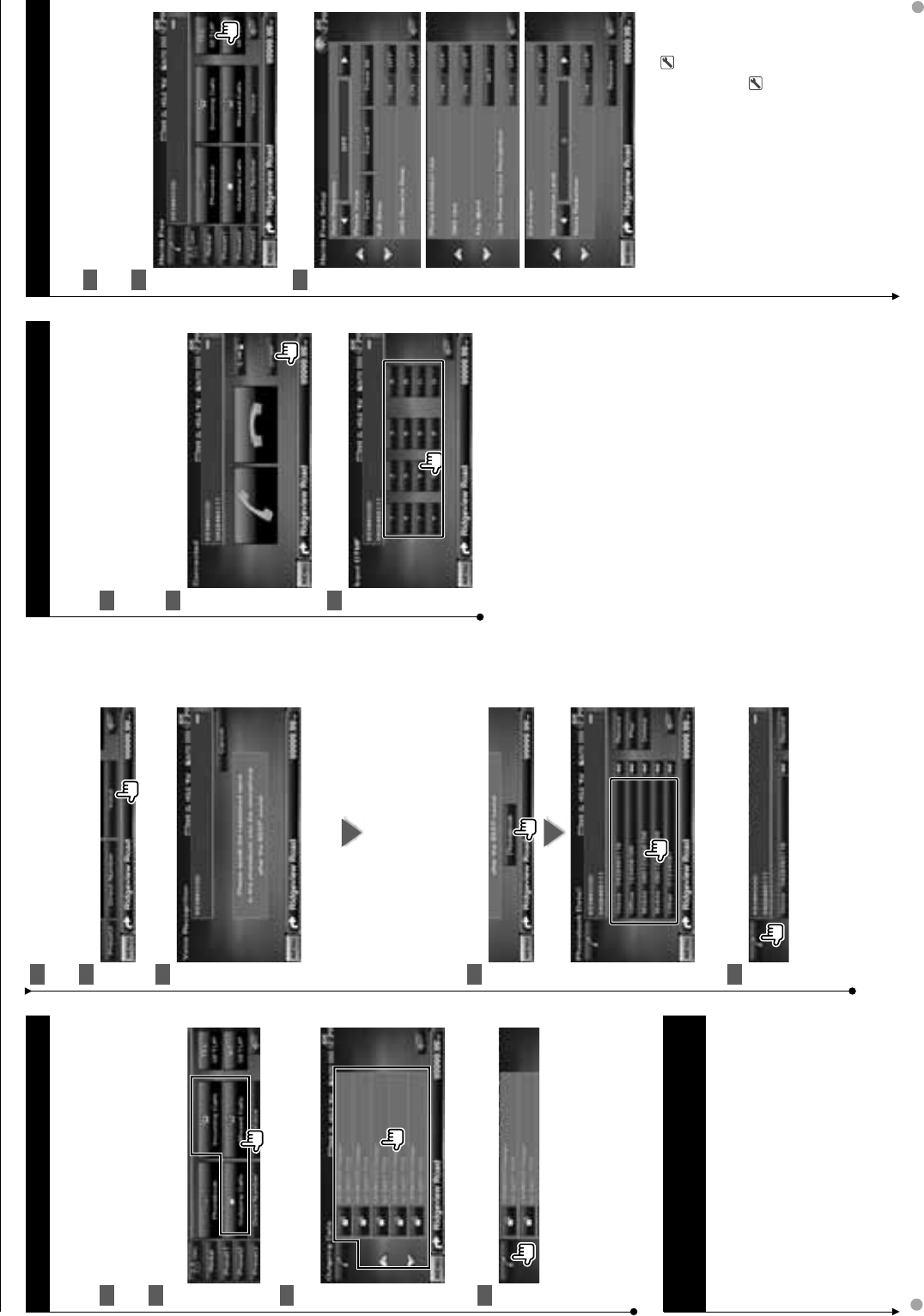

Making a Call
Displaying the control screen and using various
functions.
Display the Hands-Free Control screen1
TEL
Select a dialing method2
1
1
1
1 Calls the displayed phone number. If you
have registered a phone number in the
Phonebook, the destination person name is
displayed.
[] Calls the displayed phone number.
[Redial] Displays the previously called phone
number.
[Preset1-3] Displays the preset phone number.
For information on how to preset a phone
number, see <Phone Number Preset> (page
58).
[ Phonebook] Displays the Search
for Phonebook screen. See <Calling by
Phonebook> (page 53).
[ Outgoing Calls] Displays the Outgoing
Calls screen. See <Making a Call Using Call
Records> (page 54).
[ Incoming Calls] Displays the Incoming
Calls screen. See <Making a Call Using Call
Records> (page 54).
[ Missed Calls] Displays the Missed
Calls screen. See <Making a Call Using Call
Records> (page 54).
[Direct Number] Displays the Dialing Display
screen. See <Calling by Entering a Phone
Number> (page 53).
[Voice] (DDX814/ DDX8034BT only)
Starts voice recognition.
See <Calling by Voice Recognition> (page 54).
[BT SETUP] Displays the Bluetooth SETUP
screen. (page 77)
[TEL SETUP] Displays the Hands Free Setup
screen. (page 55)
⁄
While your car is moving, some functions are disabled •
due to safety reasons. The buttons associated with the
disabled functions become ineffective if pressed.
When the Hands-Free Control screen appears, the name •
of the connected cell-phone is displayed for 5 seconds.
* Since the number of steps of the control unit is different •
from that of the cell-phone, the statuses displayed on
the control unit may discord from those displayed on
the cell-phone. No status is displayed if information
about it cannot be obtained.
Setting the cell-phone in the private mode can disable •
the hands-free function.
Hands Free Unit Control

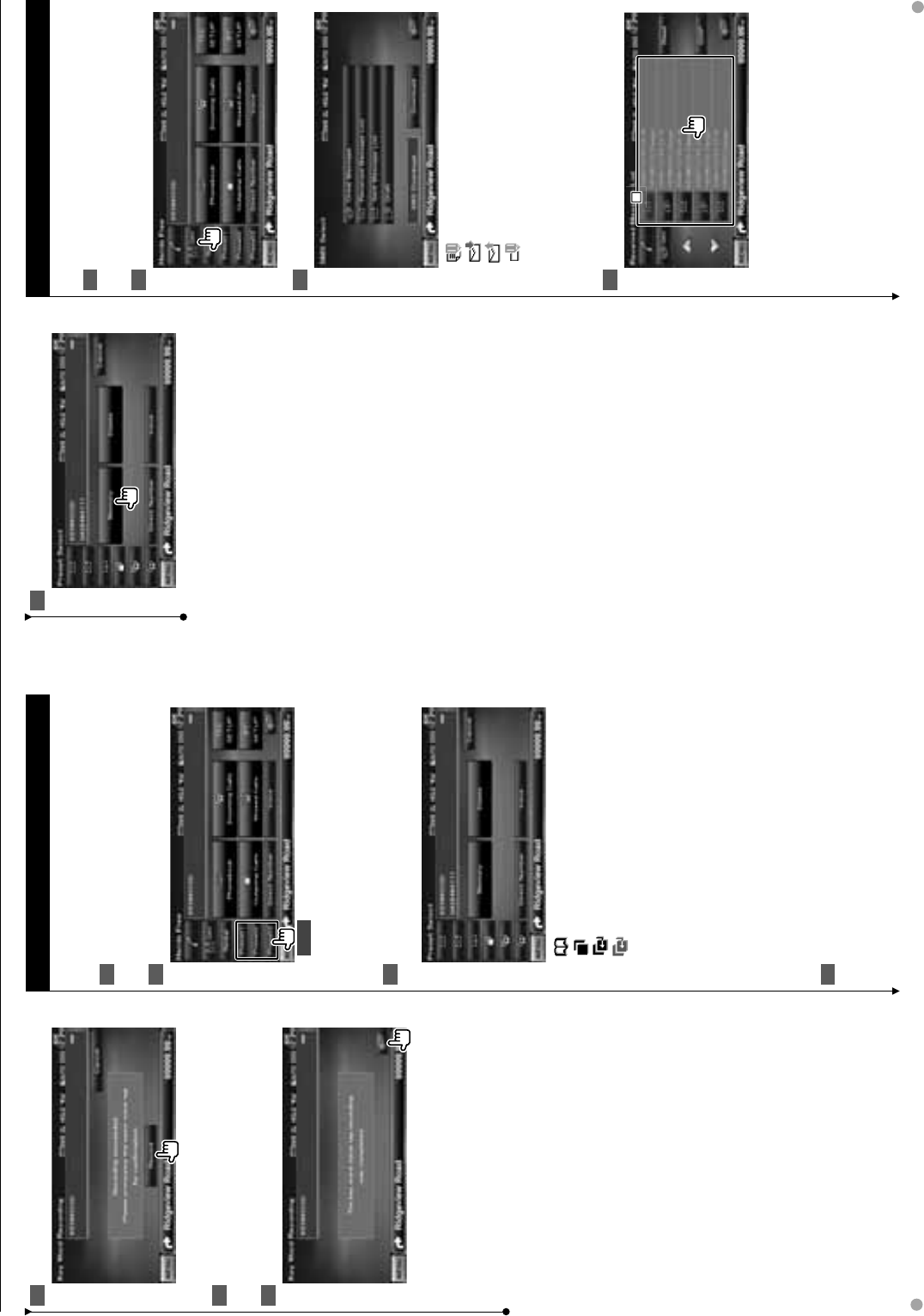

Calling by Phonebook
You can call a person using his/her phone
number that you have registered in the
Phonebook.
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Display the Phonebook screen2
Select the name to call 3
1
1
1
2
2
2
1 Phonebook data list.
2 Displays the Phonebook beginning with the
name whose first character you have touched.
[] When appears, the text display is
scrolled by touching it.
Select the phone number to call 4
Make a call5
⁄
To use the Phonebook, it must have been downloaded •
from the cell-phone. For more details, see the instruction
manual of your Bluetooth Unit and your cell-phone.
Initials including no corresponding name will not be •
displayed.
During search, a non-accent character such as "u" is •
searched for instead of an accent character such as "ü".
For DNX9140 only:•
Some icons and buttons will not appear.
Calling by Entering a Phone Number
Makes a call by entering a phone number.
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Display the number input screen2
Enter a phone number3
1
1
1
1 Enters the desired phone number using the
keypad.
[Clear] Clears the number.
Make a call4
Press the green phone icon to dial the entered
phone number.
⁄
You can input up to 32 digits.•
54 DNX9140/DDX814/DDX8034BT English 55
Making a Call Using Call Records
Calls by selecting a phone number from the
outgoing, incoming, or missed calls list.
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Display the Outgoing Calls, Incoming Calls, 2
or Missed Calls screen
Select from calls list 3
Example : Outgoing Calls screen
Calls the selected phone number.
Make a call4
⁄
The Outgoing Calls list screen, Incoming Calls list, •
or Missed Calls list screen shows the list of the calls
originated from or received at this unit. They are not the
ones stored in the cell-phone memory.
Calling by Voice Recognition
(DDX814/ DDX8034BT)
Calls by recognizing the registered voice.
⁄
In order to perform voice recognition, voice must •
be registered in the Phonebook data. See <Voice
Registration> (page 56). Or, to perform voice recognition
by Phone number category (Home, Office, Mobile etc.)
of Phonebook data, a key word voice must be registered.
See <Key Word Voice Registration> (page 57).
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Display the Voice Recognition screen2
Say the name registered in the Phonebook3
When a beep is heard, say the name within 2
seconds.
When a beep is heard, say the category within
2 seconds.
If there are more than one phone numbers
registered under the same name, go to step 4.
Select a Phone number category4
Selects the Phone number category.
Make a call5
⁄
A message is displayed if the voice is not recognized. •
Read the message for the further operation.
Hands Free Unit Control
Controlling Tone-based Services
Uses tone base service using DTMF (Dual Tone
Multi Frequency).
Display the Talking screen1
See <Calling by Entering a Phone Number>
(page 53).
Display the DTMF input screen2
You can send tones during a call3
Setting Up the Hands-Free Phone
The Hands-Free system can be set as follows.
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Display the Hands Free Setup screen2
Set each item3
[Auto Response] Sets an automatic response
time to pick-up an incoming call. ( "OFF")
"OFF": This function is disabled.
"0-99": Sets the incoming call ringing duration
(in seconds).
[Phone Voice] Sets the phone call voice /
ringing tone output position. ( "Front All")
"Front L": Outputs the phone call voice from
the front left-hand side speaker.
"Front R": Outputs the phone call voice from
the front right-hand side speaker.
"Front All": Outputs the phone call voice from
both front speakers.
Next page 3
56 DNX9140/DDX814/DDX8034BT English 57
[Call Beep] Sets the beep of the incoming call.
( "ON")
"ON": Beep is heard.
"OFF": Beep is canceled.
[SMS Receive Beep] Sets the beep of the
incoming SMS. ( "ON")
"ON": Beep is heard.
"OFF": Beep is canceled.
[Phone Information Use] Sets whether to
use cell-phone phonebook, outgoing calls list,
incoming calls list and missed calls list.
( "ON")
"ON": Yes.
"OFF": No.
[SMS Use] Sets the SMS function. ( "ON")
"ON": Use SMS function.
"OFF": SMS not available.
[Key Word] (DDX814/ DDX8034BT only)
Registers the voice to select phone number
category with voice recognition.
See <Key Word Voice Registration> (page 57).
[Use Phone Voice Recognition] (DDX814/
DDX8034BT only)
Sets whether to dial using the phone voice
recognition function. ( "ON")
[Echo Cancel] Sets whether to disable the
units echo cancelling function.
( "ON")
[Microphone Level] Adjusts the sensitivity of
the microphone for a telephone call.
( "6")
[Noise Reduction] Turns the Noise Reduction
function On or Off, which adjusts the level
of the noise reduction and the quality of the
resulting speech signal.
( "ON")
[Restore] Restores the [Echo Cancel],
[Microphone Level], or [Noise Reduction] value
to the initial value.
⁄
Either the time interval for automatic answer set on this •
unit or the time interval set on the cell-phone, whichever
is shorter, takes effect.
Select the speaker which is further from the microphone •
in order to prevent howling or echoes.

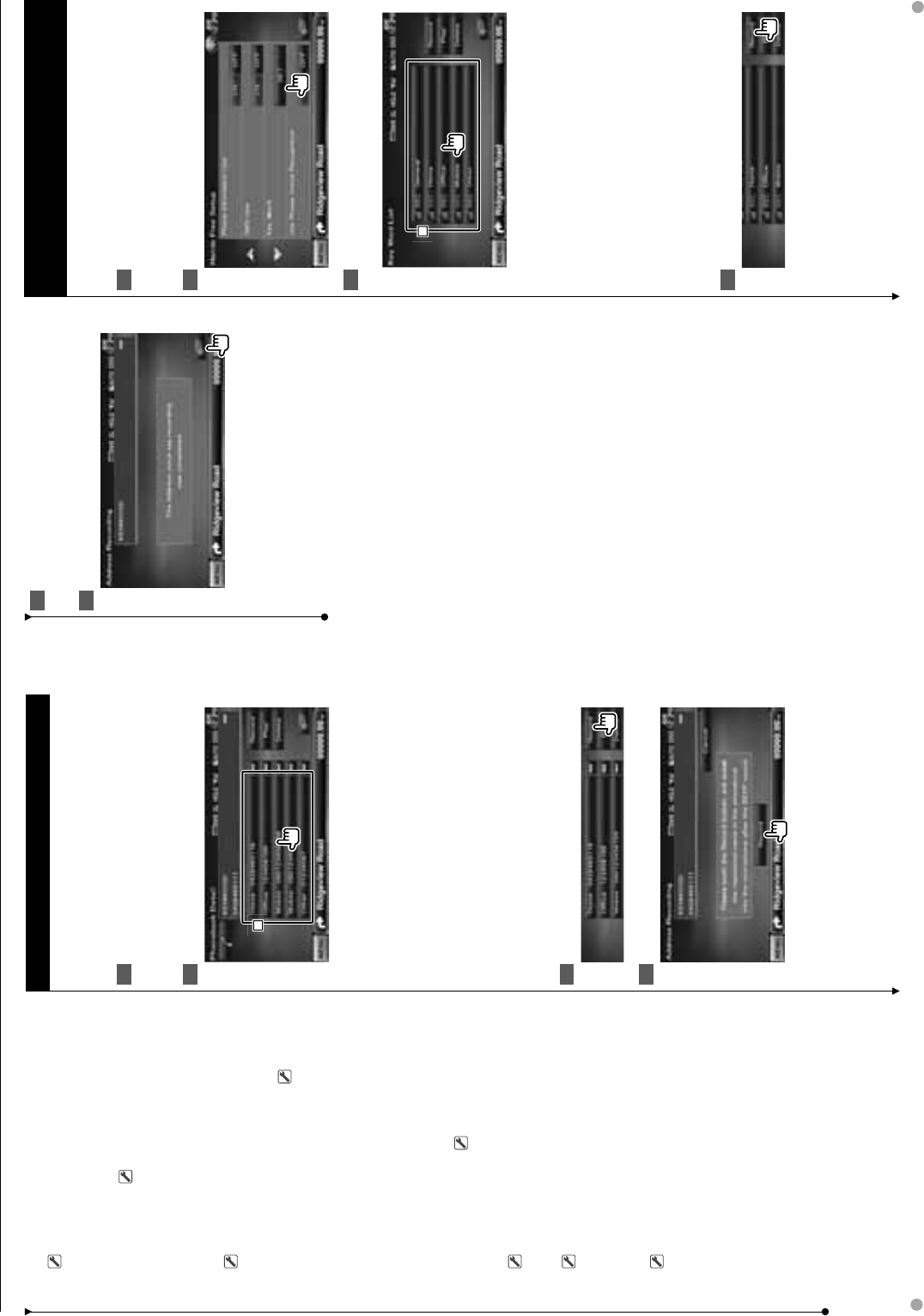

Voice Registration (DDX814/ DDX8034BT)
Registers voice for voice recognition in
Phonebook. Up to 35 voices can be recorded in
one cell-phone.
Display the Phonebook Detail screen1
Go through the procedure of <Calling by
Phonebook> (page 53).
Select the name to register2
1
1
1
1 Selects a name.
[Record] Registers the voice for voice
recognition to the selected Phonebook. If
there are already 35 voice tag registered
in the same cell-phone, [Record] button is
deactivated.
[Play] Plays the voice registered in the selected
Phonebook data.
[Delete] Deletes the voice registered in the
selected Phonebook data.
Touch to display the confirmation screen.
Touch [Yes] to delete or [No] to cancel.
Display the voice registration screen 3
Say the name to register (1st try) 4
Say within 2 seconds after the Beep.
Next page 3
Hands Free Unit Control
Say the name to register (2nd try)5
Say within 2 seconds after the Beep.
End voice registration6
⁄
A message is displayed if the voice is not recognized. •
Read the message for the further operation.
Repeat from 1st try if the voice is different from the 1st •
try.
Key Word Voice Registration
(DDX814/ DDX8034BT)
Registers the voice to select the Phone number
category by Voice Recognition.
Display the Hands Free Setup screen1
See <Setting Up the Hands-Free Phone> (page
55).
Display the Key Word List screen2
Select the Phone number category to 3
register
1
1
1
1 Selects the Phone number category.
"REC" turns on for data with voice for voice
recognition already registered.
[Record] Registers voice for the selected
Phone number category.
[Play] Plays voice registered for the selected
Phone number category.
[Delete] Deletes voice registered for the
selected Phone number category. Touch to
display the confirmation screen. Touch [Yes] to
delete or [No] to cancel.
Display voice registration screen4
58 DNX9140/DDX814/DDX8034BT English 59
Say the phone category to register (1st try) 5
Say within 2 seconds after the Beep.
Say the phone category to register (2nd try) 6
Say within 2 seconds after the Beep.
End voice registration 7
⁄
A message is displayed if the voice is not recognized. •
Read the message for the further operation.
Repeat from 1st try if the voice is different from the 1st •
try.
Phone Number Preset
Registers frequently used phone number to
Hands Free control screen preset button.
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Select the Preset number to register2
1 sec.
⁄
If no Preset number is registered, pressing this button •
momentarily moves to the step 3.
Select the search destination of the number 3
to register
[ ] Registers from Phonebook.
[] Registers from outgoing calls list.
[] Registers from incoming calls list.
[] Registers from missed calls list.
[Direct Number] Registers by entering phone
numbers.
[Voice] (DDX814/ DDX8034BT only)
Registers voice for voice recognition to preset
number.
[Memory] Registers the currently displayed
phone number.
[Delete] Deletes the currently displayed phone
number. Touch to display the confirmation
screen. Touch [Yes] to delete or [No] to cancel.
Search phone number to register with each 4
function
Next page 3
Hands Free Unit Control
Register phone number 5 SMS (Short Message Service)
Uses SMS function.
Display the Hands-Free Control screen1
See <Making a call> (page 52).
Display the SMS Select screen2
Select a function3
[ ] Displays the SMS create menu screen.
[] Displays received message list.
[] Displays sent message list.
[] Displays the SMS Create Menu screen.
The button will be active when any message
has been created after power-on.
[Download] Retrieves SMS messages from the
cell-phone.
Select a message to display 4
1
1
1
1 Calls the number in the selected message.
[DISP] Displays the selected message.
60 DNX9140/DDX814/DDX8034BT English 61
SMS Message screen
Creates a new message for the selected
message.
Create a message
Enter phone number / Select contact1
[ ] Select a contact from the phonebook.
[Direct Number] Enter the phone number.
[SET] Display the Create SMS Message screen.
[Send] Sends the message.
[Delete] Deletes the Draft message.
Touching the screen displays a confirmation
message. Touch [Yes]. To cancel clearing, touch
[No].
Display the Create SMS Message screen2
Create a message3
1
1
1
1 Enters characters.
[2], [3] Moves the cursor.
[5], [∞] Scrolls up or down the character
button display.
[QWE]/ [ABC] Sets the key layout of the
character buttons.
ABC : Alphabetical key layout.
QWE : Qwerty key layout.
[Clear] Erases the entered character.
If touched more than 1 second, all the input
characters are erased.
[Space] Enters a space.
[SET] Saves the message and returns to the
Create SMS Menu screen.
Only one draft message can be saved /
retained in memory at any one time.
Send the message.4

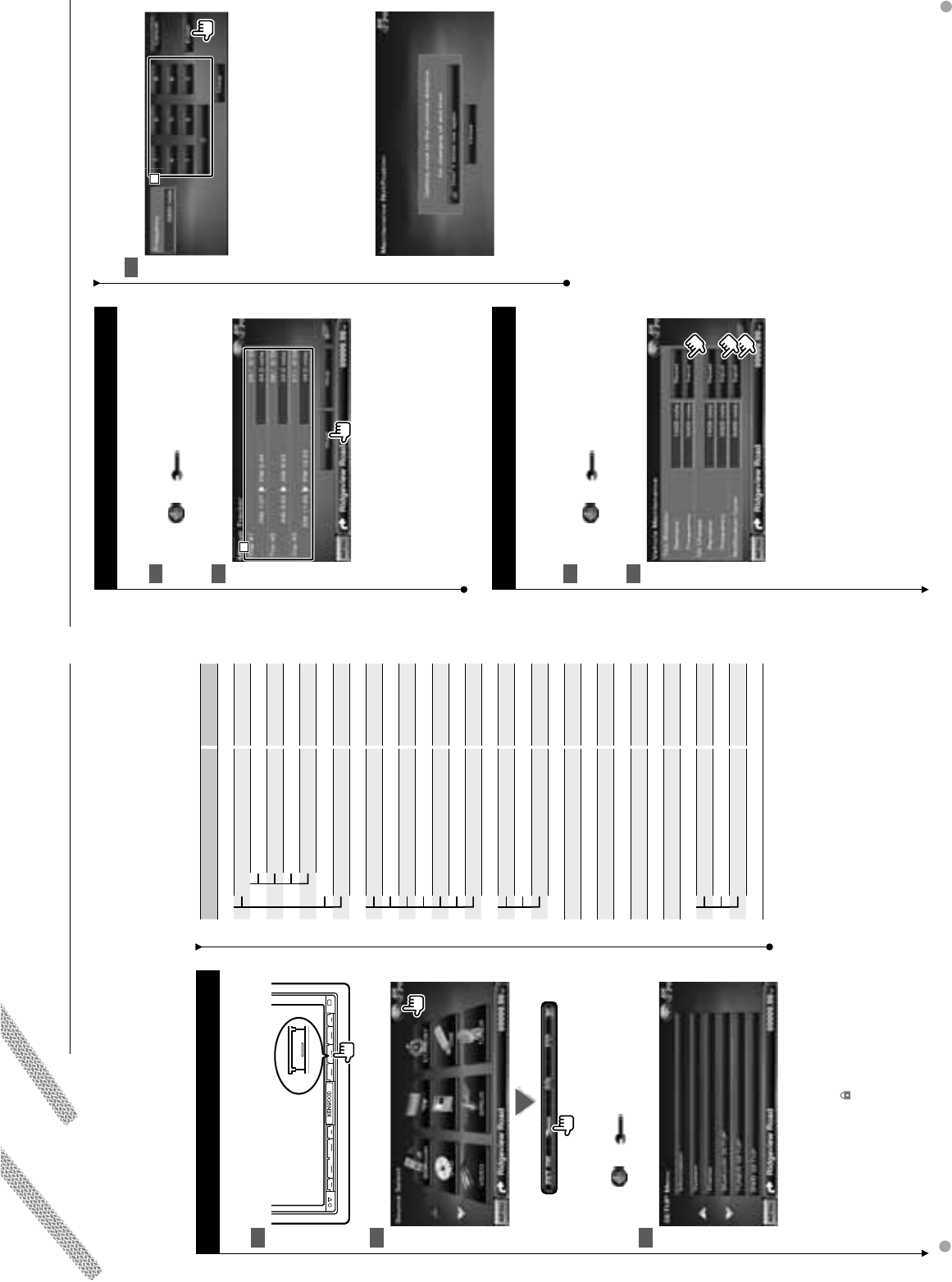

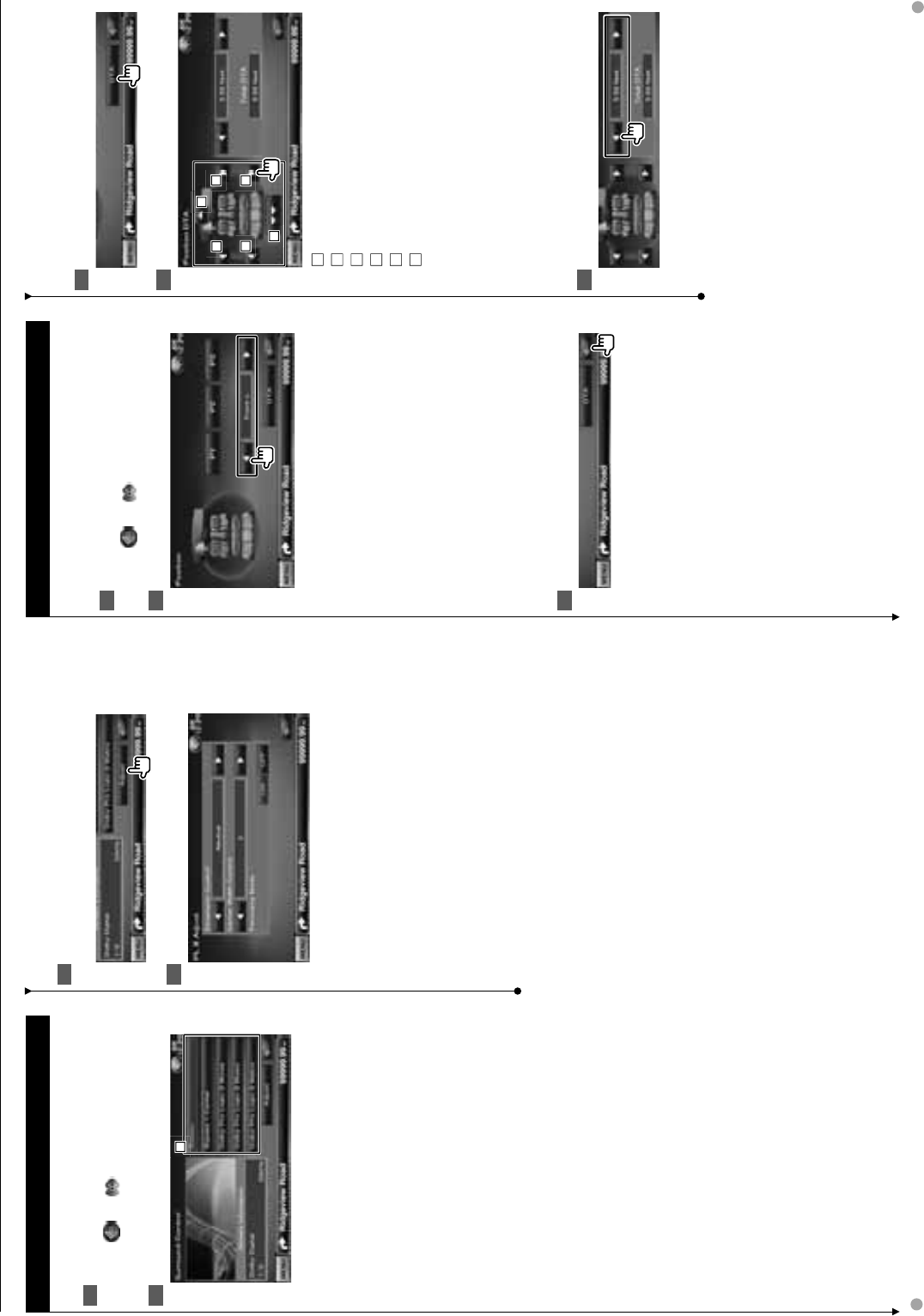

Audio Control
Audio Control Menu
Displays the Audio Control menu to set the sound
effect function of this unit.
Display the Source Select Screen1
SRC
Display the Audio Control menu2
In this manual, the above selection is indicated
as:
Touch [ ]
>
[ ].
Select the Audio Control item3
Item Page
[Audio Control] 61
[Equalizer] 62
[EQ] 62
[Zone Control] 63
[SRS WOW] 63
[Surround Control] 64
Item Page
[Position] 65

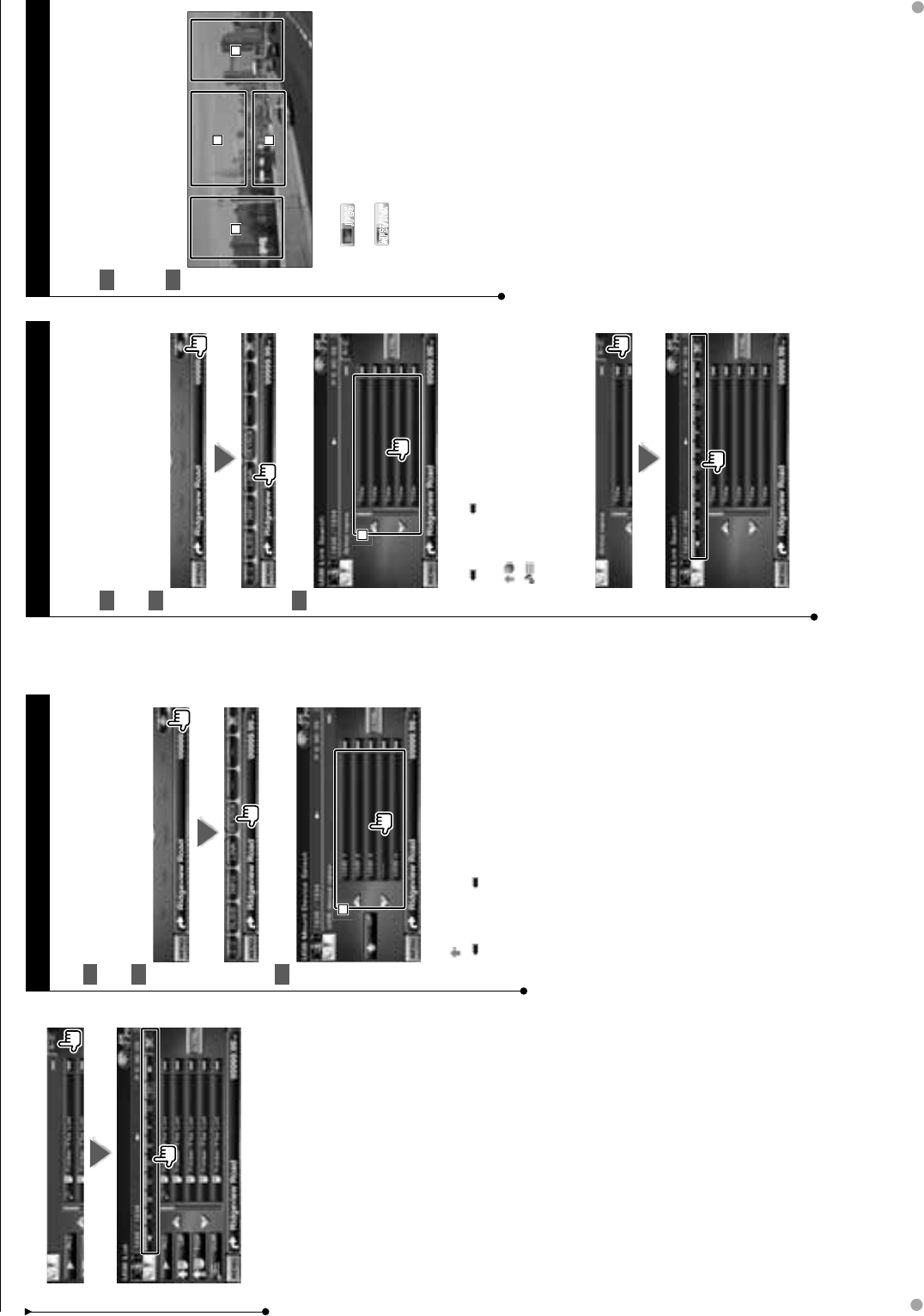

Audio Control
You can adjust the front/rear and right/left audio
balance.
Display the Audio Control screen1
Touch [ ]
>
[ ]
>
[Audio Control]. (page 61)
Set each item2
1
1
1
1 Adjusts the front/back and left/right
balance of the volume by touching the Adjust
screen.
[2], [3] Adjusts the right and left volume
balance.
[5], [∞] Adjusts the front and rear volume
balance.
[VOL.Offset] Finely adjust the volume of the
current source to minimize the difference in
volume between different sources.
⁄
If you have increased the volume first, then reduced •
the volume using the "VOL. Offset", the sound
generated if you suddenly switch to another source
may be extremely loud.
[Subwoofer Level] Adjusts the subwoofer
volume.
[Stream Information] Displays the present
source information.
The stream (Dolby Digital, dts, Linear PCM,
MPEG, MP3, WMA or AAC) is displayed.
Hands Free Unit Control
62 DNX9140/DDX814/DDX8034BT English 63
Equalizer Control
You can set up the equalizer.
Display the Equalizer screen1
Touch [ ]
>
[ ]
>
[Equalizer]. (page 61)
Set each item2
[SystemQ] Selects an equalizer curve type.
You can select any of the following equalizer
curves.
"Natural"/ "Rock"/ "Pops"/ "Easy"/ "Top40"/
"Jazz"/ "Game"/ "iPod"/ "User"
⁄
"User":•
Your own Graphic equalizer curve can be created.
See <Graphic Equalizer Setup> (page 62).
When "iPod" is selected, the [EQ] button is •
deactivated. "iPod" uses its equalizer function.
[EQ] Displays the Graphic Equalizer setup
screen. (page 62)
Graphic Equalizer Setup
You can Manually set the equalizer curve.
Display the Equalizer screen1
Touch [ ]
>
[ ]
>
[Equalizer]. (page 61)
Display the Graphic Equalizer screen2
⁄
When "iPod" is selected in <Equalizer Control>, the •
[EQ] button is deactivated. "iPod" uses its equalizer
function.
Select the channel to be adjusted3
Set the Graphic Equalizer4
1
1
1
1 Gain level can be adjusted by touching the
each frequency bar.
[2], [3] Sets a frequency.
[5], [∞] Sets a gain level.
[EQ Init] Returns to the previous level which
the gain level is adjusted.
[Flat] Tone curve becomes flat.
[SW LEVEL] Adjusts the subwoofer volume.
Audio Control
Zone Control
You can set the front and rear audio source.
Display the Zone Control screen1
Touch [ ]
>
[ ]
>
[Zone Control]. (page 61)
Set the Zone Control2
[Single Zone] Turns off the dual zone.
[Front Source] Sets the front audio source.
[Rear Source] Sets the rear audio source.
⁄
When the rear speaker sound is switched, the audio •
source that is output at the AV OUTPUT terminal is
also switched to the same source.
[Rear VOL.] Adjusts the volume of the rear
channel.
⁄
There are following limitations when zone function is set •
to "ON".
- There is no output from the subwoofer and the center
speaker.
- <Equalizer Control> (page 62), <SRS WOW Control>
(page 63), <Surround Control> (page 64), <Position>
(page 65), <DSP Bypass Control> (page 82), <Speaker
Setup> (page 82), <Car Type (DTA) Setup> (page 84),
and <Channel Level> (page 85) are not available.
SRS WOW Control
You can set up the SRS WOW effect.
Display the SRS WOW Control screen1
Touch [ ]
>
[ ]
>
[SRS WOW]. (page 61)
Set the SRS WOW Control2
1
1
1
1 Sets a SRS WOW.
You can select any of the following sound
fields.
"OFF"/ "LOW"/ "MIDDLE"/ "HIGH"/ "USER"
SRS WOW User Setup
Display the Audio SRS Adjust screen1
Adjust the Audio SRS2
1
1
1
1 Selects a speaker to be set (Front, Rear or
Center speaker).
[TruBass] Sets the TruBass effect level.
[FOCUS] Sets the FOCUS effect level.
[SRS 3D] Sets the SRS 3D effect level.
⁄
FOCUS: Adjusts the vertical position of the speaker and •
sound image by virtual adjustment.
TruBass: Assists the playback for the super bass sound. •
SRS 3D: Makes a natural 3D sound field. •
SRS WOW control is not available in tuner source, TV •
source and HD Radio source.
64 DNX9140/DDX814/DDX8034BT English 65
Dolby Pro Logic II Music Adjustment
Display the Dolby Pro Logic II Music Adjust 1
screen
Adjust the sound field2
[Dimension Control] Sets the surround
position by adjusting the front and rear
volume balance.
[Center Width Control] Sets the vocal image
position by adjusting the right and left vocal
volume level.
[Panorama Mode] Turns the Panorama mode
On or Off.
⁄
You cannot use the <Surround Control Adjustment> •
during playback of a Multi-channel source.
Surround Control
You can set up the sound field.
Display the Surround Control screen1
Touch [ ]
>
[ ]
>
[Surround Control]. (page
61)
Set the Surround Control2
1
1
1
1 Sets a sound field.
You can select any of the following sound
fields.
"Bypass"/ "Bypass+Center"/ "Dolby PLII Movie"/
"Dolby PLII Music"/ "Dolby PLII Matrix"
[Stream Information] Displays the present
source information.
The stream (Dolby Digital, dts, Linear PCM,
MPEG, SDDS, AAC or MP3/WMA), input
channels (front or rear channels), and sampling
frequency are displayed.
⁄
When you have selected the TV or TUNER source and •
when you set the Dolby PL, we recommend you to select
the "Dolby PLII Matrix" mode. If you select another Dolby
PLII mode, the sound is NOT output from rear speakers
when you receive monaural broadcasting sounds.
Surround control can be set for each source. •
Audio Control
Position
You can adjust the sound effects according to
your listening position.
Display the Position screen1
Touch [ ]
>
[ ]
>
[Position]. (page 61)
Set the Position Control2
[P1] - [P3] Stores the present adjustment setup
in memory, or calls it from memory.
To store your adjustment in memory:
Continue to touch [P1] to [P3] more than 2
seconds.
To call your adjustment from memory:
Touch [P1] to [P3] of your adjustment you
wish to call from memory.
[2], [3] Sets a listening position.
You can select any of "Front R" (Right front),
"Front L" (Left front), "Front All" (All front), and
"All" (All) positions.
[DTA] Displays the Position DTA (Digital Time
Alignment) screen.
Exit Position Control3
⁄
The final distance is adjusted to the total of Car Type Set •
Up value (page 84) and Position Setup (both Position and
Position DTA) value.
If you change the Car Type Set Up value • (page 84), the
position is set to "All".
Only the adjusted distance of position setup (Position •
and Position DTA values) is stored in memory. Therefore,
the final adjustment distance changes if you change the
Car Type Set Up value (page 84).
Position DTA Control
You can fine-adjust your listening position.
Display the Position DTA screen1
Select a speaker you wish to adjust2
4
4
4
2
2
2
1
1
1
5
5
5
3
3
3
6
6
6
1 Center speaker
2 Left front speaker
3 Right front speaker
4 Left rear speaker
5 Right rear speaker
6 Subwoofer
[2], [3] Finely adjusts the value set with the
Position function.
[Total DTA] Indicates setup distance. The
adjusted distance (Position and Position
DTA values), and the total of the distance
adjusted by Car Type Set Up (page 84) and
the adjustment distance for position setup are
indicated.
Finely adjust the distance3
Finely adjust the value set with the Position
function.
66 DNX9140/DDX814/DDX8034BT English 67
Setup Menu
How to Display SETUP Menu Screen
Displays the Setup menu to set various functions.
Display the Source Select Screen1
SRC
Display the Setup Menu Screen2
In this manual, the above selection is indicated
as:
Touch [ ]
>
[ ].
Select the setup item3
[5], [∞] Scrolls the setup menu.
⁄
[AV-IN SETUP], [Navigation] and [Audio SETUP] options •
can be locked. The key mark ( ) is displayed in reverse
video for the locked option. See <Setup Memory> (page
74).
You can set up various receiver parameters.
Item Page
[Information]
[Vehicle] (DNX9140 only)
[Mileage Tracker] 67
[Vehicle Maintenance] 67
[Gas Mileage Analysis] 68
[Vehicle SETUP] 68
[DivX(R)] 69
[Software] 69
[System]
[User Interface] 70
[Touch] 71
[Clock] 71
[Security] 72
[Angle] 73
[EXT SW] 73
[SETUP Memory] 74
[Display]
[Background] 75
[Color] 76
[Screen Control] 77
[Bluetooth SETUP] 77
[SIRIUS SETUP] 89
[DVD SETUP] 86
[iPod SETUP] 89
[USB SETUP] 88
[TV SETUP] 92
[AV-IN SETUP] 80
[Navigation] 81
[Audio SETUP] 82
[Speaker Select] 82
[Car Type] 84
[Channel Level] 85
[AV Interface] 80
Mileage Tracker (DNX9140)
Measures the travel distance.
Display the Mileage Tracker screen1
Touch [ ]
>
[ ]
>
[Information]
>
[Vehicle]
>
[Mileage Tracker]. (page 66)
Measure the travel distance2
1
1
1
1 Displays up to three measurement results.
The "3" mark turns red during measurement.
[Start] Starts measurement of the travel
distance.
[Stop] Ends measurement of the travel
distance.
Vehicle Maintenance (DNX9140)
Displays the maintenance information about the
oil change timing and so forth.
Display the Maintenance screen1
Touch [ ]
>
[ ]
>
[Information]
>
[Vehicle]
>
[Maintenance]. (page 66)
Select the item to set2
[Tire Rotation] Sets the tire rotation timing.
Notification is made when the vehicle has run
the set distance.
[Oil Change] Sets the oil change timing.
Notification is made when the vehicle has run
the set distance.
[Notification Cycle] Sets the distance the
vehicle runs before notification is made.
[Reset] Resets the distance the vehicle has run.
[Input] Sets a distance.
Set a distance3
1
1
1
1 Input a distance.
[Clear] Erases the entered digit.
If touched more than 1 second, all the input
digits are erased.
[Enter] Registers the distance.
[Cancel] Cancels the input distance.
Notification screen
When the set distance is getting close, the
maintenance notification is displayed when the
unit is turns on. Touch the check box, and then
touch the [Close] button to close the display.
68 DNX9140/DDX814/DDX8034BT English 69

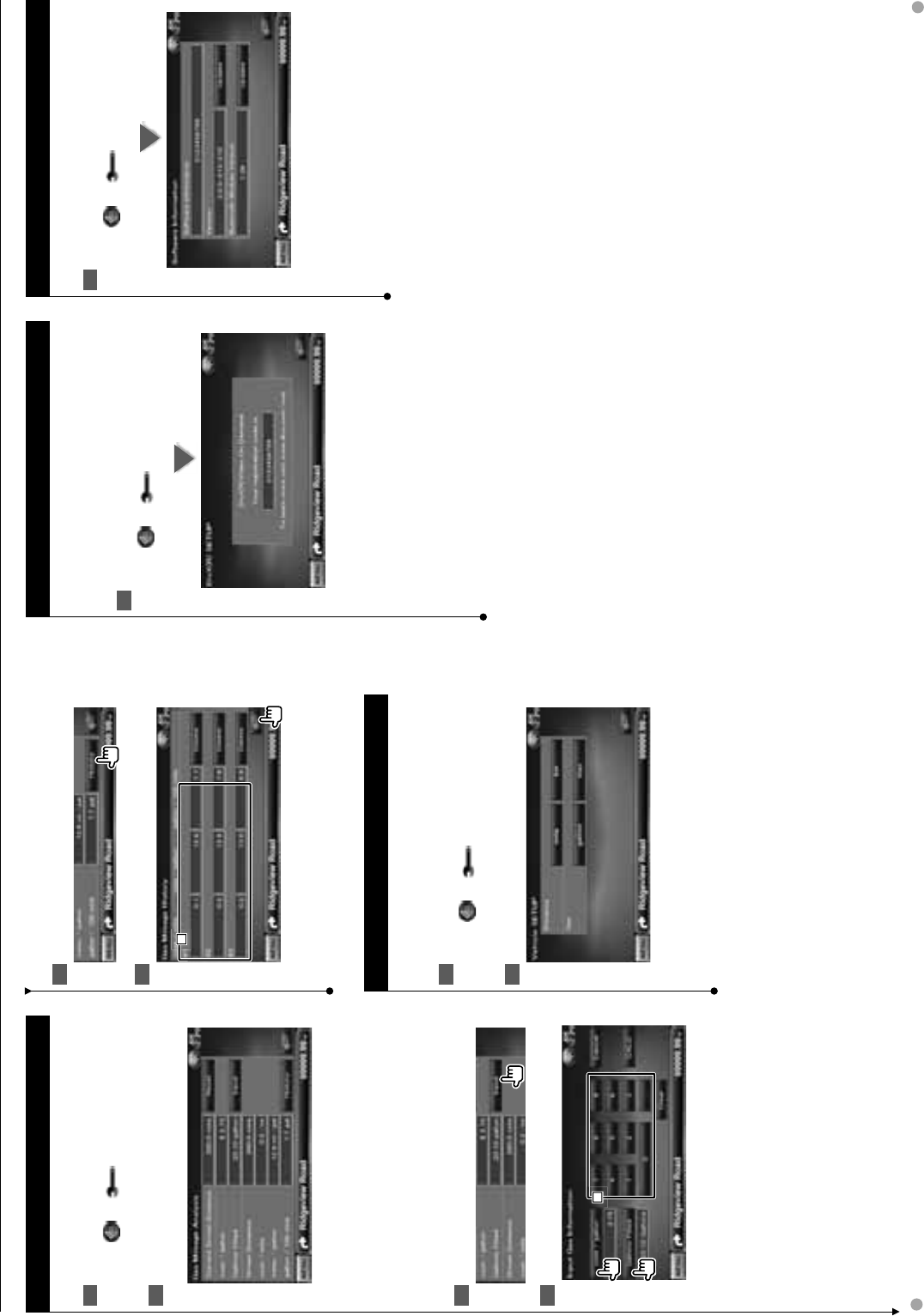

Gas Mileage Analysis (DNX9140)
Measures the gas mileage.
Display the Gas Mileage screen1
Touch [ ]
>
[ ]
>
[Information]
>
[Vehicle]
>
[Gas Mileage Analysis]. (page 66)
Display the information about the gas 2
mileage
[Reset] Resets the trip meter.
[Input] Input the information about the
gasoline filled. (Step 3)
[History] Displays the history of mileage. (Step
5)
Input the information about gasoline
Display the Input Gas Information screen3
Inputs the information about gasoline4
1
1
1
[cost / gallon], [cost / liter] Selects the mode
to input the cost per liter/gallon.
[Gallons Filled], [Liters Filled] Selects the
mode to input the amount of gasoline filled.
1 Input information.
[Clear] Erases the entered digit.
If touched more than 1 second, all the input
digits are erased.
[CALC] Determines the input information and
returns to the previous screen.
[Cancel] Cancels the input information.
Displays the history of gas mileage
Display the Gas Mileage History screen5
Display the history of gas mileage6
1
1
1
1 Displays up to three gas mileages.
[Delete] Deletes the history.
Vehicle Setup (DNX9140)
Sets the unit of distance and the unit of amount
of gasoline.
Display the Vehicle SETUP screen1
Touch [ ]
>
[ ]
>
[Information]
>
[Vehicle]
>
[Vehicle SETUP]. (page 66)
Set the units2
[mile]/ [km] Set the unit of distance.
[gallon]/ [liter] Set the unit of amount of
gasoline.
Setup Menu
DivX Setup
Checks the registration code. This code is needed
when making a disc which has DRM (Digital
Rights Management).
Display the DivX Setup screen1
Touch [ ]
>
[ ]
>
[Information]
>
[DivX].
(page 66)
Displays the registration code.
⁄
• When downloading a DivX VOD file controlled by DRM,
register the code appeared on the screen such as the
one above. Otherwise the file may not be able to play
with this unit. Remaining number of viewing is displayed
when playing a DivX VOD file with the viewing restriction.
When the remaining number of viewing reached 0, a
warning message appears and the file cannot be played.
Software Information
Checks the software version of this unit.
Display the Software Information screen1
Touch [ ]
>
[ ]
>
[Information]
>
[Software]. (page 66)
Displays the software version.
⁄
For how to update the software, refer to the relevant •
update procedure manual which comes with the
software.
70 DNX9140/DDX814/DDX8034BT English 71

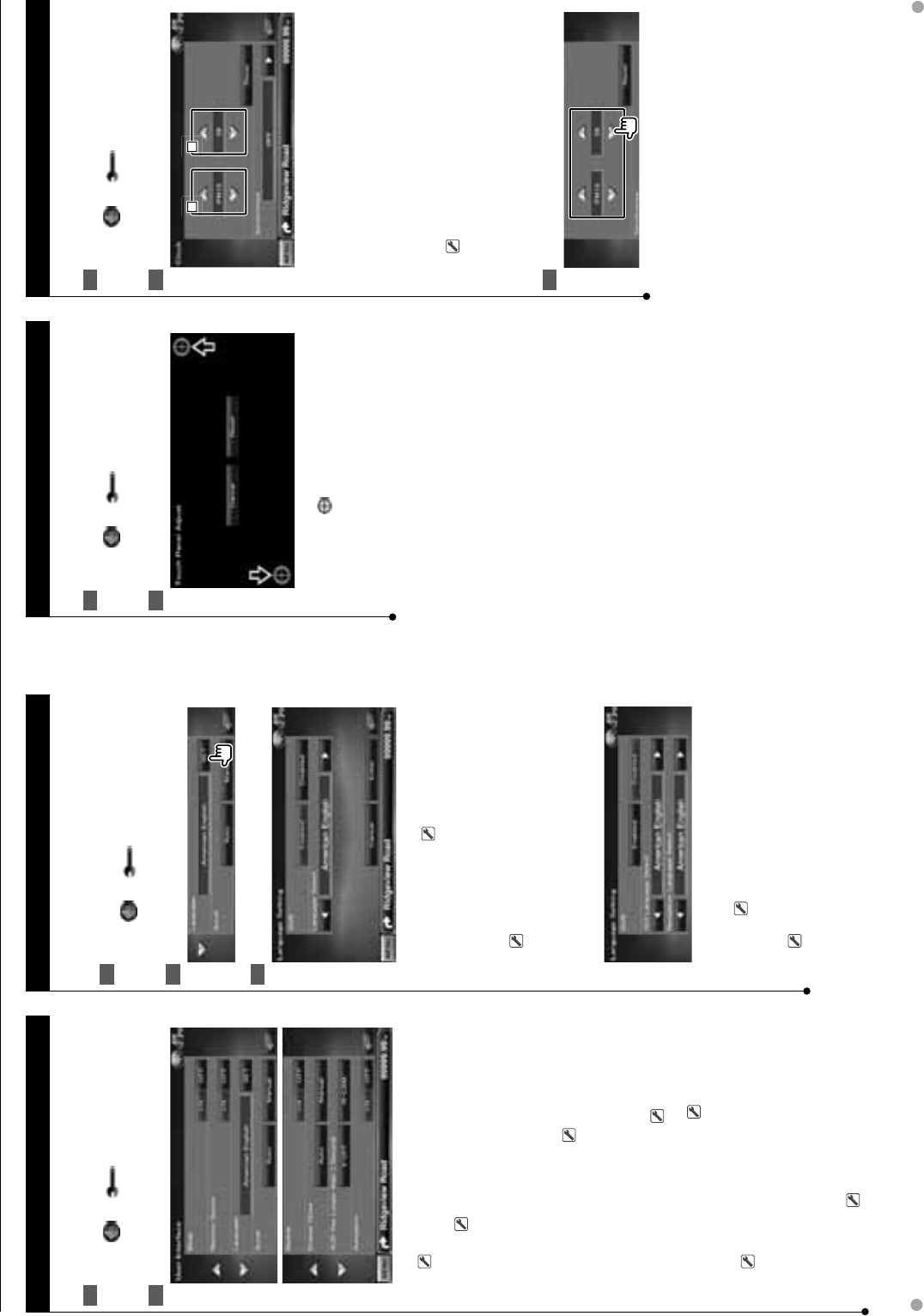

User Interface
You can setup user interface parameters.
Display the User Interface screen1
Touch [ ]
>
[ ]
>
[System]
>
[User
Interface]. (page 66)
Set each item2
[Beep] Turns the key touch tone On or Off.
( "ON")
[Remote Sensor] Selects a remote control
signal. ( "ON")
When turned "OFF", the remote control of TV
reception is rejected.
[Language] Select the language used for the
control screen and setting items. (page 70)
[Scroll] Allows scrolling of text display on the
Source Control screen. ( "Manual")
"Auto": Scrolls the screen automatically.
"Manual": Allows you to scroll the screen
manually.
[Marker] Sets whether to display the target
when touching the panel. ( "ON")
[Drawer Close] Sets whether to close the
function bar automatically. ( "Auto")
[AUD Key Longer than 1 Second] Sets the
function of the [AUD] button. (page 10)
( "R-CAM")
"V.OFF" : Press the [AUD] button for more than
1 second to turn the display off.
"R-CAM" : Press the [AUD] button for more
than 1 second to switch to rear view.
[Animation] Sets whether to display
animation. ( "ON")
Language Setting
You can select the display language for the
control screen and audio file tags.
Display the User Interface screen1
Touch [ ]
>
[ ]
>
[System]
>
[User
Interface]. (page 66)
Display the Language Setting screen2
Select a language3
[ASR] Selects whether to use the voice control
function. (page 47) ( "Disabled") (DNX9140
only)
"Enabled": Voice control is activated.
"Disabled": Voice control is deactivated.
[Language Select] Selects a language.
( "American English")
[Enter] Determines the selected language.
[Cancel] Cancels the selected language.
When [ASR] is set to "Disabled" (DNX9140
only)
[GUI Language Select] Selects the display
language used for the control screen and so
forth. ( "American English")
[Navigation Language Select] Selects the
language used for navigation.
( "American English")
Setup Menu
Touch Panel Adjustment
You can adjust the touch panel operations.
Display the Touch panel Adjustment screen1
Touch [ ]
>
[ ]
>
[System]
>
[Touch].
(page 66)
Adjust the Touch panel2
Follow the instruction on the screen and touch
the center of .
[Cancel] Cancels the adjustment and returns
to the Touch Panel Adjust screen.
[Reset] Resets to the initial status.
Clock Setup
You can adjust the clock time.
Display the Clock Setup screen1
Touch [ ]
>
[ ]
>
[System]
>
[Clock].
(page 66)
Setup the Clock2
2
2
2
1
1
1
1 Adjusts hours.
2 Adjusts minutes.
[Reset] Sets "00" minute.
Setup examples: 3:00 – 3:29 \ 3:00
3:30 – 3:59 \ 4:00
[Synchronize] Sets the clock time in
synchronization with the time data sent from
the navigation system or the RDS station.
( DNX9140: "Navigation", DDX814/
DDX8034BT: "RDS")
"OFF"/ "RDS"/ "Navigation"
When the synchronized mode is set, the clock
cannot be adjusted manually.
Adjust the clock time3
72 DNX9140/DDX814/DDX8034BT English 73
Security Setup
You can set a security code to protect your
receiver system against theft.
⁄
• When the Security Code function is activated, the code
cannot be changed and the function cannot be released.
Note the Security Code can be set as the 4 digit number
of your choice.
Display the Security screen1
Touch [ ]
>
[ ]
>
[System]
>
[Security].
(page 66)
Setup the SI (Security Indicator)2
[Security Code Set] Displays the Security code
input screen.
[SI] Turns the SI function on or off.
If turned "ON", the SI indicator on the front
panel flashes when the vehicle ignition is off.
( "ON")
Start Security Code setup3
⁄
If you have already completed the code registration, •
[CLR] is displayed.
Enter a security Code4
Input four-digit number.
Register your security code5
Reenter the security code6
Reenter the same security code as that you have
entered in Step 4 for confirmation.
⁄
If you enter a different security code, the screen •
returns to Step 4 (for the first code entry).
Register the security code again7
Now, your security code is registered.
If you have pressed the Reset button or if you
have disconnected the Receiver from battery...
Enter the correct security code1
You must enter the same security code as that
you have entered in Step 4.
Register your security code2
Now, you can use your Receiver.
Setup Menu
Monitor Angle Control
You can adjust the position of the monitor.
Display the Angle Setup screen1
Touch [ ]
>
[ ]
>
[System]
>
[Angle].
(page 66)
Set the Monitor Angle2
1
1
1
1 Sets the Monitor angle.
[Memory] Stores the current monitor angle as
the angle during power off.
EXT SW Setup
Setting up power specification of the external
device for which the power is controlled from this
unit.
Display the Angle Setup screen1
Touch [ ]
>
[ ]
>
[System]
>
[EXT SW].
(page 66)
Perform EXT SW Setup2
[SW Name] Sets the name of the external
device. See <Character Entry> (page 48) for
information on how to enter the name.
[Output Pattern] Sets the power signal output
mode.
( EXT SW1: Pulse, EXT SW2: Level)
"Pulse": Generates a single power signal pulse.
"Level": Continues output of high power signal.
Sets to turn output on/off each time
the button on the EXT SW Control
screen is touched.
[Pulse Set] Sets the Pulse signal output time.
Outputs 500ms when "1" is set. Increases by
200ms with each step. Up to 100 steps can
be set.
74 DNX9140/DDX814/DDX8034BT English 75
Setup Memory
Audio Control, AV-IN SETUP, AV Interface,
Navigation, and Audio SETUP settings can be
memorized. The memorized settings can be
recalled at any time. For example, even when the
settings are cleared due to replacement of the
battery, the settings can be restored.
Display the SETUP Memory screen1
Touch [ ]
>
[ ]
>
[System]
>
[SETUP
Memory]. (page 66)
Start Setup Memory2
[Lock] Locks the AV-IN SETUP, Navigation,
and Audio SETUP settings. When [Lock] is
selected, you cannot change the AV-IN SETUP,
Navigation, and Audio SETUP settings.
[Yes] Memorizes or recalls the settings.
[No] To cancel the function, touch [No]. To
cancel memorization, touch [No].
The SETUP Menu screen appears again.
Select a desired function3
[Recall] Recalls the memorized settings.
[Memory] Memorizes the current Audio Setup
and AV Interface settings.
[Clear] Clears the currently memorized
settings.
Memorize or recall the settings4
When memorizing the Audio Setup and AV
Interface settings:
If settings have already been memorized, a
confirmation message appears. Touch [Yes]. To
cancel memorization, touch [No].
When recalling the memorized settings:
Touching the screen displays a confirmation
message. Touch [Yes]. To cancel recalling, touch
[No].
When clearing the currently memorized
settings:
Touching the screen displays a confirmation
message. Touch [Yes]. To cancel clearing, touch
[No].
Quit memorization/recalling of settings5
Setup Menu
Entering Background
Loads a image for background.
Connect the device which has the image 1
to load
Display the Background screen2
Touch [ ]
>
[ ]
>
[Display]
>
[Background]. (page 66)
Display the Background Memory screen3
[Change] Selects a image for background.
[Delete] Deletes the background image.
Touching the screen displays a confirmation
message. Touch [Yes]. To cancel clearing, touch
[No].
Select a medium4
Select the image to load5
1
1
1
1 Lists the files.
[] When appears, the text display is
scrolled by touching it.
[ ROOT] Moves to the top hierarchy level.
[ UP] Moves up a hierarchy level.
Load the image6
1
1
1
1 Rotates the image.
⁄
See • <About Picture files> (page 8) for readable image
specifications.
This operation is not possible when USB is selected as •
the source.
Background Change
Selects a image for background.
Select Background Change screen1
Select a image for background2
1
1
1
1 Returns to the initial background.
Set the image as the background3
76 DNX9140/DDX814/DDX8034BT English 77
Panel Color Coordinate
Sets the button illumination color.
Display the Color screen1
Touch [ ]
>
[ ]
>
[Display]
>
[Color].
(page 66)
Display the Panel Color Coordinate screen2
[Initialize] Initialization resets the settings
made using the Panel Color to the default
settings made at the factory.
[Panel Color Scan] When set to "ON", the
illumination color of the screen and buttons
changes one after another.
Select a color3
1
1
1
1 Sets to the touched color.
[Adjust] Sets and registers favorite color to the
preset buttons ([P1] – [P3]).
To register your original color
Start the RGB coordinate1
Adjust each color value2
1
1
1
1 Selects a preset number to register.
[Red Value] Adjusts the Red value.
[Green Value] Adjusts the Green value.
[Blue Value] Adjusts the Blue value.
Select a Preset number to register3
2 sec.
Adjusted color is registered to the selected
Preset button.
Complete the color coordination4
Setup Menu
Screen Control
You can adjust the screen mode of the monitor.
Display the Screen Control screen1
Touch [ ]
>
[ ]
>
[Display]
>
[Screen
Control]. (page 66)
Set each item2
[Bright] Brightness Control
[Contrast] Contrast Control
[Black] Black Level Adjustment
[Dimmer] Dimmer Mode Setup
"ON": The display dims.
"OFF": The display doesn’t dim.
"SYNC": Turning the Dimmer function On or
Off when the vehicle light control
switch is turned On or Off.
"NAV-SYNC": Turning the Dimmer function
On or Off according to the
Navigation Day/Night display
setting.
⁄
• In this Screen Control screen, you can perform setups for
the menu screen. Setups for videos such as DVD can be
performed on the <Screen Control> (page 50).

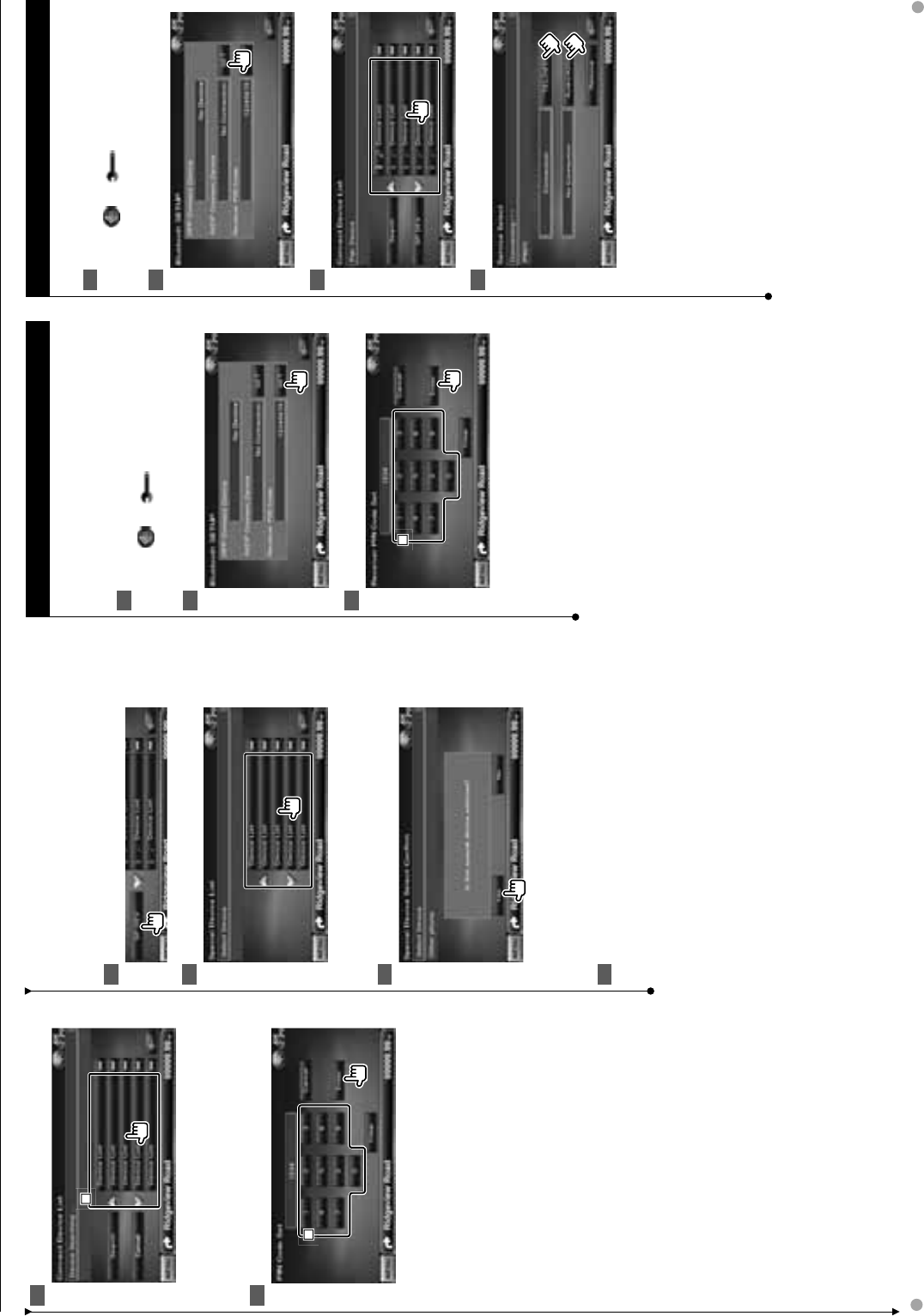

Registering Bluetooth Unit
Registers the Bluetooth unit to be connected.
Display the Bluetooth Setup screen1
Touch [ ]
>
[ ]
>
[Bluetooth SETUP].
(page 66)
Display the Connect Device List screen2
Search for a Bluetooth unit3
1
1
1
1 Displays the registered Bluetooth units.
The busy service becomes active. The available
service becomes inactive.
[] When appears, the text display is
scrolled by touching it.
[Search] Searches for a Bluetooth unit.
[SP DEV] Registers a Bluetooth unit that
cannot be registered by normal register
(pairing) operation.
⁄
A new device cannot be registered if there are •
already 5 Bluetooth units registered. Delete
unnecessary registration. See <Bluetooth Unit
Connection> (page 79).
Next page 3
78 DNX9140/DDX814/DDX8034BT English 79
Select the Bluetooth unit to register4
1
1
1
1 Displays the searched Bluetooth unit.
[Search] Searches for a Bluetooth unit.
[Cancel] Cancels searching of Bluetooth unit.
Enter PIN code 5
1
1
1
1 Enters a code number using the keypad.
[Enter] Confirms the entered PIN code. Enter
the PIN code specified for the Bluetooth unit
you are registering.
This button will not be active until at least four
PIN code digits have been entered.
[Cancel] Cancels registration of PIN code.
[Clear] Clears the code number.
⁄
You can also register from the Bluetooth unit side. For •
the PIN code necessary for registration, see <Registering
Bluetooth Unit PIN Code> (page 79).
If the error message appears even though the PIN code is •
correct, try <Registering Special Bluetooth Unit>.
Registering Special Bluetooth Unit
Registers Special Bluetooth unit, that resulted
in error by normal registration method, by
selecting from the listed models.
Display the Special Device List screen1
Select a model name2
Displays the Bluetooth unit name that can be
registered.
Confirm whether to register3
⁄
Only models in Bluetooth unit name list can be •
registered.
Go through the procedure of <Registering 4
Bluetooth Unit> and complete the
registration (pairing).
Setup Menu
Registering Bluetooth Unit PIN Code
Sets the PIN code of the Bluetooth unit to enter
when registering (pairing) from the cell-phone or
audio player side.
Display the Bluetooth Setup screen1
Touch [ ]
>
[ ]
>
[Bluetooth SETUP].
(page 66)
Display the Receiver PIN Code screen2
Enter PIN code3
1
1
1
1 Enters a code number using the keypad.
[Cancel] Cancels registration of PIN code.
[Enter] Registers the entered PIN code.
[Clear] Clears the code number.
Bluetooth Unit Connection
Selects the Bluetooth unit to connect.
Display the Bluetooth Setup screen1
Touch [ ]
>
[ ]
>
[Bluetooth SETUP].
(page 66)
Display the Connect Device List screen2
Select a registered Bluetooth unit3
Select the service to use4
[TEL (HFP)] Connects/disconnects cell-phone
to use for Hands Free.
[Audio (A2DP)] Connects/disconnects Audio
player to use for Bluetooth Audio.
[Remove] Deletes registration (pairing).
Touching the screen displays a confirmation
message. Touch [Yes]. To cancel clearing, touch
[No].
80 DNX9140/DDX814/DDX8034BT English 81
AV Input Setup
You can set AV input parameters.
Display the AV-IN Setup screen1
Touch [ ]
>
[ ]
>
[AV-IN SETUP]. (page
66)
Set each item2
[AV-IN Interruption] Sets an image display of
the system that is connected via the AV INPUT
port. ( "OFF")
"OFF": When the image source is switched, an
image entered via the AV INPUT port is
displayed.
"ON": When an image signal is entered via the
AV INPUT port, this image is displayed.
[On Screen AV-IN] Sets an on-screen display
of the AV-IN playback screen. ( "Auto")
"Auto": Information is displayed for 5 seconds
when updated.
"Manual": Information is displayed when you
touch on the screen.
[iPod AV Interface Use] Sets the terminal to
which the iPod is connected to. ( "iPod")
[AV-IN1 Name], [AV-IN2 Name], [AV-IN3
Name] Sets a name to be displayed when
you select a system that is connected via the
AV INPUT port. ( "VIDEO")
⁄
[AV-IN Interruption]•
An image entered via the AV INPUT 2 port will be
displayed.
[AV-IN Name]•
Two AV-IN names are displayed when "iPod" is selected
in [iPod AV Interface Use] and three are displayed when
not selected.
AV Interface Setup
You can set audio and visual (AV) interface
parameters.
Display the AV Interface screen1
Touch [ ]
>
[ ]
>
[AV Interface]. (page 66)
Set each item2
[AV-OUT] Selects an AV source to be output at
the AV OUTPUT port. ( "AV-IN1")
[R-CAM Interrupt] Sets a method to switch to
the rear view camera video display.
( "OFF")
"ON": Switches to the rear camera video
display when "Reverse" gear is engaged.
"OFF": Switches to the rear camera video
display when "Reverse" gear is engaged,
and then pressing the [AUD] button for
more than 1 second.
The function of the [AUD] button needs
to be set to "R-CAM" beforehand. See
<User Interface> (page 70).
[R-CAM Mirror] You can flip the left and right
of the rear view camera video display. Set to
"ON" and the rear view will be displayed left
and right in mirror image on the screen.
( "OFF")
⁄
When in DVD source, "AV-OUT" cannot be set to USB. •
When in USB source, "AV-OUT" cannot be set to DVD.
Setup Menu
Navigation Setup
You can set Navigation parameters.
Display the Navigation Setup screen1
Touch [ ]
>
[ ]
>
[Navigation]. (page 66)
Set each item2
[NAV Interrupt Speaker] Selects speakers
used for voice guidance of the navigation
system.
( "Front All")
"Front L": Uses the front left side speaker for
voice guidance.
"Front R": Uses the front right side speaker for
voice guidance.
"Front All": Uses both front speakers for voice
guidance.
[NAV Voice Volume] Adjusts the volume for
voice guidance of the navigation system.
( DNX9140: "25", DDX814/ DDX8034BT: "21")
[Line Mute] Mutes the volume during voice
guidance of the navigation system.
( "ON")
When turned "ON", the volume level drops for
voice guidance.
[Navigation Input] Selects a navigation
system connection. ( "RGB") (DDX814/
DDX8034BT only)
"RGB": Allows the Kenwood’s Navigation
System to connect via its interface
cable.
"AV-IN": Allows a third-party navigation system
to connect via the AV INPUT1 port.
"OFF": Must be used if no navigation system
is connected. (The navigation display
is cancelled when the AV source is
switched.)
[On Screen Navigation] Sets an on-screen
display of the navigation screen. ( "OFF")
(DDX814/ DDX8034BT only)
"Auto": Information is displayed for 5 seconds
when updated.
"OFF": Information is not displayed.
82 DNX9140/DDX814/DDX8034BT English 83
DSP Bypass Control
Temporarily bypassing DSP (Digital Signal
Processor) System.
Display the Audio SETUP screen1
Touch [ ]
>
[ ]
>
[Audio SETUP]. (page
66)
Set the DSP Select2
[Bypass] There is no effect by DSP.
[Through] There is an effect by DSP.
⁄
When the mode is set to [Bypass], DSP System cannot •
be adjusted.
Speaker Setup
You can select a speaker type and its size to get
the best sound effects.
Display the Speaker Select screen1
Touch [ ]
>
[ ]
>
[Audio SETUP]
>
[Speaker Select]. (page 66)
Select a speaker you wish to adjust2
When the speaker type and size are set, the
speaker crossover network and equalizer curve
are set automatically.
2
2
2
1
1
1
3
3
3
4
4
4
2
2
2
1
1
1
3
3
3
4
4
4
1 Center speaker
2 Front speaker
3 Rear speaker
4 Subwoofer
[Tweeter] You can set the tweeter when you
are selecting front speakers.
If you are using a tweeter together with the
front speakers, set the tweeter to "ON". In the
"ON" position, the Equalizer is adjusted to its
best position.
[X'over] Displays the Speaker Crossover Setup
screen.
You can adjust the crossover setup that was
set automatically when you selected the
speaker type.
Setup Menu
Select a speaker type3
You can select any of the following speaker
types.
"Center" NONE, 2-3/4x1-9/16 inch, 2 inch, 4
inch, 5 inch, 6-1/2 inch over
"Front" OEM, 4 inch, 5 inch, 6-1/2 inch, 6-3/4
inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10
"Rear" NONE, OEM, 4 inch, 5 inch, 6-1/2 inch,
6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10
"Subwoofer" NONE, 6 1/2 inch, 8 inch, 10 inch,
12 inch, 15 inch over
⁄
Select "NONE" if you have no speakers.•
If you set the center speaker to "NONE" even in a short •
time when you are setting the Surround Control (page
64) to "Bypass+Center", the Surround Control is set to
"Bypass" automatically.
If you set the center and rear speakers to "NONE" •
when you are setting the Surround Control (page 64)
to "Dolby PL II", the Surround Control is set to "Bypass"
automatically.
Crossover Network Setup
You can set a crossover frequency of speakers.
Select the speaker to set the crossover1
2
2
2
1
1
1
3
3
3
4
4
4
2
2
2
1
1
1
3
3
3
4
4
4
1 Sets the High Pass Filter of the center
speaker.
2 Sets the High Pass Filter of the front speaker.
3 Sets the High Pass Filter of the rear speaker.
4 Sets the Low Pass Filter of the sub woofer.
Display the Crossover setup screen2
Set the crossover3
[Phase] Sets the phase of subwoofer output.
The phase is reversed 180 degrees when set
to "Reverse".
Sets the sub woofer phase. (Only when
"Subwoofer" is set to "ON" in Audio Setup)
[HPF FREQ] High Pass Filter adjustment.
(When front, center or rear speaker is selected
on Speaker Select screen)
[LPF FREQ] Low Pass Filter adjustment. (When
Subwoofer is selected on Speaker Select
screen)
[Slope] Sets a crossover slope.
84 DNX9140/DDX814/DDX8034BT English 85

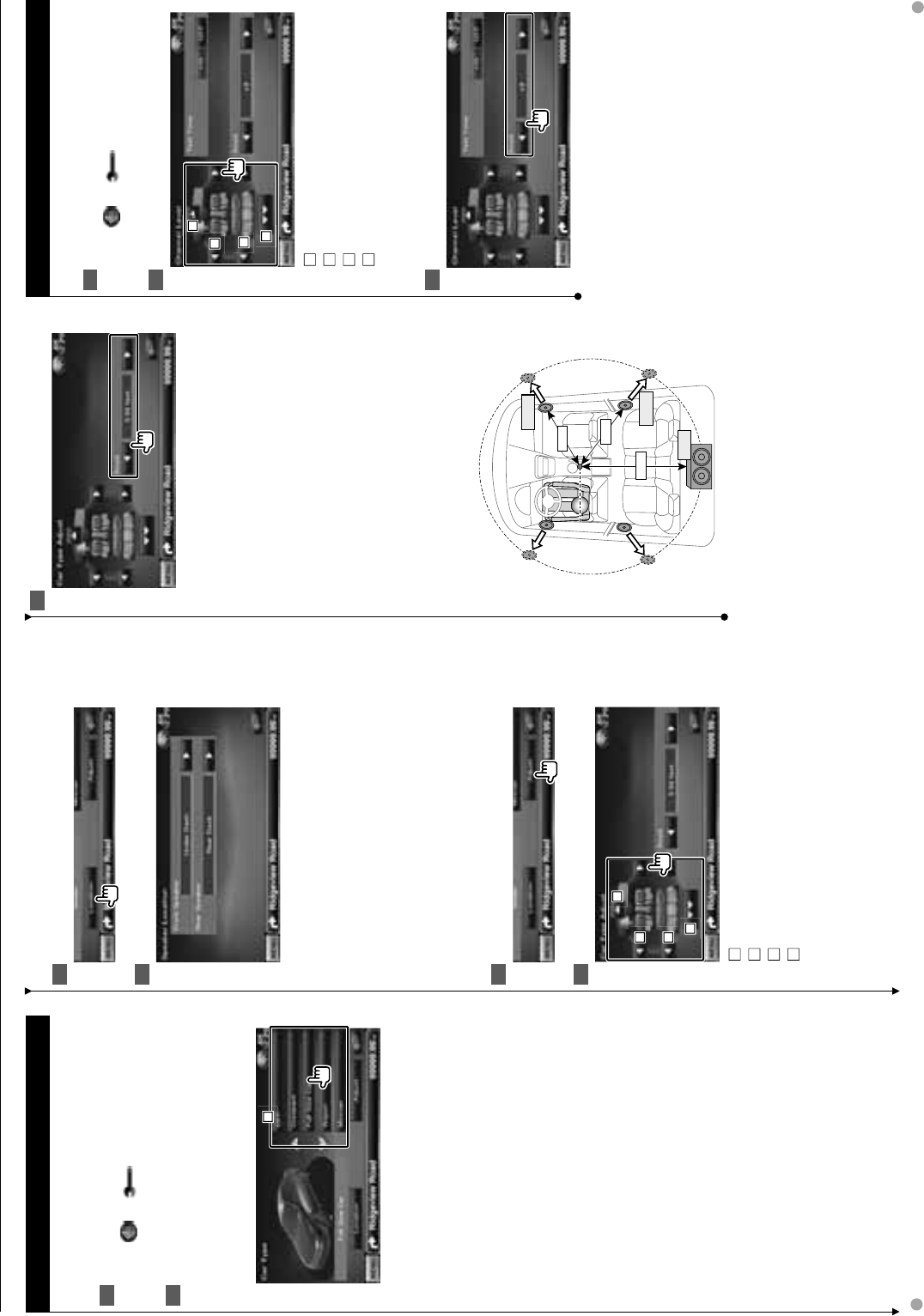

Car Type (DTA) Setup
You can setup the car type and speaker network,
etc.
Display the Car Type Setup screen1
Touch [ ]
>
[ ]
>
[Audio SETUP]
>
[Car
Type]. (page 66)
Setup the Car Type2
If your car type is selected, the Digital Time
Alignment and Equalizer is set automatically (for
timing adjustment of sound output for each
channel) to have the highest surround effects.
1
1
1
1 Sets up the car type you use together with
this unit.
You can choose according to type of your car.
"OFF", "Compact", "Full Size Car", "Wagon",
"Minivan", "SUV", "Minivan (Long)"
[Location] Sets the locations of the speakers.
[Adjust] Displays the Car Type Adjust screen.
You can adjust the digital time alignment that
was set automatically when you selected the
car type.
Speaker Location setup
Display the Speaker Location Setup screen1
Set the speaker locations2
[Front Speaker] Sets the location of the front
speaker.
"Door", "On Dash", "Under Dash"
[Rear Speaker] Sets the location of the rear
speaker.
"Door", "Rear Deck"
"2nd Row", "3rd Row" (Minivan, Minivan (Long))
Car Type Adjust
You can manually set the sound output timing of
each channel.
Display the Car Type Adjust screen1
Select a speaker you wish to adjust2
2
2
2
1
1
1
3
3
3
4
4
4
1 Center speaker
2 Front speaker
3 Rear speaker
4 Subwoofer
Setup Menu
Set a delay time3
Make fine adjustment of the delay time of the
speaker output specified at <Setup the Car
Type> to have a more suitable environment for
your vehicle.
The settings of the delay time are automatically
identified and compensated by specifying the
distances of each speaker from the center of the
vehicle interior.
1 Set the front and rear positions and the height
of the reference point to the position of the
ears of the person sitting in the front seat, and
set the right and left positions to the center of
the vehicle interior.
2 Measure the distances from the reference
point to the speakers.
3 Calculate the distance difference in
accordance with the farthest speaker.
1.6feet
2.5feet
5feet
+2.5feet
+0feet
+3.4feet
Channel Level
You can set the volume at each setup position.
Display the Car Type Setup screen1
Touch [ ]
>
[ ]
>
[Audio SETUP]
>
[Channel Level]. (page 66)
Select a speaker you wish to adjust2
1
1
1
3
3
3
2
2
2
4
4
4
1 Center speaker
2 Front speaker
3 Rear speaker
4 Subwoofer
[Test Tone] Starts or stops test signal tone
output for setup check.
Adjust the volume3
86 DNX9140/DDX814/DDX8034BT English 87

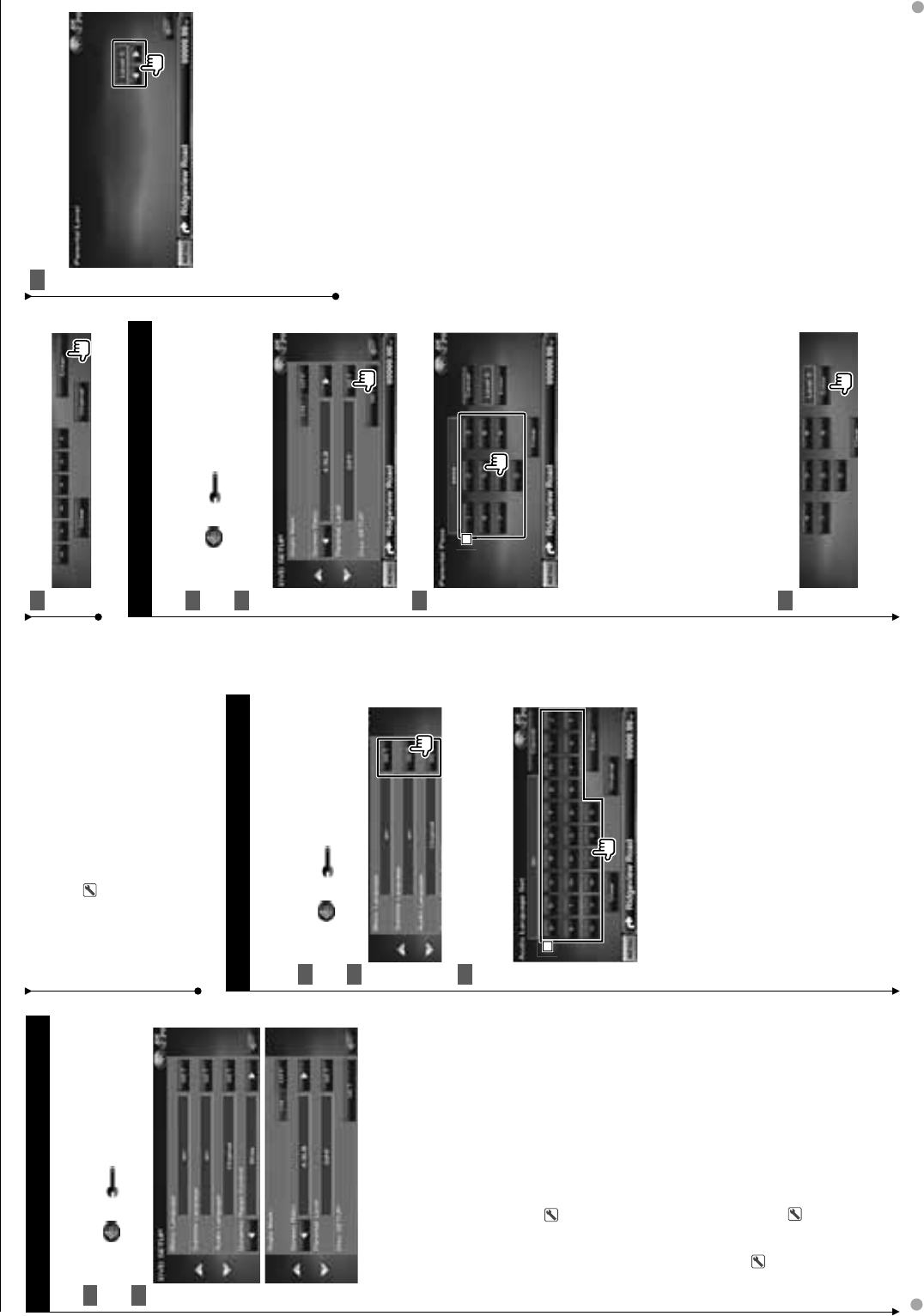

DVD Setup
You can set up the DVD play.
Display the DVD Setup screen1
Touch [ ]
>
[ ]
>
[DVD SETUP]. (page 66)
Set each item2
[Menu Language] Selects a disc menu
language.*1
(See <DVD Language Setup>, page 86)
[Subtitle Language] Selects a subtitle
language.*1
(See <DVD Language Setup>, page 86)
[Audio Language] Selects an audio
language.*1
(See <DVD Language Setup>, page 86)
[Dynamic Range Control] Sets the dynamic
range.*1 ( "Dialog")
The dynamic range is reduced by changing
from "Wide" to "Normal" and from "Normal"
to "Dialog". "Dialog" makes the total sound
volume becomes larger as compared with
"Wide" and "Normal", allowing you to listen to
the movie's dialog more clearly.
This is effective only when you are using a
Dolby Digital software.
The operation is available during the play stop
mode.
[Angle Mark] Sets an angle mark display.
( "ON")
[Screen Ratio] Selects the screen display
mode.*1 ( "16:9")
"16:9": Displays wide pictures.
"4:3 LB": Displays wide pictures in the Letter
Box format (having black stripes at the
top and bottom of screen).
"4:3 PS": Displays wide pictures in the Pan &
Scan format (showing pictures cut at
the right and left ends).
[Parental Level] Displays the Parental Lock
screen.*1 ( "OFF")
(See <DVD Parental Level Setup>, page 87)
[Disc SETUP] Makes the settings related to the
disc media. (See <Disc Setup>, page 88)
⁄
*• Disabled when a DVD is being played.

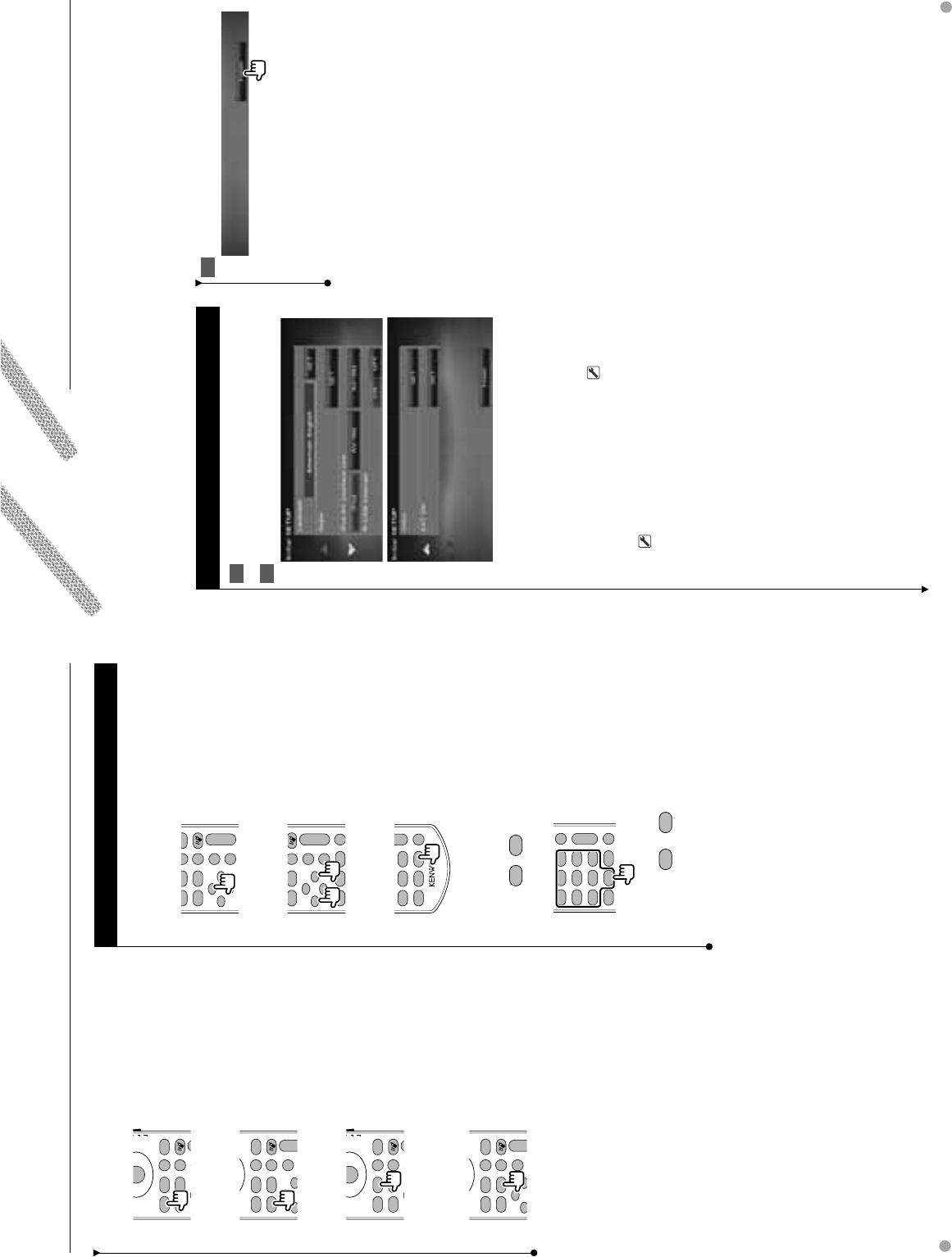

DVD Language Setup
Selects a language you use for the speech and
menus.
Display the DVD Setup screen1
Touch [ ]
>
[ ]
>
[DVD SETUP]. (page 66)
Select the language item to set2
Enter a language code3
See <DVD Language Codes> (page 101) and
select the desired language.
1
1
1
1 Enters a language code.
[Cancel] Cancels the language setup and
returns to the "DVD SETUP" screen.
[Enter] Sets the language and returns to the
"DVD SETUP" screen. (It appears after you have
entered a language code.)
[Original] Sets the DVD's original language
(only when setting an audio language).
[Clear] Clears the language code.
Setup Menu
Set the language you use4
DVD Parental Level Setup
Sets a parental level.
Display the DVD Setup screen1
Touch [ ]
>
[ ]
>
[DVD SETUP]. (page 66)
Display the Parental Level code number 2
screen
Enter the code number3
1
1
1
1 Enters a code number.
[Cancel] Cancels the current setup and returns
to the "DVD SETUP" screen.
[Level] Indicates the present parental lock
level.
[Enter] Determines the code number and
displays the Parental Level setup screen.
[Clear] Clears the code number.
⁄
The number you enter first is set as your code •
number.
Display the Parental Level SETUP screen4
Select a parental level and complete the 5
setup
Selects a parental level.
⁄
• If a disc has higher parental lock level, you need to enter
the code number.
• The parental lock level varies depending on a loaded
disc.
• If a disc has no parental lock, anybody can play it back
even when you have set the parental lock.
88 DNX9140/DDX814/DDX8034BT English 89
Disc Setup
Performs setup when using disc media.
Display the DVD Setup screen1
Touch [ ]
>
[ ]
>
[DVD SETUP]. (page 66)
Display the Disc Setup screen2
Set each item3
[Picture Display Time] Selects a picture
display time. *1 ( "Long")
The Display of a JPEG picture is changed.
("Short", "Middle", "Long")
[CD Read] Sets a music CD playback. *2 ( "1")
"1": Automatically recognizes and plays back
an Audio file disc, a DVD or a music CD.
"2": Forcibly plays back a disc as a music CD.
Select "2" if you wish to play a music CD
having a special format or if you cannot
play a disc in the "1" position.
[On Screen DVD] Sets an on-screen display of
the DVD Playback screen. ( "Manual")
"Auto": Information is displayed for 5 seconds
when updated.
"Manual": Information is displayed when you
touch on the screen.
⁄
*• 1 Disabled when a DVD is being played.
*• 2 You cannot play an Audio file/VCD disc in the "2"
position. Also, you may not play some music CDs
in the "2" position.

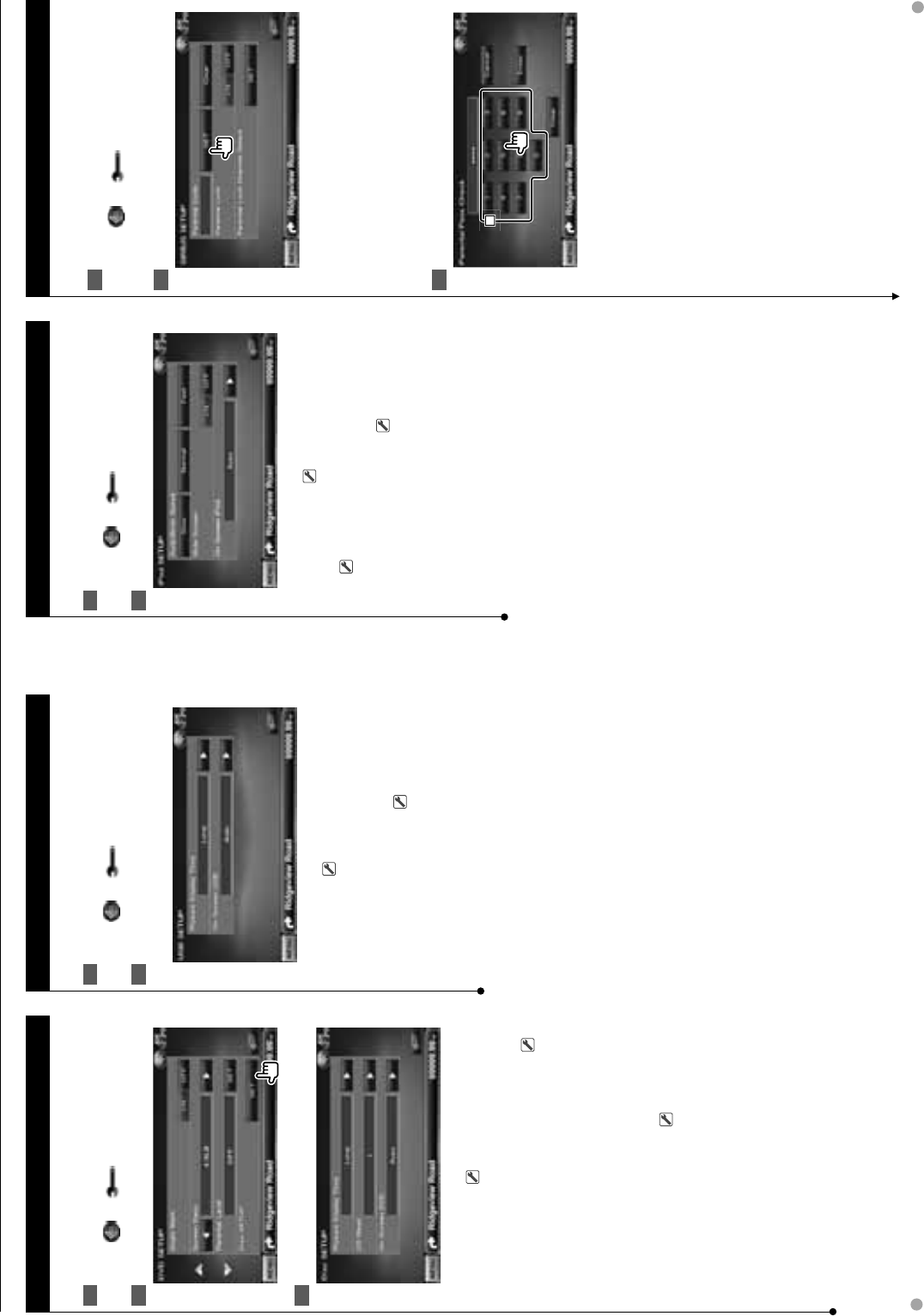

USB Setup
Performs setup when using USB.
Display the USB Setup screen1
Touch [ ]
>
[ ]
>
[USB SETUP]. (page 66)
Set each item2
Example : USB Setup screen
[Picture Display Time] Selects a picture
display time. ( "Long")
The Display of a JPEG picture is changed.
("Short", "Middle", "Long")
[On Screen USB] Sets an on-screen display of
the USB Playback screen. ( "Auto")
"Auto": Information is displayed for 5 seconds
when updated.
"Manual": Information is displayed when you
touch on the screen.
Setup Menu

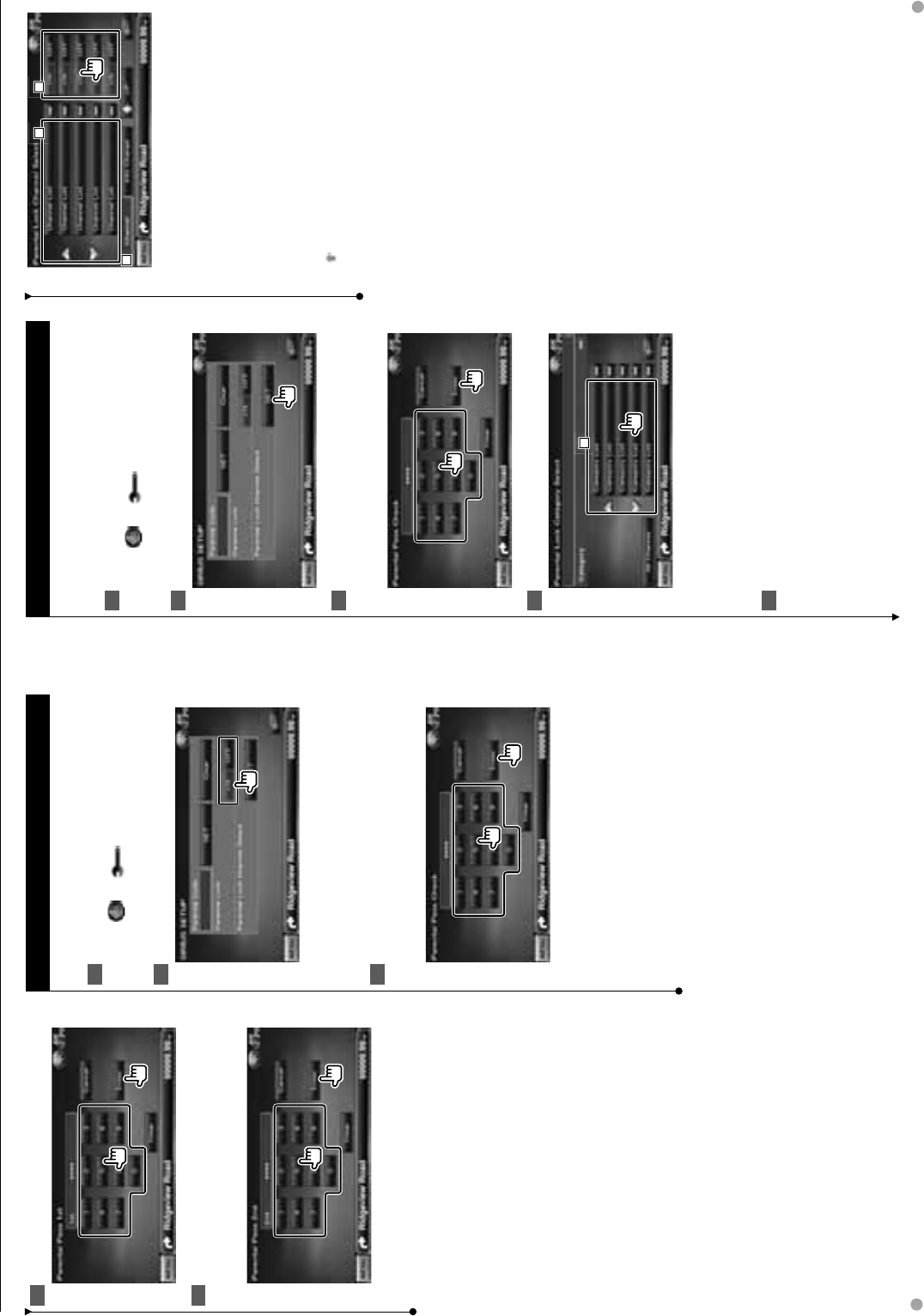

SIRIUS Parental Code Setup
Sets a SIRIUS Parental code.
Display the SIRIUS Setup screen1
Touch [ ]
>
[ ]
>
[SIRIUS SETUP]. (page
66)
Display the Parental Code screen2
⁄
If you have already completed the code registration, •
[Change] is displayed.
If you want to clear the code which has already been •
registered, touch [Clear].
Pressing [Clear] for 5 seconds or longer deletes the •
code.
Enter the current code number3
1
1
1
1 Enters a code number.
[Cancel] Cancels the current setup and returns
to the SIRIUS Setup screen.
[Enter] Registers the enetered code number
and displays the Parental Code 1st screen.
[Clear] Clears the code number.
⁄
If you are to register the parental code for the first •
time, this screen will not appear. Go to Step 4.
iPod Setup
Performs setup when using iPod.
Display the iPod Setup screen1
Touch [ ]
>
[ ]
>
[iPod SETUP]. (page 66)
Set each item2
[AudioBook Speed] Sets the Audio book
playback speed. ( "Normal")
[Wide Screen] Sets Wide Screen on or off.
( "OFF")
[On Screen iPod] Sets an on-screen display of
the iPod Playback screen. ( "Auto")
"Auto": Information is displayed for 5 seconds
when updated.
"Manual": Information is displayed when you
touch on the screen.
⁄
• "Wide Screen" cannot be set while the iPod is connected.
90 DNX9140/DDX814/DDX8034BT English 91
Enter the new code number4
Confirm the code number5
Enter the same code number as you input in
step 4.
SIRIUS Parental code is now set, and the display
returns to SIRIUS Setup screen.
SIRIUS Parental Lock Setup
Sets a SIRIUS Parental Lock function on or off.
Display the SIRIUS Setup screen1
Touch [ ]
>
[ ]
>
[SIRIUS SETUP]. (page
66)
Display the Parental Code screen2
⁄
You need to complete <SIRIUS Parental Code Setup> •
beforehand.
Enter the code number3
Enter the same code number as you input in
<SIRIUS Parental Code Setup> (page 89).
Parental Lock function is now set to on or off,
and the display returns to "SIRIUS SETUP" screen.
⁄
• If you have not registered the parental code, the code
number you input in this step will be the number to
register as SIRIUS Parental Code. In this case, you are
requested to input the code once more.
Setup Menu

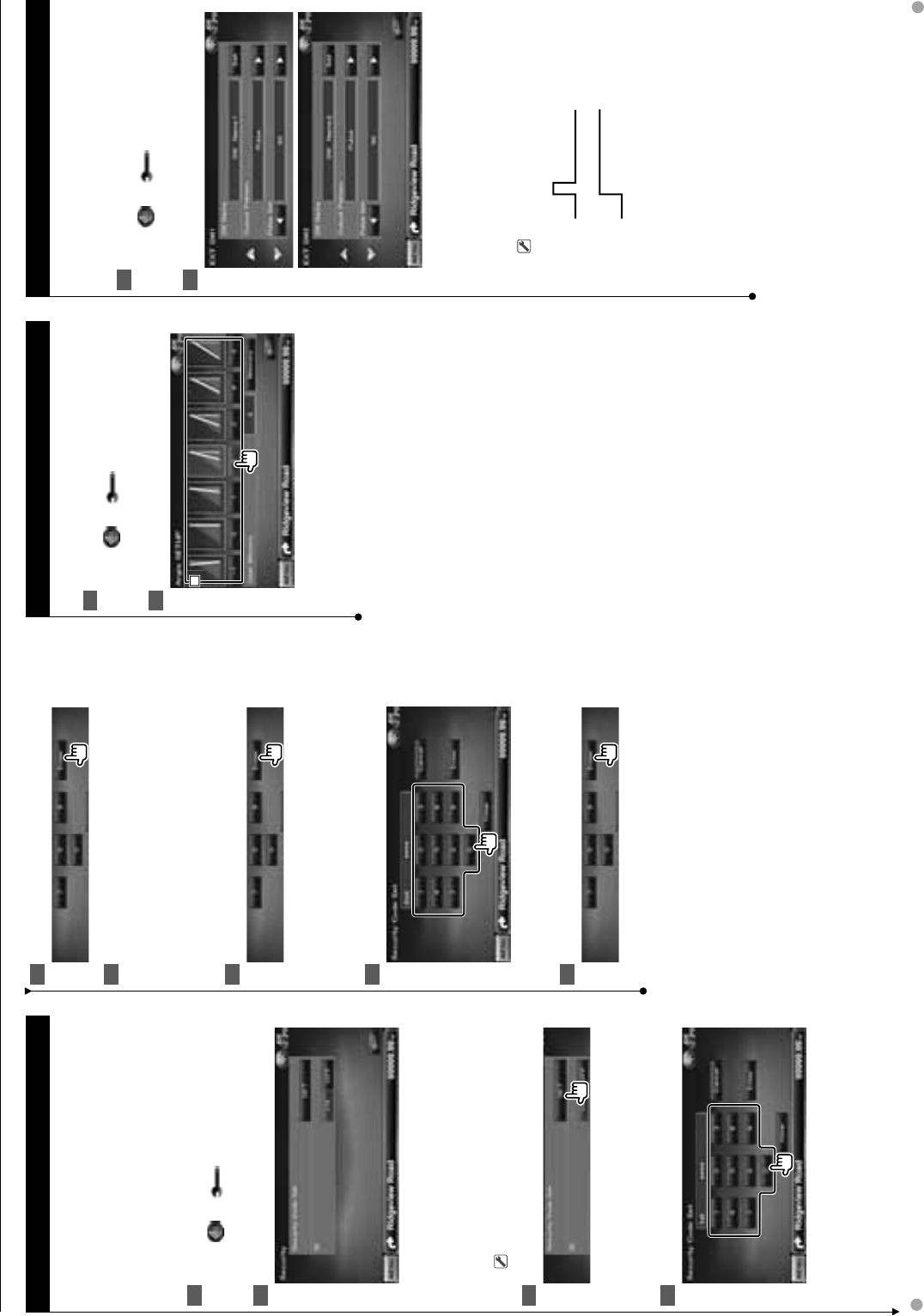

SIRIUS Parental Lock Channel Select
Selects the channel to enable SIRIUS Parental lock
function.
Display the SIRIUS Setup screen1
Touch [ ]
>
[ ]
>
[SIRIUS SETUP]. (page
66)
Display the Parental Code screen2
Enter the code number3
Enter the same code number as you input in
<SIRIUS Parental Code Setup>.
Select a category4
1
1
1
1 Category List
When a category is selected, all the channels
in the selected category are displayed.
[All Channel] Displays all the channels.
Set the parental lock for each channel5
3
3
3
1
1
1
2
2
2
1 Channel list
2 Sets the Parental lock function on or off for
each channel.
You need to input the Parental code to switch
the Parental lock function on or off.
3 Displays the sort sequence
[Info Change] Switch the sort sequence of
the channel list. ("Channel", "Song title", "Artist",
"Composer" and "Category")
[ UP] Moves to SIRIUS Category Select Setup
screen.
92 DNX9140/DDX814/DDX8034BT English 93
T V Setup
The TV signal receiving areas can be set. (only
when the optional accessory TV Tuner connected)
Displaying TV SETUP screen1
Touch [ ]
>
[ ]
>
[TV SETUP]. (page 66)
Set each item2
[On Screen TV] Sets an on-screen display of
the TV screen.
( "Auto") (only when the optional accessory
TV tuner connected)
"Auto": Information is displayed for 5 seconds
when updated.
"Manual": Information is displayed when you
touch on the screen.

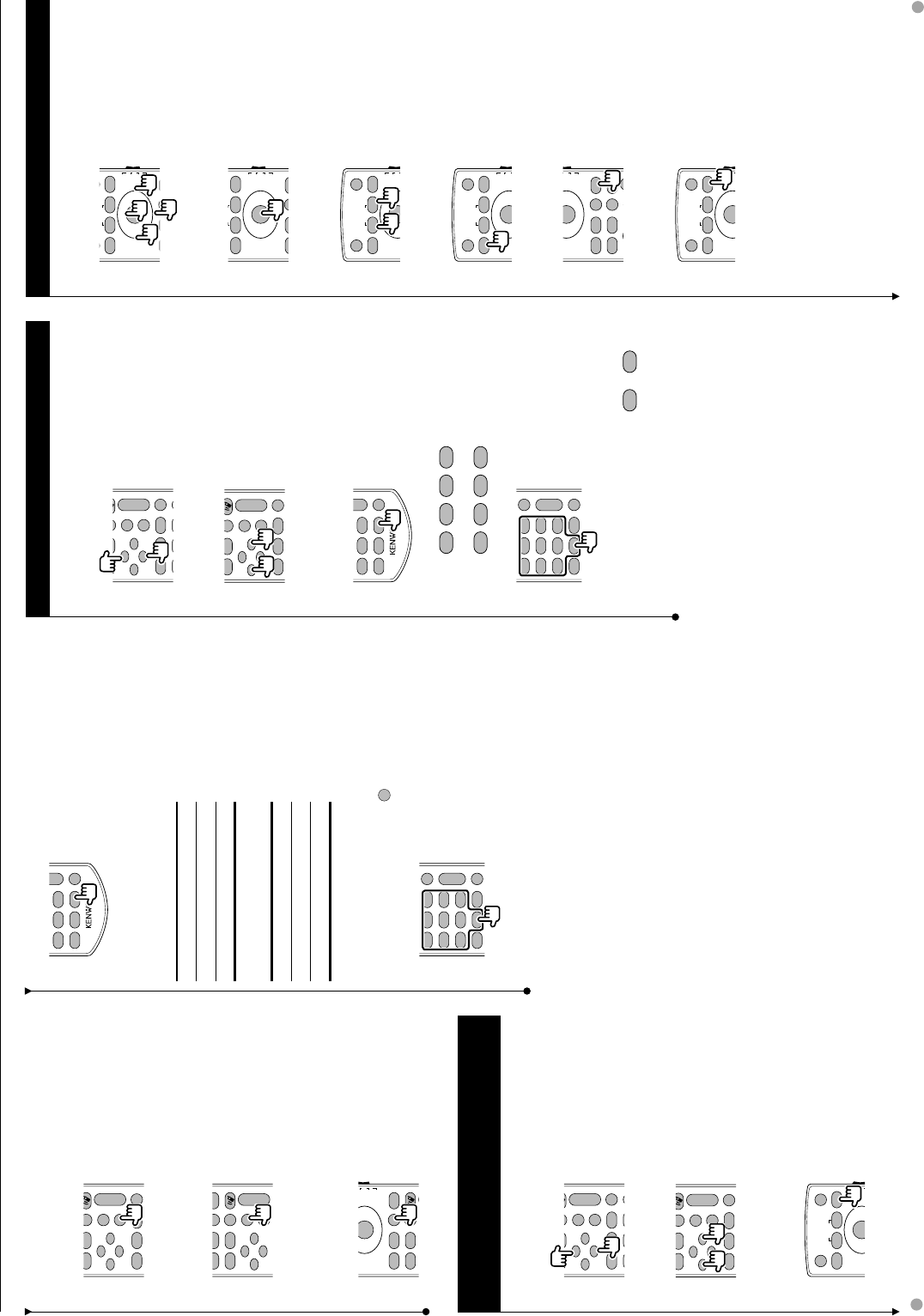

Remote Controller
This unit can be operated using the Remote Controller supplied with this unit.
¤
• Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could
result, if the Remote Controller falls down and gets wedged under the pedals while driving.
• Do not place the battery near an open flame or heat source. This may cause the battery to explode.
• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak
fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.
• Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a
physician.

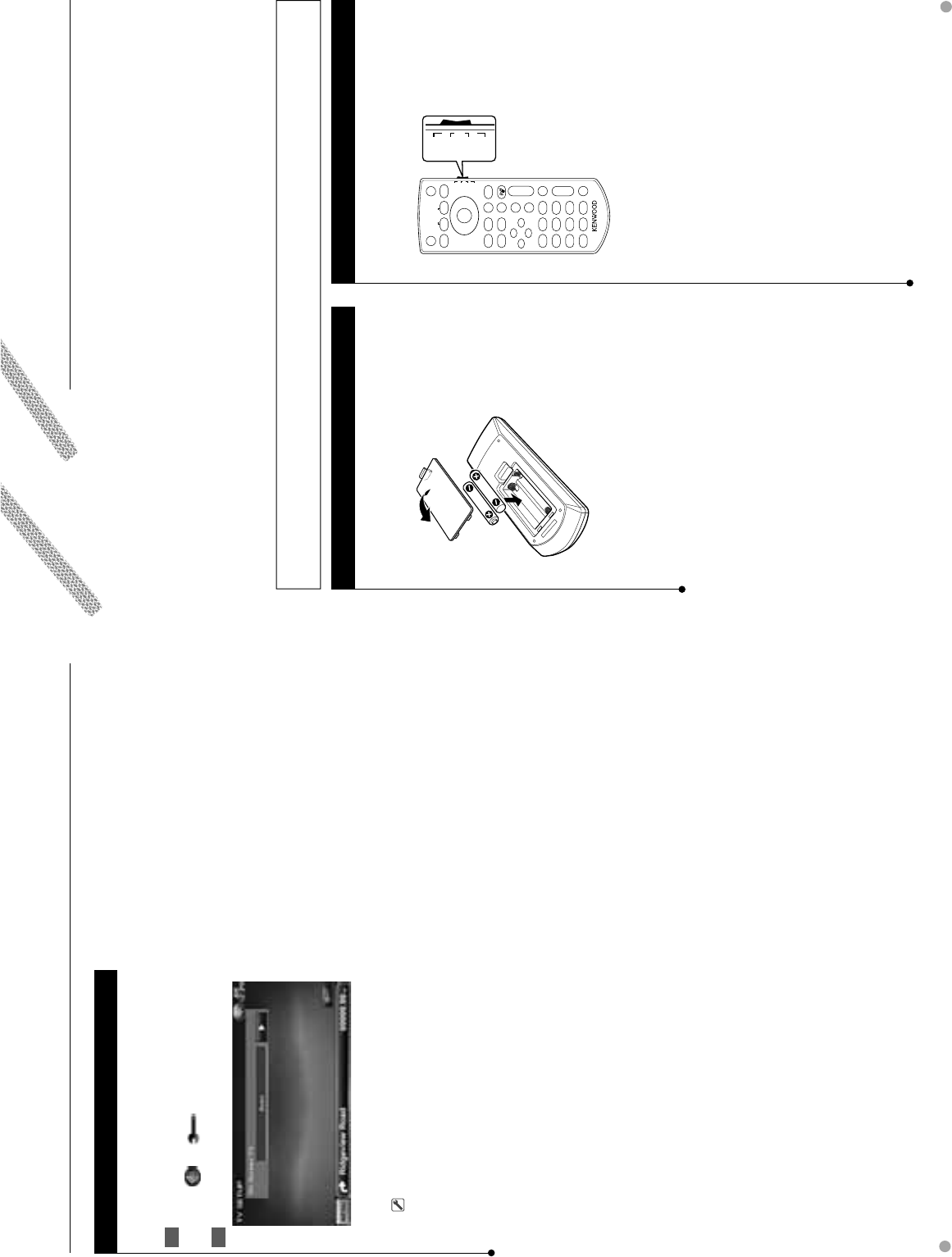

Battery installation
Use two "AAA"/"R03"-size batteries.
Insert the batteries with the + and – poles aligned
properly, following the illustration inside the case.
⁄
• If the Remote Controller operates only over shorter
distances or does not operate at all, it is possible that
the batteries are depleted. In such instances, replace the
both batteries with new ones.
Remote Controller mode switch
The functions operated from the remote
controller differ depending on the position of the
mode switch.
V.SEL
R.VOL
OUT
MENU
IN
ENTER
ZOOM
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
ZOOM
RETURN
DVD
TV
NAVI
AUD
DISP
12ABC 3DEF
4GHI
7
PQRS
#+ BS
5JKL
8TUV
0
9
WXYZ
6
MNO
1
ATT
2ZONE
VOL
FM
+
AM−
POSITION
SRC
D
Y
1
O
O
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT
CLEAR DIRECT
OPEN
MAP DIR
VIEW
U
U
U
U
O
O
O
O
DVD
TV
NAVI
AUD
U
U
U
U
AUD mode
Switch to this mode when controlling a selected
source or tuner source, etc.
DVD mode
Switch to this mode when playing DVDs or CDs etc.
with the player integrated in this unit.
TV mode
Switch to this mode when controlling TV.
NAVI mode
Switch to this mode when controlling Navigation
unit.
⁄
• The position of the remote control mode switch is
indicated in the title of each mode, e.g., "(AUD mode)".
• When controlling a player that is not integrated in the
unit, select "AUD" mode.
2CAUTION
• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.
Setup Menu
94 DNX9140/DDX814/DDX8034BT English 95
Common operations (AUD mode)
Source switching
Switches to the source to be played.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
Volume control
Adjusts the volume.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
O
O
MAP DIR
VIEW
O
O
O
O
Volume attenuator
Press the key once to lower the volume. Press again
to restore the previous volume.
R
.
VOL
7
PQRS
#+ BS
8
TUV
0
9
WXYZ
1
ATT
CLEAR DIRECT
Dual Zone
Switches the Dual Zone function ON and OFF.
R.VOL
ZOOM
12
ABC
3
DEF
4
GHI
5
JKL
6
MNO
2 ZONE
VOL
AM−
D
Y
1
O
O
O
O
Rear volume control
Adjusts volume at rear when the Dual Zone
function is ON.
R.VOL
12
ABC
3
DEF
4
GHI
7
PQRS
#+ BS
5
JKL
8
TUV
0
9
WXYZ
6
MNO
1
ATT
2 ZONE
Y
1
CLEAR DIRECT
V.SEL
Switches to the navigation screen.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
Display angle
Switches the display angle each time it is pressed.
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
NAVI
VOL
FM
+
D
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
Cursor key
Moves the cursor when displaying menu.
OUT
MENU
IN
ENTER
ZOOM
FNC/MENU/PBCMODE/TOP MENU
AUDIO RETURN
DVD
TV
NAVI
AUD
POSITION
O
O
O
O
•
•
•
•
ENTER
Enters options.
OUT
MENU
IN
ENTER
ZOOM
FNC/MENU/PBCMODE/TOP MENU
AUDIO RETURN
DVD
TV
NAVI
AUD
POSITION
O
O
O
O
•
•
•
•
Hands-free communication
When a call comes in, it answers the call.
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
ZOOM
RETURN
VOL
FM
+
D
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
O
Function
Switches the function screen
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
DVD
TV
NAVI
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
•
MODE
Switches the screen mode.
Screen mode changes each time you press this key.
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
TV
NAVI
FM
+
D
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
O
Remote Controller
VCD 2.X (PBC ON)
Scene number
Number
Cancel
Once you have switched to the direct search
feature, specify the search number from the
numeric keypad, and then press
ENTER
[ENTER] key.
Numeric keypad
R.VOL
12
ABC
3
DEF
4
GHI
7
PQRS
#+ BS
5
JKL
8
TUV
0
9
WXYZ
6
MNO
1
ATT
2 ZONE
Y
1
CLEAR DIRECT
• Specify the number to search in direct search.
• Press
1
2
ABC
to fast forward/backward.
Switches the fast forward/backward speed each
time you press this key.
• Press
4
GHI
5
JKL
to slow forward/backward.
Switches the slow playback speed each time you
press this key.
DVD Top Menu
Returns to the DVD top menu.
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
TV
NAVI
FM
+
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
O
DVD Menu
Displays the DVD menu.
Turns the playback control on or off while playing
VCD.
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
TV
NAVI
FM
+
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
•
SUBTITLE
Switches the subtitle language.
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
ZOOM
RETURN
NAVI
VOL
FM
+
D
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
DVD/VCD (DVD mode)
Track search and file search
Selects the track or file to be played.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
1
O
O
MAP DIR
VIEW
O
O
O
O
Play/Pause
Pauses the track.
Press again to resume playing.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
Stop
Memorizes the last point where the disc stopped.
When pressed again, the last point is deleted.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
Direct search
R
.
VOL
7
PQRS
#+ BS
8
TUV
0
9
WXYZ
1
ATT
CLEAR DIRECT
Pressing this key switches the features that can be
searched directly.
DVD-VIDEO
Title number
Chapter number
Play time
Item number*
Cancel
* You may not be able to use this function with some discs
or scenes.
DVD-VR
Title number
Play time
Cancel
VCD 1.X, VCD 2.X (PBC OFF)
Track number
Cancel
Next page 3
96 DNX9140/DDX814/DDX8034BT English 97
ZOOM
Switches the zoom ratio each time you press this
key.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
1
O
O
MAP DIR
VIEW
O
O
O
O
Picture Angle
Switches the picture angle each time you press this
key.
ANGLE
ZOOM
2 ZONE
VOL
FM
+
AM−
D
Y
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
O
AUDIO
Switch Voice Language
Switches the voice language each time you press
this key.
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
DVD
TV
NAVI
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
•
Music Disc/Audio file/Video file/ Picture
file (AUD mode)
Folder search
Selects the folder to be played.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
1
O
O
O
O
O
O
Track search and file search
Selects the track or file to be played.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
1
O
O
MAP DIR
VIEW
O
O
O
O
Play/Pause
Pauses the track.
Press again to resume playing.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
Direct search
R
.
VOL
7
PQRS
#+ BS
8
TUV
0
9
WXYZ
1
ATT
CLEAR DIRECT
Pressing this key switches the features that can be
searched directly.
Music Disc
Track number
Play time
Cancel
Audio files in DVD/CD disc
Folder number
File number
Cancel
Once you have switched to the direct search
feature, specify the search number from the
numeric keypad, and then press
ENTER
[ENTER] key.
Numeric keypad
R.VOL
12
ABC
3
DEF
4
GHI
7
PQRS
#+ BS
5
JKL
8
TUV
0
9
WXYZ
6
MNO
1
ATT
2 ZONE
Y
1
CLEAR DIRECT
• Specify the number to search in direct search.
Next page 3
Remote Controller
Radio (AUD mode)
Band switching
Switches to bands received by the unit.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
1
O
O
O
O
O
O
Station selection
Switches to broadcast stations received by the unit.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
1
O
O
MAP DIR
VIEW
O
O
O
O
Direct tuning
After pressing this key, use the keypad to specify
the broadcast station you wish to receive.
R
.
VOL
7
PQRS
#+ BS
8
TUV
0
9
WXYZ
1
ATT
CLEAR DIRECT
Example: 92.1MHz (FM)
0
9
WXYZ
2
ABC
1
Example: 810kHz (AM)
0
8
TUV
1
0
Numeric keypad
R.VOL
12
ABC
3
DEF
4
GHI
7
PQRS
#+ BS
5
JKL
8
TUV
0
9
WXYZ
6
MNO
1
ATT
2 ZONE
Y
1
CLEAR DIRECT
• To use preset tuning, press the number of a
programmed broadcast station. (
1
–
6
MNO )
• Press the direct tuning key first, then specify the
frequency of the station to receive.
NAVI (NAVI mode)
Joystick
Scrolls the map, or moves the cursor.
OUT
MENU
IN
ENTER
ZOOM
FNC/MENU/PBCMODE/TOP MENU
AUDIO RETURN
DVD
TV
NAVI
AUD
POSITION
O
O
O
O
•
•
•
•
ENTER
Performs the selected function.
OUT
MENU
IN
ENTER
ZOOM
FNC/MENU/PBCMODE/TOP MENU
AUDIO RETURN
DVD
TV
NAVI
AUD
POSITION
O
O
O
O
•
•
•
•
ZOOM
Zooms in or out the navigation map.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
MENU
Displays Main menu.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
CANCEL
Displays previous screen.
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
TV
NAVI
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
•
POSITION
Displays the current position.
V.SEL
OUT
MENU
IN
ENTER
ZOOM
DVD
TV
AUD
DISP
POSITION
SRC
O
O
O
•
•
•
98 DNX9140/DDX814/DDX8034BT English 99
TV (TV mode)
Switching Band/Video
It switches between the station of the TV band to
receive and video input.
ANGLE
ZOOM
2 ZONE
VOL
FM
+
AM−
D
Y
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
O
Channel Selection
The TV channel to receive is selected.
ANGLE
ZOOM
12
ABC
3
DEF
2 ZONE
VOL
FM
+
AM−
D
Y
O
O
MAP DIR
VIEW
O
O
O
O
Direct tuning
(NTSC TV type only)
R
.
VOL
7
PQRS
#+ BS
8
TUV
0
9
WXYZ
1
ATT
CLEAR DIRECT
Press this key first, and then specify the station to
receive with the numeric keypad.
Example: In case of Channel 6 (2-digit)
0
6
MNO
Numeric keypad
R.VOL
12
ABC
3
DEF
4
GHI
7
PQRS
#+ BS
5
JKL
8
TUV
0
9
WXYZ
6
MNO
1
ATT
2 ZONE
Y
1
CLEAR DIRECT
• The number of the memorized station is
selected. (
1
–
6
MNO )
• Press the direct tuning key first, then specify the
channel of the station to receive.
ROUTEM
Displays Route Option menu.
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
TV
NAVI
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
•
VIEW
Switches between 2D and 3D map displays.
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
ZOOM
RETURN
NAVI
VOL
FM
+
D
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
VOICE
Plays Voice guidance.
ENTER
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
RETURN
TV
NAVI
O
O
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
•
•
•
MAP DIR
Switches between the heading up navigation and
north up navigation map displays.
FNC/MENU/PBCMODE/TOP MENU
AUDIO
ANGLE
ZOOM
RETURN
NAVI
VOL
FM
+
D
O
O
VOICE
CANCEL
ROUTEM
SUBTITLE
AV OUT OPEN
MAP DIR
VIEW
O
O
O
End initial setup3
⁄
The settings above can be changed in • <Setup Menu>
(page 66).
Initial Setup
Turns the power On1
Set each item2
[Language] Select the language used for the
control screen and setting items. (page 70)
[Angle] You can adjust the position of the
monitor. (page 73)
[iPod AV Interface Use] Sets the terminal to
which the iPod is connected to. ( "iPod")
[R-CAM Interrupt] Sets a method to switch to
the rear view camera video display.
( "OFF")
"ON": Switches to the rear camera video
display when "Reverse" gear is engaged.
"OFF": Switches to the rear camera video
display when "Reverse" gear is engaged,
and then pressing the [AUD] button for
more than 1 second.
The function of the [AUD] button needs
to be set to "R-CAM" beforehand. See
<User Interface> (page 70).
[Color] Sets the screen and button illumination
color. (page 76)
[EXT SW] Setting up power specification of
the external device for which the power is
controlled from this unit. (page 73)
When pressing the Reset button or turning on the unit for the first time, the Initial SETUP screen is
displayed.
Initial Setup
Remote Controller
100 DNX9140/DDX814/DDX8034BT English 101
Source Display Overview
USB "FO-REP" Indicates that the Folder repeat function is ON.
"MOVIE" Identifies the video file.
"MUSIC" Identifies the music file.
"PICTURE" Identifies the image file.
"RDM" Indicates that the Random function is ON.
"REP" Identifies that the Repeat function is ON.
"PLST" Indicates that the Play list mode is selected now.
"SLIDE" Indicates that the slide show function is ON.
iPod "MUSIC" Identifies the music file.
"VIDEO" Identifies the video file.
"RDM" Indicates that the Random function is ON.
"A-RDM" Indicates that the Album random function is ON.
"REP" Indicates that the Repeat function is ON.
Tuner "AUTO1" Indicates that Seek mode is set to Auto1.
"AUTO2" Indicates that Seek mode is set to Auto2.
"CRSC" Indicates that the CRSC function is OFF.
"MANU" Indicates that Seek mode is set to Manual.
"PS" Indicates that the list display format is PS.
"RDS" Indicates the state of the RDS station when the AF
function is ON. (Orange: RDS is being received. White: RDS
is not being received.)
"SNPS" Indicates that the list display format is SNPS.
"ST" Indicates that stereo broadcast is being received.
"TI" Indicates the reception state of traffic information.
(Orange: TP is being received. White: TP is not being
received.)
HD Radio "AUTO1" Indicates that Seek mode is set to Auto1.
"AUTO2" Indicates that Seek mode is set to Auto2.
"MANU" Indicates that Seek mode is set to Manual.
"M/S" Indicates whether the reception channel is main or sub.
(Orange: Sub channel is being received. White: Main
channel is being received.)
"ANALOG" Indicates that analog broadcast is being received.
"DIGITAL" Indicates that digital broadcast is being received.
"ST" Indicates that stereo broadcast is being received.
SIRIUS/
XM
"SCN" Indicates that the channel scan function is ON.
"SEEK1" Indicates that Seek mode is set to 1.
"SEEK2" Indicates that Seek mode is set to 2.
TV "AUTO1" Indicates that Seek mode is set to Auto1.
"AUTO2" Indicates that Seek mode is set to Auto2.
"MANU" Indicates that Seek mode is set to Manual.
Shown below is a list of indicators displayed on
the Status bar.
Source Display Overview
General "ATT" Indicates that the attenuator is active.
"DUAL" Turns on the Dual zone function.
"TEL" Indicates the connection state of the Bluetooth hands-free
unit. (Orange: Connected. White: Not connected.)
DVD/CD
MEDIA
"FO-REP" Indicates that the Folder repeat function is ON.
"IN" Indicates that a disc is inserted. (White: A Disc is inside the
unit. Orange: Error at the disc player.)
"MOVIE" Identifies the video file.
"MUSIC" Identifies the music file.
"PICTURE" Identifies the image file.
"RDM" Indicates that the Random function is ON.
"REP" Indicates that the Repeat function is ON.
"SLIDE" Indicates that the slide show function is ON.
DVD-Video "C-REP" Indicates that the Chapter repeat function is ON.
"T-REP" Indicates that the Title repeat function is ON.
DVD-VR "1 M/S" Identifies the primary/secondary audio output of stream 1.
"1 MAIN" Identifies the primary audio output of stream 1.
"1 SUB" Identifies the secondary audio output of stream 1.
"PLST" Identifies the Play list mode.
"T-REP" Indicates that the Title repeat function is ON.
VCD "1chLL" Identifies the left audio output of channel 1.
"1chLR" Identifies the monaural audio output of channel 1.
"1chRR" Identifies the right audio output of channel 1.
"1chST" Identifies the stereo audio output of channel 1.
"LL" Identifies the left audio output.
"LR" Identifies the monaural audio output.
"RR" Identifies the right audio output.
"ST" Identifies the stereo audio output.
"PBC" Indicates that the PBC function is ON.
"SVCD" Identifies the Super Video CD.
"VER1" Indicates that the Video CD version is 1.
"VER2" Indicates that the Video CD version is 2.
"REP" Indicates that the Repeat function is ON.
Status bar Indicator items DVD Language Codes
Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabic
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gli Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
Code Language
is Icelandic
it Italian
ja Japanese
jv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
ln Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn Mongolian
mo Moldavian
mr Marathi
ms Malay
mt Maltese
my Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om (Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt Portuguese
qu Quechua
rm Rhaeto-Romance
rn Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
Code Language
si Singhalese
sk Slovak
sl Slovenian
sm Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg Tajik
th Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn Setswana
to Tongan
tr Turkish
ts Tsonga
tt Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu
102 DNX9140/DDX814/DDX8034BT English 103
Voice Command Table
Voice Command for general operation
Screen Name of the button/
Operation
Voice Command Voice Command
US English UK English French German Dutch Italian Spanish
Any screen Switches to STANDBY source Standby Veille Standby Stand-by Standby En espera
Switches to Tuner source Tuner Tuner Tuner Tuner Sint. Sintonizador
Switches to DVD source DVD
Switches to iPod source iPod
Switches to USB source USB
Switches to TV source TV
Switches to SIRIUS source Sirius Sirius Sirius Sirius Sirius Sirius
Switches to XM source XM
Switches to HD Radio source HD Radio HD-Radio HD-Radio HD-Radio HD-Radio HD-Radio
Switches to Bluetooth Audio
source
Bluetooth Audio Audio Bluetooth
Volume Up Volume Up Hausse volume Lautstärke nach oben Volume omhoog Volume su Subida de volumen
Volume Down Volume Down Baisse volume Lautstärke nach unten Volume omlaag Volume giù Bajada de volumen
[4] Seek Down Rechercher vers le bas Suche nach unten Omlaag zoeken Ricerca giù Buscar posteriores
Track Down Piste précédente Spur nach unten Track omlaag Traccia giù Siguiente pista
File Down Fichier inf Datei nach unten Bestand omlaag File giù Siguiente archivo
[¢] Seek Up Rechercher vers le haut Suche nach oben Omhoog zoeken Ricerca su Buscar anteriores
Track Up Piste suivante Spur nach oben Track omhoog Traccia su Pista anterior
File Up Fichier sup Datei nach oben Bestand omhoog File su Archivo anterior
Displays Hands Free screen Hands Free
Displays Current Source Control
screen
Source Control Commande de source Quellensteuerung Bronbesturing Contr. sorgente Control de fuente
Displays Source Select screen Source Select
Displays the view from the Rear
View camera
Rear Camera Caméra arrière Heck-Kamera Camera achter Retrocamera Cámara trasera
Switches the AV OUT source AV OUT SORTIE AV AV-OUT AV UIT USC. AV SALIDA AV
Voice Command on Source Select screen
Screen Name of the button/
Operation
Voice Command Voice Command
US English UK English French German Dutch Italian Spanish
Source Select [STANDBY] Standby Veille Standby Stand-by Standby En espera
[TUNER] Tuner Tuner Tuner Tuner Sint. Sintonizador
[DVD] DVD
[iPod] iPod
[USB] USB
[TV] TV
[SIRIUS] Sirius
[XM] XM
[HD RADIO] HD Radio
[Bluetooth] Bluetooth Audio
[NAV] Navigation Guidance
[VIDEO1] Video One Vidéo 1 Video eins Video één Video 1 Vídeo 1
[VIDEO2] Video Two Vidéo 2 Video zwei Video twee Video 2 Vídeo 2
[VIDEO3] Video Three Vidéo 3 Video drei Video drie Video 3 Vídeo 3
Page Up Haut page Seite nach oben Pagina omhoog Pagina su Página anterior
Page Down Bas page Seite nach unten Pagina omlaag Pagina giù Siguiente página
104 DNX9140/DDX814/DDX8034BT English 105
Voice Command Table
Voice Command for Source Control screen
Screen Name of the button/
Operation
Voice Command Voice Command
US English UK English French German Dutch Italian Spanish
DVD VIDEO/ DVD VR/ CD/ VCD/
DVD MEDIA/ iPod/ USB/ SD/
Bluetooth
[4] Track Down Piste précédente Spur nach unten Track omlaag Traccia giù Siguiente pista
File Down Fichier inf Datei nach unten Bestand omlaag File giù Siguiente archivo
[¢] Track Up Piste suivante Spur nach oben Track omhoog Traccia su Pista anterior
File Up Fichier sup Datei nach oben Bestand omhoog File su Archivo anterior
[38] Play
Pause Pause Pause Pauzeren Pausa Pausa
[8] Pause Pause Pause Pauzeren Pausa Pausa
[1] Backward Fast Retour rapide Schneller Rücklauf Snel achteruit Indietro veloce Retroceso rápido
Rewind
[¡] Forward Fast Avance rapide Schneller Vorlauf Snel vooruit Avanti veloce Avance rápido
DVD VIDEO/ DVD VR/ CD/
VCD/ DVD MEDIA/ USB/ SD/
Bluetooth
[7] Stop Arrêt Stopp Stoppen Stop Detener
DVD VIDEO [2I] Backward Slow Retour lent Langsamer Rücklauf Langzaam achteruit Indietro lento Retroceso lento
[I3] Forward Slow Avance lente Langsamer Vorlauf Langzaam vooruit Avanti lento Avance lento
DVD MEDIA/ USB/ SD []Folder Down Dossier inf Ordner nach unten Map omlaag Cartella giù Siguiente carpeta
[]Folder Up Dossier sup Ordner nach oben Map omhoog Cartella su Carpeta anterior
DVD MEDIA [FOLD] Folder List Liste de dossiers Ordner-Liste Mappenlijst Elenco cart. Lista de carpetas
Folder Select
DVD MEDIA/ iPod/ USB/ SD/
Tuner/ SIRIUS/ XM/ TV
[List] List Screen Écran de liste Listenbildschirm Lijstscherm Scherm. elenco Pantalla de la lista
iPod [MUSIC] Music Musique Musik Muziek Musica Música
[VIDEO] Video Vidéo Video Video Video Vídeo
iPod/ USB/ SD [LINK] Link Lien Verbindung Koppeling Link Conexión
USB/ SD [Plist] Play List Liste de lecture Wiedergabeliste Afspeellijst Elenco ripr. Lista de reproducción
[Flist] Folder List Liste de dossiers Ordner-Liste Mappenlijst Elenco cart. Lista de carpetas
Tuner/ TV [PRE] Preset List Liste préréglée Voreinstellungsliste Voorinstellingenlijst Elenco preimp. Lista de preajustes
Tuner/ HD Radio/ SIRIUS/ XM [4] Seek Down Rechercher vers le bas Suche nach unten Omlaag zoeken Ricerca giù Buscar posteriores
[¢] Seek Up Rechercher vers le haut Suche nach oben Omhoog zoeken Ricerca su Buscar anteriores
Tuner [AM] AM
[FM] FM
HD Radio [HD AM] AM
HD AM
[HD FM] FM
HD FM
[CH ∞] Channel Down Canal inf Kanal nach unten Kanaal omlaag Canale giù Siguiente canal
[CH 5] Channel Up Canal sup Kanal nach oben Kanaal omhoog Canale su Canal anterior
SIRIUS/ XM [BAND] Bande Band Band Banda Banda
[CATE] Category List Liste de catégories Kategorie-Liste Categorieënlijst Elenco categ. Lista de categorías
[P1] Preset One Préréglage 1 Voreinstellung eins Voorinstelling één Preimp. 1 Preajuste 1
[P2] Preset Two Préréglage 2 Voreinstellung zwei Voorinstelling twee Preimp. 2 Preajuste 2
[P3] Preset Three Préréglage 3 Voreinstellung drei Voorinstelling drie Preimp. 3 Preajuste 3
[P4] Preset Four Préréglage 4 Voreinstellung vier Voorinstelling vier Preimp. 4 Preajuste 4
[P5] Preset Five Préréglage 5 Voreinstellung fünf Voorinstelling vijf Preimp. 5 Preajuste 5
[P6] Preset Six Préréglage 6 Voreinstellung sechs Voorinstelling zes Preimp. 6 Preajuste 6
106 DNX9140/DDX814/DDX8034BT English 107
Voice Command for List screen
Screen Name of the button/
Operation
Voice Command Voice Command
US English UK English French German Dutch Italian Spanish
DVD MEDIA List [ ROOT] Root
Root Folder Dossier racine Root-Ordner Hoofdmap Cart. princ. Carpeta raíz
[ UP] Folder Up Dossier sup Ordner nach oben Map omhoog Cartella su Carpeta anterior
[CUR] Current Actuel Aktuell Huidig Corrente Actual
Current Folder Dossier actuel Aktueller Ordner Huidige map Cartella corr. Carpeta actual
iPod List [ UP] Folder Up Dossier sup Ordner nach oben Map omhoog Cartella su Carpeta anterior
Category Up Catégorie sup Kategorie nach oben Categorie omhoog Categ. su Categoría anterior
[TOP] Top
Top Folder Dossier sup Oberster Ordner Hoofdmap Cart. super. Carpeta superior
Top Category Catégorie sup Oberste Kategorie Hoofdcategorie Categ. super. Categoría superior
[CUR] Current Actuel Aktuell Huidig Corrente Actual
Current Folder Dossier actuel Aktueller Ordner Huidige map Cartella corr. Carpeta actual
Current Category Catégorie actuelle Aktuelle Kategorie Huidige categorie Categoria corr. Categoría actual
USB List/ SD List [ UP] Folder Up Dossier sup Ordner nach oben Map omhoog Cartella su Carpeta anterior
Category Up Catégorie sup Kategorie nach oben Categorie omhoog Categ. su Categoría anterior
[TOP] Top
Top Page Page sup Oberste Seite Hoofdpagina Pagina super. Página superior
[CUR] Current Actuel Aktuell Huidig Corrente Actual
Current Folder Dossier actuel Aktueller Ordner Huidige map Cartella corr. Carpeta actual
Current Category Catégorie actuelle Aktuelle Kategorie Huidige categorie Categoria corr. Categoría actual
[3 ALL] Play
All Play Lect int Alle wiedergeben Alles afspelen Ripr. tutti Reproducción de todo
Play All Lecture intégrale Wiedergabe alle Alles afspelen Ripr. tutti Reproducir todo
All Tous Alle Alles Tutti Todo
Sirius Channel List/
XM Channel List [ UP] Category Up Catégorie sup Kategorie nach oben Categorie omhoog Categ. su Categoría anterior
[All Channel]
[Info Change] Information Change Modification d'information Information ändern Informatie vervangen Modif. informazioni Cambio de información
List screen of any source [CTRL] Source Control Commande de source Quellensteuerung Bronbesturing Contr. sorgente Control de fuente
Select the 1st line in the list Line One Ligne 1 Leitung eins Lijn één Linea 1 Línea 1
Name of the list
Select the 2nd line in the list Line Two Ligne 2 Leitung zwei Lijn twee Linea 2 Línea 2
Name of the list
Select the 3rd line in the list Line Three Ligne 3 Leitung drei Lijn drie Linea 3 Línea 3
Name of the list
Select the 4th line in the list Line Four Ligne 4 Leitung vier Lijn vier Linea 4 Línea 4
Name of the list
Select the 5th line in the list Line Five Ligne 5 Leitung fünf Lijn vijf Linea 5 Línea 5
Name of the list
Select the 6th line in the list Line Six Ligne 6 Leitung sechs Lijn zes Linea 6 Línea 6
Name of the list
Voice Command Table
108 DNX9140/DDX814/DDX8034BT English 109
Screen Name of the button/
Operation
Voice Command Voice Command
US English UK English French German Dutch Italian Spanish
DVD MEDIA/ iPod List/ USB
List/ SD List/ Phonebook
[A] Search A Recherche A Suche A A zoeken Ricerca A Buscar por A
[B] Search B Recherche B Suche B B zoeken Ricerca B Buscar por B
[C] Search C Recherche C Suche C C zoeken Ricerca C Buscar por C
[D] Search D Recherche D Suche D D zoeken Ricerca D Buscar por D
[E] Search E Recherche E Suche E E zoeken Ricerca E Buscar por E
[F] Search F Recherche F Suche F F zoeken Ricerca F Buscar por F
[G] Search G Recherche G Suche G G zoeken Ricerca G Buscar por G
.....
[S] Search S Recherche S Suche S S zoeken Ricerca S Buscar por S
[T] Search T Recherche T Suche T T zoeken Ricerca T Buscar por T
[U] Search U Recherche U Suche U U zoeken Ricerca U Buscar por U
[V] Search V Recherche V Suche V V zoeken Ricerca V Buscar por V
[W] Search W Recherche W Suche W W zoeken Ricerca W Buscar por W
[X] Search X Recherche X Suche X X zoeken Ricerca X Buscar por X
[Y] Search Y Recherche Y Suche Y Y zoeken Ricerca Y Buscar por Y
[Z] Search Z Recherche Z Suche Z Z zoeken Ricerca Z Buscar por Z
[0] Search Zero Recherche 0 Suche 0 Nul zoeken Ricerca 0 Buscar por 0
[1] Search One Recherche 1 Suche 1 Eén zoeken Ricerca 1 Buscar por 1
[2] Search Two Recherche 2 Suche 2 Twee zoeken Ricerca 2 Buscar por 2
[3] Search Three Recherche 3 Suche 3 Drie zoeken Ricerca 3 Buscar por 3
[4] Search Four Recherche 4 Suche 4 Vier zoeken Ricerca 4 Buscar por 4
[5] Search Five Recherche 5 Suche 5 Vijf zoeken Ricerca 5 Buscar por 5
[6] Search Six Recherche 6 Suche 6 Zes zoeken Ricerca 6 Buscar por 6
[7] Search Seven Recherche 7 Suche 7 Zeven zoeken Ricerca 7 Buscar por 7
[8] Search Eight Recherche 8 Suche 8 Acht zoeken Ricerca 8 Buscar por 8
[9] Search Nine Recherche 9 Suche 9 Negen zoeken Ricerca 9 Buscar por 9
[?] Search Mark Recherche de marque Suche Markierung Markering zoeken Ricerca marc. Buscar por marca
[%] Search Other Autre recherche Suche andere Andere zoeken Ricerca altro Buscar por otros
Hands Free Control screen
Screen Name of the button/
Operation
Voice Command
US English UK English French German Dutch Italian Spanish
Hands Free [Phonebook] Phonebook
[Incoming Calls] Incoming Calls Appels entrants Eingehende Anrufe Inkomende oproepen Chiam. in entrata Llamadas entrantes
[Outgoing Calls] Outgoing Calls
[Missed Calls] Missed Calls Appels manqués Nicht entgegen genommene
Anrufe
Gemiste oproepen Chiam. perse Llamadas perdidas
[]TEL TÉL. TEL TEL TEL TEL
[SMS] SMS SMS SMS SMS SMS SMS
[Redial] Redial Composer à nouveau Wiederwahl Opnieuw kiezen Ricomp. Volver a marcar
SMS Select [Received Message List] Received Message Message reçu Nachricht erhalten Ontvangen bericht Mess. ricevuto Mensaje recibido
Received Message List
[Sent Message List] Sent Message Message envoyé Nachricht gesendet Verzonden bericht Mess. inviato Mensaje enviado
Sent Message List Liste de messages envoyés Liste gesendeter Nachrichten Lijst met verzonden berichten Elenco mess. inv. Lista de mensajes enviados
Received Message List/ Sent
Message List
[Read] Read Lecture Lesen Lezen Lett. Leer
Message Read Lecture message Nachricht lesen Bericht lezen Lett. messaggio Lectura de mensajes
Any Hands Free related screen []TEL TÉL. TEL TEL TEL TEL
CALL Appel Anruf Bellen Chiam. Llamar
[]Return
Voice Command Table
110 DNX9140/DDX814/DDX8034BT English 111
Help? Troubleshooting
Some functions of this unit may be disabled by
some settings made on this unit.
! • Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.
▲
Subwoofer is not set to On. ☞ <Speaker Setup>
(page 82)
▲
The DSP Select is Bypass. ☞ <DSP Bypass
Control> (page 82)
▲
The Dual zone function is enabled. ☞ <Zone
Control> (page 63)
! • Cannot select the output destination of the
subsource in the Dual zone.
• Cannot adjust the volume of the rear
speakers.
▲
The Dual zone function is disabled. ☞ <Zone
Control> (page 63)
! Cannot play audio files.
▲
"CD Read" of <Disc Setup> (page 88) is set to
"2".
! Cannot Folder select.
▲
The Random play function is enabled.
! Cannot perform Repeat play.
▲
The PBC function is enabled.
! • Cannot set up the equalizer.
• Cannot set up the crossover network.
▲
The Dual zone function is enabled. ☞ <Zone
Control> (page 63)
▲
The DSP Select is Bypass. ☞ <DSP Bypass
Control> (page 82)
▲
The equalizer is set to "iPod". ☞ <Equalizer
Control> (page 62)
▲
The unit is set to STANDBY source.
What might seem to be a malfunction in your unit
may just be the result of slight misoperation or
miswiring. Before calling service, first check the
following table for possible problems.
General
? The Touch Sensor Tone doesn’t sound.
✔ The preout jack is being used.
☞ The Touch Sensor Tone can’t be output from
the preout jack.
Tuner source
? Radio reception is poor.
✔ The car antenna is not extended.
☞ Pull the antenna out all the way.
✔ The antenna control wire is not connected.
☞ Connect the wire correctly, referring to the
section on <INSTALLATION MANUAL>.
Disc source
? The specified disc does not play, but another
one plays instead.
✔ The specified CD is quite dirty.
☞ Clean the CD.
✔ The disc is loaded in a different slot from that
specified.
☞ Eject the disc magazine and check the
number for the specified disc.
✔ The disc is severely scratched.
☞ Try another disc instead.
Audio file source
? The sound skips when an Audio file is being
played.
✔ The media is scratched or dirty.
☞ Clean the media, referring to the CD
cleaning of the section on <Handling discs>
(page 6).
✔ The recording condition is bad.
☞ Record the media again or use another
media.
Help? Error
When the unit fails to operate correctly, the
cause of the failure appears on the display.
"Protect" :
Protective circuit has been activated because a speaker
cord has shorted or it has come in contact with the car
chassis.
➡ Wire or insulate the speaker cord as appropriate
and then push the Reset button.
"Hot Error" :
When the internal temperature of this unit rises to 60°C
or more, the protection circuit is activated and you
may not be able to operate the unit. At such times this
message will appear.
➡ Use the unit again after reducing the
temperature inside the vehicle.
"Hold Error" :
Activation of the protective circuit when the
temperature inside the disc changer is higher than 60
degrees Celsius stops the disc changer from operating.
At such times this message will appear.
➡ Use when the temperature at the site where the
disc changer has been fitted has dropped.
"Mecha Error" :
The disc player is malfunctioning.
➡ Eject the disc and try inserting it again. Contact
the Kenwood dealer if this indicator continues
blinking or the disc cannot be ejected.
"Disc Error" :
An unplayable disc is inserted.
"Read Error" :
Disc is quite dirty.
➡ Clean the disc, referring tot he section on
<Handling discs> (page 6).
Disc is upside down.
➡ Load the disc with the labeled side up.
"Region code Error" :
The disc you wanted to play has a region code that
cannot be played with this unit.
"Parental level Error" :
The disc you wanted to play has a higher level than the
parental level you set.
"Error 07–67" :
The unit is not operating correctly due to some reason
or other.
➡ Push the unit's Reset button. If the "Error 07−67"
message does not disappear, see your nearest
Kenwood dealer.
"No Device" (USB device):
The USB device is selected as a source although no USB
device is connected.
➡ Change the source to any source other than
USB/iPod. Connect an USB device, and change
the source to USB again.
"Disconnected" (iPod, Bluetooth audio player):
The iPod/Bluetooth audio player is selected as a source
although no iPod/Bluetooth audio player is connected.
➡ Change the source to any source other than
iPod/Bluetooth. Connect an iPod/Bluetooth
audio player, and change the source to iPod/
Bluetooth again.
"No Music" :
The connected USB device contains no playable audio
file.
Media was played that doesn’t have data recorded that
the unit can play.
"USB Device Error!!" :
The connected USB device is rated a current capacity
higher than the allowable limit.
➡ Check the USB device.
Some trouble may have occurred to the connected
USB device.
➡ Change the source to any source other than USB.
Remove the USB device.
"Authorization Error" :
Connection to the iPod has failed.
➡ Remove the iPod and then reconnect it.
The unit does not support the iPod.
➡ Refer to <iPod/iPhone that can be connected to
this unit> (page 8).
"Update your iPod" :
The iPod's software is an older version which the unit
can not support.
➡ Confirm that the software for the iPod is the
latest version. Refer to <iPod/iPhone that can be
connected to this unit> (page 8).
Next page 3
112 DNX9140/DDX814/DDX8034BT English 113
"Check SIRIUS" :
The unit cannot recognize the connected SIRIUS Tuner
Box.
➡ Check the connection of the SIRIUS Tuner Box.
"Antenna Error" :
Something is wrong with the anntena.
➡ Check the connection of the antenna.
"Acquring Signal" :
The unit cannot receive any signal.
➡ Move the vehicle to the area where the unit can
receive signal.
"Updating Firmware" :
Updating the firmware of SIRIUS tuner.
➡ Operation is invalid until the update is
completed.
"Updating Channels **% Completed" :
Updating the SIRIUS Channel Map.
➡ Operation is invalid until the update is
completed.
"Subscription Updated" :
Updating the suscription information.
➡ Operation is invalid until the update is
completed.
"Invalid Channel" :
The selected channel is invalid.
➡ Select a different channel.
"Call 888-539-SIRIUS to Subscribe" :
The selected channel is not subscribed.
➡ Call the displayed number for subscription.
"CHECK XM TUNER" :
The unit cannot recognize the connected XM Tuner.
➡ Check the connection of the XM Tuner.
"NO SIGNAL" :
The unit cannot receive any signal.
➡ Check the connection of the antenna.
"CHECK ANTENNA" :
Something is wrong with the antenna.
➡ Check the connection of the antenna.
"CH UNAVAILABLE" :
The selected channel is invalid.
➡ Select a different channel.
"CH UNAUTHORIZED" :
The selected channel is not subscribed.
"OFF AIR" :
The broadcast of the selected channel has finished.
"Navigation Error. Please turn on power again
later." (DNX9140 only) :
The communication error has occurred due to severely
cold temperature.
➡ Turn on power again after warming your car
interior.
Specifications
Monitor section
Picture Size
: 6.98 inches (diagonal) wide
: 157.2 mm (W) x 82.3 mm (H)
Display System
: Transparent TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 1,152,000 (800H x 480V x RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: Cold Cathode Fluorescent Tube
DVD player section
D/A Converter
: 24 bit
Audio Decoder
: Linear PCM/ Dolby ProLogic II/ Dolby Digital/
dts/ MP3/ WMA/ AAC/ WAV
Video Decoder
: MPEG1/ MPEG2/ DivX
Wow & Flutter
: Below Measurable Limit
Frequency Response
Sampling frequency; 96 kHz : 20 – 22,000 Hz
Sampling frequency; 48 kHz : 20 – 22,000 Hz
Sampling frequency; 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
: 0.008 % (1 kHz)
S/N Ratio (dB)
: 98 dB (DVD-Video 96 kHz)
Dynamic Range
: 98 dB (DVD-Video 96 kHz)
Disc Format
: DVD-Video/ VIDEO-CD/ CD-DA
Sampling Frequency
: 44.1/ 48/ 96 kHz
Quantifying Bit Number
: 16/ 20/ 24 bit
USB interface section
USB Standard
: USB 1.1/ 2.0 High speed
File System
: FAT 16/ 32
Maximum Power Supply Current
: 500 mA
D/A Converter
: 24 Bit
Video Decoder
: MPEG1/ MPEG2/ DivX
Audio Decoder
: MP3/ WMA/ AAC/ WAV
Bluetooth section
Technology
: Bluetooth Ver.1.2 Certified
Frequency
: 2.402 – 2.480 GHz
Output Power
: +4dBm (MAX), 0dBm (AVE), Power Class2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Profile
HFP (Hands Free Profile)
SPP (Serial Port Profile)
HSP (Headset Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
OPP (Object Push Profile)
PBAP (Phonebook Access Profile)
SYNC (Synchronization Profile)
Help? Error
114 DNX9140/DDX814/DDX8034BT English 115
FM tuner section
Frequency Range
200 kHz : 87.9 MHz – 107.9 MHz
(DNX9140/DDX814)
50 kHz : 87.5 MHz – 108.0 MHz (DDX8034BT)
Usable Sensitivity (S/N : 30 dB)
: 9.3 dBf (0.8 μV/ 75 Ω)
Quieting Sensitivity (S/N : 50 dB)
: 15.2 dBf (1.6 μV/ 75 Ω)
Frequency Response (± 3.0 dB)
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 70 dB (MONO)
Selectivity (± 400 kHz)
: ≥ 80 dB
Stereo Separation
: 35 dB (1 kHz)
AM tuner section
Frequency Range (10 kHz)
: 530 kHz – 1700 kHz
Usable Sensitivity
: 28 dBμ
Video section
Color System of External Video Input
: NTSC
External Video Input Level (RCA jacks)
: 1 Vp-p/ 75 Ω
External Audio Max Input Level (RCA jacks)
: 2 V/ 25 kΩ
Video Output Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Audio Output Level (RCA jacks)
: 1.2 V/ 10 kΩ
Analog RGB input (DDX814/DDX8034BT only)
: 0.7 Vp-p/ 75 Ω
Audio section
Maximum Power (Front & Rear)
: 50 W x 4
Full Bandwidth Power (Front & Rear)
(4 Ω, 14.4 V, 1 % THD)
: 22 W x 4
Preout Level (V)
: 5 V/ 10 kΩ
Preout Impedance
: 80 Ω
Speaker Impedance
: 4 – 8 Ω
DSP Section
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13): 62.5/ 100/ 160/ 250/
400/ 630/ 1k/ 1.6k/ 2.5k/
4k/ 6.3k/ 10k/ 16k Hz
Channel: Front/ Rear/ Center
Gain
: -9/ -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0/ 1/ 2/ 3/ 4/ 5/
6/ 7/ 8/ 9 dB
X'over
High pass filter
Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/
100/ 120/ 150/ 180/ 220/ 250 Hz
Slope: -6/ -12/ -18/ -24 dB
Low pass filter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250 Hz, Through
Slope: -6/ -12/ -18/ -24 dB
Time alignment
Front/ Rear/ Subwoofer: 0 – 6.1 m (2 cm Step)
0 – 20.01 ft (0.07 ft Step)
Center: 0 – 3.4 m (2 cm Step)
0 – 11.15 ft (0.07 ft Step)
Channel Level
: ± 10 dB
Specifications
Navigation section (DNX9140 only)
Receiver
: High-sensitivity GPS receiver
Reception Frequency
: 1575.42 MHz (C/A code)
Acquisition Times
Cold : < 38 seconds
Factory Reset : < 45 seconds
(On average for a stationary receiver with a clear
view of the sky)
Accuracy
Position : < 10 meters typical
Velocity : 0.05 m/sec. RMS
Position Method
: GPS
Antenna
: External GPS antenna
External SW
Maximum Power Supply Current
: 500 mA
General
Operating voltage
: 14.4 V (10.5 – 16 V allowable)
Maximum Current Consumption
: 15 A
Installation Dimensions (W × H × D)
: 181.7 × 111.2 × 163 mm
7-3/16 x 4-7/16 x 6-7/16 inch
Operational Temperature Range
: -10 °C – +60 °C
Storage Temperature Range
: -20 °C – +85 °C
Weight
DNX9140 : 2.6 kg (5.7 lbs)
DDX814/DDX8034BT : 2.55 kg (5.6 lbs)
Although the effective pixels for the liquid crystal panel is
given as 99.99% or more, 0.01% of pixels may not light or
may light incorrectly.
Specifications subject to change without notice.
DNX9140/ DDX814:
2CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
In compliance with Federal Regulations, following are
reproductions of labels on, or inside the product relating to
laser product safety.
Kenwood Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI
TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS N0.21 CFR
1040. 10, CHAPTER 1, SUBCHAPTER J.
Location : Bottom Panel
FCC WARNING
This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized
change or modification is made.
NOTE
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment may cause harmful
interference to radio communications, if it is not installed
and used in accordance with the instructions. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
IC (Industry Canada) Notice
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
The term "IC: " before the certification/registration
number only signifies that the Industry Canada
technical specification were met.
is a trademark of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc.
is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Manufactured under license from Dolby Laboratories.
Dolby, ProLogic and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol
are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
About DivX
DivX is a popular media technology created by DivX, Inc. DivX media Files contain highly compressed video
with high visual quality that maintains a relatively small file size. DivX files can also include advanced media
features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download
online, and you can create your own using your personal content and easy-to-use tools from DivX.com.
About DivX Certified
DivX Certified products are officially tested by the creators of DivX and guaranteed to play all versions of DivX
video, including DivX 6. Certified products qualify for one of several DivX Profiles that designate the type of
video the product supports, from compact portable video to high-definition video.
The "AAC" logo is a trademark of Dolby Laboratories.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation
is under license. Other trademarks and trade names are those of their respective owners.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
iPhone is a trademark of Apple Inc.
iTunes is a trademark of Apple Inc.
“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified
by the developer to meet Apple performance standards.
“Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been
certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Font for this product is designed by Ricoh.
