TM-D710GA/ TM-D710GE144/440 MHz FM DUAL BANDER/ 144/430 MHz FM DUAL BANDERINSTRUCTION MANUAL144/440 MHz FM DOUBLE BANDE/ 144/430 MHz FM DOUBLE BANDEMODE D’EMPLOIDOBLE BANDA DE 144/440 MHz EN FM/ DOBLE BANDA DE 144/430 MHz EN FMMANUAL DE INSTRUCCIONES© B62-2562-00 (K, E)09 08 07 06 05 04 03 02 01 00Only basic operations are explained in this instruction manual. For a detailed explanation on the operations, refer to the PDF ﬁ le supplied on the CD-ROM.Seules les fonctions de base sont expliquées dans ce mode d’emploi. Pour le détail sur les autres opérations, reportez-vous au ﬁ chier PDF à votre disposition sur le CD-ROM.En este manual de instrucciones solamente se explican las operaciones básicas. Si desea obtener una descripción detallada de las operaciones, consulte el archivo PDF correspondiente incluido en el CD-ROM.

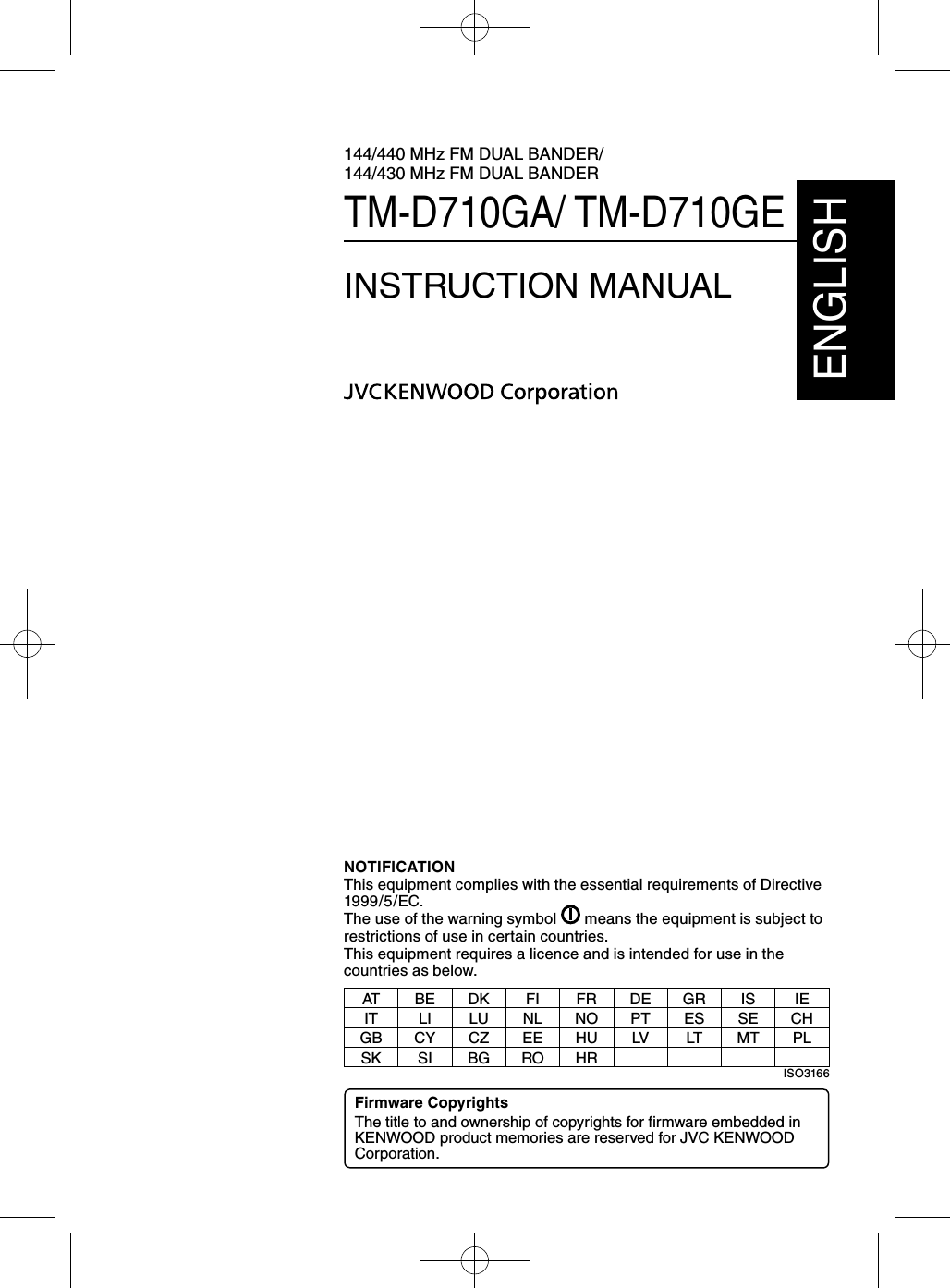

144/440 MHz FM DUAL BANDER/144/430 MHz FM DUAL BANDERTM-D710GA/ TM-D710GEINSTRUCTION MANUALENGLISHNOTIFICATIONThis equipment complies with the essential requirements of Directive 1999/5/EC.The use of the warning symbol means the equipment is subject to restrictions of use in certain countries.This equipment requires a licence and is intended for use in the countries as below.AT BE DK FI FR DE GR IS IEIT LI LU NL NO PT ES SE CHGB CY CZ EE HU LV LT MT PLSK SI BG RO HR ISO3166Firmware CopyrightsThe title to and ownership of copyrights for ﬁ rmware embedded in KENWOOD product memories are reserved for JVC KENWOOD Corporation.

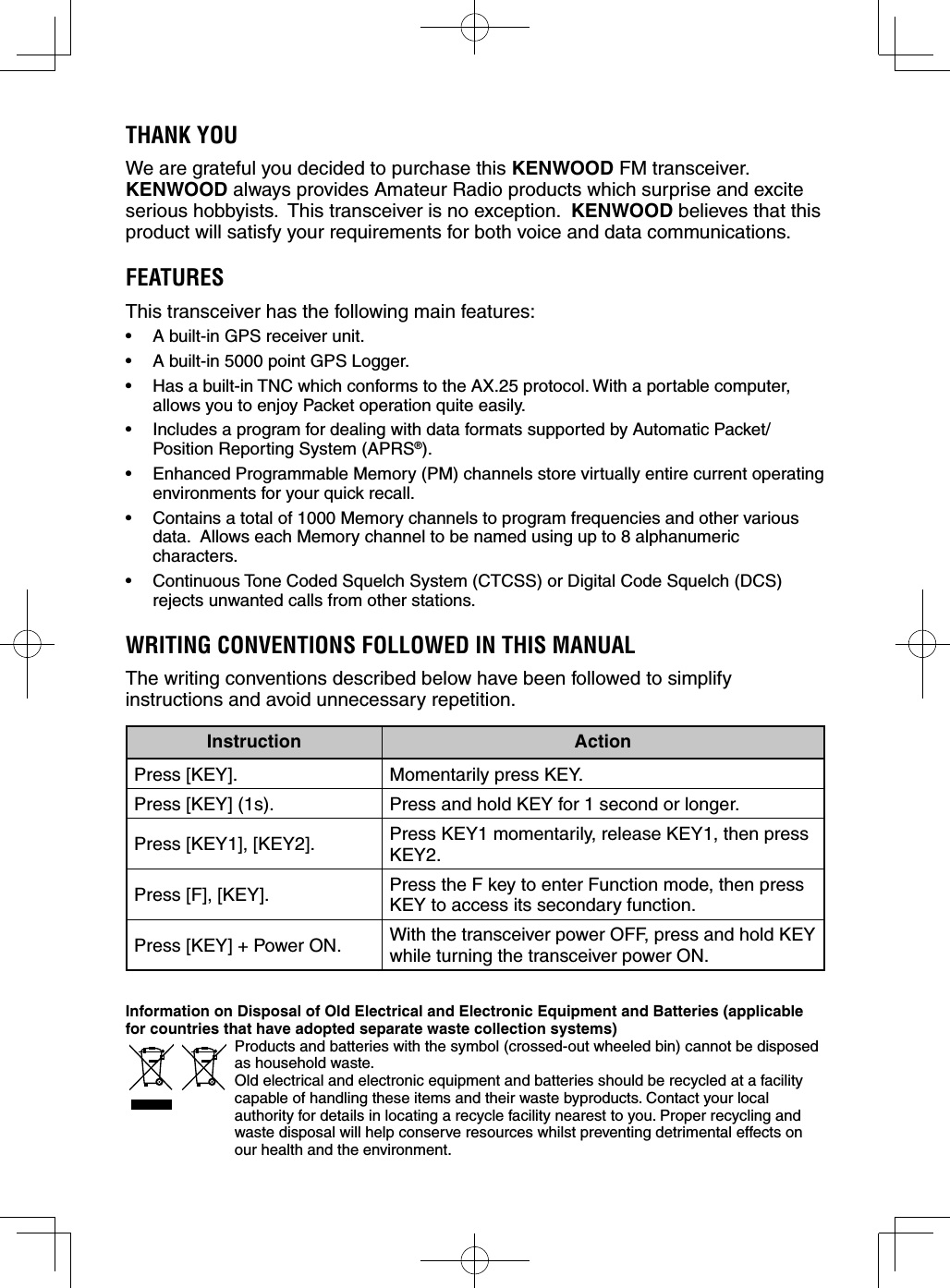

THANK YOUWe are grateful you decided to purchase this KENWOOD FM transceiver. KENWOOD always provides Amateur Radio products which surprise and excite serious hobbyists. This transceiver is no exception. KENWOOD believes that this product will satisfy your requirements for both voice and data communications.FEATURESThis transceiver has the following main features:• A built-in GPS receiver unit.• A built-in 5000 point GPS Logger.• Has a built-in TNC which conforms to the AX.25 protocol. With a portable computer, allows you to enjoy Packet operation quite easily.• Includes a program for dealing with data formats supported by Automatic Packet/ Position Reporting System (APRS®).• Enhanced Programmable Memory (PM) channels store virtually entire current operating environments for your quick recall.• Contains a total of 1000 Memory channels to program frequencies and other various data. Allows each Memory channel to be named using up to 8 alphanumeric characters.• Continuous Tone Coded Squelch System (CTCSS) or Digital Code Squelch (DCS) rejects unwanted calls from other stations.WRITING CONVENTIONS FOLLOWED IN THIS MANUALThe writing conventions described below have been followed to simplify instructions and avoid unnecessary repetition.Instruction ActionPress [KEY]. Momentarily press KEY.Press [KEY] (1s). Press and hold KEY for 1 second or longer.Press [KEY1], [KEY2]. Press KEY1 momentarily, release KEY1, then press KEY2.Press [F], [KEY]. Press the F key to enter Function mode, then press KEY to access its secondary function.Press [KEY] + Power ON. With the transceiver power OFF, press and hold KEY while turning the transceiver power ON.Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

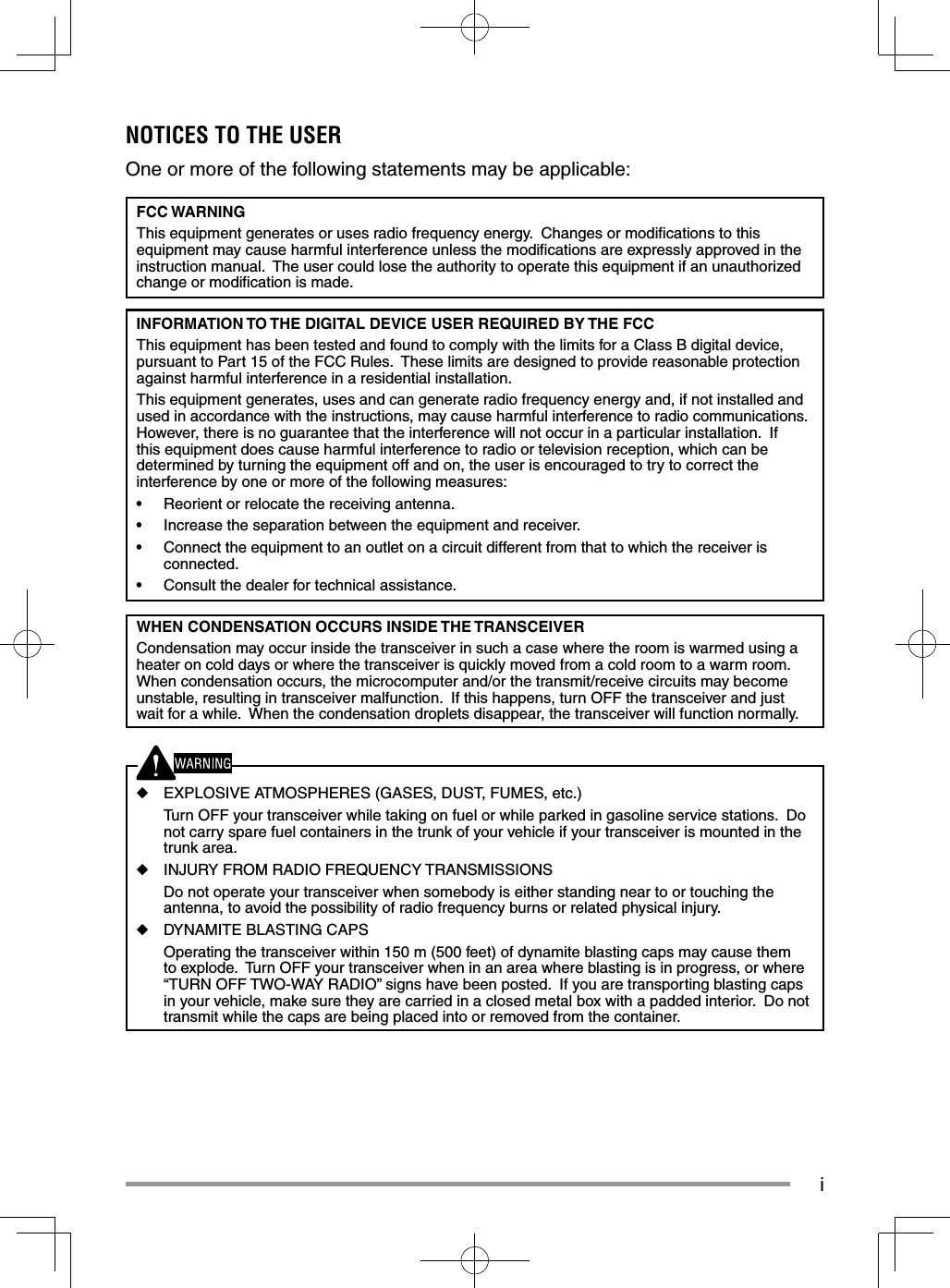

iNOTICES TO THE USER One or more of the following statements may be applicable:FCC WARNINGThis equipment generates or uses radio frequency energy. Changes or modiﬁ cations to this equipment may cause harmful interference unless the modiﬁ cations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁ cation is made.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCCThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer for technical assistance.WHEN CONDENSATION OCCURS INSIDE THE TRANSCEIVERCondensation may occur inside the transceiver in such a case where the room is warmed using a heater on cold days or where the transceiver is quickly moved from a cold room to a warm room. When condensation occurs, the microcomputer and/or the transmit/receive circuits may become unstable, resulting in transceiver malfunction. If this happens, turn OFF the transceiver and just wait for a while. When the condensation droplets disappear, the transceiver will function normally.◆ EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area.◆ INJURY FROM RADIO FREQUENCY TRANSMISSIONS Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury.◆ DYNAMITE BLASTING CAPS Operating the transceiver within 150 m (500 feet) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container.

iiPRECAUTIONSObserve the following precautions to prevent ﬁ re, personal injury, and transceiver damage.• When operating mobile, do not attempt to conﬁ gure the transceiver while driving; it is too dangerous.• Do not transmit with high output power for extended periods. The transceiver may overheat.• Do not disassemble or modify the transceiver for any reason, unless instructed by this manual or by KENWOOD documentation.• Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances.• Do not place the transceiver in excessively dusty, humid, or wet areas, nor on unstable surfaces.• If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact a KENWOOD service station or your dealer.• Use of the transceiver while you are driving may be against trafﬁ c laws. Please check and observe the vehicle regulations in your area.• Do not use options not speciﬁ ed by KENWOOD.◆ The transceiver is designed for a 13.8 V DC (±15%) power source! Never use a 24 V battery to power the transceiver. Check the battery polarity and voltage of the vehicle before installing the transceiver.◆ Use only the supplied DC power cable or a KENWOOD optional DC power cable.◆ Do not insert metal objects into the cooling fan.◆ Do not cut and/or remove the fuse holder on the DC power cable. Improper connections and/or current surges may cause smoke or ﬁ re.◆ For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set so the transceiver will not break loose in the event of a collision.◆ Various electronic equipment in your vehicle may malfunction if they are not properly protected from the radio frequency energy which is present while transmitting. Electronic fuel injection, anti-skid braking, and cruise control systems are typical examples of equipment that may malfunction. If your vehicle contains such equipment, consult the dealer for the make of vehicle and enlist his/her aid in determining if they will perform normally while transmitting.

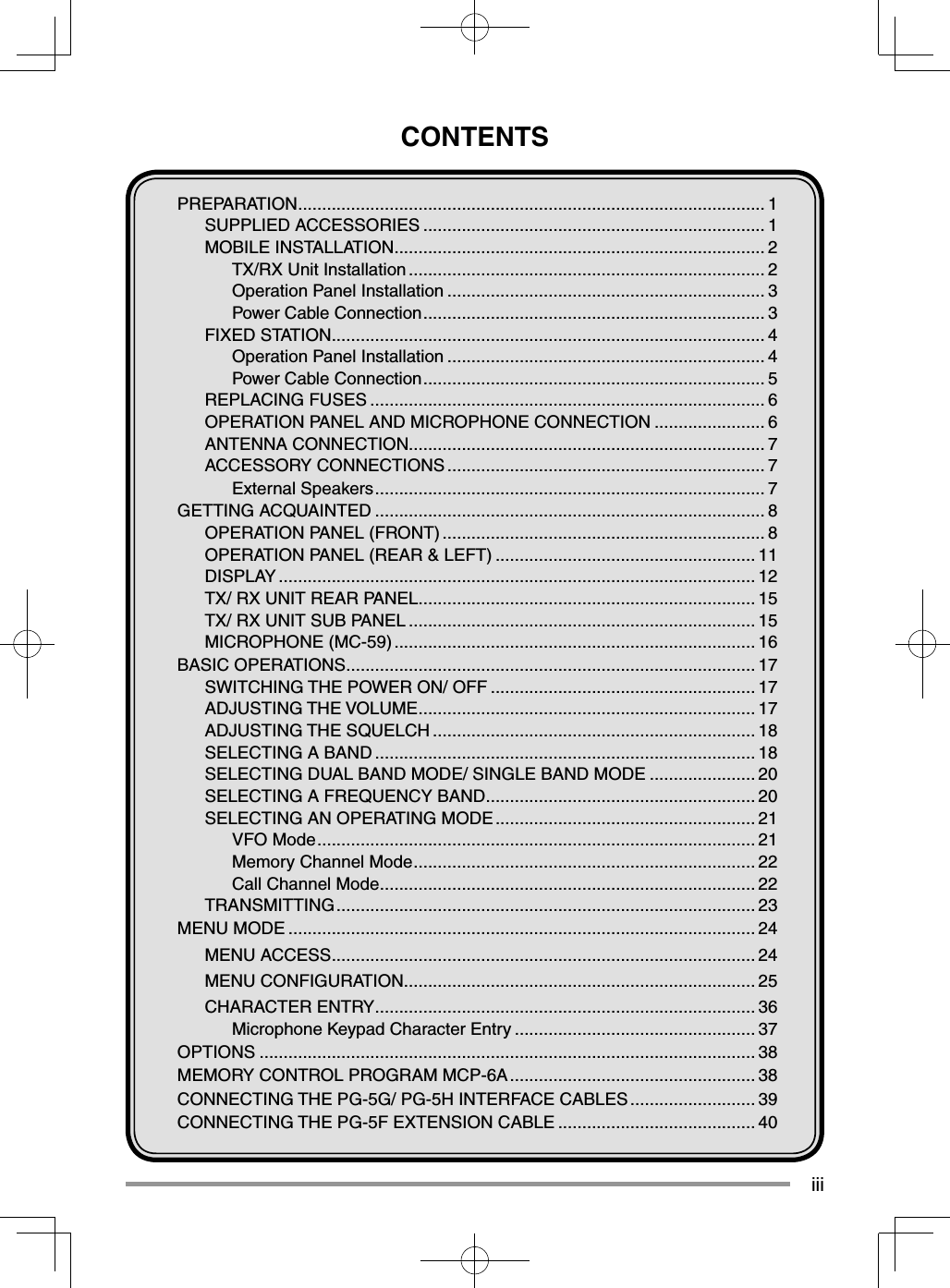

iiiCONTENTSPREPARATION ................................................................................................. 1SUPPLIED ACCESSORIES ....................................................................... 1MOBILE INSTALLATION ............................................................................. 2TX/RX Unit Installation .......................................................................... 2Operation Panel Installation .................................................................. 3Power Cable Connection ....................................................................... 3FIXED STATION .......................................................................................... 4Operation Panel Installation .................................................................. 4Power Cable Connection ....................................................................... 5REPLACING FUSES .................................................................................. 6OPERATION PANEL AND MICROPHONE CONNECTION ....................... 6ANTENNA CONNECTION.......................................................................... 7ACCESSORY CONNECTIONS .................................................................. 7External Speakers ................................................................................. 7GETTING ACQUAINTED ................................................................................. 8OPERATION PANEL (FRONT) ................................................................... 8OPERATION PANEL (REAR & LEFT) ...................................................... 11DISPLAY ................................................................................................... 12TX/ RX UNIT REAR PANEL...................................................................... 15TX/ RX UNIT SUB PANEL ........................................................................ 15MICROPHONE (MC-59) ........................................................................... 16BASIC OPERATIONS ..................................................................................... 17SWITCHING THE POWER ON/ OFF ....................................................... 17ADJUSTING THE VOLUME ...................................................................... 17ADJUSTING THE SQUELCH ................................................................... 18SELECTING A BAND ............................................................................... 18SELECTING DUAL BAND MODE/ SINGLE BAND MODE ...................... 20SELECTING A FREQUENCY BAND ........................................................ 20SELECTING AN OPERATING MODE ...................................................... 21VFO Mode ........................................................................................... 21Memory Channel Mode ....................................................................... 22Call Channel Mode .............................................................................. 22TRANSMITTING ....................................................................................... 23MENU MODE ................................................................................................. 24MENU ACCESS ........................................................................................ 24MENU CONFIGURATION ......................................................................... 25CHARACTER ENTRY ............................................................................... 36Microphone Keypad Character Entry .................................................. 37OPTIONS ....................................................................................................... 38MEMORY CONTROL PROGRAM MCP-6A ................................................... 38CONNECTING THE PG-5G/ PG-5H INTERFACE CABLES .......................... 39CONNECTING THE PG-5F EXTENSION CABLE ......................................... 40

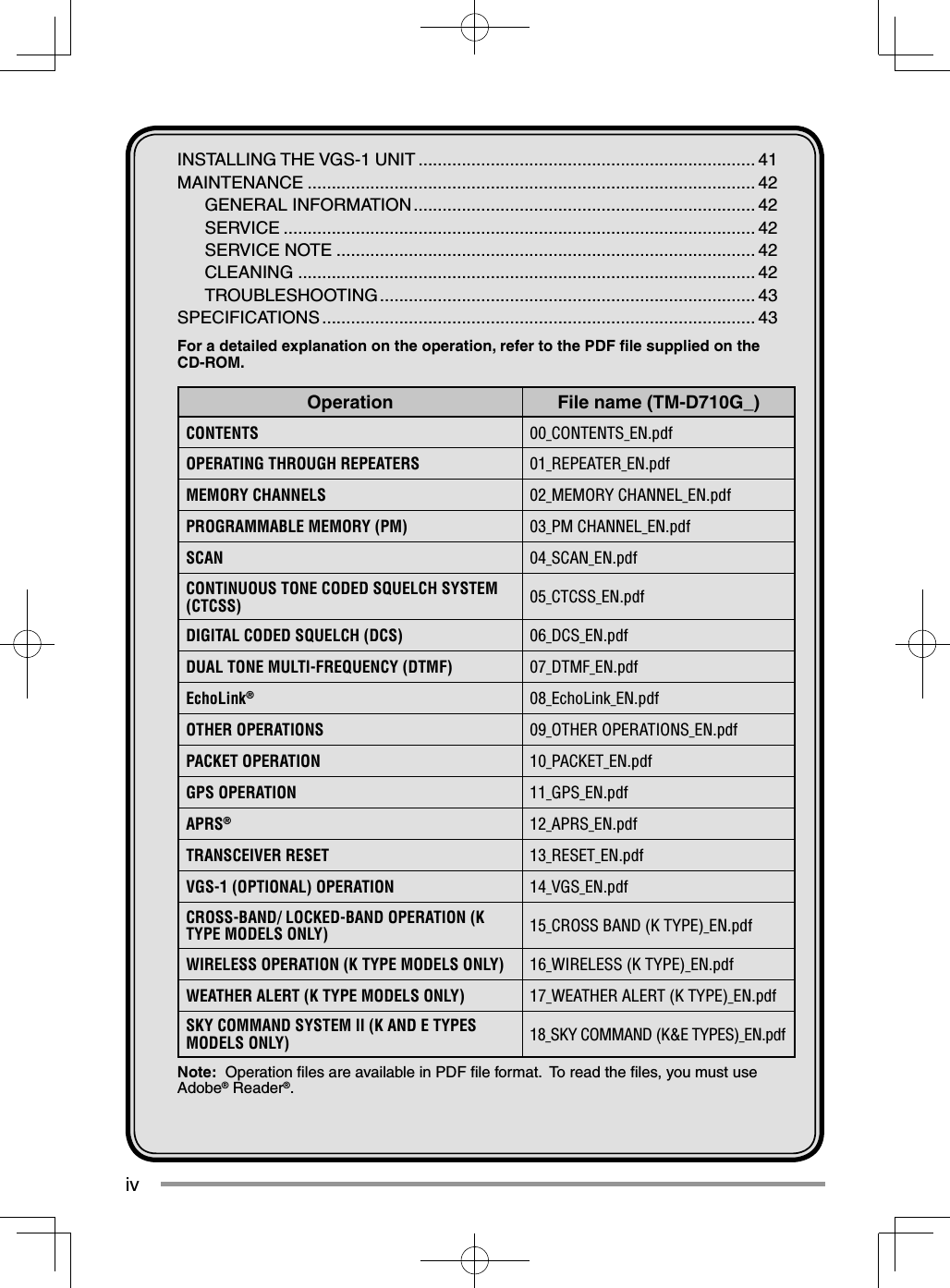

ivINSTALLING THE VGS-1 UNIT ...................................................................... 41MAINTENANCE ............................................................................................. 42GENERAL INFORMATION ....................................................................... 42SERVICE .................................................................................................. 42SERVICE NOTE ....................................................................................... 42CLEANING ............................................................................................... 42TROUBLESHOOTING .............................................................................. 43SPECIFICATIONS .......................................................................................... 43For a detailed explanation on the operation, refer to the PDF ﬁ le supplied on the CD-ROM.Operation File name (TM-D710G_)CONTENTS 00_CONTENTS_EN.pdfOPERATING THROUGH REPEATERS 01_REPEATER_EN.pdfMEMORY CHANNELS 02_MEMORY CHANNEL_EN.pdfPROGRAMMABLE MEMORY (PM) 03_PM CHANNEL_EN.pdfSCAN 04_SCAN_EN.pdfCONTINUOUS TONE CODED SQUELCH SYSTEM (CTCSS) 05_CTCSS_EN.pdfDIGITAL CODED SQUELCH (DCS) 06_DCS_EN.pdfDUAL TONE MULTI-FREQUENCY (DTMF) 07_DTMF_EN.pdfEchoLink®08_EchoLink_EN.pdfOTHER OPERATIONS 09_OTHER OPERATIONS_EN.pdfPACKET OPERATION 10_PACKET_EN.pdfGPS OPERATION 11_GPS_EN.pdfAPRS®12_APRS_EN.pdfTRANSCEIVER RESET 13_RESET_EN.pdfVGS-1 (OPTIONAL) OPERATION 14_VGS_EN.pdfCROSS-BAND/ LOCKED-BAND OPERATION (K TYPE MODELS ONLY) 15_CROSS BAND (K TYPE)_EN.pdfWIRELESS OPERATION (K TYPE MODELS ONLY) 16_WIRELESS (K TYPE)_EN.pdfWEATHER ALERT (K TYPE MODELS ONLY) 17_WEATHER ALERT (K TYPE)_EN.pdfSKY COMMAND SYSTEM II (K AND E TYPES MODELS ONLY) 18_SKY COMMAND (K&E TYPES)_EN.pdfNote: Operation ﬁ les are available in PDF ﬁ le format. To read the ﬁ les, you must use Adobe® Reader®.

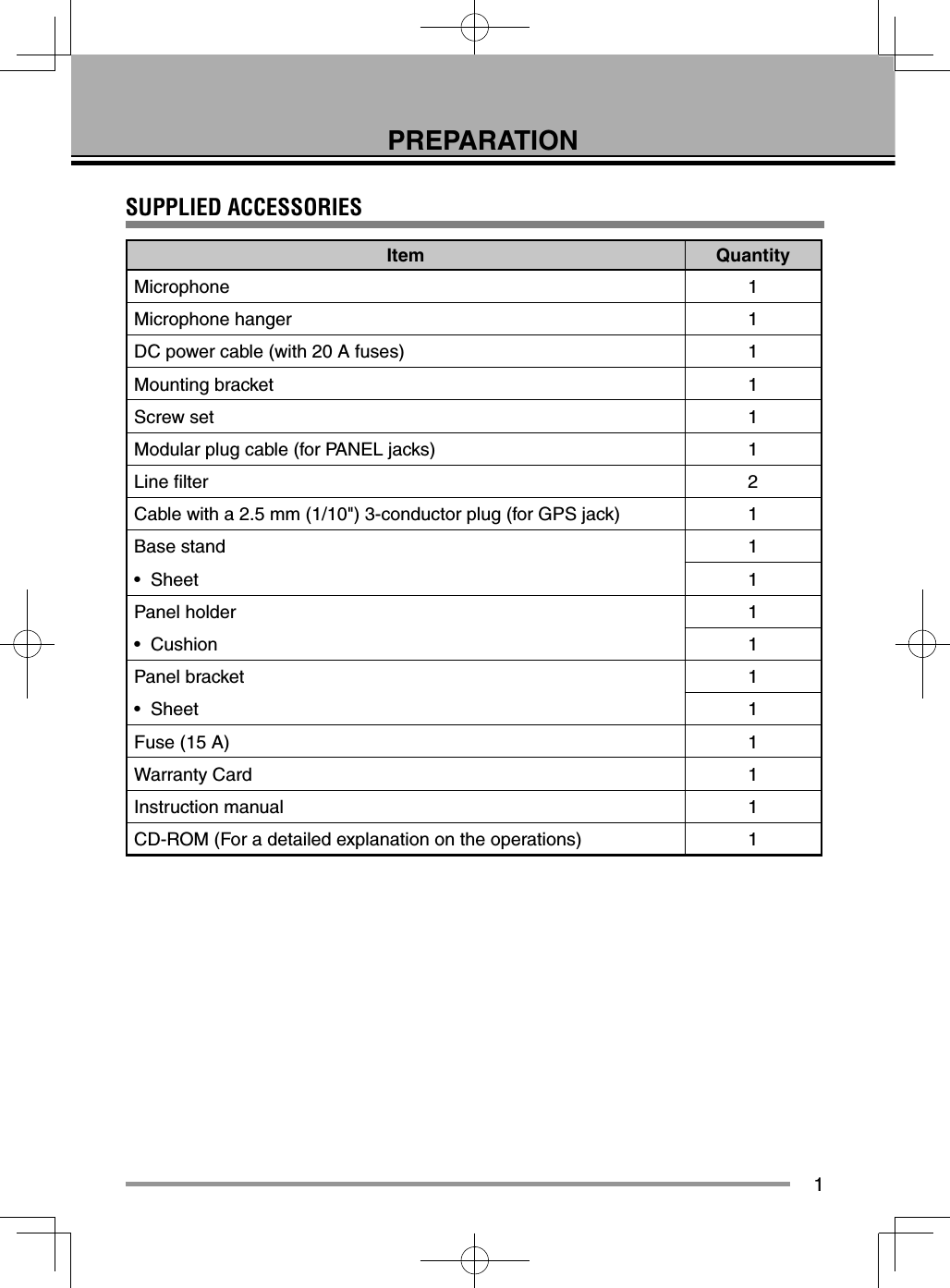

1PREPARATIONSUPPLIED ACCESSORIESItem QuantityMicrophone 1Microphone hanger 1DC power cable (with 20 A fuses) 1Mounting bracket 1Screw set 1Modular plug cable (for PANEL jacks) 1Line ﬁ lter 2Cable with a 2.5 mm (1/10") 3-conductor plug (for GPS jack) 1Base stand 1• Sheet 1Panel holder 1• Cushion 1Panel bracket 1• Sheet 1Fuse (15 A) 1Warranty Card 1Instruction manual 1CD-ROM (For a detailed explanation on the operations) 1

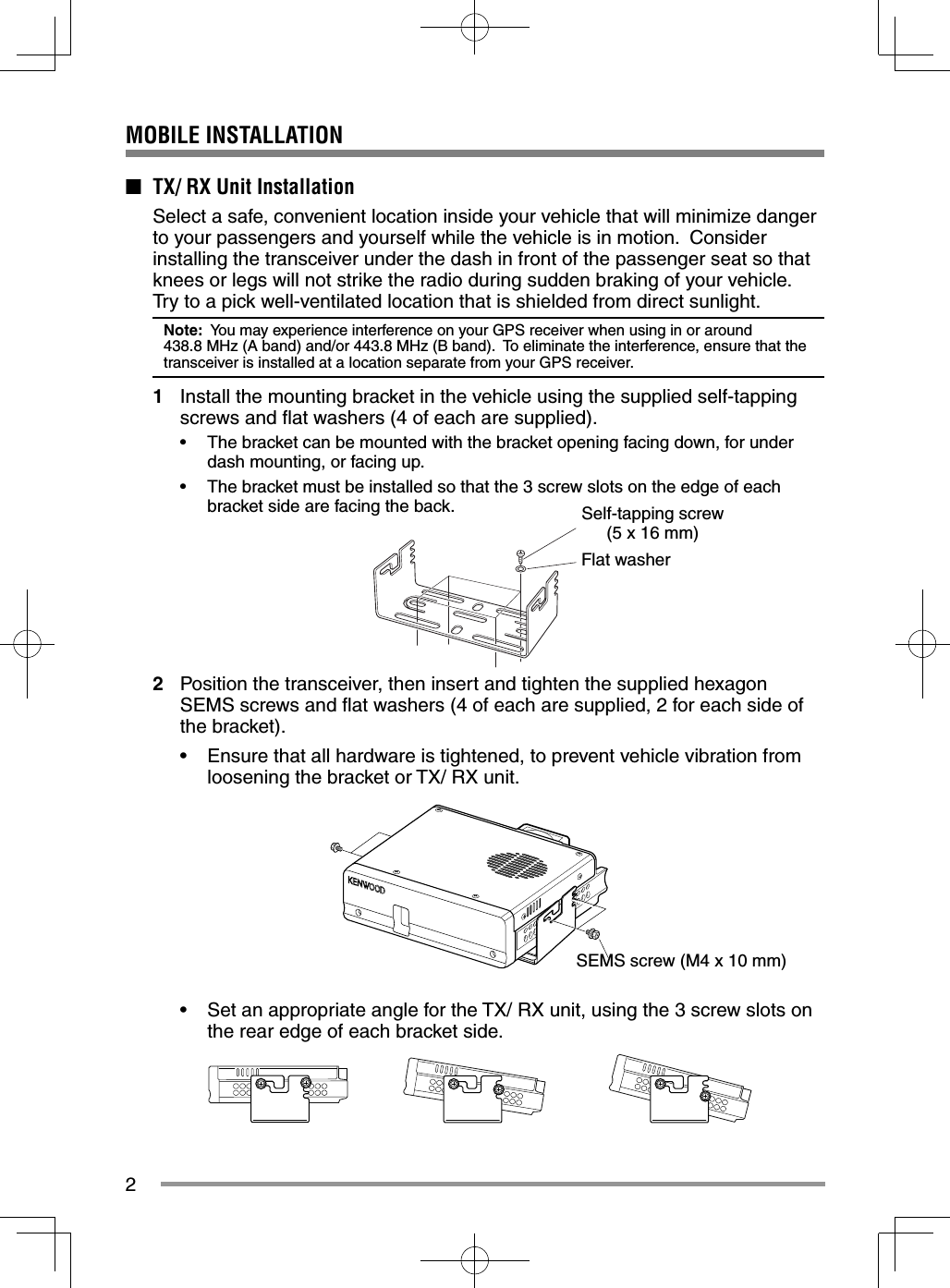

2MOBILE INSTALLATION■ TX/ RX Unit Installation Select a safe, convenient location inside your vehicle that will minimize danger to your passengers and yourself while the vehicle is in motion. Consider installing the transceiver under the dash in front of the passenger seat so that knees or legs will not strike the radio during sudden braking of your vehicle. Try to a pick well-ventilated location that is shielded from direct sunlight.Note: You may experience interference on your GPS receiver when using in or around 438.8 MHz (A band) and/or 443.8 MHz (B band). To eliminate the interference, ensure that the transceiver is installed at a location separate from your GPS receiver.1 Install the mounting bracket in the vehicle using the supplied self-tapping screws and ﬂ at washers (4 of each are supplied).• The bracket can be mounted with the bracket opening facing down, for under dash mounting, or facing up.• The bracket must be installed so that the 3 screw slots on the edge of each bracket side are facing the back.2 Position the transceiver, then insert and tighten the supplied hexagon SEMS screws and ﬂ at washers (4 of each are supplied, 2 for each side of the bracket).• Ensure that all hardware is tightened, to prevent vehicle vibration from loosening the bracket or TX/ RX unit.• Set an appropriate angle for the TX/ RX unit, using the 3 screw slots on the rear edge of each bracket side. Self-tapping screw (5 x 16 mm)Flat washerSEMS screw (M4 x 10 mm)

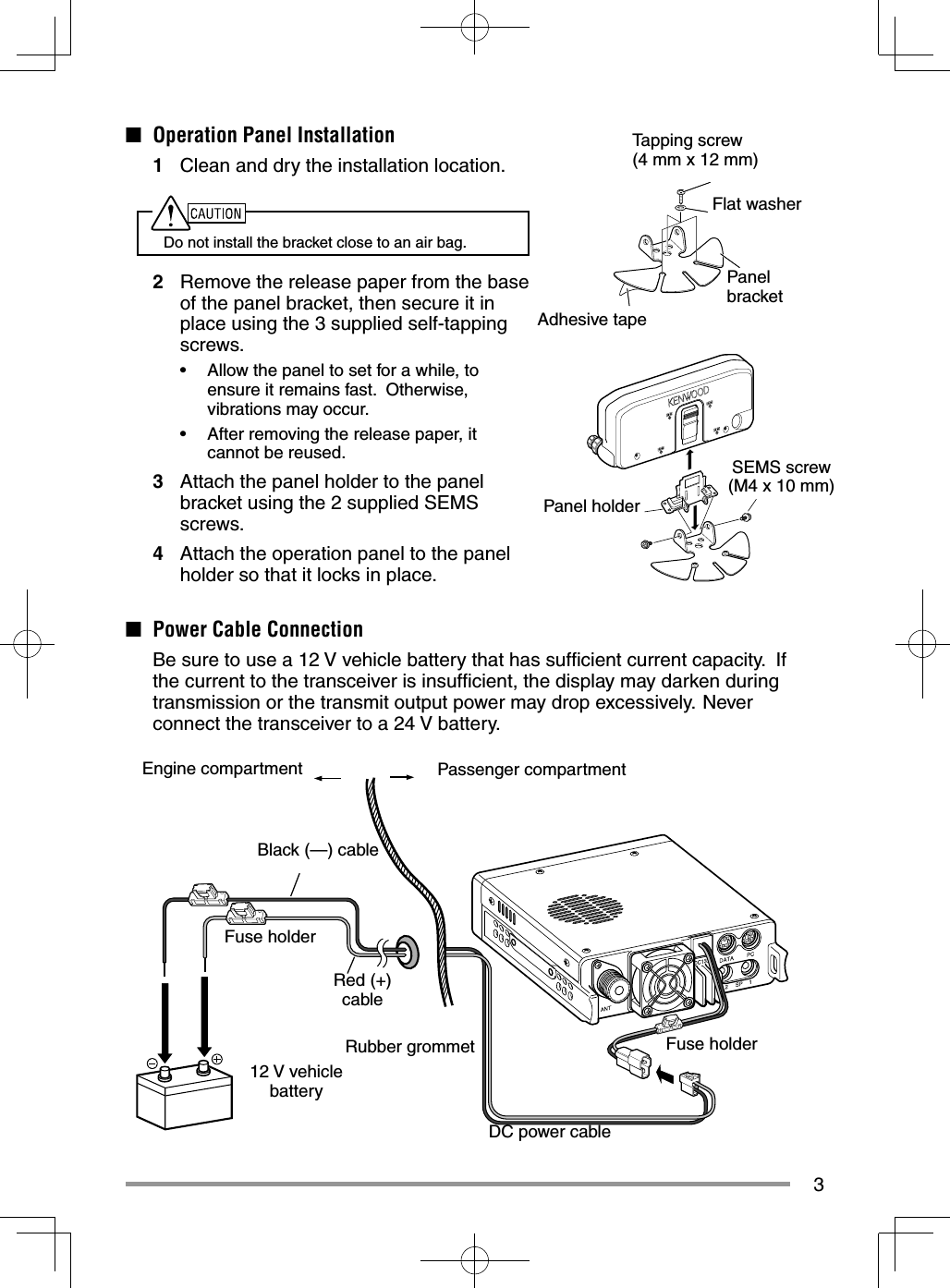

3■ Operation Panel Installation1 Clean and dry the installation location.Do not install the bracket close to an air bag.2 Remove the release paper from the base of the panel bracket, then secure it in place using the 3 supplied self-tapping screws.• Allow the panel to set for a while, to ensure it remains fast. Otherwise, vibrations may occur.• After removing the release paper, it cannot be reused.3 Attach the panel holder to the panel bracket using the 2 supplied SEMS screws.4 Attach the operation panel to the panel holder so that it locks in place.■ Power Cable Connection Be sure to use a 12 V vehicle battery that has sufﬁ cient current capacity. If the current to the transceiver is insufﬁ cient, the display may darken during transmission or the transmit output power may drop excessively. Never connect the transceiver to a 24 V battery.SEMS screw(M4 x 10 mm)Panel holderTapping screw(4 mm x 12 mm)Flat washerAdhesive tapePanel bracketPassenger compartmentEngine compartmentBlack (—) cableRed (+) cableRubber grommetFuse holder 12 V vehicle batteryDC power cableFuse holder

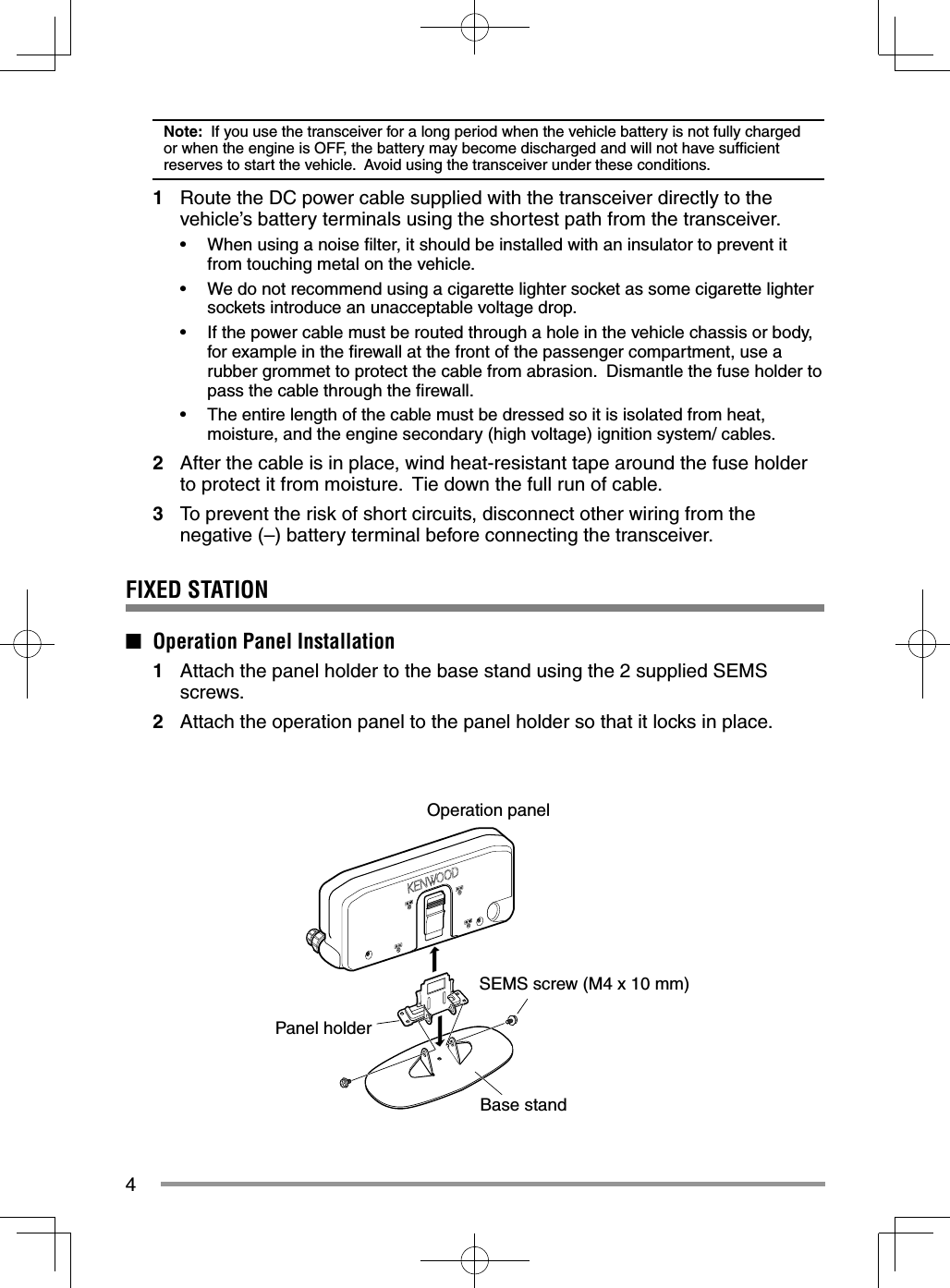

4SEMS screw (M4 x 10 mm)Panel holderBase standOperation panelNote: If you use the transceiver for a long period when the vehicle battery is not fully charged or when the engine is OFF, the battery may become discharged and will not have sufﬁ cient reserves to start the vehicle. Avoid using the transceiver under these conditions.1 Route the DC power cable supplied with the transceiver directly to the vehicle’s battery terminals using the shortest path from the transceiver.• When using a noise ﬁ lter, it should be installed with an insulator to prevent it from touching metal on the vehicle.• We do not recommend using a cigarette lighter socket as some cigarette lighter sockets introduce an unacceptable voltage drop.• If the power cable must be routed through a hole in the vehicle chassis or body, for example in the ﬁ rewall at the front of the passenger compartment, use a rubber grommet to protect the cable from abrasion. Dismantle the fuse holder to pass the cable through the ﬁ rewall.• The entire length of the cable must be dressed so it is isolated from heat, moisture, and the engine secondary (high voltage) ignition system/ cables.2 After the cable is in place, wind heat-resistant tape around the fuse holder to protect it from moisture. Tie down the full run of cable.3 To prevent the risk of short circuits, disconnect other wiring from the negative (–) battery terminal before connecting the transceiver. FIXED STATION■ Operation Panel Installation1 Attach the panel holder to the base stand using the 2 supplied SEMS screws.2 Attach the operation panel to the panel holder so that it locks in place.

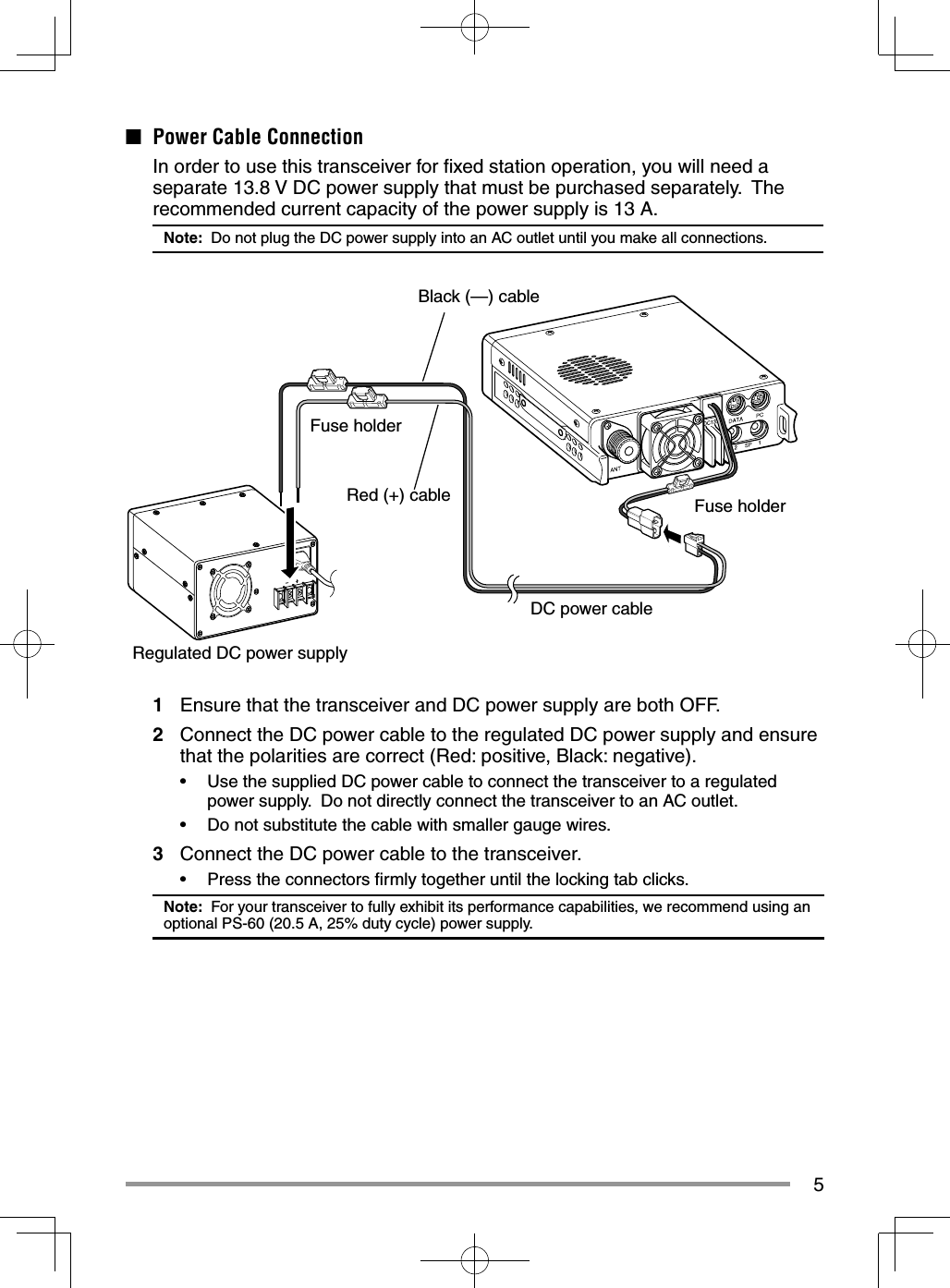

5■ Power Cable Connection In order to use this transceiver for ﬁ xed station operation, you will need a separate 13.8 V DC power supply that must be purchased separately. The recommended current capacity of the power supply is 13 A.Note: Do not plug the DC power supply into an AC outlet until you make all connections.1 Ensure that the transceiver and DC power supply are both OFF.2 Connect the DC power cable to the regulated DC power supply and ensure that the polarities are correct (Red: positive, Black: negative).• Use the supplied DC power cable to connect the transceiver to a regulated power supply. Do not directly connect the transceiver to an AC outlet.• Do not substitute the cable with smaller gauge wires.3 Connect the DC power cable to the transceiver.• Press the connectors ﬁ rmly together until the locking tab clicks.Note: For your transceiver to fully exhibit its performance capabilities, we recommend using an optional PS-60 (20.5 A, 25% duty cycle) power supply.Black (—) cableRed (+) cableDC power cableFuse holder Fuse holder Regulated DC power supply

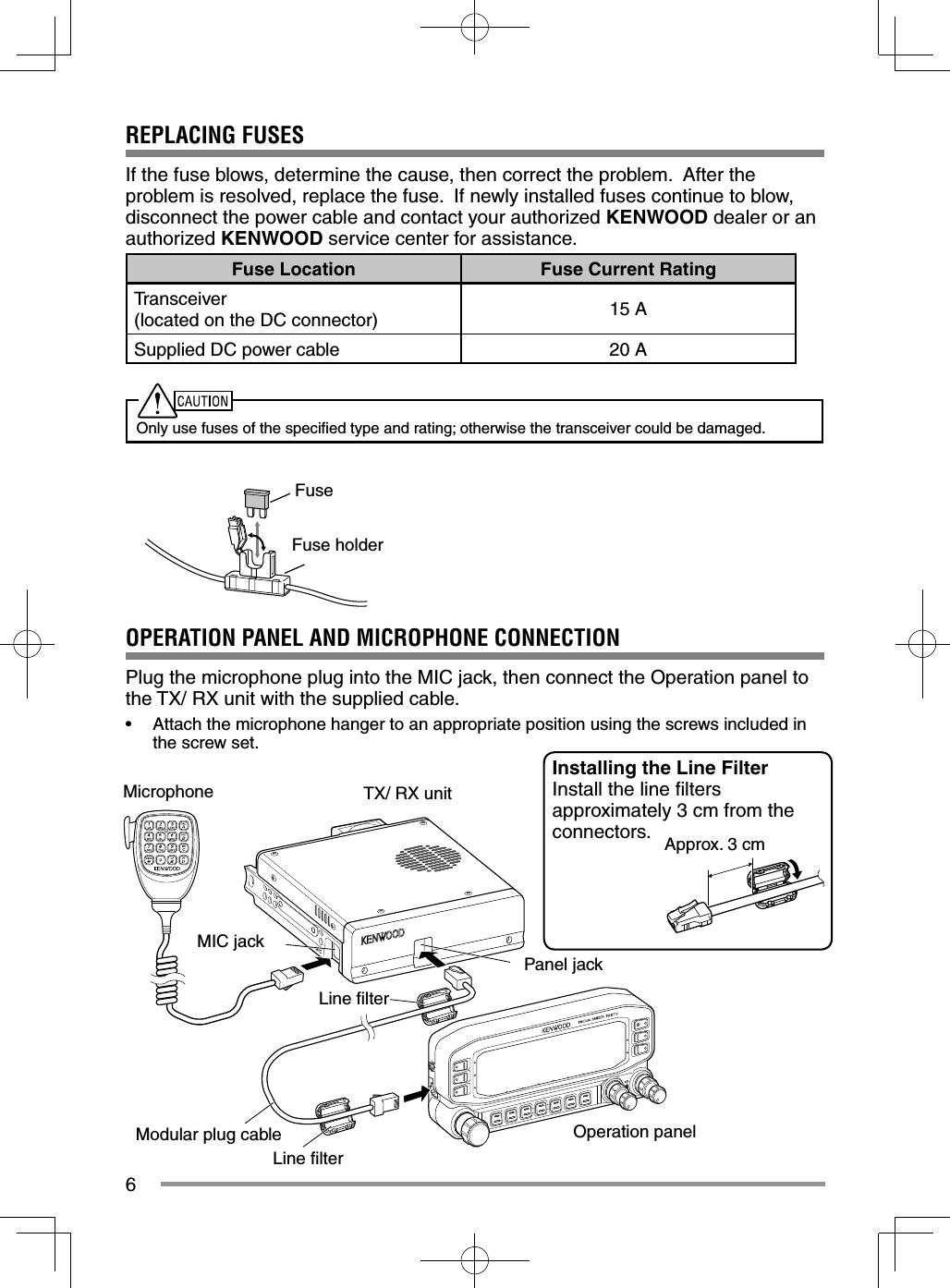

6REPLACING FUSESIf the fuse blows, determine the cause, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your authorized KENWOOD dealer or an authorized KENWOOD service center for assistance.Fuse Location Fuse Current RatingTransceiver(located on the DC connector) 15 ASupplied DC power cable 20 AOnly use fuses of the speciﬁ ed type and rating; otherwise the transceiver could be damaged.Panel jackMIC jackMicrophoneOperation panelTX/ RX unitFuseFuse holderOPERATION PANEL AND MICROPHONE CONNECTIONPlug the microphone plug into the MIC jack, then connect the Operation panel to the TX/ RX unit with the supplied cable.• Attach the microphone hanger to an appropriate position using the screws included in the screw set.Modular plug cableInstalling the Line FilterInstall the line ﬁ lters approximately 3 cm from the connectors. Approx. 3 cmLine ﬁ lterLine ﬁ lter

7ANTENNA CONNECTIONBefore operating, you must ﬁ rst install an efﬁ cient, well-tuned antenna. The success of your installation will depend largely on the type of antenna and its correct installation. The transceiver can give excellent results if the antenna system and its installation are given careful attention.Use a low-loss coaxial feed line that also has a characteristic impedance of 50 , to match the transceiver input impedance. Coupling the antenna to the transceiver via feed lines having an impedance other than 50  reduces the efﬁ ciency of the antenna system and can cause interference to nearby broadcast television receivers, radio receivers, and other electronic equipment.◆ Transmitting without ﬁ rst connecting an antenna or other matched load may damage the transceiver. Always connect the antenna to the transceiver before transmitting.◆ All ﬁ xed stations should be equipped with a lightning arrester to reduce the risk of ﬁ re, electric shock, and/or transceiver damage.SP 1 jackExternal speakers (SP-50B)SP 2 jackTo antennaAntenna terminalFeed line connectorACCESSORY CONNECTIONS■ External Speakers If you plan to use external speakers, choose speakers with an impedance of 8 . The external speaker jacks accept a 3.5 mm (1/8") mono (2-conductor) plug. We recommend using SP-50B speakers. There are 2 speaker jacks on the rear of the transceiver: SP 1 and SP 2.

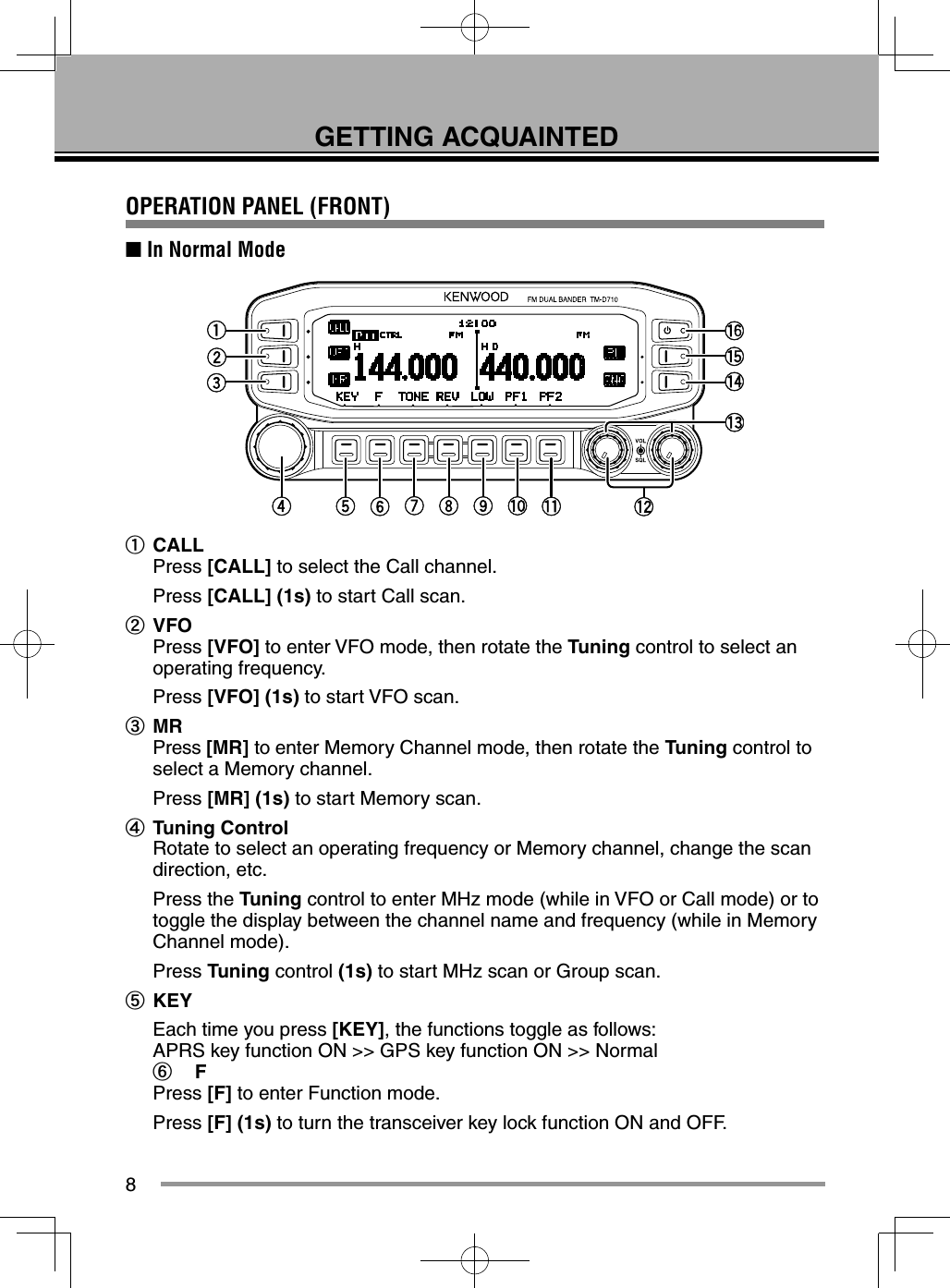

8GETTING ACQUAINTEDOPERATION PANEL (FRONT)■ In Normal Modea CALLPress [CALL] to select the Call channel. Press [CALL] (1s) to start Call scan. b VFOPress [VFO] to enter VFO mode, then rotate the Tuning control to select an operating frequency. Press [VFO] (1s) to start VFO scan. c MRPress [MR] to enter Memory Channel mode, then rotate the Tuning control to select a Memory channel. Press [MR] (1s) to start Memory scan.d Tuning ControlRotate to select an operating frequency or Memory channel, change the scan direction, etc. Press the Tuning control to enter MHz mode (while in VFO or Call mode) or to toggle the display between the channel name and frequency (while in Memory Channel mode). Press Tuning control (1s) to start MHz scan or Group scan.e KEY Each time you press [KEY], the functions toggle as follows: APRS key function ON >> GPS key function ON >> Normalf FPress [F] to enter Function mode. Press [F] (1s) to turn the transceiver key lock function ON and OFF.

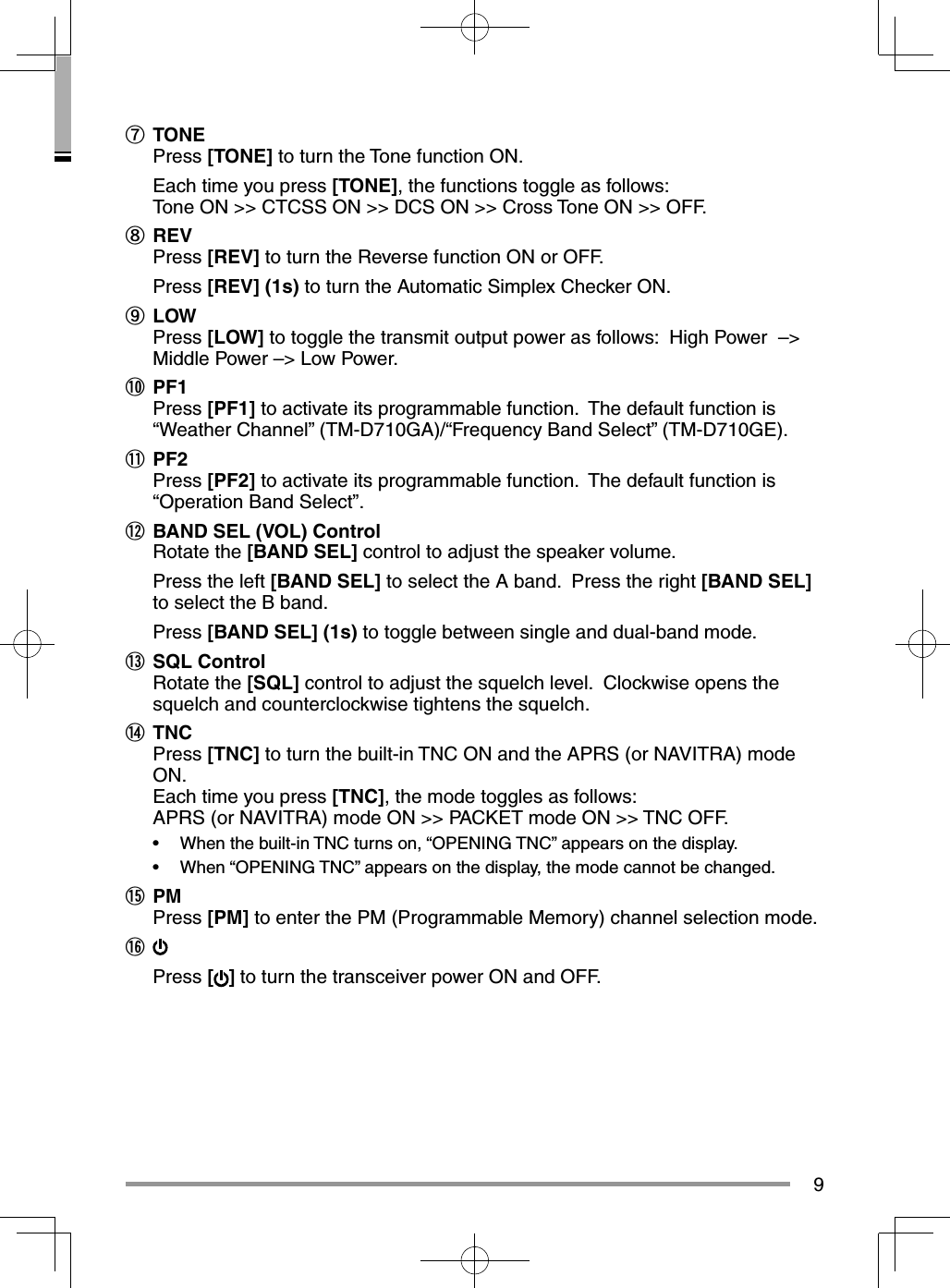

9g TONEPress [TONE] to turn the Tone function ON. Each time you press [TONE], the functions toggle as follows: Tone ON >> CTCSS ON >> DCS ON >> Cross Tone ON >> OFF.h REVPress [REV] to turn the Reverse function ON or OFF. Press [REV] (1s) to turn the Automatic Simplex Checker ON.i LOWPress [LOW] to toggle the transmit output power as follows: High Power –> Middle Power –> Low Power.j PF1Press [PF1] to activate its programmable function. The default function is “Weather Channel” (TM-D710GA)/“Frequency Band Select” (TM-D710GE).k PF2Press [PF2] to activate its programmable function. The default function is “Operation Band Select”.l BAND SEL (VOL) ControlRotate the [BAND SEL] control to adjust the speaker volume. Press the left [BAND SEL] to select the A band. Press the right [BAND SEL] to select the B band. Press [BAND SEL] (1s) to toggle between single and dual-band mode.m SQL ControlRotate the [SQL] control to adjust the squelch level. Clockwise opens the squelch and counterclockwise tightens the squelch.n TNCPress [TNC] to turn the built-in TNC ON and the APRS (or NAVITRA) mode ON. Each time you press [TNC], the mode toggles as follows: APRS (or NAVITRA) mode ON >> PACKET mode ON >> TNC OFF.• When the built-in TNC turns on, “OPENING TNC” appears on the display.• When “OPENING TNC” appears on the display, the mode cannot be changed.o PMPress [PM] to enter the PM (Programmable Memory) channel selection mode. p Press [ ] to turn the transceiver power ON and OFF.

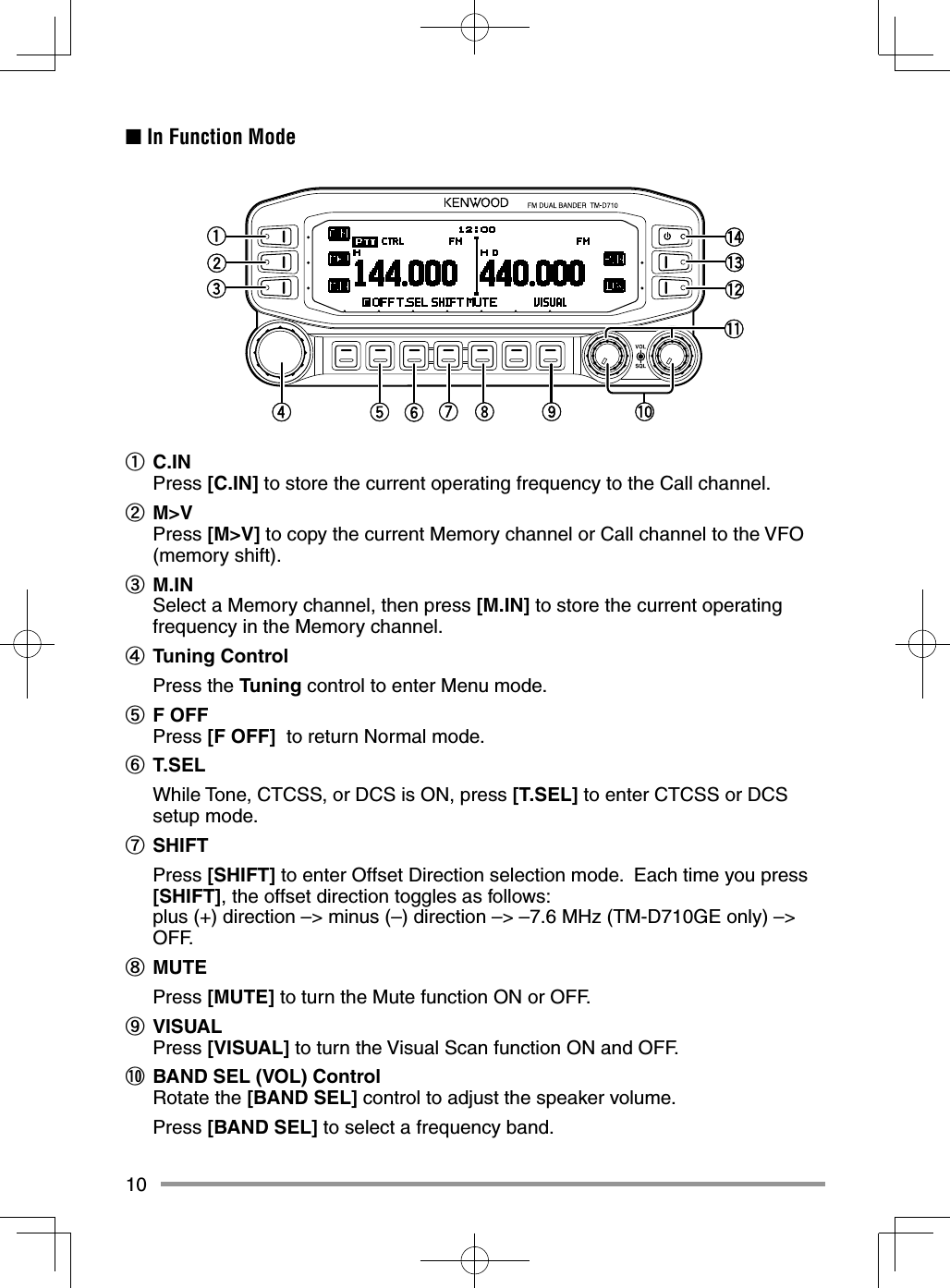

10■ In Function Modea C.INPress [C.IN] to store the current operating frequency to the Call channel.b M>VPress [M>V] to copy the current Memory channel or Call channel to the VFO (memory shift).c M.INSelect a Memory channel, then press [M.IN] to store the current operating frequency in the Memory channel.d Tuning Control Press the Tuning control to enter Menu mode. e F OFFPress [F OFF] to return Normal mode. f T.SEL While Tone, CTCSS, or DCS is ON, press [T.SEL] to enter CTCSS or DCS setup mode. g SHIFT Press [SHIFT] to enter Offset Direction selection mode. Each time you press [SHIFT], the offset direction toggles as follows:plus (+) direction –> minus (–) direction –> –7.6 MHz (TM-D710GE only) –> OFF.h MUTE Press [MUTE] to turn the Mute function ON or OFF.i VISUALPress [VISUAL] to turn the Visual Scan function ON and OFF.j BAND SEL (VOL) ControlRotate the [BAND SEL] control to adjust the speaker volume. Press [BAND SEL] to select a frequency band.

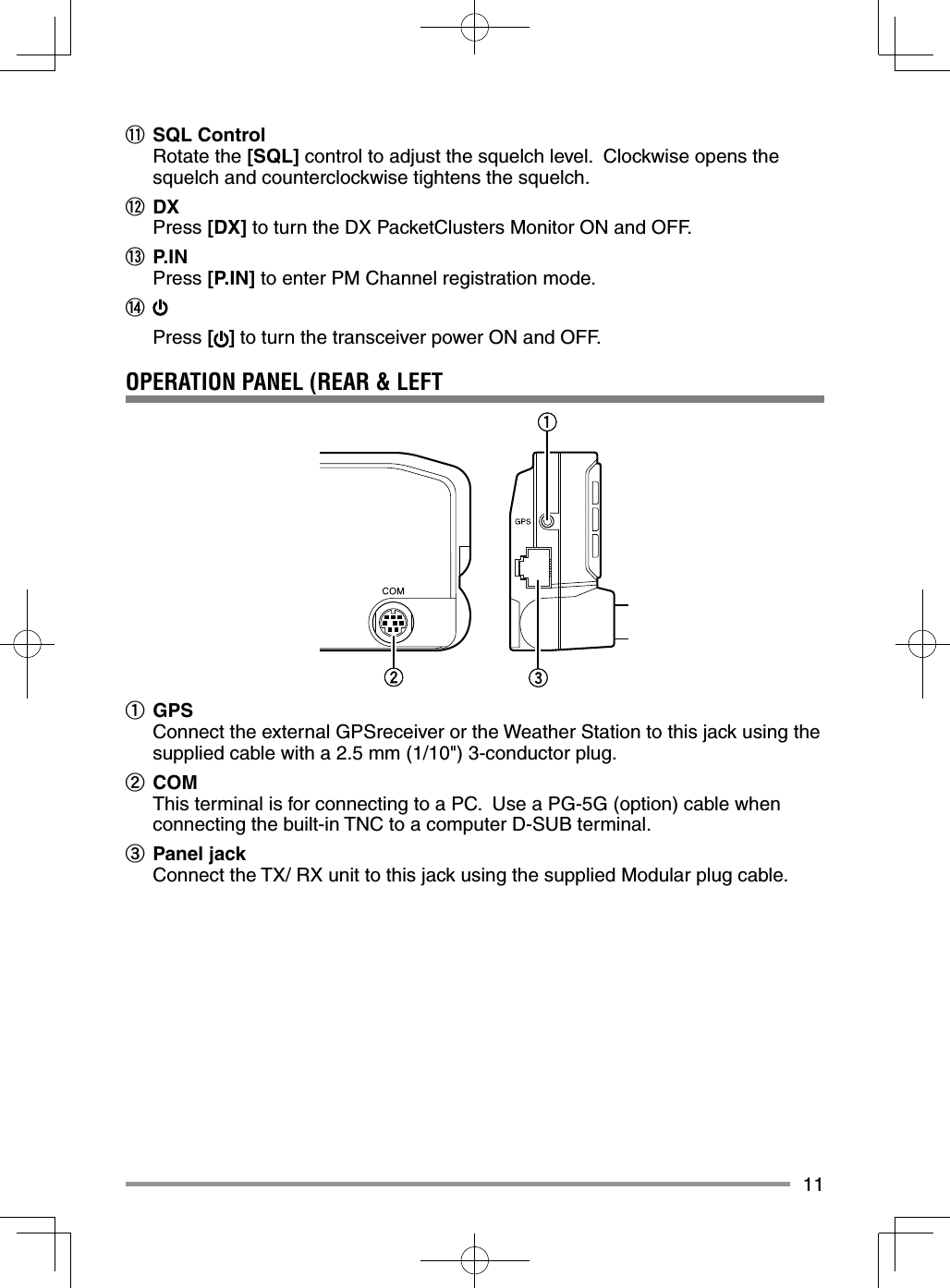

11k SQL ControlRotate the [SQL] control to adjust the squelch level. Clockwise opens the squelch and counterclockwise tightens the squelch.l DXPress [DX] to turn the DX PacketClusters Monitor ON and OFF.m P.INPress [P.IN] to enter PM Channel registration mode.n Press [ ] to turn the transceiver power ON and OFF.OPERATION PANEL (REAR & LEFTa GPSConnect the external GPSreceiver or the Weather Station to this jack using the supplied cable with a 2.5 mm (1/10") 3-conductor plug.b COMThis terminal is for connecting to a PC. Use a PG-5G (option) cable when connecting the built-in TNC to a computer D-SUB terminal.c Panel jackConnect the TX/ RX unit to this jack using the supplied Modular plug cable.

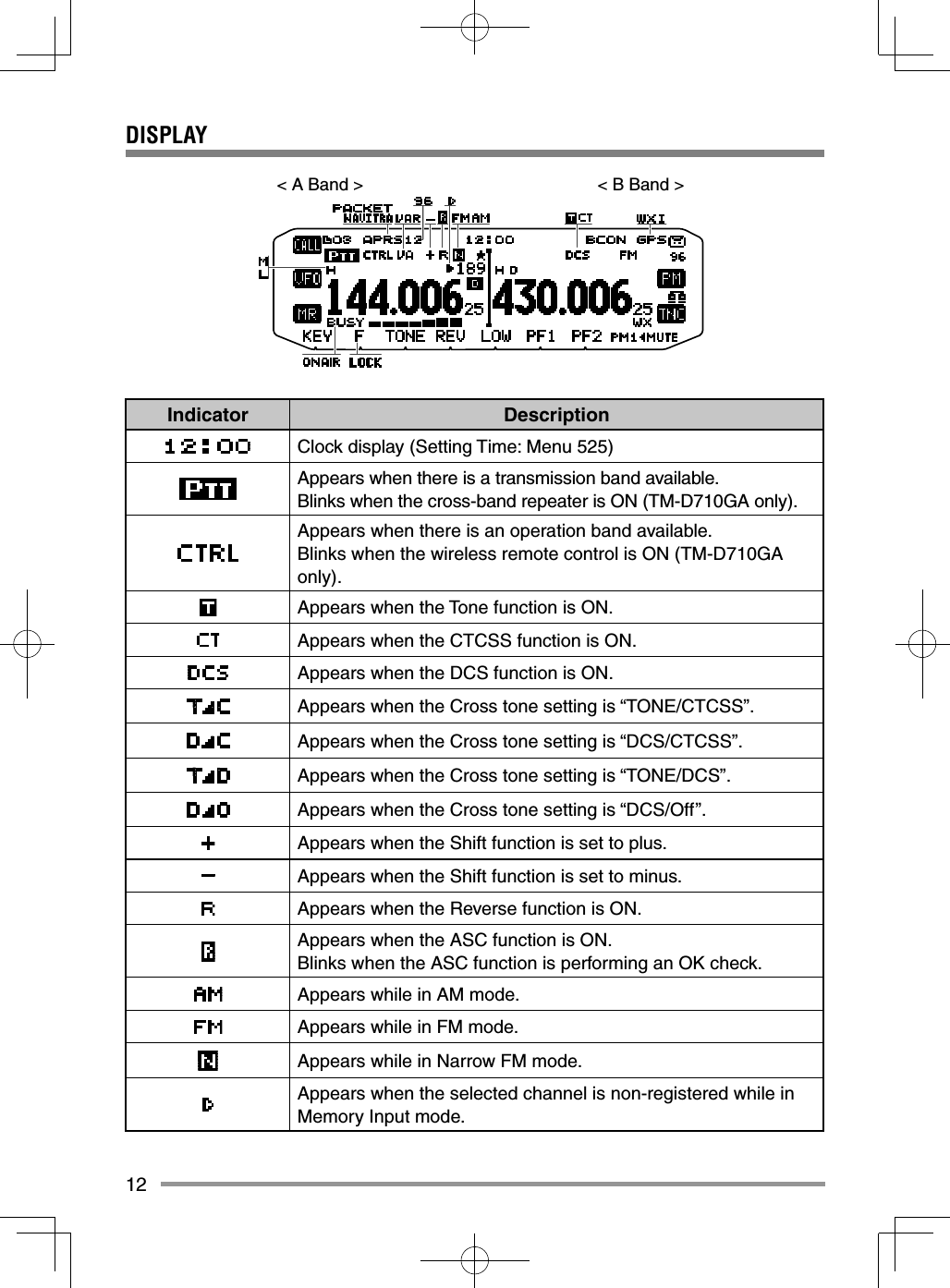

12DISPLAYIndicator DescriptionClock display (Setting Time: Menu 525)Appears when there is a transmission band available. Blinks when the cross-band repeater is ON (TM-D710GA only).Appears when there is an operation band available. Blinks when the wireless remote control is ON (TM-D710GA only).Appears when the Tone function is ON.Appears when the CTCSS function is ON.Appears when the DCS function is ON.Appears when the Cross tone setting is “TONE/CTCSS”.Appears when the Cross tone setting is “DCS/CTCSS”.Appears when the Cross tone setting is “TONE/DCS”.Appears when the Cross tone setting is “DCS/Off”.Appears when the Shift function is set to plus.Appears when the Shift function is set to minus.Appears when the Reverse function is ON.Appears when the ASC function is ON. Blinks when the ASC function is performing an OK check.Appears while in AM mode.Appears while in FM mode.Appears while in Narrow FM mode.Appears when the selected channel is non-registered while in Memory Input mode.< A Band > < B Band >

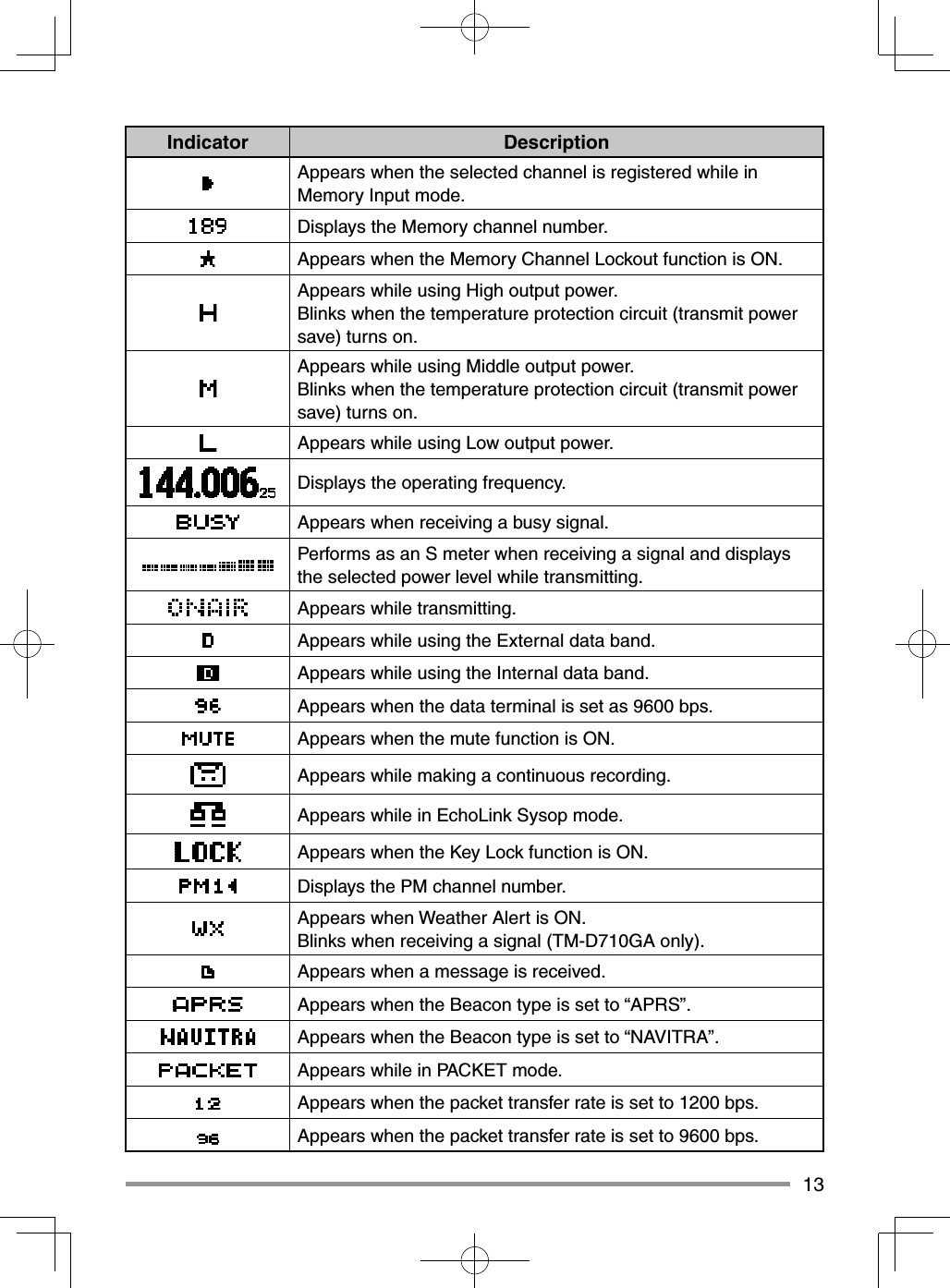

13Indicator DescriptionAppears when the selected channel is registered while in Memory Input mode.Displays the Memory channel number.Appears when the Memory Channel Lockout function is ON.Appears while using High output power. Blinks when the temperature protection circuit (transmit power save) turns on.Appears while using Middle output power. Blinks when the temperature protection circuit (transmit power save) turns on.Appears while using Low output power.Displays the operating frequency.Appears when receiving a busy signal.Performs as an S meter when receiving a signal and displays the selected power level while transmitting.Appears while transmitting.Appears while using the External data band.Appears while using the Internal data band.Appears when the data terminal is set as 9600 bps.Appears when the mute function is ON.Appears while making a continuous recording.Appears while in EchoLink Sysop mode.Appears when the Key Lock function is ON.Displays the PM channel number.Appears when Weather Alert is ON. Blinks when receiving a signal (TM-D710GA only).Appears when a message is received.Appears when the Beacon type is set to “APRS”.Appears when the Beacon type is set to “NAVITRA”.Appears while in PACKET mode.Appears when the packet transfer rate is set to 1200 bps.Appears when the packet transfer rate is set to 9600 bps.

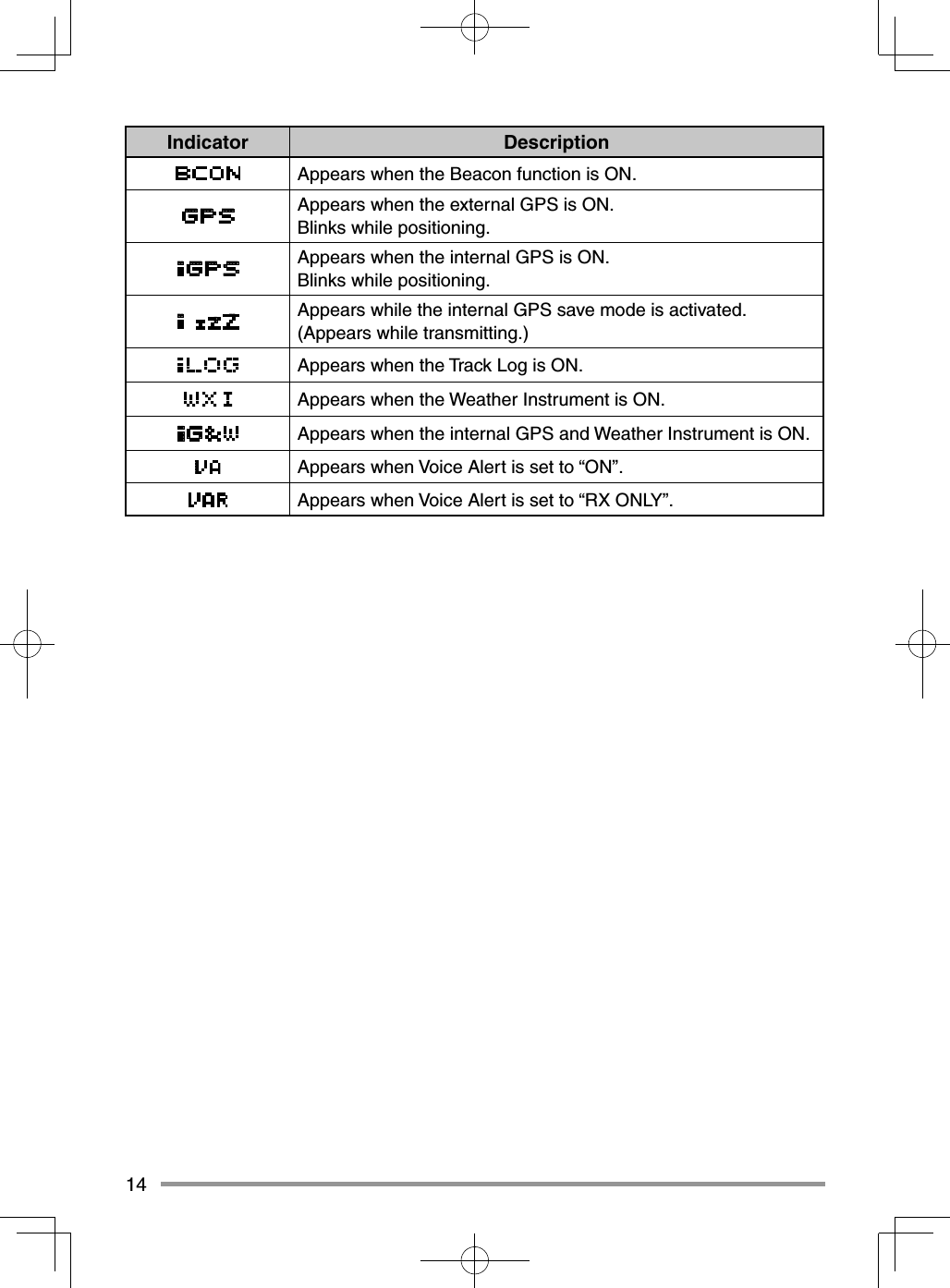

14Indicator DescriptionAppears when the Beacon function is ON.Appears when the external GPS is ON. Blinks while positioning.Appears when the internal GPS is ON. Blinks while positioning.Appears while the internal GPS save mode is activated. (Appears while transmitting.)Appears when the Track Log is ON.Appears when the Weather Instrument is ON.Appears when the internal GPS and Weather Instrument is ON.Appears when Voice Alert is set to “ON”.Appears when Voice Alert is set to “RX ONLY”.

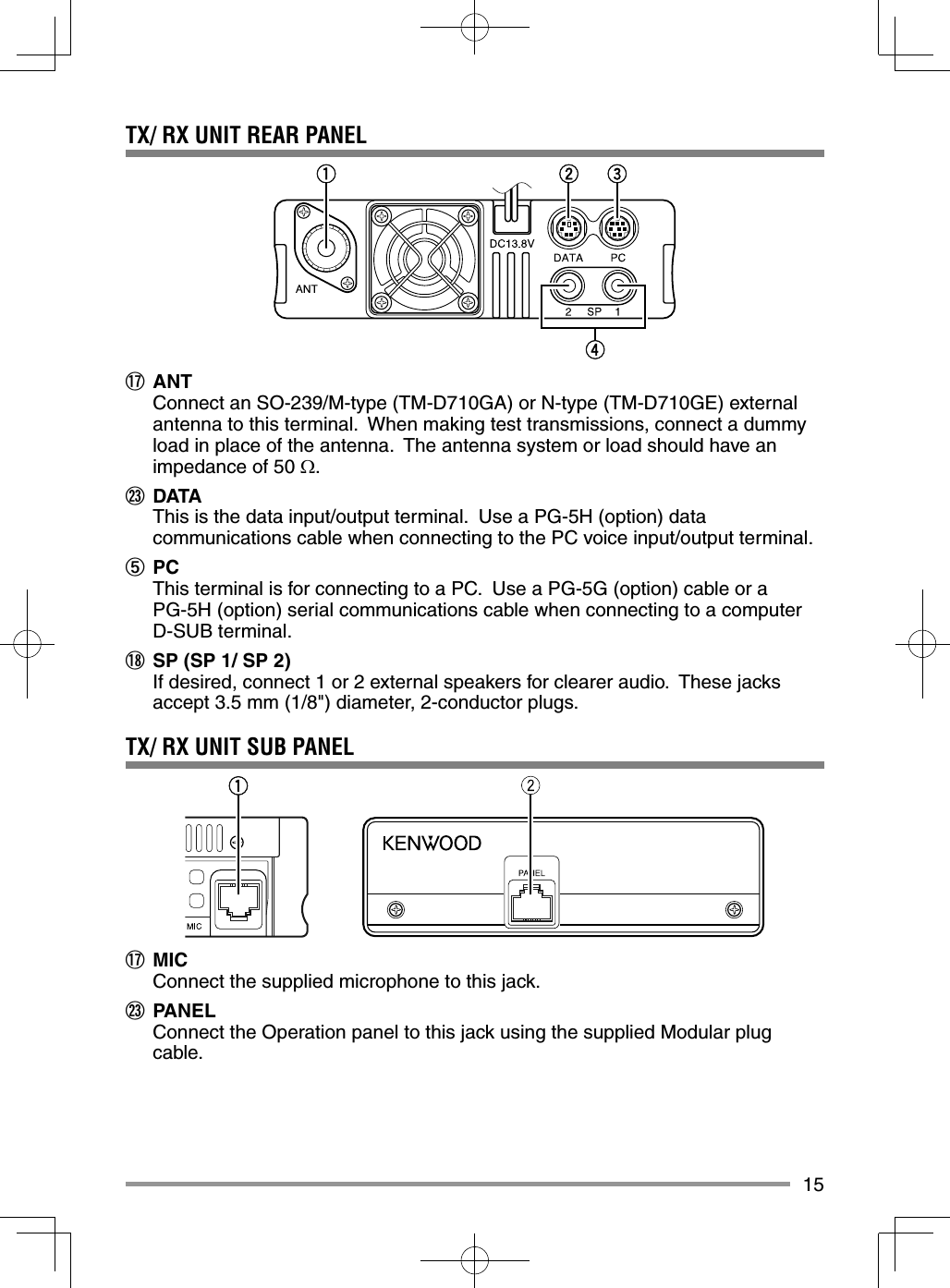

15TX/ RX UNIT REAR PANELq ANTConnect an SO-239/M-type (TM-D710GA) or N-type (TM-D710GE) external antenna to this terminal. When making test transmissions, connect a dummy load in place of the antenna. The antenna system or load should have an impedance of 50 .w DATAThis is the data input/output terminal. Use a PG-5H (option) data communications cable when connecting to the PC voice input/output terminal.e PCThis terminal is for connecting to a PC. Use a PG-5G (option) cable or a PG-5H (option) serial communications cable when connecting to a computer D-SUB terminal.r SP (SP 1/ SP 2)If desired, connect 1 or 2 external speakers for clearer audio. These jacks accept 3.5 mm (1/8") diameter, 2-conductor plugs. TX/ RX UNIT SUB PANELq MICConnect the supplied microphone to this jack.w PANELConnect the Operation panel to this jack using the supplied Modular plug cable.

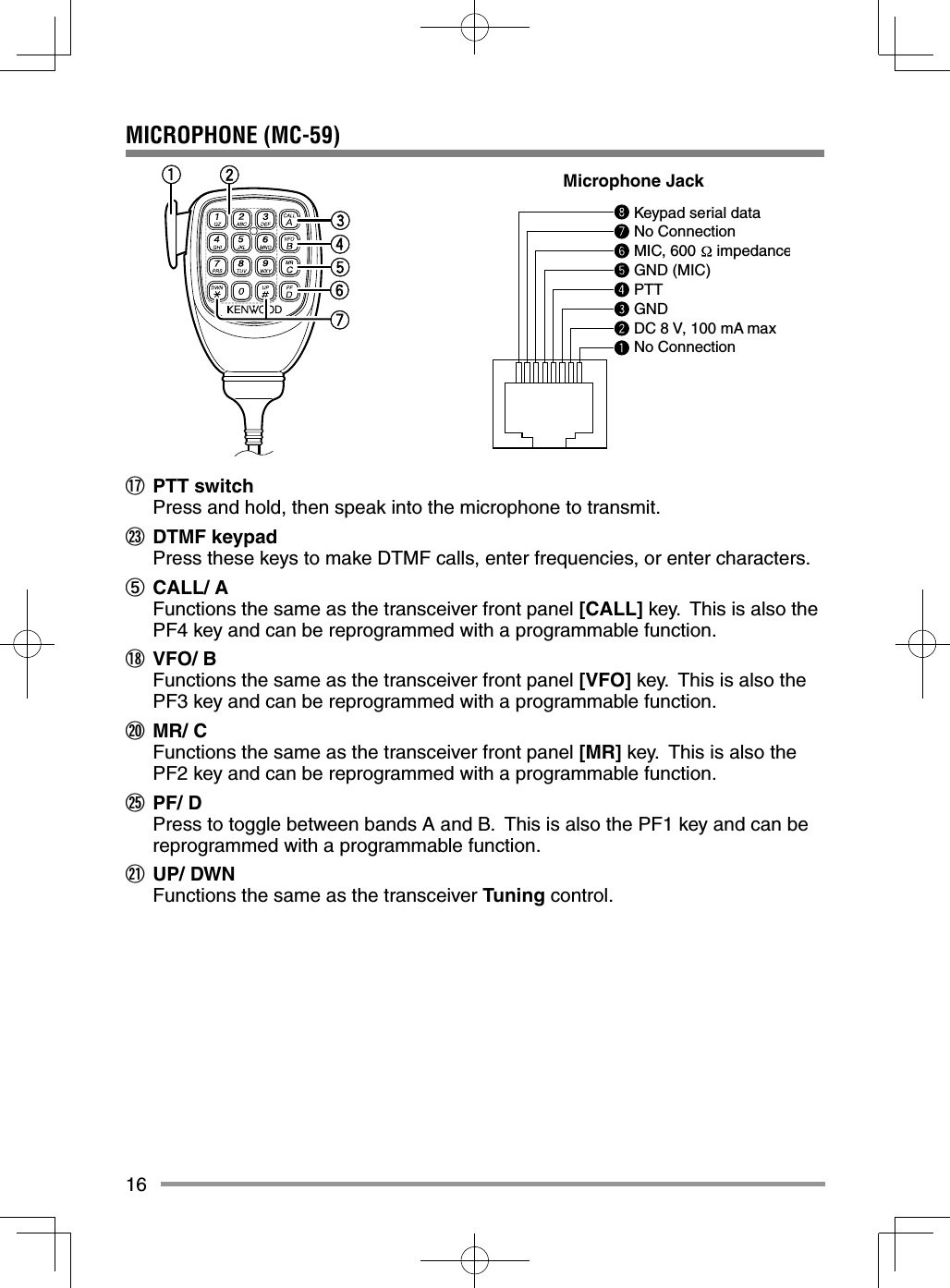

16MICROPHONE (MC-59)Keypad serial dataNo ConnectionMIC, 600 impedanceGND (MIC)PTTGNDDC 8 V, 100 mA maxNo ConnectionMicrophone Jackq PTT switchPress and hold, then speak into the microphone to transmit.w DTMF keypadPress these keys to make DTMF calls, enter frequencies, or enter characters.e CALL/ AFunctions the same as the transceiver front panel [CALL] key. This is also the PF4 key and can be reprogrammed with a programmable function.r VFO/ BFunctions the same as the transceiver front panel [VFO] key. This is also the PF3 key and can be reprogrammed with a programmable function.t MR/ CFunctions the same as the transceiver front panel [MR] key. This is also the PF2 key and can be reprogrammed with a programmable function.y PF/ DPress to toggle between bands A and B. This is also the PF1 key and can be reprogrammed with a programmable function.u UP/ DWNFunctions the same as the transceiver Tuning control.

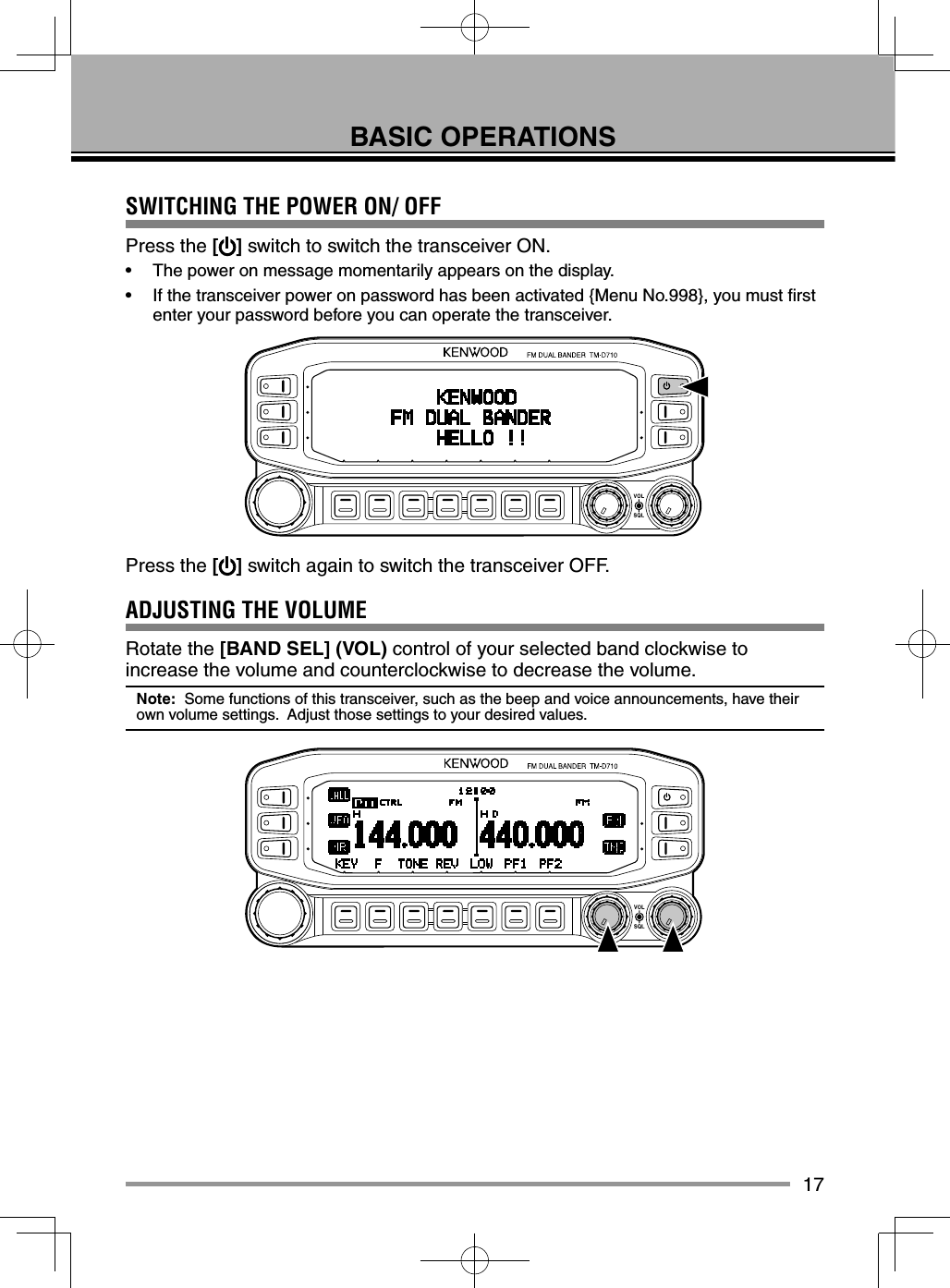

17BASIC OPERATIONSSWITCHING THE POWER ON/ OFFPress the [ ] switch to switch the transceiver ON.• The power on message momentarily appears on the display.• If the transceiver power on password has been activated {Menu No.998}, you must ﬁ rst enter your password before you can operate the transceiver.Press the [ ] switch again to switch the transceiver OFF.ADJUSTING THE VOLUMERotate the [BAND SEL] (VOL) control of your selected band clockwise to increase the volume and counterclockwise to decrease the volume.Note: Some functions of this transceiver, such as the beep and voice announcements, have their own volume settings. Adjust those settings to your desired values.

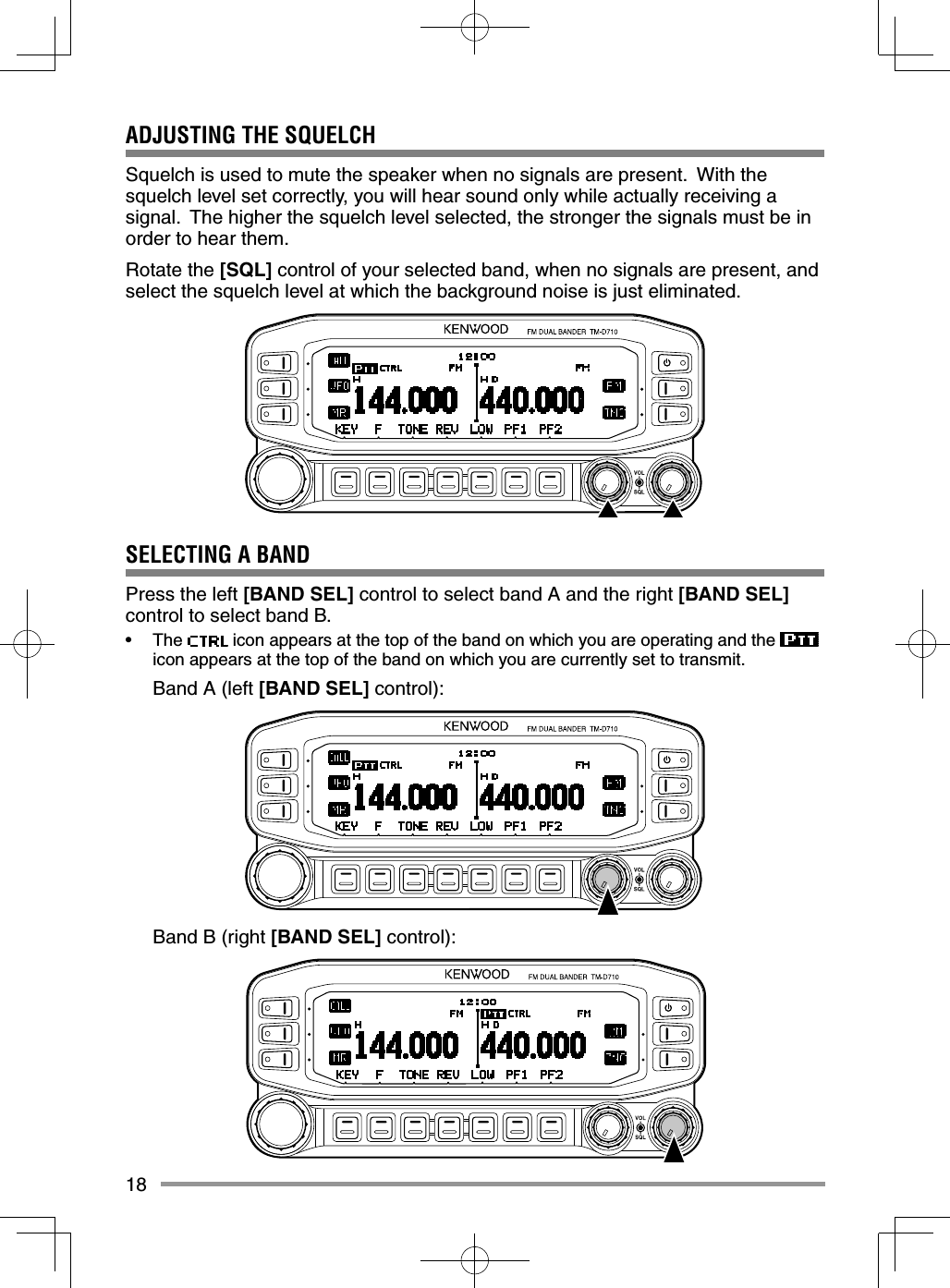

18ADJUSTING THE SQUELCHSquelch is used to mute the speaker when no signals are present. With the squelch level set correctly, you will hear sound only while actually receiving a signal. The higher the squelch level selected, the stronger the signals must be in order to hear them.Rotate the [SQL] control of your selected band, when no signals are present, and select the squelch level at which the background noise is just eliminated.SELECTING A BANDPress the left [BAND SEL] control to select band A and the right [BAND SEL] control to select band B.• The icon appears at the top of the band on which you are operating and the icon appears at the top of the band on which you are currently set to transmit. Band A (left [BAND SEL] control): Band B (right [BAND SEL] control):

19Pressing [PF2] allows you to switch the operating band between bands A and B, while maintaining the original band as the transmit band. Band A is the transmit band and band B is the operating band: Band A is both the transmit and operating band:

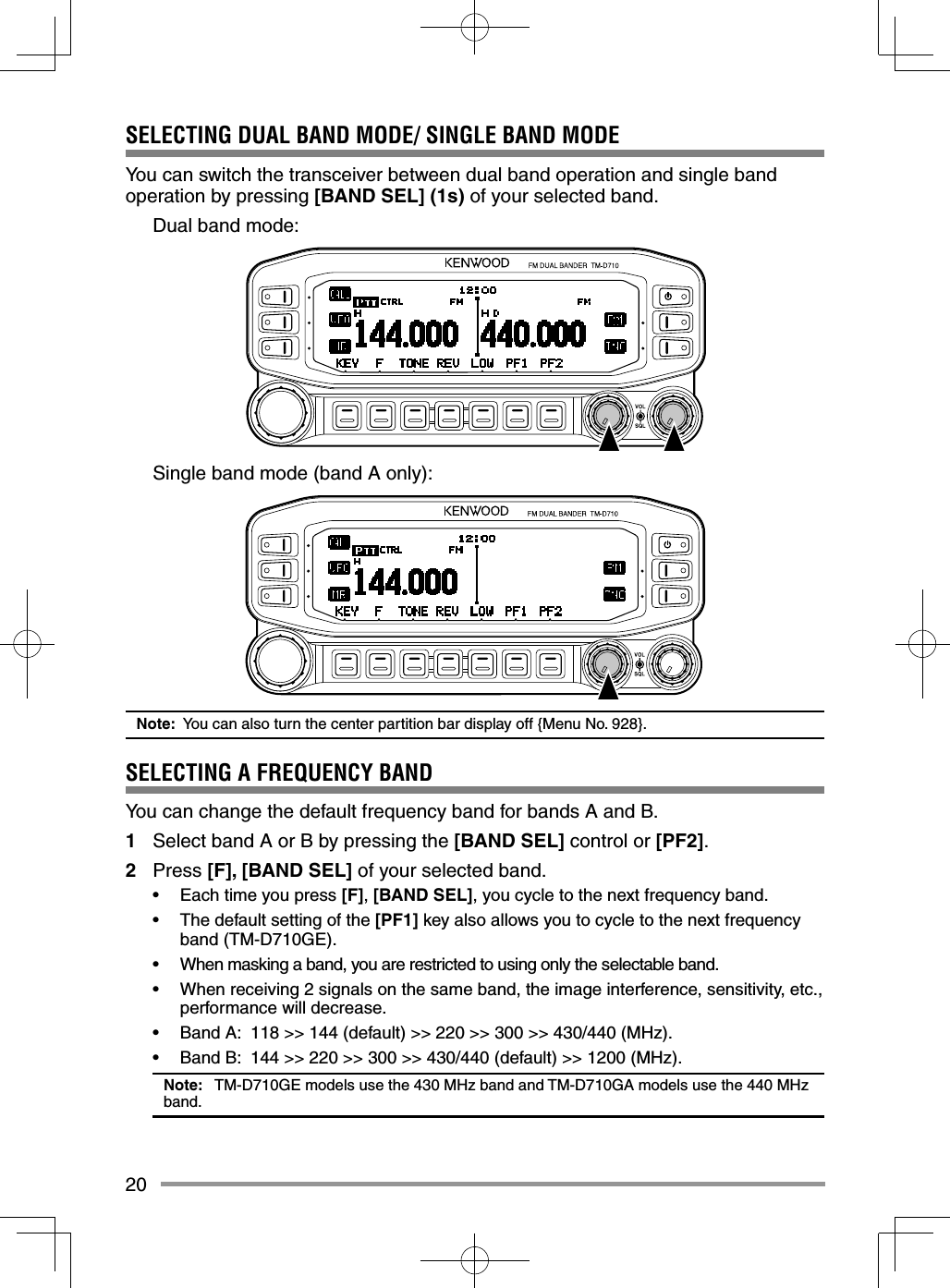

20SELECTING DUAL BAND MODE/ SINGLE BAND MODE You can switch the transceiver between dual band operation and single band operation by pressing [BAND SEL] (1s) of your selected band. Dual band mode: Single band mode (band A only):Note: You can also turn the center partition bar display off {Menu No. 928}.SELECTING A FREQUENCY BANDYou can change the default frequency band for bands A and B.1 Select band A or B by pressing the [BAND SEL] control or [PF2].2 Press [F], [BAND SEL] of your selected band.• Each time you press [F], [BAND SEL], you cycle to the next frequency band.• The default setting of the [PF1] key also allows you to cycle to the next frequency band (TM-D710GE).• When masking a band, you are restricted to using only the selectable band.• When receiving 2 signals on the same band, the image interference, sensitivity, etc., performance will decrease.• Band A: 118 >> 144 (default) >> 220 >> 300 >> 430/440 (MHz).• Band B: 144 >> 220 >> 300 >> 430/440 (default) >> 1200 (MHz).Note: TM-D710GE models use the 430 MHz band and TM-D710GA models use the 440 MHz band.

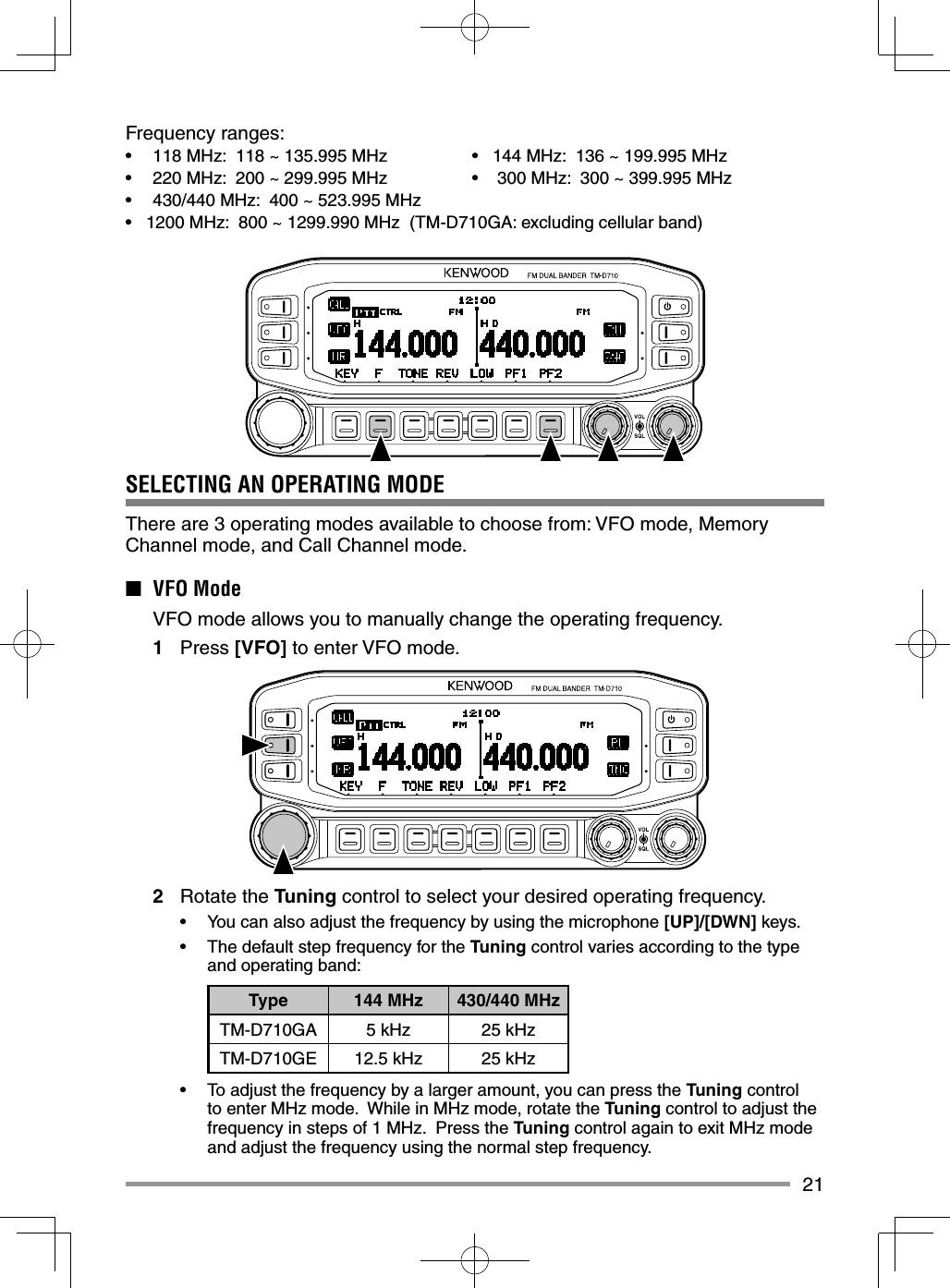

21Frequency ranges:• 118 MHz: 118 ~ 135.995 MHz • 144 MHz: 136 ~ 199.995 MHz• 220 MHz: 200 ~ 299.995 MHz • 300 MHz: 300 ~ 399.995 MHz• 430/440 MHz: 400 ~ 523.995 MHz • 1200 MHz: 800 ~ 1299.990 MHz (TM-D710GA: excluding cellular band)SELECTING AN OPERATING MODEThere are 3 operating modes available to choose from: VFO mode, Memory Channel mode, and Call Channel mode.■ VFO Mode VFO mode allows you to manually change the operating frequency.1 Press [VFO] to enter VFO mode.2 Rotate the Tuning control to select your desired operating frequency.• You can also adjust the frequency by using the microphone [UP]/[DWN] keys.• The default step frequency for the Tuning control varies according to the type and operating band:Type 144 MHz 430/440 MHzTM-D710GA 5 kHz 25 kHzTM-D710GE 12.5 kHz 25 kHz• To adjust the frequency by a larger amount, you can press the Tuning control to enter MHz mode. While in MHz mode, rotate the Tuning control to adjust the frequency in steps of 1 MHz. Press the Tuning control again to exit MHz mode and adjust the frequency using the normal step frequency.

22■ Memory Channel Mode Memory Channel mode allows you to quickly select a frequently used frequency and related data which you have saved in the transceiver memory.1 Press [MR] to enter Memory Channel mode.2 Rotate the Tuning control to select your desired Memory channel.■ Call Channel Mode Call Channel mode allows you to quickly select a preset channel to allow immediate calls on that frequency. The Call channel can be conveniently used as an emergency channel within your group.1 Select your desired band (A or B).• The Call channel has a dedicated frequency for both bands A and B. The default frequency for band A is 144 MHz. The default frequency for band B is 430/440 MHz. 2 Press [CALL] to enter Call Channel mode.• The icon appears on the display.3 Press [CALL] again to return to your previous operating frequency.

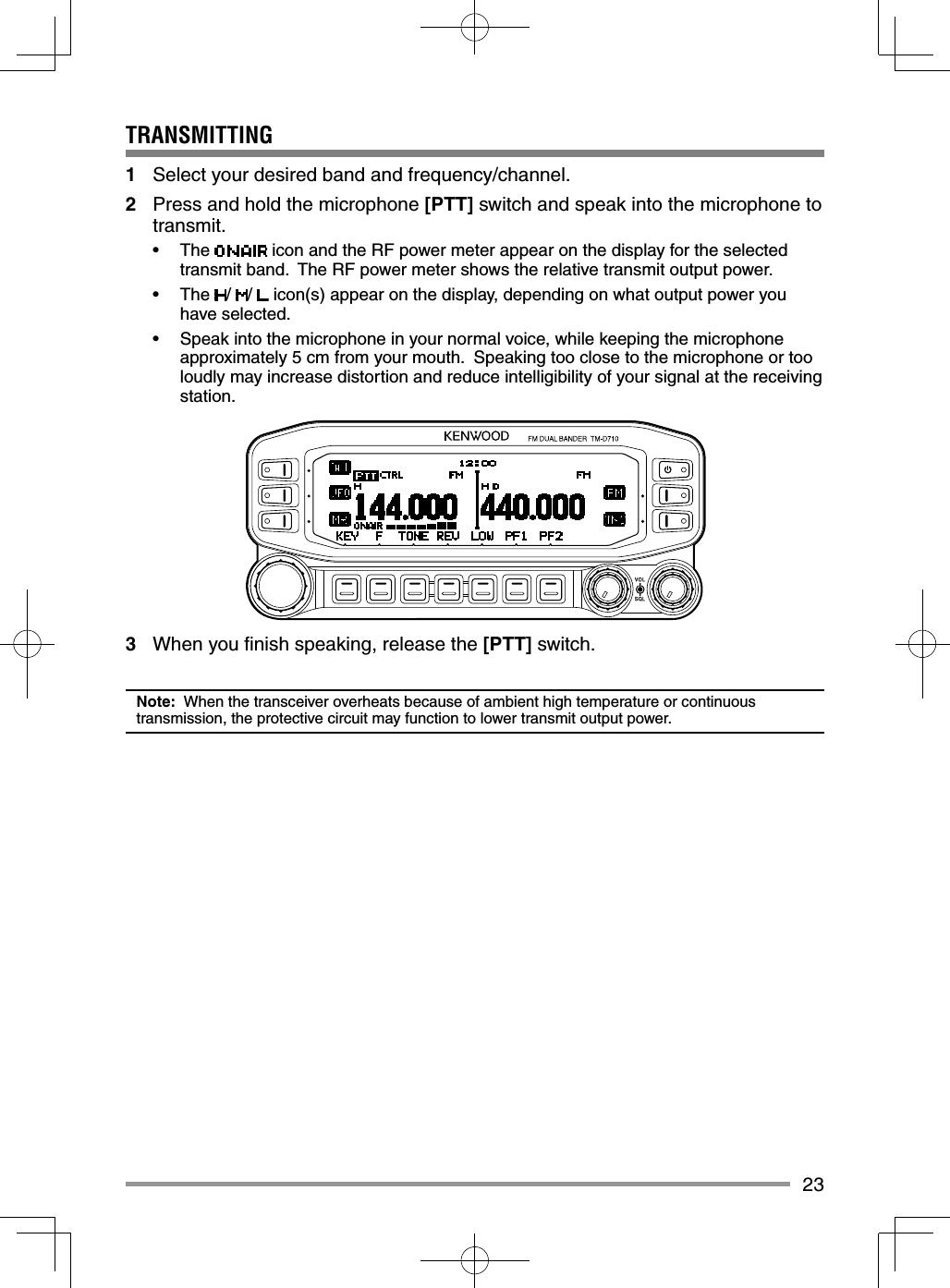

23TRANSMITTING1 Select your desired band and frequency/channel.2 Press and hold the microphone [PTT] switch and speak into the microphone to transmit.• The icon and the RF power meter appear on the display for the selected transmit band. The RF power meter shows the relative transmit output power.• The / / icon(s) appear on the display, depending on what output power you have selected.• Speak into the microphone in your normal voice, while keeping the microphone approximately 5 cm from your mouth. Speaking too close to the microphone or too loudly may increase distortion and reduce intelligibility of your signal at the receiving station.3 When you ﬁ nish speaking, release the [PTT] switch.Note: When the transceiver overheats because of ambient high temperature or continuous transmission, the protective circuit may function to lower transmit output power.

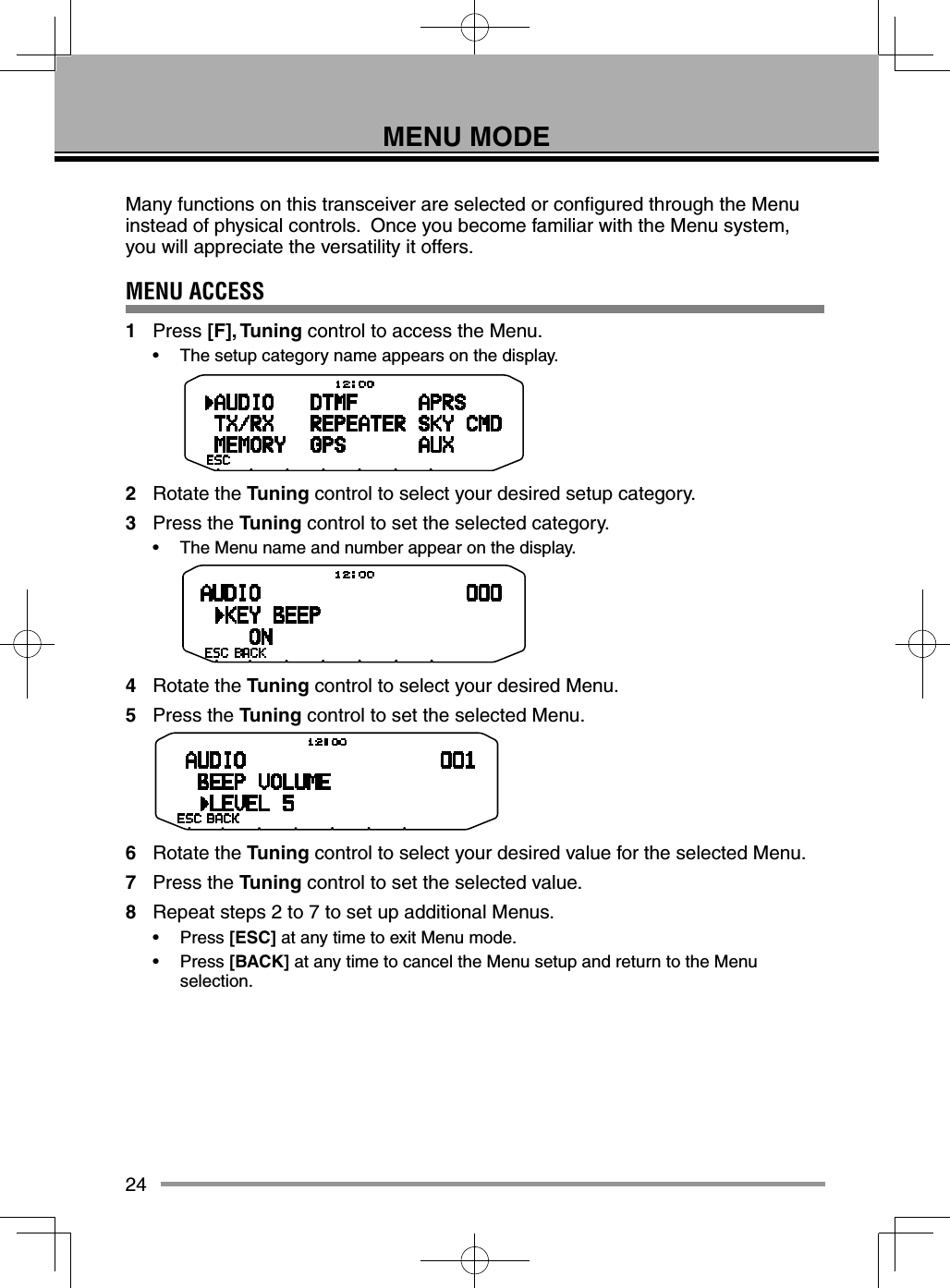

24MENU MODEMany functions on this transceiver are selected or conﬁ gured through the Menu instead of physical controls. Once you become familiar with the Menu system, you will appreciate the versatility it offers.MENU ACCESS1 Press [F], Tuning control to access the Menu.• The setup category name appears on the display.2 Rotate the Tuning control to select your desired setup category.3 Press the Tuning control to set the selected category.• The Menu name and number appear on the display.4 Rotate the Tuning control to select your desired Menu.5 Press the Tuning control to set the selected Menu.6 Rotate the Tuning control to select your desired value for the selected Menu.7 Press the Tuning control to set the selected value.8 Repeat steps 2 to 7 to set up additional Menus.• Press [ESC] at any time to exit Menu mode.• Press [BACK] at any time to cancel the Menu setup and return to the Menu selection.

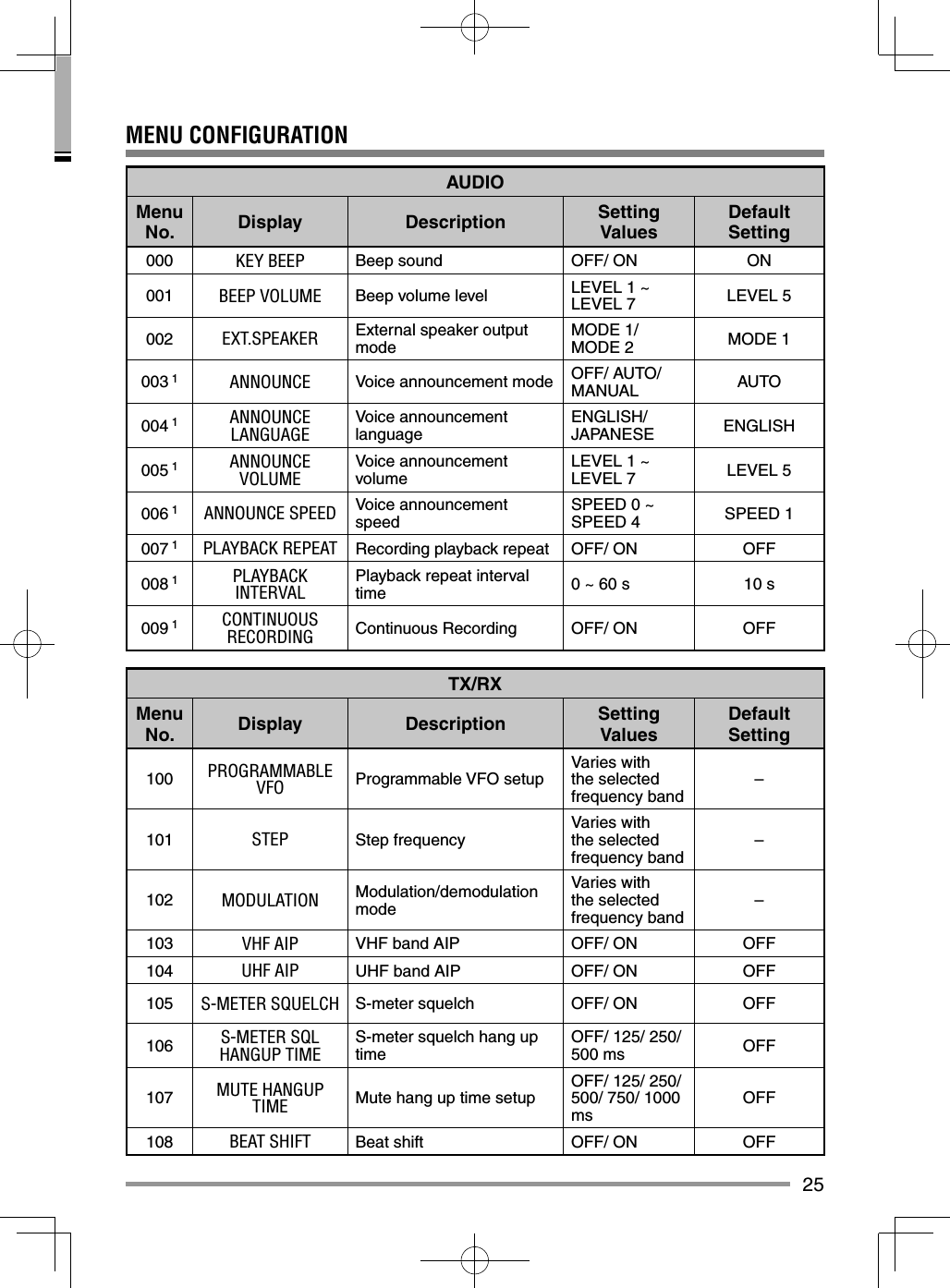

25MENU CONFIGURATIONAUDIOMenu No. Display Description Setting ValuesDefault Setting000 KEY BEEP Beep sound OFF/ ON ON001 BEEP VOLUME Beep volume level LEVEL 1 ~ LEVEL 7 LEVEL 5002 EXT.SPEAKER External speaker output mode MODE 1/ MODE 2 MODE 1003 1 ANNOUNCE Voice announcement mode OFF/ AUTO/ MANUAL AUTO004 1 ANNOUNCE LANGUAGEVoice announcement language ENGLISH/ JAPANESE ENGLISH005 1 ANNOUNCE VOLUMEVoice announcement volume LEVEL 1 ~ LEVEL 7 LEVEL 5006 1 ANNOUNCE SPEED Voice announcement speed SPEED 0 ~ SPEED 4 SPEED 1007 1 PLAYBACK REPEAT Recording playback repeat OFF/ ON OFF008 1 PLAYBACK INTERVALPlayback repeat interval time 0 ~ 60 s 10 s009 1 CONTINUOUS RECORDING Continuous Recording OFF/ ON OFFTX/RXMenu No. Display Description Setting ValuesDefault Setting100 PROGRAMMABLE VFO Programmable VFO setup Varies with the selected frequency band –101 STEP Step frequency Varies with the selected frequency band –102 MODULATION Modulation/demodulation modeVaries with the selected frequency band –103 VHF AIP VHF band AIP OFF/ ON OFF104 UHF AIP UHF band AIP OFF/ ON OFF105 S-METER SQUELCH S-meter squelch OFF/ ON OFF106 S-METER SQL HANGUP TIMES-meter squelch hang up time OFF/ 125/ 250/ 500 ms OFF107 MUTE HANGUP TIME Mute hang up time setup OFF/ 125/ 250/ 500/ 750/ 1000 ms OFF108 BEAT SHIFT Beat shift OFF/ ON OFF

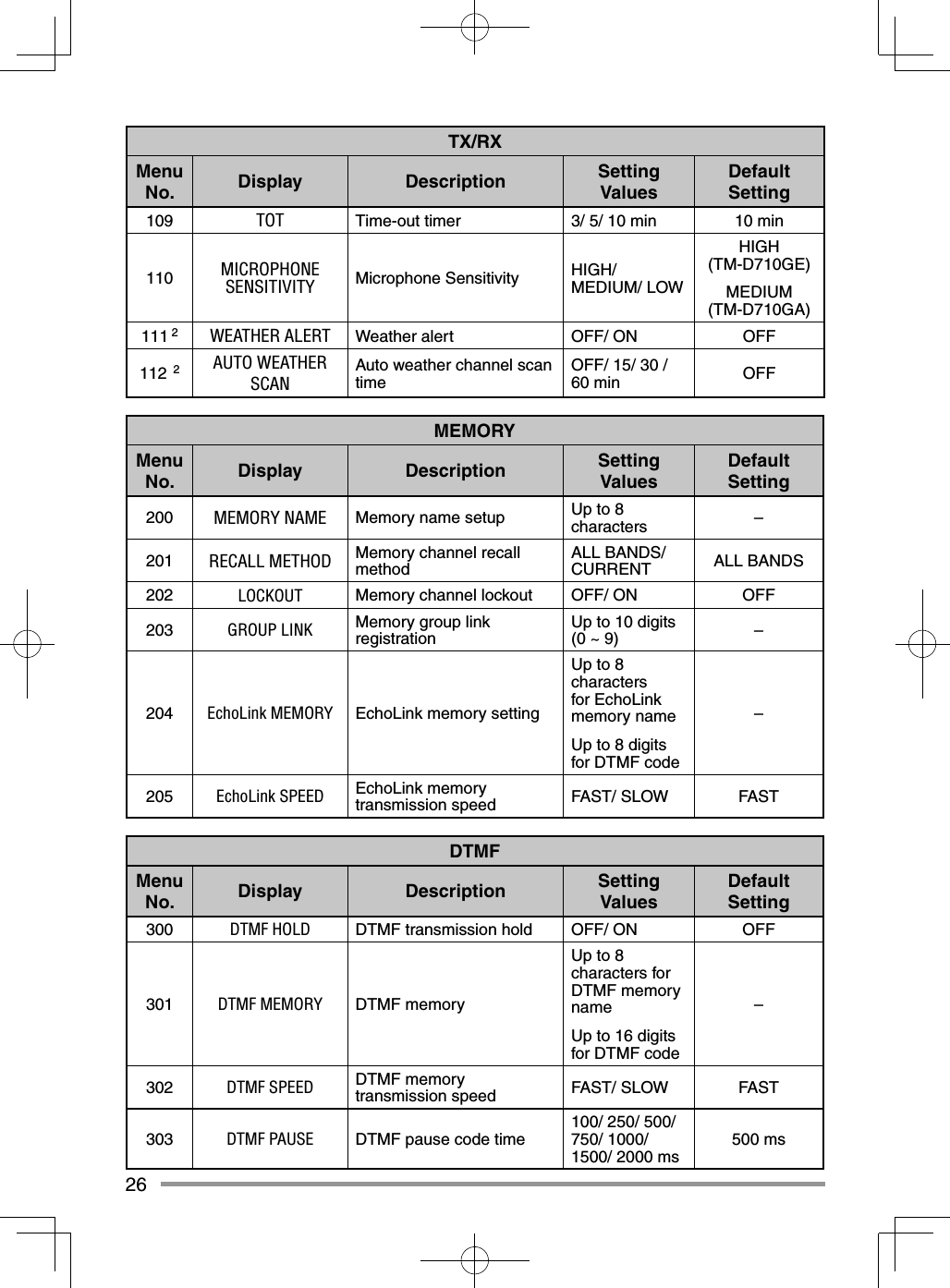

26TX/RXMenu No. Display Description Setting ValuesDefault Setting109 TOT Time-out timer 3/ 5/ 10 min 10 min110 MICROPHONE SENSITIVITY Microphone Sensitivity HIGH/ MEDIUM/ LOWHIGH (TM-D710GE)MEDIUM(TM-D710GA)111 2 WEATHER ALERT Weather alert OFF/ ON OFF112 2 AUTO WEATHER SCANAuto weather channel scan time OFF/ 15/ 30 / 60 min OFFMEMORYMenu No. Display Description Setting ValuesDefault Setting200 MEMORY NAME Memory name setup Up to 8 characters –201 RECALL METHOD Memory channel recall method ALL BANDS/ CURRENT ALL BANDS202 LOCKOUT Memory channel lockout OFF/ ON OFF203 GROUP LINK Memory group link registration Up to 10 digits (0 ~ 9) –204 EchoLink MEMORY EchoLink memory settingUp to 8 characters for EchoLink memory nameUp to 8 digits for DTMF code–205 EchoLink SPEED EchoLink memory transmission speed FAST/ SLOW FASTDTMFMenu No. Display Description Setting ValuesDefault Setting300 DTMF HOLD DTMF transmission hold OFF/ ON OFF301 DTMF MEMORY DTMF memoryUp to 8 characters for DTMF memory nameUp to 16 digits for DTMF code–302 DTMF SPEED DTMF memory transmission speed FAST/ SLOW FAST303 DTMF PAUSE DTMF pause code time 100/ 250/ 500/ 750/ 1000/ 1500/ 2000 ms 500 ms

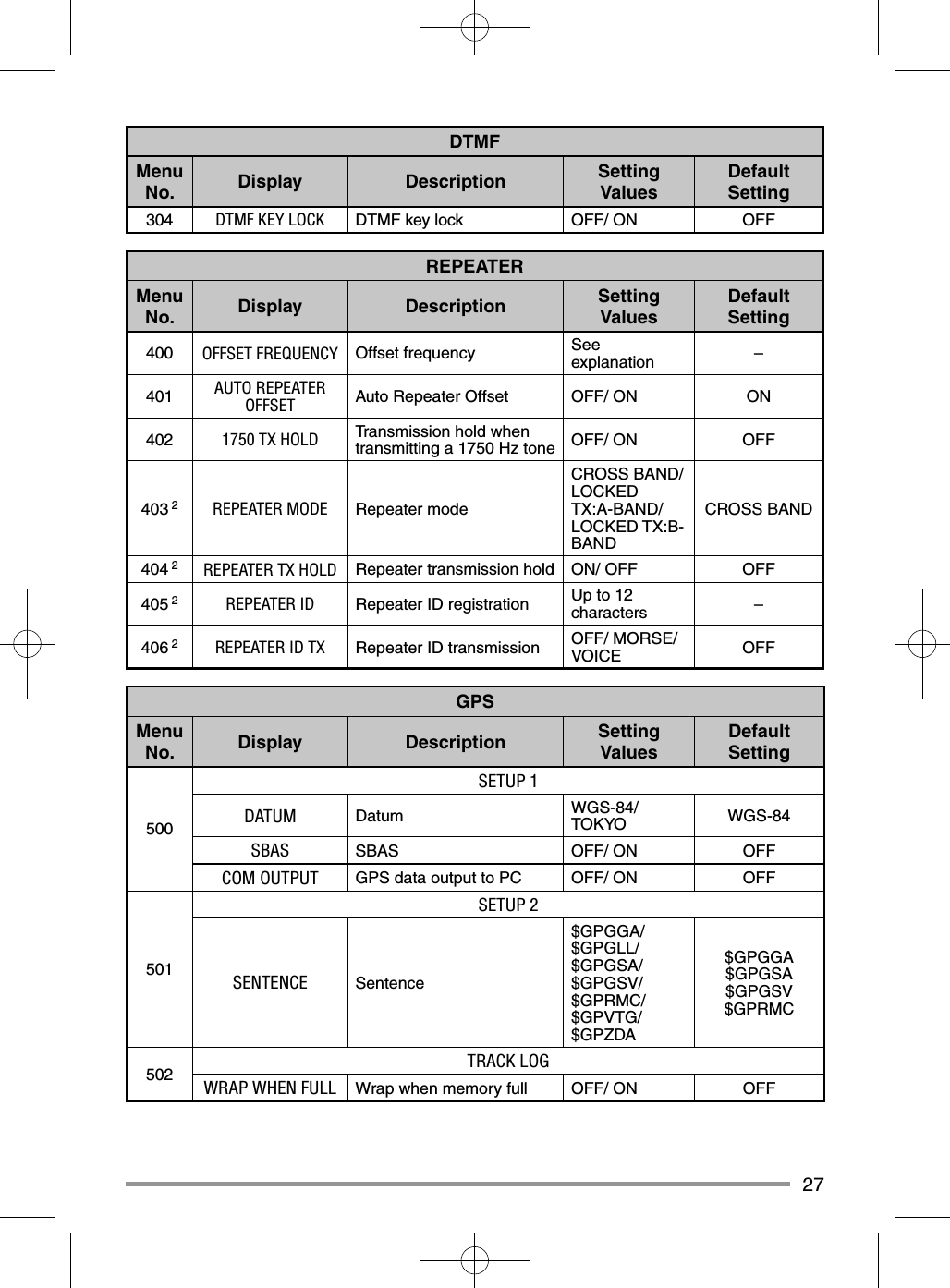

27DTMFMenu No. Display Description Setting ValuesDefault Setting304 DTMF KEY LOCK DTMF key lock OFF/ ON OFFREPEATERMenu No. Display Description Setting ValuesDefault Setting400 OFFSET FREQUENCY Offset frequency See explanation –401 AUTO REPEATER OFFSET Auto Repeater Offset OFF/ ON ON402 1750 TX HOLD Transmission hold when transmitting a 1750 Hz tone OFF/ ON OFF403 2 REPEATER MODE Repeater modeCROSS BAND/ LOCKED TX:A-BAND/ LOCKED TX:B-BANDCROSS BAND404 2 REPEATER TX HOLD Repeater transmission hold ON/ OFF OFF405 2 REPEATER ID Repeater ID registration Up to 12 characters –406 2 REPEATER ID TX Repeater ID transmission OFF/ MORSE/ VOICE OFFGPSMenu No. Display Description Setting ValuesDefault Setting500SETUP 1DATUM Datum WGS-84/ TOKYO WGS-84SBAS SBAS OFF/ ON OFFCOM OUTPUT GPS data output to PC OFF/ ON OFF501SETUP 2SENTENCE Sentence$GPGGA/ $GPGLL/ $GPGSA/ $GPGSV/ $GPRMC/ $GPVTG/ $GPZDA$GPGGA $GPGSA $GPGSV $GPRMC502 TRACK LOGWRAP WHEN FULL Wrap when memory full OFF/ ON OFF

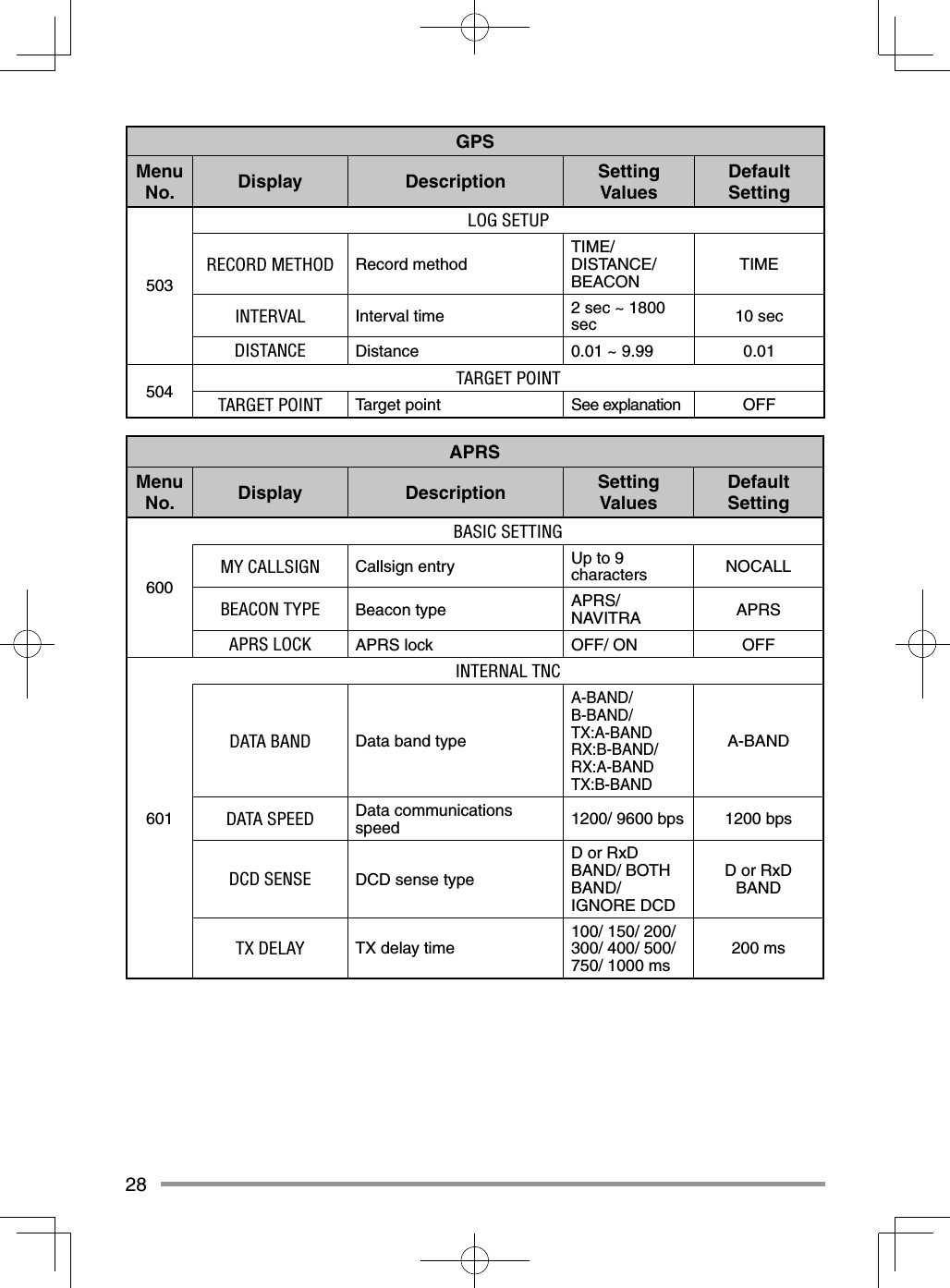

28GPSMenu No. Display Description Setting ValuesDefault Setting503LOG SETUPRECORD METHOD Record method TIME/ DISTANCE/ BEACON TIMEINTERVAL Interval time 2 sec ~ 1800 sec 10 secDISTANCE Distance 0.01 ~ 9.99 0.01504 TARGET POINTTARGET POINT Target point See explanation OFFAPRSMenu No. Display Description Setting ValuesDefault Setting600BASIC SETTINGMY CALLSIGN Callsign entry Up to 9 characters NOCALLBEACON TYPE Beacon type APRS/ NAVITRA APRSAPRS LOCK APRS lock OFF/ ON OFF601INTERNAL TNCDATA BAND Data band typeA-BAND/ B-BAND/ TX:A-BAND RX:B-BAND/ RX:A-BAND TX:B-BANDA-BANDDATA SPEED Data communications speed 1200/ 9600 bps 1200 bpsDCD SENSE DCD sense typeD or RxD BAND/ BOTH BAND/ IGNORE DCDD or RxD BANDTX DELAY TX delay time 100/ 150/ 200/ 300/ 400/ 500/ 750/ 1000 ms 200 ms

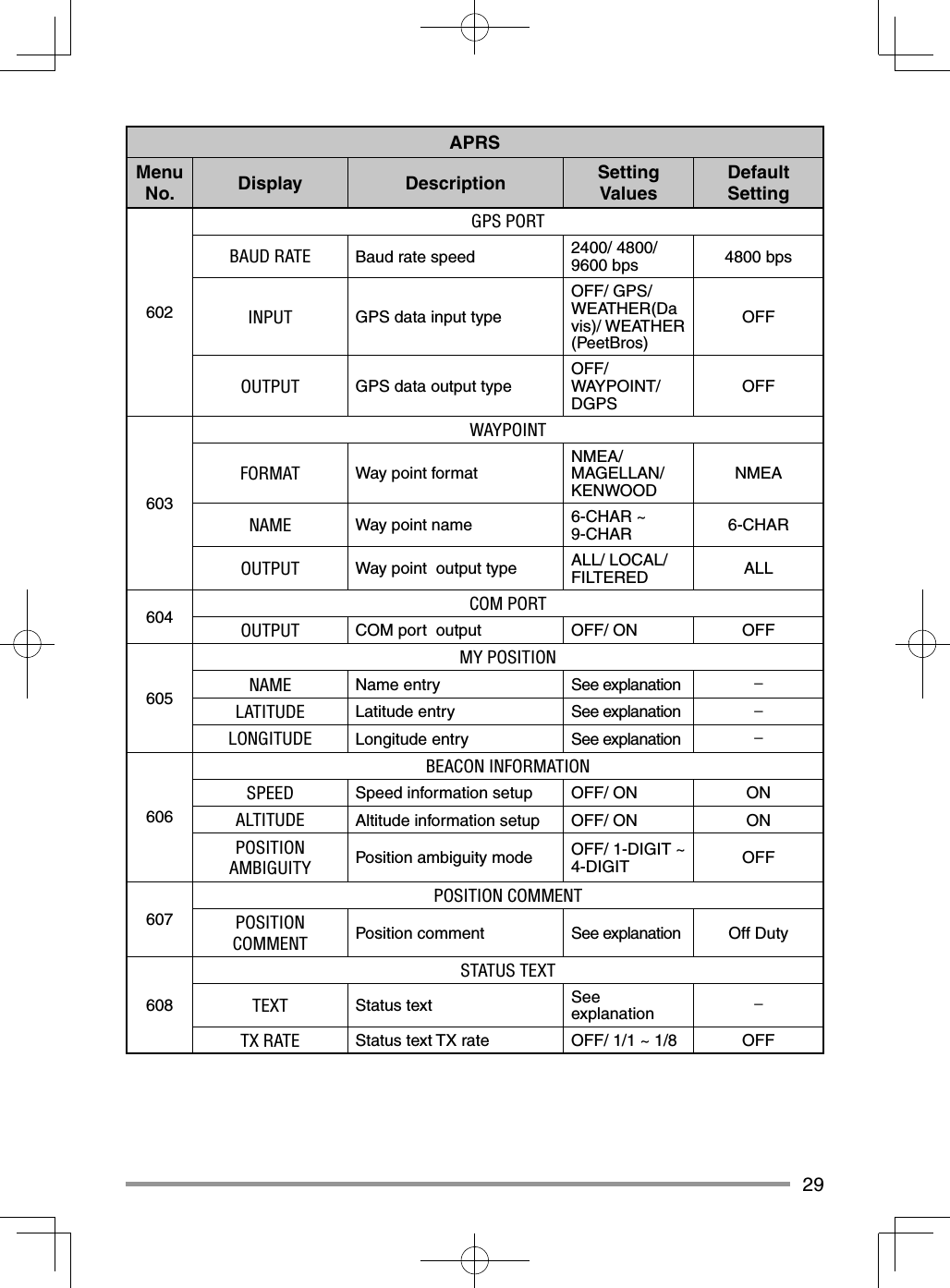

29APRSMenu No. Display Description Setting ValuesDefault Setting602GPS PORTBAUD RATE Baud rate speed 2400/ 4800/ 9600 bps 4800 bpsINPUT GPS data input typeOFF/ GPS/ WEATHER(Da vis)/ WEATHER (PeetBros) OFFOUTPUT GPS data output type OFF/ WAYPOINT/ DGPS OFF603WAYPOINTFORMAT Way point format NMEA/ MAGELLAN/ KENWOOD NMEANAME Way point name 6-CHAR ~ 9-CHAR 6-CHAROUTPUT Way point output type ALL/ LOCAL/ FILTERED ALL604 COM PORTOUTPUT COM port output OFF/ ON OFF605MY POSITIONNAME Name entry See explanation −LATITUDE Latitude entry See explanation −LONGITUDE Longitude entry See explanation −606BEACON INFORMATIONSPEED Speed information setup OFF/ ON ONALTITUDE Altitude information setup OFF/ ON ONPOSITION AMBIGUITY Position ambiguity mode OFF/ 1-DIGIT ~ 4-DIGIT OFF607POSITION COMMENTPOSITION COMMENT Position comment See explanation Off Duty608STATUS TEXTTEXT Status text See explanation −TX RATE Status text TX rate OFF/ 1/1 ~ 1/8 OFF

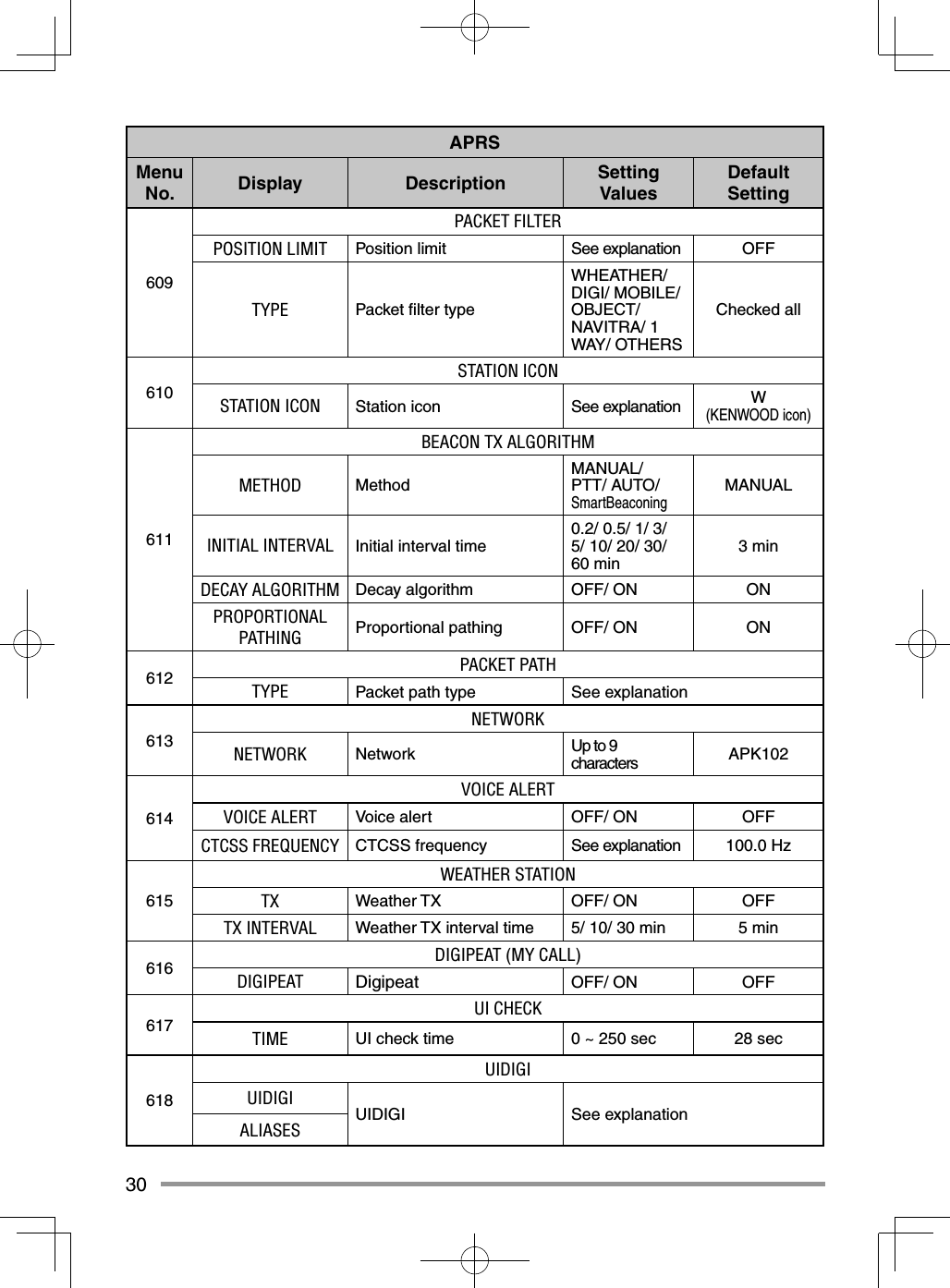

30APRSMenu No. Display Description Setting ValuesDefault Setting609PACKET FILTER POSITION LIMIT Position limit See explanation OFFTYPE Packet ﬁ lter typeWHEATHER/ DIGI/ MOBILE/ OBJECT/ NAVITRA/ 1 WAY/ OTHERSChecked all610STATION ICONSTATION ICON Station icon See explanation W(KENWOOD icon)611BEACON TX ALGORITHMMETHOD Method MANUAL/ PTT/ AUTO/ SmartBeaconingMANUALINITIAL INTERVAL Initial interval time 0.2/ 0.5/ 1/ 3/ 5/ 10/ 20/ 30/ 60 min 3 minDECAY ALGORITHM Decay algorithm OFF/ ON ONPROPORTIONAL PATHING Proportional pathing OFF/ ON ON612 PACKET PATHTYPE Packet path type See explanation613NETWORKNETWORK Network Up to 9 characters APK102614VOICE ALERTVOICE ALERT Voice alert OFF/ ON OFFCTCSS FREQUENCY CTCSS frequency See explanation 100.0 Hz615WEATHER STATIONTX Weather TX OFF/ ON OFFTX INTERVAL Weather TX interval time 5/ 10/ 30 min 5 min616 DIGIPEAT (MY CALL)DIGIPEAT Digipeat OFF/ ON OFF617 UI CHECKTIME UI check time 0 ~ 250 sec 28 sec618UIDIGIUIDIGI UIDIGI See explanationALIASES

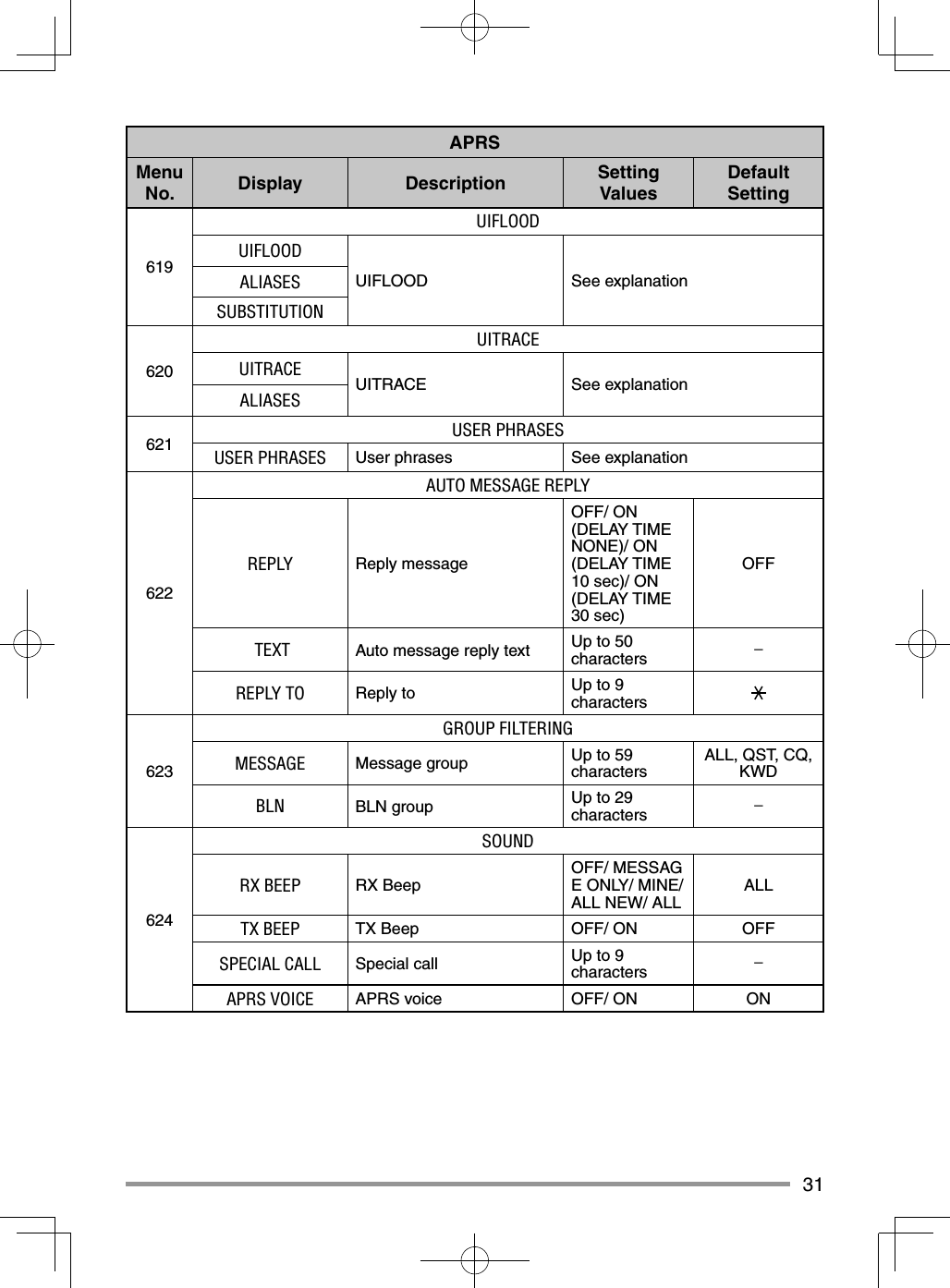

31APRSMenu No. Display Description Setting ValuesDefault Setting619UIFLOODUIFLOODUIFLOOD See explanationALIASESSUBSTITUTION620UITRACEUITRACE UITRACE See explanationALIASES621 USER PHRASESUSER PHRASES User phrases See explanation622AUTO MESSAGE REPLYREPLY Reply messageOFF/ ON (DELAY TIME NONE)/ ON (DELAY TIME 10 sec)/ ON (DELAY TIME 30 sec)OFF TEXT Auto message reply text Up to 50 characters −REPLY TO Reply to Up to 9 characters623GROUP FILTERINGMESSAGE Message group Up to 59 characters ALL, QST, CQ, KWDBLN BLN group Up to 29 characters −624SOUNDRX BEEP RX Beep OFF/ MESSAG E ONLY/ MINE/ ALL NEW/ ALL ALLTX BEEP TX Beep OFF/ ON OFFSPECIAL CALL Special call Up to 9 characters −APRS VOICE APRS voice OFF/ ON ON

32APRSMenu No. Display Description Setting ValuesDefault Setting625INTERRUPT DISPLAYDISPLAY AREA Display areaOFF/ HALF/ ENTIRE/ ENTIRE ALWAYSENTIRE ALWAYSAUTO BRIGHTNESS Auto brightness OFF/ ON ONCHANGE COLOR Change color OFF/ ON ONINTERRUPT TIME Interrupt time 3/ 5/ 10 sec/ INFINITE 10 sec626DISPLAY UNIT 1SPEED, DISTANCE Speed/ distance mi/h, mile/ Km/h, km/ Knots, nm mi/h, mileALTITUDE, RAIN Altitude/ rain feet, inch/ m, nm feet, inchTEMPERATURE Temperature °F/ °C °F627DISPLAY UNIT 2POSITION Position format dd°mm. mm’/ dd°mm’ ss. s” dd°mm. mm’GRID FORMAT Grid formatMAIDENHEAD GRID/ SAR GRID (CONV)/ SAR GRID (CELL)MAIDENHEAD GRID628NAVITRA GROUPGROUP MODE Group mode OFF/ ON OFFGROUP CODE Group code 3 characters 000629NAVITRA MESSAGEMESSAGE Message Up to 20 characters −630SMARTBEACONING 1LOW SPEED Low speed setting 2 ~ 30 <mi/h, km/h, knots> 5HIGH SPEED High speed setting 2 ~ 90 <mi/h, km/h, knots> 70SLOW RATE Low speed transmission interval time 1 ~ 100 min 30 minFAST RATE High speed transmission interval time 10 ~ 180 sec 120 sec

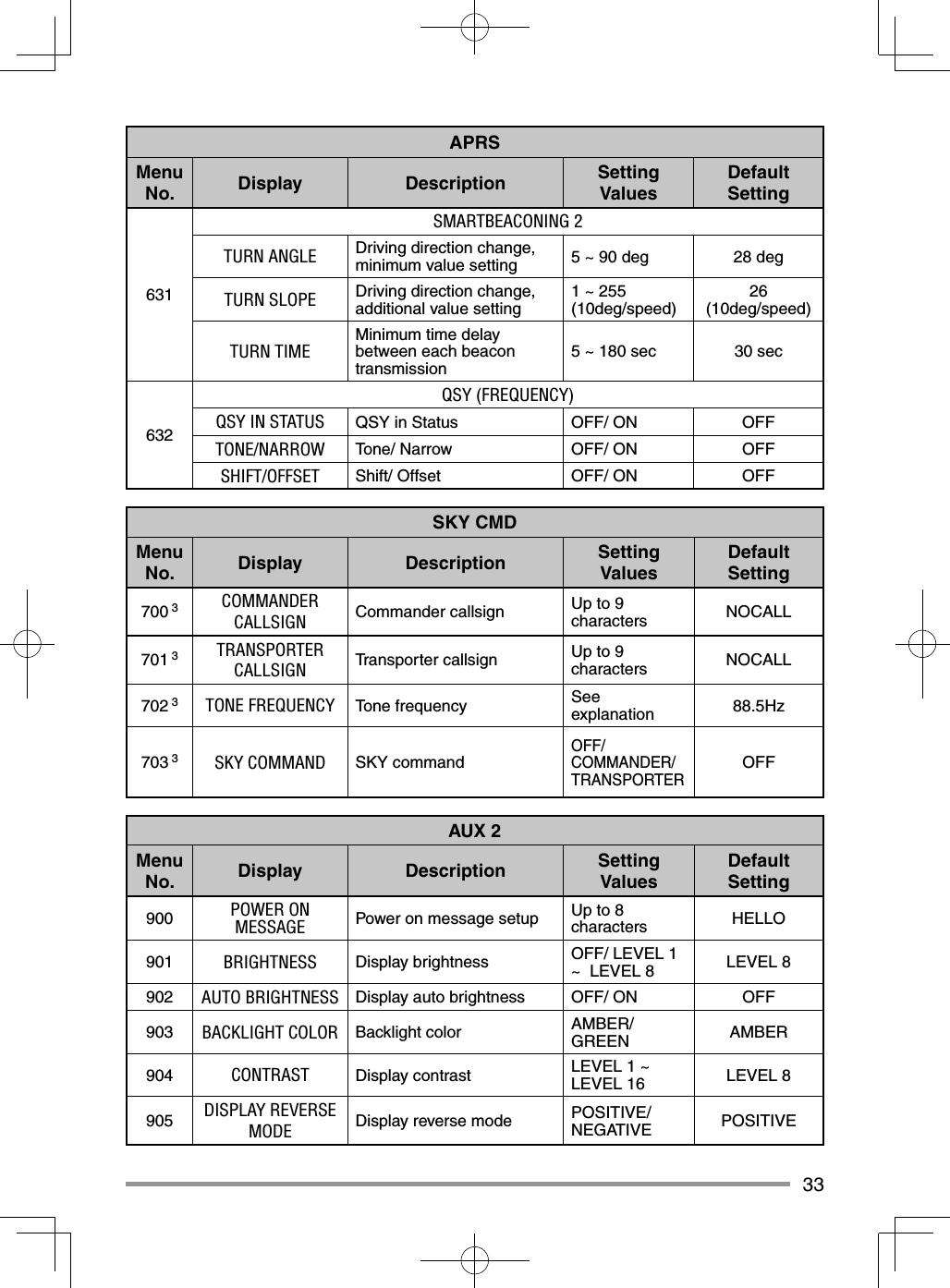

33APRSMenu No. Display Description Setting ValuesDefault Setting631SMARTBEACONING 2TURN ANGLE Driving direction change, minimum value setting 5 ~ 90 deg 28 degTURN SLOPE Driving direction change, additional value setting 1 ~ 255 (10deg/speed) 26(10deg/speed)TURN TIMEMinimum time delay between each beacon transmission 5 ~ 180 sec 30 sec632QSY (FREQUENCY)QSY IN STATUS QSY in Status OFF/ ON OFFTONE/NARROW Tone/ Narrow OFF/ ON OFFSHIFT/OFFSET Shift/ Offset OFF/ ON OFFSKY CMDMenu No. Display Description Setting ValuesDefault Setting700 3 COMMANDER CALLSIGN Commander callsign Up to 9 characters NOCALL701 3 TRANSPORTER CALLSIGN Transporter callsign Up to 9 characters NOCALL702 3 TONE FREQUENCY Tone frequency See explanation 88.5Hz703 3 SKY COMMAND SKY commandOFF/ COMMANDER/ TRANSPORTEROFFAUX 2Menu No. Display Description Setting ValuesDefault Setting900 POWER ON MESSAGE Power on message setup Up to 8 characters HELLO901 BRIGHTNESS Display brightness OFF/ LEVEL 1 ~ LEVEL 8 LEVEL 8902 AUTO BRIGHTNESS Display auto brightness OFF/ ON OFF903 BACKLIGHT COLOR Backlight color AMBER/ GREEN AMBER904 CONTRAST Display contrast LEVEL 1 ~ LEVEL 16 LEVEL 8905 DISPLAY REVERSE MODE Display reverse mode POSITIVE/ NEGATIVE POSITIVE

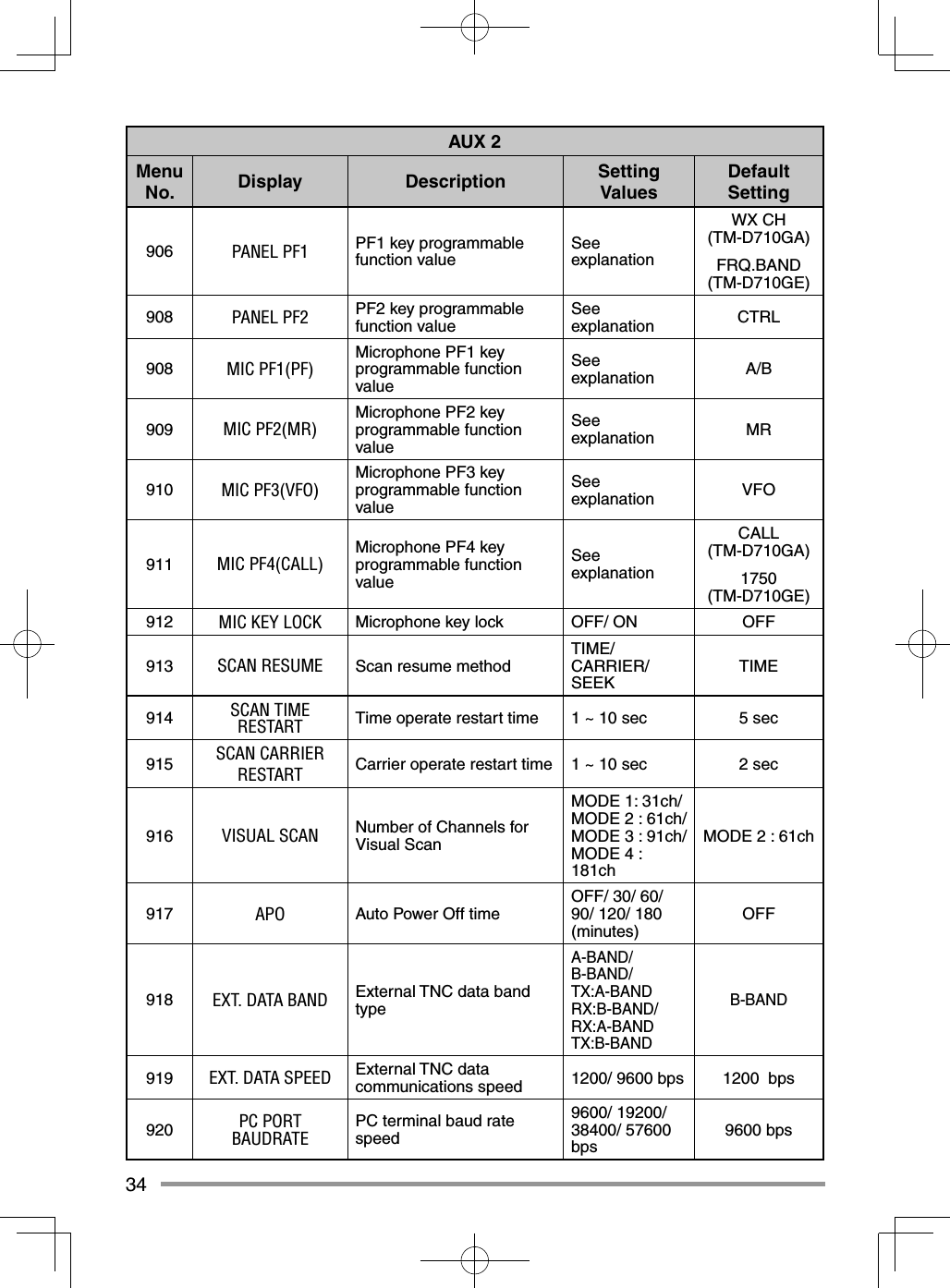

34AUX 2Menu No. Display Description Setting ValuesDefault Setting906 PANEL PF1 PF1 key programmable function value See explanationWX CH(TM-D710GA)FRQ.BAND(TM-D710GE)908 PANEL PF2 PF2 key programmable function value See explanation CTRL908 MIC PF1(PF)Microphone PF1 key programmable function valueSee explanation A/B909 MIC PF2(MR)Microphone PF2 key programmable function valueSee explanation MR910 MIC PF3(VFO)Microphone PF3 key programmable function valueSee explanation VFO911 MIC PF4(CALL)Microphone PF4 key programmable function valueSee explanationCALL (TM-D710GA)1750 (TM-D710GE)912 MIC KEY LOCK Microphone key lock OFF/ ON OFF913 SCAN RESUME Scan resume method TIME/ CARRIER/ SEEK TIME914 SCAN TIME RESTART Time operate restart time 1 ~ 10 sec 5 sec915 SCAN CARRIER RESTART Carrier operate restart time 1 ~ 10 sec 2 sec 916 VISUAL SCAN Number of Channels for Visual Scan MODE 1: 31ch/ MODE 2 : 61ch/ MODE 3 : 91ch/ MODE 4 : 181chMODE 2 : 61ch917 APO Auto Power Off time OFF/ 30/ 60/ 90/ 120/ 180 (minutes) OFF918 EXT. DATA BAND External TNC data band typeA-BAND/ B-BAND/ TX:A-BAND RX:B-BAND/ RX:A-BAND TX:B-BANDB-BAND919 EXT. DATA SPEED External TNC data communications speed 1200/ 9600 bps 1200 bps920 PC PORT BAUDRATE PC terminal baud rate speed9600/ 19200/ 38400/ 57600 bps 9600 bps

35AUX 2Menu No. Display Description Setting ValuesDefault Setting921 SQC SOURCE SQC output typeOFF/ BUSY/ SQL/ TX/ BUSY or TX/ SQL or TXBUSY or TX922 AUTO PM STORE Automatic PM entry OFF/ ON ON923 2 REMOTE ID Personal Identiﬁ cation Number 000 ~ 999 000924 2 REMOTE ANSWER BACK Answer back OFF/ ON ON925 DATE Date See explanation –926 TIME Clock time See explanation –927 TIME ZONE Time zone UTC + 14:00 ~ UTC − 14:00 UTC928 DISPLAY PARTITION BAR Display partition bar OFF/ ON ON929 COM PORT BAUDRATECOM terminal baud rate speed9600/ 19200/ 38400/ 57600 bps 9600 bps930 INT. DATA BAND (PACKET)Internal TNC data band (PACKET)A-BAND/ B-BAND/ TX:A-BAND RX:B-BAND/ RX:A-BAND TX:B-BANDSA-BAND998 POWER ON PASSWORD Power on password OFF/ ON OFF999 RESET ResetVFO RESET/ PARTIAL RESET/PM RESET/ FULL RESETVFO RESET1 Available only when the optional VGS-1 unit is installed in the transceiver.2 Available only for TM-D710GA.Note: The default settings are subject to change.

36CHARACTER ENTRYCertain menus require you to enter characters, such as the power on message and memory names. When character entry is required, a cursor will appear on the display.1 Press the Tuning control.• The cursor will blink.2 Rotate the Tuning control to select your desired character.3 Press the Tuning control to set the selected character.• The cursor will move to the next digit.• You can move the cursor to the left or right by pressing [] or [].• You can insert one space by pressing [SPACE].• You can insert a character by pressing [INS].• You can delete the selected character by pressing [CLR]. 4 Repeat steps 2 and 3 to enter the remaining characters.• Press [ESC] at any time to exit Menu mode.• Press [BACK] at any time to cancel the Menu setup and return to the Menu selection.

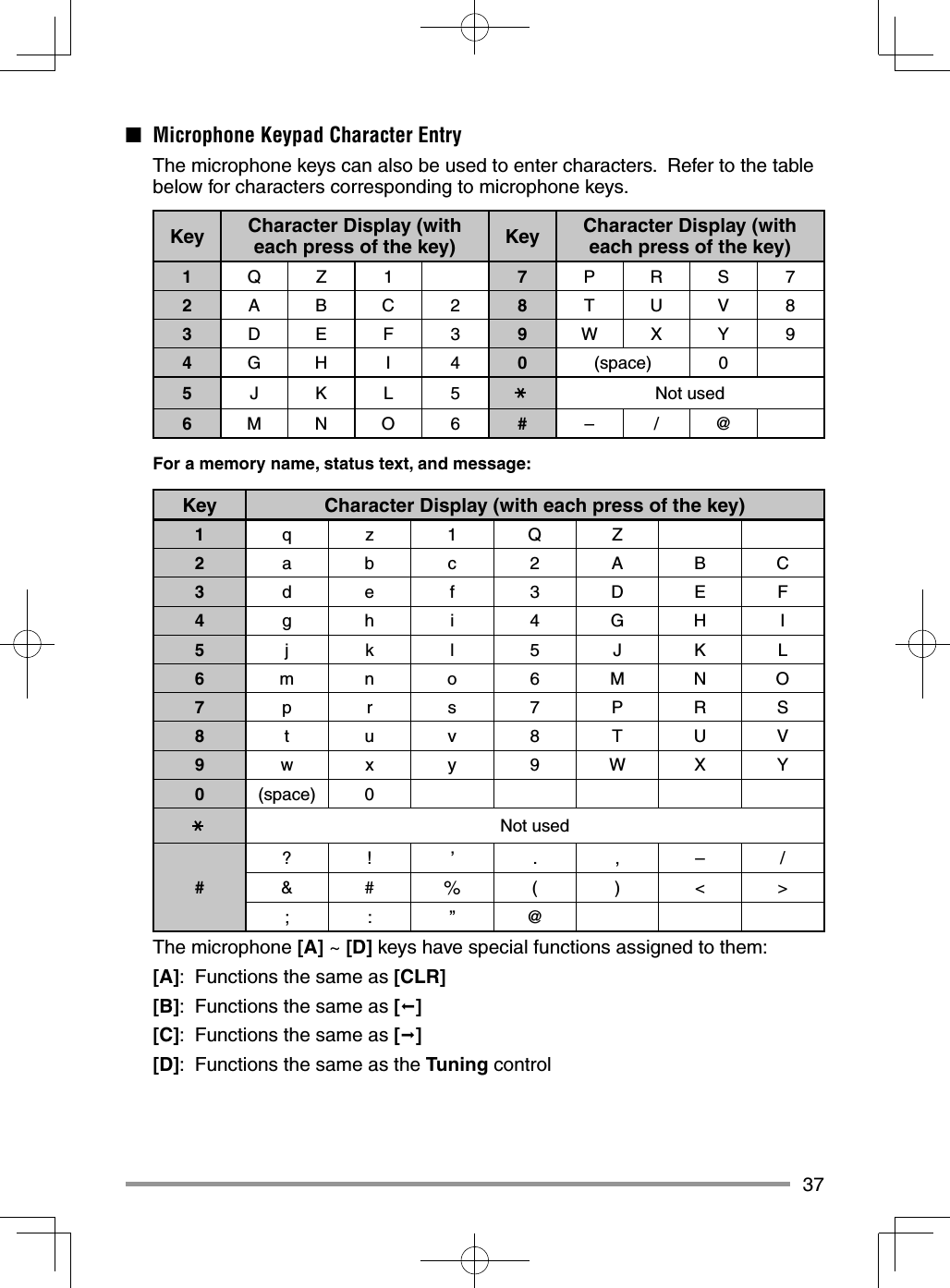

37■ Microphone Keypad Character Entry The microphone keys can also be used to enter characters. Refer to the table below for characters corresponding to microphone keys.Key Character Display (with each press of the key) Key Character Display (with each press of the key)1QZ1 7PRS72ABC28TUV83DEF3 9WX Y 94GH I 4 0(space) 05JKL5 Not used6MNO6 #–/@For a memory name, status text, and message:Key Character Display (with each press of the key)1qz1QZ2abc2ABC3def3DEF4gh i 4GHI5jkl5JKL6mno 6MNO7p r s 7PRS8tuv8TUV9wxy9WXY0(space) 0Not used#?! ’ .,–/&#%()<>;:”@ The microphone [A] ~ [D] keys have special functions assigned to them: [A]: Functions the same as [CLR] [B]: Functions the same as [] [C]: Functions the same as [] [D]: Functions the same as the Tuning control

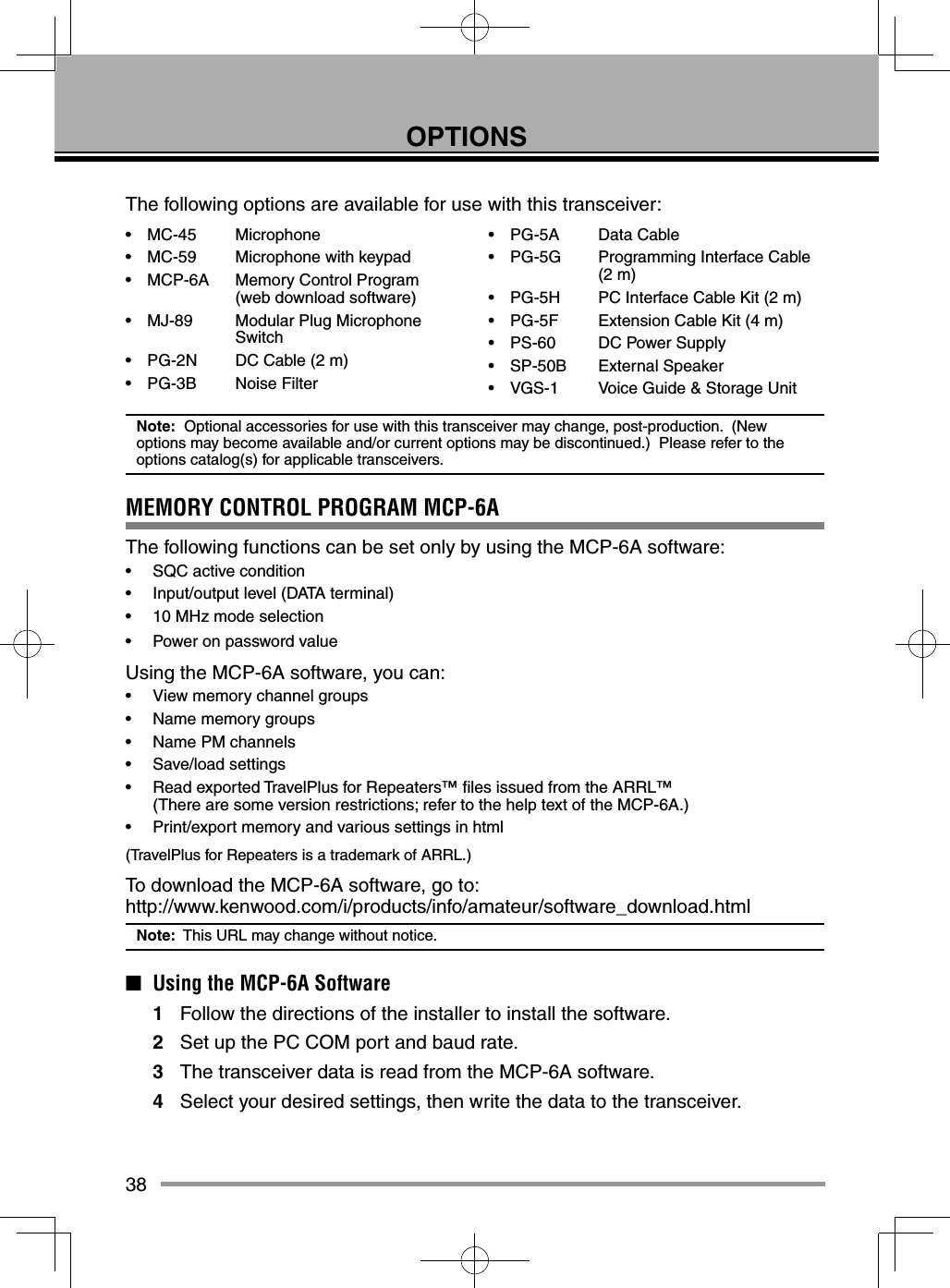

38OPTIONSThe following options are available for use with this transceiver:• MC-45 Microphone• MC-59 Microphone with keypad• MCP-6A Memory Control Program (web download software)• MJ-89 Modular Plug Microphone Switch• PG-2N DC Cable (2 m)• PG-3B Noise Filter• PG-5A Data Cable• PG-5G Programming Interface Cable (2 m)• PG-5H PC Interface Cable Kit (2 m)• PG-5F Extension Cable Kit (4 m)• PS-60 DC Power Supply• SP-50B External Speaker• VGS-1 Voice Guide & Storage UnitNote: Optional accessories for use with this transceiver may change, post-production. (New options may become available and/or current options may be discontinued.) Please refer to the options catalog(s) for applicable transceivers.MEMORY CONTROL PROGRAM MCP-6AThe following functions can be set only by using the MCP-6A software:• SQC active condition• Input/output level (DATA terminal)• 10 MHz mode selection• Power on password valueUsing the MCP-6A software, you can:• View memory channel groups• Name memory groups• Name PM channels• Save/load settings• Read exported TravelPlus for Repeaters™ ﬁ les issued from the ARRL™ (There are some version restrictions; refer to the help text of the MCP-6A.)• Print/export memory and various settings in html(TravelPlus for Repeaters is a trademark of ARRL.)To download the MCP-6A software, go to:http://www.kenwood.com/i/products/info/amateur/software_download.htmlNote: This URL may change without notice.■ Using the MCP-6A Software1 Follow the directions of the installer to install the software.2 Set up the PC COM port and baud rate.3 The transceiver data is read from the MCP-6A software.4 Select your desired settings, then write the data to the transceiver.

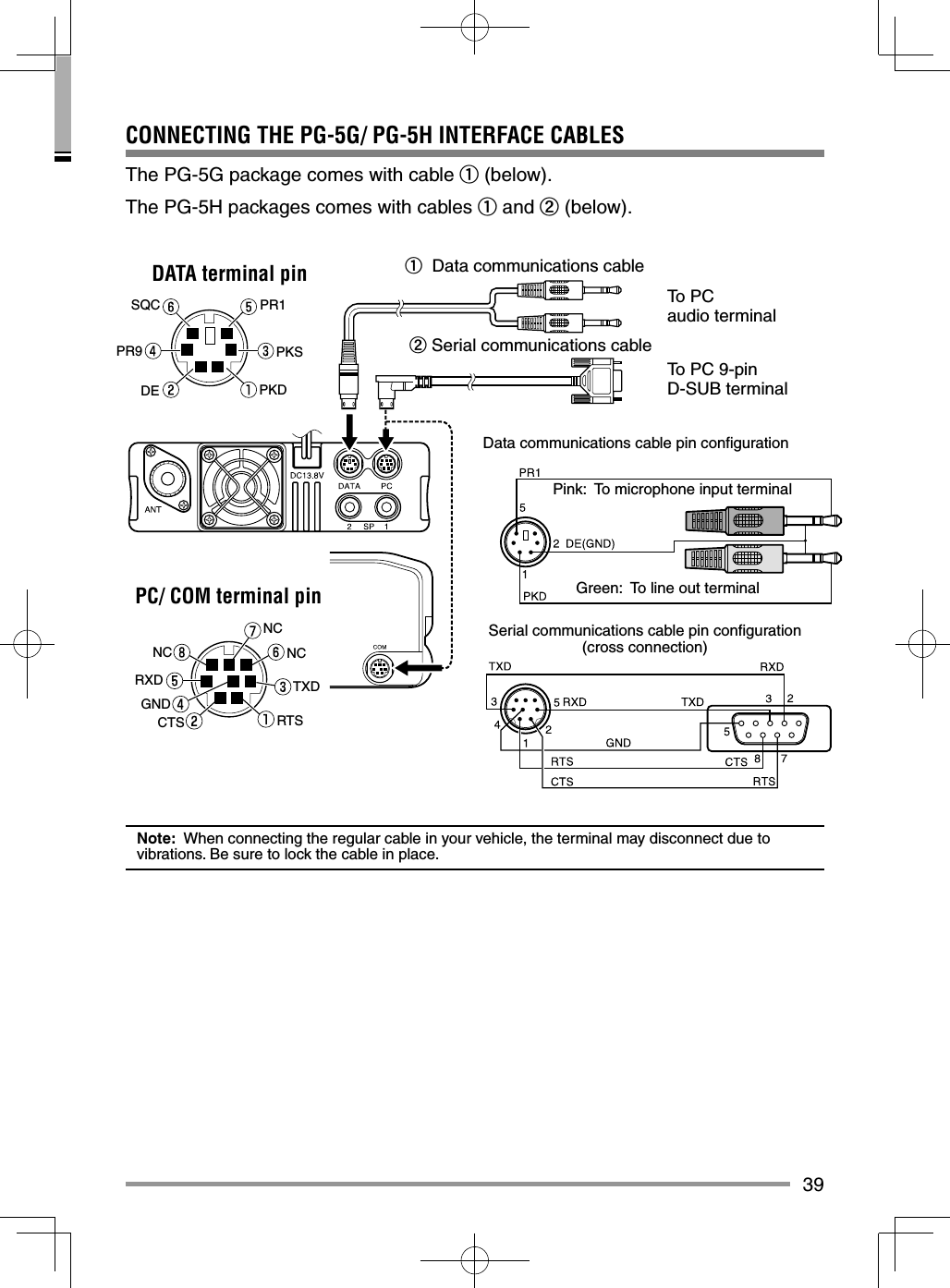

39CONNECTING THE PG-5G/ PG-5H INTERFACE CABLESThe PG-5G package comes with cable a (below).The PG-5H packages comes with cables a and b (below).a Data communications cableb Serial communications cableTo PC audio terminalTo PC 9-pin D-SUB terminalNote: When connecting the regular cable in your vehicle, the terminal may disconnect due to vibrations. Be sure to lock the cable in place.PR1PR9PKSPKDDESQCDATA terminal pinPC/ COM terminal pinData communications cable pin conﬁ gurationSerial communications cable pin conﬁ guration (cross connection)Pink: To microphone input terminalGreen: To line out terminalNCNCCTSTXDRTSGNDRXDNC

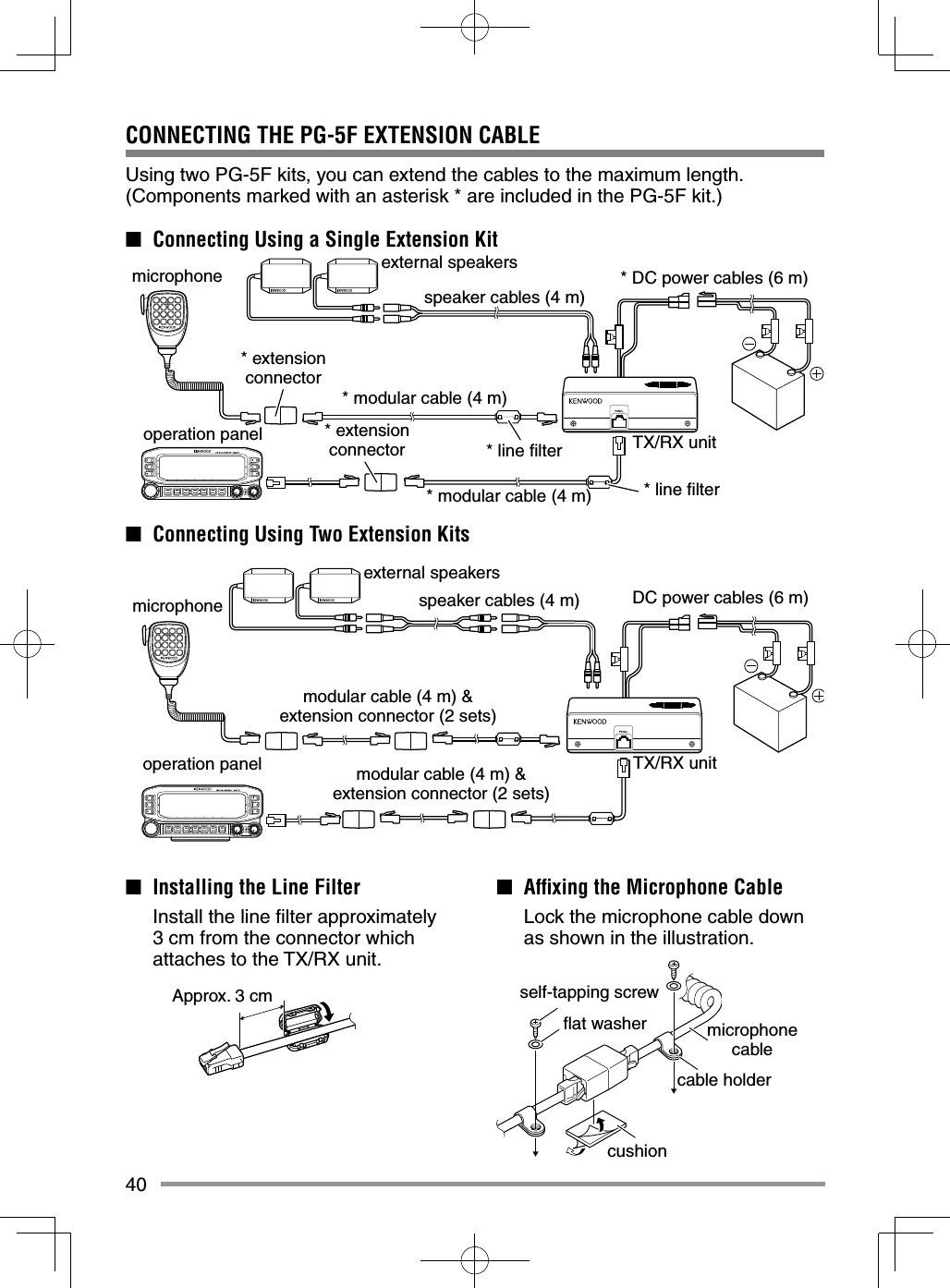

40CONNECTING THE PG-5F EXTENSION CABLE Using two PG-5F kits, you can extend the cables to the maximum length. (Components marked with an asterisk * are included in the PG-5F kit.)■ Connecting Using a Single Extension Kit■ Connecting Using Two Extension Kits■ Installing the Line Filter Install the line ﬁ lter approximately 3 cm from the connector which attaches to the TX/RX unit.■ Afﬁ xing the Microphone Cable Lock the microphone cable down as shown in the illustration.microphone external speakersoperation panelspeaker cables (4 m) * DC power cables (6 m)* extension connector* extension connector TX/RX unit* modular cable (4 m)* modular cable (4 m)* line ﬁ lter* line ﬁ ltermicrophoneexternal speakersoperation panelspeaker cables (4 m) DC power cables (6 m)TX/RX unitmodular cable (4 m) & extension connector (2 sets)modular cable (4 m) & extension connector (2 sets)Approx. 3 cm self-tapping screwﬂ at washer microphone cablecable holdercushion

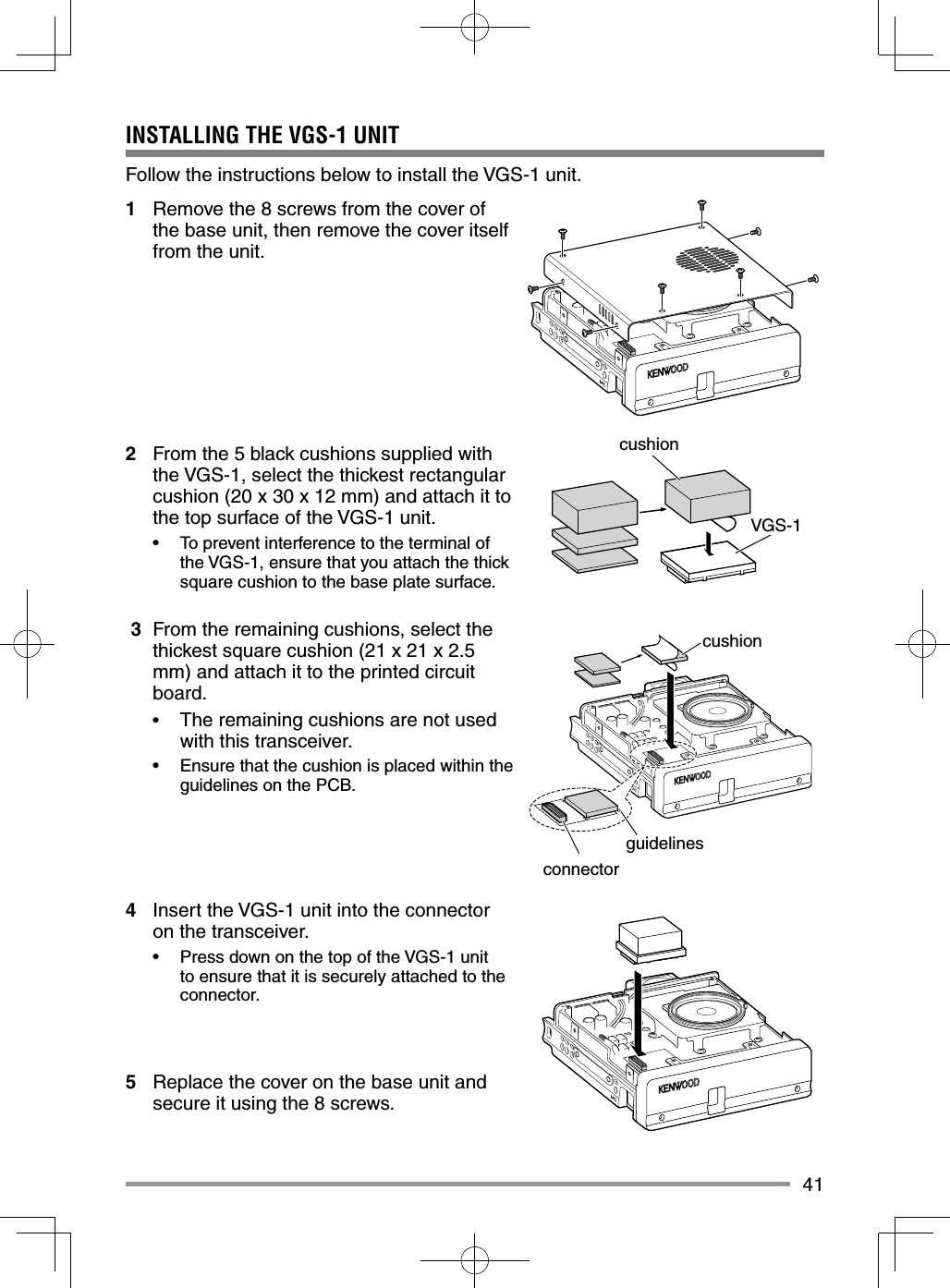

41INSTALLING THE VGS-1 UNITFollow the instructions below to install the VGS-1 unit.1 Remove the 8 screws from the cover of the base unit, then remove the cover itself from the unit.2 From the 5 black cushions supplied with the VGS-1, select the thickest rectangular cushion (20 x 30 x 12 mm) and attach it to the top surface of the VGS-1 unit.• To prevent interference to the terminal of the VGS-1, ensure that you attach the thick square cushion to the base plate surface. 3 From the remaining cushions, select the thickest square cushion (21 x 21 x 2.5 mm) and attach it to the printed circuit board.• The remaining cushions are not used with this transceiver.• Ensure that the cushion is placed within the guidelines on the PCB.4 Insert the VGS-1 unit into the connector on the transceiver.• Press down on the top of the VGS-1 unit to ensure that it is securely attached to the connector.5 Replace the cover on the base unit and secure it using the 8 screws.cushionconnectorVGS-1cushionguidelines

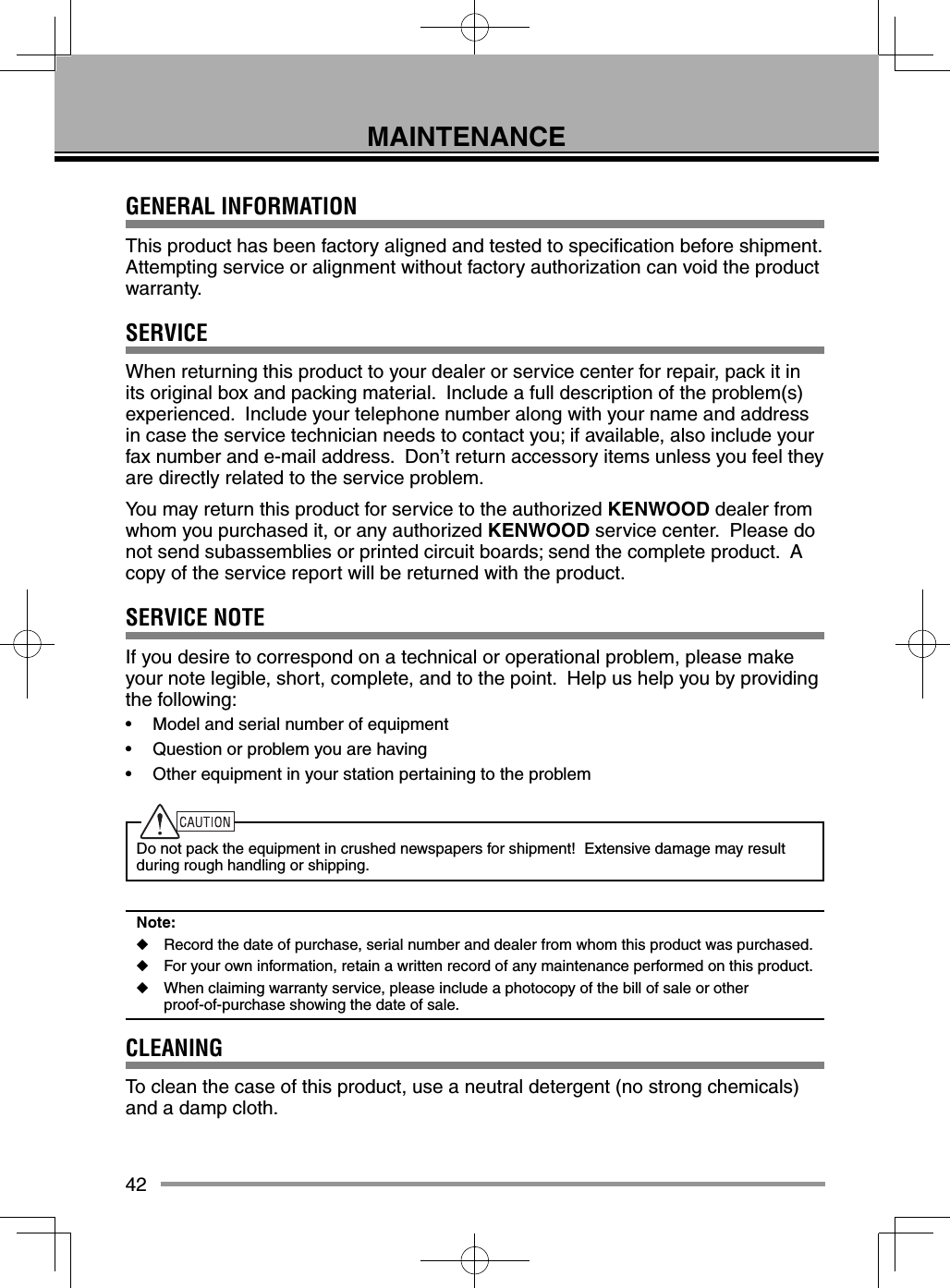

42MAINTENANCEGENERAL INFORMATIONThis product has been factory aligned and tested to speciﬁ cation before shipment. Attempting service or alignment without factory authorization can void the product warranty.SERVICEWhen returning this product to your dealer or service center for repair, pack it in its original box and packing material. Include a full description of the problem(s) experienced. Include your telephone number along with your name and address in case the service technician needs to contact you; if available, also include your fax number and e-mail address. Don’t return accessory items unless you feel they are directly related to the service problem.You may return this product for service to the authorized KENWOOD dealer from whom you purchased it, or any authorized KENWOOD service center. Please do not send subassemblies or printed circuit boards; send the complete product. A copy of the service report will be returned with the product.SERVICE NOTEIf you desire to correspond on a technical or operational problem, please make your note legible, short, complete, and to the point. Help us help you by providing the following:• Model and serial number of equipment• Question or problem you are having• Other equipment in your station pertaining to the problemDo not pack the equipment in crushed newspapers for shipment! Extensive damage may result during rough handling or shipping.Note:◆ Record the date of purchase, serial number and dealer from whom this product was purchased.◆ For your own information, retain a written record of any maintenance performed on this product.◆ When claiming warranty service, please include a photocopy of the bill of sale or other proof-of-purchase showing the date of sale.CLEANINGTo clean the case of this product, use a neutral detergent (no strong chemicals) and a damp cloth.

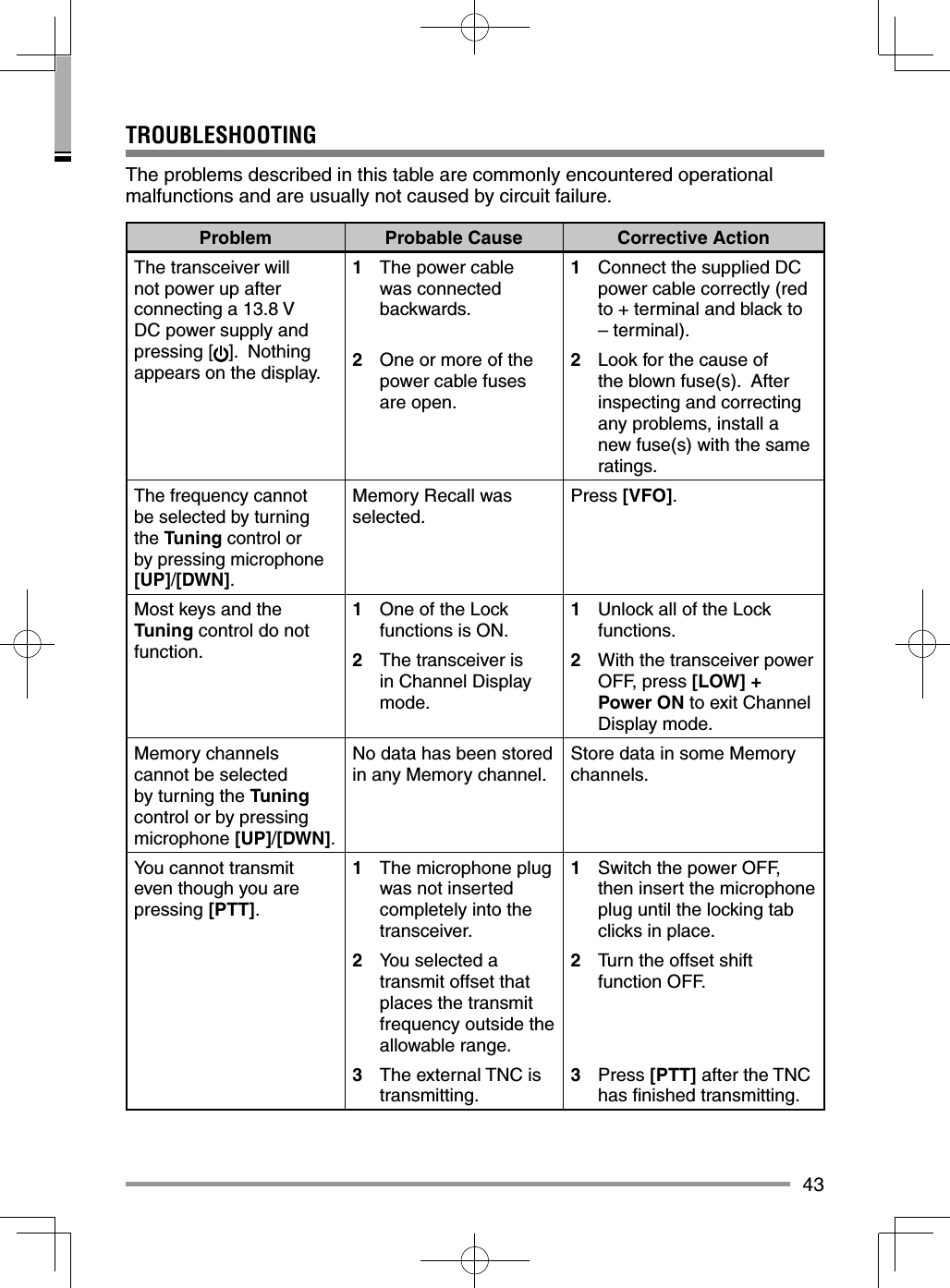

43TROUBLESHOOTINGThe problems described in this table are commonly encountered operational malfunctions and are usually not caused by circuit failure.Problem Probable Cause Corrective ActionThe transceiver will not power up after connecting a 13.8 V DC power supply and pressing [ ]. Nothing appears on the display.1 The power cable was connected backwards.2 One or more of the power cable fuses are open.1 Connect the supplied DC power cable correctly (red to + terminal and black to – terminal).2 Look for the cause of the blown fuse(s). After inspecting and correcting any problems, install a new fuse(s) with the same ratings.The frequency cannot be selected by turning the Tuning control or by pressing microphone [UP]/[DWN].Memory Recall was selected.Press [VFO].Most keys and the Tuning control do not function.1 One of the Lock functions is ON.2 The transceiver is in Channel Display mode.1 Unlock all of the Lock functions.2 With the transceiver power OFF, press [LOW] + Power ON to exit Channel Display mode.Memory channels cannot be selected by turning the Tuning control or by pressing microphone [UP]/[DWN].No data has been stored in any Memory channel.Store data in some Memory channels.You cannot transmit even though you are pressing [PTT].1 The microphone plug was not inserted completely into the transceiver.2 You selected a transmit offset that places the transmit frequency outside the allowable range.3 The external TNC is transmitting.1 Switch the power OFF, then insert the microphone plug until the locking tab clicks in place.2 Turn the offset shift function OFF.3 Press [PTT] after the TNC has ﬁ nished transmitting.

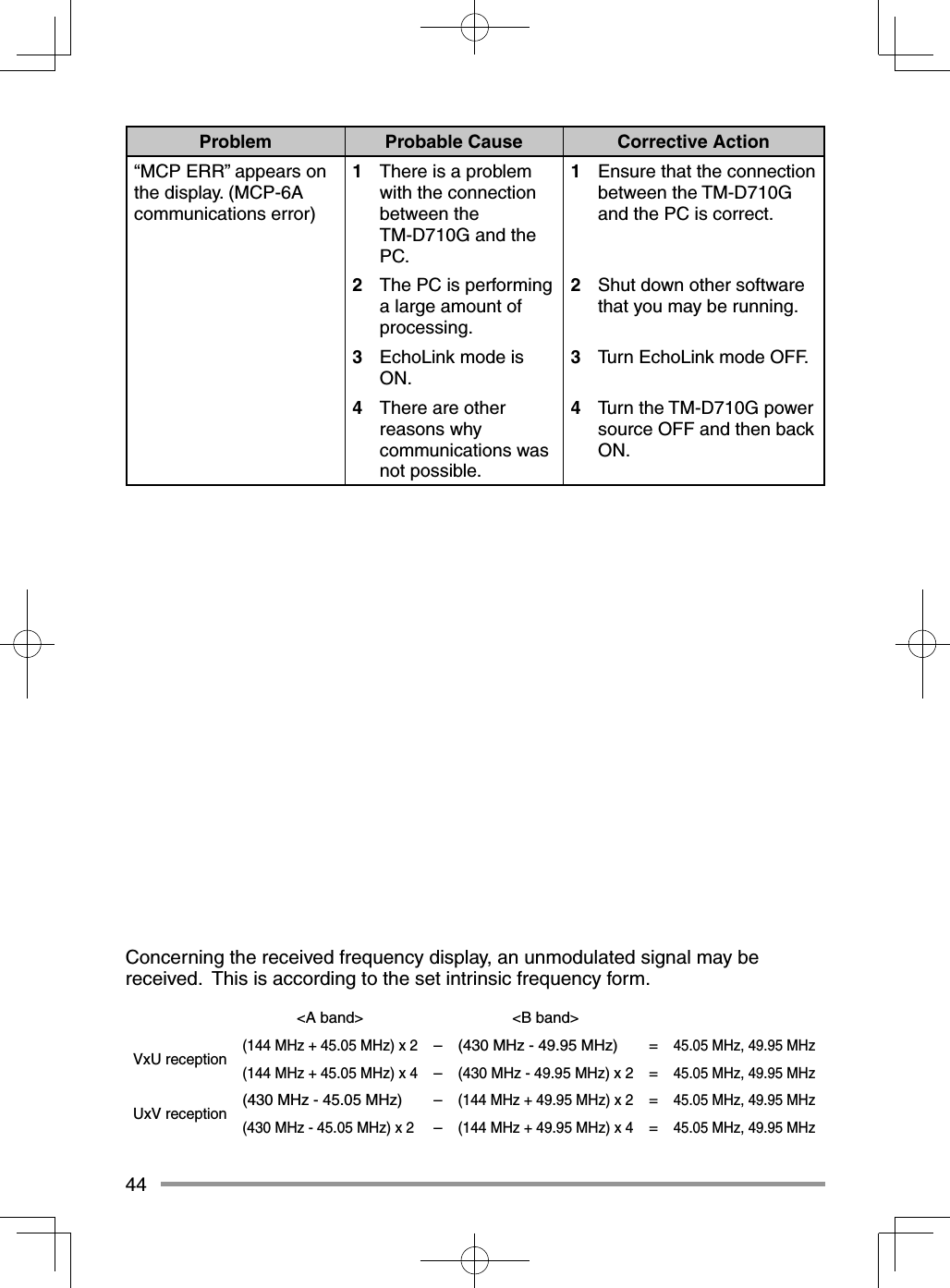

44Concerning the received frequency display, an unmodulated signal may be received. This is according to the set intrinsic frequency form.<A band> <B band>VxU reception(144 MHz + 45.05 MHz) x 2– (430 MHz - 49.95 MHz) =45.05 MHz, 49.95 MHz(144 MHz + 45.05 MHz) x 4–(430 MHz - 49.95 MHz) x 2=45.05 MHz, 49.95 MHzUxV reception(430 MHz - 45.05 MHz) –(144 MHz + 49.95 MHz) x 2=45.05 MHz, 49.95 MHz(430 MHz - 45.05 MHz) x 2–(144 MHz + 49.95 MHz) x 4=45.05 MHz, 49.95 MHzProblem Probable Cause Corrective Action“MCP ERR” appears on the display. (MCP-6A communications error)1 There is a problem with the connection between the TM-D710G and the PC.2 The PC is performing a large amount of processing.3 EchoLink mode is ON.4 There are other reasons why communications was not possible.1 Ensure that the connection between the TM-D710G and the PC is correct.2 Shut down other software that you may be running.3 Turn EchoLink mode OFF.4 Turn the TM-D710G power source OFF and then back ON.

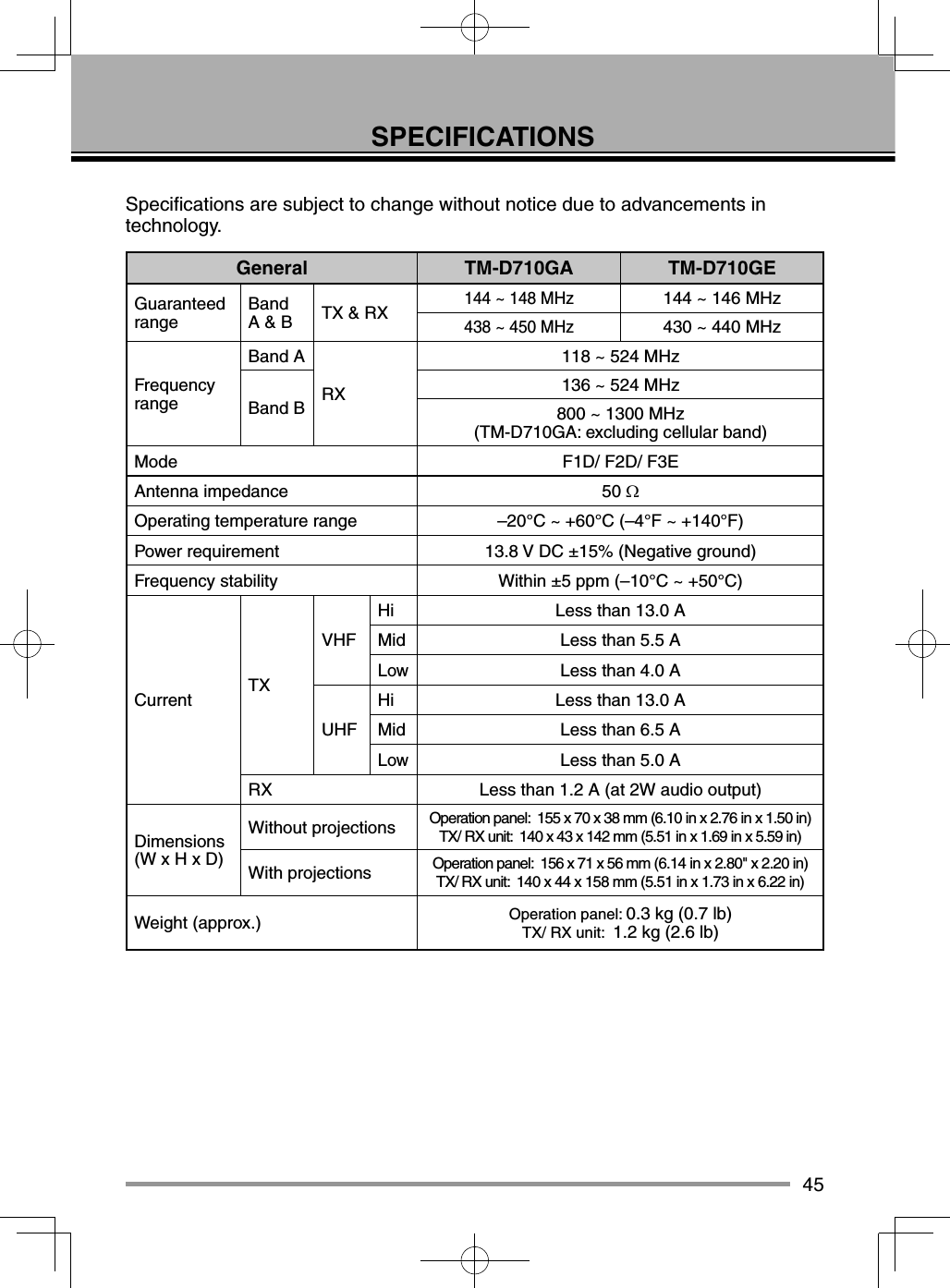

45SPECIFICATIONSSpeciﬁ cations are subject to change without notice due to advancements in technology.General TM-D710GA TM-D710GEGuaranteed range Band A & BTX & RX144 ~ 148 MHz144 ~ 146 MHz438 ~ 450 MHz 430 ~ 440 MHzFrequency rangeBand ARX118 ~ 524 MHzBand B136 ~ 524 MHz800 ~ 1300 MHz(TM-D710GA: excluding cellular band)Mode F1D/ F2D/ F3EAntenna impedance 50 Operating temperature range –20°C ~ +60°C (–4°F ~ +140°F)Power requirement 13.8 V DC ±15% (Negative ground)Frequency stability Within ±5 ppm (–10°C ~ +50°C)Current TXVHFHi Less than 13.0 AMid Less than 5.5 ALowLess than 4.0 AUHFHi Less than 13.0 AMid Less than 6.5 ALowLess than 5.0 ARX Less than 1.2 A (at 2W audio output)Dimensions (W x H x D)Without projections Operation panel: 155 x 70 x 38 mm (6.10 in x 2.76 in x 1.50 in)TX/ RX unit: 140 x 43 x 142 mm (5.51 in x 1.69 in x 5.59 in)With projections Operation panel: 156 x 71 x 56 mm (6.14 in x 2.80" x 2.20 in)TX/ RX unit: 140 x 44 x 158 mm (5.51 in x 1.73 in x 6.22 in)Weight (approx.) Operation panel: 0.3 kg (0.7 lb)TX/ RX unit: 1.2 kg (2.6 lb)

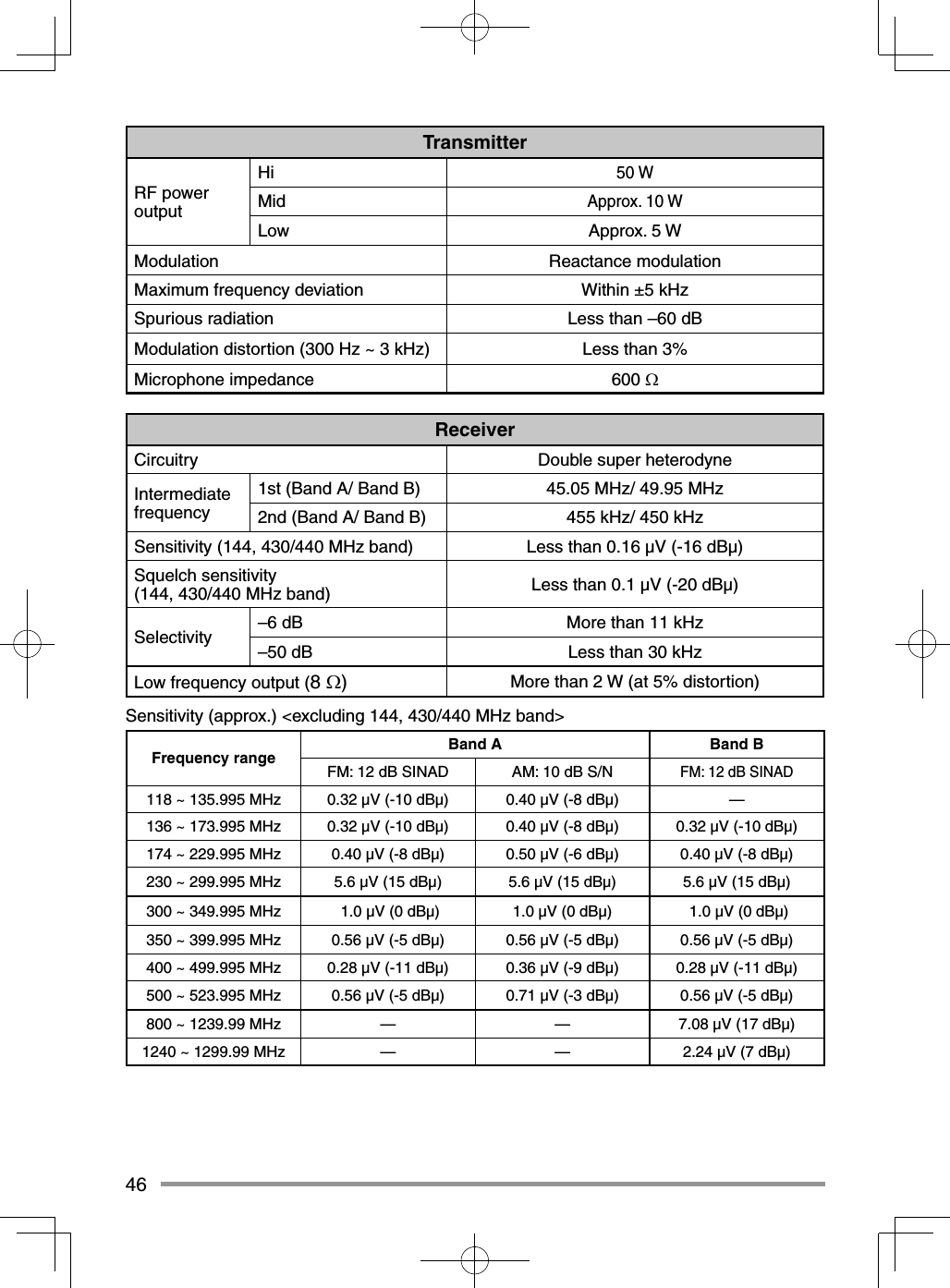

46TransmitterRF power outputHi50 WMidApprox. 10 WLow Approx. 5 WModulation Reactance modulationMaximum frequency deviation Within ±5 kHzSpurious radiation Less than –60 dBModulation distortion (300 Hz ~ 3 kHz) Less than 3%Microphone impedance 600 ReceiverCircuitry Double super heterodyneIntermediate frequency1st (Band A/ Band B) 45.05 MHz/ 49.95 MHz2nd (Band A/ Band B) 455 kHz/ 450 kHzSensitivity (144, 430/440 MHz band) Less than 0.16 µV (-16 dBµ)Squelch sensitivity(144, 430/440 MHz band) Less than 0.1 µV (-20 dBµ)Selectivity –6 dB More than 11 kHz–50 dB Less than 30 kHzLow frequency output (8 )More than 2 W (at 5% distortion)Sensitivity (approx.) <excluding 144, 430/440 MHz band>Frequency range Band A Band BFM: 12 dB SINAD AM: 10 dB S/NFM: 12 dB SINAD118 ~ 135.995 MHz 0.32 µV (-10 dBµ) 0.40 µV (-8 dBµ) —136 ~ 173.995 MHz 0.32 µV (-10 dBµ) 0.40 µV (-8 dBµ) 0.32 µV (-10 dBµ)174 ~ 229.995 MHz 0.40 µV (-8 dBµ) 0.50 µV (-6 dBµ) 0.40 µV (-8 dBµ)230 ~ 299.995 MHz 5.6 µV (15 dBµ) 5.6 µV (15 dBµ) 5.6 µV (15 dBµ)300 ~ 349.995 MHz 1.0 µV (0 dBµ) 1.0 µV (0 dBµ) 1.0 µV (0 dBµ)350 ~ 399.995 MHz 0.56 µV (-5 dBµ) 0.56 µV (-5 dBµ) 0.56 µV (-5 dBµ)400 ~ 499.995 MHz 0.28 µV (-11 dBµ) 0.36 µV (-9 dBµ) 0.28 µV (-11 dBµ)500 ~ 523.995 MHz 0.56 µV (-5 dBµ) 0.71 µV (-3 dBµ) 0.56 µV (-5 dBµ)800 ~ 1239.99 MHz — — 7.08 µV (17 dBµ)1240 ~ 1299.99 MHz — — 2.24 µV (7 dBµ)
