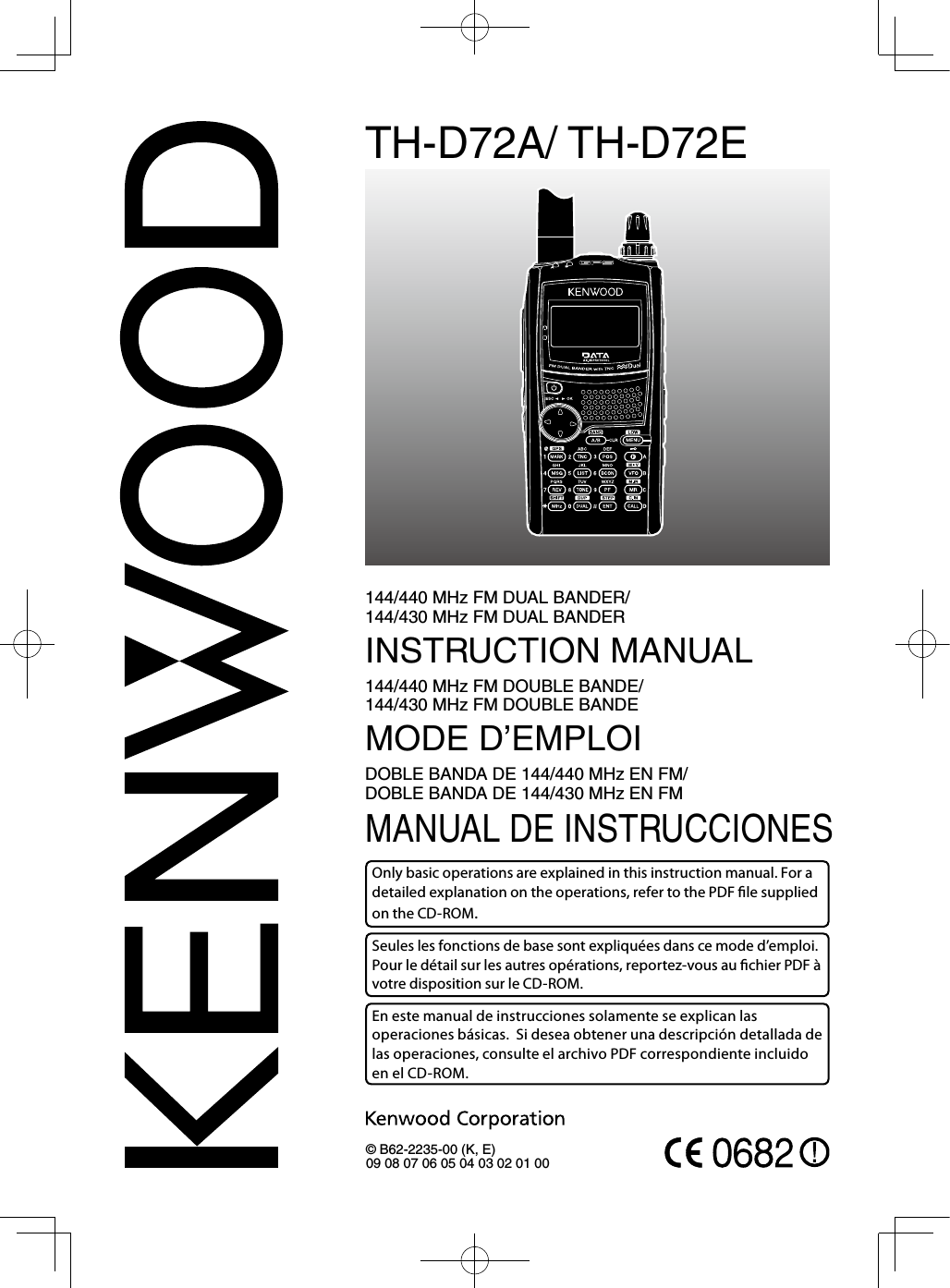

TH-D72A/ TH-D72E144/440 MHz FM DUAL BANDER/ 144/430 MHz FM DUAL BANDERINSTRUCTION MANUAL144/440 MHz FM DOUBLE BANDE/ 144/430 MHz FM DOUBLE BANDEMODE D’EMPLOIDOBLE BANDA DE 144/440 MHz EN FM/ DOBLE BANDA DE 144/430 MHz EN FMMANUAL DE INSTRUCCIONES© B62-2235-00 (K, E)09 08 07 06 05 04 03 02 01 00Only basic operations are explained in this instruction manual. For a detailed explanation on the operations, refer to the PDF le supplied on the CD-ROM.Seules les fonctions de base sont expliquées dans ce mode d’emploi. Pour le détail sur les autres opérations, reportez-vous au chier PDF à votre disposition sur le CD-ROM.En este manual de instrucciones solamente se explican las operaciones básicas. Si desea obtener una descripción detallada de las operaciones, consulte el archivo PDF correspondiente incluido en el CD-ROM.

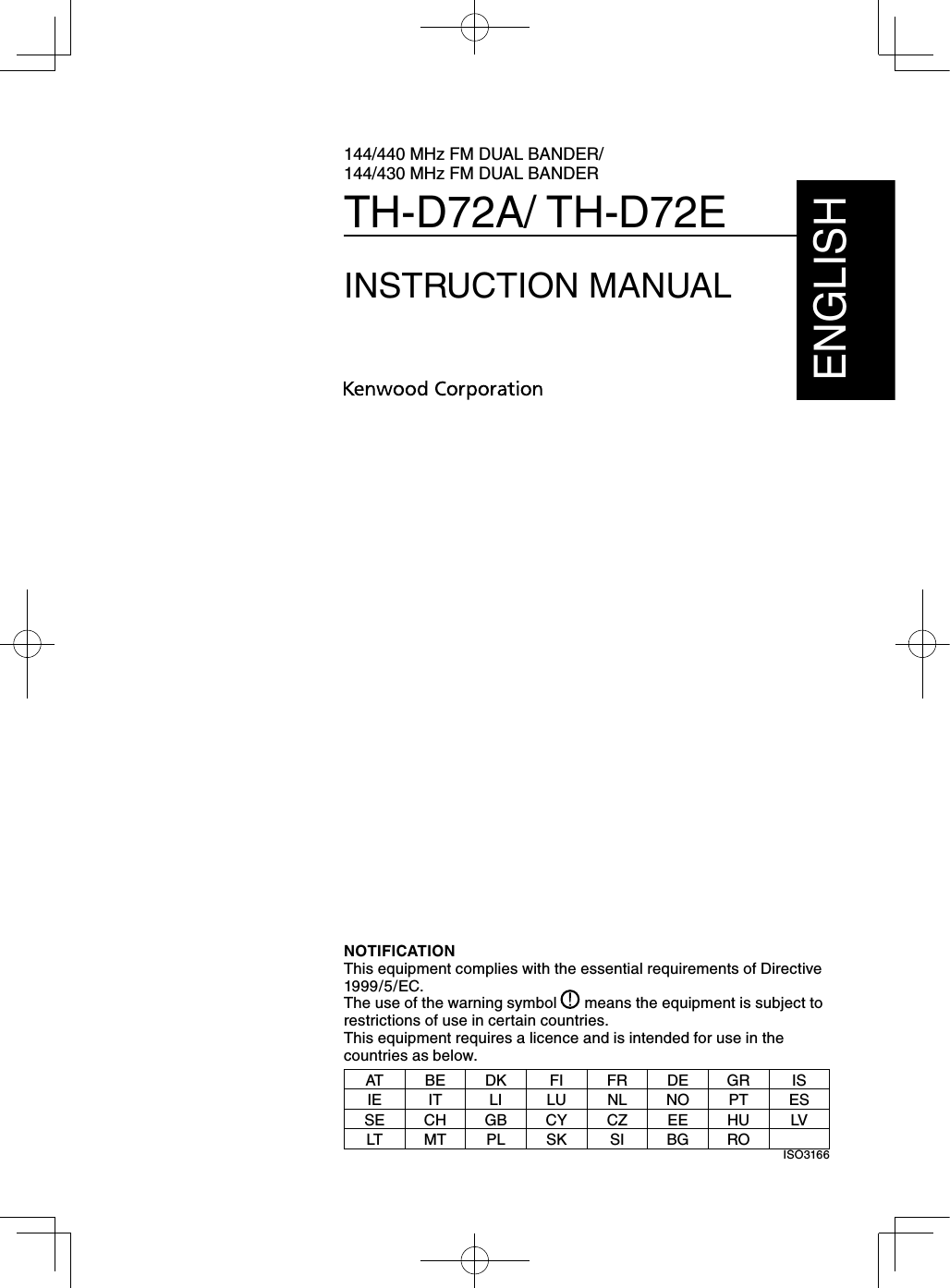

144/440 MHz FM DUAL BANDER/ 144/430 MHz FM DUAL BANDERTH-D72A/ TH-D72EINSTRUCTION MANUALENGLISHNOTIFICATIONThis equipment complies with the essential requirements of Directive 1999/5/EC.The use of the warning symbol means the equipment is subject to restrictions of use in certain countries.This equipment requires a licence and is intended for use in the countries as below.AT BE DK FI FR DE GR ISIE IT LI LU NL NO PT ESSE CH GB CY CZ EE HU LVLT MT PL SK SI BG RO ISO3166

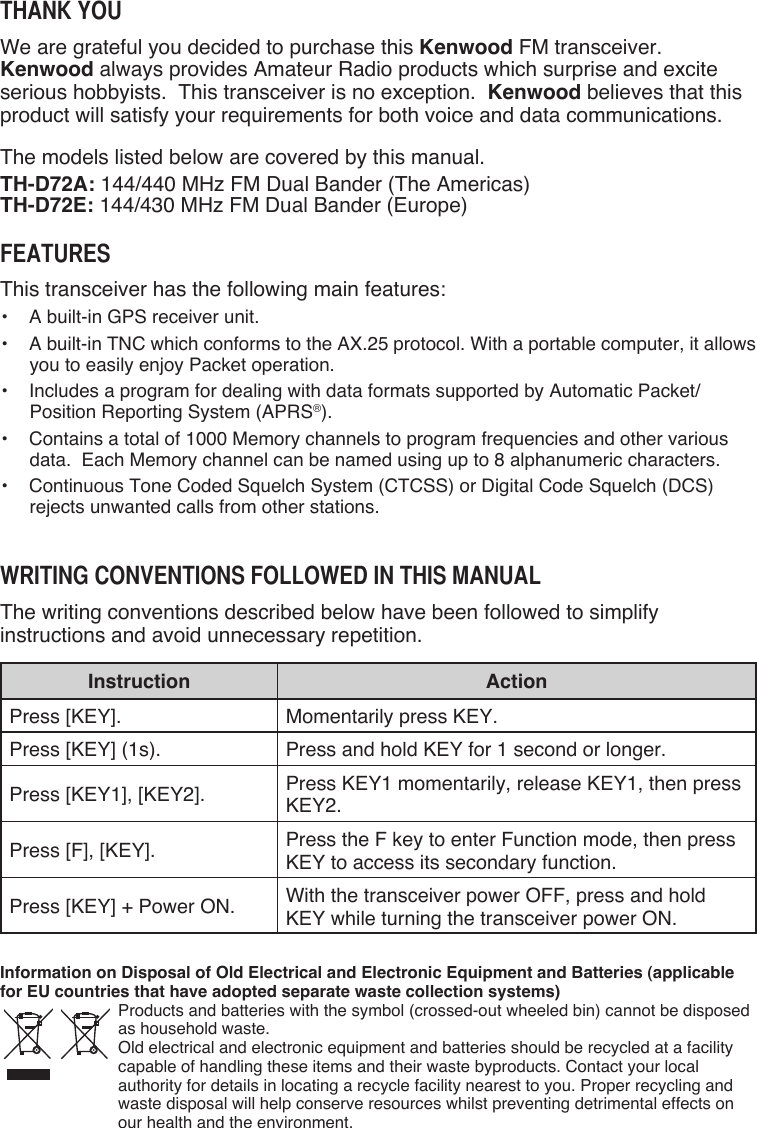

Thank YouWe are grateful you decided to purchase this Kenwood FM transceiver. Kenwood always provides Amateur Radio products which surprise and excite serious hobbyists. This transceiver is no exception. Kenwood believes that this product will satisfy your requirements for both voice and data communications.The models listed below are covered by this manual.TH-D72A: 144/440 MHz FM Dual Bander (The Americas)TH-D72E: 144/430 MHz FM Dual Bander (Europe)FeaTuresThis transceiver has the following main features:• A built-in GPS receiver unit.• A built-in TNC which conforms to the AX.25 protocol. With a portable computer, it allows you to easily enjoy Packet operation.• Includes a program for dealing with data formats supported by Automatic Packet/ Position Reporting System (APRS®).• Contains a total of 1000 Memory channels to program frequencies and other various data. Each Memory channel can be named using up to 8 alphanumeric characters.• Continuous Tone Coded Squelch System (CTCSS) or Digital Code Squelch (DCS) rejects unwanted calls from other stations.WriTing ConvenTions FolloWed in This ManualThe writing conventions described below have been followed to simplify instructions and avoid unnecessary repetition.Instruction ActionPress [KEY]. Momentarily press KEY.Press [KEY] (1s). Press and hold KEY for 1 second or longer.Press [KEY1], [KEY2]. Press KEY1 momentarily, release KEY1, then press KEY2.Press [F], [KEY]. Press the F key to enter Function mode, then press KEY to access its secondary function.Press [KEY] + Power ON. With the transceiver power OFF, press and hold KEY while turning the transceiver power ON.Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems)Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

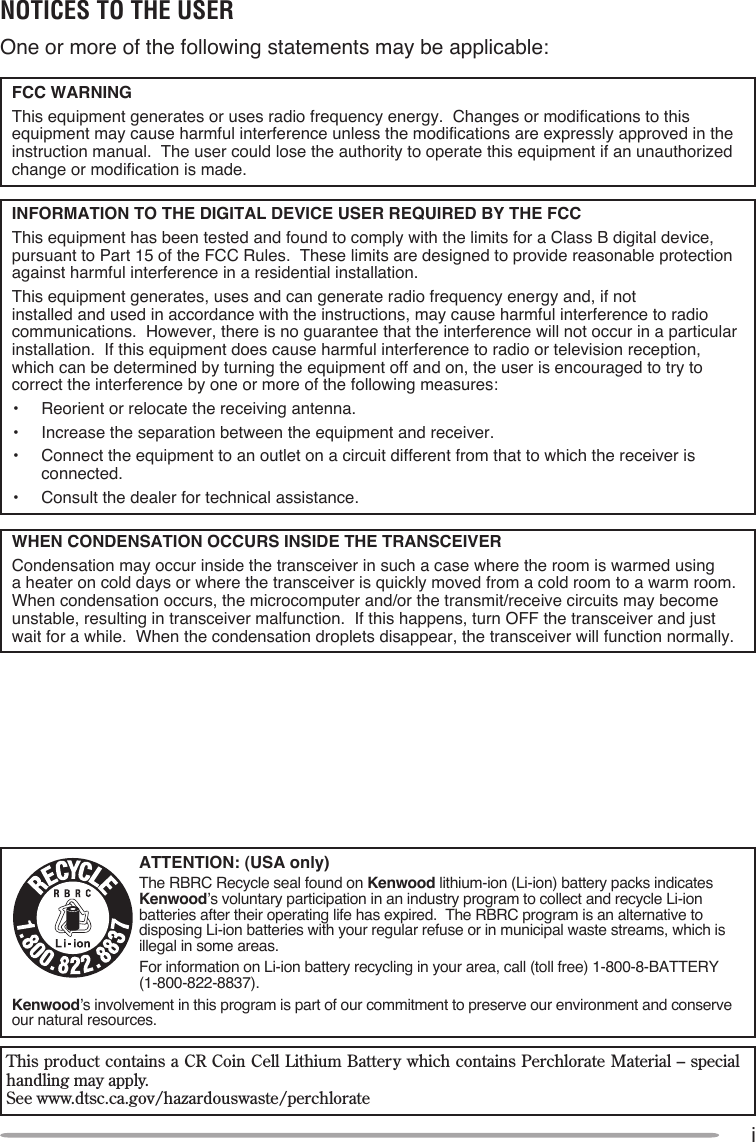

iNOTICES TO THE USER One or more of the following statements may be applicable:FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer for technical assistance.WHEN CONDENSATION OCCURS INSIDE THE TRANSCEIVER Condensation may occur inside the transceiver in such a case where the room is warmed using a heater on cold days or where the transceiver is quickly moved from a cold room to a warm room. When condensation occurs, the microcomputer and/or the transmit/receive circuits may become unstable, resulting in transceiver malfunction. If this happens, turn OFF the transceiver and just wait for a while. When the condensation droplets disappear, the transceiver will function normally.ATTENTION: (USA only)The RBRC Recycle seal found on Kenwood lithium-ion (Li-ion) battery packs indicates Kenwood’s voluntary participation in an industry program to collect and recycle Li-ion batteries after their operating life has expired. The RBRC program is an alternative to disposing Li-ion batteries with your regular refuse or in municipal waste streams, which is illegal in some areas.For information on Li-ion battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837).Kenwood’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources.This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply.See www.dtsc.ca.gov/hazardouswaste/perchlorate

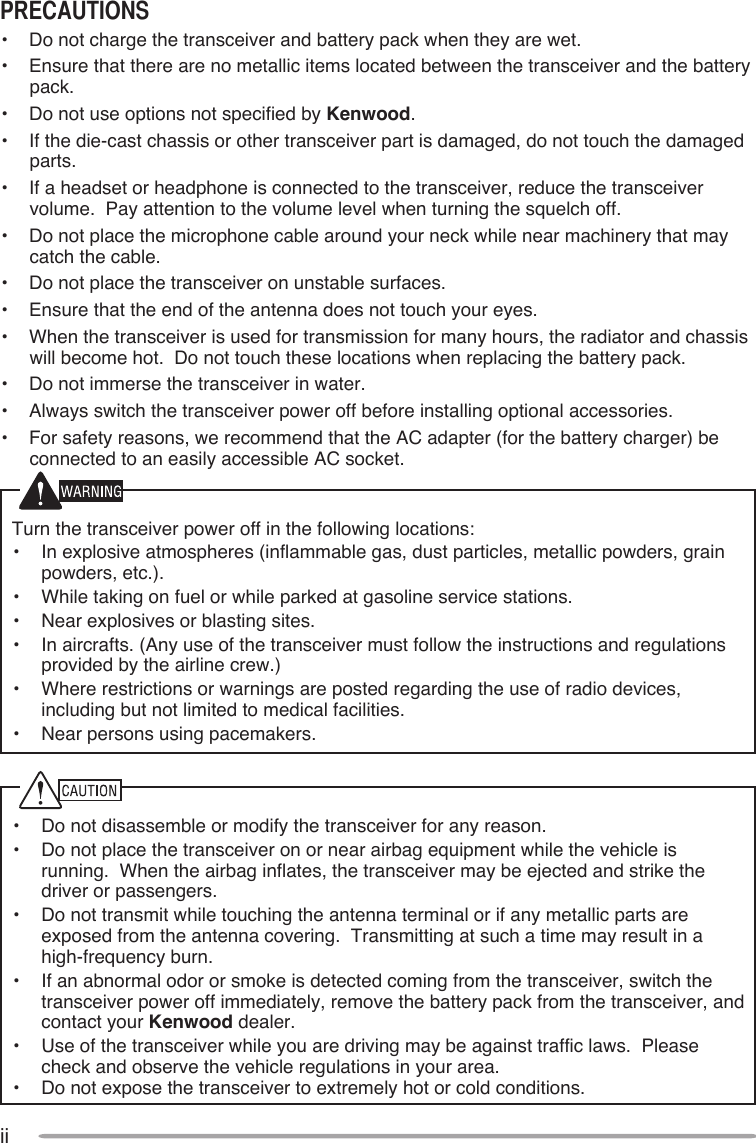

iiPrecautions• Do not charge the transceiver and battery pack when they are wet.• Ensure that there are no metallic items located between the transceiver and the battery pack.• Do not use options not specified by Kenwood.• If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts.• If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay attention to the volume level when turning the squelch off.• Do not place the microphone cable around your neck while near machinery that may catch the cable.• Do not place the transceiver on unstable surfaces.• Ensure that the end of the antenna does not touch your eyes.• When the transceiver is used for transmission for many hours, the radiator and chassis will become hot. Do not touch these locations when replacing the battery pack.• Do not immerse the transceiver in water.• Always switch the transceiver power off before installing optional accessories.• For safety reasons, we recommend that the AC adapter (for the battery charger) be connected to an easily accessible AC socket.Turn the transceiver power off in the following locations:• In explosive atmospheres (inflammable gas, dust particles, metallic powders, grain powders, etc.).• While taking on fuel or while parked at gasoline service stations.• Near explosives or blasting sites.• In aircrafts. (Any use of the transceiver must follow the instructions and regulations provided by the airline crew.)• Where restrictions or warnings are posted regarding the use of radio devices, including but not limited to medical facilities.• Near persons using pacemakers.• Do not disassemble or modify the transceiver for any reason.• Do not place the transceiver on or near airbag equipment while the vehicle is running. When the airbag inflates, the transceiver may be ejected and strike the driver or passengers.• Do not transmit while touching the antenna terminal or if any metallic parts are exposed from the antenna covering. Transmitting at such a time may result in a high-frequency burn.• If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, remove the battery pack from the transceiver, and contact your Kenwood dealer.• Use of the transceiver while you are driving may be against traffic laws. Please check and observe the vehicle regulations in your area.• Do not expose the transceiver to extremely hot or cold conditions.

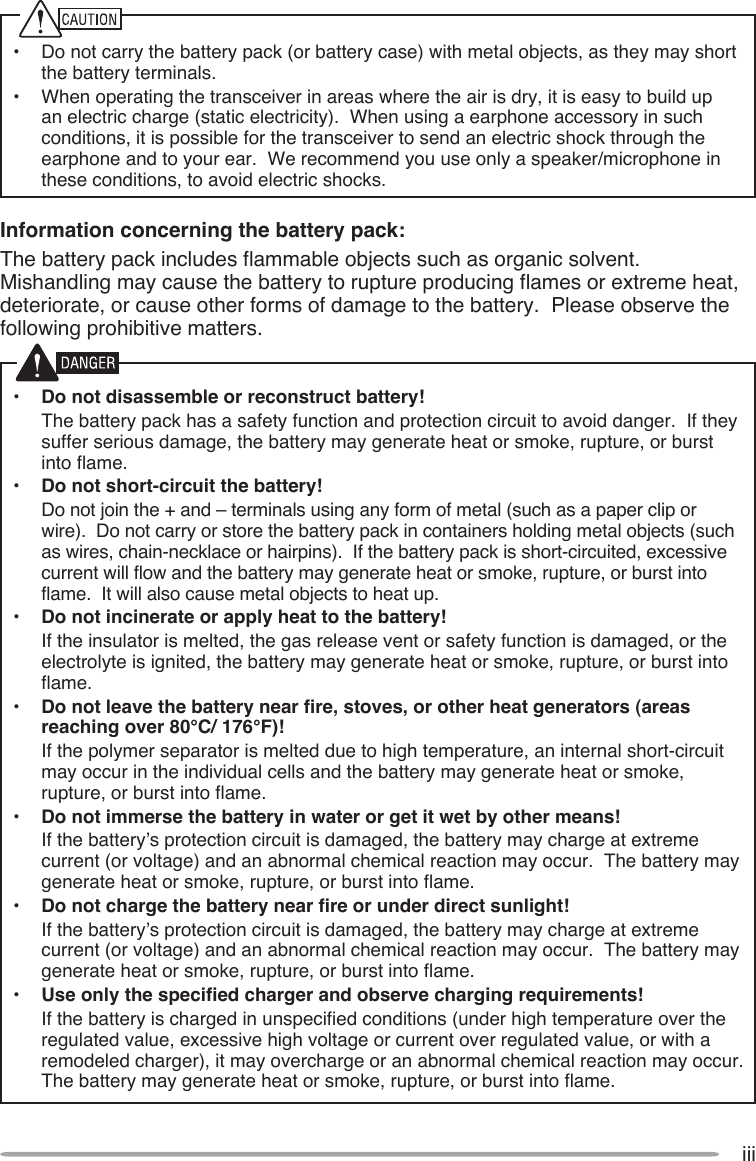

iii• Do not carry the battery pack (or battery case) with metal objects, as they may short the battery terminals.• When operating the transceiver in areas where the air is dry, it is easy to build up an electric charge (static electricity). When using a earphone accessory in such conditions, it is possible for the transceiver to send an electric shock through the earphone and to your ear. We recommend you use only a speaker/microphone in these conditions, to avoid electric shocks.Information concerning the battery pack:The battery pack includes flammable objects such as organic solvent. Mishandling may cause the battery to rupture producing flames or extreme heat, deteriorate, or cause other forms of damage to the battery. Please observe the following prohibitive matters.• Do not disassemble or reconstruct battery! The battery pack has a safety function and protection circuit to avoid danger. If they suffer serious damage, the battery may generate heat or smoke, rupture, or burst into flame.• Do not short-circuit the battery! Do not join the + and – terminals using any form of metal (such as a paper clip or wire). Do not carry or store the battery pack in containers holding metal objects (such as wires, chain-necklace or hairpins). If the battery pack is short-circuited, excessive current will flow and the battery may generate heat or smoke, rupture, or burst into flame. It will also cause metal objects to heat up.• Do not incinerate or apply heat to the battery! If the insulator is melted, the gas release vent or safety function is damaged, or the electrolyte is ignited, the battery may generate heat or smoke, rupture, or burst into flame.• Do not leave the battery near fire, stoves, or other heat generators (areas reaching over 80°C/ 176°F)! If the polymer separator is melted due to high temperature, an internal short-circuit may occur in the individual cells and the battery may generate heat or smoke, rupture, or burst into flame. • Do not immerse the battery in water or get it wet by other means! If the battery’s protection circuit is damaged, the battery may charge at extreme current (or voltage) and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.• Do not charge the battery near fire or under direct sunlight! If the battery’s protection circuit is damaged, the battery may charge at extreme current (or voltage) and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.• Use only the specified charger and observe charging requirements! If the battery is charged in unspecified conditions (under high temperature over the regulated value, excessive high voltage or current over regulated value, or with a remodeled charger), it may overcharge or an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.

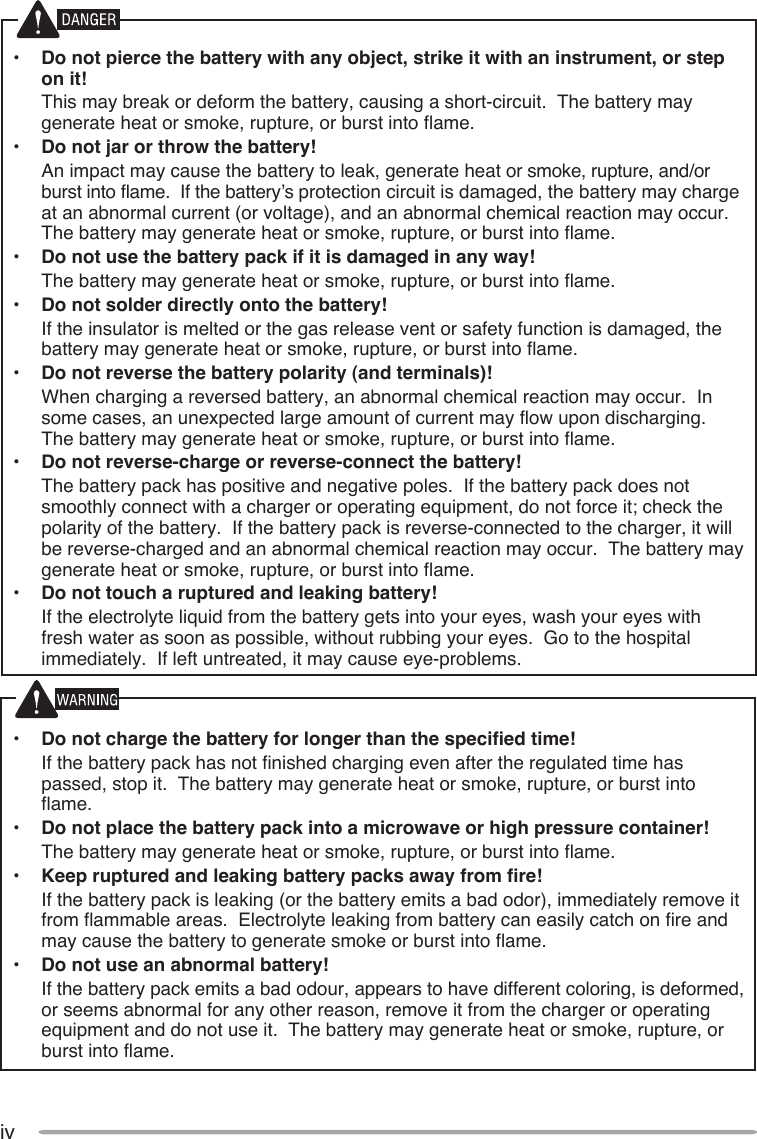

iv• Do not pierce the battery with any object, strike it with an instrument, or step on it! This may break or deform the battery, causing a short-circuit. The battery may generate heat or smoke, rupture, or burst into flame.• Do not jar or throw the battery! An impact may cause the battery to leak, generate heat or smoke, rupture, and/or burst into flame. If the battery’s protection circuit is damaged, the battery may charge at an abnormal current (or voltage), and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.• Do not use the battery pack if it is damaged in any way! The battery may generate heat or smoke, rupture, or burst into flame.• Do not solder directly onto the battery! If the insulator is melted or the gas release vent or safety function is damaged, the battery may generate heat or smoke, rupture, or burst into flame.• Do not reverse the battery polarity (and terminals)! When charging a reversed battery, an abnormal chemical reaction may occur. In some cases, an unexpected large amount of current may flow upon discharging. The battery may generate heat or smoke, rupture, or burst into flame.• Do not reverse-charge or reverse-connect the battery! The battery pack has positive and negative poles. If the battery pack does not smoothly connect with a charger or operating equipment, do not force it; check the polarity of the battery. If the battery pack is reverse-connected to the charger, it will be reverse-charged and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.• Do not touch a ruptured and leaking battery! If the electrolyte liquid from the battery gets into your eyes, wash your eyes with fresh water as soon as possible, without rubbing your eyes. Go to the hospital immediately. If left untreated, it may cause eye-problems.• Do not charge the battery for longer than the specified time! If the battery pack has not finished charging even after the regulated time has passed, stop it. The battery may generate heat or smoke, rupture, or burst into flame.• Do not place the battery pack into a microwave or high pressure container! The battery may generate heat or smoke, rupture, or burst into flame.• Keep ruptured and leaking battery packs away from fire! If the battery pack is leaking (or the battery emits a bad odor), immediately remove it from flammable areas. Electrolyte leaking from battery can easily catch on fire and may cause the battery to generate smoke or burst into flame.• Do not use an abnormal battery! If the battery pack emits a bad odour, appears to have different coloring, is deformed, or seems abnormal for any other reason, remove it from the charger or operating equipment and do not use it. The battery may generate heat or smoke, rupture, or burst into flame.

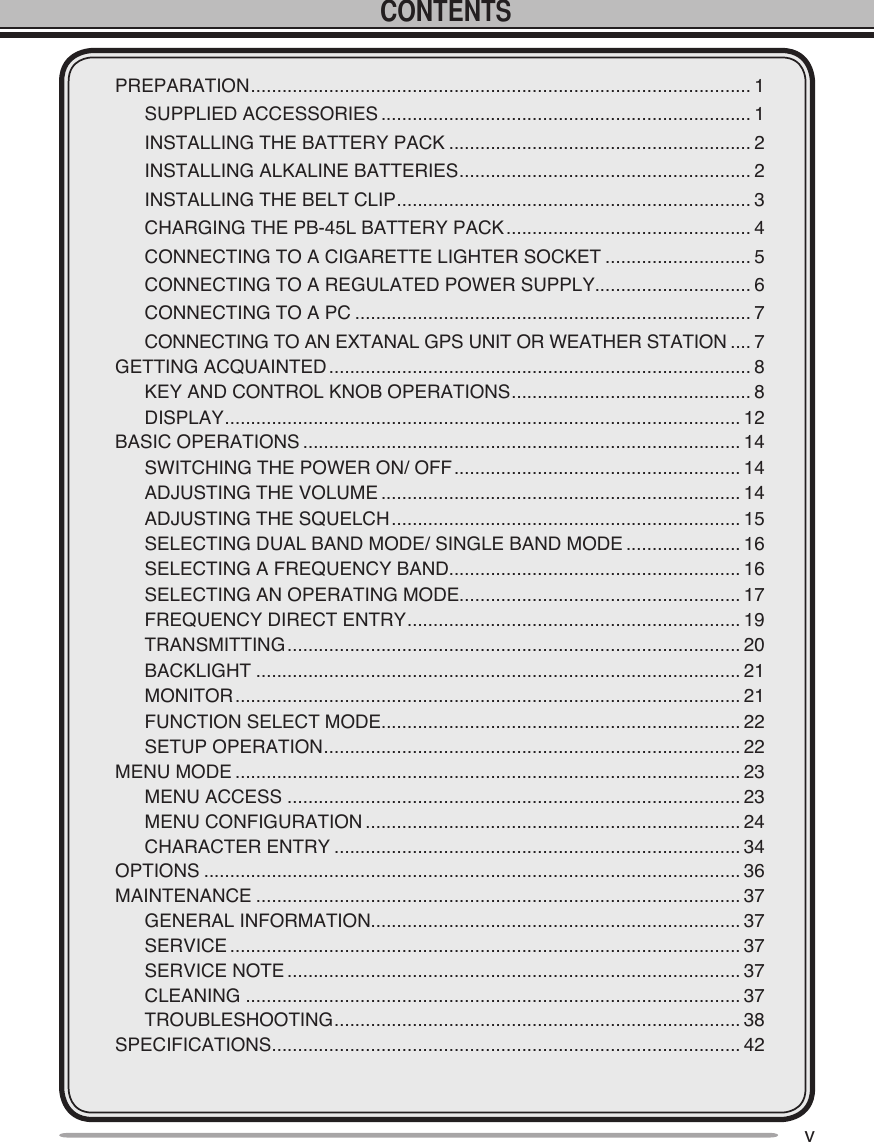

vcontentsPREPARATION ................................................................................................ 1SUPPLIED ACCESSORIES ....................................................................... 1INSTALLING THE BATTERY PACK .......................................................... 2INSTALLING ALKALINE BATTERIES ........................................................ 2INSTALLING THE BELT CLIP .................................................................... 3CHARGING THE PB-45L BATTERY PACK ............................................... 4CONNECTING TO A CIGARETTE LIGHTER SOCKET ............................ 5CONNECTING TO A REGULATED POWER SUPPLY.............................. 6CONNECTING TO A PC ............................................................................ 7CONNECTING TO AN EXTANAL GPS UNIT OR WEATHER STATION .... 7GETTING ACQUAINTED ................................................................................. 8KEY AND CONTROL KNOB OPERATIONS .............................................. 8DISPLAY ................................................................................................... 12BASIC OPERATIONS .................................................................................... 14SWITCHING THE POWER ON/ OFF ....................................................... 14ADJUSTING THE VOLUME ..................................................................... 14ADJUSTING THE SQUELCH ................................................................... 15SELECTING DUAL BAND MODE/ SINGLE BAND MODE ...................... 16SELECTING A FREQUENCY BAND........................................................ 16SELECTING AN OPERATING MODE...................................................... 17FREQUENCY DIRECT ENTRY ................................................................ 19TRANSMITTING ....................................................................................... 20BACKLIGHT ............................................................................................. 21MONITOR ................................................................................................. 21FUNCTION SELECT MODE..................................................................... 22SETUP OPERATION ................................................................................ 22MENU MODE ................................................................................................. 23MENU ACCESS ....................................................................................... 23MENU CONFIGURATION ........................................................................ 24CHARACTER ENTRY .............................................................................. 34OPTIONS ....................................................................................................... 36MAINTENANCE ............................................................................................. 37GENERAL INFORMATION....................................................................... 37SERVICE .................................................................................................. 37SERVICE NOTE ....................................................................................... 37CLEANING ............................................................................................... 37TROUBLESHOOTING .............................................................................. 38SPECIFICATIONS .......................................................................................... 42

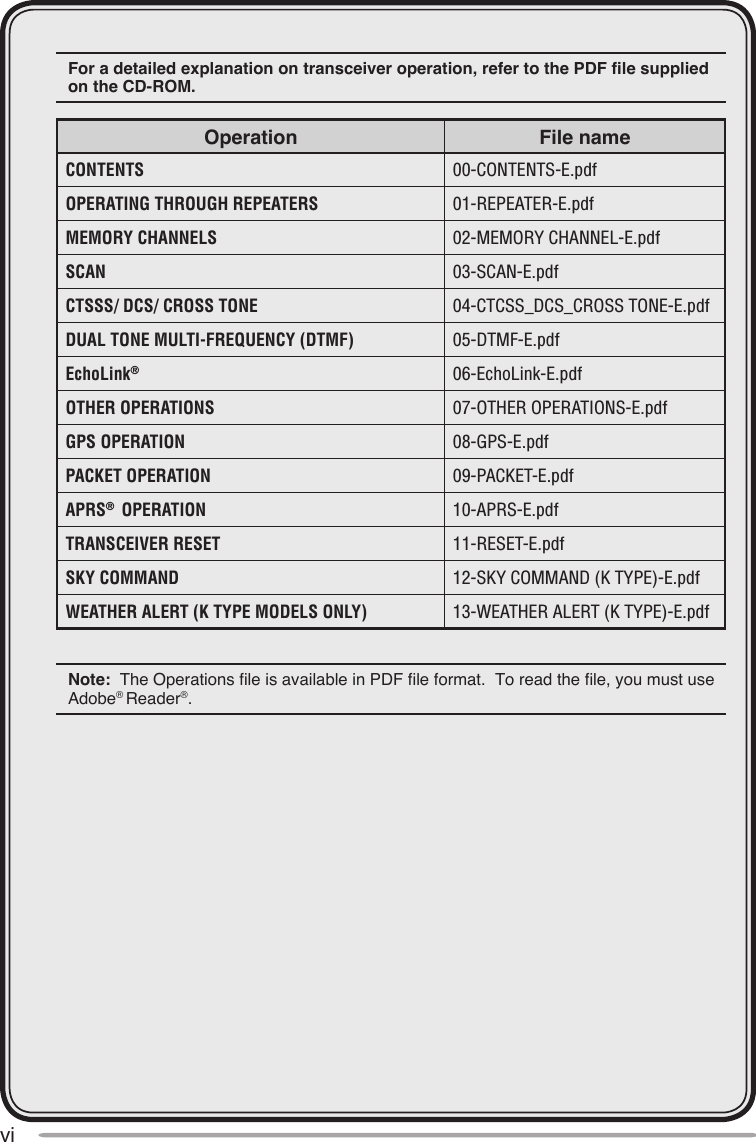

viFor a detailed explanation on transceiver operation, refer to the PDF file supplied on the CD-ROM.Operation File nameCONTENTS 00-CONTENTS-E.pdfOPERATING THROUGH REPEATERS 01-REPEATER-E.pdfMEMORY CHANNELS 02-MEMORY CHANNEL-E.pdfSCAN 03-SCAN-E.pdfCTSSS/ DCS/ CROSS TONE 04-CTCSS_DCS_CROSS TONE-E.pdfDUAL TONE MULTI-FREQUENCY (DTMF) 05-DTMF-E.pdfEchoLink®06-EchoLink-E.pdfOTHER OPERATIONS 07-OTHER OPERATIONS-E.pdfGPS OPERATION 08-GPS-E.pdfPACKET OPERATION 09-PACKET-E.pdfAPRS® OPERATION 10-APRS-E.pdfTRANSCEIVER RESET 11-RESET-E.pdfSKY COMMAND 12-SKY COMMAND (K TYPE)-E.pdfWEATHER ALERT (K TYPE MODELS ONLY) 13-WEATHER ALERT (K TYPE)-E.pdfNote: The Operations file is available in PDF file format. To read the file, you must use Adobe® Reader®.

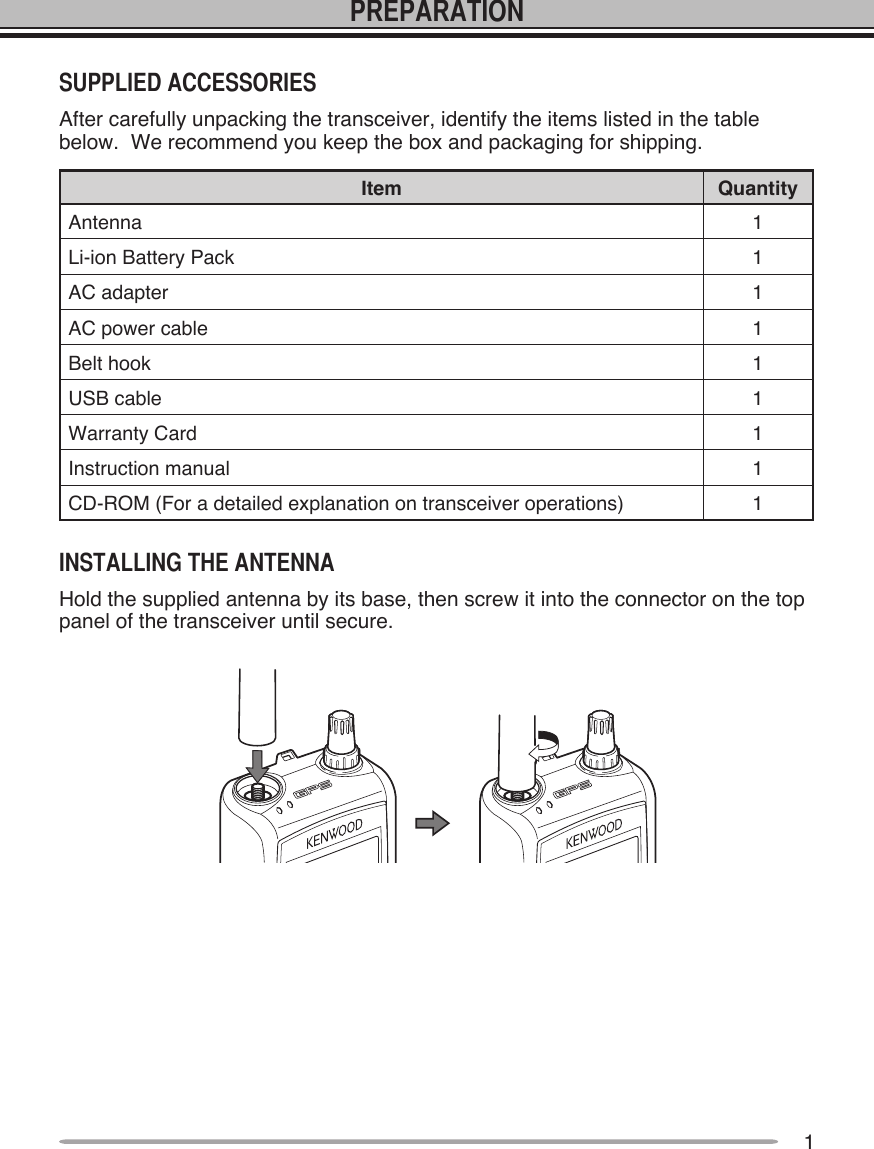

1PREPARATIONSuPPlIEd AccESSORIESAfter carefully unpacking the transceiver, identify the items listed in the table below. We recommend you keep the box and packaging for shipping.Item QuantityAntenna 1Li-ion Battery Pack 1AC adapter 1AC power cable 1Belt hook 1USB cable 1Warranty Card 1Instruction manual 1CD-ROM (For a detailed explanation on transceiver operations) 1INSTAllINg ThE ANTENNAHold the supplied antenna by its base, then screw it into the connector on the top panel of the transceiver until secure.

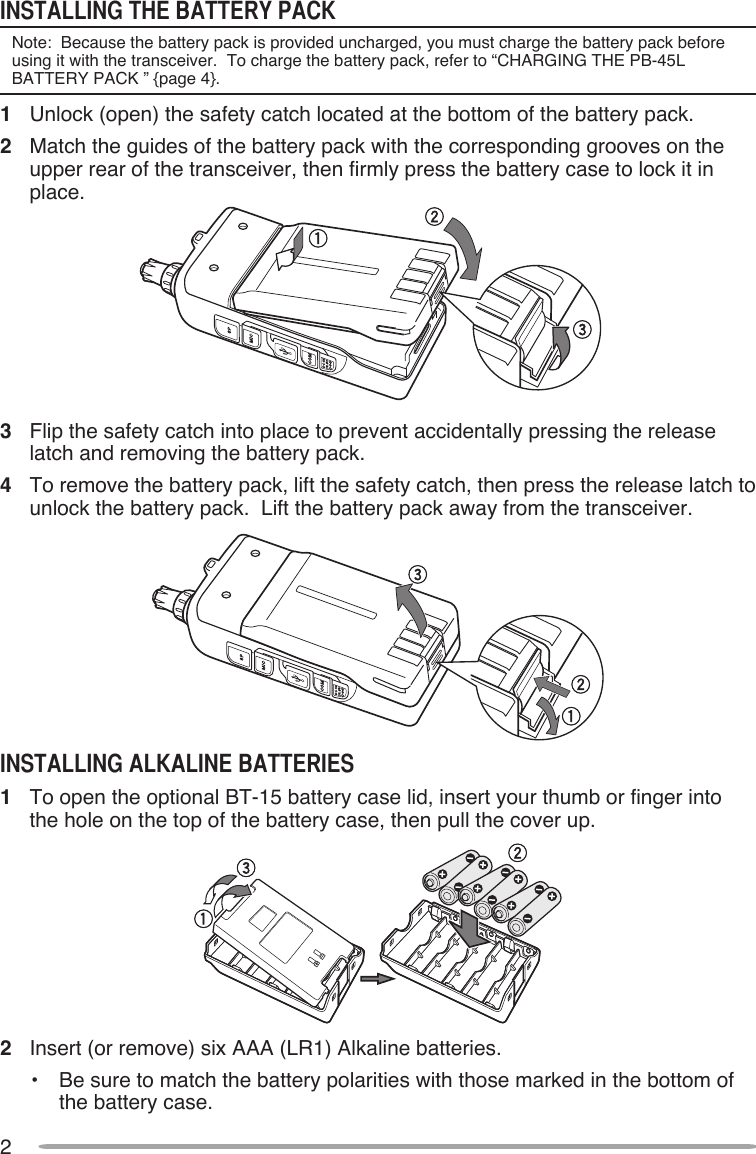

2INSTAllINg ThE BATTERY PAcKNote: Because the battery pack is provided uncharged, you must charge the battery pack before using it with the transceiver. To charge the battery pack, refer to “CHARGING THE PB-45L BATTERY PACK ” {page 4}.1 Unlock (open) the safety catch located at the bottom of the battery pack.2 Match the guides of the battery pack with the corresponding grooves on the upper rear of the transceiver, then firmly press the battery case to lock it in place.3 Flip the safety catch into place to prevent accidentally pressing the release latch and removing the battery pack.4 To remove the battery pack, lift the safety catch, then press the release latch to unlock the battery pack. Lift the battery pack away from the transceiver.INSTAllINg AlKAlINE BATTERIES1 To open the optional BT-15 battery case lid, insert your thumb or finger into the hole on the top of the battery case, then pull the cover up.2 Insert (or remove) six AAA (LR1) Alkaline batteries.• Be sure to match the battery polarities with those marked in the bottom of the battery case.

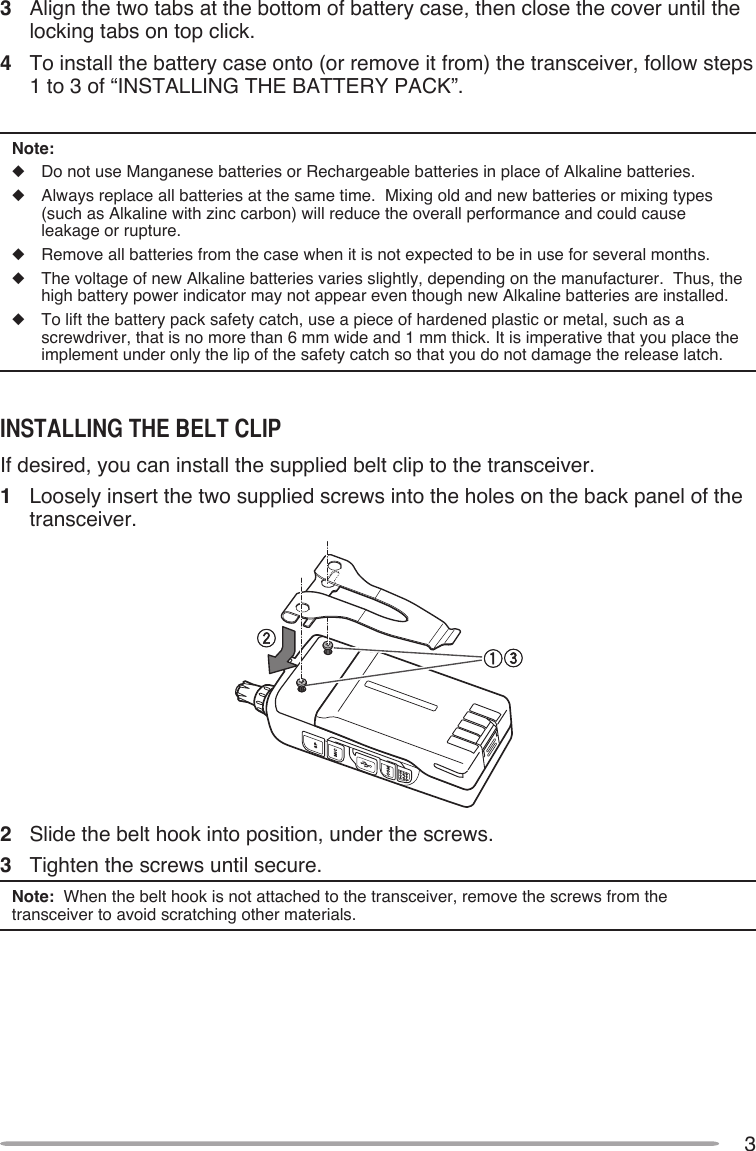

33 Align the two tabs at the bottom of battery case, then close the cover until the locking tabs on top click.4 To install the battery case onto (or remove it from) the transceiver, follow steps 1 to 3 of “INSTALLING THE BATTERY PACK”.Note:u Do not use Manganese batteries or Rechargeable batteries in place of Alkaline batteries.u Always replace all batteries at the same time. Mixing old and new batteries or mixing types (such as Alkaline with zinc carbon) will reduce the overall performance and could cause leakage or rupture.u Remove all batteries from the case when it is not expected to be in use for several months.u The voltage of new Alkaline batteries varies slightly, depending on the manufacturer. Thus, the high battery power indicator may not appear even though new Alkaline batteries are installed.u To lift the battery pack safety catch, use a piece of hardened plastic or metal, such as a screwdriver, that is no more than 6 mm wide and 1 mm thick. It is imperative that you place the implement under only the lip of the safety catch so that you do not damage the release latch.INSTAllINg ThE BElT clIPIf desired, you can install the supplied belt clip to the transceiver.1 Loosely insert the two supplied screws into the holes on the back panel of the transceiver.2 Slide the belt hook into position, under the screws.3 Tighten the screws until secure.Note: When the belt hook is not attached to the transceiver, remove the screws from the transceiver to avoid scratching other materials.

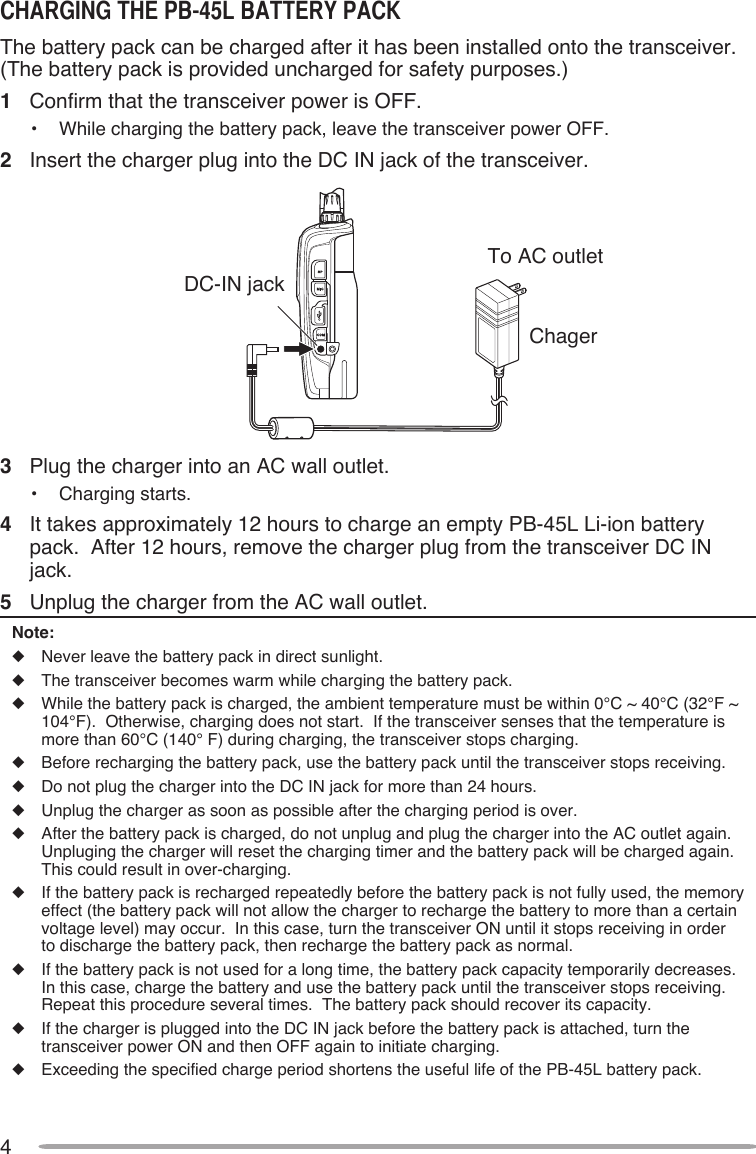

4chARgINg ThE PB-45l BATTERY PAcKThe battery pack can be charged after it has been installed onto the transceiver. (The battery pack is provided uncharged for safety purposes.)1 Confirm that the transceiver power is OFF.• While charging the battery pack, leave the transceiver power OFF.2 Insert the charger plug into the DC IN jack of the transceiver.DC-IN jack To AC outletChager3 Plug the charger into an AC wall outlet.• Charging starts.4 It takes approximately 12 hours to charge an empty PB-45L Li-ion battery pack. After 12 hours, remove the charger plug from the transceiver DC IN jack.5 Unplug the charger from the AC wall outlet.Note:u Never leave the battery pack in direct sunlight.u The transceiver becomes warm while charging the battery pack.u While the battery pack is charged, the ambient temperature must be within 0°C ~ 40°C (32°F ~ 104°F). Otherwise, charging does not start. If the transceiver senses that the temperature is more than 60°C (140° F) during charging, the transceiver stops charging.u Before recharging the battery pack, use the battery pack until the transceiver stops receiving.u Do not plug the charger into the DC IN jack for more than 24 hours.u Unplug the charger as soon as possible after the charging period is over.u After the battery pack is charged, do not unplug and plug the charger into the AC outlet again. Unpluging the charger will reset the charging timer and the battery pack will be charged again. This could result in over-charging.u If the battery pack is recharged repeatedly before the battery pack is not fully used, the memory effect (the battery pack will not allow the charger to recharge the battery to more than a certain voltage level) may occur. In this case, turn the transceiver ON until it stops receiving in order to discharge the battery pack, then recharge the battery pack as normal.u If the battery pack is not used for a long time, the battery pack capacity temporarily decreases. In this case, charge the battery and use the battery pack until the transceiver stops receiving. Repeat this procedure several times. The battery pack should recover its capacity.u If the charger is plugged into the DC IN jack before the battery pack is attached, turn the transceiver power ON and then OFF again to initiate charging.u Exceeding the specified charge period shortens the useful life of the PB-45L battery pack.
5u The provided charger is designed to charge only the PB-45L battery pack. Charging other models of battery packs may damage the charger and battery pack.u Do not transmit while charging.u When not in use, store the battery pack in a cool and dry place.u Before charging the battery pack, ensure that the safety catch is firmly closed.u Attention should be drawn to the environmental aspects of battery disposal.cONNEcTINg TO A cIgARETTE lIghTER SOcKETTo connect the transceiver to the cigarette lighter socket in your vehicle, use an optional PG-3J Cigarette Lighter cable.When the PG-3J is connected to the cigarette lighter plug, the transceiver automatically starts charging the PB-45L battery pack. While you operate the transceiver, it charges the PB-45L battery pack in the background.To connect with an external 24 V power source via a DC-DC converter, only use the optional PG-3J Cigarette Lighter cable. Using the PG-2W DC cable in this situation may cause a fire.Note:u Do not use the PG-2W to connect directly to a vehicle battery (12 V). Extensive voltage could result in damaging the transceiver.u If the input voltage exceeds approximately 16.5 V, warning beeps sound and “DC ERR” appears.PG-2W2 4 V1 2 V2 4 V PG-3J1 2 V1 2 V2 4 V PG-3JDC-DC ConverterDC-DC ConverterSocket

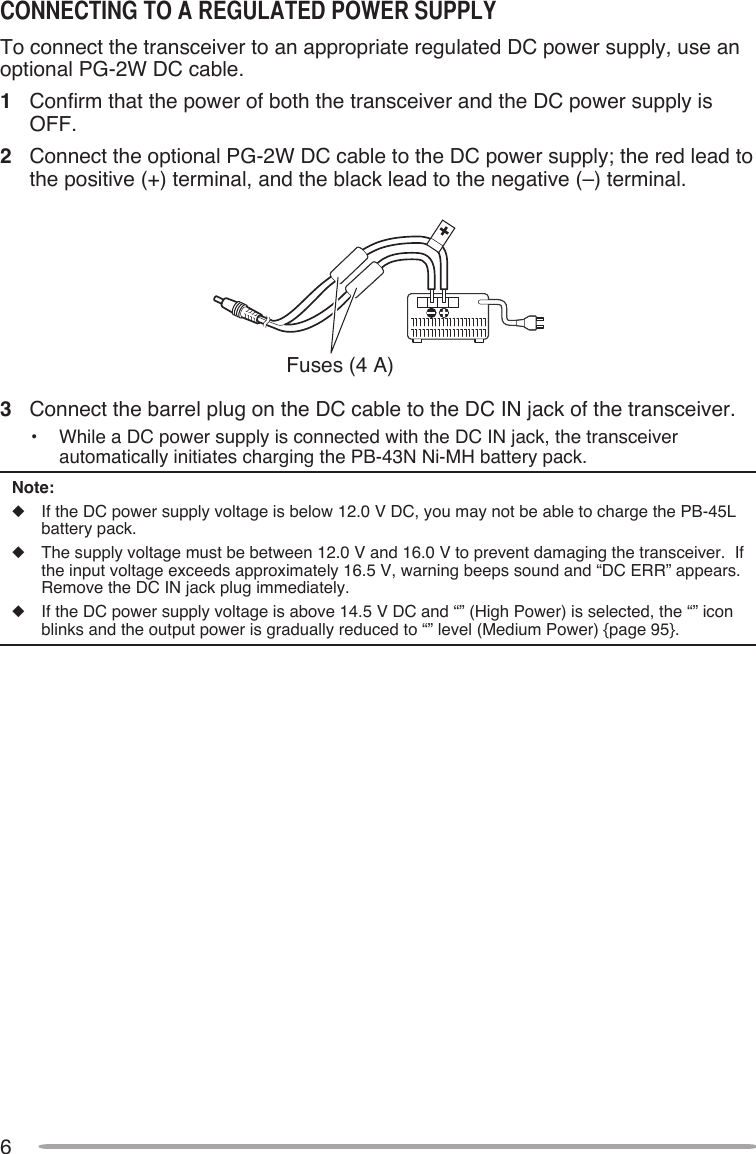

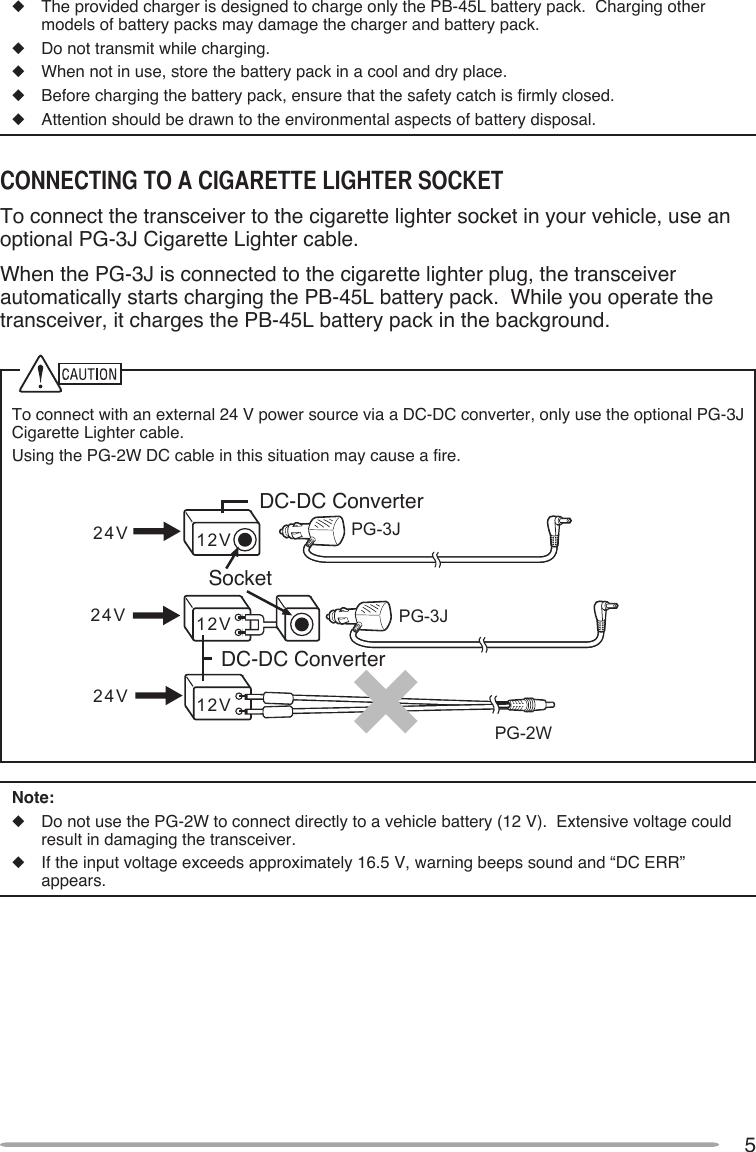

6cONNEcTINg TO A REgulATEd POWER SuPPlYTo connect the transceiver to an appropriate regulated DC power supply, use an optional PG-2W DC cable.1 Confirm that the power of both the transceiver and the DC power supply is OFF.2 Connect the optional PG-2W DC cable to the DC power supply; the red lead to the positive (+) terminal, and the black lead to the negative (–) terminal.Fuses (4 A)3 Connect the barrel plug on the DC cable to the DC IN jack of the transceiver.• While a DC power supply is connected with the DC IN jack, the transceiver automatically initiates charging the PB-43N Ni-MH battery pack.Note:u If the DC power supply voltage is below 12.0 V DC, you may not be able to charge the PB-45L battery pack.u The supply voltage must be between 12.0 V and 16.0 V to prevent damaging the transceiver. If the input voltage exceeds approximately 16.5 V, warning beeps sound and “DC ERR” appears. Remove the DC IN jack plug immediately.u If the DC power supply voltage is above 14.5 V DC and “” (High Power) is selected, the “” icon blinks and the output power is gradually reduced to “” level (Medium Power) {page 95}.

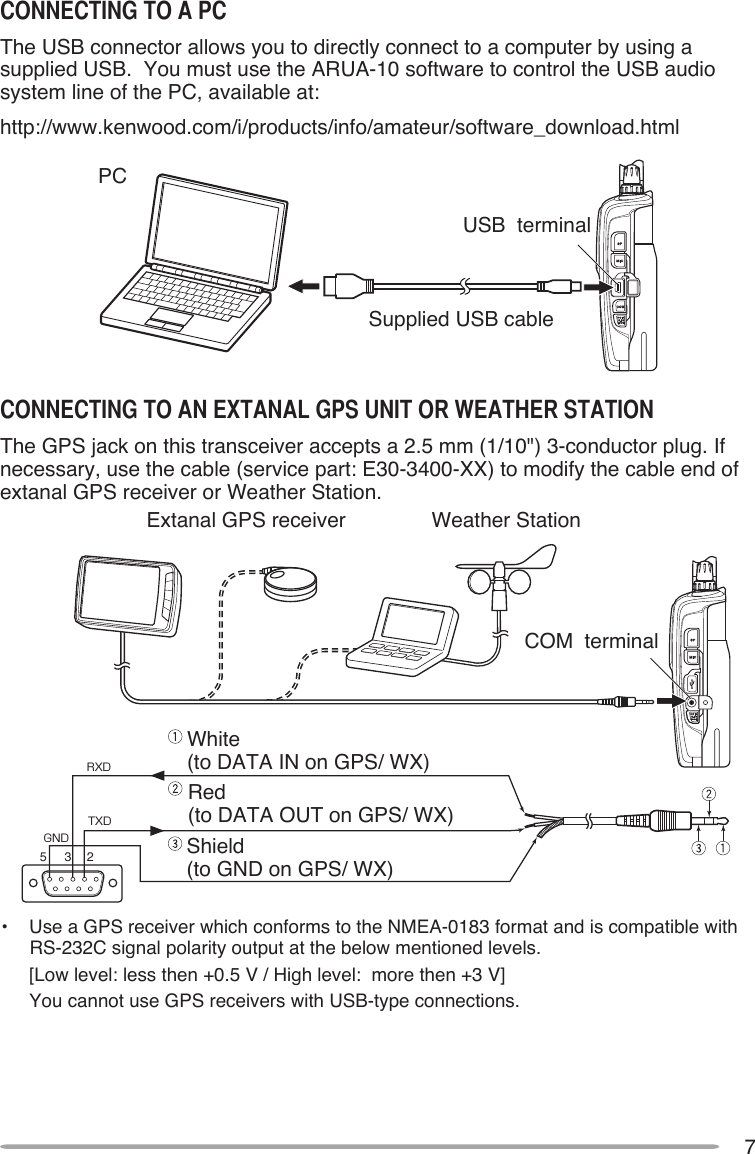

7cONNEcTINg TO A PcThe USB connector allows you to directly connect to a computer by using a supplied USB. You must use the ARUA-10 software to control the USB audio system line of the PC, available at:http://www.kenwood.com/i/products/info/amateur/software_download.htmlUSB terminalSupplied USB cablePCcONNEcTINg TO AN ExTANAl gPS uNIT OR WEAThER STATIONThe GPS jack on this transceiver accepts a 2.5 mm (1/10") 3-conductor plug. If necessary, use the cable (service part: E30-3400-XX) to modify the cable end of extanal GPS receiver or Weather Station.• Use a GPS receiver which conforms to the NMEA-0183 format and is compatible with RS-232C signal polarity output at the below mentioned levels. [Low level: less then +0.5 V / High level: more then +3 V] You cannot use GPS receivers with USB-type connections.5 3 2GNDRXDTXDShield (to GND on GPS/ WX)Red (to DATA OUT on GPS/ WX)White (to DATA IN on GPS/ WX)Extanal GPS receiverCOM terminalWeather Station

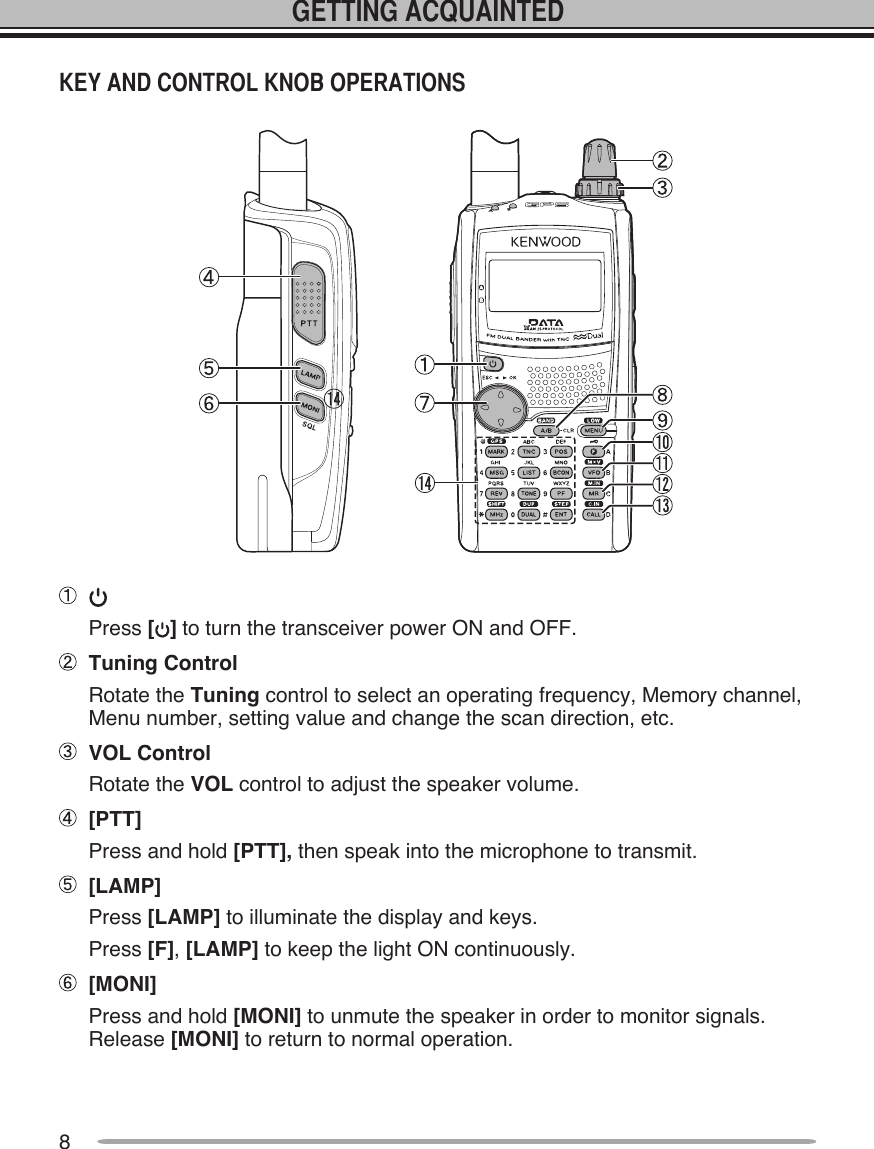

8GETTING ACQUAINTED Press [ ] to turn the transceiver power ON and OFF. Tuning ControlRotate the Tuning control to select an operating frequency, Memory channel, Menu number, setting value and change the scan direction, etc. VOL ControlRotate the VOL control to adjust the speaker volume. [PTT]Press and hold [PTT], then speak into the microphone to transmit. [LAMP] Press [LAMP] to illuminate the display and keys.Press [F], [LAMP] to keep the light ON continuously. [MONI] Press and hold [MONI] to unmute the speaker in order to monitor signals. Release [MONI] to return to normal operation. KEy AND CONTROL KNOB OpERATIONs

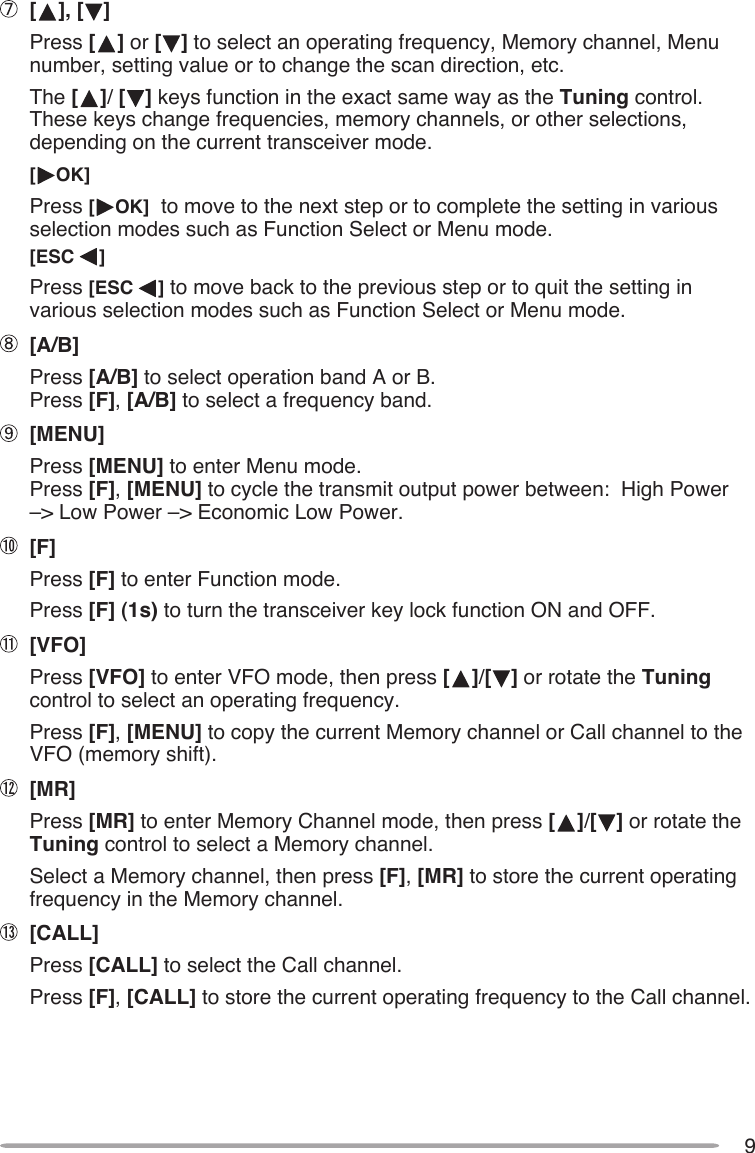

9 [ ], [ ] Press [ ] or [ ] to select an operating frequency, Memory channel, Menu number, setting value or to change the scan direction, etc. The [ ]/ [ ] keys function in the exact same way as the Tuning control. These keys change frequencies, memory channels, or other selections, depending on the current transceiver mode.[ OK] Press [ OK] to move to the next step or to complete the setting in various selection modes such as Function Select or Menu mode.[ESC ]Press [ESC ] to move back to the previous step or to quit the setting in various selection modes such as Function Select or Menu mode.[A/B]　 Press [A/B] to select operation band A or B. Press [F], [A/B] to select a frequency band.[MENU]　 Press [MENU] to enter Menu mode. Press [F], [MENU] to cycle the transmit output power between: High Power –> Low Power –> Economic Low Power.[F]Press [F] to enter Function mode.Press [F] (1s) to turn the transceiver key lock function ON and OFF.[VFO]Press [VFO] to enter VFO mode, then press [ ]/[ ] or rotate the Tuning control to select an operating frequency.Press [F], [MENU] to copy the current Memory channel or Call channel to the VFO (memory shift).[MR]Press [MR] to enter Memory Channel mode, then press [ ]/[ ] or rotate the Tuning control to select a Memory channel. Select a Memory channel, then press [F], [MR] to store the current operating frequency in the Memory channel.[CALL]Press [CALL] to select the Call channel. Press [F], [CALL] to store the current operating frequency to the Call channel.

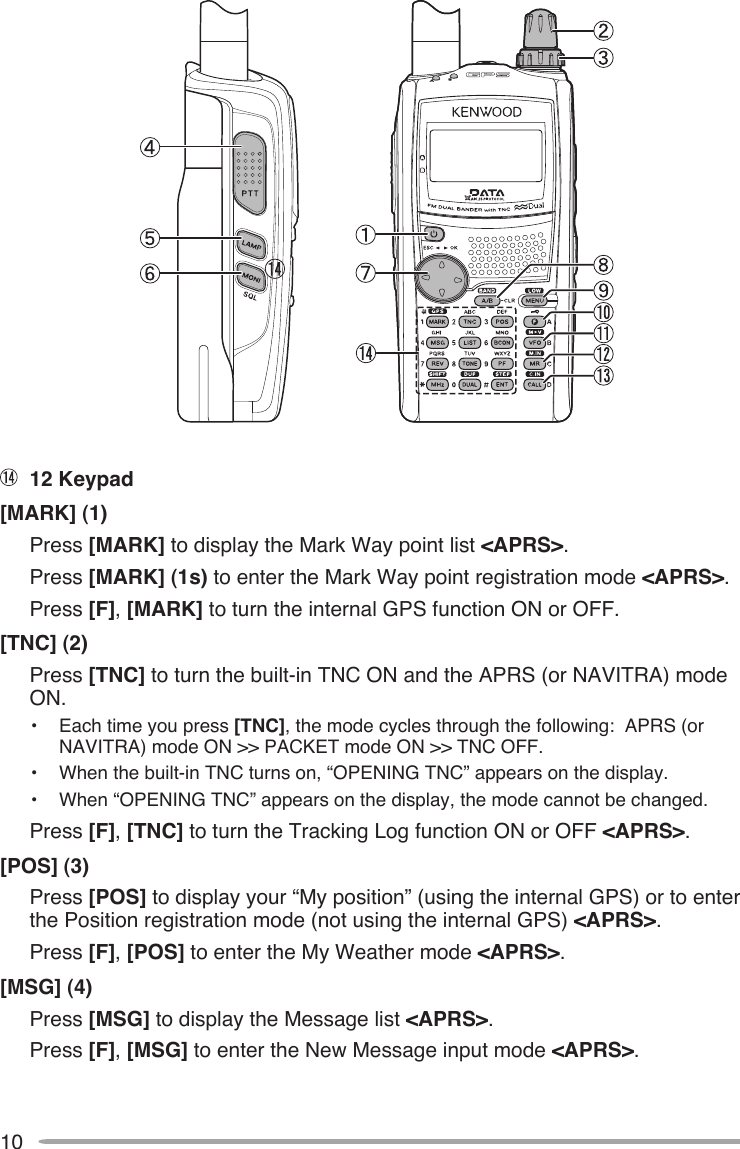

1012 Keypad[MARK] (1)Press [MARK] to display the Mark Way point list <APRS>.Press [MARK] (1s) to enter the Mark Way point registration mode <APRS>.Press [F], [MARK] to turn the internal GPS function ON or OFF.[TNC] (2)Press [TNC] to turn the built-in TNC ON and the APRS (or NAVITRA) mode ON.• Each time you press [TNC], the mode cycles through the following: APRS (or NAVITRA) mode ON >> PACKET mode ON >> TNC OFF.• When the built-in TNC turns on, “OPENING TNC” appears on the display.• When “OPENING TNC” appears on the display, the mode cannot be changed.Press [F], [TNC] to turn the Tracking Log function ON or OFF <APRS>.[POS] (3)Press [POS] to display your “My position” (using the internal GPS) or to enter the Position registration mode (not using the internal GPS) <APRS>.Press [F], [POS] to enter the My Weather mode <APRS>.[MSG] (4)Press [MSG] to display the Message list <APRS>.Press [F], [MSG] to enter the New Message input mode <APRS>.

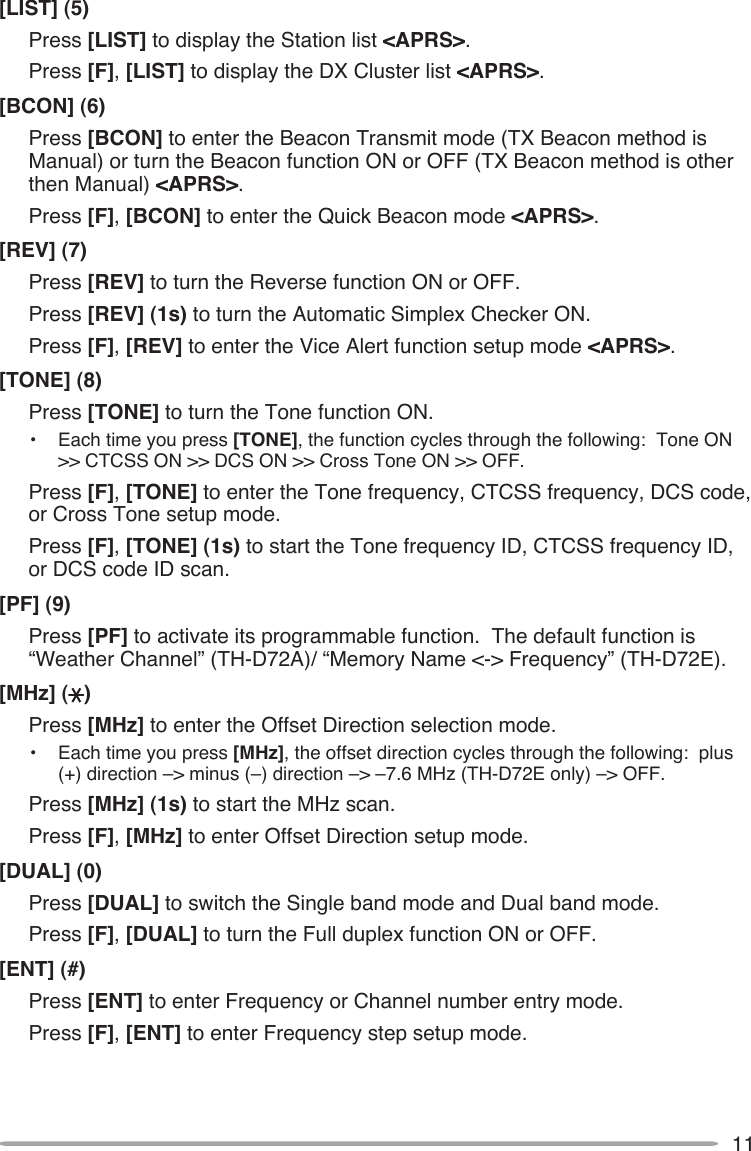

11[LIST] (5)Press [LIST] to display the Station list <APRS>.Press [F], [LIST] to display the DX Cluster list <APRS>.[BCON] (6)Press [BCON] to enter the Beacon Transmit mode (TX Beacon method is Manual) or turn the Beacon function ON or OFF (TX Beacon method is other then Manual) <APRS>.Press [F], [BCON] to enter the Quick Beacon mode <APRS>.[REV] (7)Press [REV] to turn the Reverse function ON or OFF. Press [REV] (1s) to turn the Automatic Simplex Checker ON.Press [F], [REV] to enter the Vice Alert function setup mode <APRS>.[TONE] (8)Press [TONE] to turn the Tone function ON.• Each time you press [TONE], the function cycles through the following: Tone ON >> CTCSS ON >> DCS ON >> Cross Tone ON >> OFF.Press [F], [TONE] to enter the Tone frequency, CTCSS frequency, DCS code, or Cross Tone setup mode.Press [F], [TONE] (1s) to start the Tone frequency ID, CTCSS frequency ID, or DCS code ID scan.[PF] (9)Press [PF] to activate its programmable function. The default function is “Weather Channel” (TH-D72A)/ “Memory Name <-> Frequency” (TH-D72E).[MHz] ( )Press [MHz] to enter the Offset Direction selection mode. • Each time you press [MHz], the offset direction cycles through the following: plus (+) direction –> minus (–) direction –> –7.6 MHz (TH-D72E only) –> OFF.Press [MHz] (1s) to start the MHz scan.Press [F], [MHz] to enter Offset Direction setup mode.[DUAL] (0)Press [DUAL] to switch the Single band mode and Dual band mode.Press [F], [DUAL] to turn the Full duplex function ON or OFF.[ENT] (#)Press [ENT] to enter Frequency or Channel number entry mode.Press [F], [ENT] to enter Frequency step setup mode.

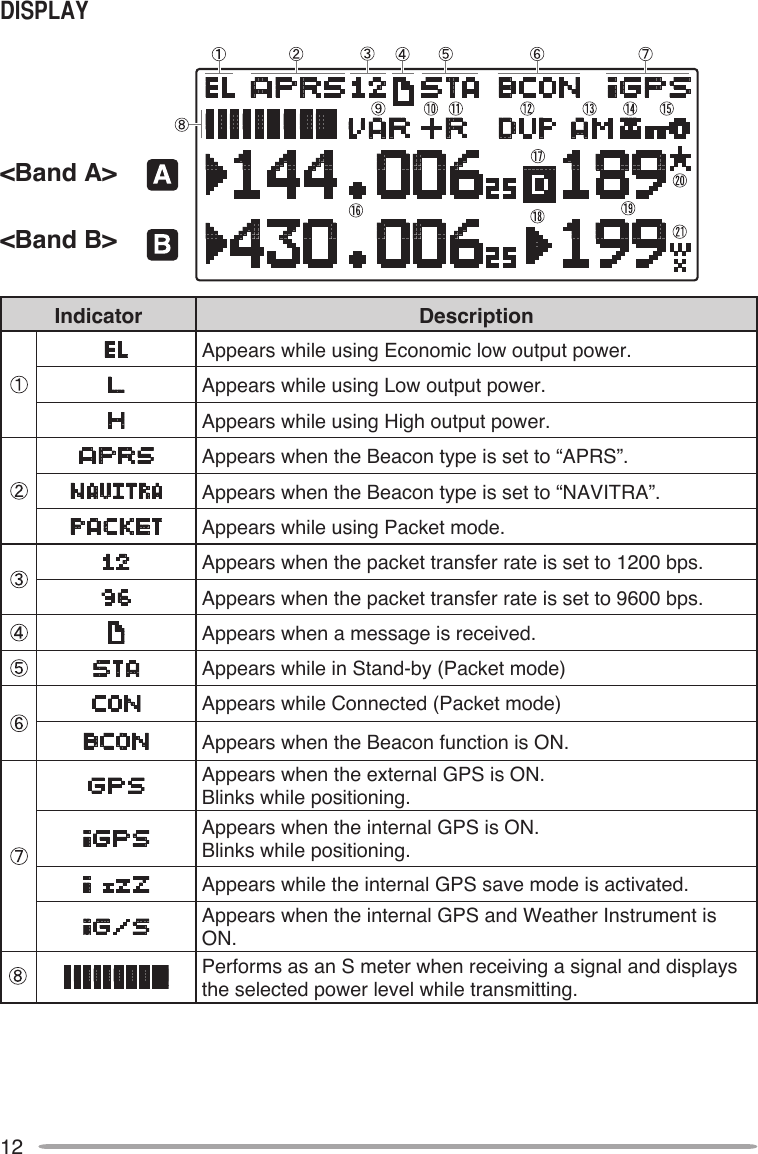

12Indicator DescriptionAppears while using Economic low output power. Appears while using Low output power.Appears while using High output power. Appears when the Beacon type is set to “APRS”.Appears when the Beacon type is set to “NAVITRA”.Appears while using Packet mode. Appears when the packet transfer rate is set to 1200 bps.Appears when the packet transfer rate is set to 9600 bps.Appears when a message is received.Appears while in Stand-by (Packet mode)Appears while Connected (Packet mode)Appears when the Beacon function is ON.Appears when the external GPS is ON. Blinks while positioning.Appears when the internal GPS is ON. Blinks while positioning.Appears while the internal GPS save mode is activated.Appears when the internal GPS and Weather Instrument is ON.Performs as an S meter when receiving a signal and displays the selected power level while transmitting.DIspLAy<Band A><Band B>

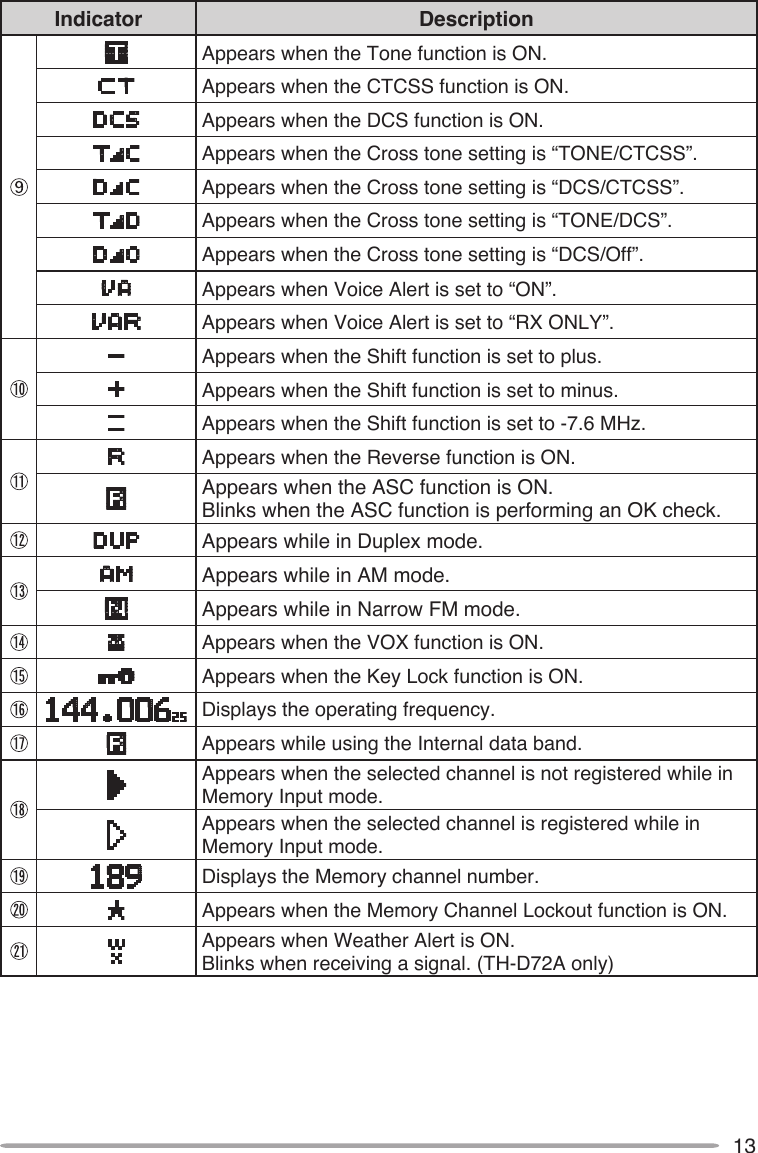

13Indicator DescriptionAppears when the Tone function is ON.Appears when the CTCSS function is ON.Appears when the DCS function is ON.Appears when the Cross tone setting is “TONE/CTCSS”.Appears when the Cross tone setting is “DCS/CTCSS”.Appears when the Cross tone setting is “TONE/DCS”.Appears when the Cross tone setting is “DCS/Off”.Appears when Voice Alert is set to “ON”.Appears when Voice Alert is set to “RX ONLY”.Appears when the Shift function is set to plus.Appears when the Shift function is set to minus.Appears when the Shift function is set to -7.6 MHz.Appears when the Reverse function is ON.Appears when the ASC function is ON. Blinks when the ASC function is performing an OK check.Appears while in Duplex mode.Appears while in AM mode.Appears while in Narrow FM mode.Appears when the VOX function is ON.Appears when the Key Lock function is ON.Displays the operating frequency.Appears while using the Internal data band.Appears when the selected channel is not registered while in Memory Input mode.Appears when the selected channel is registered while in Memory Input mode.Displays the Memory channel number.Appears when the Memory Channel Lockout function is ON.Appears when Weather Alert is ON. Blinks when receiving a signal. (TH-D72A only)

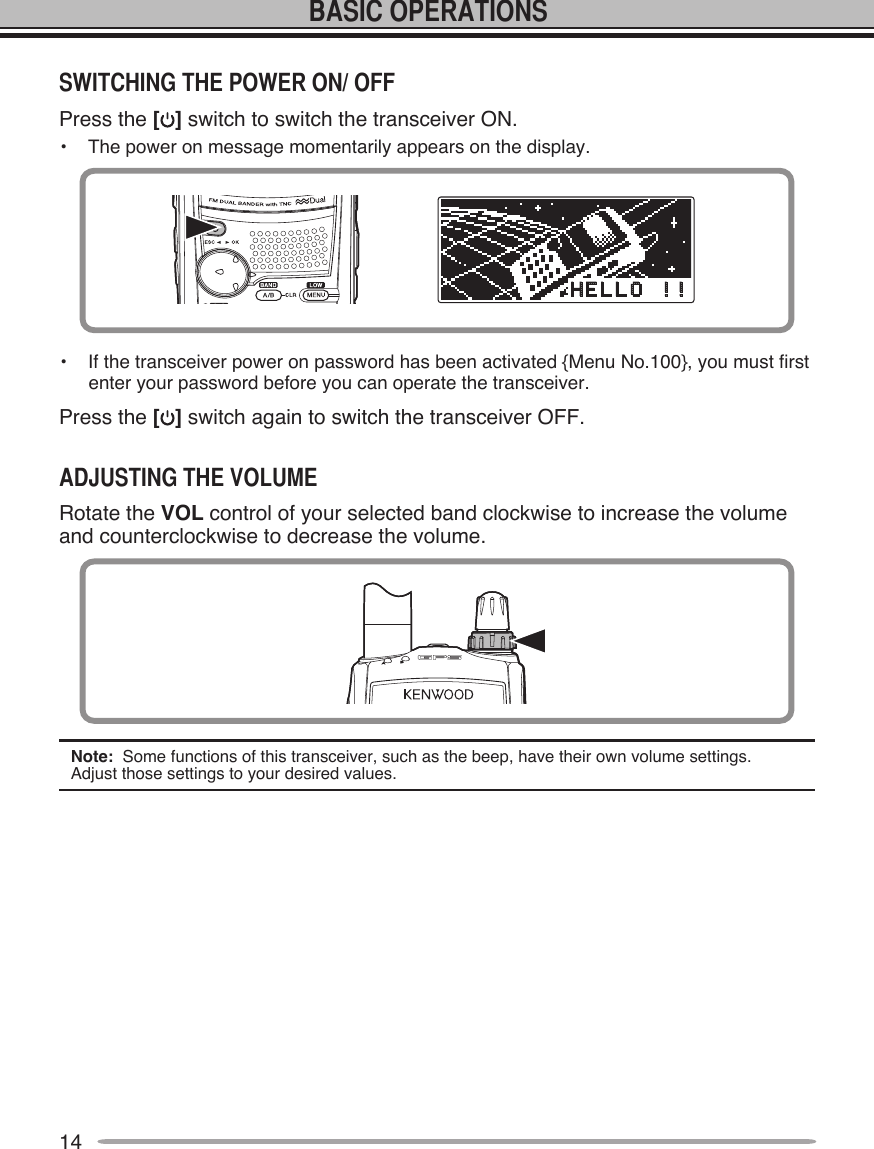

14Press the [ ] switch to switch the transceiver ON.• The power on message momentarily appears on the display.• If the transceiver power on password has been activated {Menu No.100}, you must first enter your password before you can operate the transceiver.Press the [ ] switch again to switch the transceiver OFF.Rotate the VOL control of your selected band clockwise to increase the volume and counterclockwise to decrease the volume.Note: Some functions of this transceiver, such as the beep, have their own volume settings. Adjust those settings to your desired values.

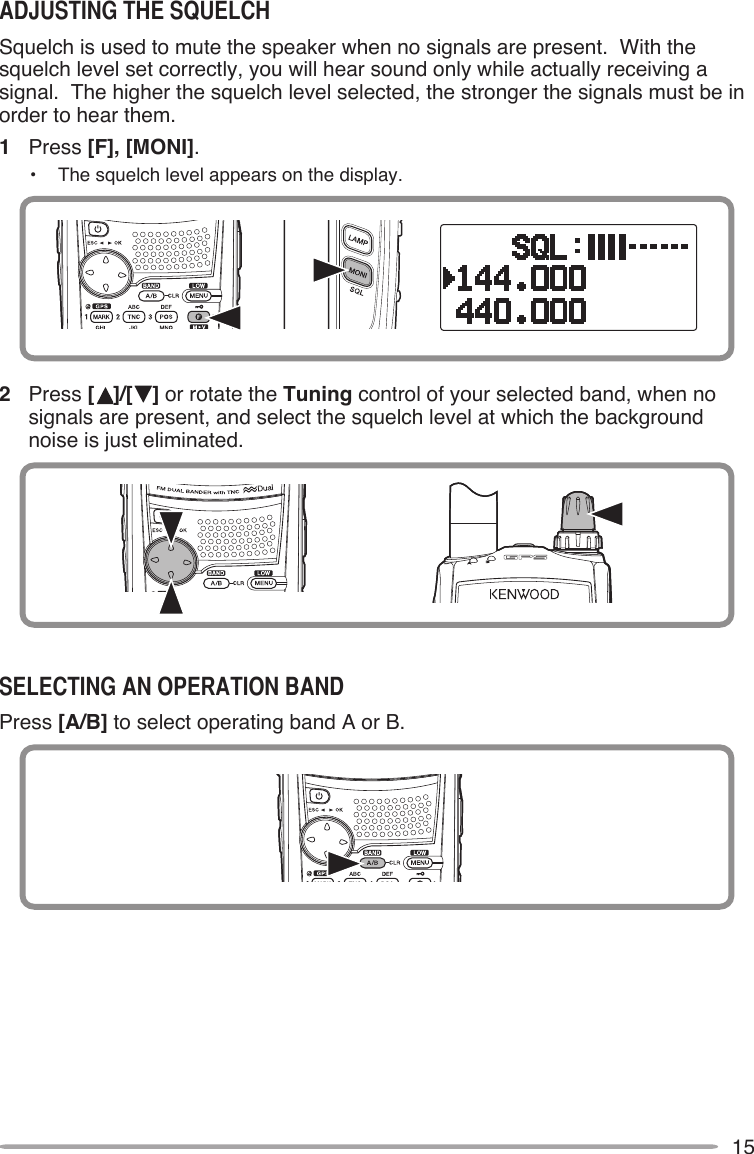

15Squelch is used to mute the speaker when no signals are present. With the squelch level set correctly, you will hear sound only while actually receiving a signal. The higher the squelch level selected, the stronger the signals must be in order to hear them.1 Press [F], [MONI].• The squelch level appears on the display.2 Press [ ]/[ ] or rotate the Tuning control of your selected band, when no signals are present, and select the squelch level at which the background noise is just eliminated.Press [A/B] to select operating band A or B.

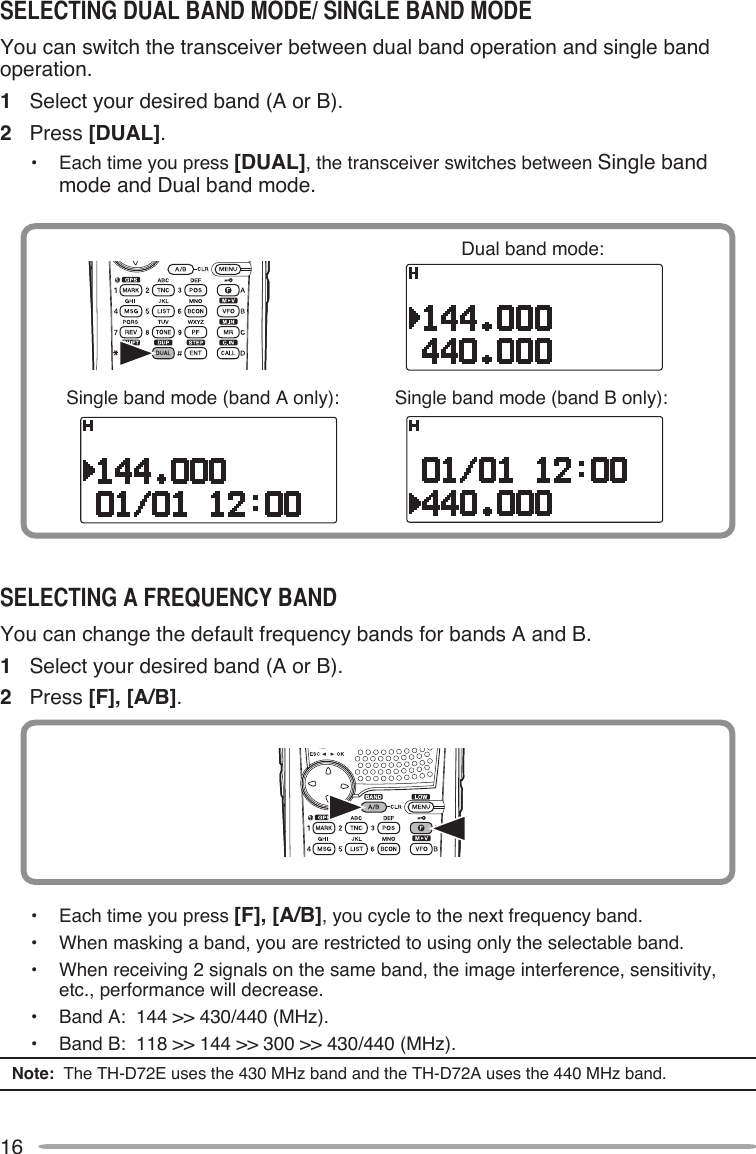

16You can switch the transceiver between dual band operation and single band operation.1 Select your desired band (A or B).2 Press [DUAL].• Each time you press [DUAL], the transceiver switches between Single band mode and Dual band mode.Dual band mode:Single band mode (band A only): Single band mode (band B only):You can change the default frequency bands for bands A and B.1 Select your desired band (A or B).2 Press [F], [A/B].• Each time you press [F], [A/B], you cycle to the next frequency band.• When masking a band, you are restricted to using only the selectable band.• When receiving 2 signals on the same band, the image interference, sensitivity, etc., performance will decrease.• Band A: 144 >> 430/440 (MHz).• Band B: 118 >> 144 >> 300 >> 430/440 (MHz).Note: The TH-D72E uses the 430 MHz band and the TH-D72A uses the 440 MHz band.

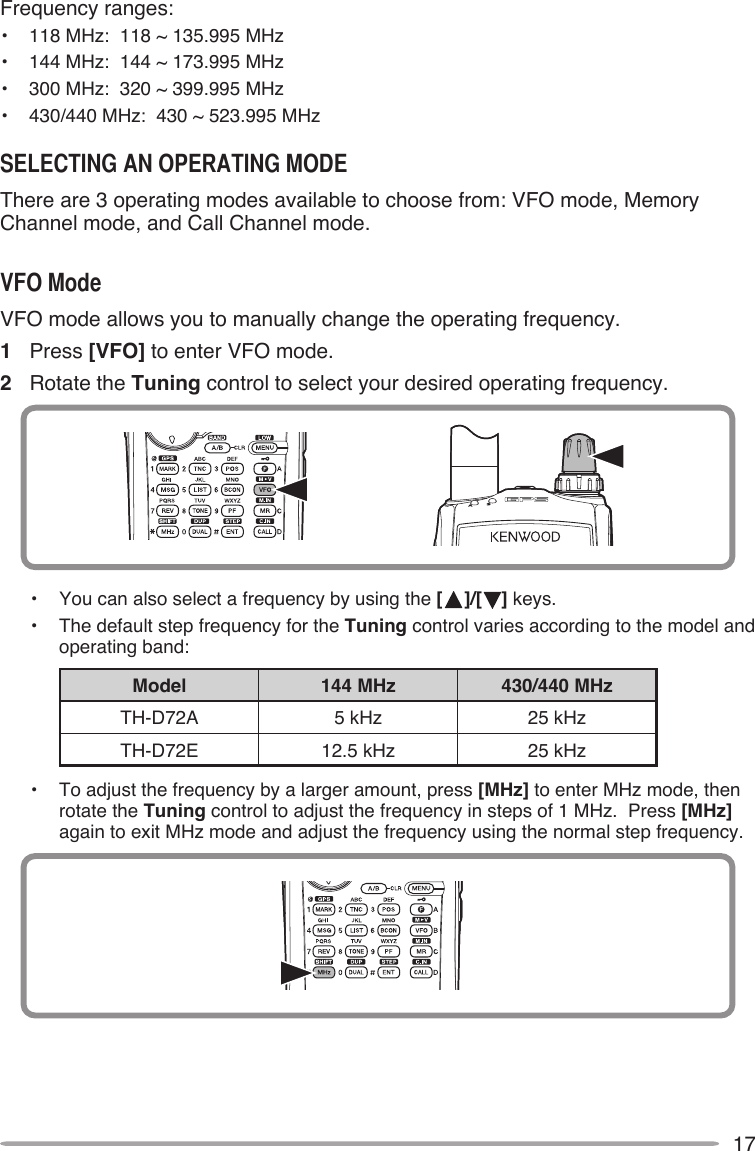

17Frequency ranges:• 118 MHz: 118 ~ 135.995 MHz• 144 MHz: 144 ~ 173.995 MHz• 300 MHz: 320 ~ 399.995 MHz• 430/440 MHz: 430 ~ 523.995 MHzThere are 3 operating modes available to choose from: VFO mode, Memory Channel mode, and Call Channel mode.VFO mode allows you to manually change the operating frequency.1 Press [VFO] to enter VFO mode.2 Rotate the Tuning control to select your desired operating frequency.• You can also select a frequency by using the [ ]/[ ] keys.• The default step frequency for the Tuning control varies according to the model and operating band:Model 144 MHz 430/440 MHzTH-D72A 5 kHz 25 kHzTH-D72E 12.5 kHz 25 kHz• To adjust the frequency by a larger amount, press [MHz] to enter MHz mode, then rotate the Tuning control to adjust the frequency in steps of 1 MHz. Press [MHz] again to exit MHz mode and adjust the frequency using the normal step frequency.

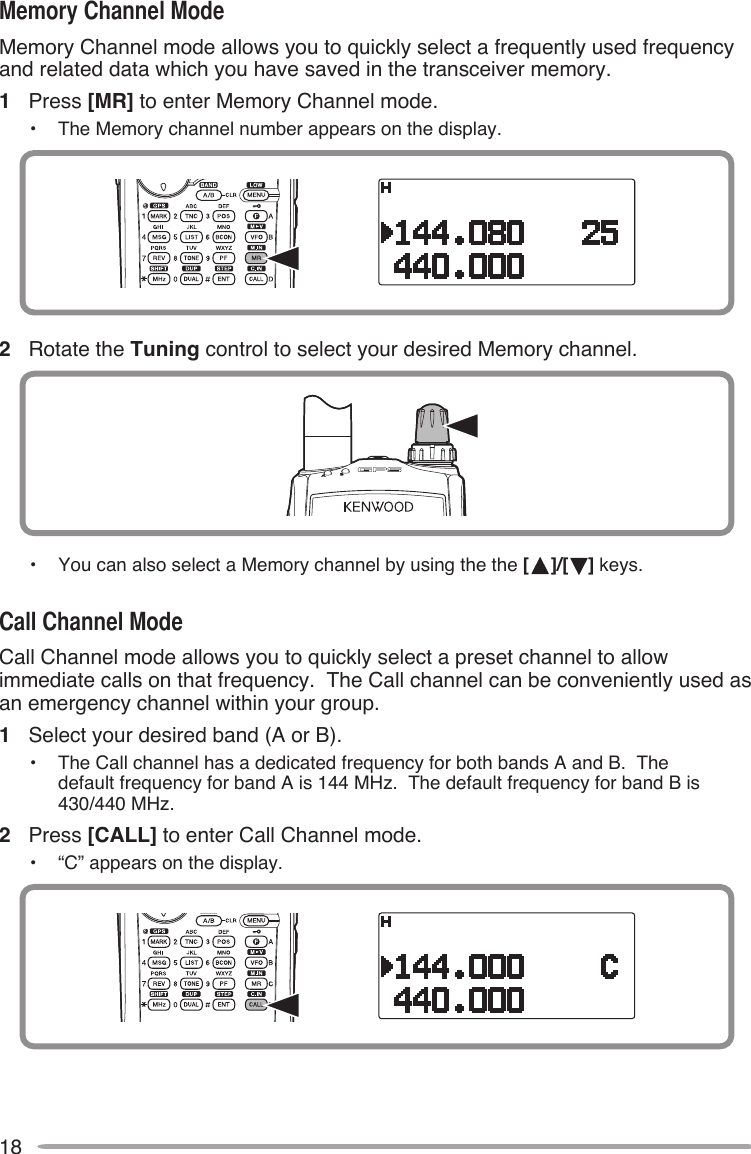

18Memory Channel mode allows you to quickly select a frequently used frequency and related data which you have saved in the transceiver memory.1 Press [MR] to enter Memory Channel mode.• The Memory channel number appears on the display.2 Rotate the Tuning control to select your desired Memory channel.• You can also select a Memory channel by using the the [ ]/[ ] keys.Call Channel mode allows you to quickly select a preset channel to allow immediate calls on that frequency. The Call channel can be conveniently used as an emergency channel within your group.1 Select your desired band (A or B).• The Call channel has a dedicated frequency for both bands A and B. The default frequency for band A is 144 MHz. The default frequency for band B is 430/440 MHz.2 Press [CALL] to enter Call Channel mode.• “C” appears on the display.

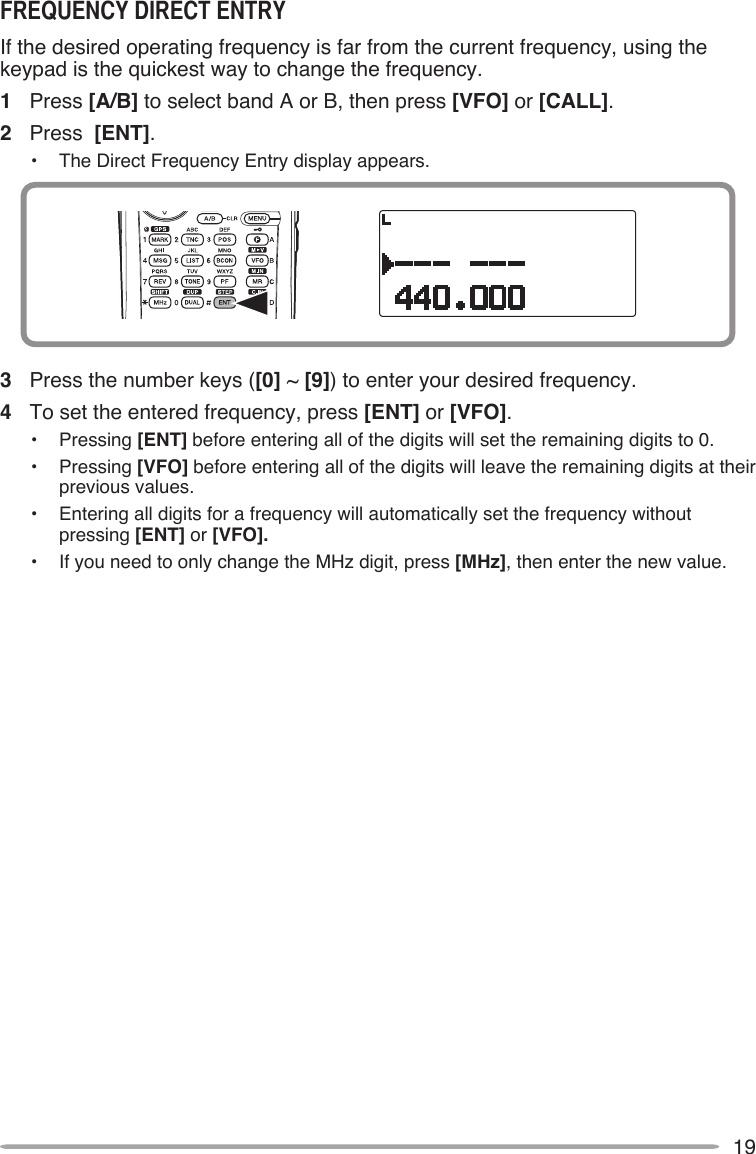

19If the desired operating frequency is far from the current frequency, using the keypad is the quickest way to change the frequency. 1 Press [A/B] to select band A or B, then press [VFO] or [CALL].2 Press [ENT].• The Direct Frequency Entry display appears.3 Press the number keys ([0] ~ [9]) to enter your desired frequency.4 To set the entered frequency, press [ENT] or [VFO].• Pressing [ENT] before entering all of the digits will set the remaining digits to 0.• Pressing [VFO] before entering all of the digits will leave the remaining digits at their previous values.• Entering all digits for a frequency will automatically set the frequency without pressing [ENT] or [VFO].• If you need to only change the MHz digit, press [MHz], then enter the new value.

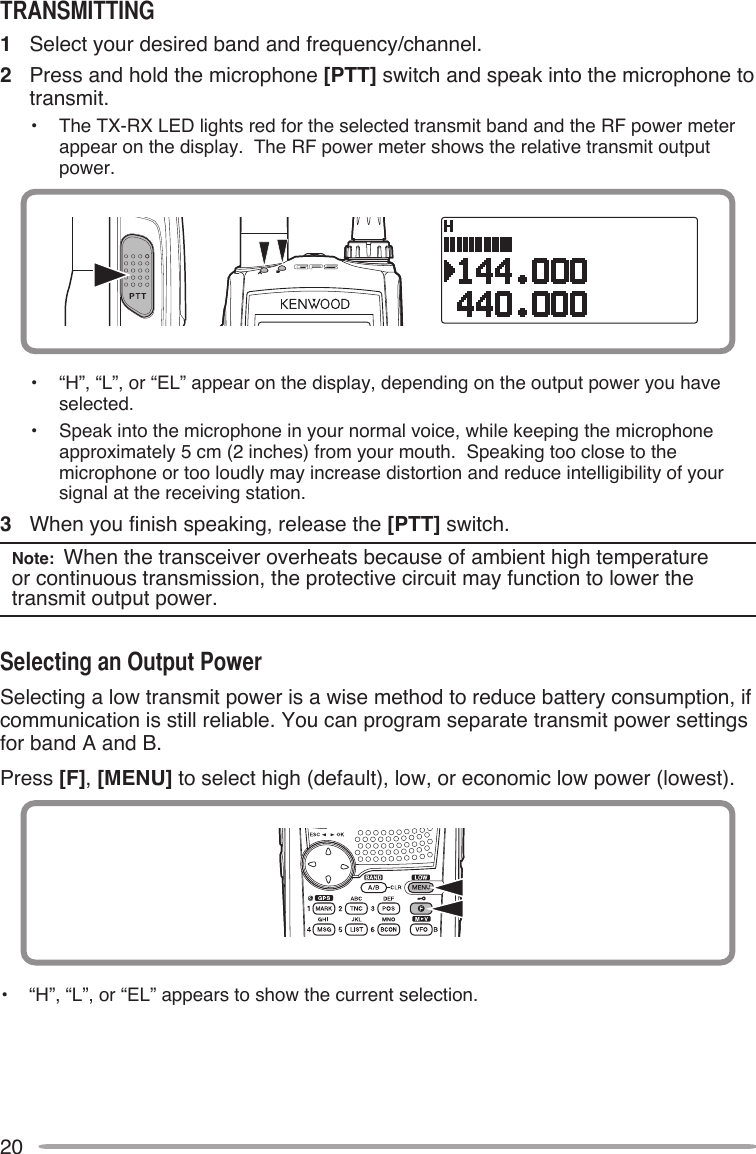

201 Select your desired band and frequency/channel.2 Press and hold the microphone [PTT] switch and speak into the microphone to transmit.• The TX-RX LED lights red for the selected transmit band and the RF power meter appear on the display. The RF power meter shows the relative transmit output power.• “H”, “L”, or “EL” appear on the display, depending on the output power you have selected.• Speak into the microphone in your normal voice, while keeping the microphone approximately 5 cm (2 inches) from your mouth. Speaking too close to the microphone or too loudly may increase distortion and reduce intelligibility of your signal at the receiving station.3 When you finish speaking, release the [PTT] switch.Note: When the transceiver overheats because of ambient high temperature or continuous transmission, the protective circuit may function to lower the transmit output power. Selecting a low transmit power is a wise method to reduce battery consumption, if communication is still reliable. You can program separate transmit power settings for band A and B.Press [F], [MENU] to select high (default), low, or economic low power (lowest).• “H”, “L”, or “EL” appears to show the current selection.

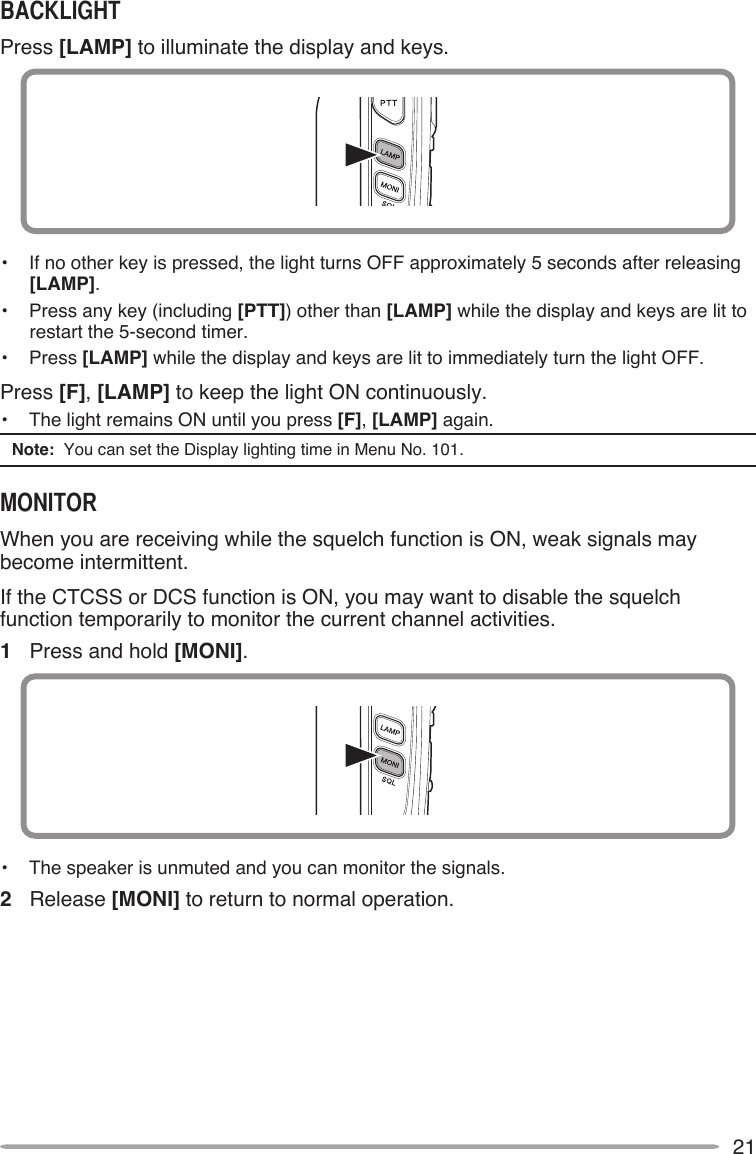

21Press [LAMP] to illuminate the display and keys.• If no other key is pressed, the light turns OFF approximately 5 seconds after releasing [LAMP].• Press any key (including [PTT]) other than [LAMP] while the display and keys are lit to restart the 5-second timer.• Press [LAMP] while the display and keys are lit to immediately turn the light OFF.Press [F], [LAMP] to keep the light ON continuously.• The light remains ON until you press [F], [LAMP] again.Note: You can set the Display lighting time in Menu No. 101.When you are receiving while the squelch function is ON, weak signals may become intermittent.If the CTCSS or DCS function is ON, you may want to disable the squelch function temporarily to monitor the current channel activities.1 Press and hold [MONI].• The speaker is unmuted and you can monitor the signals.2 Release [MONI] to return to normal operation.

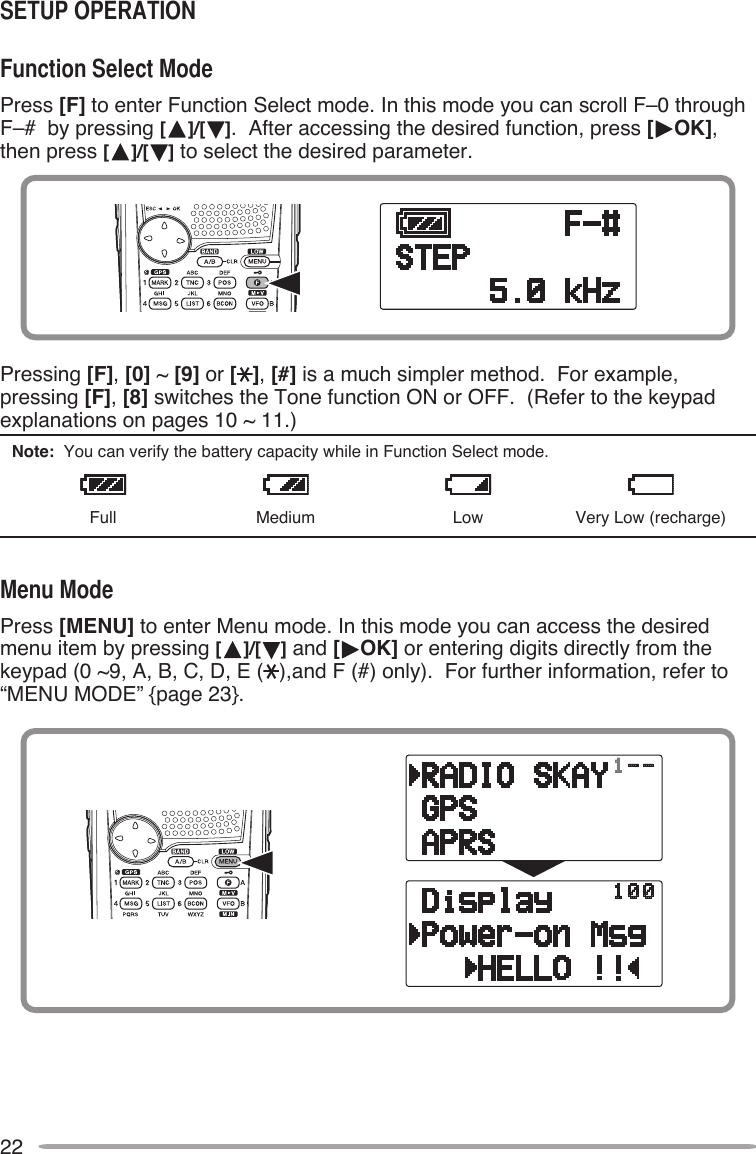

22Press [F] to enter Function Select mode. In this mode you can scroll F–0 through F–# by pressing [ ]/[ ]. After accessing the desired function, press [ OK], then press [ ]/[ ] to select the desired parameter.Pressing [F], [0] ~ [9] or [ ], [#] is a much simpler method. For example, pressing [F], [8] switches the Tone function ON or OFF. (Refer to the keypad explanations on pages 10 ~ 11.)Note: You can verify the battery capacity while in Function Select mode. Full Medium Low Very Low (recharge)Press [MENU] to enter Menu mode. In this mode you can access the desired menu item by pressing [ ]/[ ] and [ OK] or entering digits directly from the keypad (0 ~9, A, B, C, D, E ( ),and F (#) only). For further information, refer to “MENU MODE” {page 23}.

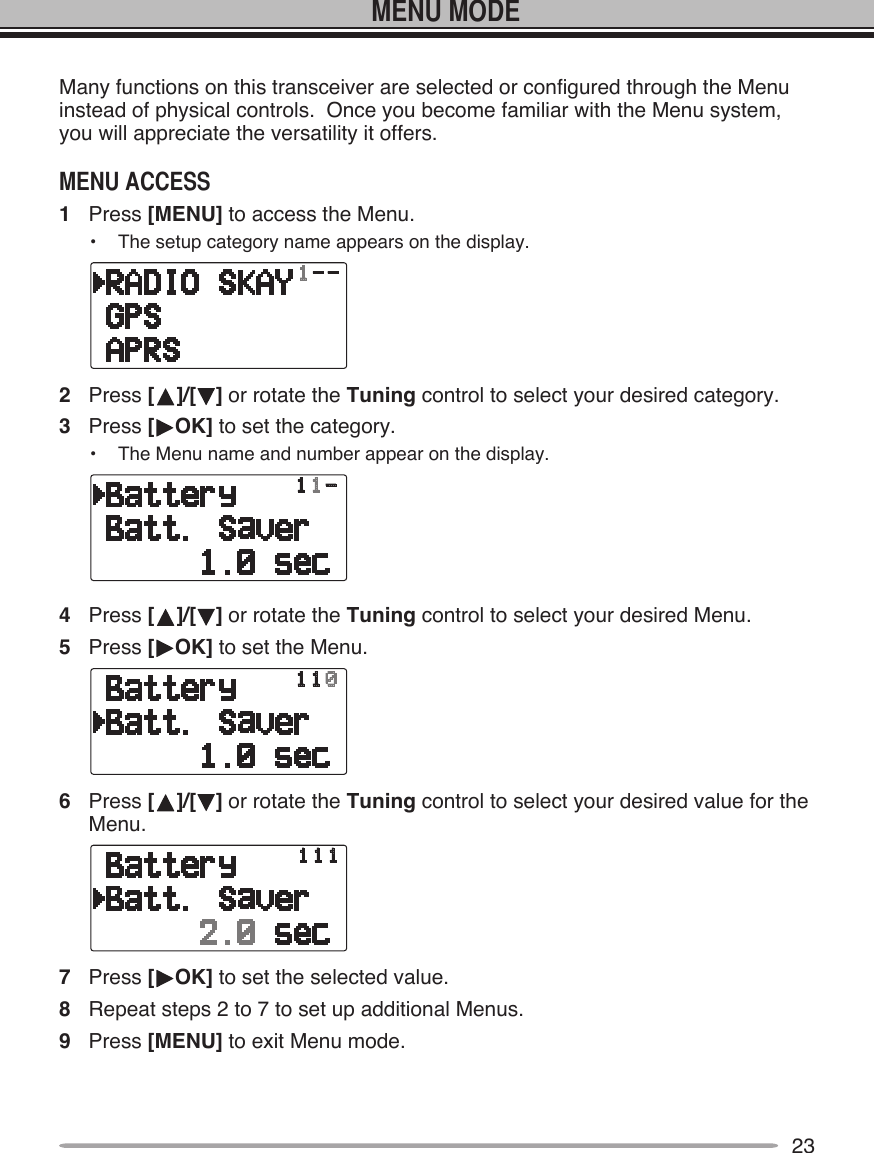

23Many functions on this transceiver are selected or configured through the Menu instead of physical controls. Once you become familiar with the Menu system, you will appreciate the versatility it offers.1 Press [MENU] to access the Menu.• The setup category name appears on the display.2 Press [ ]/[ ] or rotate the Tuning control to select your desired category.3 Press [ OK] to set the category.• The Menu name and number appear on the display.4 Press [ ]/[ ] or rotate the Tuning control to select your desired Menu.5 Press [ OK] to set the Menu.6 Press [ ]/[ ] or rotate the Tuning control to select your desired value for the Menu.7 Press [ OK] to set the selected value.8 Repeat steps 2 to 7 to set up additional Menus.9 Press [MENU] to exit Menu mode.

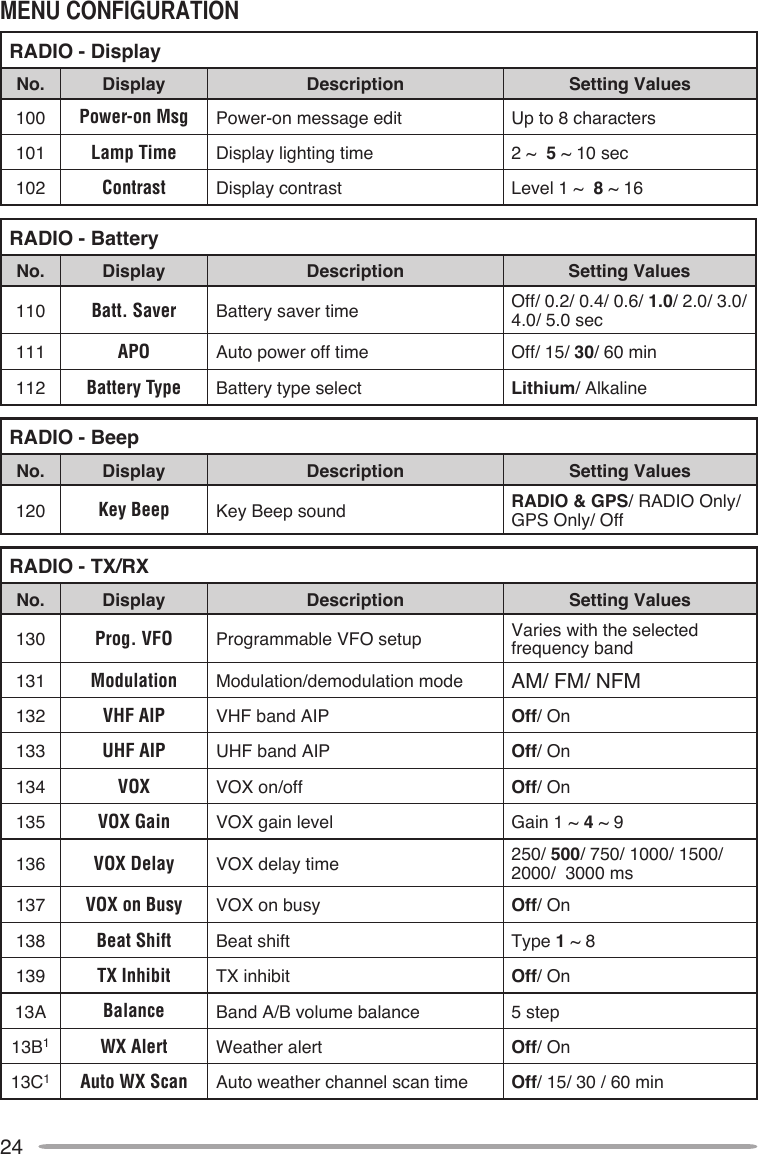

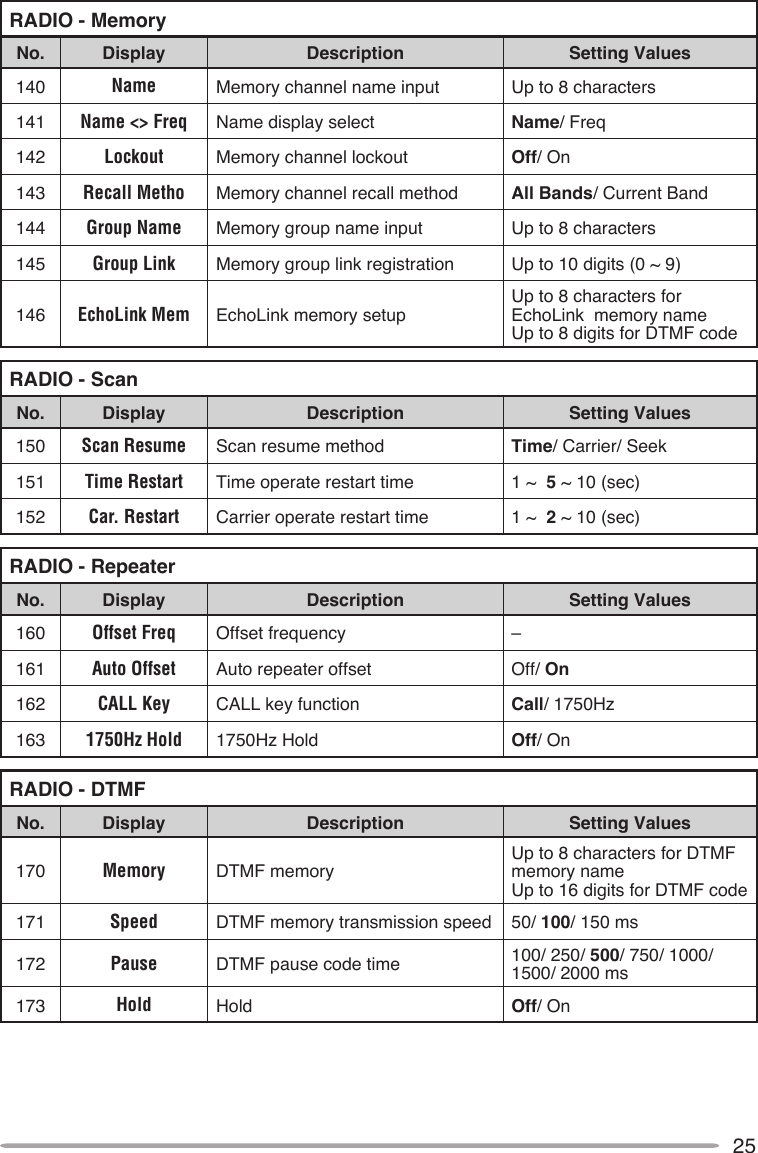

24RADIO - DisplayNo. Display Description Setting Values100 Power-on Msg Power-on message edit Up to 8 characters101 Lamp Time Display lighting time 2 ~ 5 ~ 10 sec102 Contrast Display contrast Level 1 ~ 8 ~ 16RADIO - BatteryNo. Display Description Setting Values110 Batt. Saver Battery saver time Off/ 0.2/ 0.4/ 0.6/ 1.0/ 2.0/ 3.0/ 4.0/ 5.0 sec111 APO Auto power off time Off/ 15/ 30/ 60 min112 Battery Type Battery type select Lithium/ AlkalineRADIO - BeepNo. Display Description Setting Values120 Key Beep Key Beep sound RADIO & GPS/ RADIO Only/ GPS Only/ OffRADIO - TX/RXNo. Display Description Setting Values130 Prog. VFO Programmable VFO setup Varies with the selected frequency band131 Modulation Modulation/demodulation mode AM/ FM/ NFM132 VHF AIP VHF band AIP Off/ On133 UHF AIP UHF band AIP Off/ On134 VOX VOX on/off Off/ On135 VOX Gain VOX gain level Gain 1 ~ 4 ~ 9136 VOX Delay VOX delay time 250/ 500/ 750/ 1000/ 1500/ 2000/ 3000 ms137 VOX on Busy VOX on busy Off/ On138 Beat Shift Beat shift Type 1 ~ 8139 TX Inhibit TX inhibit Off/ On13A Balance Band A/B volume balance 5 step13B1WX Alert Weather alert Off/ On13C1Auto WX Scan Auto weather channel scan time Off/ 15/ 30 / 60 min
25RADIO - MemoryNo. Display Description Setting Values140 Name Memory channel name input Up to 8 characters141 Name <> Freq Name display select Name/ Freq142 Lockout Memory channel lockout Off/ On143 Recall Metho Memory channel recall method All Bands/ Current Band144 Group Name Memory group name input Up to 8 characters145 Group Link Memory group link registration Up to 10 digits (0 ~ 9)146 EchoLink Mem EchoLink memory setupUp to 8 characters for EchoLink memory nameUp to 8 digits for DTMF codeRADIO - ScanNo. Display Description Setting Values150 Scan Resume Scan resume method Time/ Carrier/ Seek151 Time Restart Time operate restart time 1 ~ 5 ~ 10 (sec)152 Car. Restart Carrier operate restart time 1 ~ 2 ~ 10 (sec)RADIO - RepeaterNo. Display Description Setting Values160 Offset Freq Offset frequency –161 Auto Offset Auto repeater offset Off/ On162 CALL Key CALL key function Call/ 1750Hz163 1750Hz Hold 1750Hz Hold Off/ OnRADIO - DTMFNo. Display Description Setting Values170 Memory DTMF memoryUp to 8 characters for DTMF memory nameUp to 16 digits for DTMF code171 Speed DTMF memory transmission speed 50/ 100/ 150 ms172 Pause DTMF pause code time 100/ 250/ 500/ 750/ 1000/ 1500/ 2000 ms173 Hold Hold Off/ On

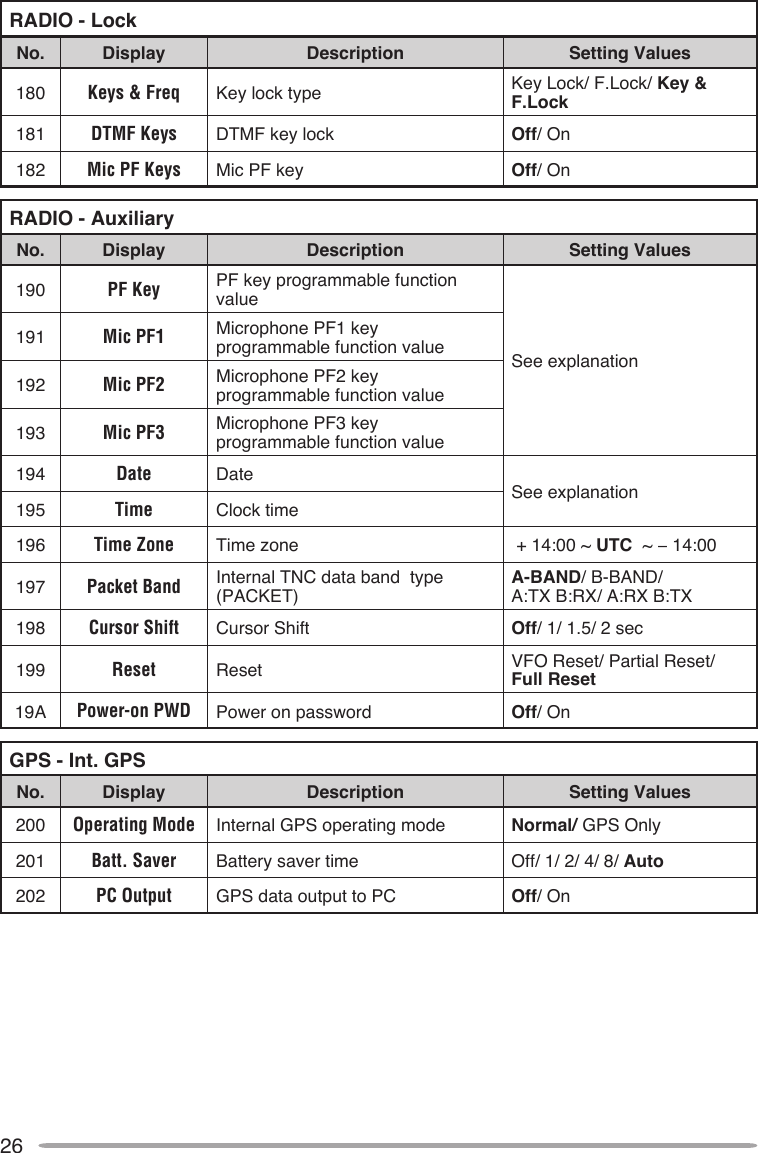

26RADIO - LockNo. Display Description Setting Values180 Keys & Freq Key lock type Key Lock/ F.Lock/ Key & F.Lock181 DTMF Keys DTMF key lock Off/ On182 Mic PF Keys Mic PF key Off/ OnRADIO - AuxiliaryNo. Display Description Setting Values190 PF Key PF key programmable function valueSee explanation 191 Mic PF1 Microphone PF1 key programmable function value192 Mic PF2 Microphone PF2 key programmable function value193 Mic PF3 Microphone PF3 key programmable function value194 Date DateSee explanation195 Time Clock time196 Time Zone Time zone + 14:00 ~ UTC ~ − 14:00197 Packet Band Internal TNC data band type (PACKET)A-BAND/ B-BAND/ A:TX B:RX/ A:RX B:TX198 Cursor Shift Cursor Shift Off/ 1/ 1.5/ 2 sec199 Reset Reset VFO Reset/ Partial Reset/ Full Reset19A Power-on PWD Power on password Off/ OnGPS - Int. GPSNo. Display Description Setting Values200 Operating Mode Internal GPS operating mode Normal/ GPS Only201 Batt. Saver Battery saver time Off/ 1/ 2/ 4/ 8/ Auto202 PC Output GPS data output to PC Off/ On

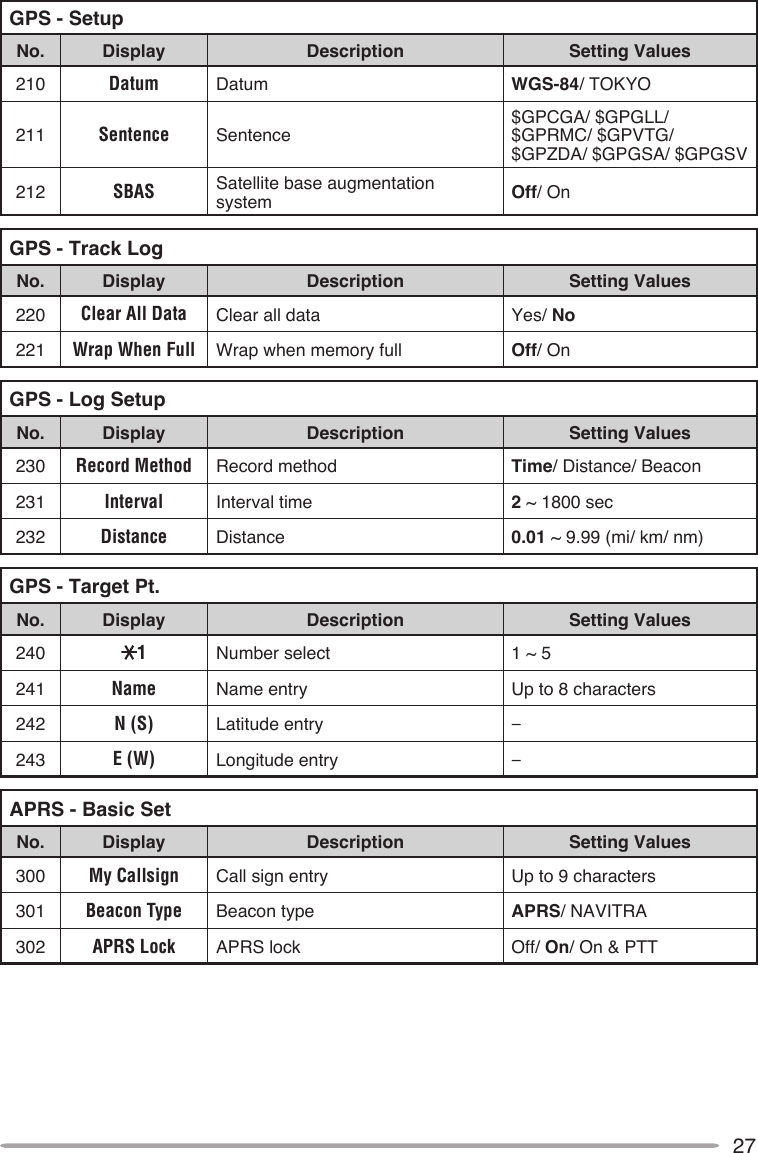

27GPS - SetupNo. Display Description Setting Values210 Datum Datum WGS-84/ TOKYO211 Sentence Sentence$GPCGA/ $GPGLL/ $GPRMC/ $GPVTG/ $GPZDA/ $GPGSA/ $GPGSV212 SBAS Satellite base augmentation system Off/ OnGPS - Track LogNo. Display Description Setting Values220 Clear All Data Clear all data Yes/ No221 Wrap When Full Wrap when memory full Off/ OnGPS - Log SetupNo. Display Description Setting Values230 Record Method Record method Time/ Distance/ Beacon231 Interval Interval time 2 ~ 1800 sec232 Distance Distance 0.01 ~ 9.99 (mi/ km/ nm)GPS - Target Pt. No. Display Description Setting Values240 1Number select 1 ~ 5241 Name Name entry Up to 8 characters242 N (S) Latitude entry −243 E (W) Longitude entry −APRS - Basic SetNo. Display Description Setting Values300 My Callsign Call sign entry Up to 9 characters301 Beacon Type Beacon type APRS/ NAVITRA302 APRS Lock APRS lock Off/ On/ On & PTT

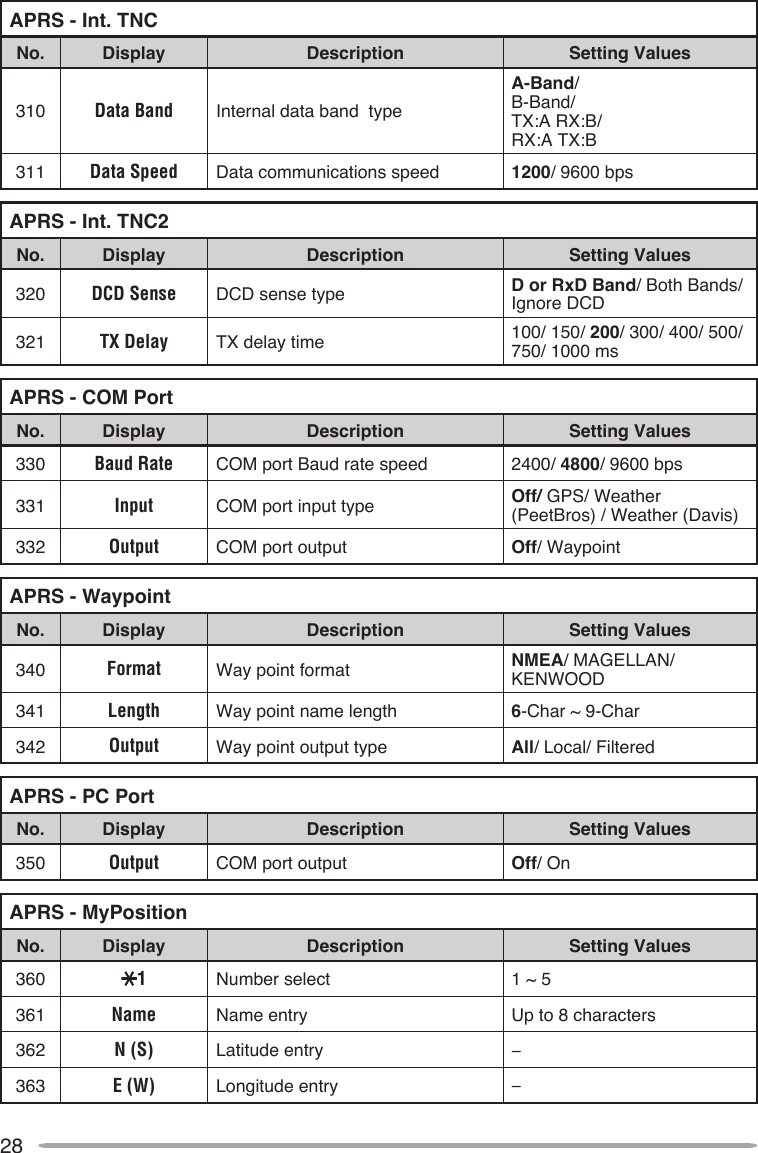

28APRS - Int. TNCNo. Display Description Setting Values310 Data Band Internal data band typeA-Band/ B-Band/ TX:A RX:B/ RX:A TX:B311 Data Speed Data communications speed 1200/ 9600 bpsAPRS - Int. TNC2No. Display Description Setting Values320 DCD Sense DCD sense type D or RxD Band/ Both Bands/ Ignore DCD321 TX Delay TX delay time 100/ 150/ 200/ 300/ 400/ 500/ 750/ 1000 msAPRS - COM PortNo. Display Description Setting Values330 Baud Rate COM port Baud rate speed 2400/ 4800/ 9600 bps331 Input COM port input type Off/ GPS/ Weather (PeetBros) / Weather (Davis)332 Output COM port output Off/ WaypointAPRS - WaypointNo. Display Description Setting Values340 Format Way point format NMEA/ MAGELLAN/ KENWOOD341 Length Way point name length 6-Char ~ 9-Char342 Output Way point output type All/ Local/ FilteredAPRS - PC PortNo. Display Description Setting Values350 Output COM port output Off/ OnAPRS - MyPositionNo. Display Description Setting Values360 1Number select 1 ~ 5361 Name Name entry Up to 8 characters362 N (S) Latitude entry −363 E (W) Longitude entry −

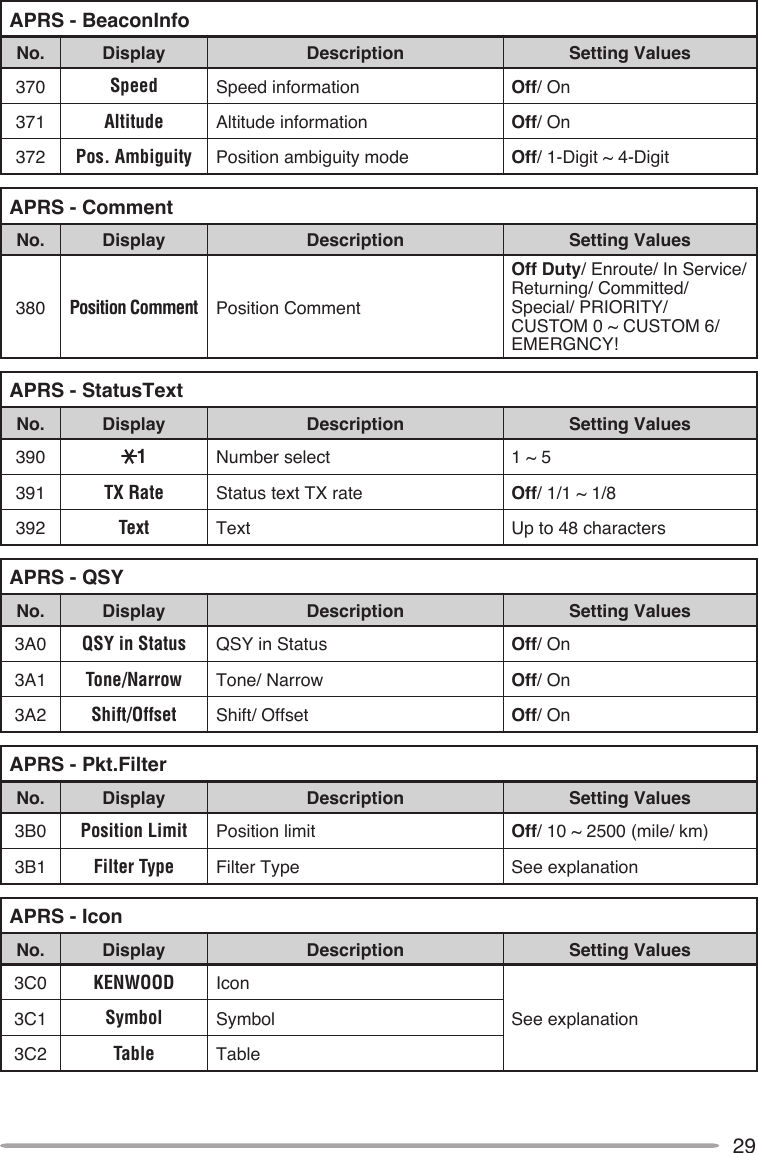

29APRS - BeaconInfoNo. Display Description Setting Values370 Speed Speed information Off/ On371 Altitude Altitude information Off/ On372 Pos. Ambiguity Position ambiguity mode Off/ 1-Digit ~ 4-DigitAPRS - CommentNo. Display Description Setting Values380 Position Comment Position CommentOff Duty/ Enroute/ In Service/ Returning/ Committed/ Special/ PRIORITY/ CUSTOM 0 ~ CUSTOM 6/ EMERGNCY!APRS - StatusTextNo. Display Description Setting Values390 1Number select 1 ~ 5391 TX Rate Status text TX rate Off/ 1/1 ~ 1/8392 Text Text Up to 48 charactersAPRS - QSYNo. Display Description Setting Values3A0 QSY in Status QSY in Status Off/ On3A1 Tone/Narrow Tone/ Narrow Off/ On3A2 Shift/Offset Shift/ Offset Off/ OnAPRS - Pkt.FilterNo. Display Description Setting Values3B0 Position Limit Position limit Off/ 10 ~ 2500 (mile/ km)3B1 Filter Type Filter Type See explanationAPRS - IconNo. Display Description Setting Values3C0 KENWOOD IconSee explanation3C1 Symbol Symbol3C2 Table Table

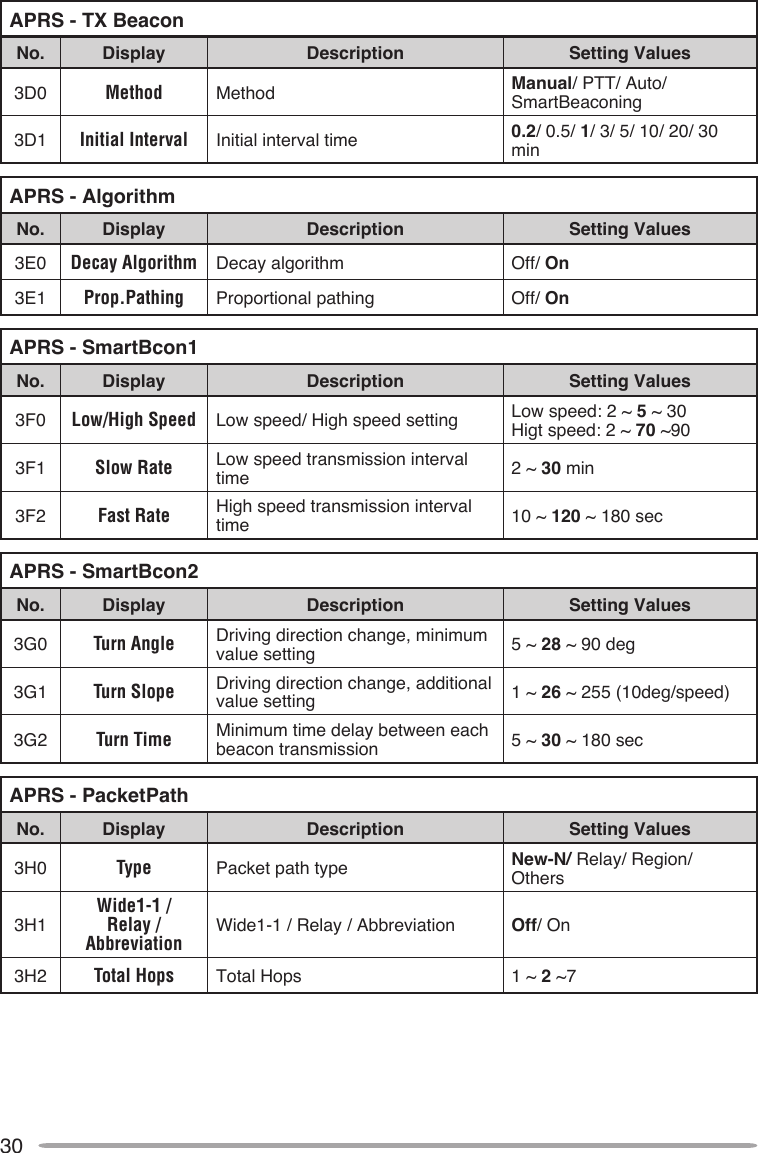

30APRS - TX BeaconNo. Display Description Setting Values3D0 Method Method Manual/ PTT/ Auto/ SmartBeaconing3D1 Initial Interval Initial interval time 0.2/ 0.5/ 1/ 3/ 5/ 10/ 20/ 30 minAPRS - AlgorithmNo. Display Description Setting Values3E0 Decay Algorithm Decay algorithm Off/ On3E1 Prop.Pathing Proportional pathing Off/ OnAPRS - SmartBcon1No. Display Description Setting Values3F0 Low/High Speed Low speed/ High speed setting Low speed: 2 ~ 5 ~ 30 Higt speed: 2 ~ 70 ~903F1 Slow Rate Low speed transmission interval time 2 ~ 30 min3F2 Fast Rate High speed transmission interval time 10 ~ 120 ~ 180 secAPRS - SmartBcon2No. Display Description Setting Values3G0 Turn Angle Driving direction change, minimum value setting 5 ~ 28 ~ 90 deg3G1 Turn Slope Driving direction change, additional value setting 1 ~ 26 ~ 255 (10deg/speed)3G2 Turn Time Minimum time delay between each beacon transmission 5 ~ 30 ~ 180 secAPRS - PacketPathNo. Display Description Setting Values3H0 Type Packet path type New-N/ Relay/ Region/ Others3H1Wide1-1 / Relay / AbbreviationWide1-1 / Relay / Abbreviation Off/ On3H2 Total Hops Total Hops 1 ~ 2 ~7

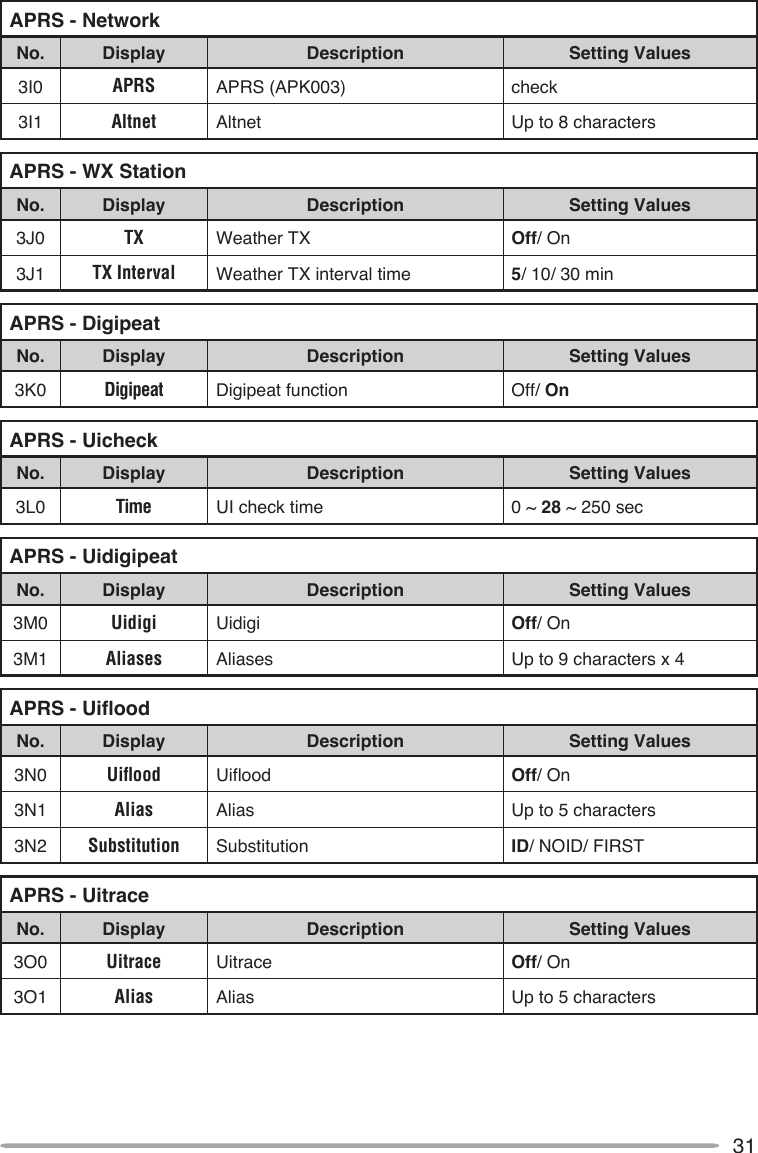

31APRS - NetworkNo. Display Description Setting Values3I0 APRS APRS (APK003) check3I1 Altnet Altnet Up to 8 charactersAPRS - WX StationNo. Display Description Setting Values3J0 TX Weather TX Off/ On3J1 TX Interval Weather TX interval time 5/ 10/ 30 minAPRS - DigipeatNo. Display Description Setting Values3K0 Digipeat Digipeat function Off/ OnAPRS - UicheckNo. Display Description Setting Values3L0 Time UI check time 0 ~ 28 ~ 250 secAPRS - UidigipeatNo. Display Description Setting Values3M0 Uidigi Uidigi Off/ On3M1 Aliases Aliases Up to 9 characters x 4APRS - UifloodNo. Display Description Setting Values3N0 Uiflood Uiflood Off/ On3N1 Alias Alias Up to 5 characters3N2 Substitution Substitution ID/ NOID/ FIRSTAPRS - UitraceNo. Display Description Setting Values3O0 Uitrace Uitrace Off/ On3O1 Alias Alias Up to 5 characters

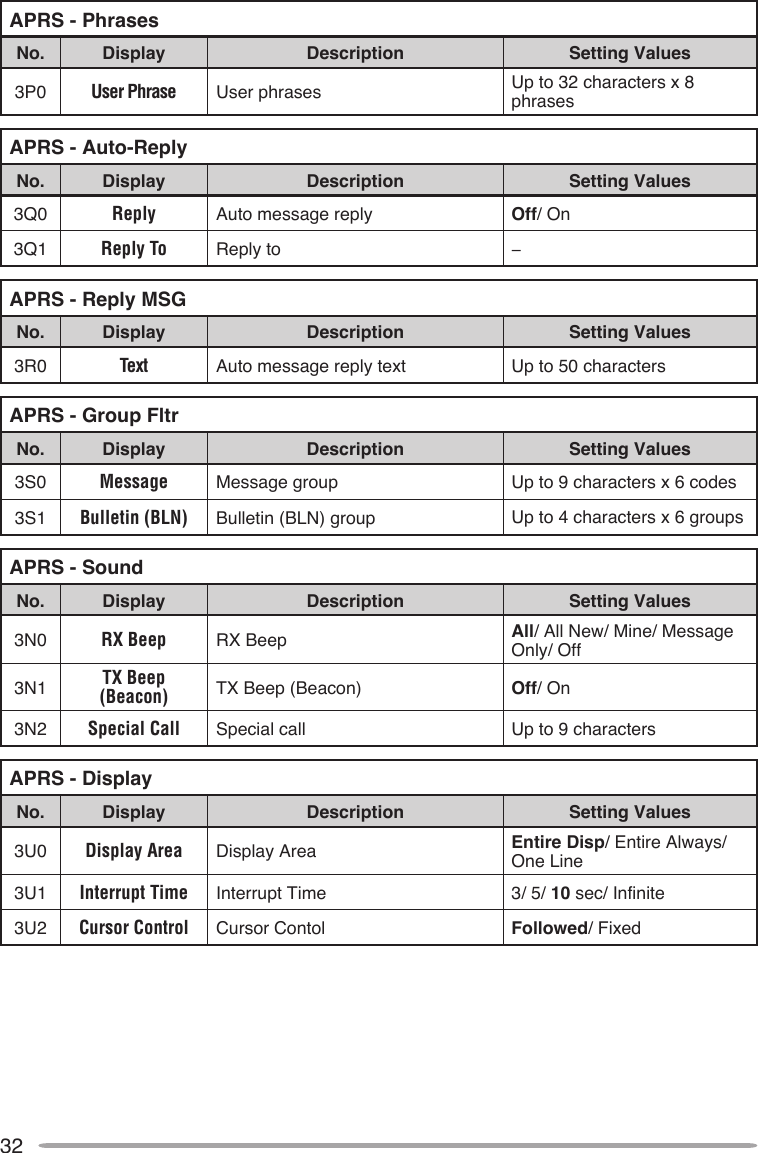

32APRS - PhrasesNo. Display Description Setting Values3P0 User Phrase User phrases Up to 32 characters x 8 phrasesAPRS - Auto-ReplyNo. Display Description Setting Values3Q0 Reply Auto message reply Off/ On3Q1 Reply To Reply to −APRS - Reply MSGNo. Display Description Setting Values3R0 Text Auto message reply text Up to 50 charactersAPRS - Group FltrNo. Display Description Setting Values3S0 Message Message group Up to 9 characters x 6 codes3S1 Bulletin (BLN) Bulletin (BLN) group Up to 4 characters x 6 groupsAPRS - SoundNo. Display Description Setting Values3N0 RX Beep RX Beep All/ All New/ Mine/ Message Only/ Off3N1 TX Beep (Beacon) TX Beep (Beacon) Off/ On3N2 Special Call Special call Up to 9 charactersAPRS - DisplayNo. Display Description Setting Values3U0 Display Area Display Area Entire Disp/ Entire Always/One Line3U1 Interrupt Time Interrupt Time 3/ 5/ 10 sec/ Infinite3U2 Cursor Control Cursor Contol Followed/ Fixed

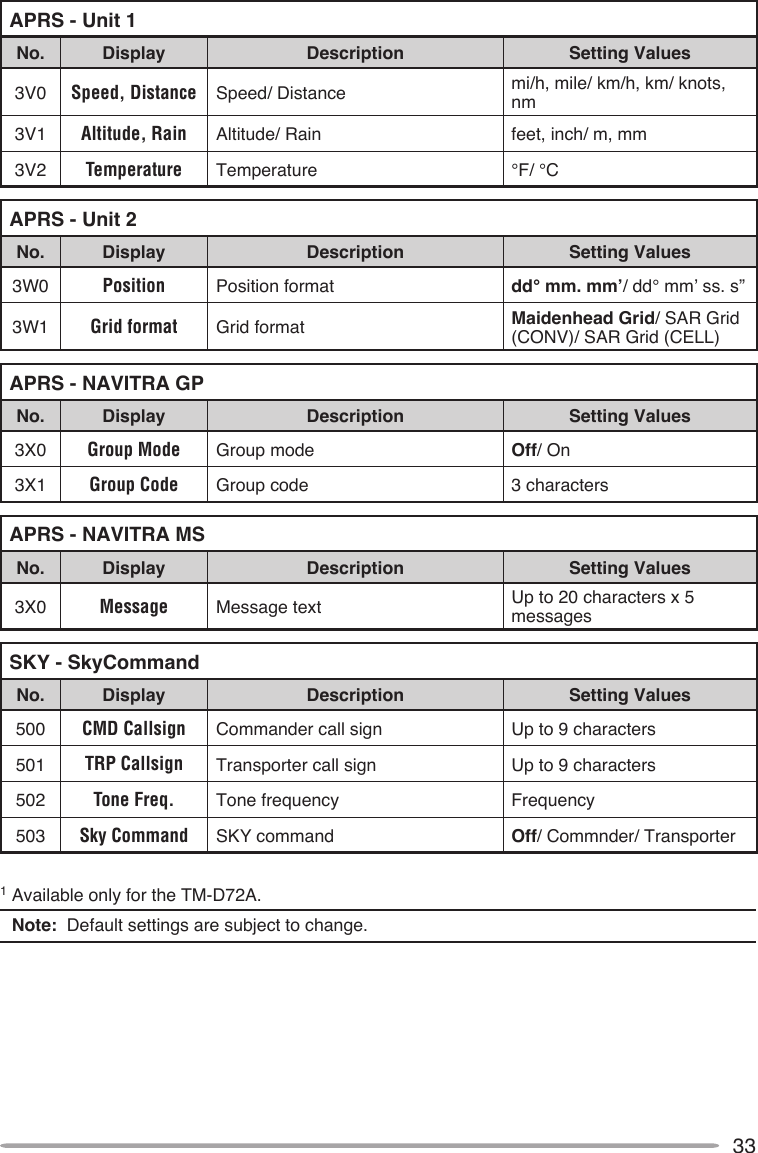

33APRS - Unit 1No. Display Description Setting Values3V0 Speed, Distance Speed/ Distance mi/h, mile/ km/h, km/ knots, nm3V1 Altitude, Rain Altitude/ Rain feet, inch/ m, mm3V2 Temperature Temperature °F/ °CAPRS - Unit 2No. Display Description Setting Values3W0 Position Position format dd° mm. mm’/ dd° mm’ ss. s”3W1 Grid format Grid format Maidenhead Grid/ SAR Grid (CONV)/ SAR Grid (CELL)APRS - NAVITRA GPNo. Display Description Setting Values3X0 Group Mode Group mode Off/ On3X1 Group Code Group code 3 charactersAPRS - NAVITRA MSNo. Display Description Setting Values3X0 Message Message text Up to 20 characters x 5 messagesSKY - SkyCommandNo. Display Description Setting Values500 CMD Callsign Commander call sign Up to 9 characters501 TRP Callsign Transporter call sign Up to 9 characters502 Tone Freq. Tone frequency Frequency503 Sky Command SKY command Off/ Commnder/ Transporter1 Available only for the TM-D72A.Note: Default settings are subject to change.

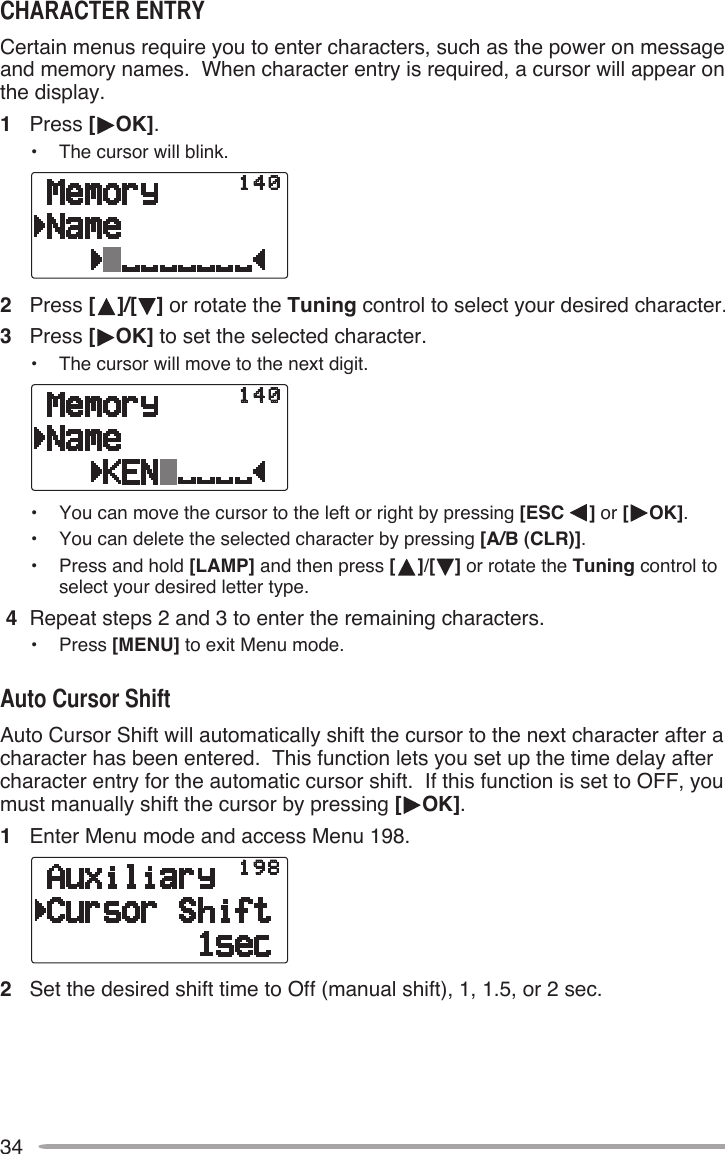

34Certain menus require you to enter characters, such as the power on message and memory names. When character entry is required, a cursor will appear on the display.1 Press [ OK].• The cursor will blink.2 Press [ ]/[ ] or rotate the Tuning control to select your desired character.3 Press [ OK] to set the selected character.• The cursor will move to the next digit.• You can move the cursor to the left or right by pressing [ESC ] or [ OK].• You can delete the selected character by pressing [A/B (CLR)].• Press and hold [LAMP] and then press [ ]/[ ] or rotate the Tuning control to select your desired letter type. 4 Repeat steps 2 and 3 to enter the remaining characters.• Press [MENU] to exit Menu mode.Auto Cursor Shift will automatically shift the cursor to the next character after a character has been entered. This function lets you set up the time delay after character entry for the automatic cursor shift. If this function is set to OFF, you must manually shift the cursor by pressing [ OK].1 Enter Menu mode and access Menu 198.2 Set the desired shift time to Off (manual shift), 1, 1.5, or 2 sec.
35n  The keypad can also be used to enter characters. Refer to the table below for characters corresponding to keypad.Key Character Display (with each press of the key) Key Character Display (with each press of the key)117P Q R S 72A B C 2 8T U V 83D E F 3 9W X Y Z 94G H I 4 0space 0 05J K L 5 Not used6M N O 6 #– / @For a memory name, status text, and message:Key Character Display (with each press of the key)1@ / . - _ : 1 , +2a b c 2 A B C3d e f 3 D E F4g h i 4 G H I5j k l 5 J K L6m n o 6 M N O7p q r s 7 P Q R S8t u v 8 T U V9w y z z 9 W X Y Z0Spece 0 0Not used#? ! ’ . , – / & #( ) < > ; : ” @

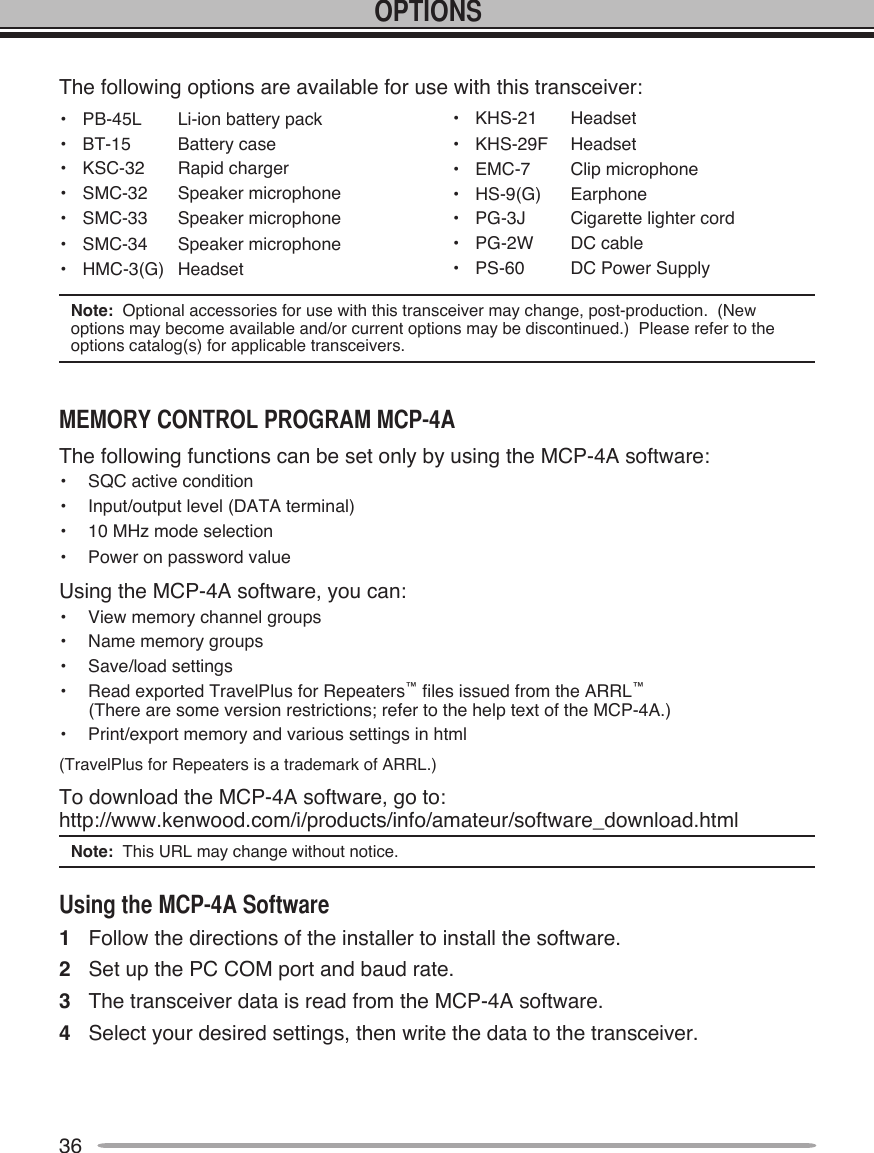

36The following options are available for use with this transceiver:• PB-45L Li-ion battery pack• BT-15 Battery case• KSC-32 Rapid charger• SMC-32 Speaker microphone• SMC-33 Speaker microphone• SMC-34 Speaker microphone• HMC-3(G) Headset• KHS-21 Headset• KHS-29F Headset• EMC-7 Clip microphone• HS-9(G) Earphone• PG-3J Cigarette lighter cord• PG-2W DC cable• PS-60 DC Power SupplyNote: Optional accessories for use with this transceiver may change, post-production. (New options may become available and/or current options may be discontinued.) Please refer to the options catalog(s) for applicable transceivers.The following functions can be set only by using the MCP-4A software:• SQC active condition• Input/output level (DATA terminal)• 10 MHz mode selection• Power on password valueUsing the MCP-4A software, you can:• View memory channel groups• Name memory groups• Save/load settings• Read exported TravelPlus for Repeaters™ files issued from the ARRL™ (There are some version restrictions; refer to the help text of the MCP-4A.)• Print/export memory and various settings in html(TravelPlus for Repeaters is a trademark of ARRL.)To download the MCP-4A software, go to: http://www.kenwood.com/i/products/info/amateur/software_download.htmlNote: This URL may change without notice.1 Follow the directions of the installer to install the software.2 Set up the PC COM port and baud rate.3 The transceiver data is read from the MCP-4A software.4 Select your desired settings, then write the data to the transceiver.

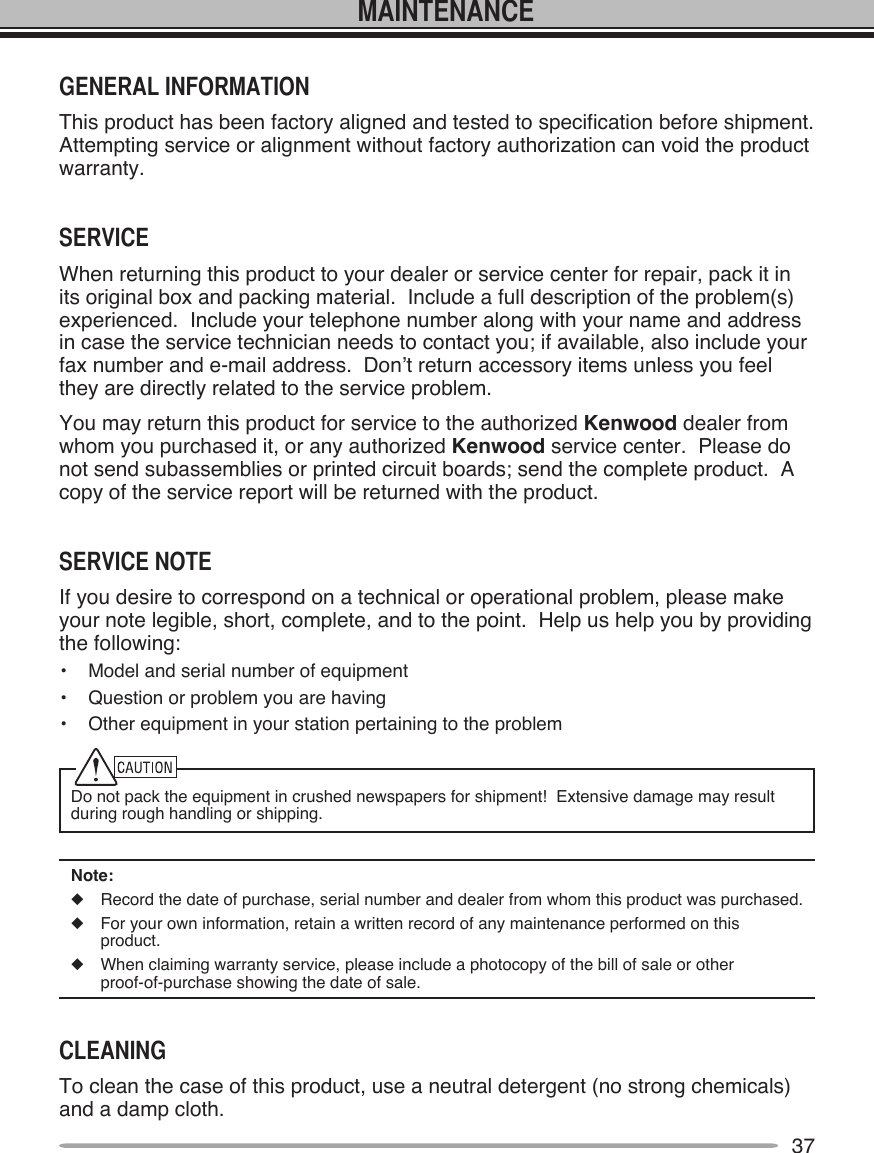

37MAINTENANCEGENERAL INFORMATIONThis product has been factory aligned and tested to specification before shipment. Attempting service or alignment without factory authorization can void the product warranty.SERVICEWhen returning this product to your dealer or service center for repair, pack it in its original box and packing material. Include a full description of the problem(s) experienced. Include your telephone number along with your name and address in case the service technician needs to contact you; if available, also include your fax number and e-mail address. Don’t return accessory items unless you feel they are directly related to the service problem.You may return this product for service to the authorized Kenwood dealer from whom you purchased it, or any authorized Kenwood service center. Please do not send subassemblies or printed circuit boards; send the complete product. A copy of the service report will be returned with the product.SERVICE NOTEIf you desire to correspond on a technical or operational problem, please make your note legible, short, complete, and to the point. Help us help you by providing the following:• Model and serial number of equipment• Question or problem you are having• Other equipment in your station pertaining to the problemDo not pack the equipment in crushed newspapers for shipment! Extensive damage may result during rough handling or shipping.Note:u Record the date of purchase, serial number and dealer from whom this product was purchased.u For your own information, retain a written record of any maintenance performed on this product.u When claiming warranty service, please include a photocopy of the bill of sale or other proof-of-purchase showing the date of sale.CLEANINGTo clean the case of this product, use a neutral detergent (no strong chemicals) and a damp cloth.

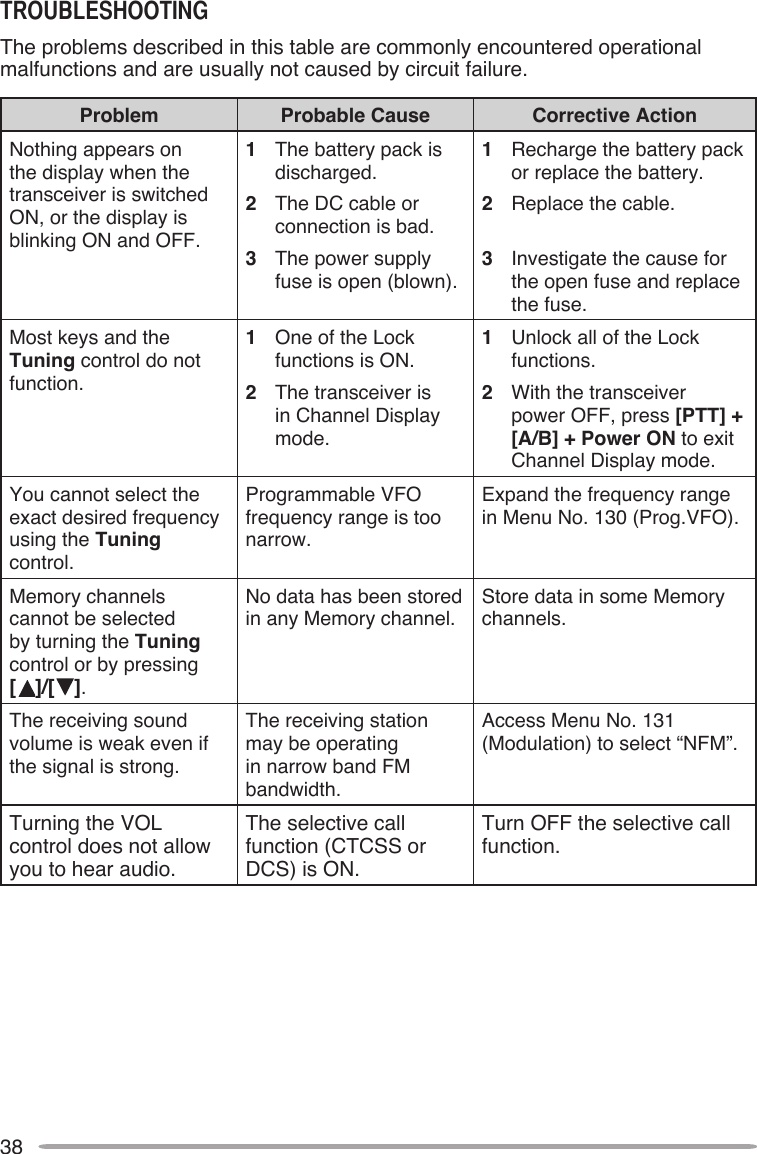

38TROUBLESHOOTINGThe problems described in this table are commonly encountered operational malfunctions and are usually not caused by circuit failure.Problem Probable Cause Corrective ActionNothing appears on the display when the transceiver is switched ON, or the display is blinking ON and OFF.1 The battery pack is discharged.2 The DC cable or connection is bad.3 The power supply fuse is open (blown).1 Recharge the battery pack or replace the battery.2 Replace the cable. 3 Investigate the cause for the open fuse and replace the fuse.Most keys and the Tuning control do not function.1 One of the Lock functions is ON.2 The transceiver is in Channel Display mode.1 Unlock all of the Lock functions.2 With the transceiver power OFF, press [PTT] + [A/B] + Power ON to exit Channel Display mode.You cannot select the exact desired frequency using the Tuning control.Programmable VFO frequency range is too narrow.Expand the frequency range in Menu No. 130 (Prog.VFO).Memory channels cannot be selected by turning the Tuning control or by pressing [ ]/[ ].No data has been stored in any Memory channel.Store data in some Memory channels.The receiving sound volume is weak even if the signal is strong.The receiving station may be operating in narrow band FM bandwidth.Access Menu No. 131 (Modulation) to select “NFM”.Turning the VOL control does not allow you to hear audio.The selective call function (CTCSS or DCS) is ON.Turn OFF the selective call function.

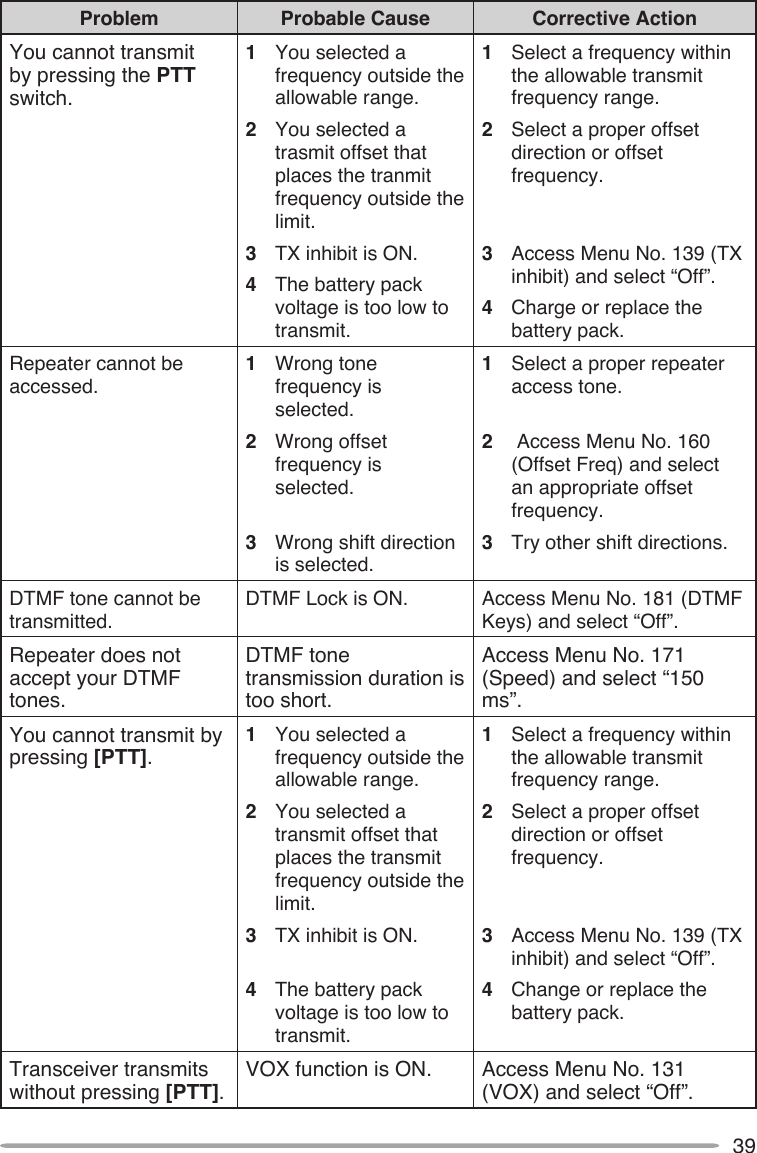

39Problem Probable Cause Corrective ActionYou cannot transmit by pressing the PTT switch.1 You selected a frequency outside the allowable range.2 You selected a trasmit offset that places the tranmit frequency outside the limit.3 TX inhibit is ON. 4 The battery pack voltage is too low to transmit.1 Select a frequency within the allowable transmit frequency range.2 Select a proper offset direction or offset frequency. 3 Access Menu No. 139 (TX inhibit) and select “Off”.4 Charge or replace the battery pack.Repeater cannot be accessed.1 Wrong tone frequency is selected. 2 Wrong offset frequency is selected. 3 Wrong shift direction is selected. 1 Select a proper repeater access tone. 2 Access Menu No. 160 (Offset Freq) and select an appropriate offset frequency.3 Try other shift directions.DTMF tone cannot be transmitted.DTMF Lock is ON. Access Menu No. 181 (DTMF Keys) and select “Off”.Repeater does not accept your DTMF tones.DTMF tone transmission duration is too short.Access Menu No. 171 (Speed) and select “150 ms”.You cannot transmit by pressing [PTT].1 You selected a frequency outside the allowable range.2 You selected a transmit offset that places the transmit frequency outside the limit. 3 TX inhibit is ON. 4 The battery pack voltage is too low to transmit.1 Select a frequency within the allowable transmit frequency range.2 Select a proper offset direction or offset frequency. 3 Access Menu No. 139 (TX inhibit) and select “Off”.4 Change or replace the battery pack.Transceiver transmits without pressing [PTT].VOX function is ON. Access Menu No. 131 (VOX) and select “Off”.

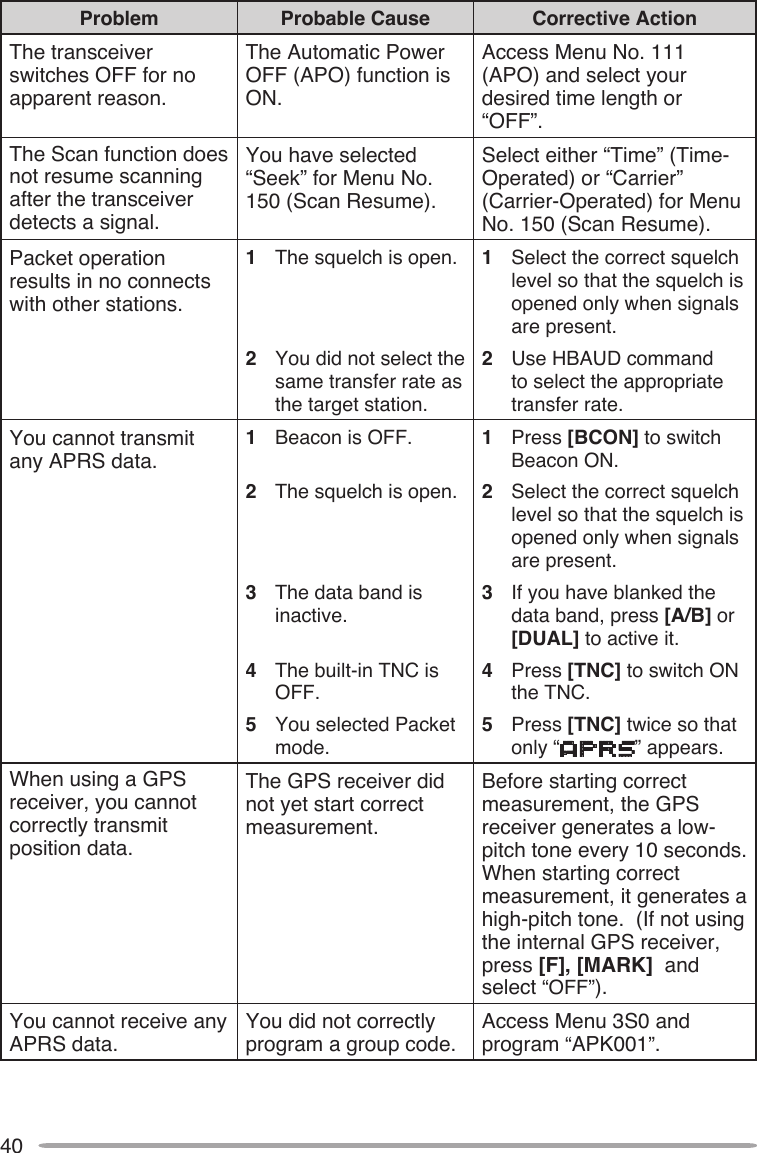

40Problem Probable Cause Corrective ActionThe transceiver switches OFF for no apparent reason.The Automatic Power OFF (APO) function is ON.Access Menu No. 111 (APO) and select your desired time length or “OFF”.The Scan function does not resume scanning after the transceiver detects a signal.You have selected “Seek” for Menu No. 150 (Scan Resume).Select either “Time” (Time-Operated) or “Carrier” (Carrier-Operated) for Menu No. 150 (Scan Resume).Packet operation results in no connects with other stations.1 The squelch is open. 2 You did not select the same transfer rate as the target station.1 Select the correct squelch level so that the squelch is opened only when signals are present.2 Use HBAUD command to select the appropriate transfer rate.You cannot transmit any APRS data.1 Beacon is OFF. 2 The squelch is open. 3 The data band is inactive. 4 The built-in TNC is OFF.5 You selected Packet mode.1 Press [BCON] to switch Beacon ON.2 Select the correct squelch level so that the squelch is opened only when signals are present.3 If you have blanked the data band, press [A/B] or [DUAL] to active it.4 Press [TNC] to switch ON the TNC.5 Press [TNC] twice so that only “ ” appears.When using a GPS receiver, you cannot correctly transmit position data.The GPS receiver did not yet start correct measurement.Before starting correct measurement, the GPS receiver generates a low-pitch tone every 10 seconds. When starting correct measurement, it generates a high-pitch tone. (If not using the internal GPS receiver, press [F], [MARK] and select “OFF”).You cannot receive any APRS data.You did not correctly program a group code.Access Menu 3S0 and program “APK001”.

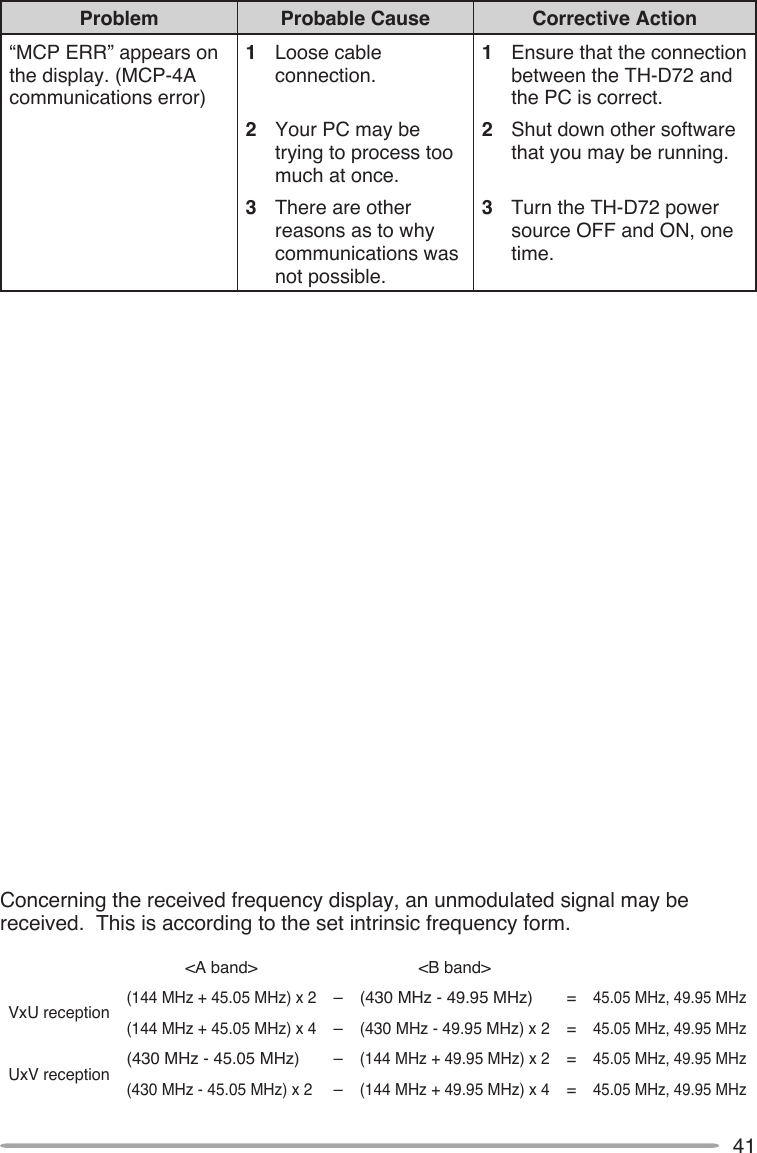

41Concerning the received frequency display, an unmodulated signal may be received. This is according to the set intrinsic frequency form.<A band> <B band>VxU reception(144 MHz + 45.05 MHz) x 2– (430 MHz - 49.95 MHz) =45.05 MHz, 49.95 MHz(144 MHz + 45.05 MHz) x 4–(430 MHz - 49.95 MHz) x 2=45.05 MHz, 49.95 MHzUxV reception(430 MHz - 45.05 MHz) –(144 MHz + 49.95 MHz) x 2=45.05 MHz, 49.95 MHz(430 MHz - 45.05 MHz) x 2–(144 MHz + 49.95 MHz) x 4=45.05 MHz, 49.95 MHzProblem Probable Cause Corrective Action“MCP ERR” appears on the display. (MCP-4A communications error)1 Loose cable connection. 2 Your PC may be trying to process too much at once.3 There are other reasons as to why communications was not possible.1 Ensure that the connection between the TH-D72 and the PC is correct.2 Shut down other software that you may be running. 3 Turn the TH-D72 power source OFF and ON, one time.

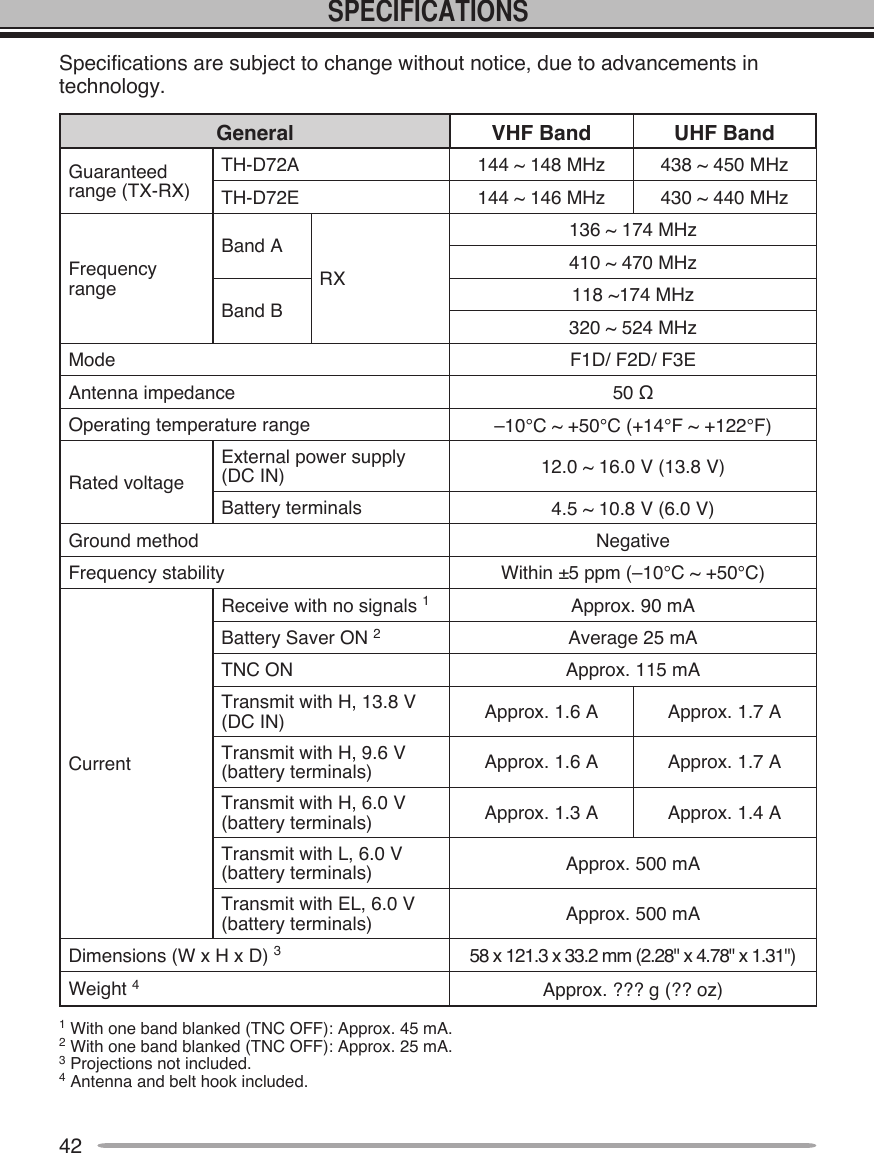

42SPECIFICATIONSSpecifications are subject to change without notice, due to advancements in technology.General VHF Band UHF BandGuaranteed range (TX-RX)TH-D72A 144 ~ 148 MHz 438 ~ 450 MHz TH-D72E 144 ~ 146 MHz 430 ~ 440 MHzFrequency rangeBand ARX136 ~ 174 MHz410 ~ 470 MHzBand B 118 ~174 MHz320 ~ 524 MHzMode F1D/ F2D/ F3EAntenna impedance 50 ΩOperating temperature range –10°C ~ +50°C (+14°F ~ +122°F)Rated voltageExternal power supply (DC IN) 12.0 ~ 16.0 V (13.8 V)Battery terminals 4.5 ~ 10.8 V (6.0 V)Ground method NegativeFrequency stability Within ±5 ppm (–10°C ~ +50°C)CurrentReceive with no signals 1Approx. 90 mABattery Saver ON 2Average 25 mATNC ON Approx. 115 mATransmit with H, 13.8 V (DC IN) Approx. 1.6 A Approx. 1.7 ATransmit with H, 9.6 V (battery terminals) Approx. 1.6 A Approx. 1.7 ATransmit with H, 6.0 V (battery terminals) Approx. 1.3 A Approx. 1.4 ATransmit with L, 6.0 V (battery terminals) Approx. 500 mATransmit with EL, 6.0 V (battery terminals) Approx. 500 mADimensions (W x H x D) 358 x 121.3 x 33.2 mm (2.28" x 4.78" x 1.31")Weight 4Approx. ??? g (?? oz)1 With one band blanked (TNC OFF): Approx. 45 mA.2 With one band blanked (TNC OFF): Approx. 25 mA.3 Projections not included.4 Antenna and belt hook included.

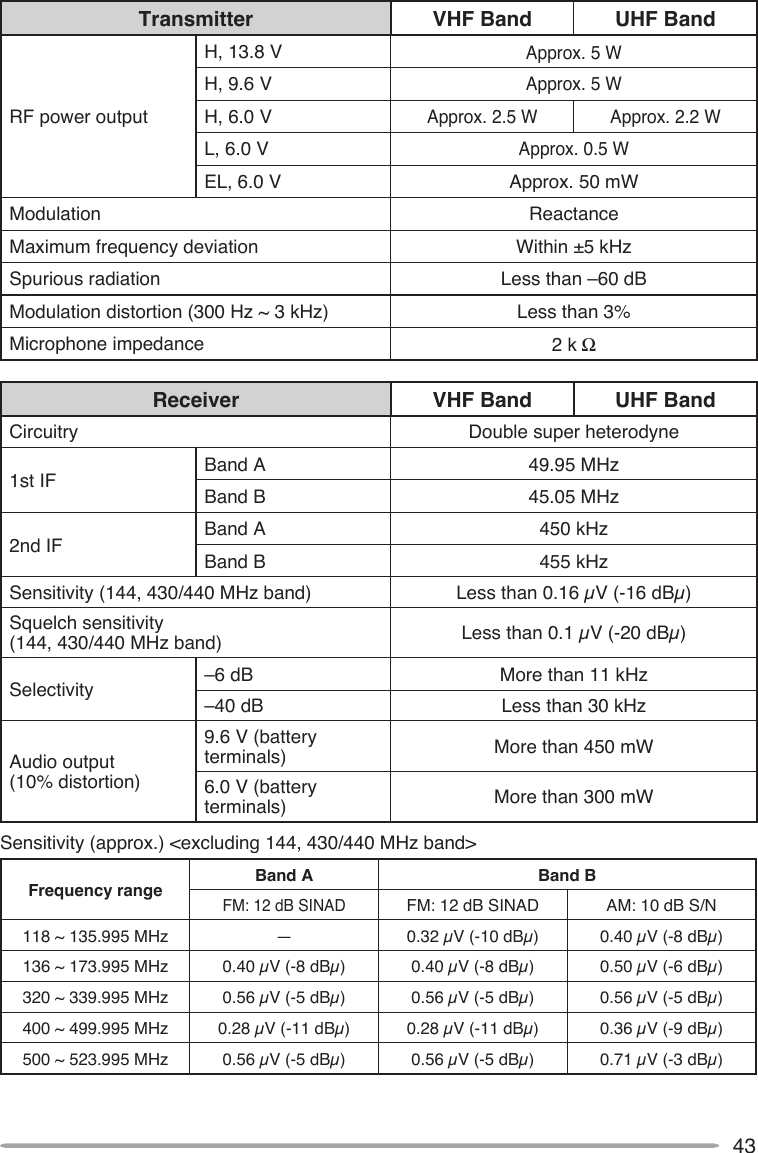

43Transmitter VHF Band UHF BandRF power outputH, 13.8 VApprox. 5 WH, 9.6 VApprox. 5 WH, 6.0 VApprox. 2.5 W Approx. 2.2 WL, 6.0 VApprox. 0.5 WEL, 6.0 V Approx. 50 mWModulation ReactanceMaximum frequency deviation Within ±5 kHzSpurious radiation Less than –60 dBModulation distortion (300 Hz ~ 3 kHz) Less than 3%Microphone impedance 2 k ΩReceiver VHF Band UHF BandCircuitry Double super heterodyne1st IF Band A 49.95 MHzBand B 45.05 MHz2nd IF Band A 450 kHzBand B 455 kHzSensitivity (144, 430/440 MHz band) Less than 0.16 µV (-16 dBµ)Squelch sensitivity (144, 430/440 MHz band) Less than 0.1 µV (-20 dBµ)Selectivity –6 dB More than 11 kHz–40 dB Less than 30 kHzAudio output (10% distortion)9.6 V (battery terminals) More than 450 mW6.0 V (battery terminals) More than 300 mWSensitivity (approx.) <excluding 144, 430/440 MHz band>Frequency range Band A Band BFM: 12 dB SINADFM: 12 dB SINAD AM: 10 dB S/N118 ~ 135.995 MHz — 0.32 µV (-10 dBµ) 0.40 µV (-8 dBµ)136 ~ 173.995 MHz 0.40 µV (-8 dBµ) 0.40 µV (-8 dBµ) 0.50 µV (-6 dBµ)320 ~ 339.995 MHz 0.56 µV (-5 dBµ) 0.56 µV (-5 dBµ) 0.56 µV (-5 dBµ)400 ~ 499.995 MHz 0.28 µV (-11 dBµ) 0.28 µV (-11 dBµ) 0.36 µV (-9 dBµ)500 ~ 523.995 MHz 0.56 µV (-5 dBµ) 0.56 µV (-5 dBµ) 0.71 µV (-3 dBµ)
