JVCKENWOOD 422300 VHF Digital Base-Repeater User Manual

JVC KENWOOD Corporation VHF Digital Base-Repeater

User Manual

NXR-710/ NXR-810INSTRUCTION MANUAL© B62-2199-00 (K)09 08 07 06 05 04 03 02 01 00MANUAL DE INSTRUCCTIONESMODE D'EMPLOIBASE-REPETIDOR DIGITAL VHF / BASE-REPETIDOR DIGITAL UHFVHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATERBASE-RELAIS NUMÉRIQUE VHF/BASE-RELAIS NUMÉRIQUE UHF

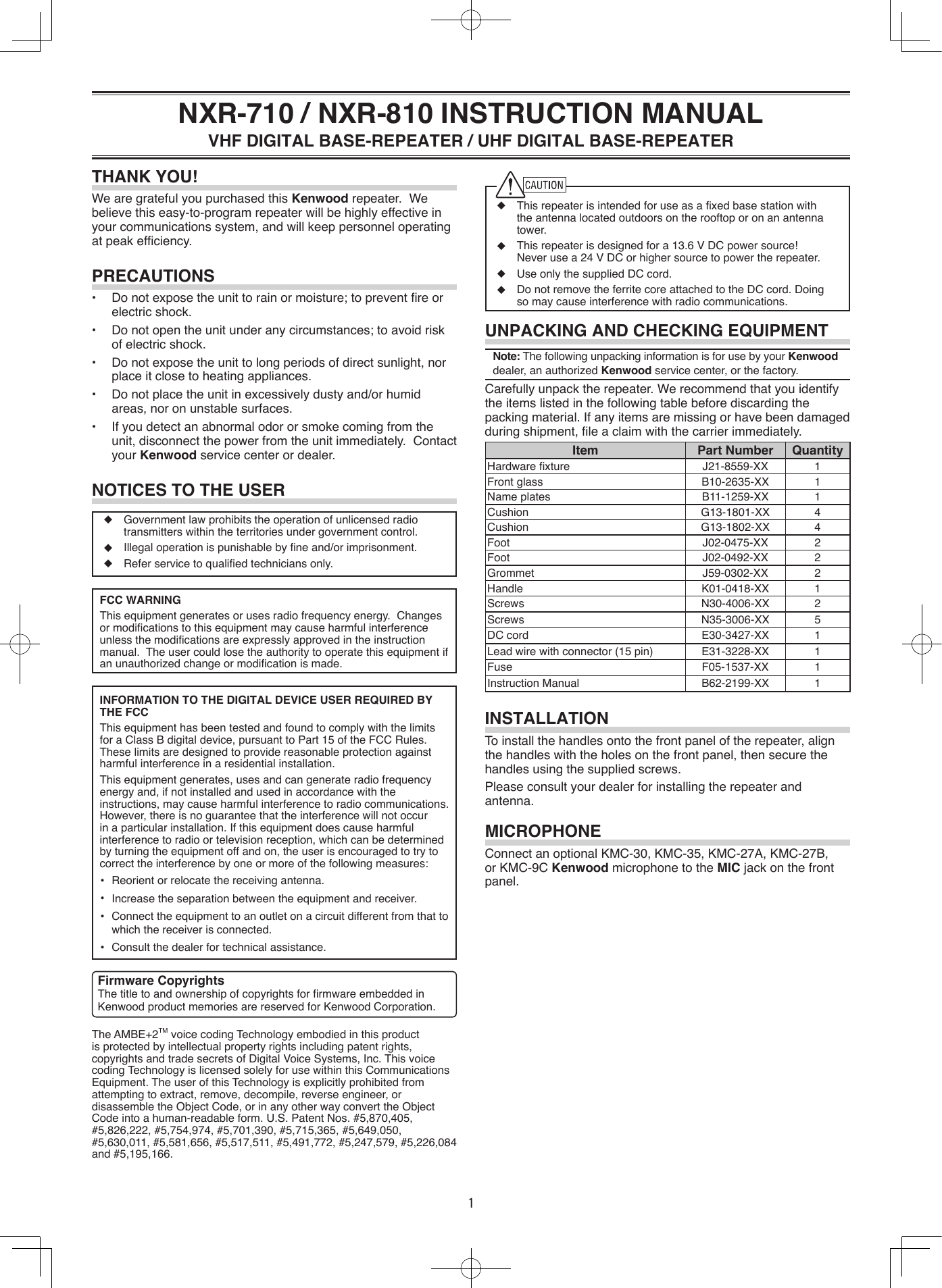

◆ Thisrepeaterisintendedforuseasaxedbasestationwiththe antenna located outdoors on the rooftop or on an antenna tower.◆ Thisrepeaterisdesignedfora13.6VDCpowersource!Neverusea24VDCorhighersourcetopowertherepeater.◆ UseonlythesuppliedDCcord.◆ DonotremovetheferritecoreattachedtotheDCcord.Doingsomaycauseinterferencewithradiocommunications.UNPACKING AND CHECKING EQUIPMENTNote:ThefollowingunpackinginformationisforusebyyourKenwood dealer, an authorized Kenwoodservicecenter,orthefactory.Carefullyunpacktherepeater.Werecommendthatyouidentifytheitemslistedinthefollowingtablebeforediscardingthepackingmaterial.Ifanyitemsaremissingorhavebeendamagedduringshipment,leaclaimwiththecarrierimmediately.Item Part Number QuantityHardwarexture J21-8559-XX 1Front glass B10-2635-XX 1Name plates B11-1259-XX 1Cushion G13-1801-XX 4Cushion G13-1802-XX 4Foot J02-0475-XX 2Foot J02-0492-XX 2Grommet J59-0302-XX 2Handle K01-0418-XX 1Screws N30-4006-XX 2Screws N35-3006-XX 5DC cord E30-3427-XX 1Leadwirewithconnector(15pin) E31-3228-XX 1Fuse F05-1537-XX 1Instruction Manual B62-2199-XX 1INSTALLATIONTo install the handles onto the front panel of the repeater, align thehandleswiththeholesonthefrontpanel,thensecurethehandlesusingthesuppliedscrews.Please consult your dealer for installing the repeater and antenna.MICROPHONEConnect an optional KMC-30, KMC-35, KMC-27A, KMC-27B, or KMC-9C Kenwood microphone to the MICjackonthefrontpanel.◆ Governmentlawprohibitstheoperationofunlicensedradiotransmitterswithintheterritoriesundergovernmentcontrol.◆ Illegaloperationispunishablebyneand/orimprisonment.◆ Referservicetoqualiedtechniciansonly.FCC WARNINGThisequipmentgeneratesorusesradiofrequencyenergy.Changesormodicationstothisequipmentmaycauseharmfulinterferenceunlessthemodicationsareexpresslyapprovedintheinstructionmanual.Theusercouldlosetheauthoritytooperatethisequipmentifanunauthorizedchangeormodicationismade.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCCThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipment generates, uses and can generate radio frequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethattheinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: • Reorientorrelocatethereceivingantenna. • Increasetheseparationbetweentheequipmentandreceiver. • Connect the equipment to an outlet on a circuit different from that to whichthereceiverisconnected. • Consultthedealerfortechnicalassistance.THANK YOU!WearegratefulyoupurchasedthisKenwoodrepeater.Webelievethiseasy-to-programrepeaterwillbehighlyeffectiveinyourcommunicationssystem,andwillkeeppersonneloperatingatpeakefciency.PRECAUTIONS• Donotexposetheunittorainormoisture;topreventreorelectricshock.• Donotopentheunitunderanycircumstances;toavoidriskofelectricshock.• Donotexposetheunittolongperiodsofdirectsunlight,norplaceitclosetoheatingappliances.• Donotplacetheunitinexcessivelydustyand/orhumidareas,noronunstablesurfaces.• Ifyoudetectanabnormalodororsmokecomingfromtheunit,disconnectthepowerfromtheunitimmediately.Contactyour Kenwood servicecenterordealer.NOTICES TO THE USERNXR-710 / NXR-810 INSTRUCTION MANUALVHF DIGITAL BASE-REPEATER / UHF DIGITAL BASE-REPEATERThe AMBE+2TMvoicecodingTechnologyembodiedinthisproductisprotectedbyintellectualpropertyrightsincludingpatentrights,copyrightsandtradesecretsofDigitalVoiceSystems,Inc.ThisvoicecodingTechnologyislicensedsolelyforusewithinthisCommunicationsEquipment.TheuserofthisTechnologyisexplicitlyprohibitedfromattemptingtoextract,remove,decompile,reverseengineer,ordisassembletheObjectCode,orinanyotherwayconverttheObjectCodeintoahuman-readableform.U.S.PatentNos.#5,870,405,#5,826,222,#5,754,974,#5,701,390,#5,715,365,#5,649,050,#5,630,011,#5,581,656,#5,517,511,#5,491,772,#5,247,579,#5,226,084and#5,195,166.Firmware CopyrightsThetitletoandownershipofcopyrightsforrmwareembeddedinKenwoodproductmemoriesarereservedforKenwoodCorporation.

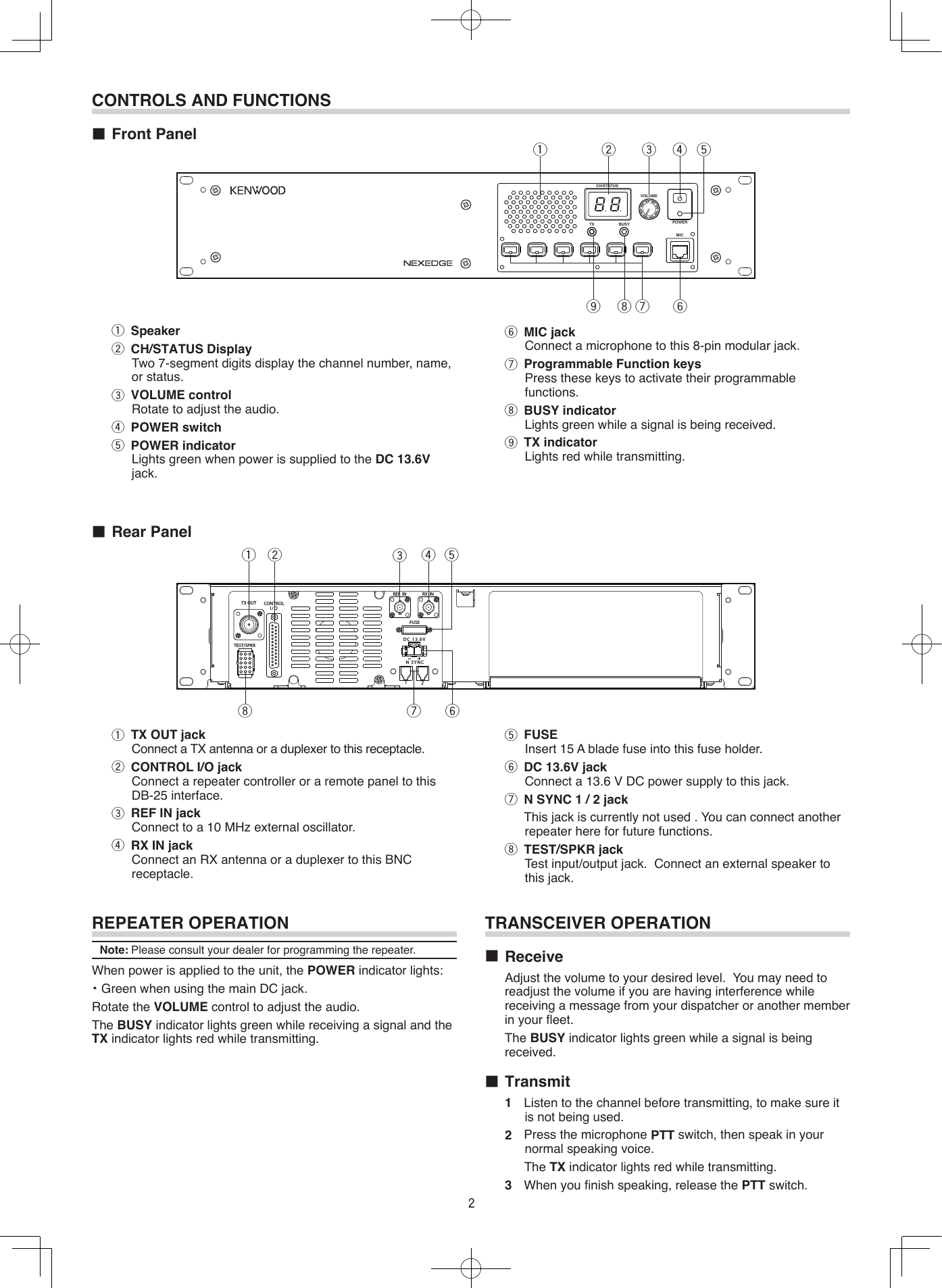

REPEATER OPERATIONNote: Pleaseconsultyourdealerforprogrammingtherepeater.Whenpowerisappliedtotheunit,thePOWERindicatorlights:・GreenwhenusingthemainDCjack.Rotate the VOLUMEcontroltoadjusttheaudio.The BUSYindicatorlightsgreenwhilereceivingasignalandtheTXindicatorlightsredwhiletransmitting.■ Rear Panelq TX OUT jack ConnectaTXantennaoraduplexertothisreceptacle.w CONTROL I/O jack Connect a repeater controller or a remote panel to this DB-25interface.e REF IN jack Connecttoa10MHzexternaloscillator.r RX IN jack ConnectanRXantennaoraduplexertothisBNCreceptacle.CONTROLS AND FUNCTIONS■ Front Panelqwryuioet FUSE Insert15Abladefuseintothisfuseholder.y DC 13.6V jack Connecta13.6VDCpowersupplytothisjack.u N SYNC 1 / 2 jack Thisjackiscurrentlynotused.Youcanconnectanotherrepeaterhereforfuturefunctions.i TEST/SPKR jack Testinput/outputjack.Connectanexternalspeakertothisjack.TRANSCEIVER OPERATION■ Receive Adjustthevolumetoyourdesiredlevel.Youmayneedtoreadjustthevolumeifyouarehavinginterferencewhilereceivingamessagefromyourdispatcheroranothermemberinyoureet. The BUSYindicatorlightsgreenwhileasignalisbeingreceived.■ Transmit1 Listentothechannelbeforetransmitting,tomakesureitisnotbeingused.2 Press the microphone PTTswitch,thenspeakinyournormalspeakingvoice.The TXindicatorlightsredwhiletransmitting.3 Whenyounishspeaking,releasethePTTswitch.q Speakerw CH/STATUS Display Two7-segmentdigitsdisplaythechannelnumber,name,orstatus.e VOLUME control Rotatetoadjusttheaudio.r POWER switcht POWER indicator LightsgreenwhenpowerissuppliedtotheDC 13.6V jack.y MIC jack Connectamicrophonetothis8-pinmodularjack.u Programmable Function keys Pressthesekeystoactivatetheirprogrammablefunctions.i BUSY indicator Lightsgreenwhileasignalisbeingreceived.o TX indicator Lightsredwhiletransmitting.CH/STATUSVOLUMEBUSYTX POWERMICFUSEN SYNCDC 13.6VREF IN RX INTX OUT CONTROLI/OTEST/SPKRtqwrtyuei

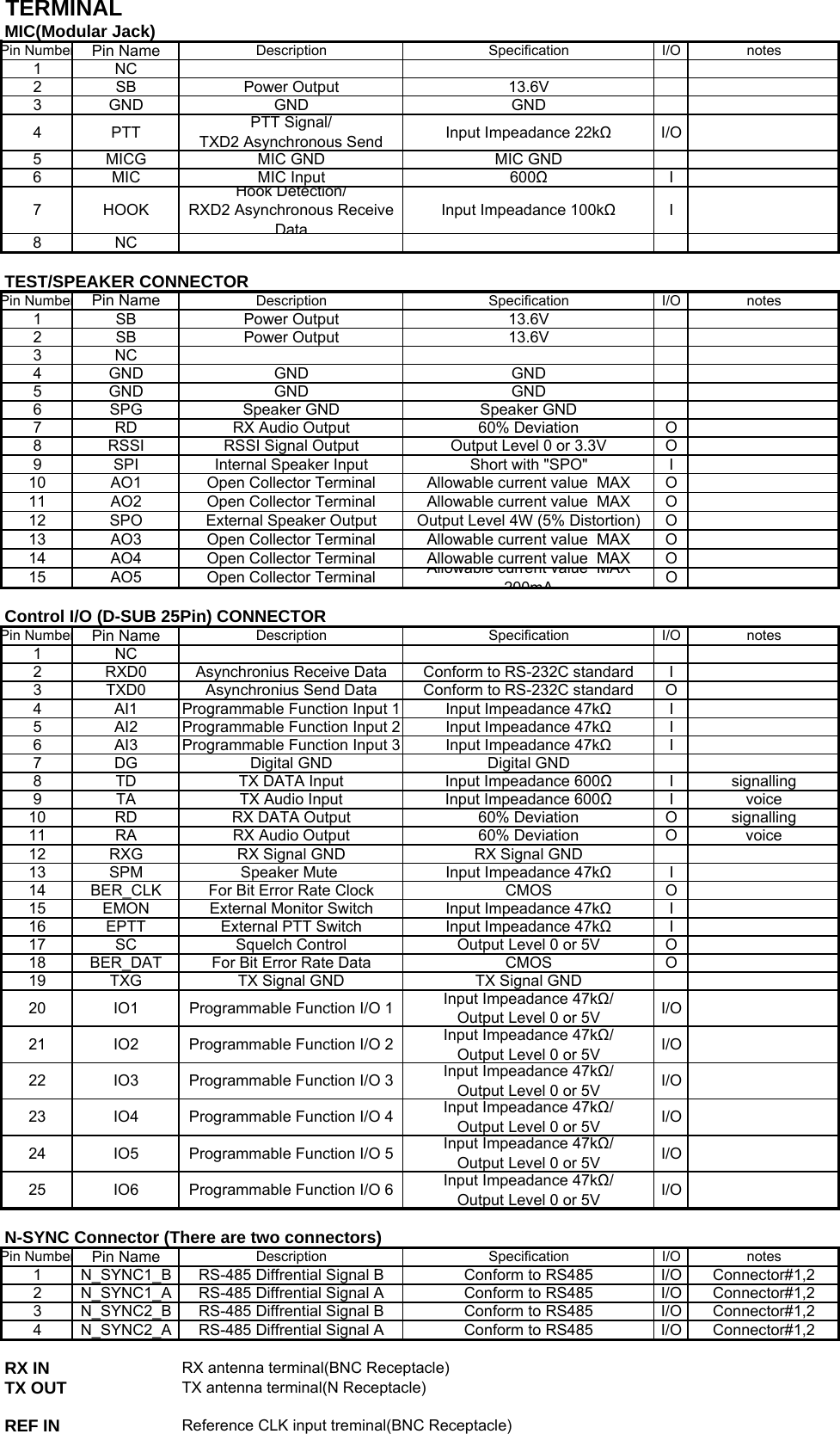

TERMINALMIC(Modular Jack)Pin NumberPin Name Description Specification I/O notes1NC2 SB Power Output 13.6V3 GND GND GND4 PTT PTT Signal/TXD2 Asynchronous Send Input Impeadance 22kΩI/O5 MICG MIC GND MIC GND6 MIC MIC Input 600ΩI7 HOOKHook Detection/RXD2 Asynchronous ReceiveDataInput Impeadance 100kΩI8NCTEST/SPEAKER CONNECTORPin NumberPin Name Description Specification I/O notes1 SB Power Output 13.6V2 SB Power Output 13.6V3NC4 GND GND GND5 GND GND GND6 SPG Speaker GND Speaker GND7 RD RX Audio Output 60% Deviation O8 RSSI RSSI Signal Output Output Level 0 or 3.3V O9 SPI Internal Speaker Input Short with "SPO" I10 AO1 Open Collector Terminal Allowable current value MAX O11 AO2 Open Collector Terminal Allowable current value MAX O12 SPO External Speaker Output Output Level 4W (5% Distortion) O13 AO3 Open Collector Terminal Allowable current value MAX O14 AO4 Open Collector Terminal Allowable current value MAX O15 AO5 Open Collector TerminalAllowable current value MAX200mAOControl I/O (D-SUB 25Pin) CONNECTORPin NumberPin Name Description Specification I/O notes1NC2 RXD0 Asynchronius Receive Data Conform to RS-232C standard I3 TXD0 Asynchronius Send Data Conform to RS-232C standard O4 AI1 Programmable Function Input 1 Input Impeadance 47kΩI5AI2 Programmable Function Input 2 Input Impeadance 47kΩI6AI3 Programmable Function Input 3 Input Impeadance 47kΩI7 DG Digital GND Digital GND8 TD TX DATA Input Input Impeadance 600ΩI signalling9 TA TX Audio Input Input Impeadance 600ΩI voice10 RD RX DATA Output 60% Deviation O signalling11 RA RX Audio Output 60% Deviation O voice12 RXG RX Signal GND RX Signal GND13 SPM Speaker Mute Input Impeadance 47kΩI14 BER_CLK For Bit Error Rate Clock CMOS O15 EMON External Monitor Switch Input Impeadance 47kΩI16 EPTT External PTT Switch Input Impeadance 47kΩI17 SC Squelch Control Output Level 0 or 5V O18 BER_DAT For Bit Error Rate Data CMOS O19 TXG TX Signal GND TX Signal GND20 IO1 Programmable Function I/O 1 Input Impeadance 47kΩ/Output Level 0 or 5V I/O21 IO2 Programmable Function I/O 2 Input Impeadance 47kΩ/Output Level 0 or 5V I/O22 IO3 Programmable Function I/O 3 Input Impeadance 47kΩ/Output Level 0 or 5V I/O23 IO4 Programmable Function I/O 4 Input Impeadance 47kΩ/Output Level 0 or 5V I/O24 IO5 Programmable Function I/O 5 Input Impeadance 47kΩ/Output Level 0 or 5V I/O25 IO6 Programmable Function I/O 6 Input Impeadance 47kΩ/Output Level 0 or 5V I/ON-SYNC Connector (There are two connectors)Pin NumberPin Name Description Specification I/O notes1 N_SYNC1_B RS-485 Diffrential Signal B Conform to RS485 I/O Connector#1,22 N_SYNC1_A RS-485 Diffrential Signal A Conform to RS485 I/O Connector#1,23 N_SYNC2_B RS-485 Diffrential Signal B Conform to RS485 I/O Connector#1,24 N_SYNC2_ARS-485 Diffrential Signal A Conform to RS485 I/O Connector#1,2RX IN RX antenna terminal(BNC Receptacle)TX OUT TX antenna terminal(N Receptacle)REF IN Reference CLK input treminal(BNC Receptacle)

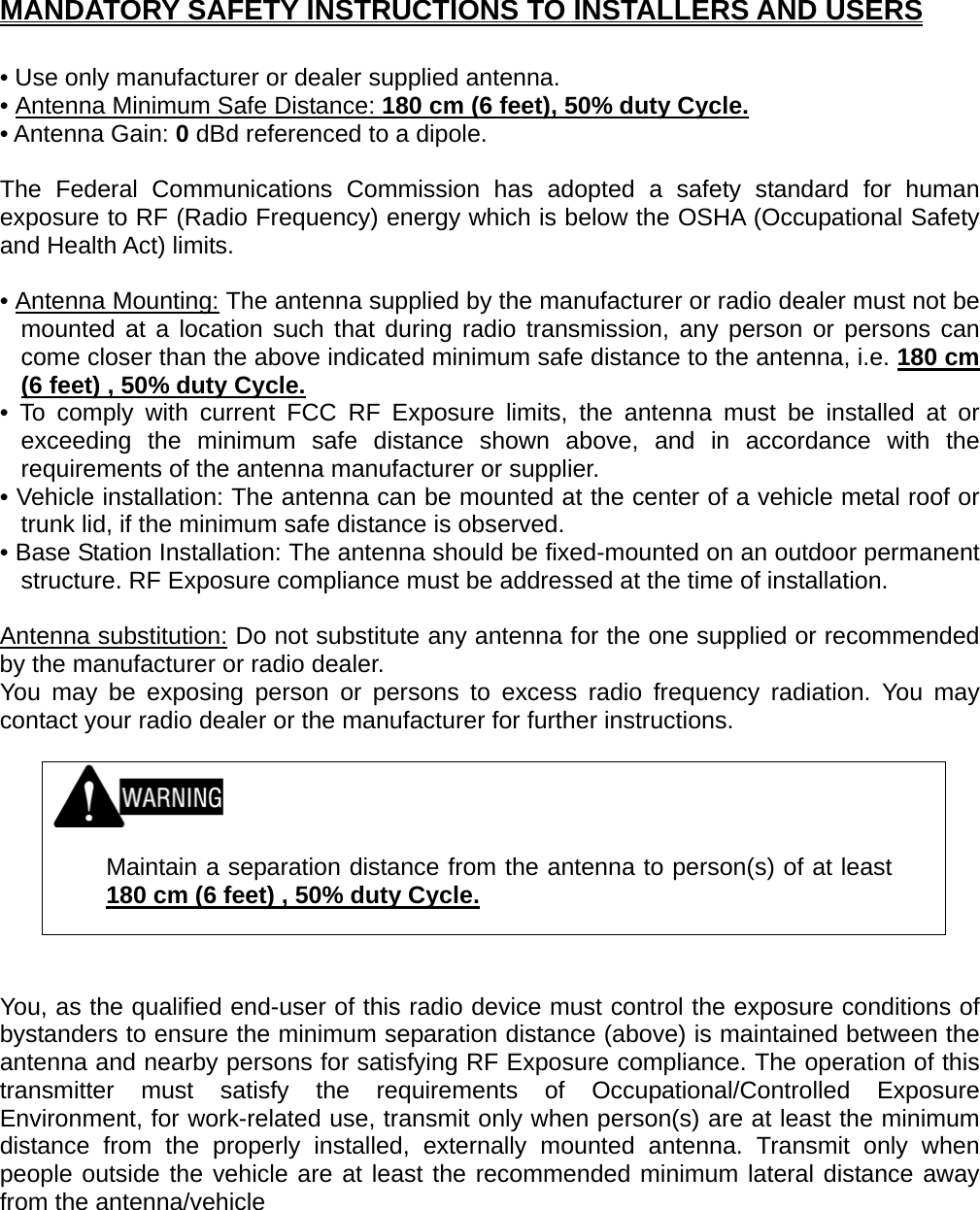

MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS • Use only manufacturer or dealer supplied antenna. • Antenna Minimum Safe Distance: 180 cm (6 feet), 50% duty Cycle.• Antenna Gain: 0 dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. • Antenna Mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna, i.e. 180 cm (6 feet) , 50% duty Cycle.• To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. • Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid, if the minimum safe distance is observed. • Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna substitution: Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) of at least 180 cm (6 feet) , 50% duty Cycle. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use, transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Transmit only when people outside the vehicle are at least the recommended minimum lateral distance away from the antenna/vehicle
