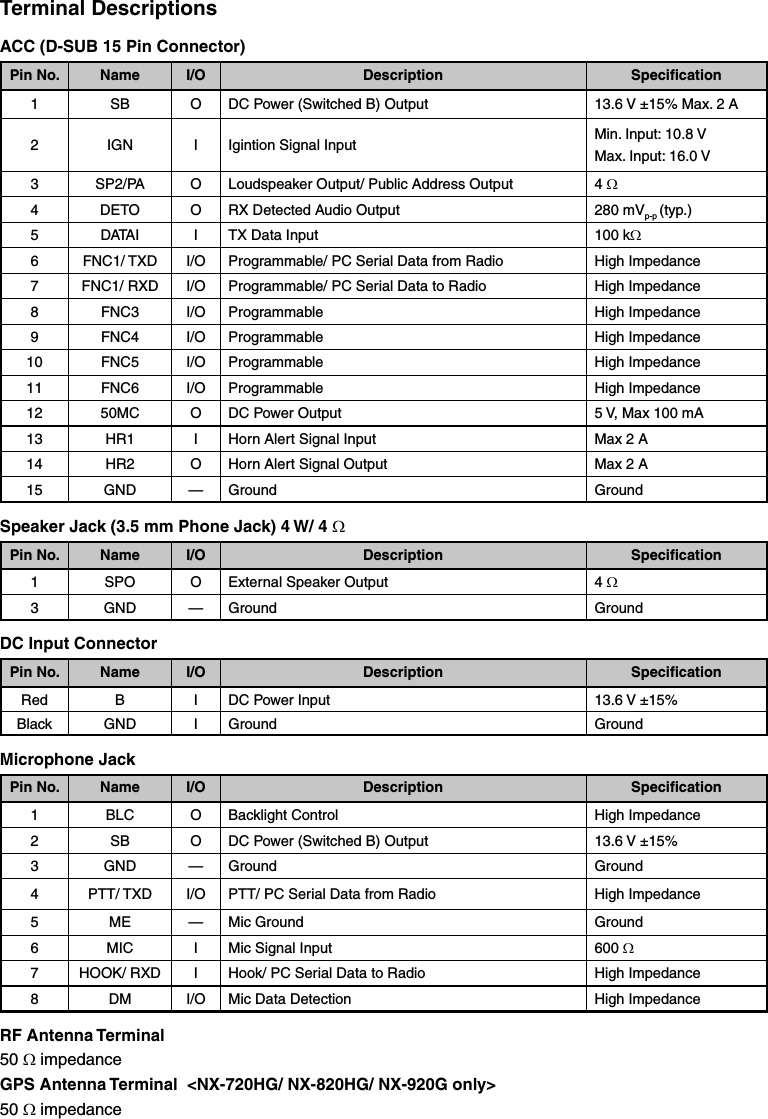

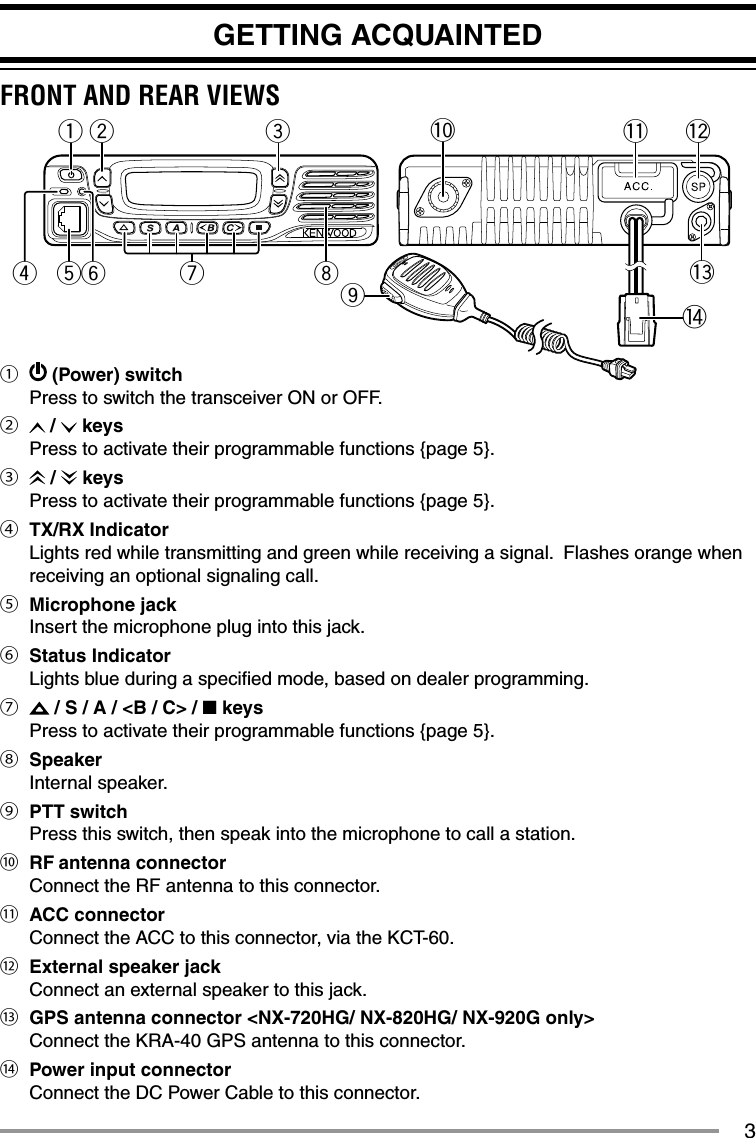

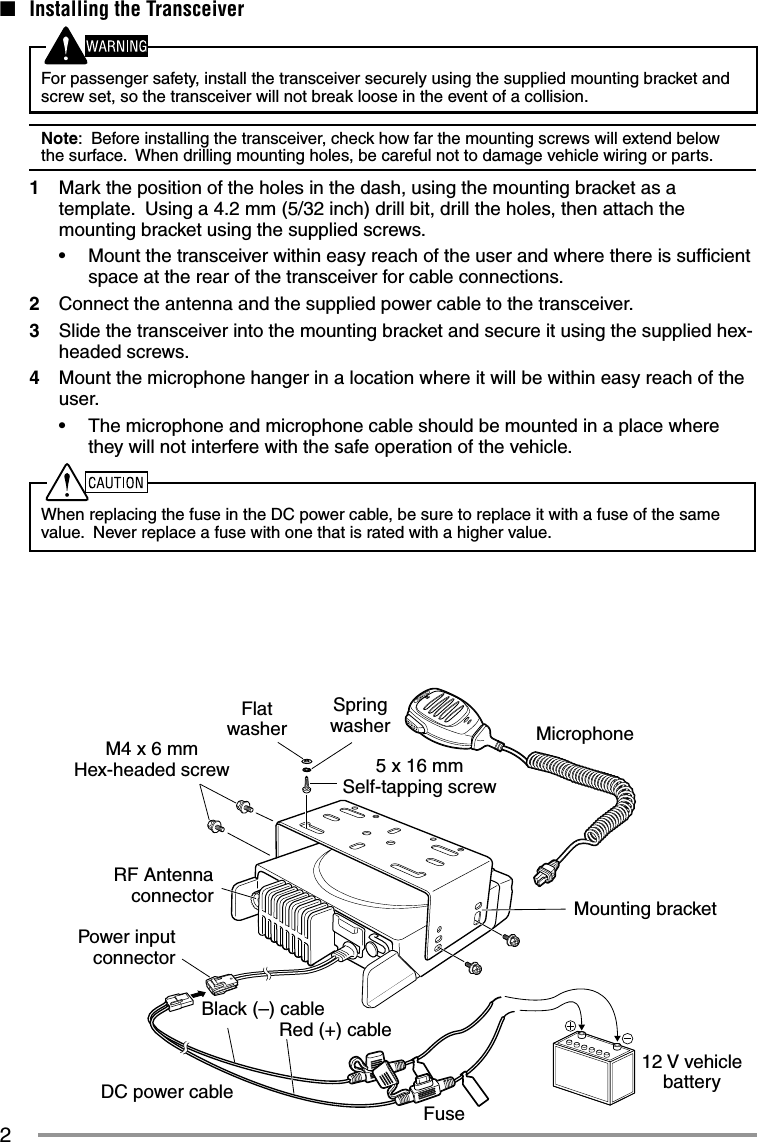

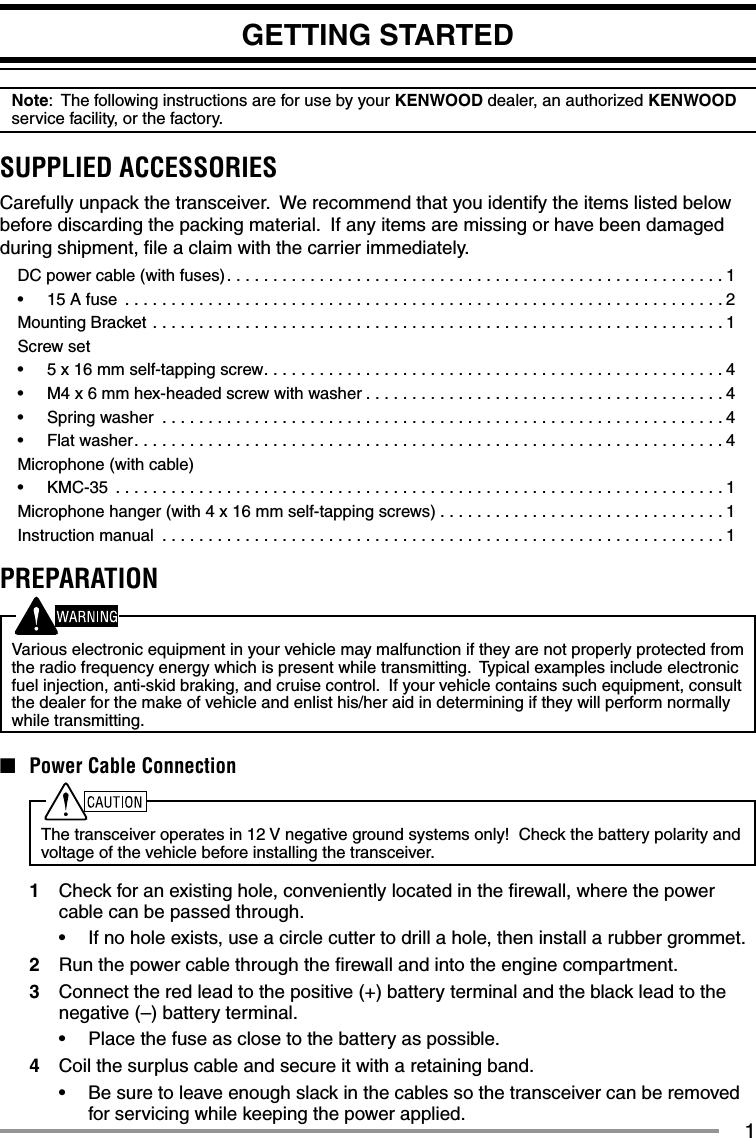

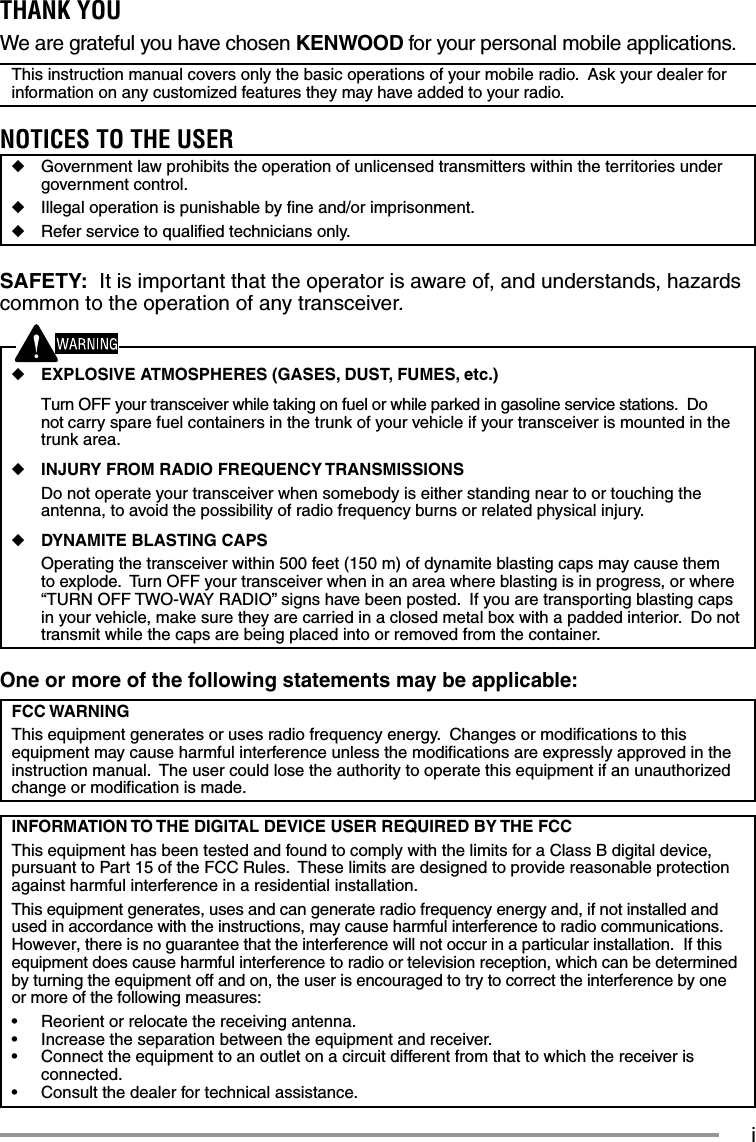

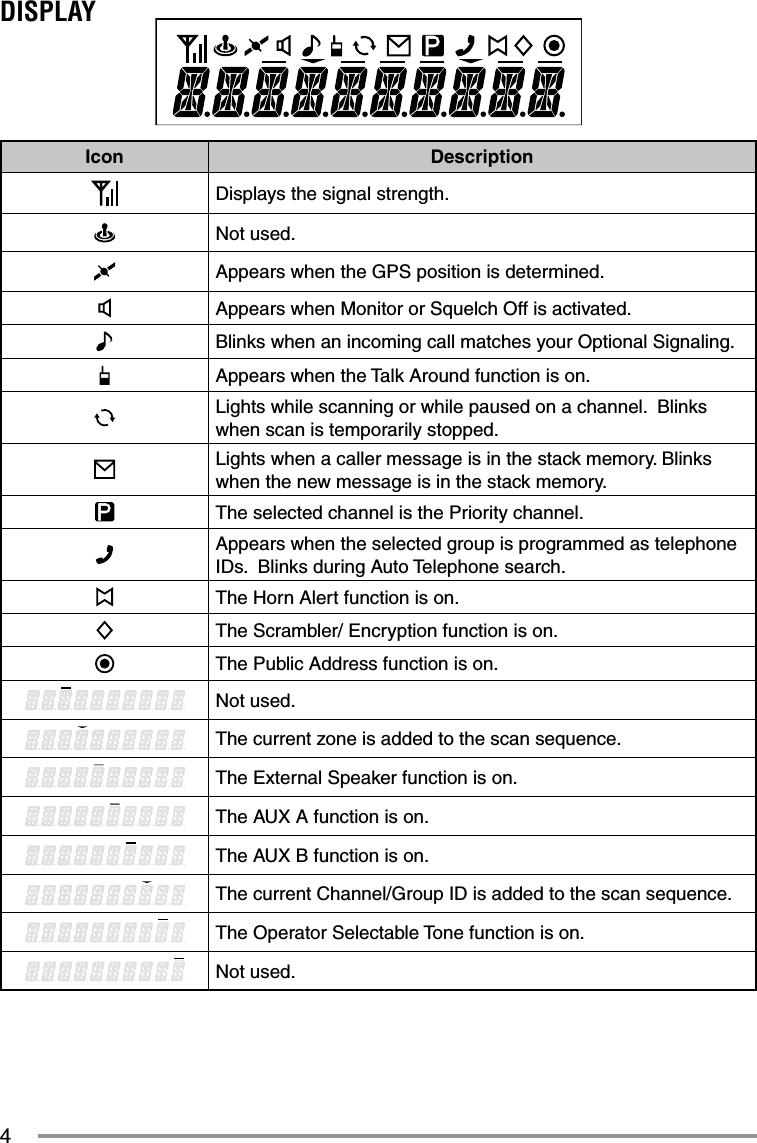

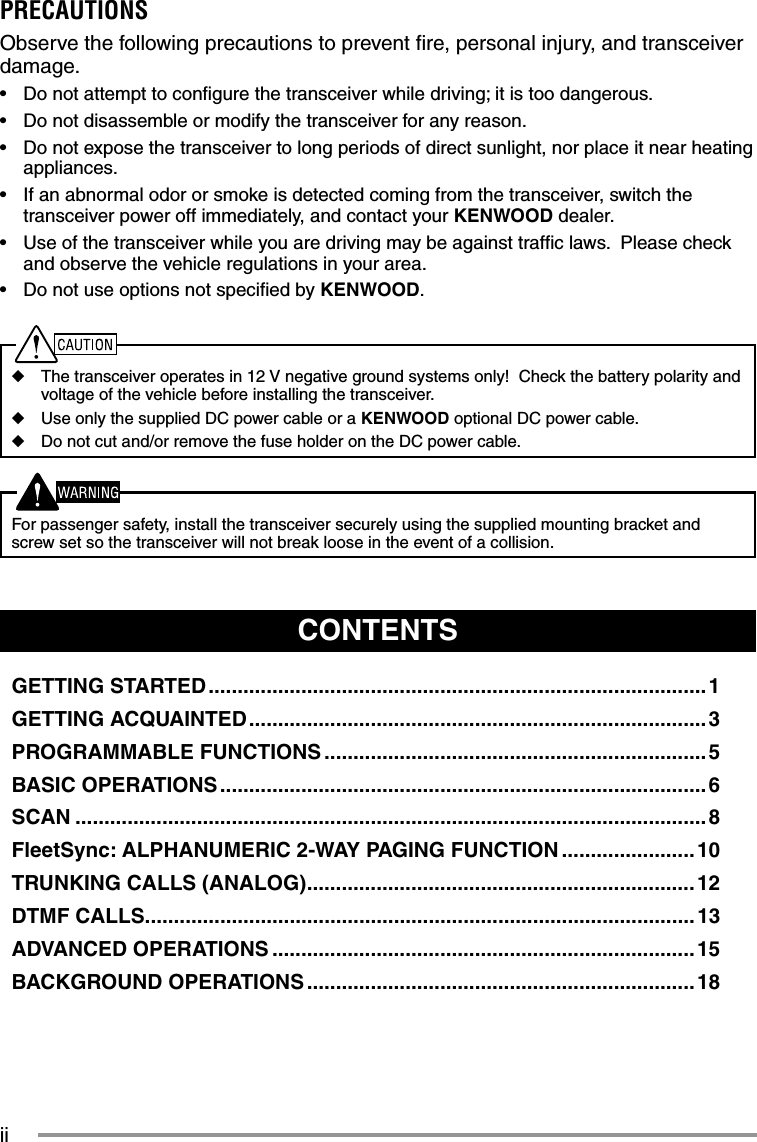

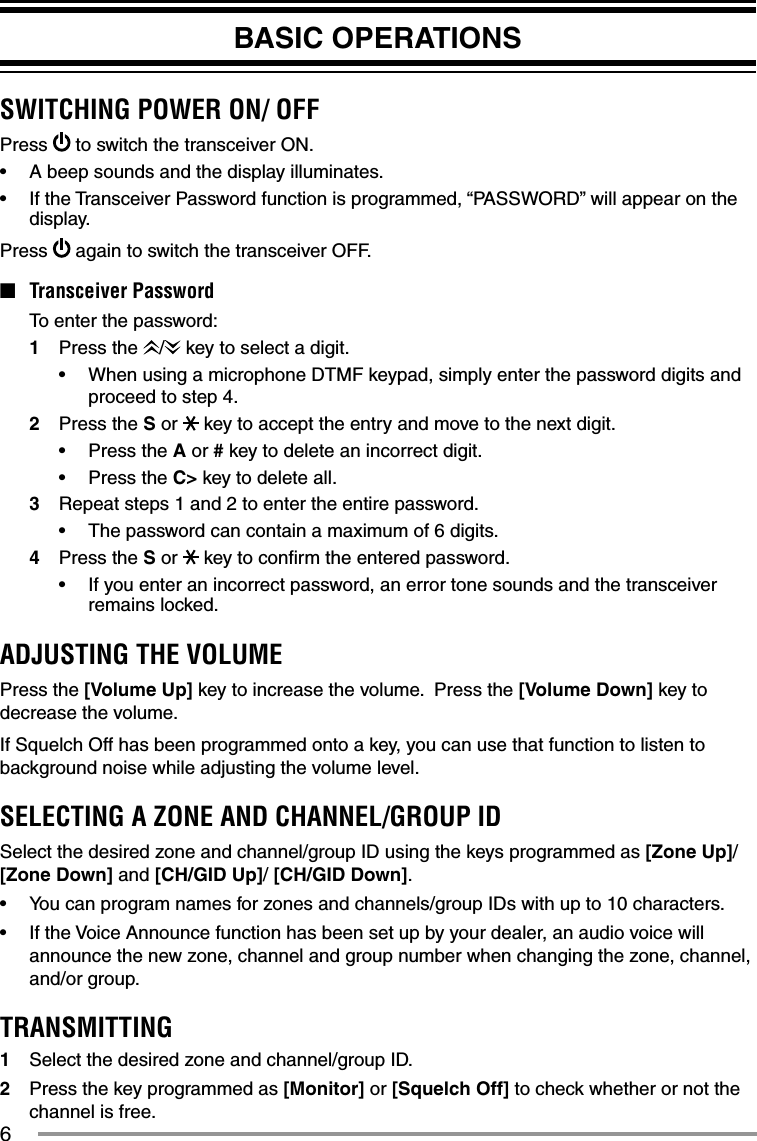

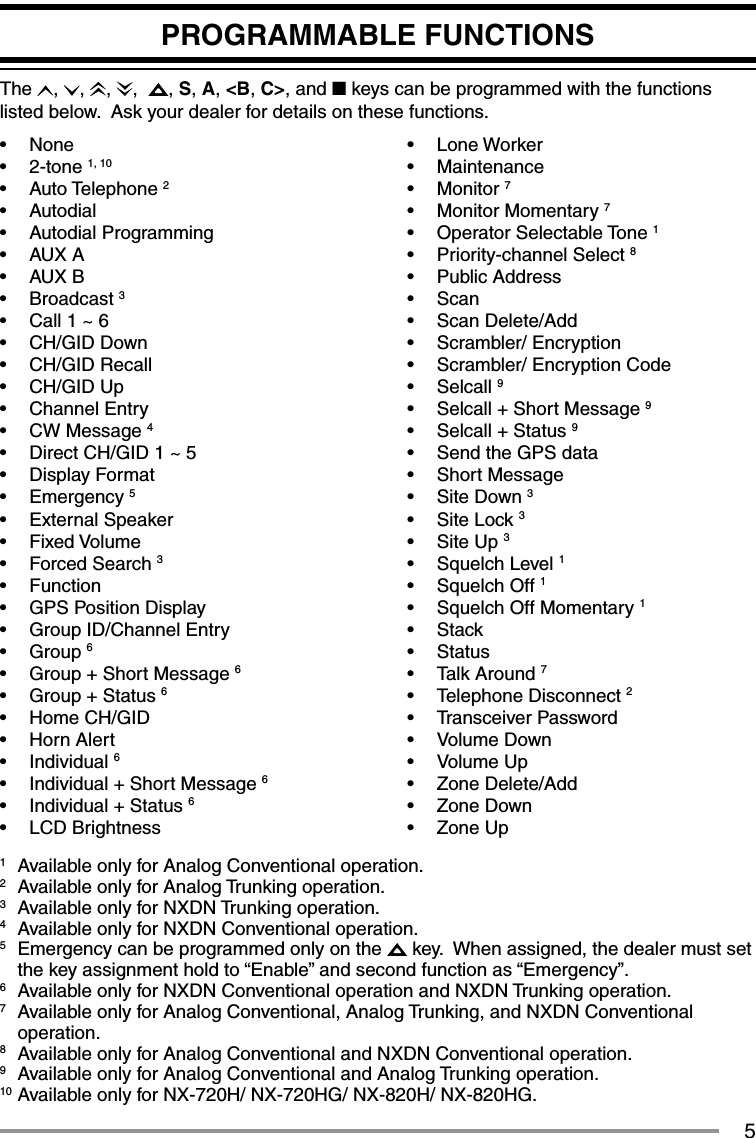

![6BASIC OPERATIONSSWITCHING POWER ON/ OFFPress to switch the transceiver ON.• A beep sounds and the display illuminates.• If the Transceiver Password function is programmed, “PASSWORD” will appear on the display.Press again to switch the transceiver OFF.■ Transceiver Password To enter the password:1 Press the / key to select a digit.• When using a microphone DTMF keypad, simply enter the password digits and proceed to step 4.2 Press the S or key to accept the entry and move to the next digit.• Press the A or # key to delete an incorrect digit.• Press the C> key to delete all.3 Repeat steps 1 and 2 to enter the entire password.• The password can contain a maximum of 6 digits.4 Press the S or key to confi rm the entered password.• If you enter an incorrect password, an error tone sounds and the transceiver remains locked.ADJUSTING THE VOLUMEPress the [Volume Up] key to increase the volume. Press the [Volume Down] key to decrease the volume.If Squelch Off has been programmed onto a key, you can use that function to listen to background noise while adjusting the volume level.SELECTING A ZONE AND CHANNEL/GROUP IDSelect the desired zone and channel/group ID using the keys programmed as [Zone Up]/ [Zone Down] and [CH/GID Up]/ [CH/GID Down].• You can program names for zones and channels/group IDs with up to 10 characters.• If the Voice Announce function has been set up by your dealer, an audio voice will announce the new zone, channel and group number when changing the zone, channel, and/or group. TRANSMITTING1 Select the desired zone and channel/group ID.2 Press the key programmed as [Monitor] or [Squelch Off] to check whether or not the channel is free.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-12.png)

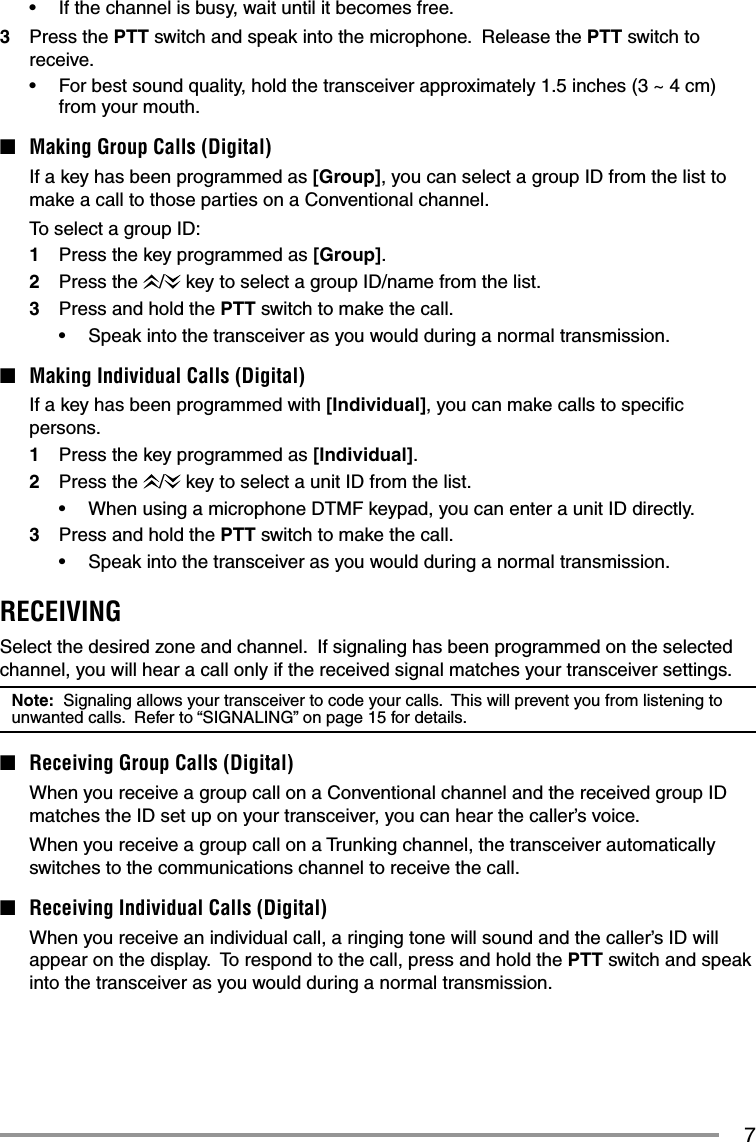

![7• If the channel is busy, wait until it becomes free.3 Press the PTT switch and speak into the microphone. Release the PTT switch to receive.• For best sound quality, hold the transceiver approximately 1.5 inches (3 ~ 4 cm) from your mouth.■ Making Group Calls (Digital) If a key has been programmed as [Group], you can select a group ID from the list to make a call to those parties on a Conventional channel. To select a group ID:1 Press the key programmed as [Group].2 Press the / key to select a group ID/name from the list.3 Press and hold the PTT switch to make the call.• Speak into the transceiver as you would during a normal transmission.■ Making Individual Calls (Digital) If a key has been programmed with [Individual], you can make calls to specifi c persons.1 Press the key programmed as [Individual].2 Press the / key to select a unit ID from the list.• When using a microphone DTMF keypad, you can enter a unit ID directly.3 Press and hold the PTT switch to make the call.• Speak into the transceiver as you would during a normal transmission.RECEIVINGSelect the desired zone and channel. If signaling has been programmed on the selected channel, you will hear a call only if the received signal matches your transceiver settings.Note: Signaling allows your transceiver to code your calls. This will prevent you from listening to unwanted calls. Refer to “SIGNALING” on page 15 for details. ■ Receiving Group Calls (Digital) When you receive a group call on a Conventional channel and the received group ID matches the ID set up on your transceiver, you can hear the caller’s voice. When you receive a group call on a Trunking channel, the transceiver automatically switches to the communications channel to receive the call.■ Receiving Individual Calls (Digital) When you receive an individual call, a ringing tone will sound and the caller’s ID will appear on the display. To respond to the call, press and hold the PTT switch and speak into the transceiver as you would during a normal transmission.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-13.png)

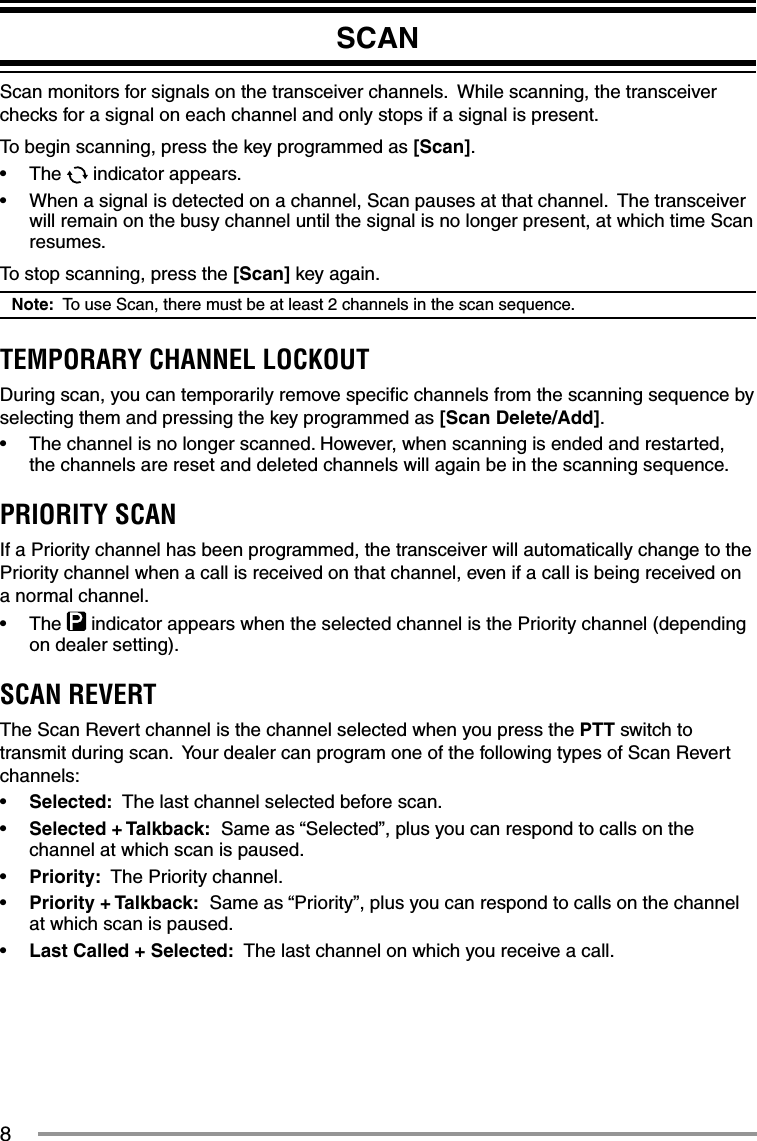

![8SCANScan monitors for signals on the transceiver channels. While scanning, the transceiver checks for a signal on each channel and only stops if a signal is present.To begin scanning, press the key programmed as [Scan].• The indicator appears.• When a signal is detected on a channel, Scan pauses at that channel. The transceiver will remain on the busy channel until the signal is no longer present, at which time Scan resumes.To stop scanning, press the [Scan] key again.Note: To use Scan, there must be at least 2 channels in the scan sequence.TEMPORARY CHANNEL LOCKOUTDuring scan, you can temporarily remove specifi c channels from the scanning sequence by selecting them and pressing the key programmed as [Scan Delete/Add].• The channel is no longer scanned. However, when scanning is ended and restarted, the channels are reset and deleted channels will again be in the scanning sequence.PRIORITY SCANIf a Priority channel has been programmed, the transceiver will automatically change to the Priority channel when a call is received on that channel, even if a call is being received on a normal channel.• The indicator appears when the selected channel is the Priority channel (depending on dealer setting).SCAN REVERTThe Scan Revert channel is the channel selected when you press the PTT switch to transmit during scan. Your dealer can program one of the following types of Scan Revert channels:• Selected: The last channel selected before scan.• Selected + Talkback: Same as “Selected”, plus you can respond to calls on the channel at which scan is paused.• Priority: The Priority channel.• Priority + Talkback: Same as “Priority”, plus you can respond to calls on the channel at which scan is paused.• Last Called + Selected: The last channel on which you receive a call.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-14.png)

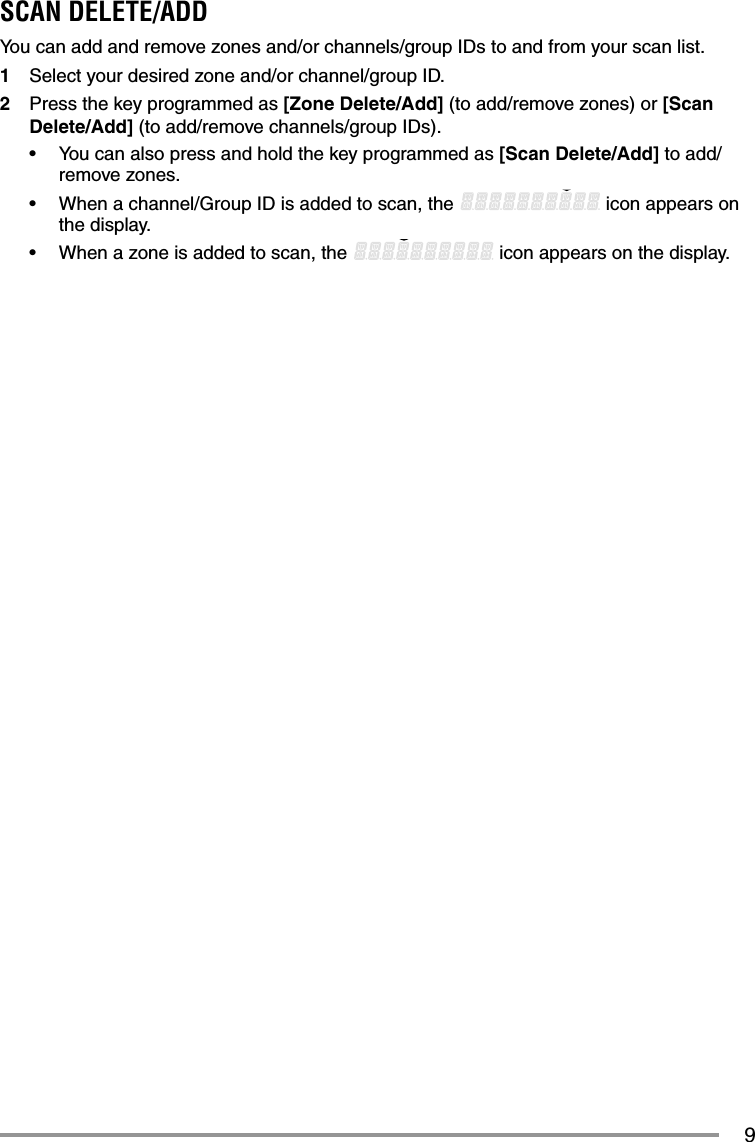

![9SCAN DELETE/ADDYou can add and remove zones and/or channels/group IDs to and from your scan list.1 Select your desired zone and/or channel/group ID.2 Press the key programmed as [Zone Delete/Add] (to add/remove zones) or [Scan Delete/Add] (to add/remove channels/group IDs).• You can also press and hold the key programmed as [Scan Delete/Add] to add/remove zones.• When a channel/Group ID is added to scan, the icon appears on the display.• When a zone is added to scan, the icon appears on the display.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-15.png)

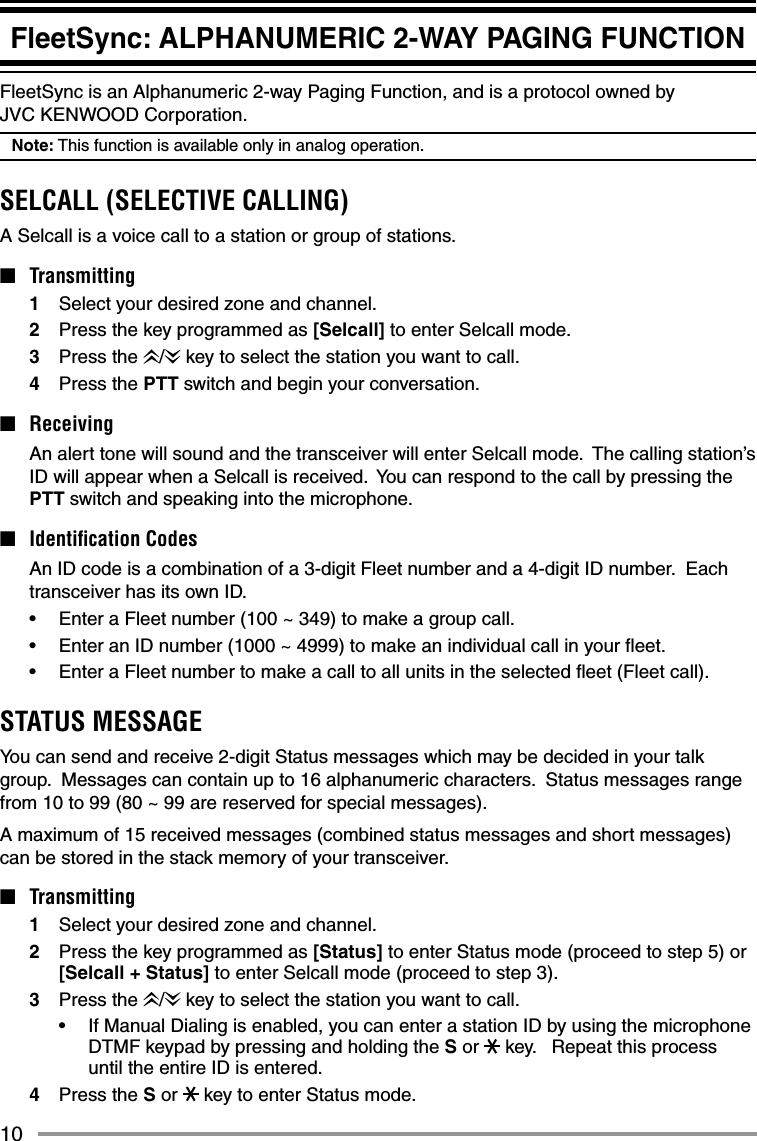

![10FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTIONFleetSync is an Alphanumeric 2-way Paging Function, and is a protocol owned by JVC KENWOOD Corporation.Note: This function is available only in analog operation.SELCALL (SELECTIVE CALLING)A Selcall is a voice call to a station or group of stations.■ Transmitting1 Select your desired zone and channel.2 Press the key programmed as [Selcall] to enter Selcall mode.3 Press the / key to select the station you want to call.4 Press the PTT switch and begin your conversation.■ Receiving An alert tone will sound and the transceiver will enter Selcall mode. The calling station’s ID will appear when a Selcall is received. You can respond to the call by pressing the PTT switch and speaking into the microphone.■ Identifi cation Codes An ID code is a combination of a 3-digit Fleet number and a 4-digit ID number. Each transceiver has its own ID.• Enter a Fleet number (100 ~ 349) to make a group call.• Enter an ID number (1000 ~ 4999) to make an individual call in your fl eet.• Enter a Fleet number to make a call to all units in the selected fl eet (Fleet call).STATUS MESSAGEYou can send and receive 2-digit Status messages which may be decided in your talk group. Messages can contain up to 16 alphanumeric characters. Status messages range from 10 to 99 (80 ~ 99 are reserved for special messages).A maximum of 15 received messages (combined status messages and short messages) can be stored in the stack memory of your transceiver.■ Transmitting1 Select your desired zone and channel.2 Press the key programmed as [Status] to enter Status mode (proceed to step 5) or [Selcall + Status] to enter Selcall mode (proceed to step 3).3 Press the / key to select the station you want to call.• If Manual Dialing is enabled, you can enter a station ID by using the microphone DTMF keypad by pressing and holding the S or key. Repeat this process until the entire ID is entered.4 Press the S or key to enter Status mode.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-16.png)

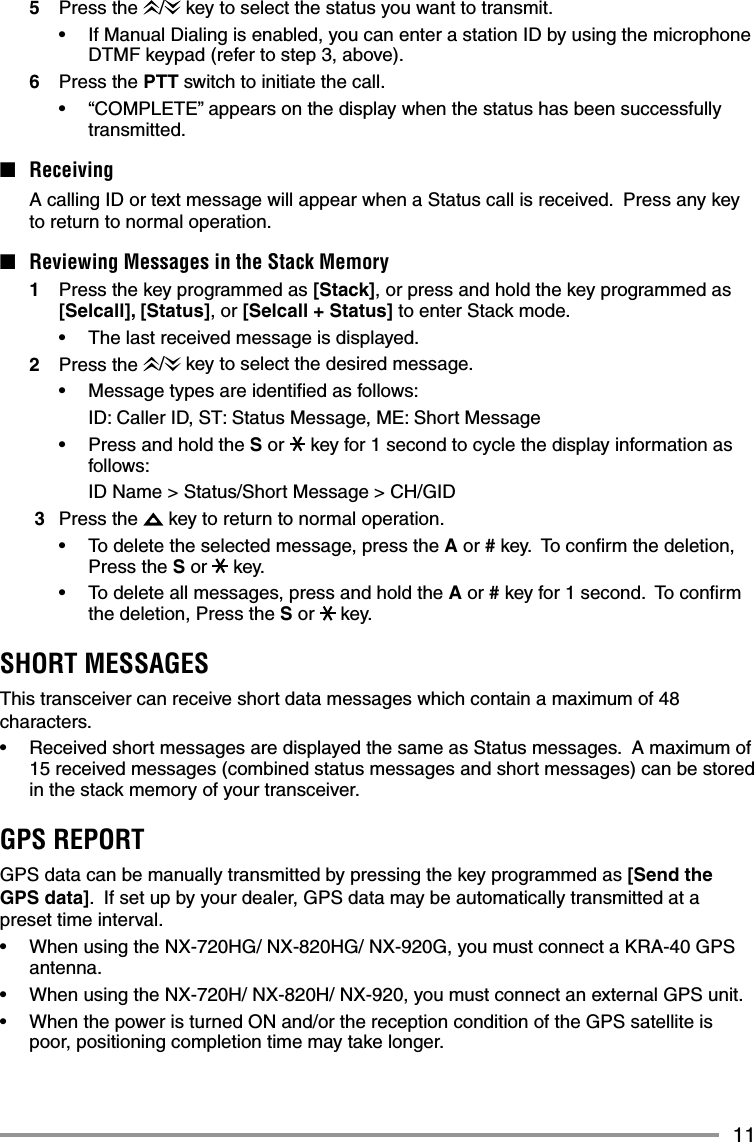

![115 Press the / key to select the status you want to transmit.• If Manual Dialing is enabled, you can enter a station ID by using the microphone DTMF keypad (refer to step 3, above).6 Press the PTT switch to initiate the call.• “COMPLETE” appears on the display when the status has been successfully transmitted.■ Receiving A calling ID or text message will appear when a Status call is received. Press any key to return to normal operation.■ Reviewing Messages in the Stack Memory1 Press the key programmed as [Stack], or press and hold the key programmed as [Selcall], [Status], or [Selcall + Status] to enter Stack mode.• The last received message is displayed.2 Press the / key to select the desired message.• Message types are identifi ed as follows: ID: Caller ID, ST: Status Message, ME: Short Message• Press and hold the S or key for 1 second to cycle the display information as follows: ID Name > Status/Short Message > CH/GID 3 Press the key to return to normal operation.• To delete the selected message, press the A or # key. To confi rm the deletion, Press the S or key.• To delete all messages, press and hold the A or # key for 1 second. To confi rm the deletion, Press the S or key.SHORT MESSAGESThis transceiver can receive short data messages which contain a maximum of 48 characters.• Received short messages are displayed the same as Status messages. A maximum of 15 received messages (combined status messages and short messages) can be stored in the stack memory of your transceiver.GPS REPORTGPS data can be manually transmitted by pressing the key programmed as [Send the GPS data]. If set up by your dealer, GPS data may be automatically transmitted at a preset time interval.• When using the NX-720HG/ NX-820HG/ NX-920G, you must connect a KRA-40 GPS antenna.• When using the NX-720H/ NX-820H/ NX-920, you must connect an external GPS unit.• When the power is turned ON and/or the reception condition of the GPS satellite is poor, positioning completion time may take longer.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-17.png)

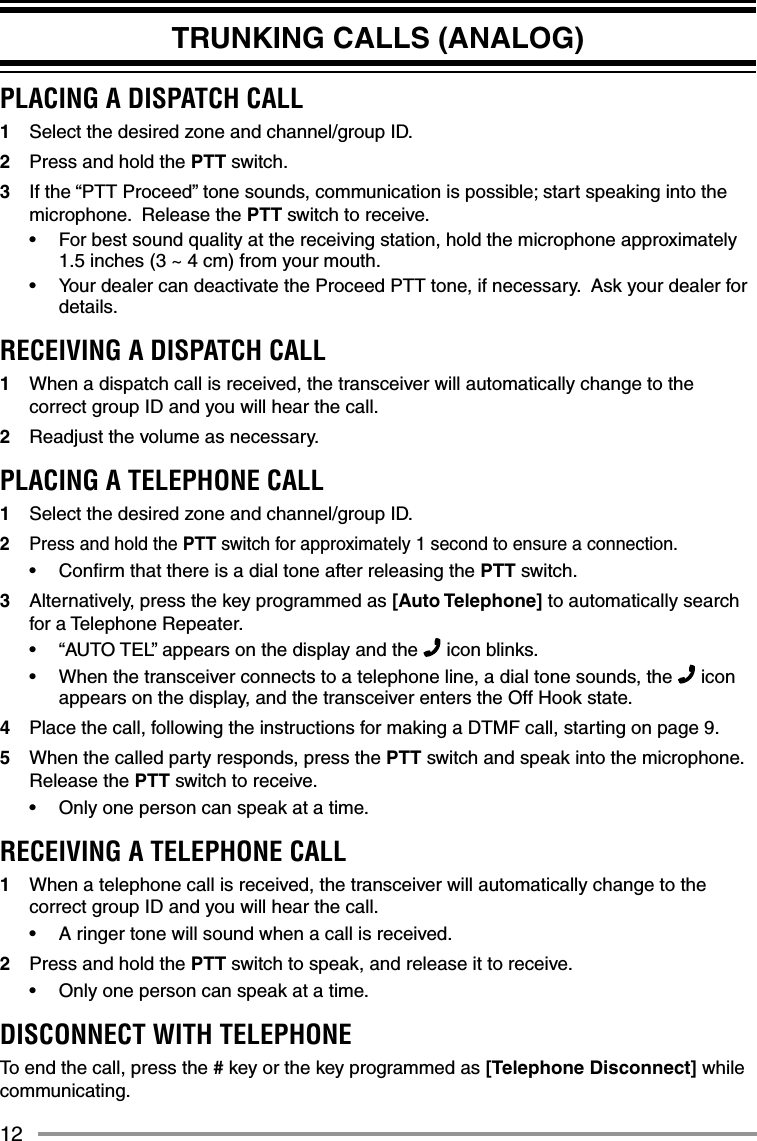

![12TRUNKING CALLS (ANALOG)PLACING A DISPATCH CALL1 Select the desired zone and channel/group ID.2 Press and hold the PTT switch.3 If the “PTT Proceed” tone sounds, communication is possible; start speaking into the microphone. Release the PTT switch to receive.• For best sound quality at the receiving station, hold the microphone approximately 1.5 inches (3 ~ 4 cm) from your mouth.• Your dealer can deactivate the Proceed PTT tone, if necessary. Ask your dealer for details.RECEIVING A DISPATCH CALL1 When a dispatch call is received, the transceiver will automatically change to the correct group ID and you will hear the call.2 Readjust the volume as necessary.PLACING A TELEPHONE CALL1 Select the desired zone and channel/group ID.2 Press and hold the PTT switch for approximately 1 second to ensure a connection.• Confi rm that there is a dial tone after releasing the PTT switch. 3 Alternatively, press the key programmed as [Auto Telephone] to automatically search for a Telephone Repeater.• “AUTO TEL” appears on the display and the icon blinks.• When the transceiver connects to a telephone line, a dial tone sounds, the icon appears on the display, and the transceiver enters the Off Hook state. 4 Place the call, following the instructions for making a DTMF call, starting on page 9.5 When the called party responds, press the PTT switch and speak into the microphone. Release the PTT switch to receive.• Only one person can speak at a time.RECEIVING A TELEPHONE CALL1 When a telephone call is received, the transceiver will automatically change to the correct group ID and you will hear the call.• A ringer tone will sound when a call is received.2 Press and hold the PTT switch to speak, and release it to receive.• Only one person can speak at a time.DISCONNECT WITH TELEPHONETo end the call, press the # key or the key programmed as [Telephone Disconnect] while communicating.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-18.png)

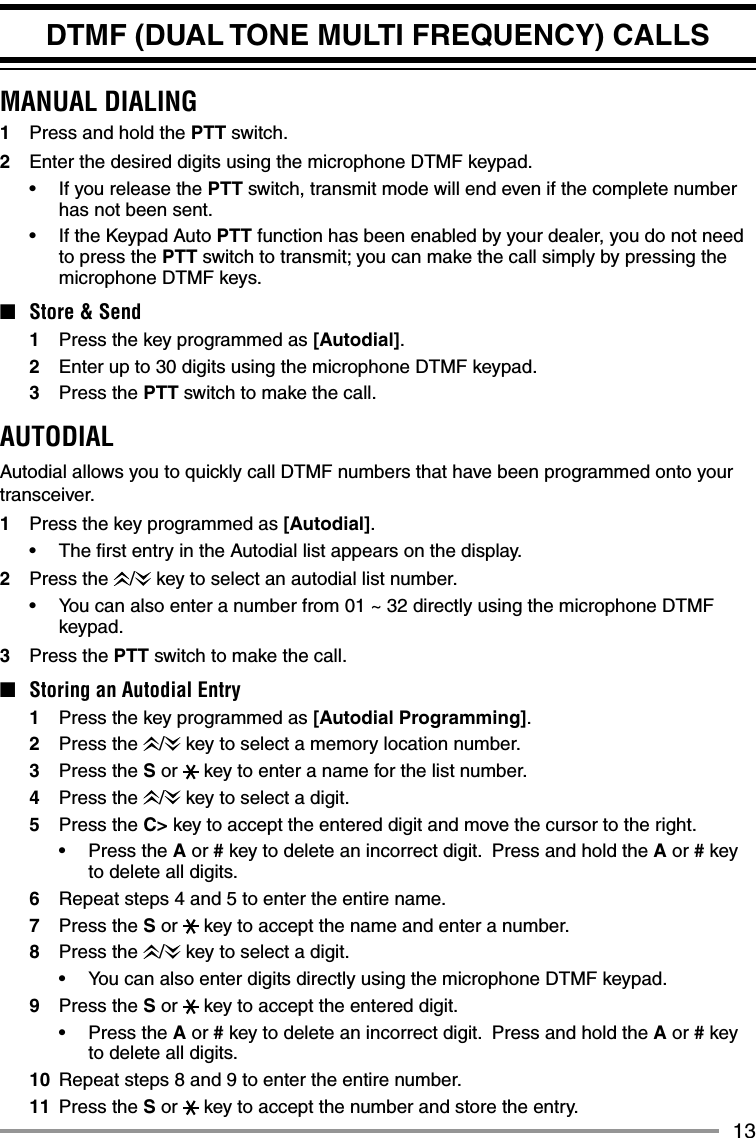

![13DTMF (DUAL TONE MULTI FREQUENCY) CALLSMANUAL DIALING1 Press and hold the PTT switch.2 Enter the desired digits using the microphone DTMF keypad.• If you release the PTT switch, transmit mode will end even if the complete number has not been sent.• If the Keypad Auto PTT function has been enabled by your dealer, you do not need to press the PTT switch to transmit; you can make the call simply by pressing the microphone DTMF keys.■ Store & Send1 Press the key programmed as [Autodial].2 Enter up to 30 digits using the microphone DTMF keypad.3 Press the PTT switch to make the call.AUTODIALAutodial allows you to quickly call DTMF numbers that have been programmed onto your transceiver.1 Press the key programmed as [Autodial].• The fi rst entry in the Autodial list appears on the display.2 Press the / key to select an autodial list number.• You can also enter a number from 01 ~ 32 directly using the microphone DTMF keypad.3 Press the PTT switch to make the call.■ Storing an Autodial Entry1 Press the key programmed as [Autodial Programming].2 Press the / key to select a memory location number.3 Press the S or key to enter a name for the list number.4 Press the / key to select a digit.5 Press the C> key to accept the entered digit and move the cursor to the right.• Press the A or # key to delete an incorrect digit. Press and hold the A or # key to delete all digits.6 Repeat steps 4 and 5 to enter the entire name.7 Press the S or key to accept the name and enter a number.8 Press the / key to select a digit.• You can also enter digits directly using the microphone DTMF keypad.9 Press the S or key to accept the entered digit.• Press the A or # key to delete an incorrect digit. Press and hold the A or # key to delete all digits.10 Repeat steps 8 and 9 to enter the entire number.11 Press the S or key to accept the number and store the entry.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-19.png)

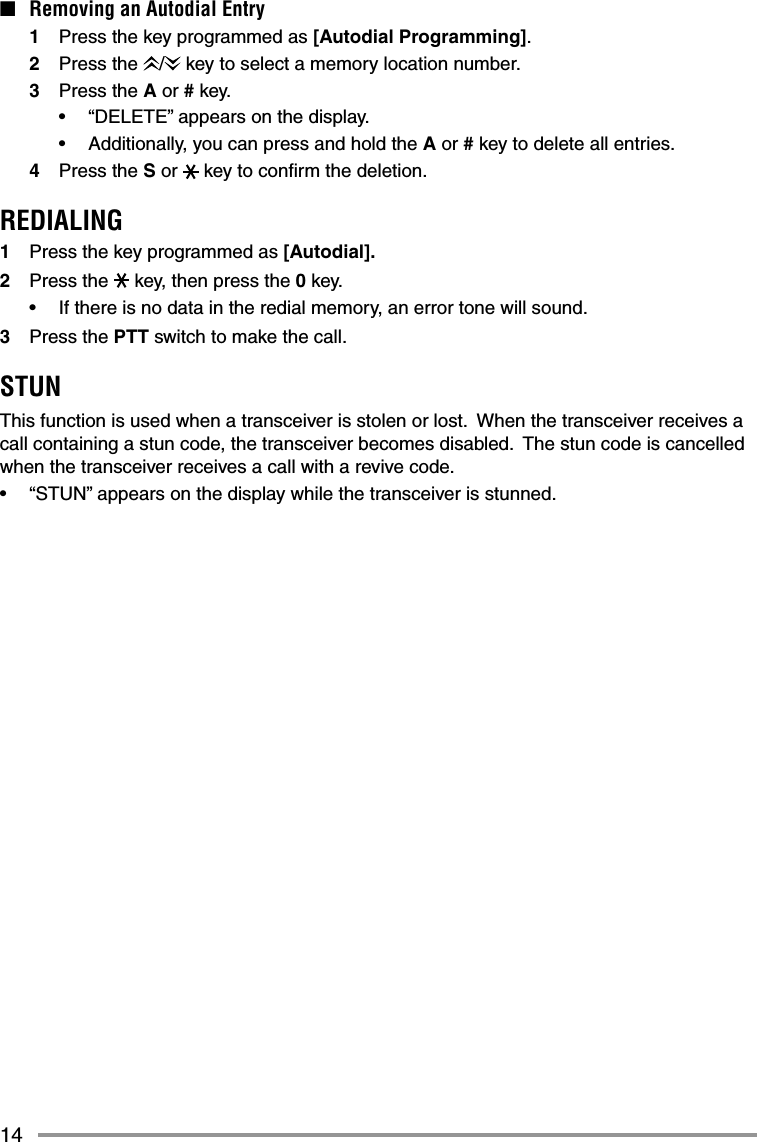

![14■ Removing an Autodial Entry1 Press the key programmed as [Autodial Programming].2 Press the / key to select a memory location number.3 Press the A or # key.• “DELETE” appears on the display.• Additionally, you can press and hold the A or # key to delete all entries.4 Press the S or key to confi rm the deletion.REDIALING1 Press the key programmed as [Autodial].2 Press the key, then press the 0 key.• If there is no data in the redial memory, an error tone will sound.3 Press the PTT switch to make the call.STUNThis function is used when a transceiver is stolen or lost. When the transceiver receives a call containing a stun code, the transceiver becomes disabled. The stun code is cancelled when the transceiver receives a call with a revive code.• “STUN” appears on the display while the transceiver is stunned.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-20.png)

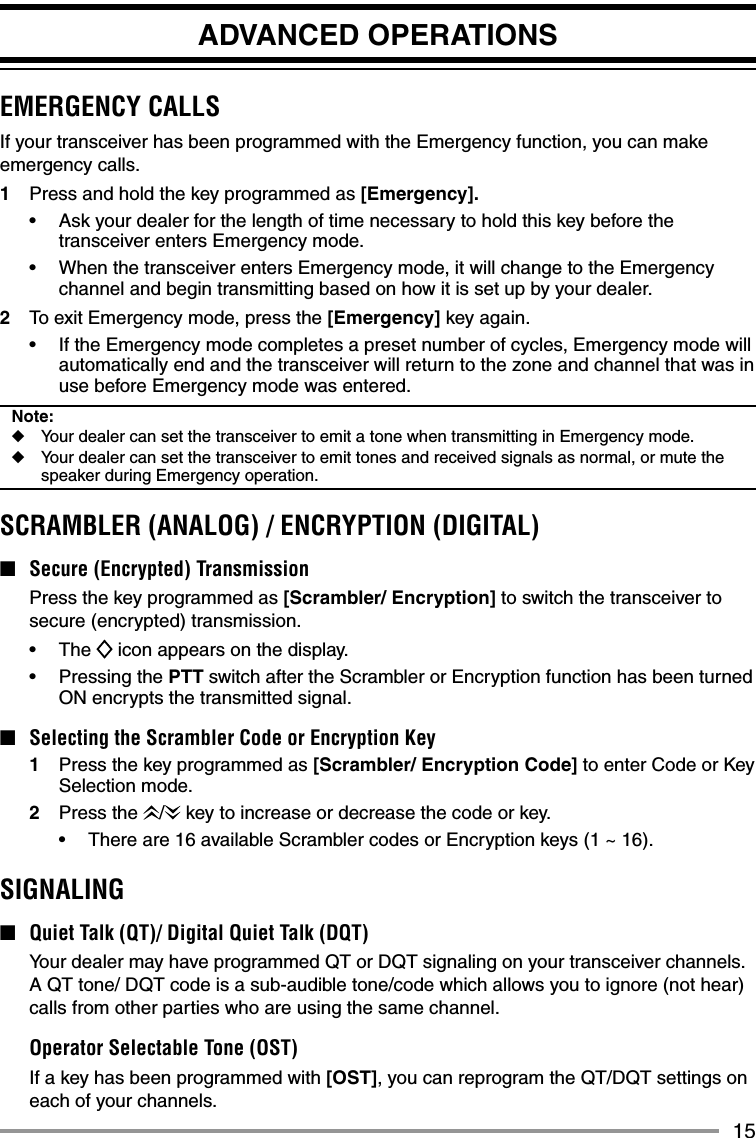

![15ADVANCED OPERATIONSEMERGENCY CALLSIf your transceiver has been programmed with the Emergency function, you can make emergency calls.1 Press and hold the key programmed as [Emergency].• Ask your dealer for the length of time necessary to hold this key before the transceiver enters Emergency mode.• When the transceiver enters Emergency mode, it will change to the Emergency channel and begin transmitting based on how it is set up by your dealer.2 To exit Emergency mode, press the [Emergency] key again.• If the Emergency mode completes a preset number of cycles, Emergency mode will automatically end and the transceiver will return to the zone and channel that was in use before Emergency mode was entered.Note:◆ Your dealer can set the transceiver to emit a tone when transmitting in Emergency mode.◆ Your dealer can set the transceiver to emit tones and received signals as normal, or mute the speaker during Emergency operation.SCRAMBLER (ANALOG) / ENCRYPTION (DIGITAL)■ Secure (Encrypted) Transmission Press the key programmed as [Scrambler/ Encryption] to switch the transceiver to secure (encrypted) transmission.• The icon appears on the display.• Pressing the PTT switch after the Scrambler or Encryption function has been turned ON encrypts the transmitted signal.■ Selecting the Scrambler Code or Encryption Key1 Press the key programmed as [Scrambler/ Encryption Code] to enter Code or Key Selection mode.2 Press the / key to increase or decrease the code or key.• There are 16 available Scrambler codes or Encryption keys (1 ~ 16).SIGNALING■ Quiet Talk (QT)/ Digital Quiet Talk (DQT) Your dealer may have programmed QT or DQT signaling on your transceiver channels. A QT tone/ DQT code is a sub-audible tone/code which allows you to ignore (not hear) calls from other parties who are using the same channel. Operator Selectable Tone (OST) If a key has been programmed with [OST], you can reprogram the QT/DQT settings on each of your channels.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-21.png)

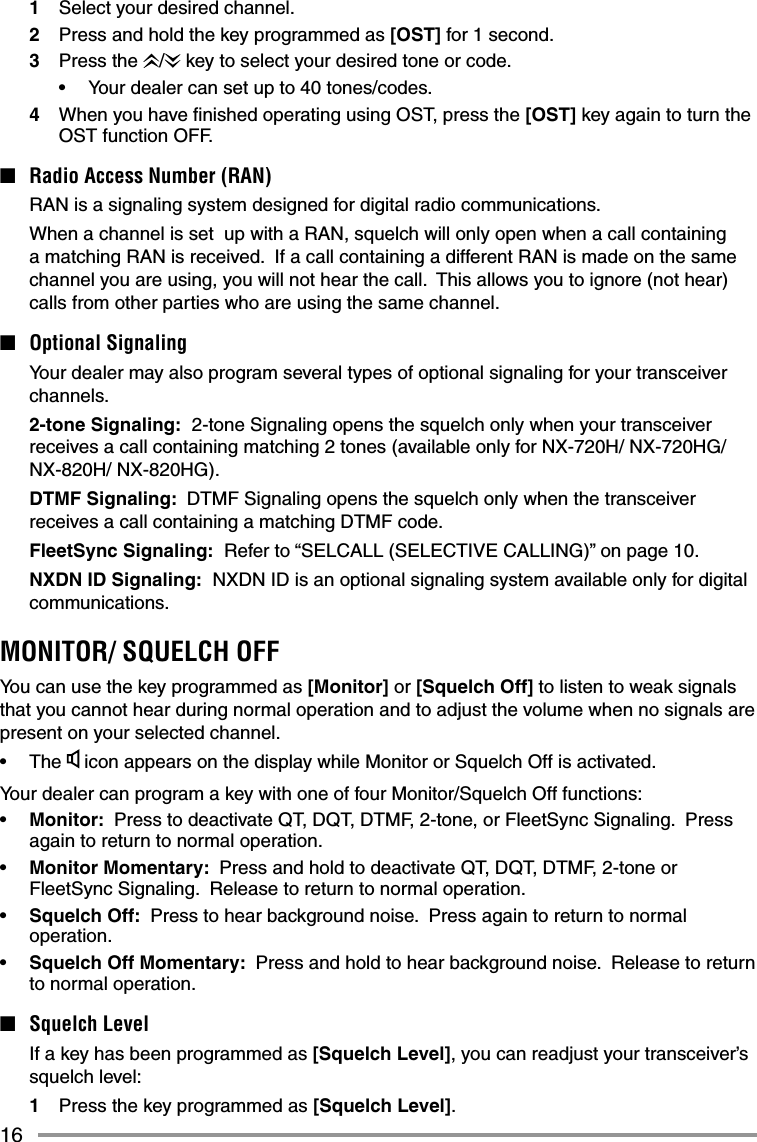

![161 Select your desired channel.2 Press and hold the key programmed as [OST] for 1 second.3 Press the / key to select your desired tone or code.• Your dealer can set up to 40 tones/codes.4 When you have fi nished operating using OST, press the [OST] key again to turn the OST function OFF.■ Radio Access Number (RAN) RAN is a signaling system designed for digital radio communications. When a channel is set up with a RAN, squelch will only open when a call containing a matching RAN is received. If a call containing a different RAN is made on the same channel you are using, you will not hear the call. This allows you to ignore (not hear) calls from other parties who are using the same channel.■ Optional Signaling Your dealer may also program several types of optional signaling for your transceiver channels. 2-tone Signaling: 2-tone Signaling opens the squelch only when your transceiver receives a call containing matching 2 tones (available only for NX-720H/ NX-720HG/ NX-820H/ NX-820HG). DTMF Signaling: DTMF Signaling opens the squelch only when the transceiver receives a call containing a matching DTMF code. FleetSync Signaling: Refer to “SELCALL (SELECTIVE CALLING)” on page 10. NXDN ID Signaling: NXDN ID is an optional signaling system available only for digital communications.MONITOR/ SQUELCH OFFYou can use the key programmed as [Monitor] or [Squelch Off] to listen to weak signals that you cannot hear during normal operation and to adjust the volume when no signals are present on your selected channel.• The icon appears on the display while Monitor or Squelch Off is activated.Your dealer can program a key with one of four Monitor/Squelch Off functions:• Monitor: Press to deactivate QT, DQT, DTMF, 2-tone, or FleetSync Signaling. Press again to return to normal operation.• Monitor Momentary: Press and hold to deactivate QT, DQT, DTMF, 2-tone or FleetSync Signaling. Release to return to normal operation.• Squelch Off: Press to hear background noise. Press again to return to normal operation.• Squelch Off Momentary: Press and hold to hear background noise. Release to return to normal operation.■ Squelch Level If a key has been programmed as [Squelch Level], you can readjust your transceiver’s squelch level:1 Press the key programmed as [Squelch Level].](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-22.png)

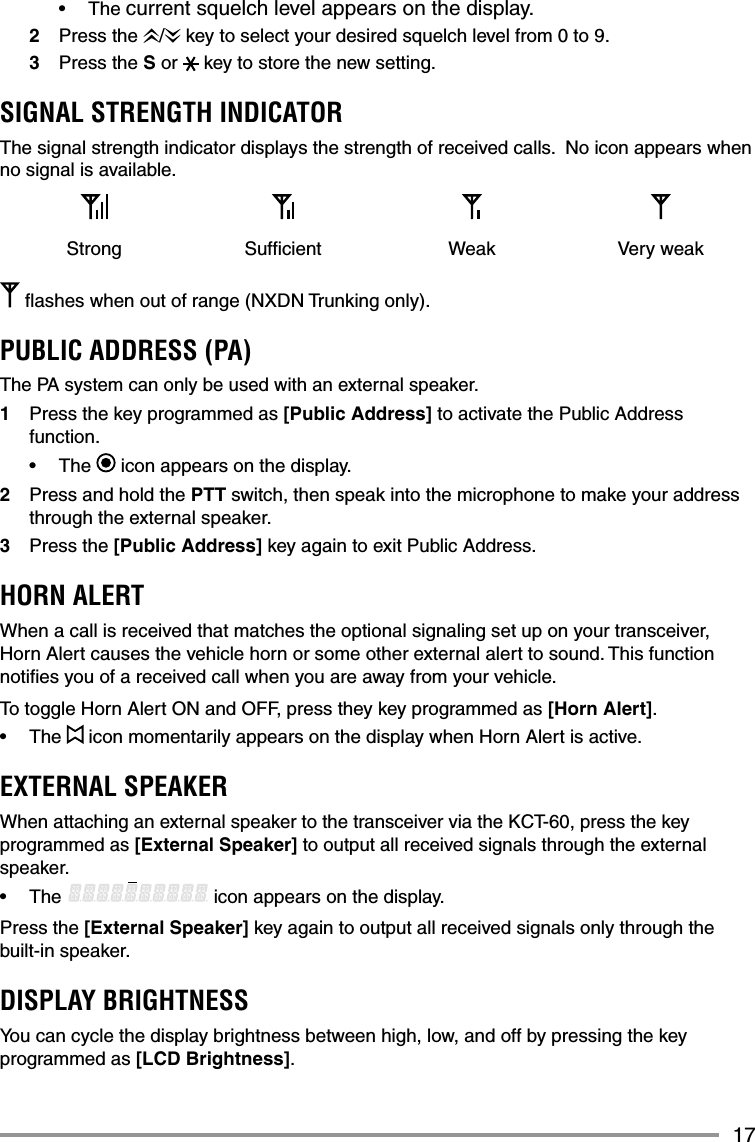

![17• The current squelch level appears on the display.2 Press the / key to select your desired squelch level from 0 to 9.3 Press the S or key to store the new setting.SIGNAL STRENGTH INDICATORThe signal strength indicator displays the strength of received calls. No icon appears when no signal is available.Strong Suffi cient Weak Very weak fl ashes when out of range (NXDN Trunking only).PUBLIC ADDRESS (PA)The PA system can only be used with an external speaker.1 Press the key programmed as [Public Address] to activate the Public Address function.• The icon appears on the display.2 Press and hold the PTT switch, then speak into the microphone to make your address through the external speaker.3 Press the [Public Address] key again to exit Public Address.HORN ALERTWhen a call is received that matches the optional signaling set up on your transceiver, Horn Alert causes the vehicle horn or some other external alert to sound. This function notifi es you of a received call when you are away from your vehicle.To toggle Horn Alert ON and OFF, press they key programmed as [Horn Alert].• The icon momentarily appears on the display when Horn Alert is active.EXTERNAL SPEAKERWhen attaching an external speaker to the transceiver via the KCT-60, press the key programmed as [External Speaker] to output all received signals through the external speaker.• The icon appears on the display.Press the [External Speaker] key again to output all received signals only through the built-in speaker.DISPLAY BRIGHTNESSYou can cycle the display brightness between high, low, and off by pressing the key programmed as [LCD Brightness].](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-23.png)

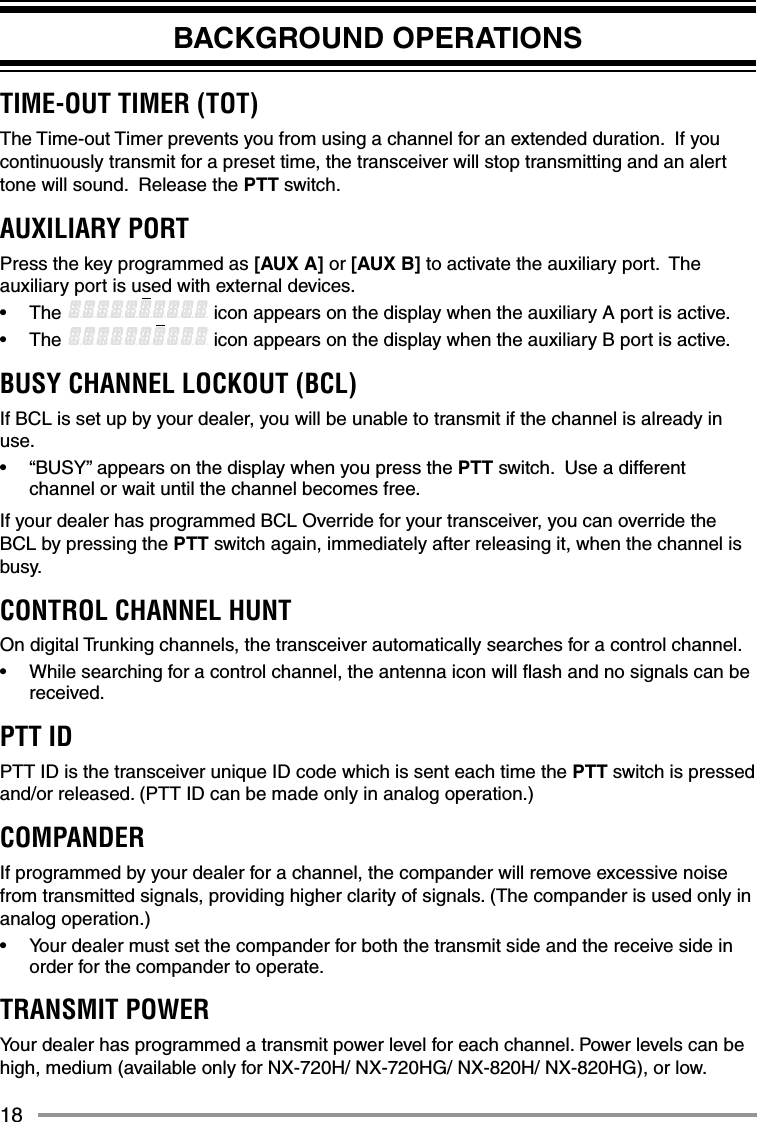

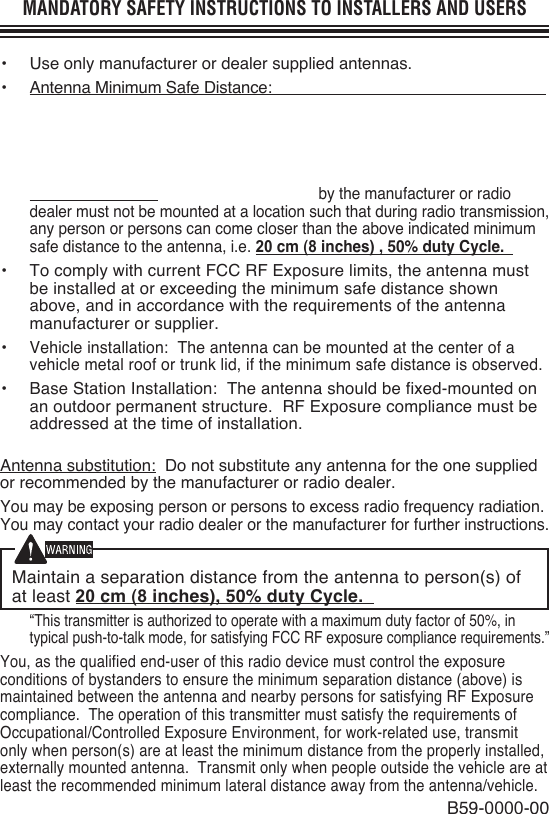

![18BACKGROUND OPERATIONSTIME-OUT TIMER (TOT) The Time-out Timer prevents you from using a channel for an extended duration. If you continuously transmit for a preset time, the transceiver will stop transmitting and an alert tone will sound. Release the PTT switch.AUXILIARY PORTPress the key programmed as [AUX A] or [AUX B] to activate the auxiliary port. The auxiliary port is used with external devices.• The icon appears on the display when the auxiliary A port is active.• The icon appears on the display when the auxiliary B port is active.BUSY CHANNEL LOCKOUT (BCL)If BCL is set up by your dealer, you will be unable to transmit if the channel is already in use.• “BUSY” appears on the display when you press the PTT switch. Use a different channel or wait until the channel becomes free.If your dealer has programmed BCL Override for your transceiver, you can override the BCL by pressing the PTT switch again, immediately after releasing it, when the channel is busy.CONTROL CHANNEL HUNTOn digital Trunking channels, the transceiver automatically searches for a control channel.• While searching for a control channel, the antenna icon will fl ash and no signals can be received.PTT IDPTT ID is the transceiver unique ID code which is sent each time the PTT switch is pressed and/or released. (PTT ID can be made only in analog operation.)COMPANDERIf programmed by your dealer for a channel, the compander will remove excessive noise from transmitted signals, providing higher clarity of signals. (The compander is used only in analog operation.)• Your dealer must set the compander for both the transmit side and the receive side in order for the compander to operate.TRANSMIT POWERYour dealer has programmed a transmit power level for each channel. Power levels can be high, medium (available only for NX-720H/ NX-720HG/ NX-820H/ NX-820HG), or low.](https://usermanual.wiki/JVCKENWOOD/458300/User-Guide-1993808-Page-24.png)
