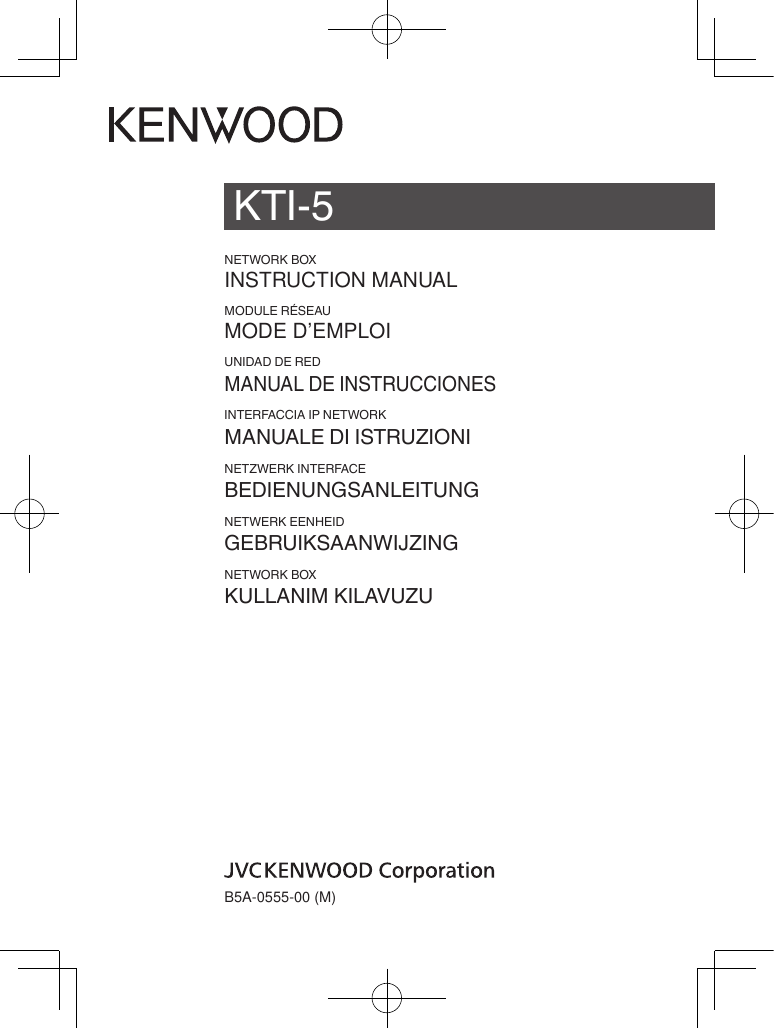

B5A‑0555‑00 (M)NETWORK BOXINSTRUCTION MANUALMODULE RÉSEAUMODE D’EMPLOIUNIDAD DE REDMANUAL DE INSTRUCCIONESINTERFACCIA IP NETWORKMANUALE DI ISTRUzIONINETzWERK INTERFACEBEDIENUNgSANLEITUNgNETWERK EENHEIDgEBRUIKSAANWIjzINgNETWORK BOXKULLANIM KILAVUzUKTI-5

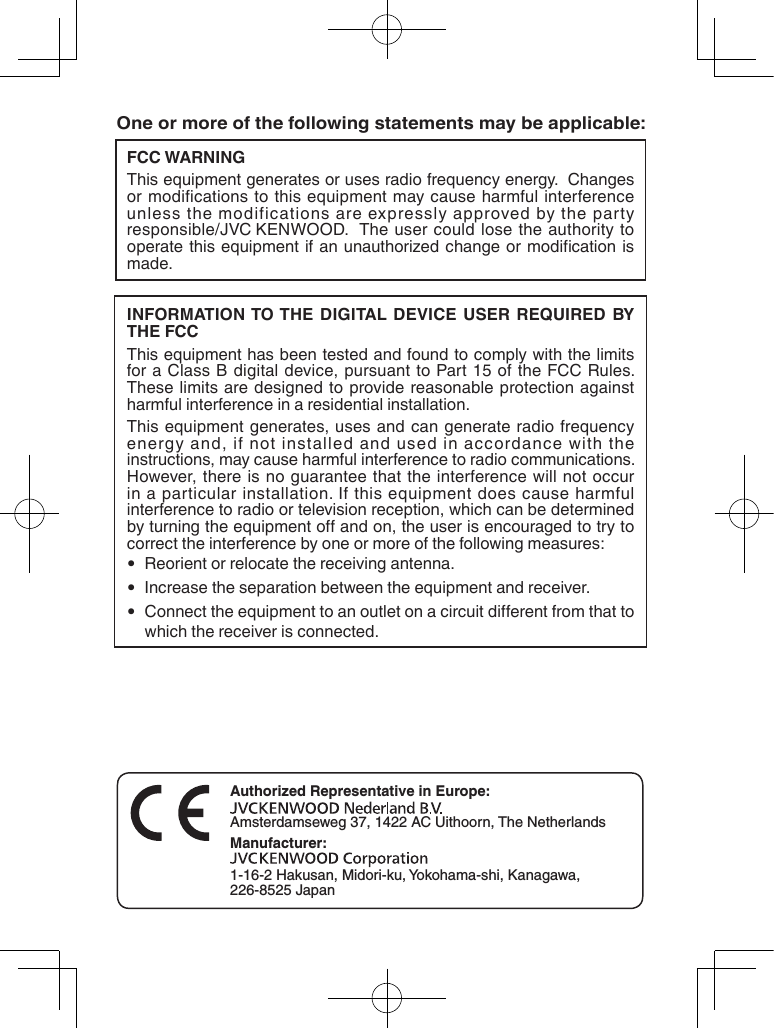

FCC WARNINGThis equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved by the party responsible/jVC KENWOOD. The user could lose the authority to operate this equipment if an unauthorized change or modication is made.INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCCThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.One or more of the following statements may be applicable:Authorized Representative in Europe:Amsterdamseweg 37, 1422 AC Uithoorn, The NetherlandsManufacturer:1‑16‑2 Hakusan, Midori‑ku, Yokohama‑shi, Kanagawa, 226‑8525 Japan

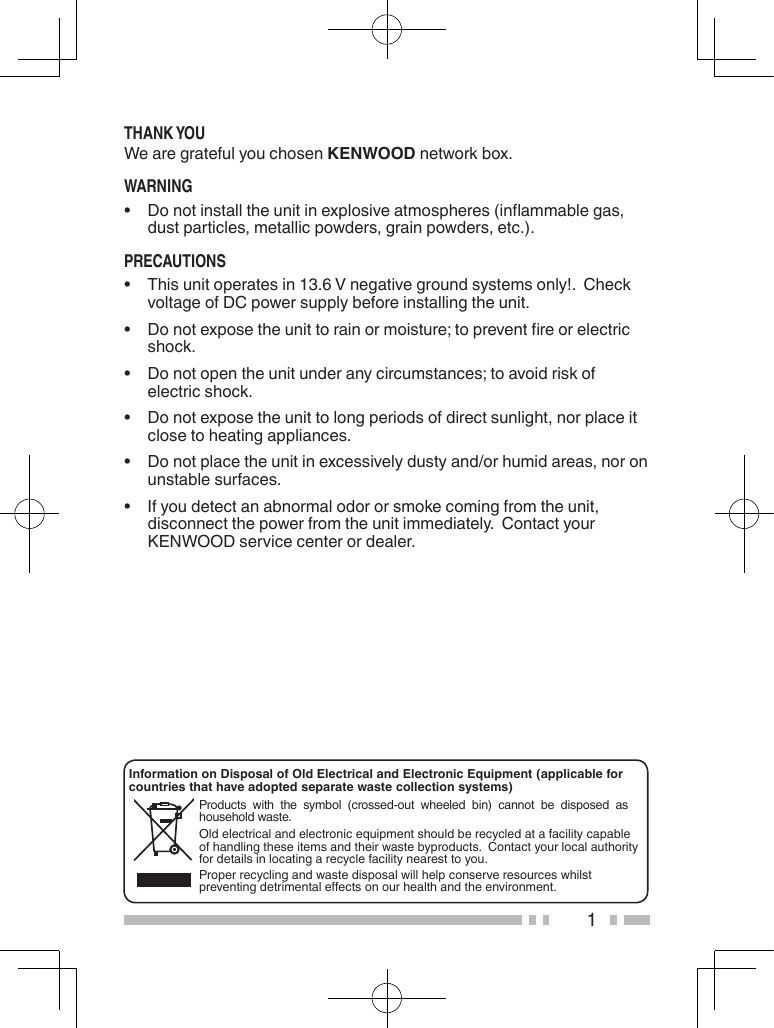

1THANK YOUWe are grateful you chosen KENWOOD network box.WARNING• Donotinstalltheunitinexplosiveatmospheres(inammablegas,dustparticles,metallicpowders,grainpowders,etc.).PRECAUTIONS• Thisunitoperatesin13.6Vnegativegroundsystemsonly!.CheckvoltageofDCpowersupplybeforeinstallingtheunit.• Donotexposetheunittorainormoisture;topreventreorelectricshock.• Donotopentheunitunderanycircumstances;toavoidriskofelectricshock.• Donotexposetheunittolongperiodsofdirectsunlight,norplaceitclosetoheatingappliances.• Donotplacetheunitinexcessivelydustyand/orhumidareas,noronunstable surfaces.• Ifyoudetectanabnormalodororsmokecomingfromtheunit,disconnectthepowerfromtheunitimmediately.ContactyourKENWOODservicecenterordealer.Information on Disposal of Old Electrical and Electronic Equipment (applicable for countries that have adopted separate waste collection systems) Products with the symbol (crossed-out wheeled bin) cannot be disposed ashousehold waste.Oldelectricalandelectronicequipmentshouldberecycledatafacilitycapableofhandlingtheseitemsandtheirwastebyproducts.Contactyourlocalauthorityfordetailsinlocatingarecyclefacilitynearesttoyou.Properrecyclingandwastedisposalwillhelpconserveresourceswhilstpreventingdetrimentaleffectsonourhealthandtheenvironment.

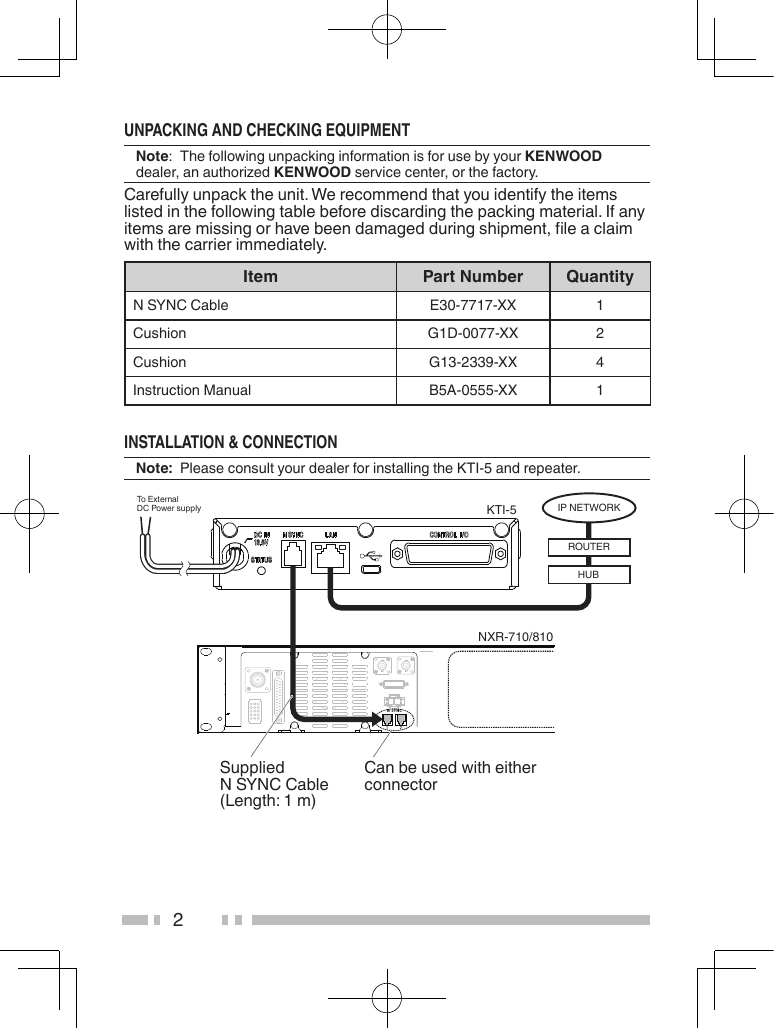

2UNPACKING AND CHECKING EQUIPMENTNote: ThefollowingunpackinginformationisforusebyyourKENWOOD dealer,anauthorizedKENWOODservicecenter,orthefactory.Carefullyunpacktheunit.Werecommendthatyouidentifytheitemslistedinthefollowingtablebeforediscardingthepackingmaterial.Ifanyitemsaremissingorhavebeendamagedduringshipment,leaclaimwiththecarrierimmediately.Item Part Number QuantityNSYNCCable E30-7717-XX 1Cushion G1D-0077-XX 2Cushion G13-2339-XX 4InstructionManual B5A-0555-XX 1INSTALLATION & CONNECTIONNote: PleaseconsultyourdealerforinstallingtheKTI-5andrepeater.KTI-5NXR-710/810To ExternalDC Power supplyN SYNCIP NETWORKROUTERHUBSuppliedNSYNCCable(Length:1m)Canbeusedwitheitherconnector

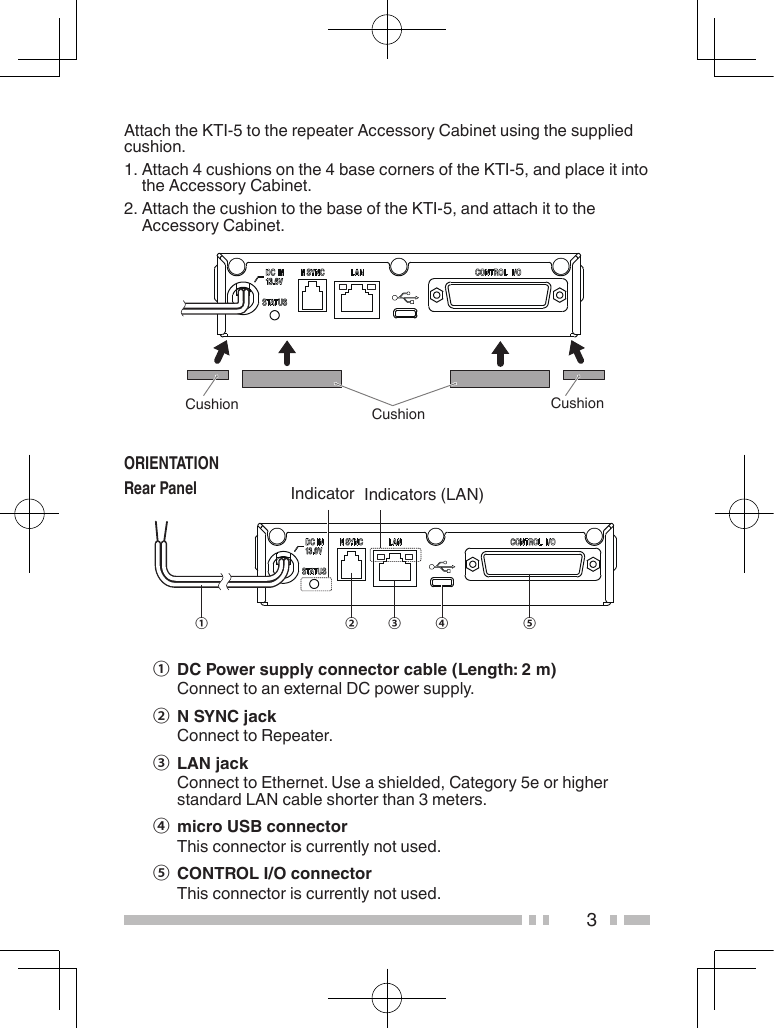

3AttachtheKTI-5totherepeaterAccessoryCabinetusingthesuppliedcushion.1.Attach4cushionsonthe4basecornersoftheKTI-5,andplaceitintotheAccessoryCabinet.2.AttachthecushiontothebaseoftheKTI-5,andattachittotheAccessoryCabinet.ORIENTATIONRear Panel④② ③① ⑤① DC Power supply connector cable (Length: 2 m) ConnecttoanexternalDCpowersupply.② N SYNC jack ConnecttoRepeater.③ LAN jack ConnecttoEthernet.Useashielded,Category5eorhigherstandardLANcableshorterthan3meters.④ micro USB connector Thisconnectoriscurrentlynotused.⑤ CONTROL I/O connector Thisconnectoriscurrentlynotused.Indicators(LAN)IndicatorCushion CushionCushion

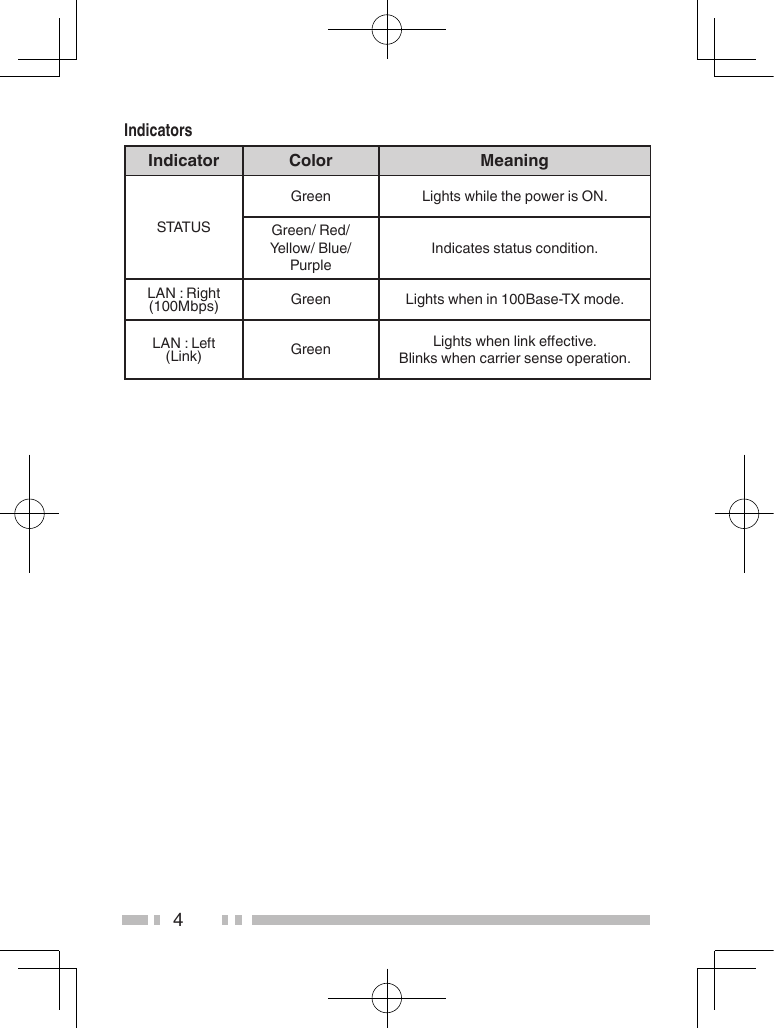

4IndicatorsIndicator Color MeaningSTATUSGreen LightswhilethepowerisON.Green/Red/Yellow/Blue/PurpleIndicatesstatuscondition.LAN:Right(100Mbps) Green Lightswhenin100Base-TXmode.LAN:Left(Link) Green Lightswhenlinkeective.Blinkswhencarriersenseoperation.
