JVC KENWOOD Corporation BLUETOOTH MODULE Users Manual

Contents

Users Manual

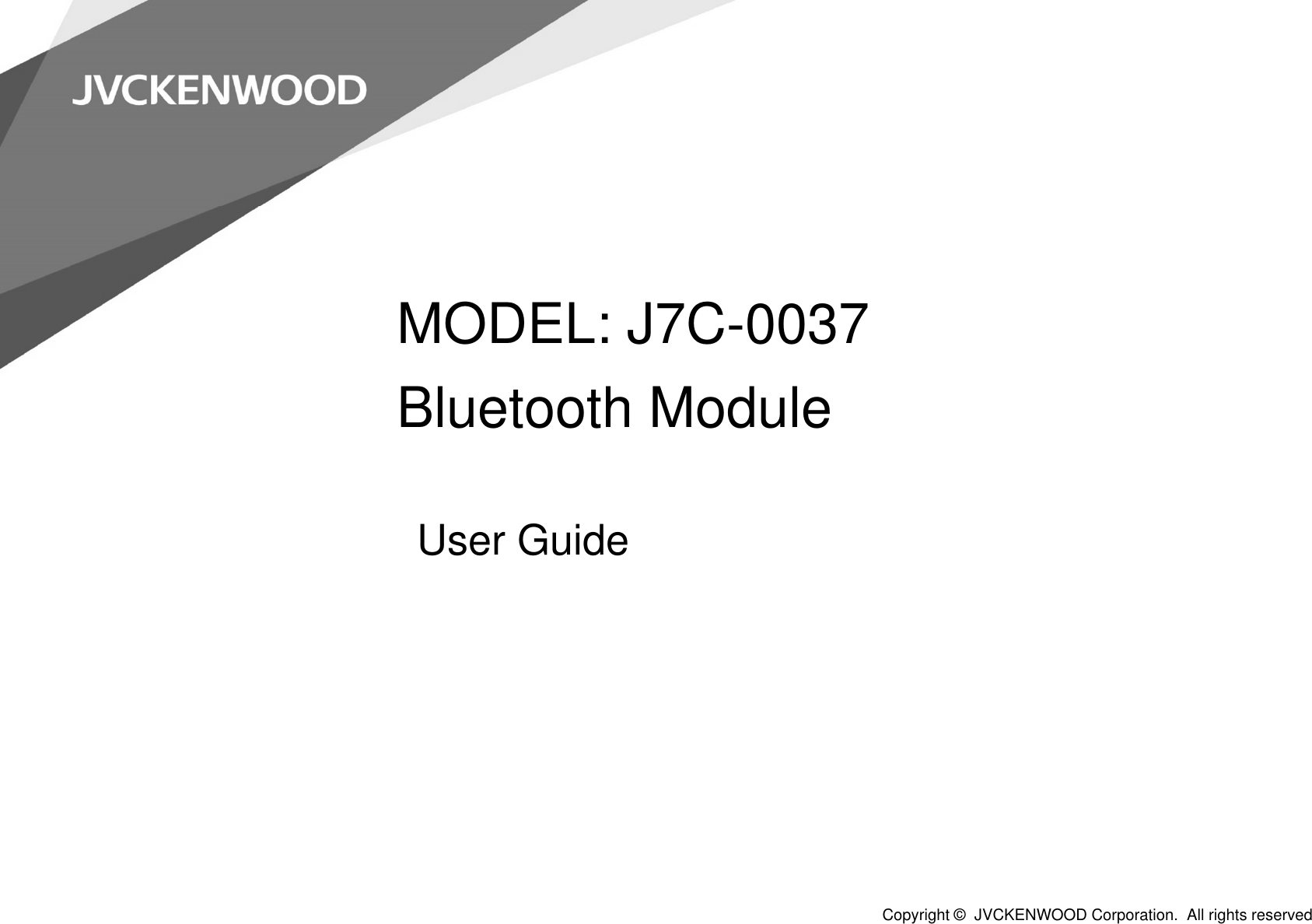

MODEL: J7C-0037Bluetooth ModuleUser GuideCopyright © JVCKENWOOD Corporation. All rights reserved

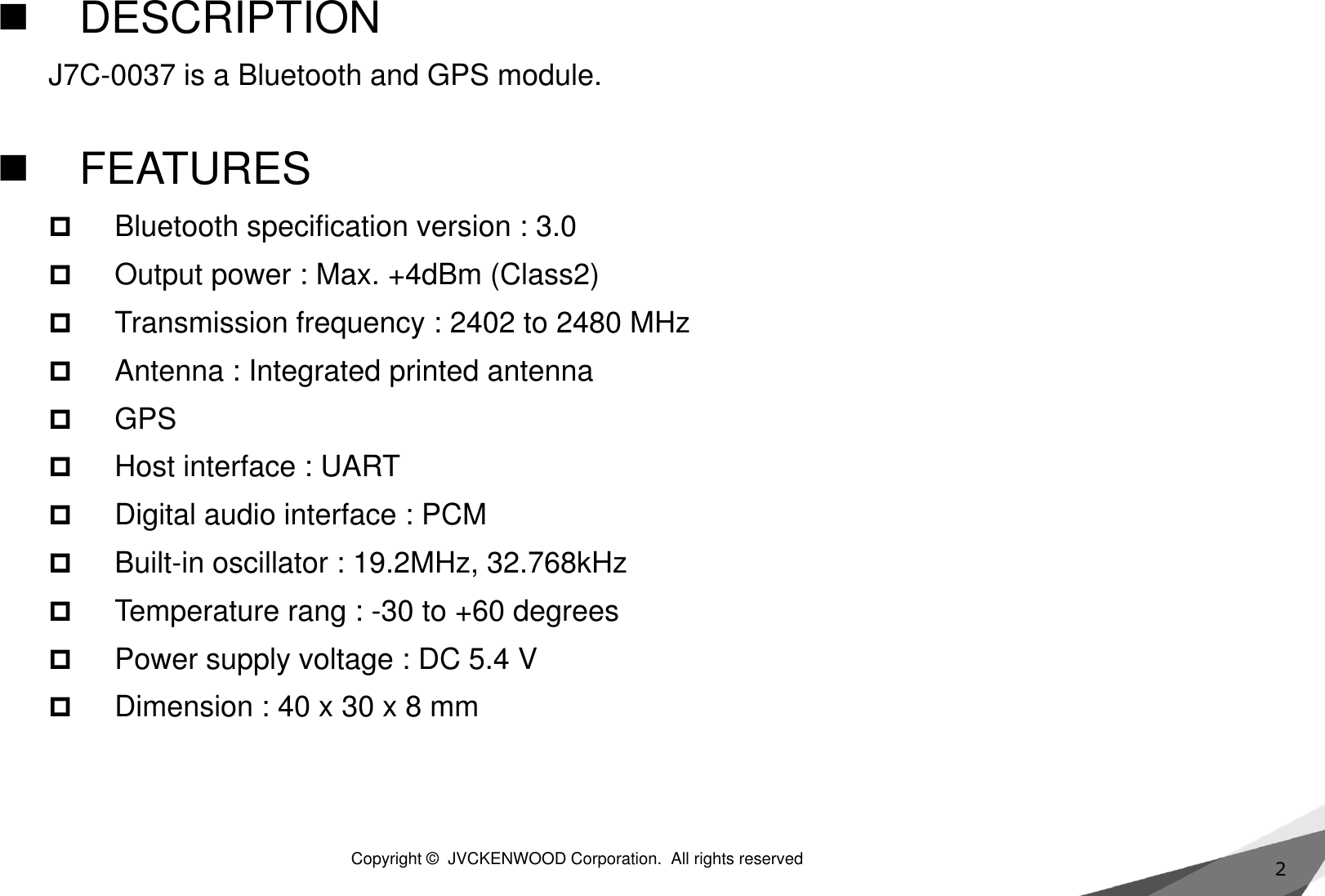

2DESCRIPTIONJ7C-0037 is a Bluetooth and GPS module. FEATURESBluetooth specification version : 3.0Output power : Max. +4dBm (Class2)Transmission frequency : 2402 to 2480 MHzAntenna : Integrated printed antennaGPSHost interface : UART Digital audio interface : PCMBuilt-in oscillator : 19.2MHz, 32.768kHzTemperature rang : -30 to +60 degreesPower supply voltage : DC 5.4 VDimension : 40 x 30 x 8 mmCopyright © JVCKENWOOD Corporation. All rights reserved

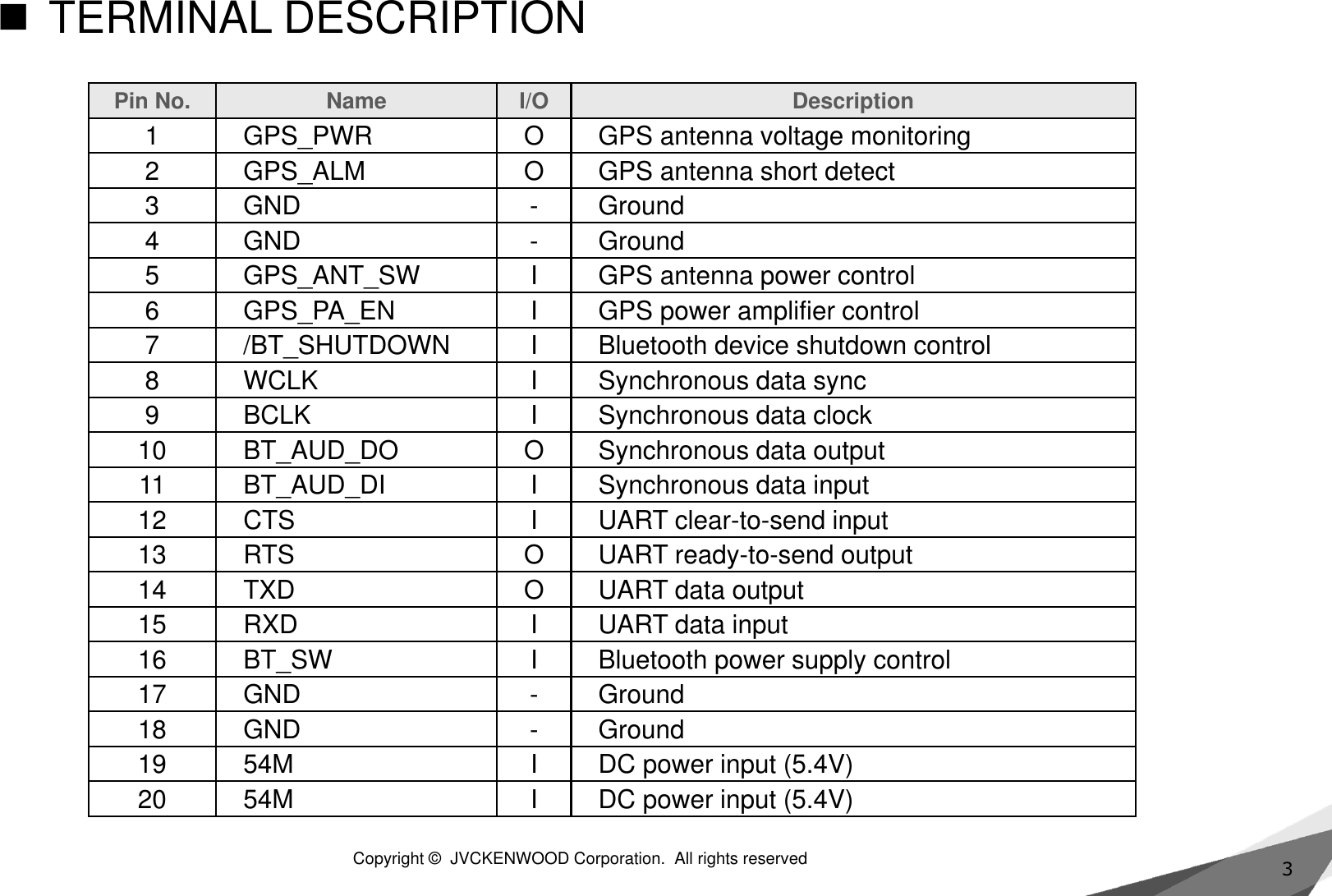

3TERMINAL DESCRIPTIONPin No. Name I/O Description1 GPS_PWR O GPS antenna voltage monitoring2 GPS_ALM O GPS antenna short detect3 GND - Ground4 GND - Ground5 GPS_ANT_SW I GPS antenna power control6 GPS_PA_EN I GPS power amplifier control7 /BT_SHUTDOWN I Bluetooth device shutdown control8 WCLK I Synchronous data sync9 BCLK I Synchronous data clock10 BT_AUD_DO O Synchronous data output11 BT_AUD_DI I Synchronous data input12 CTS I UART clear-to-send input13 RTS O UART ready-to-send output14 TXD O UART data output15 RXD I UART data input16 BT_SW I Bluetooth power supply control17 GND - Ground18 GND - Ground19 54M I DC power input (5.4V)20 54M I DC power input (5.4V)Copyright © JVCKENWOOD Corporation. All rights reserved

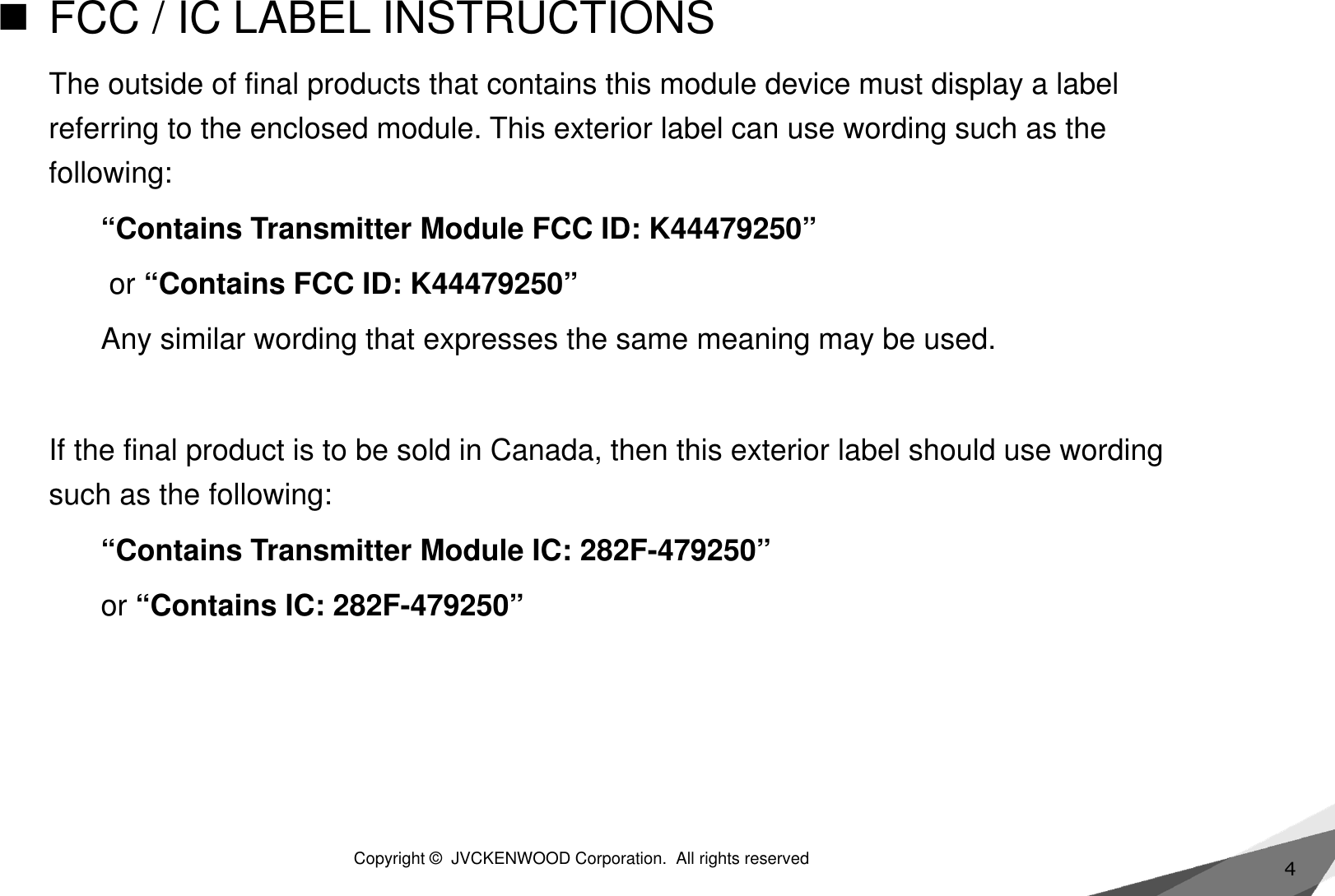

4FCC / IC LABEL INSTRUCTIONSThe outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as the following:“Contains Transmitter Module FCC ID: K44479250”or “Contains FCC ID: K44479250”Any similar wording that expresses the same meaning may be used. If the final product is to be sold in Canada, then this exterior label should use wording such as the following:“Contains Transmitter Module IC: 282F-479250”or “Contains IC: 282F-479250” Copyright © JVCKENWOOD Corporation. All rights reserved

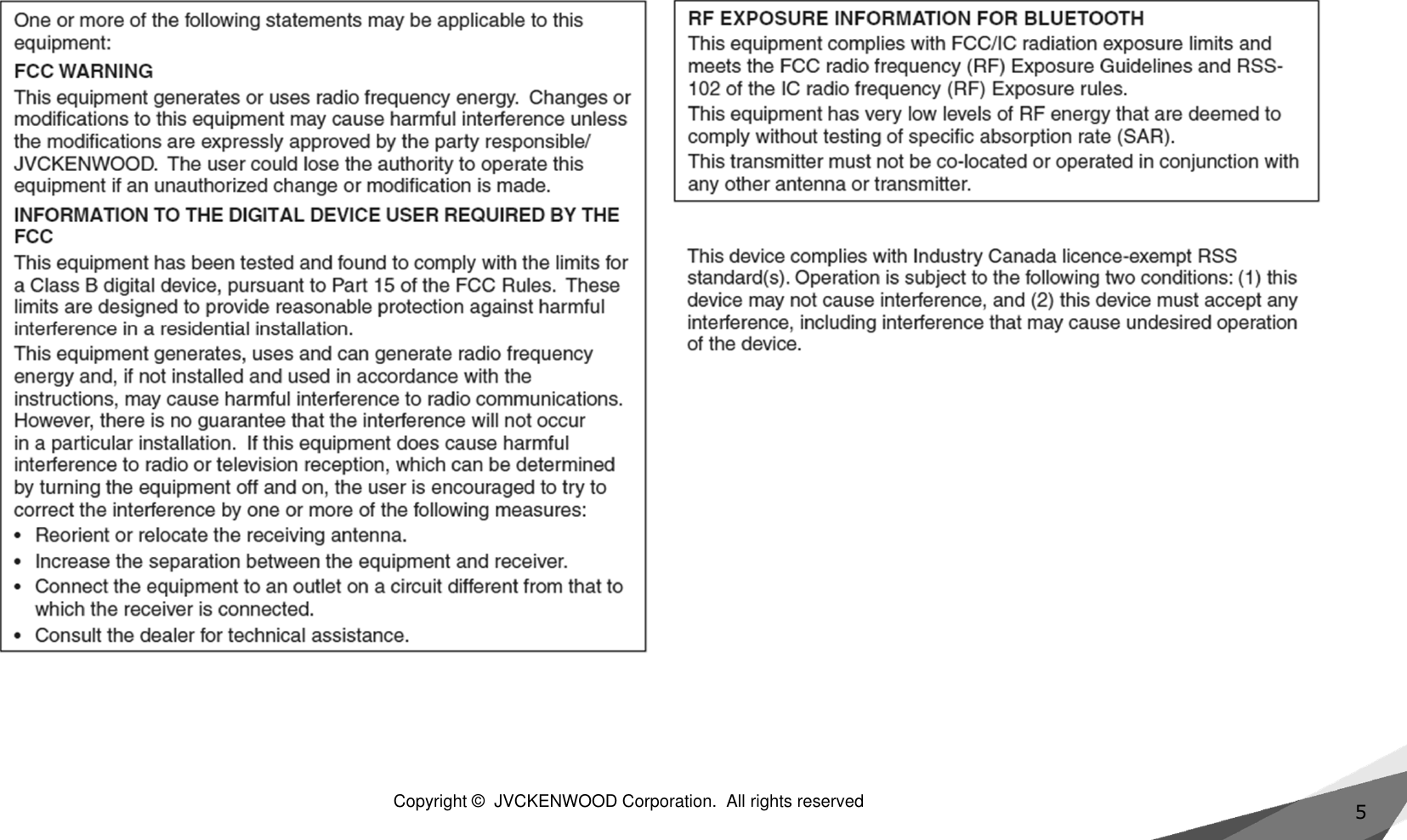

5Copyright © JVCKENWOOD Corporation. All rights reserved
