JVC KENWOOD 701349 A/V Remote Control TX User Manual IOM701349A

JVC KENWOOD Corporation A/V Remote Control TX IOM701349A

Exhibit A Users Manual

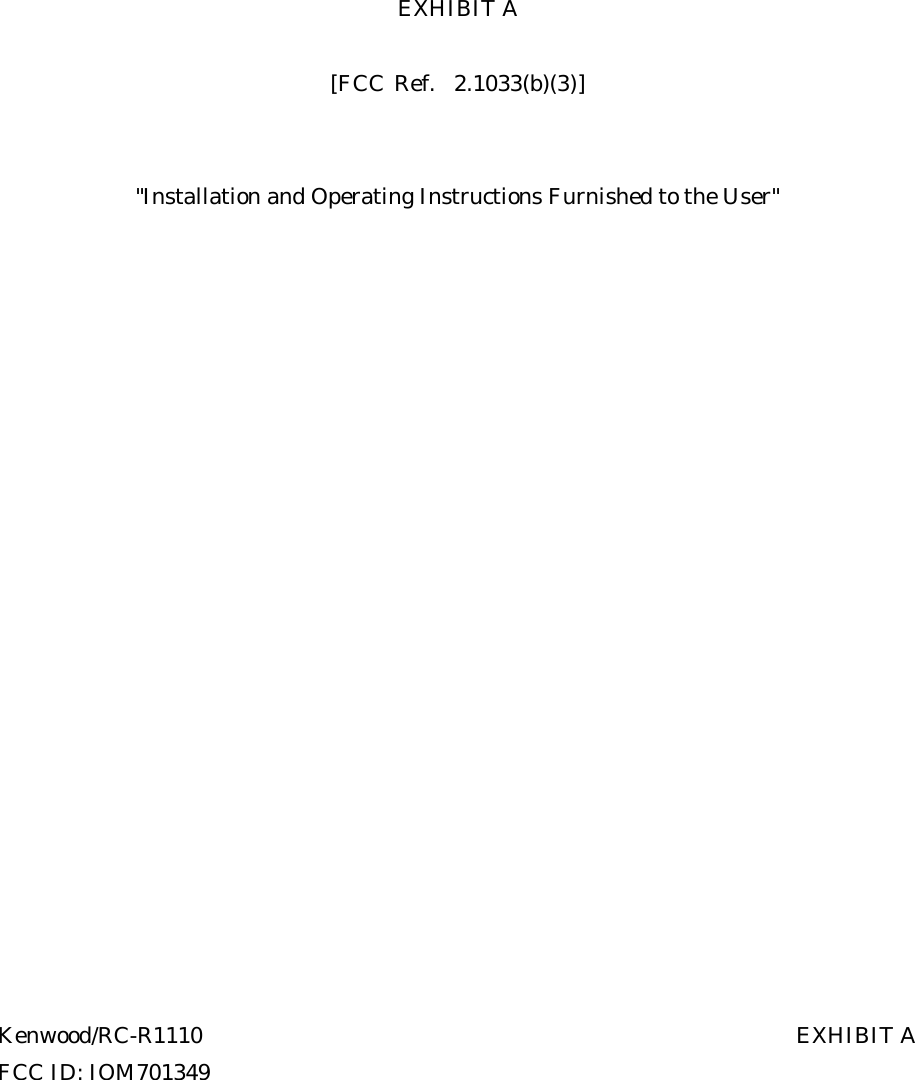

Kenwood/RC-R1110 EXHIBIT AFCC ID: IOM701349EXHIBIT A[FCC Ref. 2.1033(b)(3)]"Installation and Operating Instructions Furnished to the User"
B60-4502-00 00 CH (K, M, T, X)  9912VR-4900/VR-4700KRF-V9993DOC

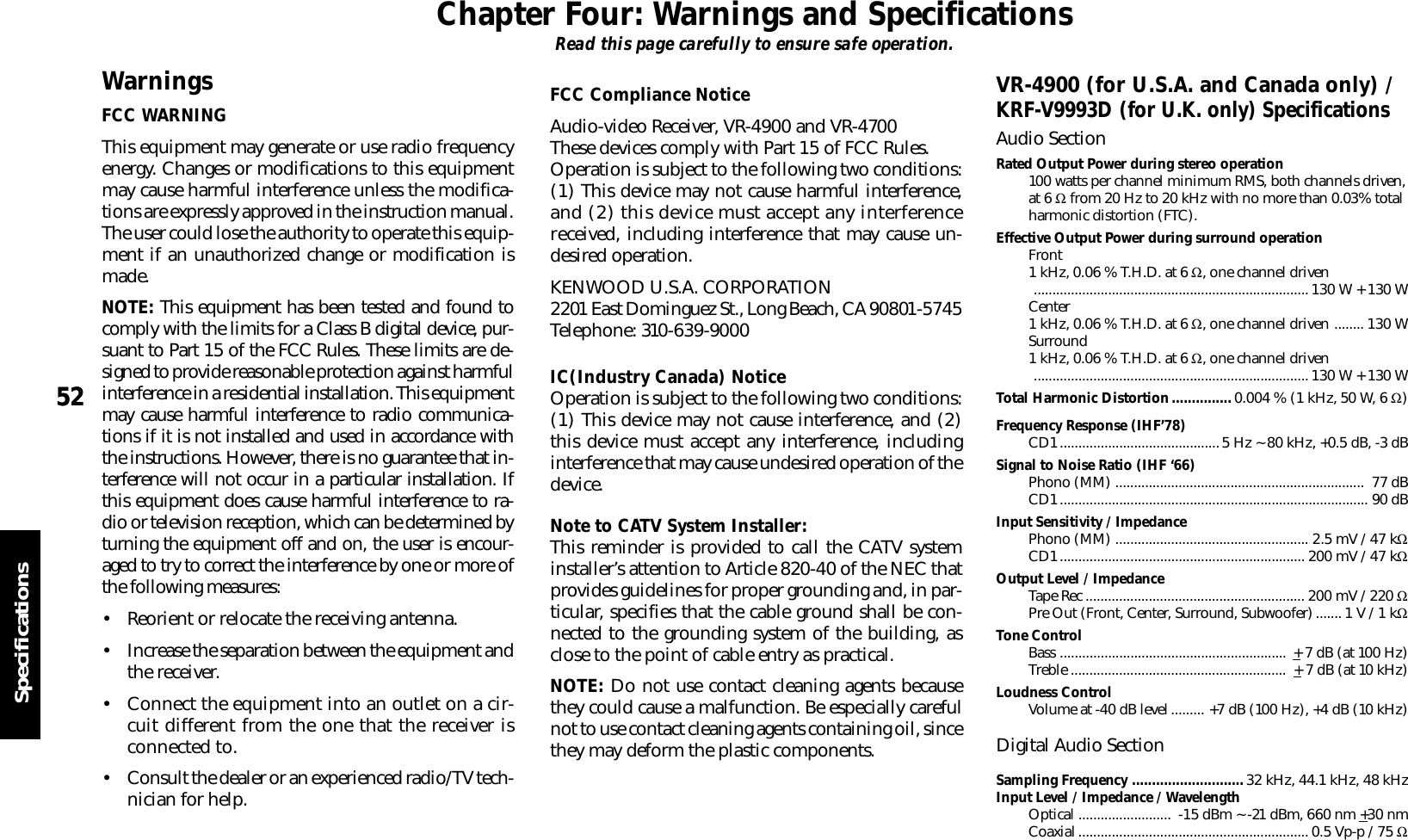

5252SpecificationsChapter Four : Warnings and SpecificationsFrequency Response (IHF’78)CD1...........................................5 Hz ~ 80 kHz, +0.5 dB, -3 dBSignal to Noise Ratio (IHF ‘66)Phono (MM) ................................................................... 77 dBCD1................................................................................... 90 dBInput Sensitivity / ImpedancePhono (MM) .................................................... 2.5 mV / 47 kΩCD1.................................................................. 200 mV / 47 kΩOutput Level / ImpedanceTape Rec ........................................................... 200 mV / 220 ΩPre Out (Front, Center, Surround, Subwoofer)....... 1 V / 1 kΩTone ControlBass ............................................................. + 7 dB (at 100 Hz)Treble .......................................................... + 7 dB (at 10 kHz)Loudness ControlVolume at -40 dB level......... +7 dB (100 Hz), +4 dB (10 kHz)Digital Audio SectionSampling Frequency ............................ 32 kHz, 44.1 kHz, 48 kHzInput Level / Impedance / WavelengthOptical ......................... -15 dBm ~ -21 dBm, 660 nm +30 nmCoaxial.............................................................. 0.5 Vp-p / 75 ΩChapter Four: Warnings and SpecificationsRead this page carefully to ensure safe operation.VR-4900 (for U.S.A. and Canada only) /KRF-V9993D (for U.K. only) SpecificationsAudio SectionRated Output Power during stereo operation100 watts per channel minimum RMS, both channels driven,at 6 Ω from 20 Hz to 20 kHz with no more than 0.03% totalharmonic distortion (FTC).Effective Output Power during surround operationFront1 kHz, 0.06 % T.H.D. at 6 Ω, one channel driven..........................................................................130 W + 130 WCenter1 kHz, 0.06 % T.H.D. at 6 Ω, one channel driven ........ 130 WSurround1 kHz, 0.06 % T.H.D. at 6 Ω, one channel driven..........................................................................130 W + 130 WTotal Harmonic Distortion............... 0.004 % (1 kHz, 50 W, 6 Ω)WarningsFCC WARNINGThis equipment may generate or use radio frequencyenergy. Changes or modifications to this equipmentmay cause harmful interference unless the modifica-tions are expressly approved in the instruction manual.The user could lose the authority to operate this equip-ment if an unauthorized change or modification ismade.NOTE: This equipment has been tested and found tocomply with the limits for a Class B digital device, pur-suant to Part 15 of the FCC Rules. These limits are de-signed to provide reasonable protection against harmfulinterference in a residential installation. This equipmentmay cause harmful interference to radio communica-tions if it is not installed and used in accordance withthe instructions. However, there is no guarantee that in-terference will not occur in a particular installation. Ifthis equipment does cause harmful interference to ra-dio or television reception, which can be determined byturning the equipment off and on, the user is encour-aged to try to correct the interference by one or more ofthe following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment andthe receiver.• Connect the equipment into an outlet on a cir-cuit different from the one that the receiver isconnected to.• Consult the dealer or an experienced radio/TV tech-nician for help.FCC Compliance NoticeAudio-video Receiver, VR-4900 and VR-4700These devices comply with Part 15 of FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may cause un-desired operation.KENWOOD U.S.A. CORPORATION2201 East Dominguez St., Long Beach, CA 90801-5745Telephone: 310-639-9000IC(Industry Canada) NoticeOperation is subject to the following two conditions:(1) This device may not cause interference, and (2)this device must accept any interference, includinginterference that may cause undesired operation of thedevice.Note to CATV System Installer:This reminder is provided to call the CATV systeminstaller’s attention to Article 820-40 of the NEC thatprovides guidelines for proper grounding and, in par-ticular, specifies that the cable ground shall be con-nected to the grounding system of the building, asclose to the point of cable entry as practical.NOTE: Do not use contact cleaning agents becausethey could cause a malfunction. Be especially carefulnot to use contact cleaning agents containing oil, sincethey may deform the plastic components.
