JVCKENWOOD KWNT500HDT GPS NAVIGATION SYSTEM User Manual EN KW NT500HDT NT300 J indb

JVC KENWOOD Corporation GPS NAVIGATION SYSTEM EN KW NT500HDT NT300 J indb

UserManual.wiki >

KWNT500HDT User Manual

User's Manual

ENGLISHESPAÑOLFRANÇAISESPAÑOLFor installation and connections, refer to the separate manual.Para la instalación y las conexiones, refiérase al manual separado.Pour l’installation et les raccordements, se référer au manuel séparé.INSTRUCTIONSMANUAL DE INSTRUCCIONESMANUEL D’INSTRUCTIONSFor customer Use:Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.Model No.Serial No.LVT2277-001A[J]KW-NT500HDT / KW-NT300GPS NAVIGATION SYSTEMSISTEMA DE NAVEGACIÓN GPSSYSTÈME DE NAVIGATION GPSThis HD Radio receiver enables:This HD Radio receiver enables:Only for KW-NT500HDTSólo para KW-NT500HDTUniquement pour le KW-NT500HDTOnly for KW-NT500HDTSólo para KW-NT500HDTUniquement pour le KW-NT500HDTCover1_NT500HDT_NT300[J]_001A.in2 2Cover1_NT500HDT_NT300[J]_001A.in2 212/6/2011 2:30:04 PM12/6/2011 2:30:04 PM

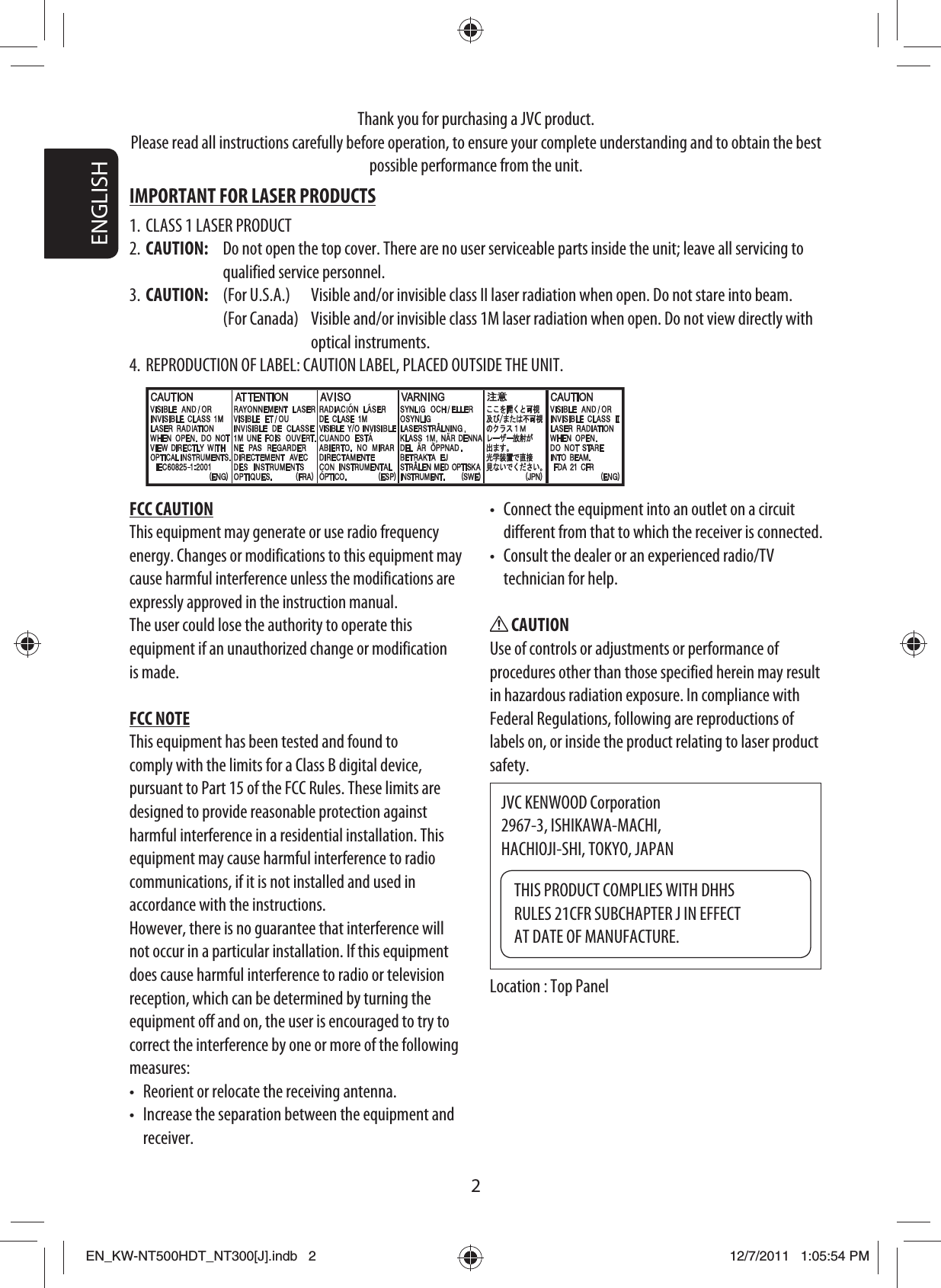

ENGLISH2Thank you for purchasing a JVC product.Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.IMPORTANT FOR LASER PRODUCTS1. CLASS 1 LASER PRODUCT2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.FCC CAUTIONThis equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual.The user could lose the authority to operate this equipment if an unauthorized change or modification is made.FCC NOTEThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help. CAUTIONUse of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.JVC KENWOOD Corporation2967-3, ISHIKAWA-MACHI,HACHIOJI-SHI, TOKYO, JAPANTHIS PRODUCT COMPLIES WITH DHHSRULES 21CFR SUBCHAPTER J IN EFFECTAT DATE OF MANUFACTURE.Location : Top PanelEN_KW-NT500HDT_NT300[J].indb 2EN_KW-NT500HDT_NT300[J].indb 212/7/2011 1:05:54 PM12/7/2011 1:05:54 PM

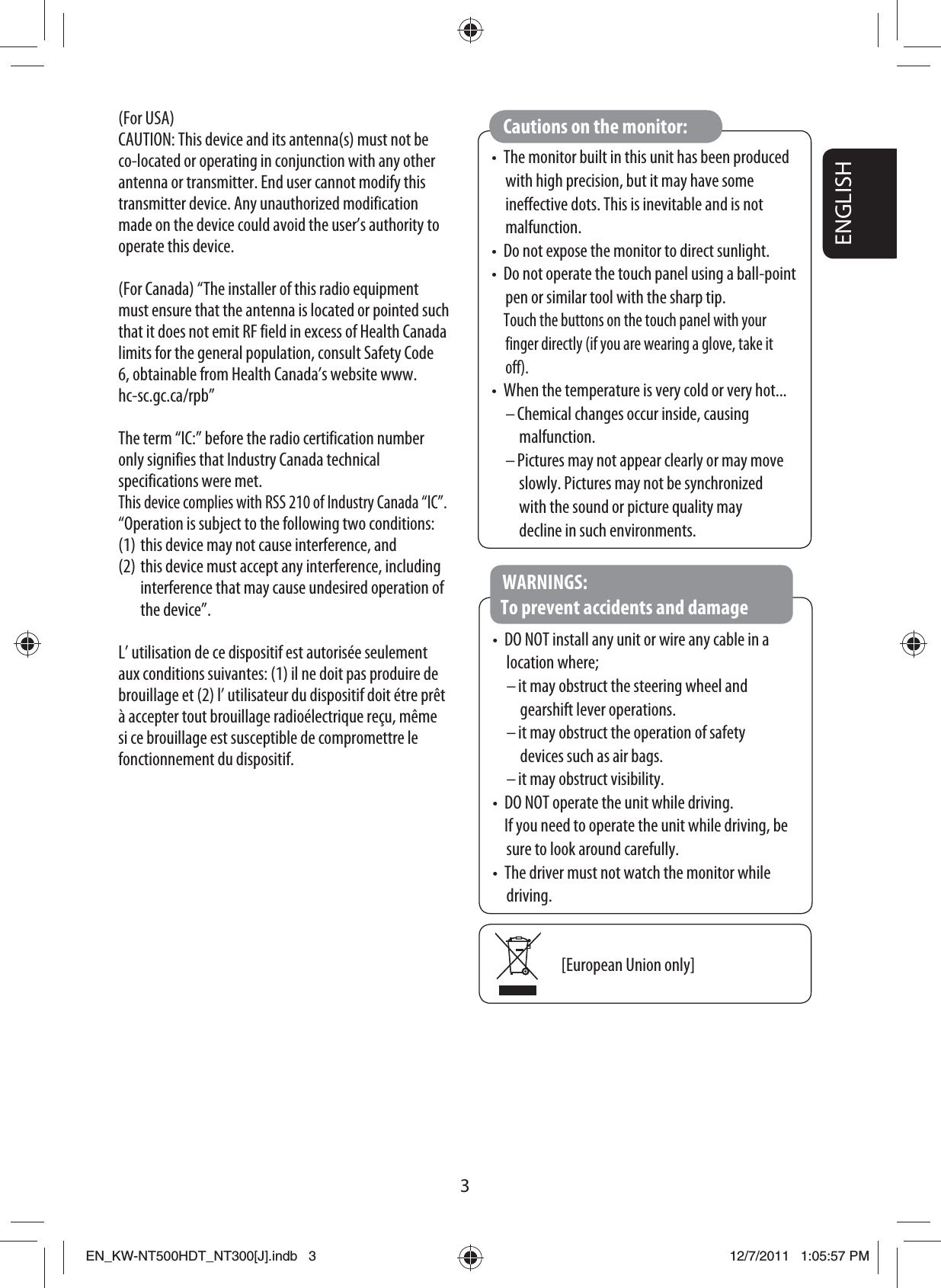

3ENGLISH• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.• Do not expose the monitor to direct sunlight.• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip. Touch the buttons on the touch panel with your finger directly (if you are wearing a glove, take it off).• When the temperature is very cold or very hot...– Chemical changes occur inside, causing malfunction.– Pictures may not appear clearly or may move slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.Cautions on the monitor:• DO NOT install any unit or wire any cable in a location where;– it may obstruct the steering wheel and gearshift lever operations.– it may obstruct the operation of safety devices such as air bags.– it may obstruct visibility.• DO NOT operate the unit while driving. If you need to operate the unit while driving, be sure to look around carefully.• The driver must not watch the monitor while driving.WARNINGS: To prevent accidents and damage[European Union only](For USA)CAUTION: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End user cannot modify this transmitter device. Any unauthorized modification made on the device could avoid the user’s authority to operate this device.(For Canada) “The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population, consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb”The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.This device complies with RSS 210 of Industry Canada “IC”.“Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device”.L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.EN_KW-NT500HDT_NT300[J].indb 3EN_KW-NT500HDT_NT300[J].indb 312/7/2011 1:05:57 PM12/7/2011 1:05:57 PM

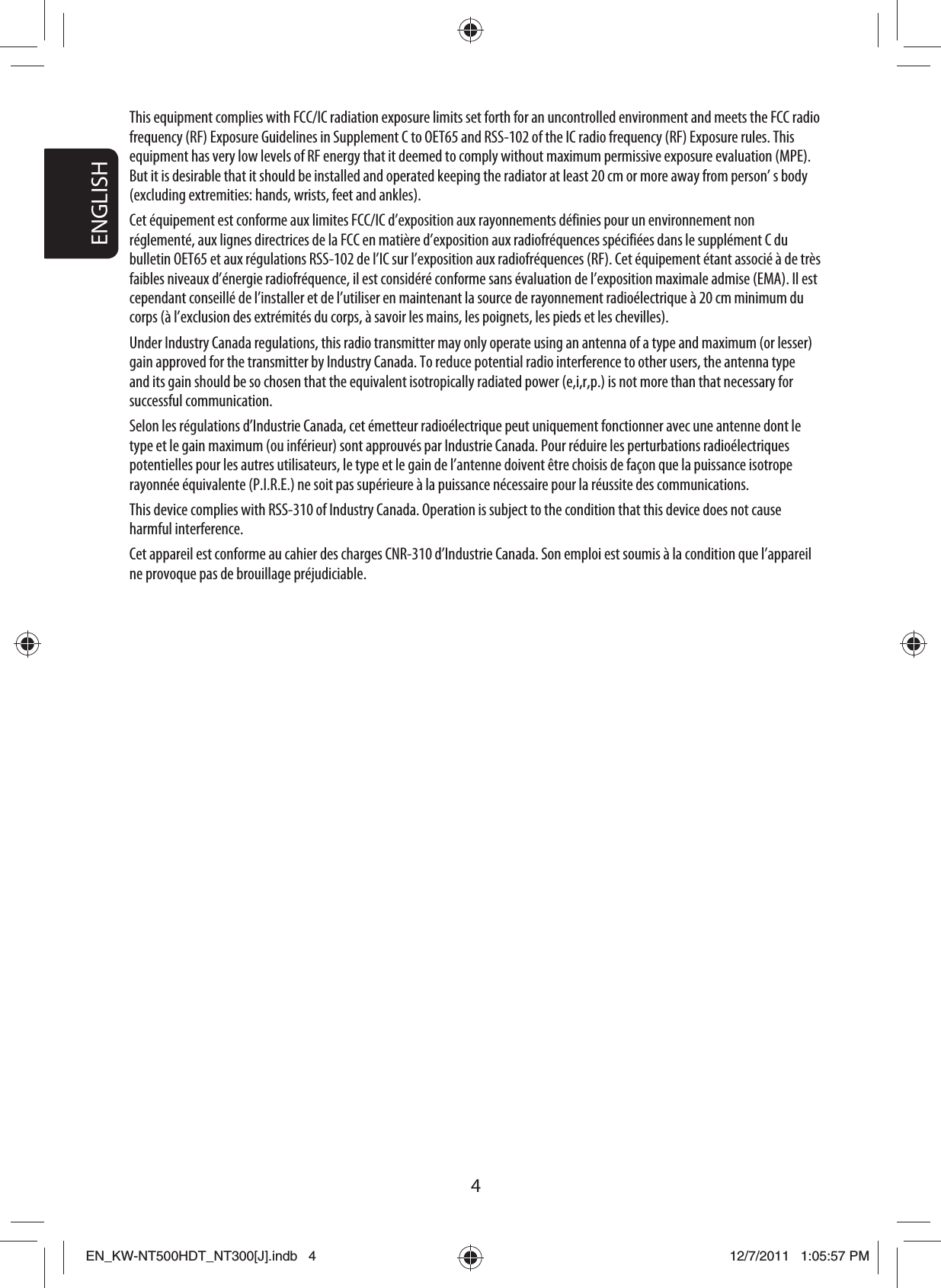

ENGLISH4This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’ s body (excluding extremities: hands, wrists, feet and ankles).Cet équipement est conforme aux limites FCC/IC d’exposition aux rayonnements définies pour un environnement non réglementé, aux lignes directrices de la FCC en matière d’exposition aux radiofréquences spécifiées dans le supplément C du bulletin OET65 et aux régulations RSS-102 de l’IC sur l’exposition aux radiofréquences (RF). Cet équipement étant associé à de très faibles niveaux d’énergie radiofréquence, il est considéré conforme sans évaluation de l’exposition maximale admise (EMA). Il est cependant conseillé de l’installer et de l’utiliser en maintenant la source de rayonnement radioélectrique à 20 cm minimum du corps (à l’exclusion des extrémités du corps, à savoir les mains, les poignets, les pieds et les chevilles). Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e,i,r,p.) is not more than that necessary for successful communication.Selon les régulations d’Industrie Canada, cet émetteur radioélectrique peut uniquement fonctionner avec une antenne dont le type et le gain maximum (ou inférieur) sont approuvés par Industrie Canada. Pour réduire les perturbations radioélectriques potentielles pour les autres utilisateurs, le type et le gain de l’antenne doivent être choisis de façon que la puissance isotrope rayonnée équivalente (P.I.R.E.) ne soit pas supérieure à la puissance nécessaire pour la réussite des communications.This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.Cet appareil est conforme au cahier des charges CNR-310 d’Industrie Canada. Son emploi est soumis à la condition que l’appareil ne provoque pas de brouillage préjudiciable.EN_KW-NT500HDT_NT300[J].indb 4EN_KW-NT500HDT_NT300[J].indb 412/7/2011 1:05:57 PM12/7/2011 1:05:57 PM

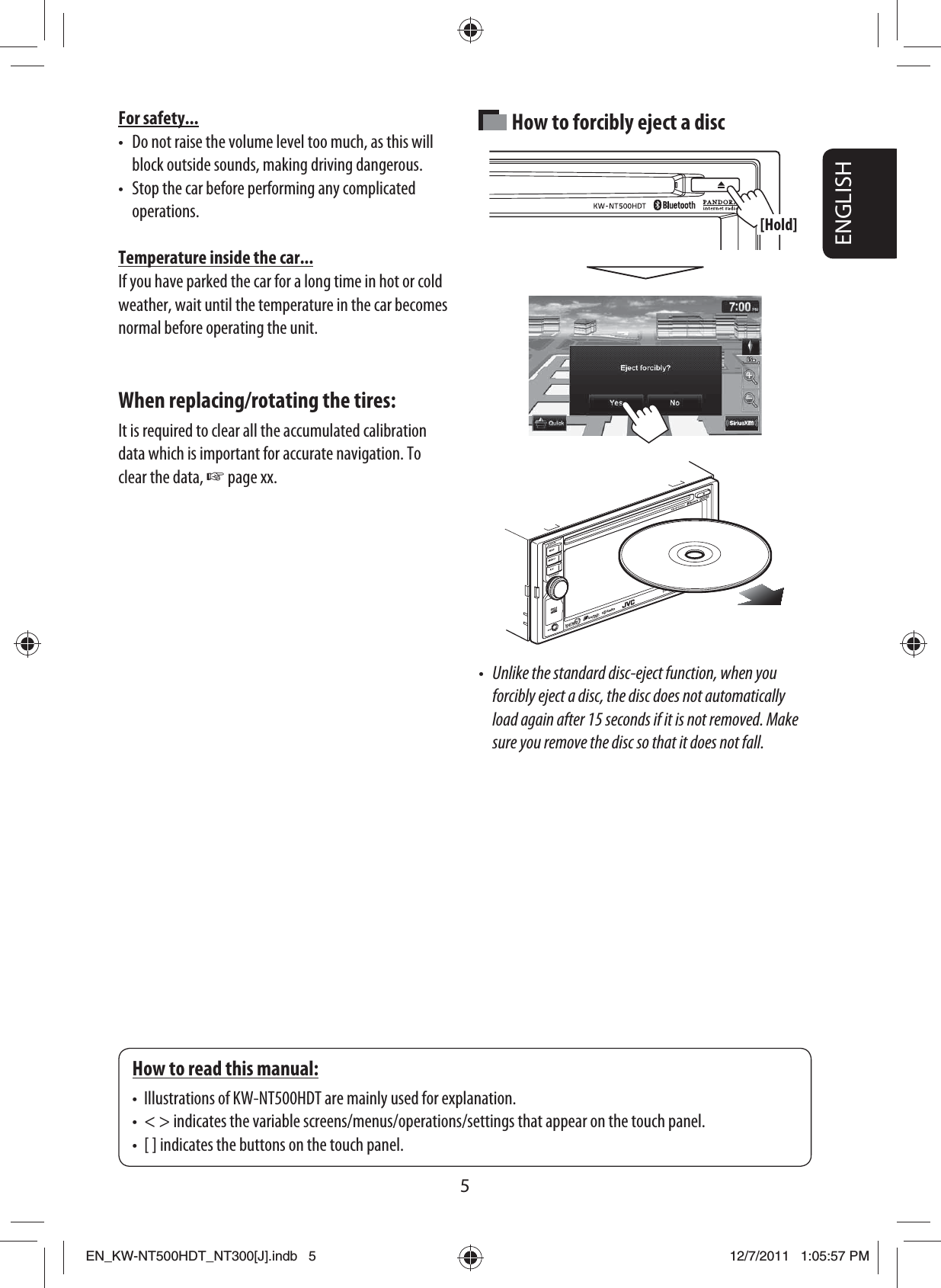

5ENGLISHFor safety...• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.• Stop the car before performing any complicated operations.Temperature inside the car...If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.When replacing/rotating the tires:It is required to clear all the accumulated calibration data which is important for accurate navigation. To clear the data, ☞ page xx. How to forcibly eject a disc[Hold]• Unlike the standard disc-eject function, when you forcibly eject a disc, the disc does not automatically load again after 15 seconds if it is not removed. Make sure you remove the disc so that it does not fall.How to read this manual:• Illustrations of KW-NT500HDT are mainly used for explanation.• < > indicates the variable screens/menus/operations/settings that appear on the touch panel.• [ ] indicates the buttons on the touch panel.EN_KW-NT500HDT_NT300[J].indb 5EN_KW-NT500HDT_NT300[J].indb 512/7/2011 1:05:57 PM12/7/2011 1:05:57 PM

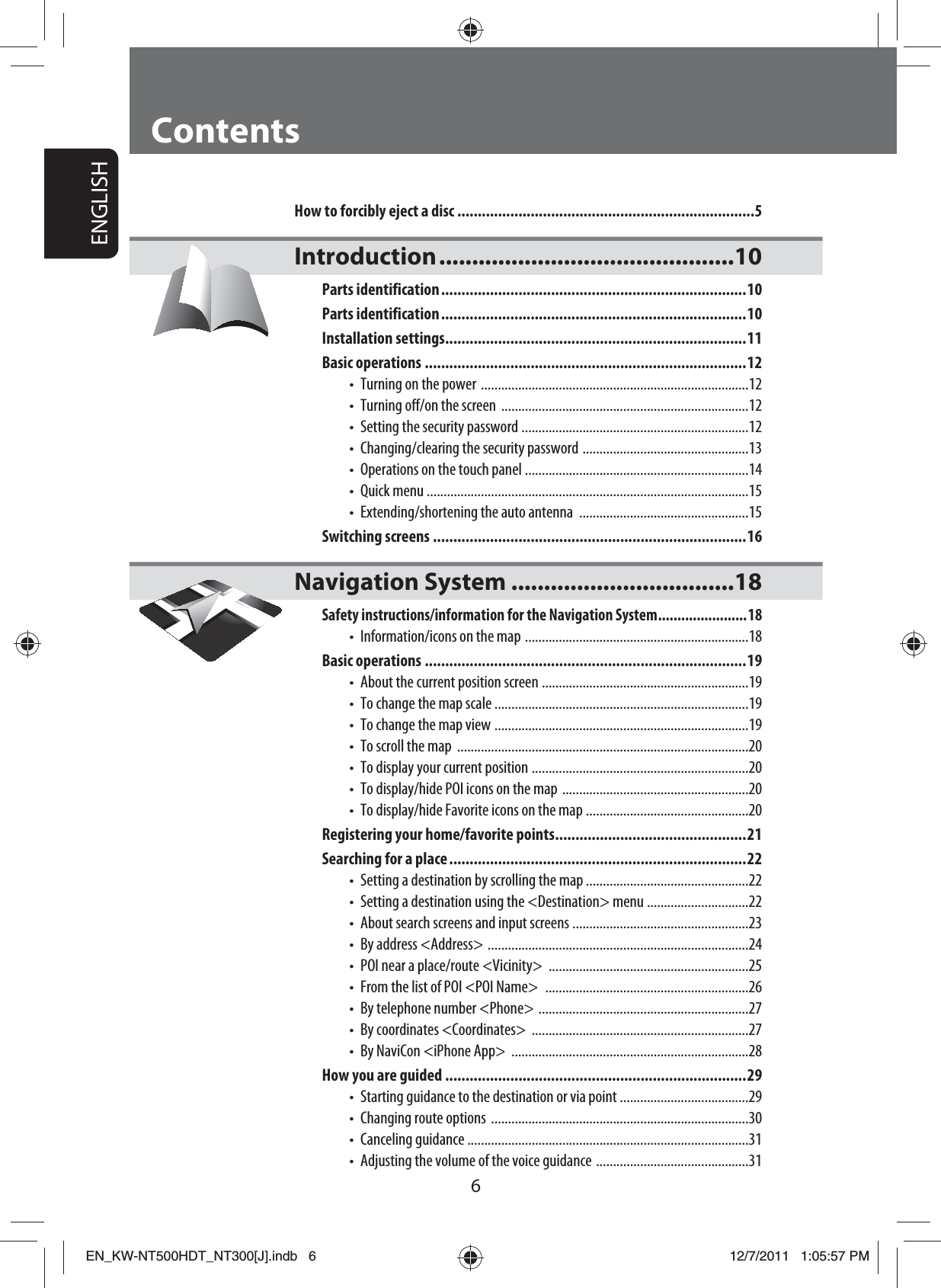

ENGLISH6How to forcibly eject a disc .........................................................................5Introduction .............................................10Parts identification ...........................................................................10Parts identification ...........................................................................10Installation settings ..........................................................................11Basic operations ...............................................................................12Turning on the power ...............................................................................12Turning off/on the screen .........................................................................12Setting the security password ...................................................................12Changing/clearing the security password .................................................13Operations on the touch panel ..................................................................14Quick menu ...............................................................................................15Extending/shortening the auto antenna ..................................................15Switching screens .............................................................................16Navigation System ..................................18Safety instructions/information for the Navigation System .......................18Information/icons on the map ..................................................................18Basic operations ...............................................................................19About the current position screen .............................................................19To change the map scale ...........................................................................19To change the map view ...........................................................................19To scroll the map ......................................................................................20To display your current position ................................................................20To display/hide POI icons on the map .......................................................20To display/hide Favorite icons on the map ................................................20Registering your home/favorite points ...............................................21Searching for a place .........................................................................22Setting a destination by scrolling the map ................................................22Setting a destination using the <Destination> menu ..............................22About search screens and input screens ....................................................23By address <Address> .............................................................................24POI near a place/route <Vicinity> ...........................................................25From the list of POI <POI Name> ............................................................26By telephone number <Phone> ..............................................................27By coordinates <Coordinates> ................................................................27By NaviCon <iPhone App> ......................................................................28How you are guided ..........................................................................29Starting guidance to the destination or via point ......................................29Changing route options ............................................................................30Canceling guidance ...................................................................................31Adjusting the volume of the voice guidance .............................................31••••••••••••••••••••••••••••ContentsEN_KW-NT500HDT_NT300[J].indb 6EN_KW-NT500HDT_NT300[J].indb 612/7/2011 1:05:57 PM12/7/2011 1:05:57 PM

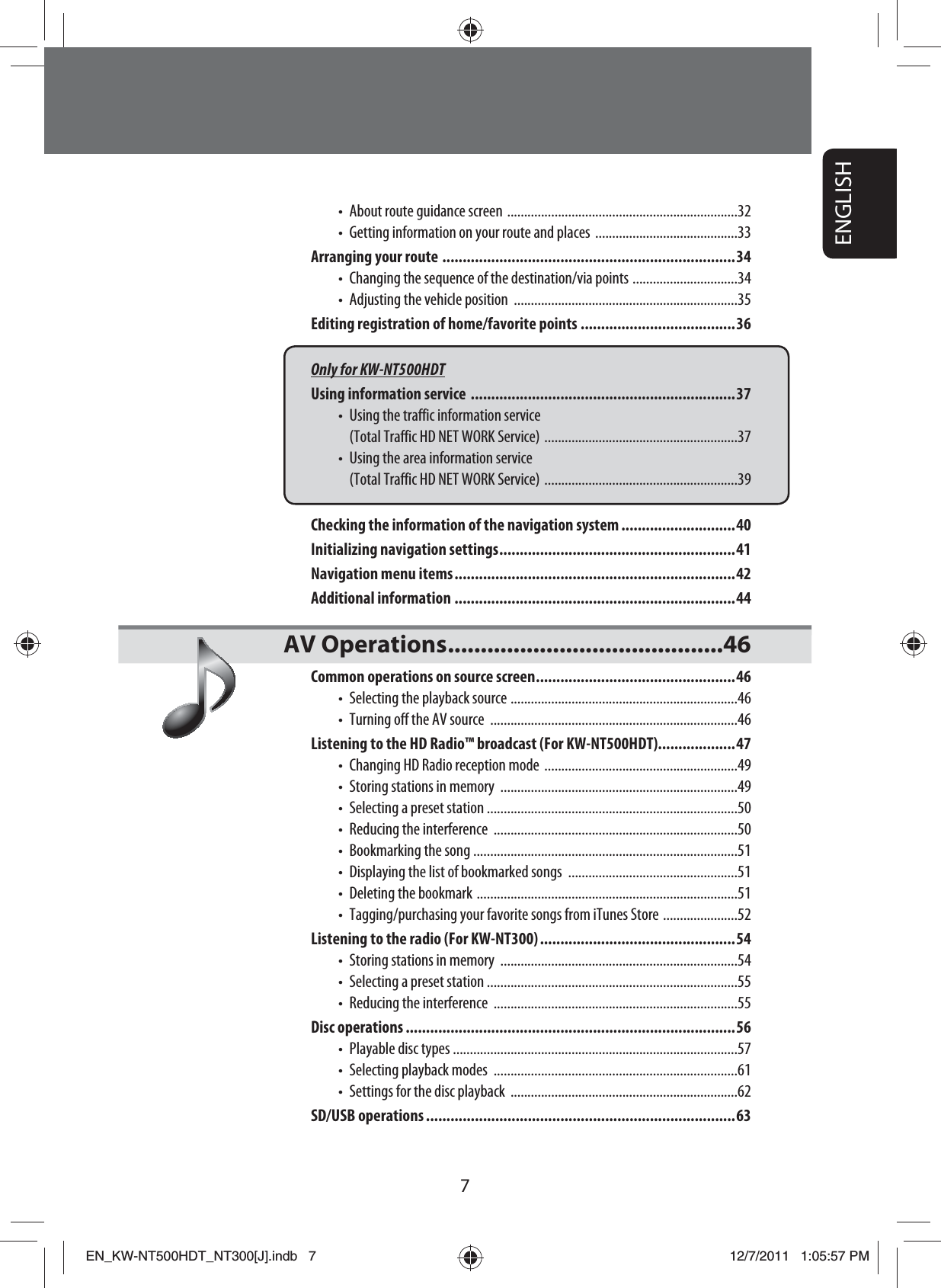

7ENGLISHAbout route guidance screen ....................................................................32Getting information on your route and places ..........................................33Arranging your route ........................................................................34Changing the sequence of the destination/via points ...............................34Adjusting the vehicle position ..................................................................35Editing registration of home/favorite points ......................................36Only for KW-NT500HDTUsing information service .................................................................37Using the traffic information service (Total Traffic HD NET WORK Service) .........................................................37Using the area information service (Total Traffic HD NET WORK Service) .........................................................39Checking the information of the navigation system ............................40Initializing navigation settings ..........................................................41Navigation menu items .....................................................................42Additional information .....................................................................44AV Operations ..........................................46Common operations on source screen .................................................46Selecting the playback source ...................................................................46Turning off the AV source .........................................................................46Listening to the HD Radio™ broadcast (For KW-NT500HDT)...................47Changing HD Radio reception mode .........................................................49Storing stations in memory ......................................................................49Selecting a preset station ..........................................................................50Reducing the interference ........................................................................50Bookmarking the song ..............................................................................51Displaying the list of bookmarked songs ..................................................51Deleting the bookmark .............................................................................51Tagging/purchasing your favorite songs from iTunes Store ......................52Listening to the radio (For KW-NT300) ................................................54Storing stations in memory ......................................................................54Selecting a preset station ..........................................................................55Reducing the interference ........................................................................55Disc operations .................................................................................56Playable disc types ....................................................................................57Selecting playback modes ........................................................................61Settings for the disc playback ...................................................................62SD/USB operations ............................................................................63••••••••••••••••••••••EN_KW-NT500HDT_NT300[J].indb 7EN_KW-NT500HDT_NT300[J].indb 712/7/2011 1:05:57 PM12/7/2011 1:05:57 PM

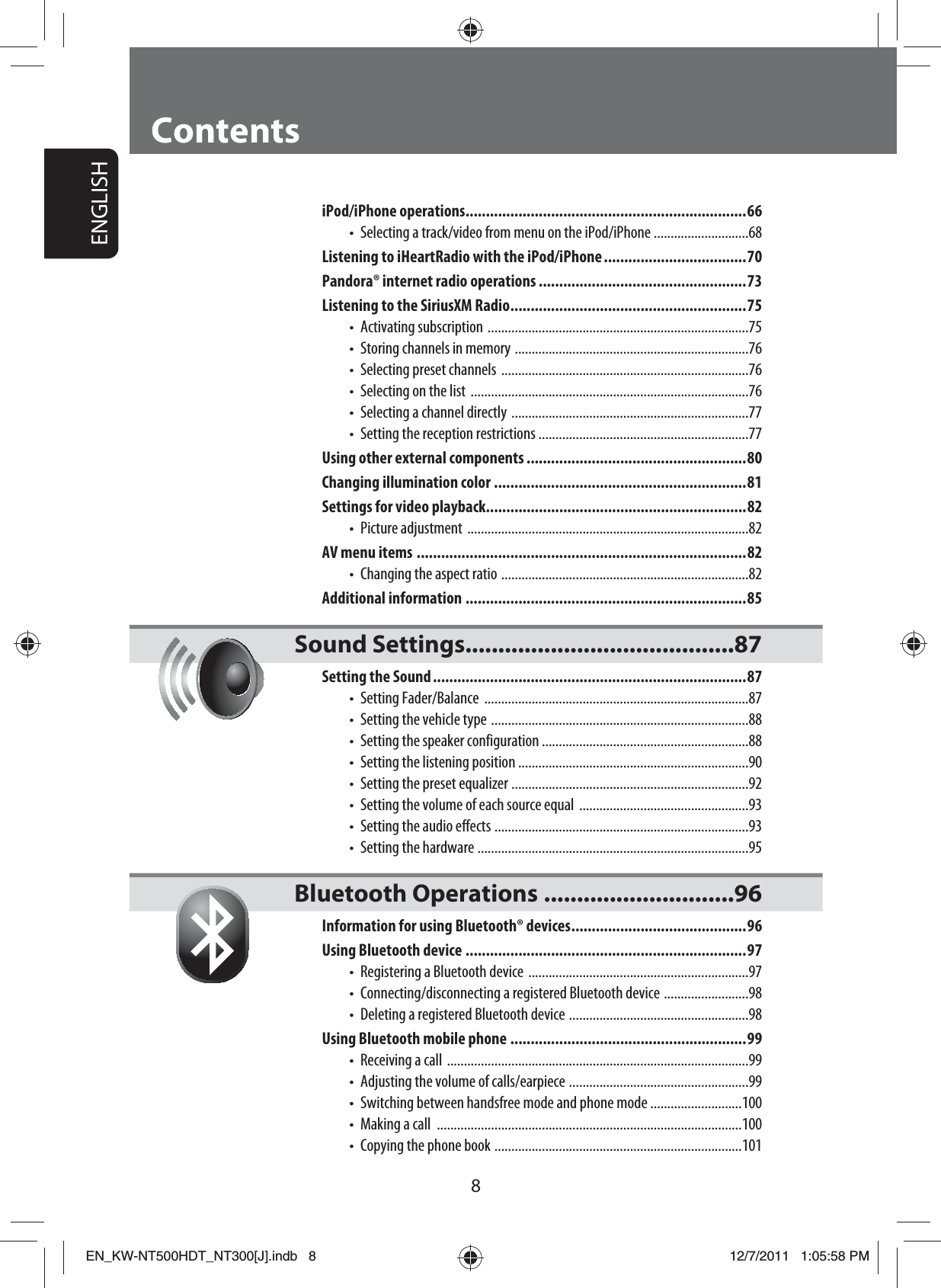

ENGLISH8iPod/iPhone operations .....................................................................66Selecting a track/video from menu on the iPod/iPhone ............................68Listening to iHeartRadio with the iPod/iPhone ...................................70Pandora® internet radio operations ...................................................73Listening to the SiriusXM Radio ..........................................................75Activating subscription .............................................................................75Storing channels in memory .....................................................................76Selecting preset channels .........................................................................76Selecting on the list ..................................................................................76Selecting a channel directly ......................................................................77Setting the reception restrictions ..............................................................77Using other external components ......................................................80Changing illumination color ..............................................................81Settings for video playback................................................................82Picture adjustment ...................................................................................82AV menu items .................................................................................82Changing the aspect ratio .........................................................................82Additional information .....................................................................85Sound Settings.........................................87Setting the Sound .............................................................................87Setting Fader/Balance ..............................................................................87Setting the vehicle type ............................................................................88Setting the speaker configuration .............................................................88Setting the listening position ....................................................................90Setting the preset equalizer ......................................................................92Setting the volume of each source equal ..................................................93Setting the audio effects ...........................................................................93Setting the hardware ................................................................................95Bluetooth Operations .............................96Information for using Bluetooth® devices ...........................................96Using Bluetooth device .....................................................................97Registering a Bluetooth device .................................................................97Connecting/disconnecting a registered Bluetooth device .........................98Deleting a registered Bluetooth device .....................................................98Using Bluetooth mobile phone ..........................................................99Receiving a call .........................................................................................99Adjusting the volume of calls/earpiece .....................................................99Switching between handsfree mode and phone mode ...........................100Making a call ..........................................................................................100Copying the phone book .........................................................................101•••••••••••••••••••••••••ContentsEN_KW-NT500HDT_NT300[J].indb 8EN_KW-NT500HDT_NT300[J].indb 812/7/2011 1:05:58 PM12/7/2011 1:05:58 PM

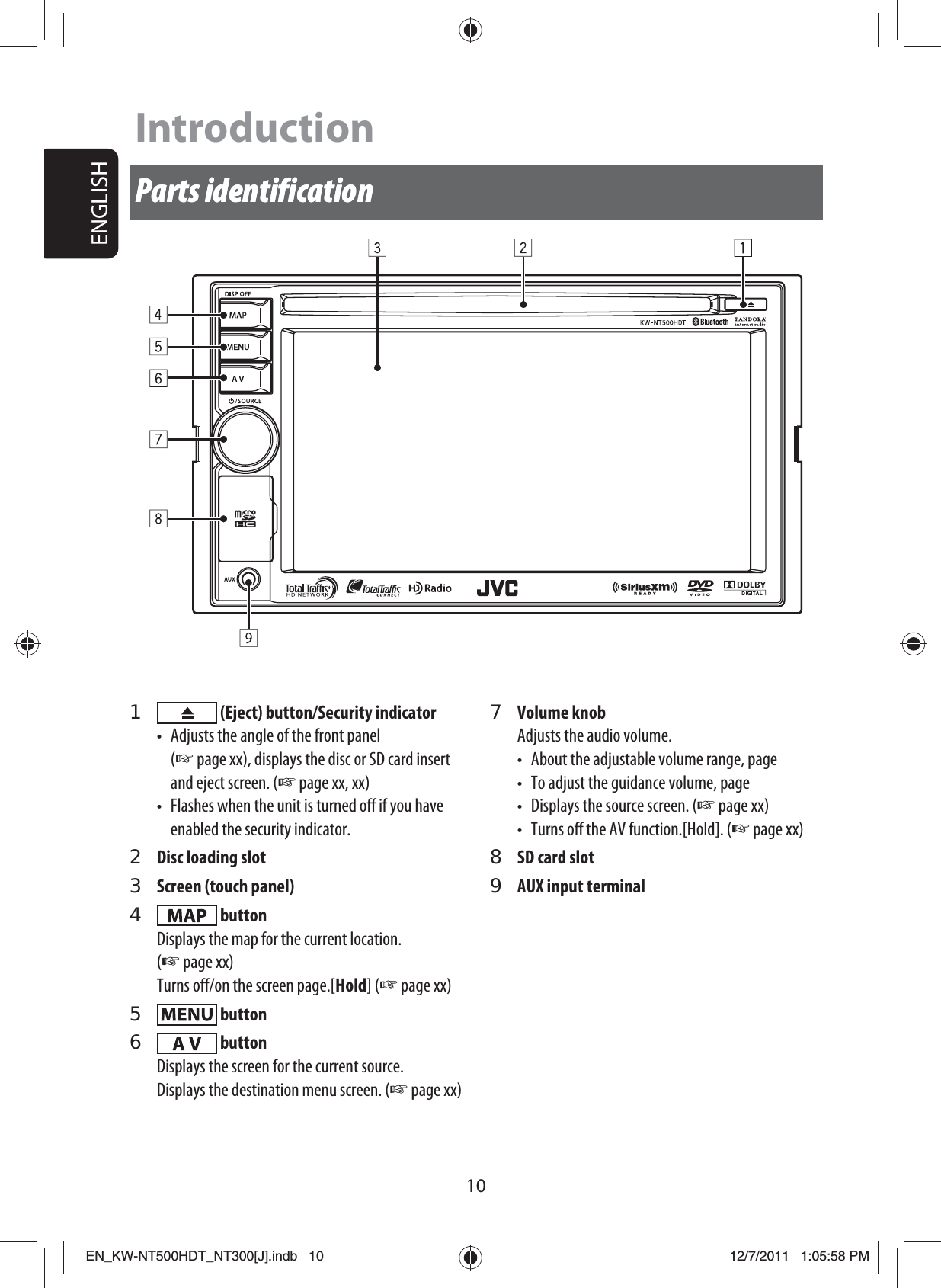

ENGLISH101 (Eject) button/Security indicator• Adjusts the angle of the front panel (☞ page xx), displays the disc or SD card insert and eject screen. (☞ page xx, xx)• Flashes when the unit is turned off if you have enabled the security indicator.2 Disc loading slot3 Screen (touch panel)4 buttonDisplays the map for the current location. (☞ page xx)Turns off/on the screen page.[Hold] (☞ page xx)5 button6 buttonDisplays the screen for the current source.Displays the destination menu screen. (☞ page xx)7 Volume knobAdjusts the audio volume.• About the adjustable volume range, page• To adjust the guidance volume, page• Displays the source screen. (☞ page xx)• Turns off the AV function.[Hold]. (☞ page xx)8 SD card slot9 AUX input terminalIntroductionParts identificationParts identificationEN_KW-NT500HDT_NT300[J].indb 10EN_KW-NT500HDT_NT300[J].indb 1012/7/2011 1:05:58 PM12/7/2011 1:05:58 PM

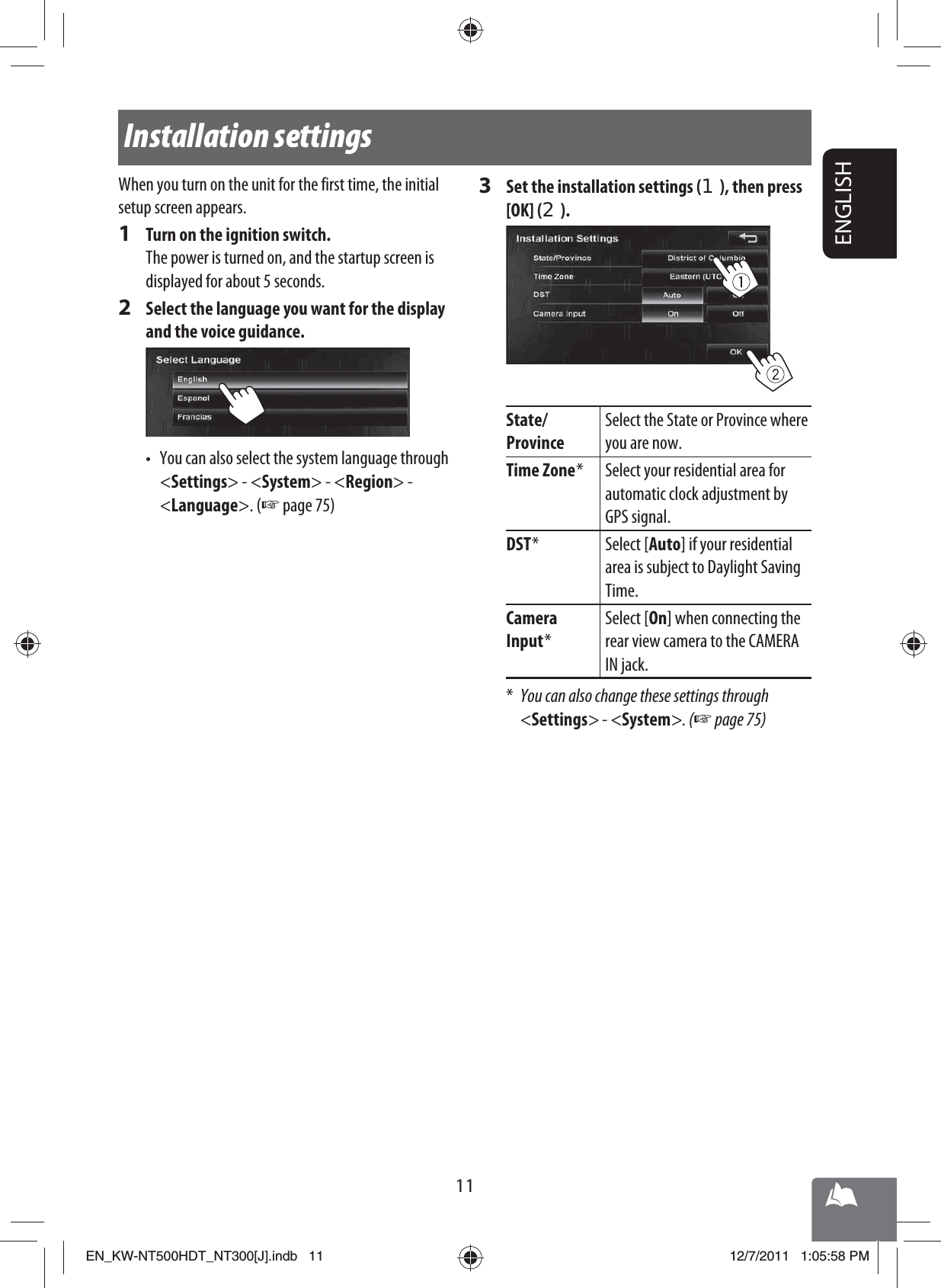

11ENGLISHInstallation settingsWhen you turn on the unit for the first time, the initial setup screen appears.1 Turn on the ignition switch.The power is turned on, and the startup screen is displayed for about 5 seconds.2 Select the language you want for the display and the voice guidance.• You can also select the system language through <Settings> - <System> - <Region> -<Language>. (☞ page 75)3 Set the installation settings (1), then press [OK] (2).State/ProvinceSelect the State or Province where you are now.Time Zone * Select your residential area for automatic clock adjustment by GPS signal.DST * Select [Auto] if your residential area is subject to Daylight Saving Time.Camera Input *Select [On] when connecting the rear view camera to the CAMERA IN jack.* You can also change these settings through <Settings> - <System>. (☞ page 75)EN_KW-NT500HDT_NT300[J].indb 11EN_KW-NT500HDT_NT300[J].indb 1112/7/2011 1:05:58 PM12/7/2011 1:05:58 PM

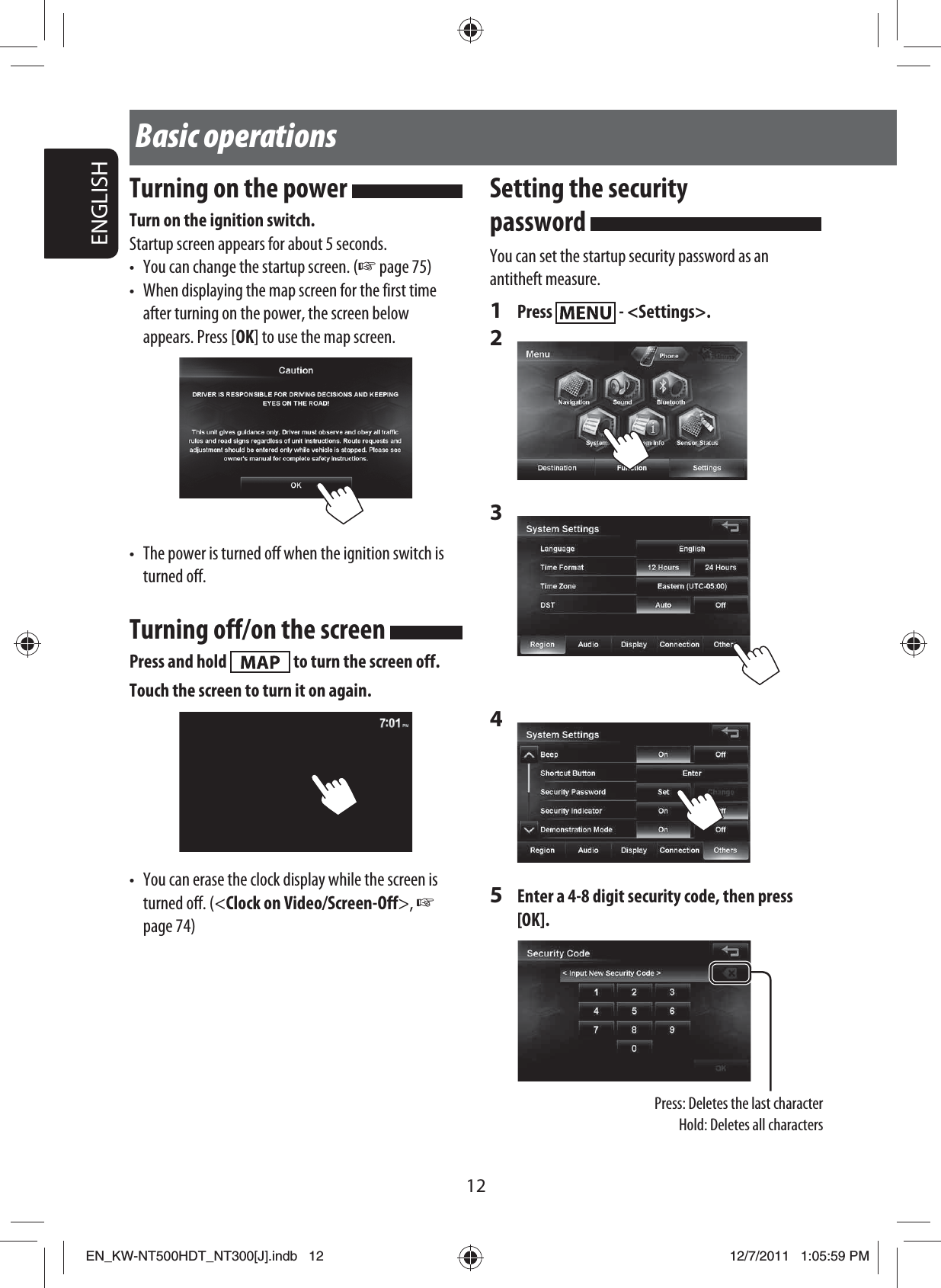

ENGLISH12Basic operationsTurning on the power Turn on the ignition switch.Startup screen appears for about 5 seconds.• You can change the startup screen. (☞ page 75)• When displaying the map screen for the first time after turning on the power, the screen below appears. Press [OK] to use the map screen.• The power is turned off when the ignition switch is turned off.Turning off/on the screen Press and hold to turn the screen off.Touch the screen to turn it on again.• You can erase the clock display while the screen is turned off. (<Clock on Video/Screen-Off>, ☞ page 74)Setting the security password You can set the startup security password as an antitheft measure.1 Press - <Settings>.2 3 4 5 Enter a 4-8 digit security code, then press [OK].Press: Deletes the last characterHold: Deletes all charactersEN_KW-NT500HDT_NT300[J].indb 12EN_KW-NT500HDT_NT300[J].indb 1212/7/2011 1:05:59 PM12/7/2011 1:05:59 PM

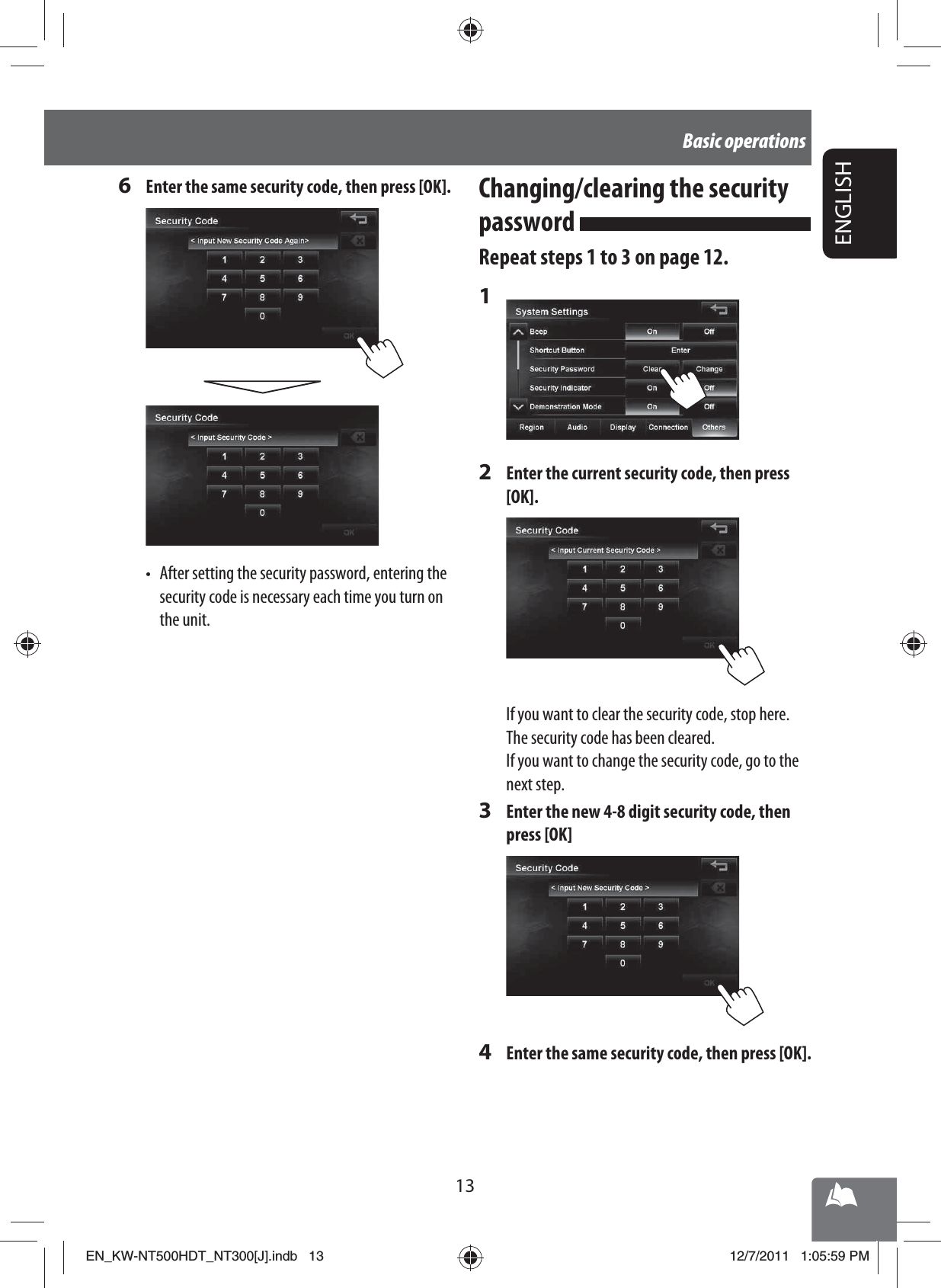

13ENGLISHBasic operations6 Enter the same security code, then press [OK].• After setting the security password, entering the security code is necessary each time you turn on the unit.Changing/clearing the security password Repeat steps 1 to 3 on page 12.1 2 Enter the current security code, then press [OK].If you want to clear the security code, stop here. The security code has been cleared.If you want to change the security code, go to the next step.3 Enter the new 4-8 digit security code, then press [OK]4 Enter the same security code, then press [OK].EN_KW-NT500HDT_NT300[J].indb 13EN_KW-NT500HDT_NT300[J].indb 1312/7/2011 1:05:59 PM12/7/2011 1:05:59 PM

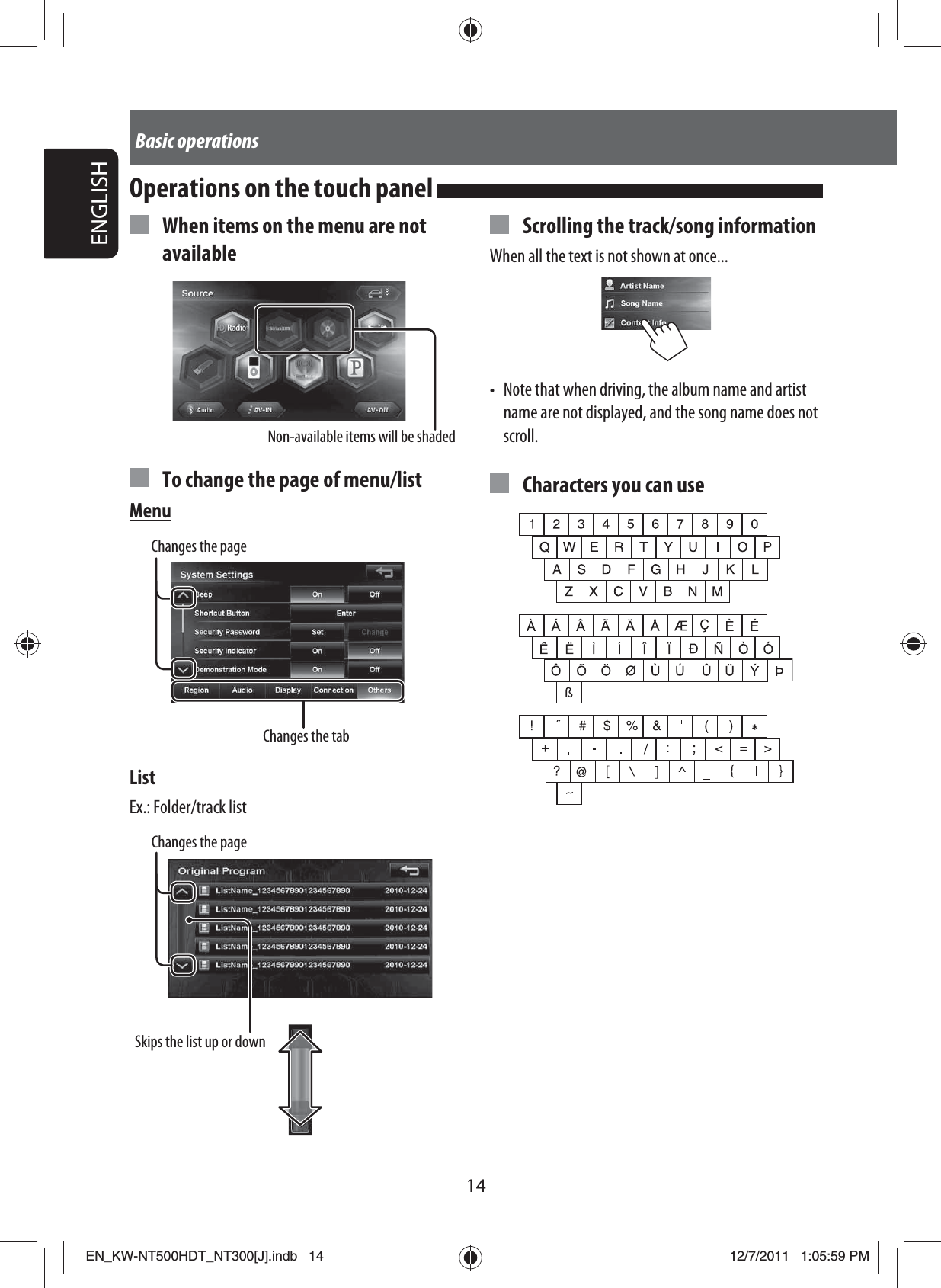

ENGLISH14Basic operations When items on the menu are not availableNon-available items will be shaded To change the page of menu/listMenuChanges the tabChanges the pageListEx.: Folder/track listSkips the list up or downChanges the pageOperations on the touch panel Scrolling the track/song informationWhen all the text is not shown at once...• Note that when driving, the album name and artist name are not displayed, and the song name does not scroll. Characters you can useEN_KW-NT500HDT_NT300[J].indb 14EN_KW-NT500HDT_NT300[J].indb 1412/7/2011 1:05:59 PM12/7/2011 1:05:59 PM

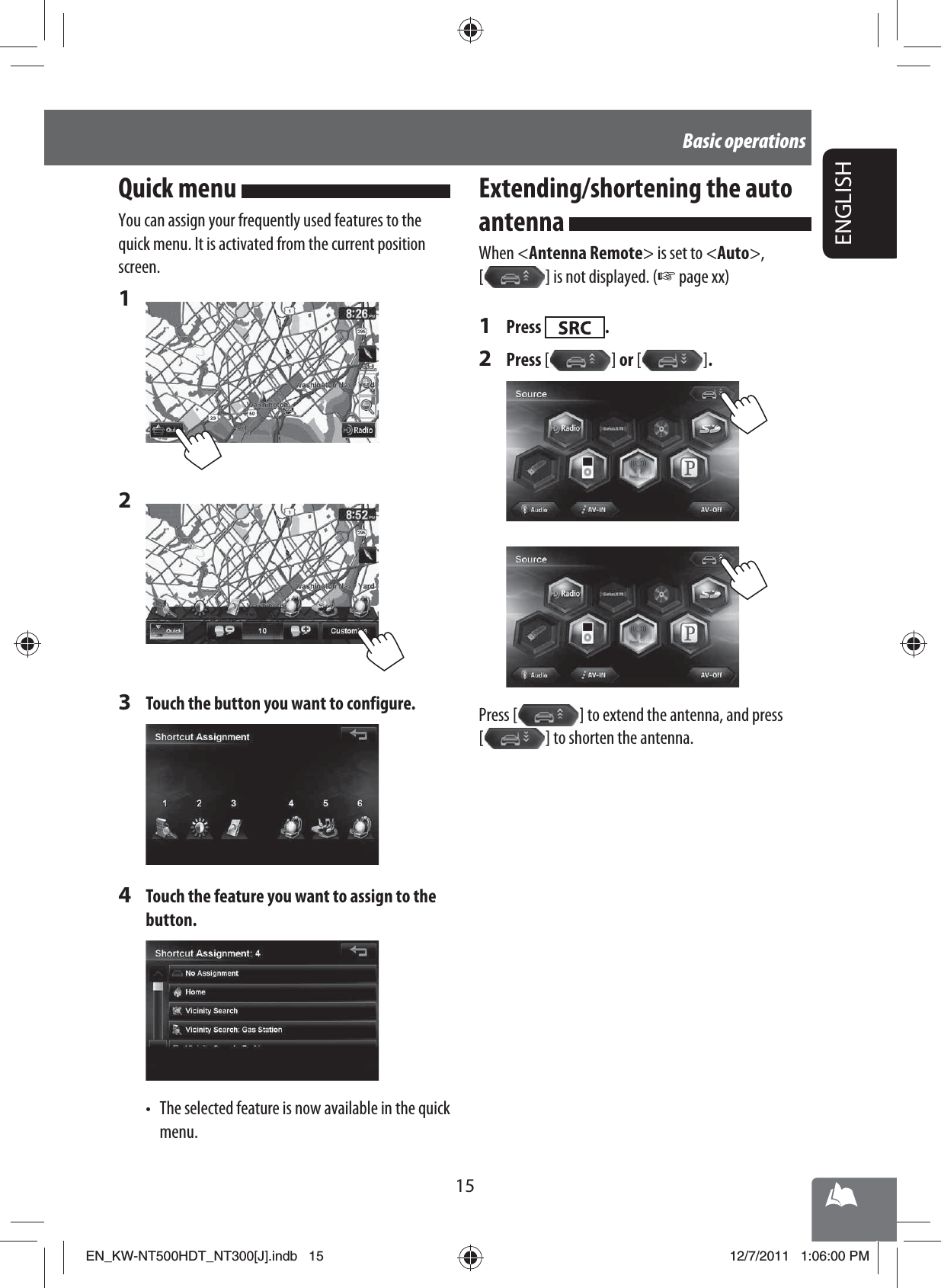

15ENGLISHBasic operationsQuick menu You can assign your frequently used features to the quick menu. It is activated from the current position screen.1 2 3 Touch the button you want to configure.4 Touch the feature you want to assign to the button.• The selected feature is now available in the quick menu.Extending/shortening the auto antenna When <Antenna Remote> is set to <Auto>, [ ] is not displayed. (☞ page xx)1 Press .2 Press [ ] or [ ] .Press [ ] to extend the antenna, and press [ ] to shorten the antenna.EN_KW-NT500HDT_NT300[J].indb 15EN_KW-NT500HDT_NT300[J].indb 1512/7/2011 1:06:00 PM12/7/2011 1:06:00 PM

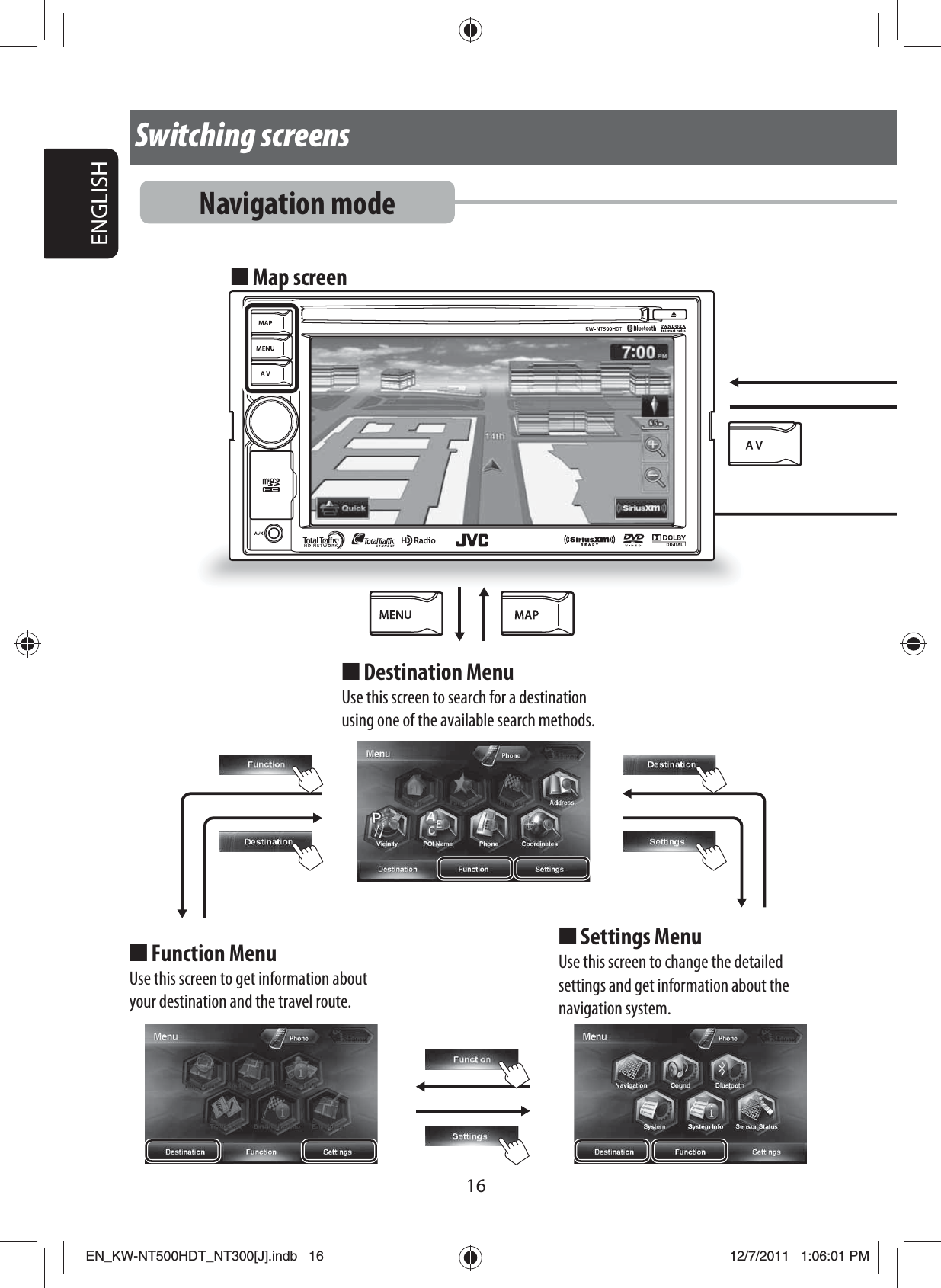

ENGLISH16Switching screensNavigation modeMap screen■Function MenuUse this screen to get information about your destination and the travel route. ■Settings MenuUse this screen to change the detailed settings and get information about the navigation system.■Destination MenuUse this screen to search for a destination using one of the available search methods.■EN_KW-NT500HDT_NT300[J].indb 16EN_KW-NT500HDT_NT300[J].indb 1612/7/2011 1:06:01 PM12/7/2011 1:06:01 PM

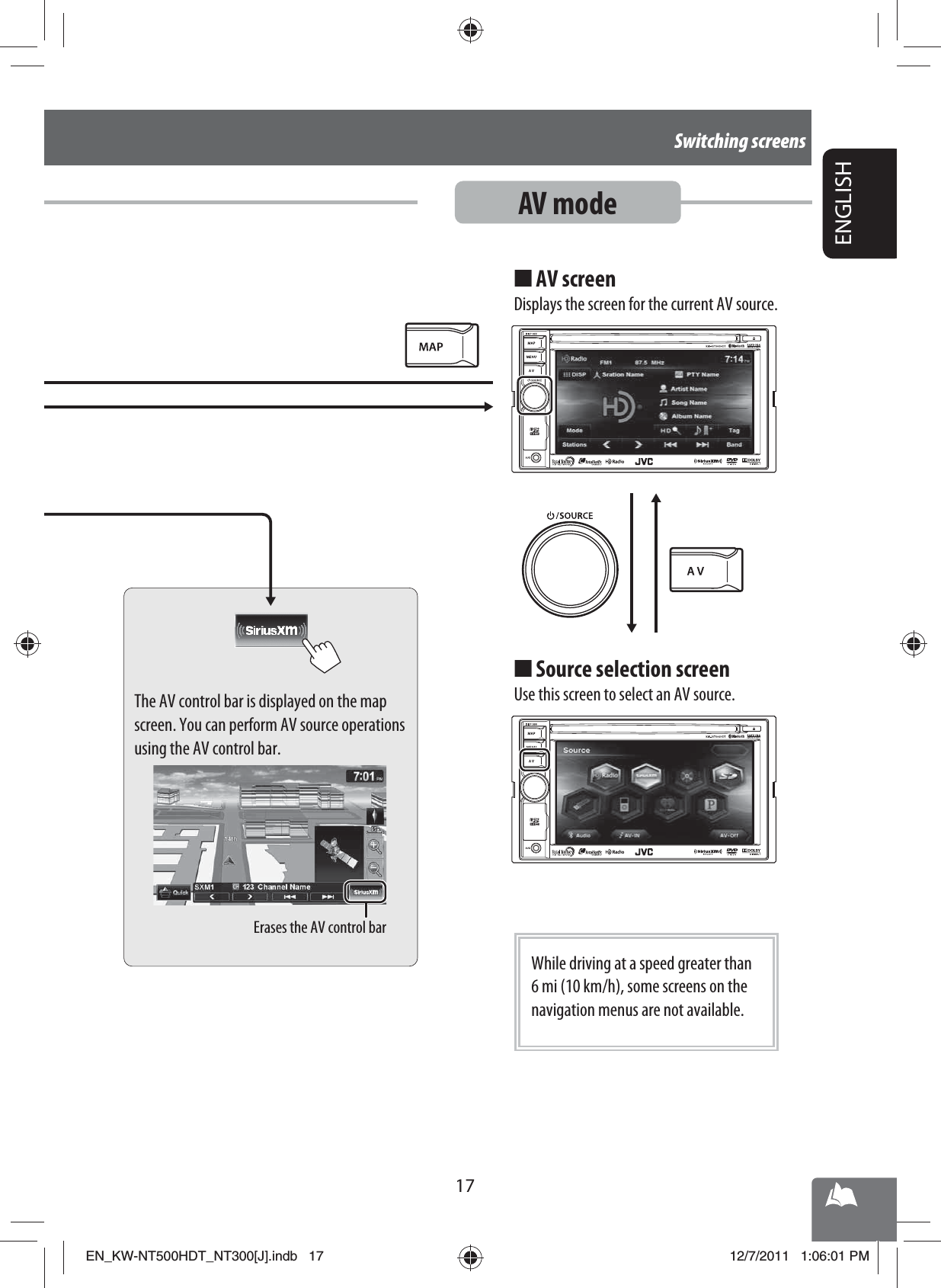

Erases the AV control bar17ENGLISHSwitching screensAV modeThe AV control bar is displayed on the map screen. You can perform AV source operations using the AV control bar.AV screenDisplays the screen for the current AV source.■Source selection screenUse this screen to select an AV source.■While driving at a speed greater than 6 mi (10 km/h), some screens on the navigation menus are not available.EN_KW-NT500HDT_NT300[J].indb 17EN_KW-NT500HDT_NT300[J].indb 1712/7/2011 1:06:01 PM12/7/2011 1:06:01 PM

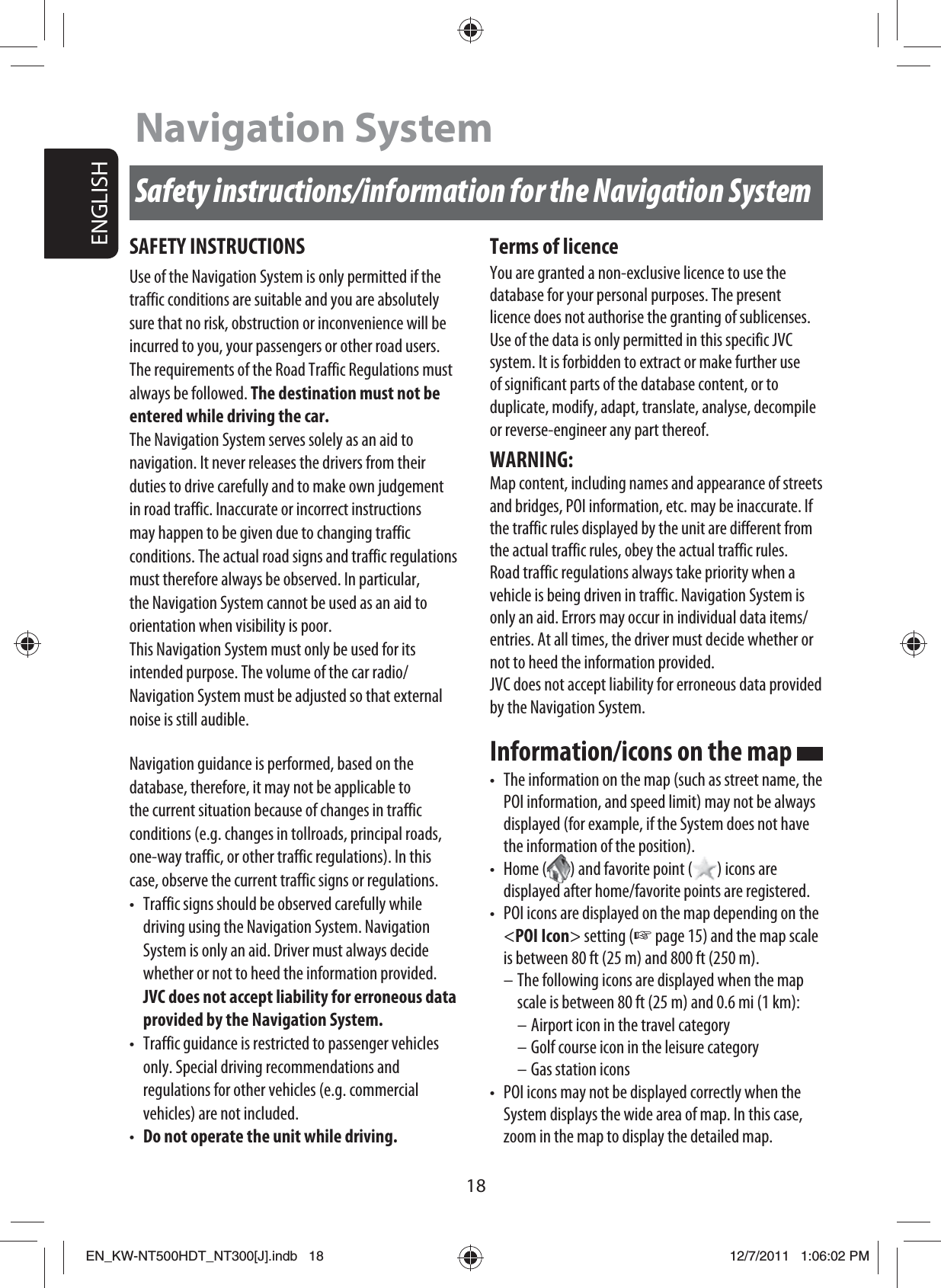

18ENGLISHSafety instructions/information for the Navigation SystemNavigation SystemSAFETY INSTRUCTIONSUse of the Navigation System is only permitted if the traffic conditions are suitable and you are absolutely sure that no risk, obstruction or inconvenience will be incurred to you, your passengers or other road users. The requirements of the Road Traffic Regulations must always be followed. The destination must not be entered while driving the car.The Navigation System serves solely as an aid to navigation. It never releases the drivers from their duties to drive carefully and to make own judgement in road traffic. Inaccurate or incorrect instructions may happen to be given due to changing traffic conditions. The actual road signs and traffic regulations must therefore always be observed. In particular, the Navigation System cannot be used as an aid to orientation when visibility is poor.This Navigation System must only be used for its intended purpose. The volume of the car radio/Navigation System must be adjusted so that external noise is still audible.Navigation guidance is performed, based on the database, therefore, it may not be applicable to the current situation because of changes in traffic conditions (e.g. changes in tollroads, principal roads, one-way traffic, or other traffic regulations). In this case, observe the current traffic signs or regulations.• Traffic signs should be observed carefully while driving using the Navigation System. Navigation System is only an aid. Driver must always decide whether or not to heed the information provided. JVC does not accept liability for erroneous data provided by the Navigation System.• Traffic guidance is restricted to passenger vehicles only. Special driving recommendations and regulations for other vehicles (e.g. commercial vehicles) are not included.• Do not operate the unit while driving.Terms of licenceYou are granted a non-exclusive licence to use the database for your personal purposes. The present licence does not authorise the granting of sublicenses.Use of the data is only permitted in this specific JVC system. It is forbidden to extract or make further use of significant parts of the database content, or to duplicate, modify, adapt, translate, analyse, decompile or reverse-engineer any part thereof.WARNING:Map content, including names and appearance of streets and bridges, POI information, etc. may be inaccurate. If the traffic rules displayed by the unit are different from the actual traffic rules, obey the actual traffic rules.Road traffic regulations always take priority when a vehicle is being driven in traffic. Navigation System is only an aid. Errors may occur in individual data items/entries. At all times, the driver must decide whether or not to heed the information provided.JVC does not accept liability for erroneous data provided by the Navigation System.Information/icons on the map • The information on the map (such as street name, the POI information, and speed limit) may not be always displayed (for example, if the System does not have the information of the position).• Home ( ) and favorite point ( ) icons are displayed after home/favorite points are registered.• POI icons are displayed on the map depending on the <POI Icon> setting (☞ page 15) and the map scale is between 80 ft (25 m) and 800 ft (250 m).– The following icons are displayed when the map scale is between 80 ft (25 m) and 0.6 mi (1 km):– Airport icon in the travel category– Golf course icon in the leisure category– Gas station icons• POI icons may not be displayed correctly when the System displays the wide area of map. In this case, zoom in the map to display the detailed map.EN_KW-NT500HDT_NT300[J].indb 18EN_KW-NT500HDT_NT300[J].indb 1812/7/2011 1:06:02 PM12/7/2011 1:06:02 PM

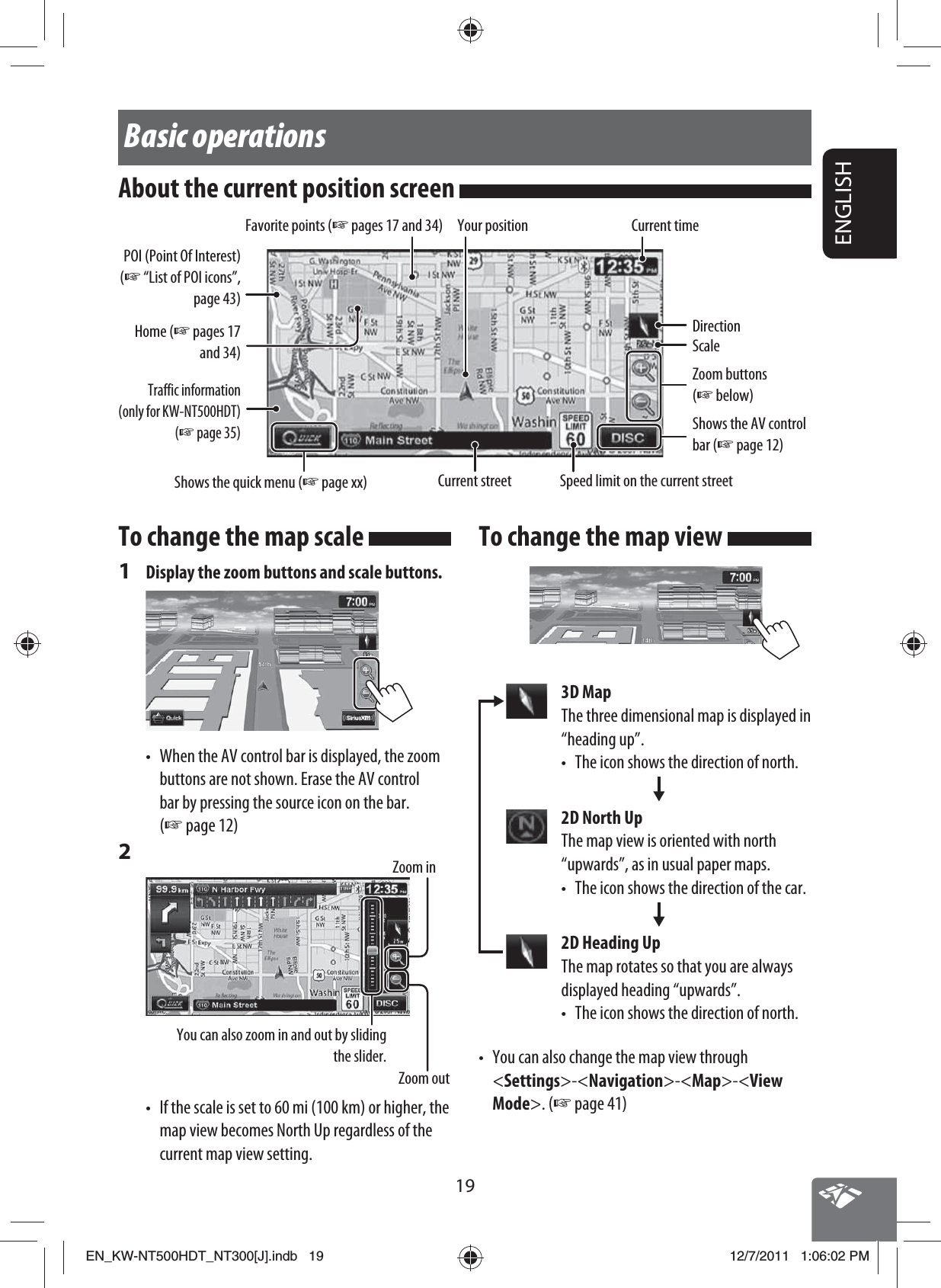

19ENGLISHTo change the map scale 1 Display the zoom buttons and scale buttons.• When the AV control bar is displayed, the zoom buttons are not shown. Erase the AV control bar by pressing the source icon on the bar. (☞ page 12)2 Zoom outYou can also zoom in and out by sliding the slider.Zoom in• If the scale is set to 60 mi (100 km) or higher, the map view becomes North Up regardless of the current map view setting.Basic operationsAbout the current position screen Your positionCurrent streetCurrent timeSpeed limit on the current streetScaleDirectionShows the quick menu (☞ page xx)Favorite points (☞ pages 17 and 34)Home (☞ pages 17 and 34)POI (Point Of Interest) (☞ “List of POI icons”, page 43)Zoom buttons (☞ below)Traffic information (only for KW-NT500HDT) (☞ page 35)Shows the AV control bar (☞ page 12)To change the map view 3D MapThe three dimensional map is displayed in “heading up”.• The icon shows the direction of north.2D North UpThe map view is oriented with north “upwards”, as in usual paper maps.• The icon shows the direction of the car.2D Heading UpThe map rotates so that you are always displayed heading “upwards”.• The icon shows the direction of north.• You can also change the map view through <Settings>-<Navigation>-<Map>-<View Mode>. (☞ page 41)EN_KW-NT500HDT_NT300[J].indb 19EN_KW-NT500HDT_NT300[J].indb 1912/7/2011 1:06:02 PM12/7/2011 1:06:02 PM

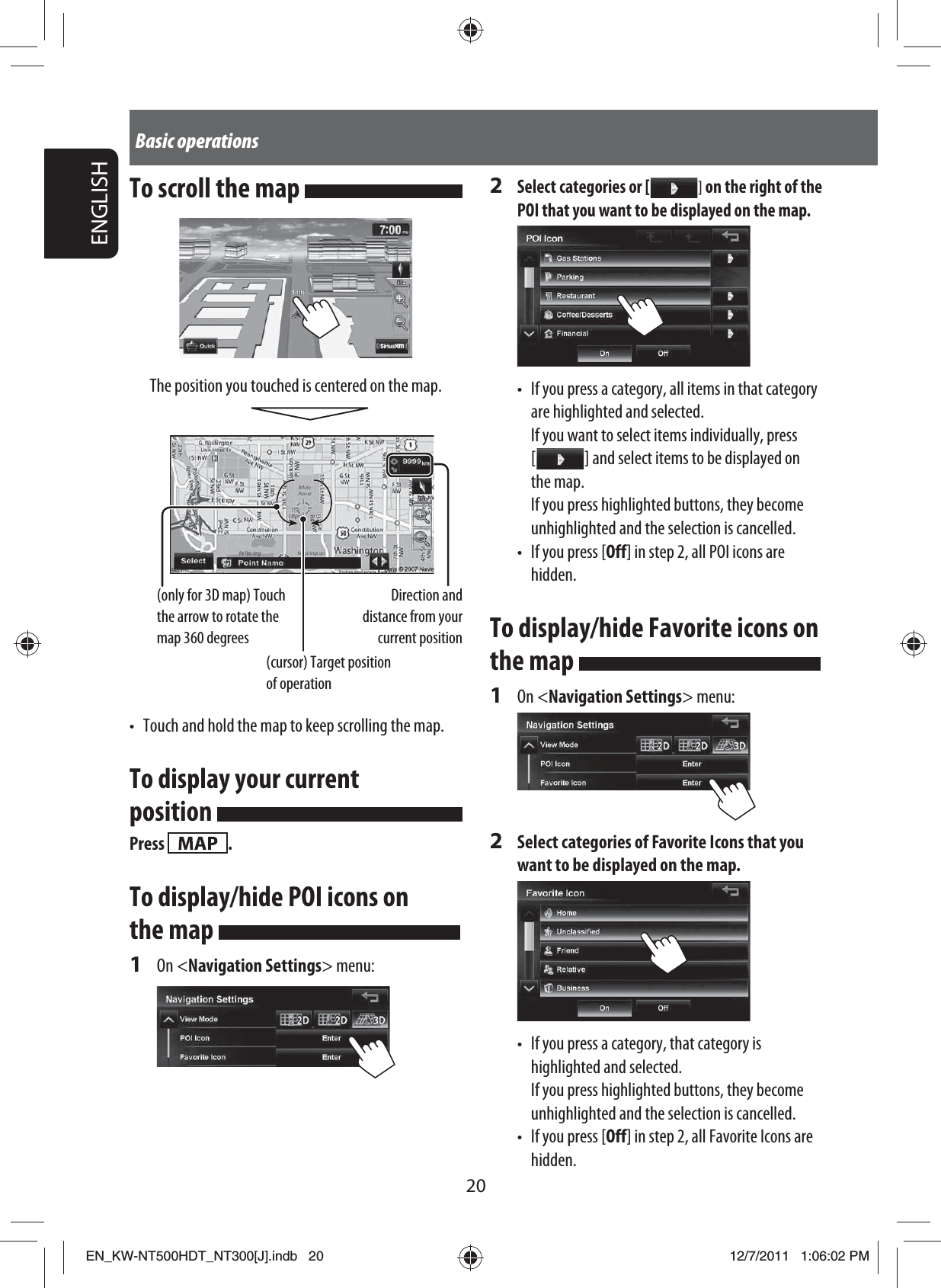

20ENGLISHBasic operationsTo scroll the map The position you touched is centered on the map.Direction and distance from your current position(only for 3D map) Touch the arrow to rotate the map 360 degrees(cursor) Target position of operation• Touch and hold the map to keep scrolling the map.To display your current position Press .To display/hide POI icons on the map 1 On <Navigation Settings> menu:2 Select categories or [ ] on the right of the POI that you want to be displayed on the map.• If you press a category, all items in that category are highlighted and selected. If you want to select items individually, press [ ] and select items to be displayed on the map. If you press highlighted buttons, they become unhighlighted and the selection is cancelled. • If you press [Off] in step 2, all POI icons are hidden.To display/hide Favorite icons on the map 1 On <Navigation Settings> menu:2 Select categories of Favorite Icons that you want to be displayed on the map.• If you press a category, that category is highlighted and selected. If you press highlighted buttons, they become unhighlighted and the selection is cancelled.• If you press [Off] in step 2, all Favorite Icons are hidden.EN_KW-NT500HDT_NT300[J].indb 20EN_KW-NT500HDT_NT300[J].indb 2012/7/2011 1:06:02 PM12/7/2011 1:06:02 PM

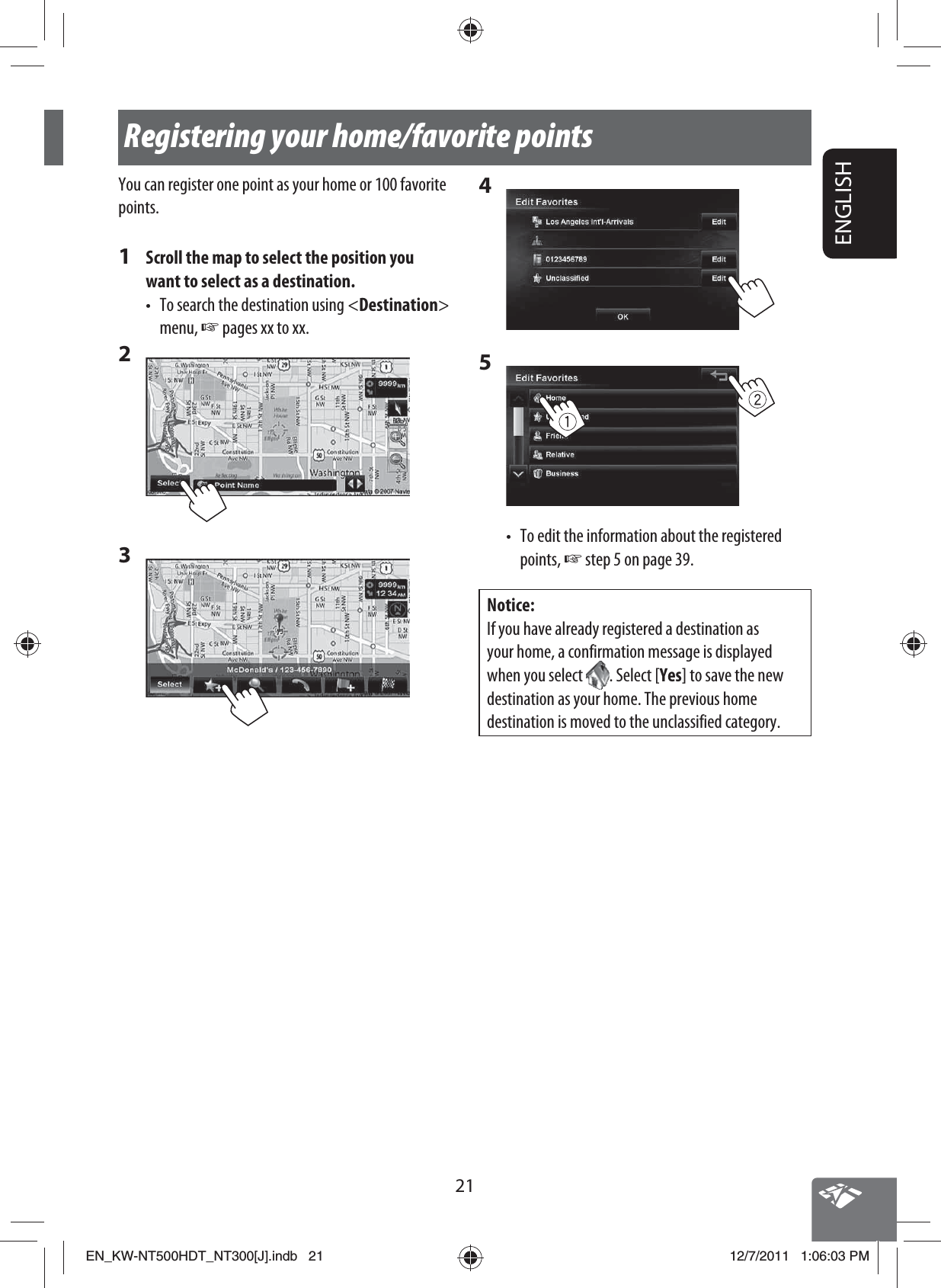

21ENGLISHRegistering your home/favorite pointsYou can register one point as your home or 100 favorite points.1 Scroll the map to select the position you want to select as a destination.• To search the destination using <Destination> menu, ☞ pages xx to xx. 2 3 4 5 • To edit the information about the registered points, ☞ step 5 on page 39.Notice:If you have already registered a destination as your home, a confirmation message is displayed when you select . Select [Yes] to save the new destination as your home. The previous home destination is moved to the unclassified category.EN_KW-NT500HDT_NT300[J].indb 21EN_KW-NT500HDT_NT300[J].indb 2112/7/2011 1:06:03 PM12/7/2011 1:06:03 PM

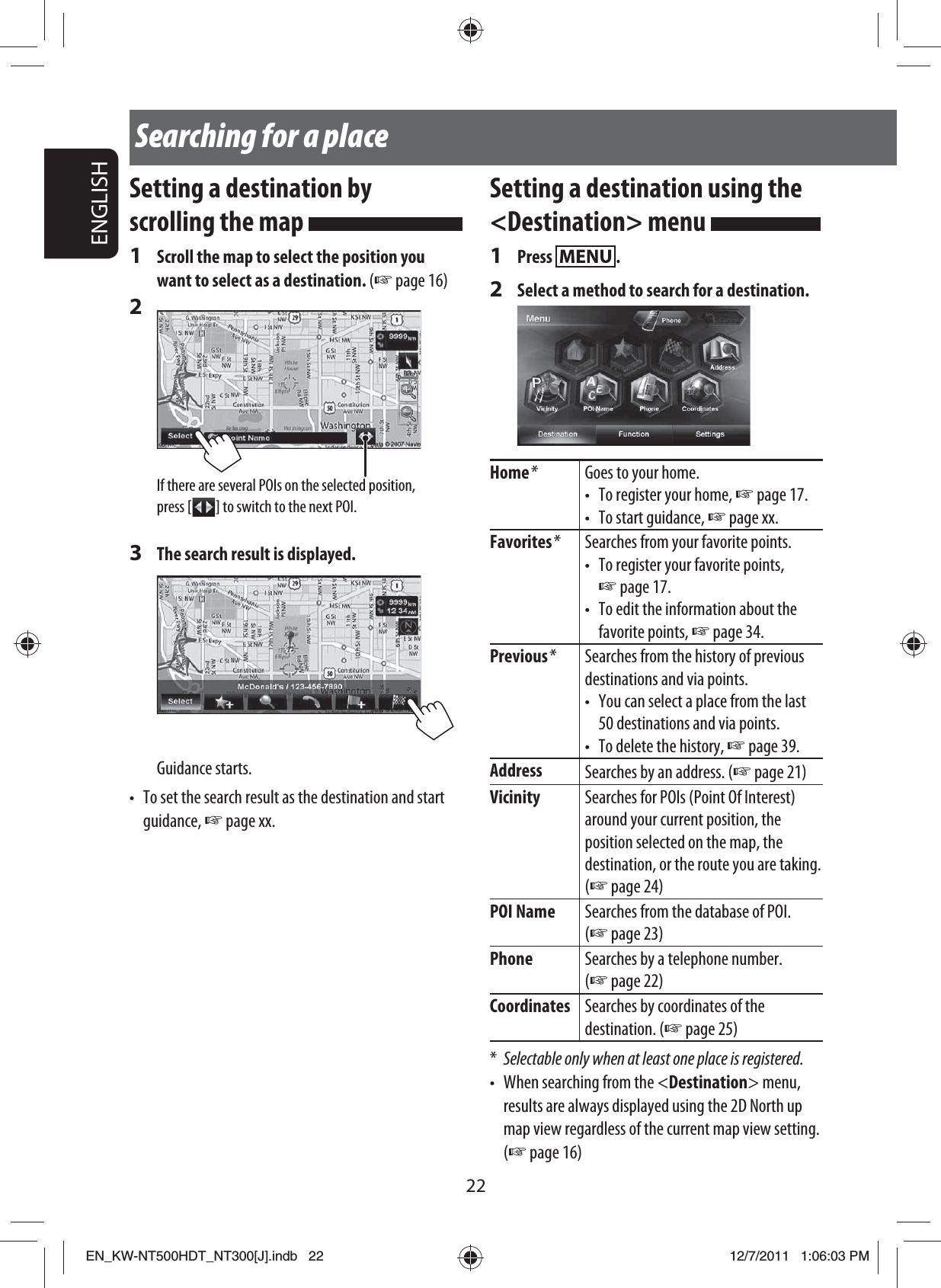

22ENGLISHSearching for a placeSetting a destination by scrolling the map 1 Scroll the map to select the position you want to select as a destination. (☞ page 16)2 If there are several POIs on the selected position, press [ ] to switch to the next POI.3 The search result is displayed.Guidance starts.• To set the search result as the destination and start guidance, ☞ page xx.Setting a destination using the <Destination> menu 1 Press .2 Select a method to search for a destination.Home *Goes to your home.• To register your home, ☞ page 17.• To start guidance, ☞ page xx.Favorites *Searches from your favorite points.• To register your favorite points, ☞ page 17.• To edit the information about the favorite points, ☞ page 34.Previous *Searches from the history of previous destinations and via points.• You can select a place from the last 50 destinations and via points.• To delete the history, ☞ page 39.Address Searches by an address. (☞ page 21)Vicinity Searches for POIs (Point Of Interest) around your current position, the position selected on the map, the destination, or the route you are taking. (☞ page 24)POI Name Searches from the database of POI. (☞ page 23)Phone Searches by a telephone number. (☞ page 22)Coordinates Searches by coordinates of the destination. (☞ page 25)* Selectable only when at least one place is registered.• When searching from the <Destination> menu, results are always displayed using the 2D North up map view regardless of the current map view setting. (☞ page 16)EN_KW-NT500HDT_NT300[J].indb 22EN_KW-NT500HDT_NT300[J].indb 2212/7/2011 1:06:03 PM12/7/2011 1:06:03 PM

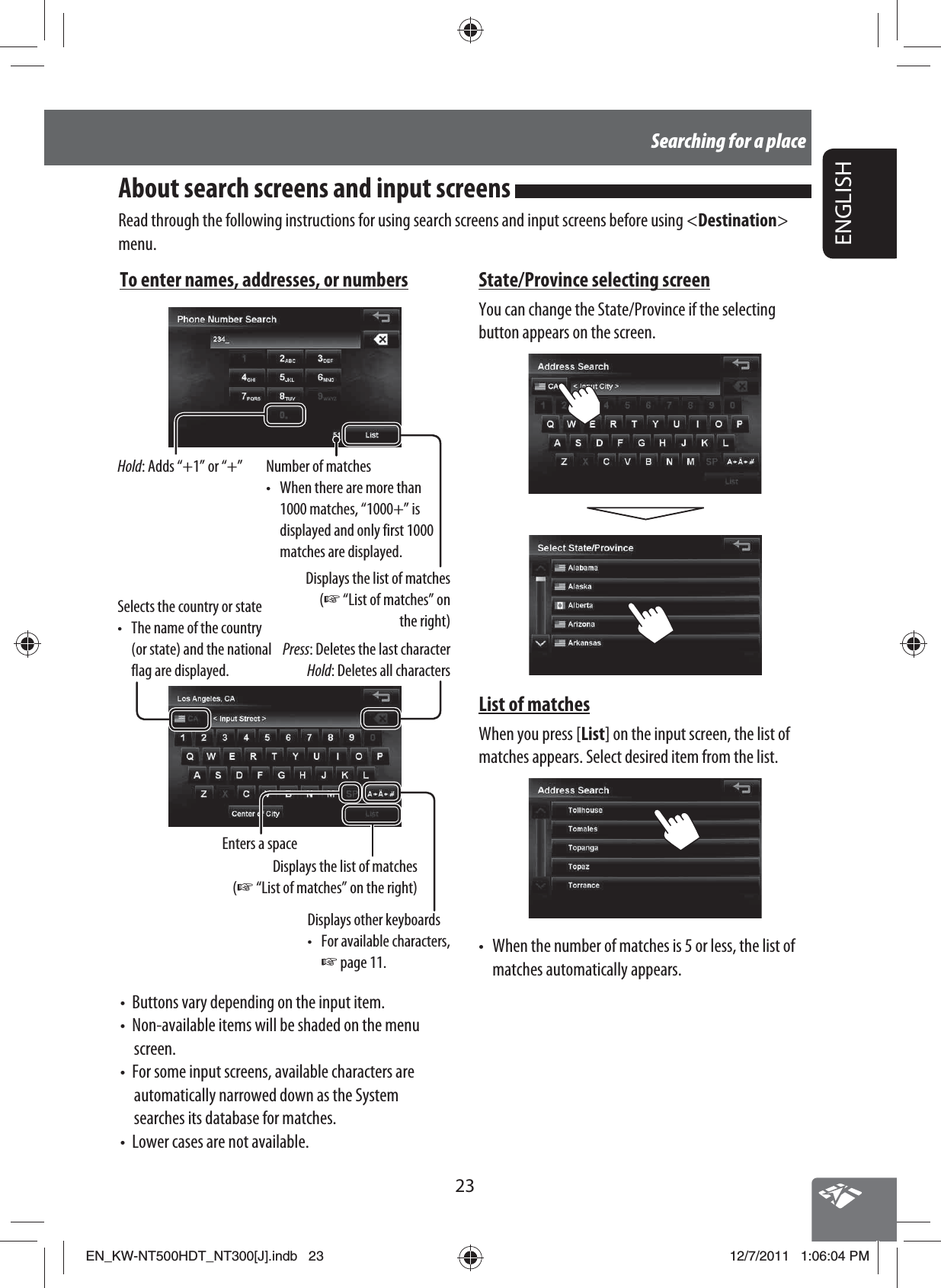

23ENGLISHSearching for a placeAbout search screens and input screens Read through the following instructions for using search screens and input screens before using <Destination> menu.State/Province selecting screenYou can change the State/Province if the selecting button appears on the screen.List of matchesWhen you press [List] on the input screen, the list of matches appears. Select desired item from the list.• When the number of matches is 5 or less, the list of matches automatically appears.To enter names, addresses, or numbersHold: Adds “+1” or “+” Number of matches• When there are more than 1000 matches, “1000+” is displayed and only first 1000 matches are displayed.Displays the list of matches (☞ “List of matches” on the right)Selects the country or state• The name of the country (or state) and the national flag are displayed.Press: Deletes the last characterHold: Deletes all charactersEnters a spaceDisplays the list of matches (☞ “List of matches” on the right)Displays other keyboards • For available characters, ☞ page 11.• Buttons vary depending on the input item.• Non-available items will be shaded on the menu screen.• For some input screens, available characters are automatically narrowed down as the System searches its database for matches.• Lower cases are not available.EN_KW-NT500HDT_NT300[J].indb 23EN_KW-NT500HDT_NT300[J].indb 2312/7/2011 1:06:04 PM12/7/2011 1:06:04 PM

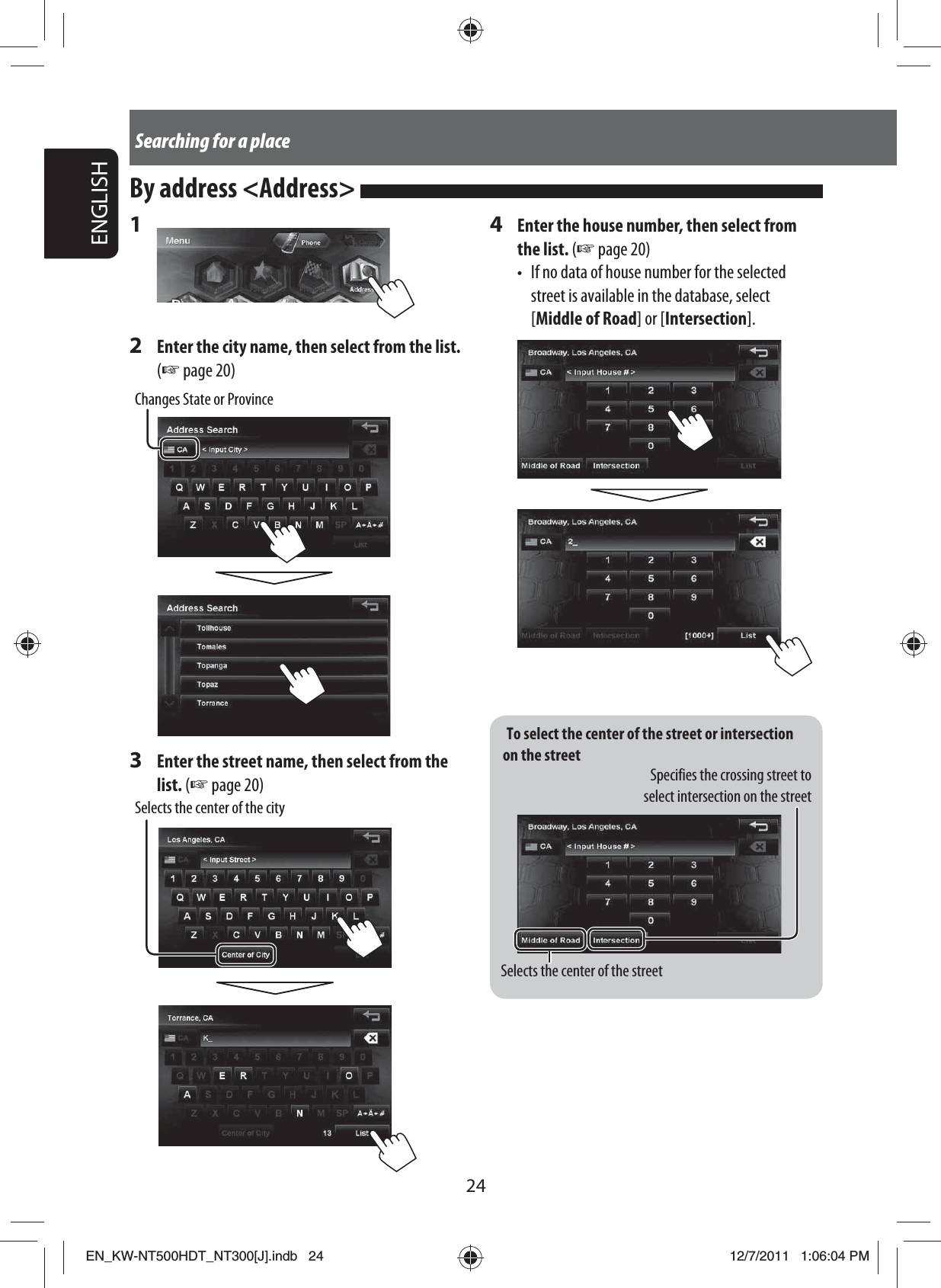

To select the center of the street or intersection on the streetSpecifies the crossing street to select intersection on the streetSelects the center of the street24ENGLISHSearching for a place1 2 Enter the city name, then select from the list. (☞ page 20)Changes State or Province3 Enter the street name, then select from the list. (☞ page 20)Selects the center of the cityBy address <Address> 4 Enter the house number, then select from the list. (☞ page 20)• If no data of house number for the selected street is available in the database, select [Middle of Road] or [Intersection].EN_KW-NT500HDT_NT300[J].indb 24EN_KW-NT500HDT_NT300[J].indb 2412/7/2011 1:06:04 PM12/7/2011 1:06:04 PM

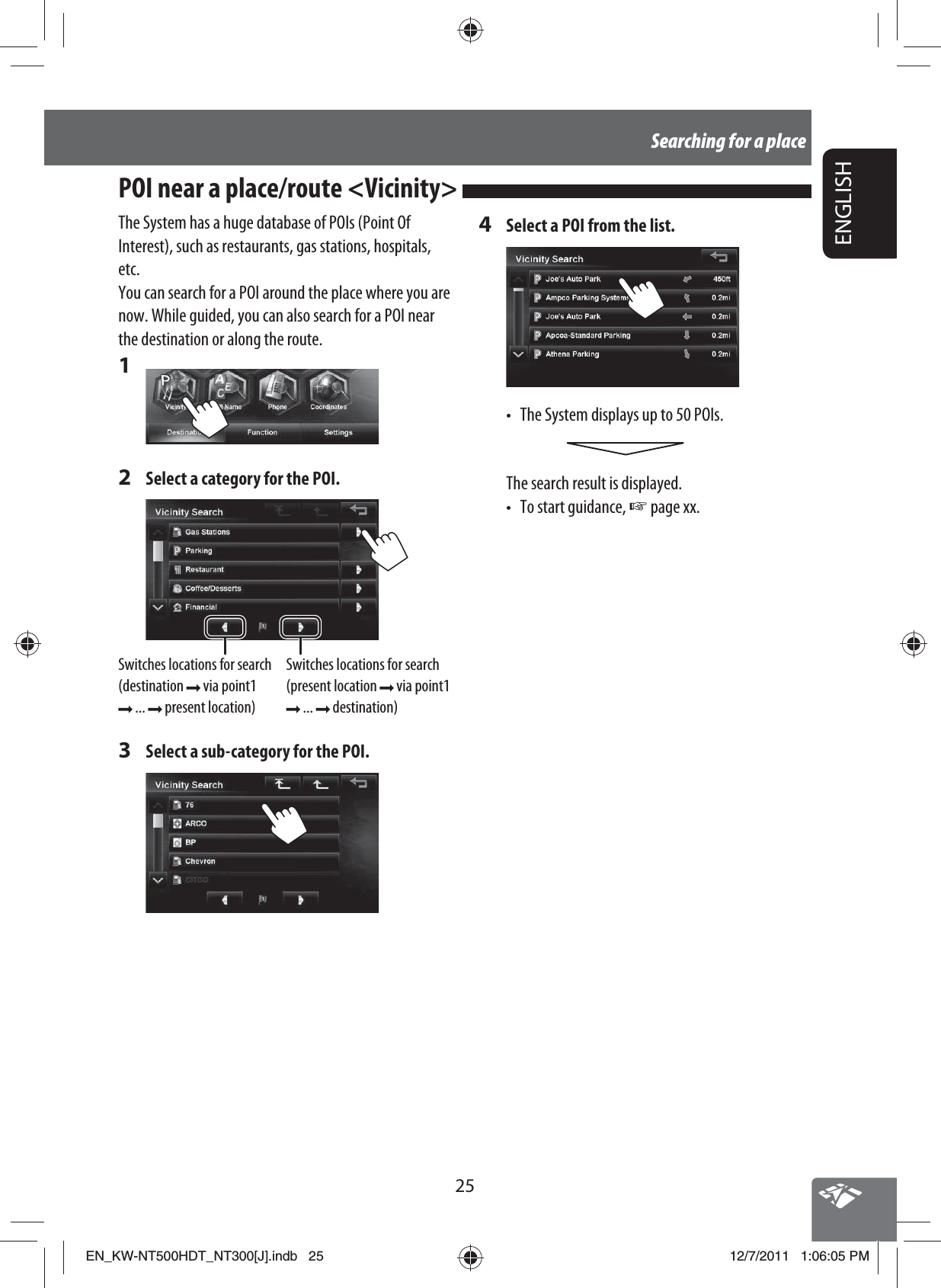

25ENGLISHSearching for a placeThe System has a huge database of POIs (Point Of Interest), such as restaurants, gas stations, hospitals, etc.You can search for a POI around the place where you are now. While guided, you can also search for a POI near the destination or along the route.1 2 Select a category for the POI.Switches locations for search (destination via point1 ... present location)Switches locations for search (present location via point1 ... destination)3 Select a sub-category for the POI.4 Select a POI from the list.• The System displays up to 50 POIs.The search result is displayed.• To start guidance, ☞ page xx.POI near a place/route <Vicinity> EN_KW-NT500HDT_NT300[J].indb 25EN_KW-NT500HDT_NT300[J].indb 2512/7/2011 1:06:05 PM12/7/2011 1:06:05 PM

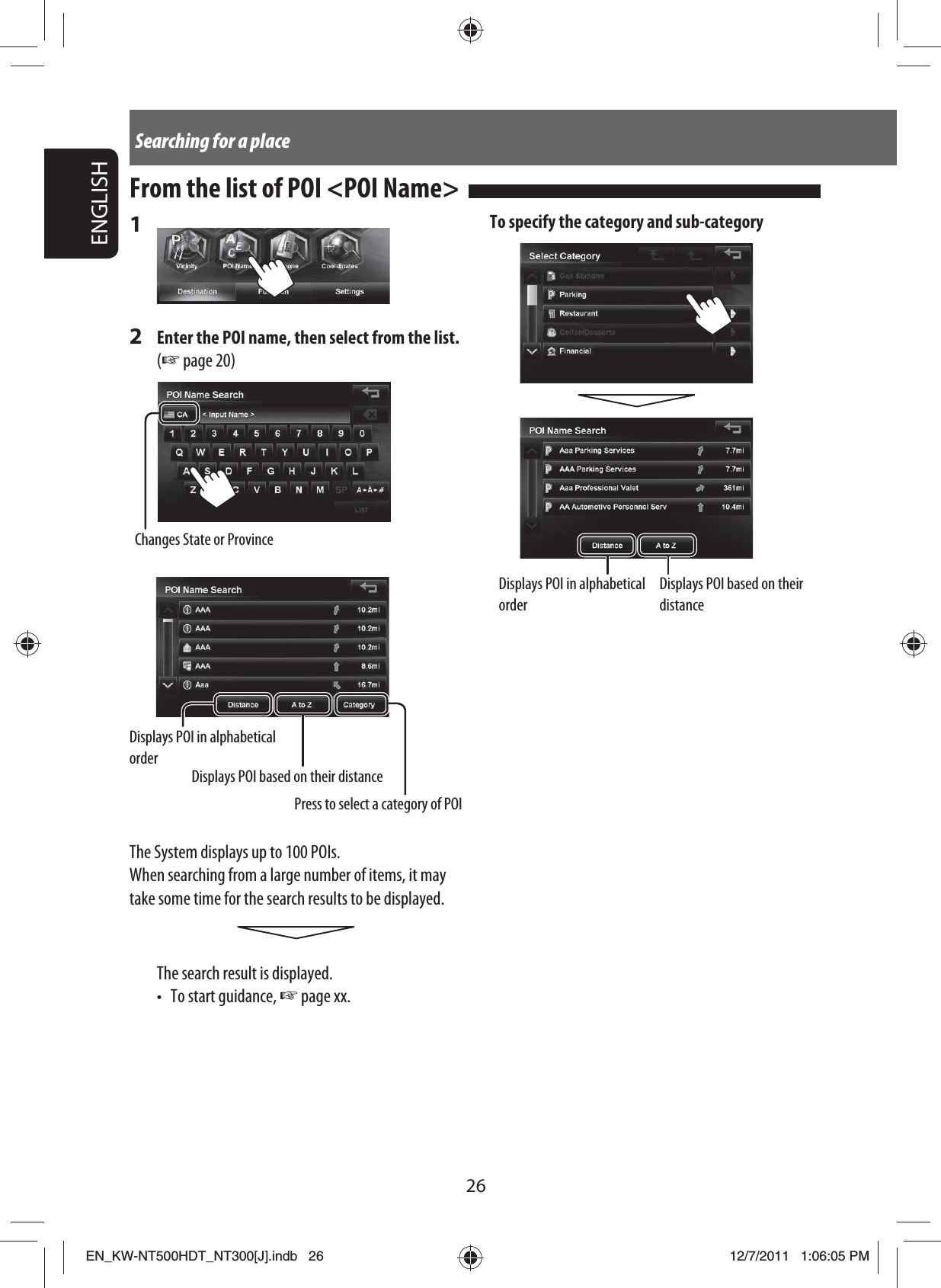

26ENGLISHSearching for a place1 2 Enter the POI name, then select from the list. (☞ page 20)Changes State or ProvinceDisplays POI in alphabetical orderDisplays POI based on their distancePress to select a category of POIThe System displays up to 100 POIs.When searching from a large number of items, it may take some time for the search results to be displayed.The search result is displayed.• To start guidance, ☞ page xx.From the list of POI <POI Name> To specify the category and sub-categoryDisplays POI in alphabetical orderDisplays POI based on their distanceEN_KW-NT500HDT_NT300[J].indb 26EN_KW-NT500HDT_NT300[J].indb 2612/7/2011 1:06:05 PM12/7/2011 1:06:05 PM

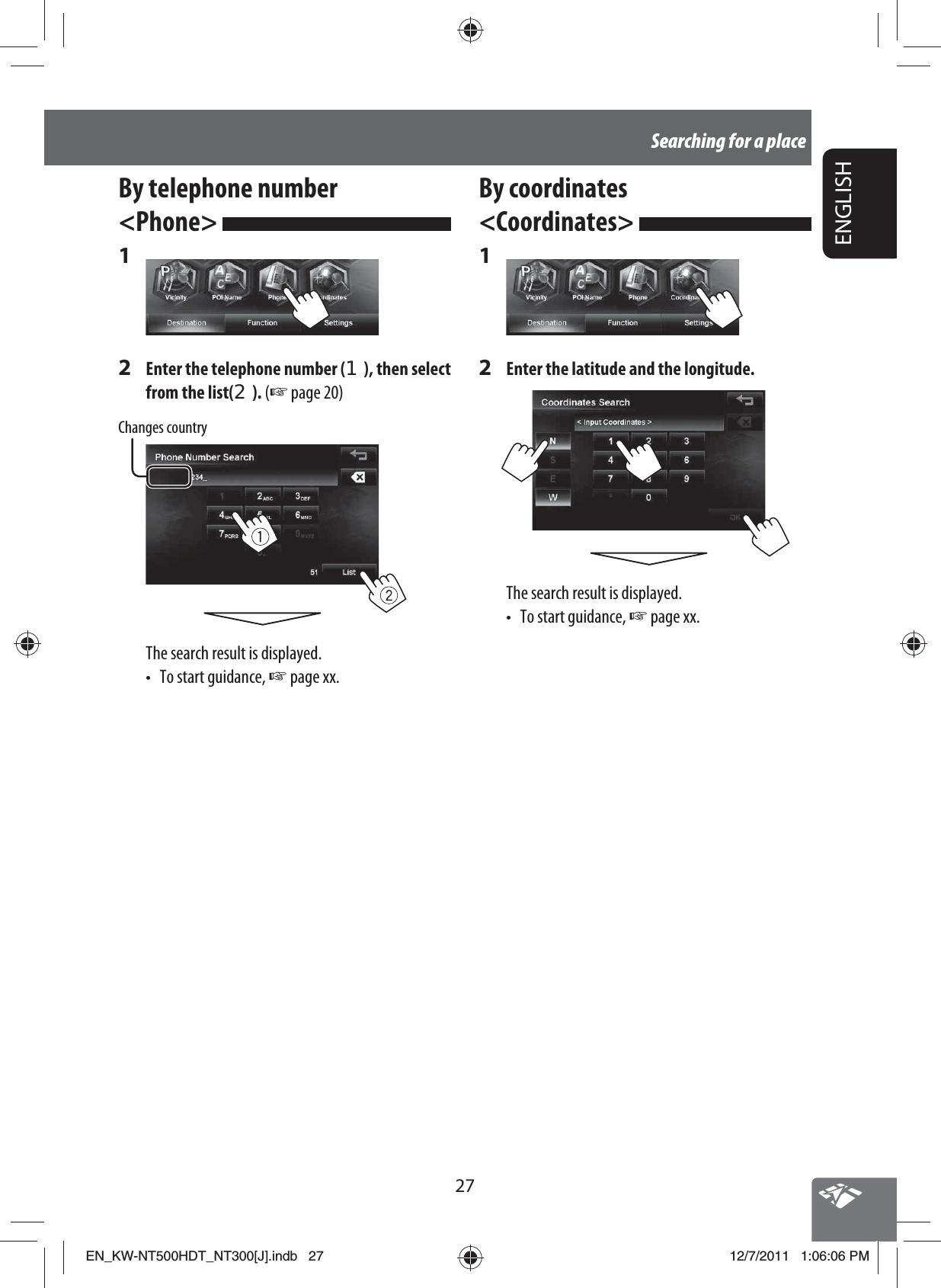

27ENGLISHSearching for a placeBy coordinates <Coordinates> 1 2 Enter the latitude and the longitude.The search result is displayed.• To start guidance, ☞ page xx.By telephone number <Phone> 1 2 Enter the telephone number (1), then select from the list(2). (☞ page 20)Changes countryThe search result is displayed.• To start guidance, ☞ page xx.EN_KW-NT500HDT_NT300[J].indb 27EN_KW-NT500HDT_NT300[J].indb 2712/7/2011 1:06:06 PM12/7/2011 1:06:06 PM

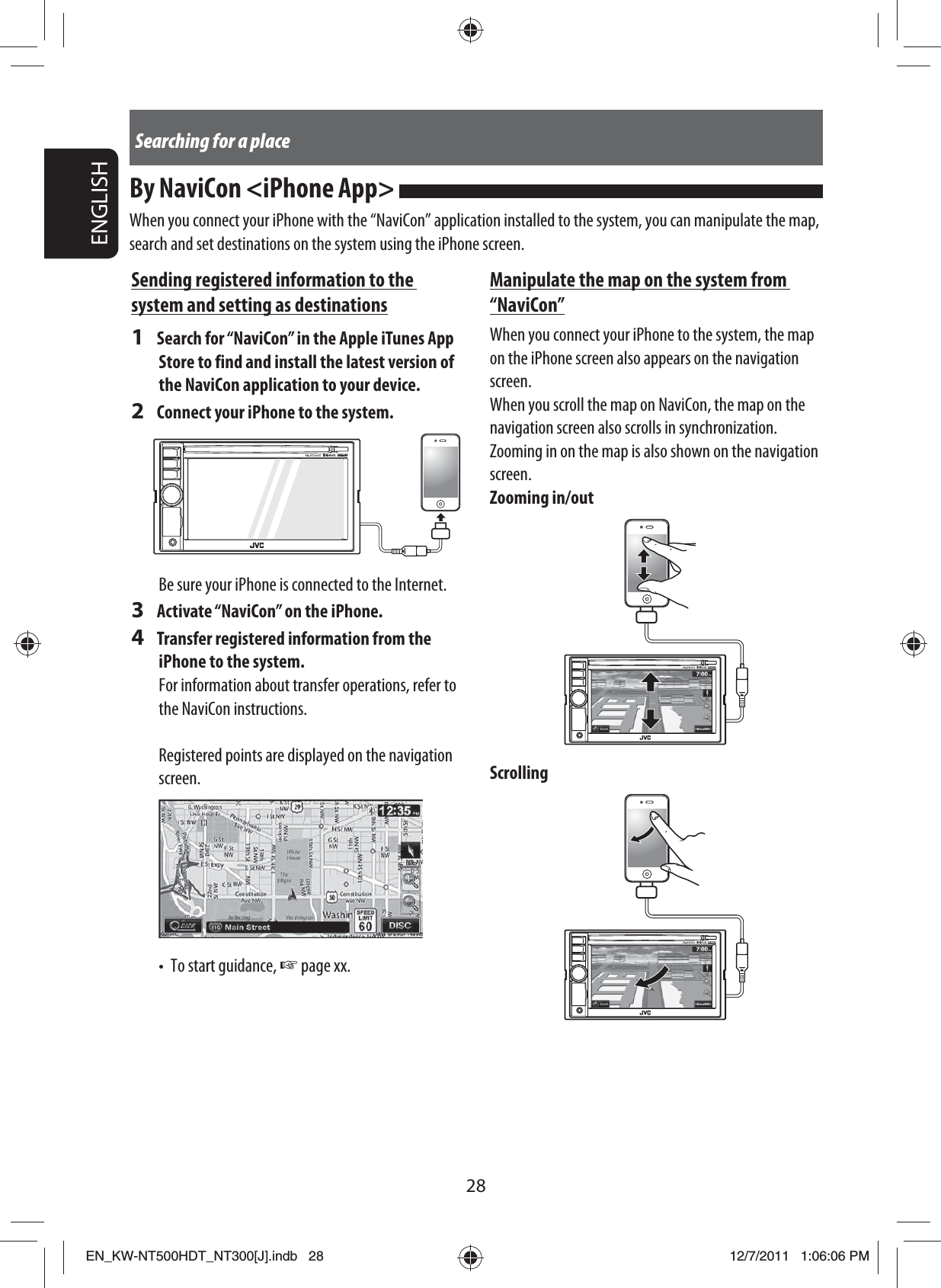

28ENGLISHSearching for a placeBy NaviCon <iPhone App> When you connect your iPhone with the “NaviCon” application installed to the system, you can manipulate the map, search and set destinations on the system using the iPhone screen.Manipulate the map on the system from “NaviCon”When you connect your iPhone to the system, the map on the iPhone screen also appears on the navigation screen.When you scroll the map on NaviCon, the map on the navigation screen also scrolls in synchronization.Zooming in on the map is also shown on the navigation screen.Zooming in/outScrollingSending registered information to the system and setting as destinations1 Search for “NaviCon” in the Apple iTunes App Store to find and install the latest version of the NaviCon application to your device.2 Connect your iPhone to the system.Be sure your iPhone is connected to the Internet.3 Activate “NaviCon” on the iPhone.4 Transfer registered information from the iPhone to the system.For information about transfer operations, refer to the NaviCon instructions.Registered points are displayed on the navigation screen.• To start guidance, ☞ page xx. EN_KW-NT500HDT_NT300[J].indb 28EN_KW-NT500HDT_NT300[J].indb 2812/7/2011 1:06:06 PM12/7/2011 1:06:06 PM

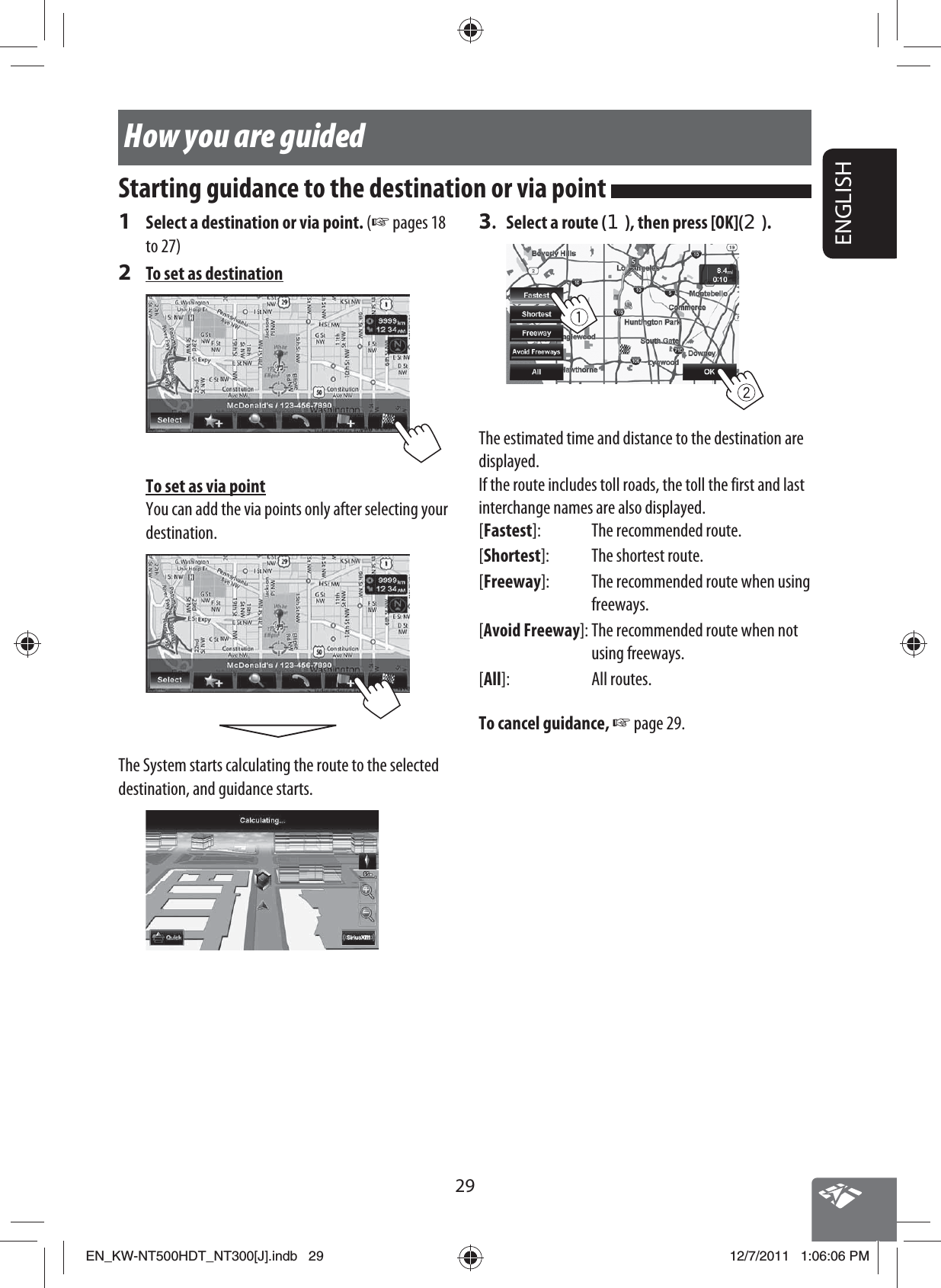

29ENGLISHHow you are guided1 Select a destination or via point. (☞ pages 18 to 27)2 To set as destinationTo set as via pointYou can add the via points only after selecting your destination.The System starts calculating the route to the selected destination, and guidance starts.3. Select a route (1), then press [OK](2).The estimated time and distance to the destination are displayed.If the route includes toll roads, the toll the first and last interchange names are also displayed.[Fastest]: The recommended route.[Shortest]: The shortest route.[Freeway]: The recommended route when using freeways.[Avoid Freeway]:The recommended route when not using freeways.[All]: All routes.To cancel guidance, ☞ page 29.Starting guidance to the destination or via point EN_KW-NT500HDT_NT300[J].indb 29EN_KW-NT500HDT_NT300[J].indb 2912/7/2011 1:06:06 PM12/7/2011 1:06:06 PM

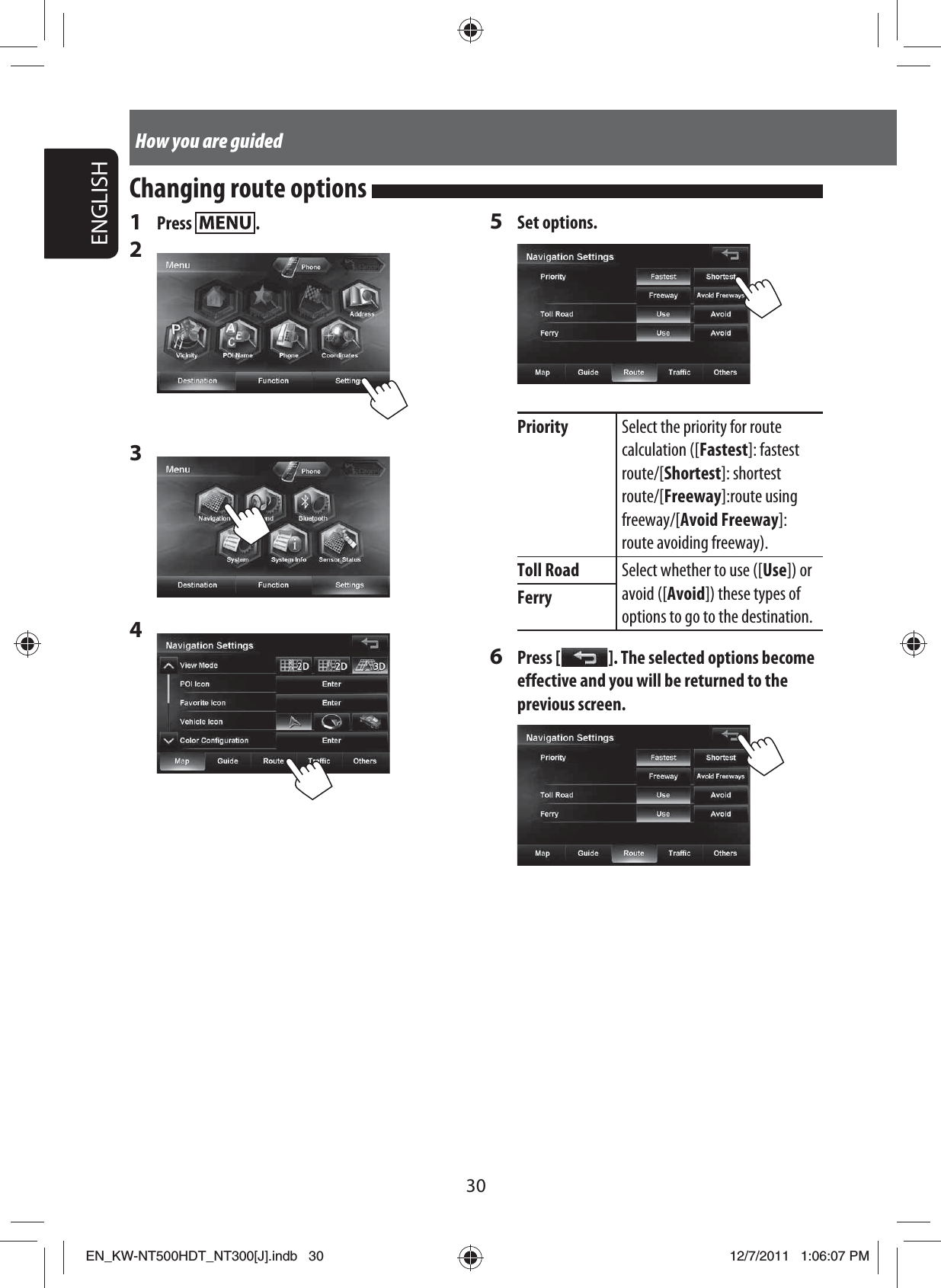

30ENGLISHHow you are guided1 Press .2 3 4 5 Set options.Priority Select the priority for route calculation ([Fastest]: fastest route/[Shortest]: shortest route/[Freeway]:route using freeway/[Avoid Freeway]:route avoiding freeway).Toll Road Select whether to use ([Use]) or avoid ([Avoid]) these types of options to go to the destination.Ferry6 Press [ ]. The selected options become effective and you will be returned to the previous screen.Changing route options EN_KW-NT500HDT_NT300[J].indb 30EN_KW-NT500HDT_NT300[J].indb 3012/7/2011 1:06:07 PM12/7/2011 1:06:07 PM

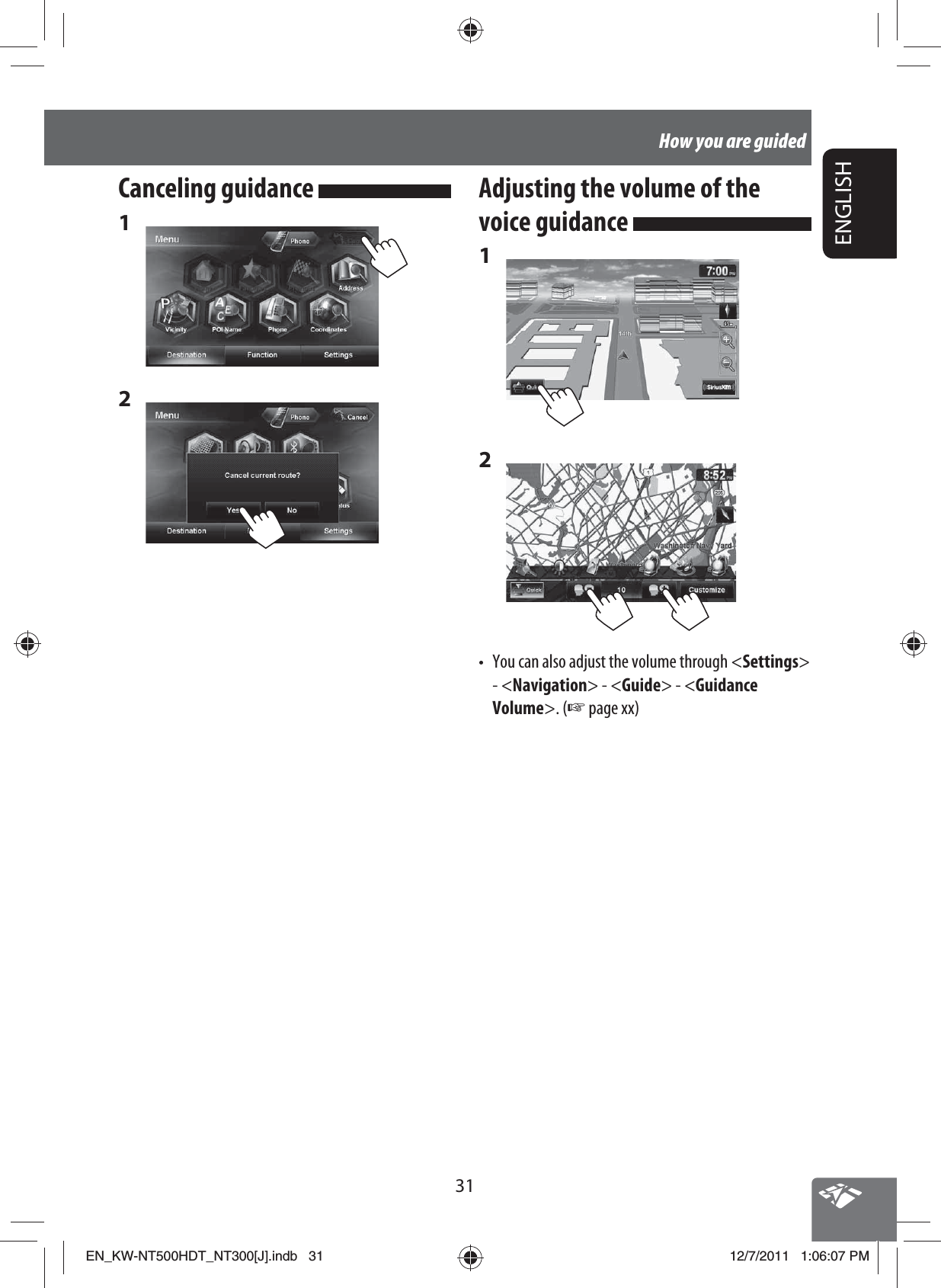

31ENGLISHHow you are guidedCanceling guidance 1 2 Adjusting the volume of the voice guidance 1 2 • You can also adjust the volume through <Settings> - <Navigation> - <Guide> - <Guidance Volume>. (☞ page xx)EN_KW-NT500HDT_NT300[J].indb 31EN_KW-NT500HDT_NT300[J].indb 3112/7/2011 1:06:07 PM12/7/2011 1:06:07 PM

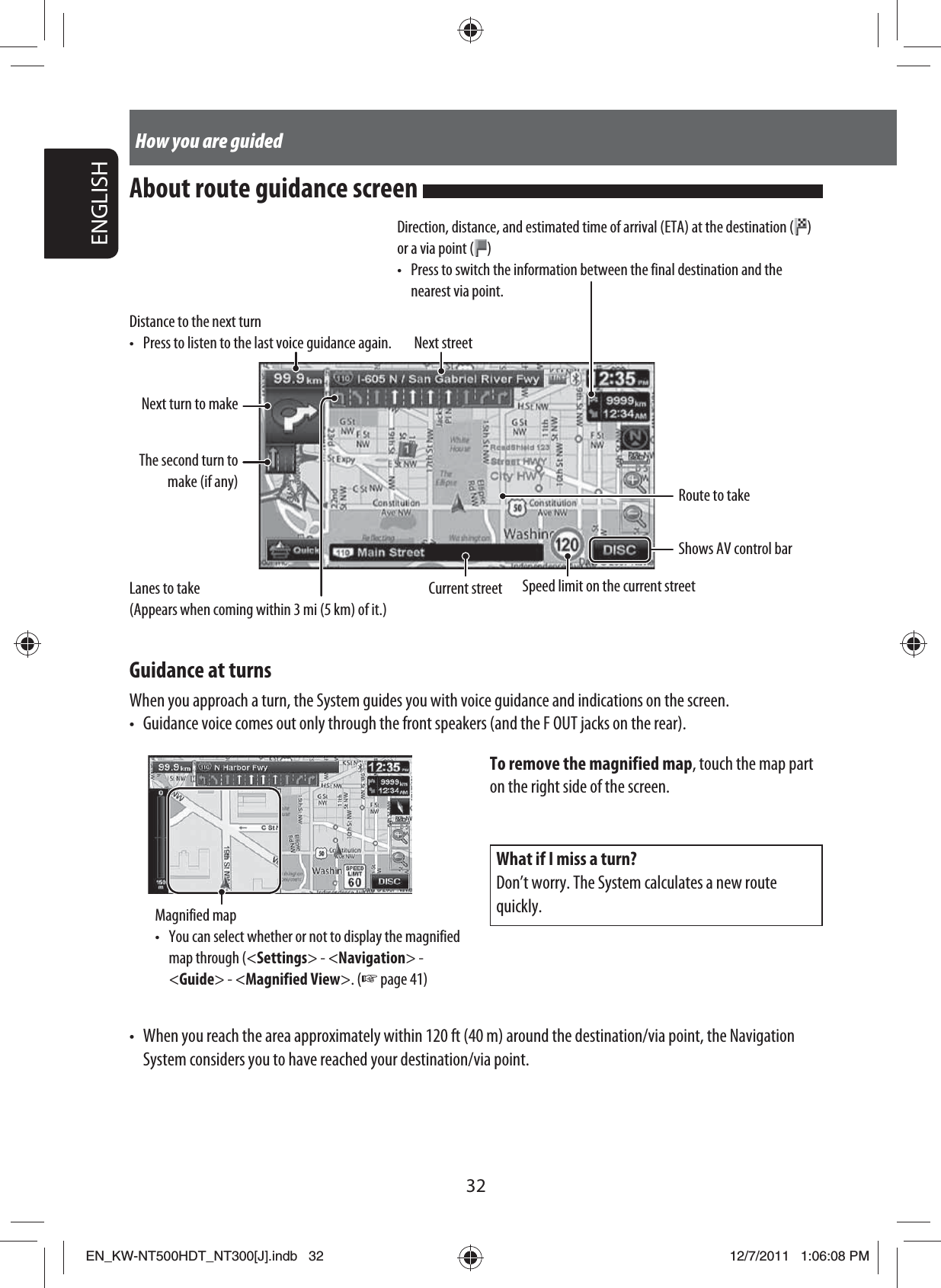

32ENGLISHHow you are guidedDistance to the next turn• Press to listen to the last voice guidance again. Next streetRoute to takeGuidance at turnsWhen you approach a turn, the System guides you with voice guidance and indications on the screen.• Guidance voice comes out only through the front speakers (and the F OUT jacks on the rear).Current streetNext turn to makeThe second turn to make (if any)Speed limit on the current streetWhat if I miss a turn?Don’t worry. The System calculates a new route quickly.Magnified map• You can select whether or not to display the magnified map through (<Settings> - <Navigation> - <Guide> - <Magnified View>. (☞ page 41)To remove the magnified map, touch the map part on the right side of the screen.• When you reach the area approximately within 120 ft (40 m) around the destination/via point, the Navigation System considers you to have reached your destination/via point.Shows AV control barAbout route guidance screen Lanes to take(Appears when coming within 3 mi (5 km) of it.)Direction, distance, and estimated time of arrival (ETA) at the destination ( ) or a via point ( )• Press to switch the information between the final destination and the nearest via point.EN_KW-NT500HDT_NT300[J].indb 32EN_KW-NT500HDT_NT300[J].indb 3212/7/2011 1:06:08 PM12/7/2011 1:06:08 PM

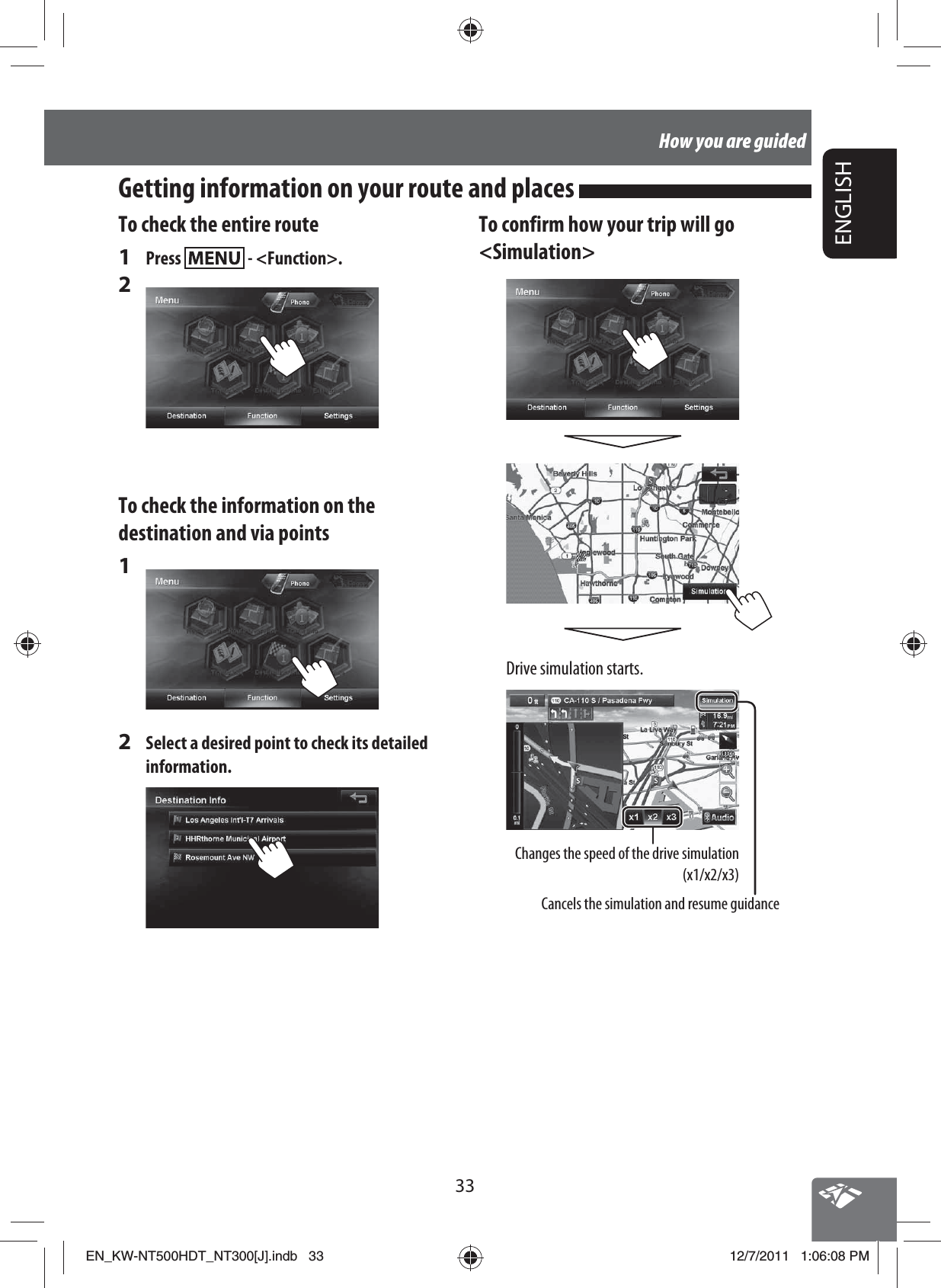

33ENGLISHHow you are guidedTo check the entire route1 Press - <Function>.2 To check the information on the destination and via points1 2 Select a desired point to check its detailed information.Getting information on your route and places To confirm how your trip will go <Simulation>Drive simulation starts.Changes the speed of the drive simulation (x1/x2/x3)Cancels the simulation and resume guidanceEN_KW-NT500HDT_NT300[J].indb 33EN_KW-NT500HDT_NT300[J].indb 3312/7/2011 1:06:08 PM12/7/2011 1:06:08 PM

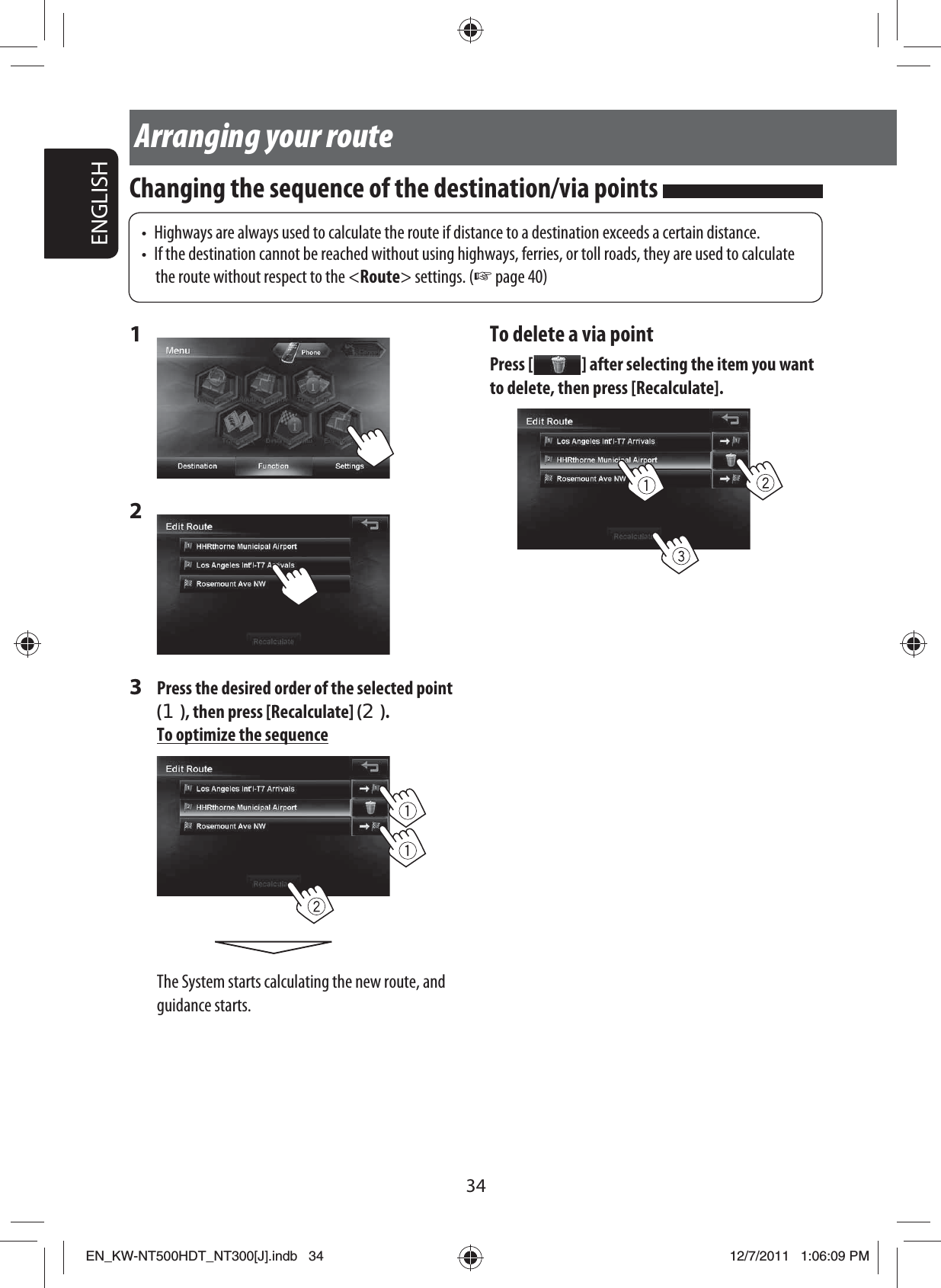

34ENGLISHArranging your route1 2 3 Press the desired order of the selected point (1), then press [Recalculate] (2).To optimize the sequenceThe System starts calculating the new route, and guidance starts.• Highways are always used to calculate the route if distance to a destination exceeds a certain distance.• If the destination cannot be reached without using highways, ferries, or toll roads, they are used to calculate the route without respect to the <Route> settings. (☞ page 40)To delete a via pointPress [ ] after selecting the item you want to delete, then press [Recalculate]. Changing the sequence of the destination/via points EN_KW-NT500HDT_NT300[J].indb 34EN_KW-NT500HDT_NT300[J].indb 3412/7/2011 1:06:09 PM12/7/2011 1:06:09 PM

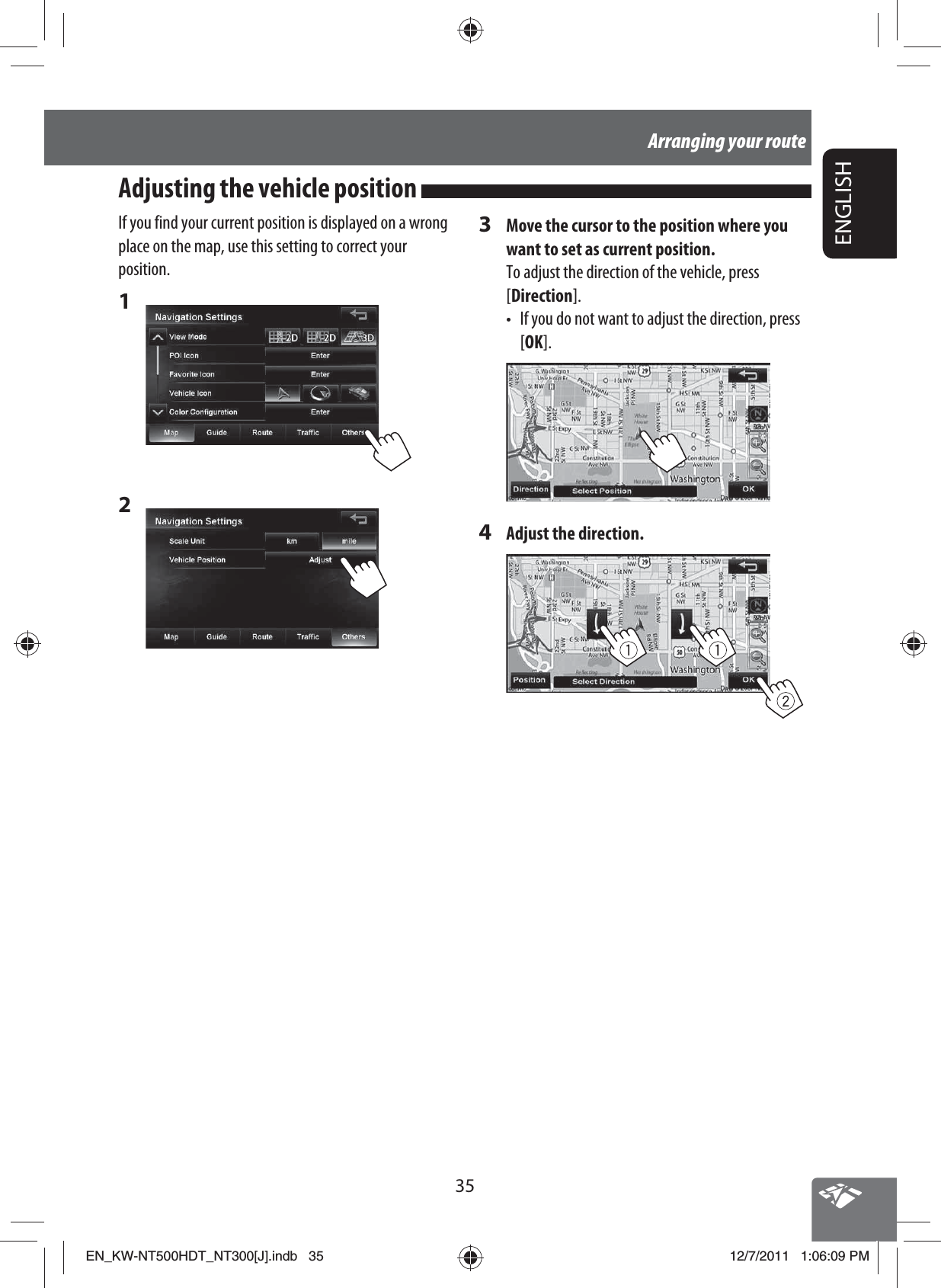

35ENGLISHArranging your routeIf you find your current position is displayed on a wrong place on the map, use this setting to correct your position.1 2 Adjusting the vehicle position 3 Move the cursor to the position where you want to set as current position.To adjust the direction of the vehicle, press [Direction].• If you do not want to adjust the direction, press [OK].4 Adjust the direction.EN_KW-NT500HDT_NT300[J].indb 35EN_KW-NT500HDT_NT300[J].indb 3512/7/2011 1:06:09 PM12/7/2011 1:06:09 PM

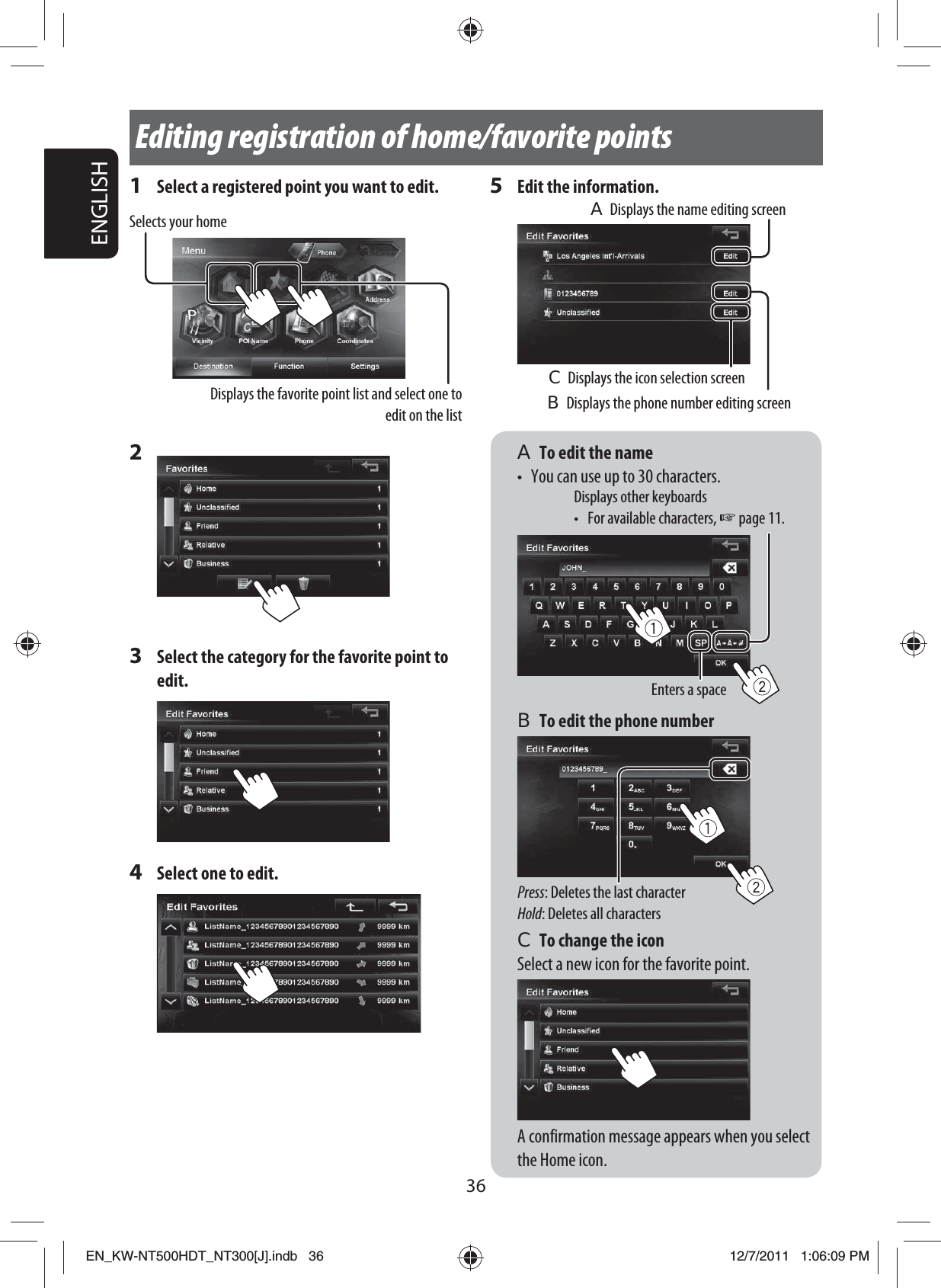

36ENGLISHEditing registration of home/favorite pointsA To edit the name• You can use up to 30 characters.Enters a spaceDisplays other keyboards • For available characters, ☞ page 11.B To edit the phone numberPress: Deletes the last characterHold: Deletes all charactersC To change the iconSelect a new icon for the favorite point.A confirmation message appears when you select the Home icon.1 Select a registered point you want to edit.Selects your homeDisplays the favorite point list and select one to edit on the list2 3 Select the category for the favorite point to edit.4 Select one to edit.5 Edit the information.B Displays the phone number editing screenA Displays the name editing screenC Displays the icon selection screenEN_KW-NT500HDT_NT300[J].indb 36EN_KW-NT500HDT_NT300[J].indb 3612/7/2011 1:06:09 PM12/7/2011 1:06:09 PM

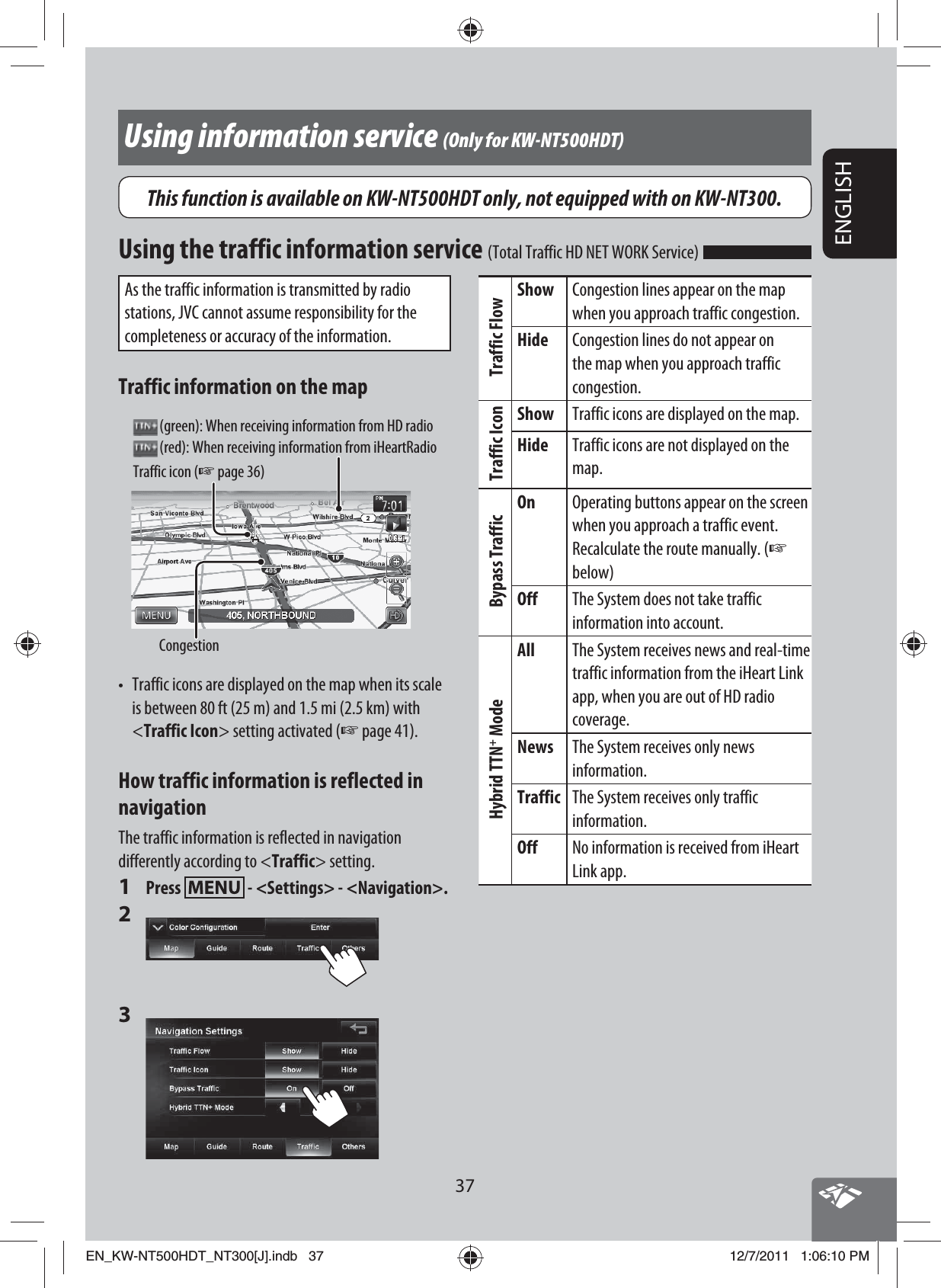

37ENGLISHAs the traffic information is transmitted by radio stations, JVC cannot assume responsibility for the completeness or accuracy of the information.Traffic information on the mapTraffic icon (☞ page 36)Congestion (green): When receiving information from HD radio (red): When receiving information from iHeartRadio• Traffic icons are displayed on the map when its scale is between 80 ft (25 m) and 1.5 mi (2.5 km) with <Traffic Icon> setting activated (☞ page 41).How traffic information is reflected in navigationThe traffic information is reflected in navigation differently according to <Traffic> setting.1 Press - <Settings> - <Navigation>.2 3 Using information service (Only for KW-NT500HDT)Traffic FlowShow Congestion lines appear on the map when you approach traffic congestion.Hide Congestion lines do not appear on the map when you approach traffic congestion.Traffic IconShow Traffic icons are displayed on the map.Hide Traffic icons are not displayed on the map.Bypass TrafficOn Operating buttons appear on the screen when you approach a traffic event. Recalculate the route manually. (☞ below)Off The System does not take traffic information into account.Hybrid TTN+ ModeAll The System receives news and real-time traffic information from the iHeart Link app, when you are out of HD radio coverage.News The System receives only news information.Traffic The System receives only traffic information.Off No information is received from iHeart Link app.Using the traffic information service (Total Traffic HD NET WORK Service) This function is available on KW-NT500HDT only, not equipped with on KW-NT300.EN_KW-NT500HDT_NT300[J].indb 37EN_KW-NT500HDT_NT300[J].indb 3712/7/2011 1:06:10 PM12/7/2011 1:06:10 PM

38ENGLISHUsing information service (Only for KW-NT500HDT)On the map1 Touch the traffic icon.2 • If there are several POIs on the selected position, select one from the list. – The list appears only when <POI Icon> is set to [On]. (☞ page 15) Checking the traffic informationFrom <Traffic List>1 2 Select a list (1), then a traffic alert (2).The icons of traffic alert which are not on your route are shown in gray when all the information is displayed.[All]: Lists all the information.[On Route]: Lists the information on your route.Details of the selected alert are displayed. List of traffic iconsTraffic jam Narrow lanes Other caution eventRoadworks Accident InformationRoad is blocked or closed ConditionThis function is available on KW-NT500HDT only, not equipped with on KW-NT300.EN_KW-NT500HDT_NT300[J].indb 38EN_KW-NT500HDT_NT300[J].indb 3812/7/2011 1:06:11 PM12/7/2011 1:06:11 PM

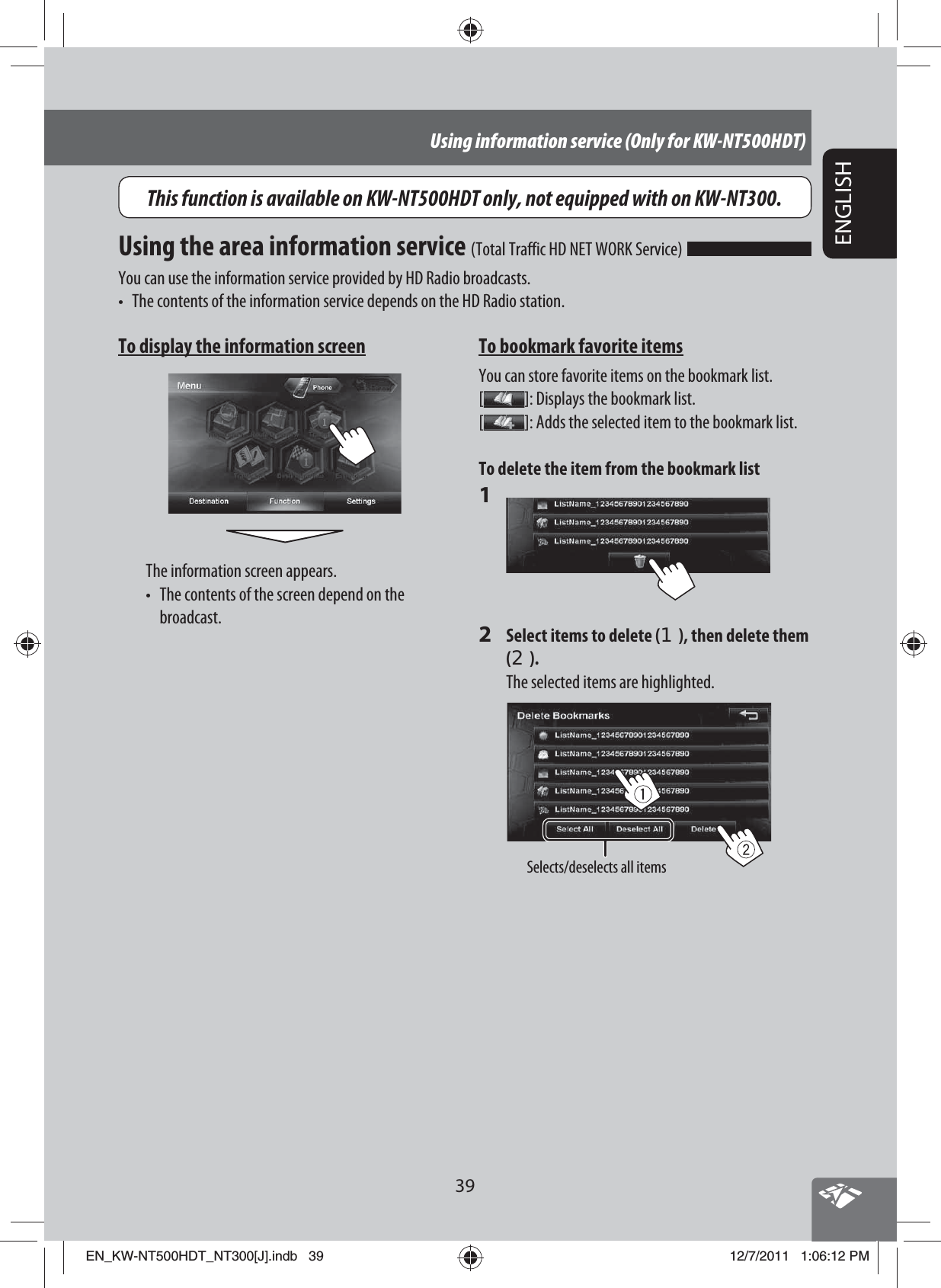

39ENGLISHUsing information service (Only for KW-NT500HDT)To display the information screenThe information screen appears.• The contents of the screen depend on the broadcast.Using the area information service (Total Traffic HD NET WORK Service) You can use the information service provided by HD Radio broadcasts.• The contents of the information service depends on the HD Radio station.To bookmark favorite itemsYou can store favorite items on the bookmark list.[]: Displays the bookmark list.[]: Adds the selected item to the bookmark list.To delete the item from the bookmark list1 2 Select items to delete (1), then delete them (2).The selected items are highlighted.Selects/deselects all itemsThis function is available on KW-NT500HDT only, not equipped with on KW-NT300.EN_KW-NT500HDT_NT300[J].indb 39EN_KW-NT500HDT_NT300[J].indb 3912/7/2011 1:06:12 PM12/7/2011 1:06:12 PM

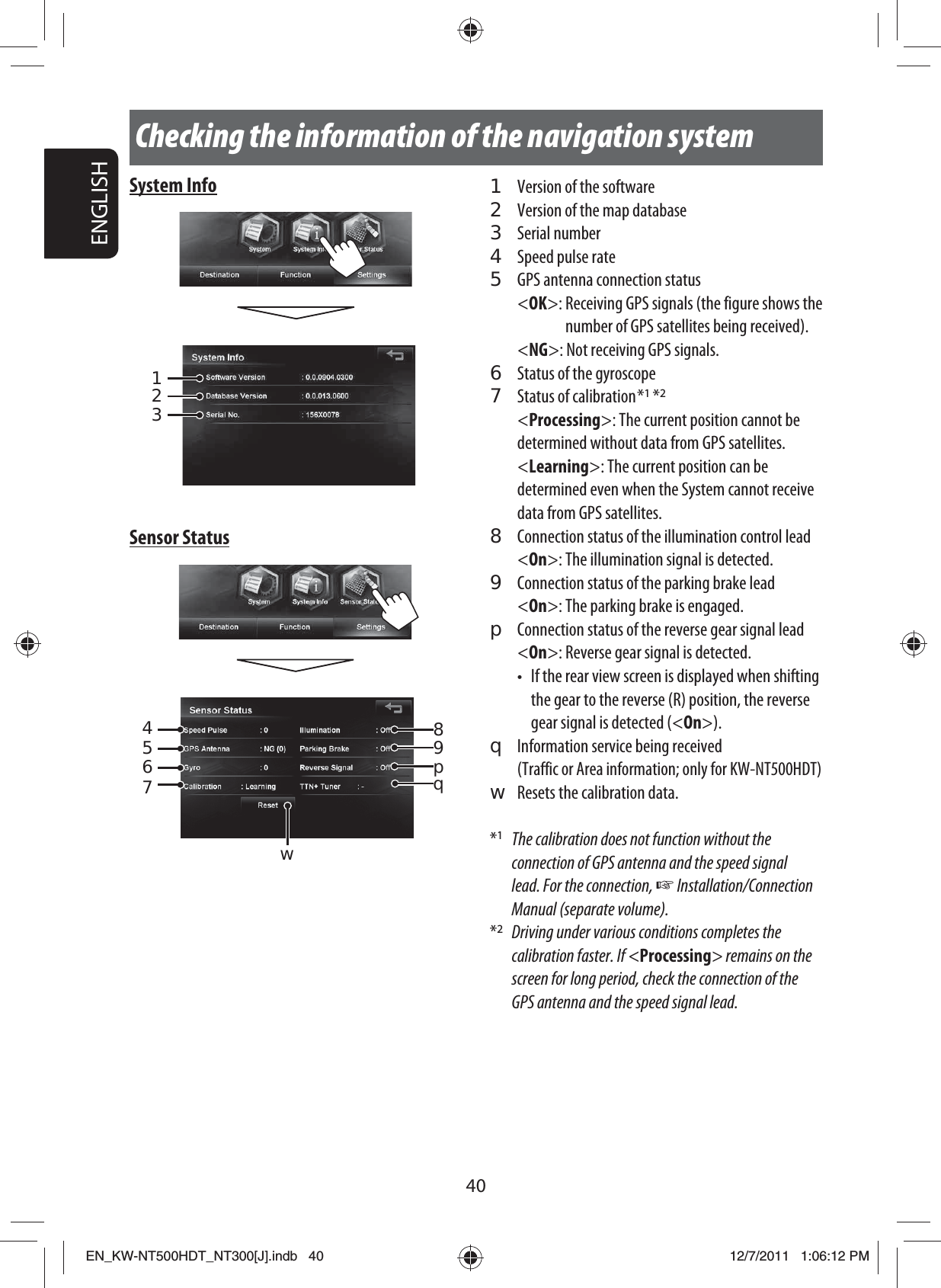

40ENGLISHChecking the information of the navigation system1 Version of the software2 Version of the map database3 Serial number4 Speed pulse rate5 GPS antenna connection status<OK>: Receiving GPS signals (the figure shows the number of GPS satellites being received).<NG>: Not receiving GPS signals.6 Status of the gyroscope7 Status of calibration *1 *2<Processing>: The current position cannot be determined without data from GPS satellites.<Learning>: The current position can be determined even when the System cannot receive data from GPS satellites.8 Connection status of the illumination control lead<On>: The illumination signal is detected.9 Connection status of the parking brake lead<On>: The parking brake is engaged.p Connection status of the reverse gear signal lead<On>: Reverse gear signal is detected.• If the rear view screen is displayed when shifting the gear to the reverse (R) position, the reverse gear signal is detected (<On>).q Information service being received (Traffic or Area information; only for KW-NT500HDT)w Resets the calibration data.*1 The calibration does not function without the connection of GPS antenna and the speed signal lead. For the connection, ☞ Installation/Connection Manual (separate volume).*2 Driving under various conditions completes the calibration faster. If <Processing> remains on the screen for long period, check the connection of the GPS antenna and the speed signal lead.System Info123Sensor Status845679pwqEN_KW-NT500HDT_NT300[J].indb 40EN_KW-NT500HDT_NT300[J].indb 4012/7/2011 1:06:12 PM12/7/2011 1:06:12 PM

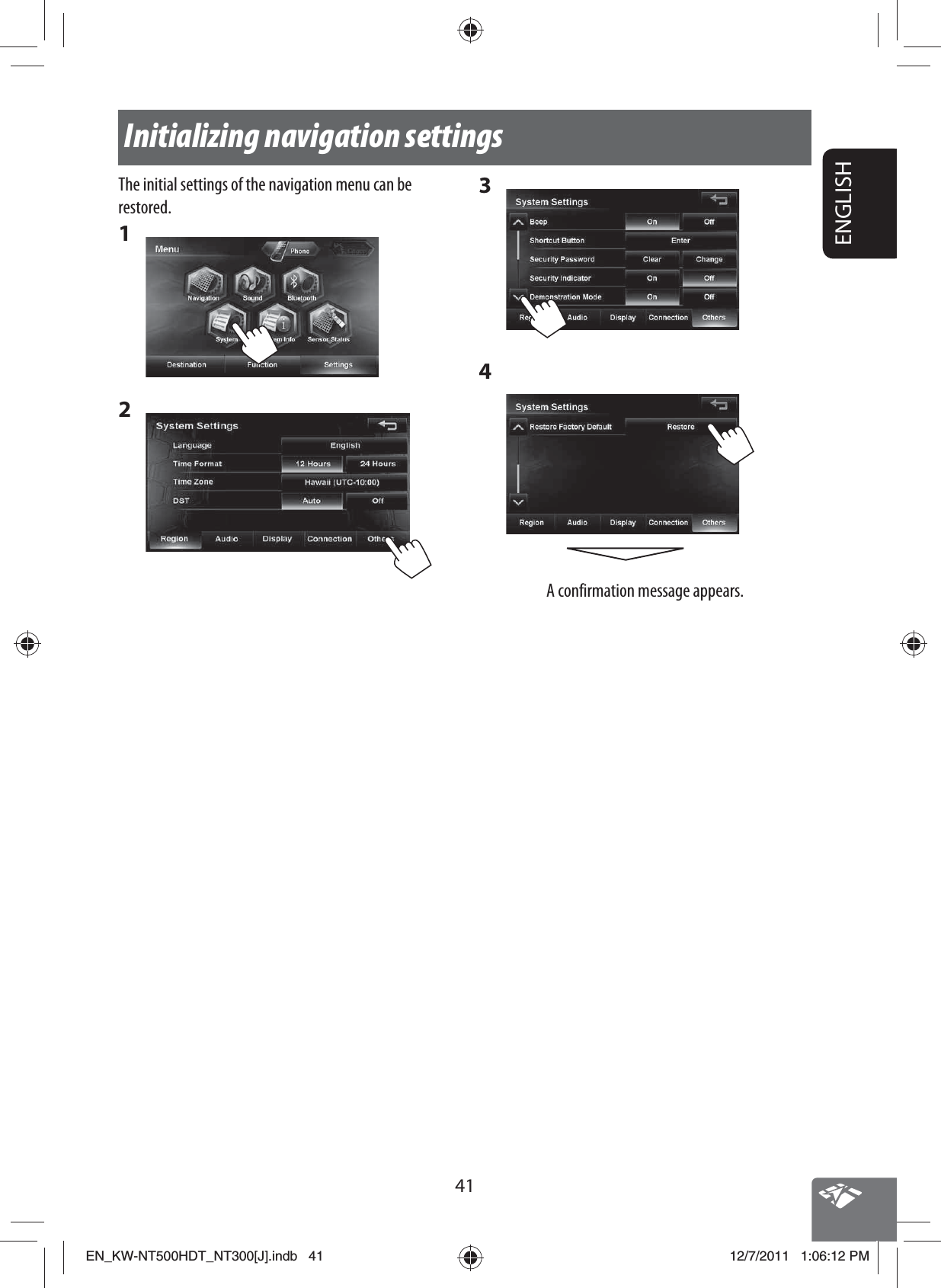

41ENGLISHInitializing navigation settingsThe initial settings of the navigation menu can be restored.1 2 3 4 A confirmation message appears.EN_KW-NT500HDT_NT300[J].indb 41EN_KW-NT500HDT_NT300[J].indb 4112/7/2011 1:06:12 PM12/7/2011 1:06:12 PM

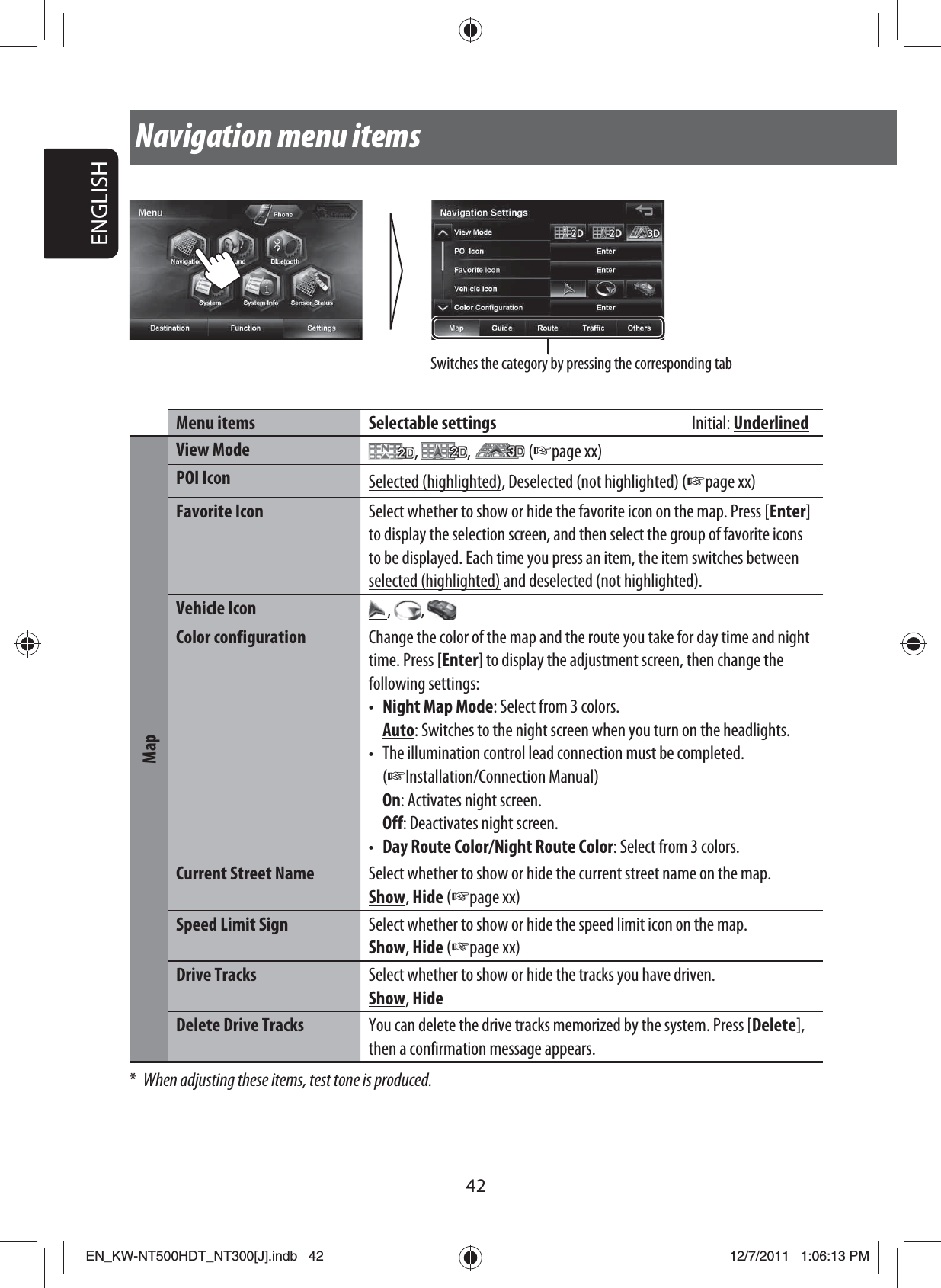

42ENGLISHSwitches the category by pressing the corresponding tabMenu items Selectable settings Initial: UnderlinedMapView Mode , , (☞page xx) POI Icon Selected (highlighted), Deselected (not highlighted) (☞page xx)Favorite Icon Select whether to show or hide the favorite icon on the map. Press [Enter] to display the selection screen, and then select the group of favorite icons to be displayed. Each time you press an item, the item switches between selected (highlighted) and deselected (not highlighted).Vehicle Icon , , Color configuration Change the color of the map and the route you take for day time and night time. Press [Enter] to display the adjustment screen, then change the following settings:• Night Map Mode: Select from 3 colors. Auto: Switches to the night screen when you turn on the headlights.• The illumination control lead connection must be completed. (☞Installation/Connection Manual) On: Activates night screen. Off: Deactivates night screen.• Day Route Color/Night Route Color: Select from 3 colors.Current Street Name Select whether to show or hide the current street name on the map.Show, Hide (☞page xx)Speed Limit Sign Select whether to show or hide the speed limit icon on the map.Show, Hide (☞page xx)Drive Tracks Select whether to show or hide the tracks you have driven.Show, HideDelete Drive Tracks You can delete the drive tracks memorized by the system. Press [Delete], then a confirmation message appears.* When adjusting these items, test tone is produced.Navigation menu itemsEN_KW-NT500HDT_NT300[J].indb 42EN_KW-NT500HDT_NT300[J].indb 4212/7/2011 1:06:13 PM12/7/2011 1:06:13 PM

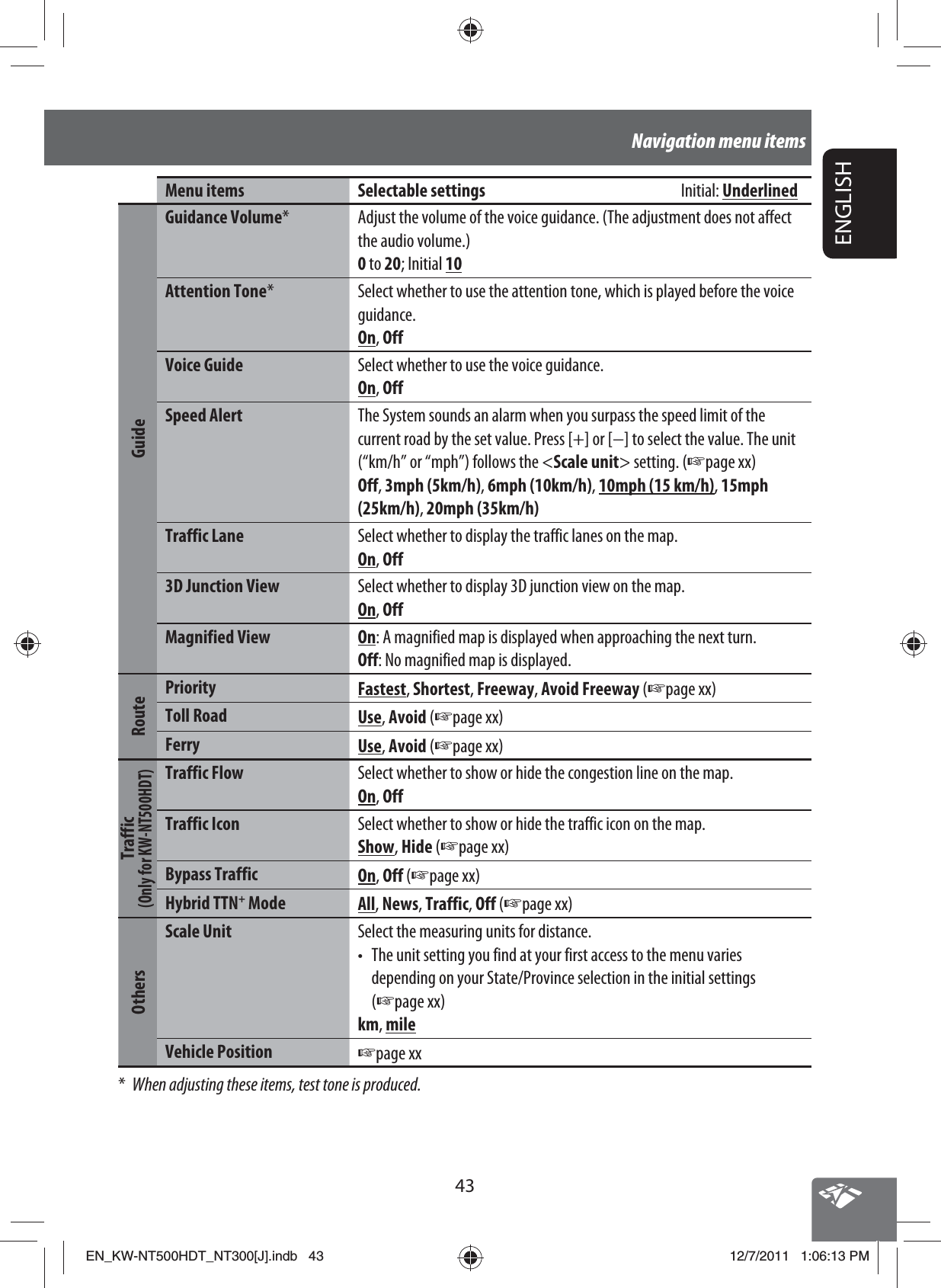

43ENGLISHNavigation menu items Menu items Selectable settings Initial: UnderlinedGuideGuidance Volume* Adjust the volume of the voice guidance. (The adjustment does not affect the audio volume.)0 to 20; Initial 10Attention Tone* Select whether to use the attention tone, which is played before the voice guidance.On, OffVoice Guide Select whether to use the voice guidance.On, OffSpeed Alert The System sounds an alarm when you surpass the speed limit of the current road by the set value. Press [+] or [−] to select the value. The unit (“km/h” or “mph”) follows the <Scale unit> setting. (☞page xx)Off, 3mph (5km/h), 6mph (10km/h), 10mph (15 km/h), 15mph (25km/h), 20mph (35km/h)Traffic Lane Select whether to display the traffic lanes on the map.On, Off3D Junction View Select whether to display 3D junction view on the map.On, OffMagnified View On: A magnified map is displayed when approaching the next turn.Off: No magnified map is displayed.RoutePriority Fastest, Shortest, Freeway, Avoid Freeway (☞page xx)Toll Road Use, Avoid (☞page xx)Ferry Use, Avoid (☞page xx)Traffic(Only for KW-NT500HDT)Traffic Flow Select whether to show or hide the congestion line on the map.On, OffTraffic Icon Select whether to show or hide the traffic icon on the map.Show, Hide (☞page xx)Bypass Traffic On, Off (☞page xx)Hybrid TTN+ Mode All, News, Traffic, Off (☞page xx)OthersScale Unit Select the measuring units for distance.• The unit setting you find at your first access to the menu varies depending on your State/Province selection in the initial settings (☞page xx)km, mileVehicle Position ☞page xx* When adjusting these items, test tone is produced.EN_KW-NT500HDT_NT300[J].indb 43EN_KW-NT500HDT_NT300[J].indb 4312/7/2011 1:06:13 PM12/7/2011 1:06:13 PM

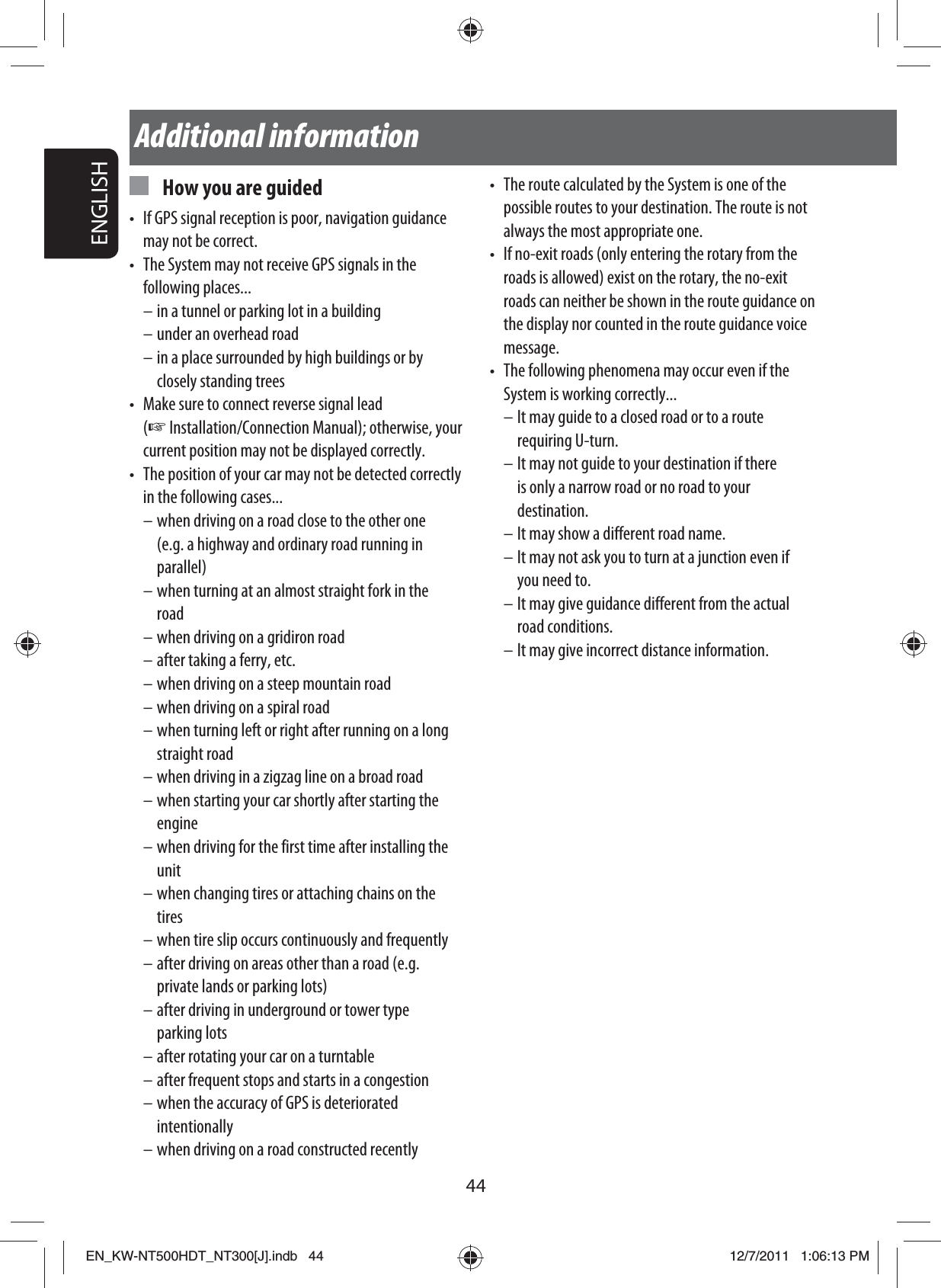

44ENGLISH• The route calculated by the System is one of the possible routes to your destination. The route is not always the most appropriate one.• If no-exit roads (only entering the rotary from the roads is allowed) exist on the rotary, the no-exit roads can neither be shown in the route guidance on the display nor counted in the route guidance voice message.• The following phenomena may occur even if the System is working correctly...– It may guide to a closed road or to a route requiring U-turn.– It may not guide to your destination if there is only a narrow road or no road to your destination.– It may show a different road name.– It may not ask you to turn at a junction even if you need to.– It may give guidance different from the actual road conditions.– It may give incorrect distance information.Additional information How you are guided• If GPS signal reception is poor, navigation guidance may not be correct.• The System may not receive GPS signals in the following places...– in a tunnel or parking lot in a building– under an overhead road– in a place surrounded by high buildings or by closely standing trees• Make sure to connect reverse signal lead (☞ Installation/Connection Manual); otherwise, your current position may not be displayed correctly.• The position of your car may not be detected correctly in the following cases...– when driving on a road close to the other one (e.g. a highway and ordinary road running in parallel)– when turning at an almost straight fork in the road– when driving on a gridiron road– after taking a ferry, etc.– when driving on a steep mountain road– when driving on a spiral road– when turning left or right after running on a long straight road– when driving in a zigzag line on a broad road– when starting your car shortly after starting the engine– when driving for the first time after installing the unit– when changing tires or attaching chains on the tires– when tire slip occurs continuously and frequently– after driving on areas other than a road (e.g. private lands or parking lots)– after driving in underground or tower type parking lots– after rotating your car on a turntable– after frequent stops and starts in a congestion– when the accuracy of GPS is deteriorated intentionally– when driving on a road constructed recentlyEN_KW-NT500HDT_NT300[J].indb 44EN_KW-NT500HDT_NT300[J].indb 4412/7/2011 1:06:13 PM12/7/2011 1:06:13 PM

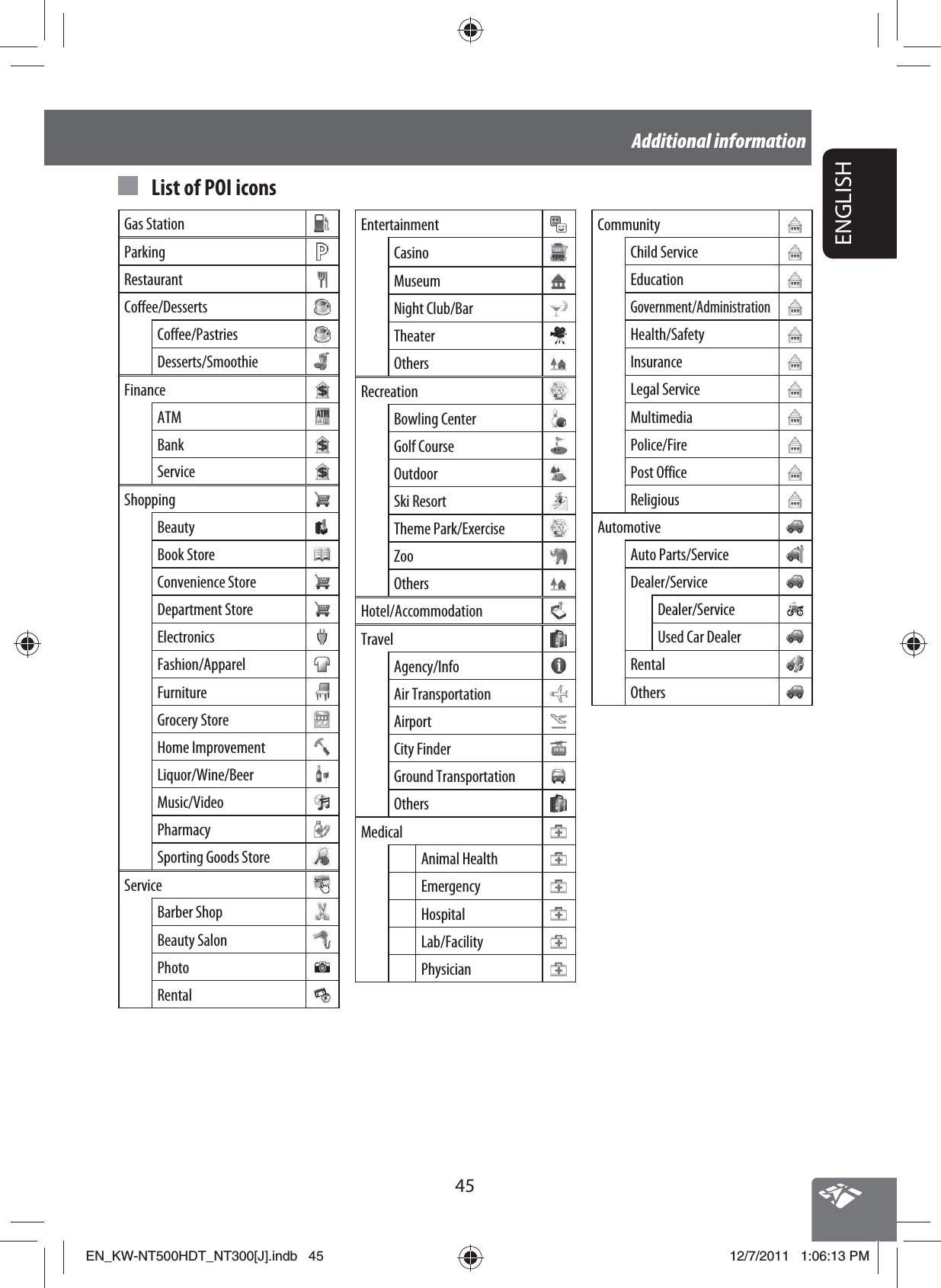

45ENGLISHAdditional information List of POI iconsEntertainmentCasinoMuseumNight Club/BarTheaterOthersRecreationBowling CenterGolf CourseOutdoorSki ResortTheme Park/ExerciseZooOthersHotel/AccommodationTravelAgency/InfoAir TransportationAirportCity FinderGround TransportationOthersMedicalAnimal HealthEmergencyHospitalLab/FacilityPhysicianGas StationParkingRestaurantCoffee/DessertsCoffee/PastriesDesserts/SmoothieFinanceATMBankServiceShoppingBeautyBook StoreConvenience StoreDepartment StoreElectronicsFashion/ApparelFurnitureGrocery StoreHome ImprovementLiquor/Wine/BeerMusic/VideoPharmacySporting Goods StoreServiceBarber ShopBeauty SalonPhotoRentalCommunityChild ServiceEducationGovernment/AdministrationHealth/SafetyInsuranceLegal ServiceMultimediaPolice/FirePost OfficeReligiousAutomotiveAuto Parts/ServiceDealer/ServiceDealer/ServiceUsed Car DealerRentalOthersEN_KW-NT500HDT_NT300[J].indb 45EN_KW-NT500HDT_NT300[J].indb 4512/7/2011 1:06:13 PM12/7/2011 1:06:13 PM

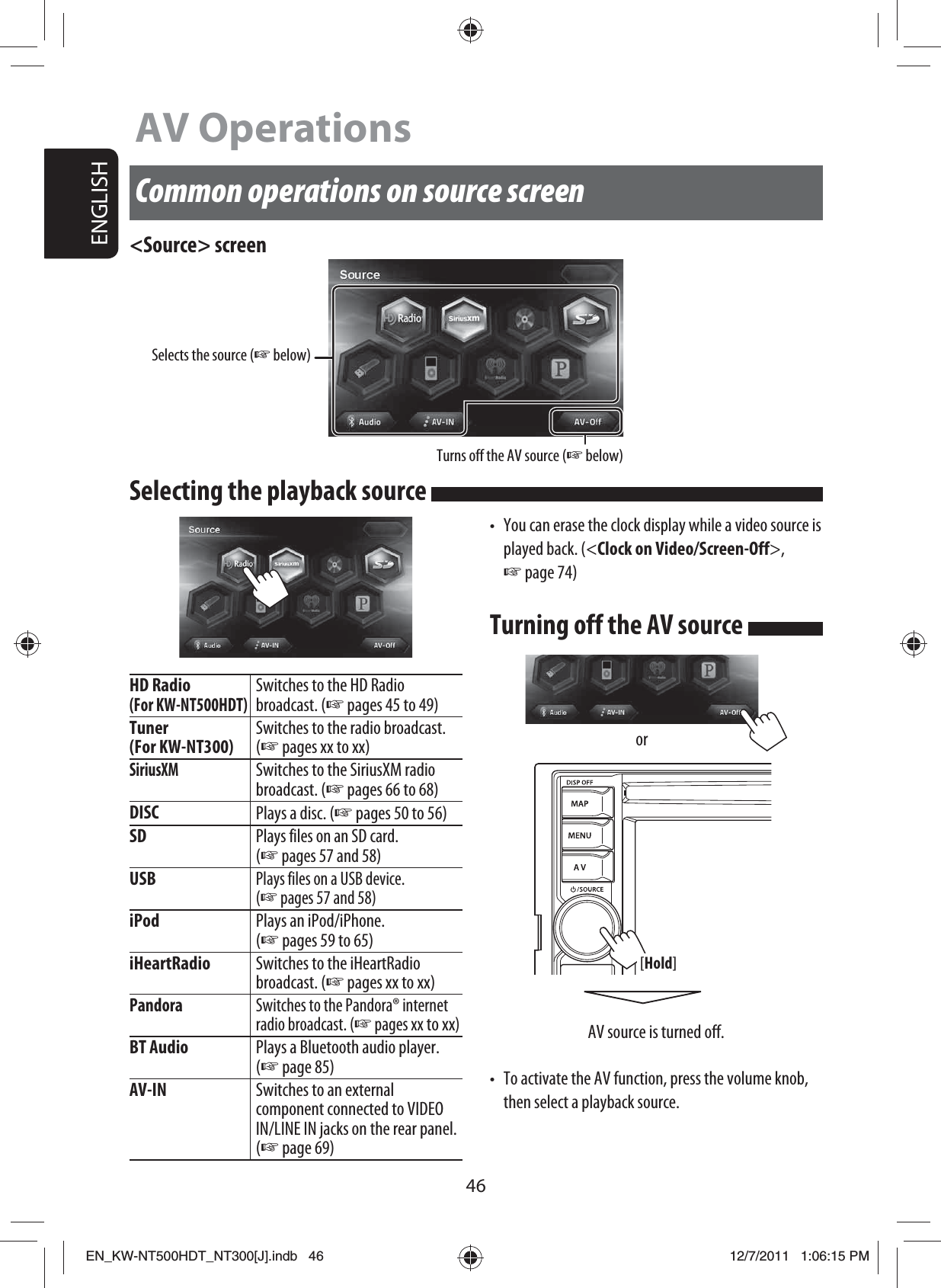

Selects the source (☞ below)Turns off the AV source (☞ below)46ENGLISHCommon operations on source screenHD Radio (For KW-NT500HDT)Switches to the HD Radio broadcast. (☞ pages 45 to 49) Tuner (For KW-NT300)Switches to the radio broadcast. (☞ pages xx to xx)SiriusXMSwitches to the SiriusXM radio broadcast. (☞ pages 66 to 68)DISC Plays a disc. (☞ pages 50 to 56)SDPlays files on an SD card. (☞ pages 57 and 58)USB Plays files on a USB device. (☞ pages 57 and 58)iPod Plays an iPod/iPhone. (☞ pages 59 to 65)iHeartRadio Switches to the iHeartRadio broadcast. (☞ pages xx to xx)PandoraSwitches to the Pandora® internet radio broadcast. (☞ pages xx to xx)BT Audio Plays a Bluetooth audio player. (☞ page 85)AV-IN Switches to an external component connected to VIDEO IN/LINE IN jacks on the rear panel. (☞ page 69)<Source> screenAV OperationsSelecting the playback source • You can erase the clock display while a video source is played back. (<Clock on Video/Screen-Off>, ☞ page 74)Turning off the AV source or[Hold]AV source is turned off.• To activate the AV function, press the volume knob, then select a playback source.EN_KW-NT500HDT_NT300[J].indb 46EN_KW-NT500HDT_NT300[J].indb 4612/7/2011 1:06:15 PM12/7/2011 1:06:15 PM

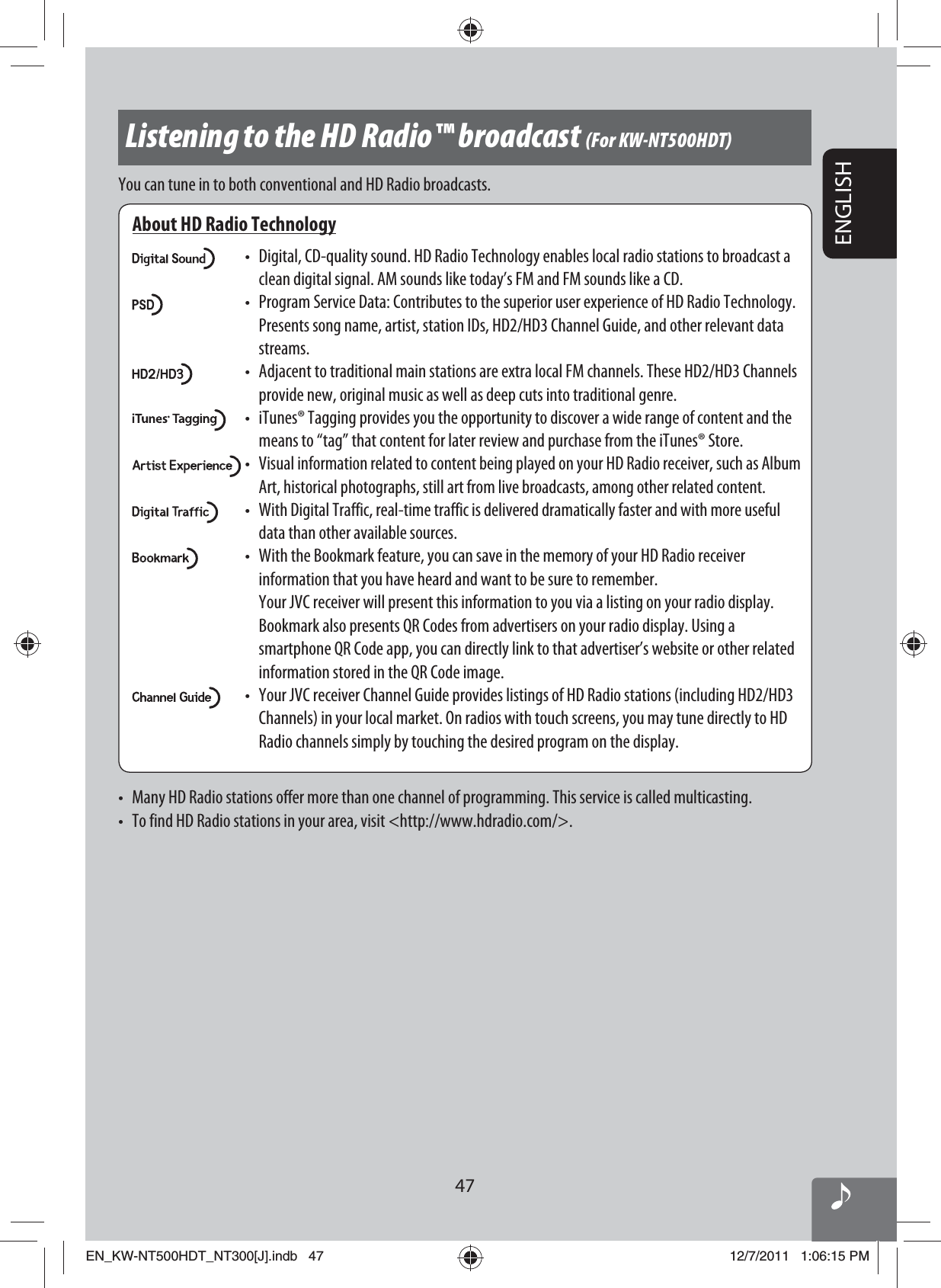

47ENGLISHListening to the HD Radio™ broadcast (For KW-NT500HDT)About HD Radio Technology• Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.• Program Service Data: Contributes to the superior user experience of HD Radio Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other relevant data streams.• Adjacent to traditional main stations are extra local FM channels. These HD2/HD3 Channels provide new, original music as well as deep cuts into traditional genre.• iTunes® Tagging provides you the opportunity to discover a wide range of content and the means to “tag” that content for later review and purchase from the iTunes® Store.• Visual information related to content being played on your HD Radio receiver, such as Album Art, historical photographs, still art from live broadcasts, among other related content.• With Digital Traffic, real-time traffic is delivered dramatically faster and with more useful data than other available sources.• With the Bookmark feature, you can save in the memory of your HD Radio receiver information that you have heard and want to be sure to remember. Your JVC receiver will present this information to you via a listing on your radio display. Bookmark also presents QR Codes from advertisers on your radio display. Using a smartphone QR Code app, you can directly link to that advertiser’s website or other related information stored in the QR Code image.• Your JVC receiver Channel Guide provides listings of HD Radio stations (including HD2/HD3 Channels) in your local market. On radios with touch screens, you may tune directly to HD Radio channels simply by touching the desired program on the display.You can tune in to both conventional and HD Radio broadcasts.• Many HD Radio stations offer more than one channel of programming. This service is called multicasting.• To find HD Radio stations in your area, visit <http://www.hdradio.com/>.EN_KW-NT500HDT_NT300[J].indb 47EN_KW-NT500HDT_NT300[J].indb 4712/7/2011 1:06:15 PM12/7/2011 1:06:15 PM

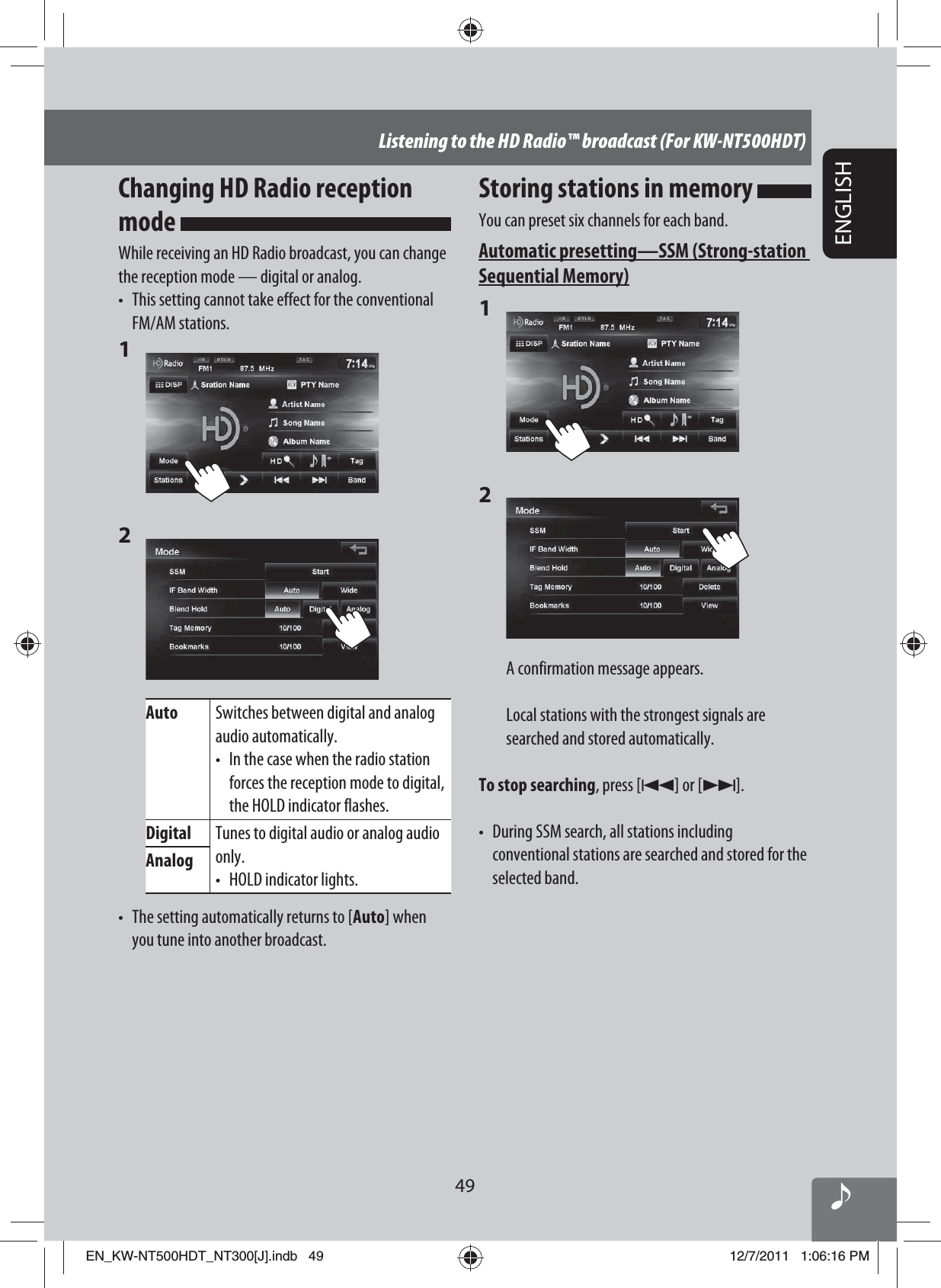

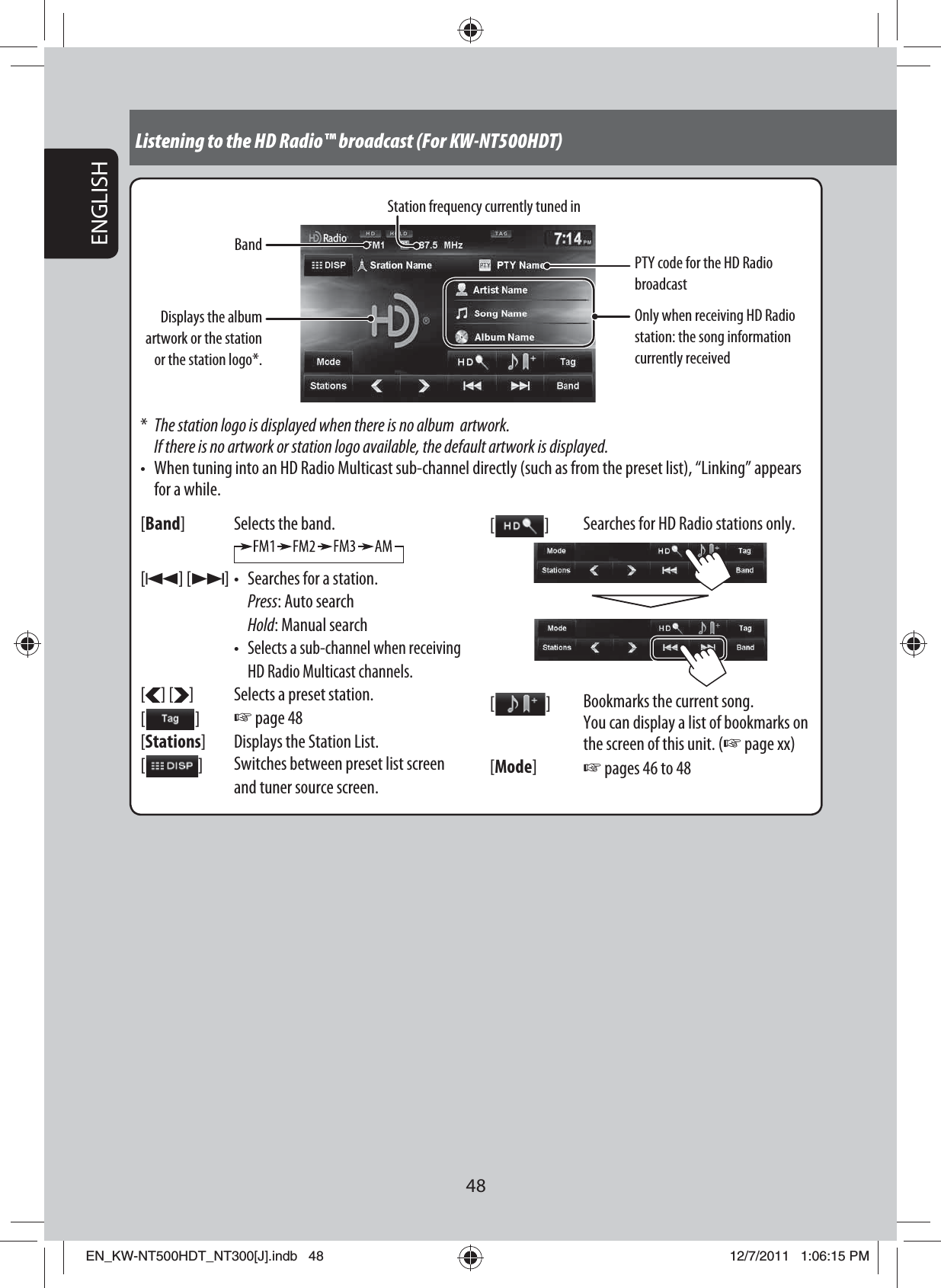

49ENGLISHListening to the HD Radio™ broadcast (For KW-NT500HDT)Storing stations in memory You can preset six channels for each band.Automatic presetting — SSM (Strong-station Sequential Memory)1 2 A confirmation message appears.Local stations with the strongest signals are searched and stored automatically.To stop searching, press [4] or [¢].• During SSM search, all stations including conventional stations are searched and stored for the selected band.Changing HD Radio reception mode While receiving an HD Radio broadcast, you can change the reception mode — digital or analog.• This setting cannot take effect for the conventional FM/AM stations.1 2 Auto Switches between digital and analog audio automatically.• In the case when the radio station forces the reception mode to digital, the HOLD indicator flashes.Digital Tunes to digital audio or analog audio only.• HOLD indicator lights.Analog• The setting automatically returns to [Auto] when you tune into another broadcast.EN_KW-NT500HDT_NT300[J].indb 49EN_KW-NT500HDT_NT300[J].indb 4912/7/2011 1:06:16 PM12/7/2011 1:06:16 PM

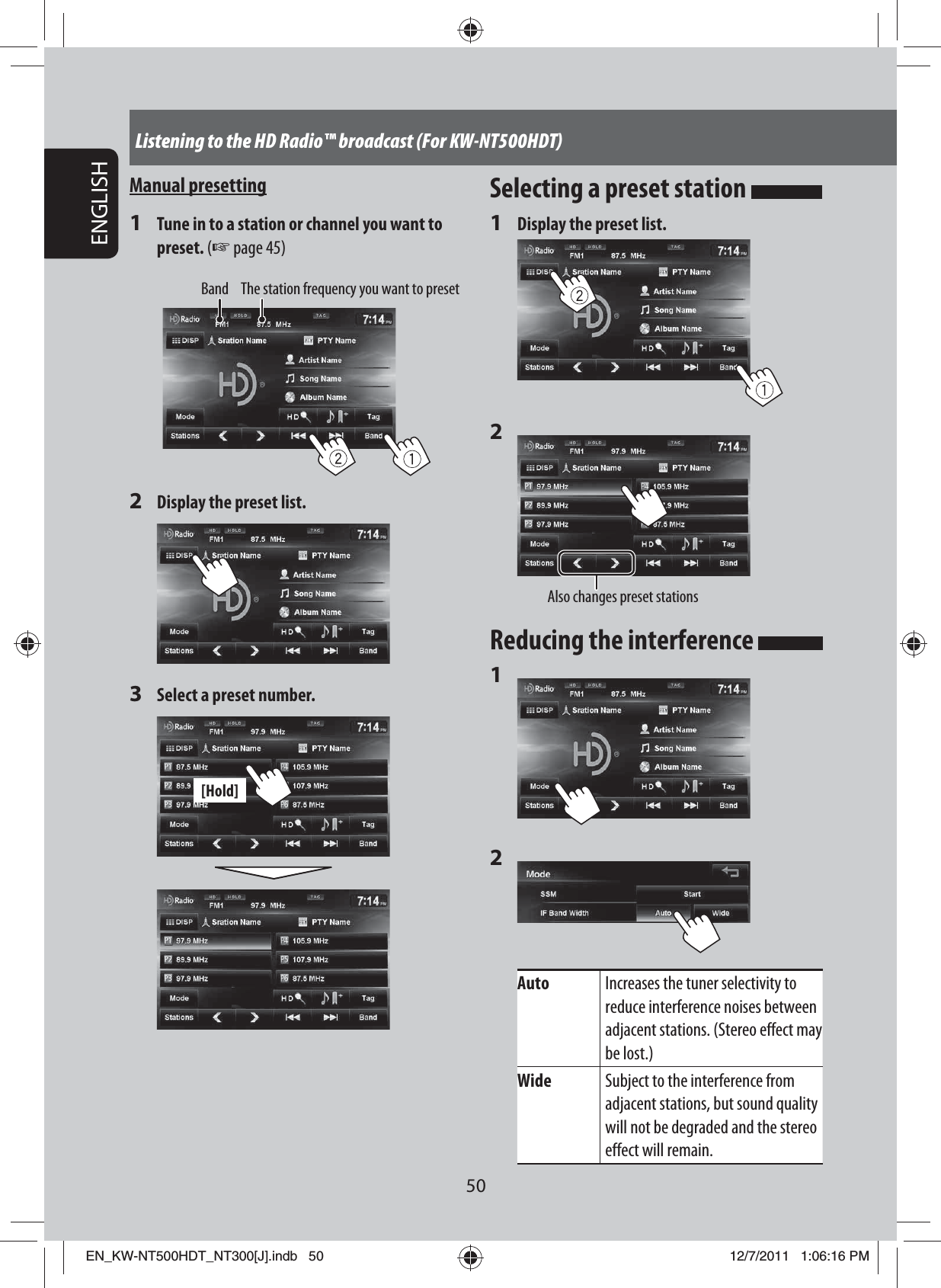

50ENGLISHListening to the HD Radio™ broadcast (For KW-NT500HDT)Manual presetting1 Tune in to a station or channel you want to preset. (☞ page 45)Band The station frequency you want to preset2 Display the preset list.3 Select a preset number.[Hold]Selecting a preset station 1 Display the preset list.2 Also changes preset stationsReducing the interference 1 2 Auto Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)Wide Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.EN_KW-NT500HDT_NT300[J].indb 50EN_KW-NT500HDT_NT300[J].indb 5012/7/2011 1:06:16 PM12/7/2011 1:06:16 PM

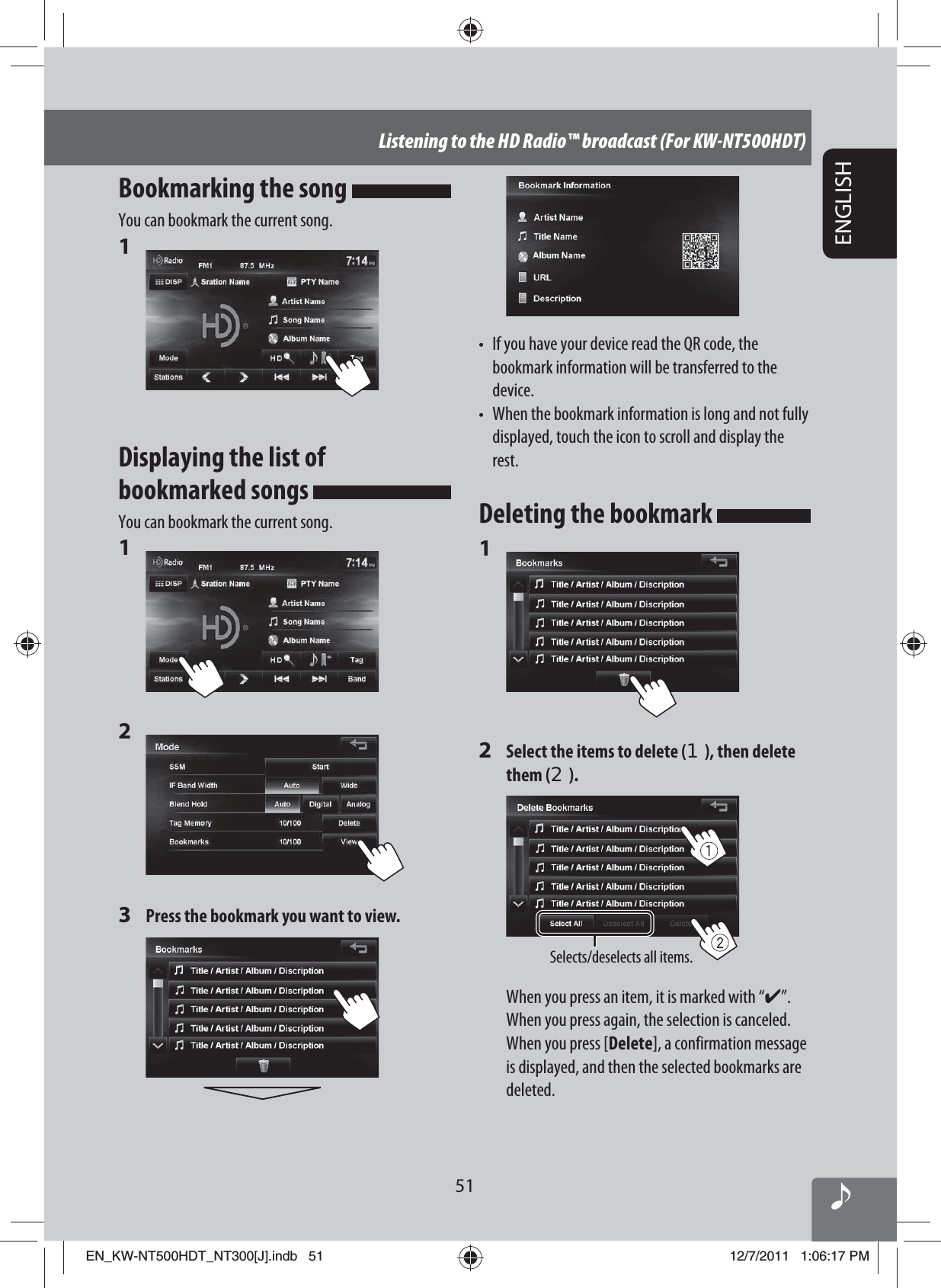

51ENGLISHListening to the HD Radio™ broadcast (For KW-NT500HDT)• If you have your device read the QR code, the bookmark information will be transferred to the device.• When the bookmark information is long and not fully displayed, touch the icon to scroll and display the rest.Deleting the bookmark 1 2 Select the items to delete (1), then delete them (2).Selects/deselects all items.When you press an item, it is marked with “✔”. When you press again, the selection is canceled.When you press [Delete], a confirmation message is displayed, and then the selected bookmarks are deleted.Bookmarking the song You can bookmark the current song.1 Displaying the list of bookmarked songs You can bookmark the current song.1 2 3 Press the bookmark you want to view.EN_KW-NT500HDT_NT300[J].indb 51EN_KW-NT500HDT_NT300[J].indb 5112/7/2011 1:06:17 PM12/7/2011 1:06:17 PM

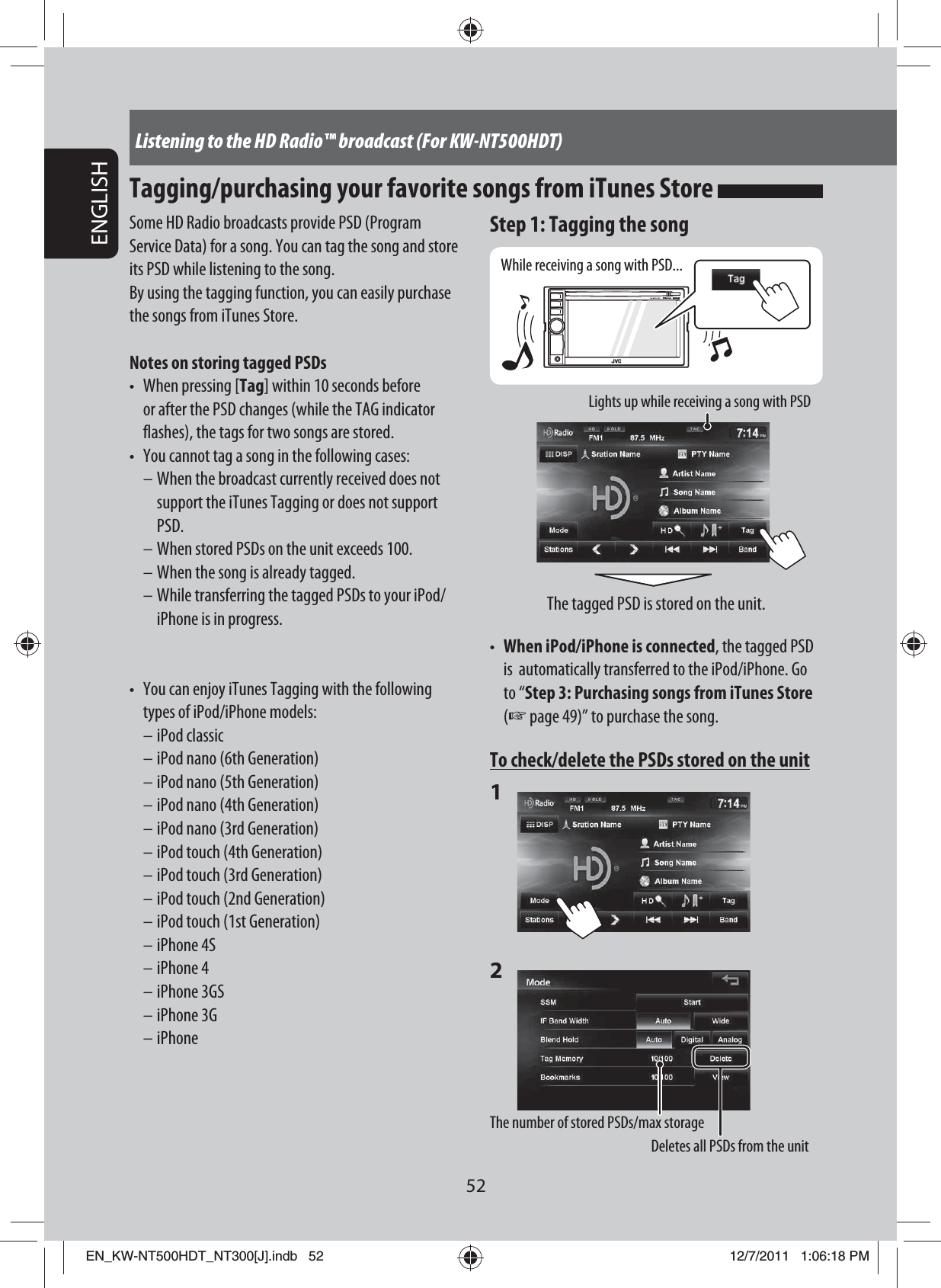

52ENGLISHListening to the HD Radio™ broadcast (For KW-NT500HDT)Tagging/purchasing your favorite songs from iTunes Store Some HD Radio broadcasts provide PSD (Program Service Data) for a song. You can tag the song and store its PSD while listening to the song.By using the tagging function, you can easily purchase the songs from iTunes Store.Notes on storing tagged PSDs• When pressing [Tag] within 10 seconds before or after the PSD changes (while the TAG indicator flashes), the tags for two songs are stored.• You cannot tag a song in the following cases:– When the broadcast currently received does not support the iTunes Tagging or does not support PSD.– When stored PSDs on the unit exceeds 100.– When the song is already tagged.– While transferring the tagged PSDs to your iPod/iPhone is in progress.• You can enjoy iTunes Tagging with the following types of iPod/iPhone models:– iPod classic– iPod nano (6th Generation)– iPod nano (5th Generation)– iPod nano (4th Generation)– iPod nano (3rd Generation)– iPod touch (4th Generation)– iPod touch (3rd Generation)– iPod touch (2nd Generation)– iPod touch (1st Generation)– iPhone 4S– iPhone 4– iPhone 3GS– iPhone 3G– iPhoneStep 1: Tagging the songWhile receiving a song with PSD...Lights up while receiving a song with PSDThe tagged PSD is stored on the unit.• When iPod/iPhone is connected, the tagged PSD is automatically transferred to the iPod/iPhone. Go to “Step 3: Purchasing songs from iTunes Store (☞ page 49)” to purchase the song.To check/delete the PSDs stored on the unit1 2 The number of stored PSDs/max storageDeletes all PSDs from the unitEN_KW-NT500HDT_NT300[J].indb 52EN_KW-NT500HDT_NT300[J].indb 5212/7/2011 1:06:18 PM12/7/2011 1:06:18 PM

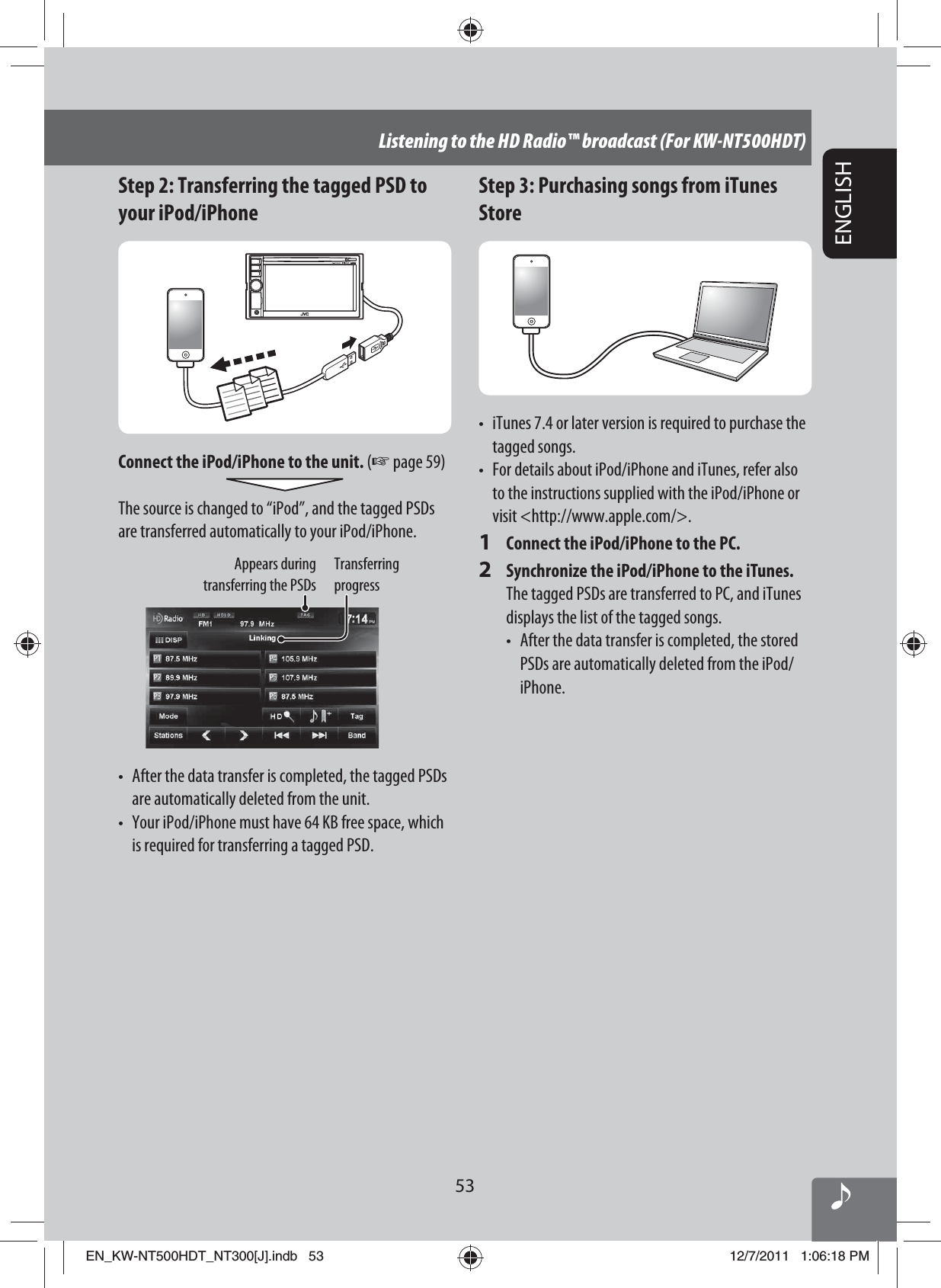

53ENGLISHListening to the HD Radio™ broadcast (For KW-NT500HDT)Step 2: Transferring the tagged PSD to your iPod/iPhoneConnect the iPod/iPhone to the unit. (☞ page 59)The source is changed to “iPod”, and the tagged PSDs are transferred automatically to your iPod/iPhone.Transferring progressAppears during transferring the PSDs• After the data transfer is completed, the tagged PSDs are automatically deleted from the unit.• Your iPod/iPhone must have 64 KB free space, which is required for transferring a tagged PSD.Step 3: Purchasing songs from iTunes Store• iTunes 7.4 or later version is required to purchase the tagged songs.• For details about iPod/iPhone and iTunes, refer also to the instructions supplied with the iPod/iPhone or visit <http://www.apple.com/>.1 Connect the iPod/iPhone to the PC.2 Synchronize the iPod/iPhone to the iTunes.The tagged PSDs are transferred to PC, and iTunes displays the list of the tagged songs.• After the data transfer is completed, the stored PSDs are automatically deleted from the iPod/iPhone.EN_KW-NT500HDT_NT300[J].indb 53EN_KW-NT500HDT_NT300[J].indb 5312/7/2011 1:06:18 PM12/7/2011 1:06:18 PM

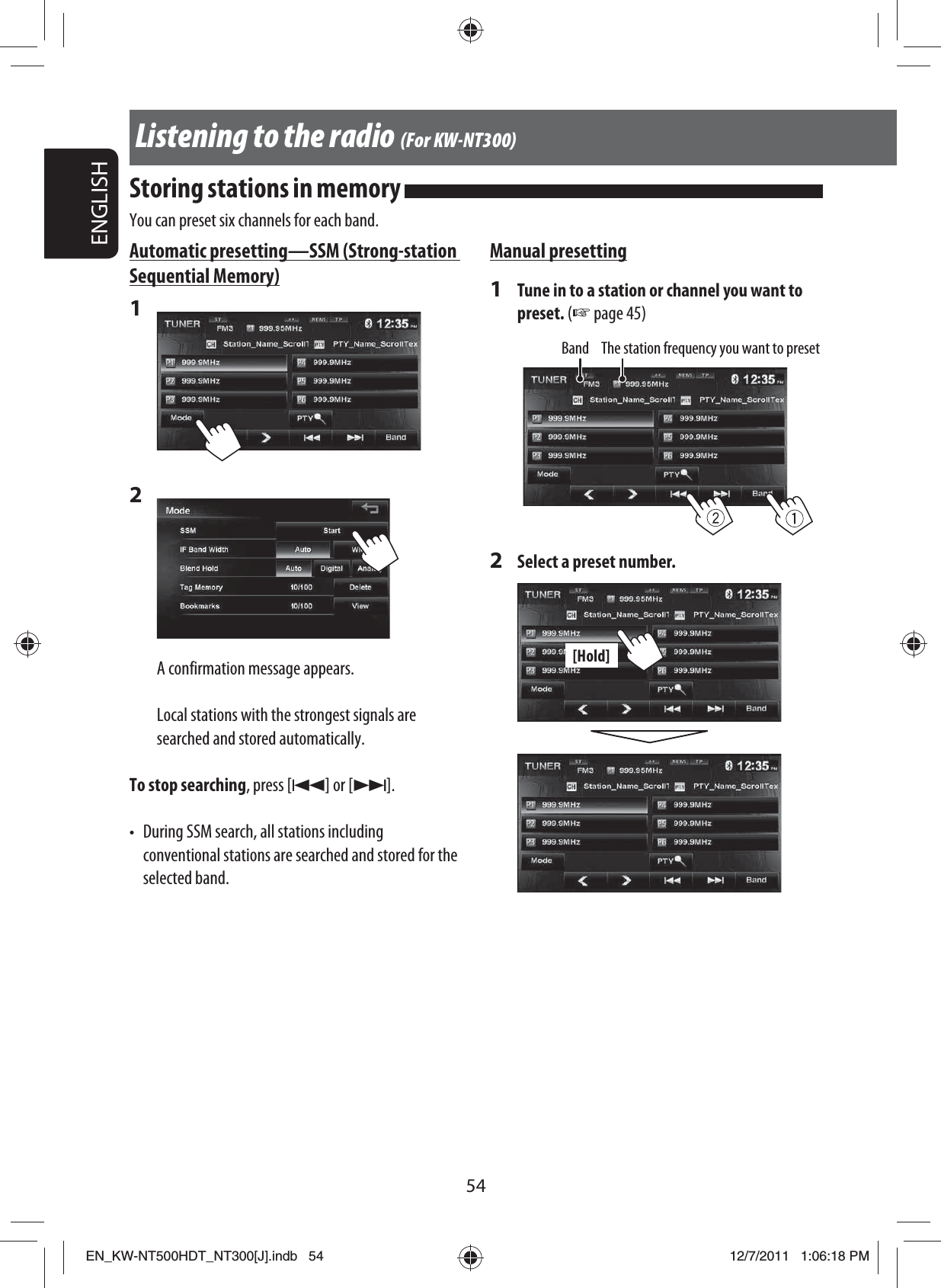

54ENGLISHAutomatic presetting — SSM (Strong-station Sequential Memory)1 2 A confirmation message appears.Local stations with the strongest signals are searched and stored automatically.To stop searching, press [4] or [¢].• During SSM search, all stations including conventional stations are searched and stored for the selected band.Manual presetting1 Tune in to a station or channel you want to preset. (☞ page 45)Band The station frequency you want to preset2 Select a preset number.[Hold]Listening to the radio (For KW-NT300)Storing stations in memory You can preset six channels for each band.EN_KW-NT500HDT_NT300[J].indb 54EN_KW-NT500HDT_NT300[J].indb 5412/7/2011 1:06:18 PM12/7/2011 1:06:18 PM

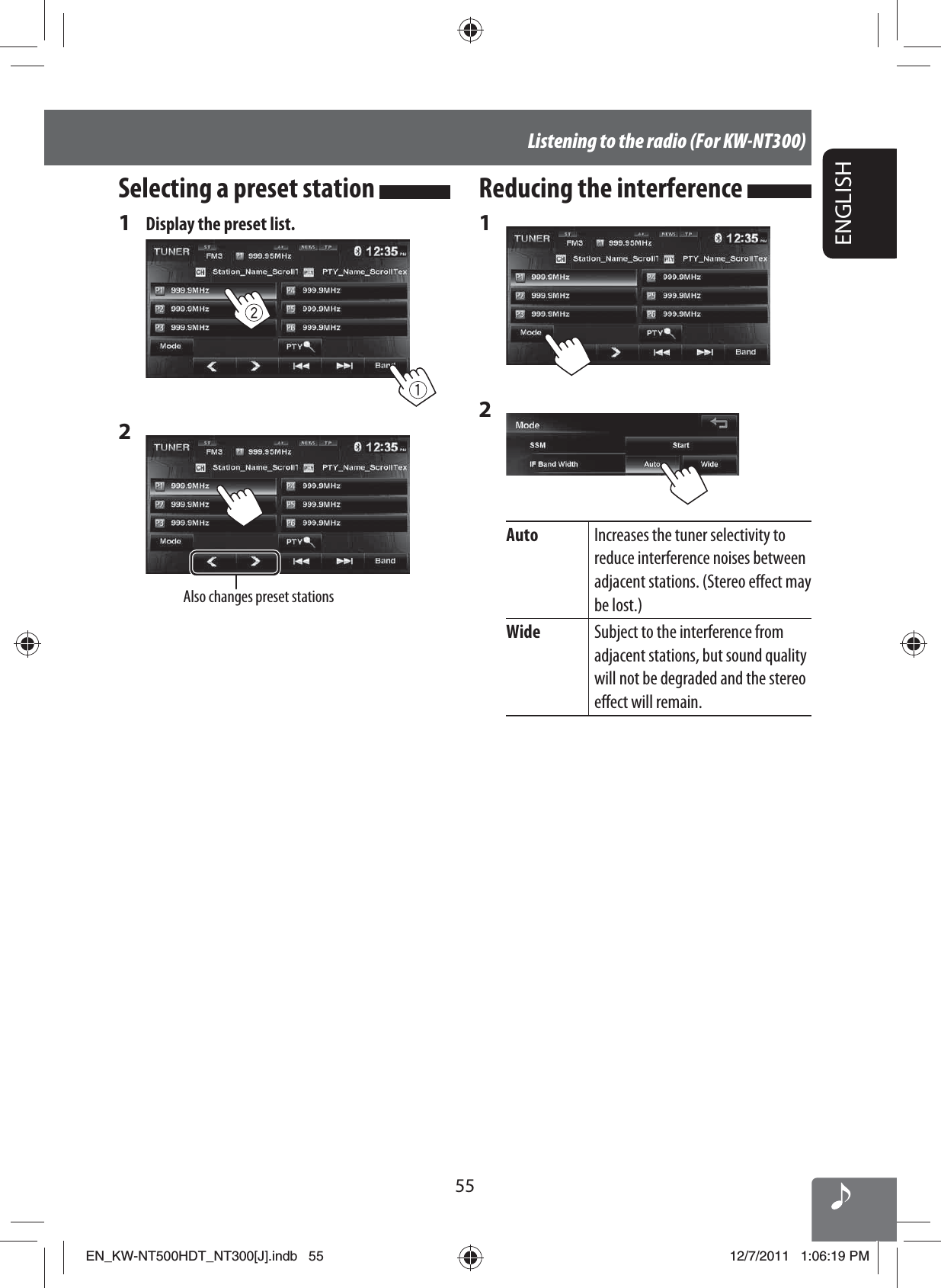

55ENGLISHListening to the radio (For KW-NT300)Selecting a preset station 1 Display the preset list.2 Also changes preset stationsReducing the interference 1 2 Auto Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)Wide Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.EN_KW-NT500HDT_NT300[J].indb 55EN_KW-NT500HDT_NT300[J].indb 5512/7/2011 1:06:19 PM12/7/2011 1:06:19 PM

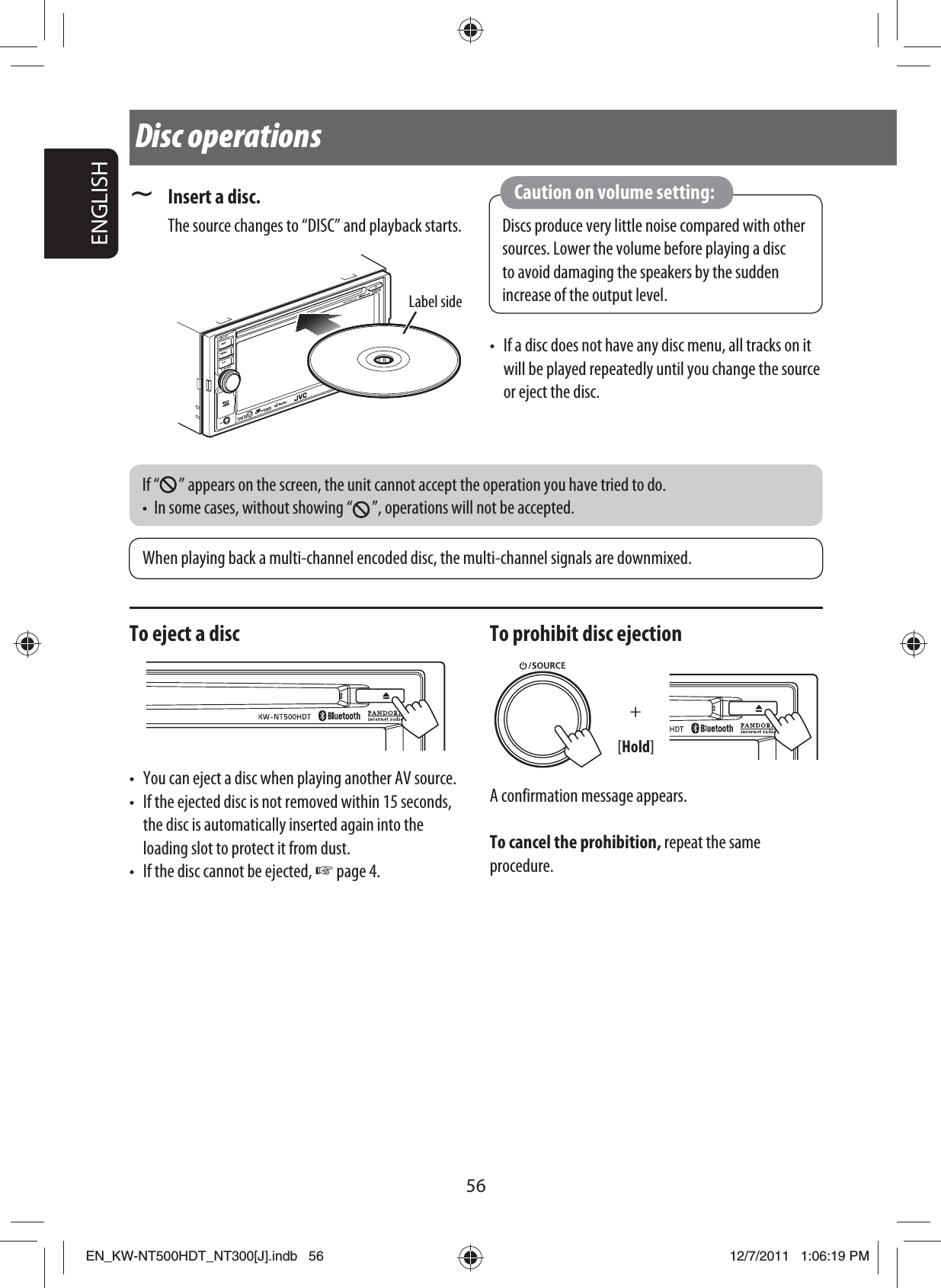

Label side56ENGLISH~ Insert a disc. The source changes to “DISC” and playback starts.Disc operationsWhen playing back a multi-channel encoded disc, the multi-channel signals are downmixed.If “ ” appears on the screen, the unit cannot accept the operation you have tried to do.• In some cases, without showing “ ”, operations will not be accepted.Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.Caution on volume setting:To eject a disc• You can eject a disc when playing another AV source.• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.• If the disc cannot be ejected, ☞ page 4.To prohibit disc ejection+[Hold]A confirmation message appears.To cancel the prohibition, repeat the same procedure.• If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.EN_KW-NT500HDT_NT300[J].indb 56EN_KW-NT500HDT_NT300[J].indb 5612/7/2011 1:06:19 PM12/7/2011 1:06:19 PM

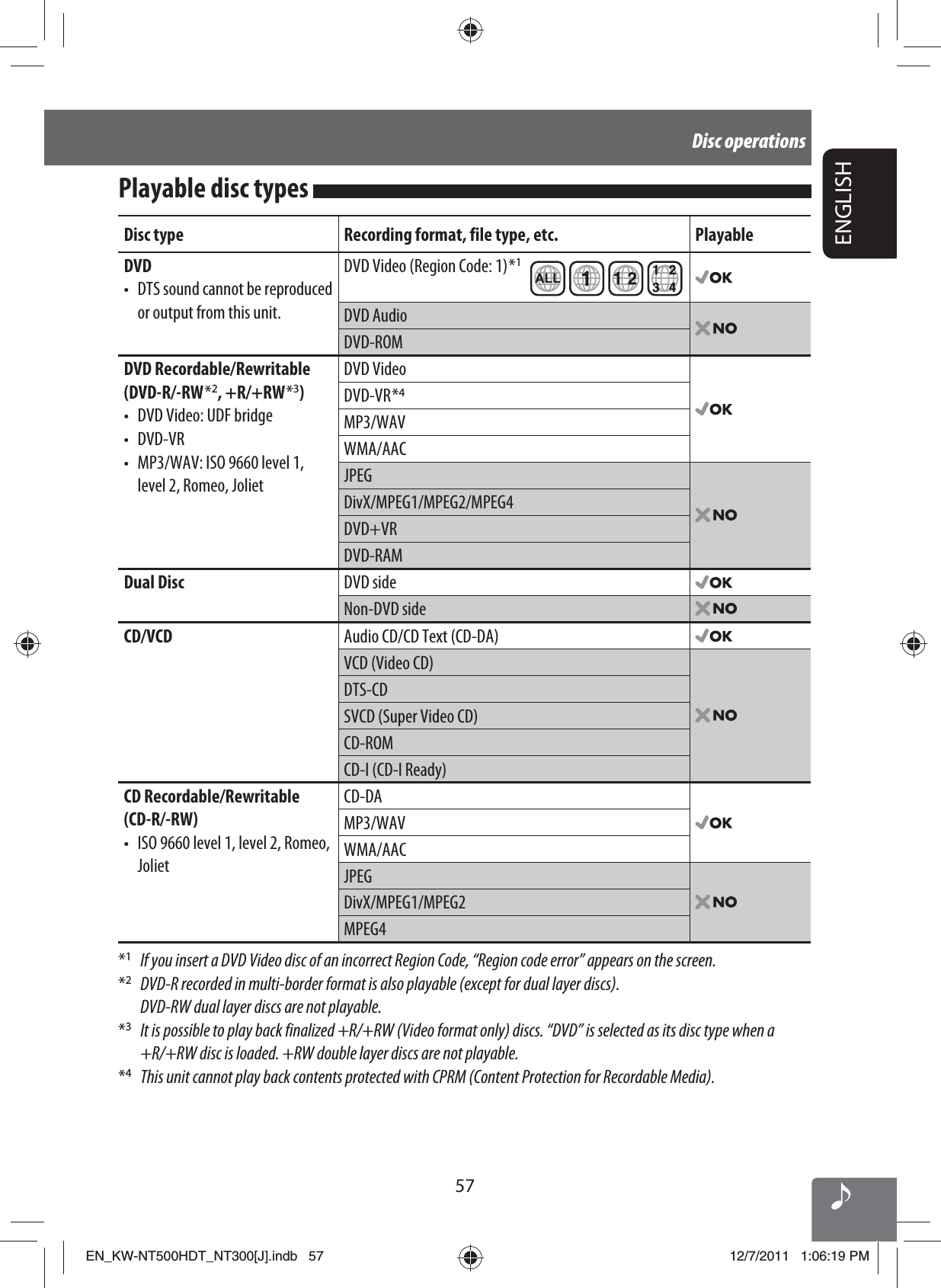

57ENGLISHDisc operationsPlayable disc types Disc type Recording format, file type, etc. PlayableDVD• DTS sound cannot be reproduced or output from this unit.DVD Video (Region Code: 1) *1DVD AudioDVD-ROMDVD Recordable/Rewritable(DVD-R/-RW * 2, +R/+RW * 3)• DVD Video: UDF bridge• DVD-VR• MP3/WAV: ISO 9660 level 1, level 2, Romeo, JolietDVD VideoDVD-VR *4MP3/WAVWMA/AACJPEGDivX/MPEG1/MPEG2/MPEG4 DVD+VRDVD-RAMDual Disc DVD sideNon-DVD sideCD/VCD Audio CD/CD Text (CD-DA)VCD (Video CD)DTS-CDSVCD (Super Video CD)CD-ROMCD-I (CD-I Ready)CD Recordable/Rewritable(CD-R/-RW)• ISO 9660 level 1, level 2, Romeo, JolietCD-DAMP3/WAVWMA/AACJPEGDivX/MPEG1/MPEG2MPEG4*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen.*2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not playable.*3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a +R/+RW disc is loaded. +RW double layer discs are not playable.*4 This unit cannot play back contents protected with CPRM (Content Protection for Recordable Media).EN_KW-NT500HDT_NT300[J].indb 57EN_KW-NT500HDT_NT300[J].indb 5712/7/2011 1:06:19 PM12/7/2011 1:06:19 PM

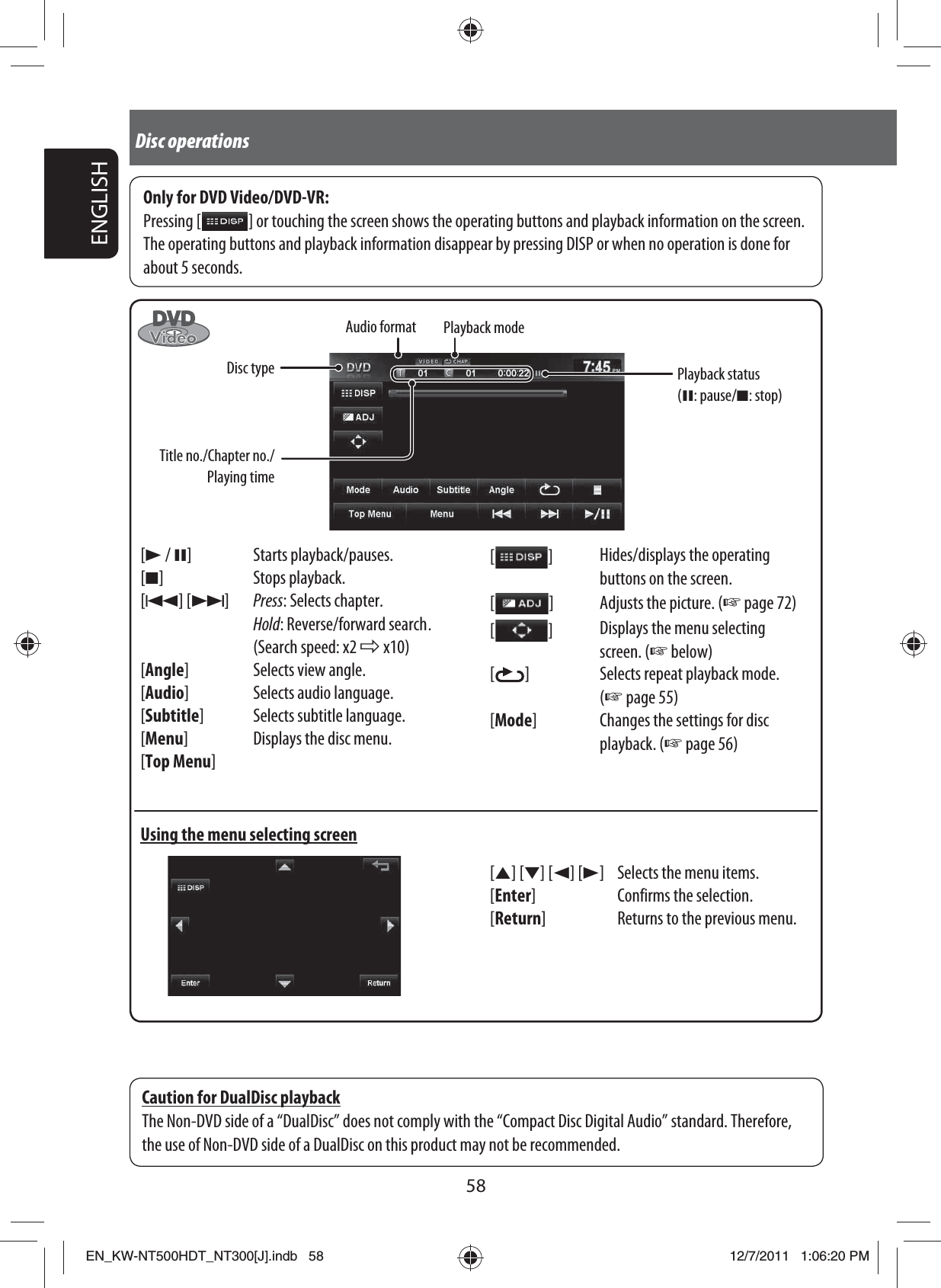

58ENGLISHDisc operations[3 / 8] Starts playback/pauses.[7] Stops playback.[4] [¢]Press: Selects chapter.Hold: Reverse/forward search .(Search speed: x2 ] x10)[Angle] Selects view angle.[Audio] Selects audio language.[Subtitle] Selects subtitle language.[Menu] Displays the disc menu.[Top Menu]Using the menu selecting screenOnly for DVD Video/DVD-VR:Pressing [ ] or touching the screen shows the operating buttons and playback information on the screen. The operating buttons and playback information disappear by pressing DISP or when no operation is done for about 5 seconds.[5] [∞] [2] [3] Selects the menu items.[Enter] Confirms the selection.[Return] Returns to the previous menu.[ ]Hides/displays the operating buttons on the screen.[ ]Adjusts the picture. (☞ page 72)[ ]Displays the menu selecting screen. (☞ below)[ ] Selects repeat playback mode. (☞ page 55)[Mode] Changes the settings for disc playback. (☞ page 56)Caution for DualDisc playbackThe Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.Audio formatTitle no./Chapter no./Playing timeDisc typePlayback modePlayback status (8: pause/7: stop)EN_KW-NT500HDT_NT300[J].indb 58EN_KW-NT500HDT_NT300[J].indb 5812/7/2011 1:06:20 PM12/7/2011 1:06:20 PM

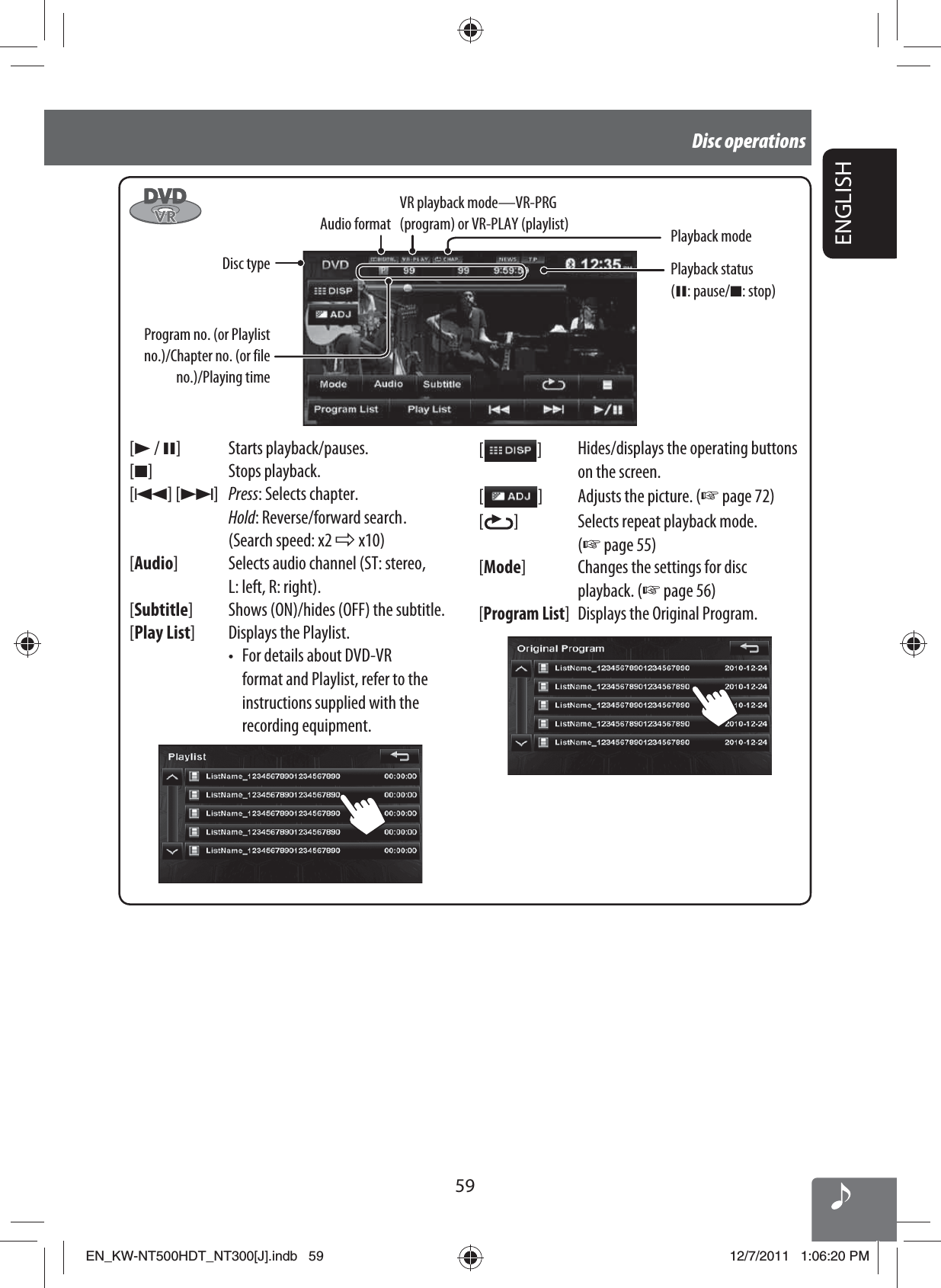

59ENGLISHDisc operationsProgram no. (or Playlist no.)/Chapter no. (or file no.)/Playing time[3 / 8] Starts playback/pauses.[7] Stops playback.[4] [¢]Press: Selects chapter.Hold: Reverse/forward search .(Search speed: x2 ] x10)[Audio] Selects audio channel (ST: stereo, L: left, R: right).[Subtitle] Shows (ON)/hides (OFF) the subtitle.[Play List] Displays the Playlist.• For details about DVD-VR format and Playlist, refer to the instructions supplied with the recording equipment.[ ]Hides/displays the operating buttons on the screen.[ ]Adjusts the picture. (☞ page 72)[ ] Selects repeat playback mode. (☞ page 55)[Mode] Changes the settings for disc playback. (☞ page 56)[Program List]Displays the Original Program. Audio format Playback modeDisc type VR playback mode—VR-PRG (program) or VR-PLAY (playlist)Playback status (8: pause/7: stop)EN_KW-NT500HDT_NT300[J].indb 59EN_KW-NT500HDT_NT300[J].indb 5912/7/2011 1:06:20 PM12/7/2011 1:06:20 PM

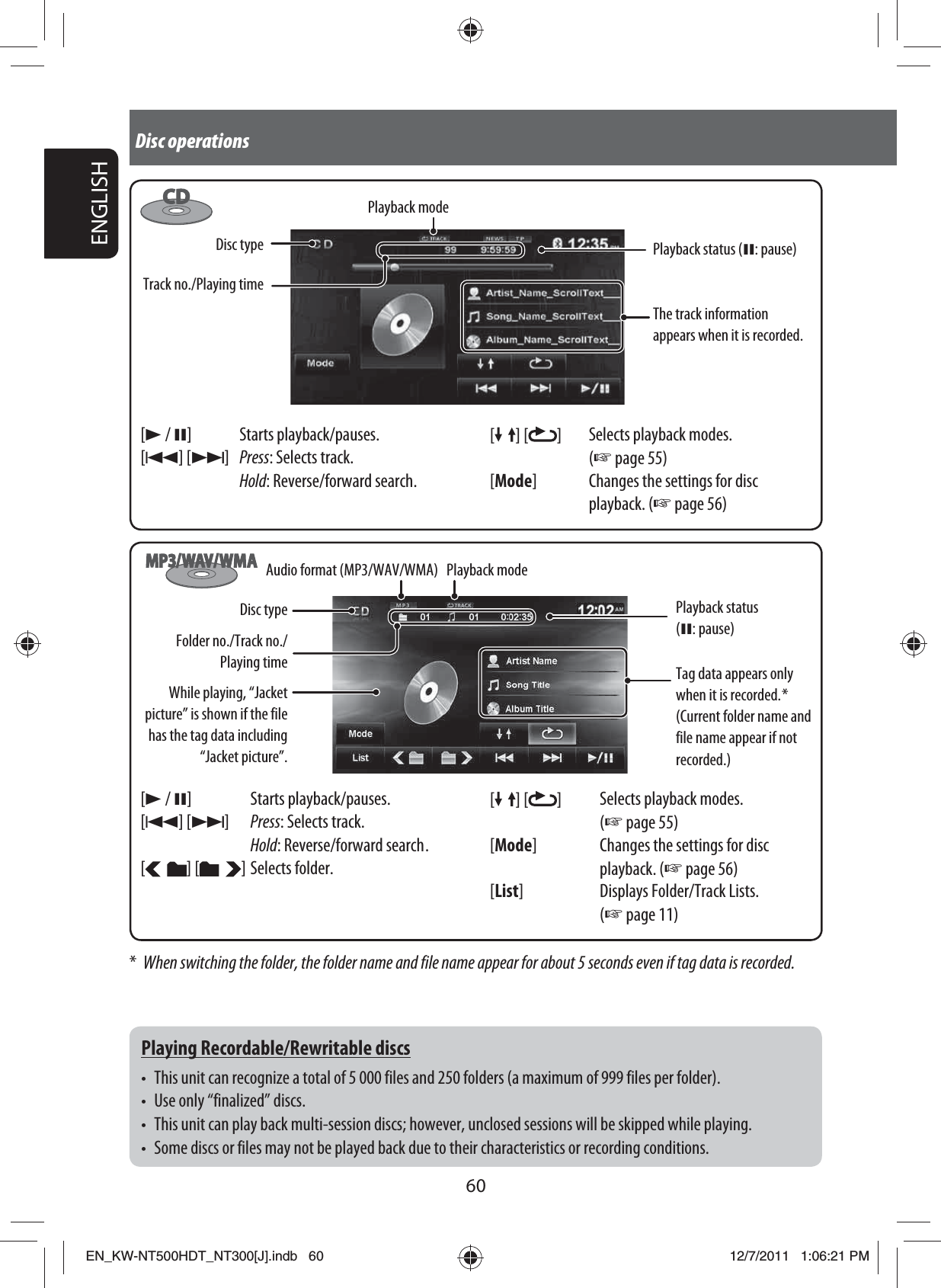

60ENGLISHDisc operations[ ] [ ] Selects playback modes. (☞ page 55)[Mode] Changes the settings for disc playback. (☞ page 56)Track no./Playing timePlayback modeDisc typeThe track information appears when it is recorded.[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track.Hold: Reverse/forward search. * When switching the folder, the folder name and file name appear for about 5 seconds even if tag data is recorded.Audio format (MP3/WAV/WMA)While playing, “Jacket picture” is shown if the file has the tag data including “Jacket picture”.[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track.Hold: Reverse/forward search .[] [ ] Selects folder.Folder no./Track no./Playing timePlayback modeDisc typeTag data appears only when it is recorded. *(Current folder name and file name appear if not recorded.)[ ] [ ] Selects playback modes. (☞ page 55)[Mode] Changes the settings for disc playback. (☞ page 56)[List] Displays Folder/Track Lists. (☞ page 11)Playing Recordable/Rewritable discs• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).• Use only “finalized” discs.• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.• Some discs or files may not be played back due to their characteristics or recording conditions.Playback status (8: pause)Playback status (8: pause)EN_KW-NT500HDT_NT300[J].indb 60EN_KW-NT500HDT_NT300[J].indb 6012/7/2011 1:06:21 PM12/7/2011 1:06:21 PM

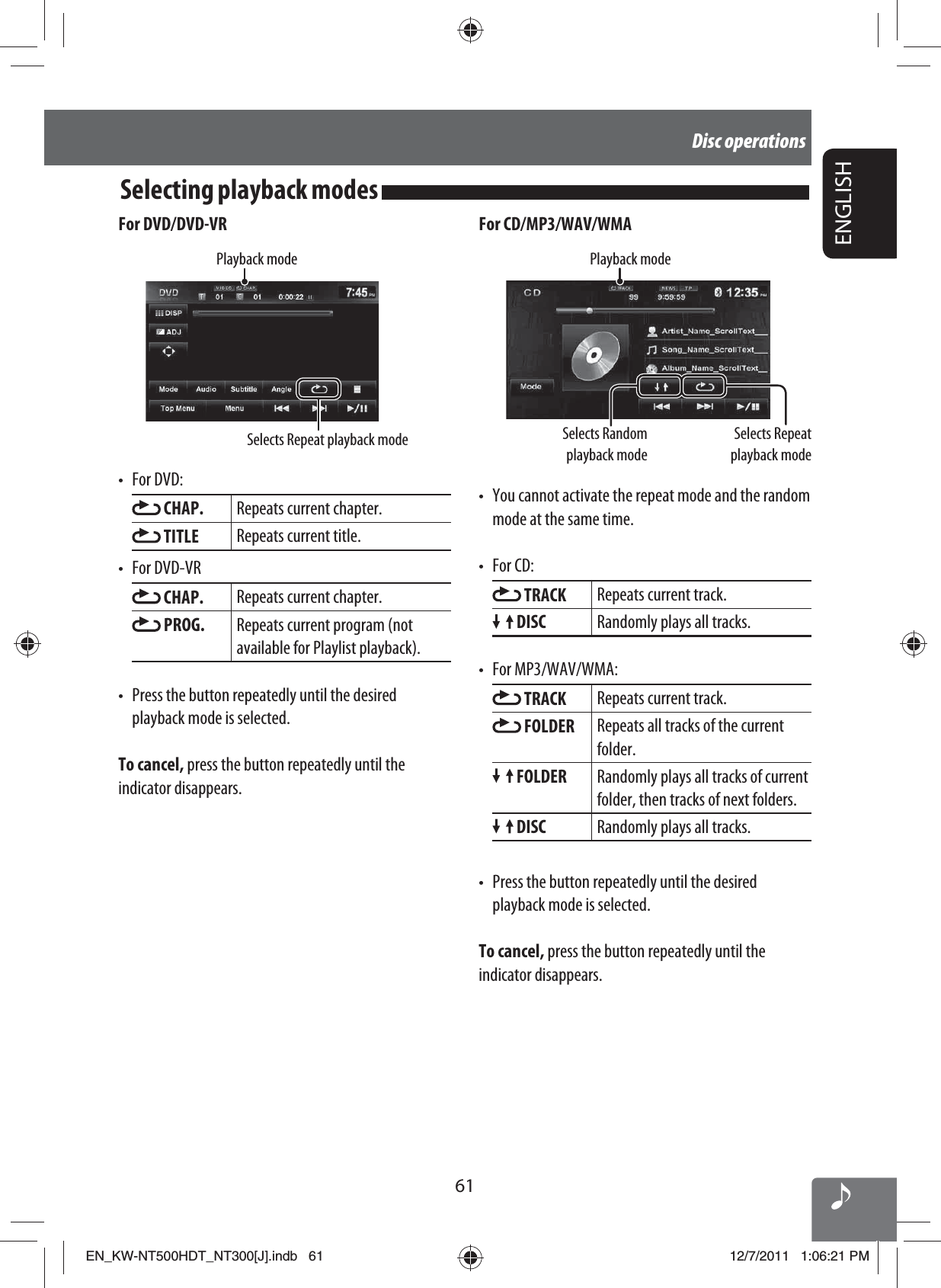

61ENGLISHDisc operationsSelecting playback modes For CD/MP3/WAV/WMASelects Repeat playback modeSelects Random playback modePlayback mode• You cannot activate the repeat mode and the random mode at the same time.• For CD: TRACK Repeats current track. DISC Randomly plays all tracks.• For MP3/WAV/WMA: TRACK Repeats current track. FOLDER Repeats all tracks of the current folder. FOLDER Randomly plays all tracks of current folder, then tracks of next folders. DISC Randomly plays all tracks.• Press the button repeatedly until the desired playback mode is selected. To cancel, press the button repeatedly until the indicator disappears.For DVD/DVD-VRPlayback modeSelects Repeat playback mode• For DVD: CHAP. Repeats current chapter. TITLE Repeats current title.• For DVD-VR CHAP. Repeats current chapter. PROG. Repeats current program (not available for Playlist playback).• Press the button repeatedly until the desired playback mode is selected. To cancel, press the button repeatedly until the indicator disappears.EN_KW-NT500HDT_NT300[J].indb 61EN_KW-NT500HDT_NT300[J].indb 6112/7/2011 1:06:21 PM12/7/2011 1:06:21 PM

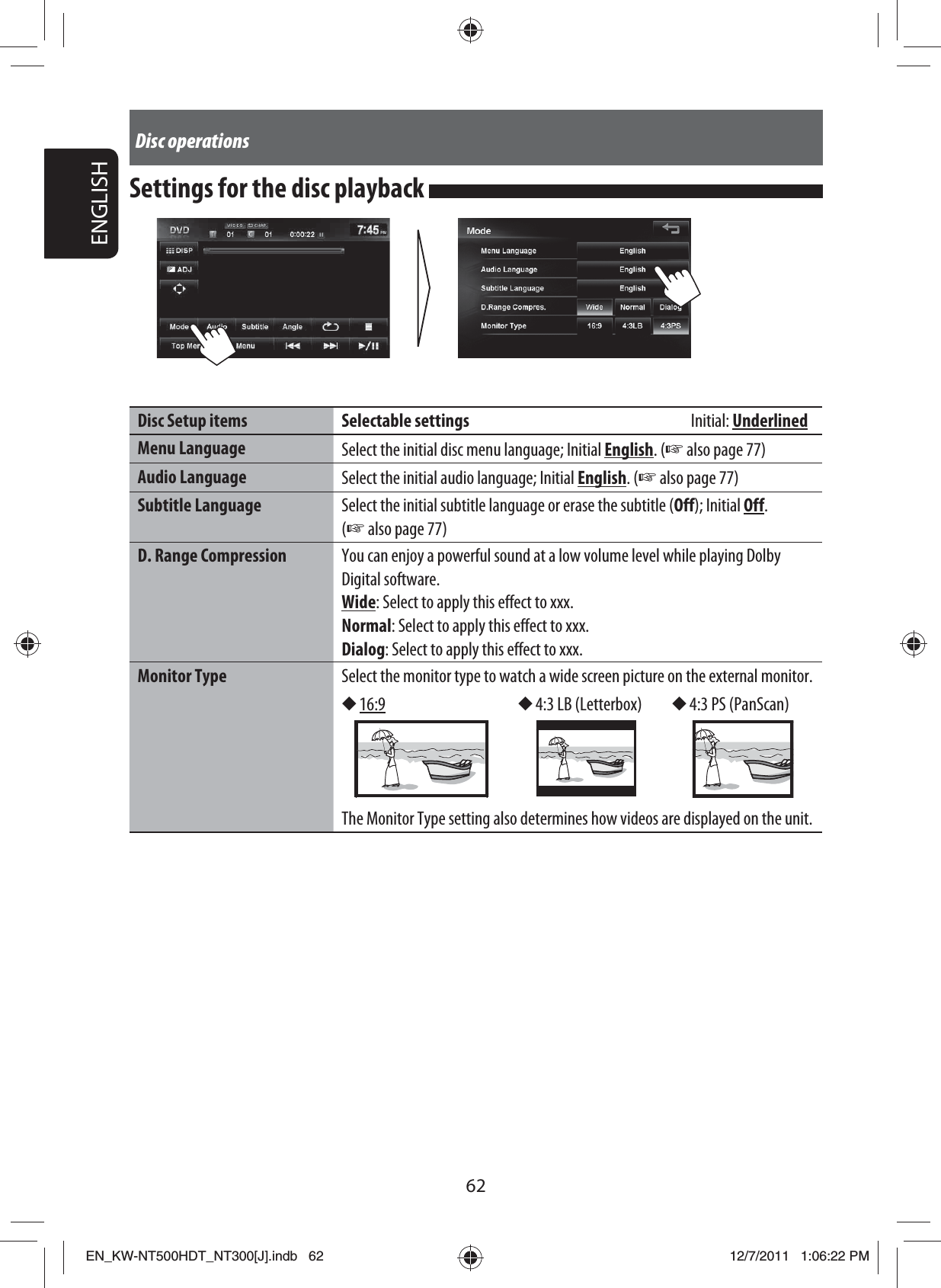

62ENGLISHDisc operationsSettings for the disc playback Disc Setup items Selectable settings Initial: UnderlinedMenu Language Select the initial disc menu language; Initial English. (☞ also page 77)Audio Language Select the initial audio language; Initial English. (☞ also page 77)Subtitle Language Select the initial subtitle language or erase the subtitle (Off); Initial Off. (☞ also page 77)D. Range Compression You can enjoy a powerful sound at a low volume level while playing Dolby Digital software.Wide: Select to apply this effect to xxx.Normal: Select to apply this effect to xxx.Dialog: Select to apply this effect to xxx.Monitor Type Select the monitor type to watch a wide screen picture on the external monitor.◆ 16:9 ◆ 4:3 LB (Letterbox) ◆ 4:3 PS (PanScan)The Monitor Type setting also determines how videos are displayed on the unit.EN_KW-NT500HDT_NT300[J].indb 62EN_KW-NT500HDT_NT300[J].indb 6212/7/2011 1:06:22 PM12/7/2011 1:06:22 PM

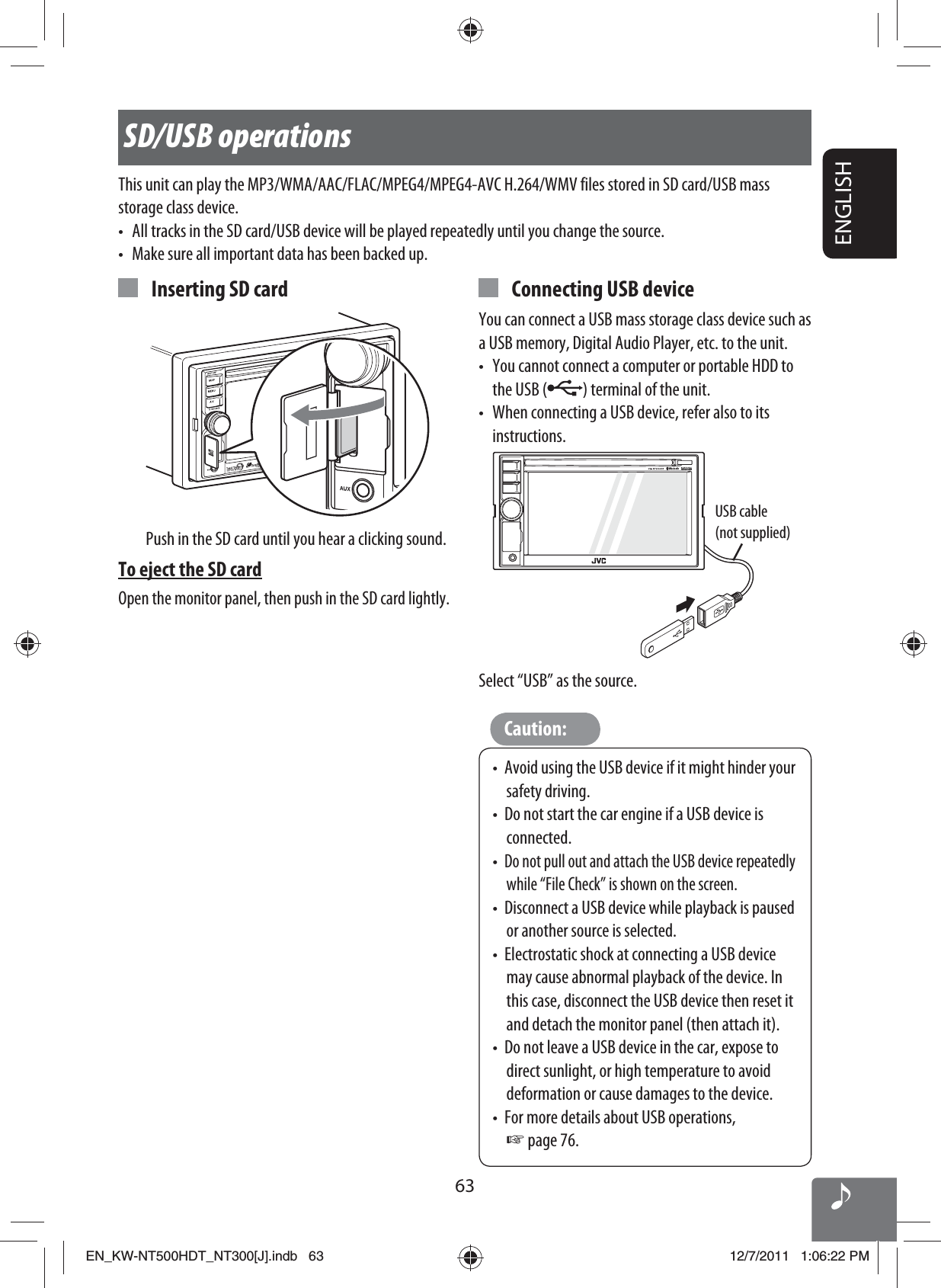

63ENGLISHSD/USB operationsThis unit can play the MP3/WMA/AAC/FLAC/MPEG4/MPEG4-AVC H.264/WMV files stored in SD card/USB mass storage class device.• All tracks in the SD card/USB device will be played repeatedly until you change the source.• Make sure all important data has been backed up. Inserting SD cardPush in the SD card until you hear a clicking sound.To eject the SD cardOpen the monitor panel, then push in the SD card lightly. Connecting USB deviceYou can connect a USB mass storage class device such as a USB memory, Digital Audio Player, etc. to the unit.• You cannot connect a computer or portable HDD to the USB ( ) terminal of the unit.• When connecting a USB device, refer also to its instructions.USB cable (not supplied)Select “USB” as the source.• Avoid using the USB device if it might hinder your safety driving.• Do not start the car engine if a USB device is connected.• Do not pull out and attach the USB device repeatedly while “File Check” is shown on the screen.• Disconnect a USB device while playback is paused or another source is selected.• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset it and detach the monitor panel (then attach it).• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.• For more details about USB operations, ☞ page 76.Caution:EN_KW-NT500HDT_NT300[J].indb 63EN_KW-NT500HDT_NT300[J].indb 6312/7/2011 1:06:22 PM12/7/2011 1:06:22 PM

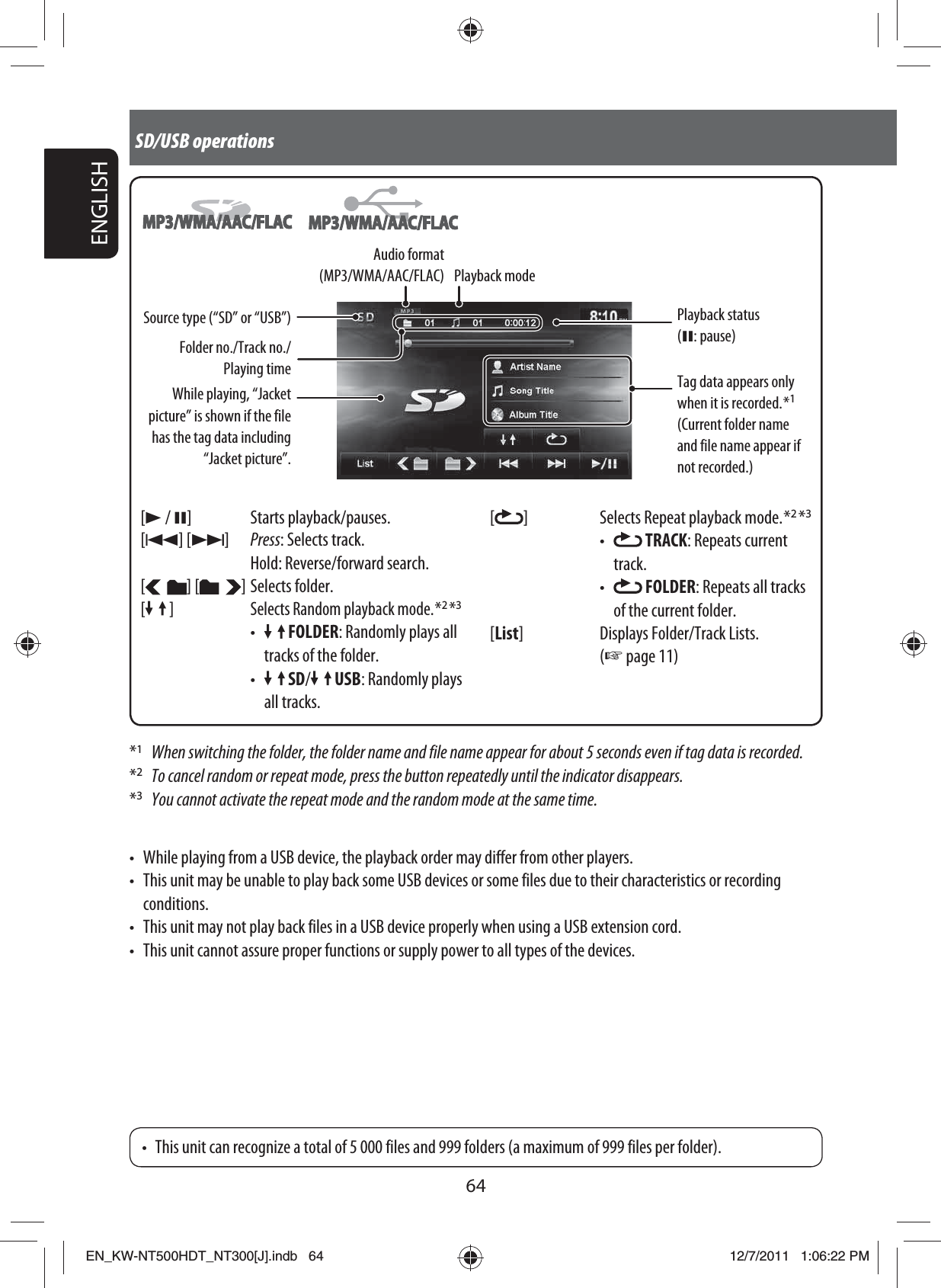

64ENGLISHSD/USB operations*1 When switching the folder, the folder name and file name appear for about 5 seconds even if tag data is recorded.*2 To cancel random or repeat mode, press the button repeatedly until the indicator disappears.*3 You cannot activate the repeat mode and the random mode at the same time.Source type (“SD” or “USB”)[ ] Selects Repeat playback mode. *2 * 3• TRACK: Repeats current track.• FOLDER: Repeats all tracks of the current folder.[List] Displays Folder/Track Lists. (☞ page 11)Audio format (MP3/WMA/AAC/FLAC)While playing, “Jacket picture” is shown if the file has the tag data including “Jacket picture”.Folder no./Track no./Playing timePlayback mode[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track.Hold: Reverse/forward search.[] [ ] Selects folder. [ ]Selects Random playback mode. *2 *3• FOLDER: Randomly plays all tracks of the folder.• SD/ USB: Randomly plays all tracks.• This unit can recognize a total of 5 000 files and 999 folders (a maximum of 999 files per folder).Tag data appears only when it is recorded. *1(Current folder name and file name appear if not recorded.)Playback status (8: pause)• While playing from a USB device, the playback order may differ from other players.• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.• This unit may not play back files in a USB device properly when using a USB extension cord.• This unit cannot assure proper functions or supply power to all types of the devices. EN_KW-NT500HDT_NT300[J].indb 64EN_KW-NT500HDT_NT300[J].indb 6412/7/2011 1:06:22 PM12/7/2011 1:06:22 PM

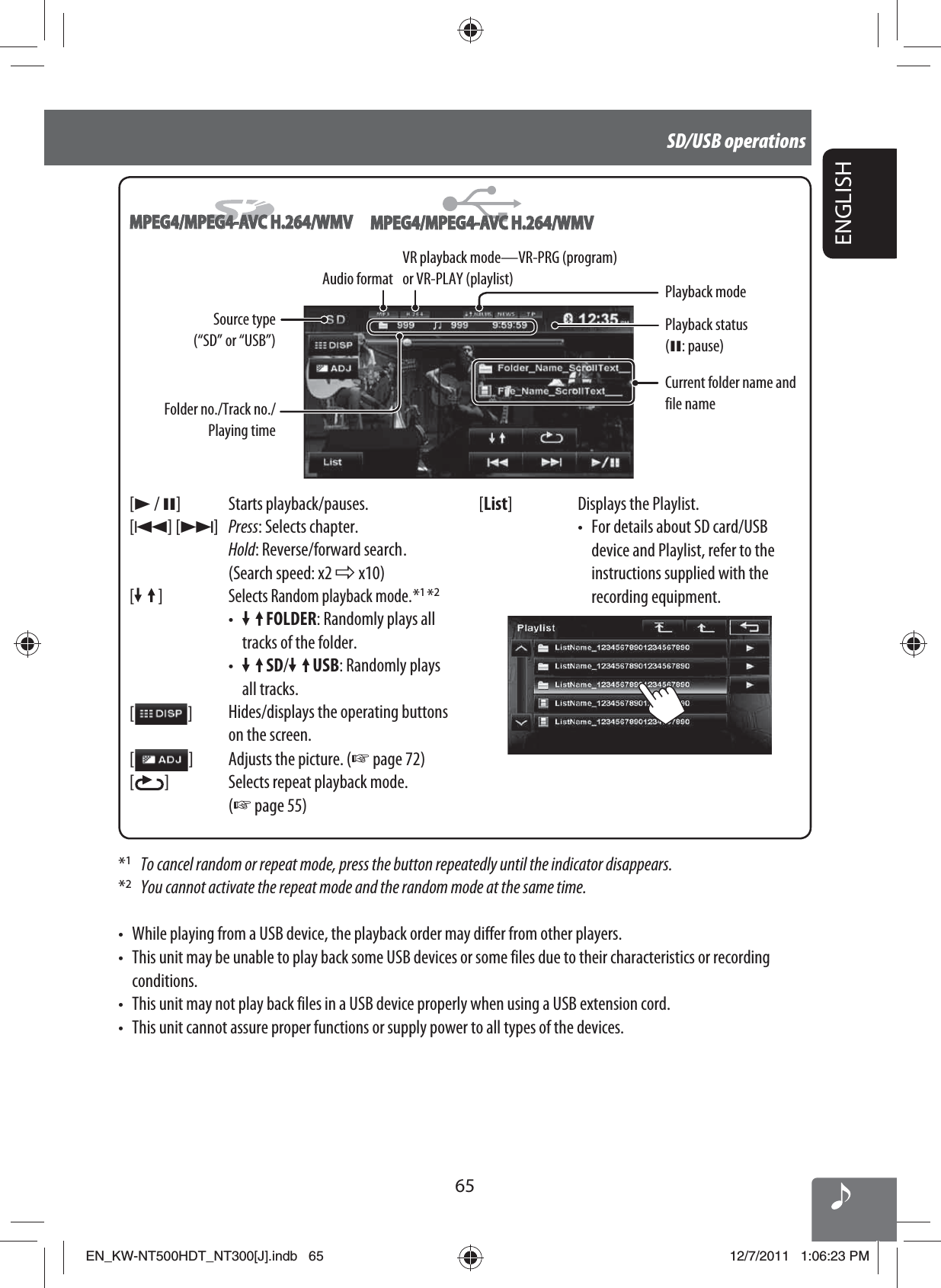

MPEG4/MPEG4-AVC H.264/WMVMPEG4/MPEG4-AVC H.264/WMVMPEG4/MPEG4-AVC H.264/WMVMPEG4/MPEG4-AVC H.264/WMV65ENGLISHSD/USB operationsFolder no./Track no./Playing time[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects chapter.Hold: Reverse/forward search .(Search speed: x2 ] x10)[ ]Selects Random playback mode. *1 *2• FOLDER: Randomly plays all tracks of the folder.• SD/ USB: Randomly plays all tracks.[ ]Hides/displays the operating buttons on the screen.[ ]Adjusts the picture. (☞ page 72)[ ] Selects repeat playback mode. (☞ page 55)[List] Displays the Playlist.• For details about SD card/USB device and Playlist, refer to the instructions supplied with the recording equipment.Audio format Playback modeSource type (“SD” or “USB”)VR playback mode—VR-PRG (program) or VR-PLAY (playlist)Playback status (8: pause)Current folder name and file name*1 To cancel random or repeat mode, press the button repeatedly until the indicator disappears.*2 You cannot activate the repeat mode and the random mode at the same time.• While playing from a USB device, the playback order may differ from other players.• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.• This unit may not play back files in a USB device properly when using a USB extension cord.• This unit cannot assure proper functions or supply power to all types of the devices.EN_KW-NT500HDT_NT300[J].indb 65EN_KW-NT500HDT_NT300[J].indb 6512/7/2011 1:06:23 PM12/7/2011 1:06:23 PM

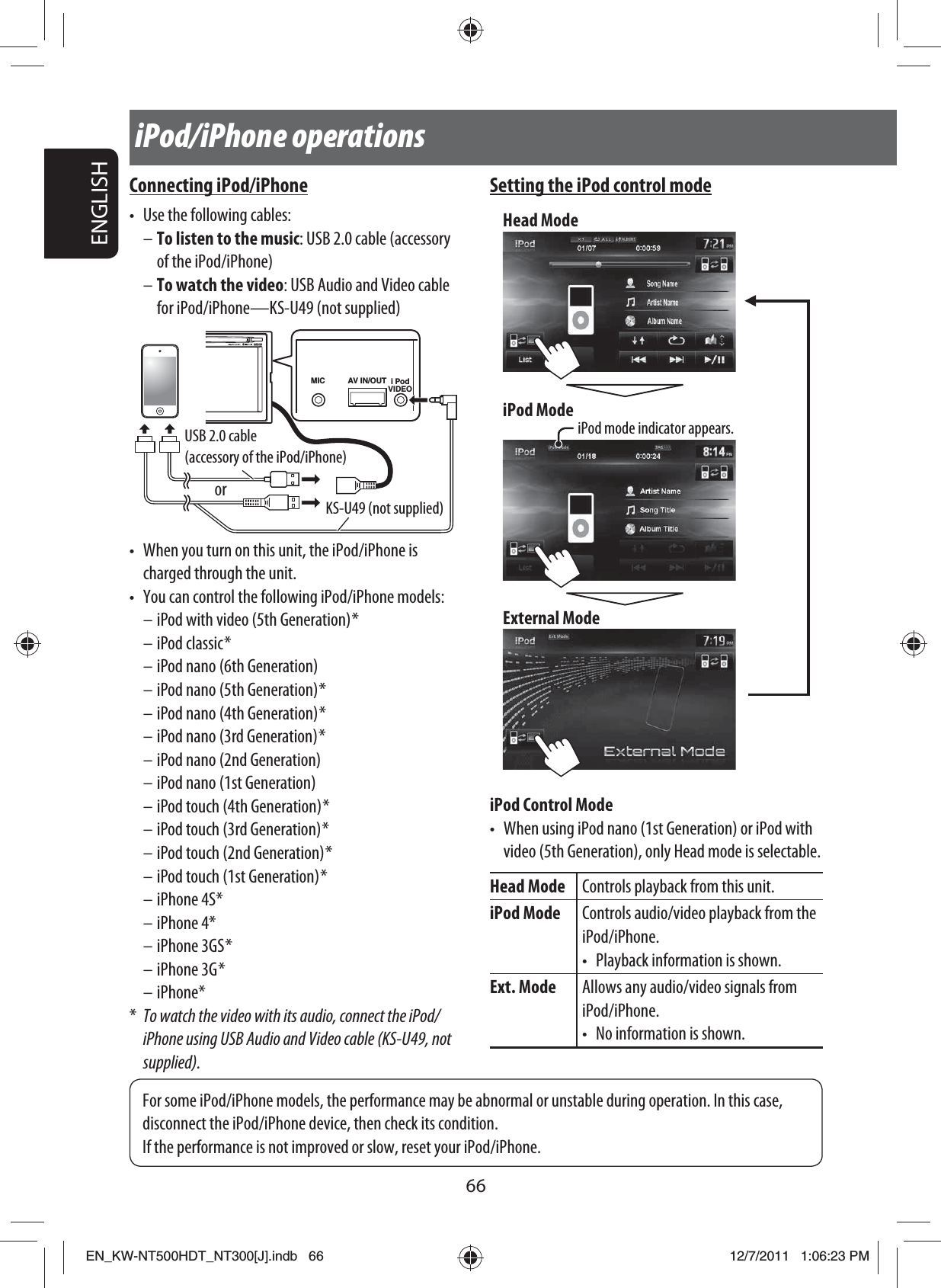

66ENGLISHiPod/iPhone operationsConnecting iPod/iPhone• Use the following cables:– To listen to the music: USB 2.0 cable (accessory of the iPod/iPhone)– To watch the video: USB Audio and Video cable for iPod/iPhone—KS-U49 (not supplied)AV IN/OUTMIC i PodVIDEOUSB 2.0 cable (accessory of the iPod/iPhone)KS-U49 (not supplied)or• When you turn on this unit, the iPod/iPhone is charged through the unit.• You can control the following iPod/iPhone models:– iPod with video (5th Generation) *– iPod classic *– iPod nano (6th Generation)– iPod nano (5th Generation) *– iPod nano (4th Generation) *– iPod nano (3rd Generation) *– iPod nano (2nd Generation)– iPod nano (1st Generation)– iPod touch (4th Generation) *– iPod touch (3rd Generation) *– iPod touch (2nd Generation) *– iPod touch (1st Generation) *– iPhone 4S*– iPhone 4*– iPhone 3GS *– iPhone 3G *– iPhone** To watch the video with its audio, connect the iPod/iPhone using USB Audio and Video cable (KS-U49, not supplied).Setting the iPod control modeExternal ModeHead ModeiPod ModeiPod mode indicator appears.iPod Control Mode• When using iPod nano (1st Generation) or iPod with video (5th Generation), only Head mode is selectable.Head Mode Controls playback from this unit.iPod Mode Controls audio/video playback from the iPod/iPhone.• Playback information is shown.Ext. Mode Allows any audio/video signals from iPod/iPhone.• No information is shown.For some iPod/iPhone models, the performance may be abnormal or unstable during operation. In this case, disconnect the iPod/iPhone device, then check its condition.If the performance is not improved or slow, reset your iPod/iPhone.EN_KW-NT500HDT_NT300[J].indb 66EN_KW-NT500HDT_NT300[J].indb 6612/7/2011 1:06:23 PM12/7/2011 1:06:23 PM

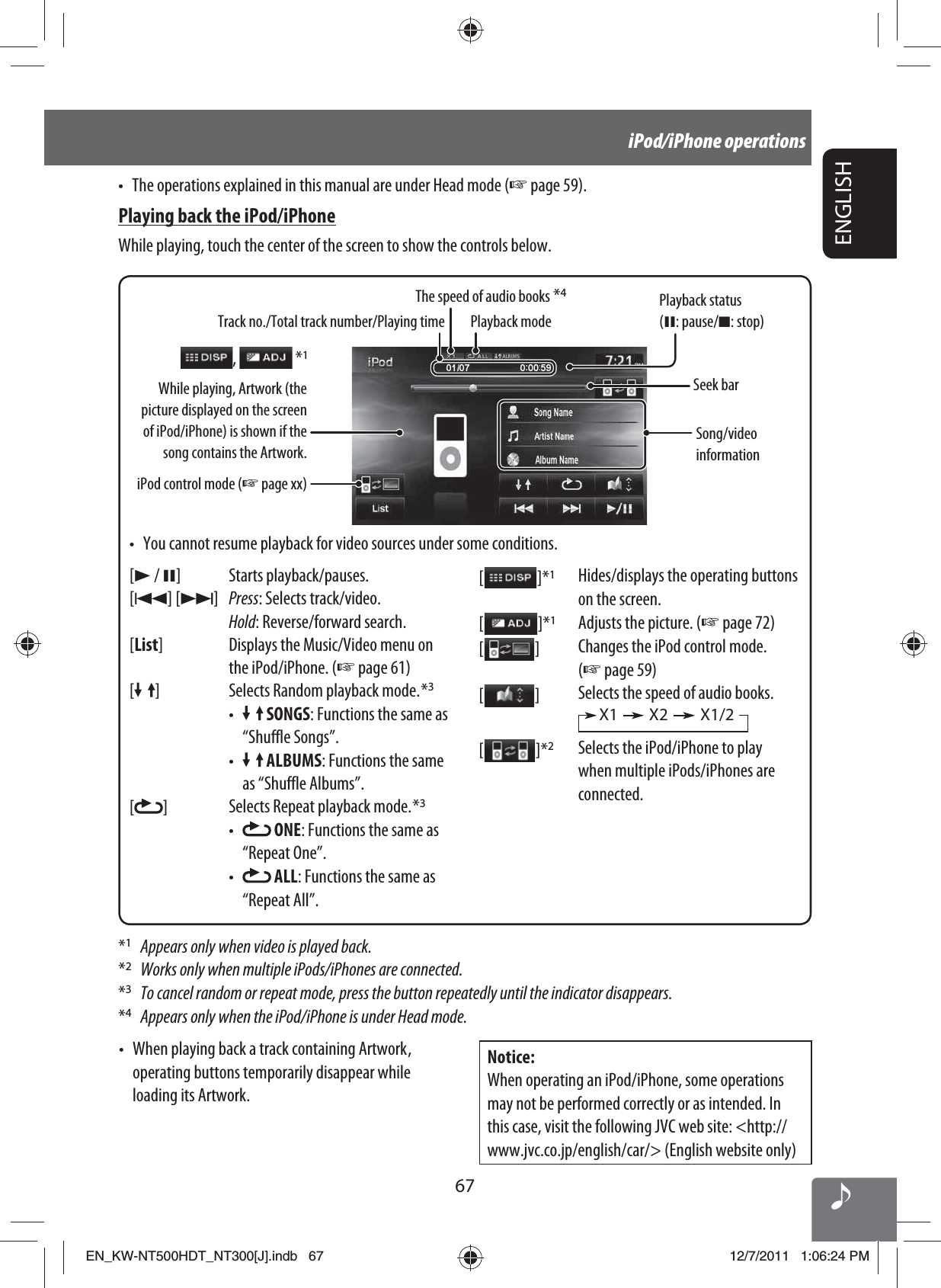

67ENGLISHiPod/iPhone operations*1 Appears only when video is played back.*2 Works only when multiple iPods/iPhones are connected.*3 To cancel random or repeat mode, press the button repeatedly until the indicator disappears.*4 Appears only when the iPod/iPhone is under Head mode.Track no./Total track number/Playing timeiPod control mode (☞ page xx)Playback modeWhile playing, Artwork (the picture displayed on the screen of iPod/iPhone) is shown if the song contains the Artwork.[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track/video.Hold: Reverse/forward search.[List] Displays the Music/Video menu on the iPod/iPhone. (☞ page 61)[] Selects Random playback mode. *3• SONGS: Functions the same as “Shuffle Songs”.• ALBUMS: Functions the same as “Shuffle Albums”.[]Selects Repeat playback mode. *3• ONE: Functions the same as “Repeat One”.• ALL: Functions the same as “Repeat All”.[ ]*1Hides/displays the operating buttons on the screen.[ ]*1Adjusts the picture. (☞ page 72)[ ]Changes the iPod control mode. (☞ page 59)[ ]Selects the speed of audio books. X1 X2 X1/2[ ]*2Selects the iPod/iPhone to play when multiple iPods/iPhones are connected.Seek barSong/video information• You cannot resume playback for video sources under some conditions.• When playing back a track containing Artwork , operating buttons temporarily disappear while loading its Artwork.Notice:When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only), *1• The operations explained in this manual are under Head mode (☞ page 59).Playing back the iPod/iPhoneWhile playing, touch the center of the screen to show the controls below.The speed of audio books *4Playback status (8: pause/7: stop)EN_KW-NT500HDT_NT300[J].indb 67EN_KW-NT500HDT_NT300[J].indb 6712/7/2011 1:06:24 PM12/7/2011 1:06:24 PM

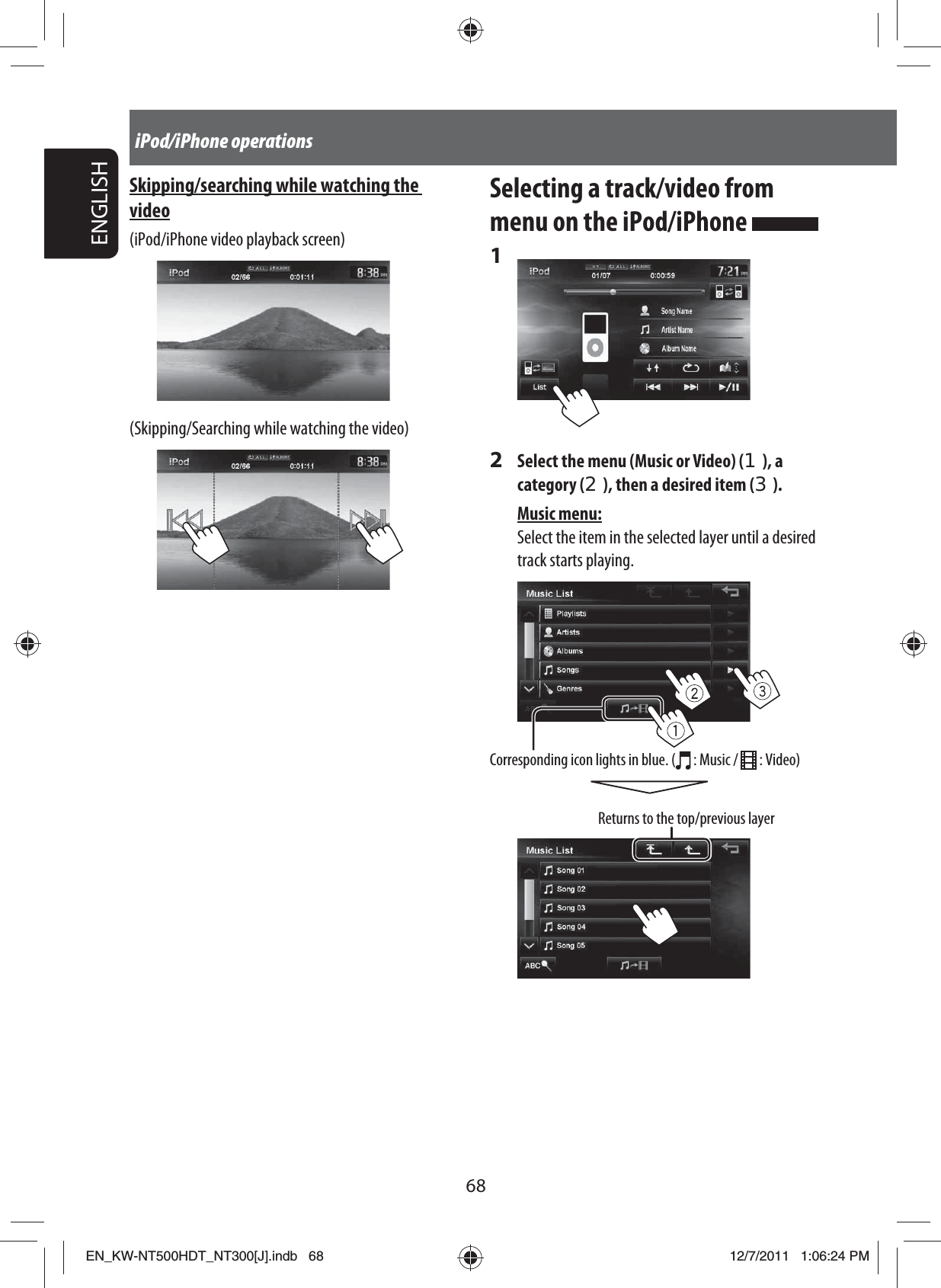

68ENGLISHiPod/iPhone operationsSelecting a track/video from menu on the iPod/iPhone 1 2 Select the menu (Music or Video) (1), a category (2), then a desired item (3).Music menu:Select the item in the selected layer until a desired track starts playing.Returns to the top/previous layerCorresponding icon lights in blue. ( : Music / : Video)Skipping/searching while watching the video(iPod/iPhone video playback screen)(Skipping/Searching while watching the video)EN_KW-NT500HDT_NT300[J].indb 68EN_KW-NT500HDT_NT300[J].indb 6812/7/2011 1:06:24 PM12/7/2011 1:06:24 PM

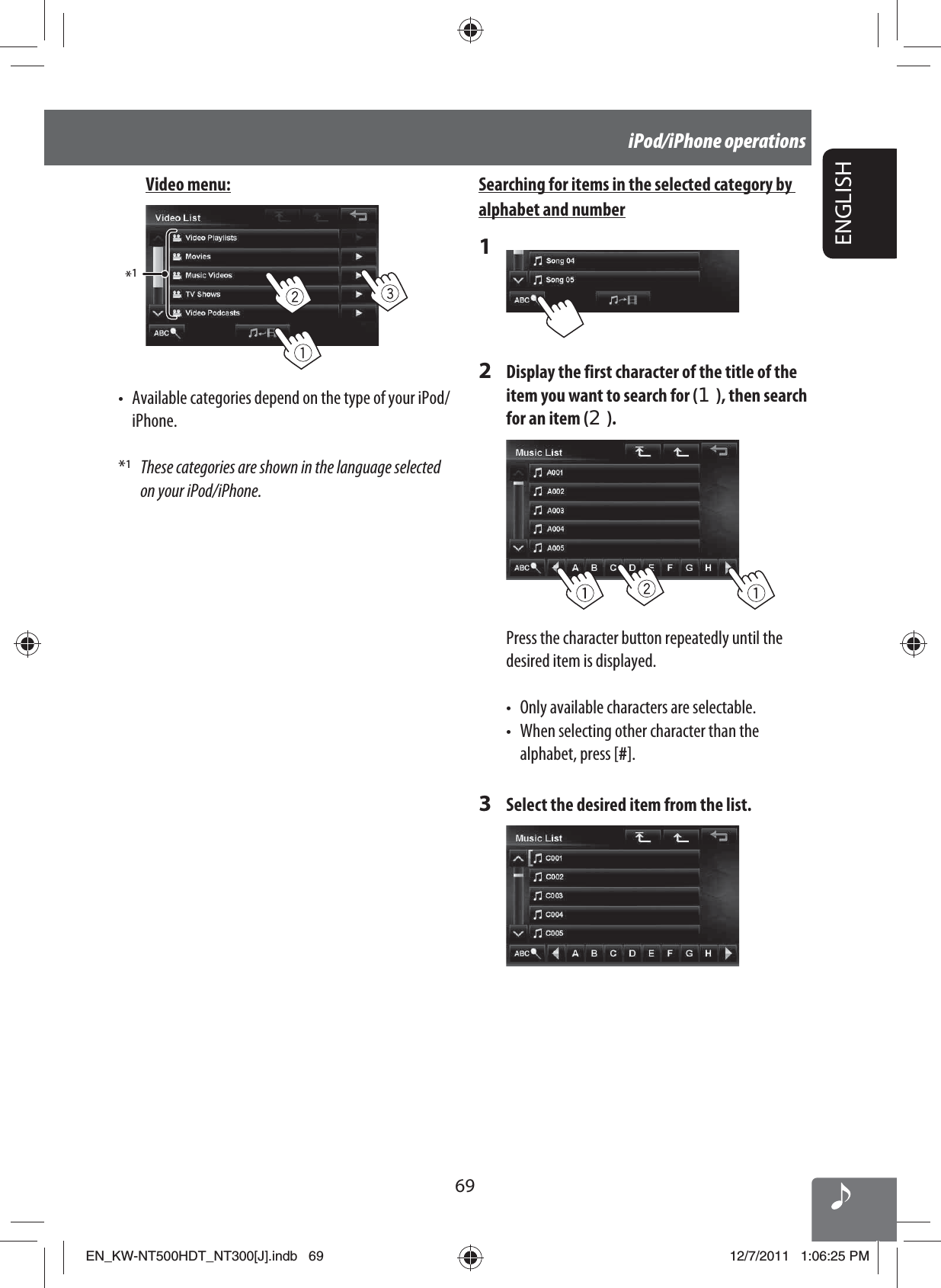

69ENGLISHiPod/iPhone operationsVideo menu:*1• Available categories depend on the type of your iPod/iPhone.*1 These categories are shown in the language selected on your iPod/iPhone.Searching for items in the selected category by alphabet and number12 Display the first character of the title of the item you want to search for (1), then search for an item (2).Press the character button repeatedly until the desired item is displayed.• Only available characters are selectable.• When selecting other character than the alphabet, press [#].3 Select the desired item from the list.EN_KW-NT500HDT_NT300[J].indb 69EN_KW-NT500HDT_NT300[J].indb 6912/7/2011 1:06:25 PM12/7/2011 1:06:25 PM

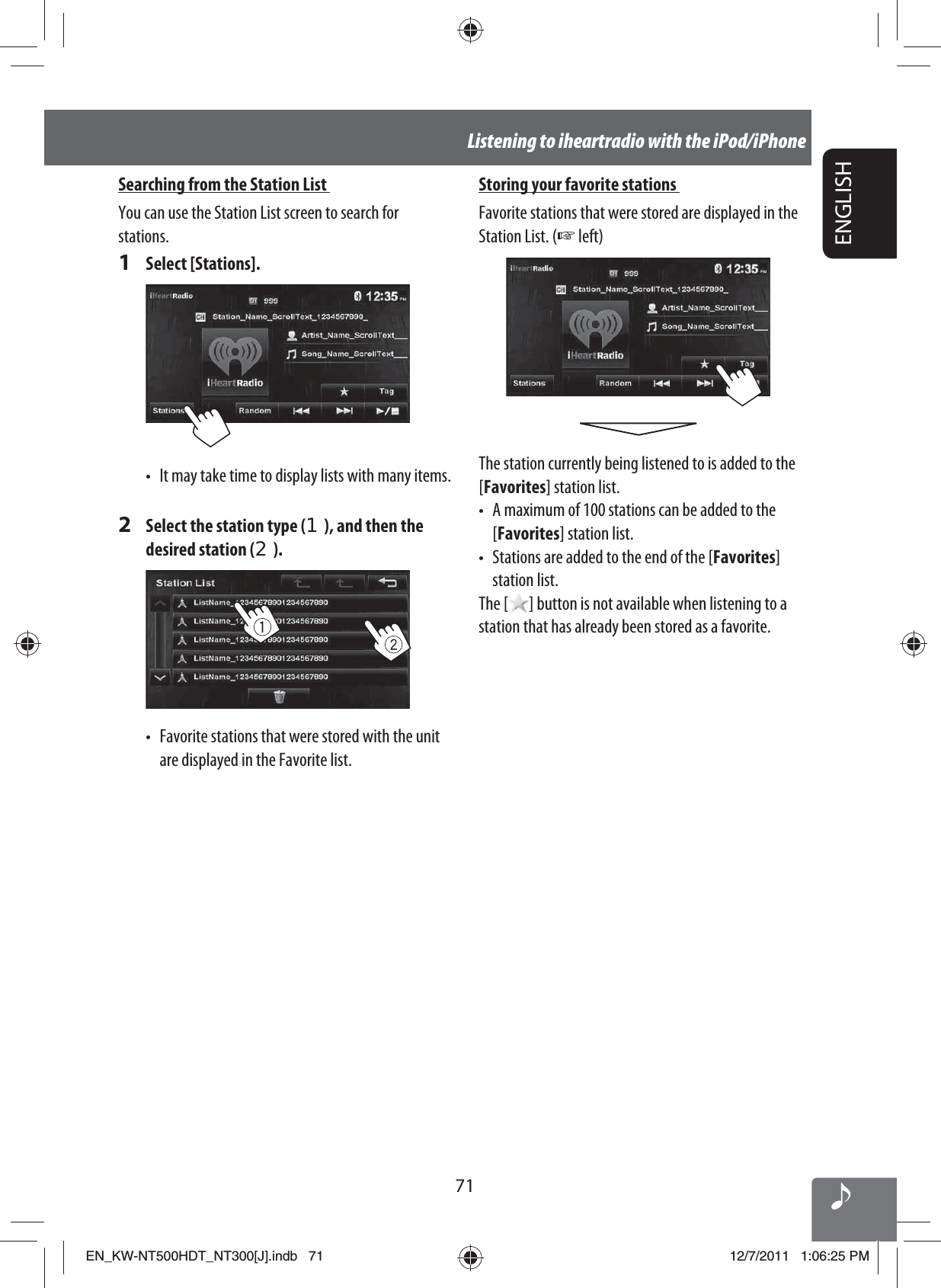

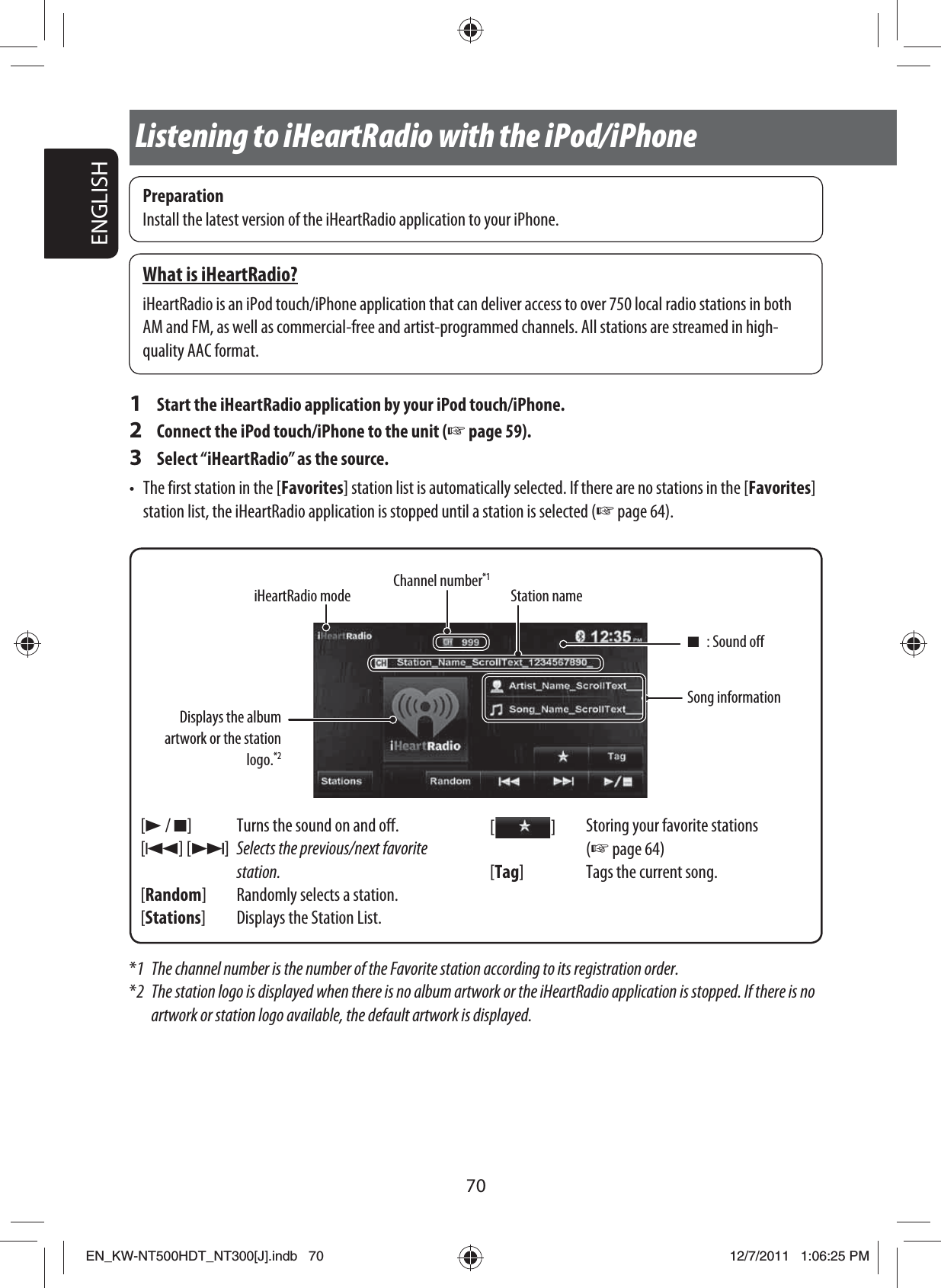

71ENGLISHListening to iheartradio with the iPod/iPhoneStoring your favorite stations Favorite stations that were stored are displayed in the Station List. (☞ left)The station currently being listened to is added to the [Favorites] station list.• A maximum of 100 stations can be added to the [Favorites] station list.• Stations are added to the end of the [Favorites] station list.The [ ] button is not available when listening to a station that has already been stored as a favorite.Searching from the Station List You can use the Station List screen to search for stations.1 Select [Stations].• It may take time to display lists with many items.2 Select the station type (1), and then the desired station (2).• Favorite stations that were stored with the unit are displayed in the Favorite list.EN_KW-NT500HDT_NT300[J].indb 71EN_KW-NT500HDT_NT300[J].indb 7112/7/2011 1:06:25 PM12/7/2011 1:06:25 PM

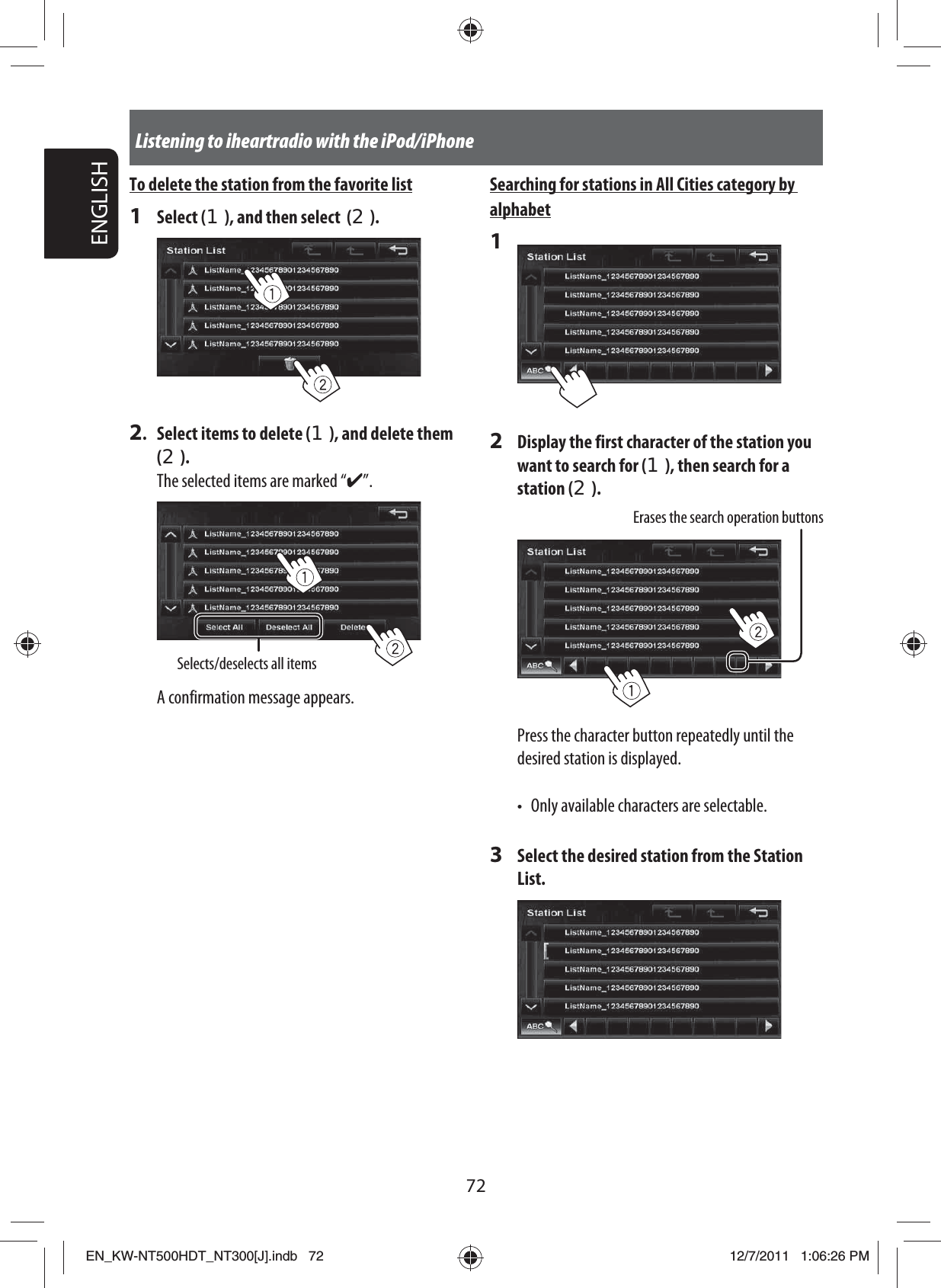

72ENGLISHListening to iheartradio with the iPod/iPhoneTo delete the station from the favorite list1 Select (1), and then select (2).2. Select items to delete (1), and delete them (2).The selected items are marked “✔”.Selects/deselects all itemsA confirmation message appears. Searching for stations in All Cities category by alphabet12 Display the first character of the station you want to search for (1), then search for a station (2).Erases the search operation buttonsPress the character button repeatedly until the desired station is displayed.• Only available characters are selectable.3 Select the desired station from the Station List.EN_KW-NT500HDT_NT300[J].indb 72EN_KW-NT500HDT_NT300[J].indb 7212/7/2011 1:06:26 PM12/7/2011 1:06:26 PM

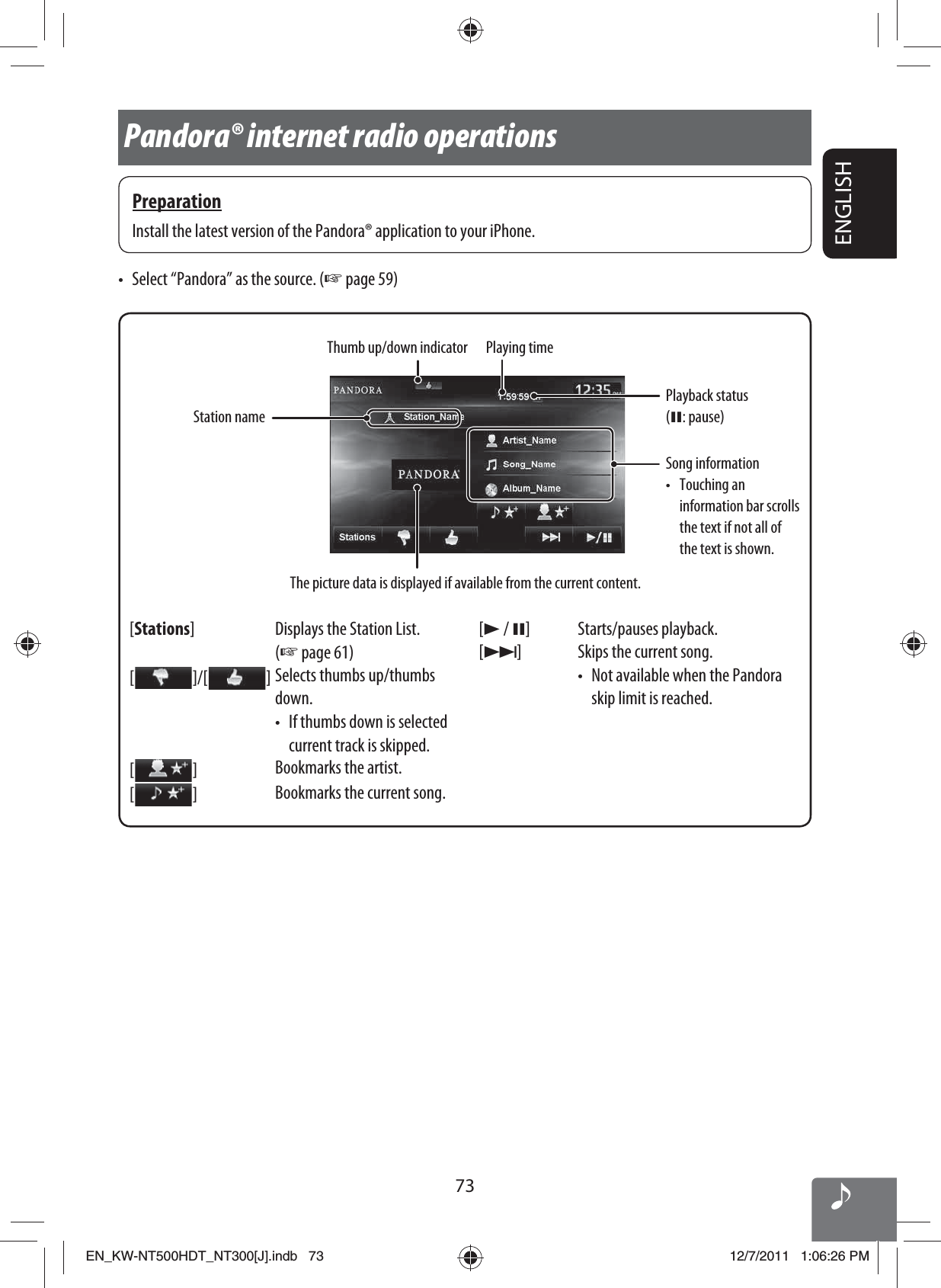

73ENGLISHThumb up/down indicator[Stations] Displays the Station List. (☞ page 61)[ ]/[ ]Selects thumbs up/thumbs down.• If thumbs down is selected current track is skipped.[ ]Bookmarks the artist.[ ]Bookmarks the current song.[3 / 8] Starts/pauses playback.[¢] Skips the current song.• Not available when the Pandora skip limit is reached.Playback status (8: pause)• Select “Pandora” as the source. (☞ page 59)Pandora® internet radio operationsPreparationInstall the latest version of the Pandora® application to your iPhone.The picture data is displayed if available from the current content.Song information• Touching an information bar scrolls the text if not all of the text is shown.Playing timeStation nameEN_KW-NT500HDT_NT300[J].indb 73EN_KW-NT500HDT_NT300[J].indb 7312/7/2011 1:06:26 PM12/7/2011 1:06:26 PM

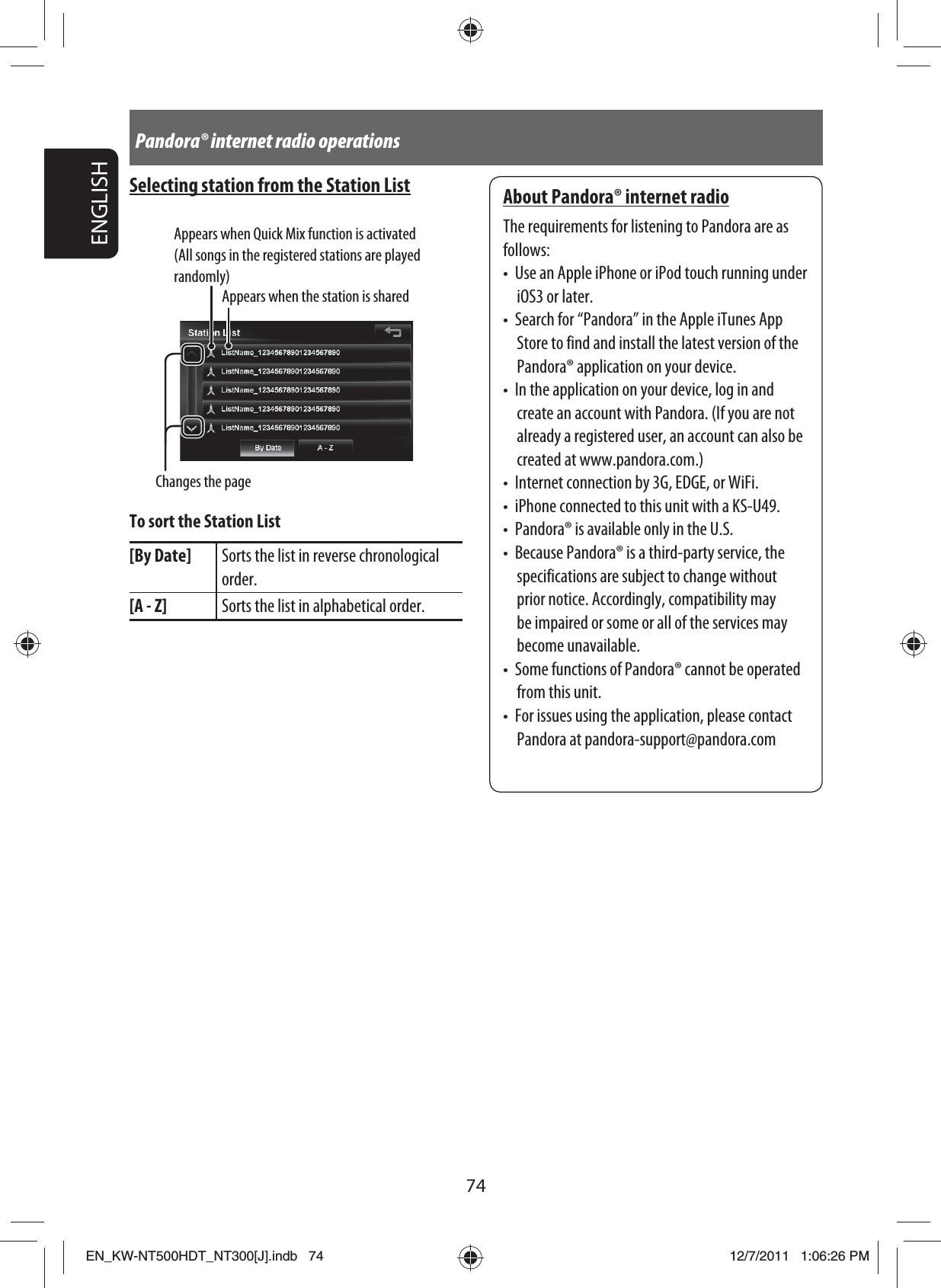

74ENGLISHPandora® internet radio operationsSelecting station from the Station ListAppears when Quick Mix function is activated (All songs in the registered stations are played randomly)Appears when the station is sharedChanges the pageTo sort the Station List[By Date] Sorts the list in reverse chronological order.[A - Z] Sorts the list in alphabetical order.About Pandora® internet radioThe requirements for listening to Pandora are as follows:• Use an Apple iPhone or iPod touch running under iOS3 or later.• Search for “Pandora” in the Apple iTunes App Store to find and install the latest version of the Pandora® application on your device.• In the application on your device, log in and create an account with Pandora. (If you are not already a registered user, an account can also be created at www.pandora.com.)• Internet connection by 3G, EDGE, or WiFi.• iPhone connected to this unit with a KS-U49.• Pandora® is available only in the U.S.• Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.• Some functions of Pandora® cannot be operated from this unit.• For issues using the application, please contact Pandora at pandora-support@pandora.comEN_KW-NT500HDT_NT300[J].indb 74EN_KW-NT500HDT_NT300[J].indb 7412/7/2011 1:06:26 PM12/7/2011 1:06:26 PM

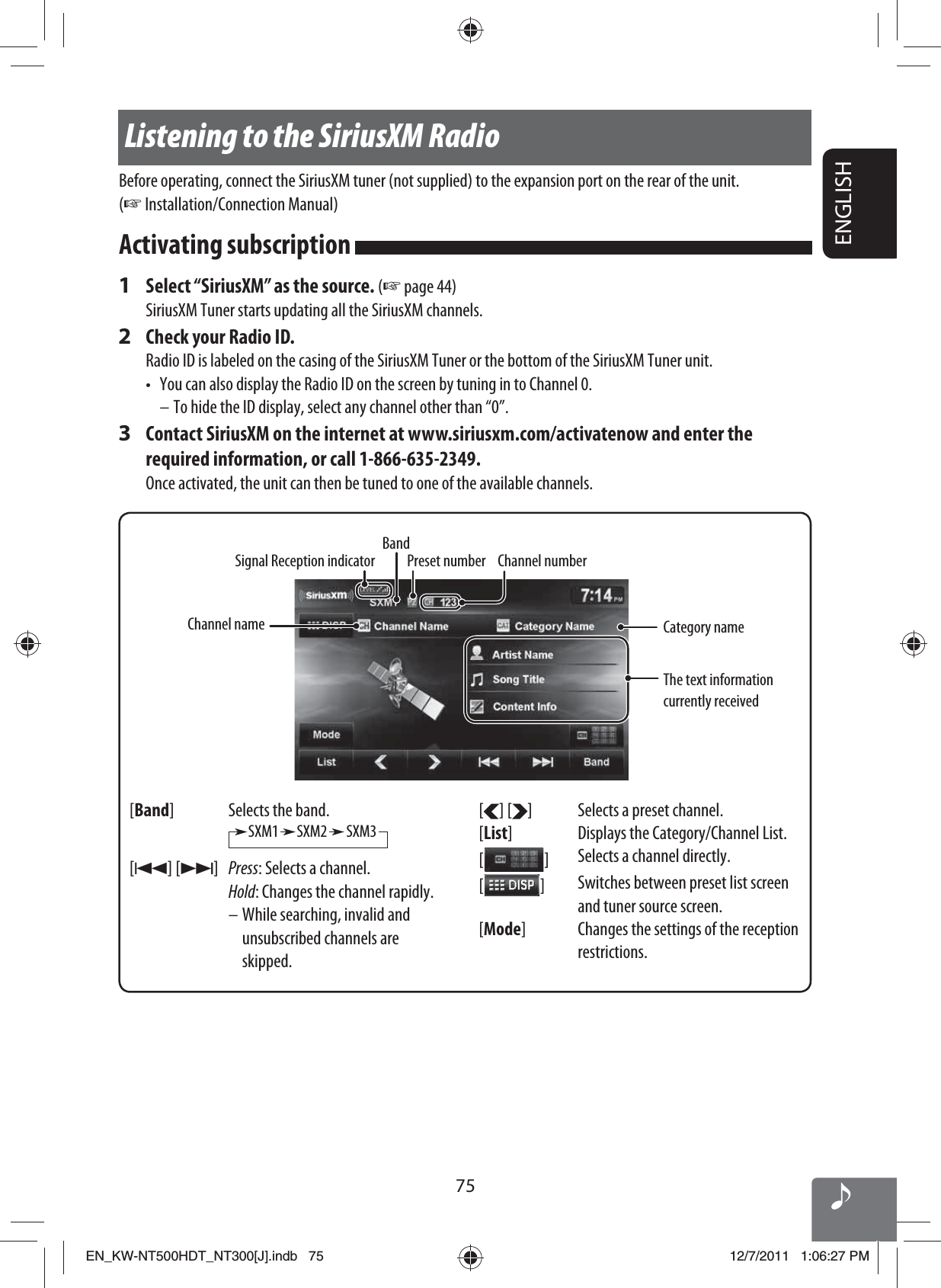

Signal Reception indicatorChannel nameBandPreset numberThe text information currently receivedCategory nameChannel numberENGLISH751 Select “SiriusXM” as the source. (☞ page 44)SiriusXM Tuner starts updating all the SiriusXM channels.2 Check your Radio ID.Radio ID is labeled on the casing of the SiriusXM Tuner or the bottom of the SiriusXM Tuner unit.• You can also display the Radio ID on the screen by tuning in to Channel 0.– To hide the ID display, select any channel other than “0”.3 Contact SiriusXM on the internet at www.siriusxm.com/activatenow and enter the required information, or call 1-866-635-2349.Once activated, the unit can then be tuned to one of the available channels.Listening to the SiriusXM RadioBefore operating, connect the SiriusXM tuner (not supplied) to the expansion port on the rear of the unit. (☞ Installation/Connection Manual)Activating subscription [Band] Selects the band.SXM1 SXM2 SXM3[4] [¢]Press: Selects a channel.Hold: Changes the channel rapidly.– While searching, invalid and unsubscribed channels are skipped.[] [ ] Selects a preset channel.[List] Displays the Category/Channel List.[ ]Selects a channel directly.[ ]Switches between preset list screen and tuner source screen.[Mode] Changes the settings of the reception restrictions.EN_KW-NT500HDT_NT300[J].indb 75EN_KW-NT500HDT_NT300[J].indb 7512/7/2011 1:06:27 PM12/7/2011 1:06:27 PM

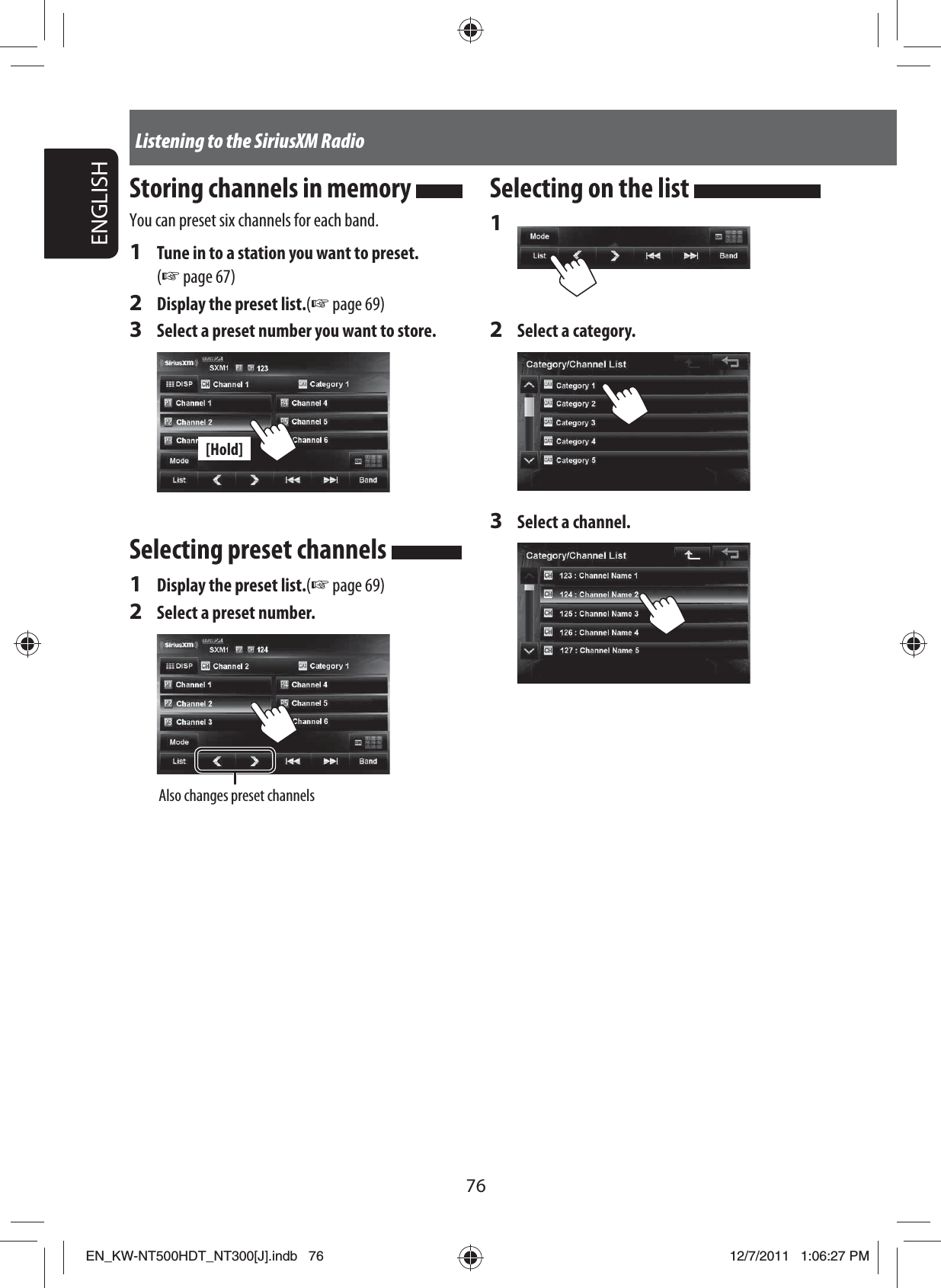

76ENGLISHListening to the SiriusXM RadioSelecting on the list 1 2 Select a category.3 Select a channel.Storing channels in memory You can preset six channels for each band.1 Tune in to a station you want to preset. (☞ page 67)2 Display the preset list.(☞ page 69)3 Select a preset number you want to store.[Hold]Selecting preset channels 1 Display the preset list.(☞ page 69)2 Select a preset number.Also changes preset channelsEN_KW-NT500HDT_NT300[J].indb 76EN_KW-NT500HDT_NT300[J].indb 7612/7/2011 1:06:27 PM12/7/2011 1:06:27 PM

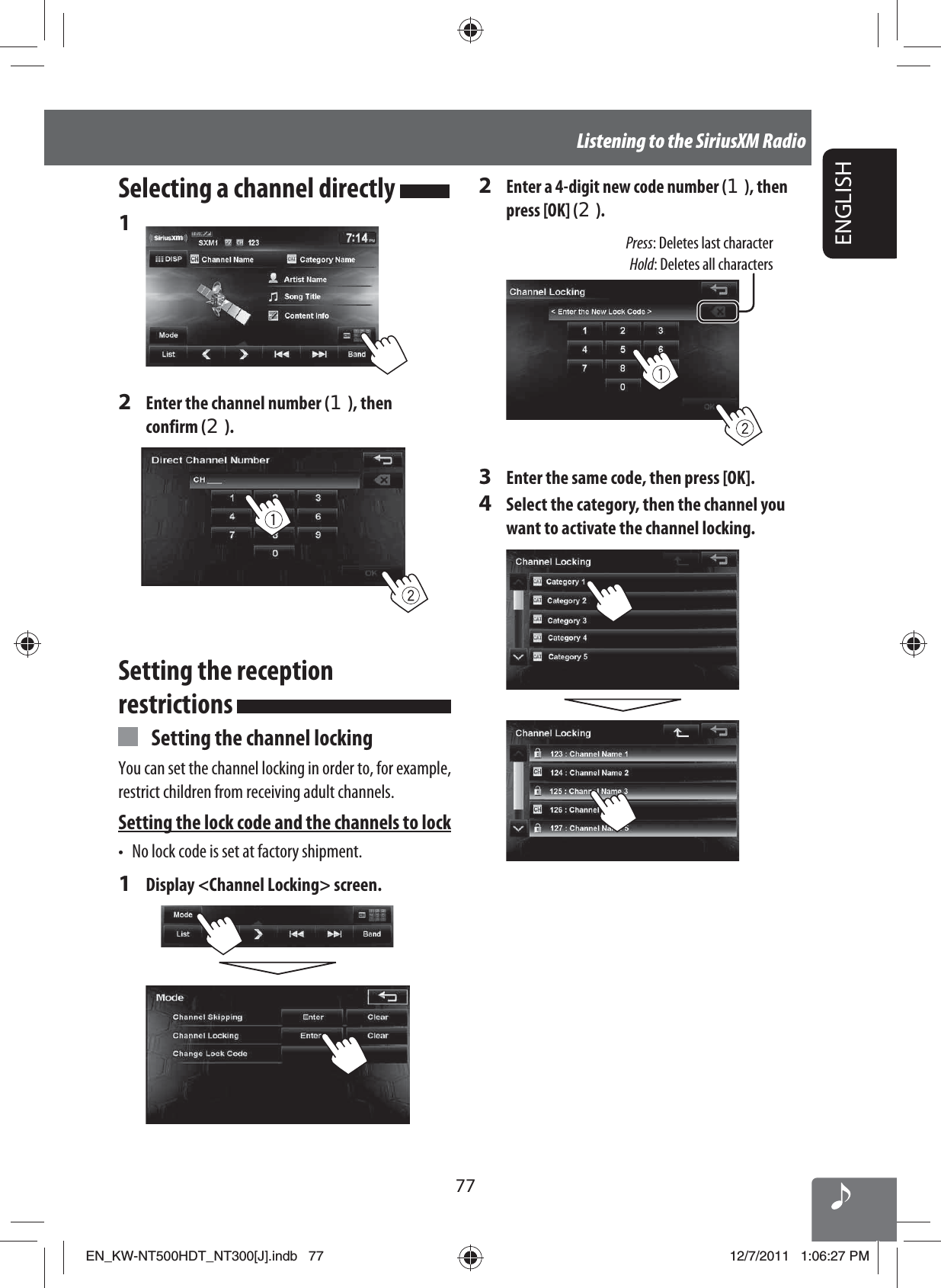

ENGLISH77Listening to the SiriusXM RadioSelecting a channel directly 1 2 Enter the channel number (1), then confirm (2).Setting the reception restrictions Setting the channel lockingYou can set the channel locking in order to, for example, restrict children from receiving adult channels.Setting the lock code and the channels to lock• No lock code is set at factory shipment.1 Display <Channel Locking> screen.2 Enter a 4-digit new code number (1), then press [OK] (2).Press: Deletes last characterHold: Deletes all characters3 Enter the same code, then press [OK].4 Select the category, then the channel you want to activate the channel locking.EN_KW-NT500HDT_NT300[J].indb 77EN_KW-NT500HDT_NT300[J].indb 7712/7/2011 1:06:27 PM12/7/2011 1:06:27 PM

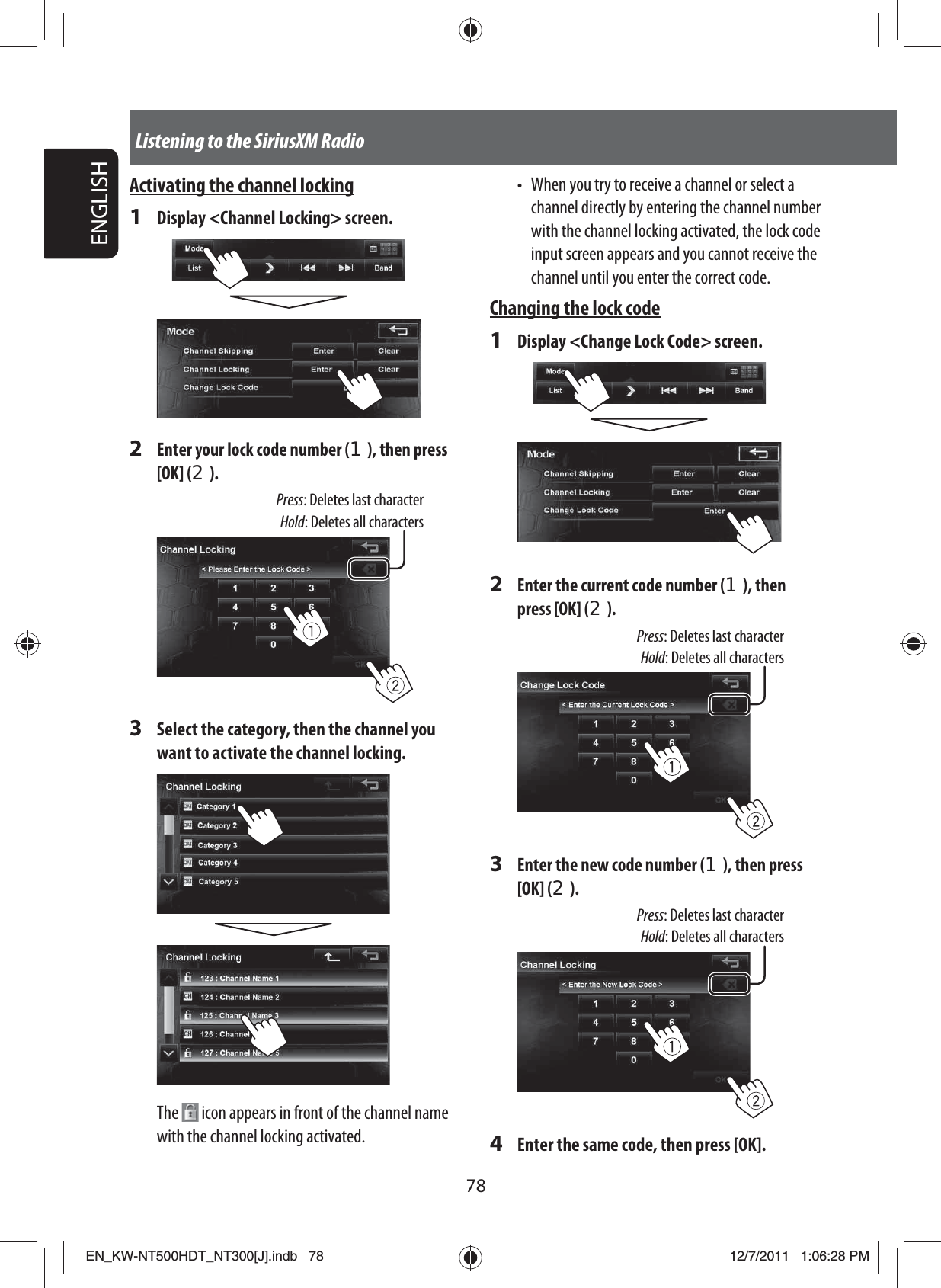

78ENGLISHListening to the SiriusXM RadioActivating the channel locking1 Display <Channel Locking> screen.2 Enter your lock code number (1), then press [OK] (2).Press: Deletes last characterHold: Deletes all characters3 Select the category, then the channel you want to activate the channel locking.The icon appears in front of the channel name with the channel locking activated.• When you try to receive a channel or select a channel directly by entering the channel number with the channel locking activated, the lock code input screen appears and you cannot receive the channel until you enter the correct code. Changing the lock code1 Display <Change Lock Code> screen.2 Enter the current code number (1), then press [OK] (2).Press: Deletes last characterHold: Deletes all characters3 Enter the new code number (1), then press [OK] (2).Press: Deletes last characterHold: Deletes all characters4 Enter the same code, then press [OK].EN_KW-NT500HDT_NT300[J].indb 78EN_KW-NT500HDT_NT300[J].indb 7812/7/2011 1:06:28 PM12/7/2011 1:06:28 PM

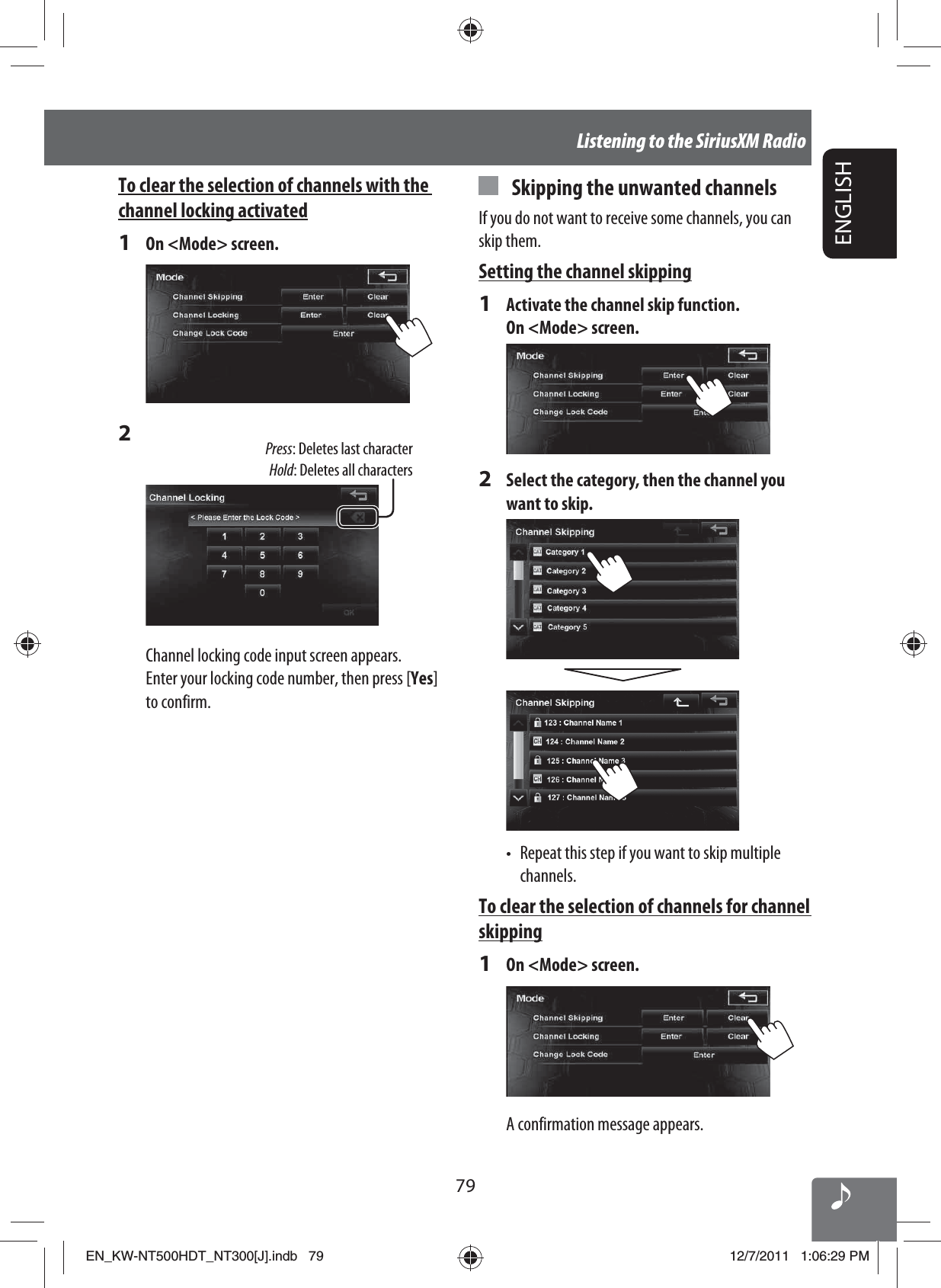

ENGLISH79Listening to the SiriusXM RadioTo clear the selection of channels with the channel locking activated1 On <Mode> screen.2 Press: Deletes last characterHold: Deletes all charactersChannel locking code input screen appears.Enter your locking code number, then press [Yes] to confirm. Skipping the unwanted channelsIf you do not want to receive some channels, you can skip them.Setting the channel skipping1 Activate the channel skip function. On <Mode> screen.2 Select the category, then the channel you want to skip.• Repeat this step if you want to skip multiple channels.To clear the selection of channels for channel skipping1 On <Mode> screen.A confirmation message appears.EN_KW-NT500HDT_NT300[J].indb 79EN_KW-NT500HDT_NT300[J].indb 7912/7/2011 1:06:29 PM12/7/2011 1:06:29 PM

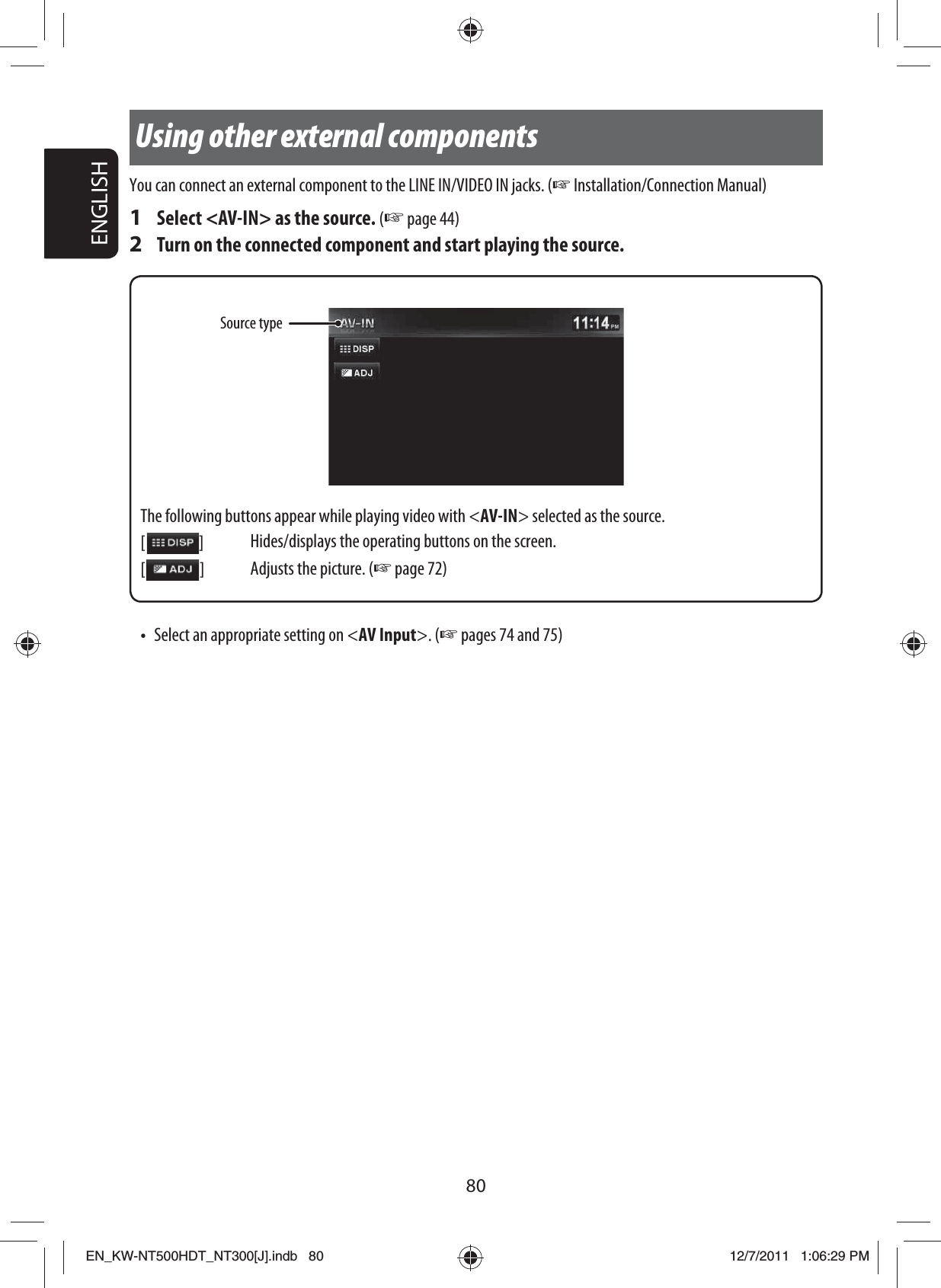

80ENGLISHUsing other external componentsYou can connect an external component to the LINE IN/VIDEO IN jacks. (☞ Installation/Connection Manual)1 Select <AV-IN> as the source. (☞ page 44)2 Turn on the connected component and start playing the source.Source type The following buttons appear while playing video with <AV-IN> selected as the source.[ ]Hides/displays the operating buttons on the screen.[ ]Adjusts the picture. (☞ page 72)• Select an appropriate setting on <AV Input>. (☞ pages 74 and 75)EN_KW-NT500HDT_NT300[J].indb 80EN_KW-NT500HDT_NT300[J].indb 8012/7/2011 1:06:29 PM12/7/2011 1:06:29 PM

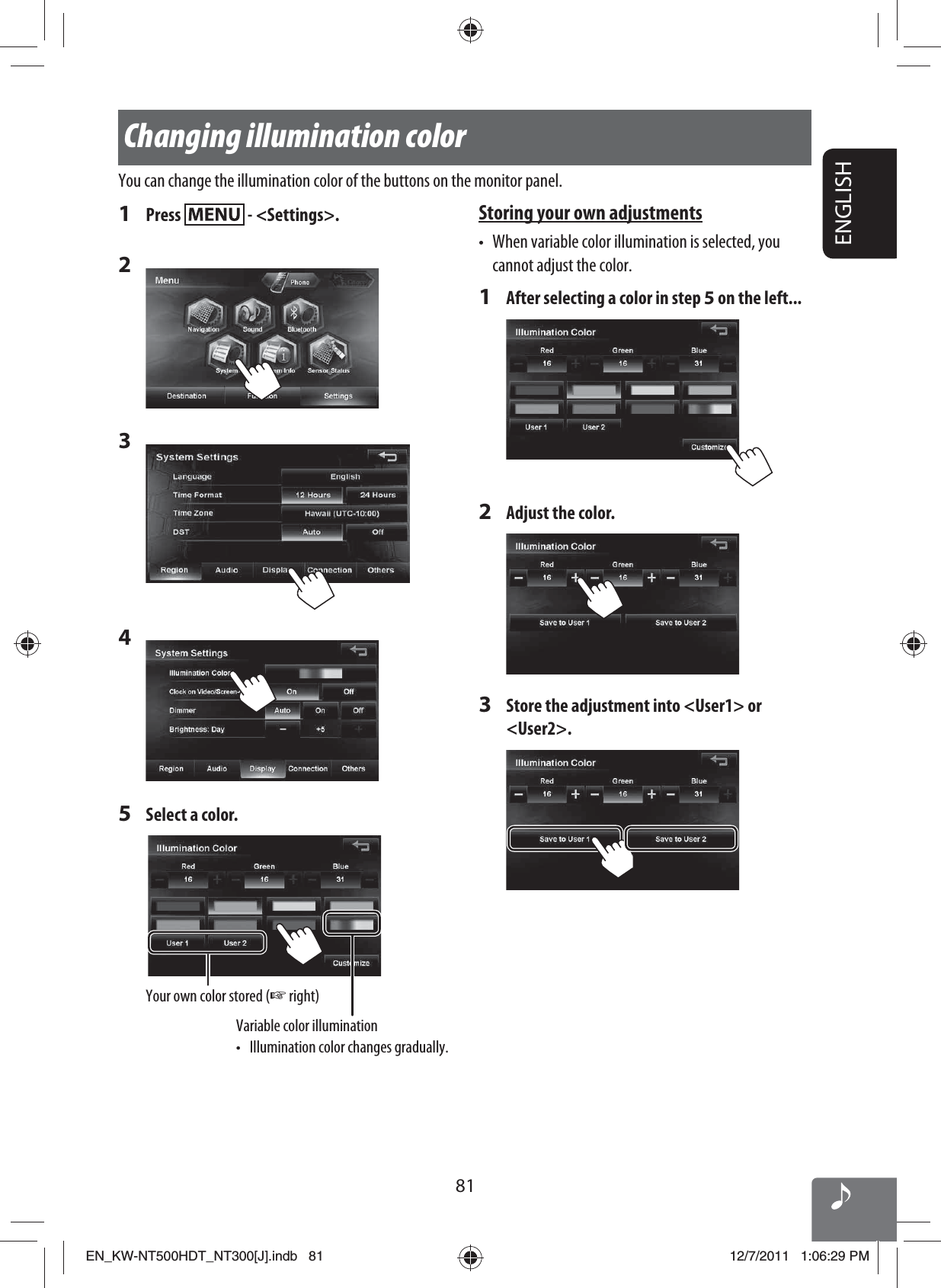

ENGLISH81Changing illumination colorYou can change the illumination color of the buttons on the monitor panel.1 Press - <Settings>.2 3 4 5 Select a color.Your own color stored (☞ right)Variable color illumination• Illumination color changes gradually.Storing your own adjustments• When variable color illumination is selected, you cannot adjust the color.1 After selecting a color in step 5 on the left...2 Adjust the color.3 Store the adjustment into <User1> or <User2>.EN_KW-NT500HDT_NT300[J].indb 81EN_KW-NT500HDT_NT300[J].indb 8112/7/2011 1:06:29 PM12/7/2011 1:06:29 PM

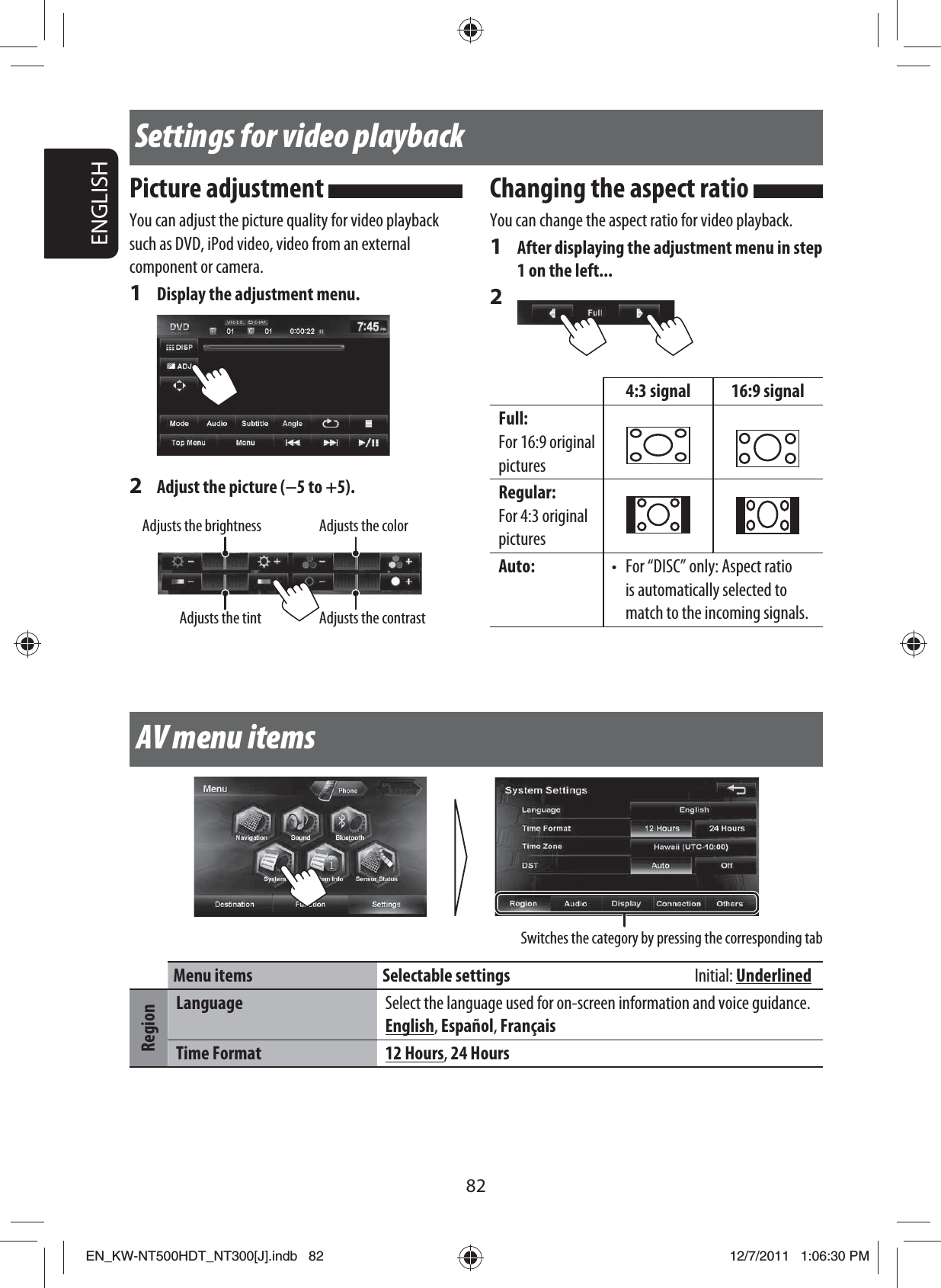

82ENGLISHSwitches the category by pressing the corresponding tabSettings for video playbackPicture adjustment You can adjust the picture quality for video playback such as DVD, iPod video, video from an external component or camera.1 Display the adjustment menu.2 Adjust the picture (−5 to +5). Adjusts the brightnessAdjusts the contrastAdjusts the tintAdjusts the colorChanging the aspect ratio You can change the aspect ratio for video playback.1 After displaying the adjustment menu in step 1 on the left...2 4:3 signal 16:9 signalFull:For 16:9 original picturesRegular:For 4:3 original pictures Auto: • For “DISC” only: Aspect ratio is automatically selected to match to the incoming signals.AV menu itemsMenu items Selectable settings Initial: UnderlinedRegionLanguage Select the language used for on-screen information and voice guidance.English, Español, FrançaisTime Format 12 Hours, 24 HoursEN_KW-NT500HDT_NT300[J].indb 82EN_KW-NT500HDT_NT300[J].indb 8212/7/2011 1:06:30 PM12/7/2011 1:06:30 PM

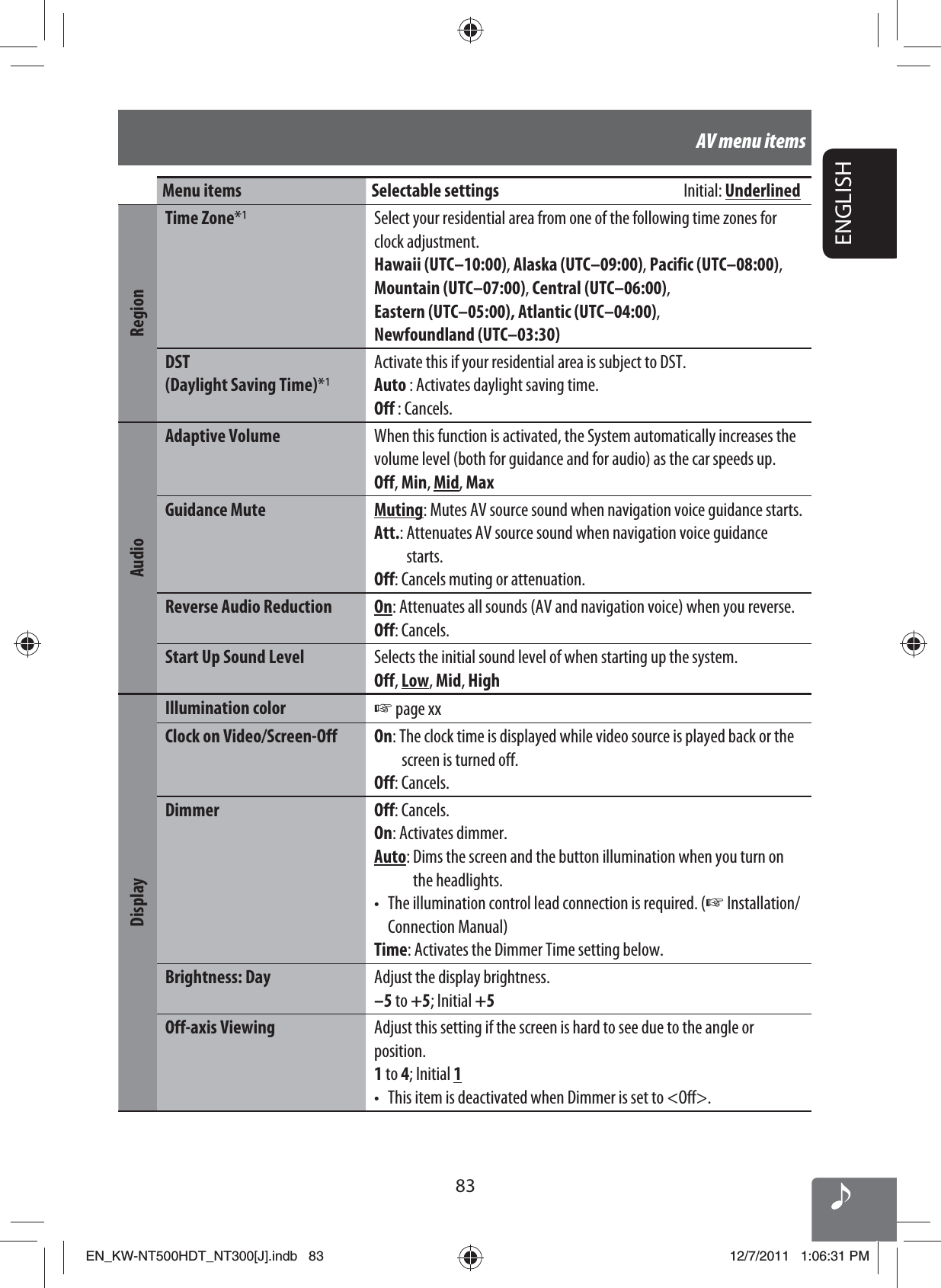

ENGLISH83AV menu itemsMenu items Selectable settings Initial: UnderlinedRegionTime Zone*1Select your residential area from one of the following time zones forclock adjustment.Hawaii (UTC–10:00), Alaska (UTC–09:00), Pacific (UTC–08:00),Mountain (UTC–07:00), Central (UTC–06:00),Eastern (UTC–05:00), Atlantic (UTC–04:00),Newfoundland (UTC–03:30)DST (Daylight Saving Time)*1Activate this if your residential area is subject to DST.Auto : Activates daylight saving time.Off : Cancels.AudioAdaptive Volume When this function is activated, the System automatically increases the volume level (both for guidance and for audio) as the car speeds up.Off, Min, Mid, MaxGuidance Mute Muting: Mutes AV source sound when navigation voice guidance starts.Att.: Attenuates AV source sound when navigation voice guidance starts.Off: Cancels muting or attenuation.Reverse Audio Reduction On: Attenuates all sounds (AV and navigation voice) when you reverse.Off: Cancels.Start Up Sound Level Selects the initial sound level of when starting up the system.Off, Low, Mid, HighDisplayIllumination color ☞ page xxClock on Video/Screen-Off On: The clock time is displayed while video source is played back or the screen is turned off.Off: Cancels.Dimmer Off: Cancels.On: Activates dimmer.Auto: Dims the screen and the button illumination when you turn on the headlights.• The illumination control lead connection is required. (☞ Installation/Connection Manual)Time: Activates the Dimmer Time setting below.Brightness: Day Adjust the display brightness.–5 to +5; Initial +5Off-axis Viewing Adjust this setting if the screen is hard to see due to the angle or position.1 to 4; Initial 1• This item is deactivated when Dimmer is set to <Off>.EN_KW-NT500HDT_NT300[J].indb 83EN_KW-NT500HDT_NT300[J].indb 8312/7/2011 1:06:31 PM12/7/2011 1:06:31 PM

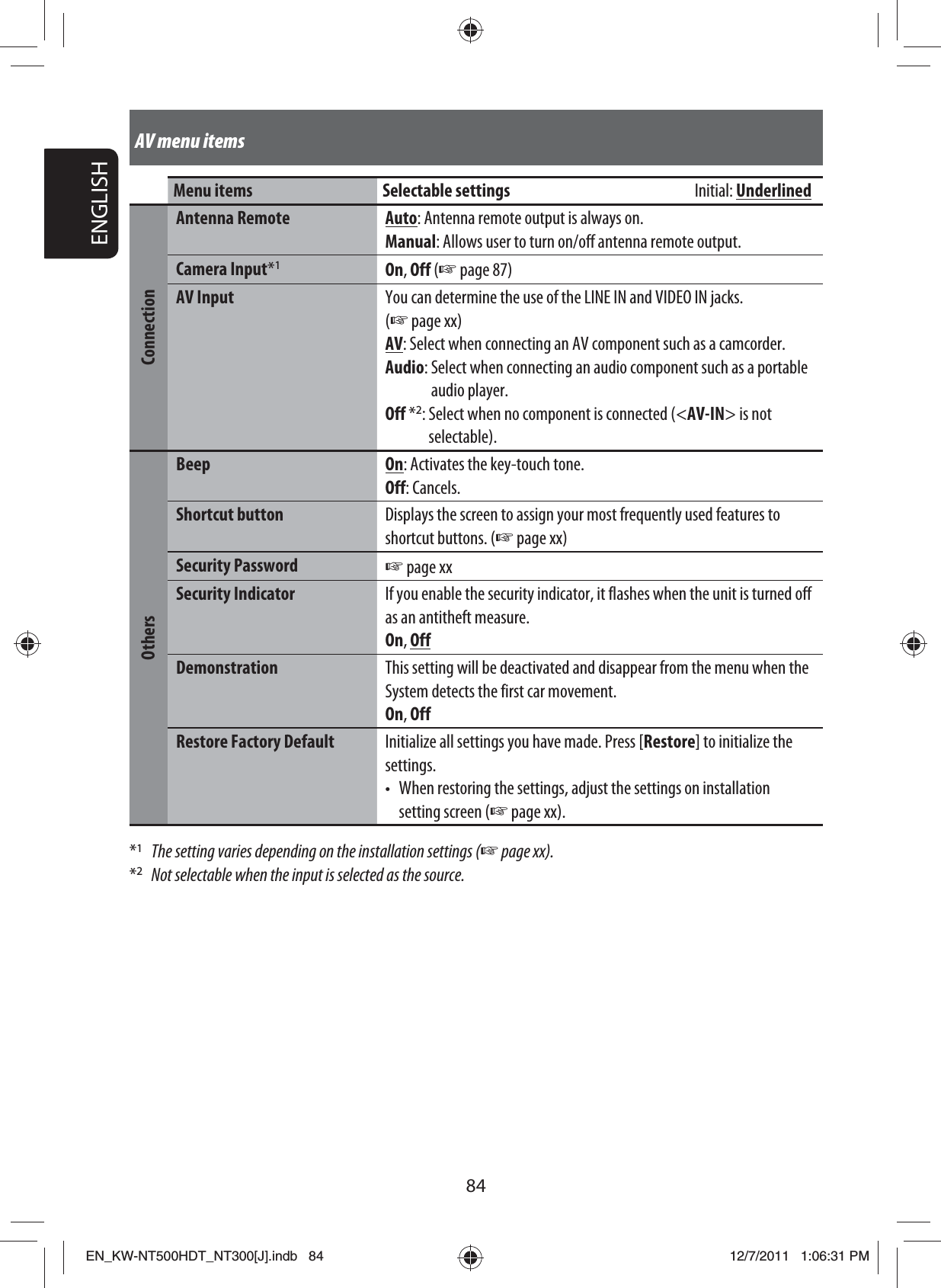

84ENGLISHAV menu itemsMenu items Selectable settings Initial: UnderlinedConnectionAntenna Remote Auto: Antenna remote output is always on.Manual: Allows user to turn on/off antenna remote output.Camera Input*1On, Off (☞ page 87)AV Input You can determine the use of the LINE IN and VIDEO IN jacks. (☞ page xx)AV: Select when connecting an AV component such as a camcorder.Audio: Select when connecting an audio component such as a portable audio player.Off *2: Select when no component is connected (<AV-IN> is not selectable).OthersBeep On: Activates the key-touch tone.Off: Cancels.Shortcut button Displays the screen to assign your most frequently used features to shortcut buttons. (☞ page xx)Security Password ☞ page xxSecurity Indicator If you enable the security indicator, it flashes when the unit is turned off as an antitheft measure.On, OffDemonstration This setting will be deactivated and disappear from the menu when the System detects the first car movement.On, OffRestore Factory Default Initialize all settings you have made. Press [Restore] to initialize the settings.• When restoring the settings, adjust the settings on installation setting screen (☞ page xx).*1 The setting varies depending on the installation settings (☞ page xx).*2 Not selectable when the input is selected as the source.EN_KW-NT500HDT_NT300[J].indb 84EN_KW-NT500HDT_NT300[J].indb 8412/7/2011 1:06:31 PM12/7/2011 1:06:31 PM

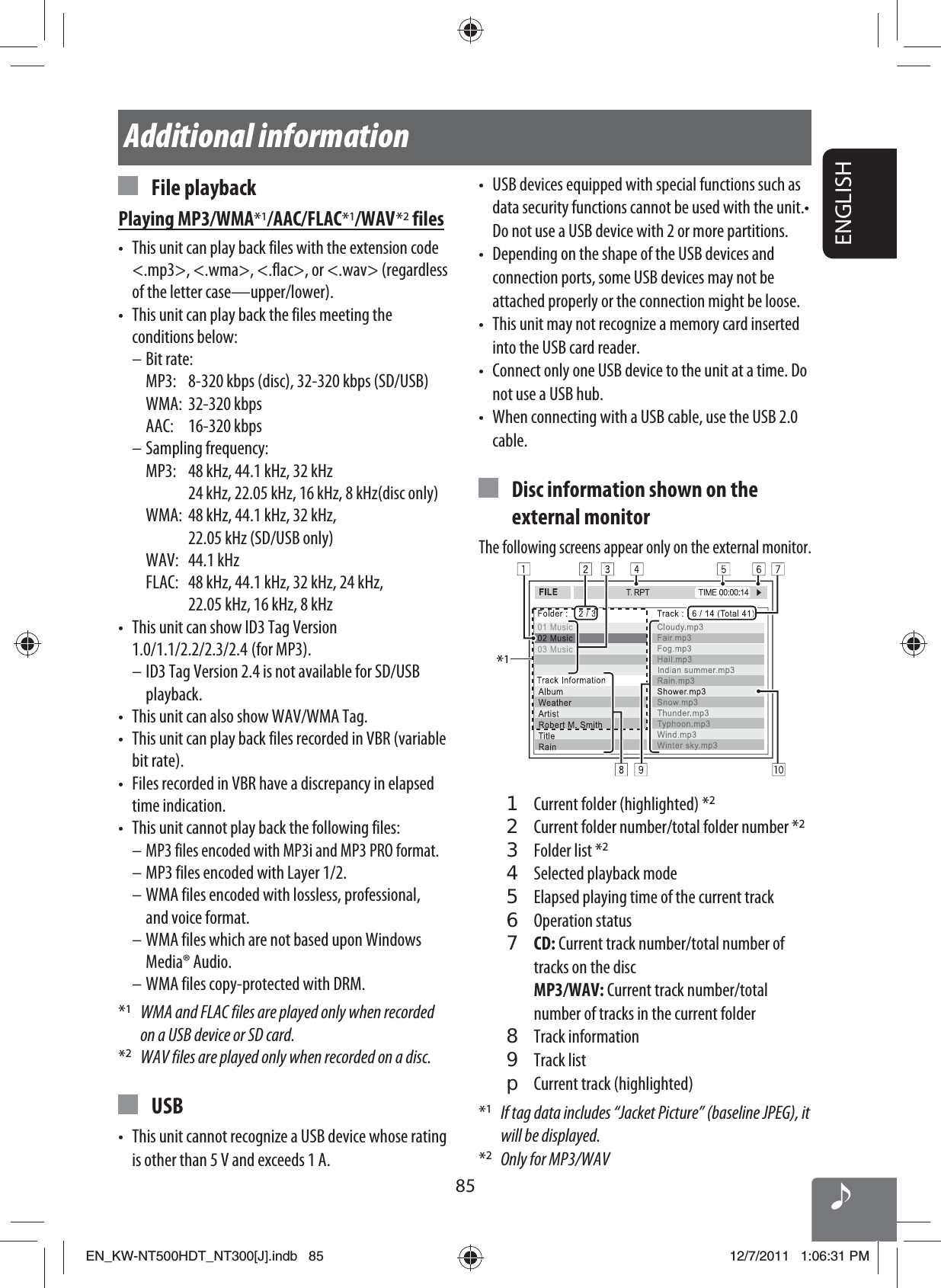

ENGLISH85Additional information• USB devices equipped with special functions such as data security functions cannot be used with the unit.• Do not use a USB device with 2 or more partitions.• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.• This unit may not recognize a memory card inserted into the USB card reader.• Connect only one USB device to the unit at a time. Do not use a USB hub.• When connecting with a USB cable, use the USB 2.0 cable. Disc information shown on the external monitorThe following screens appear only on the external monitor.*11 Current folder (highlighted) *22 Current folder number/total folder number *23 Folder list *24 Selected playback mode5 Elapsed playing time of the current track 6 Operation status7 CD: Current track number/total number of tracks on the disc MP3/WAV: Current track number/total number of tracks in the current folder8 Track information9 Track listp Current track (highlighted)*1 If tag data includes “Jacket Picture” (baseline JPEG), it will be displayed.*2 Only for MP3/WAV File playbackPlaying MP3/WMA*1/AAC/FLAC*1/WAV *2 files• This unit can play back files with the extension code <.mp3>, <.wma>, <.flac>, or <.wav> (regardless of the letter case—upper/lower).• This unit can play back the files meeting the conditions below:– Bit rate: MP3: 8-320 kbps (disc), 32-320 kbps (SD/USB) WMA: 32-320 kbps AAC: 16-320 kbps– Sampling frequency: MP3: 48 kHz, 44.1 kHz, 32 kHz 24 kHz, 22.05 kHz, 16 kHz, 8 kHz(disc only) WMA: 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (SD/USB only) WAV: 44.1 kHz FLAC: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, 16 kHz, 8 kHz• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).– ID3 Tag Version 2.4 is not available for SD/USB playback.• This unit can also show WAV/WMA Tag.• This unit can play back files recorded in VBR (variable bit rate).• Files recorded in VBR have a discrepancy in elapsed time indication.• This unit cannot play back the following files:– MP3 files encoded with MP3i and MP3 PRO format.– MP3 files encoded with Layer 1/2.– WMA files encoded with lossless, professional, and voice format.– WMA files which are not based upon Windows Media® Audio.– WMA files copy-protected with DRM.*1 WMA and FLAC files are played only when recorded on a USB device or SD card.*2 WAV files are played only when recorded on a disc. USB• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.EN_KW-NT500HDT_NT300[J].indb 85EN_KW-NT500HDT_NT300[J].indb 8512/7/2011 1:06:31 PM12/7/2011 1:06:31 PM

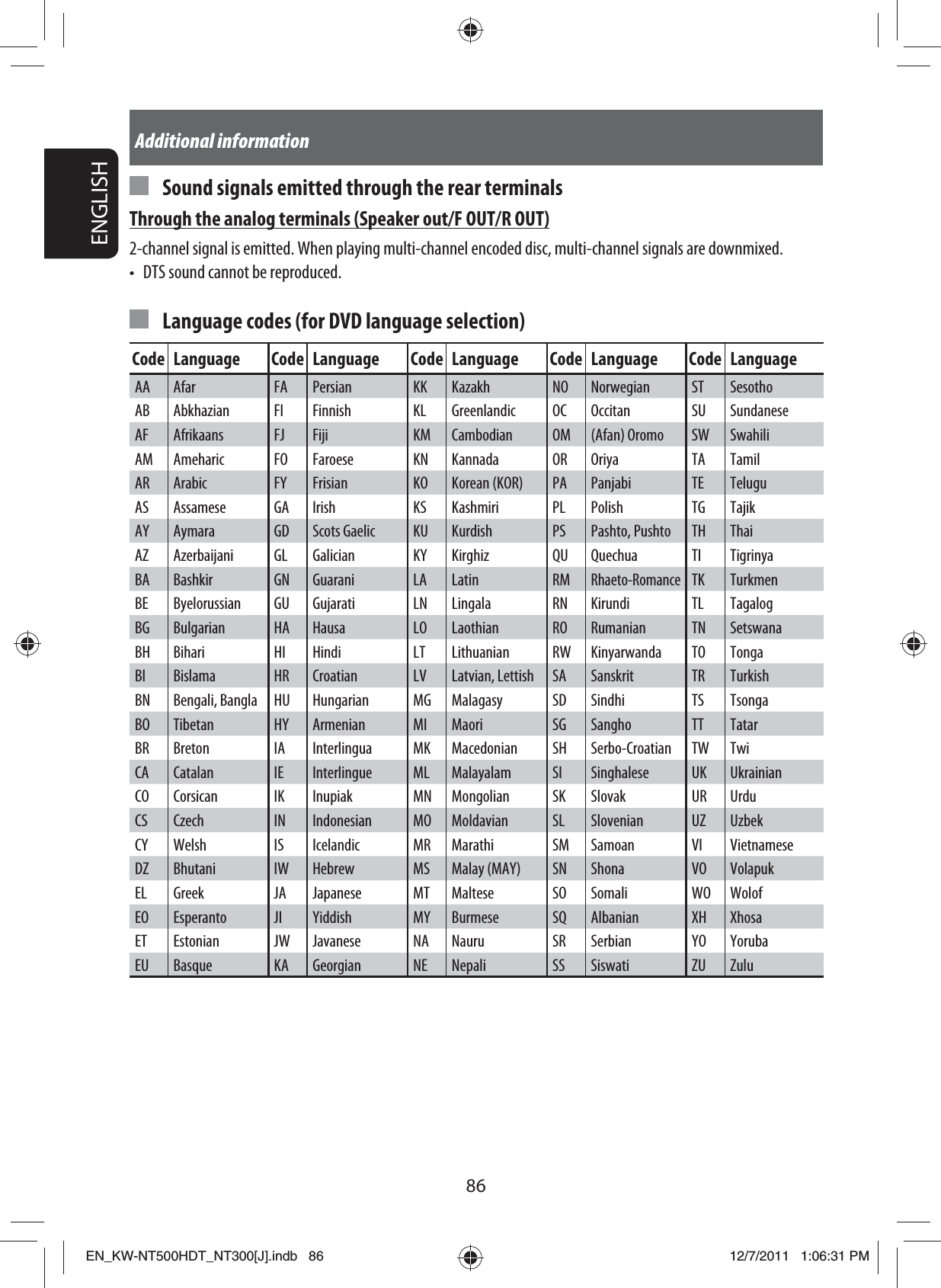

86ENGLISHAdditional information Sound signals emitted through the rear terminalsThrough the analog terminals (Speaker out/F OUT/R OUT)2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed.• DTS sound cannot be reproduced. Language codes (for DVD language selection)Code Language Code Language Code Language Code Language Code LanguageAA Afar FA Persian KK Kazakh NO Norwegian ST SesothoAB Abkhazian FI Finnish KL Greenlandic OC Occitan SU SundaneseAF Afrikaans FJ Fiji KM Cambodian OM (Afan) Oromo SW SwahiliAM Ameharic FO Faroese KN Kannada OR Oriya TA TamilAR Arabic FY Frisian KO Korean (KOR) PA Panjabi TE TeluguAS Assamese GA Irish KS Kashmiri PL Polish TG TajikAY Aymara GD Scots Gaelic KU Kurdish PS Pashto, Pushto TH ThaiAZ Azerbaijani GL Galician KY Kirghiz QU Quechua TI TigrinyaBA Bashkir GN Guarani LA Latin RMRhaeto-RomanceTK TurkmenBE Byelorussian GU Gujarati LN Lingala RN Kirundi TL TagalogBG Bulgarian HA Hausa LO Laothian RO Rumanian TN SetswanaBH Bihari HI Hindi LT Lithuanian RW Kinyarwanda TO TongaBI Bislama HR Croatian LV Latvian, Lettish SA Sanskrit TR TurkishBN Bengali, Bangla HU Hungarian MG Malagasy SD Sindhi TS TsongaBO Tibetan HY Armenian MI Maori SG Sangho TT TatarBR Breton IA Interlingua MK Macedonian SH Serbo-Croatian TW TwiCA Catalan IE Interlingue ML Malayalam SI Singhalese UK UkrainianCO Corsican IK Inupiak MN Mongolian SK Slovak UR UrduCS Czech IN Indonesian MO Moldavian SL Slovenian UZ UzbekCY Welsh IS Icelandic MR Marathi SM Samoan VI VietnameseDZ Bhutani IW Hebrew MS Malay (MAY) SN Shona VO VolapukEL Greek JA Japanese MT Maltese SO Somali WO WolofEO Esperanto JI Yiddish MY Burmese SQ Albanian XH XhosaET Estonian JW Javanese NA Nauru SR Serbian YO YorubaEU Basque KA Georgian NE Nepali SS Siswati ZU ZuluEN_KW-NT500HDT_NT300[J].indb 86EN_KW-NT500HDT_NT300[J].indb 8612/7/2011 1:06:31 PM12/7/2011 1:06:31 PM

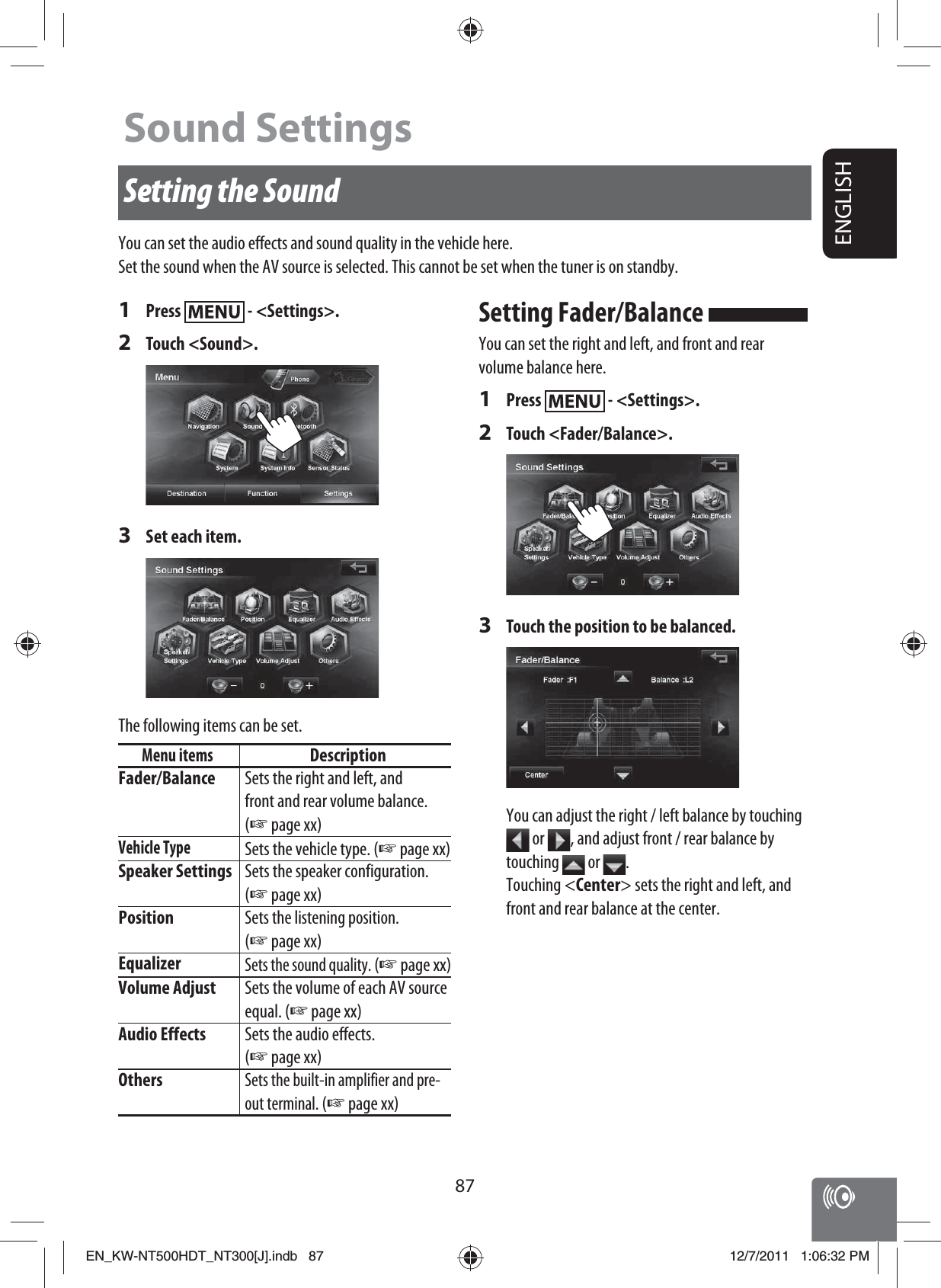

87ENGLISHSetting the Sound1 Press - <Settings>.2 Touch <Sound>.3 Set each item.The following items can be set.Menu itemsDescriptionFader/Balance Sets the right and left, and front and rear volume balance. (☞ page xx)Vehicle TypeSets the vehicle type. (☞ page xx)Speaker Settings Sets the speaker configuration. (☞ page xx)PositionSets the listening position. (☞ page xx)EqualizerSets the sound quality. (☞ page xx)Volume Adjust Sets the volume of each AV source equal. (☞ page xx)Audio Effects Sets the audio effects. (☞ page xx)OthersSets the built-in amplifier and pre-out terminal. (☞ page xx)Sound SettingsYou can set the audio effects and sound quality in the vehicle here.Set the sound when the AV source is selected. This cannot be set when the tuner is on standby.Setting Fader/Balance You can set the right and left, and front and rear volume balance here.1 Press - <Settings>.2 Touch <Fader/Balance>.3 Touch the position to be balanced.You can adjust the right / left balance by touching or , and adjust front / rear balance by touching or .Touching <Center> sets the right and left, and front and rear balance at the center.EN_KW-NT500HDT_NT300[J].indb 87EN_KW-NT500HDT_NT300[J].indb 8712/7/2011 1:06:32 PM12/7/2011 1:06:32 PM

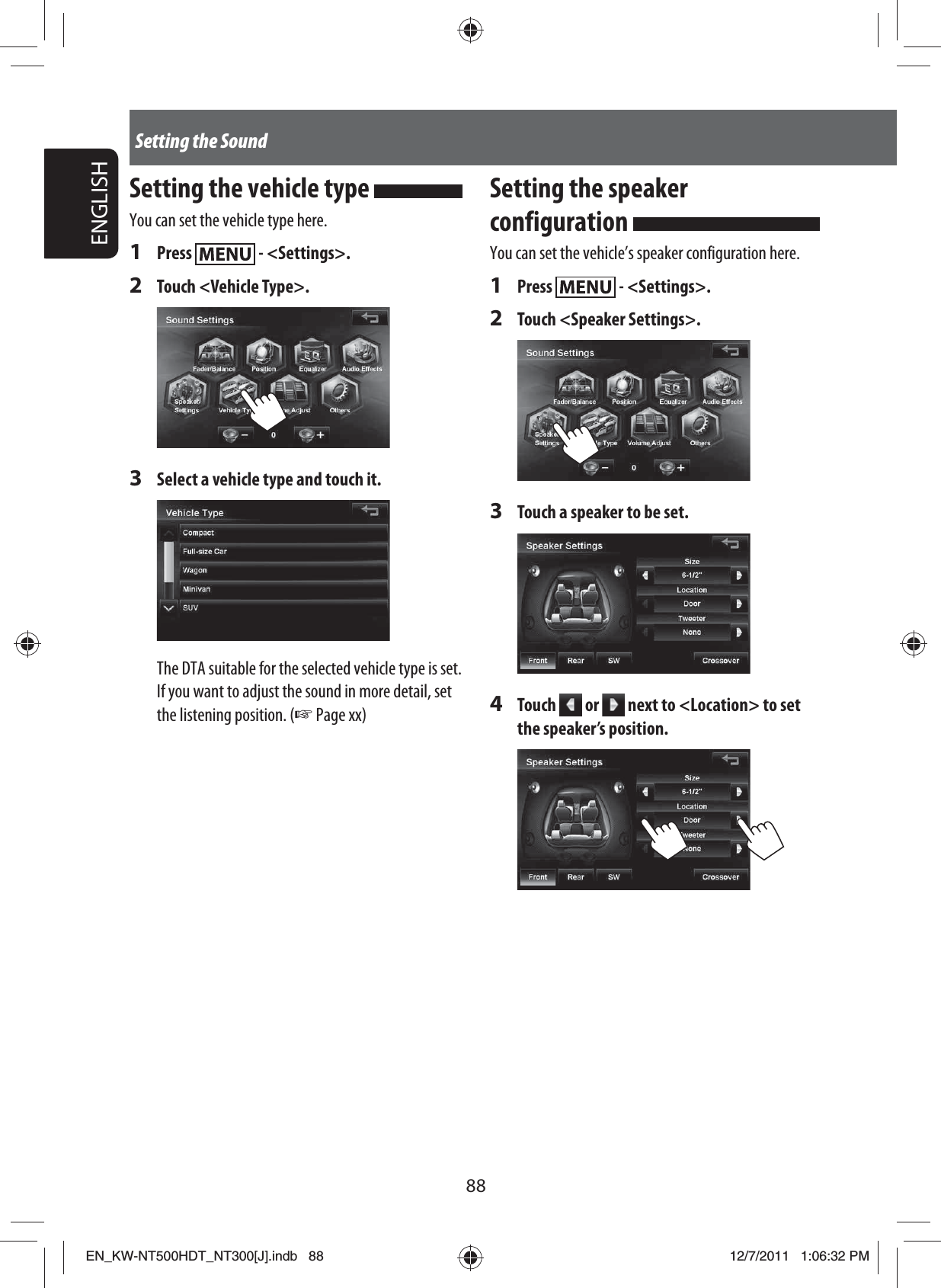

88ENGLISHSetting the SoundSetting the vehicle type You can set the vehicle type here.1 Press - <Settings>.2 Touch <Vehicle Type>.3 Select a vehicle type and touch it.The DTA suitable for the selected vehicle type is set.If you want to adjust the sound in more detail, set the listening position. (☞ Page xx)Setting the speaker configuration You can set the vehicle’s speaker configuration here.1 Press - <Settings>.2 Touch <Speaker Settings>.3 Touch a speaker to be set.4 Touch or next to <Location> to set the speaker’s position.EN_KW-NT500HDT_NT300[J].indb 88EN_KW-NT500HDT_NT300[J].indb 8812/7/2011 1:06:32 PM12/7/2011 1:06:32 PM

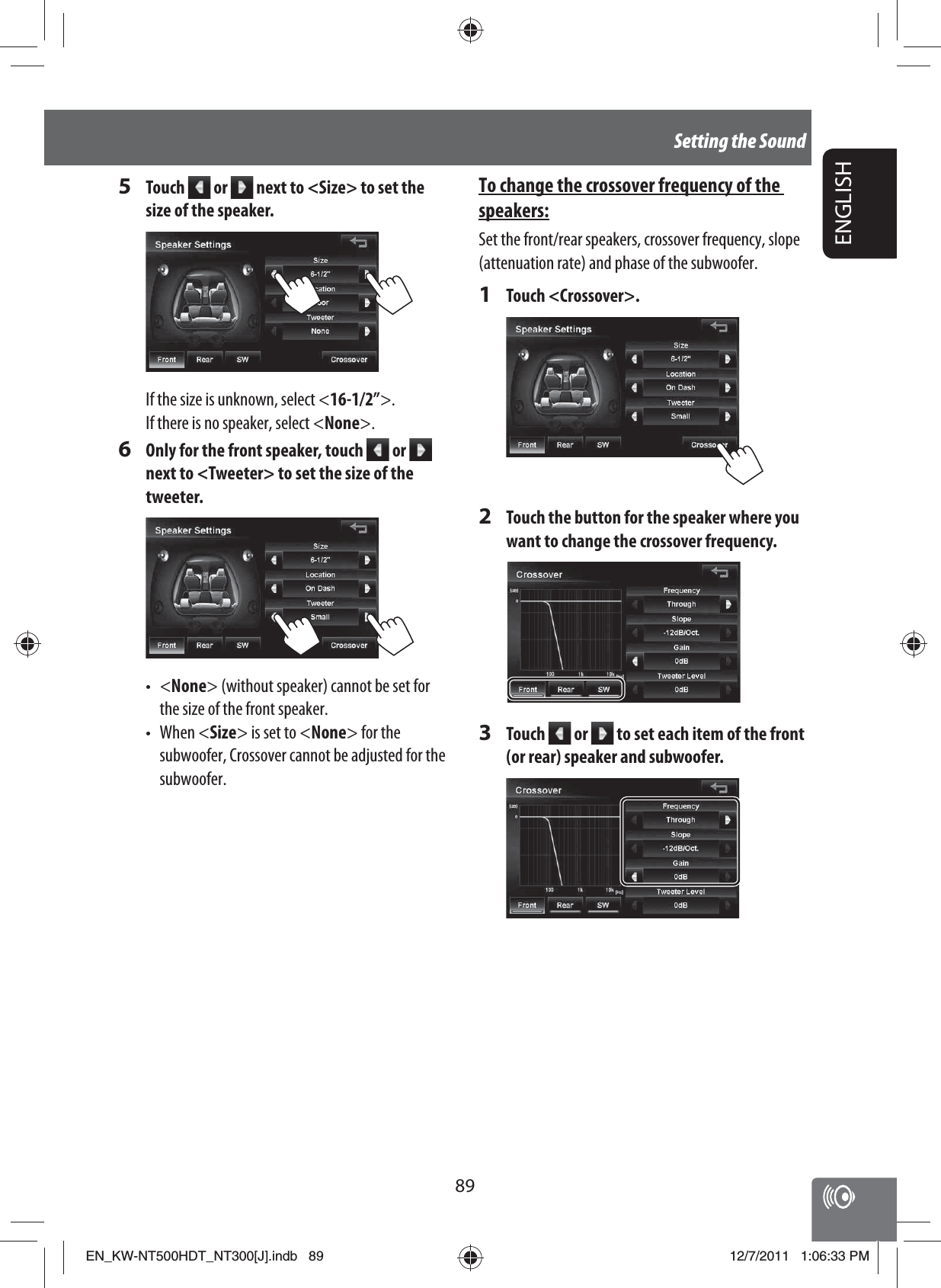

89ENGLISHSetting the SoundTo change the crossover frequency of the speakers:Set the front/rear speakers, crossover frequency, slope (attenuation rate) and phase of the subwoofer.1 Touch <Crossover>.2 Touch the button for the speaker where you want to change the crossover frequency.3 Touch or to set each item of the front (or rear) speaker and subwoofer.5 Touch or next to <Size> to set the size of the speaker.If the size is unknown, select <16-1/2”>.If there is no speaker, select <None>.6 Only for the front speaker, touch or next to <Tweeter> to set the size of the tweeter.• <None> (without speaker) cannot be set for the size of the front speaker.• When <Size> is set to <None> for the subwoofer, Crossover cannot be adjusted for the subwoofer.EN_KW-NT500HDT_NT300[J].indb 89EN_KW-NT500HDT_NT300[J].indb 8912/7/2011 1:06:33 PM12/7/2011 1:06:33 PM

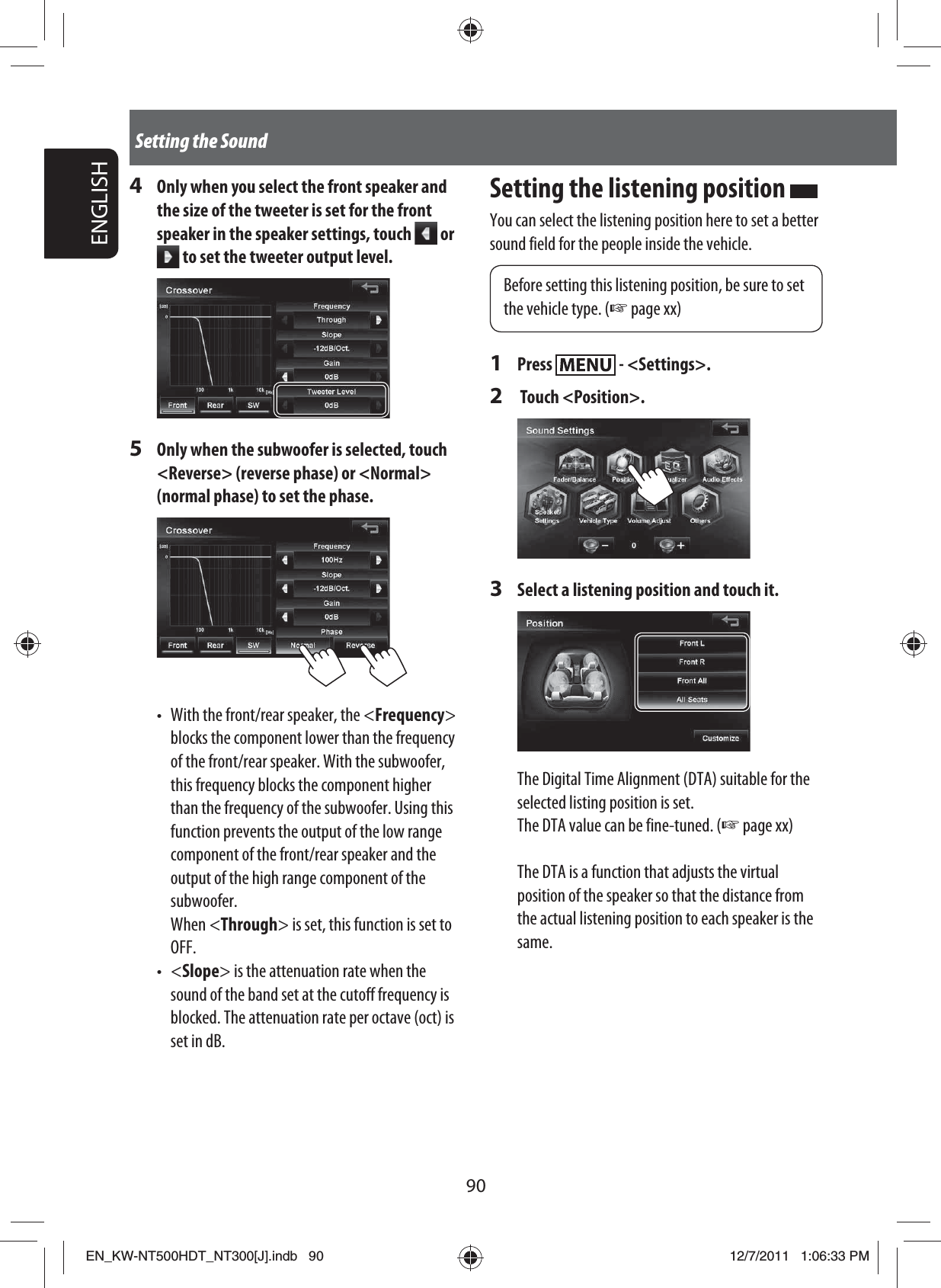

90ENGLISHSetting the Sound4 Only when you select the front speaker and the size of the tweeter is set for the front speaker in the speaker settings, touch or to set the tweeter output level. 5 Only when the subwoofer is selected, touch <Reverse> (reverse phase) or <Normal> (normal phase) to set the phase.• With the front/rear speaker, the <Frequency> blocks the component lower than the frequency of the front/rear speaker. With the subwoofer, this frequency blocks the component higher than the frequency of the subwoofer. Using this function prevents the output of the low range component of the front/rear speaker and the output of the high range component of the subwoofer. When <Through> is set, this function is set to OFF.• <Slope> is the attenuation rate when the sound of the band set at the cutoff frequency is blocked. The attenuation rate per octave (oct) is set in dB.Setting the listening position You can select the listening position here to set a better sound field for the people inside the vehicle.Before setting this listening position, be sure to set the vehicle type. (☞ page xx)1 Press - <Settings>.2 Touch <Position>.3 Select a listening position and touch it.The Digital Time Alignment (DTA) suitable for the selected listing position is set. The DTA value can be fine-tuned. (☞ page xx)The DTA is a function that adjusts the virtual position of the speaker so that the distance from the actual listening position to each speaker is the same. EN_KW-NT500HDT_NT300[J].indb 90EN_KW-NT500HDT_NT300[J].indb 9012/7/2011 1:06:33 PM12/7/2011 1:06:33 PM

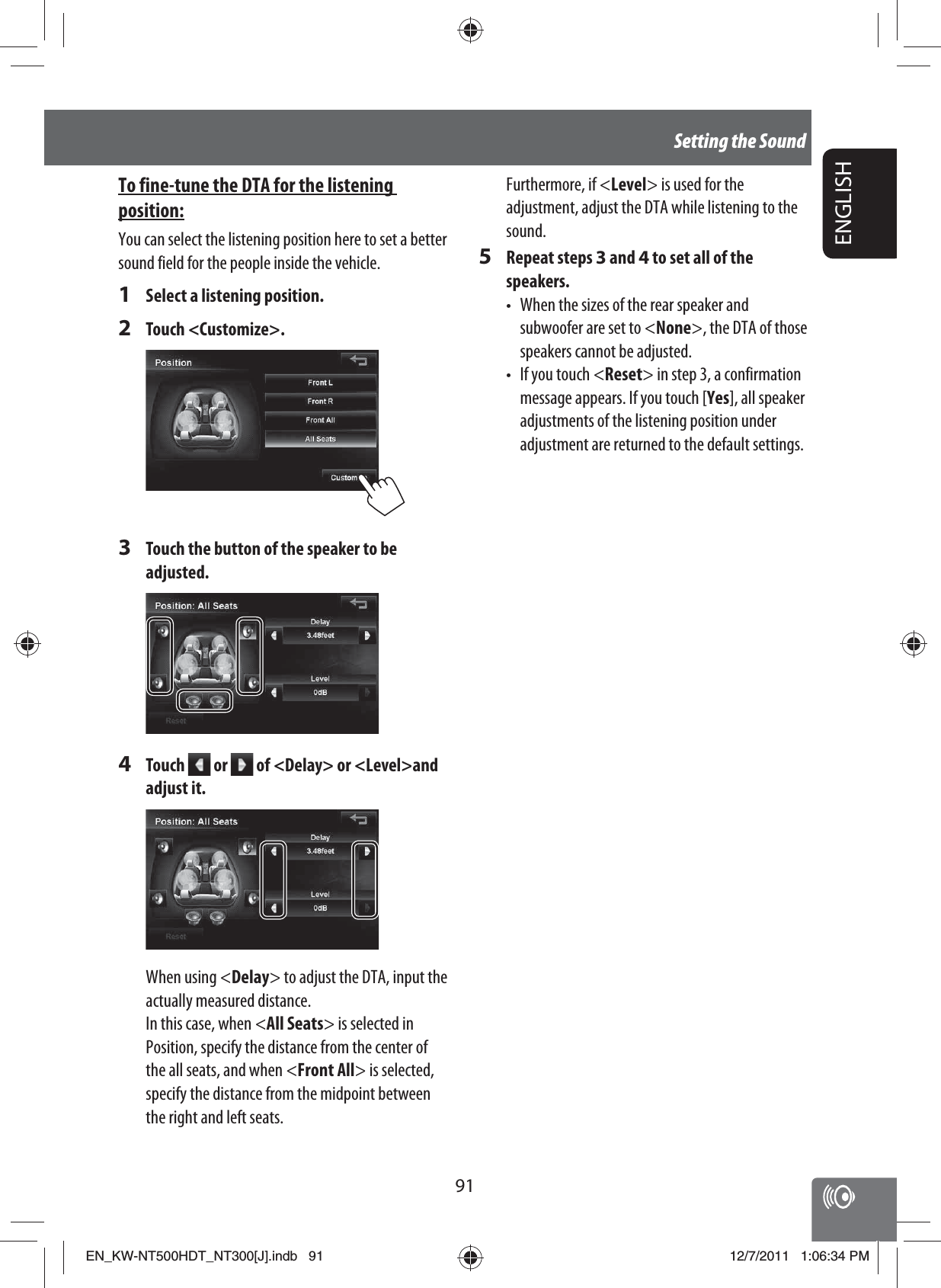

91ENGLISHSetting the SoundFurthermore, if <Level> is used for the adjustment, adjust the DTA while listening to the sound.5 Repeat steps 3 and 4 to set all of the speakers.• When the sizes of the rear speaker and subwoofer are set to <None>, the DTA of those speakers cannot be adjusted.• If you touch <Reset> in step 3, a confirmation message appears. If you touch [Yes], all speaker adjustments of the listening position under adjustment are returned to the default settings.To fine-tune the DTA for the listening position:You can select the listening position here to set a better sound field for the people inside the vehicle.1 Select a listening position.2 Touch <Customize>.3 Touch the button of the speaker to be adjusted.4 Touch or of <Delay> or <Level>and adjust it.When using <Delay> to adjust the DTA, input the actually measured distance.In this case, when <All Seats> is selected in Position, specify the distance from the center of the all seats, and when <Front All> is selected, specify the distance from the midpoint between the right and left seats.EN_KW-NT500HDT_NT300[J].indb 91EN_KW-NT500HDT_NT300[J].indb 9112/7/2011 1:06:34 PM12/7/2011 1:06:34 PM

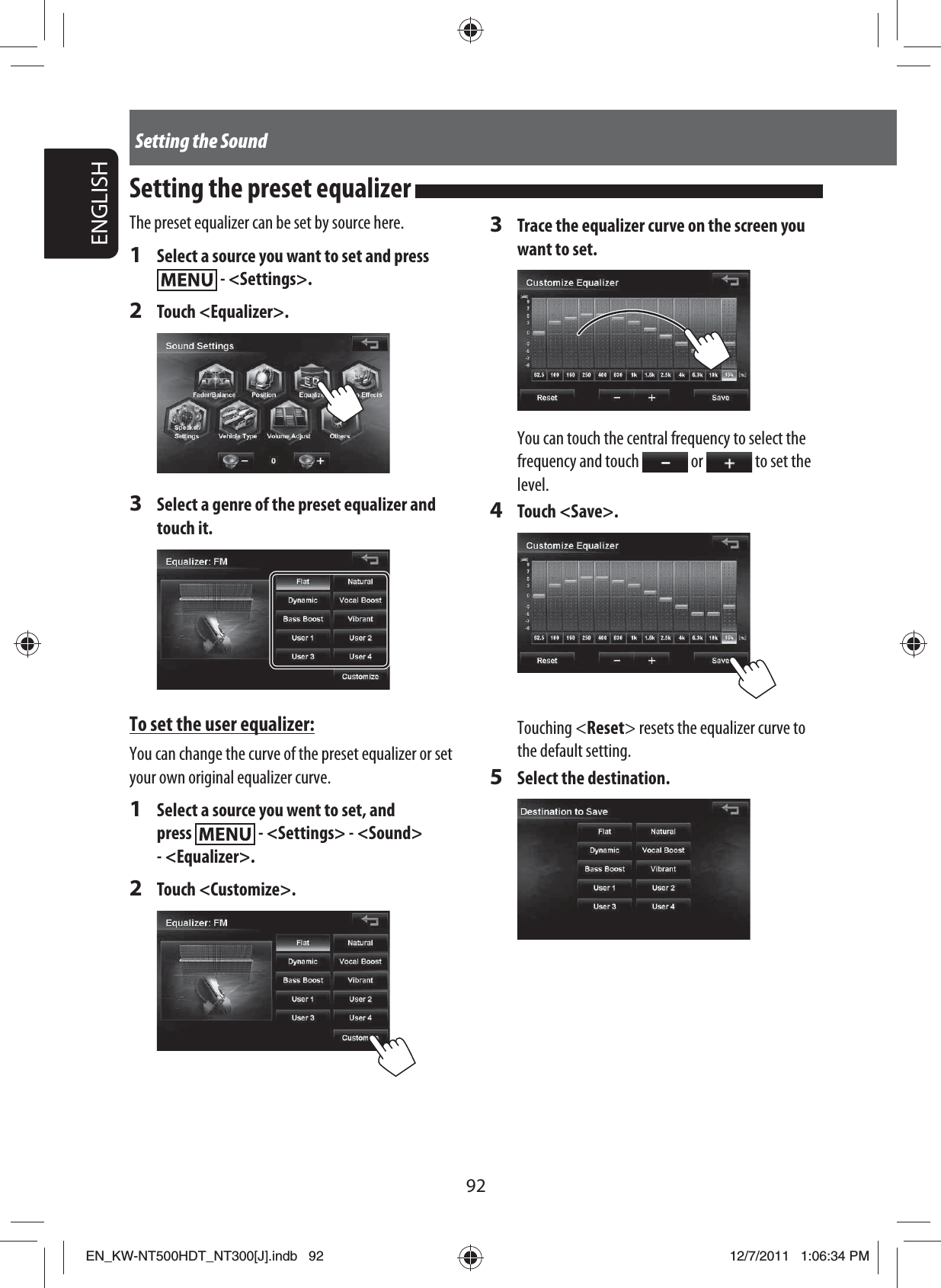

92ENGLISHSetting the SoundThe preset equalizer can be set by source here.1 Select a source you want to set and press - <Settings>.2 Touch <Equalizer>.3 Select a genre of the preset equalizer and touch it.To set the user equalizer:You can change the curve of the preset equalizer or set your own original equalizer curve.1 Select a source you went to set, and press - <Settings> - <Sound> - <Equalizer>.2 Touch <Customize>.3 Trace the equalizer curve on the screen you want to set.You can touch the central frequency to select the frequency and touch or to set the level.4 Touch <Save>.Touching <Reset> resets the equalizer curve to the default setting.5 Select the destination.Setting the preset equalizer EN_KW-NT500HDT_NT300[J].indb 92EN_KW-NT500HDT_NT300[J].indb 9212/7/2011 1:06:34 PM12/7/2011 1:06:34 PM

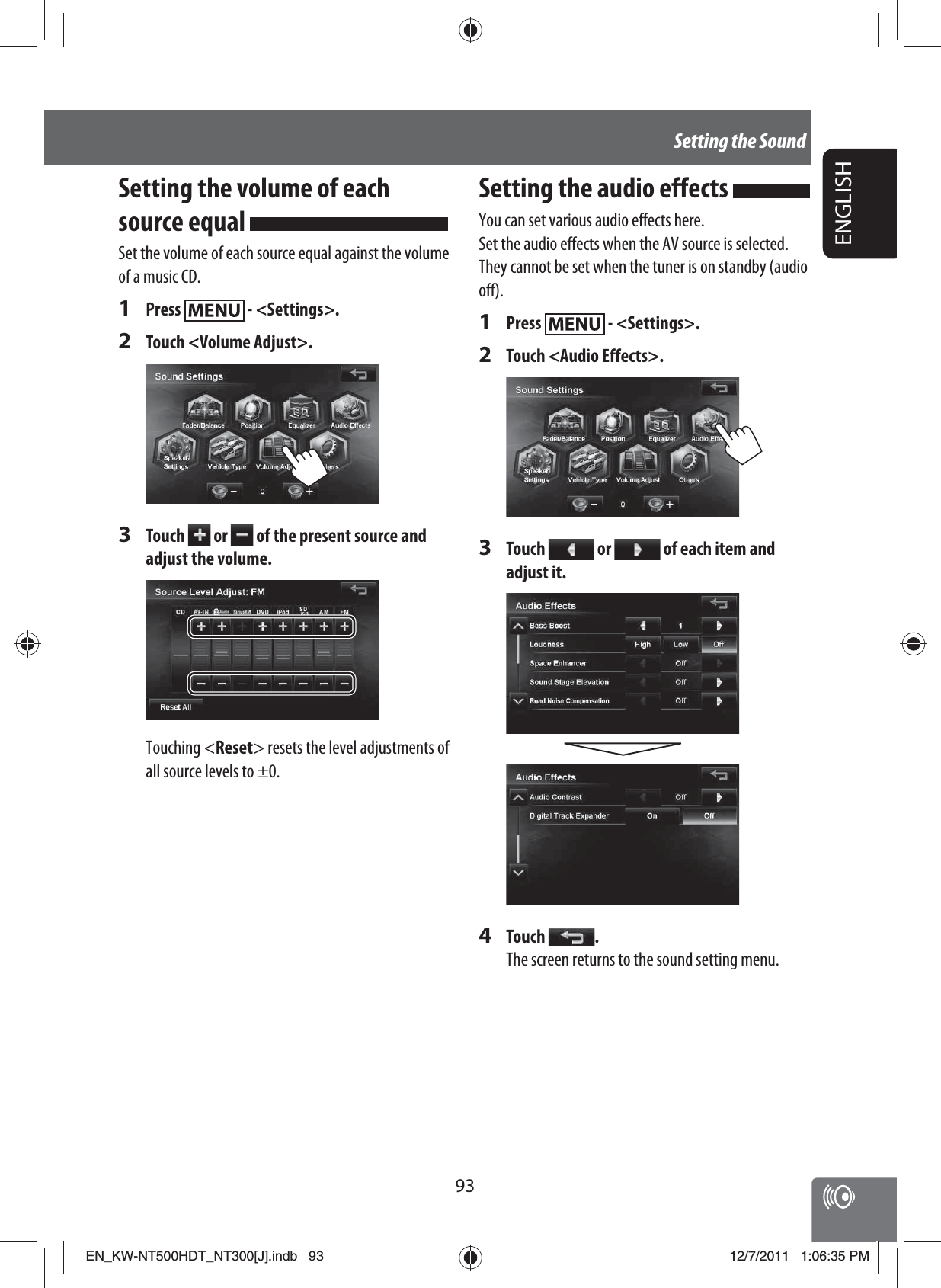

93ENGLISHSetting the SoundSetting the volume of each source equal Set the volume of each source equal against the volume of a music CD.1 Press - <Settings>.2 Touch <Volume Adjust>.3 Touch or of the present source and adjust the volume.Touching <Reset> resets the level adjustments of all source levels to ±0.Setting the audio effects You can set various audio effects here.Set the audio effects when the AV source is selected. They cannot be set when the tuner is on standby (audio off).1 Press - <Settings>.2 Touch <Audio Effects>.3 Touch or of each item and adjust it.4 Touch .The screen returns to the sound setting menu.EN_KW-NT500HDT_NT300[J].indb 93EN_KW-NT500HDT_NT300[J].indb 9312/7/2011 1:06:35 PM12/7/2011 1:06:35 PM

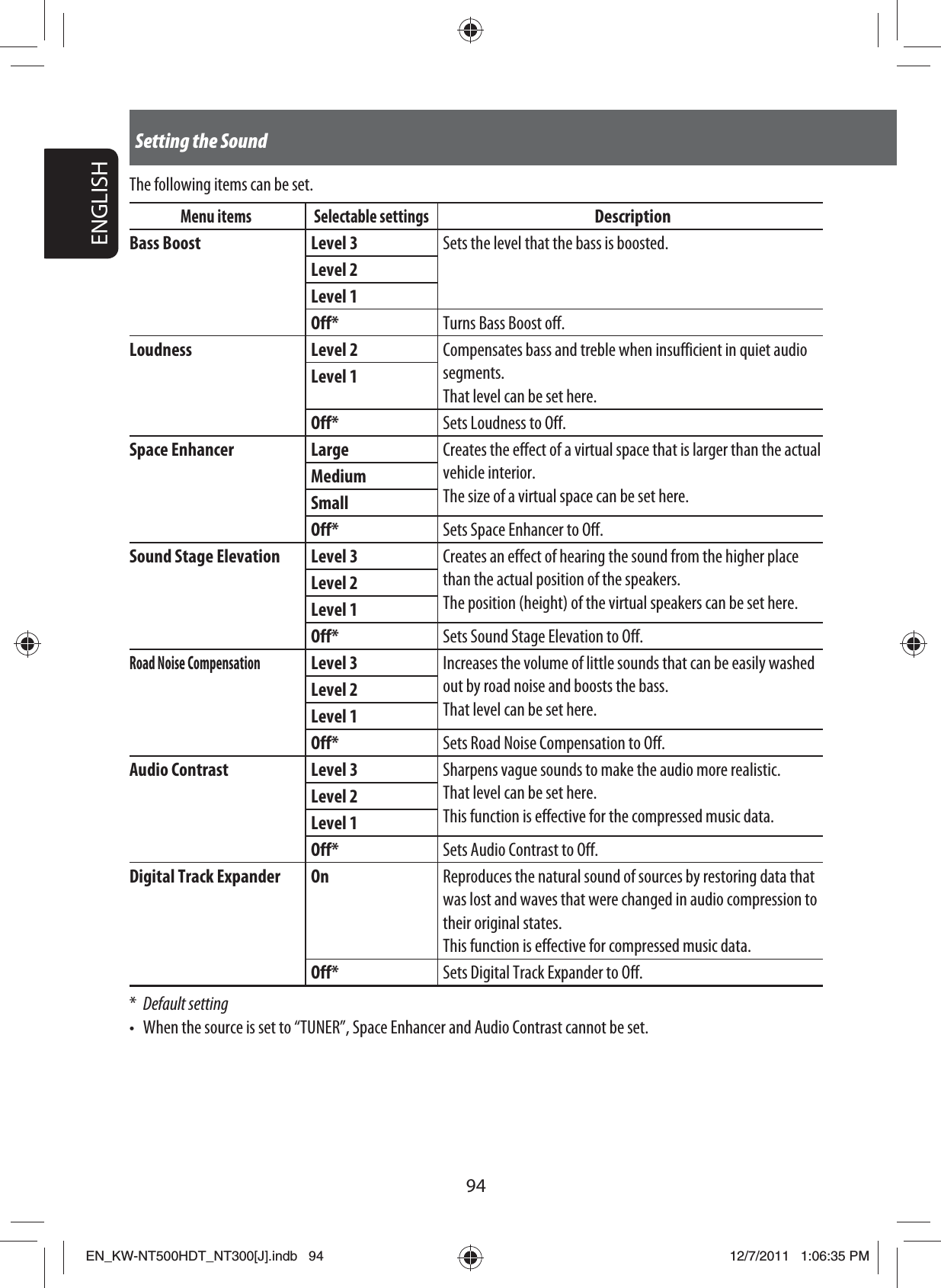

94ENGLISHSetting the SoundThe following items can be set.Menu items Selectable settingsDescriptionBass Boost Level 3 Sets the level that the bass is boosted.Level 2Level 1Off* Turns Bass Boost off.Loudness Level 2 Compensates bass and treble when insufficient in quiet audio segments.That level can be set here.Level 1Off* Sets Loudness to Off.Space Enhancer Large Creates the effect of a virtual space that is larger than the actual vehicle interior.The size of a virtual space can be set here.MediumSmallOff* Sets Space Enhancer to Off.Sound Stage Elevation Level 3 Creates an effect of hearing the sound from the higher place than the actual position of the speakers.The position (height) of the virtual speakers can be set here.Level 2Level 1Off* Sets Sound Stage Elevation to Off.Road Noise CompensationLevel 3 Increases the volume of little sounds that can be easily washed out by road noise and boosts the bass.That level can be set here.Level 2Level 1Off* Sets Road Noise Compensation to Off.Audio Contrast Level 3 Sharpens vague sounds to make the audio more realistic.That level can be set here.This function is effective for the compressed music data.Level 2Level 1Off* Sets Audio Contrast to Off.Digital Track Expander On Reproduces the natural sound of sources by restoring data that was lost and waves that were changed in audio compression to their original states.This function is effective for compressed music data.Off* Sets Digital Track Expander to Off.* Default setting• When the source is set to “TUNER”, Space Enhancer and Audio Contrast cannot be set.EN_KW-NT500HDT_NT300[J].indb 94EN_KW-NT500HDT_NT300[J].indb 9412/7/2011 1:06:35 PM12/7/2011 1:06:35 PM

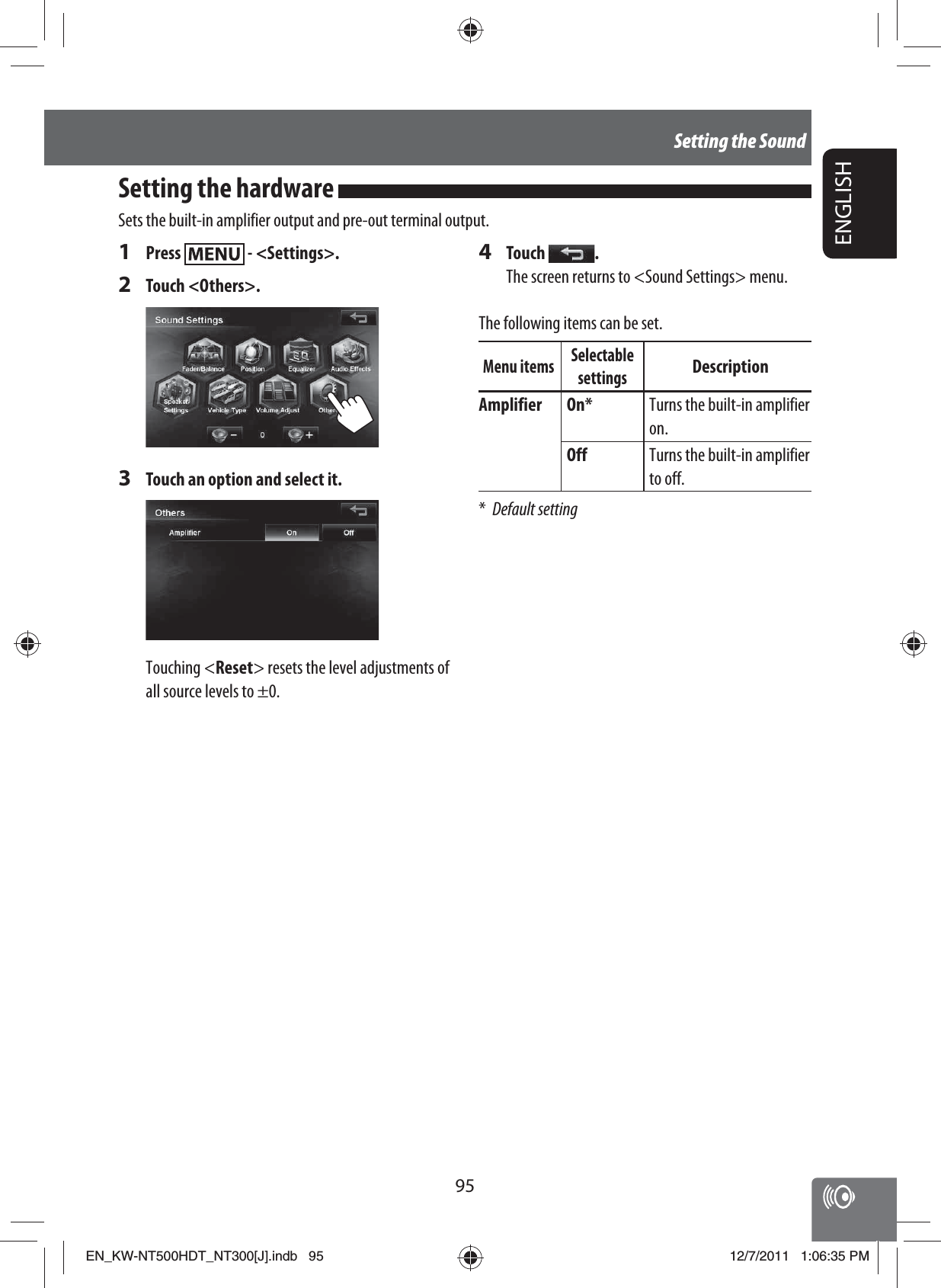

95ENGLISHSetting the Sound1 Press - <Settings>.2 Touch <Others>.3 Touch an option and select it.Touching <Reset> resets the level adjustments of all source levels to ±0.4 Touch .The screen returns to <Sound Settings> menu.The following items can be set.Menu items Selectable settingsDescriptionAmplifier On* Turns the built-in amplifier on.Off Turns the built-in amplifier to off.* Default settingSetting the hardware Sets the built-in amplifier output and pre-out terminal output.EN_KW-NT500HDT_NT300[J].indb 95EN_KW-NT500HDT_NT300[J].indb 9512/7/2011 1:06:35 PM12/7/2011 1:06:35 PM

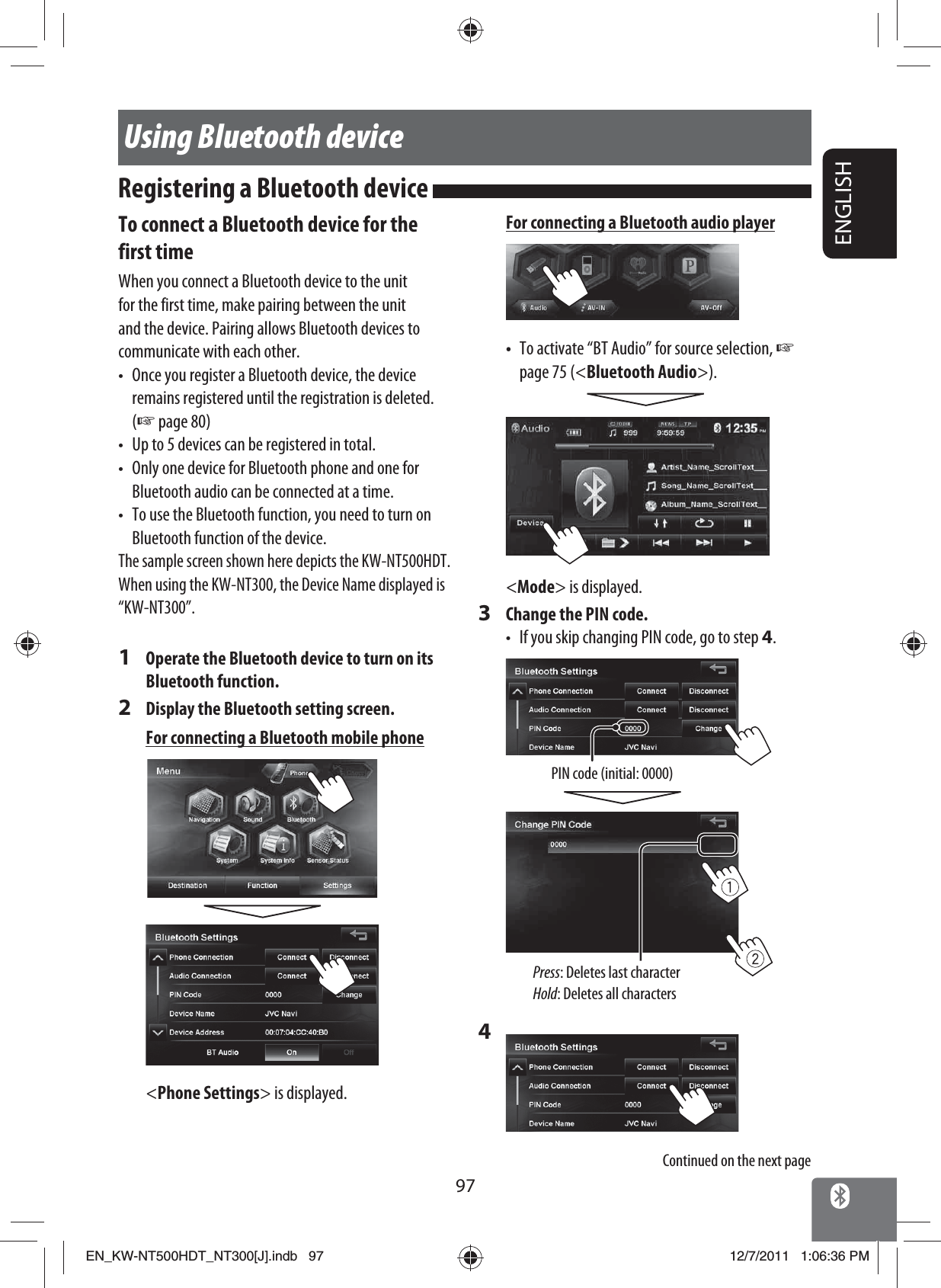

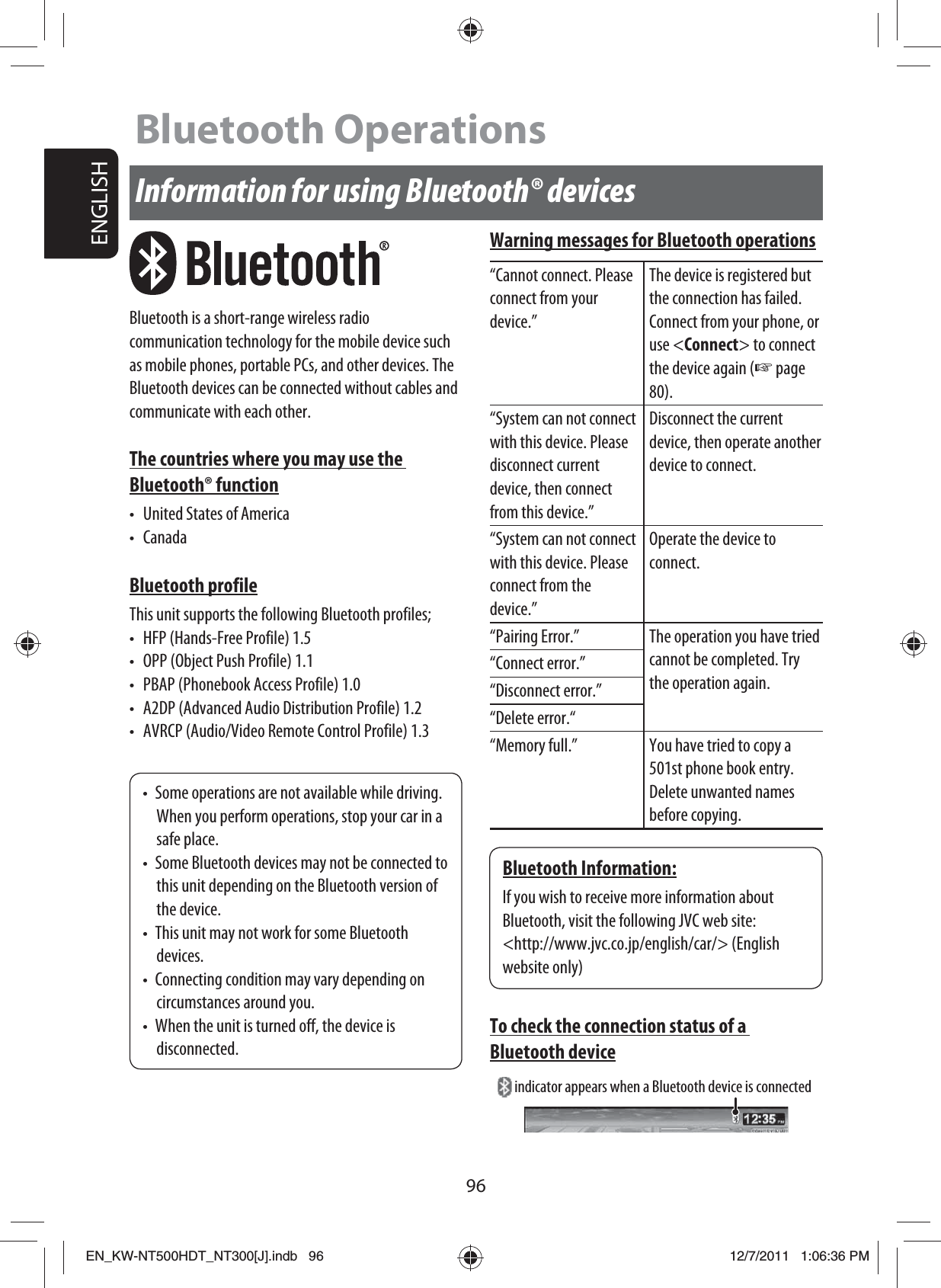

ENGLISH97Using Bluetooth deviceTo connect a Bluetooth device for the first timeWhen you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate with each other.• Once you register a Bluetooth device, the device remains registered until the registration is deleted. (☞ page 80)• Up to 5 devices can be registered in total.• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.• To use the Bluetooth function, you need to turn on Bluetooth function of the device.The sample screen shown here depicts the KW-NT500HDT. When using the KW-NT300, the Device Name displayed is “KW-NT300”.1 Operate the Bluetooth device to turn on its Bluetooth function.2 Display the Bluetooth setting screen.For connecting a Bluetooth mobile phone<Phone Settings> is displayed.Registering a Bluetooth device For connecting a Bluetooth audio player• To activate “BT Audio” for source selection, ☞ page 75 (<Bluetooth Audio>).<Mode> is displayed.3 Change the PIN code.• If you skip changing PIN code, go to step 4.PIN code (initial: 0000)Press: Deletes last characterHold: Deletes all characters4 Continued on the next pageEN_KW-NT500HDT_NT300[J].indb 97EN_KW-NT500HDT_NT300[J].indb 9712/7/2011 1:06:36 PM12/7/2011 1:06:36 PM

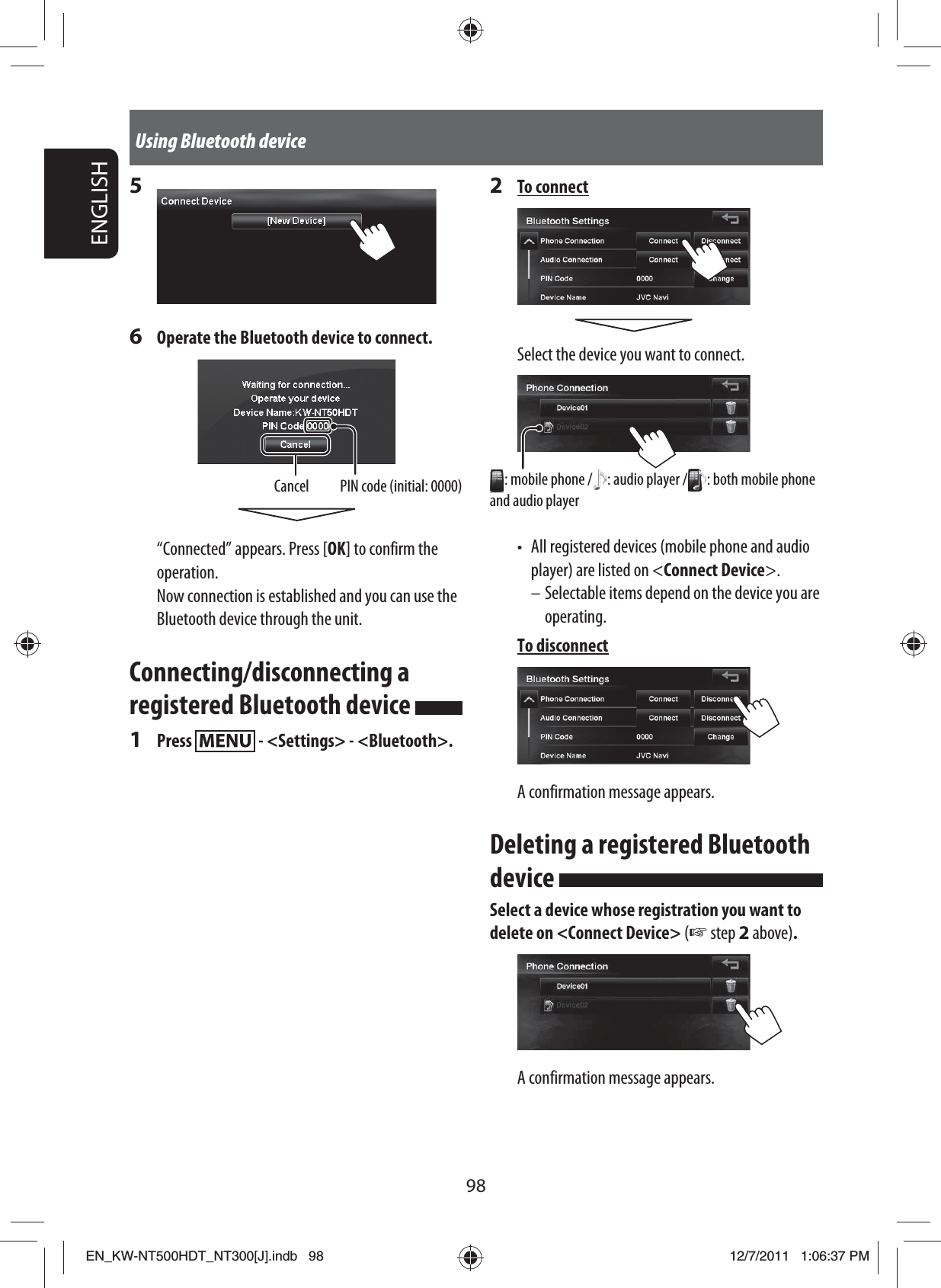

98ENGLISHUsing Bluetooth device2 To connectSelect the device you want to connect. : mobile phone / : audio player / : both mobile phone and audio player• All registered devices (mobile phone and audio player) are listed on <Connect Device>.– Selectable items depend on the device you are operating.To disconnectA confirmation message appears.Deleting a registered Bluetooth device Select a device whose registration you want to delete on <Connect Device> (☞ step 2 above).A confirmation message appears.5 6 Operate the Bluetooth device to connect.Cancel PIN code (initial: 0000)“Connected” appears. Press [OK] to confirm the operation.Now connection is established and you can use the Bluetooth device through the unit.Connecting/disconnecting a registered Bluetooth device 1 Press - <Settings> - <Bluetooth>.EN_KW-NT500HDT_NT300[J].indb 98EN_KW-NT500HDT_NT300[J].indb 9812/7/2011 1:06:37 PM12/7/2011 1:06:37 PM

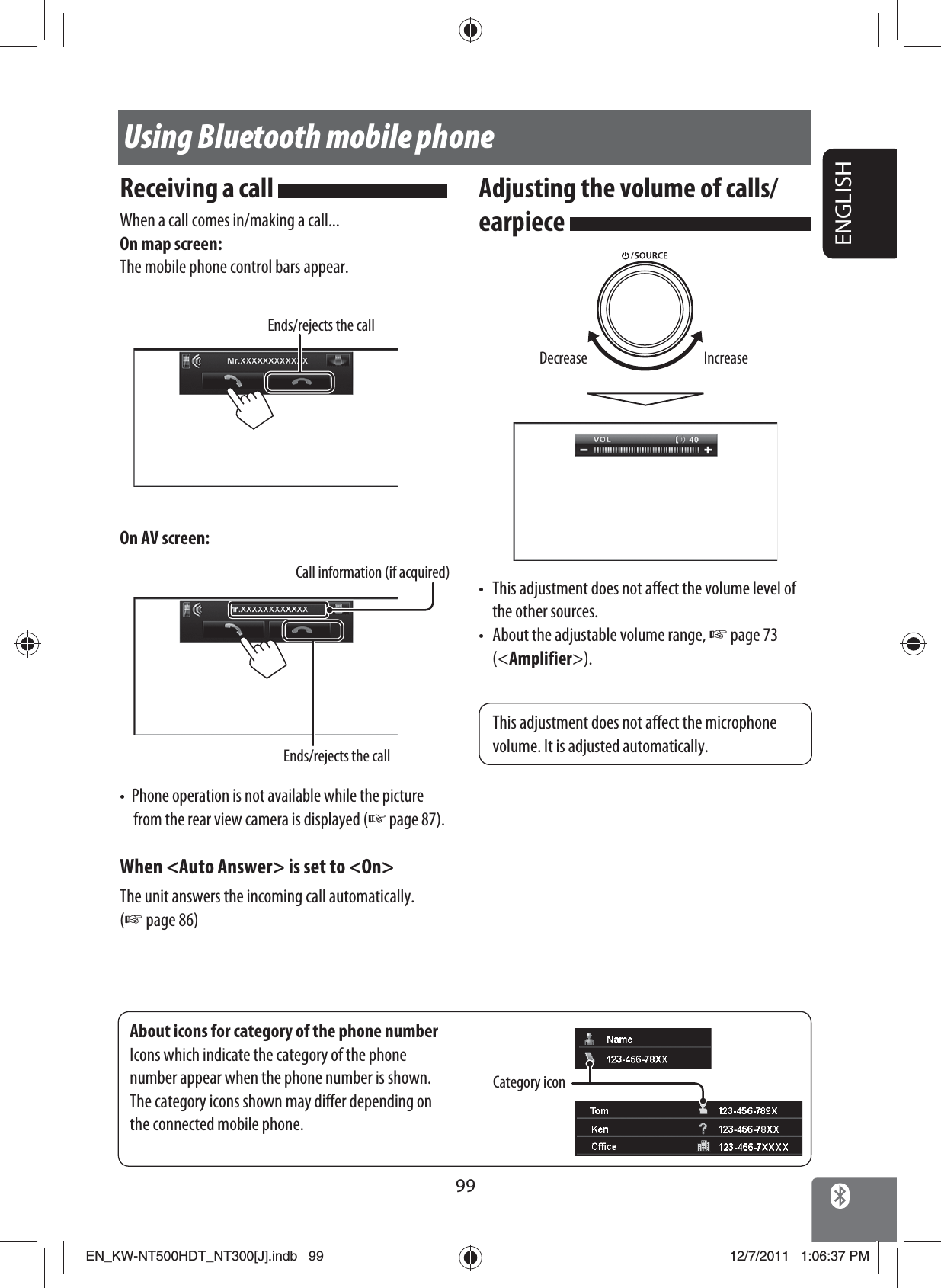

Category iconENGLISH99Using Bluetooth mobile phoneReceiving a call When a call comes in/making a call...On map screen:The mobile phone control bars appear.Ends/rejects the callOn AV screen:Call information (if acquired)Ends/rejects the call• Phone operation is not available while the picture from the rear view camera is displayed (☞ page 87).When <Auto Answer> is set to <On>The unit answers the incoming call automatically. (☞ page 86)Adjusting the volume of calls/earpiece IncreaseDecrease• This adjustment does not affect the volume level of the other sources.• About the adjustable volume range, ☞ page 73 (<Amplifier>).This adjustment does not affect the microphone volume. It is adjusted automatically.About icons for category of the phone numberIcons which indicate the category of the phone number appear when the phone number is shown. The category icons shown may differ depending on the connected mobile phone.EN_KW-NT500HDT_NT300[J].indb 99EN_KW-NT500HDT_NT300[J].indb 9912/7/2011 1:06:37 PM12/7/2011 1:06:37 PM

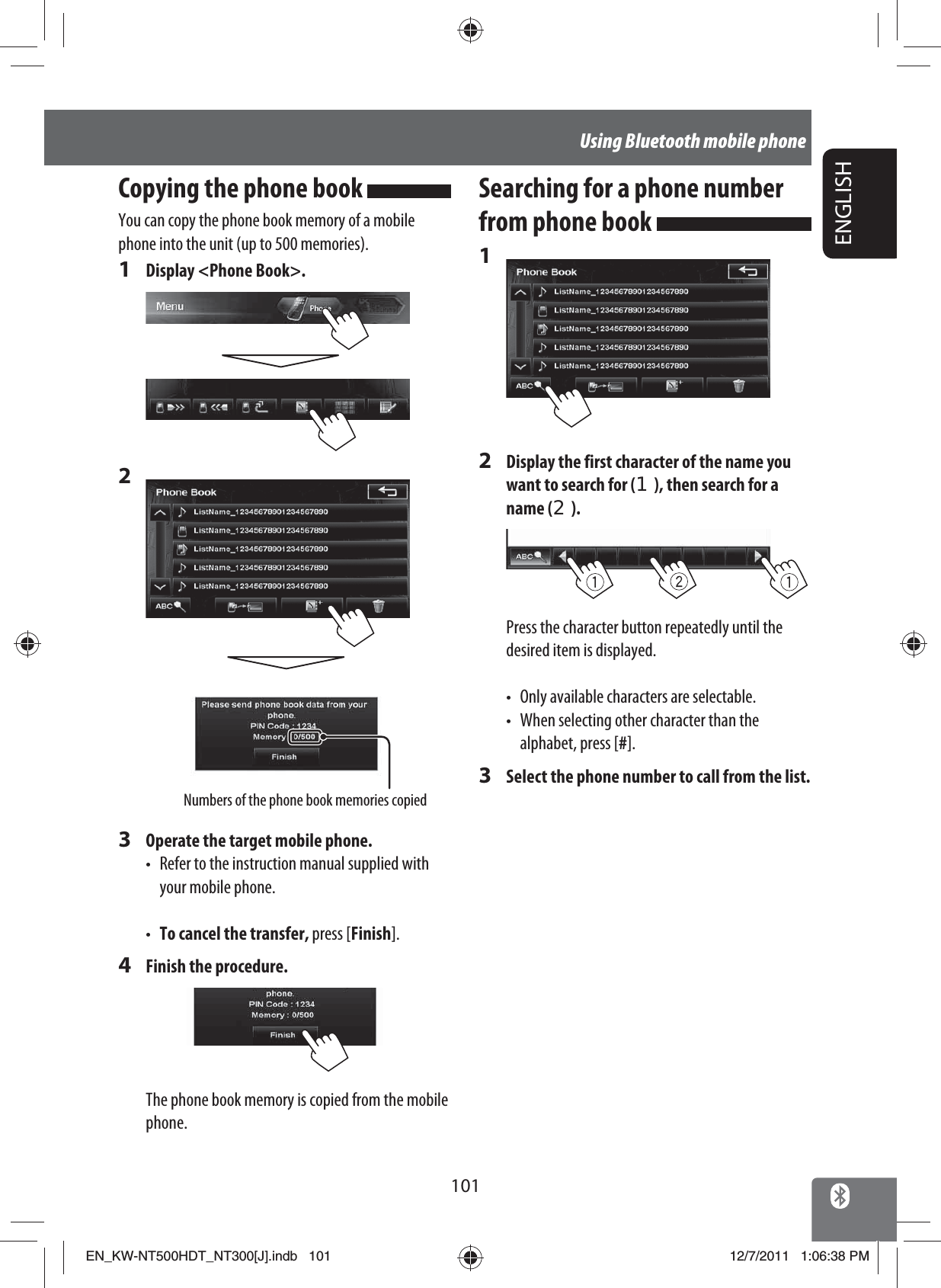

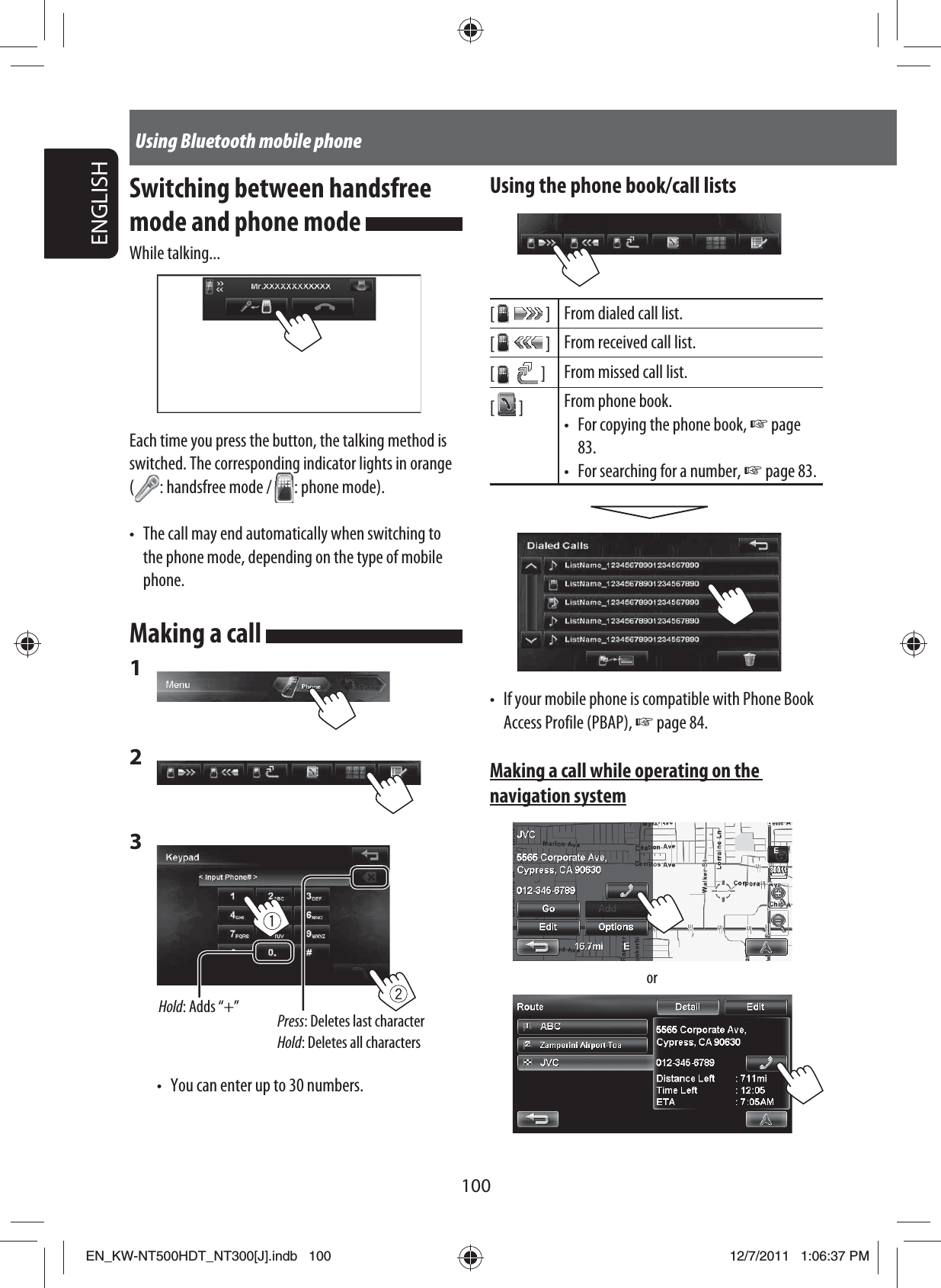

ENGLISH101Using Bluetooth mobile phoneCopying the phone book You can copy the phone book memory of a mobile phone into the unit (up to 500 memories).1 Display <Phone Book>.2 Numbers of the phone book memories copied3 Operate the target mobile phone.• Refer to the instruction manual supplied with your mobile phone.• To cancel the transfer, press [Finish].4 Finish the procedure.The phone book memory is copied from the mobile phone.Searching for a phone number from phone book 1 2 Display the first character of the name you want to search for (1), then search for a name (2).Press the character button repeatedly until the desired item is displayed.• Only available characters are selectable.• When selecting other character than the alphabet, press [#].3 Select the phone number to call from the list.EN_KW-NT500HDT_NT300[J].indb 101EN_KW-NT500HDT_NT300[J].indb 10112/7/2011 1:06:38 PM12/7/2011 1:06:38 PM

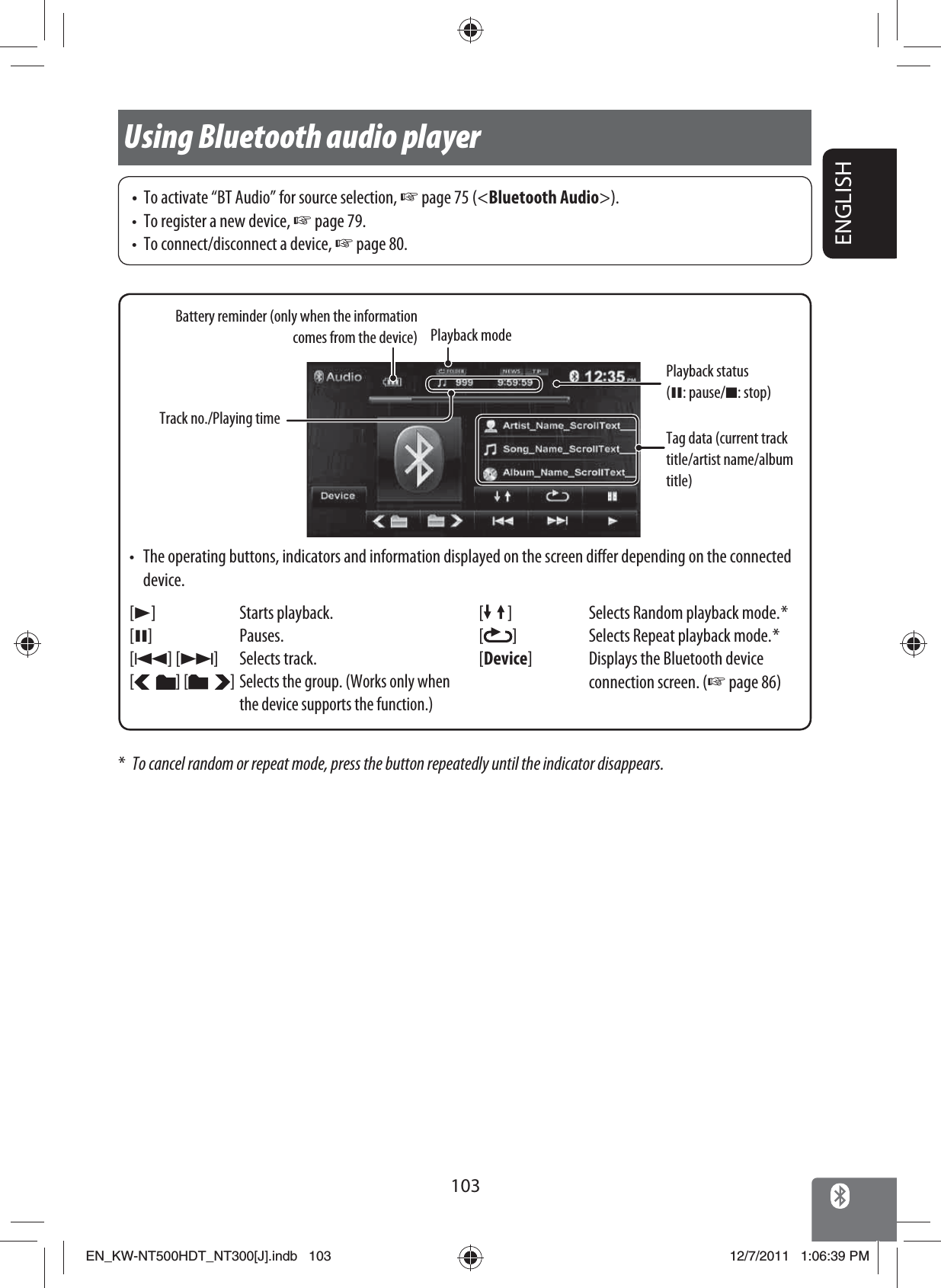

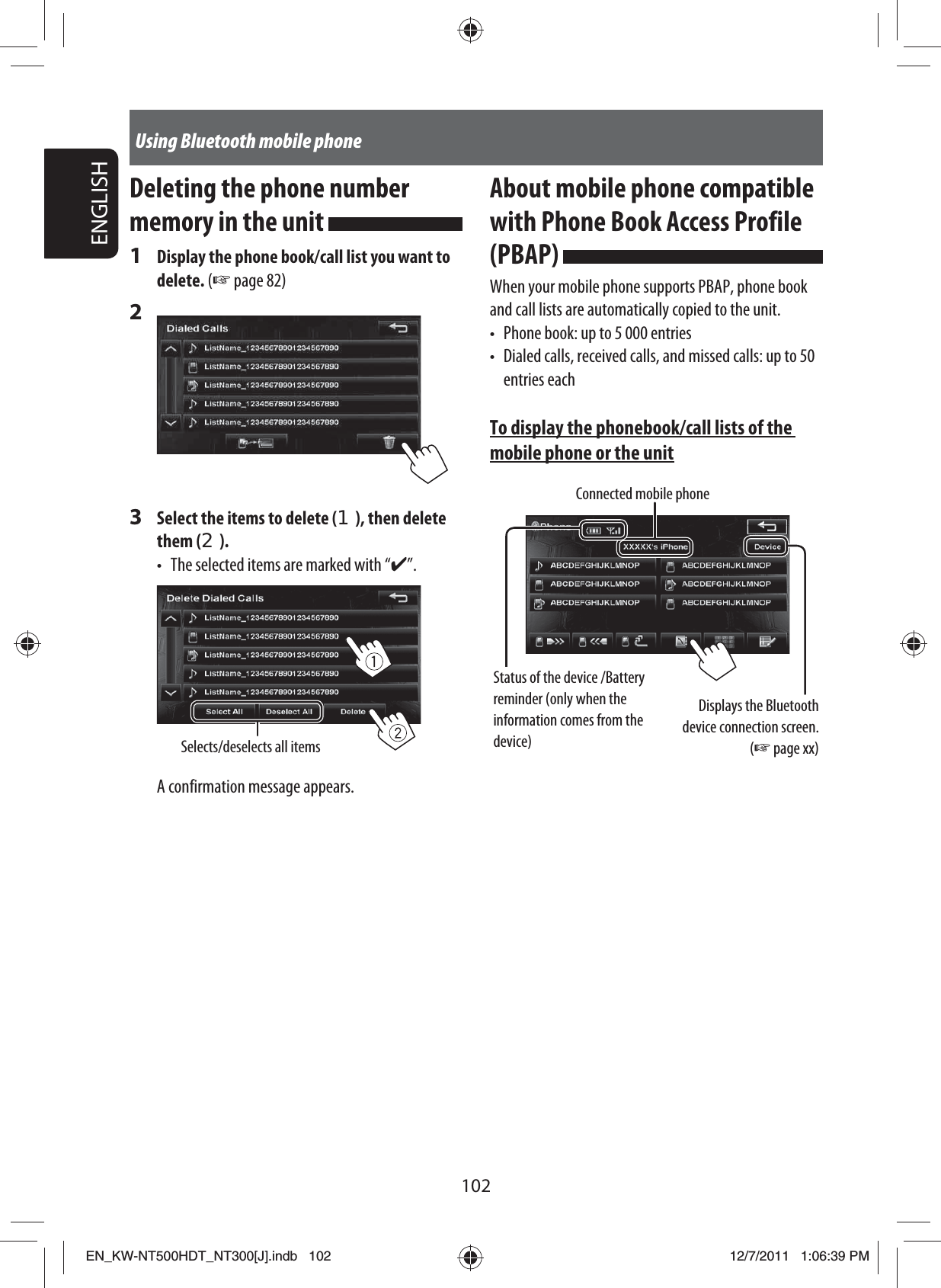

ENGLISH103Using Bluetooth audio player* To cancel random or repeat mode, press the button repeatedly until the indicator disappears.Playback mode[3] Starts playback.[8] Pauses.[4] [¢] Selects track.[] [ ]Selects the group. (Works only when the device supports the function.)Tag data (current track title/artist name/album title)Playback status (8: pause/7: stop)[ ] Selects Random playback mode. *[]Selects Repeat playback mode. *[Device] Displays the Bluetooth device connection screen. (☞ page 86) Battery reminder (only when the information comes from the device)• To activate “BT Audio” for source selection, ☞ page 75 (<Bluetooth Audio>).• To register a new device, ☞ page 79.• To connect/disconnect a device, ☞ page 80.Track no./Playing time• The operating buttons, indicators and information displayed on the screen differ depending on the connected device.EN_KW-NT500HDT_NT300[J].indb 103EN_KW-NT500HDT_NT300[J].indb 10312/7/2011 1:06:39 PM12/7/2011 1:06:39 PM

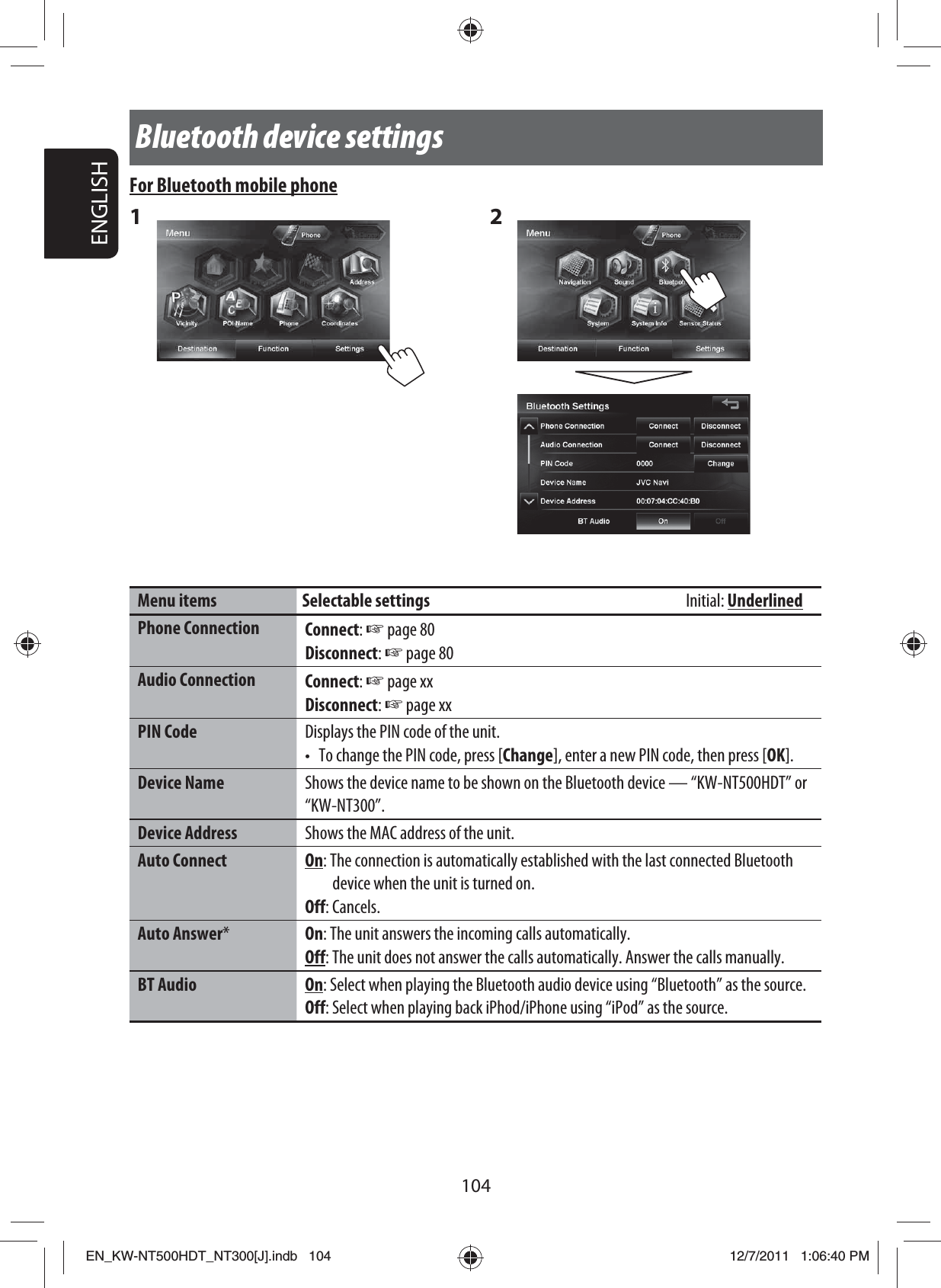

104ENGLISHFor Bluetooth mobile phone1 2 Menu items Selectable settings Initial: UnderlinedPhone Connection Connect: ☞ page 80Disconnect: ☞ page 80Audio Connection Connect: ☞ page xxDisconnect: ☞ page xxPIN Code Displays the PIN code of the unit.• To change the PIN code, press [Change], enter a new PIN code, then press [OK].Device Name Shows the device name to be shown on the Bluetooth device — “KW-NT500HDT” or “KW-NT300”.Device Address Shows the MAC address of the unit.Auto Connect On: The connection is automatically established with the last connected Bluetooth device when the unit is turned on.Off: Cancels.Auto Answer*On: The unit answers the incoming calls automatically.Off: The unit does not answer the calls automatically. Answer the calls manually.BT Audio On: Select when playing the Bluetooth audio device using “Bluetooth” as the source.Off: Select when playing back iPhod/iPhone using “iPod” as the source.Bluetooth device settingsEN_KW-NT500HDT_NT300[J].indb 104EN_KW-NT500HDT_NT300[J].indb 10412/7/2011 1:06:40 PM12/7/2011 1:06:40 PM

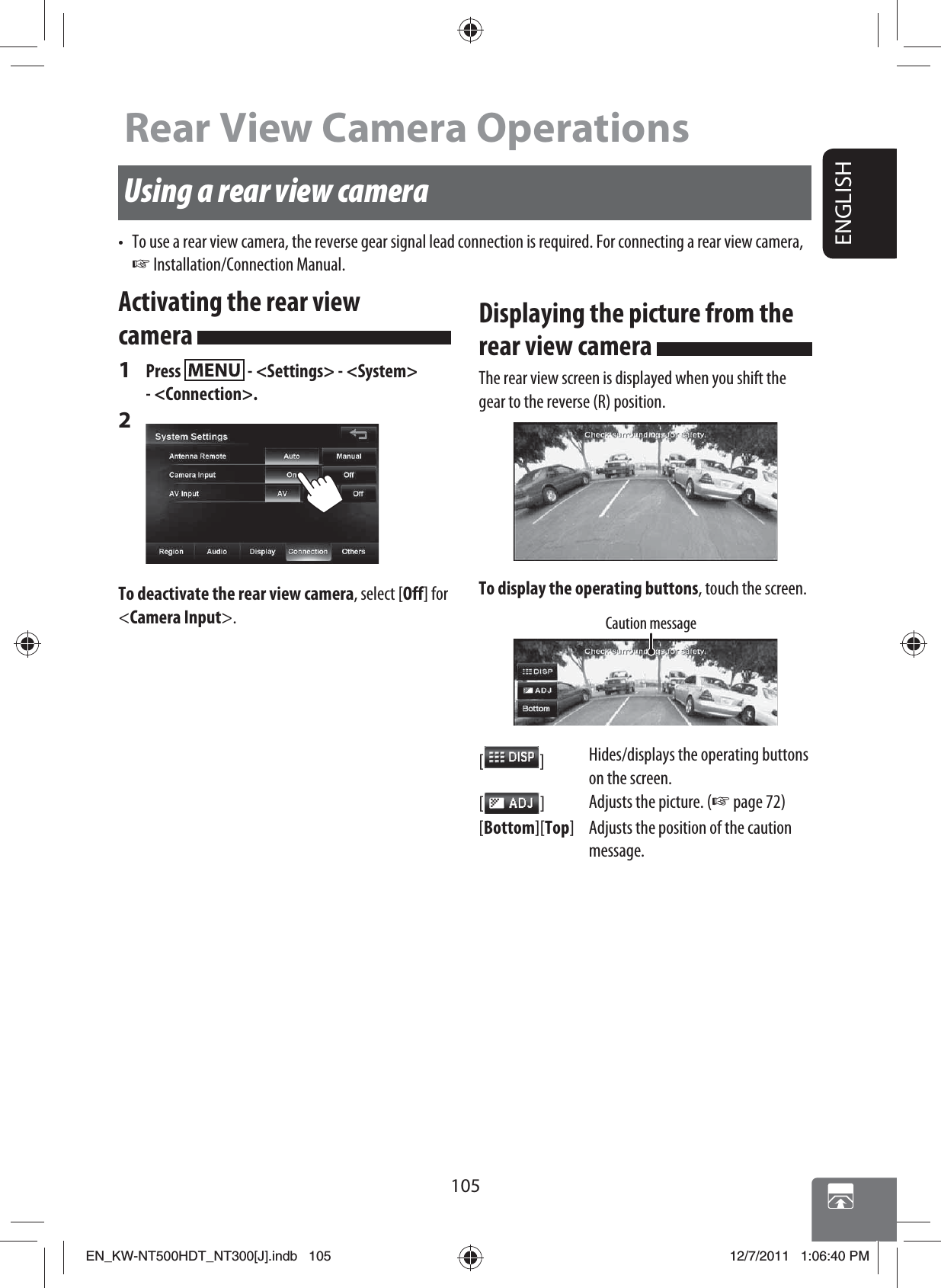

ENGLISH105Using a rear view camera• To use a rear view camera, the reverse gear signal lead connection is required. For connecting a rear view camera, ☞ Installation/Connection Manual.Activating the rear view camera 1 Press - <Settings> - <System> - <Connection>.2 To deactivate the rear view camera, select [Off] for <Camera Input>.Rear View Camera OperationsDisplaying the picture from the rear view camera The rear view screen is displayed when you shift the gear to the reverse (R) position.To display the operating buttons, touch the screen.Caution message[ ]Hides/displays the operating buttons on the screen.[ ]Adjusts the picture. (☞ page 72)[Bottom][Top] Adjusts the position of the caution message.EN_KW-NT500HDT_NT300[J].indb 105EN_KW-NT500HDT_NT300[J].indb 10512/7/2011 1:06:40 PM12/7/2011 1:06:40 PM

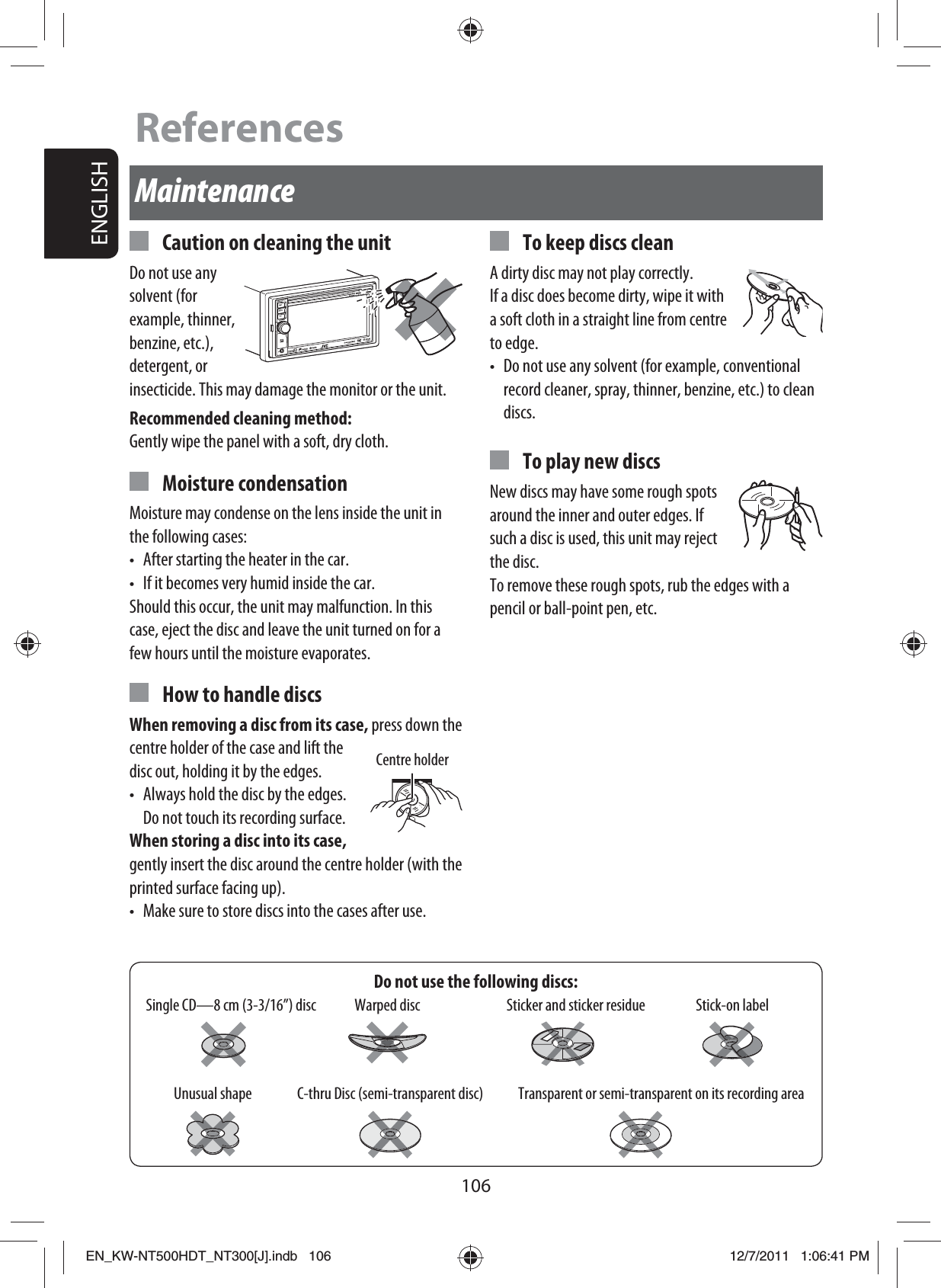

ENGLISH106Do not use the following discs:Maintenance Caution on cleaning the unitDo not use any solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit.Recommended cleaning method:Gently wipe the panel with a soft, dry cloth. Moisture condensationMoisture may condense on the lens inside the unit in the following cases:• After starting the heater in the car.• If it becomes very humid inside the car.Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates. How to handle discsWhen removing a disc from its case, press down the centre holder of the case and lift the disc out, holding it by the edges.• Always hold the disc by the edges. Do not touch its recording surface.When storing a disc into its case, gently insert the disc around the centre holder (with the printed surface facing up).• Make sure to store discs into the cases after use. To keep discs cleanA dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from centre to edge.• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs. To play new discsNew discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.Stick-on labelSticker and sticker residueUnusual shapeWarped discSingle CD—8 cm (3-3/16”) discC-thru Disc (semi-transparent disc) Transparent or semi-transparent on its recording areaCentre holderReferencesEN_KW-NT500HDT_NT300[J].indb 106EN_KW-NT500HDT_NT300[J].indb 10612/7/2011 1:06:41 PM12/7/2011 1:06:41 PM

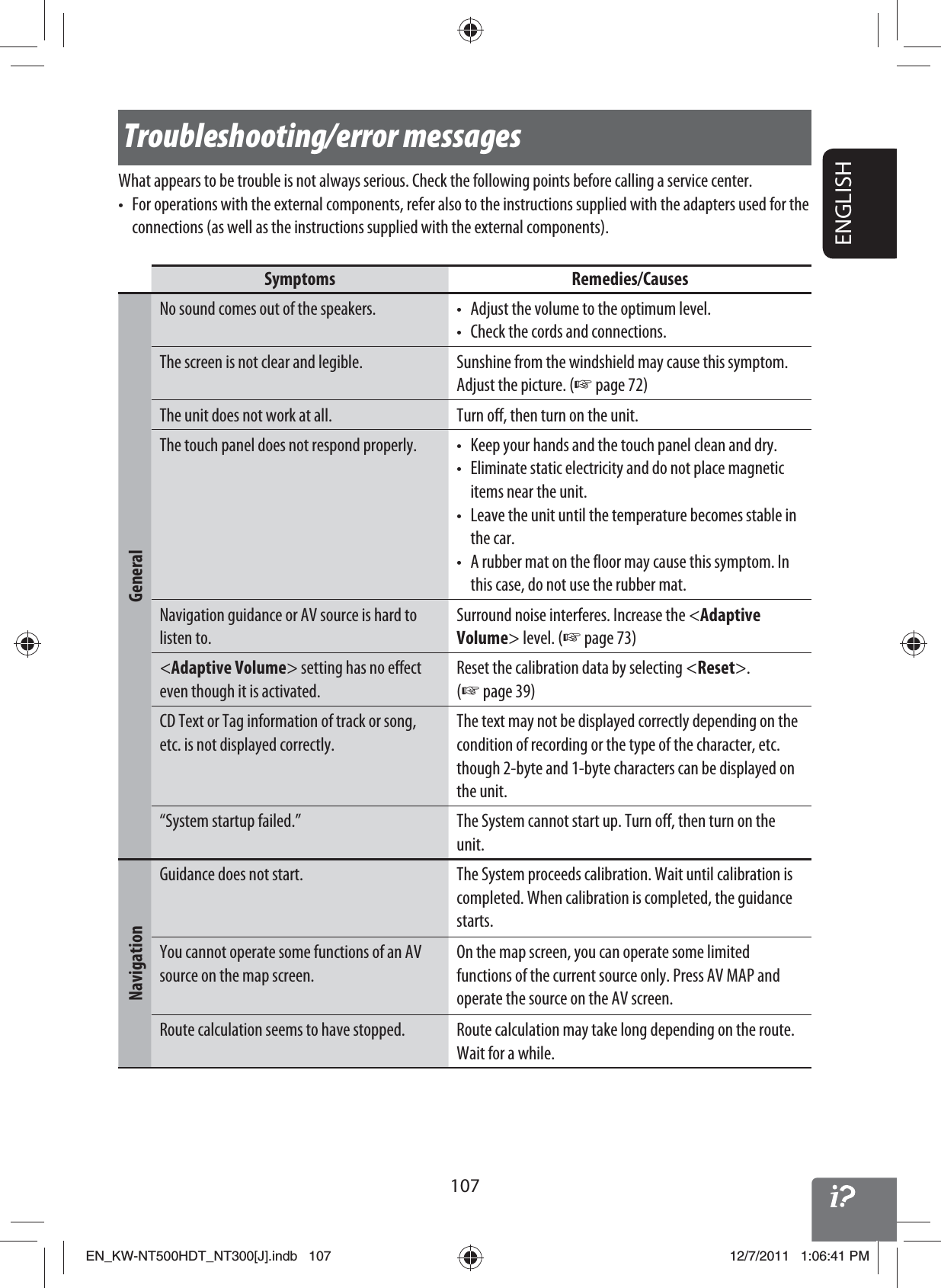

107ENGLISHTroubleshooting/error messagesWhat appears to be trouble is not always serious. Check the following points before calling a service center.• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).Symptoms Remedies/CausesGeneralNo sound comes out of the speakers. • Adjust the volume to the optimum level.• Check the cords and connections.The screen is not clear and legible. Sunshine from the windshield may cause this symptom.Adjust the picture. (☞ page 72)The unit does not work at all. Turn off, then turn on the unit.The touch panel does not respond properly. • Keep your hands and the touch panel clean and dry.• Eliminate static electricity and do not place magnetic items near the unit.• Leave the unit until the temperature becomes stable in the car.• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.Navigation guidance or AV source is hard to listen to.Surround noise interferes. Increase the <Adaptive Volume> level. (☞ page 73)<Adaptive Volume> setting has no effect even though it is activated.Reset the calibration data by selecting <Reset>. (☞ page 39)CD Text or Tag information of track or song, etc. is not displayed correctly.The text may not be displayed correctly depending on the condition of recording or the type of the character, etc. though 2-byte and 1-byte characters can be displayed on the unit.“System startup failed.” The System cannot start up. Turn off, then turn on the unit.NavigationGuidance does not start. The System proceeds calibration. Wait until calibration is completed. When calibration is completed, the guidance starts.You cannot operate some functions of an AV source on the map screen.On the map screen, you can operate some limited functions of the current source only. Press AV MAP and operate the source on the AV screen.Route calculation seems to have stopped. Route calculation may take long depending on the route. Wait for a while.EN_KW-NT500HDT_NT300[J].indb 107EN_KW-NT500HDT_NT300[J].indb 10712/7/2011 1:06:41 PM12/7/2011 1:06:41 PM

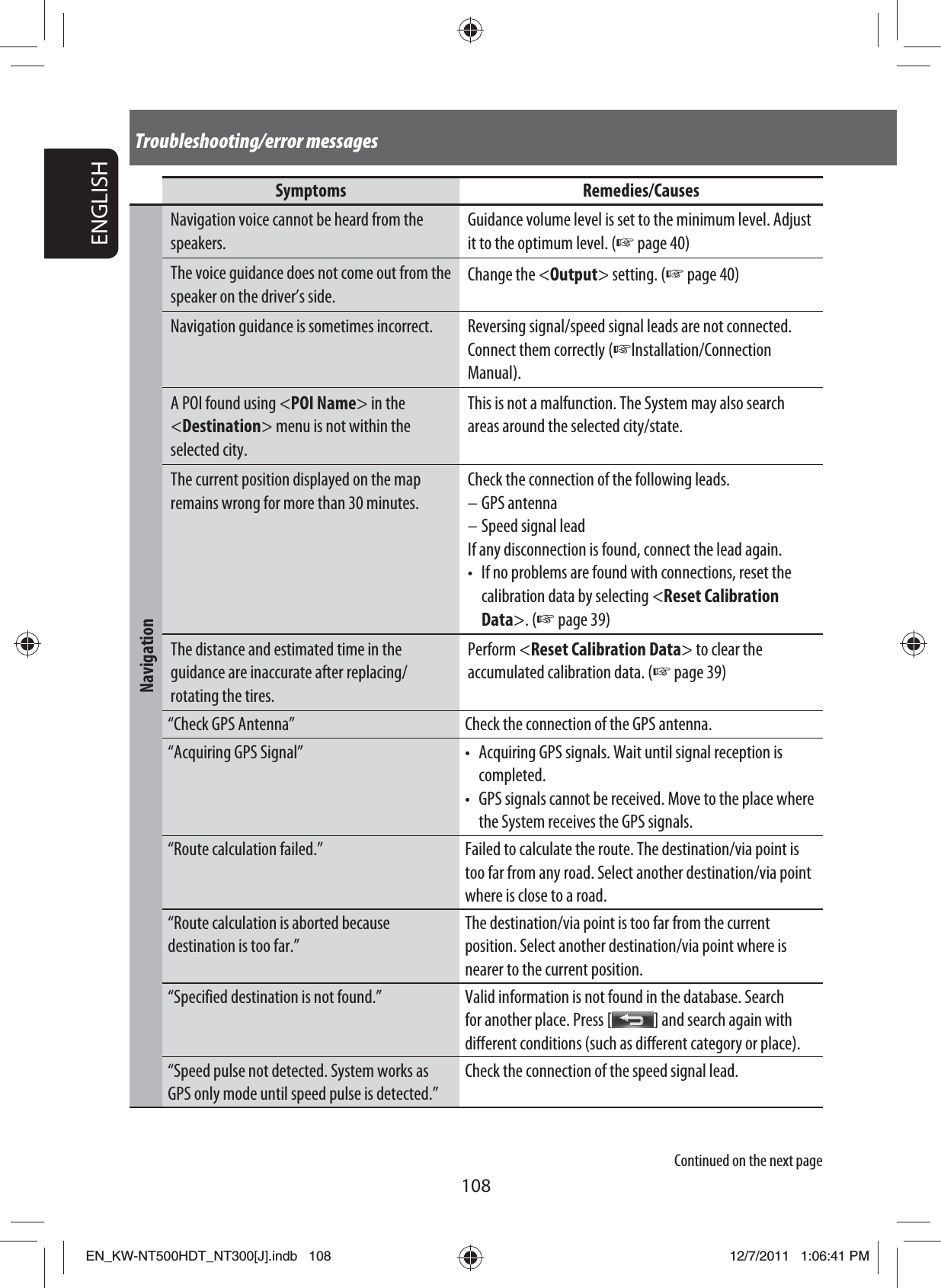

ENGLISH108Troubleshooting/error messagesSymptoms Remedies/CausesNavigationNavigation voice cannot be heard from the speakers.Guidance volume level is set to the minimum level. Adjust it to the optimum level. (☞ page 40)The voice guidance does not come out from the speaker on the driver’s side.Change the <Output> setting. (☞ page 40)Navigation guidance is sometimes incorrect. Reversing signal/speed signal leads are not connected. Connect them correctly (☞Installation/Connection Manual).A POI found using <POI Name> in the <Destination> menu is not within the selected city.This is not a malfunction. The System may also search areas around the selected city/state.The current position displayed on the map remains wrong for more than 30 minutes.Check the connection of the following leads.– GPS antenna– Speed signal leadIf any disconnection is found, connect the lead again.• If no problems are found with connections, reset the calibration data by selecting <Reset Calibration Data>. (☞ page 39)The distance and estimated time in the guidance are inaccurate after replacing/rotating the tires.Perform <Reset Calibration Data> to clear the accumulated calibration data. (☞ page 39)“Check GPS Antenna” Check the connection of the GPS antenna.“Acquiring GPS Signal” • Acquiring GPS signals. Wait until signal reception is completed.• GPS signals cannot be received. Move to the place where the System receives the GPS signals.“Route calculation failed.” Failed to calculate the route. The destination/via point is too far from any road. Select another destination/via point where is close to a road.“Route calculation is aborted because destination is too far.”The destination/via point is too far from the current position. Select another destination/via point where is nearer to the current position.“Specified destination is not found.” Valid information is not found in the database. Search for another place. Press [ ] and search again with different conditions (such as different category or place).“Speed pulse not detected. System works as GPS only mode until speed pulse is detected.”Check the connection of the speed signal lead.Continued on the next pageEN_KW-NT500HDT_NT300[J].indb 108EN_KW-NT500HDT_NT300[J].indb 10812/7/2011 1:06:41 PM12/7/2011 1:06:41 PM

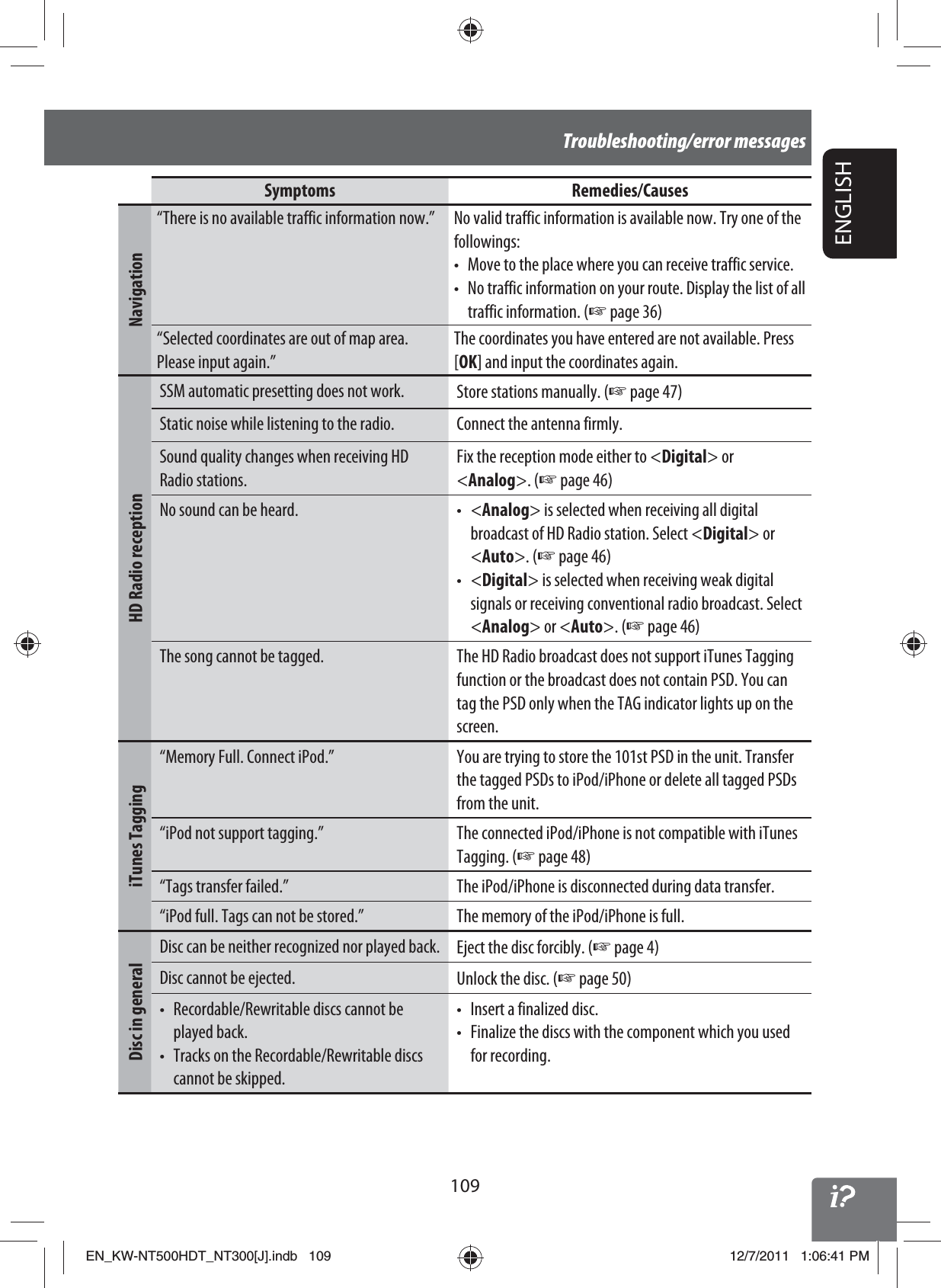

109ENGLISHTroubleshooting/error messagesSymptoms Remedies/CausesNavigation“There is no available traffic information now.” No valid traffic information is available now. Try one of the followings:• Move to the place where you can receive traffic service.• No traffic information on your route. Display the list of all traffic information. (☞ page 36)“Selected coordinates are out of map area. Please input again.”The coordinates you have entered are not available. Press [OK] and input the coordinates again.HD Radio receptionSSM automatic presetting does not work. Store stations manually. (☞ page 47)Static noise while listening to the radio. Connect the antenna firmly.Sound quality changes when receiving HD Radio stations.Fix the reception mode either to <Digital> or <Analog>. (☞ page 46)No sound can be heard. • <Analog> is selected when receiving all digital broadcast of HD Radio station. Select <Digital> or <Auto>. (☞ page 46)• <Digital> is selected when receiving weak digital signals or receiving conventional radio broadcast. Select <Analog> or <Auto>. (☞ page 46)The song cannot be tagged. The HD Radio broadcast does not support iTunes Tagging function or the broadcast does not contain PSD. You can tag the PSD only when the TAG indicator lights up on the screen.iTunes Tagging“Memory Full. Connect iPod.” You are trying to store the 101st PSD in the unit. Transfer the tagged PSDs to iPod/iPhone or delete all tagged PSDs from the unit.“iPod not support tagging.” The connected iPod/iPhone is not compatible with iTunes Tagging. (☞ page 48)“Tags transfer failed.” The iPod/iPhone is disconnected during data transfer.“iPod full. Tags can not be stored.” The memory of the iPod/iPhone is full.Disc in generalDisc can be neither recognized nor played back. Eject the disc forcibly. (☞ page 4)Disc cannot be ejected. Unlock the disc. (☞ page 50)• Recordable/Rewritable discs cannot be played back.• Tracks on the Recordable/Rewritable discs cannot be skipped.• Insert a finalized disc.• Finalize the discs with the component which you used for recording.EN_KW-NT500HDT_NT300[J].indb 109EN_KW-NT500HDT_NT300[J].indb 10912/7/2011 1:06:41 PM12/7/2011 1:06:41 PM

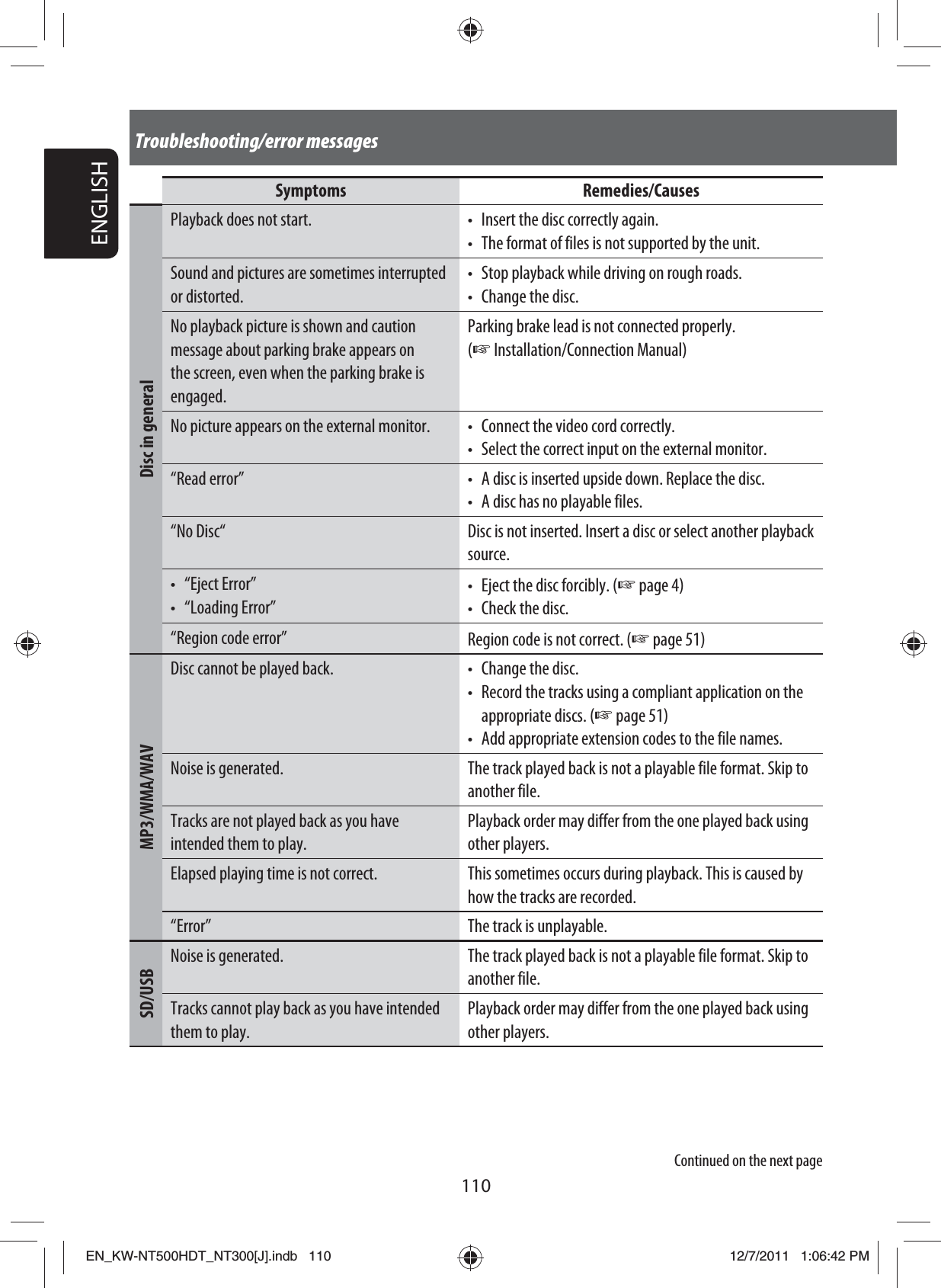

ENGLISH110Troubleshooting/error messagesSymptoms Remedies/CausesDisc in generalPlayback does not start. • Insert the disc correctly again.• The format of files is not supported by the unit.Sound and pictures are sometimes interrupted or distorted.• Stop playback while driving on rough roads.• Change the disc.No playback picture is shown and caution message about parking brake appears on the screen, even when the parking brake is engaged.Parking brake lead is not connected properly. (☞ Installation/Connection Manual)No picture appears on the external monitor. • Connect the video cord correctly.• Select the correct input on the external monitor.“Read error” • A disc is inserted upside down. Replace the disc.• A disc has no playable files.“No Disc“ Disc is not inserted. Insert a disc or select another playback source.• “Eject Error”• “Loading Error”• Eject the disc forcibly. (☞ page 4)• Check the disc.“Region code error” Region code is not correct. (☞ page 51)MP3/WMA/WAVDisc cannot be played back. • Change the disc.• Record the tracks using a compliant application on the appropriate discs. (☞ page 51)• Add appropriate extension codes to the file names.Noise is generated. The track played back is not a playable file format. Skip to another file.Tracks are not played back as you have intended them to play.Playback order may differ from the one played back using other players.Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the tracks are recorded.“Error” The track is unplayable.SD/USB Noise is generated. The track played back is not a playable file format. Skip to another file. Tracks cannot play back as you have intended them to play.Playback order may differ from the one played back using other players.Continued on the next pageEN_KW-NT500HDT_NT300[J].indb 110EN_KW-NT500HDT_NT300[J].indb 11012/7/2011 1:06:42 PM12/7/2011 1:06:42 PM

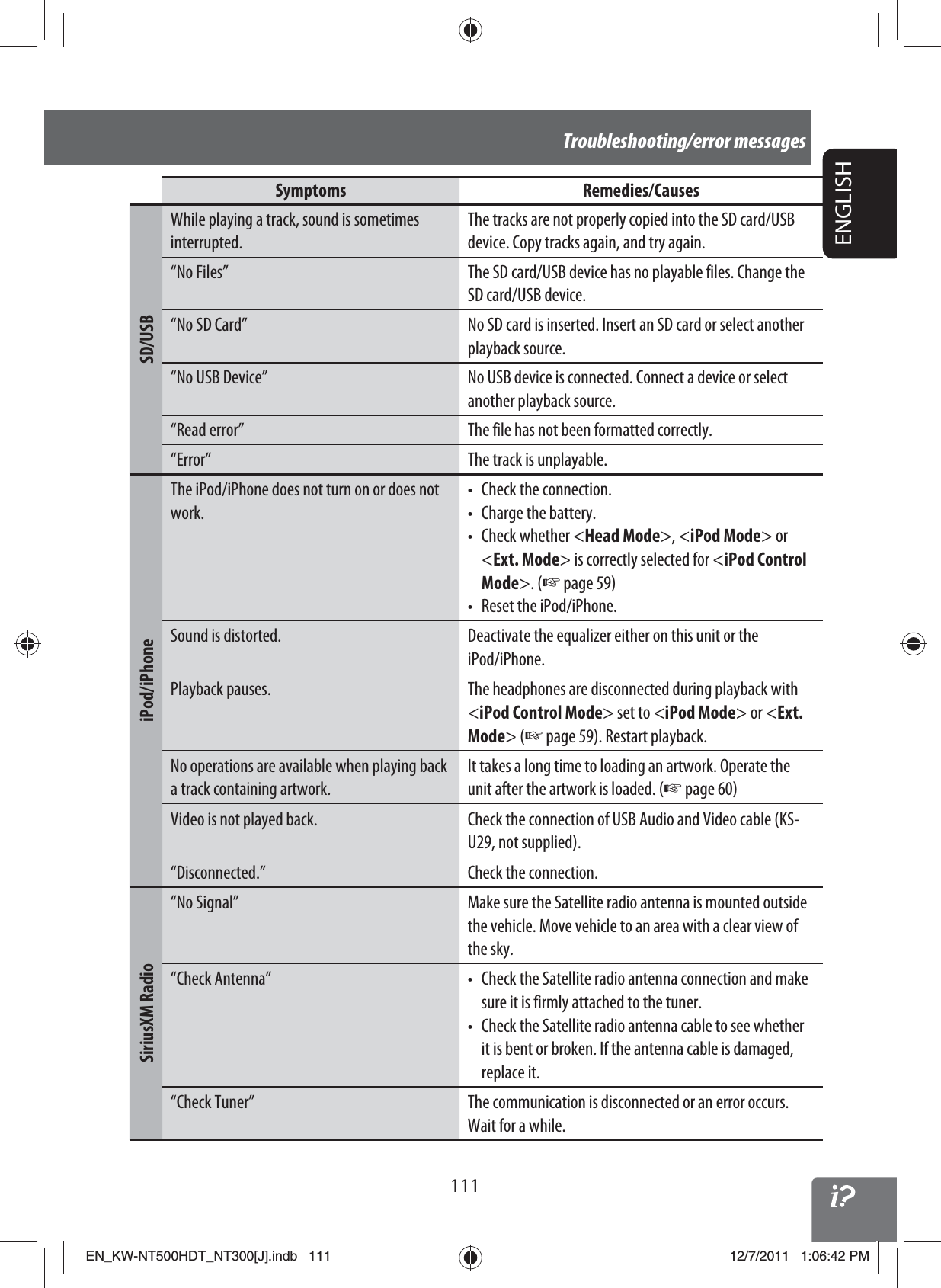

111ENGLISHTroubleshooting/error messagesSymptoms Remedies/CausesSD/USB While playing a track, sound is sometimes interrupted.The tracks are not properly copied into the SD card/USB device. Copy tracks again, and try again.“No Files” The SD card/USB device has no playable files. Change the SD card/USB device.“No SD Card” No SD card is inserted. Insert an SD card or select another playback source.“No USB Device” No USB device is connected. Connect a device or select another playback source.“Read error” The file has not been formatted correctly.“Error” The track is unplayable.iPod/iPhoneThe iPod/iPhone does not turn on or does not work.• Check the connection.• Charge the battery.• Check whether <Head Mode>, <iPod Mode> or <Ext. Mode> is correctly selected for <iPod Control Mode>. (☞ page 59)• Reset the iPod/iPhone.Sound is distorted. Deactivate the equalizer either on this unit or the iPod/iPhone.Playback pauses. The headphones are disconnected during playback with <iPod Control Mode> set to <iPod Mode> or <Ext. Mode> (☞ page 59). Restart playback.No operations are available when playing back a track containing artwork.It takes a long time to loading an artwork. Operate the unit after the artwork is loaded. (☞ page 60)Video is not played back. Check the connection of USB Audio and Video cable (KS-U29, not supplied).“Disconnected.” Check the connection.SiriusXM Radio“No Signal” Make sure the Satellite radio antenna is mounted outside the vehicle. Move vehicle to an area with a clear view of the sky.“Check Antenna” • Check the Satellite radio antenna connection and make sure it is firmly attached to the tuner.• Check the Satellite radio antenna cable to see whether it is bent or broken. If the antenna cable is damaged, replace it.“Check Tuner” The communication is disconnected or an error occurs. Wait for a while.EN_KW-NT500HDT_NT300[J].indb 111EN_KW-NT500HDT_NT300[J].indb 11112/7/2011 1:06:42 PM12/7/2011 1:06:42 PM

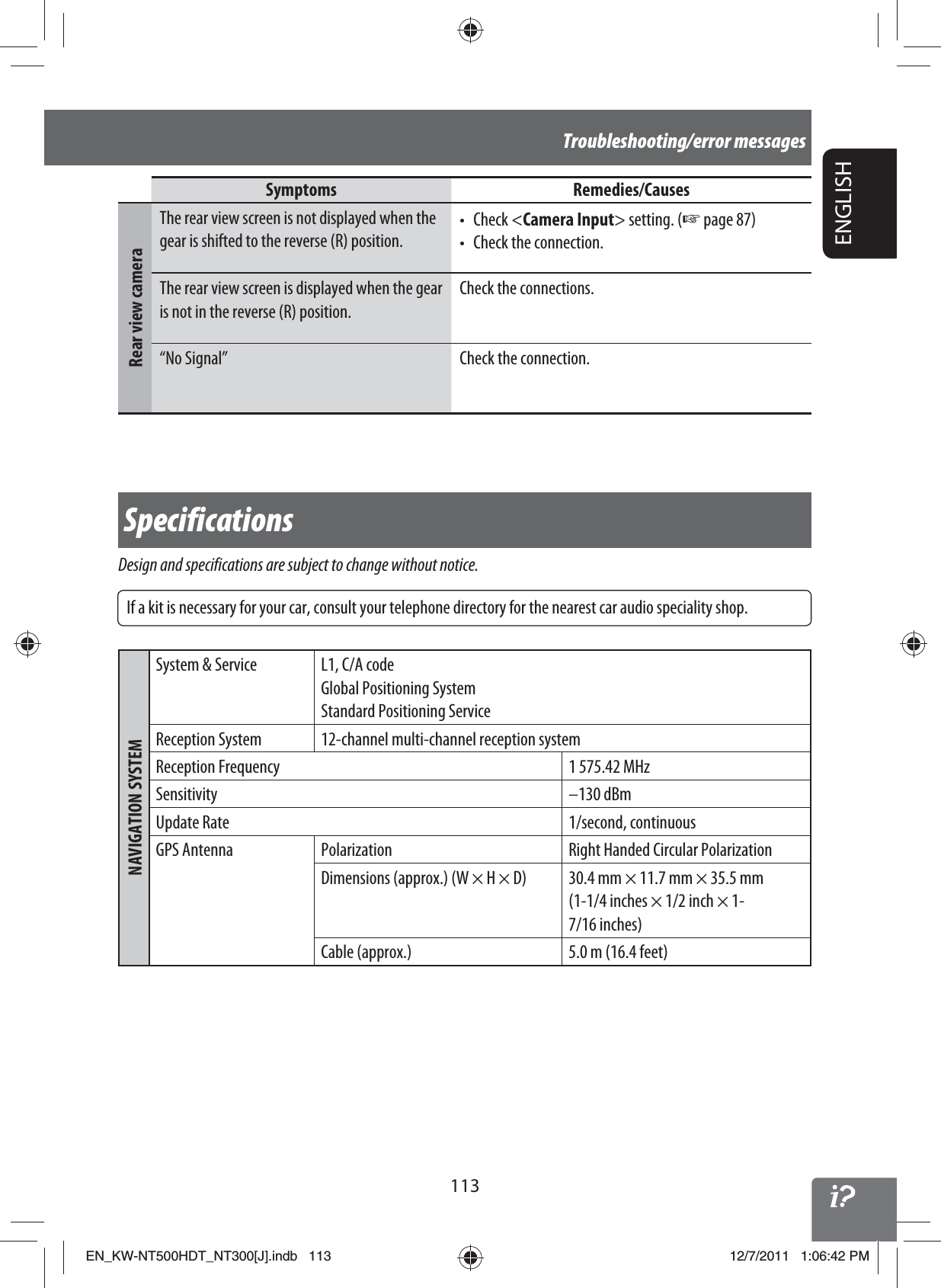

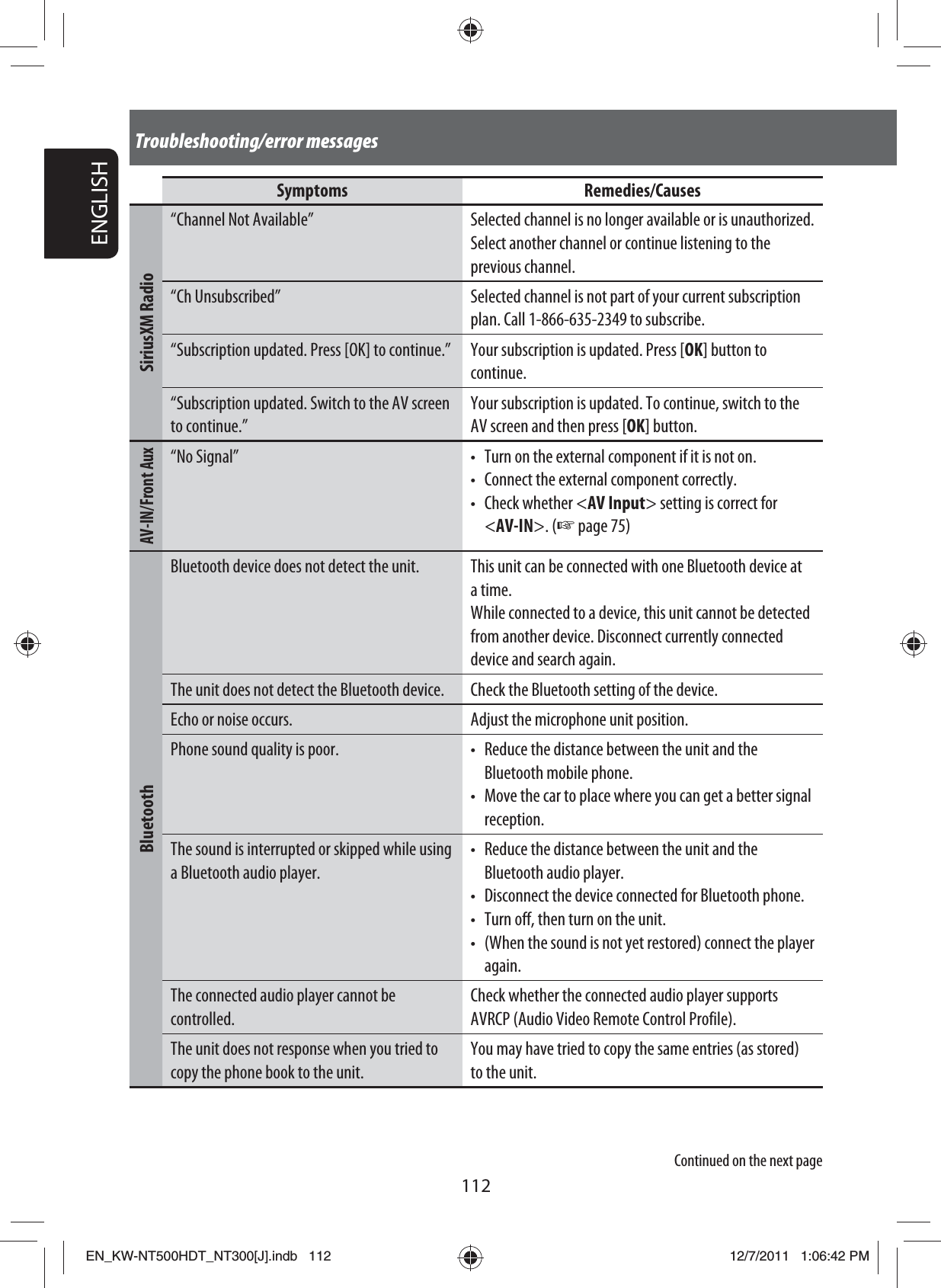

113ENGLISHTroubleshooting/error messagesSpecificationsDesign and specifications are subject to change without notice.NAVIGATION SYSTEMSystem & Service L1, C/A codeGlobal Positioning SystemStandard Positioning ServiceReception System 12-channel multi-channel reception systemReception Frequency 1 575.42 MHzSensitivity –130 dBmUpdate Rate 1/second, continuousGPS Antenna Polarization Right Handed Circular PolarizationDimensions (approx.) (W × H × D) 30.4 mm × 11.7 mm × 35.5 mm(1-1/4 inches × 1/2 inch × 1-7/16 inches)Cable (approx.) 5.0 m (16.4 feet)Symptoms Remedies/CausesRear view cameraThe rear view screen is not displayed when the gear is shifted to the reverse (R) position.• Check <Camera Input> setting. (☞ page 87)• Check the connection.The rear view screen is displayed when the gear is not in the reverse (R) position.Check the connections.“No Signal” Check the connection.If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.EN_KW-NT500HDT_NT300[J].indb 113EN_KW-NT500HDT_NT300[J].indb 11312/7/2011 1:06:42 PM12/7/2011 1:06:42 PM

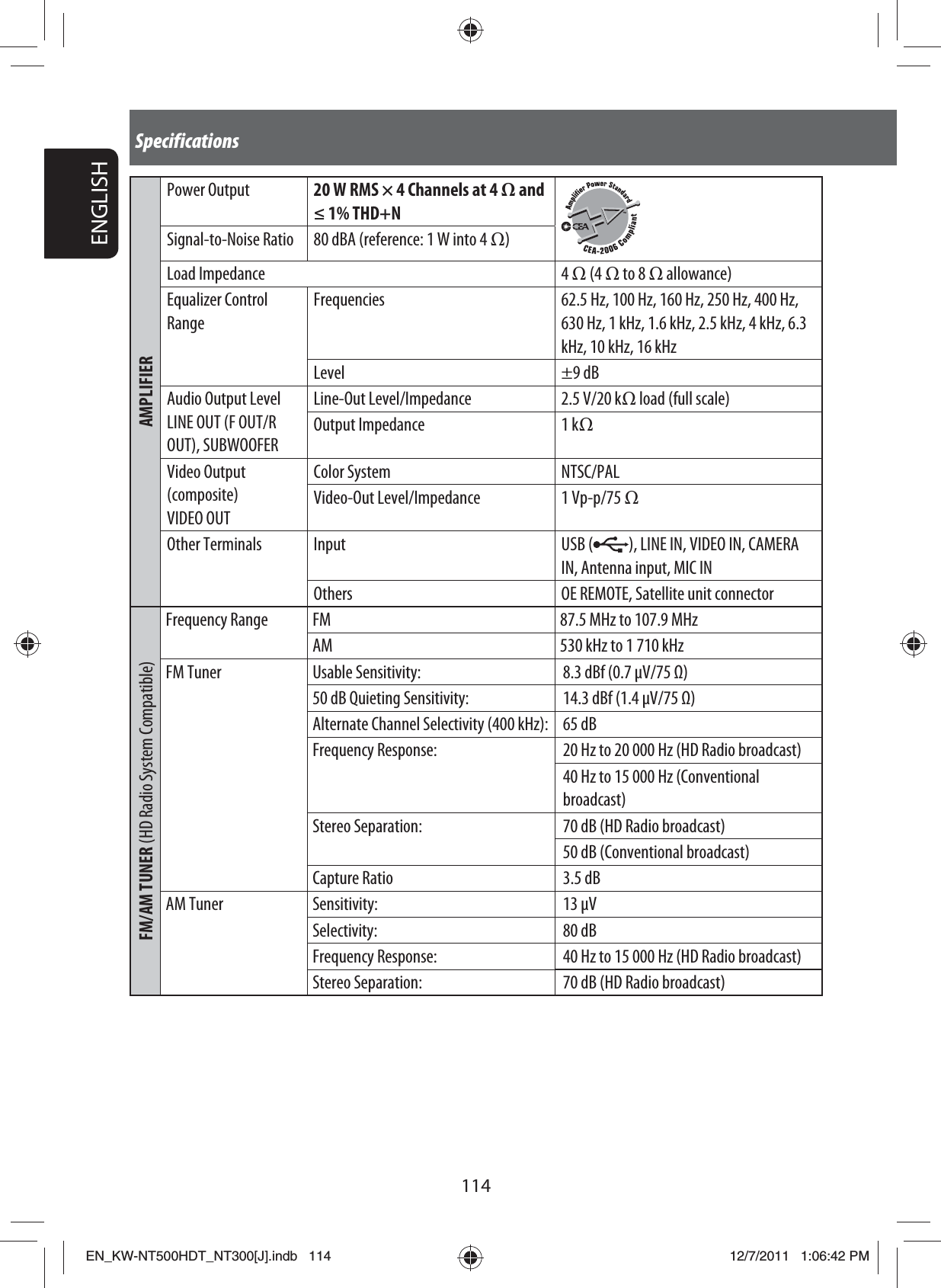

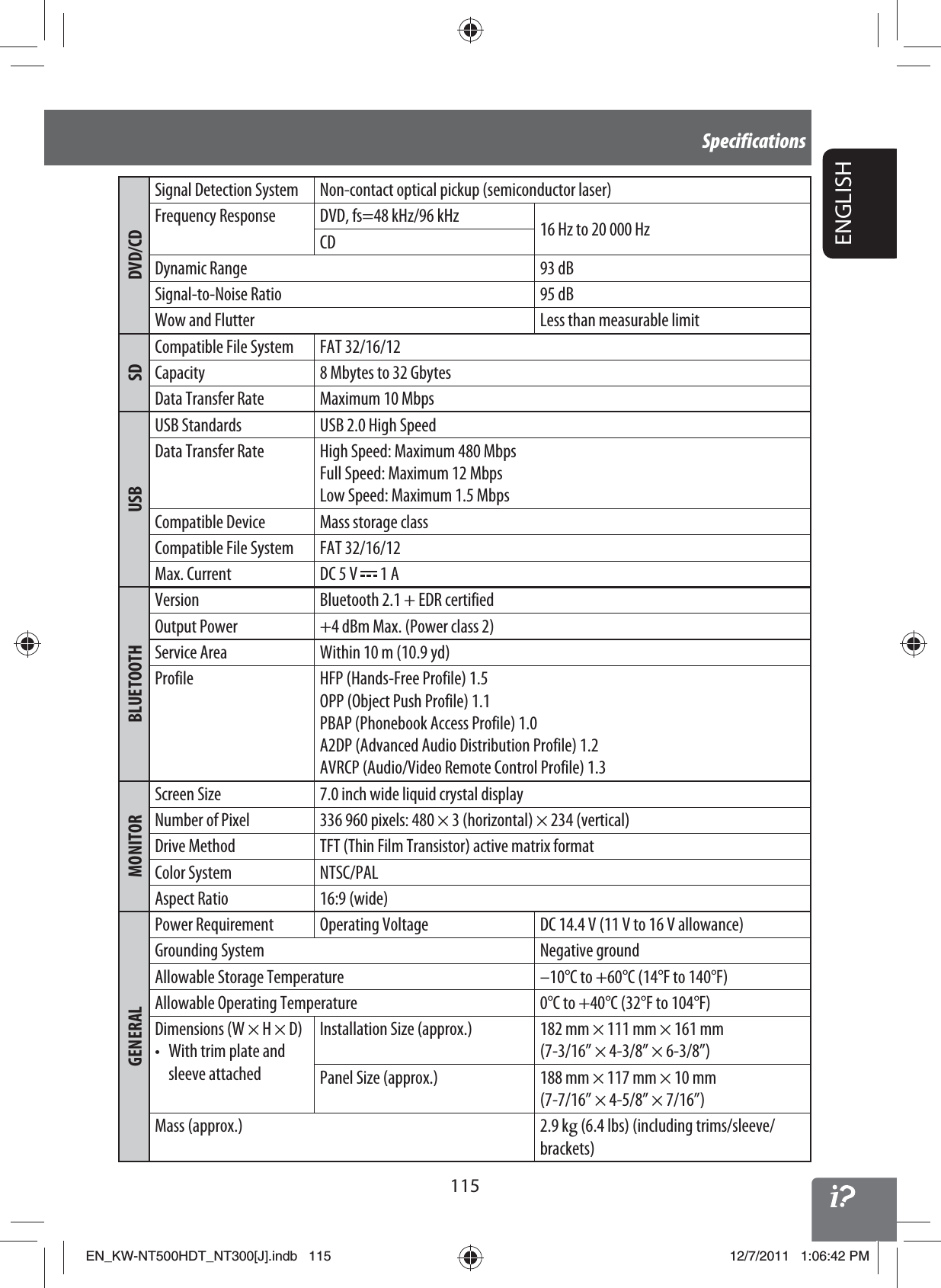

ENGLISH114SpecificationsAMPLIFIERPower Output 20 W RMS × 4 Channels at 4 Ω and ≤ 1% THD+NSignal-to-Noise Ratio 80 dBA (reference: 1 W into 4 Ω)Load Impedance 4  (4  to 8  allowance)Equalizer Control RangeFrequencies 62.5 Hz, 100 Hz, 160 Hz, 250 Hz, 400 Hz, 630 Hz, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 10 kHz, 16 kHzLevel ±9 dBAudio Output LevelLINE OUT (F OUT/R OUT), SUBWOOFERLine-Out Level/Impedance 2.5 V/20 kΩ load (full scale)Output Impedance 1 kΩVideo Output (composite) VIDEO OUTColor System NTSC/PALVideo-Out Level/Impedance 1 Vp-p/75 ΩOther Terminals Input USB ( ), LINE IN, VIDEO IN, CAMERA IN, Antenna input, MIC INOthers OE REMOTE, Satellite unit connectorFM/AM TUNER (HD Radio System Compatible)Frequency Range FM 87.5 MHz to 107.9 MHzAM 530 kHz to 1 710 kHzFM Tuner Usable Sensitivity: 8.3 dBf (0.7 μV/75 Ω)50 dB Quieting Sensitivity: 14.3 dBf (1.4 μV/75 Ω)Alternate Channel Selectivity (400 kHz): 65 dBFrequency Response: 20 Hz to 20 000 Hz (HD Radio broadcast)40 Hz to 15 000 Hz (Conventional broadcast)Stereo Separation: 70 dB (HD Radio broadcast)50 dB (Conventional broadcast)Capture Ratio 3.5 dB AM Tuner Sensitivity: 13 μVSelectivity: 80 dBFrequency Response: 40 Hz to 15 000 Hz (HD Radio broadcast)Stereo Separation: 70 dB (HD Radio broadcast)EN_KW-NT500HDT_NT300[J].indb 114EN_KW-NT500HDT_NT300[J].indb 11412/7/2011 1:06:42 PM12/7/2011 1:06:42 PM
