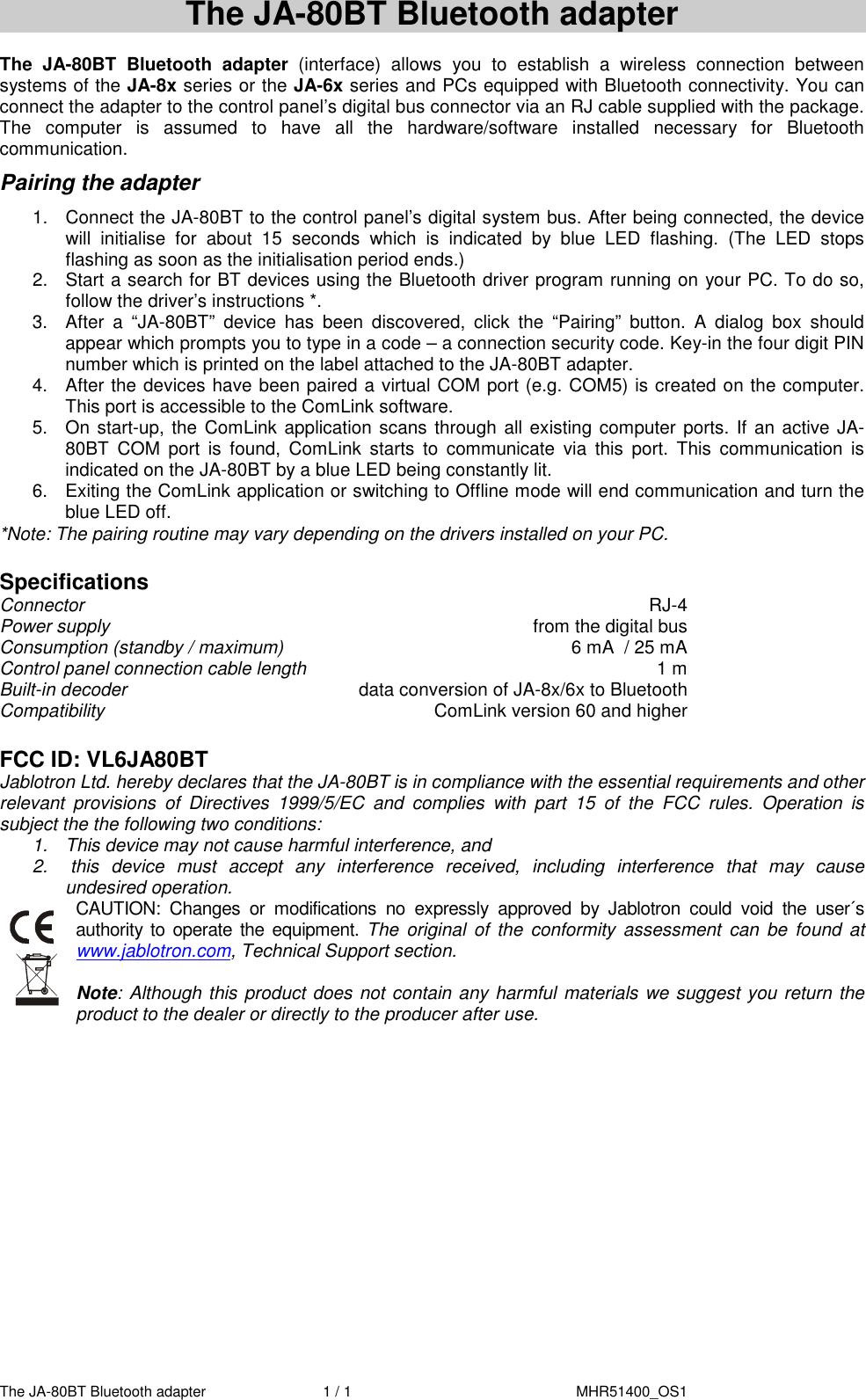

The JA-80BT Bluetooth adapter  1 / 1     MHR51400_OS1   The JA-80BT Bluetooth adapter  The  JA-80BT  Bluetooth  adapter  (interface)  allows  you  to  establish  a  wireless  connection  between systems of the JA-8x series or the JA-6x series and PCs equipped with Bluetooth connectivity. You can connect the adapter to the control panel’s digital bus connector via an RJ cable supplied with the package. The  computer  is  assumed  to  have  all  the  hardware/software  installed  necessary  for  Bluetooth communication. Pairing the adapter 1.  Connect the JA-80BT to the control panel’s digital system bus. After being connected, the device will  initialise  for  about  15  seconds  which  is  indicated  by  blue  LED  flashing.  (The  LED  stops flashing as soon as the initialisation period ends.) 2.  Start a search for BT devices using the Bluetooth driver program running on your PC. To do so, follow the driver’s instructions *. 3.  After  a  “JA-80BT”  device  has  been  discovered,  click  the  “Pairing”  button.  A  dialog  box  should appear which prompts you to type in a code – a connection security code. Key-in the four digit PIN number which is printed on the label attached to the JA-80BT adapter. 4.  After the devices have been paired a virtual COM port (e.g. COM5) is created on the computer. This port is accessible to the ComLink software. 5.  On start-up, the ComLink application scans through  all existing computer ports.  If an active JA-80BT  COM  port  is  found,  ComLink  starts  to  communicate  via  this  port.  This  communication  is indicated on the JA-80BT by a blue LED being constantly lit. 6.  Exiting the ComLink application or switching to Offline mode will end communication and turn the blue LED off. *Note: The pairing routine may vary depending on the drivers installed on your PC.  Specifications Connector  RJ-4 Power supply  from the digital bus Consumption (standby / maximum)  6 mA  / 25 mA   Control panel connection cable length  1 m Built-in decoder   data conversion of JA-8x/6x to Bluetooth Compatibility  ComLink version 60 and higher   FCC ID: VL6JA80BT Jablotron Ltd. hereby declares that the JA-80BT is in compliance with the essential requirements and other relevant  provisions  of  Directives  1999/5/EC  and  complies  with  part  15  of  the  FCC  rules.  Operation  is subject the the following two conditions:  1.  This device may not cause harmful interference, and   2.   this  device  must  accept  any  interference  received,  including  interference  that  may  cause undesired operation.  CAUTION:  Changes  or  modifications  no  expressly  approved  by  Jablotron  could  void  the  user´s authority to operate  the equipment. The  original  of  the  conformity  assessment  can  be  found  at www.jablotron.com, Technical Support section.  Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.
