Users Manual

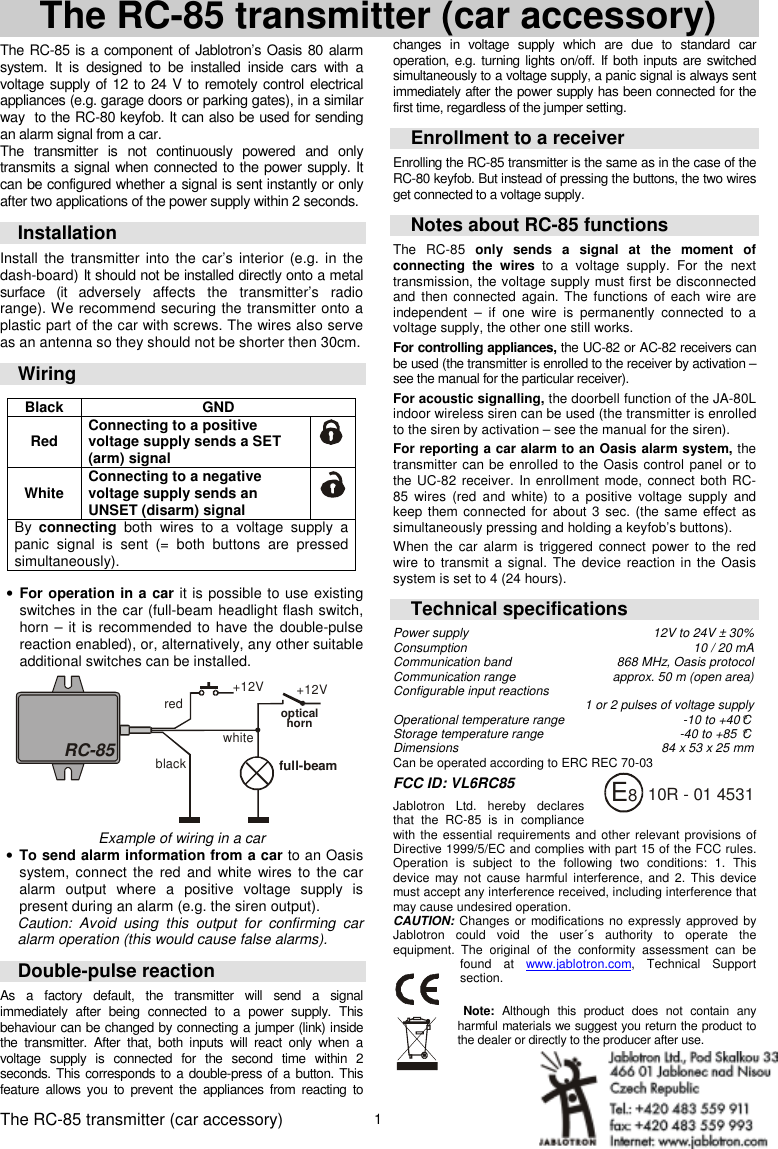

The RC-85 transmitter (car accessory) MKF51000 1 The RC-85 transmitter (car accessory) The RC-85 is a component of Jablotron’s Oasis 80 alarm system. It is designed to be installed inside cars with a voltage supply of 12 to 24 V to remotely control electrical appliances (e.g. garage doors or parking gates), in a similar way to the RC-80 keyfob. It can also be used for sending an alarm signal from a car. The transmitter is not continuously powered and only transmits a signal when connected to the power supply. It can be configured whether a signal is sent instantly or only after two applications of the power supply within 2 seconds. Installation Install the transmitter into the car’s interior (e.g. in the dash-board) It should not be installed directly onto a metal surface (it adversely affects the transmitter’s radio range). We recommend securing the transmitter onto a plastic part of the car with screws. The wires also serve as an antenna so they should not be shorter then 30cm. Wiring Black GND Red Connecting to a positive voltage supply sends a SET (arm) signal White Connecting to a negative voltage supply sends an UNSET (disarm) signal By connecting both wires to a voltage supply a panic signal is sent (= both buttons are pressed simultaneously). • For operation in a car it is possible to use existing switches in the car (full-beam headlight flash switch, horn – it is recommended to have the double-pulse reaction enabled), or, alternatively, any other suitable additional switches can be installed. RC-85redopticalhorn+12V+12Vfull-beamblackwhite Example of wiring in a car • To send alarm information from a car to an Oasis system, connect the red and white wires to the car alarm output where a positive voltage supply is present during an alarm (e.g. the siren output). Caution: Avoid using this output for confirming car alarm operation (this would cause false alarms). Double-pulse reaction As a factory default, the transmitter will send a signal immediately after being connected to a power supply. This behaviour can be changed by connecting a jumper (link) inside the transmitter. After that, both inputs will react only when a voltage supply is connected for the second time within 2 seconds. This corresponds to a double-press of a button. This feature allows you to prevent the appliances from reacting to changes in voltage supply which are due to standard car operation, e.g. turning lights on/off. If both inputs are switched simultaneously to a voltage supply, a panic signal is always sent immediately after the power supply has been connected for the first time, regardless of the jumper setting. Enrollment to a receiver Enrolling the RC-85 transmitter is the same as in the case of the RC-80 keyfob. But instead of pressing the buttons, the two wires get connected to a voltage supply. Notes about RC-85 functions The RC-85 only sends a signal at the moment of connecting the wires to a voltage supply. For the next transmission, the voltage supply must first be disconnected and then connected again. The functions of each wire are independent – if one wire is permanently connected to a voltage supply, the other one still works. For controlling appliances, the UC-82 or AC-82 receivers can be used (the transmitter is enrolled to the receiver by activation – see the manual for the particular receiver). For acoustic signalling, the doorbell function of the JA-80L indoor wireless siren can be used (the transmitter is enrolled to the siren by activation – see the manual for the siren). For reporting a car alarm to an Oasis alarm system, the transmitter can be enrolled to the Oasis control panel or to the UC-82 receiver. In enrollment mode, connect both RC-85 wires (red and white) to a positive voltage supply and keep them connected for about 3 sec. (the same effect as simultaneously pressing and holding a keyfob’s buttons). When the car alarm is triggered connect power to the red wire to transmit a signal. The device reaction in the Oasis system is set to 4 (24 hours). Technical specifications Power supply 12V to 24V ± 30% Consumption 10 / 20 mA Communication band 868 MHz, Oasis protocol Communication range approx. 50 m (open area) Configurable input reactions 1 or 2 pulses of voltage supply Operational temperature range -10 to +40°C Storage temperature range -40 to +85 °C Dimensions 84 x 53 x 25 mm Can be operated according to ERC REC 70-03 FCC ID: VL6RC85 Jablotron Ltd. hereby declares that the RC-85 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications no expressly approved by Jablotron could void the user´s authority to operate the equipment. The original of the conformity assessment can be found at www.jablotron.com, Technical Support section. Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use. 10R - 01 4531E8
