AJ-44T SERIES RACK CONVEYOR DISHMACHINE
September 29, 2007
P/N 7610-003-07-21 (Revision C)
AJ-44T SERIES
AJ-44TE
AJ-44TG
AJ-44TS
AJ-66T SERIES
AJ-66TE
AJ-66TG
AJ-66TS
AJ-80T SERIES
AJ-80TE
AJ-80TS
AND ASSOCIATED OPTION PACKAGES INCLUDING:
SIDE LOADER
ALL NEW JACKSON DISHWASHERS ARE WARRANTED TO THE ORIGINAL PURCHASER TO BE FREE FROM
DEFECTS IN MATERIAL OR WORKMANSHIP, UNDER NORMAL USE AND OPERATION FOR A PERIOD OF (1) ONE
YEAR FROM THE DATE OF PURCHASE, BUT IN NO EVENT TO EXCEED (18) EIGHTEEN MONTHS FROM THE DATE
OF SHIPMENT FROM THE FACTORY.
Jackson MSC agrees under this warranty to repair or replace , at its discretion, any original part which fails under normal use due to faulty
material or workmanship during the warranty period, providing the equipment has been unaltered, and has been properly installed, main-
tained and operated in accordance with the applicable factory instruction manual furnished with the machine and the failure is reported to
the authorized service agency within the warranty period. This includes the use of factory specified genuine replacement parts, purchased
directly from a Jackson authorized parts distributor or service agency. Use of generic replacement parts may create a hazard and void war-
ranty certification.
The labor to repair or replace such failed part will be paid by Jackson MSC, within the continental United States, Hawaii and Canada, during
the warranty period provided a Jackson MSC authorized service agency, or those having prior authorization from the factory, performs the
service. Any repair work by persons other than a Jackson MSC authorized service agency is the sole responsibility of the customer. Labor
coverage is limited to regular hourly rates, overtime premiums and emergency service charges will not be paid by Jackson MSC.
Accessory components not installed by the factory carry a (1) one year parts warranty only. Accessory components such as table limit switch-
es, pressure regulators, pre rinse units, etc. that are shipped with the unit and installed at the site are included. Labor to repair or replace
these components is not covered by Jackson MSC.
This warranty is void if failure is a direct result from shipping, handling, fire, water, accident, misuse, acts of god, attempted repair by unau-
thorized persons, improper installation, if serial number has been removed or altered, or if unit is used for purpose other than it was origi-
nally intended.
TRAVEL LIMITATIONS
Jackson MSC limits warranty travel time to (2) two hours and mileage to (100) one hundred miles. Jackson MSC will not pay for travel time
and mileage that exceeds this, or any fees such as those for air or boat travel without prior authorization.
WARRANTY REGISTRATION CARD
The warranty registration card supplied with the machine must be returned to Jackson MSC within 30 days to validate the warranty.
REPLACEMENT PARTS WARRANTY
Jackson replacement parts are warranted for a period of 90 days from the date of installation or 180 days from the date of shipment from the
factory, which ever occurs first.
PRODUCT CHANGES AND UPDATES
Jackson MSC reserves the right to make changes in design and specification of any equipment as engineering or necessity requires.
THIS IS THE ENTIRE AND ONLY WARRANTY OF JACKSON MSC. JACKSON’S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING
NEGLIGENCE, WITH RESPECT TO THE GOODS OR SERVICES COVERED HEREUNDER, SHALL IN NO CASE EXCEED THE PRICE
OF THE GOODS OR SERVICES OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING FOR FITNESS OR MERCHANTABILITY, THAT ARE NOT SET
FORTH HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF. UNDER NO CIRCUMSTANCES WILL JACKSON MSC BE
LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR CONSEQUENTIAL, OR FOR THE DAMAGES IN THE NATURE OF PENALTIES,
ARISING OUT OF THE USE OR INABILITY TO USE ANY OF ITS PRODUCTS.
ITEMS NOT COVERED
This warranty does not cover cleaning or deliming of the unit or any component such as, but not limited to, wash arms, rinse arms or strain-
ers at anytime. Nor does it cover adjustments such as, but not limited to timer cams, thermostats or doors, beyond 30 days from the date
of installation. In addition, the warranty will only cover the replacement of wear items such as curtains, drain balls, door guides or gaskets
during the first 30 days after installation. Also, not covered are conditions caused by the use of incorrect (non-Commercial) grade detergents,
incorrect water temperature or pressure, or hard water conditions.
MANUFACTURERS WARRANTY
ONE YEAR LIMITED PARTS & LABOR WARRANTY
STOP!
PARE!
ARRET!
CALL 1-888-800-5672 TO REGISTER THIS PRODUCT!
FAILURE TO DO SO WILL VOID THE WARRANTY!
LLAME AL 1-888-800-5672 PARA REGISTRAR ESTE PRODUCTO!
AL NO HACERLO LA GARANTIA SERA ANULADA!
S.V.P. APPELER 1-888-800-5672 POUR ENREGISTRER CE PRODUIT,
LA GARANTIE SERA ANNULEE POUR TOUT PRODUIT NON- ENREGISTREE
i
REVISION REVISION
DATE MADE
BY APPLICABLE
ECN DETAILS
A 08-03-2005 MAW 7442 Initial release of manual.
B 02-13-2006 MAW 7600, 7558
7462, 7367
7463
Added gas exhaust fan schematic, updated electric exhaust fan
schematic. Replaced rinse drain weldment 05700-021-68-28 with
05700-002-51-12. Added wash, rinse and psi decals. Changed
the door assemblies. Added the rinse fill motor assembly. Added
Gas Models.
C 3-21-2006 MAW 7571 Change to new layout. Change themostats and add replacement
kits.
PG. 100 04-19-2007 MAW 7898 Added 09905-003-32-20 fan load decal.
4 thru 21, 91 09-29-2007 MAW N/A Updated dimension pages. Removed alternate table limit switch-
es.
NOMENCLATURE FOR THE MODELS COVERED IN THIS MANUAL
AJ-44TS
AJ = AJ series of rack conveyors
44 = 44” wide machine
66 = 66” wide machine
80 = 80” wide machine
TE = Electrically heated, hot water sanitizing machine
TG = Gas heated, hot water sanitizing machine
TS = Steam heated, hot water sanitizing machine
Model:
Serial No.:
Installation Date:
Service Rep. Name:
Phone No.:
Jackson MSC LLC. provides technical support for all
of the dishmachines detailed in this manual. We
strongly recommend that you refer to this manual
before making a call to our technical support staff.
Please have this manual with you when you call so
that our staff can refer you, if necessary, to the prop-
er page. Technical support is available from 8:00
a.m. to 5:00 p.m. (EST), Monday through Friday.
Technical support is not available on holidays.
Contact technical support toll free at 1-888-800-
5672. Please remember that technical support is
available for service personnel only.
ii
SECTION DESCRIPTION PAGE
I. SPECIFICATION INFORMATION
Operating Characteristics 2
Electrical Requirements 3

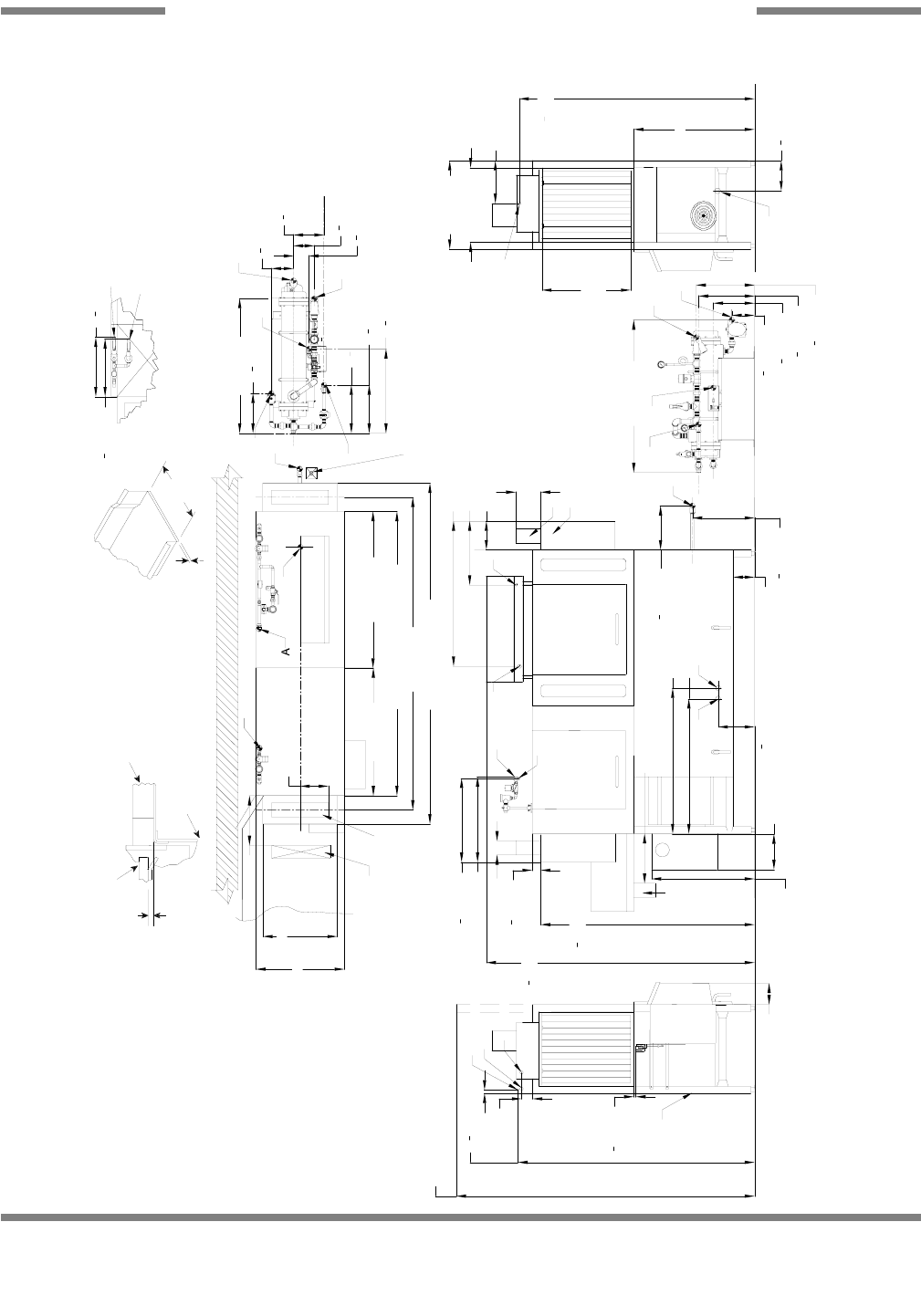

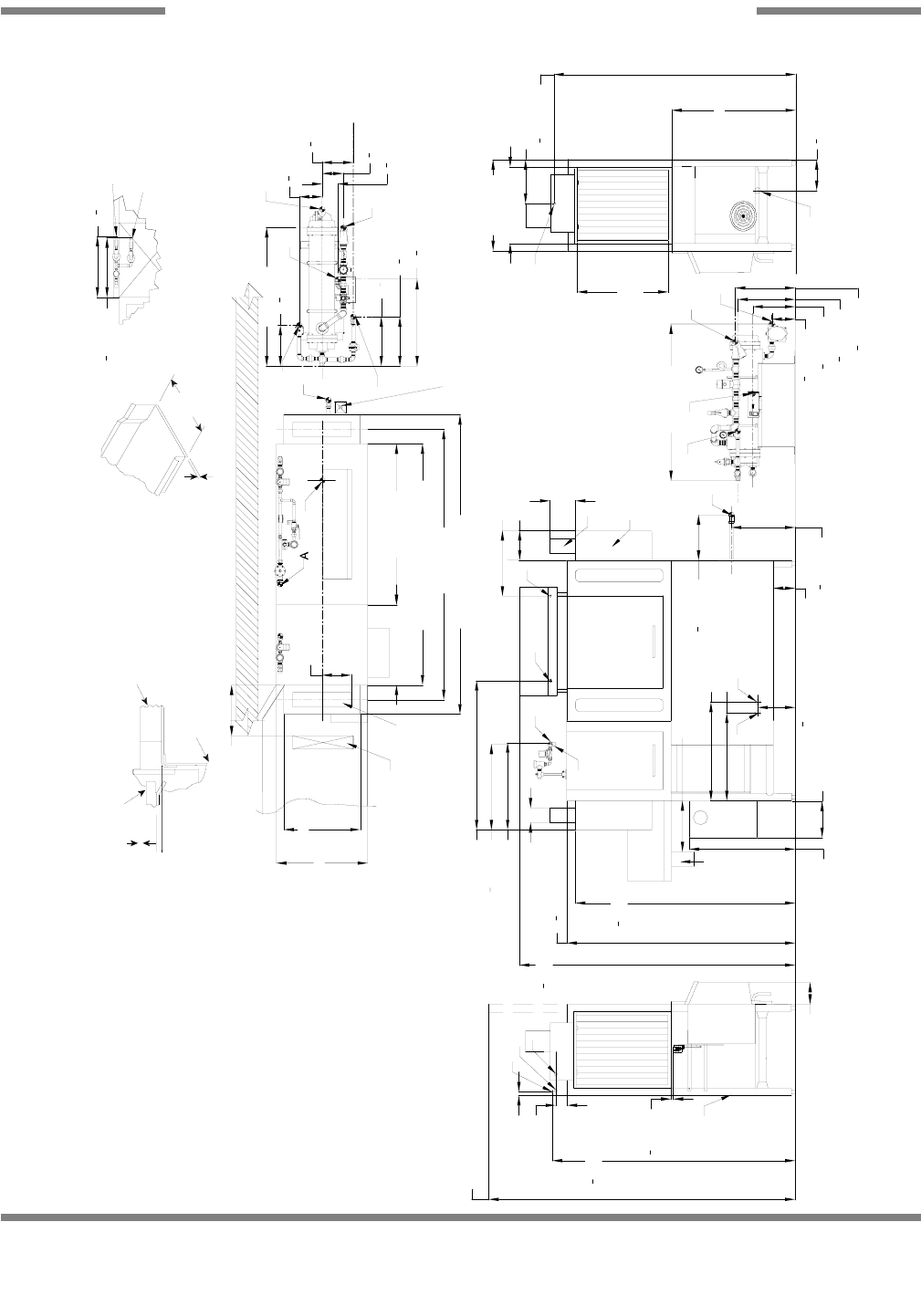

AJ-44T Electric - Left to Right 4
AJ-44T Electric - Right to Left 5

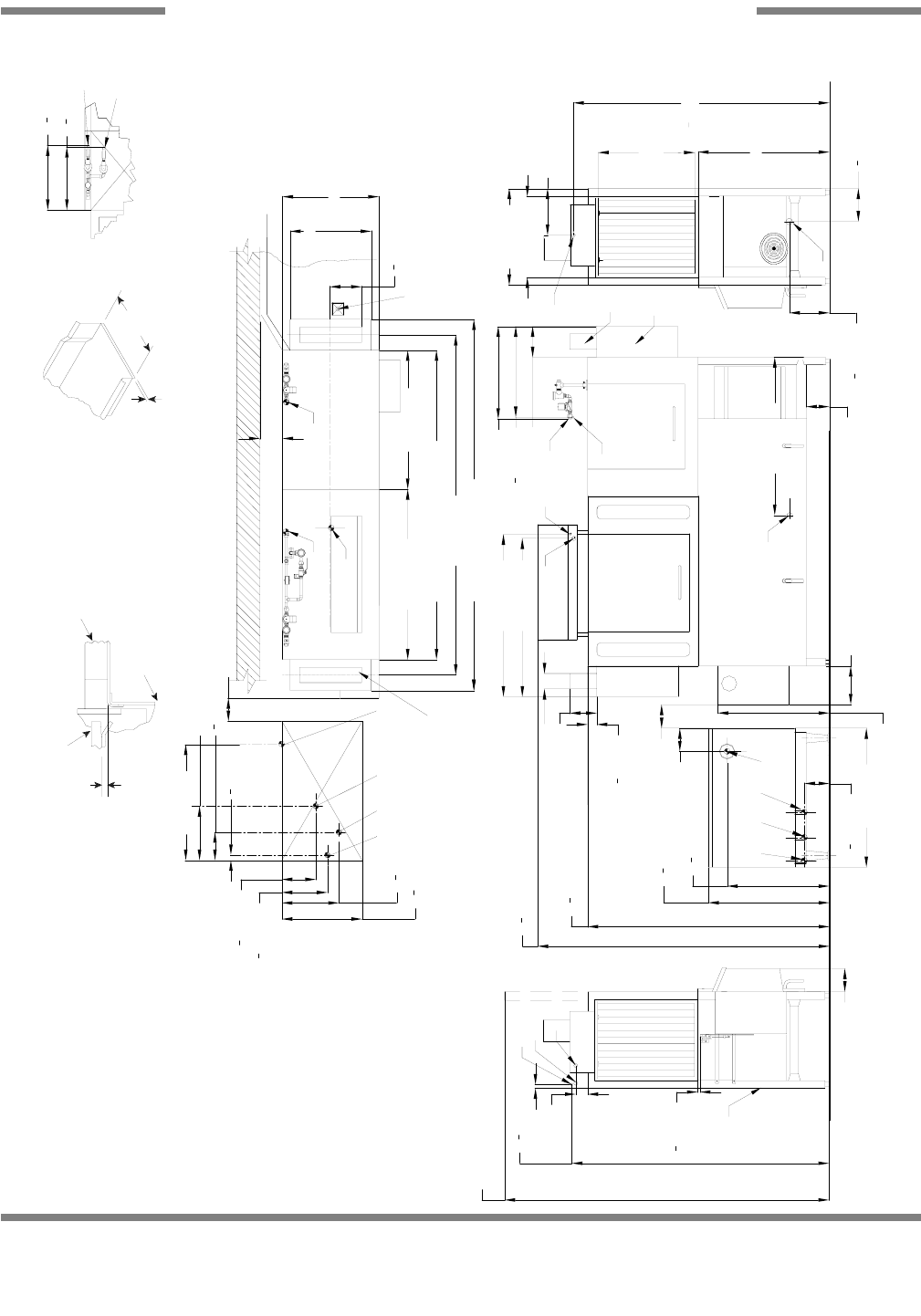

AJ-44T Gas - Left to Right 6
AJ-44T Gas - Right to Left 7

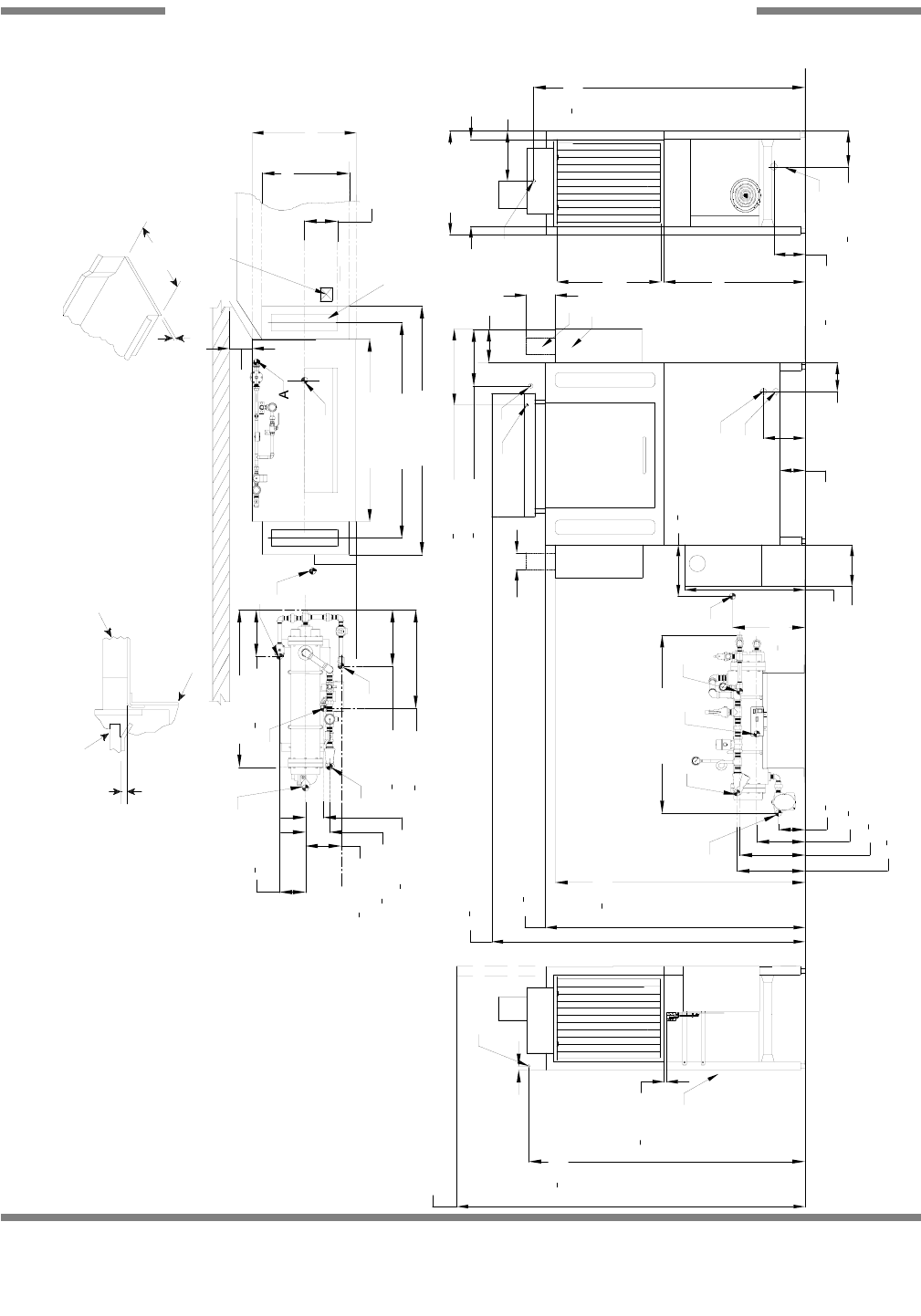

AJ-44T Steam - Left to Right 8
AJ-44T Steam - Right to Left 9
AJ-66T Electric - Left to Right 10
AJ-66T Electric - Right to Left 11
AJ-66T Gas - Left to Right 12
AJ-66T Gas - Right to Left 13
AJ-66T Steam - Left to Right 14
AJ-66T Steam - Right to Left 15
AJ-80T Electric - Left to Right 16
AJ-80T Electric - Right to Left 17
AJ-80T Gas - Left to Right 18
AJ-80T Gas - Right to Left 19
AJ-80T Steam - Left to Right 20
AJ-80T Steam - Right to Left 21
Side Loader (Left to Right) Dimensions 22
Side Loader (Right to Left) Dimensions 23
Side Loader (Installed) Dimensions 24
II. INSTALLATION & OPERATION INSTRUCTIONS
Installation Instructions 26
Curtain Installation Diagram 29
Deliming Operations 30
Side Loader Installation & Operation Instructions 31
Dishmachine Operating Instructions 32
Detergent Control 34
Striker Plate Limit Switch Installation Instructions 35
III. PREVENTATIVE MAINTENANCE
General Maintenance 37
Lubrication Chart for Drive Gear 38
Drive Motor Gear Reducer Preventative Maintenance 39
IV. TROUBLESHOOTING 41
V. PARTS SECTION
AJ-44T Control Box Assembly 44
AJ-66T/AJ-80T Control Box Assembly 46
Motor Overload Chart 48
Heater Box Assembly 49
Frame Weldments/Front Dress Panels 52
Prewash Plumbing Assembly 53
Incoming Plumbing Assembly 55
Incoming Plumbing Assembly (TG Series) 57
Solenoid Valve & Vacuum Breaker Repair Parts 58
Steam Unit Wash Tank Coil Assembly 59
Steam Plumbing (Left to Right Models) 60
Steam Plumbing (Right to Left Models) 61
Gas Coil Assembly (TG Models) 62
TABLE OF CONTENTS
iii
SECTION DESCRIPTION PAGE
V. PARTS SECTION (CONTINUED)
Rinse Booster Tank Assembly (TG Models) 63
Recirculating Pump Assembly (TG Models) 64
Hose Connections (TG Models) 65
AJ-44T Series Drain Plumbing Assemblies 66
AJ-66T Series Drain Plumbing Assemblies 67
AJ-80T Series Drain Plumbing Assemblies 68
AJ-66TG Series (Left to Right) Drain Plumbing Assembly 69
AJ-66TG Series (Right to Left) Drain Plumbing Assembly 70
Drain Quench Assembly 71
Motor Assemblies 72
Prewash & Wash Pump Weldments 73
Prewash Arm/Manifold Assembly 74
Wash Arm/Manifold Assembly 75
Final Rinse Assembly 76
Drive Assembly 77
Door Assemblies 79
Pawl Bar Roller Bracket 80
AJ-44T & AJ-66T Pawl Bar Assemblies 81
AJ-80T Pawl Bar Assemblies 82
AJ-44T Rack Rail Assembly 83
AJ-66T Rack Rail Assemblies 84
AJ-80T Rack Rail Assemblies 85
Miscellaneous Parts & Weldments 86
Strainers 87
Float Switch Components/Scrap Baskets 88
Curtains/Tub Magnets 89
Vent Cowl Assembly/Vent Scoop Option 90
Exhaust Fan Control/Limit Switch Options 91
SIDE LOADER SECTION
Side Loader Track Assembly/Leg Replacements 92
Side Loader Pawl Bar Assemblies/Strainer/Magnet 93
Side Loader Pawl Bar Associated Parts 94
Side Loader Vent Cowl Option 95
Rinse Fill Option 96
VI. ELECTRICAL SCHEMATICS
AJ-44TE208-230 Volt, 60 Hz, 1 Phase 98
208-230 Volt, 60 Hz, 3 Phase 99
460 Volt, 60 Hz, 3 Phase 100
AJ-44TG208-230 Volt, 60 Hz, 1 Phase 101
208-230 Volt, 60 Hz, 3 Phase 102
460 Volt, 60 Hz, 3 Phase 103
AJ-44TS208-230 Volt, 60 Hz, 1 Phase 104
208-230 Volt, 60 Hz, 3 Phase 105
460 Volt, 60 Hz, 3 Phase 106
AJ-66TE & AJ-80TE
208-230 Volt, 60 Hz, 1 Phase 107
208-230 Volt, 60 Hz, 3 Phase 108
460 Volt, 60 Hz, 3 Phase 109
TABLE OF CONTENTS
iv
SECTION DESCRIPTION PAGE
VII. ELECTRICAL SCHEMATICS
AJ-66TG & AJ-80TG
208-230 Volt, 60 Hz, 1 Phase 110
208-230 Volt, 60 Hz, 3 Phase 111
460 Volt, 60 Hz, 3 Phase 112
AJ-66TS & AJ-80TS
208-230 Volt, 60 Hz, 1 Phase 113
208-230 Volt, 60 Hz, 3 Phase 114
460 Volt, 60 Hz, 3 Phase 115
Conveyor Side Loader/Drain Quench Schematics 116
Exhaust Fan Hook-Up Schematics 117
VIII. JACKSON MAINTENANCE & REPAIR CENTERS 118
TABLE OF CONTENTS
v
1
SECTION 1:
SPECIFICATION INFORMATION
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION
OPERATING CHARACTERISTICS
2
RACKS PER HOUR:
AJ-44-66-80TE/TG/TS 204
DISHES OR GLASSES PER HOUR:
AJ-44-66-80TE/TG/TS 5100
PREWASH TANK CAPACITY (GALLONS):
AJ-66TE/TG/TS 17.25
AJ-80TE/TG/TS 17.25
WASH TANK CAPACITY (GALLONS):
AJ-44-66-80TE/TG/TS 20.4
PREWASH PUMP CAPACITY (GPM):
AJ-66TE/TG/TS 120
AJ-80TE/TG/TS 270
WASH PUMP CAPACITY
GALLONS PER MINUTE (ALL MODELS): 270
VENTING REQUIREMENTS (CFM)(100% CAP.):
INPUT END 200
OUTPUT END 400
TOTAL 600
CONVEYOR SPEED (FPM):
AJ-44-66-80TE/TG/TS MACHINES 5.7
GALLONS PER RACK:
AJ-44-66-80TE/TG/TS MACHINES .69
WATER TEMPERATURES:
AJ-44-66-80TE/TG/TS MODELS:
PREWASH (RECOMMENDED) (AJ-66 & AJ-80) 110-140°F
WASH (MINIMUM) 160°F
RINSE (MINIMUM) 180°F
FLOW PRESSURE (PSI) 20±5
FLOWRATE (GPM):
AJ-44-66-80TE/TG/TS 3.1
STEAM COIL TANK HEAT (TS MODELS ONLY):
STEAM INLET PRESSURE (PSIG) 10-20
STEAM CONNECTION NPT 3/4”
CONSUMPTION @ 15 PSIG (lbs/hr): 60
MOTOR ELECTRICAL CHARACTERISTICS:
DRIVE MOTOR HP 1/4
WASH MOTOR HP 2
POWER RINSE MOTOR HP 2
PREWASH MOTOR HP:
AJ-66TE/TG/TS MODELS 1
AJ-80TE/TG/TS MODELS 2
NOTE: Always refer to the machine data plate for specific
electrical and water requirements. The material provided
on this page is for reference only and may be subject to
change without notice.
NOTE: Typical Electrical Circuit is based upon (1) 125% of the full amperage load of the machine and (2) typical fixed-
trip circuit breaker sizes as listed in the NEC 2002 Edition. Local codes may require more stringent protection than
what is displayed here. Always verify with your electrical service contractor that your circuit protection is adequate
and meets all applicable national and local codes. These numbers are provided in this manual simply for reference
and may change without notice at any given time.
RINSE TYPICAL
HEATER TOTAL ELECTRICAL
MODEL VOLTS PH HZ RATINGS AMPS CIRCUIT
AJ-44TE 208 1 60 N/A 97 A 125 AMP
AJ-44TE 230 1 60 N/A 89 A 125 AMP
AJ-44TE 208 3 60 N/A 57 A 80 AMP
AJ-44TE 230 3 60 N/A 49 A 70 AMP
AJ-44TE 460 3 60 N/A 25 A 35 AMP
AJ-44TG 208 1 60 N/A 12 A 15 AMP
AJ-44TG 230 1 60 N/A 12 A 15 AMP
AJ-44TG 208 3 60 N/A 8 A 15 AMP
AJ-44TG 230 3 60 N/A 8 A 15 AMP
AJ-44TG 460 3 60 N/A 5 A 15 AMP
AJ-44TS 208 1 60 N/A 11 A 15 AMP
AJ-44TS 230 1 60 N/A 11 A 15 AMP
AJ-44TS 208 3 60 N/A 7 A 15 AMP
AJ-44TS 230 3 60 N/A 7 A 15 AMP
AJ-44TS 460 3 60 N/A 4 A 15 AMP
AJ-66TE 208 1 60 N/A 103 A 150 AMP
AJ-66TE 230 1 60 N/A 95 A 125 AMP
AJ-66TE 208 3 60 N/A 61 A 80 AMP
AJ-66TE 230 3 60 N/A 52 A 70 AMP
AJ-66TE 460 3 60 N/A 26 A 35 AMP
AJ-66TG 208 1 60 N/A 18 A 25 AMP
AJ-66TG 230 1 60 N/A 18 A 25 AMP
AJ-66TG 208 3 60 N/A 12 A 15 AMP
AJ-66TG 230 3 60 N/A 12 A 15 AMP
AJ-66TG 460 3 60 N/A 7 A 15 AMP
AJ-66TS 208 1 60 N/A 17 A 25 AMP
AJ-66TS 230 1 60 N/A 17 A 25 AMP
AJ-66TS 208 3 60 N/A 11 A 15 AMP
AJ-66TS 230 3 60 N/A 11 A 15 AMP
AJ-66TS 460 3 60 N/A 6 A 15 AMP
AJ-80TE 208 1 60 N/A 106 A 150 AMP
AJ-80TE 230 1 60 N/A 97 A 125 AMP
AJ-80TE 208 3 60 N/A 63 A 80 AMP
AJ-80TE 230 3 60 N/A 58 A 80 AMP
AJ-80TE 460 3 60 N/A 29 A 40 AMP
AJ-80TG 208 1 60 N/A 19 A 25 AMP
AJ-80TG 230 1 60 N/A 19 A 25 AMP
AJ-80TG 208 3 60 N/A 13 A 20 AMP
AJ-80TG 230 3 60 N/A 13 A 20 AMP
AJ-80TG 460 3 60 N/A 7 A 15 AMP
AJ-80TS 208 1 60 N/A 19 A 25 AMP
AJ-80TS 230 1 60 N/A 19 A 25 AMP
AJ-80TS 208 3 60 N/A 13 A 20 AMP
AJ-80TS 230 3 60 N/A 13 A 20 AMP
AJ-80TS 460 3 60 N/A 7 A 15 AMP
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION
ELECTRICAL REQUIREMENTS
3
Left to Right
Drive
Unit
Left Side
Drive
Unit
Front View Right Side

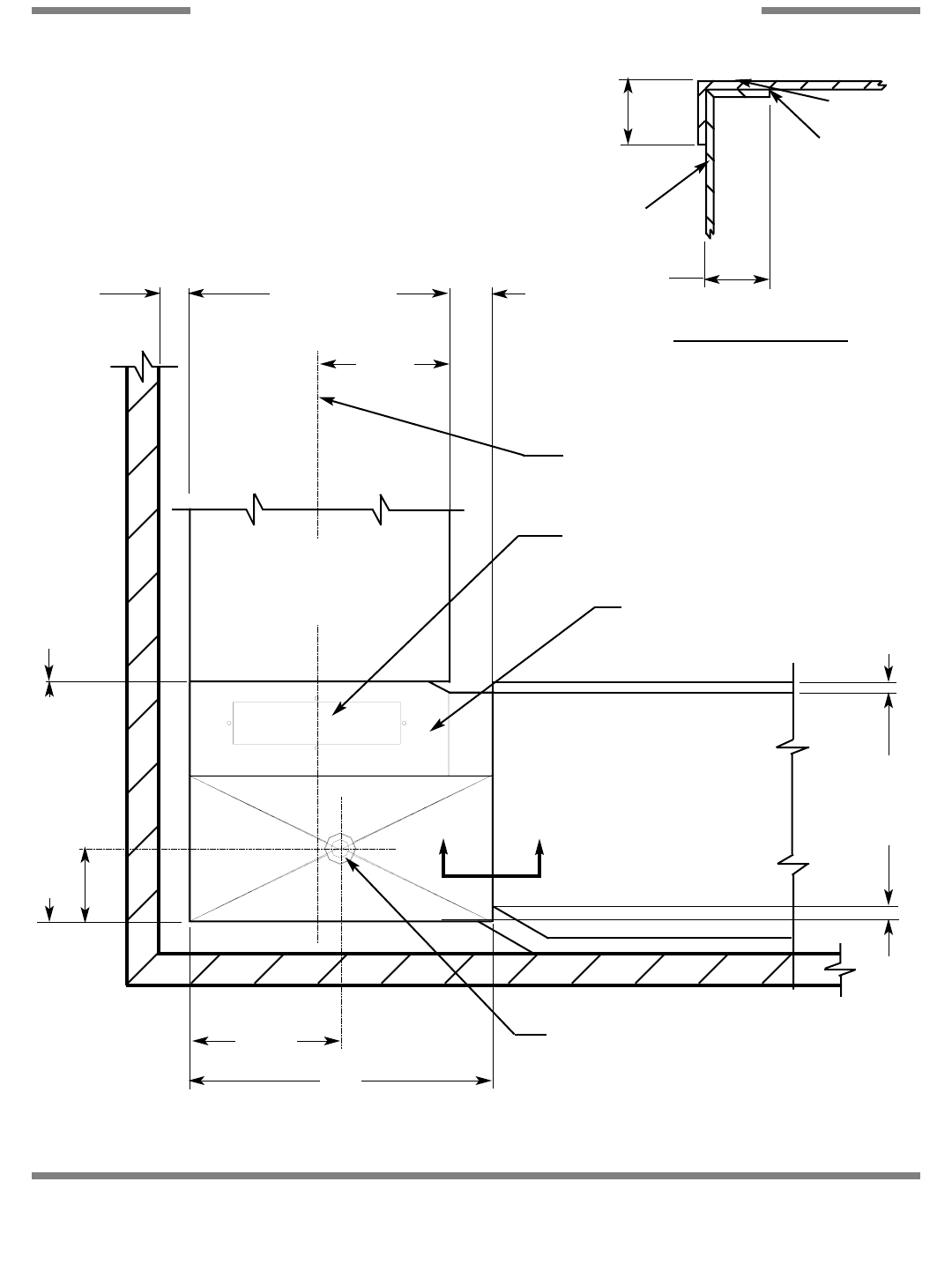

4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
3/4" (19 mm)
Table Turndown
Flange 3/4" Max
21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage

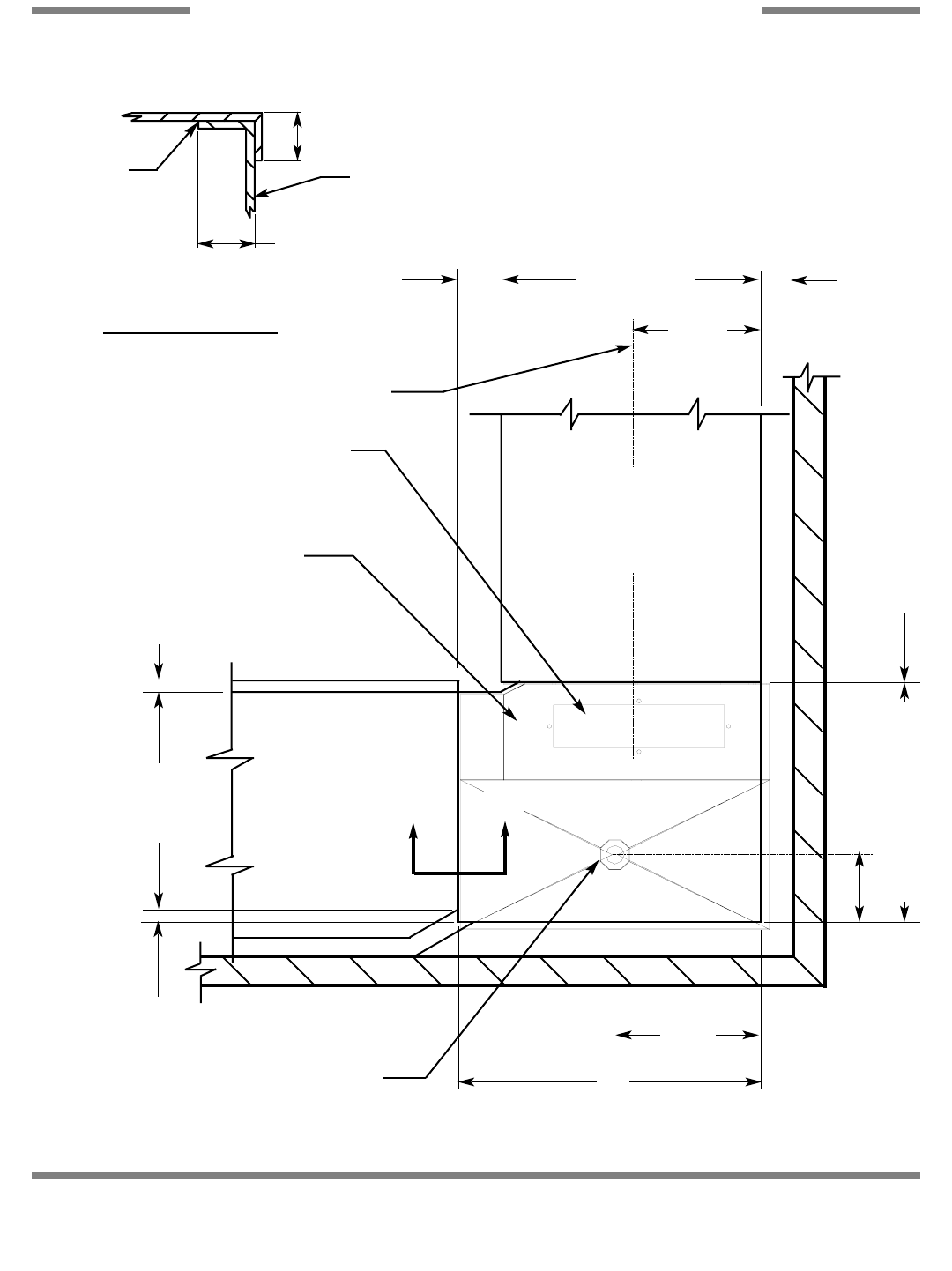

Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1
2
[15mm]
84 [2134mm]
75
1
2
[1919mm]
62
1
2
[1590mm]
34 [864mm]
29 [737mm] 6 [152mm] 7
1
2
[193mm]
21 [533mm]
25 [635mm]
25 [635mm]
10 [254mm]
7 [178mm]
D
E
A
C
AB
18
1
2
[467mm]
25 [635mm]
4 1/2 [114mm]
4 [102mm]
Table to Table
Overall
With Doors Open
Rear of
Machine
Dish Clearance
14 [356mm]
Minimum
10" High
Table
Backsplash
Scrap
Trough
7
1
2
[190mm]
C
B
Legend
A - Machine water inlet 3/4" NPT,
180°F Hi-temp,140°F Low-temp
minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
44 [1118mm]
52 [1321mm]
60 [1524mm]
60
1
4
[1530mm]
8 [203mm]
8 [203mm]
14 [355mm]
Scrap
Trough
Minimum
21 [533mm]
B
12 [307mm]
65
1
2
[1667mm]
1 [25mm]
66
1
2
[1692mm]
13
3
4
[346mm]
7 [178mm]

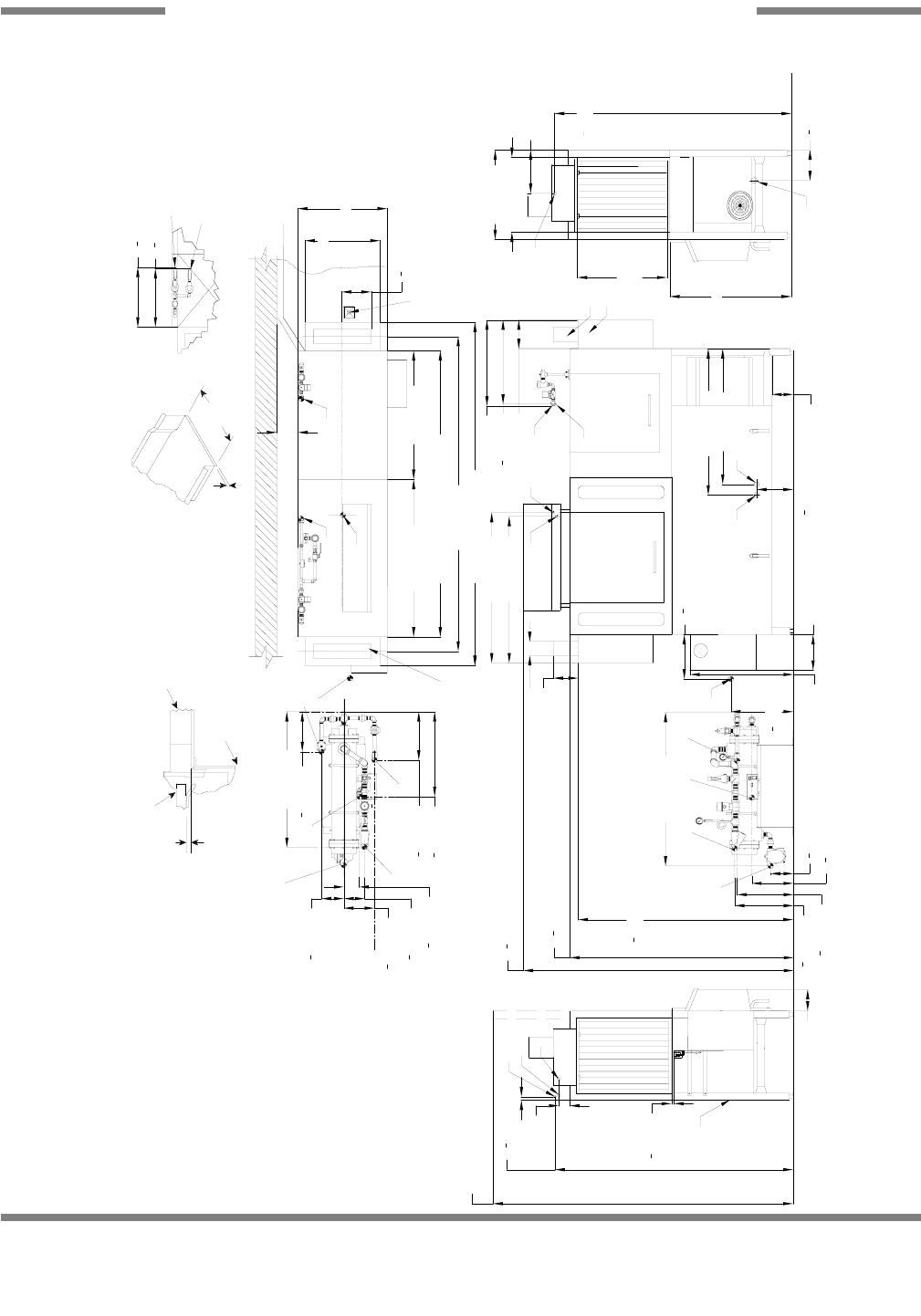

SECTION 1: SPECIFICATION INFORMATION

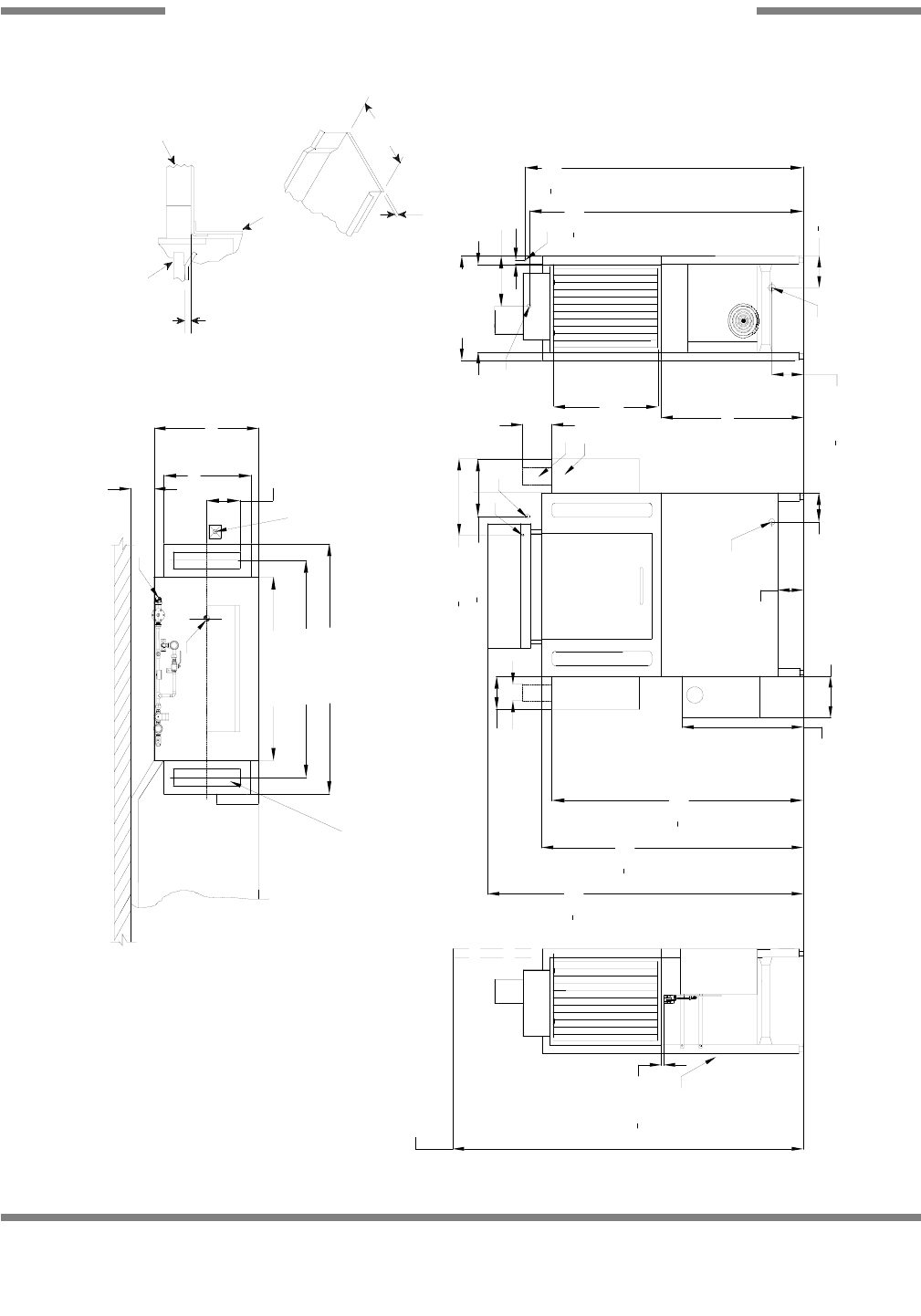

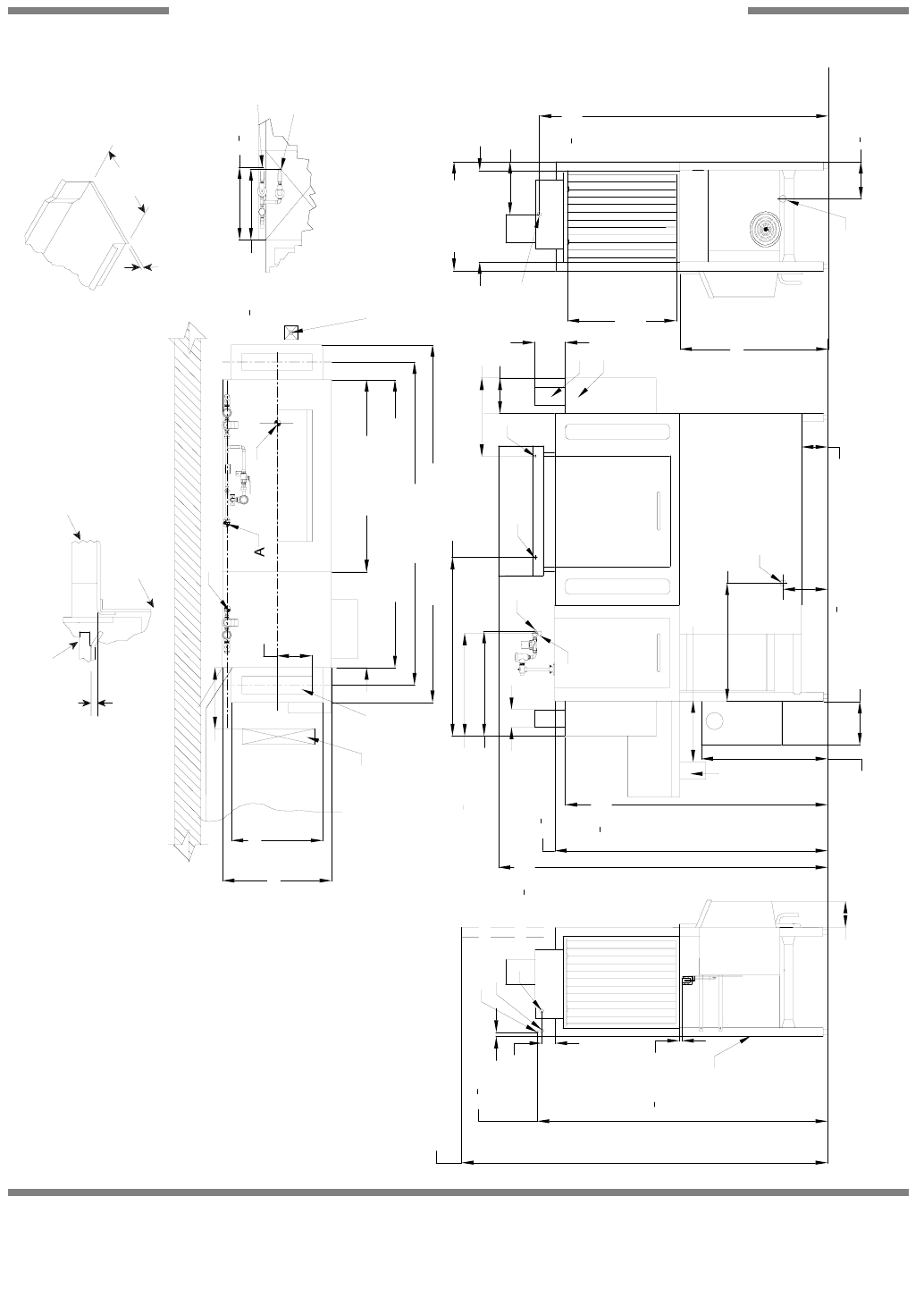

AJ-44T ELECTRIC - LEFT TO RIGHT
4
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Right to Left
Drive
Unit
Left Side
Drive
Unit
Front View Right Side
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
3/4" (19 mm)
Table Turndown
Flange 3/4" Max
21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1
2
[15mm]
84 [2134mm]
75
1
2
[1919mm]
62
1
2
[1590mm]
34 [864mm]
29 [737mm]
6 [152mm]
7
1
2
[193mm]
21 [533mm]
25 [635mm]
25 [635mm]
10 [254mm]
7 [178mm]
D
E
A
C
A
B
18
1
2
[467mm]
25 [635mm]
4 1/2 [114mm]
4 [102mm]
Table to Table
Overall
With Doors Open
Rear of
Machine
Dish Clearance
7
1
2
[190mm]
C
B
Legend
A - Machine water inlet 3/4" NPT,
180°F Hi-temp,140°F Low-temp
minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
44 [1118mm]
52 [1321mm]
60 [1524mm]
60
1
4
[1530mm]
8 [203mm]
8 [203mm]
21 [533mm]
B
12 [307mm]
65
1
2
[1667mm]
1 [25mm]
66
1
2
[1692mm]
13
3
4
[349mm]
7 [178mm]
A

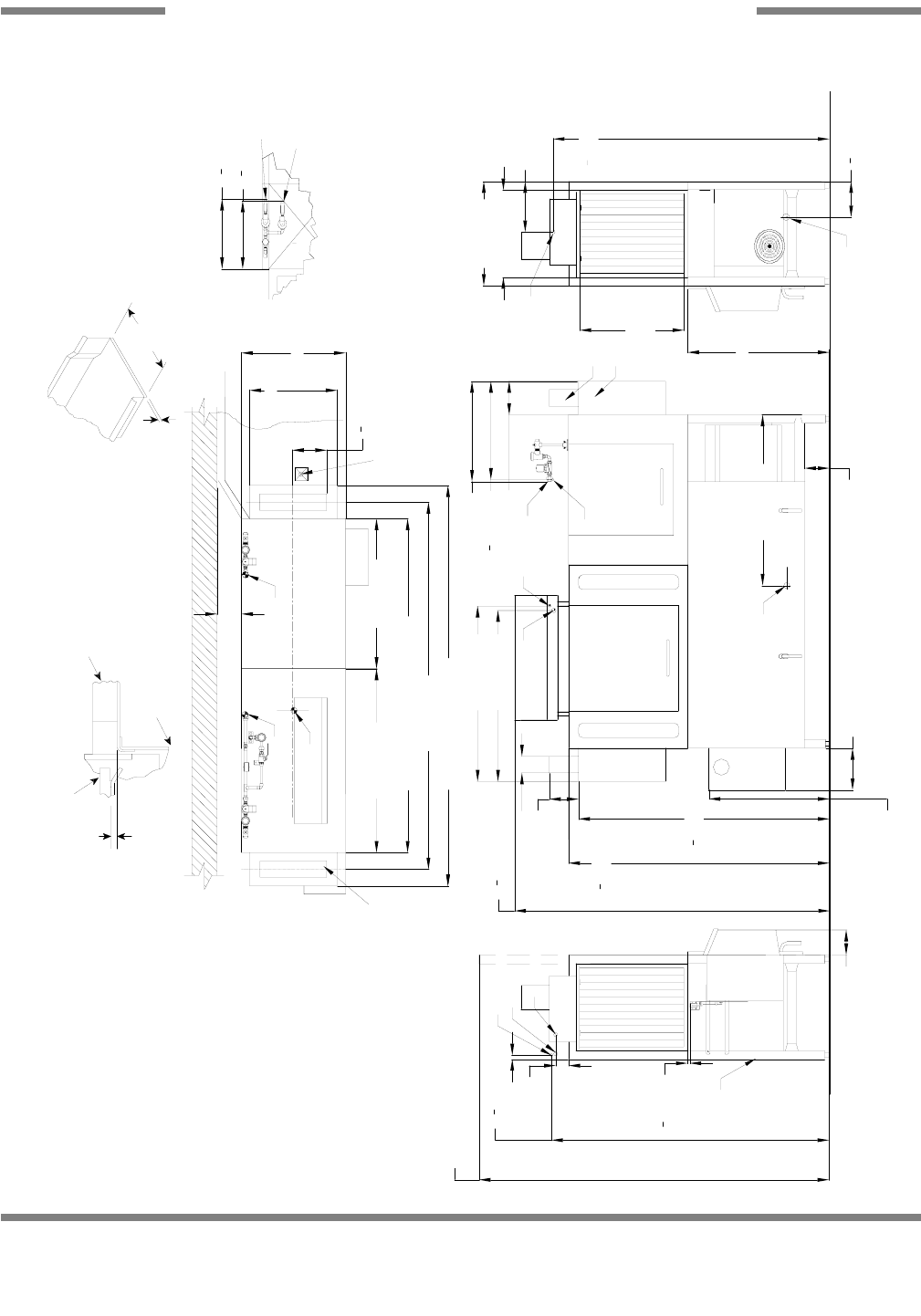

SECTION 1: SPECIFICATION INFORMATION

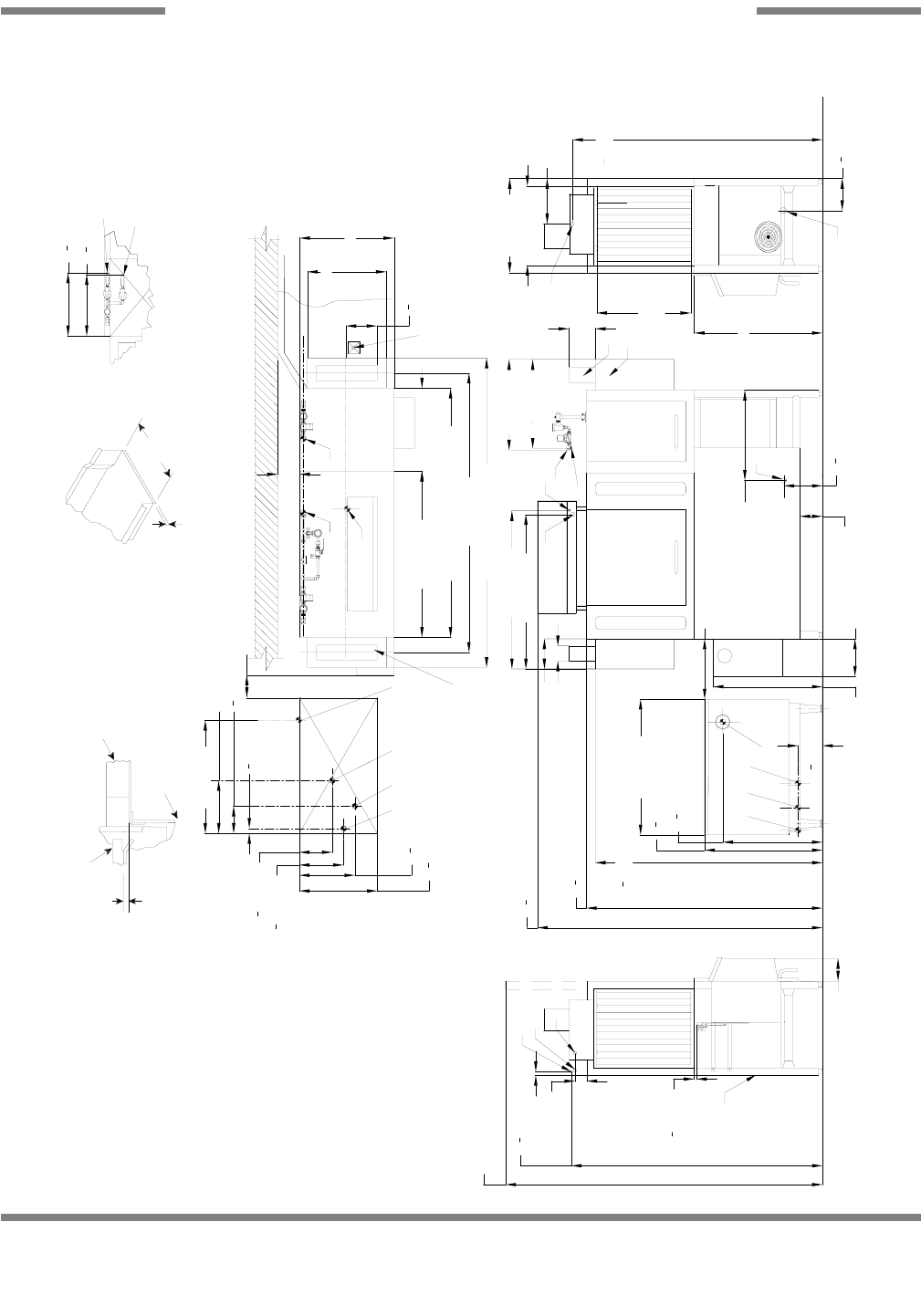

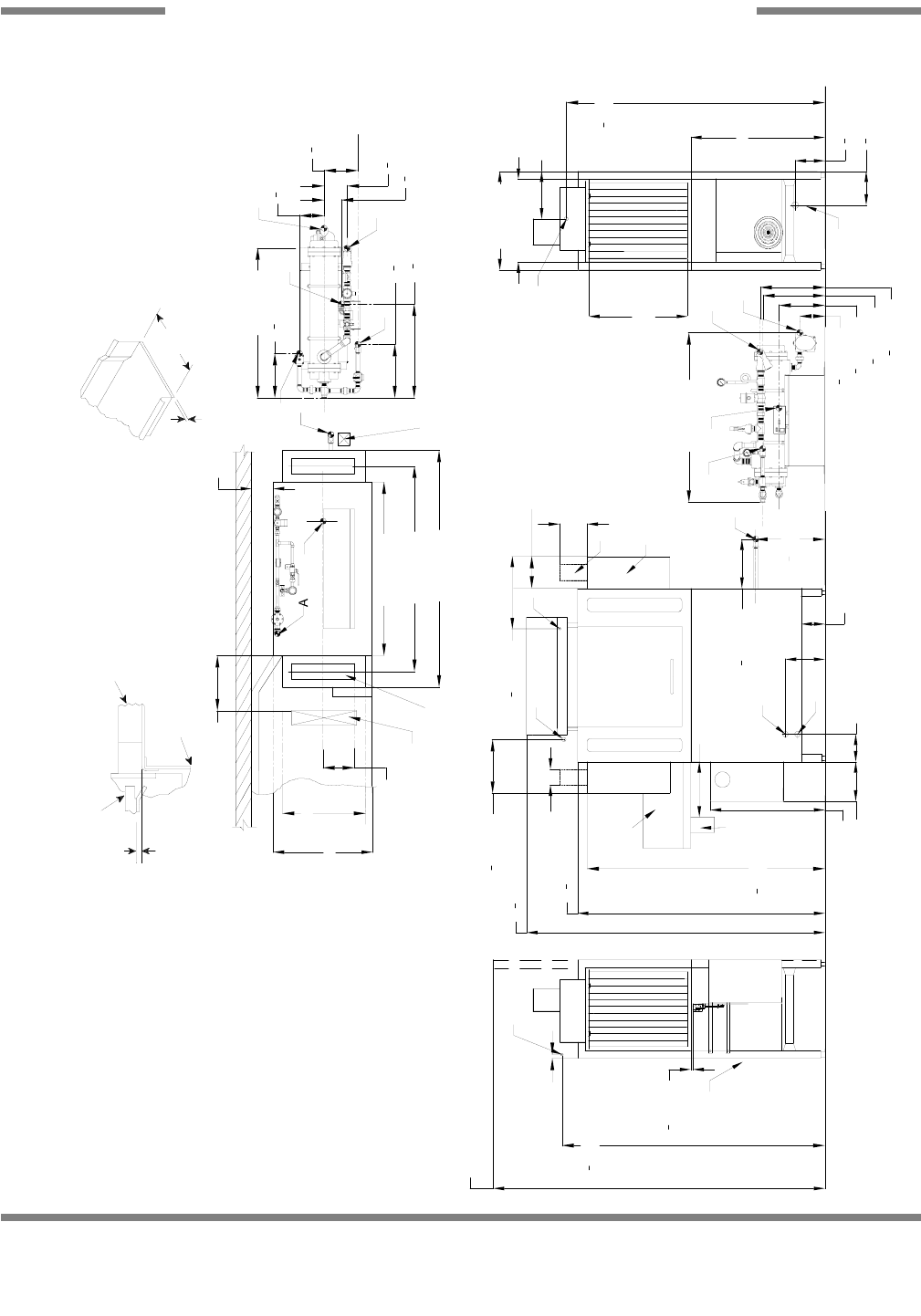

AJ-44T ELECTRIC - RIGHT TO LEFT
5
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Front View Right Side
75
1
2
[1919mm]
62
1
2
[1590mm]
34 [864mm]
29 [737mm]
6 [152mm] 8
1
2
[218mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
10 [254mm]
7 [178mm]
D
E
B
18
1
2
[467mm]
4 [102mm] 8 [206mm]
Table to Table
Overall
Dish Clearance
14 [356mm]
Minimum
10" High
Table
Backsplash
Scrap
Trough
20
3
4
[527mm]
8
3
4
[222mm]
11
3
4
[298mm]
14
3
4
[375mm]
6 [154mm]
30 [763mm]
14 [357mm]
7
1
4
[185mm]
1
1
4
[35mm]
6 [152mm]
36 [914mm]
31
1
4
[795mm]
6
1
2
[165mm]
26
1
2
[673mm]
B
Left to Right
Drive
Unit
Left Side
66
1
2
[1692mm]
1
2
[15mm]
84 [2134mm]
With Doors Open
Rear of
Machine
Legend to Drawing
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT 180°F Water Inlet for wash tank
fill, final rinse, & tank heating. From gas
booster heater. Interconnecting hose
provided by manufacturer.
G - 3/4" NPT 140°F Water inlet for
gas booster heater.
H - 3/4" NPT 180°F Water Outlet
connection to line on dishmachine.
Connection hose provided by
manufacturer.
J - 3/4" NPT Gas Connection
K - 4" OD Vent pipe connection. Flue to
be installed to meet local codes by
installing contractor.
Note: All vertical dimensions are +/- 1/2" from
floor due to adjustable bullet feet.
1 [25mm]
K
J
HG
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
F
601
4 [1530mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [637mm]
44 [1118mm]
52 [1321mm]
60 [1524mm]
8 [204mm]
14 [355mm]
Scrap
Trough
Minimum
21 [535mm]
36 [914mm]
K
J
HG
C
71
2 [190mm]
C
133
4 [346mm]
A
661
4 [1684mm]
A

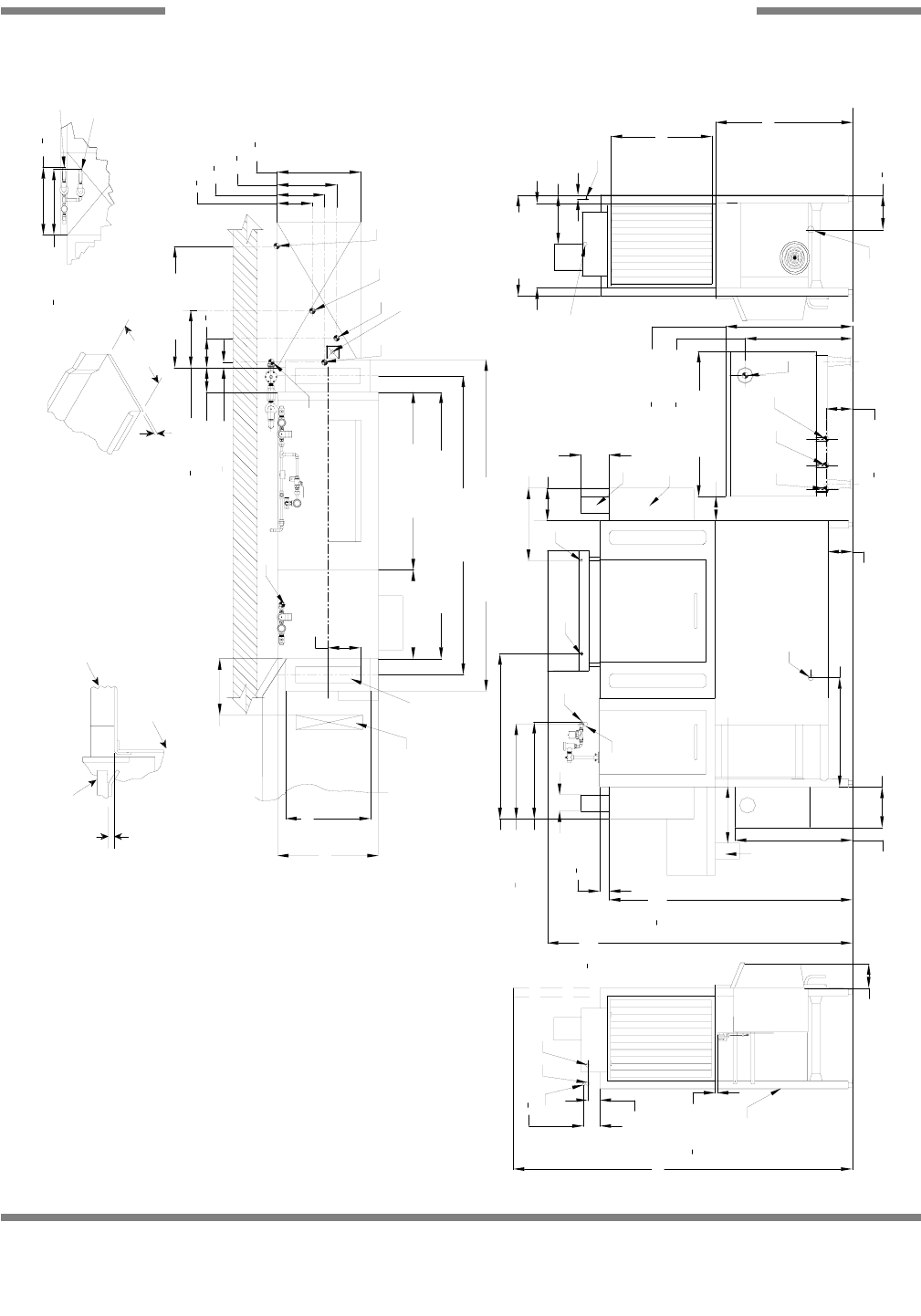

SECTION 1: SPECIFICATION INFORMATION

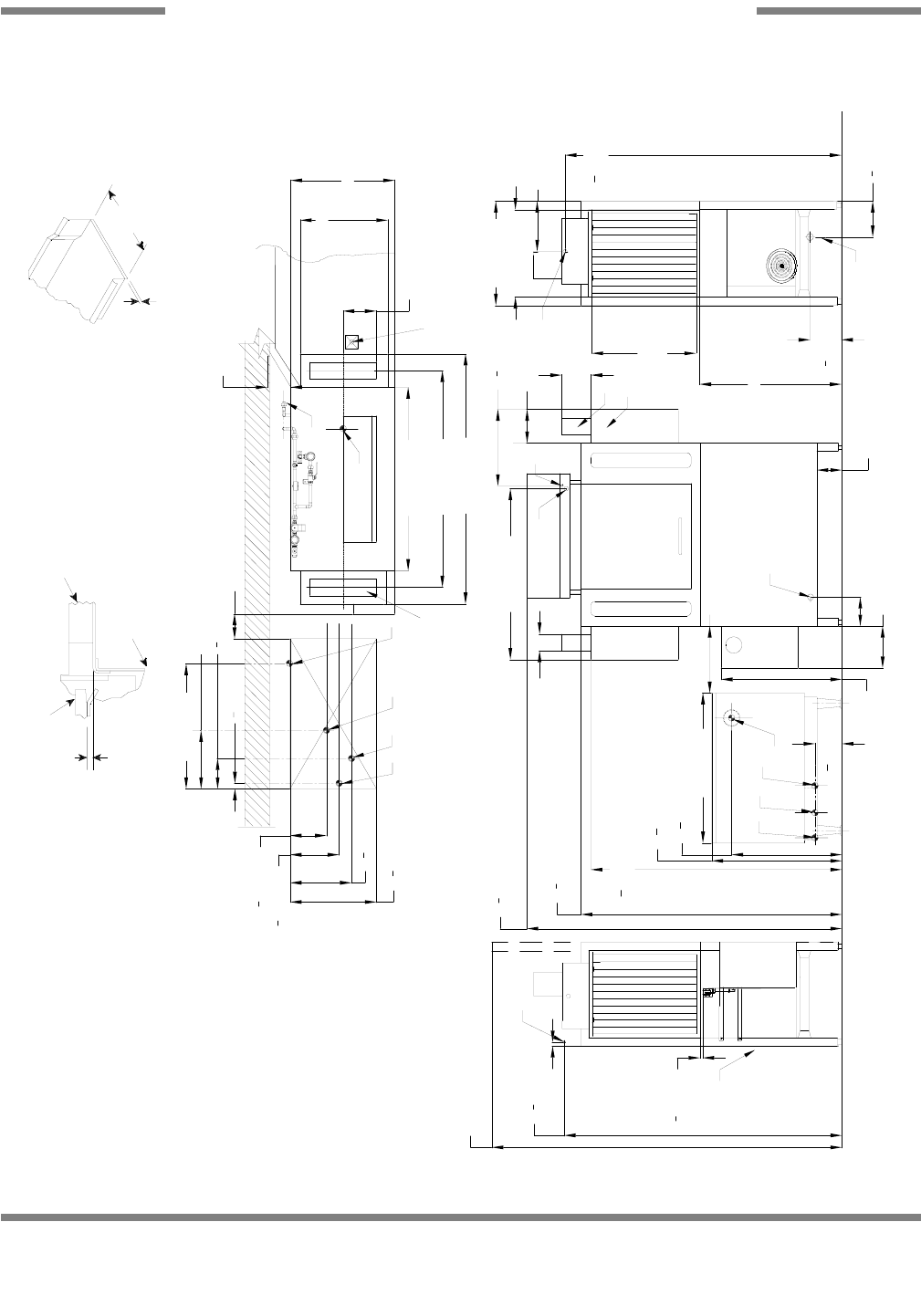

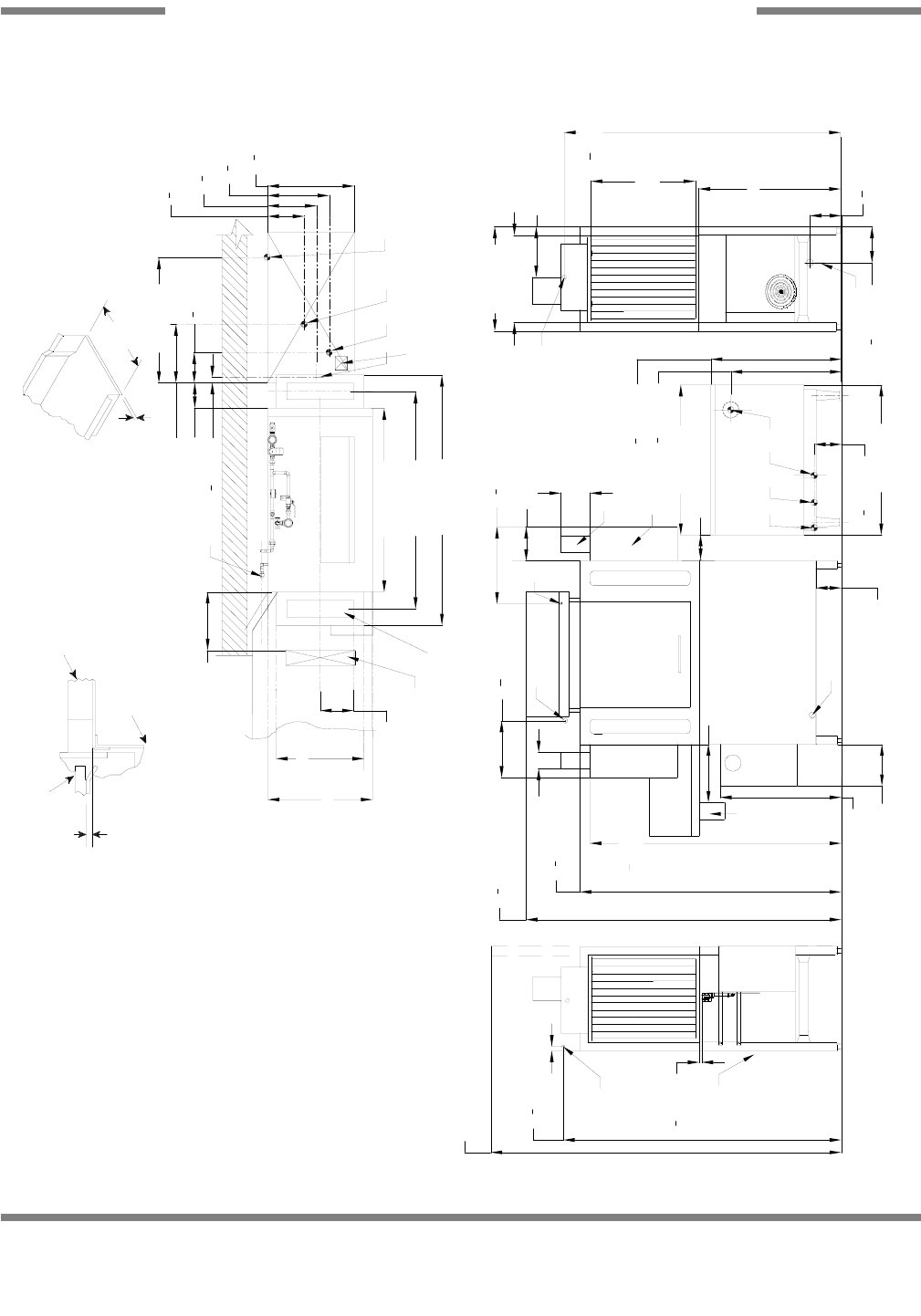

AJ-44T GAS - LEFT TO RIGHT
6
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Right to Left
Drive
Unit
Left Side
Drive
Unit
Front View Right Side
66
1
2
[1692mm]
1
2
[15mm]
84 [2134mm]
75
1
2
[1919mm]
62
1
2
[1590mm]
34 [864mm]
29 [737mm] 7 [178mm] 6 [152mm]
7
1
2
[191mm]
8
1
2
[218mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
10 [254mm]
7 [178mm]
D
E
A
C
AB
18
1
2
[467mm]
4 [102mm] 8 [206mm]
41 [1042mm]
Table to Table
Overall
With Doors Open
Rear of
Machine
Dish Clearance
20
3
4
[527mm]
8
3
4
[222mm]
11
3
4
[298mm]
14
3
4
[375mm]
6 [152mm]
30 [763mm] 14 [357mm]
7
1
4
[185mm]
1
1
4
[35mm]
C
B
Legend to Drawing
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT 180°F Water Inlet for wash tank
fill, final rinse, & tank heating. From gas
booster heater. Interconnecting hose
provided by manufacturer.
G - 3/4" NPT 140°F Water inlet for
gas booster heater.
H - 3/4" NPT 180°F Water Outlet
connection to line on dishmachine.
Connection hose provided by
manufacturer.
J - 3/4" NPT Gas Connection
K - 4" OD Vent pipe connection. Flue to
be installed to meet local codes by
installing contractor.
Note: All vertical dimensions are +/- 1/2" from
floor due to adjustable bullet feet.
601
4 [1530mm]
1 [25mm]
661
4 [1684mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
44 [1118mm]
52 [1321mm]
60 [1524mm]
8 [203mm]
21 [533mm]
B
A
16 [407mm]
261
2 [672mm]
61
2 [163mm]
36 [914mm]
311
4 [794mm]
K
JH G
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
K
J
HG

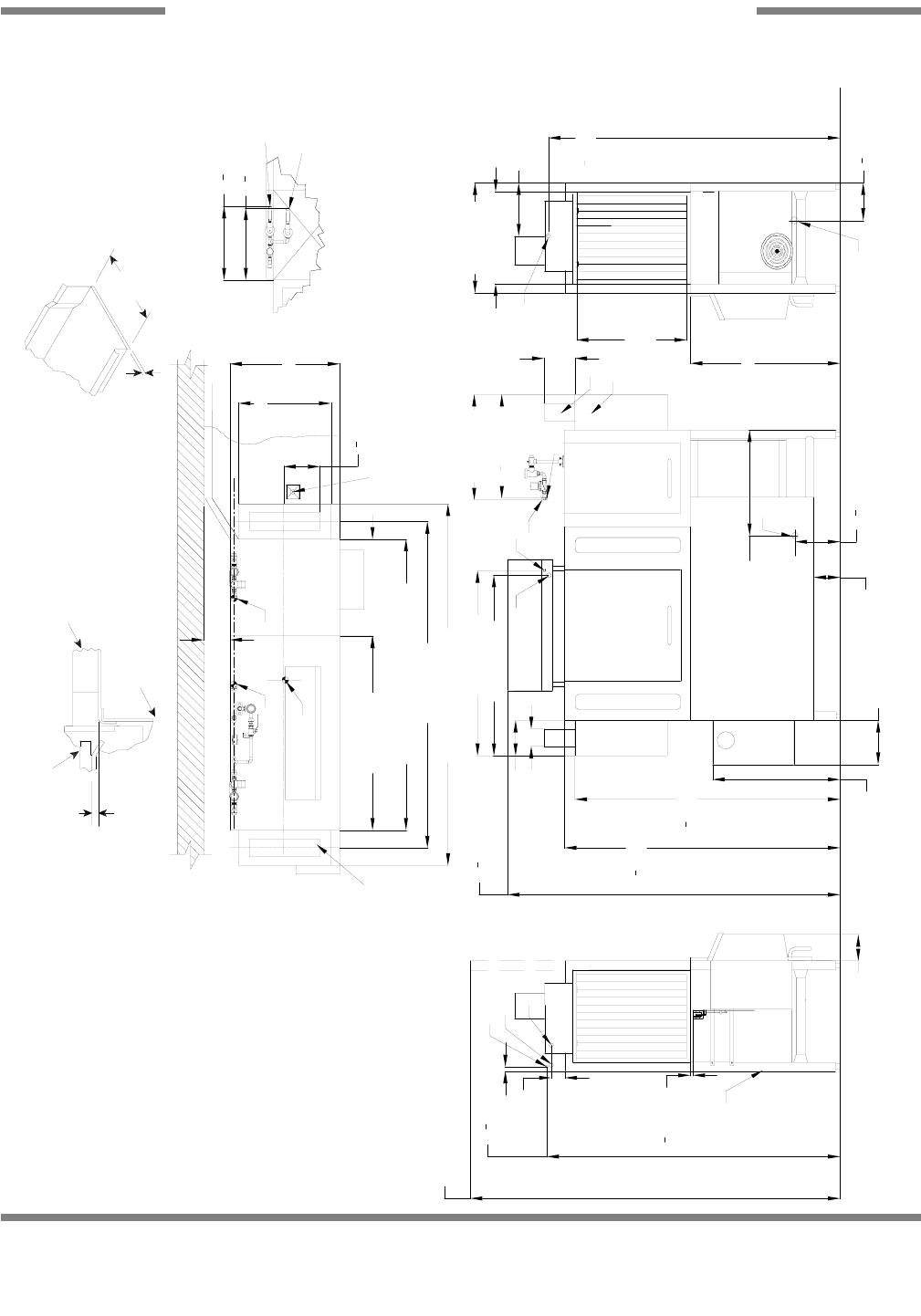

SECTION 1: SPECIFICATION INFORMATION

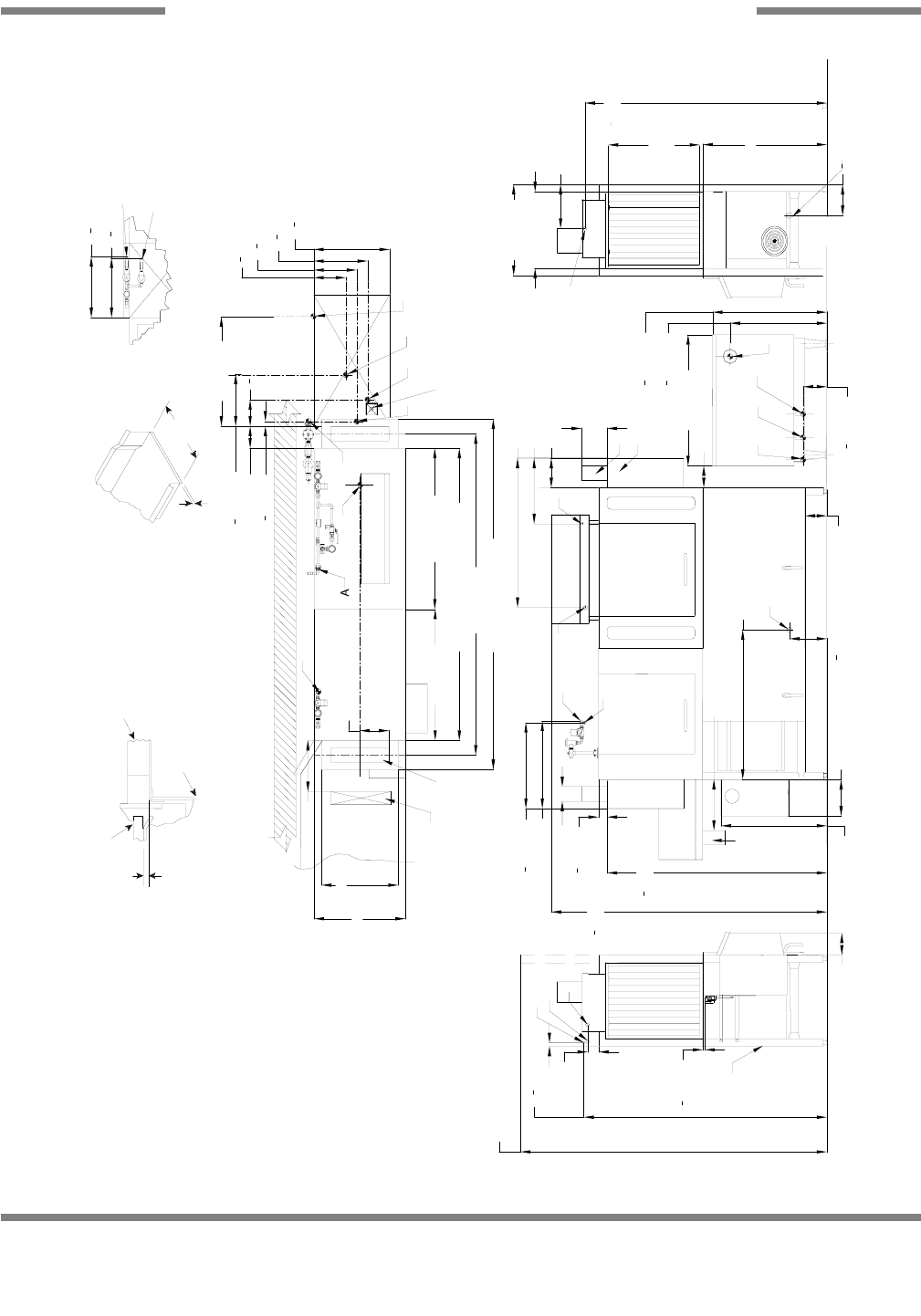

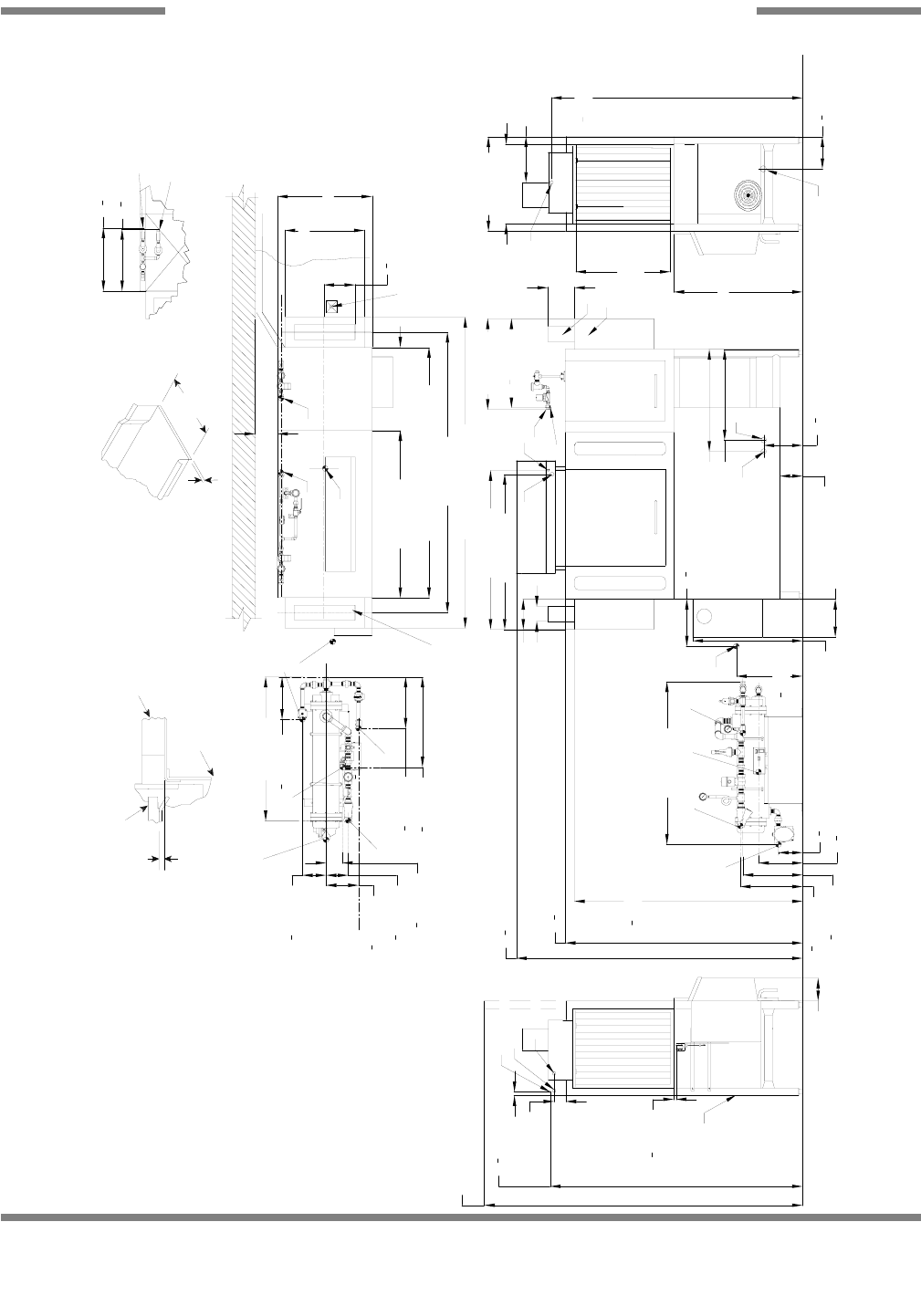

AJ-44T GAS - RIGHT TO LEFT
7
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Left to Right
Drive
Unit
Left Side
Drive
Unit
Front View Right Side
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1
2 [15mm]
84 [2134mm]
751
2 [1919mm]
621
2 [1590mm]
34 [864mm]
29 [737mm] 6 [152mm]
81
2 [218mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
10 [254mm]
7 [178mm]
D
E
A
C
B
181
2 [467mm]
4 [102mm]
Table to Table
Overall
With Doors Open
Rear of
Machine
Dish Clearance
14 [356mm]
Minimum
10" High
Table
Backsplash
Scrap
Trough
71
2 [190mm]
C
B
Legend
A - Machine water inlet 3/4" NPT 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT Steam connection
G - 3/4" NPT Condensate return
H - Steam electrical connection
J - 1" NPT Steam connection
K - 3/4" Condensate connection
L - 3/4" NPT Incoming 110°F water
connection
M - 3/4" NPT 180°F water to dishmachine.
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
601
4 [1530mm]
8 [204mm]
7 [178mm]
10 [254mm]
121
2 [316mm]
G
F
171
2 [445mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [637mm]
4 1/2 [114mm]
44 [1118mm]
52 [1321mm]
60 [1524mm]
8 [204mm]
14 [355mm]
Scrap
Trough
Minimum
21 [535mm] B
1 [25mm]
665
8 [1692mm] 651
2 [1665mm]
135
8 [346mm]
A
63
8 [162mm]
115
8 [295mm]
153
4 [400mm]
163
8 [417mm]
43 [1092mm]
111
4 [285mm]
135
8 [345mm]
233
4 [604mm]
38 [966mm]
61
4 [159mm]
57
8 [148mm]
43
8 [110mm]
85
8 [218mm]
H
J
L
M
K
LHJ
M
F

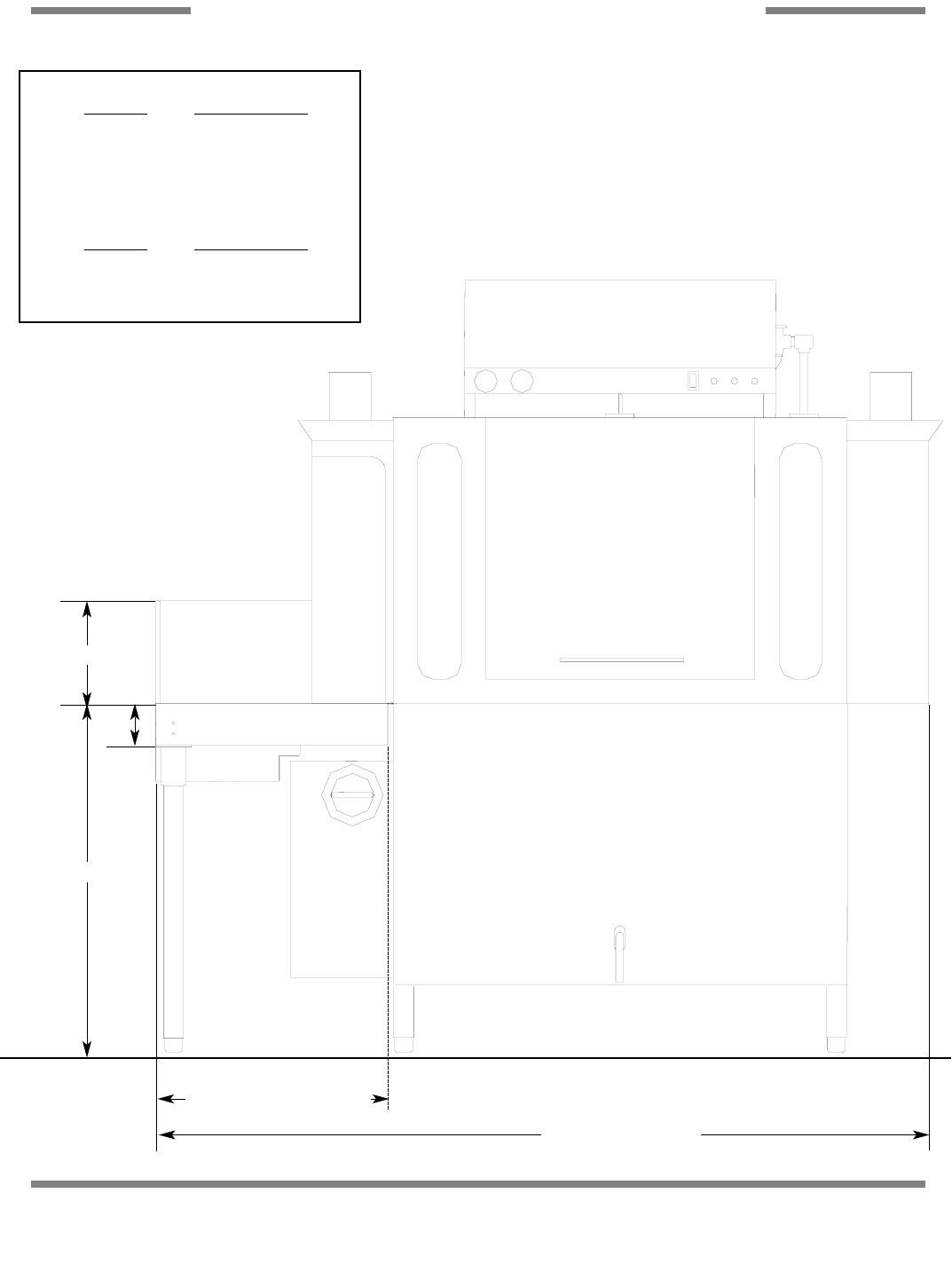

SECTION 1: SPECIFICATION INFORMATION
AJ-44T STEAM - LEFT TO RIGHT
8
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Right to Left
Drive
Unit
Left Side
Drive
Unit
Front View Right Side
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1
2
[15mm]
84 [2134mm]
75
1
2
[1919mm]
62
1
2
[1590mm]
34 [864mm]
29 [737mm] 6 [152mm]
8
1
2
[218mm]
21 [533mm]
25 [635mm]
12 [307mm
25 [635mm]
10 [254mm]
7 [178mm]
D
E
A
C
B
18
1
2
[467mm]
4 [102mm]
Table to Table
Overall
With Doors Open
Rear of
Machine
Dish Clearance
7
1
2
[190mm] C
B
Legend
A - Machine water inlet 3/4" NPT 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT Steam connection
G - 3/4" NPT Condensate return
H - Steam electrical connection
J - 1" NPT Steam connection
K - 3/4" Condensate connection
L - 3/4" NPT Incoming 110°F water
connection
M - 3/4" NPT 180°F water to dishmachine.
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
60
1
4
[1530mm]
8 [204mm]
7 [178mm]
10 [254mm]
12
1
2
[316mm]
G
F
17
1
2
[445mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [637mm]
4 1/2 [114mm]
44 [1118mm]
52 [1321mm]
60 [1524mm]
8 [204mm]
21 [535mm]
B
1 [25mm]
66
5
8
[1692mm] 65
1
2
[1665mm
13
5
8
[346mm]
A
6
3
8
[162mm]
11
5
8
[295mm]
15
3
4
[400mm]
16
3
8
[417mm]
43 [1092mm]
11
1
4
[285mm]
13
5
8
[345mm]
23
3
4
[604mm]
38 [966mm]
6
1
4
[159mm]
5
7
8
[148mm]
4
3
8
[110mm]
8
5
8
[218mm]
H
JL
M
K
L
H
J
M
F
SECTION 1: SPECIFICATION INFORMATION

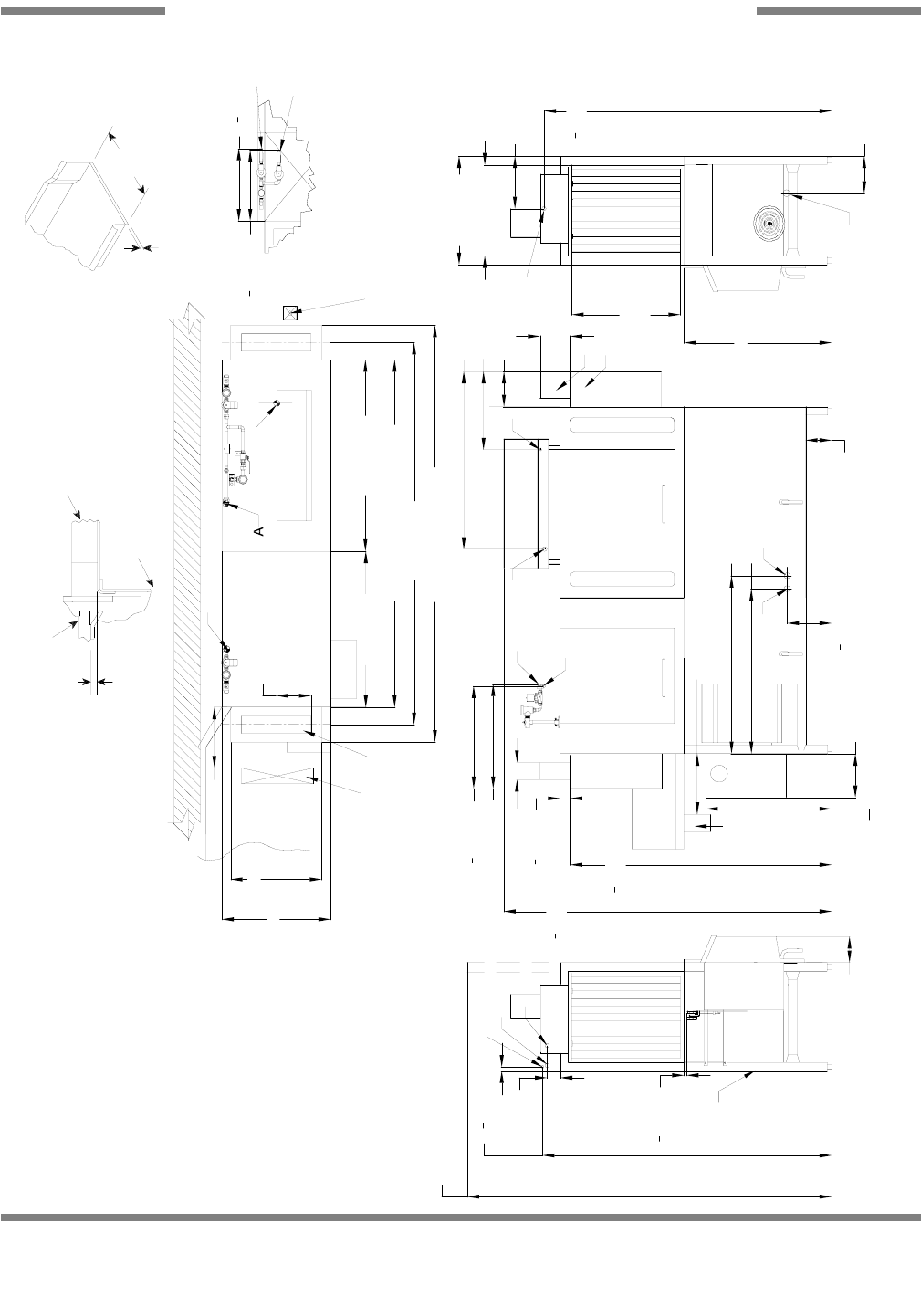

AJ-44T STEAM - RIGHT TO LEFT
9
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
SECTION 1: SPECIFICATION INFORMATION

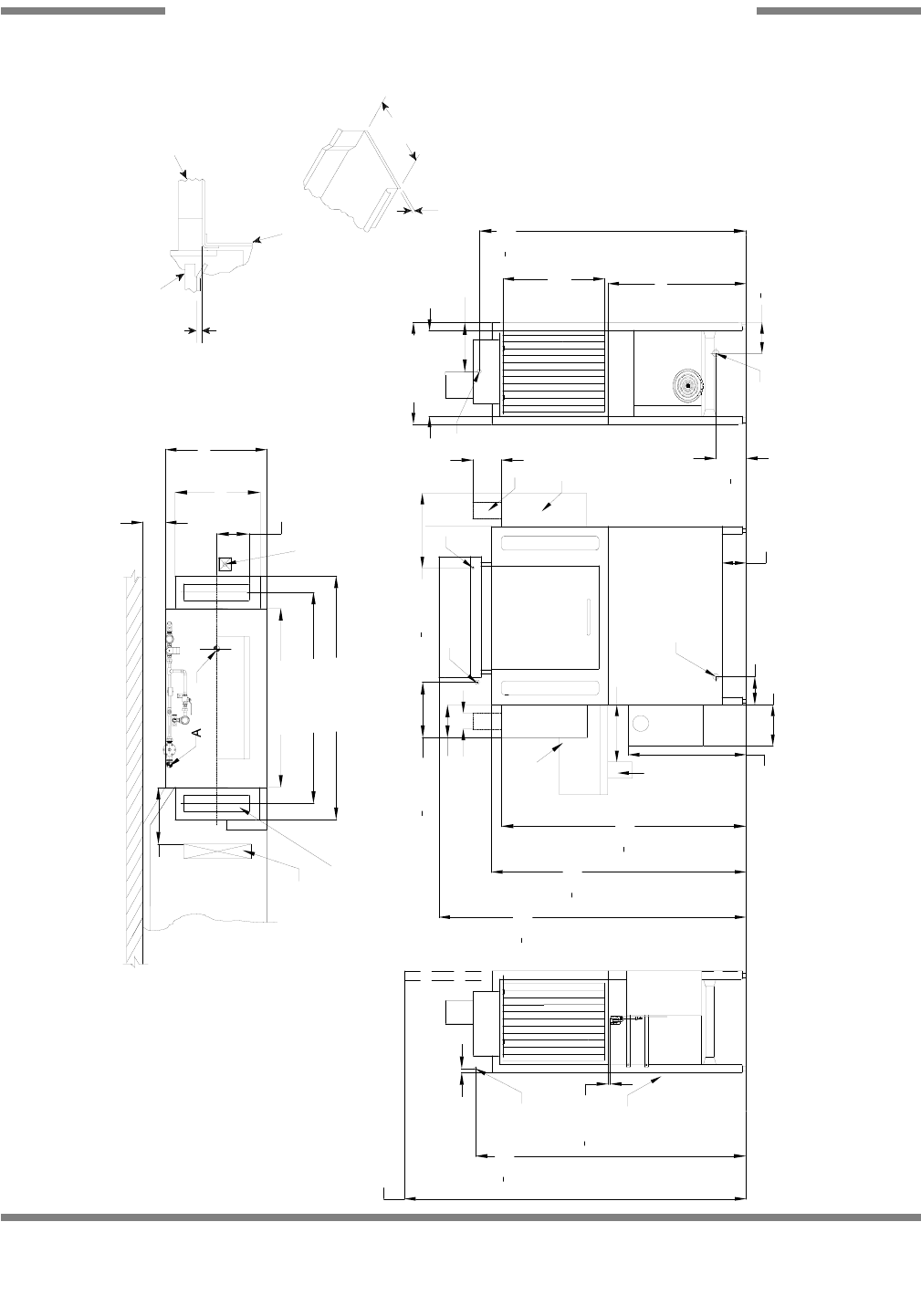

AJ-66T ELECTRIC - LEFT TO RIGHT
10
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
C
Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
Drive
Unit
Left Side
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
A
G
F
With Doors Open
Rear of
Machine
6 [152mm]
Right to Left
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - Prewash water inlet 3/4" NPT
110°F-140°F
G - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
1 [25mm]
Drive
Unit
Front View
75
1
2
[1919mm]
62
1
2
[1590mm]
29 [737mm] 6 [152mm]
10 [254mm]
C
AB
4 [102mm]
7 [178mm]
D
E
8 [203mm]
42 [1067mm]
41 [1041mm]
24 [610mm]
10
1
4
[260mm]
F
24 [610mm]
G
23
1
2
[599mm]
60
1
4
[1530mm]
66
1
4
[1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
8
1
4
[210mm]
21 [533mm]
B
AF
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm]
F
G
82 [2086mm]
74 [1883mm]
66 [1679mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
22 [559mm]44 [1121mm]
Base Unit Prewash
SECTION 1: SPECIFICATION INFORMATION
AJ-66T ELECTRIC - RIGHT TO LEFT
11
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Left Side
Drive
Unit
4
1
4
[105mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
75
1
2
[1919mm]
60
1
4
[1530mm]
2
1
2
[61mm]
29 [737mm]
6 [152mm]
10 [254mm]
7 [178mm]
D
E
A
C
C
M
B
4 [102mm] 8 [206mm]
24 [609mm]
41 [1040mm]
LA
18 [457mm]
27 [687mm]
ML
23
1
2
[598mm]
Front View Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
1 [25mm]
25 [635mm]
B
A
Dish Clearance
With Doors Open
Rear of
Machine
14 [356mm]
Minimum
10" High
Table
Backsplash
Scrap
Trough
6 [152mm]
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm] L
M
20
3
4
[527mm]
8
3
4
[222mm]
11
3
4
[298mm]
14
3
4
[375mm]
6 [154mm]
30 [763mm]
14
1
4
[363mm]
7
1
4
[185mm]
1
1
4
[35mm]
31
1
4
[795mm]
6
1
2
[165mm]
26
1
2
[673mm]
6 [152mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Minimum
Scrap
Trough
14 [355mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
21 [533mm] 8 [203mm]
Left to Right
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT 180°F Water Inlet for wash tank
fill, final rinse, & tank heating. From gas
booster heater. Interconnecting hose
provided by manufacturer.
G - 3/4" NPT 140°F Water inlet for
gas booster heater.
H - 3/4" NPT 180°F Water Outlet
connection to line on dishmachine.
Connection hose provided by
manufacturer.
J - 3/4" NPT Gas Connection
K - 4" OD Vent pipe connection. Flue to
be installed to meet local codes by
installing contractor.
L - Prewash water inlet 3/4" NPT
110°F-140°F
M - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2" from
floor due to adjustable bullet feet.
36 [914mm]
H G JK
F
82 [2086mm]
74 [1883mm]
66 [1679mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
H G JK
L
44 [1121mm]22 [559mm] Base Unit
Prewash
SECTION 1: SPECIFICATION INFORMATION
AJ-66T GAS - LEFT TO RIGHT
12
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
C
Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
Drive
Unit
Left Side
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
A
M
L
With Doors Open
Rear of
Machine
6 [152mm]
1 [25mm]
Drive
Unit
Front View
75
1
2
[1919mm]
62
1
2
[1590mm]
29 [737mm] 6 [152mm]
10 [254mm]
C
AB
4 [102mm]
7 [178mm]
D
E
8 [203mm]
42 [1067mm]
41 [1041mm]
24 [610mm]
10
1
4
[260mm]
L
24 [610mm]
M
23
1
2
[599mm]
60
1
4
[1530mm]
66
1
4
[1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
8
1
4
[210mm]
21 [533mm]
B
AL
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm]
F
G
82 [2086mm]
74 [1883mm]
66 [1679mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
22 [559mm]44 [1121mm]
Base Unit Prewash
Left to Right
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT 180°F Water Inlet for wash tank
fill, final rinse, & tank heating. From gas
booster heater. Interconnecting hose
provided by manufacturer.
G - 3/4" NPT 140°F Water inlet for
gas booster heater.
H - 3/4" NPT 180°F Water Outlet
connection to line on dishmachine.
Connection hose provided by
manufacturer.
J - 3/4" NPT Gas Connection
K - 4" OD Vent pipe connection. Flue to
be installed to meet local codes by
installing contractor.
L - Prewash water inlet 3/4" NPT
110°F-140°F
M - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2" from
floor due to adjustable bullet feet.
6 [152mm]
30 [763mm] 14 [357mm]
7
1
4
[185mm]
1
1
4
[35mm]
K
JH G
K
J
HG
8
3
4
[222mm]
11
3
4
[298mm]
14
3
4
[375mm]
20
3
4
[527mm]
36 [914mm]
26
1
2
[672mm]
31
1
4
[794mm]
6
1
2
[163mm]
16 [407mm]
SECTION 1: SPECIFICATION INFORMATION
AJ-66T GAS - RIGHT TO LEFT
13
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Left Side
Drive
Unit
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
75
1
2
[1919mm]
60
1
4
[1530mm]
29 [737mm]
24 [610mm]
10
1
4
[260mm]
17
1
2
[445mm]
6 [152mm]
10 [254mm]
7 [178mm]
D
E
A
C
C
O
B
4 [102mm] 8 [206mm]
G
24 [609mm]
41 [1040mm]
NA
18 [457mm]
27 [687mm]
O
N
23
1
2
[598mm]
Front View Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
With Doors Open
Rear of
Machine
14 [356mm]
Minimum
10" High
Table
Backsplash
Scrap
Trough
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm] N
O
6 [152mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Minimum
Scrap
Trough
14 [355mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
21 [533mm] 8 [203mm]
82 [2086mm]
74 [1883mm]
66 [1679mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
Left to Right
Legend
A - Machine water inlet 3/4" NPT 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT Steam connection
G - 3/4" NPT Condensate return
H - Steam electrical connection
J - 1" NPT Steam connection
K - 3/4" Condensate connection
L - 3/4" NPT Incoming 110°F water
connection
M - 3/4" NPT 180°F water to dishmachine.
N - Prewash water inlet 3/4" NPT
110°F-140°F
O - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
B
38 [966mm]
11
1
4
[285mm]
13
1
2
[345mm]
23
3
4
[604mm]
13
1
2
[345mm] 4
1
4
[110mm]
5
3
4
[148mm]
8
1
2
[218mm]
6
1
4
[159mm]
M
K
LJ
12
1
2
[316mm]
F
16
3
8
[417mm]
15
3
4
[400mm]
11
5
8
[295mm]
6
3
8
[162mm]
M
J
H
L
43 [1092mm]
62
1
2
[1590mm]
1 [25mm]
66
1
4
[1684mm]
FH
44 [1121mm]22 [559mm] Base Unit
Prewash
SECTION 1: SPECIFICATION INFORMATION
AJ-66T STEAM - LEFT TO RIGHT
14
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
C
Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
Drive
Unit
Left Side
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
A
G
F
With Doors Open
Rear of
Machine
6 [152mm]
Right to Left
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - Prewash water inlet 3/4" NPT
110°F-140°F
G - Cold water thermostat plumbing
connection 3/4" NPT - Optional
H - Steam electrical connection
J - 1" NPT Steam connection
K - 3/4" Condensate connection
L - 3/4" NPT Incoming 110°F water
connection
M - 3/4" NPT 180°F water to dishmachine.
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
1 [25mm]
Drive
Unit
Front View
75
1
2
[1919mm]
62
1
2
[1590mm]
29 [737mm] 6 [152mm]
10 [254mm]
C
AB
4 [102mm]
7 [178mm]
D
E
8 [203mm]
42 [1067mm]
41 [1041mm]
24 [610mm]
10
1
4
[260mm]
F
24 [610mm]
G
23
1
2
[599mm]
60
1
4
[1530mm]
66
1
4
[1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
8
1
4
[210mm]
21 [533mm]
B
AF
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm]
F
G
82 [2086mm]
74 [1883mm]
66 [1679mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
22 [559mm]44 [1121mm]
Base Unit Prewash
12
1
2
[316mm]
F
H
JL
M
K
L
H
J
M
F
38 [966mm]
11
1
4
[285mm]
13
1
2
[345mm]
23
3
4
[604mm]
4
1
4
[110mm]
5
3
4
[148mm]
8
1
2
[218mm]
6
1
4
[159mm]
43 [1092mm]
17
1
2
[445mm]
6
1
2
[162mm]
11
1
2
[295mm]
15
3
4
[400mm]
16
1
2
[417mm]
G
27 [686mm]
SECTION 1: SPECIFICATION INFORMATION
AJ-66T STEAM - RIGHT TO LEFT
15
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Left Side
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
A
C
G
F
Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
With Doors Open
Rear of
Machine
Base Unit
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm] F
G
6 [152mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Minimum
Scrap
Trough
14 [355mm]
25 [635mm]
21 [533mm] 8 [203mm]
Left to Right
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - Prewash water inlet 3/4" NPT
110°F-140°F
G - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
88 [2238mm]
44 [1121mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1 [25mm]
66
1
4
[1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
B
F
36 [914mm]
Prewash
Table to Table
96 [2441mm]
80 [2035mm]
Front View
75
1
2
[1919mm]
60
1
4
[1530mm]
2
1
2
[61mm]
29 [737mm]
38 [966mm]
10
1
4
[260mm] 6 [152mm]
10 [254mm]
7 [178mm]
D
E
C
AB
41 [1039mm]
8 [206mm]
G
24 [610mm]
23
1
2
[600mm]
G
18 [457mm]
41 [1043mm]
4 [102mm]
Drive
Unit
F
14 [356mm]
Minimum
10" High
Table
Backsplash
Scrap
Trough
SECTION 1: SPECIFICATION INFORMATION
AJ-80T ELECTRIC - LEFT TO RIGHT
16
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
C
Right Side
34 [864mm]
81
2 [217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
Drive
Unit
Left Side
661
2 [1692mm]
3 [79mm]
1
2 [15mm]
84 [2134mm]
A
G
F
With Doors Open
Rear of
Machine
6 [152mm]
Right to Left
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - Prewash water inlet 3/4" NPT
110°F-140°F
G - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
1 [25mm]
661
4 [1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
81
4 [210mm]
21 [533mm]
B
AF
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
163
4 [425mm]
161
4 [415mm]
F
G
88 [2238mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
44 [1121mm]
Base Unit Prewash
36 [914mm]
96 [2441mm]
80 [2035mm]
Front View
751
2 [1921mm]
621
2 [1590mm]
29 [734mm]
6 [152mm]
10 [254mm]
AB
41 [1042mm]
C
231
2 [598mm]
24 [611mm]
G
42 [1069mm]
4 [102mm]
Drive
Unit
F
D
E
8 [203mm]
41 [1041mm]
7 [178mm]
601
4 [1529mm]
SECTION 1: SPECIFICATION INFORMATION
AJ-80T ELECTRIC - RIGHT TO LEFT
17
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Left Side
661
2 [1692mm]
3 [79mm]
1
2 [15mm]
84 [2134mm]
A
C
M
L
Right Side
34 [864mm]
81
2 [217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
With Doors Open
Rear of
Machine
Base Unit
Overall
Prewash Plan View Section
with Cold Water Thermostat
163
4 [425mm]
161
4 [415mm]
L
M
6 [152mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Minimum
Scrap
Trough
14 [355mm]
25 [635mm]
21 [533mm] 8 [203mm]
Left to Right
88 [2238mm]
44 [1121mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1 [25mm]
661
4 [1684mm]
B
L
36 [914mm]
Prewash
Table to Table
96 [2441mm]
80 [2035mm]
Front View
751
2 [1919mm]
601
4 [1530mm]
21
2 [61mm]
29 [737mm] 101
4 [260mm] 6 [152mm]
10 [254mm]
7 [178mm]
D
E
C
AB
41 [1039mm]
8 [206mm]
24 [610mm]
231
2 [600mm]
M
18 [457mm]
41 [1043mm]
4 [102mm]
Drive
Unit
L
14 [356mm]Minimum
10" High
Table
Backsplash
Scrap
Trough
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT 180°F Water Inlet for wash tank
fill, final rinse, & tank heating. From gas
booster heater. Interconnecting hose
provided by manufacturer.
G - 3/4" NPT 140°F Water inlet for
gas booster heater.
H - 3/4" NPT 180°F Water Outlet
connection to line on dishmachine.
Connection hose provided by
manufacturer.
J - 3/4" NPT Gas Connection
K - 4" OD Vent pipe connection. Flue to
be installed to meet local codes by
installing contractor.
L - Prewash water inlet 3/4" NPT
110°F-140°F
M - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2" from
floor due to adjustable bullet feet.
203
4 [527mm]
83
4 [222mm]
113
4 [298mm]
143
4 [375mm]
6 [154mm]
30 [763mm]
141
4 [363mm]
71
4 [185mm]
11
4 [35mm]
H G JK
F
6 [152mm]
311
4 [795mm]
61
2 [165mm]
261
2 [673mm]
36 [914mm]
H G JK
SECTION 1: SPECIFICATION INFORMATION
AJ-80T GAS - LEFT TO RIGHT
18
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Left Side
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
A
M
L
With Doors Open
Rear of
Machine
6 [152mm]
Right to Left
1 [25mm]
66
1
4
[1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
8
1
4
[210mm]
21 [533mm]
B
AL
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm]
L
M
88 [2238mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
44 [1121mm]
Base Unit Prewash
36 [914mm]
96 [2441mm]
80 [2035mm]
Front View
75
1
2
[1921mm]
2
1
2
[61mm]
62
3
4
[1592mm]
29 [735mm]
6 [152mm]
10 [254mm]
AB
41 [1042mm]
C
23
1
2
[598mm]
24 [611mm]
M
42 [1069mm]
4 [102mm]
Drive
Unit
L
D
E
8 [203mm]
41 [1041mm]
7 [178mm]
10
1
4
[264mm]
C
Right Side
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
6 [155mm]
J
K
G
H
36 [914mm]
31
1
4
[797mm]
6
1
2
[165mm]
6 [152mm]
26
1
2
[673mm]
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT 180°F Water Inlet for wash tank
fill, final rinse, & tank heating. From gas
booster heater. Interconnecting hose
provided by manufacturer.
G - 3/4" NPT 140°F Water inlet for
gas booster heater.
H - 3/4" NPT 180°F Water Outlet
connection to line on dishmachine.
Connection hose provided by
manufacturer.
J - 3/4" NPT Gas Connection
K - 4" OD Vent pipe connection. Flue to
be installed to meet local codes by
installing contractor.
L - Prewash water inlet 3/4" NPT
110°F-140°F
M - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2" from
floor due to adjustable bullet feet.
6 [152mm]
30 [763mm] 14 [357mm]
7
1
4
[185mm]
1
1
4
[35mm]
K
J
HG
8
3
4
[222mm]
11
3
4
[298mm]
14
3
4
[375mm]
20
3
4
[527mm]
SECTION 1: SPECIFICATION INFORMATION
AJ-80T GAS - RIGHT TO LEFT
19
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
Drive
Unit
Left Side
661
2 [1692mm]
3 [79mm]
1
2 [15mm]
84 [2134mm]
A
C
O
N
Right Side
34 [864mm]
81
2 [217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
With Doors Open
Rear of
Machine
Base Unit
Overall
Prewash Plan View Section
with Cold Water Thermostat
163
4 [425mm]
161
4 [415mm] N
O
6 [152mm]
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
Minimum
Scrap
Trough
14 [355mm]
25 [635mm]
21 [533mm] 8 [203mm]
Left to Right
88 [2238mm]
44 [1121mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
1 [25mm]
661
4 [1684mm]
B
N
36 [914mm]
Prewash
Table to Table
96 [2441mm]
80 [2035mm]
Front View
751
2 [1919mm]
601
4 [1530mm]
21
2 [61mm]
29 [737mm]
38 [966mm]
101
4 [260mm] 6 [152mm]
10 [254mm]
7 [178mm]
D
E
C
AB
41 [1039mm]
8 [206mm]
G
24 [610mm]
231
2 [600mm]
O
18 [457mm]
41 [1043mm]
4 [102mm]
Drive
Unit
N
14 [356mm]Minimum
10" High
Table
Backsplash
Scrap
Trough
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
38 [966mm]
111
4 [285mm]
131
2 [345mm]
233
4 [604mm]
131
2 [345mm] 41
4 [110mm]
53
4 [148mm]
81
2 [218mm]
61
4 [159mm]
M
K
LJ
FH
171
2 [445mm]
121
2 [316mm]
F
163
8 [417mm]
153
4 [400mm]
115
8 [295mm]
63
8 [162mm]
M
J
H
L
43 [1092mm]
Legend
A - Machine water inlet 3/4" NPT 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - 3/4" NPT Steam connection
G - 3/4" NPT Condensate return
H - Steam electrical connection
J - 1" NPT Steam connection
K - 3/4" Condensate connection
L - 3/4" NPT Incoming 110°F water
connection
M - 3/4" NPT 180°F water to dishmachine.
N - Prewash water inlet 3/4" NPT
110°F-140°F
O - Cold water thermostat plumbing
connection 3/4" NPT - Optional
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
SECTION 1: SPECIFICATION INFORMATION
AJ-80T STEAM - LEFT TO RIGHT
20
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
C
34 [864mm]
8
1
2
[217mm]
21 [533mm]
25 [635mm]
12 [307mm]
25 [635mm]
B
Dish Clearance
Drive
Unit
Left Side
66
1
2
[1692mm]
3 [79mm]
1
2
[15mm]
84 [2134mm]
A
G
F
With Doors Open
Rear of
Machine
6 [152mm]
Right to Left
1 [25mm]
66
1
4
[1684mm]
Floor Sink Or Drain
With 3" (76 mm)
Minimum Drain Line
25 [635mm]
4 1/2 [114mm]
8
1
4
[210mm]
21 [533mm]
B
AF
Table to Table
Overall
Prewash Plan View Section
with Cold Water Thermostat
16
3
4
[425mm]
16
1
4
[415mm]
F
G
88 [2238mm]
3/4" (19 mm)
Table Turndown
Flange 3/4" Max 21" (533 mm)
Rack Rail Height
Above Dishtable
1/4" (6mm) - 5/16" (8mm)
Rack Rail
Tub
Table
Use Silicone Sealer
Between Table and
Lip of Machine to
Prevent Leakage
Recommended Table Fabrication
Note: Tub Will Accept
a Table Flange
Up to 24 7/8"
(632 mm)
4" (102 mm) wide x 16" (406 mm)
long cutout in Vent Cowl/Splash
Shield. Shipped with Cover Plate.
44 [1121mm]
Base Unit Prewash
36 [914mm]
96 [2441mm]
80 [2035mm]
Front View
75
1
2
[1921mm]
60
1
4
[1529mm]
62
3
4
[1592mm]
29 [735mm] 10
1
4
[260mm] 6 [152mm]
10 [254mm]
G
AB
41 [1042mm]
C
23
1
2
[598mm]
24 [611mm]
G
42 [1069mm]
4 [102mm]
Drive
Unit
F
D
E
8 [203mm]
41 [1041mm]
38 [965mm]
7 [178mm]
Right Side
Legend
A - Machine water inlet 3/4" NPT, 180°F
Hi-temp,140°F Low-temp minimum
B - Electrical connection
C - Drain connection 1-1/2" NPT
D - Vent collar - Optional
E - Vent cowl standard
F - Prewash water inlet 3/4" NPT
110°F-140°F
G - Cold water thermostat plumbing
connection 3/4" NPT - Optional
H - Steam electrical connection
J - 1" NPT Steam connection
K - 3/4" Condensate connection
L - 3/4" NPT Incoming 110°F water
connection
M - 3/4" NPT 180°F water to dishmachine.
Note: All vertical dimensions are +/- 1/2"
from floor due to adjustable bullet feet.
H
JL
M
K
F
38 [966mm]
11
1
4
[285mm]
13
1
2
[345mm]
23
3
4
[604mm]
4
1
4
[110mm]
5
3
4
[148mm]
8
1
2
[218mm]
6
1
4
[159mm]
12
1
2
[316mm]
F
L
H
J
M
43 [1092mm]
17
1
2
[445mm]
6
1
2
[162mm]
11
1
2
[295mm]
15
3
4
[400mm]
16
1
2
[417mm]
SECTION 1: SPECIFICATION INFORMATION
AJ-80T STEAM - RIGHT TO LEFT
21
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: 09-29-2007
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION
SIDE LOADER (LEFT TO RIGHT) DIMENSIONS
22
NOTE: ALL DIMENSIONS ARE TYPICAL.
23” or 30” depending on
the width of the side loader.
CONVEYOR
DISHWASHER
LENGTH
8” or 15” depending on the
width of the side loader.
4 1/2”
MINIMUM
25”
DISHWASHER 5”
12 1/2”
14 1/2”
29”
1 1/2” TABLE
ROLL
20 3/4”
OPENING
1”
A A
1/2”
MINIMUM
1/2”
DISHTABLE
USE SILICONE
BETWEEN
TABLE AND LIP
OF SIDE
LOADER TO
PREVENT LEAK-
AGE.
WALL OF SIDE
LOADER
SECTION “A-A”
CENTER-LINE
DISHMACHINE
SPLASH SHIELD
VENT CONNECTION
OPENING
1 1/2” DRAIN. CONNECTED
TO DISHMACHINE DRAIN
LINE
CONVEYOR
DISHMACHINE
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION
SIDE LOADER (RIGHT TO LEFT) DIMENSIONS
23
NOTE: ALL DIMENSIONS ARE TYPICAL.
14 1/2”
29”
8” or 15” depending on the
width of the side loader.
23” or 30” depending on
the width of the side loader.
CONVEYOR
DISHMACHINE
LENGTH
4 1/2”
MINIMUM
12 1/2”
25”
DISHWASHER
5”
1 1/2” TABLE
ROLL 20 3/4”
OPENING 1”
1/2”
MINIMUM
DISHTABLE
1/2”
WALL OF SIDE
LOADER
USE SILICONE
BETWEEN TABLE
AND LIP OF SIDE
LOADER TO PRE-
VENT LEAKAGE
SECTION “A-A”
CONVEYOR
DISHMACHINE
CENTER LINE
DISHMACHINE
VENT CONNECTION
OPENING
SPLASH
SHIELD
AA
1 1/2” DRAIN. CONNECTED TO
DISHMACHINE DRAIN LINE
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION
SIDE LOADER (INSTALLED) DIMENSIONS
24
Refer to chart above.
34”
23” or 30” depending on
the width of the side
loader.
10”
4”
23” SIDE LOADER DIMENSIONS
30” SIDE LOADER DIMENSIONS
MODEL
AJ-44T
AJ-66T
AJ-80T
MODEL
AJ-44T
AJ-66T
AJ-80T
DIMENSIONS
75”
97”
111”
DIMENSIONS
82”
104”
118”
(Left to Right installation shown for reference.)
NOTE: ALL DIMENSIONS ARE TYPICAL.
25
SECTION 2:
INSTALLATION & OPERATION
INSTRUCTIONS
NOTE: THE INSTRUCTIONS PROVIDED HEREIN, UNLESS OTHERWISE SPECIFIED ARE FOR THE DISHMA-
CHINES ONLY. THERE ARE SEPARATE DIRECTIONS FOR THE GAS BOOSTER.

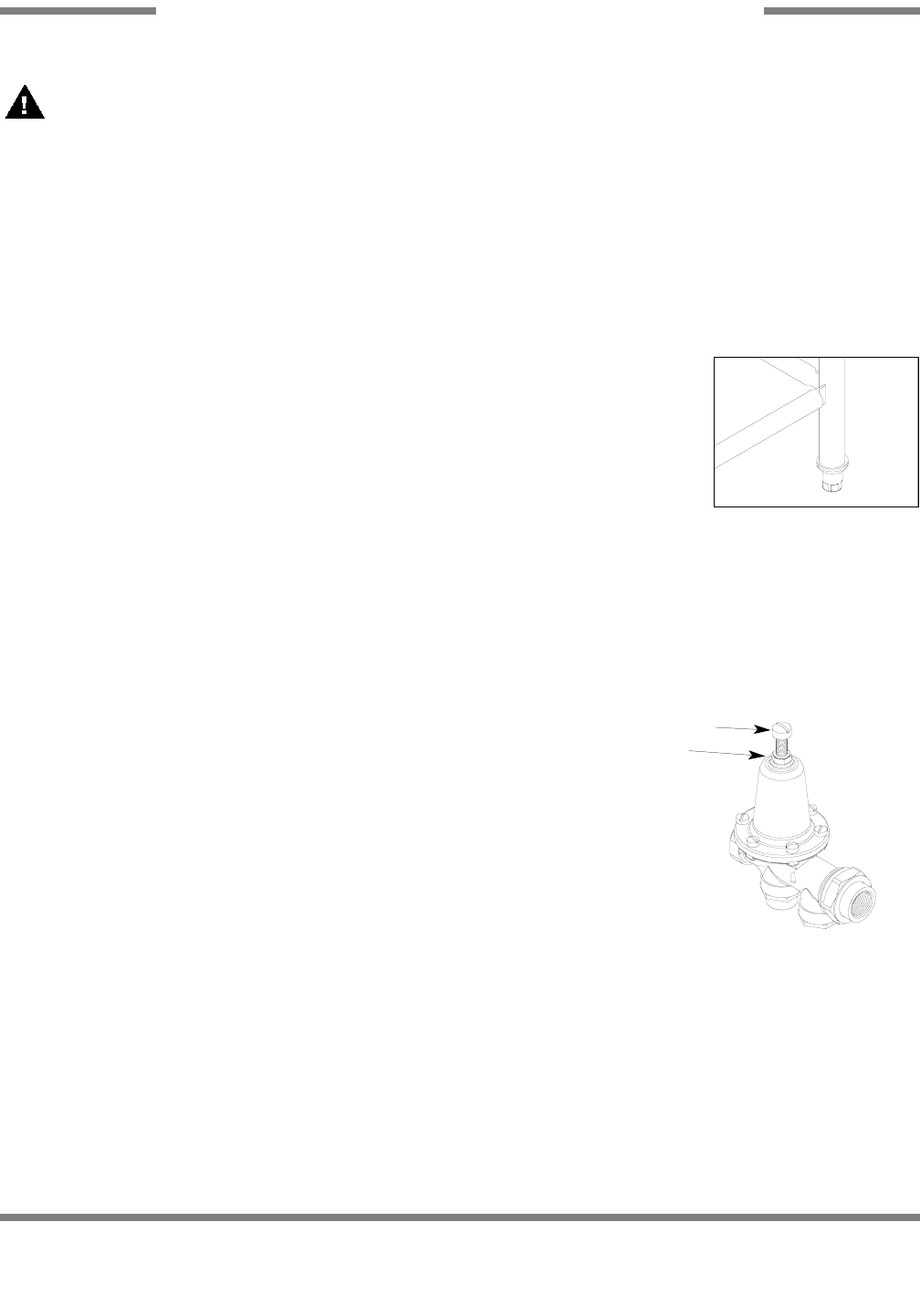

VISUAL INSPECTION: Before installing the unit, check the container and machine for damage. A damaged container is an indi-
cator that there may be some damage to the machine. If there is damage to both the container and machine, do not throw away
the container. The dishmachine has been inspected and packed at the factory and is expected to arrive to you in new, undam-
aged condition. However, rough handling by carriers or others may result in damage to the unit while in transit. If such a situ-
ation occurs, do not return the unit to Jackson; instead, contact the carrier and ask them to send a representative to the site to
inspect the damage to the unit and to complete an inspection report. You must contact the carrier within 48 hours of receiving
the machine. Also, contact the dealer through which you purchased the unit.
UNPACKING THE DISHMACHINE: The machine should be unboxed and removed from shipping pallet prior to being installed.
Open the front door and remove all of the packing materials. Once unpacked, ensure that there are no missing parts from the
machine. This may not be obvious at first. If it is discovered that an item is missing, contact Jackson immediately.
LEVEL THE DISHMACHINE: The dishmachine is designed to operate while being level. This is
important to prevent any damage to the machine during operation and to ensure the best results
when washing ware. The unit comes with adjustable bullet feet, which can be turned using a pair
of channel locks or by hand if the unit can be raised safely. Ensure that the unit is level from side
to side and from front to back before making any connections. You will be able to adjust the over-
all height of the unit by turning the bullet feet from between 75-1/2” to 76-1/2”.
PLUMBING THE DISHMACHINE: All plumbing connections must comply with all applicable local,
state, and national plumbing codes. The plumber is responsible for ensuring that the incoming water line is thoroughly flushed
prior to connecting it to any component of the dishmachine. It is necessary to remove all foreign debris from the water line that
may potentially get trapped in the valves or cause an obstruction. Any valves that are fouled as a result of foreign matter left in
the water line, and any expenses resulting from this fouling, are not the responsibility of the manufacturer.
Water hardness should be a maximum of 6 grains per gallon. Harder water should be treated prior to using the machine. Iron
in the water supply can cause staining. A filter designed to remove iron from the supply water is highly recommended for sup-
plies in excess of 0.1 ppm (parts per million).
CONNECTING THE DRAIN LINE: The drain for the models covered in this
manual are gravity discharge drains. All piping from the machine to the drain
must be a minimum 1 1/2” NPT and shall not be reduced. There must also be
an air gap between the machine drain line and the floor sink or drain. If a grease
trap is required by code, it should have a flow capacity of 30 gallons per minute.
WATER SUPPLY CONNECTION: Ensure that you have read the section enti-
tled “PLUMBING THE DISHMACHINE” above before proceeding. The supply
water temperature must meet the minimum requirements listed on the machine
data plate. Install the water supply line (1/2” pipe size minimum) to the dishma-
chine line strainer. It is recommended that a water shut-off valve be installed in
the water line between the main supply and the machine to allow access for ser-
vice. The water supply line is to be capable of 25 PSI “flow” pressure at the rec-
ommended temperature indicated on the data plate.
If the water level is too low or too high, check the incoming water pressure. It should be 20 ± 5 PSI. Too high of pressure results
in too much water; too low of pressure results in too little water. To adust the regulator, loosen the nut at the top, this will allow
you to screw or unscrew the adjustment. With a screwdriver, turn the adjuster clockwise to increase pressure or counter clock-
wise to decrease it.
Do not confuse static pressure with flow pressure. Static pressure is the line pressure in a “no flow” condition (all valves and
services are closed). Flow pressure is the pressure in the fill line when the fill valve is opened during the cycle.
It is also recommended that a shock absorber (not supplied) be installed in the incoming water line. This prevents line hammer
(hydraulic shock), induced by the solenoid valve as it operates, from causing damage to the equipment.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
26
Adjusting screw
Locking nut
Incoming Plumbing Connection
STEAM LINE CONNECTIONS: Some machines covered in this manual are designed to use low pressure steam as a source
of heat for wash tank water. The machines come with lines by which outside source steam needs to be connected. Connect all
incoming steam lines in accordance with the steam booster manufacturer’s instructions. Ensure that all applicable codes and
regulations are adhered to. See machine data plate for information concerning steam flow pressure.
GAS CONNECTIONS: Some machines covered in this manual are designed to use gas as an outside source of heat for wash
tank water. The machines come with connections by which an outside source needs to be connected. Connect all incoming gas
lines in accordance with the gas booster manufacturer’s instructions. Ensure that all applicable codes and regulations are
adhered to.
PLUMBING CHECK: Slowly turn on the water supply to the machine after the incoming fill line and the drain line have been
installed. Check for any leaks and repair as required. All leaks must be repaired prior to placing the machine in operation.
ELECTRICAL POWER CONNECTION: Electrical and grounding connections must comply with the applicable portions of the
National Electrical Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
Disconnect electrical power supply and place a tag at the disconnect switch to indicate that you are working on the
circuit.
The dishmachine data plate is located on the right side and to
the front of the machine. Refer to the data plate for machine
operating requirements, machine voltage, total amperage load
and serial number.
To install the incoming power lines, open the control box. Install
conduit into the pre-punched holes in the back of the control box.
Route power wires and connect to power block and grounding
lug. Install the service wires (L1, L2, and L3 (3 phase only)) to
the appropriate terminals as they are marked on the terminal
block. Install the grounding wire into the lug provided. Tighten
the connections. It is recommended that “DE-OX” or another
similar anti-oxidation agent be used on all power connections.
VOLTAGE CHECK: Ensure that the power switch is in the OFF
position and apply power to the dishmachine. Check the incom-
ing power at the terminal block and ensure it corresponds to the
voltage listed on the data plate. If not, contact a qualified service
agency to examine the problem. Do not run the dishmachine if
the voltage is too high or too low. Shut off the service breaker
and mark it as being for the dishmachine. Advise all proper per-
sonnel of any problems and of the location of the service break-
er. Replace the control box cover and tighten down the screws.
VENTILATION OF DISHMACHINE: The dishmachine should be located with provisions for venting into an adequate exhaust
hood or ventilation system. This is essential to permit efficient removal of the condensation exhaust. Ensure that the exhaust
system is acceptable in accordance with all applicable codes and standards.
NOTE: Any damage that is caused by steam or moisture due to improper ventilation is NOT covered under the war-
ranty.
This units covered in this manual have the following exhaust requirements:
Load End: 200 CFM
Unload End: 400 CFM
The exhaust system must be sized to handle this volume for the dishmachine to operate as it was designed to.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS (CONTINUED)
27

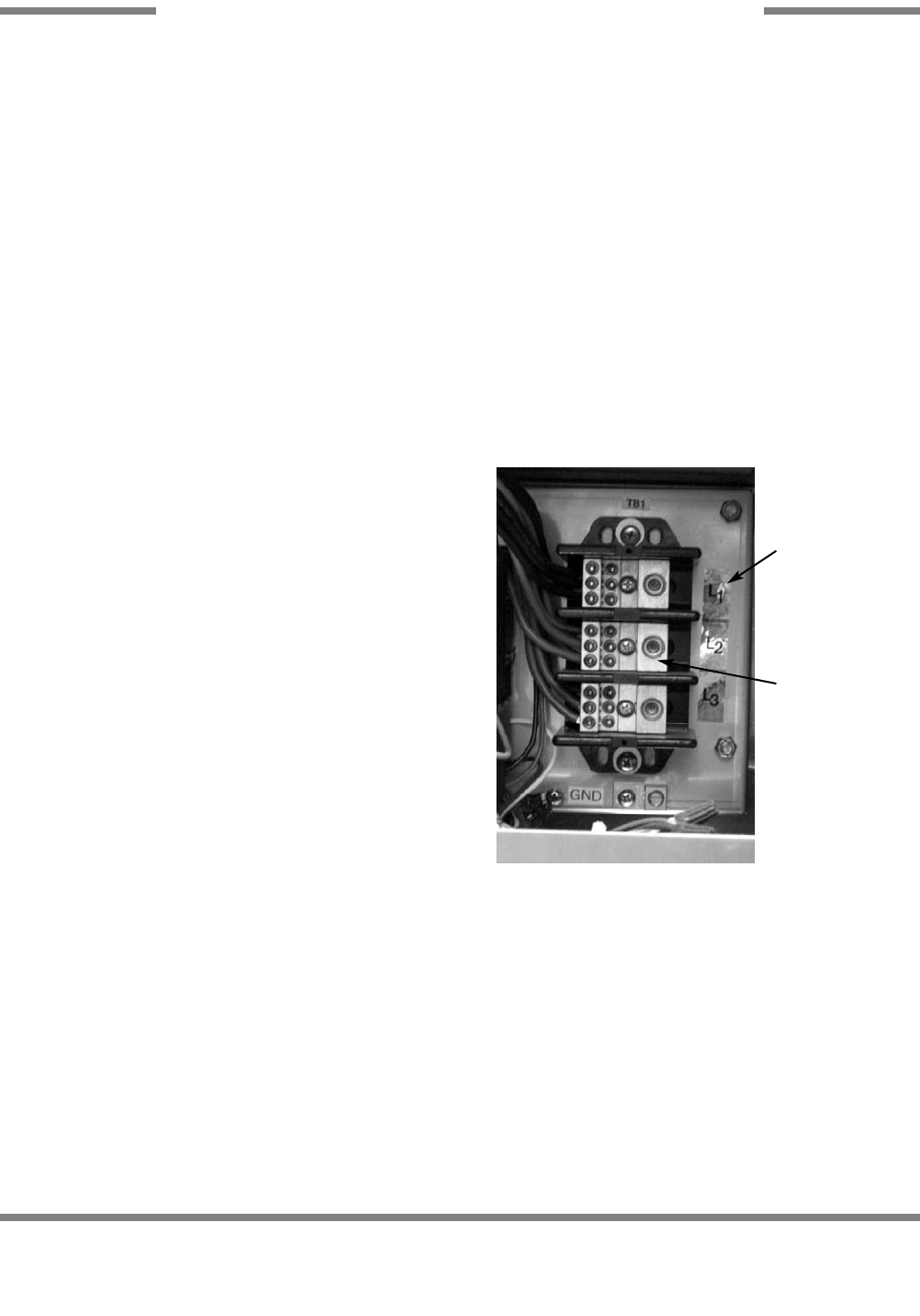

Incoming Power Connection
Decal showing
“L1”, “L2”, & “L3”
(3 phase models
only).
Terminal Block
ELECTRIC HEAT: The thermostats for the machines covered in this manual are factory set. They should not be adjusted except
by an authorized service agent.

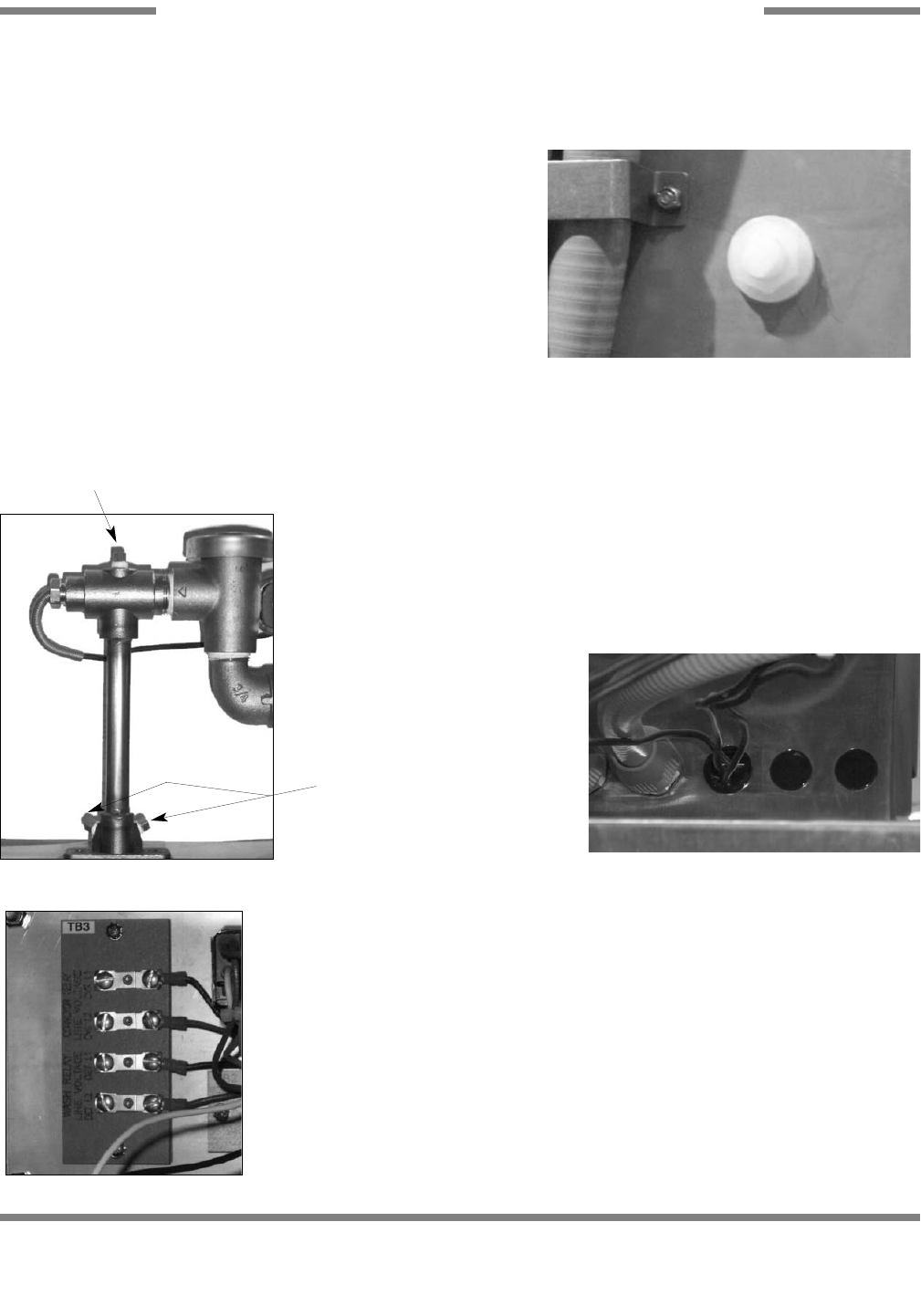

CHEMICAL FEEDER EQUIPMENT: Detergent may be introduced
into the unit through the removal of the bulkhead plug in the rear of
the tub and replacing it with the third party detergent injection fitting.
Remove the bulkhead plug in the side of the tub to install the deter-
gent concentration probe.
For more information concerning detergent concerns, please refer to
the page entitled “Detergent Control”.
The 1/8” brass plugs on the incoming plumbing rinse injector may be removed to install
sanitizer and rinse aid injection fittings.
All wires for the chemical injectors should be routed through one
of the extra openings in the back of the control box.
Terminals in the control box marked “CVS” provide a constant voltage signal whenever the
drive motor is operating.
Terminals in the control box marked “DET” provide a voltage signal whenever the wash motor
is operating.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS (CONTINUED)
28
Aid Connection Points
Back of Control Box
Detergent Connection Point
(Machine rear view)
Brass Plug
Brass Plugs
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS

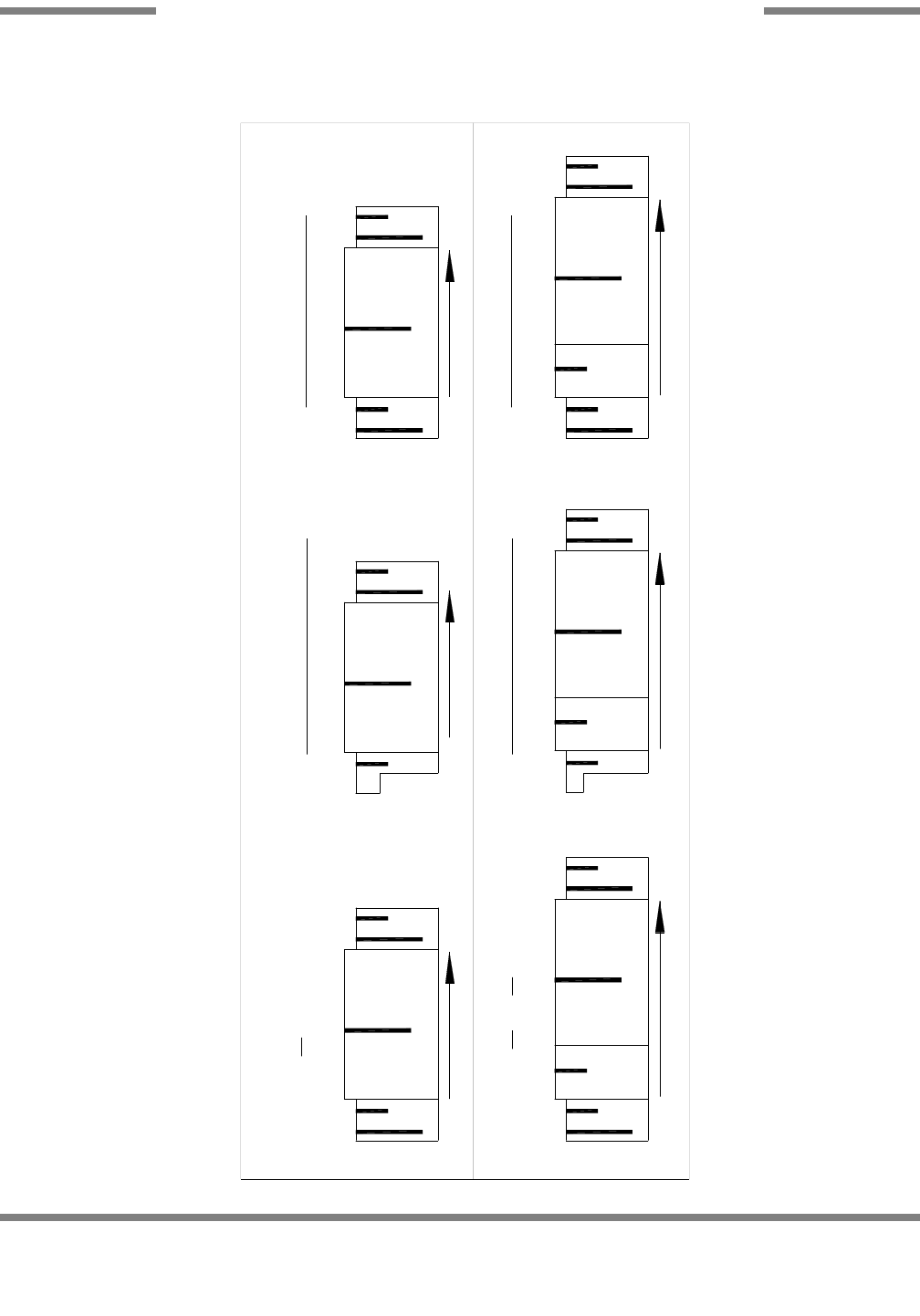

CURTAIN INSTALLATION DIAGRAMS
29
44
L R
LS SLL
21" 12" 12"21"21" 21" 21" 12"12"
LLSS
RL
21" 21" 12"
12"
21"
LLSSL
RL
66
12"
S
80
S
12"
L R
SSLL
12" 12"
21"21"
S
12"
L R
LS SLL
21" 12" 12"
21"21"
21" 21" 12"
12"21"
LLSSL
RL
HOODED SIDE LOADER
UNHOODED SIDE LOADER
UNHOODED SIDE LOADER HOODED SIDE LOADER
ELECTRIC & STEAM MACHINES
Please refer to the chart for
placement of the curtains.
DELIMING OPERATIONS: In order to maintain the dishmachine at its optimum performance level, it will be required to remove
lime and corrosion deposits on a frequent basis. A deliming solution should be available from your detergent supplier. Read and
follow all instructions on the label of the deliming solution.
To proceed with the deliming operation, fill the dishmachine and add the correct amount of deliming solution as recommended
by the deliming solution manufacturer. The water capacity of the various tanks of the dishmachine can be verified on the spec-
ification sheet(s) of this manual.
Perform the following operations to delime the dishmachine:
1. Turn the NORMAL/DELIME switch on the back of the control box to the DELIME position.
2. Disconnect or turn off all chemical feeder pumps.
3. Close all doors (after adding the deliming solution).
4. Run the machine for the recommended period of time.
5. Turn the unit off and open the doors.
6. Wait five minutes, then inspect the inside of the machine. If the machine is not delimed, run another time cycle as per the
deliming solution’s instructions.
7. When clean, drain and re-fill the machine.
8. Run in MANUAL for 10 minutes to remove residual deliming solution.
9. Drain and re-fill the machine.
This equipment is not recommend for use with deionized water or other aggressive fluids. Use of deionized water or
other aggressive fluids will result in corrosion and failure of materials and components. Use of deionized water or
other aggressive fluids will void the manufacturer's warranty.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
DELIMING OPERATIONS
30
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
SIDE LOADER INSTALLATION & OPERATION INSTRUCTIONS
31
This accessory assists in the delivery of a full dish rack from the break down (scrapping) table to the dishmachine. It will con-
vert the direction of travel 90°. Since the Side Loader is shipped mounted on the conveyor dishwasher there is no additional
installation required for this option. As it is operated mechanically by the dishwasher it does not require any plumbing or elec-
trical connections.
This Side Loader does not require or add any additional electrical or mechanical devices to the unit which could create opera-
tional or maintenance problems. As designed the drive mechanism is powered by the conveyor drive motor on the dishma-
chine. An extension on the pawl bar provides the drive to push the racks into the unit.
PREPARATION: Before proceeding with the start-up of the unit, verify that the Side Loader pan strainer is installed.
WARE PREPARATION: Proper preparation of ware will help ensure good results and less re-washes. If not done properly, ware
may not come out clean and the efficiency of the dishmachine will be reduced. It is important to remember that a dishmachine
is not a garbage disposal and that simply throwing unscraped dishes into the machine simply defeats the purpose altogether
of washing the ware. Scraps should be removed from ware prior to being loaded into a rack. Pre-rinsing and pre-soaking are
good ideas, especially for silverware and casserole dishes. Place cups and glasses upside down in racks so that they do not
hold water during the cycle. The dishmachine is meant not only to clean, but to sanitize as well, to destroy all of the bacteria
that could be harmful to human beings. In order to do this, ware must be properly prepared prior to being placed in the machine.
WASHING A RACK OF WARE: Once a rack is fully loaded it should be positioned against the front of the dish table. The rack
should then be moved into the Side Loader until it activates the actuator switch. Once the the machine is started, it should pull
the rack through the machine and push it out the unload end. Once a rack has started through, you may put another rack in.
OPERATIONAL INSPECTION: Based upon usage, the pan strainer may become clogged with soil and debris as the workday
progresses. Operators should regularly inspect the pan strainer to ensure it has not become clogged. If the strainer does
become clogged, it will reduce the washing capability of the machine. Instruct operators to clean out the pan strainer at regu-
lar intervals or as required by work load.
SHUTDOWN AND CLEANING: At the end of the workday, remove the pan strainer and clean as required. Wipe out the inside
of the Side Loader and then reinsert the strainer.
PREPARATION: Before proceeding with the start-up of the unit, verify the following:
1. Close door(s) on dishmachine.
2. Close the drain valve(s).
POWER UP (ELECTRICALLY-HEATED MODELS): To energize the unit, turn on the power at the service breaker. The volt-
age should have been previously verified as being correct. If not, the voltage will have to be verified.
POWER UP (GAS-HEATED MODELS): To energize the unit, turn on the power at the service breaker. The voltage should have
been previously verified as being correct. If not, the voltage will have to be verified. Ensure that the gas service is connected
and that gas is flowing to the machine. Without gas, the water will not reach the required minimum temperatures that the
machine is designed to operate at.
POWER UP (STEAM-HEATED MODELS): To energize the unit, turn on the power at the service breaker. The voltage should
have been previously verified as being correct. If not, the voltage will have to be verified. Ensure that the steam service is con-
nected and that steam is flowing to the machine. Without steam, the water will not reach the required minimum temperatures
that the machine is designed to operate at.
FILLING THE WASH TUB: Ensure that the delime switch is in the NORMAL position, and place the power switch into the ON
position. The machine should fill automatically and shut off when the appropriate level is reached (just below the pan strainer).
The wash tub must be completely filled before operating the wash pump to prevent damage to the component. Once the wash
tub is filled, the unit is ready for operation.
Machines equipped with prewash sections should not be run without water in those sections. This can cause
damage to components.
WARE PREPARATION: Proper preparation of ware will help ensure good results and less re-washes. If not done properly, ware
may not come out clean and the efficiency of the dishmachine will be reduced. It is important to remember that a dishmachine
is not a garbage disposal and that simply throwing unscraped dishes into the machine simply defeats the purpose altogether
of washing the ware. Scraps should be removed from ware prior to being loaded into a rack. Pre-rinsing and pre-soaking are
good ideas, especially for silverware and casserole dishes. Place cups and glasses upside down in racks so that they do not
hold water during the cycle. The dishmachine is meant not only to clean, but to sanitize as well, to destroy all of the bacteria
that could be harmful to human beings. In order to do this, ware must be properly prepared prior to being placed in the machine.
DAILY MACHINE PREPARATION: Refer to the section entitled “PREPARATION” at the top of this page and follow the instruc-
tions there. Afterwards, check that all of the chemical levels are correct and/or that there is plenty of detergent available for the
expected workload.
WASHING A RACK OF WARE: To wash a rack, simply slide a rack of soiled ware into the load end of the machine. Once the
the machine is started, it should pull the rack through the machine and push it out the unload end. Once a rack has started
through, you may put another rack in.
OPERATIONAL INSPECTION: Based upon usage, the pan strainers may become clogged with soil and debris as the work-
day progresses. Operators should regularly inspect the pan strainers to ensure they have not become clogged. If the strainers
do, they will reduce the washing capability of the machine. Instruct operators to clean out the pan strainers at regular intervals
or as required by work load.
NOTE: On units equipped with prewash sections (AJ-66 & AJ-80), operators should also take the time to inspect the prewash
section strainers and clean them as required by workload.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
DISHMACHINE OPERATING INSTRUCTIONS
32
SHUTDOWN AND CLEANING (ELECTRICALLY-HEATED MODELS): At the end of the workday, place the power switch in
the OFF position and open the door(s). Open the drain valves and allow the machine to drain completely. Remove the pawl bar
assembly (clean as required). Remove the pan strainers and, if equipped, the prewash strainers, run off sheets and scrap bas-
ket strainer. Remove the wash and, if equipped, the prewash arms and verify that the nozzles and arms are free from obstruc-
tions. Flush the arms with fresh water. Remove the pump suction strainers and clean out as required. Remove the rinse tray
assembly and clean. Remove the curtains and scrub with a mild detergent and warm water. Wipe out the inside of the unit and
then reassemble with the components previously removed.
SHUTDOWN AND CLEANING (GAS-HEATED MODELS): At the end of the work day, shut down the gas booster in accor-
dance with manufacturer’s instructions. Place the power switch in the OFF position, secure the flow to the machine and open
the door(s). Open the drain valves and allow the machine to drain completely. Remove the pawl bar assembly (clean as
required). Remove the pan strainers and, if equipped, the prewash strainers, run off sheets and scrap basket strainer. Remove
the wash and, if equipped, the prewash arms and verify that the nozzles and arms are free from obstructions. Flush the arms
with fresh water. Remove the pump suction strainers and clean out as required. Remove the rinse tray assembly and clean.
Remove the curtains and scrub with a mild detergent and warm water. Wipe out the inside of the unit and then reassemble with
the components previously removed.
SHUTDOWN AND CLEANING (STEAM-HEATED MODELS): At the end of the workday, place the power switch in the OFF
position, secure the flow of steam to the machine and open the door(s). Open the drain valves and allow the machine to drain
completely. Remove the pawl bar assembly (clean as required). Remove the pan strainers and, if equipped, the prewash strain-
ers, run off sheets and scrap basket strainer. Remove the wash and, if equipped, the prewash arms and verify that the nozzles
and arms are free from obstructions. Flush the arms with fresh water. Remove the pump suction strainers and clean out as
required. Remove the rinse tray assembly and clean. Remove the curtains and scrub with a mild detergent and warm water.
Wipe out the inside of the unit and then reassemble with the components previously removed.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
DISHMACHINE OPERATION INSTRUCTIONS (CONTINUED)
33
Detergent usage and water hardness are two factors that contribute greatly to how efficiently your dishmachine will operate.
Using detergent in the proper amount can become, in time, a source of substantial savings. A qualified water treatment spe-
cialist can tell you what is needed for maximum efficiency from your detergent, but you should still know some basics so you’ll
understand what they are talking about.
First, you must understand that hard water greatly effects the performance of the dishmachine. Water hardness is the amount
of dissolved calcium and magnesium in the water supply. The more dissolved solids in the water, the greater the water hard-
ness. Hard water works against detergent, thereby causing the amount of detergent required for washing to increase. As you
use more detergent, your costs for operating the dishmachine will increase and the results will decrease. The solids in hard
water also may build-up as a scale on wash and rinse heaters, decreasing their ability to heat water. Water temperature is
important in removing soil and sanitizing dishes. If the water cannot get hot enough, your results may not be satisfactory. This
is why Jackson recommends that if you have installed the machine in an area with hard water, that you also install some type
of water treatment equipment to help remove the dissolved solids from the water before it gets to the dishmachine.
Second, hard water may have you adding drying agents to your operating cycle to prevent spotting, when the real problem is
deposited solids on your ware. As the water evaporates off of the ware, the solids will be left behind to form the spotting and
no amount of drying agent will prevent this. Again, using treated water will undoubtedly reduce the occurrences of this prob-
lem.
Third, treated water may not be suitable for use in other areas of your operation. For instance, coffee made with soft water may
have an acid or bitter flavor. It may only be feasible to install a small treatment unit for the water going into the dishmachine
itself. Discuss this option with your qualified water treatment specialist.
Even after the water hardness problems have been solved, there still must be proper training of dishmachine operators in how
much detergent is to be used per cycle. Talk with your water treatment specialist and detergent vendor and come up with a
complete training program for operators. Using too much detergent has as detrimental effects as using too little. The proper
amount of detergent must be used for job. It is important to remember that certain menu items may require extra detergent by
their nature and personnel need to be made aware of this. Experience in using the dishmachine under a variety of conditions,
along with good training in the operation of the machine, can go a long way in ensuring your dishmachine operates as effi-
ciently as possible.
Certain dishmachine models require that chemicals be provided for proper operation and sanitization. Some models even
require the installation of third-party chemical feeders to introduce those chemicals to the machine. Jackson does not recom-
mend or endorse any brand name of chemicals or chemical dispensing equipment. Contact your local chemical distributor for
questions concerning these subjects.
Some dishmachines come equipped with integral solid detergent dispensers. These dispensers are designed to accommodate
detergents in a certain sized container. If you have such a unit, remember to explain this to your chemical distributor upon first
contacting them.
As explained before, water temperature is an important factor in ensuring that your dishmachine functions properly. The data
plate located on each unit details what the minimum temperatures must be for either the incoming water supply, the wash tank
and the rinse tank, depending on what model of dishmachine you have installed. These temperatures may also be followed by
temperatures that Jackson recommends to ensure the highest performance from you dishmachine. However, if the minimum
requirements are not met, the chances are your dishes will not be clean or sanitized. Remember, a dish can look clean, but it
may not be sanitized. Instruct your dishmachine operators to observe the required temperatures and to report when they fall
below the minimum allowed. A loss of temperature can indicate a much larger problem such as a failed heater or it could also
indicate that the hot water heater for your operation is not up to capacity and a larger one may need to be installed.
There are several factors to consider when installing your dishmachine to ensure that you get the best possible results from it
and that it operates at peak efficiency for many years. Discuss your concerns with your local chemical distributor and water
treatment specialist before there is a problem.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
DETERGENT CONTROL
34
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS

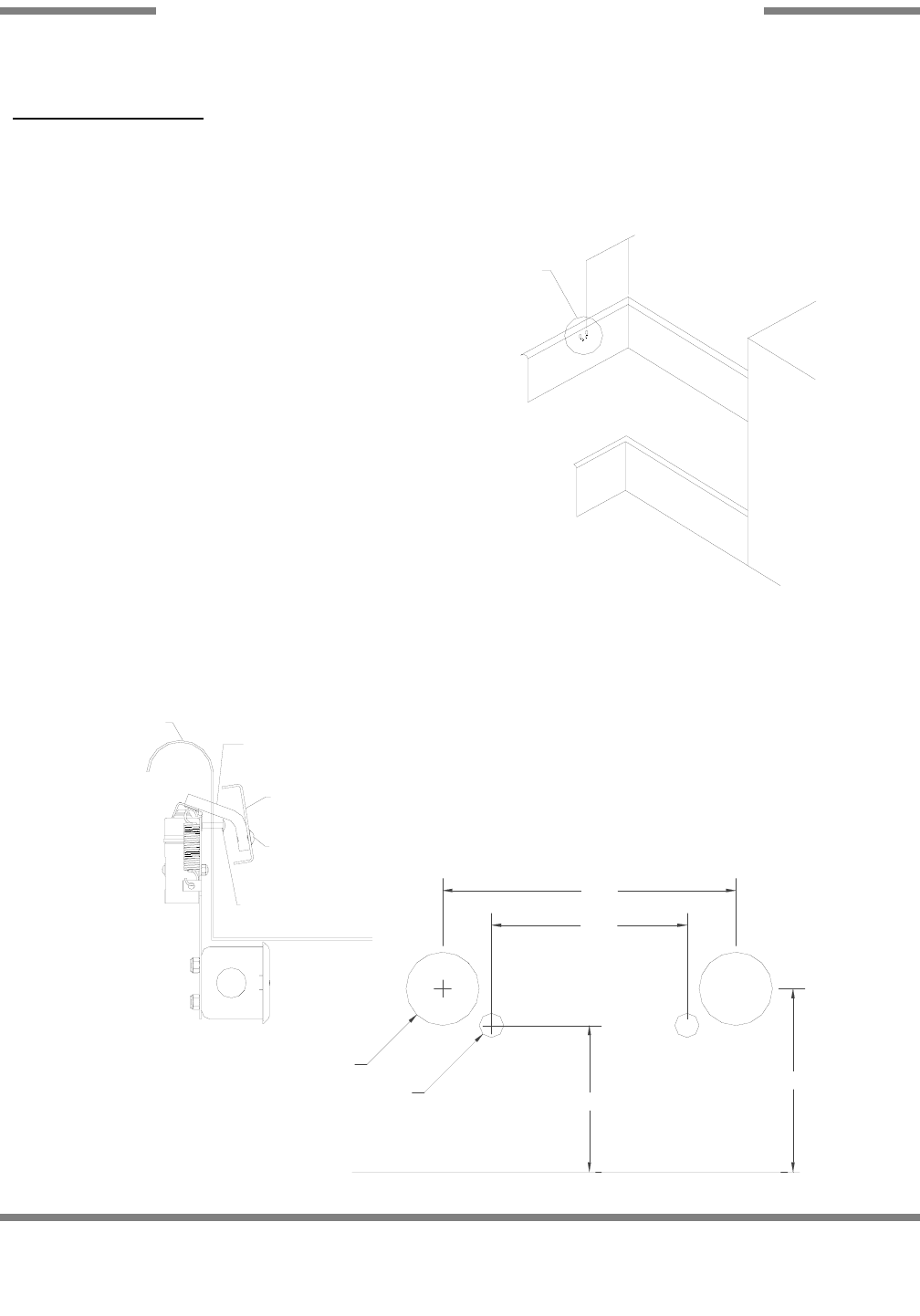

STRIKER PLATE LIMIT SWITCH INSTALLATION INSTRUCTIONS
35
TABLE LIMIT SWITCH THROUGH ROD HOLES
TABLE
SWITCH RODS
STRIKE PLATE
STRIKE PLATE BOLTS
MOUNTING BOLTS
TABLE BOTTOM
3.00
2.00
Ø0.75
Ø0.25 1.50
TABLE BOTTOM
1.875
INSTALL AT FAR END OF TABLE
1/3 RACK WIDTH
Installation Instructions:
1. Wiring: The switch is wired common and nor-
mally open because of the hinge design. By
interrupting the line in series with the door
switches, the dishmachine ceases to operate.
Refer to the machine schematic for details on
how to wire the switch.
2. Parts of the table switch are mounted in the
dishtable, at the end of the table and under the
table. See the drawing(s) for the relationship of
the switch to the table.
3. Move the limit switch as far down on the two
slots as possible and see that the limit switch is
straight on the base plate. This might require
adjustment of the nut on the connector for the
limit switch.
4. Then adjust the inside and the outside con-
nector nuts for the connector box so that it lines
up even with the limit switch and the base plate.
5. Tighten down the nuts for the seal so that
they are tight.
6. If you have any difficulty you might have to adjust the
connectors to the seal, screwing in or screwing out
until the installation is straight on the table and the limit
switch is actuated correctly by the rack.
Unless noted, all dimensions are in
inches.
36
SECTION 3:
PREVENTATIVE MAINTENANCE
The dishmachines covered in this manual are designed to operate with a minimum of interaction with the operator. However,
this does not mean that some items will not wear out in time. Jackson highly recommends that any maintenance and repairs
not specifically discussed in this manual should be performed by QUALIFIED SERVICE PERSONNEL ONLY. Performing main-
tenance on your dishmachine may void your warranty if it is still in effect, so if you have a question or concern, do not hesitate
to contact Jackson.
There are many things that operators can do to prevent catastrophic damage to the dishmachine. One of the major causes of
component failure has to do with prescrapping procedures. A dishmachine is not a garbage disposal; any large pieces of mate-
rial that are put into the machine shall remain in the machine until they are either broken up (after spreading out on your ware!)
or physically removed. Strainers are installed to help catch debris, but they do no good if they are clogged. Have operators reg-
ularly inspect the pan strainers to ensure (1) that they are free of soil and debris and (2) they are laying flat in the tub.
When cleaning out strainers, do NOT beat them on waste cans. The strainers are made of metal and can be forgiving; but once
severe damage is done, it is next to impossible for the strainer to work in the way it was designed to. Wipe out strainers with
a rag and rinse under a faucet if necessary. For stubborn debris, a toothpick should be able to dislodge any obstructions from
the perforations. Always ensure that strainers are placed back in the machine before operation and that they lay flat in the tub.
You may wish to also refer to the page entitled “Detergent Control” in order to learn more about how your water hardness will
effect the performance of your machine. Hard water makes dishmachines work harder and decreases efficiency.
Again, it is important to remind operators that trying to perform corrective maintenance on the dishmachine could lead to larg-
er problems or even cause harm to the operator. If a problem is discovered; secure the dishmachine using proper shut down
procedures as listed in this manual and contact Jackson.
Some problems, however, may having nothing to do with the machine itself and no amount of preventative maintenance is
going to help. A common problem has to do with temperatures being too low. Verify that the water temperatures coming to your
dishmachine match the requirements listed on the machine data plate. There can be a variety of reasons why your water tem-
perature could be too low and you should discuss it with Jackson to determine what can be done.
By following the operating and cleaning instructions in this manual, you should get the most efficient results from your machine.
As a reminder, here are some steps to take to ensure that you are using the dishmachine the way it was designed to work:
1. Ensure that the water temperatures match those listed on the machine data plate.
2. Ensure that all strainers are in place before operating the machine.
3. Ensure that all wash and/or rinse arms are secure in the machine before operating.
4. Ensure that drains are closed/sealed before operating.
5. Remove as much soil from dishes by hand as possible before loading into racks.
6. Do not overfill racks.
7. Ensure that glasses are placed upside down in the rack.
8. Ensure that all chemicals being injected to machine have been verified as being at the correct concentrations.
9. Clean out the machine at the end of every workday as per the instructions in the manual.
10. Always contact Jackson whenever a serious problem arises.
11. Follow all safety procedures, whether listed in this manual or put forth by local, state or national codes/regulations.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 3: PREVENTATIVE MAINTENANCE
PREVENTATIVE MAINTENANCE
37
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 3: PREVENTATIVE MAINTENANCE
38
LUBRICATION CHART FOR DRIVE GEAR
Note: The maintenance procedures detailed here are manufacturer’s instructions for the WINSMITH brand of gear reducer
that is installed on the rack conveyors covered in this manual.
Ambient Temperature -30 - 15°F 16 - 50°F 51 - 95°F 51 - 95°F 96 - 131°F 96 - 131°F
Final Stage Worm Speed1up to 2000 FPM up to 2000 FPM up to 450 FPM above 450 FPM up to 450 FPM above 450 FPM
ISO Viscosity Grade 220 460 680 460 680 460
AGMA Lubricant No. 5S #7 Compounded #8 Compounded #7 Compounded 8S 7S
Mobil SHC 630 600W Super Extra Hecla Super 600W Super SHC 636 SHC 634
Cylinder Cylinder
American Lubricants SHC-90W AGMA #7 Gear Oil AGMA #8 Gear Oil AGMA #7 Gear Oil N/A N/A
Castrol Tribol 800/220 Tribol 1105-7C Tribol 1105-8C Tribol 1105-7C Tribol 800/680 Tribol 800/460
Chevron Tegra 220 Cylinder Oil W460 Cylinder Oil W680 Cylinder Oil W460 Tegra 680 Tegra 460
Conoco Syncon R & O Inca Oil 460 Inca Oil 680 Inca Oil 460 N/A Syncon R & O
220 460
Exxon (Esso) Teresstic SHP220 Spartan EP 460 Spartan EP 680 Spartan EP 460 Teresstic SHP 680 Teresstic SHP
460
Fiske Brothers SPO-MG SPO-277 SPO-288 SPO-277 N/A N/A
Shell Omala RL 220 Valvata J 460 Valvata J 680 Valvata J 460 Omala RL 680 Omala RL 460
Texaco Pinnacle 220 Vanguard 460 Vanguard 680 Vanguard 460 Pinnacle 680 Pinnacle 460
(1) The sliding velocity in feet per minute (FPM) for standard ratios is determined by multiplying the speed of the worm in RPM by
the factor from the table below. For selecting proper lubricant, use the speed of the worm in the final stage (input RPM divided by
the first stage ratio).
Note: The maintenance procedures detailed here are manufacturer’s instructions for the WINSMITH brand of gear reducer that
is installed on the rack conveyors covered in this manual.
Lubrication & Maintenance:
Factory filling - WINSMITH speed reducers are oil filled at the factory to the proper level for the standard mounting position that you
will find it in on the unit. The oil level should be checked and adjusted (if necessary) prior to operation, using the oil level plug provided
and while the unit is oriented in its operating position.
Ambient temperature - If the operating ambient temperature is other than 51 - 95°F, then refer to the lubrication chart and refill the unit
with the correct grade based on actual ambient temperature and operating speed. See “Oil changing” below for additional information.
Oil changing - When changing the oil for any reason, it should be remembered that oils of various types may not be compatible.
Therefore, when changing to a different oil, it is recommended that the housing be completely drained and thoroughly flushed with a
light flushing oil prior to refilling with the appropriate lubricant. The oil level should be rechecked after a short period of operation and
adjusted, if necessary. When changing double reduction models, each housing should be drained and filled independently, even though
there may be a common level.
Initial oil change: The new oil in a speed reducer should be changed at the end of 250 hours of operation. This is equivalent
to 30 days of operation for 8 hours per day; 15 days of operation for 16 hours per day, or 10 days of operation for 24 hours per day.
Subsequent oil changes: Under normal conditions, after the initial oil change, the oil should be changed after every 2500
hours of operation, or every 6 months, whichever occurs first. Under severe conditions (rapid temperature changes, moist, dirty or cor-
rosive environment) it may be necessary to change oil at intervals of one to three months. Periodic examination of oil samples taken
from the unit will help establish the appropriate interval.
Synthetic oils: Synthetic lubricants can be advantageous over mineral oils in that they generally are more stable, have a much
longer life, and operate over a wider temperature range. These oils are appropriate for any application but are especially useful when
units are subjected to low start-up temperatures or high operating temperatures. However, continuous operation above 225°F may cause
damage to seals or other components. It is recommended that the initial oil be changed or filtered after the first 1500 hours of operation
to remove metal particles that accumulate during break-in. Subsequent oil changes should be made after 5000 hours operation if units
are operating in a clean environment. This can be extended to 10,000 hours if using new reformulated Mobil SHC lubricants (orange in
color) and the lubricant remains free of contamination over this period. See comments under “Subsequent oil changes” for discussion
of severe ambient conditions.
Long term storage or infrequent operation: If a speed reducer is to stand idle for an extended period of time, either prior to
installation or during use, it is recommended that the unit be filled completely with oil to protect interior parts from rust and corrosion due
to internal condensation. Be sure to drain the oil to the proper level before placing the speed reducer in service.
Grease fittings: Some units are equipped with grease fittings to lubricate bearings not adequately lubricated by the oil splash.
These fittings must be lubricated every 3 - 6 months depending on operating conditions. bearing greases must be compatible with the
type of gear lubricant being used (i.e. mineral, synthetic, food grade, etc.). For mineral oils, use a high quality lithium base NLGOI #2
bearing grease. For synthetic oils, use a synthetic bearing grease such as Mobil Synthetic Universal grease, Mobilith SHC 100 or a suit-
able equivalent. For food grade lubricants, use Chevron FM grease, NGLI 2, or equivalent.
Low input speeds (under 1600 RPM): When input speeds are less than 1600 RPM, grease fittings will be required to lubri-
cate any bearings not partially covered by the normal oil level.
Oil temperature: Speed reducers in normal operation can generate temperatures up to 200°F depending on the type of reduc-
er and the severity of the application 9loading, duration of service, ambient temperatures). Excessive oil temperatures may be the result
of several factors including overloading, overfilling, underfilling or inadequate cooling.
Nominal Ratio
Size 5 7.5 10 15 20 25 30 40 50 60 80 100
920 0.347 0.263 0.225 0.216 0.202 0.191 0.215 0.200 0.188 0.182 0.164 0.161
Lubricant selections are provided by the lubricant manufacturer based on AGMA recommended viscosity grades. Viscosity grades are
based on Lubrication Standard ANSI/AGMA 9005-D94.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 3: PREVENTATIVE MAINTENANCE
DRIVE MOTOR GEAR REDUCER PREVENTATIVE MAINTENANCE
39
40
SECTION 4:
TROUBLESHOOTING SECTION
WARNING: Inspection, testing and repair of electrical equipment should be performed only by qualified service per-
sonnel. Certain procedures in this section require electrical tests or measurements while power is applied to the
machine. Exercise extreme caution at all times. If test points are not easily accessible, disconnect power, attach
test equipment and reapply power to test. When replacing electrical parts, disconnect power at source circuit breaker
Problem: Nothing on dishmachine operates. The power switch is ON and the power indicator light is OFF.
1. Machine is not wired correctly to incoming power source. Have an electrician verify wiring.
2. Machine circuit breaker is tripped. Reset the circuit breaker. If it trips again, contact an electrician to verify the machine amp
draw.
3. Service breaker is tripped. Reset the service breaker. If it trips again, contact an electrician to verify the machine amp draw.
Problem: Machine will not fill. The power switch is ON and the power indicator light is ON.
1. No water supply to machine. Verify that water lines have been connected to the machine.
2. Dishmachine doors are not closed. Close doors completely.
3. Incoming water solenoid valve damaged/faulty. Verify that the valve is operating. If not, replace.
4. Tank floats faulty. Verify the wiring of the floats. Verify that no debris is jamming the floats. Replace if necessary.
Problem: Machine fills, but fill is weak.
1. Low incoming water pressure. Verify that incoming water pressure during fill is 20 ±5 PSI.
2. Incoming water solenoid is clogged. Verify that debris is not entrapped in valve. If so, remove debris.
Problem: Low wash tank temperature.
1. Low incoming water temperature. Verify that the incoming water temperature matches what is indicated on the machine data
plate.
2. Heater not energizing. Verify that the wash tank heater is operating. If not, replace.
3. Low incoming voltage. Have an electrician verify that the power coming to the machine is the same as indicated on the data
plate.
Problem: Low wash arm pressure, poor spray pattern.
1. Clogged wash arm nozzles. Verify that nozzles are not clogged with debris. If so, remove debris.
2. Clogged wash tank or wash pump strainers. Clean out strainers if necessary.
3. Worn wash pump impeller. Verify status of impeller, replace if necessary.
Problem: Low prewash arm pressure, poor spray pattern.
1. Clogged prewash arm nozzles. Verify that nozzles are not clogged with debris. If so, remove debris.
2. Clogged prewash tank or prewash pump strainers. Clean out strainers if necessary.
3. Worn prewash pump impeller. Verify status of impeller, replace if necessary.
Problem: Inadequate rinse.
1. Low incoming water pressure. Verify that incoming water pressure during fill is 20 ±5 PSI.
2. Incoming water solenoid is clogged. Verify that debris is not entrapped in valve. If so, remove debris.
Problem: Pawl bar moves with no load, but does not move when loaded.
1. Clutch on drive assembly is out of adjustment. Adjust as required.
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 4: TROUBLESHOOTING
COMMON PROBLEMS
41
Problem: Pawl bar does not move.
1. Failed or broken overload spring. Replace spring if necessary.
2. No power to the drive motor/failed drive motor. Verify power and wiring connections to the motor. If necessary, replace the
motor.
3. Pawl bar not properly installed. Verify that the pawl bar is installed correctly.
Problem: Racks go through the machine, but results are poor.
1. Verify that detergent is being dispensed into the machine at the appropriate quantities for the water volume. If not, get deter-
gent to appropriate level and review results of washing ware.
2. Clogged strainers/scrap basket. Clean out strainers and scrap basket and replace.
3. Ware not being properly prescrapped. Review paragraph entitled “Ware Preparation” in Operating Instructions.
4. Wash or rinse arms missing end plugs or caps. Verify and replace as required.
5. Low tank heat.
6. Inadequate rinse.
7. Incorrect voltage coming to the machine. Verify that the voltage matches that on the machine data plate.
8. Wash pump cavitation due to low water level. Verify that the drains are shut and that the water level is correct.
Problem: Spotting of silverware, glasses and dishes.
1. Incorrect final rinse temperature. Verify that the rinse water temperature matches that which is listed on the machine data
plate.
2. Clogged wash and/or rinse nozzles and arms. Remove the arms and verify that they and their nozzles are from debris.
3. Excessively hard water. Install a water softener to reduce hardness.
4. Loss of water pressure due to clogged/obstructed wash pump. Turn the power off to the machine at the source. Drain the
wash tank of water and verify that the pump intake is free from debris.
5. Improper scrapping procedures. Review the paragraph entitled “Ware Preparation” in Operating Instructions.
6. incorrect detergent/chemical concentrations. Verify that the detergent/chemical concentrations are correct for the associat-
ed water volume.
TORQUE SETTINGS
When replacing components either in the control box or the heater box area, the manufacturer has suggestions on how
much to torque the screws and nuts used in securing items to the machine. Refer to the table below for the torque specifica-
tions:
ITEMS TORQUE SPEC
Relays 16 In/lbs
Heater Contactor 35 In/lbs
Heater Nuts 16 In/lbs
Terminal Block 50 In/lbs
AJ-44T Series Technical Manual 7610-003-07-21
Issued: 03-21-2006 Revised: N/A
SECTION 4: TROUBLESHOOTING
COMMON PROBLEMS
42

Navigation menu
