Jakks Pacific 28692R RC-XD VIDEO SURVEILLANCE VEHICLE User Manual 28692 Rumble RC Car IS US R1
Jakks Pacific (HK) Ltd. RC-XD VIDEO SURVEILLANCE VEHICLE 28692 Rumble RC Car IS US R1
Users Manual
32
1.5V “AA”, LR6
-+
1.5V “AA”, LR6
1.5V “AA”, LR6
1.5V “AA”, LR6
-+
1.5V “AA”, LR6
1.5V “AA”, LR6
-+
-
+
-+
-
+
1.5V “AA”, LR6
-
+
1.5V “AA”, LR6
-
+
1.5V “AA”, LR6
-
+
1.5V “AA”, LR6
-
+
1.5V “AA”, LR6
-
+
+
1.5V “AA”, LR6
-

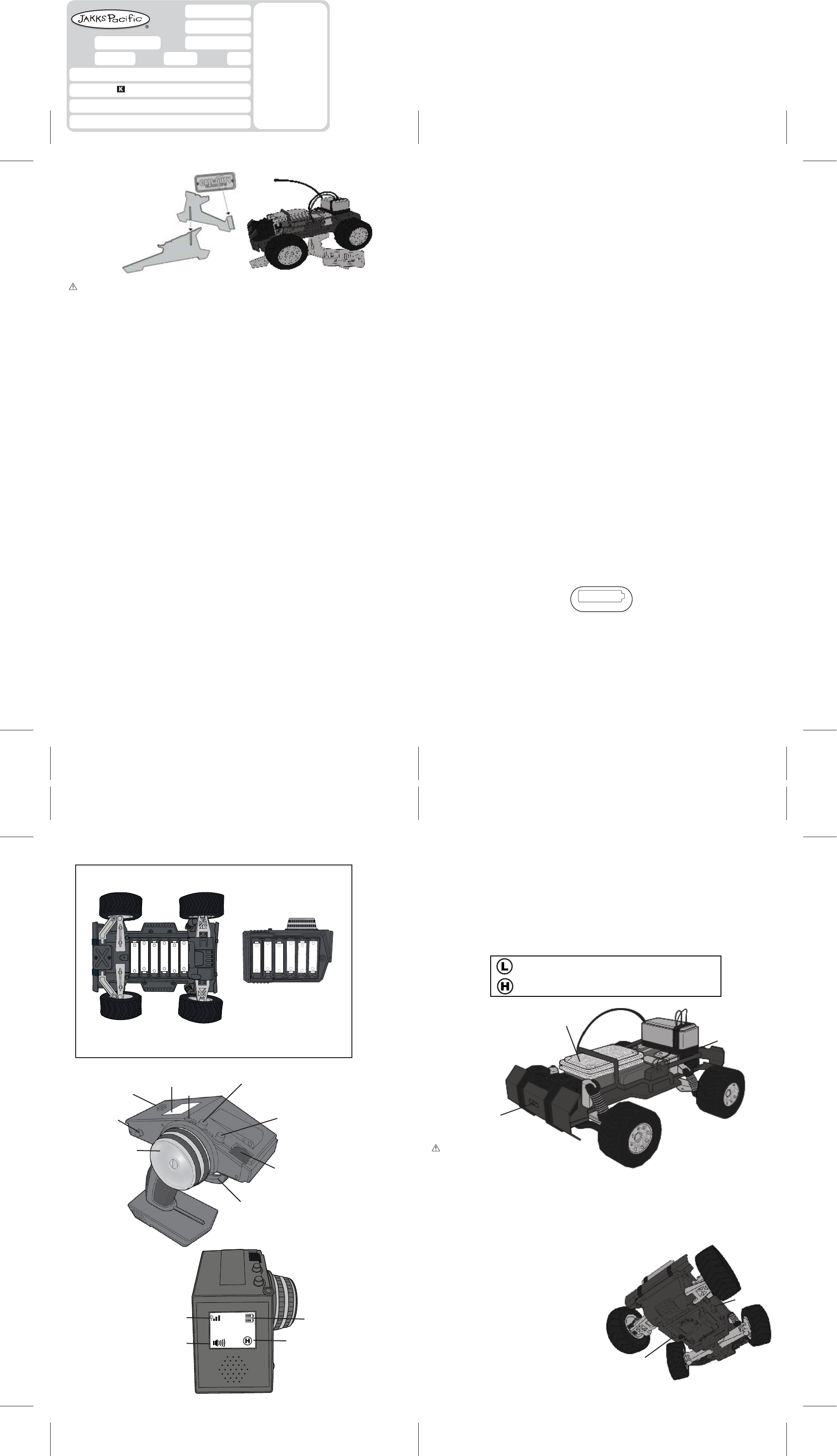

VEHICLE
BATTERY INSTALLATION
Requires 6 AA (LR6) alkaline batteries Requires 6 AA (LR6) alkaline batteries
TRANSMITTER
INSTRUCTIONS
STEERING TRIM
VOLUME / DISPLAY
SPEED / PAIRING
LCD SCREEN
ON/OFF
STEERING
WHEEL
(LEFT / RIGHT)
Press button to adjust 0-4 level (0 = no sound).
Push and hold the volume key for 3 seconds
to power on/off the display.
Press button to adjust HIGH or LOW Speed Mode.
Default setting is LOW.
THROTTLE TRIGGER
(FORWARD / REVERSE)
LED
SPEAKER
LCD SCREEN
TRANSMITTER
RC-XD VIDEO
SURVEILLANCE
VEHICLE
CAUTION
TROUBLESHOOTING
Indicates volume level 0-4
Antenna signal strength
VEHICLE OPERATION
microphone
lens
LED
ON/OFF
1. Never steer into other objects. Impact may damage vehicle.
2. Never drive through water or mud as vehicle is not waterproof.
3. Never drive vehicle in parking lots, near roads, pets or cars.
4. Never touch the rear wheels or pick up the vehicle while it is in motion.
5. Always keep fingers, hair, and eyes away from the wheels while the vehicle is in the “ON” position.
6. Always store vehicle in a cool, dry place. Never store near heat or direct sunlight.
Recommended for video monitor usage.
Recommended for approaching targets.
LOW SPEED MODE
HIGH SPEED MODE
Battery Icons (V for Vehicle /
T for Transmitter) - the icons
will display in Red color when
battery is low.
H or L appears for 3 seconds
when the Speed button is
pressed to switch between
HIGH and LOW Speed Mode.
1. Turn on the power for both the vehicle and the transmitter.
2. Test the transmitter and vehicle by turning the transmitter steering wheel and watching to see if the vehicle's wheels turn as
well. If not, see PAIRING information in troubleshooting section below.
3. Apply gentle pressure to the throttle by pulling the trigger back to move the vehicle forward. Apply more pressure to the throttle
to increase speed. Slow or reverse the vehicle by reversing the direction of pressure on the throttle trigger. The default speed
setting is LOW. NOTE: If the vehicle does not drive straight when no steering input is given, adjust the front wheel angle using
the steering trim.
4. Steer the vehicle by turning the steering wheel on the transmitter in the direction you wish the vehicle to go. Slight changes to
the wheel will result in gentle turns, while sharp twists of the steering will result in sharp turns.
Push and hold the volume key for 3 seconds
to power on/off the display. In HIGH Speed
mode, it is recommended to turn LCD
screen off.
T
V
❚ PAIRING - Press and hold the Speed/Pairing button until the LED flashes on the transmitter. Then, using a small point (such as a
paper clip), press the Pairing button on the bottom of the vehicle to complete the pairing process. The pairing information will be
stored in the vehicle's memory automatically and will remain even after it is turned off.
❚ If the vehicle will not operate or slows down, or the video screen starts to fade,
batteries may need to be replaced.
❚ If the vehicle is not traveling in a straight line, adjust the front
wheel alignment using the steering trim.
❚ If the vehicle moves erratically without the transmitter, or the
LCD screen begins to flicker, there may be interference with the
signal, the vehicle is out of range, or the batteries are running
low. To fix this, try: 1) moving to a new location, 2) holding the
transmitter higher above the ground, 3) moving closer to the
vehicle, or 4) replacing the batteries.
❚ Direct sunlight into the vehicle’s camera may cause the
transmitter’s LCD screen to turn white. Move the camera’s angle
away from the sun to restore the LCD screen.
❚ If the LCD screen is flickering a lot, move to a new location.
PAIRING
BUTTON
Place car on stand as shown.
Front CoverBack Cover
InsideInside
Item No.:
Description:
Color(s):
Dimension (Width x Height x Depth):
Primary Display Panel (PDP) Size:
Product Line:
Studio:
Customer: Vendor:
Activision RC Car
In-house
Rumble Car - Instruction
11”(W) x 8.5”(H) - with one folding
13”(W) x 22”(H)
28692/29431 Version: US
Early Light
Revision: 01
Minimum Packaging Spec.:-
Coating: xBlack ONLY
12 AA’s Required
(Not Included)
Ages 8+
RC-XD VIDEO
SURVEILLANCE VEHICLE
MANUAL
COLLECTOR STAND
ASSEMBLY
IMPORTANT SAFETY INFORMATION / BATTERY WARNINGS AND PROPER USE
Locate battery compartments on bottom of vehicle and transmitter. Using a Phillips screwdriver,
remove the screws and battery door. Install batteries. Replace the battery cover and the screws.
For better performance, high capacity rechargeable nickel-metal hydride (NiMH) batteries are
recommended.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for complianace could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio / TV technician for help
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
WARNING: Battery acid leakage can cause personal injury and cause damage to the product and surrounding property. If battery
leakage occurs, thoroughly wash any affected skin, making sure to keep battery acid away from eyes, ears, nose and mouth. Immediately
wash any clothing or other surface that comes in contact with leaked battery acid. Leaking batteries may make "popping" sounds. Dispose
according to local, state and federal laws.
TO AVOID BATTERY PROBLEMS:
NEVER mix old and new batteries or different brands of batteries.
NEVER mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.
NEVER dispose of batteries in fire, as they may leak and explode.
NEVER disassemble, modify, or attempt to short circuit the battery compartment.
NEVER leave batteries in the product for long periods (a week or more) of non-use.
NEVER leave the product on after the batteries have lost their charge.
NEVER put batteries in backwards by placing the negative (-) battery poleinto the positive (+) receptor slot.
ALWAYS have an adult install and change the batteries.
ALWAYS remove exhausted batteries from toy.
ALWAYS have an adult install batteries consistent with installation instructions.
ALWAYS use batteries according to the instructions.
Non-rechargeable batteries are not to be recharged.
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the toy.
The supply terminals are not to be short-circuited.
Only batteries of the same or equivalent type as recommended are to be used.
Note: If you reverse vehicle direction abruptly, the motor will pause momentarily (for ~ 1 second) to prevent damage.
90 DAY LIMITED WARRANTY
IMPORTANT NOTICE TO CONSUMER: This 90 DAY LIMITED WARRANTY applies to the original product purchaser, provided the
product: 1) was purchased from an authorized ACTIVISION distributor/dealer/retailer, and 2) is returned at your expense,
postage pre-paid and insured, along with the original dated sales receipt to the address noted below. Please save a copy of
your original sales receipt, as the original receipt will not be returned to you. If you return the product to us without the
original dated sales receipt, this warranty coverage will not apply. If the product is determined by JAKKS™ to be defective and
returned to JAKKS™ within the 90 day warranty period, we will (at our option) repair or replace it. Return shipment to you
may take up to 6 weeks, depending upon your location. If your product is repaired or replaced, it will be warranted for the
longer of the original warranty or for 30 days after warranty service.
SCOPE OF LIMITED WARRANTY: The product is warranted to be: a) tested and inspected before shipment, and b) free of
defects in material and workmanship for 90 days from date of purchase. If a covered defect occurs within the warranty period,
then at our sole option, we will repair or replace the product or provide you with another product of equal value.
WHAT IS NOT COVERED BY LIMITED WARRANTY: THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN MODIFIED OR
REPAIRED BY USER OR OTHERS OR IF IT HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, IMMERSION IN WATER,
NEGLECT, ABUSE, MISUSE, BATTERY LEAKAGE, IMPROPER BATTERY INSTALLATION, UNAUTHORIZED SERVICE, LOSS OF
PARTS, WEATHER, ACTS OF GOD, ANY ACTION OR OMISSION WHICH CONSTITUTES A DEVIATION FROM THE OPERATING
INSTRUCTIONS, OR ANY OTHER CAUSES NOT ARISING OUT OF DEFECTS IN WORKMANSHIP OR MATERIALS. EXCLUSIONS
FROM LIMITED WARRANTY: THIS WARRANTY IS EXCLUSIVE OF AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED
WARRANTIES RELATED TO THIS PRODUCT, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARISING FROM POSSESSION, USE, OR
MALFUNCTION OF THIS PRODUCT ARE EXCLUDED BOTH FOR PROPERTY DAMAGE AND PERSONAL INJURY TO THE
EXTENT LEGALLY PERMITTED.
ADDITIONAL LEGAL RIGHTS: This warranty provides specific legal rights. You may have other or different rights in your state
or country.
QUESTIONS OR COMMENTS: If you experience product difficulties or have questions or comments, you may contact our
Consumer Relations department as follows:
Phone: 877-875-2557 (toll-free, North America only) or 909-594-7771 x560 (Mon- Fri, 7:30AM-4:30PM Pacific/GMT -8).
Mail: JAKKS Consumer Relations, 21749 Baker Parkway, Walnut, California USA 91789. Email: consumers@jakks.com
WHEN WRITING TO US: Please include: 1) product name; 2) item number; 3) purchase date; 4) description of the problem
being experienced; and 5) your name, address and phone number. Additionally, if eligible under the warranty and so advised
by JAKKS Consumer Relations, also include the defective product and the ORIGINAL dated sales receipt evidencing product
purchase. Please retain a copy of your receipt.
© 2010 Activision Publishing, Inc. Call of Duty and Activision are registered trademarks of Activision Publishing, Inc.
INCLUDES: 1 CALL OF DUTY®: BLACK OPS GAME DISC, 1 RC-XD VIDEO SURVEILLANCE VEHICLE, 1 TRANSMITTER and 1
COLLECTOR STAND
Contents may vary in style, color, shape and decoration from images shown.
