Janam Technologies
Copyright 2008 Janam Technologies LLC. All rights reserved.
XM Series Quick Start Guide
Janam Technologies LLC assumes no responsibility for any damage or loss resulting from the use of this guide. Janam
Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise through the use of
this product. Janam Technologies LLC assumes no responsibility for any damage or loss caused by deletion of data as
a result of malfunction, dead battery or repairs. Be sure to make backup copies of all important data on other media
to protect against data loss.
Important: Please read the End User Software License Agreement with this product before using the accompanying
software program(s). Using any part of the software indicates that you accept the terms of the End User Software
License Agreement.
XM Series, XM60 (XM60N-1NCHBMOO, XM60W-1NCHBMOO), Janam and the Janam logo are trademarks of Janam
Technologies LLC. Other product and brand names may be trademarks or registered trademarks of their respective
owners.
1
XM Series Quick Start Guide
To help you get started with your XM Series mobile computer, this guide features:
- Hardware Overview
- Getting Started
- Regulatory
For additional product details, visit www.janam.com
For Microsoft® Windows® CE software updates and information, visit www.microsoft.com.
Content and Additional Resources
2
Janam Technologies

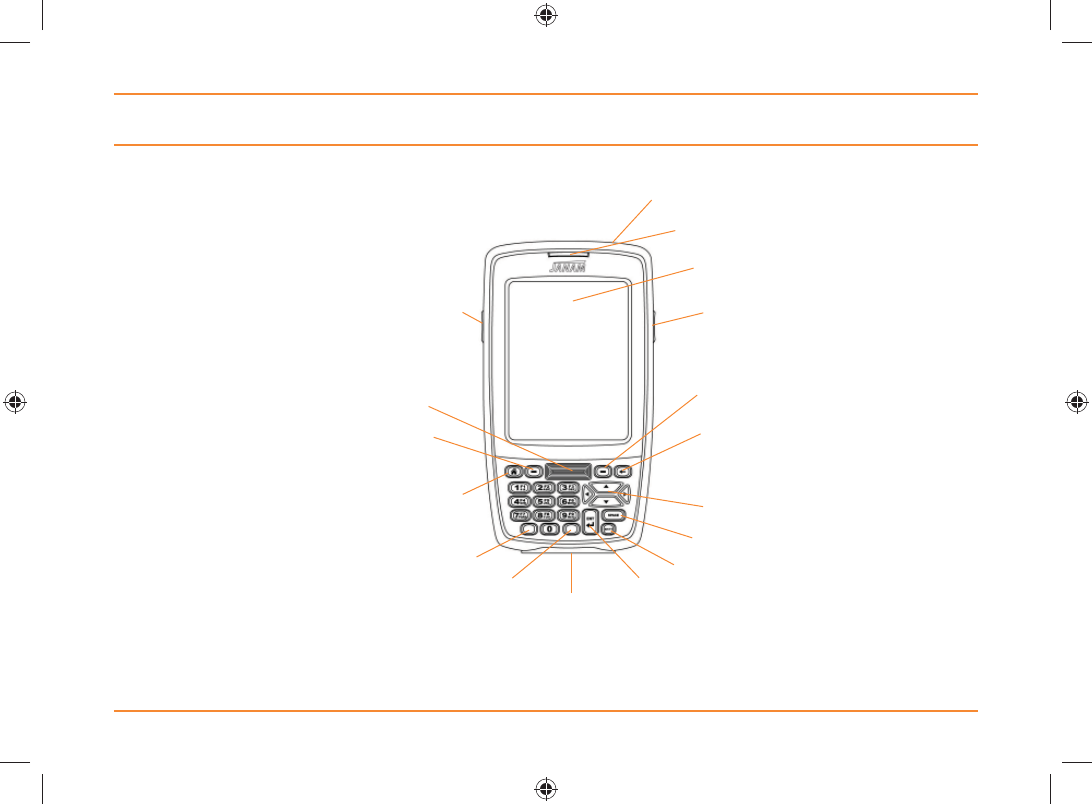

Hardware Overview
1. Power
2. Indicator LED
3. LCD
4. Connector
5. Scan Trigger
6. Right Trigger
7. Left Trigger
8. Navigation
9. Home
10. Enter
11. Programmable
12. Function
13. Backspace
14. Alpha/Numeric Shift
15. Space
16. Shift
5
8
9
6
4
7
10
1
2
3
12
11 13
15
16
14
12
3
XM Series Quick Start Guide
Hardware Overview

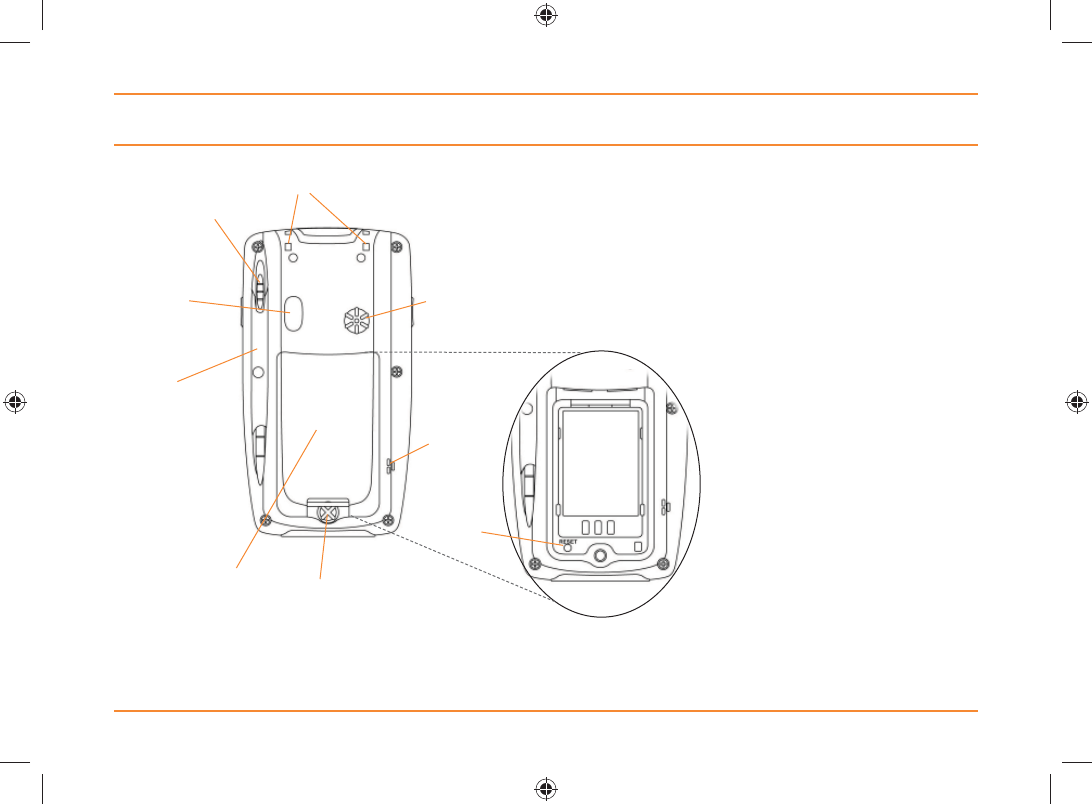

1. Battery Door
2. Battery Screw
3. Reset
4. Microphone
5. Speaker
6. IrDA Window
7. Stylus
8. Stylus Slot
9. Handstrap Connector
7
4
2
3
56
8
9
1
Battery Compartment
4
Janam Technologies
Getting Started
INSTALLING THE BATTERY
1. To access the battery compartment, turn the battery screw counterclockwise to open the latch and
remove battery cover.
2. Position the battery-lift strap, place the Lithium-ion battery and snap into place.
3. Replace the battery cover by positioning the top prongs fi rst and sliding cover into place.
Tighten battery screw by turning clockwise.
CALIBRATING THE SCREEN
The fi rst time the device is turned on, the Welcome Utility appears. To set up the device, follow the on-screen instructions
using the stylus to tap the exact center of each target
Note: If your XM Series device came pre-loaded with a custom software application, the Welcome Utility may not appear.
BRIGHTNESS/CONTRAST/BACKLIGHT ADJUSTMENT
To adjust LCD brigthness, press and hold the function key and adjust on-screen slider with the stylus, or use the left/
right arrow keys.
To adjust the LCD backlight, tap the following sequence: Start > Settings > Display > Backlight, then use controls
presented to adjust settings.
5
XM Series Quick Start Guide
Regulatory
6
The CE Mark on the product indicates that the system has been tested to and conforms with the provisions noted
within the 89/336/EEC Electromagnetic Compatibility Directive.
For further information, please contact:
Janam Technologies LLC
100 Crossways Park West, Suite 105
Woodbury, NY 11797
Janam Technologies shall not be liable for use of our product with equipment (i.e., power supplies, personal
computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
FCC and Canadian Compliance
XM Series mobile computers meet or exceed all applicable standards and have been manufactured to the highest level
of quality. To see the specifi c labels associated with RF terminals confi gurations, visit www.janam.com.
Warning: Changes or modifi cations to this unit not expressly approved by the party responsible for compliance could
void the user authority to operate the equipment.
XM Series Batch Terminal
Regulatory and Safety Approvals
Parameter Specifi cation
U.S.A. FCC Part 15 Subpart B
Canada ICES-003 Issue 4
European Community EN55022:1998+A1: 2000+A2:2003
EN55024:1998+A1: 2000+A2:2003
Australia AS/NZS CISPR 22:2004
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Janam Technologies 7
This Class B digital apparatus complies with the Canadian ICES-003.
Cet appareil numerique de la Class B est conforme a la norm NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouil-
lage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage
est susceptible de compromettre le fonctionnement du dispositif.
XM Series RF Terminals with 802.11b and/or Bluetooth
RF, Regulatory and Safety Approvals
Parameter Specifi cation
RF Approvals
U.S.A. FCC Part 15 Subpart C and Subpart B
Canada RSS 210 Issue 6
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
XM Series Quick Start Guide
8
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.
The user may fi nd the following booklet helpful: “Something about Interference.” This is available at FCC local regional
offi ces. Our company is not responsible for any radio or television interference caused by unauthorized modifi cations of
this equipment or the substitution or attachment of connective cables and equipment other than those specifi ed by our
company. The correction is the responsibility of the user. Use only shielded data cables with this system.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmit-
ter. To maintain compliance with the FCC RF exposure guidelines for body-worn operation, do not use accessories
that contain metallic components other than specifi ed by the manufacturer.
This Class B digital apparatus complies with the Canadian ICES-003.
Cet appareil numerique de la Class B est conforme a la norm NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouil-
lage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage
est susceptible de compromettre le fonctionnement du dispositif.
To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from win-
dows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
Janam Technologies 9
RF, Regulatory and Safety Approvals
Parameter Specifi cation
R&TTE EN 300 328 v1.6.1 (2004-11)
EN 301 489-1 v1.6.1 (2005-09)
EN 301 489-17 v1.2.1 (2002-08)
EN 60950-1:2001+A11
EN 50371:2002
Australia AS/NZS CISPR 22:2004
This product is marked with in accordance with the Class II product requirements specifi ed in the R&TTE Directive,
1999/5/EC. The equipment is intended for use throughout the European Community.
Care and Cleaning of Terminals
When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth.
The terminal can be cleaned with a damp cloth.
Waste Electrical and Electronic Equipment Information
This product has required the extraction and use of natural resources for its production. It may contain hazardous
substances that could impact health and the environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural
resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal
waste and invites you to use the appropriate separate take-back systems for product disposal.
If you need more information on the collection, reuse and recycling systems, please contact your local region waste
administration. You may also contact your supplier for more information on the environmental performances of this product.
XM Series Quick Start Guide
10
Battery Warning CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
Use only Janam approved batteries such as the BA-XP-1 and recharge batteries using only Janam approved chargers. Use only
easily accessible wall outlets that are easily reached with the length of the supplied power cables.
The standard charger PSC11R-050 provides an easy and convenient way to charge the device. You can purchase the charger
through an authorized dealer. Visit Janam’s website www.janam.com for information.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
GENERAL INFORMATION
1. Before using the standard charger, read all instructions and warnings.
2. Please retain this instruction for future reference.
WARNING
1. No user serviceable parts inside. Do not open the charger. The charger is not serviceable.
2. If found any damage or cracking on the enclosure of the charger, do not use the charger. This charger shall be disposed of.
3. Do not short-circuit the output terminals of the charger.
4. The charger is for indoor use only. Do not expose the charger to moisture or place the charger at location which could
subject to water spillage.
5. The standard charger is designed for use with this barcode scanner only. Do not use this charger for other purpose.
OPERATING INSTRUCTION
1. Insert the output plug of the standard charger to the barcode scanner before plug in the charger into ac power socket outlet.
2. Always unplug the standard charger from the socket outlet after use.
3. Ensure that your local power supply system complies with the technical data of the standard charger.
Janam Technologies 11
www.janam.com
Technology at Work.™
XM Series Quick Start Guide
