Janam Technologies XT100WA Mobile Computer User Manual

XT100 Android 6.0.1 User Manual

1

Enterprise Mobility

XT100 User Manual

For Android 6.0.1

PHONE & WLAN

FCC ID: UTWXT100WA / IC: 6914A-XT100WA

WLAN

FCC ID: UTWXT100WB / IC: 6914A-XT100WB

WCDMA/LTE feature is optional.

Some product options only include WLAN feature.

XT100 Android 6.0.1 User Manual

2

User Manual

Please note your phone is battery-embedded design with removable battery and battery cover. Unauthorized

personnel are strictly prohibited from disassembling the phone. Make sure to use only the power adapter (5V

2A Output AC/DC) that came with XT100.

In case your phone does not work as expected, you are strongly recommended to restart it by pressing and

holding the power button for at least 12 seconds until the startup screen appears. If your phone has

encountered a serious error and cannot be recovered, you should reset your phone to factory settings by using

the menu, either “Backup & Reset”, or “Factory Reset”. For more details, please refer to “Factory data reset”

section on page 42

Note: Please be cautious while performing the factory data reset. Because this will erase personalized

settings and data saved in your phone, such as SMS, Contacts, Music, etc.

Body-worn Operation

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume

levels for long periods. Exercise caution when holding your device near

your ear while the loudspeaker is in use.

Rev 01

XT100 Android 6.0.1 User Manual

3

Table of Contents

User Manual .......................................................................................................................................................................... 1

Table of Contents ................................................................................................................................................................. 3

Getting Started ...................................................................................................................................................................... 4

Major Parts ........................................................................................................................................................................ 4

Accessary .......................................................................................................................................................................... 6

Setup XT100 ..................................................................................................................................................................... 7

Charge XT100 ................................................................................................................................................................. 10

Turn On/Off XT100 ......................................................................................................................................................... 11

Hot swap the battery ...................................................................................................................................................... 12

Learning the basics ............................................................................................................................................................ 13

Use a keypad .................................................................................................................................................................. 13

Use a touch screen ........................................................................................................................................................ 15

Home Screen, Apps and Widget.................................................................................................................................. 17

Status & Notifications Icons .......................................................................................................................................... 21

Make a call ...................................................................................................................................................................... 23

Add to a contact .............................................................................................................................................................. 25

Send a message ............................................................................................................................................................. 26

Connect to your Wi-Fi network ..................................................................................................................................... 28

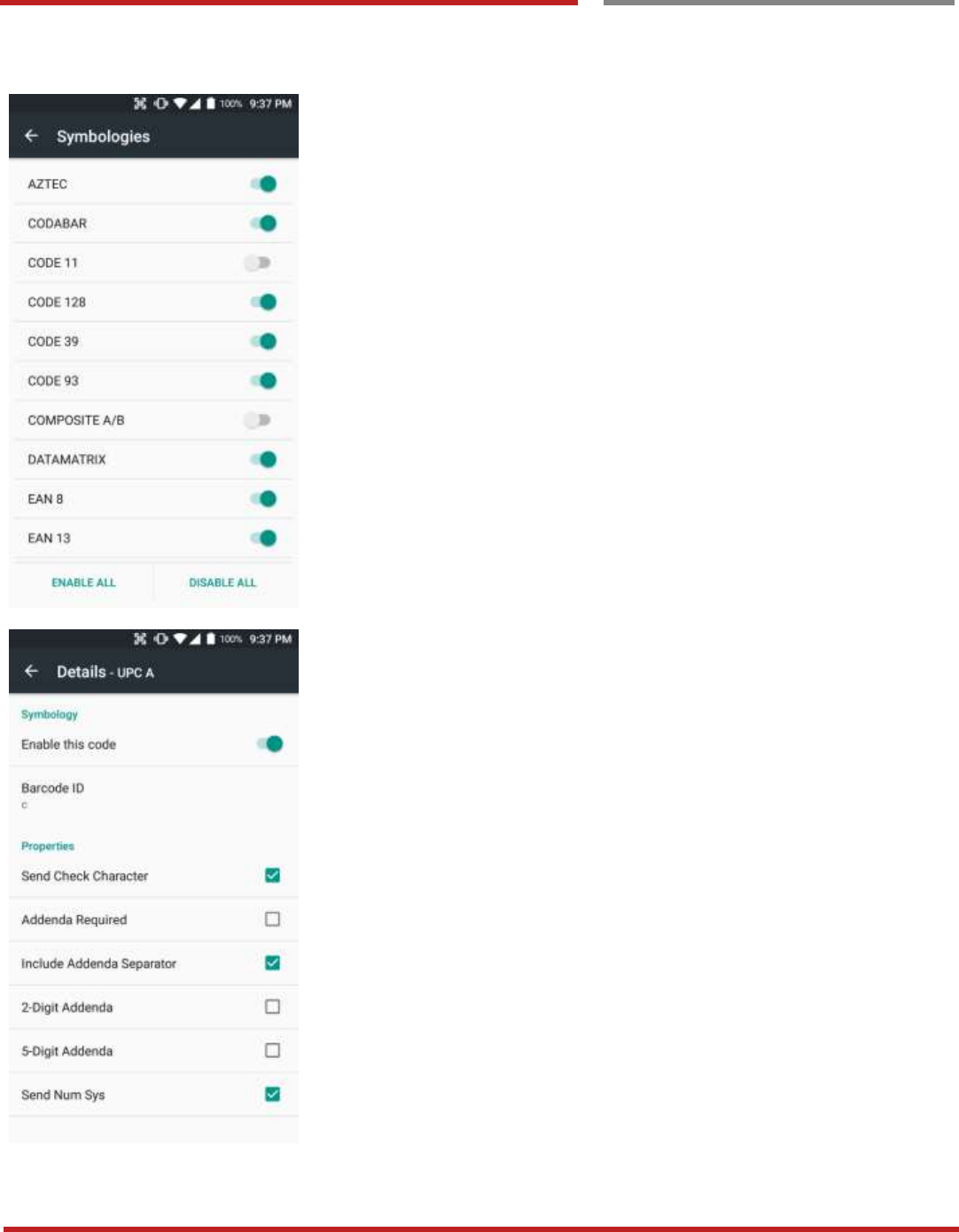

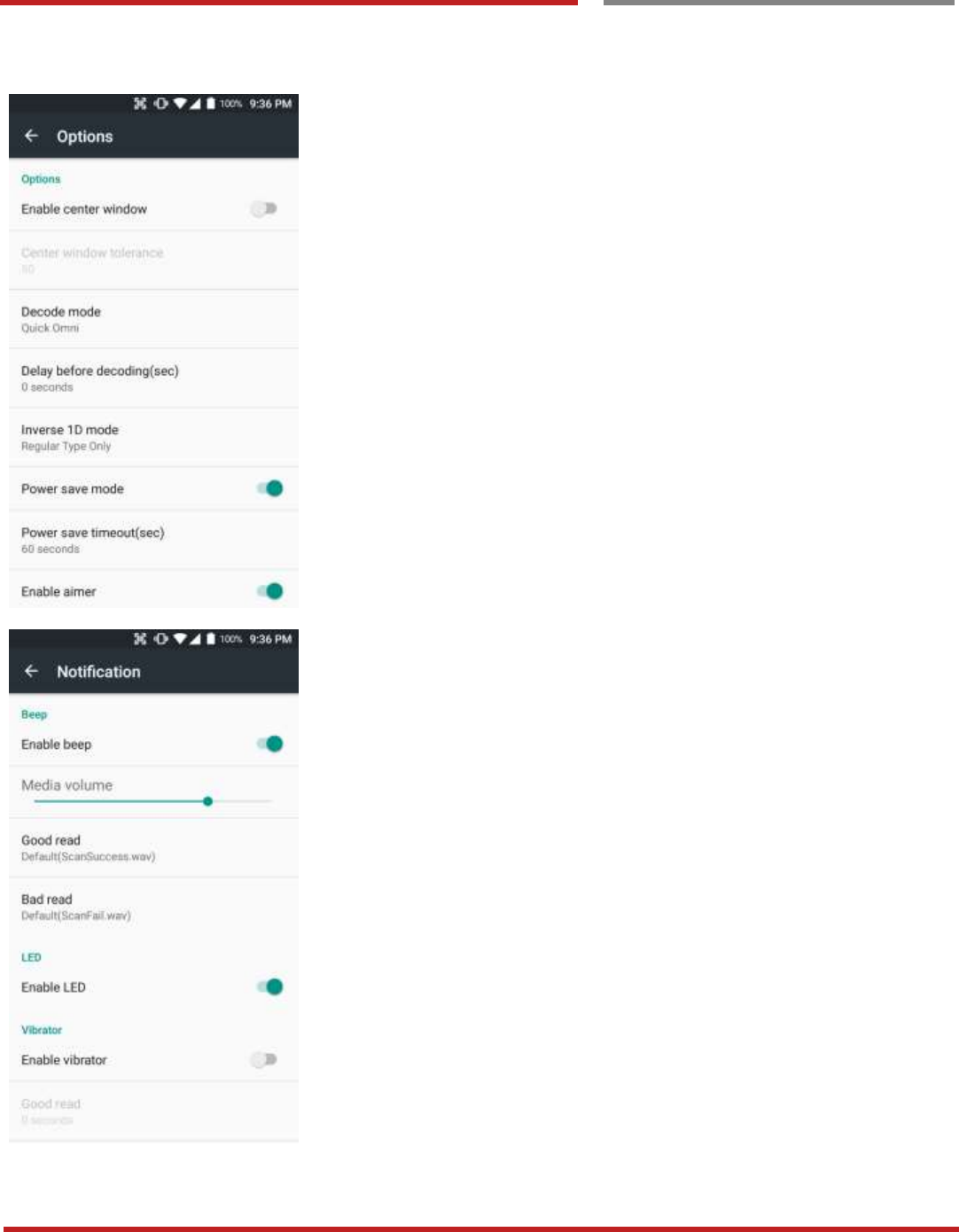

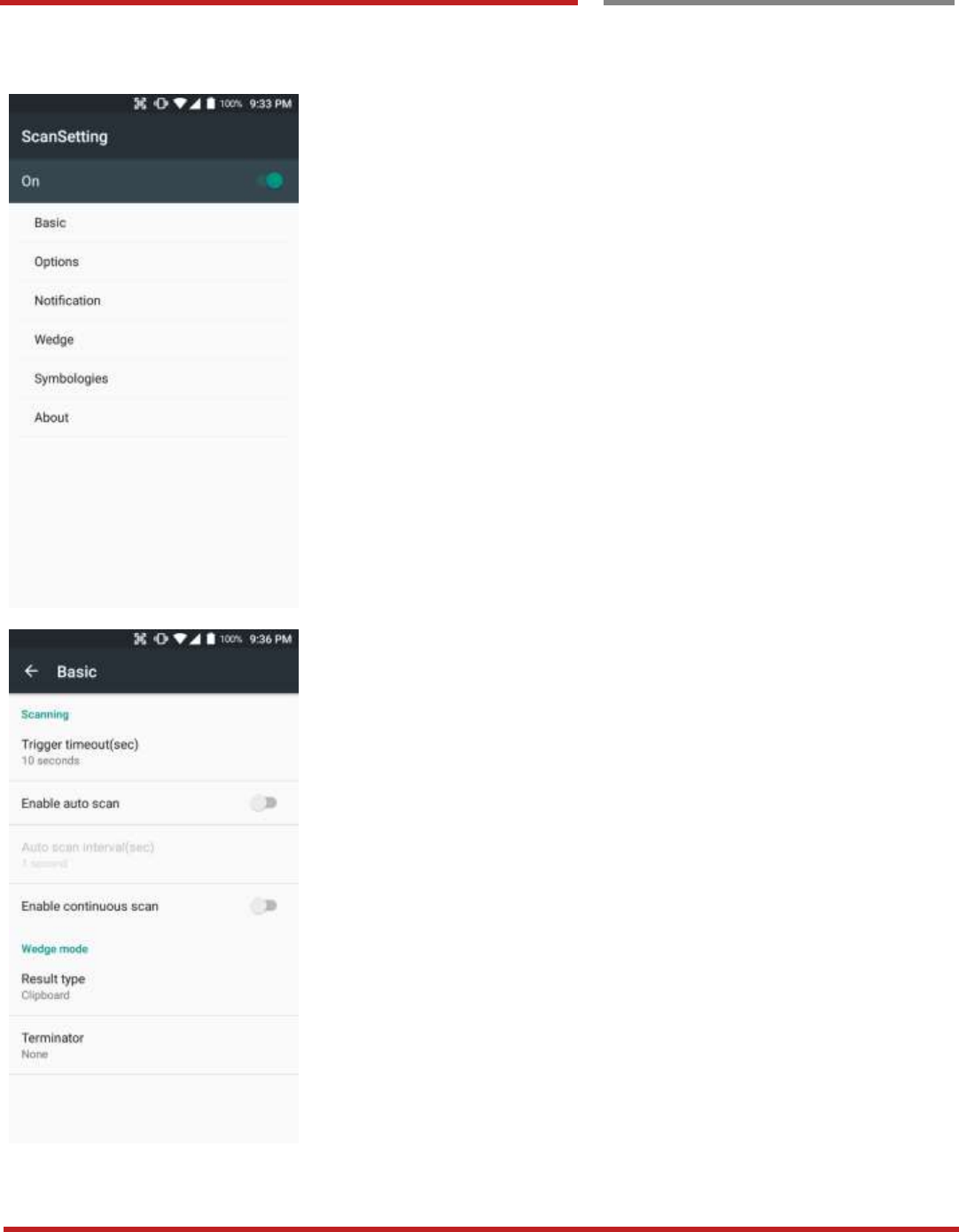

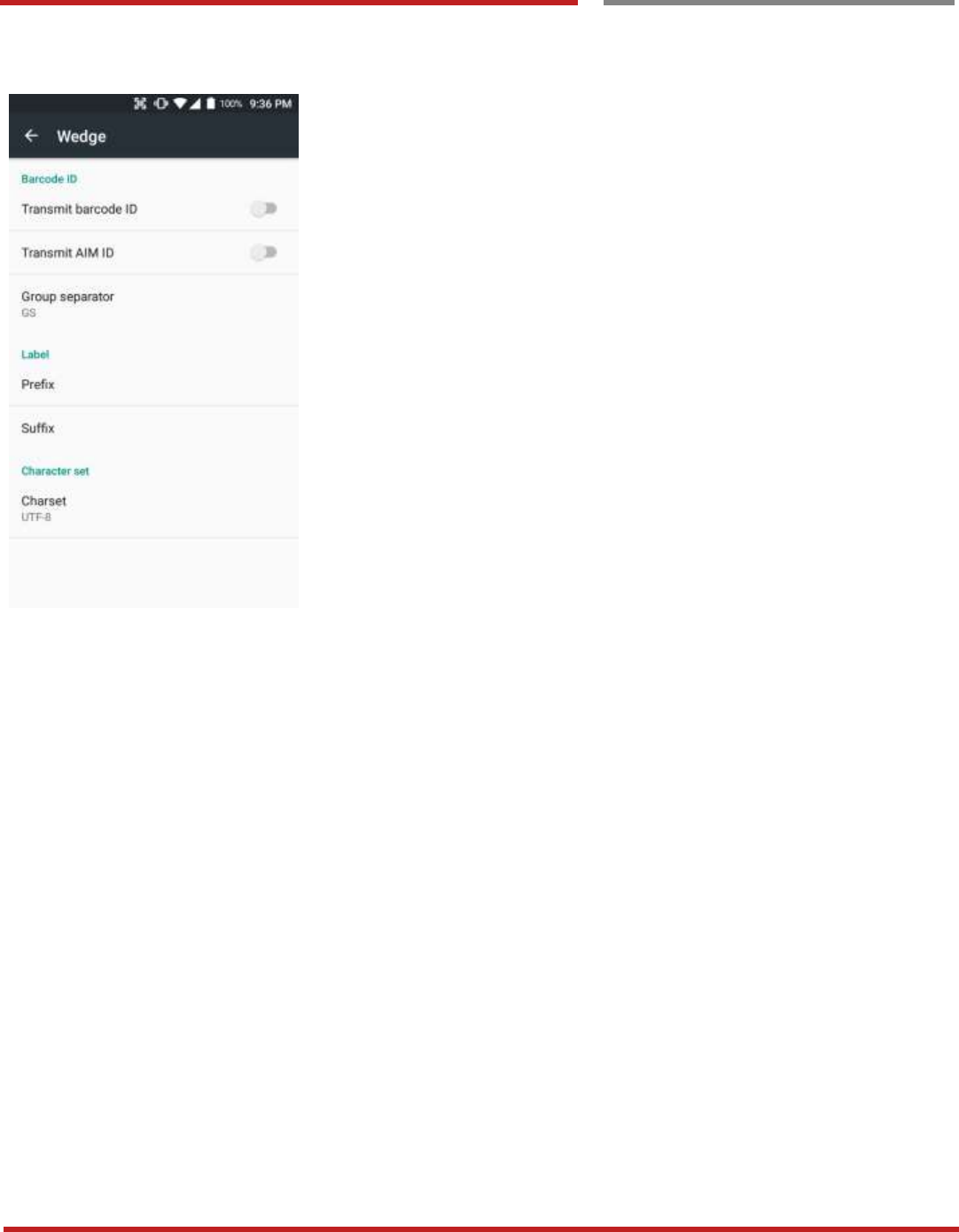

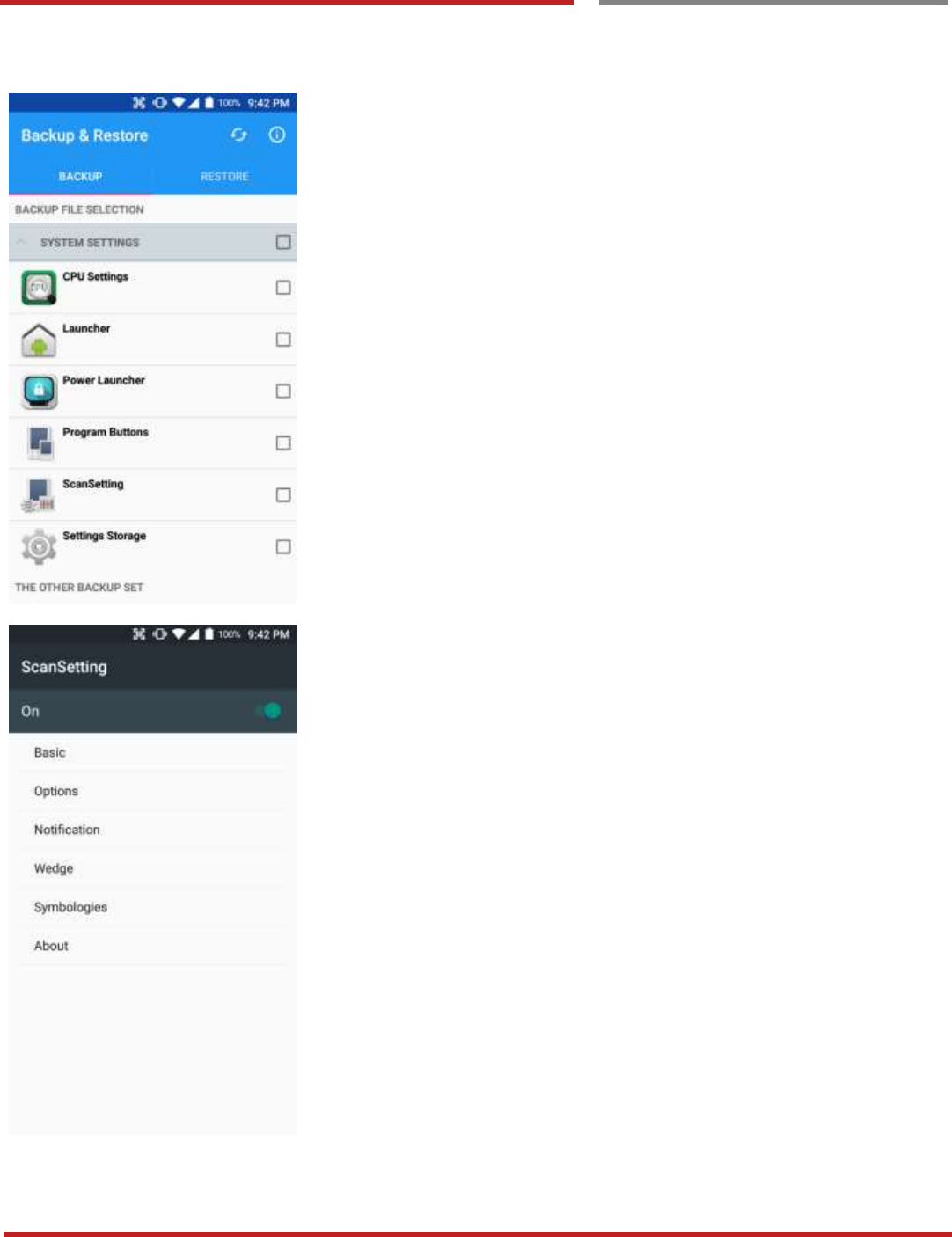

Scanner Settings ................................................................................................................................................................ 30

Use a Scanner ................................................................................................................................................................ 30

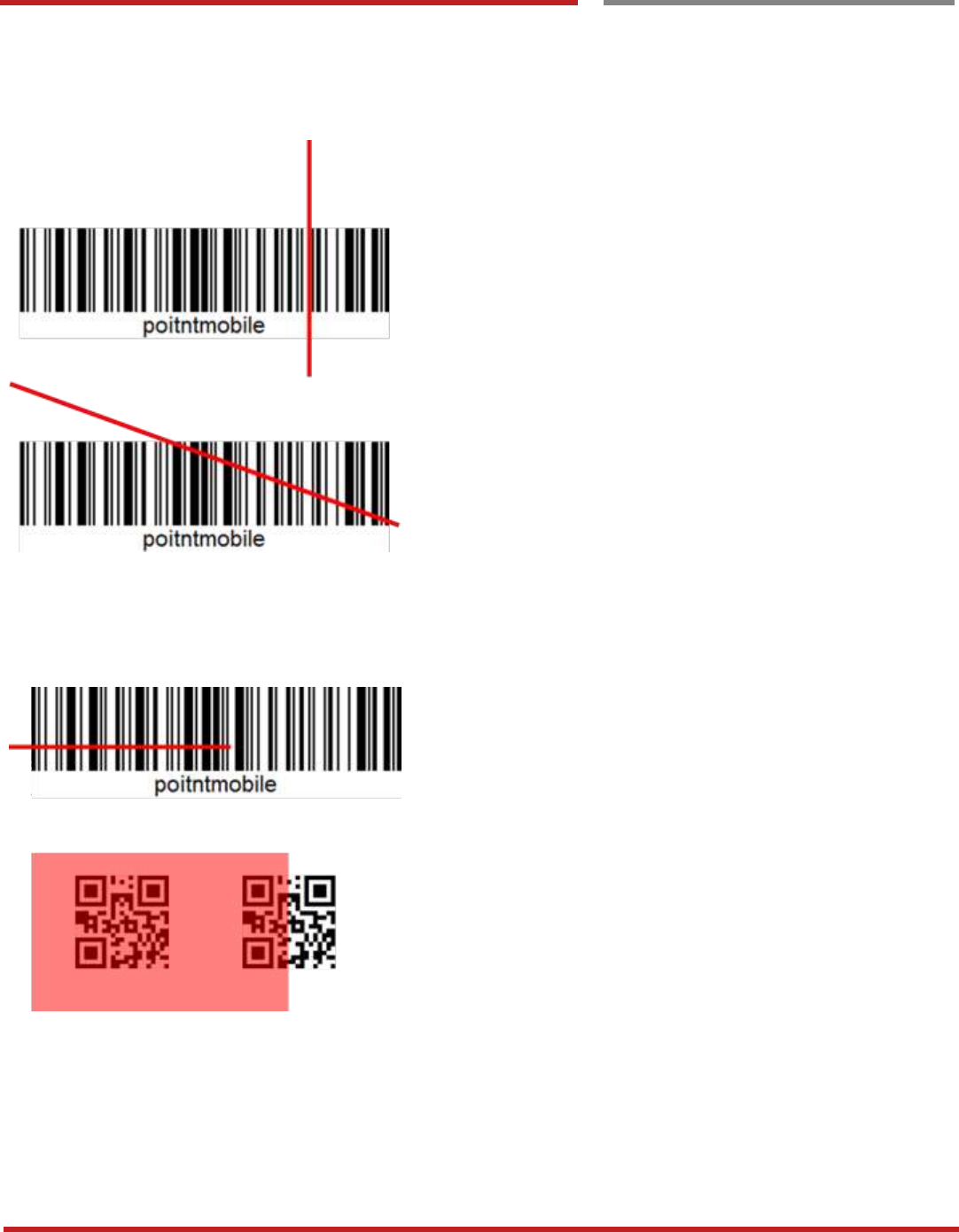

Scan a Barcode .............................................................................................................................................................. 37

OS Update ........................................................................................................................................................................... 39

OS Image update from a Storage ................................................................................................................................ 39

OS Image update from the FOTA ................................................................................................................................ 41

Factory data reset .............................................................................................................................................................. 43

Factory data reset from Settings .................................................................................................................................. 43

Force Factory data reset ............................................................................................................................................... 45

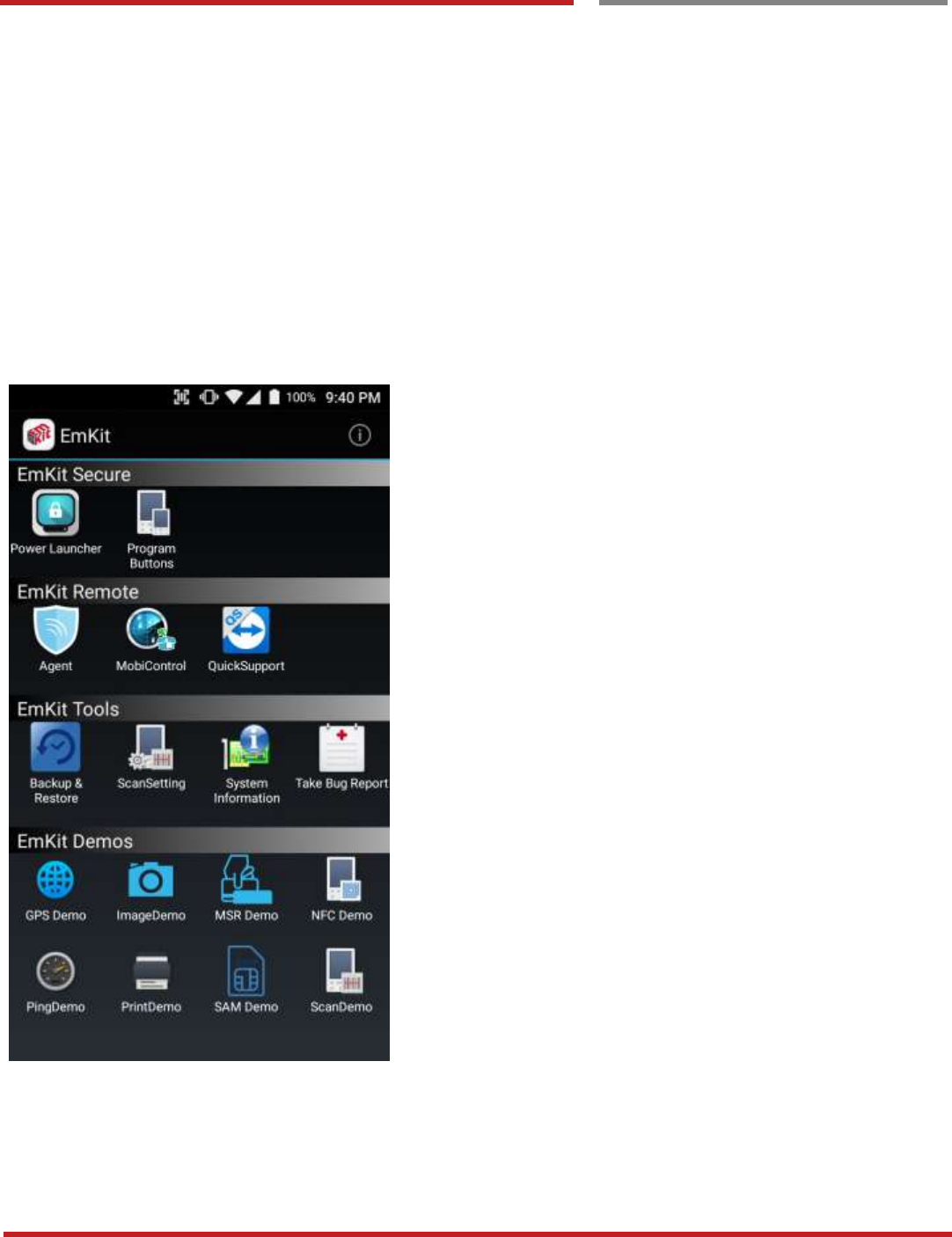

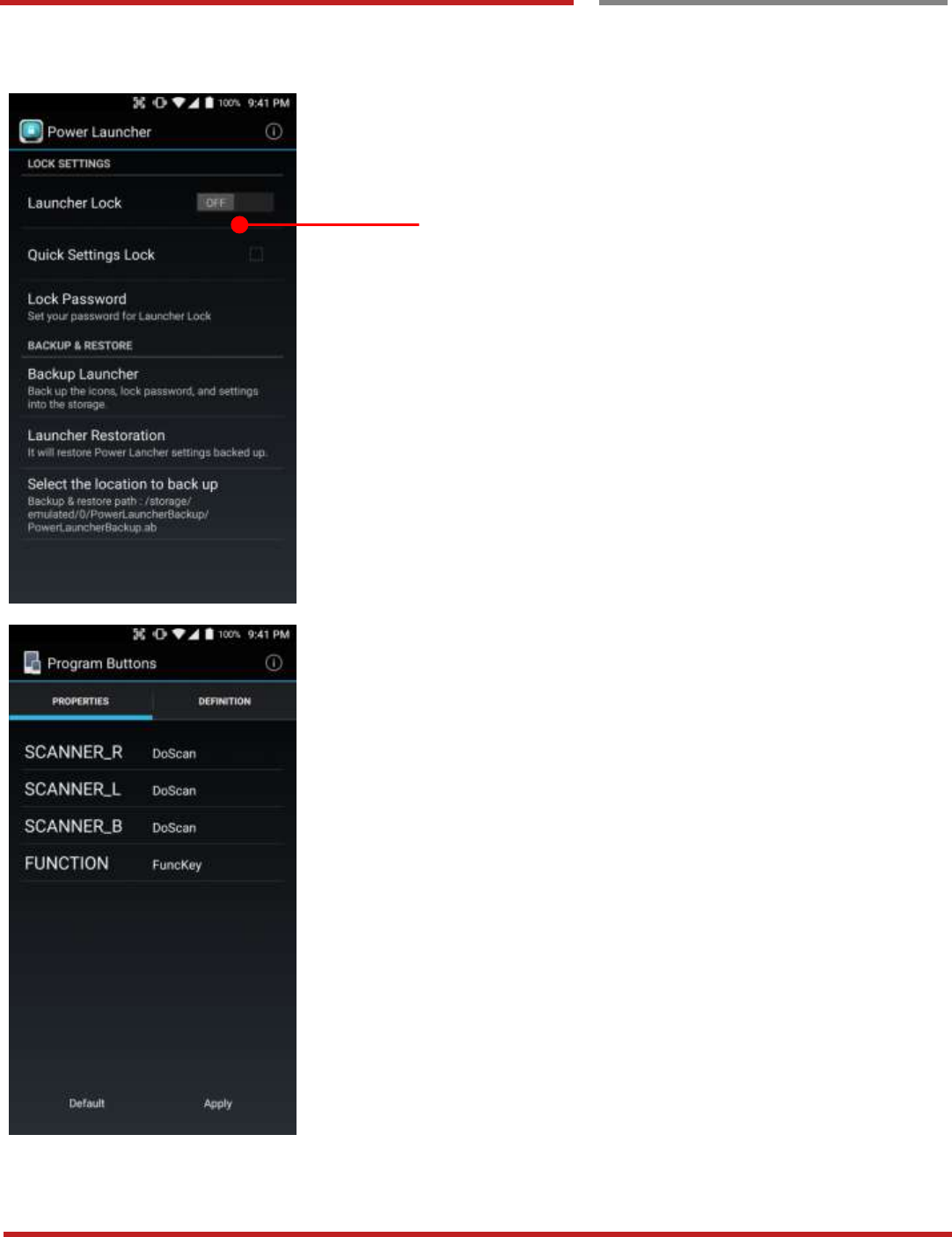

EmKit .................................................................................................................................................................................... 48

EmKit Secure .................................................................................................................................................................. 49

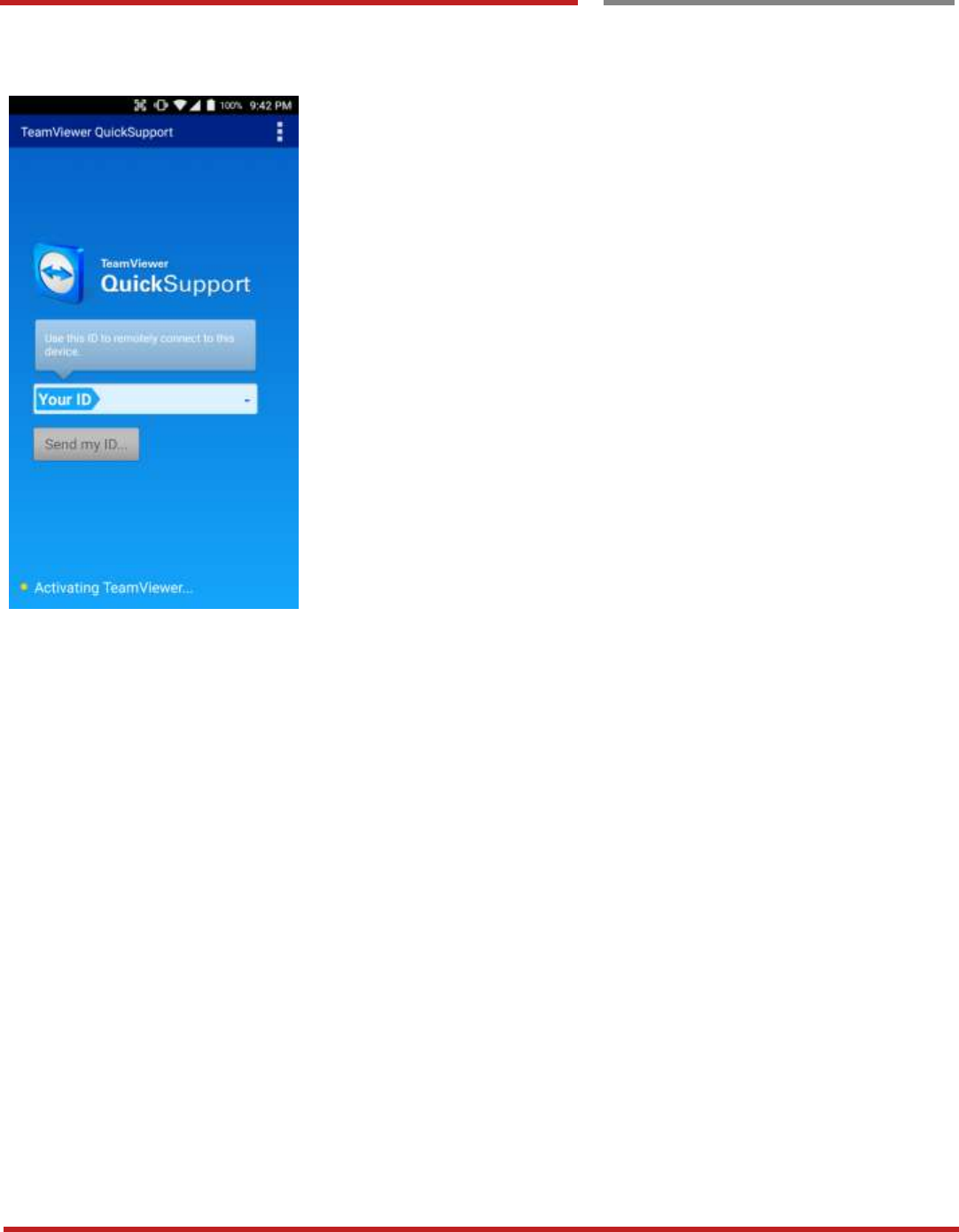

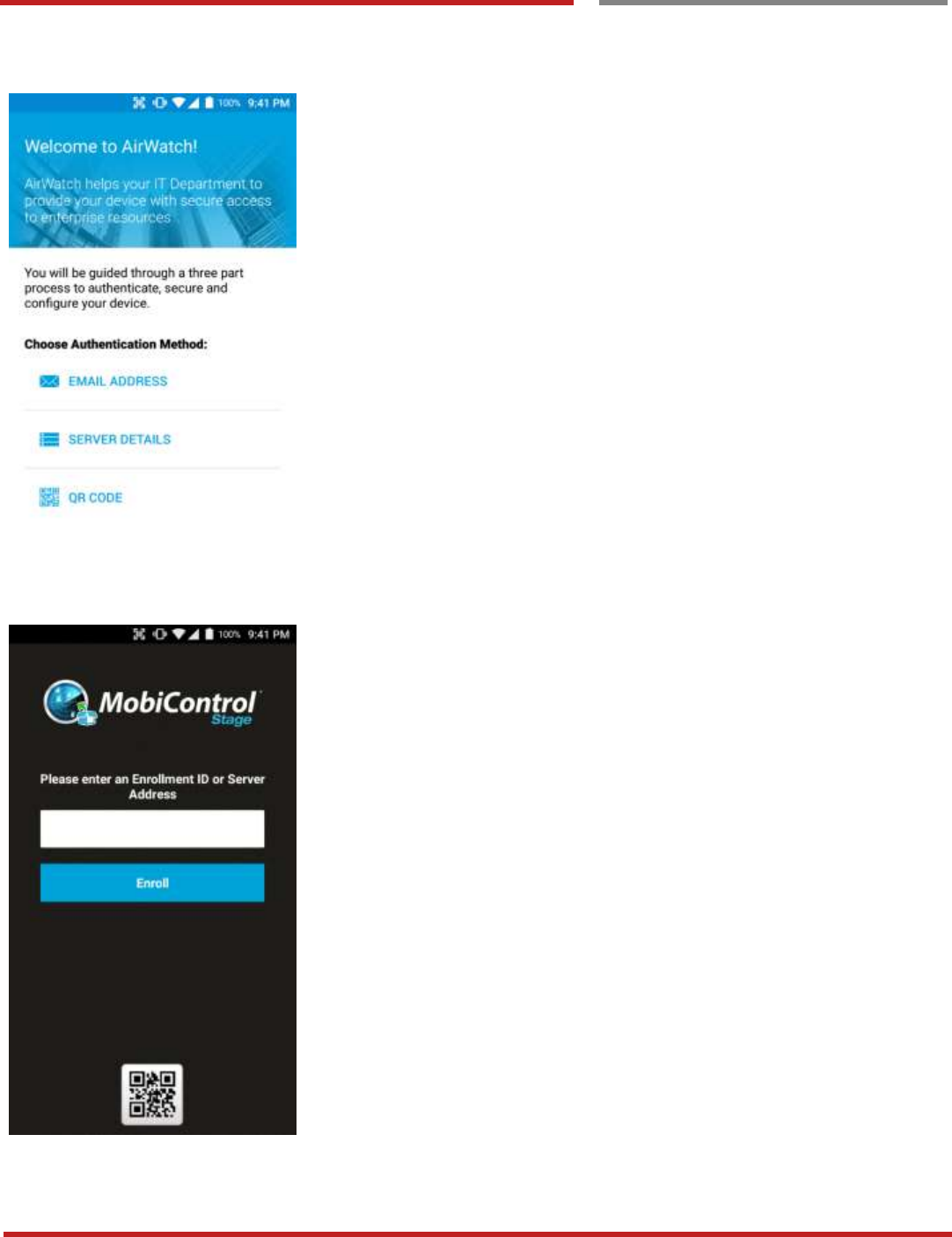

EmKit Remote ................................................................................................................................................................. 50

EmKit Tools ..................................................................................................................................................................... 52

XT100 Android 6.0.1 User Manual

4

Getting Started

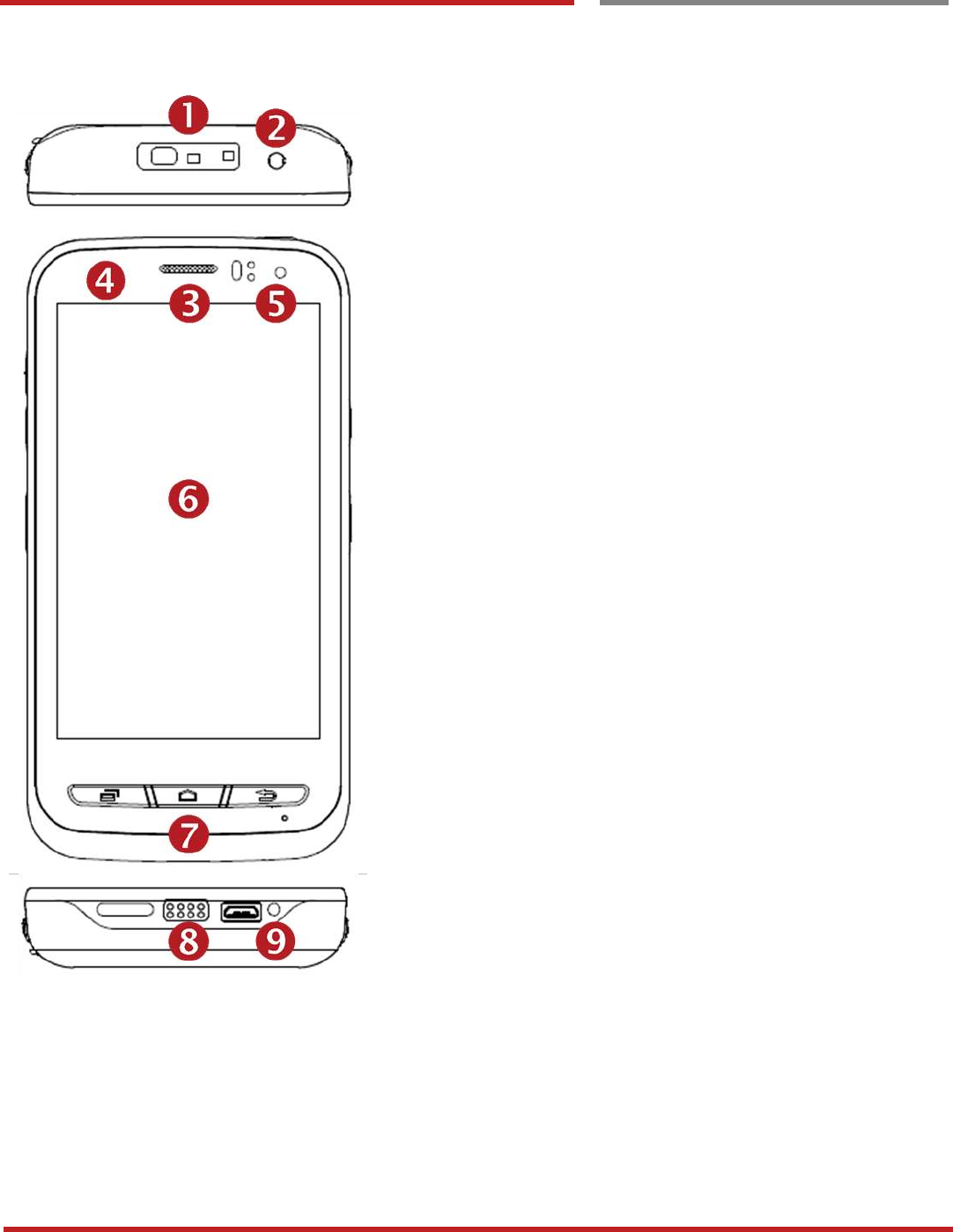

Major Parts

Getting Started

1. Barcode Scanner

2. 3.5mm Audio Jack

3. Speaker

4. Illuminance / Proximity Sensor

5. Front Camera / LED Indicator

6. Touch Screen

7. Front Panel

8. Pogo pin connector

9. micro USB

XT100 Android 6.0.1 User Manual

5

Getting Started

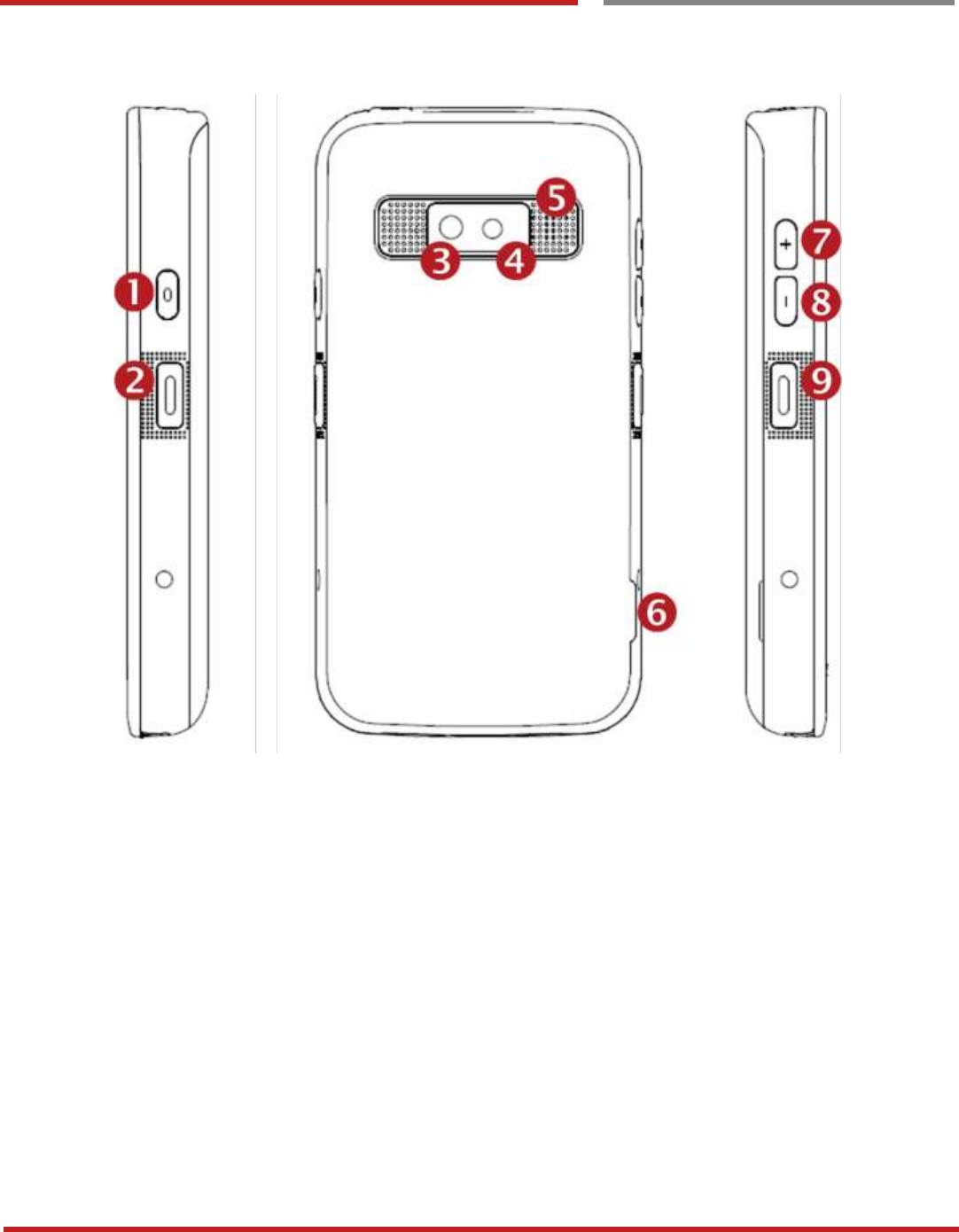

Major Parts

Getting Started

1. Power Key

2. Scanner Trigger

3. Camera

4. Flash Light

5. Speaker

6. Battery Cover Wing

7. 3.5mm Audio Jack

8. Power Key

9. Scan Trigger Key

XT100 Android 6.0.1 User Manual

6

Getting Started

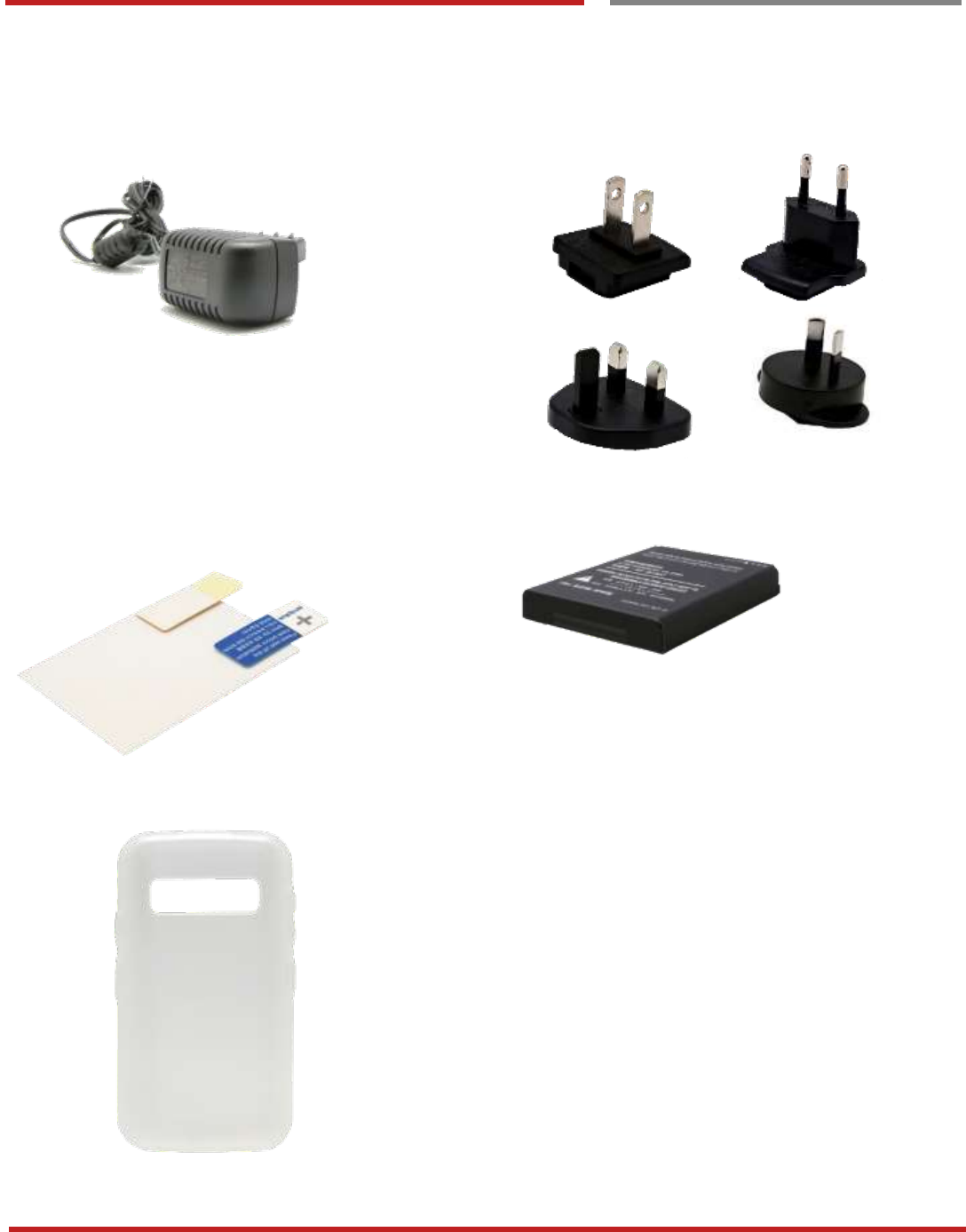

Accessary

Getting Started

AC/DC adapter Plug (US/ EU/ UK/AU)

LCD protection film Li-ion battery

Jelly Case

XT100 Android 6.0.1 User Manual

7

Getting Started

Setup XT100

Getting Started

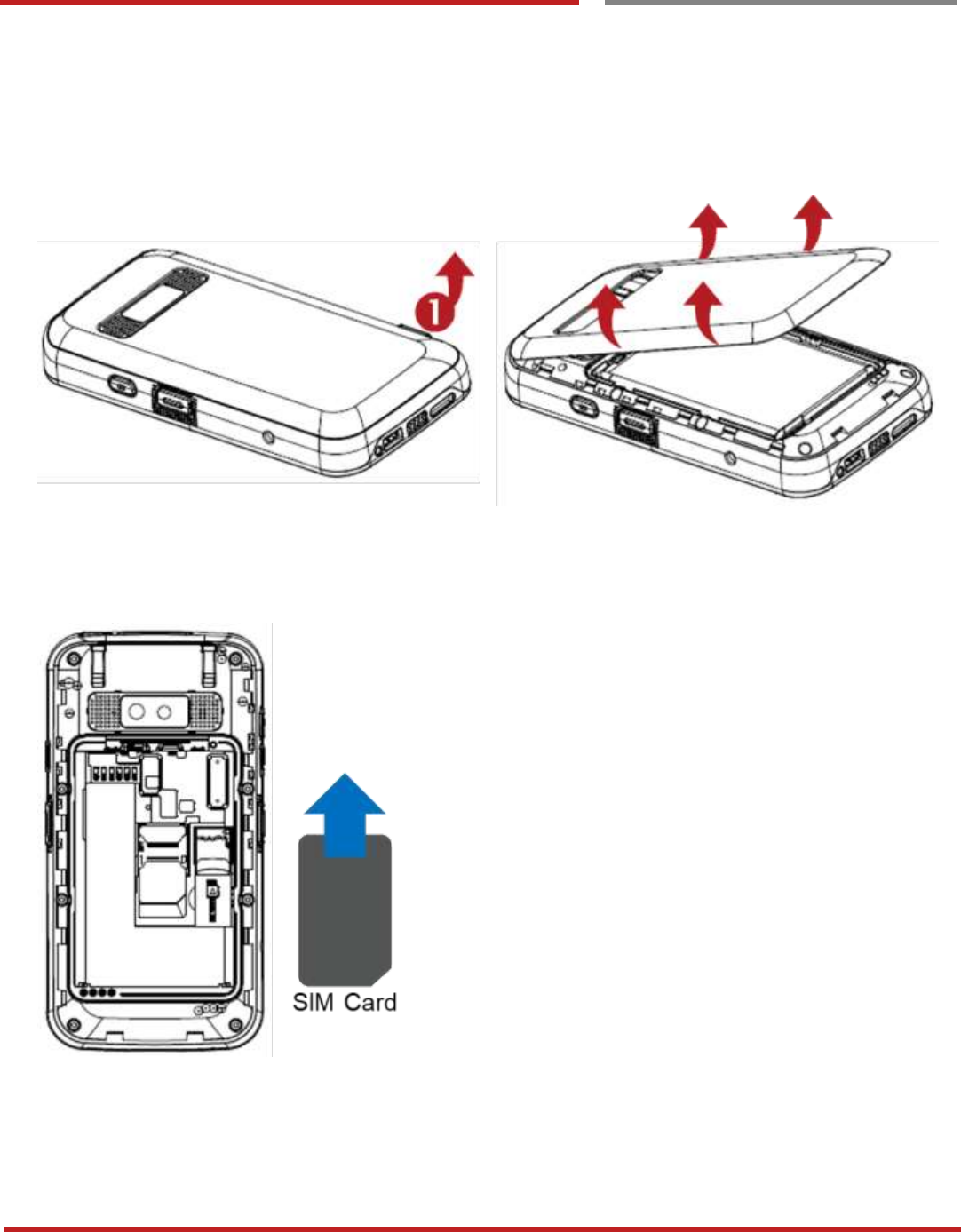

Remove the Battery Cover

1. Lift up the Battery Cover with “Battery Cover Wing”

2. Remove the Battery Cover

Insert and Remove the SIM card

1. Insert the SIM card into the slot. (Gold plate should face down)

2. To remove the card, gently slide it out of the slot.

Getting `Started

XT100 Android 6.0.1 User Manual

8

Setup XT100

Getting Started

Note: Your device only supports SIM cards. Do not attempt to insert other SIM types such as “Micro” and

“Nano” SIM card, this may cause damage to your device. If you have to use different SIM card types,

please use “SIM adaptor”.

Install and Remove the microSD card

1. Insert the microSD card into the slot (Gold plate should face down).

2. To remove the microSD card, gently slide it out of the slot.

Note: To avoid data loss and SD card damage, please ensure the SD card is unmounted from Android

system “Settings – Storage - Unmount SD card”

Getting Started

XT100 Android 6.0.1 User Manual

9

Setup XT100

Getting Started

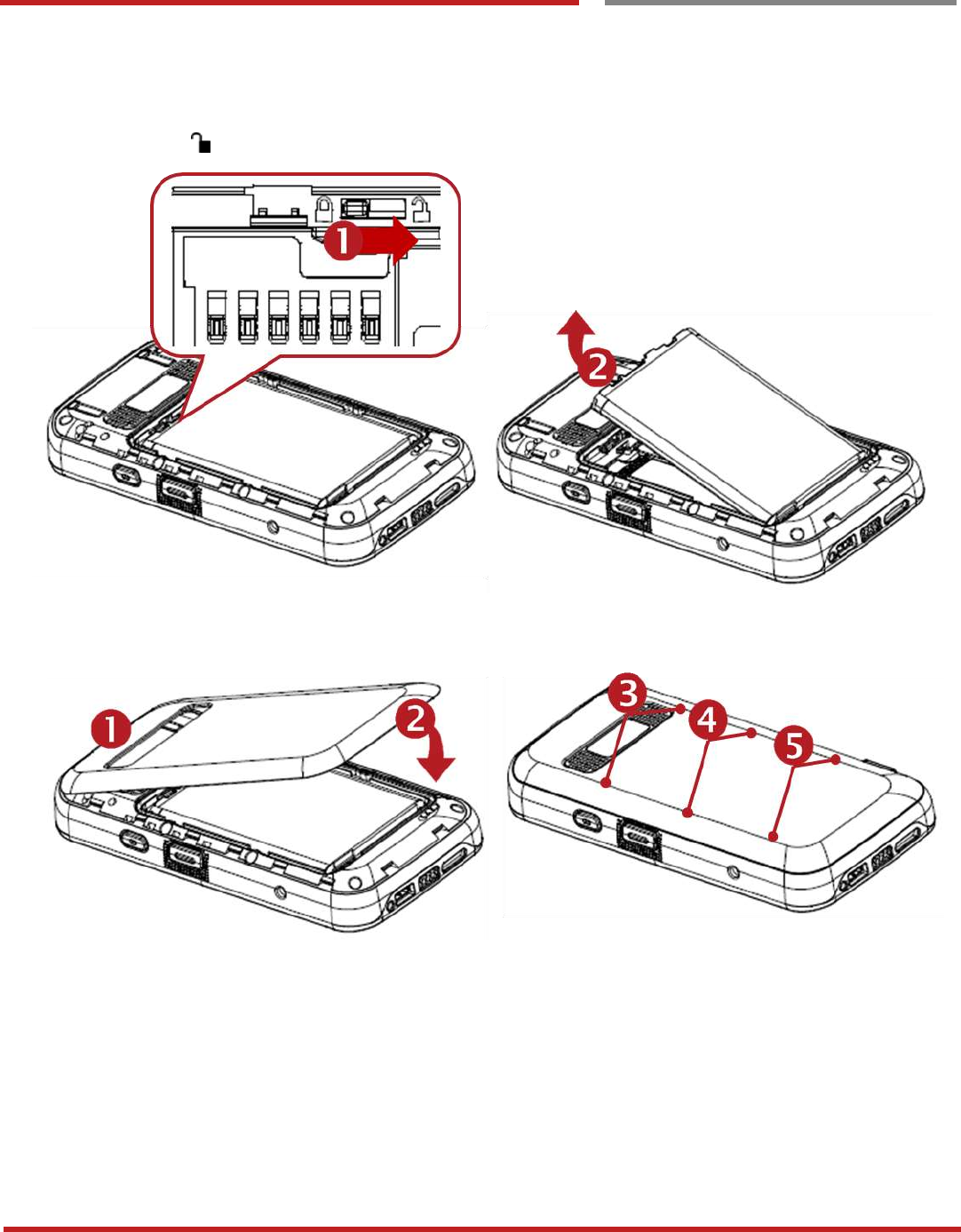

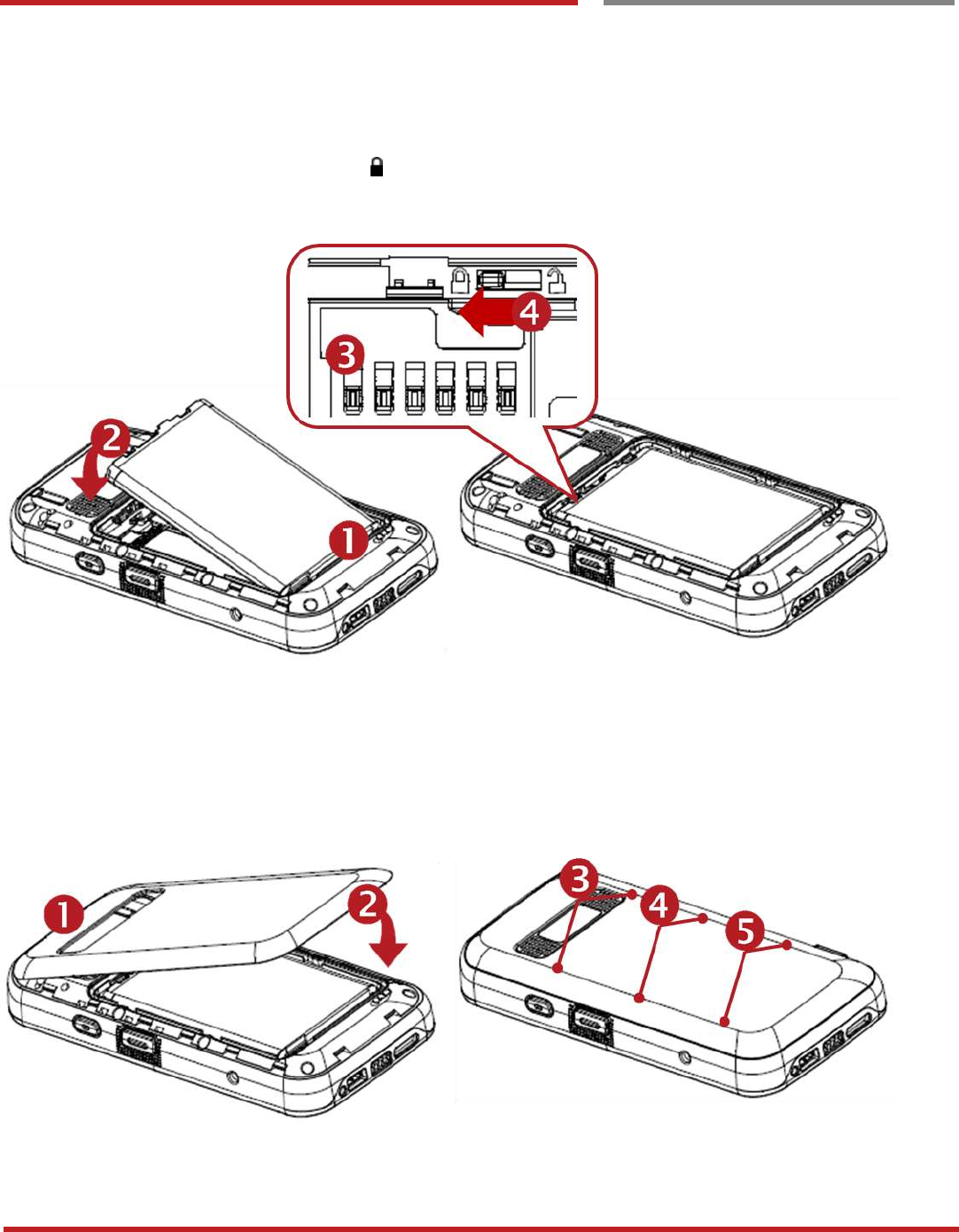

Insert the Battery

Insert “Battery” from bottom area first and then put in top area. Make sure battery contact “Battery Connector”

and Battery Latch (Orange color) is locked

Close the Battery Cover

Insert “Battery Cover” from the bottom area first and then put in top area. Press battery cover with both hand

firmly

XT100 Android 6.0.1 User Manual

10

Getting Started

Charge XT100

Getting Started

1. Connect the AC/DC adaptor to your device and wall socket respectively

2. LED indicator will display charging status.

Steady Red

Battery is charging or Battery level is low

Blinking Red

Battery level is critical low

Steady Green

Battery is fully charged

Blinking Red and Green

Battery is removed or fail to recognize

XT100 Battery Specification

Standard Battery

3.8V, 3,000mAh

Backup Battery

3.7V, 60mAh

Charging time

About 5hours

Note: Always use an original charger and cable from the Janam Technologies LLC.. Other chargers and

cables may damage XT100. In addition, make sure connector, charger, cables are not wet.

XT100 Android 6.0.1 User Manual

11

Getting Started

Turn On/Off XT 100

Turn On/Off XT100

Getting Started

Turn On

1. Press and hold down the “Power Key” for a few seconds.

2. When XT100 enter to the boot mode, it will display “SMART BEYOND RUGGED” logo with short

vibration

3. Release the “Power Key” and wait until XT100 finish booting

Note: If you cannot turn on your XT100, try below steps

- To turn on XT100, battery needs to be charged certain level. Please charge first

- Press and hold the “Power key” for 12 seconds to force reboot

- Press and release the “Reset Hole” and then turn on XT100 again

Turn Off

1. Press and hold the “Power Key” until you see the power menu

2. Among the menu, tap “Power Off”

XT100 Android 6.0.1 User Manual

12

Getting Started

Hot swap the ba ttery

Hot swap the battery

Getting Started

When battery level is low, you can replace the battery without turning off and on XT100.

- Please unlock the Battery Latch (Orange color) first. Remove the Battery and replace to another one.

- Make sure the battery cover closed firmly.

- Press the Power Key to use XT100 again.

XT100 Android 6.0.1 User Manual

13

Learning the basics

Use a keypad

Learning the basics

Power key

Press

- Lock the screen / Light up the screen.

Press and hold

- Display the power menu “Power Off / Reboot / Airplane mode”

Press and hold for 12seconds

- Forced to reboot

Press the “Power” key and “Volume Down” key together

- Screen capture

Volume keys

In general

- Adjusts the ringtone volume or “Mute” the ringtone of an incoming call.

In call mode

- Adjusts the earpiece or headset volume.

In Music / Video / Streaming

- Adjusts the media volume.

In camera preview

- Take the photo by pressing Volume Up or Down key.

Scanner Triggers

When “Scan Wedge” mode is activated

- By pressing, XT100 scan the barcode.

XT100 Android 6.0.1 User Manual

14

Learning the basics

Using a keypad

Learning the basics

Front panel

Recent Apps key

- Press to see recently used apps.

Home key

- From any apps or screens, press to return to the Home screen.

Back key

- Press to go back to the previous screen, or to close a dialog box, options menu, notification panel,

etc.

XT100 Android 6.0.1 User Manual

15

Learning the basics

Use a touch scr een

Use a touch screen

Learning the basics

Touch

One-finger press

Double touch

One-finger press, lift, one-finger press, lift for “Zoom in”

Long press

One-finger press, wait, lift for “Select an item”

Drag, Swipe, or Fling

One-finger press, move, lift for “Scroll” or “Tilt”

Long-press drag

One-finger press, wait, move, lift for “Pick up and move” or “select multiple items”

XT100 Android 6.0.1 User Manual

16

Learning the basics

Use a touch screen

Learning the basics

Scroll

Vertical or horizontal swipe in a single direction

Pinch Open & Close

Two-finger press, move outwards and inwords, lift for “Zoom in and out”

Rotate

When XT100 is turning sideways, screen orientation is changing

XT100 Android 6.0.1 User Manual

17

Learning the basics

Home Screen, A pps and Widget

Home Screen, Apps and Widget

Learning the basics

Status Bar

- Status / Notification

- Drag down to open the “Quick Setting Panel”

Search Bar

- Touch 1 to search by text

- Touch 2 to search by voice

Touch an icon to run an app, open folder, etc

Favorite tray apps

- Touch to run an app

- Touch and hold to reorganize

App Drawer

Touch to enter “Apps and Widget”

XT100 Android 6.0.1 User Manual

18

Learning the basics

Home Screen, Apps and Widget

Learning the basics

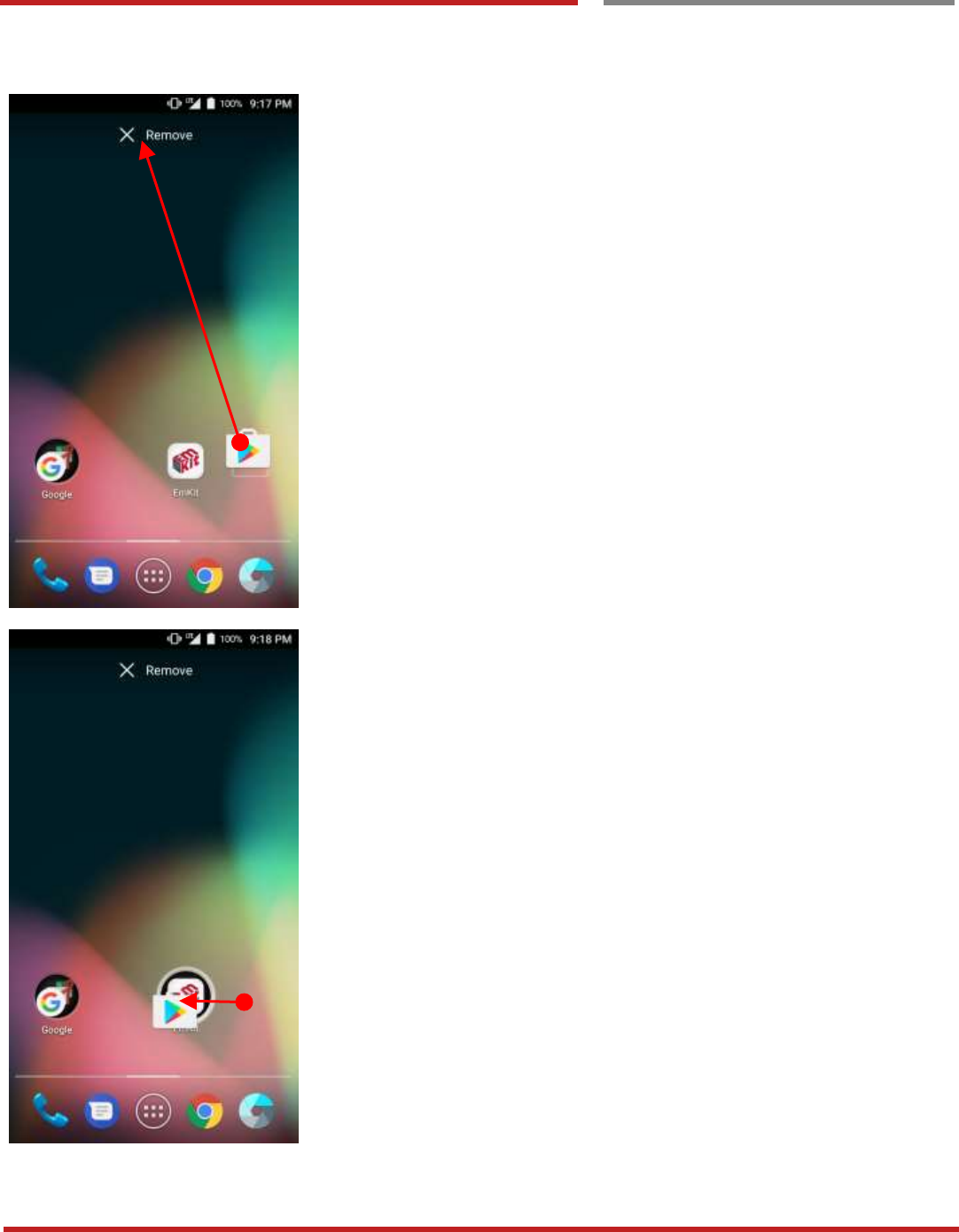

Remove the app icon from home screen

- Long press the app icon and then drag it to the

“Remove” area and then release

Create “App Folder”

- Long press the app icon to other app icon. This will

create the “App Folder”

- To set the folder name, touch the “Unnamed Folder”

and rename it

XT100 Android 6.0.1 User Manual

19

Home Screen, Apps and Widget

Learning the basics

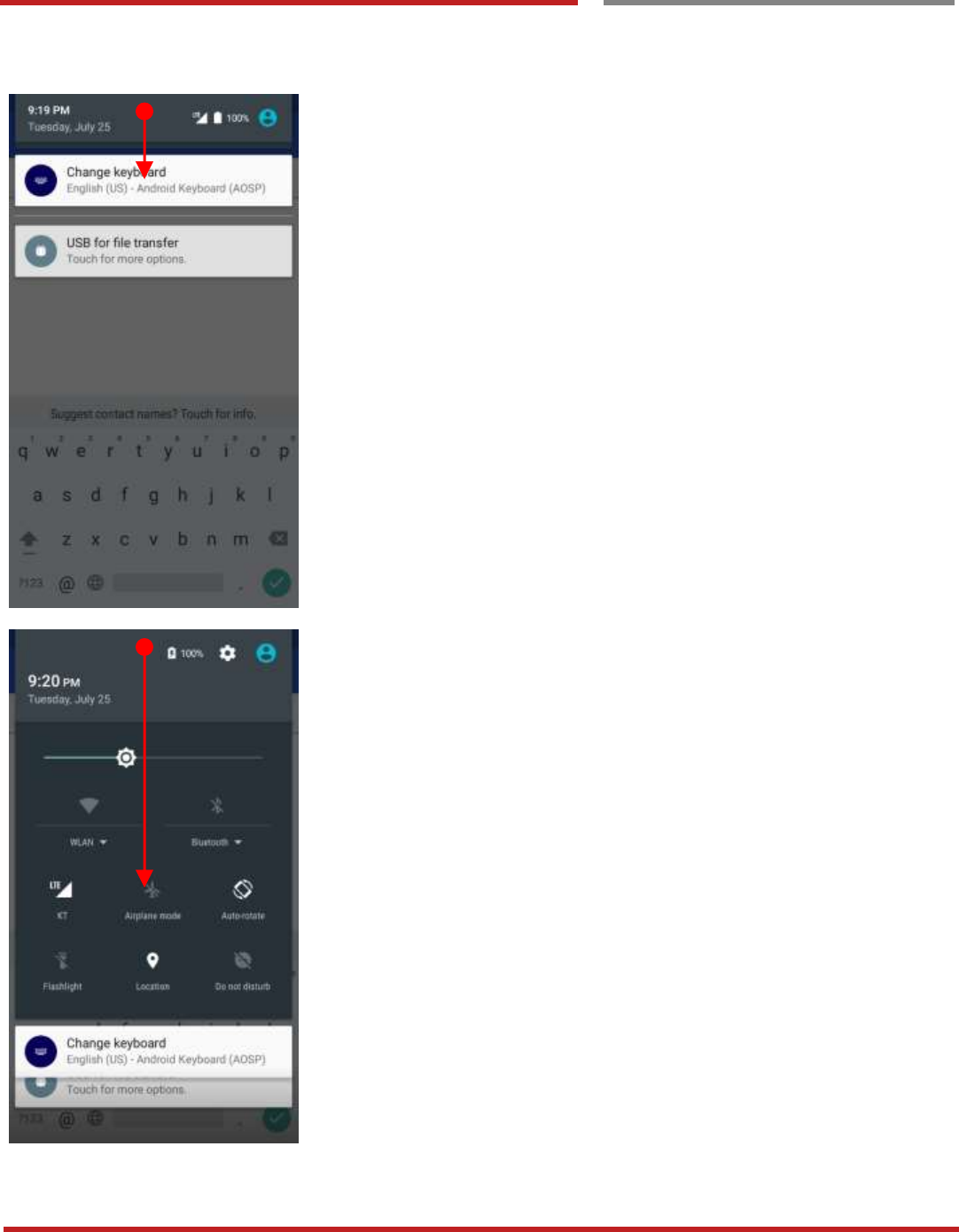

Notification panel

When there are notifications from the Android (system) or

the App, you can check details by drag down the “Status

Bar”.

Quick setting panel

You can access “Quick setting panel” by drag down the

“Notification panel”. You can enable / disable functions or

change modes easily.

XT100 Android 6.0.1 User Manual

20

Learning the basics

Home Screen, Apps and Widget

Learning the basics

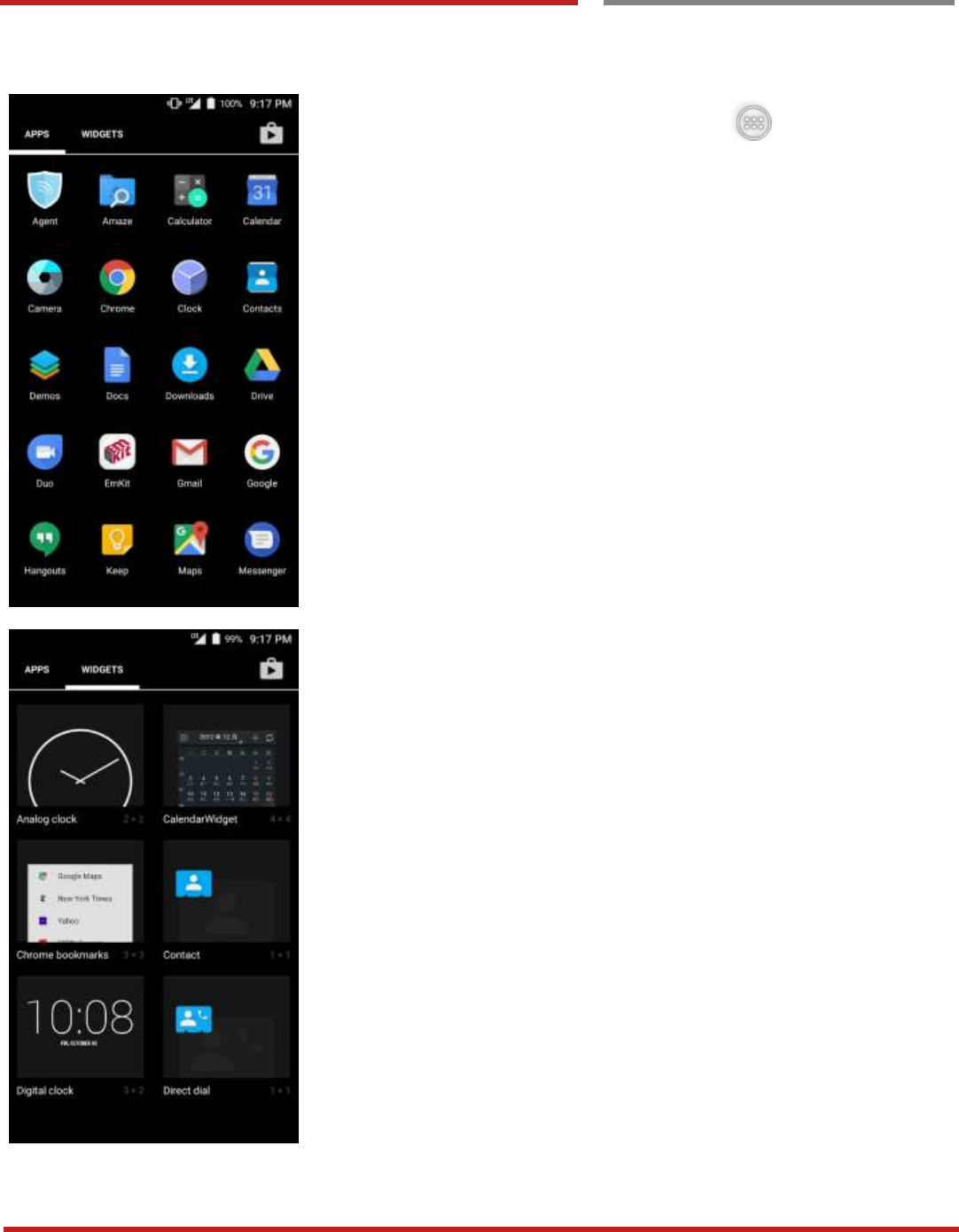

By touching the “App drawer” icon, you can enter to

the “Apps” and “Widgets”

All installed apps are listed in the “Apps” tab, alphabetically

- Tap app icon to run.

- Long press, specific app icon to place to the “Home

Screen”.

All available widgets are listed in the “Widgets” tab,

alphabetically.

- Long press, specific widget to place to the “Home

Screen”.

XT100 Android 6.0.1 User Manual

21

Learning the basics

Status & Notific ations Icons

Status & Notifications Icons

Learning the basics

Status icons

3G connected

3G in use

4G connected

4G in use

Signal strength

No signal

Roaming

Airplane mode

No SIM card installed

WLAN is on

Connected to a WLAN

network

Bluetooth is on

Connected to a Bluetooth

device

Battery is full

Battery is partially drained

Battery is low

Battery is very low

Battery is charging

GPS is on

Alarm is set

Speaker phone is on

Headset connected

Vibrate mode/ Mute

Phone mic is mute

XT100 Android 6.0.1 User Manual

22

Learning the basics

Status & Notifications Icons

Learning the basics

Notification icons

Missed call

New SMS or MMS message

New Email

Connected to VPN network

Upcoming event

Screenshot captured

Preparing SD card

SD card removed,

unexpectedly

OTG device connected

File uploaded

File downloaded

There are more notification

Other input method available

XT100 Android 6.0.1 User Manual

23

Learning the basics

Make a call

Learning the basics

Touch icon in the Favorite tray apps

Slide to access the “FAVORITE”, “RECENTS” and

“CONTACTS”.

- To make a call from recent call list or missed call,

select “RECENTS” tab

- To make a call from your contact list, select

“CONTRACTS”

Touch to use a dialer

Suggested phone number(s)

Phone number can be saved to “CONTACTS”

Touch and hold the dial pad #1, to access voicemail.

XT100 Android 6.0.1 User Manual

24

Learning the basics

Make a call

Learning the basics

You can answering or rejecting a call by sliding the phone

icon

Slide the icon to the right direction in order to answer

the call

Slide the icon to the left direction in order to reject the

call

Slide the icon upwards to reject the call and send a

preset message to the caller.

Tip: To mute the ringtone volume of an incoming call,

keep press the “Volume down” key or turn your XT100

over.

XT100 Android 6.0.1 User Manual

25

Learning the basics

Add to a contact

Learning the basics

Touch “App Drawer” icon and then icon

CREATE A NEW CONTACT

- You can manually create the new contact

SIGN IN TO AN ACCOUNT

- You can sync with your contacts in the Google

account.

IMPORT CONTACTS

- You can import contact in the storage (.vcf file) or

SIM card

Touch to add a new contact

XT100 Android 6.0.1 User Manual

26

Learning the basics

Send a messag e

Send a message

Learning the basics

Touch icon in the Favorite tray apps

Touch to use a dialer

Touch to type a name, phone number or email

Suggest contact display here. Touch “Contacts” to compose

a message

XT100 Android 6.0.1 User Manual

27

Learning the basics

Send a message

Learning the basics

Your message display here

Touch to send the composed message

You can attach photo, saved picture, voice or location

Note: You may allow granting “Message App” access

specific app or service.

XT100 Android 6.0.1 User Manual

28

Learning the basics

Connect to your Wi-Fi networ k

Connect to your Wi-Fi network

Learning the basics

Touch “App Drawer” - “Settings” and then

“WLAN”

Touch to turn On / Off the W-Fi

You can see nearby Wi-Fi network. Each AP’s SSID

information listed by signal strength

Icon means: Open Wi-Fi network. You don’t need

to enter the password

Icon means: Secured Wi-Fi network. To connect

this Wi-Fi, you need to enter the password

XT100 Android 6.0.1 User Manual

29

Learning the basics

Connect to your Wi-Fi network

Learning the basics

Touch SSID, which you want to connect.

To connect to secured network, enter the password

Your XT100 is obtaining the IP address from selected AP

XT100 Android 6.0.1 User Manual

30

Scanner Settings

Use a Scanner

Scanner Settings

Default setting of Scanner is “Off”

To use the Scanner,

- Touch EmKit and then “ScanSetting”

- Touch “App Drawer” - “Settings” and

then “ScanSettings”

Touch to turn on the Scanner

XT100 Android 6.0.1 User Manual

31

Scanner Settings

Use a Scanner

Scanner Settings

Now you can see “Scanner” icon in the “Status Bar”

Note: When “Scanner” turned on, you can scan the

barcode with “ScanDemo” in the EmKit

XT100 Android 6.0.1 User Manual

32

Scanner Settings

Use a Scanner

Scanner Settings

Scanner setting details

Scanner setting consist with “Basic”, “Options”,

“Notification”, “Wedge”, “Symbologies”, and “About”

In the “Basic”, you can set “Scanning” option and “Wedge”

mode option

In the “Scanning menu”, you can change Scanner’s trigger

time out and set “Auto scan” & “Continues scan”

In the Wedge menu you can change, decode scan data’s

result type handling “User Message”, “Keyboard Event”,

“Clipboard’ or ‘Intent Broadcast’. Also you can set

“Terminator” – “Space”, “Tab”, “LF” or “Tab & LF”

XT100 Android 6.0.1 User Manual

33

Scanner Settings

Use a Scanner

Scanner Settings

In the “Options”, you can enable / disable the “Center

Window”, set “Decode mode”, “Power save mode” and

enable / disable “Aimer” & “Illumination”

In the “Notification”, you can set notification option. You can

change the volume level, notification sound, LED and

vibration option

XT100 Android 6.0.1 User Manual

34

Scanner Settings

Use a Scanner

Scanner Settings

In the “Wedge”, you can enable / disable “Barcode ID” and

“Aim ID”, set “Group separator”, “Prefix” & “Suffix” and

“Character set”

XT100 Android 6.0.1 User Manual

35

Scanner Settings

Use a Scanner

Scanner Settings

In the “Symbologies”, you can enable / disable specific

barcode.

By touching each “Symbology” name, you can set detail

option.

XT100 Android 6.0.1 User Manual

36

Scanner Settings

Use a Scanner

Scanner Settings

In the ‘About’, you can check your Scanner’s information

and restore Scanner’s settings to default

XT100 Android 6.0.1 User Manual

37

Scan a Barcode

Scanner Settings

Example of good Barcode reading

Idle barcode scan

Please aim the middle of barcode

Even you aim the barcode slightly upper or down area or

angle is tilted, you can read the barcode

XT100 Android 6.0.1 User Manual

38

Scan a Barcode

Scanner Settings

Example of bad Barcode reading

If you aim the barcode wrong direction or tilt too much, you

can’t read the barcode

If you aim part of Barcode or aim two barcode together, you

can’t read the barcode

XT100 Android 6.0.1 User Manual

39

OS Update

OS Image update from a Storag e

OS Image update from a Storage

OS Update

To update OS image, copy or place OS image file into

the root folder of “Internal Storage” or “External

Storage”

Touch “App Drawer” - “Settings” and then

“About phone”

Touch “System Updates”

XT100 Android 6.0.1 User Manual

40

OS Update

OS Image update from a Storage

OS Update

Your XT100 will check storage and display available OS


Touch “Update” button

By touching the “CONTINUE” button, your XT100 start to

update the OS image. During this time, you cannot use your

XT100. Please save the data before start, the OS update

process.

XT100 Android 6.0.1 User Manual

41

OS Update

OS Image update from the FOT A

OS Image update from the FOTA

OS Update

Tap icon for the advanced option

Touch “FOTA Client”

XT100 Android 6.0.1 User Manual

42

OS Update

OS Image update from the FOTA

OS Update

XT100 will compare the OS image between FOTA server

and current OS image. If there is newer OS image in the

FOTA server, FOTA server will suggest downloading.

Touch “OK” to start download the image in the FOTA server

You can cancel OS image download process

Note: Default OS image download setting of FOTA

Client is “Download over Wi-Fi only” Please connect to

the nearby Wi-Fi network for FOTA service

XT100 Android 6.0.1 User Manual

43

Factory data res et

Factory data res et from Settings

Factory data reset from Settings

Factory data reset

When your XT100 system is unstable and abnormal

behavior occur but could not recover by rebooting, you may

need to “Factory data reset” your XT100

Touch “App Drawer” - “Settings” and then

“Backup & reset”

Touch “Factory data reset”

XT100 Android 6.0.1 User Manual

44

Factory data reset from Settings

Factory data reset

Please note, all apps and data in the internal storage will be

deleted and restored to “Factory default” and this process

cannot “Undo”

Touch to start “Factory Reset” process

Touch to confirm erase of “Apps and Data”

XT100 Android 6.0.1 User Manual

45

Factory data Reset

Force Factory dat a reset

Force Factory data reset

Factory data reset

Force Factory data reset your XT100

You can perform “force” factory data reset your XT100.

When your XT100 turned off, press “Power” + “Volume up” +

“Home” button all together. After short vibration from your

XT100, you may release the buttons.

XT100 enter to the “Android Recovery” mode. In this mode,

“Volume up” is “Move Up” in the menu tree and “Volume

down” is “Move Down” in the menu tree. “Power Button” is

“Select”

XT100 Android 6.0.1 User Manual

46

Factory data Reset

Force Factory data reset

Factory data reset

Select “Wipe data/factory reset”

Select “Yes” to perform the “Factory data reset”

After that, your XT100 start wiping the data

XT100 Android 6.0.1 User Manual

47

Factory data Reset

Force Factory data reset

Factory data reset

After data wiping, please select “Reboot system now” to

finish the “Force Factory data reset” process

XT100 Android 6.0.1 User Manual

48

EmKit

Enterprise Mobility Kit

EmKit

Enterprise Mobility Kit – Truly, what Enterprise needs

Janam Technologies announces new software solution – called “EmKit” is new software solution for enterprise

mobility users. Our every Android device shall have EmKit pre-installed and every use can access them for

free of charge*. EmKit offers truly-value-added advantages, for enterprise users, which are against consumer-

centric & non-customizable smartphones. Every solution in EmKit is 100% compatible with Janam

Technologies Android GMS certified devices.

* Necessary MDM license subjects upon individual subscribers

EmKit consist with “EmKit Secure”, “EmKit Remote”, “Emkit

Tools” and “EmKit Demos”

- EmKit Secure “Lock Your Device”

- EmKit Remote “Mobile Device Management”

- EmKit Tools “Smarty Tools Ease Enterprise”

- EmKit Demos “Friendly For Programmers”

XT100 Android 6.0.1 User Manual

49

EmKit Secure

EmKit

Power Launcher

You can lock your XT100’s “Home Screen” and limit to

access “Settings” from “Quick Setting” panel. This function

as known as “Kiosk” mode

Program Buttons

You can assign Hardware buttons function to rich pre-

assigned functions.

Also you can applying the customized KCM file (Key

Character Map Files) here

XT100 Android 6.0.1 User Manual

50

EmKit Remote

EmKit

Airwatch Agent preinstalled.

Select option for enrollment process

SOTI Mobi Control preinstalled

Enter enrollment information for the next process

XT100 Android 6.0.1 User Manual

51

EmKit Remote

EmKit

Teamviewer Quick Support App and Plugin, preinstalled.

You may need to purchase “Teamviewer” license during

remote access and control

XT100 Android 6.0.1 User Manual

52

EmKit Tools

EmKit

Backup & Restore

You can create the “Golden sample” and then “Restore” I to

other XT100 easily

ScanSetting

You can set your XT100’s scanner option with intuitive menu

XT100 Android 6.0.1 User Manual

53

EmKit Tools

EmKit

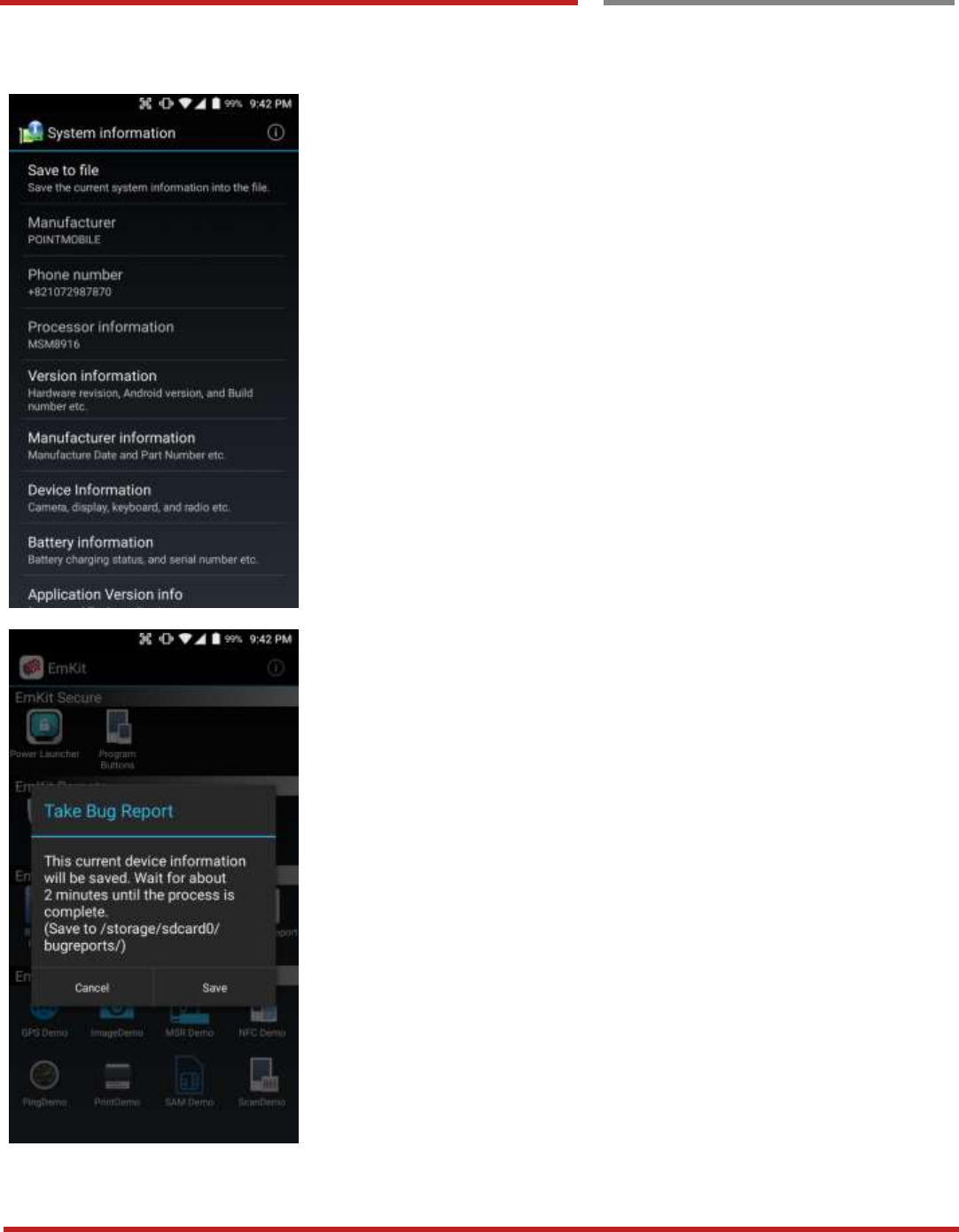

System information

All of SW and HW information available here and can save it

to the file.

- Touch “Save to file”

- devinfo.html file saved to root folder of the internal

storage.

Take Bug Report

This function save logs and event to the internal storage.

When you have a field issue, and need to contact service

center, please find the reproduce step first.

- Reproduce the issue.

- After issue, reproduce, please run “Take bug report”

- File will be saved to “bugreports” folder.

- Copy the file to the PC and then zip it to reduce the

file size

- Share bug report file to the service center with

“reproduce” steps.

XT100 Android 6.0.1 User Manual

54

FCC

Changes or modifications not expressly approved by the manufacturer could void the user’s authority to

operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

IC

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device

Le présent appareil est conforme aux CNR d'Industrie Canada

applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes :

(1)l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de

l'appareil doit accepter tout brouillage radioélectrique subi, même si

le brouillage est susceptible d'en compromettre le fonctionnement.

This device is restricted to indoor use only within the 5.15 ~ 5.35GHz Band.

Cet appareil est restreint à l'utilisation à l'intérieur seulement dans la bande 5.15 ~ 5.35GHz.

Janam Technologies XT100WA Mobile Computer User Manual

Janam Technologies LLC Mobile Computer

User Manual

Navigation menu

Namespaces

Views

Navigation
