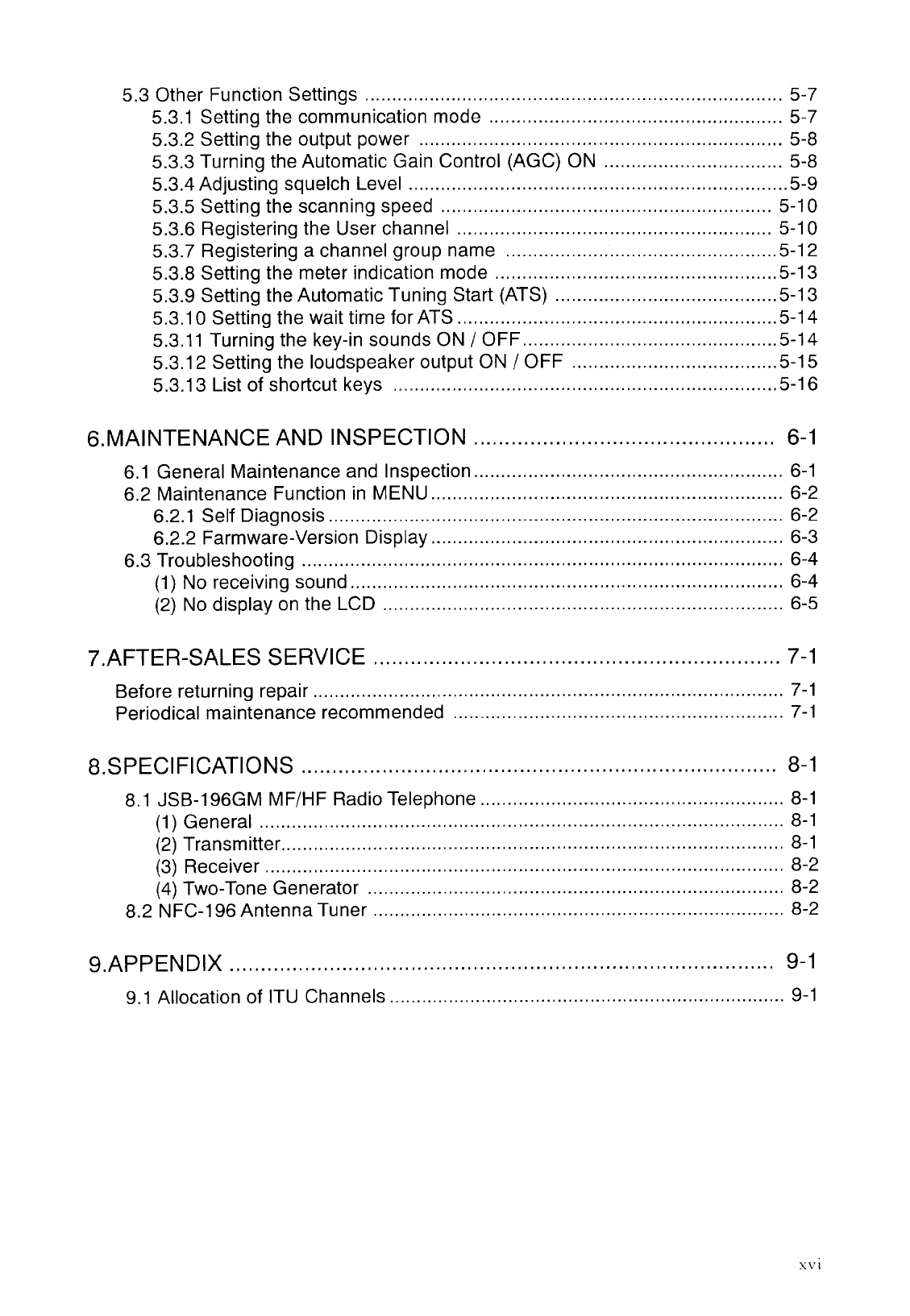

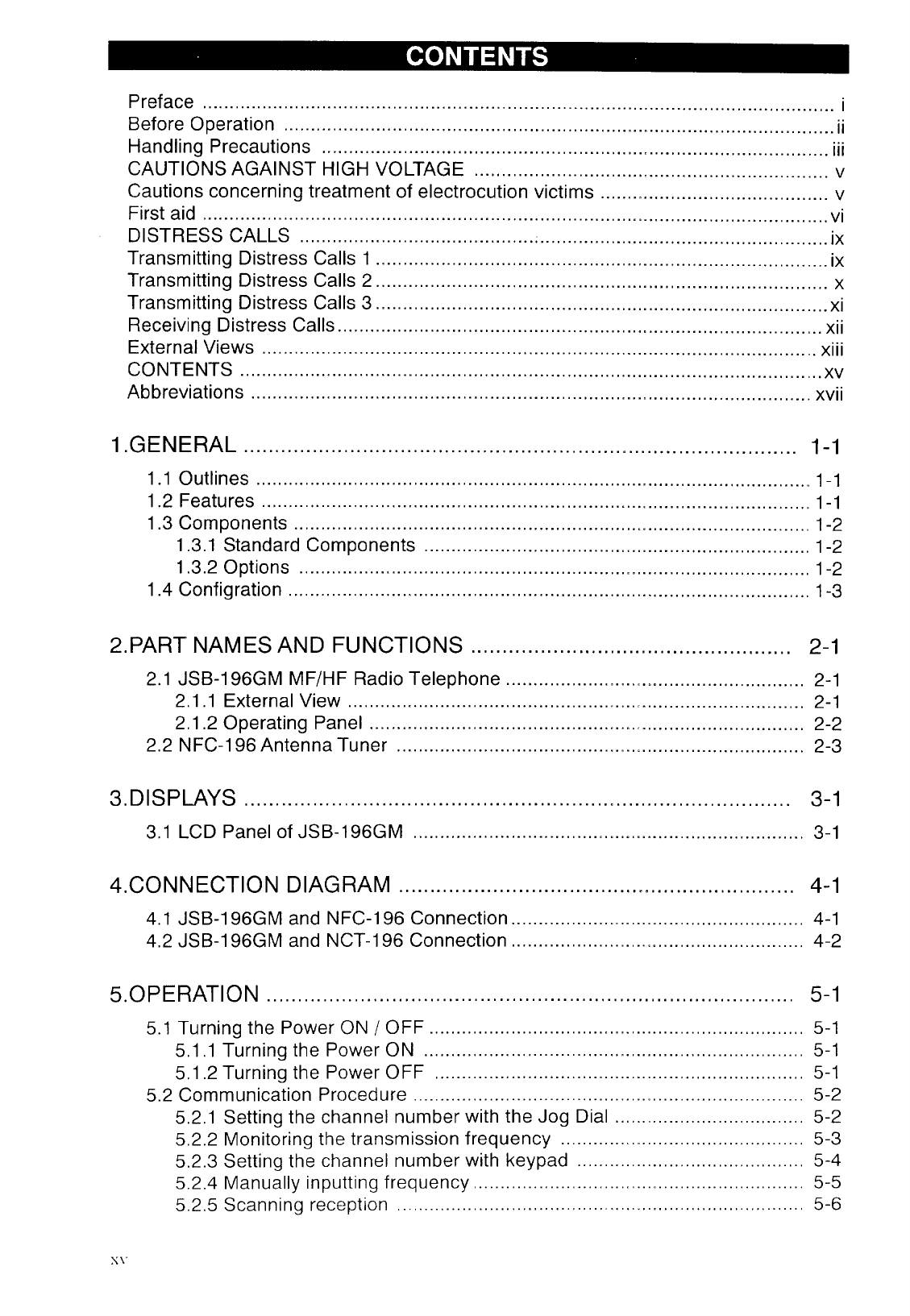

Contents
- 1. NCT196 Users Manual2
- 2. Users Manual

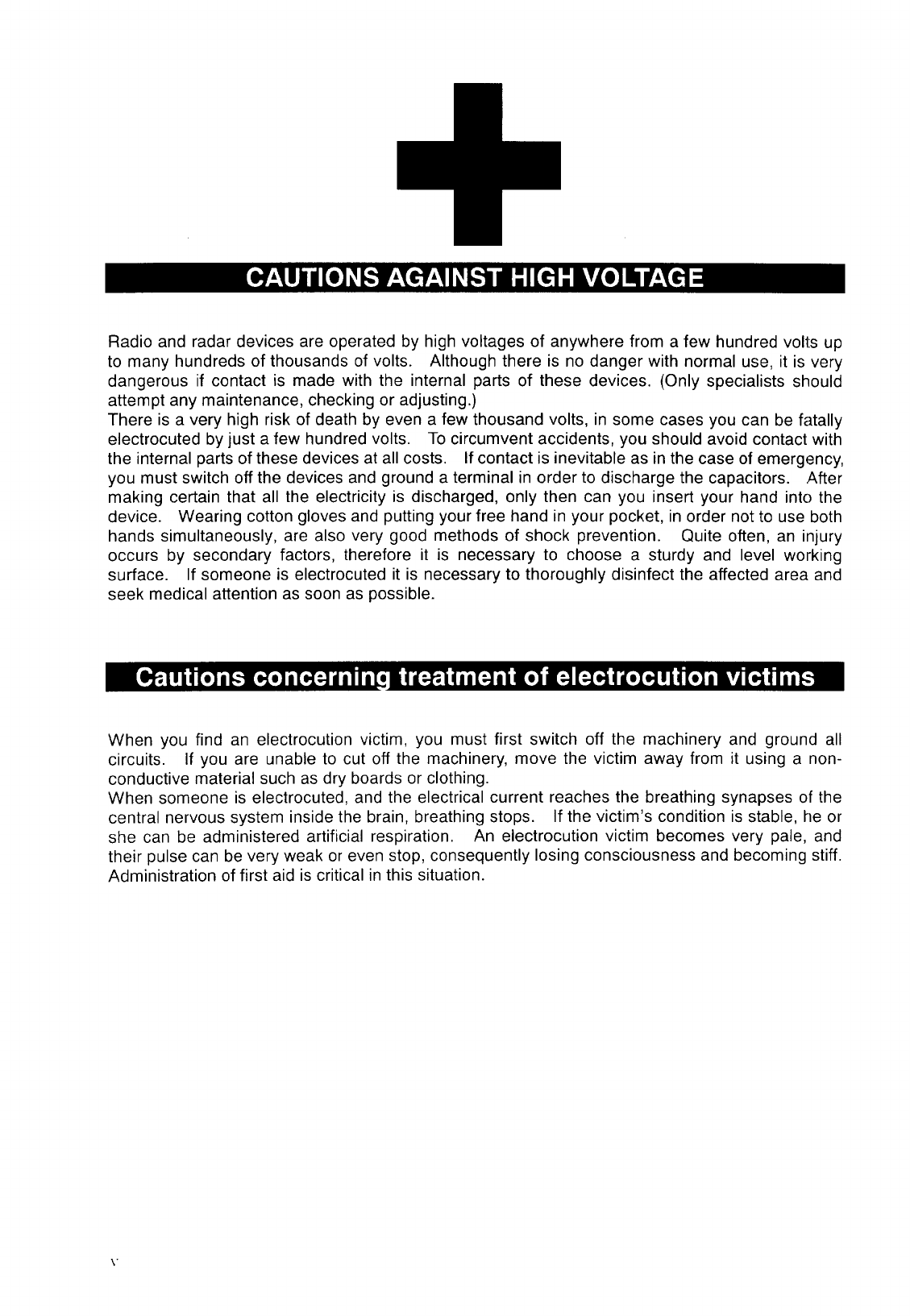

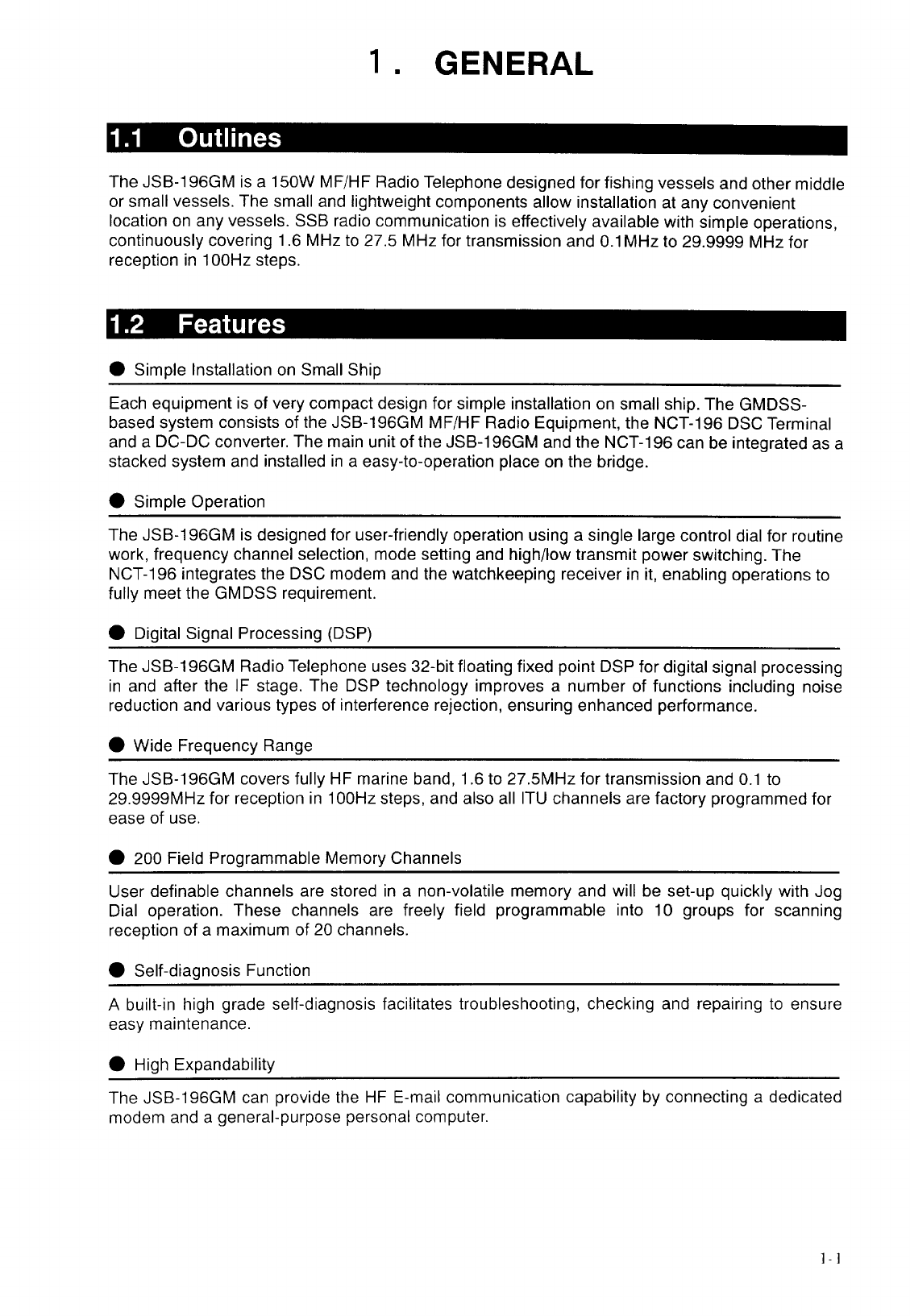

Users Manual
1-3

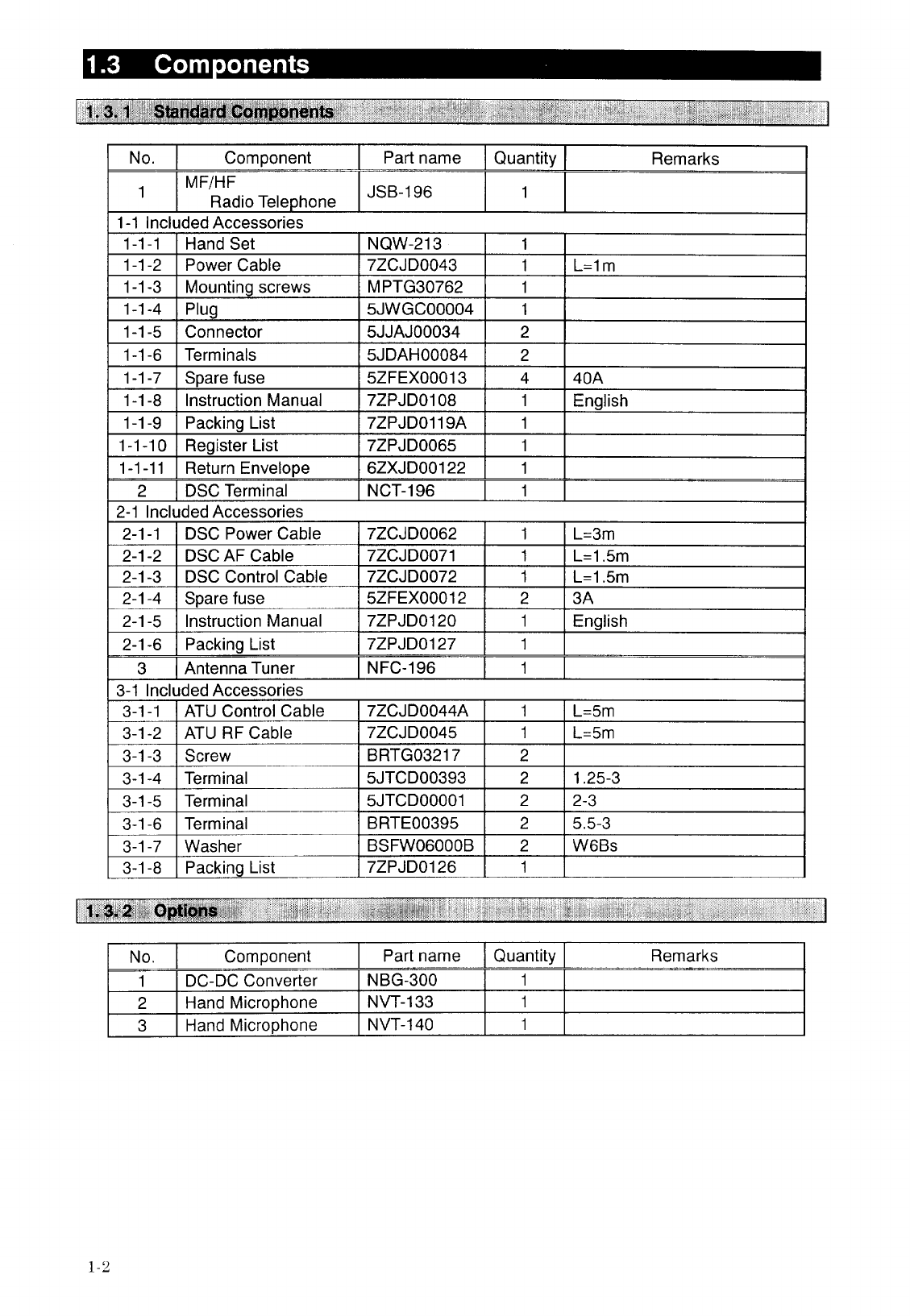

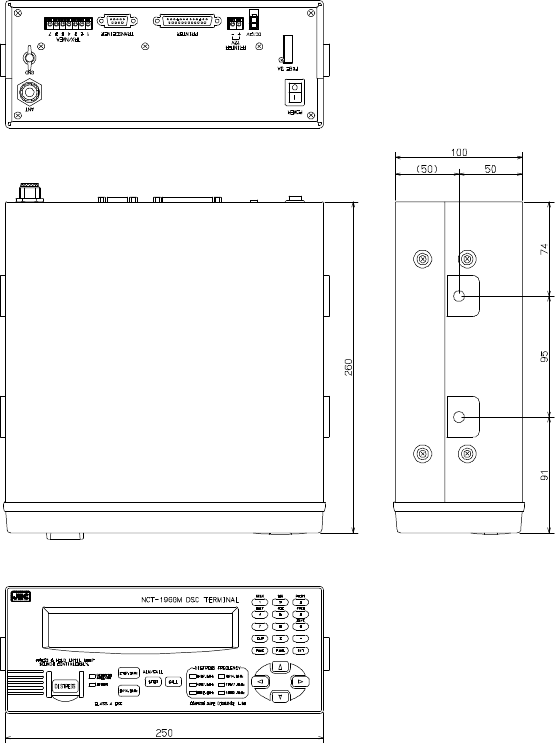

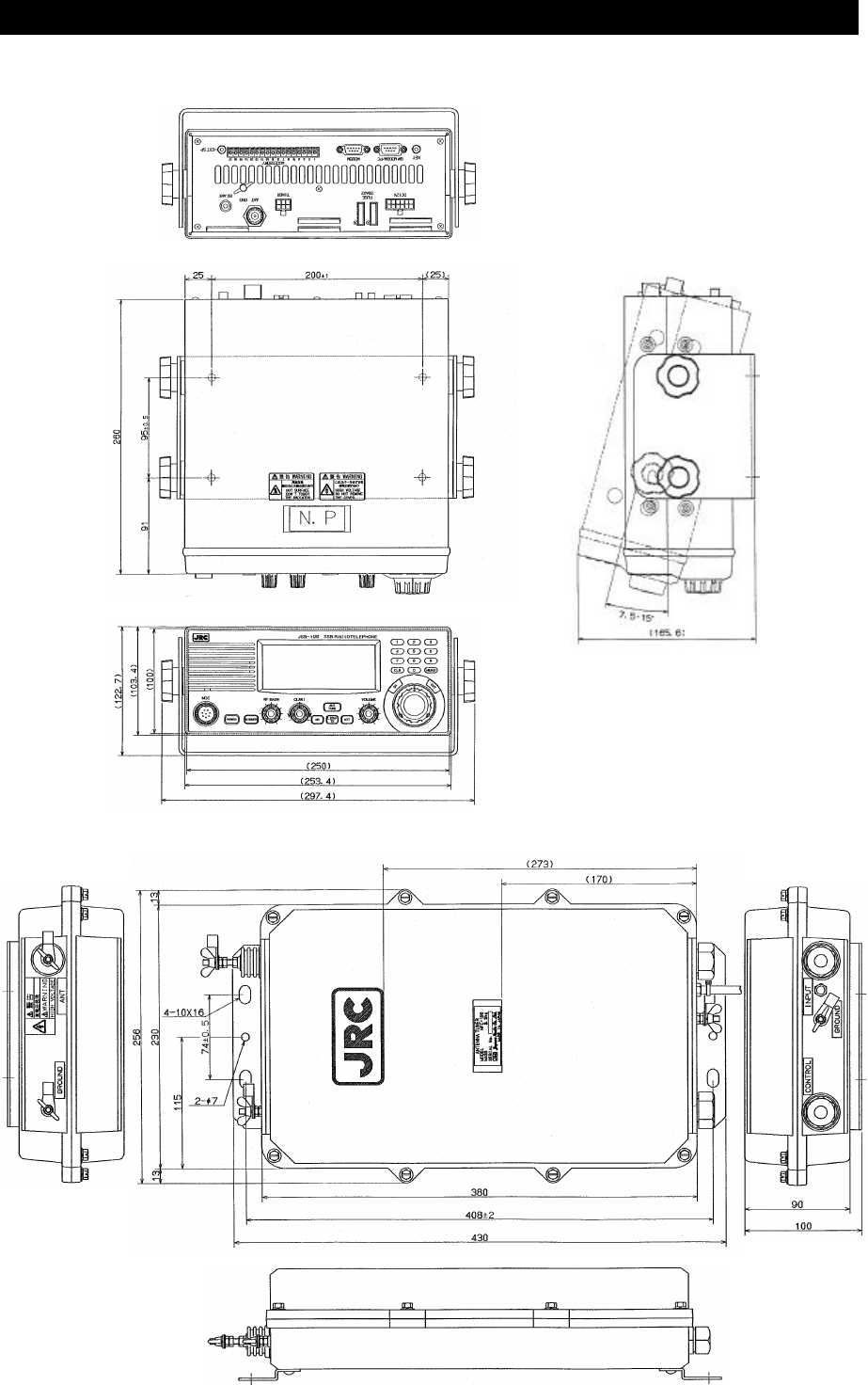

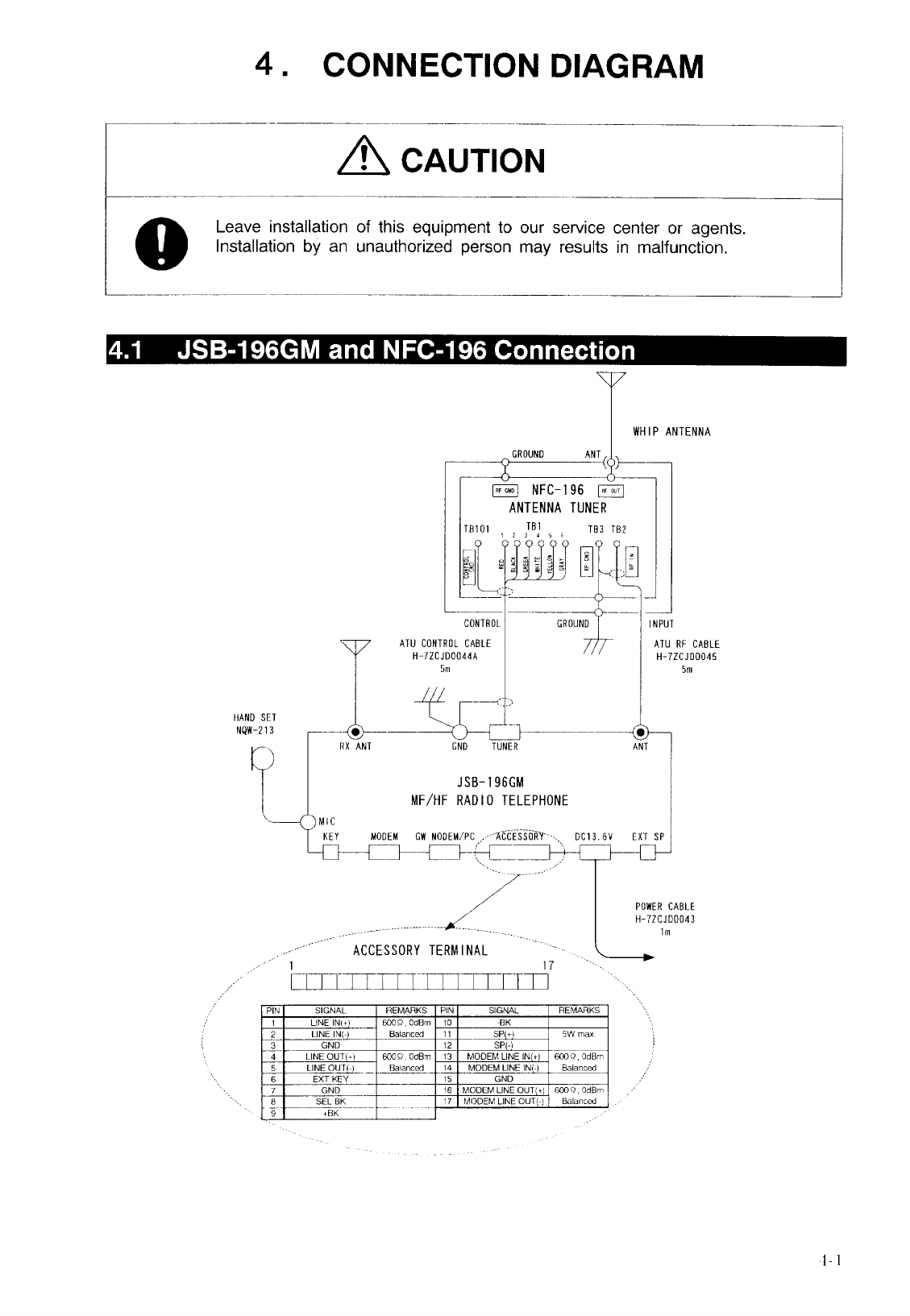

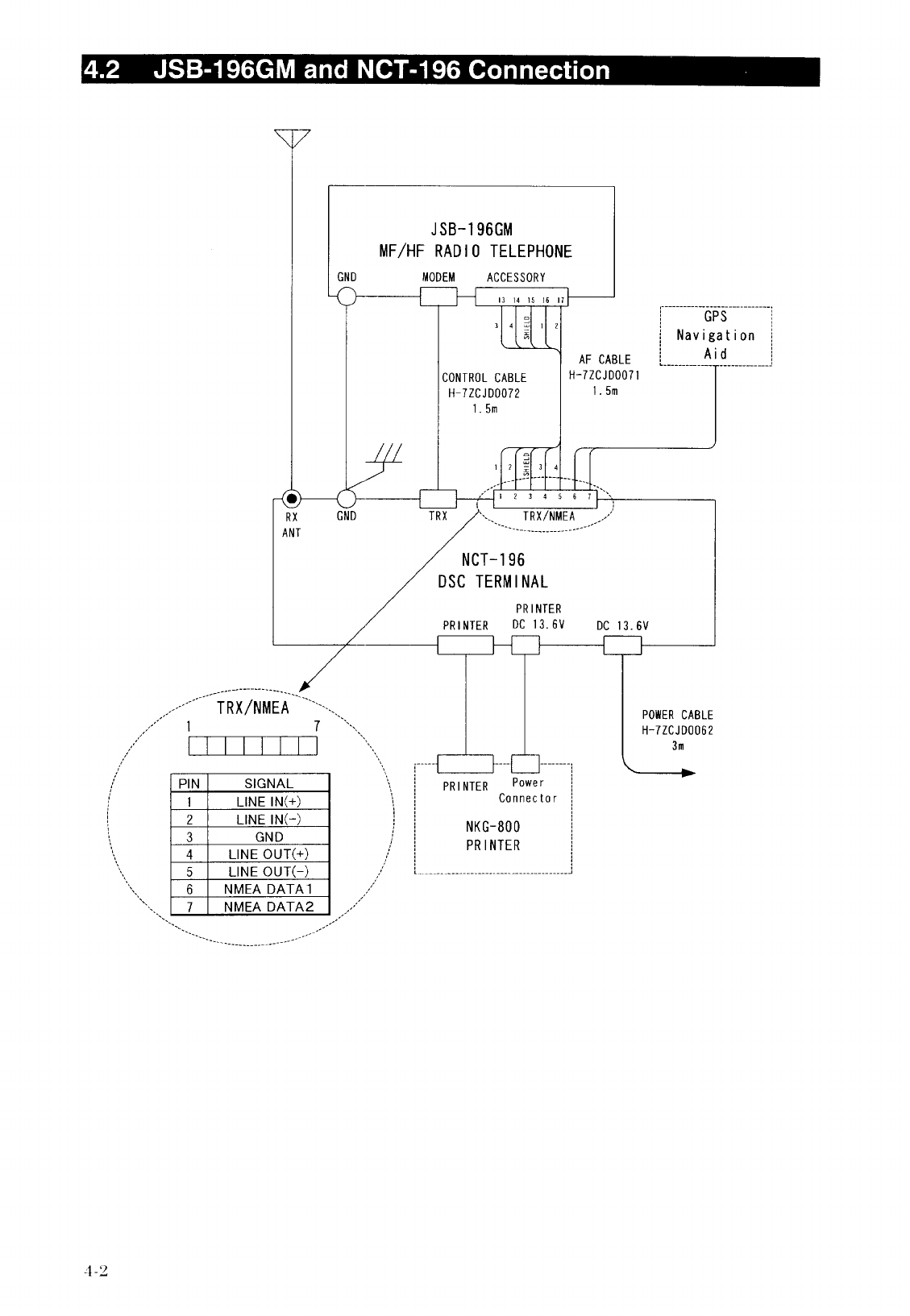

1.4 Configuration
●

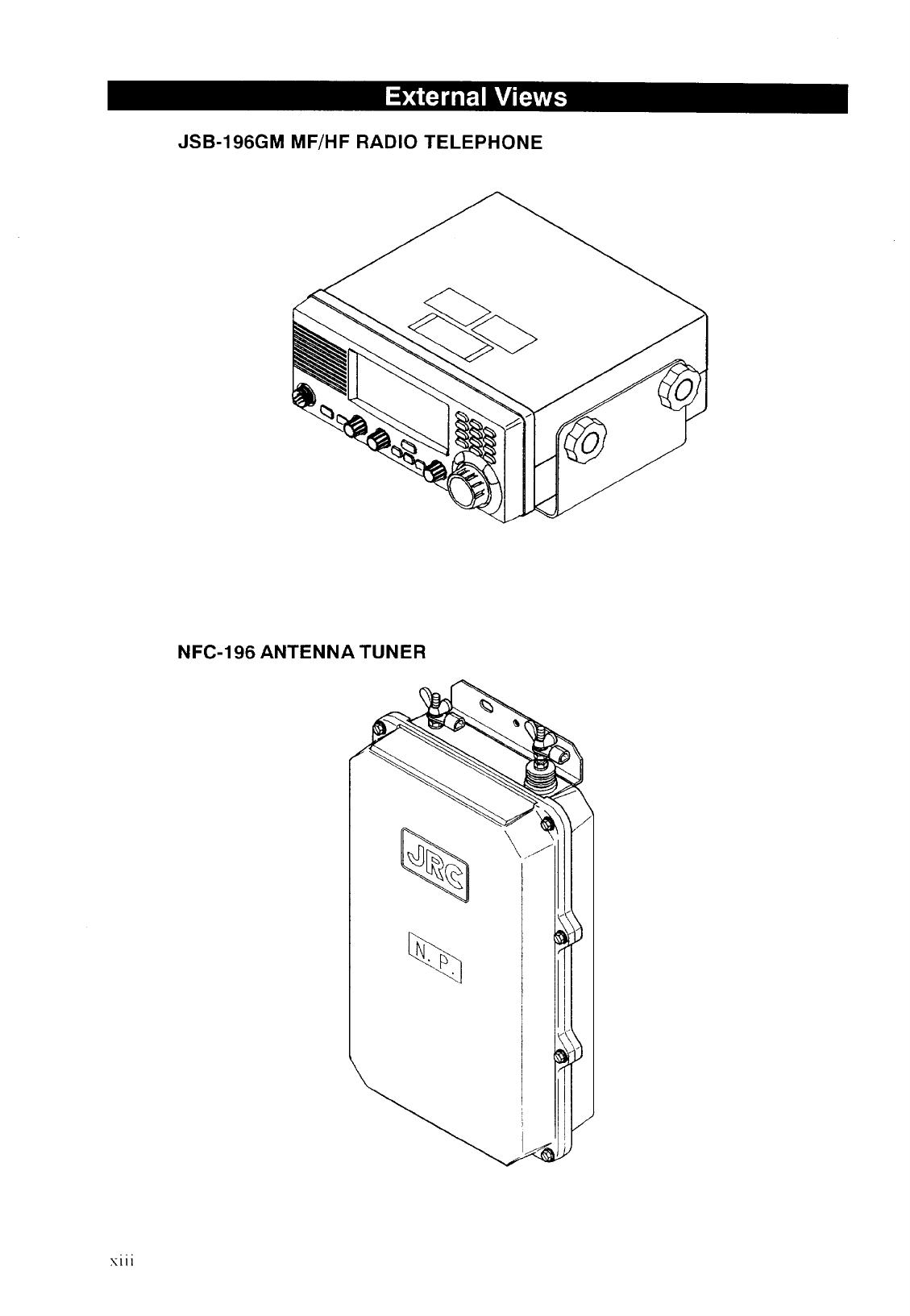

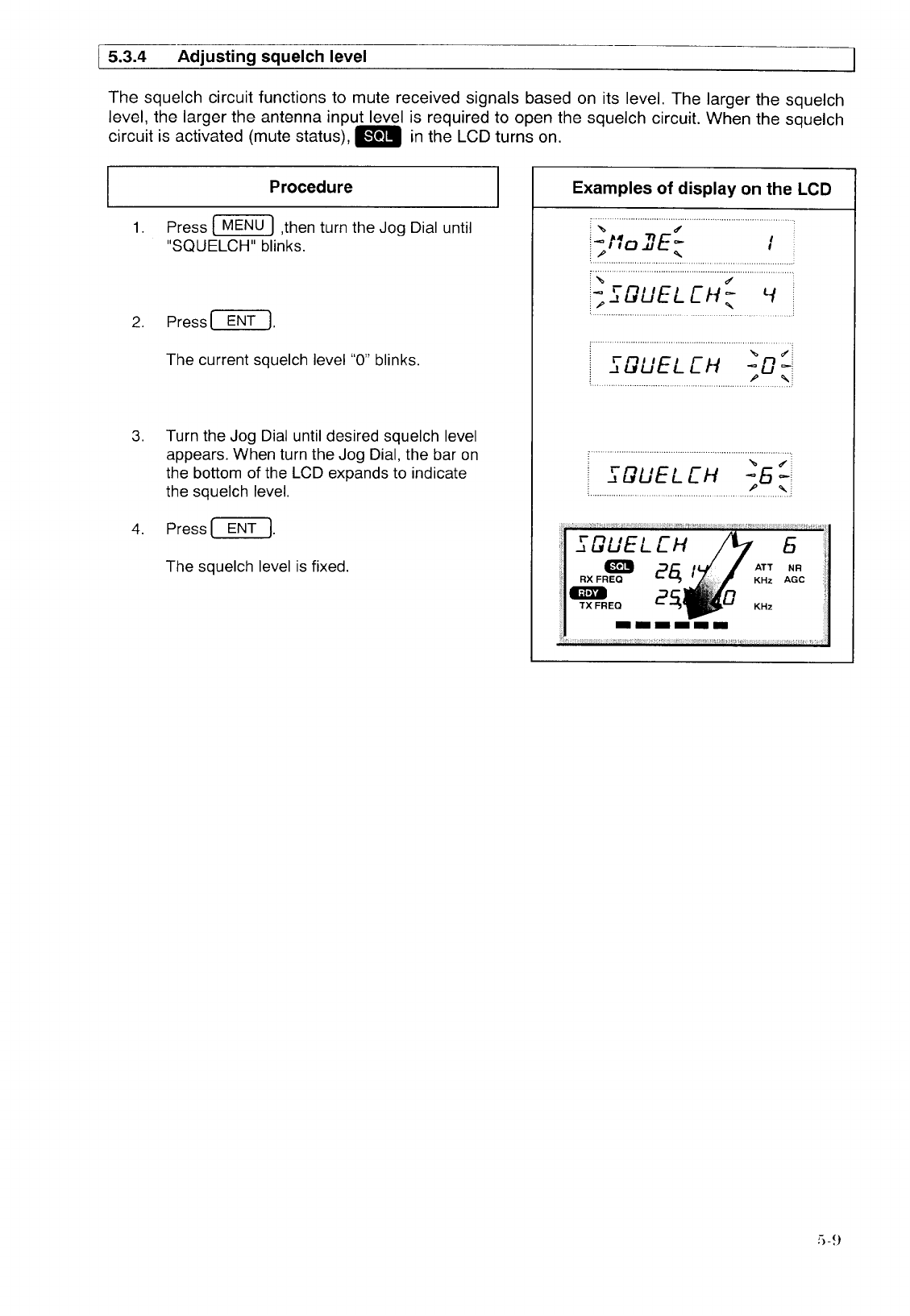

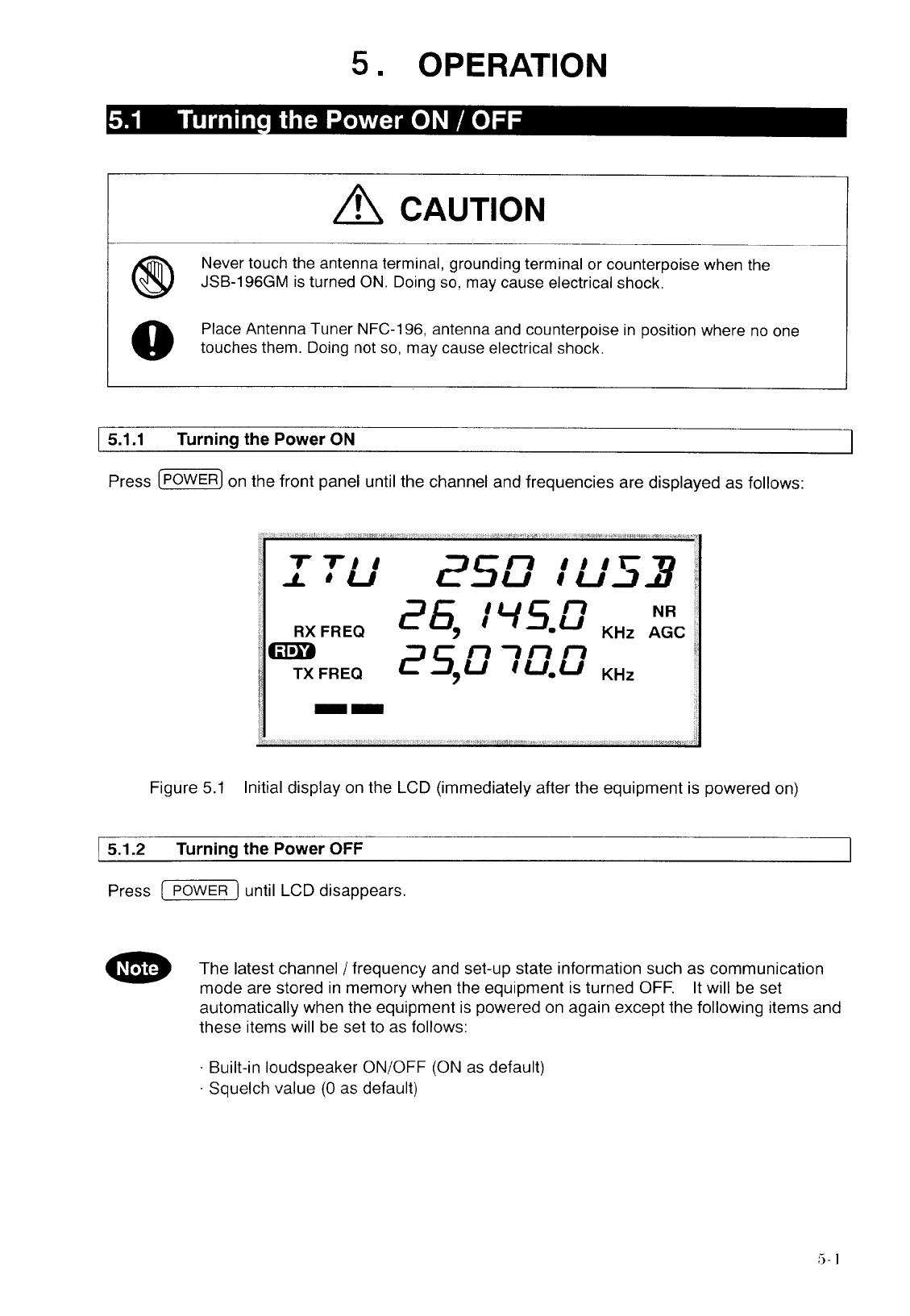

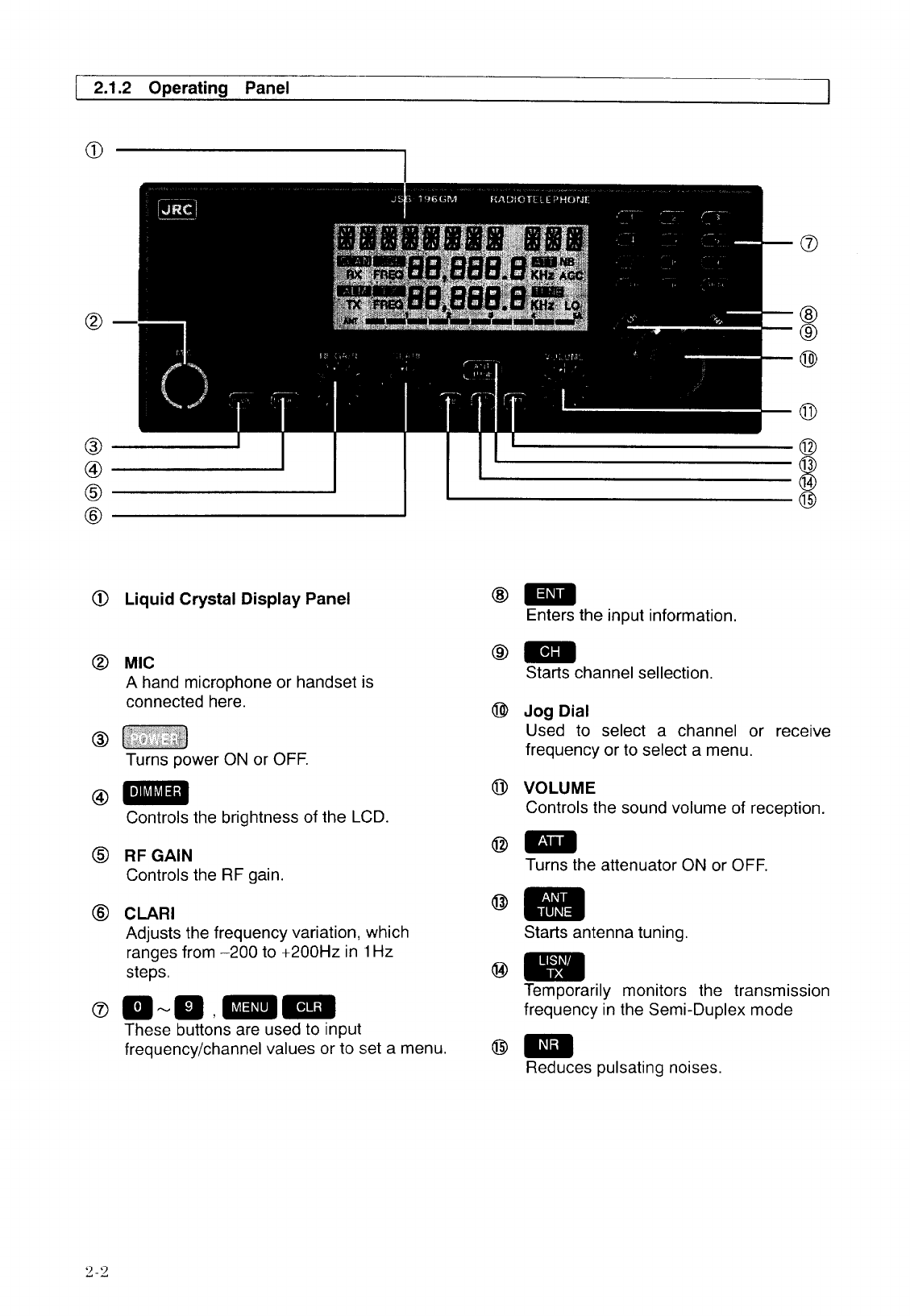

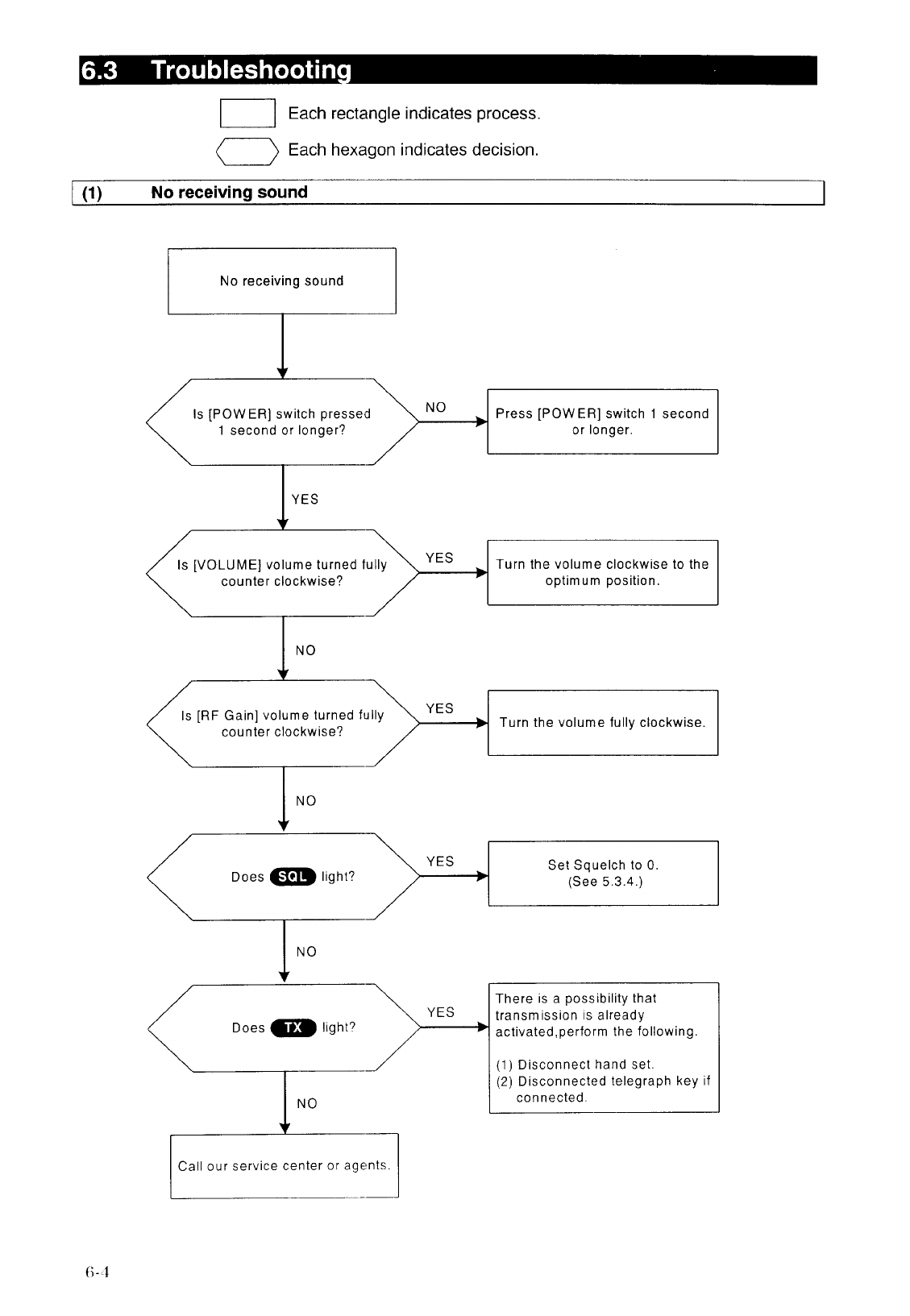

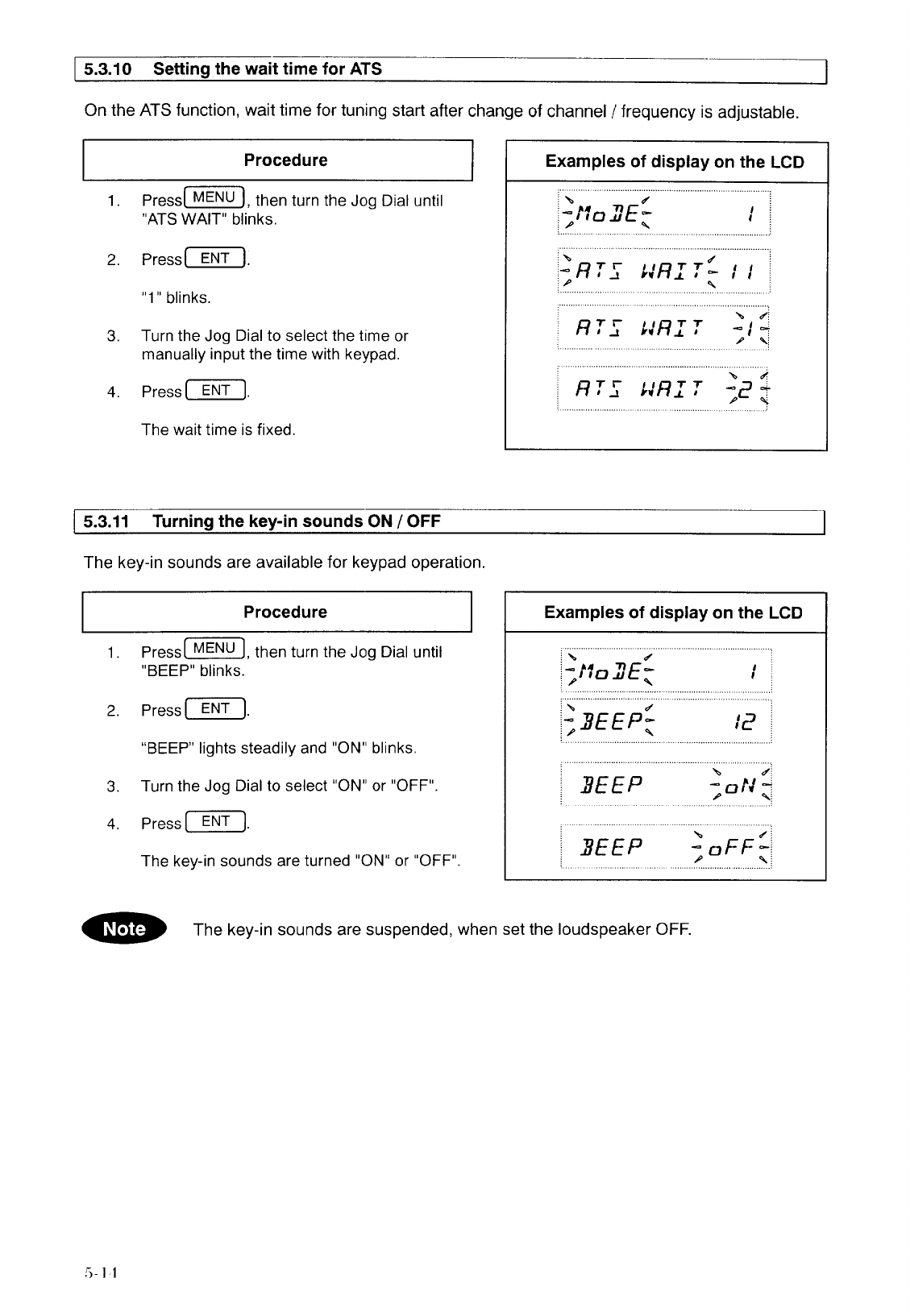

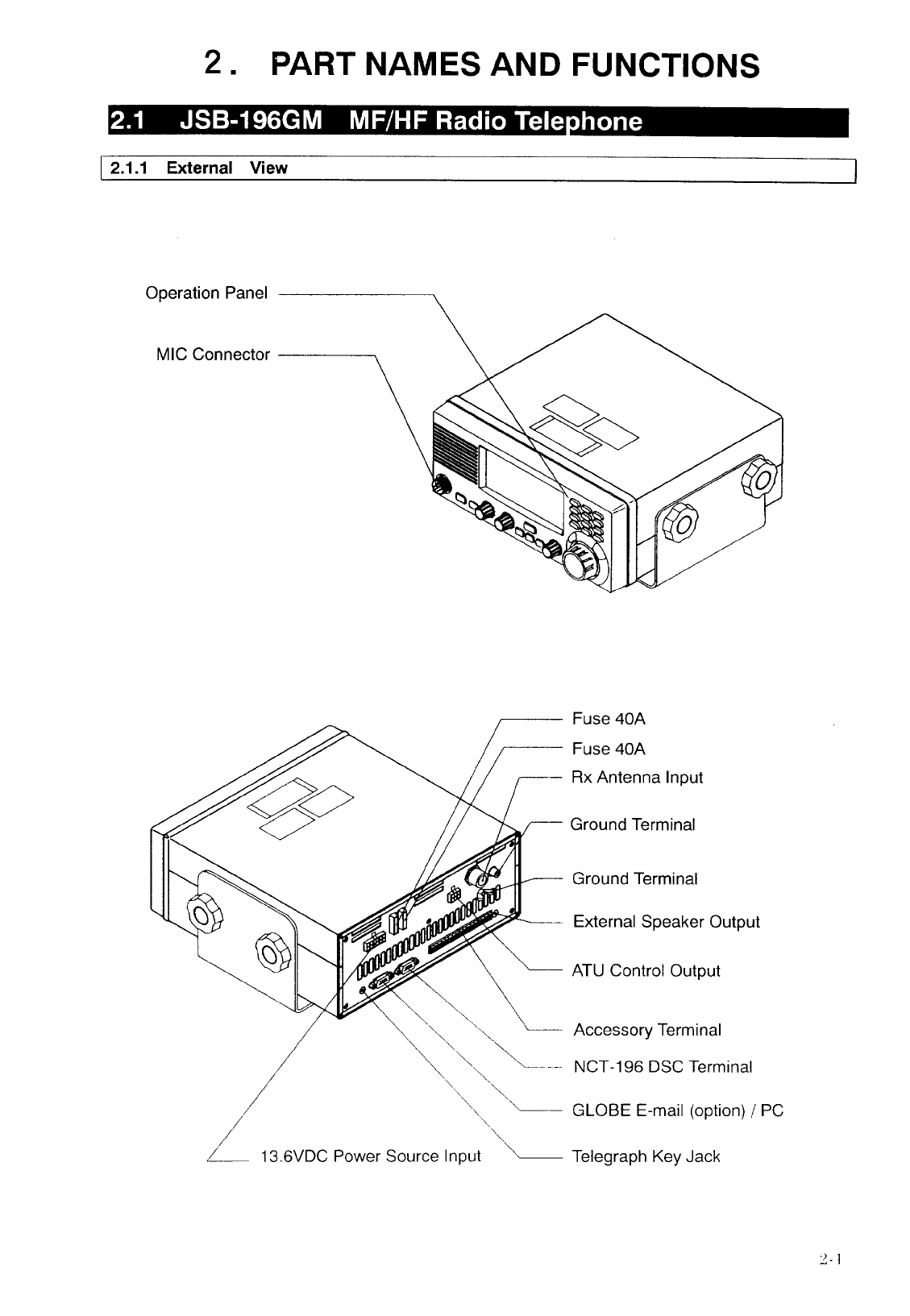

JSB-196GM MF/HF Radio Telephone
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
(Unit: mm)
●

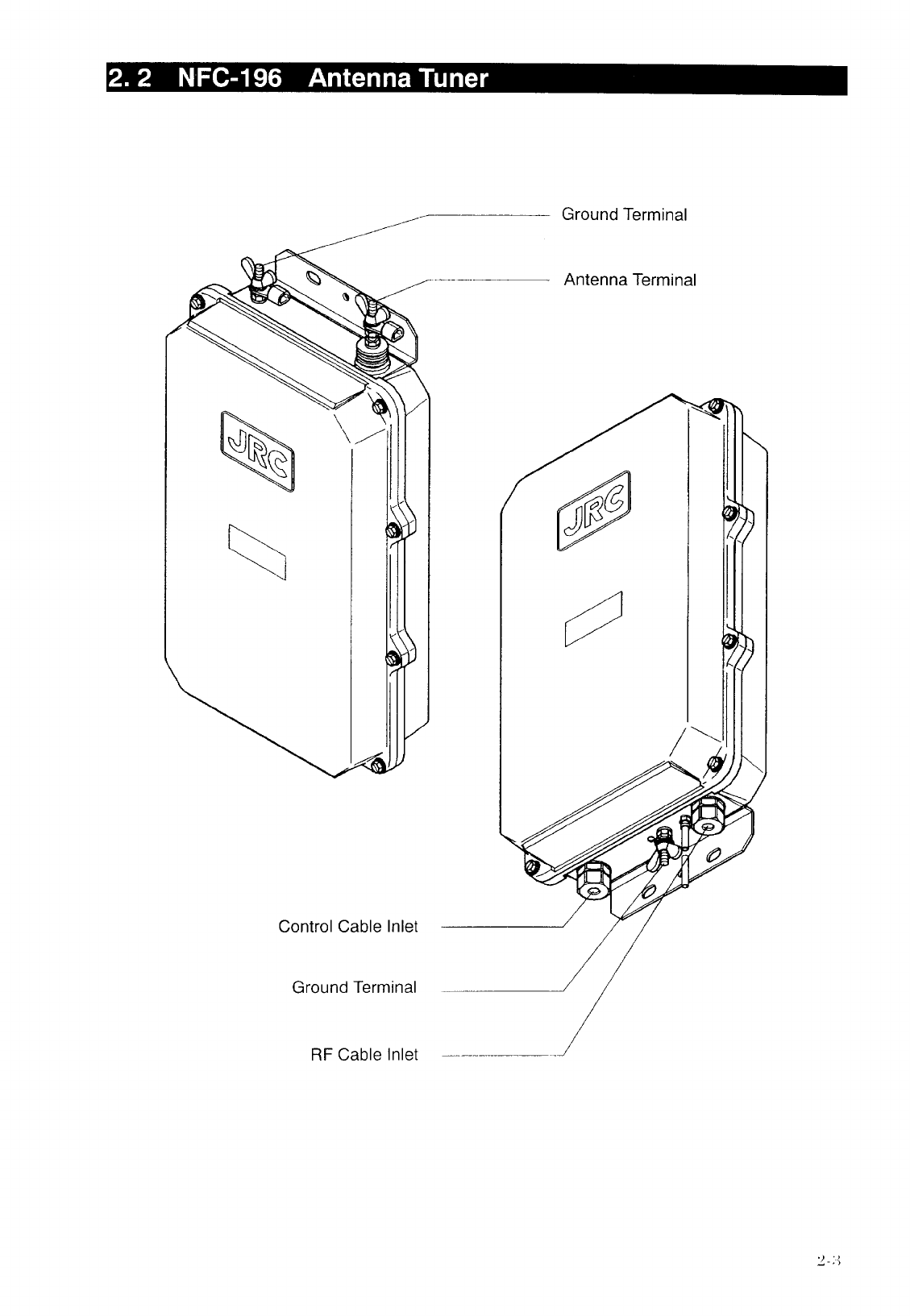

NFC-196 Antenna Tuner
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
(Unit: mm)
1-4
●

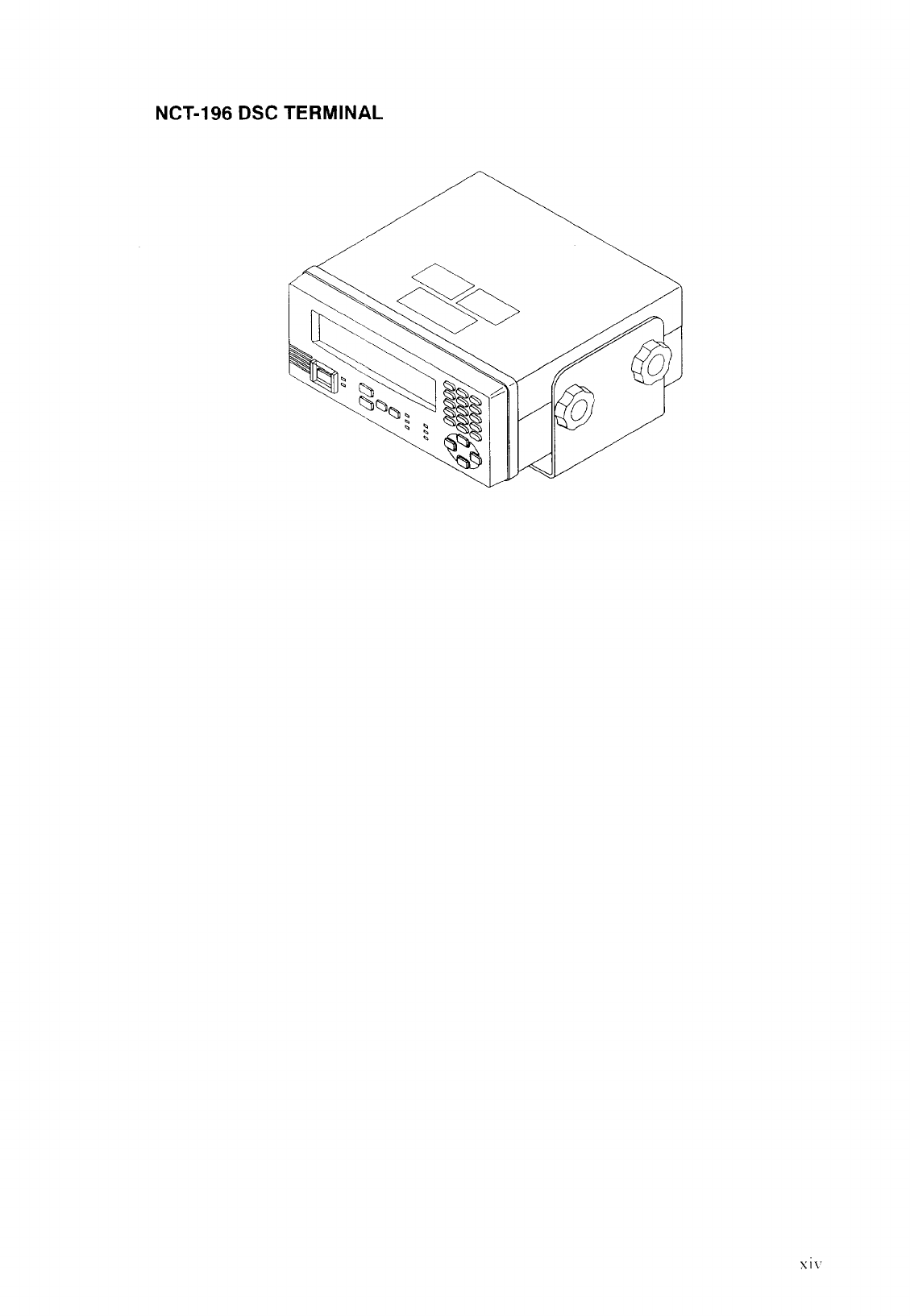

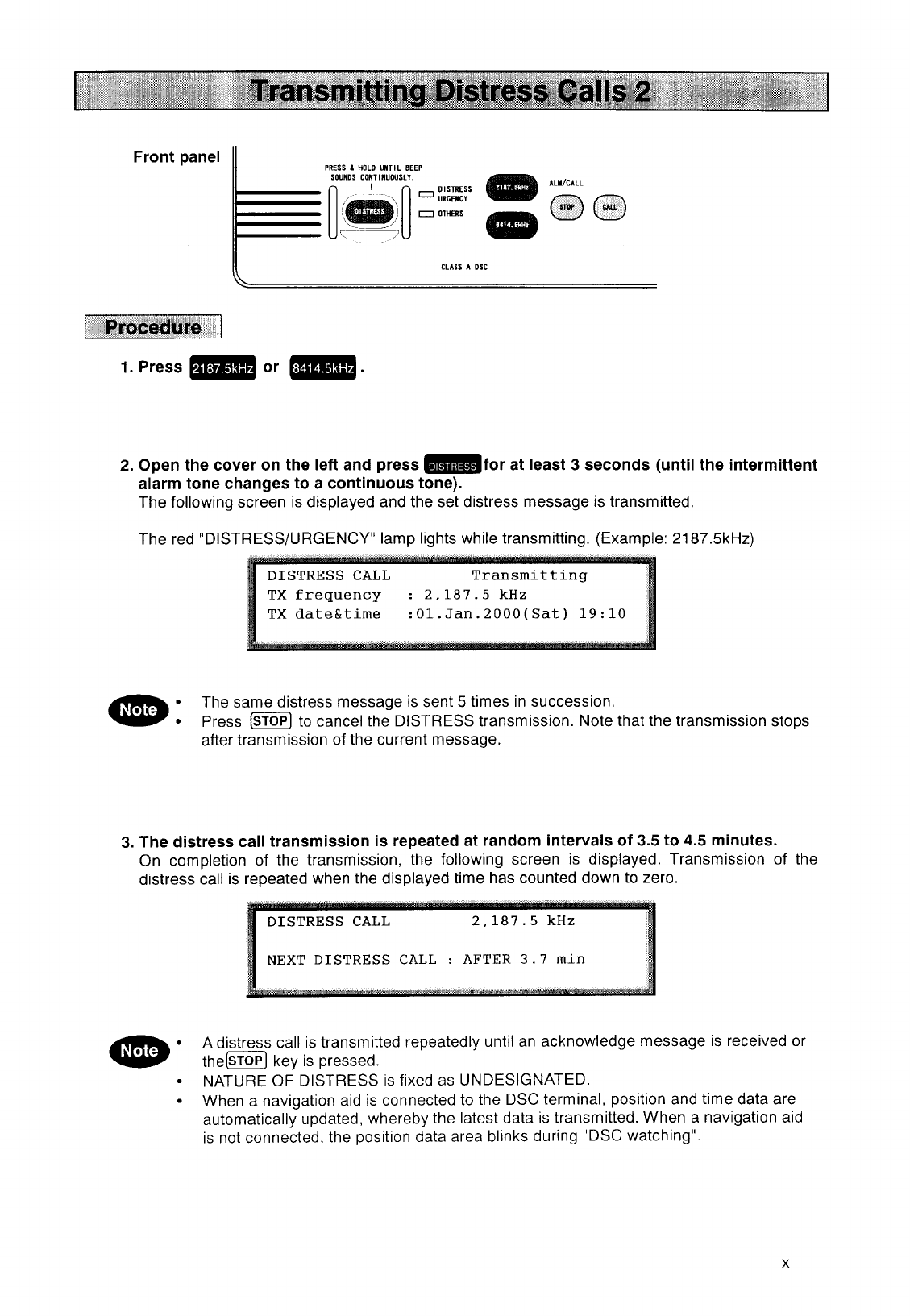

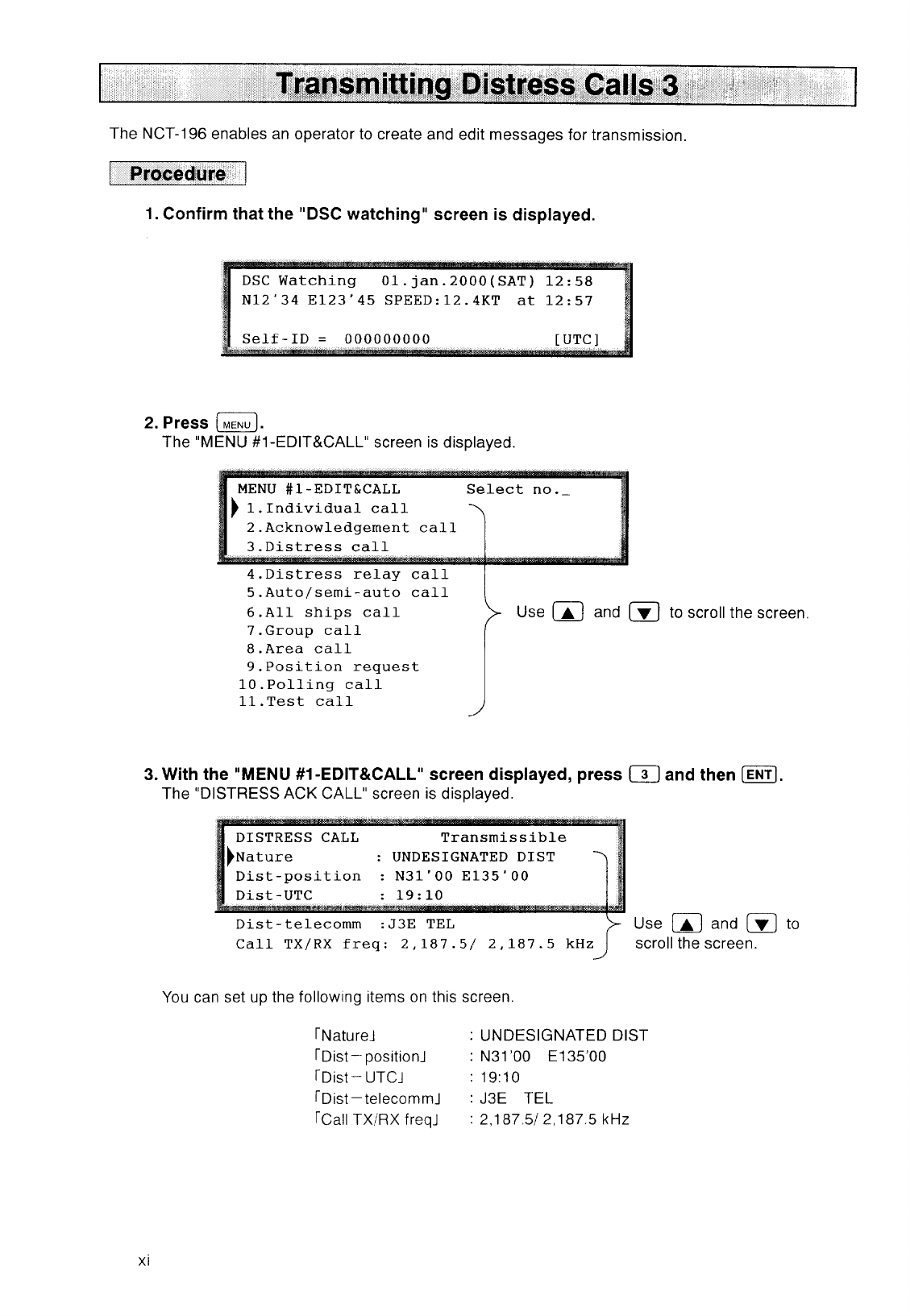

NCT-196
DSC Terminal
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
8-1
８
. SPECIFICATIONS
8.1 JSB-196GM MF/HF Radiotelephone
(1) General
Frequency range: Transmit: 1.6 to 27.5MHz (100Hz steps)
Receive: 0.1 to 29.9999MHz (100Hz steps)
Frequency tolerance: ±10 Hz or better (after 1minute warm-up)
Emission mode: J3E, A1A, F1B (DSC/TLX) , H2B and H3E (Reception only)

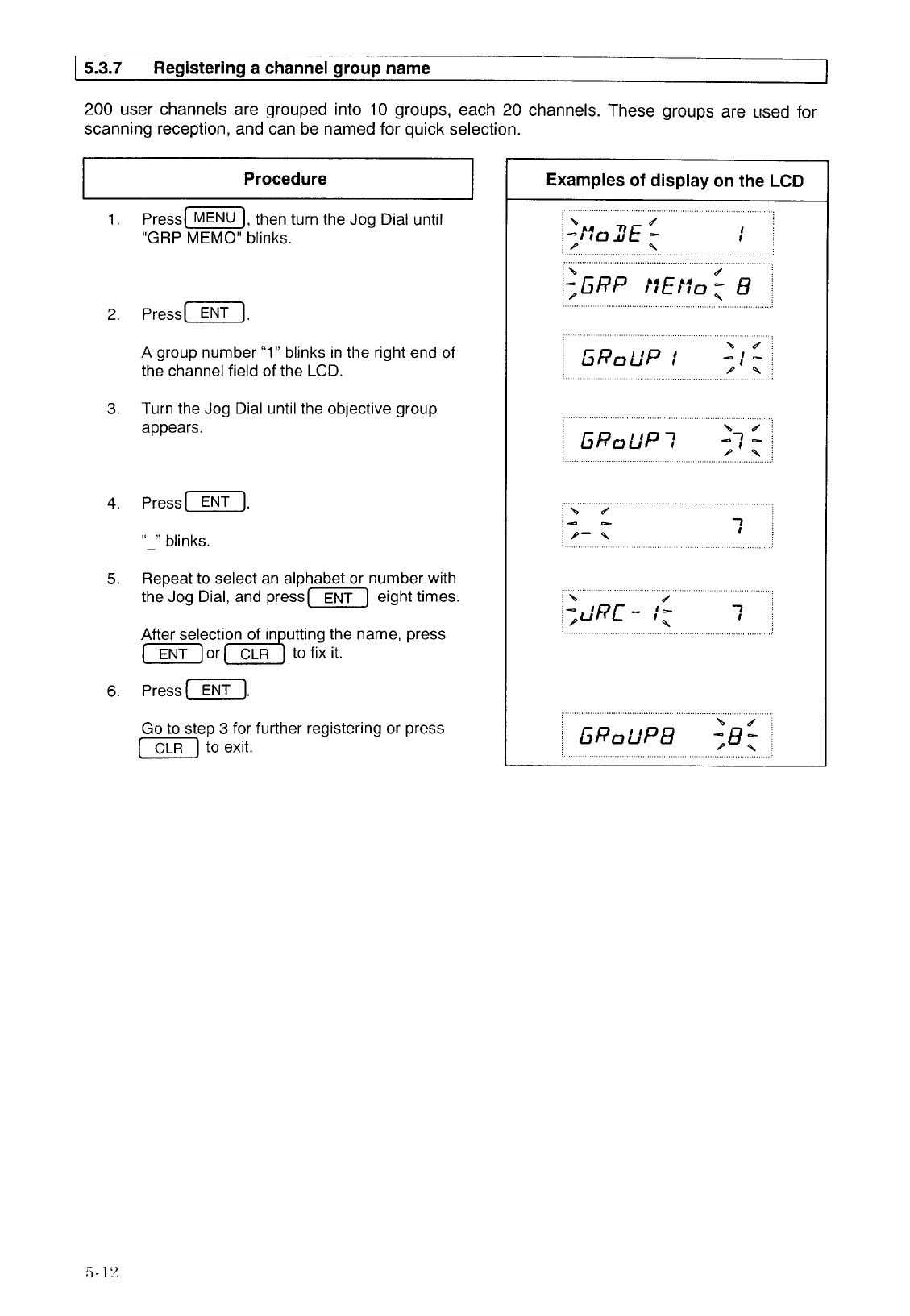

User definable channels: 200ch (20ch X 10 Groups)

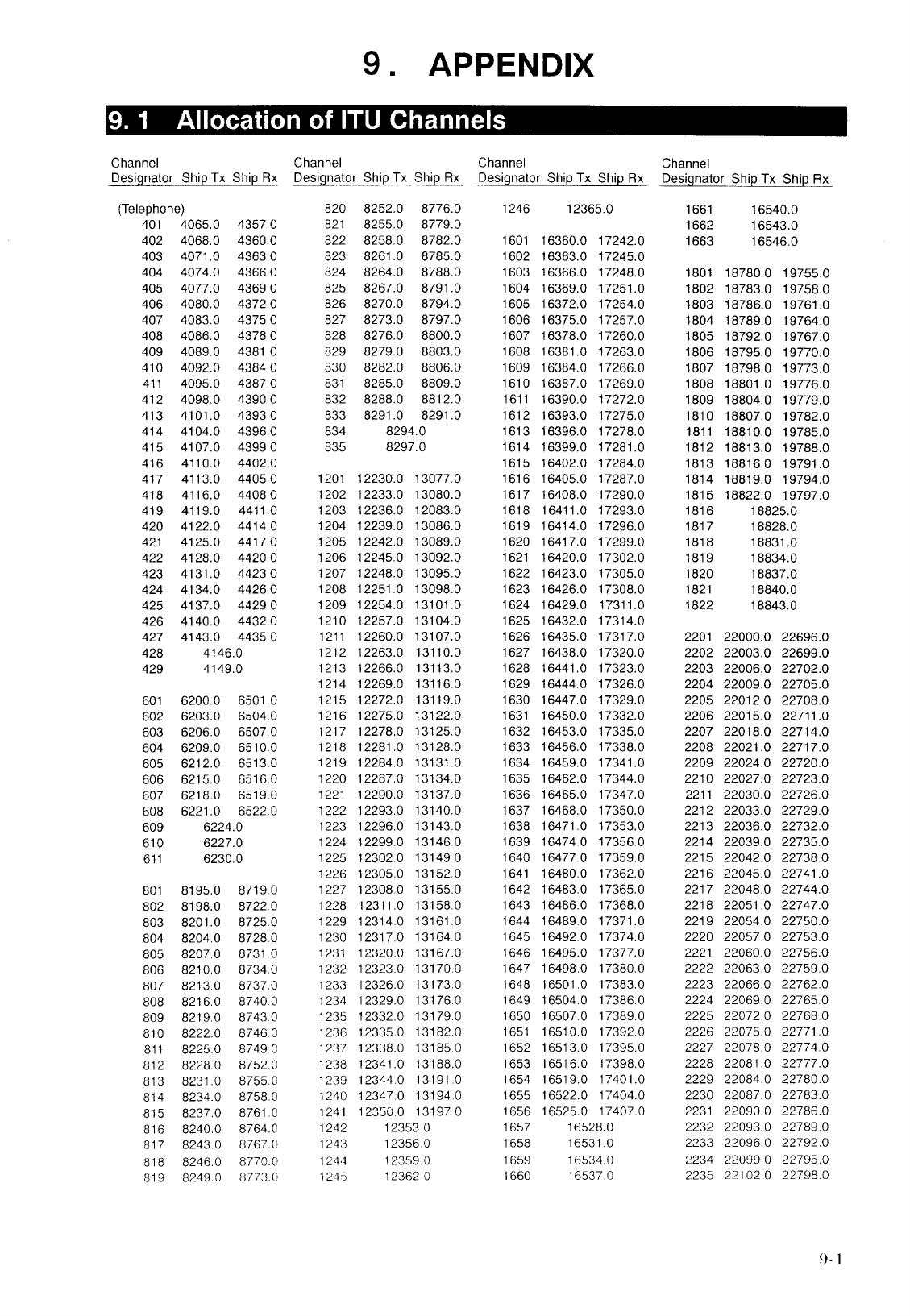

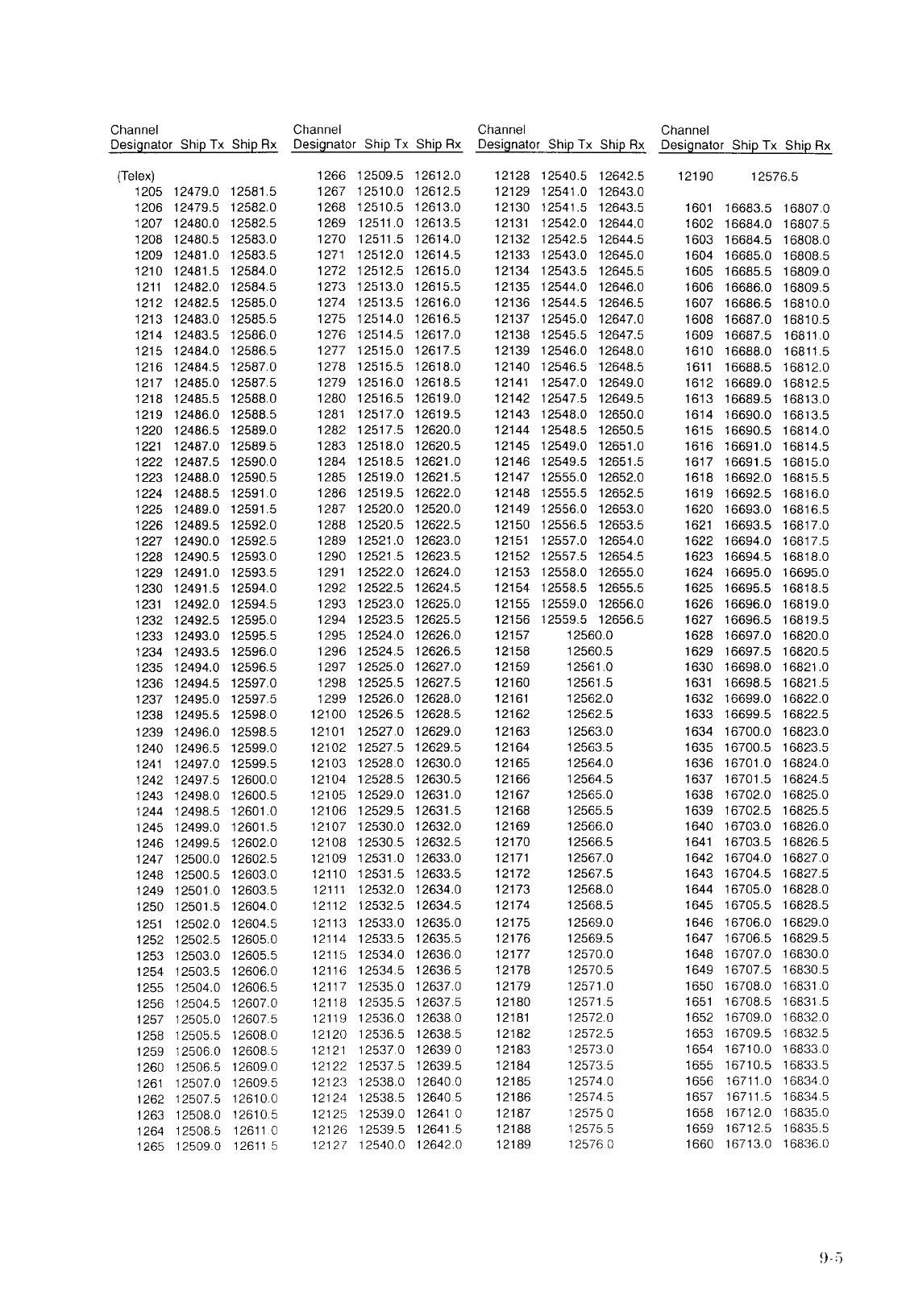

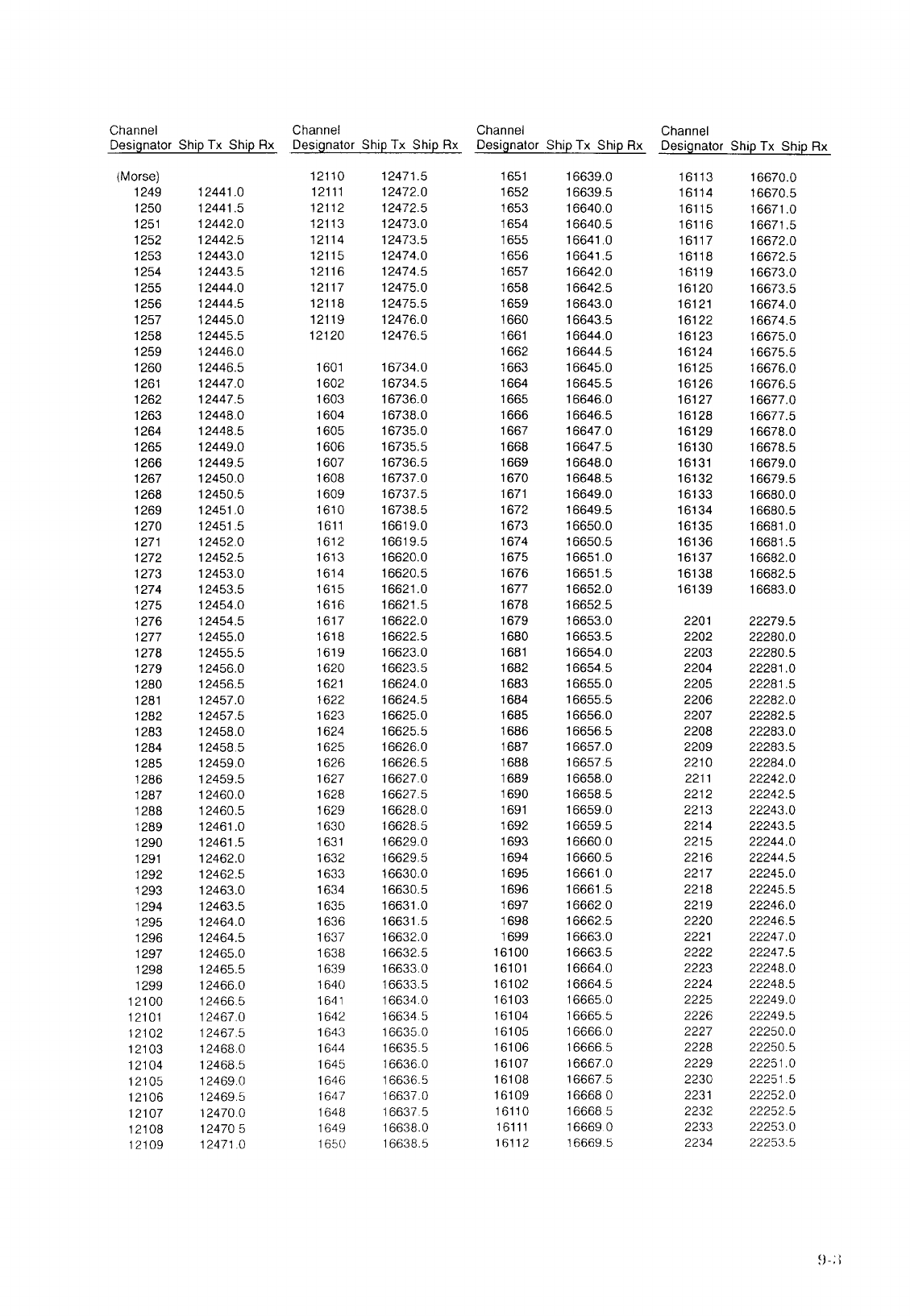

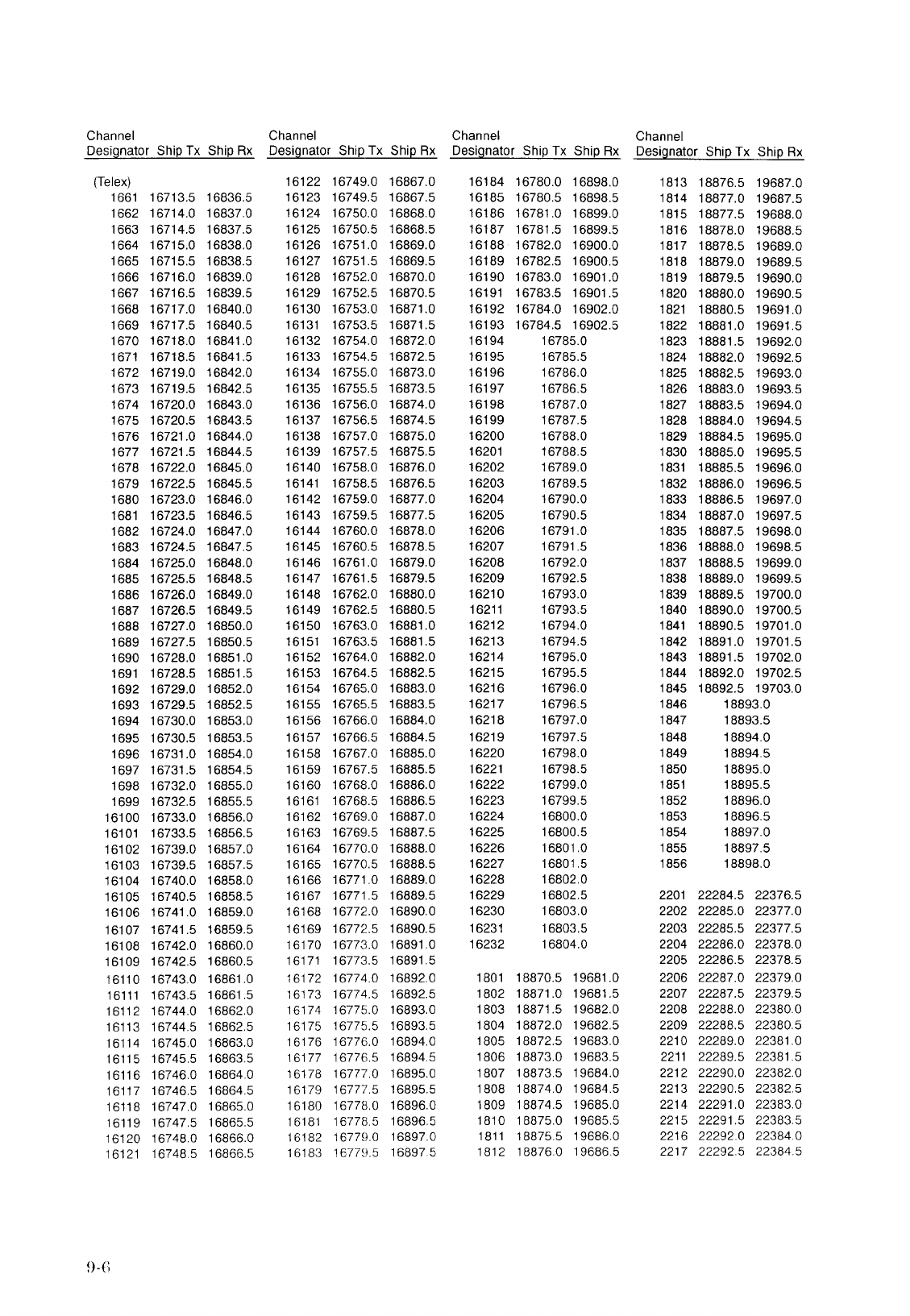

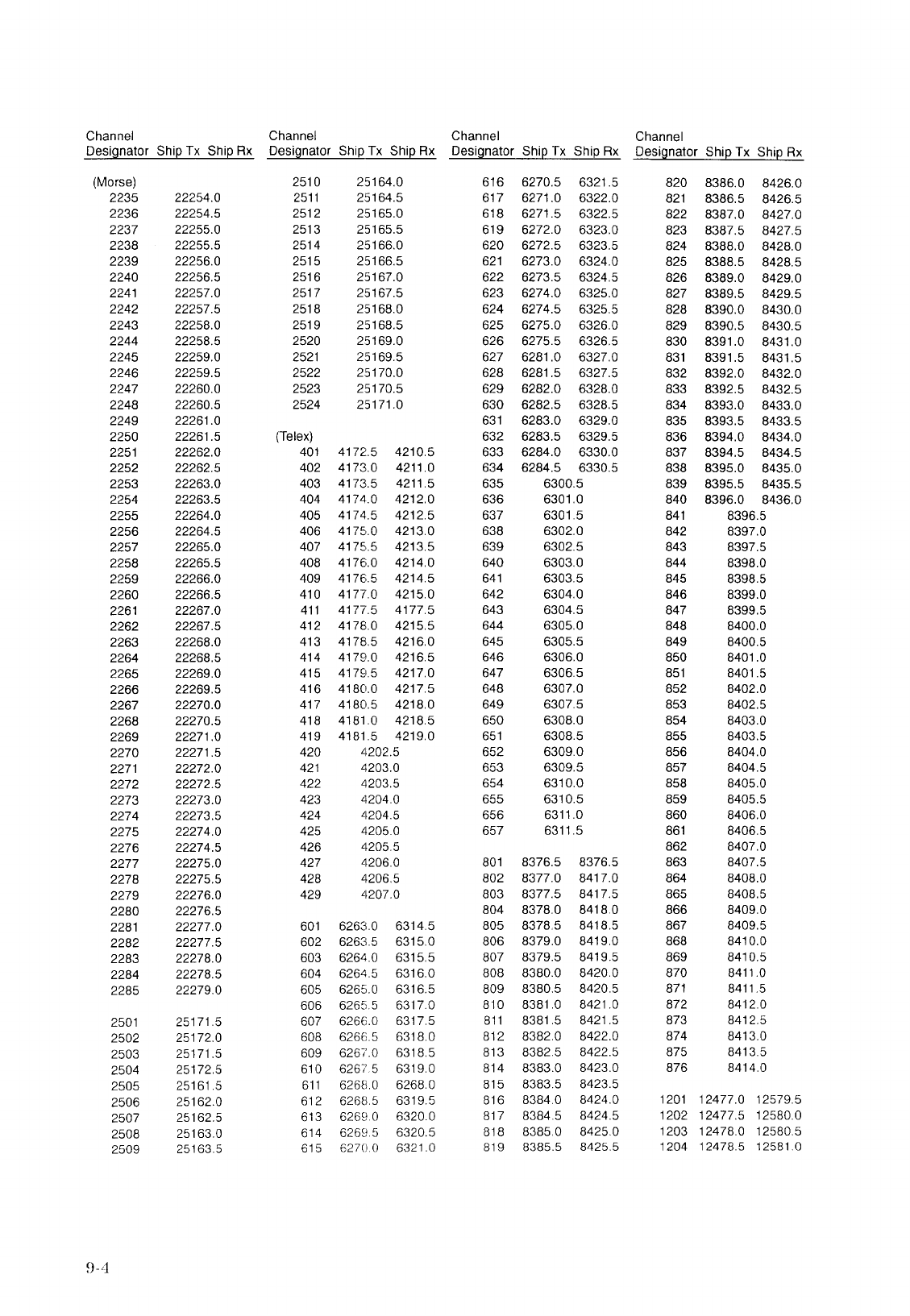

Preset ITU channels: 1722ch [ SSB:283, F1B(DSC:29, TLX:891), A1A:519 ]
Frequency switching time: 0.1s or better
Communication mode: Simplex and semi-duplex

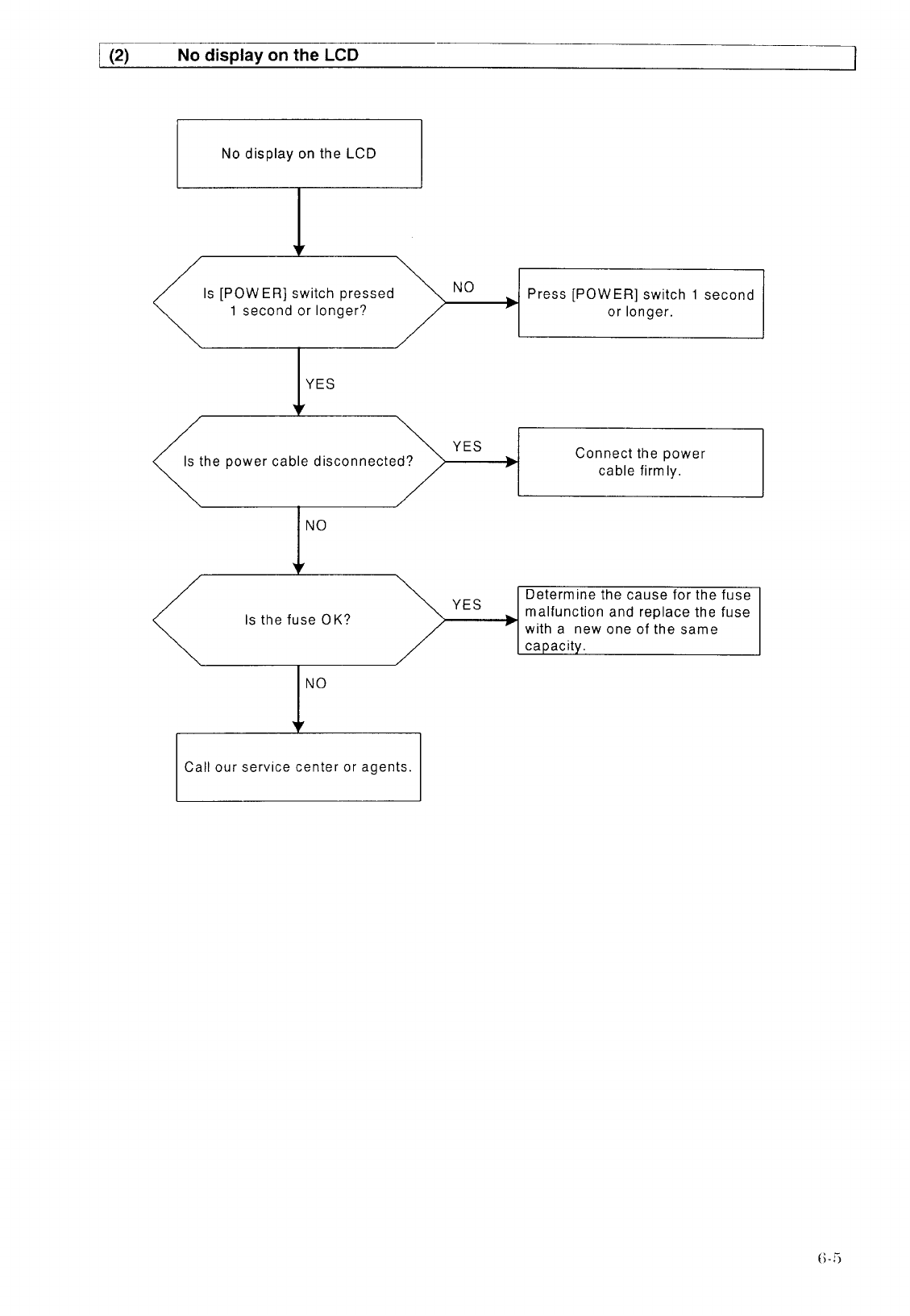

Power requirement: 13.6V DC±10% (12.3V DC to 15.0V DC), negative-grounded
Tx: 40A max
Rx: 2A max
(Operable between 10.2V DC and 16.2V DC)
Compass safe distance: 1.5 m
Operating temperature: -30 to +55oC
Dimensions and mass: 250 mm(W) × 100 mm(H) × 260 mm(D), Approx. 7.4 kg
(2) Transmitter

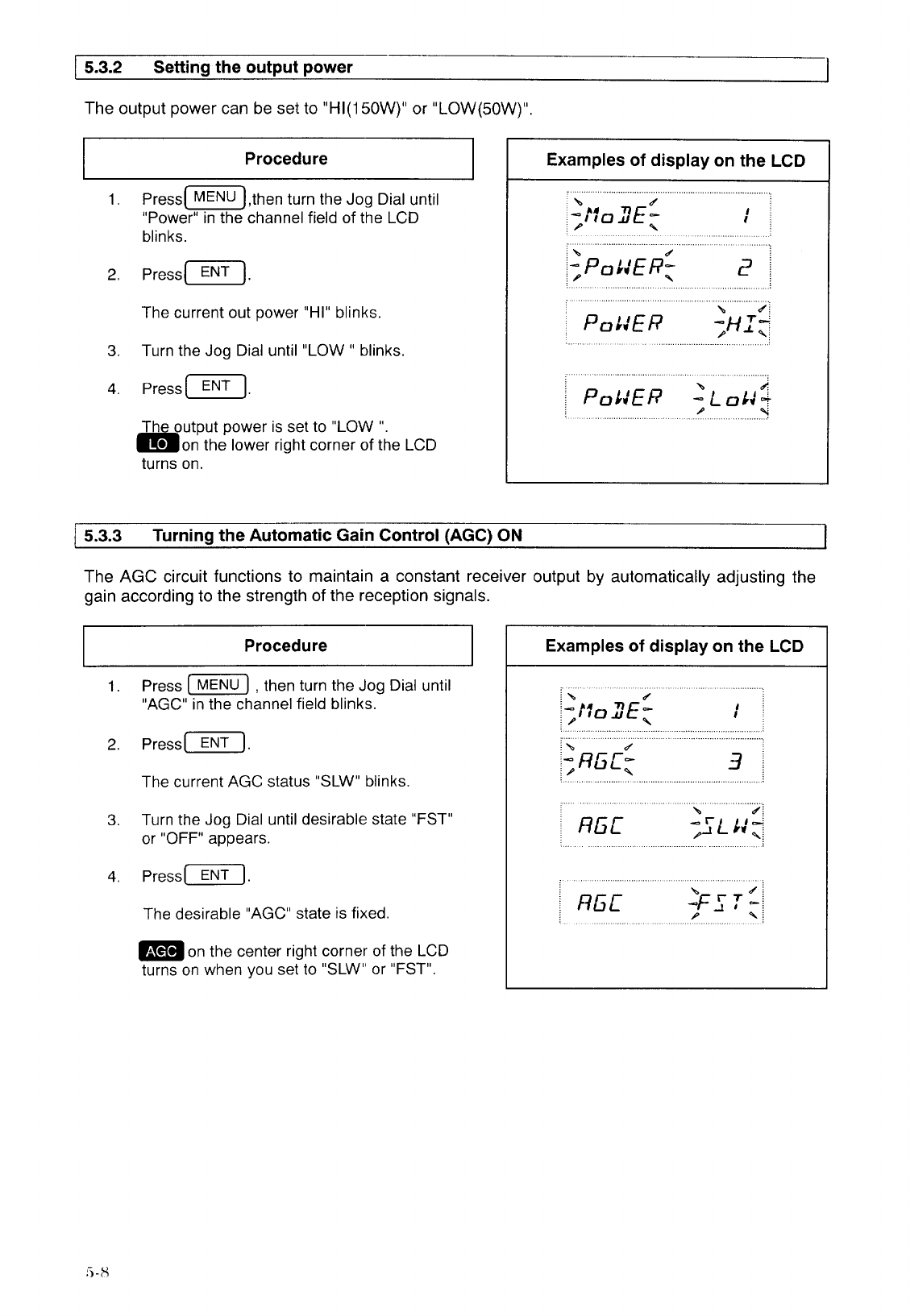

Output power and power reduction: 100 W ( 1.6 to 4MHz ) , 150 W ( 4 to 27.5MHz )
Duty cycle: Intermittent cycle
Occupied frequency band: J3E 3 kHz or better
F1B (DSC/TLX), A1A 0.5 kHz or better
Carrier suppression: J3E -60dB or less
Spurious suppression: -60 dB or less
AF frequency response: 350 to 2700Hz (6dB bandwidth)
Microphone input: 600 ohms dynamic microphone (-40 dBm standard)
Line input: 0 dBm, 600 ohms (Balanced)
8-2
(3) Receiver
Sensitivity: J3E 6.3 uV or better (1.6 to 4MHz)
3.5 uV or better (4 to 27.5MHz)
F1B(DSC/TLX) 1.8 uV or better (1.6 to 4MHz)
1.0 uV or better (4 to 27.5MHz)
Receiving system: Triple superheterodyne
Intermediate frequencies: 70.455MHz, 455kHz, 20.217kHz
Selectivity: J3E 6 dB bandwidth 2.4 to 3kHz,
66 dB bandwidth Within ±2.1kHz
F1B(DSC/TLX) 6 dB bandwidth 270 to 300Hz,
60 dB bandwidth Within ±550Hz
Spurious response: 60 dB or better
Clarifier range: ±200 Hz (1Hz steps)
AF output: 5.0W max. 1W rated
8.2 NFC-196 Antenna Tuner
Frequency range: 1.6 to 30MHz
Power capability: 200 W
SWR after tuning: 2:1
Tuning method: Automatic tuning and preset tuning
Tuning time: Automatic tuning: typical 3sec
Preset tuning: typical 0.5sec
Operating temperature: -30 to +60 oC
Power requirement: 10.2V DC to 16.2V DC, negative-grounded
1.5A max
Dimensions and mass: 230 mm(W) × 380 mm(H) × 90 mm(D), Approx. 3.3 kg
