VESSEL TRAFFIC SERVICE
VTS
INSTRUCTION
MANUAL
JRC Code : H-7ZPKP0001
◆◆◆PRECAUTIONS BEFORE OPERATION◆◆◆
■Cautions for high voltage
High voltages from hundreds volts to tens of thousands volts are to be applied to the electronic
equipment such radio and radar devices. You do not face any danger during normal operation,
but sufficient cares are required for maintenance, inspection and adjustment of their internal
components. (Maintenance, check-up and adjustment of the inside of the equipment are
prohibited except by maintenance specialists.)
High voltages of tens of thousands volts are so dangerous as to bring an instantaneous death from
electric shock, but even voltages of hundred volts may sometimes lead to a death from electric
shock. To prevent such an accident, make it a rule to turn off the power switch, discharge
capacitors with a wire surely earthed on an end make sure that internal parts are no longer charged
before you touch any parts inside these devices. At the time, wearing dry cotton gloves ensures
you further to prevent such danger. It is also a necessary caution to put one of your hands in the
pocket and not to use your both hands at the same time.
It is also important to select a stable foothold always to prevent additional injuries once you were
shocked by electricity. If you were injured from electric shock, disinfect the burn sufficiently
and get it taken care of promptly.
■What to do in case of electric shock
When finding a victim of electric shock, turn off the power source and earth the circuit
immediately.
If it is impossible to turn off the circuit, move the victim away promptly using insulators such as
dry wood plate and cloth without touching the victim directly.
In case of electric shock, breathing may stop suddenly if current flows to the respiration center in
the brain. If the shock is not so strong, artificial respiration may recover breathing. When
shocked by electricity, the victim will come to look very bad with weak pulse or without beating,
resulting in unconsciousness and rigidity. In this case, it is necessary to perform an emergency
measure immediately.
◆◆◆FIRST-AID TREATMENTS◆◆◆
☆First-aid treatments
As far as the victim of electric shock is not in dangerous condition, do not move him and practice
artificial respiration on him immediately. Once started, it should be continued rhythmically.
(1) Do not touch the victim confusedly as a result of the accident, but the rescuer may also get an
electric shock.
(2) Turn off the power source calmly and move the victim away quietly from the electric line.
(3) Call a physician or ambulance immediately or ask someone to call a doctor.
(4) Lay the victim on this back and loosen his necktie, clothes, belt, etc.
(5) a. Examine the victim’s pulse.
b. Examine his heartbeat bringing your ear close to his heart.
c. Examine his breathing bringing the back of your hand or your face close to his face.
d. Check the size of the pupils of his eyes.
(6) Open the victim’s mouth and take out artificial teeth, cigarette or chewing gum if any.
Keep his mouth open, stretch his tongue and insert a towel or the like in his mouth to prevent
the tongue from suffocating. (If it is hard to open his mouth due to set teeth, open it with a
screwdriver and insert a towel in this mouth.)
(7) Then, wipe his mouth so that foaming mucus does not accumulate inside.
☆When pulse is beating but breathing has stopped
(Mouth-to-mouth respiration) Fig. 1
(1) Tilt the victim’s head back as far as this face looks back. (A pillow may be inserted his
neck.)
(2) Push his jaw upward to open his throat wide (to spread his airway).
(3) Pinch the victim’s nostrils and take a deep breath, block his mouth completely with yours
and blow into his mouth strongly. Take a deep breath again and blow into his mouth.
Continue this 10 to 15 times a minutes (blocking his nostrils).
(4) Carefully watch that he has recovered his natural breathing and atop practicing artificial
respiration.
(5) If it is difficult to open the victim’s mouth, insert a rubber or vinyl tube into one of his
nostrils and blow into it blocking the other nostril and his mouth completely.
(6) When the victim recovers consciousness, he may try to stand up suddenly, but let him lie
calmly and serve him with a cup of hot coffee or tea and keep him warm and quiet. (Never
give him alcoholic drinks.)
Method of mouth-to-mouth respiration by raising head
(1) Raise the victim’s head. Support his
forehead with one of your hand and his
neck with the other hand. →1
When you tilt his head backward, the
victim, in most cases, opens his mouth to
the air. This makes mouth-to mouth
respiration easy.
(2) Cover his mouth as widely as possible with
yours and press your cheek against his nose
→2
or, pinch his nostrils with your fingers to
prevent air from leaking. →3
(3) Blow into his lungs. Continue blowing
into his mouth until his breast swells.
Blow into his mouth as quickly as possible
for the first 10 times.
Fig. 1 Mouth-to mouth respiration
☆When both pulse and breathing have stopped
Perform the (Cardiac massage) Fig. 2 and (Mouth-to-mouth respiration) Fig. 1
When no pulse has come not to be felt, his pupils are open and no heartbeat is heard, cardiac arrest
is supposed to have occurred and artificial respiration must be performed.
(1) Place your both hands, one hand on the other, on the lower one third area of his breastbone
and compress his breast with your elbows applying your weight on his breast so that it is
dented about 2cm (Repeat compressing his breast 50 times or so a minutes). (Cardiac
massage)
(2) In case of one rescuer,
Repeat cardiac massages about 15 times and blow into his mouth 2 times quickly, and repeat
this combination.
In case of two rescuers,
One person repeats cardiac massages 15 times while the other person blow into his mouth
twice, and they shall repeat this combination. (Perform the cardiac massage and
mouth-to-mouth respiration)
(3) Examine his pupils and his pulse sometimes. When the both have returned to normal, stop
the artificial respiration, serve him with a cup of hot coffee or tea and keep him warm and
calm while watching him carefully. Commit the victim to a medical specialist depending
on his condition. (Never give him alcoholic drinks.) To let him recover from the mental
shock, it is necessary for persons concerned to understand his situations and the necessary
treatment.
Fig. 2 Cardiac massage
- i -
PREFACE
Thank you very much for purchasing the JRC VTS radar equipment, JPL-600-MK2 series.
This equipment is a marine radar equipment designed to obtain safe operation of marine ships.
This equipment consists of a radar signal transmitter-receiver unit, a LCD display unit and a scanner unit as
its main units.
● Before operating the equipment, be sure to read this instruction manual carefully for correct operation.
● Maintain this instruction manual so that operators can refer to it at anytime.
Refer to this manual when any inconvenience or defect occurs.
- ii -
●Before Operation●
Pictorial Indication
Various pictorial indications are included in this manual and are shown on these equipment so that you can
operate them safety and correctly and prevent any danger to you and/or to other persons and any damage to
your property during operation. Such indications and their meanings are as follows.
Please understand them before you read this manual:
DANGER This indication is shown where incorrect equipment operation due to
negligence may cause death or serious injuries.
WARNING This indication is shown where any person is supposed to be in
danger of being killed or seriously injured if this indication is
neglected and these equipment are not operated correctly.
CAUTION This indication is shown where any person is supposed to be injured
or any property damage is supposed to occur if this indication is
neglected and these equipment are not operated correctly.
Examples of Pictorial Indication
Electric Shock
The U mark represents CAUTION (including DANGER and WARNING).
Detailed contents of CAUTION (“Electric Shock” in the example on the
left.) is shown in the mark.
Disassembling
Prohibited
Prohibited
The mark represents prohibition.
Detailed contents of the prohibited action (“Disassembling Prohibited” in the
example on the left.) is shown in the mark.
Disconnect
the power
plug
Instruction
The mark represents instruction.
Detailed contents of the instruction (“Disconnect the power plug “ in the
example on the left.) is shown in the mark.
Warning Label
There is a warning label on the top cover of the equipment.
Do not try to remove, break or modify the label.
- iii -
●PRECAUTIONS●
DANGER
Never carry out internal inspection or repair work of the
equipment by users.
Inspection or repair work by uncertified personnel may
result in fire hazard or electrocution.
For inspection and repair work of equipment components,
consult with our branch office, branch shop, sales office,
or our distributor in your district.
When conducting maintenance, make sure to turn the main
power off.
Failure to comply may result in electrocution.
Turn off the main power before cleaning the equipment.
Especially when a rectifier is used, make sure to turn it off
since voltage is still outputted from the rectifier even after
the indicator and the radar are turned off. Failure to
comply may result in equipment failure, or death or serious
injury due to electric shock.
When conducting maintenance work on the scanner, make
sure to turn its main power off.
Failure to comply may result in electrocution or injuries.
Make sure to turn off the scanner safety switch. Failure to
comply may result in injuries caused by physical contact
with the rotating scanner.
Do not touch the radiator. Even if the power is turned off,
the radiator may be rotated by the wind.
- iv -
WARNING
Never directly touch the internal components of the
scanner or indicator. Direct contact with these
high-voltage components may cause electrocution. For
maintenance, inspection, or adjustment of equipment
components, consult with our branch office, branch shop,
sales office, or our distributor in your district.
To contact our sales department, branch offices, branch
shops, and sales offices:
Please refer to the "Office List" at the end of the document.
Do not get close to the radiant section of the scanner. It is
a rotating part, and it may cause injuries if it suddenly
starts rotating and consequently hits the body. It is
recommended that the radiant section be installed at a high
place such as on the roof of the wheelhouse, on the flying
bridge, on the trestle, or on the radar mast so that no one
can get close to it. When any work must be done on the
scanner, make sure to turn the safety switch off.
Microwave radiation level:
Keep out from a distance closer than that specified below
for each type of scanner when it is transmitting. Being
within the specified distance from the center of the front
face of the scanner may cause microwave exposure which
could result in injuries (especially of the eyes).
NKE-600-2F2T/2254 (radiation levels: 10 W/m2): 0.6 m
NKE-600-2C1T (radiation levels: 10 W/m2): 1.1 m
NKE-600-2C1T (radiation levels: 100 W/m2): 25 cm
Make sure to install the scanner at a place higher than
human height.
Direct exposure to electromagnetic waves at close range
will have adverse effects on the human body.
- v -
WARNING
Do not change MBS Level/Area unless absolutely
necessary.
Incorrect adjustment will result in deletion of nearby target
images and thus collisions may occur resulting in death or
serious injuries.
When cleaning the display screen, do not wipe it too
strongly with a dry cloth. Also, do not use gasoline or
thinner to clean the screen. Failure to comply will result
in damage to the screen surface.
Direct exposure to electromagnetic waves at close range
will have adverse effects on the human body. When it is
necessary to get close to the scanner for maintenance or
inspection purposes, make sure to turn the indicator power
switch to "OFF" or "STBY."
Direct exposure to electromagnetic waves at close range
will have adverse effects on the human body.
When conducting maintenance work, make sure to turn off
the power and unplug the power connector J1 of the radar
process unit so that the power supply to the equipment is
completely cut off.
Some equipment components can carry electrical current
even after the power switch is turned off, and conducting
maintenance work without unplugging the power
connector may result in electrocution, equipment failure, or
accidents.
When disposing of used lithium batteries, be sure to
insulate the batteries by attaching a piece of adhesive tape
on the + and - terminals. Failure to comply may cause
heat generation, explosion, or fire when the batteries get
shorted out.
- vi -
CAUTION
A malfunction may occur if the power is instantaneously
interrupted during operation of the radar. In this case, the
power should be turned on again.
Normally, use the automatic tune mode.
Use the manual tune mode only when best tuning is not
possible in the automatic tune mode due to deterioration of
magnetron.
If the gain is too high, unnecessary signals including
receiver noise and false video increase resulting in
reduction of visibility of targets.
On the contrary, if the gain is too low, targets including
ships and dangerous objects may not be clearly indicated.
When using the sea clutter suppression function, never set
the suppression level too high canceling out all image
noises from the sea surface at close range.
Detection of not only echoes from waves but also targets
such as other ships or dangerous objects will become
inhibited.
When using the sea clutter suppression function, make
sure to choose the most appropriate image noise
suppression level.
When using the rain / snow clutter suppression function,
never set the suppression level too high canceling out all
image noises from the rain or snow at the close range.
Detection of not only echoes from the rain or snow but also
targets such as other ships or dangerous objects will
become inhibited.
When using the rain / snow clutter suppression function,
make sure to choose the most appropriate image noise
suppression level.
- vii -
CAUTION
Use the radar only as a navigation aid.
The final navigation decision must always be made by the
operator him/herself.
Making the final navigation decision based only on the
radar display may cause accidents such as collisions or
running aground.
Use target tracking function only as a navigation aid. The
final navigation decision must always be made by the
operator him/herself.
Making the final navigation decision based only on
tracking target information may cause accidents.
Tracking target information such as vector, target
numerical data, and alarms may contain some errors.
Also, targets that are not detected by the radar cannot be
acquired or tracked.
In setting an automatic acquisition zone, it is necessary to
adjust the gain, sea clutter suppression and rain clutter
suppression to ensure that target echoes are displayed in
the optimum conditions. No automatic acquisition zone
alarms will be issued for targets undetected by the radar,
and this may cause accidents such as collisions.
Target Tracking Function Test is provided to test if the
target tracking function is operating normally. Thus, do
not use the function except when you test the target
tracking function.
In particular, if the operation test mode is used during
operation, pseudo targets appear on the radar display and
they are confused with actual targets.
Do not use the mode during navigation.
Otherwise, an accident may result.
- viii -
CAUTION
If a great value is set as a condition for deciding targets as
identical, a tracking target near an AIS target is regarded as
identical to the AIS target and it may not be displayed any
more.
For example, when a pilot boat (which is a small target not
being tracked) equipped with an AIS function approaches a
cargo ship as a tracking target not equipped with an AIS
function, the tracking target symbol of the cargo ship may
not be displayed any more.
These alarms may include some errors depending on the
target tracking conditions.
Making the final decision based only on the alarm may
cause accidents such as collisions.
Any adjustments must be made by specialized service
personnel.
Incorrect settings may result in unstable operation.
Do not make any adjustments during operation. Failure to
comply may result in adverse effects on the radar function
which may lead to accidents or equipment failure.
Optimal values have been set for Video Level and Vector
Constant; therefore, never change their values unless
absolutely necessary. Failure to comply may result in
accidents that would lower target tracking performance.
Do not change the quantization level settings unless
absolutely necessary. If set at an inappropriate value, the
target acquisition or target tracking function deteriorates,
and this may lead to accidents.
Any adjustments must be made by specialized service
personnel.
Failure to comply may result in accidents or equipment
failure.
- ix -
CAUTION
Make sure to shut off the main power before replacing
parts. Failure to comply may result in electrocution or
equipment failure.
When replacing magnetrons, make sure to shut off the
main power and let the equipment stand for more than 5
minutes to discharge the high-voltage circuit. Failure to
comply may result in electrocution.
Make sure to take off your watch when your hand must get
close to the magnetron.
Failure to comply may result in damage to the watch since
the magnetron is a strong magnet.
Make sure that two or more staff member work together
when replacing the LCD. If only one person attempts to
replace the LCD, he/she may drop it and become injured.
Do not directly touch the inverter circuit of the LCD display
with a bare hand since high voltage temporarily remains in
the circuit even after the main power is shut off.
Failure to comply may result in electrocution.
- x -
The Mounting Point of the Warning Label
NCD-1376A Radar Process Unit
NWZ-167A LCD Monitor
Front face Back face
Warning Label
Warning Label
- xi -
NKE-600-2F2T/HS Scanner Unit
NKE-600-2E1T/2D1T/2F1T-HS Scanner Unit
Warning Label
Warning Label
- xii -
NKE-600-2C1T Scanner Unit
NQE-3151A Junction Box
Warning
Label
Warning
Label
- xiii -
NQE-3141-4A/8A Interswitch Unit
NBA-5070A Power Supply
Warning Label
Warning Label
- xiv -
EQUIPMENT APPEARANCE
Scanner Unit Type NKE-600-2C1T (12 feet)
Scanner Unit Type NKE-600-2F2T/HS (6 feet)
Scanner Unit Type NKE-600-2F1T-HS (6 feet)
Scanner Unit Type NKE-600-2E1T (7 feet)
- xv -
Scanner Unit Type NKE-600-2D1T (9 feet)
NDC-1376A Radar Processor Unit (Desktop Type)
NWZ-167A LCD Monitor Unit (Desktop Type)
NCE-5085A Operation Unit (Desktop Type)
NCD-2034A Display Unit (Desktop Type)
- xvi -
GLOSSARY
This section describes the main terms used for this equipment and general related maritime terms.
A
AZ
Acquisition/Activation zone
A zone set up by the operator in which the system should
automatically acquire radar targets and activate reported AIS targets
when entering the zone.
Activated target A target representing the automatic or manual activation of a sleeping
target for the display of additional information.
AIS Automatic Identification System
A system which enables ships and shore stations to obtain identifying
and navigation information about other ships at sea, using an
automated transponder.
Anti-clutter rain Rain/snow clutter suppression.
Anti-clutter sea Sea clutter suppression.
Associated target A target simultaneously representing a tracked target and a reported
AIS target having similar parameters (position, course, speed) which
comply with an association algorithm.
AZI AZImuth stabilization mode
B
BCR/BCT Bow Crossing Range and Bow Crossing Time
C
C up Course up
Own ship’s course is pointed to the top center of the radar display.
CCRP The Consistent Common Reference Point
A location on own ship, to which all horizontal measurements such as
target range, bearing, relative course, relative speed, CPA or TCPA
are referenced, typically the conning position of the bridge.
Clutter Unwanted reflections on a radar screen, from sea surface, rain or
snow.
- xvii -
COG Course Over Ground
The direction of the ship's movement relative to the earth, measured
on board the ship, expressed in angular units from true north
CORREL CORRELation
CPA/TCPA The distance to the Closest Point of Approach and Time to the
Closest Point of Approach. Limits are set by the operator and are
related to own ship.
CTW Course Through Water
The direction of the ship's movement through the water
D
DRIFT The current velocity for manual correction or the current speed on the
horizontal axis of the 2-axis log is displayed.
E
EBL Electronic Bearing Line
An electronic bearing line originated from own ship’s position.
ETA Estimated Time of Arrival
G
Ground
stabilization A display mode in which speed and course information are referred to
the ground, using ground track input data.
H
HDG Heading
The horizontal direction that the bow of a ship is pointing at any
instant, expressed in angular units from a reference direction .
HL Heading line
A graphic line on a radar presentation drawn from the consistent
common reference point to the bearing scale to indicate the heading
of the ship
HSC Vessels which comply with the definition in SOLAS for high speed
craft
H up Head up
Own ship’s heading line is always pointed to the top center of the
radar display.
I
IMO International Maritime Organization
Interswitch Unit A device to switch over two or more radar display units and two or
more scanners.
- xviii -
IR radar Interference Rejecter
ISW InterSWitch L
Lost AIS target A target symbol representing the last valid position of an AIS target
before the reception of its data was lost, or its last dead-reckoned
position.
Lost tracked target One for which target information is no longer available due to poor,
lost or obscured signals.
LP Long Pulse M
MMSI Maritime Mobile Service Identity
MOB Man OverBoard
MON Performance monitor
MP Medium Pulse N
nm 1nm=1852m
N up North up
The north is always pointed to the top center of the radar display.
O
Own track Display function of own ship’s track
P
PI Parallel Index line
Past positions Equally time-spaced past position marks of a tracked or AIS target
and own ship.
POSN POSitioN
PRF Pulse Repetition Frequency
The number of radar pulses transmitted each second.
PROC PROCess
Radar signal processing function
R
Radar beacon A navigation aid which responds to the radar transmission by
generating a radar signal to identify its position and identity
- xix -
Radar cross-section Radar cross-section of a target determines the power density returned
to the radar for a particular power density incident on the target
Range Rings A set of concentric circles labeled by distance from CCRP.
Reference target A symbol indicating that the associated tracked stationary target is
used as a speed reference for the ground stabilization
Relative course The direction of motion of a target relative to own ship motion
Relative speed The speed of a target relative to own ship’s speed data
Relative vector A predicted movement of a target relative to own ship’s motion
RM Relative Motion
A display on which the position of own ship remains fixed, and all
targets move relative to own ship.
RM(R) Relative Motion. Relative Trails.
RM(T) Relative Motion. True Trails.
ROT Rate Of Turn
Change of heading per time unit.
Route A set of waypoints.
RR Range Rings S
SART Search And Rescue Transponder
Radar transponder capable of operating in the 9GHz band
Sea stabilization A display mode in which speed and course information are referred to
the sea.
Sea state Status of the sea condition due to the weather environment, expressed
as a sea state 0 for flat conditions with minimal wind, to sea state 8
for very rough sea conditions.
SET The current direction for manual correction or the current speed on
the horizontal axis of the 2-axis log is displayed.
Sleeping AIS target A target indicating the presence and orientation of a vessel equipped
with AIS in a certain location.
- xx -
SOG Speed Over the Ground
The speed of the ship relative to the earth, measured on board of the
ship.
SP Short Pulse
STAB STABilization
STW Speed Through Water
The speed of the ship relative to the water surface.
T
TCPA Time to Closest Point of Approach to own ship
Test target Radar target of known characteristics used for test requirement
TM True Motion
A display across which own ship moves with its own true motion.
Trails Tracks displayed by the radar echoes of targets in the form of an
afterglow.
Trial maneuver A graphical simulation facility used to assist the operator to perform a
proposed maneuver for navigation and collision avoidance purposes.
True course The direction of motion relative to ground or to sea, of a target
expressed as an angular displacement from north
True speed The speed of a target relative to ground, or to sea
True vector A vector representing the predicted true motion of a target, showing
course and speed with reference to the ground or sea
TT Target Tracking.
A computer process of observing the sequential changes in the
position of a radar target in order to establish its motion. Such a
target is a Tracked Target.
TTG Time To Go.
Time to next waypoint.
TXRX Transceiver Unit U
UTC Universal Time Coordinated.
The international standard of time, kept by atomic clocks around the
world.
- xxi -
V
VRM Variable Range Marker
An adjustable range ring used to measure the distance to a target.
W
Waypoint A geographical location on a route indicating a event.
CONTENTS
PREFACE............................................................................................................... i
BEFORE OPERATION.......................................................................................... ii
PRECAUTIONS.................................................................................................... iii
The Mounting Point of the Warning Label ........................................................ ix
EQUIPMENT APPEARANCE............................................................................. xiv
GLOSSARY........................................................................................................ xvi
1. GENERAL AND EQUIPMENT COMPOSITION
1.1 FUNCTIONS.............................................................................................. 1-1
1.1.1 FUNCTION OF THIS SYSTEM............................................................ 1-1
1.2 FEATURES ............................................................................................... 1-2
1.3 CONFIGURATION .................................................................................... 1-4
1.4 OUTSIDE DRAWINGS.............................................................................. 1-6
1.5 GENERAL SYSTEM DIAGRAMS ........................................................... 1-18
2. NAMES AND FUNCTIONS OF CONTROL PANEL KEYS
AND FUNCTIONS OF SOFTWARE BUTTONS

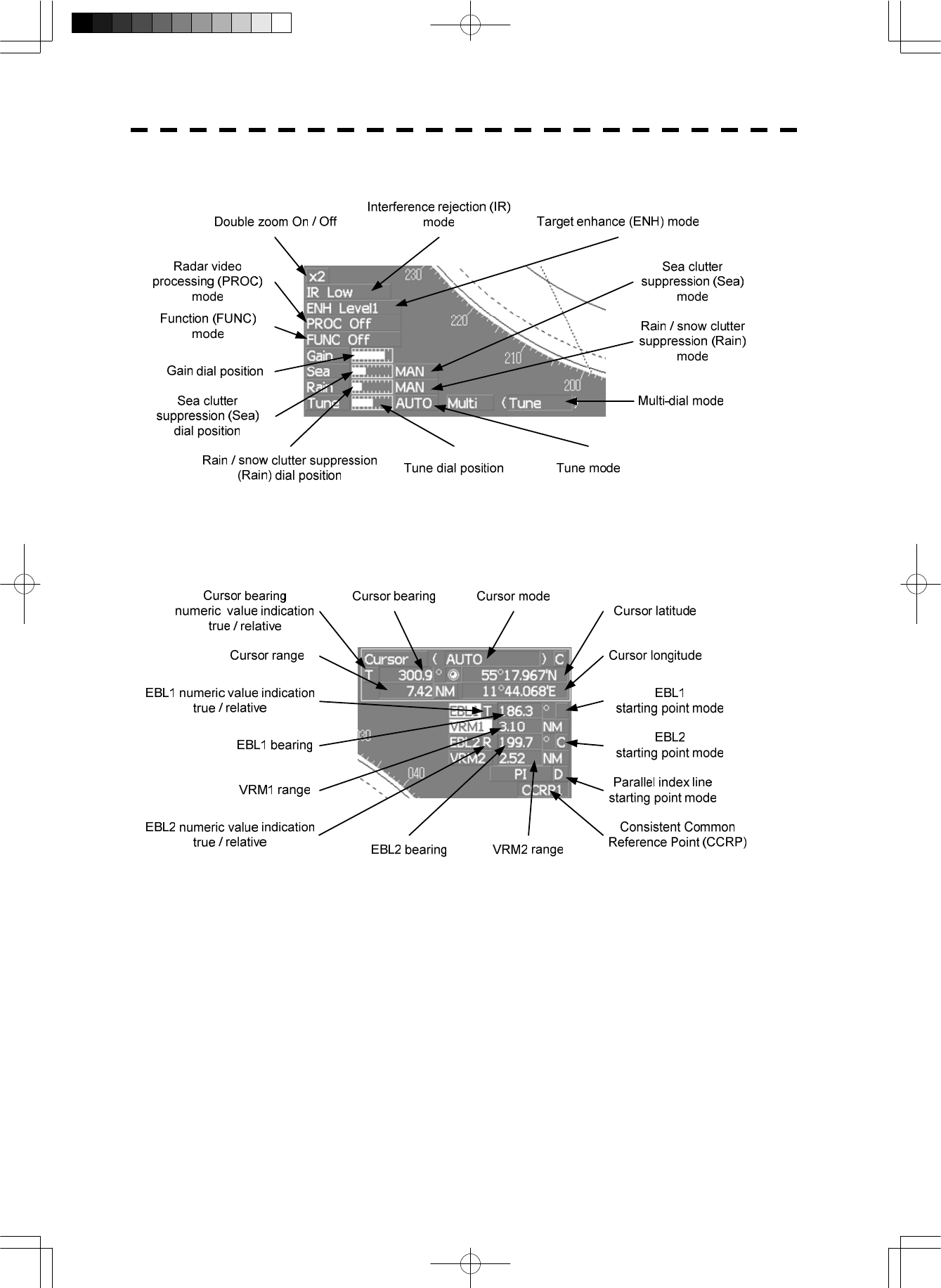

2.1 NAMES OF DISPLAY................................................................................ 2-1
2.2 NAMES AND FUNCTIONS OF CONTROL PANEL KEYS ...................... 2-11
2.3 FUNCTIONS OF SOFTWARE BUTTONS............................................... 2-16
3. BASIC OPERATION
3.1 OPERATION FLOW ..................................................................................3-1
3.1.1 POWER ON AND START THE SYSTEM ............................................. 3-2
3.1.2 OBSERVE AND ADJUST VIDEO......................................................... 3-3
3.1.3 ACQUIRE AND MEASURE DATA........................................................ 3-3
3.1.4 DISPLAY AND MEASURE WITH REFERENCE TO CCRP.................. 3-3
3.1.5 END THE OPERATION AND STOP THE SYSTEM.............................. 3-4
3.2 OBSERVE AND ADJUST VIDEO ............................................................. 3-5
3.2.1 ADJUST MONITOR BRILLIANCE [BRILL]......................................... 3-5
3.2.2 CHANGE OBSERVATION RANGE [RANGE + / - ].............................. 3-5
3.2.3 TUNE ................................................................................................... 3-6
3.2.4 ADJUST GAIN [GAIN / PL].................................................................. 3-7
3.2.5 SUPPRESS SEA CLUTTER [AUTO-SEA] .......................................... 3-7
3.2.6 SUPPRESS RAIN / SNOW CLUTTER [AUTO-RAIN].......................... 3-9
3.2.7 RESET ALARM BUZZER [ALARM ACK].......................................... 3-10
3.3 OPERATION PROCEDURES ..................................................................3-11
3.3.1 MOVE CROSS CURSOR MARK BY TRACKBALL............................3-11
3.3.2 OPERATE SOFTWARE BUTTONS................................................... 3-12
3.3.3 BASIC MENU OPERATION............................................................... 3-13
3.3.4 OPERATION ON NUMERIC VALUE, LATITUDE / LONGITUDE
AND CHARACTER INPUT MENU.................................................... 3-15
3.3.5 OVERVIEW OF MENU STRUCTURE................................................ 3-19
3.3.6 OPERATE MULTI-DIAL [MULTI] ....................................................... 3-19
3.4 GENERAL RADAR OPERATION ........................................................... 3-21
3.4.1 INTERFERENCE REJECTION (IR) ................................................... 3-21
3.4.2 SWITCH TRANSMITTER PULSE LENGTH [GAIN / PL] ................... 3-22
3.4.3 TARGET ENHANCE (ENH) ............................................................... 3-23
3.4.4 USE VIDEO PROCESSING (PROC).................................................. 3-24
3.4.5 SWITCH AZIMUTH DISPLAY MODE [AZI MODE] ............................ 3-25
3.4.6 SWITCH TRUE / RELATIVE MOTION DISPLAY MODE [TM / RM].... 3-26
3.4.7 MOVE OWN SHIP’S DISPLAY POSITION [OFF CENT].................... 3-27
3.4.8 DISPLAY RADAR TRAILS [TRAILS]................................................. 3-28
3.4.9 ERASE PART OF RADAR TRAILS (TRAILS ERASE) ...................... 3-30
3.4.10 OPERATE RADAR TRAILS FILE (FILE OPERATIONS) ................... 3-31
3.4.11 ZOOM (X2)......................................................................................... 3-33
3.4.12 HIDE / DISPLAY RANGE RINGS (RR / HL) ....................................... 3-33
3.4.13 HIDE GRAPHICS INFORMATION ON RADAR DISPLAY
(DATA OFF) ...................................................................................... 3-34
3.4.14 SWITCH DAY / NIGHT MODE [DAY / NIGHT].................................... 3-34
3.4.15 ADJUST OPERATION PANEL BRILLIANCE [PANEL]..................... 3-34
3.4.16 SET TRUE BEARING (GYRO SETTING) .......................................... 3-35
3.4.17 SET OWN SHIP SPEED..................................................................... 3-35
3.4.18 MAGNET COMPASS CORRECTION (MAG COMPASS SETTING).. 3-36
3.4.19 SET DRIFT CORRECTION (SET / DRIFT SETTING)......................... 3-37
3.4.20 GPS RECEIVER SETTING (GPS PROCESS SETTING)................... 3-38
3.4.21 DGPS RECEIVER SETTING (DGPS SETTING)................................ 3-42
3.4.22 SBAS RECEIVER SETTING (SBAS SETTING)................................. 3-43
3.4.23 DISPLAYING GPS RECEPTION STATUS (GPS STATUS)................ 3-46
3.4.24 SET RADAR ALARM (RADAR ALARM) ...........................................3-47
3.5 USE OWN SHIP'S TRACK DATA............................................................ 3-49
3.5.1 DISPLAY OWN SHIP’S TRACK (DISPLAY OWN TRACK)................ 3-49
3.5.2 SAVE OWN SHIP'S TRACK DATA (OWN TRACK MEMORY)........... 3-50
3.5.3 CANCEL SAVING OF OWN SHIP’S TRACK DATA
(OWN TRACK MEMORY)................................................................. 3-50
3.5.4 CLEAR OWN SHIP’S TRACK DATA (CLEAR OWN TRACK) ........... 3-50
3.5.5 OPERATE OWN SHIP'S TRACK FILES (FILE OPERATIONS) ......... 3-51
3.6 DISPLAY USER MAP..............................................................................3-54
3.6.1 CREATE USER MAP (MARK / LINE)................................................. 3-54
3.6.2 SET USER MAP DISPLAY (MARK DISPLAY SETTING)................... 3-57
3.6.3 EDIT USER MAP (EDIT USER MAP)................................................. 3-60
3.6.4 EDIT MARK / LINE LIST (MARK / LINE LIST) ................................... 3-66
3.6.5 CORRECT POSITION ON USER MAP (SHIFT USER MAP) .............3-72
3.6.6 OPERATE USER MAP FILE (FILE OPERATIONS) ........................... 3-73
3.6.7 SET AND DISPLAY GEODETIC SYSTEM (GEODETIC) ...................3-77
3.7 USE ROUTE FUNCTION ........................................................................ 3-78
3.7.1 DISPLAY DESTINATION MARK (NMEA WAYPOINT DISPLAY)....... 3-78
3.8 APPLIED OPERATIONS......................................................................... 3-79
3.8.1 SET RADAR SIGNAL PROCESSING (PROCESS SETTING)........... 3-79
3.8.2 SET RADAR TRAILS (RADAR TRAILS SETTING)........................... 3-81
3.8.3 SET SCANNER UNIT (TXRX SETTING)............................................ 3-83
3.8.4 SET CURSOR (CURSOR SETTING)................................................. 3-84
3.8.5 SET RADAR DISPLAY (DISPLAY SETTING) .................................... 3-85
3.8.6 ADJUST SOUND VOLUME (BUZZER VOLUME) ............................. 3-87
3.8.7 SET USER KEYS [USER KEY 1 / 2]................................................... 3-88
3.8.8 SET NAVIGATION DATA DISPLAY (MULTI WINDOW SETTING) ..... 3-90
3.9 USE FUNCTION KEY [FUNC]................................................................. 3-94
3.9.1 OPERATION PROCEDURES [FUNC] ............................................... 3-94
3.9.2 FUNCTION SETTING MENU ITEMS (USER FUNCTION SETTING). 3-95
3.9.3 OVERVIEW OF FUNCTION OPERATIONS
(USER FUNCTION SETTING) ........................................................... 3-96
3.9.4 OVERVIEW OF SAVED FUNCTION SETTING DATA........................3-99
3.10 USE USER SETTING............................................................................ 3-100
3.10.1 SAVE OPERATING STATE (SAVE USER SETTING) ...................... 3-100
3.10.2 LOAD OPERATING STATE (LOAD USER SETTING) ..................... 3-101
3.10.3 DELETE OPERATING STATE (DELETE USER SETTING) ............. 3-101
3.11 USING CARD........................................................................................ 3-102
3.11.1 OPERATE FILE ON THE CARD (FILE MANAGER) ........................ 3-102
3.12 DISPLAY SIMPLE CHART.................................................................... 3-108
3.12.1 DISPLAY JRC COASTLINE ROM CARD [MAP] ............................. 3-108
3.12.2 DISPLAY ERC CARD [MAP] ........................................................... 3-108
3.12.3 DISPLAY JRC CHART ON CF CARD (SEL JRC ROM CARD FILE) 3-109
3.12.4 FILL CHARTS (FILL LAND AREA)...................................................3-110
3.12.5 SET JRC / ERC CHART DISPLAY (JRC / ERC SETTING) ...............3-111
3.12.6 DISPLAY C-MAP CARD [MAP] ........................................................3-115
3.12.7 CORRECTING CHART POSITION (MAP DISPLAY SETTING)........3-118
3.12.8 CHART PLOTTING BEARING MODE (MAP DRAW AZI MODE) .... 3-120
4. MEASUREMENT OF RANGE AND BEARING
4.1 USE OF NAVIGATION TOOLS ................................................................. 4-1
4.1.1 USING CURSOR (CURSOR)............................................................... 4-2
4.1.2 USING RANGE RINGS [RR / HL] ........................................................ 4-2
4.1.3 USING ELECTRONIC BEARING LINE (EBL1/EBL2) ......................... 4-3
4.1.4 USING VARIABLE RANGE MARKER (VRM1 / VRM2) ....................... 4-6
4.1.5 USING PARALLEL INDEX LINES (PI MENU) ..................................... 4-7
4.1.6 OPERATING EBL MANEUVER FUNCTION
(EBL MANEUVER SETTING)............................................................ 4-12
4.1.7 USING MOB [MOB]........................................................................... 4-14
4.1.8 OPERATING EBL, VRM, AND PI WITH CURSOR............................. 4-14
4.2 MEASUREMENT OF RANGE AND BEARING ....................................... 4-17
4.2.1 MEASUREMENT WITH CURSOR POSITION (CURSOR) ................ 4-17
4.2.2 MEASUREMENT WITH ELECTRONIC BEARING LINE AND
VARIABLE RANGE MARKER [EBL] [VRM]...................................... 4-18
4.2.3 MEASUREMENT WITH TWO ARBITRARY POINTS ........................ 4-19
5. OPERATION OF TARGET TRACKING AND AIS
USAGE OF TARGET TRACKING FUNCTION..................................................... 5-1
5.1 PREPARATION......................................................................................... 5-2
5.1.1 COLLISION AVOIDANCE.................................................................... 5-3
5.1.2 DEFINITIONS OF SYMBOLS.............................................................. 5-6
5.1.3 RADAR DISPLAY................................................................................ 5-9
5.1.4 CURSOR MODES (CURSOR)............................................................5-11
5.1.5 SETTING COLLISION DECISION CRITERIA ................................... 5-13
5.1.6 SETTING CPA RING.......................................................................... 5-13
5.1.7 SETTING VECTORS (VECTOR TIME).............................................. 5-14
5.1.8 SETTING THE GPS ANTENNA LOCATION...................................... 5-15
5.2 TARGET TRACKING OPERATION......................................................... 5-16
5.2.1 ACQUIRING TARGET [ACQ]............................................................ 5-17
5.2.2 CANCELING UNWANTED TRACKED TARGETS [TGT CNCL]....... 5-20
5.2.3 TRACKED TARGET DATA DISPLAY [TGT DATA] ........................... 5-21
5.2.4 DISPLAYING TARGET ID NO. (TARGET NUMBER DISPLAY) ..... 5-22
5.2.5 ADDING TRACKED TARGET ID NAME (NAME) ............................. 5-23
5.2.6 REFERENCE TARGET (REFERENCE) ............................................ 5-24
5.2.7 OPERATION TEST (TT TEST MENU)............................................... 5-26
5.3 AIS OPERATION..................................................................................... 5-30
5.3.1 RESTRICTIONS................................................................................. 5-30
5.3.2 SETTING AIS DISPLAY FUNCTION (AIS FUNCTION)..................... 5-30
5.3.3 ACTIVATE AIS TARGETS (ACTIVATE AIS)...................................... 5-31
5.3.4 DEACTIVATE AIS TARGETS (DEACTIVATE AIS)............................ 5-31
5.3.5 DISPLAYING AIS INFORMATION [TGT DATA] ................................ 5-32
5.3.6 DISPLAYING TARGET ID NO. (TARGET NUMBER DISPLAY) ..... 5-36
5.3.7 SETTING AIS FILTER (AIS FILTER SETTING)................................. 5-36
5.3.8 CONDITIONS FOR DECIDING AIS TARGET TO BE LOST ............. 5-39
5.3.9 SETTING CONDITIONS FOR AIS ALARM (AIS ALARM SETTING) 5-40
5.4 DECISION OF TARGETS AS IDENTICAL (ASSOCIATION)................... 5-41
5.5 ALARM DISPLAY.................................................................................... 5-43
5.6 TRACK FUNCTION................................................................................. 5-47
5.6.1 PAST POSITION (PAST POSN) ........................................................ 5-47
5.6.2 TARGET SHIP'S TRACKS (TARGET TRACK) ................................. 5-48
5.7 TRIAL MANEUVERING (TRIAL MANEUVER) ....................................... 5-57
6. TRUE AND FALSE ECHOES ON DISPLAY
6.1 RADAR WAVE WITH THE HORIZON ....................................................... 6-1
6.2 STRENGTH OF REFLECTION FROM THE TARGET............................... 6-3
6.3 SEA CLUTTER AND RAIN AND SNOW CLUTTER.................................. 6-5
6.4 FALSE ECHOES....................................................................................... 6-9
6.5 DISPLAY OF RADAR TRANSPONDER (SART)..................................... 6-12
7. SETTINGS FOR SYSTEM OPERATION
7.1 SETTINGS AT INSTALLATION................................................................. 7-1
7.1.1 HOW TO OPEN THE SERVICEMAN MENU........................................ 7-1
7.1.2 GYRO I/F SETTING ............................................................................. 7-2
7.1.3 TUNING (TUNE ADJUSTMENT) ......................................................... 7-4
7.1.4 BEARING ADJUSTMENT ................................................................... 7-5
7.1.5 RANGE ADJUSTMENT....................................................................... 7-6
7.1.6 NAVIGATOR SETTING (DEVICE) ....................................................... 7-6
7.1.7 SETTING OF TRUE BEARING VALUE ............................................... 7-7
7.1.8 ANTENNA HEIGHT SETTING (ANTENNA HEIGHT) .......................... 7-7
7.1.9 SETTING OF CCRP/ANTENNA/GPS ANTENNA POSITION
(CCRP SETTING) ................................................................................ 7-8
7.2 SETTINGS .............................................................................................. 7-10
7.2.1 COMMUNICATION PORT SETTING (COM PORT SETTING)........... 7-10
7.2.2 SECTOR BLANK SETTING (SECTOR BLANK) ............................... 7-14
7.2.3 TNI BLANK SETTING (TNI BLANK).................................................. 7-15
7.2.4 SETTING OF BEARING PULSES FROM ANTENNA
(OUTPUT PULSE) ............................................................................. 7-16
7.2.5 SLAVE MODE SETTING (MASTER/SLAVE)..................................... 7-17
7.2.6 LANGUAGE SETTING (LANGUAGE)............................................... 7-18
7.2.7 DATE TIME SETTING........................................................................ 7-18
7.2.8 INPUT INSTALLATION INFORMATION ............................................ 7-19
7.2.9 SETTING THE ALARM SYSTEM....................................................... 7-20
7.3 ADJUSTMENT........................................................................................ 7-22
7.3.1 NOISE LEVEL ADJUSTMENT (NOISE LEVEL)................................ 7-22
7.3.2 ADJUSTMENT OF TARGET TRACKING FUNCTION (TT) ............... 7-24
7.3.3 MAIN BANG SUPPRESSION ADJUSTMENT (MBS)........................ 7-27
7.3.4 ADJUSTMENT OF PERFORMANCE MONITOR (MON)................... 7-28
7.4 MAINTENANCE MENU .......................................................................... 7-30
7.4.1 ANTENNA SAFETY SWITCH (SAFETY SWITCH)............................ 7-30
7.4.2 INITIALIZATION OF MEMORY AREA (AREA INITIAL)..................... 7-31
7.4.3 SAVE OF INTERNAL MEMORY DATA (CARD1/2)............................ 7-32
7.4.4 CLEAR AND SAVE/RESTORATION OF ANTENNA OPERATION
TIME (TXRX TIME)............................................................................. 7-33
7.4.5 UPDATE OF CHARACTER STRING DATA
(STRING DATA UPDATE).................................................................. 7-35
8. MAINTEMANCE
8.1 ROUTINE MAINTENANCE ....................................................................... 8-1
8.2 MAINTENANCE ON EACH UNIT.............................................................. 8-2
8.2.1 SCANNER UNIT NKE-600-2C1T/2F2T/2254....................................... 8-2
8.2.2 DISPLAY UNIT NCD-2034A................................................................. 8-5
8.3 PERFORMANCE CHECK......................................................................... 8-6
8.3.1 CHECK PERFORMANCE ON TEST MENU ........................................8-7
8.4 REPLACEMENT OF MAJOR PARTS ..................................................... 8-12
8.4.1 PARTS REQUIRED FOR PERIODIC REPLACEMENT ..................... 8-13
8.4.2 REPLACEMENT OF MAGNETRON.................................................. 8-14
8.4.3 REPLACEMENT OF MOTOR ............................................................ 8-21
8.4.4 REPLACEMENT OF LCD MONITOR................................................. 8-27
8.4.5 REPLACEMENT OF BACKUP BATTERY......................................... 8-28
9. TROUBLESHOOTING AND AFTER-SALES SERVICE
9.1 FAULT FINDING........................................................................................ 9-1
9.1.1 LIST OF ALARMS AND OTHER INDICATIONS .................................. 9-1
9.1.2 OPERATION CHECKING .................................................................... 9-5
9.1.3 FUSE CHECKING................................................................................ 9-6
9.2 TROUBLE SHOOTING ............................................................................. 9-7
9.3 AFTER-SALES SERVICE....................................................................... 9-13
9.3.1 KEEPING PERIOD OF MAINTENANCE PARTS ............................... 9-13
9.3.2 WHEN YOU REQUEST FOR REPAIR ............................................... 9-13
9.3.3 RECOMMENDED MAINTENANCE ................................................... 9-13
10. DISPOSAL
10.1 DISPOSAL OF THE UNIT ....................................................................... 10-1
10.2 DISPOSAL OF USED BATTERIES......................................................... 10-1
10.3 DISPOSAL OF USED MAGNETRON......................................................10-2
10.4 ABOUT THE CHINA ROHS..................................................................... 10-2
11. SPECIFICATIONS
11.1 JPL-600-1ER2-6/6HS TYPE RADAR.....................................................11-1
11.2 JPL-600-2ER2-7/9/6HS TYPE RADAR..................................................11-2
11.3 JPL-600-2ER2-12 TYPE RADAR...........................................................11-3
11.4 SCANNER (NKE-600-2F2T)...................................................................11-4
11.5 SCANNER (NKE-600-2E1T/2D1T).........................................................11-5
11.6 SCANNER (NKE-600-2C1T) ..................................................................11-6
11.7 SCANNER (NKE-600-2F2T-HS).............................................................11-7
11.8 SCANNER (NKE-600-2F1T-HS).............................................................11-8
11.9 DISPLAY UNIT (NCD-2034A).................................................................11-9
11.10 PROCESSOR UNIT (NDC-1376A).........................................................11-10
11.11 TARGET TRACKING FUNCTION (OPTION).........................................11-12
11.12 AIS UNIT (NQA-2236) (OPTION)...........................................................11-13
11.13 PLOTTER...............................................................................................11-14
11.14 OPERATION UNIT (NCE-5085A)...........................................................11-15
11.15 PERFORMANCE MONITOR (NJU-87A) (OPTION)...............................11-16
11.16 PERFORMANCE MONITOR (NJU-82A) (OPTION)...............................11-16
11.17 AVAILABLE INPUT SIGNAL .................................................................11-17
11.18 AVAILABLE OUTPUT SIGNAL..............................................................11-18
11.19 STANDARD CONFIGURATION.............................................................11-18
11.20 EQUIPMENT DISTANCE BETWEEN OTHER INSTRUMENTS.............11-19
11.21 OTHERS (OPTION) ...............................................................................11-19
APPENDIX
INTERSWITCH (OPTION) NQE-3141 INSTRUCTION MANUAL
HOW TO INSERT AND REMOVE A CARD
FIG.1 BLOCK DIAGRAM OF RADAR, TYPE
JPL-600-1ER2-6/6HS/JPL-600-2ER2-7/9/6HS
FIG.2 BLOCK DIAGRAM OF RADAR, TYPE JPL-600-2ER2-12
FIG.3 TERMINAL BOARD CONNECTION DIAGRAM, TYPE
JPL-600-1ER2-6/6HS
FIG.4 TERMINAL BOARD CONNECTION DIAGRAM, TYPE
JPL-600-2ER2-7/9/6HS
FIG.5 TERMINAL BOARD CONNECTION DIAGRAM, TYPE JPL-600-2ER2-12
FIG.6 TERMINAL BOARD CONNECTION DIAGRAM OF RADAR AND
INTERSWITCH UNIT, TYPE NQE-3141-4A
FIG.7 POWER SYSTEM DIAGRAM, TYPE
JPL-600-1ER2-6/6HS,JPL-600-2ER2-7/9/6HS
FIG.8 POWER SYSTEM DIAGRAM, TYPE JPL-600-2ER2-12
FIG.9 INTERCONNECTION DIAGRAM OF RADAR PROCESS UNIT,
TYPE NCD-1417
FIG.10 INTERCONNECTION DIAGRAM OF INTERFACE UNIT, TYPE
NQA-2123
FIG.11 INTERCONNECTION DIAGRAM OF OPERATION UNIT, TYPE
NCE-5085A
FIG.12 INTERNAL CONNECTION DIAGRAM OF LCD MONITOR, TYPE
NWZ-167A
FIG.13 INTERCONNECTION DIAGRAM OF JUNCTION BOX, TYPE
NQE-3151A
FIG.14 INTERCONNECTION DIAGRAM OF SCANNER UNIT, TYPE
NKE-600-2F2T/HS
FIG.15 INTERCONNECTION DIAGRAM OF SCANNER UNIT, TYPE NKE-2254
FIG.16 INTERCONNECTION DIAGRAM OF SCANNER UNIT, TYPE
NKE-600-2C1T (100/110/115V)
FIG.17 INTERCONNECTION DIAGRAM OF SCANNER UNIT, TYPE
NKE-600-2C1T (220/230/240V)
FIG.18 INTERCONNECTION DIAGRAM OF INTERSWITCH UNIT,
TYPE NQE-3141
FIG.19 OVER VIEW OF RADAR MENU
3
4
5
2
1
6
7
8
9
10
11
APPENDIX
1 GENERAL AND EQUIPMENT COMPOSITION
2 NAME AND FUNCTION OF CONTROL PANEL KEYS
AND FUNCTION OF SOFTWARE BUTTONS
3 BASIC OPERATION
4 MEASUREMENT OF RANGE AND BEARING
5 OPERATION OF ARPA AND AIS
6 TRUE AND FALSE ECHOES ON DISPLAY
7 MAINTENANCE
8 COUNTERMEASURES FOR TROUBLE AND
ADJUSTMENT
9 AFTER-SALES SERVICE
10 DISPOSAL
11 SPECIFICATION
APPENDIX
SECTION 1
GENERAL AND EQUIPMENT
COMPOSITION
1.1 FUNCTIONS ...............................................................................................1-1
1.2 FEATURES .................................................................................................1-2
1.3 CONFIGURATION ......................................................................................1-4
1.4 OUTSIDE DRAWINGS ...............................................................................1-6
1.5 GENERAL SYSTEM DIAGRAMS ............................................................1-18
1-1
1.1 FUNCTIONS
This equipment is a high-performance VTS radar equipment consisting of a scanner unit, a transceiver unit
and a high resolution color LCD display unit.
1.1.1 Function of This System
The JPL-600-MK2 series is a color radar system designed to comply with the international standards
of the IMO.
The main functions include:
• gain adjustment
• sea clutter and rain / snow clutter suppression
• interference rejection
• bearing and range measurement using a cursor, fixed/variable range markers, and electronic bearing
line
• own track display (Not used for VTS)
• colored own track display (7 colors) (option) (Not used for VTS)
• NAV line and marker displays
• TM (True Motion) presentation
• self-diagnostic facilities
• radar performance monitoring (Performance Monitor, option)
• Target Tracking (TT) functions (manual / automatic target acquisition and automatic tracking,
vector and track displays and alarm displays) (option)
• simple plotter functions:
marker and line display (up to 2000 items.)
marker and line display (up to 20000 items.)(option)
waypoint / route setting (option)
• 8-unit switchover (Inter switch) function (option)
Note: Performance monitor, ARPA/ATA Process Unit, AIS Process Unit and GYRO Interface Unit must
be fitted on ships compliant to IMO.
1-2
1.2 Features y
1
1.2 FEATURES
Realization of Large, Easy-to-see Screen with High Resolution
The 19-inch color LCD with high resolution of 1280 × 1024 pixels can display radar images of 250 mm or
more in diameter. Even short-range targets can also be displayed as high-resolution images.
Target Detection by Latest Signal Processing Technology
The system employs the latest digital signal processing technology to eliminate undesired clutter from the
radar video signals that are obtained from the receiver with a wide dynamic range, thus improving the target
detection.
Advanced Technology Based Target Tracking (TT) Functions (Option)
The target acquisition and tracking performance is enhanced by the use of the fastest DSP and tracking
algorithm. So stable operation in target tracking under clutter is ensured.
• Acquisition and tracking of 100 targets for High performance edition, 30 targets for Normal edition.
• Hazardous conditions are represented by shapes and colors of symbols as well as sounds.
• Trial maneuvering functions provided. (High performance edition)
• Tracks of up to 20 target ships can be stored with a maximum of 1,500 points for each of them, and
displayed distinguished by using 7 different colors.
Note: ARPA/ATA Process Unit must be fitted on ships compliant to IMO.
Overlay of Radar Images, Coastlines, and Track
As well as operator-created NAV lines, the data of coastlines, objects such as buoys, and target tracks / AIS
tracks, which is stored on the memory card can be superimpose-displayed with radar images and radar trails
in all display modes including the head-up mode.
Creation / display of marks and lines (up to 2000 items).
Use of the optional plotter function enables the own track display distinguished by using 7 different colors,
creation of marks and lines (up to 20000 items) and the settings of waypoints / courses.
Easy Operation with GUI
All the radar functions can be easily controlled by simply using the trackball and 2 switches to operate the
buttons shown on the radar display.
Improved Day / Night Mode
Five types of background colors are available in Day / Dusk / Night mode.
Each background color can be reproduced to be suited for the user’s operating environment by simple key
operation. The radar echoes and a variety of graphics can also be represented in different colors, ensuring
easy-to-see displays.
1-3
Self-diagnostic Program Incorporated
The Self-diagnostic program always monitors all the functions of the system. If any function deteriorates,
an alarm message will appear on the radar display and an alarm sounds at the same time. Even when the
system is operating, the functionality test can be carried out. (except on some functions)
Performance Monitor (Option)
The radar performance (transmitted output power and receiving sensitivity) can appear on the radar display.
Note: Performance monitor must be fitted on ships compliant to IMO.
Easy Interswitch Operation (Option)
If an interswitch unit (option) is connected, up to four JPL-600-MK2 radars can be switched over by
performing simple operation.
* An interswitch (NQA-3201) is needed separately.
Various Functions
• RADAR Trails
• TM (True Motion) display
• Head-up / North-up / Course-up display (Course-up is not used on the JPL-600-MK2.)
• Automatic Acquisition / Activation function
1-4
1.3 Configuration y
1
1.3 CONFIGURATION
Specified of scanner, and categories of ship/craft for SOLAS V
Radar Model Antenna Type Transmitted
Output Power Band Rate of
Rotation Category
JPL-600-1ER2-
6 6 ft slot antenna 10 kW X 27 rpm CAT 2
JPL-600-1ER2-
6HS 6 ft slot antenna 10 kW X 48 rpm CAT 2H
JPL-600-2ER2-
7 7 ft slot antenna 25 kW X 24 rpm CAT 2
JPL-600-2ER2-
9 9 ft slot antenna 25 kW X 24 rpm CAT 2
JPL-600-2ER2-
6HS 6 ft slot antenna 25 kW X 48 rpm CAT 2H
JPL-600-2ER2-
12 12 ft slot antenna 30 kW S 24 rpm CAT 2
*The class of emission: P0N (All scanner types)
Radar Configuration and Ship’s Mains
Radar Model Scanner Unit Performance
Monitor (option) Display Unit Ship’s Mains
JPL-600-1ER2-6 NKE-600-2F2T NJU-82A NCD-2034A 24 VDC
JPL-600-1ER2-6HS NKE-600-2F2T-HS NJU-82A NCD-2034A 24 VDC
JPL-600-2ER2-7 NKE-600-2E1T NJU-82A NCD-2034A 24 VDC
JPL-600-2ER2-9 NKE-600-2D1T NJU-82A NCD-2034A 24 VDC
JPL-600-2ER2-6HS NKE-600-2F1T-HS NJU-82A NCD-2034A 24 VDC
NCD-2034A 24 VDC (supplied from
NBA-5070A)
100/110/115 VAC,1 φ,50/60 Hz
JPL-600-2ER2-12 NKE-600-2C1T NJU-87A
*NQE-3151A 220/230/240 VAC,1 φ,50/60 Hz
* The NQE-3151A included in JPL-600-2ER2-12 is a connection unit to supply AC power for the
motor to the scanner unit.
Notes:
1. The JPL-600-2ER2-12 needs AC power for the radar process unit (rectifier unit NBA-5070A), and
motor to drive the scanner unit.
2. The table above shows six types of power supplies available for the motor of JPL-600-2ER2-12.
3. An optional POWER SUPPLY NBA-5070A is necessary for using Ship's Mains
100/110/115/220/230/240 VAC,1φ,50/60Hz.
4. The DISPLAY UNIT NCD-2034A has a separate structure consisting of the following:
LCD MONITOR NWZ-167A
CONTROL UNIT NCM-836A
1-5
The control unit NCM-836A is consisting of the following
RADAR PROCESS UNIT NDC-1376A
OPERATION UNIT NCE-5085A
1-6
1.4 Exterior Drawings y
1
1.4 OUTSIDE DRAWINGS
Fig. 1.1 Outside Drawing of SCANNER UNIT, Type NKE-600-2F2T / 6HS
Fig. 1.2 Outside Drawing of SCANNER UNIT, Type NKE-600-2E1T
Fig. 1.3 Outside Drawing of SCANNER UNIT, Type NKE-600-2D1T
Fig. 1.4 Outside Drawing of SCANNER UNIT, Type NKE-600-2F1T-HS
Fig. 1.5 Outside Drawing of SCANNER UNIT, Type NKE-600-2C1T
Fig. 1.6 Outside Drawing of LCD MONITOR, Type NWZ-167A
Fig. 1.7 Outside Drawing of LCD MONITOR, Type NWZ-167A with Stand MPBC42446 (option)
Fig. 1.8 Outside Drawing of RADAR PROCESS UNIT, Type NDC-1376A
Fig. 1.9 Outside Drawing of OPERATION UNIT, Type NCE-5085A
Fig. 1.10 Outside Drawing of JUNCTION BOX, Type NQE-3201
Fig. 1.11 Outside Drawing of RECTIFIER UNIT, Type NBA-5070A
1-7

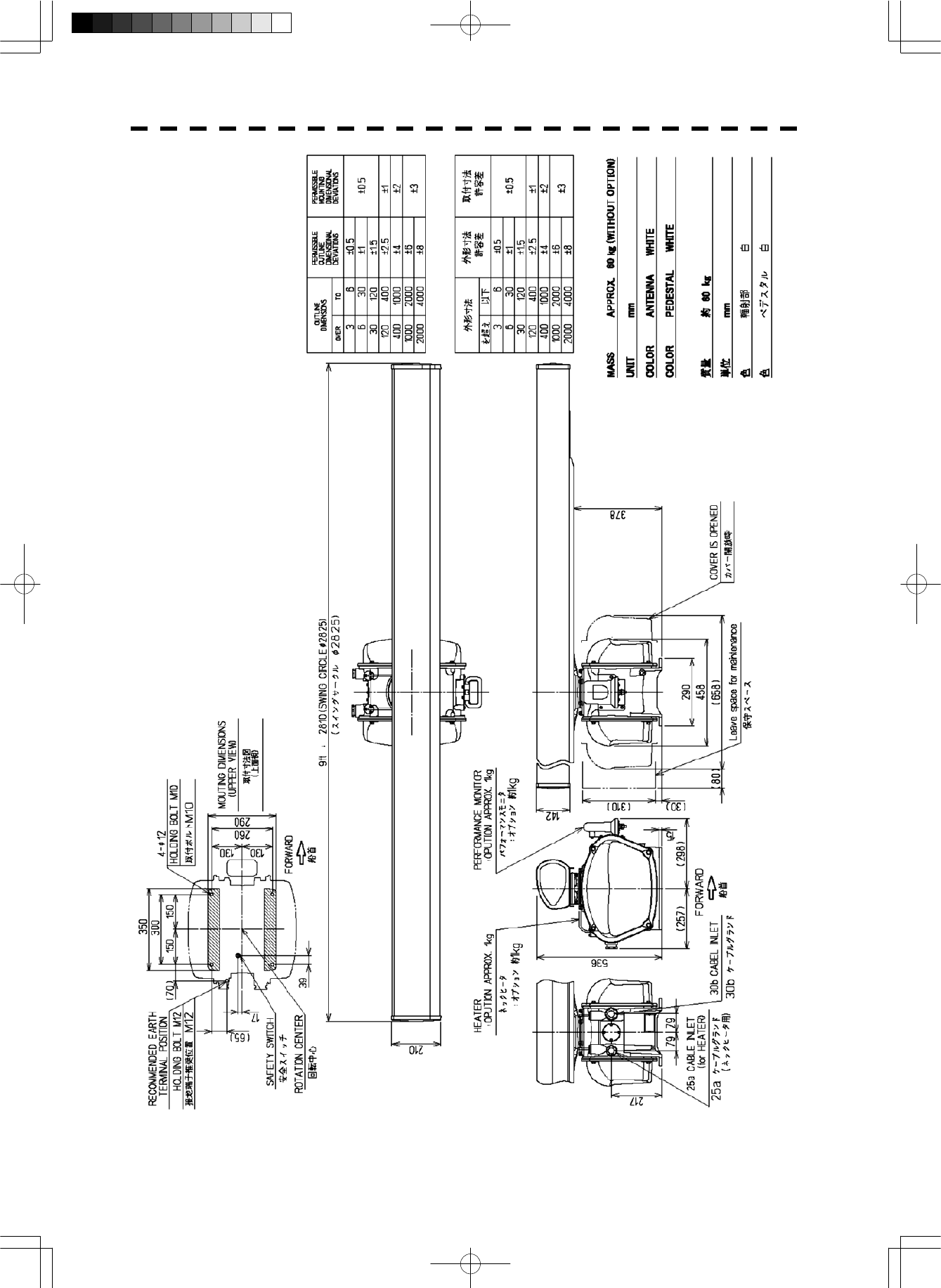

Fig. 1.1 Outside Drawing of SCANNER UNIT, Type NKE-600-2F2T / HS
1-8
1.4 Exterior Drawings y
1

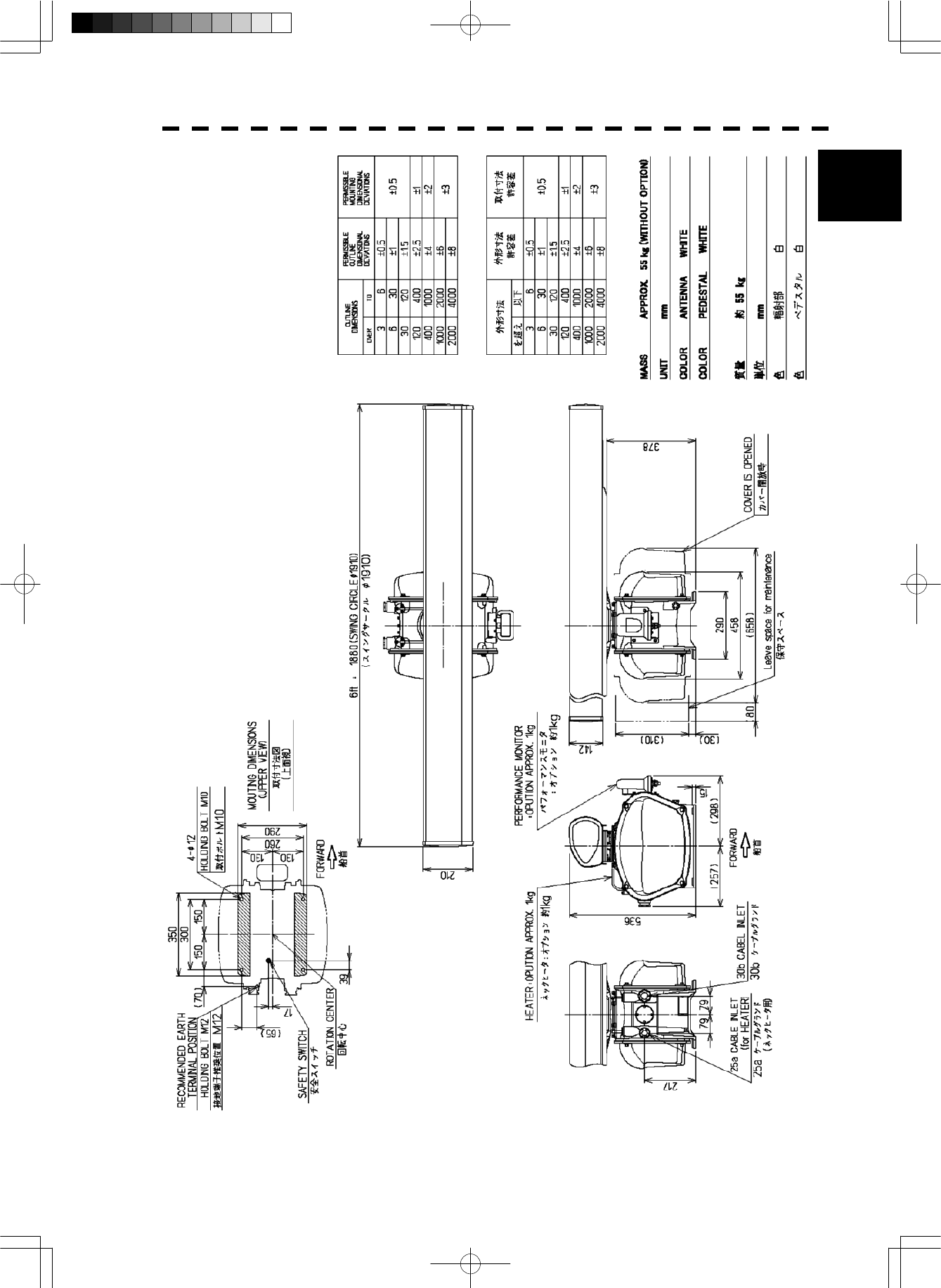

Fig. 1.2 Outside Drawing of SCANNER UNIT, Type NKE-600-2E1T
1-9
Fig. 1.3 Outside Drawing of SCANNER UNIT, Type NKE-600-2D1T
1-10
1.4 Exterior Drawings y
1
Fig. 1.4 Outside Drawing of SCANNER UNIT, Type NKE-600-2F1T-HS
1-11
Fig. 1.5 Outside Drawing of SCANNER UNIT, Type NKE-600-2C1T
1-12
1.4 Exterior Drawings y
1
Fig. 1.6 Outside Drawing of LCD MONITOR, Type NWZ-167A
NWZ-167A
1-13

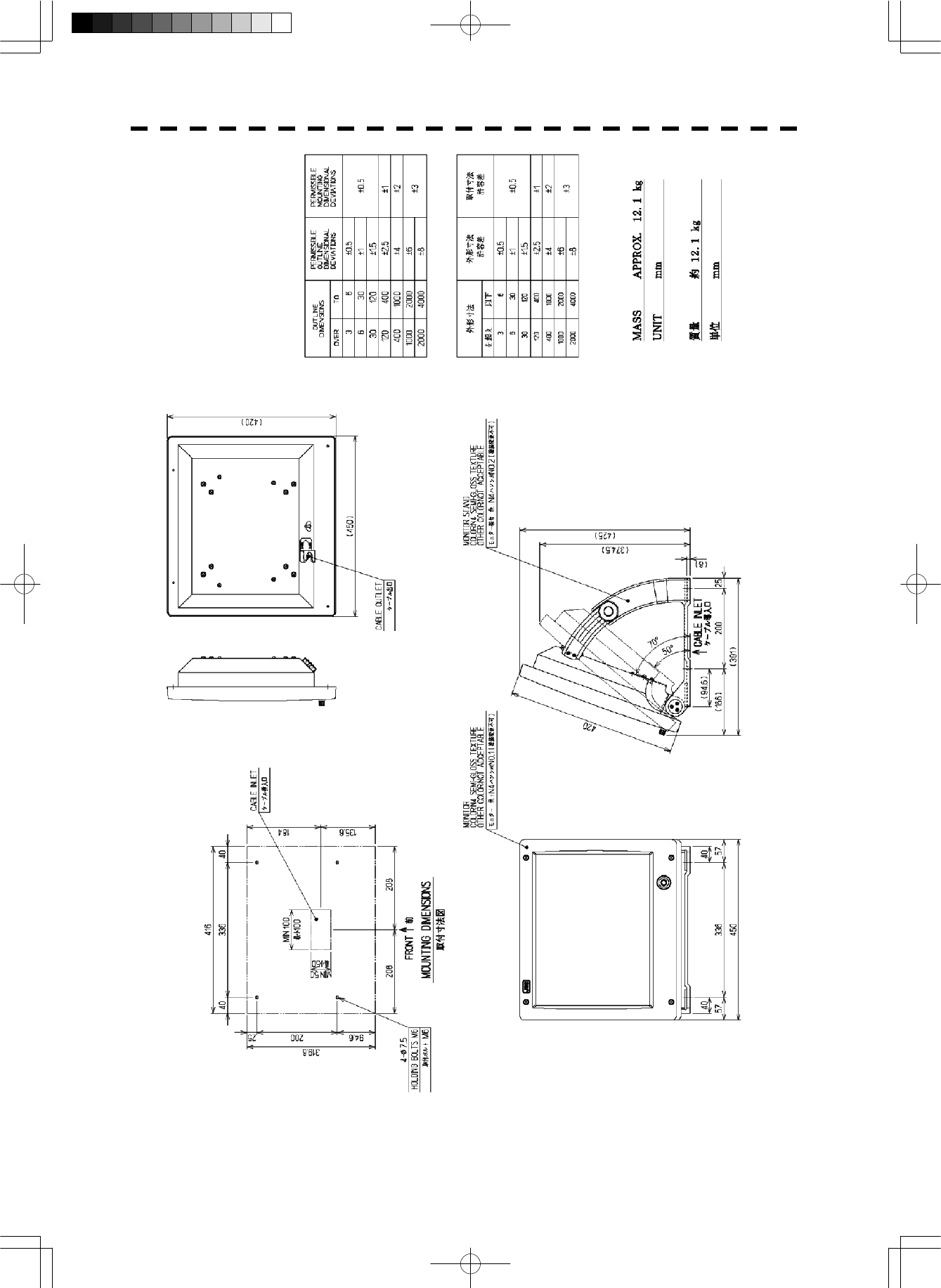

Fig. 1.7 Outside Drawing of LCD MONITOR, Type NWZ-167A with STAND MPBC42446 (option)
1-14
1.4 Exterior Drawings y
1

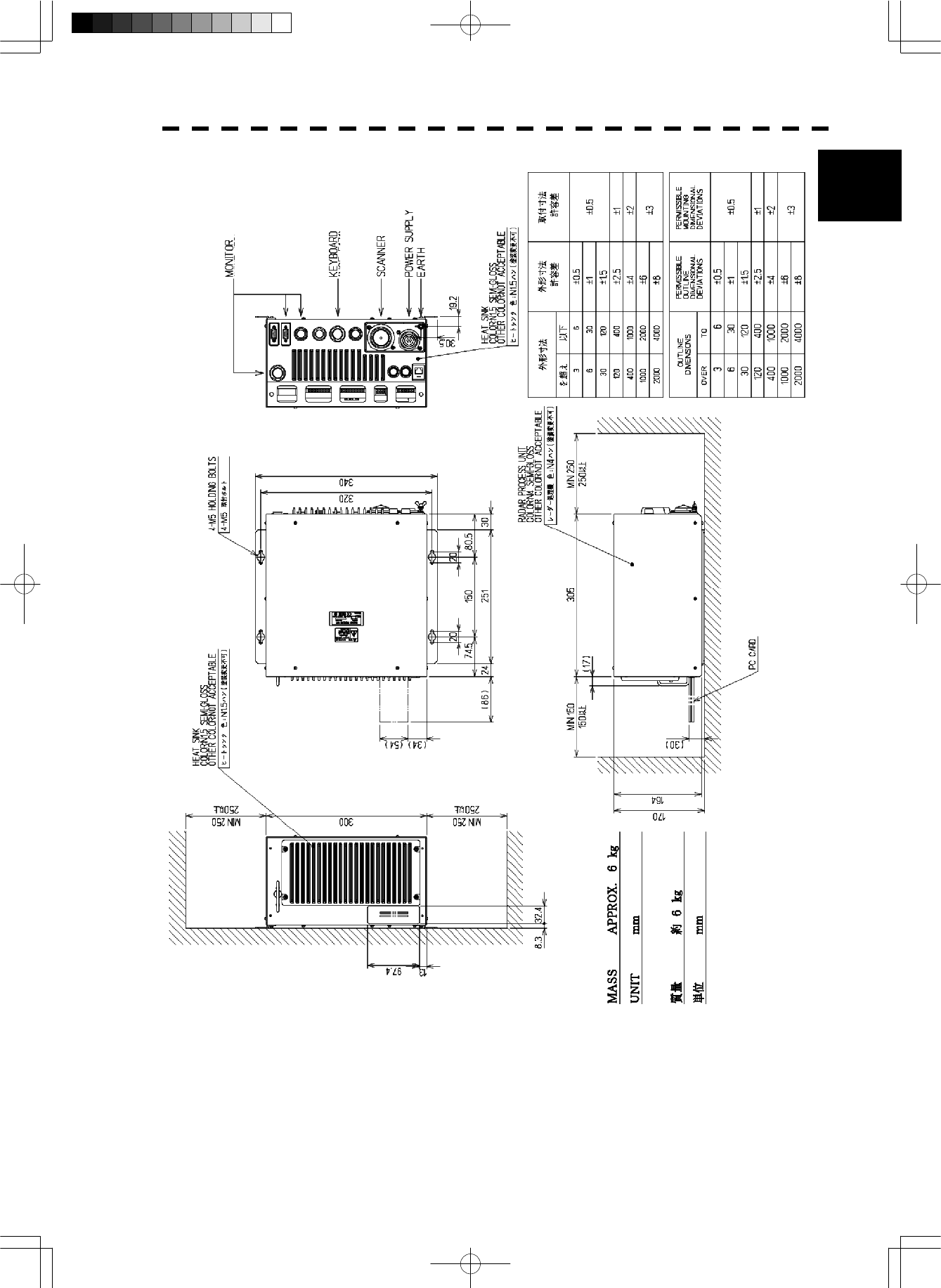

Fig. 1.8 Outside Drawing of RADAR PROCESS UNIT, Type NDC-1376A
NWZ-167A
NCE-5085A
1-15
Fig. 1.9 Outside Drawing of OPERATION UNIT, Type NCE-5085A
1-16
1.4 Exterior Drawings y
1
Fig. 1.10 Outside Drawing of JUNCTION BOX, Type NQE-3201
1-17

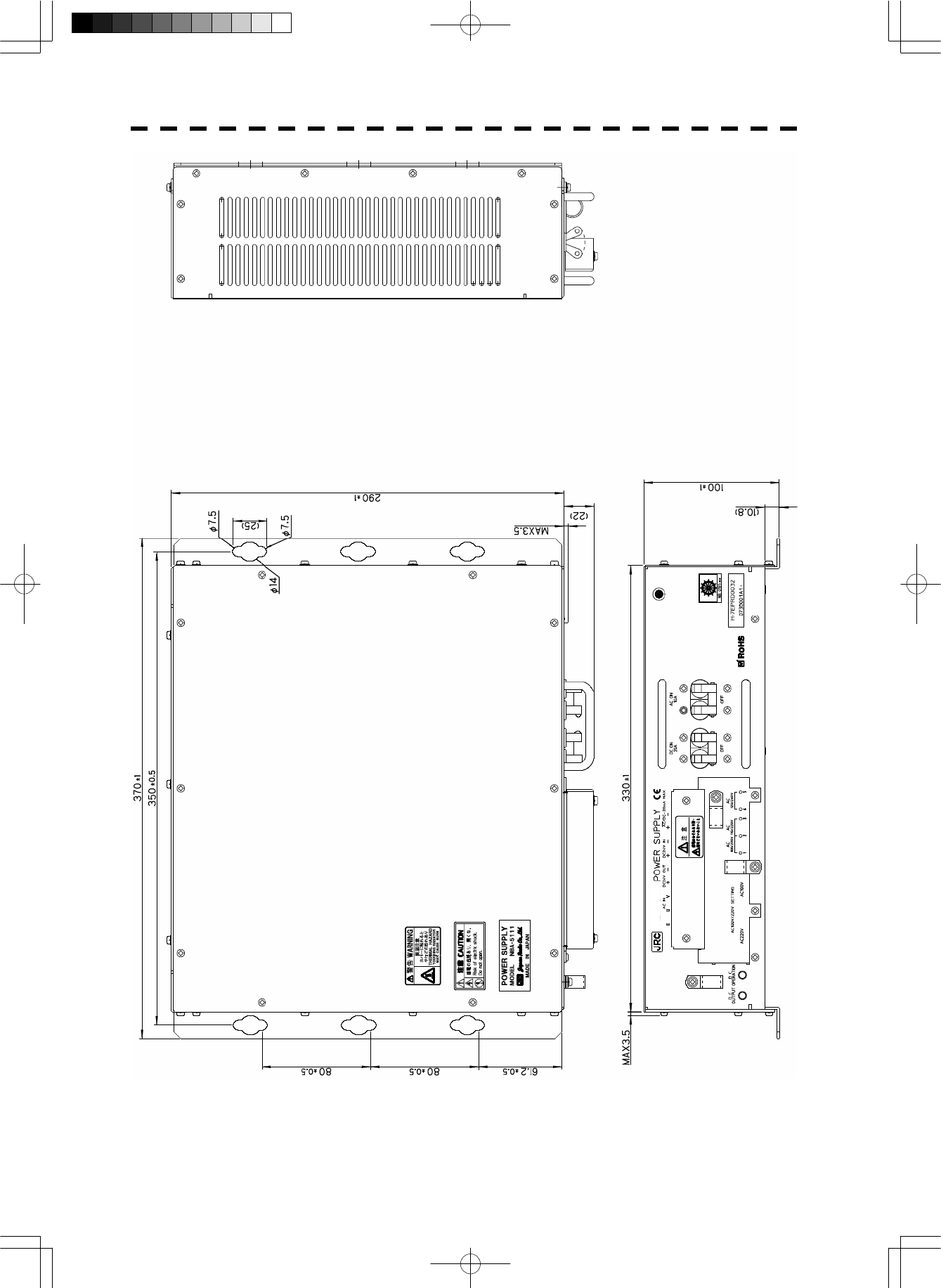

Fig. 1.11 Outside Drawing of RECTIFIER UNIT, Type NBA-5070A
NBA-5070A
1-18
1
1.5 General System Diagrams y
1.5 GENERAL SYSTEM DIAGRAMS
Fig. 1.12 General System Diagram of RADAR, Type JPL-600-1ER2-6/6HS
Fig. 1.13 General System Diagram of RADAR, Type JPL-600-2ER2-7/9/6HS
Fig. 1.14 General System Diagram of RADAR, Type JPL-600-2ER2-12
1-19
CFQ-6912
MAX f 14.5 (JRC SUPPLY)
19 CORES COMPOSITE CABLE
NJU-82A PERFORMANCE
MONITOR
NKE-600-2F2T/HS SCANNER UNIT
NCM-836A-E CONTROL
UNIT
NCE-5085A OPERATION
UNIT
NCA-891/877A (JRC SUPPLY)
5m
NWZ-167A LCD
MONITOR
NDC-1376A RADAR PROCESS UNIT
NCD-2034A DISPLAY
UNIT
(JRC SUPPLY)
5m
(JRC SUPPLY)
5m
0.6/1kV-DPYC-6
CFQ-5436-5
MAX f 10 (JRC SUPPLY) 5m
NBA-5070A POWER SUPPLY
GYRO
LOG(200P)
250V-TTYCS-4
250V-TTYCS-1
250V-MPYCYS-7
250V-DPYCYS-1.5
250V-TTYCS-1
GP
S
SHIP'S MAIN
AC100/110/115V 50/60Hz 1f
AC220/230/240V 50/60Hz 1f
H-2695111153
MAX f 18 (JRC SUPPLY)
INTER SWITCH
AIS
LOG(NMEA)
(JRC SUPPLY)
5m
ARPA/ATA PROCESS CIRCUIT (OPTION)
(OPTION)
NCT-59A GYRO INTERFACE UNIT
NQA-2236 AIS PROCESS CIRCUIT
NDB-37 PLOTTER CONTROL UNIT
(OPTION)
(OPTION)
(OPTION)
NOTE: Eliminating the interference on frequencies used for marine communications and
navigation due to operation of the radar.
All cables of the radar are to be run away from the cables of radio equipment.
(Ex. Radiotelephone. Communications receiver and direction finder, etc. )
Especially inter-wiring cables between scanner unit and display unit of the radar should
not be run parallel with the cables of radio equipment.
Performance monitor, ARPA/ATA Process Circuit, AIS Process Circuit and GYRO
Interface Unit must be fitted on ships compliant to IMO.
(OPTION)
Fig. 1.12 General System Diagram of RADAR, Type JPL-600-1ER2-6/6HS
1-20
1
1.5 General System Diagrams y
CFQ-6912
MAX f 14.5 (JRC SUPPLY)
19 CORES COMPOSITE CABLE
NJU-82A PERFORMANCE MONITOR
NKE-600-2E1T/2D1T/2F1T-HS SCANNER UNIT
NCM-836A-E CONTROL UNIT
NCE-5085A OPERATION UNIT
NCA-891/877A (JRC SUPPLY) 5m
NWZ-167A LCD MONITOR
NDC-1376A RADAR PROCESS UNIT
NCD-2034A DISPLAY UNIT
(JRC SUPPLY) 5m
(JRC SUPPLY) 5m
0.6/1kV-DPYC-6
CFQ-5436-
5
MAX f 10 (JRC SUPPLY) 5m
NBA-5070A POWER SUPPLY
GYR
O
LOG(200P)
250V-
TTYCS-4
250V-
TTYCS-1
250V-
MPYCYS-7
250V-DPYCYS-
1.5
250V-
TTYCS-1
GP
S
SHIP'S MAIN
AC100/110/115V 50/60Hz 1f
AC220/230/240V 50/60Hz 1f
H-2695111153
MAX f 18 (JRC SUPPLY)
INTER
SWITCH
AIS
LOG(NME
A)
(JRC SUPPLY)
5m
ARPA/ATA PROCESS CIRCUIT (OPTION)
(OPTION)
NCT-59A GYRO INTERFACE UNIT
NQA-2236 AIS PROCESS CIRCUIT
NDB-37 PLOTTER CONTROL UNIT
(OPTION)
(OPTION)
(OPTION
)
NOTE: Eliminating the interference on frequencies used for marine communications and navigation due to
operation of the radar.
All cables of the radar are to be run away from the cables of radio equipment .
(Ex. Radiotelephone. Communications receiver and direction finder, etc. )
Especially inter-wiring cables between scanner unit and display unit of the radar should not be run parallel
with the cables of radio equipment.
Performance monitor, ARPA/ATA Process Circuit, AIS Process Circuit and GYRO Interface Unit must be
fitted on ships compliant to IMO.
(OPTION)
Fig. 1.13 General System Diagram of RADAR, Type JPL-600-2ER2-7/9/6HS
1-21
CFQ-6912
MAX φ14.5 (JRC SUPPLY)
19 CORES COMPOSITE CABLE
NQE-3201 JUNCTION BOX
H-2695110056
MAX φ23 (JRC SUPPLY)
14 CORES COMPOSITE CABLE
NJU-87A PERFORMANCE MONITOR
0.6/1kV-DPYC-1.5
SHIP'S MAIN
AC100/110/115V 50/60Hz 1φ
AC220/230/240V 50/60Hz 1φ
NKE-600-2C1T SCANNER UNIT
NCM-836A CONTROL UNIT
NCE-5085A OPERATION UNIT
NCA-891/877A (JRC SUPPLY) 5m
NWZ-167A LCD MONITOR
NDC-1376A RADAR PROCESS UNIT
NCD-2034A DISPLAY UNIT
(JRC SUPPLY) 5m
(JRC SUPPLY) 5m
0.6/1kV-DPYC-6
CFQ-5436-5
MAX φ10 (JRC SUPPLY) 5m
NBA-5070A POWER SUPPLY
GYRO
LOG(200P)
250V-TTYCS-4
250V-TTYCS-1
250V-MPYCYS-7
250V-DPYCYS-1.5
250V-TTYCS-1
GPS
SHIP'S MAIN
AC100/110/115V 50/60Hz 1φ
AC220/230/240V 50/60Hz 1φ
H-2695111153
MAX φ18 (JRC SUPPLY)
INTER SWITCH
AIS
LOG(NMEA)
(JRC SUPPLY) 5m
ARPA/ATA PROCESS CIRCUIT (OPTION)
(OPTION)
NCT-59A GYRO INTERFACE UNIT
NQA-2236 AIS PROCESS CIRCUIT
NDB-37 PLOTTER CONTROL UNIT
(OPTION)
(OPTION)
(OPTION)
NOTE:Eliminating the interference on frequencies used for marine communications and navigation due to
operation of the radar.
All cables of the radar are to be run away from the cables of radio equipment.
(Ex. Radiotelephone. Communications receiver and direction finder, etc. )
Especially inter-wiring cables between scanner unit and display unit of the radar should not be run parallel
with the cables of radio equipment.
Performance monitor, ARPA/ATA Process Circuit, AIS Process Circuit and GYRO Interface Unit must be
fitted on ships compliant to IMO.
Fig. 1.14 General System Diagram of RADAR, Type JPL-600-2ER2-12
SECTION 2
NAMES AND FUNCTIONS OF CONTROL
PANEL KEYS AND FUNCTIONS OF
SOFTWARE BUTTONS
2.1 NAMES OF DISPLAY......................................................................... 2-1
2.2 NAMES AND FUNCTIONS OF CONTROL PANEL KEYS............... 2-11
2.3 FUNCTIONS OF SOFTWARE BUTTONS........................................ 2-16
2-1
2.1 NAMES OF DISPLAY
Example of screen display
In this example, the screen is divided into a number of areas and the names in each area are
indicated.
PPI
Upper left
of the display
Lower left
of the display
Upper right
of the display
Lower right
of the display
Radar station
information
(Some items are
not displayed for
VTS.)
Digital information
Target
tracking (TT) /
AIS information
Menu
Brilliance /
Display information
Alarm
JPL-600MK2
2-2
2.1 Names of Dis
p
la
y
yy
2
PPI
Upper left of the display
About ground and sea stabilization (Not used for VTS)
Speed sensor source is MAN , LOG , 2AXW
If Set/Drift Setting menu is on : GND (Ground stabilization)
If Set/Drift Setting menu is off : Sea (Sea stabilization)
Speed sensor source is 2AXG , GPS : GND (Ground stabilization)
2-3
Lower left of the display
Upper right of the display
2-4
2.1 Names of Dis
p
la
y
yy
2
Lower right of the display
Own ship’s track interval and own ship’s track interval unit are not used for VTS.
Radar station information
About time display mode
UTC : Universal Time Coordinate
UTC(S) : UTC (System Time)
LMT : Local Mean Time
LMT(S) : LMT (System Time)
Some items cannot be displayed for VTS (SPD/COG/SOG/GPS, etc.).
2-5
Target tracking (TT) / AIS information
Digital information: AIS target information
Ship's name
Call sign MMSI
Course
Speed CPA
TCPA
Bearing
Range
Ship's heading bearing
Rate of turn
Latitude
Longitude
DestinationNavigation status
Latitude / longitude error
Simple display item
AIS target number
Unread message
JPL-600MK2
2-6
2.1 Names of Dis
p
la
y
yy
2
Digital information: Tracked target information
Bearing
RangeTrue course
True speed
CPA
TCPA
BCR
BCT
Tracked target number
No information is displayed
if digital information value is
not displayed
Digital information: Enhancement of cursor position numeric value
indication
Digital information: Enhancement of EBL / VRM numeric value display
2-7
Digital information: Navigation information
Navigation information is not displayed on the JPL-600-MK2 for VTS. Each sensor is connected,
showing accurate numeric values. Even if numeric values are displayed on the Navigation INFO screen,
they do not show accurate values.
Digital information: Depth indication
Not displayed on the JPL-600-MK2 for VTS.
2-8
2.1 Names of Dis
p
la
y
yy
2
Digital information: Water temperature indication
Not displayed on the JPL-600-MK2 for VTS.
Digital information: Wind direction / speed
Wind speed
Wind direction / speed
true / relative
Wind direction
Not displayed on the JPL-600-MK2 for VTS.
Digital information: Course bar
Not displayed on the JPL-600-MK2 for VTS.
2-9
Digital information: Marker
Marker longitude
Marker latitude
Marker range
Marker bearing
Arrival time
Not displayed on the JPL-600-MK2 for VTS.
Menu
Brilliance
Display information
JPL-600MK2
2-10
2.1 Names of Dis
p
la
y
yy
2
Alarm
Alarm indication
(The system alarm indicated in red.
Other information indicated in blue or yellow.)
2-11
2.2 NAMES AND FUNCTIONS OF
CONTROL PANEL KEYS
1
23
4 5 6 7
8 9
10
2019
18 17
1615
14
13
12
11 21 22 23
24 25 26
27 28 29
3031 32
33
34
35 36
37 38
Multi dial
Enter
Electronic bearing line dial
Function
call
/ User registration 1 / 2
Transmission /
transmission repetition
frequency
Alarm
acknowledgment
/ Electronic bearing line 1 / 2
Standby
Automatic - Rain /
snow clutter dial Automatic - Sea
clutter dial Gain / pulse length
dial
Marker
Control panel
brilliance Target data
indication
Tracked target
cancellation
Manual
acquisition
Azimuth display
mode / 1
Day / night / 7
True / relative
motion / 4
Map / 2
Range rings /
ship’s heading line
cancellation / 8
Off-center / 5
Vector mode / 3
Automatic
acquisition /
activation zone / 9
Mark / 6
Main menu Radar trails / 0 Target tracking
(TT) menu
Clear /
information
2
456 7
8
9
10
2019
18 17
1615
14
13
12
11
22 23
24 25 26
27
28 29
30
31 32
37 38
21
Track ball
1
/ Variable range marker 1 / 2
Variable range marker dial
/ Range scale + / -
3
33 34
35 36
The name of each button is described from the following page. See below.
2-12
2.2 Names and Functions of Control Panel Ke
y
syy
2
1 Track ball
Use the track ball to move the cursor mark to any position.
For example, use it for setting in each mode and specifying a floating EBL center position and
off-center position.
2 [EBL] (Electronic Bearing Line) dial
Turn the dial to rotate the bearing of the EBL.
By pressing the dial, the selected EBL can be switched.
(Center fixing) ⇒ C (Floating) ⇒ D (latitude / longitude fixing) ⇒
* D is enabled only when the navigator is connected.
3 [VRM] (Variable Range Marker) dial
Turn the dial to change the VRM range.
Press the dial to set the display of parallel index line (PI) to On / Off and open the PI Menu.
4 [MULTI] dial
Press the dial to switch the function that is registered in the multi-dial.
Vecto r ⇒ Trails ⇒ TGT No. ⇒ Course ⇒ Track ⇒ Mark
⇒ Tune ⇒ Vector
The function that is switched is displayed in multi-dial mode (lower left of the display on page 2-3)
If the dial is pressed for 2 seconds, the Multi Dial Setting menu is opened. If the dial is pressed again
for 2 seconds, the setting menu is closed.
5 [AUTO-RAIN] (Automatic - Rain / Snow clutter suppression) dial
Turn the dial to suppress images by rain / snow clutter.
Turn the dial clockwise to increase the effect of suppression.
Press the dial to switch the mode to manual / automatic.
6 [AUTO-SEA] (Automatic - Sea clutter suppression) dial
Turn the dial to suppress images by sea clutter.
Turn the dial clockwise to increase the effect of suppression.
Press the dial to switch the mode to manual / automatic.
7 [GAIN / PL] (Gain / Pulse Length) dial
Turn the dial to adjust the reception gain of the radar.
Turn the dial clockwise to increase the gain.
Press the dial to switch the transmitting pulse length.
8 [STBY] (Standby) key
Use this key to turn on the power of the equipment.
Use this key also to switch the equipment from a transmitting state to a standby state.
The power can be turned off by pressing the [STBY] key and [TX / PRF] key concurrently while the
power is On.
9 [TX / PRF] (Transmission / transmission repetition frequency) key
At expiration of the pre-heat time after the power is turned on, Preheat of the transmission /
standby indication (Upper left of the display on page 2-2) changes to Standby .
If this key is pressed subsequently, transmission starts.
If this key is pressed during transmission, fine adjustments of the transmission repetition frequency are
enabled.
By using the fine adjustments of the transmission repetition frequency and the interference removal
function, the interference suppression effect can be improved.
2-13
10 / 11 [EBL1] / [EBL2] (Electronic Bearing Line 1 / 2) key
Use these keys to switch EBL1 / EBL2 to On / Off.
If the key is pressed for 2 seconds, the EBL / Cursor Setting menu is opened.
12 [ALARM ACK] (Alarm acknowledgment) key
Use this key to acknowledge the alarm such as a failure alarm and a collision alarm.
To stop the alarm, press this key while the alarm sound is emitted.
If multiple alarms occur, press this key same time as the alarms.
13 [PANEL] (Control panel brilliance) key
Use this key to adjust the brilliance of various keys and dials on the control panel.
14 [MOB] (Marker) key (Not used on the JPL-600-MK2 for VTS)
Use this key to store the radar station position at the time.
The marker can be cleared by pressing the key for 2 seconds.
15 [ACQ] (Manual acquisition) key
Use this key to acquire a target of the cursor position manually.
16 [TGT CNCL] (Tracked target cancellation) key
Use this key to cancel the tracked target symbol / vector at the cursor position and stop tracking.
When this key is pressed for 2 seconds, all the tracked target symbols / vectors are cancelled and
tracking is stopped.
17 [TGT DATA] (Target data indication) key
Use this key to check the digital information of the AIS target or the tracked target.
18 [FUNC] (Function call) key
Use this key to switch the original signal processing settings.
FUNC Off ⇒ Coast ⇒ Deep Sea ⇒ Fishnet ⇒ Storm ⇒ FUNC Off
If the key is pressed for 2 seconds, the User Function Setting menu is displayed.
19 / 20 [USER KEY 1 / 2] (User registration 1 / 2) key
Use this key to perform pre-registered operations.
If this key is pressed for 2 seconds while no operation is registered, the User Key Setting menu is
opened.
21 [AZI MODE / 1] (Azimuth display mode / 1) key
Switch the azimuth display.
H Up (Head Up) ⇒ N Up (North Up) ⇒ C Up (Course Up) ⇒ N Up
During the menu operation, the key functions as a numeric key [1].
If this key is pressed for 2 seconds, GYRO setting menu is opened.
22 [MAP / 2] key
Use this key to switch the map display to On / Off such as marine chart, coastline, and depth contour.
During the menu operation, the key functions as a numeric key [2].
If this key is pressed for 2 seconds, the Map Setting menu is opened.
2-14
2.2 Names and Functions of Control Panel Ke
y
syy
2
23 [VECT R / T / 3] (Vector mode / 3)
Use this key to switch vector indication T (true vector) / R (relative vector).
During the menu operation, the key functions as a numeric key [3].
24 [TM / RM / 4] (True Motion / Relative Motion / 4) key Display does not
change even if this key is switched on the JPL-600-MK2 for VTS.
Use this key to switch the motion mode between TM (true motion) and RM (relative motion).
If the key is pressed for 2 seconds in TM , the radar station position is reset.
During the menu operation, the key functions as a numeric key [4].
25 [OFF CENT / 5] (Off-center / 5) key
By pressing this key, moving the cursor, and pressing the [ENT] key, the ship's position can be moved
to the cursor position. The moving range is about 66% of the radius.
If the key is pressed for 2 seconds, the off-center is set to Off and the ship's position is returned to the
center of the screen.
During the menu operation, the key functions as a numeric key [5].
26 [MARK / 6] (Mark / 6) key
Use this key to display a mark in any screen position. This key can also be used for clearing the mark
that is currently displayed.
If the key is pressed for 2 seconds, the Mark Setting menu is opened.
During the menu operation, the key functions as a numeric key [6].
27 [DAY / NIGHT / 7] (Day / night mode / 7) key
Use this key to switch the color and brightness of the screen that have been set in advance.
If the key is pressed for 2 seconds, the Display Color Setting menu is opened.
During the menu operation, the key functions as a numeric key [7].
28 [RR / HL / 8] (Range Rings / scanner heading line off / 8) key
Use this key to set the range rings marker to On / Off.
If the key is pressed for 2 seconds, the scanner heading line is cleared while the key is pressed.
During the menu operation, the key functions as a numeric key [8].
29 [AZ / 9] (Automatic Acquisition / Activation Zone / 9) key
Use this key to set automatic acquisition / activation zone.
If the key is pressed for 2 seconds, the AZ Menu (automatic acquisition / activation zone menu) is
opened.
During the menu operation, the key functions as a numeric key [9].
30 [TRAILS / 0] (Radar trails / 0) key
Use this key to switch the length of the radar trail period.
If the key is pressed for 2 seconds, the RADAR Trails setting menu is opened.
If this key is pressed for 5 seconds, the radar trail is cleared.
During the menu operation, the key functions as a numeric key [0].
31 [RADAR Menu] (Main menu) key
Use this key to open the Main Menu.
32 [TT Menu] key
Use this key to open the TT Menu (target tracking menu).
2-15
33 / 34 [RANGE + / - ] key
Press the [+] key to increase the observation range and the [-] key to reduce the observation range.
35 / 36 [VRM 1 / 2 ] (Variable Range Marker 1 / 2) key
Use this key to set the display of VRM1 / VRM2 to On / Off and acquire the operation right.
37 [ENT] (Enter) key
Use this key to confirm menu selection and input of numeric values.
This key is equivalent to the clicking of the left button of the track ball.
38 [CLR / INFO] (Clear / information) key
Use this key to cancel menu selection or numeric value input.
This key is equivalent to the clicking of the right button of the track ball.
2-16
2
2.3 Functions of Software Buttons yy
2.3 FUNCTIONS OF SOFTWARE BUTTONS
In this radar, the frequently used functions can be directly set from the screen without opening the
menu by using the software buttons on the screen for quick handling. The screen is divided into a
number of areas and each area is named.
PPI
Upper left
of the display
Lower left
of the display
Upper right
of the display
Lower right
of the display
Radar station
information
(Some items are
not displayed for
VTS.)
Digital information
Target
tracking (TT) /
AIS information
Menu
Brilliance /
Display information
Alarm
The name of each button is described from the next page. The function can be used by pressing
(clicking) the [ENT] key while setting the arrow cursor on the button position.
JPL-600MK2
2-17
PPI
①：Heading device switching
This function switches the heading device.
GYRO (GYRO) ⇒ CMPS (Electronic compass) ⇒ G.COM (GPS compass) ⇒ GYRO
If the selected heading device is not connected to the equipment, an alarm is issued.
(Not used on the JPL-600-MK2 for VTS)
Upper left of the display
2-18
2
2.3 Functions of Software Buttons yy
①：Range scale switching
To increase the observation range scale (maximum 96NM), click + and to reduce the range
(minimum 0.125NM), click - .
②：Range rings display On / Off
The display of range rings are set to On / Off whenever this button is clicked.
When the display is set to On, the interval of the fixed range marker is displayed.
③：Motion mode true / relative switching (Display does not change even if
this key is switched to “relative motion” on the JPL-600-MK2 for VTS.)
The screen motion mode is switched whenever the button is clicked.
TM (true motion) ⇒ RM (relative motion) ⇒ TM
RM(R) indicates that the radar trails is a relative trail.
RM(T) indicates that the radar trails is a true trail.
④：Off center switching
If this button is clicked, the cursor is moved, and the [ENT] key is pressed, the radar station position
can be moved to the cursor position. The moving range is within 66% of the radius.
If the button is clicked for 2 seconds, the off-center is set to Off and the ship's position is returned to
the center of the screen.
⑤：Transmission / standby switching
At expiration of the pre-heat time after the power is turned on, Preheat changes to Standby .
Standby : Indicates a standby state. If this button is clicked in this state, the equipment is set to a
transmission state.
Transmit : Indicates a transmission state. If this button is clicked in this state, the equipment is set
to a standby state.
⑥：Interswitch connection change
This button is displayed when the interswitch is connected. This button indicates the connection
status of the scanner unit that is connected to the indicator.
If the button is clicked in the transmission standby state, the menu for changing the connection state
between the scanner unit and the indicator is displayed. The connection state of the scanner unit and
indicator cannot be changed unless the master indicator is in a standby state.
→ Refer to the Interswitch (Optional) Instruction Manual that is attached for the setting method.
This button is not displayed if the interswitch is not connected.
⑦：Transmission pulse length switching
The transmission pulse length is switched whenever this button is clicked. Three types of pulses are
available, short pulse (SP), middle pulse (MP), and long pulse (LP). The pulse length and repetition
frequency vary even for the same short pulse, according to the range that is used and it is displayed as
SP1 , SP2 .
⑧：Azimuth display mode switching
The azimuth display is switched whenever this button is clicked.
H Up (Head Up) ⇒ N Up (North Up) ⇒ C Up (Course Up) ⇒ H Up
If the button is clicked for 2 seconds, the GYTO Setting menu is displayed.
(Display does not change even if “Course Up” is selected on the JPL-600-MK2 for VTS.)
2-19
Lower left of the display
①：Double zoom switching
Use this function to enlarge to double the size the display screen of the position specified by the cursor.
If this button is clicked, the zoom mode is set. When the cursor is moved to the radar screen and the
[ENT] key is pressed, the screen is enlarged to double the size so that the middle of the cursor and the
radar station position is set to the center of the screen. This function cannot be used when the range is
0.125NM.
②：Interference rejection (IR) mode switching
The interference rejection mode is switched whenever this button is clicked.
IR Off ⇒ IR Low ⇒ IR Medium ⇒ IR High ⇒ IR Off
③：Target enhance (ENH) mode switching
The target enhance mode is switched whenever this button is clicked.
ENH Off ⇒ ENH Level1 ⇒ ENH Level2 ⇒ ENH Level3 ⇒ ENH Off
④：Radar video processing (PROC) mode switching
The radar video processing mode is switched whenever this button is clicked.
PROC Off ⇒ 3Scan CORREL ⇒ 4Scan CORREL ⇒ 5Scan CORREL ⇒
⇒ Remain ⇒ Peak Hold ⇒ PROC Off
⑤：Function (FUNC) mode switching
The function mode is switched whenever this button is clicked.
FUNC Off ⇒ Coast ⇒ Deep Sea ⇒ Fishnet ⇒ Storm ⇒ FUNC Off
If the button is clicked for 2 seconds, the function registration menu (User Function Setting) is opened.
2-20
2
2.3 Functions of Software Buttons yy
⑥, ⑦, ⑧,and ⑨：Gain, Sea clutter suppression (Sea), Rain / snow clutter
suppression (Rain), Tune adjustment
Adjust the gain, sea clutter suppression, rain and snow clutter suppression and tune using the track ball.
If the button is clicked on, the adjustment value is shown at the upper-right of the cursor. Make
adjustments by moving the track ball to the left and right. Determine the adjustment by pressing the
[ENT] key.
⑩, ⑪,and ⑫：Sea clutter suppression (Sea) mode, Rain / snow clutter
suppression (Rain) mode, and Tune mode switching
Use these functions to switch to the manual or automatic mode of sea clutter suppression, rain / snow
clutter suppression and tune. The bar on the left side indicates the position of the dial.
The mode is switched to MAN (manual) / AUTO (automatic) whenever the button is clicked.
If rain / snow clutter suppression is switched to an automatic mode, sea clutter suppression is switched
to an automatic mode also.
⑬：Multi-dial mode switching
The function that is registered in the multi-dial is switched whenever the button is clicked.
Vector ⇒ Trails ⇒ TGT No. ⇒ Course ⇒ Track ⇒ Mark ⇒
⇒ Tune ⇒ Vector
The switched function is displayed in ( ).
If the button is clicked for 2 seconds, the Multi Dial Setting menu is opened. If this button is clicked
again for 2 seconds, this setting menu is closed.
Upper right of the display
①：Cursor mode switching
The mode of the function that uses the cursor is switched whenever this button is pressed.
AUTO ⇒ ACQ TT ⇒ ACT AIS ⇒ TGT DATA ⇒ CNCL TT ⇒
⇒ DEACT AIS ⇒ CNCL Data ⇒ □ (Mark) ⇒ -------- (Line) ⇒
⇒ Property ⇒ AUTO
2-21
②：Mark font / line pattern switching
This function switches a mark font / line pattern. If this button is clicked while the cursor mode is
□ (mark) or -------- (line), the mark font / line pattern is changed.
③：Mark color / line color switching
This function switches a mark color / line color. If this button is clicked while the cursor mode is
□ (mark) or -------- (line), the mark color / line color is changed.
④：Cursor bearing numeric value display true / relative switching
The bearing numeric value display T (true bearing) / R (relative bearing) of the cursor is
switched whenever this button is clicked.
(Display does not change even if “relative bearing” is selected on the JPL-600-MK2 for VTS.)
⑤, ⑥, ⑦,and ⑧：EBL1 / 2 and VRM1 / 2 adjustment
These functions set the EBL1 , VRM1 , EBL2 , and VRM2 displays to On / Off and acquire
the operation right.
If the button is clicked on, the operation right is acquired. Make adjustments by moving the track ball
to the left and right Determine the adjustment by pressing the [ENT] key.
⑨ and ⑩：EBL1, EBL2 numeric value true / relative switching
The EBL1 / 2 bearing numeric value display T (true bearing) / R (relative bearing) is switched
whenever the button is clicked.
If the button is clicked for 2 seconds, the EBL / Cursor Setting menu is displayed.
⑪ and ⑫：EBL1 / EBL2 starting point mode switching
The EBL starting point is set to the radar station position or any position on the radar screen whenever
this button is clicked.
⇒ C ⇒ D ⇒
: Center :The starting point is fixed to the CCRP position.
C : Screen Fix :The starting point is set to the cursor position. If the [ENT] key is pressed
subsequently, the starting position is fixed to the cursor position.
D : L/L Fix :The starting point is set to the cursor position. If [ENT] key is pressed
subsequently, the starting position is fixed to the latitude / longitude of the
cursor.
(Connection of a navigator is necessary.)
If the starting point is moved outside of the screen, the operation is reset
automatically and the starting point returns to the radar station position.
* D is enabled only when a navigator is connected.
⑬：Parallel index line setting
This function sets the parallel index line display to On / Off and acquires the operation right.
If this button is clicked, the operation right is acquired and the menu is opened. After setting,
determine the setting by pressing the [ENT] key.
⑭：Parallel index line starting point mode switching
The parallel index line starting point is set to CCRP or any position on the radar screen whenever this
button is clicked.
In the same way as for the EBL starting point, three options are available, : Center, C :
Screen Fix, and D : L/L Fix.
2-22
2
2.3 Functions of Software Buttons yy
Lower right of the display
①：Mark color switching
The color of the mark is switched whenever this button is clicked.
If the button is clicked for 2 seconds, the Mark Setting menu is opened.
②：Own ship's track interval switching
(Not used on the JPL-600-MK2 for VTS)
The own ship's track interval is switched whenever this button is clicked.
③：Own ship's track interval unit switching
(Not used on the JPL-600-MK2 for VTS)
The unit of the own ship's track interval is switched whenever this button is clicked.
sec ⇒ min ⇒ NM ⇒ sec
④：Map display On / Off
The map display is set to On / Off whenever this button is clicked.
Map information must be inserted in the card slot of the radar process unit in advance.
If the button is clicked for 2 seconds, the Map Setting menu is opened.
⑤：Graphic display Off
While the button is clicked, the graphic display other than VRM, EBL, HL, a cursor, and range rings
on the radar screen is cleared temporarily.
⑥：Scanner heading line Off
The scanner heading line (HL) display is set to Off while this button is clicked.
Since the scanner heading line is cleared while the button is clicked, the target in the scanner heading
bearing can be clearly seen.
⑦：CPA ring display On / Off
The CPA ring display is switched to On / Off whenever the button is clicked.
When the target vector display mode is T (true vector), the CPA ring cannot be set to On.
2-23
Radar station information
①：Heading device switching
The heading device is switched whenever this button is clicked.
GYRO ⇒ CMPS (Electronic compass) ⇒ GCOM (GPS compass) ⇒ GYRO
When the selected heading device is not connected to the equipment, an alarm is issued.
(Not used on the JPL-600-MK2 for VTS)
②：Speed sensor switching
The speed sensor is switched whenever the button is clicked.
MAN (Manual) ⇒ LOG (Single-axis water log) ⇒ 2AXW (Dual-axis water log)
⇒ 2AXG (Dual-axis ground log) ⇒ GPS ⇒ MAN
When the selected speed device is not connected to the equipment, an alarm is issued.
③：Time display mode switching
The time display mode UTC (universal time clock) / LMT (local mean time) is switched
whenever this button is clicked.
④：Manual own ship's speed setting
When selection of the speed sensor is set to MAN , enter the own ship's speed manually.
If this button is clicked, the numeric value input screen is opened. After setting a value, determine the
entry by clicking ENT .
(Not used on the JPL-600-MK2 for VTS)
2-24
2
2.3 Functions of Software Buttons yy
Target tracking (TT) / AIS information
①：Target vector display true / relative switching
The tracked target / AIS target vector display is switched to T (true vector) / R (relative vector)
whenever this button is clicked.
This setting is switched together with the past position display true / relative switching.
(Display does not change even if this key is switched on the JPL-600-MK2 for VTS.)
②：Target vector length setting
Set a vector length of the tracked target / AIS target.
If this button is clicked, the numeric value input screen is opened. After setting the length, determine
the setting by clicking ENT .
③：CPA limit setting
Set a CPA limit.
If this button is clicked, the numeric value input screen is opened. After setting the limit, determine
the setting by clicking ENT .
④：TCPA limit setting
Set a TCPA limit.
If this button is clicked, the numeric value input screen is opened. After setting the limit, determine
the setting by clicking ENT .
⑤：Past position display true / relative switching
The tracked target / AIS target past position display is switched to T (true past position) /
R (relative past position) whenever the button is clicked.
This setting is switched together with the target vector display true / relative switching.
(Display does not change even if this key is switched on the JPL-600-MK2 for VTS.)
⑥：Past position display interval switching
The past position display interval is switched whenever the button is clicked.
2-25
⑦：Past position display interval unit switching
The past position display interval unit is switched whenever the button is clicked.
min ⇒ NM ⇒ min
⑧：AIS On / Off
The AIS display is switched to On / Off whenever the button is clicked.
⑨：Tracked target symbol display On / Off
The tracked target symbol display is switched to On / Off whenever the button is clicked. Use this
function to avoid confusion with the AIS symbol.
⑩：AIS target symbol display On / Off
The AIS target symbol display is switched to On / Off whenever the button is clicked. Use this
function to avoid confusion with the tracked target symbol.
⑪：Association On / Off
The tracked target / AIS target association is switched to On / Off whenever the button is clicked.
⑫：AIS filter mode switching
The AIS filter is switched whenever the button is clicked.
Range ⇒ Sector ⇒ Zone ⇒ Range
⑬：Radar trails display true / relative switching
Radar trails are switched to T (true motion trail) / R (relative motion trail) whenever this button
is clicked.
This setting is restricted by the radar display motion mode.
In relative motion display mode (RM), switching to T / R is possible.
In true motion display mode (TM), only T can be set.
(Display does not change even if this key is switched on the JPL-600-MK2 for VTS.)
⑭：Radar trails display time switching
The radar trails display time is switched whenever the button is clicked.
If the time does not reach the radar trails time that was set, the remaining time is displayed on the
right-hand side.
If the button is clicked for 2 seconds, the RADAR Trails Setting menu is opened.
2-26
2
2.3 Functions of Software Buttons yy
Digital information: AIS target information
①Detail / simple display
switching
Simple display item
②Unread message display
①：Detail / simple display switching
This function switches the display mode to detail / simple display when AIS target information is
displayed.
②：Unread message display
When there is an unread message from the AIS target that is displayed, the message is displayed. If
this button is clicked, the message is displayed.
JPL-600MK2
2-27
Digital information: Tracked target information
①：Tracked target numeric value indication scroll
This function scrolls the target numbers that are indicated in the tracked target information.
Digital information: Navigation information
(Navigation information is not displayed unless each sensor is connected on the JPL-600-MK2 for
VTS.)
①：Wind direction / speed numeric value indication true / relative switching
The wind direction / speed numeric value indication is switched to T (true) / R (relative)
whenever this button is clicked.
2-28
2
2.3 Functions of Software Buttons yy
Digital information: Wind direction / speed
①：Wind direction / speed numeric value indication true / relative switching
The wind direction / speed numeric value indication is switched to T (true) / R (relative)
whenever this button is clicked.
Menu
①：Digital information display
If this button is clicked while the menu screen is open, the menu is closed and control returns to the
digital information display.
This function switches between the tracked target / AIS target display and navigation information or
the course bar, and so on.
②：Ship's track menu
If this button is clicked, the Target Track Setting menu is opened.
③：Map menu
If the button is clicked, the Map Setting menu is opened.
④：Main menu
If this button is clicked, the Main Menu is opened.
⑤：Automatic acquisition / activation zone (AZ) menu
If this button is clicked, the AZ Menu is opened.
2-29
⑥：Plotter menu
If this button is clicked, the Plot Menu is opened.
⑦：Radar trails menu
If this button is clicked, the RADAR Trails Setting menu is opened.
⑧：Own ship's track menu
If this button is clicked, the Own Track Menu is opened.
(Not used on the JPL-600-MK2 for VTS)
⑨：Tool menu
If this button is clicked, the Tool Menu is opened.
Brilliance
①Display item switching
②Panel lighting brilliance
switching
③Radar video brilliance
switching
⑤Day / night mode
switching
④Tracked target / AIS target symbol
brilliance switching
Display information
①：Display item switching
The brilliance adjustment screen and display information setting screen interchange whenever this
button is clicked.
JPL-600MK2
JPL-600MK2
2-30
2
2.3 Functions of Software Buttons yy
②：Panel lighting brilliance switching
This function enables the setting of the brilliance of the lighting of the control panel.
The brilliance changes whenever this button is clicked. Five levels of settings are available.
③：Radar video brilliance switching
Adjust the brightness of the radar video (echo).
The brilliance changes whenever this button is clicked. Four levels of settings are available.
④：Tracked target / AIS target symbol brilliance switching
Use this function to adjust the brilliance of the tracked target / AIS target symbol.
The brilliance changes whenever this button is clicked. Five levels of settings are available.
⑤：Day / night mode switching
The day / night mode is switched whenever this button is clicked.
Day1 ⇒ Day2 ⇒ Day3 ⇒ Dusk ⇒ Night ⇒ Day1
⑥：User map load
If this button is clicked, the user created map read menu is opened.
⑦：User setting load
If this button is clicked, the user setting read menu is opened.
Alarm
①：Alarm acknowledgment
If this button is clicked, the buzzer sound of the alarm that is currently issued is stopped and the alarm
lamp stops blinking. If multiple alarms are issued, the next alarm to be acknowledged is displayed.
If the button is clicked, the alarm displayed on the top is acknowledged.
The alarms that are currently issued are displayed at the bottom one by one.
②：Alarm log display
If this button is clicked, the alarm log is displayed.
SECTION 3
BASIC OPERATION
3.1 OPERATION FLOW .......................................................................... 3-1
3.2 OBSERVE AND ADJUST VIDEO ..................................................... 3-5
3.3 OPERATION PROCEDURES ..........................................................3-11
3.4 GENERAL RADAR OPERATION ................................................... 3-21
3.5 USE OWN SHIP'S TRACK DATA ................................................... 3-49
3.6 DISPLAY USER MAP...................................................................... 3-54
3.7 USE ROUTE FUNCTION ................................................................ 3-78
3.8 APPLIED OPERATIONS................................................................. 3-79
3.9 USE FUNCTION KEY [FUNC] ........................................................ 3-94
3.10 USE USER SETTING.................................................................... 3-100
3.11 USING CARD ................................................................................ 3-102
3.12 DISPLAY SIMPLE CHART ........................................................... 3-108
3-1
3.1 OPERATION FLOW
Each operation is described in detail below.
z Do not put anything on the operation panel.
If you put anything hot on it, it may be deformed.
z Do not give any impact to the operation panel,
trackball, or controls.
Otherwise, any failure or damage may result.
Attention
POWER ON AND
START THE SYSTEM
OBSERVE AND
ADJUST VIDEO
ACQUIRE AND
MEASURE DATA
END THE OPERATION AND
STOP THE SYSTEM
3-2
3.1 Operation Flow y
y y
3
z Wait for about 2 seconds before turning on the
power again.
z Immediately after the radar is installed, at start of the
system after it has not been used for a long time, or
after the magnetron is replaced, preheat the
equipment in the standby state for 20 to 30 minutes
before setting it into the transmit state.
z If the preheating time is short, the magnetron
causes sparks, resulting in its unstable oscillation.
Start transmission on a short-pulse range and
change the range to the longer pulse ranges in turn.
If the transmission is unstable in the meantime,
immediately place the system back into the standby
state and maintain it in the standby state for 5 to 10
minutes before restarting the operation.
Repeat these steps until the operation is stabilized.
3.1.1 Power ON and Start the System
CAUTION
A malfunction may occur if the power is instantaneously
interrupted during operation of the radar. In this case, the
power should be turned on again.
Attention
3-3
Procedures 1 Be sure that the commercial power is being supplied.
2 Press the [STBY] key.
The system is turned on, and the preheating time is displayed.
Preheat is indicated upper left of the display.
3 Wait until the preheating time is over.
When the preheating time is over, the preheating time screen disappears, and Preheat
upper left of the display changes to Standby .
4 Press the [TX / PRF] key.
The radar will start transmission and the antenna will start rotating.
Standby upper left of the display changes to Transmit .
Note: The radar does not start transmission if you Press the [TX / PRF] key while Preheat is
indicated.
3.1.2 Observe and Adjust Video
Procedures 1 Press the [RANGE+] key or [RANGE-] key to set the range to the scale
required for target observation.
2 Turn the dials [GAIN / PL], [AUTO-SEA], and [AUTO-RAIN] to obtain
the clearest targets.
Refer to
[GAIN/PL]→3-7P
[AUTO-SEA]→3-7P
[AUTO-RAIN]→3-9P
for how to use each dial.
For how to adjust video, see Chapter 3.2.
3.1.3 Acquire and Measure Data
For details on how to acquire data and measure, see Section 4 "Measurement of range and bearing."
3.1.4 Display and Measure with Reference to CCRP
The radar video, range, bearing, Target Tracking and AIS data display etc... are displayed with
reference to CCRP (Consistent Common Reference Point).
If scanner is switched, these data are measured from CCRP.
If some kind of functions set scanner position to outside of the PPI range, these data except Target
Tracking and AIS data are displayed with reference to scanner position.
For how to setting CCRP, see the section 7.1.9.
3-4
3.1 Operation Flow y
y y
3
3.1.5 End the Operation and Stop the System
Exit 1 Press the [STBY] key.
The radar will stop transmission and the antenna will stop rotating.
Transmit upper left of the display changes to Standby .
Maintain the standby state if radar observation is restarted in a relatively short time.
Only pressing the [TX / PRF] key starts observation.
2 Press the [STBY] key and the [TX / PRF] key together.
The system will be turned off.
3-5
3.2 OBSERVE AND ADJUST VIDEO
3.2.1 Adjust Monitor Brilliance [BRILL]
Procedures 1 Obtain the best-to-see display with optimum brilliance by turning the
[BRILL] dial at the lower right of the LCD monitor.
Turning the [BRILL] dial clockwise increases the brilliance of the entire display.
Conversely, turning the [BRILL] dial counterclockwise decreases the brilliance of the
entire display.
In consideration of the ambient brightness, adjust display brilliance that is high
enough to easily observe the radar display but does not glare.
3.2.2 Change Observation Range [RANGE + / - ]
Procedures 1 When increasing the observation range, press the [RANGE+] key.
Increasing the observation range will enable a wider range to be observed.
However, a video image is small and the ability to detect targets near own ship
decreases. Therefore, when observing the vicinity of own ship, use the smaller
observation range.
2 When decreasing the observation range, press the [RANGE-] key.
Decreasing the observation range will enable the vicinity of own ship to be enlarged.
However, caution must be taken because video images of the area beyond the
observation range cannot be displayed.
3-6
3.2 Observe and Adjust Video y
y y
3
3.2.3 Tune
CAUTION
Normally, use the automatic tune mode.
Use the manual tune mode only when best tuning is not
possible in the automatic tune mode due to deterioration of
magnetron.
This radar system provides the automatic tune mode and the manual tune mode. The automatic tune
mode automatically adjusts the tuning of the transmitting frequency and the receiving frequency, and
the manual tune mode enables tuning to be adjusted by using the dial located on the operation unit.
The tune mode currently being used is displayed in the tune mode switching (lower left of the display
⑫ on page 2-18).
When using the automatic tune mode
Procedures 1 Put the cursor on the tune mode switching (lower left of the display
⑫ on page 2-18) and press the [ENT] key.
The automatic tune mode is selected and AUTO is displayed in the tune mode
field.
Tune adjustment is automatically conducted. Tune is adjusted at the start of
transmission, at the change of the range or pulse length. Tune adjustment is
completed within several seconds.
When using the manual tune mode
Procedures 1 Put the cursor on the tune mode switching (lower left of the display
⑫ on page 2-18) and press the [ENT] key to set the manual tune
mode.
The automatic tune mode is cancelled, and MAN is displayed in the tune mode
field.
2 Press the [MULTI] dial to set the ( Tune ) mode.
Tune is displayed in the multi-dial mode (lower left of the display on page 2-3).
3 Turn the [MULTI] dial to adjust tune.
Make adjustments so that the tuning indication (upper left of the display on page 2-2)
indicates the maximum.
3-7
3.2.4 Adjust Gain [GAIN / PL]
CAUTION
If the gain is too high, unnecessary signals including
receiver noise and false video increase resulting in
reduction of visibility of targets.
On the contrary, if the gain is too low, targets including
ships and dangerous objects may not be clearly indicated.
Procedures 1 Adjust noise of the display by turning the [GAIN / PL] dial until targets
can be easily observed.
Turning [GAIN / PL] dial clockwise increases gain.
Turning [GAIN / PL] dial counterclockwise decreases gain.
By increasing receiving gain, the range to observe radar video is widened.
To observe densely crowded targets or short-range targets, reducing the receiving gain will
enable the targets to be easily observed.
3.2.5 Suppress Sea Clutter [AUTO-SEA]
CAUTION
When using the sea clutter suppression function, never set
the suppression level too high canceling out all image
noises from the sea surface at close range.
Detection of not only echoes from waves but also targets
such as other ships or dangerous objects will become
inhibited.
When using the sea clutter suppression function, make
sure to choose the most appropriate image noise
suppression level.
3-8
3.2 Observe and Adjust Video y
y y
3
Using the manual sea clutter suppression mode
Procedures 1 Adjust the sea clutter returns of the display by turning the
[AUTO-SEA] dial until targets can be easily observed.
Turning [AUTO-SEA] dial clockwise suppresses sea clutter returns.
Turning [AUTO-SEA] dial counterclockwise intensifies sea clutter returns.
The sea clutter suppression function suppresses sea clutter returns by decreasing the
receiving gain on a short range.
Turning the [AUTO-SEA] dial clockwise heightens the effect of sea clutter suppression.
However, be careful that excessive suppression causes low signal-strength targets such as
buoys and boats to disappear from the radar display.
Using the automatic sea clutter suppression mode
The sea clutter suppression in accordance with the intensity of sea clutter is possible. Use
this mode when the sea clutter's intensity differs according to directional orientation.
Procedures 1 Press the [AUTO-SEA] dial.
The automatic sea clutter suppression mode is selected, and AUTO is displayed in
sea clutter suppression (Sea) mode switching (lower left of the display ⑩ on page
2-18).
2 Make adjustments by turning the [AUTO-SEA] dial.
Even when the automatic sea clutter suppression mode is selected, turning the
[AUTO-SEA] dial can make fine adjustments manually.
Note: When the automatic sea clutter suppression mode is selected, the automatic rain/snow clutter
suppression mode is switched to the manual mode.
To select both the sea clutter suppression function and the rain/snow clutter suppression
function in the automatic mode, use the automatic rain/snow clutter suppression mode.
Cancellation 1 Press the [AUTO-SEA] dial.
The automatic sea clutter suppression mode is cancelled, and MAN is displayed in
the sea clutter suppression (Sea) mode field.
3-9
3.2.6 Suppress Rain / Snow Clutter [AUTO-RAIN]
CAUTION
When using the rain / snow clutter suppression function,
never set the suppression level too high canceling out all
image noises from the rain or snow at the close range.
Detection of not only echoes from the rain or snow but also
targets such as other ships or dangerous objects will
become inhibited.
When using the rain / snow clutter suppression function,
make sure to choose the most appropriate image noise
suppression level.
Using the manual rain / snow clutter suppression mode
Procedures 1 Adjust the rain / snow clutter returns of the display by turning the
[AUTO-RAIN] dial until targets can be easily observed.
Turning [AUTO-RAIN] dial clockwise suppresses rain / snow clutter returns.
Turning [AUTO-RAIN] dial counterclockwise intensifies rain / snow clutter returns.
When the [AUTO-RAIN] dial is turned clockwise, the rain / snow clutter suppression
function suppresses rain / snow clutter returns and gets targets hidden by rain / snow clutter
returns to appear of the display. However, be careful that excessive suppression may
cause small targets to be overlooked. Since the rain / snow clutter suppression function
also has the effect of suppressing sea clutter, the suppression efficiency improves when the
[AUTO-RAIN] dial is used with the [AUTO-SEA] dial. In general, turn the
[AUTO-RAIN] dial fully to the left.
3-10
3.2 Observe and Adjust Video y
y y
3
Using the automatic rain / snow clutter suppression mode
The rain / snow clutter suppression in accordance with the intensity of rain / snow clutter is
possible. Use this mode when the rain / snow clutter's intensity differs according to
directional orientation.
Procedures 1 Press the [AUTO-RAIN] dial.
The automatic rain / snow clutter suppression mode is selected, and AUTO is
displayed in the sea clutter suppression (Sea) mode switching and the rain / snow
clutter suppression (Rain) mode switching ( lower left on the display ⑩ and ⑪ on
page 2-18)
2 Make adjustments by turning the [AUTO-RAIN] dial and the
[AUTO-SEA] dial.
Even when the automatic rain / snow clutter suppression mode is selected, turning the
[AUTO-RAIN] dial and the [AUTO-SEA] dial can make fine adjustments manually.
Note: When the automatic rain / snow clutter suppression mode is selected, the automatic sea
clutter suppression mode is also activated.
It is not possible to set only the rain / snow clutter suppression function to the automatic
mode.
Cancellation 1 Press the [RAIN] dial.
The automatic rain / snow clutter suppression mode is cancelled, and AUTO is
changed to MAN in the sea clutter suppression (Sea) mode field and the rain /
snow clutter suppression (Rain) mode field.
3.2.7 Reset Alarm Buzzer [ALARM ACK]
When an audible alarm is issued, use [ALARM ACK] to acknowledge the alarm information, stop
the alarm buzzing, and stop the alarm lamp flashing. (If more than one alarm has occurred, press the
key for each alarm indication.) The alarm stops buzzing, but the alarm indication does not disappear.
Procedures 1 Press the [ALARM ACK] key.
The alarm will stop buzzing.
3-11
3.3 OPERATION PROCEDURES
3.3.1 Move Cross Cursor Mark by Trackball
The cross cursor mark + is used for position designation and other purposes in various operating
procedures. The cross cursor mark + moves in coupling with the trackball. If the trackball is
rotated up and down or right and left, the cross cursor mark follows the move of the trackball.
Operators must be familiar with trackball operation before running the system.
Operation inside Radar Video PPI
The cross cursor mark as shown at right is displayed inside the radar video PPI.
1) The distance, bearing, and latitude / longitude between the radar station and the cross cursor mark
are digitally indicated in the cursor bearing, distance, latitude, and longitude (upper right of the
display on pages 2-4).
2) When moving the current center position, use the cross cursor mark to designate a new center
position.
3) Use the cross cursor mark to create marks and lines.
4) Use the cross cursor mark to designate a target in the target tracking (TT) function and the AIS
display function.
5) Use the cross cursor mark to adjust EBL, VRM, automatic acquisition and activation zone (AZ),
radar alarm zone (RA), parallel index line (PI), and AIS filter.
Operation outside Radar Video PPI
As shown at right, the cursor mark changes into the cursor outside the radar video PPI.
1) Use the cursor to operate software buttons.
2) Use the cursor to select menu items.
* The EBL / VRM dial is available for operating the cursor mark. Pressing the EBL dial for 2
seconds can perform switching to the trackball operation. For details, refer to Section 3.8.4.
3-12
3.3 Operation Procedures y
y y
3
3.3.2 Operate Software Buttons
Software buttons are provided of the display so as to easily switch functions without operating menu
items.
For software buttons that can be operated and their locations, see Chapter 2.
Procedures 1 Put the pointer on the software button of the display.
The software button indicated by the cursor will be shown in reverse video, which
indicates that the button is specified.
2 Press the [ENT] key.
The operating state changes according to the function of the software button.
On / off settings
Each time the [ENT] key is pressed, the operating state switches as follows:
On ⇒ Off ⇒ On ⇒ Off
Multiple settings
For example, each time the [ENT] key is pressed, the operating state switches as
follows:
IR Off ⇒ IR Low ⇒ IR Middle ⇒ IR High ⇒ IR Off
3-13
3.3.3 Basic Menu Operation
To open the menu:
Put the cursor on main menu Main (Menu ④ on page 2-27) and press the [ENT] key, and the
main menu will open. Alternatively, press the [RADAR MENU] key.
By putting the cursor on Target , Map , or AZ adjacent to Main and pressing the
[ENT] key, the menu exclusive for the function will open.
For the arrangement of software buttons, see Chapter 2.
To close the menu:
Put the cursor on digital information display Target (Menu ① on page 2-27) and press the
[ENT] key, and the menu will close and the digital information display screen will appear.
Alternatively, press the [0] key until the menu will close.
To move to a lower level of the menu:
The menu is in hierarchical structure. Put the cursor on the desired menu item and press the
[ENT] key, and control will move to the lower level. Alternatively, Press numeric keys
corresponding to the desired menu item number, and the > mark will appear at the right end of
a menu item having a lower level.
To move to a higher level of the menu:
Put the cursor on 0. Exit located lower of the menu when the menu is open. Control will
return to the higher level. Alternatively, press the [0] key.
To determine an item:
Put the cursor on the menu item you want to change and press the [ENT] key. The selected item
will be displayed. Alternatively, Press numeric keys corresponding to the desired item number.
To determine the selected item:
Put the cursor on the desired item and then press the [ENT] key. The selected item will be
determined. Alternatively, Press numeric keys corresponding to the selected item number.
If you do not change the setting of the selected item, press the [CLR / INFO] key. The selected
item will be closed without changing the settings.
3-14
3.3 Operation Procedures y
y y
3
Example of menu display
Press numeric keys
corresponding to the desired
item number to display the
selected item.
Press numeric keys
corresponding to the
desired item number to
select a set value.
Software button
Press the [0] key to
move to the higher level.
When the [ > ] mark appears
at the right end of a menu
item, press numeric keys
corresponding to the selected
item number to move to a
lower level.
Item
Selected item
Cursor
Present state
3-15
3.3.4 Operation on Numeric Value, Latitude / Longitude and
Character Input menu
When a numeric value, latitude / longitude, or character must be entered during operation, the input
screen will appear. Enter a numeric value, latitude / longitude, or character according to the
procedures below.
Numeric value input menu
Entered value
+ button
Enter buttonClear button
-button
Numeric button
Directly entering a numeric value
Procedures 1 On the numeric value input menu, sequentially press numeric keys to
enter a desired numeric value.
For example, when entering 123.4 ° for a bearing value, sequentially press the keys as
follows:
[1] → [2] → [3] → [4]
2 Make sure that the entered value is correct, put the cursor on ENT ,
and then press the [ENT] key.
The set value is reflected to the operating state.
3 To cancel input, put the cursor on CLR , and then press the [ENT]
key.
The numeric value input menu will close without reflecting the set value to the
operating state.
3-16
3.3 Operation Procedures y
y y
3
Increasing or decreasing a numeric value
Procedures 1 On the numeric value input menu, put the cursor on + or - , and
then press the [ENT] key to increase or decrease numeric value so as
to change to the desired numeric value.
For example, to change bearing value of 123.0 ° to 123.4 °, put the cursor sequentially
on + located on the software numeric value input menu, and then press the [ENT]
key four times.
* Turning the [MULTI] dial will conduct the same operation.
2 Make sure that the entered value is correct, put the cursor on ENT ,
and then press the [ENT] key.
The set value is reflected to the operating state.
3 To cancel input, put the cursor on CLR , and then press the [ENT]
key.
The numeric value input menu will close without reflecting the set value to the
operating state.
3-17
Latitude / longitude input screen
Entered latitude/
longitude
+ button (north latitude/
east longitude)
ENT buttonCLR button
- button (south latitude/
west longitude)
Numeric button
Entering latitude / longitude
Procedures 1 On the latitude / longitude input menu, sequentially press numeric
keys to enter latitude (XX°XX．XXX').
For example, to enter 12°34.567'N, sequentially press numeric keys as follows.
[1] → [2] → [3] → [4] → [5] → [6] → [7]
2 To make change between north latitude and south latitude, use +
and - .
North latitude: Put the cursor on + and then press the [ENT] key.
South latitude: Put the cursor on - and then press the [ENT] key.
3 Put the cursor on ENT and then press the [ENT] key.
The manually entered latitude value is determined. Then, enter the longitude value.
4 Sequentially press numeric keys to enter longitude (XXX°XX．XXX').
5 To make change between east longitude and west longitude, use +
and - .
East longitude: Put the cursor on + and then press the [ENT] key.
West longitude: Put the cursor on - and then press the [ENT] key.
6 Put the cursor on ENT and then press the [ENT] key.
The manually entered longitude value is determined.
3-18
3.3 Operation Procedures y
y y
3
7 To cancel input, put the cursor on CLR and then press the [ENT]
key.
The latitude / longitude input menu will close without reflecting the set value to the
operating state.
Character input screen
Entering a character
Procedures 1 On the character input menu, use trackball to select alphabet from A
to Z, numbers from 0 to 9, or symbols (only comments for mark / line),
and then press the [ENT] key to enter one character of the name to be
inputted.
For example, JRC for a name, click button as follows:
J → R → C
2 Make sure that the entered character is correct, put the cursor on
ENT , and then press the [ENT] key.
The character has been entered.
3 To cancel input, put the cursor on Exit , and press the [ENT] key.
The character input menu will be closed without entering the character.
3-19
3.3.5 Overview of Menu Structure
The menu structure of this radar system consists of seven frequently used function menus, one main
menu, and one service man menu used for the installation settings.
Software buttons for opening those menus are displayed in the menu area.
For each menu item and structure, see the menu list in the appendix.
To prevent incorrect use, enter the special code to open the service man menu. For operating the
service man menu, see Chapter 7.
Frequently used functions
Trails Used for operating and setting the radar trails function.
T.TRK Used for operating and setting the target track function.
AZ Used for operating and setting the automatic acquisition / activation function.
O.TRK Used for operating and setting the own ship track function.
(Not used on the JPL-600-MK2 for VTS)
Map Used for operating and setting the map function.
Plot Used for operating and setting the plotter function.
Tool Used for operating and setting the navigation tool functions.
Main menu
Main Used for operating and setting the functions other than the above.
Service man menu
This menu is used for operation and settings when a system is installed.
It is not used during normal operation.
The special code must be entered to open the service man menu.
3.3.6 Operate Multi-Dial [MULTI]
The [MULTI] dial is provided to change the settings of parameters such as the length of radar trails.
Radar operation is simplified by using the [MULTI] dial.
[I] Initial Setting (Multi Dial Setting)
Set parameters that can be operated with the multi-dial.
Procedures 1 Press the [MULTI] dial for 2 seconds.
The Multi Dial Setting menu will appear.
3-20
3.3 Operation Procedures y
y y
3
2 Press numeric keys corresponding to the desired item number.
On and off functions of the item are switched.
On : Operation is conducted by the [MULTI] dial.
Off : Operation is not conducted by the [MULTI] dial.
Items set to On can be opened by pressing the [MULTI] dial.
Item overview
Vector Length : The vector length of tracked target and activate AIS target is
adjusted.
Trails Length : The radar trails length is adjusted.
TT Display No. : The target numbers of tracked target to be displayed are
switched.
C-Up Angle : The course in the course up mode is adjusted.
Mark/Line Color : Mark / line colors are switched.
Manual Tune : Tune in the manual tune mode is adjusted.
[II] Using Multi-dial
Procedures 1 Press the [MULTI] dial to select the parameter whose setting is to be
changed.
The multi-dial modes are switched.
Vector ⇒ Trails ⇒ TGT No. ⇒ Course ⇒ Mark ⇒
⇒ Tune ⇒ Vector
The selected item is displayed in the multi-dial mode (lower left of the display on page
2-3).
For example, when three items, 1/2/3, are set to On at the initial setting, the
multi-dial modes switch as shown below every time the [MULTI] dial is pressed.
Vector ⇒ Trails ⇒ TGT No. ⇒ Vector
2 Turn the [MULTI] dial to change the setting.
The preset values of the selected parameter will change sequentially.
Stop turning the dial when the desired value appears.
3-21
3.4 GENERAL RADAR OPERATION
3.4.1 Interference Rejection (IR)
Interference by other radars is rejected.
Procedures 1 Put the cursor on interference rejection (IR) mode switching IR
( ② lower left of the display on page 2-18) and press the [ENT] key.
The interference rejection modes are switched.
IR Off ⇒ IR Low ⇒ IR Middle ⇒ IR High ⇒ IR Off
Rejection levels of the interference rejection
IR Off : Interference rejection off
IR Low : Interference rejection level - low
IR Middle : Interference rejection level - middle
IR High : Interference rejection level - high
When a high interference rejection level is selected, the radar’s ability of detecting
small targets such as buoys and small boats lowers.
In general, IR Low should be selected.
z When viewing a radar beacon or SART signal, select
IR Off (Interference Rejection Off) because IR
processing suppresses the video.
Attention
3-22
3.4 General Radar Operation y
y y
3
3.4.2 Switch Transmitter Pulse Length [GAIN / PL]
Procedures 1 Press the [GAIN / PL] dial.
Values of the transmitter pulse length are switched.
Example MP1 ⇒ MP2 ⇒ LP1 ⇒ LP2 ⇒ MP1
Effects of transmitter pulse length
With SP selected:
The transmitter pulse becomes shorter, and the range resolution improves.
The effect of suppressing sea clutter returns and rain / snow clutter returns heightens.
Recommended condition for selection:
This is suitable when the targets being observed are clustered together.
Rough sea state due to torrential rain or stormy weather
With MP selected:
The normal transmitter pulse length is set.
Both range resolution and gain are appropriately set.
Recommended condition for selection:
This is suitable for regular usage.
With LP selected:
The transmitter pulse becomes longer, and gain improves.
Small targets are zoomed and are easy to observe.
When the sea state is bad, detection performance decreases.
Recommended condition for selection:
Detection of small targets in good weather conditions
Usable transmitter pulse length differs according to the type of scanner unit being used and the
observation range being used. For usable pulse length, see Chapter 11.
3-23
3.4.3 Target Enhance (ENH)
The dimension of video display is enlarged to enhance a target.
Procedures 1 Put the cursor on target enlarge (ENH) mode switching ENH
(lower left of the display ③ on page 2-18) and press the [ENT] key.
The target enlargement levels are switched.
ENH Off ⇒ ENH Level1 ⇒ ENH Level2 ⇒ ENH Level3 ⇒
⇒ ENH Off
Effect of target enlargement
ENH Off Enhance off : Select this mode particularly when resolution is required.
ENH Level1 Enhance - small : Select this mode in general.
Radar echoes are expanded by 1 scale in all directions.
ENH Level2 Enhance - medium : Select this mode to easily view the radar video.
Radar echoes are expanded by 2 scales in all directions
on the display.
ENH Level3 Enhance - large : Select this mode to detect small targets such as buoys.
The expansion near a screen center is added to ENH
Level2.
Note: When ENH Level3 is selected, sea clutter returns and rain / snow clutter returns are apt to be
expanded. When using this expansion mode, operate [AUTO-SEA] dial and
[AUTO-RAIN] dial to suppress sea clutter returns and rain / snow clutter returns.
In general, ENH Level1 or ENH Level2 should be selected.
3-24
3.4 General Radar Operation y
y y
3
z When viewing a radar beacon, SART signal, or fast
moving target on the radar display, select PROC Off
(video processing off).
z If video processing mode is set to CORREL , it may
be difficult to detect high speed target.
3.4.4 Use Video Processing (PROC)
This function reduces unnecessary noise to highlight targets.
Procedures 1 Put the cursor on radar video processing (PROC) mode switching
PROC (lower left of the display ④ on page 2-18) and press the
[ENT] key.
The video processing modes are switched.
PROC Off ⇒ 3Scan CORREL ⇒ 4Scan CORREL ⇒ 5Scan CORREL
⇒ Remain ⇒ Peak Hold ⇒ PROC Off
Video process modes
PROC Off : Select this mode in general.
3Scan CORREL : Select this mode when many rain / snow clutter returns are detected.
4Scan CORREL : Select this mode to highlight targets while suppressing sea clutter returns.
5Scan CORREL : Select this mode to detect small targets hidden by sea clutter returns.
Remain : Select this mode when own ship yaws wildly.
(Not used on the JPL-600-MK2 for VTS)
Peak Hold : Select this mode to detect small targets of which detection probability is low.
Attention
3-25
3.4.5 Switch Azimuth Display Mode [AZI MODE]
Select the azimuth for the radar video to be displayed of the display.
(“C Up” is not used on the JPL-600-MK2 for VTS.)
Procedures 1 Press the [AZI MODE] key.
The azimuth display modes are switched.
N Up ⇒ C Up ⇒ H Up ⇒ N Up
North-up Mode [N Up]
The video is displayed so that the zenith of the PPI (0° on bearing scale) points to the due north.
Fixed targets do not flicker and are easily identified on the chart, and the true bearing of a target
can easily be read out.
Head-up Mode [H Up]
The video is displayed so that the ship’s heading line points to the zenith of the PPI (0° on bearing
scale). Since targets are displayed in their directions relative to the ship’s heading line, the
operator can view the video in the same field of view as in operating the ship at sea. This mode
is suitable for watching over other ships.
Course-up Mode [C Up]
By setting the course-up mode, own ship's course is fixed so that it is located on the zenith of the
display (0° on bearing scale). In the same way as in the North-up mode, fixed targets do not
flicker, and are stabilized even if the ship is yawing. The bearing of the heading line varies by
the same shift of own ship’s course. To change the course, press the [AZI MODE] key several
times again to select the course-up mode so as to set a new course.
HL
North-up mode Head-up mode Course-up mode
HLNorth HL
North
3-26
3.4 General Radar Operation y
y y
3
3.4.6 Switch True / Relative Motion Display Mode [TM / RM]
Switching Relative Motion (RM) Mode to True Motion (TM) Mode
Display does not change even if this key is switched on the JPL-600-MK2
for VTS.
Procedures 1 Press the [TM / RM] key.
RM ⇒ TM
The true motion mode will be selected. In the true motion mode, the own ship’s
position of the display moves depending upon its speed and course and the influence
of the current. Land and other fixed targets are fixed of the display and only actually
moving targets move of the display. When the true motion mode is selected, the own
ship’s position is set to about 60% of the display radius in the opposite direction to its
course allowing for the influence of the current. Own ship starts moving depending
upon its speed and course and the influence of the current. Subsequently, when own
ship arrives at the position of about 60% of the display radius, it is automatically reset
to its initial position at about 66% of the display radius in the opposite direction to its
course allowing for the influence of the current.
Resetting Own Ship to its Initial Position in True Motion (TM) Mode
Procedures 1 Press the [TM / RM] key for 2 seconds.
Own ship will be reset to its initial position as established when the relative motion
mode is changed to the true motion mode. The ship starts moving from that position.
Switching True Motion (TM) Mode to Relative Motion (RM) Mode
Procedures 1 Press the [TM / RM] key.
TM ⇒ RM ⇒ TM
The relative motion mode will be selected. Own ship returns to the center of the
display.
3-27
3.4.7 Move Radar Station Display Position [OFF CENT]
The Radar Station position can be moved from the display center to any position within 66% of the
display radius. This function is convenient for observing a wide coverage in any direction.
If Off Center functions set to scanner position is outside of the PPI range, when function switching
display with reference to scanner position.
Note: This function is not available on the 96 NM range.
Procedures 1 Press the [OFF CENT] key.
The cursor mark will appear at the radar station position of the display.
2 Move the cursor mark (radar station display position) to a desired
position by using the trackball.
While the cursor mark is moving, the radar station display position moves following
the cursor mark.
When it moves to a position outside 66% of the display radius, the center position is
limited to a position within 66% of the display radius.
3 Press the [ENT] key.
The own ship’s display position will be fixed to the cursor mark.
Move the cursor mark to
a desired position
HL
Press the [ENT] key
The radar station display
position will be fixed.
HL
Returning Radar Station Position to the Center
Cancellation 1 Press the [OFF CENT] key for 2 seconds.
The radar station position is returned to the center of the display.
3-28
3.4 General Radar Operation y
y y
3
3.4.8 Display Radar Trails [TRAILS]
Ship's movements and speeds can be monitored from the lengths and directions of their trails, serving
for collision avoidance. The trail length varies according to setting.
Changing the length of the trail
Procedures 1 Press the [TRAILS] key.
Values of the length of the radar trail are switched.
Trails length setting: Short mode
Off ⇒ 15sec ⇒ 30sec ⇒ 1min ⇒ 3min ⇒ 6min ⇒
⇒ 10min ⇒ 15min ⇒ Off
Short: : 15 sec, 30 sec, 1 min, 3 min, 6 min, 10 min, and 15 min
Middle: : 30 sec, 1 min, 3 min, 6 min, 10 min, 15 min, and 30 min
Long: : 1 min, 3 min, 6 min, 10 min, 15 min, 30 min, and 1 hr
Super Long : 30 min, 1 hr, 2 hr, 3 hr, 4 hr, 5 hr, 6 hr, 7 hr, 8 hr, 9 hr, 10 hr, 11 hr,
and 12 hr
Saved trails cannot be erased even when the trail lengths are changed by using
[TRAILS] key. Even after the trails display is turned off, the past trails can be
displayed traced back by setting a desired time.
The radar system is start transmission, trails is start plot.
The system is plotting trails even while the trails display is off.
If the transmit time is short, the indicated trails duration may not have achieved the
specified time. The radar trails remaining time is indicated at the right of the trails
length setting.
Erasing Trails Data
Procedures 1 Press the [TRAILS] key for 5 seconds.
All the saved trails data will be erased. The system starts plotting trails in initial
state.
If [TRAILS] key is pressed for 2 seconds, the RADAR Trails Setting menu is opened.
Furthermore, data will be erased if it continues pressing.
3-29
Trails Motion Mode Display does not change even if this key is
switched on the JPL-600-MK2 for VTS.
There are two types of trails, relative motion trails and true motion trails.
Relative motion trails : The system plots the trails of a target at a position relative to the own
ship.
The operator can easily judge whether the target is approaching the own
ship.
While the own ship is moving, the system also plots the trails of land and
other fixed targets.
True motion trails : The system plots the absolute motion trails of a target, irrespective of the
own ship’s position.
The operator can easily judge the course and speed of the target.
The system does not plot the trails of land and other fixed targets.
Trails modes provided with this system vary depending on the motion mode.
With true motion (TM) mode : Only the true motion trails mode is available.
With relative motion (RM) mode :
The relative motion trails mode or true motion trails mode is selectable.
RM(R) is indicated while the relative motion trails mode is active.
RM(T) is indicated while the true motion trails mode is active.
While the true motion trails mode is active, this system enables the continuous use of true motion
trails even if any of the following operations is performed:
• Motion display mode change (TM / RM)
• TM reset
• Azimuth display mode change (AZI Mode)
• Center move (Off Center)
• MAP display on / off (Map)
Note: Accurate true bearing signals and speed signals are necessary for using the true motion trails
mode.
3-30
3.4 General Radar Operation y
y y
3
Changing Motion Mode of Trails (Trails mode)
Display does not change even if this key is switched on the JPL-600-MK2
for VTS.
Procedures 1 Put the cursor on radar trails display true / relative switching (TT / AIS
information ⑬ on page 2-23), and press the [ENT] key.
The trails motion modes are switched.
T ⇒ R ⇒ T
3.4.9 Erase Part of Radar Trails (Trails Erase)
A part of the radar trails can be erased.
Procedures 1 Press the [TRAILS] key for 2 seconds.
The RADAR Trails Setting menu will appear.
2 Open the Trails Erase menu by performing the following menu
operation.
7. Trails Erase
3 Press the [3] key.
The Erase Size switches.
2x2 : 2x2 pixels
4x4 : 4x4 pixels
8x8 : 8x8 pixels
16x16 : 16x16 pixels
32x32 : 32x32 pixels
4 Press the [1] key.
The Trails Erase Mode is set to On .
A square cursor □ will appear at the location of own ship.
5 Put the cursor on the position where you want to start erasing, and
press the [2] key.
The Trails Erase Start function is selected and trails start to be erased.
Moving the cursor will erase that portion of the trails.
6 To finish erasing the trails, press the [2] key.
The trails erase operation is terminated.
7 Press the [1] key.
The Trails Erase Mode is set to Off .
3-31
3.4.10 Operate Radar Trails File (File Operations)
[I] Loading radar trails (Load RADAR Trails)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Press the [TRAILS] key for 2 seconds.
The RADAR Trails Setting menu will appear.
3 Open the File Operations menu by performing the following menu
operation.
8. File Operations
4 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
5 Press the [2] key.
The list of radar trails saved in the card will be displayed.
6 Press numeric keys corresponding to the desired file.
Confirmation Window will appear.
7 Press the [1] key.
The selected radar trails data is loaded and displayed of the display.
[II] Saving radar trails (Save RADAR Trails)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Press the [TRAILS] key for 2 seconds.
The RADAR Trails Setting menu will appear.
3 Open the File Operations menu by performing the following menu
operation.
8. File Operations
4 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
3-32
3.4 General Radar Operation y
y y
3
5 Press the [3] key.
The Input File Name screen will appear.
6 Enter the file name to be saved.
Up to 15 characters can be entered.
For the input method on the character input screen, see Section 3.3.4.
After characters have been entered, Confirmation Window will appear.
7 Press the [1] key.
Radar trails data currently being displayed is saved.
[III] Erasing save radar trails (Erase RADAR Trails)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Press the [TRAILS] key for 2 seconds.
The RADAR Trails Setting menu will appear.
3 Open the File Operations menu by performing the following menu
operation.
8. File Operations
4 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
5 Press the [4] key.
The File Erase menu will appear.
The list of radar trails saved in the card will be displayed.
6 Press numeric keys corresponding to the desired file number.
Confirmation Window will appear.
7 Press the [1] key.
The selected radar trails data is erased and the name of the radar trails data is deleted
from the list.
3-33
3.4.11 Zoom (x2)
This function doubles the size of radar video near a specified position.
Note: If the range is 0.125 NM or motion mode is true motion mode (TM), this function is not
available.
Procedures 1 Put the cursor on double zoom switching x2 (lower left of the
display ① on page 2-18), and press the [ENT] key.
The zoom mode is selected.
2 Put the cursor on the position to be zoomed, and then press the
[ENT] key.
The zoom is set.
Using the cross cursor mark as reference, the zoom function doubles the size of a radar
video with the midpoint between the cursor mark and own ship’s position being set to the
center of radar display.
Cancellation 1 Put the cursor on double zoom switching x2 (lower left of the
display ① on page 2-18), and press the [ENT] key.
The zoom mode is cancelled.
3.4.12 Hide / Display Scanner Heading Line (RR / HL)
Procedures 1 Press the [RR / HL] key for 2 seconds or more.
The scanner heading line (HL) is hidden while the [RR / HL] key is held down.
Because the scanner heading line disappears while this key is held down, it becomes
easier to see target objects in the scanner heading direction.
3-34
3.4 General Radar Operation y
y y
3
3.4.13 Hide Graphics Information on Radar Display (Data Off)
Various graphics information such as target tracking (TT) / AIS symbols, NAV lines, and MAP
information is shown of the display of this radar system, and may make it difficult to view the radar
video. In that case, use this function to temporarily hide unnecessary graphics information.
Procedures 1 Put the cursor on graphic display Off Data Off (lower right on the
display ⑤ on page 2-21), and press the [ENT] key.
While the key is pressed, graphics data other than VRM, EBL, HL, cursor mark, and
range rings of the display is temporarily hidden.
3.4.14 Switch Day / Night Mode [DAY / NIGHT]
Several combinations of the display color and brilliance according to the ambient lighting conditions
are provided. The display color setting is easily changed.
Procedures 1 Press the [DAY / NIGHT] key.
The Day / Night modes are switched.
Day1 ⇒ Day2 ⇒ Day3 ⇒ Dusk ⇒ Night ⇒ Dusk ⇒
Day3 ⇒ Day2 ⇒ Day1
The current mode is displayed in the Day / Night mode switching (brilliance / Alarm
⑤ on page 2-28).
For how to set the display color and brilliance for each mode, see Section 3.8.6.
3.4.15 Adjust Operation Panel Brilliance [PANEL]
Adjust brilliance of the operation panel according to the ambient lighting conditions.
Procedures 1 Press the [PANEL] key.
In consideration of the ambient brightness, adjust panel brilliance that is high enough
to read the characters on the operation panel but does not glare.
The [PANEL] key lamp lights up irrespective of panel brilliance adjustment.
3-35
3.4.16 Set True Bearing (GYRO Setting)
(Not used on the JPL-600-MK2)
When the GYRO I/F unit is used to enter a gyro signal, there is a rare case in which a true bearing
value indicated by the master gyro does not match the true bearing value indicated by this radar
system.
In that case, adjust the true bearing value of this system so that it matches the value indicated by the
master gyro.
Procedures 1 Press the [AZI MODE] key for 2 seconds.
The numeric value input menu for the GYRO Setting menu will appear.
2 Enter the value indicated by the master gyro.
For how to input numeric data on the numeric value input menu, see Section 3.3.4.
3.4.17 Set Own Ship Speed
(Not used on the JPL-600-MK2 for VTS)
Switch the own ship speed device
Procedures 1 Put the cursor on speed sensor switching (own ship information ②
on page 2-22), and press the [ENT] key.
The speed sensor is switched whenever the button is clicked.
MAN (Manual) ⇒ LOG (Single-axis water log)
⇒ 2AXW (Dual-axis water log) ⇒ 2AXG (Dual-axis ground log)
⇒ GPS ⇒ MAN
* If the single axis water log display can present the speed of the ship in other than the
forward direction, the direction of movement should be indicated unambiguously.
Therefore single axis water logs cannot detect the effect of leeway.
If you selected the 2AXW, the value of forward-backward direction is indicated.
If ships in shallow water, when the accuracy of the dual-axis log may be decreased.
If ships in deep sea area, when the accuracy of the dual-axis log error may be
occurred.
The accuracy of GPS's COG is ±3° when own ships speed no fewer than 1kn, no
more than 17kn. The accuracy of GPS's COG is ±1° when own ships speed over
17kn.
3-36
3.4 General Radar Operation y
y y
3
Input the own ship speed (Manual Speed)
If the ship-speed system, such as LOG, etc., connected to this radar system malfunctions, it is possible
to manually enter own ship speed by the method described below to use the target tracking (TT) and
true motion display functions.
Procedures 1 Put the cursor on speed sensor switching (own ship information ②
on page 2-22), and press the [ENT] key to select manual mode
MAN .
2 Put the cursor on manual own ship's speed setting (own ship
information ④ on page 2-22), and press the [ENT] key.
The numeric value input screen for the Manual Speed menu will appear.
3 Enter the value of own ship speed.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
3.4.18 Magnet Compass Correction (MAG Compass Setting)
(Not used on the JPL-600-MK2)
Set the correction value, when the radar receive HDM sentence from magnet compass or the variation
of HDG is NULL.
Procedures 1. Press the [RADAR MENU] key twice.
2 Open the MAG Compass Setting menu by performing the following
menu operation.
4. NAV equipment Setting
→ 2. MAG Compass Setting
2. Press the [1] key.
The Heading Correction function can be turned on / off.
Off : Heading correction is not conducted.
On : Heading correction is conducted.
3. Press the [2] key.
The correction set numeric value input menu will appear.
4. Input the correction value.
Press the + or - button to select south and north for latitude or the east and
west for longitude.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
3-37
3.4.19 Set Drift Correction (Set / Drift Setting)
(Not used on the JPL-600-MK2)
The direction and speed of the drift are set.
This function can be used only when MAN or LOG is selected for ship-speed data.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Set / Drift Setting menu by performing the following menu
operation.
4. NAV Equipment Setting
→ 3. Set/Drift Setting
3 Press the [1] key.
The Correction function can be turned on / off.
Off : Drift correction is not conducted.
On : Drift correction is conducted.
4 Press the [2] key.
The direction set numeric value input menu will appear.
5 Enter the value of the drift direction (true bearing).
For how to input numeric data on the numeric value input menu, see Section 3.3.4.
6 Press the [3] key.
The drift speed numeric value input menu will appear.
7 Enter the value of the drift speed.
For how to input numeric data on the numeric value input menu, see Section 3.3.4.
3-38
3.4 General Radar Operation y
y y
3
3.4.20 GPS Receiver Setting (GPS Process Setting)
Set to a JRC’s GPS receiver.
This setting is enabled when a JRC’s GPS is connected to the GPS connector of processor unit.
[I] Radar station position setting (Position)
Initial position fixing speeds up by entering an approximate position of the radar station.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Position menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 1. Position
2. Enter the own ship’s position in the numeric value input menu.
For the input method on the latitude / longitude input screen, see Section 3.3.4.
3. Press the [9] key to send the setting value to GPS receiver.
[Ⅱ] Satellite exclusion setting (Exclusion)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Exclusion menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 2. Exclusion
2. Enter the satellite exclusion number in the numeric value input menu.
For the input method on the numeric value input screen, see Section 3.3.4.
3. Press the [9] key to send the setting value to GPS receiver.
3-39
[Ⅲ] Geodetic system setting (Geodetic)
This menu is used to set the geodetic system of the radar station position.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Geodetic menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 3. Geodetic
2. Enter the geodetic system number in the numeric value input menu
refer to next page.
3. Press the [9] key to send the setting value to GPS receiver.
[Ⅳ] Antenna height setting (Antenna height)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Antenna Height menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 4. Antenna height
2. Enter the GPS antenna height in the numeric value input menu.
3. Press the [9] key to send the setting value to GPS receiver.
[Ⅴ] Fix mode setting (Fix mode)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Fix Mode menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 5. Fix Mode
2. Select the fix mode.
2D : height is measured in two dimensions
3D : height is measured in three dimensions
AUTO :select the proper dimension to measure a height automatically
3. Press the [9] key to send the setting value to GPS receiver.
3-40
3.4 General Radar Operation y
y y
3
Geodetic System List
No. Name
0 WGS-84
1 WGS-72
2 Japan
3 North American 1927(U.S)
4 North American 1927(Canada & Alaska)
5 European 1950 (Europe)
6 Australian geodetic 1966 (Australia)
7 Ordnance Survey of Great Britain (England)
8 NAD-83
9 - (No Use)
10 - (No Use)
11 ADINDAN (Ethiopia & Sudan)
12 ARC 1950 (Botswana)
13 AUSTRALIAN GEODETIC 1984 (Australia)
14 BERMUDA 1957 (Bermuda islands)
15 BOGOTA OBSERVATORY (Colombia)
16 CAMPO INCHAUSPE (Argentine)
17 CHATHAM 1971 (Chatham Islands)
18 CHUA ASTRO (Paraguay)
19 CORREGO ALEGRE (Brazil)
20 DJAKARTA (VATAVIA) (Sumatra)
21 EUROPEAN 1979 (Europe)
22 GEODETIC DATUM 1949 (New Zealand)
23 GUAM 1963 (Guam)
24 HAYFORD 1910 (Finland)
25 HJORSEY 1955 (Iceland)
26 INDIAN (India & Nepal)
27 IRELAND1965 (Ireland)
28 KERTAU 1948 (West Malaysia)
29 L.C.5 ASTRO (Cayman Brac Island)
30 LIBERIA 1964 (Liberia)
31 LUZON (Philippines)
32 MERCHICH (Morocco)
33 MINNA (Nigeria)
34 NAHRWAN (Oman)
35 NAPARIMA, BWI (Trinidad & Tobago)
36 OLD EGYPTIAN (Egypt)
37 OLD HAWAIIAN (Hawaii)
38 PICO DE LAS NIEVES (Canary Islands)
39 PROVISIONAL SOUTH AMERICAN 1956 (South America)
40 PROVISIONAL SOUTH CHILEAN 1963 (South Chile)
41 PUERTO RICO (Puerto Rico & Virgin Islands)
42 QORNOQ (South Greenland)
43 RT90 (Sweden)
44 SANTA BRAZ (San Miguel island & Santa Maria islands)
45 SOUTH AMERICAN 1969 (South America)
46 SOUTHWEST BASE (Faial & Sao Jorge & Pico & Graciosa & Terceira island)
47 TIMBALAI 1948 (Brunei & East Malaysia)
48 - (No Use)
49 - (No Use)
3-41
[Ⅵ] HDOP level setting (DOP Level)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the DOP Level menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 6. DOP Level
2. Enter the HDOP level in the numeric value input menu.
When the HDOP level is decrease, the accuracy is increased. But it is hard to
measure the position.
3. Press the [9] key to send the setting value to GPS receiver.
[Ⅶ] Position average time setting (Position Average)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Position Average menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 7. Position Average
2. Set the position average time.
The following are provided according to the ROM version of GPS receiver.
ROM Version R26.00: Select the average time
LONG (40 sec)
STANDARD (10 sec)
NONE (2 sec)
Other ROM Version: Enter the average time
When the average time is short, the renewal speed is increased. But the stability
become worse.
3. Press the [9] key to send the setting value to GPS receiver.
3-42
3.4 General Radar Operation y
y y
3
[Ⅷ] Master reset
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu procedure to set the Master Reset On.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 8. Master Reset
2. Press the [9] key to send the setting value while the master reset is
on.
3.4.21 DGPS Receiver Setting (DGPS Setting)
Set to a JRC’s DGPS receiver.
This setting is enabled when a JRC’s DGPS is connected to the GPS connector of processor unit.
[I] Beacon frequency mode setting (Mode)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the DGPS Setting menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 2. DGPS Setting
2. Press the [1] key to select the beacon frequency mode.
AUTO : The beacon frequency mod is selected automatically
Manual : The beacon frequency mod is selected manually
3. Press the [5] key to send the setting value to DGPS receiver.
[Ⅱ] Beacon frequency setting(Frequency)
This setting is enabled when beacon frequency mode is set to manual.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Frequency menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 2. DGPS Setting
→ 2. Frequency
2. Enter the beacon frequency.
3. Press the [5] key to send the setting value to DGPS receiver.
3-43
[Ⅲ] baud rate setting(Baud Rate(BPS))
This setting is enabled when beacon frequency mode is set to manual.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Baud Rate menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 2. DGPS Setting
→ 3. Baud Rate(BPS)
2. Select the baud rate.
Following baud rate is selectable
50 bps/100 bps/200 bps
3. Press the [5] key to send the setting value to DGPS receiver.
[Ⅳ] DGPS Mode setting(DGPS Mode)
When DGPS mode set to on, DGPS use the information from beacon to get reliable
position.
When DGPS mode set to off, the accuracy of position is same as GPS.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the DGPS Mode menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 2. DGPS Setting
2. Press [4] key to select the DGPS Mode.
On : DGPS use the information from beacon
Off : DGPS don’t use the information from beacon
3. Press the [5] key to send the setting value to DGPS receiver.
3.4.22 SBAS Receiver Setting (SBAS Setting)
Set to a JRC’s SBAS receiver.
SBAS receiver use the information from satellite same as that of beacon which DGPS use. So the
accuracy of position is higher than GPS.
This setting is enabled when a JRC’s DGPS is connected to the GPS connector of processor unit.
[I] SBAS mode setting (Mode)
Select the satellite or the beacon whose differential information is used.
3-44
3.4 General Radar Operation y
y y
3
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Mode menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
→ 1. Mode
2. Select the satellite or the beacon whose differential information is
used.
Beacon : SBAS receiver use the information from beacon
SBAS : SBAS receiver use the information from SBAS satellite
AUTO : SBAS receiver selects automatically
3. Press the [6] key to send the setting value to SBAS receiver.
[Ⅱ] Ranging satellite setting (Ranging)
Set the SBAS satellite to be used or not to be used.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the SBAS Setting menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
2. Press [2] key to select the SBAS satellite to be used or not to be
used.
On : SBAS satellite is used
Off : SBAS satellite is not used
3. Press the [6] key to send the setting value to SBAS receiver.
[Ⅲ] Prohibitive satellite setting (NG SBAS)
Set the information from prohibitive SBAS satellite to be used or not to be used.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the SBAS Setting menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
2. Press [3] key to select the information from prohibitive SBAS satellite
to be used or not to be used.
On : The information from prohibitive SBAS satellite is used
Off : The information from prohibitive SBAS satellite is not used
3. Press the [6] key to send the setting value to SBAS receiver.
3-45
[Ⅳ] Satellite number select mode setting (SBAS Select Mode)
Set the satellite number select mode.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the SBAS Setting menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
2. Press [4] key to select the satellite number select mode.
Manual : SBAS satellite number is set manually
AUTO : SBAS satellite number is set automatically
3. Press the [6] key to send the setting value to SBAS receiver.
[Ⅴ] Satellite number setting (SBAS No.)
Set the satellite number.
This setting is enabled when satellite number select mode is set to manual.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the SBAS No. menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
→ 5. SBAS No.
2. Enter the satellite number.
Enter the number from 120 to 138.
3. Press the [6] key to send the setting value to SBAS receiver.
3-46
3.4 General Radar Operation y
y y
3
3.4.23 Displaying GPS Reception Status (GPS Status)
The reception status of GPS(GPS/DGPS/WAAS) which is connected to radar processor unit is
displayed.
This setting is enabled when a JRC’S GPS/DGPS/WAAS is connected to the GPS connector of
processor unit.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the GPS Status window.
4. NAV equipment Setting
→ 4. GPS Status
2. After check of the GPS status, press [0] key to close the GPS status
window.
This window cannot be opened in the transmission state.
3-47
3.4.24 Set Radar Alarm (RADAR Alarm)
The radar alarm can be issued when targets have entered the radar alarm range.
Turning on / off the radar alarm (Sector RADAR Alarm)
Procedures 1 Press the [AZ] key for 2 seconds.
The AZ Menu will appear.
2 Open the Sector RADAR Alarm menu by performing the following
menu operation.
4. RADAR Alarm
→ 1. Sector RADAR Alarm
3 Press the [1] key or [2] key.
Sector Alarm1 or Sector Alarm2 is turned on / off.
On : The radar alarm is turned on.
Off : The radar alarm is turned off.
Change the Radar Alarm Setting (RADAR Alarm Mode)
Procedures 1 Press the [AZ] key for 2 seconds.
The AZ Menu will appear.
2 Open the Sector RADAR Alarm menu by performing the following
menu operation.
4. RADAR Alarm
3 Press the [5] key.
Sector Alarm1 or Sector Alarm2 is turned on / off.
In : When a target has entered the zone, RADAR Alarm (In) is issued.
Out : When a target has departed the zone, RADAR Alarm (Out) is issued.
4 Press the [6] key.
Selected items for Sensitivity Level will be displayed.
5 Press numeric keys corresponding to the Sensitivity Level.
The threshold video level increases in order of
Level1 → Level2 → Level3 → Level4 .
3-48
3.4 General Radar Operation y
y y
3
Creating the radar alarm zone (Make Sector Alarm)
Procedures 1 Press the [AZ] key for 2 seconds.
The AZ Menu will appear.
2 Open the Make Sector Alarm menu by performing the following menu
operation.
4. RADAR Alarm
→ 3. Make Sector Alarm
3 Press the [1] key or [2] key.
The range setting for Sector Alarm1 or Sector Alarm2 starts.
4 Turn the [EBL] dial and the [VRM] dial to set the start bearing and the
start range, and then press the [ENT] key.
5 Turn the [EBL] dial and the [VRM] dial to set the end bearing and the
end range, and then press the [ENT] key.
The radar alarm zone is determined.
Setting the [AZ] key allocation (Set AZ Key)
Only by pressing the [AZ] key, the normally-used radar alarm can be easily turned on
/ off.
Procedures 1 Press the [AZ] key for 2 seconds.
The AZ Menu will appear.
2 Open the Sector RADAR Alarm menu by the following menu
operation.
5. Set AZ Key
→ 2. Sector RADAR Alarm
3 Set the [AZ] key allocation.
On : Pressing the [AZ] key will turn on or off the radar alarm.
Off : Even if the [AZ] key is pressed, the radar alarm zone is not turned on.
Note: When the automatic acquisition / activation zone key allocation is set, pressing the [AZ] key
will simultaneously turn on or off the radar alarm in the automatic acquisition / activation
zone.
3-49
3.5 USE OWN SHIP'S TRACK DATA
(Not used on the JPL-600-MK2 for VTS)
The own ship's track function saves and displays own ship's track.
If navigation equipment is connected, this radar system records latitude / longitude data sent from the
navigation equipment and displays own ship's track.
Note: Even when own ship's track interval switching (lower right of the display ③ on page 2-21)
is set to Off , own ship's track can be displayed. However, in this case, if rewrite
operation such as changing of the display range is performed for the radar display, own
ship's track display is erased and the track will not be plotted again.
If the DISP Own Track is turned off when the own ship track is in save, own ship's track is
not shown of the display, but own ship's track data is still saved.
When a plotter unit (optional) is connected, own ship's track can be displayed and saved in seven
different colors. The color display can be turned on or off by color.
3.5.1 Display Own Ship’s Track (Display Own Track)
Procedures 1 Open the Own Track Menu by the following menu operation.
O.TRK
2 Press the [1] key.
The DISP Own Track function item is turned on or off.
On : Own ship's track is displayed.
Off : Own ship's track is not displayed.
3 Press the [MAP] key.
The map display function is turned on or off.
Selecting On will display own ship's track.
3-50
3.5 Use Own ship's track data y
y y
3
3.5.2 Save Own Ship's Track Data (Own Track Memory)
To save own ship's track data, save at a specified time interval and at a specified range
interval can be selected.
The data save interval can be selected from 10 preset time intervals and 8 preset range
intervals.
Save intervals that can be selected
Time : 3 sec, 5 sec, 10 sec, 30 sec, 1 min,
3 min, 5 min, 10 min, 30 min, and 60 min
Range : 0.1 NM, 0.2 NM, 0.3 NM, 0.5 NM,
1 NM, 3 NM, 5 NM, and 10 NM
Procedures 1 Put the cursor on own ship's track interval unit switching (lower right
of the display ④ on page 2-21), and press the [ENT] key.
Units of own ship's track interval are switched.
2 Put the cursor on own ship's track interval switching (lower right of
the display ③ on page 2-21), and press the [ENT] key.
Own ship's track intervals are switched.
Setting the button to Off cancels the saving of data.
3.5.3 Cancel Saving of Own Ship’s Track Data (Own Track Memory)
This function cancels the saving of own ship’s track data.
Procedures 1 Put the cursor on own ship's track interval switching (lower right of
the display ③ on page 2-21), and press the [ENT] key.
Own ship's track intervals are switched.
Selecting Off will cancel the saving of data.
3.5.4 Clear Own Ship’s Track Data (Clear Own Track)
This function clears own ship’s track data from memory.
Procedures 1 Open the Own Track Menu by the following menu operation.
O.TRK
2 Press the [2] key.
Clear Own Track Confirmation Window will appear.
3 Press the [1] key.
The own ship’s track data will be cleared.
3-51
3.5.5 Operate Own ship's Track Files (File Operations)
[I] Loading own ship's track data (Load Own Track)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by the following menu operation.
O.TRK
→ 5. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [2] key to select Add or Overwrite.
Add and Overwrite in the Load Mode items are switched.
When Add is selected, new data is added to the saved data. When Overwrite
is selected, the saved data is overwritten.
5 Press the [3] key.
The list of own ship's tracks data saved in the system will be displayed.
6 Press numeric keys corresponding to the file to be loaded.
Confirmation Window will appear.
7 Press the [1] key.
The selected own ship's track data is loaded and displayed of the display.
3-52
3.5 Use Own ship's track data y
y y
3
[II] Saving own ship's track data (Save Own Track)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
O.TRK
→ 5. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [4] key.
The character input screen for Input File Name will appear.
5 Enter the file name to be saved.
Up to 10 characters can be entered.
For the input method on the character input screen, see Chapter 3.3.4.
After entry has been finished, Confirmation Window will appear.
6 Press the [1] key.
Own ship's track data currently being displayed is saved.
[III] Erasing own ship's track data (Erase Own Track)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
O.TRK
→ 5. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [5] key.
The Erase screen will appear.
The list of own ship's track data saved in the card will be displayed.
3-53
5 Press numeric keys corresponding to the file to be deleted.
Confirmation Window will appear.
6 Press the [1] key.
The selected own ship's track data is deleted and the file name is deleted from the list.
[IV] Displaying saved own ship's track data (Card Own Track Display)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
O.TRK
→ 5. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [6] key.
The Card Own Track Display menu will appear.
The list of own ship's track data saved in the card will be displayed.
5 Press numeric keys corresponding to the number for the file to be
displayed.
Confirmation Window will appear.
6 Press the [1] key.
The saved own ship's track data will be displayed.
3-54
3.6 Display User Map y
y y
3
3.6 DISPLAY USER MAP
Up to 2,000 items (20,000 items when a plotter unit option is connected) of NAV lines, coastlines,
depth contours, and NAV marks can be created, displayed, loaded, and saved. (This function is
available only when navigation equipment is connected to this radar system.)
If the number of items exceeds 2,000, the oldest saved items are sequentially deleted.
Up to 20 items of temporarily used marks can be created and displayed.
Marks that can be used : 29 types
Lines that can be used : 3 types (solid, broken, and dashed-dotted line)
Color of mark and line that can be used : 7 colors
If radar video is poor visibility caused by user map function, press the [DATA OFF] key to map
displays temporarily off.
3.6.1 Create User Map (Mark / Line)
In this system, when the radar is in the transmission state, the user map is displayed all the time.
However, valid latitude / longitude data and true bearing data must be entered into the system.
The user map can be created and edited by performing the following operation.
Plotting a mark
Procedures 1 Press the [MARK] key to select the mark mode.
The mark font to be used is displayed in the mark font switching (upper right of the
display ② on page 2-19).
2 Put the cursor on mark font switching (upper right of the
display ② on page 2-19), and press the [ENT] key.
The mark fonts are switched.
3 Put the cursor mark on mark color switching C (upper right of the
display ③ on page 2-19), and press the [ENT] key.
The mark colors are switched.
4 Put the cursor on a location of the display at which you want to plot
the mark, and press the [ENT] key.
The specified mark is displayed in the specified shape and color.
To create another mark, repeat the above procedures.
3-55
Plotting a line
Procedures 1 Press the [MARK] key to select the line mode.
The line pattern to be used is displayed in the line pattern switching (upper right of the
display ② on page 2-19).
2 Put the cursor on line pattern switching ------- (upper right of the
display ② on page 2-19), and press the [ENT] key.
Line patterns are switched.
3 Put the cursor on line color switch C (upper right of the display ③
on page 2-19), and press the [ENT] key.
Line colors are switched.
4 Put the cursor on a location of the display at which you want to start
plotting a line, and press the [ENT] key.
The start point of the specified line will be displayed.
5 Move the cursor to a location of the display at which you want to
finish plotting the line, and press the [ENT] key.
A line is plotted between the previous point and the end point.
Repeat this procedure so that sequential lines can be plotted.
6 When you want to finish plotting the line, press the [ENT] key at the
previous point.
Line plotting will be terminated.
To plot another line, repeat procedures 4 to 6.
3-56
3.6 Display User Map y
y y
3
Plotting a mark / line make with latitude and longitude
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [2] key.
The Make with L/L menu will appear.
3 Press the [9] key to select the New Mark Input or New Line Input.
The Mark Input menu and the Line Input menu are switched.
4 Press the [1] key to select the type of mark font or line pattern to be
created.
The desired mark font or line pattern is selected.
To add a line, select midpoint --O-- .
5 Press the [2] key to select the color of mark or line to be created.
The desired mark or line color is selected.
6 Press the [3] key to input the latitude / longitude.
For the input method on the latitude / longitude input screen, see Section 3.3.4.
7 Press the [4] key to input the comment.
For the input method on the character input screen, see Section 3.3.4.
The window will not be open when the system is in the transmission state.
8 Press the [5] key.
Mark / Line plotting will be terminated.
To create another mark or line, repeat procedures 4 to 8.
3-57
Plotting a temporarily used mark
Procedures 1 Put the cursor on a location of the display at which you want to plot a
mark, and press the [CLR / INFO] key.
The cursor mode list will be displayed.
2 Press the [7] key.
Temporarily used marks will be displayed. To create another mark, put the
cursor on a location at which you want to plot a mark, and press the [ENT] key.
Up to 20 temporarily used marks can be created, but adding comments and saving data
onto a card are not possible. When the power supply is turned off, the data will be
deleted.
When the number of temporarily used marks exceeds 20, if rewrite operation such as
changing of the display range is performed for the radar display, items older than most
recently plotted 20 items will not be plotted again.
3.6.2 Set User Map Display (Mark Display Setting)
The user map can be individually displayed (on) or hidden (off).
Setting by type : Setting can be made by mark font and line pattern.
Setting by color : Setting can be made by color of mark or line.
The mark font display size can be selected.
Normal : The mark is displayed in normal size.
Small : The mark is displayed in a size smaller than usual.
Setting display by type
Procedures 1 Press the [MARK] key for 2 seconds.
The Mark Setting display will appear.
2 Open the Display Mark Type menu by performing the following menu
operation.
1. Display Mark Type
3 Press the [1] key.
Selected items for All will be displayed.
4 Press the [3] key to make Individual setting.
Off : All types are not displayed.
On : All types are displayed.
Individual : Setting by type is activated.
5 Press numeric keys corresponding to each mark font / line pattern
display.
On : Displayed.
Off : Not Displayed.
3-58
3.6 Display User Map y
y y
3
Setting display by color
Procedures 1 Press the [MARK] key for 2 seconds.
The Mark Setting menu will appear.
2 Open the Display Mark Color menu by performing the following menu
operation.
2. Display Mark Color
3 Press the [1] key.
Selected items for All will be displayed.
4 Press the [3] key to make Individual setting.
Off : All colors are not displayed.
On : All colors are displayed.
Individual : Setting by color is activated.
5 Press numeric keys corresponding to each mark font / line pattern
display.
On : Displayed.
Off : Not Displayed.
Setting the mark font size
Procedures 1 Press the [MARK] key for 2 seconds.
The Mark Setting display will appear.
2 Open the Select Mark Size menu by performing the following menu
operation.
4. Select Mark Size
3 Press numeric keys corresponding to the mark font size to be set.
Normal : The mark is displayed in normal size.
Small : The mark is displayed in a size smaller than usual.
3-59
Setting the character size for comments
Procedures 1 Press the [MARK] key for 2 seconds.
The Mark Setting menu will appear.
2 Open the Comment Font Size menu by performing the following
menu operation.
5. Comment Font Size
3 Press numeric keys corresponding to the desired character size for
comments.
Normal : The characters for comments are displayed in normal size.
Small : The characters for comments are displayed in a size smaller than
usual.
Clearing mark / line data (Clear Mark / Line Data)
The mark / line data saved in the process unit is cleared.
Procedures 1 Open the Clear Mark / Line Data menu by performing the following
menu operation.
Plot
→ 5. Clear Memory
→ 1. Clear Mark/Line Data
2 Press the [1] key.
Confirmation Window will appear.
3 Press the [1] key.
The mark / line data is deleted.
3-60
3.6 Display User Map y
y y
3
3.6.3 Edit User Map (Edit User Map)
Manually entering the radar station position (Own Ship Position)
Use this function when editing navigation data for a location different from the radar
station position.
Procedures 1 Open the Mark Operations menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
2 Press the [1] key.
The latitude / longitude input menu for Radar Station Position menu will appear.
3 Enter a latitude / longitude value.
For how to enter a value on the latitude / longitude input screen, see Chapter 3.3.4.
The radar station position latitude / longitude value is determined.
Note: The own ship's position manually entered by using the function above is valid only in the
navigation data setting menu. After exciting from the menu, the manually entered position
data is invalidated.
Cancellation 1 Press the [0] key.
The Mark Operations menu is closed, and Own Ship Position menu is cancelled.
Moving a mark or line (Move)
With regard to the created user map, a mark or line is moved individually.
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [3] key.
The user map move mode is selected.
Move is displayed in the cursor mode (upper right of the display on page 2-3).
3 Put the cursor on a mark or line, and press the [ENT] key.
When a mark or line to be moved is selected, the cross cursor mark will appear.
3-61
4 Move the cursor mark to the destination, and press the [ENT] key.
The selected mark or line is moved to the destination.
To move another mark or line, repeat procedures 3 and 4.
5 When finished with the correction of lines and marks, press the [0]
key.
The cursor mode changes to the normal operation mode, terminating the user map
move mode.
(Example)
Deleting a mark or line (Delete)
With regard to the created user map, a mark or line is deleted individually.
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [4] key.
The user map delete mode is selected.
Delete Map is displayed in the cursor mode (upper right of the display on page
2-3).
3 Put the cursor on a mark or line, and press the [ENT] key.
The selected mark or line is deleted.
To delete another mark or line, repeat procedures 3.
4 When finished with the correction of lines and marks, press the [0]
key.
The cursor mode changes to the normal operation mode, terminating the user map
delete mode.
3-62
3.6 Display User Map y
y y
3
Inserting a vertex into a line (Insert / Move Vertex)
With regard to the created user map, a vertex is inserted into a line.
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [5] key.
The user map insert / move mode is selected.
Insert/Move is displayed in the cursor mode (upper right of the display on page
2-3).
3 Put the cursor to a side line into which a vertex will be inserted, and
press the [ENT] key.
A vertex is inserted into the selected line, and the cross cursor mark will be displayed.
4 Move the cross cursor mark to the newly inserted vertex, and press
the [ENT] key.
To insert another vertex, repeat procedures 3 and 4.
5 When finished with the insertion of all vertices, press the [0] key.
The cursor mode changes to the normal operation mode, terminating the user map
insert / move mode.
(Example)
The side line into which
a vertex is inserted
Inserted vertex
3-63
Correcting the mark or vertex of a line (Insert / Move Vertex)
With regard to the created user map, a mark or line is corrected.
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [5] key.
The user map insert / move mode is selected.
Insert / Move is displayed in the cursor mode (upper right of the display on page
2-3).
3 Put the cursor on the mark or vertex of a line, and press the [ENT]
key.
When the mark or vertex of a line to be corrected is selected, the cross cursor mark
will appear.
4 Move the cross cursor mark to the destination, and press the [ENT]
key.
The vertex of the selected mark or vertex of a line is moved to the destination.
To correct another mark or vertex of a line, repeat procedures 3 and 4.
5 When finished with the correction of all vertices, press the [0] key.
The cursor mode changes to the normal operation mode, terminating the user map
insert / move mode.
(Example)
Original vertex
New vertex
3-64
3.6 Display User Map y
y y
3
Deleting a mark or vertex of a line (Delete Vertex)
With regard to the created user map, a vertex is deleted individually from a mark or line.
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [6] key.
The user map delete mode is selected.
Delete is displayed in the cursor mode (upper right of the display on page 2-3).
3 Put the cursor on the mark or vertex of a line, and press the [ENT]
key.
The vertex of the selected mark or vertex of a line is deleted.
All of the lines drawn by joining two points are deleted.
To delete another mark or vertex of a or line, repeat procedure 3.
4 When finished with the correction of all vertices, press the [0] key.
The cursor mode changes to the normal operation mode, terminating the user map
delete mode.
(Example)
The vertex to be deleted
3-65
Batch clearing marks or lines (Clear by Type by Color)
With regard to the created user map, marks or lines are batch cleared by type or by color.
Procedures 1 Open the Edit User Map menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 2. Edit User Map
2 Press the [7] key to select the type of marks or lines to be deleted.
Select the type of marks or lines to be deleted.
To select all types, select All .
For example, to delete "red ○" marks, select ○ .
3 Select the color of the marks or lines to be deleted.
Select the color of marks or lines to be deleted.
To select all colors, select All .
For example, to clear "red ○" marks, select Red .
After the items have been selected, Confirmation Window will appear.
4 Press the [1] key.
Selected marks or lines will be batch cleared.
Note: If data is not copied on the flash memory card (option), the data is not be reloaded.
3-66
3.6 Display User Map y
y y
3
3.6.4 Edit Mark / Line List (Mark / Line List)
With regard to the created user map, it is possible to display the mark / line list, add and edit marks
and lines, and also add comments.
When editing a line, a line extending from the changed vertex to the previous point can be changed.
Comments for
mark / line vertex
Latitude / longitude of
mark / line vertex
Mark color /
line color
Mark / line vertex
number
Character inputMark / line list switchingExit
Mark font /
line pattern
Mark / line list scroll
Mark / line list scroll
3-67
Procedures 1 Open the Mark Operations menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
2 Press the [STBY] key.
The transmission standby state is selected.
3 Press the [5] key.
The Mark/Line Entry menu will appear.
4 Select an item to be edited.
For batch entry, select whether to enter the latitude / longitude and comments. For
new entry, select LAT / LON or LAT / LON + Comment .
LAT / LON : Latitude / longitude can be entered.
Comment : Comments can be entered.
LAT / LON + Comment : Both latitude / longitude and comments can be
entered.
5 Press the [6] key.
The Mark/Line List menu will appear.
This window cannot be opened in the transmission state.
3-68
3.6 Display User Map y
y y
3
Creating marks and lines
Procedures 1 Open the Mark / Line List menu.
2 Press the [2] key to select the mark list or line list.
The Mark Input menu and the Line Input menu are switched.
3 Press the [1] key.
The input list will appear.
4 Turn the [MULTI] dial to show a vacant number in reverse video.
Holding down the [RANGE + / - ] key for at least two seconds will enable scroll.
Even if a mark or line is created for a vacant number, the created mark or line is listed
at the end of the current mark / line list.
5 Press the [MULTI] dial.
The list of the mark font or the line pattern will be displayed.
6 Press numeric keys corresponding to the desired mark font or the
line pattern.
The desired mark font or line pattern is selected.
7 In the same manner, enter the color of the mark or line, latitude /
longitude, and comments.
Use the numeric keys, latitude / longitude input screen, and the character input screen
for entry.
For the input method on the latitude / longitude and character input screens, see
Section 3.3.4.
To create another mark or line, repeat procedures 2 to 5.
3-69
Adding a line
With regard to the created user map, a vertex is added to the end of the line.
Procedures 1 Open the input list for the Mark / Line List menu.
2 Press the [2] key to select the line list.
The Mark Input menu and the Line Input menu are switched.
3 Press the [1] key.
The input list will appear.
4 Turn the [MULTI] dial to show the number for the end point of a
desired line ……○ in reverse video.
Holding down the [RANGE + / - ] key for at least two seconds will enable scroll.
5 Press the [MULTI] dial.
The list of the line pattern will be displayed.
6 Press numeric keys corresponding to the desired line type.
The previous end point of the line is changed to the midpoint and a new end point is
added.
7 In the same manner, enter the color of the mark or line, latitude /
longitude, and comments.
Use the numeric keys, latitude / longitude, and the character input screen for entry.
For the input method on the latitude / longitude and character input screens, see
Section 3.3.4.
To add another line, repeat procedures 2 to 5.
3-70
3.6 Display User Map y
y y
3
Editing a mark or line
Procedures 1 Open the input list for the Mark / Line List menu.
2 Press the [2] key to select the mark list or line list.
The Mark Input menu and the Line Input menu are switched.
3 Press the [1] key.
The input list will appear.
4 Turn the [MULTI] dial to show the number for a mark or line to be
changed in reverse video.
Holding down the [RANGE + / - ] key for at least two seconds will enable scroll.
5 Press the [MULTI] dial.
The list of the mark font or line type will be displayed.
6 Press numeric keys corresponding to the desired mark font or line
pattern.
The mark font or line type is changed.
7 In the same manner, enter the color of the mark or line, latitude /
longitude, and comments.
Use the numeric keys, latitude / longitude, and the character input screen for entry.
For the input method on the latitude / longitude and character input screens, see
Section 3.3.4.
To edit or add another mark or line, repeat procedures 2 to 5.
3-71
Changing mark / line list items individually
Procedures 1 Open the input list for the Mark / Line List menu.
2 Press the [2] key to select the mark list or line list.
The Mark Input menu and the Line Input menu are switched.
3 Press the [1] key.
The input list will appear.
4 Turn the [MULTI] dial to display the vertex of a mark or line to be
changed.
Holding down the [RANGE + / - ] key for at least two seconds will enable scroll.
5 Put the cursor on the item to be changed, and press the [ENT] key.
The list will be displayed or the input can be enabled.
6 Press numeric keys corresponding to the number for the item to be
changed. Alternatively, enter a numeric value and character to be
changed.
Use the numeric keys, latitude / longitude, and the character input screen for entry.
For the input method on the latitude / longitude and character input screens, see
Section 3.3.4.
To change another item in the mark / line list individually, repeat procedures 2 to 4.
3-72
3.6 Display User Map y
y y
3
3.6.5 Correct Position on User Map (Shift User Map)
If the display position on the user map is different from an actual position, it can be changed to the
correct position in manual mode.
Correcting the display position on the user map (Shift)
Procedures 1 Open the Mark Operations menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
2 Press the [3] key.
Shift is displayed in the cursor mode (upper right of the display on page 2-3) and
the user map shift mode is activated.
3 Put the cursor on a mark or end of a line, and press the [ENT] key.
4 Put the cursor on the point to be corrected, and press the [ENT] key.
Positions of all marks and lines currently displayed will be corrected.
At this time, Map Shift is displayed in the map position correction (lower right of
the display on page 2-4), indicating that the position is being corrected.
Clearing the corrected user map to its original state (Shift Clear)
Procedures 1 Open the Mark Operations menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
2 Press the [4] key.
Shift Clear Confirmation window will appear.
3 Press the [1] key.
Corrected data will be cleared, and the data will be displayed at its original position.
At this time, Map Shift is not displayed in the map position correction (lower right
of the display on page 2-4).
3-73
3.6.6 Operate User Map File (File Operations)
[I] Loading navigation data (Load User Map)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
Plot
→ 1. Mark Setting
→ 3. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [2] key to select Add or Overwrite.
Add and Overwrite of the Load Mode items are switched.
When Add is selected, new data is added to the saved data. When Overwrite
is selected, the saved data is overwritten.
5 Press the [3] key.
The list of navigation data saved in the system will be displayed.
6 Press numeric keys corresponding to the file to be loaded.
Confirmation Window will appear.
7 Press the [1] key.
The selected navigation data will be loaded and displayed of the display.
[II] Discarding navigation data (Unload User Map)
Procedures 1 Open the File Operations menu by performing the following menu
operation.
Plot
→ 1. Mark Setting
→ 3. File Operations
2 Press the [4] key.
Unload Confirmation Window will appear.
3 Press the [1] key.
The saved navigation data will be discarded.
3-74
3.6 Display User Map y
y y
3
[III] Saving navigation data (Save User Map)
Navigation data can be saved when navigation equipment is connected, or the own
ship position on the user map is entered in the manual mode.
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
Plot
→ 1. Mark Setting
→ 3. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [5] key.
The Input File Name menu will appear.
5 Enter the file name to be saved.
Up to 10 characters can be entered.
For the input method on the character input screen, see Section 3.3.4.
After the data has been entered, Confirmation Window will appear.
6 Press the [1] key.
Navigation data currently being displayed is saved.
3-75
[IV] Clearing the saved navigation data (Erase User Map)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
Plot
→ 1. Mark Setting
→ 3. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [6] key.
The Erase screen will appear.
The list of navigation data saved in the card will be displayed.
5 Press numeric keys corresponding to the number for the file to be
erased.
Confirmation Window will appear.
6 Press the [1] key.
The selected navigation data is erased and the name of the file is deleted from the list.
3-76
3.6 Display User Map y
y y
3
[V] Displaying saved navigation data (Card Mark Display)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
Plot
→ 1. Mark Setting
→ 3. File Operations
3 Press the [1] key to select a card slot.
Slot1 and Slot2 of the Select Card Slot items are switched.
4 Press the [7] key.
The Card Mark Display menu will appear.
The list of navigation data saved in the card will be displayed.
5 Press numeric keys corresponding to the number for the file to be
displayed.
Confirmation Window will appear.
6 Press the [1] key.
The selected navigation data will be displayed.
3-77
3.6.7 Set and Display Geodetic System (Geodetic)
To create navigation information, set the geodetic system that is used with the connected navigation
equipment. When navigation information is loaded, the geodetic system used when the navigation
information was saved, is displayed. Make sure that the displayed geodetic system is identical to the
one used with the navigation equipment. If the two geodetic systems are different, the positions of
navigation information of the display will be shifted. Therefore, it is important to set the geodetic
system of the navigation equipment.
Setting the geodetic system for navigation data to be saved (Geodetic)
Procedures 1 Open the Geodetic menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
→ 7. Geodetic
The numeric value input screen for Geodetic will appear.
2 Enter the desired geodetic system number. (See the section 3.4.20
Geodetic System List)
The geodetic system is determined.
For how to input numeric value on the numeric value input menu, see Section 3.3.4.
By turning the [MULTI] dial, the geodetic system number can be changed.
Displaying the geodetic system of the navigation data being displayed
(Geodetic)
Procedures 1 Load navigation data by referring to Section " [I] Loading navigation
data" on page 3-66.
2 Open the Mark Operations menu by performing the following menu
operation.
Plot
→ 2. Mark Operations
The geodetic system will be displayed in the Geodetic field.
3-78
3.8 Use Route Function y
y y
3
3.7 USE ROUTE FUNCTION
In this radar system, a destination mark set by navigation equipment can be displayed and a simple
route can be created, displayed, loaded and saved. (To use this function, navigation equipment must
be connected to this system)
A plotter unit (option) is required to create, display, load and save the simple route.
If radar video is poor visibility caused by route function, click the Map button to turn off the Map
function. Otherwise, press the [DATA OFF] key to map displays temporarily off.
3.7.1 Display Destination Mark (NMEA Waypoint Display)
A destination mark sent from the external navigation equipment can be displayed.
Procedures 1 Open the Plot menu by performing the following menu operation.
Plot
2 Press the [7] key.
The NMEA Waypoint Display is turned on or off.
Off : Destination is not displayed.
On : Destination is displayed.
When On is selected, the ○WP mark appears of the display.
The destination mark is displayed only when Waypoint data is received from outside
by the NMEA sentence (RMB,BWC,BWR).
3-79
3.8 APPLIED OPERATIONS
3.8.1 Set Radar Signal Processing (Process Setting)
This function enables the setting of detail information about radar signal processing.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Process Setting menu by performing the following menu
operation.
2. RADAR Menu
→ 1. Process Setting
Detail information about radar signal processing can be set by changing the settings of
the menu items.
Note: After the settings for radar signal processing are changed, small targets may not be displayed
or unwanted waves may not be suppressed. Thus, do not make a significant change in the
settings.
[1] Video Latitude
• Select the dynamic range in which receiving signals are to be shown of the display.
• Select Normal in standard, and Wide in rainy weather.
• Narrow clearly displays short-range videos when STC is used in manual mode.
Narrow : Narrows the dynamic range at short range.
Normal : Standard setting
The dynamic range varies depending on the actual range.
Short distance : wide Long distance : narrow
Wide : Use this mode when rainy weather intensifies unwanted waves.
The dynamic range is about twice as wide as when Normal is
selected.
Super Wide : Use this mode when rain cloud remain at Wide mode.
[2] Video Noise Rejection
• This function rejects signals that assumed as noise and clutter in radar videos.
• Select Off to display radar videos like analog signals.
• Select Level1 or Level2 to suppress noise and clutter.
• Select Level1 or Level2 to superimpose-display the chart.
Off : Turns off the noise rejection function, and displays all signals.
Targets are popped up from noise and displayed like analog signals.
Level1 : Rejects the signals of definitely unwanted waves (noise and clutter).
When detection of targets or unwanted waves is not definite, the signals
are displayed.
When detection of targets is definite, the signals are displayed.
Level2 : Rejects the signals of definitely unwanted waves (noise and clutter).
When detection of targets or unwanted waves is not definite, the signals
are rejected.
Only when detection of targets is definite, the signals are displayed.
3-80
3.8 Applied Operations y
y y
3
[3] AUTO Dynamic Range
• When the automatic sea clutter suppression mode and the automatic rain / snow clutter suppression
mode are in use, the dynamic range is automatically controlled.
• When the automatic sea clutter suppression mode is in use, this function improves gain by
widening the dynamic range of only areas where sea clutter is strong and narrowing the dynamic
range of areas where sea clutter is not detected.
• When the automatic rain / snow clutter suppression mode is in use, this function improves gain by
widening the dynamic range of areas where sea clutter and rain / snow clutter are strong and
narrowing the dynamic range of the other areas.
• Land videos become obscure when the automatic rain / snow clutter suppression mode is in use.
Off : Does not control the dynamic range automatically. (Standard setting)
The dynamic range is set in the same manner as when the manual sea clutter
suppression mode or the manual rain / snow clutter suppression mode is in use.
On : Automatically controls the dynamic range.
[4] Process Switch
• This function sets a specific area and switches the video process mode between the inside and
outside of the area.
• In [5] 2nd Process Mode, set the second video process mode for the area outside the boundary.
• In radar video processing (PROC) mode switching (④ lower left of the display on page 2-18), set
the first video process mode for the area inside the boundary.
• Gain at a distance can be improved by suppressing near sea clutter through the correlative process.
• There are two methods for setting an area.
Off : Disables the Process Switching function. (Standard setting)
Range Fix : Sets a boundary at a constant range from the center.
Set the boundary range in [6] Process Switch Range.
The specific area turns out to be a circle with the own ship’s position as
the center.
AUTO : Automatically sets a specific area.
The area subject to many clutter returns is inside the boundary, and the
area less subject to clutter returns is outside the boundary.
[5] 2nd Process Mode
• Set the second video process mode for the outside of a specific area.
• This function is enabled when Range Fix or AUTO is selected in [4] Process Switch.
Video process modes.
PROC Off : Select this mode in general.
3Scan CORREL : Select this mode when many rain / snow clutter returns are
detected.
4Scan CORREL : Select this mode to highlight targets while suppressing sea
clutter
returns.
5Scan CORREL : Select this mode to detect small targets hidden by sea clutter
returns.
Remain : Select this mode when own ship yaws wildly.
(Not used on the JPL-600-MK2 for VTS)
Peak Hold : Select this mode to detect small targets of which detection
probability is low.
3-81
[6] Process Switch Range
• Set the boundary range of a specific area.
• This function is enabled when Range Fix is selected in [4] Process Switch.
• The specific area turns out to be a circle with the own ship’s position as the center.
• The boundary range can be set in units of 0.1 nm, ranging 0.1 to 25.5 nm.
[7] Fast Target Detection
• This function displays fast moving targets that are suppressed in scan-correlative process mode.
• This function is enabled when 3Scan CORREL , 4Scan CORREL , or 5Scan CORREL is
selected as the video process mode.
• If unwanted waves remain of the display, suppress them by using the [SEA], [RAIN], or [GAIN]
dial, or adjusting the interference rejection mode.
Off : Disables the Fast Target Detection function.
On : Enables the Fast Target Detection function.
3.8.2 Set Radar Trails (RADAR Trails Setting)
This function enables the setting of detail information about radar trails processing.
Procedures 1 Press the [TRAILS] key for 2 seconds.
The RADAR Trails Setting menu will appear.
Detail data about radar trails processing can be set by changing the settings of each
menu item.
Note: After the settings for radar trails processing are changed, targets’ trails may not be displayed or
trails may be plotted with unwanted waves. Thus, do not make a significant change in the
settings.
[1] Trails Mode
• Set the radar trail display mode.
• For details on the trail mode, see Section 3.4.8.
[2] Trails Reference Level
• Select a radar video threshold level required for plotting radar trails.
• The radar video threshold level increases in order of
Level1 → Level2 → Level3 → Level4 .
• To plot radar trails with unwanted waves, change to a higher level.
• To thin radar trails, change to a higher level.
• If radar trails are plotted in snatches, change to a lower level.
3-82
3.8 Applied Operations y
y y
3
[3] Trails Reduction
• Make a setting for thinning radar trails.
• The effect of thinning increases in order of Level1 → Level2 → Level3 .
• Radar videos do not become obscure because of the thinning of radar trails.
Off : Disables the Trails Reduction function.
Level1 : Enables the Trails Reduction function. (Effect: Low)
Level2 : Enables the Trails Reduction function. (Effect: Middle)
Level3 : Enables the Trails Reduction function. (Effect: High)
[5] Trails Process
• Determine whether to use the video process with radar signals for plotting radar trails.
• When Trails Process is On , radar trails are never plotted with unwanted waves, but the radar
trails of moving targets may not be plotted.
• When Trails Process is Off , radar trails may be plotted with unwanted waves, but the radar trails
of moving targets are always plotted.
Off : Disables the Trails Process function.
On : Enables the Trails Process function.
[6] MAX Interval
• Select the maximum time for displaying radar trails.
• Select Short when short radar trails are often used.
• Select Super Long when long radar trails are necessary.
• Continuous trails are available with all the options.
Short : Sets 15 minutes as the maximum time for radar trails display.
Middle : Sets 30 minutes as the maximum time for radar trails display.
Long : Sets 60 minutes as the maximum time for radar trails display.
Super Long : Sets 12 hours as the maximum time for radar trails display.
[7] Trails Erase
• A part of the radar trails can be erased.
• For details on the trail erase, see Section 3.4.9.
[8] File Operations
• For details on the file operations, see Section 3.4.10.
3-83
3.8.3 Set Scanner Unit (TXRX Setting)
This function enables the setting of detail information about an scanner unit.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the TXRX Setting menu by performing the following menu
operation.
2. RADAR Menu
→ 3. TXRX Setting
Detail information about scanner unit operation can be set by changing the settings of
the menu items.
[1] PRF Fine Tuning
• Fine-tune the transmitting repetition frequency of the transmitter in the range 90 to 100%.
• If radar’s interference patterns are concentrically displayed, increment or decrement the set value
by 3 to 4 in order to heighten the effect of interference rejection.
• One of 32 levels 0-31 can be set.
[2] Stagger Trigger
• The interference reduction function is activated by using the transmission repetition frequency
control of the transmitter.
• This function is effective when radar interference does not go away.
Off : Stagger Trigger is not used.
On : Stagger Trigger is used.
[4] PRF
• Select the operation mode the transmitting repetition frequency of the transmitter.
Normal : Standard mode : Both appropriate gain and magnetron’s life
expectancy are maintained.
Economy : Power saving mode : Gain slightly lowers, but the service
life of magnetron is prolonged when short
pulses are used.
High Power : High gain mode : Gain improves when long pulses are used,
but the service life of magnetron is slightly
shortened.
[5] Ice Class Standby Mode
• In this mode, the scanner is rotated when transmission is in the standby state.
• This mode is effective to prevent the antenna's rotating shaft from freezing.
Off : The ice class standby mode is not used.
When transmission is in the standby state, the antenna also stops rotating.
On : The ice class standby mode is used.
When transmission is in the standby state, the antenna rotates.
3-84
3.8 Applied Operations y
y y
3
3.8.4 Set Cursor (Cursor Setting)
This function enables the setting of detail information about EBL / cursor operation and display.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Cursor Setting menu by performing the following menu
operation.
5. Sub Menu
→ 9. EBL/Cursor Setting
→ 3. Cursor Setting
Detail information about cursor operation and display can be set by changing the
settings of the menu items.
[1] EBL / VRM Control Cursor
• The EBL / VRM Control Cursor is switched between Valid and Invalid.
• The trackball is provided as a standard device. If the trackball malfunctions, the cursor can be
moved by using the [EBL] dial and [VRM] dial.
• The cursor moves horizontally when [EBL] is operated, and moves vertically when [VRM] is
operated.
• To switch between EBL / VRM operation and cursor operation while On is selected, Press the
[EBL] dial for 2 seconds.
On : Cursor is operated using a [EBL] [VRM] dial.
Off : Cursor is operated using a trackball.
[2] Cursor Length
• Set the length of the cross cursor mark of the display.
Short : Cuts the cross cursor mark in length.
Long : Makes the cross cursor mark twice as long as when Short is selected.
[4] Cursor Pattern
• The type of the cross cursor mark displayed of the display is selected.
: Type 1 is selected for the cross cursor mark 1 displayed in the radar display.
: Type 2 is selected for the cross cursor mark 2 displayed in the radar display.
: Type 3 is selected for the cross cursor mark 1 displayed in the radar display.
: Type 4 is selected for the cross cursor mark 2 displayed in the radar display.
3-85
3.8.5 Set Radar Display (Display Setting)
This system can save combinations of display color and brilliance in accordance with ambient
lighting conditions and the radar display can be easily switched.
Follow the procedures below to set display color and brilliance to be saved before hand.
Setting display color (Display Color Setting)
Procedures 1 Press the [DAY / NIGHT] key for 2 seconds.
The Display Color Setting menu will appear.
[1] Day / Night
• Specify the mode to be changed.
• The following modes are available.
Day1 : Day mode 1 : Used under bright lighting conditions.
Day2 : Day mode 2 : Used under bright lighting conditions.
Day3 : Day mode 3 : Used under bright lighting conditions.
Dusk : Dusk mode : Used under dim lighting conditions.
Night : Night mode : Used under dark lighting conditions.
Setting color of each element
• Specify the color for the element.
• The color for the following elements can be specified.
Outer PPI : The color of the background outside radar video PPI
is selected.
Inner PPI : The color of the background inside radar video PPI
is selected.
Character : The color of the character and bearing scale is
selected.
RADAR Video : The color of the radar video is selected.
RADAR Trails (Time) : The color of the time radar trails is selected.
Target Symbol : The color of the target symbol is selected.
Cursor : The color of the cursor is selected.
Range Rings : The color of the range rings is selected.
EBL / VRM / PI : The color of the EBL / VRM / PI is selected.
Own Symbol / HL / Vector : The color of the own ship symbol, heading line, own
ship vector is selected.
Note: Those selected colors can be saved for each Day / Night mode.
3-86
3.8 Applied Operations y
y y
3
Setting display brilliance (Brilliance Setting)
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Brilliance Setting menu by performing the following menu
operation.
5. Sub Menu
→ 2. Brilliance Setting
Setting brilliance of each element
• Specify the brilliance for the element.
• Level4 indicates maximum brilliance and Level1 indicates minimum brilliance.
• The brilliance for the following elements can be specified.
RADAR Video : The brilliance of the radar video is selected.
RADAR Trails : The brilliance of the radar trails is selected.
Target Symbol : The brilliance of the target symbol is selected.
Range Rings : The brilliance of the range rings is selected.
EBL / VRM / PI : The brilliance of the EBL / VRM / PI is selected.
Character : The brilliance of the character and bearing scale is
selected.
Own Symbol / HL / Vector : The brilliance of the own ship symbol, heading line,
and own ship vector is selected.
Keyboard : The brilliance of the operation panel is selected.
Note: Those selected brilliance can be saved for each Day / Night mode.
Setting radar video brilliance (VID)
The brilliance of the video of the display is adjusted.
Procedures 1 Put the cursor on radar video brilliance switching VID (brilliance /
Alarm ③ on page 2-28), and press the [ENT] key to adjust the radar
video brilliance to obtain the best-to-view video.
The brilliance of the radar video can be adjusted on four stages without opening the
Brilliance Setting menu.
Adjust the radar display to obtain the best-to-view video.
3-87
Setting target symbol brilliance (TT)
The brilliance of the target symbol of the display is adjusted.
Procedures 1 Put the cursor on tracked target / AIS target symbol brilliance
switching
TT (brilliance / Alarm ④ on page 2-28), and press the [ENT] key to
adjust the brilliance of the target symbol to obtain the best-to-view
video.
The brilliance of the target symbol can be adjusted on four stages without opening the
Brilliance Setting menu.
Adjust the radar display to obtain the best-to-view video.
3.8.6 Adjust Sound Volume (Buzzer Volume)
When an alarm is activated, the operation panel issues an alarm audible to inform user of the change
of the condition.
The alarm sound can be adjusted by performing the following procedures.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Buzzer Volume menu by performing the following menu
operation.
5. Sub Menu
→ 5. Buzzer Volume
• The volume of the alarm sound can be specified for each cause for alarm.
• Level4 indicates maximum volume and Level1 indicates minimum volume.
Key ACK : The operation key acknowledgement is set.
OPE Miss : The incorrect operation alarm is set.
CPA / TCPA Alarm : The dangerous ship alarm is set.
New Target Alarm : The automatic acquisition target alarm is set.
Lost Alarm : The target lost alarm is set.
Navigation Alarm : The navigation data abnormality alarm is set.
System Alarm : The system abnormality alarm is set.
Inter Switch : The inter switch switching alarm is set.
3-88
3.8 Applied Operations y
y y
3
3.8.7 Set User Keys [USER KEY 1 / 2]
Users can freely make settings with [USER KEY1] key and [USER KEY2] key.
By using the keys, users can open a frequently used menu by only single operation, or assign special
functions, to the user key switches.
[I] Initial Setting (User Key Setting)
Set functions that can be performed with the user key switches.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the User Key Setting menu by performing the following menu
operation.
5. Sub Menu
→ 4. User Key Setting
This system provides two user keys: [USER KEY1] and [USER KEY2]. Different functions can be
allocated to each key.
Functions that can be allocated to each key are as follows:
Menu : A specific menu is directly displayed.
Zoom : The zoom display function is switched between on and off.
[II] Using User Keys (Directly displaying a specified menu)
Preset the menu that is to be displayed with the user key switch.
Procedures 1 Make the initial setting for the user key to Menu .
Make settings in accordance with Section [I] Initial Setting (User Key Setting).
2 Perform the general menu open procedure to open the menu that is
to be directly displayed with User Key.
3 While the menu is open, Press the [USER KEY1] key or [USER KEY2]
key for 2 seconds.
The menu currently being displayed is saved for the pressed user key.
Directly displaying the menus assigned to the User Keys
Procedures 1 Press the [USER KEY1] key or the [USER KEY2] key.
The menu set for the pressed user key will open.
Subsequently, general menu operation can be performed.
3-89
[III] How to use the User key (Zoom Display)
Preset whether to execute the zoom display by operating the user key.
Procedures 1 Make the initial setting for the user key to Zoom .
Make settings in accordance with Section [I] Initial Setting (User Key Setting).
Executing zoom display
Procedures 1 Press either [USER KEY1] key or [USER KEY2] key for which Zoom
has been set.
The zoom mode is activated.
2 Put the cursor on a location that is to be zoomed, and press the
[ENT] key.
Zoom is set.
Cancellation 1 Press either [USER KEY1] key or [USER KEY2] key for which Zoom
has been set.
The zoom mode is cancelled and a normal display will appear.
3-90
3.8 Applied Operations y
y y
3
3.8.8 Set Navigation Data Display (Multi Window Setting)
By performing the following operation, it is possible to display navigation data of the wind direction /
velocity, water depth and the like, as a graph of the display.
Procedures 1 Press the [RADAR MENU] key twice.
2 Press the [3] key.
The Multi Window Setting menu will appear.
Detailed settings of the display are possible by changing the settings of each item.
[1] DIR / DIST EXP Display
• Determine whether to expand the value display of cursor, EBL, and VRM.
• The value display is expanded in digital information area 2.
• When the cursor mark moves on the PPI, the display of cursor information is expanded.
• When an EBL or VRM is operated, the value display of each marker is expanded.
• While the menu is open, any display is not expanded.
Off : Does not expand any display.
On : Expands the display in digital information area 2.
The expanded display remains for 5 seconds after the operation of each
marker, and then it will disappear.
Always On : Expands the display in digital information area 2.
[2] Numeric NAV INFO
(Numeric NAV INFO is not displayed unless each sensor is connected on the JPL-600-MK2 for
VTS.)
• Determine whether to display the numeric values of received navigation information.
• One of two digital information areas is used to display data.
• When navigation data is displayed, the sizes of the target tracking (TT) / AIS information areas are
exclusively decreased.
• Navigation information of the water depth, water temperature, tidal current, wind direction / speed,
and destination is displayed with numeric values.
• Put the cursor on the digital information display Target (menu ① on page 2-27), and press the
[ENT] key. The navigation data display function is switched between on and off.
Off : Does not display the numeric values of navigation information.
Area1 : Displays the numeric values of navigation information in digital
information area 1.
Area2 : Displays the numeric values of navigation information in digital
information area 2.
3-91
[3] Depth Graph Setting >
• The Depth Graph Setting menu will appear.
[1] Depth Graph Display
• Determine whether to display received water depth information with a graph.
• One of two digital information areas is used to display data.
• When the water-depth graph is displayed, the sizes of the target tracking (TT) / AIS information
areas are exclusively decreased.
• Put the cursor on the digital information display Target (menu ① on page 2-27), and press the
[ENT] key. The water-depth graph display function is switched between on and off.
Off : Does not display a water depth graph.
Area1 : Displays the water depth graph in digital information area 1.
Area2 : Displays the water depth graph in digital information area 2.
[2] Depth Range
• Select the depth range on the water depth graph.
50m : Sets 50 m as the depth range.
100m : Sets 100 m as the depth range.
250m : Sets 250 m as the depth range.
AUTO : Uses the depth range in the DPT sentence included in received data.
[3] Time Range
• Select the time range on the water depth graph.
10min : Sets 10 minutes as the time range.
15min : Sets 15 minutes as the time range.
30min : Sets 30 minutes as the time range.
60min : Sets 60 minutes as the time range.
12hour : Sets 12 hours as the time range.
[4] Depth Unit
• Set the unit of water depth for the water-depth graph.
Feet : The feet is used as the unit of water depth.
Fathom : The fathom is used as the unit of water depth.
Meters : The meter is used as the unit of water depth.
3-92
3.8 Applied Operations y
y y
3
[4] Wind Graph Setting >
• The Wind Graph Setting menu will appear.
[1] Wind Graph Display
• Determine whether to display received wind direction / speed information with a graph.
• One of two digital information areas is used to display data.
• When the wind direction / speed is displayed, the sizes of the target tracking (TT) / AIS
information areas are exclusively decreased.
• Put the cursor on the digital information display Target (menu ① on page 2-27), and press the
[ENT] key. The wind direction / speed graph display function is switched between on and off.
Off : Does not display the wind direction / speed graph.
Area1 : Displays the wind direction / speed graph in digital information area 1.
Area2 : Displays the wind direction / speed graph in digital information area 2.
[2] Wind Speed Unit
• Set the unit of wind speed for the wind direction / speed graph.
m/s : Meters per second are used as the unit of wind speed.
km/h : Meters per hour are used as the unit of wind speed.
kn : Knots are used as the unit of wind speed.
[5] TEMP Graph Setting >
• The TEMP Graph Setting menu will appear.
[1] TEMP Graph Display
• Determine whether to display the graph of the water-temperature data that has been received of the
display.
• One of two digital information areas is used to display data.
• When the water-temperature graph is displayed, the sizes of the target tracking (TT) / AIS digital
information areas are exclusively decreased.
• Put the cursor on the digital information display Target (menu ① on page 2-27), and press the
[ENT] key. The water-temperature graph display function is switched between on and off.
Off : The water-temperature graph is not displayed.
Area1 : The water-temperature graph is displayed in the digital information
area 1.
Area2 : The water-temperature graph is displayed in the digital information
area 2.
[2] TEMP Graph Color
• Set the color for the water-temperature graph.
• There are eight selection items: Color , White , Gray , Blue , Green , Yellow , Pink ,
and Red .
[3] TEMP Range
• When Color is selected for the display color for the water-temperature graph, set the
temperature range of each color.
3-93
[4] Time Range
• Set the time range for the water-temperature graph.
10min : The time range is set at 10 minutes.
15min : The time range is set at 15 minutes.
30min : The time range is set at 30 minutes.
60min : The time range is set at 60 minutes.
12hour : The time range is set at 12 hours.
[6] Course Bar Setting >
• The Course Bar Setting menu will appear.
[1] Course Bar Display
• Determine whether to display the bar graph for the course data that has been received of the
display.
• One of two digital information areas is used to display data.
• When the course-bar graph is displayed, the sizes of the target tracking (TT) / AIS information
areas are exclusively decreased.
• Put the cursor on the digital information display Target (menu ① on page 2-27), and press the
[ENT] key. The course bar display function is switched between on and off.
Off : The course bar graph is not displayed.
Area1 : The course bar graph is displayed in the numeric value data area 1.
Area2 : The course bar graph is displayed in the numeric value data area 2.
[2] AUTO Pilot Course
• Determine which field of the APB sentence that has been received is used to display Autopilot
(AP) course.
Course to Steer : The steering angle is displayed.
From ORG : The bearing difference from the original point is displayed.
From CURR POSN : The bearing difference from own ship is displayed.
[3] ROT Scale
• Set the maximum scale for the TURN Rate graph.
30-0-30 : The scale is set at ±30 °/min.
60-0-60 : The scale is set at ±60 °/min.
90-0-90 : The scale is set at ±90 °/min.
120-0-120 : The scale is set at ±120 °/min.
150-0-150 : The scale is set at ±150 °/min.
300-0-300 : The scale is set at ±300 °/min.
3-94
3.9 Use Function Key y
y y
3
3.9 USE FUNCTION KEY [FUNC]
“Radar Function Setting” is provided for easily obtaining the best radar video by saving complex radar
signal processing settings in the optimum status by use, and calling the setting in accordance with the
conditions for using the function.
Functions are factory-set for general use, and the settings can be fine adjusted by operating the menu.
Four function modes are available, and they are factory-set as follows:
Function 1 : Coast Useful for observing short-range videos.
Function 2 : Deepsea This setting is suitable for general long-distance videos.
Function 3 : Fishnet Useful for small target.
Function 4 : Storm Useful for observing videos in stormy weather.
3.9.1 Operation Procedures [FUNC]
Calling a Function
Procedures 1 Press the [FUNC] key.
Each time the [FUNC] key is pressed, the selection changes cyclically as follows.
Function Off → Function 1 → Function 2 → Function 3 → Function 4 → Function
Off
The name of the current function mode is displayed in the function (FUNC) mode
switching ( lower left of the display ⑤ on page 2-18).
Alternatively, put the cursor on the function (FUNC) mode switching, and press the
[ENT] key to conduct the same operation as the above.
Changing Function Setting (temporary change)
• When radar signal processing setting is changed by using the menu or button of the display
while function 1 to 4 is called, the change is temporarily reflected to the operating state.
• Since this method does not change the memory contents, the new setting is discarded as soon
as another function is called.
• When the previous function is called again, operation is performed according to the memory
contents.
Changing Function Setting (memory contents change)
• To change the memory contents of functions 1 to 4, use the function setting menu.
• For how to operate the function setting menu, see Section 3.9.3.
3-95
3.9.2 Function Setting Menu Items (User Function Setting)
The function setting menu has the items below.
Page 1
Page 2
Page 3
Page 4
Page 5
1. Gain Offset Gain correction Correction value setting
2. PRF Pulse repetition frequency Normal / Economy / High Power
3. Small Buoy Detection Small target detection mode Off / On
4. Fishnet Detection Fishnet detection mode Off / On
5. Antenna Height Antenna height Default / -5m / 5-10m / 10-20m / 20m-
1. Trails Interval Radar trails length Off / 15sec / ････
2. Trails Mode Radar trails mode True / Relative
3. Trails Reference Level Radar trails plotting threshold Level1-4
4. Trails Reduction Thinning of radar trails Off / Level1-3
5. Time / All Combine Superimpose-display of time radar
trails and continuous radar trails Off / On
6. Trails Process Radar trails video process Off / On
7. Max Interval Maximum time for radar trails display Short / Middle / Long / Super Long
1. Video Latitude Dynamic range of radar video Narrow / Normal / Wide / Super Wide
2. Video Noise Rejection Radar video noise rejection Off / Level1 / Level2
3. AUTO Dynamic Range Automatic dynamic range control Off / On
4. Process Switch Radar video process switching Off / Range FIX / AUTO
5. 2nd Process Mode Second video process mode PROC Off / 3Scan CORREL / ････
6. Process Switch Range Video process switching range Range setting
7. Fast Target Detection Fast moving target detection Off / On
1. Pulse Length 0.75NM Standard pulse length of 0.75 NM range SP1 / MP1
2. Pulse Length 1.5NM Standard pulse length of 1.5 NM range SP1 / MP1 / MP2 / MP3
3. Pulse Length 3 / 4NM Standard pulse length of 3 NM range MP1 / MP2 / MP3 / LP1
4. Pulse Length 6 / 8NM Standard pulse length of 6 NM range MP1 / MP2 / MP3 / LP1 / LP2
5. Pulse Length 12NM Standard pulse length of 12 NM range MP1 / MP2 / MP3 / LP1 / LP2
6. Pulse Length 16NM Standard pulse length of 16 NM range MP1 / MP2 / MP3 / LP1 / LP2
1. Mode Name of the mode to be used Coast / Deepsea / ････
2. IR Radar interference rejection Off / Low / Middle / High
3. Process Video process PROC Off / 3Scan CORREL / ････
4. Target Enhance Target enhance Off / Level1 / Level2 / Level3
5. AUTO STC/FTC Automatic clutter suppression Off / AUTO Sea / AUTO Sea/Rain
6. Save Present State Saving of the present state
3-96
3.9 Use Function Key y
y y
3
3.9.3 Overview of Function Operations (User Function Setting)
The following outlines the operation of each function selected from the function setting menu.
Procedures 1 Press the [FUNC] key for 2 seconds.
The User Function Setting menu will appear.
Specify the number for the function for which the settings are to be changed.
The following are the operation overviews of each function setting item.
[Page 1] [1] Mode
• Selects the function name to be indicated at the lower left of the display when the function is
selected.
• When the setting is changed back to the factory setting, the initial value of the selected mode is
called.
• The following 11 modes are provided.
Coast : Use this mode to monitor a relatively short range, for example, bays and
coasts where many boats and ships are running. (Importance is attached to
resolution.)
Deepsea : Use this mode to monitor a relatively long range.
(Importance is attached to long-range gain.)
Fishnet : Use this mode to detect small targets hidden by sea clutter returns.
(Importance is attached to sea clutter suppression, and gain to moving targets
lowers.)
Storm : Use this mode when many rain / snow clutter returns or sea clutter returns
are detected in stormy weather. (Importance is attached to rain / snow
clutter and sea clutter suppression, and gain slightly lowers.)
Calm : Use this mode when only a few rain / snow clutter returns or sea clutter
returns are detected.
Rain : Use this mode when sea clutter is not strong but rain / snow clutter is strong.
(Importance is attached to rain / snow clutter suppression, and gain slightly
lowers.)
Bird : Use this mode to detect flocks of sea birds.
Long : Use this mode to monitor utmost distances in the broad ocean.
Buoy : Use this mode to detect small targets like radio buoys in areas outside the
sea clutter area. (This mode displays targets of which detection probability
is low.)
User1 : General mode used when the nine modes above are not applicable.
User2 : General mode used when the nine modes above are not applicable.
[Page 1] [2] IR (Interference Rejection)
• Same function as IR described in Section 3.4.1.
3-97
[Page 1] [3] Process (Video Process)
• Same function as Process described in Section 3.4.4.
[Page 1] [4] Target Enhance
• Same function as Target Enhance described in Section 3.4.3.
[Page 1] [5] Auto STC / FTC (Auto Sea / Rain)
• Detects unwanted waves such as rain / snow clutter and sea clutter and automatically suppresses
them.
• When the sea state or weather changes, this function automatically performs suppression
processing in accordance with the situation.
• Suppression processing is not full automatic, and requires the operator to adjust the afterimages of
unwanted waves.
• To adjust the afterimage of sea clutter, use the [SEA] dial.
• To adjust the afterimage of rain / snow clutter, use the [RAIN] dial.
• In areas where the density of unwanted waves is low, unwanted waves may remain being judged
as targets. Thus, use the automatic clutter suppression mode together with the video process
mode.
• Characteristics of the automatic clutter suppression function.
Off : Disables the automatic clutter suppression function.
Select off when rain / snow clutter and sea clutter are not strong.
AUTO Sea : Automatically detects the strength of sea clutter, and performs the
most suitable sea clutter suppression processing.
Even when the strength of sea clutter varies depending on the
wind direction, AUTO Sea performs the most suitable suppression
processing.
Land like islands can be displayed naturally.
Since rain clouds outside sea clutter areas are recognized as land,
there is no effect of suppressing rain / snow clutter.
AUTO Sea/Rain : Along with AUTO Sea, AUTO Rain automatically detects the
strength of rain / snow clutter, and performs the most suitable rain
/ snow clutter suppression processing.
When rain clouds are scattered about, AUTO Rain performs rain
/ snow clutter suppression processing for only the rain-cloud areas.
Since land is recognized as rain clouds, land videos become
obscure.
[Page 2] [1] - [7] Pulse Length
• Sets the standard transmitter pulse length in each range.
• When the range is called, the pulse range is used.
[Page 3] [1] - [7] Process Setting
• Operation is the same as that of the Process Setting menu described in Section 3.8.1.
3-98
3.9 Use Function Key y
y y
3
[Page 4] [1] - [7] Trails Setting
• Same functions as in the Trails Setting menu described in Section 3.8.2.
[Page 5] [1] Gain Offset
• Corrects gain while the function mode is called.
• Since the displayed noise level varies depending on the combination of the video process mode
and the interference rejection level, gain needs fine adjustment for always obtaining the highest
level.
• The gain correction function saves the correction value set by the gain adjust in each function
mode, so it can obtain the highest gain without the gain adjust being operated when the function
mode is changed.
• To set high gain, set a value on the “+” side.
• To set low gain, set a value on the “-” side.
• When the radar interference rejection level is increased, the noise level is lowered. Thus, set a
gain correction value to the “+” side.
• When the video process mode 3Scan CORREL , 4Scan CORREL , or 5Scan CORREL is
used, the noise level is lowered. Thus, set a gain correction value to the “+” side.
• When the video process mode Remain or Peak Hold is used, noise is hard to disappear.
Thus, set a gain correction value to the “-” side.
[Page 5] [2] PRF
• Same function as in the Pulse Repetition Frequency described in 3.8.3.
[Page 5] [3] Small Buoy Detection
• When the automatic sea clutter suppression function is used, this mode is used to process signals
for detecting small targets.
Off : Activates the general signal processing mode.
On : The signal processing mode for detecting small targets.
[Page 5] [4] Fishnet Detection
• Use this mode to detect small targets hidden by sea clutter returns.
• The simultaneous use with the automatic rain / snow clutter suppression function will increase
effects.
Off : Activates the general signal processing mode.
On : Activates the fishnet detection mode.
[Page 5] [5] Antenna Height
• Set the height of radar antenna above sea level.
• The STC/FTC curve is changed.
-5m : Set the antenna height under 5m.
5-10m : Set the antenna height 5m to 10m.
10-20m : Set the antenna height 10m to 20m.
20m- : Set the antenna height over 20m.
3-99
3.9.4 Overview of saved Function Setting Data
The overview of saved function setting data is as follows:
• Factory-set data : Saved data that general operation cannot change
• Default data : Standard data of each function mode that users can change
• Data that can be called : Saved data that can be called by pressing the [FUNC] key
User Function Menu [Page 1] [1] Mode
• Calls the default value of the mode, and saves it for the function number.
User Function Menu [Page 1] [6] Save Present State
• The currently operating state can be saved for the function number.
• Use this function to save the state of good setting that will be frequently used.
User Function Menu [Page 5] [8] Set Mode Default
• Saves the setting of the current function number, as the default setting of the mode.
User Function Menu [Page 5] [9] Initialize
• Changes the memory contents of the mode, which is used with the current function number, back
to the factory setting.
Coast
Deepsea
Fishnet
Storm
Calm
Rain
Bird
Long
Buoy
User1
User2
Coast
Deepsea
Fishnet
Storm
Calm
Rain
Bird
Long
Buoy
User1
User2
FUNC1
FUNC2
FUNC3
FUNC4
Present
[page5]-[9] [page1]-[1]
[page5]-[8]
[FUNC]
[page1]-[6]
Function Setting
Factory-set data
Function Setting
Default data
Function Setting
Data that can be called Current data
3-100
3.10 Use User Setting y
y y
3
3.10 USE USER SETTING
The operation status of the radar is recorded. If the system is operated by more than one operator,
the operators can register operation status as suitable for them and call the status. Operation status
for up to five operations can be registered, and a name can be assigned to each status. (Up to 10
alphanumeric characters)
* Data saved by the user setting
• Display Color Setting menu
• Buzzer Volume
• User Key Setting menu
• Display Style (Date display style)
• EBL / VRM Control CURS
• Cursor Length
3.10.1 Save Operating State (Save User Setting)
The system's current operating state can be saved in the system by performing the operation below.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the User Setting menu by performing the following menu
operation.
5. Sub Menu
→ 3. User Setting
3 Press the [2] key.
The Input File Name menu will appear.
4 Enter the file name to be saved.
The operating state data will be saved.
Up to 10 characters can be entered.
For the input method on the character input screen, see Section 3.3.4.
3-101
3.10.2 Load Operating State (Load User Setting)
The operating state saved in the system can be loaded by performing the operation below.
When the operating state is loaded, the previous operating state data is discarded. Therefore, if you
do not want to discard the operating state data, save the operating state by performing the operation
described in Section 3.10.1.
Procedures 1 Put the cursor on the display item switching (Brilliance / Alarm ① on
page 2-28), and press the [ENT] key.
The Brilliance menu and the Display INFO menu are switched.
2 Put the cursor on the user setting load (Display information ⑦ on
page 2-28), and press the [ENT] key.
The Load User Setting menu will appear.
3 Press numeric keys corresponding to the file to be loaded.
Confirmation Window will appear.
4 Press the [1] key.
The operating state data will be loaded.
3.10.3 Delete Operating State (Delete User Setting)
The operating state saved in the system can be deleted by performing the operation
below.
Use this function to delete unnecessary operating state data.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Delete User Setting menu by performing the following menu
operation.
5. Sub Menu
→ 3. User Setting
→ 3. Delete User Setting
3 Press numeric keys corresponding to the file to be deleted.
Confirmation Window will appear.
4 Press the [1] key.
The operating state data will be deleted.
3-102
3.11 Using Card y
y y
3
3.11 USING CARD
This radar has two card slots. Inserting a flash memory card (option) into a card slot, you can save
the following contents, saved in the process unit, in the card or can load data from the card to the
process unit.
• Trails of own ship : 7000 points maximum (Not used on the JPL-600-MK2 for
VTS)
• Track of other ship : 20 target×1500 points (the Target Tracking unit, or AIS unit
option is necessary)
• Mark Line : 2000 points maximum (20000 items when the plotter unit
option is connected)
• Waypoint : 999 points maximum (the plotter unit option is necessary)
• Route : 10 routes maximum (the plotter unit option is necessary)
These pieces of information can be saved in a flash memory card as a file. The internal capacity is
as large as only a file. An internally created file can be saved until the flash memory card is full.
3.11.1 Operate File on the Card (File Manager)
Procedures 1 Insert a flash memory card into the card slot.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Press the [STBY] key.
The transmission standby state is activated.
3 Press the [RADAR MENU] key twice.
4 Press the [1] key.
The File Manager window will appear.
The window will not be open when the system is in the transmission state.
3-103
• Information saved in the process unit is displayed in the Memory Content.
Own Track : Number of data points for own ship's track (7000 points maximum).
(Not used on the JPL-600-MK2 for VTS)
Remain : Number of remaining data points of own ship's track that can be saved.
(Not used on the JPL-600-MK2 for VTS)
Target Track : The number of target track (up to 20 targets).
Remain : The remaining number of target track to be saved.
Mark / Line : Number of mark and line points made with user map (up to 2000 items.
20000 items when the plotter unit option is connected).
Remain : Number of remaining data points of marks and lines that can be saved.
WPT : Number of data points of created waypoints (999 points maximum).
Remain : Remaining waypoints that can be saved.
Route : Number of data points of created routes (10 routes maximum).
Remain : Remaining routes that can be saved.
Internal Total : Total number of data points.
• The file name and data saved in the selected device will be displayed.
• Pressing the arrows located upper right and bottom right of the file name list will scroll the list.
3-104
3.11 Using Card y
y y
3
[I] Copy Internal Information to Card (Copy Internal -> Card)
Procedures 1 Press the [2] key while the File Manager menu is open.
Selected items for Device1 will be displayed.
2 Press the [1] key.
Internal is selected.
3 Press the [3] key.
Selected items for Device2 will be displayed.
4 Press numeric keys corresponding to the device to which data is to
be copied.
The list of files saved in the selected device will be displayed.
5 Put the cursor on the data to be copied, and press the [ENT] key.
Pressing the [ENT] key will select the data. Pressing the [ENT] key one more time
will cancel the selection.
6 Put the cursor on Copy , and press the [ENT] key.
The character input screen for the Input File Name menu will appear.
7 Enter the file name to be saved.
Up to 10 characters can be entered.
For the input method on the character input screen, see Section 3.3.4.
After the data has been entered, Confirmation Window will appear.
8 Press the [1] key.
The entered name is written into the selected device as a file name.
Up to the maximum number of items, described on the previous page, can be saved in
the device. With regard to the capacity for saving data, data can be saved on a flash
memory card as a file, and those files can be saved until the flash memory card is full.
3-105
[II] Load Information from Card to Internal Portion (Copy Card ->
Internal)
Procedures 1 Press the [2] key while the File Manager menu is open.
Selected items for Device1 will be displayed.
2 Press the [1] key.
Internal is selected.
3 Press the [3] key.
Selected items for Device2 will be displayed.
4 Press numeric keys corresponding to the device in which data to be
loaded is saved.
The list of files saved in the selected device will be displayed.
5 Put the cursor on the data to be copied, and press the [ENT] key.
Pressing the [ENT] key will select the data. Pressing the [ENT] key one more time
will cancel the selection.
6 Put the cursor on Copy , and press the [ENT] key.
Confirmation Window will appear.
7 Press the [1] key to overwrite data, or press the [2] key to add new
data.
When Overwrite is selected, internally saved data is deleted and new data is loaded.
When Add is selected, new data is added to the saved data.
8 Press the [1] key.
The selected file is loaded into the system from the card.
When adding data saved on the card to the data saved in the system, data can be copied from multiple
files. However, when the maximum number of units of data is reached, additional data cannot be
loaded. Even in the ADD mode, WPT data and Route data are overwritten.
3-106
3.11 Using Card y
y y
3
[III] Copy Information (Copy)
Procedures 1 Press the [2] key while the File Manager menu is open.
Selected items for Device1 will be displayed.
2 Press numeric keys corresponding to the device from which data is
to be copied.
The list of files saved in the selected device will be displayed.
3 Press the [3] key.
Selected items for Device2 will be displayed.
4 Press numeric keys corresponding to the device to which data is to
be copied.
The list of files saved in the selected device will be displayed.
5 Put the cursor on the data to be copied, and press the [ENT] key.
Pressing the [ENT] key will select the data. Pressing the [ENT] key one more time
will cancel the selection.
6 Put the cursor on Copy , and press the [ENT] key.
The character input screen for the Input File Name menu will appear.
If there is a file having the same name, the file selection window will appear.
When deleting saved data and copying new data, press the [1] key to select Overwrite.
When adding data to a Waypoint file, press the [2] key to select Add. Even in the
Add mode, WPT data and Route data are overwritten. When selection has been
made, Confirmation Window will appear.
7 Enter the file name to be saved.
Up to 10 characters can be entered.
For the input method on the character input screen, see Section 3.3.4.
After the data has been entered, Confirmation Window will appear.
8 Press the [1] key.
The entered name is written into the selected device as a file name.
3-107
[IV] Erase File (Erase)
Procedures 1 Press the [2] key while the File Manager menu is open.
Selected items for Device1 will be displayed.
2 Press numeric keys corresponding to the device in which data to be
erased is saved.
The list of files saved in the selected device will be displayed.
3 Select data to be erased.
Pressing the [ENT] key will select the data. Pressing the [ENT] key one more time
will cancel the selection.
4 Put the cursor on Erase , and press the [ENT] key.
Confirmation Window will appear.
5 Press the [1] key.
The selected file will be erased.
[V] Initializing a card (Format)
Procedures 1 Press the [2] or [3] key while the File Manager is open.
Selected items for Device1 or Device2 will be displayed.
2 Put the cursor on Format for the device to be initialized, and press
the [ENT] key.
Confirmation Window will appear.
3 Press the [1] key.
Initialization will be executed.
[VI] Showing data saved on the card (Show Card)
Procedures 1 Press the [2] or [3] key while the File Manager is open.
Selected items for Device1 or Device2 will be displayed.
2 Press numeric keys corresponding to the device in which data to be
displayed is saved.
The list of files saved in the selected device will be displayed.
[VII] Exit
Exit 1 Press the [0] key.
The File Manager menu will close.
3-108
3
3.12 Display Simple Chart y
y y
3.12 DISPLAY SIMPLE CHART
3.12.1 Display JRC Coastline ROM Card [MAP]
z Insert the JRC coastline ROM card with the top surface upward into card slot 1 (lower) or 2
(upper). Press the [MAP] key, and the coastlines will be displayed automatically.
z Two JRC coastline ROM cards can be inserted into card slots 1 and 2 at the same time.
z For ranges including detailed coastlines, refer to the Coastline ROM card catalog.
z Do not insert an ERC card (provided by Japan Hydrographic Association) or C-MAP card into a
card slot while JRC Coastline ROM card is in the other slot. Doing so causes display trouble.
Procedures 1 Press the [Map] key while the JRC coastline ROM card is being
inserted into the card slot.
Coastline will be displayed.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
3.12.2 Display ERC Card [MAP]
z Insert the ERC card (provided by Japan Hydrographic Association) with the top surface upward
into card slot 1 (lower) or 2 (upper). Press the [MAP] key, and the coastlines will be displayed
automatically.
z Two ERC cards can be inserted into card slots 1 and 2 at the same time.
z For ranges of charts to be displayed, refer to the catalog issued by Japan Hydrographic
Association.
z Do not insert JRC Coastline ROM card or C-MAP card into a card slot while the ERC card is in
the other slot. Doing so causes display trouble.
Procedures 1 Press the [Map] key while the ERC card is being inserted into the
card slot.
Coastlines will be displayed.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
3-109
3.12.3 Display JRC Chart on CF Card (SEL JRC ROM Card File)
By copying multiple JRC coastline ROM cards onto a compact flash memory card, this function
selectively displays any two charts among the copied charts. For a ship that sails in the wide range,
this function is convenient because charts can be selected from the menu without alternately inserting
JRC coastline ROM cards.
Note: The copied chart can operate only in the system that originally copied the chart.
The copied chart cannot be operated in other systems. The capacity of the compact flash
memory card to be used is 2GB or less.
[I] Copying a JRC ROM card to a CF card (Copy JRC ROM Card to CF)
Procedures 1 Insert a JRC coastline ROM card into card slot 1 (lower) and insert a
compact flash memory card into card slot 2 (upper).
Flash memory card (option) is necessary.
A PCMCIA (PC card) adapter for the compact flash memory card is necessary to
insert a compact flash memory card.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
3 Open the JRC / ERC Setting menu by performing the following menu
operation.
3. JRC/ERC Setting
→ 9. Next
4 Press the [7] key.
Confirmation Window will appear.
5 Press the [1] key.
Data on the JRC card will be copied onto the compact flash memory card.
6 To copy multiple JRC charts, alternately change JRC coastline ROM
cards and repeat procedures 4 and 5.
3-110
3
3.12 Display Simple Chart y
y y
[II] Selecting a copied JRC chart (SEL JRC ROM Card File)
Procedures 1 Insert a compact flash memory card on which a JRC chart has been
copied into slot 2.
Flash memory card (option) is necessary.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
3 Press the [6] key.
The SEL JRC ROM Card File menu will appear.
4 Press numeric keys corresponding to the desired file to be selected.
The selected file will be shown in reverse video.
Cancelling the selected file
5 Press numeric keys corresponding to the file to be cancelled.
The canceled file name will return to the original normal display.
Note: Up to 2 files of the JRC chart can be selected.
If JRC charts are not copied on the compact flash memory card, the file names is not be
displayed.
3.12.4 Fill Charts (Fill Land Area)
This function fills the chart when JRC / ERC card is in use.
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [1] key.
The Fill Land Area function is switched between on and off.
On : Charts are filled.
Off : Charts are not filled.
3-111
3.12.5 Set JRC / ERC Chart Display (JRC / ERC Setting)
This function enables the setting of detail information about chart display.
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [3] key.
The JRC / ERC Setting Menu will appear.
Detail information about the colors and brilliance of JRC / ERC chart display can be
set by changing the settings of the menu items.
The data of colors and brilliance can be saved for each day / night mode.
[1] Day/Night
• Select a desired display mode before setting the colors and brilliance of chart display.
• There are 5 selection items: Day1 , Day2 , Day3 , Dusk , and Night .
[2] Color of Land
• Select the color of land display.
• There are 4 selection items: Brown , Yellow , Green , and White .
[3] Bright of Land
• Select the brilliance of land display.
• There are 3 selection items: Low , Middle , and High .
[4] Color of Sea
• Select the color of sea display.
• There are 4 selection items: Gray , Gray , Blue , and Green .
[5] Bright of Sea
• Select the bright of sea display.
• There are 4 selection items: Off , Low , Middle , and High .
[6] Color of Name
• Select the color of a location name.
• There are 8 selection items: Black , White , Gray , Blue , Green , Yellow , Pink ,
and Red .
3-112
3
3.12 Display Simple Chart y
y y
[7] Bright of Name
• Select the brilliance of location name display.
• There are 4 selection items: Off , Low , Middle , and High .
[8] Bright of Track/Mark/Line
• Select the brilliance of track, mark and line.
• There are 4 selection items: Level1 , Level2 , Level3 , and Level4 .
[9] Next
• Moves to the next page.
[1] LAT/LON Line
• Select the mode to display latitude and longitude lines.
• There are 2 selection items:
Line&NUM :Displays both latitude / longitude lines and values indicating the latitude and
longitude.
NUM :Displays only the values indicating the latitude and longitude.
[2] Color of L/L Line
• Select the colors that are to represent latitude and longitude lines.
• There are 8 selection items: Black , White , Gray , Blue , Green , Yellow , Pink ,
and Red .
[3] Bright of L/L Line
• Select the bright of latitude / longitude line display.
• There are 4 selection items: Off , Low , Middle , and High .
[4] ERC Display Request
• Set whether to display data saved in the ERC.
On : Data in the ERC is displayed.
Off : Data in the ERC is not displayed.
[5] ERC Mark
• Select the size of mark display on the ERC chart.
Normal : The ERC mark is displayed in normal size.
Small : The ERC mark is displayed in a size smaller than normal.
3-113
[6] JRC ROM Card Display
• Sets the display contents of the JRC card.
• The JRC ROM Card Display menu will appear.
[1] Light House
• Determine whether to display lighthouses.
• Set whether to display data saved in the ERC.
On : Light houses are displayed.
Off : Light houses are not displayed.
[2] Buoy
• Determine whether to display buoys.
• Set whether to display data saved in the ERC.
On : Buoys are displayed.
Off : Buoys are not displayed.
[3] Rough Line
• Determine whether to display rough lines.
• Set whether to display data saved in the ERC.
On : Rough lines are displayed.
Off : Rough lines are not displayed.
[4] Other Line
• Determine whether to display other lines.
• Set whether to display data saved in the ERC.
On : Other lines are displayed.
Off : Other lines are not displayed.
3-114
3
3.12 Display Simple Chart y
y y
Setting Contour Lines on JRC Chart (Contour Setting)
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [4] key.
The Contour Setting Menu will appear.
Depths and display colors can be set for 9 contour lines in total: 8 for depth
specification and 1 for other depths.
3 Press numeric keys corresponding to the depth for which the
settings are to be changed.
The numeric value input screen for the Contour Setting menu will appear.
4 Enter the depth to be set.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
After a value has been entered, depth contour setting items will be displayed.
5 Press numeric keys corresponding to the type of the depth contour
to be set.
The type of line for displaying the depth contour corresponding to the depth is set.
6 Select the number of display color to be set, pressing the numeric
key.
The selected color to represent the contour lines of the depth will be set.
When Off is selected, the depth contour will not be displayed.
To change the settings of other depths, repeat steps 3 to 6.
JRC ROM card plotting mode (JRC ROM Card Draw Mode)
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [8] key.
The JRC ROM Card Draw Modes are switched. If the chart is plotted in segments
due to the [Fast] display mode, change the mode to the [Detailed] mode.
Fast : The chart is displayed quickly.
Detailed : The chart is displayed in detail.
3-115
3.12.6 Display C-MAP Card [MAP]
• Turn off the power supply to the system, insert a C-MAP card into either card slot 1 (lower) or
card slot 2 (upper), and then press the [Map] key. Coastlines will be displayed.
• Be sure to turn off the power supply to the system before inserting or removing a C-MAP card.
If a C-MAP card is inserted or removed with the power supply turned on, a malfunction will
occur on the display.
• When using a compact flash memory type C-MAP card, be sure to use a PCMCIA(PC card)
adapter for the compact flash memory card which is commonly sold at retail outlets.
• Only one C-MAP card can be inserted. If two C-MAP cards are inserted at the same time, a
malfunction will occur on the display.
• With regard to the range of the chart to be displayed, refer to the catalog.
• Do not simultaneously insert a JRC coastline ROM card and an ERC card (issued by Japan
Hydrographic Association) into the card slot. A malfunction will occur on the display.
Procedures 1 Press the [Map] key while a C-MAP card is being inserted into the
card slot.
Coastlines will be displayed.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
Insert or remove a C-MAP card while the power supply to the system is turned off.
C-MAP display setting (C-MAP Setting)
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [2] key.
The C-Map Setting menu will appear.
[1] LAT/LON Line Display
• Set whether to display latitude / longitude lines on the C-MAP.
On : Latitude / longitude lines are displayed.
Off : Latitude / longitude lines are not displayed.
[2] Depth Display
• Set whether to display water depth values on the C-MAP
On : Water depth values are displayed.
Off : Water depth values are not displayed.
3-116
3
3.12 Display Simple Chart y
y y
[3] Depth Unit
• Set the unit to display water depth value on the C-MAP.
Feet : The feet is used as the unit of water depth.
Fathom : The fathom is used as the unit of water depth.
Meters : The meter is used as the unit of water depth.
Decimal Fathom : The decimal fathom is used as the unit of water depth.
[4] Light Sectors Display
• Set whether to display lighthouse's light sectors on the C-MAP.
On : Light sectors are displayed.
Off : Light sectors are not displayed.
[5] Light Sectors Level
• Set the level of lighthouse's light sectors displayed on the C-MAP.
Levels from A to H are available.
[6] Chart Boundary
• Set whether to display chart boundary on the C-MAP.
On : The chart boundary is displayed.
Off : The chart boundary is not displayed.
[7] Buoy&Beacon
• Set the buoy and beacon display on the C-MAP and the type of marks.
Off : Buoys and beacons are not displayed.
International : Buoys and beacons are displayed in the international format.
US : Buoys and beacons are displayed in the US format.
Simple : Buoys and beacons are displayed in a simple format.
[8] Names
• Set whether to display place-names on the C-MAP.
On : Place-names are displayed.
Off : Place-names are not displayed.
[9] Next
• Move on to the following page.
[1] Land Marks
• Set whether to display land marks on the C-MAP.
On : Land marks are displayed.
Off : Land marks are not displayed.
3-117
[2] River&Lake
• Set whether to display rivers and lakes on the C-MAP.
On : Rivers and lakes are displayed.
Off : Rivers and lakes are not displayed.
[3] Cultural
• Set whether to display cultural facilities on the C-MAP.
On : Cultural facilities are displayed.
Off : Cultural facilities are not displayed.
[4] Bottom Type
• Set whether to display bottom sediment on the C-MAP.
On : Bottom sediment is displayed.
Off : Bottom sediment is not displayed.
[5] Under Water
• Set whether to display reefs on the C-MAP.
On : Reefs are displayed.
Off : Reefs are not displayed.
[6] Depth Contour
• Set whether to display depth contour on the C-MAP.
On : Depth contour is displayed.
Off : Depth contour is not displayed.
3-118
3
3.12 Display Simple Chart y
y y
3.12.7 Correcting Chart Position (Map Display Setting)
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [5] key.
The Map Display Setting Menu will appear.
There are three methods for correcting the chart position.
[1] Shift Coast Line 1
With regard to display Coast Line 1, set the correction value by operating the cursor.
Procedures 1 Press the [1] key while the Map Display Setting Menu is open.
The chart display position correction 1 (Shift Coast Line 1) is set.
2 Move the cursor to the chart on which a position is to be corrected,
and Press the [ENT] key.
3 Move the cursor to the radar video of which position is to be
corrected, and Press the [ENT] key.
Setting (correcting) will be indicated for Shift Coast Line 1.
At this time, Map Shift is displayed in the map position correction (lower right of
the display on page 2-4), indicating that the position is being corrected.
Note: A correction value can be operated in the range -9.999’ to +9.999’.
Cancellation 1 Press the [1] key while the Map Display Setting menu is open.
Delete (no correction) is selected for the Shift Coast Line 1.
At this time, Map Shift is not displayed in the map position correction (lower right
of the display on page 2-4).
3-119
[2] Shift Coast Line 2
With regard to Shift Coast Line 2, enter latitude / longitude to set a correction value.
A correction value can be entered in the range -9.999’ to +9.999’.
Procedures 1 Press the [2] key while the Map Display Setting Menu is open.
The latitude / longitude input screen for the Shift Coast Line2 menu will appear.
2 Enter a latitude / longitude correction value.
For how to enter a value on the latitude / longitude input screen, see Section 3.3.4.
The latitude / longitude correction value is determined.
At this time, Map Shift is displayed in the map position correction (lower right of
the display on page 2-4), indicating that the position is being corrected.
Cancellation 1 Press the [2] key while the Map Display Setting menu is open.
The latitude / longitude input screen for the Shift Coast Line2 menu will appear.
2 Press the [0] key, and then [ENT] key.
The correction value for the latitudinal direction will be set to 0.
3 Press the [0] key, and then [ENT] key.
The correction value for the longitudinal direction will be set to 0.
At this time, Map Shift is not displayed in the map position correction (lower right
of the display on page 2-4).
[3] LAT/LON Correction
This method corrects a chart position by changing the values of latitude and longitude that are sent by
the navigation equipment.
Only our service engineers are to use this correction method because the contents of data such as
track data to be saved are changed when the method is used.
A correction value can be entered in the range -9.999’ to +9.999’.
Procedures 1 Press the [3] key while the MAP Display Setting Menu is open.
The latitude / longitude input screen for the LAT/LON Correction menu will appear.
2 Enter a latitude / longitude correction value.
For how to enter a value on the latitude / longitude input screen, see Section 3.3.4.
The latitude / longitude correction value is determined.
Cancellation 1 Press the [3] key while the Map Display Setting menu is open.
The latitude / longitude input screen for the LAT/LON Correction menu will appear.
2 Press the [0] key, and then [ENT] key.
The correction value for the latitudinal direction will be set to 0.
3-120
3
3.12 Display Simple Chart y
y y
3 Press the [0] key, and then [ENT] key.
The correction value for the longitudinal direction will be set to 0.
[4] Map Center Position
This method corrects a chart position by entering the values of latitude and longitude at radar station
position in manual mode.
If latitude and longitude data sent by the navigation equipment has been entered, the data has priority
over the manually entered values.
Procedures 1 Press the [4] while the Map Display Setting Menu is open.
The latitude / longitude input screen for the Map Center Position menu will appear.
2 Enter a latitude / longitude value.
For how to enter a value on the latitude / longitude input screen, see Section 3.3.4.
The latitude / longitude correction value is determined.
Cancellation 1 Press the [4] key while the Map Display Setting menu is open.
The latitude / longitude input screen for the Map Center Position menu will appear.
2 Press the [0] key, and then press the [ENT] key.
The latitude direction correction value will set at 0.
3 Press the [0] key, and then press the [ENT] key.
The longitude direction correction value will be set at 0.
3.12.8 Chart plotting bearing mode (Map Draw AZI Mode)
Procedures 1 Press the [Map] key for 2 seconds.
The Map Setting menu will appear.
2 Press the [7] key.
The Map Draw AZI Mode are switched.
N-Up : The chart is displayed in the North-up mode.
C-Up : The chart is displayed in the Course-up mode.
SECTION 4
MEASUREMENT OF RANGE AND BEARING
4.1 USE OF MEASUREMENT TOOLS..................................................... 4-1
4.2 MEASUREMENT OF RANGE AND BEARING ................................ 4-17
4-1
4.1 USE OF MEASUREMENT TOOLS
The system is equipped with the measurement tools below.
Cursor Specifies an arbitrary point, and measures the range and bearing from the radar station.
Range Rings
Displays concentric circles with own ship's position as the center at specified intervals, and the rings
are used as rough guides for range measurement.
Electronic Bearing Line (EBL1/2)
Displays a straight line for specifying an arbitrary bearing, and measures the bearing from the radar
station.
The process unit is equipped with two electronic bearing lines.
Variable Range Marker (VRM1/2)
Displays a circle for specifying an arbitrary range, and measures the range from the radar station.
The process unit is equipped with two variable range markers.
Parallel Index Line (PI)
Displays straight lines at even intervals, and the lines are used as rough guides for complex
measurement or ship courses.
EBL Maneuver (Not used on the JPL-600MK2 for VTS)
Displays the course by steering the own ship, and it is used as a rough guide for ship maneuvering.
Man Overboard
Stores the latitude and longitude where the own ship was at the point of storing the markers, and
shows an anchor symbol on the radar display. When the own ship has moved, the system displays
the range and bearing to the position.
Use this tool when the ship is anchored or man overboard.
EBL/VRM/PI Operation with Cursor (Cursor AUTO)
Operates EBL, VRM, or PI on the radar display by using the cursor.
4-2
4.1 Use of Navigation Tools y
yyy
4
4.1.1 Using Cursor (Cursor)
Procedures 1 Move the cursor onto the PPI display by moving the trackball.
When the cursor is moved onto the PPI display, the arrow cursor turns into a cross
cursor.
4.1.2 Using Range Rings [RR / HL]
Procedures 1 Press the [RR / HL] key.
The range ring display switches disappear and appear between display and
non-display each time the [RR / HL] key is pressed. The range ring interval is
shown in the Range Rings display on / off (upper left of the display ② on page 2-16).
The range between the target and own ship can be determined by visually measuring
the target's position that lies between two range rings.
For change of the brilliance of range rings, refer to Section 3.8.6.
4-3
4.1.3 Using Electronic Bearing Line (EBL1/EBL2)
Electronic bearing lines (EBL) are indispensable to the measurement of bearings.
Operators must be familiar with the operation of EBL beforehand.
The system is equipped with two EBL. The bearing and starting point of an EBL can be operated
separately from the other EBL.
An intersection marker is displayed at the intersection point of the EBL and VRM of the same
number.
Intersection markers shown on EBL:
: EBL1, VRM1
: EBL2, VRM2
EBL Bearing Display
The bearing value of the current EBL1 or EBL2 on the PPI display is shown in the
EBL1/2 bearing (upper right of the display on page 2-3). The currently operable
EBL1 or EBL2 is highlighted in the EBL1/2 adjustment (upper right of the display ⑤
/⑦ on page 2-19).
Starting Point of EBL
The starting point of the currently operating EBL can be switched from the center of
the radar display to any offset position . The offset position of the EBL starting point
can be fixed on the radar display or at the latitude and longitude. (The setting of the
navigator is necessary for fixing the offset position at the latitude and longitude.)
4-4
4.1 Use of Navigation Tools y
yyy
4
[I] Operating EBL (EBL)
To operate EBL
Procedures 1 Press the [EBL1] or [EBL2] key.
The EBL adjustment (upper right of the display ⑤/⑦ on page 2-19) will be
highlighted, and the selected EBL becomes operable.
2 Turn the [EBL] dial.
To turn the [EBL] dial to the right, turn the EBL control clockwise, to turn the [EBL]
dial to the left, turn the EBL control counterclockwise.
Cancellation 1 Press the [EBL1] or [EBL2] key again.
The selected EBL display will disappear.
[II] Moving the Starting Point of EBL
The system provides three types of EBL starting points. Select one of them in
accordance with purpose.
:The EBL starting point is defined as the own ship's position.
C :The EBL starting point is moved and fixed on the radar display.
D :The EBL starting point is moved and fixed at the latitude and longitude.
(The navigator needs to be connected.)
To move the starting point of EBL
Procedures 1 Make EBL1 or EBL2 operable.
2 Press the [EBL] dial to set C or D for the EBL1 / EBL2 starting
point mode switching (upper right of the display ⑪/⑫ on page 2-19).
The selected EBL starting point mode is switched as shown below each time the dial is
pressed.
⇒ C ⇒ D ⇒
3 Put the cursor on the EBL starting point is to be moved, and press
the [ENT] key.
The selected EBL starting point will be determined.
4-5
To return the EBL starting point to radar station position
Procedures 1 Make EBL1 or EBL2 operable.
2 Press the [EBL] dial to set for the EBL1 / EBL2 starting point
mode switching (upper right of the display ⑪/⑫ on page 2-19).
The selected EBL starting point will be set as the radar station display position.
[III] Setting EBL Operation Mode
To set the numeric value display mode of EBL (EBL Bearing REF)
Determine whether to display EBL in true bearing mode or relative bearing mode.
(Even if this mode is switched, measured values do not change on the JPL-600MK2.)
Procedures 1 Put the cursor on the EBL1/2 numeric value indication true / relative
switching (upper right of the display ⑨/⑩ on page 2-19), and press
the [ENT] key.
The selected mode is switched as shown below each time the [ENT] key is pressed.
T ⇒ R ⇒ T
T :EBL bearing is displayed in true bearing mode.
R :EBL bearing is displayed in relative bearing mode.
To set a mode for fixing EBL display (EBL Bearing Fix)
(Not used on the JPL-600MK2)
When this function is set to Angle , an EBL is fixed to the preset bearing.
When the function is set to Screen , the EBL is fixed on the radar display.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the EBL/Cursor Setting menu by performing the following menu
operation.
5. Sub Menu
9. EBL/Cursor Setting
3 Press [1] or [2] key.
To set EBL1, press the [1] key, to set EBL2, press the [2] key
Angle :EBL bearing is fixed to the preset value.
Screen :EBL bearing is fixed on the radar display.
Note: Course data is necessary for turning on this function.
4-6
4.1 Use of Navigation Tools y
yyy
4
4.1.4 Using Variable Range Marker (VRM1 / VRM2)
Variable range markers (VRM) are indispensable to the measurement of ranges. Operators must be
familiar with the operation of VRM beforehand.
The system is equipped with two VRM. The VRM can be operated separately from each other.
An intersection marker is displayed at the intersection point of the VRM and EBL of the same
number.
When the starting point of an EBL is offset, the center of the VRM is defined as the offset EBL
starting point.
Intersection markers shown on VRM:
: EBL1, VRM1
: EBL2, VRM2
VRM Operation
The range value of the current VRM1 or VRM2 on the PPI display is shown in the
VRM1/2 range (upper right of the display on page 2-3). The currently operable
VRM1 or VRM2 is highlighted in the VRM1/2 adjustment (upper right of the display
⑥/⑧ on page 2-19).
To operate VRM
Procedures 1 Press the [VRM1] or [VRM2] key.
The VRM adjustment (upper right of the display ⑥/⑧ on page 2-19) will be
highlighted, and the selected VRM becomes operable.
2 Turn the [VRM] dial.
To turn the [VRM] dial to the right, the VRM control wide, to turn the [VRM] dial to
the left, the VRM control narrow.
Cancellation 1 Press the [VRM1] or [VRM2] key again.
The selected EBL display will disappear.
4-7
4.1.5 Using Parallel Index Lines (PI Menu)
Parallel index lines can be displayed.
[I] Operating Parallel Index Lines (PI)
Procedures 1 Press the [VRM] dial.
Parallel index lines and the PI Menu will appear.
To change the bearing of parallel index lines, turn the [EBL] dial, to change the line
interval, turn the [VRM] dial.
The bearing and interval of parallel index lines are displayed in the PI Menu.
2 Press the [VRM] dial again.
The parallel index lines will be fixed.
Note: Parallel index lines are operable only while the PI Menu is displayed. When the menu is
closed, the parallel index line display remains, but the settings of the bearing and interval
cannot be adjusted any more. To adjust the bearing and interval after closing the menu,
press the [VRM] dial twice to open the PI Menu.
Cancellation 1 Press the [VRM] dial again.
The parallel index line display will disappear.
4-8
4.1 Use of Navigation Tools y
yyy
4
[II] Operation of Parallel Index Lines
Parallel index lines rotate in the same direction as you turn the [EBL] dial. ( ① , ② )
The intervals of parallel index lines narrow when you turn the [VRM] dial counterclockwise
( ③ ), and widen when you turn the [VRM] dial clockwise ( ④ ).
HL
EBL1 EBL2 VRM1 VRM2
When the [VRM] dial is pressed, the PI Menu closes and the parallel index lines are fixed.
During the operation of parallel index lines, pressing the [EBL1] or [EBL2] key disables operation
for rotation directions. Pressing the [VRM1] or [VRM2] key disables operation for parallel index
line intervals.
4-9
[III] Settings in PI Menu
The operation of parallel index lines can be set in the PI Menu.
Procedures 1 Open the PI Menu by performing the following menu operation.
Tool
1. PI Menu
[1] Display for All Lines
Sets the parallel index line display to on or off.
On :Parallel index lines are displayed.
Off :Parallel index lines are not displayed.
[2] Operation Mode
Sets an operation mode for parallel index lines.
All :All the parallel lines are operated at the same time.
Individual :The bearing of each line is operated individually.
Track :Equally spaced lateral lines are displayed on both sides.
Equiangular :Two lines intersecting at the center of a circle are displayed.
All Individual
Track Equiangulaｒ
PI
PI PI
PI
4-10
4.1 Use of Navigation Tools y
yyy
4
Operation if Individual is selected
A line perpendicular to the radar station and the intersection marker "----○" are displayed on
an operable line.
Turning the [EBL] dial changes the direction.
Pressing the [VRM] dial changes the range, end point 1, or end point 2 to be operated.
An operable point is displayed with " " and can be operated by turning the [VRM] dial.
If Sequential is selected for [3] Control, the parallel index lines of the next number can
be displayed by pressing the [EBL] dial.
To close the menu, press [0] key.
Operation if Equiangular is selected
Select a group of lines to be operated according to the setting of [3] Control.
Pressing the [EBL] dial switches between the direction change mode and elevation-angle
change mode. Turning the [EBL] dial changes the direction or elevation angle.
[3] Control
Determines whether to operate all the lines at the same time. The setting items are determined by
the setting of [2] Operation Mode.
If All is selected
The setting cannot be changed.
All : All the lines are operated at the same time.
If Individual is selected
Determine whether to set consecutive lines or individual lines.
Sequential : Lines are operated sequentially.
Index Line1 to Line8 : A specified line is operated.
If Track or Equiangular is selected
Select a group of lines to be operated.
Group1 to Group4 : A specified group is operated.
[4] Floating
Moves the center point of parallel index lines.
Off : The starting point of parallel index lines is defined as the own ship's
position.
Screen Fix : The center of parallel index lines is moved and fixed on the radar
display.
L/L Fix : The center of parallel index lines is moved and fixed at the latitude
and :longitude. (The navigator needs to be connected.)
4-11
[5] Heading Link (Display does not change on the JPL-600MK2.)
Determines whether to operate parallel index lines following the heading bearing.
On : Parallel index lines are operated following the heading bearing.
Off : Parallel index lines are not operated following the heading bearing.
[6] Next
Moves to the next page.
[1] Range Scale Link
Determines the operation of parallel index line intervals when the range is changed.
On : The intervals are fixed with the actual range (nm).
The appearance of parallel index line intervals changes when the range
is changed.
Off : The intervals are fixed with the display range.
The parallel index line intervals (nm) change when the range is
changed.
[2] Reference Bearing
Sets a reference bearing for the numeric data display of parallel index lines. The setting items are
determined by the setting of [2] Operation Mode.
If All is selected
True : Displayed with true bearing (with North as reference).
HL : Displayed with the scanner heading line as reference.
If Individual is selected
True : Displayed with true bearing
(with North as reference).
HL : Displayed with the scanner heading line as reference.
Index Line1 to Line8 : Displayed with a specified line as reference.
If Track is selected
True : Displayed with true bearing
(with North as reference).
HL : Displayed with the scanner heading line as
reference.
Index Line1 to Line8 : Displayed with a specified line as reference.
Line1 , Line3 , Line5 , and Line7
correspond to Group1 , Group2 , Group3 , and
Group4 , respectively.
4-12
4.1 Use of Navigation Tools y
yyy
4
If Equiangular is selected
The setting cannot be changed.
[3] Operation Area
If All is selected for [2] Operation Mode, this function sets an area for displaying parallel index
lines. One Side : Parallel index lines are displayed only on one side.
Both Sides : Parallel index lines are displayed on both sides.
[4] Display for Individual Line
Determines whether to turn on / off the parallel index line display of a selected number.
On : The line of the selected number is displayed.
Off : The line of the selected number is not displayed.
If All is selected for [2] Operation Mode, the line near the own ship is line1.
If Track or Equiangular is selected for [2] Operation Mode, Line1 , Line3 ,
Line5 , and Line7 correspond to Group1 , Group2 , Group3 , and Group4 ,
respectively.
4.1.6 Operating EBL Maneuver Function (EBL Maneuver Setting)
(Not used on the JPL-600MK2)
[I] Initial Setting (EBL Maneuver Setting)
Procedures 1 Open the EBL Maneuver Setting menu by performing the following
menu operation.
Tool
3. EBL Maneuver Setting
2 Set the following parameters.
Reach : Set the range from when the rudder is steered to when the ship
beings to turn.
Turn Mode : Select a turn mode.
Radius :Turning radius (nm)
Rate :Rate of turn (deg/min)
Turn Set : Select the setting for turning.
If Radius is selected : Turning radius (nm)
If Rate is selected : Rate of turn (deg/min)
For inputs to the numeric value input menu, refer to Section 3.3.4.
Note: A wrong initial setting affects the maneuver curve function explained below.
4-13
[II] Creation of Maneuver Curve (EBL Maneuver)
Procedures 1 Press the [1] key while the EBL Maneuver Setting menu is open.
The EBL maneuver function will be set to on or off.
A auxiliary line for maneuver curve creation, a maneuver curve, and a WOL will
appear on the radar display.
2 Put the cursor on the starting point of the auxiliary line, and set the
bearing of the auxiliary line by operating the [EBL] dial.
The bearing of the auxiliary line is the final bearing in which the own ship is to move.
The WOL position varies depending on the bearing of the auxiliary line.
If the WOL is behind the own ship's position, the line color of WOL will change.
3 Press the [ENT] key.
The setting will be determined. However, if the WOL is behind the own ship's
position at this point, pressing of the [ENT] key is rejected, and the setting is not
determined.
4-14
4.1 Use of Navigation Tools y
yyy
4
4.1.7 Using MOB [MOB]
The marker (anchor symbol) function displays a dotted line from the marker input position to the
radar station position, and indicates the range, bearing, and required time from the radar station
position to the marker. (The navigator needs to be connected.)
Procedures 1 Press the [MOB] key.
A marker will be displayed at the radar station position on the radar display at the
moment when the [MOB] key is pressed. The radar station and the marker are
connected with a dotted line.
Cancellation 1 Press the [MOB] key for 2 seconds.
The marker will disappear.
4.1.8 Operating EBL, VRM, and PI with Cursor
When the cursor mode is set to AUTO (upper right of the display on page 2-3), EBL, VRM, and
PI can be operated simply by using the trackball and the [ENT] key.
[I] Operating Electronic Bearing Line (EBL)
Procedures 1 Put the cursor on EBL1 or EBL2, and press the [ENT] key.
When the cursor is moved to it, EBL1 or EBL2 is shown at the upper right of
the cursor. The EBL becomes operable when the [ENT] key is pressed.
2 Move the cursor to the bearing to be set.
The EBL will move as the cursor moves.
3 Press the [ENT] key.
The EBL will be fixed.
4-15
[II] Operating Variable Range Marker (VRM)
Procedures 1 Put the cursor on VRM1 or VRM2, and press the [ENT] key.
When the cursor is moved to it, VRM1 or VRM2 is shown at the upper right
of the cursor. The VRM becomes operable when the [ENT] key is pressed.
2 Move the cursor to the range to be set.
The VRM will move as the cursor moves.
3 Press the [ENT] key.
The VRM will be fixed.
[III] Operating EBL and VRM Concurrently (EBL and VRM)
Procedures 1 Put the cursor on the intersection marker ( ○ or ● ), and press
the [ENT] key.
When the cursor is moved to it, EBL1 VRM1 or EBL2 VRM2 is shown at the
upper right of the cursor. The EBL and VRM become operable when the [ENT] key
is pressed.
2 Move the cursor to the bearing / range to be set.
The EBL and VRM will move as the cursor moves.
3 Press the [ENT] key.
The EBL and VRM will be fixed.
[IV] Operating Parallel Index Lines (PI)
To change the direction of parallel index lines
Procedures 1 Put the cursor on near the center of line, and press the [ENT] key.
When the cursor is moved there, it will turn into " " and PI will be displayed at
the upper right of the cursor. The parallel index lines become operable when the
[ENT] key is pressed.
2 Move the cursor to the direction to be set.
The parallel index lines will change the direction as the cursor moves.
3 Press the [ENT] key.
The parallel index lines will be fixed.
4-16
4.1 Use of Navigation Tools y
yyy
4
To change parallel index line intervals
Procedures 1 Put the cursor on near the end of line, and press the [ENT] key.
When the cursor is moved there, it will turn into " " and PI will be displayed at
the upper right of the cursor. The parallel index lines become operable when the
[ENT] key is pressed.
2 Move the cursor to the interval to be set.
The parallel index lines interval will change as the cursor moves.
If Individual is selected for Operation Mode, the parallel index lines move.
3 Press the [ENT] key.
The parallel index lines will be fixed.
To change the end points of parallel index lines
If Individual is selected for Operation Mode, the length of parallel index lines can be
changed.
Procedures 1 Put the cursor on the end point of parallel index lines, and press the
[ENT] key.
When the cursor is moved there, it will turn into " " and PI will be displayed at
the upper right of the cursor. The parallel index lines become operable when the
[ENT] key is pressed.
2 Move the cursor to the position to be set.
The position of the end point will change as the cursor moves.
3 Press the [ENT] key.
The parallel index lines will be fixed.
4-17
4.2 MEASUREMENT OF RANGE AND
BEARING
4.2.1 Measurement with Cursor Position (Cursor)
Procedures 1 Make sure of the target echoes on the radar display.
2 Move the cursor to the target.
The bearing and range of the target will be shown in the Cursor bearing / range (upper
right of the display on page 2-3). The range is a distance from the radar station
position.
To set a cursor bearing numeric value mode
Determine whether to display a cursor bearing in true or relative bearing mode.
Procedures 1 Put the cursor on the Cursor bearing numeric value indication true /
relative switching (upper right of the display ④ on page 2-19), and
press the [ENT] key.
The selected mode is switched as shown below each time the [ENT] key is pressed.
T ⇒ R ⇒ T
T :Cursor bearing is displayed in true bearing mode.
R :Cursor bearing is displayed in relative bearing mode.
4-18
4
4.2 Measurement of Range and Bearing y
yyy
4.2.2 Measurement with Electronic Bearing Line and Variable
Range Marker [EBL] [VRM]
Procedures 1 Press the [EBL1] key.
The display in the EBL1 adjustment (upper right of the display ⑤ on page 2-19) will
be highlighted, and EBL1 will be shown with a dotted line on the PPI display.
2 Move the EBL1 to the target by turning the [EBL] dial.
The EBL1 bearing will be shown in the EBL1 bearing (upper right of the display on
page 2-3).
The EBL1 bearing is the bearing of the target.
3 Press the [VRM1] key.
The display in the VRM1 adjustment (upper right of the display ⑥ on page 2-19)
will be highlighted, and VRM1 will be shown with a dotted line on the PPI display.
4 Move the VRM1 to the target by turning the [VRM] dial.
The range of VRM1 from the radar station position will be shown in the VRM1 range
(upper right of the display on page 2-3).
4-19
4.2.3 Measurement with Two Arbitrary Points
Procedures 1 Press the [EBL2] key.
The display in the EBL2 adjustment (upper right of the display ⑦ on page 2-19) will
be highlighted, and EBL2 will be shown on the PPI display.
2 Press the [EBL] dial to select C for the EBL2 starting point mode
switching (upper right of the display ⑫ on page 2-19).
3 Put the cursor on the point A of the two points between which
measurement is made, and press the [ENT] key.
Refer to the figure below.
4 Move the EBL2 to the other point B by turning the [EBL] dial.
Refer to the figure below.
5 Press the [VRM2] key.
When VRM2 is selected, ● (intersection marker) will appear on the dotted line of
EBL2.
6 Move the intersection marker on the dotted line to point B by turning
the [VRM] dial.
The range and bearing between the two points will be shown in the VRM2 range and
EBL2 bearing (upper right of display on page 2-3).
Similarly, EBL1 can also be used for measuring the bearing and range between two points. In this
case, perform the above procedure reading EBL2 as EBL1 and VRM2 as VRM1.
SECTION 5
OPERATION OF TARGET TRACKING
AND AIS
USAGE OF TARGET TRACKING FUNCTION ............................................5-1
5.1 PREPARATION....................................................................................5-2
5.2 TARGET TRACKING OPERATION...................................................5-16
5.3 AIS OPERATION................................................................................5-30
5.4 DECISION OF TARGETS AS IDENTICAL (ASSOCIATION) ............5-41
5.5 ALARM DISPLAY ..............................................................................5-43
5.6 TRACK FUNCTION ...........................................................................5-47
5.7 TRIAL MANEUVERING (TRIAL MANEUVER)..................................5-57
5-1
z There are the following limitations on use of the target
acquisition and target tracking functions.
[I] Resolution between adjacent targets and swapping
during automatic target tracking
Depending on the particular distance and echo size,
resolution between adjacent targets during automatic target
tracking usually ranges somewhere between 0.03 to 0.05 NM.
If multiple targets approach each other, resolution will
become about 0.05 NM and this may cause the system to
regard them as one target and thus to swap them or lose part
of them. Such swapping or less of targets may also occur if
the picture of the target being tracked is affected by rain/snow
clutter returns or sea clutter returns or moves very close to
land.
[II] Intensity of echoes and the target tracking function
The intensity of echoes and the tracking function have a
correlationship, and thus the target will be lost if no echoes
are detected during six scans in succession. If a lost target
exists, therefore, radar gain must be increased to support
detection of the target. If, however, radar gain is increased
too significantly, sea clutter returns or other noise may be
erroneously detected and tracked as a target, and resultingly,
a false alarm may be issued.
[III] Adverse effects of error sources on automatic
tracking
To execute accurate tracking, it becomes necessary first to
appropriately adjust the [GAIN], [SEA] and [RAIN] dials of the
radar so that the target to be acquired and tracked id clearly
displayed on the radar display. Inappropriate settings of
these adjustments reduce the reliability / accuracy of
automatic tracking.
USAGE OF TARGET TRACKING FUNCTION
Attention
5-2
5.1 Preparation yy
yyy
5
5.1 PREPARATION
This section explains the features of the target tracking and AIS functions, and the initial setting for using each
function.
Target Tracking Function (Option)
The target tracking function calculates the course and speed of a target by automatically tracking the
target's move.
The target tracking function enables the automatic acquisition of targets by using the automatic
acquisition zone function.
Normal edition
NCA-895A High performance edition
NCA-891
Maximum number of targets that
can be tracked 30 100
Trial maneuver function Not provided Provided
Note: ARPA Process Unit (NCA-891) or ATA Process Unit (NCA-895A) must be fitted on ships compliant to
IMO.
AIS (Automatic Identification System) function (Option)
The AIS function shows the target’s information on the radar display, using other ship's information sent
out from the AIS unit.
Note: AIS Process Unit must be fitted on ships compliant to IMO.
5-3
5.1.1 Collision Avoidance
Problems of Collision Avoidance in Navigation
Marine collision avoidance is one of the problems that have been recognized from of old. Now, it will be
described briefly who the collision avoidance is positioned among the navigational aid problems.
The navigation pattern of all mobile craft constitutes a system with some closed loops regardless of the media
through which the mobile craft travels, whether air, water, the boundary between air and water, or space. This
pattern consists of two closed loops in principle, one of which is a collision with another mobile craft and the
other is a loop of finding a right and safe way to reach a predeterminate destination. Fig. 5-1 shows the
conceptual diagram of navigation pattern by MR. E.W. Anderson. The closed loop of collision avoidance is
shown on the left side and the closed loop of finding a right course on the right side.

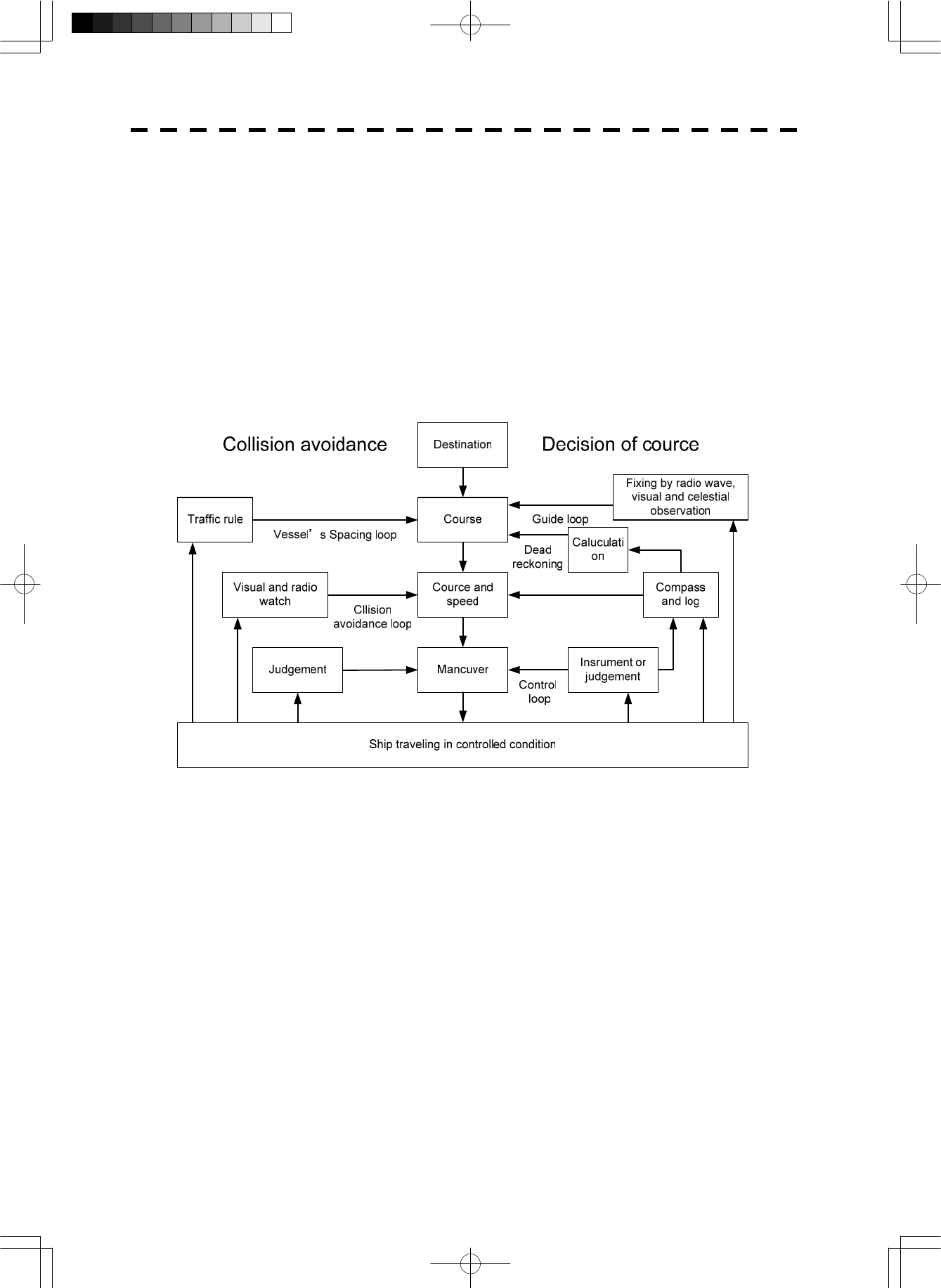

Fig. 5-1 Navigation Pattern
Marine Accidents and Collisions
Among marine accidents, collision accidents have been highlighted as the tonnages and speeds of ships become
higher along with the increase in traffic at sea. If a tanker carrying dangerous articles such as crude oil
collides with any other vessel, then not only the vessels involved with the accident but other vessels in the
vicinity, port facilities, inhabitants in the coastal area as well as marine resources may also suffer immeasurable
damages and troubles. Collision accidents have a high percentage of the marine accidents that have occurred
in recent years. To cope with these problems, any effective measures are needed and some equipment to
achieve collision avoidance requirements have been developed at rapid strides.
5-4
5.1 Preparation yy
yyy
5
Basic Concept of Collision Avoidance
There are two aspects in collision avoidance: collision prediction and avoidance. Collision prediction is to
predict that two or more vessels will happen to occupy the same point at the same time, while collision
avoidance is to maneuver vessels not to occupy the same point at the same time.
In practical operation of vessels, a spot of collision has to be deemed to be a single point but a closed zone.
This closed zone is conceptually defined as a CPA (Closest Point of Approach). In collision prediction, the
time to be taken until a ship reaches the CPA is defined as a TCPA (Time to CPA).
Fig. 5-2 shows a diagram caked “Collision Triangle”.
CPA
Target Vessel True Vector
Own Ship True Vector
Own Ship
TCPA（Time to CPA）
Target vessel
CPA ring
Relative Vector
Collision Triangle
Fig. 5-2 Collision Triangle
5-5
Relative Vector and True Vector
From two points of view, collision prediction and avoidance, it is necessary to obtain the relative vector of other
ship for prediction and the true vector of other ship for collision avoidance in order to grasp other ship’s aspect.
The relationship between the relative vector and true vector is shown in Fig. 5-3.
Both rough CPA and TCPA can be obtained easily from the relative speed vector of other ship. This method
has an advantage that the risks of collision with all other ships within the radar range can be seen at a glance.
On the other hand, the course and speed of other ship can easily be obtained from its true speed vector, enabling
other ship’s aspect to be seen at a glance. Thus, the aspects of other ships (transverse, outsail, parallel run,
reverse run, etc...) as described in the act of prevention of collision at sea can be readily grasped. If there is a
risk of collision with other ship, the operator can determine which rule to be applied and how to operate own
ship.
N
T
R
A
O
Vo
VR
VT
VO: Own ship's speed
O: Own ship's course
VT: Other ship's true speed
T: Target ship's true course
VR: Target ship's relative speed
R: Target ship's relative course
A: Aspect
Relative vector
Target ship true vector
N
CPA
Own ship true vector
Fig. 5-3 Relative Vector and True vector
Radar and Collision Avoidance
Radar is still playing an important roll for collision prevention and positioning. A plotter is used to further
enhance the radar functionality. The plotter is capable of plotting other positions of other ships in 3 to 6
minute intervals to monitor their movement. The plots of other ships represent their tracks relative to own
ship, and it is shown whether there is a risk of collision, namely CPA and TCPA can be obtained. This method
using a plotter is fairly effective, but the number of target ship, which is manually plotted, is limited and it takes
several minutes to measure those.
5-6
5.1 Preparation yy
yyy
5
5.1.2 Definitions of Symbols
Types and Definitions of Target Tracking Symbols
Vector/Symbol Definition Remarks
Initial acquisition target This symbol is displayed until the vector is displayed
after target acquisition.
Target acquired in
automatic acquisition zone
The alarm sounds.
The alarm message (New Target) turns red and blinks.
The symbol is red colored.
Tracked target
Dangerous target
The alarm sounds.
The alarm message (CPA/TCPA) turns red and blinks.
The symbol is turns red, and indicates with X mark.
Numeric displayed target When the numeric data is displayed, the target symbol
is enclosed in a square.
Lost target
The alarm sounds.
The alarm message (Lost) turns red and blinks.
The symbol is turns red, and indicates with X mark.
Past position The past positions of an AIS target are displayed as
well as the target tracking symbol.
Target track The track of another ship as an AIS target is displayed
as well as the target tracking symbol.
12
12
12
12
12
12
12
12
5-7
Types and Definitions of AIS Target Symbols
Vector/Symbol Definition Remarks
Sleeping target This symbol is displayed when received data is valid.
The direction of the triangle’s vertex indicates the
target’s bow or course.
Activated target
The heading direction is displayed with a solid line, and
the course vector is displayed with a dotted line. The
line perpendicular to the heading direction indicates the
direction to which the course is to be changed. This
line may not be displayed.
Target acquired in automatic
acquisition zone The alarm sounds.
The alarm message (New Target) turns red and blinks.
Outline display The outlines of ships are displayed scaled down.
Numeric displayed target When the numeric data is displayed, the target symbol
is enclosed in a square.
Dangerous target
The alarm sounds.
The alarm message (CPA/TCPA) turns red and blinks.
The symbol is turns red, and indicates with X mark.
Lost target
The alarm sounds.
The alarm message (Lost) turns red and blinks.
The symbol is turns red, and indicates with X mark.
Up to 300 targets can be displayed in total of activated and sleeping AIS targets. Up to 100 activated AIS
targets can be included in the total.
If there are more AIS targets than the allowable maximum, they are displayed in the following priority order:
1. Numeric displayed target
2. Target of which CPA / TCPA is lower than the set value
(Target as a dangerous ship for which an alarm has occurred)
3. Target in automatic activation zone
4. Activated AIS target
5. Target inside AIS filter
6. Target outside AIS filter
If the number of targets at the same priority level exceeds the allowable maximum, they are displayed in the
following priority order:
1. Association target
2. Activated AIS target
3. Sleeping AIS target
AIS12
AIS12
AIS12
AIS12
AIS12
AIS12
5-8
5.1 Preparation yy
yyy
5
The vector of an AIS target is to be displayed with a vector over ground or over water, depending on the speed
sensor setting and current offset setting. The type of the currently displayed vector can be confirmed by
viewing the setting of the stable mode.
When GND is displayed for the stability mode (upper left of the display on page 2-2):
Vector over ground
When Sea is displayed for the stability mode (upper left of the display on page 2-2):
Vector over water
When the vector of an AIS target is displayed with a vector over water, the system has converted the AIS
target's vector over ground to the vector over water according to the data received from the AIS and the own
ship's information.
Note: When the AIS target's symbol is activated but the vector is not displayed, the following are
probable causes of the trouble:
COG/SOG is not yet input from the GPS.
The selected speed sensor is malfunctioning.
Types and Definitions of Association Target Symbols
When a tracked target and an AIS target are decided as identical, it is displayed with either of the following
symbols:
Vector/Symbol Definition Remarks
Priority for tracked target
Association target
Priority for AIS target
Association target
Setting of Tracked Target Symbol Display
This function switches the tracking target symbol display between on and off.
Even if the tracking target symbol display is turned off, the data is retained.
Procedures 1 Move the cursor onto the tracking target symbol display On / Off (TT / AIS
information ⑨ on page 2-23), and press the [ENT] key.
The tracking target symbol display will be set to on or off.
Setting of AIS Target Symbol Display
This function switches the AIS target symbol display between on and off.
Procedures 1 Move the cursor onto the AIS target symbol display On / Off (TT/AIS
information ⑩ on page 2-23), and press the [ENT] key.
The AIS target symbol display will be set to on or off.
AIS12
12
5-9
5.1.3 Radar Display
Vector Display
A vector to represent a target’s predicted position can be presented in the True vector or Relative vector mode.
In each mode, a vector length can be freely changed for a time interval of 1 to 60 minutes.
To switch between the true vector mode and relative vector mode, press the [VECT R/T] key.
[I] Vector Mode Selection
True Vector Mode (Not used on the JPL-600-MK2 for VTS)
In the true vector mode, the direction of a target vector indicates the true course of the target and its vector
length is proportional to its speed.
However, CPA Ring cannot appear in this mode.
The relative vector is
not displayed
True vector
HL
5-10
5.1 Preparation yy
yyy
5
Relative Vector Mode (Not used on the JPL-600-MK2 for VTS)
The relative vector does not represent the true motion of the target, but its relative relation with own ship.
This means that a target with its relative vector directed to own ship (passing through the CPA Limit ring) will
be a dangerous target. In the Relative Vector mode, it can be seen at a glance where the CPA Limit of the
dangerous target is.
The true vector is
not displayed
Relative vector
CPA ring
HL
Therefore, the True / Relative mode shall optionally be used for the purpose of observation: the True vector
mode for grasping the true aspect of a target, and the Relative vector mode for grasping a target’s closest point
of approach (CPA).
[II] Vector Length (Vector Time)
The vector length of a target is proportional to its speed, and the vector time can be switched in a range of 1 to
60 minutes.
The diagram below illustrates a vector length of a target for 6 minutes, and the tip of the vector represents the
target’s position expected to reach 6 minutes later.
Current position
Future predicted position
(6 min later in this example)
HL
Refer to Section 5.1.7 Setting Vectors for how to change the vector time.
5-11
5.1.4 Cursor Modes (Cursor)
Types and Functions of Cursor Modes
The types of cursor modes are listed in the table below. To use the function of a cursor mode, move the cursor
onto the PPI object and press the [ENT] key.
Mode Function
ACQ TT Enables the target tracking function to acquire a target in manual mode.
ACT AIS Activates AIS targets, and sets a point filter.
TGT Data Displays the numeric data of a tracked target or AIS target.
CNCL TT Cancels a target tracking.
DEACT AIS Deactivates AIS target.
CNCL Data Hides the displayed numeric data of a tracked target or AIS target.
Mark Puts a temporary mark.
Property Displays the information of tracked targets, AIS targets, and marks.
AUTO Changes operation in accordance with the object at the cursor position.
Change of Cursor Mode
Procedures 1 Move the cursor to the cursor mode Cursor (upper right of the display
① on page 2-19), and press the [ENT] key. On the PPI, press the
[CLR / INFO] key and select a desired cursor mode from the list.
The selected cursor mode will be shown at the cursor mode (upper right of the display on
page 2-3).
Note: If the function of a selected cursor mode is not used for one minute or more, the cursor mode is
automatically changed to AUTO .
5-12
5.1 Preparation yy
yyy
5
Operation of AUTO Mode
As shown below, the AUTO mode performs operation in accordance with the object at the cursor position
when the [ENT] key is pressed.
Object at Cursor Position Operation
None Acquires a target.
EBL Performs EBL operation.
VRM Performs VRM operation.
Intersection point of EBL and VRM Performs EBL operation and VRM operation at the same time.
Parallel index line (PI) Operates the parallel index line.
Tracked target Displays the numeric data of the tracked target.
Tracked target with numeric data displayed Hides the numeric data.
Sleeping AIS target Activates the AIS target.
Activated AIS target Displays the AIS target information.
AIS target with numeric data displayed Hides the AIS target information.
Automatic acquisition / activation zone Operates the automatic acquisition / activation zone.
Sector radar alarm zone Operates the sector radar alarm zone.
AIS filter zone Operates the AIS filter zone.
5-13
z Set the optimum values of collision decision conditions,
depending upon vessel type, water area, weather and
oceanographic conditions.
(For the relations between those conditions and alarms,
refer to section 5.5 Alarm Display. )
5.1.5 Setting Collision Decision Criteria
(Not used on the JPL-600-MK2 for VTS)
Input of CPA Limit
Procedures 1 Move the cursor to the CPA limit setting (TT/AIS information ③ on page
2-23), and press the [ENT] key.
The CPA Limit value input screen will appear.
2 Enter the value to be set as a CPA limit.
For inputs to the value input screen, refer to Section 3.3.4.
Input of TCPA Limit
Procedures 1 Move the cursor to the TCPA limit setting (TT/AIS information ④ on page
2-23), and press the [ENT] key.
The TCPA Limit value input screen will appear.
2 Enter the value to be set as a TCPA limit.
For inputs to the value input screen, refer to Section 3.3.4.
5.1.6 Setting CPA Ring
While the distance of the specified CPA Limit value is used as the radius, the CPA ring is displayed with a red
circle.
Procedures 1 Move the cursor to the CPA ring display On / Off (lower right of the
display ⑦ on page 2-21), and press the [ENT] key.
The CPA ring will be displayed.
Note: The CPA ring is not displayed when the true vector mode is selected.
Attention
5-14
5.1 Preparation yy
yyy
5
5.1.7 Setting Vectors (Vector Time)
Vector time can be set in minutes in the range 1 to 60 min.
A true vector mode or relative vector mode can be selected.
Setting vector time on the display
Procedures 1 Move the cursor to the target vector time setting (TT / AIS information ②
on page 2-23), and press the [ENT] key.
The Vector Time value input screen will appear.
2 Enter the value to be set as vector time.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
Setting vector time using the multi-dial [MULTI]
Procedures 1 Press the [MULTI] dial several times to activate the Vector mode.
Vector will be displayed in the multi-dial mode (lower left of the display on page 2-3).
2 Turn the [MULTI] dial to set the vector time.
Setting vector mode [VECT R / T]
Procedures 1 Press the [VECT R / T] key.
The current vector mode T (true vector) or R (relative vector) will be displayed in
the target vector display true / relative switching (TT / AIS information ① on page 2-23).
5-15
z If offset ranges are not set correctly, AIS symbols and
radar echoes may be displayed shifted.
z When offset ranges are set, latitude and longitude data
received from the GPS is offset, and the offset data is
displayed as the latitude and longitude of own ship’s
position.
5.1.8 Setting the GPS antenna location
(Not used on the JPL-600-MK2 for VTS)
Set the GPS antenna location. Set offset ranges in longitudinal direction and latitudinal direction from the
own ship's reference position.
For the setting procedure, refer to Section 7.1.9 Setting of CCRP/Antenna/GPS Antenna Position.
Attention
5-16
5.2 Target Tracking Operation yy
yyy
5
5.2 TARGET TRACKING OPERATION
This section explains how to use the target tracking function.
The target tracking function automatically tracks a target, and displays the target's course and speed as
vectors.
The target tracking function calculates CPA and TCPA, and issues an alarm as needed.
The tracking data is erased from memory when the power is turned off or during transmission standby.
CAUTION
Tracking target information such as vector, target
numerical data, and alarms may contain some errors.
Also, targets that are not detected by the radar cannot be
acquired or tracked.
In setting an automatic acquisition zone, it is necessary to
adjust the gain, sea clutter suppression and rain clutter
suppression to ensure that target echoes are displayed in
the optimum conditions. No automatic acquisition zone
alarms will be issued for targets undetected by the radar.
5-17
5.2.1 Acquiring Target [ACQ]
Target acquisition can be performed on two modes, Automatic and Manual, and both modes can be used at
the same time.
Automatic acquisition
Note: If the number of targets being tracked has reached the allowable maximum and other targets
(not being tracked) go into the acquisition/activation zone, automatically acquired targets are
canceled in ascending order of danger.
The position of the scanner shall be at the centre of the azimuth or range in the
acquisition/activation zone.
Turning On / Off the automatic acquisition and AIS activation (AZ Menu)
Procedures 1 Press the [AZ] key for two seconds.
The AZ Menu will appear.
2 Press the [1] or [2] key.
The acquisition / activation zone 1 (AZ1) or acquisition / activation zone 2 (AZ2) will
be set to on or off.
On :The acquisition / activation zone is turned on.
The mark " " and target ID number are put to an acquired target and
move
with the target. The vectors are displayed within 1 minute.
AIS targets are activated.
Off :The acquisition/activation zone is turned off.
The acquisition/activation zone will disappear from the radar display, but the
system continues to track the acquired target.
The activated AIS targets remain activate.
5-18
5.2 Target Tracking Operation yy
yyy
5
Creating the automatic acquisition and AIS activation Zone
Procedures 1 Press the [AZ] key for 2 seconds.
The AZ Menu will appear.
2 Open the Make AZ menu by performing the following menu operation.
3. Make AZ
3 Press [1] or [2] key.
The range setting of the acquisition / activation zone 1 (AZ1) or acquisition /
activation zone 2 (AZ2) will be started.
4 Set the starting azimuth and range by turning the [EBL] dial and
[VRM] dial, and press the [ENT] key.
5 Set the ending azimuth and range by turning the [EBL] dial and
[VRM] dial, and press the [ENT] key.
The acquisition / activation zone will be determined.
Setting the [AZ] key allocation (Set AZ Key)
A generally used acquisition / activation zone can be turned on / off by simply pressing the [AZ] key.
Procedures 1 Press the [AZ] key for 2 seconds.
The AZ Menu will appear.
2 Open the AZ menu by performing the following menu operation.
5. Set AZ Key
→ 1. AZ
3 Set the assignment of the key.
On :Pressing the [AZ] key turns on / off the acquisition / activation zone.
Off :Pressing the [AZ] key does not turn on the acquisition / activation zone.
Note: If the RADAR Alarm key assignment is set, pressing the [AZ] key turns on / off the Acquisition
Zone at the same time the RADAR Alarm is turned on / off.
5-19
Manual Acquisition [ACQ]
Note: If more targets are acquired manually in the condition that the maximum number of targets are
under tracking, the targets cannot acquired.
Procedures 1 Move the cursor onto the target to be acquired, and press the [ACQ]
key.
The target will be acquired and the initial acquisition symbol will be displayed.
The vector will be displayed within one minute.
Target manually acquired.
The initial acquisition symbol is displayed.
Target that has passed for 1 min.
The acquisition symbol and vector are displayed.
To perform operation only in the manual acquisition mode without automatic
acquisition/activation, turn off the automatic acquisition/activation function.
Use of Automatic and Manual Acquisition Modes
Use the manual acquisition mode while the automatic acquisition mode is on.
Manually acquire the target to which particular attention should be paid, and get the other targets
automatically acquired. If a new target appears exceeding the maximum number of targets, the manually
acquired target is displayed even in the background until it gets out of the display. However, automatically
acquired targets are canceled starting far distance from own ship.
5-20
5.2 Target Tracking Operation yy
yyy
5
5.2.2 Canceling Unwanted Tracked Targets [TGT CNCL]
Unwanted tracked targets can be canceled one by one in the following cases:
• Tracking is no longer necessary for targets with which vectors/symbols are displayed after being acquired
and tracked.
• The number of vectors on the radar display needs to be reduced for easy observation.
When targets are to be re-acquired from the beginning, all the current vectors can also be canceled.
Canceling targets one by one [TGT CNCL]
Procedures 1 Put the cursor on the tracked target to the desired for canceling target,
and press the [TGT CNCL] key.
The vectors and symbols of the tracked targets will disappear, and only the radar video
remain.
Canceling all targets collectively [TGT CNCL]
Procedures 1 Press the [TGT CNCL] key for 5 seconds.
The vectors and symbols of all the targets will disappear, and only the radar videos
remain.
Note: When all the targets have been canceled, the system stops tracking them. Thus, you need to
re-acquire targets in manual or automatic acquisition mode. Do not cancel all the targets unless
otherwise required.
5-21
z When a target changes its course, or when a new target
is acquired, its vector may not reach a given level of
accuracy until 3 minutes or more has passed after such
course change or target acquisition.
Even if 3 minutes or more has passed, the vector may
include an error depending upon the tracking
conditions.
5.2.3 Tracked Target Data Display [TGT DATA]
Type of Data Display (Target Information)
Target Data
Target identification (TT ID) ID number of the target
True bearing (BRG) 0.1° unit
Range 0.01 NM unit
Course 0.1° unit
Speed 0.1 knot unit
Closest point of approach (CPA) 0.01 NM unit
Time to CPA (TCPA) 0.1 min unit
Bow crossing range (BCR) 0.01 NM unit
Bow crossing time (BCT) 0.1 min unit
The target for which its numeric data is displayed is marked with a symbol " " to distinguish from
other targets.
If a target’s data is displayed, but without the symbol " " , such a target exists outside the currently
displayed radar display.
Method of Displaying Numeric Data [TGT DATA]
Procedures 1 Put the cursor on the tracked target for which numeric data is to be
displayed, and press the [TGT DATA] key.
Then, the data of the designated target will appear, it will be marked with a symbol
" ". The target data will remain on the radar display until the target is lost and
its vector disappears, or until another target is designated.
If a target with the mark " " is designated, only its true bearing and range will
appear until its vector appears.
Attention
5-22
5.2 Target Tracking Operation yy
yyy
5
Cancellation of Numeric Data Display (CNCL Data)
Procedures 1 Put the cursor on the tracked target with which numeric data is
displayed, and press the [CLR / INFO] key.
The cursor mode list will appear.
2 Press the [6] key.
The numeric value will disappear.
5.2.4 Displaying Target ID No. (Target Number Display)
A target ID number is a value displayed beside the acquisition symbol when a target is acquired.
A target ID number 1 to 100 is assigned to each target in acquisition order. Once a target ID number is
assigned, it identifies the target until the target is lost or the target acquisition is canceled.
Procedures 1 Press the [TT MENU] key.
2 Press the [4] key.
Target Number Display will appear.
3 Press the [numeric] key corresponding to the display method to be
set.
On :Displays target ID numbers.
Off :Hides target ID numbers.
Target Track :Displays target ID number with ship track.
If there are many tracking targets and their symbol display is confusing, set Target
Number Display to off to view the radar display easily.
Note: An ID number is always displayed for only targets with which numeric data is displayed.
5-23
5.2.5 Adding Tracked Target ID Name (Name)
The system can enter a name for each of tracking targets that have been acquired.
Procedures 1 Put the cursor on the tracked target, and press the [CLR / INFO] key.
The cursor mode list will appear.
2 Press the [8] key.
The TT Target Information will appear.
3 Press the [1] key.
The setting items for ship name (Name) will be displayed.
4 Select the input method.
Data Base : Selection of one of previously input ship names.
When this method is selected, a list of ship names that have been input
by selecting Input will be displayed.
Input : Input of a new ship name.
When this method is selected, the ship name (Name) input window
will open.
Off : Target ship's name is not displayed.
Entering a new ship name (Input)
5 Input a new ship name.
Up to 8 characters can be input as a ship name.
For the input method on the character input screen, see Section 3.3.4.
The input name by selecting Input is saved in Data Base .
Selecting one of previously input ship names (Data Base)
5 Press the [numeric] key corresponding to the ship name to be
selected.
The selected ship name will be entered.
* Data Base can contain 30 ship names.
5-24
5.2 Target Tracking Operation yy
yyy
5
z If the REF. is selected for the speed sensor, the AIS
function cannot be turned on.
5.2.6 Reference Target (Reference)
(Not used on the JPL-600-MK2 for VTS)
The system can display the own ship's speed. To do so, it sets a reference target by tracking a target for
which ground fixed.
Procedures 1 Tracking a target for which ground fixed.
2 Put the cursor on the tracked target, and press the [CLR / INFO] key.
The cursor mode list will appear.
3 Press the [8] key.
The Property will appear.
4 Press the [3] key.
The reference target function will be set to on or off.
On :A reference target is set.
Off :The reference target is canceled.
5 Put the cursor on the speed sensor switching (Own ship information
② on page 2-22), press the [ENT] key, and select REF. .
The speed of own ship calculated from the reference target will be displayed.
When a reference target is set, the symbol display is changed to " R ".
Only one target can be set as a reference target.
When a new reference target is set, the previously set reference target is canceled.
Note: If AIS function is set to on, the reference target function cannot be used.
Attention
5-25
5.2.7 Operation Test (TT Test Menu)
CAUTION
Target Tracking Function Test is provided to test if the
target tracking function is operating normally. Thus, do
not use the function except when you test the target
tracking function.
The following functions are available for testing the target tracking function:
[I] Test Video Makes an operation check on the target detection circuit.
[II] TT Simulator Generates pseudo targets on the radar display in order to test if the target
tracking function is operating normally.
[III] Status Displays the status of the target tracking function.
[IV] Gate Display Displays the gate size for acquiring / tracking a target.
5-26
5.2 Target Tracking Operation yy
yyy
5
[I] Test Video
Test Video is used to check whether the video signals under target acquisition and tracking are inputted to
and processed in the target detection circuit normally.
However, it is sufficient to check that VDH in Test Video is displayed.
Note: Test Video may not be displayed for a target which is not yet acquired or tracked. Test Video may
not be displayed either if the [GAIN] dial or [SEA] dial is not properly adjusted.
Procedures 1 Press the [TT MENU] key.
2 Open the TT Test Menu by performing the following menu operation.
9. TT Test Menu
3 Press the [1] key.
The setting items for Test Video will be displayed.
4 Select the test video to be displayed.
In general, VDH is sufficient for target display checks in test video mode.
If any target displayed clearly in the radar display is not displayed in the Test Video mode, the target
detection circuit of the Target Tracking unit may have a trouble
Cancellation 1 Press the [1] key while the TT Test Menu is displayed.
The setting items for Test Video will be displayed.
2 Press the [1] key
The test video display will be turned off.
5-27
[II] Target Tracking Simulator
Pseudo targets can be generated in certain known positions to check whether the target tracking units are
operating normally. Since the pseudo targets move depending on known parameters, the values for these
pseudo targets can be compared with the known value if the pseudo targets are acquired and tracked, and
displayed. Thus, it can be checked if the system is operating normally.
Procedures 1 Press the [STBY] key.
The equipment will enter the transmission standby state.
2 Press the [TT MENU] key.
3 Open the TT Test Menu by performing the following menu operation.
9. TT Test Menu
4 Press the [2] key.
The setting items for TT Simulator will be displayed.
5 Select the scenario to be set.
The TT Simulator display will be turned on.
6 Press the [TX / PRF] key.
When the TT simulator is active, the character " X " will display at the bottom of the
radar display.
Target tracking simulator / scenario
Target start point Target end point
Scenario Distance Bearing Distance Bearing
Pseudo-target speed
1 3.2 nm 20 ° 1 nm 90 ° 20 kn
2 6 nm 0 ° 0 nm 0 ° 10 kn
3 6 nm every 18 °1 nm every 18 ° 10 kn
4 6 nm 45 ° 1 nm 45 ° 105 kn
5 6 nm 45 ° 6 nm 150 ° 20 kn
6 6 nm 45 ° 6 nm 150 ° 20 kn
Cancellation 1 Press the [STBY] key.
The equipment will enter the transmission standby state.
2 Press the [2] key while the TT Test Menu is displayed.
The setting items for TT Simulator will be displayed.
3 Press the [1] key.
The TT Simulator display will be turned off.
5-28
5.2 Target Tracking Operation yy
yyy
5
[III] Status display (Status)
The current Target Tracking status will appear.
Procedures 1 Press the [TT MENU] key.
2 Open the TT Test Menu by performing the following menu operation.
9. TT Test Menu
3 Press the [3] key.
The setting items for Status will be displayed.
*Constant : Vector response
*VID Level TD : Threshold value used for automatic
acquisition
*VID Level High : Threshold value used for tracking
*VID Level Low : Unused
*Gate Size : Size of gate used for tracking
*Tracking : Number of targets currently acquired
5-29
[IV] Gate Display
The gate displays an area monitoring a target using the Target Tracking function. This radar equipment
allows the gate size to change automatically according to target range and size. User can check the gate
size using the following function.
Procedures 1 Press the [TT MENU] key.
2 Open the TT Test Menu by performing the following menu operation.
9. TT Test Menu
3 Press the [4] key.
The gate display mode is switched.
On : Gate is displayed
Off : Gate is not displayed
4 Display the numeric value of a target according to Section 5.2.3.
The numeric value of the target will be displayed, and the tracked target symbol will
be enclosed in a green gate.
Note: The Target Tracking can display the gate of two targets simultaneously.
5-30
5.3 AIS Operation yy
yyy
5
z When the AIS function is set to Off, the AIS display
function is turned off and AIS symbols are no longer
displayed.
z Once the AIS display function is set to Off, it is not
automatically switched to On even if a dangerous
target exists.
5.3 AIS OPERATION
5.3.1 Restrictions
The following restrictions are placed on use of the AIS function.
• The AIS function is unavailable in the following cases:
a) MAN or REF. is selected for the speed sensor.
b) The current offset (Set/Drift Setting) is set while LOG or 2AXW is selected for the speed
sensor.
c) The GPS geodetic system is used except WGS-84.
• LOG or 2AXW cannot be selected for the speed sensor in the following case:
The AIS function is turned on and the current offset (Set/Drift Setting) is selected.
• MAN cannot be selected for the speed sensor in the following case:
The AIS function is On.
• Current offset (Set/Drift Setting) cannot be turned On in the following case:
LOG or 2AXW is selected for the speed sensor while the AIS function is on.
5.3.2 Setting AIS Display Function (AIS Function)
Procedures 1 Put the cursor on the AIS On / Off (TT / AIS information ⑧ on page
2-23), and press the [ENT] key.
The received AIS information will be shown on the radar display.
Attention
5-31
5.3.3 Activate AIS Targets (Activate AIS)
Activate an AIS target, and display the target’s vector and make a collision decision.
Manual activation (ACT AIS)
Activate an AIS target in manual mode to display the vector and heading line.
Procedures 1 Put the cursor on the AIS symbol to be activated, and press the
[CLR/INFO] key.
The setting items for cursor modes will be displayed.
2 Press the [2] key.
The selected AIS target will be activated.
Automatic activation (AUTO Activate)
Activate an AIS target in automatic mode to display the vector and heading line.
When the automatic activation function is used, AIS targets are automatically activated when they go into
the automatic activation zone. The automatic activation zone is identical to the automatic acquisition zone
(AZ) used for target tracking. For the zone setting, refer to " Acquiring Target " in Section 5.2.1
The position of the scanner shall be at the centre of the azimuth or range in the acquisition/activation zone.
If there are more AIS targets than the allowable maximum, they are deactivated in the low-priority (See the
section 5.1.2).
Reference If an AIS target is activated but the vector is not displayed, refer to " Displaying Target ID
Number " in section 5.3.6
5.3.4 Deactivate AIS Targets (Deactivate AIS)
Deactivate an AIS target and clear the display of the vector and heading line.
Procedures 1 Put the cursor on the AIS target to be deactivated, and press the
[CLR/INFO] key.
The setting items for cursor modes will be displayed.
2 Press the [5] key.
The selected AIS target will be deactivated.
Note: This operation is available only for an activated AIS target.
5-32
5.3 AIS Operation yy
yyy
5
5.3.5 Displaying AIS Information [TGT DATA]
Types of information displayed
There are two modes (simple and detail) to display AIS target information. The display items are
determined by the selected mode.
Display Item Detail mode Simple mode
NAME (ship name) Up to 20 characters
Call Sign Up to 7 characters
MMSI Up to 9 characters
COG (course over ground) or CTW (course through water) 0.1 ° unit
SOG (speed over ground) or STW (speed through water) 0.1 knot unit
CPA (closest point of approach) 0.01 nm unit
TCPA (time to CPA) 0.1 min unit
BRG (true bearing) 0.1 ° unit
Range 0.01 nm unit
HDG (heading bearing) 0.1 ° unit
ROT (rate of turn) 0.01 °/min
POSN (latitude / longitude) 0.0001’ unit
Destination (waypoint) Up to 20 characters
NAV Status Status (number)
Not displayed
If the numeric information of ROT is blank, the radar is receiving the AIS data which is cannot displayed.
In this case, you can only trust the turning direction which is indicated by the turn indicator. The turn
indicator is displayed on the AIS symbol as the line perpendicular to the heading direction. (See the
Section 5.1.2 "Types and Definitions of AIS Target Symbols")
If the numeric information of SOG or STW is 102.2kn, the target ship's speed is 102.2kn or over. Then the
system cannot calculate CPA and TCPA. Therefore, missing is indicated in the CPA and TCPA
information.
The detail mode displays the numeric data of only a single ship, the simple mode can display the numeric
data of up to two ships.
For NAV Status, one of the following statuses is displayed in accordance with Navigation Status:
No. Status
0 Under Way Using Engine
1 at Anchor
2 Not Under Command
3 Restricted Maneuverability
4 Constrained by Her Draft
5 Moored
6 Aground
7 Engaged in Fishing
8 Under Way Sailing
9 Reserved
10 Reserved
11-14 Reserved
15 Not Defined
5-33
Displaying AIS Target Information [TGT DATA]
Procedures 1 Put the cursor on the AIS target of which information is to be
displayed , and press the [TGT DATA] key.
The information of the selected AIS target will be displayed.
Reference: When the numeric data of a target is displayed but the mark " " is not on the radar
display, the target is outside the display.
Canceling AIS Target Information Display (CNCL Data)
Procedures 1 Put the cursor on the activated AIS target of which information
display is to be cancelled, and press the [CLR / INFO] key.
The setting items for cursor modes will be displayed.
2 Press the [6] key.
The information display of the selected AIS target will be cleared.
Selecting Detail / Simple Mode for AIS Target Information Display
Procedures 1 Put the cursor on the detail/simple display switching (AIS target
information ① on page 2-25), and press the [ENT] key.
The detail or simple mode display for AIS target information will be selected.
5-34
5.3 AIS Operation yy
yyy
5
Message
Received AIS messages can be displayed.
Up to 10 messages of addressed message and up to 10 messages of broadcast message can be displayed.
If the number of messages exceeds 10, the oldest received messages are sequentially deleted.
Displaying Message Selected from List (Message)
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Message menu by performing the following menu operation.
7. AIS Menu
→ 7. Message
3 Press the [1] or [2] key.
Pressing [1] key lists addressed messages; pressing [2] key lists broadcast messages.
Each list shows ship names and message-received time.
For an unread message, * is displayed to the left of the item number.
4 Press the [numeric] key corresponding to the message to be
displayed.
The message will appear.
Displaying Specified Target's Message
Procedures 1 Display AIS target information.
If there are messages from the target, a message mark will be displayed in the unread
message display field (AIS target information ② on page 2-25).
2 Put the cursor on the unread message display (AIS target information
in ② on page 2-25), and press the [ENT] key.
The message will appear.
Deleting Message (Delete)
Procedures 1 Press the [1] key while the message is displayed.
The Confirmation Window will appear.
2 Press the [1] key.
The message will be deleted, and the ship name and message-received time will
disappear from the list.
5-35
Displaying Data of Lost AIS Target (Display Lost TGT Data)
The data of the last-lost AIS target can be displayed.
The data of only one target that has been lost most recently can be displayed.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Display Lost Target Data menu by performing the following
menu operation.
7. AIS Menu
→ 8. Display Lost TGT Data
The data of the last-lost AIS target will be displayed.
Displaying Own Ship's AIS Data (Own Ship's AIS Data)
(Not used on the JPL-600-MK2 for VTS)
The AIS data of own ship can be displayed.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Own Ship's AIS Data menu by performing the following
menu operation.
7. AIS Menu
→ 9. Own Ship’s AIS Data
The own ship's AIS data will be displayed.
5-36
5.3 AIS Operation yy
yyy
5
5.3.6 Displaying Target ID No. (Target Number Display)
When an AIS target is activated, a target ID number is displayed next to the AIS target symbol.
A target ID number 1 to 100 is assigned to each target in activation order. Once a target ID number is
assigned, it identifies the target until the target is lost or deactivated.
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Target Number Display menu by performing the following
menu operation.
7. AIS Menu
→ 5. Target Number Display
3 Press the [numeric] key corresponding to the display method to be
set.
On : Displays target ID numbers.
Off : Hides target ID numbers.
Target Track : Displays target ID number with AIS track.
Ship's Name : Displays the ship's name.
If there are many tracking targets and their symbol display is confusing, set Target
Number Display to off to view the radar display easily.
Note: An ID number or ship's name is always displayed for only targets with which numeric value is
displayed.
5.3.7 Setting AIS Filter (AIS Filter Setting)
About an AIS filter
By setting an AIS filter, an AIS target in the area can be displayed by priority or only the targets in the area
can be displayed. An AIS filter is initially set in a circle having a radius of 20 [nm] from the radar station.
If 301 or more AIS targets exist in the filter range, they are displayed in the priority order explained in
Section 5.1.2 Symbols - Types and Definitions of AIS Target Symbols.
Types of AIS Filters (Filter Type)
There are the following 3 types of AIS filters:
Range :A filter is set in a circle with a set range as the radius.
Sector :A filter is set in a sector formed by two bearings with the bow as reference.
Zone :A filter is set in a zone formed by two bearings and two ranges with the bow as reference.
Procedures 1 Put the cursor on the AIS filter mode switching (TT / AIS information
⑫ on page 2-23), and press the [ENT] key to select the filter to be
set.
The AIS filter will be selected.
5-37
Creation of AIS Filter (Make AIS Filter)
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the AIS Filter Setting menu by performing the following menu
operation.
7. AIS Menu
→ 4. AIS Filter Setting
3 Press the [2] key.
The mode to make an AIS filter will be activated.
[I] Setting Range Filter
4 Set a filter range by turning the [VRM] dial, and press the [ENT] key.
[II] Setting Sector Filter
4 Set a starting bearing by turning the [EBL] dial, and press the [ENT]
key.
5 Set an ending bearing by turning the [EBL] dial, and press the [ENT]
key.
[III] Setting Zone Filter
4 Set a starting bearing and range by turning the [EBL] dial and [VRM]
dial, and press the [ENT] key.
5 Set an ending bearing and range by turning the [EBL] dial and [VRM]
dial, and press the [ENT] key.
Note: When the automatic activation function is enabled, the filter range is automatically changed for
covering the automatic activation zone. Thus, the automatic activation zone is always within the
filter range.
AIS Filter Display On/Off (Filter Display)
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the AIS Filter Setting menu by performing the following menu
operation.
7. AIS Menu
→ 4. AIS Filter Setting
3 Press the [3] key.
Filter Display will be set to on or off.
5-38
5.3 AIS Operation yy
yyy
5
Display of Targets outside AIS Filter (Filter Mode)
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the Filter Mode menu by performing the following menu
operation.
7. AIS Menu
→ 6. Filter Mode
3 Press the [6] key.
The Filter Mode is switched.
Display : Displays only AIS targets in the AIS filter.
Priority : Displays AIS targets in the AIS filter by priority, and also displays
targets outside the AIS filter.
Note: Activated AIS targets can be displayed even when they are outside the AIS filter.
Point Filter
AIS targets which are not displayed because they are outside the AIS filter or at low priority levels can be
activated by giving a higher priority to them.
Procedures 1 Put the cursor on the position where a point filter is to be set, and
press the [CLR / INFO] key to select the filter to be set.
The setting items for cursor modes will be displayed.
2 Press the [2] key.
A point filter will be set at the cursor position.
If an AIS target is in the point filter, it will be activated.
When an AIS target is activated or an AIS target is not found within one minute, the
point filter will be cleared.
Note: The point filter's range is 1 nm, and cannot be changed.
5-39
5.3.8 Conditions for Deciding AIS Target to be Lost
About a lost target
When the data of an AIS target cannot be received for a specified time, the target is decided to be lost and
the target data is deleted. As shown in the table below, the time until target data is deleted varies
depending on the class of receive data and the target status.
Deciding AIS Target to be Lost
Time until data deletion
Target status SOLAS ship
(Class A) SOLAS ship
(Class B)
Vessel below 3 knots (Class A) or 2 knots (Class B) and it is
now at anchor or on the berth 18 min 18 min
Vessel of 3 knots or more and it is now at anchor or on the berth 60 sec 18 min
Vessel of 0 to 14 knots (Class B: 0 to 14 knots) 60 sec 180 sec
Vessel of 14 to 23 knots 36 sec 180 sec
Vessel of 23 knots or more 30 sec 180 sec
SAR (Search and Rescue) 60 sec 60 sec
ATON (Aid to Navigation) 18 min 18 min
Base Station 60 sec 60 sec
Reference: When a dangerous target ship is lost, a lost alarm is issued and the symbol changes to a lost
symbol. The lost symbol will display continuously on the last-received position.
If the [ALARM ACK] key is pressed, the symbol is cleared.
5-40
5.3 AIS Operation yy
yyy
5
5.3.9 Setting Conditions for AIS Alarm (AIS Alarm Setting)
Conditions for issuing a Lost alarm and CPA/TCPA alarm for AIS targets can be set.
Setting of Condition for Lost Alarm
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the AIS Alarm Setting menu by performing the following menu
operation.
7. AIS Menu
→ 6. AIS Alarm Setting
3 Press the [1] key.
The setting items for Lost Alarm will be displayed.
4 Press the [numeric] key corresponding to the condition to be set.
Off : A lost alarm is not issued.
Danger : A lost alarm is issued only for AIS targets for
which a dangerous target alarm has been issued.
ACT&Danger : A lost alarm is issued only for activated AIS
targets and AIS targets for which a dangerous
target alarm has been issued.
ACT&Danger&Select : A lost alarm is issued only for activated AIS
targets, data indicated AIS targets and AIS targets
for which a dangerous target alarm has been issued.
Note: A lost alarm is not issued for sleeping AIS targets.
Setting of Condition for CPA/TCPA Alarm
Procedures 1 Press the [RADAR MENU] key twice.
2 Open the AIS Alarm Setting menu by performing the following menu
operation.
7. AIS Menu
→ 6. AIS Alarm Setting
3 Press the [2] key.
The setting items for CPA/TCPA Alarm is switched.
Off : A CPA/TCPA alarm is not issued.
ACT : A CPA/TCPA alarm is issued only for activated AIS targets.
ACT&Sleep : A CPA/TCPA alarm is issued for all AIS targets on the radar
display.
Note: When the Lost Alarm menu set to Off, the CPA ring color changes to dark color.
5-41
z Turn off Association in order not to make a decision
on if targets are identical, or in order to display
symbols that have disappeared.
5.4 DECISION OF TARGETS AS IDENTICAL
(ASSOCIATION)
CAUTION
If a great value is set as a condition for deciding targets as
identical, a tracking target near an AIS target is regarded as
identical to the AIS target and it may not be displayed any
more.
For example, when a pilot boat (which is a small target not
being tracked) equipped with an AIS function approaches a
cargo ship as a tracking target not equipped with an AIS
function, the tracking target symbol of the cargo ship may
not be displayed any more.
Setting of Function to Decide Targets as Identical (Association)
When an AIS target and a tracking target are decided to be identical, an association symbol is displayed for
the targets regarded as identical. In this case, the AIS target symbol is automatically activated.
Procedures 1 Put the cursor on the association On/Off (TT/AIS information ⑪on
page 2-23), and press the [ENT] key.
Association will be set to on or off.
Attention
5-42
5.4 Decision of Targets as Identical yy
yyy
5
Setting of Conditions for Deciding AIS and Tracked Targets as Identical
(Association Setting)
Procedures 1 Press the [TT MENU] key.
2 Press the [1] key.
The Association Setting menu will appear.
3 Select and enter the item to be set.
Conditions for deciding targets as identical will be set. When the differences of all
item between AIS and tracked target are under the set conditions..
Once regard as identical, when one of the differences exceed 125 % of the set
condition, they are regarded as dissidence.
* The setting for this function is common to Association Setting in the AIS Menu.
Types of Decision Conditions to be Set
Decision conditions
1. Association On / Off (Function to decide targets as identical)
2. Priority AIS / TT (Symbol to be displayed)
3. Bearing 0.0 to 9.9 °
4. Range 0 to 999 m
5. Course 0 to 99 °
6. Speed 0 to 99 kn
7.Applicable AIS Target ACT or ACT&Sleep (activated AIS target or all AIS
target)
5-43
5.5 ALARM DISPLAY
Critical alarm messages for Target Tracking (TT) and AIS functions:
Error message Description
CPA/TCPA There is a dangerous target.
Alarm messages for Target Tracking (TT) and AIS functions:
Error message Description
CPA/TCPA There is a dangerous target.
New Target A new target is acquired in the automatic acquisition zone
Lost There is a lost target.
REF Target The accuracy of the reference target may be decreased.
95% Capacity The number of targets being tracked by the Target Tracking function has reached 95%
of the maximum.
MAX Target The number of targets being tracked by the Target Tracking function has reached the
maximum.
AIS 95% Capacity The number of displayed AIS target symbols has reached 95% of the maximum.
AIS MAX Target The number of received data items exceeds the maximum number of AIS target
symbols that can be displayed.
AIS ACT 95%
Capacity The number of activated AIS targets by the AIS function has reached 95% of the
maximum.
AIS ACT MAX The number of activated AIS targets by the AIS function has reached the maximum.
AIS Alarm *** Alarm information issued with the ALR sentence by the AIS.
*** is a 3-digit number which is Local Alarm No in the ALR sentence.
AIS Alarm 001 Tx malfunction
AIS Alarm 002 Antenna VSWR exceeds limit
AIS Alarm 003 Rx channel 1 malfunction
AIS Alarm 004 Rx channel 2 malfunction
AIS Alarm 005 Rx channel 70 malfunction
AIS Alarm 006 general failure
AIS Alarm 008 MKD connection lost
AIS Alarm 025 external EPFS lost
AIS Alarm 026 no sensor position in use
AIS Alarm 029 no valid SOG information
AIS Alarm 030 no valid COG information
AIS Alarm 032 Heading lost/invalid
AIS Alarm 035 no valid ROT information
An alarm is displayed in the alarm indication (Alarm on page 2-9)
See also section 9.1.1 "List of Alarm Indications".
5-44
5.5 Alarm Display yy
yyy
5
CPA / TCPA Alarm
CAUTION
These alarms may include some errors depending on the
target tracking conditions.
In the system, targets are categorized into two types: tracked / activate AIS targets and dangerous targets.
The grade of danger can easily be recognized on the display at a glance. So the officer can easily decide
which target he should pay attention to.
It is not possible to switch off the tracked target visual alarm, unless tracking is ceased, or the alarm
condition no longer applies.
The types of target and alarm are shown below.
CPA / TCPA Alarm
Status Symbol on display Alarm characters Alarm sound Conditions
Tracked target
Activated AIS
target
(Off) (Off)
• CPA > CPA LIMIT
• 0 > TCPA
• TCPA > TCPA LIMIT
The symbol is displayed when
one of the above conditions is
met.
Dangerous target
Red blinking
CPA / TCPA
Beep sound
(pee-poh)
Alarm
acknowledgeable
• CPA ≤ CPA LIMIT,
• 0 ≤ TCPA ≤ TCPA LIMIT
An alarm is issued when all the
conditions are met.
The AIS targets that issues
alarm refer to 5.3.9.
CPA Limit and TCPA Limit: The Setting Values
12
AIS12
12
AIS12
5-45
Alarm for New Target Acquired in Automatic Acquisition Zone (New Target)
CAUTION
In setting an automatic acquisition zone, it is necessary to
adjust the gain, sea clutter suppression and rain clutter
suppression to ensure that target echoes are displayed in
the optimum conditions. No automatic acquisition zone
alarms will be issued for targets undetected by the radar.
The automatic acquisition function sets a zone in a range and issues an alarm when a new target (which is
not yet acquired) goes into this zone.
For the setting of an automatic acquisition zone, refer to " Acquiring Target " in Section 5.2.1.
Alarm for New Target Acquired in Automatic Acquisition Zone
Status Symbol on display Alarm characters Alarm sound Conditions
New target in
automatic
acquisition
zone
Red Blinking
New Target Beep sound (pipi-pipi)
Alarm
acknowledgeable
The alarm is issued when a
new target is acquired in
the automatic acquisition
zone.
Note: When an already acquired target goes into automatic acquisition zone, the alarm message
is not displayed and the buzzer does not sound either.
12
5-46
5.5 Alarm Display yy
yyy
5
z If the gain, sea clutter suppression, rain/snow clutter
suppression are not adjusted adequately, the lost
target alarm may be easily generated. So such
adjustments should be mad carefully.
Lost Target Alarm
When it is impossible to continue tracking any acquired and tracked target, or the data of AIS target cannot
received for a specified time, the LOST alarm will be generated. The typical causes for alarm
generation are shown below, but not limited to the following:
• The target echo is very weak.
• The target is shadowed by a shore or a large ship and its echo is not received.
• The target echo is blurred by sea clutter returns.
If a target under tracking goes out of a range of 32 nm and can no longer be tracked, it is canceled without a
lost target alarm.
Lost Target Alarm
Status Symbol on display Alarm characters Alarm sound Conditions
Lost target
Red Blinking
Lost
Beep sound (pee)
Alarm
acknowledgeable
The alarm will sound once
when a lost target symbol is
displayed.
Gyro Set Alarm (Not used on the JPL-600-MK2 for VTS)
The GYRO I/F in this system receives signals from a gyro. Even if the power is turned off, the system will
follow up the gyro. However, the system stops the follow-up operation when the power of the master gyro
is turned off or when any trouble occurs to the line. When the power of the master gyro is recovered, the
Set Gyro alarm will be generated.
If this alarm occurs, set the gyro.
Gyro Set Alarm
Alarm characters Alarm sound Conditions
Set Gyro Beep sound (pipi-pipi) The signals from the gyro are stopped, but the gyro is
recovered.
Attention
12
AIS12
5-47
5.6 TRACK FUNCTION
5.6.1 Past Position (Past POSN)
Procedures 1 Put the cursor on the past position display interval unit switching
(TT/AIS information ⑦ on page 2-23), and press the [ENT] key to set
a desired unit.
The past position display interval unit will be set to min or NM .
2 Put the cursor on the past position display interval switching (TT/AIS
information ⑥ on page 2-23), and press the [ENT] key to set a desired
track display interval.
The past position will be set.
Off :Tracks are not displayed.
Numeric :Tracks are displayed at intervals of a specified value.
The past position function can display up to 10 past positions of a target under tracking. The past position
display interval can be set to specified time intervals of 0.5, 1, 2, or 4 minutes, or specified range intervals
of 0.1, 0.2, 0.5, or 1 nm.
The specified interval is displayed in the past position display interval switching (TT / AIS information ⑥
on page 2-23). When Off is displayed, the track display function is turned off.
The target is acquisition, past position of traced target is start plot.
The AIS target is displayed, past position of AIS target is start plot.
If the past position plotted time is short, the indicated past position duration may not have achieved the
specified time or range.
5-48
5.6 Track Function yy
yyy
5
5.6.2 Ship's Tracks (Target Track)
This function makes settings for the tracks of tracked targets and AIS targets.
The system can display the tracks of up to 20 ships.
[I] Track Color Setting (Target Track Color)
Procedures 1 Put the cursor on the tracked target or activated AIS target, and
press the [CLR / INFO] key.
The setting items for cursor modes will be displayed.
2 Press the [8] key.
The TT Target Information will appear.
3 Press the [2] key.
The setting items for Track Color will be displayed.
4 Press the [numeric] key corresponding to the track color to be set.
Colors set by performing the procedure in [III] Setting of Track Colors can be selected.
Individual colors can be set for up to 10 ships.
The same color is set for 11 to 20 ships.
[II] Track Function On/Off (Target Track Function)
Procedures 1 Open the T.TRK menu by performing the following menu operation.
T.TRK
2 Press the [1] key.
The Track Function will be set to on or off.
On : Track Function is turned on.
Off : Track Function is turned off.
* Note that when this function is turned off, all the track functions are turned off. In this case, the track
data of other ships is not saved, so they cannot be traced later.
5-49
[III] Setting of Track Colors (Target Track Color)
You can set either one track color for all targets under tracking, or individual colors for the ships of track
numbers 1 to 10. The tracks of ships 11 to 20 are displayed in the same color.
* If the other ship's track function (Target Track Function) is turned off, the track data is not saved.
Procedures 1 Open the Target Track Color menu by performing the following menu
operation.
T.TRK
→ 2. Target Track Color
2 Press the [1] key.
The setting items for All will be displayed.
3 Press the [numeric] key corresponding to the track display to be set.
Individual : Track color is set individually for ships.
Color name : One color is set for all ships.
Individual setting
4 Press the [numeric] key corresponding to the track number to be set.
The setting items for the selected track number will be displayed.
5 Press the [numeric] key corresponding to the track color to be set.
The track color of the selected track number will be set.
When Individual is selected, the track numbers Target Track No. 1 to No. 10 and the individual
setting for Other are valid. Select a color for each target.
The color list is displayed by pressing the [numeric] key corresponding to the item number to be set.
Select a desired color. There are 8 color choices: Off , White , Gray , Blue , Green , Yellow ,
Pink , and
Red . Target Track No. 1 to No. 10 : Setting for 1 to 10 ships
Other : Setting for 11 to 20 ships
* Note that the individual setting is not enabled unless Individual is selected.
5-50
5.6 Track Function yy
yyy
5
[IV] Setting of Track Display (Target Track Display)
The target track display function can be turned on / off. Choices for track display are displaying / hiding
the tracks of all ships and Individual (displaying the tracks of individual ships).
Procedures 1 Open the Target Track Display menu by performing the following
menu operation.
T.TRK
→ 3. Target Track Display
2 Press the [1] key.
The setting items for All will be displayed.
3 Press the [numeric] key corresponding to the track display to be set.
Individual : Track display is set for individual ships.
Off : The tracks of all ships are hidden.
On : The tracks of all ships are displayed.
* Even when Track Display is turned off, the track data is saved if Track Memory Interval is set.
Individual setting
4 Press the [numeric] key corresponding to the track number to be set.
The selected track number display will be set to on or off.
On :The track number display is turned on.
Off :The track number display is turned off.
When Individual is selected, the track numbers Target Track No. 1 to No. 10 and the individual
setting for Other are valid. Select on / off for each target.
Target Track No. 1 to No. 10 : Setting for 1 to 10 ships
Other : Setting for 11 to 20 ships
* Note that the individual setting is not enabled unless Individual is selected.
5-51
[V] Setting of Track Saving Interval (Track Memory Interval)
An interval for saving track data can be set.
* This function is not available when the Track Function is turned off.
Procedures 1 Open the T.TRK menu by performing the following menu operation.
T.TRK
2 Press the [4] key.
The setting items for Track Memory Interval will be displayed.
3 Press the [numeric] key corresponding to the track memory interval to
be set.
Select an interval from the following:
Off /
3 sec / 5 sec / 10 sec / 30 sec /
1 min / 3 min / 5 min / 10 min / 30 min / 60 min /
1 NM / 3 NM / 5 NM / 10 NM
5-52
5.6 Track Function yy
yyy
5
[VI] Clear of Track
The track can be cleared by setting a color or a track number.
* If Card T.TRK Display is used, tracks displayed through the card cannot be cleared.
Clear of Tracks by Setting Color (Clear Track Color)
Procedures 1 Open the T.TRK menu by performing the following menu operation.
T.TRK
2 Press the [5] key.
The setting items for Clear Track Color will be displayed.
3 Press the [numeric] key corresponding to the color of the tracks to be
cleared.
The Confirmation Window will appear.
4 Press the [1] key.
All the tracks of the selected color will be cleared.
Clear of Tracks by Setting Track Number (Clear Track Number)
Procedures 1 Open the T.TRK menu by performing the following menu operation.
T.TRK
2 Press the [6] key.
The setting items for Clear Track Number will be displayed.
3 Press the [numeric] key corresponding to the number of the tracks to
be cleared.
The Confirmation Window will appear.
4 Press the [1] key.
The tracks of the selected number will be cleared.
5-53
[VII] Operation of Track Data Saved on Card (File Operations)
Track data can be saved on a flash memory card and read from the card.
Note: Data can be saved to a flash memory card until the card becomes full, but the number of files that
can be read and displayed is limited to 64 in alphanumeric order. When the number of files has
reached 64, delete unnecessary files.
Loading File (Load)
Procedures 1 Insert a flash memory card into the card slot
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
T.TRK
→ 7. File Operations
3 Press the [1] key and select a card slot.
The setting item for Select Card Slot is switched between Slot1 and Slot2.
4 Press the [2] key and select Add or Overwrite.
The setting item for Load Mode is switched between Add and Overwrite.
When Add is selected, new data is added to the current data on the card. When
Overwrite is selected, new data is saved over the current data on the card.
5 Press the [3] key.
Currently saved track data on the card will be listed.
6 Press the [numeric] key corresponding to the file to be loaded.
The Confirmation Window will appear.
7 Press the [1] key.
The selected track data will be loaded and shown on the radar display.
5-54
5.6 Track Function yy
yyy
5
Saving File (Save)
Procedures 1 Insert a flash memory card into the card slot.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
T.TRK
→ 7. File Operations
3 Press the [1] key and select a card slot.
The setting item for Select Card Slot is switched between Slot1 and Slot2.
4 Press the [4] key.
The Save menu will appear.
5 Input the file name to be saved.
Up to 10 characters can be input as a file name.
For inputs to the characters input screen, refer to Section 3.3.4.
After the input, the Confirmation Window will appear.
6 Press the [1] key.
The currently displayed track data will be saved.
5-55
Erasing File (Erase)
Procedures 1 Insert the flash memory card into the card slot.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
T.TRK
→ 7. File Operations
3 Press the [1] key and select a card slot.
The setting item for Select Card Slot is switched between Slot1 and Slot2.
4 Press the [5] key.
The Erase menu will appear.
Currently saved target ship's track data on the card will be listed.
5 Press the [numeric] key corresponding to the file to be erased.
The Confirmation Window will appear.
6 Press the [1] key.
The selected target track data will be erased and the file name will disappear from the
list.
5-56
5.6 Track Function yy
yyy
5
Displaying File (Card Target Track Display)
Procedures 1 Insert the flash memory card into the card slot.
For the insertion and removal of the card, see HOW TO INSERT AND REMOVE A
CARD in the appendix.
2 Open the File Operations menu by performing the following menu
operation.
T.TRK
→ 7. File Operations
3 Press the [1] key and select a card slot.
The setting item for Select Card Slot is switched between Slot1 and Slot2.
4 Press the [6] key.
The Card T.TRK Display menu will appear.
Currently saved target ship's track data on the card will be listed.
5 Press the [numeric] key corresponding to the file to be displayed.
The Confirmation Window will appear.
6 Press the [1] key.
The selected file will be highlighted, and the currently saved target track data will be
displayed.
Cancellation 1 Open the Card T.TRK Display window.
The displayed file is highlighted.
2 Press the [numeric] key corresponding to the displayed file.
The Confirmation Window will appear.
3 Press the [1] key.
The file will be deselected and returned to normal display.
5-57
z Trial maneuvering is to simulate own ship’s course and
speed in the conditions that the course and speed of a
target ship are unchanged as they are. As the
situation is different from any actual ship
maneuvering, set values with large margins to CPA
Limit and TCPA Limit.
5.7 TRIAL MANEUVERING
(TRIAL MANEUVER)
(Not used on the JPL-600-MK2 for VTS)
The trial maneuvering is the function of simulating own ship’s course and speed for collision avoidance
when a dangerous target appears. When the own ship's course and speed are entered in manual mode, the
trial maneuvering function checks if pre-acquired or pre-activated targets are dangerous.
The ranges of course and speed to be entered manually:
Course: 360 ° (in 0.1 ° intervals)..........................................................................[EBL] dial
Speed: 0 to 100 kn (in 0.1 kn steps) ...................................................................[VRM] dial
Attention
5-58
5
5.7 Trial Maneuvering yy
yyy
Trial Maneuvering in the True Vector Mode
In the True Vector mode, calculations are performed according to the values set by Trial Speed, Trial Course
and other features, and the result is displayed as a bold-line that represents the change of own ship’s vector
as shown in the figure below (an example of the course changed to the right).
In this figure, the dangerous target forward left becomes safe as a result of simulation.
The tracked target information indicates the current CPA and TCPA values regardless of the result of
simulation.
Dangerous target
HL
Change of symbol
as a result of
trial maneuver
HL
TRIAL
NORMAL
Route
Own ship’s vector
5-59
Trial Maneuvering in the Relative Vector Mode
The result of Trial maneuvering in the Relative Vector mode is shown by a change in target vector. In the
figure below (in the same conditions as in the True Vector mode in the previous page), it is seen that the
acquired target is a dangerous one because its vector is crossing the CPA RING.
CPA Ring
Change of symbol
as a result of
trial maneuver
TRIAL
NORMAL
Dangerous target
CPA Ring
HL
HL
The above figure shows that the relative vector of the target has changed as shown in the figure as a result
of simulation (course and speed), so that the symbol color is changed into “White”, a safe target.
Irrespective of the simulation results, the current CPA and TCPA values are shown in the tracked target
information just like when the true vector mode is active.
The course change of own ship is displayed as a dotted-line.
Better information is provided by using relative motion and sea stabilization.
5-60
5
5.7 Trial Maneuvering yy
yyy
Operation of Trial Maneuvering Function
Procedures 1 Press the [TT MENU] key.
2 Open the Trial Maneuver menu by performing the following menu
operation.
3. Trial Maneuver
3 Press the [1] key.
The Trial Function will be set to on or off.
On : The trial maneuvering function is turned on.
Off : The trial maneuvering function is turned off.
When the Trial Function is active, the character " T " will display at the bottom of the
radar display.
4 Set values for Course by turning the [EBL] dial, and for Speed by
turning the [VRM] dial.
5 Set other characteristics.
Vector Time : Vector time (1 to 60 min)
Time to Maneuver : Time until trial maneuvering is started (0 to 30 min)
Own Ship Dynamic Trait> : Dynamic trait of the own ship
→ Reach : Range from when steered to when the ship
beings to turn (0 to 2000 m)
→ Turn Radius : Turning radius (0.10 to 2.00 NM)
→ Acceleration : Acceleration (0.0 to 100 kn/min)
→ Deceleration : Deceleration (0.0 to 100 kn/min)
For inputs to the value input screen, refer to Section 3.3.4.
Dangerous target symbols are displayed in red and safe target symbols in white.
* Vector Time is valid only when Trial Function is set to on. If it is off, the vector time before trial
maneuvering is displayed.
Time until the start of trial maneuvering is counted down immediately after the input.
The acceleration and deceleration are influenced depending on the relationship between the current
speed and the input speed for trial maneuvering.
If 0.0 kn/min is set for Acceleration when the speed for trial maneuvering is faster than the current
speed, or for Deceleration when the speed for trial maneuvering is slower than the current speed, the
system performs simulation on the assumption that the speed is changed immediately after the time set
for Time to Maneuver .
Cancellation 1 Press the [1] key while the Trial Maneuver menu is displayed.
The Trial Function will be set to on or off.
Off : The trial maneuvering function is turned off.
SECTION 6
TRUE AND FALSE ECHOES ON DISPLAY
6.1 RADAR WAVE WITH THE HORIZON .................................................6-1
6.2 STRENGTH OF REFLECTION FROM THE TARGET.........................6-3
6.3 SEA CLUTTER AND RAIN AND SNOW CLUTTER............................6-5
6.4 FALSE ECHOES..................................................................................6-9
6.5 DISPLAY OF RADAR TRANSPONDER (SART)...............................6-12
6-1
The radar operator has a role of interpreting the radar displays to provide his best aid in maneuvering the
ship. For this purpose, the operator has to observe the radar displays after fully understanding the
advantages and disadvantages that the radar has. For better interpretation of radar display, it is important
to gain more experiences by operating the radar equipment in fair weathers and comparing the target ships
watched with the naked eyes and their echoes on the radar display.
Various types of radar display will be explained below.
6.1 RADAR WAVE WITH THE HORIZON
Radar beam radiation has the nature of propagating nearly along the curved surface of the earth.
The propagation varies with the property of the air layer through which the radar beam propagates.
In the normal propagation, the distance (D) of the radar wave to the horizon is approximately 10% longer
than the distance to the optical horizon. The distance (D) is given by the following formula:
D=2.23( h2h1 +)(nm)
h1: Height (m) of radar scanner above sea level
h2: Height (m) of a target above sea level

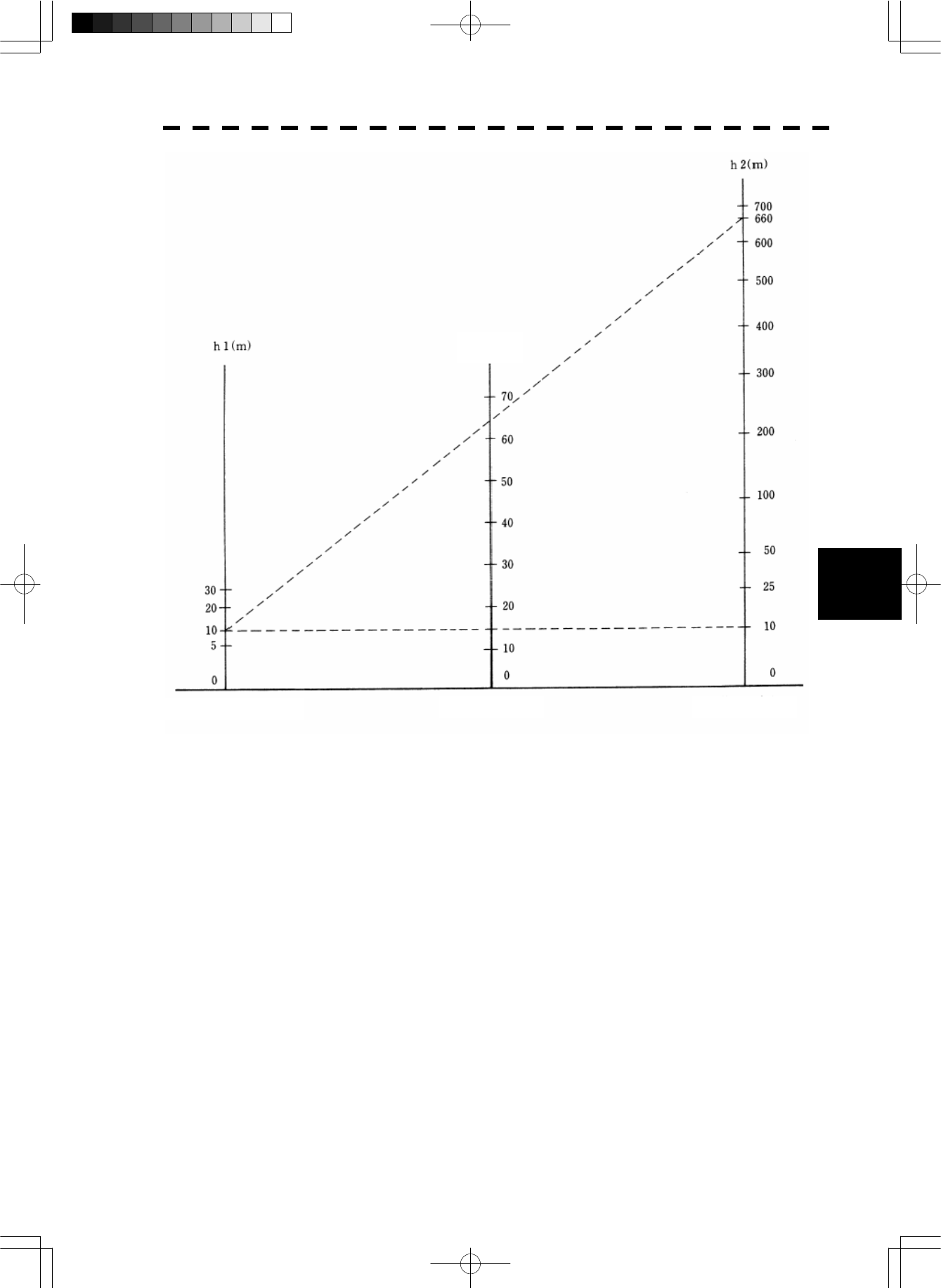

Figure 6. is a diagram for determining the maximum detection range of a target that is limited by the curve
of the earth surface in the normal propagation.
Figure 6.1
6-2
6.1 Radar Wave with the Horizon
y
yy
yyy
6
Figure 6.2
When the height of scanner is 10 m for instance,
(a) A target that can be detected at the radar range of 64 nm on the radar display is required to have a
height of 660 m or more.
(b) If the height of a target is 10 m, the radar range has to be approx. 15 nm. However, the maximum
radar range at which a target can be detected on the radar display depends upon the size of the target
and the weather conditions, that is, the radar range may increase or decrease depending upon those
conditions.
Height of Radar Scanne
r
Detective Range Height of Target
D (nm)
6-3
6.2 STRENGTH OF REFLECTION FROM
THE TARGET
The signal intensity reflected from a target depends not only on the height and size of the target but also on
its material and shape. The echo intensity from a higher and larger target is not always higher in general.
In particular, the echo from a coast line is affected by the geographic conditions of the coast.
If the coast has a very gentle slop, the echo from a mountain of the inland appears on the radar display.
Therefore, the distance to the coast line should be measured carefully.
Mountain displayed
on the radar display
Sea shore line not displayed
on the radar display.
HL
Figure 6.3
Table 6.1 shows the graph indicating the relation between the target detection distance and the radar
reflection cross-sectional area (RCS) with regard to the type and the height of the target in a situation in
which the weather is good, the sea state is calm and the radio wave propagation is normal. As revealed by
this table, even on the same sea shore line, detection distance greatly differs depending on the height of the
target from the surface of the sea. Furthermore, because the target detection distance is greatly influenced
by the shape and material of the target and environmental conditions, such as the sea state, weather, and
radio wave propagation, caution should be taken when detecting distance of target.
6-4
6.2 Stren
g
th of Reflection from the Tar
g
et
y
yy
yyy
6
Table 6.1 Relation between type and height of target and detection distance and RCS
Caution: Detection distance shown in the above table may greatly decrease depending on the shape of the
target, sea state, weather and radio wave propagation conditions.
Detection distance (NM) RCS (m²)
Type of target
Height from
sea surface
(m) X band S band X band S band
Sea shore line 60 20 20 50,000 50,000
Sea shore line 6 8 8 5000 5000
Sea shore line 3 6 6 2500 2500
SOLAS target ship (>5000GT) 10 11 11 50,000 30,000
SOLAS target ship (>500GT) 5 8 8 1800 1000
Small boat with IMO standard
compatible radar reflector 4 5.0 3.7 7.5 0.5
Marine buoy with corner reflector 3.5 4.9 3.6 10 1
Standard marine buoy 3.5 4.6 3.0 5 0.5
10-meter small boat without radar
reflector 2 3.4 3.0 2.5 1.4
Waterway location beacon 1 2.0 1.0 1 0.1
6-5
6.3 SEA CLUTTER AND RAIN AND SNOW
CLUTTER
In addition to the echo required for observing ships and land radar video image also includes unnecessary
echo, such as reflection from waves on the sea surface and reflection from rain and snow. Reflection from
the sea surface is called "sea clutter," and reflection from rain and snow is called "rain and snow clutter,"
and those spurious waves must be eliminated by the clutter rejection function.
[I] Sea clutter
Sea clutter appears as an image radiating outwardly from the center of the radar display and changing
depending on the size and the shape of waves. Generally, as waves become larger, image level of the
sea clutter is intensified and the clutter far away is also displayed. When waves are large and the sea
clutter level is high, it is difficult to distinguish sea clutter from a small boat whose reflection intensity
is weak. Accordingly, it is necessary to properly adjust the sea clutter rejection function. Table 6.2
shows the relation between the sea state (SS) showing the size of waves generated by wind and the
radar's detection probability.
Table 6.2 Sea state and probability of target detection
S band radar (probability to detect a target at a distance of 0.4 NM)
X band radar (probability to detect a target at a distance of 0.7 NM)
V: Detection probability of 80 %
M: Detection probability of 50 %
NV: Detection probability of less than 50 %
RCS SS1 to 2 SS2 to 3 SS3 to 4 SS4 to 5
0.1m2 V V-M M-NV
0.5 m2 V V V-M M-NV
1 m2 V V V V-M
RCS SS1 to 2 SS2 to 3 SS3 to 4 SS4 to 5
1m2 V-M M-NV
5 m2 V V-M M-NV
10 m2 V V V V-M
6-6
6.3 Sea Clutter and Rain and Snow Clutte
r
y
yy
yyy
6
As shown in Table 6.3, the number of SS increases as the wind speed becomes high and the waves
become large. Table 6.2 reveals that detection probability decreases from V (80 %) to NV (less than
50 %) as the number of SS increases. Therefore, even if the sea state is calm and a target clearly
appears on the radar display, when the sea state becomes rough, target detection probability decreases
resulting in difficulty of target detection by the radar.
Table 6.3 Relation between Douglas sea state and average wind speed and significant wave
height
Significant wave height: an average of top N/3 higher waves when the
number of waves detected within a constant time
duration is N
For example, in the case of a standard marine buoy, RCS of X band radar is 5 m2 as shown in Table 6.1.
When observing such a target in the sea state (SS3) in which significant wave height exceeds 1.2
meters, detection probability is M-NV, as shown in Table 6.2, which indicates 50 % or less.
[II] Rain and snow clutter
Rain and snow clutter is a video image that appears in a location where rain or snow is falling. The
image changes according to the amount of rain (or the amount of snowfall). As precipitation
increases, the image of rain and snow clutter becomes intensified on the radar display, and in the case
of localized heavy rain, an image similar to the image indicating land is displayed in some cases.
Furthermore, because radio waves tend to attenuate due to rain and snow, the ability to detect a target
in the rain and snow clutter or a target beyond the rain and snow clutter may decrease. The amount of
attenuation depends on the transmission frequency, antenna beam width, and the pulse length. Figure
6.3 and Figure 6.4 show examples in which detection distance is reduced due to the influence of
precipitation. Because of this, a target, which clearly appeared up to 10 NM by an X band radar
(pulse width of 0.8 μs) when it was not raining, may become dimly visible up to 5 NM when the
amount of rain becomes 4 millimeters per hour. Furthermore, when comparing the X band radar with
the S band radar, target detection distance decreases less when an S band radar is used, which means it
is influenced less by precipitation.
Sea state Average wind speed (kn) Significant wave height (m)
0 <4 <0.2
1 5-7 0.6
2 7-11 0.9
3 12-16 1.2
4 17-19 2.0
5 20-25 3.0
6 26-33 4.0
6-7
Figure 6.3 Decreased target detection distance by S band radar due to precipitation
Figure 6.4 Decreased target detection distance by X band radar due to precipitation
0
2
4
6
8
10
12
14
16
0 2 4 6 8 10 12 14 16
Detection distance while it is raining (NM)
Precipitation of 16 mm/hr Pulse width 0.05 μs
Precipitation of 4 mm/hr Pulse width 0.05 μs
Precipitation of 16 mm/hr Pulse width 0.8 μs
Precipitation of 4 mm/hr Pulse width 0.8 μs
Detection distance while it is not raining (NM)
02468 1 12 14 16
Detection distance while it is not raining (NM)
Precipitation of 16 mm/hr Pulse width 0.05 μs
Precipitation of 4 mm/hr Pulse width 0.05 μs
Precipitation of 16 mm/hr Pulse width 0.8 μs
Precipitation of 4 mm/hr Pulse width 0.8 μs
Detection distance while it is raining (NM)
0
2
4
6
8
10
12
14
16
6-8
6.3 Sea Clutter and Rain and Snow Clutte
r
y
yy
yyy
6
[III] Coping with sea clutter and rain and snow clutter
When the weather is bad and the ocean is rough, the use of an S band radar is effective because the
radar is not influenced by sea clutter so much and attenuation due to rain drops is small. When an X
band radar is used, reducing the pulse width will reduce the influence by spurious waves, and also the
spurious wave rejection function effectively works; therefore, the use of short pulse is effective when
the weather is bad. By using image processing functions PROC 1 to 3, it is expected that spurious
waves are further suppressed. Since optimal settings for those items can be automatically made by
using the function mode, it is recommended that FUNC Storm or FUNC Rain be used by
selecting the function mode when the weather is bad. For details of the function mode, see Chapter
3.9.
However, these functions may make some targets invisible, particularly targets with higher speeds.
6-9
6.4 FALSE ECHOES
The radar observer may be embarrassed with some echoes that do not exist actually. These false echoes
appear by the following causes that are well known:
[I] Shadow
When the radar scanner is installed near a funnel or mast, the echo of a target that exists in the direction
of the funnel or mast cannot appear on the radar display because the radar beam is reflected on the
funnel or mast. Whether there are some false echoes due to shadows can be checked monitoring the
sea clutter returns, in which there may be a part of weak or no returns.
Such shadows appear always in the same directions, which the operator should have in mind in radar
operation.
[II] Side Lobe Effect
A broken-line circular arc may appear at the same range as the main lobe of the radar beam on the radar
display. This type of false echo can easily be discriminated when a target echo appears isolated.
(See Figure 6.5)
HL
Figure 6.5
[III] False Echo by Secondary Reflection
When a target exists near own ship, two echoes from the single target may appear on the radar display.
One of those echoes is the direct echo return from the target and the other is the secondary reflection
return from a mast or funnel that stands in the same direction as shown in Figure 6.6.
Radar
scanner
Funnel
HL
Direct microwave
Secondary reflection
of microwave
Actual target
False echo from funnel
Figure 6.6
6-10
6.4 False Echoes
y
yy
yyy
6
[IV] False Echo by Multiple Reflection
When there is a large structure or ship with a high vertical surface near own ship as shown in Figure
6.7, multiple refection returns may appear on the radar display. These echoes appear in the same
intervals, of which the nearest echo is the true echo of the target.
Figure 6.7
[V] Second Time Echoes
The maximum radar detection range depends upon the height of the scanner and the height of a target
as described in the section of “The Horizon for Radar Beam Radiation”. If a so-called “duct” occurs
on the sea surface due to a certain weather condition, however, the radar beam may propagate to a
abnormally long distance, at which a target may be detected by the radar.
For instance, assuming that the pulse length is MP3 (on the repetition frequency of 1400 Hz), the first
pulse is reflected from a target at about 58 NM or more and received during the next pulse repetition
time. In this case, a false echo (second time echo) appears at a position that is about 58 NM shorter
than the actual distance. If the false echo appears at 5 NM on the radar display, the true distance of
the target is 5+58=63 NM. On the pulse length is SP1 (on the repetition frequency of 2250 Hz), a
false echo may appear at a position that is about 36 NM shorter than the actual distance.
This type of false echo can be discriminated by changing over the range scale (the repetition frequency),
because the distance of the target changes accordingly.
If second time echo is appeared, the use of Economy mode in PRF menu is effective. Otherwise,
Stagger Trigger menu set to on. (See section 3.8.3)
6-11
[VI] Radar Interference
When another radar equipment using the same frequency band as that on own ship is near own ship, a
radar interference pattern may appear on the radar display. This interference pattern consists of a
number of spots which appear in various forms. In many cases, these spots do not always appear at
the same places, so that they can be discriminated from the target echoes. (See Figure 6.8)
HL HL
Figure 6.8
If radar equipment causing an interference pattern and this radar are of the same model, their
transmitting repetition frequency is nearly the same. As a result, interference patterns may be
displayed concentrically.
In this case, the interference patterns cannot be eliminated by using only the interference reflector
function, so press [TX/PRF] key several times to fine-tune the transmitting repetition frequency.
An interference suppressing effect can be heightened by applying a different transmitting repetition
frequency to the interference pattern source radar and this radar.
6-12
6
6.5 Displa
y
of Radar Transponde
r
y
yy
yyy
6.5 DISPLAY OF RADAR TRANSPONDER
(SART)
The SART (Search and rescue Radar Transponder) is a survival device authorized by the GMDSS (Global
Maritime Distress and Safety System), which is used for locating survivors in case that a distress accident
occurs at sea. The SART is designed to operate in the 9 GHz frequency band.
When receiving the 9 GHz radar signal (interrogating signal) transmitted from the radar equipment on a
rescue ship or search aircraft, the SART transmit a series of response signals to inform the distress position
to the rescue and search party.
* This radar provides a shortcut item to make settings for SART signal reception. Execution of this item
automatically switches to the setting for SART reception.
It also functions for detect the beacon or target enhancer.
Procedures 1 Press [RANGE +] or [RANGE -] key to set the radar range to 6
NM or 12 NM.
2 Press [RADAR MENU] key twice, and then set the SART
display mode according to the procedures below.
2. RADAR Menu
→ 1. Process Setting
→ 9. SART
On : SART On
Off : SART Off
With the SART display mode set to ON, settings as shown below are made automatically.
(1) Sea clutter control: Minimum (Most counterclockwise)
(2) AUTO SEA function: Off
(3) Rain and Snow Clutter Control (RAIN): minimum
(4) Auto Rain and Snow Clutter function (AUTO RAIN): Off
(5) TUNE control: No tuning (to weaken clutter echoes)
(6) Interference rejecter (IR): Off
(7) PROCESS: Off
6-13
z When the SART function is set to ON, small targets around radar
station will disappear from the radar display.
z After end of detecting the START signal, turn the START display
off. Then the radar returns to the normal mode.
[Example of Display]
Attention
SECTION 7
SETTINGS FOR SYSTEM OPERATION
7.1 SETTINGS AT INSTALLATION ...........................................................7-1
7.2 SETTINGS..........................................................................................7-10
7.3 ADJUSTMENT...................................................................................7-22
7.4 MAINTENANCE MENU .....................................................................7-30
7-1
7.1 SETTINGS AT INSTALLATION
This section describes the electrical adjustment procedures to be performed by service engineers during
system installation.
The bearing adjustment value is saved to non-volatile memory in the scanner. Other settings are saviedto
non-volatile memory in the radar process unit.
CAUTION
Any adjustments must be made by specialized service
personnel.
Incorrect settings may result in unstable operation.
Do not make any adjustments during operation. Failure to
comply may result in adverse effects on the radar function
which may lead to accidents or equipment failure.
7.1.1 How to Open the Serviceman Menu
(Some items are not set on the JPL-600-MK2 for VTS.)
Procedures 1. Press the [RADAR Menu] key for 2
seconds.
The Code Input menu will appear.
2. Press [0] key.
3. Put the cursor on the ENT button,
and press the [ENT] key.
The Serviceman Menu will appear.
7-2
7.1 Settings at Installation yyy
yyyy
7
7.1.2 GYRO I/F Setting
(Not used on the JPL-600-MK2 for VTS)
The GYRO I/F circuit of the system is designed to be compatible with most types of gyro compasses by
simply setting the switches.
Step motor type: 20 to 170 VDC
Synchro-motor type: Primary excitation voltage 35 to 120 VAC
Before power-on operation can be performed, the switches S1 to S5 on the GYRO I/F circuit (PC4201)
must be set in accordance with the type of your gyro compass by performing the procedure below. The
switches are factory-set for a gyration ratio of 180X and the step motor type. Make sure of the type of the
gyro compass installed on the own ship before starting the procedure below.
Procedures 1. Set S1 to "OFF."
The gyro compass and GYRO I/F are turned off.
2. Set S2 and S3 in accordance with the type of your gyro compass.
There are two types of gyro compasses: one type outputs a step signal, and the other
type outputs a synchro signal. Make sure of the type of the gyro compass installed on
the own ship before setting the switches S2 and S3.
Synchro signal: Set the switches to [SYNC].
Step signal: Set the switches to [STEP].
3. Set the DIP switch S4.
The items to be set are listed below. For the settings, refer to Table 7-1.
S4-1: LOG alarm ON/OFF
S4-2: GYRO simulator ON/OFF
S4-3: LOG simulator ON/OFF
S4-5: Time before occurrence of GYRO alarm
S4-6: Sensor to be used (GYRO/NMEA)
S4-7/8: Baud rate when NMEA is used
4. Set the DIP switch S5.
The items to be set are listed below. For the setting, refer to Table 7-2.
S5-1: Type of gyro signal (step/synchro)
S5-2/3: Gyration ratio of gyro compass
S5-4: Gyration direction of gyro compass
S5-5: Type of log signal (pulse/synchro)
S5-7/8: Ratio of log signal
5. Connect the gyro signal and log signal cables to the terminal block.
6. Set S1 to "ON."
The gyro compass and GYRO I/F are connected.
7. After power-on operation, set the true bearing according to Section
7.1.7.
8. Make sure of the radar video and the operation with the true bearing
value.
9. If the true bearing value of the radar equipment is reversed, change
the setting of the switch S5-4.
7-3
Table 7-1 Setting Table (S4 DIP Switch)
S4 SETTING 1 2 3 4 5 6 7 8
ON
BSHLOG ALM OFF
ON
GYRO SIMULATOR OFF
ON
LOG SIMULATOR OFF
N.C. (No Connection) OFF
5 SEC ON
GYRO ALM TIME 0.2 SEC OFF
HDT ( NMEA (HDT/THS) ) ON
GYRO SRC
(Heading Sensor Source) GYRO OFF
4800 BPS OFF OFF
9600 BPS ON OFF
19200 BPS OFF ON
NMEA BAUDRATE
38400 BPS ON ON
Table 7-2 Setting Table (S5 DIP Switch)
S5 SETTING 1 2 3 4 5 6 7 8
STEP ON
SYNC OFF
36X ON ON
90X OFF ON
180X ON OFF
RATIO
360X OFF OFF
REV (Reverce) ON
GYRO SETTING
DIRECTION NOR (Normal) OFF
SYNC (Synchro) ON
PULSE OFF
NC (No Connection) OFF
100P／30X ON ON
200P／90X OFF ON
400P／180X ON OFF
LOG SETTING
PULSE/NM
800P／360X OFF OFF
7-4
7.1 Settings at Installation yyy
yyyy
7
7.1.3 Tuning (Tune Adjustment)
Adjust the tuning control for the transmitter and receiver.
The turning control should be adjusted when the system is installed or when the magnetron is replaced.
Procedures 1. Set a range of 48 NM or more.
2. Open the Serviceman Menu.
3. Open the Tune Adjustment menu by performing the following menu
operation.
1. Adjust Menu
→ 1. Tune Adjustment
4. Adjust the tune adjustment value so that the tune indicator bar at the
upper left of the display is maximized.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
5. Move the cursor onto the ENT button, and press the [ENT] key.
[I] Tune Indicator Adjustment
Set the scale mark when the tune indicator bar reaches the maximum point.
Procedures 1. Set a range of 48 NM or more.
2. Open the Serviceman Menu.
3. Open the Tune Indicator Adjust menu by performing the following
menu operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 3. Tune Indicator Adjust
4. Adjust the tune indicator adjustment value so that the tune indicator
bar at the upper left of the display reaches a point of 80 to 90% of the
maximum.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
5. Move the cursor onto the ENT button, and press the [ENT] key.
7-5
• With the JPL-600-1ER2 radar:
For this model, perform Tune Peak Adjustment explained below.
After the above adjustment procedure, perform the adjustment procedures below.
[II] Tune Peak Adjustment
Adjust the tune indicator and echo peak.
Procedures 1. Set a range of 48 NM or more.
2. Open the Serviceman Menu.
3. Open the Tune Peak Adjustment menu by performing the following
menu operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 2. Tune Peak Adjustment
4. Adjust the tune peak adjustment value so that the tune indicator bar at
the upper left of the display is maximized.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
5. Move the cursor onto the ENT button, and press the [ENT] key.
7.1.4 Bearing Adjustment
Make adjustment so that the bearing of the target measured with the compass matches the bearing of the
target echo on the radar display.
Procedures 1. Select H Up for the bearing presentation. Set video processing
(PROC) to OFF.
2. Measure the bearing of an appropriate target object (e.g., a ship at
anchor, a breakwater, or a buoy) relative to the scanner heading line.
3. Open the Serviceman Menu.
4. Open the Bearing Adjustment menu by performing the following menu
operation.
1. Adjust Menu
→ 2. Bearing Adjustment
5. Adjust the bearing adjustment value so that the target measured in
step 2 is adjusted to the correct bearing.
For how to input numeric data on the numeric value input screen, see Section 3.3.4.
Make adjustment by the 0.1°.
6. Move the cursor onto the ENT button, and press the [ENT] key.
7-6
7.1 Settings at Installation yyy
yyyy
7
7.1.5 Range Adjustment
Make adjustment so that the range of a target on the radar display is shown correctly.
Procedures 1. Search the radar display for a target of which range is already known.
2. Open the Serviceman Menu.
3. Open the Range Adjustment menu by performing the following menu
operation.
1. Adjust Menu
→ 3. Range Adjustment
4. Adjust the range adjustment value so that the target measured in step
1 is adjusted to the correct range. (For inputs to the value input
screen, refer to Section 3.3.4.)
5. Move the cursor onto the ENT button, and press the [ENT] key.
7.1.6 Navigator Setting (Device)
(Not used on the JPL-600-MK2 for VTS)
Determine whether to connect navigators to the radar equipment.
Only the navigators set to ON here can be used.
Procedures 1. Open the Serviceman Menu.
2. Open the Device Installation menu by performing the following menu
operation.
2. Installation Menu
→ 9. Next
→ 3. Device Installation
3. Select On for navigators connected to the radar equipment, and
Off for navigators not connected.
GYRO : Gyro (via GYRO I/F)
Compass : Compass (Compliant with IEC61162)
GPS Compass : GPS compass produced by JRC
Log : Log (via GYRO I/F)
2AXW : 2-axis log (Speed over water: Compliant with IEC61162)
2AXG : 2-axis log (Speed over ground: Compliant with IEC61162)
GPS : GPS (Compliant with IEC61162)
7-7
7.1.7 Setting of True Bearing Value
(Not used on the JPL-600-MK2 for VTS)
If GYRO I/F is used to input a gyro signal, the true bearing value indicated by the master gyro does not
match the value indicated by the radar equipment only in a rare case. In this case, perform the following
procedure to adjust the true bearing value of the radar equipment to the value of the master gyro.
Procedures 1. Press the [RADAR MENU] key twice.
2. Open the GYRO Setting menu by performing the following menu
operation.
4. NAV Equipment Setting
→ 1. GYRO Setting
3. Input the master gyro value to the value input screen. (For inputs to
the value input screen, refer to Section 3.3.4.)
4. Move the cursor onto the ENT button, and press the [ENT] key.
7.1.8 Antenna Height Setting (Antenna Height)
Set the height of radar antenna above sea level. Do not change this setting carelessly.
Procedures 1. Measure the height of radar antenna above sea level in advance.
2. Open the Serviceman Menu.
3. Open the Antenna Height menu by performing the following menu
operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 1. Antenna Height
4. Select the setting that matches the antenna height measured in step 1.
7-8
7.1 Settings at Installation yyy
yyyy
7
7.1.9 Setting of CCRP/Antenna/GPS Antenna Position (CCRP
Setting)
Set the radar station CCRP location, radar antenna installation location, and GPS installation location.
CCRP : Up to four locations can be input. (One location selected when used)
Radar antenna : Up to eight radar antennas can be input. (Automatically selected in response to
ISW operation)
GPS : Up to four locations can be input. (One location selected when used)
Procedures 1. Measure the CCRP location, radar antenna location, and GPS antenna
location in advance.
2. Open the Serviceman Menu.
3. Open the CCRP Setting menu by performing the following menu
operation.
2. Installation Menu
→ 4. CCRP Setting
4. Specify the ship length for Length at the upper right of the CCRP
Setting Menu, and the ship width for Beam.
5. Move the cursor onto the CCRP1 X, Y value, and press the ENT key to
input the CCRP1 location.
When X > 0, the CCRP is on the starboard side of the ship. When X < 0, it is on the
port side.
6. To input the second CCRP, press the CCRP2 button to display the
CCRP2 X,Y value, and input the value in the same manner for step 5.
Similarly, input the third and subsequent CCRPs.
7. Repeat the above steps to input the GPS location(s) and radar
antenna location(s).
8. If multiple CCRP locations and GPS locations are input, select the
CCRP location and GPS location to be used by pressing the buttons at
the upper left of the menu.
9. Press [0] key to close the CCRP Setting menu.
7-9
Length 300m
Beam 30m
RADAR Antenna1
X 0m, Y 15m
GPS1
X -10m, Y 30m
RADAR Antenna2
X 5m, Y 250m
30m
250m
15m
10m
5m
25m
CCRP1
X 0m, Y 25m
Example:
7-10
7.2 Settings yyy
yyyy
7
7.2 SETTINGS
This section describes the electrical adjustment procedures to be performed by service engineers during
system installation.
CAUTION
Any adjustments must be made by specialized service
personnel.
Incorrect settings may result in unstable operation.
Do not make any adjustments during operation. Failure to
comply may result in adverse effects on the radar function
which may lead to accidents or equipment failure.
7.2.1 Communication Port Setting (COM Port Setting)
External sensor signals are input to the radar equipment through a communication port. The radar
equipment has five communication ports. For signals to be input from sensors or to be output to the
sensors, communication ports need to be set in accordance with the sensors.
[I] Baud Rate Setting
Set the baud rate of the signal to be input to the COM port.
Procedures 1. Open the Serviceman Menu.
2. Open the Baud Rate menu by performing the following menu
operation.
2. Installation Menu
→ 5. COM Port Setting
→ 1. Baud Rate
7-11
3. Set the baud rate of the port to be set.
Selection value
1. COMPASS : 4800(NMEA)/9600(NSK)/38400(Fast NMEA) bps
2. NAV1 : 1200/4800/9600/38400 bps
3. NAV2 : 1200/4800/9600/38400 bps
4. GPS : 1200/4800/9600/38400 bps
5. NMEA : 1200/4800/9600/38400/115200 bps
The bold values are factory-set.
The COMPASS port is a receive-only port that is dedicated to COMPASS signals.
[II] Reception Port Setting (RX Port)
Set the numbers of ports for receiving signals from sensors.
There are two methods for receiving signals: specifying a port for each sensor, or using the automatic
recognition function without specifying ports.
Procedures 1. Open the Serviceman Menu.
2. Open the RX Port menu by performing the following menu operation.
2. Installation Menu
→ 5. COM Port Setting
→ 2. RX Port
3. Set a port for each sensor.
Settable sensor signals
GPS, DLOG, Alarm, Depth, Temperature, Wind, Current, ROT, RSA
Selectable ports
When the automatic recognition function is used: AUTO
When ports are specified: NAV1, NAV2, GPS, and NMEA
7-12
7.2 Settings yyy
yyyy
7
[III] Reception Sentence Setting (RX Sentence)
Set signal sentences to be received from sensors.
The system is factory-set for using all sentences.
To receive only specified sentences, select No Use for sentences which are not necessary.
Procedures 1. Open the Serviceman Menu.
2. Open the RX Sentence menu by performing the following menu
operation.
2. Installation Menu
→ 5. COM Port Setting
→ 3. RX Sentence
3. Select the sentences to be used by the sensors to be set.
Selection value: (Use) or (No Use) can be set for each sentence.
1. GPS(LL/COG/SOG) : GGA/RMC/RMA/GNS/GLL/VTG
2. GPS(WPT/Time) : GGA/RMC/RMB/BWC/BWR/ZDA
3. Depth : DPT/DBK/DBT/DBS
4. Wind : MWV/MWD
5. Current :
Data Set Number : 0-9. Set the number of the sentence to be used by Data Set
Number. (Initial value All)
Layer A : 0-999. Set the number of the sentence to be used with
layer A by Layer Number. (Initial value 3)
Layer B : 0-999. Set the number of the sentence to be used with
layer B by Layer Number. (Initial value 4)
Layer C : 0-999. Set the number of the sentence to be used with
layer C by Layer Number. (Initial value 5)
7-13
[IV] Transmission Port Setting (TX Port)
For each sentence, set a communication port through which signals are transmitted to sensors.
Procedures 1. Open the Serviceman Menu.
2. Open the TX Port menu by performing the following menu operation.
2. Installation Menu
→ 5. COM Port Setting
→ 4. TX Port
3. Select the communication port through which the sentence to be set
is output.
Settable sentences
TTM(TT), TLL(TT), TTD(TT), TLB(TT), OSD, RSD, ALR, ACK,
TTM(AIS), TLL(AIS), TTD(AIS), TLB(AIS), RemoteMaintenance,
JRC-ARPA, APB, BOD, GGA, GLL, RMC, RMB, VTG, XTE,
BWC, HDT, THS
Selectable ports
NAV1, ARPA, GPS, and NMEA
4. Select the output format, talker, and transmission interval.
Signals for which the above items can be set:
• NMEA0183 Output Format
Signal names: APB, BOD, GGA, GLL, RMC, RMB,VTG, XTE, BWC, HDT, THS
Selection Value: V1.5, V2.0, and V2.3
• NMEA0183 Talker
Signal names: APB, BOD,RMB, XTE, BWC, HDT, THS
Selection Value:
Standard: The talker is RA.
GP: The talker is GP.
For TTM, TLL, TTD, TLB, OSD, RSD and ALR the talker is always RA.
For GGA, GLL, RMC, and VTG, the talker is always GP.
• NMEA0183 TX Interval
Signal names: APB, BOD, GGA, GLL, RMC, RMB,VTG, XTE, BWC, HDT, THS
Selection Value: Set an interval in the range 1 to 9 seconds.
7-14
7.2 Settings yyy
yyyy
7
[V] GPS Receive Port Setting (Select NAV Equipment)
Select the receive port of GPS data.
Procedures 1. Open the Serviceman Menu.
2. Open the COM Port setting menu by performing the following menu
operation.
2. Installation Menu
→ 5. COM Port Setting
3. Press the [5] key.
Units of Select NAV Equipment are switched.
Internal GPS : The receive port is selected GPS connector of processor unit
(JRC’s GPS).
External GPS : The receive port is selected GPS terminal of terminal board
circuit.
7.2.2 Sector Blank Setting (Sector Blank)
In order not to display radar echoes, set a sector and stop transmission in the bearing. Three sector blank
areas can be created.
The sector blank function operates in the relative bearing with the bow.
[I] Sector Blank Function On/Off (Sectors 1, 2, and 3)
Procedures 1. Open the Serviceman Menu.
2. Open the Sector Blank menu by performing the following menu
operation.
2. Installation Menu
→ 3. Sector Blank
3. Set the sector blank number Sector 1 , 2 , or 3 with which the
sector blank function operates.
The system allows the use of up to three sector blank areas.
Set each sector blank area to on or off.
On : The sector blank function is operated.
Off : The sector blank function is stopped.
7-15
[II] Sector Blank Area Creation (Make Sectors 1, 2, and 3)
Procedures 1. Transmit the radar.
2. Open the Serviceman Menu.
3. Open the Sector Blank menu by performing the following menu
operation.
2. Installation Menu
→ 3. Sector Blank
4. Press numeric keys corresponding to the desired sector creation
Make Sector 1 , 2 , or 3 .
The selected sector blank will be made.
5. Set the starting bearing of the sector blank by operating the [EBL] dial,
and press the [ENT] key.
6. Set the ending azimuth of the sector blank by operating the [EBL] dial,
and press the [ENT] key.
7.2.3 TNI Blank Setting (TNI Blank)
Set a sector and stop tuning operation in the bearing.
If a structure such as the mast is close to the radar antenna, automatic tuning operation may become
unstable. In this case, set a TNI blank in the direction of the structure in order to stabilize the tuning
operation.
Only one TNI blank sector can be created. The TNI blank function operates in the relative bearing with
the scanner heading line as the benchmark.
[I] TNI Blank Function On/Off (Sector)
Procedures 1. Open the Serviceman Menu.
2. Open the TNI Blank menu by performing the following menu
operation.
2. Installation Menu
→ 9. Next
→ 2. TNI Blank
3. Select the item 1. TNI Blank in the menu, and turn on or off the TNI
blank function.
On : The TNI blank function is operated.
Off : The TNI blank function is stopped.
7-16
7.2 Settings yyy
yyyy
7
[II] TNI Blank Area Creation (Make Sector)
Procedures 1. Transmit the radar.
2. Open the Serviceman Menu.
3. Open the TNI Blank menu by performing the following menu
operation.
2. Installation Menu
→ 9. Next
→ 2. TNI Blank
4. Press the 2. Make Sector button in the menu.
5. Set the starting bearing of the TNI blank by operating the [EBL] dial,
and press the [ENT] key.
6. Set the ending bearing of the TNI blank by operating the [EBL] dial,
and press the [ENT] key.
7.2.4 Setting of Bearing Pulses from Antenna (Output Pulse)
Set the output value of bearing pulses from the antenna. The system can set 2048 pulses or 4096 pulses.
This setting is enabled only when an antenna of 25 or 30 kW is used.
Procedures 1. Open the Serviceman Menu.
2. Open the Output Pulse menu by performing the following menu
operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 6. Output Pulse
3. Set the number of pulses to be output by the antenna.
2048 : 2048 pulses per antenna rotation (Recommended value)
4096 : 4096 pulses per antenna rotation
* If a 10 kW antenna is used, 2048 is always set.
7-17
7.2.5 Slave Mode Setting (Master/Slave)
Place the system in the Slave mode when it is to be operated as the sub-display that displays radar
echoes by using radar signals from other radar equipment.
The input value of externally input bearing pulses can be set. The system can set 2048 pulses or 4096
pulses.
[I] Slave Mode Setting (Master/Slave)
Procedures 1. Open the Serviceman Menu.
2. Open the Installation Menu by performing the following menu
operation.
2. Installation Menu
3. Select Slave for the item 2. Master/Slave in the menu.
Master : The system operates as radar equipment while the own antenna is
connected.
Slave : The system operates as a sub-display while the signal cable of other radar
equipment is connected.
[II] Setting of Input Bearing Pulse (Input BP Count)
Procedures 1. Open the Serviceman Menu.
2. Open the second page of the Installation Menu by performing the
following menu operation.
2. Installation Menu
→ 9. Next
3. Set the number of pulses for the item 1. Input BP Count in the
menu.
2048 : 2048 pulses per antenna rotation
4096 : 4096 pulses per antenna rotation
7-18
7.2 Settings yyy
yyyy
7
7.2.6 Language Setting (Language)
The system is designed to switch between display languages, Japanese and English.
Procedures 1. Open the Serviceman Menu.
2. Open the Language menu by performing the following menu
operation.
2. Installation Menu
→ 8. Language
3. Select the language to be used.
1. English
2. Japanese
3. Other
3. Other is an option to display character strings created by our agents.
Ask the agent or our sales department if your language is supported.
4. To determine the selected language, turn the radar off, and then turn it
on.
7.2.7 Date Time Setting
To display time, the local time, local date, and time-zone difference must be set.
However, if the "ZDA" sentence of NMEA0183 is received, time can be automatically displayed.
Procedures 1. Press the [RADAR MENU] key twice.
2. Open the Date/Time Setting menu by performing the following menu
operation.
5. Sub Menu
→ 6. Date/Time Setting
7-19
2. Set information about date and time.
[1] UTC/LMT (Time display system)
UTC : Universal Time Coordinate
LMT : Local Mean Time
[2] LMT Date
Input the date in local time.
[3] LMT Time
Input the time in local time.
[4] Time Zone
Input the time-zone difference between the universal time and local time.
[5] Display Style
Set one of the following date display formats.
YYYY-MM-DD : Example: 2007-12-31
MMM DD, YYYY : Example: Dec 31, 2007
DD MMM YYYY : Example: 31 Dec 2007
[6] Synchronize with GPS
A ZDA sentence sent by the GPS is used, thereby displaying time synchronized
with the GPS time.
On : Time synchronized with the GPS time
Off : Time not synchronized with the GPS time
* If On is selected for this item but a ZDA sentence is not input, the system
internal clock function is used to display the date and time.
7.2.8 Input Installation Information
The system can input installation information.
Procedures 1. Open the Serviceman Menu.
2. Open the Installation Information menu by performing the following
menu operation.
2. Installation Menu
→ 1. Installation Information
3. Input the installation information.
For the input method on the numeric value and character input screens, see Section
3.3.4.
[1] Date
Input the date of installed system.
[2] Name
Input the name of installation personel.
[3] Company
Input the name of radar installer.
7-20
7.2 Settings yyy
yyyy
7
7.2.9 Setting the Alarm System
Setting the relay output (Relay Output)
This function enables the control of ARPAALM terminal (on the terminal board
circuit).
Procedures 1. Open the Serviceman Menu.
2. Open the Relay Output menu by performing the following menu
operation.
2. Installation Menu
→ 6. Alarm System
→ 2. Relay Output
3. Press the [1] key.
The Relay Output mode is switched.
Continuous : The output is continuously controlled.
Intermittent : The output is intermittenly controlled.
4. Press the [numeric] key corresponding to the item to be changed.
The item can be turned on / off.
On : The relay output is turned on when alarm have issued.
Off : The relay output is not turned on when alarm have issued.
2. TT CPA/TCPA : There is a dangerous target. (tracked target)
3. AIS CPA/TCPA : There is a dangerous target. (AIS target)
4. New Target : A new target is acquired in the automatic acquisition zone.
5. Lost : There is a lost target. (Target Tracking / AIS).
6. RADAR Alarm : Targets have entered the radar alarm range.
Setting the ALR output (ALR Output)
This function enables the control of ALR port (See the section 7.2.1).
Procedures 1. Open the Serviceman Menu.
2. Open theALR output menu by performing the following menu
operation.
2. Installation Menu
→ 6. Alarm System
→ 3. ALR Output
3. Press the [numeric] key corresponding to the item to be changed.
The item is turned on / off.
On : The ALR sentence is output when alarm have issued.
Off : The ALR sentence is not output when alarm have issued.
1. System Alarm : The internal alarm.
2. TT/AIS Alarm : Target Tracking Alarms and AIS Function Alarms.
7-21
Setting the External Acknowledgement (External ACK Setting)
This function enables the control of system when ACK sentence have received.
Procedures 1. Open the Serviceman Menu.
2. Open the External ACK Setting menu by performing the following
menu operation.
2. Installation Menu
→ 6. Alarm System
→ 5. External ACK Setting
3. Press the [numeric] key corresponding to the menu to be changed.
Critical Alarm ：CPA/TCPA alarm.
Normal Alarm ：Exept Critical Alarm.
4. Press the [numeric] key corresponding to the item to be changed.
The item is switched.
Audio : Setting of alarm sound.
On : The alarm sound is not stopped when acknowridgement have
received.
Off : The alarm sound is stopped when acknowridgement have
received.
Indication : Setting of alarm indication.
Lighting : The alarm indication brinking is stopped when
acknowridgement have received.
Brinking : The alarm indication brinking is not stopped when
acknowridgement have received.
Acknowridge State : Setting of ALR sentence.
A:ACK : Add acknowridgement to ALR sentence.
V:UNACK : Add no acknowridgement (unrecognized) to ALR
sentence.
7-22
7.3 Adjustment yyy
yyyy
7
7.3 ADJUSTMENT
This section describes the electrical adjustment procedures to be performed by service engineers during
system installation.
CAUTION
Any adjustments must be made by specialized service
personnel.
Incorrect settings may result in unstable operation.
Do not make any adjustments during operation. Failure to
comply may result in adverse effects on the radar function
which may lead to accidents or equipment failure.
7.3.1 Noise Level Adjustment (Noise Level)
[I] Noise Level Adjustment for Signal Processing
Procedures 1. Open the Serviceman Menu.
2. Open the Echo Noise Level menu by performing the following menu
operation.
9. SP/TT Initial Setup
→ 1. Signal Processing
→ 1. Echo Noise Level
3. Increase/decrease the noise level adjustment value.
The noise level is factory-set.
After system installation, a great change in the noise level adjustment value should be
avoided; it should be fine adjusted within ±5.
7-23
[II] Noise Level Adjustment Mode (Setting Mode)
A noise level is factory-adjusted while this mode is turned on.
Procedures 1. Open the Serviceman Menu.
2. Open the Signal Processing menu by performing the following menu
operation.
9. SP/TT Initial Setup
→ 1. Signal Processing
3. Press the [2] key.
The noise level setting mode is switched between on and off.
Factory-adjustment method
• The GAIN control is set to the maximum position, the SEA control is set to the
minimum position, the RAIN control is set to the minimum position, and IR,
AUTO-SEA, AUTO-RAIN, PROC, FUNC, and TRAILS are all set to off.
• The noise level adjustment mode is turned on.
• While the noise level adjustment value is decreased gradually, the value with which
radar echoes no longer appear is determined as the set value.
• Ten is added to the set value (with which radar echoes no longer appear), and the
result is set as the final noise level adjustment value.
• The noise level adjustment mode is turned off when the adjustment is finished.
7-24
7.3 Adjustment yyy
yyyy
7
z Do not change the set value carelessly.
The vector constant shall be set to 4 normally. If the
vector constant value is higher, a target’s vector will be
better followed up when the target and own ship
change their course or speed, but the vector accuracy
will be lower on the contrary.
7.3.2 Adjustment of Target Tracking Function (TT)
CAUTION
Optimal values have been set for Video Level and Vector
Constant; therefore, never change their values unless
absolutely necessary. Failure to comply may result in
accidents that would lower target tracking performance.
[I] Vector Constant Adjustment (Vector Constant)
Adjust the vector follow-up performance of the target tracking function.
The vector constant is adjusted to an optimal value, so do not change it carelessly.
Procedures 1. Open the Serviceman Menu.
2. Open the Vector Constant menu by performing the following menu
operation.
9. SP/TT Initial Setup
→ 2. TT
→ 1. Vector Constant
3. Input the value to be set.
To improve vector follow-up performance, increase the set value.
To stabilize vectors, decrease the set value.
Attention
7-25
[II] Quantization Level Adjustment (Video Level)
Use the target tracking function (TT) to adjust the level of the signal to be recognized as a target. If a
small value is set, even weak target signals will be input to the target detection circuit of the target tracking
function. However, many unnecessary signals are also input, which may cause unstable target acquisition
or tracking. It is important to set a value four or five greater than the value with which unnecessary signals
are detected.
The quantization level is adjusted to an optimal value, so do not change it carelessly.
CAUTION
Do not change the quantization level settings unless
absolutely necessary. If set at an inappropriate value, the
target acquisition or target tracking function deteriorates,
and this may lead to accidents.
Procedures 1. Open the Serviceman Menu.
2. Open the TT (Target Tracking) menu by performing the following menu
operation.
9. SP/TT Initial Setup
→ 2. TT
3. To change the quantization level of the automatic acquisition area,
specify the item 2. Video TD Level in the menu. To change the
quantization level of tracking and manual acquisition, specify the item
3. Video High Level .
7-26
7.3 Adjustment yyy
yyyy
7
[III] Gate Size Adjustment (Gate Size)
Use the target tracking function (TT) to set a target search area.
The gate size is adjusted to an optimal value, so do not change it carelessly.
Procedures 1. Open the Serviceman Menu.
2. Open the Gate Size menu by performing the following menu
operation.
9. SP/TT Initial Setup
→ 2. TT
→ 5. Gate Size
3. Select a gate size.
Wide : Large gate size
Normal : Medium gate size
Narrow : Small gate size
[IV] CPA Limit Ring Display On/Off (Limit Ring)
Use the target tracking function (TT) to determine whether to display the CPA limit for determining a
dangerous ship. When the CPA limit ring display function is turned on and a relative vector is used, the
CPA limit ring is displayed as a red circle.
Procedures 1. Open the Serviceman Menu.
2. Open the TT (Target Tracking) menu by performing the following menu
operation.
9. SP/TT Initial Setup
→ 2. TT
3. Press the [6] key.
The Limit Ring item is turned on / off.
Off : Limit ring not displayed
On : Limit ring displayed
7-27
7.3.3 Main Bang Suppression Adjustment (MBS)
Main Bang Suppression is adjusted to suppress main bang, a reflection signal from 3D circuit including
wave guide tube, that generally appears as a circular video focusing on the center of the radar display.
Optimum adjustment allows main bang video to remain slightly on the display.
WARNING
Do not change MBS Level/Area unless absolutely
necessary.
Incorrect adjustment will result in deletion of nearby target
images.
Procedures 1. Open the Serviceman Menu.
2. Open the MBS menu by performing the following menu operation.
9. SP/TT Initial Setup
→ 3. MBS
3. Set the radar as follows:
• Set the radar video enhance function and video processing (PROC) to OFF.
• Turn the [RAIN] control to the minimum position (fully to the left).
• Turn the [GAIN] control to the maximum position (fully to the right).
• Turn the [SEA] control to achieve the strength with which main bang can be judged.
4. Set 20 for 2. MBS Area .
5. Adjust the value set for 1. MBS Level so that the main bang
remains slightly.
6. Adjust the value set for 2. MBS Area so that the suppression area
will match the main bang.
7-28
7.3 Adjustment yyy
yyyy
7
7.3.4 Adjustment of Performance Monitor (MON)
After replacement of either of the following units, adjust the performance monitor according to the
procedures in this section:
• Performance monitor
• Antenna unit
[I] Reception Monitor Adjustment (MON Adjustment)
Adjust the circuit for monitoring the reception performance of the radar equipment.
Procedures 1. If the performance monitor is equipped with an inter-switch function,
set it as the master display unit.
2. Open the Serviceman Menu.
3. Open the MON (Performance Monitor) Adjustment menu by
performing the following menu operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 4. MON Adjustment
4. Increase or decrease the adjustment value so that the farthest point of
the performance monitor pattern touches the 18.0 NM line.
Note: During performance monitor adjustment, all acquisitions by the target tracking function are
released.
The released target acquisitions are not recovered.
7-29
[II] Transmission Monitor Adjustment (MON Indicator Adjustment)
Adjust the circuit for monitoring the transmission performance of the radar equipment.
Procedures 1. If the performance monitor is equipped with an inter-switch function,
set it as the master display unit.
2. Open the Serviceman Menu.
3. Open the MON (Performance Monitor) Indicator Adjustment menu by
performing the following menu operation.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 5. MON Indicator Adjustment
4. Increase or decrease the adjustment value so that the performance
monitor level indicator will be adjusted to "8."
5. Press the Exit button to close the adjustment menu.
Note: During performance monitor adjustment, all acquisitions by the target tracking function are
released.
The released target acquisitions are not recovered.
Adjusted to 8
7-30
7
7.4 Maintenance Menu yyy
yyyy
7.4 MAINTENANCE MENU
This item is provided for equipment maintenance, including settings of antenna safety switch, master reset,
etc.
CAUTION
Any adjustments must be made by specialized service
personnel.
Failure to comply may result in accidents or equipment
failure.
Do not make any adjustments during operation. Failure to
comply may result in adverse effects on the radar function
which may lead to accidents or equipment failure.
7.4.1 Antenna Safety Switch (Safety Switch)
Use this switch to measure the transmission/reception performance while the antenna is in stopped state.
Procedures 1. Open the Serviceman Menu.
2. Open the Safety Switch menu by performing the following menu
operation.
3. Maintenance Menu
→ 1. Safety Switch
3. Select the item to be set.
Set operation when the antenna safety switch is turned off.
1. TX-Off :
The transmitter stops transmission.
The display unist remains in transmission state.
2. Standby : (Normal setting)
The transmitter stops transmission.
The display unit is placed in standby state.
3.TX-On :
The transmitter continues transmission.
The display unit remains in transmission state.
4. Change the setting back to 2. Standby when the work is finished.
7-31
7.4.2 Initialization of Memory Area (Area Initial)
If system operation is unstable, it may be stabilized by initializing the memory area. To initialize the
memory area, follow the procedure in this section. The memory area is reset to the factory setting when
initialized.
[I] Partial Master Reset
Procedures 1. Open the Serviceman Menu.
2. Open the Partial Master Rest menu by performing the following menu
operation.
3. Maintenance Menu
→ 2. Area Initial
→ 1. Partial Master Reset
3. Select the items to be initialized.
Serviceman Menu : The set values in the Serviceman menu are initialized.
Except Serviceman Menu : The set values not in the Serviceman menu are
initialized.
User Setting : The user setting values are initialized.
TT Setting : The set values for the target tracking function are
initialized.
AIS Setting : The set values for the AIS function are initialized.
Day/Night : The color scheme and brilliance setting for the day/night
mode are initialized.
JRC Card Copy Record : The history of JRC charts copied on the memory card is
erased.
4. Select Yes in the Confirmation Window.
The memory areas of specified items are initialized, and the system is restarted.
[II] All Master Reset
Procedures 1. Open the Serviceman Menu.
2. Open the All Master Rest menu by performing the following menu
operation.
3. Maintenance Menu
→ 2. Area Initial
→ 2. All Master Reset
3. Select Yes in the Confirmation Window.
The whole memory area is initialized, and the system is restarted.
7-32
7
7.4 Maintenance Menu yyy
yyyy
7.4.3 Save of Internal Memory Data (Card1/2)
The system can save internal memory data such as item settings in all menus onto a flash memory card. If
the radar processing circuit in the system has been replaced, the set values before the circuit replacement
can be restored by reading the set values you saved before the replacement.
To save the internal memory data onto a flash memory card (option), the card must be inserted in card slot
beforehand.
[I] Copying of Internal Settings onto Card (Internal to Card1/2)
Save the internal memory data, such as item settings in menus, onto a flash memory card.
The internal memory data should be saved at completion of system setting, and the operation condition
should be saved periodically.
Procedures 1. Open the Serviceman Menu.
2. Open the Internal to Card 1/2 menu by performing the following menu
operation.
3. Maintenance Menu
→ 3. Internal to Card1/2
3. Select the slot of the card on which the internal memory data is to be
saved.
The lower slot is slot 1; the upper slot is slot 2.
4. Select Yes in the Confirmation Window.
The internal memory data is saved on the flash memory card.
[II] Reading of Internal Settings from Card (Card1/2 to Internal)
Read the saved memory data from the flash memory card into the system memory.
Perform the read operation in order to return the system to the previous operation condition after
replacement of the radar processing circuit in the system.
Procedures 1. Open the Serviceman Menu.
2. Open the Card 1/2 to Internal menu by performing the following menu
operation.
3. Maintenance Menu
→ 4. Card1/2 to Internal
3 Select the slot of the card from which the previously saved internal
memory data is to be read.
The lower slot is slot 1; the upper slot is slot 2.
4. Select Yes in the Confirmation Window.
The memory data is read from the flash memory card into the system memory.
After the internal memory area is updated, the system is restarted.
7-33
7.4.4 Clear and Save/Restoration of Antenna Operation Time
(TXRX Time)
The system adds up the following operation time and contains it in the antenna unit:
• Transmission time
• Motor run time
Clear the above total time when the magnetron or antenna unit motor is replaced.
[I] Clear of Transmission Time (Clear TX Time)
Clear the transmission time of the antenna unit.
Perform the following procedure to clear the transmission time when the magnetron is replaced.
Procedures 1. Open the Serviceman Menu.
2. Open the Clear TX Time menu by performing the following menu
operation.
3. Maintenance Menu
→ 5. TXRX Time
→ 1. Clear TX Time
3. Select Yes in the Confirmation Window.
The transmission time in the antenna's internal control circuit is cleared to 0.
[II] Clear of Motor Run Time (Clear Motor Time)
Clear the antenna's motor run time.
Perform the following procedure to clear the motor run time when the antenna motor is replaced.
Procedures 1. Open the Serviceman Menu.
2. Open the Clear Motor Time menu by performing the following menu
operation.
3. Maintenance Menu
→ 5. TXRX Time
→ 2. Clear Motor Time
3. Select Yes in the Confirmation Window.
The motor run time in the antenna's internal control circuit is cleared to 0.
7-34
7
7.4 Maintenance Menu yyy
yyyy
[III] Save of Antenna Time (TXRX to Display Unit)
Save the following antenna time data from the antenna unit into the display unit.
• Antenna's operating hours
• Transmission time
• Motor run time
Perform the following procedure to inherit the antenna time data when the antenna's internal control circuit
is replaced.
1. Saving the antenna time data
2. Replacing the antenna's internal control circuit
3. Restoring the antenna time data
Procedures 1. Open the Serviceman Menu.
2. Open the TXRX to Display Unit menu by performing the following
menu operation.
3. Maintenance Menu
→ 5. TXRX Time
→ 3. TXRX to Display Unit
3. Select Yes in the Confirmation Window.
The antenna time data in the antenna's internal control circuit is saved transferred to
the display unit.
[IV] Restoration of Antenna Time (Display Unit to TXRX)
Restore the antenna time data from the display unit into the antenna's internal control circuit.
Perform the following procedure to inherit the antenna time data when the antenna's internal control circuit
is replaced.
1. Saving the antenna time data
2. Replacing the antenna's internal control circuit
3. Restoring the antenna time data
Procedures 1. Open the Serviceman Menu.
2. Open the Display Unit to TXRX menu by performing the following
menu operation.
3. Maintenance Menu
→ 5. TXRX Time
→ 4. Display Unit to TXRX
3. Select Yes in the Confirmation Window.
The antenna time data in the display unit is restored transferred to the antenna's
internal control circuit.
7-35
7.4.5 Update of Character String Data (String Data Update)
The system is designed to transfer and display external character strings as the second language display.
The second language is factory-set to "Japanese."
Ask our agent or sales department for the supply of character strings to be updated.
To update character strings, the flash memory card (option) containing the character string file must be
inserted in card slot 2.
Procedures 1. Open the Serviceman Menu.
2. Open the String Data Update menu by performing the following menu
operation.
3. Maintenance Menu
→ 6. String Data Update
3. Select Yes in the Confirmation Window.
The character string file on the flash memory card is read into the system, and the
second language area is updated.
To display the read character strings in the second language, select Other in the
menu shown in Section 7.2.6.
SECTION 8
MAINTEMANCE
8.1 ROUTINE MAINTENANCE................................................................. 8-1
8.2 MAINTENANCE ON EACH UNIT ....................................................... 8-2
8.3 PERFORMANCE CHECK................................................................... 8-6
8.4 REPLACEMENT OF MAJOR PARTS .............................................. 8-12
8-1
8.1 ROUTINE MAINTENANCE
DANGER
Never carry out internal inspection or repair work of the
equipment by users.
Inspection or repair work by uncertified personnel may
result in fire hazard or electrocution.
For inspection and repair work of equipment components,
consult with our branch office, branch shop, sales office, or
our distributor in your district.
When conducting maintenance, make sure to turn the main
power off.
Failure to comply may result in electrocution.
Turn off the main power before cleaning the equipment.
Especially when a rectifier is used, make sure to turn it off
since voltage is still outputted from the rectifier even after
the indicator and the radar are turned off. Failure to
comply may result in equipment failure, or death or serious
injury due to electric shock.
For operating the radar equipment in the good conditions, it is necessary to make the maintenance work as
described below. If maintenance is made properly, troubles will reduce. It is recommended to make
regular maintenance work.
Common points of maintenance for each unit are as follow:
Clean the equipment.
Remove the dust, dirt, and sea water rest on the equipment cabinet with a piece of dry cloth.
Especially, clean the air vents with a brush for good ventilation.
8-2
8.2 Maintenance on each Unit yyyy
yyyy
8
8.2 MAINTENANCE ON EACH UNIT
8.2.1 Scanner Unit NKE-600-2C1T/2F2T/2254
DANGER
When conducting maintenance work on the scanner, make
sure to turn its main power off.
Failure to comply may result in electrocution or injuries.
Make sure to turn off the scanner safety switch. Failure to
comply may result in injuries caused by physical contact
with the rotating scanner.
Do not touch the radiator. Even if the power is turned off,
the radiator may be rotated by the wind.
After the work, turn "ON" the scanner unit safety switch.
8-3
Precautions in Mounting the Cover
When the cover is removed for regular checkup and replacement of parts and refitted after such work, the
procedures of fastening bolts shall be taken with the following precautions:
(a) The proper fastening torque of the fitting bolts (M8) is 1176 to 1470 N-cm (120 to 150 kgf-cm) (which
makes the inside water-tight and protects the packing against permanent compressive strain).
The packing start producing from the cover at a torque of approximately 1470N-cm (150 kgf-cm).
Do not fasten the bolts with a torque exceeding the specified value. Otherwise, the screws may be
broken.
(b) Use an offset wrench of 11 mm × 13 mm or a double-ended wrench of 13 mm × 17 mm (not longer
than 200 mm).
(c) Screw all the bolts by hand first to prevent them playing, then fasten them evenly in order not to cause
one-sided fastening. (Fasten the bolts with 25 % of the required torque at the first step.)
*: Fasten the bolts in the diagonal order.
8-4
8.2 Maintenance on each Unit yyyy
yyyy
8
z If the radiator front face (radiation plane) is soiled with
smoke, salt, dust, paint or birds’ droppings, wipe it
with a piece of soft cloth wetted with alcohol or water
and try to keep it clean at all times. Otherwise, radar
beam radiation may attenuate or reflect on it, resulting
in deterioration of radar performance.
z Never use solvents of gasoline, benzine,
trichloroethylene and ketone for cleaning.
(1) Radiator
Check up and clean the radiator.
(2) Rotating section
(a) Supply Oil Seal
An scanner unit with a grease nipple needs grease supply. Remove the cap of the grease nipple
on the front of the radiator support, and supply grease with a grease gun.
Make the oiling every six months. The oil quantity shall be approximately 100 g, which is as
much as the grease comes out of the oil seal. Use the grease of Mobilux 2 of Mobil Oil.
(b) Oiling gears
Apply grease evenly to the tooth surfaces of the main shaft drive gear and the encoder drive gear
with a spreader or brush. Oiling in short intervals is more effective to prevent the gears from
wear and tear and extend their service life, but oil at least every six months.
Use Mobilux2 of Mobile Oil.
(c) Mounting legs
Check the mounting legs and mounting bolts of the scanner unit case for corrosion at intervals
and maintain them to prevent danger. Apply paint to them once a half year because painting is
the best measure against corrosion.
Attention
8-5
8.2.2 Display Unit NCD-2034A
WARNING
When cleaning the display screen, do not wipe it too
strongly with a dry cloth. Also, do not use gasoline or
thinner to clean the screen. Failure to comply will result in
damage to the screen surface.
Dust accumulated on the screen will reduce clarity and darken the video. For cleaning it, wipe it with a
piece of soft cloth (flannel or cotton). Do not wipe it strongly with a piece of dry cloth nor use gasoline or
thinner.
8-6
8.3 Performance Check yyyy
yyyy
8
8.3 PERFORMANCE CHECK
Make operational check on the radar equipment regularly and if any problem is found, investigate it
immediately. Pay special attention to the high voltage sections in checking and take full care that no
trouble is caused by any error or carelessness in measurement. Take note of the results of checking, which
can be used effectively in the next check work.
Operational check shall be made in accordance with Table 8-1 Function Check List in the order as specified
in it.
Table 8-1 Check List
Equipment Item to be checked Criteria Remarks
Transmitter-receiver
Unit Tuning LED of Receiver The LED is lighting
during operation 48NM
range
Video and echoes on the screen
Sensitivity
LCD brilliance can be controlled correctly
Various markers
Various numerical indications
Lighting
Can be correctly
controlled
Memory See section 8.3.1 [I]-[1].
Communications Lines See section 8.3.1 [I]-[3].
Power Supply, Backup Battery See section 8.3.1 [I]-[4].
Monitor See section 8.3.1 [II].
Operation Unit See section 8.3.1 [III].
System Alarm Log Display See section 8.3.1 [V].
System Information Display See section 8.3.1 [VI].
Magnetron current See section 8.3.1 [VII].
Display Unit
Target Tracking See section 5.2.7.
Signals from the Scanner Unit See section 8.3.1 [I]-[2].
Scanner Unit Performance Monitor See section 8.3.1 [IV].
8-7
8.3.1 Check Performance on Test Menu
The radar operating state can be checked by opening the Test Menu.
Procedures 1. Perform the following menu open procedure to open the Test Menu.
Main
→ 9. NEXT
→ 9. Test Menu
2. Select the items to be checked.
The list of check items will appear.
1. Self Test [I] Self-diagnostic function
2. Monitor Test [II] Monitor check
3. Keyboard Test [III] Operation unit check
4. MON Display [IV] Performance monitor
5. System Alarm Log [V] Error log display
6. System Information [VI] System information display
Magnetron Current [VII] Indication of magnetron current
3. Select the items to be checked.
The list of check items will appear.
[I] Self-diagnosis function (Self Test)
Check of memory, scanner unit, and communications Lines
1. Memory Test [1] Memory check
2. TXRX Test [2] Scanner check
3. Line Test [3] Communication line check
4. Supply Voltage [4] Supply voltage check
[1] Memory Test
Checks for the performance of built-in memory.
1. SDRAM [1] SDRAM check
2. SRAM [2] SRAM check
3. FLASH ROM [3] Flash ROM check
4. GRAPHIC [4] Graphic check
When no abnormality is found, OK is displayed.
When an abnormality is found, NG is displayed.
8-8
8.3 Performance Check yyyy
yyyy
8
[2] TXRX Test
Checks for signals from the scanner.
Safety Switch Scanner’s safety switch check
AZI Pulse Scanner rotation signal check
HL Pulse Scanner heading line signal check
MH Current Check on the load current of high voltage in the modulator
Trigger Radar trigger signal check
Video Radar video check
When no abnormality is found, OK is displayed.
When an abnormality is found, NG is displayed.
In standby, ** will appear.
[3] Check of Communication Lines (Line Test)
Check the status of communications with options.
TXRX Check on connection with the transmitter-receiver
SIG.PROC Check on connection with the signal processing circuit
TT Check on connection with the target tracking unit
GYROO I/F Check on connection with the GYRO I/F unit
GPS Compass Check on connection with the GPS compass
ISW Check on connection with the interswitch
Plotter Key Check on connection with the plotter option
When no abnormality is found, OK is displayed.
When an abnormality is found, NG is displayed.
The status display field of equipment not connected is left blank.
[4] Supply Voltage
Check the voltage of internal power supply.
Item Normal value
12V 11.00-12.20 V
5V 4.75-5.25 V
3.3V 3.14-3.46 V
Battery 2.50 V or more
8-9
[II] Monitor Test
Checks for the display.
The test pattern will be shown on the display.
Pattern 1 All colors are filled with white.
Pattern 2 A white box is displayed on the black background of 1280 × 1024 dots.
Pattern 3 Displays rectangle × 2, circle × 2, and cross-shape× 13 (white lines on
the black background).
Pattern 4 Displays “H” of 9 dots × 9 dots on the entire screen (white character on
the black background).
Pattern 5 Gray scale display (16 levels)
Pattern 6 Displays a color bar.
Pattern 7 Displays the VDR test pattern.
Pattern 8 Displays the specified color.
To return to the normal display, press any key.
If errors occur in the monitor, no test pattern will appear.
[III] Keyboard Test (Operation Unit Test)
Checks for the controls and switches of the operation panel.
1. Key Test [1] Key check
2. Buzzer Test [2] Buzzer check
3. Light [3] Control panel light check
[1] Key Test
Checks for the controls and switches of the operation panel.
Each key on the operation panel on the display is shown in reverse video at the same time the key is
pressed, and the name of the pressed key is displayed.
[2] Buzzer Test
Checks for the operation panel buzzer.
The buzzer will sound.
The buzzer automatically stops after it sounds for a specified length of time.
[3] Light Test
Checks for the control panel light.
The brightness of the operation panel is gradually intensified at four levels.
8-10
8.3 Performance Check yyyy
yyyy
8
[IV] Check of the Performance Monitor (MON Display)
Displays the performance monitor status.
* Transmitter System Transmitter system attenuation value check.
Attenuation Value
* Receiver System Receiver system attenuation value check.
MON Pattern Range
Attenuation Value
Turn the [VRM] dial to make adjustments so that the farthest point of the performance monitor pattern.
The attenuation value of receiver system is displayed.
Procedures 1. Turn the [VRM] dial to make adjustments so that the farthest point of
the performance monitor pattern.
2. The Attenuation Value of *Receiver System is displayed.
Note: If Receiver System Attenuation Value display is under -3 dB or Transmitter System Attenuation
Value display is under -7 dB with the performance monitor test, radar should be checked by service
engineer. This means that the TX/RX unit may be faulty. Consult with the near-by dealer or our
sales department.
8-11
[V] System Alarm Log display
Displays previously occurred system alarms with the dates and times
when they occurred.
The Alarm log display button (2-29P Alarm) is clicked, in the same
way as that one.
To display the occurrence alarm , press the
1. Display Only Occurrence button.
To erase the alarm logs, press the 2. All Clear button.
The current alarm is displayed at the lower right of the radar display. For details, refer to Chapter 9.
[VI] System INFO
Displays the current system information.
Indicator Processor software version information
TXRX Scanner software version information
System No. System number
TX Time Total magnetron transmitting time (Total time during which
radar was transmitted)
X-Band
S-Band
Motor Time Total operating time (Total power-on time)
TXRX Total Time Total operating time of the scanner unit (Total power-on time of
the antenna unit)
Total Time Total operating time of the display unit (Total power-on time of
the display unit)
[VII] Magnetron Current
Displays the Magnetron Current bar indicating the magnetron current to check.
When a 48 NM range is set, the magnetron current is normal if the Magnetron Current bar reads the value
below.
10 kW: 4-7 scale marks
25/30 kW: 6-9 scale marks
8-12
8
8.4 Replacement of Major Parts yyyy
yyyy
8.4 REPLACEMENT OF MAJOR PARTS
The system includes parts that need periodic replacement. The parts should be replaced as scheduled.
Use of parts over their service life can cause a system failure.
WARNING
Direct exposure to electromagnetic waves at close range
will have adverse effects on the human body. When it is
necessary to get close to the scanner for maintenance or
inspection purposes, make sure to turn the indicator power
switch to "OFF" or "STBY."
Direct exposure to electromagnetic waves at close range
will have adverse effects on the human body.
When conducting maintenance work, make sure to turn off
the power and unplug the power connector J1 of the radar
process unit so that the power supply to the equipment is
completely cut off.
Some equipment components can carry electrical current
even after the power switch is turned off, and conducting
maintenance work without unplugging the power connector
may result in electrocution, equipment failure, or accidents.
CAUTION
Make sure to shut off the main power before replacing
parts. Failure to comply may result in electrocution or
equipment failure.
When replacing magnetrons, make sure to shut off the main
power and let the equipment stand for more than 5 minutes
to discharge the high-voltage circuit. Failure to comply
may result in electrocution.
8-13
CAUTION
Make sure to take off your watch when your hand must get
close to the magnetron.
Failure to comply may result in damage to the watch since
the magnetron is a strong magnet.
Make sure that two or more staff member work together
when replacing the LCD. If only one person attempts to
replace the LCD, he/she may drop it and become injured.
Do not directly touch the inverter circuit of the LCD display
with a bare hand since high voltage temporarily remains in
the circuit even after the main power is shut off.
Failure to comply may result in electrocution.
8.4.1 Parts Required for Periodic Replacement
Here are parts required for periodic replacement
Part name Interval Radar model Part type Part code
JPL-600-1ER2-6/6HS MAF1565N 5VMAA00102
JPL-600-2ER2-7/9/6HS M1568BS 5VMAA00106
1. Magnetron 4000 hours
JPL-600-2ER2-12 M1555 5VMAA00104
JPL-600-1ER2-6/6HS 7BDRD0048 7BDRD0048
JPL-600-2ER2-7/9 7BDRD0044A 7BDRD0044A
JPL-600-2ER2-6HS 7BDRD0045A 7BDRD0045A
2. Motor 10000 hours
JPL-600-2ER2-12 MDBW10823 MDBW10823
3. Fan (Scanner Unit) 20000 hours 7BFRD0002 7BFRD0002
4. LCD PANEL 50000 hours CML-771 CML-771
5. Monitor fan 20000 hours CBP-189 CBP-189
6. Fan (Radar Process
Unit) 20000 hours 7BFRD0005 7BFRD0005
7. Backup battery 5 years CR2032 5ZBCJ00012
Use a genuine magnetron.
8-14
8
8.4 Replacement of Major Parts yyyy
yyyy
8.4.2 Replacement of Magnetron
Caution: Replacement of magnetron must be made by specialized service personnel.
For details, refer to Service Manual.
Use genuine parts as mentioned above.
When mounting a new magnetron, do not touch the magnet with a screwdriver or put it on an iron plate.
After replacement, connect the lead wire correctly.
Handling of Magnetron under Long-Time Storage
The magnetron that has been kept in storage for a long time may cause sparks and operate unstably when its
operation is started. Perform the aging in the following procedures:
(1) Warm up the cathode for a longer time than usually. (20 to 30 minutes in the STBY state.)
(2) Start the operation from the short pulse range and shift it gradually to the longer pulse ranges. If the
operation becomes unstable during this process, return it to the standby mode immediately. Keep the
state for 5 to 10 minutes until the operation is restarted.
8-15
Bow side
Turn off the safety
switch.
Remove the eight
hexagonal screws.
Magnetron
Remove the
yellow cable.
Remove the
green cable.
Remove the
two screws.
Magnetron Replacement Procedure for Scanner Unit NKE-600-2C1T
(1) Before starting part replacement work, turn off the
safety switch of the scanner unit.
The safety switch is located on the rear (stern) side.
Remove the cover and turn off (to the lower side) the
safety switch.
(2) Loosen the hexagonal bolts and remove the cover on
the left (port) side
(3) Check that there is no remaining electric charge
in the modulation high-voltage circuit board.
Remove the two screws (M4) holding the
magnetron cables (both yellow and green).
8-16
8
8.4 Replacement of Major Parts yyyy
yyyy
(4) Remove the eight screws (M6) to remove the fixture
holding the magnetron. The screws cannot be
removed from the fixture, so loosen the all eight screws
and remove the magnetron together with the fixture.
The magnetron is held by a hook, but be careful
not to let it fall.
Use a shielded screwdriver. If the magnetron
comes into contact with any metal (tool), its
performance may deteriorate.
(5) Install the new magnetron together with the fixture and tighten the screws to hold the cables.
Follow the removal procedure in the reverse order.
Do not forget to tighten the screws and connect the cables.
Remove the
magnetron.
Loosen the
eight screws.
8-17
Loosen the four
hexagonal bolts.
Bow direction
Turn off the safety
switch.
Bow
direction
Loosen the
four screws.
Magnetron cove
r
Magnetron Replacement Procedure for Scanner Unit NKE-2254
(1) Before beginning work, turn off the safety switch
located on the bottom of the stern side of the
scanner unit.
(2) Loosen the hexagonal bolts and remove the cover on the
right (starboard) side.
(3) Loosen the screws (four M4 screws) to remove the
magnetron cover.
8-18
8
8.4 Replacement of Major Parts yyyy
yyyy
(4) Make sure there is no charge remaining in the
modulation high-voltage circuit board, and then
remove the screws (two M4 screws) holding the
magnetron cables (yellow and green) in place.
(5) Remove the screws (four M4 screws) holding the
magnetron in place, then replace the magnetron
after cutting the leads (yellow and green) for the
replacement magnetron to an appropriate length.
Use a shielded screwdriver because the
contact of the metal tool with the magnetron
causes deterioration of its performance.
(6) After having replaced the magnetron, reassemble the unit by following the disassembly procedure in the
reverse order. Do not forget to tighten the bolts and screws, and do not forget to reconnect the cables.
Extreme care should be taken to connect the leads (yellow and green) to the magnetron for
prevention of contact with other parts or the casing. Contact may cause them to discharge.
Remove the green
cable.
Remove the yellow
cable.
Magnetron
Re
m
ove the
four screws.
Remove the
two screws.
8-19
Magnetron Replacement Procedure for Scanner Unit NKE-600-2F2T
(1) Before beginning work, turn off the safety
switch on the bottom of the scanner unit.
(2) Loosen the hexagonal bolts (four bolts) and open the upper
cover until the stopper of the stay operates.
When closing the upper cover, release the stay stopper and
then tighten the cover.
(3) Loosen the screws (four M4 screws), remove the
transmitter-receiver unit cover, and remove the cables connected to
the transmitter-receiver unit (ten cables). Slide the cover of the
transmitter-receiver unit to remove it.
Stay
Loosen the four
hexa
g
onal bolts.
Bow direction
Turn off the
safet
y
switch.
Slide the cover.
Loosen the four
screws.
8-20
8
8.4 Replacement of Major Parts yyyy
yyyy
(4) Loosen the bolts (five M5 bolts) and remove the
transmitter-receiver unit. Slide the
transmitter-receiver unit upward to remove it.
(5) Remove the screws (six M4 screws) holding the
magnetron in place and replace the magnetron.
Use a shielded secrewdriver because the contact of
the metal tool with the magnetron causes
deterioration of its performance.
(6) Cut the leads (yellow and green) for the replacement magnetron to an appropriate length, then tighten the
screws and fix the cables in place.
After having replaced the magnetron, reassemble the unit by following the disassembly procedure in the
reverse order.
Do not forget to tighten the bolts and screws, and do not forget to reconnect the cables.
Extreme care should be taken to connect the leads (yellow and green) to the magnetron for
prevention of contact with other parts or the casing. Contact may cause them to discharge.
Slide the unit.
Loosen the five
bolts.
N
ut plate Remove the six
screws.
Magnetron
Green cable
Yellow cable
8-21
8.4.3 Replacement of Motor
Caution: Replacement of motor must be made by specialized service personnel.
For details, refer to Service Manual.
Motor Replacement Procedure for Scanner Unit NKE-600-2C1T
(1) Before starting part replacement work, turn off the
safety switch of the scanner unit.
The safety switch is located on the rear (stern) side.
Remove the cover and turn off (to the lower side) the
safety switch.
(2) Loosen the hexagonal bolts and remove the cover on the
both sides
(3) Remove the cover on the right (starboard) side and
loosen the four screws (M4) to remove the driver
unit, which has the motor driver circuit board on its back
side.
Disconnect the cables connecting the motor to the motor
driver circuit board.
Bow side
Turn off the safety
switch.
Remove the eight
hexagonal screws.
Driver circuit board Disconnect the
cables.
8-22
8
8.4 Replacement of Major Parts yyyy
yyyy
(4) Remove the cover on the left (port) side and remove the five
screws (M5) to remove the fixture.
(5) Remove the four hexagonal screws (M10x40, SW10, and
W10) that hold the motor from both the right and left sides
to remove the motor.
(6) Apply grease to the gear wheel of the new motor.
(7) Install the new motor in the scanner unit and secure it using the hexagonal screws. Tighten the screws
with the specified torque (380 kgf-cm).
(8) After replacing the motor, assemble the unit in the reverse order of the disassembly procedure.
Do not forget to tighten the screws and connect the cables.
Remove the metal fixture.
Remove the
five screws.
Remove the four hexagonal screws
(two screws on each side)
Remove the motor.
Apply grease.
Motor gear wheel
8-23
Motor Replacement Procedure for Scanner Unit NKE-2254
(1) Before beginning work, turn off the safety switch
located on the bottom of the stern side of the
scanner unit.
(2) Loosen the hexagonal bolts and remove the cover on the
left (port) side.
(3) Remove the cables connected to the motor driver
circuit board.
(4) Remove the hexagonal bolts (four M8 bolts) and
remove the motor.
Loosen the four
hexagonal bolts.
Bow direction
Turn off the safety
switch.
Bow
direction
Remove the four
bolts. Remove the two
cables.
Motor driver
circuit board
Moto
r
8-24
8
8.4 Replacement of Major Parts yyyy
yyyy
(5) Remove the hexagonal bolts (four M8 bolts) and
remove the installation plate from the motor.
(6) Attach the installation plate to the replacement
motor. Do not forget to tighten the hexagonal
bolts to an appropriate torque (210 kgf-cm) so they
are free of looseness.
(7) Install the motor into the scanner unit. Press the motor
against the protrusions of the arm fixed to the motor on
which the arm extends through the wall of the casing,
adjust it to minimize backlash, and fix it in place.
Do not forget to tighten the hexagonal bolts, to an
appropriate torque (140 kgf-cm) so they are free of
looseness.
(8) After having installed the motor, grease the gear wheel.
(9) After having replaced the motor, reassemble the unit by following the disassembly procedure in the
reverse order.
Do not forget to tighten the bolts and screws, and do not forget to reconnect the cables.
Remove the four
bolts.
Moto
r
Installation plate
Press
Tighten the four
bolts.
Arm protrusions
Grease here.
8-25
Motor Replacement Procedure for Scanner Unit NKE-600-2F2T
(1) Before beginning work, turn off the safety
switch on the bottom of the scanner unit.
(2) Loosen the hexagonal bolts (four bolts) and open the upper
cover until the stopper of the stay operates.
When closing the upper cover, release the stay stopper and
then tighten the cover.
(3) Loosen the screws (four M4 screws), remove the
transmitter-receiver unit cover, and remove the cables connected to
the transmitter-receiver unit (ten cables). Slide the cover of the
transmitter-receiver unit to remove it.
Stay
Loosen the four
hexa
g
onal bolts.
Bow direction
Turn off the
safet
y
switch.
Slide the cover.
Loosen the four
screws.
8-26
8
8.4 Replacement of Major Parts yyyy
yyyy
(4) Loosen the bolts (five M5 bolts) and remove the
transmitter-receiver unit. Slide the
transmitter-receiver unit upward to remove it.
(5) Remove the hexagonal bolts (four M6 bolts) and remove the
motor. Grease the gear wheel of the replacement motor and
place it in the casing. Do not forget to tighten the hexagonal
bolts to an appropriate torque (72 kgf-cm) so they are free of
loose
(6) After having replaced the motor, reassemble the unit by following the disassembly procedure in the
reverse order.
Do not forget to tighten the bolts and screws, and do not forget to reconnect the cables.
Clamp the cables so they do not interfere with the rotation of the motor's rotors.
Slide the unit.
Loosen the five
bolts.
Remove the
four bolts.
8-27
z When replacing the LCD monitor, which is easily
broken by a little impact, handle it carefully and do not
hit any article against it or put it on a hard article.
8.4.4 Replacement of LCD Monitor
Caution: Replacement of LCD Monitor must be made by specialized service personnel.
For details, refer to Service Manual.
(1) Disconnect the cables from the connectors “VIDEO” and “VIDEO DC OUT” on the rear of the
processor.
(2) Softly place the LCD monitor on a desk covered with a soft cloth.
(3) Attach a new LCD monitor in the reverse sequence as described above.
Attention
8-28
8
8.4 Replacement of Major Parts yyyy
yyyy
8.4.5 Replacement of Backup Battery
Caution: Replacement of backup battery must be made by specialized service personnel.
For details, refer to Service Manual.
A coin-cell battery maintains radar system configuration, date, and time information while power off
condition. radar system configuration is saving to non-volatile memory at fixed intervals.
About the Battery Alarm
If Battery Low is appeared at the lower-right of the display when start up the radar system, the battery
has not enough time left to live. We recommend to replace the battery.
If Battery Dead is appeared at the lower-right of the display when start up the radar system, the battery
has no time left to live. There is a necessary to replace the battery. In This condition, this radar system
is restored configuration information from flash memory and normal operation is available. However,
you turned of the radar system before saving to flash memory, the configuration information is maybe lost.
In this case, you must setup the configuration again.
If No Battery is appeared at the lower-right of the display when start up the radar system, the battery
has not inserted. There is a necessary to insert the battery.
Note: About disposal of used battery, refer to Section 10.2.
How to Replacement of Backup Battery
1. Remove the Coin-Cell Battery from the Holder
Be careful, don't break holder.
3. Fix the Coin-Cell Battery in the Holder
Turn up + surface.
Battery type : CR2032
SECTION 9
TROUBLESHOOTING AND
AFTER-SALES SERVICE
9.1 FAULT FINDING.................................................................................. 9-1
9.2 TROUBLE SHOOTING....................................................................... 9-7
9.3 AFTER-SALES SERVICE................................................................. 9-13
9-1
9.1 FAULT FINDING
In case of semiconductor circuits, it is deemed that there are few cases in which the used
semiconductor devices have inferior quality or performance deterioration except due to
insufficient design or inspection or by other external and artificial causes. In general, the
relatively many causes are disconnection in a high-value resistor due to moisture, a defective
variable resistor and poor contact of a switch or relay.
Some troubles are caused by defective parts, imperfect adjustment (such as tuning adjustment)
or insufficient service (such as poor cable contact). It will also be effective to check and
readjust these points.
9.1.1 List of Alarms and other Indications
The system automatically recognizes an internal alarm and displays the alarm message. If an
event which is not trouble but must be reported to the operator occurs, the system notifies the
operator of the event.
This section gives the list of alarms displayed by the system and other display lists.
ALR No : Unique alarm number in ALR sentence and ACK sentence.
Table 9-1 List of System Alarm Message
Message Description ALR No.
TXRX (SSW Off) Scanner: Safety switch OFF. 308
TXRX (AZI) Scanner: BP error. 311
TXRX (HL) Scanner: HL error. 312
TXRX (MHV) Scanner: Modulator’s high voltage alarm. 315
TXRX (Data) Scanner: No communication, communication mismatched, checksum
error, or collision. 326
TXRX (Heater) Scanner: Magnetron heater voltage error. 314
TXRX (Reverse) Scanner: Reverse rotation. 313
TXRX (Video) Scanner: VIDEO error. 309
TXRX (Trigger) Scanner: TRIGGER error.. 310
TXRX (Fan 1) Scanner: FAN 1 error. 320
TXRX (Fan 2) Scanner: FAN 2 error. 320
Keyboard (Data) Operation unit: Communication error or checksum error. 325
Keyboard2 (Data) Second operation unit: Communication error or checksum error. 325
GYRO I/F (Data) GYRO I/F: No communication or checksum error. 324
GYRO I/F (GYRO) GYRO I/F: GYRO error (error bit detected). 110
GYRO I/F (Log) GYRO I/F: Log error (error bit detected). 111
GPS (Status) GPS status error. 103
Position (Data) Latitude / longitude data: No communication or data error. 102
Date (Data) Date data: No communication or data error. 112
Speed (Log) 1-axis log: No communication or data error. 114
Speed (2AXW) 2-axis log (speed over water): No communication or data error. 114
Speed (2AXG) 2-axis log (speed over ground): No communication or data error. 114
9-2
9.1 Fault Finding
y
yyyy
yyyy
9
Message Description ALR No.
Speed (GPS) GPS speed: No communication or data error. 114
PROC (Interrupt) Process unit: Interrupt error. 962
PROC (AZI) Process unit: AZI error. 305
PROC (HL) Process unit: HL error. 306
ASIC1 to RADAR Error during interrupt from ASIC1 to RADAR DSP. 963
PROC (Video) VIDEO error. 303
PROC (Trigger) Trigger error. 304
Heading (Data) Heading data: No communication or data error. 113
Depth (Data) Water depth: No communication or data error. 115
TEMP (Data) Water temperature: No communication or data error. 117
Wind (Data) Wind direction/velocity: No communication or data error. 118
Current (Data) Tidal current: No communication or data error. 119
ROT (Data) Rate of Turn: No communication or data error. 120
RSA (Data) Rudder Sensor Angle: No communication or data error. 121
Autopilot (Data) APB: No communication or data error. 101
Fan (LCD) LCD monitor: Fan error. 955
SRB (Data) SRB: No communication or data error. 960
Datum (Data) DTM: No communication or data error. 122
Out of Bounds Own ship's latitude is over 85°N or 85°S. 123
Table 9-2 List of Notification
Message Description ALR No.
CCRP Changed CCRP is automatic changed.
Weather INFO Weather information is received.
Copying Display is capturing to file.
Set GYRO Requires setting of true bearing.
TM Reset Use care of resetting TM.
POSN Reset Change the latitude and longitude sentence.
9-3
Table 9-3 List of Target Tracking Alarms and AIS Function Critical Alarms
Message Description ALR No.
CPA/TCPA There is a dangerous target. 301
Table 9-4 List of RADAR Alarm, Target Tracking Alarms and AIS Function Alarms
Message Description ALR No.
CPA/TCPA There is a dangerous target. 301
RADAR Alarm (In) Targets have entered the radar alarm range.
RADAR Alarm (Out) Targets have left the radar alarm range.
Trial There is a dangerous target, when trial maneuver is active.
New Target Acquisition or activation of a target in the automatic acquisition /
activation zone. 302
Lost Failure in tracking the target that has been under tracking.
Failure in receiving AIS target data for a specified time.
REF Target Decrease in the reference target accuracy.
TT MAX Target The maximum number of targets is under acquisition.
TT 95% Capacity Over 95% of the maximum number of targets to be tracked.
AIS MAX Target Maximum number of AIS targets.
AIS 95% Capacity Over 95% of the maximum number of AIS targets.
AIS ACT MAX Maximum number of AIS targets to be activated.
AIS ACT 95%
Capacity Over 95% of the maximum number of AIS targets to be activated.
TT (Boot) Target tracking unit start failure. 344
TT (Data) The target tracking unit is malfunctioning.. 323
AIS (Data) AIS: No communication or communication error. 116
AIS PROC (Data) AIS processing circuit: No communication or communication error. 328
AIS ALARM *** AIS alarm (Up to 10 alarm messages can be displayed.).
Table 9-5 List of Route Error Messages and Warnings
Message Description ALR No.
Arrival Arrive at way point.
Break Off (WPT) Out of the way point.
Approach Approach the route.
Cross Track Error Go off the route.
9-4
9.1 Fault Finding
y
yyyy
yyyy
9
Table 9-6 List of Operational Error Messages and Warnings
Message Description
ALR No.
No Position Data Mark or line input when the latitude and longitude is invalid.
No Heading Data Target tracking operation or TM selection when bearing data is invalid.
Out of Range Out of operation range.
Invalid Range TM selection due to TM-disabled range (96 nm).
Zooming in a ZOOM-disabled range (0.125 nm).
MAX Point Tried to enter navigation information beyond the specified.
Can’t Transmit Tried to transmit within 5 second after standby or when the
transmitter-receiver has any trouble.
Invalid Data Tried to enter any data beyond its range.
Invalid Connection The operator set performance monitor to on without selecting straight.
No Card Card not detected yet.
Card Full Card capacity insufficient.
Format Card Unformatted card.
Invalid Card Invalid card.
Read Failed Read failure.
Write Failed Write failure.
Delete failed Deletion failure.
Format Failed Format failure.
Copy Failed Copy failure.
Not Allowed General operation error.
No Object No object at the cursor-specified position.
Slave Mode Operation of a menu for the scanner unit when the slave mode is active.
Table 9-7 List of Conditions Messages
Message Description ALR No.
GPS (HDOP) The HDOP level is increased (Decrease in the GPS accuracy.).
MON Test Performance monitor is active.
Scanner Rotating The scanner is rotating (When transmitter is standby state.).
Battery Low The battery is weakening.
Battery Dead The battery is dead.
No Battery The battery had removed.
9-5
Table 9-8 List of Interswitch Alarms and Messages
Message Description ALR No.
Master Range CHG The range of the own display unit has changed due to change in the
range of the master display unit.
ISW Complete The switchover of the Interswitch ended normally.
ISW Busy Access to the ISW menu was made during interswitching.
TXRX Standby The scanner unit is in the standby mode.
ISW Straight Failed in straight connection when the Interswitch system stops
operating.
ISW Standby The Interswitch recovered normally.
ISW Time Out Failed in switching.
ISW Error The interswitch is disabled.
Pattern CHG Failed Connection change failed.
Connection Masked Inhibition of control / connection is set.
Master Standby The master display unit does not transmit any signals.
ISW (Data) ISW: No communication, data mismatched, or checksum error. 327
Update ISW Software Tried to enter new TXRX function, when interswitch software used old
version.
Message set off in a failure of the monitor fan
！
When a failure has occurred in the monitor fan, the LCD monitor displays LCD FAN FAILURE at the center.
This display will disappear by pressing the BRIGHTNESS knob on the LCD monitor. In order to replace the
monitor fan, contact our service department, or the distributor.
9.1.2 Operation Checking
When the system is operating, the operation status (located at the upper right of the screen) is
changing pictures.
If picture freeze occurred, turn off the system and restart the system.
9-6
9.1 Fault Finding
y
yyyy
yyyy
9
9.1.3 Fuse Checking
Melted fuses are caused by any clear cause. When a fuse is replaced, it is necessary to check the
related circuits even if there is no trouble. In checking, note that there is some dispersion in the
fusing characteristics. Table 9-8 shows a list of fuses used in the equipment.
Table 9-9 Fuse List
Location Parts No. Current Rating Protection Circuit Type
F2 5A ST4-5AN1 Radar process unit
(JPL-600-1ER2-6/6HS) F3 10A
I/F circuit PC410 ST6-10AN1
F2 10A ST6-10AN1 Radar process unit
(JPL-600-2ER2-7/9/6HS,
JPL-600-2ER2-12) F3 10A
I/F circuit PC410 ST6-10AN1
GYRO I/F circuit F1 to F4 0.5A GYRO I/F circuit PC4201 MF51NR-0.5A
9-7
9.2 TROUBLE SHOOTING
As this radar equipment includes complicated circuits, it is necessary to request a specialist engineer for repair or
instructions for remedy if any circuit is defective.
There are also troubles by the following causes, which should be referred to in checking or repair work.
1 Poor Contact in Terminal Board of Inter-Unit Cables
a) Poor contact in terminal board
b) The cable end is not fully connected, that it, contacted with earthed another terminal.
c) Disconnected cable wire
2 Poor Contact of Connector within Unit
Reference: This radar equipment is provided with 9-9 standard spares.
Table 9-10 Spares (7ZXRD0026, JPL-600-1ER2-6/6HS, 7ZXRD0015, JPL-600-2ER2-7/9/6HS,
JPL-600-2ER2-12)
7ZXRD0026
Name Type/Code Shape (mm) In use Spare Parts No. Location
Fuse ST4-5AN1
(5ZFCA00050)
1 3 F2
Inside process
unit
Fuse ST6-10AN1
(5ZFCA00053)
1 3 F3
Inside process
unit
7ZXRD0015
Name Type/Code Shape (mm) In use Spare Parts No. Location
Fuse ST6-10AN1
(5ZFCA00053)
1 3 F2
Inside process
unit
Fuse ST6-10AN1
(5ZFCA00053)
1 3 F3
Inside process
unit
31.8
Φ6.35
31.8
Φ6.35
31.8
Φ6.35
31.8
Φ6.35
9-8
9.2 Trouble Shooting
y
yyyy
yyyy
9
Caution: Use the specified magnetron in table 9-11.
Table 9-11 Special Parts
[I] JPL-600-1ER2-6/6HS
Parts No. Name Type Manufacturer Location Code
V101 Magnetron MAF1565N NJRC Scanner unit 5VMAA00102
A101/A102 Circulator FCX68R Orient
Microwave Scanner unit 5AJIX00027
A103 Dummy NJC4002 NJRC Scanner unit 5ANDF00001
A104 Filter NJC9952 NJRC Scanner unit 5AWAX00002
A301 Diode Limiter NJS6930 NJRC Scanner unit 5ATBT00006
[II] JPL-600-2ER2-7/9/6HS
Parts No. Name Type Manufacturer Location Code
V101 Magnetron M1568BS NJRC Scanner unit 5VMAA00106
A101/A102 Circulator NJC3901M NJRC Scanner unit 5AJBV00007
A103 Dummy NJC4002 NJRC Scanner unit 5ANDF00001
A104 Filter NJC9952 NJRC Scanner unit 5AWAX00002
A301 Diode Limiter NJS6930 NJRC Scanner unit 5ATBT00006
[III] JPL-600-2ER2-12
Parts No. Name Type Manufacturer Location Code
V101 Magnetron M1555 NJRC Scanner unit 5VMAA00104
A101 Circulator NJC3316 NJRC Scanner unit 5AJBV00008
A301 Diode Limiter NJS6318 NJRC Scanner unit 5ATBT00005
9-9
Table 9-12 Circuit Block to be Repaired (JPL-600-1ER2-6/6HS)
Location Circuit Block Type Remarks
Scanner unit Motor 7BDRD0048 DC brushless motor
Scanner unit Motor control power circuit CBD-1875
Scanner unit Encoder CHT-76
Scanner unit Brake circuit CFA-252
Scanner unit Fan 7BFRD0002
Scanner unit Performance Monitor NJU-82A
Scanner unit Modulator circuit CME-363 Excluding Magnetron
Scanner unit Receiver unit NRG-610 Including CAE-529-1
Scanner unit Power supply circuit CBD-1783
Process unit Radar process circuit CDC-1287
Process unit ARPA process circuit NCA-891
Process unit ATA process circuit NCA-895A
Process unit AIS process circuit NQA-2236
Process unit GYRO interface circuit CMJ-509
Process unit Terminal board CQD-2056
Process unit I/F circuit NQA-2123
Process unit Power supply circuit NBD-891
Process unit Fan 7BFRD0005
Operation unit Operation circuit CCK-946
Operation unit Interface circuit CQC-1179
Operation unit Trackball CCK-1000
LCD Monitor Bezel kit MPBC43590 for radar
LCD Monitor Brower circuit CBP-189
LCD Monitor Interface circuit CMH-2136
LCD Monitor Inverter circuit CBF-36
LCD Monitor Brilliance control circuit CCK-945
LCD Monitor LCD Panel CML-771
9-10
9.2 Trouble Shooting
y
yyyy
yyyy
9
Table 9-13 Circuit Block to be Repaired (JPL-600-2ER2-7/9/6HS)
Location Circuit Block Type Remarks
Scanner unit Motor 7BDRD0044A DC brushless motor (normal speed)
Scanner unit Motor 7BDRD0045A DC brushless motor (high speed)
Scanner unit Motor control power circuit CBD-1875
Scanner unit Encoder CHT-76
Scanner unit Heater control part CHG-216 Option (AC100V)
Scanner unit Brake circuit CFA-257
Scanner unit Fan 7BFRD0002
Scanner unit Performance Monitor NJU-82A
Scanner unit Modulator unit NMA-544A-1
Including CPA-261A
Including CNM-253A
Including CFR-229
Excluding Magnetron
Scanner unit Modulator circuit CPA-261A
Scanner unit Receiver unit NRG-230A Including CMA-888A
Scanner unit T/R control circuit CMC-1322A
Scanner unit Power supply circuit CBD-1814A
Process unit Radar process circuit CDC-1287
Process unit ARPA process circuit NCA-891
Process unit ATA process circuit NCA-895A
Process unit AIS process circuit NQA-2236
Process unit GYRO interface circuit CMJ-509
Process unit Terminal board CQD-2056
Process unit I/F circuit NQA-2123
Process unit Power supply circuit NBD-891
Process unit Fan 7BFRD0005
Operation unit Operation circuit CCK-946
Operation unit Interface circuit CQC-1179
Operation unit Trackball CCK-1000
LCD Monitor Bezel kit MPBC43590 for radar
LCD Monitor Brower circuit CBP-189
LCD Monitor Interface circuit CMH-2136
LCD Monitor Inverter circuit CBF-36
LCD Monitor Brilliance control circuit CCK-945
LCD Monitor LCD Panel CML-771
9-11
Table 9-14 Circuit Block to be Repaired (JPL-600-2ER2-12)
Location Circuit Block Type Remarks
Scanner unit Motor MDBW10823 DC brushless motor
Scanner unit AC220V motor driver 7EPRD0034 220VAC
Scanner unit AC100V motor driver 7EPRD0035 110VAC
Scanner unit Encoder CHT-76
Scanner unit Heater control part CHG-215 Option (AC100V)
Scanner unit Brake circuit CFA-255
Scanner unit Brake control circuit CCB-659
Scanner unit Brake unit NZR-17 Including CFA-261
Including CFA-262
Scanner unit Fan 7BFRD0002
Scanner unit Performance Monitor NJU-87A
Scanner unit Modulator unit NMA-557A-1
Including CPA-261A
Including CMB-360
Including CFR-229
Excluding Magnetron
Scanner unit Modulator circuit CPA-261A
Scanner unit Receiver unit NRG-178A Including CAE-539
Including CAF-618
Scanner unit T/R control circuit CMC-1322A
Scanner unit Power supply circuit CBD-1814A
Scanner unit Relay filter circuit CSC-657A
Process unit Radar process circuit CDC-1287
Process unit ARPA process circuit NCA-891
Process unit ATA process circuit NCA-895A
Process unit AIS process circuit NQA-2236
Process unit GYRO interface circuit CMJ-509
Process unit Terminal board CQD-2056
Process unit I/F circuit NQA-2123
Process unit Power supply circuit NBD-891
Process unit Fan 7BFRD0005
Operation unit Operation circuit CCK-946
Operation unit Interface circuit CQC-1179
Operation unit Trackball CCK-1000
LCD Monitor Bezel kit MPBC43590 for radar
LCD Monitor Brower circuit CBP-189
LCD Monitor Interface circuit CMH-2136
LCD Monitor Inverter circuit CBF-36
9-12
9.2 Trouble Shooting
y
yyyy
yyyy
9
Location Circuit Block Type Remarks
LCD Monitor Brilliance control circuit CCK-945
LCD Monitor LCD Panel CML-771
9-13
9.3 AFTER-SALES SERVICE
9.3.1 Keeping period of maintenance parts
Keeping period of maintenance parts is ten years from the production is discontinued.
9.3.2 When you Request for Repair
If you suppose the product may be out of order, read the description in Section 9 carefully and
check the suspected point again.
If it is still out of order, you are recommended to stop operation of the equipment and consult
with the dealer from whom you purchased the product, or our branch office in your country or
district, the sales department in our main office in Tokyo.
z Repair within the Warranty Period
If any failure occurs in the product during its normal operation in accordance with the
instruction manual, the dealer or JRC will repair free of charge. In case that any failure is
caused due to misuse, faulty operation, negligence or force major such as natural disaster
and fire, the product will be repaired with charges.
z Repair after the Warranty Period
If any defective function of the product is recoverable by repair, the repair of it will be
made at your own charge upon your request.
z Necessary Information for Repair
☆ Product name, model, manufacturing date and serial number
☆ Trouble conditions (as detailed as possible. Refer to “Radar Failure Check List” in
page 9-14.)
☆ Name of company/organization, address and telephone number
9.3.3 Recommended Maintenance
The performance of the product may deteriorate due to the secular change of the parts used in
it, though such deterioration depends upon the conditions of operation.
So checkup and maintenance is recommendable for the product in addition to your daily care.
For maintenance, consult with the near-by dealer or our sales department.
Such maintenance will be made with charges.
For further details of after-sale service, contact the JRC Offices.
9-14
9
9.3 After-sales Service
y
yyyy
yyyy
Radar Failure Check List
When placing an order for repair of the product, it is requested that you could confirm the check items and fill the
results and sent the sheet to our contact.
If there is any unclear items, contact the ship on which the product is installed, and give the correct information on
the product.
Ship name: Phone: Fax:
Radar general model name: JMA- Serial No. :
(Write the full model name correctly)
(1)Check the following items in the order of the number, and circle the applicable answer between YES or NO.
If the item cannot be determined as YES or NO, explain in detail in the item (18), others.
(2)If any of the items (1) to (5) is marked as NO, check the fuse of the product (refer to Section 9.1.2 and 9.2).
(3)Check the items (4) to (17) while the transmission (TX) is ON.
*Functions mentioned in the items (14), (15) and (17) may be optional, answer is not necessary.
No. Check Item Result
(1) Power can be turned on. (The lamp on the Operation unit is lit) YES NO
(2) A few minutes after powering-on, it will become standby status . YES NO
(3) When powering-on (or TX ON), LCD monitor something is lit. YES NO
(4) The antenna rotates at the transmission (TX) ON.
(Check the following items while transmission is ON) YES NO
(5) Current is supplied to the magnetron. (Refer to the instruction manual) YES NO
(6) Turning is enabled. (Check with the range of 6 NM or more) YES NO
(7) Fixed marker is displayed. YES NO
(8) VRM is displayed. YES NO
(9) While noise is displayed while set at SEA and RAIN minimum, GAIN maximum,
IR-OFF and range 48 NM. YES NO
(10) Target reflection echo is displayed. YES NO
(11) Sensitivity of reflection echo is normal. YES NO
(12) EBL is displayed. YES NO
(13) Cursor mark moves. YES NO
*(14) GYRO course can be set and normally displayed. YES NO
*(15) LOG speed can be normally displayed. YES NO
(16) Target tracking function works normally. YES NO
*(17) If equipped with an interswitch, when switching from the straight mode (II) to (X),
the failures (items marked NO) in the above (1) to (16), are switched over to the
other unit. YES NO
(18)Others (Error message, etc. )
SECTION 10
DISPOSAL
10.1 DISPOSAL OF THE UNIT............................................................... 10-1
10.2 DISPOSAL OF USED BATTERIES ................................................ 10-1
10.3 DISPOSAL OF USED MAGNETRON............................................. 10-2
10.4 ABOUT THE CHINA ROHS............................................................ 10-2
10─1
10.1 DISPOSAL OF THE UNIT
When disposing of this unit, be sure to follow the local laws and regulations for the place of
disposal.
10.2 DISPOSAL OF USED BATTERIES
WARNING
When disposing of used lithium batteries, be sure to
insulate the batteries by attaching a piece of adhesive tape
on the + and - terminals. Failure to comply may cause
heat generation, explosion, or fire when the batteries get
shorted out.
In this unit, Lithium batteries are used for the following parts:
Radar Processing circuit (CDC-1287): BT1 (Maxell: CR2032)
z Do not store used lithium batteries. Dispose of them in accordance with regulations of
local government.
z When disposing of used lithium batteries be sure to insulate the batteries by taping the +
and - terminals. For disposal of batteries, be sure to follow the local laws and regulations.
For detail, consult with the dealer you purchased the product our business office, or local
government.
10-2
10.3 Disposal of Used Magnetron
yy
yyyy
yyyy
10
10.3 DISPOSAL OF USED MAGNETRON
Magnetron is used in the Scanner （NKE-600-2C1T/2F2T/2254）
z When the magnetron is replaced with a new one, return the used magnetron to our dealer
or business office.
For detail, consult with our dealer or business office.
10.4 ABOUT THE CHINA ROHS
形式名(Type): JPL-600-MK2 Series 名称(Name): RADAR
铅 汞 镉 六价铬 多溴联苯 多溴二苯醚
(Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE)
雷达天线单元
(Scanner Unit)
××○×××
收发信单元
(Transmitter-receiver Unit)
××××××
主船内装置 (Inboard Unit)
・显示装置 (Display Unit)
・键盘装置 (OperationUnit)
・信号处理装置
(RADAR Process Unit)
××××××
外部设备 (Peripherals)
・选择 (Options)
・电线类 (Cables)
・手册 (Documennts)
××××××
有毒有害物质或元素的名称及含量
(Names & Content of toxic and hazardous substances or elements）
(Toxic and Hazardous Substances and Elements)
×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006 标准规定的限量要求。
(Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials
used for this part is above the limit requirement in SJ/T 11363-2006.)
○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11306-2006 标准规定的限量要求以下。
(Indicates that this toxic, or hazardous substance contained in all of the homogeneous materials for this
part is below the requirement in SJ/T11363-2006.)
部件名称
(Part name)
有毒有害物质或元素
SECTION 11
SPECIFICATIONS
11.1 JPL-600-1ER2-6/6HS TYPE RADAR ..............................................11-1
11.2 JPL-600-2ER2-7/9/6HS TYPE RADAR...........................................11-2
11.3 JPL-600-2ER2-12 TYPE RADAR ....................................................11-3
11.4 SCANNER (NKE-600-2F2T)............................................................11-4
11.5 SCANNER (NKE-600-2E1T/2D1T)..................................................11-5
11.6 SCANNER (NKE-600-2C1T)............................................................11-6
11.7 SCANNER (NKE-600-2F2T-HS) ......................................................11-7
11.8 SCANNER (NKE-600-2F1T-HS) ......................................................11-8
11.9 DISPLAY UNIT (NCD-2034A)..........................................................11-9
11.10 PROCESSOR UNIT (NDC-1376A) ................................................11-10
11.11 TARGET TRACKING FUNCTION (OPTION) ................................11-12
11.12 AIS PROCESS CIRCUIT (NQA-2236) (OPTION)..........................11-13
11.13 PLOTTER.......................................................................................11-14
11.14 OPERATION UNIT (NCE-5085A) ..................................................11-15
11.15 PERFORMANCE MONITOR (NJU-87A) (OPTION)......................11-16
11.16 PERFORMANCE MONITOR (NJU-82A) (OPTION)......................11-16
11.17 AVAILABLE INPUT SIGNAL .........................................................11-17
11.18 AVAILABLE OUTPUT SIGNAL .....................................................11-18
11.19 STANDARD CONFIGURATION.....................................................11-18
11.20 EQUIPMENT DISTANCE BETWEEN OTHER INSTRUMENTS....11-19
11.21 OTHERS (OPTION) .......................................................................11-19
2
11
11 Specifications
yyy
yyyy
yyyy
11-1
11.1 JPL-600-1ER2-6/6HS TYPE RADAR
(1) Class of emission P0N
(2) Display Color Raster Scan
(3) Screen 19-inch Color LCD
Effective diameter of radar display, more than 250 mm
(4) Range Scale 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 NM
(5) Range Resolution Less than 30 m
(6) Minimum Detective Range Less than 40 m
(7) Range Accuracy Less than 1 % of the maximum distance of the range scale in
use or less than 15 m whichever is larger
(8) Bearing Accuracy Less than 1 °
(9) Bearing Indication Relative Motion mode: Head-up/Course-up/North-up
True Motion mode: Course-up/North-up
(10) Ambient Condition According to IEC60945-4
Temperature
Scanner: -25 to +55 ℃
(Storage Temperature: -25 to +70 ℃)
Other Unit except Scanner: -15 to +55 ℃
Relative Humidity
93% at +40 ℃
Vibration
2 to 13.2 Hz, amplitude ±1 mm ±10 %
13.2 to 100 Hz, Gravity acceleration 7 m/s2
Velocity of the wind 51.5 m/s (100 knot)
(11) Power Supply Input +24 VDC (Display Unit)
+24 VDC (Scanner)
* Display Unit correspond to 100/110/115/220/230/240 VAC
when use NBA-5070A.
(12) Power Consumption Approx. 140 W (typical)
Approx. 620 W (In maximum wind resistant velocity)
(13) Power Supply Voltage Fluctuation +24 VDC –10/+50 % (Display Unit)
+24 VDC –10/+50 % (Scanner Unit)
(14) Pre-heating Time Approx. Within 1 min 30 sec
11-2
11.2 JPL-600-2ER2-7/9/6HS Type Radar
yyy
yyyy
yyyy
11
11.2 JPL-600-2ER2-7/9/6HS TYPE RADAR
(1) Class of emission P0N
(2) Display Color Raster Scan
(3) Screen 19-inch Color LCD
Effective diameter of radar display, more than 250 mm
(4) Range Scale 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 NM
(5) Range Resolution Less than 30 m
(6) Minimum Detective Range Less than 40 m
(7) Range Accuracy Less than 1% of the maximum distance of the range scale in
use or less than 15m whichever is larger
(8) Bearing Accuracy Less than 1 °
(9) Bearing Indication Relative Motion mode: Head-up/Course-up/North-up
True Motion mode: Course-up/North-up
(10) Ambient Condition According to IEC60945-4
Temperature
Scanner: -25 to +55 ℃
(Storage Temperature: -25 to +70 ℃)
Other Unit except Scanner: -15 to +55 ℃
Relative Humidity
93% at +40 ℃
Vibration
2 to 13.2 Hz, amplitude ±1 mm ±10 %
13.2 to 100 Hz, Gravity acceleration 7 m/s2
Velocity of the wind
51.5 m/s (100 knot)
(11) Power Supply Input +24 VDC (Display Unit)
+24 VDC (Scanner)
* Display Unit correspond to 100/110/115/220/230/240 VAC
when use NBA-5070A.
(12) Power Consumption Approx. 220 W (typical)
Approx. 700 W (In maximum wind resistant velocity)
(13) Power Supply Voltage Fluctuation +24 VDC –10/+50 % (Display Unit)
+24 VDC –10/+50 % (Scanner Unit)
(14) Pre-heating Time Approx. Within 3 min
11-3
11.3 JPL-600-2ER2-12 TYPE RADAR
(1) Class of emission P0N
(2) Display Color Raster Scan
(3) Screen 19-inch Color LCD
Effective diameter of radar display, more than 250 mm
(4) Range Scale 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 NM
(5) Range Resolution Less than 30 m
(6) Minimum Detective Range Less than 40 m
(7) Range Accuracy Less than 1 % of the maximum distance of the range scale in
use or less than 15m whichever is larger
(8) Bearing Accuracy Less than 1 °
(9) Bearing Indication Relative Motion mode: Head-up/Course-up/North-up
True Motion mode: Course-up/North-up
(10) Ambient Condition According to IEC60945-4
Temperature
Scanner: -25 to +55 ℃
(Storage Temperature: -25 to +70 ℃)
Other Unit except Scanner: -15 to +55 ℃
Relative Humidity
93% at +40 ℃
Vibration
2 to 13.2 Hz, amplitude ±1 mm ±10 %
13.2 to 100 Hz, Gravity acceleration 7 m/s2
Velocity of the wind
51.5 m/s (100 knot)
(11) Power Supply Input +24 VDC (Display Unit)
100/110/120/220/230/240 VAC, 1 Φ, 50/60 Hz (Scanner)
* Display Unit correspond to 100/110/115/220/230/240 VAC
when use NBA-5070A.
(12) Power Consumption Approx. 240 W +600 VA (typical)
Approx. 240 W +1600 VA (In maximum wind resistant
velocity)
(13) Power Supply Voltage Fluctuation +24 VDC –10/+50 % (Display Unit)
100/110/115/220/230/240 VAC ±10 % (Scanner Unit)
(14) Pre-heating Time Approx. Within 3 min
11-4
11.4 Scanner (NKE-600-2F2T)
yyy
yyyy
yyyy
11
11.4 SCANNER (NKE-600-2F2T)
(1) Dimensions 10 kW 6 ft: Height 457 mm × Swing Circle 1910 mm
(2) Mass Approx. 40 kg
(3) Polarization Horizontal Polarization
(4) Directional Characteristic Horizontal Beam Width: 1.2 ° (-3 dB width)
Vertical Beam Width: 20 ° (-3 dB width)
Sidelobe Level: Below –26 dB (within ±10 °)
Below –30 dB (outside ±10 °)
(5) Revolution Approx. 27 rpm (Normal)
(6) Peak Power 10 kW±50 %
(7) Transmitting Frequency 9410 ±30 MHz
(8) Transmitting Tube Magnetron [MAF1565N]
(9) Pulse width/Repetition Frequency SP1: 0.08 μs/2250 Hz
MP1: 0.25 μs/1700 Hz, MP2: 0.5 μs/1200 Hz
LP1: 0.8 μs/750 Hz, LP2: 1.0 μs/650 Hz
0.125 NM SP1
0.25 NM SP1
0.5 NM SP1
0.75 NM SP1/MP1
1.5 NM SP1/MP1/MP2
3 NM MP1/MP2/LP1
6 NM MP1/MP2/LP1/LP2
12 NM MP1/MP2/LP1/LP2
24 NM MP2/LP1/LP2
48 NM LP2
96 NM LP2
(10) Duplexer Circulator + Diode Limiter
(11) Mixer MIC Front End
(12) Intermediate Frequency Amplifier Intermediate Frequency: 60 MHz
Band Width: 20 MHz (0.08 μs)
6 MHz (0.25 μs,0.5 μs)
3 MHz (0.8 μs, 1 μs)
Gain: More than 90 dB
Amplifying Characteristics: Logarithmic Amplifier
(13) Overall Noise Figure 7.5 dB (Average)
(14) Compass Safe Distance Standard 2.4 m
Steering 1.8 m
11-5
11.5 SCANNER (NKE-600-2E1T/2D1T)
(1) Dimensions 25 kW 7 ft: Height 536 mm × Swing Circle 2270 mm
25 kW 9 ft: Height 536 mm × Swing Circle 2825 mm
(2) Mass 25 kW 7 ft: Approx. 58 kg
25 kW 9 ft: Approx. 60 kg
(3) Polarization Horizontal Polarization
(4) Directional Characteristics Horizontal Beam Width: 1.0° (7 ft, -3 dB width)
0.8° (9 ft, -3 dB width)
Vertical Beam Width 20° (7/9 ft, -3 dB width)
Sidelobe Level: Below -26 dB
(7/9 ft, within ±10 °)
Below -30 dB
(7/9 ft, outside ±10 °)
(5) Revolution 24 rpm (7/9 ft, Normal)
(6) Peak Power 25 kW ±50 %
(7) Transmitting Frequency 9410 ±30 MHz
(8) Transmitting Tube Magnetron [M1568BS]
(9) Pulse Width/Repetition Frequency SP1: 0.07 μs/2250 Hz
MP1: 0.2 μs/2250 Hz, MP2: 0.3 μs/1900 Hz,
MP3: 0.4 μs/1400 Hz
LP1: 0.8 μs/750 Hz, LP2: 1.0 μs/650 Hz, LP3: 1.2 μs/510 Hz
0.125 NM SP1
0.25 NM SP1
0.5 NM SP1
0.75 NM SP1/MP1
1.5 NM SP1/MP1/MP2/MP3
3 NM MP1/MP2/MP3/LP1
6 NM MP1/MP2/MP3/LP1/LP2
12 NM MP1/MP2/MP3/LP1/LP2
24 NM MP3/LP1/LP2
48 NM LP2
96 NM LP3
(10) Duplexer Circulator + Diode Limiter
(11) Mixer MIC Front End
(12) Intermediate Frequency Amplifier Intermediate Frequency: 60 MHz
Band Width: 25 MHz (0.07 μs)
8 MHz (0.2 μs, 0.3 μs, 0.4 μs)
3 MHz (0.8 μs, 1 μs, 1.2 μs)
Gain: More than 90 dB
Amplifying Characteristics: Logarithmic Amplifier
(13) Overall Noise Figure 7.5 dB (Average)
(14) Compass Safe Distance Standard 2.4 m
Steering 1.8 m
11-6
11.6 Scanner (NKE-600-2C1T)
yyy
yyyy
yyyy
11
11.6 SCANNER (NKE-600-2C1T)
(1) Dimensions 30 kW 12 ft: Height 791 mm × Swing Circle 400 0mm
(2) Mass Approx. 180 kg
(3) Polarization Horizontal Polarization
(4) Directional Characteristics Horizontal Beam Width 12 ft: 1.9 °
Vertical Beam Width 12 ft: 25 °
Sidelobe Level: Below -26 dB (within ±10 °)
Below -30 dB (outside ±10 °)
(5) Revolution 24 rpm (60/50 Hz)
(6) Peak Power 30 kW ±50 %
(7) Transmitting Frequency 3050 ±20 MHz
(8) Transmitting Tube Magnetron M1555
(9) Pulse Width/Repetition Frequency SP1: 0.07 μs/2250 Hz
MP1: 0.2 μs/2250 Hz, MP2: 0.3 μs/1900 Hz,
MP3: 0.4 μs/1400 Hz
LP1: 0.8 μs/750 Hz, LP2: 1.0 μs/650 Hz, LP3: 1.2 μs/510 Hz
0.125 NM SP1
0.25 NM SP1
0.5 NM SP1
0.75 NM SP1/MP1
1.5 NM SP1/MP1/MP2/MP3
3 NM MP1/MP2/MP3/LP1
6 NM MP1/MP2/MP3/LP1/LP2
12 NM MP1/MP2/MP3/LP1/LP2
24 NM MP3/LP1/LP2
48 NM LP2
96 NM LP3
(10) Duplexer Circulator + Diode Limiter
(11) Mixer MIC Front End
(12) Intermediate Frequency Amplifier Intermediate Frequency: 60 MHz
Band Width: 25 MHz (0.07 μs)
8 MHz (0.2 μS, 0.3 μS, 0.4 μS)
3 MHz (0.8 μS, 1.0 μS, 1.2 μS)
Gain: More than 90 dB
Amplifying Characteristics: Logarithmic Amplifier
(13) Overall Noise Figure 7.5 dB (Average)
(14) Compass Safe Distance Standard 5.1 m
Steering 2.7 m
11-7
11.7 SCANNER (NKE-600-2F2T-HS)
(1) Dimensions 10 kW 7 ft: Height 457 mm × Swing Circle 1910 mm
(2) Mass Approx. 40 kg
(3) Polarization Horizontal Polarization
(4) Directional Characteristic Horizontal Beam Width: 1.2 ° (-3 dB width)
Vertical Beam Width: 20 ° (-3 dB width)
Sidelobe Level: Below -26 dB (within ±10 °)
Below -30 dB (outside ±10 °)
(5) Revolution Approx. 48 rpm
(6) Peak Power 10kW±50 %
(7) Transmitting Frequency 9410 ±30 MHz
(8) Transmitting Tube Magnetron [MAF1565N]
(9) Pulse width/Repetition Frequency SP1: 0.08 μs/2250 Hz
MP1: 0.25 μs/1700 Hz, MP2: 0.5 μs/1200 Hz
LP1: 0.8 μs/750 Hz, LP2: 1.0 μs/650 Hz
0.125 NM SP1
0.25 NM SP1
0.5 NM SP1
0.75 NM SP1 / MP1
1.5 NM SP1 / MP1 / MP2
3 NM MP1 / MP2 / LP1
6 NM MP1 / MP2 / LP1 / LP2
12 NM MP1 / MP2 / LP1 / LP2
24 NM MP3 / LP1 / LP2
48 NM LP2
96 NM LP2
(10) Duplexer Circulator + Diode Limiter
(11) Mixer MIC Front End
(12) Intermediate Frequency Amplifier Intermediate Frequency: 60 MHz
Band Width: 20 MHz (0.08 μs)
6 MHz (0.25 μs,0.5 μs)
3 MHz (0.8 μs, 1 μs)
Gain: More than 90 dB
Amplifying Characteristics: Logarithmic Amplifier
(13) Overall Noise Figure 7.5 dB (Average)
(14) Compass Safe Distance Standard 2.4 m
Steering 1.8 m
11-8
11.8 Scanner (NKE-600-2F1T-HS)
yyy
yyyy
yyyy
11
11.8 SCANNER (NKE-600-2F1T-HS)
(1) Dimensions 25 kW 6 ft: Height 536 mm × Swing Circle 1910 mm
(2) Mass Approx. 55 kg
(3) Polarization Horizontal Polarization
(4) Directional Characteristics Horizontal Beam Width: 1.2 °
Vertical Beam Width 20 ° (-3 dB width)
Sidelobe Level: Below -26 dB
(within ±10 °)
Below -30 dB
(outside ±10 °)
(5) Revolution 48 rpm (Normal)
(6) Peak Power 25 kW ±50 %
(7) Transmitting Frequency 9410 ±30 MHz
(8) Transmitting Tube Magnetron [M1568BS]
(9) Pulse Width/Repetition Frequency SP1: 0.07 μs/2250 Hz
MP1: 0.2 μs/2250 Hz, MP2: 0.3 μs/1900 Hz,
MP3: 0.4 μs/1400 Hz
LP1: 0.8 μs/750 Hz, LP2: 1.0 μs/650 Hz, LP3: 1.2 μs/510 Hz
0.125 NM SP1
0.25 NM SP1
0.5 NM SP1
0.75 NM SP1/MP1
1.5 NM SP1/MP1/MP2/MP3
3 NM MP1/MP2/MP3/LP1
6 NM MP1/MP2/MP3/LP1/LP2
12 NM MP1/MP2/MP3/LP1/LP2
24 NM MP3/LP1/LP2
48 NM LP2
96 NM LP3
(10) Duplexer Circulator + Diode Limiter
(11) Mixer MIC Front End
(12) Intermediate Frequency Amplifier Intermediate Frequency: 60 MHz
Band Width: 25 MHz (0.07 μs)
8 MHz (0.2 μs, 0.3 μs, 0.4 μs)
3 MHz (0.8μs, 1 μs, 1.2 μs)
Gain: More than 90 dB
Amplifying Characteristics: Logarithmic Amplifier
(13) Overall Noise Figure 7.5 dB (Average)
(14) Compass Safe Distance Standard 2.4 m
Steering 1.8 m
11-9
11.9 DISPLAY UNIT (NCD-2034A)
(1) Structure Desk Top Type
(LCD Monitor/Operation Unit/Processor Unit Separation Structure)
(2) Screen 19-inch Color LCD 1280 × 1024 dot (SXGA)
Viewing Distance: 1m from the center of Display
(3) Display mode Radar mode
Synthesis mode (Synthesis Radar echo and Coastline)
Plotter mode (Require Plotter Unit (option))
(4) Range Scale 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96 NM
(5) Range Marker 0.025, 0.05, 0.1, 0.25, 0.25, 0.5, 1, 2, 4, 8, 16 NM
(6) Bearing Indication Rader mode/Synthesis mode
Relative motion: North-up, Course-up, Head-up
True motion: North-up, Course-up
True motion (Plotter mode (Option)): N-up, C-up
(7) Variable Range Maker 2VRM (Digital Display)
VRM unit of Display: NM
VRM Range: 0.000 to 97.2 NM
(8) Electric Bearing lines 2EBL(Digital Display)
Each EBL can be floating displayed.
EBL unit of Display: 0.1 °
EBL Range: 0.000 °to 359.9 °
Bearing Indication: Relative bearing and True bearing can be switched.
(9) Cursor Target Range, Bearing and Latitude presentation can be possible to
move with trackball.
(10) Compass Safe Distance Standard 3.1 m
Steering 1.9 m
11-10
11.10 Processor Unit (NDC-1376A)
yyy
yyyy
yyyy
11
11.10 PROCESSOR UNIT (NDC-1376A)
(1) Structure Desk Top Type (Horizontal putting and length putting using
combined)
(2) Dimensions Height 170 mm × Width 300 mm × Depth 320 mm
(3) Mass Approx. Below 10 kg
(4) Tune Method AUTO/MANUAL(Bar-graph indicate)
(5) STC (SEA) AUTO/MANUAL
(6) FTC (RAIN) AUTO/MANUAL
(7) Radar Interference Rejection Built-in (The effect can be adjusted by three stages.)
(8) Scan Correlation Function1/2/3, 2 Peak Hold Processing1/2
Automatic change of processing method. (Target range
synchronize/Clutter synchronize)
(9) Bearing Marker 360 ° in 1 ° digit.
Relative motion: Fixation
True motion: Rewrite at a position correct in every
scan.
(10) Heading Line Electronic (Stern Line can be displayed.)
(11) Radar Alarm Invasion, Secession, OFF can be selected.
With buzzer sound.(Possible to output to external buzzer. )
Ring.
Automatically acquisition by target tracking described in
Section “TARGET TRACKING”.
(12) Off Center Within 66 % of the radius of any range. (Except 96 NM)
Can be operated in all mode in relative motion.
Trail is succeed at Off Center mode.
(13) True motion Unit Built-in (Except 96 NM)
(14) True motion reset position 66 % of radius of any range.
Possible to manual reset.
(15) Twice zoom The zoom center is 66 % radius of any range. (Except 0.125
NM)
11-11
(16) Radar trails indication True motion mode:(Only true motion trails
Relative motion mode:
True motion trails and relative motion trails can be selected.
Trail time length:
15 sec/30 sec/1 min/3 min/6 min/10 min/15 min/30 min/60
min/Continuous/OFF
Arbitrary trail time length can be displayed at any time.
Possible to display time series trail and continuous trail by
color classification.
Built-in Trail thinning process.
Trail function can be use at true motion reset.
When range is changed, Trail function can be use.
Trail function can be use at Off Center. (Relative motion)
When motion indication and bearing indication changed, Trail
function can be use.(Only true motion trails indication.)
(17) Variety of Pulse width SP1/MP1/MP2/LP1/LP2(NKE-600-2F2T)
SP1/SP2/MP1/MP2/MP3/LP1/LP2/LP3(NKE-2254/NKE-600-
2C1T)
(18) Target enhance 3 stages can be changed.
(19) Correct position When synthesis Radar and Coastline is displayed, position can
be corrected by manually.
(20) Display color Radar echo: 16 stages (Yellow, Green, Amber, Purple, Red)
Radar trails: 16 stages (White, Cyan, Green)
Fixed Maker: 4 colors (White, Cyan, Green, Amber)
VRM1/2,EBL1/2,PI: 4 colors (White, Cyan, Green, Amber)
Character/Bearing Marker: 5 colors (White, Green, Amber,
Black, Red)
Cursor: 4 colors (White, Cyan, Green, Amber)
Heading Line/Vector: 4 colors (Cyan, Green, Amber, Black)
Own Ship’s track/Another Ship’s track: 7 colors
Coastline/Isobaths: 16 colors
Mark/Line: 7 colors
11-12
11.11 Target Tracking Unit (Option)
yyy
yyyy
yyyy
11
11.11 TARGET TRACKING FUNCTION
(OPTION)
Radar mode, synthesis mode
(1) Available range scale All range
(2) Acquisition MANUAL/AUTO(by two automatic
acquisition/activation zone)
Acquisition range: 0.1 to 32 NM (Available all range scale)
(3) Tracking Normal edition type NCA-895A: 30 target
High performance type NCA-891: 100 target
Tracking range: 0 to 32NM (Available all range scale)
(4) Display Tracking data: 4 at the same time. (Can be scroll.)
Naming function: Possible to name by the alphabet up to 8
characters to each target.
The range, bearing, CPA, TCPA, true course, true speed, BCR,
BCT of target can be displayed. (When naming is displayed,
BCR/BCT can’t be displayed.) Vector display: True/Relative Past
position
(5) Alarm Automatic acquisition/activation zone
Danger ship: Depends on CPA/TCPA setting.
(6) Trial Maneuver (NCA-891) Input parameter: Course, Speed, Vector time, Time to Maneuver,
Reach, Turn Radius, Acceleration, Deceleration
Synthesis mode
(7) Another ship track 20 targets. 1500 point per one target can be displayed. (Own ship
track and marks are another.)
Display color: 7 colors (The display color of each target can be
set.) (The display color of all targets can be set by the batch. In
this case, the display color is one color.)
Interval of save: 3/5/10/30 sec, 1/3/5/10/30/60 min, 1/3/5/10 NM
Possible to storage in memory card (Option).
Note: ARPA Process Unit (NCA-891) or ATA Process Unit (NCA-895A) must be fitted on ships
compliant to IMO.
11-13
11.12 AIS PROCESS CIRCUIT (NQA-2236)
(OPTION)
Radar mode, synthesis mode
(1) Activation 100 target
MANUAL/AUTO(by two automatic activation/activation zone)
(2) Display 300 target (sleeping target and activated target)
AIS data: 2 at the same time. (simple display)
The ship's name, call sign, MMSI, course, speed, CPA, TCPA of target
can be displayed. (simple display item)
The ship's name, call sign, MMSI, course, speed, CPA, TCPA, bearing,
range, ship's heading bearing, rate of turn, latitude, longitude,
destination, navigation status of target can be displayed. (detail display
item)
Vector display: True/Relative
Past position
The message can be displayed. (broadcast message, addressed message)
(3) Alarm Automatic activation/activation zone
Danger ship: Depends on CPA/TCPA setting.
Synthesis mode
(4) Another ship track 20 targets. 1500 point per one target can be displayed.
(Own ship track and marks are another.)
Display color: 7 colors
(The display color of each target can be set.)
(The display color of all targets can be set by the batch. In this case, the
display color is one color.)
Interval of save: 3/5/10/30 sec, 1/3/5/10/30/60 min, 1/3/5/10 NM
Possible to storage in memory card (Option).
Note: AIS Process Unit must be fitted on ships compliant to IMO.
11-14
11.13 Plotter
yyy
yyyy
yyyy
11
11.13 PLOTTER
(1) Plotter (Normal) (Synthesis mode)
Projection: Mercator projection (Latitude 85 degree or less.)
Scale: Radar synchronize range scale
Own ship track: 1 color(Cyan)
Interval of save 3/5/10/30 sec, 1/3/5/10/30/60 min or
every 0.1/0.2/0.3/0.5/1/3/5/10 NM and Off
Capacity 7,000 point
Cursor mark: 7 colors
Capacity of cursor mark: 2,000 point
Variety of cursor Mark: 29
Line: 7 colors
Capacity of line: Include in cursor mark
Variety of line: Solid line, broken line, alternate long and
short dash line
Coastline data: Coastline ROM Card (Option) (ERC, JRC, C-Map NT+)
One selected depth contour can be displayed.
External memory: Memory card (Option)
Position correction: Latitude / Longitude correction
Radar video synchronize range scale coast line by
manual. (Synthesis mode)
(2) Plotter (Option NDB-37) (Synthesis mode, Plotter mode)
Projection: Mercator projection (Latitude 70 degree or less.)
Scale: Synchronize range scale (Synthesis mode)
1/1,000 to 1/10,000,000 are continuously selected. 10
stage can be changed (preset can be used). (Plotter
mode)
Own ship track: 7 colors.
Interval of save: 3/5/10/30 sec, 1/3/5/10/30/60 min or
every 0.1/0.2/0.3/0.5/1/3/5/10 NM and Off
Capacity of own ship track: 7,000 point
Cursor mark: 7 colors
Capacity of cursor mark: 20,000 point
Variety of cursor Mark: 29
Line: 7 colors
Capacity of line: Include in cursor mark
Variety of line: Solid line, broken line, alternate long and
short dash line
Coast line data: Coast line ROM card (Option)(ERC, JRC, C-Map NT+)
Selected one depth contour can be displayed.
External memory: Memory card (Option)
Waypoint and route: Waypoint can be set up to 999 point.
Information of waypoint: Azimuth, distance and the time
to required destination.
Setting of sea route: 10 sea routes. (20 destination for
one route can be set.)
Alarm of route: Waypoint arrival / break off, Route
arrival / break off
Position correction: Latitude / Longitude correction
Radar video synchronize range scale coast line by
manual. (Synthesis mode)
11-15
11.14 OPERATION UNIT (NCE-5085A)
(1) Structure Structure of operation unit is separate from processor unit.
Desk-Top type
Correspond Flush mount
(2) Switch
GAIN/PL: Adjust the reception gain. (Transmit pulse width
can be changed by PUSH-SW.)
AUTO-SEA: Sea clutter suppression.
(AUTO/MANU can be changed by PUSH-SW.)
AUTO-RAIN: Rain clutter suppression.
(AUTO/MANU can be changed by PUSH-SW.)
MULTI: Change the setting. (Adjustment item can be
changed by PUSH-SW)
EBL (Electric Bearing Line): Rotate the bearing of the EBL (Floating EBL
ON/OFF can be changed by PUSH-SW.)
VRM (Variable Range Marker): Change the VRM range.
(3) Operation switch
Trackball: Move the cursor mark.
STBY/OFF (Standby/Power off): Stop transmit, Power off.
TX/OFF (Transmit Start/Power Off): Start transmit, Power off
PANEL (Brightness of Keyboard Adjustment): Brightness of keyboard switch adjust.
ALARM ACK (Alarm Acknowledge): Acknowledge and stop alarm.
EBL1: Selection display and non-display of EBL1.
EBL2: Selection display and non-display of EBL2.
VRM1: Selection display and non-display of VRM1.
VRM2: Selection display and non-display of VRM2.
RANGE+ (Increase Display Range): Increase display range.
RANGE- (Decrease Display Range): Decrease display range.
ACQ (Acquisition): Target acquisition
TGT DATA (Numeric Display): Numeric display of tracking target.
TGT CNCL (Cancel of Selection): Release of selection of tracking target.
MOB (Marker): Turning on and release marker.
ENT (Enter): Left side button of trackball.
CLR/INFO (Clear/Information): Right side of trackball.
MAP (Display Mode): Selection display and non-display of MAP(NAV
LINE, etc…).
Selection of Rader, Synthesis and Plotter mode.
AZI MODE (Display Azimuth Mode): Selection of North-up, Course-Up, Head-Up.
TM/RM (True/Relative Motion): Selection true motion, relative motion.
RR/HL (Range Ring/Heading line): Selection display and non-display of fixed ring
and heading line.
OFF CENT(Off Center): Off center operation
AZ (Automatic Acquisition/Activate zone): Setting and release of acquisition/activation zone.
VECT T/R (True/Relative Motion Vector): Selection of true motion and relative motion of
vector.
TRAILS: Switching trails display time.
DAY/NIGHT: Selection of screen arrangement of color.
FUNC (Function): Selection of signal processing.
USER KEY1: User assignment key1.
USER KEY2: User assignment key2.
RADAR MENU: Rader menu.
MARK: Selection display and non-display of mark.
TT MENU: Target tracking menu.
11-16
11.15 Performance Monitor (NJU-87A)
yyy
yyyy
yyyy
11
11.15 PERFORMANCE MONITOR (NJU-87A)
(OPTION)
(1) Dimensions Height 130 mm × Width 180 mm × Depth 70 mm
(2) Mass Approx. 1.2 kg
(3) Operating Frequency 3050±30 MHz
Note: Performance monitor must be fitted on ships compliant to IMO.
11.16 PERFORMANCE MONITOR (NJU-82A)
(OPTION)
(1) Dimensions Height 130 mm × Width 149 mm × Depth 70 mm
(2) Mass Approx. 1.2 kg
(3) Operating Frequency 9410±30 MHz
Note: Performance monitor must be fitted on ships compliant to IMO.
11-17
11.17 AVAILABLE INPUT SIGNAL
Receive capability Port: .NAV1, NAV2, GPS port at terminal board TB4303. NMEA Connecter at rear of
the process unit (D-Sub 9 PIN)
(1) Navigation equipment: IEC61162-1/2
Longitude/Latitude: GGA > RMC > RMA >
GNS/GLL
Waypoint: RMB>BWC>BWR
COG/SOG: RMC>RMA>VTG
SPEED: VBW
Day/Time information: ZDA
Alarm acknowledge: ACK
Rate of Turn : ROT
Rudder : RSA
(2) Bearing signal: GYRO-SYNC: 360X, 180X, 90X, 30X. (GYRO I/F Unit)
GYRO-STEP: 360X, 180X, 90X, 30X. (GYRO I/F Unit)
JRC-NSK format (JLR-10,20,30) (COMPASS Connector at rear
of the process unit)
IEC61162-2 38400bps: THS>HDT (over 40Hz) (COMPAS port at
terminal board TB4303).
IEC61162-1 4800bps: HDT>HDG>HDM>VHW (COMPAS port
at terminal board TB4303). ※Can’t be use for target tracking.
(3) Speed signal: LOG-SYNC: 360X, 180X,90X, 30X. (GYRO I/F Unit)
LOG-PULSE: 800, 400, 200, 100. (GYRO I/F Unit)
(4) External event mark: Contact input (EVENT port at terminal board TB4303).
(5) Radar buoy: Negative input (RBVD port at terminal board TB4302).
(6) Depth: DPT>DBS>DBT>DBK, JRC format
(7) Water temperature: MTW, JRC format
(8) Tendency: CUR, JRC format
(9) Direction of wind, velocity of wind: MWV, MWD
(10) AIS: VDM, VDO
Note: The Speed measuring accuracy of speed sensor shall confirm to IMO Resolution MSC.96(72).
The measuring accuracy of GPS shall confirm to IMO Resolution MSC.112(73).
11-18
11.18 Available Output Signal
yyy
yyyy
yyyy
11
11.18 AVAILABLE OUTPUT SIGNAL
(1) Slave video Radar video: TIY, VD, BP (2048 p), BZ (Terminal board TB4302)
(2) Navigation information Send capability Port: .NAV1, NAV2, GPS port at terminal board TB4303.
NMEA Connecter at rear of the process unit (D-Sub 9 PIN). IEC61162-1/2
Radar system data: RSD
Own ship data: OSD
Tracking target data: TTM, TLL, TTD, TLB, JRC-ARPA
AIS target data: TTM, TLL, TTD, TLB
Alarm: ALR
Auto pilot: APB
Bearing of destination: BOD
Latitude/Longitude data: GGA, GLL, RMC
Waypoint data: RMB, BWC
COG/SOG data: VTG
Cross track error: XTE
Heading data: HDT, THS
(3) External alarm Default setting: normally closed contact
Maximum current: 200 mA
(SYSALM, ARPAALM port at terminal board TB4303).
(4) External monitor Multi scan monitor, Analog RGB, HD15 pin Connector
11.19 STANDARD CONFIGURATION
(1) Scanner 1
(2) Display unit 1 (Process unit, LCD unit, Operation unit)
(3) Equipment cable 10/25 kW
Standard:20 m
30 kW
Display unit to junction box Standard: 10 m
Junction box to scanner Standard: 20 m
(4) Equipment reserve parts 1
(5) Instruction manual 1 (Japanese or English)
11-19
11.20 EQUIPMENT DISTANCE BETWEEN
OTHER INSTRUMENTS
Maximum Standard
(1) LCD monitor to processor unit 5 m 5 m
(2) Keyboard unit to processor unit 5 m 5 m
(3) Scanner to display unit (10/25 kW) 65 m 20 m
(4) Scanner to junction box (30 kW) 50 m*1 20 m
(5) Junction box to display unit (30 kW) 30 m*1 10 m
*1 Total distance between scanner and display unit must be 65 m or less.
11.21 OTHERS (OPTION)
• Coast line ROM card
• Memory card
• Interswitch unit (NQE-3141)
• Rectifier unit (NBA-5070A)
