Jastec JTGM-1100 Vehicle Fleet Management Service System User Manual 1
Jastec Co., Ltd. Vehicle Fleet Management Service System 1
Jastec >
User manual
von-S2(JTGM-1100) Manual Instruction
von-S2(JTGM-1100) Information
This confidential information is not supposed to disclosed and misused to the third party
1
•Certified Business Name: Jastec Co.,Ltd.
•Device (model): Vehicle Fleet Management Service System
•Manufacture date: Jan, 2013
•Manufacturer/country : Jastec Co,Ltd./Korea
•Certified code : JS0
•A radio interference of this wireless module is not providing a service related the safety of life.
This confidential information is not supposed to disclosed and misused to the third party
2
We kindly recommend you to be fully aware of using a product accurately and for safety of user. All liabilities by
uncomplying cautions are not supposed to be responsible to manufacturer.
1. This product into water or prolonged exposure to moisture can cause failure resulting in no charge for broken A/S.
2. Do not disassemble or repair this product if the label seal is broken or damaged, free A/S will not be received.
3. Do not separate or equip von-F module while driving vehicle or ignition off. – This causes to car accident and defective of it.
4. Please note that on the surface of the product carefully to avoid strong detergent or chemicals.
5. This product works under the proper temperature -20~+60℃.
6. Do not impact the product. It’s the cause of product defective.
7. Using other products rated voltage is the cause of the crush. Rated voltage state must be sure to use the product.
8. After parking vehicle in a safe place, install von-F module then drive.
9. When installing or removing product on the vehicle as the vehicle peripheral device could be due to injury, Please be careful.
10. Incorrect installation of the product by the vehicle’s shock and vibration and can cause data loss, after the installation, please check
it properly.
11. Products by shock or vibration of the vehicle is released from the car because it can cause data loss if the installation status checks
on a regular basis. This product is equipped with a breakdown of the car by the impact of accidents, damage, of driving record, we are
not responsible for missing.
Cautions For Safety
1. von-S2(JTGM-1100) Descriptions
This confidential information is not supposed to disclosed and misused to the third party
3

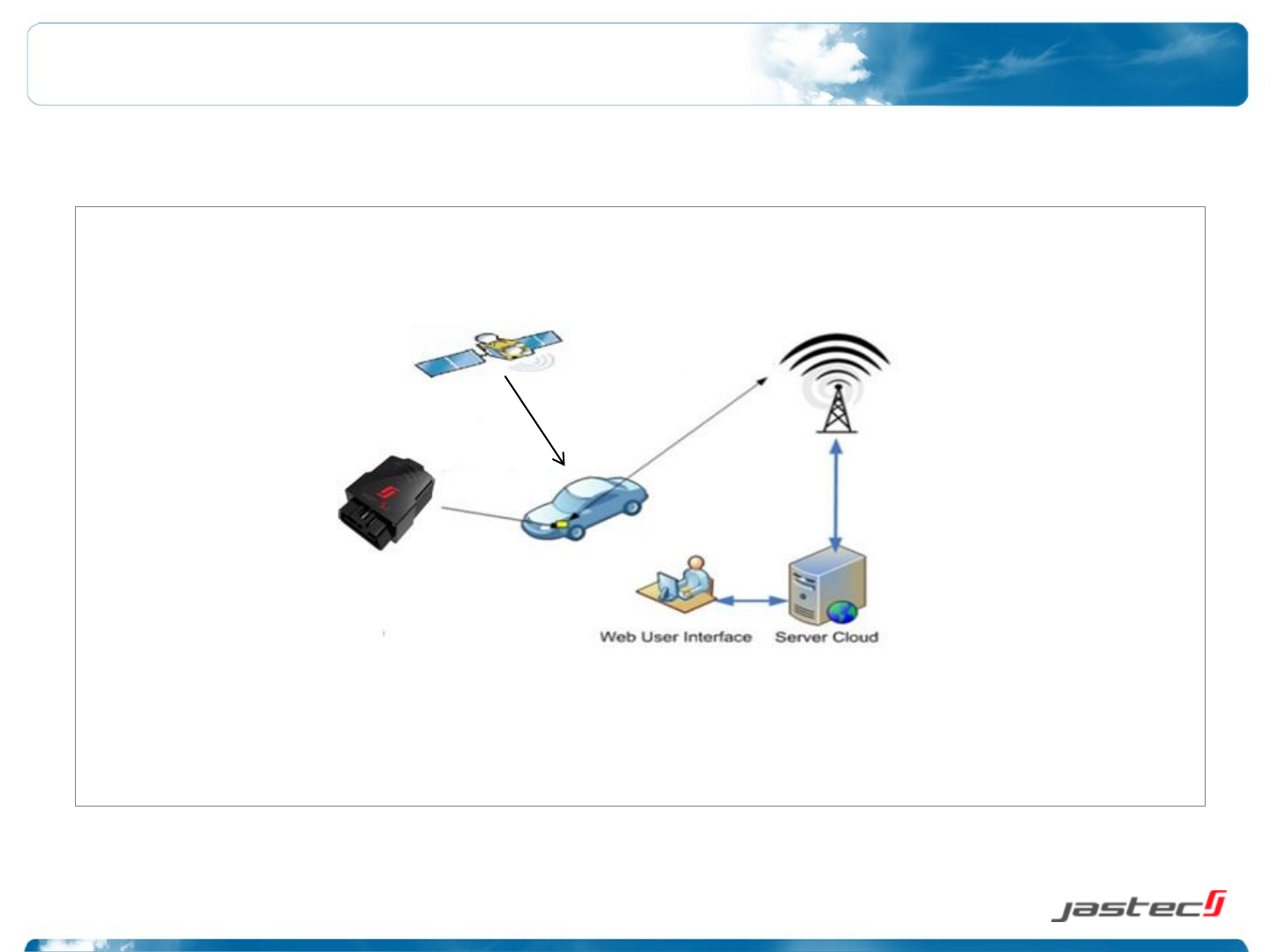

1.1 Overview
von-S2(JTGM-1100) as vehicle Fleet Management Service System designed to collect a vehicle driving information from
ECU(Electronic Control Unit) By OBD standard protocol communication and can be saved a driving logs by connecting to
PC.
Von-S2(JTGM-1100)
GPS GSM
This confidential information is not supposed to disclosed and misused to the third party
4
1.2 Specifications
1. von-S2(JTGM-1100) Descriptions
Item Description
CPU Processor
External Memory
In-Vehicle Protocol
Status
Supported Functions
Vehicle Interface
USB Port
GSM/GPRS
G-Sensor
GPS
MIC Function
Internal Battery
Operational Voltage
Power Consumption
Dimensions
Weight
Operating Temperature
Storage Temperature
32-bit ARM Cortex-M3(256KB Flash, 64KB SRAM)
4MB Serial Flash Memory
ISO 9141-2, ISO 14230-4(KWP-2000), ISO 15765-4(CAN), SAE J1850(PWM/VPWM)
4-LEDs (Power, Status, Modem, GPS)
SAE J1979 Mode $01~$0A
SAE J1962 Standard OBD-II 16 PIN Connector
USB 2.0 Compatible, VCP(Vitural COM Port) Supported
GSM/GPRS/EDGE 850/900/1800/1900MHz
Bosch 3-Axis 10-Bit Resolution, BMA150
SGPS, AGPS, gpsOneXTRA-tm
Microphone (Emergency Call)
360mAh
DC 8V ~16V or USB 5V Support
Save Mode Max. 60mW, Max Power Mode 5000mW
Max. 46mm(W) x 25mm(D) x 66mm(H)
54g
-20 ~ +60℃
-40 ~ +85℃
This confidential information is not supposed to disclosed and misused to the third party
5
1.3 Functions
Driving logs record
Saving vehicle information.
Collecting and saving driving logs information.
Vehicle identification information / module certification / module serial number information / driving
data starting time and ending time / ignition On and Off time /
Accumulated driving distance / module connection and disconnection time / driving information
transmitting time / acceleration pedal or throttle valve open angle
Driving information security Encoded saving data to not modify a driving recorded information.
Driving information upload GSM transmitter preferred.
Power saving function Automatically power will be off when ignition off.
Self diagnostic Supporting self diagnostic function through von-F module operating check (Indicator).
Firmware upgrade support Supporting firmware upgrade
1. von-S2(JTGM-1100) Descriptions
This confidential information is not supposed to disclosed and misused to the third party
6

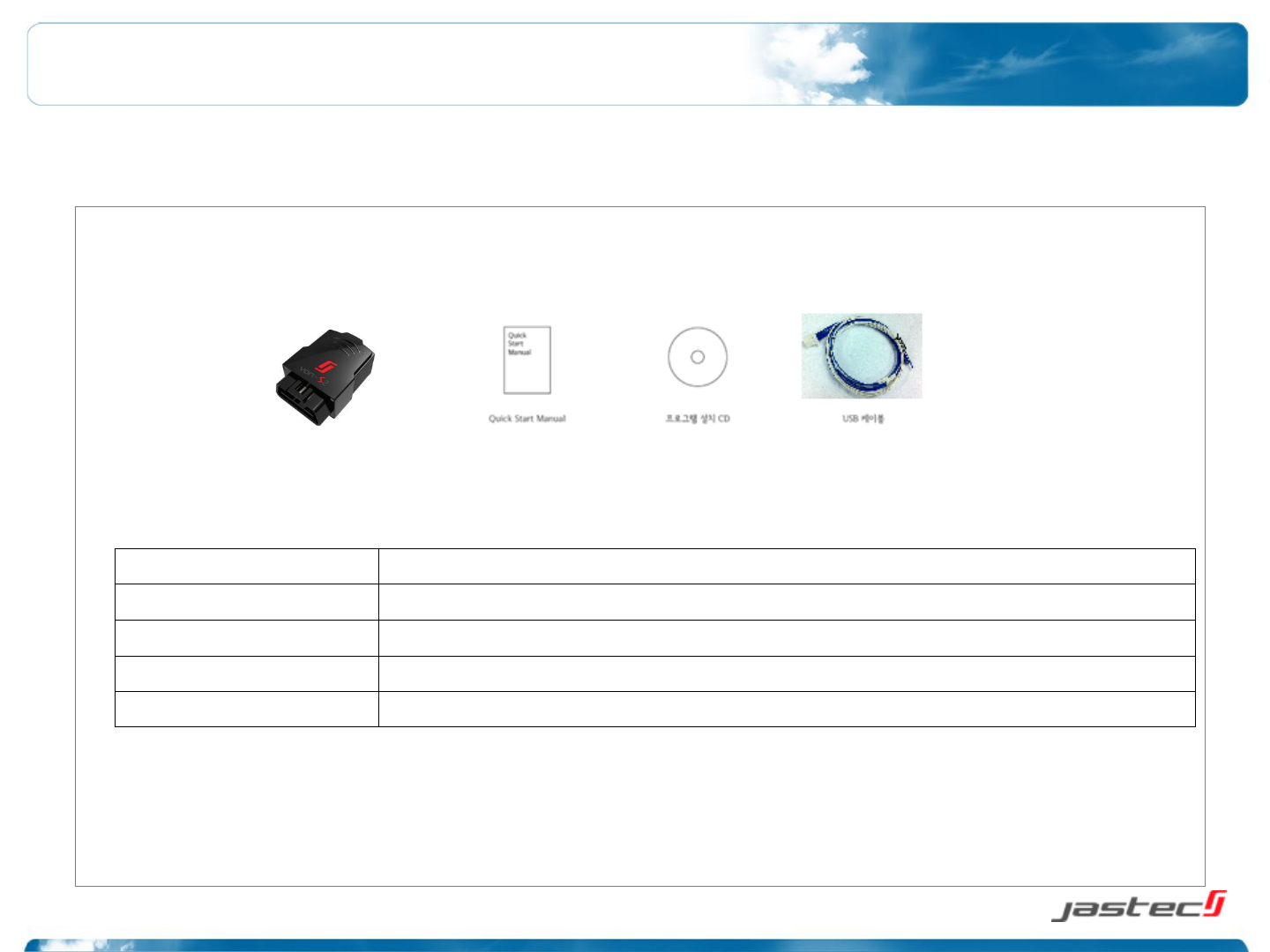

1.4 Composition
Name Function
von-S2(JTGM-1100) module Connection to vehicle OBD diagnostic port.
USB cable Firmware Update
Quick Start Manual Quick guide manual
Program installation CD von-S2(JTGM-1100) PC Manager installation program
1. von-S2(JTGM-1100) Descriptions
This confidential information is not supposed to disclosed and misused to the third party
7

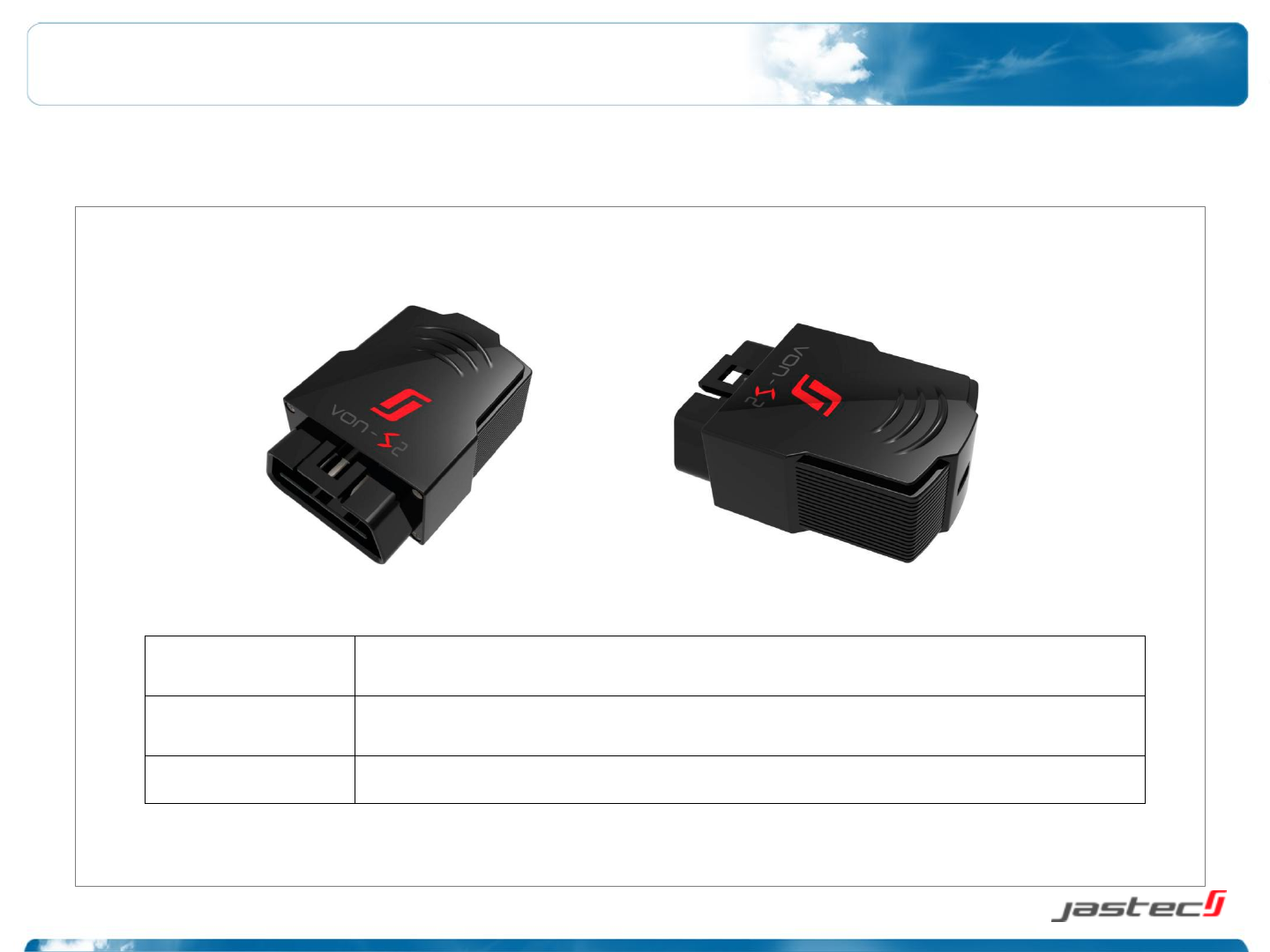

1.5 Body description
display LED 4-Indicator display LED
DLC connector Connect to vehicle OBD diagnostic port.
USB Connector F/W Update Connector
1. von-S2(JTGM-1100) Descriptions
8

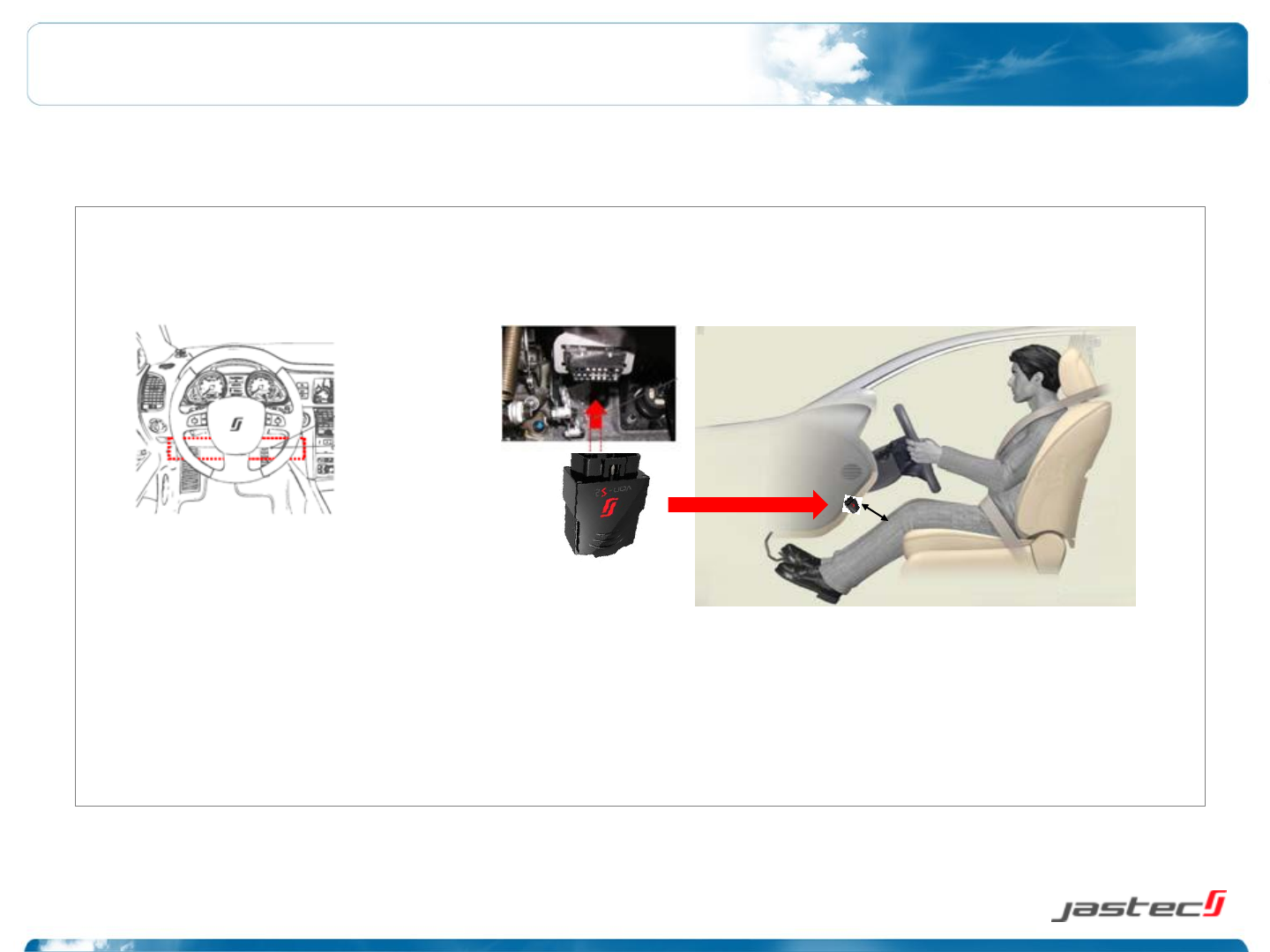

2.1 von-S2(JTGM-1100) installation
von-S2(JTBT-2200) installation is following below order.
1. von-STD(JTGM-1100) installation requires after vehicle parking in safety area.
** Caution : A side brake or foot brake should be locked and shift also checked on the parking position.
2. Please check vehicle engine should be off when if ignition on
3. von-S2(JTGM-1100) shall be installed in front of driver seat and must be located to ensure a separation distance of 20cm or
more between the antenna and the driver/passenger to comply with FCC RF exposure requirements.
4. Check the position of vehicle OBD diagnostic connector.
2. Product Instructions
Min
20cm
[Vehicle OBD
diagnostic Connector]
This confidential information is not supposed to disclosed and misused to the third party
9
2.3 von-S2(JTGM-1100) module separation
** Caution : von-S2(JTGM-1100) module separation should be performed at safety area after parking.
** Caution : The separation from vehicle is prohibited if not the purpose of driving data saving or transmitting.
** Caution : Performing von-S2(JTGM-1100) module separation on ignition on may be caused to data loss or module damaged.
1. Turn vehicle ignition off.
2. Pull von-S2(JTGM-1100) module from vehicle OBD diagnostic Cable then separating it.
2. Product Instructions
This confidential information is not supposed to disclosed and misused to the third party
10
3.2 Warranty Service
1. Warranty Period : 1 year
2. Warranty Details
1) Any defective or damage within warranty period can be repaired free A/S service or exchanged as free of charge.
2) Any damage or defective by customer’s misuse is not allowed free exchange or free charged A/S service.
3. Exchange and Return
1) An exchange or return is possible within 1 week after purchase if not opening box.
2) A shipping charge against retuning product because of just customer’s changed mind may be paid by customer.
4. Others
1) Warranty period is valid only for 12 months from manufacturing date if not checking a purchasing date.
2) Repair charge will be billed even though it’s warranty period as below.
- Defective by user’s misuse (impact/flooded/fault)
- Dismantle or alteration by user’s intention.
- Defective by natural disaster.
- Repaired not in official After Sales service centre.
3) Please contact to A/S call service centre for repair charges.
A/S call service : (031-719-5170 Extension : 206)
3. Warranty & After Sale Service
This confidential information is not supposed to disclosed and misused to the third party
FCC ID : UK4JTGM-1100
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications (including the antennas) made to this device that are not expressly approved
by the manufacturer may void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
** This device must not be installed in cars where the module would be less than 20cm from the legs or body of driver or passenger.
This confidential information is not supposed to disclosed and misused to the third party
FCC ID : UK4JTGM-1100
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under
FCC rules.
