Jawon Medical Co., Ltd. Fully Automated Blood Pressure Monitor
User Manual
1. INTRODUCTION 3
2 WORD DEFINITIONS 3
3. CLASSIFICATION AND COMPLIANCE 4
4. SAFETY PRECAUTIONS 4
5. SAFETY SYMBOLS 6
1. FRONT PART 7
2. PRINTER 9
3. REAR PART 10
4. ACCESSORIES 12
5. OPTIONS 12
1. CONNECTING POWER CABLE(AC INPUT) 13
2. ASSEMBLING OF ARM REST 13
3. LOADING THE PRINT PAPER 14
4. CONNECTING PORTS(RS-232C) 14
5. SETTING TIME AND DATE 15
1. CAUTION FOR MEASUREMENT 16
2. MEASUREMENT 17
3. DATA ON MEASUREMENT BY PRINTER 20
21
1. AFTER SERVICE 24
2. PACKING AND TRANSPORT 24
25
26
We highly appreciate you choose this JAWON product.
You are kindly requested to be familiar with these directions before using this product and
always keep it together with the product. In case you are not clear about any directions or
problems arising while using the product, please contact our service center.
We will provide you with detailed instructions.
1. INTRODUCTION
FT-500 (R/L) is a state-of-the-art medical equipment that can check not only blood pressure
and the pulse rate but also Pressure Rate Product (PRP - an important index for the oxygen
consumption of cardiac muscle) through a single process.
This machine will help to provide upgraded medical services for the patients since more
accurate and reliable diagnosis is collected and suitable treatments can be arranged on the
basis of these measured results.
FT-500 (R/L) is the fully automated blood pressure monitor armed with the belt-type cuff that
facilitates the test time quicker and provides the results more reliable.
2. WORD DEFINITIONS
To ensure safe operation and long term performance stability, it is essential that you fully
understand the functions, operating and maintenance instructions by reading this manual
before operating your unit.
Particular attention must be paid to all warnings, cautions and notes incorporated herein.
The following conventions are used throughout the manual to denote information of special
emphasis.
WARNING
Important information to indicate the presence of a hazard which can cause severe
personal injury, death of substantial property damage if the warning is ignored.
CAUTION
Important information to indicate the presence of a hazard which will or can cause
minor personal injury or property damage if the warning is ignored.
NOTE
Important information to notify the user of installation, operation, or maintenance
information which is important but not hazard-related. Hazard warning should never
be included under the note signal word.
3. CLASSIFICATION AND COMPLIANCE
1) FT-500(R/L) is classified as ;
- Class 1 type-BF against electric shock
- Ordinary equipment without protection against ingress of water
- Equipment not suitable for use in presence of a flammable anesthetic mixture by standard of
IEC 60601-1(Safety of Medical Electrical Equipment)
2) FT-500(R/L) are complied with Class A for Noise-Emission, Level B for Noise-immunity, by
standard of IEC 60601-1-2(Electromagnetic Compatibility Requirements).
3) This blood pressure meter complies with the EN 1060-1 : 1995 Non-invasive
Sphygmomanometers general requirements as well as EN 1060-3 : 1997 supplementary
requirements for electro-mechanical blood pressure measuring systems.
4. SAFETY PRECAUTIONS
FT-500(R/L) is designed and manufactured with consideration given to the safety of the
operator and subject and also to the reliability of the unit.
The following precautions must be observed for additional safety ;
1) The unit must be operated only by, or under supervision of, a qualified person by JAWON
or his distributor.
2) FT series are specified as Class 1 type BF unit under the standard of IEC 60601-1(Safety
of Medical Electrical Equipment).
Therefore, patients must not touch or handle inner side of the system at any time.
3) Do not modify the unit. If any modification is desired, ask JAWON or its authorized dealer
for service.
4) The unit has been factory-adjusted for optimum performance.
Do not attempt to adjust any pre-controls or switches except those specified in this
manual for operation.
5) If you have experienced any trouble with the unit, switch it off immediately, and contact
JAWON or its authorized dealer for assistance.
6) If you plan to connect any device of other manufacturers electrically or mechanically to
this unit, contact JAWON or its authorized dealer for instructions before doing so.
When you connect computer or other system to the unit(RS-232C), the attached systems
should be certified by IEC 950 or equivalent standards for data processing equipment.
Configurations shall comply with the system standard IEC60601-1-1.
Everybody who connects additional equipment to the signal input part or signal output part
configures a medical system standard IEC 60601-1-1.
If in doubt, consult the A/S department of local distributor.
7) Avoid the following environments for storage ;
- Where the ambient temperature falls -5 or exceeds 50 .
- Where the atmospheric pressure falls below 70 kPa(700 mbar) or exceeds 106kPa
(1060 mbar).
- Where the humidity is over 85% non-condensing.
- Where the unit is exposed to spray or splashing water.
- Where the unit is exposed to dust,
- Where the unit is exposed to water vapor.
- Where the unit is exposed to high density oil vapor.
- Where the unit is exposed to salty atmosphere.
- Where the unit is exposed to explosive gas.
- Where the unit is exposed to excessive shocks or vibrations.
- Where the angle of inclination of mounting surface exceeds 10 degrees.
- Where the AC power line voltage heavily fluctuates
- Where the AC power line voltage changes heavily when this unit is in operation.
- Where the unit is exposed to direct sunlight.
Note
Incorrect operation or failure of user to maintain the unit relieves the manufacturer or
his agent of the system's non-compliance with specifications or responsibility for any
damage or injury.
This manual is made for informational purpose and this manual and product are not
meant to be a substitute for the advice provided by your own physcian or other
medical problem. You should not use this information contained product for diagnosis
or treatment of health problem or prescription of medication by yourself.
If you have or suspect that you have a madical problem, consult your physician
promptly.
Defective unit or accessories, must be packed in the replacement cartons, are
shipped off from you to JAWON MEDICAL CO.,LTD.
Shipping and insurance costs for return of defective unit must be prepaid by you.
Caution
Measurements may be impaired if this device is used near televisions, microwave
ovens, X-ray equipment or other devices with strong electrical fields. To prevent such
interference, use the meter at a sufficient distance from such devices or turn them off.
The following symbols are used inside the system :
Isolated patient connection (IEC 60601-1 Type BF)
This symbol identifies a safety note.
Ensure you understand the function of this control before using it.
Control function is described in appreciate operating manual.
I and O on power switch represent ON and OFF, respectively
Identifies equipotential ground(located next to ground stud on rear panel)
(IEC 417-5021)
Identifies the point where the safety ground of the system is fastened to
the chassis
Do not open. This is for factory only
CAL
5. SAFETY SYMBOLS
The International Electrotechnical Commission(IEC) has established a set of symbols for
medical electrical equipment which classifies a connection or warnning of any potential
hazard. The classifications and symbols are shown below. Save these instructions for
your safety.
1. FRONT PART
START BUTTON
Press START button after ready to measure, the cuff will be wrapped automatically and
begins to pressurize.
STOP BUTTON
Press STOP button if you want to stop it during measurement. Pressurizing will stop and
the air will exhaust from the cuff.
SYSTOLIC DISPLAY
It indicates systolic blood pressure values.
DIASTOLIC DISPLAY
It indicates diastolic blood pressure values.
PULSE DISPLAY
It indicates pulse rate.
TIMER
It indicates time.
EMERGENCY STOP BUTTON
When your arm is oppressed due to high pressurizing or irregular operation is done, press
this button then the cuff will be exhausted rapidly
PRINTER COVER
It protects the printer.
AUTOMATIC CUTTER(Printer paper let-out slot)
Printing paper is automatically cut off to let it out through the slot.
CUFF
It wraps and releases the arm automatically for measurement.
ARM REST
When the arm is placed on the cuff, the arm supporter sustains the arm and makes the
right position.
HUMAN SENSOR
A melody is tuned up, when person comes near by.
CARD-READER
When the card is inserted, it reads ID NO. in it and stores the measured results.
Note
The cuff and the buttons(START and STOP button) of FT-500 are located at reverse
side by R and L type.
TIMER
HUMAN SENSOR
CARD-READER
START BUTTON
STOP BUTTON
EMERGENCY
STOP BUTTON
PAPER OUTPUT
SYSTOLIC DISPLAY
DIASTOLIC DISPLAY
PULSE DISPLAY
ARM REST
CUFF
FRONT PART
PRINTER COVER
Note
Printer, card reader and human sensor are optional. ID buttons are only attached to
FT-750AF (R/L) model. ID card can be issued either by the machine manager or by
the manufacturer of the model, The card can store ID number and measured results.
The card stores two previous measured results and can contain three measured
results with the current one altogether. When the model manager writes the card,
please refer to the manual and specifications for operation and programs attached to
the card writing device at the time of purchase.

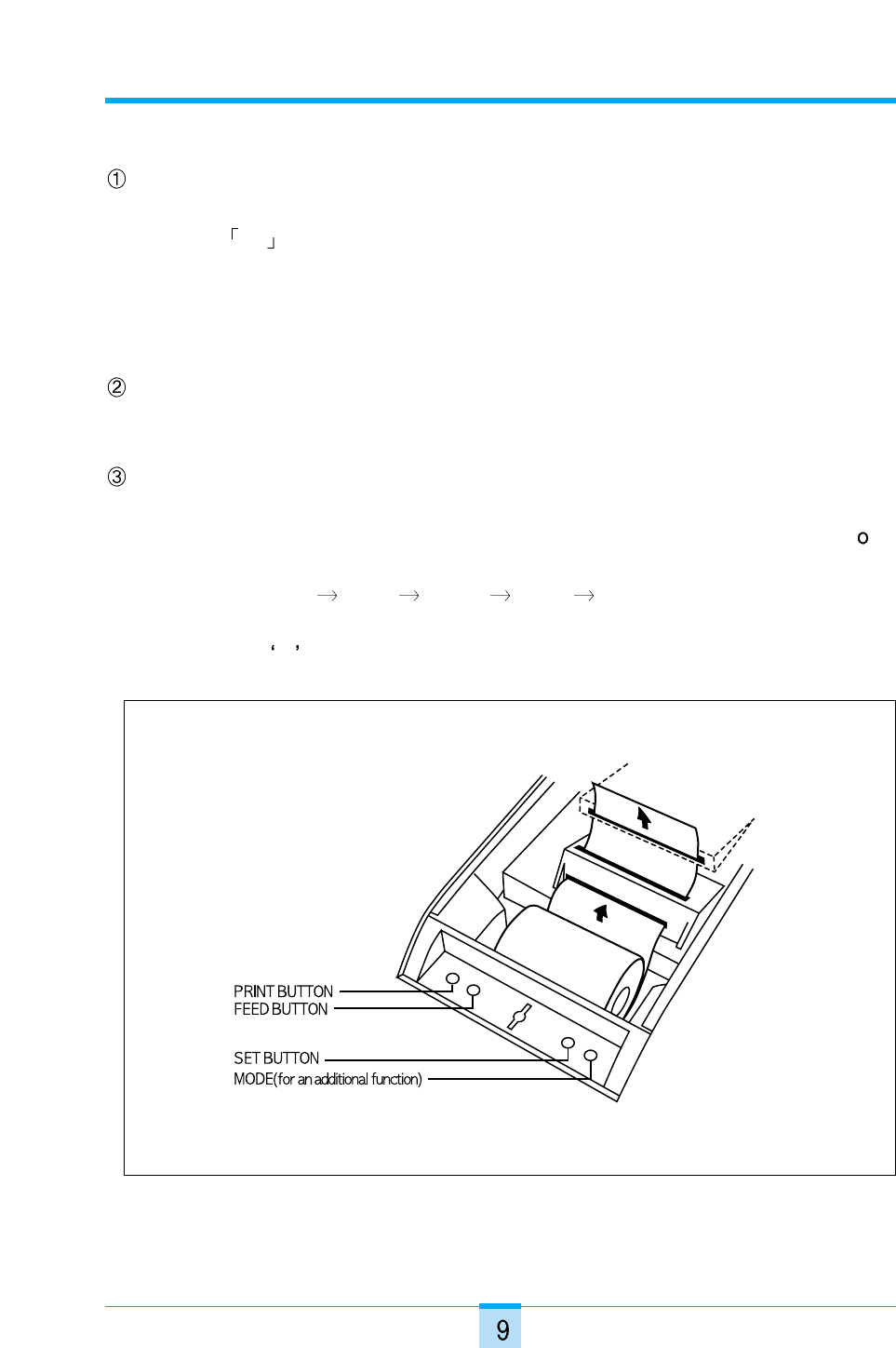

2. PRINTER
PRINT button
- Use it when you print out the data.
- If you set ON at the rear (PRINT ON/OFF switch), the data is printed automatically
even you do not press PRINT button.
- Normally, when you press this button, all measured data after you trun the power on will
be printed.(if you turn it off, all memorized data would be deleted.)
- When you set the date and time, use as a key which increases the number.
FEED button
- Use this button for setting the paper.
- When you set the date and time, use as a key which decreases the number.

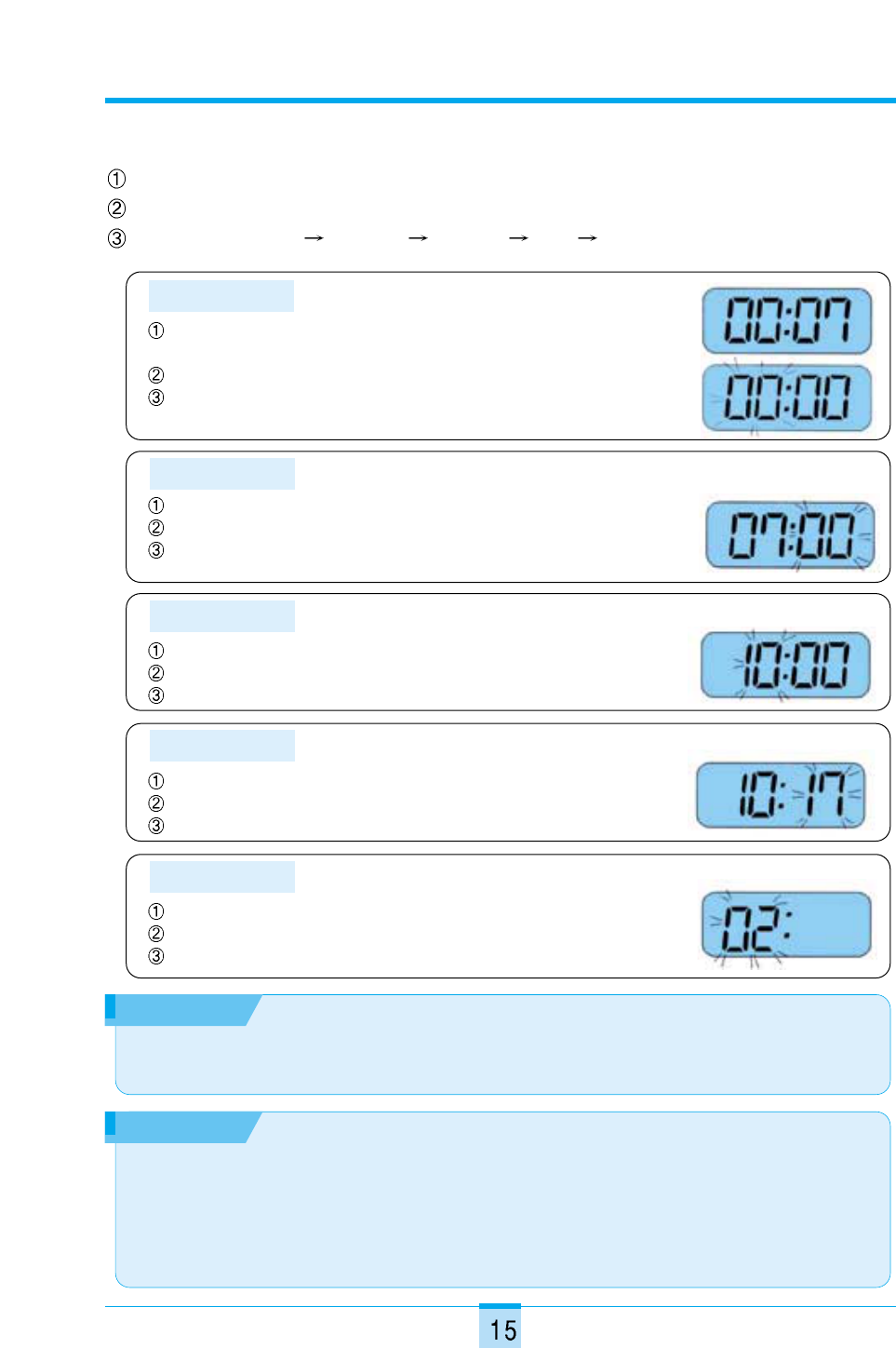

SET button
- set the date and time
- The functions are as follows when press this before or after measurement.(It does n t
work during measurement)
- Sequence is HOUR MIN. MON. DAY YEAR
- Within 5seconds, finish set of the date and time.
- See the page 15 for detailed method
Note
While sound switch is activated on (so sound is functioning), place the VOLUME
ON/OFF switch to OFF for deactivation of voice message and music play.

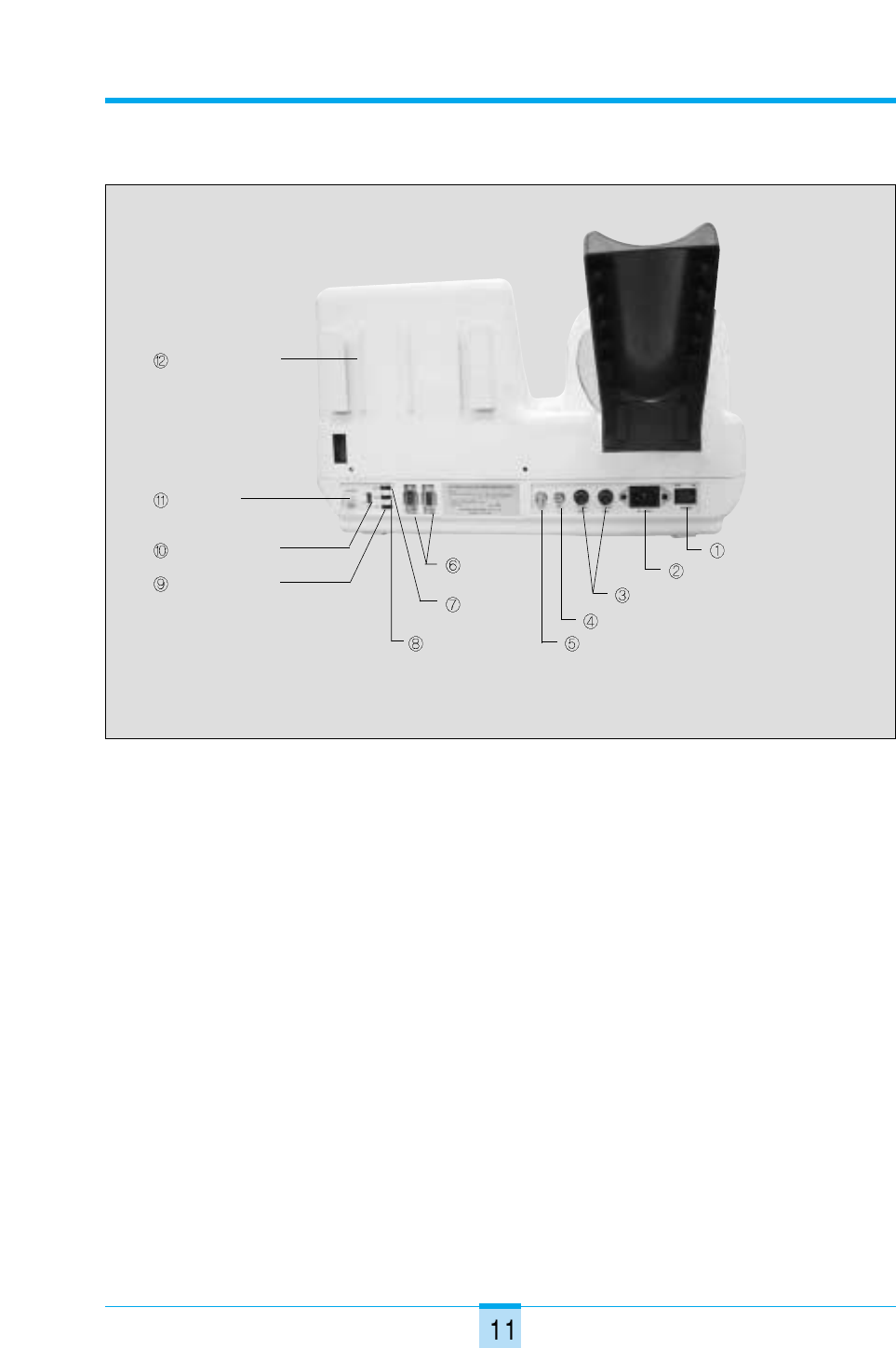

3. REAR PART
POWER
It is to turn the power on and off
AC INPUT
It is to connect with the power cord
FUSE
Two fuses(250V/1.6A) are installed to prevent overload.
CAL
This is only for inspection. Never open it.
EARTH(POTENTIAL EQUALIZATION TERMINAL)
Please make sure for safety
COMMUNICATION PORTS(RS-232C)
Two ports are fixed, first for connecting between the main body and a computer or other
equipment with cable(RS-232C) to transfer the data collected or measured, second for
connecting between the main body and the coin slot with RS-232C calble to transfer the
data
SENSOR ON/OFF
Human sensor is turned on and off with the switch.
SOUND ON/OFF
Music and voice output functions are activated with the switch placed to ON , and vice
versa.
CARD ON/OFF
ID card is usable when the switch is placed to ON , and vice versa.
PRINT ON/OFF
Test results are printed out when switched to ON , and vice versa.
VOLUME (ANNOUNCE ON/OFF)
It regulates volume output when switch is at ON while all volume is out at OFF .
INFORMATION BOARD FIXER
Fix the information board here
INFORMATION
BOARD FIXER
VOLUME
(ANNOUNCE) ON/OFF
CARD ON/OFF
SOUND
ON/OFF
SENSOR
ON/OFF
PRINT ON/OFF
REAR PART
EARTH (POTENTIAL
EQUALIZATION TERMINAL)
CAL
AC INPUT
POWER
FUSE
PORT
(RS-232C)

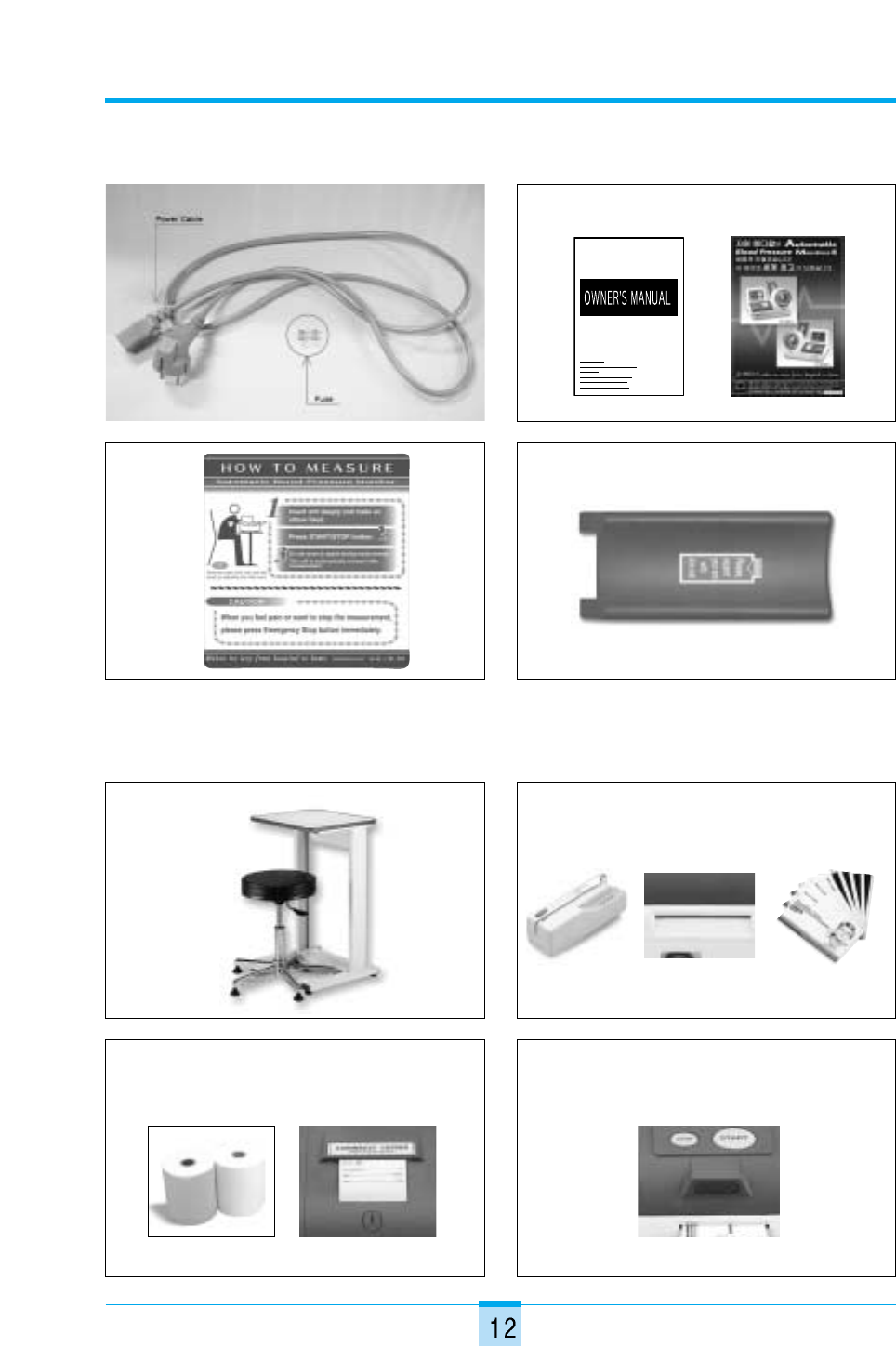

4. ACCESSORIES
Manual/Poster
Guide Arm rest
5. OPTIONS
Cart/ Chair Card-reader/ Card writing device/Cards
Printer paper/Printer Human sensor
Earth /Power /Fuse

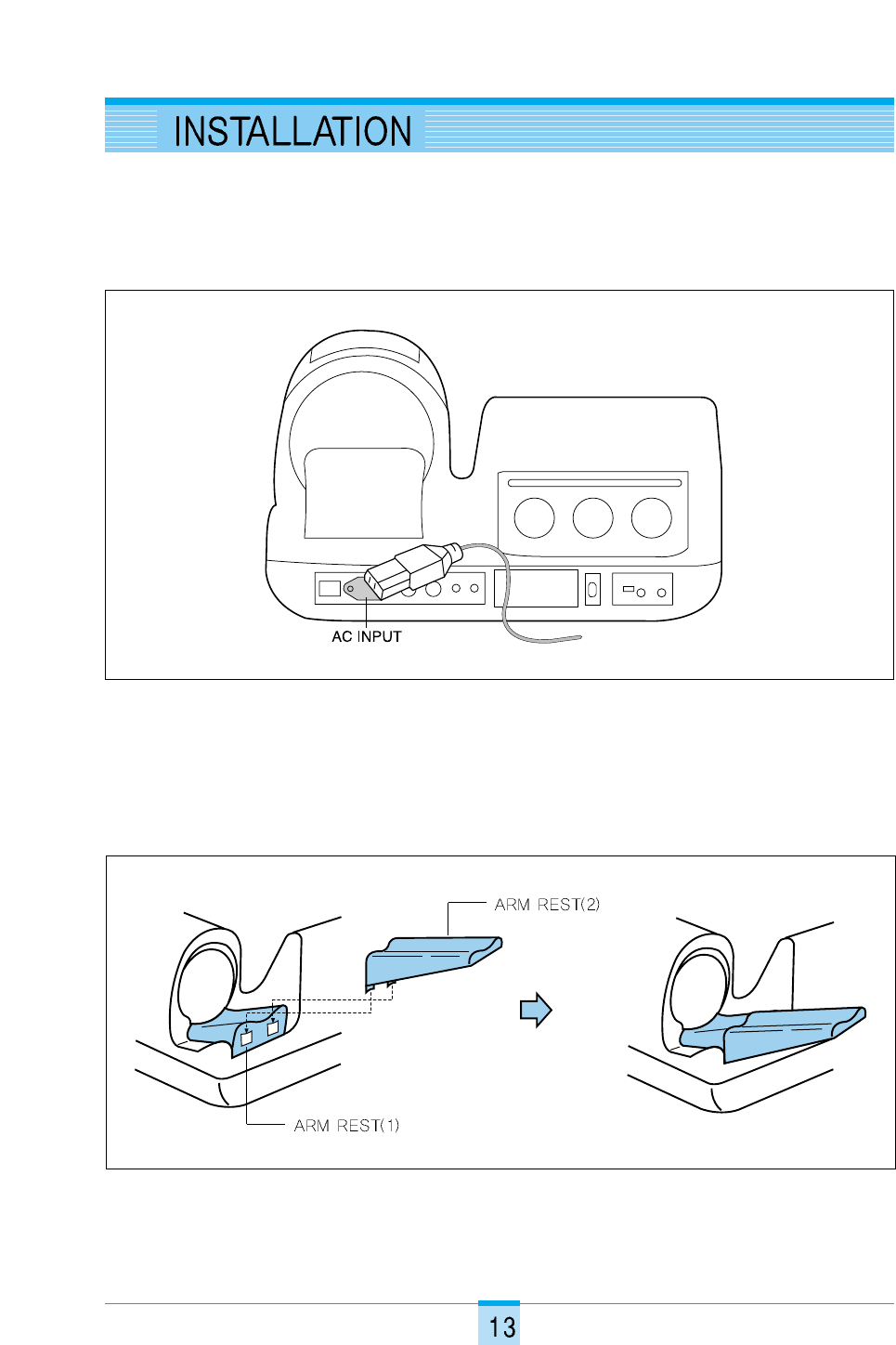

1. CONNECTING POWER CABLE(AC INPUT)
Just connect the power cable to the AC INPUT slot on the rear and turn the POWER
ON/OFF switch(O/I) on the lower part of the rear(See the picture).
2. ASSEMBLING OF ARM REST
The arm rest is divided into two parts, the first one is built-in the unit as it is packed in
factory. For assembling, fit the other to the one as below (See the picture)

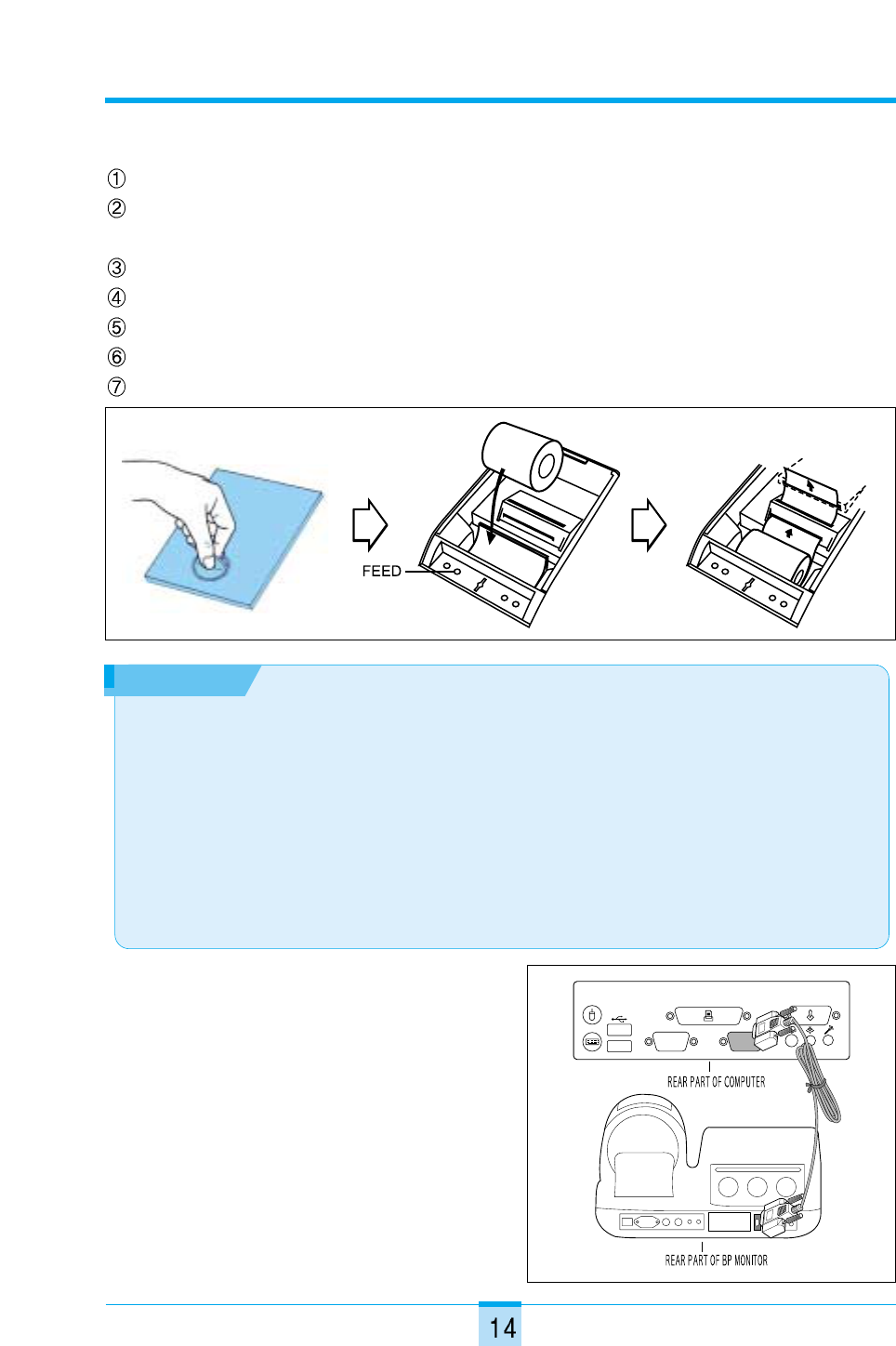

3. LOADING THE PRINT PAPER
Check and see if power is turned on.
Turn the nut(with a driver on the groove in the middle) on the lower printer cover
clockwise to 90 degrees and open the cover.
Load the print paper as shown in the picture.
Insert the paper edge deep under the black roll, then it comes out above the CUTTER.
Balance the paper in the right place.
Cut the paper by pressing the FEED button.
Close the cover and turn the nut counterclockwise back.
4. CONNECTING PORTS(RS-232C)
To transmit the data with connecting a
computer or other external options to the unit.
Connect the RS-232C cable both to port of
the unit and to the computer jack or other
external options(See the picture)
Note
Being thermal type, printing is photocopied on one side of the paper(slippery side),
without using printing ink.
Please check remainder of the paper always and then replace it.
Please use exclusive paper (58mm).
Keep paper rolls in a dark and ventilated place.
Avoid any dust etc. on the paper.
Do not pull the paper during printing. It could cause jam.
When printing paper is not loaded in correct place, it may cause the malfunction of
the printer or paper will be shoved out.
5. SETTING TIME AND DATE
Turn ON the unit
Open the printer cover.
Sequence is HOUR MINUTE MONTH DAY YEAR
Note
If you want to measure blood pressure during setting the date and time, press STOP
button. Then you can measure immediately.
Note
You should set all data at once (hour, min, month, date and year). In case of stopping
setting, the values return to previous ones which you have done before.
The calendar and time functions work without plugging power cord in.
Calendar program is inputted for 100 years, and it will be adjusted automatically even
at a leap year.
Press SET button, then indicator says its counts that have been
measured since keeping button ON.
Press SET button one more. First 2 figures will blink.
To set the current hour, press PRINT button to make the number
goes up or press FEED button to make the number goes down.
HOUR
After setting the hour, press SET button again.
In this time, last 2 figures will blink.
As the same way as above, set the current minute with PRINT and
FEED button.
MINUTE
After setting the minute, press SET button again.
First 2 figures will blink.
Set the current month with PRINT and FEED button.
MONTH
After setting the month, press SET button again.
Last 2 figures will blink.
Set the current day with PRINT and FEED button.
DAY
After setting the day, press SET button again
First 2 figures will blink.
Set the current year with PRINT and FEED button.
YEAR

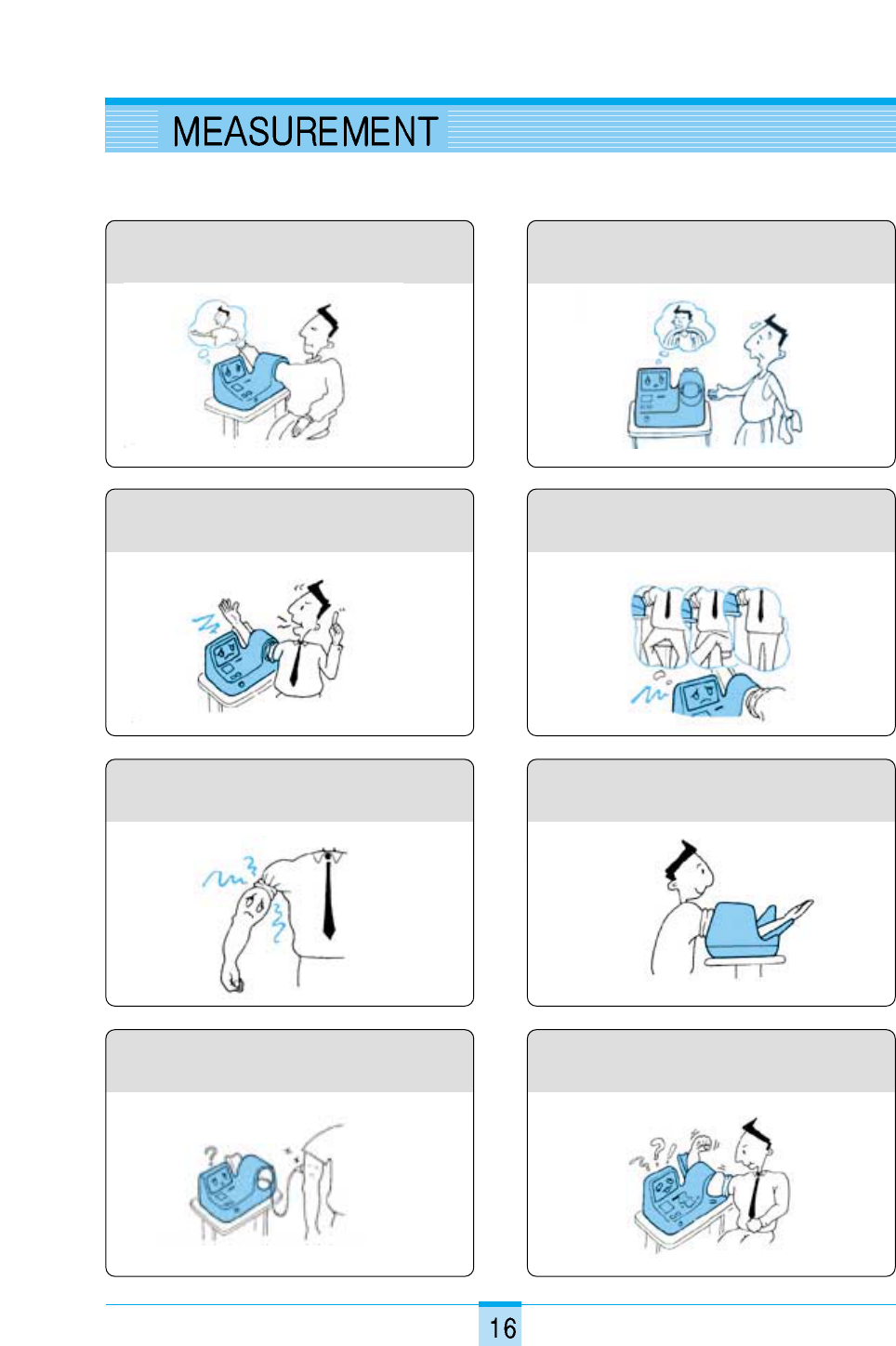

1. CAUTIONS FOR MEASUREMENT
Take off heavy sweater or shirts.
Do not chat or move while you are being measured. Do not measure in bad positions such as standing,
half seat or sitting with your legs crossed.
When you fold your sleeves up, please make
sure not to press your arm. Put your arm deeply in order to fit to the arm
rest.
If it is not easy to check your pulse with the
stethoscope, the measurement cannot go on.
If you strain to your arm, there will be some
differences. Please relax your arm and have a seat
correctly.
Before measurement, take it easy and have a
rest for a while.

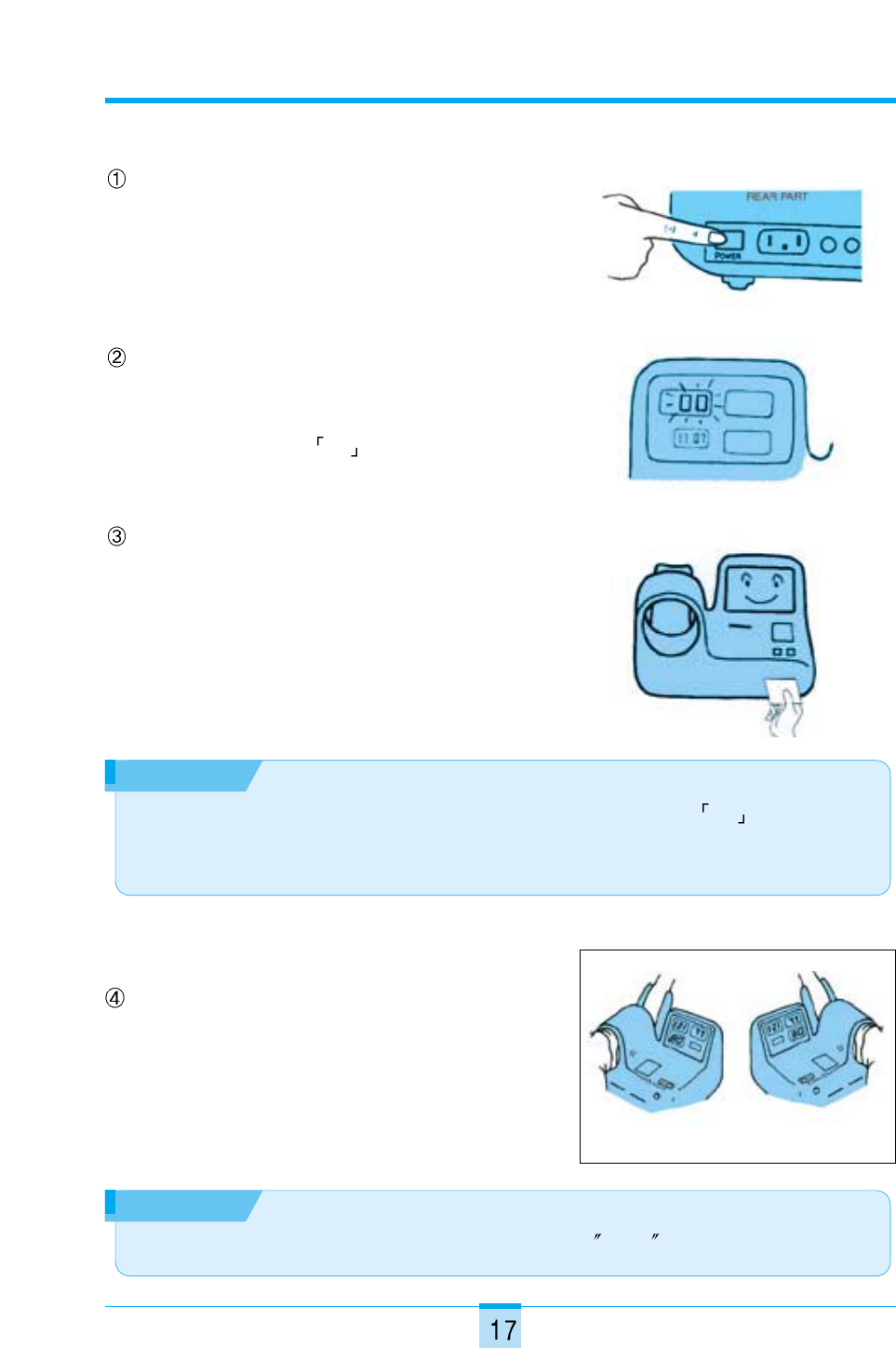

2. MEASUREMENT
Check the voltage and turn the power on
With the switch-on, a music sound flows as the
LED screen is activated
But, the SOUND ON/OFF switch in the rear of the
unit should be set as ON
For the card users, proceed with checking after
entering the card into the card-reader.
When the card is inserted, a voice message
comes out to “press the start button”
Put your right or left arm into the cuff
deeply. For FT-500R, measure with right
arm, for FT-500L, measure with left arm.
Note
the CARD ON/OFF switch in the rear of the unit should be set as ON
if the card is damaged or expired, the voice message comes out as “Can not use ID
card.” In this case, purchase new one and try again.
Note
An optimal arm circumferance for this equipment is 9 to 14
FT-500L FT-500R
Press start button and then the cuff is
automatically inflated and the
measurement is started.
Note
Check the blood pressure with the right arm
with FT-500R and the left arm with FT-500L.

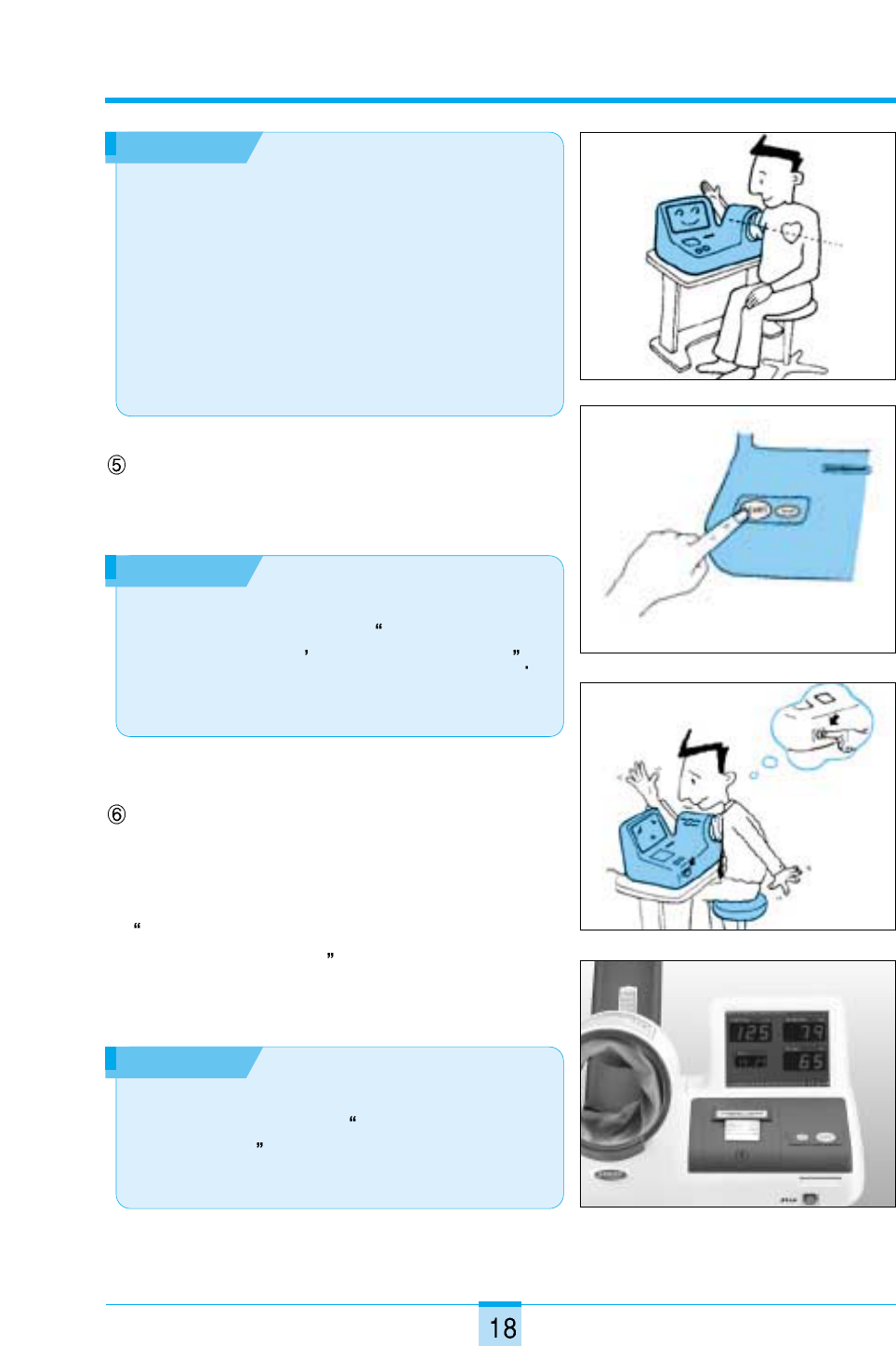

Place your arm on the arm supporter with the
palm facing up through the cuff deeply.
Adjust the height of the chair so that the arm is
levelled off with the heart.
when the arm is placed lower than the heart,
blood pressure will become higher than actual
value, and vice versa.
Note
When the measurement is started, the voice
message is announced as Starting
measurement, don t move or speak please
When you feel painful and want to stop the
measurement, press STOP button.
When the measurement completed, the
cuff is automatically deflated and it returns
to normal condition. Simultanously, the
voice message is announced as
Measurement completed, pull your arm
out please. Thank you.
Note
When checking is not satisfactory, the voice
message comes out as Can not measure, we
will try again. At this time, let the arm stay into
the cuff and start over again from the beginning.
Blood pressure and pulse rate are displayed on
LED and then the results are printed out.
Also the results are informed by the voice
message as Your BLOOD PRESSURE is,
SYSTOLIC 000, DIASTOLIC 000, PULSE 000.
Note
When the PRINT ON/OFF switch on the rear is set as OFF , the result will not be
printed even if the measurement is completed.

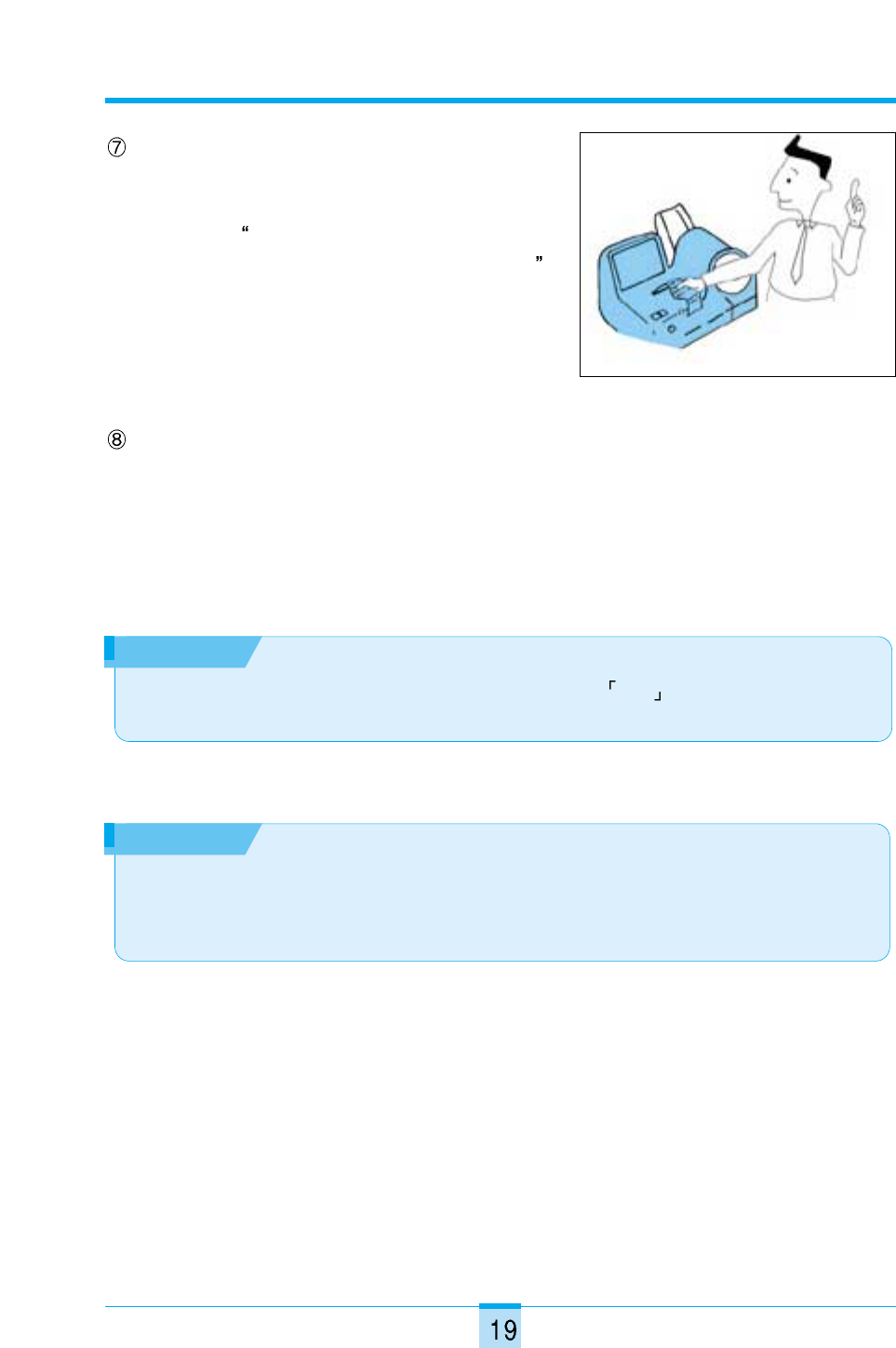

Pull your arm out.
Note
For the card users, two previous results stored in the card can be recalled to
compare with the current ones newly checked.
Three results altogether could be printed out.
3. DATA ON MEASUREMENT BY PRINTER
SYSTOLIC : below 139 Hg
DIASTOLIC : below 89 Hg
MEANPRESS : 74~106 Hg
PULSE : 60~100beats/minute
PRP(Pressure Rate Product) : 7000~12000
Related with myocardial oxygen consumption
Note
The results of MEANPRESS and P.R.P are not displayed on LED, but printed out on
the paper.
Note
When pressure is high with the jammed air hose, message appears on the printer
as ERROR PRESSURE.
When the message is repeated, call for maintenance service.
When pressure is low as air leaks, message appears on the printer as ERROR
CUFF.
When the message is repeated, call for maintenance service.
When a testee moves or speaks while in testing, message appears on the printer
as ERROR MEASURE.
Try to re-test after for a while. If the message is repeated, call for maintenance
service.
A buzzer goes off once when error takes place, then the machine is ready for
testing
When the machine does not work altogether, turn the power off. And then make
sure if there is the fuse inserted and turn the power on and off a few times.
Results on printer paper Normal Range
ID-NO 0001
DATE 02/15/2002
TIME 16:50
SYSTOLIC 122mmHg
DIASTOLIC 077mmHg
MEANPRESS 089mmHg
PULSE 080bpm
P.R.P 9760
To ensure safe operation and long term performance stability, it is essential that you follow
this maintenance instruction all the time.
The performance test should be done every 2 years to ensure that the device operates
properly and safely at all times. It can be performed either by the manufacturer or by an
authorized dealer according to the regulations governing manufacturing of medical products.

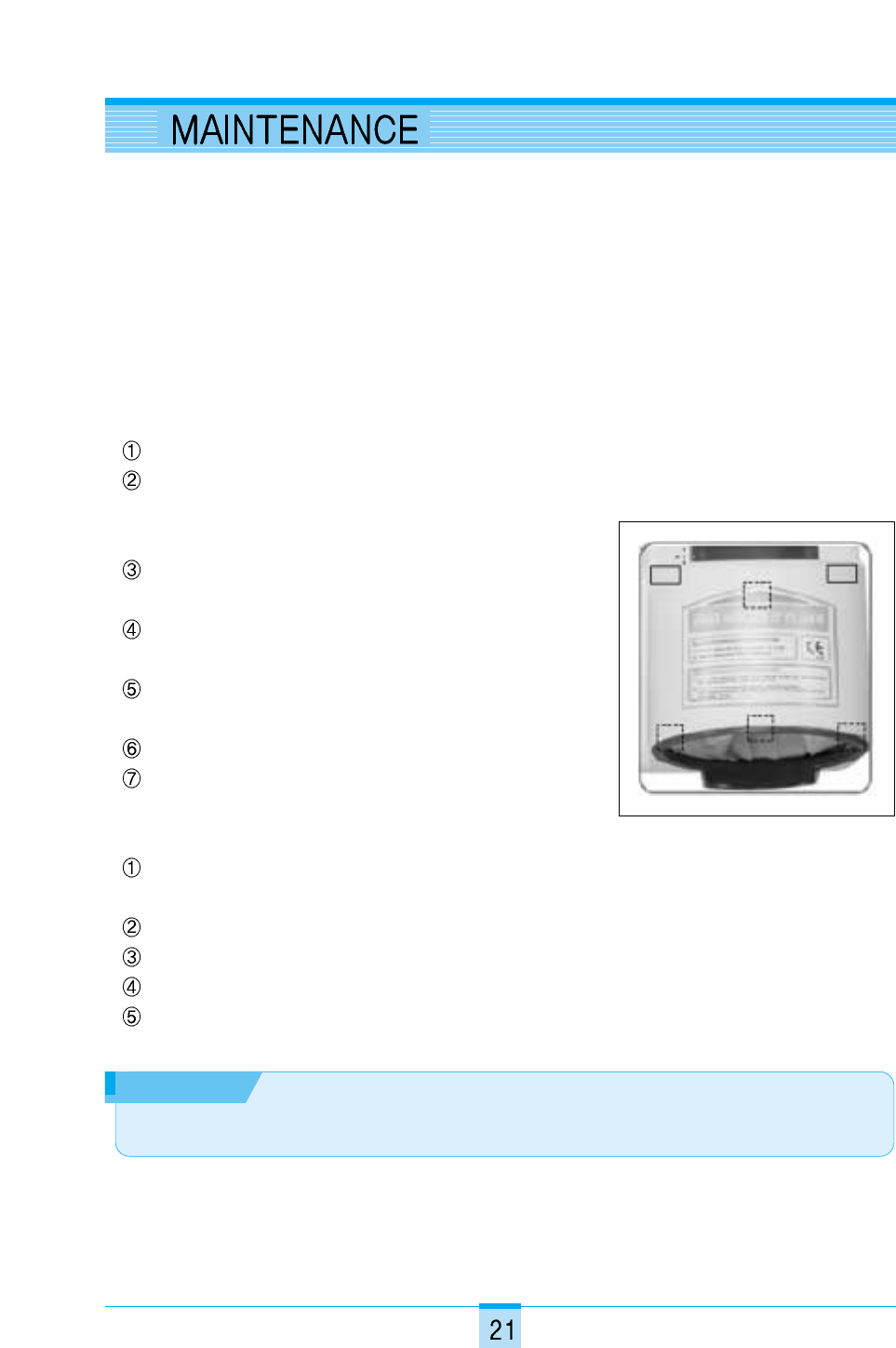

1. REPLACING THE CUFF COVER
Remove the old cuff cover as follow;
Remove the rubber molding which is located in the front of the arm insertion part.
Press the start button, then the cuff will be wrapped.
When the cuff is wrapped approximately half, turn the power off.
The cuff cover will be strained.
Detach the cuff cover from the magic tape.
(The location of the magic tape is as the picture.)
Pull the upper part of the cover down direction, and
then pull out the ring of it very gently.
Turn the power on again, then the cuff will
return the original status.
Pull out the rear ring.
Remove the old cuff cover completely.
Replace the new cuff cover as follow;
Place the new one through the arm insertion part. At this time, the large ring is for front,
and the small ring for rear. (The sewed part of the cover should be placed bottom.)
Press the start button and turn the power off again for half wrapping of the cuff.
Push the cover’s rings into the body.
Attach the cuff to the magic tape with pressing.
Fix the rubber molding like the beginning.
Note
If the cuff cover is not placed properly, it may cause problems in operation.

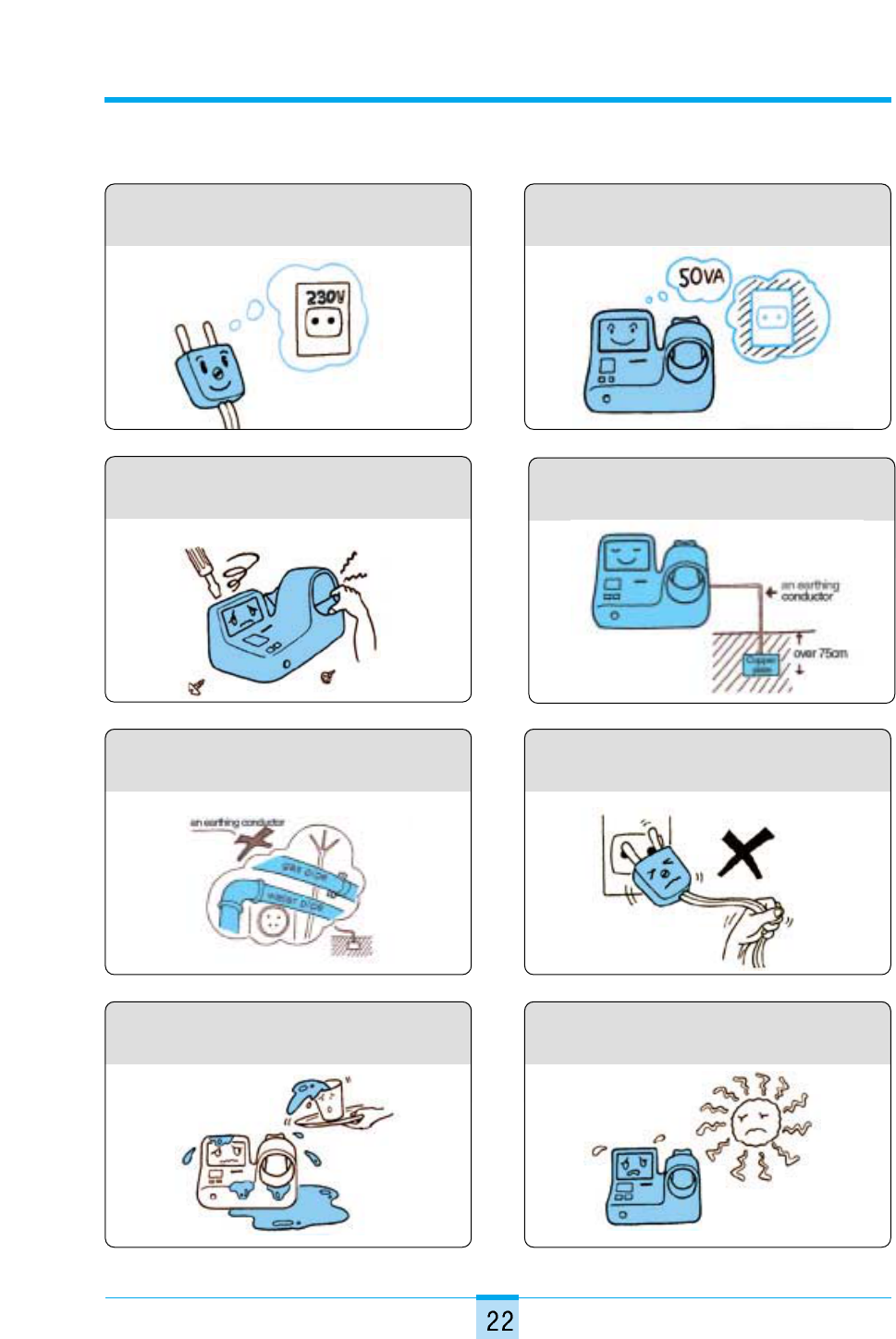

This unit is for 230V. If you want 110V, please
contact to a service center.
Do not disassemble the main body. To prevent electric shock, please make sure the
earth.
When grounded, do not mount it close to the gas
pipe, water pipe, lightening rod and connection
of telephone.
When you take out the plug, grasp the plug
exactly.
Keep the unit dry and do not wet it.
Never immerse the main unit in the water.
It could cause damage the electronic parts inside.
Avoid direct sunshine, humidity, dust and
extreme changes in temperature.
Remind the permitted current(50VA).
Note
When the cuff cover is dirty, wash it in
the warm water with neutral detergent.
If it worn out, replace with a new
one.(Refer to “Replacing the cuff
cover” on page 21)
When you sterilize the cuff, please use
EO GAS sterilizer every 2 years.

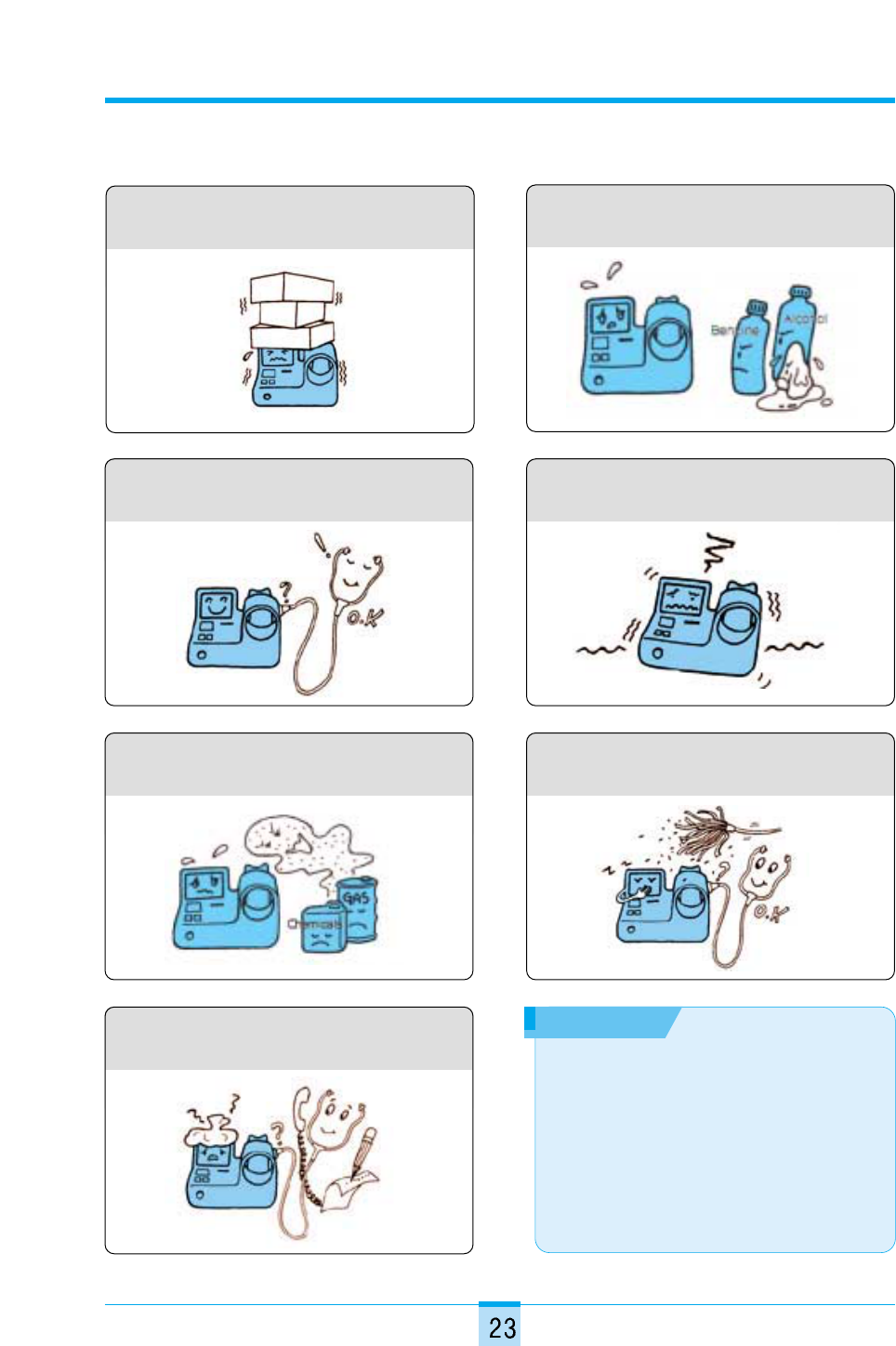

Do not put heavy things on the unit.
Check the unit conditions occasionally. Do not use the unit under the condition of shock
or vibration.
Do not install and shock with chemicals or gas. When you re-use after a long time, please check
the unit carefully.
When some problems are found, please call our
service center.
Wipe the unit with a damp cloth. Do not use benzine,
alcohol or liquid similar to solvents and wet cloth.
1. AFTER SERVICE
If there is any problem with the unit, please follow the steps below ;
Contact the JAWON Overseas Service Department immediately.
After gathering the model name, Serial Number, date of purchase and description of the
problem, contact JAWON with information shown below.
Try to solve the problem over the phone with the
local
service department personnel.
If the problem cannot be solved over the phone, just return to service department directly.
JAWON or local distributor will make available on request circuit diagrams,component
part list, descriptions, calibration or other information which will assist your appropriately
qualified technical personnel to repair those parts of unit which are designated by
JAWON as repairable.
How to contact JAWON MEDICAL CO., LTD.
Write us at :
JAWON MEDICAL CO., LTD
SEOUL OFFICE
JEONGJU BLDG 7F, 1451-38, SEOCHO-DONG, SEOCHO-KU, SEOUL, KOREA
TEL : 82-2-587-4056
FAX : 82-2-588-1937
FACTORY
13 LOT, 21 BLOCK JINRYANG INDUSTRIAL COMPLEX, KYUNGSAN CITY,
KYUNGSANG BUKDO 712-830 KOREA
TEL : 82-53-856-0993
FAX : 82-53-856-0995
(You can also contact the following representative or your local distributor)
2. PACKING AND TRANSPORT
JAWON follows his packing ways to protect any impact during transporting etc. So please
do not transport or move the unit without JAWON s packing condition as your wishes.
The normal storage environment ; - 5 ~ + 50 of temperature, Humidity is less than 85%
non-condensing.
Model FT-500L FT-500R
Display mode LED display
Measuring ranges Pressure : 30 ~ 300mmHg, Pulse : 30 ~ 200beats/minute
Accuracy Pressure : 2mmHg, Pulse : 5%
Resolving Power 1mmHg
Pressurizing method DC Motor
Cuff Belt type
Pressurizing time Approx. 10seconds
Measuring time Approx. 33seconds
Measuring method Oscillometric
Printer Thermal high-speed printer
Power supply 230V~/50Hz(EC), AC120V/60Hz(US)
Power consumption 50VA
Ambience for operation
Temperature : 10~40 , Humidity : Less than 85% non-condensing
Ambience for storage
Temperature : 5~50 , Humidity : Less than 85% non-condensing
Data transmission RS-232C
Dimensions 480(W) 310(D) 290(H)mm
Weight Approx. 11kg
Measuring parts FT-500L : with left arm FT-500R : with right arm
Note
1. It is convenient and useful, if you purchase a cart and a chair for FT series.
Those are designed only for FT series so that can be placed anywhere.
2. An external appearance and specifications are subject to change without notice.
WARRANTY
Item Automatic Blood Pressure Monitor Warranty period
Model FT-500(R/L) 1 year (main unit only)
Serial NO.
Note
When you receive this warranty, make sure that the name of the dealer and the
month, day and year of purchase are all completed.
This warranty will not be reissued, please keep it in a safe place.
Date Defection Confirmation
Date of purchase Month Day Year
Customer Name: TEL:
Address:
Dealer Name: TEL:
Address:
www.jawon.co.kr
