Jawon Medical Co., Ltd. Fully Automated Blood Pressure Monitor

User Manual

1. INTRODUCTION 3
2. WORD DEFINITIONS 3
3. CLASSIFICATION AND COMPLIANCE 4
4. SAFETY PRECAUTIONS 4
5. SAFETY SYMBOLS 6
1. FRONT PART 7
2. PRINTER 9
3. REAR PART 10
4. ACCESSORIES 12
5. OPTIONS 12

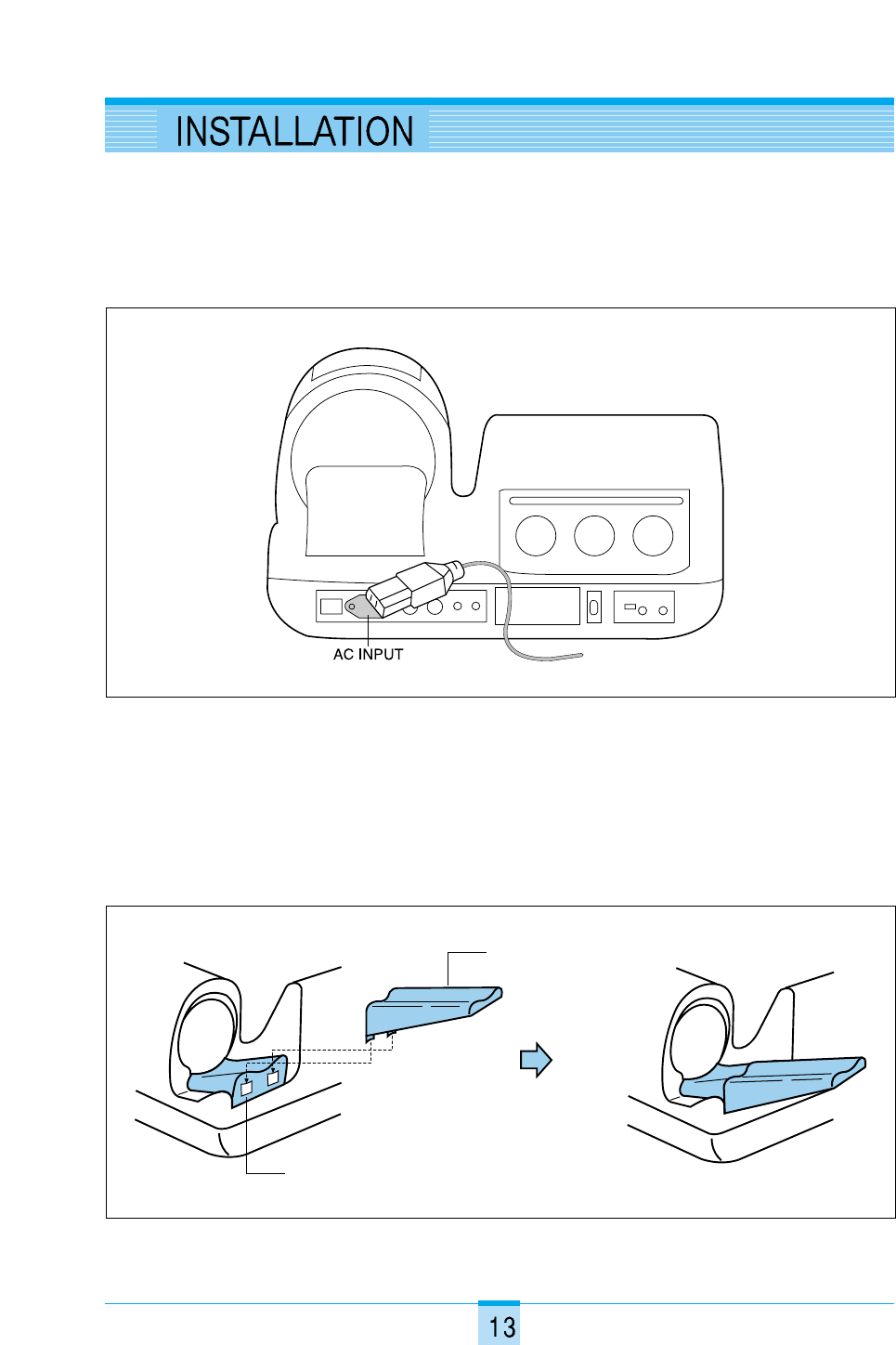

1. CONNECTING POWER CABLE(AC INPUT) 13
2. ASSEMBLING OF ARM SUPPORTER 13

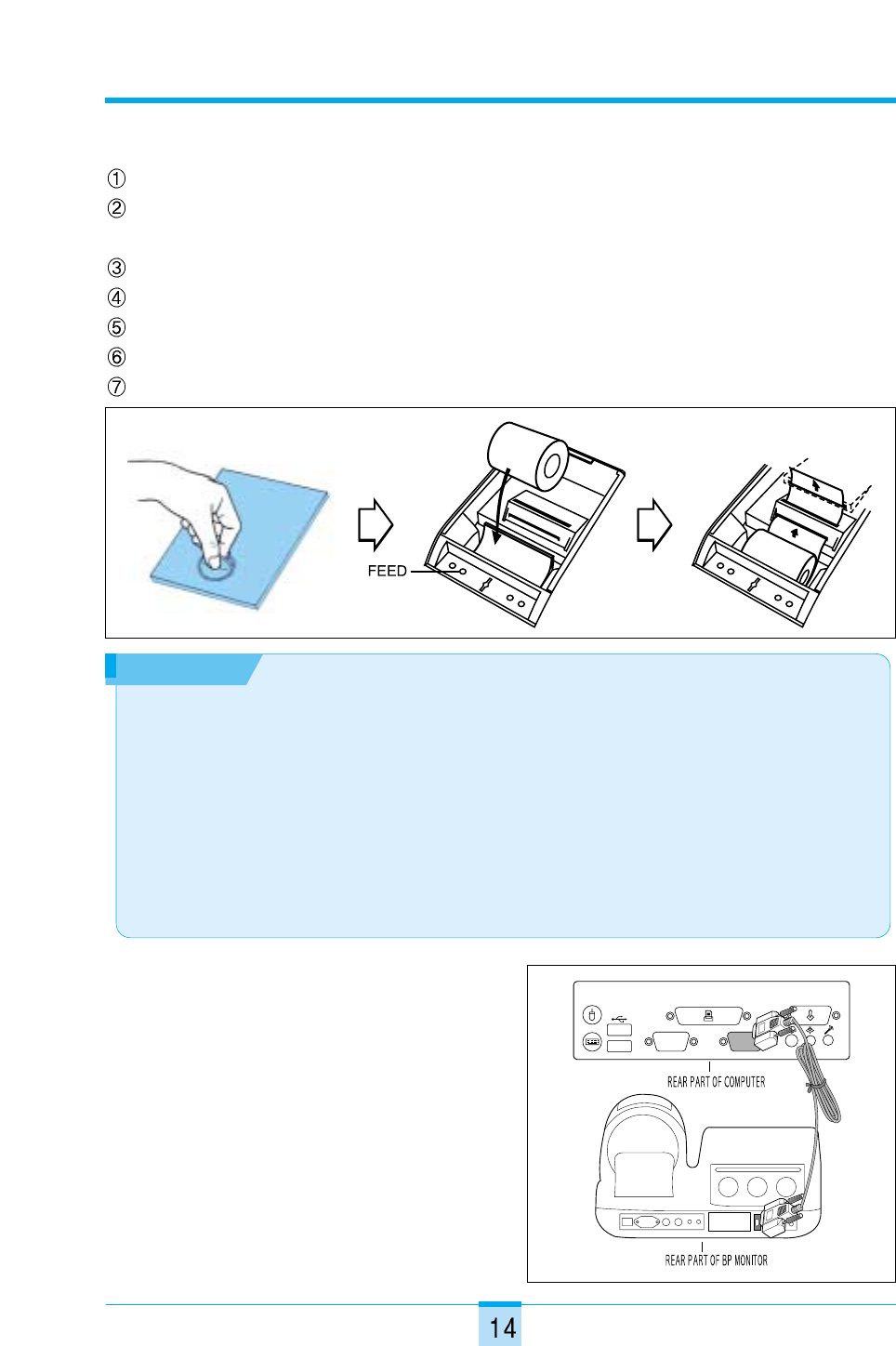

3. LOADING THE PRINT PAPER 14
4. CONNECTING PORTS(RS-232C) 14

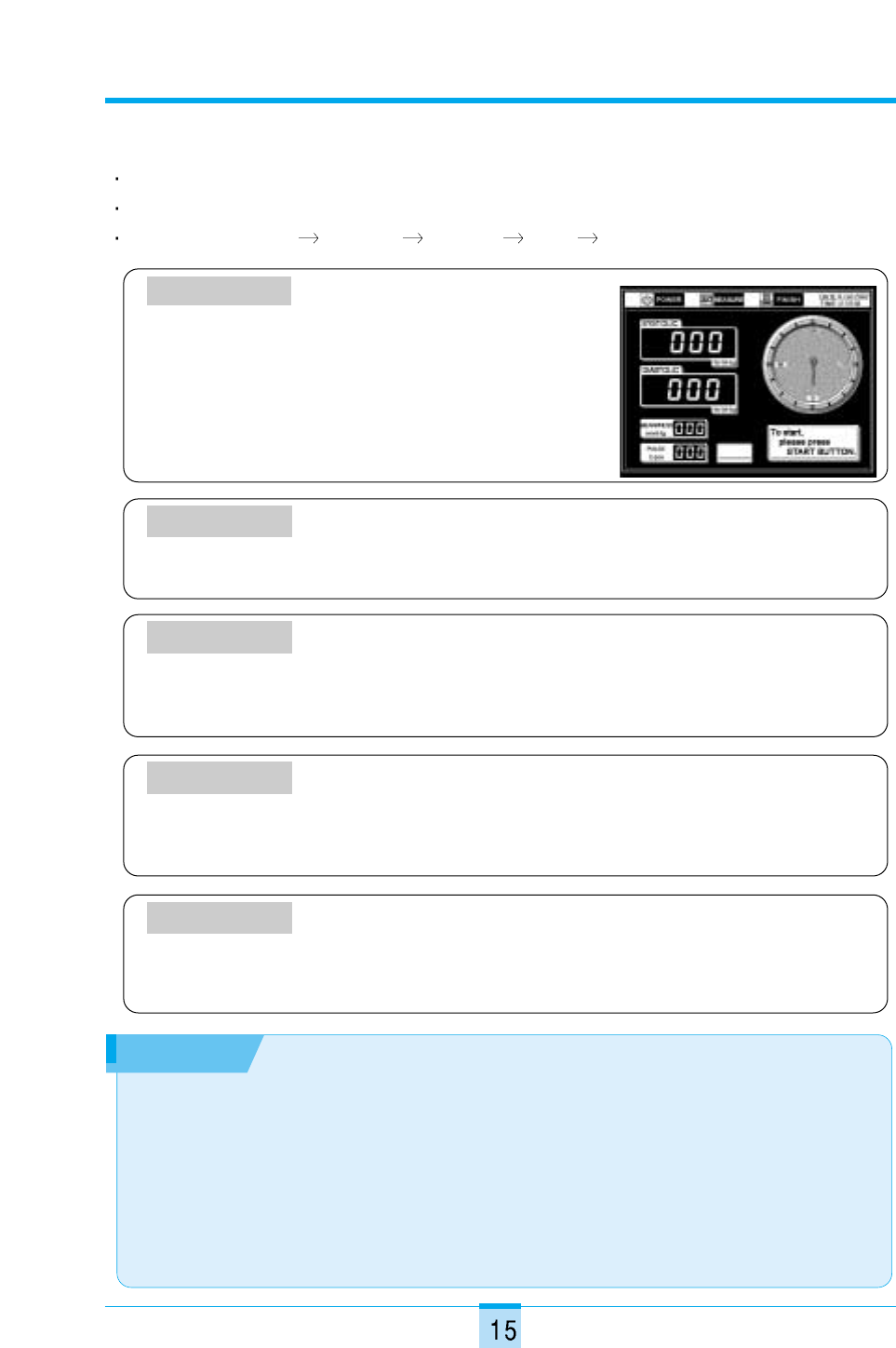

5. SETTING TIME AND DATE 15

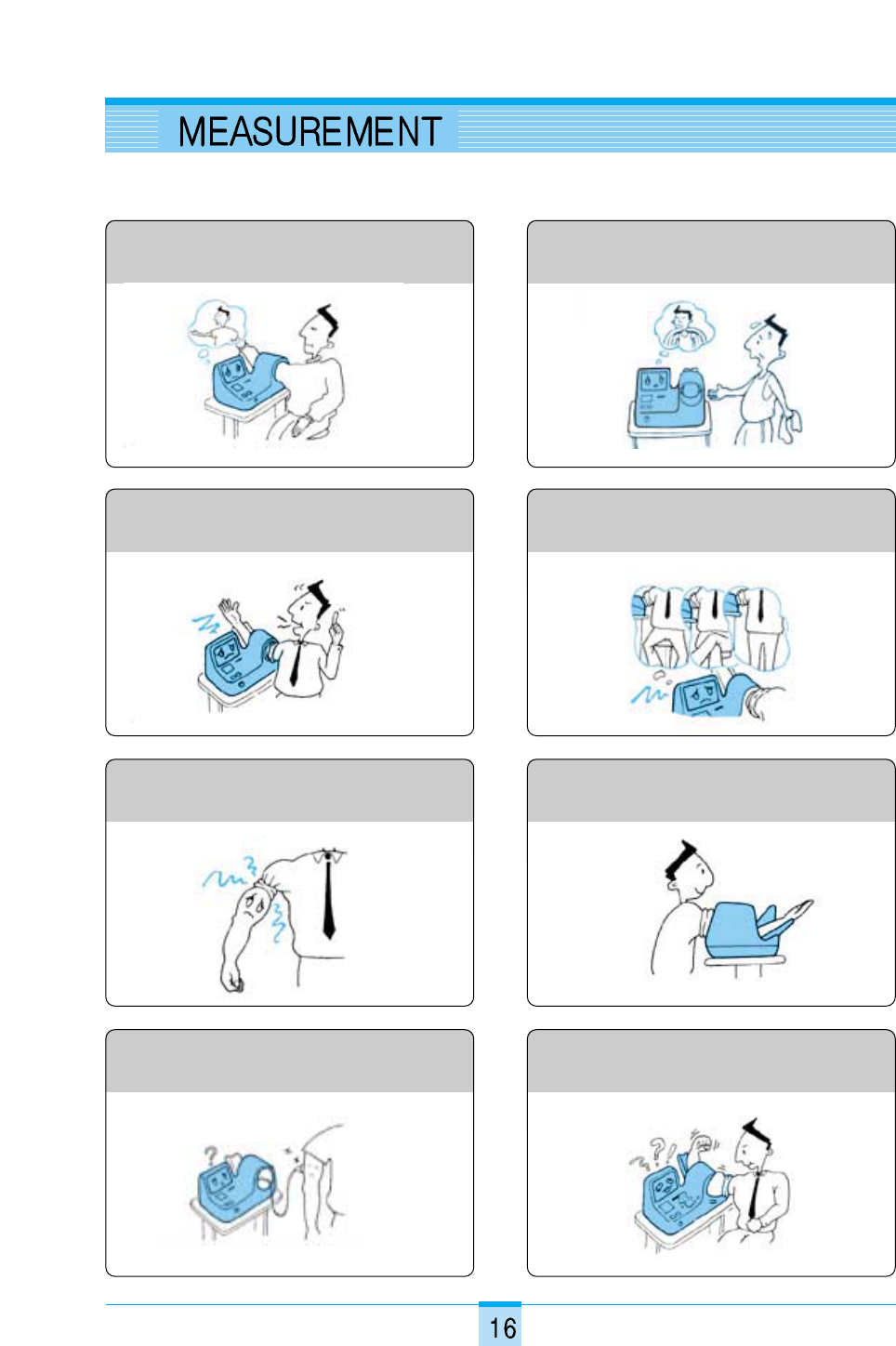

1. CAUTIONS FOR MEASUREMENT 16

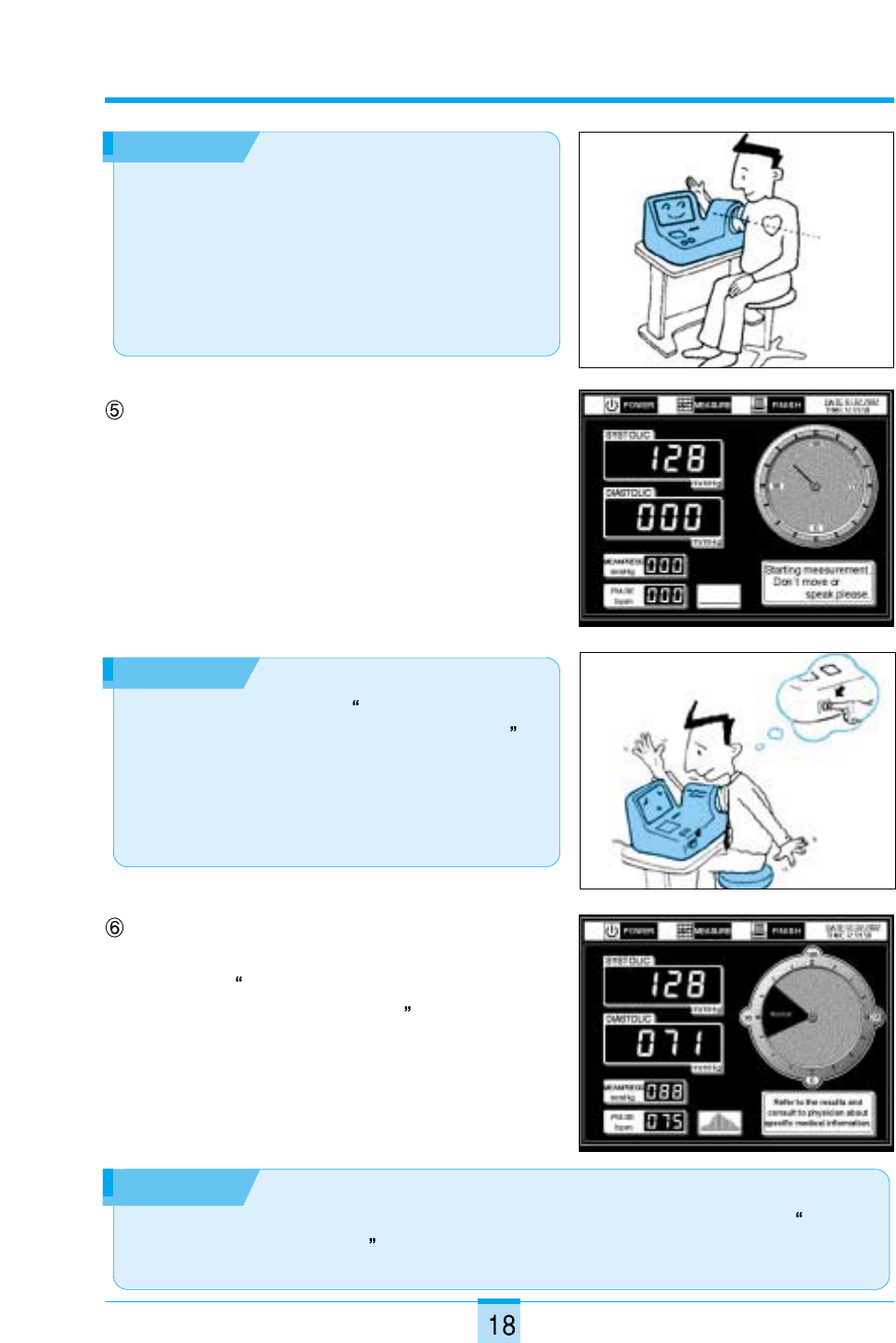

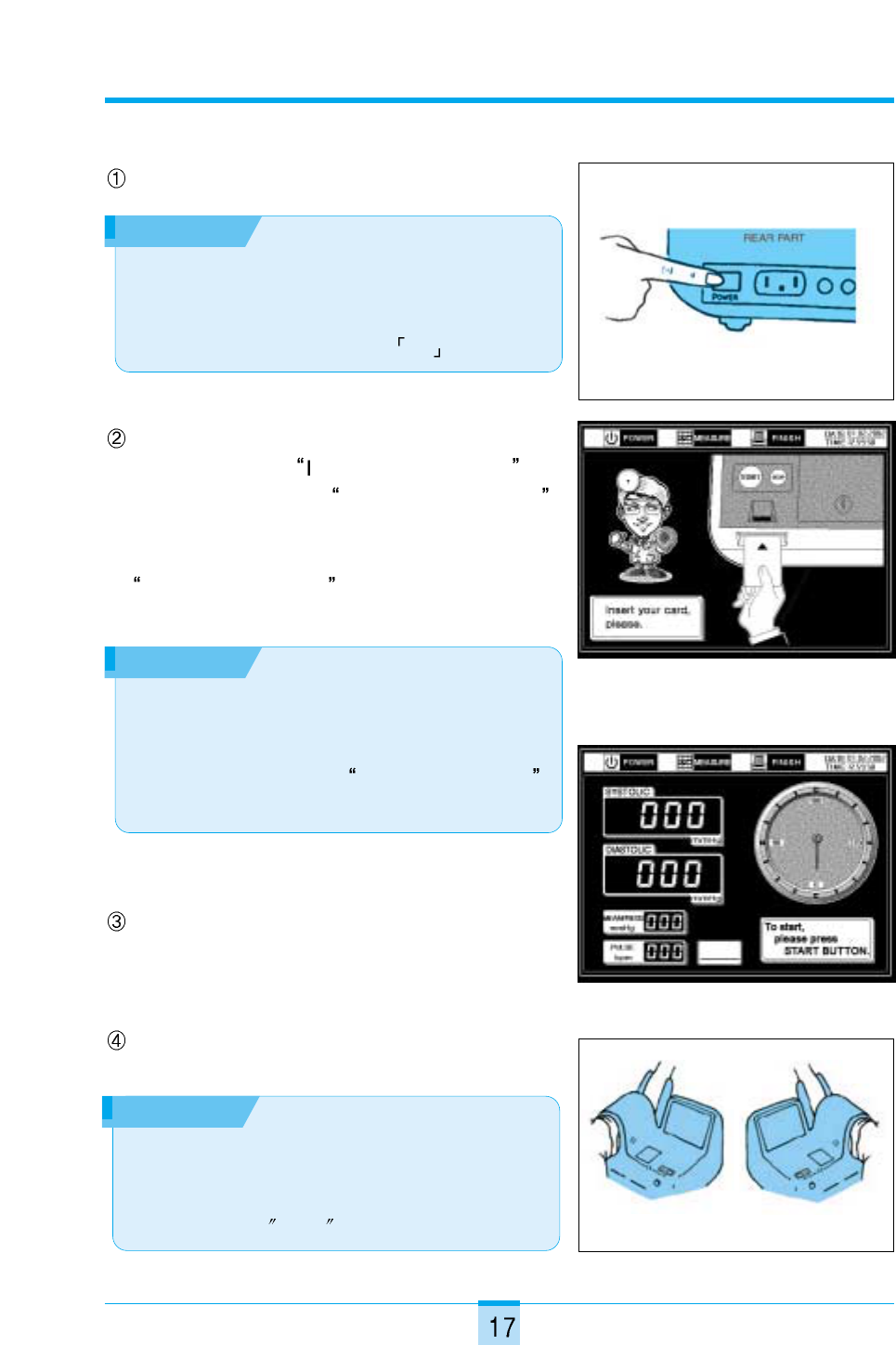

2. MEASUREMENT 17
3. DATA ON MEASUREMENT BY PRINTER 20
21
1. AFTER SERVICE 24
2. PACKING AND TRANSPORT 24
25
26
We highly appreciate you choose this JAWON product.
You are kindly requested to be familiar with these directions before using this product and
always keep it together with the product. In case you are not clear about any directions or
problems arising while using the product, please contact our service center.
We will provide you with detailed instructions.
1. INTRODUCTION
FT-700 (R/L) is a state-of-the-art medical equipment that can check not only blood pressure
and the pulse rate but also Pressure Rate Product (PRP - an important index for the oxygen
consumption of cardiac muscle) through a single process.
This machine will help to provide upgraded medical services for the patients since more
accurate and reliable diagnosis is collected and suitable treatments can be arranged on the
basis of these measured results.
FT-700 (R/L) is the fully automated blood pressure monitor armed with the belt-type cuff that
facilitates the test time quicker and provides the results more reliable.
2. WORD DEFINITIONS
To ensure safe operation and long term performance stability, it is essential that you fully
understand the functions, operating and maintenance instructions by reading this manual
before operating your unit.
Particular attention must be paid to all warnings, cautions and notes incorporated herein.
The following conventions are used throughout the manual to denote information of special
emphasis.
WARNING
Important information to indicate the presence of a hazard which can cause
severe personal injury, death of substantial property damage if the warning is
ignored.
CAUTION
Important information to indicate the presence of a hazard which will or can cause
minor personal injury or property damage if the warning is ignored.
NOTE
Important information to notify the user of installation, operation, or maintenance
information which is important but not hazard-related. Hazard warning should
never be included under the note signal word.
3. CLASSIFICATION AND COMPLIANCE
1) FT-700(R/L) is classified as ;
- Class 1 type-BF against electric shock
- Ordinary equipment without protection against ingress of water
- Equipment not suitable for use in presence of a flammable anesthetic mixture by standard of
IEC 60601-1(Safety of Medical Electrical Equipment)
2) FT-700(R/L) are complied with Class A for Noise-Emission, Level B for Noise-immunity, by
standard of IEC 60601-1-2(Electromagnetic Compatibility Requirements).
3) This blood pressure meter complies with the EN 1060-1 : 1995 Non-invasive
Sphygmomanometers general requirements as well as EN 1060-3 : 1997 supplementary
requirements for electro-mechanical blood pressure measuring systems.
4. SAFETY PRECAUTIONS
FT-700(R/L) is designed and manufactured with consideration given to the safety of the
operator and subject and also to the reliability of the unit.
The following precautions must be observed for additional safety;
1) The unit must be operated only by, or under supervision of, a qualified person by JAWON
or his distributor.
2) FT series are specified as Class 1 type BF unit under the standard of IEC 60601-1(Safety
of Medical Electrical Equipment).
Therefore, patients must not touch or handle inner side of the system at any time.
3) Do not modify the unit. If any modification is desired, ask JAWON or its authorized dealer
for service.
4) The unit has been factory-adjusted for optimum performance.
Do not attempt to adjust any or switches except those specified in this manual for
operation.
5) If you have experienced any trouble with the unit, switch it off immediately, and contact
JAWON or its authorized dealer for assistance.
6) If you plan to connect any device of other manufacturers electrically or mechanically to
this unit, contact JAWON or its authorized dealer for instructions before doing so.
When you connect computer or other system to the unit(RS-232C), the attached systems
should be certified by IEC 950 or equivalent standards for data processing equipment.
Configurations shall comply with the system standard IEC60601-1-1.
Everybody who connects additional equipment to the signal input part or signal output part
configures a medical system standard IEC 60601-1-1.
If in doubt, consult the A/S department of local distributor.

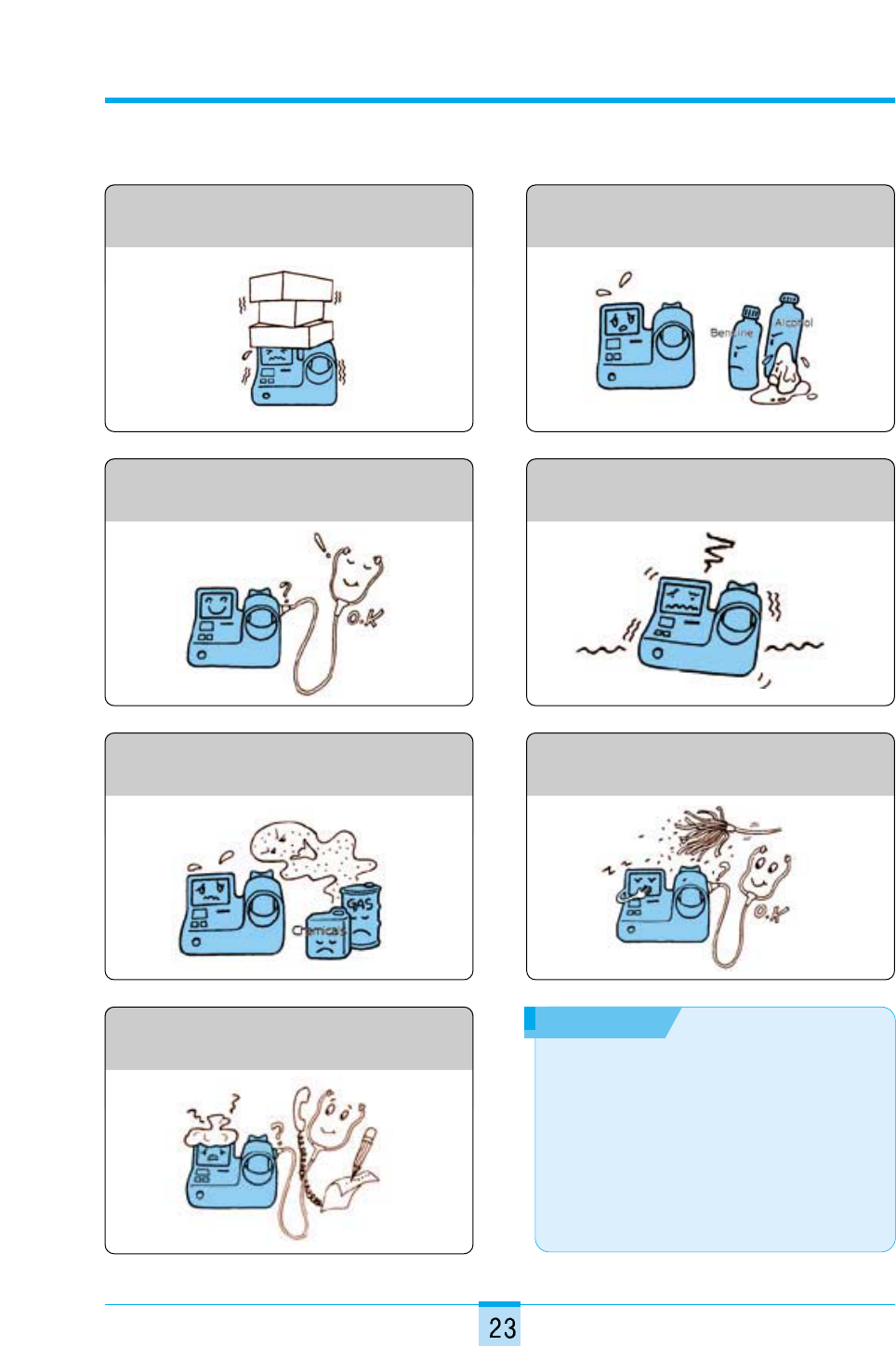

7) Avoid the following environments for storage ;
- Where the ambient temperature falls -5 or exceeds 50 .
- Where the atmospheric pressure falls below 70 kPa(700 mbar) or exceeds 106 kPa
(1060 mbar).
- Where the humidity is over 85% non-condensing.
- Where the unit is exposed to spray or splashing water.
- Where the unit is exposed to dust
- Where the unit is exposed to water vapor.
- Where the unit is exposed to high density oil vapor.
- Where the unit is exposed to salty atmosphere.
- Where the unit is exposed to explosive gas.
- Where the unit is exposed to excessive shocks or vibrations.
- Where the angle of inclination of mounting surface exceeds 10 degrees.
- Where the AC power line voltage heavily fluctuates
- Where the AC power line voltage changes heavily when this unit is in operation.
- Where the unit is exposed to direct sunlight.
Note
Incorrect operation or failure of user to maintain the unit relieves the manufacturer or
his agent of the system's non-compliance with specifications or responsibility for any
damage or injury.
This manual is made for informational purpose and this manual and product are not
meant to be a substitute for the advice provided by your own physcian or other
medical problem. You should not use this information contained product for diagnosis
or treatment of health problem or prescription of medication by yourself.
If you have or suspect that you have a madical problem, consult your physician
promptly.
Defective unit or accessories, must be packed in the replacement cartons, are
shipped off from you to JAWON MEDICAL CO.,LTD.
Shipping and insurance costs for return of defective unit must be prepaid by you.
Caution
Measurements may be impaired if this device is used near televisions, microwave
ovens, X-ray equipment or other devices with strong electrical fields. To prevent
such interference, use the meter at a sufficient distance from such devices or turn
them off.

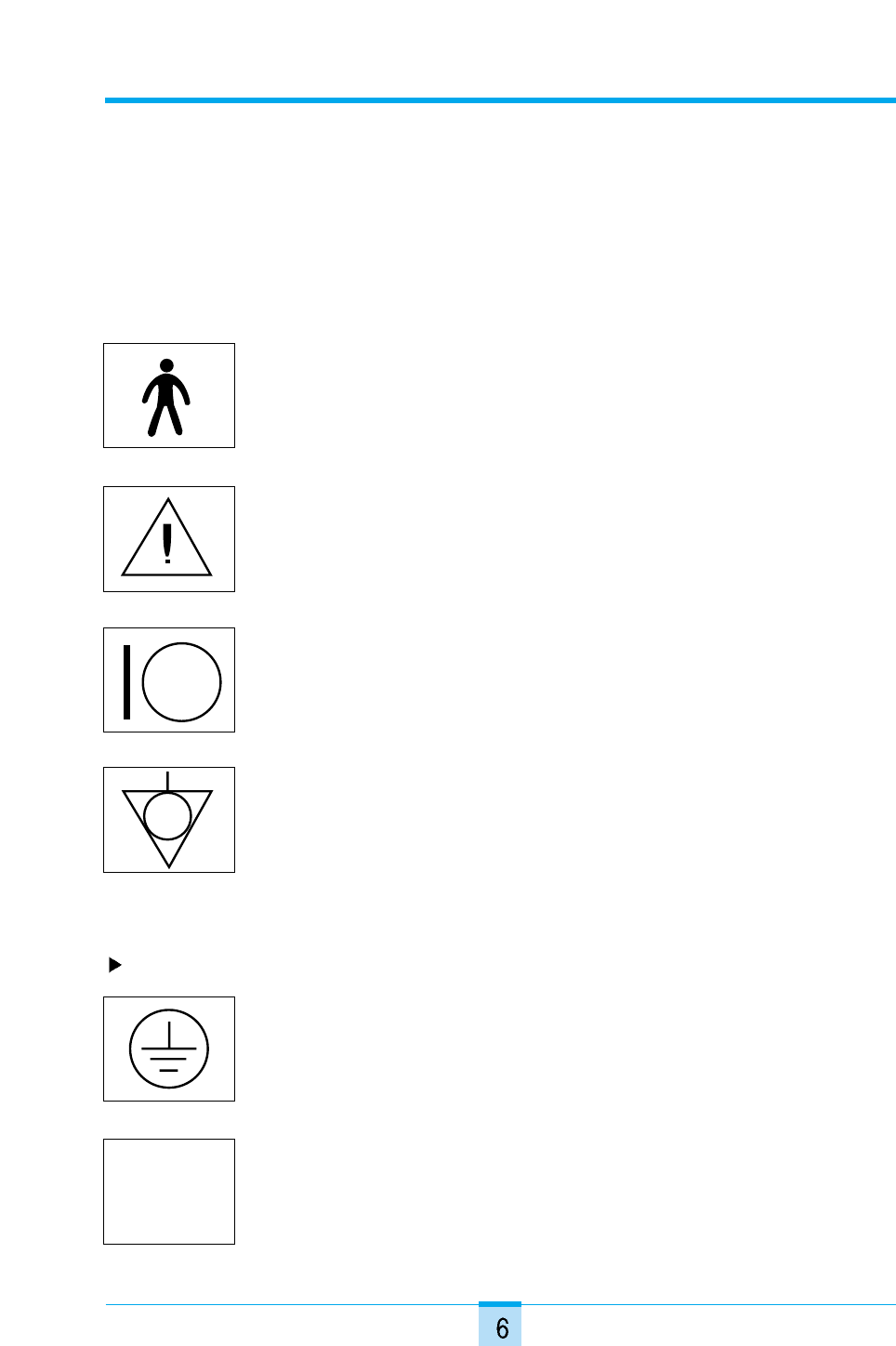

5. SAFETY SYMBOLS
The International Electrotechnical Commission(IEC) has established a set of symbols for
medical electrical equipment which classifies a connection or warnning of any potential
hazard. The classifications and symbols are shown below. Save these instructions for
your safety.
The following symbols are used inside the system :
Isolated patient connection (IEC 60601-1-Type BF)
This symbol identifies a safety note.
Ensure you understand the function of this control before using it.
Control function is described in operation manual.
I and O on power switch represent ON and OFF, respectively.
Identifies equipotential ground(located next to ground stud on rear panel)
(IEC 417-5021).
Identifies the point where the safety ground of the system is fastened to
the chassis.
Do not open. This is for factory only.
CAL
1. FRONT PART
START BUTTON
Press START button after ready to measure, the cuff will be wrapped automatically and
begins to pressurize.
STOP BUTTON
Press STOP button if you want to stop it during measurement. Pressurizing will stop and
the air will exhaust from the cuff.
LCD DISPLAY
It displays letters and animations during test processes, along with the results (systolic,
diastolic, pulse, PRP) upon finishing examination.
CLOCK SECTION (Date and Time)
On the right upper corner of the LCD screen, date and time are displayed.
PRINTER COVER
It protects the printer.
AUTOMATIC CUTTER(printer paper let-out slot)
Printing paper is automatically cut off to let it out through the slot.
CUFF
It wraps and releases the arm automatically for measurement.
ARM REST
When the arm is placed on the cuff, the arm supporter sustains the arm and makes the
right position.
HUMAN SENSOR
When a user approaches, power is automatically turned on and vice versa.
CARD-READER
When card is inserted, it reads information in it and stores the measured results.
EMERGENCY STOP BUTTON
When your arm is oppressed due to high pressurizing or irregular operation is done, press
this button then the cuff will be exhausted rapidly.
Note
The cuff and the buttons(START and STOP button) of FT-700 are located at reverse
side by R and L type.

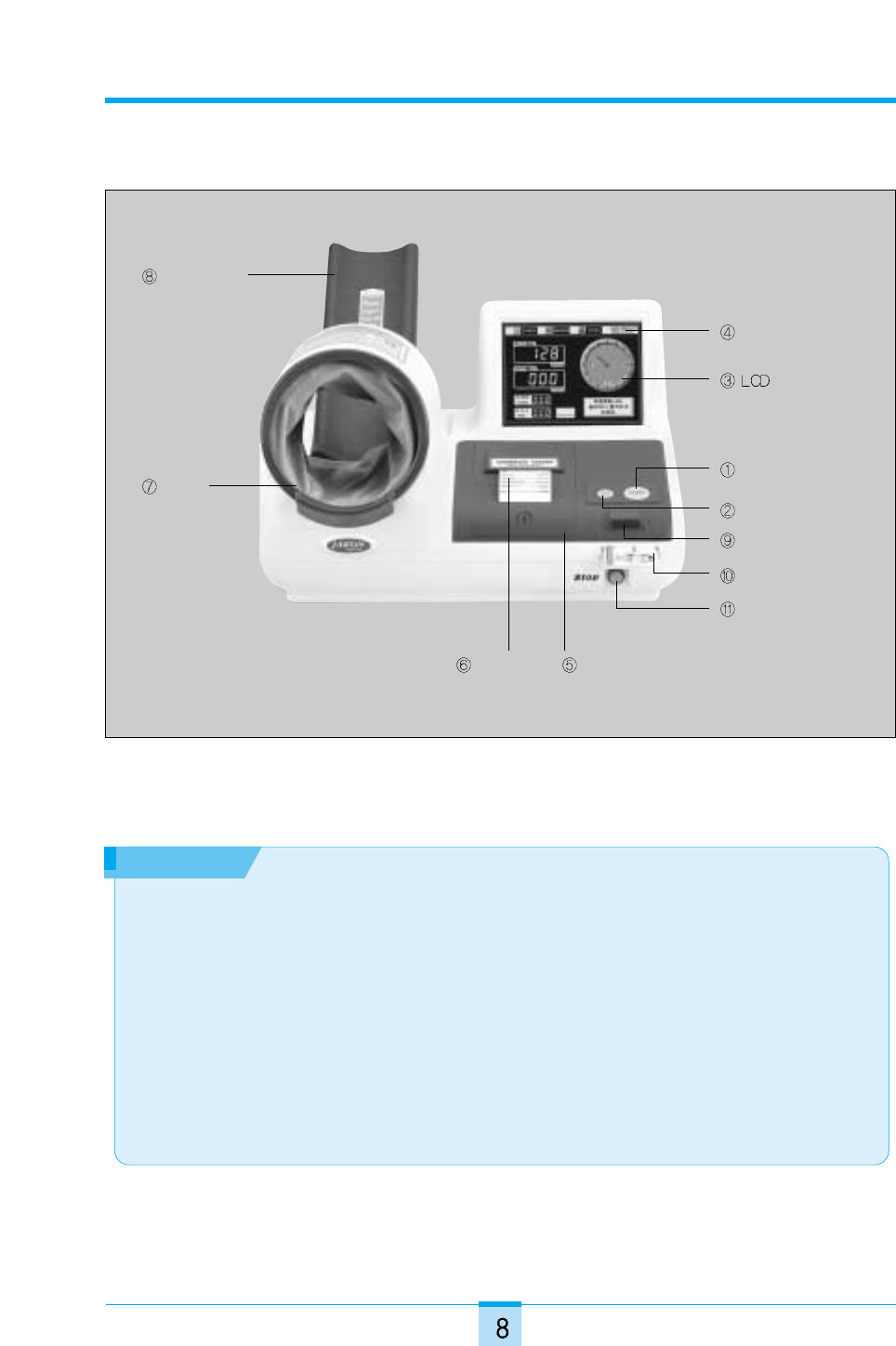

FRONT PART
ARM REST
CUFF
PAPER
OUTPUT PRINTER
COVER
TIMER
DISPLAY
START BUTTON
STOP BUTTON
HUMAN SENSOR
CARD-READER
EMERGENCY
STOP BUTTON
Note
Printer, card reader and human sensor are optional.
ID buttons are only attached to FT-750AF (R/L) model.
ID card can be issued either by the machine manager or by the manufacturer of the
model.
The card can store ID number and measured results.
The card stores two previous measured results and can contain three measured
results with the current one altogether.
When the model manager writes the card, please refer to the manual and
specifications for operation and programs attached to the card writing device at the
time of purchase.
2. PRINTER
PRINT button
- Use it when you print out the data.
- If you set ON at the rear (PRINT ON/OFF switch), the data is printed automatically
even you do not press PRINT button.
- Normally, when you press this button, all measured data after you turn the power on will
be printed.(if you turn it off, all memorized data would be deleted.)
- When you set the date and time, the number goes up by pressing this one.
FEED button
- Use this button for setting the paper
- When you set the date and time, the number goes down by pressing this one.
SET button
- set the date and time
- The functions are as follows when press this before or after measurement.
(It does not work during measurement)
- Sequence is HOUR MIN. MON. DAY YEAR
- Within 5seconds, finish set of the date and time.
- See the page ‘15’ for detailed method
Note
While sound switch is activated on (so sound is functioning), place the VOLUME
ON/OFF switch to OFF for deactivation of voice message and music play.
3. REAR PART
POWER
It is used to turn the power on and off.
AC INPUT
It is used to connect with the power cord.
FUSE
Two (250V/1.6A) fuses are installed to prevent overload.
CAL
This is only for inspection. Never open it.
EARTH(POTENTIAL EQUALIZATION TERMINAL)
Please make sure for safety.
COMMUNICATION PORTS (RS-232C)
Two ports are fixed, first for connecting between the main body and a computer or other
equipment with cable(RS-232C) to transfer the data collected or measured, second for
connecting between the main body and the coin slot with RS-232C cable to transfer the
data
SENSOR ON/OFF
Human sensor is turned on and off with the switch.
SOUND ON/OFF
Music and voice output functions are activated with the switch placed to ON , and vice
versa.
CARD ON/OFF
ID card is usable when the switch is placed to ON , and vice versa.
PRINT ON/OFF
Measured results are printed out when switched to ON , and vice versa.
VOLUME (ANNOUNCE ON/OFF)
It regulates volume output when switch is on while all volume is out at OFF
INFORMATION BOARD FIXER
Fix the information board here.
INFORMATION
BOARD FIXER
VOLUME
ANNOUNCE ON/OFF
CARD ON/OFF
SOUND
ON/OFF
SENSOR
ON/OFF
PRINT ON/OFF

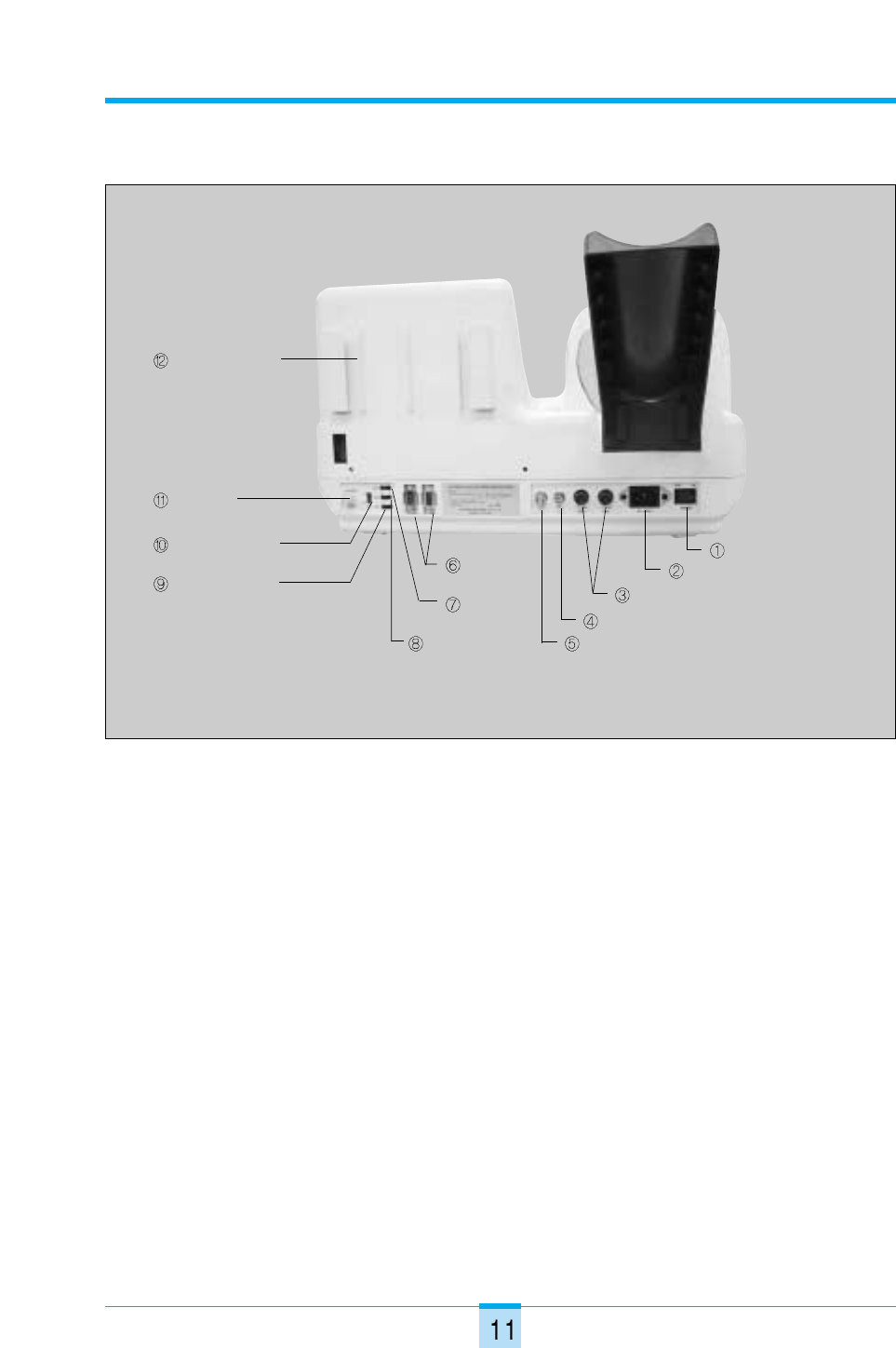

REAR PART
EARTH (POTENTIAL
EQUALIZATION TERMINAL)
CAL
AC INPUT
POWER
FUSE
PORT
(RS-232C)

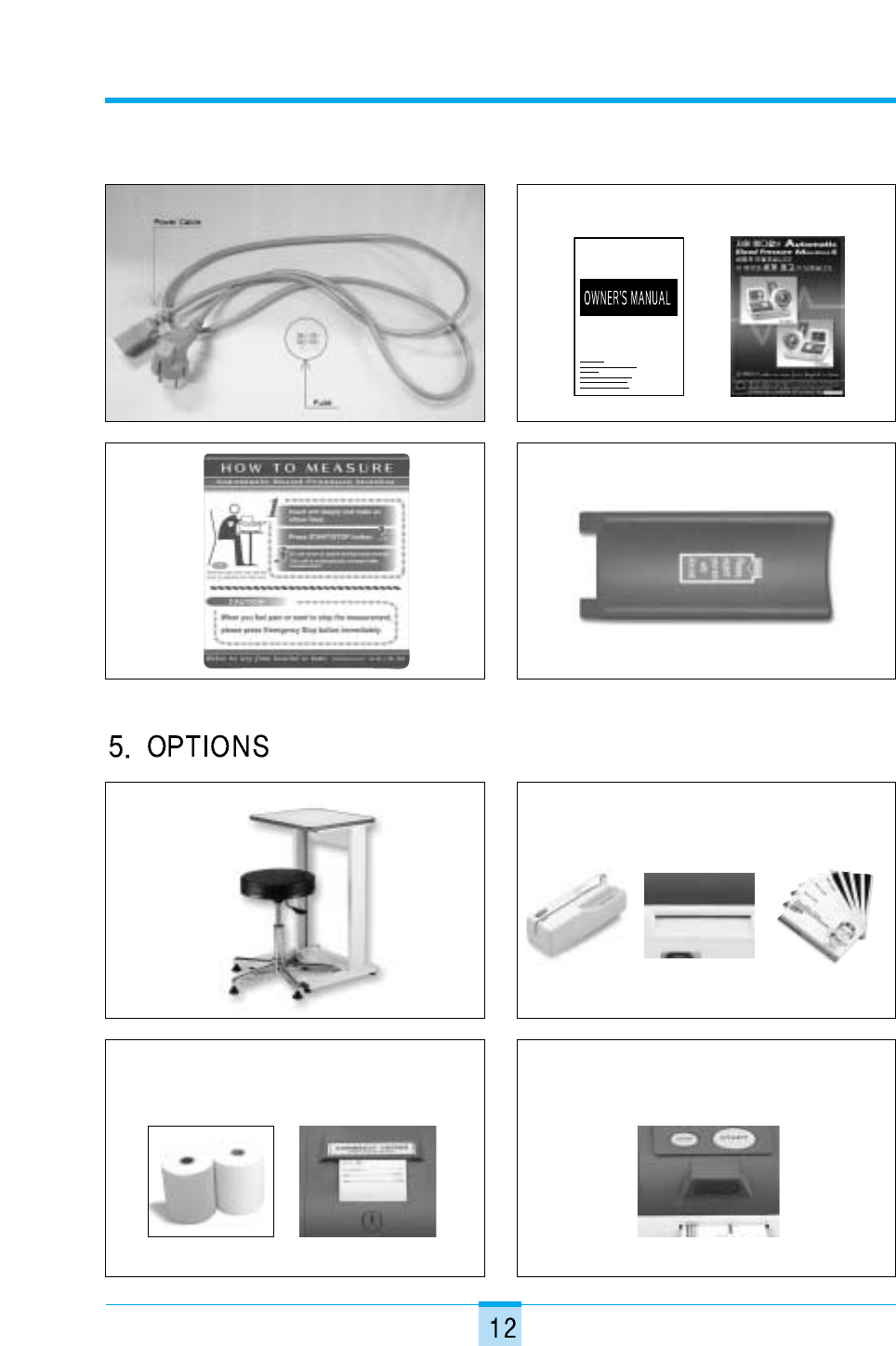

4. ACCESSORIES
Earth /Power /Fuse Manual/Poster
Guide Arm rest
Cart/ Chair Card-reader/ Card writing device/Cards
Printer paper/Printer Human sensor
1. CONNECTING POWER CABLE(AC INPUT)
Just connect the power cable to the AC INPUT slot on the rear and turn the POWER
ON/OFF switch(O/I) on the lower part of the rear(See the picture).
2. ASSEMBLING OF ARM SUPPORTER
The arm supporter consists of two parts. The first part (1) is attached to the main body when
it is manufactured in the factory while the second part(2) is assembled to the first part as
shown in the picture.
ARM REST(1)
ARM REST(2)
3. LOADING THE PRINT PAPER
Check and see if power is turned on.
Turn the nut (with a driver on the groove in the middle) on the lower printer cover
clockwise to 90 degrees and open the cover.
Load the print paper as shown in the picture.
Insert the paper edge deep under the black roll, then it comes out above the CUTTER.
Balance the paper in the right place.
Cut the paper by pressing the FEED button.
Close the cover and turn the nut counterclockwise back.
4. CONNECTING PORT (RS-232C)
To transmit the data, connect a computer or
other external options to the unit.
Connect the RS-232C cable both to port of
the unit and to the computer jack or other
external options. (See the picture)
Note
Being thermal type, printing is photocopied on one side of the paper(slippery side),
without using printing ink.
Please check remainder of the paper always and then replace it.
Please use exclusive paper (58mm).
Keep paper rolls in a dark and ventilated place.
Avoid any dust on the paper.
Do not pull the paper during printing. It could cause jam.
When printing paper is not loaded in correct place, it may cause the malfunction of the
printer or paper will be shoved out.
5. SETTING TIME AND DATE
Turn the power of the unit on.
Open the printer cover.
Sequence is HOUR MINUTE MONTH DAY YEAR
Note
If you want to measure blood pressure during setting the date and time, press STOP
button, then you can measure again immediately.
You should set all data at once (hour, minute, month, day and year)
In case of stopping setting, the values return to previous ones which you have done
before.
The calendar and time functions work without plugging power cord in.
Calendar program is inputted for 100 years. and it would be adjusted automatically
even at a leap year.
Press the SET button. DATE and TIME will appear up
and down with the line between them at the right upper
corner. At the same time, another line appears above the
first two numbers in TIME column, and these numbers
indicate the hour.
The number goes up by pressing PRINT button and goes
down by pressing FEED button.
HOUR
After setting the hour, press the SET button again. The line appears above the second two
numbers, and they indicate the minute. Adjust the minute as you did for the hour.
MINUTE
After setting the minute, again press the SET button to see two numbers with the line above
them in the DATE space, which indicate the month.
Regulate the month by pressing PRINT or FEED button alternately.
MONTH
After setting the month, press the SET button again ,and there appears the number in the
second column of DATE space with the line above the number.
It indicates day and PRINT and FEED buttons adjust days.
DAY
After the day is set, press the SET button once more for the year appearing in the third column of
the DATE space with the line above the number.
The number gains when PRINT button is pressed and it reduces as FEED button is pressed.
YEAR
1. CAUTIONS FOR MEASUREMENT
Take off heavy sweater or shirts.
Do not chat or move while you are being measured. Do not measure in bad positions such as standing,
half seat or sitting with your legs crossed.
When you fold your sleeves up, please make
sure not to press your arm. Put your arm deeply in order to fit to the arm
rest.
If it is not easy to check your pulse with the
stethoscope, the measurement cannot go on.
If you strain to your arm, there will be some
differences. Please relax your arm and have a seat
correctly.
Before measurement, take it easy and have a
rest for a while.
For non-ID card users, a background music flows
as power is turned on, and there appears the
stand-by scene on the LCD screen.
Place either the right arm or left arm into the cuff.
For ID card users, the message first appears on
the LCD screen as nsert your card, please.
Then a voice message Input identification card.
is announced with the backdrop music. When the
card is inserted, another voice message as
Press the start button. comes out.
2. MEASUREMENT
Check the voltage and turn the power on
FT-700L FT-700R
Note
With the human sensor attached optionally, the
LCD screen is automatically turned on as it
detects a user coming to the range.
The sensor should be placed ON .
Note
For ID card using, the CARD ON/OFF switch
(in the rear) should be turned on.
If the card is damaged or expired, the voice
message comes out as Can not use ID card.
In this case, purchase new one and try again.
Note
Check the blood pressure with the right arm for
FT-700R and the left arm for FT-700L.
An optimal arm circumferance for this
equipment is 9 to 14
Note
When the measurement is not satisfactory, the voice message comes out as Cannot
measure, we will try again. At this time, let your arm stay into the cuff and start over
again from the beginning.
Press the START button.
Checking blood pressure begins as the cuff
is automatically pressurized with the LCD
screen displaying animations of the
checking in process.
Note
A voice message warns Starting
measurement, don't move or speak please.
as the process begins.
Press the EMERGENCY STOP button
when the user feels pain on the arm with higher
pressure or wishes to halt the checking
Note
Place your arm on the arm supporter with the
palm facing up through the cuff deeply.
Adjust the height of the chair so that the arm is
leveled off with the heart.
When the arm is placed lower than the heart,
blood pressure will become higher than actual
value, and vice versa.

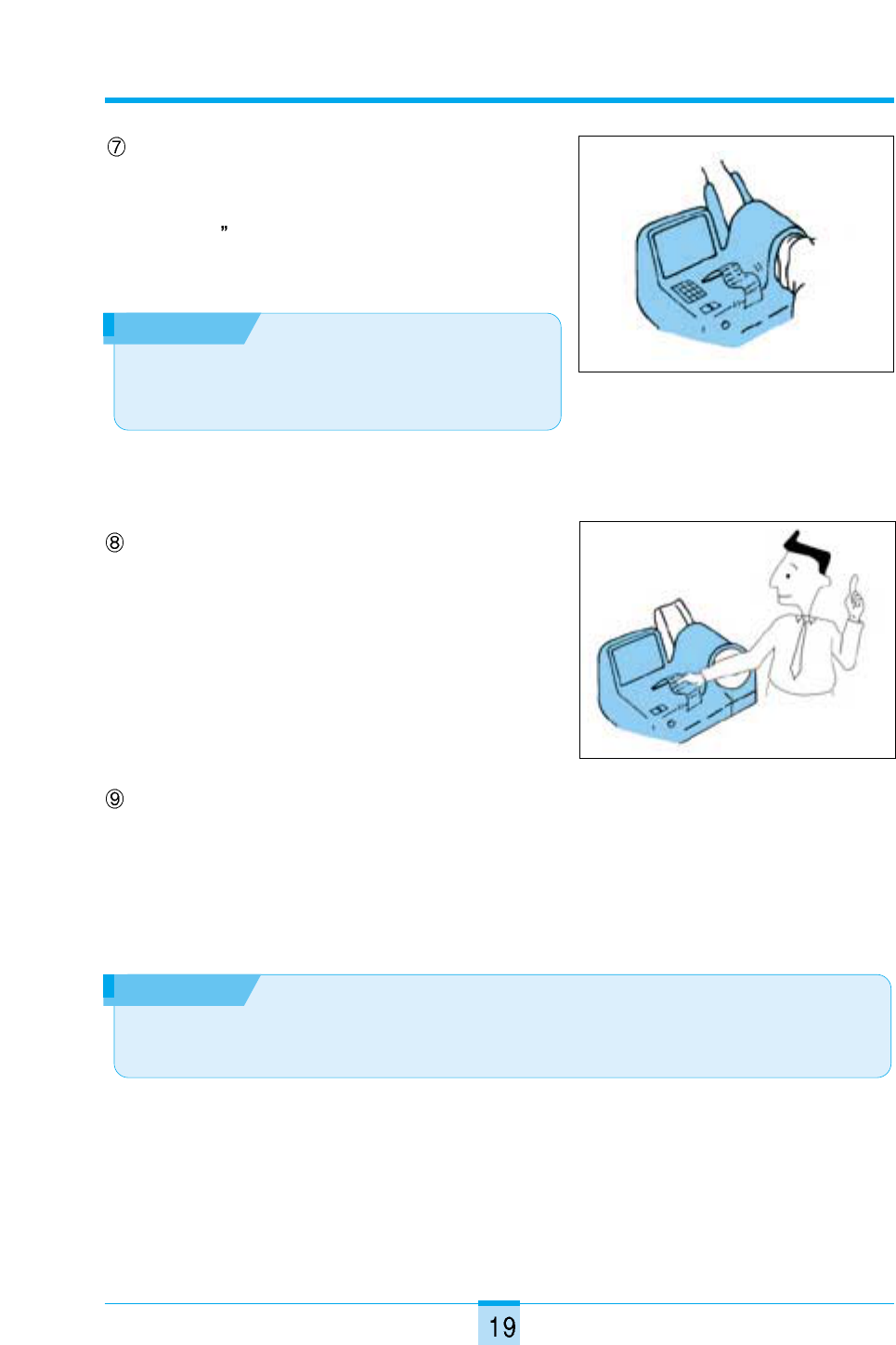

The LCD screen displays the results of
checking upon finishing along with a voice
message of Measurement completed, pull
your arm out please. Thank you.
The cuff will automatically release your arm
and resume the original position.
The results are printed out, and a voice message
also announces the results as “Your blood
pressure is systolic 000, diastolic 000 and
pulse 000.
Note
When the PRINT ON/OFF switch on the rear is
set as off, the result will not be printed.
Pull your arm out from the cuff.
Note
When the card is used, two data previously stored and the newly checked results
are simultaneously printed out to make them compare for analysis.
When you want to measure one more time,
press STOP button and start all procedures
from the beginning.
3. DATA ON MEASUREMENT BY PRINTER
Results on printer paper
ID-NO 0001
DATE 02/03/2002
TIME 06:04
SYSTOLIC 124mmHg
DIASTOLIC 084mmHg
MEANPRESS 075mmHg
PULSE 075bpm
P.R.P 9300
Note
The result of pressure rate product(P.R.P) is not displayed on the LCD screen but
printed out on the paper.
Note
When pressure is high with the jammed air hose, message appears on the printer
as ERROR PRESSURE.
When the message is repeated, call for maintenance service.
When pressure is low as air leaks, message appears on the printer as ERROR
CUFF.
When the message is repeated, call for maintenance service.
When a testee moves or speaks while in testing, message appears on the printer
as ERROR MEASURE.
Try to retest after for a while. If the message is repeated, call for maintenance
service.
A buzzer goes off once when error takes place, then the machine is ready for
testing.
When the machine does not work altogether, turn the power off and make sure if
there is the fuse inserted and turn the power on and off a few times.
SYSTOLIC : below 139 Hg
DIASTOLIC : below 89 Hg
MEANPRESS : 74~106 Hg
PULSE : 60~100beats/minute
PRP(Pressure Rate Product) : 7000~12000
Related with myocardial oxygen consumption
Normal Range
To ensure safe operation and long term performance stability, it is essential that you follow
this maintenance instruction all the time.
The performance test should be done every 2 years to ensure that the device operates
properly and safely at all times. It can be performed either by the manufacturer or by an
authorized dealer according to the regulations governing manufacturing of medical products.

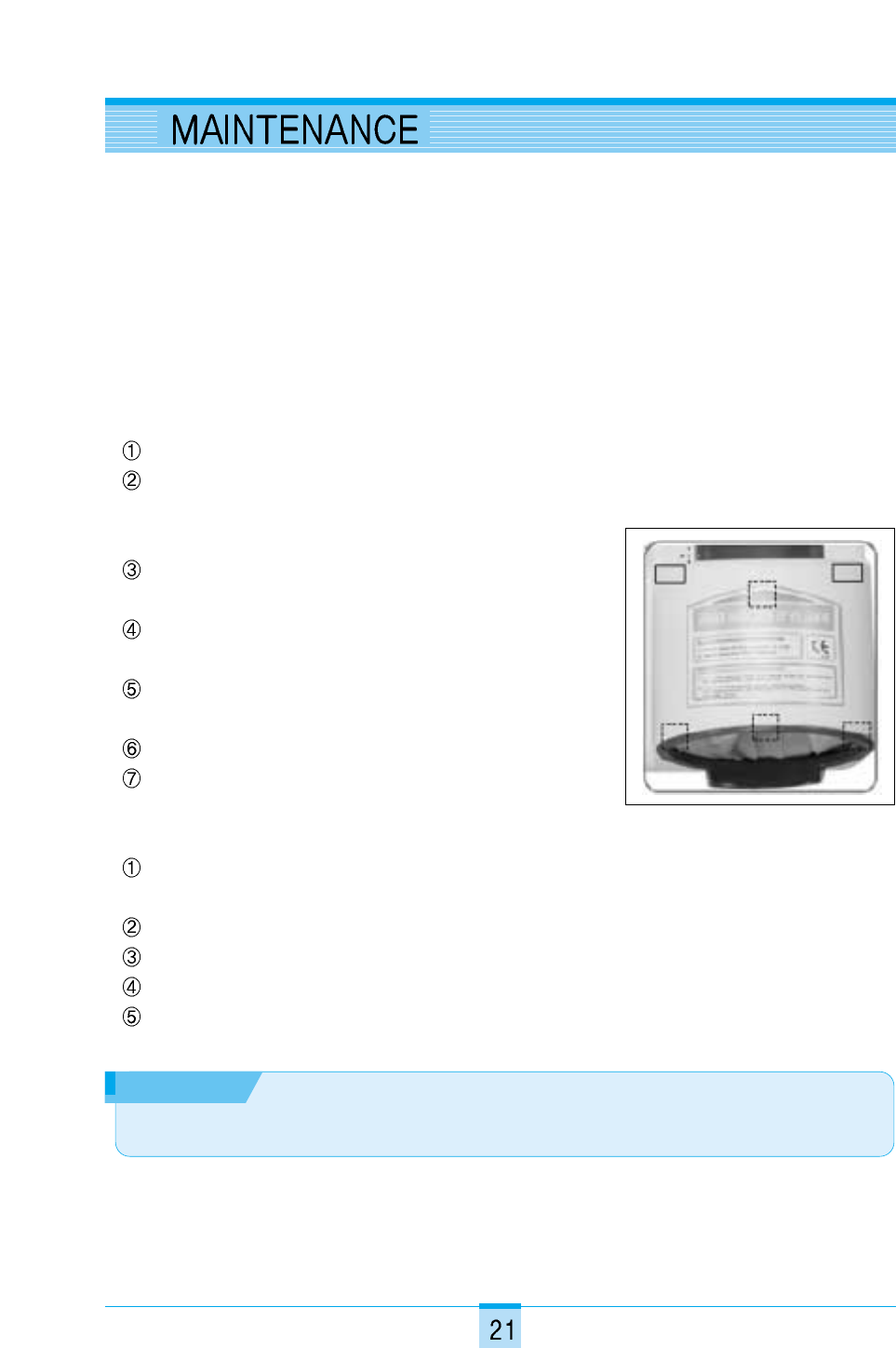

1. REPLACING THE CUFF COVER
Remove the old cuff cover as follow;
Remove the rubber molding which is located in the front of the arm insertion part.
Press the start button, then the cuff will be wrapped.
When the cuff is wrapped approximately half, turn the power off.
The cuff cover will be strained.
Detach the cuff cover from the magic tape.
(The location of the magic tape is as the picture.)
Pull the upper part of the cover down direction, and
then pull out the ring of it very gently.
Turn the power on again, then the cuff will
return the original status.
Pull out the rear ring.
Remove the old cuff cover completely.
Replace the new cuff cover as follow;
Place the new one through the arm insertion part. At this time, the large ring is for front,
and the small ring for rear. (The sewed part of the cover should be placed bottom.)
Press the start button and turn the power off again for half wrapping of the cuff.
Push the cover’s rings into the body.
Attach the cuff to the magic tape with pressing.
Fix the rubber molding like the beginning.
Note
If the cuff cover is not placed properly, it may cause problems in operation.
This unit is for 230V. If you want 110V, please
contact to a service center.
Do not disassemble the main body. To prevent electric shock, please make sure the
earth.
When grounded, do not mount it close to the gas
pipe, water pipe, lightening rod and connection
of telephone.
When you take out the plug, grasp the plug
exactly.
Keep the unit dry and do not wet it.
Never immerse the main unit in the water.
It could cause damage the electronic parts inside.
Avoid direct sunshine, humidity, dust and
extreme changes in temperature.
Remind the permitted current(50VA).
Note
When the cuff cover is dirty, wash it in
the warm water with neutral detergent.
If it worn out, replace with a new
one.(Refer to “Replacing the cuff cover”
on page 21)
When you sterilize the cuff, please use
EO GAS sterilizer every 2 years.
Do not put heavy things on the unit.
Check the unit conditions occasionally. Do not use the unit under the condition of shock
or vibration.
Do not install and shock with chemicals or gas. When you re-use after a long time, please
check the unit carefully.
When some problems are found, please call our
service center.
Wipe the unit with a damp cloth. Do not use benzine,
alcohol or liquid similar to solvents and wet cloth.
1. AFTER SERVICE
If there is any problem with the unit, please follow the steps below ;
Contact the JAWON Overseas Service Department immediately.
After gathering the model name, Serial Number, date of purchase and description of the
problem, contact JAWON with information shown below.
Try to solve the problem over the phone with the
local
service department personnel.
If the problem cannot be solved over the phone, just return to service department directly.
JAWON or local distributor will make available on request circuit diagrams,component
part list, descriptions, calibration or other information which will assist your appropriately
qualified technical personnel to repair those parts of unit which are designated by
JAWON as repairable.
How to contact JAWON MEDICAL CO., LTD.
Write us at :
JAWON MEDICAL CO., LTD
SEOUL OFFICE
JEONGJU BLDG 7F, 1451-38, SEOCHO-DONG, SEOCHO-KU, SEOUL, KOREA
TEL : 82-2-587-4056
FAX : 82-2-588-1937
FACTORY
13 LOT, 21 BLOCK JINRYANG INDUSTRIAL COMPLEX, KYUNGSAN CITY,
KYUNGSANG BUKDO 712-830 KOREA
TEL : 82-53-856-0993
FAX : 82-53-856-0995
(You can also contact the following representative or your local distributor)
2. PACKING AND TRANSPORT
JAWON follows his packing ways to protect any impact during transporting etc. So please
do not transport or move the unit without JAWON s packing condition as your wishes.
The normal storage environment ; - 5 ~ + 50 of temperature, Humidity is less than 85%
non-condensing.
Model FT-700L FT-700R
Display mode LCD display
Measuring ranges Pressure : 30 ~ 300mmHg, Pulse : 30 ~ 200beats/minute
Accuracy Pressure : 2mmHg, Pulse : 5%
Resolving Power 1mmHg
Pressurizing method DC Motor
Cuff Belt type
Pressurizing time Approx. 10seconds
Measuring time Approx. 33seconds
Measuring method Oscillometric
Printer Thermal high-speed printer
Power supply 230V~/50Hz(EC), AC120V/60Hz(US)
Power consumption 50VA
Ambience for operation
Temperature : 10~40 , Humidity : Less than 85% non-condensing
Ambience for storage
Temperature : 5~50 , Humidity : Less than 85% non-condensing
Data transmission RS-232C
Dimensions 480(W) 310(D) 290(H)mm
Weight Approx. 11kg
Measuring parts FT-700L : with left arm FT-700R : with right arm
Note
1. It is convenient and useful, if you purchase a cart and a chair for FT series.
Those are designed only for FT series so that can be placed anywhere.
2. An external appearance and specifications are subject to change without notice.
WARRANTY
Item Automatic Blood Pressure Monitor Warranty period
Model FT-700(R/L) 1 year (main unit only)
Serial NO.
Note
When you receive this warranty, make sure that the name of the dealer and the
month, day and year of purchase are all completed.
This warranty will not be reissued, please keep it in a safe place.
Date Defection Confirmation
Date of purchase Month Day Year
Customer Name: TEL:
Address:
Dealer Name: TEL:
Address:
www.jawon.co.kr

Navigation menu
