Module integration manual

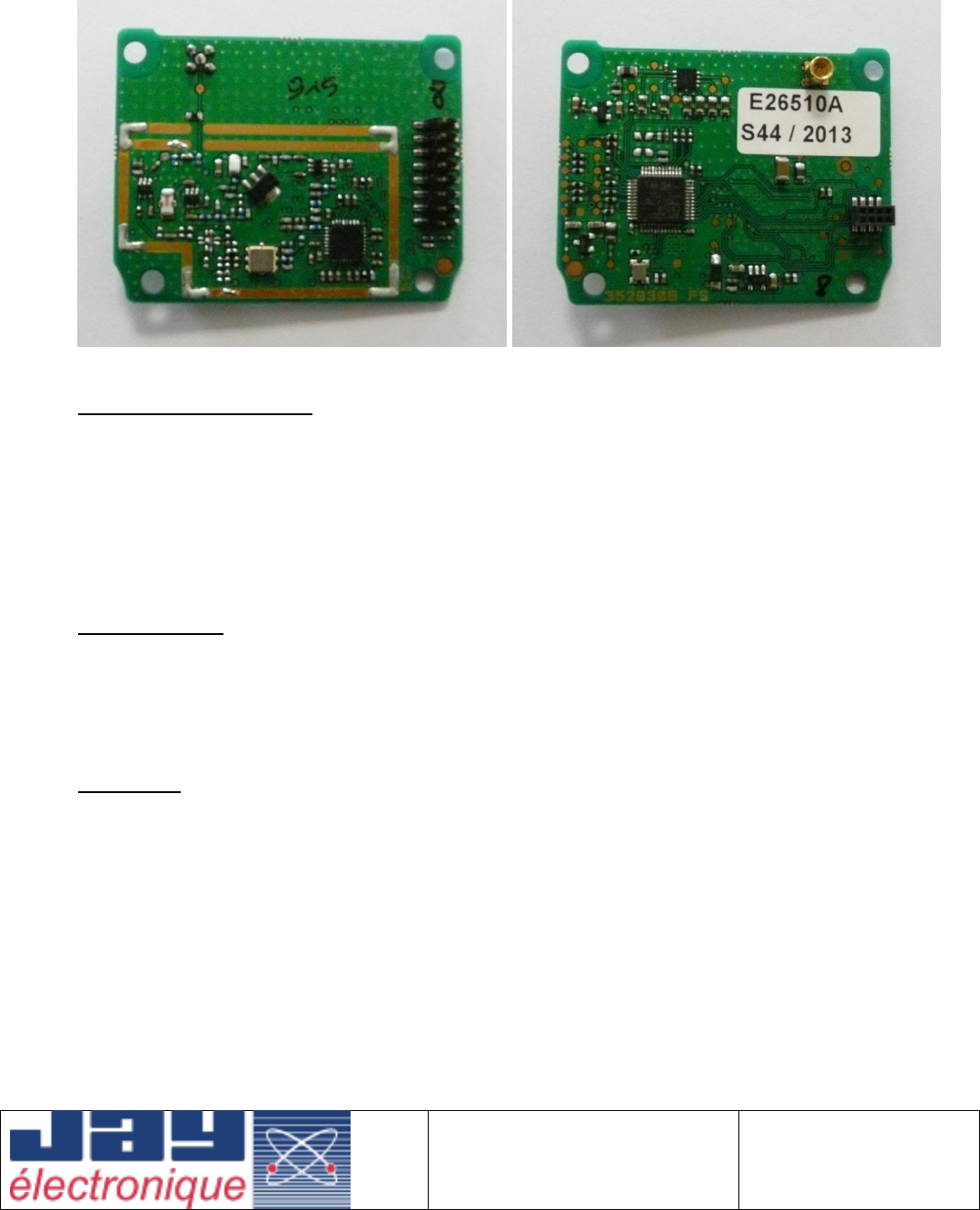

Product Description
The RF module with the FCCID number OQMSA is a compact high performance module for 25 kHz
narrow band 2-FSK operation with embedded proprietary protocol.
The modules are completely shielded and certified for operation under the US radio regulations
for license-free use.
Applications
Remote controlled machines
Cranes
Features
Smallest in the world (50 x 39 x 0.7 mm)
25 kHz narrow band multi-channel operation
Very low current consumption
Addressing and Error check
No external components
Easy to use data interface
Wide supply voltage range, 2.8 – 5.5 V
Conforms with FCC CFR 47 part 15
T940-HOM-004-Module
integration
manual_Rev3.docx
Date:
April 24th 2014
24-04-2014
Quick Reference Data
Parameter
Jay RF Module
Units
Frequency band
911.8 – 918.2
MHz
Number of channels
64
Channel bandwidth
25
kHz
Data rate
4.8
kbits/s
Max output power (typ.)
-8
dBm
Sensitivity
-114
dBm
Supply voltage
2.8 – 5.5
Volts
Current consumption, RX
31
mA
Current consumption, TX
37
mA
* Programmable. Maximum allowed radiated power under FCC CFR 47, part 15 is -1 dBm ERP.

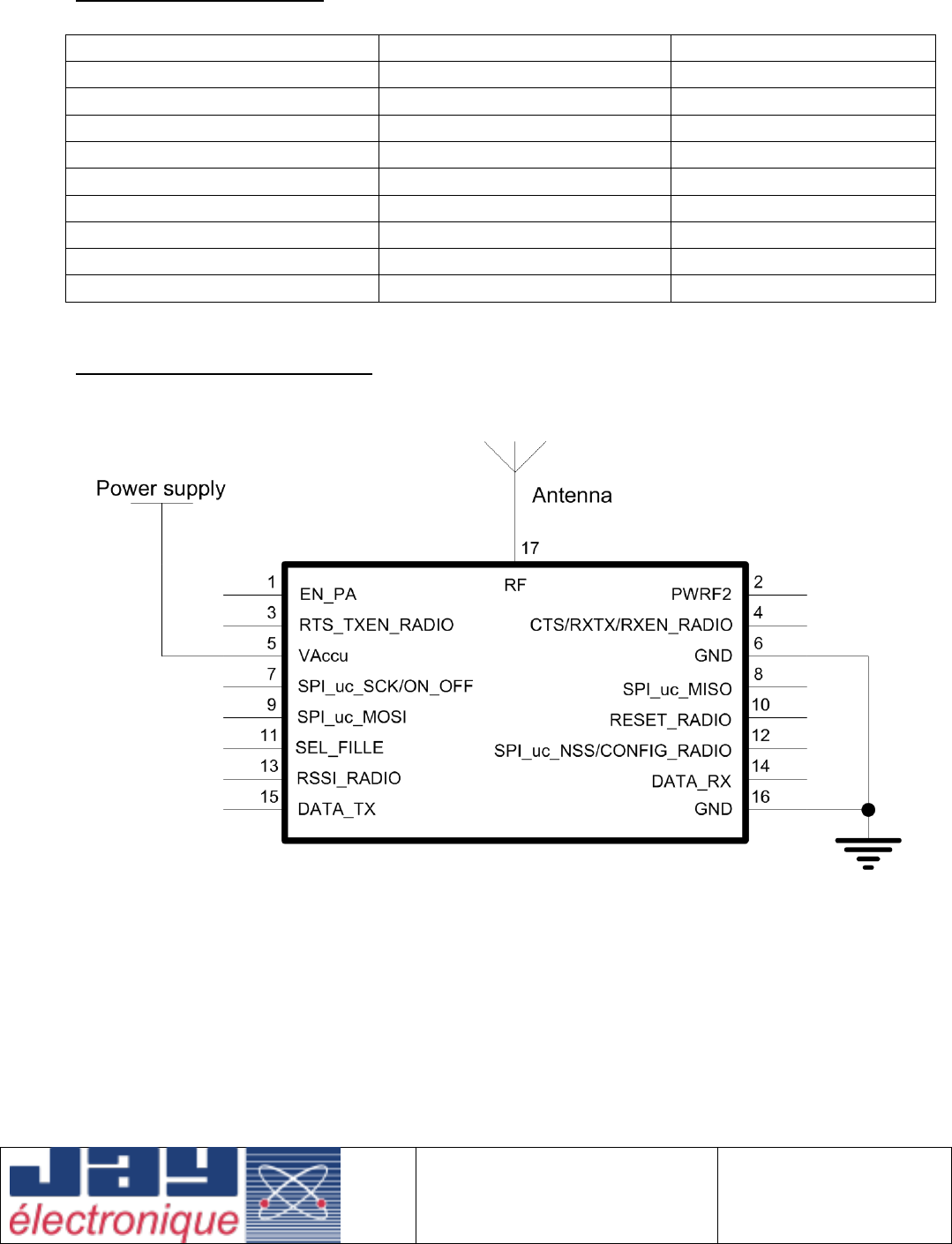

Typical Application Circuit
T940-HOM-004-Module
integration
manual_Rev3.docx
Date:
April 24th 2014
24-04-2014
Pin Description
Pin no
Pin name
Description
1
EN_PA
PA enable input, active high
2
PWRF2
Not used
3
RTS_TXEN_RADIO
Not used
4
CTS/RXTX/RXEN_RADIO
UART Clear to Send
5
VAccu
Supply voltage input
6
GND
System ground
7
SPI_uc_SCK/ON_OFF
SPI Clock
8
SPI_uc_MISO
SPI MISO
9
SPI_uc_MOSI
SPI MOSI
10
RESET_RADIO
Reset
11
SEL_FILLE
Not used
12
SPI_uc_NSS/CONFIG_RADIO
SPI Chip Select
13
RSSI_RADIO
Not used
14
DATA_RX
UART RX Data
15
DATA_TX
UART TX Data
16
GND
System ground
17
RF
RF I/O connection to antenna
T940-HOM-004-Module
integration
manual_Rev3.docx
Date:
April 24th 2014
24-04-2014

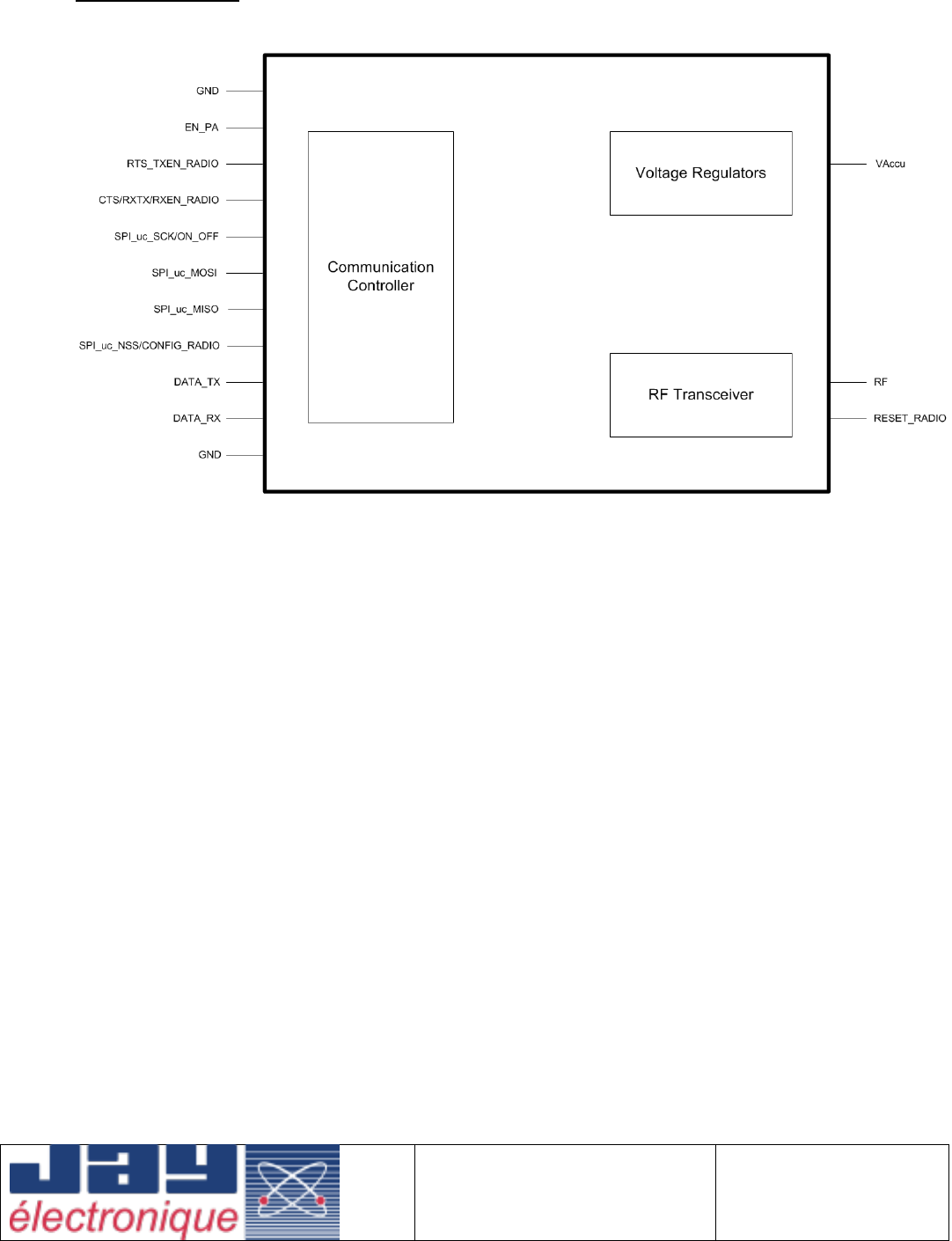

Block Diagram
The module contains a communication controller with embedded proprietary protocol software, a
narrow band high performance RF transceiver and three internal voltage regulators.
The communication controller handles the radio packet protocol. Data to be sent by the host is
received at the DATA_RX pin and buffered in the communication controller. The data packet is
then assembled with preamble, synchronization word and data with CRC check sum before it is
transmitted on RF.
The asynchronous UART interface consists of DATA_TX, DATA_RX and CTS/RXTX/RXEN_RADIO
signals and it is used for hardware handshake flow control.
The RF transceiver modulates the data to be transmitted on RF frequency, and demodulates data
that are received. Narrow band technology is used to enhance sensitivity and selectivity.
The supply voltage is connected to the VAccu pin. The module contains three internal voltage
regulators and can therefore operate over a wide supply voltage range.
T940-HOM-004-Module
integration
manual_Rev3.docx
Date:
April 24th 2014
24-04-2014
Authorized antennas

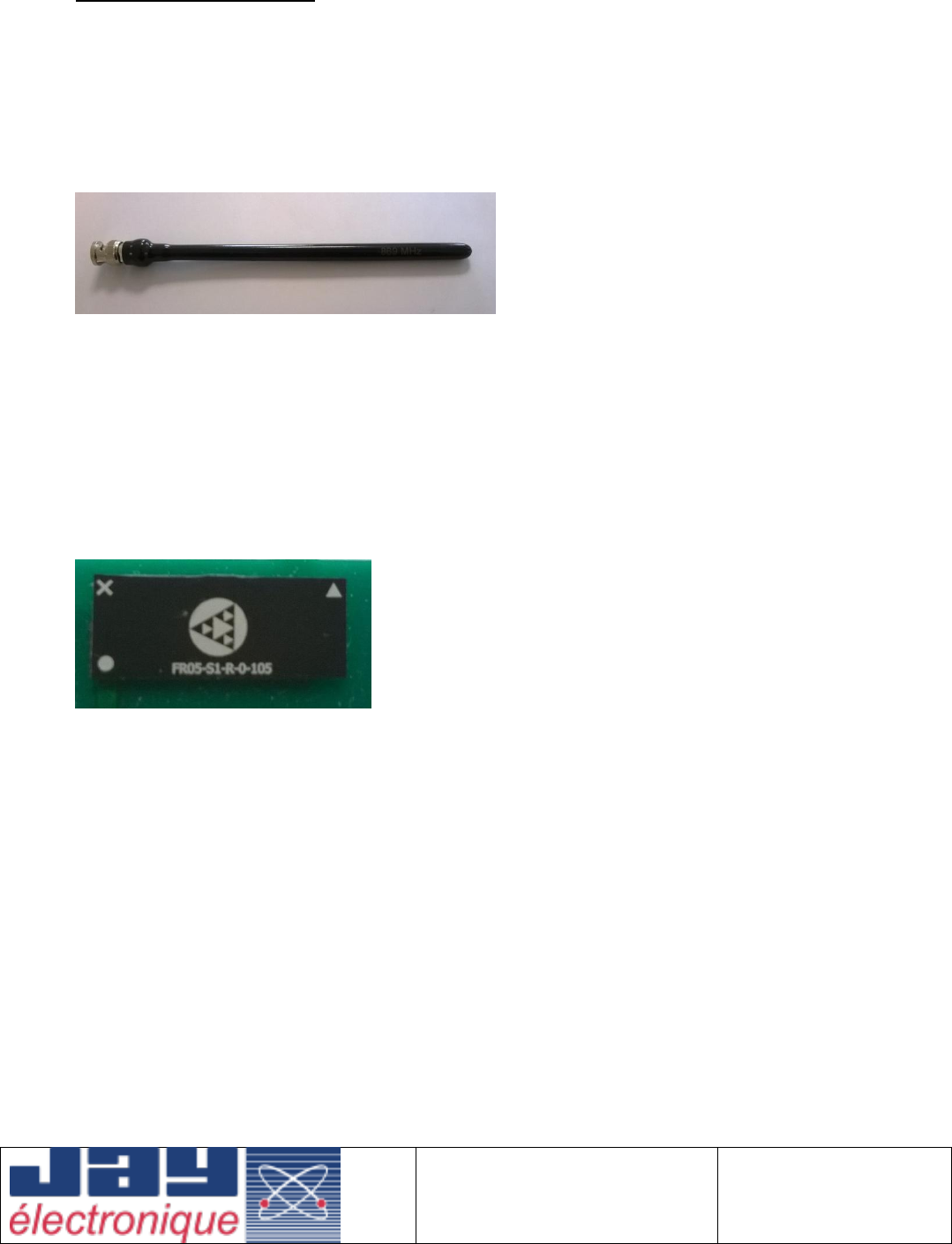

External antenna:
Product reference: VUB884.
This antenna is designed by Jay Electronique.
Antenna gain: 0 dBi @ 915 MHz
Printed antenna:
Product reference: FR05-S1-R-0-105.
Brand name: Fractus
Frequency Range: 902 - 928 MHz
Antenna gain: > 0 dBi
T940-HOM-004-Module
integration
manual_Rev3.docx
Date:
April 24th 2014
24-04-2014

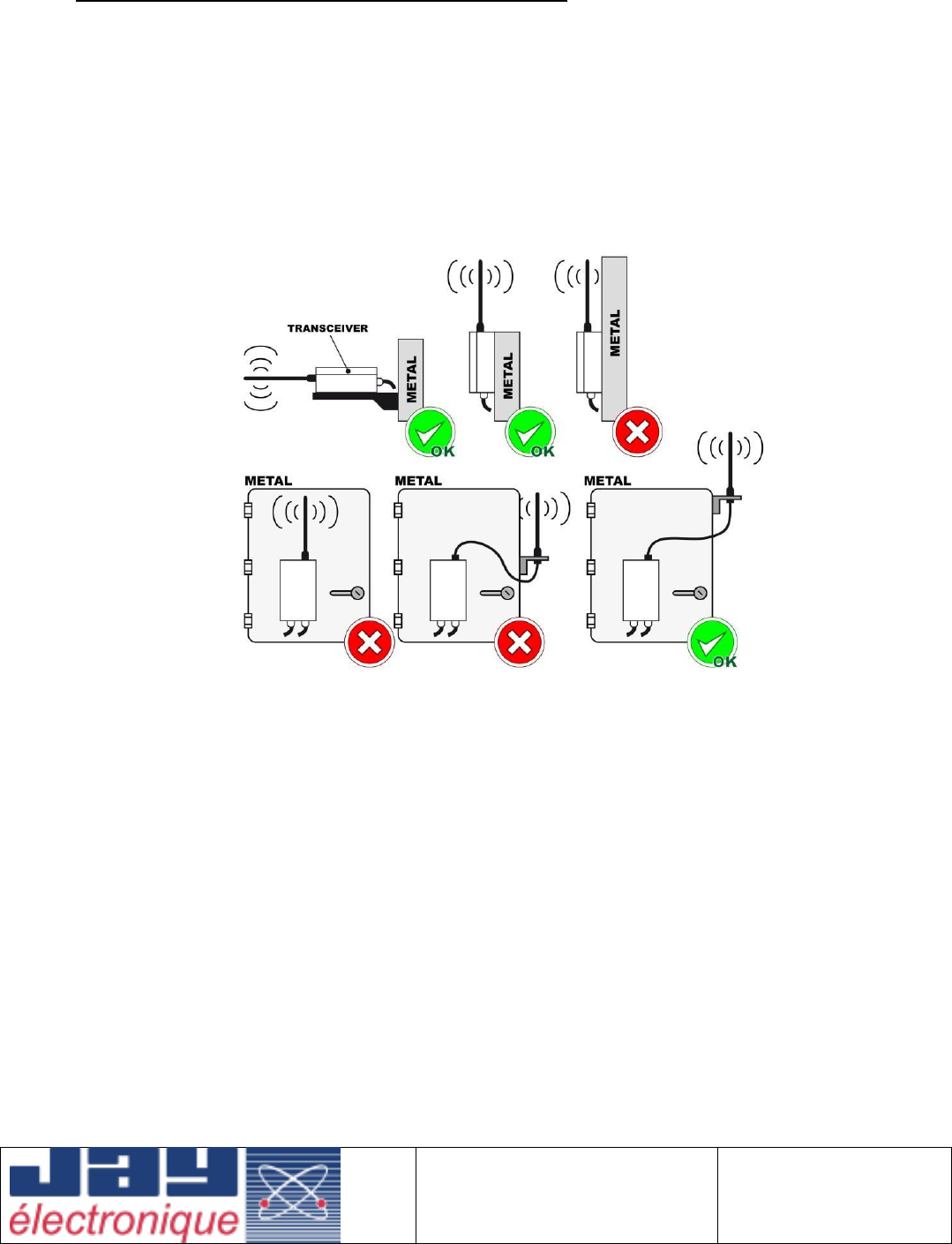

External antenna installation requirements
The external antenna must be installed at a distance from the class 3 cables and power
components (power supply, motor, variable speed drives …) while remaining in an area which is
favourable to radio reception.
It must be located at a certain height.
No metal object which could form a screen should be located in front of the external antenna (risk
of communication cut-out).
T940-HOM-004-Module
integration
manual_Rev3.docx
Date:
April 24th 2014
24-04-2014
Labelling
!! Warning !!
“This transmitter module is authorized to be used in other devices only by OEM integrators
under the following conditions:
1. The antenna(s) must be installed such that a minimum separation distance of 20cm is
maintained between the radiator (antenna) & user’s/nearby person’s body at all times.
2. The transmitter module must not be co-located with any other antenna or transmitter.”
Moreover, the host equipment must be labelled as follows:
“Contains Transmitter Module FCC ID: OQMSA”
Finally, the host equipment must precise the following warning:
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.”
Information Note
This modular is used exclusively by Jay Electronique.
The OEM integrators are responsible for ensuring that the end-user has no manual instructions to
remove or install module.
This module and the antennas must be professionally installed.
A specific ferrite must be attached to the AC line; here its characteristics below:
Brand name: Laird Technologies
Product reference: 28B0686-200
Number of turns: 2
“THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY
THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.” According to FCC Part 15.21
