COMMUNICATIONS TEST & MEASUREMENT SOLUTIONS

The JDSU SmartPocket OLP-3x series next-generation small, rugged optical power

meters are ideal for quickly, easily, and conveniently measuring optical power level

and loss in fiber networks from the field. The instruments’ rugged ergonomic

design and large, sharp display show relevant results and settings at the same time.

Their intuitive one-button operation and automatic wavelength recognition is

why technicians choose SmartPocket OLPs when they test fiber. SmartPocket

instruments’ unprecedented data storage capacity for saving up to 100 results and

optional micro USB port for downloading results to a PC fulfills all of your testing and

reporting needs.

SmartPocket™ Optical Power Meters

OLP-34/35/38

Key Features • Cost-effective, rugged high-performance solution

• 3-year recalibration period

• 1 nm incremental universal wavelength settings

• Universal optical interface supports all 2.5mm with an

option to support 1.25mm connectors

• Auto λ detection and TwinTest mode

• Internal data storage and optional PC download capability

• Quick start operation eliminates warm-up

Applications

• Measure optical power levels and

link insertion loss

• Enterprise LAN networks

with 850/1300 nm multimode

wavelengths capability

• Test access and metro (LAN/WAN)

networks in multimode and single-

mode

• Standard and high-power level

tests for use in telecom, CATV, and

military applications

2

SMARTPOCKET OLP-3x SERiES OPTiCAL POwER METERS

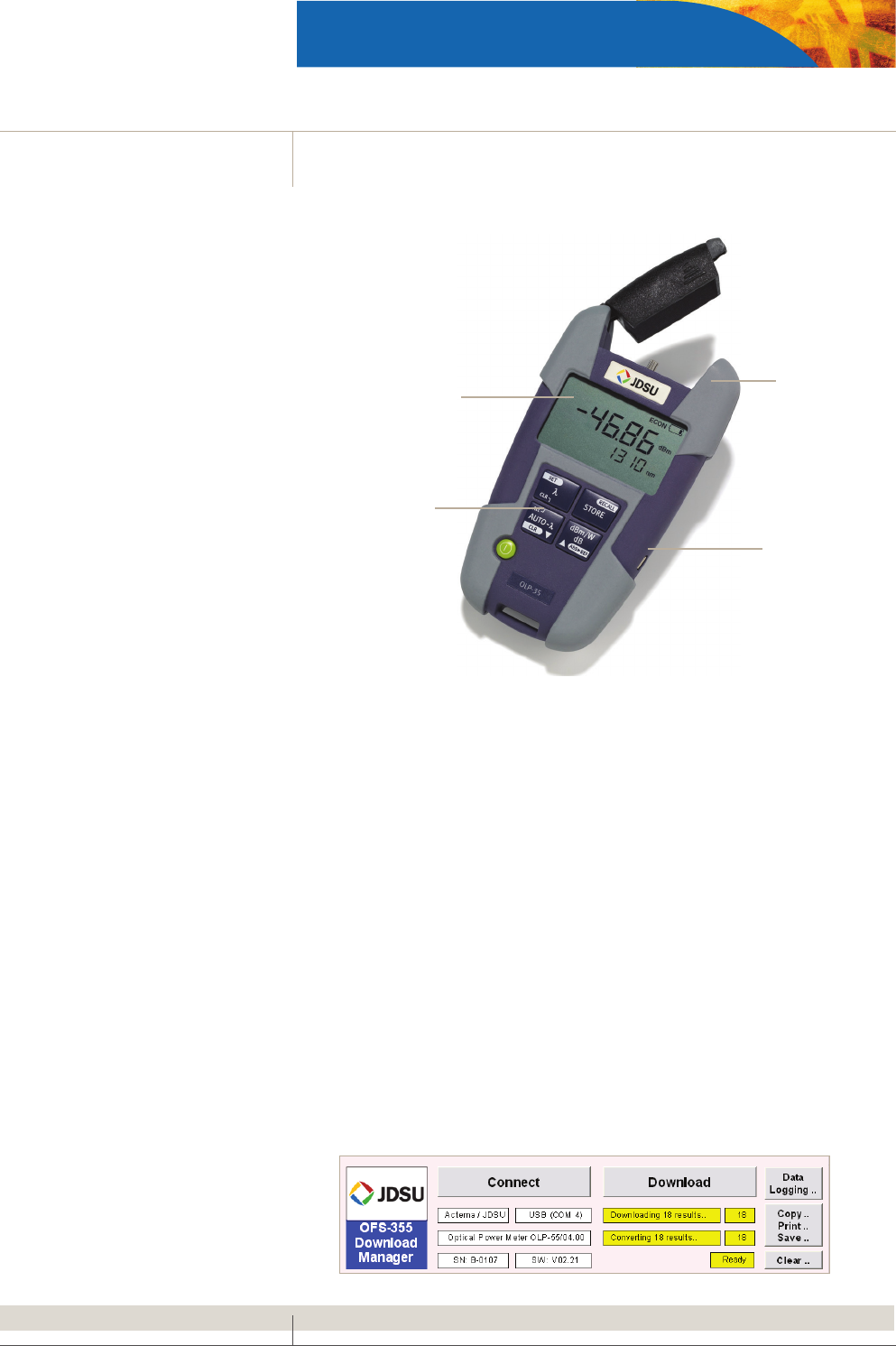

A small tool with big testing capabilities

Rugged, shock resistant

and splash proof design

3-way power

• AA dry

• AA rechargeable

• AC operation (optional)

Straightforward

4-button operation

Large, sharp screen displays:

• Battery level status

• Power mode (PERM, ECON)

• Measurement results in dBm/W/dB

• Wavelength setting

• Auto wavelength detection

• Tone detection

Pocket-sized power meters for various applications

For multimode enterprise networks and high power applications, the SmartPocket

series power meters offer a range of optical fiber testing and troubleshooting

capabilities for the field.

• The OLP-34 is optimized for use in LAN/WAN access and enterprise

networks and multimode or single-mode applications.

• The OLP-35 is optimized for use in standard telecommunication network

applications.

• The OLP-38 is a higher power (+26 dBm) version for use in CATV (with

analog RF transmission) or amplified DWDM systems applications.

Test and report field measurements

JDSU OFS-355 Reporting Software lets users quickly and efficiently download

test results data from the power meter’s memory with just a few clicks. After it’s

downloaded, the software reporting functions let users generate and customize

professional certification reports.

3

SMARTPOCKET OLP3X SERIES OPTICAL POWER METERS

Specifications

Technical OLP-34 OLP-35 OLP-38

Detector type Germanium InGaAs Filtered InGaAs

Optical interface/connectors Universal 2.5 mm/1.25 mm1Universal 2.5 mm/1.25 mm1Universal 2.5 mm/1.25 mm1

Wavelength range 780 to 1600 nm 780 to 1650 nm 780 to 1650 nm

Wavelength settings 780 to 1600 nm, in 1 nm steps 780 to 1650 nm, in 1 nm steps 780 to 1650 nm, in 1 nm steps

Programmable wavelengths 5 presets (customized) 5 presets (customized) 5 presets (customized)

Calibrated wavelengths 850, 980, 1300, 1310,

1490, 1550 nm

850, 980, 1300, 1310,

1490, 1550, 1625 nm

850, 980, 1300, 1310,

1490, 1550, 1625 nm

Power range –60 to +5 dBm –65 to +10 dBm –50 to +26 dBm

Display range –60 to +10 dBm –65 to +13 dBm –50 to +26 dBm

Max. input power +13 dBm +16 dBm +27 dBm

Measurement units dB/dBm/W dB/dBm/W dB/dBm/W

Absolute uncertainty2± 0.2 dB (±5%) ± 0.2 dB (±5%) ± 0.2 dB (±5%)

Linearity3± 0.06 dB (–50 to +5 dBm) ± 0.06 dB (–50 to +5 dBm) ± 0.06 dB (–32 to +20 dBm)

Tone detection 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz 270 Hz, 1 kHz, 2 kHz

Auto λ mode4Yes Yes Yes

Multi λ mode4TwinTest/serial TripleTest TwinTest/serial TripleTest TwinTest/serial TripleTest

Notes:

1. Optional 1.25 mm UPP accessory adapter is available

2. Under these reference conditions: 20 dBm (CW), 1310 nm ±1 nm, 23°C ±3K, 5 to 75% relative humidity 9 to 50 μm test fiber with ceramic DIN connector

3. –5 to +45°C

4. With JDSU light sources

General

Storage and interface

Data storage 100 results

Data download capability micro USB interface for PC transfer (option)

Power supply

Dry batteries 2x Mignon (AA) 1.5 V

Rechargeable batteries 2x Mignon (AA) NiMH 1.2 V

AC operation (optional) via micro USB and SNT-505

Battery life ≥ 200 hr

Automatic power o after 20 minutes

Environmental conditions

EMI/ESD CE compliant

Recommended calibration interval 3 years

Operating temperature –10 to +55°C (+14 to +131°F)

Storage temperature –40 to +70°C (–40 to +158°F)

Dimensions (H x W x D) 30 x 80 x 150 mm (1.2 x 3.1 x 5.9 in)

Weight 200 g (0.45 lb)

Product specifications and descriptions in this document subject to change without notice. © 2013 JDS Uniphase Corporation 30162955.002.0213 OLP-34-35-38.DS.FOP.TM.AE February 2013

SMARTPOCKET OLP3X SERIES OPTICAL POWER METERS

north america

TOLL FREE: 1 855 ASK-JDSU

1 855 275-5378

Test & Measurement Regional Sales

latin america

tel: +1 954 688 5660

fax: +1 954 345 4668

as ia pacific

tel: +852 2892 0990

fax: +852 2892 0770

em ea

tel: +49 7121 86 2222

fax: +49 7121 86 1222

www.jdsu.com/test

Power Meters

Product Number Description

2302/01 OLP-34 Optical Power Meter

Germanium, +5 dBm with data storage

2302/02 OLP-35 Optical Power Meter

InGaAs, +10 dBm with data storage

2302/03 OLP-38 Optical Power Meter

Filtered InGaAs, +26 dBm with data storage

2302/11 OLP-34 Optical Power Meter*

Germanium, +5 dBm with data storage and USB download capability

2302/12 OLP-35 Optical Power Meter*

InGaAs, +10 dBm with data storage and USB download capability

2302/13 OLP-38 Optical Power Meter*

Filtered InGaAs, +26 dBm with data storage and USB download capability

Each optical power meter includes a 2.5 mm UPP adapter, AA alkaline batteries, operating manual,

neck strap, and a belt bag.

* Includes downloading capability in addition to USB connection cable and a USB memory stick con-

taining reporting software and product documentation.

Optional Accessories

Product Number Description

FCR-CLN-01 Fiber Cleaning Consumables kit

2237/90.02 NiMH rechargeable batteries, Mignon AA, 1.2 V (2 batteries required)

2302/90.01 SNT-505; universal AC power adapter, micro USB connector

2256/90.03 UPP adapter for LC, MU (1.25 mm)

K 807 USB connection cable

OFS-355 Reporting Software (free download from jdsu.com)
