Owner's Manual
WIRELESS REMOTE SWITCH
MODEL: 47-1012E-T
FCC ID: ELY547-47-1012E-T IC: 1492A-471012ET
FLAME/HEAT ON/OFF BUTTON
Press the Flame/Heat On/Off button to turn the Flame/Heat function ON or OFF. When the heater
function is ON, the icon is displayed on the remote control in the upper left hand corner. When this icon
is displayed, the red indicator light is activated on the firebox.
NOTE
When using the remote control the heater runs on a thermostat. Press the or direction keys to adjust
the set temperature. Once the desired set temperature is reached the heater will turn OFF. The heater
will cycle ON and OFF to maintain the desired set temperature.
PURIFIRE ON/OFF BUTTON
Press the Purifire™ On/Off button to turn the Purifire™ function ON or OFF. When the Purifire™
function is ON and the Heater icon is NOT displayed on the remote control, the green indicator light is
activated on the firebox.
NOTE
To turn the Flame/Heat and Purifire™ ON or OFF at the same time, press both control buttons
simultaneously.
DIMMER
Press the left “-“ or right “+” direction button to decrease or increase the brightness of the upper lights.
NOTE
The bar graph located on the display screen indicates the upper light brightness range.
FLAME SPEED
Press the left “-“ or right “+” direction buttons to decrease or increase the flame speed.
NOTE
The bar graph located on the display screen indicates the speed range of the flame.
2
COUNTDOWN TIMER
To set the Countdown timer, press the left “-“ or right “+” direction buttons to decrease or increase by
30 minute decrements or increments. The countdown timer can be set from 30 minutes to 8 hours. The
fireplace will automatically turn OFF when the sleep timer reaches 0 minutes.
PURIFIRE SPEED
The Purifire™ includes a high efficiency filter to help improve the quality of air. When the Purifire™
function is ON, the green indicator light is activated on the firebox. Press the left “-“ or right “+”
direction buttons to select LOW or HIGH.
NOTE
The Purifire™ can also be turned On/Off by pressing the Purifire™ On/Off button.
SET TEMPERATURE
Press the “-“ or right “+” direction button together of to select between °F and °C.
Press the “-“ or right “+” direction button to decrease or to increase temperature.
3
INITIALIZING THE REMOTE CONTROL
1. Plug cord into 120 volt wall outlet.
2. Set the 3 position manual control to Position 1 (left position).
3. Press and hold the initialization button on the Switch Power.
4. While holding the initialization button, press the flame ON/OFF button or the Purifire™ ON/OFF
button on the remote control transmitter.
5. Release the initialization button on the Switch Board. The remote control is now ready for operation.

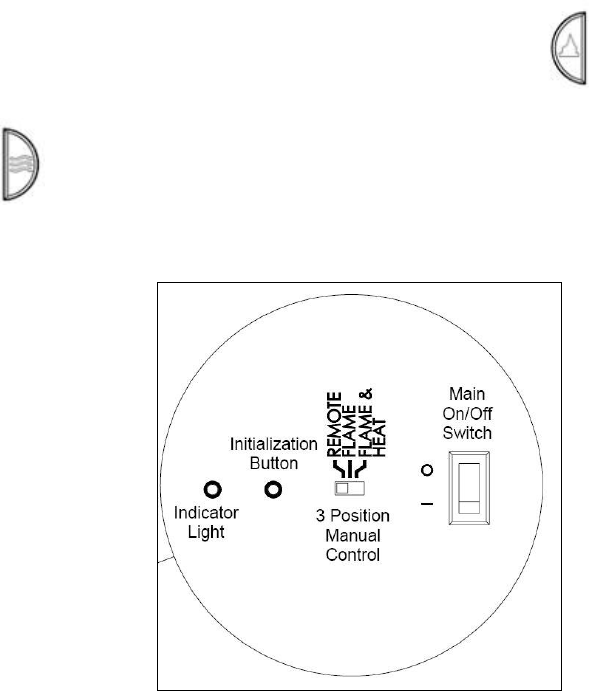

Switch Board Panel
CAUTION
1. For indoor use in dry areas only.
2. 120 volt AC supply.
4
WARNING
The Manufacturer is not responsible for any radio and TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
 Consult the dealer or an experienced radio/TV technician for help.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada,. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
   
Specifications
Input Rating…….…………………………………………………………………………………AC 100~240V, 50/60Hz
Output Rating……………………………………………………..………………………….….. AC 100~240V, 50/60Hz
Resistive Load……………………………………………………………..……………………………….1200W
Incandescent Lamp………………………………………………………………………………………….270W
Operation Temperature…………………………………………………………………..………………….... 0 - 40
Storage Temperature ………………………………………………………………….…………………….-25 - 60
5
