oo
42
Litre Electronic Microwave
Owner s Instruction Manual
Read the Instructions carefully and Keep for Future Reference
MEW621-A
MEW622-A
,
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the
following:
WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIB LE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY” found on page 3.
3. This appliance must be grounded. Connect only to properly grounded outlet. See
“GROUNDING INSTRUCTIONS” found on page 3.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers – for example, closed glass jars
– are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to
heat, cook, or dry food. It is not designed for industrial or laboratory use.
7. Close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly,
or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest
authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water – for example,
near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven, please see “CARE OF YOUR MICROWAVE
OVEN” found on page 15.
16. To reduce the risk of fire in the oven cavity:
a.Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible
materials are placed inside the oven to facilitate cooking.
b.Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c.If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit breaker panel.
d.Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or
food in the cavity when not in use.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL
IS INSERTED INTO THE LIQUID.
18. HOUSEHOLD USE ONLY.
-2-
SAVE THESE INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened), (3) door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
5. Servicing of the appliance not explicitly described in the manual shall be performed by
qualified service personnel only.
Service Instructions
PRECAUTIONS TO BE OBSERVED BEFO RE AND DURING SERVICING TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
1. Do not operate or allow the oven to be operated with the door open.
2. Make the following safety checks on all ovens to be serviced before activating the
magnetron or other microwave source, and make repairs as necessary: (1) interlock operation,
(2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4)
damage to or loosening of hinges and latches, (5) evidence of dropping or abuse.
3. Before turning on microwave power for any service test or inspection within the microwave
generating compartments, check the magnetron, wave guide or transmission line, and cavity for
proper alignment, integrity, and connection.
4. Any defective or misadjusted components in the interlock, monitor, door seal, and
microwave generation and transmission systems shall be repaired, replaced, or adjusted by
procedures described in this manual before the oven is released to the owner.
5. A microwave leakage check to verify compliance with the Federal Performance Standard
should be performed on each oven prior to release to the owner.
Grounding Instructions
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
WARNING – Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded, and If it is
necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or greater than the electrical rating of the
appliance.
-3-
Extension Cord Instructions
a) A short power-supply cord is provided to reduce the risks resulting from becoming entangled
in or tripping over a longer cord.
b) Extension cords are available and may be used if care is exercised in their use.
c) If a extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as great as
the electrical rating of the appliance;
2) The extension cord must be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the counter top or tabletop
where it can be pulled on by children or tripped over unintentionally.
-4-
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service
or repair operation that involves the removal of a cover which gives protection against exposure
to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are
liable to explode.
-WARNING: Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a safe way and
understands the hazards of improper use;
- The oven must have sufficient air flow.Keep 10 cm space at back;15 cm at both sides and
30cms from top of the oven.Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to
stifle any flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be
taken when handling the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since
they may explode, even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive
soaps, or detergents applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
- The temperature of accessible surfaces may be high when the appliance is operating.
-5-

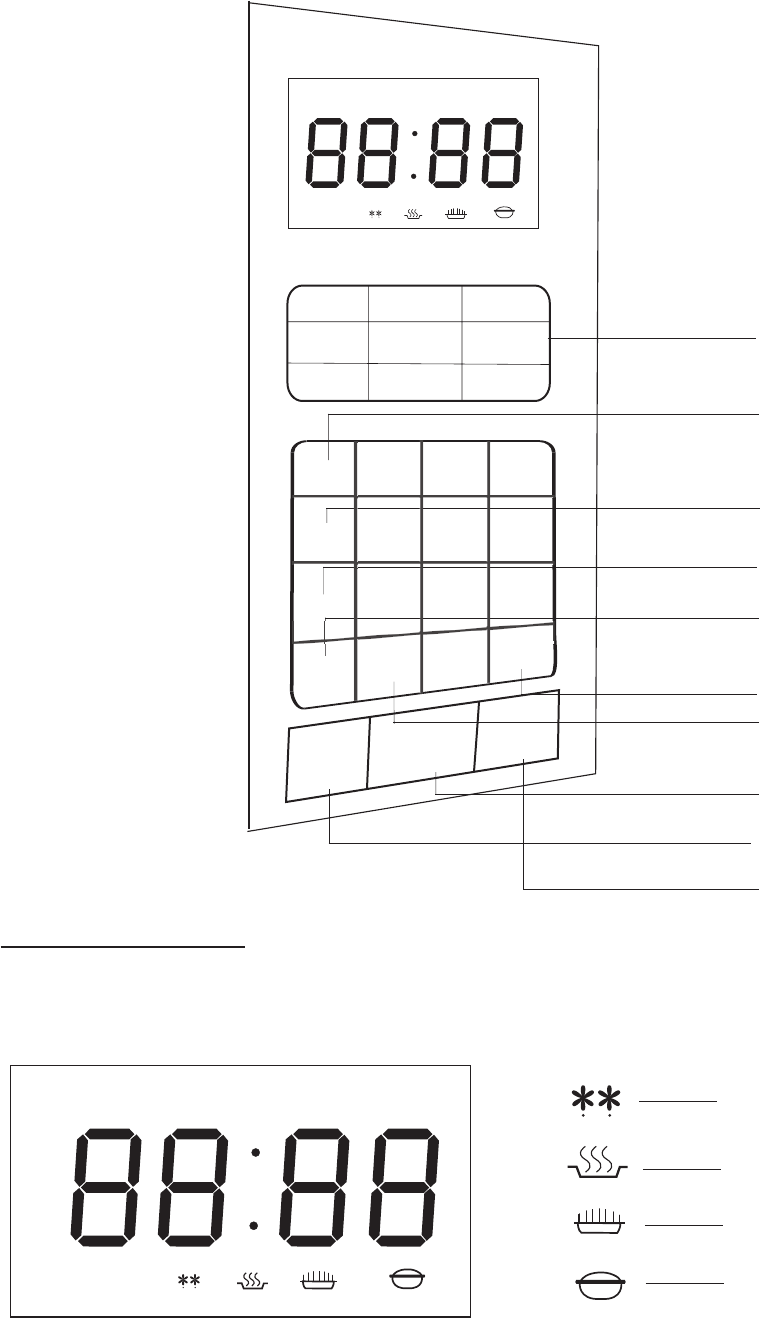

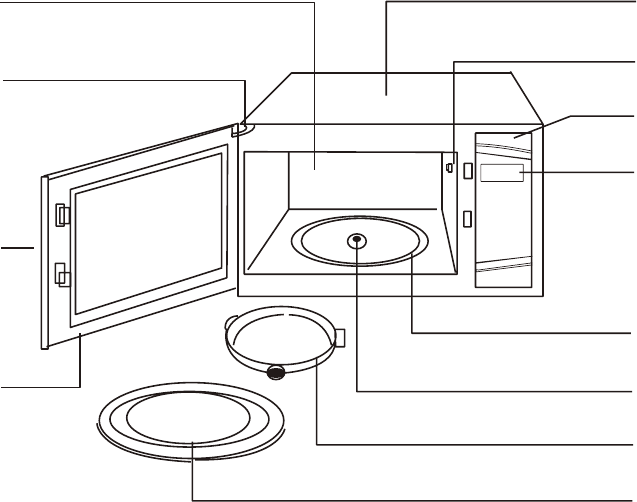

FEATURE DIAGRAM
vailability of components depending on Mod. / Type of appliance
Legend of Components
A
Circular track(for turntable undercarriage)
1
2
3
4
5
6
-
-
-
-
-
-
Cabinet
Interior light
Control panel
LED display
Turntable drive
10
11
12
-
-
-
Oven interior
Door hinge
Door
Door seal
7
8
9
-
-
-
Turntable undercarriage
Turntable
1
2
3
4
6
7
8
9
10
12
11
5
SPECIFICATIONS
Power consumption: 120V, 60Hz, 1550W (for microwave)
Output: 1000W
Operating Frequency: 2,450MHz
Outside Dimensions: 555mm(W) X 470mm(D) X 324mm(H)
Oven Cavity Dimensions: 410mm(W) X 375mm(D) X 260mm(H)
Over Capacity:
42
Litres
Uncrated Weight: Approx. 17.6Kg
-6-
BEFORE YOU CALL FOR SERVICE
1. If the oven will not perform at all, the display does not appear or the display disappears:
a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10
seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating
properly, test the outlet with another appliance.
2. If the microwave power does not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the
microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUAT ION, THEN CONTACT THE AUTHORIZED SERVICE
AGENT.
Note:
The appliance is for household use for heating food and beverages using electromagnetic
energy and for indoor use only.
RADIO
FREQUENCY
INTERFERENCE BTATEMENT
Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it
may be eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.
-7-
INSTALLATION
1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the oven.
3. This Microwave Oven weights 1 .5Kg and must be placed on a horizontal surface strong enough to
support this weight.
4. The oven must be places away from high temperature and steam.
5. DO NOT place anything on top of the oven.
6. DO NOT remove the turn-table drive shaft.
7. As with any appliance, close supervision is necessary when used by children.
CAUTION: This oven is protected internally by ac 250V, 20Amp Fuse.
SAFETY INSTRUCTIONS FOR GENERAL USE
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance
from this oven:
1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any
other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without
first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
IMPORTANT
·The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
·As the colours of the wires in the mains leads of the appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
·The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol coloured green of green-and-yellow.
·The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
·The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
3
-8-
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the
oven.
9. Important-cookware not to use in your microwave oven:
·Do not use metal pans or dishes with metal handles.
·Do not use anything with metal trim.
·Do not use paper covered wire twist-ties on plastic bags.
·Do not use melamine dishes as they contain a material which will absorb microwave energy. This may
cause the dishes to crack or char and will slow down the cooking speed.
·Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed
handle cups should not be used.
·Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may
explode if heated in a microwave oven.
·Do not use conventional meat or candy thermometers.
There are the thermometers available specifically for microwave cooking. These may be used.
10. Microwave utensils should be used only in accordance with manufacturer's instructions.
11. Do not attempt to deep-fry foods in this oven.
12. Please remember that a microwave oven only heats the liquid in a container rather than the container
itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven,
please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when
the lid is removed as in conventional cooking.
13. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid
for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few
minutes and stir food/liquid to distribute heat evenly.
14. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it
has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in
the food/liquid or a stock cube is added.
15. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings,
jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar
content do not use plastic containers.
16. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true
if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the
utensil.
17. To reduce the risk of fire in the oven cavity:
(a)Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
(b)Remove wire twist-ties from bags before placing bag in oven.
(c)If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or
shut off power at the fuse or circuit breaker panel.
18. This appliance is not intend for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
19. Children should be supervised to ensure that they do not play with the appliance.
20. Save these instructions.
-9-
Visual Displays

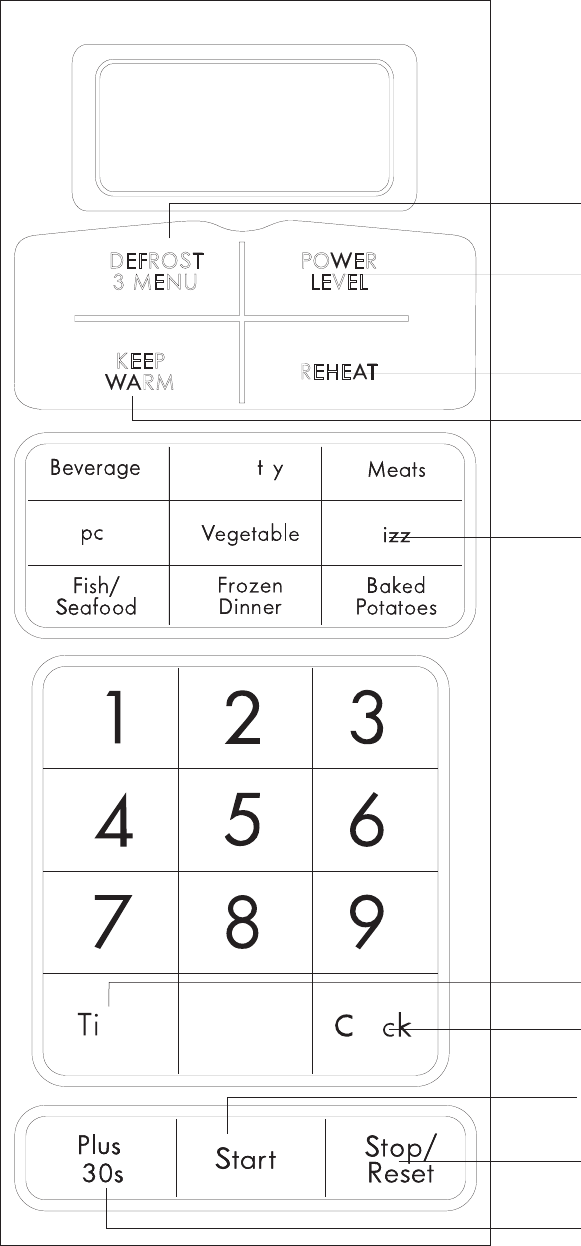

Words around the display will light to indicate what function in progress
Please see the following pages.
Enter Cook
kg gTime
DEFROST
POWER
LEVEL
REHEAT
KEEP WARM
Clock
Page
Page
Page
Page
Page
Page
Page
Page
Page
Page
Enter Cook
kg Time
BEVERAGE
POPCORN
FISH/SEAFOOD
POULTRY MEAT
VEGETABLES
FROZEN DINNER
PIZZA
BAKED POTATO
PLUS
30S
DEFROST
3 MENU
REHEAT
KEEP
WARM
1
23
5
46
789
0
TIME CLOCK
POWER
LEVEL
PAUSE/STOP START
Clock
g
1
10
11
10
9
9
9
9
9
10
0(:$
0
-10-
KEE
P
R
M
R
EHE
DEFRO
S
3 ME
N
U
PO ER
LEVEL
PP
oo
uu
ll
rr
PP
oo
oo
rr
nn
PP
a
mm
ee
ll
oo
0
Page 11
Page 10
Page 10
Page 10
Page 10
Page 9
Page 9
Page 9
Page 9
Page 9
MEW622$
-11-
Operation Instruction
Please read and fully understand the instructions before operating the Oven.

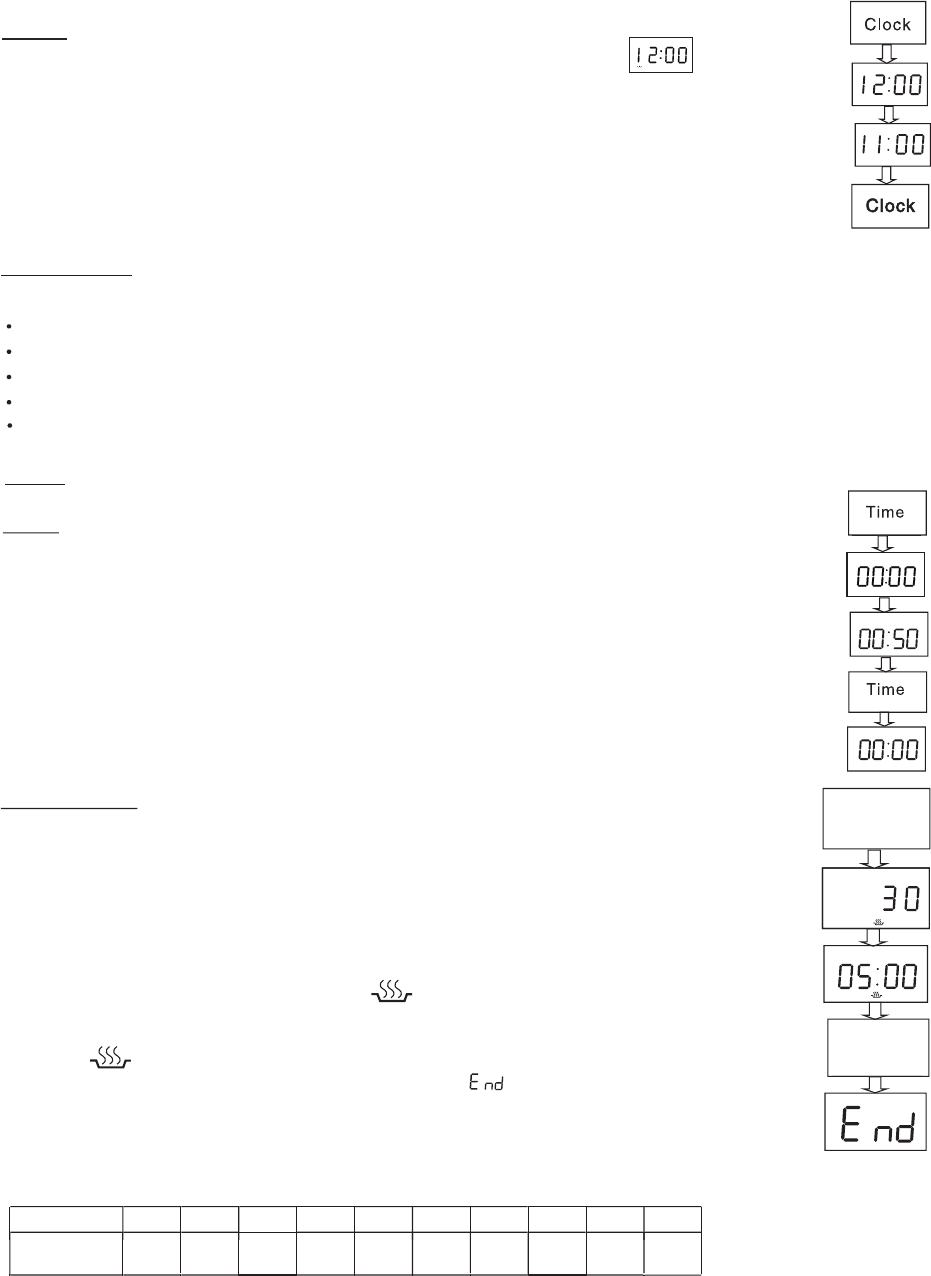

Clock
The first time you plug the power cord into an outlet, the display shows and the beep
a short tick. At this point, you can set the clock. 11:00 for example,
1.Touch Clock pad, the display shows the last time you setup, the numbers and Clock indicator
will flash. put the time 11:00 ,
2.Touch Clock pad again, the colon will flash and the time will go on, the Clock indicator keeps
lighting.
Note: Clock is 12-hour display, if you enter an incorrect time,
you to cancel it , If you want to reenter start states, please touch Pause/Stop pad for one time.
The Pause/Stop pad will help
Pause/Stop
This keypad allows you to do the following:
Cancel any error programming .you made
Cancel cooking time.
Stop the oven for a short time during cooking.
Return to the time of the day display.
Cancel any program/selection you do not want during cooking.
NOTE: To pause a program press Pause/Stop pad one time
Clock
Clock
Clock
Start
Press this pad to start cooking.
Time
You can preset time up to 99 minutes 99 seconds. You can always enter .
1.Touch Time pad, the numbers and
Time
indicator will flash, and set the time 00:50.
2.Touch Time again. the colon will flash and the
Time
indicator will light, the time will go on
until 00:00. the buzzer of control panel will remind you with a long alarm. Then it returns
to the enter states automatic in 10 seconds
Note: If you want to reset time, please touch
Pause/Stop
pad for one time.
This has nothing to do with oven cooking time.
Rather it is just a kitchen timer to simply remind you of how much time is left on the timer.
second after minute
Ti m e
Ti m e
Touch T imes
POWER LEVEL
(%) 100 90 80 70 60 50 40 30 20 10
1 2 3 4 5 6 7 8 9 10
Please see the chart below for power level:
Power level
For your convenience, there are ten preset power levels programmed for different types
of cooking.
Note: using lower power levels increase the cooking time which is recommended for
foods such as cheeses, milk and long slow cooking of meats. Please refer to cooking
guides and recipes for specific recommendations.
For example: suppose you want to cooking something for 5 min
utes at 30%power level.
1.Enter the power level by touching Power level 8 times.
The display shows 30 and
Enter/Cook/Time/
indicator will flash.
2.Input cooking time 05:00.
3.Now touch Start keypad, the oven start working and the time you setup will count
down. will indicator light.
When the cooking is finished, The display shows , the buzzer of control panel will
remind you with three short alarms. Then it returns to the enter states automatically in
10 seconds. Or If you want to reenter start states, please touch
Pause/Stop
pad for 2 times.
Power
level
En t er Cook Time
En t er Cook Time
Start
MEG621-A1 MEG622-A1
-12-
1
1
4
2
3
1
2
Popcorn
Vegetables
Pizza
2 00
2 35"
4 00
4 50
5 30"
2 00
'
'
'
'
'
Menu Touch Times Weight /Quantity Time
1
4
2
3
Baked potato
6 30
9 20
15 10"
23 30"
'
'
'
'
"
"
'"
1 25
'"
99g
150g
250g
350g
450g
250g
500g
100g
150g
300g
450g
"
33'25
800g "
Plus 30s
Press once for 30 seconds of cooking quickly at High Power , and the
Pause/Stop
max time you can setup is
5 minutes .you can put pad to restart after you put the pad.
Automatic express cooking
These Menus allow you to cook or reheat many of your
favourite foods by just touching the relevant keypad.
For your convenience, the microwave is programmed with
9 one touch selection. The follow is part of automatic
express cooking:
Beverage
Popcorn
Fish/Seafood
Poultry
Meat
Vegetables
Frozen dinner
Pizza
Baked potato

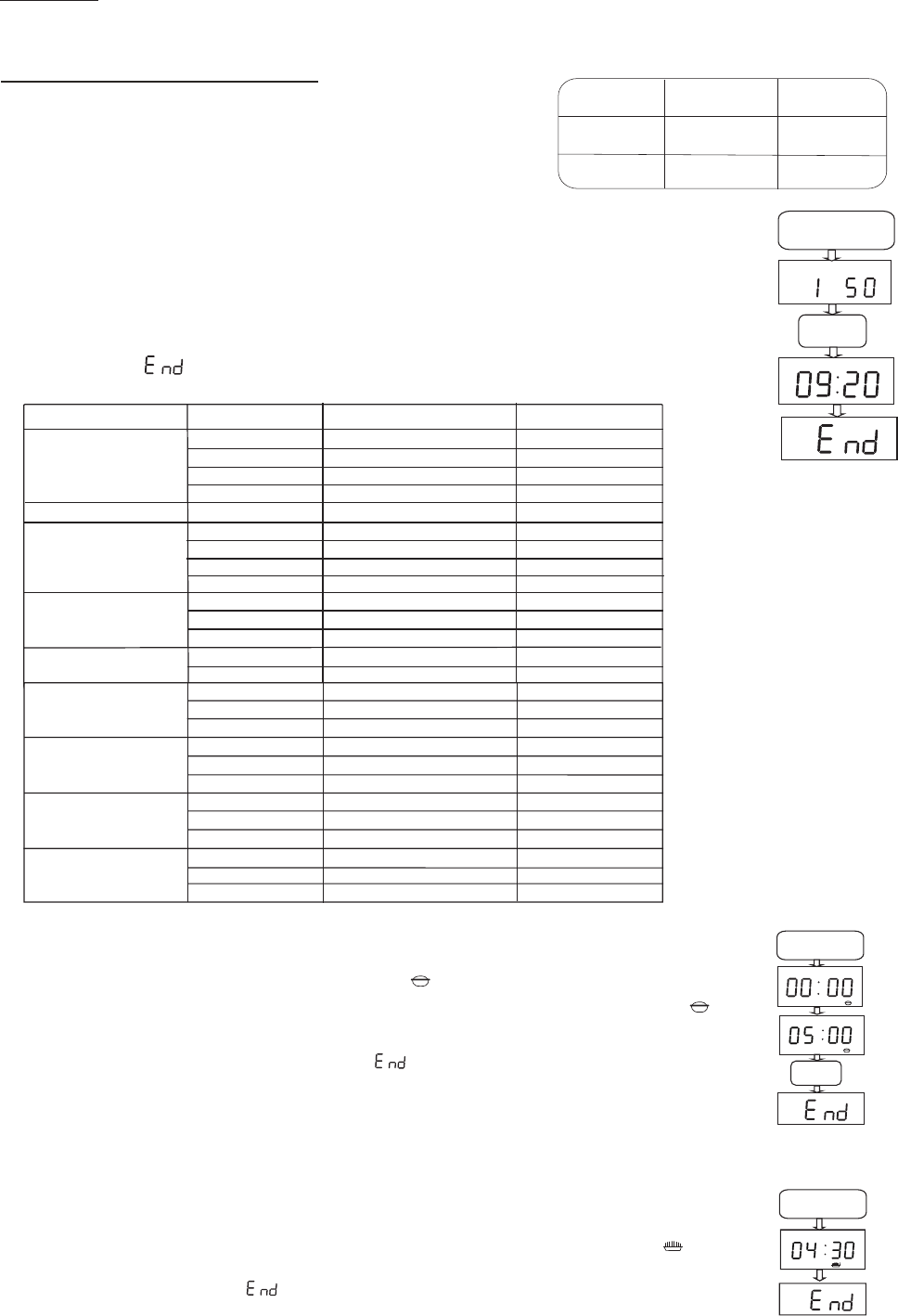

For example: if you want to cook a baked potato for 150 g.
1.Put the potato in the proper container and place it in the oven.
2.Touch Baked potato keypad two times and
it displays the weight of 150,
3.Touch Start , Cook When the cooking is
finished, the buzzer of control panel will remind you with three short ticks, and the
screen displays . It will return to the enter states automatically in 10 seconds.
Enter/g will indicator flash, touch the pad
indicator lights. the time of 09:20 will cut down
En t e r g
Co o k
Baked potato
1
Beverage
2
0.5kg
1.0kg
2 40"
4 40
'
'
"
Start
"
"
Keep Warm
Touch the pad, 00:00 flashes in the display,Enter/ /Time will indicator flash,set time05:00
and touch Start pad, the microwave begins to work and the time counts down.
indicator lights.When the cooking is finished,the buzzer of control panel will remind you
with three short ticks,and the screen display .It will return to the enter states
automatically in 10seconds.
Reheat pad
This pad helps you to reheat vegetables fast. The oven will work for 4 minutes and 3
seconds unless you touch pad, you can reheat a plate of vegetables each
time. During the cooking time colon of the time flashes and the reheat indicator lights.
When the cooking is finished the buzzer of control panel will remind you with three short
beeps, and the display shows .It will return to the enter states automatically in 10
seconds.
0
Pause/Stop
En ter
Keep Warm
Time
En ter
Time
Reheat
3
1
2
1
2
3
1
2
3
1
2
3
Poultry
Meat
Fish/Seafood
Frozen dinner
0.4kg
0.8kg
1.0kg
0.2kg
0.5kg
1.0kg
0.7kg
1.0kg
1.2kg
0.2kg
0.4kg
0.6kg
13 30"
19 30"
24 00"
5 05
7 15
9 30"
4'20
6 10
12 00
7 45"
10 25
11 45
"
"
"
'
'
'
'
'
'
'
'
''''''
'
'
'
Start
"
"
"
"
-13-
Note: the weight you input is the multiple of 100g,
you can setup freely from 0.1kg to 3kg.
Defrost 3 Menu

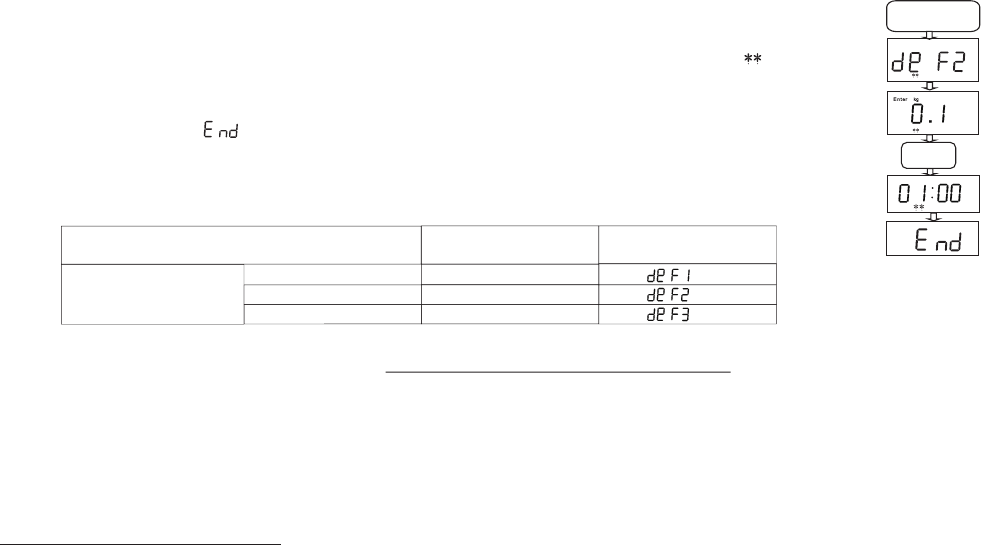

1.F Touch the pad two times, the
Enter/ /kg
indicator
will flash,input the weight 0.1 , then touch Start Pad,the oven begins to work.
or example to defrost poultry of 0.1kg :
When the
cooking is finished, the buzzer of control panel will remind you with three and
the screen displays . It will return to the enter states automatically in 10 seconds.
short ticks,
Defrost 3 Menu
E n ter
kg
1
2
3
Defrost 3 Menu
Menu Touch Times Display
Meat
Poultry
Note : If you want to temporarily stop an AUT OMA TIC EXPRESS COOKING process, press the
Pause/Stop pad once and then you can start the cooking by press Start; or press the
Pause/Stop pad twice to cancel the cooking program altogether, then the microwave oven
returns to the electrified state.
Fish
Start
CHILD SAFETY LOCK
Press and Hold the PAUSE/STOP pad until it locks the controls, and in the right of the
display shows L .
Press and Hold the PAUSE/STOP pad until it unlocks the controls. It returns to the enter state.
Note: To lock or unlock the child safety lock function, the buzzer of the microwave oven will beep
twice.
-14-
CARE OF YOUR MICROWAVE OVEN:
1.Turn the oven off and remove the power plug from the wall socket before cleaning.
2.Keep the inside of the oven clean.When food splatters or spilled liquids adhere to oven walls,wipe with
a damp cloth.The use of harsh detergent or abrasives is not recommended.
3.The outside oven surface should be cleaned with a damp cloth.To prevent damage to the operating
parts inside the oven,water should not be allowed to seep into the ventilation openings.
4.Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents,
abrasives or spray-on cleaners on the control Panel.
5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.This may
occur when the microwave oven is operated under high humidity conditions and in no way indicates
malfunction of the unit.
6.It is occasionally necessary to remove the glass tray for cleaning.Wash the tray in warm sudsy water or
in a dishwasher.
7.The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise.Simply wipe
the bottom surface of the oven with mild detergent,water or window cleaner and dry.The roller ring may
be washed in mild sudsy water or dish washer.Cooking vapour collect during repeated use but in no way
affect the bottom surface or roller ring wheels.
When removing the roller ring from cavity floor for cleaning,be sure to replace it in the proper position.
8.Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a
deep microwaveable bowl. Microwave for 5 minutes,wipe thoroughly and dry with a soft cloth.
9.When it becomes necessary to replace the oven light,please consult a dealer to have it replaced.
-15-
