VX6020

Operating Instructions

160

watts peak

40W x 4

Navigation

VX6020

This page intentionally left blank.

VX6020

WARNINGS AND PRECAUTIONS

WARNING! Please read and follow the following safety precautions.

Failure to follow the instructions below may increase your risk of collision and

personal injury.

The Attention - Please Drive Safely! Screen is displayed each time the iGO primo

software is turned ON as a reminder to make use of the system’s navigational aids

in a safe manner.

Before using the software, read this entire manual. Make sure that you are familiar

with the system’s features and know how to operate the system. Proper use of the

iGO primo software includes the following guidelines:

The iGO primo software is not a substitute for your personal judgment. The route

suggestions should never supersede any local trac regulation or your personal

judgment and /or knowledge of safe driving practices. Prior to completing any

maneuvers suggested by your iGO primo software (for example, a U-turn or a left

turn), verify that you can legally and safely complete the maneuver. Do not follow

route suggestions if they direct you to perform an unsafe or illegal maneuver,

would place you in an unsafe situation, or would route you into an area that you

consider unsafe.

Glance at the screen only when necessary and safe to do so. Let the computer

voice guide you. If prolonged viewing is necessary, pull o the road to a

safe location.

Do not use the iGO primo software to locate emergency services (such as police,

re stations, hospitals, and clinics). The database may not include all emergency

service providers. Use your own best judgment and ask for directions in

these situations.

If the vehicle is in motion, only a passenger should program the iGO primo soft-

ware. The driver should not program the system unless the vehicle is parked in a

safe location.

The iGO primo software’s map database provides information on suggested routes

without regard to factors that may aect your driving experience or the time re-

quired to arrive at your destination. For example, the system does not reect road

detours, closures or construction, some road characteristics (e.g., road surface,

slope or grade, weight or height restrictions, etc.), temporary trac congestion,

weather conditions, and similar factors.

VX6020

iGO primo software provides turn-by-turn visual and voice assistance to direct you

to your selected destination. The software quickly calculates step-by-step

directions to any destination available on the included navigation map.

The iGO primo software uses Global Positioning System (GPS) satellites, and a

digital roadway map database to calculate and display travel directions. The sys-

tem’s GPS antenna receives signals from a constellation of 24 satellites orbiting the

earth and uses the strongest signals to determine your position to within meters.

Vehicle Position

The iGO primo software’s computer considers vehicle speed and heading changes,

together with longitude and latitude information, to accurately determine vehicle

heading and position on a digital map.

Signals from GPS satellites are used to determine the vehicle location. Three

(good) or four (best) satellites must be received to accurately determine location.

The GPS reception status is indicated by the GPS symbol on the map.

Map and Information Database

The map database used by your iGO primo software was created using

high-resolution aerial and land based data collection.

Car navigation maps are frequently updated. While the database was judged to

be as accurate as possible at the time of its release, a map database can never be

100% accurate. Road information that is maintained in the map databases, such as

turn restrictions or road names may change over time.

iGO primo mapping is supported by the mapping manufacturer. iGO oers

periodic updates for data such as roads, new addresses, and other navigational

information that will keep your navigation system up to date and provide the best

possible experience. For updates and add-on options, please visit their website at

www.naviextras.com. A free program called “toolbox” can be downloaded from

this site so you can create a copy of your map as a backup, as well as assist in easily

checking for updates and optional features that are available. We

recommend that you back up your map because If your map becomes damaged

or erased, or if the card is lost without being backed up, you will need to purchase

a new map package.

To report incorrect information, missing addresses, or other map data, click on

“REPORT A MAP ERROR” under the SUPPORT section of www.naviextras.com.

Errors will be veried and corrected in a future map update.

We recommend that you check your map with this system now and every six

months to insure you always have the most up-to-date operating system

and maps.

VX6020

SAFETY INFORMATION

User Agreement

When the unit is rst turned on, you will see the following message, warning you

to operate your navigation system appropriately:

You must agree to the above notice before using the navigation software.

Tap to proceed to the Navigation Menu.

VX6020

Driver Safety Rules

The following safety rules must be followed to prevent accidents that can result in

injury or death to yourself or others:

• The driver should operate the device only when the vehicle is stopped. Only

a vehicle passenger should operate the device while the vehicle is moving.

When driving, the need to view the display is minimal. Voice prompts will

guide you to your destinations.

• It is your responsibility to comply with all trac laws.

• The navigation software is designed to assist you in the process of reaching

your destination. It is not a substitute for attentiveness and good judgement.

• It is your responsibility to disregard any unsafe, hazardous, or illegal route

suggestions.

• The device does not include, analyze, process, consider, or reect any of the

following:

a. Legal restrictions (such as vehicular type, weight, height, width, load

and speed restrictions);

b. Road slope or grade, bridge height, width, weight, or other limits;

c. Population density;

d. Neighborhood quality or safety;

e. Availability or proximity of law enforcement, emergency rescue,

medical, or other assistance;

f. Construction work zones or hazards;

g. Road or lane closures;

h. Road, trac, or trac facilities’ safety or condition;

i. Weather conditions;

j. Pavement characteristics or conditions;

k. Special events;

l. Trac congestion.

• While every attempt is made to ensure that the database is accurate,

roadways, points of interest, and business and service locations may change

over time.

• Do not use the unit to navigate to a police station, hospital, etc. in an

emergency. Call 911 for assistance.

• Laws in some states prohibit wearing stereo headphones or may prohibit use

or placement of a navigation device while operating a motor vehicle. Please

contact your state’s Department of Motor Vehicles for information.

VX6020

WARNINGS AND PRECAUTIONS ............................................. 3

Vehicle Position ....................................................... 4

Map Information and Database ........................................ 4

SAFETY INFORMATION ..................................................... 5

User Agreement ....................................................... 5

Driver Safety Rules .................................................... 6

CONTENTS ..................................................................7

QUICK START GUIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INTRODUCTION ............................................................12

Key Features ..........................................................12

Specications .........................................................12

About GPS and GNSS ..................................................13

Acquiring a Satellite Signal ............................................14

GETTING STARTED .........................................................15

Accessing the Navigation Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Adjusting the Navigation Voice Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

INITIAL SETUP ..............................................................16

Free Latest Map Guarantee ............................................17

NAVIGATION MENU ........................................................18

BUTTONS AND OTHER CONTROLS ON THE SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . .19

Using Keyboards ......................................................21

Beyond Single Screen Tap .............................................22

MAP SCREEN ...............................................................23

Navigating on the Map ................................................23

Position Markers ......................................................26

Objects on the Map ...................................................27

Manipulating the Map .................................................32

Quick Menu ...........................................................35

Where Am I? ..........................................................39

NAVIGATING ...............................................................41

SELECTING THE DESTINATION OF A ROUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Entering an Address or Part of an Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Selecting the Destination from the Places of Interest . . . . . . . . . . . . . . . . . . .64

Selecting a Map Location as the Destination . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Selecting the Destination from Your Favorites . . . . . . . . . . . . . . . . . . . . . . . . . .81

Selecting One of the Most Likely Destinations (Smart History) . . . . . . . . . .83

Selecting a Recent Destination from the History . . . . . . . . . . . . . . . . . . . . . . . .85

Entering the Coordinates of the Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Building a Route from the List of Destinations (Create Route) . . . . . . . . . . .89

VIEWING THE ENTIRE ROUTE ON THE MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

CHECKING ROUTE PARAMETERS ............................................92

VX6020

MODIFYING THE ROUTE ....................................................93

Selecting a New Destination When Already Having a Route . . . . . . . . . . . . .93

Setting a New Starting Position for the Route . . . . . . . . . . . . . . . . . . . . . . . . . .94

Editing the List of Destinations (Edit Route) . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Pausing the Active Route ..............................................97

Canceling the Active Route ............................................97

Checking Route Alternatives When Planning the Route . . . . . . . . . . . . . . . . .98

Checking Route Alternatives for an Existing Route . . . . . . . . . . . . . . . . . . . . . .99

Changing the Vehicle Used In Route Planning . . . . . . . . . . . . . . . . . . . . . . . . 101

Changing the Road Types Used In Route Planning . . . . . . . . . . . . . . . . . . . . 102

SAVING A LOCATION AS A FAVORITE DESTINATION . . . . . . . . . . . . . . . . . . . . . . . . 103

SAVING A LOCATION AS AN ALERT POINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

EDITING AN ALERT POINT ................................................ 105

WATCHING THE SIMULATION OF THE ROUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

REFERENCE GUIDE ....................................................... 109

CONCEPTS ............................................................... 109

Smart Zoom ........................................................ 109

Daytime and Night Color Themes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Route Calculation and Recalculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Green Routing ...................................................... 113

Road Safety Cameras and Other Proximity Alert Points . . . . . . . . . . . . . . . 114

Speed Limit Warning ................................................ 114

GPS Position Quality Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Stored Trac Information In Route Planning . . . . . . . . . . . . . . . . . . . . . . . . . 115

‘MORE’ MENU ............................................................ 116

SETTINGS MENU ......................................................... 118

Sound and Warnings ................................................ 120

Customize Quick Menu .............................................. 123

Trac Settings ...................................................... 123

Route Settings ...................................................... 124

Green Routing Settings .............................................. 127

Map Settings ........................................................ 128

Visual Guidance Settings ............................................ 130

Display Settings ..................................................... 131

Regional Settings ................................................... 131

Trip Monitor Settings ................................................ 132

GLOSSARY ............................................................... 133

END USER LICENSE AGREEMENT .......................................... 135

VX6020

QUICK START GUIDE

Follow these six easy steps and you are on your way.

NOTE: Before operating your iGO Primo software, please carefully read and follow

the instructions provided in the “Warnings and Precautions” section of this

manual.

Step 1 - Access the navigation function:

You can access the navigation function by pressing the front panel NAV button.

Step 2 - Start Up:

After the iGO primo software starts, you will see the reminder warning to use your

iGO primo software safely and lawfully.

Step 3 - Access the Main Menu:

Press access the Navigation Menu:

VX6020

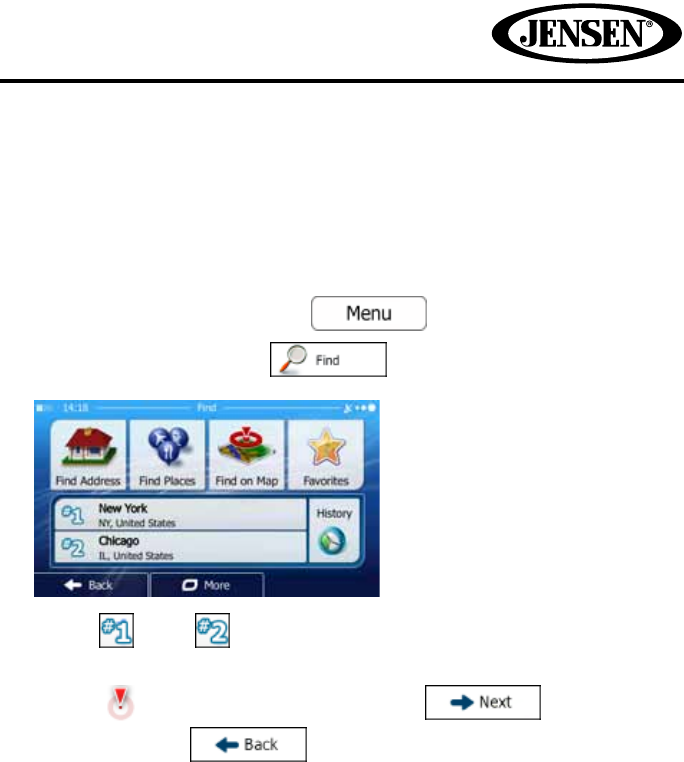

Step 4 - Select a Destination:

You have many ways to select a destination. Select by touching screen:

• Tap to select your destination by entering an address or selecting

a place of interest, a location on the map or one of your Favorite destinations.

You can also look up your recent destinations from the Smart History, enter a

coordinate or use the location saved in a photo.

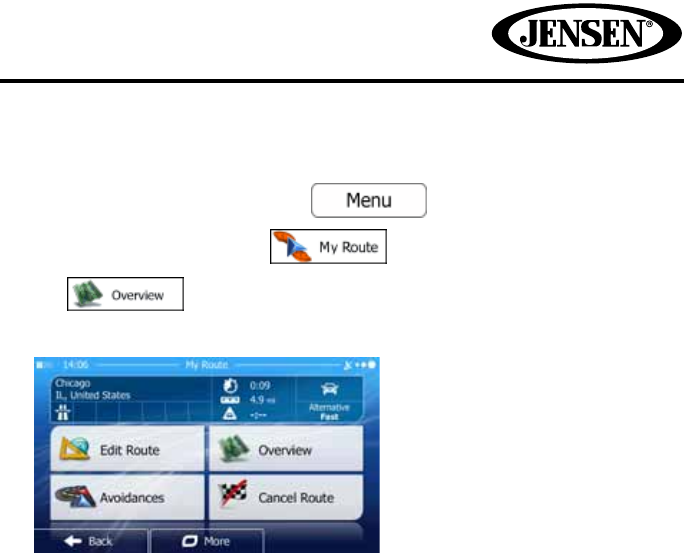

• Tap to display the route parameters and the route in its full

length on the map. You can also perform route-related actions such as editing

or canceling your route, setting a start point for the route, picking route

alternatives, avoiding parts of the route, simulating navigation or adding the

destination to your Favorites.

• Tap to customize the way the navigation software works, simulate

demo routes, or to run some additional applications.

• Tap to start navigating on the map. The button itself is a miniature

live map that shows your current position, the recommended route and the

surrounding map area. Tap the button to enlarge the map to the full screen.

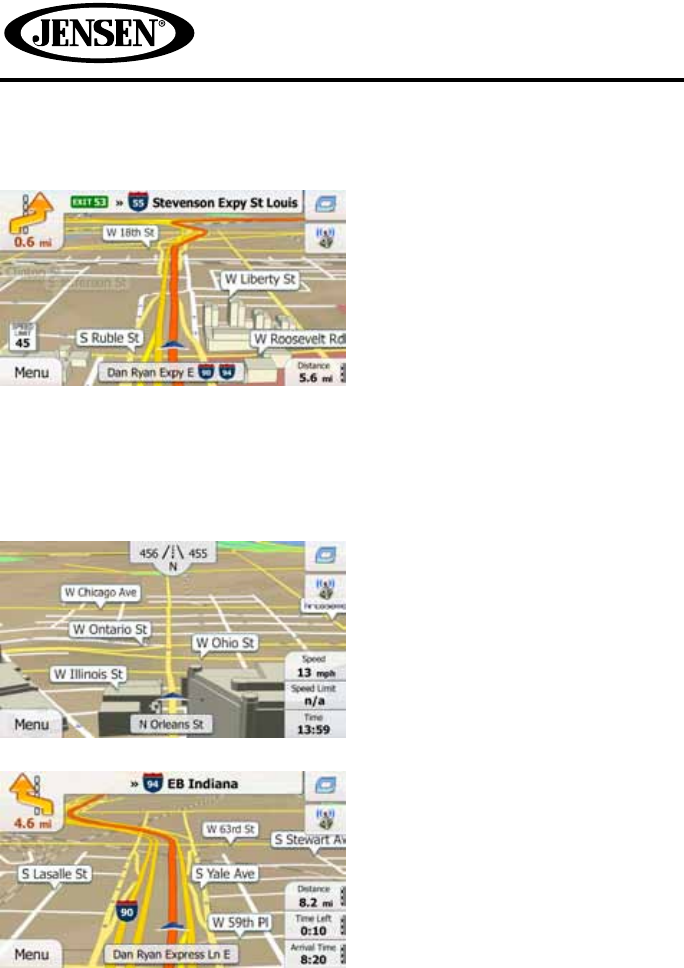

Step 5 - Map/Guide Along Route

Proceed to the highlighted route and drive while the iGO primo software provides

guidance to your destination.

VX6020

Step 6 - Arriving at Your Destination

When you are near your destination, the destination is indicated by a

checkered ag symbol .

Refer to the rest of this manual to become more familiar with the many options

available on your iGO primo software.

VX6020

INTRODUCTION

We hope that you enjoy using your new navigation system. This manual is

designed to help you get the most out of your system.

This navigation system leads you straight to your destination. You can navigate

and plan your route with an easy-to-use and intuitive interface, plan your trip

to suit your personal preferences and interests, and nd and save (bookmark)

interesting destinations before you begin your trip.

Key Features

• English, French and Spanish Voice

• Tele Atlas Map Data

• 11 Million Points of Interest

• 4GB SD Card with Continental US, Alaska, Hawaii, and Puerto Rico

• Latest Map Guarantee (Limited time only - Must be used within 90 days of

initial activation)

• Compatible with Jensen VX6020 multimedia receiver

Specications

• SiRF Prima Processor

• Processor Speed 600MHz

• NAND Flash 256MB

• GPS Receiver - SiRF

VX6020

About GPS and GNSS

The unit uses a vehicle Global Positioning System (GPS)-based navigation device

which uses digital map data to guide you from your selected location A to

location B, using location information obtained from a Global Navigation Satellite

System (GNSS).

A GNSS consists of a set of satellites that transmit high-frequency radio signals

containing time, direction, and distance data that can be picked up by a receiver,

allowing users to pinpoint their precise locations anywhere around the globe.

Navigation Satellite Receivers (GPS devices) use this transmitted information to

calculate an exact location on the Earth. Every point on Earth can be identied

by latitude and longitude. The receiver uses the information sent by at least three

satellites and determines the coordinates of the receiving device.

By comparing the time the signals were transmitted from the satellites and the

time they were recorded, the receiver calculates how far away each satellite is.

The distance of the receiver from three or more satellites reects its position

on the surface of the planet. Using these distance measurements, the receiver

might also be able to calculate speed, bearing, trip time, distance to destination,

altitude, etc. The GPS position may be displayed as a point on a digital map (at

least three satellites’ signals must be received) and as the GPS device moves the

corresponding trace is displayed as well.

Please keep in mind that although the radio signals of navigation satellites will

pass through clouds, glass, plastic, and other lightweight materials, satellite-

navigation receivers will not work underground or in some enclosed spaces.

VX6020

Acquiring a Satellite Signal

The initial GPS location lock is best established when your vehicle is parked. If

the device is in motion, the signal can take longer to initially connect. Once the

initial coordinates are established, the software will follow you as you move and

navigate.

Drive your vehicle to an open area where the GPS signal can be clearly received

and park the vehicle. If the device is in motion, the signal can take longer to

initially connect.

If you cannot acquire the signal, drive to another location. If the signal is still

unobtainable, check your antenna installation.

Once a GPS signal has been established, verify that the information display clock

time (time displayed on the radio) matches the navigation system clock. With an

established GPS signal, the software will follow you as you move and navigate.

The GPS reception quality icon shows the current accuracy of the position

information.

Icon Description

iGO primo has no connection to the GPS receiver: GPS

navigation is not possible.

Devices with a built-in GPS receiver are permanently

connected. On such devices, the icon does not appear in

normal circumstances.

iGO primo is connected to the GPS receiver, but the

signal is too weak and the receiver cannot determine the

GPS position.

GPS navigation is not possible.

Only a few satellites are received. Position information is

available, but elevation (altitude) cannot be calculated.

GPS navigation is possible, but the position error may be

signicant.

Altitude information is available, the position is a 3D

position.

GPS navigation is possible.

VX6020

GETTING STARTED

iGO primo is optimized for in-car use. There is no need to use a stylus. You can use

it easily by tapping the screen buttons and the map with your ngertips.

Accessing the Navigation Software

Press the MENU button and touch the Navigation icon to access navigation mode.

Adjusting the Navigation Voice Volume

While the Navigation is on and a route has been programmed, the Navigation will

speak commands. While the Navigation is speaking, adjust the volume by turning

the radio volume knob. The Navigation volume will remain at this level and when

done speaking will return to the previous source (ie, radio) at the volume level set

for that source.

The main volume must be set above zero in order to hear the spoken directions.

If the radio is muted, the Bluetooth (if equipped) engaged in a call, or the volume

knob has been turned to zero, the navigation will not be heard but your visual

directions will continue.

Selecting / Listening to a Source while Navigating

While navigating, other sources may be selected and listened to such as AM-FM

Tuner, CD, etc. To listen to another source while navigating, press the SRC button

and then select a source from the Source Menu. Navigation voice prompts will be

heard automatically, although the navigation map cannot be seen. To view the

navigation screen, but continue to listen to the selected source, press the NAV/

WIDE button.

VX6020

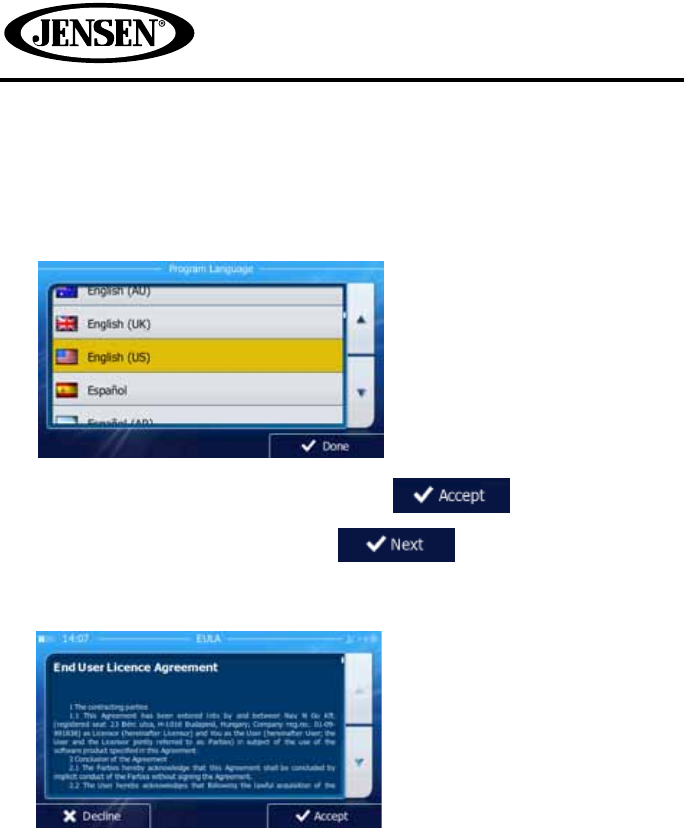

INITIAL SETUP

When using the navigation software for the rst time, an initial setup process

starts automatically. Do as follows:

1. Select the written language of the application interface. Later you can change

it in Regional settings.

2. Read the End User License Agreement. Tap to continue.

3. The Conguration Wizard starts. Tap to continue.

4. Select the language and speaker used for voice guidance messages. Later you

can change it in Sound and Warnings settings.

VX6020

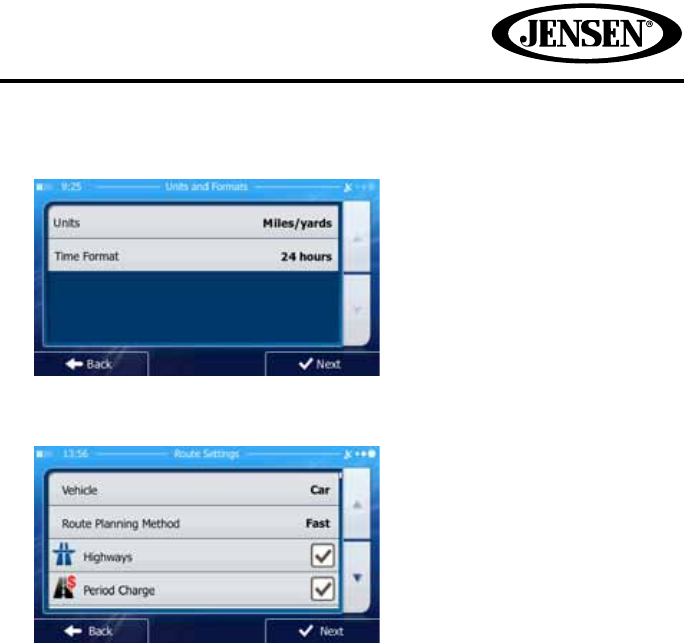

5. If needed, modify the time format and unit settings. Later you can change

them in Regional settings.

6. If needed, modify the default route planning options. Later you can change

them in Route settings.

7. The initial setup is now complete. The Conguration Wizard can be restarted

later from the Settings menu.

After the initial setup, the Navigation Menu appears and you can start using

iGO primo.

Free Latest Map Guarantee

Visit www.naviextras.com to register your map. (Limited time only - Must be used

within 90 days of initial activation).

NOTE: Map MUST be run in your navigation device one time before attempting

registration. Follow the instructions on-line.

VX6020

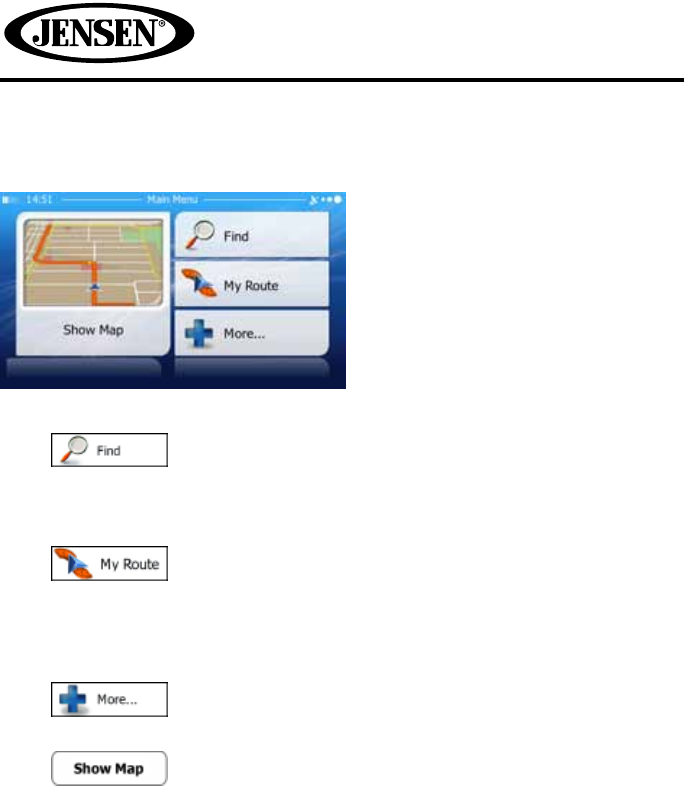

NAVIGATION MENU

You can reach all parts of iGO primo from the Navigation Menu.

You have the following options:

• Tap to select your destination by entering an address or selecting

a place of interest, a location on the map or one of your Favorite destinations.

You can also look up your recent destinations from the Smart History, enter a

coordinate or use the location saved in a photo.

• Tap to display the route parameters and the route in its full

length on the map. You can also perform route-related actions such as editing

or canceling your route, setting a start point for the route, picking route

alternatives, avoiding parts of the route, simulating navigation or adding the

destination to your Favorites.

• Tap to customize the way the navigation software works, simulate

demo routes, or to run some additional applications.

• Tap to start navigating on the map. The button itself is a miniature

live map that shows your current position, the recommended route and the

surrounding map area. Tap the button to enlarge the map to the full screen.

VX6020

BUTTONS AND OTHER CONTROLS ON THE

SCREEN

When you are using iGO primo, you usually tap buttons on the touch screen.

You only need to conrm selections or changes if the application needs to restart,

it needs to perform a major reconguration, or you are about to lose some of your

data or settings. Otherwise, iGO primo saves your selections and applies the new

settings without conrmation as soon as you use the controls.

Type Example Description How to Use It

Button Tap it to initiate a

function, to open

a new screen, or to

set a parameter.

Tap it once.

Button

with value

Some buttons

display the current

value of a eld or

setting. Tap the

button to change

the value. After the

change, the new

value is shown on

the button.

Tap it once.

Icon Shows status

information.

Some icons also

function as a button.

Tap them once.

VX6020

List When you need to

select from several

options, they

appear in a list.

Grab the list

anywhere and slide

your nger up or

down. Depending

on the speed of the

sliding, the list will

scroll fast or slow,

only a bit or until the

end.

Alternatively, move

between pages with

the and

buttons and tap the

value that you want.

Radio

button

When there are only

a few choices, radio

buttons may be

used instead of lists.

Only one value can

be selected.

Tap one of the

buttons to select a

new value.

Switch

When there are

only two choices, a

checkmark shows

whether the feature

is enabled.

Tap it to turn the

switch on or o.

Slider

When a feature can

be set to dierent

values in a range,

iGO primo shows

an indicator on a

gauge that displays

and sets the value

• Drag the handle to

move the slider to

its new position.

• Tap the slider

where you want the

handle to appear;

the thumb jumps

there.

Virtual

keyboard

Alphabetic and

alphanumeric

keyboards to enter

text and numbers.

Each key is a touch

screen button.

VX6020

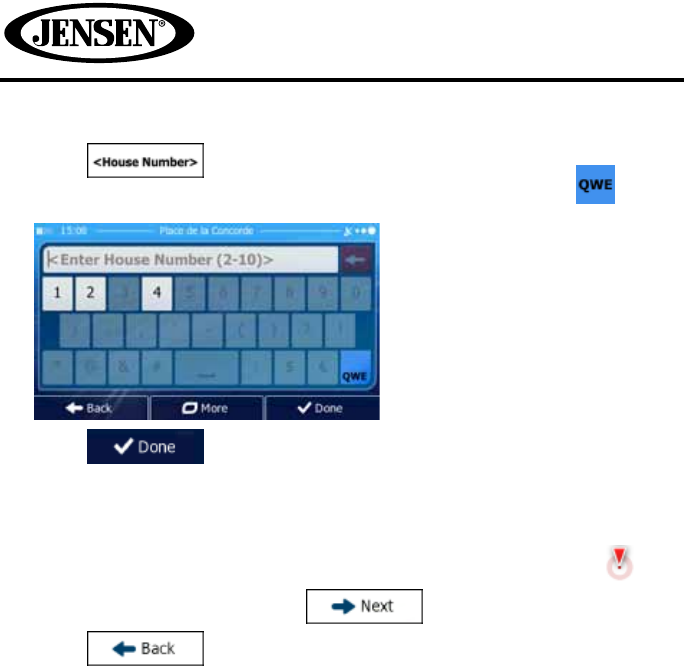

Using Keyboards

You only need to enter letters or numbers when you cannot avoid it. You can type

with your ngertips on the full-screen keyboards and you can switch between

various keyboard layouts, for example English, Greek or numerical.

Task Instruction

Switching to another keyboard layout,

for example from an English keyboard

to a Greek keyboard.

Tap the button and

select the new keyboard layout from

the list.

Correcting your entry on the keyboard. Tap to remove the unneeded

character(s). Tap and hold the button

to delete several characters or the

entire input string.

Entering a space, for example between

a rst name and a family name or in

multi-word street names.

Tap the button at the bottom

center of the screen.

Entering numbers and symbols. Tap to switch to a keyboard

oering numeric and symbol

characters.

Finalizing the keyboard entry

(accepting the suggested search

result).

Tap .

Finalizing the keyboard entry

(opening the list of search results). Tap .

Finalizing the keyboard entry

(saving your input). Tap .

Canceling the keyboard entry

(returning to the previous screen). Tap .

VX6020

Beyond Single Screen Tap

You usually need to tap the screen only once. However, some useful features can

be accessed with combined touch screen tapping. Those are the following:

Action Details

Tapping and holding the

screen.

Tap and keep pressing the following buttons to reach

extra functions:

• Tap and hold on list and menu

screens: the Map screen appears.

• Tap and hold any of the , , , ,

, and buttons on the Map screen: you can

rotate, tilt or scale the map continuously.

• Tap and hold on keyboard screens: you can

delete several characters quickly.

• Tap and hold or in long lists: you can scroll

pages continuously.

Gestures (drag & drop). You need to drag and drop the screen only in cases

like:

• Moving the handle on a slider.

• Scrolling the list: grab the list anywhere and slide

your nger up or down. Depending on the speed

of the sliding, the list will scroll fast or slow, only a

bit or until the end.

• Moving the map in map browsing mode: grab the

map, and move it in the desired direction.

VX6020

MAP SCREEN

The Map screen is the most frequently used screen of iGO primo.

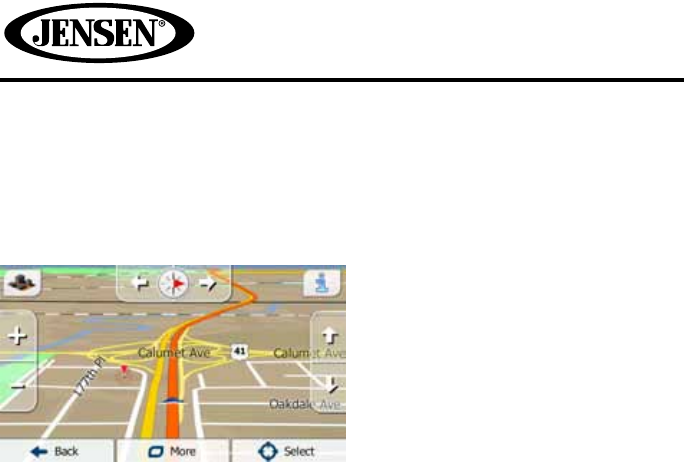

Navigating On the Map

A small live map is displayed on the startup screen, the Navigation Menu, as a part

of the button.

To enlarge this small map and open the Map screen, tap .

This map shows the current position (the Vehimarker, a red arrow by default), the

recommended route (an orange line), and the surrounding map area.

When there is no GPS position, the Vehimarker is transparent. It shows your last

known position.

You see colored dots circling around a satellite symbol in the top left corner. The

more green dots you see, the closer you are to get the valid GPS position.

VX6020

When GPS position is available, the Vehimarker is displayed in full color, now

showing your current position.

There are screen buttons and data elds on the screen to help you navigate.

During navigation, the screen shows route information.

By default, only one data eld is displayed in the bottom right corner. Tap this eld

to see all route data elds.

Tap any of the data elds to suppress others and display only the selected one.

The data elds are dierent when you are navigating an active route and when

you have no specied destination (the orange line is not displayed).

VX6020

Default data elds when cruising without a destination (tap and hold any of the

elds to change its value):

Field Description

Shows your current speed given by the GPS receiver.

Shows the speed limit of the current road if the map contains

it.

Shows the current time corrected with time zone oset.

The accurate time comes from the GPS satellites, and the

time zone information comes from the map or it can be set

manually in Regional settings. (The current time is always

displayed in the top left corner of menu screens.)

Default data elds when navigating a route (tap and hold any of the elds to

change its value):

Field Description

Shows the distance you need to travel on the route before

reaching your nal destination.

Shows the time needed to reach the nal destination of

the route based on information available for the remaining

segments of the route. Historical trac data or trac

patterns are also taken into account whenever such

information exists..

Shows the estimated arrival time at the nal destination

of the route based on information available for the

remaining segments of the route. Historical trac data or

trac patterns are also taken into account whenever such

infromation exists.

VX6020

Position Markers

Vehimarker and Lock-on-Road

When your GPS position is available, iGO primo marks your current position with

the Vehimarker. By default, this marker is a red arrow, but you can change this icon

in Settings.

The exact location of the Vehimarker depends on the vehicle type used for route

calculation. The vehicle type can be selected in Route settings.

• If you choose pedestrian: The Vehimarker is at your exact GPS position. The

direction of the icon shows your current heading.

• If you choose any of the vehicles: The Vehimarker may not show your exact

GPS position and heading. If roads are near, it is aligned to the nearest road

to suppress GPS position errors, and the direction of the icon is aligned to the

direction of the road.

Selected Map Location (Cursor) and Selected Map Object

You can mark a map location in the following ways:

• Tap the map when navigating,

• Tap the map when you are asked to conrm the destination at the end of a

search, or

• Tap the map in Find on Map.

When a map location is selected, the Cursor appears at the selected point on the

map.

The Cursor is displayed with a radiating red dot ( ) to make it visible at all

zoom levels.

The location of the Cursor can be used as the destination of the route, a new alert

point, you can search for Places around it, or you can save this location as one of

your Favorite destinations.

You can also select some of the objects on the map. If you tap the map at the icon

of a Place of Interest or an alert point, the object will be selected (you see a red

circling border around the object), and you can get information about this object

or use it as a route point.

VX6020

Objects On the Map

Streets and Roads

iGO primo shows the streets in a way that is similar to how the paper road maps

show them. Their width and colors correspond to their importance: you can easily

tell a freeway from a small street.

Turn Preview and Next Street

When navigating a route, the top section of the Map screen shows information

about the next route event (maneuver) and the next street or the next city/town.

There is a eld in the top left corner that displays the next maneuver. Both the

type of the event (turn, trac circle, exiting freeway, etc.) and its distance from the

current position are displayed.

A smaller icon shows the type of the second next maneuver if it is near the rst

one. Otherwise, only the next maneuver is displayed.

VX6020

Most of these icons are very intuitive. The following table lists some of the

frequently shown route events. The same symbols are used in both elds:

Icon Description

Turn left.

Turn right.

Turn back.

Bear right.

Turn sharp left.

Keep left.

Continue straight in the intersection.

Go left on the trac circle, 3rd exit (next maneuver).

Enter trac circle (second next maneuver).

Enter freeway.

Exit freeway.

Board ferry.

VX6020

Leave ferry.

Approaching a waypoint.

Approaching the destination.

Lane Information and Signposts

When navigating on multilane roads, it is important to take the appropriate lane in

order to follow the recommended route. If lane information is available in the map

data, iGO primo displays the lanes and their directions using small arrows at the

bottom of the map. Highlighted arrows represent the lanes you need to take.

Where additional information is available, signposts substitute arrows. Signposts

are displayed at the top of the map. The color and style of the signposts are

similar to the real ones you can see above road or by the roadside. They show the

available destinations and the number of the road the lane leads to.

All signposts look similar when cruising (when there is no recommended route).

When navigating a route, only the signpost that points to the lane(s) to be taken is

displayed in vivid colors; all others are darker.

VX6020

Junction View

If you are approaching a freeway exit or a complex intersection and the needed

information exists, the map is replaced with a 3D view of the junction. The lanes

you need to take are displayed with arrows. Signposts can also be present if

information is available.

3D Object Types

iGO primo supports the following 3D object types:

Type Description

3D terrain 3D terrain map data shows changes in terrain, elevations or

depressions in the land when you view the map in 2D, and

use it to plot the route map in 3D when you navigate. Hills

and mountains are shown in the background of the 3D map,

and illustrated by color and shading on the 2D map.

Elevated roads Complex intersections and vertically isolated roads (such as

overpasses or bridges) are displayed in 3D.

3D landmarks Landmarks are 3D artistic or block representations of

prominent or well-known objects.

VX6020

Elements of the Active Route

iGO primo shows the route in the following way:

Symbol Name Description

Current GPS position

and Start point

Your current position displayed on the

map.

• In pedestrian mode it is the exact

GPS position.

• If a vehicle is selected for route

calculation and roads are near, the

symbol is snapped onto the nearest

road.

Normally if GPS position is available,

the route starts from the current

position. If there is no valid GPS

position, iGO primo uses the last

known position as the start point.

Waypoint (intermediate

destination)

An intermediate destination of

the route before reaching the nal

destination.

Destination (end point) The nal destination of the route.

Route color The route always stands out with its

color on the map, both in daytime and

in night color mode.

Streets and roads that

are excluded from the

navigation

You can choose whether you want

to use or avoid certain road types.

However, when iGO primo cannot

avoid such roads, the route will include

them and it will show them in a color

that is dierent from the route color.

Streets and roads that

are aected by trac

events

Road segments may be aected by

trac events received. These streets

and roads are displayed in an alternate

color, and small symbols displayed

along the route show the type of the

trac event.

VX6020

Manipulating the Map

Tap the map anywhere to browse it during navigation. The map stops following

the current position (the Vehimarker, a red arrow by default, is not locked in a x

position on the screen any more) and control buttons appear to help you modify

the map view.

VX6020

Action Button(s) Description

Moving the map

with drag & drop.

No buttons You can move the map in any

direction: tap and hold the map,

and move your nger towards the

direction you want to move the map.

Zooming in and

out ,

Changes how much of the map is

displayed on the screen.

iGO primo uses high-quality vector

maps that let you examine the map

at various zoom levels, always with

optimized content. It always displays

street names and other text with the

same font size, never upside-down,

and you only see the streets and

objects that you need.

Map scaling has a limit in 3D map

view mode. If you zoom out further,

the map switches to 2D view mode.

Tap the button once to modify the

view in large steps, or tap and hold

the button to modify it continuously

and smoothly.

Tilting up and

down ,

Changes the vertical view angle of

the map in 3D mode.

Tap the button once to modify the

view in large steps, or tap and hold

the button to modify it continuously

and smoothly.

Rotating left and

right ,

Changes the horizontal view angle

of the map.

Tap the button once to modify the

view in large steps, or tap and hold

the button to modify it continuously

and smoothly.

2D or 3D view

Tap this button to switch between

the 3D perspective and 2D top-

down map view modes.

VX6020

Compass in 2D

map view mode ,

The direction of the compass shows

North.

Tap the button to switch to North-up

view, and then tap again to rotate

the map in the previous direction.

Compass in 3D

map view mode ,

The direction of the compass shows

North.

Tap the button to switch to North-up

view, and then tap again to rotate

the map in the previous direction.

Location

information

Tap this button to open a new

screen with information about the

selected map point, the Cursor.

Return to normal

navigation

Tap this button to move the map

back to follow the current GPS

position. Automatic map rotation is

also re-enabled.

The map manipulation buttons

disappear and navigation continues.

Additional options Tap this button to open a list of

additional features like saving the

Cursor as a Favorite destination,

or searching for Places around the

Cursor.

Select destination Tap this button to select the Cursor

as a new destination. The route is

automatically calculated.

VX6020

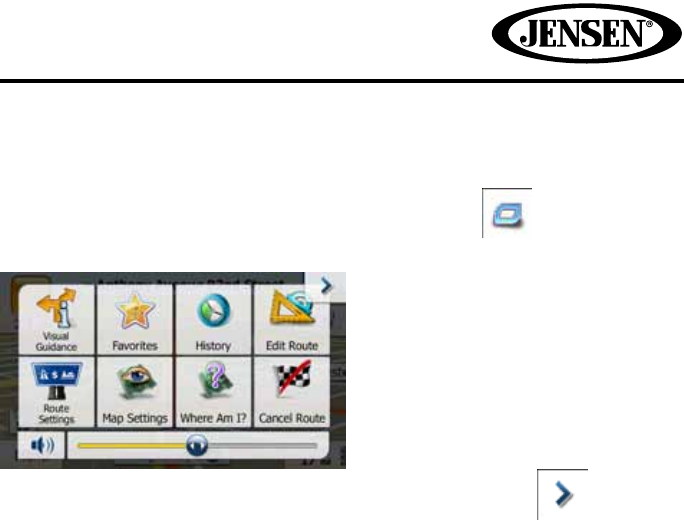

Quick Menu

The Quick menu is a selection of controls and functions that are frequently

needed during navigation.

It can be opened directly from the Map screen by tapping .

The menu will close after a few seconds of inactivity or if you tap .

The menu will also close if you initiate simple controls like muting the device. In

other cases tapping a button will open a new screen with options.

Most of these functions are shortcuts. They are accessible from the menu system.

VX6020

There are more functions available than the number of buttons in the menu. In

Settings, you can choose the function of each button. The following options are

available:

Button Description Shortcut for:

Master Volume slider This slider adjusts the sound

volume of the device. All

sounds of the application are

aected.

More / Settings / Sound

and Warnings / Volume

/ Master slider

This switch mutes all sounds

of the device. Tap again to re-

enable sounds.

More / Settings / Sound

and Warnings / Volume

/ Master switch

This function lets you search

for a Place along your route or

around your current location

if there is no route calculated.

Find / Find Places /

Quick Search

This button opens the list of

your Favorite destinations.

Find / Favorite

This button opens the History

list. You can select one of your

previous destinations.

Find / History

This button opens the route

editing function.

My Route / Edit Route

This button opens the route

related settings.

More / Settings / Route

Settings

This button opens the map

related settings.

More / Settings / Map

Settings

VX6020

This button opens a special

screen with information about

the current position and a

button to search for nearby

emergency or roadside

assistance. For details, see the

next chapter.

n/a

This button cancels the route

and stops navigation. The

button is replaced with the

next one if waypoints are

given.

My Route / Cancel

Route

This button skips the next

waypoint from the route.

n/a

This button opens a 2D map

scaled and positioned to

show the entire route.

My Route / Overview

This button opens the Visual

Guidance settings screen.

More / Settings / Visual

Guidance

This button lets you bypass

parts of the recommended

route.

My Route / Avoidances

This button opens the Trip

Monitor screen where you can

manage your previously saved

trip logs and track logs.

More / Trip Monitor

This button opens the list of

maneuvers (the itinerary).

Tap the top of the

Map screen during

navigation.

With this function you can

save the active route for later

use.

My Route / More / Save

Route

VX6020

With this function you can

replace the active route with a

previously saved route.

My Route / More / Load

Route

With this function you can

search for Places of Interest in

various dierent ways.

Find / Find Places

This button opens the Map

screen and starts simulating

the active route.

My Route / More /

Simulate Navigation

This button opens the GPS

Information screen with

satellite position and signal

strength information.

Tap the top of the Map

screen when there is no

GPS reception.

VX6020

Checking the Details of the Current Position (Where

Am I?)

Opened from the Quick menu, this screen contains information about the current

position (or about the last known position if GPS reception is not available) and a

button to search for useful Places nearby.

Information On This Screen:

• and : Latitude and Longitude (coordinate of the current position in

WGS84 format).

• : Altitude (elevation information coming from the GPS receiver - often

inaccurate).

• : House number on the left.

• : House number on the right.

• In the middle of the screen you can see whether the position is current, or the

time left since it was last updated.

• Address details (when available) of the current position are also displayed at the

bottom.

VX6020

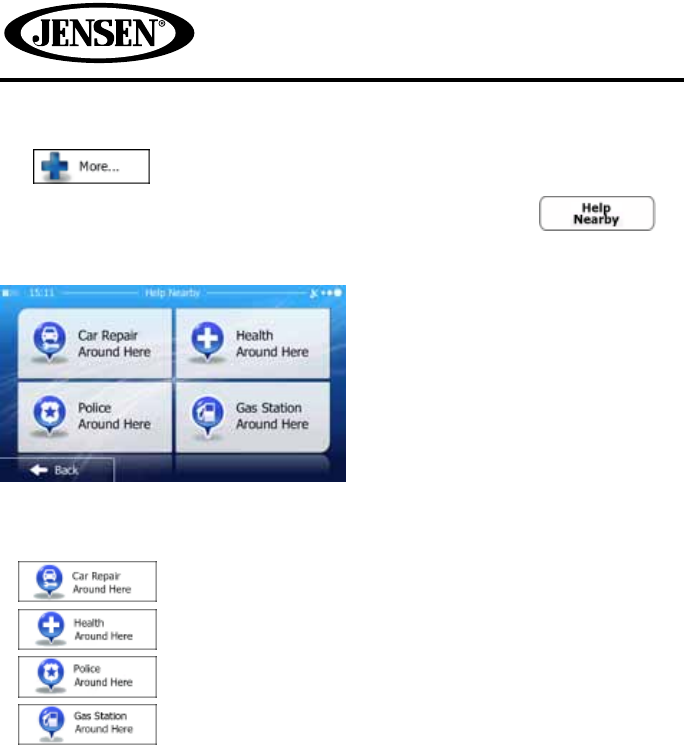

You can also perform some actions on this screen:

Tap to save the current position as a Favorite destination.

You can also search for assistance near your current position. Tap to

open a new screen for the Quick search:

The following services can be searched around the current position or the last

known position:

• : Car repair and roadside assistance services

• : Medical and emergency services

• : Police stations

• : Gas stations

Tap any of the buttons, select a Place from the list, and navigate to it.

VX6020

NAVIGATING

You can set up your route in dierent ways:

• If you need a route for immediate navigation, you can select the destination and

start navigating to it right away (normal navigation).

• You can also plan a route independently of your current GPS position or even

without GPS reception (to achieve this, you need to turn o the GPS receiver

and set a new starting point in My Route / Edit Route by tapping the ag icon at

the current position).

You can plan routes with multiple destinations. Select the rst destination. Then

select a second destination and add it to your route to create a multi-point route.

You can add as many destinations to your route as you like.

SELECTING THE DESTINATION OF A ROUTE

iGO primo oers you several ways of choosing your destination:

• Enter a full address or a part of an address, for example a street name without a

house number or the names of two intersecting streets.

• Enter an address with ZIP code. This way you do not need to select the name of

the city and the search for street names might be faster as well.

• Use a built-in Place of Interest as your destination.

• Select a location on the map with the Find on Map feature.

• Use a previously saved Favorite destination.

• Select a location from the History of previously used destinations.

• Enter the coordinate of the destination.

• Use the location where a photo was taken.

Entering an Address or a Part of the Address

If you know at least a part of the address, it is the quickest way to select the

destination of the route.

Using the same screen, you can nd an address by entering:

• the exact address, including house number

• the center of a city/town

• an intersection

• the midpoint of a street

• any of the above, starting the search with the ZIP code.

VX6020

Entering an Address (United States)

To enter an address as the destination, do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. By default, iGO primo proposes the country and state where you are. If

needed,

tap , enter the rst few letters of the destination country or

state on the keyboard, and select one from the list. If you select a country

without a state, you can search for a city/town in all its states.

4. Select a new city/town:

a. Tap . The city/town of your current location is oered by

default. For a local search, tap to accept it, otherwise continue with

entering the destination city/town name.

b. Start entering the name of the city/town on the keyboard.

c. Find the city/town you need:

• The most likely city/town name is always shown in the input eld.

To accept it, tap .

VX6020

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the city/

town from the list.

5. Enter the street name:

a. Tap .

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input eld.

To accept it, tap .

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of results

before it appears automatically, tap ). Select the street from the

list.

VX6020

6. Enter the house number:

a. Tap .

b. Enter the house number on the keyboard. (To enter letters, tap ).

c. Tap to nish entering the address. (If the entered house

number cannot be found, the midpoint of the street is selected as the

destination.)

7. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

VX6020

8. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

Tip!

If you know that you will use this destination frequently, before

tapping to conrm the destination, put it on the list of your

Favorites rst: tap then , give a name for the new

Favorite, and tap to save the location. The map with the destination

returns automatically. Now you can start your journey.

VX6020

Entering an Address (Canada)

To enter an address as the destination, do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. By default, iGO primo proposes the country, state and city where you are. If

needed, tap , enter the rst few letters of the destination

country or state on the keyboard, and select one from the list. If you select a

country without a state, you can search for a city/town in all its states.

4. If needed, select a new city/town:

a. Tap .

b. Start entering the name of the city/town on the keyboard.

c. Find the city/town you need:

• The most likely city/town name is always shown in the input eld.

To accept it, tap .

VX6020

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the city/

town from the list.

5. Enter the street name:

a. Tap .

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input eld.

To accept it, tap .

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the street

from the list.

VX6020

6. Enter the house number:

a. Tap .

b. Enter the house number on the keyboard. (To enter letters, tap ).

c. Tap to nish entering the address. (If the entered house

number cannot be found, the midpoint of the street is selected as the

destination.)

7. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

VX6020

8. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Entering an Address Starting with the Street Name (in the United States only)

You can leave the city/town name empty and start the search with the street

name. This way you can search in all streets of a state. Do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. By default, iGO primo proposes the country and state where you are. If

needed, tap the button with the name of the country, enter the rst few

letters of the destination country or state on the keyboard, and select a

country and state from the list. If you select the country without a state, this

function cannot work.

4. Enter the street name:

a. Tap .

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input eld.

To accept it, tap .

VX6020

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the street

from the list.

5. Enter the house number:

a. Tap .

b. Enter the house number on the keyboard. (To enter letters, tap ).

c. Tap to nish entering the address. (If the entered house

number cannot be found, the midpoint of the street is selected as the

destination.)

6. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

VX6020

7. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start your

journey.

VX6020

Entering the Midpoint of a Street as the Destination

You can navigate to the midpoint of a street if the house number is not available:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Select the country, state and city as described earlier.

4. Enter the street name:

a. Tap .

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input eld.

To accept it, tap .

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the street

from the list.

VX6020

5. Instead of entering the house number, tap . The midpoint of the

street is selected as the destination.

6. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

7. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting an Intersection as the Destination

To enter an address as the destination, do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Select the country, state and city as described earlier.

4. Enter the street name:

a. Tap .

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input eld.

To accept it, tap .

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the street

from the list.

VX6020

5. Enter the intersecting street name:

Tap .

• If only a few intersecting streets exist, their list appears immediately.

• In case of a longer street, the keyboard screen appears. Start entering the

name of the intersecting street on the keyboard.

As soon as the street names that match the entered string can be shown on

one screen, their list appears automatically. Select from the list.

6. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

VX6020

7. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting a City/Town Center as the Destination

The city/town center is not the geometric center of the city but an arbitrary

point the map creators have chosen. In towns and villages, it is usually the most

important intersection; in larger cities, it is one of the important intersections.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Select the country and state as described earlier.

4. Select the destination city/town:

a. Tap .

b. Start entering the name of the city/town on the keyboard.

c. Find the city/town you need:

• The most likely city/town name is always shown in the input eld.

To accept it, tap .

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the city/

town from the list.

VX6020

5. Instead of entering the street name, tap . This way the center of

the displayed city/town becomes the destination of the route.

6. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

7. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Entering an Address with a ZIP Code

1. All of the above address searching possibilities can be performed with

entering the ZIP code instead of the city name. Find below an example with a full

address:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Select the country and state as described earlier.

4. Enter a new city/town using its ZIP code:

a. Tap .

b. Tap to open the numeric keypad.

c. Start entering the ZIP code.

d. Find the city/town you need:

• The most likely ZIP code is always shown in the input eld.

To accept it, tap .

• If the desired number does not show up, open the list of results by

tapping . Select the ZIP code from the list.

VX6020

5. Enter the street name:

a. Tap .

b. Start entering the street name on the keyboard.

c. Find the street you need:

• The most likely street name is always shown in the input eld.

To accept it, tap .

• If the desired name does not show up, the names that match the string

appear in a list after entering a couple of characters (to open the list of

results before it appears automatically, tap ). Select the street

from the list.

6. Enter the house number:

a. Tap .

b. Enter the house number on the keyboard. (To enter letters, tap ).

c. Tap to nish entering the address. (If the entered house

number cannot be found, the midpoint of the street is selected as the

destination.)

VX6020

7. A full screen map appears with the selected point in the middle. If necessary,

tap the map somewhere else to modify the destination. The Cursor ( )

appears at the new location. Tap to conrm the destination,

or tap to select a dierent destination.

8. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Tips on Entering Addresses Quickly

When you are entering the name of a city/town or a street:

• Only those letters are oered on the keyboard that appear in possible search

results. All other characters are grayed out.

• As you are typing, the most likely result is always displayed in the input eld. If

the guess is correct, tap to select it.

• After entering a couple of letters, tap to list the items that contain

the specied letters.

You can speed up nding an intersection:

• Search rst for the street with a less common or less usual name; fewer letters

are enough to nd it.

• If one of the streets is shorter, search for that one rst. You can then nd the

second one faster.

You can search for both the type and the name of a road. If the same word appears

in several names, for example in the name of streets, roads and avenues, you can

obtain the result faster if you enter the rst letter of the street type: For example,

enter ‘PI A’ to obtain Pine Avenue and skip all Pine Streets and Pickwick Roads.

You can also search in ZIP codes. As ZIP codes consist of only a few characters, this

is usually faster than entering the name of the city/town.

VX6020

Selecting the Destination from the Places of Interest

You can select your destination from the Places of Interest included with iGO

primo. Using the same screen, you can nd a Place in dierent ways:

• with the Quick search feature, you can quickly nd a nearby Place by its name

• with the Preset search feature, you can nd frequently searched types of Places

with only a few screen taps

• you can search for a Place by its category

• you can search for a Place by its name.

In addition, you can search for special services from the ‘Where Am I?’ screen.

Quick Search for a Place of Interest

The Quick search feature lets you quickly nd a Place by its name. The search is

always carried out:

• along the recommended route if it exists or

• around your current location if there is no destination given.

1. Start the Quick search function:

• If you are on the Map screen, tap and then tap .

• If you are in the Navigation menu, tap , and then

tap .

2. Using the keyboard, start entering the name of the Place.

3. After entering a few letters, tap to open the list of Places with

names containing the entered character sequence.

VX6020

4. (Optional) The Places in the list are ordered by the length of the necessary

detour (when navigating a route) or by their distance from the current

position (when no destination is given).

If you need to reorder the list, tap .

5. Browse the list if necessary and tap one of the list items. A full screen map

appears with the selected point in the middle. The name and address of the

Place is displayed at the top of the screen.

6. (Optional) Tap to see the details of the selected Place. Tap

to return to the map.

7. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

8. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Searching for a Place of Interest Using Preset Categories

The Preset search feature lets you quickly nd the most frequently selected types

of Places.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. The preset search categories appear:

• If an active route exists, gas stations are searched along the route.

• If there is no active route (destination is not selected), they are searched

around the current position.

• If the current position is not available either (no GPS signal), they are

searched around the last known position.

• If an active route exists, parking lots are searched around the destination of

the route.

• If there is no active route (destination is not selected), they are searched

around the current position.

• If the current position is not available either (no GPS signal), they are

searched around the last known position.

• If an active route exists, restaurants are searched along the route.

• If there is no active route (destination is not selected), they are searched

around the current position.

• If the current position is not available either (no GPS signal), they are

searched around the last known position.

• If an active route exists, accommodation is searched around the destination

of the route.

• If there is no active route (destination is not selected), they are searched

around the current position.

• If the current position is not available either (no GPS signal), they are

searched around the last known position.

VX6020

4. Tap any of the quick search buttons to get an instant list of Places.

5. (Optional) The Places in the list are ordered by their distance from the current

or last known position, from the destination or by the length of the necessary

detour.

If you need to reorder the list, tap .

6. Browse the list if necessary and tap one of the list items. A full screen map

appears with the selected point in the middle. The name and address of the

Place is displayed at the top of the screen.

7. (Optional) Tap to see the details of the selected Place. Tap

to return to the map.

8. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

VX6020

9. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Searching for a Place of Interest by Category

You can search for Places of Interest by their categories and subcategories.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Tap .

4. Select the area around which the Place should be searched for:

• Tap to search around the current position or if it is not

available, around the last know position. (The result list will be ordered by

the distance from this position.)

• Tap to search for a place within a selected city/town. (The

result list will be ordered by the distance from the center of the selected city/

town.)

• Tap to search for a place around the destination of the active

route. (The result list will be ordered by the distance from the destination.)

• Tap to search along the active route, and not around a

given point. This is useful when you search for a later stopover that results

in a minimal detour only, such as searching for upcoming gas stations or

restaurants. (The result list will be ordered by the length of the necessary

detour.)

VX6020

5. (Optional) If you have selected , select the city/town to search

in.

6. Select one of the main Place categories (e.g. Accommodation) or

tap to list all Places around the selected location or along the

route.

7. Select one of the Place subcategories (e.g. Hotel or Motel) or

tap to list all Places in the selected main category around the

selected location or along the route.

VX6020

8. Sometimes the list of brands in the selected Place subcategory appears. Select

one brand or tap to list all Places in the selected subcategory

around the selected location or along the route.

9. Finally, the results appear in a list.

10. (Optional) The Places in the list are ordered by their distance from the current

or last known position, from the selected city/town, from the destination or by

the length of the necessary detour.

If you need to reorder the list, tap .

11. Browse the list if necessary and tap one of the list items. A full screen map

appears with the selected point in the middle. The name and address of the

Place is displayed at the top of the screen.

12. (Optional) Tap to see the details of the selected Place. Tap

to return to the map.

13. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

VX6020

14. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Searching for a Place of Interest by Name

You can search for Places of Interest by their names. You can search around

dierent locations or along your route in the whole Place database or in one Place

category or subcategory only.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Tap .

4. Select the area around which the Place should be searched for:

• Tap to search around the current position or if it is not

available, around the last know position. (The result list will be ordered by

the distance from this position.)

• Tap to search for a place within a selected city/town. (The

result list will be ordered by the distance from the center of the selected city/

town.)

• Tap to search for a place around the destination of the active

route. (The result list will be ordered by the distance from the destination.)

• Tap to search along the active route, and not around a

given point. This is useful when you search for a later stopover that results

in a minimal detour only, such as searching for upcoming gas stations or

restaurants. (The result list will be ordered by the length of the necessary

detour.)

VX6020

5. (Optional) If you have selected , select the city/town to search

in.

6. Tap to search in all Places, or select one of the main Place

categories (e.g. Accommodation) to search in.

7. Tap to search in the selected Place category or select one of the

Place subcategories (e.g. Hotel or Motel) to search in.

VX6020

8. Tap if you have not done it before.

9. Using the keyboard, start entering the name of the Place.

10. After entering a few letters, tap to open the list of Places with

names containing the entered character sequence.

11. (Optional) The Places in the list are ordered by their distance from the current

or last known position, from the selected city/town, from the destination or by

the length of the necessary detour.

If you need to reorder the list, tap .

VX6020

12. Browse the list if necessary and tap one of the list items. A full screen map

appears with the selected point in the middle. The name and address of the

Place is displayed at the top of the screen.

13. (Optional) Tap to see the details of the selected Place. Tap

to return to the map.

14. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

15. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting Nearby Assistance from ‘Where Am I?’

You can quickly search for nearby assistance from the ‘Where Am I?’ screen.

1. On the Map screen, tap to open the Quick menu.

2. Tap , and then .

3. Preset search categories appear, all for searching around the current position

(or around the last known position if the current position is not available):

• : Car repair and roadside assistance services

• : Medical and emergency services

• : Police stations

• : Gas stations

VX6020

4. Tap any of the quick search buttons to get an instant list of that type of Places.

5. (Optional) The Places in the list are ordered by their distance from the current

or last known position, from the selected city/town, from the destination or by

the length of the necessary detour.

If you need to reorder the list, tap .

6. Browse the list if necessary and tap one of the list items. A full screen map

appears with the selected point in the middle. The name and address of the

Place is displayed at the top of the screen.

7. (Optional) Tap to see the details of the selected Place. Tap

to return to the map.

VX6020

8. If necessary, tap the map somewhere else to modify the destination. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

9. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting a Map Location as the Destination

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap the following buttons: , .

3. Locate your destination on the map: move and scale the map as needed.

4. Tap the location that you want to select as your destination.

The Cursor ( ) appears.

5. Tap to select the Cursor as the destination.

6. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting the Destination from Your Favorites

You can select a location that you have already saved as a Favorite to be your

destination.

1. Access the list of Favorites:

• If you are on the Map screen, tap and then tap .

• If you are in the Navigation menu, tap and then tap .

2. The list of Favorite destinations is displayed.

3. Tap the Favorite that you want to set as your destination. If necessary, browse

down to see more of the list or tap and enter a few letters from

the name of the Favorite destination.

4. A full screen map appears with the selected point in the middle. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

VX6020

5. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting One of the Most Likely Destinations (Smart

History)

The destinations that you have set earlier appear in the History list. Two of those

recent destinations are shown in the Destination menu for easy access. Smart

History oers these locations based on your navigation habits, using parameters

like the current time of day, the day of week, and the current location. The more

you use the navigation software, the better it can guess your desired destination.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. Tap the or the destination in the History eld.

4. A full screen map appears with the selected point in the middle. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

VX6020

5. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Selecting a Recent Destination from the History

The destinations that you have set earlier appear in the History.

1. Access the History:

• If you are on the Map screen, tap and then tap .

• If you are in the Navigation menu, tap and then tap .

2. The list of recent destinations appear. Smart History promotes three

destinations to the rst page based on your previous routes (most likely

destinations). The rest of the destinations are ordered by time they were last

selected. If necessary, scroll the list to see earlier destinations.

3. Select a destination from the list.

4. A full screen map appears with the selected point in the middle. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

VX6020

5. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey.

VX6020

Entering the Coordinates of the Destination

You can also select a destination by entering its coordinate. Do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. Open the menu and tap .

4. You can enter the latitude and longitude values in any of the following

formats: decimal degrees; degrees and decimal minutes; or degrees, minutes

and decimal seconds.

5. (Optional) If necessary, tap then and enter the

coordinate in UTM format.

6. When nished, tap .

VX6020

7. A full screen map appears with the selected point in the middle. The

Cursor ( ) appears at the new location. Tap to conrm the

destination, or tap to select a dierent destination.

8. After a short summary of the route parameters, the map appears showing the

entire route. The route is automatically calculated.

Tap to modify route parameters, or tap and start

your journey

VX6020

Building a Route from the List of Destinations (Create

Route)

You can also build your route destination by destination from the My Route menu.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. Tap .

4. There is only one line in the list of route points, the start point of the route,

normally the current GPS position.

5. Tap to select the destination.

6. The Destination menu appears and you can select the destination of the route

the same way as described in the previous sections.

VX6020

7. When the new destination is selected, the list returns.

8. To add more destinations, tap where you want to insert the new route

point in the list, and repeat the above procedure.

VX6020

VIEWING THE ENTIRE ROUTE ON THE MAP

It is easy to get a map overview of the active route. Do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. Tap . The active route is displayed in its full length on the map

together with additional information and controls.

VX6020

CHECKING ROUTE PARAMETERS AND

ACCESSING ROUTE RELATED FUNCTIONS

You can check dierent parameters of the route recommended by iGO primo.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. The following pieces of information are displayed:

• The name and/or address of the destination.

• Warning icons (if any). They provide extra information about your route (e.g.

unpaved roads or toll roads to be taken).

• The total time of the route.

• The total length of the route.

• Estimated delay calculated from trac events on your route.

• The symbol of the vehicle type used in route calculation.

• The route planning method (e.g. Fast).

4. You have the following options on this screen (for detailed instructions on

how to use them, see the next chapter):

• Tap to edit the route: to add or remove destinations or change

their sequence. You can also set a route start point other than your current

location. This can be useful to plan and save a future trip.

• Tap to display the entire route on the map.

• Tap to bypass a part of the route.

• Tap to delete the active route.

• Tap to open a list with more options like selecting from route

alternatives, changing route parameters, simulating the route, saving the

active route or loading a previously saved route.

• Tap to return to the Navigation menu.

VX6020

MODIFYING THE ROUTE

When navigation is already started, there are several ways to modify the active

route. The following sections show some of those options.

Selecting a New Destination When Already Having a

Route:

New Route, Waypoint or Final Destination

If you already have a recommended route and you select a new destination as

described in the above sections, the application will ask you whether to start a

new route, add a new waypoint (intermediate destination) to the route or append

the newly selected destination at the end of the current route.

• Tap to plan a new route to the newly selected location. The previous

destination and waypoint(s) are deleted.

• Tap to add the newly selected location as an intermediate destination

to your route. The other destinations of the route remain intact. Note: the new

waypoint is placed among destinations to keep the route optimal. To decide

where a waypoint should appear, use the Edit Route feature.

• Tap to append the newly selected destination at the end of the route. The

other destinations of the route remain intact. The previous nal destination is

now the last waypoint.

VX6020

Setting a New Starting Position for the Route

For normal navigation, all routes are planned from the current position. In order

to check future routes, simulate them or see their length in time and distance, you

can turn o the GPS receiver. Then you can set the starting point of the route to a

dierent location than the current GPS position.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. If you already have a route, tap .

If you are starting a new route, tap .

VX6020

4. The rst line is the start of the route, normally the current GPS position.

Tap and conrm your action at the warning message.

5. The Destination menu appears and you can select the start point of the route

the same way you select a destination.

6. When the new start point is set, tap .

7. The map returns with a transparent Vehimarker (showing that there is no GPS

reception). If an active route already existed, it is now recalculated starting

from the selected location.

8. To return to normal navigation, tap .

VX6020

Editing the List of Destinations (Edit Route)

You can edit the route by modifying the list of destinations. You can add or remove

destinations, modify the start position or reorder the list.

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. If you already have a route, tap .

4. You have the following options:

• Tap to add a new destination.

• Tap to delete a destination.

• Tap to modify the start point of the route.

• Tap to reorder the list. You can do it manually or you can let

the application optimize the route for you.

VX6020

Pausing the Active Route

You do not need to pause the active route: when you start driving again, iGO

primo restarts the voice instructions from your position.

Canceling the Active Route

To cancel the navigated route, do one of the following:

• If you are on the Map screen, tap and then tap .

(If you have a route with waypoints, you need to tap until all waypoints

are deleted.)

• In the Navigation menu, tap and then tap . The

active route is deleted with all its waypoints.

VX6020

Checking Route Alternatives when Planning the Route

You can select from dierent route alternatives or change the route planning

method after you have selected a new destination. Do as follows:

1. Select a destination as explained earlier, and go to the route conrmation

screen.

2. Tap .

3. Tap .

4. You see the basic details of three route alternatives with the selected route

planning method. Tap any of them to see it on the map.

VX6020

5. Or if you cannot nd a good alternative, tap and scroll down for

routes with dierent routing methods.

6. Select one of the route alternatives and tap to return to the

previous screen. iGO primo recalculates the route. The orange line now shows

the new recommended route.

Checking Route Alternatives for an Existing Route

To recalculate the active route with a dierent route planning method, you

can modify the Route settings. There is another way to do this and to compare

dierent route alternatives with the same route planning method. Do as follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

100

VX6020

3. Tap .

4. Tap .

5. You see the basic details of three route alternatives with the selected route

planning method. Tap any of them to see it on the map.

6. Or if you cannot nd a good alternative, tap and scroll down for

routes with dierent routing methods.

7. Select one of the route alternatives then tap and hold for a few

seconds to return to the Map screen. iGO primo recalculates the route. The

orange line now shows the new recommended route.

101

VX6020

Changing the Vehicle Used in Route Planning

To recalculate the active route for a dierent vehicle, do as follows. These changes

can also be made in Settings.

1. On the Map screen, tap and then tap .

2. Tap and then tap one of the following:

•

3. iGO primo recalculates the route optimized for the new vehicle type. The

orange line now shows the new recommended route.

Note!

If you select and you forget to change it back to a vehicle later, the

software warns you when you travel with a speed that is too high for a pedestrian.

You are allowed to switch back instantly to .

102

VX6020

Changing the Road Types Used in Route Planning

To recalculate the active route with dierent road type preferences, do as follows.

These changes can also be made in Settings.

1. On the Map screen, tap and then tap .

2. Tap any of the listed road types to modify the route. If needed, scroll the list

for all road types. You have the following options (their order depends on the

selected vehicle type):

• - You might need to avoid freeways when you are driving a slow

car or you are towing another vehicle.

• - Charge roads are pay roads where you can purchase a pass or

vignette to use the road for a longer period of time. They can be enabled or

disabled separately from toll roads.

• - iGO primo includes toll roads (pay roads where there is a per-

use charge) in the routes by default. If you disable toll roads, iGO primo plans

the best toll-free route.

• - iGO primo includes ferries in a planned route by default.

However, a map does not necessarily contain information about the

accessibility of temporary ferries. You might also need to pay a fare on ferries.

• - iGO primo excludes unpaved roads by default: unpaved roads

can be in a bad condition and usually you cannot reach the speed limit on

them.

• - Carpool or HOV lanes can be used if a given number of

passengers are traveling in the vehicle. You should check whether you are

allowed to use carpool lanes before enabling this road type.

3. Tap to conrm the changes. iGO primo recalculates the route.

The orange line now shows the new recommended route.

103

VX6020

SAVING A LOCATION AS A FAVORITE

DESTINATION

You can add any location to Favorites, the list of frequently used destinations.

1. Select a destination as described before. It can be an address, a Place, any

location on the map, a previously used destination from History, a coordinate

or a location where a photo was taken.

2. When the full screen map appears with the selected location in the middle,

tap .

3. Tap .

4. (Optional) Using the keyboard, you can change the name oered for the

Favorite. Tap to enter numbers or symbols.

5. Tap to save the location as a new Favorite destination.

104

VX6020

SAVING A LOCATION AS AN ALERT POINT

You can save any map location as an alert point (for example a speed camera or a

railroad crossing).

1. Browse the map and select a location. The red Cursor appears there.

2. Tap .

3. Scroll down the list and tap .

4. On the newly opened screen, select the type of the alert point, the direction

from which you expect the alert, and (if applicable) the speed limit for this

alert point.

5. Tap to save the location as a new alert point.

105

VX6020

EDITING AN ALERT POINT

You can edit a previously saved or uploaded alert point (for example a speed

camera or a railroad crossing).

1. Browse the map and select the alert point to edit. The red circle appears

around the alert point.

2. Tap .

3. Scroll down the list and tap .

4. On the newly opened screen, modify the type of the alert point, the direction

from which you expect the alert, or (if applicable) the speed limit for this alert

point.

5. Tap to save the changes to the alert point.

106

VX6020

WATCHING THE SIMULATION OF THE ROUTE

You can run a simulated navigation that demonstrates the active route. Do as

follows:

1. If you are on the Map screen, tap to return to the

Navigation menu.

2. In the Navigation menu, tap .

3. Tap .

4. Scroll down the list and tap . The simulation starts from the

starting point of the route, and using a realistic speed, it leads you through the

whole recommended route.

107

VX6020

5. (Optional) You have the following controls during the simulation (the control

buttons disappear after a few seconds but you can open them again if you tap

the map):

• : Jump to the next route event (maneuver).

• : Pause the simulation.

• : Jump to the previous route event (maneuver).

• : Tap to increase the speed of the simulation to 4, 8 or 16 times faster.

Now tap again to return to the normal speed.

6. Tap to stop the simulation.

108

VX6020

This page intentionally left blank.

109

VX6020

REFERENCE GUIDE

On the following pages you will nd the description of the dierent concepts and

menu screens of iGO primo.

CONCEPTS

Smart Zoom

Smart Zoom provides much more than just a usual automatic zoom feature:

• While following a route: when approaching a turn, it will zoom in and raise the

view angle to let you easily recognize your maneuver at the next junction. If the

next turn is at a distance, it will zoom out and lower the view angle to be at so

you can see the road in front of you.

• While driving without an active route: Smart Zoom will zoom in if you drive

slowly and zoom out when you drive at high speed.

Daytime and Night Color Themes

iGO primo uses dierent color themes during the day and during the night for

both the map and the menu screens.

• Daytime colors are similar to paper road maps, and the menus are bright.

• The night color themes use dark colors for large objects to keep the average

brightness of the screen low.

iGO primo oers dierent daytime and night color proles. It can also switch

automatically between the daytime and the night schemes based on the current

time and GPS position a few minutes before sunrise, when the sky has already

turned bright, and a few minutes after sunset, before it becomes dark.

110

VX6020

Route Calculation and Recalculation

iGO primo calculates the route based on your preferences:

Route planning methods:

• : Gives a quick route if you can travel at or near the speed limit on

all roads. Usually the best selection for fast and normal cars.

• : Gives a route that has the smallest total distance of all possible

routes. It can be practical for slow vehicles.

• : Gives a quick but fuel ecient route based on the fuel

consumption data given in Green Routing settings (page 88). Travel cost and

CO2 emission calculations are estimations only. They cannot take elevations,

curves and trac conditions into account.

• : Results in a route with fewer turns and no dicult maneuvers.

With this option, you can make iGO primo to take, for example, the freeway

instead of a series of smaller roads or streets.

Vehicle types:

• Maneuver restrictions and directional constraints are taken into account when

planning a route.

• Roads are used only if access for cars is allowed.

• Private roads and resident-only roads are used only if they are inevitable to

reach the destination.

• Walkways are excluded from routes.

• Neither maneuver restrictions nor directional constraints are taken into account

when planning a route.

• Roads are used only if access for pedestrians is allowed.

• Controlled-access roads are excluded from routes.

• A private road is used only if the destination is there.

• Speed limits are not used in route calculation and an average walking speed is

used when calculating the estimated time of arrival.

111

VX6020

• Maneuver restrictions and directional constraints (if they are applied to bicycles

in the map data) are taken into account when planning a route.

• Roads are used only if access for bicycles or pedestrians is allowed.

• Controlled-access roads are excluded from routes.

• A private road is used only if the destination is there.

• Speed limits are not used in route calculation and an average cycling speed is

used when calculating the estimated time of arrival.

• All maneuvers are available in intersections.

• Directional constraints are taken into account the way that opposite direction is

allowed with a low speed.

• A private road is used only if the destination is there.

• Walkways are excluded from routes.

• Maneuver restrictions and directional constraints are taken into account when

planning a route.

• Roads are used only if access for buses is allowed.

• Private roads, resident-only roads and walkways are excluded from routes.

• Maneuver restrictions and directional constraints are taken into account when

planning a route.

• Roads are used only if access for taxis is allowed.

• Private roads, resident-only roads and walkways are excluded from routes.

112

VX6020

Road types used or avoided in route calculation:

•

Whenever data exist, route calculation takes into account statistical trac data for

the given day of week and time of day.

Real-time Trac events are also taken into account and sometimes greatly modify

the route.

iGO primo automatically recalculates the route if you deviate from the proposed

itinerary or if a newly received Trac event concerns a part of the recommended

route.

113

VX6020

Green Routing

Route calculation is not only about nding the quickest or shortest route. For

some of the vehicle types, you can also check the fuel consumption and CO2

emission when planning a route, and you can create cost eective routes with less

eect on the environment.

In Settings, select to enter the necessary parameters of your vehicle

and the average fuel price. You can also select whether you want to see the

dierence between your route and the green route even if the selected routing

method is not Green.

After the above parameters are set, select as route planning

method to get a fast but also fuel ecient route. Note that travel cost and CO2

emission calculations are estimations only. They cannot take elevations, turns,

curves and trac conditions into account. Also, this routing is not meant to give

you the “greenest” route of all. It is still important to travel quickly so the result is a

fast route with low fuel consumption and CO2 emission.

With a vehicle type where green routing is selectable, whichever route planning

method is selected, the Green details are also shown when you conrm the route:

If the selected route planning method is not Green, and you have allowed the

application to show the green alternative, the price, fuel consumption and CO2

emission dierences between your selected route and the Green route are also

shown on this screen:

Tap the eld with these details to switch the route to Green immediately.

114

VX6020

Road Safety Cameras and Other Proximity Alert Points

There is a special proximity warning for road safety cameras (like speed or red light

cameras) and other proximity alert points (like schools or railroad crossings). These

alert points are preloaded in iGO primo. You can download more from

www.naviextras.com or you can upload points in a specic text le if needed.

You can also add your own alert points or edit the preloaded or uploaded points.

The application can warn you when you approach road safety cameras like speed

cameras or dangerous areas like school zones or railroad crossings. You can set up

the dierent alert types individually in Sound and Warning settings.

The following alert types are available:

• Audio warning: beeps or the spoken type of the alert can be played while you

are approaching one of these points, or extra alert sounds if you exceed the

given speed limit while approaching.

• Visual warning: the type of the alert point, its distance and the related speed

limit appear on the Map screen while you are approaching one of these

cameras. The distance from the camera is also displayed.

For some of the alert points, the enforced or expected speed limit is available. For

these points, the audio alert can be dierent if you are below or above the given

speed limit.

• Only when speeding: The audio alert is only played when you exceed the given

speed limit.

• When approaching: The audio alert is always played. In order to draw your

attention, the alert can be dierent if you exceed the speed limit.

Note!

The warning for road safety cameras is disabled when the GPS position is not yet

available or if you are in certain countries where road safety camera warning is

prohibited.

Speed Limit Warning

Maps may contain information about the speed limits of the road segments. iGO

primo is able to warn you if you exceed the current limit. This information may

not be available for your region (ask your local dealer), or may not be fully correct

for all roads in the map. Speed warning can be ne-tuned in Sound and Warning

settings.

You can set the relative speed above which the application initiates the warning.

The following alert types are available:

• Audio warning: you receive a verbal warning when you exceed the speed limit

with the given percentage.

• Visual warning: the current speed limit is shown on the map when you exceed it

(for example: ).

You can also choose to see the speed limit sign on the map all the time.

115

VX6020

GPS Position Quality Indicators

You can nd useful information in the top corners of menu screens.

In the top right corner, the GPS reception quality icon shows the current accuracy

of the position information.

Icon Description

iGO primo has no connection to the GPS receiver: GPS

navigation is not possible.

Devices with a built-in GPS receiver are permanently

connected. On such devices, the icon does not appear in

normal circumstances.

iGO primo is connected to the GPS receiver, but the

signal is too weak and the receiver cannot determine the

GPS position.

GPS navigation is not possible.

Only a few satellites are received. Position information is

available, but elevation (altitude) cannot be calculated.

GPS navigation is possible, but the position error may be

signicant.

Altitude information is available, the position is a 3D

position.

GPS navigation is possible.

Stored Tra c Information In Route Planning

The recommended route is not always the same between two points. Oine

statistical trac information (historical speed information or trac patterns)

can be taken into account in the route calculation based on the time of day and

the day of week whenever suitable data exists. This function is subject to data

availability.

Smart Routes with Stored Statistical Tra c Information

If statistical trac information is stored with the map data, iGO primo can take

them into account when planning a route. In normal cases, these statistics help

you avoid usual trac jams on the given day of week in the given hour but in

some cases like on public vacations that fall on normal weekdays, they can be

misleading.

116

VX6020

‘MORE’ MENU

The ‘More’ menu provides you with various options and additional applications.

Tap the following buttons: , .

Button Description

You can congure the program settings, and modify the

behavior of iGO primo. Fine-tune route planning options,

change the look of the Map screen, turn on or o warnings,

or restart the Conguration wizard, etc. See the next chapter

for details.

Visit www.naviextras.com to get additional content, such as

new maps or 3D landmarks and useful applications.

The Fuel Consumption monitor helps you keep track of the

consumption of your car even if you do not use navigation

for all your journeys. Set the initial odometer value and then

record the distance taken and fuel lled in whenever you ll

your car.

You can also set reminders for regular car maintenance.

Tap this button to see the sunlit and dark areas of the world.

Your current location and route points are marked on the

map. Tap the Details button to see the exact sunrise and

sunset times for all your route points (your current location,

all waypoints and the nal destination).

117

VX6020

If you save your trip logs when you arrive at some of your

destinations or let the application automatically save the trip

logs for you, those logs are all listed here.

Tap one of the trips to see the trip statistics, speed and

altitude prole. If track log has also been saved, you can

display it on the map with the selected color.

Track logs can be exported to GPX les for later use.

Select a country from the list and see useful driving

information about the selected country. Information may

include speed limits on dierent road types, the maximum

blood alcohol level and any compulsory equipment you

need to show when stopped by the police.

Run the Demo to watch sample route simulations to see

how navigation works.

The About section provides you with product information.

Read the Software and Database End User License

Agreement, look up content licenses or check the unique

identier of the software. You can also access program usage

statistics.

118

VX6020

SETTINGS MENU

You can congure the program settings, and modify the behavior of iGO primo.

Tap the following buttons: , , .

The Settings menu has several options. Tap or scroll with your nger to see the

full list.

Button Description

Adjust the sound volume, mute your device or

change the voice guidance language. In addition, you

can enable and set up dierent warnings and alerts.

The content of the Quick menu is fully customizable.

Tap the button you want to change, and select its new

function from the list.

The recommended route is not always the same

between two points. Whenever suitable data

exists,oine statistical trac information (historical

trac data or trac patterns) can be taken into

account in the route calculation based on the time of

day and the day of week.

This function is subject to data availability.

Tap the button to set up these functions.

These settings determine how routes will be

calculated. Select the type of vehicle you are driving,

the road types used in route planning, and the route

planning method.

These settings determine how Green routes will be

calculated. They are also used to display the cost and

CO2 emission of routes.

119

VX6020

You can ne-tune the appearance of the Map screen.

Adjust the map view to your needs, choose suitable

color themes from the list for both daytime and night

use, change the red arrow to a 3D car model, show or

suppress 3D buildings, turn track logging on or o,

and manage your Place visibility sets (which Places to

show on the map).

Settings related to guidance on the map screen can

be adjusted here.

Display related settings include menu animations,

separate skins for daytime and night use and the

brightness of the display.

These settings allow you to customize the application

for your local language, measurement units, time and

date settings and formats, as well as to choose the

time zone.

Trip logs and track logs contain useful information

about your trips. Trip logs can be saved manually

when you reach your destination or you can turn on

the automatic saving here.

Modify the basic software parameters set during the

initial setup process.

Delete all saved data and reset all settings to their

factory defaults.

120

VX6020

Sound and Warnings

Adjust the sound volume, mute your device or change the voice guidance

language. In addition, you can enable and set up dierent warnings and alerts.

Button Description

Tap this button to adjust the volume of the dierent

sounds in the application. A new screen shows the

dierent sound types and their controls. See below

for details.

This button shows the current voice guidance prole.

By tapping the button, you can select a new prole

from the list of available languages and speakers.

Tap any of these to hear a sample voice prompt.

Just tap when you have selected the

new spoken language.

Maps may contain information about the speed limits

of the road segments. iGO primo is able to warn you if

you exceed the current limit. This information may not

be available for your region (ask your local dealer), or

may not be fully correct for all roads in the map. This

setting lets you decide whether you wish to receive

visible and/or audible warnings.

Adjust the slider to set the relative speed above which

the application initiates the warning.

The following alert types are available:

• Audio warning: you receive a verbal warning

when you exceed the speed limit with the given

percentage.

• Visual warning: the current speed limit is shown on

the map when you exceed it.

If you prefer to see the speed limit sign on the map

all the time (normally it is shown only if your speed

exceeds it), you can set it here.

121

VX6020

This feature allows you to receive a warning when

approaching a Road Safety Camera. You must ensure

on your own liability that using this feature is legal in

the country where you intend to use it.

This button is not displayed when GPS position is

not available or if you are in certain countries where

road safety camera warning is prohibited. Even if the

button is available, you are responsible for checking

whether it is legal to use this feature at your location.

Maps may contain driver alert information. Tap this

button to turn on or o these warnings and to set the

distance from the hazard to receive the warning at.

These can be set individually for the dierent warning

types.

The application can warn you when you approach

road safety cameras like speed cameras or dangerous

areas like school zones or railroad crossings. Tap this

button and set the dierent alert types individually.

The following alert types are available:

• Audio warning: beeps or the name of the alert

type can be played while you are approaching

the camera, or extra alert sounds if you exceed

the speed limit while approaching one of these

cameras.

• Visual warning: the type of the alert point, its

distance and the related speed limit appear on

the Map screen while you are approaching one of

these cameras. The distance from the camera is also

displayed.

For some of the alert points, the enforced or expected

speed limit is available. For these points, the audio

alert can be dierent if you are below or above the

given speed limit.

• Only when speeding: The audio alert is only played

when you exceed the given speed limit.

• When approaching: The audio alert is always

played. In order to draw your attention, the alert

can be dierent if you exceed the speed limit.

Road safety cameras are not displayed in the list

when GPS position is not available or if you are in

certain countries where road safety camera warning is

prohibited.

122

VX6020

You can control the volume of the following sound types:

Button Description

This is the main volume control. These controls aect

all below sounds. They can also be accessed from the

Quick menu.

These controls aect the volume of the guidance

sounds (verbal instructions).

These controls aect the volume of the alert sounds

(beeps).

These controls aect the volume of the background

music.

Key sounds provide audible conrmation of tapping

the touch screen. These controls aect key sounds.

Controls for each sound type:

Button Description

Volume Slider Adjusts the volume of the related

sound.

Use the switch to mute the related

sound. The slider becomes inactive.

Tap again to re-enable.

123

VX6020

Customize Quick Menu

The content of the Quick menu is fully customizable. Tap the button you want to

change, and select its new function from the list.

Tra c Settings

The recommended route is not always the same between two points.

Whenever suitable data exists, oine statistical trac information (historical

speed information or trac patterns) can be taken into account in the route

calculation based on the time of day and the day of week.

This function is subject to data availability.

Button Description

Use this switch to enable or disable historical

trac data and trac patterns. This locally

stored information can be very useful in normal

circumstances but for example on public vacations

it may be better to turn o in order not to take into

account normal weekday trac jams.

124

VX6020

Route Settings

These settings determine how routes will be calculated.

Button Description

You can set the type of vehicle you will use to

navigate the route. Based upon this setting, some

of the road types can be excluded from the route,

or some of the restrictions may not be taken into

account in route calculation.

The route calculation can be optimized for dierent

situations and vehicle types by changing the planning

method. See below for details.

To let the route t your needs, you can also set which road types are to be

considered for or to be excluded from the route if possible.

Excluding a road type is a preference. It does not necessarily mean total

prohibition. If your destination can only be accessed using some of the excluded

road types, they will be used but only as much as necessary. In this case a

warning icon will be shown on the My Route screen, and the part of the route not

matching your preference will be displayed in a dierent color on the map.

In the list of road types you can see in how many segments and what total length

of the road type is used in the current route.

Button Description

You might need to avoid freeways when you are

driving a slow car or you are towing another vehicle.

Charge roads are pay roads where you can purchase a

pass or vignette to use the road for a longer period of

time. They can be enabled or disabled separately from

toll roads.

iGO primo includes toll roads (pay roads where there

is a per-use charge) in the routes by default. If you

disable toll roads, iGO primo plans the best toll-free

route.

iGO primo includes ferries in a planned route by

default. However, a map does not necessarily contain

information about the accessibility of temporary

ferries. You might also need to pay a fare on ferries.

125

VX6020

iGO primo excludes unpaved roads by default:

unpaved roads can be in a bad condition and usually

you cannot reach the speed limit on them.

Carpool or HOV lanes can be used if a given number

of passengers are traveling in the vehicle. You should

check whether you are allowed to use carpool lanes

before enabling this road type.

Vehicle types:

• Maneuver restrictions and directional constraints are taken into account when

planning a route.

• Roads are used only if access for cars is allowed.

• Private roads and resident-only roads are used only they are inevitable to reach

the destination.

• Walkways are excluded from routes.

• Neither maneuver restrictions nor directional constraints are taken into account

when planning a route.

• Roads are used only if access for pedestrians is allowed.

• Controlled-access roads are excluded from routes.

• A private road is used only if the destination is there.

• Speed limits are not used in route calculation and an average walking speed is

used when calculating the estimated time of arrival.

• Maneuver restrictions and directional constraints (if they are applied to bicycles

in the map data) are taken into account when planning a route.

• Roads are used only if access for bicycles or pedestrians is allowed.

• Controlled-access roads are excluded from routes.

• A private road is used only if the destination is there.

• Speed limits are not used in route calculation and an average cycling speed is

used when calculating the estimated time of arrival.

126

VX6020

•

• All maneuvers are available in intersections.

• Directional constraints are taken into account the way that opposite direction is

allowed with a low speed.

• A private road is used only if the destination is there.

• Walkways are excluded from routes.

• Maneuver restrictions and directional constraints are taken into account when

planning a route.

• Roads are used only if access for buses is allowed.

• Private roads, resident-only roads and walkways are excluded from routes.

• Maneuver restrictions and directional constraints are taken into account when

planning a route.

• Roads are used only if access for taxis is allowed.

• Private roads, resident-only roads and walkways are excluded from routes.

Route Planning Method Types:

Button Description

Gives a quick route if you can travel at or near the

speed limit on all roads. Usually the best selection for

fast and normal cars.

Gives a short route to minimize the distance to travel.

Usually practical for pedestrians, cyclists or slow

vehicles. Searching for a short route regardless of the

speed, this route type is rarely practical for normal

vehicles.

Gives a quick but fuel ecient route based on the

fuel consumption data given in Green Routing

settings. Travel cost and CO2 emission calculations

are estimations only. They cannot take elevations,

curves and trac conditions into account.

Results in a route with fewer turns and no dicult

maneuvers. With this option, you can make iGO

primo to take, for example, the freeway instead of a

series of smaller roads or streets.

127

VX6020

Green Routing Settings

These settings determine how Green routes will be calculated. They are also used

to display the cost and CO2 emission of routes.

Button Description

Enter the average consumption of your vehicle when

used in built-up areas.

If necessary, tap and

select to change the measurement unit.

Enter the average consumption of your vehicle when

used on highways.

If necessary, tap and

select to change the measurement unit.

Select the engine and fuel type of your vehicle. This

helps in estimating the CO2 emission.

Enter the average fuel price for travel cost calculation.

If necessary, tap and

select to change the measurement unit.

If the selected routing method is not Green, you

can have the best green alternative on screen when

selecting the route.

128

VX6020

Map Settings

You can ne-tune the appearance of the Map screen. Adjust the map view to your

needs, choose suitable color themes from the list for both daytime and night use,

change the red arrow to a 3D car model, show or hide 3D buildings, turn track

logging on or o, and manage you Place visibility sets (which Places to show on

the map).

The map is always shown on the screen so that you can see the eect when you

change a setting.

Button Description

Switch the map view between a 3D perspective view

and a 2D top-down view.

Adjust the basic zoom and tilt levels to your needs.

Three levels are available.

Switch between daytime and night color modes

or let the software switch between the two modes

automatically a few minutes before sunrise and a few

minutes after sunset.

Select the color scheme used in daytime mode.

Select the color scheme used in night mode.

Replace the default position marker to one of the

3D vehicle models. You can select separate icons for

dierent vehicle types selected for route planning.

Separate icons can be used for car, pedestrian and the

other vehicles.

Show or suppress 3D landmarks, 3D artistic or block

representations of prominent or well-known objects.

129

VX6020

Show or suppress 3D city models, 3D artistic or block

representation of full city building data containing

actual building size and position on the map.

Turn on or o track log saving, that is, saving the

sequence of the locations your journeys go through.

Select which Places to show on the map while

navigating. Too many Places make the map crowded

so it is a good idea too keep as few of them on the

map as possible. For this, you have the possibility

to save dierent Place visibility sets. You have the

following possibilities:

• Tap the checkbox to show or hide the Place

category.

• Tap the name of the Place category to open the list

of its subcategories.

• Tap to save the current Place visibility

set or to load a previously saved one. Here you can

also revert to the default visibility settings.

130

VX6020

Visual Guidance Settings

Settings related to guidance on the map screen can be adjusted here.

Button Description

The data elds in the corner of the Map screen can

be customized. Tap this button and select the values

you want to see. The values can be dierent when

you navigate a route from when you are just cruising

without a given destination. You can select general

trip data like your current speed or the altitude, or

route data related to your nal destination or the next

waypoint on your route.

If you are approaching a freeway exit or a complex

intersection and the needed information exists, the

map is replaced with a 3D view of the junction. You

can turn this feature on or let the map be displayed

for the whole route.

Whenever adequate information is available, lane

information similar to the real ones on road signs

above the road is displayed at the top of the map. You

can turn this feature on or o.

Turn on the route progress bar to see your route as a

straight line on the left side of the map. The red arrow

represents your current position and moves up as you

travel. Waypoints and Trac events are also displayed

on the line.

131

VX6020

Display Settings

Display related settings include menu animations, separate skins for daytime and

night use and the brightness of the display.

Button Description

When animation is turned on, buttons on menus and

keyboard screens appear in an animated way. Screen

transitions are also animated.

Select the style and colors of the application used in

daytime mode.

Select the style and colors of the application used in

night mode.

Adjust the display backlight.

Regional Settings

These settings allow you to customize the application for your local language,

measurement units, time and date settings and formats, as well as to choose the

time zone.

Button Description

This button displays the current written language

of the user interface. By tapping the button, you

can select a new language from the list of available

languages. The application will restart if you change

this setting; you are asked to conrm this.

You can set the distance units to be used by the

program. iGO primo may not support all the listed

units in some voice guidance languages. Select

between 12 and 24 hours time display and the various

international date display formats.

By default, time zone is taken from the map

information and adjusted by your current location.

Here you can set time zone and daylight saving

manually.

132

VX6020

Trip Monitor Settings

Trip logs and track logs contain useful information about your trips. Trip logs

can be saved manually when you reach your destination or you can turn on the

automatic saving here. You can access these logs in the Trip monitor. Trip monitor

is available from the More menu.

Button Description

Trip monitor can record statistical data of your trips. If

you need these logs later, you can let the application

save them automatically for you.

This is not a button. This line shows the current size

of the trip database, the sum of all trip and track logs

saved.

Track logs, the sequence of the positions given by the

GPS receiver, can be saved together with trip logs.

They can later be displayed on the map. You can let

the application save the track log whenever it saves a

trip.

133

VX6020

GLOSSARY

2D/3D GPS reception

The GPS receiver uses satellite signals to calculate its (your) position and needs

at least four signals to give a three-dimensional position, including elevation.

Because the satellites are moving and because objects can block the signals,

your GPS device might not receive four signals. If three satellites are available, the

receiver can calculate the horizontal GPS position but the accuracy is lower and

the GPS device does not give you elevation data: only 2D reception is possible.

Active route

The currently navigated route. Whenever the destination is set, the route is active

until you delete it, reach your destination or you quit iGO primo. See also: Route.

City Center

The city/town center is not the geometric center of the city but an arbitrary

point the map creators have chosen. In towns and villages, it is usually the most

important intersection; in larger cities, it is one of the important intersections.

Color theme

iGO primo comes with dierent color themes for daytime or night use of the

map and menu screens. Themes are custom graphic settings and they can have

dierent colors for streets, blocks or surface waters in 2D and 3D modes, and they

display shades or shadows in dierent ways in 3D mode.

One daytime scheme and one night scheme is always selected for the map and for

the menus. iGO primo uses them when it switches from day to night and back.

GPS accuracy

Several factors have impact on the deviation between your real position and

the one given by the GPS device. For example, signal delay in the ionosphere or

reecting objects near the GPS device have a dierent and varying impact on how

accurately the GPS device can calculate your position.

Map

iGO primo works with digital maps which are not simply the computerized

versions of traditional paper maps. Similarly to the paper road maps, the 2D mode

of digital maps show you streets, roads, and elevation is also shown by colors.

You can use digital maps interactively: you can zoom in and out (increase or

decrease the scale), you can tilt them up and down, and rotate them left and right.

In GPS-supported navigation, digital maps facilitate route planning.

134

VX6020

North-up map orientation

In North-up mode the map is rotated so its top always faces North. This is the

orientation for example in Find on Map. See also: Track-up map orientation.

Road Safety Camera

Special alert points for speed, red light or bus lane cameras. Dierent data sources

are available. You can congure iGO primo to warn you when you approach one of

these cameras.

Detecting the location of Road Safety Cameras is prohibited in certain countries.

It is the sole responsibility of the driver to check whether this feature can be used

during the trip.

NOTE: Optional, see details at www.naviextras.com for information.

Route

A sequence of route events, i.e. maneuvers (for example, turns and trac circles)

to reach the destination. The route contains one start point and one or more

destinations. The start point is the current (or last known) position by default.

If you need to see a future route, the start point can be replaced with any other

given point.

Track-up map orientation

In Track-up mode the map is rotated so its top always points in the current driving

direction. This is the default orientation in 3D map view mode. See also: North-up

map orientation.

Vehimarker

The current position is shown with a red arrow on the map by default. The

direction of the red arrow shows the current heading. This position marker can

be replaced with dierent vehicle and pedestrian symbols. You can even specify

dierent Vehimarkers for dierent route types (depending on which vehicle type

is selected for route calculation).

135

VX6020

END USER LICENSE AGREEMENT

1 The contracting parties

1.1 This Agreement has been entered into by and between NNG Kft. (registered

seat: 23 Bérc utca, H-1016 Budapest, Hungary; Company reg.no.: 01-09-891838)

as Licensor (hereinafter: Licensor) and You as the User (hereinafter: User; the User

and the Licensor jointly referred to as: Parties) in subject of the use of the software

product specied in this Agreement.

2 Conclusion of the Agreement

2.1 The Parties hereby acknowledge that this Agreement shall be concluded by

implicit conduct of the Parties without signing the Agreement,

2.2 The User hereby acknowledges that following the lawful acquisition of the

software product constituting the object of this Agreement (Section 4), any

degree of use, installation into a computer or other hardware, installation of such

hardware into a vehicle, pressing of the “Accept” button displayed by the software

during installation or use (hereinafter referred to as Use) shall mean that the User

has accepted the terms and conditions of this Agreement as legally binding.

2.3 This Agreement shall by no means authorise use of the software product

by those persons having unlawfully acquired the software product or having

unlawfully installed it on a computer or in a vehicle.

3 Relevant laws and regulations

3.1 Any action related to this Agreement will be governed by the laws of the

Republic of Hungary, with specic reference to Act IV of 1959 on the Civil Code

and to Act LXXVI of 1999 on Copyrights shall apply.

3.2 The original language version of this Agreement is the Hungarian version.

This Agreement has versions in other languages as well. In case of dispute the

Hungarian version shall prevail.

4 Object of the Agreement and Termination

4.1 The object of this Agreement shall be the navigation guidance software

product of Licensor (hereinafter referred to as the Software Product).

4.2 The Software Product shall include the operating computer program, its

complete documentation, the map database pertaining thereto and any third-

party content and services accessible through the Software Product (hereinafter:

Database).

4.3 Any form of display, storage, coding, including printed, electronic or graphic

display, storage, source or object code, or any other as yet undened form of

display, storage, or coding, or any medium thereof shall be deemed parts of the

Software Product.

4.4 Error corrections, additions, updates used by the User following the conclusion

of this Agreement shall also be deemed parts of the Software Product.

136

VX6020

4.5 Your rights under this Agreement will terminate immediately without notice

from Licensor if you materially breach it or take any action in derogation of

Licensor’s and/or its licensors’ rights to the Software Product. Licensor may

terminate this Agreement should any Software Product become, or in Licensor’s

reasonable opinion likely to become, the subject of a claim of intellectual property

infringement or trade secret misappropriation. Upon termination, you will cease

use of, and destroy Software Product and conrm compliance in writing to

Licensor.

5 Rights under copyright

5.1 Unless otherwise provided by law or contractual provisions, the Licensor is the

sole and exclusive owner of all material copyrights vested in the Software Product.

5.2 Copyrights extend to the whole Software Product and to its parts separately as

well.

5.3 The owner(s) of the copyrights of the Database forming part of the Software

Product is (are) the natural person(s) or corporate entity(ies) listed in the Appendix

to this Agreement or in the “About” menu item of the operating computer

program (hereinafter referred to as Database Owner). The user’s manual of the

Software Product includes the name of the menu option where all the owners

of the Database items are listed. The Licensor hereby states that it has obtained

sucient usage and representation rights from the Database owners in order to

utilize the Database, to oer it for utilization and to transfer it for utilization as set

forth in this Agreement.

5.4 Pursuant to this Agreement, all rights vested in the Software Product shall

remain in the ownership of the Licensor, except for those to which the User is

entitled under law or by virtue of this Agreement.

6 Rights of the User

6.1 The User is entitled to install the Software Product into one hardware device

(desktop, handheld, portable computer, navigation device), and to run and use

one copy of the Software Product or a preinstalled copy of the Software Product

thereon.

6.2 The User is entitled to make one backup copy of the Software Product.

However, if the Software Product operates after installation without the use of

the original media copy, then the original media copy shall be deemed to be a

backup copy. In all other cases, the User is only entitled to use the backup copy

if the original media copy of the Software Product has been ascertainably and

unequivocally rendered unsuitable for its lawful and intended use.

7 Limitations of use

7.1 The User is not entitled

7.1.1 to duplicate the Software Product (to make a copy thereof);

7.1.2 to lease, rent or lend it or to transfer it to a third person for any reason;

137

VX6020

7.1.3 to translate the Software Product (including translation (compilation) to

other programming languages);

7.1.4 to decompile the Software Product;

7.1.5 to evade the protection of the Software Product or to modify, circumvent or

obviate such protection through technological or by any other means;

7.1.6 to modify, extend, transform the Software Product (in whole or in part), to

separate it into parts, combine it with other products, install it in other products,

utilize it in other products, not even for the purpose of achieving interoperability

with other devices;

7.1.7 apart from using the computer program, to obtain information from the

Database as a part of the Software Product, to decompile the Database, to use,

copy, modify, extend, transform the Database in whole or in part or the group of

data stored therein, or to install it in other products or otherwise, utilize it in other

products or to transfer it, not even with the aim of achieving interoperability with

other products.

7.2 The User may only use the contents available through the Software Product

and provided by third parties and the data received through the services provided

by third parties (including but not limited to the trac data received from the

RDS TMC trac information service) for his/her own personal benet and at his/

her own risk. It is strictly prohibited to store, to transfer or to distribute these data

or contents or to disclose them in full or in part to the public in any format or to

download them from the product.

8 No warranty, limitation of liability

8.1 The Licensor hereby informs the User that although the greatest care was

taken in producing the Software Product, given the nature of the Software

Product and its technical limitations, the Licensor does not provide a warranty for

the Software Product being completely error-free, and the Licensor is not bound

by any contractual obligation whereby the Software Product obtained by the User

should be completely error-free.

8.2 The Licensor does not warrant that the Software Product is suitable for any

purpose dened either by the Licensor or the User, and does not warrant that the

Software Product is capable of interoperating with any other system, device or

product (e.g. software or hardware).

8.3 The Licensor does not assume any responsibility for damages incurred due to

an error in the Software Product (including errors of the computer program, the

documentation and the Database).

8.4 The Licensor does not assume any responsibility for damages incurred due to

the Software Product not being applicable for any dened purpose, or due to the

error or incompatibility of the Software Product with any other system, device or

product (e.g. software or hardware).

138

VX6020

8.5 The Licensor also draws the attention of the User to the fact that, when using

the Software Product in any form of vehicle, observing the trac regulations and

rules (e.g. use of obligatory and/or reasonable and suitable security measures,

proper and generally expected care and attention in the given situation, and

special care and attention required due to the use of the Software Product)

is the exclusive responsibility of the User. The Licensor shall not assume any

responsibility for any damages occurred in relation to use of the Software Product

in a motor vehicle.

8.6 By concluding the Agreement, the User shall, in particular, acknowledge the

information stated in Section 8 above.

9 Sanctions

9.1 The Licensor hereby informs the User that, if the Licensor nds its rights under

the Copyright Act to be breached, the Licensor may

9.1.1 seek judicial recognition of this breach;

9.1.2 demand that the breach cease and order the person in breach to refrain from

continuing such actions;

9.1.3 demand that the person under breach give proper compensation (even by

way of publicity at the expense of the person in breach);

9.1.4 claim the return of the increase of assets due to the breach;

9.1.5 demand the cease of the wrongful action and, demand restitution to its state

before the breach was committed at the expense of the person in breach, and may

demand the destruction of instruments and materials used to commit the breach

as well as of the products created by the breach;

9.1.6 claim for damages.

9.2 The Licensor hereby also informs the User that the breach of copyrights and

related rights is a crime under Act IV of 1978 on the Hungarian Criminal Code,

which may be sentenced of two years in prison in basic cases and up to eight

years in prison in aggravated cases.

9.3 Contents and services provided by third parties

The Licensor hereby excludes any liability of its own for the Database in the

Software Product and for any content or service provided by a third party by using

the Database. The Licensor does not warrant the quality, suitability, accuracy,

tness for a specic purpose or territorial coverage of the product or service

or the availability of the service, and it specically excludes any liability for the

suspension of the service, and any damage arising in relation to the service or for

complete cancellation of the service.

The relevant information and data in connection with the contents and services

provided by third parties are available at www.naviextras.com. The User hereby

acknowledges that the contents and services provided by third parties may only

be used at the risk of the User and for the personal benet of the User.

139

VX6020

9.4 Contents and services provided by the Licensor or an agent of the Licensor

The Licensor or a contractual partner may oer various products and services to

the User through www.naviextras.com. The User may only use these services when

the User has read and understood the relevant end user license agreement(s) at

www.naviextras.com and the User is obliged to use the services in line with the

terms and conditions thereof.

9.5 The parties hereby agree that the courts of the Republic of Hungary will have

exclusive jurisdiction to rule on any disputes arising in connection with this

Agreement.

10. Anonymous data collection

10.1 The User hereby acknowledges that the Software Product may collect and

store data connected to the usage of the Software Product by the User (e.g.

movement/route data, user interaction data). Such data collection functions may

be disabled or enabled by User any time from within the corresponding menu.

The collected data is connected to the device type identier of the device running

the Software Product and not associated in any way with any personal information

of the User or with the User itself.

10.2 The collected data may be uploaded to Licensor’s database and used

exclusively for the purpose of enhancing and improving the features and services

of the Software Product and the Databases. Uploading is executed through

Licensor’s special software or by the User navigation device, and the upload may

be enabled or disabled by User. After successful data upload, the collected data is

deleted from the Software Product storage media.

10.3 Collected data is transmitted, stored and handled anonymously and no

connection of the data with the User shall be established by Licensor or any third

party.

Audiovox Electronics Corporation

Hauppauge, NY 11788

Technical Assistance: 1-800-323-4815

www.jensenmobile.com

Printed in China

128-9245

Jensen Vx 6020 Operating Instructions

VX-6020 - Navigation Operating Instructions VX6020_NM_EN Free User Guide for Jensen GPS, Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
