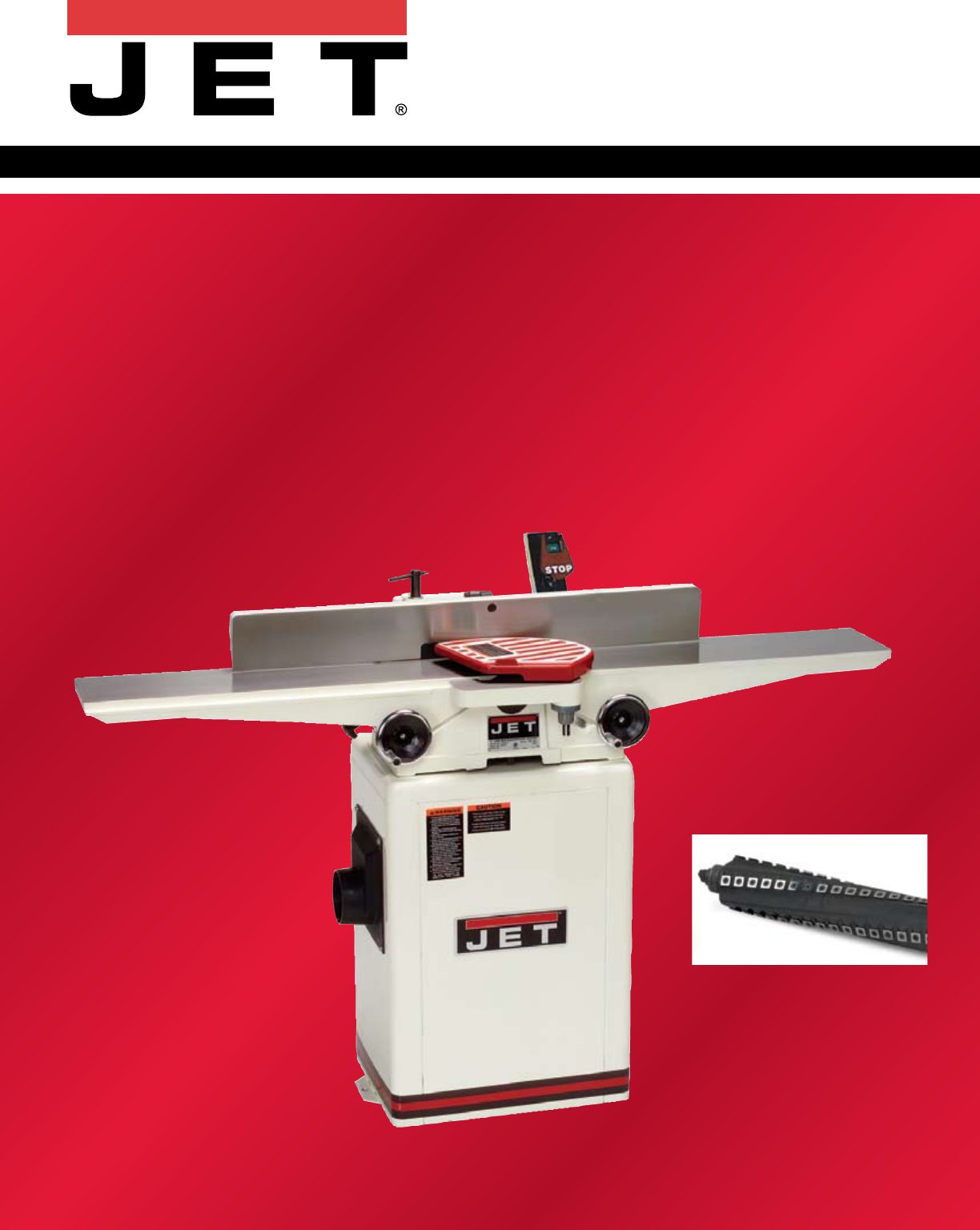

6" HH DELUXE JOINTER
STOCK NO. 900459
10M 07/07
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.
The new 6" jointer with helical style cutterhead provides unmatched surface finish and
a much quieter cut. The indexable carbide inserts make blade changes easier than ever
before. Extra long cast iron beds allow for more accurate flat edges and faces on your
material. The paddle style power switch can be mounted either below or above the infeed
table; while the front mount handwheels make table adjustments easier and more precise.
Helical head with indexable
carbide inserts makes better
finish cuts in material.
jettools.com
6" HH DELUXE JOINTER
• Helical cutterhead with indexable carbide inserts for a superior finish and
quieter cut.
• Extra-long heavy-duty cast iron infeed and outfeed tables with precision
machined finish
• Two-way tilting fence with positive stops at 45° and 90° to handle bevel
operations
• EXCLUSIVE front-mounted table adjustment handwheels make quick, easy
and accurate corrections
• Built-in dust chute with 4" port connects to your collection system for
efficient dust/chip disposal
• Center fence controls are conveniently mounted to allow quick adjustments
6" LONG BED JOINTER
HELICAL HEAD KIT
STOCK NUMBER 708466DXK
Model Number JJ-HHDX
Net Weight (lbs.) 240
Cutting Capacity (W x D/in.) 6 x 1/2
Cutterhead Speed (RPM) 6000
Number of Knives
(Helical/Standard)
27 carbide inserts
Table Height (in.) 31-3/4
Table Size (L x W/in.) 56 x 7-1/4
Fence Size (L x H/in.) 32-3/4 x 3-7/8
Fence Tilts (deg.) 45 L, 45R
Fence Positive Stops (deg.) 45 L, 90, 45 R
Dust Port Diameter (OD/in.) 4
Dust Collection Minimum
CFM Required
350
Motor Amps 13/6.5
Motor HP 1HP
Motor Phase 1Ph
Motor Voltage 115/230V
Prewired 115V
56" Long
Bed
Heavy-Duty One
Piece Steel Stand
1HP Totally Enclosed
Fan cooled Motor
Front Handwheels
High Mount
Paddle Style
On/Off Switch
4" Dust
Port
Spring-Loaded
Blade Guard
Center-Mounted Fence
with Positive Stops
Helical head with indexable
carbide inserts makes better
finish cuts in material.
