jettools.com

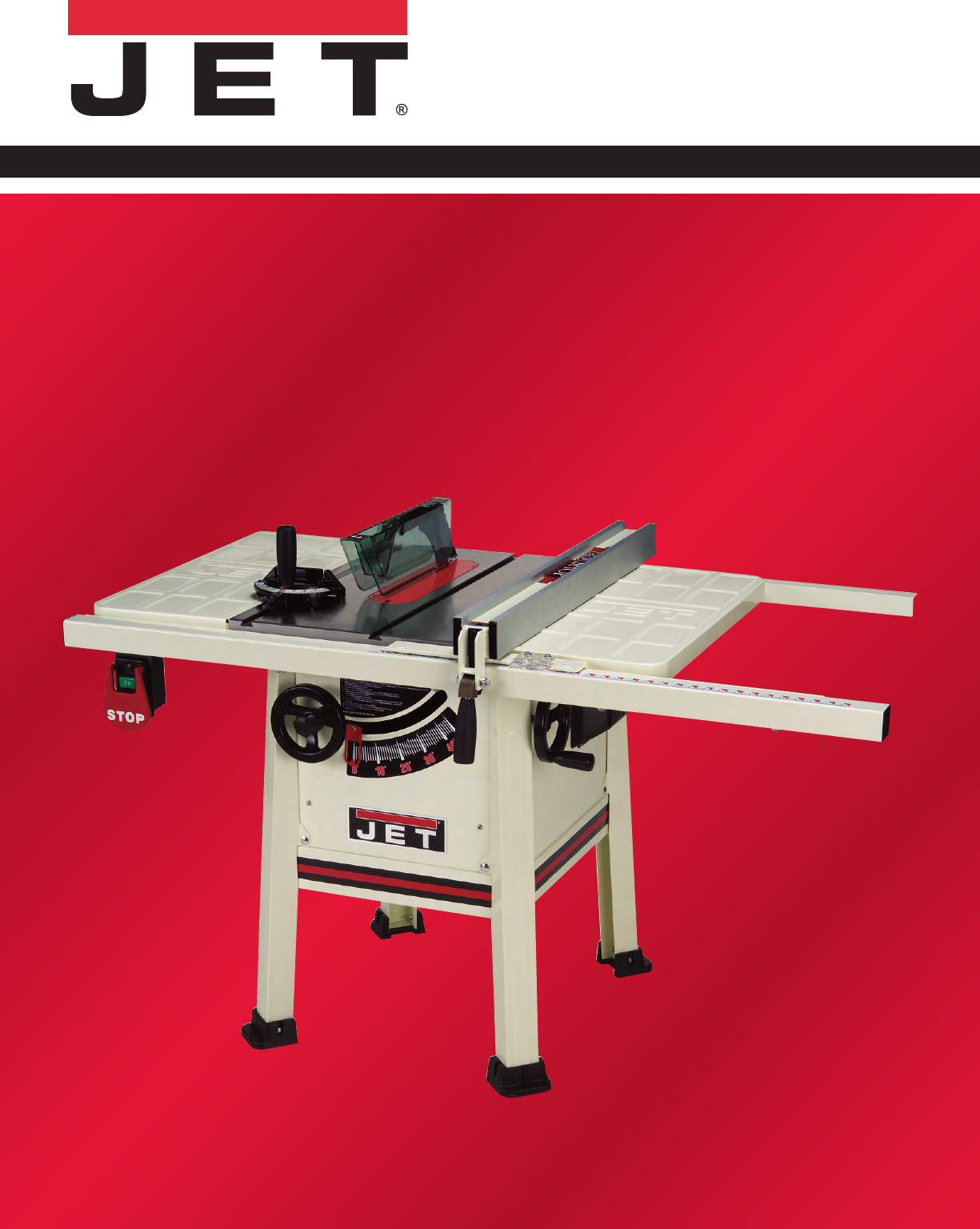

10" PROSHOP™ SAW
STOCK NO. 900494
10M 07/07
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.
The new JET® ProShop Table Saw is driven by 1-3/4 HP motor, features a fully enclosed
cabinet for highly efficient dust collection and a built-in arbor lock. Also, included is the
new ProShop fence system for precise cutting results and added versatility. Available
with either sheet metal or cast iron table extension wings.
708480K.indd 1 7/3/07 6:38:06 AM
jettools.com
10" PROSHOP™ SAW
• EXCLUSIVE 30" ProShop fence system with T-square design
• Integrated arbor lock allows for quick, safe and easy blade changes
• Heavy-duty cast iron table with T-style miter slot provides large flat work
surface and increased cross cut capacity
• Enclosed cabinet with EXCLUSIVE leg stand design for easy assembly
• 4" dust port for increased dust collection efficiency
• Rigid, left tilting cast iron trunnion
• Powder coated paint for a long-lasting, chip-resistant finish
• Steel extension wings for added workpiece support
10" PROSHOP™ SAW STOCK NUMBER 708480K
Model Number JPS-10TS
Net Weight (lbs.): 285
Blade Diameter (in.): 10
Arbor Diameter (in.): 5/8
Arbor Speed (RPM): 3600
Maximum Depth of Cut (in.): 3-1/8
Maximum Depth of Cut at 45 Degrees (in.): 2-1/8
Maximum Rip Right of Blade (in.): 30
Maximum Rip Left of Blade (in.): 12
Table in Front of Saw Blade at Maximum Depth of Cut (in.): 10-1/2
Maximum Width of Dado (in.): 13/16
Maximum Diameter of Dado (in.): 8
Table Height (in.): 34-3/4
Table Size with Standard Extension (L x W/in.): 27 x 44
Table Size without Extension (L x W/in.): 27 x 20
Dust Port Diameter (OD/in.): 4
Motor HP: 1-3/4HP
Motor Phase: 1Ph
Motor Amps: 17/9
Motor Voltage: 115/230V
Prewired: 115
Heavy-Duty
Steel Stand
Steel
Extension
Wings
Industrial
Paddle
Style
Switch
Arbor
Lock Exclusive
ProShop
Fence
708480K 708481K 708482K 708483K
PROSHOP™SAW
STEEL WINGS
30" RIP
PROSHOP™SAW
STEEL WINGS
52" RIP
PROSHOP™SAW
CAST IRON WINGS
30" RIP
PROSHOP™SAW
CAST IRON WINGS
52" RIP
708485K 708486K 708487K 708488K
PROSHOP™SAW
STEEL WINGS
30" RIP
WITH XACTA LIFT
PROSHOP™SAW
STEEL WINGS
52" RIP
WITH XACTA LIFT
PROSHOP
™
SAW
CAST IRON WINGS
30" RIP
WITH XACTA LIFT
PROSHOP™SAW
CAST IRON WINGS
52" RIP
WITH XACTA LIFT
