Jetlun RD71316 Zig Bee Appliance Module Plus User Manual RD71316UG Draft
Jetlun (Shenzhen) Corporation Zig Bee Appliance Module Plus RD71316UG Draft
Jetlun >
Users Manual
UserGuide
Draft
JetlunZigBeeGreenPHYAppliance
ModulePlus
UserGuide(RD71316)
88PARKGROVEDRIVE|SOSANFRANCISCO|CA|94080|USA
T:+18664982703|F:+16503601977
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 2
DOC: UG-RD71316-draft
© 2012 Jetlun Corporation. All rights reserved.
Notice: No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, or stored in a database
or retrieval system for any purpose without the express written permission of Jetlun Corporation.
Jetlun Corporation reserves the right to make changes to this user’s guide at any time without
notice and assumes no responsibility for its use. Jetlun products and services can only be
ordered under the terms and conditions of Jetlun Corporation's applicable agreements. All of the
features described in this user’s guide may not be currently available. Refer to the most recent
product announcement for information about feature and product availability.
This user’s guide contains the most current information available at the time of publication.
When new and/ or revised information becomes available, this entire user’s guide is updated
and distributed to all registered users.
Trademarks, Product Names, and Service Names
Jetlun, the stylized J logo, and the Jetlun logo are either trademarks or registered trademarks of
Jetlun Corporation. All other product or service names are property of their respective owners.
http://www.jetlun.com
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 3
DOC: UG-RD71316-draft
Table of Contents
1.0ABOUT THIS GUIDE .......................................................................................................... 4
1.1BECOMING FAMILIAR WITH THIS USER GUIDE...................................................................... 4
1.1Quick Reference........................................................................................................... 4
1.2Icon Descriptions .......................................................................................................... 4
1.3GETTING ADDITIONAL HELP................................................................................................ 4
1.4SENDING FEEDBACK REGARDING THIS DOCUMENTATION.................................................... 4
2.0 PRODUCT OVERVIEW....................................................................................................... 6
2.1PACKAGE CONTENTS ......................................................................................................... 6
2.2IMPORTANT SAFETY INFORMATION ..................................................................................... 6
2.3FRONT PANEL .................................................................................................................... 7
3.0INSTALLING THE JETLUN APPLIANCE PLUS............................................................... 9
3.1 INSTALLING THE ZIGBEE GREENPHY APPLIANCE MODULE PLUS HARDWARE...................... 9
3.2 JOIN AND LEAVE THE ZIGBEE GREENPHY APPLIANCE MODULE PLUS ................................ 9
3.2.1 Join the Network............................................................................................................. 9
3.2.2 Leaving the network ..................................................................................................... 10
3.3 DEMAND RESPONSE CONFIGURATION ................................................................................... 10
4.0 RESTORING FACTORY DEFAULT................................................................................. 12
5.0 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ........... 13
6.0 TECHNICAL SPECIFICATIONS....................................................................................... 14
List of Figures
Figure 1: Front Panel of the Appliance Plus................................................................................... 7
Figure 3: Power/ZigBee LED........................................................................................................ 10
Figure 4: GreenPHY LED………………………………………………………………………………11
Figure 7: Factory Default button……………………………………………………………………….12
List of Tables
Table 1: Where to find information in this User Guide ................................................................... 4
Table 2: Icon descriptions............................................................................................................... 4
Table 3: Front Panel LED Description............................................................................................7
Table 4: Front Panel Button Description ........................................................................................ 8
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 4
DOC: UG-RD71316-draft
1.0 ABOUT THIS GUIDE
1.1 Becoming familiar with this User Guide
1.1 Quick Reference
The Jetlun ZigBee GreenPHY Appliance Module Plus (RD71316) User Guide describes
the following:
Table 1: Where to find information in this User Guide
Installing and Configuring the Appliance Plus Chapter 2 and 3
Restoring the ZigBee GreenPHY Appliance Module
Plus to Factory Default Chapter 4
EMI Information Chapter 5
Technical Specification Chapter 6
1.2 Icon Descriptions
While reading through this User Guide, you may see various icons that call attention to
specific items. Below is a description of these icons:
Table 2: Icon descriptions
NOTE: This mark indicates that there is a note of interest and is
something that you should pay attention to while using the
product.
IMPORTANT: This mark identifies an indication that you should
watch for, or reiterates something that you should always keep
in mind.
WARNING: This exclamation point indicates that there is a
caution or warning and may be something that could damage
your property or project.
1.3 Getting Additional Help
To get information or assistance for problems that you encounter, please contact Jetlun
Technical Support by going online at support.jetlun.com.
Please always include with all inquiries the following information:
• Product name, model number, part number (if applicable) and serial number
• A description of the devices connected or a system configuration
• The circumstances surrounding the error or failure
• A detailed description of the problem and what has been done to try to resolve it
1.4 Sending Feedback regarding this Documentation
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 5
DOC: UG-RD71316-draft
We welcome your feedback on Jetlun Gateway documentation. This includes feedback on the
structure, content, accuracy, or completeness of our documents, and any other comments you
may have. Please send your comments to docs@jetlun.com.
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 6
DOC: UG-RD71316-draft
2.0 PRODUCT OVERVIEW
Thank you for choosing the ZigBee GreenPHY Appliance Module Plus (RD71316). The
ZigBee GreenPHY Appliance Module Plus is a 30A ZigBee-enabled two-relay Load
Control Switch (LCS) that also monitors the energy usage of the appliances that are
connected.
The ZigBee GreenPHY Appliance Module Plus features the following:
• ZigBee RF mesh networking
• Remote ON/OFF for two Appliances
• Demand Response (DR) LED indicator
• DR button
• Measuring energy usage of the appliance connected in with a resolution of 1 watts
2.1 Package Contents
When you first open the box, please check and confirm that the following items are all
included:
Appliance Plus x 1
Quick Install Guide x 1
Warraty Card x 1
Product Label x 1
Contact the retailer where you made your purchase if any of these parts are incorrect,
missing or damaged. Keep the original receipt and original packaging materials, in case
you need to return the unit for repair.
2.2 Important Safety Information
Please read all documentation and retain documentation for future reference. Follow all
warnings, alerts and instructions.
The use of of Jetlun ZigBee GreenPHY Appliance Module Plus and any other similar LCS in
conjunction with an appliance may cause a loss of ignition in gas cooktops, damage to clothing
(washer/dryers), and food spoilage (ranges, refrigerators, and freezers). Power cut-off to a
dishwasher during a cycle may result in dirty dishes. The use of these devices may also shorten
the useful life of the appliance plus.
Please DO NOT:
• Use the RD71316 near water.
• Place the RD71316 near any heat source such as direct sunlight, radiators, heaters,
stoves, or other apparatus (including amplifiers) that produce heat.
• Open the device housing or alter the product in any way.
• Do not dispose of electrical appliances as unsorted municipal waste. Contact your local
government for information regarding separate collection facilities.
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 7
DOC: UG-RD71316-draft

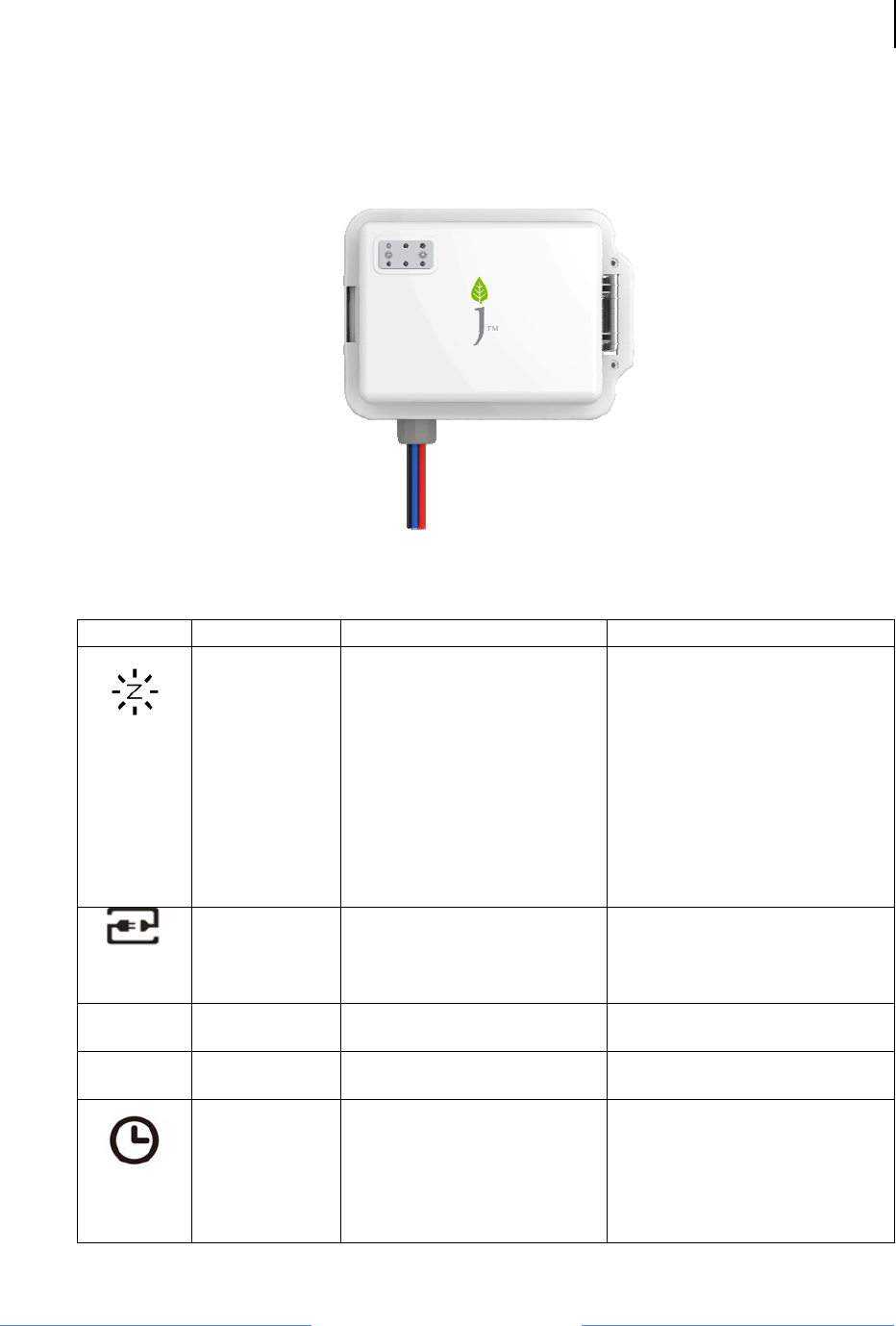

2.3 Front Panel
Figure 1: Front Panel of the Appliance Plus
Table 3: Front Panel LED Description
Icon LED Description
Power/ZigBee • Solid Green for 15
seconds
• Fast Blinking Green
• Slow Blinking Green
• Solid Green
• Blinking Orange
• Power On
• Factory Default in process
• ZigBee Successfully
joined by time is NOT
synchronized
• ZigBee Successfully
joined by time IS
synchronized
• Searching for available
ZigBee Network
HomePlugGP • Solid green
•
• OFF
• HomePlugGP Networking
form
• No HomePlugGP
Networking
1 Relay 1 LED Solid green
OFF The relay 1 is ON
The Relay 1 is OFF
2 Rleay 2 LED Solid green
OFF The relay 2 is ON
The Relay 2 is OFF
Demand
Response
Event
• Off
• Solid Green
• Slow Blinking Green
• Fast Blinking Green
• No event
• Scheduled event and no
event in process
• Event in process annd no
scheduled event
• Event in process and have
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 8
DOC: UG-RD71316-draft
scheduled event
Demand
Response
Level
• Off
• Solid Green
• Slow Blinking Green
• Fast Blinking Green
• Solid Orange
• Slow Blinking Orange
• Fast Blinking Orange
• Solid Red
• Slow Blinking Red
• Fast Blinking Red
• No event in process
• Level#1
• Level#2
• Level#3
• Level#4
• Level#5
• Level#6
• Level#7
• Level#8
• Level#9
Table 4: Front Panel Button Description
Icon Button Description
DR button Press the button once and its change the status
in the following when no DRLC event receives or
executes by Plus:
(Relay 2 ON, Relay 1 OFF)Æ(Relay 2 OFF,
Relay 1 ON)ÆRelay 2 and Relay 1 OFF)Æ
(Relay 2 ON, Relay 1 OFF)
Press the button once and the Demand
Response are set to Opt-out for this time when
receives or executes the DRLC event.
Factory Default and
Leave ZigBee Network
button
Press and hold 8 seconds, it leaves network
Press and hold 30 seconds, it is factory default
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 9
DOC: UG-RD71316-draft
3.0 INSTALLING THE JETLUN APPLIANCE PLUS
3.1 Installing the ZigBee GreenPHY Appliance Module Plus Hardware
Follow these quick steps to install your ZigBee GreenPHY Appliance Module Plus

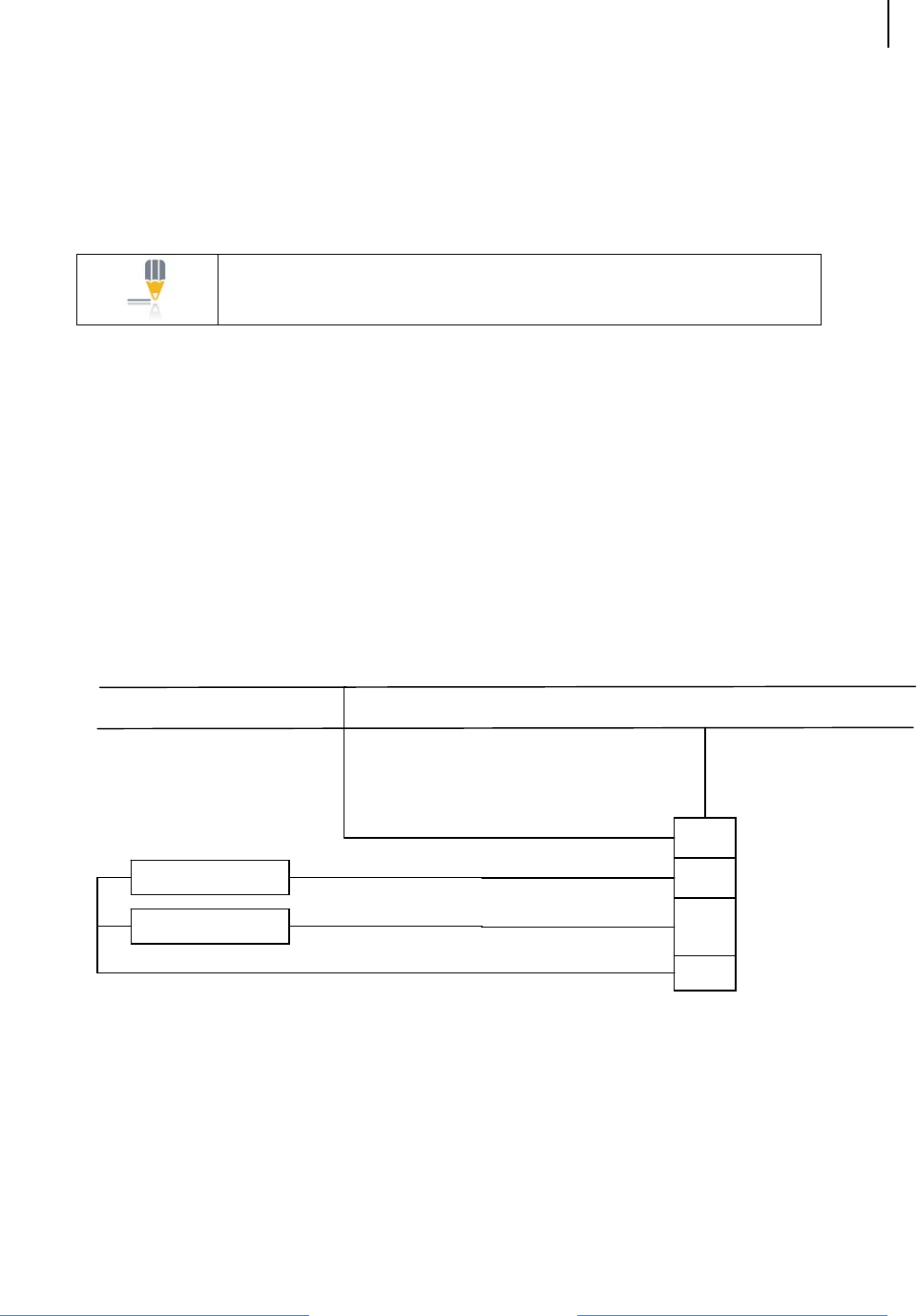

NOTE: There are two devices DUT1 and DUT2 connecting to
ZigBee GreenPHY Appliance Module Plus. Relay 1 is used to
control DUT1, and Relay 2 is used to control DUT2
 STEP 1: Connect the line for power to Line 1 in (Black wire) for ZigBee GreenPHY
Appliance Module Plus
 STEP 2: Connect the Neture for power to Line 2 in / Neutral (Brown wire) for
ZigBee GreenPHY Appliance Module Plus
 STEP 3: Connect the Line 1 out High (Red wire) for ZigBee GreenPHY Appliance
Module Plus to Line for DUT2
 STEP 4: Connect the Line 1 out Low (Yellow wire) for ZigBee GreenPHY
Appliance Module Plus to Line for DUT1
 STEP 5: Connect the Line 2 out/Neutral (Blue wire) for ZigBee GreenPHY
Appliance Module Plus to Neutral for DUT2 and DUT1
 STEP 6: Plug in the ZigBee GreenPHY Appliance Module Plus to a nearby power
outlet and the ZigBee GreenPHY Appliance Module Plus’s ZigBee LED
will be lit solid green for 15 seconds.
3.2 Join and Leave the ZigBee GreenPHY Appliance Plus
3.2.1 Join the Network
 STEP 1: The ZigBee GreenPHY Appliance plus will automatically search for any
available ZigBee network upon power up, indicated by the blinking orange
LED on the Power/ZigBee LED.
Line1
Line2/Neutral
Line1 in (Black)
RD71316
Line 2 in (Brown)
Line1 out High (Red)
Line1 out Low (Yellow)
Line 2 out Neutral (Blue)
Line
Line
Neutral
DUT2
DUT1
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 10
DOC: UG-RD71316-draft
 STEP 2: When the ZigBee GreenPHY Appliance plus joined the ZigBee network,
the Power/ZigBee LED is solid green.
 STEP 3: When the ZigBee GreenPHY Appliance plus joined the PLC network, the
HomePluGP LED is solid green.

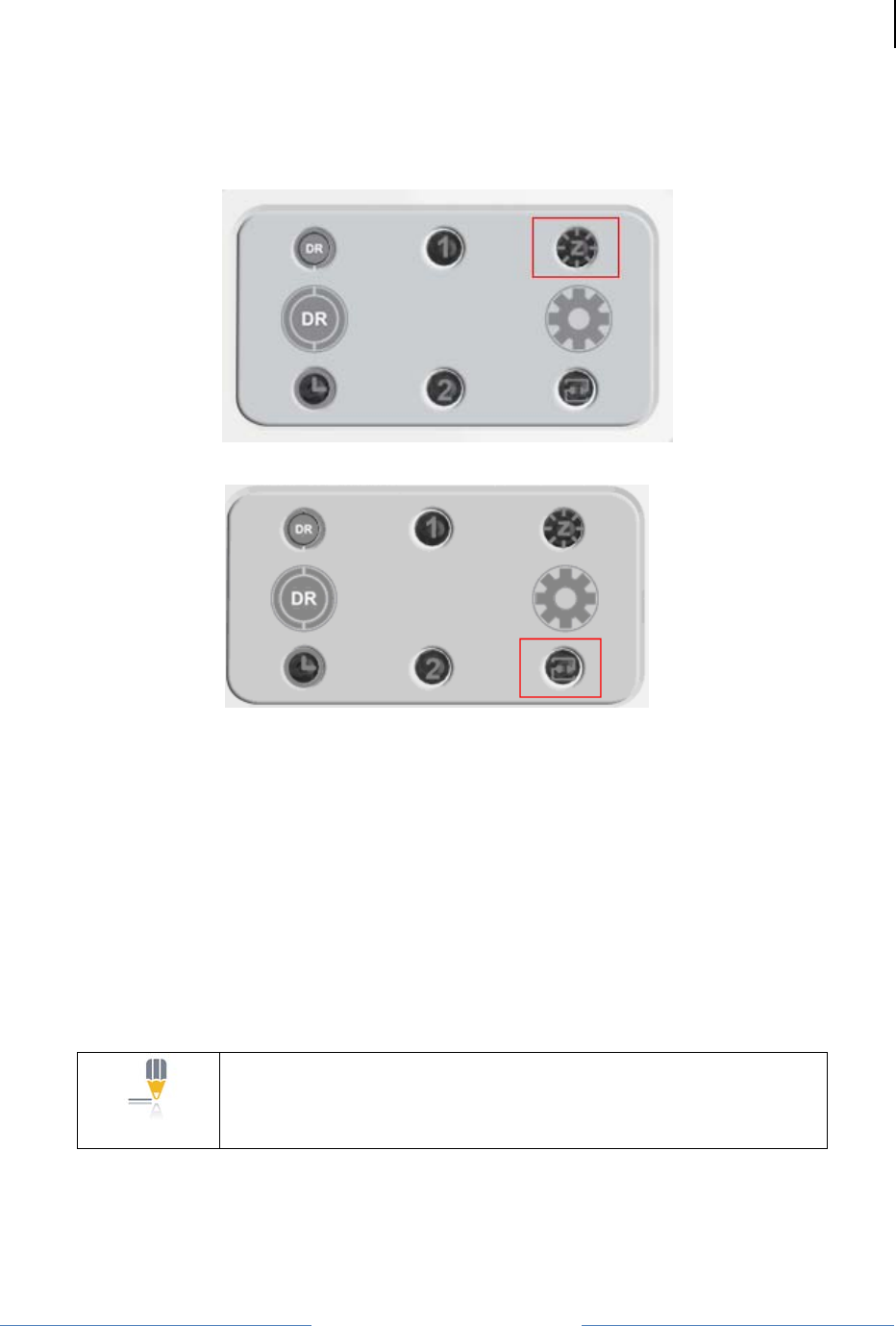

Figure 2: Power/ZigBee LED
Figure 4:HomePlugGP LED
3.2.2 Leaving the network
 STEP 1: Press and hold the factory default button for 8 seconds and release the
button. You will know that the ZigBee GreenPHY Appliance Module Plus
has left the network successfully when the ZigBee LED goes from solid
green to blinking orange.
 STEP 2: Change ZigBee GreenPHY Appliance Module Plus’s NMK ,. You will
know that the ZigBee GreenPHY Appliance plus has left the network
successfully when the ZigBee LED goes from solid green to Off.
3.3 Demand Response Configuration
NOTE: The following Demand Response features only apply if
the ZigBee GreenPHY Appliance Module Plus is connected to a
smart meter provided by or approved by your electrical utility
company.
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 11
DOC: UG-RD71316-draft
The ZigBee GreenPHY Appliance Module Plus is always opt-in of demand response by default.
If you want to opt-out of the received or executing the DRLC events, simply press the DR Button
once.

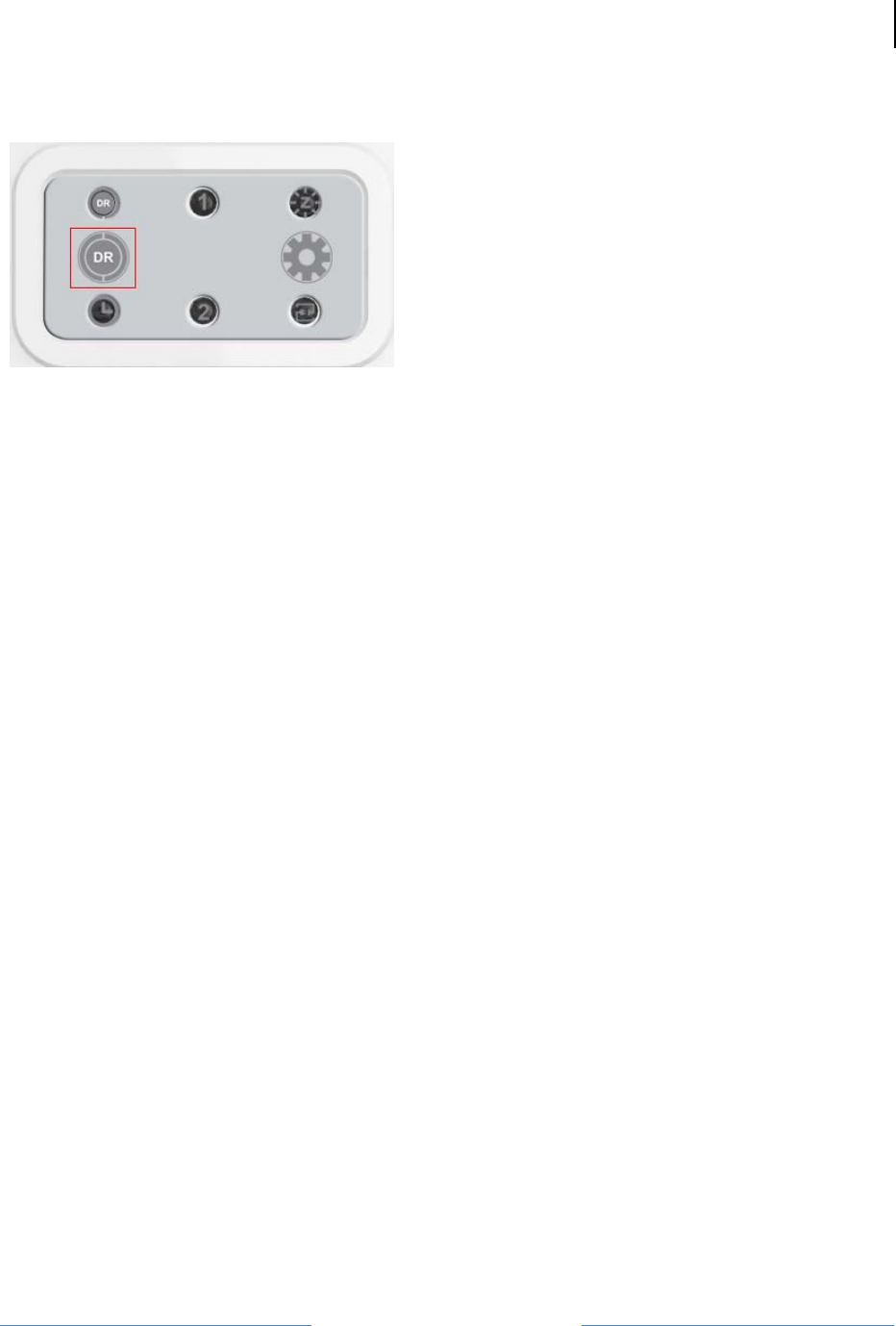

Figure 5: DR Button
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 12
DOC: UG-RD71316-draft
4.0 RESTORING FACTORY DEFAULT
To restore factory default, press and hold the factory default button for 30 seconds. The
Power/ZigBee LED will start blinking green very quickly to signify the factory default is in
process.

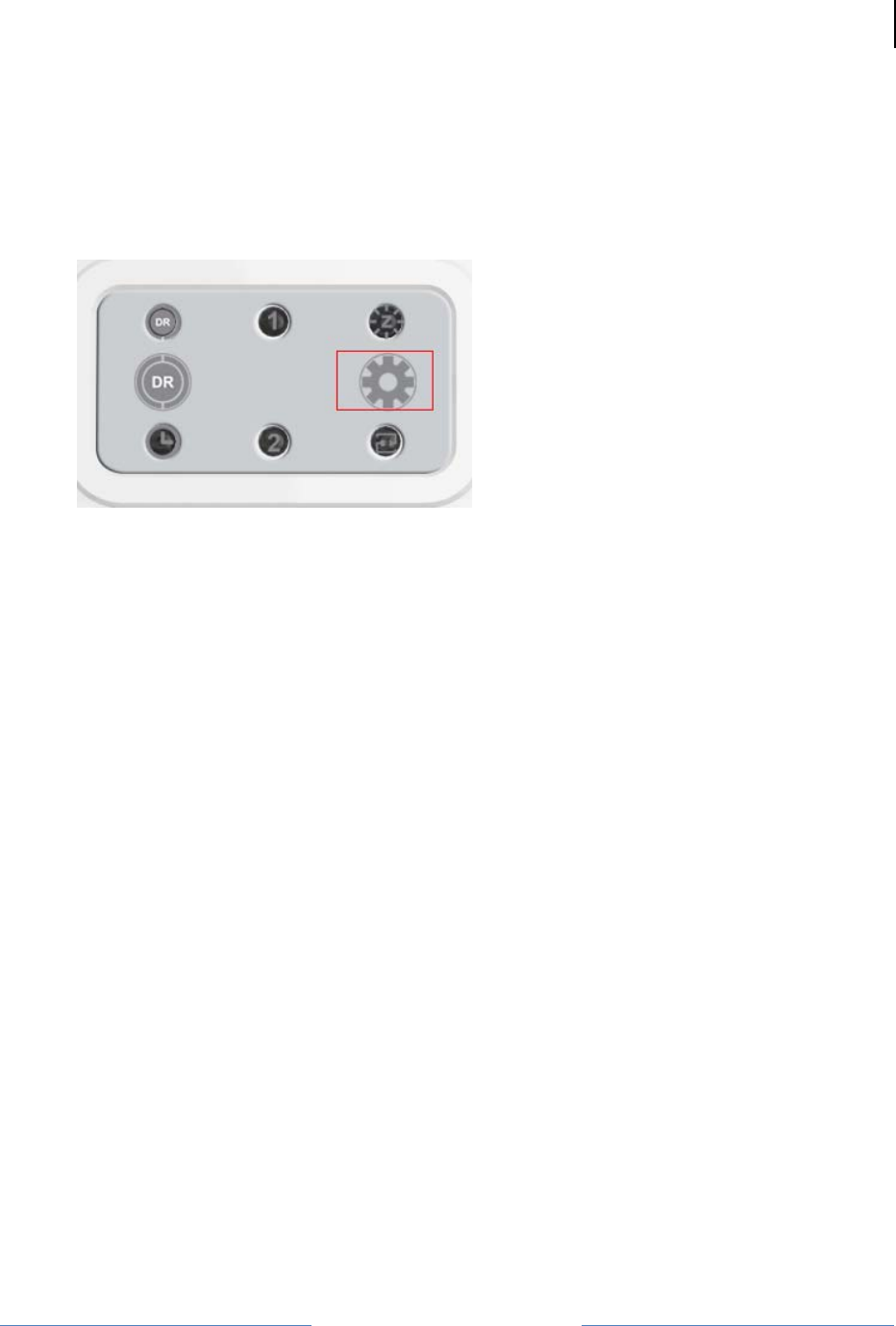

Figure 3: Factory Default button
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 13
DOC: UG-RD71316-draft
5.0 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Jetlun Corporation
Jetlun ZigBee Appliance Plus User Guide Draft 14
DOC: UG-RD71316-draft
6.0 TECHNICAL SPECIFICATIONS
Part Number RD71316
Product Name Jetlun ZigBee GreenPHY Appliance Module Plus
Standard
Compliance ZigBeePro Smart Energy 1.1 or Home Automation 1.0
Frequency Band 2.4 GHz
Transport Mode Up to 250 kbps
Range Up to 300 ft (100 m)
ZigBee Antenna Rx: -99dBm (normal mode), -100dBm (burst mode)
Tx: +18dBm (normal mode), +20dBm (burst mode)
Security 128-bit AES Encryption
LEDs Power/ZigBee, Demand Response Event, Demand Response Event
Schedule, Relay 1 and Relay 2
Accuracy +/- 99.0%
Resolution 1 watts
Operating Temp -32ºF to 113ºF (0ºC to 45ºC)
Operating Humidity 10 to 85% non-condensing
Storage Temp -4ºF to 158ºF (-20ºC to 70ºC)
Storage Humidity 5 to 90% non-condensing
Operating Voltage 100-240 VAC, 50-60 Hz
Consumption Maximum 4W
Safety and EMI FCC/UL/cUL
WEEE RoHS Compliant
Notes
Jetlun Corporation
88 Parkgrove Drive
So San Francisco CA 94080 USA
www.jetlun.com
sales@jetlun.com
support.jetlun.com
1-866-498-2703
