Jetlun RD77715 ZigBee Appliance Module User Manual Jetlun Gateway User Guide rev 0 1 DRAFT
Jetlun (Shenzhen) Corporation ZigBee Appliance Module Jetlun Gateway User Guide rev 0 1 DRAFT
Jetlun >
Users Manual
JetlunZigBeeApplianceModule
UserGuide(RD77715)
UserGuide
rev1.0
88PARKGROVEDRIVE|SOSANFRANCISCO|CA|94080|USA
T:+18664982703|F:+16503601977
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 2
DOC: UG-RD77715-1.0
© 2011 Jetlun Corporation. All rights reserved.
Notice: No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, or stored in a database
or retrieval system for any purpose without the express written permission of Jetlun Corporation.
Jetlun Corporation reserves the right to make changes to this user’s guide at any time without
notice and assumes no responsibility for its use. Jetlun products and services can only be
ordered under the terms and conditions of Jetlun Corporation's applicable agreements. All of the
features described in this user’s guide may not be currently available. Refer to the most recent
product announcement for information about feature and product availability.
This user’s guide contains the most current information available at the time of publication.
When new and/ or revised information becomes available, this entire user’s guide is updated
and distributed to all registered users.
Trademarks, Product Names, and Service Names
Jetlun, the stylized J logo, and the Jetlun logo are either trademarks or registered trademarks of
Jetlun Corporation. All other product or service names are property of their respective owners.
http://www.jetlun.com
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 3
DOC: UG-RD77715-1.0
Table of Contents
1.0S GUIDE...........................................................................................................4ABOUT THI
1.1ECOMING FAMILIAR WITH THIS USER GUIDE.......................................................................4
1.1 Quick Reference...........................................................................................................4
B
1.2Icon Descriptions ..........................................................................................................4
1.3 GETTING ADDITIONAL HELP ................................................................................................4
1.4 SENDING FEEDBACK REGARDING THIS DOCUMENTATION .....................................................4
2.0 PRODUCT OVERVIEW......................................................................................................5
2.1 PACKAGE CONTENTS .........................................................................................................5
2.2 IMPORTANT SAFETY INFORMATION......................................................................................5
2.3FRONT PANEL ....................................................................................................................6
2.4 EFT PANEL ..........................................................................................................................7
3.0STALLING THE ZIGBEE APPLIANCE MODULE...........................................................9
L
IN
3.1 INSTALLING THE APPLIANCE MODULE .................................................................................9
3.1.1 Join the Network...........................................................................................................9
3.1.2 Leaving the network....................................................................................................10
3.2 DEMAND RESPONSE CONFIGURATION..................................................................................10
3.2.1 Joining Demand Response.........................................................................................10
4.0 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ................13
5.0 TECHNICAL SPECIFICATIONS ......................................................................................14
List of Figures
Figure 1: Front Panel of the Appliance Module.............................................................................6
Figure 3: ZigBee link LED ON.......................................................................................................9
Figure 2: Left Panel of the ZigBee Appliance Module...................................................................7
Figure 5: Demand Response Always Opt In Switch ...................................................................10
Figure 6: Demand Response Opt Out Button .............................................................................11
Figure 7: Demand Response Always Opt Out Switch ................................................................11
Figure 8: Demand Response Opt In Button................................................................................12
List of Tables
Table 1: Where to find information in this User Guide ..................................................................4
Table 3: Front Panel LED Description ..........................................................................................6
Table 2: Icon descriptions.............................................................................................................4
Table 4: Back Panel of the applicne module Description..............................................................8
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 4
DOC: UG-RD77715-1.0
1.0 ABOUT THIS GUIDE
1.1 Becoming familiar with this User Guide
1.1 Quick Reference
The Jetlun ZigBee Appliance Module (RD77715) User Guide describes the following:
Table 1: Where to find information in this User Guide
Installing and Configuring the Jetlun Appliance Module Chapter 2 and 3
1.2 Icon Descriptions
While reading through this User Guide, you may see various icons that call attention to
specific items. Below is a description of these icons:
Table 2: Icon descriptions
NOTE: This mark indicates that there is a note of interest and is
something that you should pay attention to while using the
product.
IMPORTANT: This mark identifies an indication that you should
watch for, or reiterates something that you should always keep
in mind.
WARNING: This exclamation point indicates that there is a
caution or warning and may be something that could damage
your property or project.
1.3 Getting Additional Help
To get information or assistance for problems that you encounter, please visit
support.jetlun.com.
Please always include with all inquiries the following information:
• Product name, model number, part number (if applicable) and serial number
• A description of the devices connected or a system configuration
• The circumstances surrounding the error or failure
• A detailed description of the problem and what has been done to try to resolve it
1.4 Sending Feedback regarding this Documentation
We welcome your feedback on Jetlun Gateway documentation. This includes feedback on the
structure, content, accuracy, or completeness of our documents, and any other comments you
may have. Please send your comments to docs@jetlun.com.
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 5
DOC: UG-RD77715-1.0
2.0 PRODUCT OVERVIEW
Thank you for choosing the ZigBee Appliance Module (RD77715). The ZigBee
Appliance Module is a 15A (10A for Australia) ZigBee-enabled single-phase Load
Control Switch (LCS) that also monitors the energy usage of the appliance that is
plugged in.
The ZigBee Appliance Module features the following:
• ZigBee RF mesh networking
• Remote ON/OFF
• Demand Response (DR) LED indicator
• DR Switch
• One-time DR Opt-Out/ Opt-In button
• Measuring energy usage of the appliance plugged in with a resolution of 1 watts
2.1 Package Contents
When you first open the box, please check and confirm that the following items are all
included:
• 1x ZigBee Appliance Module RD77715
• 1x Quick Installation Guide
• 1x Warranty Guide
Contact the retailer where you made your purchase if any of these parts are incorrect,
missing or damaged. Keep the original receipt and original packaging materials, in case
you need to return the unit for repair.
2.2 Important Safety Information
Please read all documentation and retain documentation for future reference. Follow all
warnings, alerts and instructions.
The use of of Jetlun ZigBee Appliance Module and any other similar LCS in conjunction with an
appliance may cause a loss of ignition in gas cooktops, damage to clothing (washer/dryers), and
food spoilage (ranges, refrigerators, and freezers). Power cut-off to a dishwasher during a
cycle may result in dirty dishes. The use of these devices may also shorten the useful life of the
appliance.
Please DO NOT:
• Use the RD77715 near water.
• Place the RD77715 near any heat source such as direct sunlight, radiators, heaters,
stoves, or other apparatus (including amplifiers) that produce heat.
• Open the device housing or alter the product in any way.
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 6
DOC: UG-RD77715-1.0
• Do not dispose of electrical appliances as unsorted municipal waste. Contact your local
government for information regarding separate collection facilities.

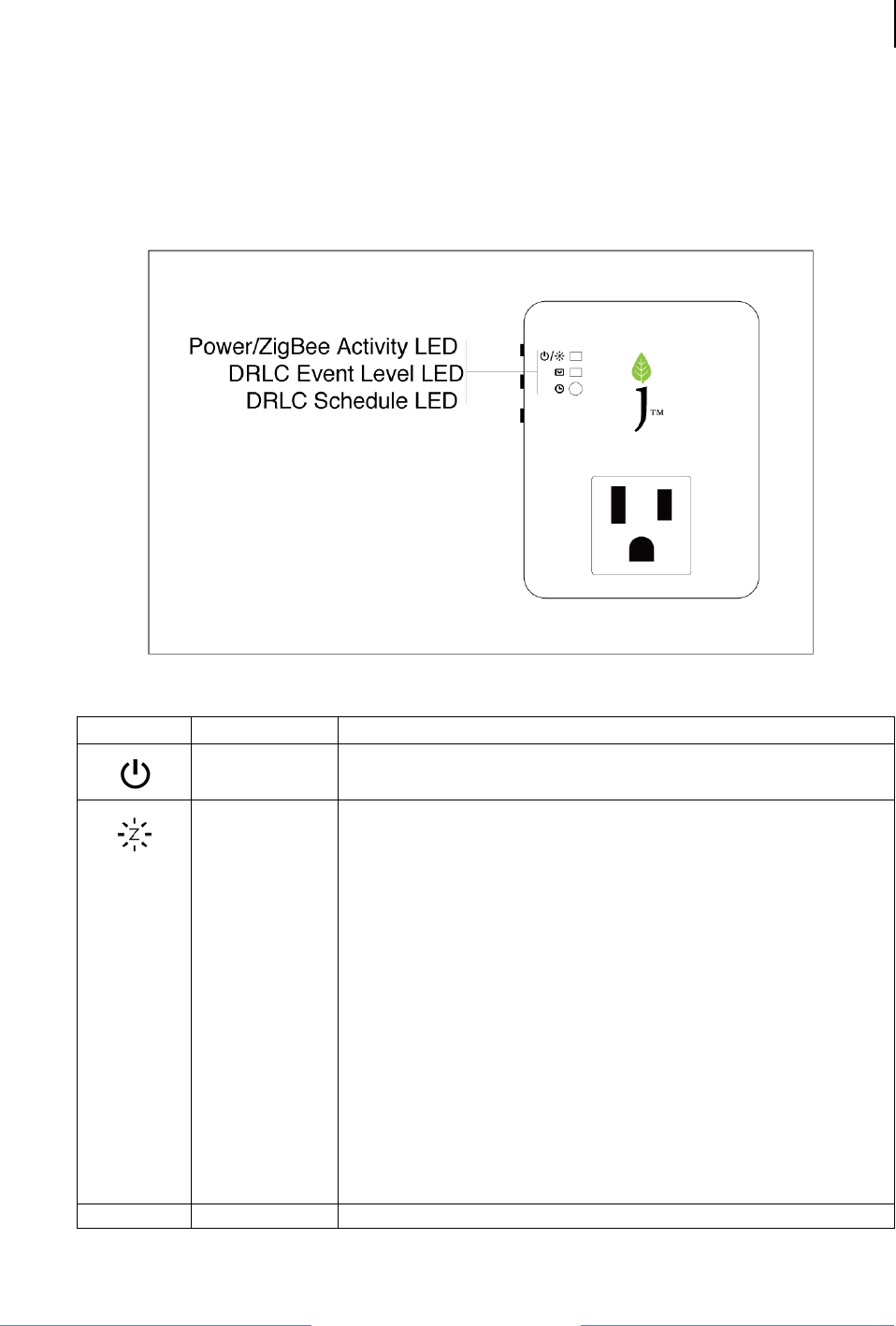

2.3 Front Panel

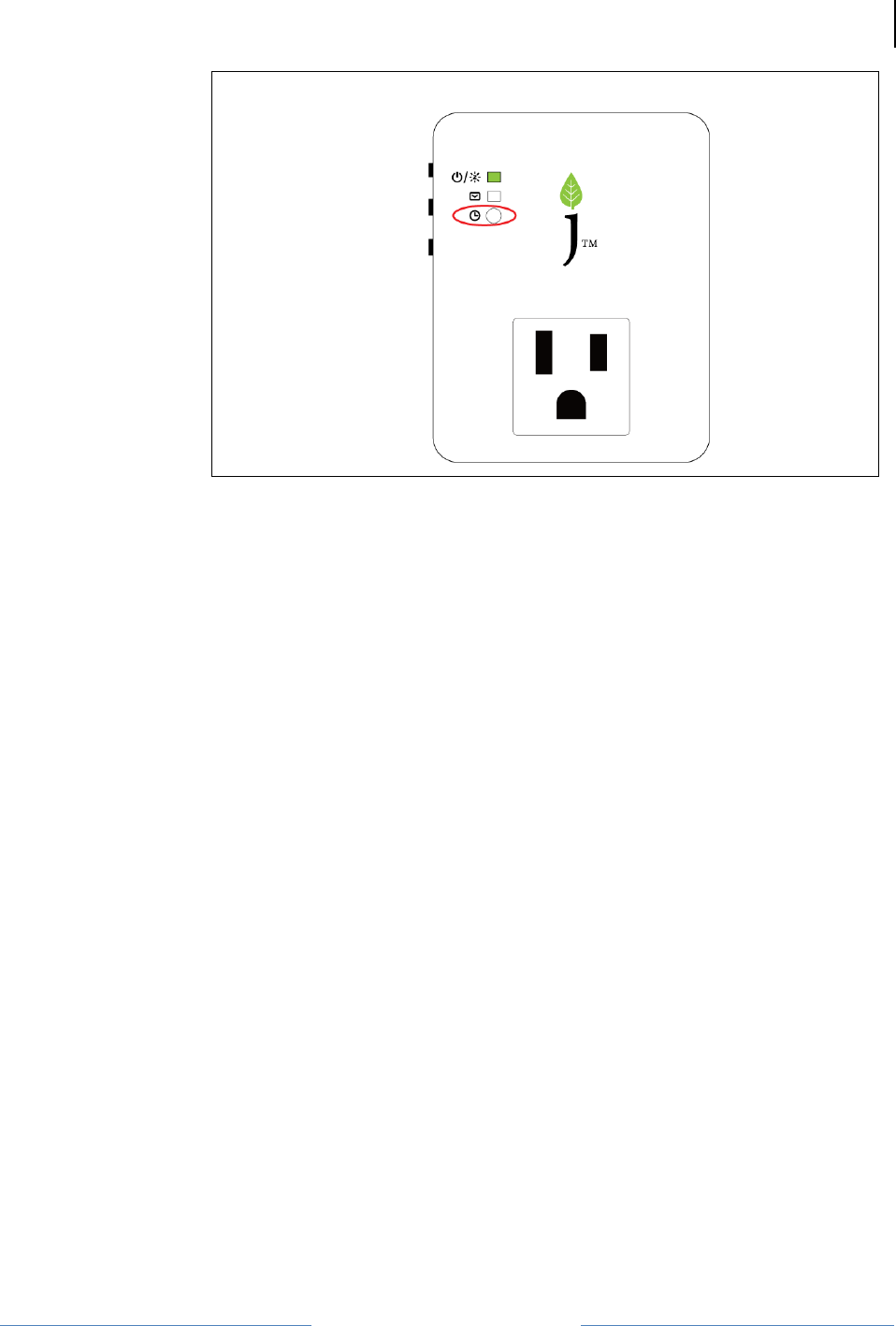

Figure 1: Front Panel of the Appliance Module
Table 3: Front Panel LED Description
Icon Name Description
Power LED When first plugged in, the Power LED will lit up solid green
for 15 seconds to indicate there is power to the device.
ZigBee LED Off indicates no ZigBee network and the device have not
be commissioned to join any network.
Blinking Green @ 0.5s interval indicates the device has
been commissioned to scan for available network to join.
Solid Green indicates the device has successfully
connected to the ZigBee Coordinator and has performed
time sync.
Blinking (flickering) Green @ 0.2s interval indicates the
device has connected to the ZigBee Coordinator and has
not been able to perform time sync.
Blinking Green @ 2s interval (slow blink) indicates the
deivce failed to join any available network.
Demand Off indicates No Event in Progress
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 7
DOC: UG-RD77715-1.0
Response
Level LED
Solid Green indicates Level #1
Slow Blinking Green @1.5s interval indicates Level #2
Fast Blinking Green @0.5s interval indicates Level #3
Solid Orange indicates Level #4
Slow Blinking Orange @1.5s interval indicates Level #5
Fast Blinking Orange @0.5s interval indicates Level #6
Solid Red indicates Level #7
Slow Red @1.5s interval indicates Level #8
Fast Blinking Red @0.5s interval indicates Level #9
Demand
Response
Schedule
LED
Solid Green indicates Scheduled Event and No Event in
Progress.
Blinking Green @ 1.5s interval indicates Event in Progress
and No Scheduled Event.
Blinking Green @0.5s interval indicates Event in Progress
and Have Scheduled Event
2.4 Left Panel

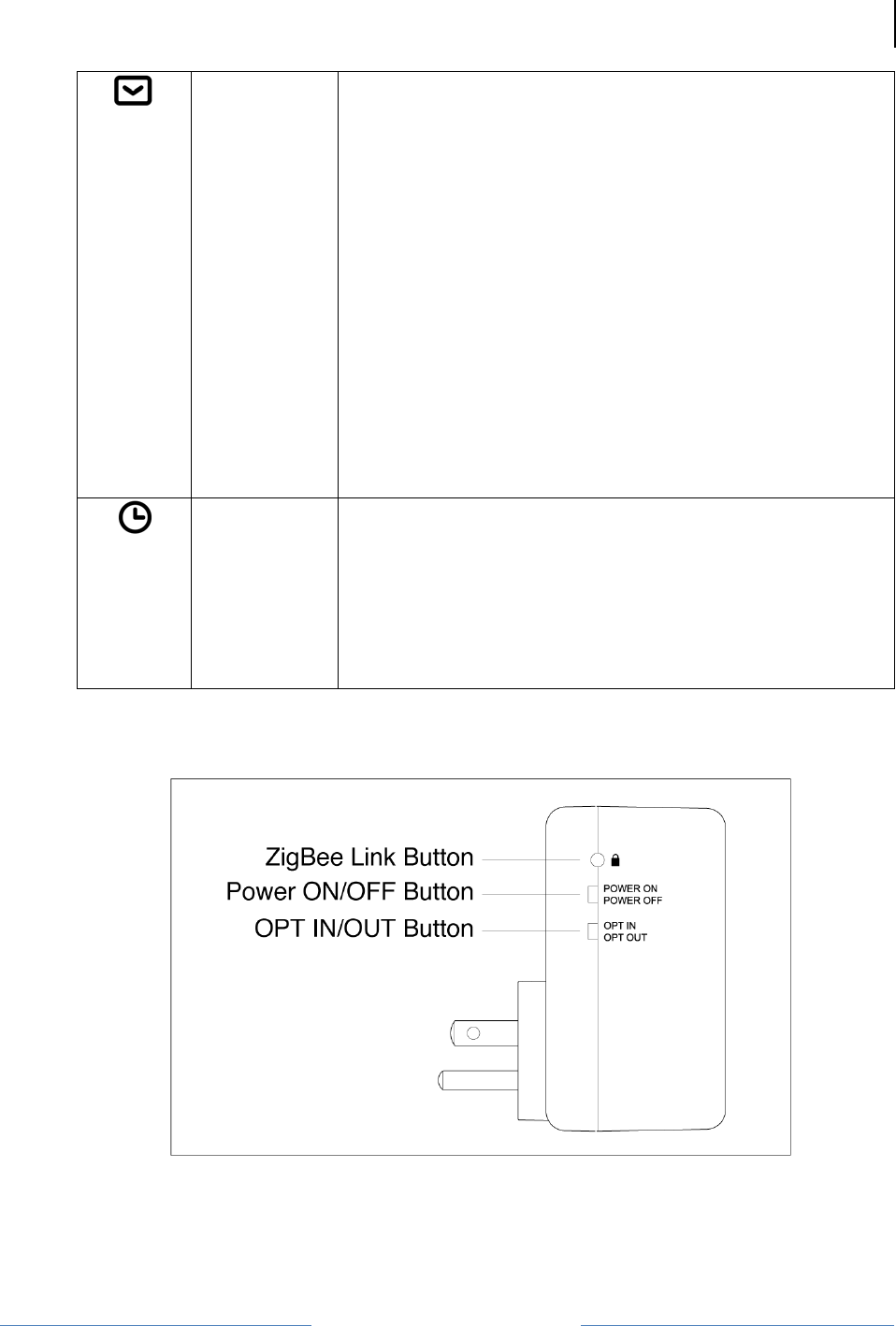

Figure 2: Left Panel of the ZigBee Appliance Module
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 8
DOC: UG-RD77715-1.0

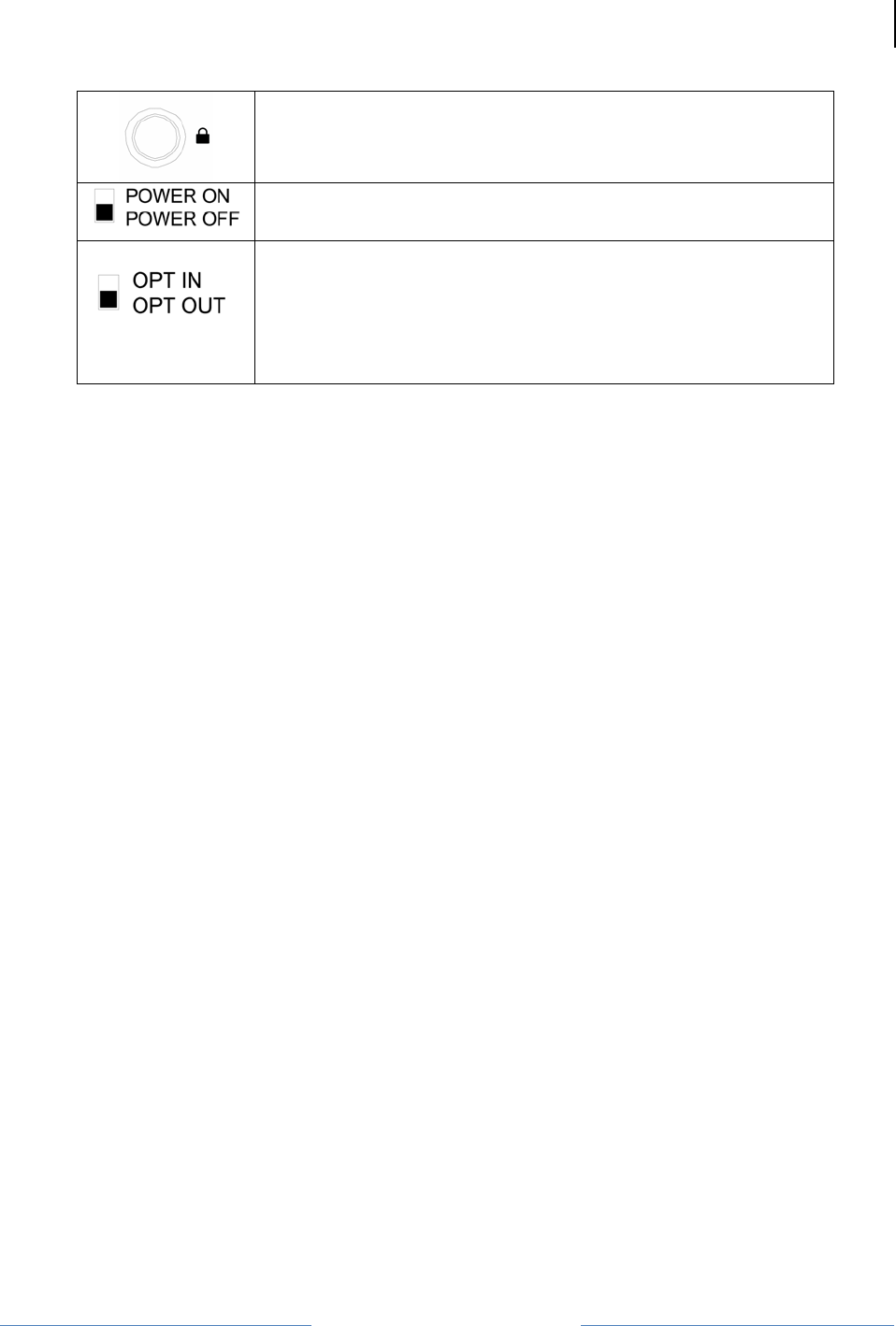

Table 4: Back Panel of the applicne module Description
The ZigBee Link button is engaged for ZigBee Appliance
Module to join the network and/or leave the network.
The Power On/Off switch is to turn on/off the ZigBee
Appliance Module.
The Opt in/out switch is to set the demand response
participation options of the ZigBee Appliance Module.
Silde the switch to left, the appliance option is permanently
opt-in.
Silde the switch to right, the appliance option is permantly
opt-out.
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 9
DOC: UG-RD77715-1.0
3.0 INSTALLING THE ZIGBEE APPLIANCE MODULE
Follow these quick steps to install your JIM ZigBee Appliance Module.
3.1 Installing the Appliance Module
 STEP 1: Plug in the ZigBee Appliance Module to a nearby power outlet. The
Power LED will lit solid green for 15 seconds before going off.
3.1.1 Join the Network
 STEP 1: Press and hold the ZigBee network button for 3-5 seconds and release
the button. The ZigBee LED will blink green every 0.5 seconds (fast
blinking) which indicate the device scanning a network to join.
 STEP 2: Once the ZigBee Appliance Module joins a network successfully, the
ZigBee LED will be solid green.
NOTE: If the ZigBee LED is flickering green (blinking every 0.2
seconds), this means the ZigBee Appliance Module successfully
joined to the ZigBee Coordinator but was not able to
synchronize time with the ZigBee Coordinator, which could
cause some malfunction. The ZigBee Appliance Module will
automatically try to time sync with the ZigBee Coordinator. I

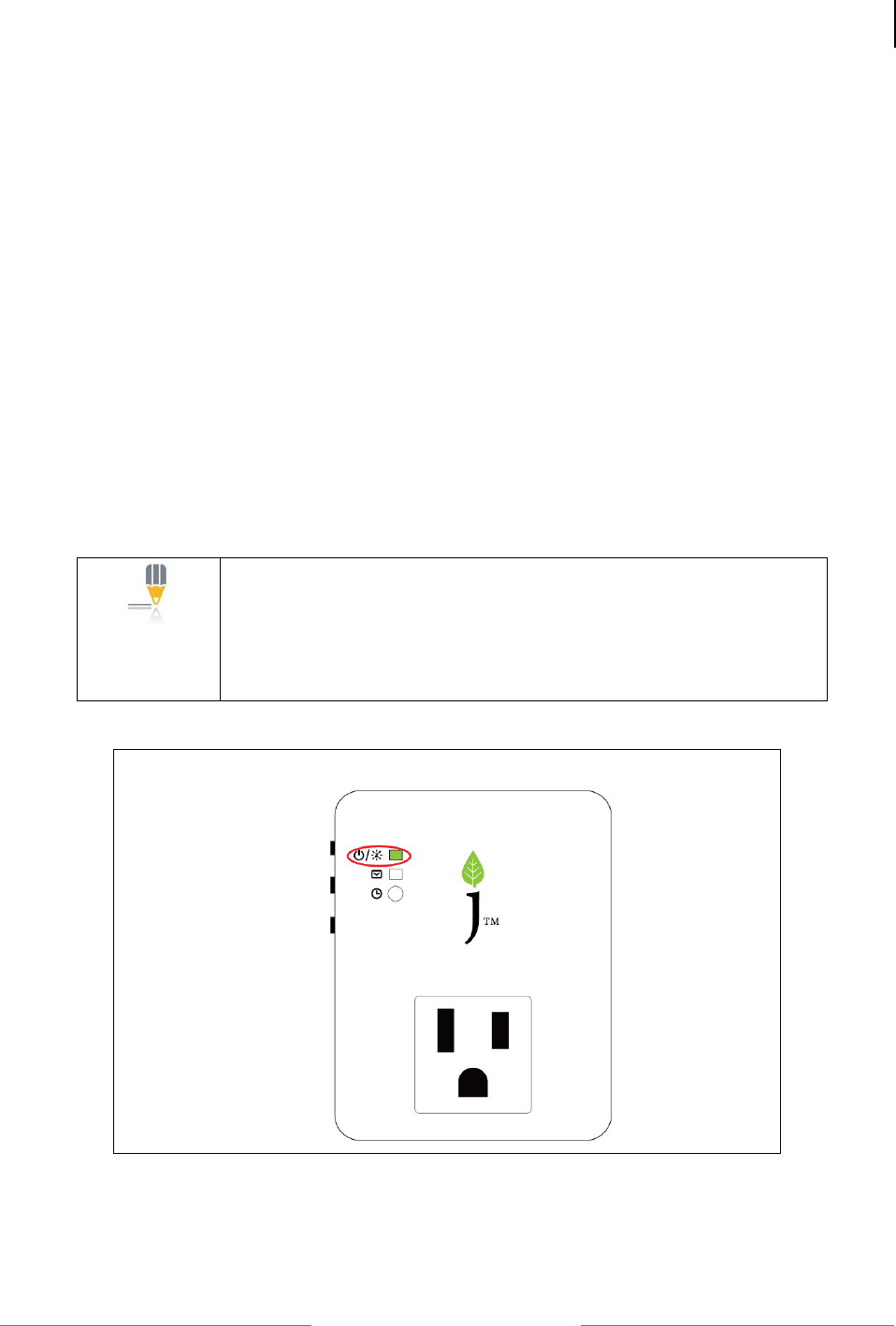

Figure 3: ZigBee link LED ON
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 10
DOC: UG-RD77715-1.0
3.1.2 Leaving the network
 STEP 1: Press and hold the ZigBee link button for >8 seconds and release the
button.
 STEP 2: You will know that the ZigBee Appliance Module has left the network
successfully when the link LED is off.
3.2 Demand Response Configuration
NOTE: The following Demand Response features only apply if
you have signed in a Demand Response program with your
local electrical utility company.
3.2.1 Joining Demand Response

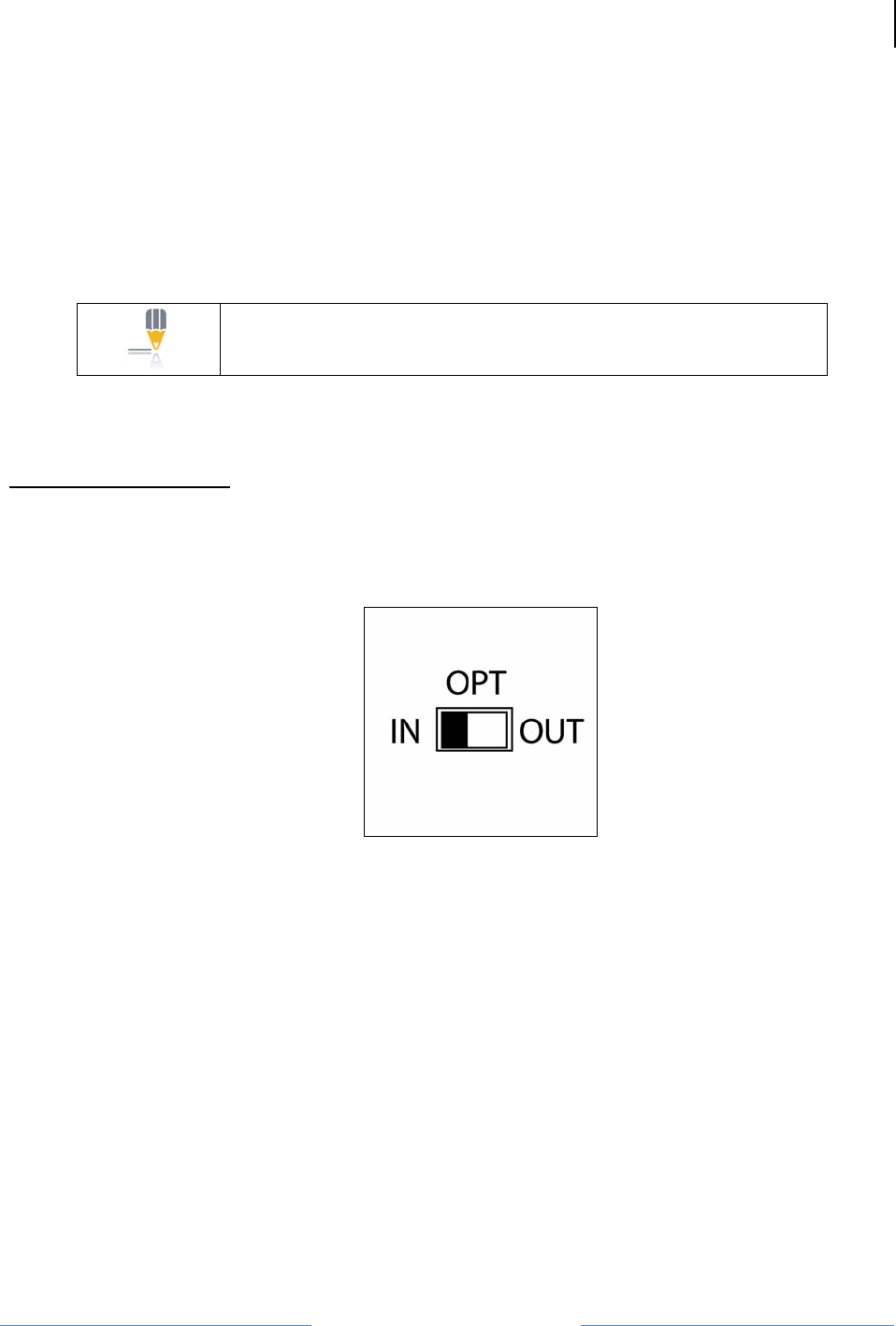

Permanent Opt-In Mode
 STEP 1: To configure the Zigbee Appliance Module to always Opt In to Demand
Response Events (Permanent Opt In Mode), slide the opt-in/out button to
the left position.
Figure 4: Demand Response Always Opt In Switch
To Opt-Out of Demand Response on an individual case-by-case basis
when in Permanent Opt In Mode, simply press the Demand Response
LED once when receiving a demand response notification.
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 11
DOC: UG-RD77715-1.0
Figure 5: Demand Response Opt Out Button
Permanent Opt-Out Mode
 STEP 1: To configure the Zigbee Appliance Module to Always Opt Out to
Demand Response Events, slide the opt-in/out button to the right
position.
Figure 6: Demand Response Always Opt Out Switch
To Opt-In of Demand Response on a case-by-case basis, simply press
the Demand Response LED.
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 12
DOC: UG-RD77715-1.0
Figure 7: Demand Response Opt In Button
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 13
DOC: UG-RD77715-1.0
4.0 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Jetlun Corporation
Jetlun ZigBee Appliance Module User Guide rev 1.0 14
DOC: UG-RD77715-1.0
5.0 TECHNICAL SPECIFICATIONS
Part Number RD77715
Product Name JIM ZigBee Appliance Module
Standard
Compliance ZigBeePro Smart Energy 1.1 or Home Automation 1.0
Frequency Band 2.4 GHz
Transport Mode Up to 250 kbps
Range Up to 100 ft (30 m)
ZigBee Antenna Rx: -99dBm (normal mode), -100dBm (burst mode)
Tx: -32dBm to +3dBm (normal mode), -23dBm to +5dBm (burst mode)
Security 128-bit AES Encryption
LEDs Power/ZigBee, Demand Event Level, Demand Response Schedule
Accuracy +/- 1.0%
Resolution 1 watts
Operating Temp -32ºF to 113ºF (0ºC to 45ºC)
Operating Humidity 10 to 85% non-condensing
Storage Temp -4ºF to 158ºF (-20ºC to 70ºC)
Storage Humidity 5 to 90% non-condensing
Consumption Maximum 1.5W
Operating Voltage 100-240VAC, 50-60 hz
Safety and EMI FCC/UL/cUL for 100-120VAC 60hz model only
CE/C-Tick for 220-240VAC 50hz model only
WEEE RoHS Compliant
Notes
