User Manual
(For Car)
SENSOR
2
TYRE GUARD
1
TYRE GUARD
JET-M-300C
(MONITOR)
JET-M1-300C
(MONITOR)
JET-M2-300C
(MONITOR)
1 Introduction
2 Function
The monitor’s function is to receive the temperature and pressure information transmitted
from a sensor fitted to each tyre and display this information on the screen in the specific
units of measurement of your choice.
The monitor will emit an alarm when a tyre pressure or temperature varies markedly
from the targeted tyre pressure and/or temperature. The system will detect
thigh or low air pressure as well as high temperature or rapid leakage from the tyres.
The monitor will flash the red LED icon and an alarm will sound to remind the operator
to check if the tyres are high or low in air pressure, leakage, high temperature or the
monitor’s battery is low, or there is a problem with a sensor. This advanced tyre monitoring
system offers these great features and benefits, is reliable, lightweight and compact.
3 Installation & Operating Instructions
The following instructions show the identification of operating buttons of the monitor.
Units Conversion
Temperature Units Conversion
F=9C/5+32
Note: C = Celsius; F = Fahrenheit
Pressure Units Conversion
1 Bar=14.5 psi
1 Bar=100 kPa
2
1 Bar=1.02 kgf/cm
installing the tyre sensors.
vehicle’s tyres to your required pressures.
Note: It is recommended to set tyre pressures at those recommended by the manufacturer
listed in the vehicle’s handbook.

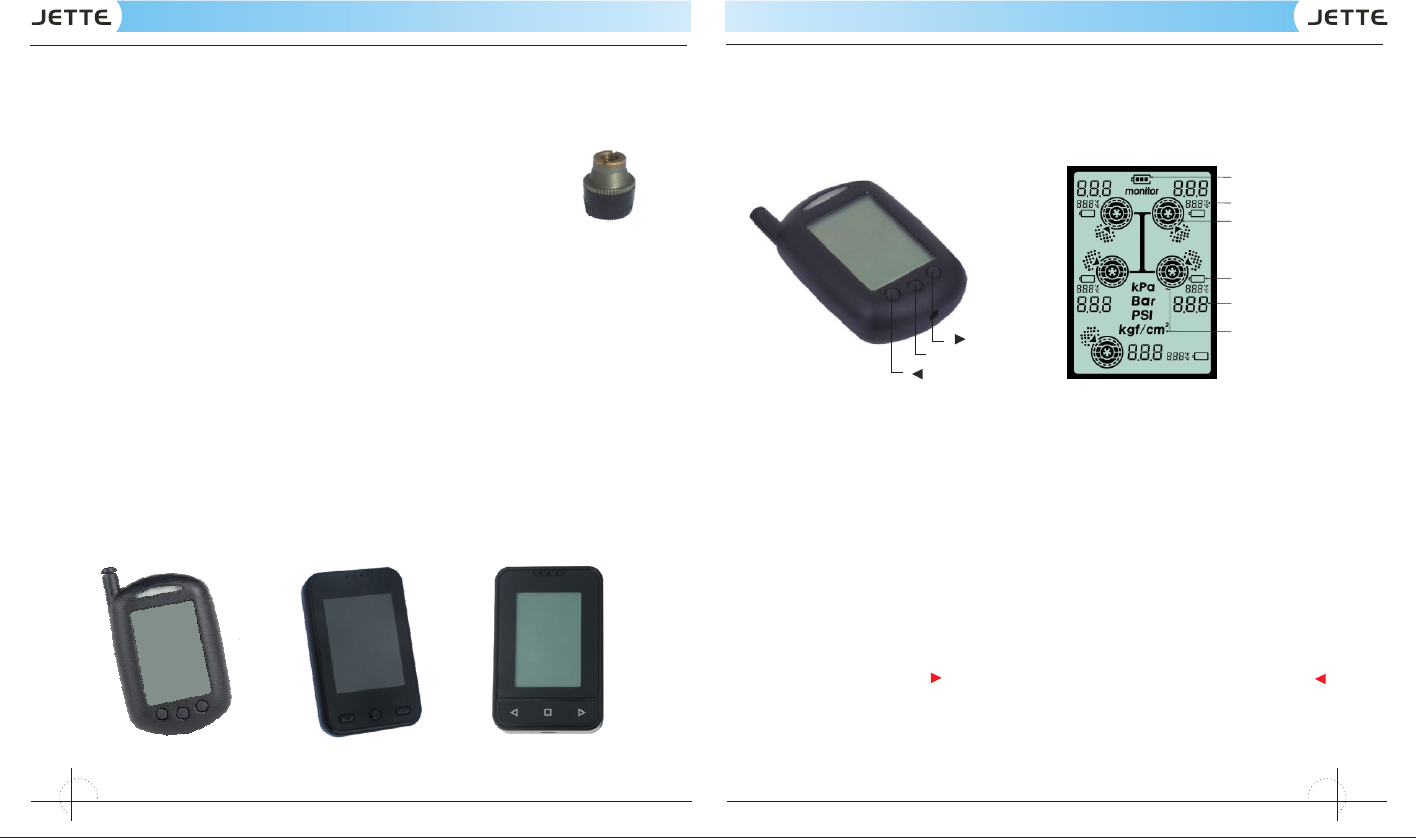

“ ” button
“” button
SET button
Congratulations on purchasing the new TYRE PRESSURE
MONITORING (TPMS).This system is a safety system
for monitoring vehicle’s tyre air pressure and temperature. It
consists of external mounted tyre pressure wireless sensors
fitted to the vehicle’s ryre valve and a hand-held monitor.The
sensor will monitor the tyre’s air pressure and temperature.The
sensor transmits the tyre pressure and temperature information
to the dash-mounted/hand-held monitor.
SYSTEM
in standby mode,press" "button to change the pressure unit,white press" "
button to change the temperature unit.
NUMBER ICAL
INDICATING SECT ION
MONITOR icon
PRESSU RE
CONDIT ION icon
SENSOR i con
TEMPER ATUR E ico n
PRESSU RE UNIT ico n
Please ensure the monitor is fully charged and in the tyre alignment mode before
Before installing sensors and setting the monitor,make sure you have inflated the
The monitor can be placed on the dashboard,on the sun visor or
mounted in any convenient place in the vehicle.
4
TYRE GUARD
3
TYRE GUARD
Tyre alignment mode
Hold down the “ ” and “ ” buttons simultaneously on the monitor for 5 seconds to enter
tyre alignment mode, and press either “ ” or “ ” button to select the specific tyre that
needs to be aligned.
Screw a sensor to the tyre valve stem and the current pressure will be displayed against
the corresponding flashing tyre icon on the screen. Once the tyre is aligned successfully
the green light appears on the monitor. The red LED light appears on the monitor if the
sensor hasn’t been aligned and “- - -” also appears on the monitor.
Note: If the sensor is to be removed from one valve and fitted to another valve, you must
delete the current setting on the monitor and realign this sensor to the new tyre. To delete
an aligned sensor from a tyre, hold down the SET button for 5 seconds.
When you exit the alignment mode, by again holding down the “ ” and “ ”, buttons
simultaneously on the monitor for 5 seconds to check the pressures and temperatures,
the monitor will indicate the data of the selected tyre. Click through to ensure all tyre
pressures and temperature details are in accordance with your requirements. After your
checks are completed, the backlight will go out and the monitor will indicate the tyre
pressure of the selected tyre.
Installation of the Sensor and anti-theft device
It’s very simple to install the sensors. Screw a sensor
to each tyre valve stem as the picture shows.
Note:
1. Always install the sensor when the tyre is cold
2. Please check each tyre valve is not damaged.
3. Check to ensure there are no leaks and the sensors
are firmly secured to each tyre valve.
A
Valve Anti-theft
Devce
Driver
c
The sensor has an anti theft ring to prevent the
sensors being stolen. Firstly, place the
anti_theft ring over the valve stem,with one
side of the inner hexagon facing out, place the
hexagon head of the sensor into the inner
hexagon and then screw down the sensor;
finally,place the inner hexagon screws of the
anti-theft device and tighten with the key
provided. Please refer to the right graphics
A,B and C when installing the rings.
Standard Pressure Setting
Hold down SET button for 5 seconds to exit the Standard Pressure Setting mode.
Hold down the set button of the monitor for 5 seconds to enter into the setting
mode, as the right graphic shows. press“ ”or “ ”button to set the required
pressure,and then quickly press the SET button to scroll through to the next the
tyre and repeat this sequence to set the remaining tyres.

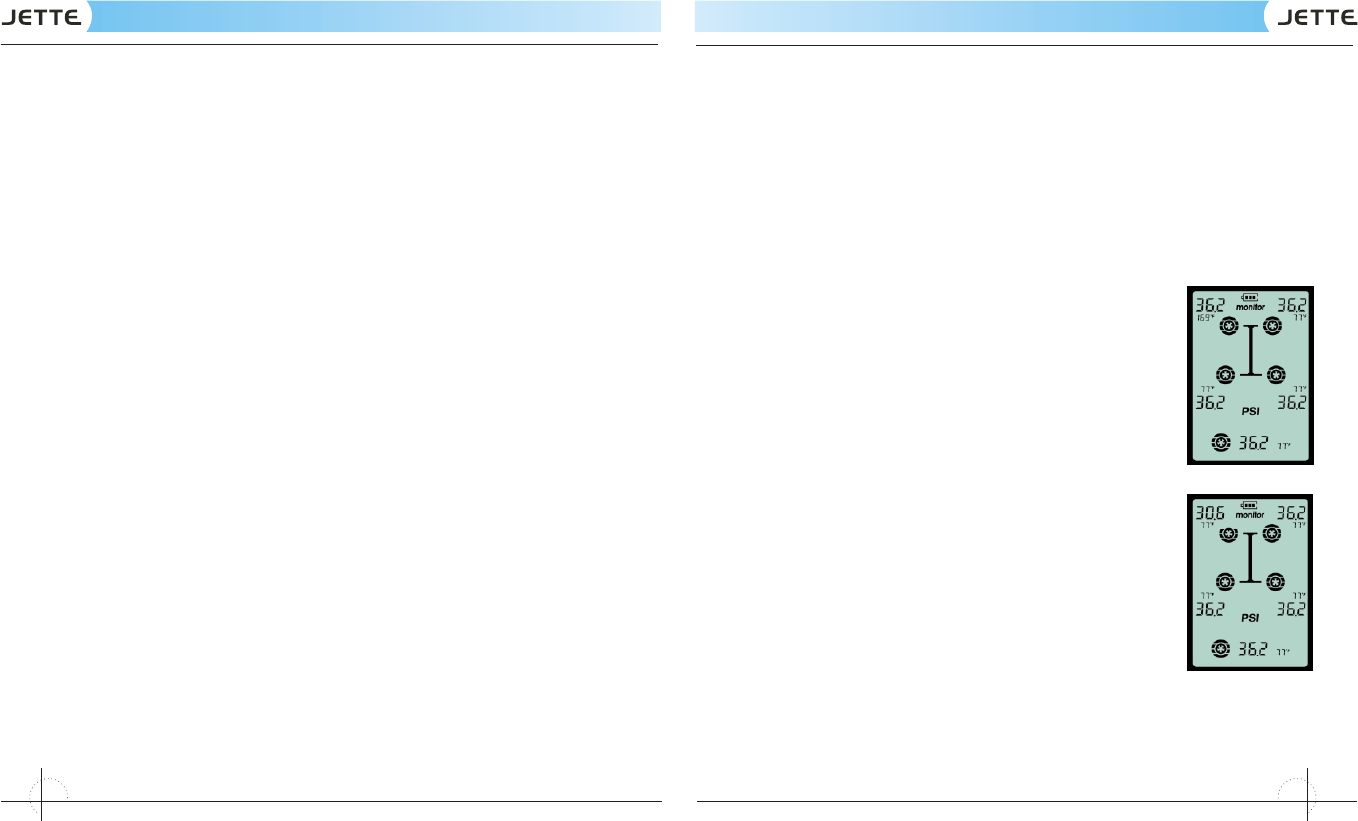

Examination of the Tyre Condition
The monitor indicates " --- " when a specific sensor's alignment is lost from
the monitor, as graphic A shows. refer to Tyre Alignment Mode on page 3 to
realign sensor.
The monitor will indicate the " noS " signal whenever a sensor is either out of
range or may be faulty,as graphic B shows.
Installation of the Monitor
The monitor can be mounted using the pedestal or brackets supplied. The monitor can
be fixed to a suitable surface in the vehicle, sun visor, dashboard etc. It has a build-in
lithium battery or you may wish to use a power source from within the vehicle’s power
socket to charge or operate the monitor.
TYRE GUARD
5
TYRE GUARD
6

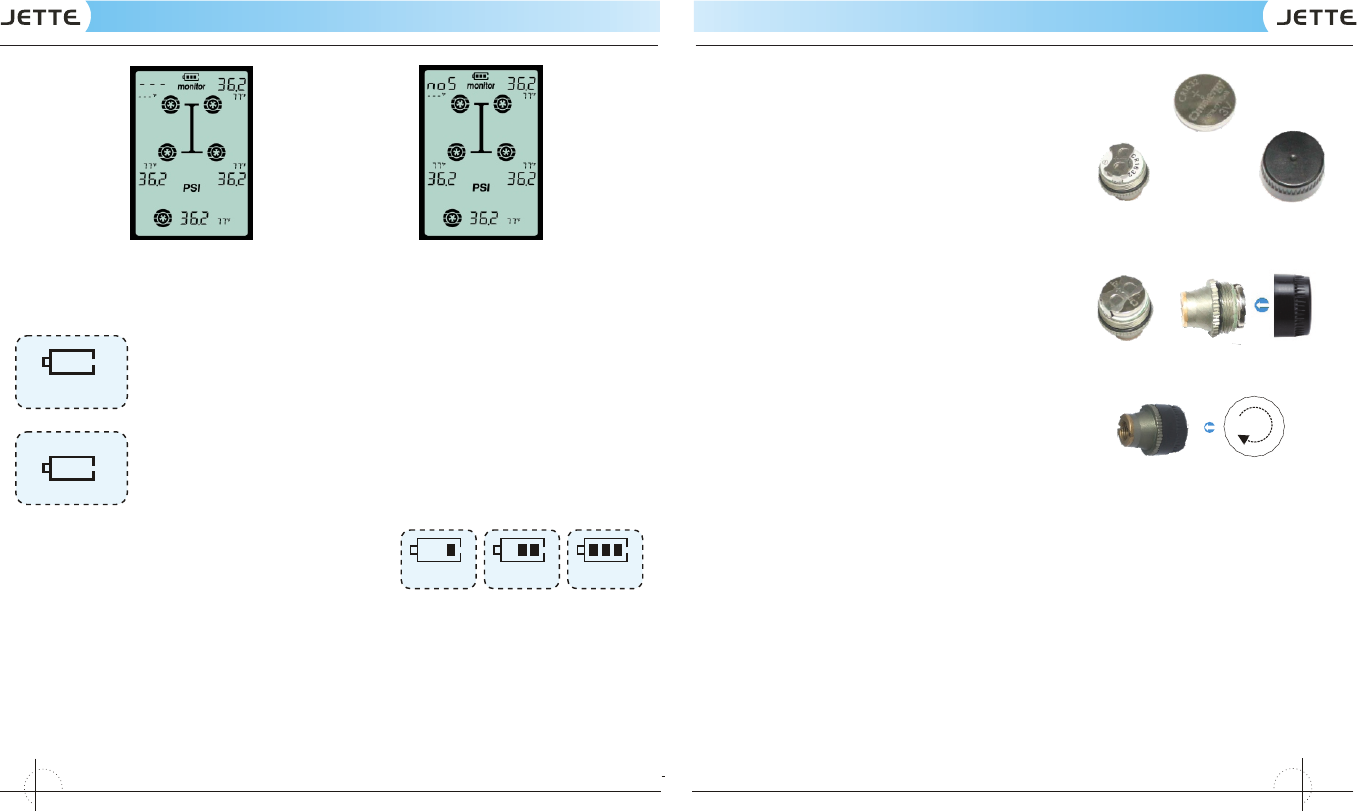

Battery Capacity Indicator of the Monitor and Sensor
When the monitor is low on power, the battery icon and “MONITOR”
icon on the screen flash, the buzzer gives a 10 second intermittent
alarm. The monitor then sounds every 30 seconds within 5 minutes
of total discharge.
Note: Please keep the monitor in a cool environment when charging.
A B
monitor
Sensor battery replacement
Replace the corresponding sensor’s battery when
the monitor indicates a low battery. Unscrew the
plastic cap from the sensor, take out the battery
and replace with a new button cell battery, (CR
1632). Ensure the “+” terminal is touching the
upper bracket. Screw down the cover. Please
refer to the right graphic A, B and C
Note:
1. The battery model required for the sensors is
a CR1632 button battery.
2. The “+” and “-” pole of sensor battery must
be placed in the correct position with the “+”
terminal facing up; failure to do so may cause
the sensor to burn out.
3. In order to make sure that the battery is
replaced correctly, enter tyre alignment mode
and delete the alignment of the respective
sensor and realign it again.
Power up
Quickly press SET button to enter into the stand-by mode at the power off state.
Note: Once the monitor is turned on, the information from all tyres can take up to 4
minutes to be received in normal conditions. When the sensors are in an area of strong
interference or in very cold conditions, the monitor may not receive the signal. Pull out the
monitor’s antenna to increase the strength of the signal.
BATTERY
A
B
SENSOR SENSOR COPING
“+” POLE OF BATTERY
C
When a tyre sensor has low power,the battery icon
together with the corresponding tyre icon flash on the
screen and a 10 second intermittent alarm will sound.If the
power of any of the sensors becomes too low,please
replace the corresponding battery immediately.
Charging the Monitor
The built-in lithium battery of the monitor is re-
chargeable. Please connect the 12/24V DC
charger into the port at base of the monitor, and
then insert the adapter plug into the port of the
vehicle’s 12/24V DC accessory port. The vehicle’s
battery power will charge the monitor when the power supply of the vehicle is turned on.
It takes approximately 6 hours to fully charge the monitor.
The battery icon flashes as shown in graphic A, B and C above.
The monitor will sound an alarm when fully charged. Graphic C will disappear after
1 second.
A B C
monitor monitor monitor
7
TYRE GUARD
8
TYRE GUARD
Power off
Hold down SET button for at least 8 seconds, and the monitor will automatically switch
off. Please note: the system will first enter into the setting mode 5 seconds after holding
down SET button, continue holding down the SET button for a further 3 seconds or more
to power off the monitor.
Note: Whether the monitor is turned on or off, the sensor is always in standby mode.
Standby Time
The monitor is installed with an intelligent 15 minutes suspension device. The monitor
turns into suspension status to save the power after the vehicles is switched off for more
than 15 minutes. Once the vehicle is started, the monitor automatically turns on and
connects to the vehicle’s sensors.
4 Warning Conditions
The TPMS possesses the two functions, monitoring tyre temperature and air
pressure
conditions of the vehicle’s tyres.
.

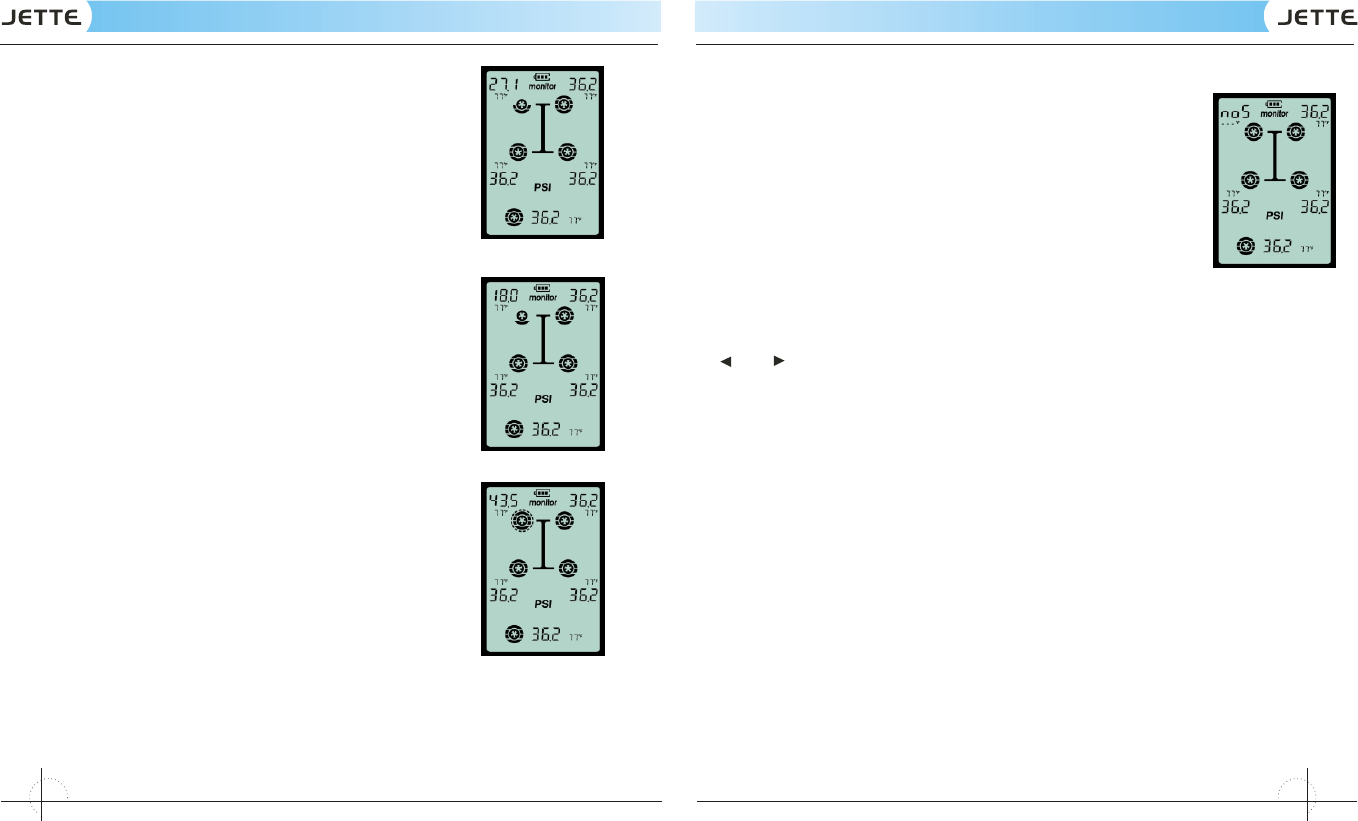

High Temperature Warning
When the temperature inside the tyre exceeds 75°C, the system
indicate the position of the tyre with abnormal temperature and
its current temperature. Abnormal temperature is indicated by
the flashing red LED on the monitor and the temperature icon
flashing on the screen, as the right graphic shows.
Low Air Pressure Warning: Level 1
When the actual air pressure is equal to or falls below 85% of the
set pressure the system will give an alarm and the monitor will
indicate the position of the tyre with abnormal air pressure and
its current air pressure. The low air pressure is indicated by the
flashing red LED on the monitor and the pressure icon flashing
on the screen, as the right graphic shows.
will give a high temperature alarm and the monitor will
TYRE GUARD
910
TYRE GUARD
Low Air Pressure Warning: Level 2
When the actual air pressure is equal to or falls below 75% of the
set pressure the system will give an alarm and the monitor will
indicate the position of the tyre with abnormal air pressure and
its current air pressure. The low air pressure is indicated by the
flashing red LED on the monitor and the pressure icon flashing
on the screen, as the right graphic shows.
Low Air Pressure Warning: Level 3
When the actual air pressure is equal to or falls below 50% of the
set pressure the system will give an alarm and the monitor will
indicate the position of the tyre with abnormal air pressure and
its current air pressure. The low air pressure is indicated by the
flashing red LED on the monitor and the pressure icon flashing
on the screen, as the right graphic shows.
High Air Pressure Warning
When the actual air pressure is equal to or greater than 120% of
the set pressure the system will give an alarm and the monitor
will indicate the position of the tyre with abnormal air pressure
and its current air pressure. The high air pressure is indicated
by the flashing red LED on the monitor and the pressure icon
flashing on the screen, as the right graphic shows.
Sensor Abnormality Indication
If the monitor can’t receive the signal from the sensors within 20
minutes in standby mode, the alarm system will sound for 15 seconds
The corresponding icon of the abnormal sensor will also flash
“no S” which indicates there is either a fault with
sensor is damaged or the sensor is out of range.
Explanation
The monitor will give out a continuous alarm for 15 seconds with the flashing red LED and
back lights for 5 minutes along with the corresponding faulty tyre icon flashing. Press the
“” or “ ” button to stop this alarm. Shortly after, the back light will automatically go off.
The system alarm will sound again after one hour to further remind the operator.
When a sensor is removed to inflate or deflate a tyre, this will cause the sensor to detect
rapid and/or slow leakage because the sensor has suddenly detected zero pressure.
The monitor will return to normal and the alarm will stop after the sensor is refitted.
and indicate with
the sensor, the
11
TYRE GUARD
12
TYRE GUARD
5 Technical Specifications
Sensor
Working Temperature 14 F TO 185 F (-10°C -- 85°C)
Working Humidity 0 -- 95%
Dimension 24 x 21 x 21mm
Weight 11g(±1g)
Battery Voltage 3V DC (CR1632)
Battery Life 1 year
Standby Current 500nA
Working Current 6mA
Pressure Measure Range 0 psi -- 72.5 psi(0 bar– 5 bar)
Pressure Measure Precision ± . psi(±1 5 0.1 bar)
Temperature Measure Range 14 F TO 185 F (-10°C -- 85°C)
Temperature Measure Precision ±3°C
Signal Transmitting Frequency
Operating Distance 8.0 metres
Monitor
Working Voltage 3V DC
Working Temperature -4 F TO 140 F ( )-20°C -- 60°C
Working Humidity 0 -- 90%
Standby Current 0.1mA
Working Current 15 mA
Dimension
Monitor size：82mm×55mm×23mm (JET-M-300C)
Monitor size：87mm×55mm×20mm (JET-M1-300C)
Monitor size：82mm×52.5mm×16.5mm (JET-M2-300C)
Signal Receiving Frequency
Color of Backlight White
6 TPMS Assembly
Description Quantity
Sensors
Monitor One (1)
Bracket One (1)
One (1)
Sensor anti-theft security devices Four(4)
Hexagon Screw Twenty(20)
Hexagon Allen Key Two (2)
NOTE
1. This system can efficiently monitor the air pressure and temperature of the vehicle’s
tyres.
2. In order to avoid damage to this equipment, please do not attempt to disassemble
any assembly.
3. Your has an automatic monitoring function, so there is no TPMS need to
press
“ ” or “ ” to read the information.
4. Please contact Shenzhen Jetson Electronic Technologies Co., Ltd.
E-mail:zx@tesee.com.cn
or log on to our website www.tesee.com.cn should you require further information.
。 。
。 。
。 。
User Manual One (1) book
Four (4)
12/24 V DC Cigarette Lighter Adapter
CR 1632 Battery Four(4)
434.2MHz
434.2MHz
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
13
TYRE GUARD
14
TYRE GUARD
For customer reservation
Name:
Model No.:
Date of Purchase:
Place of Purchase:
Note:
1. We offer one-year warranty and free repair services for the
products from the date of purchase.
2. We offer lifetime maintenance services for our products.
3 . O u r w a r r an t y e x c l u d e s t h e n or m a l a b r a s i o n o f a n y
subassemblies and accessories, any damages from improper use,
ac ci de nt s an d d is ma nt le m en t, a nd t he da ma ge s of an y
accessories.
4. Please keep this part and the commercial invoice as the
guarantee for the repair and examination of the products during
warranty.
Distributor:
(Signature and seal)
(This guarantee card will become effective upon the seal of
the distributor.)
Thank you for choosing our products.
Please carefully fill in the following form.
Name:
Post Code:
Address:
Model No.:
Tel:
Invoice No.:
Date of Purchase:
Name of the Distributor:
What makes you choose our products?
□Economy □Service □Advert □Other
□Quality □Website □Recommendation from friends
Please fill in this card and send it back to our after service
department. It will be the main guarantee for your right to
gain the after services during the warranty.
