JiangSu HuiTong Group HTMD003A MT7697 Module User Manual

JiangSu HuiTong Group Co.,Ltd MT7697 Module

User Manual

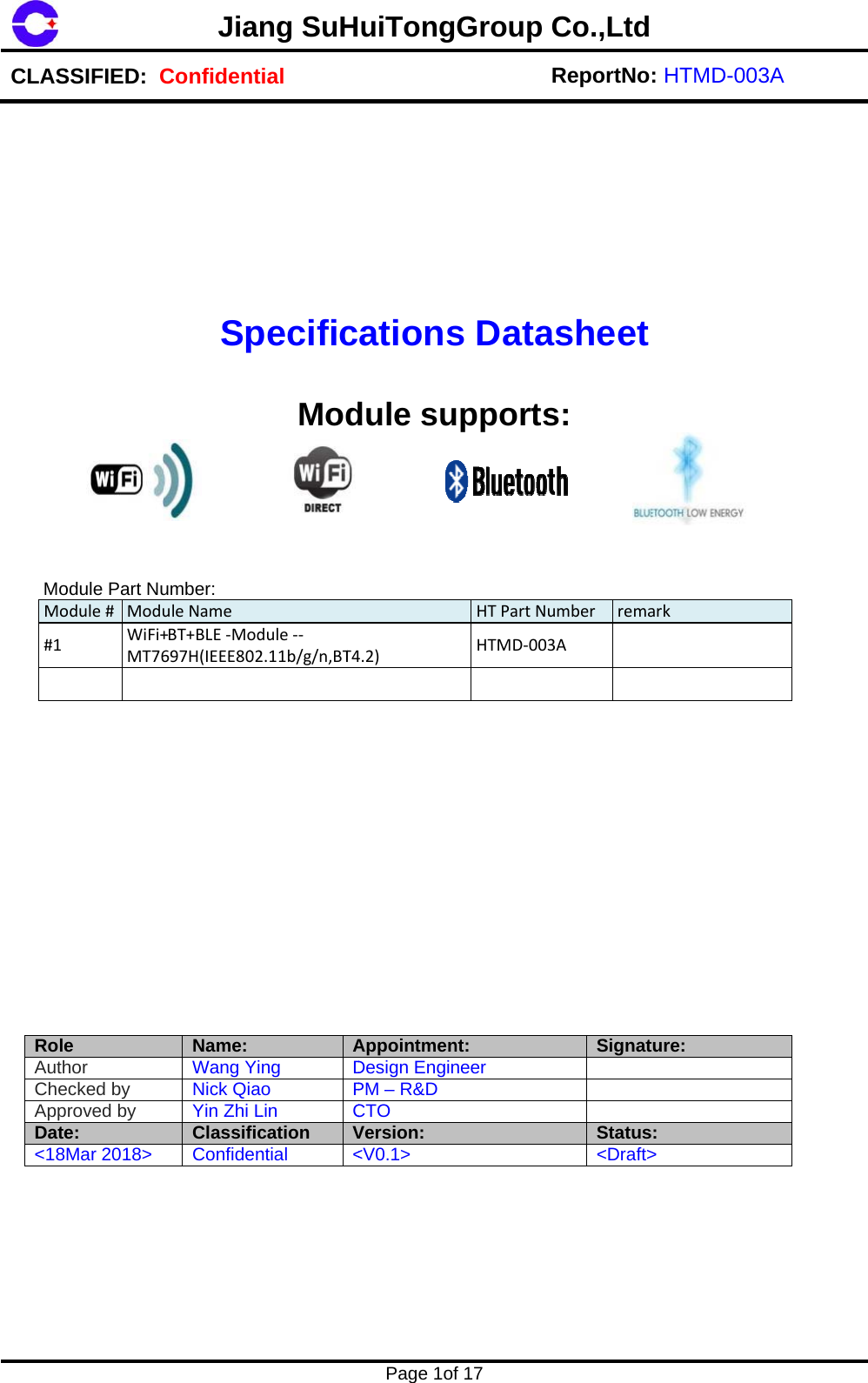

CLASMoMo#1RoleAuthCheAppDate<18SSIFIED: Codule Part Nuodule#ModuWiFi+MT76e hor ecked by roved by e: Mar 2018> JianConfidentSpumber: uleName+697H(IEEE80Name: Wang YiNick QiaYin Zhi LClassificConfidenng SuHialpecificModBT+BLE‐Module‐‐02.11b/g/n,BTAng Do PLin Ccation Vntial <uiTongPage 1ofationsdule suT4.2)AppointmenDesign EnginPM – R&D CTO Version: <V0.1> Group CRf 17 s DataupportsHTPartNuHTMD‐003nt: neer Co.,LtdReportNosheet s: umber rema3ASignatStatus<Draft>: HTMD-00arkture: s: > 03A

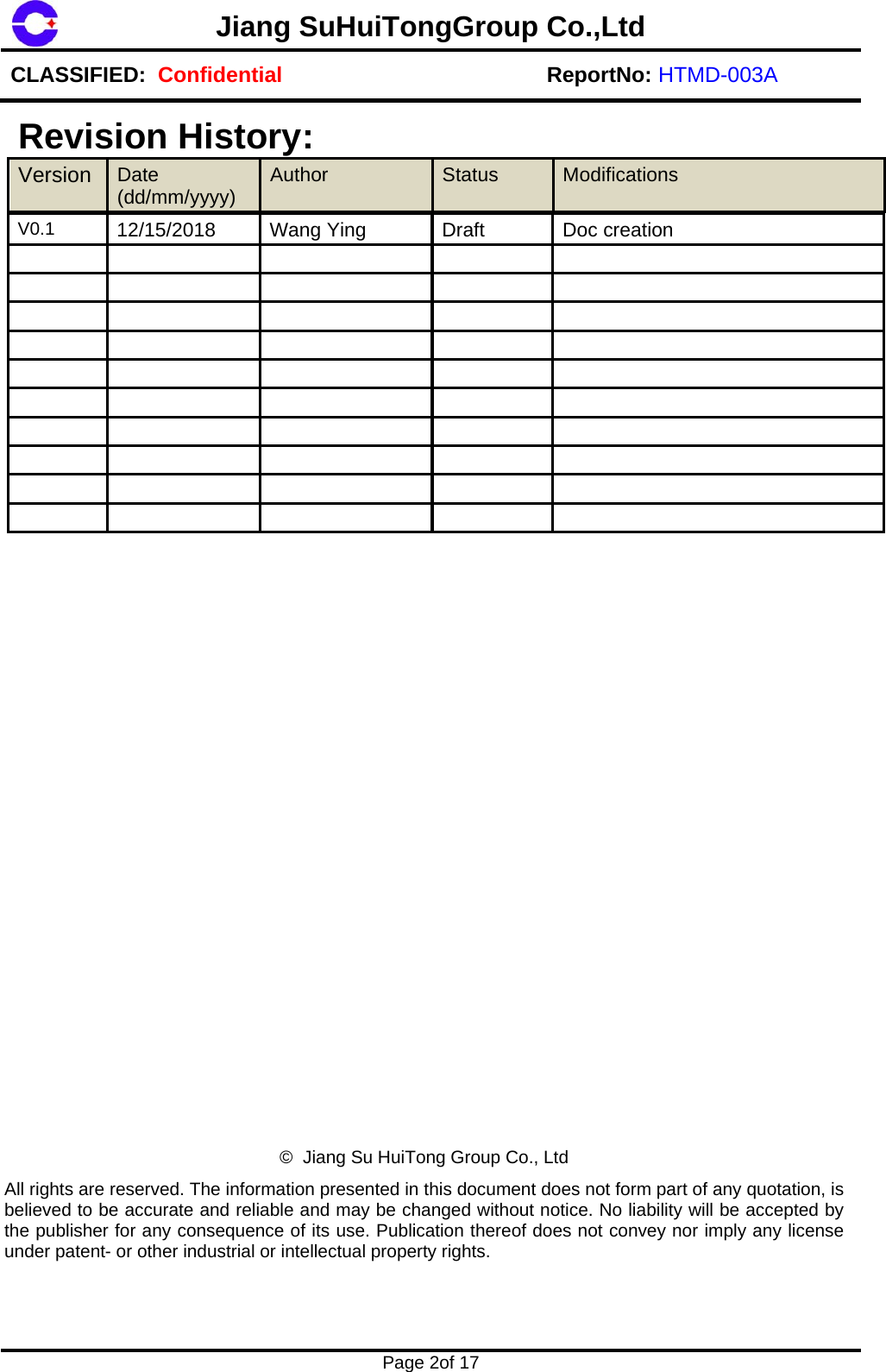

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 2of 17 V0.1 12/15/2018 Wang Ying Draft Doc creation © Jiang Su HuiTong Group Co., Ltd All rights are reserved. The information presented in this document does not form part of any quotation, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights. ReVerevisiorsion Dat(dd/n Histte /mm/yyyy) tory: Author Status Modificaations

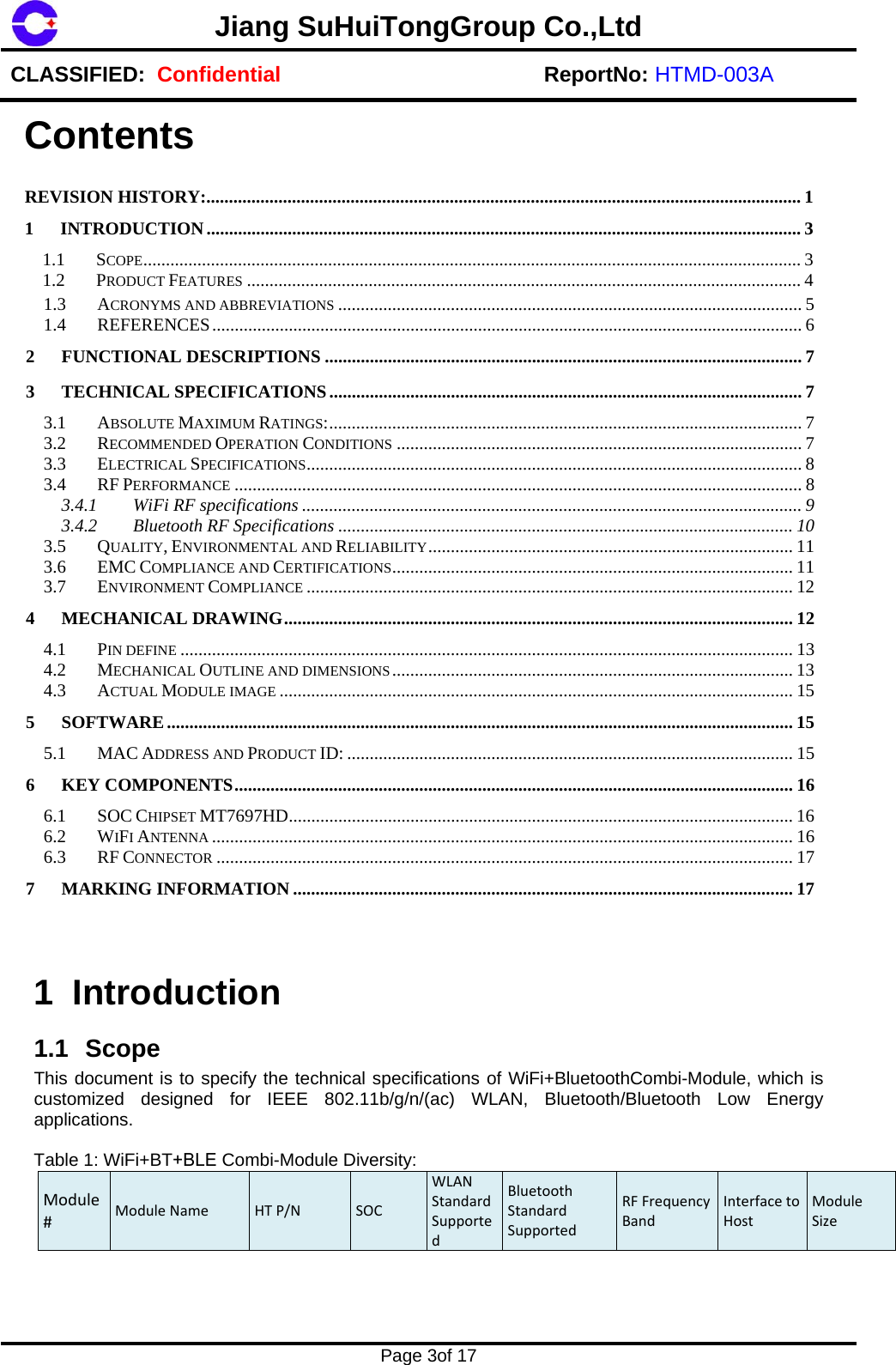

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 3of 17 1.3ACRONYMS AND ABBREVIATIONS ....................................................................................................... 51.4REFERENCES ................................................................................................................................... 62FUNCTIONAL DESCRIPTIONS .......................................................................................................... 73TECHNICAL SPECIFICATIONS ......................................................................................................... 73.1ABSOLUTE MAXIMUM RATINGS: ......................................................................................................... 73.2RECOMMENDED OPERATION CONDITIONS .......................................................................................... 73.3ELECTRICAL SPECIFICATIONS .............................................................................................................. 83.4RF PERFORMANCE .............................................................................................................................. 83.4.1WiFi RF specifications ............................................................................................................... 93.4.2Bluetooth RF Specifications ..................................................................................................... 103.5QUALITY, ENVIRONMENTAL AND RELIABILITY ................................................................................. 113.6EMC COMPLIANCE AND CERTIFICATIONS ......................................................................................... 113.7ENVIRONMENT COMPLIANCE ............................................................................................................ 124MECHANICAL DRAWING ................................................................................................................. 124.1PIN DEFINE ........................................................................................................................................ 134.2MECHANICAL OUTLINE AND DIMENSIONS ......................................................................................... 134.3ACTUAL MODULE IMAGE .................................................................................................................. 155SOFTWARE ........................................................................................................................................... 155.1MAC ADDRESS AND PRODUCT ID: ................................................................................................... 156KEY COMPONENTS ............................................................................................................................ 166.1SOC CHIPSET MT7697HD ................................................................................................................ 166.2WIFI ANTENNA ................................................................................................................................. 166.3RF CONNECTOR ................................................................................................................................ 177MARKING INFORMATION ............................................................................................................... 17 1 Introduction 1.1 Scope This document is to specify the technical specifications of WiFi+BluetoothCombi-Module, which is customized designed for IEEE 802.11b/g/n/(ac) WLAN, Bluetooth/Bluetooth Low Energy applications. Table 1: WiFi+BT+BLE Combi-Module Diversity: Module#ModuleName HTP/NSOCWLANStandardSupportedBluetoothStandardSupportedRFFrequencyBandInterfacetoHostModuleSizeContents REVISION HISTORY: .................................................................................................................................... 11INTRODUCTION .................................................................................................................................... 31.1SCOPE .................................................................................................................................................. 31.2PRODUCT FEATURES ........................................................................................................................... 4

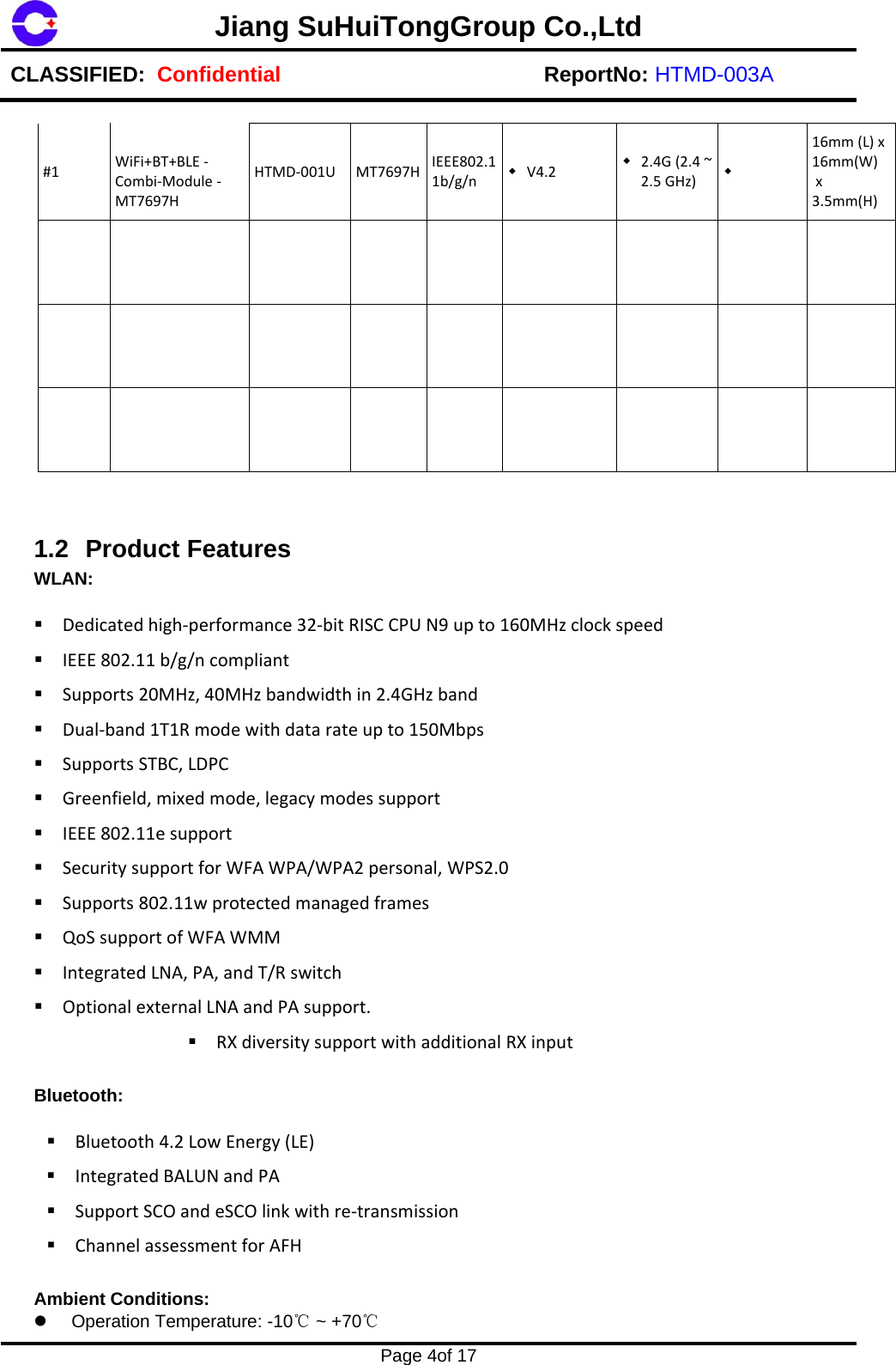

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 4of 17 #1WiFi+BT+BLE‐Combi‐Module‐MT7697HHTMD‐001UMT7697H IEEE802.11b/g/n V4.2  2.4G(2.4~2.5GHz)  16mm(L)x16mm(W)x3.5mm(H)1.2 Product Features WLAN: Dedicatedhigh‐performance32‐bitRISCCPUN9upto160MHzclockspeedIEEE802.11b/g/ncompliantSupports20MHz,40MHzbandwidthin2.4GHzbandDual‐band1T1Rmodewithdatarateupto150MbpsSupportsSTBC,LDPCGreenfield,mixedmode,legacymodessupportIEEE802.11esupportSecuritysupportforWFAWPA/WPA2personal,WPS2.0Supports802.11wprotectedmanagedframesQoSsupportofWFAWMMIntegratedLNA,PA,andT/RswitchOptionalexternalLNAandPAsupport.RXdiversitysupportwithadditionalRXinputBluetooth: Bluetooth4.2LowEnergy(LE)IntegratedBALUNandPASupportSCOandeSCOlinkwithre‐transmissionChannelassessmentforAFHAmbient Conditions: Operation Temperature: -10℃ ~ +70℃

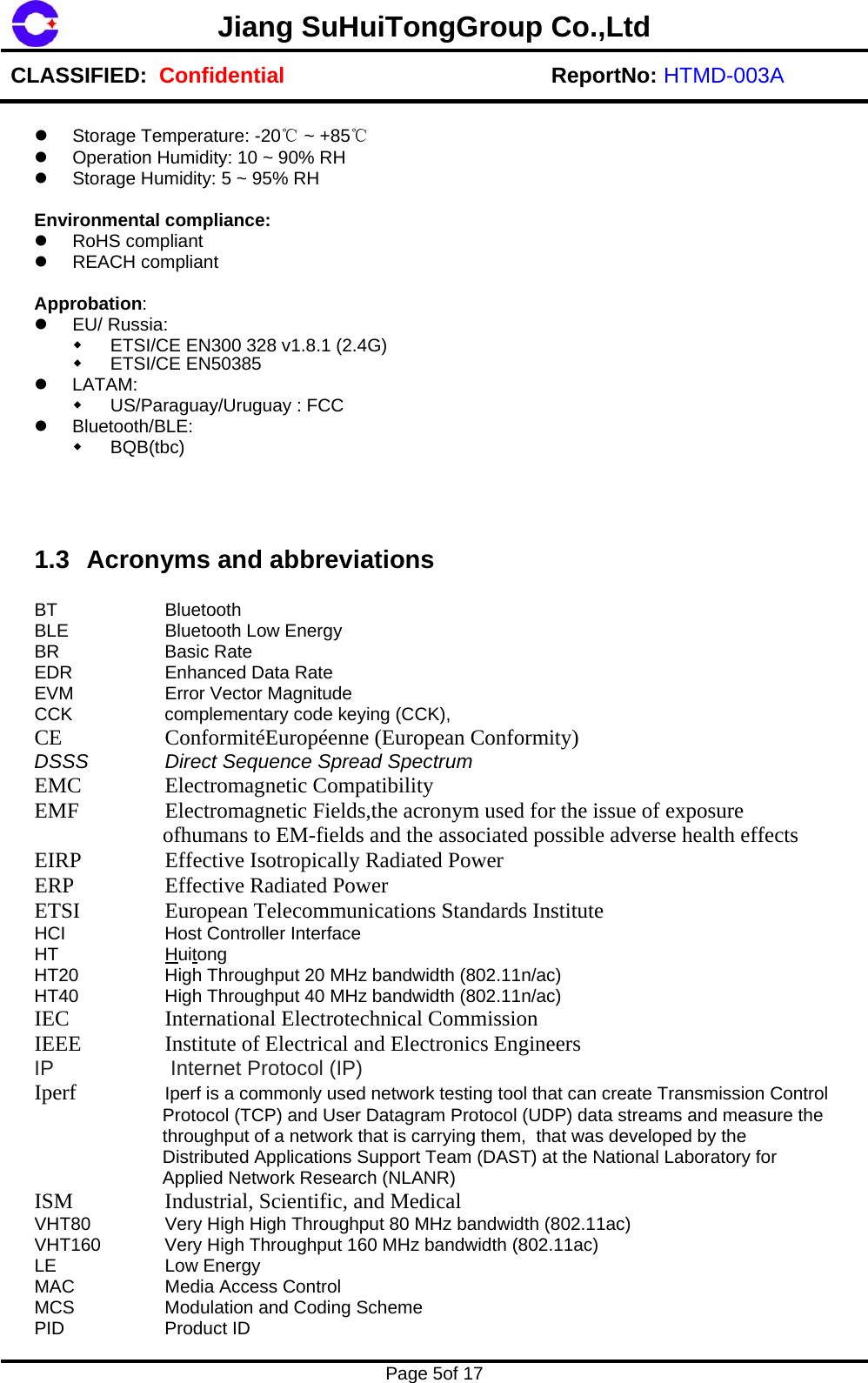

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 5of 17  Storage Temperature: -20℃ ~ +85℃  Operation Humidity: 10 ~ 90% RH  Storage Humidity: 5 ~ 95% RH Environmental compliance:  RoHS compliant  REACH compliant Approbation:  EU/ Russia:  ETSI/CE EN300 328 v1.8.1 (2.4G)  ETSI/CE EN50385  LATAM:  US/Paraguay/Uruguay : FCC  Bluetooth/BLE:  BQB(tbc) 1.3 Acronyms and abbreviations BT Bluetooth BLE Bluetooth Low Energy BR Basic Rate EDR Enhanced Data Rate EVM Error Vector Magnitude CCK complementary code keying (CCK), CE ConformitéEuropéenne (European Conformity) DSSS Direct Sequence Spread Spectrum EMC Electromagnetic Compatibility EMF Electromagnetic Fields,the acronym used for the issue of exposure ofhumans to EM-fields and the associated possible adverse health effects EIRP Effective Isotropically Radiated Power ERP Effective Radiated Power ETSI European Telecommunications Standards Institute HCI Host Controller Interface HT Huitong HT20 High Throughput 20 MHz bandwidth (802.11n/ac) HT40 High Throughput 40 MHz bandwidth (802.11n/ac) IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IP Internet Protocol (IP) Iperf Iperf is a commonly used network testing tool that can create Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) data streams and measure the throughput of a network that is carrying them, that was developed by the Distributed Applications Support Team (DAST) at the National Laboratory for Applied Network Research (NLANR) ISM Industrial, Scientific, and Medical VHT80 Very High High Throughput 80 MHz bandwidth (802.11ac) VHT160 Very High Throughput 160 MHz bandwidth (802.11ac) LE Low Energy MAC Media Access Control MCS Modulation and Coding Scheme PID Product ID

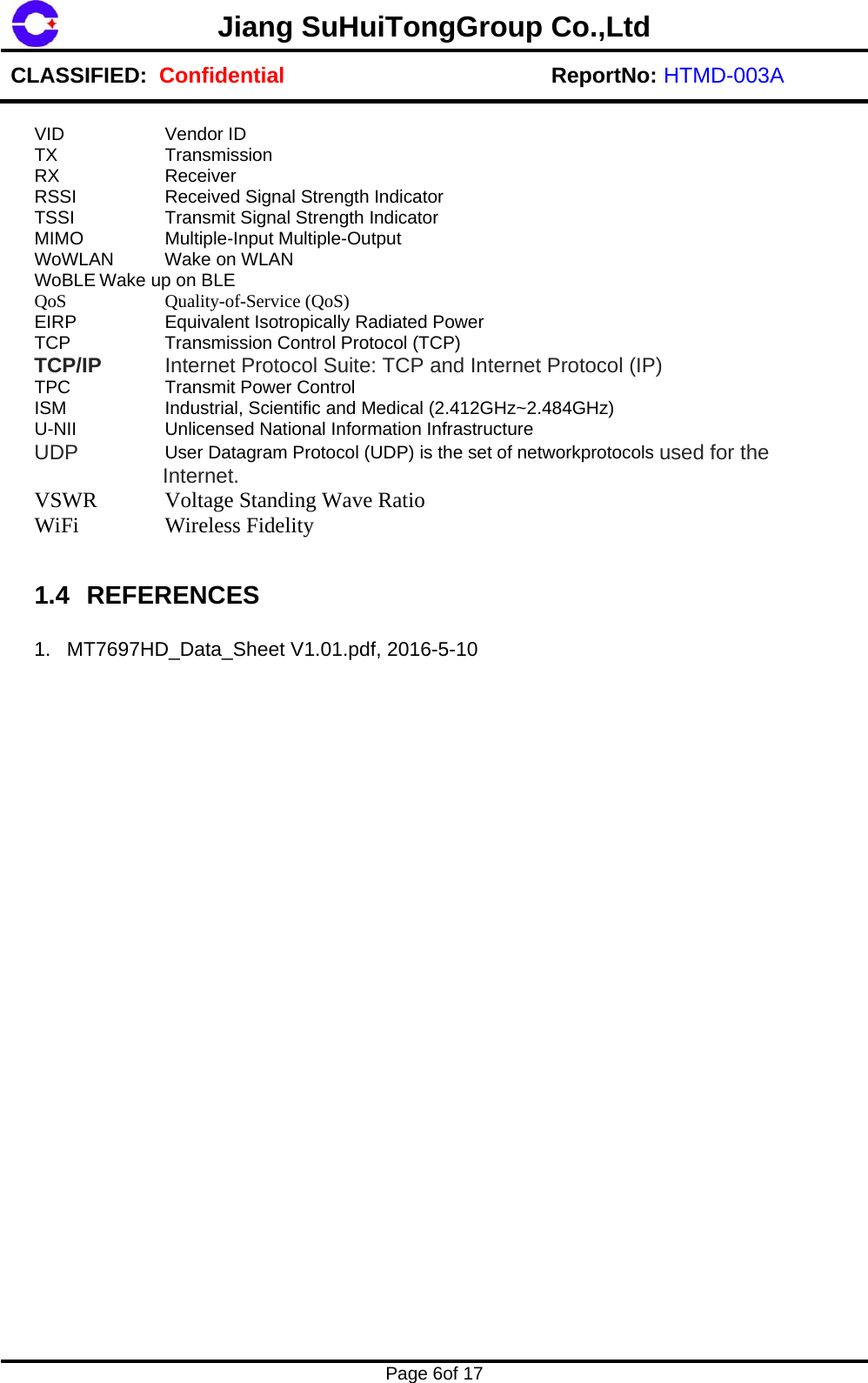

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 6of 17 VID Vendor ID TX Transmission RX Receiver RSSI Received Signal Strength Indicator TSSI Transmit Signal Strength Indicator MIMO Multiple-Input Multiple-Output WoWLAN Wake on WLAN WoBLE Wake up on BLE QoS Quality-of-Service (QoS) EIRP Equivalent Isotropically Radiated Power TCP Transmission Control Protocol (TCP) TCP/IP Internet Protocol Suite: TCP and Internet Protocol (IP) TPC Transmit Power Control ISM Industrial, Scientific and Medical (2.412GHz~2.484GHz) U-NII Unlicensed National Information Infrastructure UDP User Datagram Protocol (UDP) is the set of networkprotocols used for the Internet. VSWR Voltage Standing Wave Ratio WiFi Wireless Fidelity 1.4 REFERENCES 1. MT7697HD_Data_Sheet V1.01.pdf, 2016-5-10

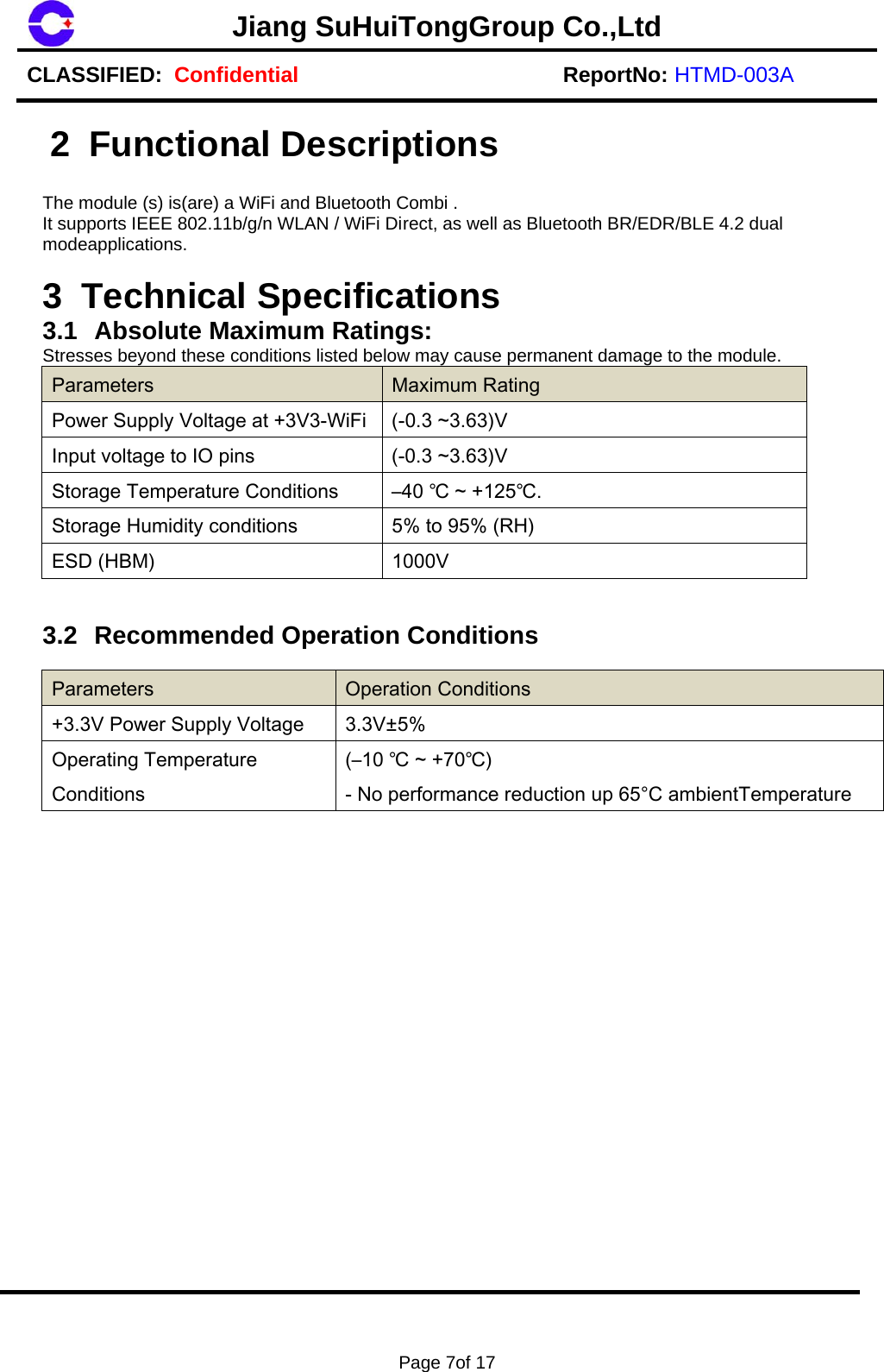

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 7of 17 2 Functional Descriptions The module (s) is(are) a WiFi and Bluetooth Combi . It supports IEEE 802.11b/g/n WLAN / WiFi Direct, as well as Bluetooth BR/EDR/BLE 4.2 dual modeapplications. 3 Technical Specifications 3.1 Absolute Maximum Ratings: Stresses beyond these conditions listed below may cause permanent damage to the module. Parameters Maximum Rating Power Supply Voltage at +3V3-WiFi (-0.3 ~3.63)V Input voltage to IO pins (-0.3 ~3.63)V Storage Temperature Conditions –40 ℃ ~ +125℃.Storage Humidity conditions 5% to 95% (RH) ESD (HBM) 1000V 3.2 Recommended Operation Conditions Parameters Operation Conditions +3.3V Power Supply Voltage 3.3V±5% Operating Temperature Conditions (–10 ℃ ~ +70℃) - No performance reduction up 65°C ambientTemperature

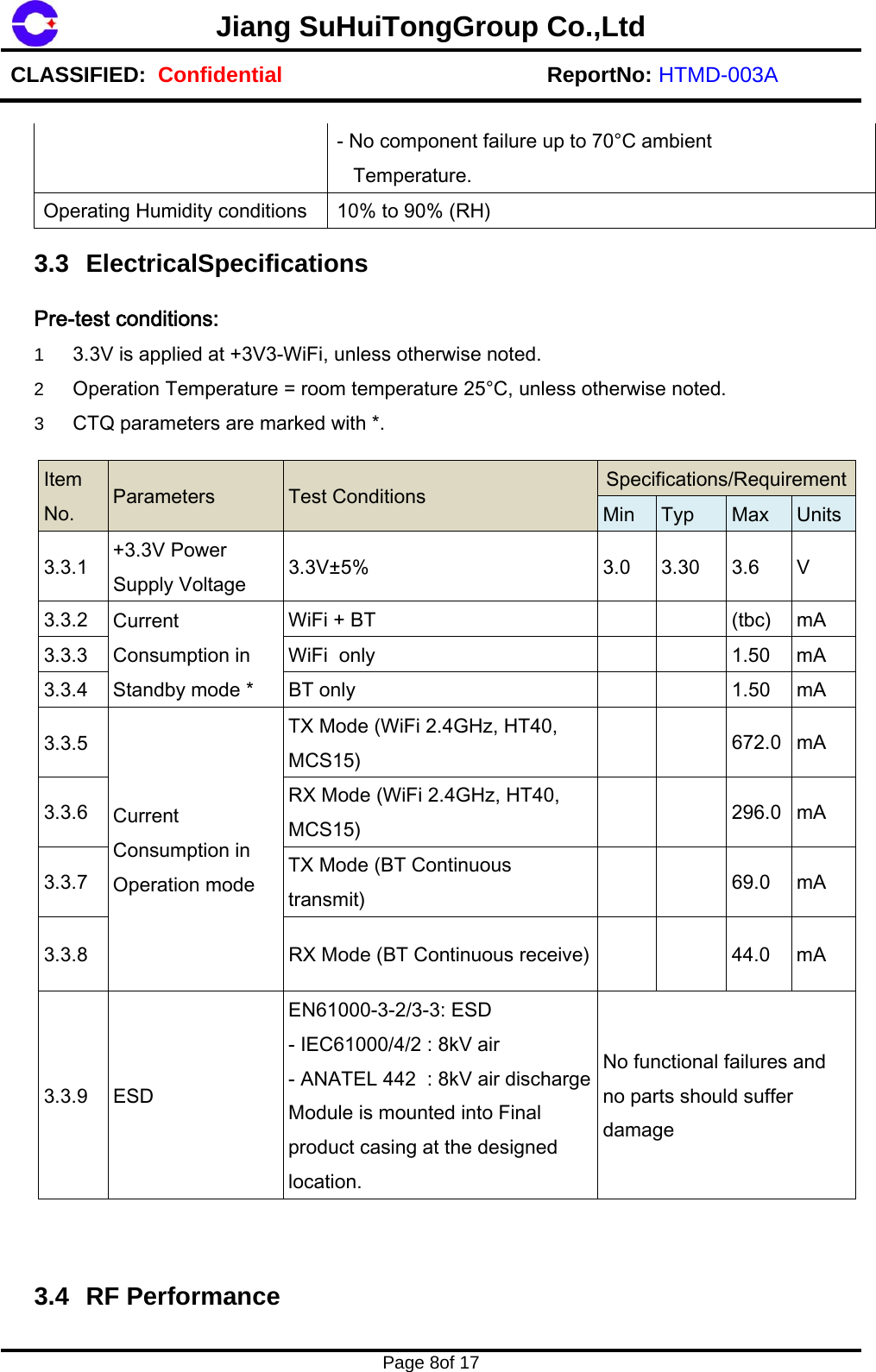

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 8of 17 - No component failure up to 70°C ambient Temperature. Operating Humidity conditions 10% to 90% (RH) 3.3 ElectricalSpecifications Pre-test conditions: 1 3.3V is applied at +3V3-WiFi, unless otherwise noted. 2 Operation Temperature = room temperature 25°C, unless otherwise noted. 3 CTQ parameters are marked with *. Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units3.3.1 +3.3V Power Supply Voltage 3.3V±5% 3.0 3.30 3.6 V 3.3.2 Current Consumption in Standby mode * WiFi + BT (tbc) mA 3.3.3 WiFi only 1.50 mA 3.3.4 BT only 1.50 mA 3.3.5 Current Consumption in Operation mode TX Mode (WiFi 2.4GHz, HT40, MCS15) 672.0 mA 3.3.6 RX Mode (WiFi 2.4GHz, HT40, MCS15) 296.0 mA 3.3.7 TX Mode (BT Continuous transmit) 69.0 mA 3.3.8 RX Mode (BT Continuous receive) 44.0 mA 3.3.9 ESD EN61000-3-2/3-3: ESD - IEC61000/4/2 : 8kV air - ANATEL 442 : 8kV air discharge Module is mounted into Final product casing at the designed location. No functional failures and no parts should suffer damage 3.4 RF Performance
Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 9of 17 Pre-test conditions: 1) 3.3V is applied at +3V3-WiFi, unless otherwise noted.2) WiFi+BT module and BT antenna are mounted at the designed location of host TV.3) TX power is at typical level, measured at antenna feed point.4) Front End Insertion loss ( including Balun, impedance mis-match+diplexer):- 0.8dB(@2.4GHz),5) WiFitypical test channels- 2.4G band: CH1 (2412MHz), CH6(2437MHz), CH11(2462MHz); - Bluetooth typical test channels:- 2402MHz、2441MHz、2480MHz.6) Operation Temperature = room temperature 25°C, unless otherwise noted.7) CTQ parameters are marked with *.3.4.1 WiFiRF specifications Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units3.4.1.1 WiFi Throughput @ 90% probability @72dB pathloss at 2.4GHz 60 Mbps @80dB pathloss at 2.4GHz 50 Mbps @85dB pathloss at 2.4GHz 45 Mbps @89dB pathloss at 2.4GHz 24 Mbps @97dB pathloss at 2.4GHz 9 Mbps3.4.1.2 @69dB pathloss at 5GHz 25 Mbps3.4.1.3 WiFi TX Output Power (measured at antenna port) * TX Power @ 2.4GHz test channels, (at 6Mbps OFDM) 17.93 - 21.69 dBm 3.4.1.5 WiFi Initial carrier CenterFrequency tolerance* 2.4GHz band test channels -75 +75 KHz 3.4.1.7 EVM* 802.11b (DSSS ) (peak EVM value) dB 3.4.1.8 802.11g/n ( for OFDM, HT, and VHT) (64QAM, Code Rate: 2/3), (EVM RMS value) -22 dB 3.4.1.9 WiFi RX Sensitivity 2.4GHz @ PER≤8%(injected at antenna port)(at 11Mbps, CCK ) -80 dBm 3.4.1.11 WiFi Maximum useable receive signal level 2.4GHz @ PER≤8%(injected at antenna port)(at 11Mbps, CCK ) -10 dBm 3.4.1.13 PER @-70dBm* 2.4GHz 8.0% %

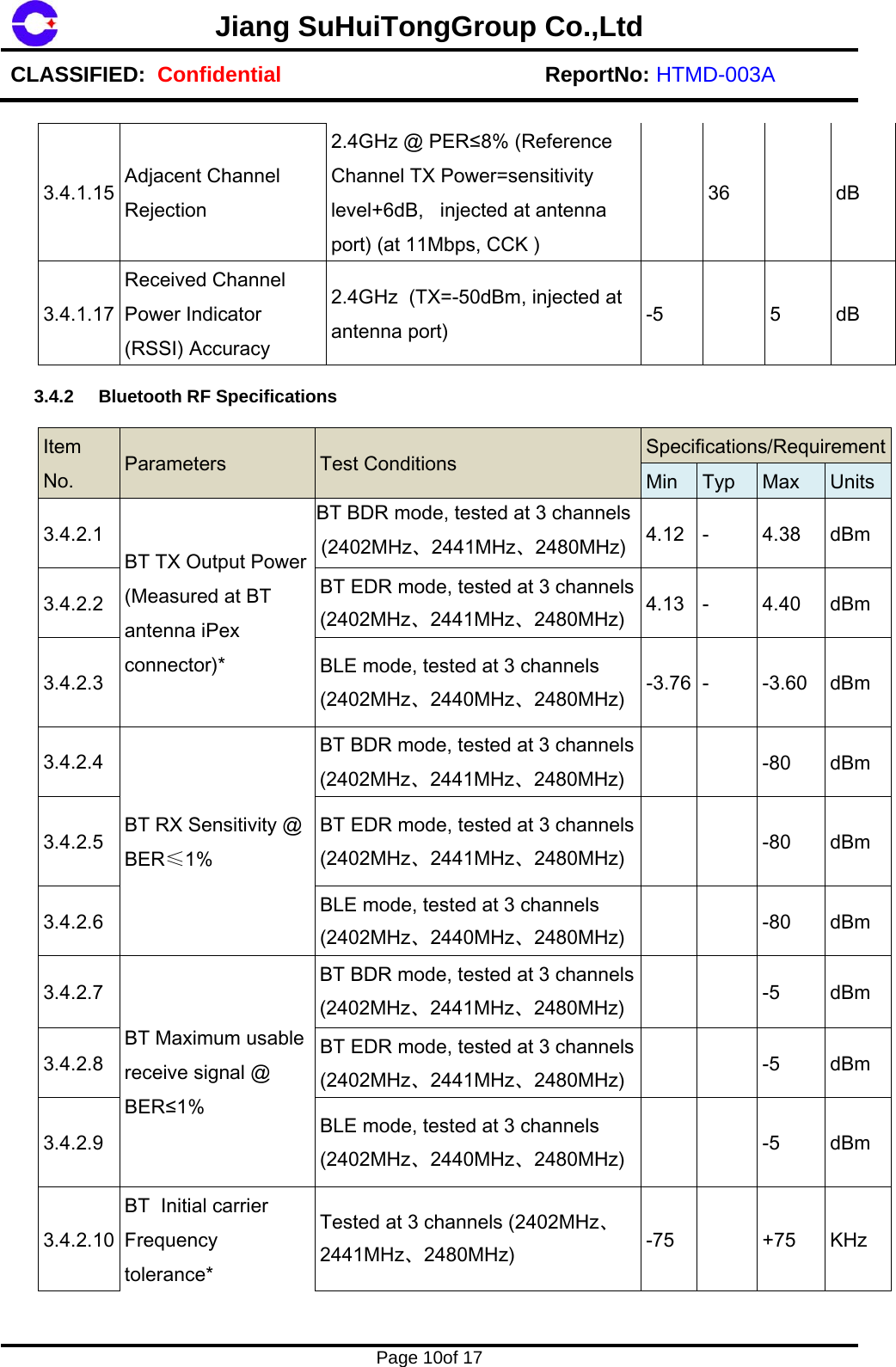

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 10of 17 3.4.1.15 Adjacent Channel Rejection 2.4GHz @ PER≤8% (Reference Channel TX Power=sensitivity level+6dB, injected at antenna port) (at 11Mbps, CCK ) 36 dB 3.4.1.17 Received Channel Power Indicator (RSSI) Accuracy 2.4GHz (TX=-50dBm, injected at antenna port) -5 5 dB 3.4.2 Bluetooth RF Specifications Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units3.4.2.1 BT TX Output Power (Measured at BT antenna iPex connector)* BT BDR mode, tested at 3 channels (2402MHz、2441MHz、2480MHz) 4.12 - 4.38 dBm 3.4.2.2 BT EDR mode, tested at 3 channels (2402MHz、2441MHz、2480MHz) 4.13 - 4.40 dBm 3.4.2.3 BLE mode, tested at 3 channels (2402MHz、2440MHz、2480MHz) -3.76 - -3.60 dBm 3.4.2.4 BT RX Sensitivity @ BER≤1% BT BDR mode, tested at 3 channels (2402MHz、2441MHz、2480MHz) -80 dBm 3.4.2.5 BT EDR mode, tested at 3 channels (2402MHz、2441MHz、2480MHz) -80 dBm 3.4.2.6 BLE mode, tested at 3 channels (2402MHz、2440MHz、2480MHz) -80 dBm 3.4.2.7 BT Maximum usable receive signal @ BER≤1% BT BDR mode, tested at 3 channels (2402MHz、2441MHz、2480MHz) -5 dBm 3.4.2.8 BT EDR mode, tested at 3 channels (2402MHz、2441MHz、2480MHz) -5 dBm 3.4.2.9 BLE mode, tested at 3 channels (2402MHz、2440MHz、2480MHz) -5 dBm 3.4.2.10 BT Initial carrier Frequency tolerance* Tested at 3 channels (2402MHz、 2441MHz、2480MHz) -75 +75 KHz

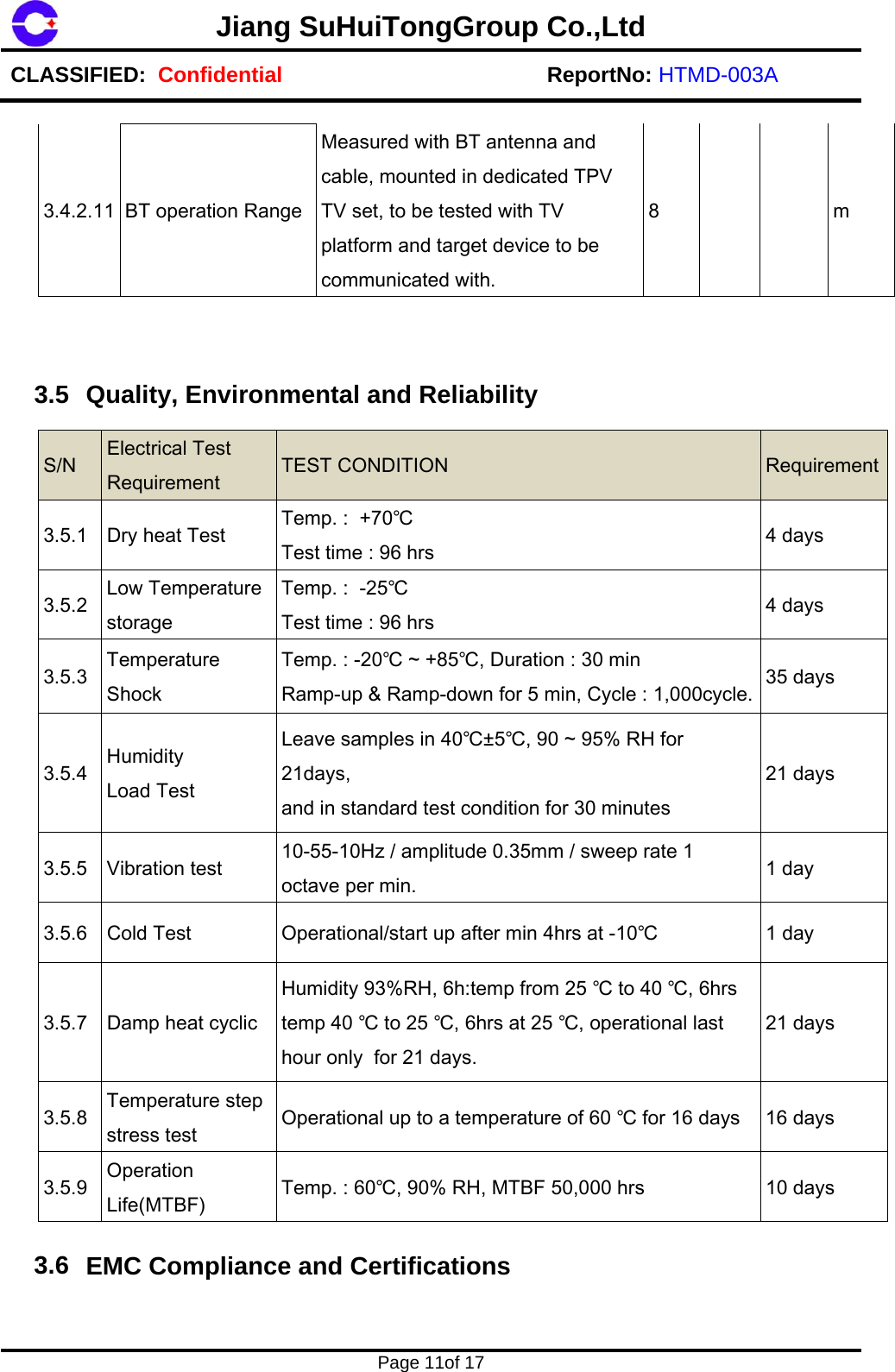

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 11of 17 3.4.2.11 BT operation Range Measured with BT antenna and cable, mounted in dedicated TPV TV set, to be tested with TV platform and target device to be communicated with. 8 m 3.5 Quality, Environmental and Reliability S/N Electrical Test Requirement TEST CONDITION Requirement3.5.1 Dry heat Test Temp. : +70℃ Test time : 96 hrs 4 days 3.5.2 Low Temperature storage Temp. : -25℃ Test time : 96 hrs 4 days 3.5.3 Temperature Shock Temp. : -20℃ ~ +85℃, Duration : 30 min Ramp-up & Ramp-down for 5 min, Cycle : 1,000cycle. 35 days 3.5.4 Humidity Load Test Leave samples in 40℃±5℃, 90 ~ 95% RH for 21days, and in standard test condition for 30 minutes 21 days 3.5.5 Vibration test 10-55-10Hz / amplitude 0.35mm / sweep rate 1 octave per min. 1 day 3.5.6 Cold Test Operational/start up after min 4hrs at -10℃ 1 day 3.5.7 Damp heat cyclic Humidity 93%RH, 6h:temp from 25 ℃ to 40 ℃, 6hrs temp 40 ℃ to 25 ℃, 6hrs at 25 ℃, operational last hour only for 21 days. 21 days 3.5.8 Temperature step stress test Operational up to a temperature of 60 ℃ for 16 days 16 days 3.5.9 Operation Life(MTBF) Temp. : 60℃, 90% RH, MTBF 50,000 hrs 10 days 3.6 EMC Compliance and Certifications

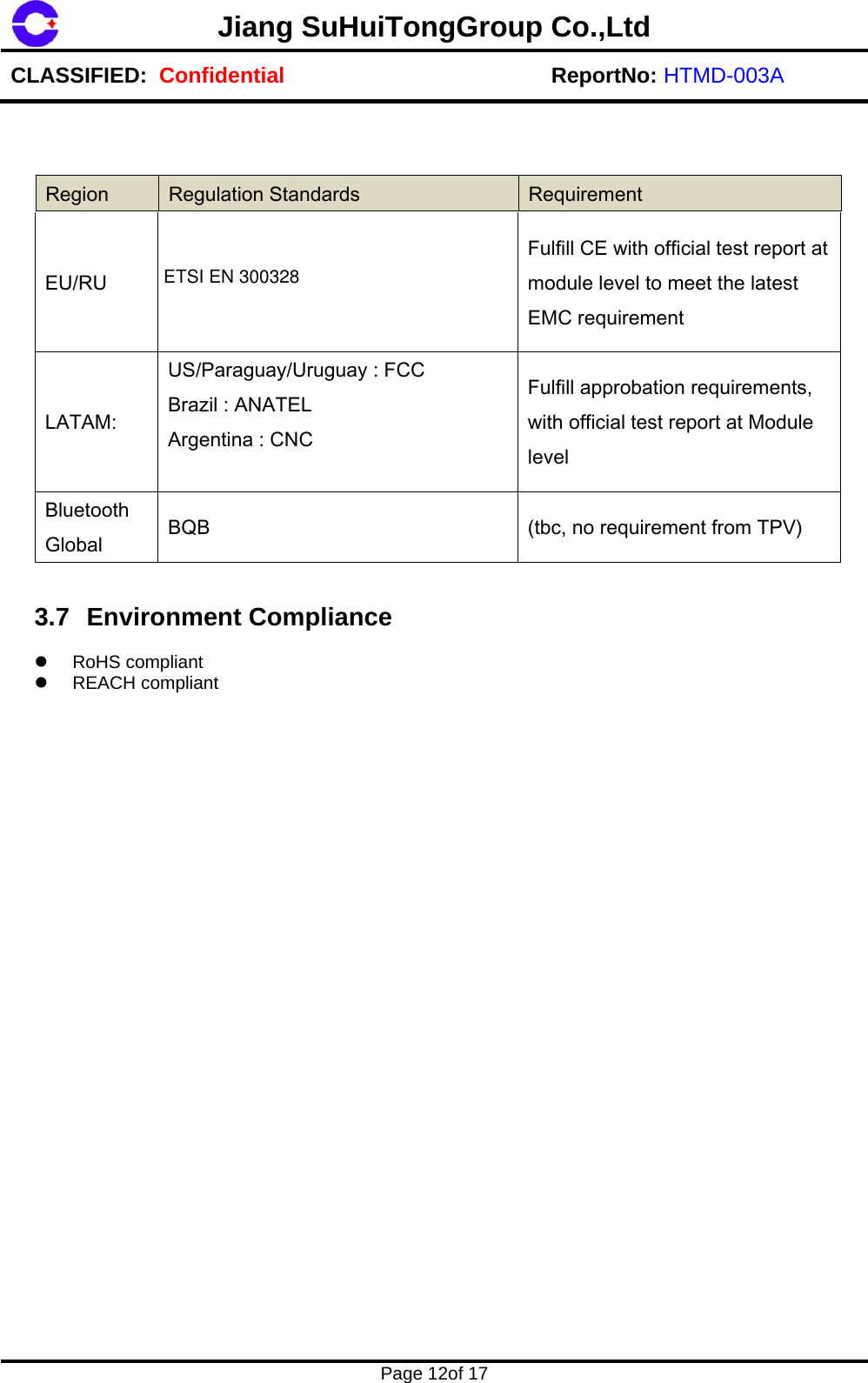

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 12of 17 EU/RU Fulfill CE with official test report at module level to meet the latest EMC requirement LATAM: US/Paraguay/Uruguay : FCC Brazil : ANATEL Argentina : CNC Fulfill approbation requirements, with official test report at Module level Bluetooth Global BQB (tbc, no requirement from TPV) 3.7 Environment Compliance  RoHS compliant  REACH compliant Region Regulation Standards Requirement ETSI EN 300328

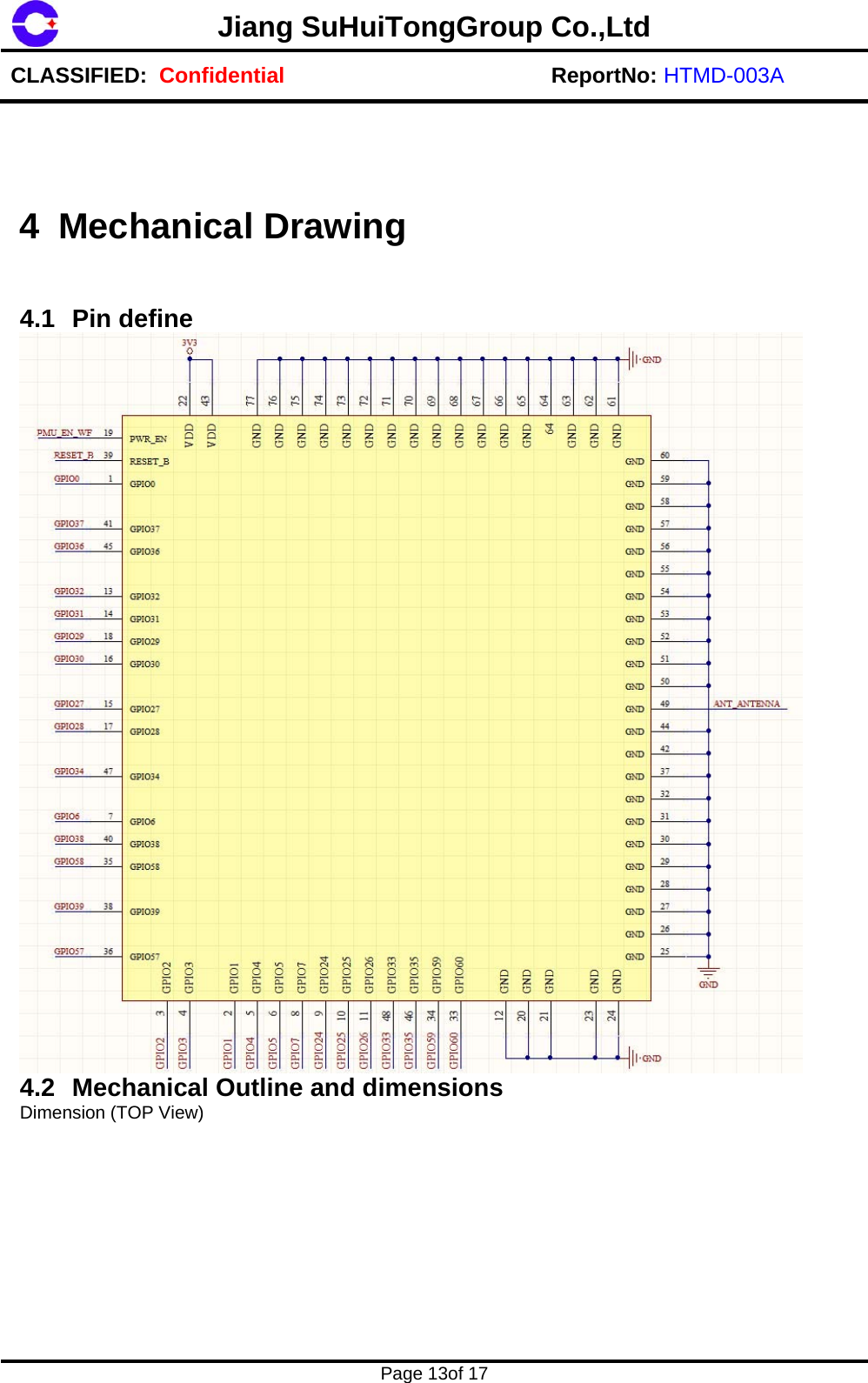

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 13of 17 4.1 Pin define 4.2 Mechanical Outline and dimensions Dimension (TOP View) 4 Mechanical Drawing

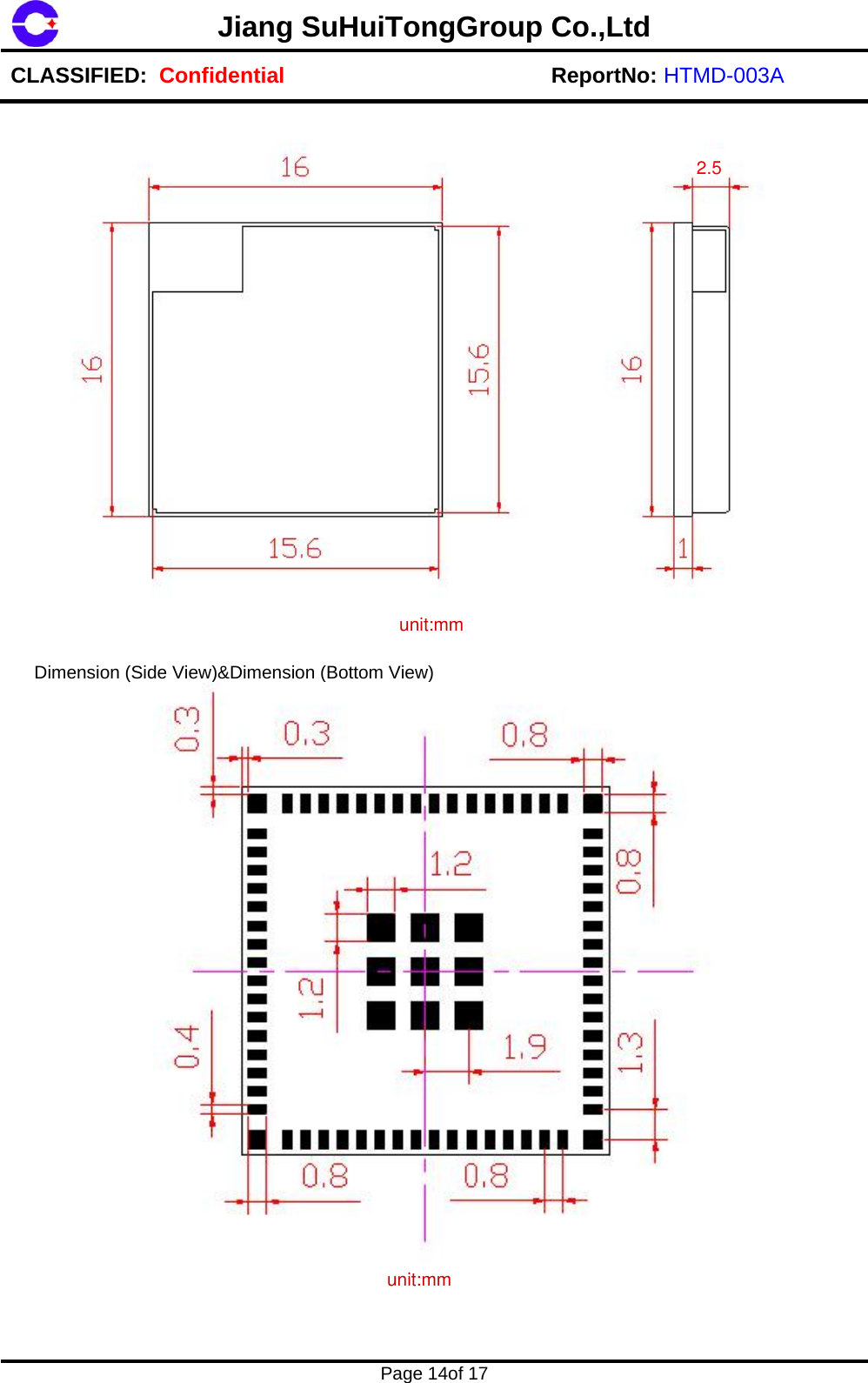

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 14of 17 Dimension (Side View)&Dimension (Bottom View) 2.5unit:mmunit:mm

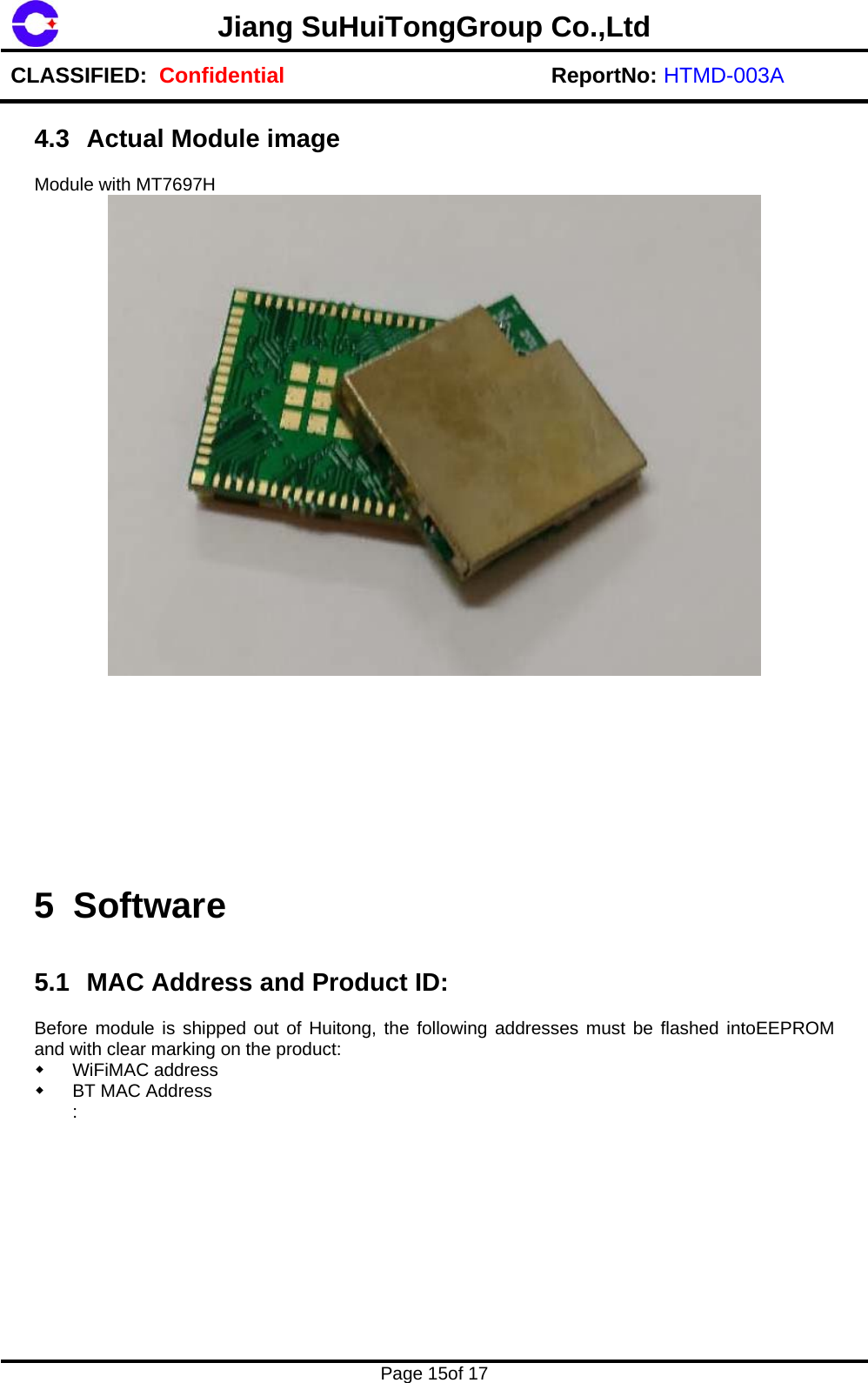

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 15of 17 4.3 Actual Module image Module with MT7697H 5 Software 5.1 MAC Address and Product ID: Before module is shipped out of Huitong, the following addresses must be flashed intoEEPROM and with clear marking on the product:  WiFiMAC address  BT MAC Address :

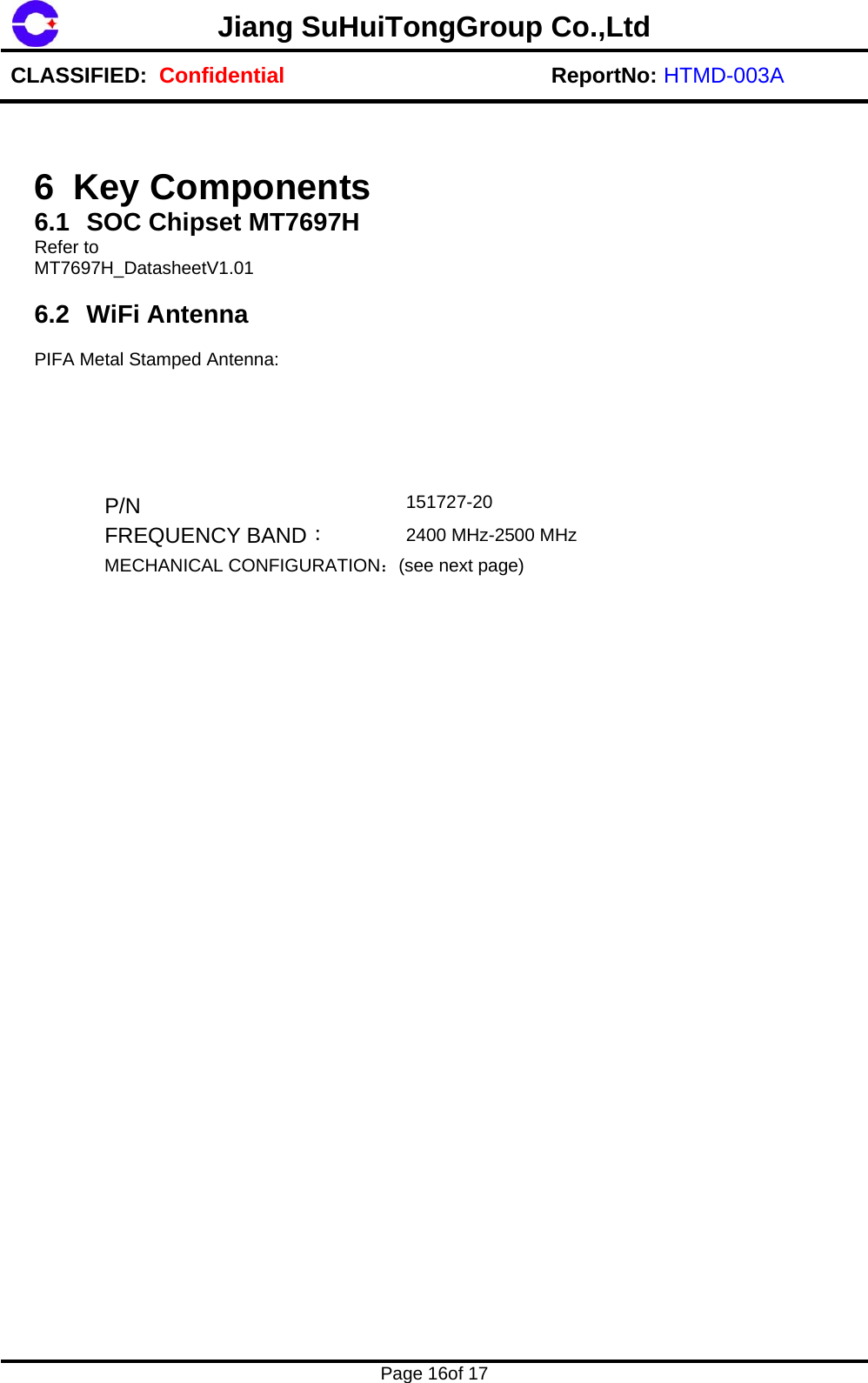

Jiang SuHuiTongGroup Co.,LtdCLASSIFIED: Confidential ReportNo: HTMD-003A Page 16of 17 6 Key Components 6.1 SOC Chipset MT7697H Refer to MT7697H_DatasheetV1.01 6.2 WiFi Antenna PIFA Metal Stamped Antenna: P/N 151727-20 FREQUENCY BAND： 2400 MHz-2500 MHz MECHANICAL CONFIGURATION：(see next page)

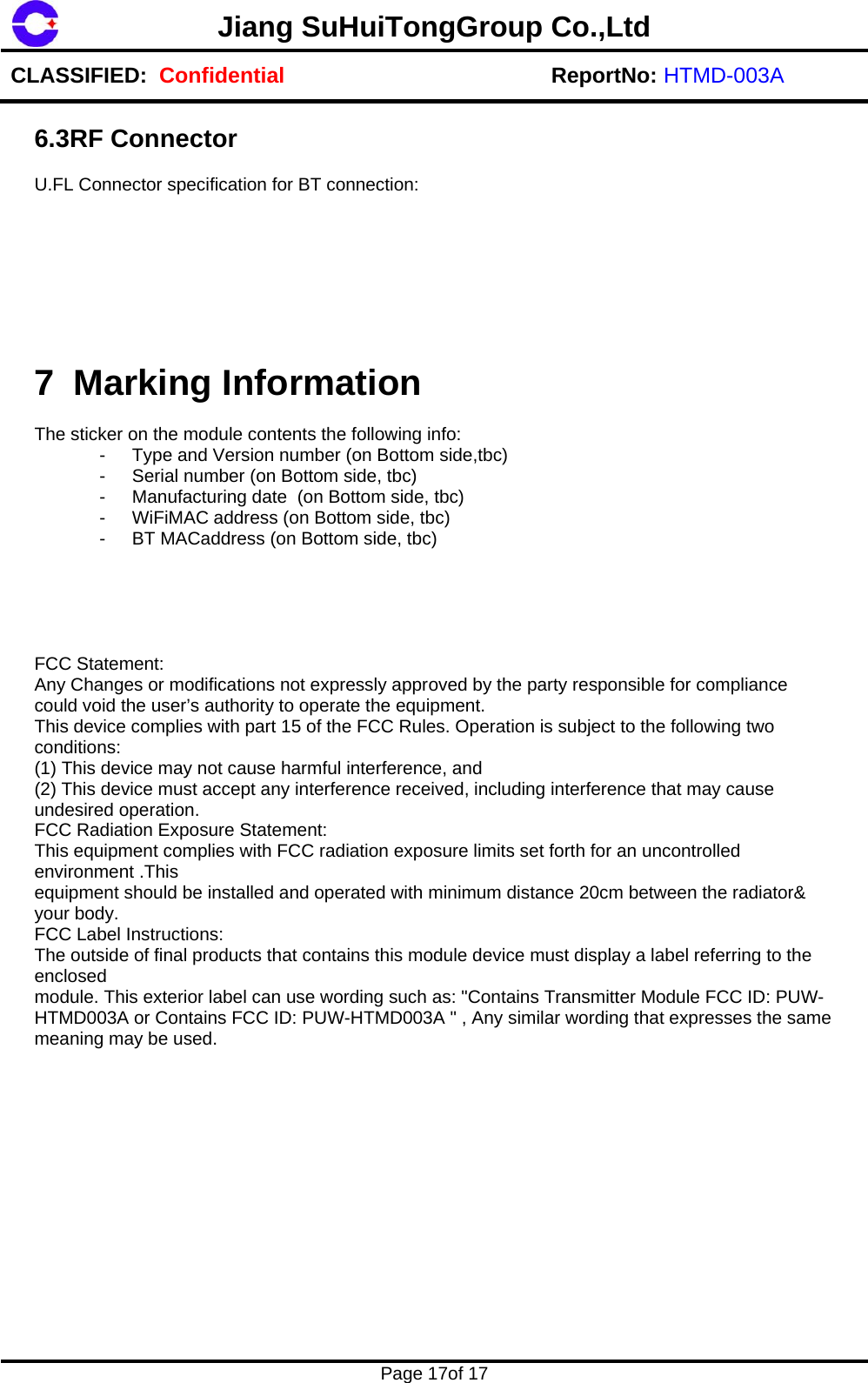

Jiang SuHuiTongGroup Co.,Ltd CLASSIFIED: Confidential ReportNo: HTMD-003A Page 17of 17 6.3RF Connector U.FL Connector specification for BT connection: 7 Marking Information The sticker on the module contents the following info: - Type and Version number (on Bottom side,tbc) - Serial number (on Bottom side, tbc) - Manufacturing date (on Bottom side, tbc) - WiFiMAC address (on Bottom side, tbc) - BT MACaddress (on Bottom side, tbc) FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. FCC Label Instructions: The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as: "Contains Transmitter Module FCC ID: PUW-HTMD003A or Contains FCC ID: PUW-HTMD003A " , Any similar wording that expresses the same meaning may be used.
