JiangSu HuiTong Group HTMD004B NXP5169LIGHT MODULE User Manual

JiangSu HuiTong Group Co.,Ltd NXP5169LIGHT MODULE

User Manual

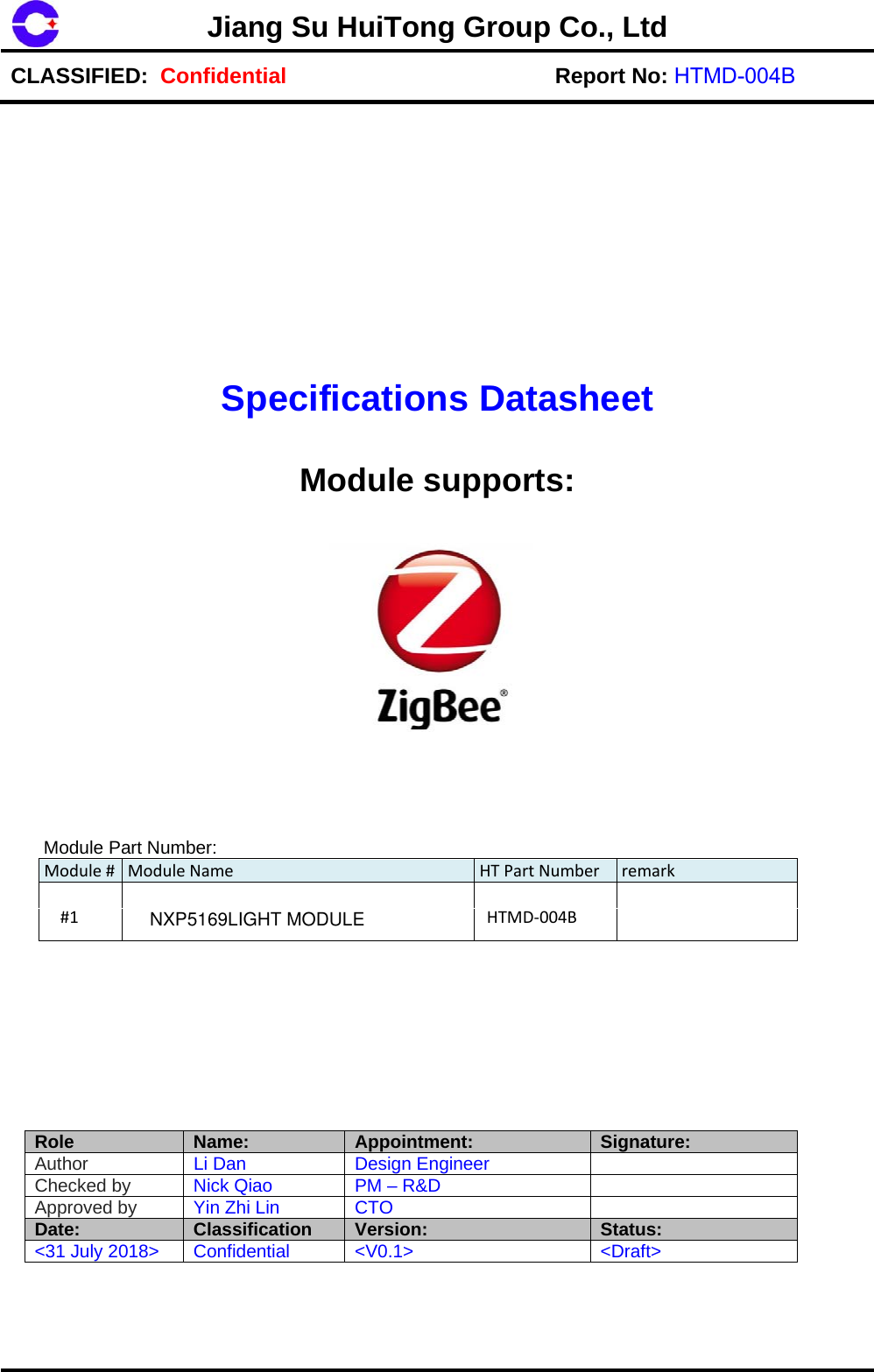

Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B Specifications Datasheet Module supports: Module Part Number: Module#ModuleName HTPartNumber remark#1HTMD‐004BRole Name: Appointment: Signature: Author Li Dan Design Engineer Checked by Nick Qiao PM – R&D Approved by Yin Zhi Lin CTO Date: Classification Version: Status: <31 July 2018> Confidential <V0.1> <Draft> NXP5169LIGHT MODULE
Page 2 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B Revision History: Version Date (dd/mm/yyyy) Author Status Modifications V0.1 31/07/2018 Li Dan Draft Doc creation V0.2 22/08/2018 Li Dan Draft Add 5169 module V0.3 7/9/2018 Li Dan Draft Add parameter All rights are reserved. The information presented in this document does not form part of any quotation, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.
Page 3 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B 1 Introduction 1.1 Scope Module#ModuleName HTP/NSOCStandardSupportedRFFrequencyBandInterfacetoHostModuleSize         #1 HTMD‐004BZigbee3.02.4G(2.4~2.5GHz) UART22mm(L)x15mm(W)x3mm(H)NXP5169LIGHT MODULE JN5169

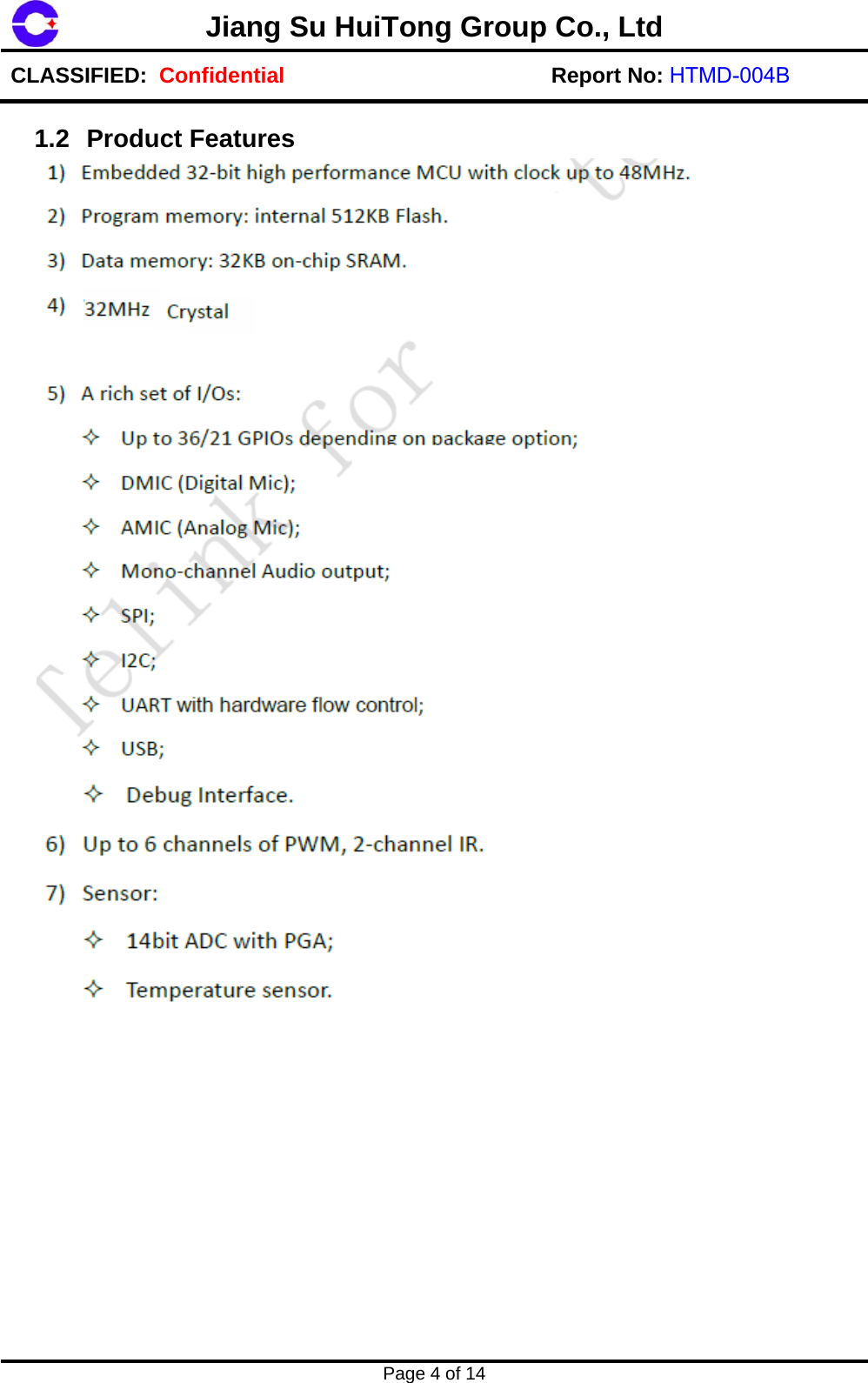

Page 4 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B 1.2 Product Features

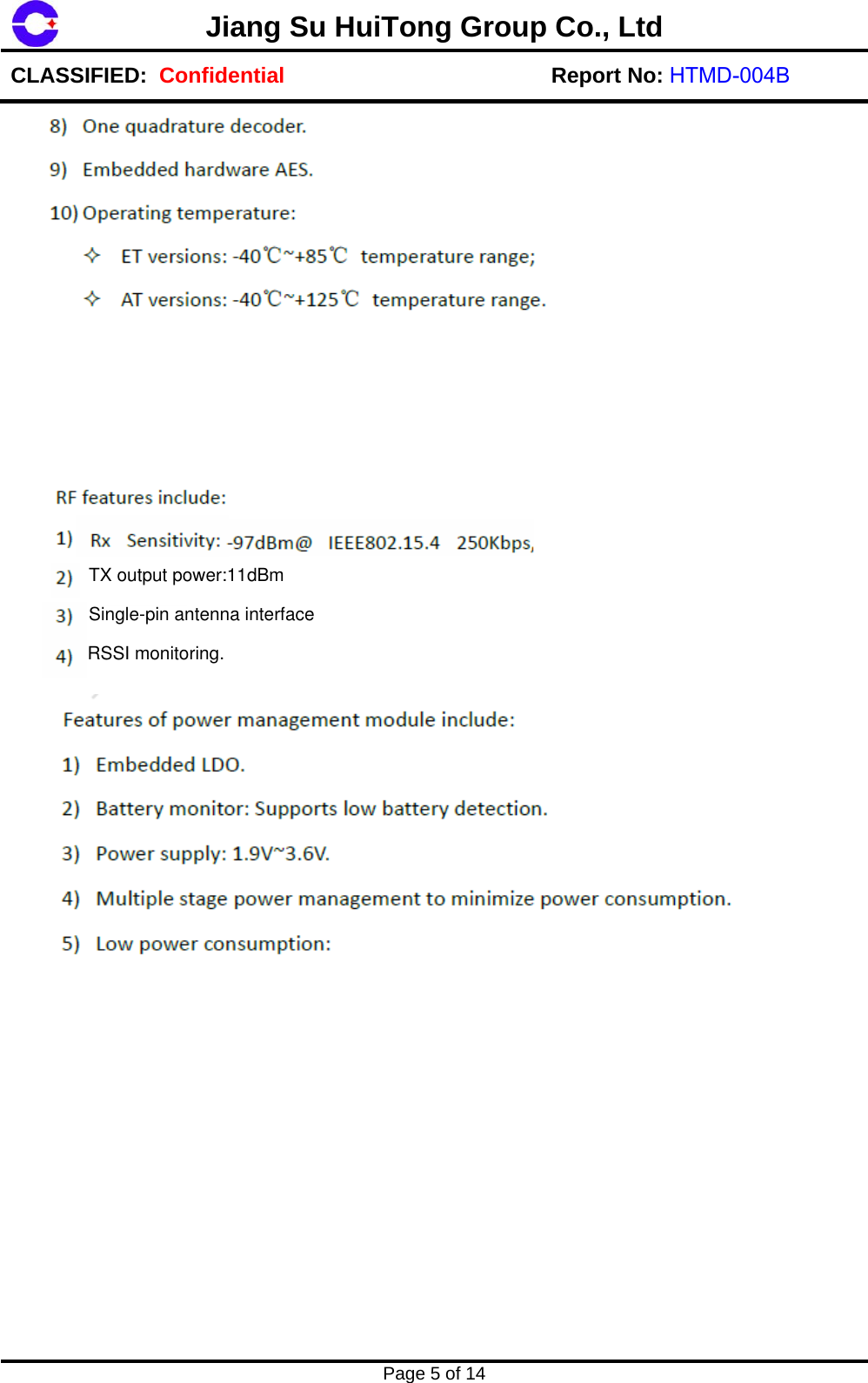

Page 5 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B TX output power:11dBmSingle-pin antenna interfaceRSSI monitoring.

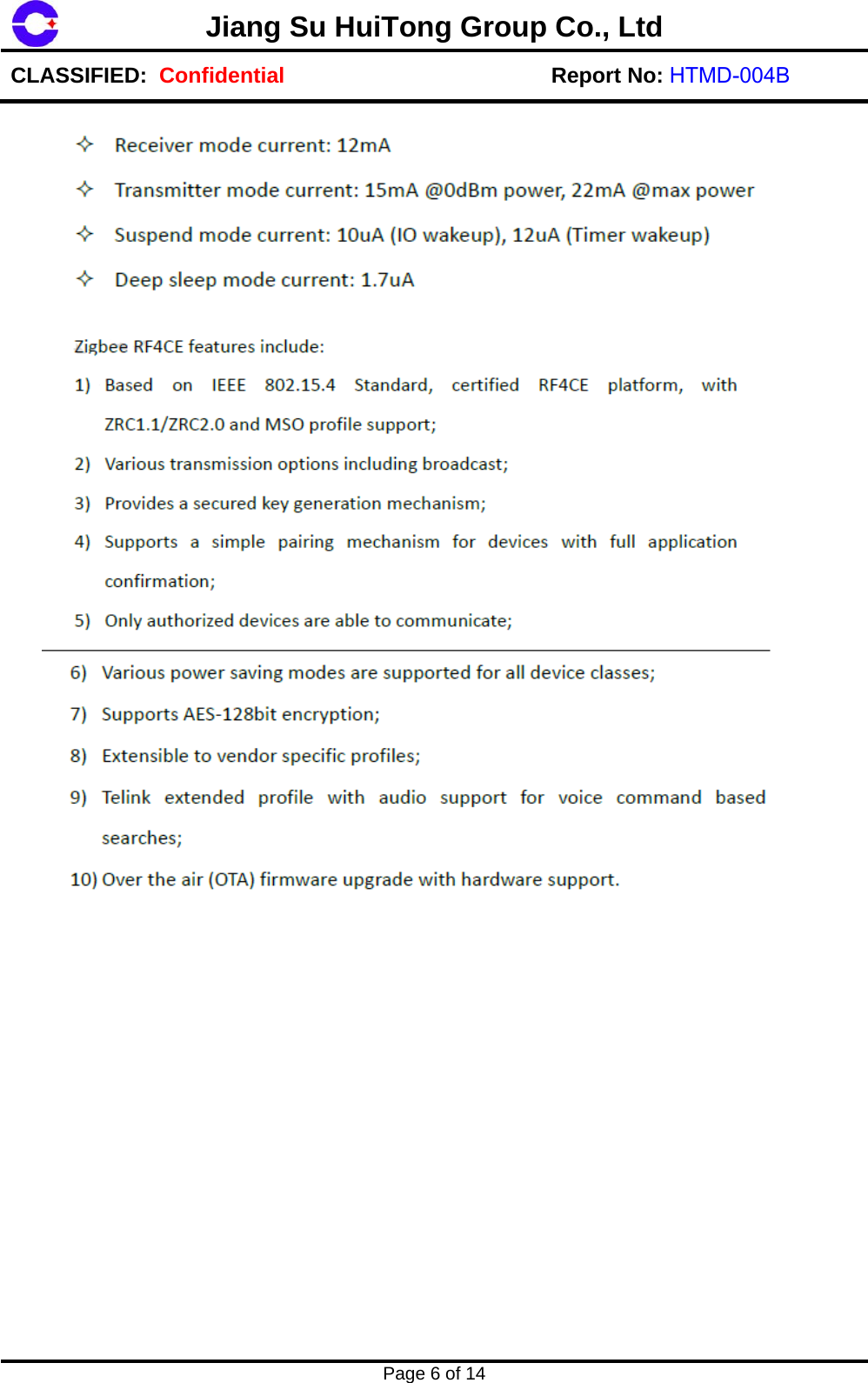

Page 6 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B

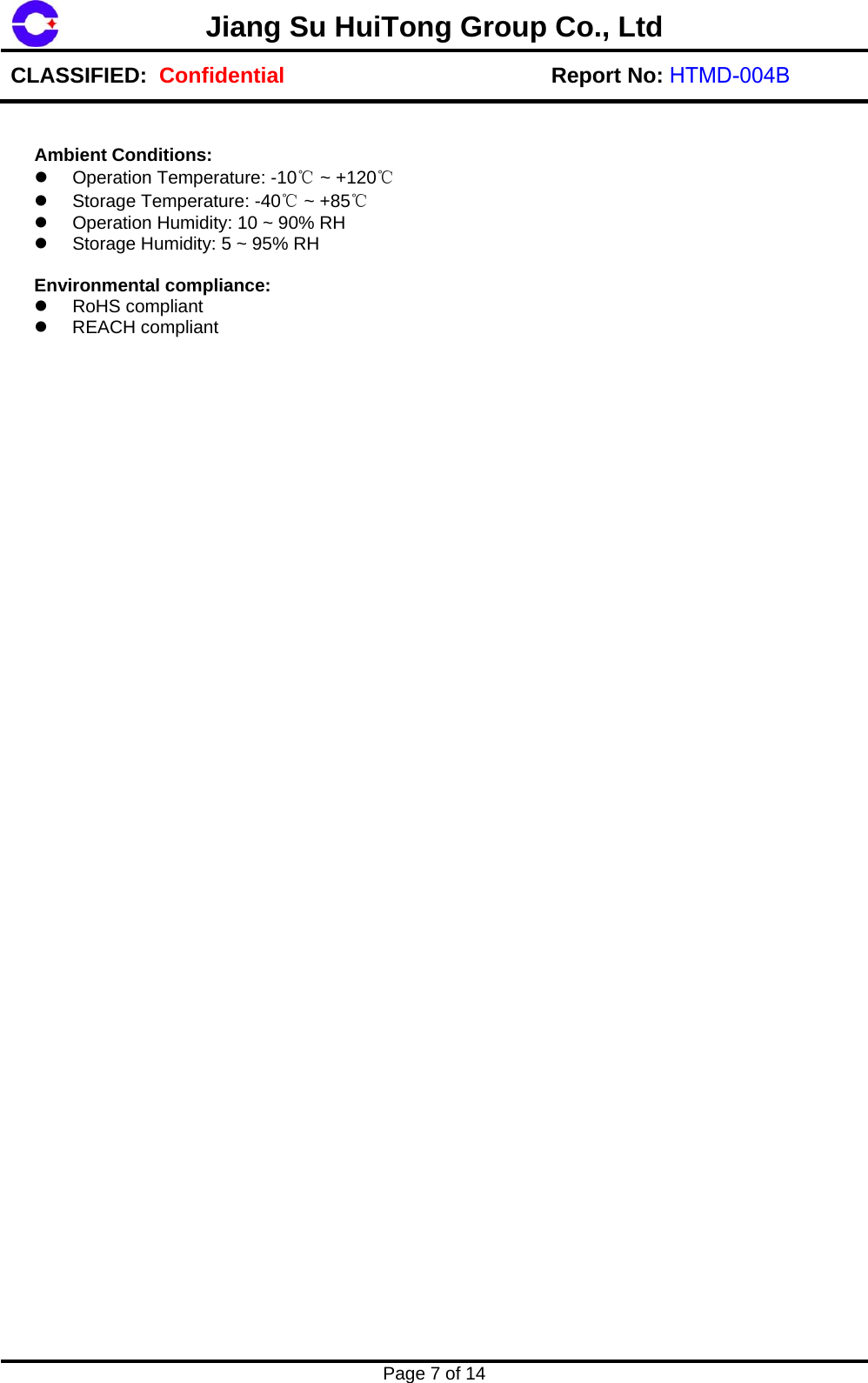

Page 7 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B Ambient Conditions: Operation Temperature: -10℃ ~ +120℃Storage Temperature: -40℃ ~ +85℃Operation Humidity: 10 ~ 90% RHStorage Humidity: 5 ~ 95% RHEnvironmental compliance: RoHS compliantREACH compliant

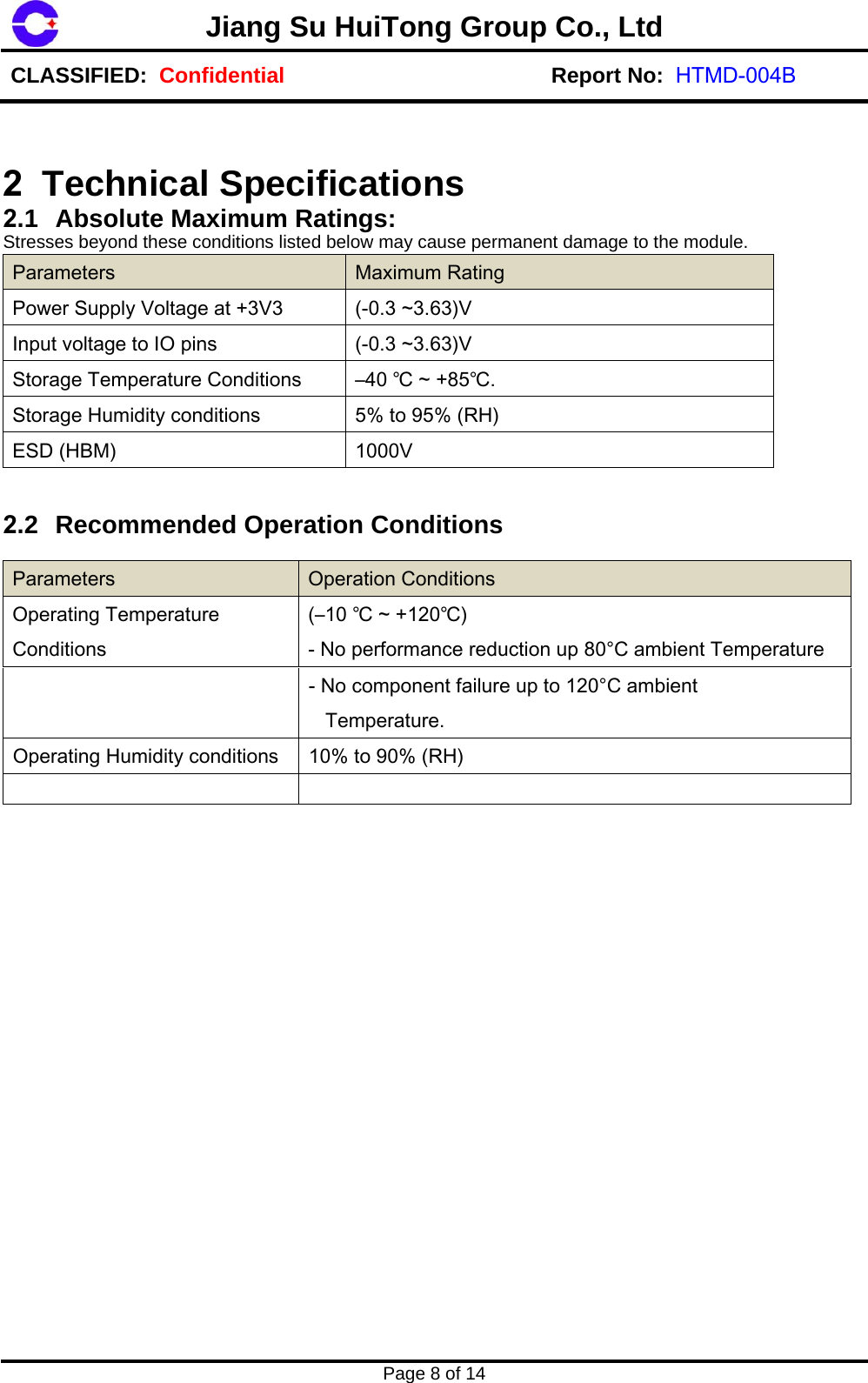

Page 8 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B2 Technical Specifications 2.1 Absolute Maximum Ratings: Stresses beyond these conditions listed below may cause permanent damage to the module. Parameters Maximum Rating Power Supply Voltage at +3V3 (-0.3 ~3.63)V Input voltage to IO pins (-0.3 ~3.63)V Storage Temperature Conditions –40 ℃ ~ +85℃.Storage Humidity conditions 5% to 95% (RH) ESD (HBM) 1000V 2.2 Recommended Operation Conditions Parameters Operation Conditions Operating Temperature Conditions (–10 ℃ ~ +120℃) - No performance reduction up 80°C ambient Temperature - No component failure up to 120°C ambient Temperature. Operating Humidity conditions 10% to 90% (RH)

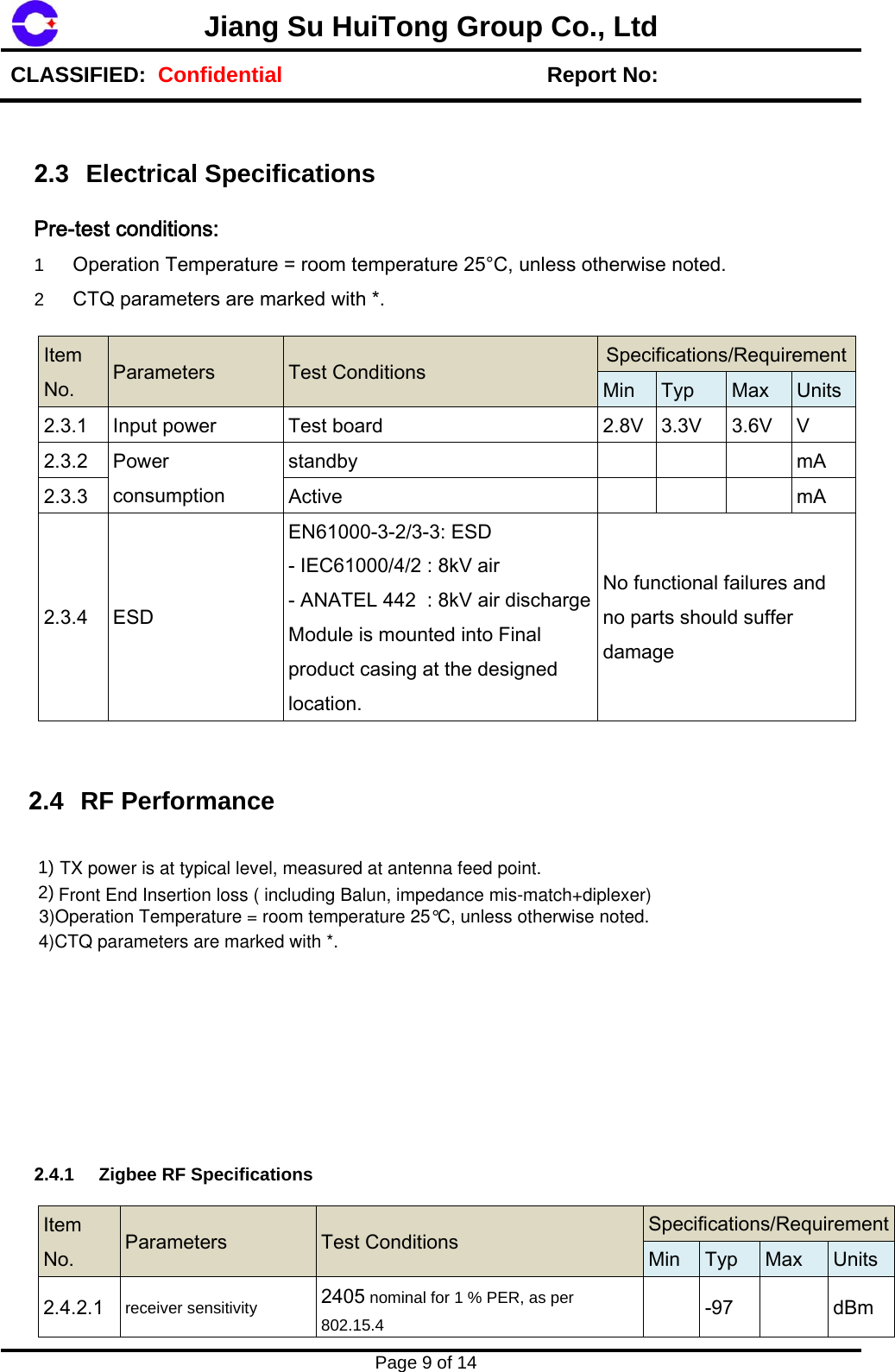

Page 9 of 14 2) 1) Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: 2.3 Electrical Specifications Pre-test conditions:1 Operation Temperature = room temperature 25°C, unless otherwise noted. 2 CTQ parameters are marked with *. Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units2.3.1 Input power Test board 2.8V 3.3V 3.6V V 2.3.2 Power consumption standby mA 2.3.3 Active mA 2.3.4 ESD EN61000-3-2/3-3: ESD - IEC61000/4/2 : 8kV air - ANATEL 442 : 8kV air discharge Module is mounted into Final product casing at the designed location. No functional failures and no parts should suffer damage 2.4 RF Performance 2.4.1 Zigbee RF Specifications Item No. Parameters Test Conditions Specifications/RequirementMin Typ Max Units2.4.2.1 receiver sensitivity 2405 nominal for 1 % PER, as per802.15.4 -97 dBm TX power is at typical level, measured at antenna feed point.Front End Insertion loss ( including Balun, impedance mis-match+diplexer)3)Operation Temperature = room temperature 25°C, unless otherwise noted.4)CTQ parameters are marked with *.

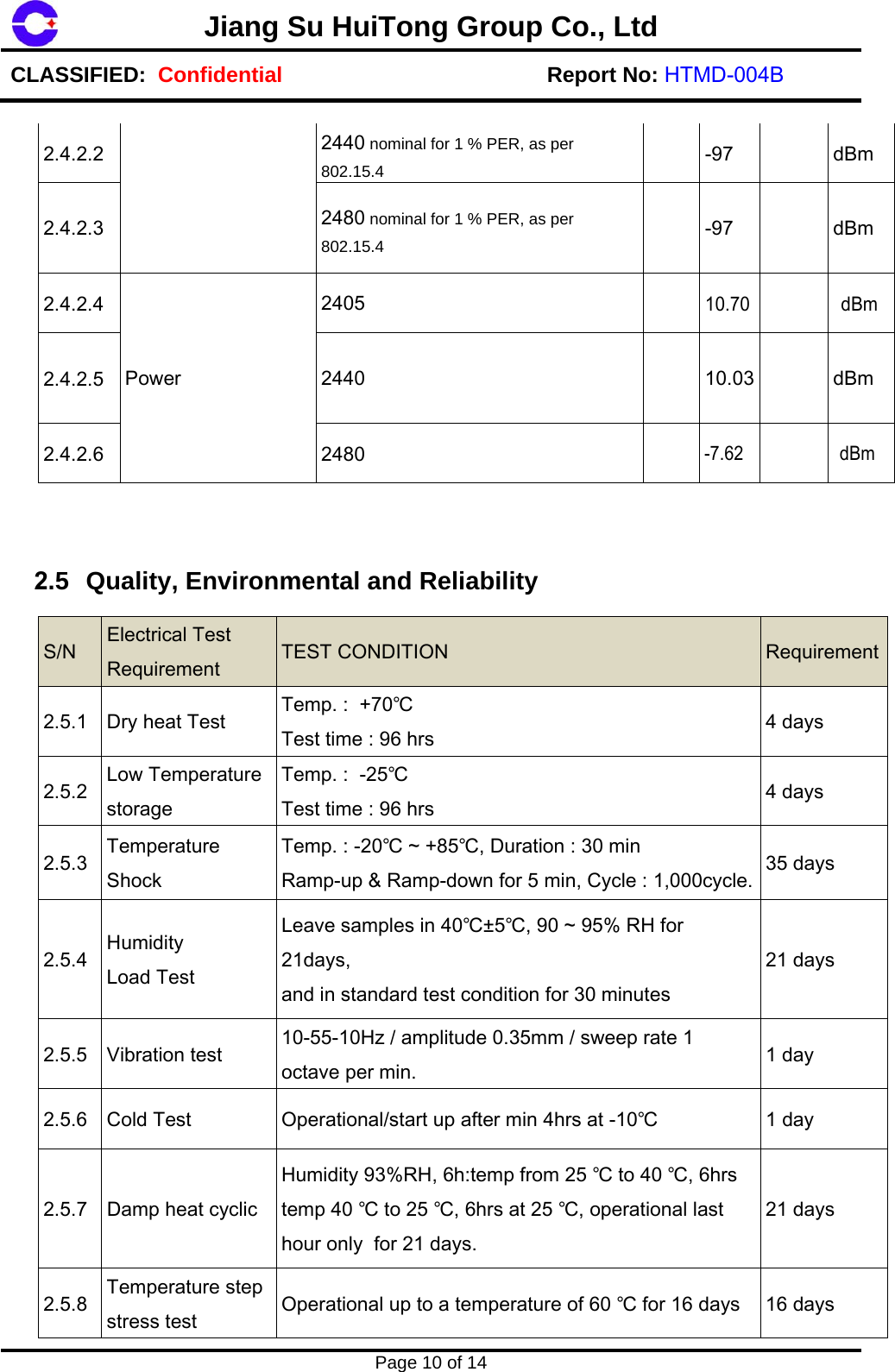

Page 10 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B 2.4.2.2 2440 nominal for 1 % PER, as per802.15.4 -97 dBm 2.4.2.3 2480 nominal for 1 % PER, as per802.15.4 -97 dBm 2.4.2.4 Power 2405 10.70 dBm 2.4.2.5 2440 10.03 dBm 2.4.2.6 2480 -7.62 dBm 2.5 Quality, Environmental and Reliability S/N Electrical Test Requirement TEST CONDITION Requirement2.5.1 Dry heat Test Temp. : +70℃ Test time : 96 hrs 4 days 2.5.2 Low Temperature storage Temp. : -25℃ Test time : 96 hrs 4 days 2.5.3 Temperature Shock Temp. : -20℃ ~ +85℃, Duration : 30 min Ramp-up & Ramp-down for 5 min, Cycle : 1,000cycle. 35 days 2.5.4 Humidity Load Test Leave samples in 40℃±5℃, 90 ~ 95% RH for 21days, and in standard test condition for 30 minutes 21 days 2.5.5 Vibration test 10-55-10Hz / amplitude 0.35mm / sweep rate 1 octave per min. 1 day 2.5.6 Cold Test Operational/start up after min 4hrs at -10℃ 1 day 2.5.7 Damp heat cyclic Humidity 93%RH, 6h:temp from 25 ℃ to 40 ℃, 6hrs temp 40 ℃ to 25 ℃, 6hrs at 25 ℃, operational last hour only for 21 days. 21 days 2.5.8 Temperature step stress test Operational up to a temperature of 60 ℃ for 16 days 16 days

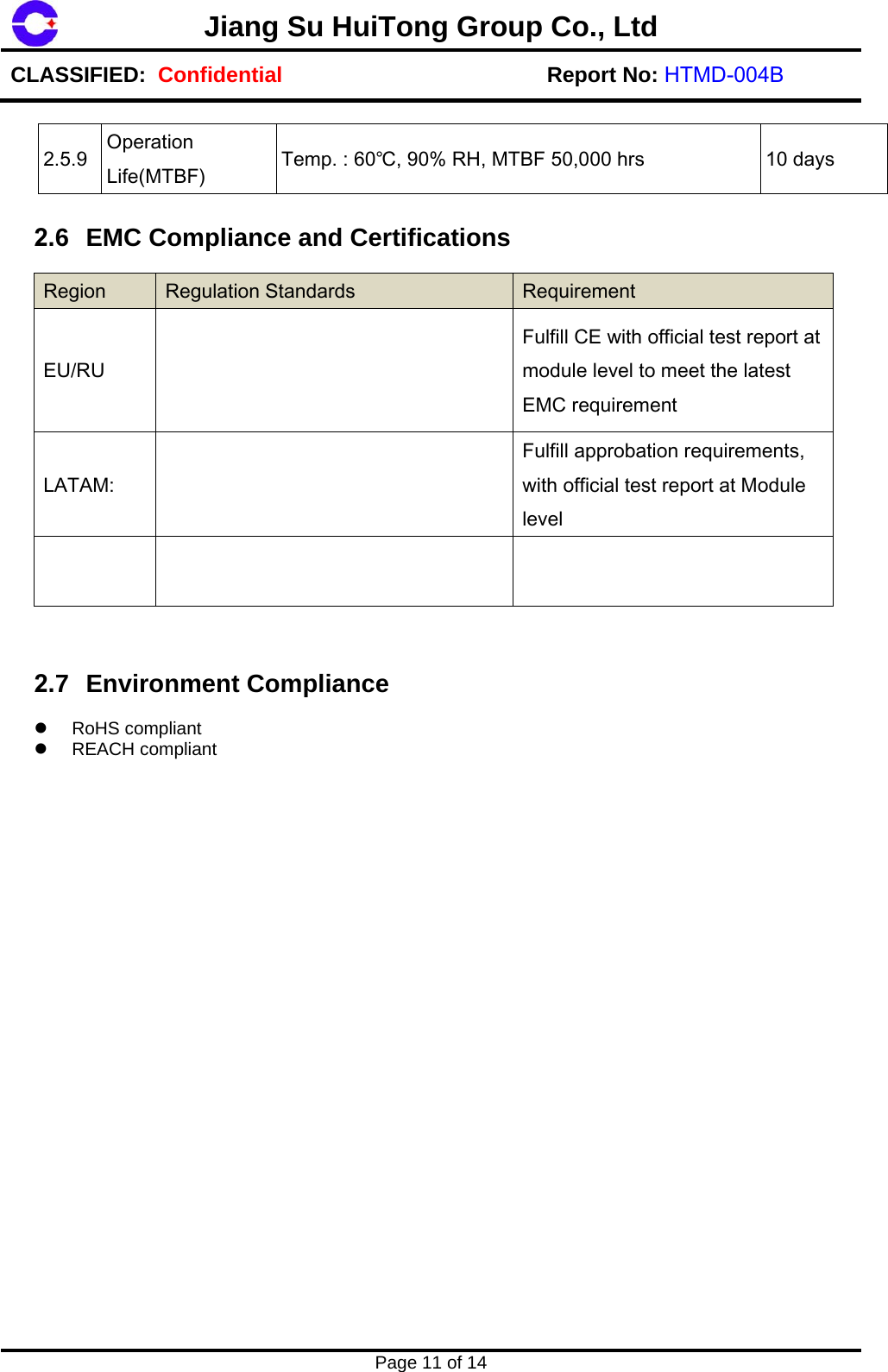

Page 11 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B 2.5.9 Operation Life(MTBF) Temp. : 60℃, 90% RH, MTBF 50,000 hrs 10 days 2.6 EMC Compliance and Certifications Region Regulation Standards Requirement EU/RU Fulfill CE with official test report at module level to meet the latest EMC requirement LATAM: Fulfill approbation requirements, with official test report at Module level 2.7 Environment Compliance RoHS compliantREACH compliant

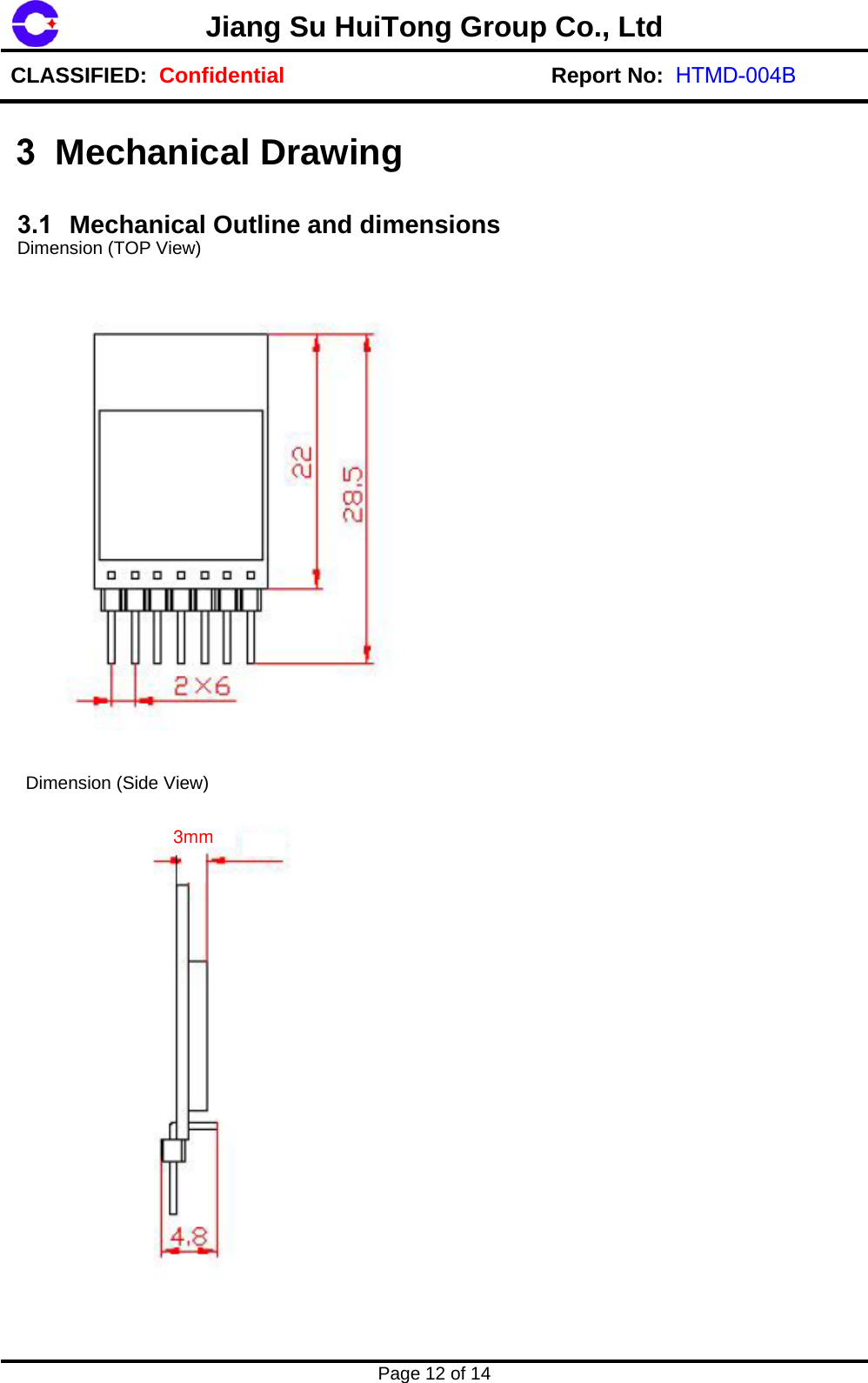

Page 12 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B3.1 Mechanical Outline and dimensions Dimension (TOP View) Dimension (Side View) 3 Mechanical Drawing 3mm

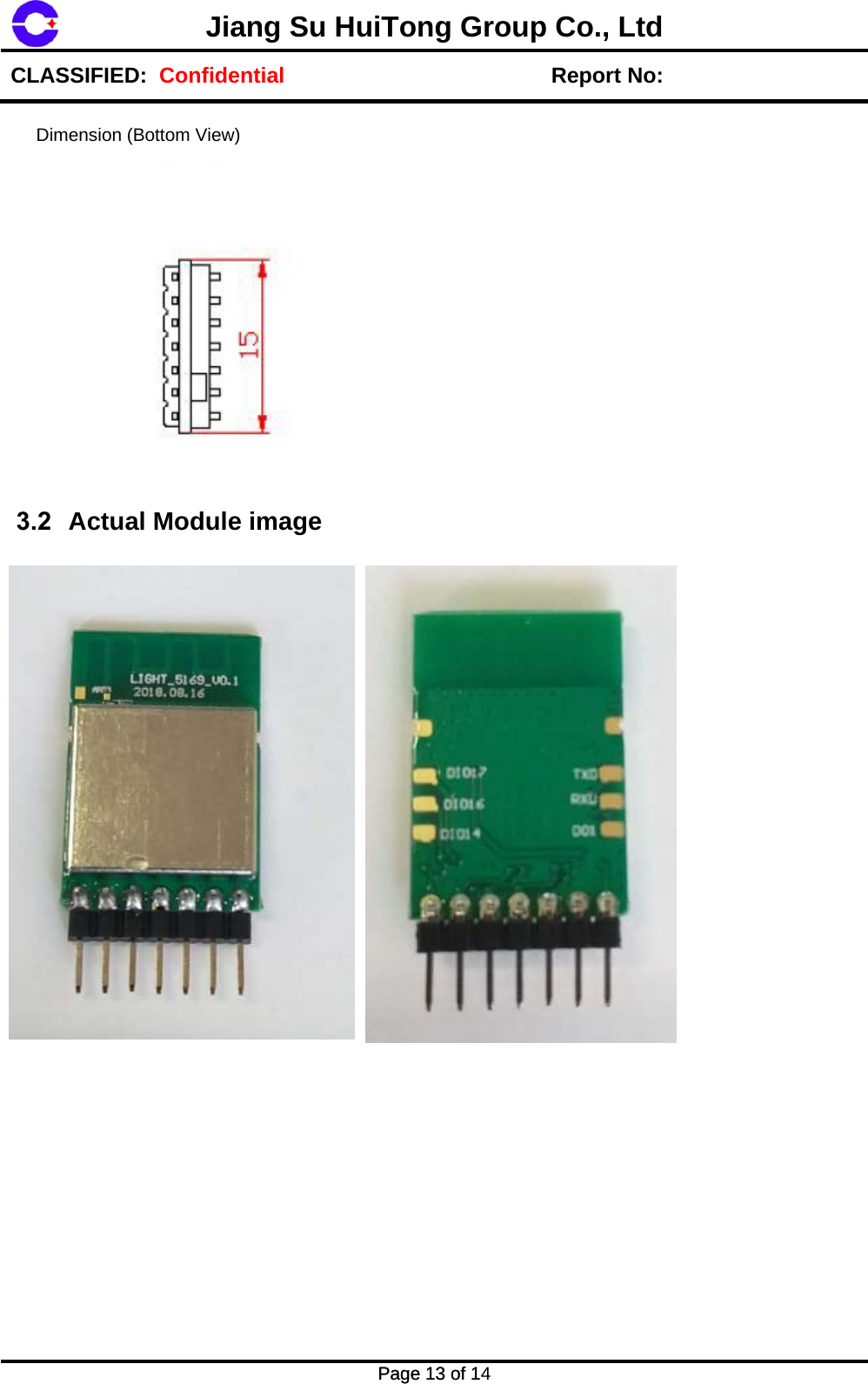

Page 13 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: Page 13 of 1 Dimension (Bottom View) 3.2 Actual Module image

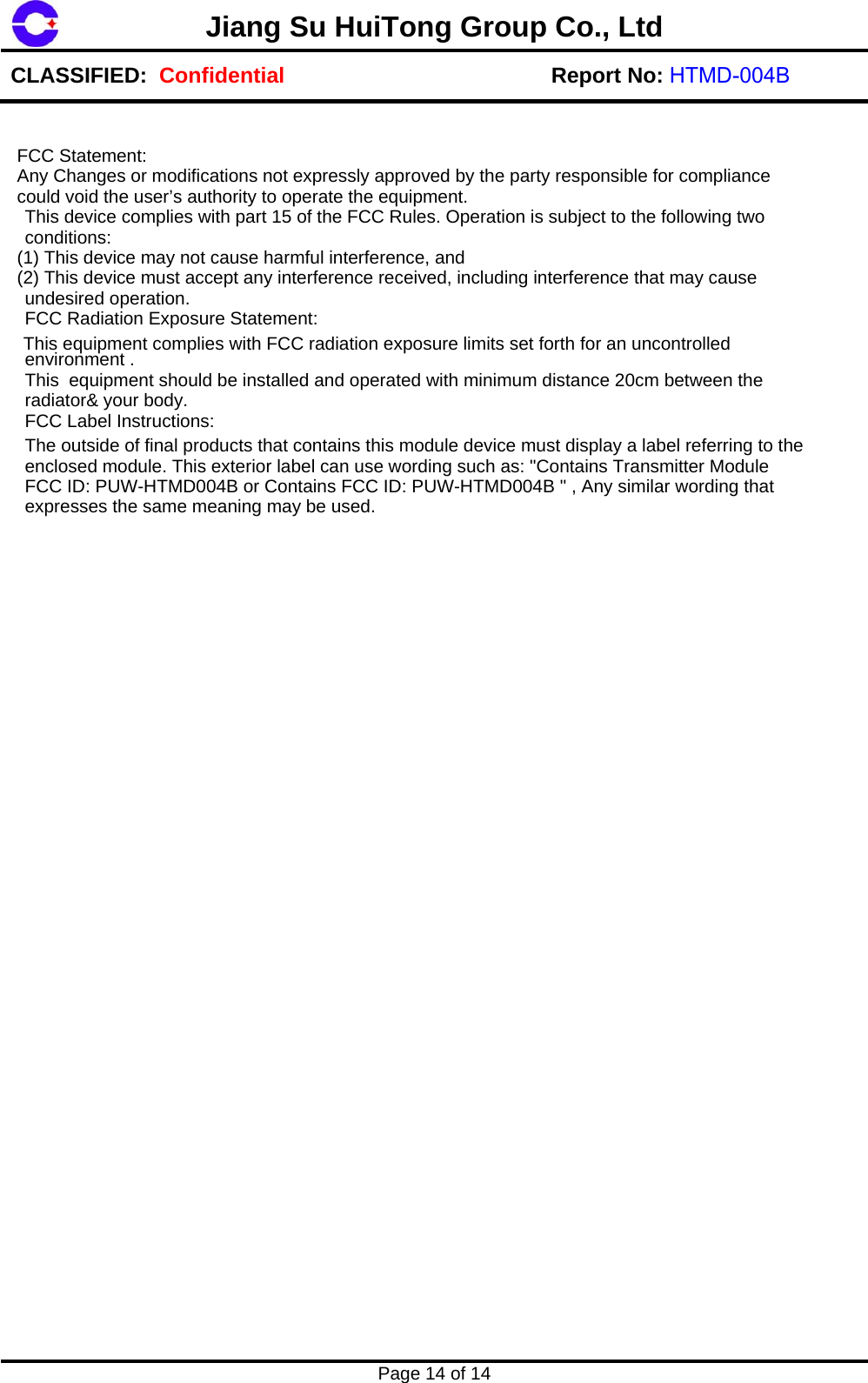

Page 14 of 14 Jiang Su HuiTong Group Co., LtdCLASSIFIED: Confidential Report No: HTMD-004B FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. FCC Label Instructions: The outside o f final products that contains this module device must display a label referring to the enclosed module. Thi s exterior label can use wording such as: "Contains Transmitter Module FCC ID: PUW-HTMD00 4B or Contains FCC ID: PUW-HTMD004B " , Any similar wording that expresses the same meaning may be used.
