Jiangmen Audiovisio Electronics GOHAWKLIT Bluetooth Alexa Speaker LED Lamp User Manual 1
Jiangmen Audiovisio Electronics Co., Ltd. Bluetooth Alexa Speaker LED Lamp 1
User Manual
Smart speaker Manual
Alexa
1
1
2
3
4
5
6
7
8
9
11
10
1. MIC hole
2. Lighting intensity adjustment
3. Lighting switch
4. Startup & Shutdown key/mode conversion
5. Play/pause key
6. Volume size adjustment key
7. MIC hole
8. Microphone on-off key
9. Awakening / Networking key
10. Power adapter power jack
11. Time display Nixie tube window
Panel function Description
2
1. MIC hole
Receive the spoken voice and then the host recognizes voice command.
2. Lighting intensity adjustment
Slide up to increase the light intensity and down to decrease the light intensity
3. Lighting on-off key
Short press to turn on the light, long press to convert chromatic lamp, then short press to convert
chromatic lamp.
4. Startup & Shutdown key/mode conversion
Short press to horizontal conversion: Bluetooth mode /WIFI mode conversion, long press 3 seconds to
shut down/start up.
5. Play/pause key
Short press to pause function in playing status ,and then short press to play function.
6. Volume size adjustment key
Slide up to increase the volume of the voice. When the volume is at its maximum, the loudspeaker box
will beep to remind. Slide down to reduce the volume.
7. MIC hole
Receive the spoken voice and then the host recognizes voice command.
8. Microphone on-off key
Short press to turn off/on the microphone to recognize the received voice.
9. Awakening/networking key
Short press to awaken the host function and conduct dialogue and interaction with the host, long press
to networking function: open the mobile APP according to the prompt tone of the host to distribute and
connect the network.
10. Power adapter power jack
Plug in the adapter to power the host.
11.Time display Nixie window
Internet time is displayed when networking. There is no need to set networking to update
automatically.
Functions and Operations
3

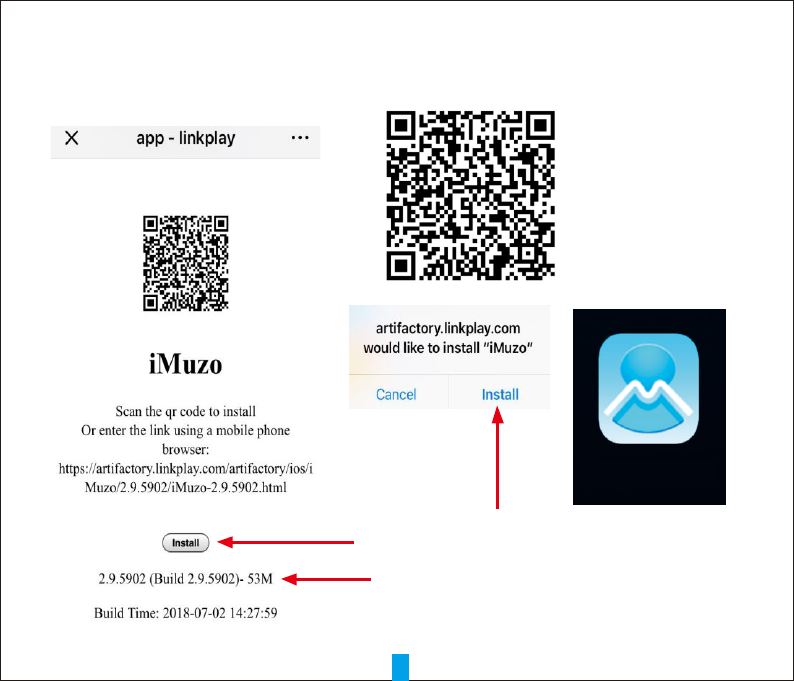

1. Use the iPhone scan the following QR code for the MUZO APP.
APP version
MUZO APP
MUZO player
Network Settings
4

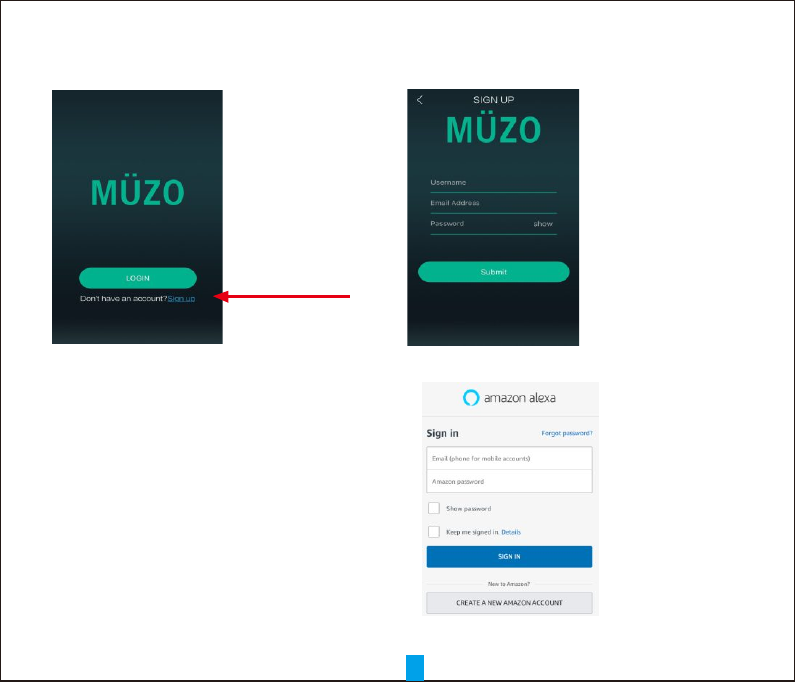

Click to register the
user, you can skip
this if you are already
registered
1.Fill in the information
2.Click Submit
MUZO app interface
3. Sign up for Alexa on amazon website
https://alexa.amazon.com/spa/index.html
2. Login MUZO
4. Connect the WIFI
5
MUZO player

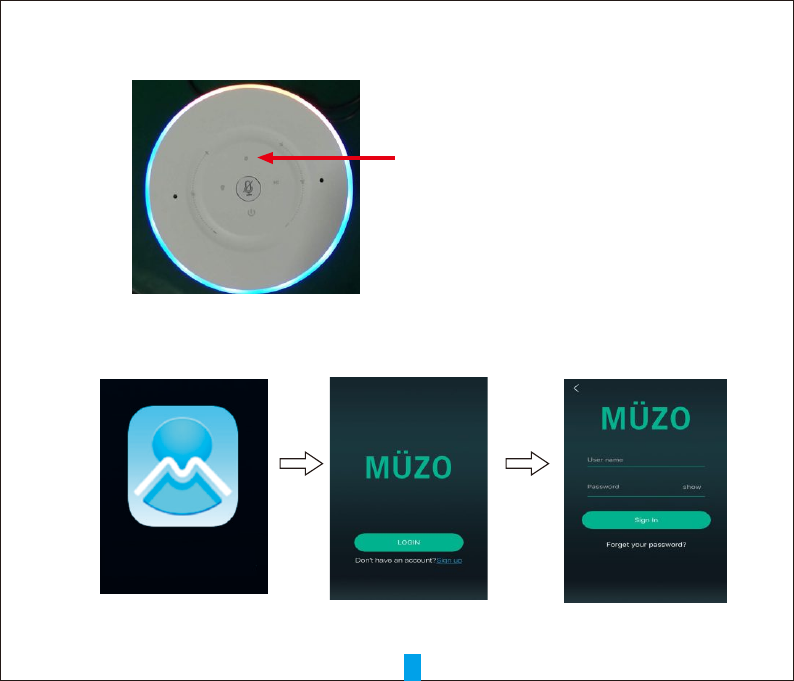

POWER ON,Waiting for
the light show like the picture,
Long press this button for 3second
Note: the phone must turn on WIFI, and the WIFI network must be consistent with ALEXA
Enter APP LOGIN Enter the username and
password to log in
6
LOGIN
Click Settings
Choose the
WIFI you use
then reback
to the APP

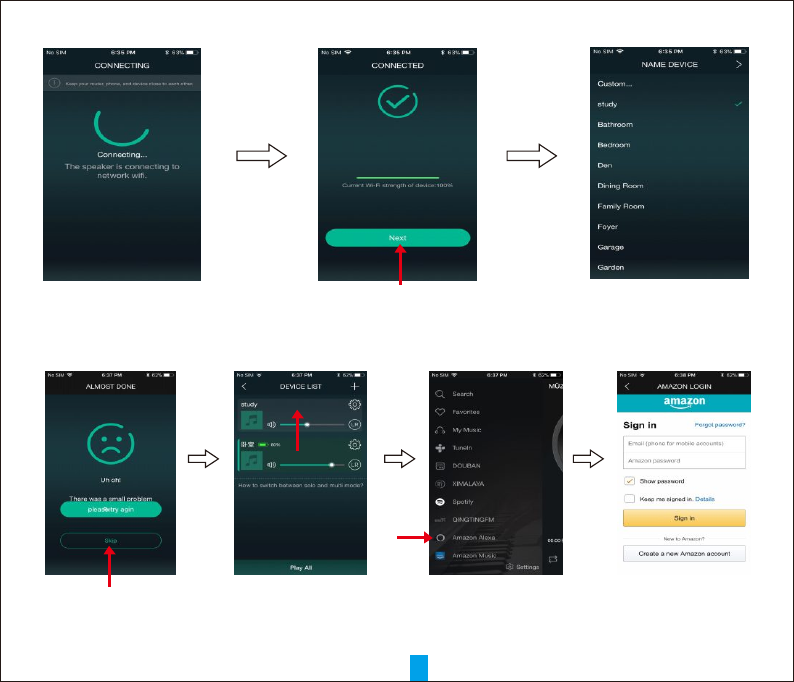

Connecting to A1＿XXXX
Choose the WIFI same as your
phone use,And enter password
7
Custom speaker
name,Such
as:study

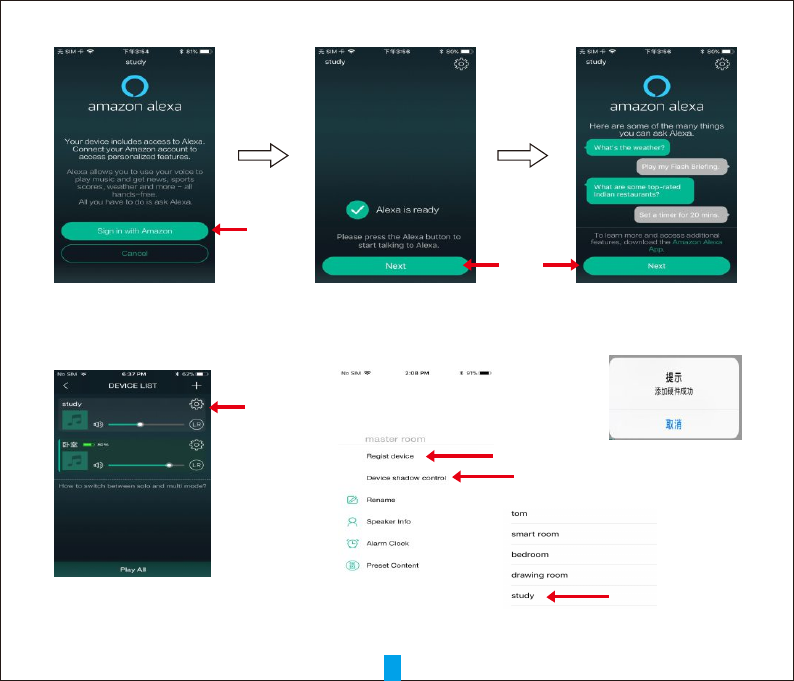

5 Login the Alexa accounts
Clic k the email and
pass word and sign in
8

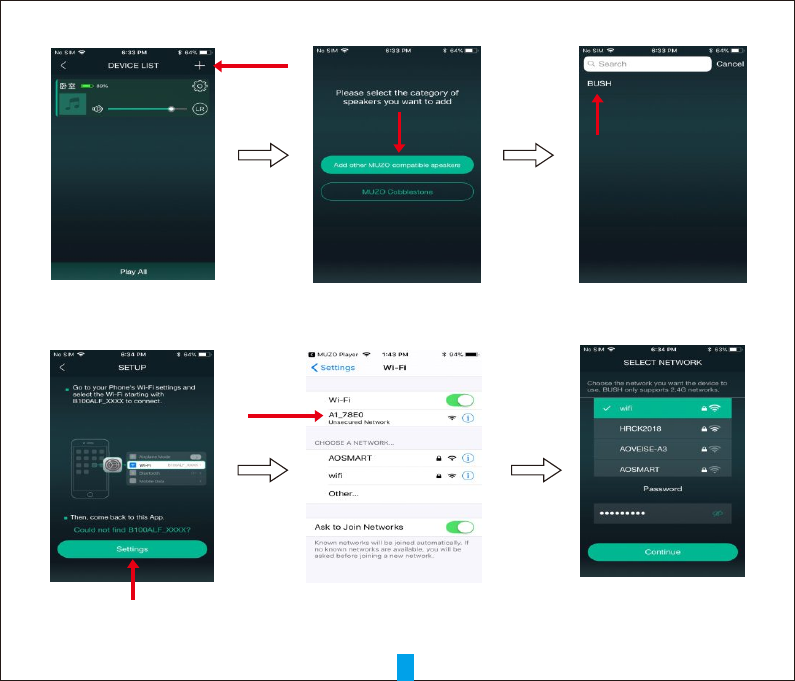

Reback to the device list,Exit APP
Reopen APP,go
to the
DEVICE LIST Press this and show
Press and show the following
Check the device
name “study”
9

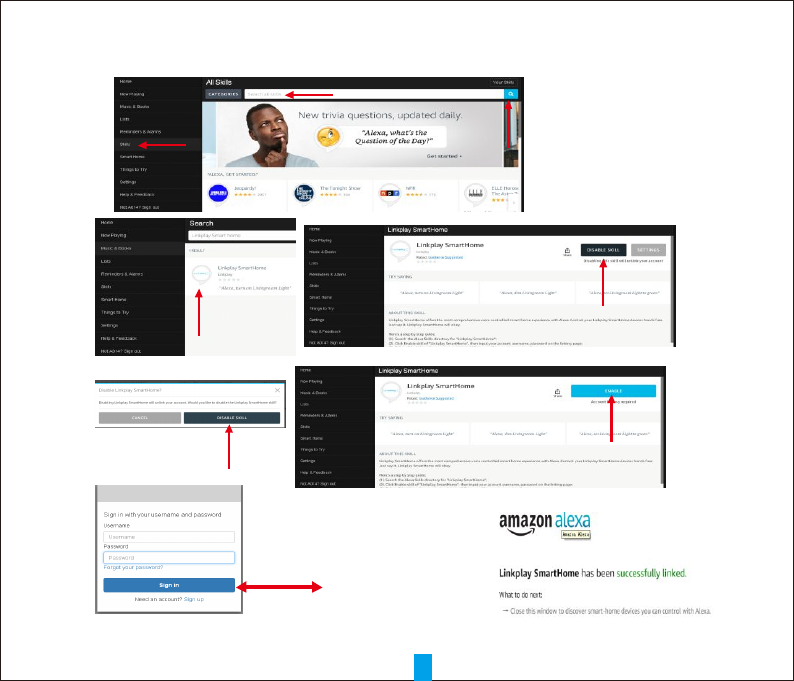

6.Load the MUZO player account on amazon https://alexa.amazon.com/spa/index.html
2.input Linkplay Smart home
1
3
4
5
6
7
Enter the account and password
registered with the MUZO player APP
Show successfully linked will ok
10
1.Alexa turn on /off the study
2.Alexa set the study to 100%
3.Alexa set the study to red
Such as the device name is study
Audio frequency response: 60HZ-18KHZ
Audio distortion factor ≤0.3%
The signal-noise ratio of audio≥40dB
Audio output power: 10W
Sound type: Home Intelligent WIFI sound host
Effective distance: 20m or above
Operation type: touch the key slightly voice control command mobile phone APP control
Power specifications: AC100-240V to DC12V-2A 60HZ
Host power supply: range of 10V-2A 15V-3A
Sound accessories: Sound x1, instruction x1, power adapter x1,
Technical Parameters:
Smart speaker Manual
Alexa
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Radiation Exposure Statement:
The equipment complies with FCC Radiation exposure limits set forth for
uncontrolled enviroment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
.
