Jiangsu SEUIC Technology AUTOID9 Industrial Handheld Terminal User Manual
Jiangsu SEUIC Technology Co.,Ltd Industrial Handheld Terminal Users Manual
User Manual
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
AUTOID9/9HC Handheld Terminal
Quick User Guide Manual
SEUIC Technology
Welcome To Use AUTOID 9/9HC Series
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
Contents
Guidelines ............................................................................................................................ 3
Laser Scanning Engine Guidelines ............................................... 错误！未定义书签。
Safety Guidelines .......................................................................... 错误！未定义书签。
Maitainance Guidelines ................................................................................................ 3
Introduction of Appearance ................................................................................................. 3
Keyboard .............................................................................................. 错误！未定义书签。
Quick Use Guide .................................................................................. 错误！未定义书签。
Initial Use ....................................................................................... 错误！未定义书签。
Power On....................................................................................... 错误！未定义书签。
Power Off ....................................................................................... 错误！未定义书签。
Restart ........................................................................................... 错误！未定义书签。
Install SIM Card ............................................................................................................ 7
Install SD Card ............................................................................................................. 7
Install Battery ................................................................................. 错误！未定义书签。
Remove Battery ............................................................................. 错误！未定义书签。
About Charging ..................................................................................... 错误！未定义书签。
Charging Time ............................................................................... 错误！未定义书签。
Charging Temperature................................................................... 错误！未定义书签。
Battery Powered ............................................................................ 错误！未定义书签。
Battery Use Guidelines .............................................................................................. 12
LED Indicator Light ..................................................................................................... 12
Main Screen .......................................................................................... 错误！未定义书签。
Status Bar Icon .............................................................................. 错误！未定义书签。
Setettings .............................................................................................. 错误！未定义书签。
WIFI ............................................................................................................................ 14
Mobile netwotks ............................................................................. 错误！未定义书签。
Bluetooth ....................................................................................... 错误！未定义书签。
Data usage .................................................................................... 错误！未定义书签。
More .............................................................................................. 错误！未定义书签。
Airplane mode ........................................................................ 错误！未定义书签。
VPN ..................................................................................................................... 29

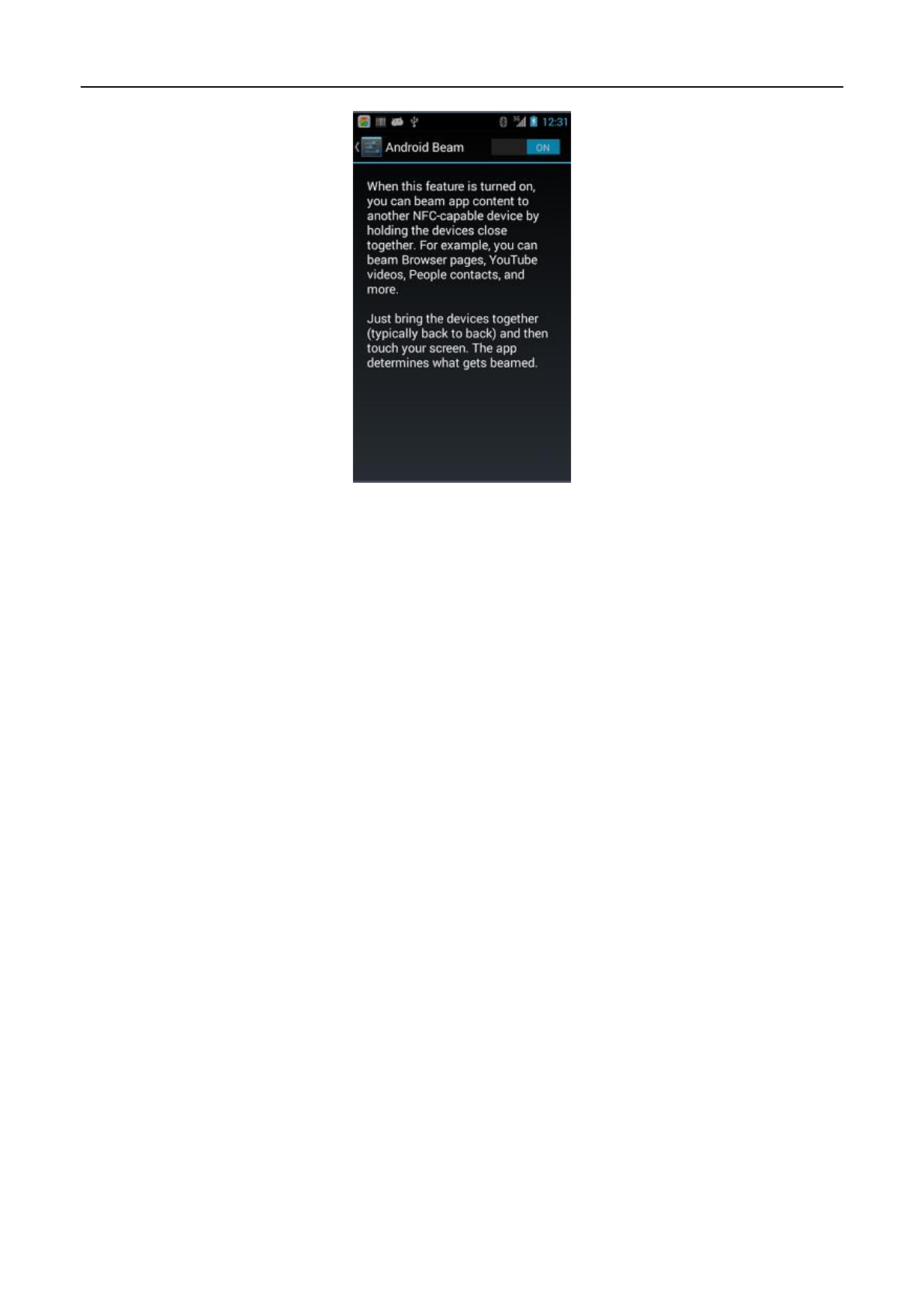

NFC ..................................................................................................................... 29
Tethering&portable hotspot .................................................... 错误！未定义书签。
Prohibit drop-down menu .............................................................. 错误！未定义书签。
Gloves mode ................................................................................. 错误！未定义书签。
Fn StickyKey ............................................................................................................... 33
Shielded first virtual key .............................................................. 错误！未定义书签。
Shielded second virtual key ........................................................ 错误！未定义书签。
Sound ............................................................................................ 错误！未定义书签。
Display ........................................................................................... 错误！未定义书签。
Storage .......................................................................................... 错误！未定义书签。
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
Battery ........................................................................................... 错误！未定义书签。
Apps .............................................................................................. 错误！未定义书签。
Location access ............................................................................. 错误！未定义书签。
Security .......................................................................................... 错误！未定义书签。
Language & input .......................................................................... 错误！未定义书签。
Backup & reset ............................................................................ 错误！未定义书签。
Add account .................................................................................. 错误！未定义书签。
Data & time .................................................................................... 错误！未定义书签。
Accessibility ................................................................................... 错误！未定义书签。
Developper options ....................................................................... 错误！未定义书签。
About phone .................................................................................. 错误！未定义书签。
Scan tool ............................................................................................... 错误！未定义书签。
APK import ............................................................................................ 错误！未定义书签。
System update ...................................................................................... 错误！未定义书签。
Mobile Butler ......................................................................................... 错误！未定义书签。
Troubleshooting .................................................................................... 错误！未定义书签。
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
3
Guidelines
Laser scanning engine guidelines
Laser radiation: Users are prohibited to look straightly at a laser beam .
Safety Guidelines
Please use specified battery& charger from SEUIC , or it may cause battery leakage , overheat , burst and
on fire .
Please don‟t use un-normal charger , or it will case electrical shock ,smoking and damage to charger
Please don‟t use the damaged charger or it will cause fire and electric shock
Please don‟t disassemble or refit charger , or it will cause personal injury , electric shock , fire and
damage to charger .
Please grip charger when pull out plug , it will cause electric shock , fire and damage to wires if pull
power line
Please use soft cloth to clean device , battery and charger
Please don‟t use alcohol , diluent or benzene and other solutions to clean device
Maintenance Guidelines
This product has waterproof and dustproof functions, but still please avoid operating under the
conditions of extremely high temperature, extremely low temperature or wet environment. Please
check the temperature and humidity standard in our product datasheet.
To push hard on the screen maybe damage the screen. Please don‟t click on the screen by touch pen
to avoid scratch or damage of screen. When clean the screen, please spray a little of commercial
LCD screen cleaner into the soft cloth to gently wipe. Don‟t directly spray cleaner into screen.
Please do not use any chemical cleaner to wipe the LCD screen.
Keep scanning window clean without stain and do not use sharp objects to scratch.
If do not use this product for a long time, please be sure to download the data and save to the
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
4
computer , remove the battery. Please pack and stock the device and battery separately.
Both battery and stand-by battery need much time to recharge when you use the device at the first
time or reuse the device after long-time stock.
Please write down the status of malfunction and contact engineers immediately when your device has
malfunction.
Introduction of appearance
Keyboard
In AUTOID 9/9HC there are 22 keys in keyboard +2 side keys+ 1 PTT key ; 3 buttons in touch panel
( Home , Back , Menu) .
Key/Button guide：
Button
Main function
Function introduction
Home
Click to return desktop
Long time click could open latest used
apps list
Menu
Click to open current desktop menu
Back
Click could return to previous screen or
quit App.
At input screen, click could close screen
keypad
Scan button
Normally to be used as scanning key to scan
barcodes. In camera screen，to be used as
photo taking function
Side scan button
Normally to be used as scanning key to scan
barcodes. In camera screen，to be used as
photo taking function
PTT
Talkback function，press it for talkback
function
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
5
Num lock button
To be used for digital input
Fn lock button
To be used for Fn input mode locking
Lock screen
button
Touch screen not operated after lock screen
been locked with screen displaying
Enter button
Confirm
Direction button:
up
Direction button:
down
Direction button:
left
Direction button:
right
Delete button
0
0 key and symbol
It‟s F10 key under Fn mode
.
.button
It‟s * key under Fn mode
#
# button
It‟s flashlight key under Fn mode
1
Number key1 and symbol
It‟s F1 key under Fn mode
2
Number key 2， A.B.C，
It‟s F2 key under Fn mode
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
6
3
Number key 3， D.E.F
It‟s F3 key under Fn mode
4
Number key 4， G.H.I,
It‟s F4 key under Fn mode
5
Number key 5， J.K.L,
It‟s F5 key under Fn mode
6
Number key 6， M.N.O,
It‟s F6 key under Fn mode
7
Number key 7， P.Q.R.S
It‟s F7 key under Fn mode
8
Number key 8， T.U.V
It‟s F8 key under Fn mode
9
Number key 9， W.X.Y.Z
It‟s F9 key under Fn mode
Quick Use Guide
Initial use
Insert battery and close the battery cover, press power key few second to turn on the device. The
device will enter into sleep mode when press power button while system in working condition; the
system will wake up and lighten screen when press power button while the device in sleep state.
Power on
Please press power key to start the device. Under deep sleep mode, press power key to wake up
system. If battery installed, please make sure battery cover already been covered correctly.
Power off
When device is open, but not under sleep status, press power key for 2 seconds, the shutdown
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
7
interface will appear, then select “power off “ to power off the device.
Restart
When device is open, but not under sleep status, press power key for 2 seconds , the restart interface
will appear, then select “restart” to restart the device.

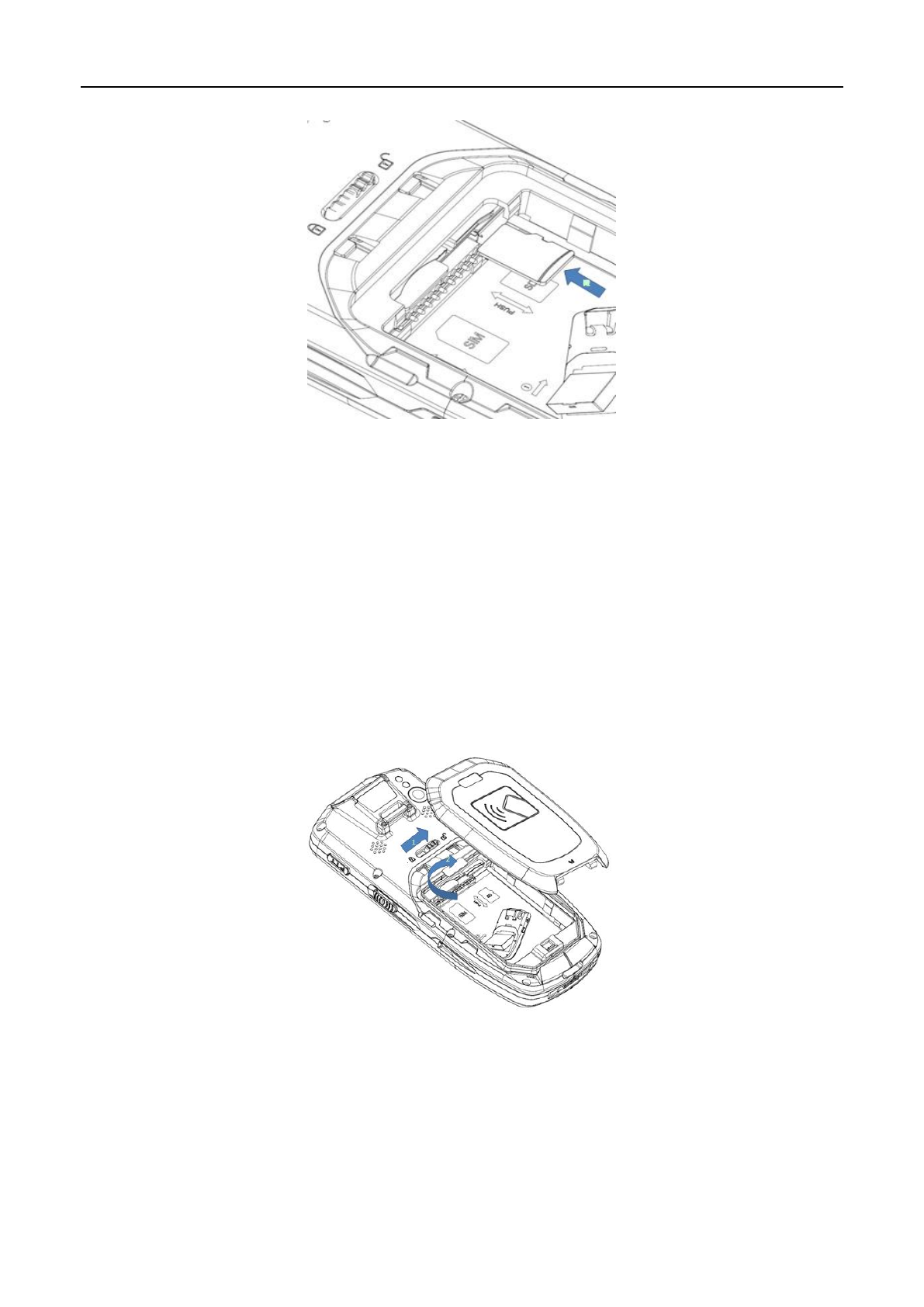

Install SIM Card
Install SIM card as below instructions:
Insert SIM as following indicated direction

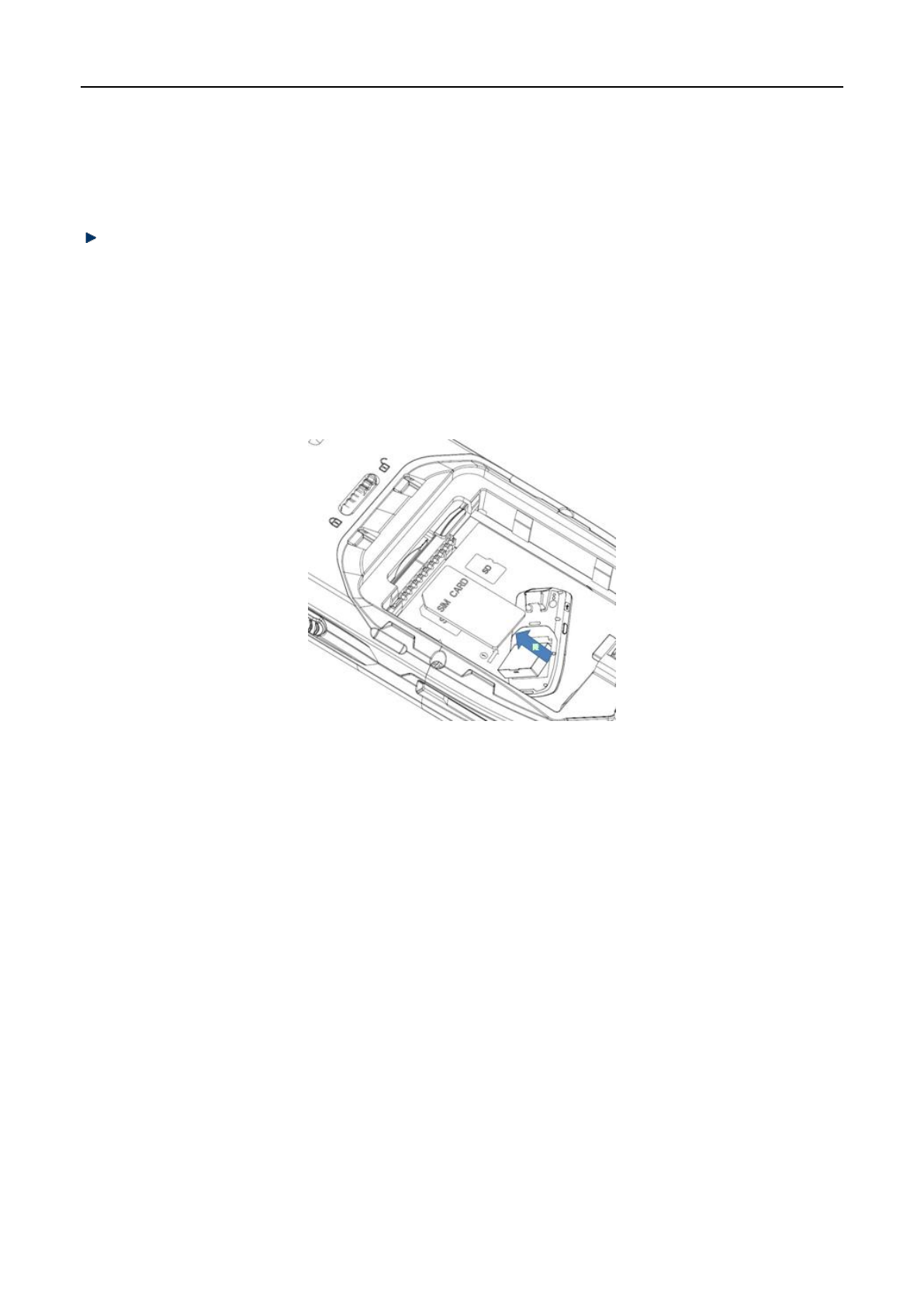

Install SD Card
Install SD card as below instructions:：
Insert SD card as following indicated direction（microSD or microSDHC）.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
8
Notes：1. PSAM card is not supported currently
2 This device doesn‟t support hot plug and must be reset after plugging card.

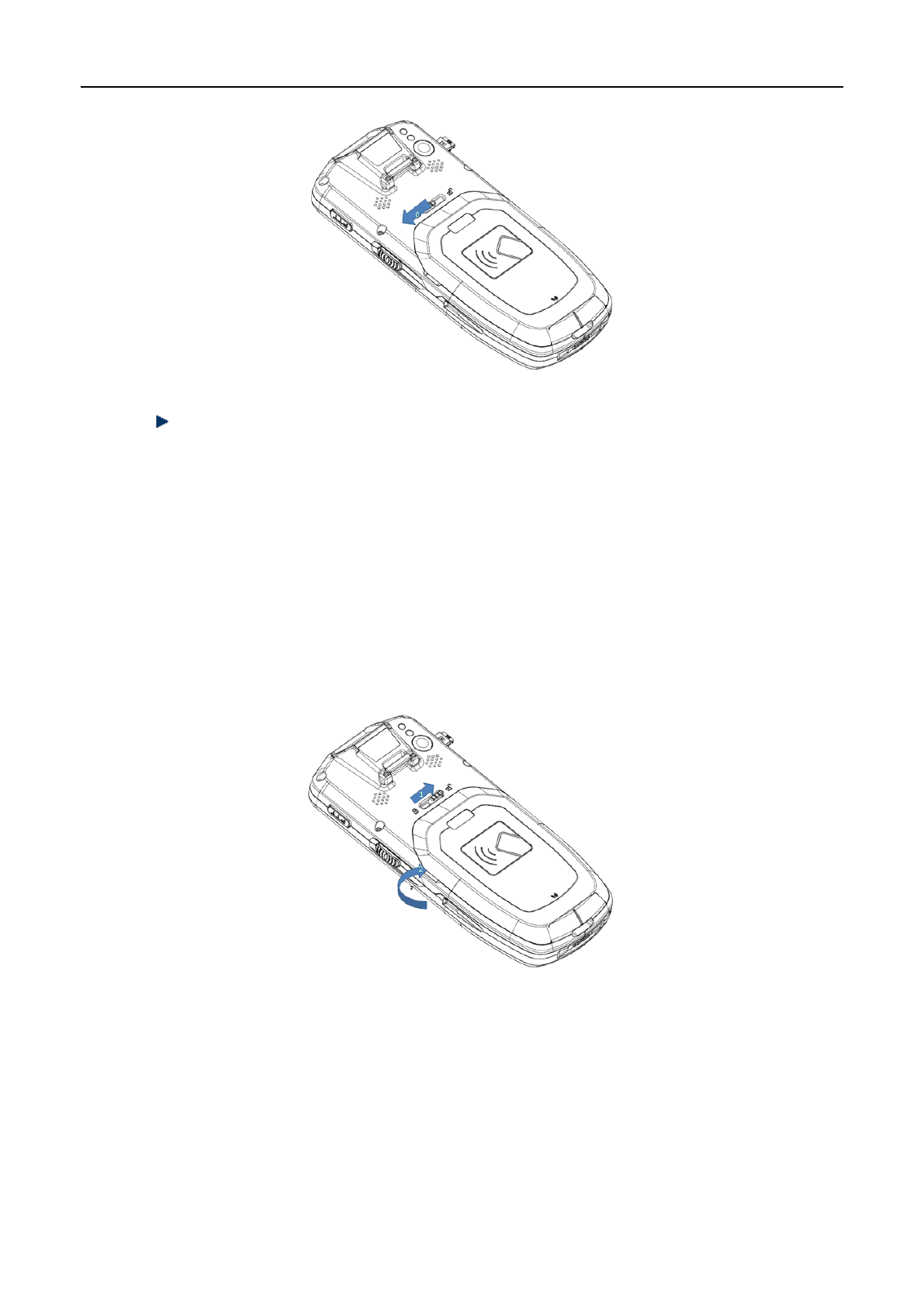

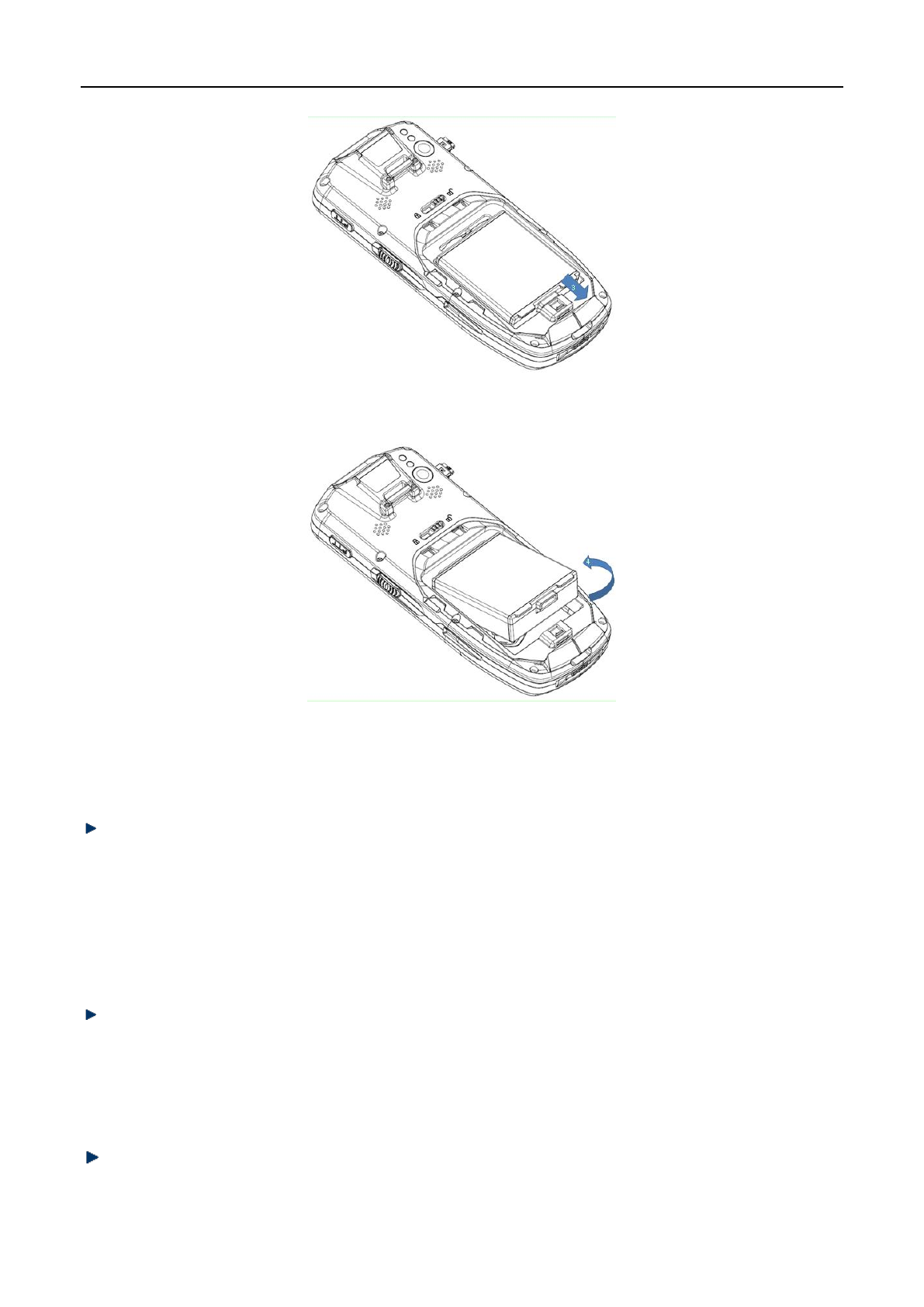

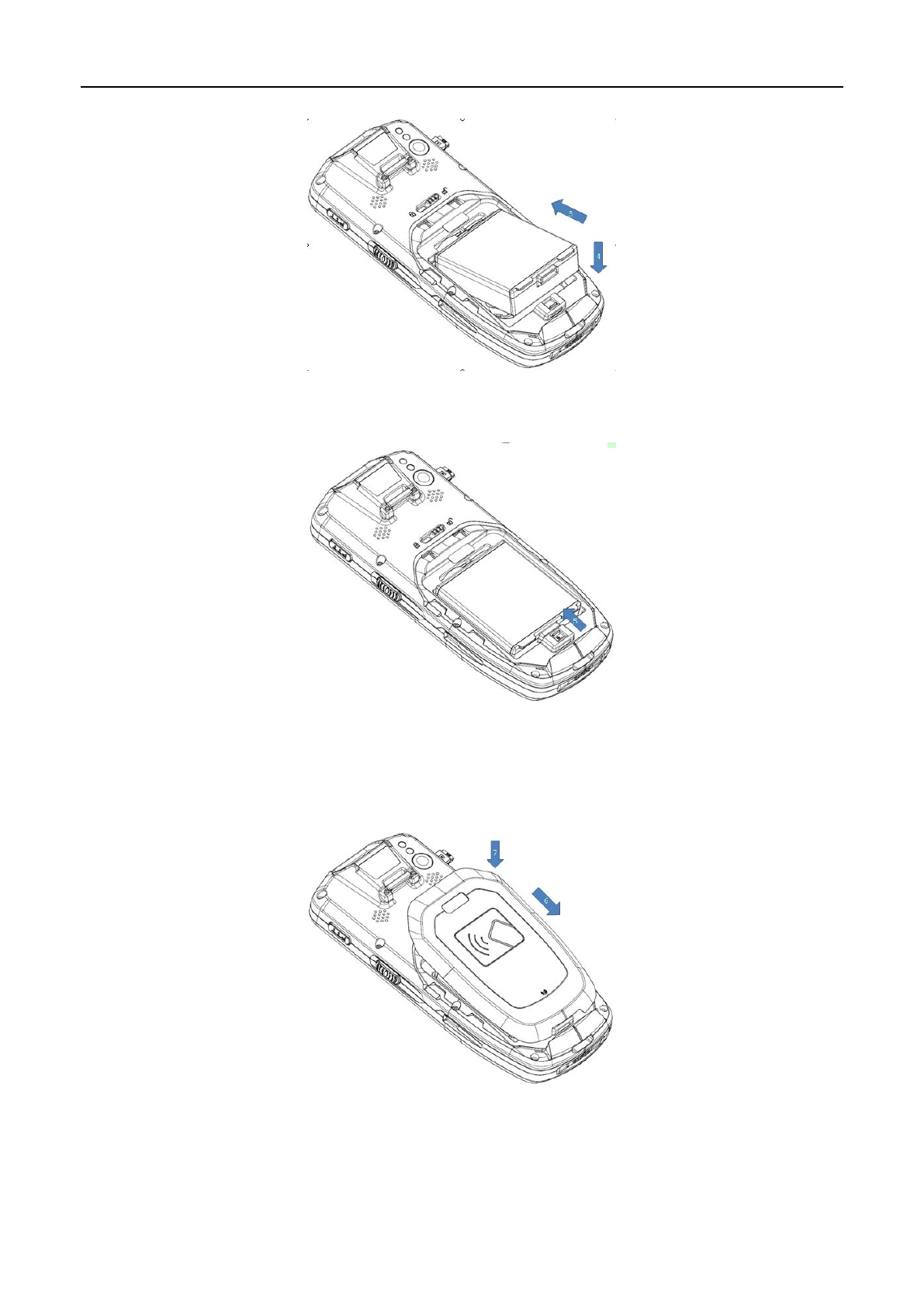

Install Battery
Please follow the below steps when install battery：
1. One hand holds device , the other hand turns toggle switch to unlocked side(right side )
2. Remove the battery cover；
3. Insert battery into battery compartment at appropriate angle
4. Ensure the battery well contact with battery pins and press down the battery
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
9
5. Pull up the battery locker and ensure battery to be locked well;
6. Put battery cover back on the cover locking slot then press slightly to lock it
7. Then press down slightly to lock the cover；
8. Turn toggle switch to the locking side(left side)
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
10
During device transportation or long time not use it, please remove the battery
from device and save it independently with the device.
Note：Any impropriate battery using method would effect battery using life.
Remove battery
Remove battery as following steps:
1. Push the toggle switch to the unlock side(right side)；
2. Remove the battery cover；
3.Pull down the battery locker to loose the battery；
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
11
4. Uninstall battery
About charging
Because main battery only has small amount of power to be used for only testing purpose when
leaving the factory; it must be charged before using when you receive the device. After installing main
battery, please connect the device to the power adapter for charging. AUTOID 9/9HC series could
also be charged through optional accessory of cradle .
Charging time
Battery：it need about four hours for the first charging through charging power adaptor, red LED
indicator means charging; the LED indicator becomes green means battery been fully charged.
Charging temperature
Best charging temperature is 180C~250C。
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
12
If temperature blow-100C or over 550C the battery would not be chargable.
Battery Powered
If open wireless network services or data acquisition program, the battery power will be much lost, so
if don‟t use these function, please be sure to close off them to save the battery power.
In order to avoid working inconvenience due to battery power shortage, we suggest that you prepare
a main battery with full power or device connection with external power supply.
Notice：If you don’t use device for long time，please charge device for every two month at
least(to ensure backup battery will not be over-discharged).
Notifications about battery usage
If battery power been used out and connect with charger, it‟s normally that the device
could not be powered on at once. Please power on the device to use after a period
charging time.
Main battery is rechargeable battery, but if the device stand-by time dropped too much,
please change a new battery.
Please charging the battery at appropriate temperature range
When battery power in short status, device would appear low battery power indication. If
battery power too low, the device would automatically been powered off.
LED indicator light
LED light on the left side of upper right show battery power and charging status with different color.
1、 Without connection of USB, charging adapter and plug, red light flashing means low battery (red light will be bright
when system in sleep mode), please charge in time；
2、 Connect USB , charging adapter and plug, red light means battery is under charging ；
3、 Connect USB, charging adapter and plug，green light means full charging .
If LED light on the right side of the upper right twinkles blue(in breathing twinkling status) it means
there is unread message, please check the message in time.
During barcode scanning, the LED indicators in the left side of device upper right position and the one
in the right side of device upper left position become red and flashing once means scanning the target
barcode successfully; otherwise it means failed to capture the barcode.
Remark：When the device under charging, the blue indicator light will not be lighted.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
13
Main Screen
AUTOID 9/9HC devices totally have five home screens, sliding screen to the left or right
to switch each screen . In the applications showing on the screen , click any application icon
to open this application .
① Status Bar ：showing messages and status icon
② Display Area：be used for placing application icon , desktop files ,
small tools
③ Shortcut Action Bar: click it then enter into the corresponding application
④ Application Tray：click it to check all applications
Status Bar Icon
Status Bar Icon and Notification Bar Icon are in Status Bar at the top of the screen ,
displaying device status information and notification , as follows .
Icon
Explanation
Icon
Explanation
Detected the available
WLAN network
Signal strength
Connected WLAN network
No SIM card
①
②
③
④
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
14
Already opened portable
WLAN
Mobile network is connected
Silent mode
Airplane mode
Vibrate mode
Opened scanning
Missed calls
Battery charging
New messages
Battery with full charging
Captured screenshot
Low battery
Clock
Multi-notification icon , beyond
display range
Preparing microSD card
Inserted earphone
Bluetooth
GPS is positioning
Uploading data
Downloading data
USB debugging
USB connect
Settings
Wi-Fi
Search this icon：
->settings
->wireless and network
->WLAN
Max range of wireless network access is 450 inches/about 150m(2.4G) or 300
inches/about 100m(5G) .( Notice : Industrial AP , open area ) .If need use the Wi-Fi in the
device , you must be connected to wireless AP or Hot spot.
Notice：The availability and coverage of Wi-Fi signal depends on quantity of devices,
physical performance, and other objects signals penetrated.
Open Wi-Fi and connect to the wireless network
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
15
1. Click WLAN button to open Wi-Fi. Automatic scanning can use wireless network.
2. Then network name and security settings of the all scanned Wi-Fi networks will be
listed (open networks or encrypted networks).
3. Please click one the Wi-Fi networks to do connection . When you choose the open
network , it will automatically connect this network. If you choose the encrypted network,
please input the corresponding password then do connection .
1. WLAN frequency band settings(Advanced WLAN(press Menu ) —>WLAN frequency
band) ，click only using 5GHz/2.4GHz frequency band ，only can search AP with
5GHz/2.4GHz frequency band .
Open it to search network
Click it to connect network
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
16
2. You can set Wi-Fi roaming trigger、roam delta、roam period by yourself according to
your detailed demands through advanced settings（in Wi-Fi searching interface ,press Menu
key —> Advanced）.
（1）Roaming trigger ：When signal value of the connected AP is lower than the set
threshold , roaming mechanism will be triggered , like the picturing showing , roaming
trigger is set as -65dBm，the roaming will be trigged if it‟s lower than -65dBm.
（2）Roam delta：When the difference between of two AP reaches the set value,
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
17
roaming will start , and connect to the AP with better signal value , if the difference between
of two AP is more than 5dBm as follow（also need reach roaming trigger standard）, then it
can roam normally.

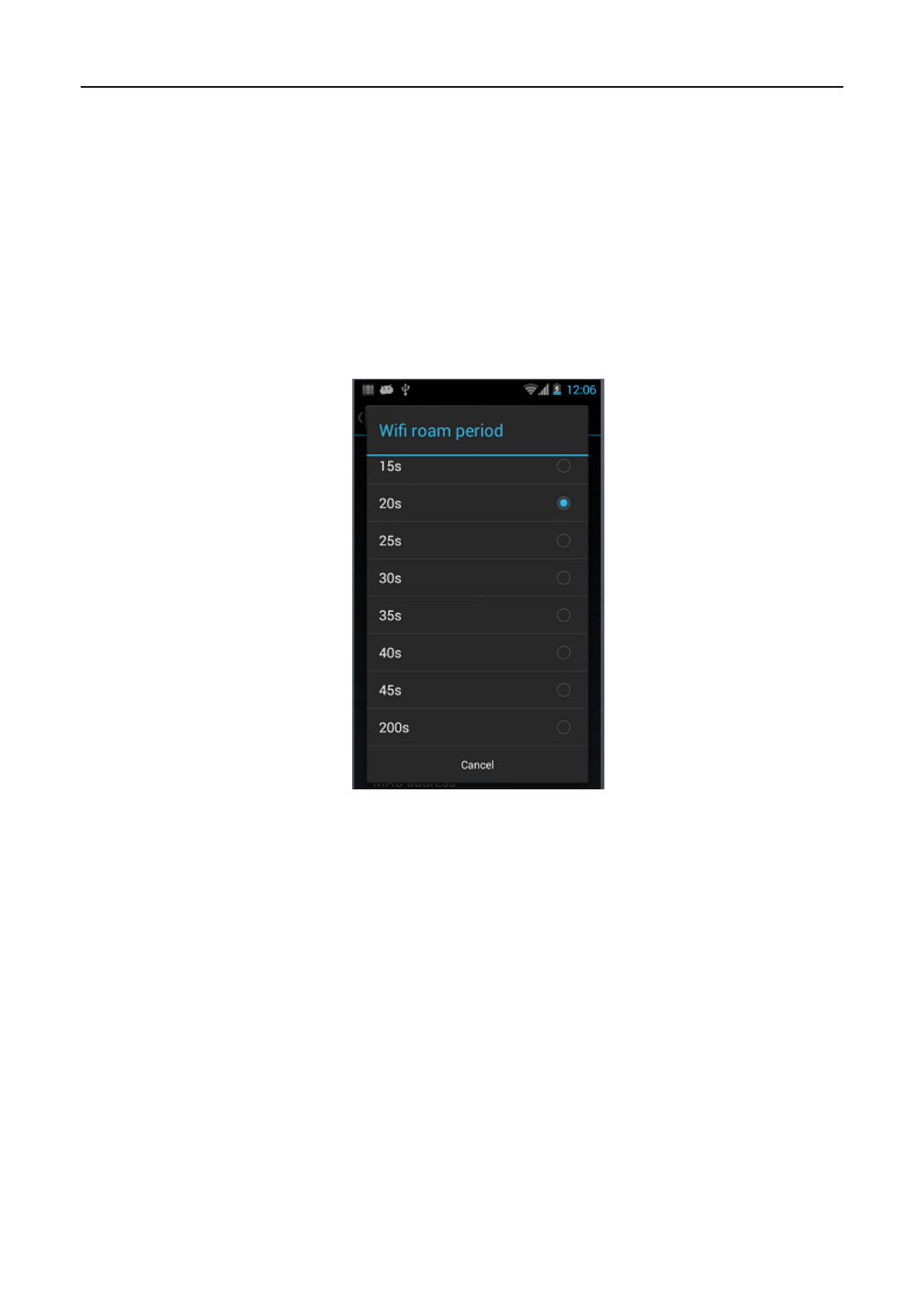

（3）Roam period：The time interval of last roaming and this roaming reaches the set
interval，it will happen to roam , it will roam when the time interval exceeds 20s as follow , or
it will not happen . This operation will prevent frequent roaming.

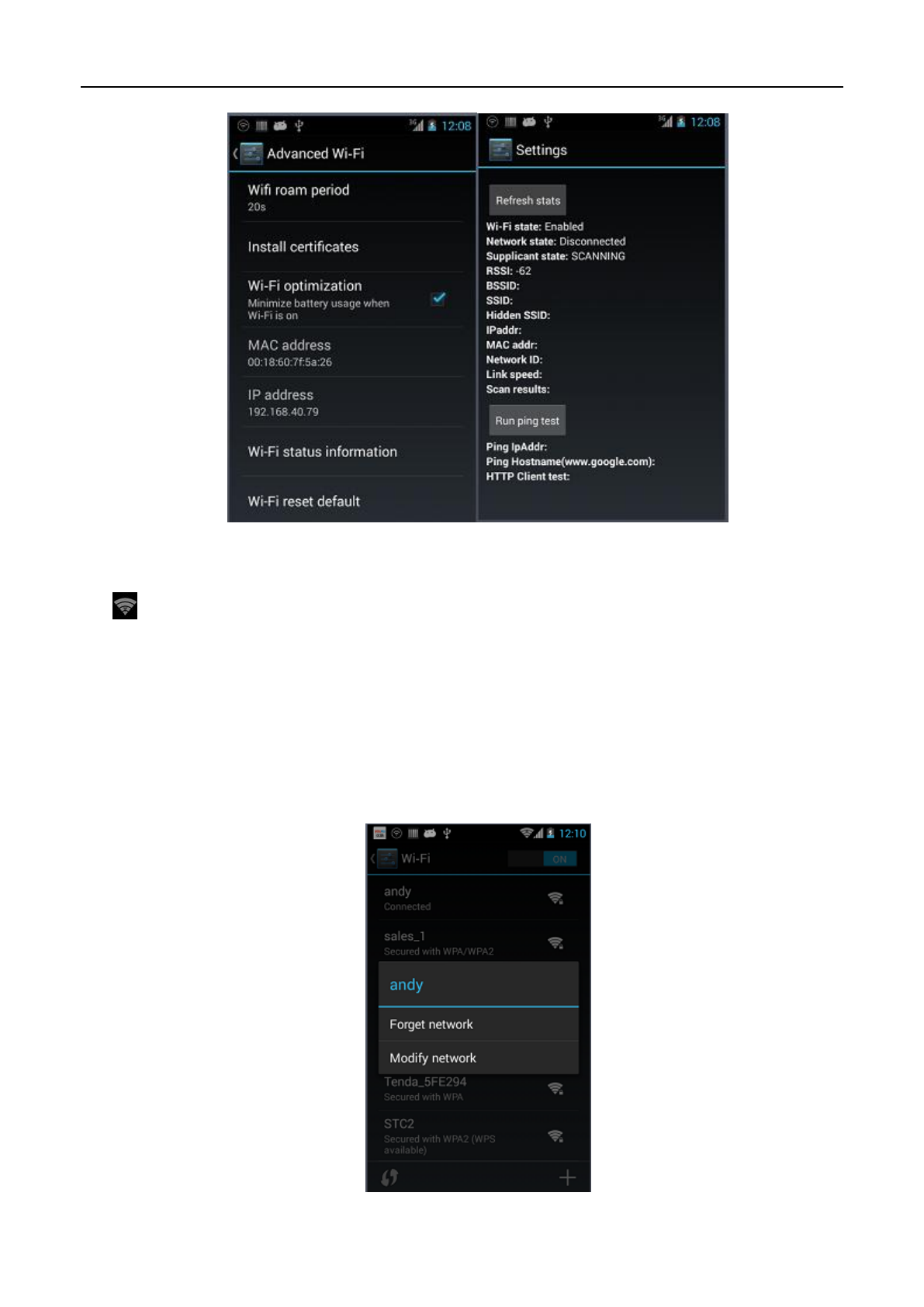

6.Wi-Fi status information , you can check Wi-Fi relevant information through Wi-Fi
status information ,click Refresh stats，like：Wi-Fi state、connected AP、signal value、MAC
address etc.，as shown in the figures；
7.Wi-Fi reset default ，click it , WLAN roaming trigger , roam delta and roam period
can back to the default. As the picture showing ,Wi-Fi will be automatically closed after
clicking this item , Wi-Fi will be back to the default after restarting.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
18
Notice：When device connects to the wireless network ,status bar will display Wi-Fi icon
（ ） and approximate signal strength (light strip).If you click the current wireless
network ,it will display Wi-Fi network name , status , speed , signal strength ,security and IP
address.
If you want to remove the wireless network settings on device , please click the
connected AP for long time , please choose “forget network”, this operation will cancel this
AP ,like the picture showing :
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
19
Notice：
Reopen Wi-Fi, if device connects the previous connected wireless network with
encryption, no need to input corresponding password again. Wi-Fi networks can search
automatically for themselves , no need do extra steps to connect Wi-Fi network .
Connect to other Wi-Fi networks
1.In Wi-Fi selection interface , please touch refresh button ,new searching Wi-Fi
networks will be displayed in Wi-Fi network lists.
2.Clcik other Wi-Fi network , device will be connected to this network .
Mobile Networks
Look for this icon：
->Settings
->More
->Mobile networks
1）Open Data enabled ，it will create the statistics related to the mobile data traffic
costs .
2）Data roaming：after opening ，enter into roaming environment , data communication
will be directly switched to the roaming status .
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
20
3）Network mode ：Insert different SIM card，choose the corresponding network
mode ，then register on the network ,and be realizable to switch 2G/3G .The default network
modes are EvDo/GSM/WCDMA （only support WCDMA default network mode
GSM/WCDMA ）.
① Insert Unicom SIM card ,optional network modes as follows：EvDo/GSM/WCDMA、
GSM/WCDMA auto、WCDMA only、GSM only，GSM only just uses 2G network，
WCDMA only just uses 3G network ,others can be based on current network types to
switch by themselves .This operation of switching among networks will be effective
after rebooting device.
② Insert Telecom SIM card, optional network modes as follows：EvDo/GSM/WCDMA,
can be based on current network types to switch by themselves .
③ Insert Mobile SIM card , optional network modes as follows：EvDo/GSM/WCDMA、
GSM、GSM only，only GSM mode can be based on current network types to switch
2G/3G ,other modes use 2G network .
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
21
4）Access point names ,general Mobile default is cmnet，Unicom default is 3g net，
Telecom default is ctnet，as follows：

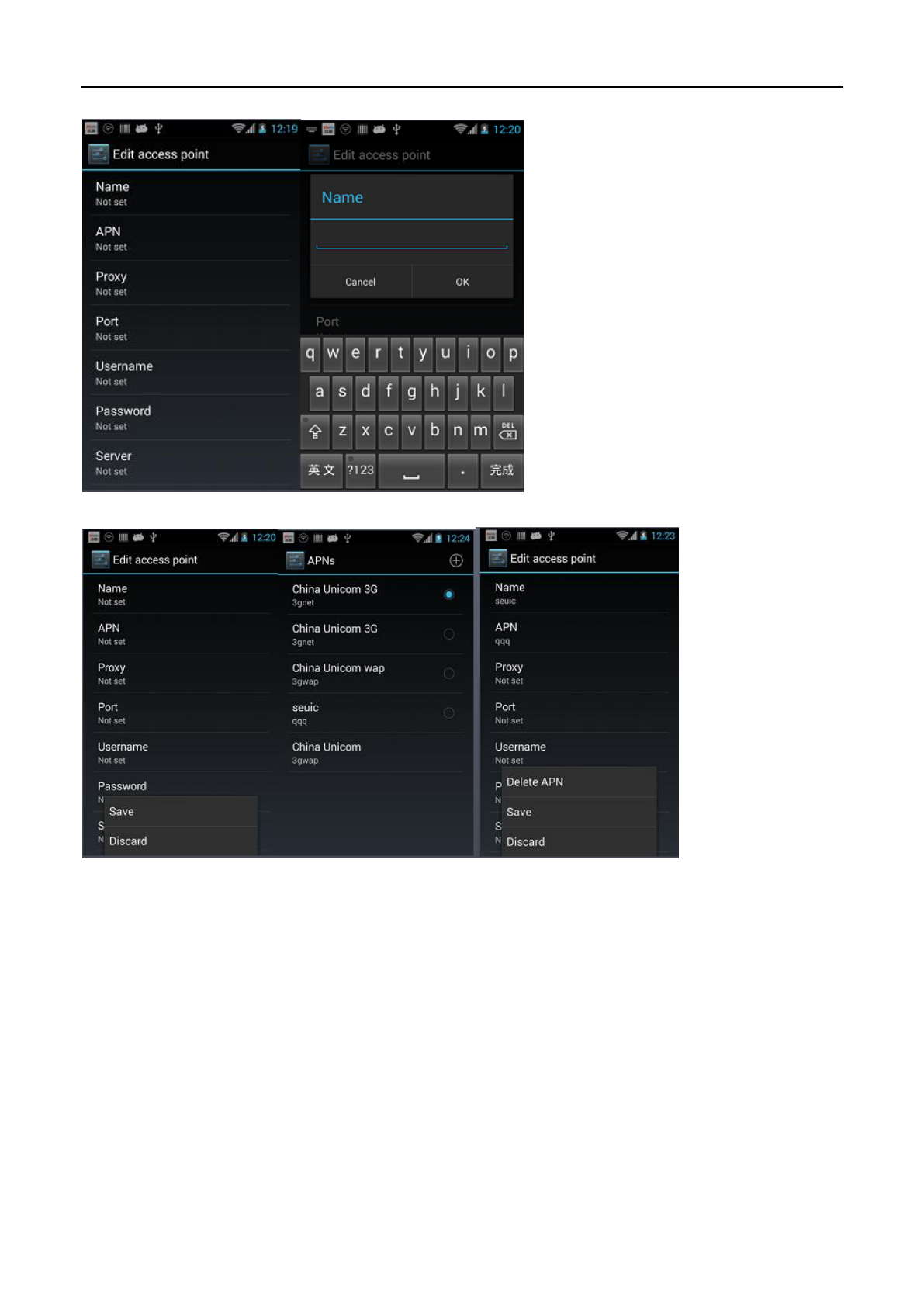

5）Add special APN，click this icon ,popup the interface as below , General , adding
name (user-defined ) ,APN (network access point) ,user name, password and so on ，press
Menu key to choose save or press Back key to return directly then finishing addition. If
modify or cancel the previous added APN , please click it to modify , to save or cancel etc. by
pressing Menu key , as shown in pictures .
Notice ：When adding APN , for other options, users can do corresponding settings
according to their own access point demands.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
22
6）Just use 2G network : after selected, reboot device , only use GSM network , device
will be enforced down to 2G network even in 3G signal coverage area in order to save
electric power .
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
23
7）Network operator ：searching for network operator sources under the current
environment .
Bluetooth
Look for this icon：
->Settings
->Wireless and networks
->Bluetooth
1) Press Bluetooth switch button, open it to search other Bluetooth devices；
2) In the device lists that was searched ,click the one to pair with it ;
3) Please type PIN code into the pop-up box with paired request, then click ok to
connect device :
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
24
4) Paired device , it can be renamed ,be canceled pairing and so on if you click settings
button on the right side of the device , you can do corresponding operations according to
detailed demands :
Open it to search Bluetooth
devices
Click it to be visible to all nearby
Bluetooth devices
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
25

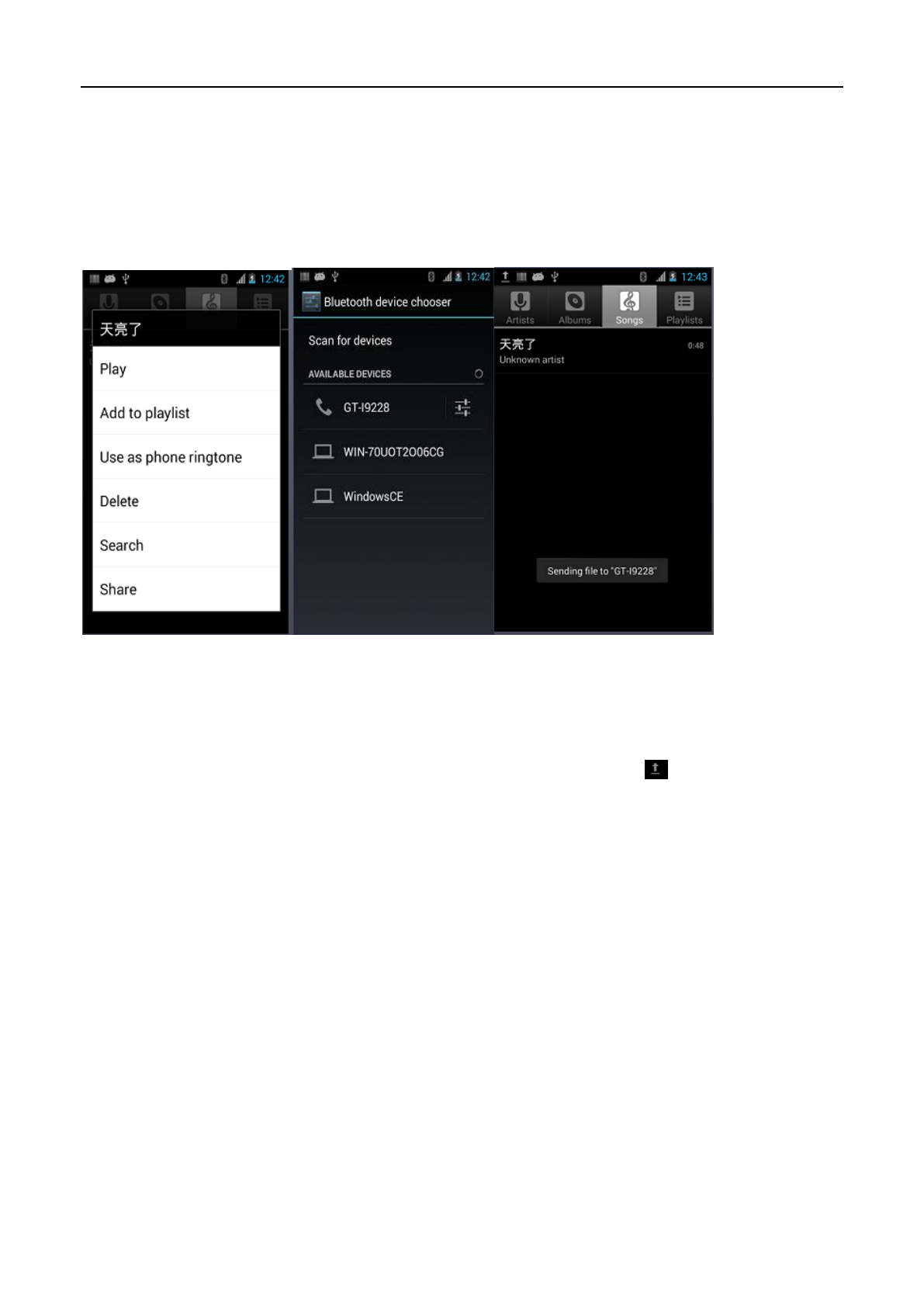

5) Bluetooth transmission: It‟s available to choose the files/ pictures/ videos/ MP3 files
to send by Bluetooth, for example: Share MP3, choose 1 MP3 and long tap the MP3, then
choose the paired Bluetooth device in the sharing window, tap the “Send” after the details
window showing, like the pictures showed below:
6) During sending, when there is the symbol of “Upper Arrow” in the left up side of
screen, it‟s available to view the situation of sending by down-dropping, like the pictures
showed below:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
26
7) There will be relative tips after sending is done.
8) Bluetooth earphone, pairing like normal Bluetooth earphone, Bluetooth earphone
could be used in Audio Communication/ Multi-media Playing etc.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
27
Reports of Data usage.
Searching this symbol:
-> Settings
->WIRELESS&NETWORKS
-> Data usage
Choose “ON” for Mobile data, choose “set mobile data limit” in “data usage”.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
28
More
Searching this symbol:
->Settings
->More
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
29
Airplane Mode
After choosing “Airplane Mode” by tapping, Wi-Fi module will be closed automatically.
VPN
After opening VPN, it will be needed to add the VPN vertical network(For example:
Needs to visit files shared on company‟s internal servers), no matter where you are, you can
connect to company‟s server via VPN User‟s Port, after gathering the VPN account
information, it can dial up via VPN Port. It can visit company‟s sharing sources after dialing
up successfully.
NFC
NFC function, it will allow Data transmission after touching with other device. It will only
need to put your device together with another NFC device, then the Apps‟ information on
your device could be shared to another device on time. While after installing third-part NFC
Apps, the device will be able to read and write RF cards.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
30

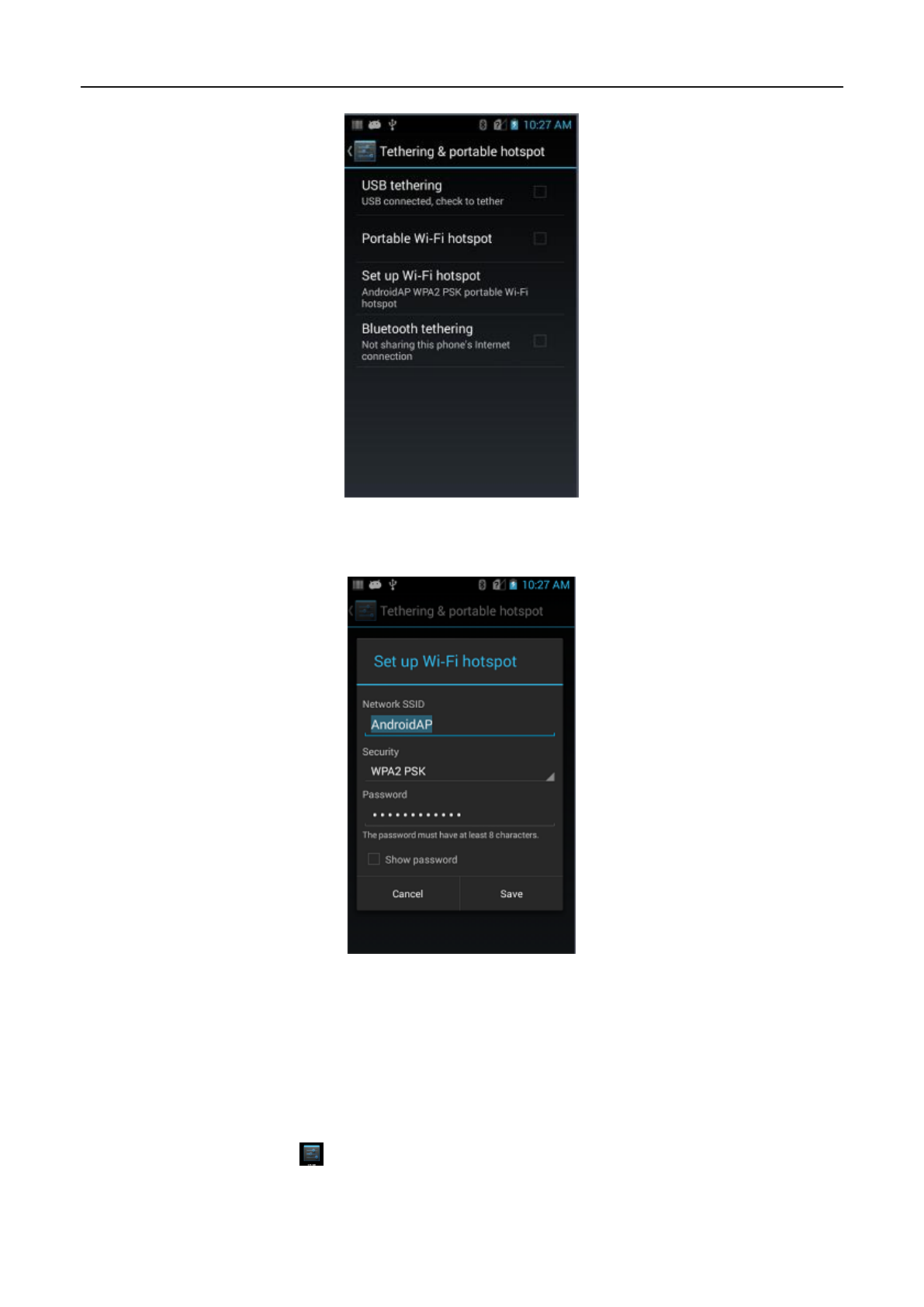

Portable Hotspot
1）Function of portable hotspot, using current terminal as a hotspot to supply network
access for mobile phones and computers who have Wi-Fi module around it.
2）Settings-->More-->Tethering&Portable hotspot-->Portable Wi-Fi hotspot-->Open, as
picture showed below:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
31
3）Set up Wi-Fi hotspot, as picture showed:
4）After another device finding out this hotspot, entering the correct PIN, then it can
tether the hotspot on this device.
Forbid drop-down menu
Looking for this icon:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
32
->Settings
->Prohibit drop-down menu
When this function is open
This function will be effective immediately, the menu can not be dropped down.
When this function is closed
Device is going to “Sleep” mode, this function becomes effectively after awaking,
then the menu could be dropped down normally.
Gloves Mode
Looking for this icon:
->Settings
->Gloves mode
When this functions is effective, the device will support operating touch screen with
gloves, the sensitivity of touch screen is very high;
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
33
Fn StickyKey
Looking for this icon:
->Settings
->Keypad quick
When this function is closed
When press Fn key and indicator of Fn is lighting, the output blue marks corresponding
to F1~F10/ *etc . while press 1~0/ ./ #; It‟s able to input characters of F1~F10/ * etc.
continuously.
When this function is open
When press Fn key and indicator of Fn is lighting, the output blue marks corresponding
to F1~F10/ *etc . while press 1~0/ ./ #; But it is only able to output F1~F10 or * once, after
inputting, it will switch to Num immediately.
Shielded First Virtual Key
Looking for this icon:
->Settings
->First virtual key 一
When this function is closed
Menu key in the left down side of screen is available, tap to open the menu of
current window.
When this function is open
Menu key in the left down side of screen is disabled, there will be no respon after
tapping, this function has been blocked.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
34
Shielded Second Virtual Key
Looking for this icon:
->Settings
->Second virtual key
When this function is closed
Home key in the middle of screen is available, it will go back to Home after tapping.
When this function is open
Home key in the middle of screen is disabled, there will be no respond after tapping, this
functions it blocked.
Sound
Looking for this icon:
->Settings
->Sound
To set Volumes/ Phone ringtone/ Default notification sound, you can also choose or
cancel “Dial pad touch tones”/ “Touch sounds”/ “Screen lock sound”/ “ Vibrate on
touch”, as picture showing below:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
35
Display
Looking for this icon:
->Settings
->Display
1）Brightness, able to adjust the backlight brightness by moving cursor to left or right.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
36

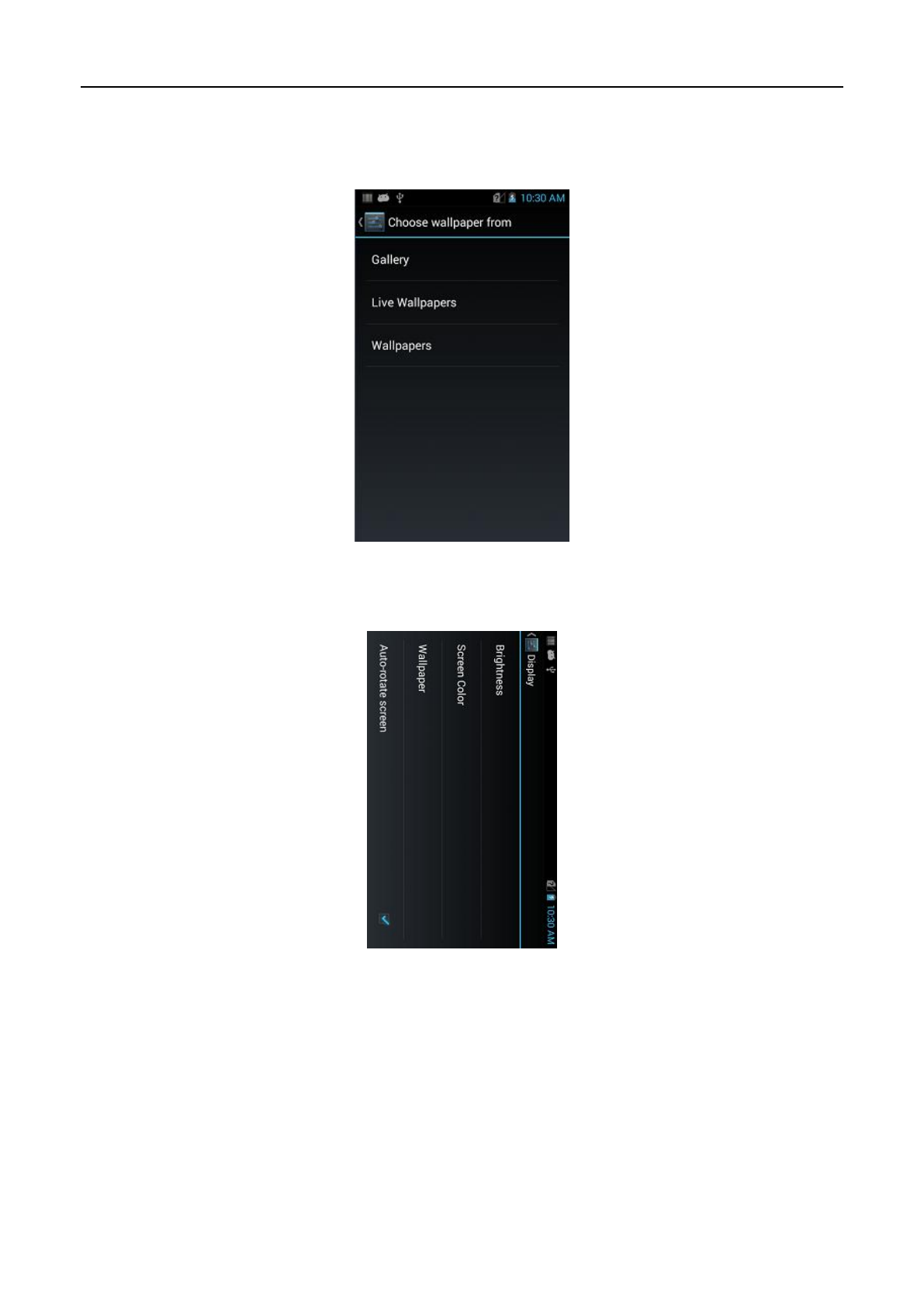

2）Wallpaper, after entering, it‟s able to change the resources of wallpaper you want to
set at will, Gallery/ Live Wallpapers/ Pictures on TF card, wallpaper: System‟s picture.
3）Auto-rotate screen, after choosing, when the device rotates, the screen will be
adjusted to Horizontal/ Vertical according to the angel of rotation.
4）Sleep, to change and set system sleep time, when the set time is coming, system will
sleep automatically.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
37
5）Font size, to adjust the font size of system according to your requirements.
Storage
Looking for this icon:
->Settings
->Storage
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
38
Able to check available space, clean memory card(Formatting the internal memory
space), media scan to external memory card or USB device.
Battery
Looking for this icon:
->Settings
->Battery
Able to check the battery‟s current capacity and using time.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
39
Apps
search this icon：
->settings
-> Apps
Apps managements. Tap the contents(DOWNLOADED/ ON SD CARD/ RUNNING or ALL), choose
the App you want to uninstall, then it will enter the interface like the photo below, tap Uninstall, then
this App will be deleted from this device.
Location access
search this icon：
->settings
->location access
Select the Google satellites in the tick box, then GPS functions will be open. You can download the
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
40
third-part positioning App automatically.
Security
search this icon：
->settings
->security
Set the Screen lock/ Owner info/ Encrypt phone/Make passwords visible/ Device Administrators/ App
ops/Unknown sources/passwords settings of unknown sources App install /Trusted credentials/Install
from SD card, etc.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
41
The system is set as default to limit the installtions of unknown resources Apps; if your installation,
select Unknown sources in the tick box and then pop up with prompt to input password, it will need to type
the passwords when to install related Apps( default password is 4007770876).
This settings will be recovered with default “Unselect” after restart.
Change related password in the subseries of passwords settings of unknown sources App installation
Language & Input
search this icon：
->settings
->Language & input
Select the keyboard and input methods you prefer in the item of input language setting/input
text/input auto correction. Set the text-to-speech output and pointer speed. If you installed some other
input methods, it will show on this interface
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
42
Backup and reset
search this icon：
->settings
->Backup and reset
Introduction: Backup or reset is for factory data reset
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
43
Add account
search this icon：
->Settings
->Add account
Add account information and synchronization information(Can sync the contact information/ calendar etc
to other clouds. It will need to set the account and server )

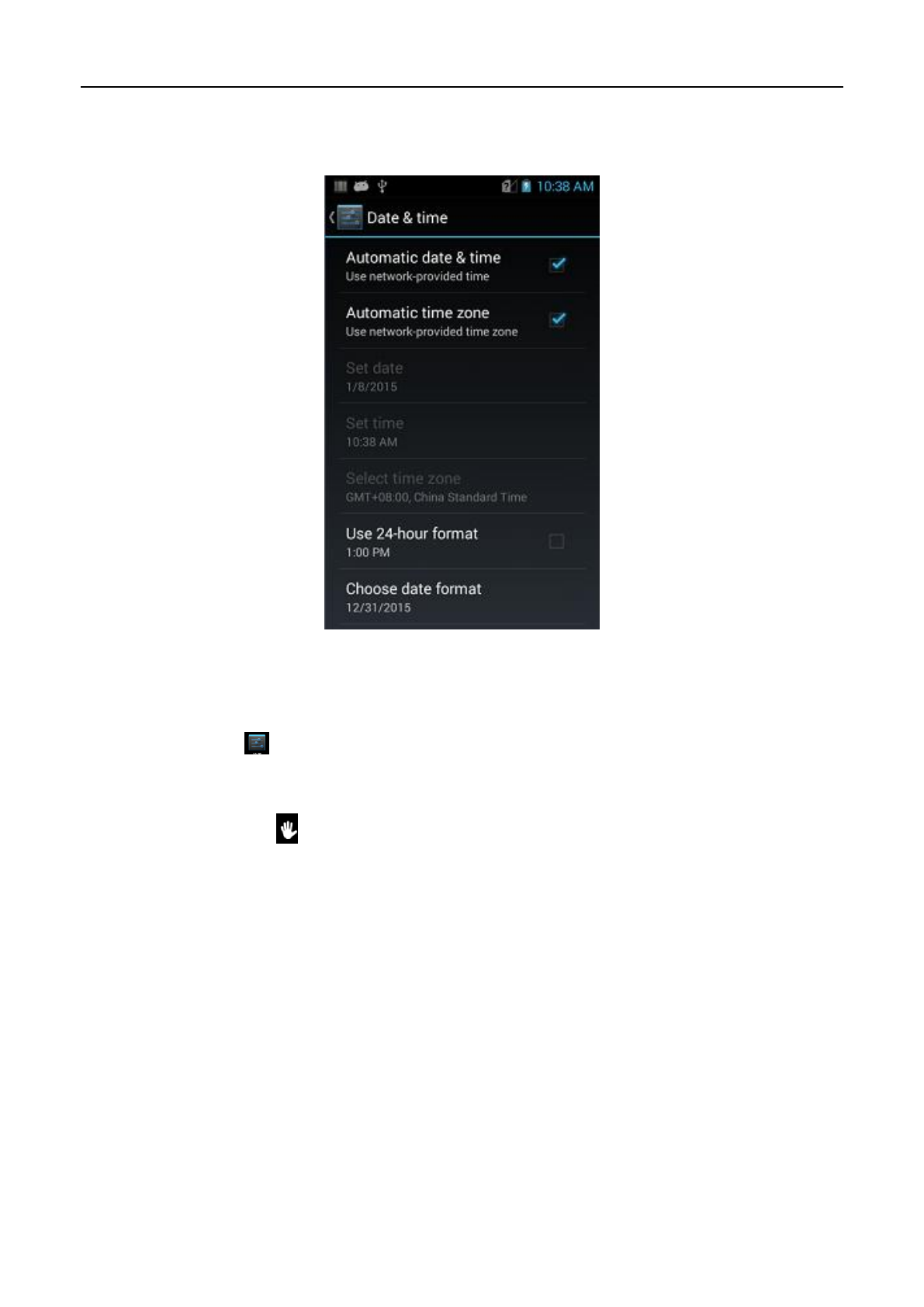

Data & time
search this icon
->Settings
->Data & time
Can choose the Automatic data & time or time zone provided by network, or set the date & time, time zone manually. Also
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
44
can choose the format of date & time.
Accessibility
search this icon：
->Settings
->Accessibility
Can set the options of System/Magnification gestures/Large text/Power button ends call/ Auto-rotate
screen/ Speak passwords/ Touch delay/ Install web scripts
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
45

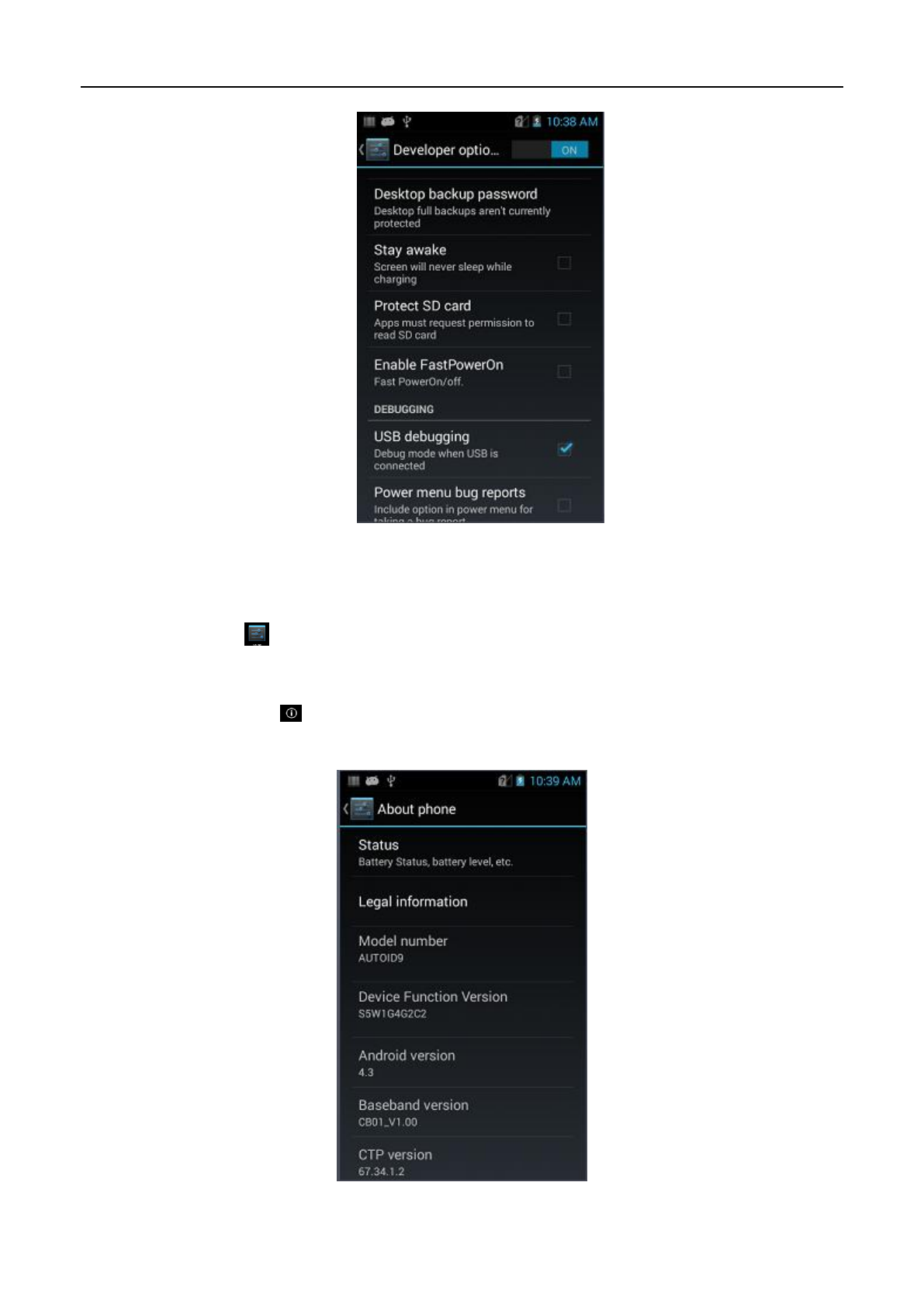

Developer options
search this icon：
->Settings
->Developer options
Settings>About phone>Build number. Tap Build number four times, and then can open developer
item. Other information in this device can be gotten. Android devices have the same operation.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
46
About phone
search this icon：
->Settings
->About phone
Detailed information of device：
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
47
1.Status: can check the Battery status & battery level, Network, Signal strength, IMEI number, IP address,
etc.
2.Model number: Show the model of this device
Part Number: Show the configurations of this device.
Android version: Version of Android system
Baseband version: Version of module
CTP version: CTP information of this device
Serial number: Version of software
Kernel version: Kernel information of this device.
Build number: system software version of this device
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
48
Scan tool
1.Open “ Scan tool “ in the program to scan when press scan button in this interface ,

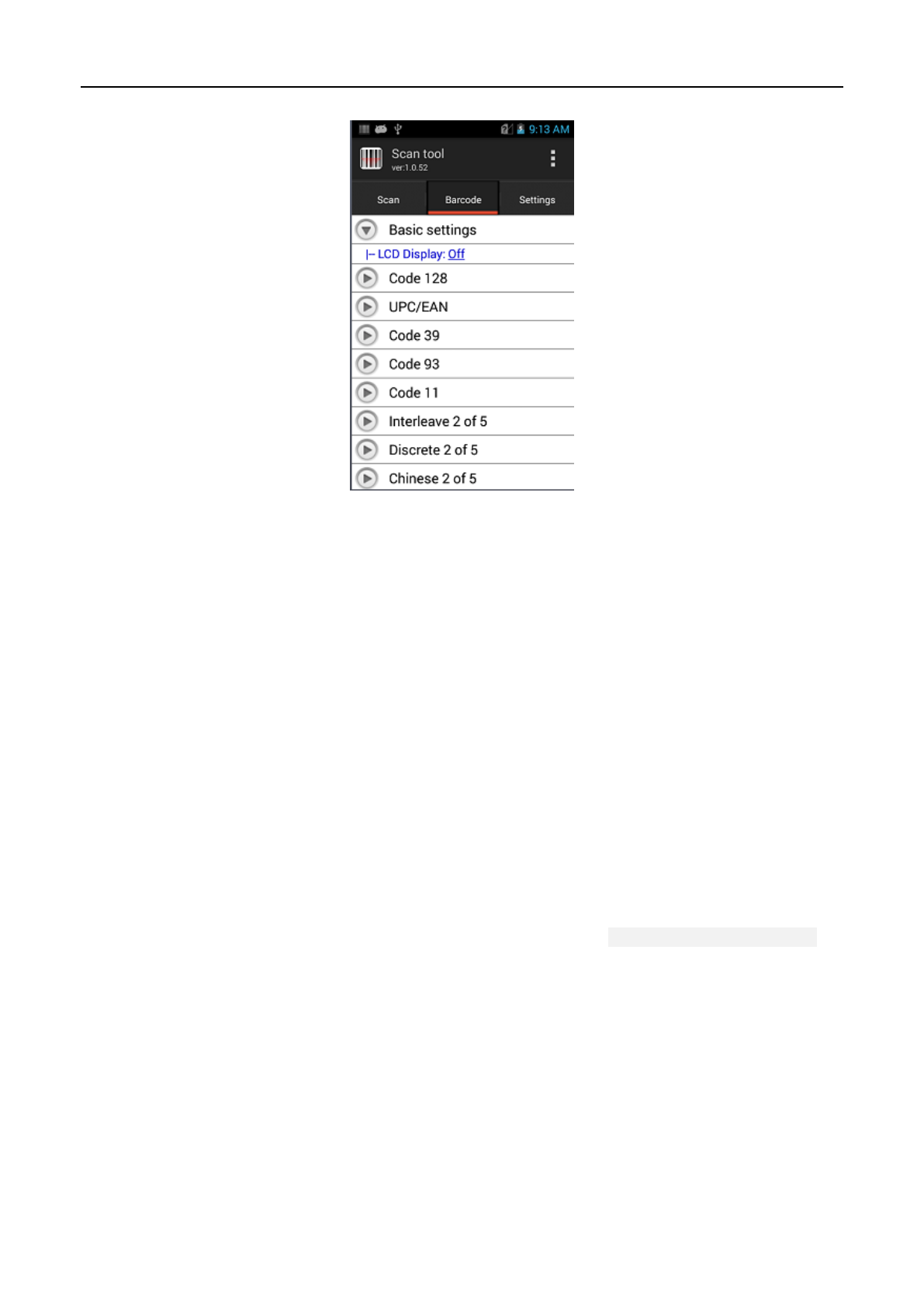

2. Select barcode settings to enter into barcode settings interface to set the required barcode type .
3.Open basic setup to set duration ,angle ,overtime of scanning and so on
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
49

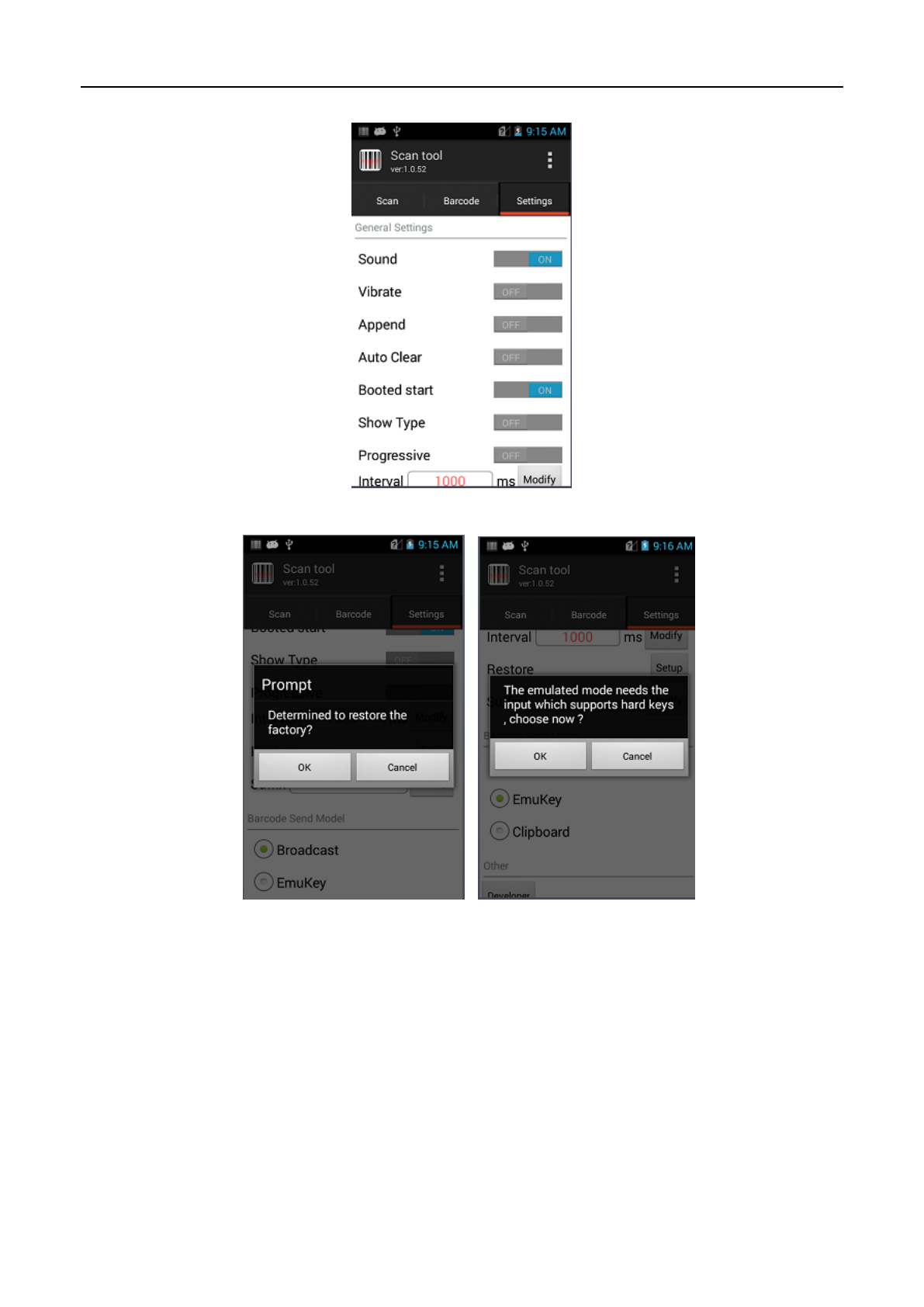

4.Open General Settings, to set on or off of barcode scan.
1).Sound：it will have sound prompt when scan.
2).Vibrate :it will have vibration prompt when scanning.
3).Append: turn on and have continuous output barcode.
4).Auto Clear：it will automatically clear previous barcode after finishing barcode scanning.
5).Booted start: open, then automatically open scan tool after power boot.
6).Continuous scanning：open，it will automatically scan continuously
7).Time interval：please set time by yourself , time interval is the time from finishing this barcode scanning
to next barcode scanning .
8).Restore: turn it on and can restore to default of barcode settings.
9).Suffix: automatically add barcode output suffix(example: Number, letter or Spechars)
10).Barcode Send Model: can select “broadcast”, “EmuKey” or “Clipboard” to send information(It‟s
necessary to select input method of hard keyboards supported)
11).Developer:input”888888”, and revise the item of Developer.(Random Change is not recommended)
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
50
（fig.1）
（fig.2） （fig.3）
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
51
（fig.4）
5. Programs Hide or exit
1) Choose Hide, the program will run in backstage
2) Choose Exit, the program will exit and close
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
52
APK import
This product has a quantity installation function for the facility of APK files installation, and this
function can be installed automatically after the device restores factory settings.
1. Create a new folder at the root directory of the built-in SD card of the device ( the “phone memory” in
the file manager), rename this folder to “appBackup”,
2. Put the APK source programs who need installations and applications in the
“appBackup” folder
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
53
3. Choose “Setup” --》”back-up and reset”--》”restore factory settings” —》 “reset the
mobile phone” --》”clear all”.
4. After restore factory settings and reboot, the device will start the APK installation
under the “appBackup” directory
System update.
This application is to facilitate the Remote Up-grade for users.
1. Find this icon , enter the wireless upgrade, as shown in figure below
2. Click check for update , if there isn‟t update, you will be informed that this is the latest
version, if there is update, you will be prompted to download.
3. Install the update. After download, click Install immediately, and Confirm then Reboot to
enter the Upgrade; if the battery runs to less than 30%, you will be prompted to charge it.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
54
Please charge the battery before upgrade .

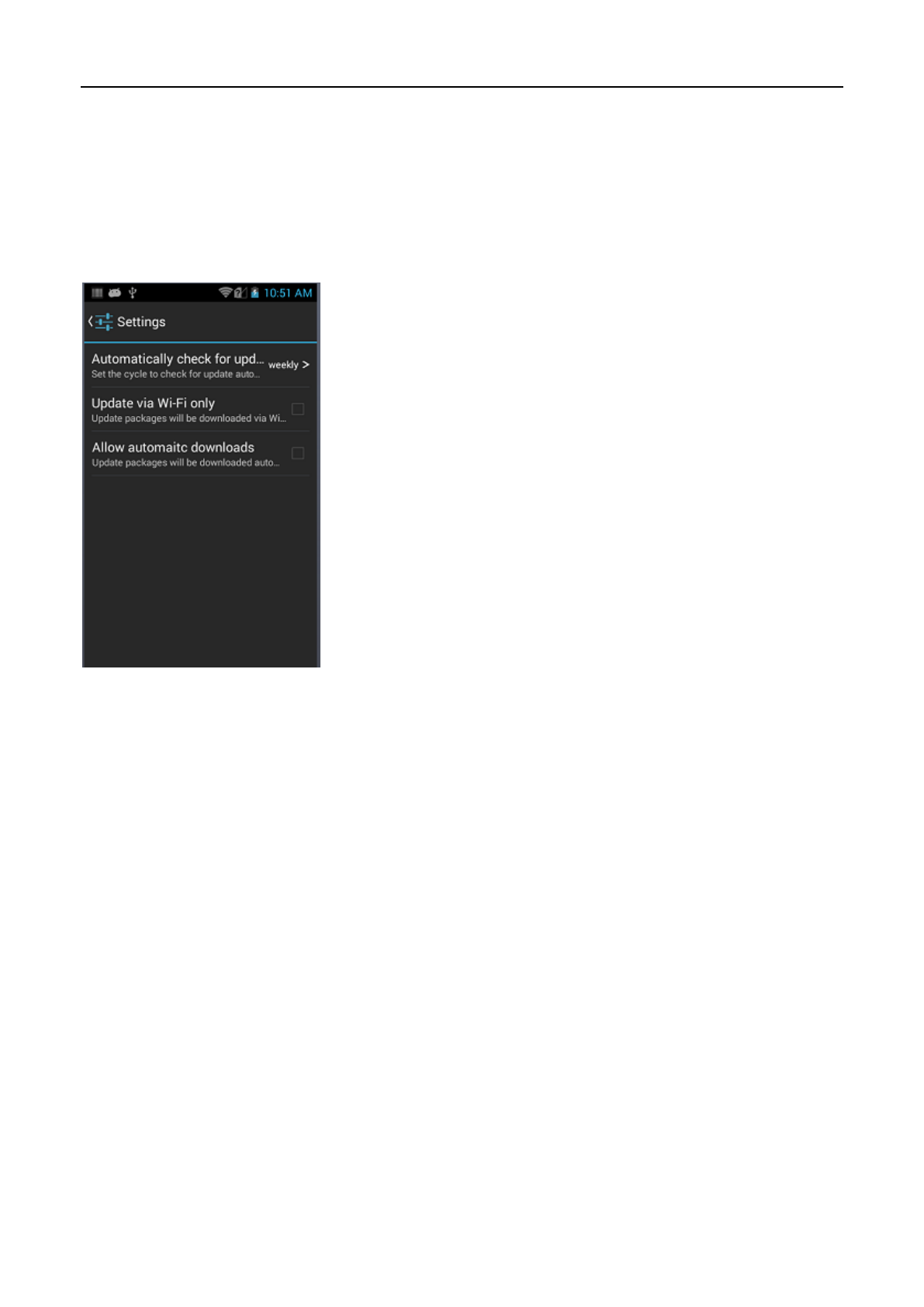

4. Wireless upgrade setting, as shown in figure
Mobile Butler
This application is to meet the customers needs to set permissions for the Android handheld terminal, so
that the users can not use the non-specified app.
1. Default settings of launcher, click Home VirtKey, as shown in figure:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
55
l
Choose Mobile phone manager, click Always to achieve memory retention of the setting.
2. The administrator sets and changes passwords
2.1 Open the application, short press Menu to add desktop item actions
Above means: the password of administrator is not set, you must set it first, click
Understand to close the dialog box.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
56
2.2 Long-press on Menu key, an interface will appear as shown below:
Set the initial administrator password as required, such as: 123456, Note: it can not be
empty. The name of App “Mobile phone manager” which appears in homepage can be changed.
2.3 Short-press Menu key again, as shown below:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
57
Type the administrator password (like 123456), pass validation, the figure below
appears:
Choose the items to add to the desktop, click Confirm then the addition is made. As
shown in figure below:
2.4 Administrator- change the password:
Long-press on Menu key, the interface of Change password appears:
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
58
3 Wallpaper change
Long-press on the desktop, the figure below appears:
4 Unlock the default setup of Starter
Go to 【setup】---->【application】---->【all】， find this application, click 【 clear default
setup】, the unlock is done.
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
59
Troubleshooting
Problem
Cause
Solution
Press the power
button ，AUTOID
9/9HC can not start up
The battery is running low,
or is not charged
Charge or change the
battery
The battery installation is
incorrect
Install the battery
correctly
System crash
Perform soft resetting
Chargeable battery
can no longer be
charged
Battery failure
Change the battery
Battery temperature is too
high/too low
Put the battery in normal
temperature
environments
No sound
Volume setting is too low
or turned off
Adjust the volume
AUTOID 9/9HC turns
itself off automatically
AUTOID 9/9HC is in an
non-active state
The mobile terminal will
turn itself off after some
time no active, you can
set the time for 15S to
30Min ， or never
dormant.
Battery runs out
Charge or change the
battery
AUTOID 9/9HC didn‟t
decode when read bar
The scanning tool program
is not started
Load the scanning
application program at
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
60
codes
AUTOID 9/9HC
You are on the bar code
setting interface or
application interface
Put/set the scanning
program on the
scanning interface, or
hide the scanning
program
The bar code is not
readable
Insure that the bar code
has no defect
The bar-code decoding
function is not open
Enter the bar code
setup, open the
corresponding decoding
AUTOID 9/9HC doesn‟t
support the decoding of
this bar code type
Inappropriate distance
between AUTOID 9/9HC
and bar codes
Put AUTOID 9/9HC in
the right scanning range
Can not find any
bluetooth device
nearby
Too far from other
bluetooth devices
Be close to other
bluetooth devices, within
10 m(32.8 inches) apart
from each other
The bluetooth devices
nearby are not open
Open the bluetooth
device you are seeking
The bluetooth device is
not in detectable mode
Set the bluetooth device
to detectable mode
Can not connect to AP
Show “identification
problem”
WLAN password is not
correct
Can not take a picture
Show “no storage device”
Exit USB storage mode
Show “camera
breakdown”
Turn off 2D, camera can
not open if 2D emits light
Show “SD Card space not
enough ”
Clear the internal
memory or change the
storage location
Can not use mobile
data to access Internet
Mobile data is not open
Setup, open the data
network
The option of network
model is not right, SIM
card is not logined
Go to Setup, choose the
right network mode
Arrearage of SIM Card
Charge the SIM Card in
time
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
61
Regulatory Conformance Hereby, Jiangsu SEUIC Technology Co.,Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Safety Information and Notices
Failure to comply with the following precautions may be dangerous or illegal.
Never attempt to disassemble your device. You alone are responsible for how you use your device and
any consequences of its use.
As a general rule, always switch off your device wherever the use of a device is prohibited. Use of your
device is subject to safety measures designed to protect users and their environment.
Do not use your device in damp areas (bathroom, swimming pool…). Protect it from liquids and other
moisture.
The max. recommended temperature is 35°C.
Do not leave your device within the reach of small children (certain removable parts may be accidentally
ingested). Please carefully read and observe the terms below:
Distance of operation
This device model has been tested and meets radiofrequency exposure guidelines when used as follows:
• Against the ear: Place or receive a device call and hold the device as you would a wire line telephone.
• Body worn: When transmitting, place the device in a carry accessory that contains no metal and
positions the device a minimum of 1 cm form your body. Use of other accessories may not ensure
compliance with radiofrequency exposure guidelines. If you do not use a body worn accessory and are not
holding the device at the ear, position the device a minimum of 1 cm from your body,
• Data operation: When using a data feature, position the device a minimum of 1 cm from your body for the
whole duration of the data transmission.
Adapter
Adapter shall be installed near the equipment and shall be easily accessible.
Sound pressure safety
Use carefully with the earphone maybe possible excessive sound pressure from earphones and
headphones can cause hearing loss.
Caution
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
62
instructions.
Proper use
As described in this manual, your device can be used only in right location. If possible, please do not
touch the antenna area on your device.
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user„s authority to operate the equipment.
RF Exposure Information (SAR)
This device meets the government‟s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the device transmitting at its highest certified
Jiangsu SEUIC Technology Co., Ltd AUTOID 9/9HC SERIES USER GUIDE
63
power level in all tested frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The highest SAR value for the device as reported to the FCC when tested for use at the ear is 0.130W/kg
and when worn on the body, as described in this user guide, is 0.750W/kg (Body-worn measurements
differ among devices, depending upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various devices and at various positions, they
all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the
FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on
FCC ID: 2AC68-AUTOID9.
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines for use
with an accessory that contains no metal and the positions the handset a minimum of 1.0 cm from the
body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If
you do no t use a body-worn accessory and are not holding the phone at the ear, position the handset a
minimum of 1.0 cm from your body when the device is switched on.
