Jing Mold Electronic Technology JME1129R Wireless Mouse User Manual JME 1129R
Jing Mold Electronic Technology (Shen Zhen) Co., Ltd. Wireless Mouse JME 1129R
User Manual
User
Manual
2.4GHz Wireless
Laser Mouse
JME
-
1129R
JME-1129R User Manual
1
Thanks for purchasing this wireless laser mouse.
This creative and easy-to-use wireless mouse will bring
you a whole new wireless life experience. Be sure to
carefully read this User Manual first for the proper use
of the wireless mouse and then keep it for future
reference.
JME-1129R User Manual
2
System Requiements
Microsoft Windows 2000/XP/Vista or later version
An available USB port
Installation & Use
Plug the USB receiver into any available USB port
or hub connected to your computer.
The operating system identifies the receiver as a
“USB Human Interface Device” and begins
installation automatically. When completed, the
system will prompt that “Your new hardware is
installed and ready to use.”
JME-1129R User Manual
3

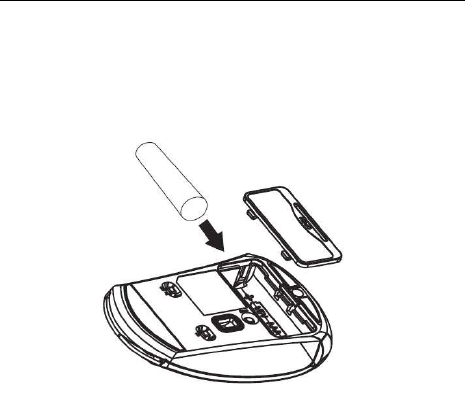

Remove the mouse battery compartment cover,
and install batteries with the positive(+) & negative(-)
in the correct direction indicated by the AAA battery
compartment label.
Replace the battery compartment cover.
Switch on the mouse, the mouse should be func-
tioning now. If not, please reestablish contact for
the mouse, press the connect button of the mouse
for 5 seconds, when the receiver blinks, the mouse
is connected.
JME-1129R User Manual
4
Battery Low Indication
When the batteries voltage become low, the battery
indicating LED on the top of the mouse will blink. The
mouse can continue to operate for a period of time on
usage, but batteries should be replaced immediately.
JME-1129R User Manual
5
DPI Switch Introduction
The switch provides you the dpi switch function between
800dpi and 1200dpi. The mouse is 800dpi (“L” side) as
default. If better performance and faster speed is
necessary for the mouse, please switch it to 1200 dpi
(“H” side).
Troubleshooting
If the mouse does not work properly, please try the steps:
1. Before you install your wireless mouse, please make
sure the receiver installation is completed and the
receiver has start-up.
2. Please check to make sure the batteries are no dead.
3. Make sure the batteries are positioned correctly and
connected well.
4. Check if the switch has been switched on.
5. Make sure that the mouse is within the effective
range --10m
6. Press the connect button on the backside of the
mouse for 5 seconds. While the receiver blinks,
release the connect button.
JME-1129R User Manual
6
FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
FCC Radiation Exposure Statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
JME-1129R User Manual
7
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID
THE USER AUTHORITY TO OPERATE THE
EQUIPMENT.
Caution:
* Risk of explosion if battery is replaced by an incorrect
type.
* Dispose of used batteries according to the instructions.
* Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
JME-1129R User Manual
8
Thanks for using the wireless mouse. If have any
questions and suggestions with our product, please
telephone or Email to our service personals, we will
reply as soon as possible.
