Jing Mold Electronic Technology JME8279R Wireless Keyboard User Manual JME 8279R manual

Jing Mold Electronic Technology (Shen Zhen) Co., Ltd. Wireless Keyboard JME 8279R manual

user manual

JME-8279R user guide
1
11
1.
..
.

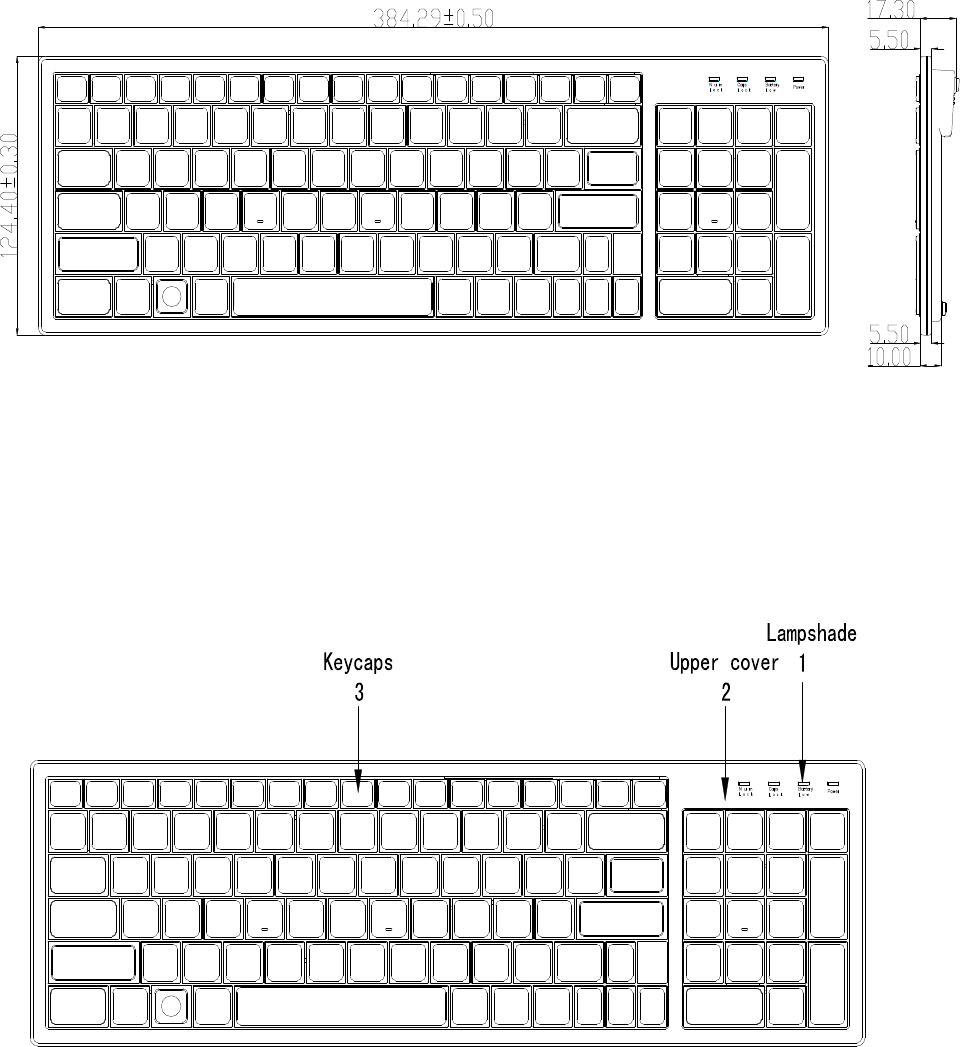

Keyboard Appearance draw
2.
2.2.
2.F
FF
Front view
ront viewront view
ront view

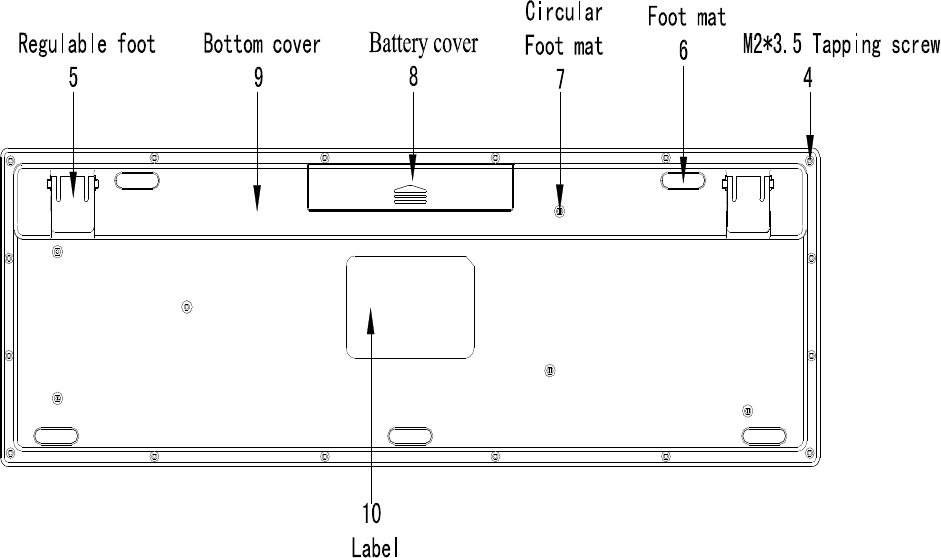

3. Back view
4. Feature
4.1 Transmission modeRF
4.2 Frequency2410~2473MHz
4.3 RFchannel quantity64
4.4 Center of Channel: 2410/2411/242…2471/2472/2473MHz
4.5 Width of Channel: 1MHz
4.6 Hopping Technology : Digital FHSS (Frequency Hopping Spread Spectrum)
4.7 Data Send timing: <500us
4.8 Power2pcs *AAA alkaline batteries (1.5V)
4.9 Modulate modeMSK
4.10 Effective distance12m
4.11 Quantity of connection ID24Bits (8,388,608 ID can be used)
4.12 Number of keys99
4.13 Operating temperature+5~+40
5. Use guide

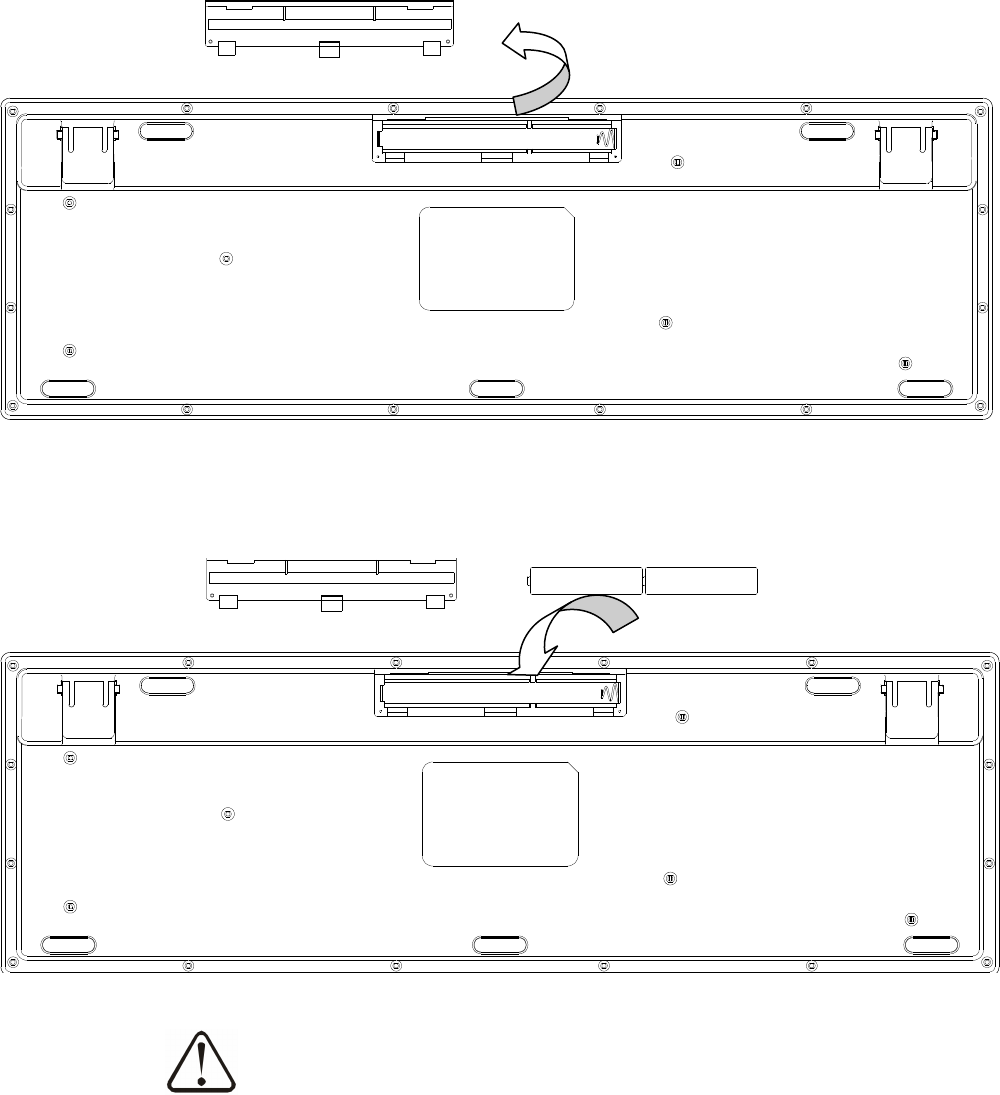

5.1 Battery Installation
a. Unlock the battery cover
b. Install the battery and match the code
Need to check and match the code for the first of time of usage only, Please match the
code as below :
1. First, confirm the receiver has been connected to the computer.
2. With the keyboard close to the receiver within 50cm,hold downESC key and inclose two
pieces of batteries, when the receiver’s led blinks 4 times,the keyboard is ready to be used
Caution:
Risk of explosion if battery is replaced by an incorrect type
Dispose of used batteries according to the instructions
6.FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference
to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
(Example- use only shielded interface cables when connecting to computer or peripheral
devices).
This device complies with Part 15 of FCC RF Rules. Operation is subject to the following
two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user authority
to operate the equipment.
