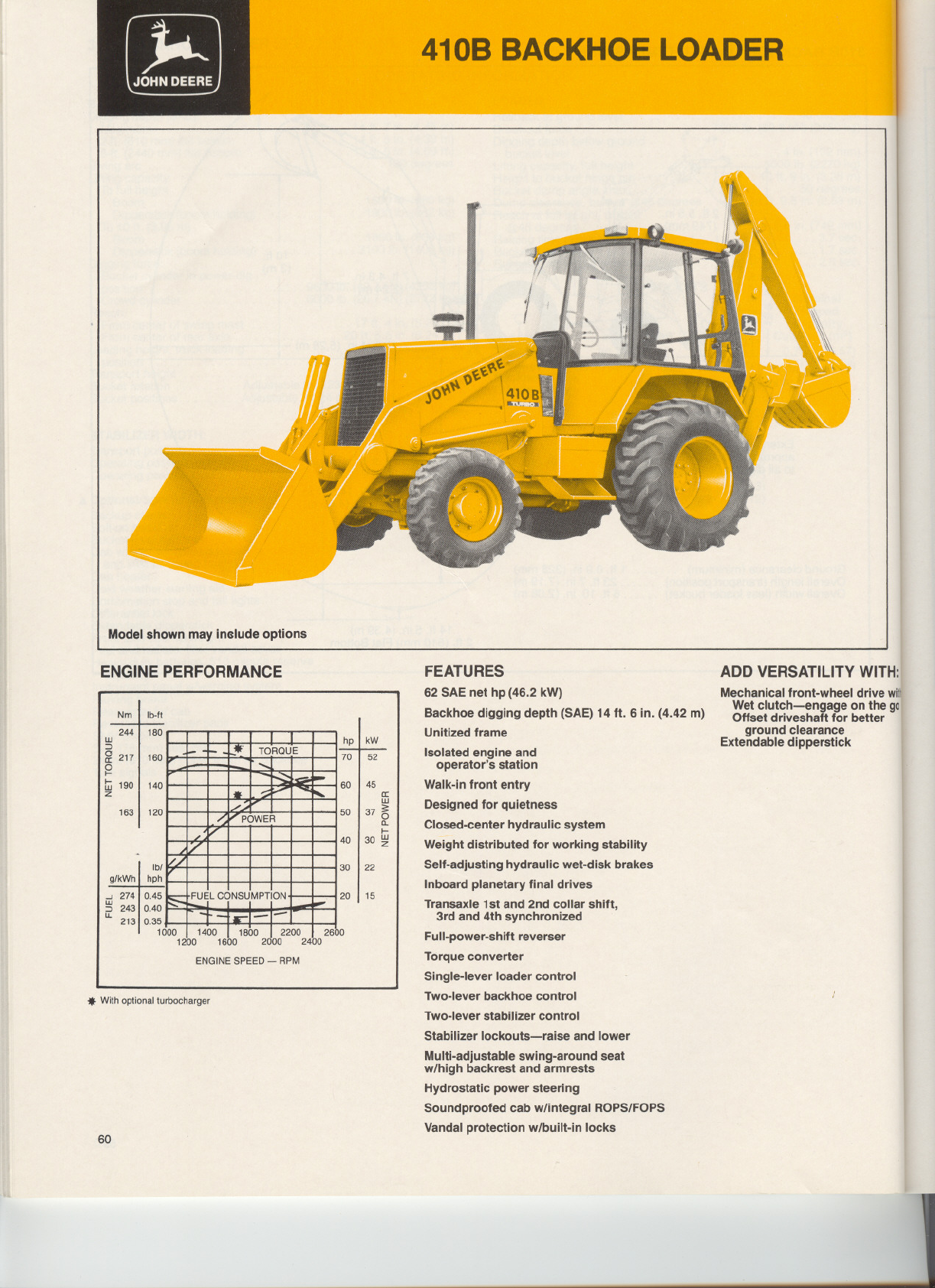

410B BACKHOE LOADER

-----

Model shown may inelude options

ENGINE PERFORMANCE

Nm Ib-ft

244 I 180

~217 I160

Ii; 190 I140

hp IkW

7OT5i

60 I45 cr

50137~ a.

.....

40130~

163 I 120

Ibl

glkWh hph

...J 274 0.45

~243 0.40

lL 213 0.35

1000 I1400 I1800 I2200 I261>0

1200 1600 2000 2400

30 122

1520

ENGINE SPEED -RPM

.With optional turbocharger

FEATURES

62 SAE net hp (46.2 kW)

Backhoe digging depth (SAE) 14 ft. 6 in. (4.42 m)

Unitized frame

Isolated engine and

operator's station

Walk-in front entry

Designed for quietness

Closed-center hydraulic system

Weight distributed for working stability

Self-adjusting hydraulic wet-disk brakes

Inboard planetary final drives

Transaxle 1st and 2nd collar shift,

3rd and 4th synchronized

Full-power-shift reverser

Torque converter

Single-lever loader control

Two-lever backhoe control

Two-lever stabilizer control

Stabilizer lockouts-raise and lower

Multi-adjustable swing-around seat

w/high backrest and armrests

Hydrostatic power steering

Soundproofed cab w/integral ROPS/FOPS

Vandal protection w/built-in locks

ADD VERSATILITY WITH:

Mechanical front-wheel drive witH

Wet clutch-engage on the go

Offset driveshaft for better

ground clearance

Extendable dipperstick

--- --~-

~_n - --- -

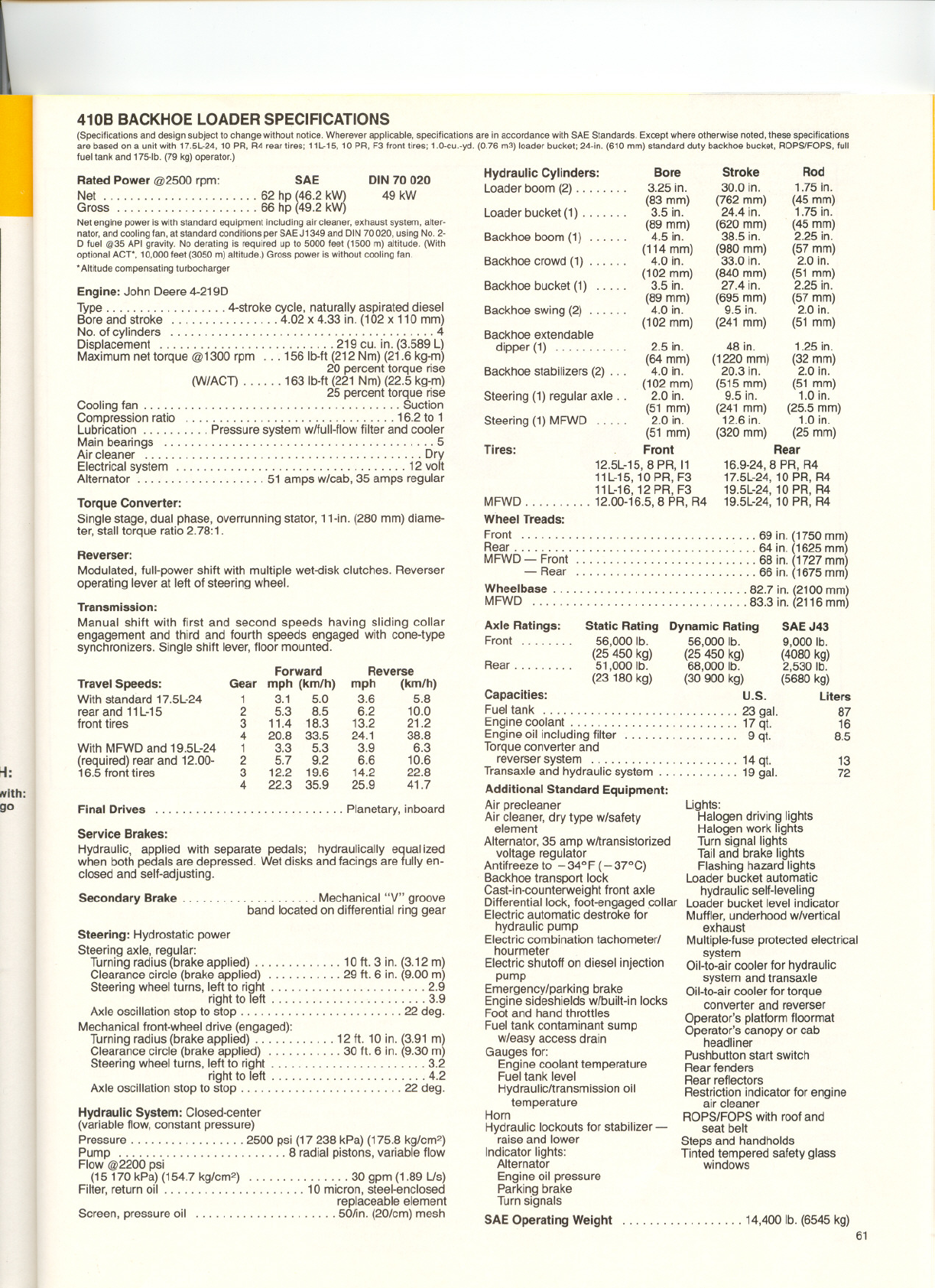

410B BACKHOELOADERSPECIFICATIONS

(Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with SAE Standards. Except where otherwise noted, these specifications

are based on a unit with 17.5L-24, 10 PR, R4 rear tires; 11L-15, 10 PR, F3 front tires; 1.0-cu.-yd. (0.76 m3) loader bucket; 24-in. (610 mm) standard duty backhoe bucket, RaPS/FOPS, full

fuel tank and 175-lb. (79 kg) operator.)

Rated Power @2500 rpm: SAE

Net 62hp(46.2kW)

Gross 66hp(49.2kW)

Net engine power is with standard equipment including air cleaner, exhaust system, alter-

nator, and cooling fan, at standard conditions per SAE J1349 and DIN 70020, using No. 2-

0 fuel @35 API gravity. No derating is required up to 5000 feet (1500 m) altitude. (With

optional ACT", 10,000 feet (3050 m) altitude.) Gross power is without cooling fan.

.Altitude compensating turbocharger

DIN 70 020

49 kW

Engine: John Deere 4-219D

Type. . . . . . . . . . . . . . . . . . 4-strokecycle,naturallyaspirated diesel

Boreand stroke. . . . . . . . . . . . . . . . 4.02 x 4.33 in. (102x 110 mm)

No.ofcylinders 4

Displacement 219cu.in.(3.589L)

Maximumnet torque @1300 rpm ... 156 Ib-ft(212 Nm)(21.6 kg-m)

20 percent torque rise

(W/ACT). . . . . . 163Ib-ft(221 Nm) (22.5 kg-m)

25 percent torque rise

Coolingfan Suction

Compression ratio 16.2t01

Lubrication. . . . . . . . . . Pressure system w/full-flowfilterand cooler

Mainbearings 5

Aircleaner Dry

Electricalsystem 12volt

Alternator. . . . . . . . . . . . . . . . . . . 51 amps w/cab, 35 amps regular

Torque Converter:

Singlestage, dual phase, overrunningstator, 11-in. (280 mm)diame-

ter, stall torque ratio 2.78:1.

Reverser:

Modulated,full-powershift withmultiplewet-diskclutches. Reverser

operating leverat leftofsteering wheel.

Transmission:

Manual shift with first and second speeds having sliding collar

engagement and third and fourth speeds engaged with cone-type

synchronizers.Single shift lever,floormounted.

Travel Speeds:

With standard 17.5L-24

rear and 11L-15

front tires

Forward

Gear mph (km/h)

1 3.1 5.0

2 5.3 8.5

3 11.4 18.3

4 20.8 33.5

1 3.3 5.3

2 5.7 9.2

3 12.2 19.6

4 22.3 35.9

Reverse

mph (km/h)

3.6 5.8

6.2 10.0

13.2 21.2

24.1 38.8

3.9 6.3

6.6 10.6

14.2 22.8

25.9 41.7

fi:

With MFWD and 19.5L-24

(required) rear and 12.00-

16.5 front tires

",ith:

go FinalDrives Planetary,inboard

Service Brakes:

Hydraulic, applied with separate pedals; hydraulicallyequal ized

when both pedals are depressed. Wet disks and facings are fully en-

closed and self-adjusting.

Secondary Brake. . . . . . . . . . . . . . . . . . . . Mechanical "V" groove

band located on differential ring gear

Steering: Hydrostatic power

Steering axle, regular:

Turning radius (brake applied) . . . . . . . . . . . . . 10ft. 3 in. (3.12 m)

Clearance circle (brake applied) 29 ft. 6 in. (9.00 m)

Steering wheel turns, left to right 2.9

righttoleft 3.9

Axleoscillationstoptostop 22deg.

Mechanical front-wheeldrive (engaged):

Turning radius (brake applied) ............12 ft. 10 in. (3.91 m)

Clearance circle (brake applied) 30 ft. 6 in. (9.30 m)

Steering wheel turns, left to right 3.2

righttoleft 4.2

Axleoscillationstoptostop 22deg.

Hydraulic System: Closed-center

(variable flow, constant pressure)

Pressure.. ... .. . . . .. . .. . .2500 psi (17 238 kPa) (175.8 kg/cm2)

Pump 8radialpistons,variableflow

Flow @2200psi

(15170kPa)(154.7kg/cm2) 30gpm(1.89Us)

Filter, return oil. . . . . . . . . . . . . . . . . . . . . 10 micron, steel-enclosed

replaceable element

Screen, pressure oil 50/in. (20/cm) mesh

Backhoe extendable

dipper(1) 2.5 in.

(64mm)

Backhoe stabilizers (2) . . . 4.0 in.

(102 mm)

Steering (1) regular axle. . 2.0 in.

(51 mm)

Steering (1) MFWD 2.0 in.

(51 mm)

.Front

12.5L-15,8 PR, 11

11L-15,10PR, F3

11L-16,12PR, F3

MFWD . . . . . . . . . . 12.00-16.5,8 PR, R4

Wheel Treads:

Front 69in.(1750mm)

Rear 64in.(1625mm)

MFWD-Front 68in.(1727mm)

-Rear 66in.(1675mm)

Wheelbase 82.7in.(2100mm)

MFWD 83.3in.(2116mm)

Static Rating Dynamic Rating

56,000 lb. 56,000 lb.

(25 450 kg) (25 450 kg)

51,000 lb. 68,000 lb.

(23180 kg) (30900 kg)

Capacities: U.S.

Fueltank 23gal.

Enginecoolant 17qt.

Engineoilincludingfilter 9qt.

Torque converter and

reverser system 14qt.

Transaxleand hydraulic system. . . . . . . . . . . . 19gal.

Additional Standard Equipment:

Air precleaner

Air cleaner, dry type w/safety

element

Alternator, 35 amp w/transistorized

voltage regulator

Antifreeze to -34°F (-37°C)

Backhoe transport lock

Cast-in-counterweight front axle

Differential lock, foot-engaged collar

Electric automatic destroke for

hydraulic pump

Electric combination tachometer/

hourmeter

Electric shutoff on diesel injection

pump

Emergency/parking brake

Engine sideshields w/built-in locks

Foot and hand throttles

Fuel tank contaminant sump

w/easy access drain

Gauges for:

Engine coolant temperature

Fuel tank level

Hydraulic/transmission oil

temperature

Horn

Hydraulic lockouts for stabilizer -

raise and lower

Indicator lights:

Alternator

Engine oil pressure

Parking brake

Turn signals

SAE Operating Weight. . . . . . . . . . . . . . . . . . 14,400 lb. (6545 kg) 61

Tires:

Axle Ratings:

Front. .. . .. . .

Rear .

1.25 in.

(32mm)

2.0 in.

(51 mm)

1.0 in.

(25.5 mm)

1.0 in.

(25mm)

Rear

16.9-24,8 PR, R4

17.5L-24,10 PR, R4

19.5L-24,10 PR, R4

48 in.

(1220 mm)

20.3 in.

(515 mm)

9.5 in.

(241 mm)

12.6 in.

(320 mm)

SAE J43

9,000 lb.

(4080 kg)

2,530 lb.

(5680 kg)

Liters

8.5

Lights:

Halogen driving lights

Halogen work lights

Turn signal lights

Tail and brake lights

Flashing hazard lights

Loader bucket automatic

hydraulic self-leveling

Loader bucket level indicator

Muffler, underhood w/vertical

exhaust

Multiple-fuse protected electrical

system

Oil-to-air cooler for hydraulic

system and transaxle

Oil-to-air cooler for torque

converter and reverser

Operator's platform floormat

Operator's canopy or cab

headliner

Pushbutton start switch

Rear fenders

Rear reflectors

Restriction indicator for engine

air cleaner

ROPS/FOPS with roof and

seat belt

Steps and handholds

Tinted tempered safety glass

windows

Hydraulic Cylinders: Bore Stroke Rod

Loader boom (2). . . . . . .. 3.25 in. 30.0 in. 1.75in.

(83 mm) (762 mm) (45mm)

Loader bucket (1) . . . . . .. 3.5 in. 24.4 in. 1.75in.

(89 mm) (620 mm) (45mm)

Backhoe boom (1) ...... 4.5 in. 38.5 in. 2.25 in.

(114mm) (980 mm) (57mm)

Backhoe crowd(1) . . . . .. 4.0 in. 33.0 in. 2.0 in.

(102mm) (840 mm) (51 mm)

Backhoebucket(1) ..... 3.5in. 27.4in. 2.25in.

(89mm) (695mm) (57mm)

Backhoeswing(2) ...... 4.0 in. 9.5 in. 2.0 in.

(102 mm) (241mm) (51mm)

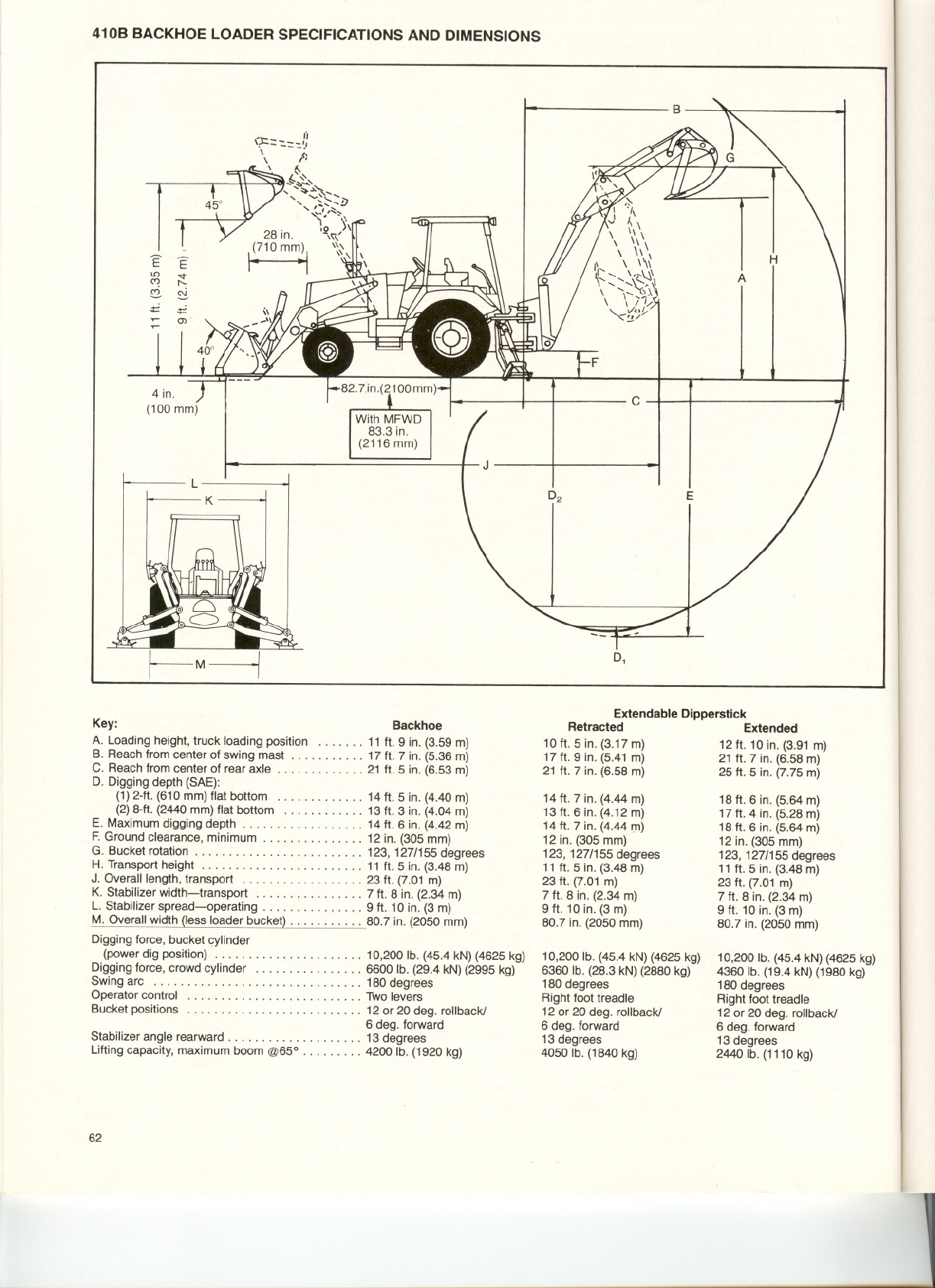

410B BACKHOELOADERSPECIFICATIONSAND DIMENSIONS

\J:.:: -(,

"' -::::'~I

~\/:

i:>~t.,

45° ',""::~~" ,~:::-:D

"'i"-"'-\\

~- 28 in '2 h

EE(10 m~) \~~

~""" .. "1 \\\ \

c-? "': \

~ ~ '

\.......-.

.::: .:::

~0>

With MFWD

83.3 in.

(2116 mm)

r-M~

Key: Backhoe

A. Loading height,truck loading position. . . . . . . 11 ft. 9 in. (3.59 m)

B. Reachfrom center of swing mast. . . . . . . . . . . 17ft. 7 in. (5.36 m)

C. Reachfrom center of rear axle. . . . . . . . . . . . . 21 ft. 5 in. (6.53 m)

D. Digging depth (SAE):

(1)2-ft.(610mm)flatbottom. . . . . . . . . . . . . 14ft. 5 in.(4.40 m)

(2) 8-ft. (2440 mm) flat bottom. . . . . . . . . . . . 13 ft. 3 in. (4.04 m)

E. Maximum digging depth. . . . . . . . . . . . . . . . . . 14ft. 6 in. (4.42 m)

F.Ground clearance, minimum. . . . . . . . . . . . . . . 12 in. (305 mm)

G.Bucketrotation 123,127/155degrees

H.Transportheight 11ft.5in.(3.48m)

J. Overall length, transport. . . . . . . . . . . . . . . . . . 23 ft. (7.01 m)

K. Stabilizer width-transport. . . . . . . . . . . . . . . . 7 ft. 8 in. (2.34 m)

L. Stabilizer spread-operating. . . . . . . . . . . . . . . 9 ft. 10 in. (3 m)

M. Overall width (less loader bucket) . . . . . . . . . . . 80.7 in. (2050 mm)

Digging force, bucket cylinder

(power dig position) 10,200 lb. (45.4 kN) (4625 kg)

Digging force, crowd cylinder. . . . . . . . . . . . . . . . 6600 lb. (29.4 kN) (2995 kg)

Swing arc 180degrees

Operatorcontrol Twolevers

Bucketpositions 12or20deg.rollback!

6 deg. forward

Stabilizer angle rearward. . . . . . . . . . . . . . . . . . . . 13degrees

Lifting capacity, maximum boom @65° . . . . . . . . . 4200 lb. (1920 kg)

o'\V'~

" -,

I ,\

" ~ \

\ II I

\ \\ I

1\ I \\\

(', \'Z~\

\, '~~

II\" 1~)

\I/

',"~';Y .

Extendable Dipperstick

Retracted Extended

10ft. 5in. (3.17m) 12ft.10in.(3.91m)

17ft. 9 in.(5.41 m) 21ft. 7 in.(6.58m)

21ft. 7 in.(6.58m) 25ft. 5 in.(7.75m)

14 ft. 7 in. (4.44 m)

13 ft. 6 in. (4.12 m)

14ft.7in.(4.44r:n)

12 in. (305 mm)

123,127/155 degrees

11 ft. 5 in. (3.48 m)

23 ft. (7.01 m)

7 ft. 8 in. (2.34 m)

9 ft. 1Q in. (3 m)

80.7 in. (2050 mm)

10,200 lb. (45.4 kN) (4625 kg)

6360 lb. (28.3 kN) (2880 kg)

180 degrees

Right foot treadle

12 or 20 deg. rollback!

6 deg. forward

13 degrees

4050 lb. (1840 kg)

18 ft. 6 in. (5.64 m)

17 ft. 4 in. (5.28 m)

18 ft. 6 in. (5.64 m)

12 in. (305 mm)

123,127/155 degrees

11 ft. 5 in. (3.48 m)

23 ft. (7.01 m)

7 ft. 8 in. (2.34 m)

9 ft. 10 in. (3 m)

80.7 in. (2050 mm)

10,200 lb. (45.4 kN) (4625 kg)

4360 lb. (19.4 kN) (1980 kg)

180 degrees

Right foot treadle

12 or 20 deg. rollback!

6 deg. forward

13 degrees

2440 lb. (1110 kg)

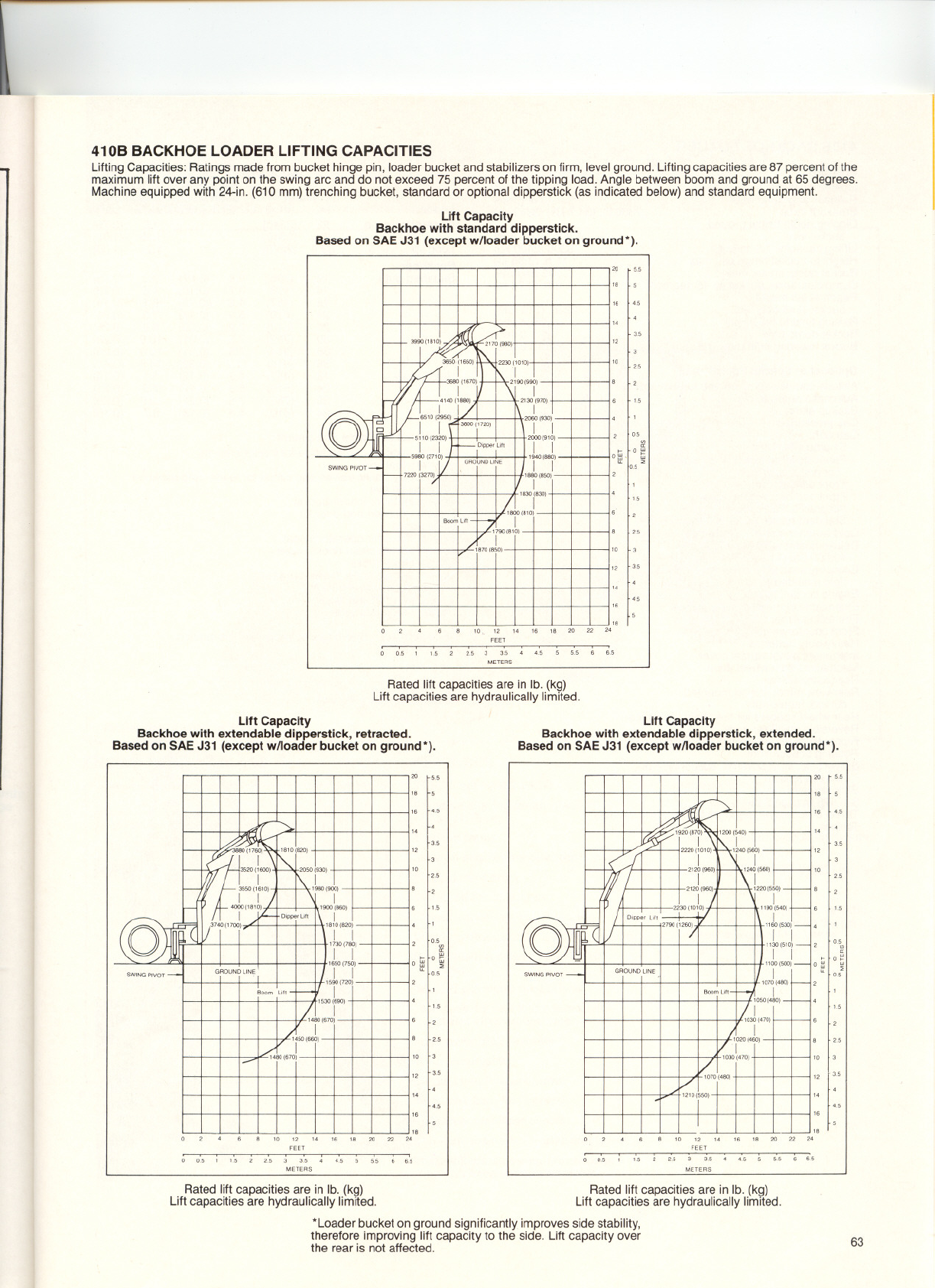

410B BACKHOE LOADER LIFTING CAPACITIES

LiftingCapacities: Ratings made from bucket hinge pin, loader bucket and stabilizers on firm, level ground. Liftingcapacities are 87 percent of the

maximum lift over any point on the swing arc and do not exceed 75 percent of the tipping load. Angle between boom and ground at 65 degrees.

Machine equipped with 24-in. (610 mm) trenching bucket, standard or optional dipperstick (as indicated below) and standard equipment.

Lift Capacity

Backhoe with standard dipperstick.

Based on SAE J31 (except w/loader bucket on ground").

20 5.5

16 45

0~t.

~. ~

00 12

FEET

16 18

22 "

0.5 1 15 2.5 3 3.5 4 45

METERS

5 5.5 65

Rated lift capacities are in lb. (kg)

Lift capacities are hydraulically limited.

Lift Capacity

Backhoe with extendable dipperstick, retracted.

Based on SAEJ31 (except w/loader bucket on ground").

LiftCapacity

Backhoe with extendable dipperstick, extended.

Based on SAEJ31 (except w/loader bucket on ground").

35 35

10 2.5 10

1.5 1.5

05g>

~fO ~

0 ~I ~

~0.5

~I:5~

0~ ~

~0.5

12 3.6 35

45 45

10 12

FEET

18 22 18

"10 12

FEET

16 20 22

00.5 2 2.5 3 35

METERS

45 55 6 6.5 0 05 1.5 2 25 3 3.5 4 45 5 55 6 65

METERS

Rated lift capacities are in lb. (kg) Rated lift capacities are in lb. (kg)

Lift capacities are hydraulically limited. Lift capacities are hydraulically limited.

"Loader bucket on ground significantly improvesside stability,

therefore improving lift capacity to the side. Lift capacity over

the rear is not affected. 63

"j'18W)J..80)

?2280 roo)

jB i"I-\"i

(Q)R I"""':/] "80!,,70)

6510(295'f 2060(980)

I I 3800 'i"2O) I 1

5110(2320) 2000(910)

[1r>--DIPpe;UI< I[,

5980(2710) 194D(880)

SWINGPIVOT- [,/ ,GROUNOLINE I [

7220(3270) 181'850)

1880(880)

/,&fJ(810i I

Boom UI< 7[ 1790(810) I

1870 (BSO)

!,,:lr;;7j)':

1810 (820)

2050(980)

'jf" -l80(i'

-3550(IW) I

-Jo(18,!) J1900 (880) I

PA (1i,L. 0'00" UII \ I

1/7T17oo)

1810(820)

1 1

1780 (7801

1 1

16SO(750) I

SWING PIVOT -GROUND LINE

1 1

1590(720)

Boom Lill -1

/1580(1690)

14BO)670) ,

/1I

1450(680)

./ 1

--- 14BO)670)

-"'iV

1920(B7 1200(540)

rtqjj>- +. ",.L'i

2120(960)1-- 0(560)- -

-"2L60) 1,20(550)--

-II1

280(1010) 1190(54D)-

/0'00" Lill T 17 I

2790(1260) 1160(580)-

) / II

1180(510)-

I 1

1100(500)-

SWING PIVOT -GROUNDLINE I

1O70(480)f--

BoomLiIl I

l/iOSO(48O)-

i-- '

1030)4701- i-- ,

7TO(480)

[7 0080(470)

./ 1070(480)

1200(1550)

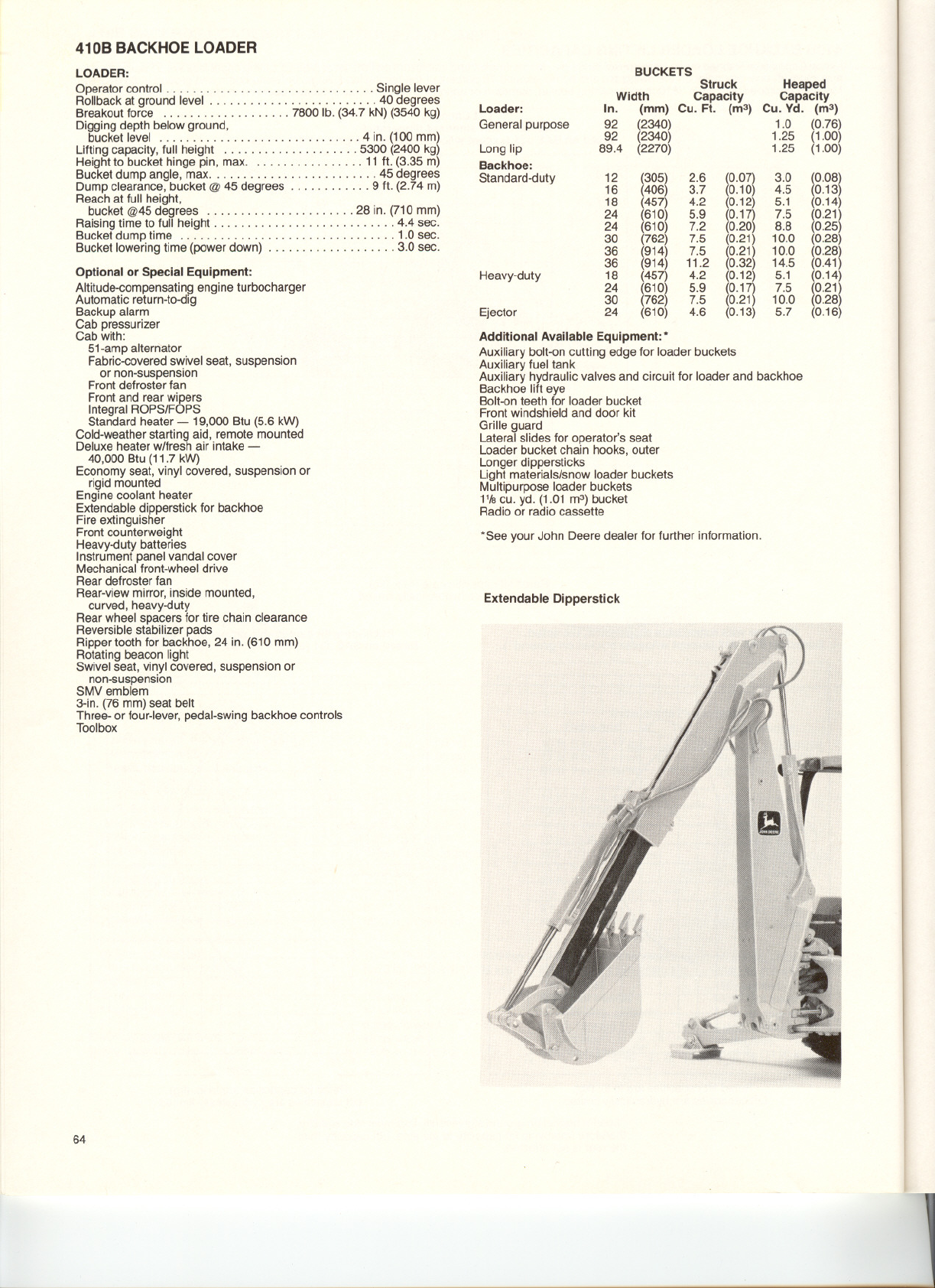

410B BACKHOE LOADER

LOADER:

Operatorcontrol Singlelever

Rollbackatgroundlevel 40degrees

Breakout force. . . . . . . . . . . . . . . . . . .7800 lb. (34.7 kN)(3540kg)

Diggingdepth below ground,

bucketlevel 4in.(100mm)

Lifting capacity, full height. . . . . . . . . . . . . . . . . . . . 5300 (2400 kg)

Height to bucket hinge pin, max. 11 ft. (3.35 m)

Bucketdumpangle,max. .45 degrees

Dump clearance, bucket @ 45 degrees. . . . . . . . . . . . 9 ft. (2.74 m)

Reach at full height,

bucket@45degrees 28in.(710mm)

Raisingtimetofullheight 4.4sec.

Bucket dump time 1.0sec.

Bucket lowering time (power down) . . . . . . . . . . . . . . . . . . . 3.0sec.

Optional or Special Equipment:

Altitude-compensating engine turbocharger

Automatic return-to-dig

Backup alarm

Cab pressurizer

Cab with:

51-amp alternator

Fabric-covered swivel seat, suspension

or non-suspension

Front defroster fan

Front and rear wipers

Integral ROPS/FOPS

Standard heater -19,000 Btu (5.6 kW)

Cold-weather starting aid, remote mounted

Deluxe heater w/fresh air intake -

40,000 Btu (11.7 kW)

Economy seat, vinyl covered, suspension or

rigid mounted

Engine coolant heater

Extendable dipperstick for backhoe

Fire extinguisher

Front counterweight

Heavy-duty batteries

Instrument panel vandal cover

Mechanical front-wheel drive

Rear defroster fan

Rear-view mirror, inside mounted,

curved, heavy-duty

Rear wheel spacers for tire chain clearance

Reversible stabilizer pads

Ripper tooth for backhoe, 24 in. (610 mm)

Rotating beacon light

Swivel seat, vinyl covered, suspension or

non-suspension

SMVemblem

3-in. (76 mm) seat belt

Three- or four-lever, pedal-swing backhoe controls

Toolbox

Loader:

General purpose

Long lip

Backhoe:

Standard-duty

Heavy-duty

Ejector

Additional Available Equipment:.

Auxiliary bolt-on cutting edge for loader buckets

Auxiliary fuel tank

Auxiliary hydraulic valves and circuit for loader and backhoe

Backhoe lift eye

Bolt-on teeth for loader bucket

Front windshield and door kit

Grille guard

Lateral slides for operator's seat

Loader bucket chain hooks, outer

Longer dippersticks

Light materials/snow loader buckets

Multipurpose loader buckets

11Ja cu. yd. (1.01 m3) bucket

Radio or radio cassette

.See your John Deere dealer for further information.

Extendable Dipperstick

BUCKETS Struck Heaped

Width Capacity Capacity

In. (mm) Cu. Ft. (m3) Cu. Yd. (m3)

92 (2340) 1.0 (0.76)

92 (2340) 1.25 (1.00)

89.4 (2270) 1.25 (1.00)

12 (305) 2.6 (0.07) 3.0 (0.08)

16 (406) 3.7 (0.10) 4.5 (0.13)

18 (457) 4.2 (0.12) 5.1 (0.14)

24 (610) 5.9 (0.17) 7.5 (0.21)

24 (610) 7.2 (0.20) 8.8 (0.25)

30 (762) 7.5 (0.21) 10.0 (0.28)

36 (914) 7.5 (0.21) 10.0 (0.28)

36 (914) 11.2 (0.32) 14.5 (0.41)

18 (457) 4.2 (0.12) 5.1 (0.14)

24 (610) 5.9 (0.17) 7.5 (0.21)

30 (762) 7.5 (0.21) 10.0 (0.28)

24 (610) 4.6 (0.13) 5.7 (0.16)

John Deere 410B Users Manual

410B to the manual 91fa9c9d-04a8-4e10-9b5c-c4e26f9ea0b2

Navigation menu

Versions of this User Manual:

Views

Navigation
