PAGES

14–15

Specifications

Engine 444J

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTech ETM 4045H

Non-Road Emission Standards . . . . . . . . . . . . . . . . certified to EPA Tier 3 emissions

Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Valves Per Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . 2

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276 cu. in. (4.5 L)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 128 hp (95 kW) @ 2,000 rpm

Net Peak Torque (ISO9249). . . . . . . . . . . . . . . . . . . 380 lb.-ft. (515 Nm) @ 1,400 rpm

Net Torque Rise . . . . . . . . . . . . . . . . . . . . . . . . . . . 32%

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . high-pressure common rail

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . full-flow spin-on filter and integral cooler

Aspiration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . turbocharged, charge air cooled

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual element dry type, restriction indicator in cab monitor for service

Fan Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulically driven, proportionally controlled, fan aft of coolers

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . 24 volt with 80-amp alternator

Batteries (two 12 volt) . . . . . . . . . . . . . . . . . . . . . . 950 CCA

Transmission

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . countershaft-type PowerShiftTM

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . single stage, single phase

Shift Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronically modulated, adaptive, load and speed dependent

Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . steering-column or hydraulic joystick-mounted F-N-R and gear-select lever, kick-down button on hydraulic lever

Shift Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . quick-shift button with two selectable modes: auto/manual, auto to 1st or 2nd, kick down or kick down/up, three clutch cutoff settings adjustable

on switch pad

Travel Speeds*

Forward Reverse

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 mph (7.2 km/h) 4.7 mph (7.6 km/h)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.7 mph (12.4 km/h) 8.1 mph (13.0 km/h)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.9 mph (24.0 km/h) 15.7 mph (25.3 km/h)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.4 mph (37.7 km/h)

*Equipped with 17.5-25 tires.

Axles/Brakes

Final Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty mid-board planetary

Differentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking front, conventional rear — standard; dual locking front and rear — optional

Rear Axle Oscillation, Stop to Stop* . . . . . . . . . . . . 24 deg.

Brakes (conform to SAE J1473, ISO3450)

Service Brakes . . . . . . . . . . . . . . . . . . . . . . . . hydraulically actuated, mid-board, self adjusting, wet multi-disc

Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . automatic spring applied, hydraulically released, oil cooled, multi-disc

*Equipped with 17.5-25 tires.

Tires

Choice of (with three-piece rims)

Tread Width Width Over Tires Change In Vertical Height

17.5 R 25, L-3T. . . . . . . . . . . . . . . . . . . . . . . . 74.8 in. (1900 mm) 92.4 in. (2348 mm) 0 in. (0 mm)

17.5 R 25, L-2. . . . . . . . . . . . . . . . . . . . . . . . . 74.8 in. (1900 mm) 92.9 in. (2360 mm) – 0.1 in. (– 3 mm)

17.5-25, 12 PR L-3 . . . . . . . . . . . . . . . . . . . . . 74.8 in. (1900 mm) 92.8 in. (2357 mm) + 0.1 in. (+ 3 mm)

17.5-25, L-2* . . . . . . . . . . . . . . . . . . . . . . . . . 74.8 in. (1900 mm) 92.8 in. (2357 mm) + 0.1 in. (+ 3 mm)

17.5-25, L-2 . . . . . . . . . . . . . . . . . . . . . . . . . . 74.8 in. (1900 mm) 92.8 in. (2357 mm) + 0.1 in. (+ 3 mm)

20.5-25, 12 PR L-2 . . . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 98.1 in. (2492 mm) + 3.6 in. (+ 91 mm)

20.5-25, 1 Star L-2 Radial. . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 97.7 in. (2482 mm) + 2.6 in. (+ 67 mm)

550/65 R 25, 1 Star L-2 . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 98.0 in. (2490 mm) + 1.0 in. (+ 27 mm)

*Equipped with one-piece rims.

Refill Capacities (U.S.)

Fuel Tank (with ground-level fueling) . . . . . . . . . . . 65 gal. (246 L)

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 qt. (19 L)

Engine Oil with Vertical Spin-On Filter. . . . . . . . . . . 18.5 qt. (17.5 L)

Refill Capacities (U.S.)

(continued)

444J

PowerShift Transmission, Including Filter . . . . . . . . 19.5 qt. (18.5 L)

Differential (front and rear, each axle). . . . . . . . . . . 23 qt. (22 L)

Hydraulic Reservoir and Filters . . . . . . . . . . . . . . . . 25.5 gal. (96.5 L)

Wet-Disc Parking Brake . . . . . . . . . . . . . . . . . . . . . 10 oz. (0.3 L)

Hydraulic System/Steering

Pump (loader and steering). . . . . . . . . . . . . . . . . . . variable-displacement, axial-piston pump; closed-center, pressure-compensating system

Maximum Rated Flow . . . . . . . . . . . . . . . . . . . 37 gpm (140 L/m) @ 1,000 psi (6895 kPa)

System Relief Pressure (loader and

steering) . . . . . . . . . . . . . . . . . . . . . . . . . . 3,600 psi (24 821 kPa)

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . two-function valve; single- or dual-lever controls; control lever lockout feature; optional third- and fourth-function valve with auxiliary lever

Steering (conforms to SAE J1511)

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power, fully hydraulic

Articulation Angle . . . . . . . . . . . . . . . . . . . . . . 80-deg. arc (40 deg. each direction)

Hydraulic Cycle Times

Standard Z-Bar High-Lift Z-Bar

Raise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6 sec. 5.6 sec.

Dump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 sec. 1.7 sec.

Lower (float down) . . . . . . . . . . . . . . . . . . . . . 2.4 sec. 2.4 sec.

Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.0 sec. 9.7 sec.

Maximum Lift Capacity. . . . . . . . . . . . . . . . . . . . . .

with 2.0-cu.-yd. (1.5 m3) bucket with bolt-on edge

Lift at Ground Level . . . . . . . . . . . . . . . . . . . . . 22,403 lb. (10 162 kg) 18,912 lb. (8578 kg)

Lift at Maximum Height . . . . . . . . . . . . . . . . . . 10,719 lb. (4862 kg) 10,575 lb. (4797 kg)

Turning Radius (measured to centerline of

outside tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ft. 5 in. (4.70 m) 15 ft. 5 in. (4.70 m)

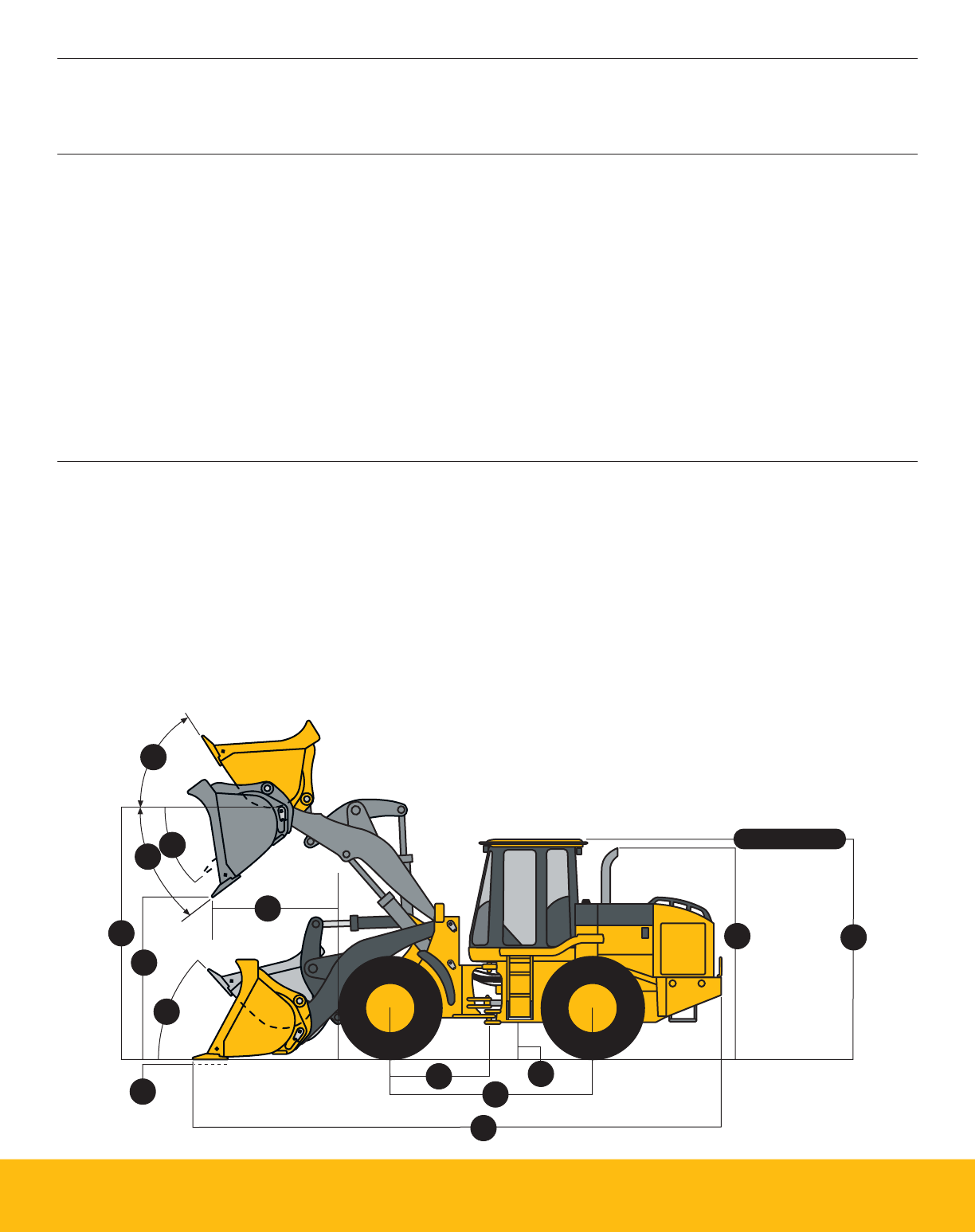

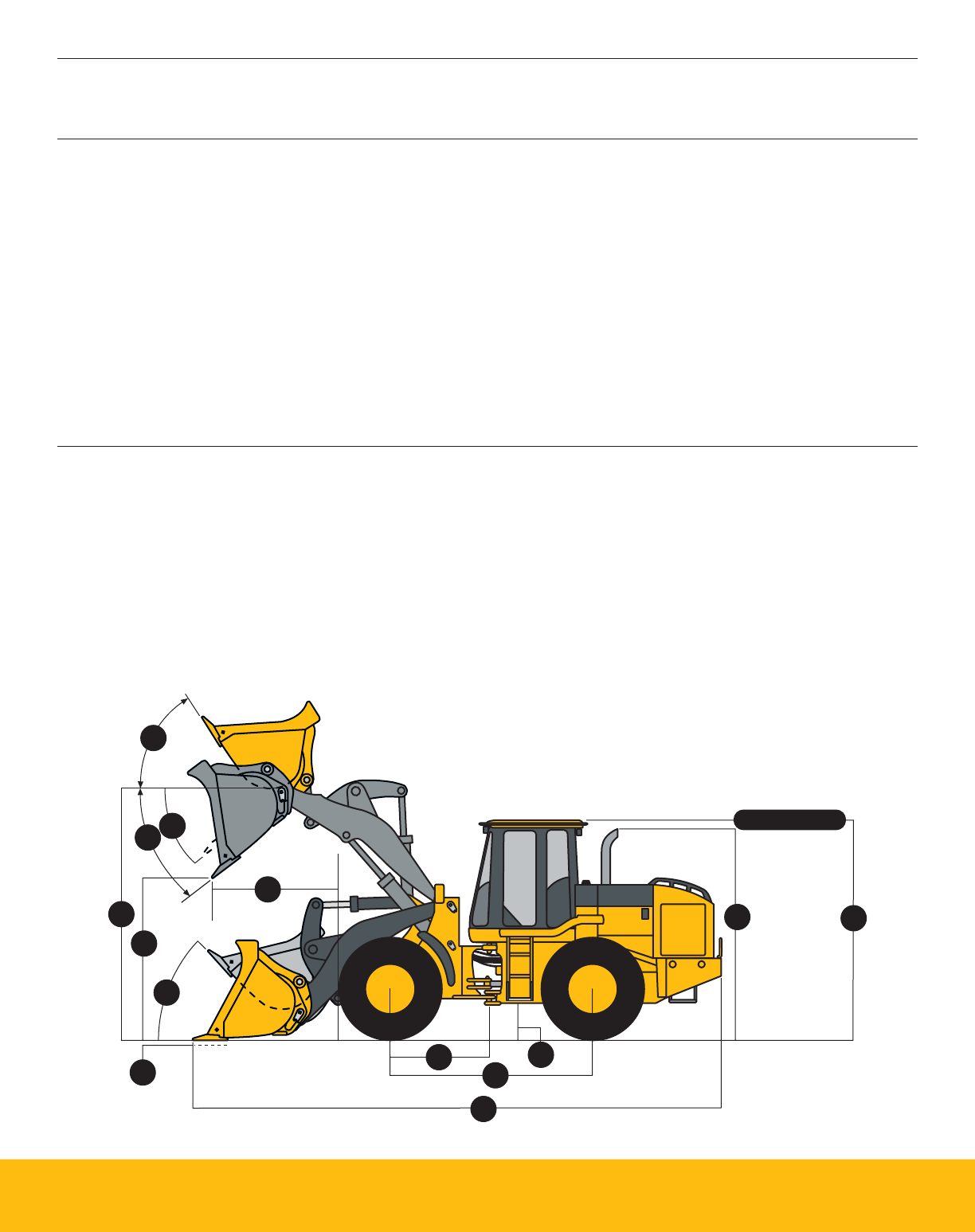

Dimensions with Pin-On Bucket

Standard Z-Bar High-Lift Z-Bar

AHeight to Top of Cab and Canopy. . . . . . . . . . . . 10 ft. 5 in. (3.15 m) 10 ft. 5 in. (3.15 m)

BHeight to Top of Exhaust . . . . . . . . . . . . . . . . . . 10 ft. 4 in. (3.14 m) 10 ft. 4 in. (3.14 m)

CGround Clearance . . . . . . . . . . . . . . . . . . . . . . . 15.6 in. (396 mm) 15.6 in. (396 mm)

DLength from Centerline to Front Axle . . . . . . . . . 4 ft. 6 in. (1.37 m) 4 ft. 6 in. (1.37 m)

EWheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 0 in. (2.75 m) 9 ft. 0 in. (2.75 m)

FDump Clearance . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 17) ▲ (see page 18)

GHeight to Hinge Pin, Fully Raised. . . . . . . . . . . . 11 ft. 10 in. (3.61 m) 13 ft. 0 in. (3.96 m)

HDump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 17) ▲▲ (see page 18)

IMaximum Digging Depth. . . . . . . . . . . . . . . . . . 3.4 in. (86 mm) 4.1 in. (104 mm)

JOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 17) ▲▲▲ (see page 18)

KMaximum Rollback at Ground Level . . . . . . . . . 39 deg. 39 deg.

LMaximum Rollback, Boom Fully Raised . . . . . . . 55 deg. 55 deg.

MMaximum Bucket Angle, Fully Raised . . . . . . . . 50 deg. 50 deg.

45˚

Cab and Canopy

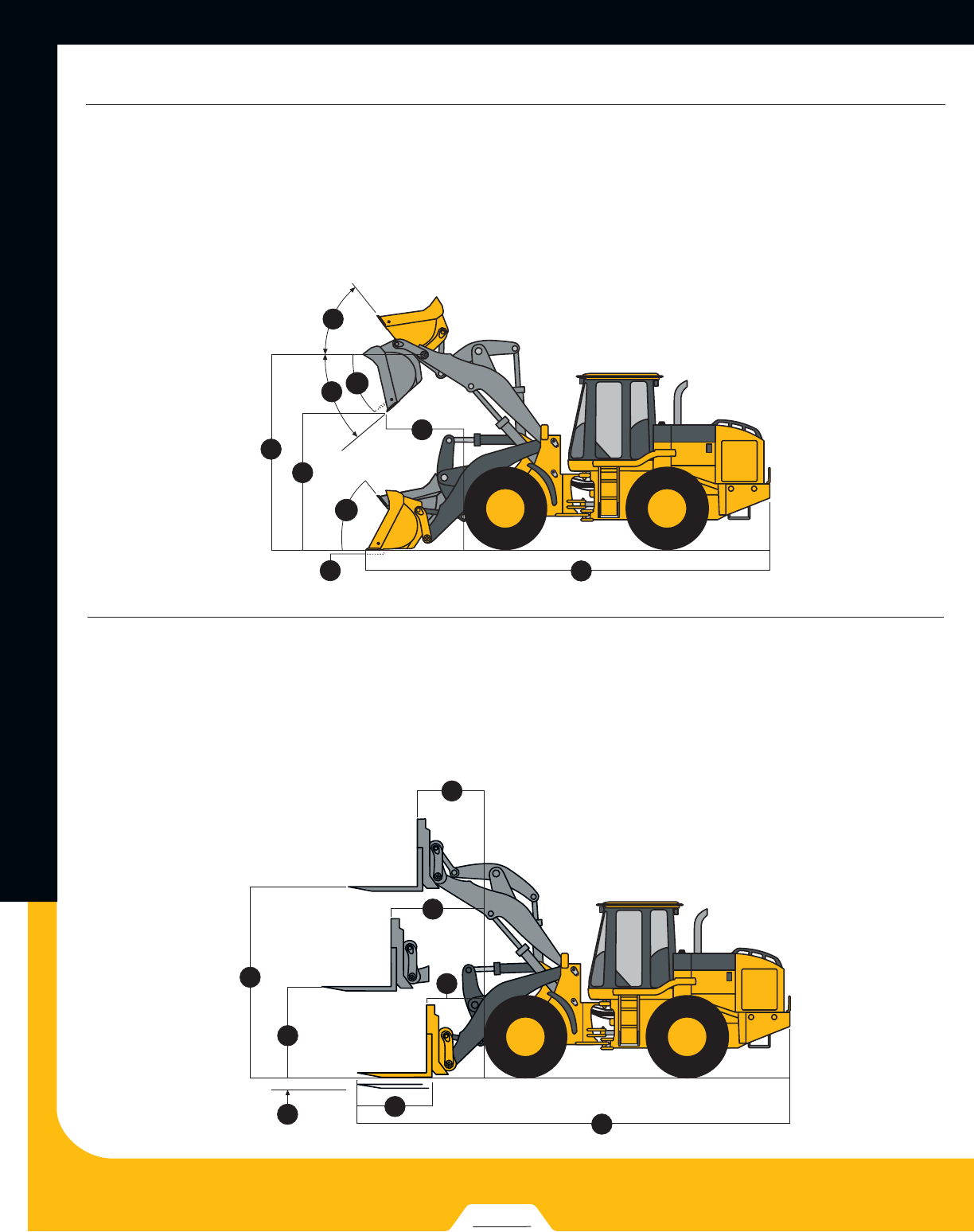

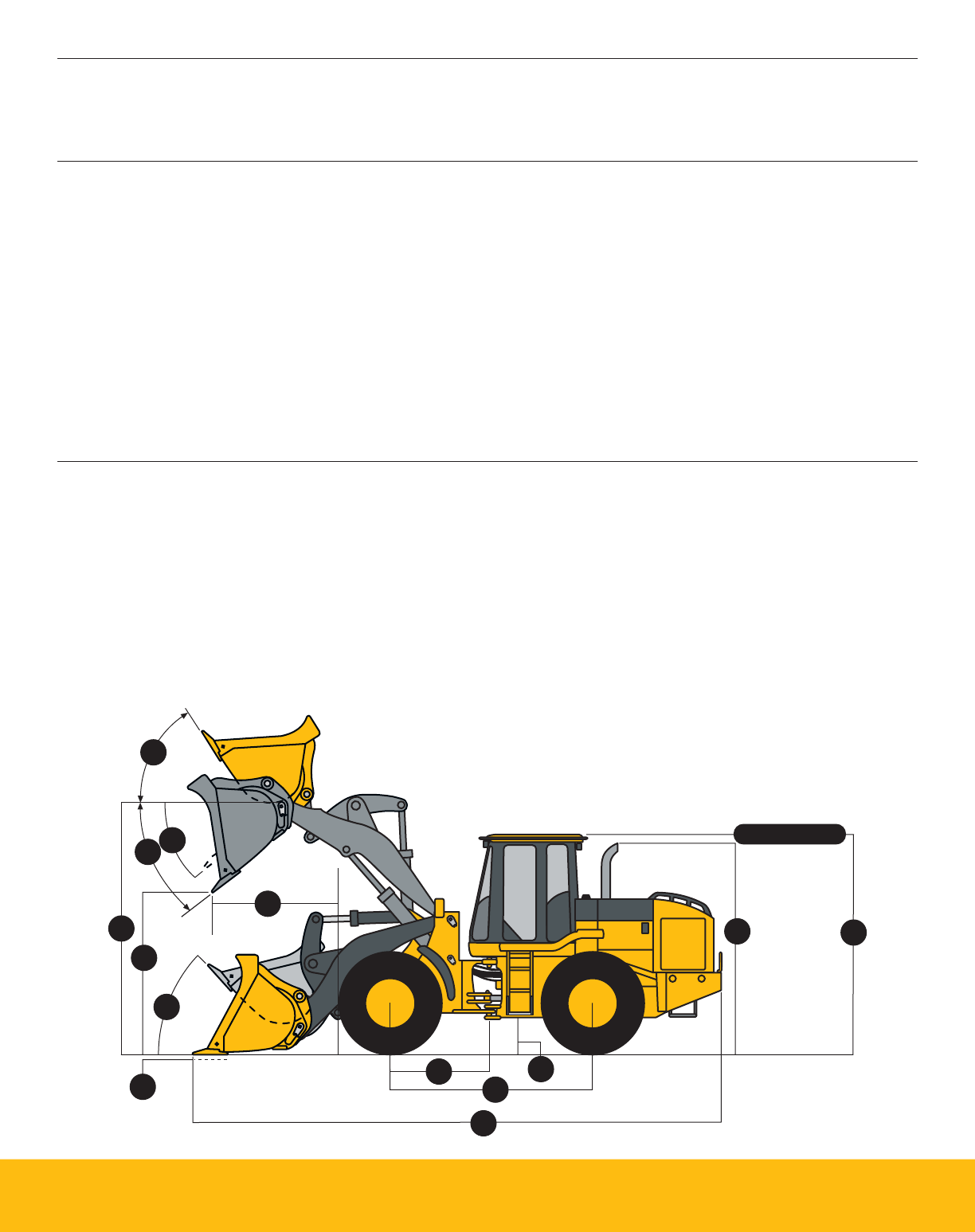

Dimensions with Quick-

Coupler and Hook-On Bucket 444J

Standard Z-Bar High-Lift Z-Bar

ADump Clearance . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 17) ▲ (see page 18)

BDump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 17) ▲▲ (see page 18)

CMaximum Digging Depth. . . . . . . . . . . . . . . . . . 3.9 in. (99 mm) 4.7 in. (119 mm)

DHeight to Hinge Pin, Fully Raised. . . . . . . . . . . . 11 ft. 10 in. (3.61 m) 13 ft. 0 in. (3.96 m)

EOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 17) ▲▲▲ (see page 18)

FMaximum Rollback, Boom Fully Raised . . . . . . . 57 deg. 48 deg.

GMaximum Bucket Discharge Angle, Fully

Raised. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 deg. 49 deg.

HMaximum Rollback at Ground Level . . . . . . . . . 38 deg. 38 deg.

Dimensions with Quick-Coupler

and Hook-On Construction Fork 444J

Standard Z-Bar High-Lift Z-Bar

AReach, Fully Raised . . . . . . . . . . . . . . . . . . . . . . 34 in. (0.86 m) 35 in. (0.89 m)

BFork Height, Fully Raised . . . . . . . . . . . . . . . . . . 11 ft. 0 in. (3.35 m) 12 ft. 2 in. (3.71 m)

CMaximum Reach, Fork Level . . . . . . . . . . . . . . . 5 ft. 2 in. (1.57 m) 6 ft. 1 in. (1.85 m)

DFork Height, Maximum Reach . . . . . . . . . . . . . . 5 ft. 4 in. (1.63 m) 5 ft. 4 in. (1.63 m)

EReach, Ground Level . . . . . . . . . . . . . . . . . . . . . 3 ft. 2 in. (0.97 m) 4 ft. 4 in. (1.32 m)

FDepth Below Ground . . . . . . . . . . . . . . . . . . . . . 4 in. (102 mm) 4 in. (102 mm)

GTine Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 18) ▲ (see page 19)

HOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 18) ▲▲ (see page 19)

45˚

PAGES

16–17

444J LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET

444J LOADER WITH QUICK-COUPLER

AND HOOK-ON CONSTRUCTION FORK

Standard Z-Bar Pin-On

Type Bucket Information 444J

General Purpose

Bucket Type/Size

w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 2.5 cu. yd. (1.9 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.1 cu. yd. (1.6 m3)

Bucket Weight . . . . . . . . . . . . . . . . . . . . . . . . . 1,973 lb. (895 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.55 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 18,104 lb. (8212 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 20,554 lb. (9323 kg)

Tipping Load, 40-Deg. Full Turn . . . . . . . . . . . . 18,263 lb. (8284 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 8 in. (1.42 m)

▲▲

Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 4 in. (1.02 m)

▲

Dump Clearance, 45 Deg., Full Height . . . . . . . 8 ft. 9 in. (2.67 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 22 ft. 2 in. (6.76 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 36 ft. 3 in. (11.05 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 24,561 lb. (11 141 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 17.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

Adjustments to Operating Weights with Standard Z-Bar Pin-On Buckets

Adjustments to operating weights and tipping loads for 2.5-cu.-yd. (1.9 m3) general-purpose bucket with bolt-on cutting edge and optional rear cast bumper/counterweight

Add (+) or deduct (–) lb. (kg) as indicated for

Tipping Load, 40-

loaders with three-piece rims and

Operating Weight Tipping Load, Straight Deg. Full Turn, SAE

17.5 R 25, L-3T tires . . . . . . . . . . . . . . . . . . . . 0 lb. (0 kg) 0 lb. (0 kg) 0 lb. (0 kg)

17.5 R 25, L-2 tires . . . . . . . . . . . . . . . . . . . . . – 196 lb. (– 89 kg) – 141 lb. (– 64 kg) – 138 lb. (– 63 kg)

17.5 R 25, 12 PR L-3 tires. . . . . . . . . . . . . . . . – 426 lb. (– 193 kg) – 302 lb. (– 137 kg) – 300 lb. (– 136 kg)

17.5-25, L-2 tires* . . . . . . . . . . . . . . . . . . . . . – 625 lb. (– 283 kg) – 445 lb. (– 202 kg) – 441 lb. (– 200 kg)

17.5-25, L-2 tires . . . . . . . . . . . . . . . . . . . . . . – 364 lb. (– 165 kg) – 258 lb. (– 117 kg) – 256 lb. (– 116 kg)

20.5-25, 12 PR L-2 tires**. . . . . . . . . . . . . . . . + 328 lb. (+ 149 kg) + 256 lb. (+ 116 kg) + 251 lb. (+ 114 kg)

20.5-25, 1 Star L-2 Radial tires** . . . . . . . . . . + 514 lb. (+ 240 kg) + 388 lb. (+ 176 kg) + 381 lb. (+ 173 kg)

550/65 R 25, 1 Star L-2 tires** . . . . . . . . . . . . + 443 lb. (+ 201 kg) + 337 lb. (+ 153 kg) + 333 lb. (+ 151 kg)

CaCl2in 17.5-25 rear tires** . . . . . . . . . . . . . . + 1,184 lb. (+ 537 kg) + 1,684 lb. (+ 764 kg) + 1,486 lb. (+ 674 kg)

Optional rear cast bumper/counterweight

(removed) . . . . . . . . . . . . . . . . . . . . . . . . . – 229 lb. (– 104 kg) – 461 lb. (– 209 kg) – 368 lb. (– 176 kg)

*Equipped with one-piece rims.

**CaCl2not recommended with 20.5 R2 5, 20.5-25, and 65 R 25 tires.

Standard Z-Bar Information with Quick-Coupler and Hook-On Bucket

General Purpose General Purpose

Bucket Type/Size

w/Bolt-On Edge w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 2.5 cu. yd. (1.9 m3) 2.0 cu. yd. (1.5 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.1 cu. yd. (1.6 m3) 1.6 cu. yd. (1.2 m3)

Bucket Weight (with coupler) . . . . . . . . . . . . . . 2,756 lb. (1250 kg) 2,654 lb. (1204 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.55 m) 8 ft. 4 in. (2.55 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 14,762 lb. (6696 kg) 15,765 lb. (7151 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 18,541 lb. (8410 kg) 18,309 lb. (8305 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 16,395 lb. (7437 kg) 16,398 lb. (7348 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 11 in. (1.49 m) 4 ft. 10 in. (1.46 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 10 in. (1.16 m) 3 ft. 8 in. (1.11 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 8 ft. 4 in. (2.54 m) 8 ft. 6 in. (2.58 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 22 ft. 10 in. (6.96 m) 22 ft. 7 in. (6.88 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ft. 9 in. (12.12 m) 36 ft. 6 in. (11.13 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 25,386 lb. (11 515 kg) 25,283 lb. (11 486 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 17.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

PAGES

18–19

Standard Z-Bar Information with Quick-

Coupler and Hook-On Construction Fork 444J

▲Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 in. (1.22 m) 60 in. (1.52 m)

▲▲ Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 24 ft. 4 in. (7.42 m) 25 ft. 4 in. (7.72 m)

Tipping Load, Straight (fork level, load

centered 24 in. [610 mm] forward

on tine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 13,693 lb. (6211 kg) 12,696 lb. (5759 kg)

Tipping Load, 40-Deg. Full Turn (fork

level, load centered 24 in. [610 mm]

forward on tine) . . . . . . . . . . . . . . . . . . . . 12,144 lb. (5508 kg) 11,228 lb. (5093 kg)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 24,787 lb. (11 243 kg) 25,122 lb. (11 395 kg)

High-Lift Z-Bar Pin-On-Type Bucket Information

General Purpose

Bucket Type/Size

w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 2.5 cu. yd. (1.9 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.1 cu. yd. (1.6 m3)

Bucket Weight . . . . . . . . . . . . . . . . . . . . . . . . . 1,973 lb. (894 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.55 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 16,655 lb. (7555 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 17,469 lb. (7924 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 15,483 lb. (7023 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 9 in. (1.76 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 5 in. (1.05 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 10 ft. 0 in. (3.05 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 23 ft. 5 in. (7.14 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 37 ft. 5 in. (11.40 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 24,809 lb. (11 253 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 17.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

Adjustments to Operating Weights with High-Lift Z-Bar Pin-On Buckets

Adjustments to operating weights and tipping loads for 2.5-cu.-yd. (1.9 m3) general-purpose bucket with bolt-on cutting edge and optional rear cast bumper/counterweight

Add (+) or deduct (–) lb. (kg) as indicated for

Tipping Load, 40-

loaders with three-piece rims and

Operating Weight Tipping Load, Straight Deg. Full Turn, SAE

17.5 R 25, L-3T tires . . . . . . . . . . . . . . . . . . . . 0 lb. (0 kg) 0 lb. (0 kg) 0 lb. (0 kg)

17.5 R 25, L-2 tires . . . . . . . . . . . . . . . . . . . . . – 196 lb. (– 89 kg) – 121 lb. (– 55 kg) – 119 lb. (– 54 kg)

17.5 R 25, L-3 tires . . . . . . . . . . . . . . . . . . . . . – 425 lb. (– 193 kg) – 262 lb. (– 119 kg) – 260 lb. (– 118 kg)

17.5-25, L-2 tires* . . . . . . . . . . . . . . . . . . . . . – 624 lb. (– 283 kg) – 386 lb. (– 175 kg) – 384 lb. (– 174 kg)

17.5-25, L-2 tires . . . . . . . . . . . . . . . . . . . . . . – 362 lb. (– 164 kg) – 223 lb. (– 101 kg) – 220 lb. (– 100 kg)

20.5-25, 12 PR L-2 tires**. . . . . . . . . . . . . . . . + 331 lb. (+ 150 kg) + 223 lb. (+ 101 kg) + 218 lb. (+ 99 kg)

20.5-25, 1 Star L-2 Radial tires** . . . . . . . . . . + 516 lb. (+ 234 kg) + 337 lb. (+ 153 kg) + 331 lb. (+ 150 kg)

550/65 R 25, 1 Star L-2 tires** . . . . . . . . . . . . + 443 lb. (+ 201 kg) + 293 lb. (+ 133 kg) + 289 lb. (+ 131 kg)

CaCl2in 17.5-25 rear tires** . . . . . . . . . . . . . . + 1,183 lb. (+ 537 kg) + 1,462 lb. (+ 663 kg) + 1,291 lb. (+ 586 kg)

Optional rear cast bumper/counterweight

(removed) . . . . . . . . . . . . . . . . . . . . . . . . . – 229 lb. (– 104 kg) – 461 lb. (– 209 kg) – 368 lb. (– 176 kg)

*Equipped with one-piece rims.

**CaCl2not recommended with 20.5 R 25, 20.5-25, and 65 R 25 tires.

High-Lift Z-Bar Information with

Quick-Coupler and Hook-On Bucket 444J

General Purpose General Purpose

Bucket Type/Size

w/Bolt-On Edge w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 2.5 cu. yd. (1.9 m3) 2.0 cu. yd. (1.5 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.1 cu. yd. (1.6 m3) 1.6 cu. yd. (1.2 m3)

Bucket Weight (with coupler) . . . . . . . . . . . . . . 2,756 lb. (1250 kg) 2,575 lb. (1168 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.55 m) 8 ft. 4 in. (2.55 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 13,552 lb. (6147 kg) 14,502 lb. (6578 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 15,652 lb. (7100 kg) 16,071 lb. (7290 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 13,785 lb. (6253 kg) 14,118 lb. (6404 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 11.5 in. (1.82 m) 5 ft. 11 in. (1.80 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 10 in. (1.18 m) 3 ft. 9 in. (1.14 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 9 ft. 7 in. (2.91 m) 9 ft. 9 in. (2.96 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 24 ft. 1 in. (7.34 m) 23 ft. 10 in. (7.26 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 37 ft. 11 in. (11.56 m) 37 ft. 8 in. (11.48 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 25,635 lb. (11 628 kg) 25,474 lb. (11 555 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5R25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

High-Lift Z-Bar Information with Quick-Coupler and Hook-On Construction Fork

▲Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 in. (1.22 m) 60 in. (1.52 m)

▲▲ Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 25 ft. 5 in. (7.75 m) 26 ft. 5 in. (8.05 m)

Tipping Load, Straight (fork level, load

centered24 in. [610 mm] forward

on tine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 12,238 lb. (5551 kg) 11,949 lb. (5420 kg)

Tipping Load, 40-Deg. Full Turn (fork

level, load centered 24 in. [610 mm]

forward on tine) . . . . . . . . . . . . . . . . . . . . 10,822 lb. (4909 kg) 10,533 lb. (4778 kg)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 25,037 lb. (11 357 kg) 25,363 lb. (11 504 kg)

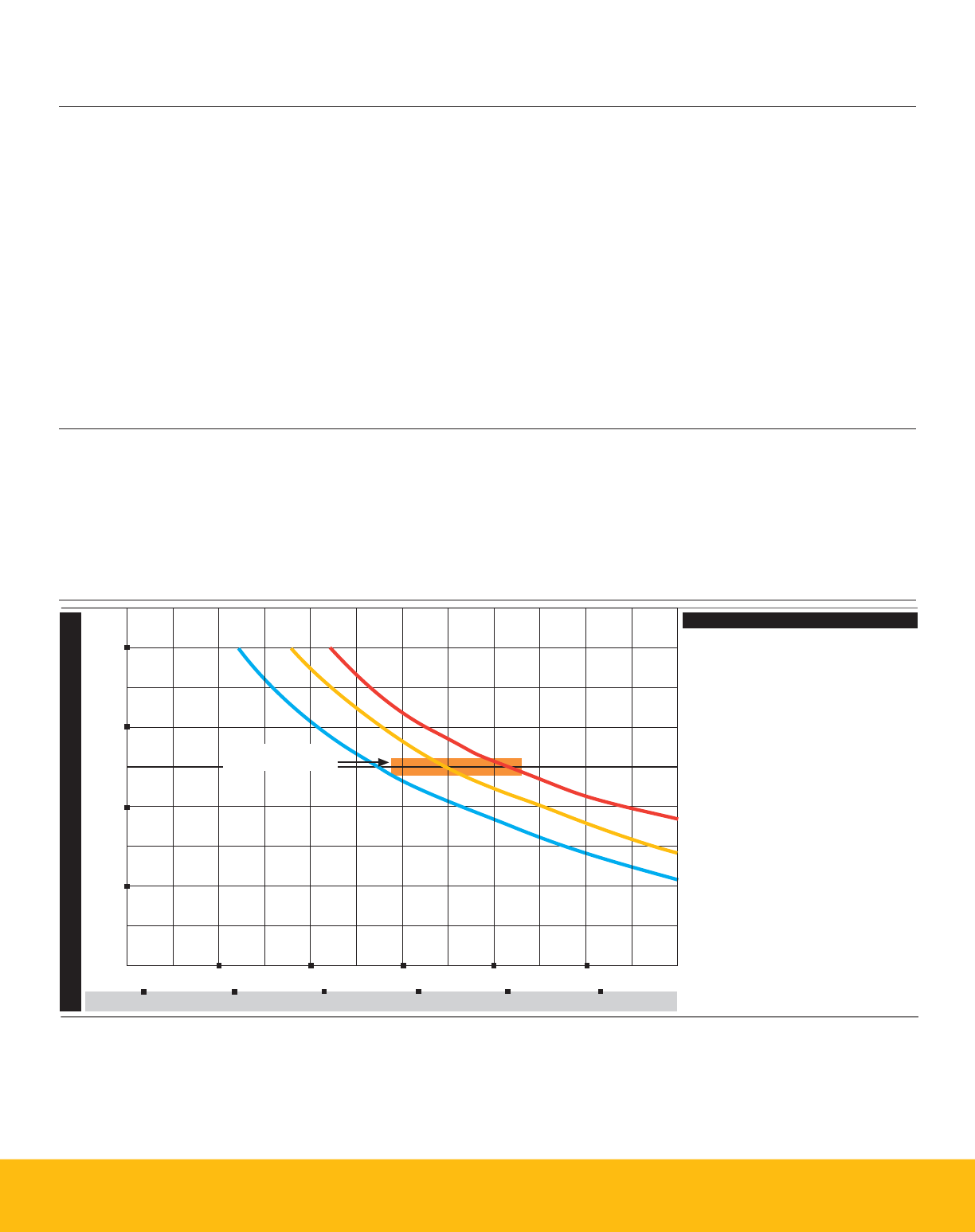

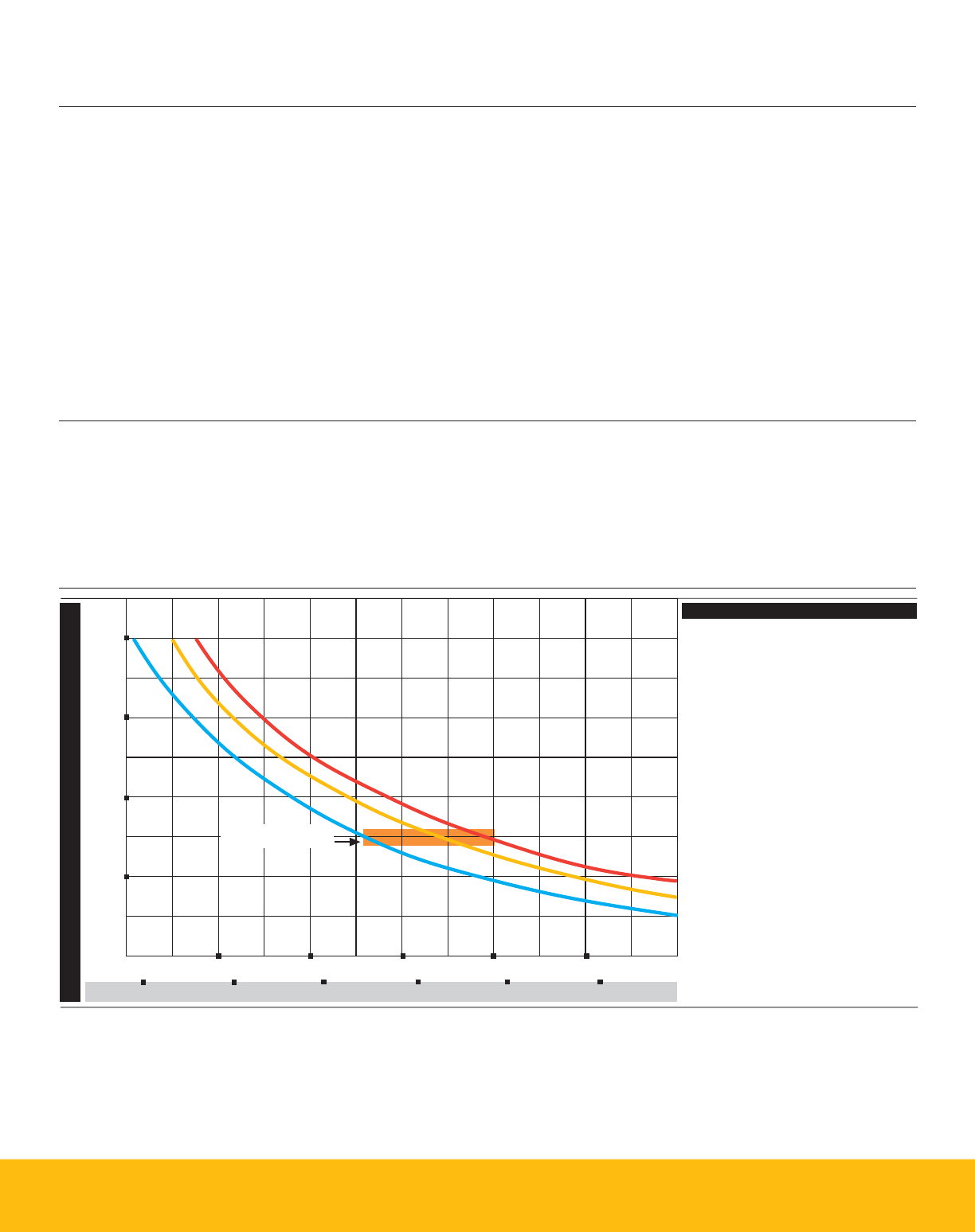

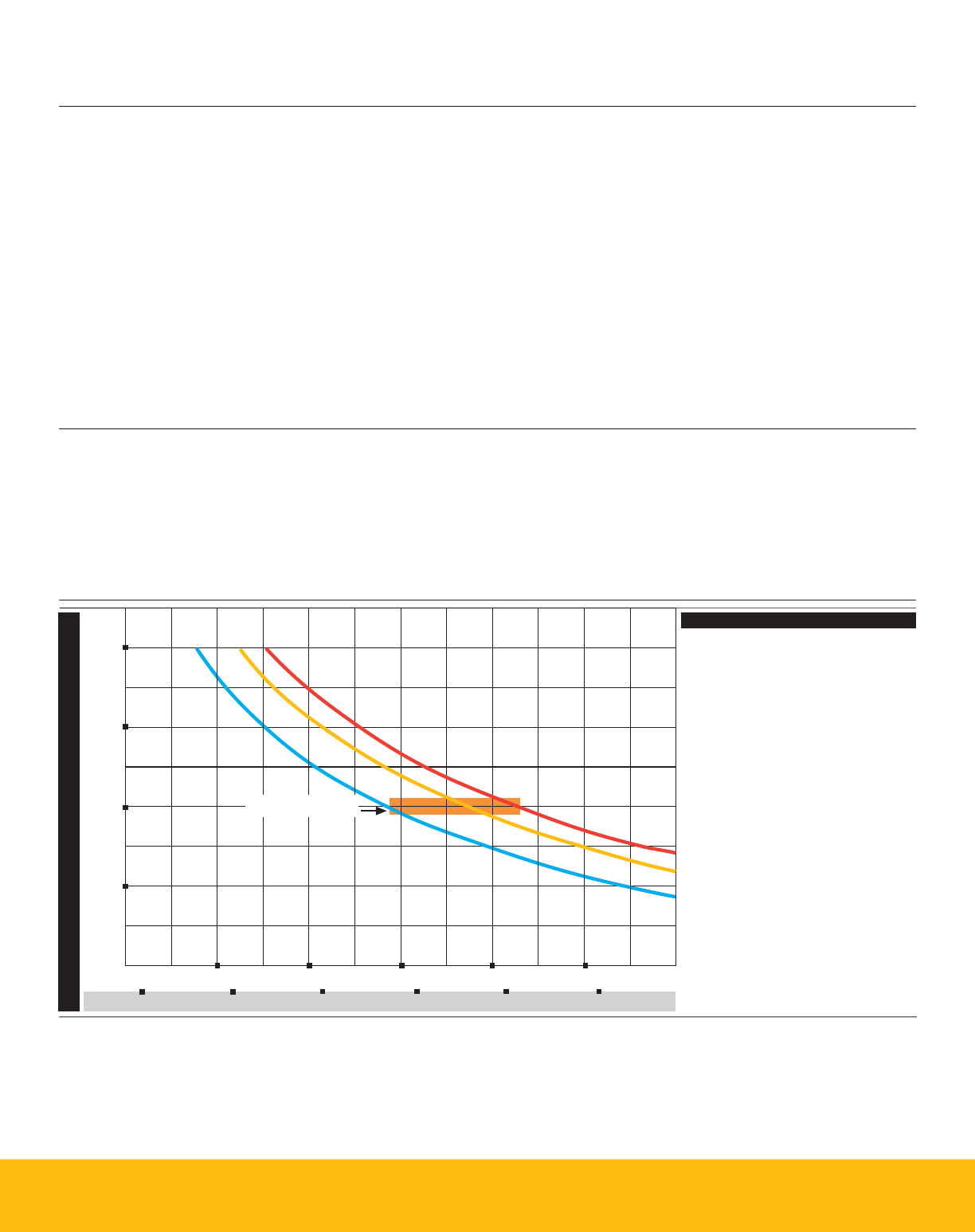

Standard Z-Bar Pin-On Bucket Selection Guide*

5.00

(3.8)

4.00

(3.0)

3.00

(2.3)

2.00

(1.5)

2,000 2,500 3,000 3,500

2100

180015001200

lb./cu. yd.

kg/m3

This guide, representing bucket sizes not necessarily manufactured by Deere, will help you in selecting proper bucket size for material density, loader configuration, and operating conditions. Optimum bucket size is determined

after adding or subtracting all tipping load changes due to optional equipment. The “conservative load” line on this guide is recommended when operating in conditions such as soft ground and unlevel surfaces. The “maximum

load” condition on this guide is sometimes utilized when operating on firm ground and level surfaces.

BUCKET SIZE cu. yd. (m3)

900

1,500

600

MATERIAL (Loose weight)

Caliche

Cinders

Clay and gravel, dry

Clay and gravel, wet

Clay, dry

Clay, natural bed

Clay, wet

Coal, anthracite, broken

Coal, bituminous, broken

Earth, dry, packed

Earth, loam

Earth, wet, excavated

Granite, broken or large crushed

Gravel, dry

Gravel, dry 1/2" to 2" (13 to 50 mm)

Gravel, pit run (graveled sand)

Gravel, wet 1/2" to 2" (13 to 50 mm)

Gypsum, crushed

Limestone, broken or crushed

Magnetite, iron ore

Phosphate rock

Pyrite, iron ore

Sand and gravel, dry

Sand and gravel, wet

Sand, dry

Sand, wet

Sandstone, broken

Shale

Slag, broken

Stone, crushed

Topsoil

lb./cu. yd.

2,100

1,000

2,400

2,600

2,500

2,800

1,850

1,400

2,550

2,100

2,700

2,800

2,550

2,850

3,250

3,400

2,700

2,600

4,700

2,160

4,350

2,900

3,400

2,400

3,100

2,550

2,100

2,950

2,700

1,600

kg/m3

1250

590

1420

1540

1480

1660

1100

830

1510

1250

1600

1660

1510

1690

1930

2020

1600

1540

2790

1280

2580

1720

2020

1420

1840

1510

1250

1750

1600

950

Normal

tiv

Deere 2.5-cu.-yd. (1.9 m3)

General-Purpose Bucket

PAGES

20–21

Specifications

Engine 544J

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTech ETM 6068H

Non-Road Emission Standards . . . . . . . . . . . . . . . . certified to EPA Tier 3 emissions

Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Valves Per Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . 2

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414 cu. in. (6.8 L)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 167 hp (125 kW) @ 1,900 rpm

Net Peak Torque (ISO9249). . . . . . . . . . . . . . . . . . . 496 lb.-ft. (673 Nm) @ 1,600 rpm

Net Torque Rise . . . . . . . . . . . . . . . . . . . . . . . . . . . 38%

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . high-pressure common rail

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . full-flow spin-on filter and integral cooler

Aspiration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . turbocharged, charge air cooled

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual element dry type, restriction indicator in cab monitor for service

Fan Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulically driven, proportionally controlled, fan aft of coolers

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . 24 volt with 80-amp alternator

Batteries (two 12 volt) . . . . . . . . . . . . . . . . . . . . . . 950 CCA

Transmission

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . countershaft-type PowerShiftTM

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . single stage, single phase

Shift Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronically modulated, adaptive, load and speed dependent

Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . steering-column or hydraulic joystick-mounted F-N-R and gear-select lever, kick-down button on hydraulic lever

on switch pad

Travel Speeds*

Forward Reverse

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3 mph (6.9 km/h) 4.5 mph (7.2 km/h)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.4 mph (11.9 km/h) 7.8 mph (12.6 km/h)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.2 mph (22.9 km/h) 15.0 mph (24.1 km/h)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.8 mph (38.3 km/h)

*Equipped with 20.5-25 tires.

Axles/Brakes

Final Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty inboard planetary

Differentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking front, conventional rear — standard; dual locking front and rear — optional

Rear Axle Oscillation, Stop to Stop* . . . . . . . . . . . . 24 deg.

Brakes (conform to SAE J1473, ISO3450)

Service Brakes . . . . . . . . . . . . . . . . . . . . . . . . hydraulically actuated, inboard, sun-shaft mounted, oil cooled, self adjusting, single disc

Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . automatic spring applied, hydraulically released, oil cooled, multi-disc

*Equipped with 20.5-25 tires.

Tires

Choice of (with three-piece rims)

Tread Width Width Over Tires Change In Vertical Height

20.5 R 25, 1 Star L-3 . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 97.7 in. (2482 mm) 0 in. (0 mm)

20.5 R 25, 1 Star L-2 . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 97.7 in. (2482 mm) 0 in. (– 1 mm)

20.5-25, 16 PR L-2 . . . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 97.5 in. (2486 mm) + 0.33 in. (+ 9 mm)

20.5-25, 12 PR L-2 . . . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 98.9 in. (2512 mm) + 0.89 in. (+ 23 mm)

20.5-25, 16 PR L-3 . . . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 98.0 in. (2488 mm) + 0.24 in. (+ 6 mm)

600/65 R 25, L-3T. . . . . . . . . . . . . . . . . . . . . . 76.8 in. (1950 mm) 101.3 in. (2572 mm) – 1.06 in. (– 27 mm)

23.1-26 Logger* . . . . . . . . . . . . . . . . . . . . . . . 84.1 in. (2136 mm) 108.0 in. (2743 mm) + 2.3 in. (+ 60 mm)

*Equipped with one-piece rims.

Refill Capacities (U.S.)

Fuel Tank (with ground-level fueling) . . . . . . . . . . . 85 gal. (322 L)

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 qt. (22 L)

Engine Oil with Vertical Spin-On Filter. . . . . . . . . . . 22.2 qt. (21 L)

PowerShift Transmission, Including Filter . . . . . . . . 19.5 qt. (18.5 L)

Refill Capacities (U.S.)

(continued)

544J

Differential (front and rear, each axle). . . . . . . . . . . 18 qt. (17 L)

Hydraulic Reservoir and Filters . . . . . . . . . . . . . . . . 25.5 gal. (96.5 L)

Wet-Disc Parking Brake . . . . . . . . . . . . . . . . . . . . . 10 oz. (0.3 L)

Hydraulic System/Steering

Pump (loader and steering). . . . . . . . . . . . . . . . . . . variable-displacement, axial-piston pump; closed-center, pressure-compensating system

Maximum Rated Flow . . . . . . . . . . . . . . . . . . . 50 gpm (189 L/m) @ 1,000 psi (6895 kPa)

System Relief Pressure (loader and

steering) . . . . . . . . . . . . . . . . . . . . . . . . . . 3,650 psi (25 166 kPa)

Steering (conforms to SAE J1511)

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power, fully hydraulic

Articulation Angle . . . . . . . . . . . . . . . . . . . . . . 80-deg. arc (40 deg. each direction)

Hydraulic Cycle Times

Standard Z-Bar High-Lift Z-Bar

Raise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8 sec. 5.8 sec.

Dump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 sec. 1.2 sec.

Lower (float down) . . . . . . . . . . . . . . . . . . . . . 3.2 sec. 3.2 sec.

Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2 sec. 10.2 sec.

Maximum Lift Capacity. . . . . . . . . . . . . . . . . . . . . .

with 2.5-cu.-yd. (1.9 m3) bucket with bolt-on edge

Lift at Ground Level . . . . . . . . . . . . . . . . . . . . . 29,596 lb. (13 425 kg) 26,074 lb. (11 827 kg)

Lift at Maximum Height . . . . . . . . . . . . . . . . . . 14,904 lb. (6760 kg) 12,996 lb. (5895 kg)

Turning Radius (measured to centerline of

outside tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 ft. 3 in. (4.95 m) 16 ft. 3 in. (4.95 m)

Dimensions with Pin-On Bucket

Standard Z-Bar High-Lift Z-Bar

AHeight to Top of Cab and Canopy. . . . . . . . . . . . 10 ft. 8 in. (3.24 m) 10 ft. 8 in. (3.24 m)

BHeight to Top of Exhaust . . . . . . . . . . . . . . . . . . 10 ft. 7 in. (3.23 m) 10 ft. 7 in. (3.23 m)

CGround Clearance . . . . . . . . . . . . . . . . . . . . . . . 17.7 in. (450 mm) 17.7 in. (450 mm)

DLength from Centerline to Front Axle . . . . . . . . . 4 ft. 9 in. (1.45 m) 4 ft. 9 in. (1.45 m)

EWheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 8 in. (2.94 m) 9 ft. 6 in. (2.90 m)

FDump Clearance . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 23) ▲ (see page 24)

GHeight to Hinge Pin, Fully Raised. . . . . . . . . . . . 12 ft. 7 in. (3.84 m) 13 ft. 9 in. (4.19 m)

HDump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 23) ▲▲ (see page 24)

IMaximum Digging Depth. . . . . . . . . . . . . . . . . . 3.25 in. (83 mm) 6.5 in. (165 mm)

JOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 23) ▲▲▲ (see page 24)

KMaximum Rollback at Ground Level . . . . . . . . . 41 deg. 41 deg.

LMaximum Rollback, Boom Fully Raised . . . . . . . 55 deg. 55 deg.

MMaximum Bucket Angle, Fully Raised . . . . . . . . 50 deg. 50 deg.

45˚

Cab and Canopy

PAGES

22–23

Dimensions with Quick-

Coupler and Hook-On Bucket 544J

Standard Z-Bar High-Lift Z-Bar

ADump Clearance . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 23) ▲ (see page 24)

BDump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 23) ▲▲ (see page 24)

CMaximum Digging Depth. . . . . . . . . . . . . . . . . . 5.5 in. (140 mm) 8.7 in. (221 mm)

DHeight to Hinge Pin, Fully Raised. . . . . . . . . . . . 12 ft. 7 in. (3.84 m) 13 ft. 9 in. (4.19 m)

EOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 23) ▲▲▲ (see page 24)

FMaximum Rollback, Boom Fully Raised . . . . . . . 55 deg. 49 deg.

GMaximum Bucket Discharge Angle, Fully

Raised. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 deg. 51 deg.

HMaximum Rollback at Ground Level . . . . . . . . . 42 deg. 41 deg.

Dimensions with Quick-Coupler

and Hook-On Construction Fork 544J

Standard Z-Bar High-Lift Z-Bar

AReach, Fully Raised . . . . . . . . . . . . . . . . . . . . . 30 in. (0.76 m) 2 ft. 6 in. (0.76 m)

BFork Height, Fully Raised . . . . . . . . . . . . . . . . . 11 ft. 9 in. (3.58 m) 12 ft. 11 in. (3.94 m)

CMaximum Reach, Fork Level . . . . . . . . . . . . . . 5 ft. 1 in. (1.55 m) 5 ft. 11 in. (1.80 m)

DFork Height, Maximum Reach . . . . . . . . . . . . . 5 ft. 7 in. (1.70 m) 5 ft. 7 in. (1.70 m)

EReach, Ground Level . . . . . . . . . . . . . . . . . . . . 3 ft. 0 in. (0.91 m) 4 ft. 1 in. (1.24 m)

FDepth Below Ground . . . . . . . . . . . . . . . . . . . . 1.2 in. (30 mm) 1.2 in. (30 mm)

GTine Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 24) ▲ (see page 25)

HOverall Length . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 24) ▲▲ (see page 25)

45˚

544J LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET

544J LOADER WITH QUICK-COUPLER

AND HOOK-ON CONSTRUCTION FORK

Standard Z-Bar Pin-On

Type Bucket Information 544J

Narrow General Wide General Purpose

Bucket Type/Size

Purpose w/Bolt-On Edge w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3) 3.0 cu. yd. (2.3 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.6 cu. yd. (2.0 m3) 2.6 cu. yd. (2.0 m3)

Bucket Weight . . . . . . . . . . . . . . . . . . . . . . . . . 2,397 lb. (1087 kg) 2,394 lb. (1086 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.55 m) 8 ft. 10 in. (2.69 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 22,672 lb. (10 284 kg) 22,672 lb. (10 284 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 25,374 lb. (11 509 kg) 25,574 lb. (11 600 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 22,688 lb. (10 291 kg) 22,869 lb. (10 373 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 11 in. (1.49 m) 4 ft. 11 in. (1.49 m)

▲▲

Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 3 in. (1.00 m) 3 ft. 3 in. (1.00 m)

▲

Dump Clearance, 45 Deg., Full Height . . . . . . . 9 ft. 2 in. (2.79 m) 9 ft. 2 in. (2.79 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 24 ft. 3 in. (7.39 m) 24 ft. 3 in. (7.39 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 37 ft. 10 in. (11.53 m) 37 ft. 10 in. (11.53 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 28,332 lb. (12 851 kg) 28,329 lb. (12 850 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

Adjustments to Operating Weights with Standard Z-Bar Pin-On Buckets

Adjustments to operating weights and tipping loads for 3.0-cu.-yd. (2.3 m3) general-purpose bucket with bolt-on cutting edge and optional rear cast bumper/counterweight

Add (+) or deduct (–) lb. (kg) as indicated for

Tipping Load, 40-

loaders with three-piece rims and

Operating Weight Tipping Load, Straight Deg. Full Turn, SAE

20.5 R 25, 1 Star L-3 tires. . . . . . . . . . . . . . . . 0 lb. (0 kg) 0 lb. (0 kg) 0 lb. (0 kg)

20.5 R 25, 1 Star L-2 tires. . . . . . . . . . . . . . . . – 344 lb. (– 156 kg) – 249 lb. (– 113 kg) – 247 lb. (– 112 kg)

20.5-25, 16 PR L-2 tires . . . . . . . . . . . . . . . . . – 697 lb. (– 316 kg) – 520 lb. (– 236 kg) – 516 lb. (– 234 kg)

20.5-25, 12 PR L-2 tires . . . . . . . . . . . . . . . . . – 529 lb. (– 240 kg) – 399 lb. (– 181 kg) – 392 lb. (– 178 kg)

20.5-25, 16 PR L-3 tires . . . . . . . . . . . . . . . . . – 520 lb. (– 236 kg) – 379 lb. (– 172 kg) – 375 lb. (– 170 kg)

600/65 R 25, L-3T tires** . . . . . . . . . . . . . . . . + 802 lb. (+ 364 kg) + 467 lb. (+ 212 kg) + 459 lb. (+ 208 kg)

23.1-26 Logger* . . . . . . . . . . . . . . . . . . . . . . . – 75 lb. (– 34 kg) – 37 lb. (– 17 kg) – 37 lb. (– 17 kg)

CaCl2in 20.5-25, L-3 rear tires . . . . . . . . . . . . + 1,820 lb. (+ 825 kg) + 2,657 lb. (+ 1205 kg) + 2,341 lb. (+ 1062 kg)

Optional rear cast bumper/counterweight

(removed) . . . . . . . . . . . . . . . . . . . . . . . . . – 229 lb. (– 104 kg) – 558 lb. (– 253 kg) – 465 lb. (– 211 kg)

*Equipped with one-piece rims.

**CaCl2not recommended with 600/65 R 25 tires.

Standard Z-Bar Information with Quick-Coupler and Hook-On Bucket

General Purpose General Purpose

Bucket Type/Size

(Wide) w/Bolt-On Edge w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3) 2.5 cu. yd. (1.9 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.6 cu. yd. (2.0 m3) 2.1 cu. yd. (1.6 m3)

Bucket Weight (with coupler) . . . . . . . . . . . . . . 3,080 lb. (1397 kg) 2,853 lb. (1294 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 10 in. (2.69 m) 8 ft. 4 in. (2.55 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 19,039 lb. (8636 kg) 18,937 lb. (8590 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 22,540 lb. (10 224 kg) 23,991 lb. (10 882 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 20,084 lb. (9110 kg) 21,411 lb. (9712 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft. 11 in. (1.50 m) 5 ft. 1 in. (1.56 m)

▲▲

Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 4 in. (1.02 m) 3 ft. 8 in. (1.11 m)

▲

Dump Clearance, 45 Deg., Full Height . . . . . . . 8 ft. 8 in. (2.63 m) 8 ft. 11 in. (2.72 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 24 ft. 10 in. (7.57 m) 23 ft. 1 in. (7.04 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 37 ft. 10 in. (11.53 m) 38 ft. 3 in. (11.66 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 29,059 lb. (13 181 kg) 28,832 lb. (13 078 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5R25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

PAGES

24–25

Standard Z-Bar Information with Quick-

Coupler and Hook-On Construction Fork 544J

▲Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 in. (1.22 m) 60 in. (1.52 m)

▲▲ Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 25 ft. 7 in. (7.80 m) 26 ft. 7 in. (8.10 m)

Tipping Load, Straight (fork level, load

centered 24 in. [610 mm] forward

on tine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 17,714 lb. (8035 kg) 16,566 lb. (7514 kg)

Tipping Load, 40-Deg. Full Turn (fork

level, load centered 24 in. [610 mm]

forward on tine) . . . . . . . . . . . . . . . . . . . . 15,842 lb. (7186 kg) 14,789 lb. (6708 kg)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 28,251 lb. (12 814 kg) 28,576 lb. (12 962 kg)

High-Lift Z-Bar Pin-On-Type Bucket Information

Narrow General Wide General Purpose

Bucket Type/Size

Purpose w/Bolt-On Edge w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3) 3.0 cu. yd. (2.3 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.6 cu. yd. (2.0 m3) 2.6 cu. yd. (2.0 m3)

Bucket Weight . . . . . . . . . . . . . . . . . . . . . . . . . 2,396 lb. (1087 kg) 2,396 lb. (1087 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 4 in. (2.55 m) 8 ft. 10 in. (2.69 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 20,939 lb. (7555 kg) 22,394 lb. (7555 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 22,018 lb. (9987 kg) 22,170 lb. (10 056 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 19,643 lb. (8910 kg) 19,778 lb. (8971 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 10 in. (1.78 m) 5 ft. 9 in. (1.74 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 3 in. (1.00 m) 3 ft. 1 in. (0.94 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 10 ft. 4 in. (3.14 m) 10 ft. 6 in. (3.19 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 25 ft. 3 in. (7.70 m) 24 ft. 11 in. (7.59 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 38 ft. 11 in. (11.86 m) 39 ft. 2 in. (11.94 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 28,534 lb. (12 943 kg) 28,532 lb. (12 942 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

Adjustments to Operating Weights with High-Lift Z-Bar Pin-On Buckets

Adjustments to operating weights and tipping loads for 3.0-cu.-yd. (2.3 m3) general-purpose bucket with bolt-on cutting edge and optional rear cast bumper/counterweight

Add (+) or deduct (–) lb. (kg) as indicated for

Tipping Load, 40-

loaders with three-piece rims and

Operating Weight Tipping Load, Straight Deg. Full Turn, SAE

20.5 R 25, 1 Star L-3 tires. . . . . . . . . . . . . . . . 0 lb. (0 kg) 0 lb. (0 kg) 0 lb. (0 kg)

20.5 R 25, 1 Star L-2 tires. . . . . . . . . . . . . . . . – 344 lb. (– 156 kg) – 223 lb. (– 101 kg) – 220 lb. (– 100 kg)

20.5-25, 16 PR L-2 tires . . . . . . . . . . . . . . . . . – 697 lb. (– 316 kg) – 463 lb. (– 210 kg) – 456 lb. (– 207 kg)

20.5-25, 12 PR L-2 tires . . . . . . . . . . . . . . . . . – 529 lb. (– 240 kg) – 353 lb. (– 160 kg) – 348 lb. (– 158 kg)

20.5-25, 16 PR L-3 tires . . . . . . . . . . . . . . . . . – 520 lb. (– 236 kg) – 337 lb. (– 153 kg) – 333 lb. (– 151 kg)

600/65 R 25, L-3T tires** . . . . . . . . . . . . . . . . + 602 lb. (+ 273 kg) + 414 lb. (+ 188 kg) + 405 lb. (+ 184 kg)

23.1-26 Logger* . . . . . . . . . . . . . . . . . . . . . . . – 75 lb. (– 34 kg) – 33 lb. (– 15 kg) – 33 lb. (– 15 kg)

CaCl2in 20.5-25, L-3 rear tires . . . . . . . . . . . . + 1,817 lb. (+ 824 kg) + 2,350 lb. (+ 1066 kg) + 2,070 lb. (+ 939 kg)

Optional rear cast bumper/counterweight

(removed) . . . . . . . . . . . . . . . . . . . . . . . . . – 229 lb. (– 104 kg) – 558 lb. (– 253 kg) – 465 lb. (– 211 kg)

*Equipped with one-piece rims.

**CaCl2not recommended with 600/65R25 tires.

High-Lift Z-Bar Information with

Quick-Coupler and Hook-On Bucket 544J

General Purpose General Purpose

Bucket Type/Size

w/Bolt-On Edge w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3) 2.5 cu. yd. (1.9 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 2.6 cu. yd. (2.0 m3) 2.1 cu. yd. (1.6 m3)

Bucket Weight (with coupler) . . . . . . . . . . . . . . 3,080 lb. (1397 kg) 2,853 lb. (1294 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 10 in. (2.69 m) 8 ft. 4 in. (2.55 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 17,557 lb. (7964 kg) 18,104 lb. (8212 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 19,870 lb. (9013 kg) 20,230 lb. (9176 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 17,655 lb. (8008 kg) 17,999 lb. (8164 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 11 in. (1.79 m) 6 ft. 1 in. (1.85 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 7 in. (1.09 m) 3 ft. 7 in. (1.09 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 9 ft. 9 in. (2.98 m) 10 ft. 1 in. (3.06 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 25 ft. 11 in. (7.90 m) 25 ft. 7 in. (7.80 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ft. 10 in. (12.14 m) 39 ft. 4 in. (11.99 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 29,286 lb. (13 284 kg) 29,057 lb. (13 180 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

High-Lift Z-Bar Information with Quick-Coupler and Hook-On Construction Fork

▲Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 in. (1.22 m) 60 in. (1.52 m)

▲▲ Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 26 ft. 8 in. (8.13 m) 27 ft. 8 in. (8.43 m)

Tipping Load, Straight (fork level, load

centered 24 in. [610 mm] forward

on tine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 15,957 lb. (7238 kg) 14,881 lb. (6750 kg)

Tipping Load, 40-Deg. Full Turn (fork

level, load centered 24 in. [610 mm]

forward on tine) . . . . . . . . . . . . . . . . . . . . 14,240 lb. (6459 kg) 13,252 lb. (6011 kg)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 28,461 lb. (12 910 kg) 28,786 lb. (13 057 kg)

Standard Z-Bar Pin-On Bucket Selection Guide*

5.00

(3.8)

4.00

(3.0)

3.00

(2.3)

2.00

(1.5)

2,000 2,500 3,000 3,500

2100

180015001200

lb./cu. yd.

kg/m3

load” condition on this guide is sometimes utilized when operating on firm ground and level surfaces.

BUCKET SIZE cu. yd. (m3)

900

1,500

600

MATERIAL (Loose weight)

Caliche

Cinders

Clay and gravel, dry

Clay and gravel, wet

Clay, dry

Clay, natural bed

Clay, wet

Coal, anthracite, broken

Coal, bituminous, broken

Earth, dry, packed

Earth, loam

Earth, wet, excavated

Granite, broken or large crushed

Gravel, dry

Gravel, dry 1/2" to 2" (13 to 50 mm)

Gravel, pit run (graveled sand)

Gravel, wet 1/2" to 2" (13 to 50 mm)

Gypsum, crushed

Limestone, broken or crushed

Magnetite, iron ore

Phosphate rock

Pyrite, iron ore

Sand and gravel, dry

Sand and gravel, wet

Sand, dry

Sand, wet

Sandstone, broken

Shale

Slag, broken

Stone, crushed

Topsoil

lb./cu. yd.

2,100

1,000

2,400

2,600

2,500

2,800

1,850

1,400

2,550

2,100

2,700

2,800

2,550

2,850

3,250

3,400

2,700

2,600

4,700

2,160

4,350

2,900

3,400

2,400

3,100

2,550

2,100

2,950

2,700

1,600

kg/m3

1250

590

1420

1540

1480

1660

1100

830

1510

1250

1600

1660

1510

1690

1930

2020

1600

1540

2790

1280

2580

1720

2020

1420

1840

1510

1250

1750

1600

950

Nor

tiv

Deere 3.0-cu.-yd. (2.3 m3)

General-Purpose Bucket

PAGES

26–27

Specifications

Engine 624J

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTech PlusTM 6068H

Non-Road Emission Standards . . . . . . . . . . . . . . . . certified to EPA Tier 3 emissions

Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Valves Per Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . 4

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414 cu. in. (6.8 L)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 198 hp (147 kW) @ 1,800 rpm

Net Peak Torque (ISO9249). . . . . . . . . . . . . . . . . . . 617 lb.-ft. (836 Nm) @ 1,600 rpm

Net Torque Rise . . . . . . . . . . . . . . . . . . . . . . . . . . . 55%

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . high-pressure common rail

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . full-flow spin-on filter and integral cooler

Aspiration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . turbocharged, charge air cooled

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual element dry type, restriction indicator in cab monitor for service

Fan Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulically driven, proportionally controlled, fan aft of coolers

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . 24 volt with 80-amp alternator

Batteries (two 12 volt) . . . . . . . . . . . . . . . . . . . . . . 950 CCA

Transmission

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . countershaft-type PowerShiftTM

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . single stage, single phase

Shift Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronically modulated, adaptive, load and speed dependent

Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . steering-column or hydraulic joystick-mounted F-N-R and gear-select lever, kick-down button on hydraulic lever

on switch pad

Travel Speeds*

Forward Reverse

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 mph (7.2 km/h) 4.7 mph (7.6 km/h)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.7 mph (12.4 km/h) 8.1 mph (13.0 km/h)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15.2 mph (24.5 km/h) 16.0 mph (25.7 km/h)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24.6 mph (39.6 km/h)

*Equipped with 20.5-25 tires.

Axles/Brakes

Final Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty inboard planetary

Differentials* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking front, conventional rear — standard; dual locking front and rear — optional

Rear Axle Oscillation, Stop to Stop* . . . . . . . . . . . . 24 deg.

Brakes (conform to SAE J1473, ISO3450)

Service Brakes . . . . . . . . . . . . . . . . . . . . . . . . hydraulically actuated, inboard, sun-shaft mounted, oil cooled, self adjusting, single disc

Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . automatic spring applied, hydraulically released, oil cooled, multi-disc

*Equipped with 20.5-25 tires.

Tires

Choice of (with three-piece rims)

Tread Width Width Over Tires Change In Vertical Height

20.5 R 25, L-3T. . . . . . . . . . . . . . . . . . . . . . . . 80.7 in. (2050 mm) 101.7 in. (2582 mm) 0 in. (0 mm)

20.5 R 25, 1 Star L-2 . . . . . . . . . . . . . . . . . . . 80.7 in. (2050 mm) 101.7 in. (2582 mm) + 0.04 in. (+ 1 mm)

20.5-25, 16 PR L-2 . . . . . . . . . . . . . . . . . . . . . 80.7 in. (2050 mm) 101.8 in. (2586 mm) + 0.33 in. (+ 9 mm)

20.5-25, 16 PR L-3 . . . . . . . . . . . . . . . . . . . . . 80.7 in. (2050 mm) 101.7 in. (2582 mm) + 0.24 in. (+ 6 mm)

600/65 R 25, L-3T. . . . . . . . . . . . . . . . . . . . . . 80.7 in. (2050 mm) 105.2 in. (2672 mm) – 0.83 in. (– 21 mm)

28L-26 Logger* . . . . . . . . . . . . . . . . . . . . . . . . 89.4 in. (2272 mm) 117.4 in. (2983 mm) + 3.1 in. (+ 78 mm)

*Equipped with one-piece rims.

Refill Capacities (U.S.)

Fuel Tank (with ground-level fueling) . . . . . . . . . . . 93 gal. (352 L)

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 qt. (27 L)

Engine Oil with Vertical Spin-On Filter. . . . . . . . . . . 22 qt. (21 L)

Power-Shift Transmission, Including Filter. . . . . . . . 24 qt. (23 L)

Refill Capacities (U.S.)

(continued)

624J

Differential (each axle)

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 qt. (22 L)

Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 qt. (17 L)

Hydraulic Reservoir and Filters . . . . . . . . . . . . . . . . 31.5 gal. (119 L)

Wet-Disc Parking Brake . . . . . . . . . . . . . . . . . . . . . 10 oz. (0.3 L)

Hydraulic System/Steering

Pump (loader and steering). . . . . . . . . . . . . . . . . . . variable-displacement, axial-piston pump; closed-center, pressure-compensating system

Maximum Rated Flow . . . . . . . . . . . . . . . . . . . 60 gpm (227 L/m) @ 1,000 psi (6895 kPa)

System Relief Pressure (loader and

steering) . . . . . . . . . . . . . . . . . . . . . . . . . . 3,675 psi (24 821 kPa)

Steering (conforms to SAE J1511)

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power, fully hydraulic

Articulation Angle . . . . . . . . . . . . . . . . . . . . . . 80-deg. arc (40 deg. each direction)

Hydraulic Cycle Times

Standard Z-Bar High-Lift Z-Bar

Raise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9 sec. 5.9 sec.

Dump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 sec. 1.3 sec.

Lower (float down) . . . . . . . . . . . . . . . . . . . . . 2.7 sec. 2.7 sec.

Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.9 sec. 9.9 sec.

Maximum Lift Capacity. . . . . . . . . . . . . . . . . . . . . .

with 3.0-cu.-yd. (2.3 m3) bucket with bolt-on edge

Lift at Ground Level . . . . . . . . . . . . . . . . . . . . . 30,958 lb. (14 042 kg) 29,190 lb. (13 240 kg)

Lift at Maximum Height . . . . . . . . . . . . . . . . . . 17,305 lb. (7849 kg) 15,812 lb. (7172 kg)

Turning Radius (measured to centerline of

outside tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ft. 0 in. (5.18 m) 17 ft. 0 in. (5.18 m)

Dimensions with Pin-On Bucket

Standard Z-Bar High-Lift Z-Bar

AHeight to Top of Cab and Canopy. . . . . . . . . . . . 10 ft. 11 in. (3.32 m) 10 ft. 11 in. (3.32 m)

BHeight to Top of Exhaust . . . . . . . . . . . . . . . . . . 10 ft. 10 in. (3.30 m) 10 ft. 10 in. (3.30 m)

CGround Clearance . . . . . . . . . . . . . . . . . . . . . . . 17.1 in. (434 mm) 17.1 in. (434 mm)

DLength from Centerline to Front Axle . . . . . . . . . 5 ft. 0 in. (1.52 m) 5 ft. 0 in. (1.52 m)

EWheelbase . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 ft. 11 in. (3.03 m) 9 ft. 11 in. (3.03 m)

FDump Clearance . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 29) ▲ (see page 30)

GHeight to Hinge Pin, Fully Raised. . . . . . . . . . . . 13 ft. 0 in. (3.96 m) 14 ft. 3 in. (4.3 m)

HDump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 29) ▲▲ (see page 30)

IMaximum Digging Depth. . . . . . . . . . . . . . . . . . 3.5 in. (89 mm) 7.4 in. (188 mm)

JOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 29) ▲▲▲ (see page 30)

KMaximum Rollback at Ground Level . . . . . . . . . 40 deg. 40 deg.

LMaximum Rollback, Boom Fully Raised . . . . . . . 55 deg. 55 deg.

MMaximum Bucket Angle, Fully Raised . . . . . . . . 50 deg. 50 deg.

45˚

Cab and Canopy

PAGES

28–29

Dimensions with Quick-

Coupler and Hook-On Bucket 624J

Standard Z-Bar High-Lift Z-Bar

ADump Clearance . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 29) ▲ (see page 31)

BDump Reach . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 29) ▲▲ (see page 31)

CMaximum Digging Depth. . . . . . . . . . . . . . . . . . 6.5 in. (165 mm) 10.5 in. (267 mm)

DHeight to Hinge Pin, Fully Raised. . . . . . . . . . . . 13 ft. 0 in. (3.96 m) 14 ft. 3 in. (4.34 m)

EOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲▲ (see page 29) ▲▲▲ (see page 31)

FMaximum Rollback, Boom Fully Raised . . . . . . . 55 deg. 49 deg.

GMaximum Bucket Discharge Angle, Fully

Raised. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 deg. 46 deg.

HMaximum Rollback at Ground Level . . . . . . . . . 42 deg. 42 deg.

Dimensions with Quick-Coupler

and Hook-On Construction Fork 624J

Standard Z-Bar High-Lift Z-Bar

AReach, Fully Raised . . . . . . . . . . . . . . . . . . . . . . 2 ft. 5 in. (0.74 m) 2 ft. 9 in. (0.84 m)

BFork Height, Fully Raised . . . . . . . . . . . . . . . . . . 12 ft. 2 in. (3.71 m) 13 ft. 4 in. (4.06 m)

CMaximum Reach, Fork Level . . . . . . . . . . . . . . . 5 ft. 2 in. (1.57 m) 6 ft. 3 in. (1.91 m)

DFork Height, Maximum Reach . . . . . . . . . . . . . . 5 ft. 9 in. (1.75 m) 5 ft. 9 in. (1.75 m)

EReach, Ground Level . . . . . . . . . . . . . . . . . . . . . 3 ft. 1 in. (0.94 m) 4 ft. 6 in. (1.37 m)

FDepth Below Ground . . . . . . . . . . . . . . . . . . . . . 1.8 in. (46 mm) 5.8 in. (147 mm)

GTine Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . ▲ (see page 30) ▲ (see page 31)

HOverall Length. . . . . . . . . . . . . . . . . . . . . . . . . . ▲▲ (see page 30) ▲▲ (see page 31)

45˚

624J LOADER WITH QUICK-COUPLER AND HOOK-ON BUCKET

624J LOADER WITH QUICK-COUPLER

AND HOOK-ON CONSTRUCTION FORK

Standard Z-Bar Pin-On

Type Bucket Information 624J

General Purpose

Bucket Type/Size

w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.5 cu. yd. (2.7 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3)

Bucket Weight . . . . . . . . . . . . . . . . . . . . . . . . . 2,630 lb. (1193 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 10 in. (2.69 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 28,483 lb. (12 920 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 30,143 lb. (13 673 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 27,070 lb. (12 279 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 2 in. (1.58 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 5 in. (1.03 m)

▲

Dump Clearance, 45 Deg., Full Height . . . . . . . 9 ft. 5 in. (2.87 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 24 ft. 10 in. (7.57 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ft. 8 in. (12.09 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 32,290 lb. (15 100 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

Adjustments to Operating Weights with Standard Z-Bar Pin-On Buckets

Adjustments to operating weights and tipping loads for 3.5-cu.-yd. (2.7 m3) general-purpose bucket with bolt-on cutting edge and optional rear cast bumper/counterweight

Add (+) or deduct (–) lb. (kg) as indicated for

Tipping Load, 40-

loaders with three-piece rims and

Operating Weight Tipping Load, Straight Deg. Full Turn, SAE

20.5 R 25, L-3T tires . . . . . . . . . . . . . . . . . . . . 0 lb. (0 kg) 0 lb. (0 kg) 0 lb. (0 kg)

20.5 R 25, 1 Star L-2 tires. . . . . . . . . . . . . . . . – 348 lb. (– 158 kg) – 254 lb. (– 115 kg) – 251 lb. (– 114 kg)

20.5-25, 16 PR L-2 tires . . . . . . . . . . . . . . . . . – 696 lb. (– 316 kg) – 516 lb. (– 234 kg) – 507 lb. (– 230 kg)

20.5-25, 16 PR L-3 tires . . . . . . . . . . . . . . . . . – 518 lb. (– 235 kg) – 384 lb. (– 174 kg) – 377 lb. (– 171 kg)

600/65 R 25, L-3T tires** . . . . . . . . . . . . . . . . + 597 lb. (+ 271 kg) + 463 lb. (+ 210 kg) + 456 lb. (+ 207 kg)

28L-26 Logger* . . . . . . . . . . . . . . . . . . . . . . . . + 732 lb. (+ 332 kg) + 562 lb. (+ 255 kg) + 556 lb. (+ 252 kg)

CaCl2in 20.5-25 rear tires . . . . . . . . . . . . . . . . + 2,571 lb. (+ 1166 kg) + 3,799 lb. (+ 1723 kg) + 3,355 lb. (+ 1522 kg)

Optional rear cast bumper/counterweight

(removed) . . . . . . . . . . . . . . . . . . . . . . . . . – 712 lb. (– 323 kg) – 1,763 lb. (– 800 kg) – 1,474 lb. (– 669 kg)

*Equipped with one-piece rims.

**CaCl2not recommended with 600/65R25 tires.

Standard Z-Bar Information with Quick-Coupler and Hook-On Bucket

General Purpose

Bucket Type/Size

w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.5 cu. yd. (2.7 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3)

Bucket Weight (with coupler) . . . . . . . . . . . . . . 3,378 lb. (1532 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 10 in. (2.69 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 23,455 lb. (10 639 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 27,088 lb. (12 287 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 24,253 lb. (11 001 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 5 ft. 3 in. (1.6 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 10 in. (1.16 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 8 ft. 9 in. (2.68 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 25 ft. 10 in. (7.87 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 40 ft. 3 in. (12.33 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 34,068 lb. (15 453 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

PAGES

30–31

Standard Z-Bar Information with Quick-

Coupler and Hook-On Construction Fork 624J

▲Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 in. (1.22 m) 60 in. (1.52 m)

▲▲ Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 26 ft. 2 in. (7.98 m) 27 ft. 2 in. (8.28 m)

Tipping Load, Straight (fork level, load

centered 24 in. [610 mm] forward

on tine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 21,136 lb. (9587 kg) 19,822 lb. (8991 kg)

Tipping Load, 40-Deg. Full Turn (fork

level, load centered 24 in. [610 mm]

forward on tine) . . . . . . . . . . . . . . . . . . . . 18,991 lb. (8614 kg) 17,782 lb. (8066 kg)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 33,120 lb. (15 023 kg) 33,446 lb. (15 171 kg)

High-Lift Z-Bar Pin-On-Type Bucket Information

General Purpose

Bucket Type/Size

w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.5 cu. yd. (2.7 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3)

Bucket Weight . . . . . . . . . . . . . . . . . . . . . . . . . 2,630 lb. (1193 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 10 in. (2.69 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 25,884 lb. (11 741 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 24,998 lb. (11 329 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 22,392 lb. (10 157 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 6 ft. 4 in. (1.94 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 3 ft. 8 in. (1.12 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 10 ft. 8 in. (3.25 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 26 ft. 2 in. (7.98 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 40 ft. 10 in. (12.45 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 33,587 lb. (15 235 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5R25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

Adjustments to Operating Weights with High-Lift Z-Bar Pin-On Buckets

Adjustments to operating weights and tipping loads for 3.5-cu.-yd. (2.7 m3) general-purpose bucket with bolt-on cutting edge and optional rear cast bumper/counterweight

Add (+) or deduct (–) lb. (kg) as indicated for

Tipping Load, 40-

loaders with three-piece rims and

Operating Weight Tipping Load, Straight Deg. Full Turn, SAE

20.5 R 25, L-3T tires . . . . . . . . . . . . . . . . . . . . 0 lb. (0 kg) 0 lb. (0 kg) 0 lb. (0 kg)

20.5 R 25, 1 Star L-2 tires. . . . . . . . . . . . . . . . – 348 lb. (– 158 kg) – 254 lb. (– 115 kg) – 251 lb. (– 114 kg)

20.5-25, 16 PR L-2 tires . . . . . . . . . . . . . . . . . – 696 lb. (– 316 kg) – 516 lb. (– 234 kg) – 507 lb. (– 230 kg)

20.5-25, 16 PR L-3 tires . . . . . . . . . . . . . . . . . – 518 lb. (– 235 kg) – 384 lb. (– 174 kg) – 377 lb. (– 171 kg)

600/65 R 25, L-3T tires** . . . . . . . . . . . . . . . . + 597 lb. (+ 271 kg) + 463 lb. (+ 210 kg) + 456 lb. (+ 207 kg)

28L-26 Logger* . . . . . . . . . . . . . . . . . . . . . . . . + 732 lb. (+ 332 kg) + 562 lb. (+ 255 kg) + 556 lb. (+ 252 kg)

CaCl2in 20.5-25 rear tires . . . . . . . . . . . . . . . . + 2,571 lb. (+ 1166 kg) + 3,799 lb. (+ 1723 kg) + 3,355 lb. (+ 1522 kg)

Optional rear cast bumper/counterweight

(removed) . . . . . . . . . . . . . . . . . . . . . . . . . – 712 lb. (– 323 kg) – 1,763 lb. (– 800 kg) – 1,474 lb. (– 669 kg)

*Equipped with one-piece rims.

**CaCl2not recommended with 600/65 R 25 tires.

High-Lift Z-Bar Information with

Quick-Coupler and Hook-On Bucket 624J

General Purpose

Bucket Type/Size

w/Bolt-On Edge

Capacity, Heaped SAE . . . . . . . . . . . . . . . . . . . 3.5 cu. yd. (2.7 m3)

Capacity, Struck SAE . . . . . . . . . . . . . . . . . . . . 3.0 cu. yd. (2.3 m3)

Bucket Weight (with coupler) . . . . . . . . . . . . . . 3,378 lb. (1532 kg)

Bucket Width . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ft. 10 in. (2.69 m)

Breakout Force, SAE J732C . . . . . . . . . . . . . . . 21,358 lb. (9688 kg)

Tipping Load, Straight . . . . . . . . . . . . . . . . . . . 22,553 lb. (10 230 kg)

Tipping Load, 40-Deg. Full Turn, SAE. . . . . . . . 20,126 lb. (9129 kg)

Reach, 45-Deg. Dump, 7-ft. (2.13 m)

Clearance . . . . . . . . . . . . . . . . . . . . . . . . . 6 ft. 6 in. (1.98 m)

▲▲ Reach, 45-Deg. Dump, Full Height. . . . . . . . . . 4 ft. 1 in. (1.24 m)

▲Dump Clearance, 45 Deg., Full Height . . . . . . . 9 ft. 11 in. (3.02 m)

▲▲▲ Overall Length, Bucket on Ground . . . . . . . . . . 27 ft. 1 in. (8.26 m)

Loader Clearance Circle, Bucket In Carry

Position . . . . . . . . . . . . . . . . . . . . . . . . . . 41 ft. 6 in. (12.65 m)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 34,386 lb. (15 597 kg)

Loader operating information is based on machine with standard equipment; cab; rear cast bumper/counterweight; 20.5 R 25 tires; ROPS cab; 175-lb. (79 kg) operator; and full fuel tank. This

information is affected by tire size, ballast, and different attachments.

High-Lift Z-Bar Information with Quick-Coupler and Hook-On Construction Fork

▲Tine Length . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 in. (1.22 m) 60 in. (15.52 m)

▲▲ Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . 27 ft. 6 in. (8.38 m) 28 ft. 6 in. (8.69 m)

Tipping Load, Straight (fork level, load

centered 24 in. [610 mm] forward

on tine) . . . . . . . . . . . . . . . . . . . . . . . . . . . 18,636 lb. (8453 kg) 17,527 lb. (7950 kg)

Tipping Load, 40-Deg. Full Turn (fork

level, load centered24 in. [610 mm]

forward on tine) . . . . . . . . . . . . . . . . . . . . 16,707 lb. (7578 kg) 15,684 lb. (7114 kg)

Operating Weight. . . . . . . . . . . . . . . . . . . . . . . 33,406 lb. (15 153 kg) 33,731 lb. (15 300 kg)

Standard Z-Bar Pin-On Bucket Selection Guide*

5.00

(3.8)

4.00

(3.0)

3.00

(2.3)

2.00

(1.5)

2,000 2,500 3,000 3,500

2100

180015001200

lb./cu. yd.

kg/m3

load” condition on this guide is sometimes utilized when operating on firm ground and level surfaces.

BUCKET SIZE cu. yd. (m3)

900

1,500

600

MATERIAL (Loose weight)

Caliche

Cinders

Clay and gravel, dry

Clay and gravel, wet

Clay, dry

Clay, natural bed

Clay, wet

Coal, anthracite, broken

Coal, bituminous, broken

Earth, dry, packed

Earth, loam

Earth, wet, excavated

Granite, broken or large crushed

Gravel, dry

Gravel, dry 1/2" to 2" (13 to 50 mm)

Gravel, pit run (graveled sand)

Gravel, wet 1/2" to 2" (13 to 50 mm)

Gypsum, crushed

Limestone, broken or crushed

Magnetite, iron ore

Phosphate rock

Pyrite, iron ore

Sand and gravel, dry

Sand and gravel, wet

Sand, dry

Sand, wet

Sandstone, broken

Shale

Slag, broken

Stone, crushed

Topsoil

lb./cu. yd.

2,100

1,000

2,400

2,600

2,500

2,800

1,850

1,400

2,550

2,100

2,700

2,800

2,550

2,850

3,250

3,400

2,700

2,600

4,700

2,160

4,350

2,900

3,400

2,400

3,100

2,550

2,100

2,950

2,700

1,600

kg/m3

1250

590

1420

1540

1480

1660

1100

830

1510

1250

1600

1660

1510

1690

1930

2020

1600

1540

2790

1280

2580

1720

2020

1420

1840

1510

1250

1750

1600

950

Nor

tiv

Deere 3.5-cu.-yd. (2.7 m3)

General-Purpose Bucket

Net engine power is with standard equipment including air cleaner,

exhaust system, alternator, and cooling fan at test conditions per

ISO9249. No derating is required up to 5,000-ft. (1525 m) altitude

for the 444J and the 544J and up to 10,000-ft. (3050 m) altitude

for the 624J.

Specifications and design subject to change without notice. Wherever applicable, specifications are in accordance with ISO standards.

Except where otherwise noted, these specifications are based on units with standard equipment, ROPS cab, one optional rear counter-

weight, rear cast bumper/counterweight, 20.5R25 tires, full fuel tank, and 175-lb. (79 kg) operator.

DKAJULDR Litho in U.S.A. (07-04)

444 544 624

Engine

●●● Complies with EPA Tier 3 regulations

●●● Wet-sleeve cylinder liners

●●● Electronically controlled fuel system

●●● Automatic derating when system temperatures exceeded

●●● Under-hood muffler

●●● Under-hood dual-element air cleaner with restriction

sensor in cab monitor

●●● Under-hood pre-screened air intake

●●● Fuel filter/water separator with sensor

●●● Heavy-duty steel fuel tank guard

●●● 500-hour spin-on oil filter

●●● Polyvee drive belt with automatic tensioner

●●● Starter protection circuit

●Automatic glow plugs for cold start

▲▲ Ether start aid (required for cold starting down to

–13°F [–25°C])

▲▲▲ 110-volt engine coolant heater (required for cold

starting below –13°F [–25°C])

▲▲▲ Chrome exhaust stack

▲▲▲ Centrifugal engine air pre-cleaner

Cooling

●●● Heavy-duty trash-resistant high-ambient cooling package

●●● Two-side access to all coolers

●●● Cooling system isolated from engine compartment

●●● Cool-on-demand hydraulically driven swing-out fan

●●● Charge air cooler (air/air – 6.5 fins per in.)

●●● Transmission oil cooler (oil/air – 6.5 fins per in.)

●●● Hydraulic oil cooler (oil/air – 6.5 fins per in.)

●●● Engine radiator (7.5 fins per in.)

●●● Integral engine oil cooler

●●● Fan guard

▲▲▲ Axle coolers (6.5 fins per in.)

▲▲▲ Reversing fan drive — auto control with manual override

▲▲▲ Harsh-environment coolers for corrosive environments

Powertrain

●●● ZF torque-converter powershift transmission — 4F/3R

●●● Electronically controlled, adaptive, load- and speed-

dependent shift modulation

▲▲▲ F-N-R and gearshift in single-lever loader control

▲▲▲ Steering-column-mounted shift lever with gearshift,

F-N-R, and lock

●●● Auto-shift/manual-shift modes

●●● Quick-shift button in hydraulic-control lever with two

selectable modes

●●● Transmission clutch disconnect (cutoff) with three

selectable settings

●●● Gear lockout on transmission

●●● Clutch calibration engaged from cab monitor

●●● Vertical spin-on transmission filter

●●● Integral transmission sight gauge/fill tube

●●● Spring-applied, hydraulically released, sealed, wet-

disc park brake

●●● Lube-for-life U-joints

●Heavy-duty mid-board planetary final drives

●● Heavy-duty inboard planetary final drives

●●● Front axle with hydraulic locking differential

▲▲▲ Front and rear axle with open differential*

▲▲ Front-axle disconnect

●●● Remote-axle breathers

▲▲▲ Wheel spin-control system

Hydraulic System

●●● Pressure-compensating load-sensing hydraulic system

●●● In-cab adjustable automatic boom height kickout control

●●● In-cab adjustable automatic boom return-to-carry control

●●● Reservoir sight gauge

●●● Spin-on hydraulic filters, vertical mounting

●●● Hydraulic function enable/disable button

●●● Two-function hydraulic valve with single-lever joystick

control

●●● Adjustable wristrest

444 544 624

Hydraulic System

(continued)

▲▲▲ Two-function hydraulic valve with two-lever fingertip

controls

▲▲▲ Three-function hydraulic valve with single-lever joy-

stick control and auxiliary lever for third function

▲▲▲ Three-function hydraulic valve with two-lever fingertip

controls, adjustable wristrest, and auxiliary lever for

third function

▲▲▲ Four-function hydraulic valve, with dual single-lever

joystick controls

▲▲▲ Hydraulic conversion kits, two-to-three- and three-to-

four-function valves

▲▲▲ Ride control, automatic with monitor-adjustable speed

settings

▲▲▲ Hydraulic control system for quick-coupler locking pins

Electrical

●●● 24-volt electrical system

●●● Solid-state electrical power distribution system

●●● High-capacity batteries (2), 12 volt with 950 CCA,

200-min. rated reserve

●●● Master electrical disconnect switch

●●● Alternator, high capacity, 80 amps and 24 volts

▲▲▲ Alternator, 100 amps

●●● Lights (conform to SAE 99): Halogen driving with

guards / Turn signals and flashers / Stop and taillights

●●● LED heavy-duty taillights and rear turn signals

●●● Work lights, halogen (4): cab front (2) and cab rear (2)

●●● Horn, with push button in center of steering wheel

(conforms to SAE J994, J1446)

●●● Reverse warning alarm (conforms to SAE J994, J1446)

●●● Computerized multifunction monitor

●●● Audible and visual warnings: Amber caution / Red

stop / Analog gauges: Engine coolant temperature,

transmission oil temperature, fuel level, hydraulic oil

temperature, engine oil pressure / Digital instruments:

Engine rpm, odometer, transmission gear/direction

indicator, speedometer, hour meter / operator warning

lights: Check engine, engine air filter restriction, battery

voltage, transmission oil filter restriction, brake pres-

sure, hydraulic oil filter restriction, fasten seat belt,

transmission fault, hydraulic oil temperature

●●● Indicator lights: Park brake / Ride control / Turn signals

and warning flashers / Coupler pin disconnect / Engine

preheater / Secondary steering / Work lights

●●● Built-in diagnostics: Fault code retrieval

▲▲▲ AM/FM/WB stereo radio with clock

▲▲▲ AM/FM/WB stereo radio with CD

▲▲▲ 5-amp, 12-volt convertor with one power plug

▲▲▲ 10-amp, 12-volt convertor with two power plugs

●●● Cab wired for rotating beacon

▲▲▲ Electrical corrosion-prevention package

Operator’s Station

●●● Canopy (conforms to SAE J1040 APR88): ROPS/FOPS /

Multiplane isolation mounted for noise/vibration reduc-

tion / Optional canopy rear window glass, for noise

reduction

▲▲▲ Cab (conforms to SAE J1040 ARP88): ROPS/FOPS /

Air conditioning / Heater/defroster / Multiplane isola-

tion mounted for noise/vibration reduction / Front and

rear windshield washers and intermittent wipers /

Tinted safety glass

▲▲▲ Canopy rear window

●●● Seat belt, 3 in. (76 mm), with retractor

●●● Air-suspension seat, deluxe vinyl covered with deep

foam, high back, adjustable for weight-height, fore-

aft position, backrest tilt, and armrest angle

▲▲▲ Air-suspension seat, deluxe cloth covered with deep

foam, high back, adjustable for weight-height, fore-

aft position, backrest tilt, and armrest angle

●●● Seat backrest extension

●●● Cup holder, personal cooler holder

▲▲▲ Sun visor for cab

444 544 624

Operator’s Station

(continued)

●●● Storage compartment for operator’s manual and

other items

●●● Rubber floormat

●●● Tilt steering column

●●● Steering wheel, textured, with spinner knob

●●● Rearview mirrors, outside (2) and inside (1) (conform

to SAE J985)

●●● Handholds and steps, ergonomically located and slip

resistant (conform to SAE J185)

Loader Linkage

●●● Loader boom service locking bar (conforms to SAE J38)

●●● Z-bar loader linkage

▲▲▲ PowerllelTM linkage for visibility and parallel-lift

▲▲▲ High-lift Z-bar loader linkage

Buckets and Attachments

▲▲▲ Full line of Deere pin-on buckets with selection of

bolt-on cutting edges and teeth-segmented bolt-on

cutting edges*

▲▲▲ Full line of Deere construction utility forks for couplers

▲▲▲ Worksite ProTM quick-coupler which accepts JRB-

pattern attachments

▲▲▲ Hi-vis coupler which accepts Euro-pattern attachments

▲▲▲ Bolt-on fork frame guard

▲▲▲ Hydraulic control system for quick-coupler locking

pins, includes all controls in the cab, lines, and valves

Tires

●17.5 R 25, L-3T

▲17.5 R 25, L-2

▲17.5-25, 12 PR L-3

▲17.5-25, L-2

▲20.5-25, 12 PR L-2

●20.5 R 25, L-3T

▲▲▲ 20.5 R 25, 1 Star L-2

●20.5 R 25, 1 Star L-3

▲20.5-25, 12 PR L-2

▲▲ 20.5-25, 16 PR L-2

▲▲ 20.5-25, 16 PR L-3

▲550/65 R 25, 1 Star L2

▲▲ 600/65 R 25, L-3T

▲23.1-26 Logger

▲28L-26 Logger

▲Single-piece rims

●●● Multi-piece rims

▲▲▲ Less wheels and tires

▲▲▲ 8-deg. rear axle stops for extra-large tires and chains

Other

▲▲▲ Sound-suppression package (Level 1)

▲▲▲ Sound-suppression package (Level 2)

●●● Fenders, front

▲▲▲ Fenders, full-coverage, front

▲▲▲ Fenders, full-coverage, front and rear

▲▲▲ Close-mounted steps

●●● Articulation locking bar (conforms to SAE J276)

●●● Front and rear tie-down points

●●● Vandal protection, includes lockable engine enclosure

and fuel fill

▲▲▲ Environmental drain valves with hose (engine, trans-

mission, hydraulic oils, and axle coolant)

▲▲▲ Fluid-sampling ports (engine, transmission, hydraulic,

axle oils, and engine coolant)

●●● Drawbar, with locking pin

▲▲●Rear cast bumper/counterweight with integral drawbar

▲▲▲ Transmission side frame guards

▲▲▲ Bottom guards, front frame and transmission

▲▲▲ Lift eyes

▲▲▲ Fire extinguisher

▲▲▲ License plate bracket and light

▲▲▲ Secondary steering

▲▲▲ LoadriteTM weighing system

▲▲▲ Special guarding for waste applications

▲▲▲ JDLinkTM

444J / 544J / 624J LOADERS

Key: ●Standard equipment ▲Optional equipment *See your John Deere dealer for further information.

John Deere 444J Users Manual

444J to the manual 47baf081-1481-41d9-a1d5-43e8bfaf68c3

Navigation menu

Versions of this User Manual:

Views

Navigation
